PRODUCT DETAILS
Liftgate grommet,.5id x 13/16gravity down, split. This is an OEM product made by Waltco Liftgate.
NEED ASSISTANCE?
Have your liftgate serial number ready for faster assistance. Where to find it
MODELS USING THIS PART
Note
This part appears in the following parts manuals. Always verify compatibility with your specific liftgate model and serial number before ordering.
Find your model and serial numberFound in
WALTCO WDL SERIES (MODELS 311 326, 401 412)
pre-2000WALTCO RZ / BZ / WZ SERIES (LEVEL LIFT)
pre-2000WALTCO HLF
4/2025WALTCO GTSL
11/2016WALTCO GT
9/2015WALTCO GT SERIES & DGS SERIES (MODELS 275 278)
pre-2000SHIPPING AND RETURNS
Shipping Information
Shipping timelines, transit options, and exceptions can vary by part and location. Please review our official policy page for the most current shipping and return details.
View Shipping PolicyReturn Policy
Return eligibility, time windows, and any applicable fees are outlined on our policy page. Policy terms may be updated there, so please refer to that page before placing your order.
View Return Policy
OEM Parts Diagram References
Find this Waltco Liftgate part in original OEM diagrams. Each link opens directly to the matching section in a new tab.
Reference Notice: Manual links are provided for reference only. If you have any doubt, contact us. We’re happy to verify parts and help you purchase with confidence.
75089313 is found in 11 OEM diagram references across 5 Waltco Liftgate manuals.
Waltco RZ / BZ / WZ-Series (Level-Lift) Parts Manual
pre-2000| Section | Item # | Pages | Link |
|---|---|---|---|
|
gen 3 bz wz control units
|
25 |
Diagram p99
Table p99
|
Open diagram View |
Waltco HLF Parts Manual
4/2025| Section | Item # | Pages | Link |
|---|---|---|---|
|
hlf mount frame assy 25 30
|
3 |
Diagram p10
Table p10
|
Open diagram View |
|
hlf mount frame assy 40 50 legacy 40 50 certified underride
|
3 |
Diagram p12
Table p12
|
Open diagram View |
|
hlf mount frame assy 40 non underride style a
|
3 |
Diagram p11
Table p11
|
Open diagram View |
Waltco GTSL Parts Manual
11/2016| Section | Item # | Pages | Link |
|---|---|---|---|
|
pump and battery box
|
27 |
Diagram p15
Table p15
|
Open diagram View |
Waltco GT Parts Manual
9/2015| Section | Item # | Pages | Link |
|---|---|---|---|
|
pump box
|
27 |
Diagram p15
Table p15
|
Open diagram View |
Waltco GT-Series & DGS-Series (Models 275-278) Parts Manual
pre-2000| Section | Item # | Pages | Link |
|---|---|---|---|
|
pump box
|
23 |
Diagram p37
Table p37
|
Open diagram View |
|
pump box built 1 09 thru 9 10
|
23 |
Diagram p45
Table p45
|
Open diagram View |
|
pump box built 6 05 thru 1 09
|
23 |
Diagram p44
Table p44
|
Open diagram View |
|
pump box built from 11 08
|
23 |
Diagram p38
Table p38
|
Open diagram View |
|
pump box built from 9 10
|
19 |
Diagram p46
Table p46
|
Open diagram View |
OEM Parts Diagram Images
Browse highlighted diagram images for this part, filtered by liftgate model.
Reference Notice: Diagram images are reference material only and may not always be perfectly aligned with every model variation. We're a small team behind a big catalog. If you spot something off or just want a second set of eyes, contact us. Getting your order right matters to us.
- Gallery
- Description
-
Waltco Liftgate Part Number 75089313 | grommet -

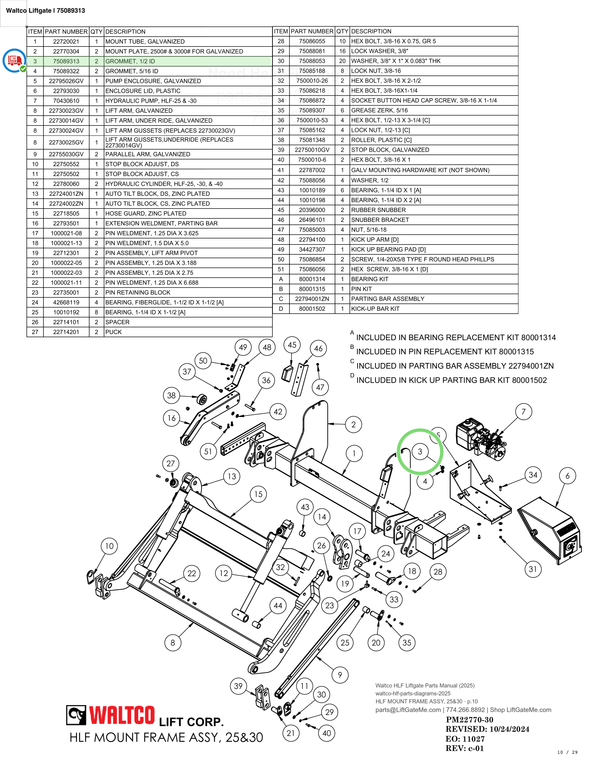

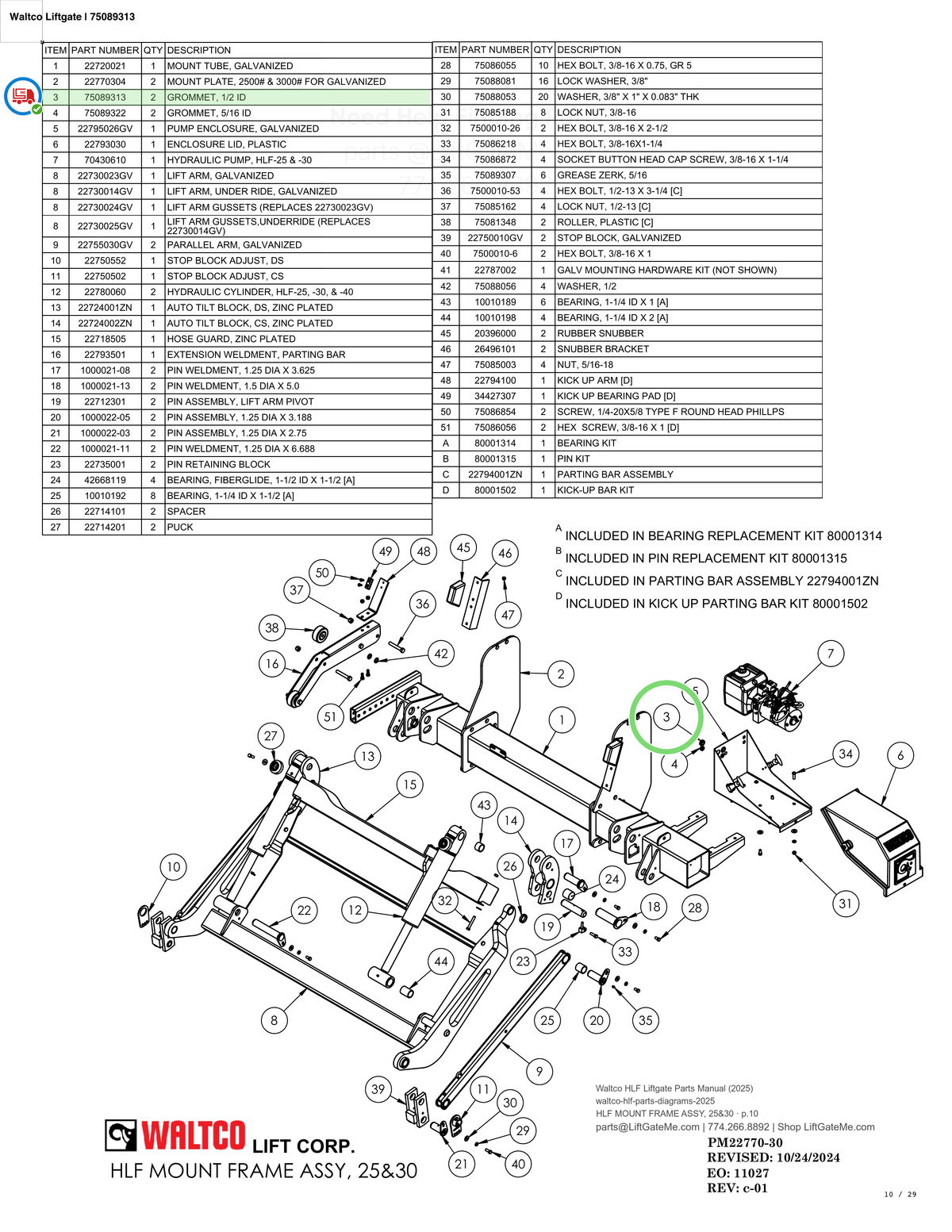

Waltco Liftgate | 75089313 — HLF MOUNT FRAME ASSY, 25&30 · p.10 (Waltco HLF Parts Manual) -

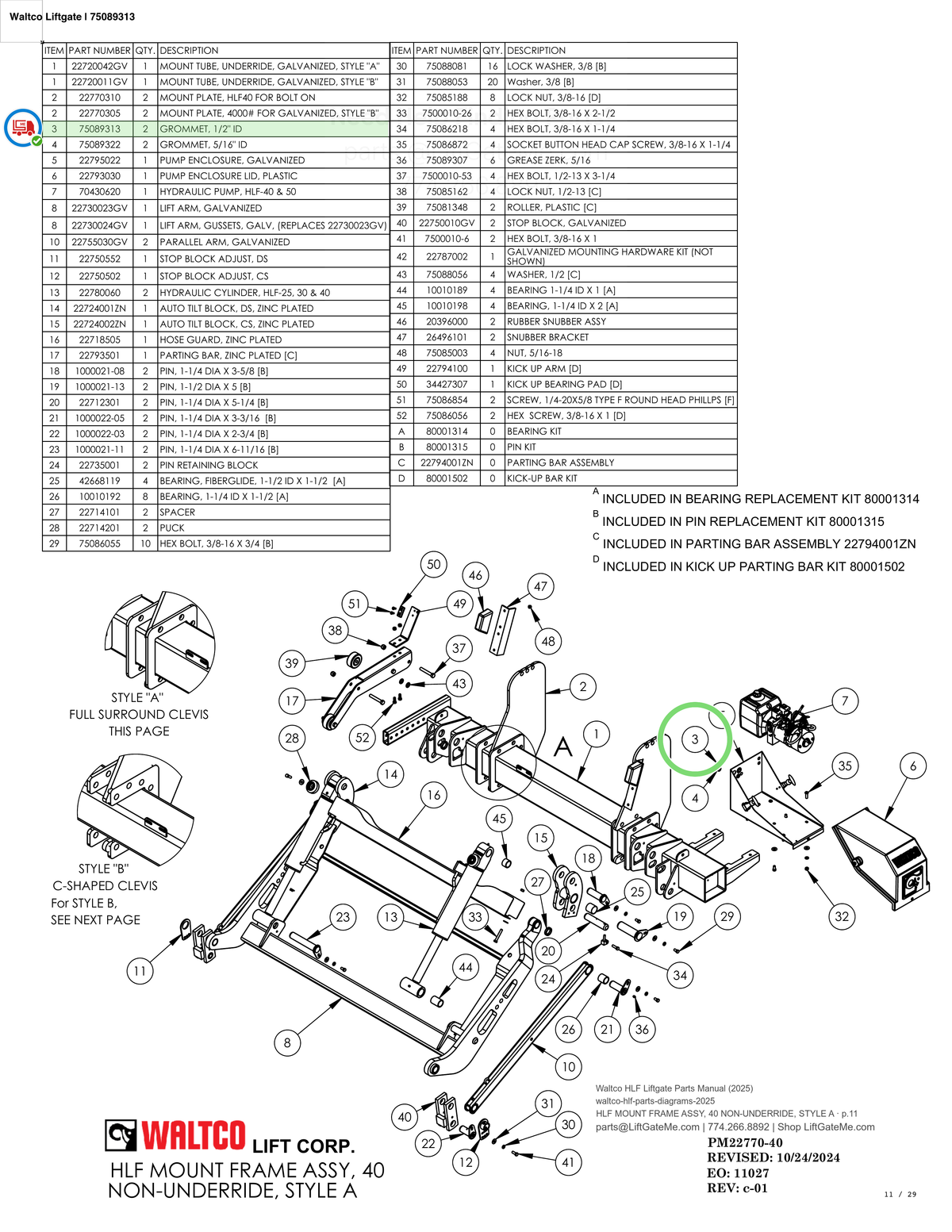

Waltco Liftgate | 75089313 — HLF MOUNT FRAME ASSY, 40 NON-UNDERRIDE, STYLE A · p.11 (Waltco HLF Parts Manual) -

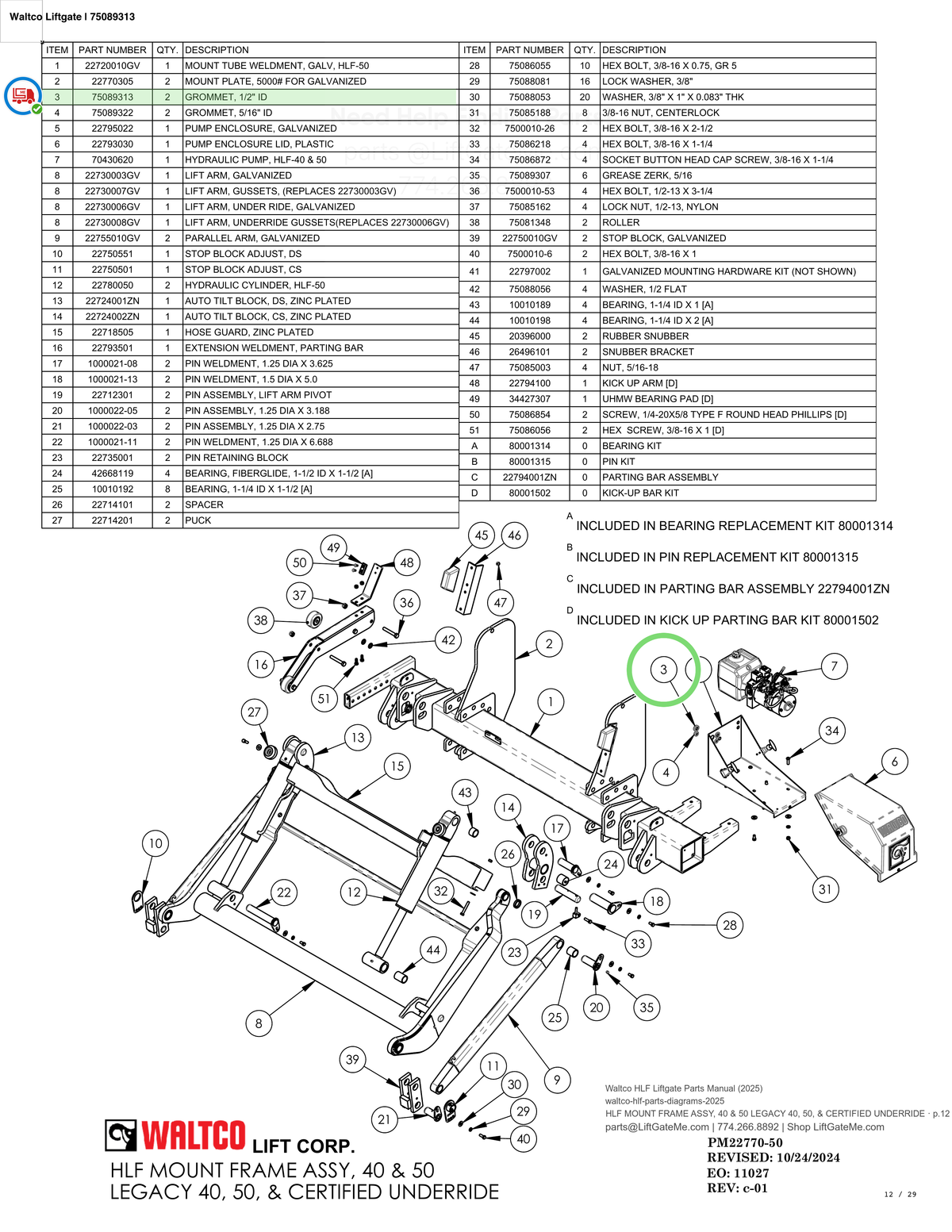

Waltco Liftgate | 75089313 — HLF MOUNT FRAME ASSY, 40 & 50 LEGACY 40, 50, & CERTIFIED UNDERRIDE · p.12 (Waltco HLF Parts Manual)
Liftgate grommet,.5id x 13/16gravity down, split. This is an OEM product made by Waltco Liftgate.
