Maxon GPC X1 LD Liftgate Parts Diagrams
Maxon GPC X1 LD Cantilever liftgate parts lookup
Use this Maxon GPC X1 LD liftgate parts diagram page to identify OEM components, review part callouts, and verify replacement parts for cantilever models.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

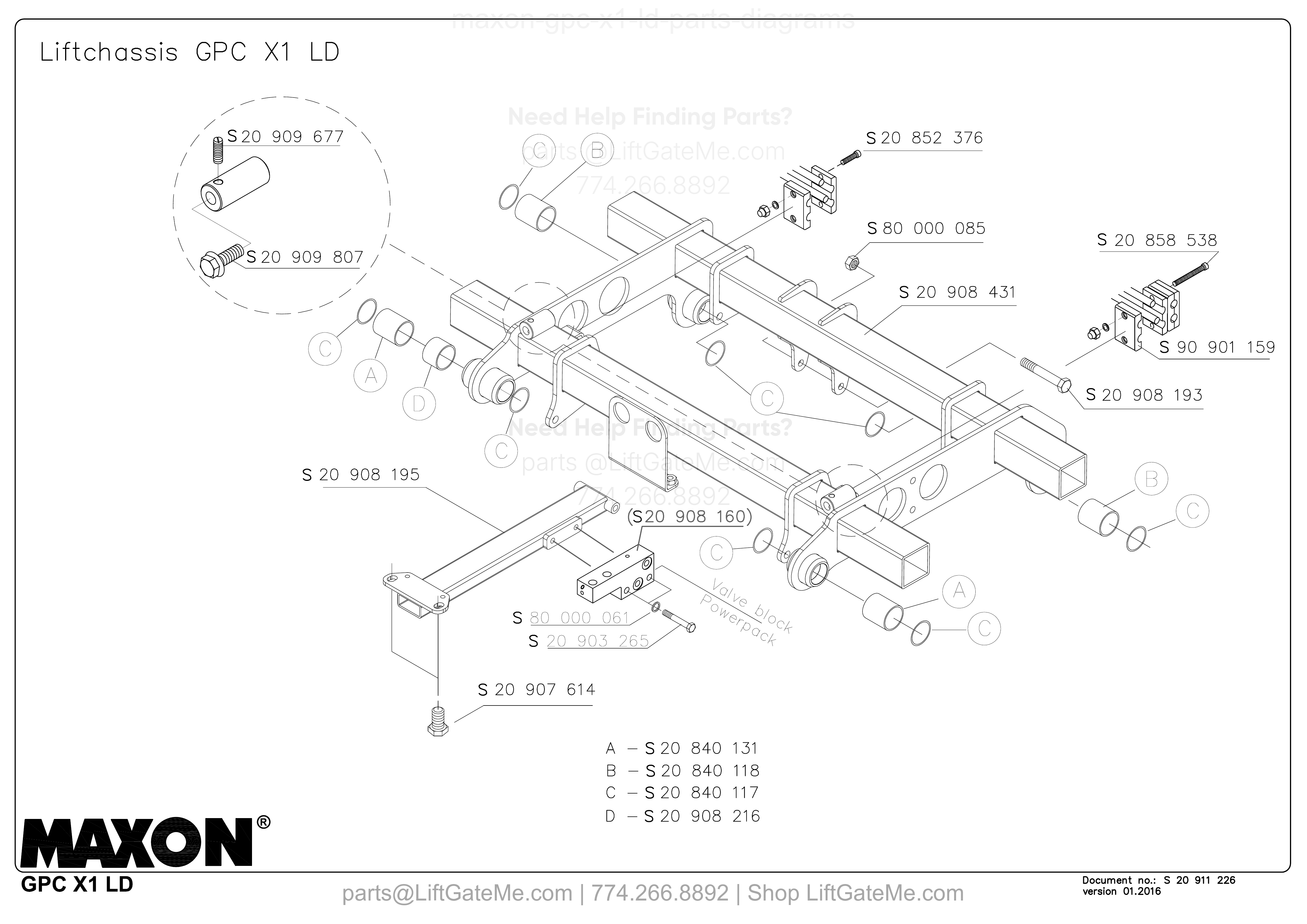

Liftchassis GPC X1 LD
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 909 677 | Liftchassis GPC X1 LD — part | |
| — | - | S 20 909 807 | Liftchassis GPC X1 LD — part | |
| A | - | S 20 840 131 | Liftchassis GPC X1 LD — part | |
| B | - | S 20 840 118 | Liftchassis GPC X1 LD — part | |
| C | - | S 20 840 117 | Liftchassis GPC X1 LD — part | |
| D | - | S 20 908 216 | Liftchassis GPC X1 LD — part | |
| — | - | S 20 852 376 | Liftchassis GPC X1 LD — part | |
| — | - | S 80 000 085 | Liftchassis GPC X1 LD — part | |
| — | - | S 20 908 431 | Liftchassis GPC X1 LD — part | |
| — | - | S 20 858 538 | Liftchassis GPC X1 LD — part | |
| — | - | S 90 901 159 | Liftchassis GPC X1 LD — part | |
| — | - | S 20 908 193 | Liftchassis GPC X1 LD — part | |
| — | - | S 20 908 195 | Liftchassis GPC X1 LD — part | |
| — | - | S20 908 160 | Liftchassis GPC X1 LD — Valve block Powerpack | |
| — | - | S 80 000 061 | Liftchassis GPC X1 LD — Valve block Powerpack | |
| — | - | S 20 903 265 | Liftchassis GPC X1 LD — Valve block Powerpack | |
| — | - | S 20 907 614 | Liftchassis GPC X1 LD — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

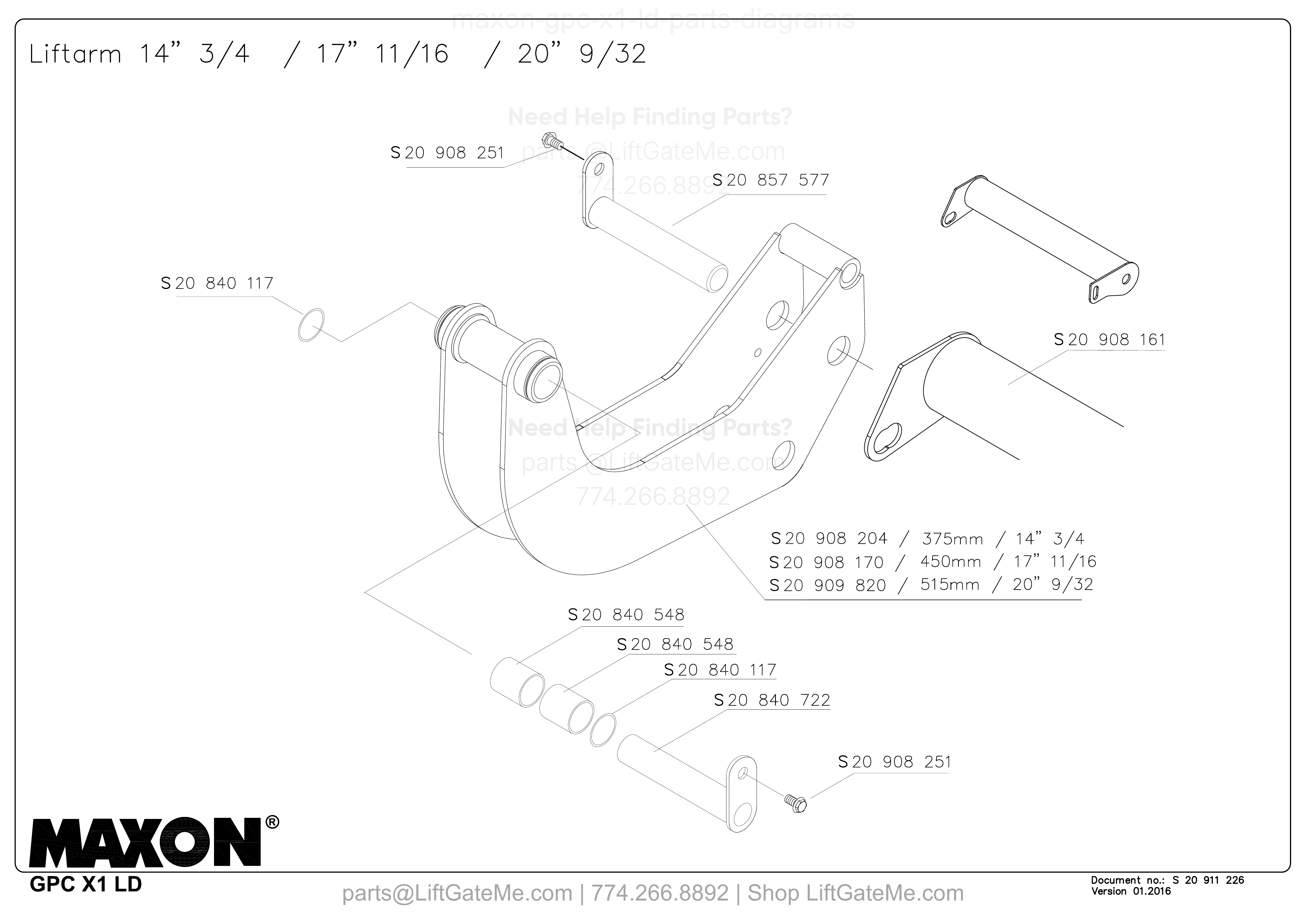

Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 908 251 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 857 577 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 117 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 161 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 204 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — 375mm / 14” 3/4 | |
| — | - | S 20 908 170 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — 450mm / 17” 11/16 | |
| — | - | S 20 909 820 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — 515mm / 20” 9/32 | |
| — | - | S 20 840 548 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 548 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 117 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 722 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 251 | Liftarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part |

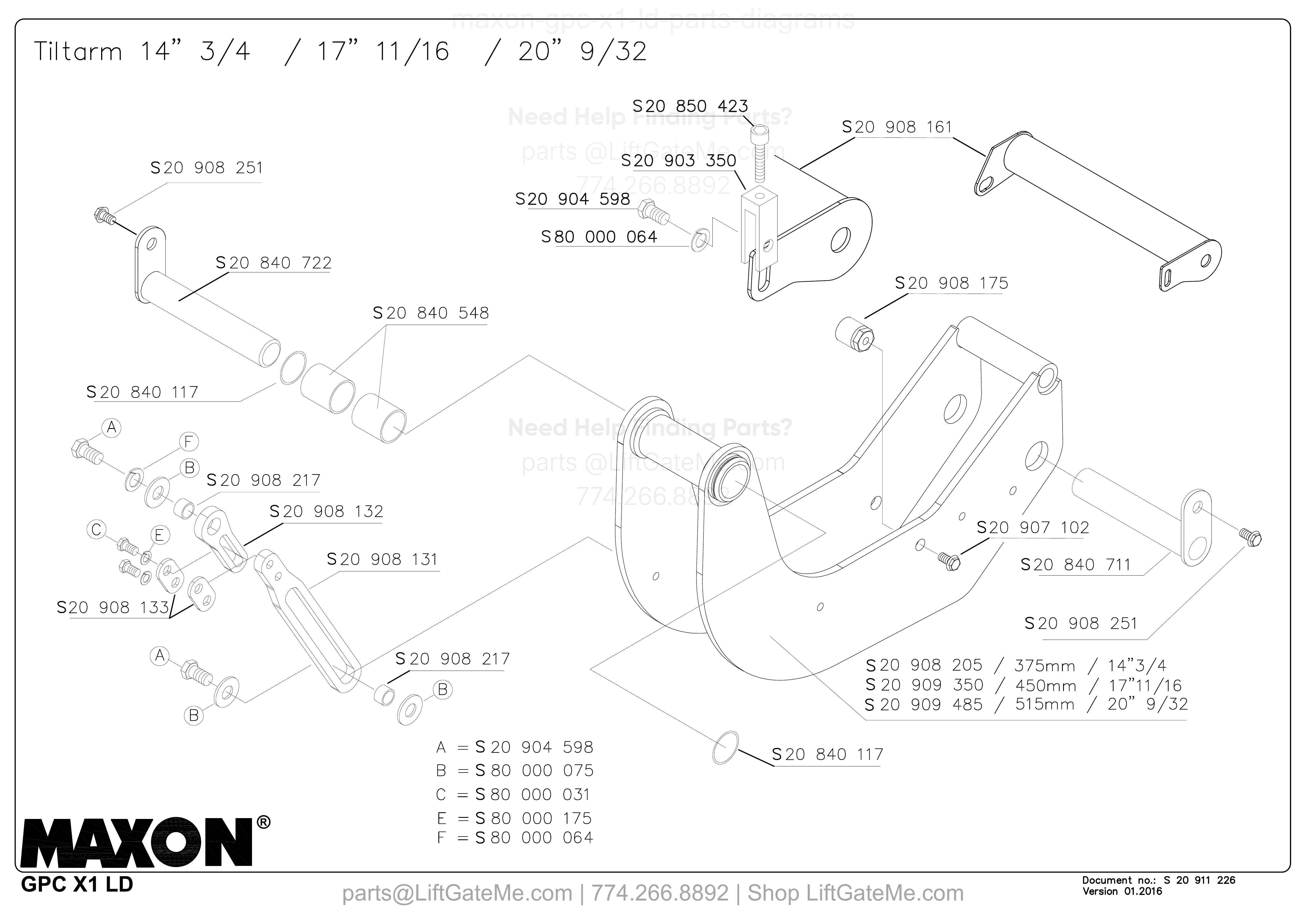

Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 908 251 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 722 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 117 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 548 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 217 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 132 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 131 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| A | - | S 20 904 598 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| B | - | S 80 000 075 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| C | - | S 80 000 031 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| E | - | S 80 000 175 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| F | - | S 80 000 064 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 850 423 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 903 350 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 904 598 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S80 000 064 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 908 161 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 908 175 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 907 102 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 840 711 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 908 205 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — 375mm / 14”3/4 | |
| — | - | S20 909 350 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — 450mm / 17”11/16 | |
| — | - | S20 909 485 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — 515mm / 20” 9/32 | |
| — | - | S20 840 117 | Tiltarm 14” 3/4 / 17” 11/16 / 20” 9/32 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

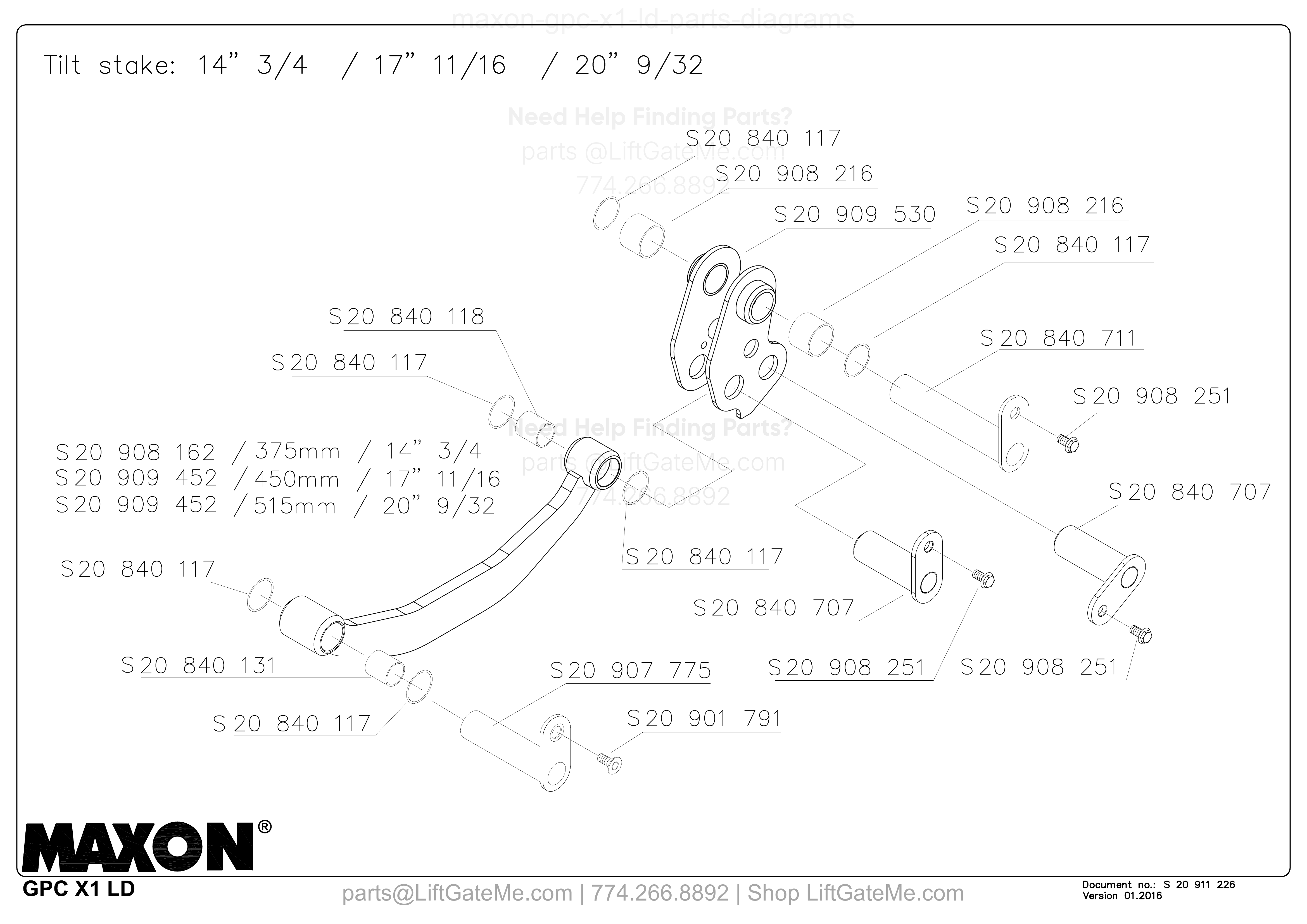

Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 117 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 216 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 909 530 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 216 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 117 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 711 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 251 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 707 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 251 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 707 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 251 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 907 775 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 901 791 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 117 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 131 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 117 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 908 162 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — 375mm / 14” 3/4 | |
| — | - | S 20 909 452 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — 450mm / 17” 11/16 | |
| — | - | S 20 909 452 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — 515mm / 20” 9/32 | |
| — | - | S 20 840 117 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S 20 840 118 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part |
Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 840 117 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 908 216 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 909 530 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 840 118 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 908 162 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — 375mm / 14” 3/4 | |
| — | - | S20 909 452 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — 450mm / 17” 11/16 | |
| — | - | S20 909 452 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — 515mm / 20” 9/32 | |
| — | - | S20 840 131 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 907 775 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 901 791 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 840 707 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 840 711 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part | |
| — | - | S20 908 251 | Tilt stake: 14” 3/4 / 17” 11/16 / 20” 9/32 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

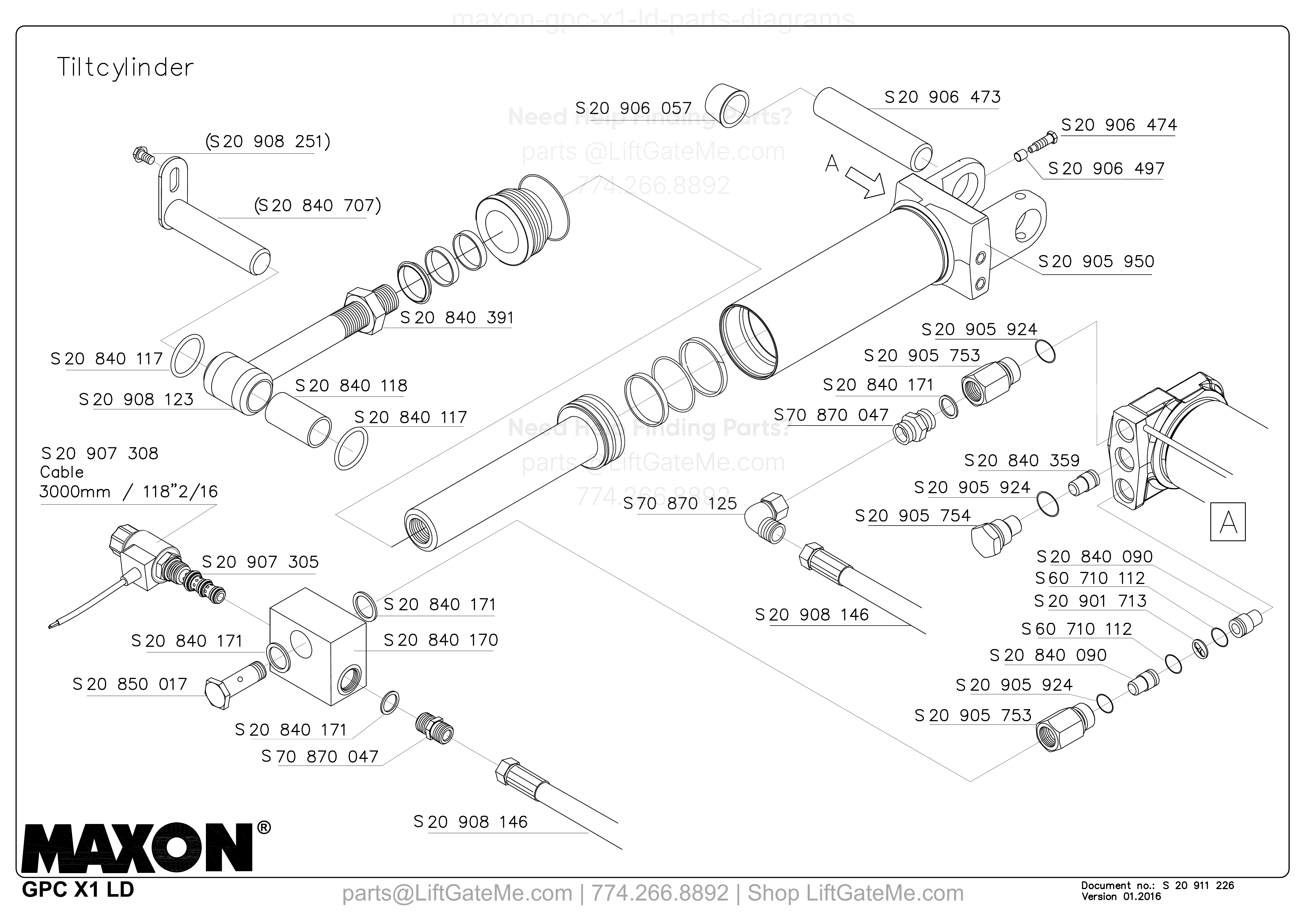

Tiltcylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 908 251 | Tiltcylinder — part | |
| — | - | S20 840 707 | Tiltcylinder — part | |
| — | - | S20 906 057 | Tiltcylinder — part | |
| — | - | S20 906 473 | Tiltcylinder — part | |
| — | - | S20 906 474 | Tiltcylinder — part | |
| — | - | S20 906 497 | Tiltcylinder — part | |
| — | - | S20 905 950 | Tiltcylinder — part | |
| — | - | S20 840 391 | Tiltcylinder — part | |
| — | - | S20 840 117 | Tiltcylinder — part | |
| — | - | S20 908 123 | Tiltcylinder — part | |
| — | - | S20 840 118 | Tiltcylinder — part | |
| — | - | S20 907 308 | Tiltcylinder — Cable 3000mm / 118”2/16 | |
| — | - | S20 907 305 | Tiltcylinder — part | |
| — | - | S20 840 171 | Tiltcylinder — part | |
| — | - | S20 850 017 | Tiltcylinder — part | |
| — | - | S20 840 170 | Tiltcylinder — part | |
| — | - | S70 870 047 | Tiltcylinder — part | |
| — | - | S20 905 924 | Tiltcylinder — part | |
| — | - | S20 905 753 | Tiltcylinder — part | |
| — | - | S20 840 171 | Tiltcylinder — part | |
| — | - | S70 870 125 | Tiltcylinder — part | |
| — | - | S20 908 146 | Tiltcylinder — part | |
| — | - | S20 840 359 | Tiltcylinder — part | |
| — | - | S20 905 754 | Tiltcylinder — part | |
| — | - | S20 840 090 | Tiltcylinder — part | |
| — | - | S60 710 112 | Tiltcylinder — part | |
| — | - | S20 901 713 | Tiltcylinder — part |

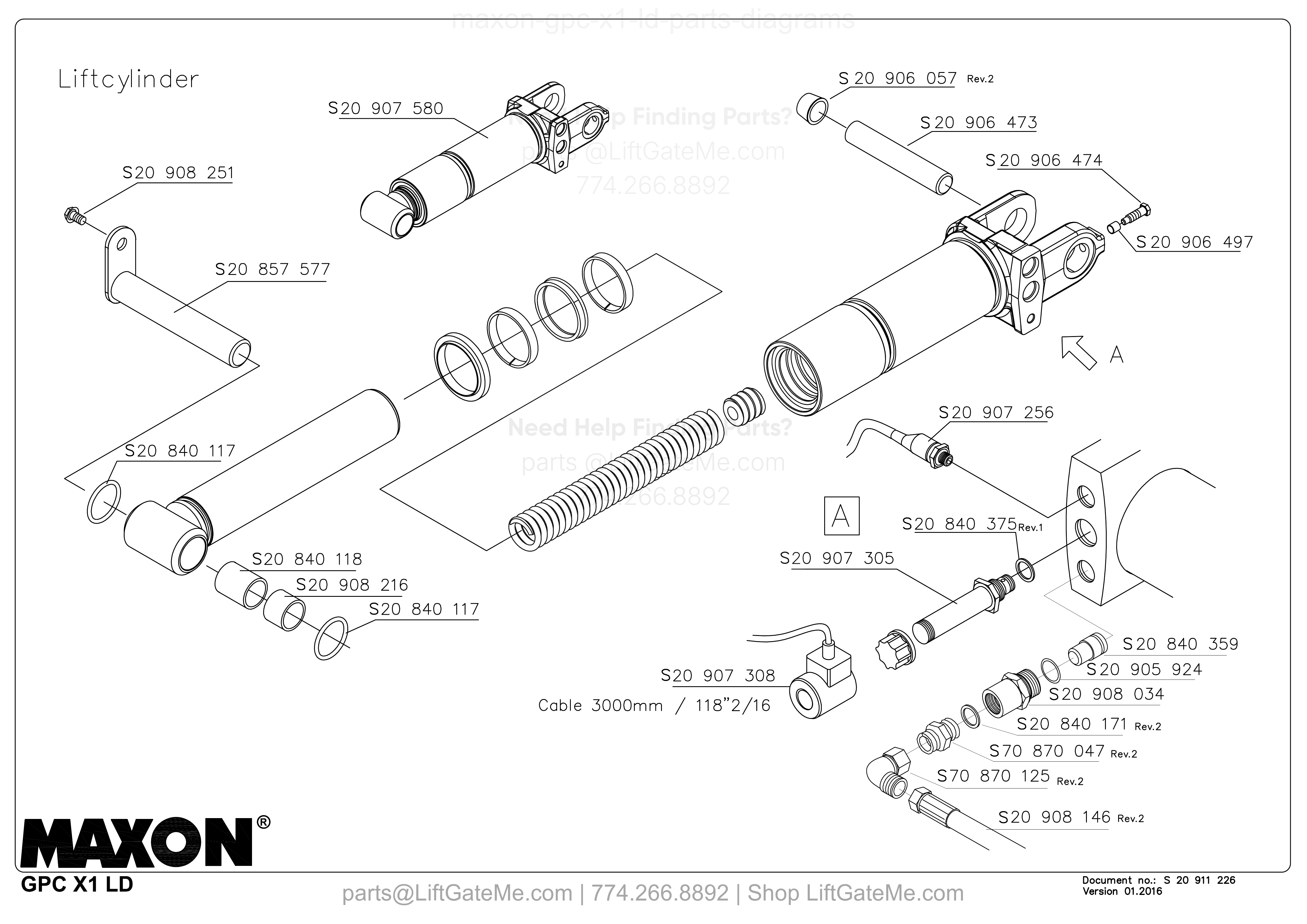

Liftcylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 908 251 | Liftcylinder — part | |
| — | - | S20 857 577 | Liftcylinder — part | |
| — | - | S20 907 580 | Liftcylinder — part | |
| — | - | S20 906 057 | Liftcylinder — part | |
| — | - | S20 906 473 | Liftcylinder — part | |
| — | - | S20 906 474 | Liftcylinder — part | |
| — | - | S20 906 497 | Liftcylinder — part | |
| — | - | S20 840 117 | Liftcylinder — part | |
| — | - | S20 840 118 | Liftcylinder — part | |
| — | - | S20 908 216 | Liftcylinder — part | |
| — | - | S20 907 256 | Liftcylinder — part | |
| — | - | S20 840 375 | Liftcylinder — part | |
| — | - | S20 907 305 | Liftcylinder — part | |
| — | - | S20 840 359 | Liftcylinder — part | |
| — | - | S20 905 924 | Liftcylinder — part | |
| — | - | S20 908 034 | Liftcylinder — part | |
| — | - | S20 840 171 | Liftcylinder — part | |
| — | - | S70 870 047 | Liftcylinder — part | |
| — | - | S70 870 125 | Liftcylinder — part | |
| — | - | S20 908 146 | Liftcylinder — part | |
| — | - | S20 907 308 | Liftcylinder — Cable 3000mm / 118”2/16 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

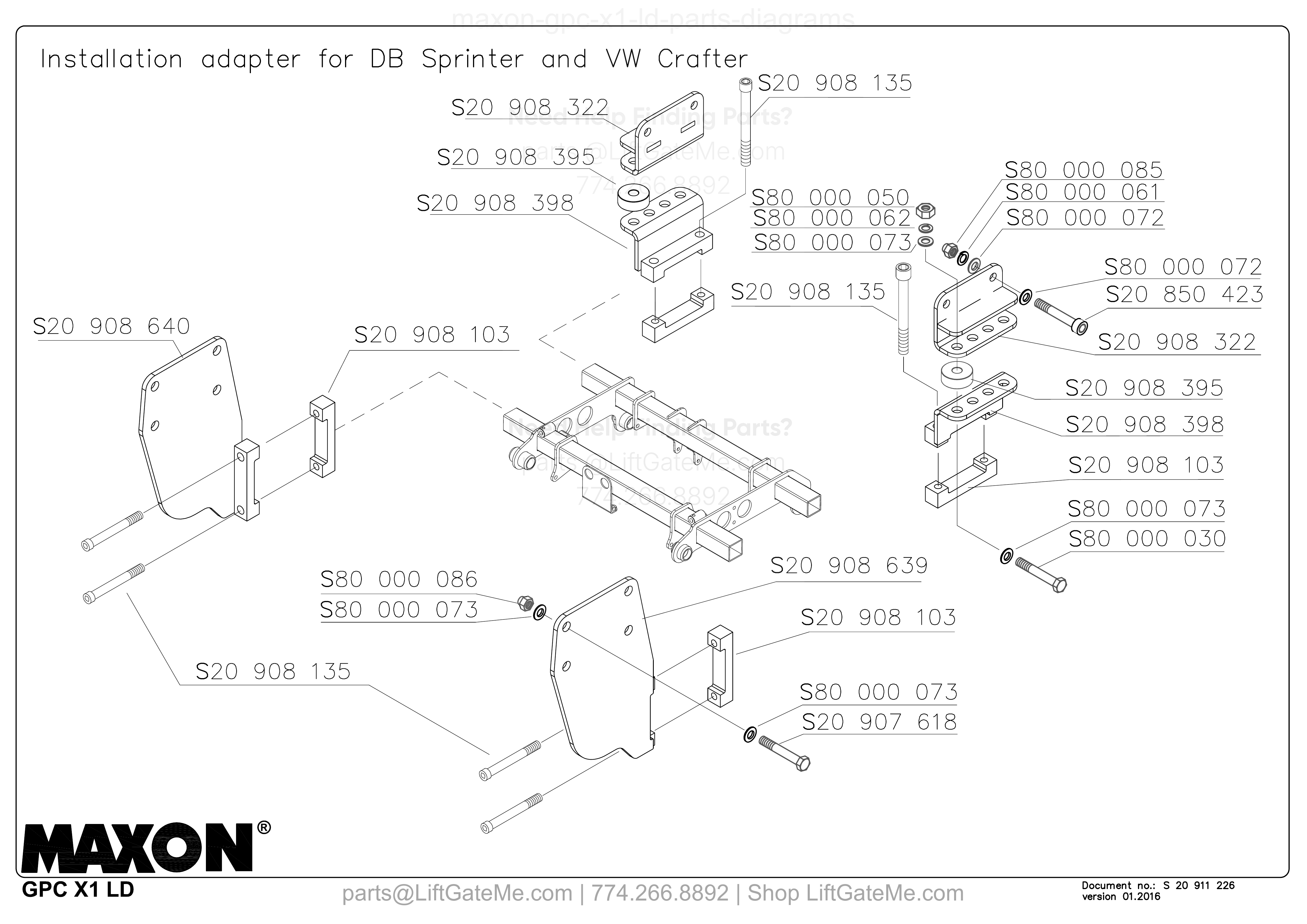

Installation adapter for DB Sprinter and VW Crafter
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 908 640 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S20 908 103 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S80 000 086 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S80 000 073 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S20 908 135 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S20 908 639 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S20 907 618 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S20 908 322 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S20 908 395 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S20 908 398 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S80 000 050 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S80 000 062 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S80 000 085 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S80 000 061 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S80 000 072 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S20 850 423 | Installation adapter for DB Sprinter and VW Crafter — part | |
| — | - | S80 000 030 | Installation adapter for DB Sprinter and VW Crafter — part |

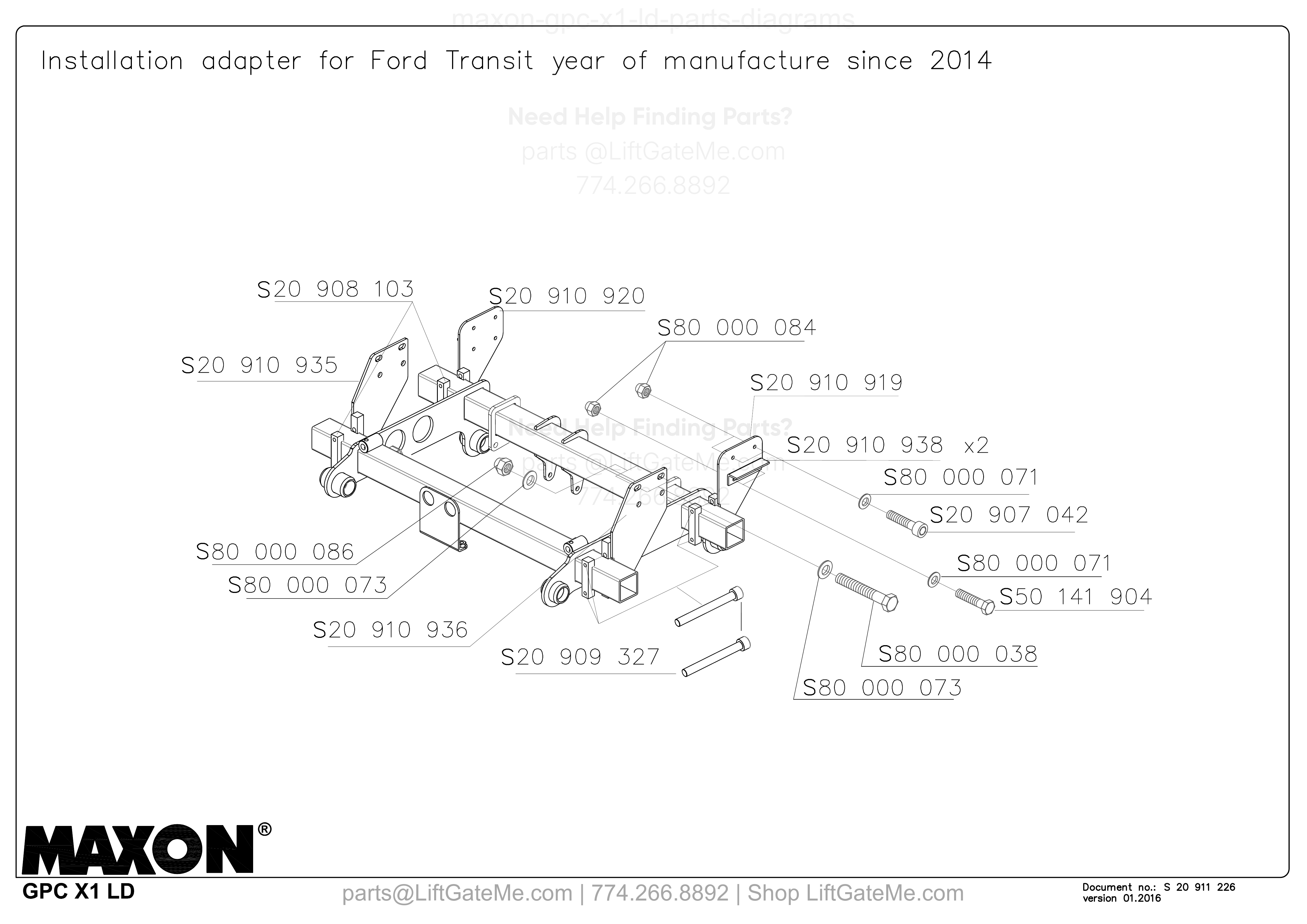

Installation adapter for Ford Transit year of manufacture since 2014
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 908 103 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S20 910 920 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S20 910 935 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S80 000 084 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S20 910 919 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | x2 | S20 910 938 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S80 000 071 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S20 907 042 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S80 000 071 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S50 141 904 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S80 000 038 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S80 000 073 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S20 909 327 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S20 910 936 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S80 000 086 | Installation adapter for Ford Transit year of manufacture since 2014 — part | |
| — | - | S80 000 073 | Installation adapter for Ford Transit year of manufacture since 2014 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

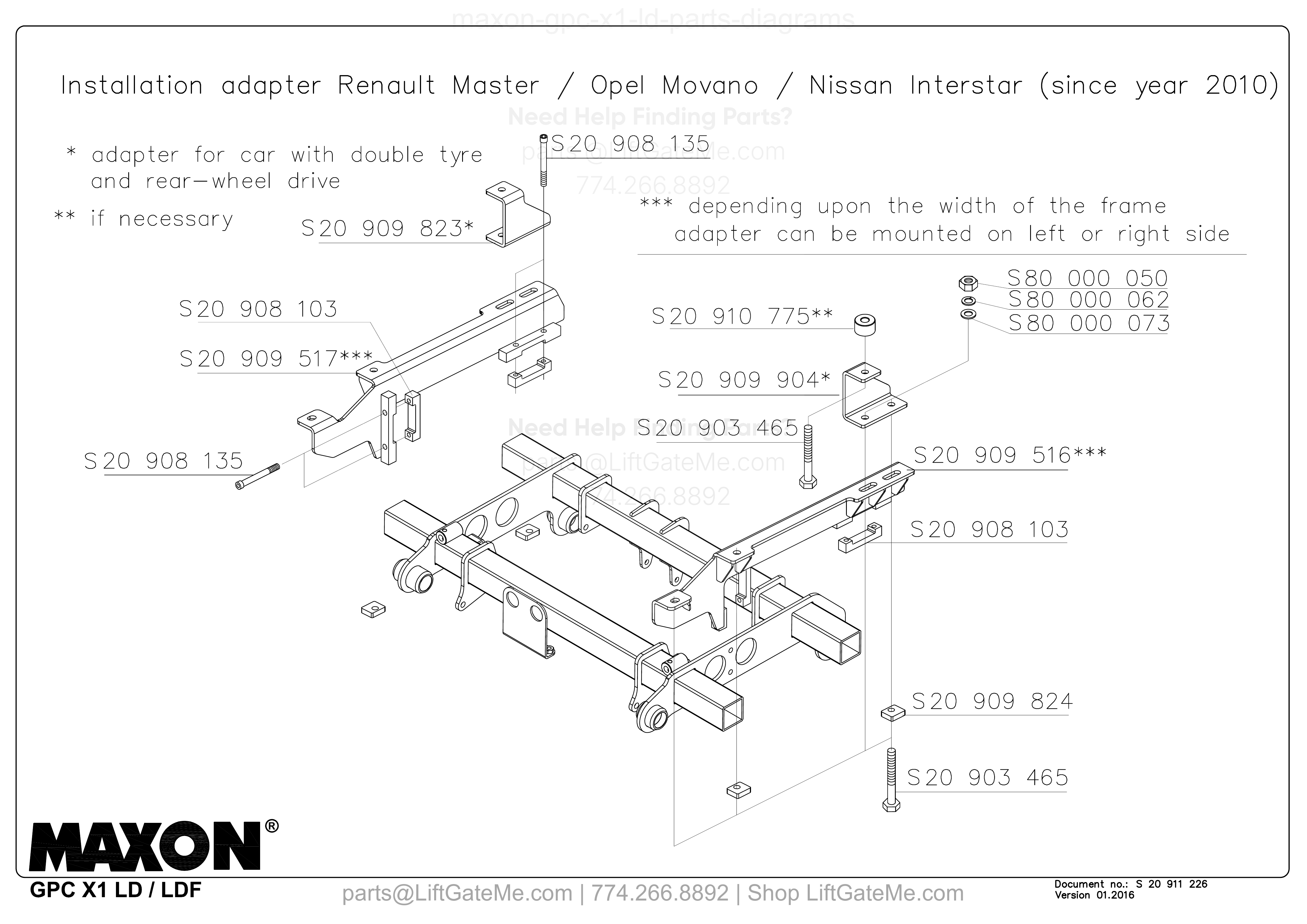

Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 908 135 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S20 909 823 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S20 908 103 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S20 909 517 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S20 910 775 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S20 909 904 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S20 903 465 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S20 909 516 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S20 908 103 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S20 909 824 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S20 903 465 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S80 000 050 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S80 000 062 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part | |
| — | - | S80 000 073 | Installation adapter Renault Master / Opel Movano / Nissan Interstar (since year 2010) — part |

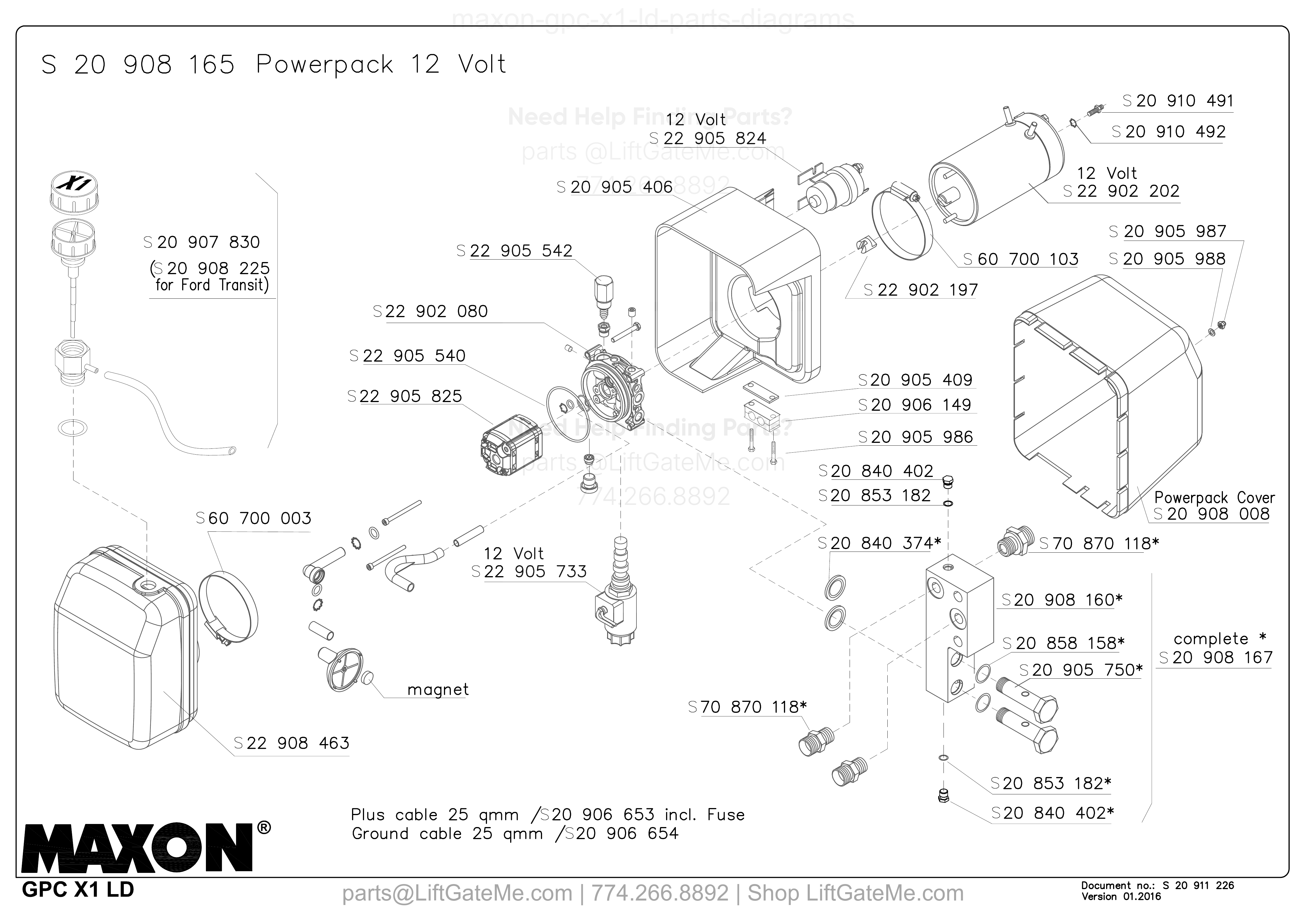

S 20 908 165 Powerpack 12 Volt
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 907 830 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 908 225 | S 20 908 165 Powerpack 12 Volt — for Ford Transit | |
| — | - | S60 700 003 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S22 908 463 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S22 905 733 | S 20 908 165 Powerpack 12 Volt — 12 Volt | |
| — | - | S22 905 825 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S22 905 540 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S22 902 080 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S22 905 542 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 905 406 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S22 905 824 | S 20 908 165 Powerpack 12 Volt — 12 Volt | |
| — | - | S22 902 197 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S60 700 103 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S22 902 202 | S 20 908 165 Powerpack 12 Volt — 12 Volt | |
| — | - | S20 910 491 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 910 492 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 905 987 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 905 988 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 908 008 | S 20 908 165 Powerpack 12 Volt — Powerpack Cover | |
| — | - | S70 870 118 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 908 160 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 858 158 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 905 750 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 908 167 | S 20 908 165 Powerpack 12 Volt — complete | |
| — | - | S20 853 182 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 840 402 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 840 374 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 906 149 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 905 409 | S 20 908 165 Powerpack 12 Volt — part | |
| — | - | S20 906 653 | S 20 908 165 Powerpack 12 Volt — Plus cable 25 qmm incl. Fuse | |
| — | - | S20 906 654 | S 20 908 165 Powerpack 12 Volt — Ground cable 25 qmm |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

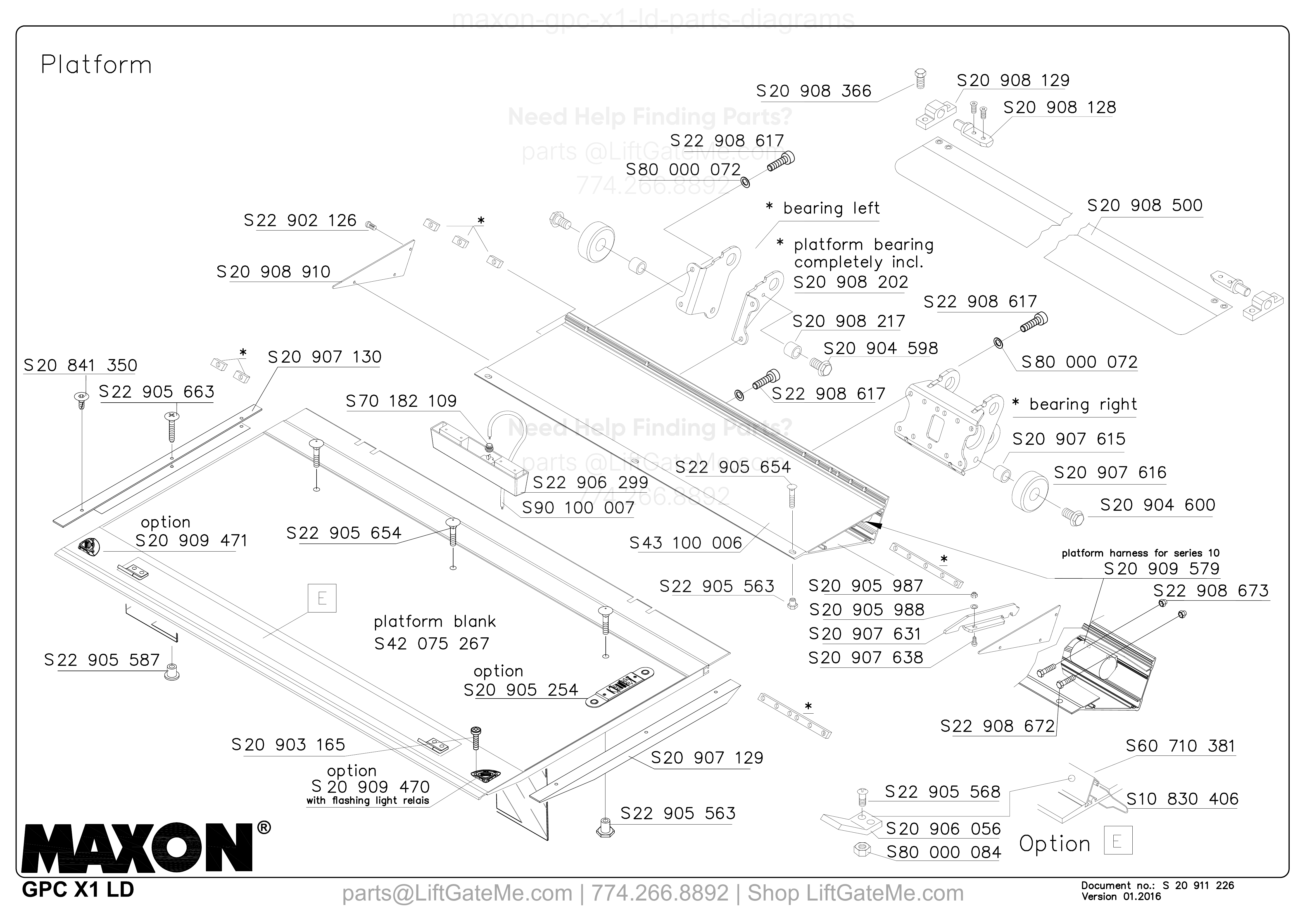

Platform
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S22 902 126 | Platform — part | |
| — | - | S20 908 910 | Platform — part | |
| — | - | S20 841 350 | Platform — part | |
| — | - | S22 905 663 | Platform — part | |
| — | - | S20 907 130 | Platform — part | |
| — | - | S20 909 471 | Platform — option | |
| — | - | S22 905 587 | Platform — part | |
| — | - | S20 903 165 | Platform — part | |
| — | - | S20 909 470 | Platform — option with flashing light relais | |
| — | - | S42 075 267 | Platform — platform blank | |
| — | - | S20 905 254 | Platform — option | |
| — | - | S22 905 654 | Platform — part | |
| — | - | S70 182 109 | Platform — part | |
| — | - | S22 906 299 | Platform — part | |
| — | - | S90 100 007 | Platform — part | |
| — | - | S43 100 006 | Platform — part | |
| — | - | S22 905 563 | Platform — part | |
| — | - | S20 905 987 | Platform — part | |
| — | - | S20 905 988 | Platform — part | |
| — | - | S20 907 631 | Platform — part | |
| — | - | S20 907 638 | Platform — part | |
| — | - | S20 907 129 | Platform — part | |
| — | - | S22 905 568 | Platform — part | |
| — | - | S20 906 056 | Platform — part | |
| — | - | S80 000 084 | Platform — part | |
| — | - | S22 908 672 | Platform — part | |
| — | - | S22 908 673 | Platform — part | |
| — | - | S20 909 579 | Platform — platform harness for series 10 | |
| — | - | S60 710 381 | Platform — part | |
| — | - | S10 830 406 | Platform — Option E | |
| — | - | S20 907 615 | Platform — bearing right | |
| — | - | S20 907 616 | Platform — part | |
| — | - | S20 904 600 | Platform — part | |
| — | - | S22 908 617 | Platform — part | |
| — | - | S80 000 072 | Platform — part | |
| — | - | S20 908 217 | Platform — part | |
| — | - | S20 904 598 | Platform — part | |
| — | - | S20 908 202 | Platform — platform bearing completely incl. | |
| — | - | S20 908 500 | Platform — part | |
| — | - | S20 908 366 | Platform — part | |
| — | - | S20 908 129 | Platform — part | |
| — | - | S20 908 128 | Platform — part |

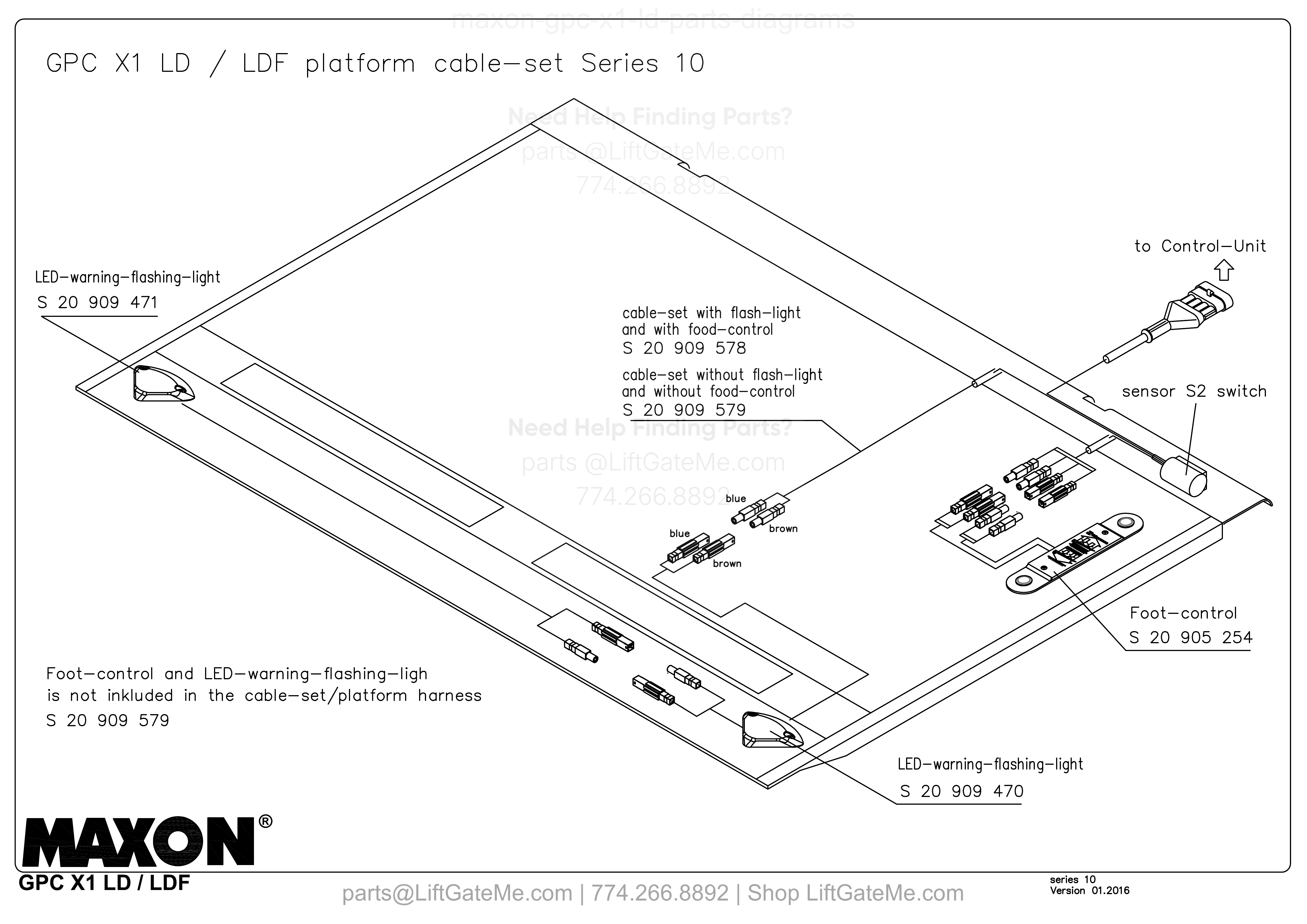

GPC X1 LD / LDF platform cable-set Series 10
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 909 471 | GPC X1 LD / LDF platform cable-set Series 10 — LED-warning-flashing-light | |
| — | - | S20 909 578 | GPC X1 LD / LDF platform cable-set Series 10 — cable-set with flash-light and with food-control | |
| — | - | S20 909 579 | GPC X1 LD / LDF platform cable-set Series 10 — cable-set without flash-light and without food-control | |
| — | - | S20 905 254 | GPC X1 LD / LDF platform cable-set Series 10 — Foot-control | |
| — | - | S20 909 470 | GPC X1 LD / LDF platform cable-set Series 10 — LED-warning-flashing-light | |
| — | - | S20 909 579 | GPC X1 LD / LDF platform cable-set Series 10 — Foot-control and LED-warning-flashing-ligh is not inkluded in the cable-set/platform harness |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
GPC X1 LD / LDF platform cable-set Series 10
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 909 471 | GPC X1 LD / LDF platform cable-set Series 10 — LED-warning-flashing-light | |
| — | - | S 20 909 578 | GPC X1 LD / LDF platform cable-set Series 10 — cable-set with flash-light and with food-control | |
| — | - | S 20 909 579 | GPC X1 LD / LDF platform cable-set Series 10 — cable-set without flash-light and without food-control | |
| — | - | S 20 905 254 | GPC X1 LD / LDF platform cable-set Series 10 — Foot-control | |
| — | - | S 20 909 470 | GPC X1 LD / LDF platform cable-set Series 10 — LED-warning-flashing-light |

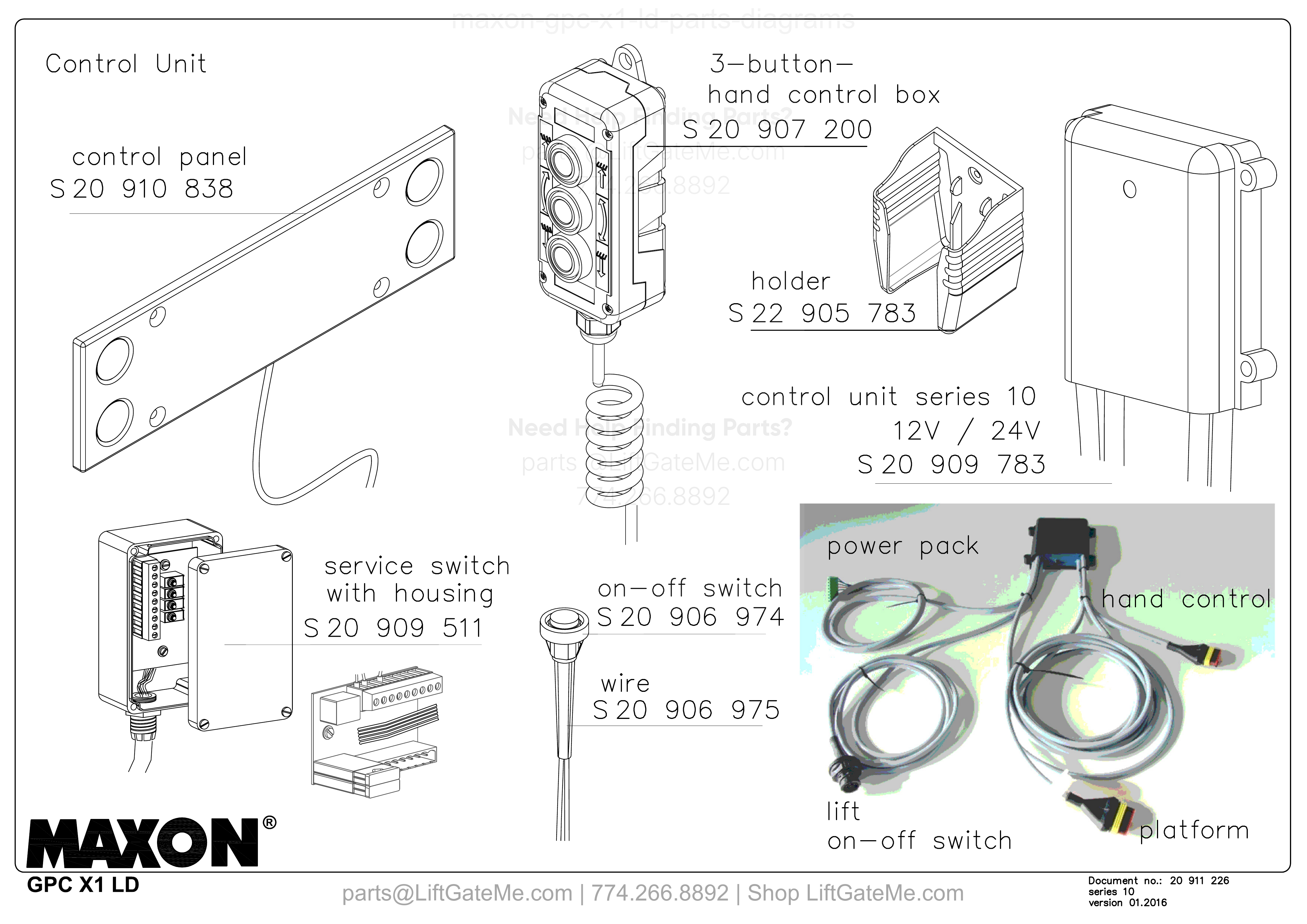

Control Unit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 910 838 | Control Unit — control panel | |
| — | - | S 20 907 200 | Control Unit — 3-button-hand control box | |
| — | - | S 22 905 783 | Control Unit — holder | |
| — | - | S 20 909 783 | Control Unit — control unit series 10 12V / 24V | |
| — | - | S 20 909 511 | Control Unit — service switch with housing | |
| — | - | S 20 906 974 | Control Unit — on-off switch | |
| — | - | S 20 906 975 | Control Unit — wire |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

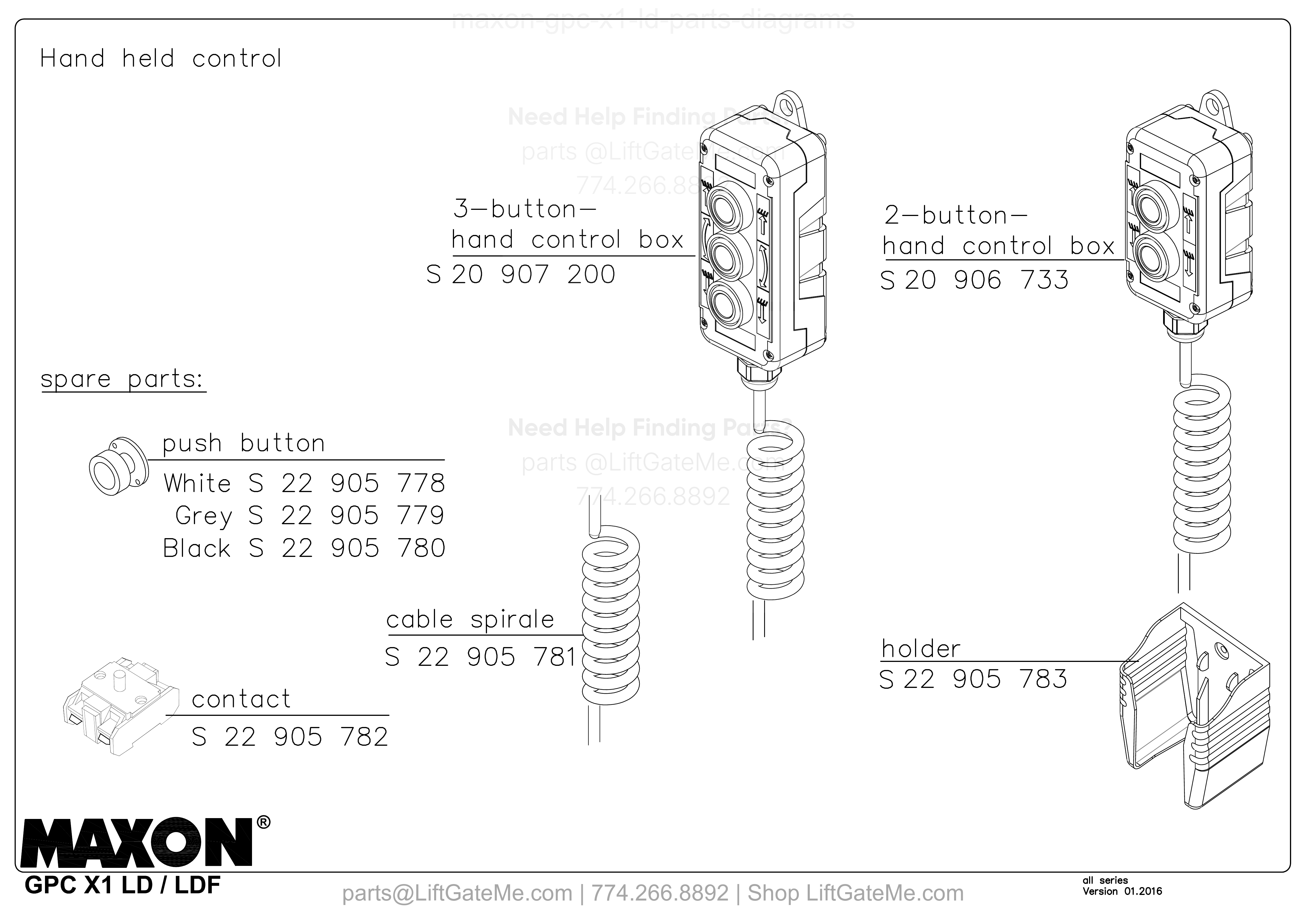

Hand held control
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 200 | Hand held control — 3-button-hand control box | |
| — | - | S 20 906 733 | Hand held control — 2-button-hand control box | |
| — | - | S 22 905 778 | Hand held control — push button White | |
| — | - | S 22 905 779 | Hand held control — push button Grey | |
| — | - | S 22 905 780 | Hand held control — push button Black | |
| — | - | S 22 905 782 | Hand held control — contact | |
| — | - | S 22 905 781 | Hand held control — cable spirale | |
| — | - | S 22 905 783 | Hand held control — holder |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
