Maxon DMD-TT Liftgate Parts Diagrams | Approximate Years 2022-Present
Maxon DMD-TT OEM parts diagram reference
Explore Maxon DMD-TT parts diagrams for 2022-Present rail lift liftgates. Use this reference to compare diagram callouts, verify part numbers, and support maintenance or repairs.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

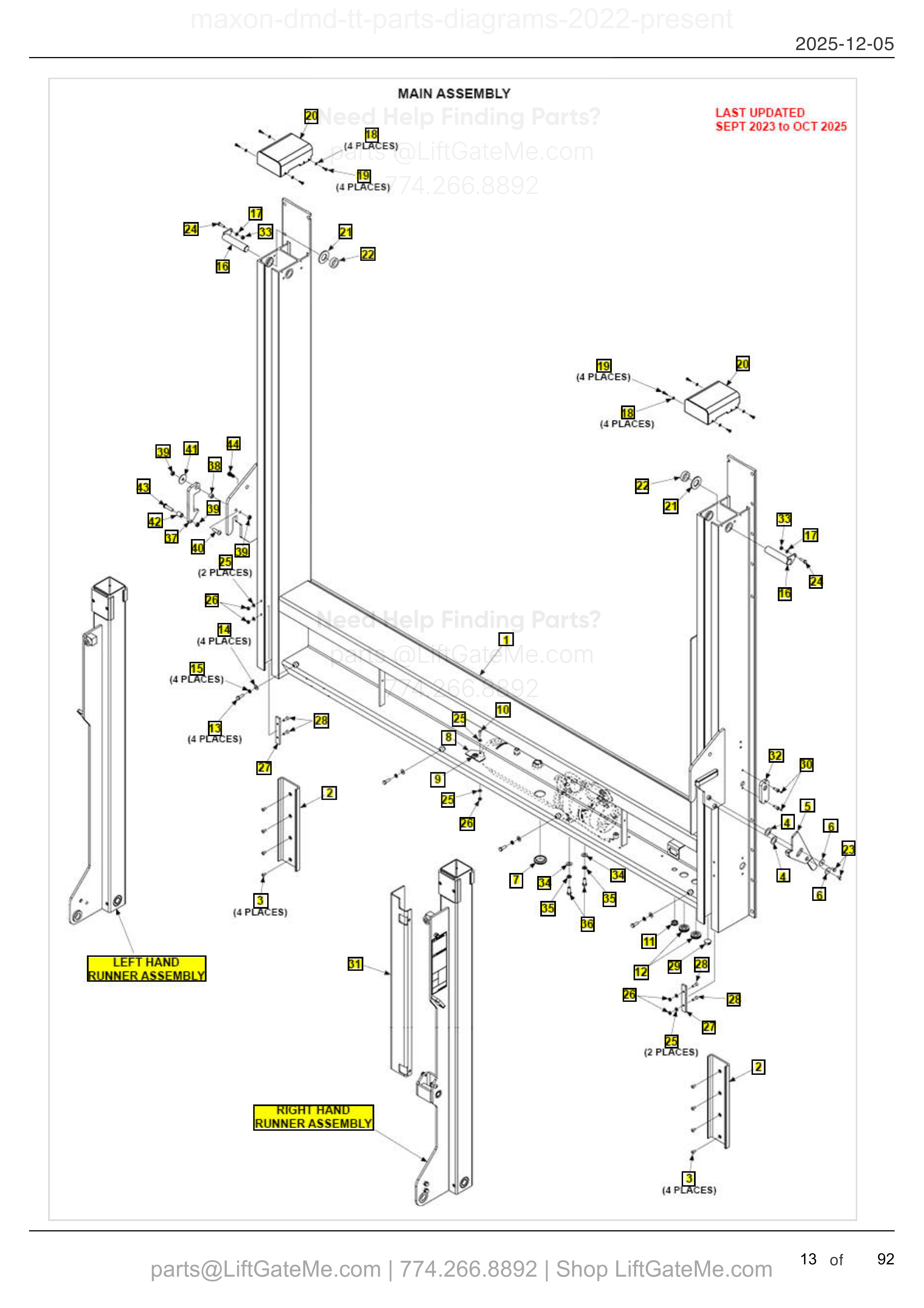

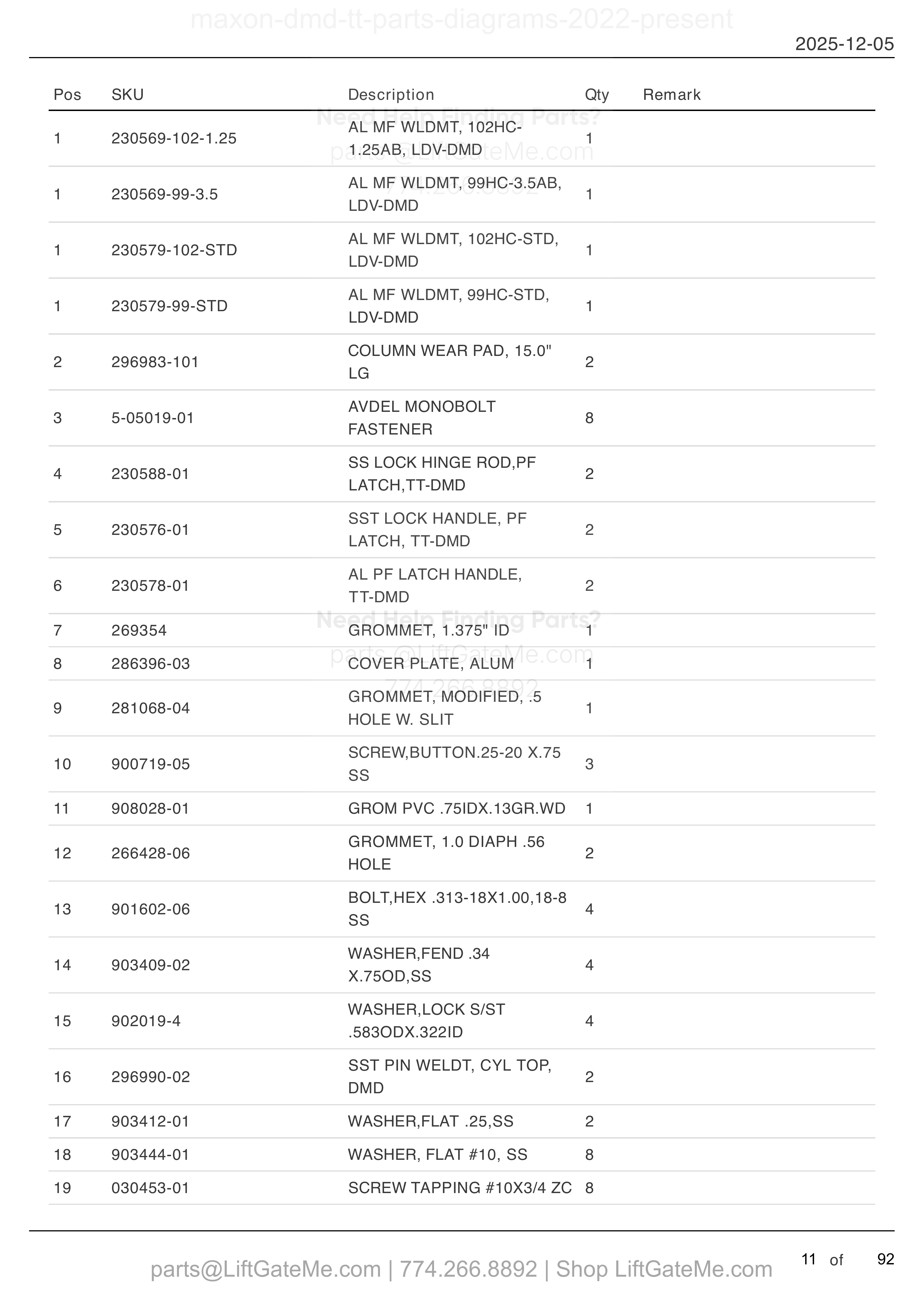

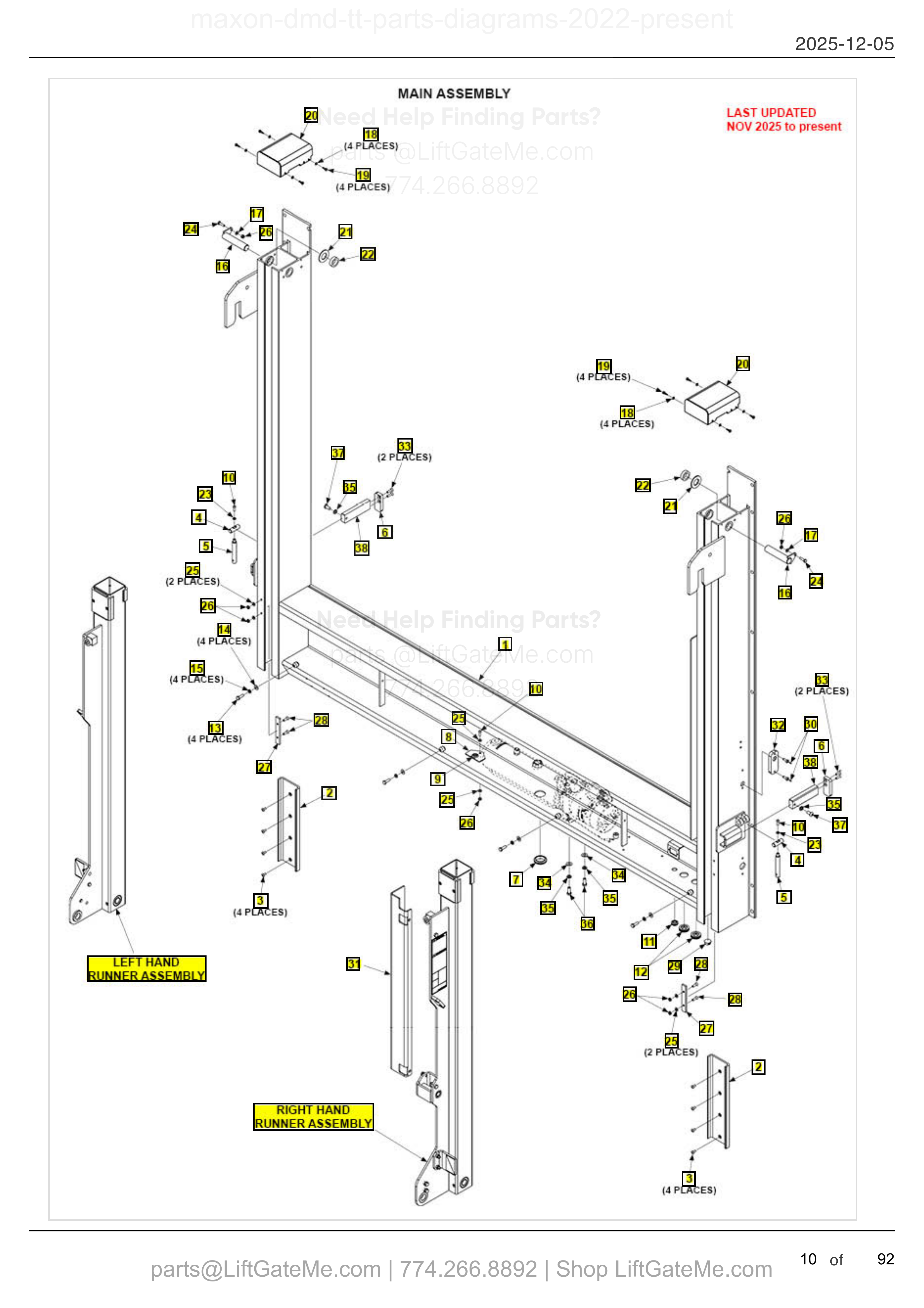

MAIN ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 230569-102-1.25 | AL MF WLDMT, 102HC-1.25AB, LDV-DMD | |
| 1 | 1 | 230569-99-3.5 | AL MF WLDMT, 99HC-3.5AB, LDV-DMD | |
| 1 | 1 | 230579-102-STD | AL MF WLDMT, 102HC-STD, LDV-DMD | |
| 1 | 1 | 230579-99-STD | AL MF WLDMT, 99HC-STD, LDV-DMD | |
| 2 | 2 | 296983-101 | COLUMN WEAR PAD, 15.0" LG | |
| 3 | 8 | 5-05019-01 | AVDEL MONOBOLT FASTENER | |
| 4 | 2 | 230588-01 | SS LOCK HINGE ROD,PF LATCH,TT-DMD | |
| 5 | 2 | 230576-01 | SST LOCK HANDLE, PF LATCH, TT-DMD | |
| 6 | 2 | 230578-01 | AL PF LATCH HANDLE, TT-DMD | |
| 7 | 1 | 269354 | GROMMET, 1.375" ID | |
| 8 | 1 | 286396-03 | COVER PLATE, ALUM | |
| 9 | 1 | 281068-04 | GROMMET, MODIFIED, .5 HOLE W. SLIT | |
| 10 | 3 | 900719-05 | SCREW,BUTTON.25-20 X.75 SS | |
| 11 | 1 | 908028-01 | GROM PVC .75IDX.13GR.WD | |
| 12 | 2 | 266428-06 | GROMMET, 1.0 DIAPH .56 HOLE | |
| 13 | 4 | 901602-06 | BOLT,HEX .313-18X1.00,18-8 SS | |
| 14 | 4 | 903409-02 | WASHER,FEND .34 X.75OD,SS | |
| 15 | 4 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 16 | 2 | 296990-02 | SST PIN WELDT, CYL TOP, DMD | |
| 17 | 2 | 903412-01 | WASHER,FLAT .25,SS | |
| 18 | 8 | 903444-01 | WASHER, FLAT #10, SS | |
| 19 | 8 | 030453-01 | SCREW TAPPING #10X3/4 ZC |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

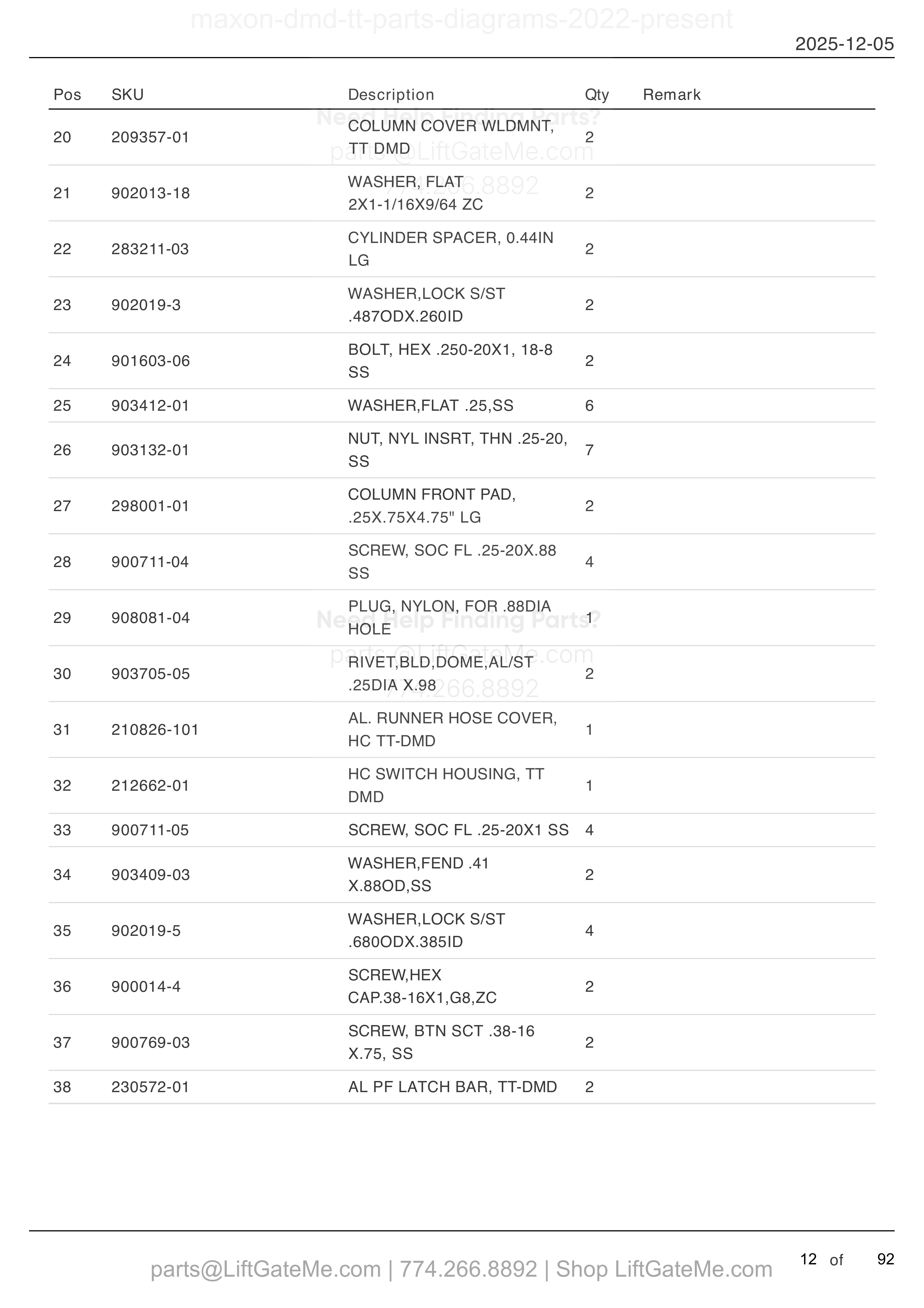

MAIN ASSEMBLY (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 20 | 2 | 209357-01 | COLUMN COVER WLDMNT, TT DMD | |
| 21 | 2 | 902013-18 | WASHER, FLAT 2X1-1/16X9/64 ZC | |
| 22 | 2 | 283211-03 | CYLINDER SPACER, 0.44IN LG | |
| 23 | 2 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 24 | 2 | 901603-06 | BOLT, HEX .250-20X1, 18-8 SS | |
| 25 | 6 | 903412-01 | WASHER,FLAT .25,SS | |
| 26 | 7 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS | |
| 27 | 2 | 298001-01 | COLUMN FRONT PAD, .25X.75X4.75" LG | |
| 28 | 4 | 900711-04 | SCREW, SOC FL .25-20X.88 SS | |
| 29 | 1 | 908081-04 | PLUG, NYLON, FOR .88DIA HOLE | |
| 30 | 2 | 903705-05 | RIVET,BLD,DOME,AL/ST .25DIA X.98 | |
| 31 | 1 | 210826-101 | AL. RUNNER HOSE COVER, HC TT-DMD | |
| 32 | 1 | 212662-01 | HC SWITCH HOUSING, TT DMD | |
| 33 | 4 | 900711-05 | SCREW, SOC FL .25-20X1 SS | |
| 34 | 2 | 903409-03 | WASHER,FEND .41 X.88OD,SS | |
| 35 | 4 | 902019-5 | WASHER,LOCK S/ST .680ODX.385ID | |
| 36 | 2 | 900014-4 | SCREW,HEX CAP.38-16X1,G8,ZC | |
| 37 | 2 | 900769-03 | SCREW, BTN SCT .38-16 X.75, SS | |
| 38 | 2 | 230572-01 | AL PF LATCH BAR, TT-DMD |

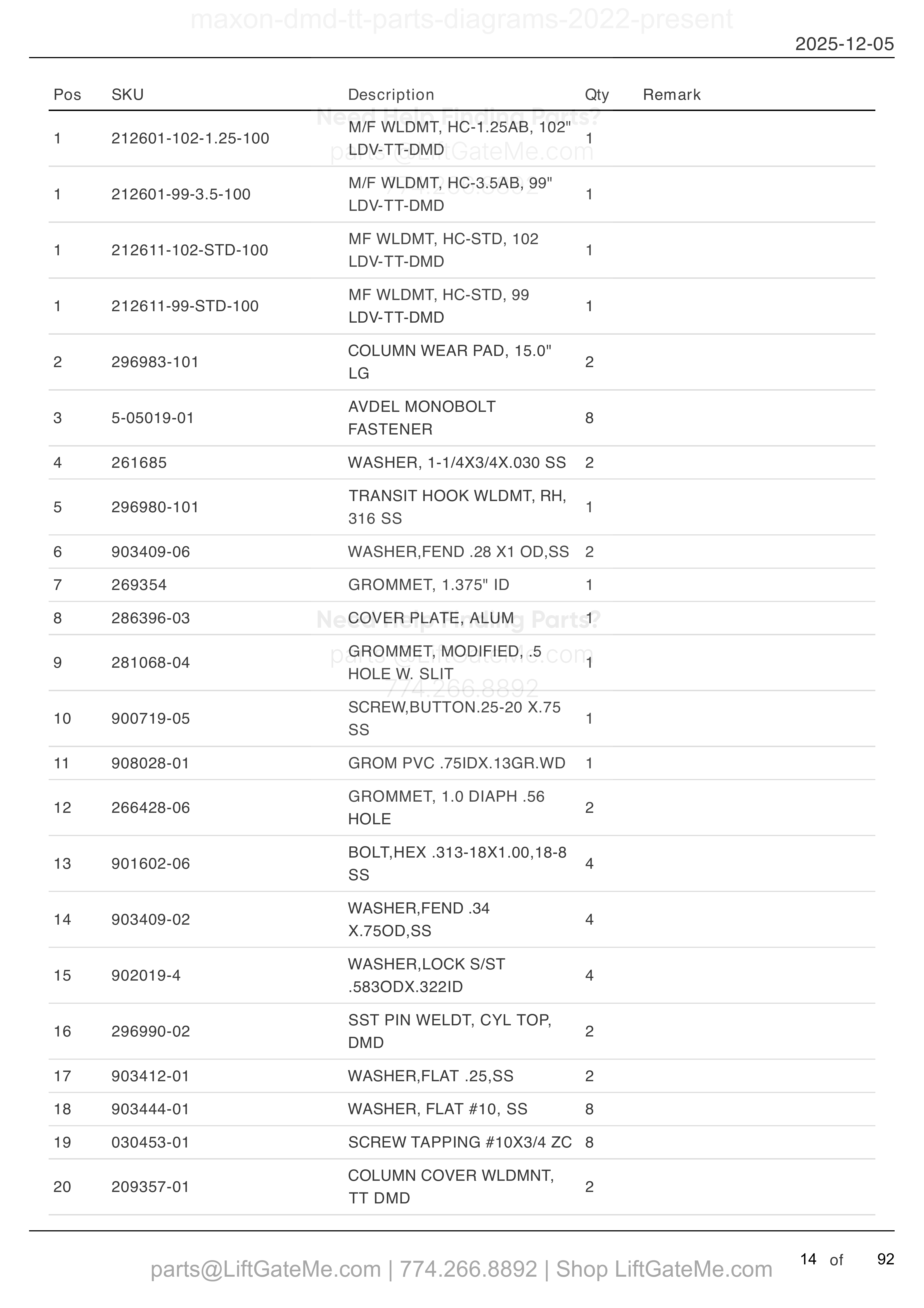

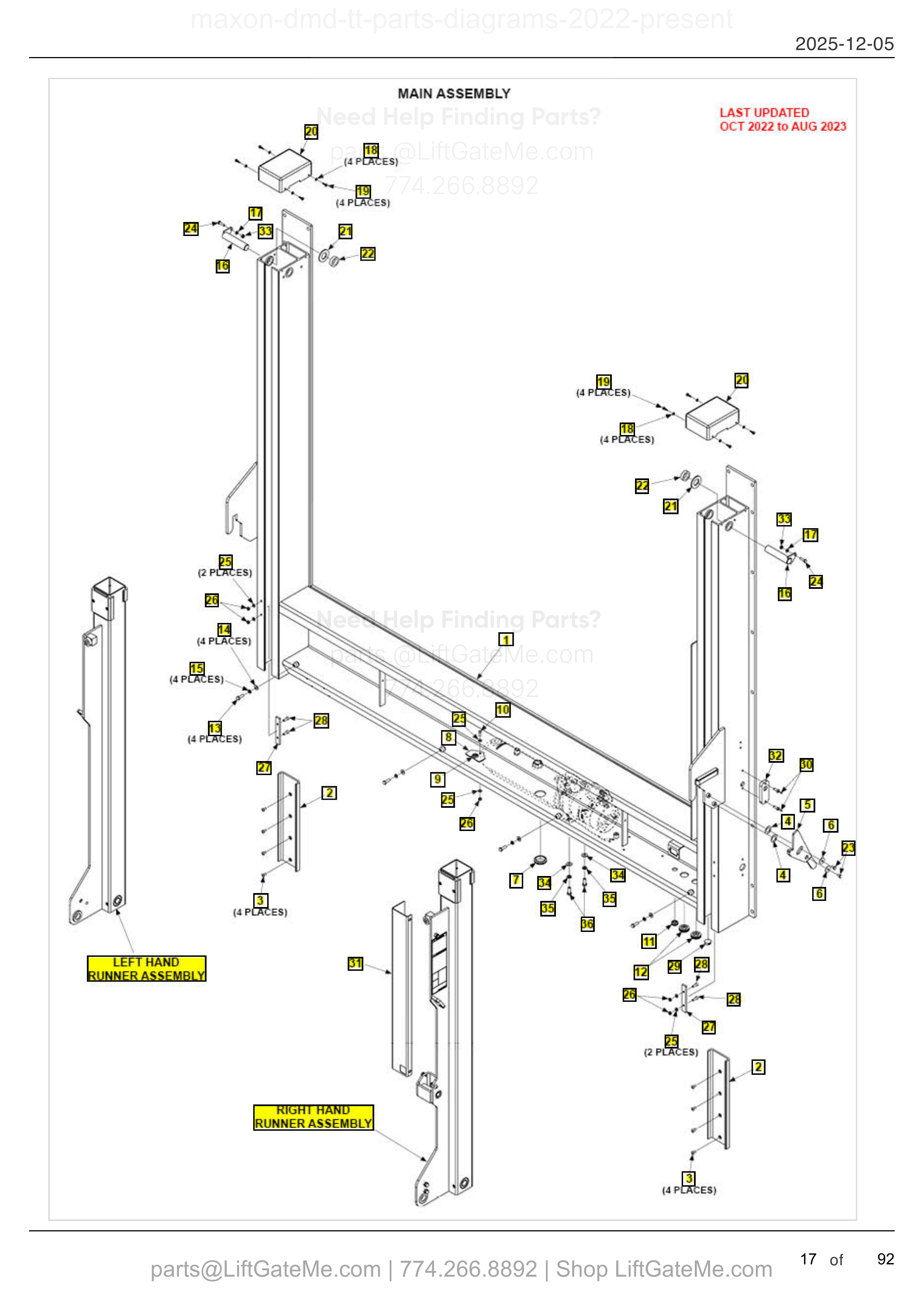

MAIN ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 212601-102-1.25-100 | M/F WLDMT, HC-1.25AB, 102" LDV-TT-DMD | |
| 1 | 1 | 212601-99-3.5-100 | M/F WLDMT, HC-3.5AB, 99" LDV-TT-DMD | |
| 1 | 1 | 212611-102-STD-100 | MF WLDMT, HC-STD, 102 LDV-TT-DMD | |
| 1 | 1 | 212611-99-STD-100 | MF WLDMT, HC-STD, 99 LDV-TT-DMD | |
| 2 | 2 | 296983-101 | COLUMN WEAR PAD, 15.0" LG | |
| 3 | 8 | 5-05019-01 | AVDEL MONOBOLT FASTENER | |
| 4 | 2 | 261685 | WASHER, 1-1/4X3/4X.030 SS | |
| 5 | 1 | 296980-101 | TRANSIT HOOK WLDMT, RH, 316 SS | |
| 6 | 2 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 1 | 269354 | GROMMET, 1.375" ID | |
| 8 | 1 | 286396-03 | COVER PLATE, ALUM | |
| 9 | 1 | 281068-04 | GROMMET, MODIFIED, .5 HOLE W. SLIT | |
| 10 | 1 | 900719-05 | SCREW,BUTTON.25-20 X.75 SS | |
| 11 | 1 | 908028-01 | GROM PVC .75IDX.13GR.WD | |
| 12 | 2 | 266428-06 | GROMMET, 1.0 DIAPH .56 HOLE | |
| 13 | 4 | 901602-06 | BOLT,HEX .313-18X1.00,18-8 SS | |
| 14 | 4 | 903409-02 | WASHER,FEND .34 X.75OD,SS | |
| 15 | 4 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 16 | 2 | 296990-02 | SST PIN WELDT, CYL TOP, DMD | |
| 17 | 2 | 903412-01 | WASHER,FLAT .25,SS | |
| 18 | 8 | 903444-01 | WASHER, FLAT #10, SS | |
| 19 | 8 | 030453-01 | SCREW TAPPING #10X3/4 ZC | |
| 20 | 2 | 209357-01 | COLUMN COVER WLDMNT, TT DMD |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

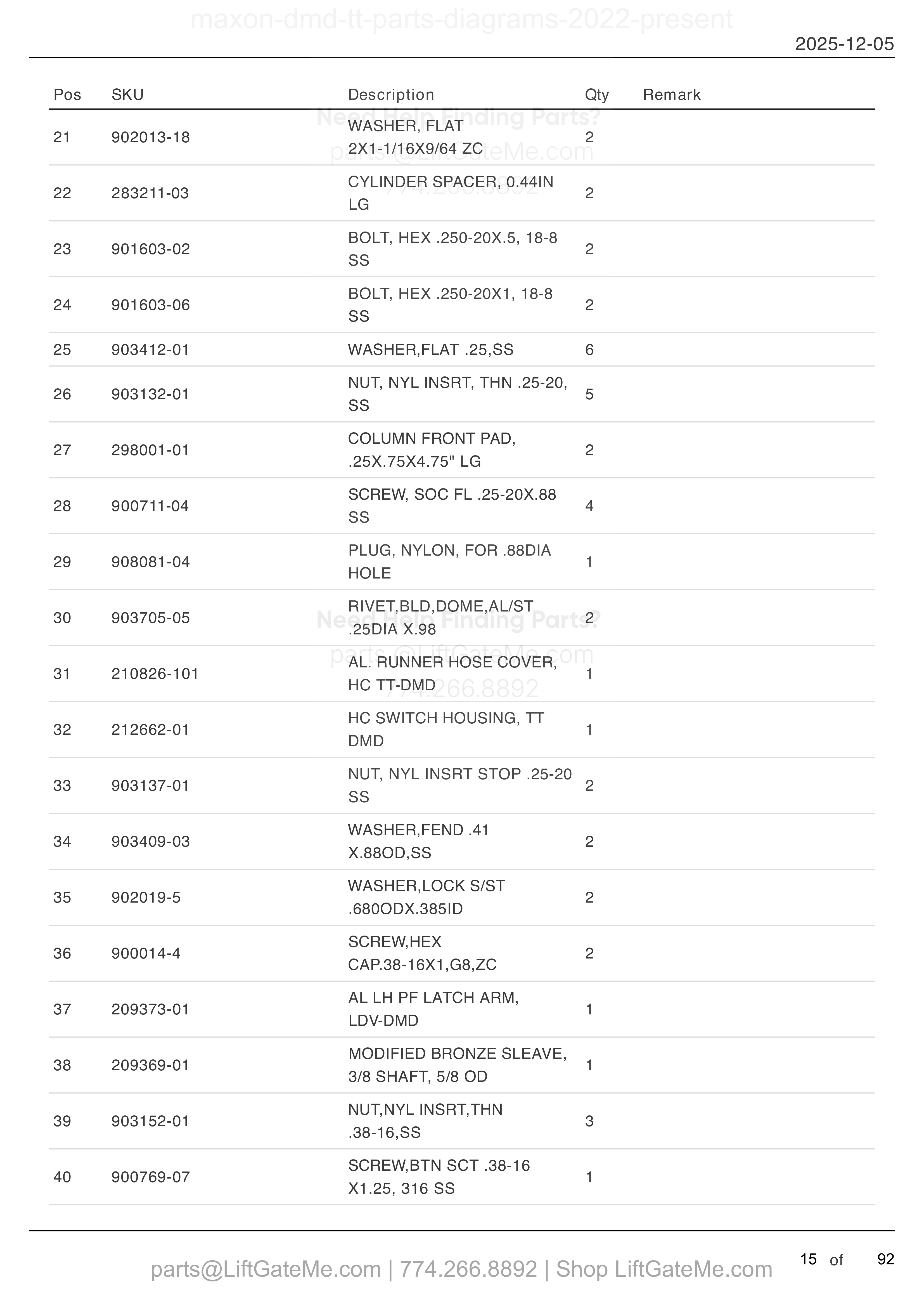

MAIN ASSEMBLY (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 21 | 2 | 902013-18 | WASHER, FLAT 2X1-1/16X9/64 ZC | |
| 22 | 2 | 283211-03 | CYLINDER SPACER, 0.44IN LG | |
| 23 | 2 | 901603-02 | BOLT, HEX .250-20X.5, 18-8 SS | |
| 24 | 2 | 901603-06 | BOLT, HEX .250-20X1, 18-8 SS | |
| 25 | 6 | 903412-01 | WASHER,FLAT .25,SS | |
| 26 | 5 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS | |
| 27 | 2 | 298001-01 | COLUMN FRONT PAD, .25X.75X4.75" LG | |
| 28 | 4 | 900711-04 | SCREW, SOC FL .25-20X.88 SS | |
| 29 | 1 | 908081-04 | PLUG, NYLON, FOR .88DIA HOLE | |
| 30 | 2 | 903705-05 | RIVET,BLD,DOME,AL/ST .25DIA X.98 | |
| 31 | 1 | 210826-101 | AL. RUNNER HOSE COVER, HC TT-DMD | |
| 32 | 1 | 212662-01 | HC SWITCH HOUSING, TT DMD | |
| 33 | 2 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | |
| 34 | 2 | 903409-03 | WASHER,FEND .41 X.88OD,SS | |
| 35 | 2 | 902019-5 | WASHER,LOCK S/ST .680ODX.385ID | |
| 36 | 2 | 900014-4 | SCREW,HEX CAP.38-16X1,G8,ZC | |
| 37 | 1 | 209373-01 | AL LH PF LATCH ARM, LDV-DMD | |
| 38 | 1 | 209369-01 | MODIFIED BRONZE SLEAVE, 3/8 SHAFT, 5/8 OD | |
| 39 | 3 | 903152-01 | NUT,NYL INSRT,THN .38-16,SS | |
| 40 | 1 | 900769-07 | SCREW,BTN SCT .38-16 X1.25, 316 SS |

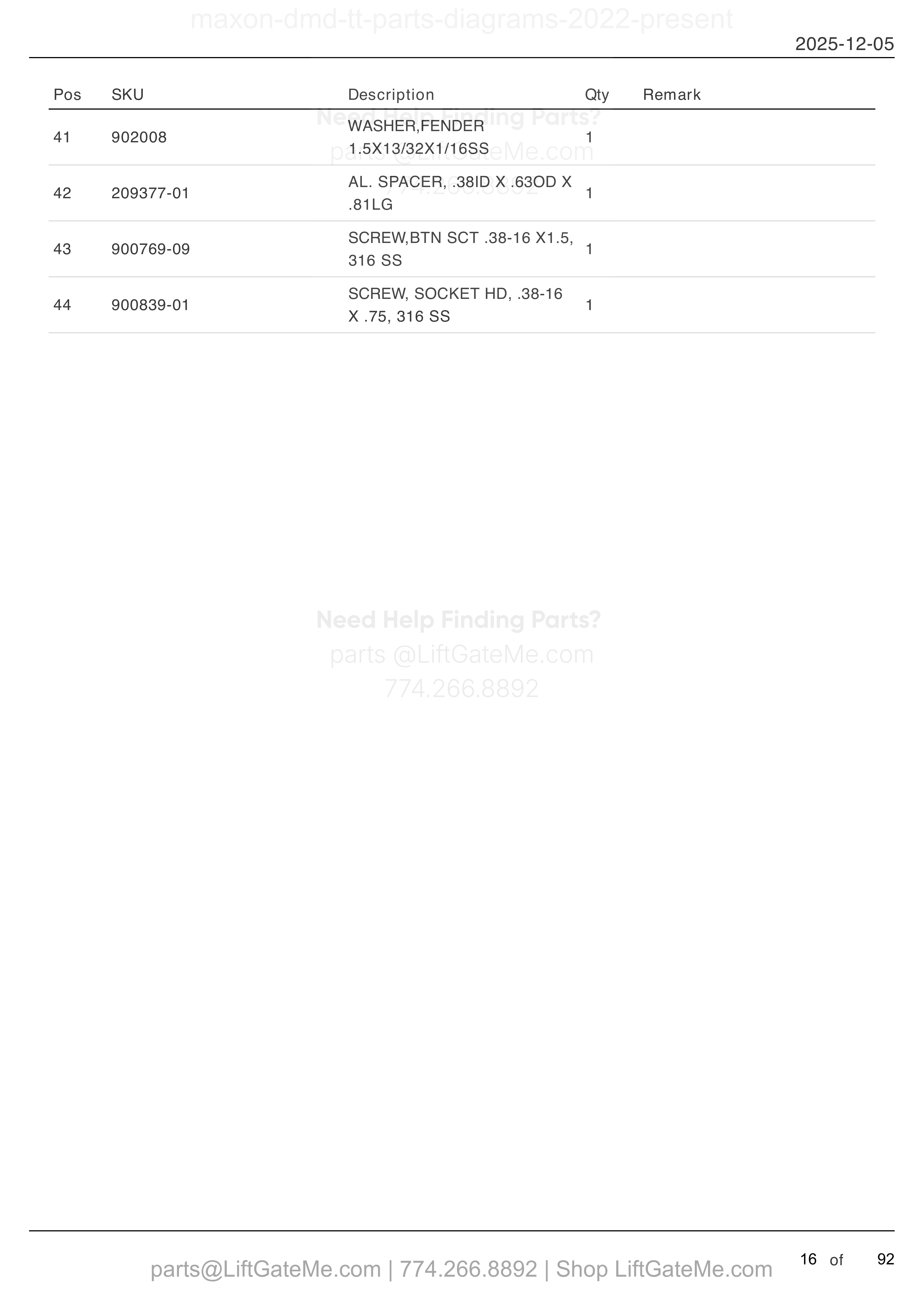

MAIN ASSEMBLY (continued)
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

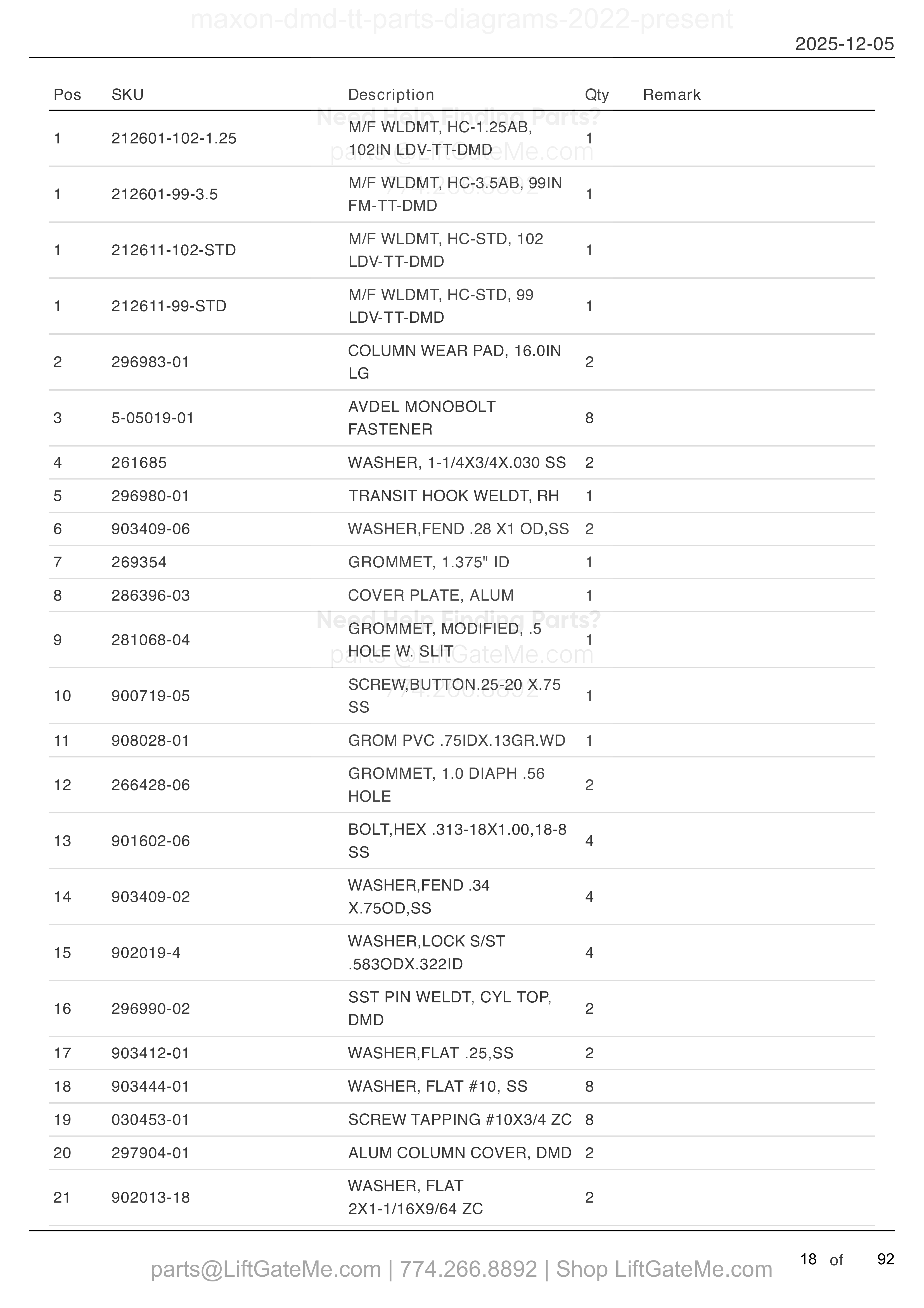

MAIN ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 212601-102-1.25 | M/F WLDMT, HC-1.25AB, 102IN LDV-TT-DMD | |
| 1 | 1 | 212601-99-3.5 | M/F WLDMT, HC-3.5AB, 99IN FM-TT-DMD | |
| 1 | 1 | 212611-102-STD | M/F WLDMT, HC-STD, 102 LDV-TT-DMD | |
| 1 | 1 | 212611-99-STD | M/F WLDMT, HC-STD, 99 LDV-TT-DMD | |
| 2 | 2 | 296983-01 | COLUMN WEAR PAD, 16.0IN LG | |
| 3 | 8 | 5-05019-01 | AVDEL MONOBOLT FASTENER | |
| 4 | 2 | 261685 | WASHER, 1-1/4X3/4X.030 SS | |
| 5 | 1 | 296980-01 | TRANSIT HOOK WELDT, RH | |
| 6 | 2 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 1 | 269354 | GROMMET, 1.375" ID | |
| 8 | 1 | 286396-03 | COVER PLATE, ALUM | |
| 9 | 1 | 281068-04 | GROMMET, MODIFIED, .5 HOLE W. SLIT | |
| 10 | 1 | 900719-05 | SCREW,BUTTON.25-20 X.75 SS | |
| 11 | 1 | 908028-01 | GROM PVC .75IDX.13GR.WD | |
| 12 | 2 | 266428-06 | GROMMET, 1.0 DIAPH .56 HOLE | |
| 13 | 4 | 901602-06 | BOLT,HEX .313-18X1.00,18-8 SS | |
| 14 | 4 | 903409-02 | WASHER,FEND .34 X.75OD,SS | |
| 15 | 4 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 16 | 2 | 296990-02 | SST PIN WELDT, CYL TOP, DMD | |
| 17 | 2 | 903412-01 | WASHER,FLAT .25,SS | |
| 18 | 8 | 903444-01 | WASHER, FLAT #10, SS | |
| 19 | 8 | 030453-01 | SCREW TAPPING #10X3/4 ZC | |
| 20 | 2 | 297904-01 | ALUM COLUMN COVER, DMD | |
| 21 | 2 | 902013-18 | WASHER, FLAT 2X1-1/16X9/64 ZC |

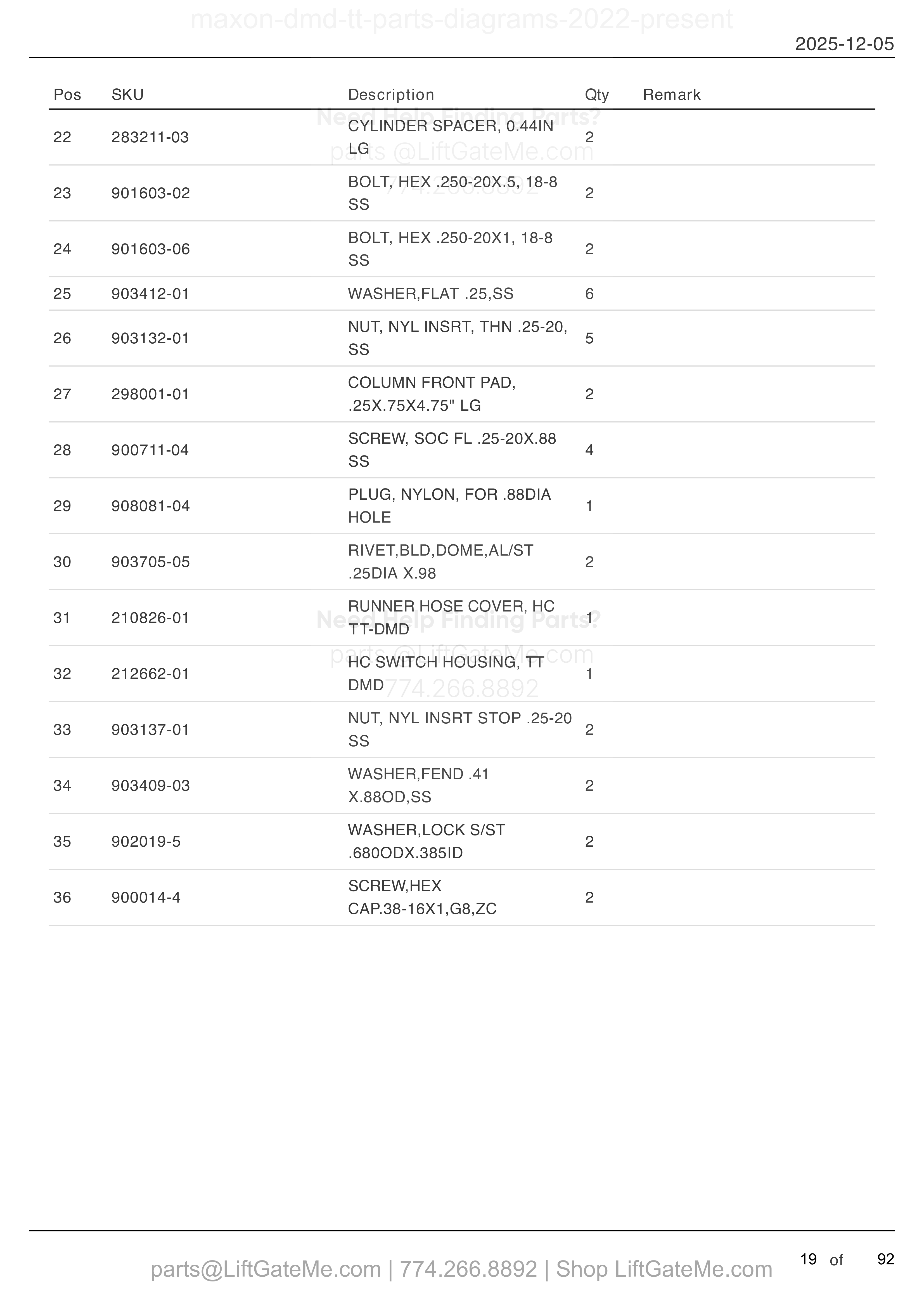

MAIN ASSEMBLY (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 22 | 2 | 283211-03 | CYLINDER SPACER, 0.44IN LG | |
| 23 | 2 | 901603-02 | BOLT, HEX .250-20X.5, 18-8 SS | |
| 24 | 2 | 901603-06 | BOLT, HEX .250-20X1, 18-8 SS | |
| 25 | 6 | 903412-01 | WASHER,FLAT .25,SS | |
| 26 | 5 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS | |
| 27 | 2 | 298001-01 | COLUMN FRONT PAD, .25X.75X4.75" LG | |
| 28 | 4 | 900711-04 | SCREW, SOC FL .25-20X.88 SS | |
| 29 | 1 | 908081-04 | PLUG, NYLON, FOR .88DIA HOLE | |
| 30 | 2 | 903705-05 | RIVET,BLD,DOME,AL/ST .25DIA X.98 | |
| 31 | 1 | 210826-01 | RUNNER HOSE COVER, HC TT-DMD | |
| 32 | 1 | 212662-01 | HC SWITCH HOUSING, TT DMD | |
| 33 | 2 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | |
| 34 | 2 | 903409-03 | WASHER,FEND .41 X.88OD,SS | |
| 35 | 2 | 902019-5 | WASHER,LOCK S/ST .680ODX.385ID | |
| 36 | 2 | 900014-4 | SCREW,HEX CAP.38-16X1,G8,ZC |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

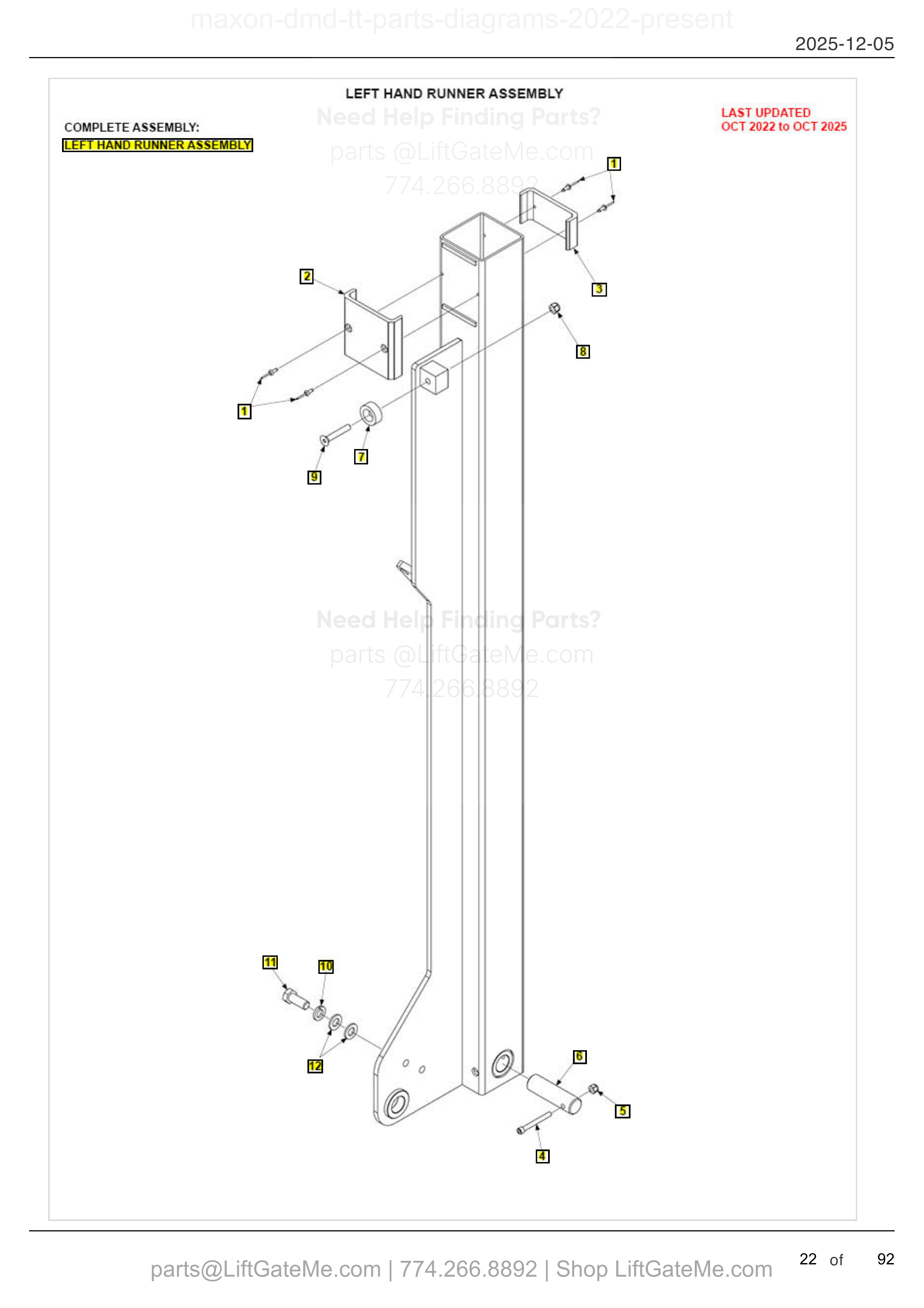

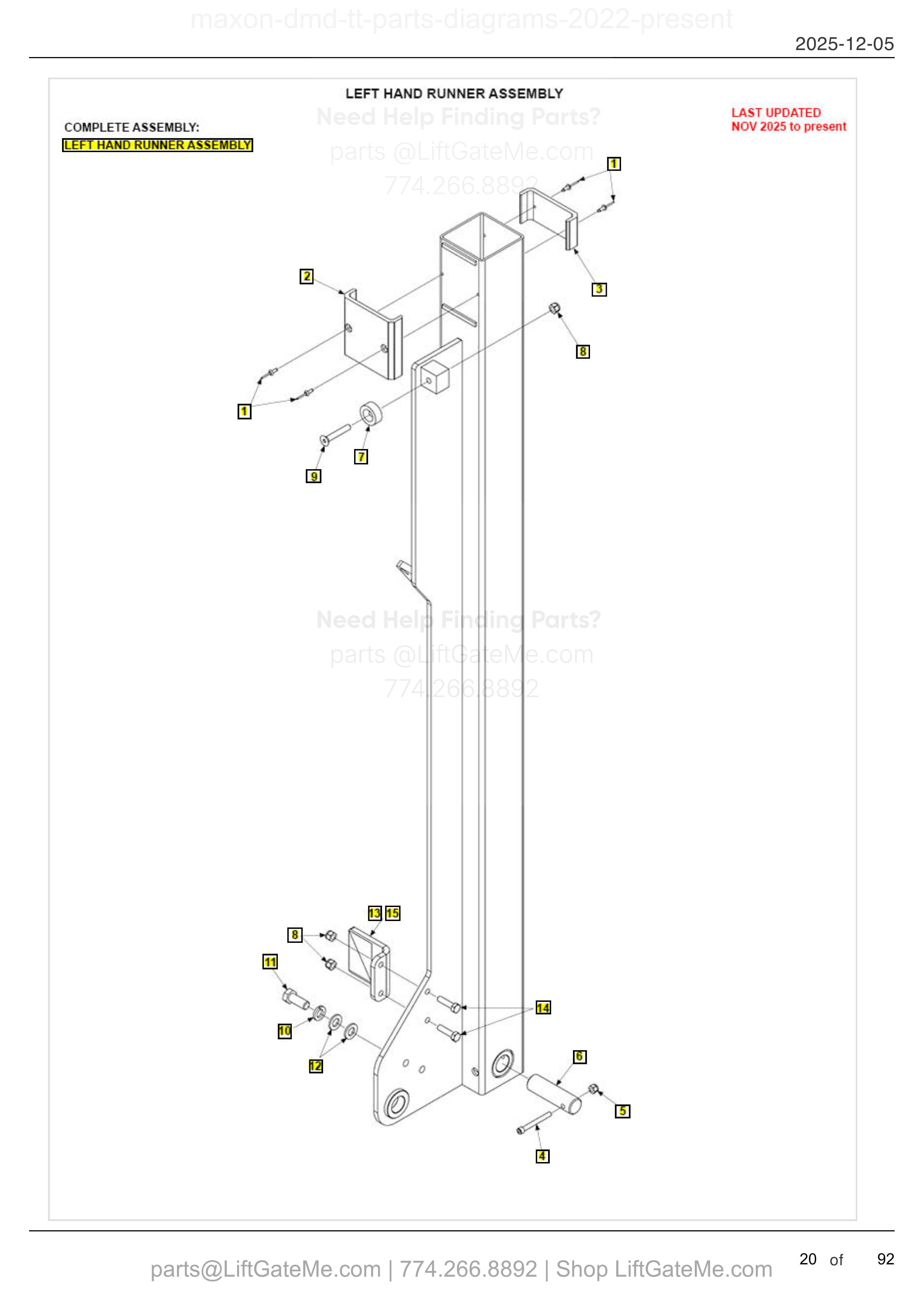

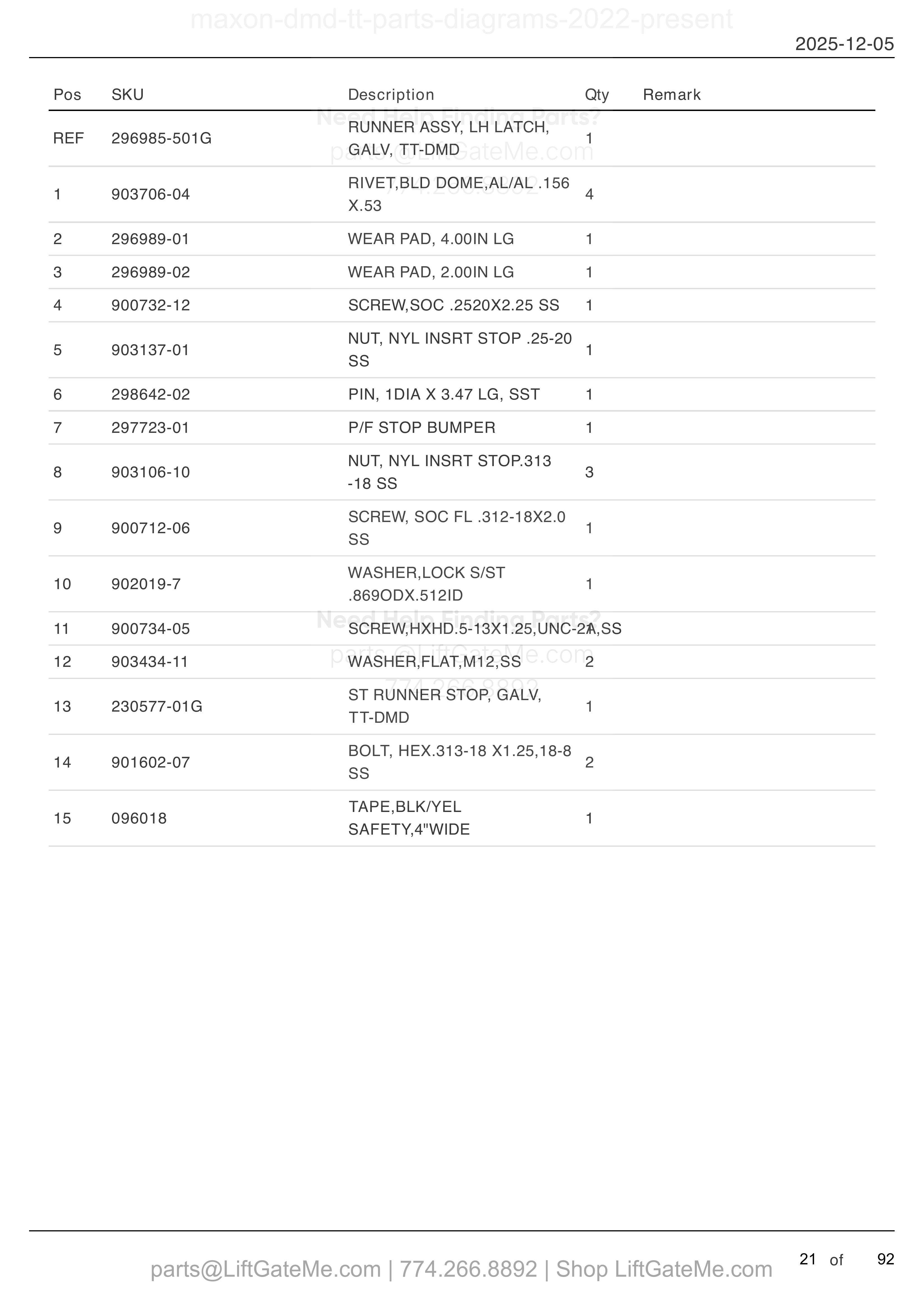

LEFT HAND RUNNER ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 296985-501G | RUNNER ASSY, LH LATCH, GALV, TT-DMD | |
| 1 | 4 | 903706-04 | RIVET,BLD DOME,AL/AL .156 X.53 | |
| 2 | 1 | 296989-01 | WEAR PAD, 4.00IN LG | |
| 3 | 1 | 296989-02 | WEAR PAD, 2.00IN LG | |
| 4 | 1 | 900732-12 | SCREW,SOC .2520X2.25 SS | |
| 5 | 1 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | |
| 6 | 1 | 298642-02 | PIN, 1DIA X 3.47 LG, SST | |
| 7 | 1 | 297723-01 | P/F STOP BUMPER | |
| 8 | 3 | 903106-10 | NUT, NYL INSRT STOP.313 -18 SS | |
| 9 | 1 | 900712-06 | SCREW, SOC FL .312-18X2.0 SS | |
| 10 | 1 | 902019-7 | WASHER,LOCK S/ST .869ODX.512ID | |
| 11 | 900734-05 A | SCREW,HXHD.5-13X1.25,UNC-2A,SS | ||
| 12 | 2 | 903434-11 | WASHER,FLAT,M12,SS | |
| 13 | 1 | 230577-01G | ST RUNNER STOP, GALV, TT-DMD | |
| 14 | 2 | 901602-07 | BOLT, HEX.313-18 X1.25,18-8 SS | |
| 15 | 1 | 096018 | TAPE,BLK/YEL SAFETY,4"WIDE |

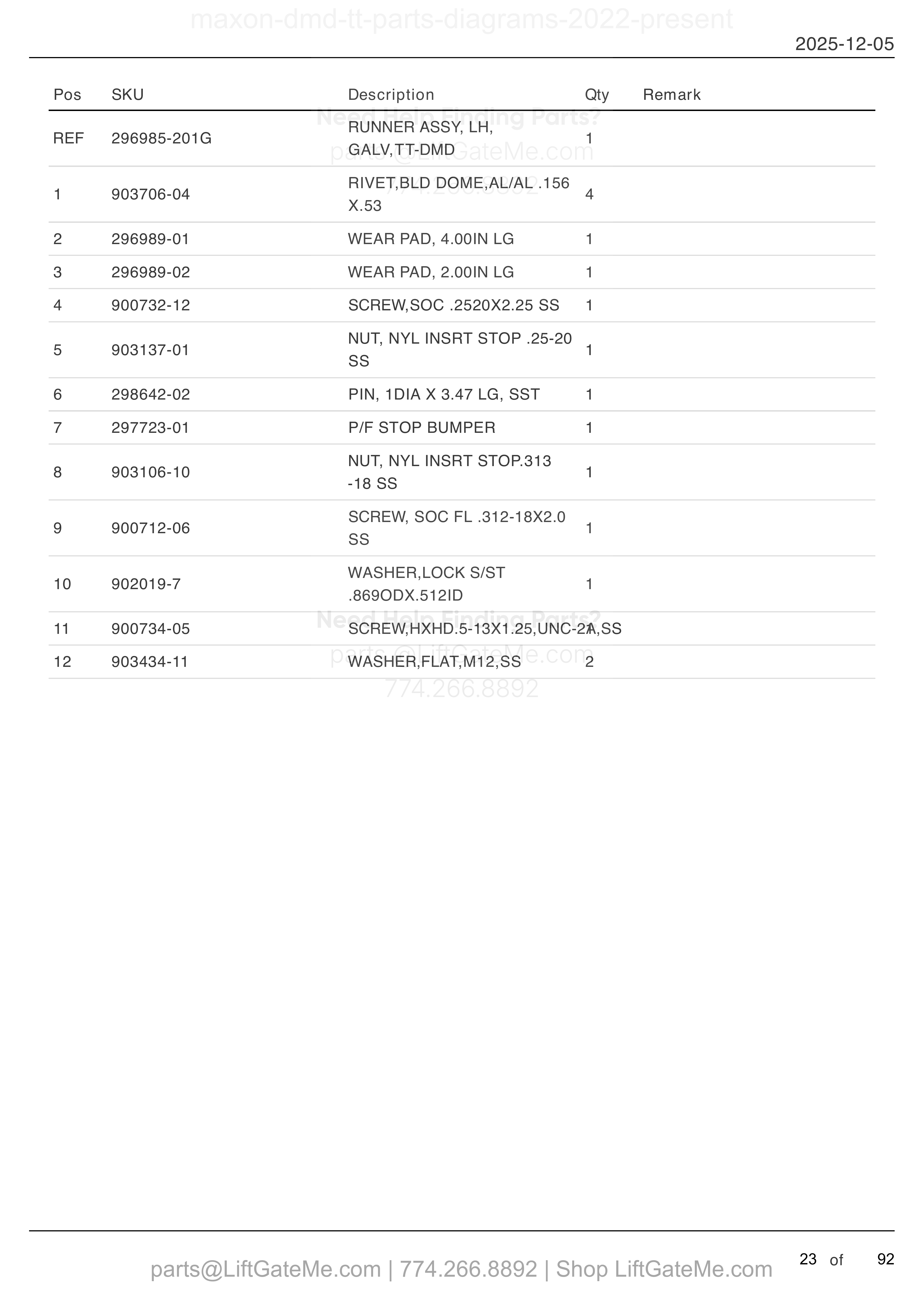

LEFT HAND RUNNER ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 296985-201G | RUNNER ASSY, LH, GALV,TT-DMD | |
| 1 | 4 | 903706-04 | RIVET,BLD DOME,AL/AL .156 X.53 | |
| 2 | 1 | 296989-01 | WEAR PAD, 4.00IN LG | |
| 3 | 1 | 296989-02 | WEAR PAD, 2.00IN LG | |
| 4 | 1 | 900732-12 | SCREW,SOC .2520X2.25 SS | |
| 5 | 1 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | |
| 6 | 1 | 298642-02 | PIN, 1DIA X 3.47 LG, SST | |
| 7 | 1 | 297723-01 | P/F STOP BUMPER | |
| 8 | 1 | 903106-10 | NUT, NYL INSRT STOP.313 -18 SS | |
| 9 | 1 | 900712-06 | SCREW, SOC FL .312-18X2.0 SS | |
| 10 | 1 | 902019-7 | WASHER,LOCK S/ST .869ODX.512ID | |
| 11 | A | 900734-05 | SCREW,HXHD.5-13X1.25,UNC-2A,SS | |
| 12 | 2 | 903434-11 | WASHER,FLAT,M12,SS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

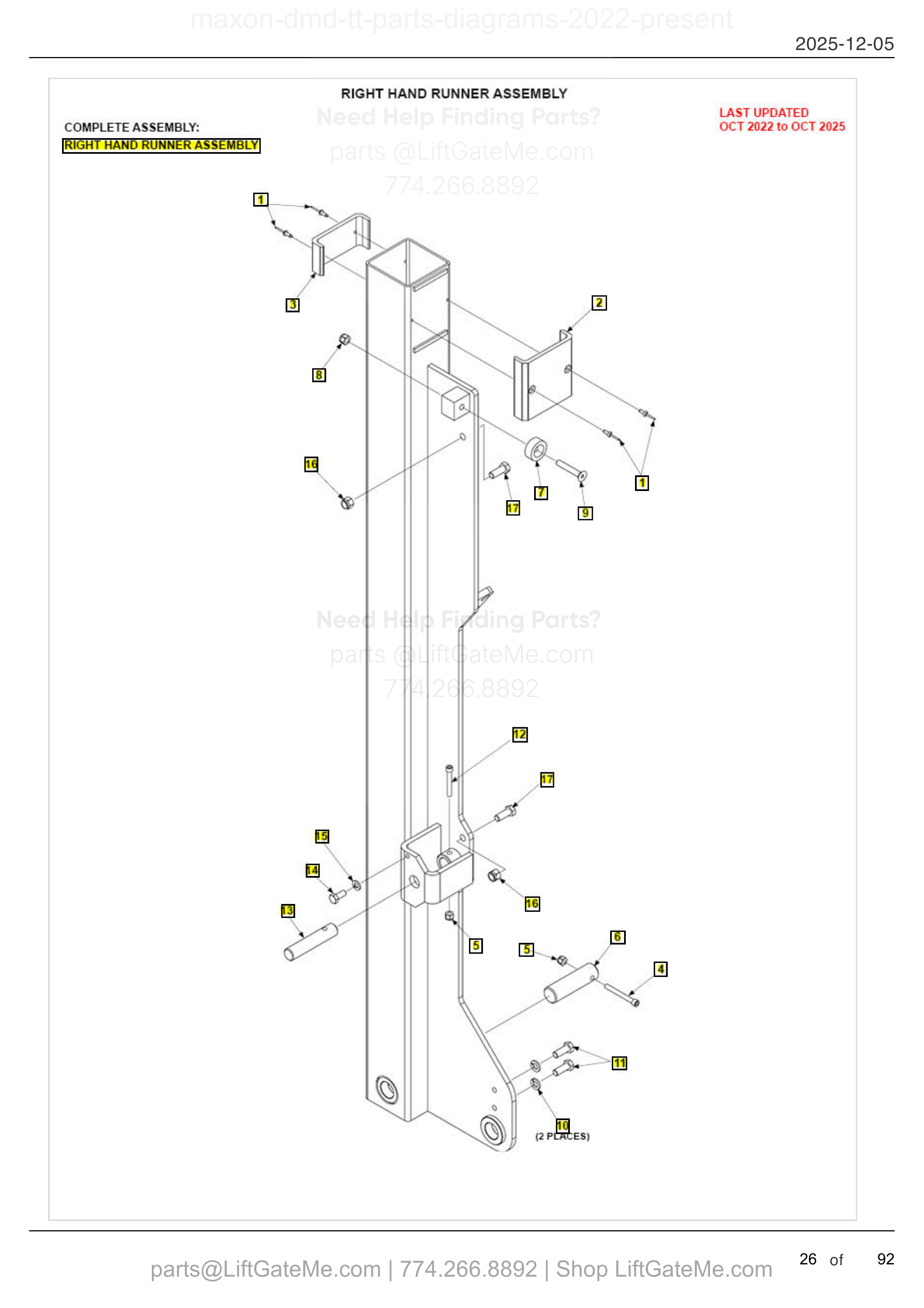

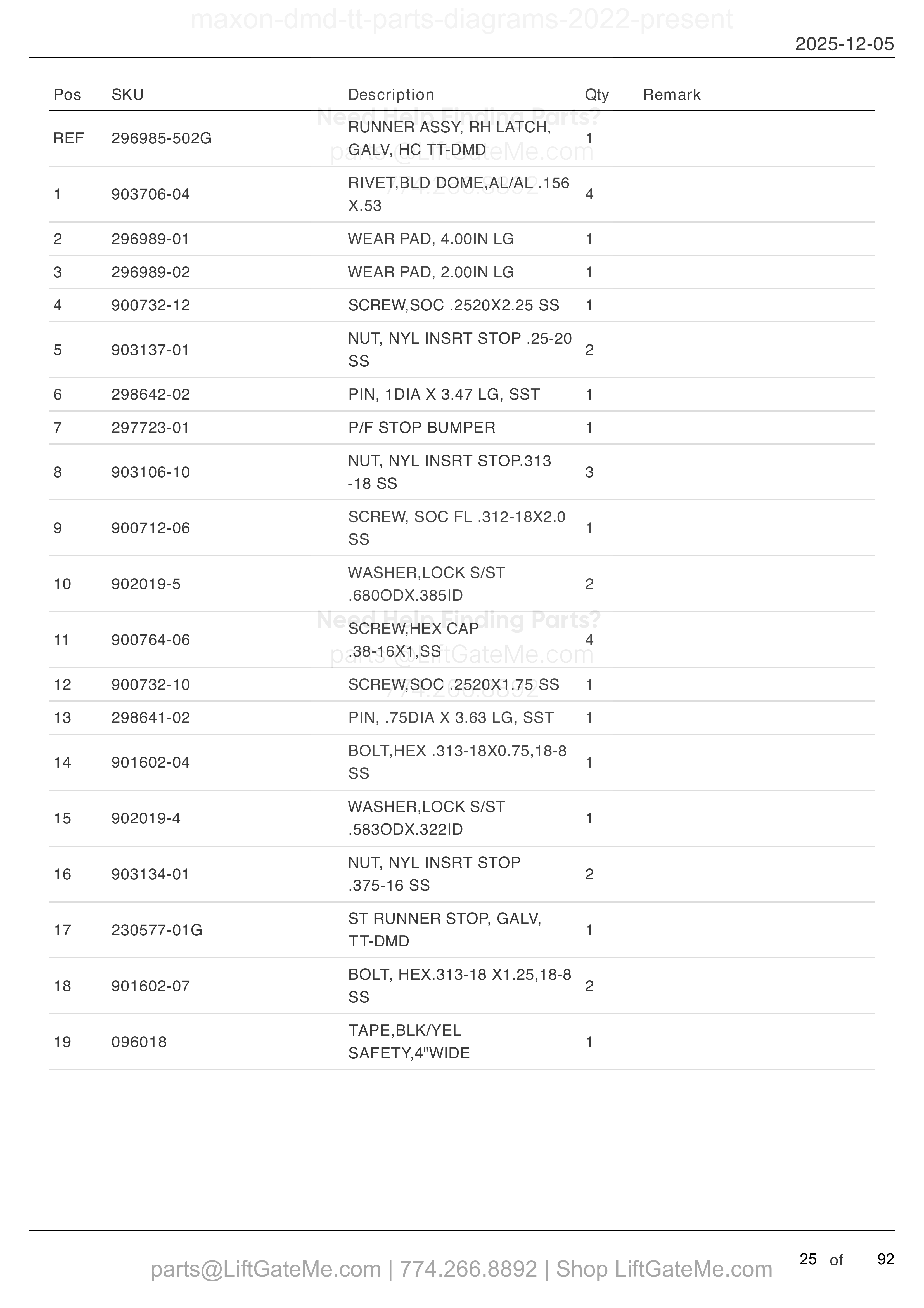

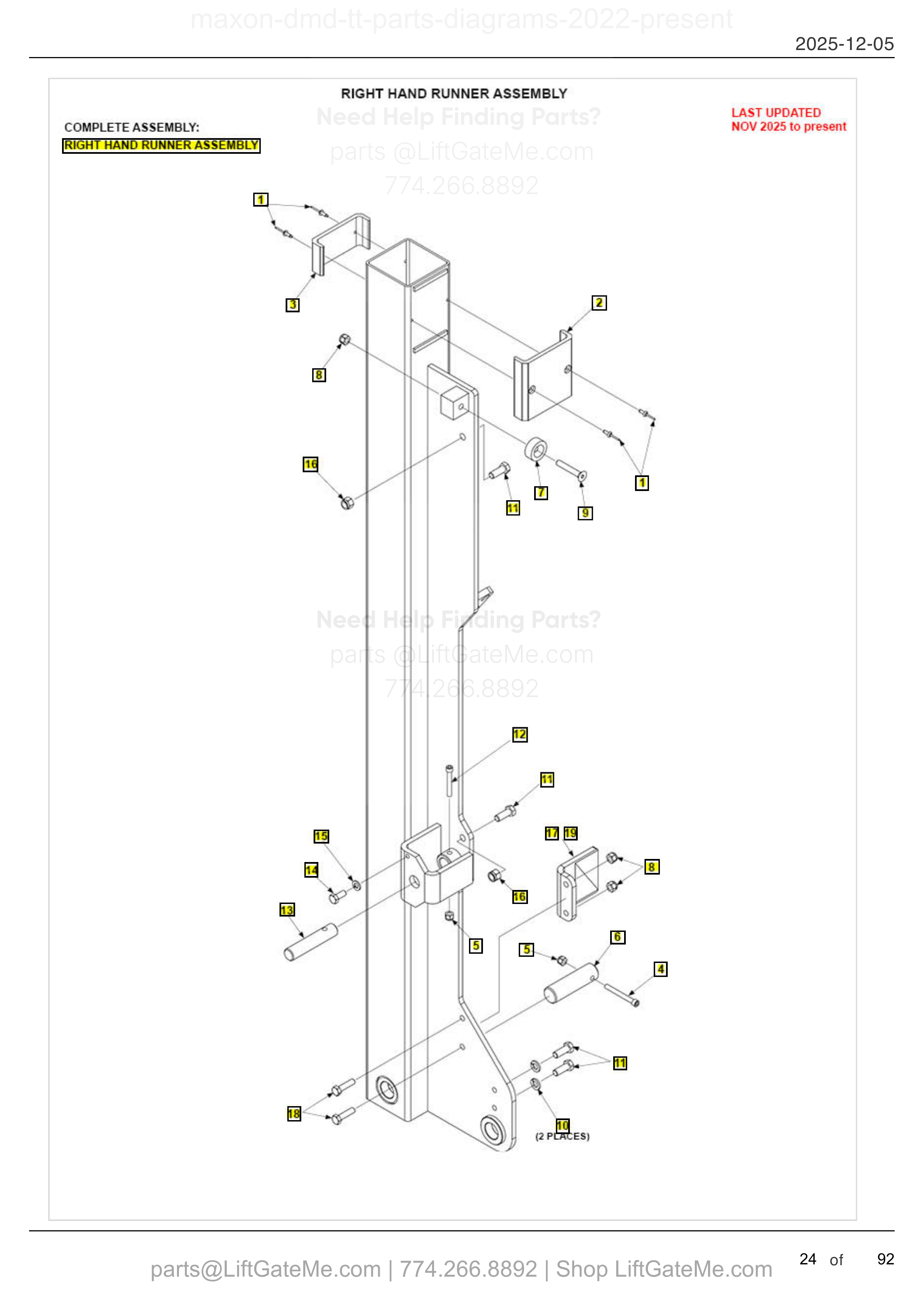

RIGHT HAND RUNNER ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 296985-502G | RUNNER ASSY, RH LATCH, GALV, HC TT-DMD | |
| 1 | 4 | 903706-04 | RIVET,BLD DOME,AL/AL .156 X.53 | |
| 2 | 1 | 296989-01 | WEAR PAD, 4.00IN LG | |
| 3 | 1 | 296989-02 | WEAR PAD, 2.00IN LG | |
| 4 | 1 | 900732-12 | SCREW,SOC .2520X2.25 SS | |
| 5 | 2 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | |
| 6 | 1 | 298642-02 | PIN, 1DIA X 3.47 LG, SST | |
| 7 | 1 | 297723-01 | P/F STOP BUMPER | |
| 8 | 3 | 903106-10 | NUT, NYL INSRT STOP.313 -18 SS | |
| 9 | 1 | 900712-06 | SCREW, SOC FL .312-18X2.0 SS | |
| 10 | 2 | 902019-5 | WASHER,LOCK S/ST .680ODX.385ID | |
| 11 | 4 | 900764-06 | SCREW,HEX CAP .38-16X1,SS | |
| 12 | 1 | 900732-10 | SCREW,SOC .2520X1.75 SS | |
| 13 | 1 | 298641-02 | PIN, .75DIA X 3.63 LG, SST | |
| 14 | 1 | 901602-04 | BOLT,HEX .313-18X0.75,18-8 SS | |
| 15 | 1 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 16 | 2 | 903134-01 | NUT, NYL INSRT STOP .375-16 SS | |
| 17 | 1 | 230577-01G | ST RUNNER STOP, GALV, TT-DMD | |
| 18 | 2 | 901602-07 | BOLT, HEX.313-18 X1.25,18-8 SS | |
| 19 | 1 | 096018 | TAPE,BLK/YEL SAFETY,4"WIDE |

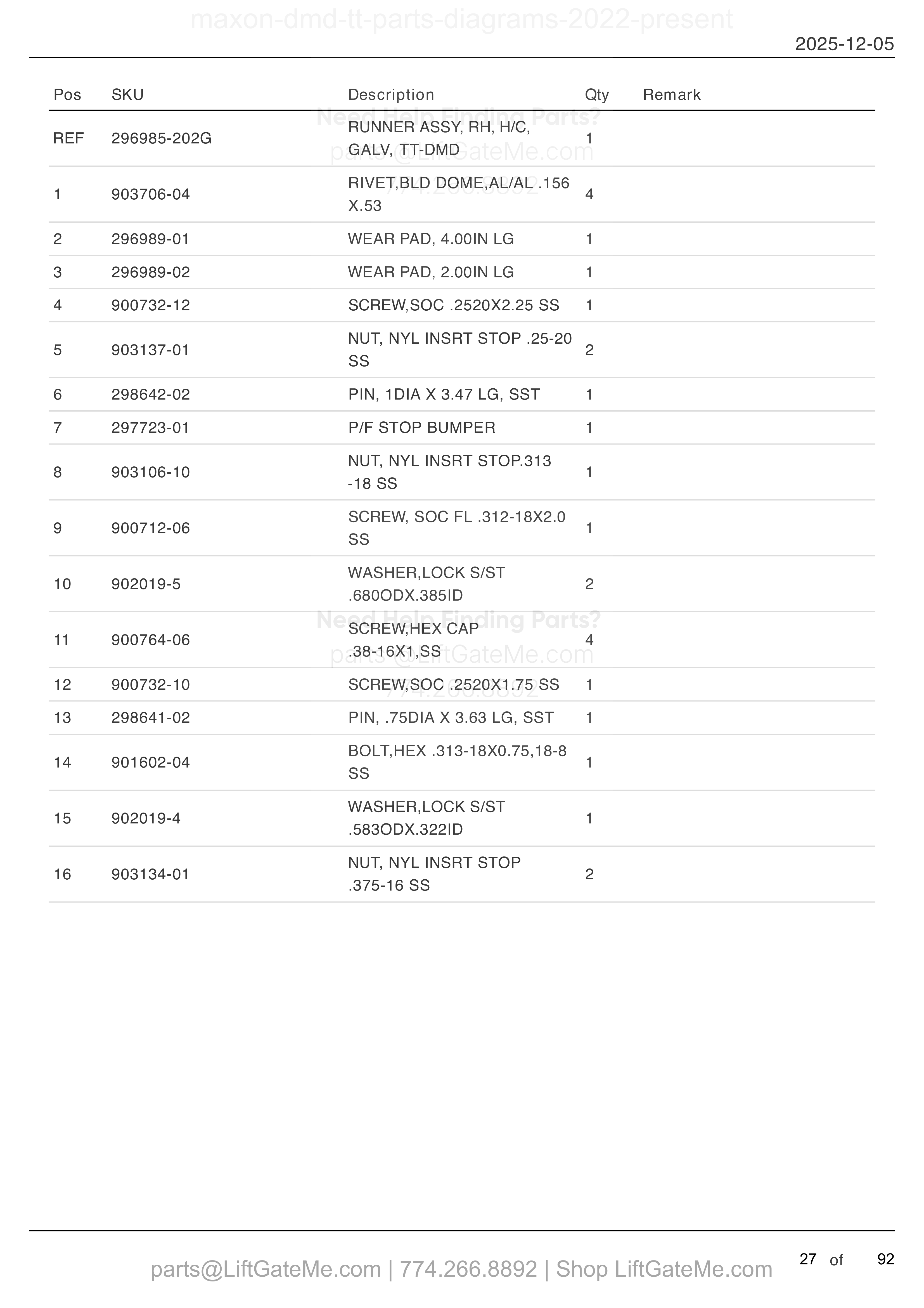

RIGHT HAND RUNNER ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 296985-202G | RUNNER ASSY, RH, H/C, GALV, TT-DMD | |
| 1 | 4 | 903706-04 | RIVET,BLD DOME,AL/AL .156 X.53 | |
| 2 | 1 | 296989-01 | WEAR PAD, 4.00IN LG | |
| 3 | 1 | 296989-02 | WEAR PAD, 2.00IN LG | |
| 4 | 1 | 900732-12 | SCREW,SOC .2520X2.25 SS | |
| 5 | 2 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | |
| 6 | 1 | 298642-02 | PIN, 1DIA X 3.47 LG, SST | |
| 7 | 1 | 297723-01 | P/F STOP BUMPER | |
| 8 | 1 | 903106-10 | NUT, NYL INSRT STOP.313 -18 SS | |
| 9 | 1 | 900712-06 | SCREW, SOC FL .312-18X2.0 SS | |
| 10 | 2 | 902019-5 | WASHER,LOCK S/ST .680ODX.385ID | |
| 11 | 4 | 900764-06 | SCREW,HEX CAP .38-16X1,SS | |
| 12 | 1 | 900732-10 | SCREW,SOC .2520X1.75 SS | |
| 13 | 1 | 298641-02 | PIN, .75DIA X 3.63 LG, SST | |
| 14 | 1 | 901602-04 | BOLT,HEX .313-18X0.75,18-8 SS | |
| 15 | 1 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 16 | 2 | 903134-01 | NUT, NYL INSRT STOP .375-16 SS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

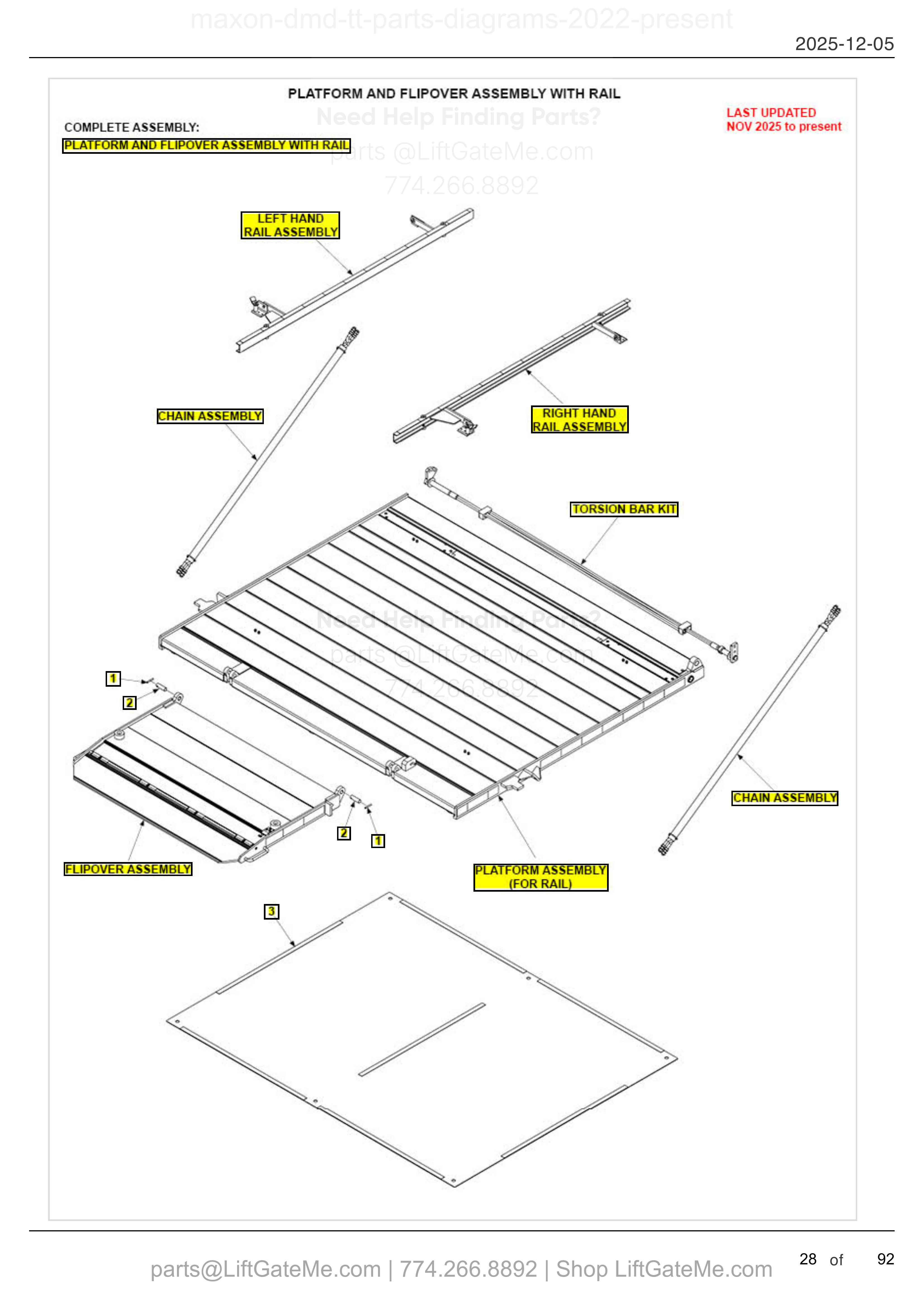

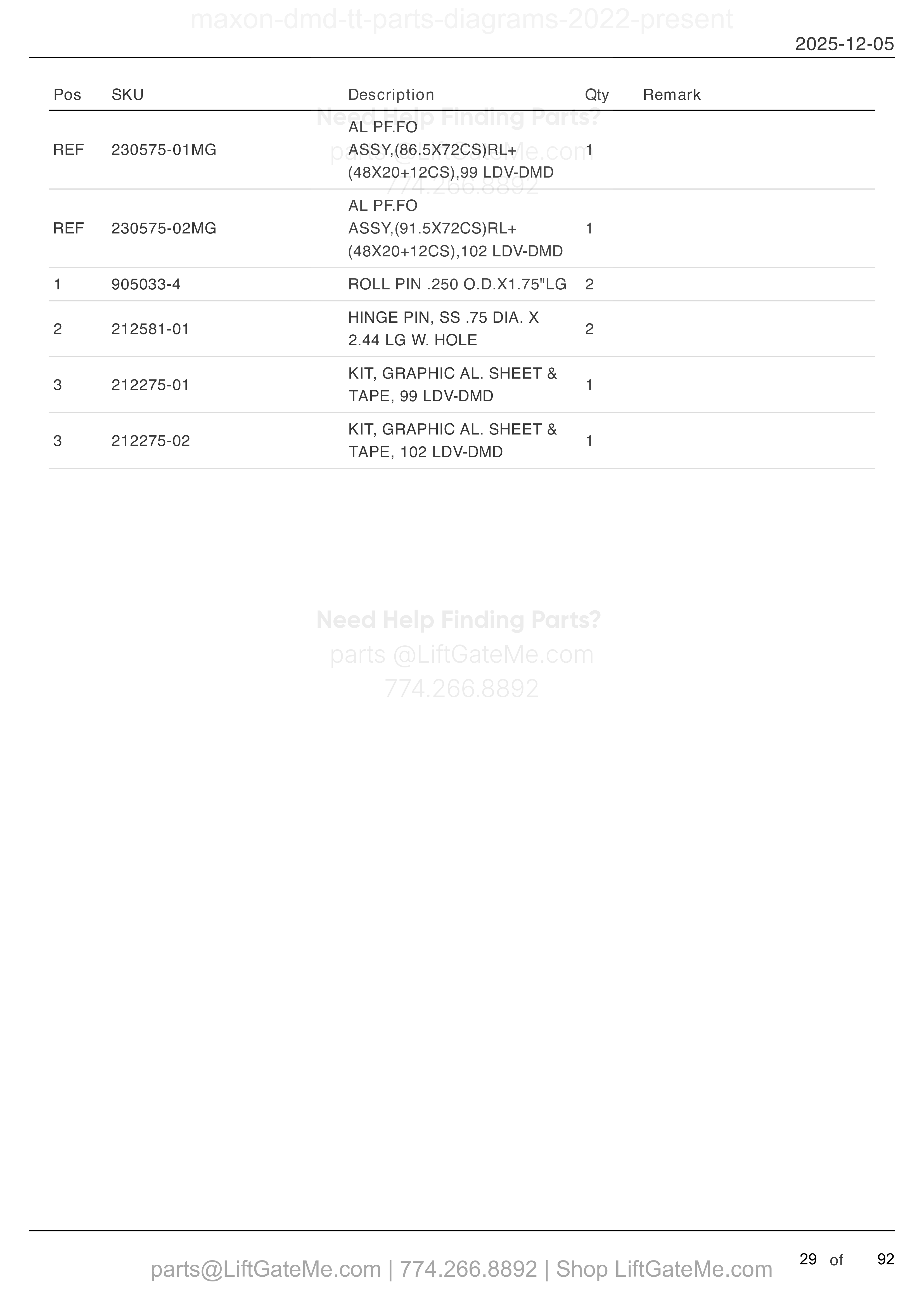

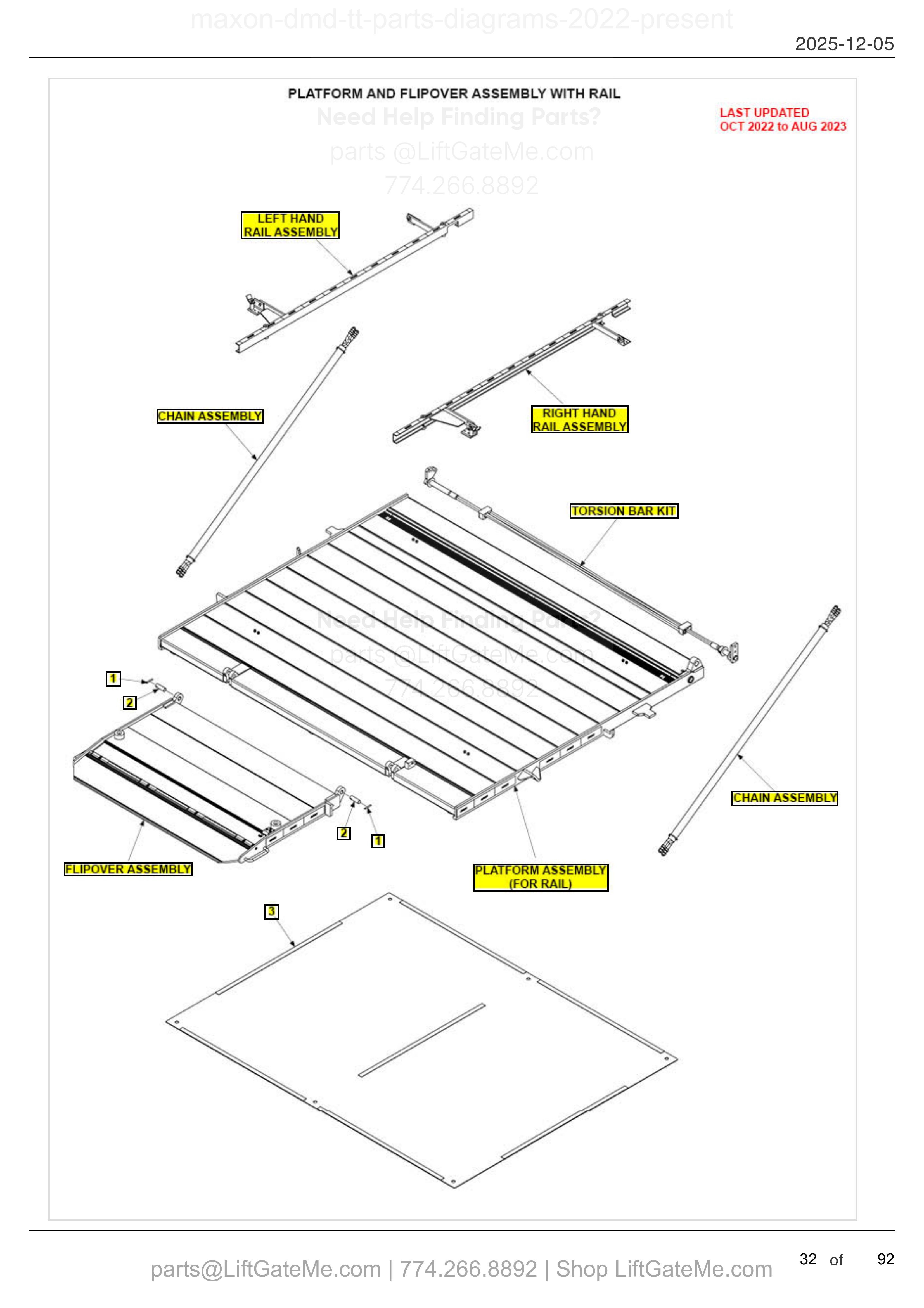

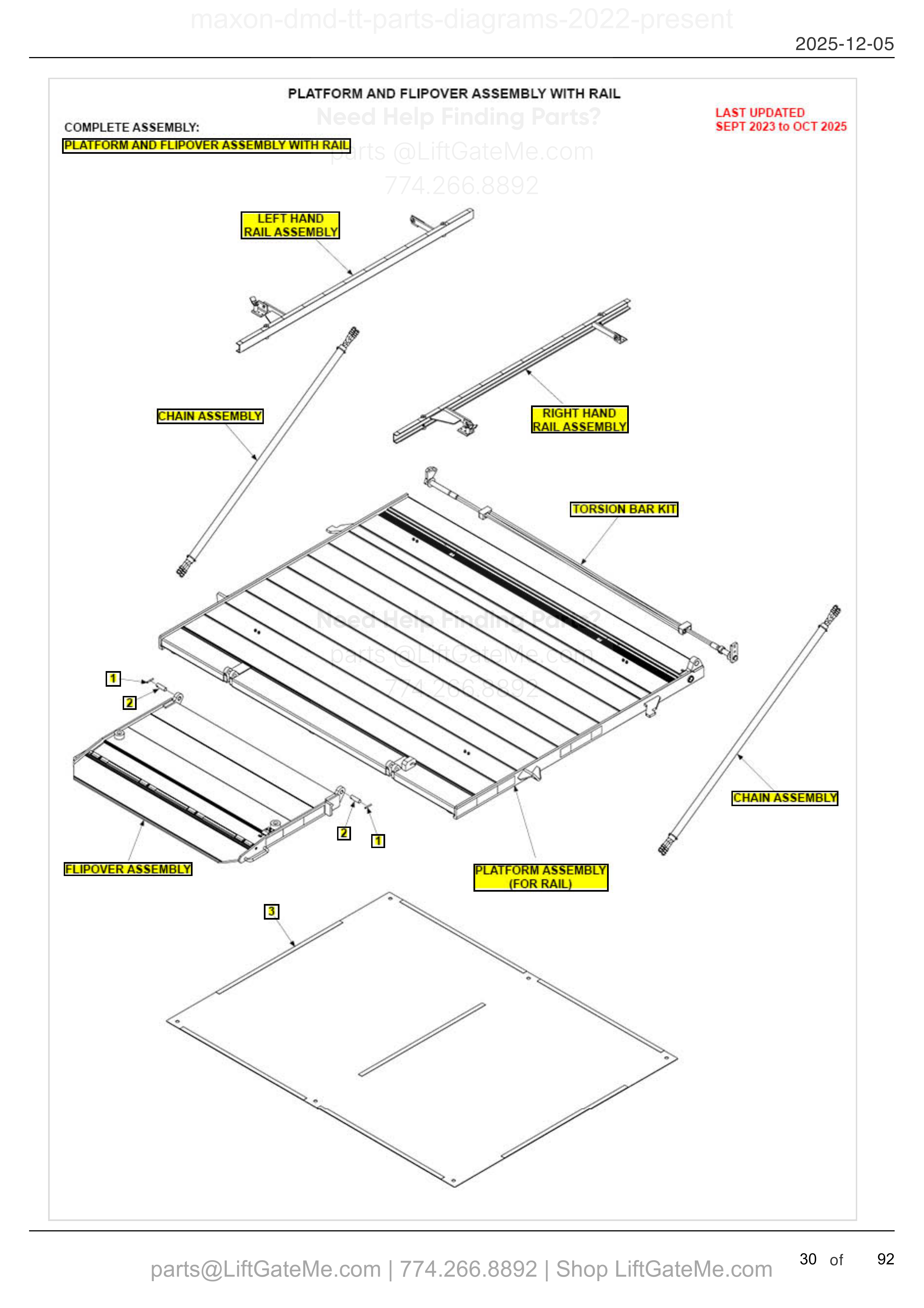

PLATFORM AND FLIPOVER ASSEMBLY WITH RAIL
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 230575-01MG | AL PF.FO ASSY,(86.5X72CS)RL+ (48X20+12CS),99 LDV-DMD | |
| REF | 1 | 230575-02MG | AL PF.FO ASSY,(91.5X72CS)RL+ (48X20+12CS),102 LDV-DMD | |
| 1 | 2 | 905033-4 | ROLL PIN .250 O.D.X1.75"LG | |
| 2 | 2 | 212581-01 | HINGE PIN, SS .75 DIA. X 2.44 LG W. HOLE | |
| 3 | 1 | 212275-01 | KIT, GRAPHIC AL. SHEET & TAPE, 99 LDV-DMD | |
| 3 | 1 | 212275-02 | KIT, GRAPHIC AL. SHEET & TAPE, 102 LDV-DMD |

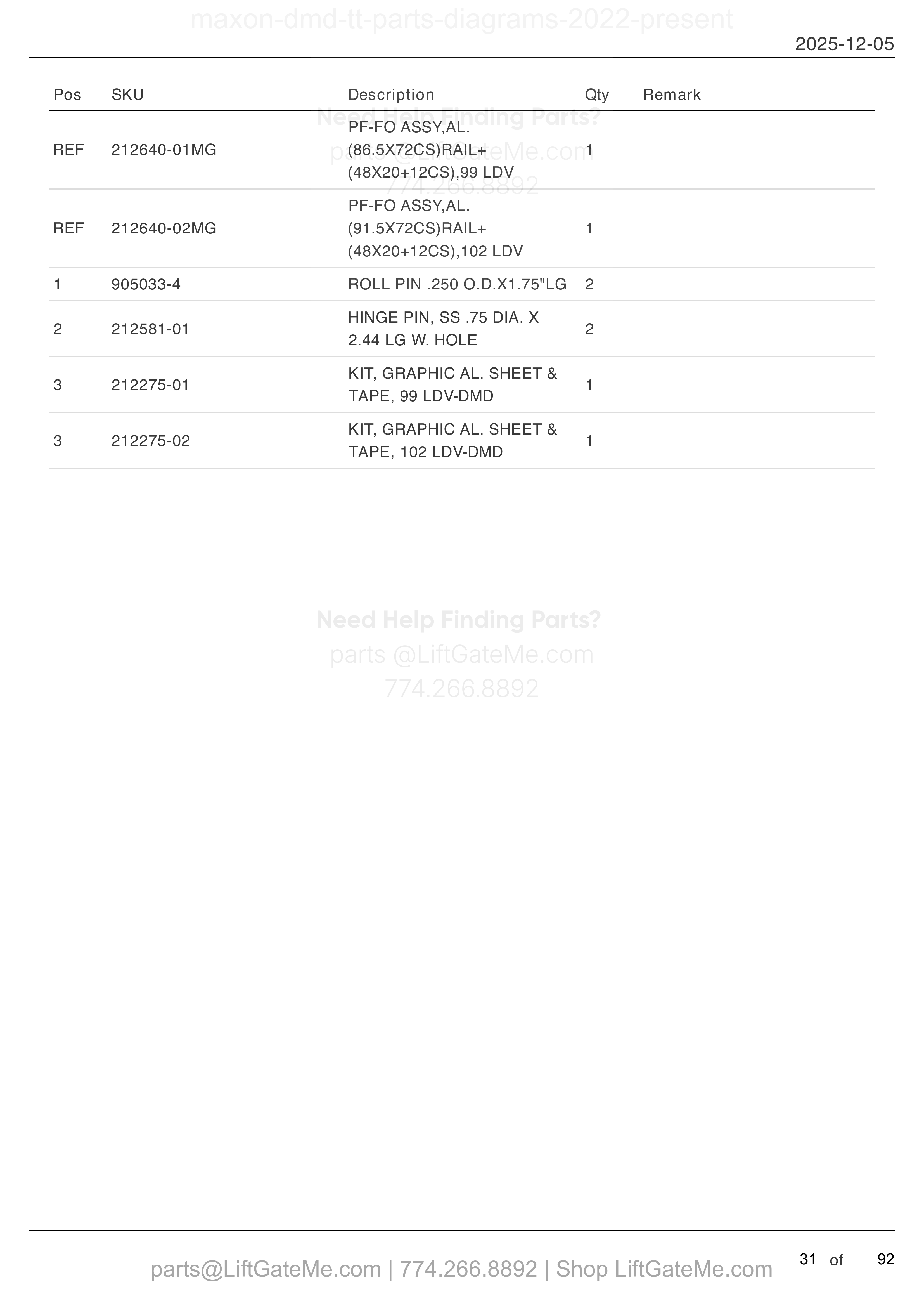

PLATFORM AND FLIPOVER ASSEMBLY WITH RAIL
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 212640-01MG | PF-FO ASSY,AL. (86.5X72CS)RAIL+ (48X20+12CS),99 LDV | |
| REF | 1 | 212640-02MG | PF-FO ASSY,AL. (91.5X72CS)RAIL+ (48X20+12CS),102 LDV | |
| 1 | 2 | 905033-4 | ROLL PIN .250 O.D.X1.75"LG | |
| 2 | 2 | 212581-01 | HINGE PIN, SS .75 DIA. X 2.44 LG W. HOLE | |
| 3 | 1 | 212275-01 | KIT, GRAPHIC AL. SHEET & TAPE, 99 LDV-DMD | |
| 3 | 1 | 212275-02 | KIT, GRAPHIC AL. SHEET & TAPE, 102 LDV-DMD |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

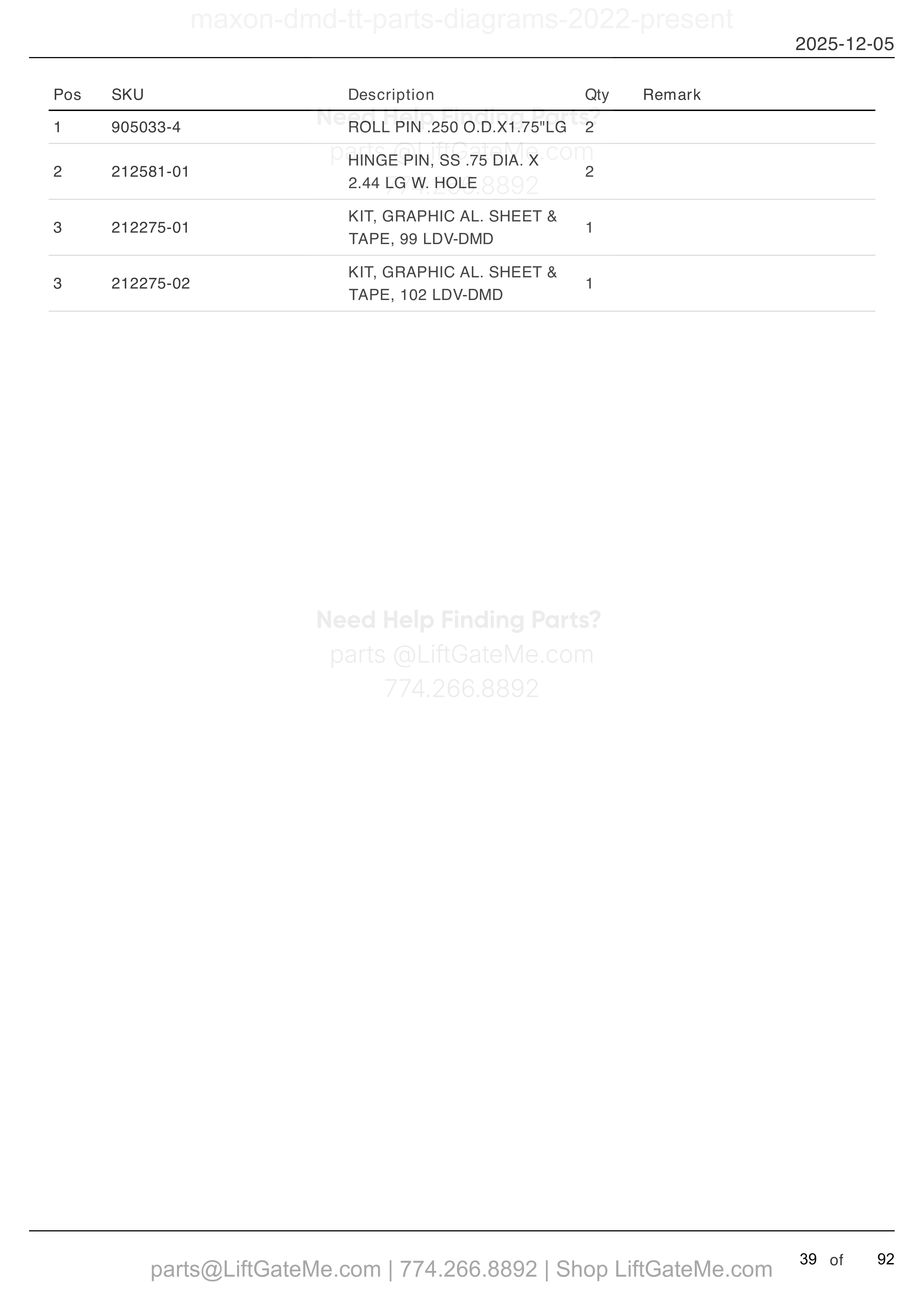

PLATFORM AND FLIPOVER ASSEMBLY WITH RAIL
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 905033-4 | ROLL PIN .250 O.D.X1.75"LG | |
| 2 | 2 | 212581-01 | HINGE PIN, SS .75 DIA. X 2.44 LG W. HOLE | |
| 3 | 1 | 212275-01 | KIT, GRAPHIC AL. SHEET & TAPE, 99 LDV-DMD | |
| 3 | 1 | 212275-02 | KIT, GRAPHIC AL. SHEET & TAPE, 102 LDV-DMD |

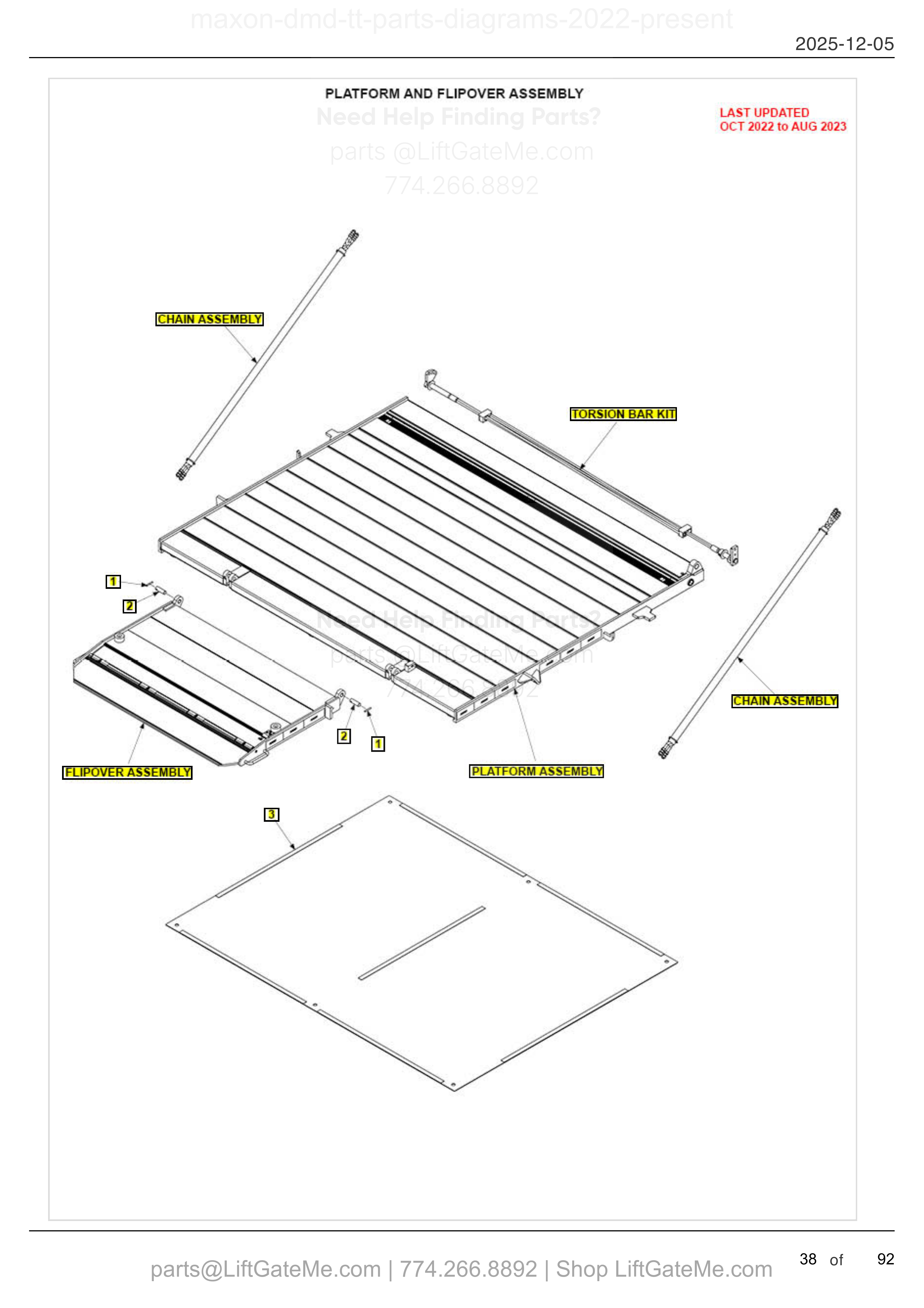

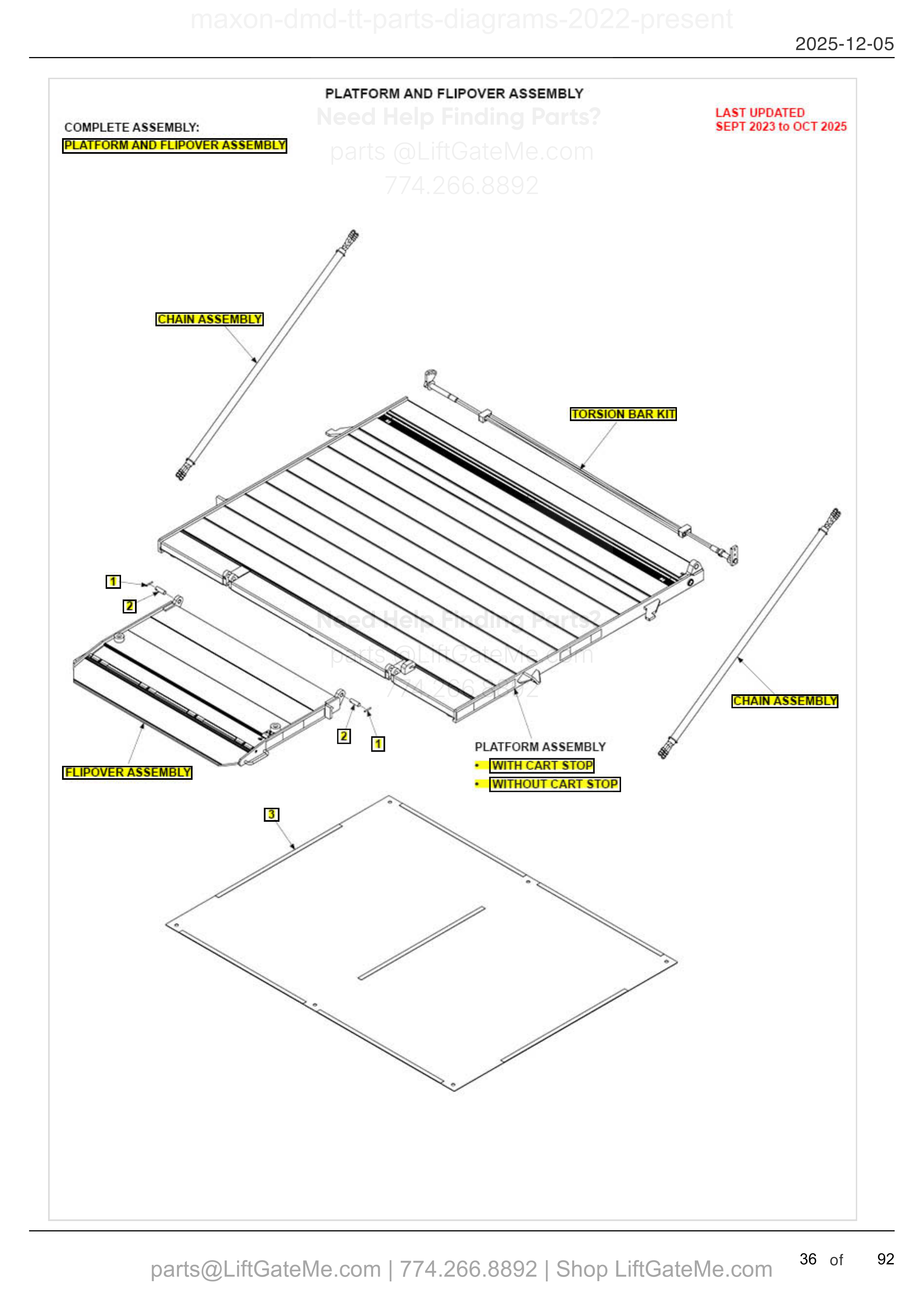

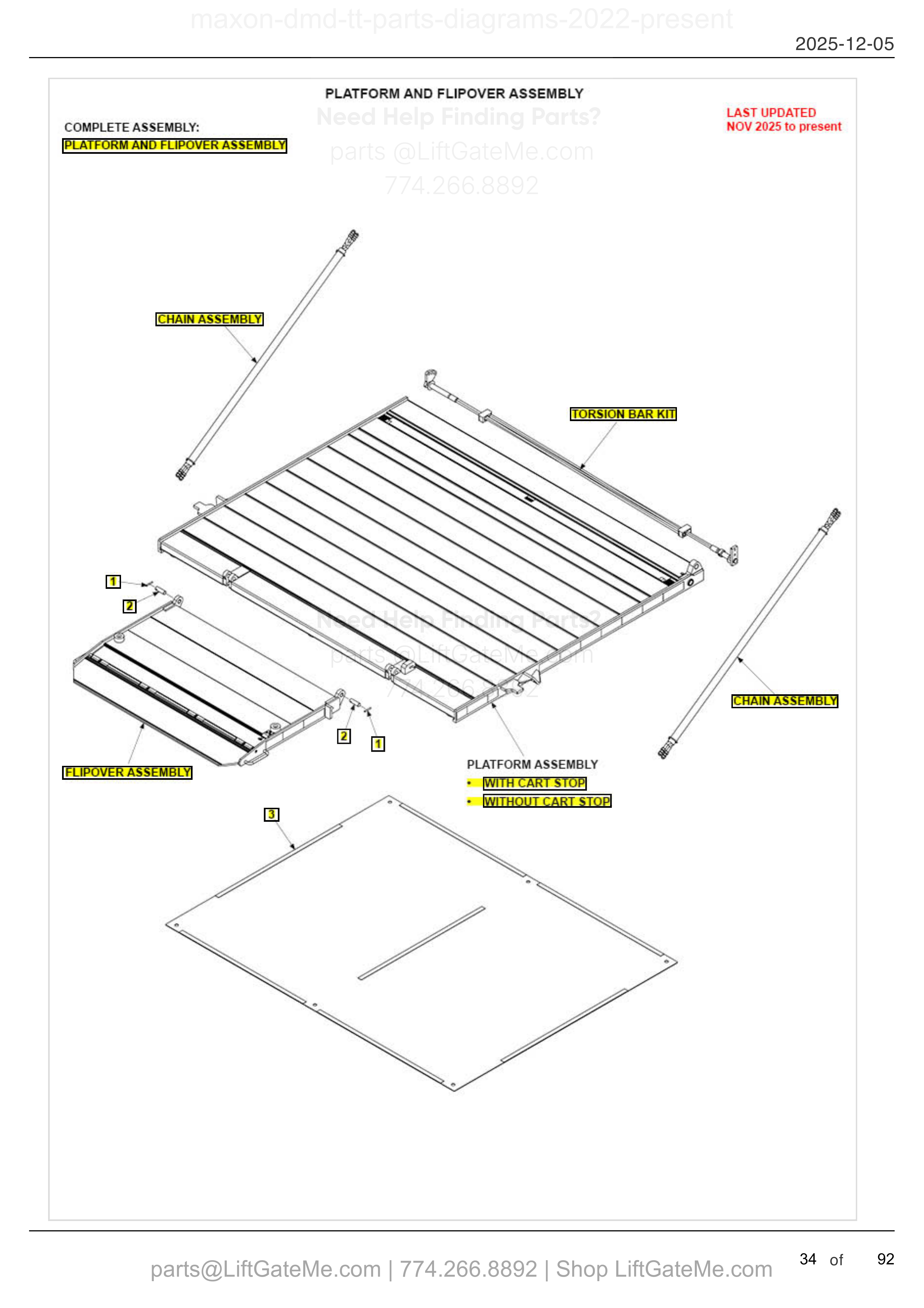

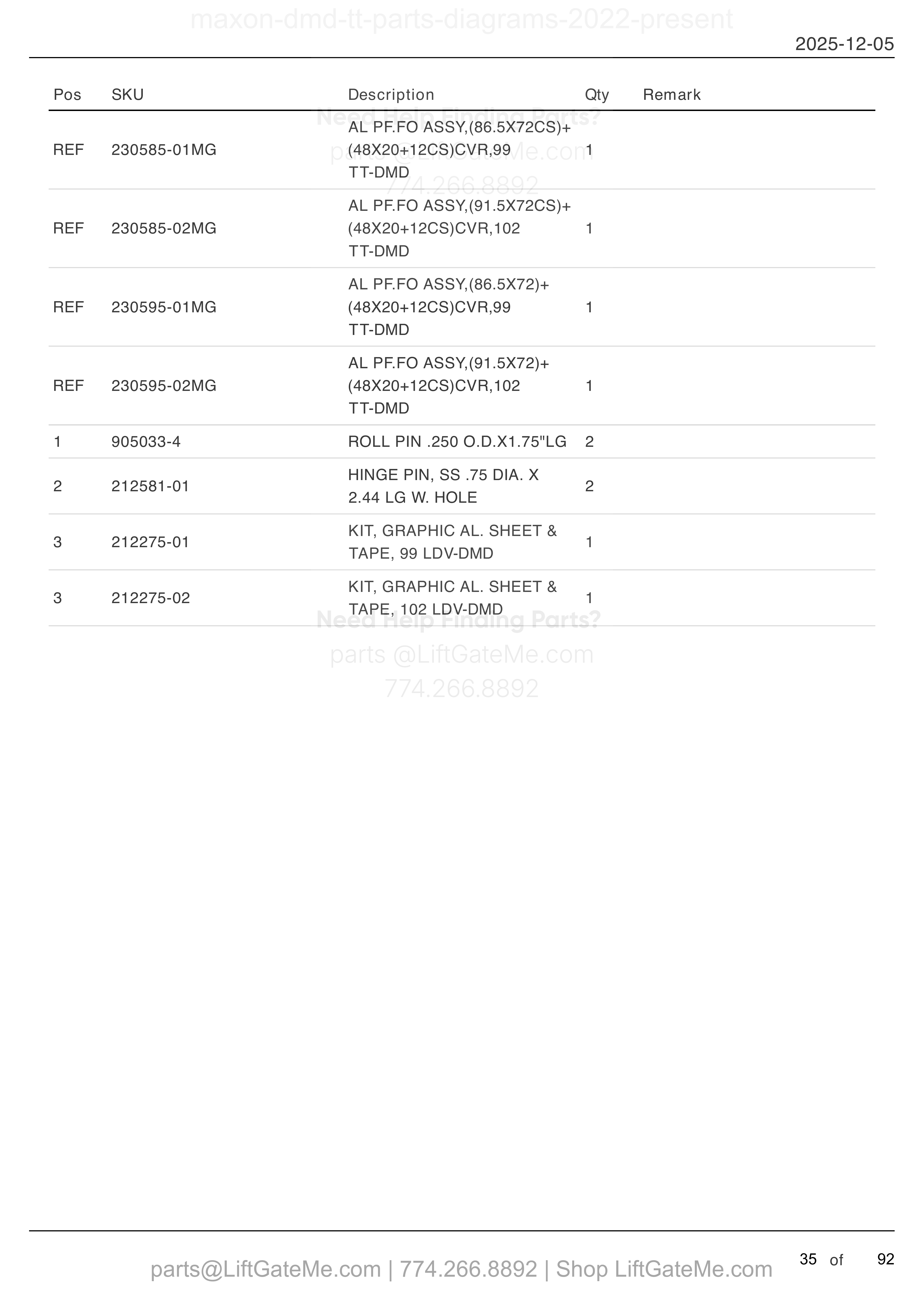

PLATFORM AND FLIPOVER ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 230585-01MG | AL PF.FO ASSY,(86.5X72CS)+(48X20+12CS)CVR,99 TT-DMD | |
| REF | 1 | 230585-02MG | AL PF.FO ASSY,(91.5X72CS)+(48X20+12CS)CVR,102 TT-DMD | |
| REF | 1 | 230595-01MG | AL PF.FO ASSY,(86.5X72)+(48X20+12CS)CVR,99 TT-DMD | |
| REF | 1 | 230595-02MG | AL PF.FO ASSY,(91.5X72)+(48X20+12CS)CVR,102 TT-DMD | |
| 1 | 2 | 905033-4 | ROLL PIN .250 O.D.X1.75"LG | |
| 2 | 2 | 212581-01 | HINGE PIN, SS .75 DIA. X 2.44 LG W. HOLE | |
| 3 | 1 | 212275-01 | KIT, GRAPHIC AL. SHEET & TAPE, 99 LDV-DMD | |
| 3 | 1 | 212275-02 | KIT, GRAPHIC AL. SHEET & TAPE, 102 LDV-DMD |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

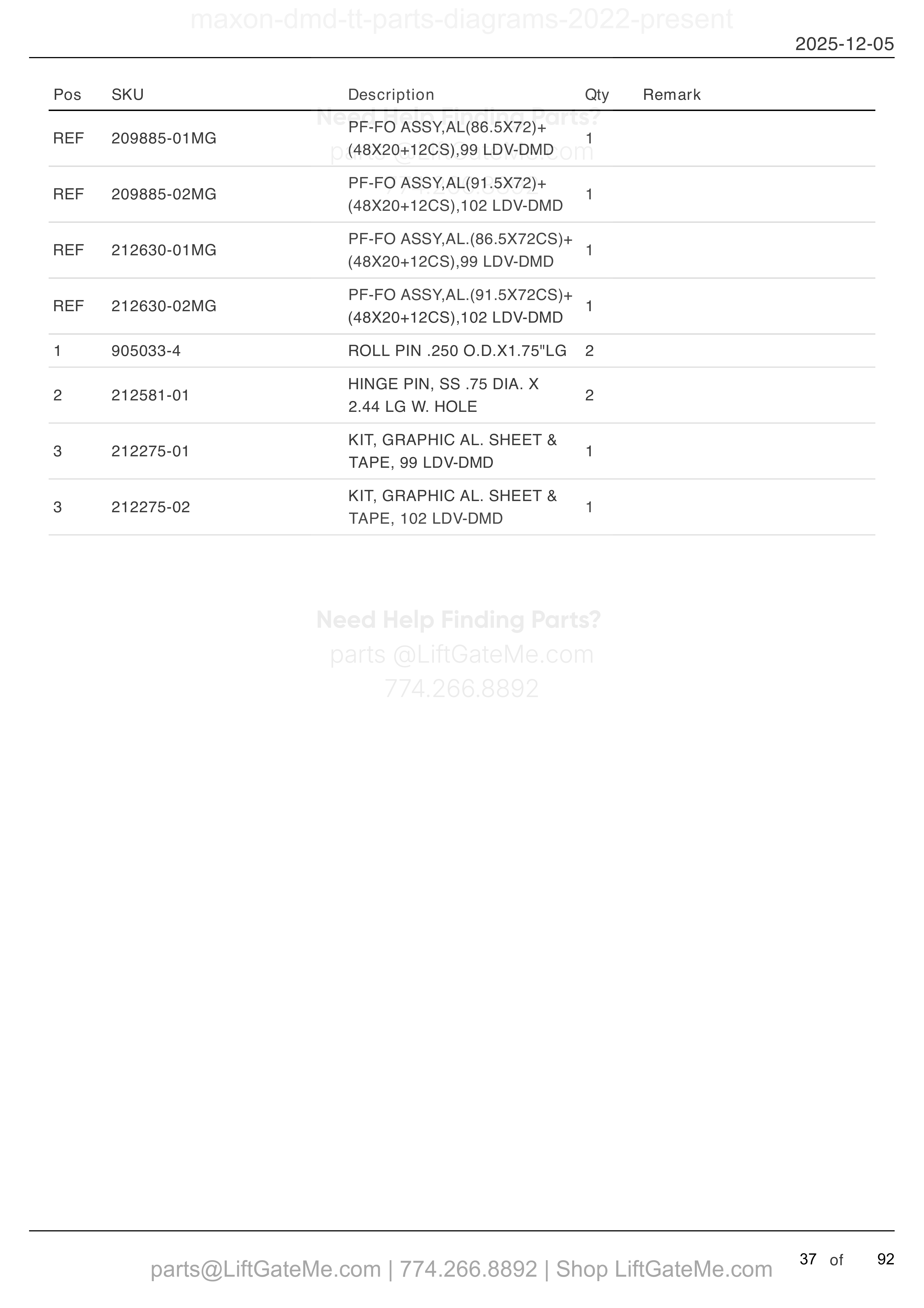

PLATFORM AND FLIPOVER ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 209885-01MG | PF-FO ASSY,AL(86.5X72)+ (48X20+12CS),99 LDV-DMD | |
| REF | 1 | 209885-02MG | PF-FO ASSY,AL(91.5X72)+ (48X20+12CS),102 LDV-DMD | |
| REF | 1 | 212630-01MG | PF-FO ASSY,AL.(86.5X72CS)+ (48X20+12CS),99 LDV-DMD | |
| REF | 1 | 212630-02MG | PF-FO ASSY,AL.(91.5X72CS)+ (48X20+12CS),102 LDV-DMD | |
| 1 | 2 | 905033-4 | ROLL PIN .250 O.D.X1.75"LG | |
| 2 | 2 | 212581-01 | HINGE PIN, SS .75 DIA. X 2.44 LG W. HOLE | |
| 3 | 1 | 212275-01 | KIT, GRAPHIC AL. SHEET & TAPE, 99 LDV-DMD | |
| 3 | 1 | 212275-02 | KIT, GRAPHIC AL. SHEET & TAPE, 102 LDV-DMD |
PLATFORM AND FLIPOVER ASSEMBLY
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

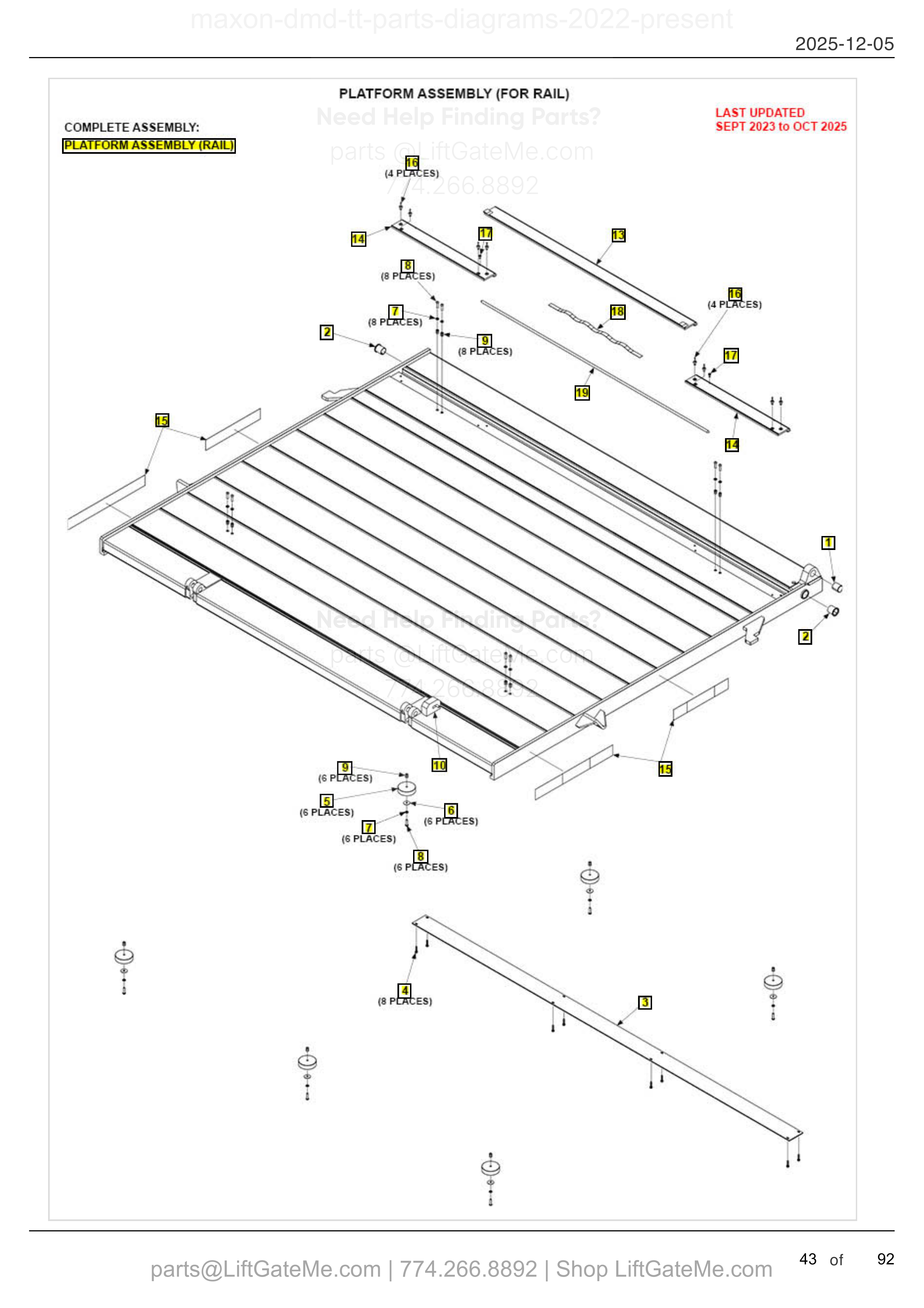

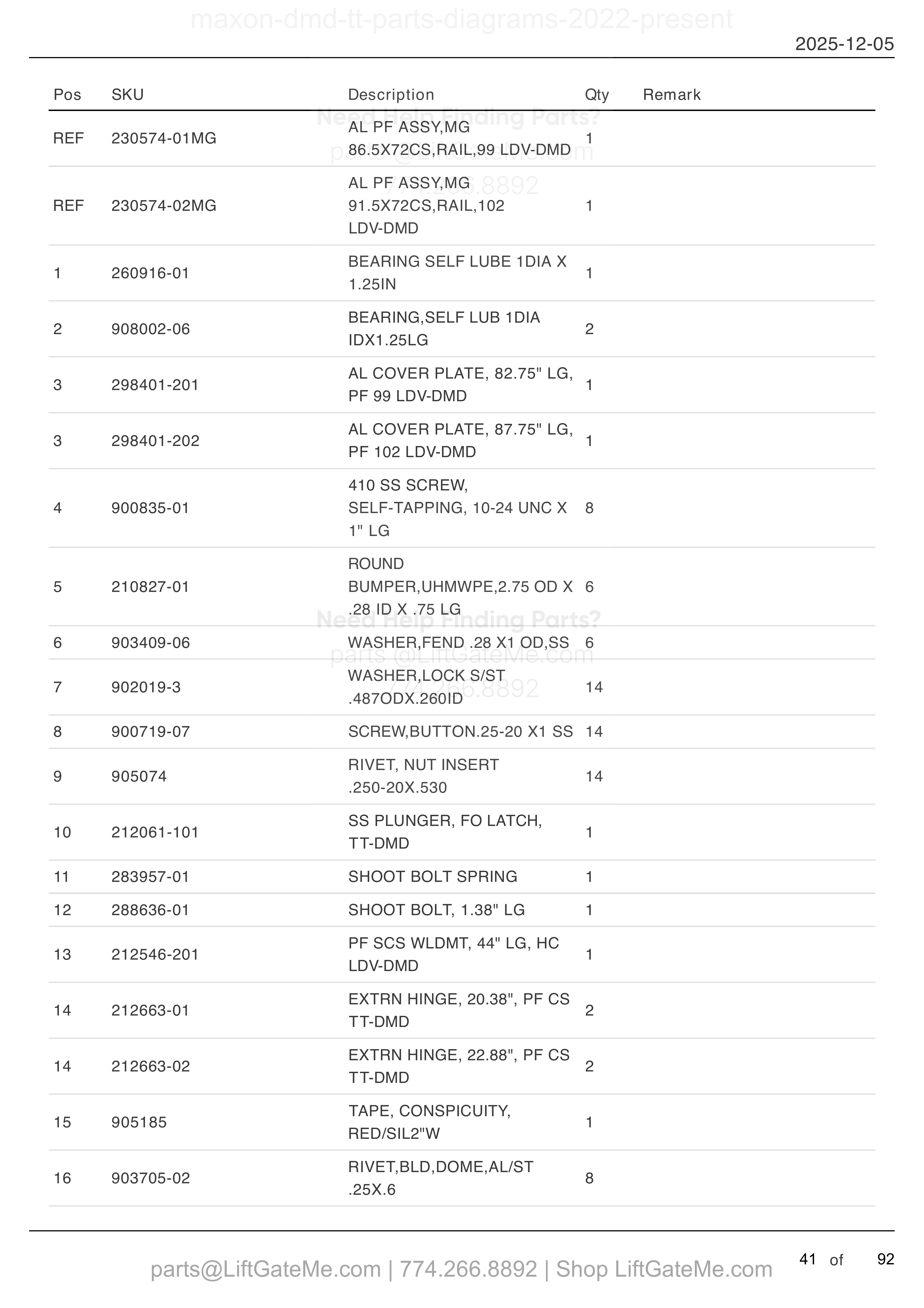

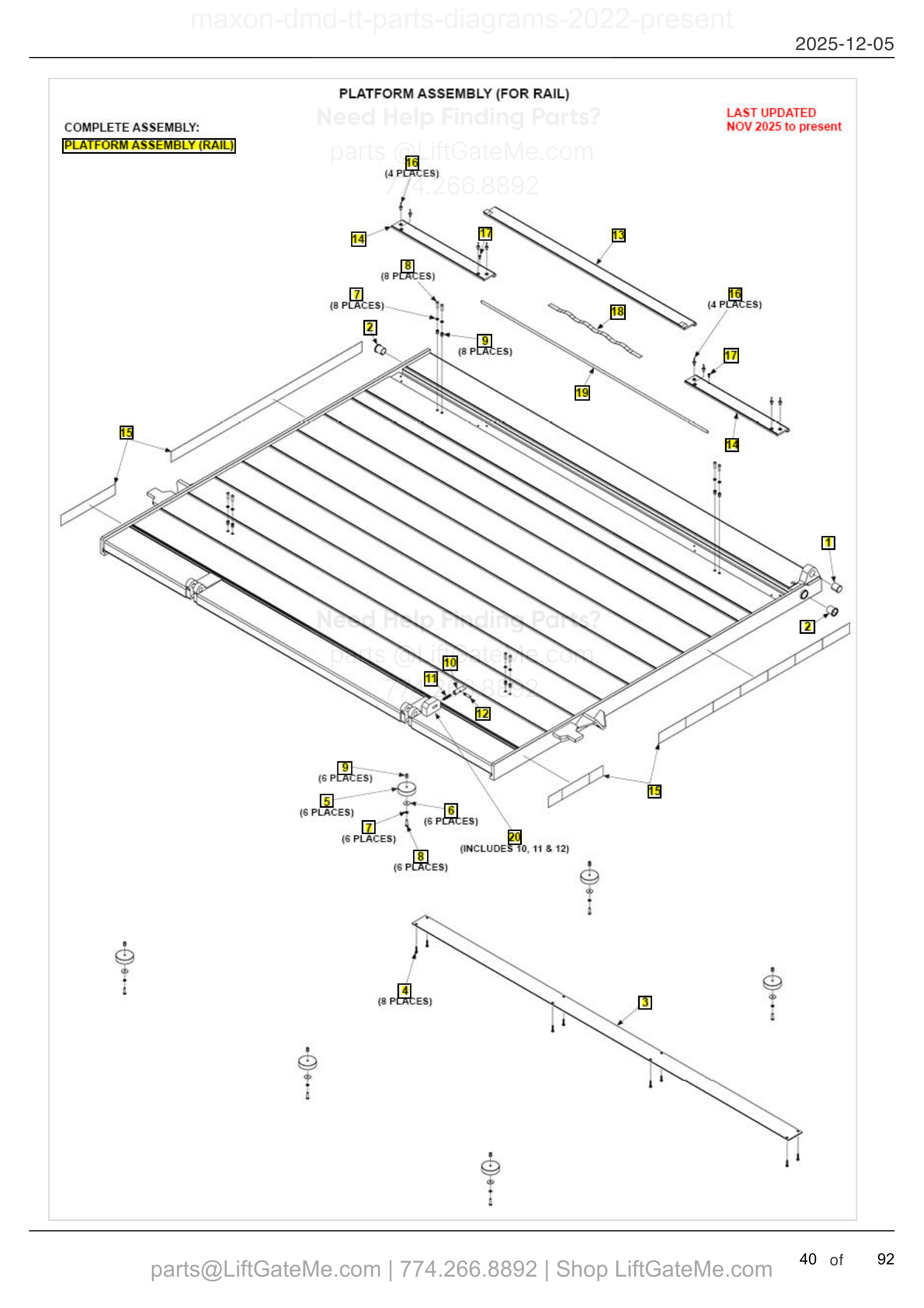

PLATFORM ASSEMBLY (FOR RAIL)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 230574-01MG | AL PF ASSY,MG 86.5X72CS,RAIL,99 LDV-DMD | |
| REF | 1 | 230574-02MG | AL PF ASSY,MG 91.5X72CS,RAIL,102 LDV-DMD | |
| 1 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN | |
| 2 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 3 | 1 | 298401-201 | AL COVER PLATE, 82.75" LG, PF 99 LDV-DMD | |
| 3 | 1 | 298401-202 | AL COVER PLATE, 87.75" LG, PF 102 LDV-DMD | |
| 4 | 8 | 900835-01 | 410 SS SCREW, SELF-TAPPING, 10-24 UNC X 1" LG | |
| 5 | 6 | 210827-01 | ROUND BUMPER,UHMWPE,2.75 OD X .28 ID X .75 LG | |
| 6 | 6 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 14 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 8 | 14 | 900719-07 | SCREW,BUTTON.25-20 X1 SS | |
| 9 | 14 | 905074 | RIVET, NUT INSERT .250-20X.530 | |
| 10 | 1 | 212061-101 | SS PLUNGER, FO LATCH, TT-DMD | |
| 11 | 1 | 283957-01 | SHOOT BOLT SPRING | |
| 12 | 1 | 288636-01 | SHOOT BOLT, 1.38" LG | |
| 13 | 1 | 212546-201 | PF SCS WLDMT, 44" LG, HC LDV-DMD | |
| 14 | 2 | 212663-01 | EXTRN HINGE, 20.38", PF CS TT-DMD | |
| 14 | 2 | 212663-02 | EXTRN HINGE, 22.88", PF CS TT-DMD | |
| 15 | 1 | 905185 | TAPE, CONSPICUITY, RED/SIL2"W | |
| 16 | 8 | 903705-02 | RIVET,BLD,DOME,AL/ST .25X.6 |
PLATFORM ASSEMBLY (FOR RAIL)
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

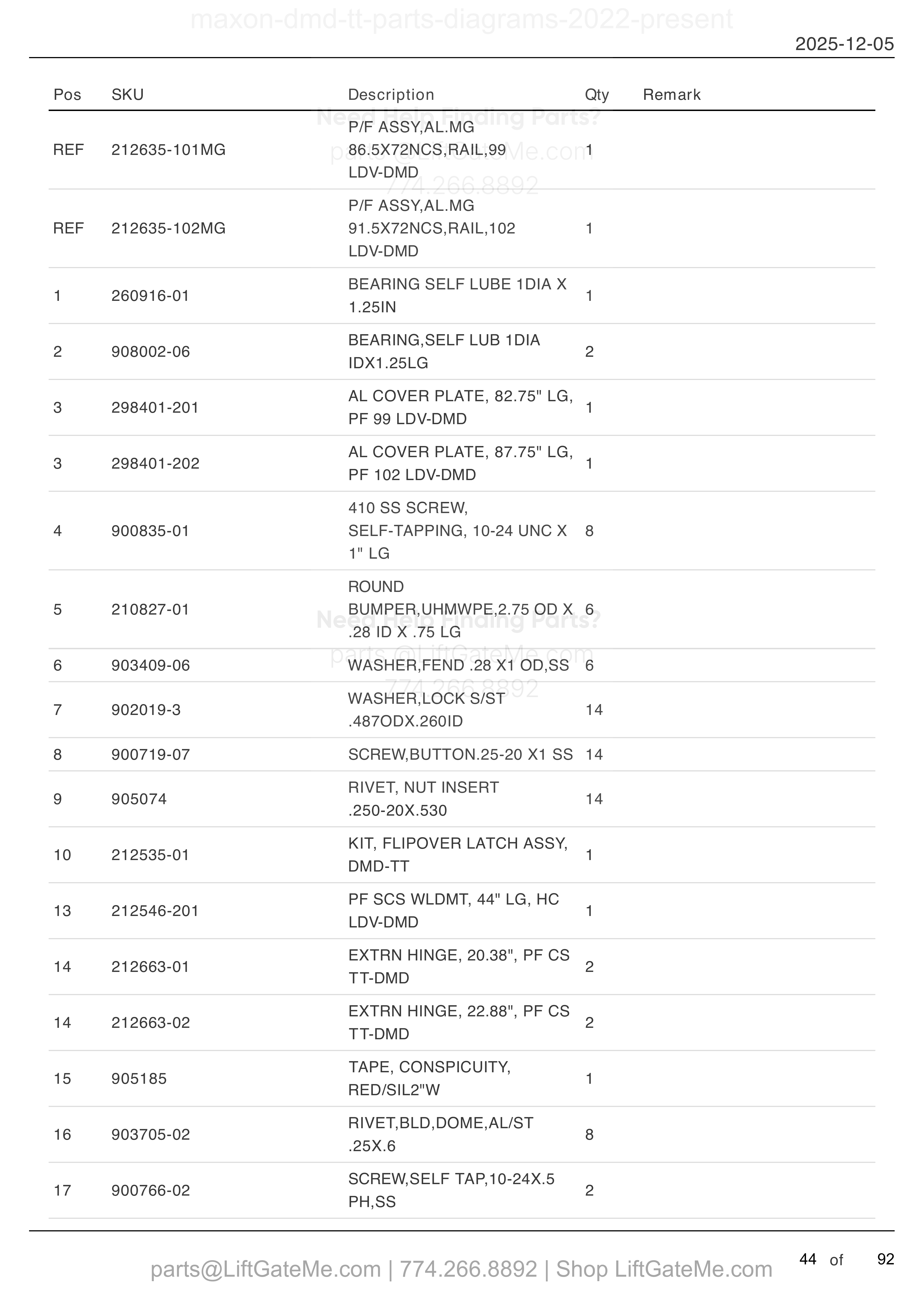

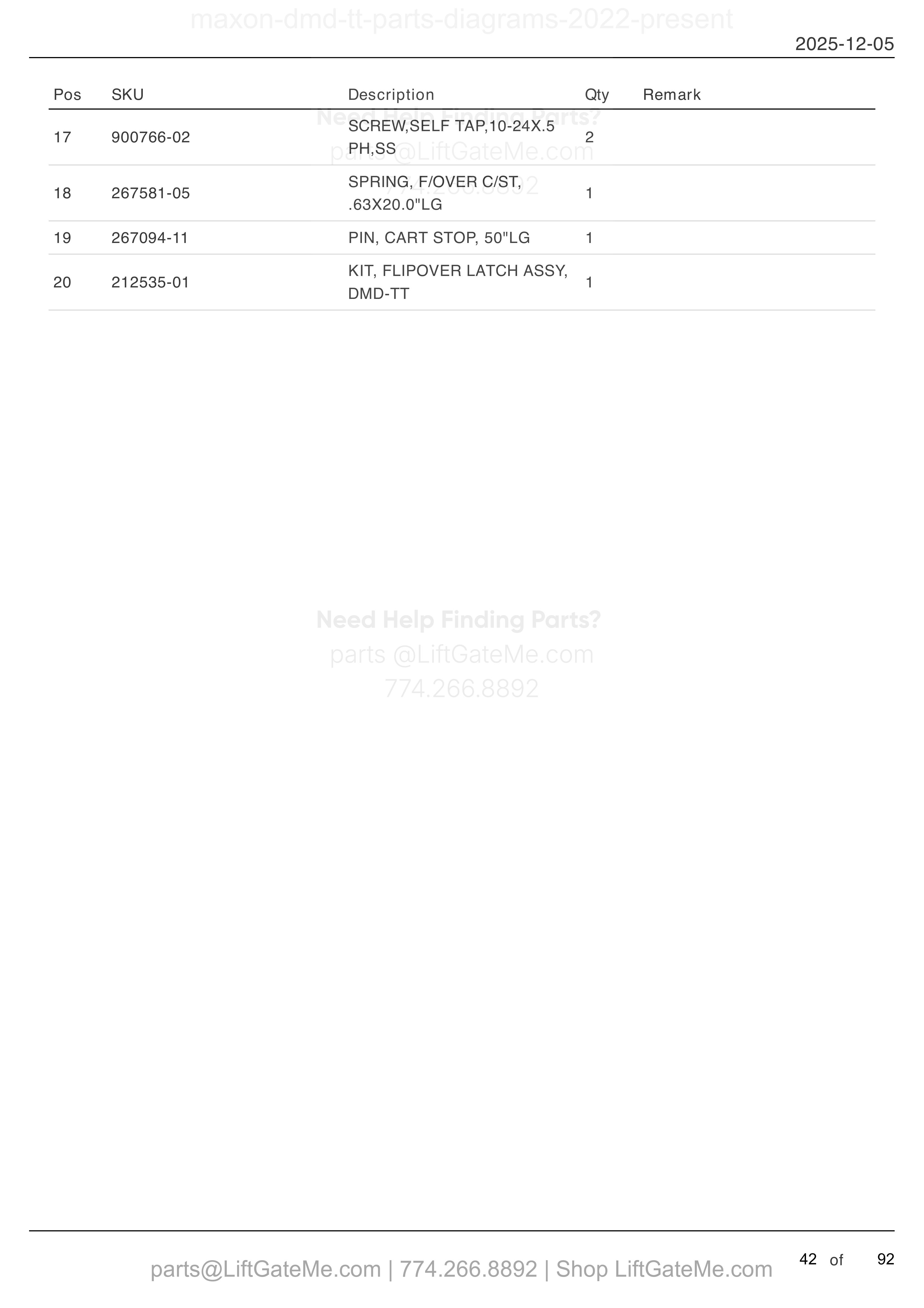

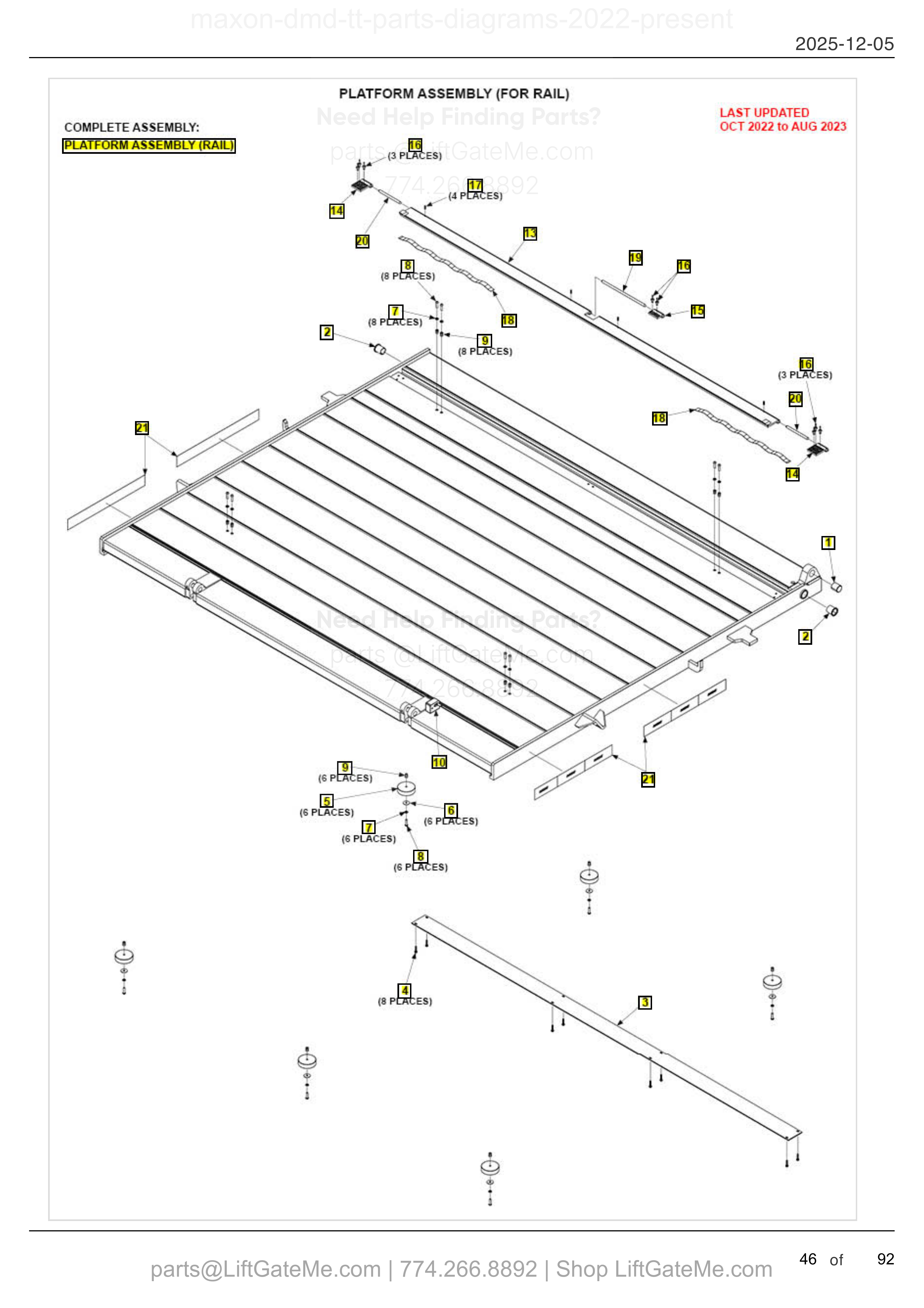

PLATFORM ASSEMBLY (FOR RAIL)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 212635-101MG | P/F ASSY,AL.MG 86.5X72NCS,RAIL,99 LDV-DMD | |
| REF | 1 | 212635-102MG | P/F ASSY,AL.MG 91.5X72NCS,RAIL,102 LDV-DMD | |
| 1 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN | |
| 2 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 3 | 1 | 298401-201 | AL COVER PLATE, 82.75" LG, PF 99 LDV-DMD | |
| 3 | 1 | 298401-202 | AL COVER PLATE, 87.75" LG, PF 102 LDV-DMD | |
| 4 | 8 | 900835-01 | 410 SS SCREW, SELF-TAPPING, 10-24 UNC X 1" LG | |
| 5 | 6 | 210827-01 | ROUND BUMPER,UHMWPE,2.75 OD X .28 ID X .75 LG | |
| 6 | 6 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 14 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 8 | 14 | 900719-07 | SCREW,BUTTON.25-20 X1 SS | |
| 9 | 14 | 905074 | RIVET, NUT INSERT .250-20X.530 | |
| 10 | 1 | 212535-01 | KIT, FLIPOVER LATCH ASSY, DMD-TT | |
| 13 | 1 | 212546-201 | PF SCS WLDMT, 44" LG, HC LDV-DMD | |
| 14 | 2 | 212663-01 | EXTRN HINGE, 20.38", PF CS TT-DMD | |
| 14 | 2 | 212663-02 | EXTRN HINGE, 22.88", PF CS TT-DMD | |
| 15 | 1 | 905185 | TAPE, CONSPICUITY, RED/SIL2"W | |
| 16 | 8 | 903705-02 | RIVET,BLD,DOME,AL/ST .25X.6 | |
| 17 | 2 | 900766-02 | SCREW,SELF TAP,10-24X.5 PH,SS |

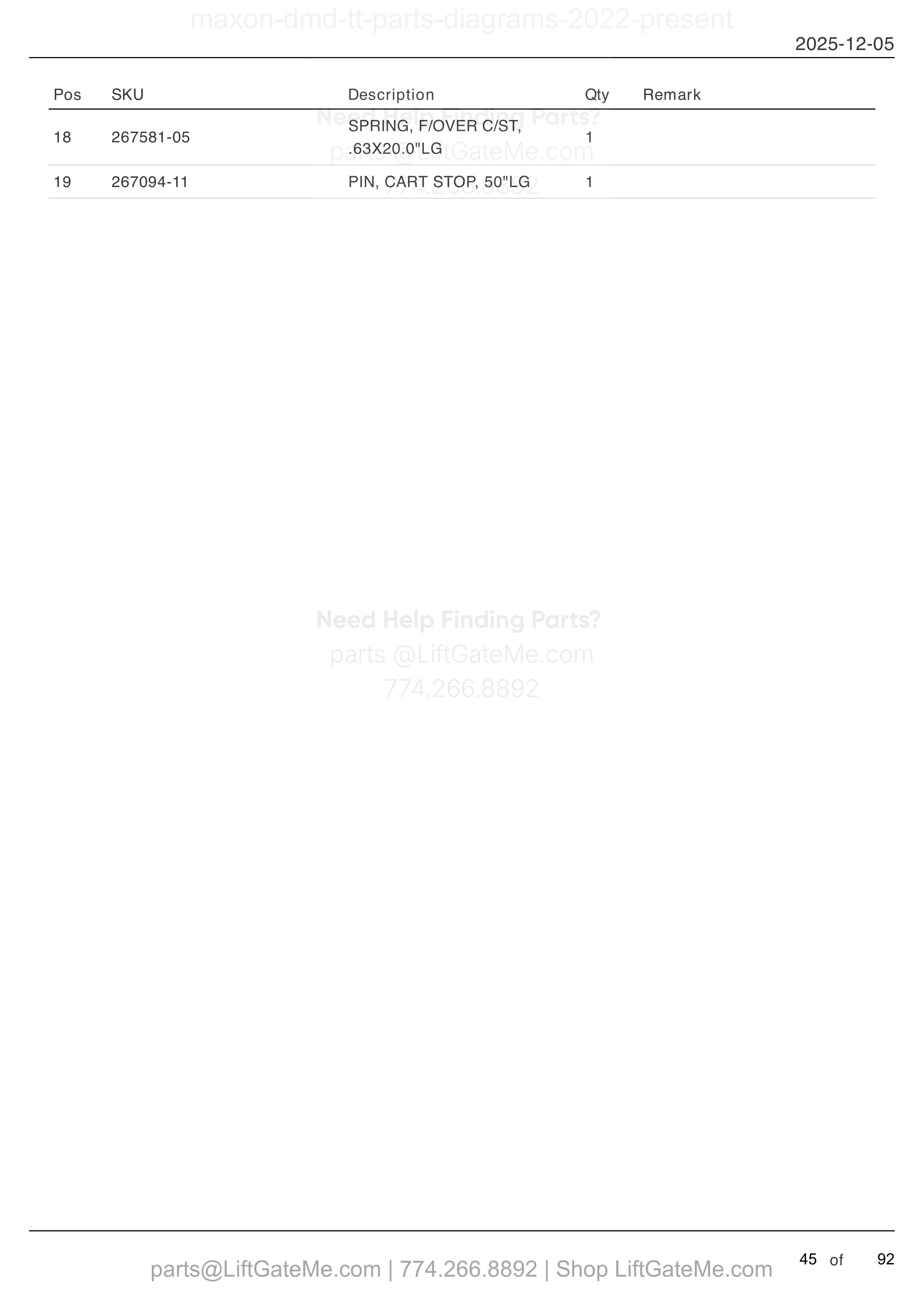

PLATFORM ASSEMBLY (FOR RAIL)
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

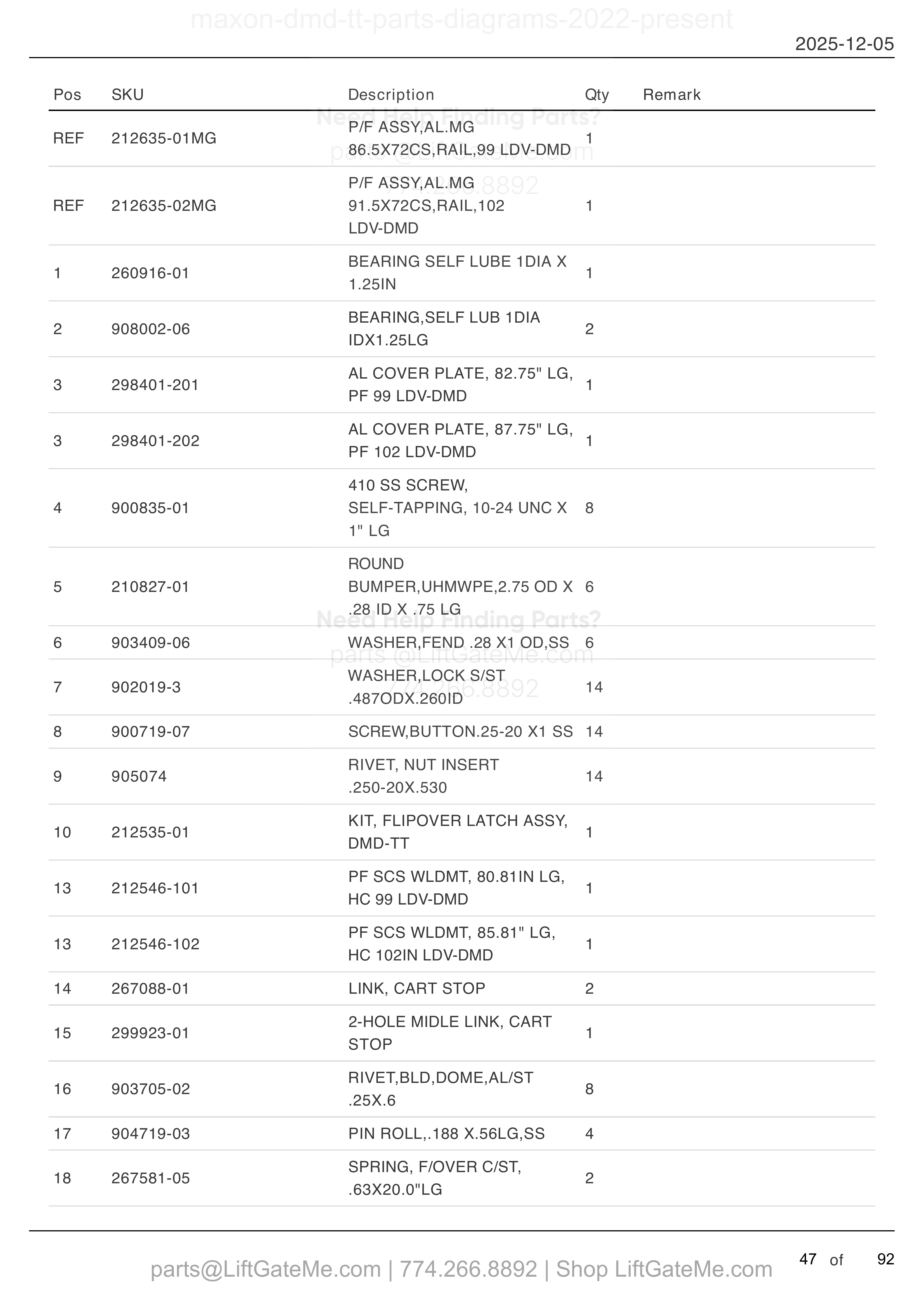

PLATFORM ASSEMBLY (FOR RAIL)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 212635-01MG | P/F ASSY,AL.MG 86.5X72CS,RAIL,99 LDV-DMD | |
| REF | 1 | 212635-02MG | P/F ASSY,AL.MG 91.5X72CS,RAIL,102 LDV-DMD | |
| 1 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN | |
| 2 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 3 | 1 | 298401-201 | AL COVER PLATE, 82.75" LG, PF 99 LDV-DMD | |
| 3 | 1 | 298401-202 | AL COVER PLATE, 87.75" LG, PF 102 LDV-DMD | |
| 4 | 8 | 900835-01 | 410 SS SCREW, SELF-TAPPING, 10-24 UNC X 1" LG | |
| 5 | 6 | 210827-01 | ROUND BUMPER,UHMWPE,2.75 OD X .28 ID X .75 LG | |
| 6 | 6 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 14 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 8 | 14 | 900719-07 | SCREW,BUTTON.25-20 X1 SS | |
| 9 | 14 | 905074 | RIVET, NUT INSERT .250-20X.530 | |
| 10 | 1 | 212535-01 | KIT, FLIPOVER LATCH ASSY, DMD-TT | |
| 13 | 1 | 212546-101 | PF SCS WLDMT, 80.81IN LG, HC 99 LDV-DMD | |
| 13 | 1 | 212546-102 | PF SCS WLDMT, 85.81" LG, HC 102IN LDV-DMD | |
| 14 | 2 | 267088-01 | LINK, CART STOP | |
| 15 | 1 | 299923-01 | 2-HOLE MIDLE LINK, CART STOP | |
| 16 | 8 | 903705-02 | RIVET,BLD,DOME,AL/ST .25X.6 | |
| 17 | 4 | 904719-03 | PIN ROLL,.188 X.56LG,SS | |
| 18 | 2 | 267581-05 | SPRING, F/OVER C/ST, .63X20.0"LG |

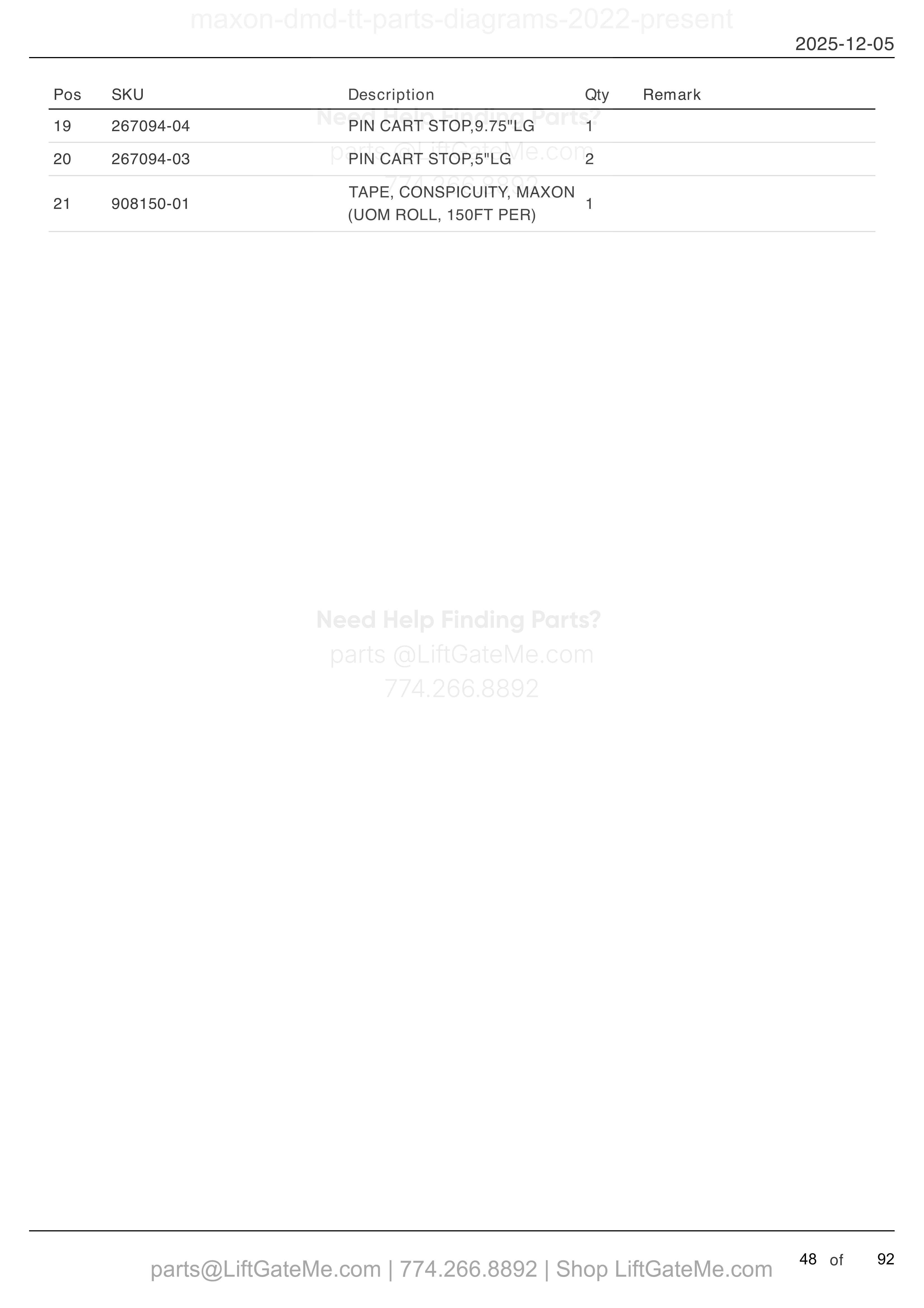

PLATFORM ASSEMBLY (FOR RAIL) (continued)
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

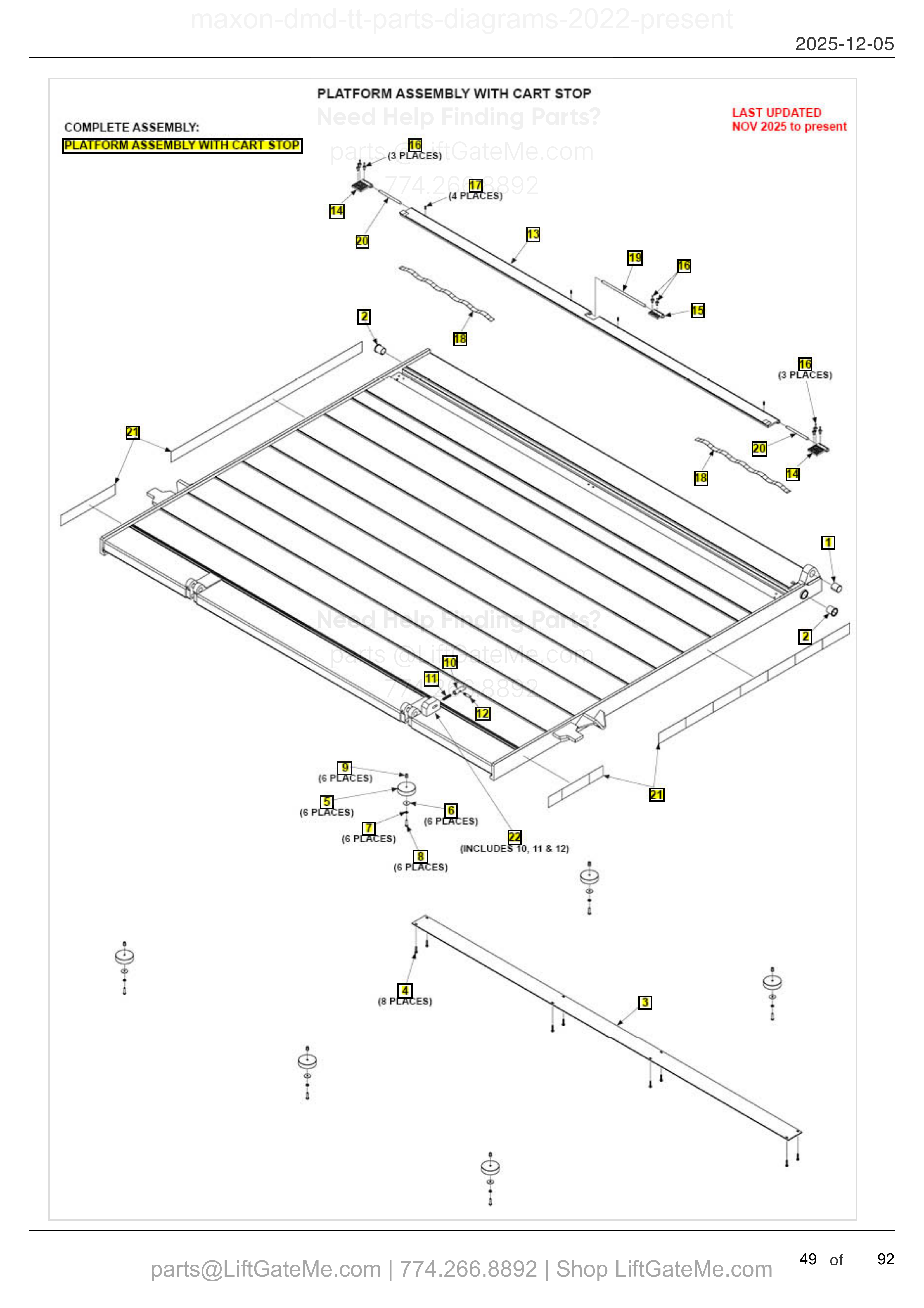

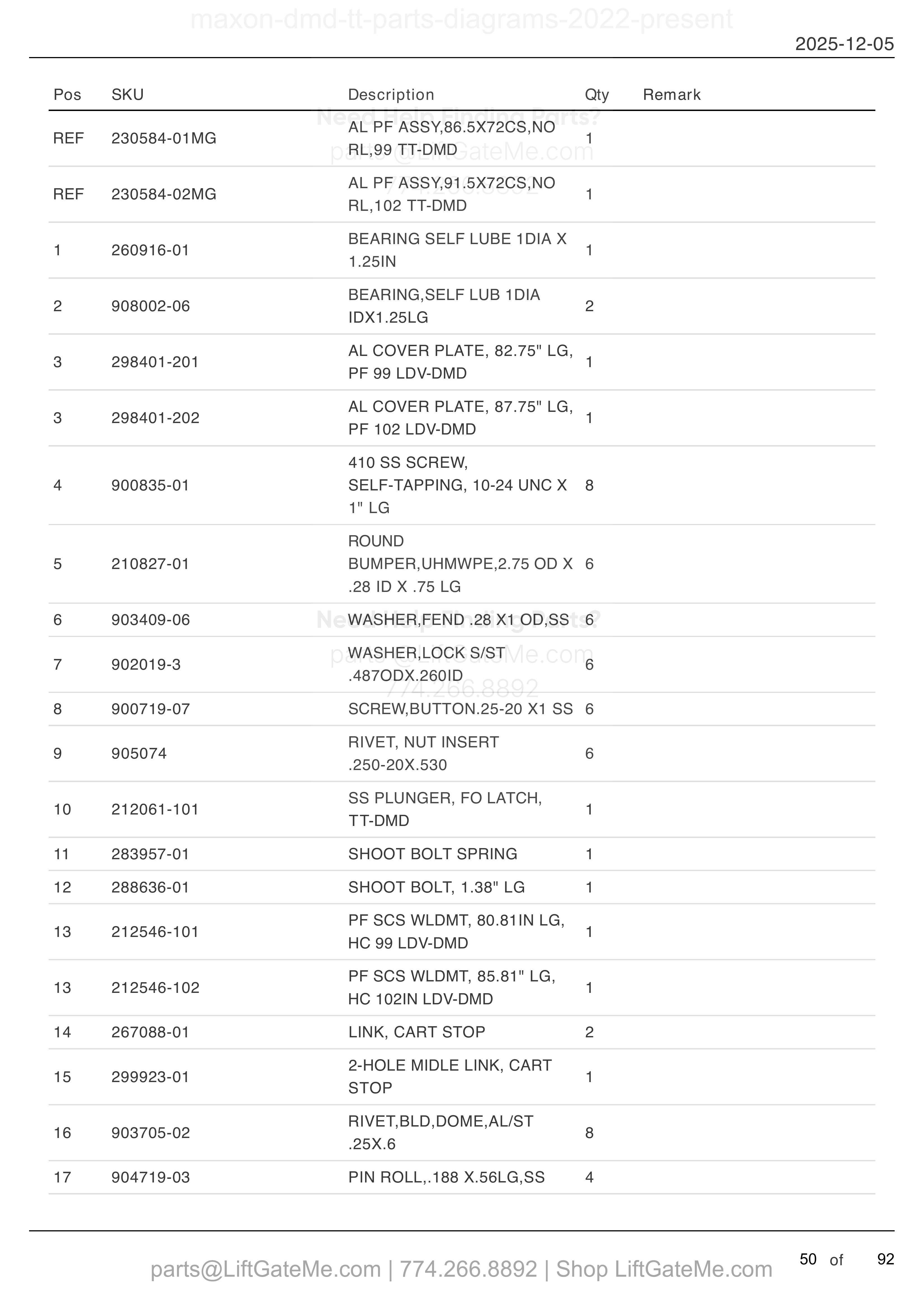

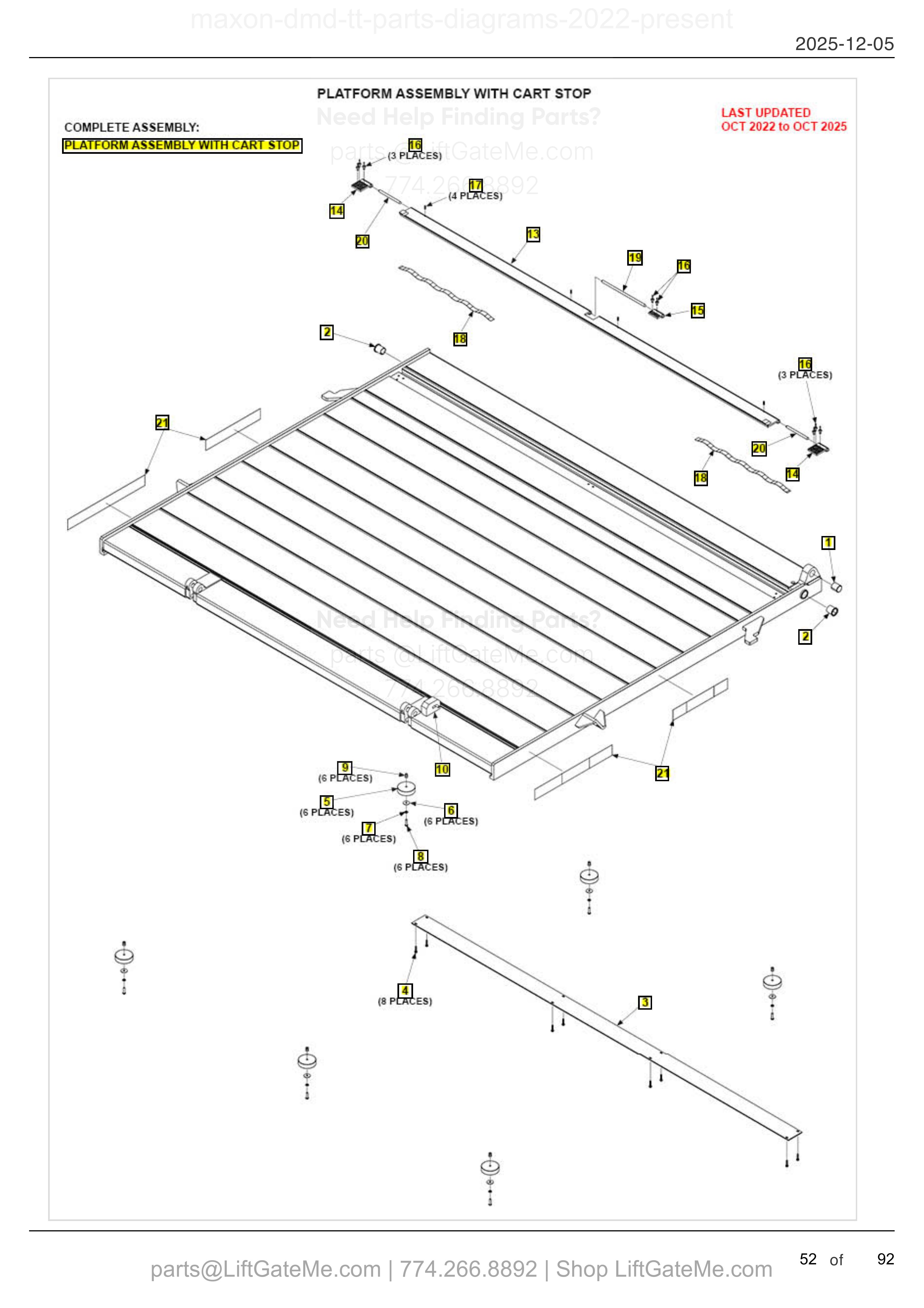

PLATFORM ASSEMBLY WITH CART STOP
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 230584-01MG | AL PF ASSY,86.5X72CS,NO RL,99 TT-DMD | |
| REF | 1 | 230584-02MG | AL PF ASSY,91.5X72CS,NO RL,102 TT-DMD | |
| 1 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN | |
| 2 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 3 | 1 | 298401-201 | AL COVER PLATE, 82.75" LG, PF 99 LDV-DMD | |
| 3 | 1 | 298401-202 | AL COVER PLATE, 87.75" LG, PF 102 LDV-DMD | |
| 4 | 8 | 900835-01 | 410 SS SCREW, SELF-TAPPING, 10-24 UNC X 1" LG | |
| 5 | 6 | 210827-01 | ROUND BUMPER,UHMWPE,2.75 OD X .28 ID X .75 LG | |
| 6 | 6 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 6 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 8 | 6 | 900719-07 | SCREW,BUTTON.25-20 X1 SS | |
| 9 | 6 | 905074 | RIVET, NUT INSERT .250-20X.530 | |
| 10 | 1 | 212061-101 | SS PLUNGER, FO LATCH, TT-DMD | |
| 11 | 1 | 283957-01 | SHOOT BOLT SPRING | |
| 12 | 1 | 288636-01 | SHOOT BOLT, 1.38" LG | |
| 13 | 1 | 212546-101 | PF SCS WLDMT, 80.81IN LG, HC 99 LDV-DMD | |
| 13 | 1 | 212546-102 | PF SCS WLDMT, 85.81" LG, HC 102IN LDV-DMD | |
| 14 | 2 | 267088-01 | LINK, CART STOP | |
| 15 | 1 | 299923-01 | 2-HOLE MIDLE LINK, CART STOP | |
| 16 | 8 | 903705-02 | RIVET,BLD,DOME,AL/ST .25X.6 | |
| 17 | 4 | 904719-03 | PIN ROLL,.188 X.56LG,SS |
PLATFORM ASSEMBLY WITH CART STOP
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

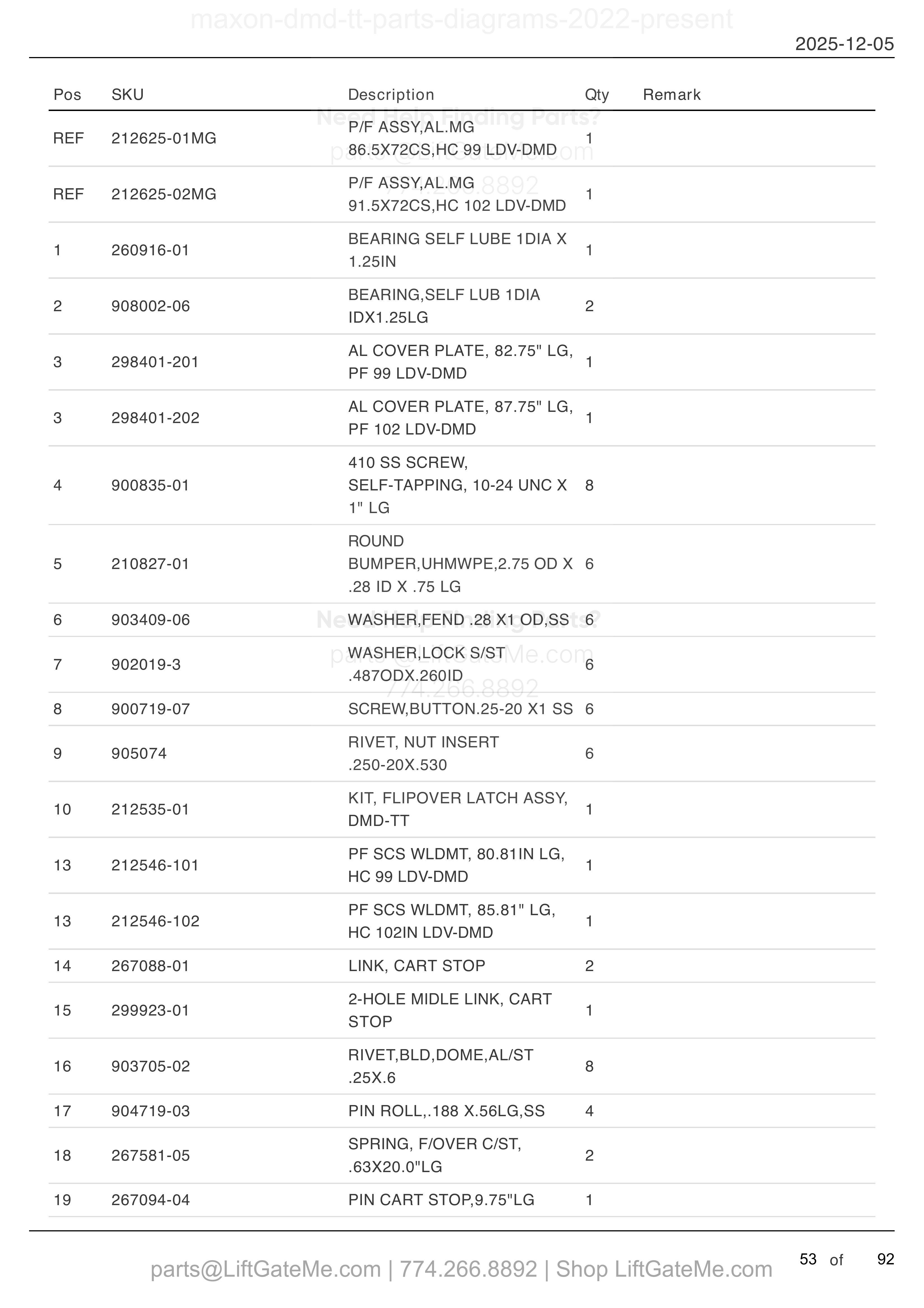

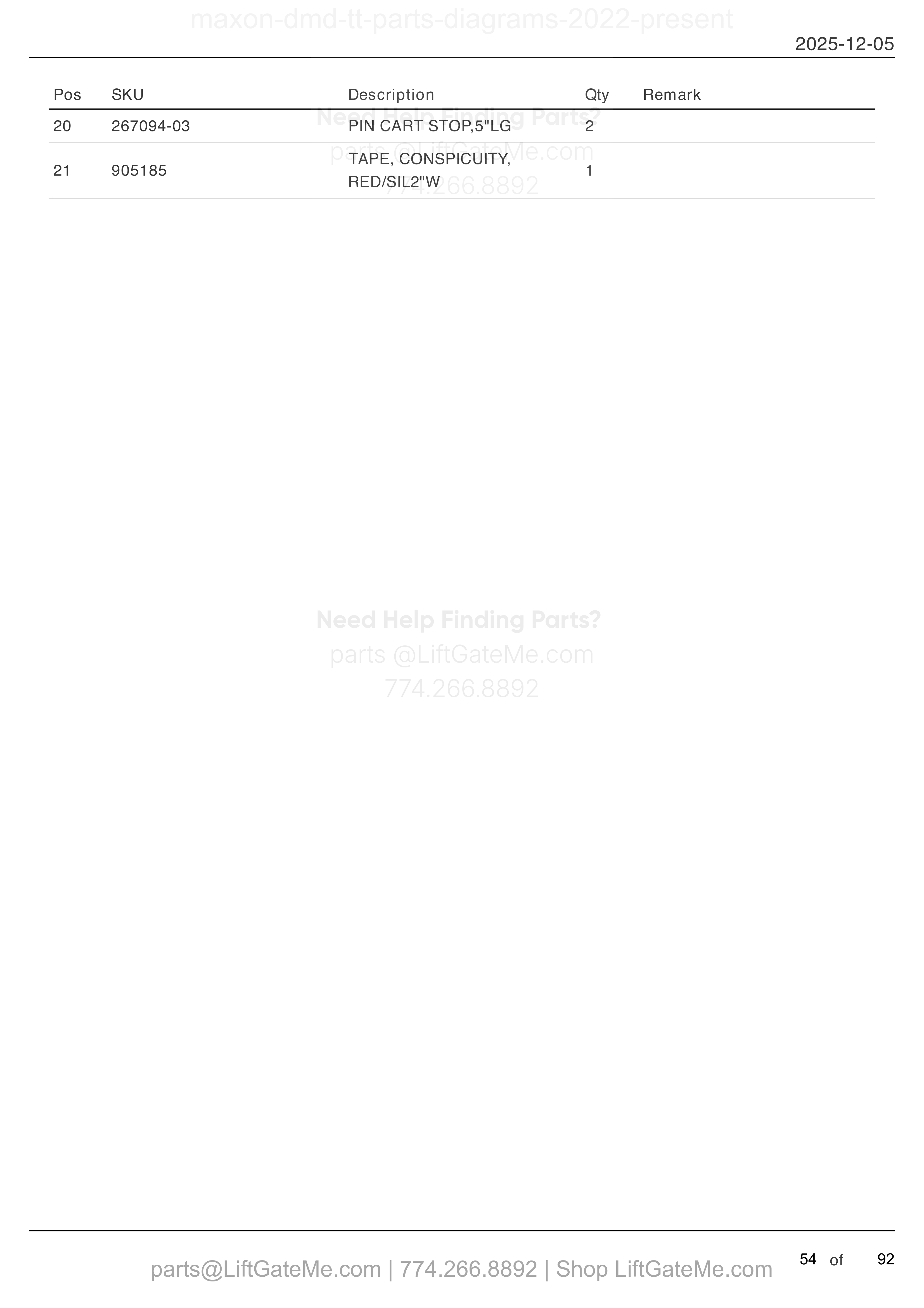

PLATFORM ASSEMBLY WITH CART STOP
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 212625-01MG | P/F ASSY,AL.MG 86.5X72CS,HC 99 LDV-DMD | |
| REF | 1 | 212625-02MG | P/F ASSY,AL.MG 91.5X72CS,HC 102 LDV-DMD | |
| 1 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN | |
| 2 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 3 | 1 | 298401-201 | AL COVER PLATE, 82.75" LG, PF 99 LDV-DMD | |
| 3 | 1 | 298401-202 | AL COVER PLATE, 87.75" LG, PF 102 LDV-DMD | |
| 4 | 8 | 900835-01 | 410 SS SCREW, SELF-TAPPING, 10-24 UNC X 1" LG | |
| 5 | 6 | 210827-01 | ROUND BUMPER,UHMWPE,2.75 OD X .28 ID X .75 LG | |
| 6 | 6 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 6 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 8 | 6 | 900719-07 | SCREW,BUTTON.25-20 X1 SS | |
| 9 | 6 | 905074 | RIVET, NUT INSERT .250-20X.530 | |
| 10 | 1 | 212535-01 | KIT, FLIPOVER LATCH ASSY, DMD-TT | |
| 13 | 1 | 212546-101 | PF SCS WLDMT, 80.81IN LG, HC 99 LDV-DMD | |
| 13 | 1 | 212546-102 | PF SCS WLDMT, 85.81" LG, HC 102IN LDV-DMD | |
| 14 | 2 | 267088-01 | LINK, CART STOP | |
| 15 | 1 | 299923-01 | 2-HOLE MIDLE LINK, CART STOP | |
| 16 | 8 | 903705-02 | RIVET,BLD,DOME,AL/ST .25X.6 | |
| 17 | 4 | 904719-03 | PIN ROLL,.188 X.56LG,SS | |
| 18 | 2 | 267581-05 | SPRING, F/OVER C/ST, .63X20.0"LG | |
| 19 | 1 | 267094-04 | PIN CART STOP,9.75"LG |
PLATFORM ASSEMBLY WITH CART STOP
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

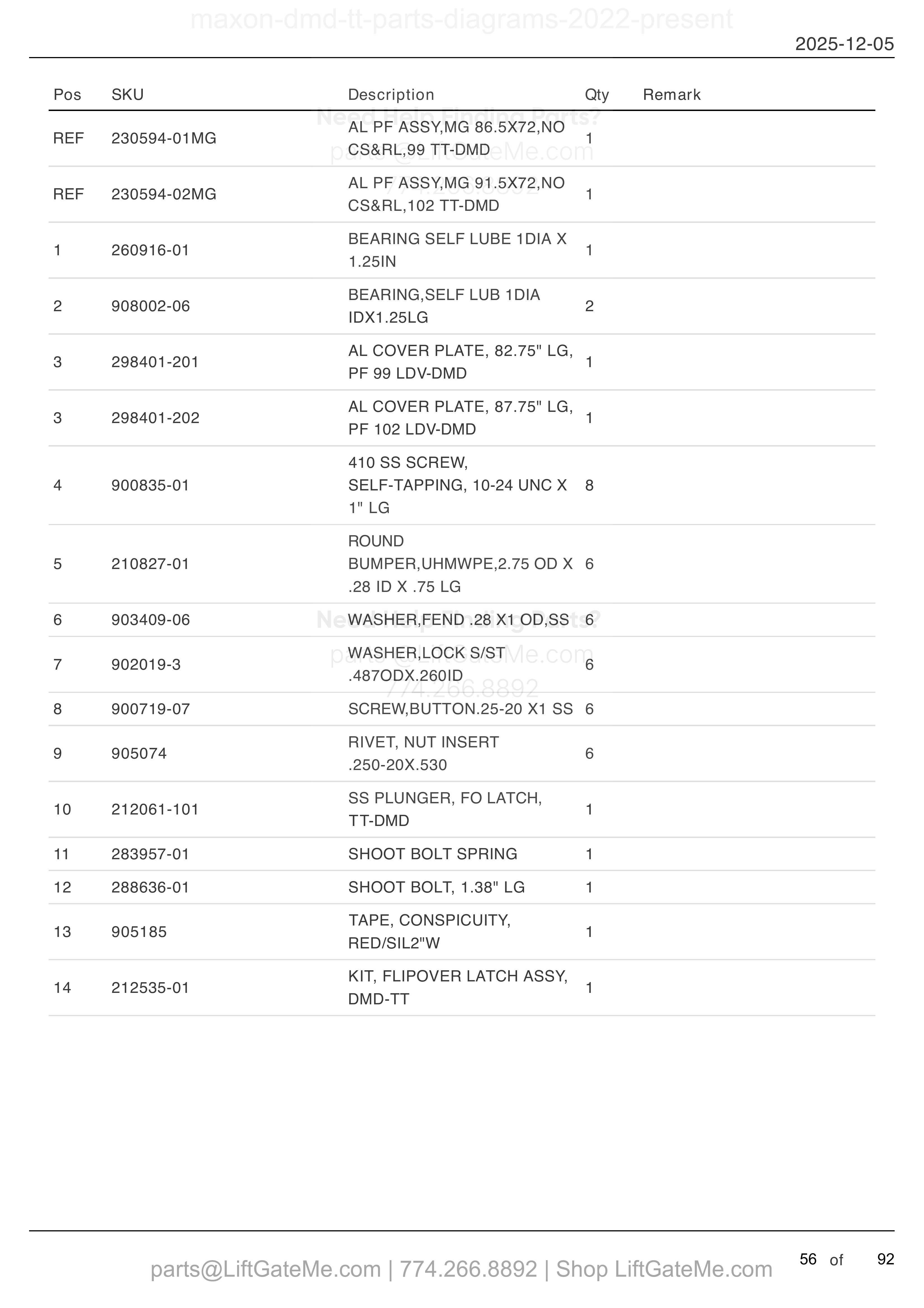

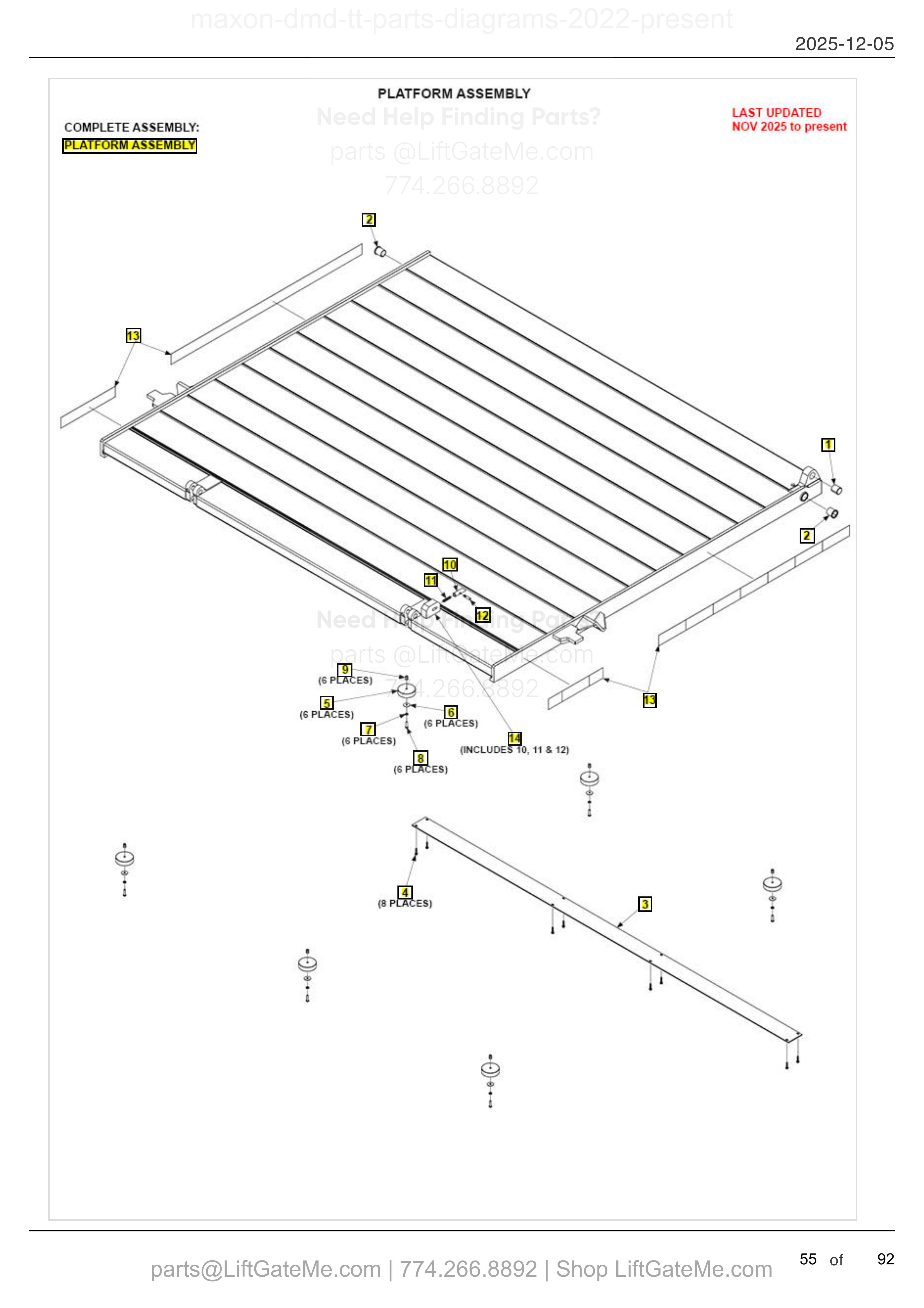

PLATFORM ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 230594-01MG | AL PF ASSY,MG 86.5X72,NO CS&RL,99 TT-DMD | |
| REF | 1 | 230594-02MG | AL PF ASSY,MG 91.5X72,NO CS&RL,102 TT-DMD | |
| 1 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN | |
| 2 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 3 | 1 | 298401-201 | AL COVER PLATE, 82.75" LG, PF 99 LDV-DMD | |
| 3 | 1 | 298401-202 | AL COVER PLATE, 87.75" LG, PF 102 LDV-DMD | |
| 4 | 8 | 900835-01 | 410 SS SCREW, SELF-TAPPING, 10-24 UNC X 1" LG | |
| 5 | 6 | 210827-01 | ROUND BUMPER,UHMWPE,2.75 OD X .28 ID X .75 LG | |
| 6 | 6 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 6 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 8 | 6 | 900719-07 | SCREW,BUTTON.25-20 X1 SS | |
| 9 | 6 | 905074 | RIVET, NUT INSERT .250-20X.530 | |
| 10 | 1 | 212061-101 | SS PLUNGER, FO LATCH, TT-DMD | |
| 11 | 1 | 283957-01 | SHOOT BOLT SPRING | |
| 12 | 1 | 288636-01 | SHOOT BOLT, 1.38" LG | |
| 13 | 1 | 905185 | TAPE, CONSPICUITY, RED/SIL2"W | |
| 14 | 1 | 212535-01 | KIT, FLIPOVER LATCH ASSY, DMD-TT |

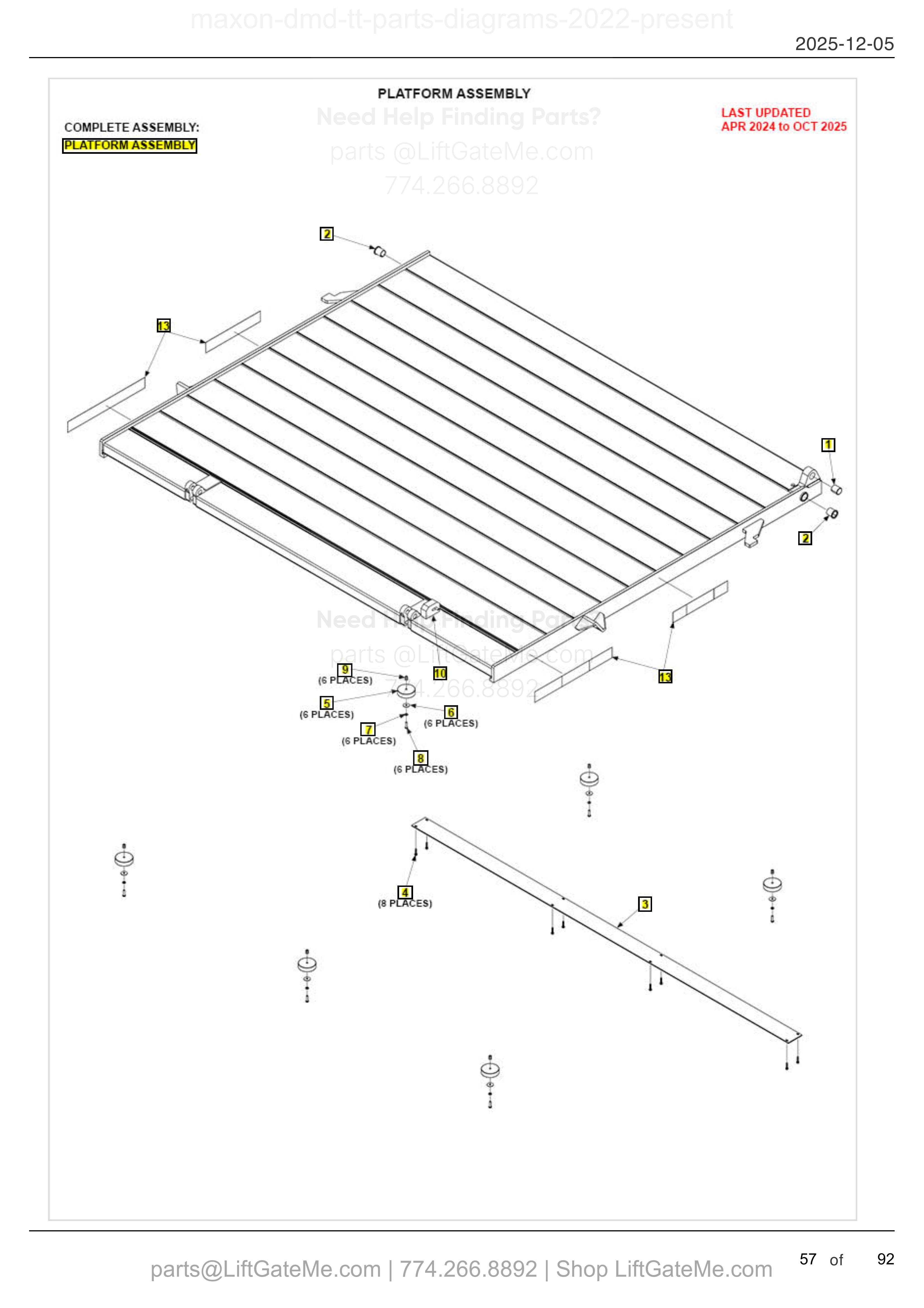

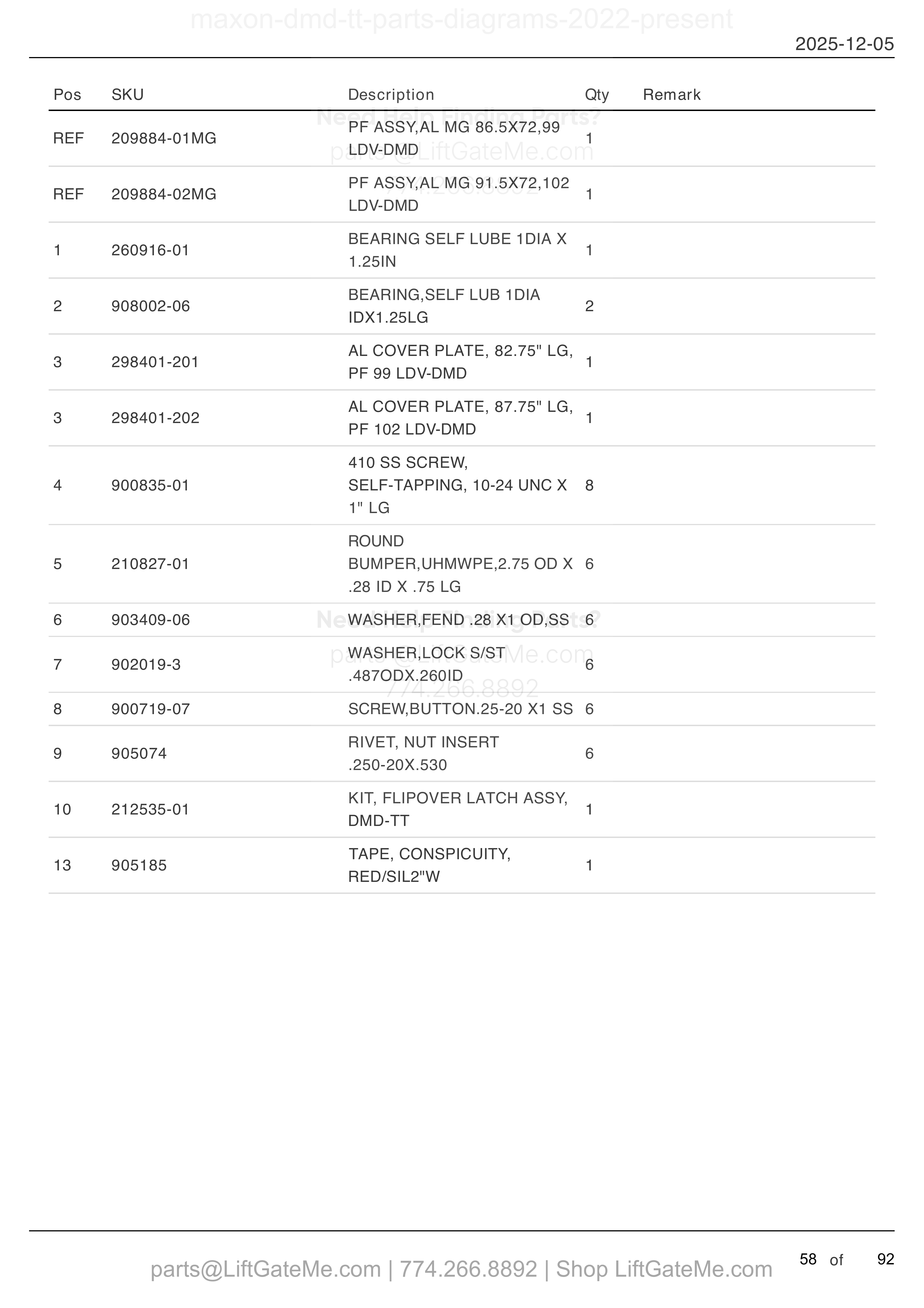

PLATFORM ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 209884-01MG | PF ASSY,AL MG 86.5X72,99 LDV-DMD | |
| REF | 1 | 209884-02MG | PF ASSY,AL MG 91.5X72,102 LDV-DMD | |
| 1 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN | |
| 2 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 3 | 1 | 298401-201 | AL COVER PLATE, 82.75" LG, PF 99 LDV-DMD | |
| 3 | 1 | 298401-202 | AL COVER PLATE, 87.75" LG, PF 102 LDV-DMD | |
| 4 | 8 | 900835-01 | 410 SS SCREW, SELF-TAPPING, 10-24 UNC X 1" LG | |
| 5 | 6 | 210827-01 | ROUND BUMPER,UHMWPE,2.75 OD X .28 ID X .75 LG | |
| 6 | 6 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 6 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 8 | 6 | 900719-07 | SCREW,BUTTON.25-20 X1 SS | |
| 9 | 6 | 905074 | RIVET, NUT INSERT .250-20X.530 | |
| 10 | 1 | 212535-01 | KIT, FLIPOVER LATCH ASSY, DMD-TT | |
| 13 | 1 | 905185 | TAPE, CONSPICUITY, RED/SIL2"W |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

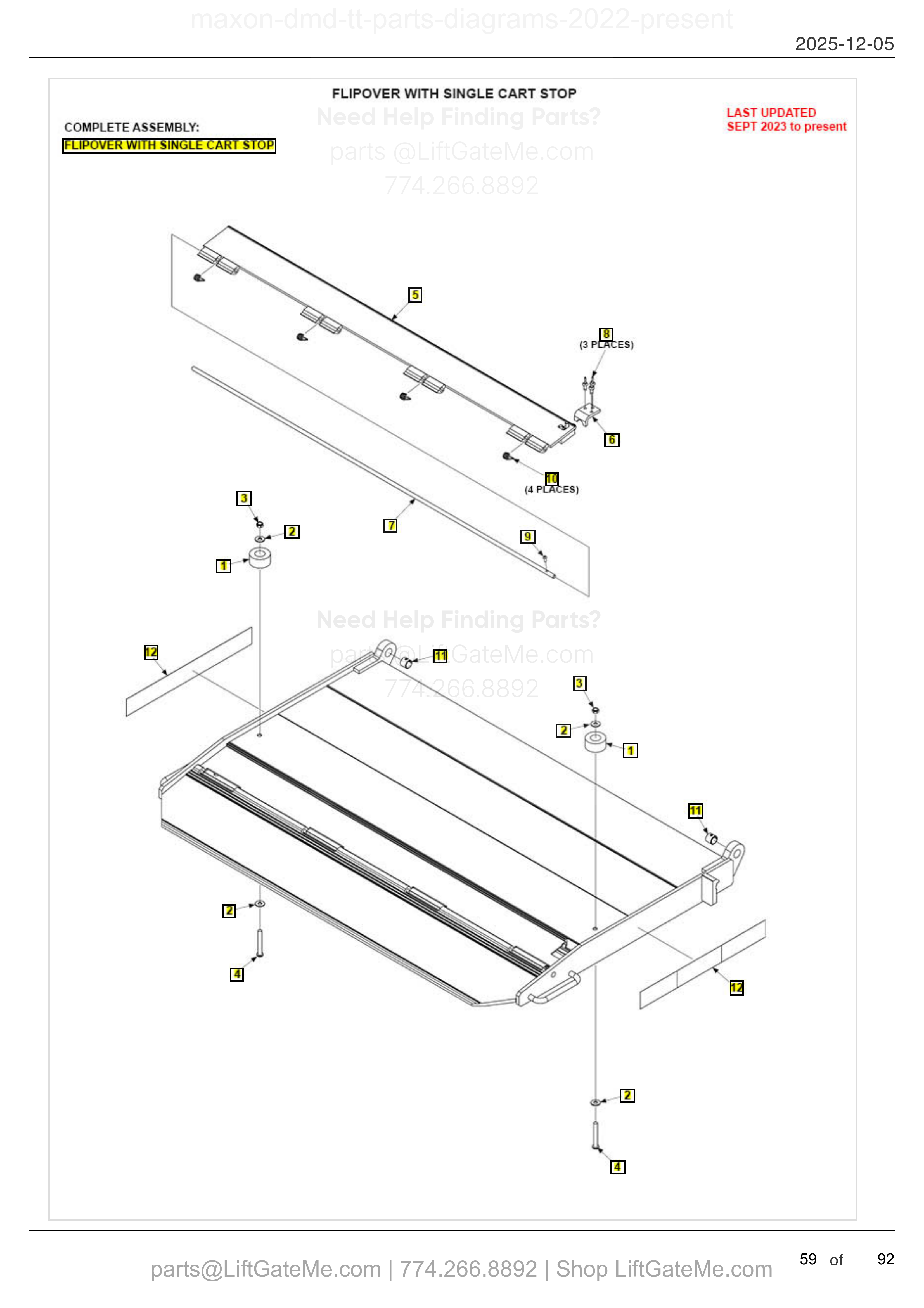

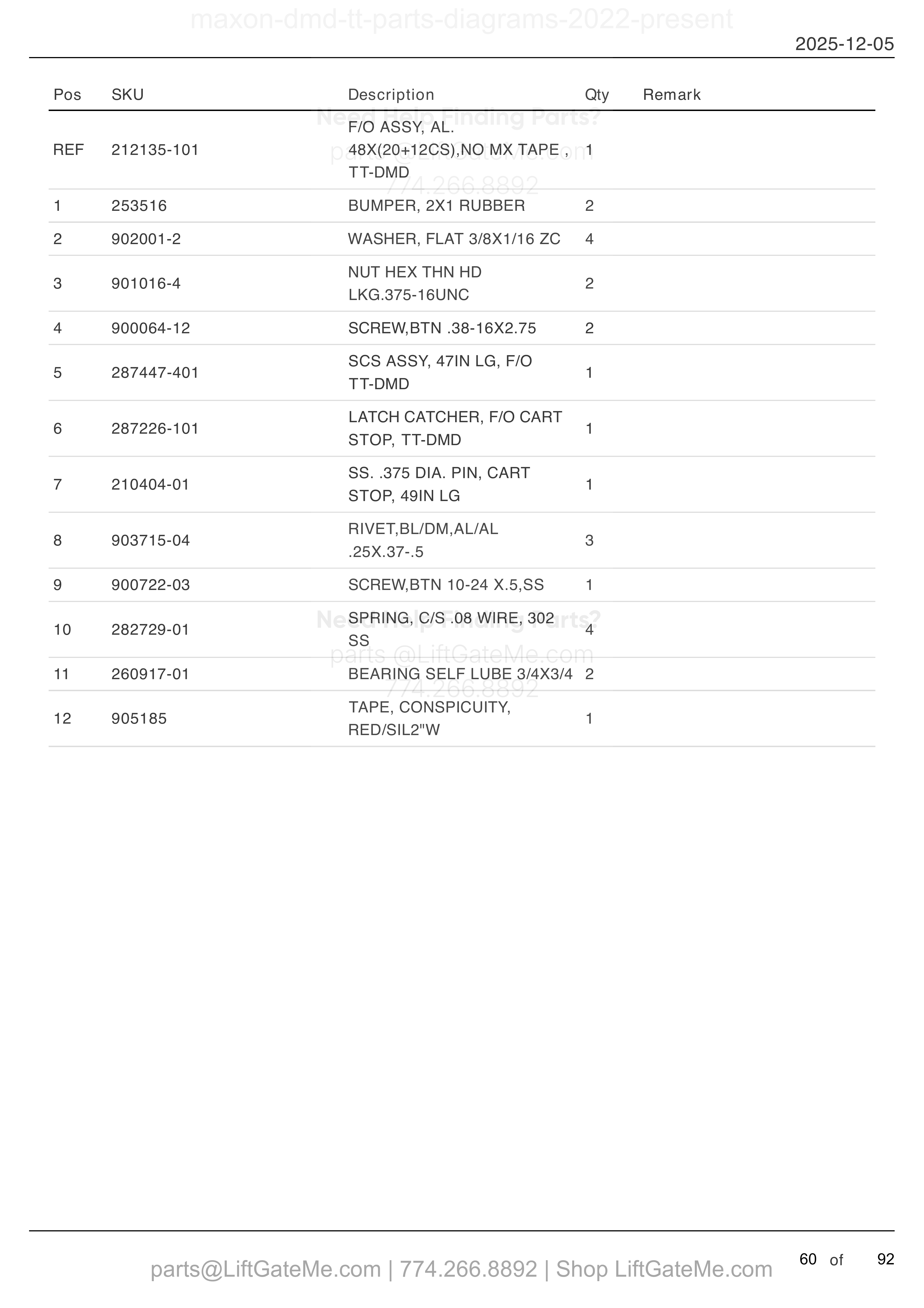

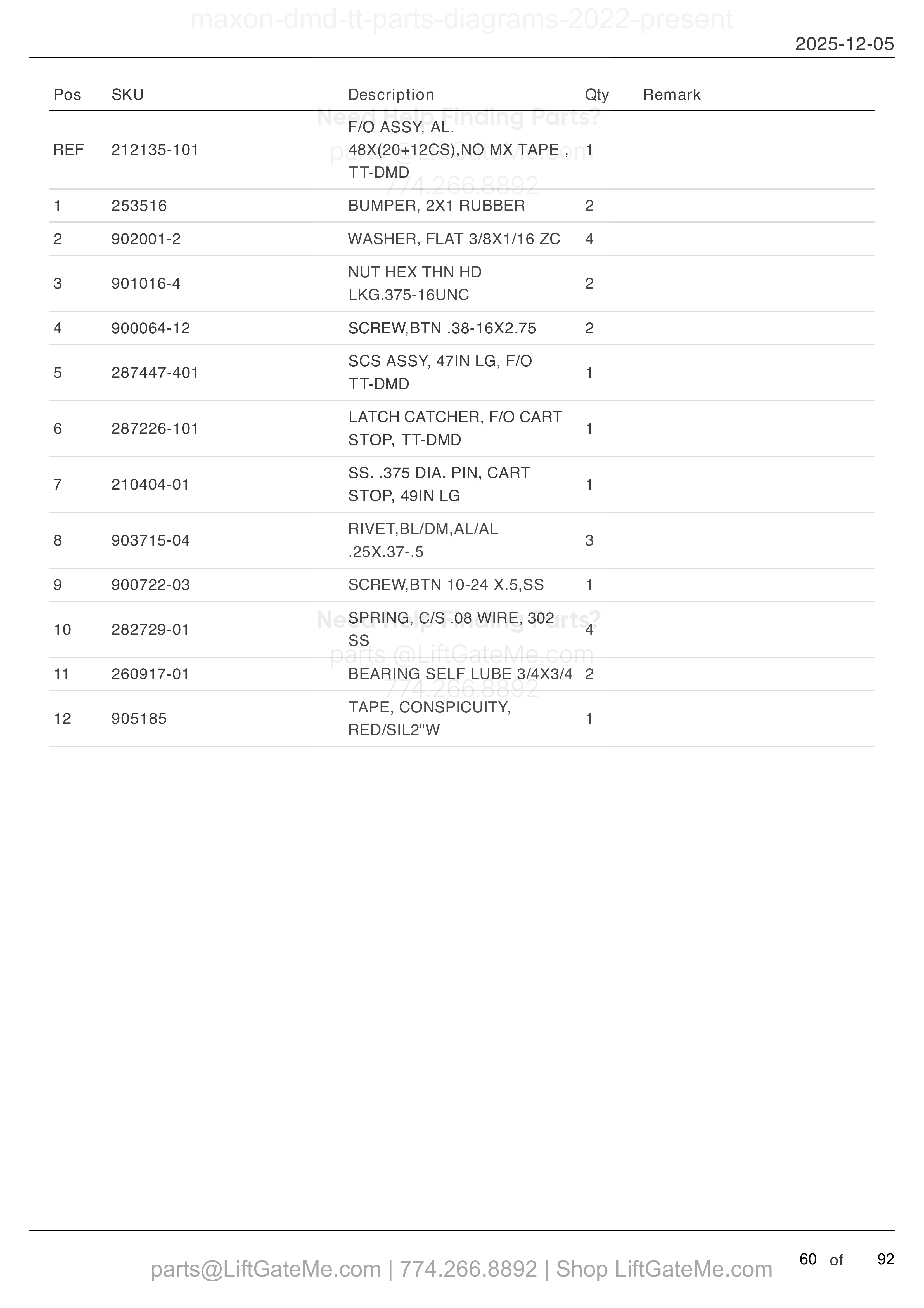

FLIPOVER WITH SINGLE CART STOP
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 212135-101 | F/O ASSY, AL. 48X(20+12CS),NO MX TAPE , TT-DMD | |
| 1 | 2 | 253516 | BUMPER, 2X1 RUBBER | |
| 2 | 4 | 902001-2 | WASHER, FLAT 3/8X1/16 ZC | |
| 3 | 2 | 901016-4 | NUT HEX THN HD LKG.375-16UNC | |
| 4 | 2 | 900064-12 | SCREW,BTN .38-16X2.75 | |
| 5 | 1 | 287447-401 | SCS ASSY, 47IN LG, F/O TT-DMD | |
| 6 | 1 | 287226-101 | LATCH CATCHER, F/O CART STOP, TT-DMD | |
| 7 | 1 | 210404-01 | SS. .375 DIA. PIN, CART STOP, 49IN LG | |
| 8 | 3 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 9 | 1 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 10 | 4 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 11 | 2 | 260917-01 | BEARING SELF LUBE 3/4X3/4 | |
| 12 | 1 | 905185 | TAPE, CONSPICUITY, RED/SIL2"W |

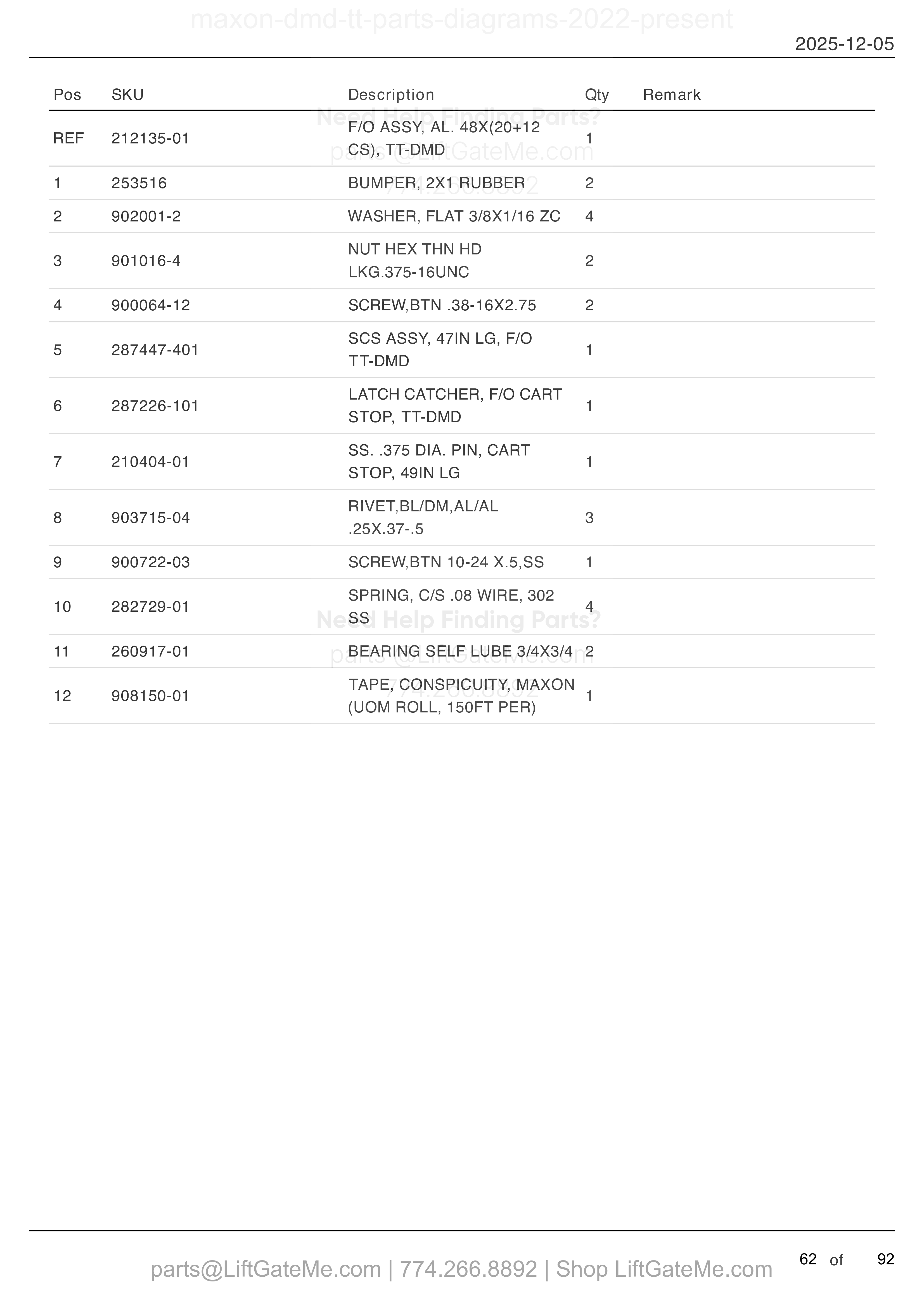

FLIPOVER WITH SINGLE CART STOP
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 212135-01 | F/O ASSY, AL. 48X(20+12 CS), TT-DMD | |
| 1 | 2 | 253516 | BUMPER, 2X1 RUBBER | |
| 2 | 4 | 902001-2 | WASHER, FLAT 3/8X1/16 ZC | |
| 3 | 2 | 901016-4 | NUT HEX THN HD LKG.375-16UNC | |
| 4 | 2 | 900064-12 | SCREW,BTN .38-16X2.75 | |
| 5 | 1 | 287447-401 | SCS ASSY, 47IN LG, F/O TT-DMD | |
| 6 | 1 | 287226-101 | LATCH CATCHER, F/O CART STOP, TT-DMD | |
| 7 | 1 | 210404-01 | SS. .375 DIA. PIN, CART STOP, 49IN LG | |
| 8 | 3 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 9 | 1 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 10 | 4 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 11 | 2 | 260917-01 | BEARING SELF LUBE 3/4X3/4 | |
| 12 | 1 | 908150-01 | TAPE, CONSPICUITY, MAXON (UOM ROLL, 150FT PER) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

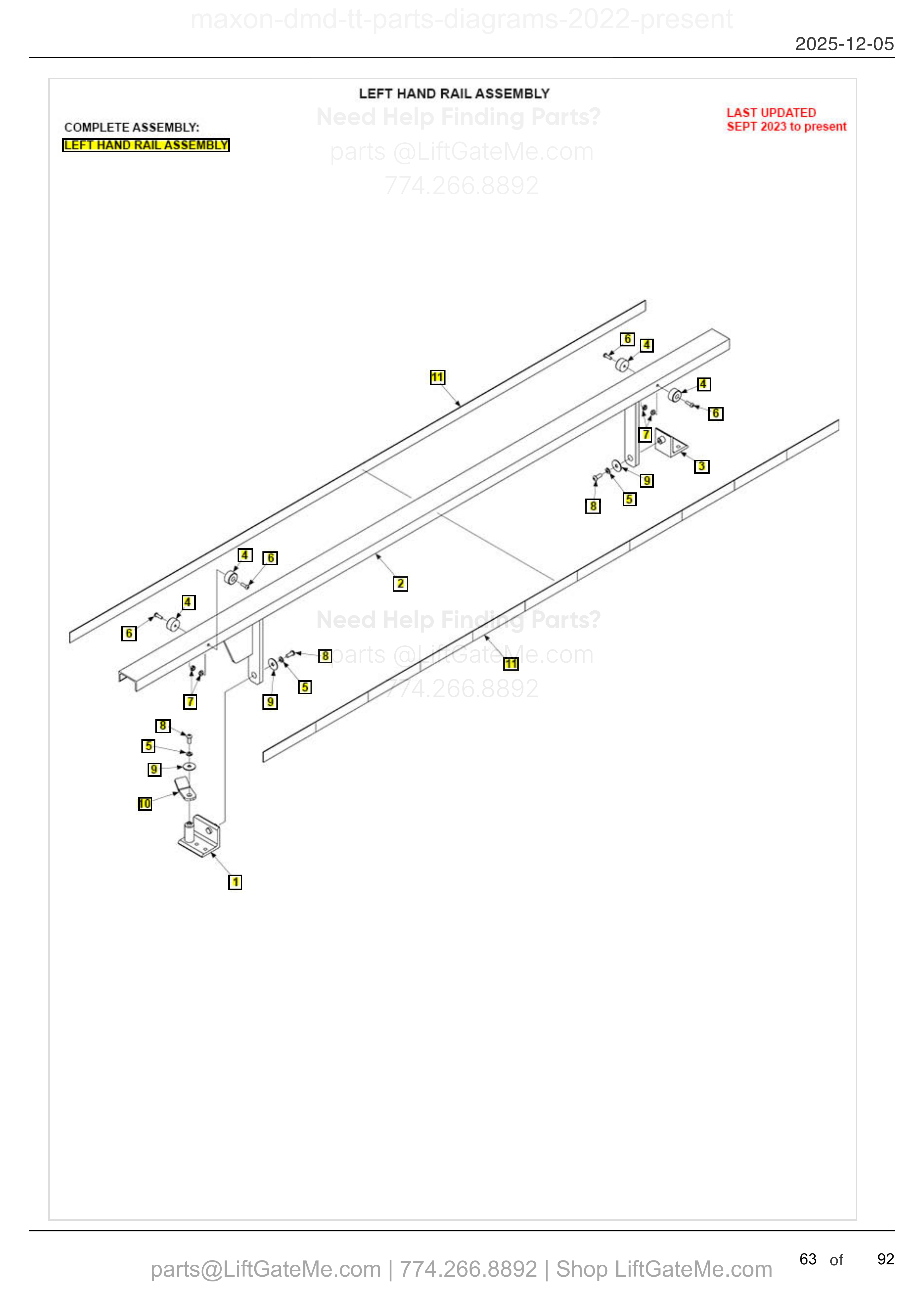

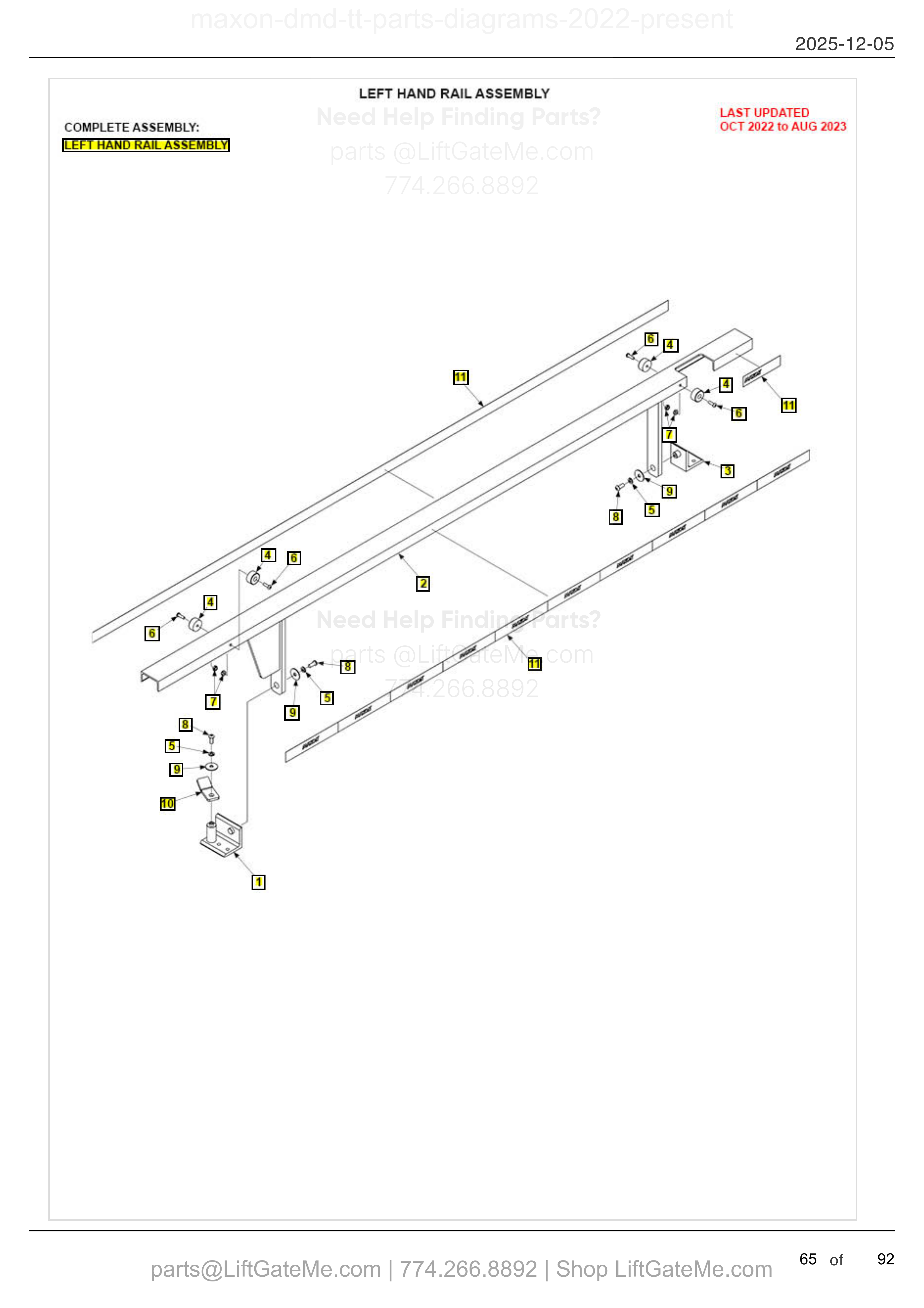

LEFT HAND RAIL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 212645-101 | LH PF RAIL ASSY,NO CUTOUT,LDV-DMD | |
| 1 | 1 | 212649-01 | LH LOCK BRACKET WLDMT, PF LDV-DMD | |
| 2 | 1 | 212646-101 | LH RAIL WLDMT,NO CUTOUT,PF LDV-DMD | |
| 3 | 1 | 212650-01 | AL. ANGLE BRCKT WLDMT, PF RAIL, LDV-DMD | |
| 4 | 4 | 905314-04 | BUMPER,CYL W/WASHER,DIA 1.0X.5 | |
| 5 | 3 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 6 | 4 | 900722-04 | SCREW,BTN 10-24 X.63,SS | |
| 7 | 4 | 903129-01 | NUT, NYL INSRT THIN 10-24 SS | |
| 8 | 3 | 900719-04 | SCREW,BUTTON.25-20 X.63 SS | |
| 9 | 3 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 10 | 1 | 212651-01 | AL. LOCK, PF RAIL, LDV-DMD | |
| 11 | 1 | 901037-01 | TRAILER REFLECTIVE TAPE, 1"W X 50YARDS |

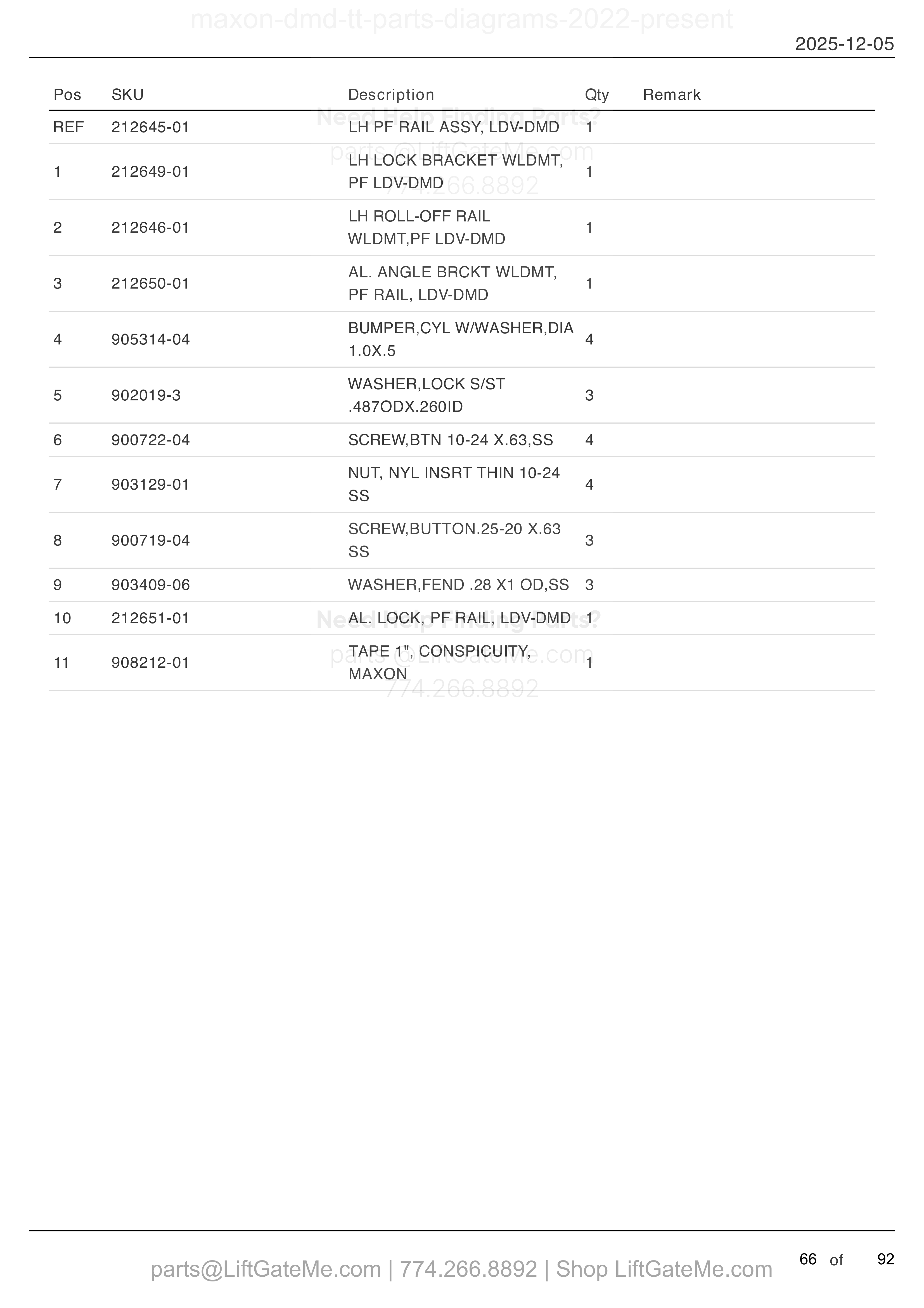

LEFT HAND RAIL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 212645-01 | LH PF RAIL ASSY, LDV-DMD | |
| 1 | 1 | 212649-01 | LH LOCK BRACKET WLDMT, PF LDV-DMD | |
| 2 | 1 | 212646-01 | LH ROLL-OFF RAIL WLDMT,PF LDV-DMD | |
| 3 | 1 | 212650-01 | AL. ANGLE BRCKT WLDMT, PF RAIL, LDV-DMD | |
| 4 | 4 | 905314-04 | BUMPER,CYL W/WASHER,DIA 1.0X.5 | |
| 5 | 3 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 6 | 4 | 900722-04 | SCREW,BTN 10-24 X.63,SS | |
| 7 | 4 | 903129-01 | NUT, NYL INSRT THIN 10-24 SS | |
| 8 | 3 | 900719-04 | SCREW,BUTTON.25-20 X.63 SS | |
| 9 | 3 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 10 | 1 | 212651-01 | AL. LOCK, PF RAIL, LDV-DMD | |
| 11 | 1 | 908212-01 | TAPE 1", CONSPICUITY, MAXON |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

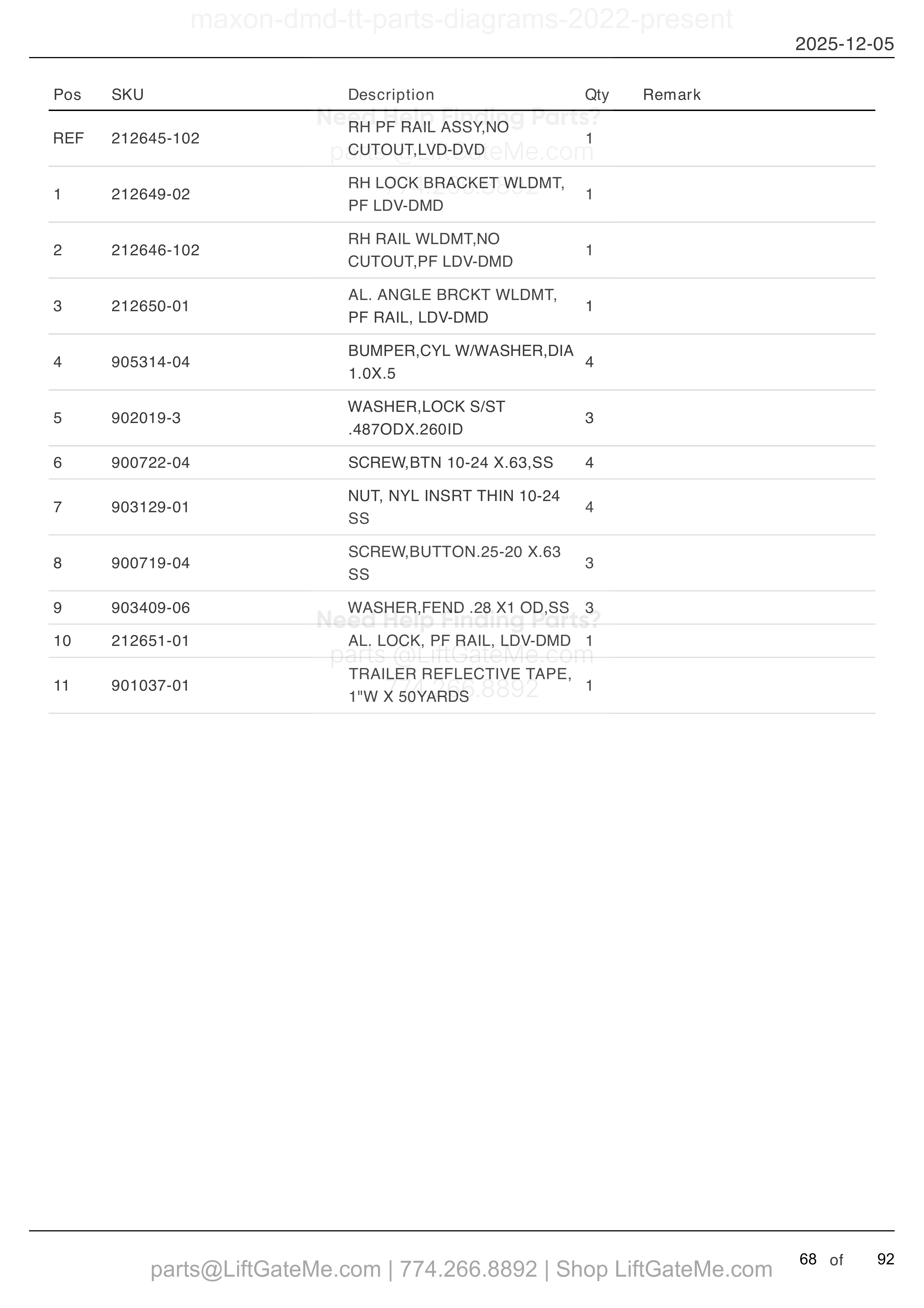

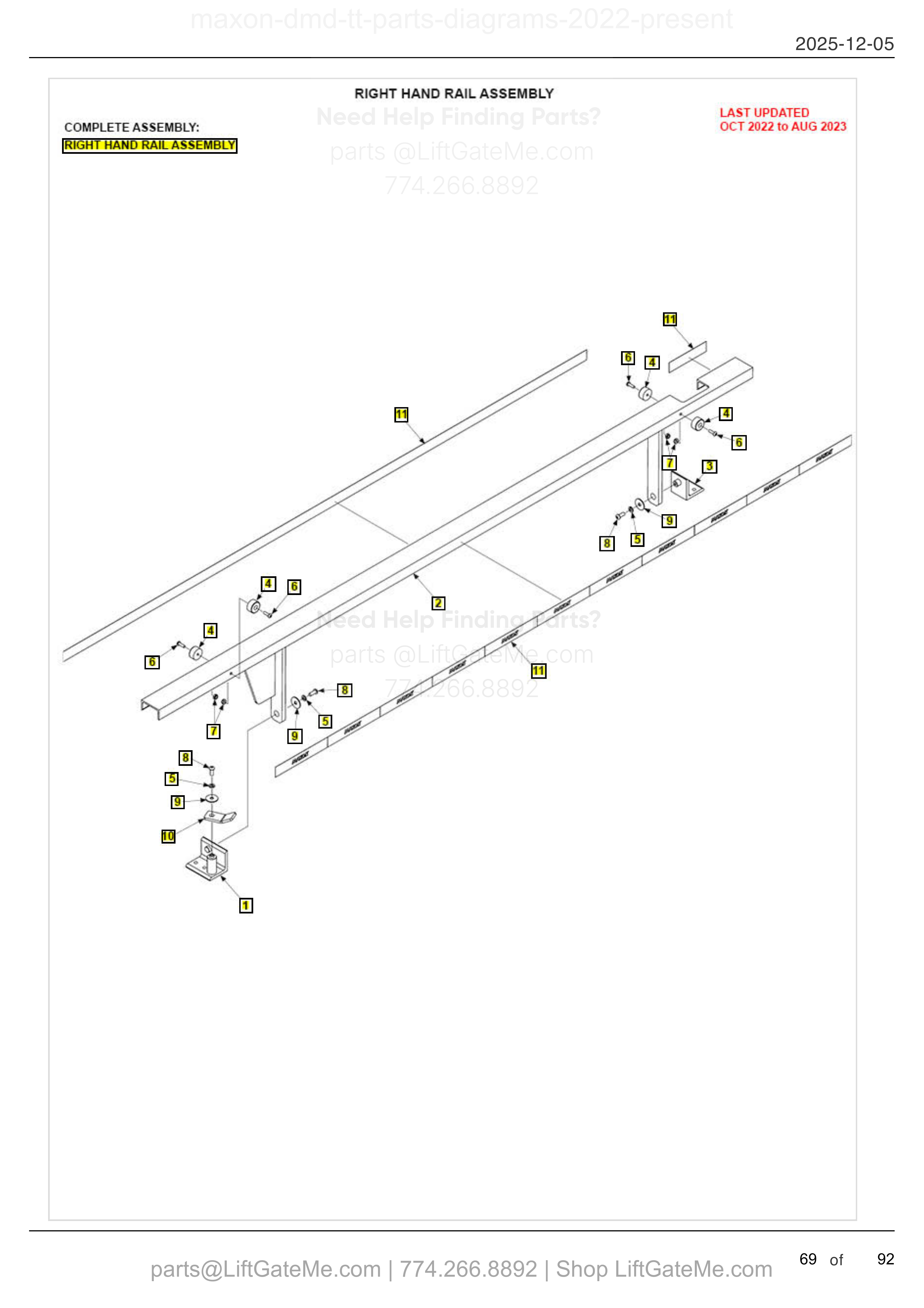

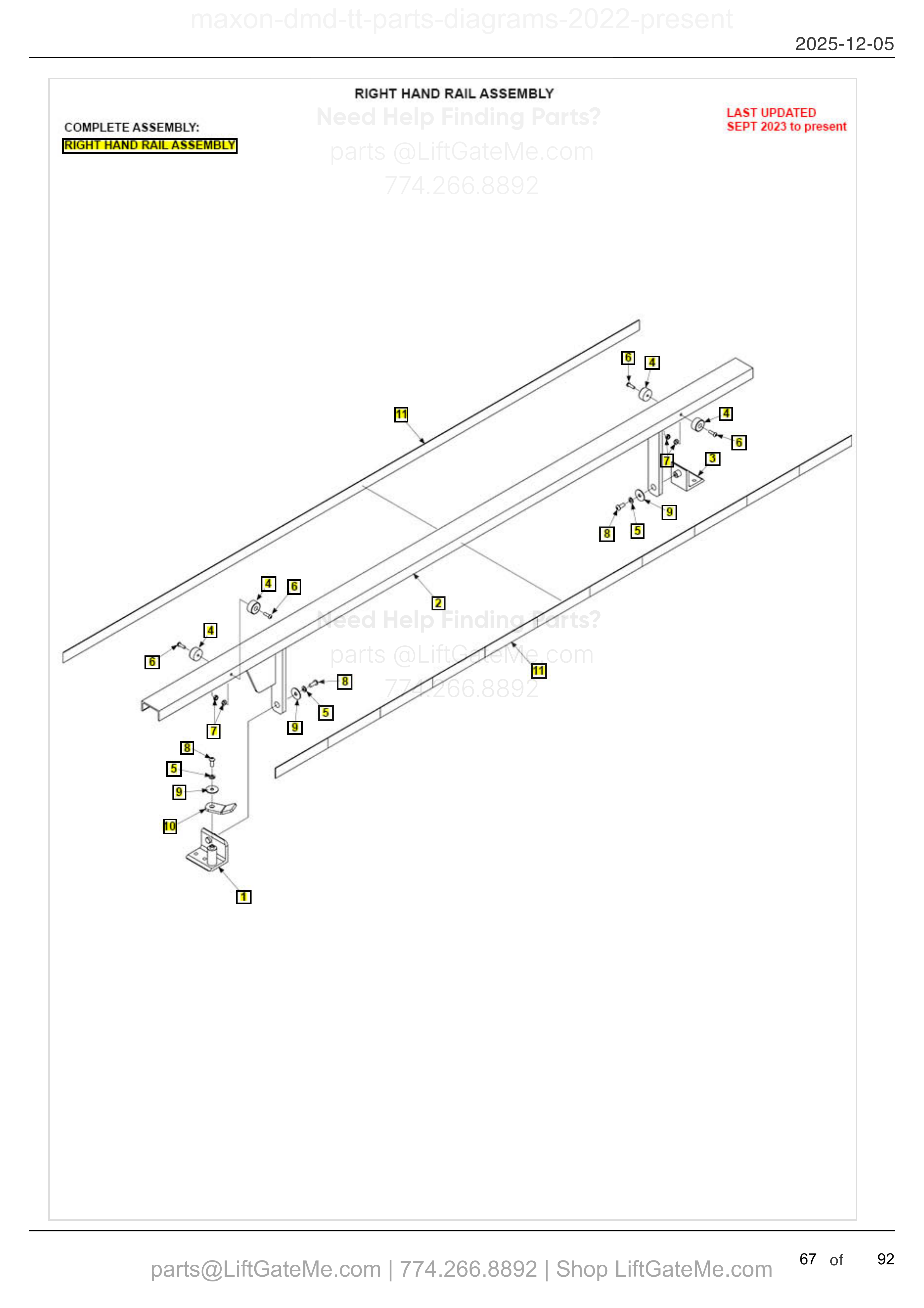

RIGHT HAND RAIL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 212645-102 | RH PF RAIL ASSY,NO CUTOUT,LVD-DVD | |
| 1 | 1 | 212649-02 | RH LOCK BRACKET WLDMT, PF LDV-DMD | |
| 2 | 1 | 212646-102 | RH RAIL WLDMT,NO CUTOUT,PF LDV-DMD | |
| 3 | 1 | 212650-01 | AL. ANGLE BRCKT WLDMT, PF RAIL, LDV-DMD | |
| 4 | 4 | 905314-04 | BUMPER,CYL W/WASHER,DIA 1.0X.5 | |
| 5 | 3 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 6 | 4 | 900722-04 | SCREW,BTN 10-24 X.63,SS | |
| 7 | 4 | 903129-01 | NUT, NYL INSRT THIN 10-24 SS | |
| 8 | 3 | 900719-04 | SCREW,BUTTON.25-20 X.63 SS | |
| 9 | 3 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 10 | 1 | 212651-01 | AL. LOCK, PF RAIL, LDV-DMD | |
| 11 | 1 | 901037-01 | TRAILER REFLECTIVE TAPE, 1"W X 50YARDS |

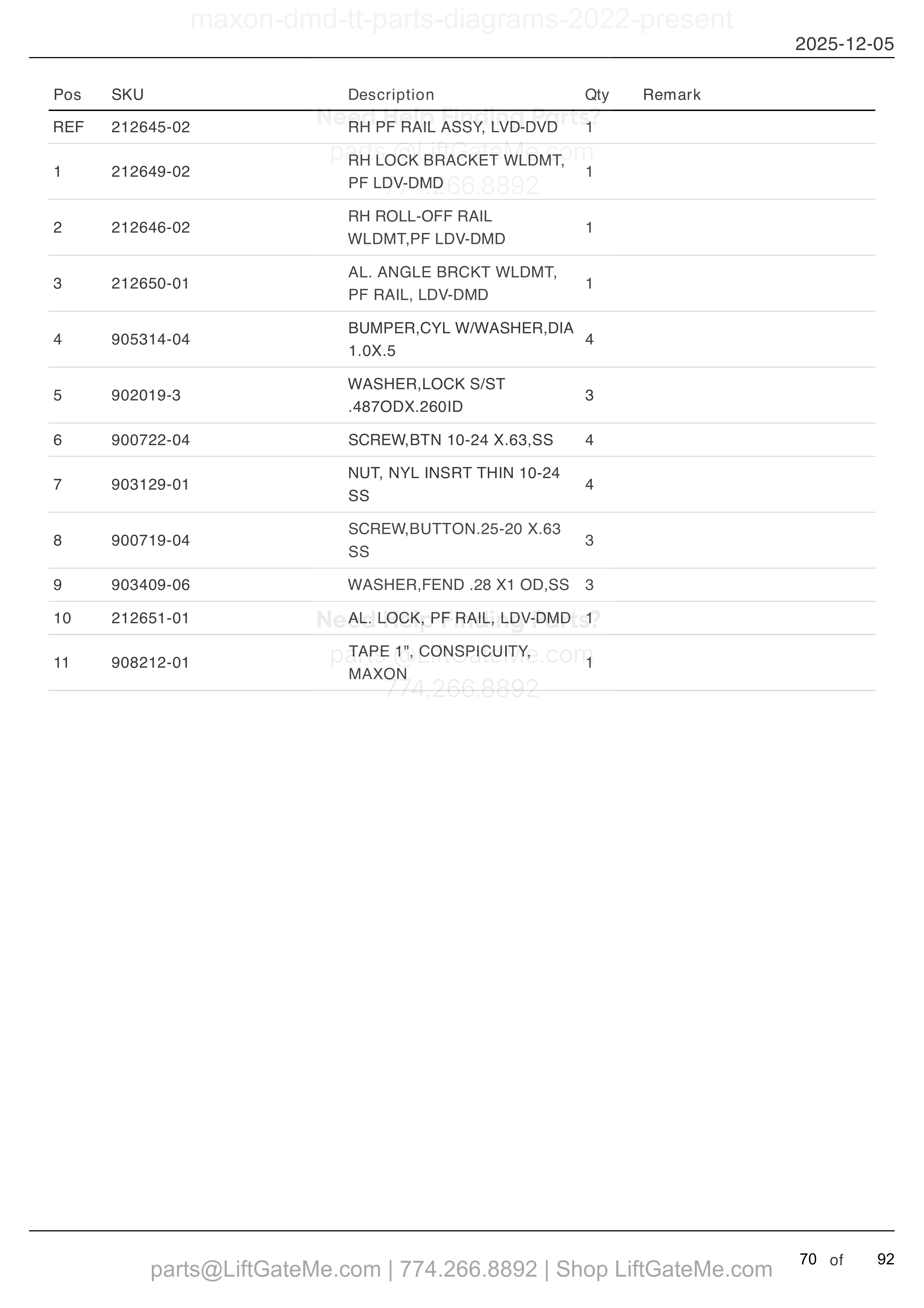

RIGHT HAND RAIL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 212645-02 | RH PF RAIL ASSY, LVD-DVD | |
| 1 | 1 | 212649-02 | RH LOCK BRACKET WLDMT, PF LDV-DMD | |
| 2 | 1 | 212646-02 | RH ROLL-OFF RAIL WLDMT,PF LDV-DMD | |
| 3 | 1 | 212650-01 | AL. ANGLE BRCKT WLDMT, PF RAIL, LDV-DMD | |
| 4 | 4 | 905314-04 | BUMPER,CYL W/WASHER,DIA 1.0X.5 | |
| 5 | 3 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 6 | 4 | 900722-04 | SCREW,BTN 10-24 X.63,SS | |
| 7 | 4 | 903129-01 | NUT, NYL INSRT THIN 10-24 SS | |
| 8 | 3 | 900719-04 | SCREW,BUTTON.25-20 X.63 SS | |
| 9 | 3 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 10 | 1 | 212651-01 | AL. LOCK, PF RAIL, LDV-DMD | |
| 11 | 1 | 908212-01 | TAPE 1", CONSPICUITY, MAXON |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

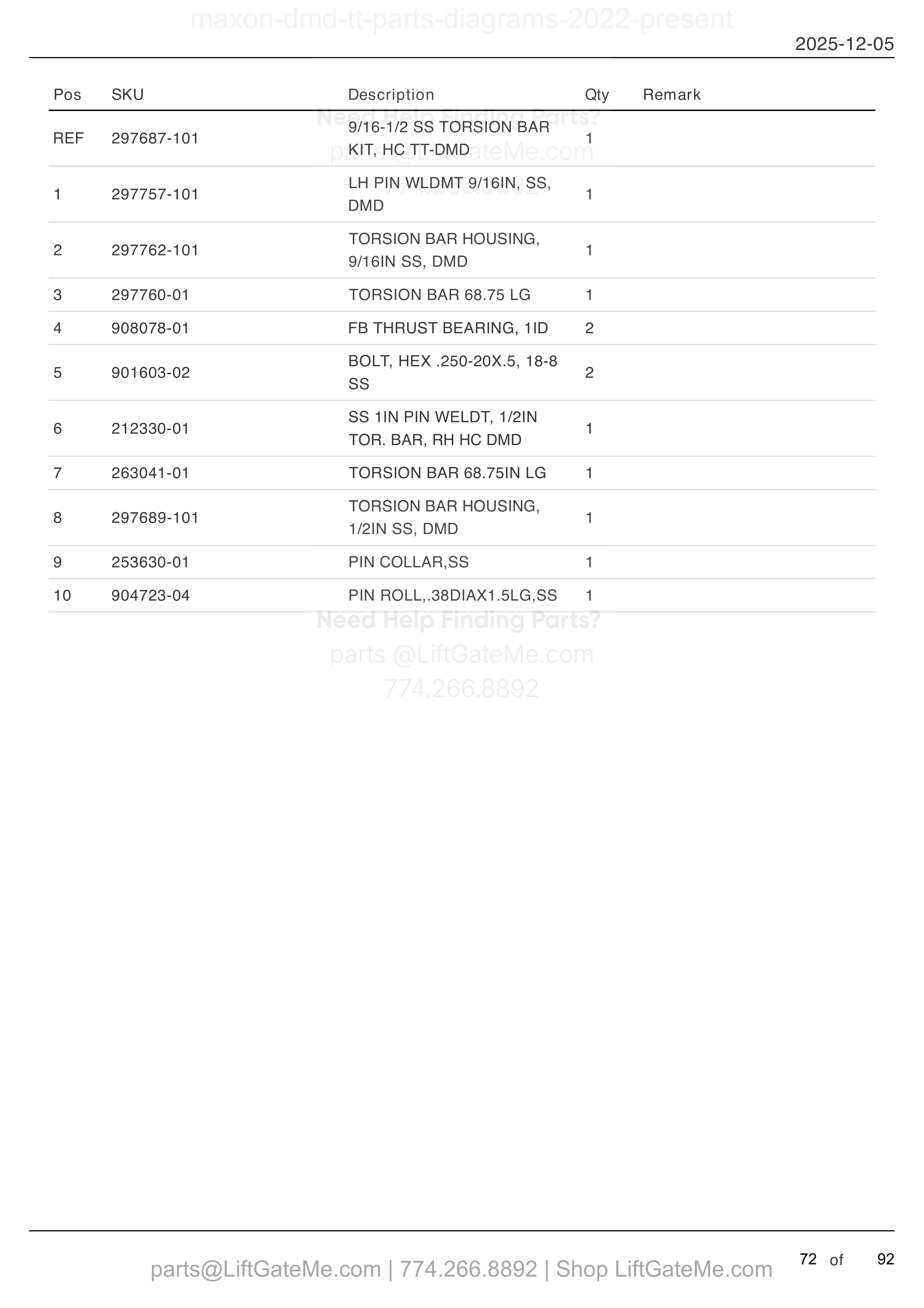

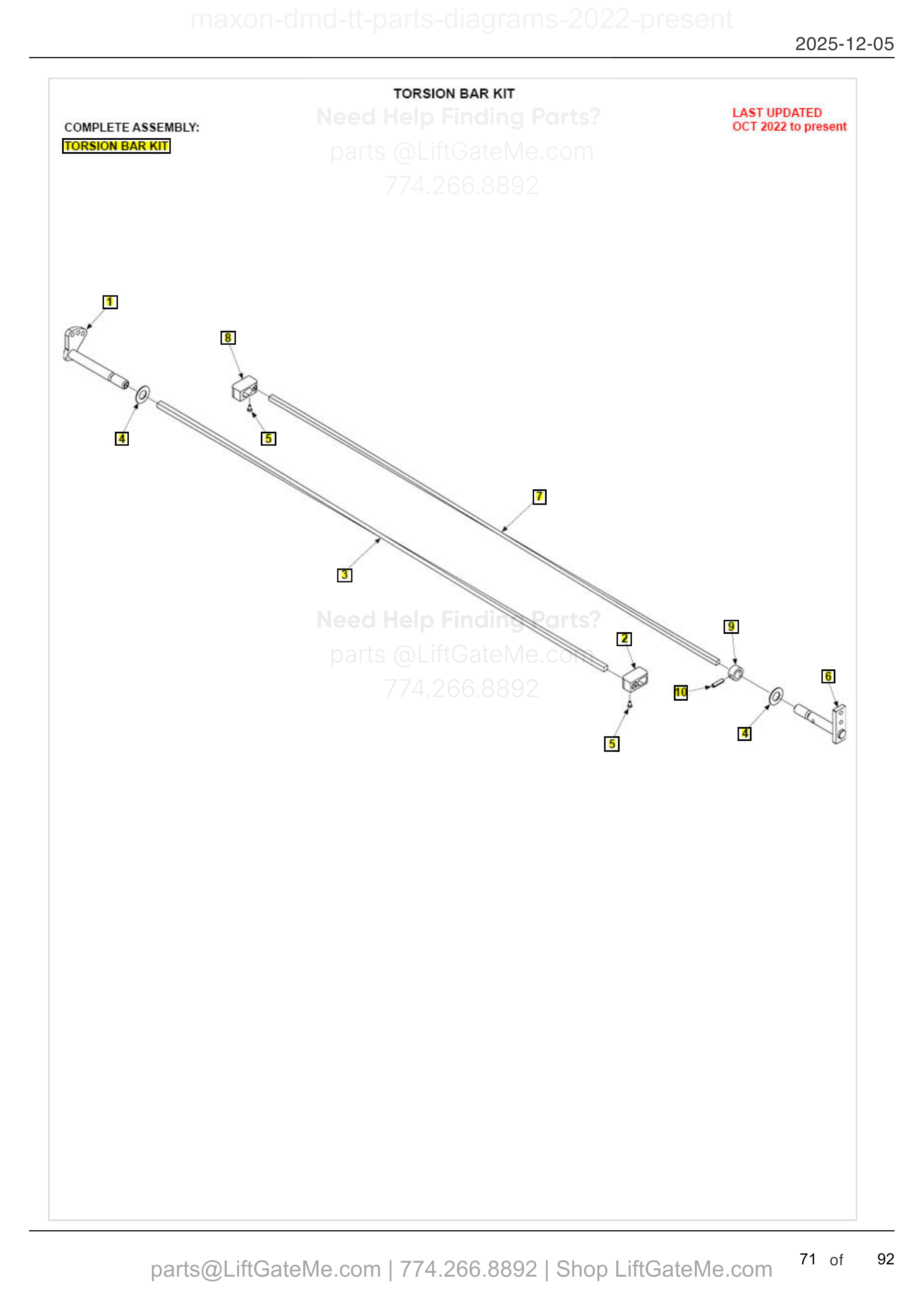

TORSION BAR KIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297687-101 | 9/16-1/2 SS TORSION BAR KIT, HC TT-DMD | |
| 1 | 1 | 297757-101 | LH PIN WLDMT 9/16IN, SS, DMD | |
| 2 | 1 | 297762-101 | TORSION BAR HOUSING, 9/16IN SS, DMD | |
| 3 | 1 | 297760-01 | TORSION BAR 68.75 LG | |
| 4 | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 5 | 2 | 901603-02 | BOLT, HEX .250-20X.5, 18-8 SS | |
| 6 | 1 | 212330-01 | SS 1IN PIN WELDT, 1/2IN TOR. BAR, RH HC DMD | |
| 7 | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 8 | 1 | 297689-101 | TORSION BAR HOUSING, 1/2IN SS, DMD | |
| 9 | 1 | 253630-01 | PIN COLLAR,SS | |
| 10 | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS |

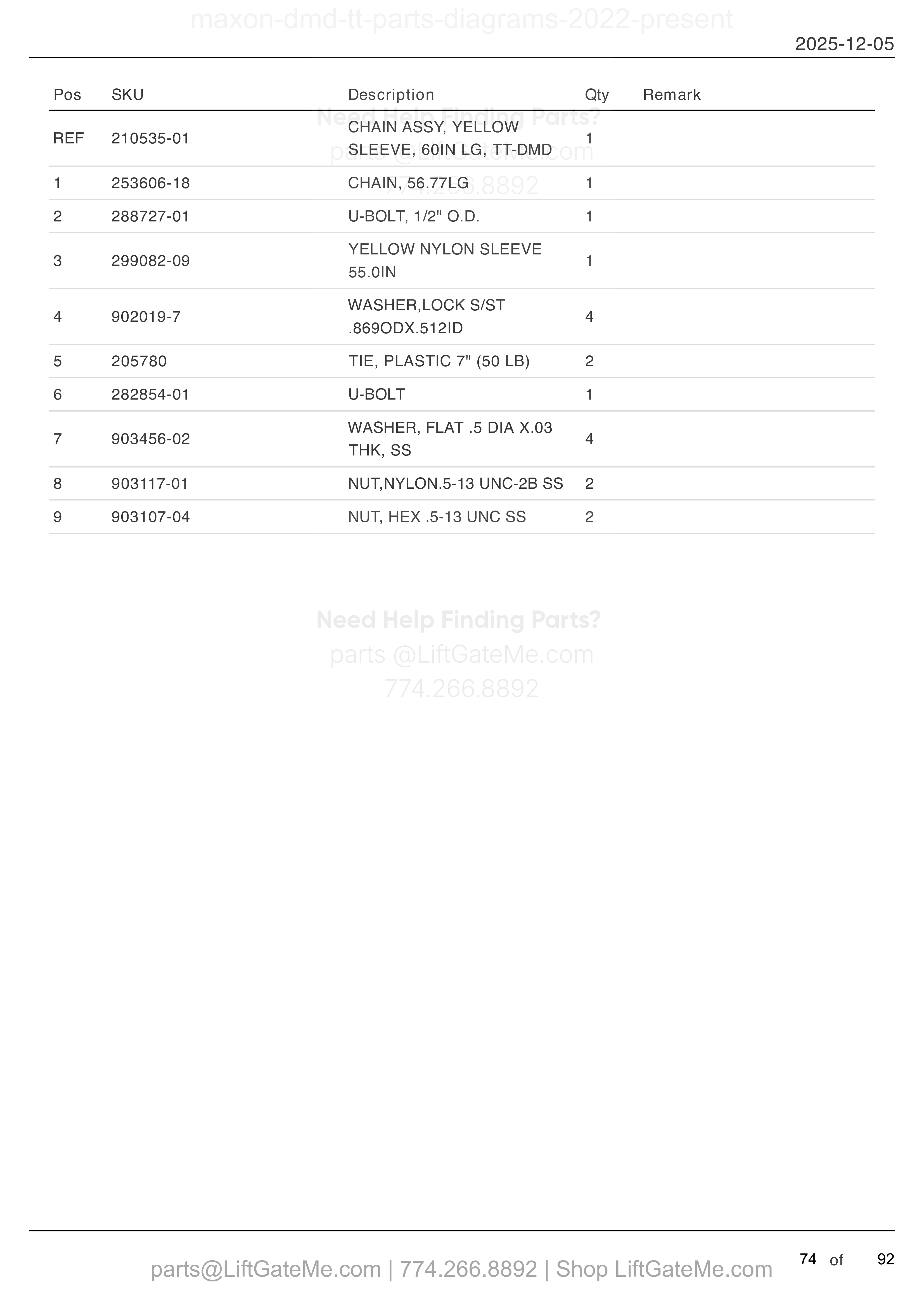

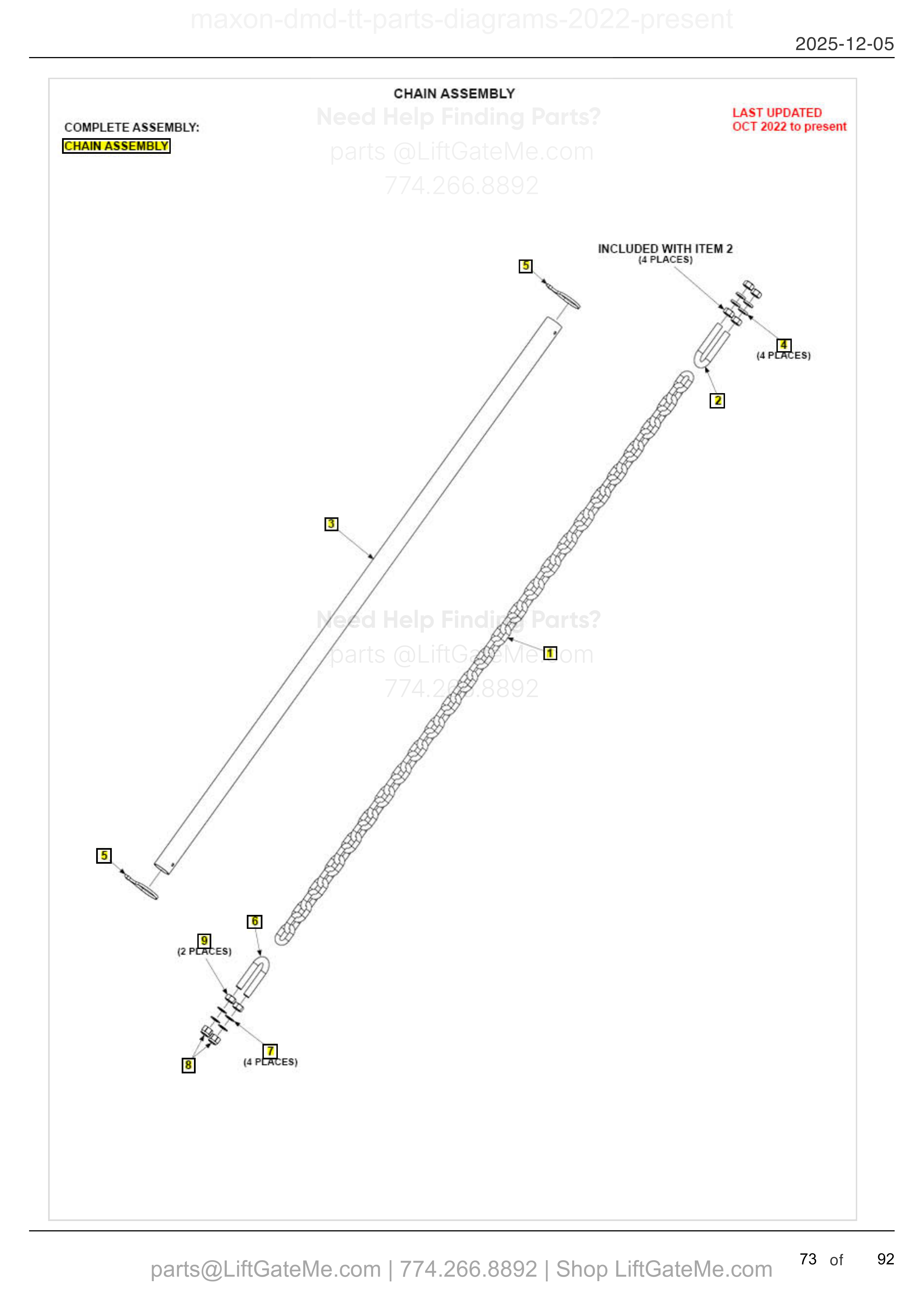

CHAIN ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 210535-01 | CHAIN ASSY, YELLOW SLEEVE, 60IN LG, TT-DMD | |
| 1 | 1 | 253606-18 | CHAIN, 56.77LG | |
| 2 | 1 | 288727-01 | U-BOLT, 1/2" O.D. | |
| 3 | 1 | 299082-09 | YELLOW NYLON SLEEVE 55.0IN | |
| 4 | 4 | 902019-7 | WASHER,LOCK S/ST .869ODX.512ID | |
| 5 | 2 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 6 | 1 | 282854-01 | U-BOLT | |
| 7 | 4 | 903456-02 | WASHER, FLAT .5 DIA X.03 THK, SS | |
| 8 | 2 | 903117-01 | NUT,NYLON.5-13 UNC-2B SS | |
| 9 | 2 | 903107-04 | NUT, HEX .5-13 UNC SS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

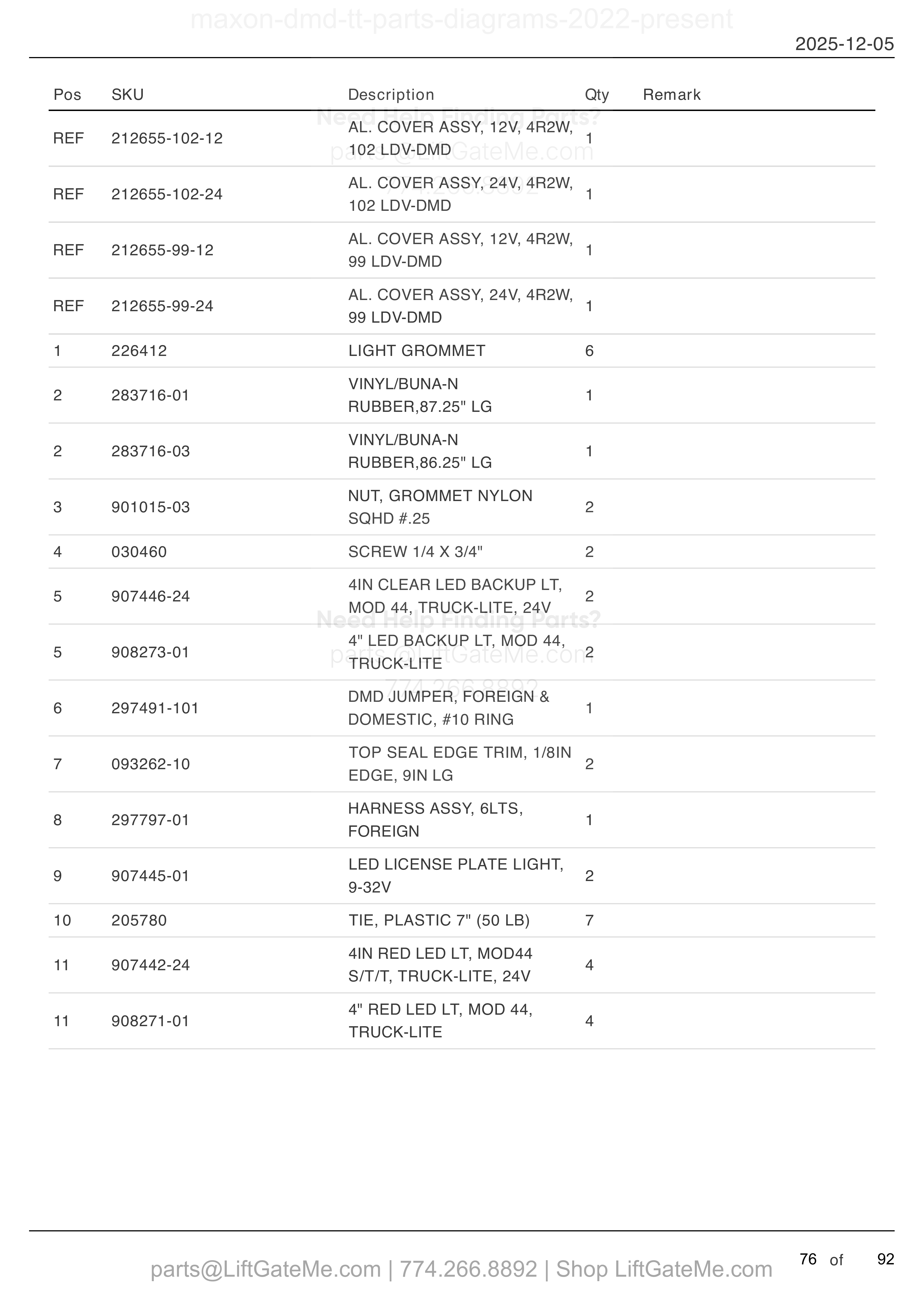

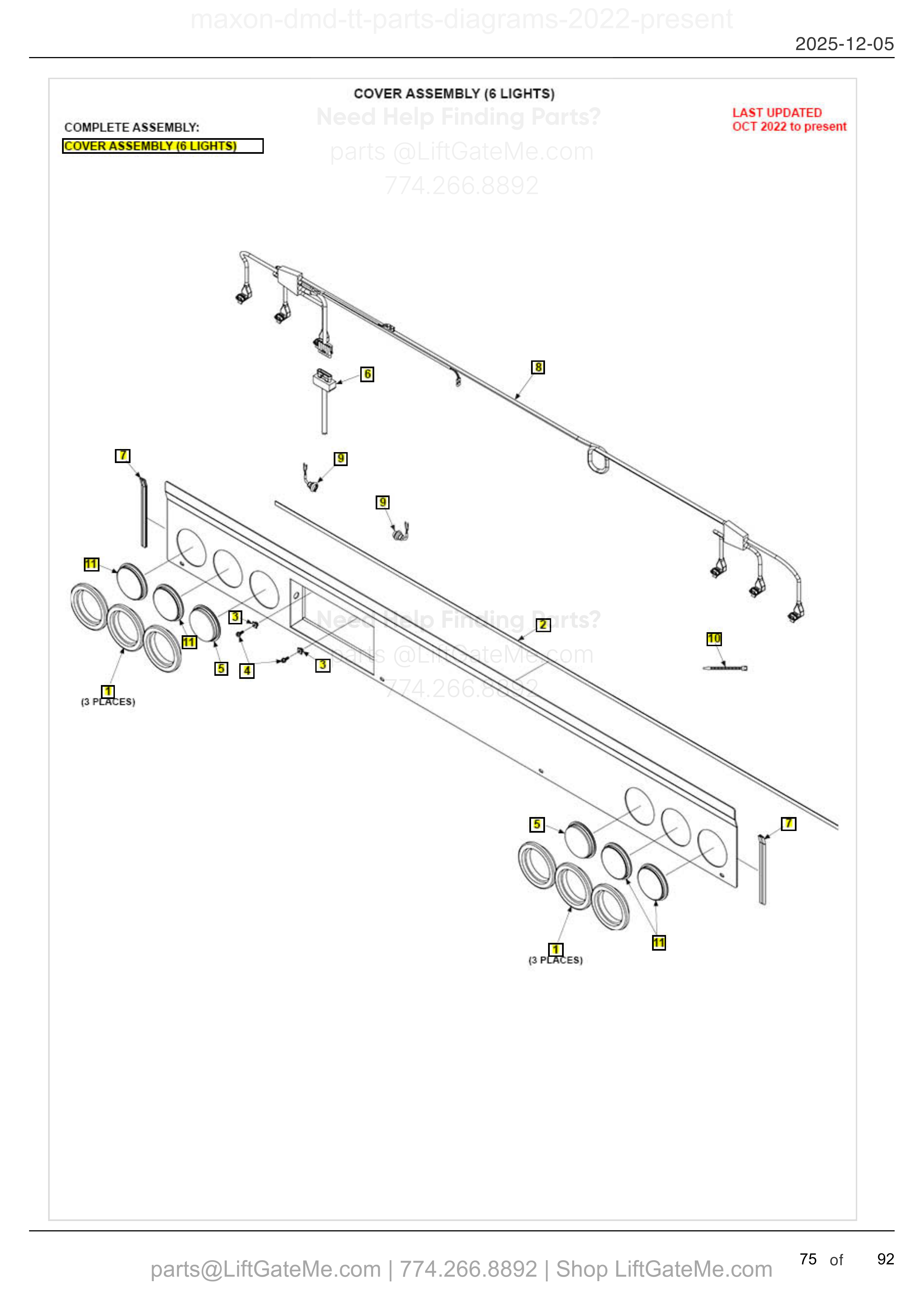

COVER ASSEMBLY (6 LIGHTS)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 212655-102-12 | AL. COVER ASSY, 12V, 4R2W, 102 LDV-DMD | |
| REF | 1 | 212655-102-24 | AL. COVER ASSY, 24V, 4R2W, 102 LDV-DMD | |
| REF | 1 | 212655-99-12 | AL. COVER ASSY, 12V, 4R2W, 99 LDV-DMD | |
| REF | 1 | 212655-99-24 | AL. COVER ASSY, 24V, 4R2W, 99 LDV-DMD | |
| 1 | 6 | 226412 | LIGHT GROMMET | |
| 2 | 1 | 283716-01 | VINYL/BUNA-N RUBBER,87.25" LG | |
| 2 | 1 | 283716-03 | VINYL/BUNA-N RUBBER,86.25" LG | |
| 3 | 2 | 901015-03 | NUT, GROMMET NYLON SQHD #.25 | |
| 4 | 2 | 030460 | SCREW 1/4 X 3/4" | |
| 5 | 2 | 907446-24 | 4IN CLEAR LED BACKUP LT, MOD 44, TRUCK-LITE, 24V | |
| 5 | 2 | 908273-01 | 4" LED BACKUP LT, MOD 44, TRUCK-LITE | |
| 6 | 1 | 297491-101 | DMD JUMPER, FOREIGN & DOMESTIC, #10 RING | |
| 7 | 2 | 093262-10 | TOP SEAL EDGE TRIM, 1/8IN EDGE, 9IN LG | |
| 8 | 1 | 297797-01 | HARNESS ASSY, 6LTS, FOREIGN | |
| 9 | 2 | 907445-01 | LED LICENSE PLATE LIGHT, 9-32V | |
| 10 | 7 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 11 | 4 | 907442-24 | 4IN RED LED LT, MOD44 S/T/T, TRUCK-LITE, 24V | |
| 11 | 4 | 908271-01 | 4" RED LED LT, MOD 44, TRUCK-LITE |

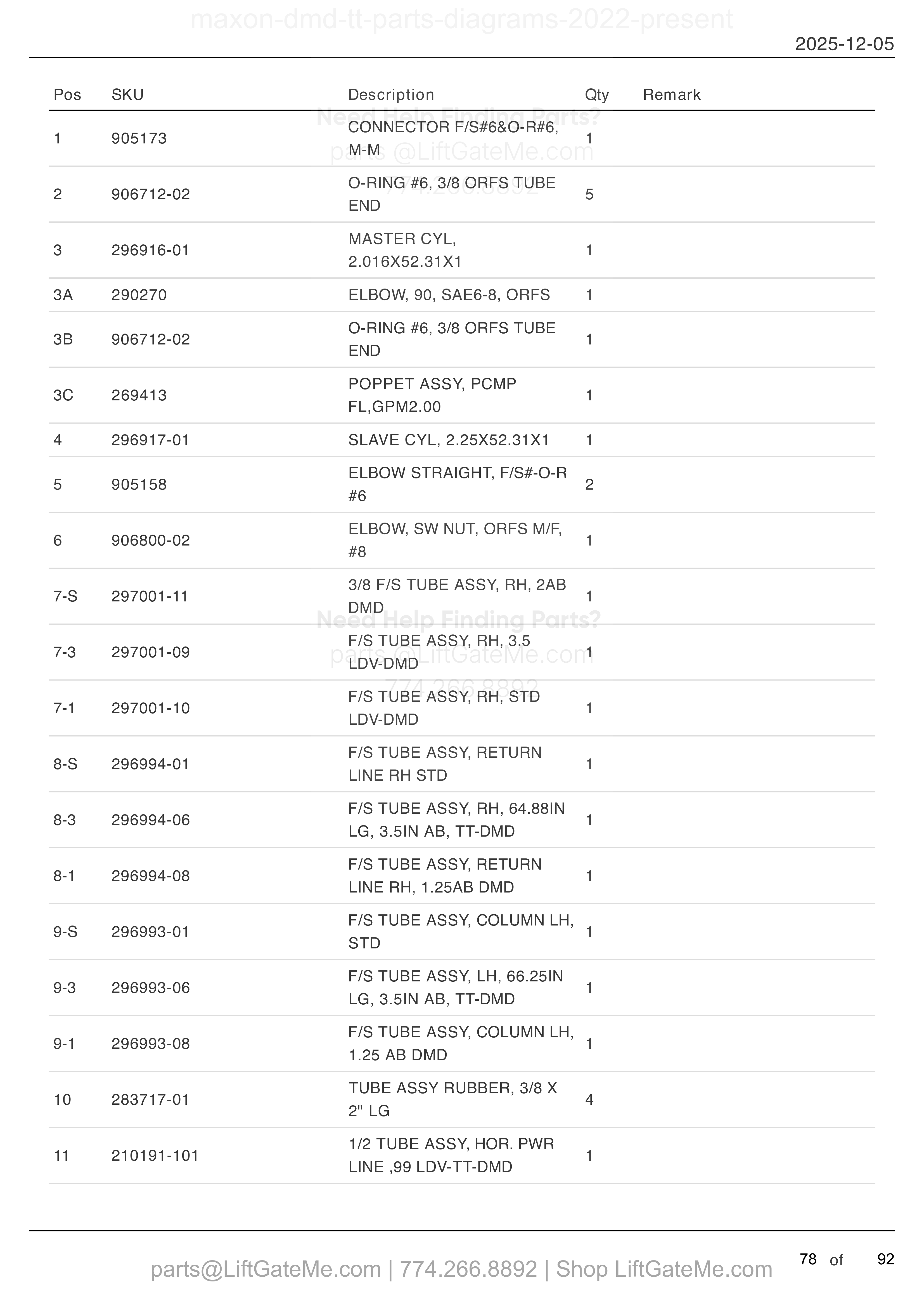

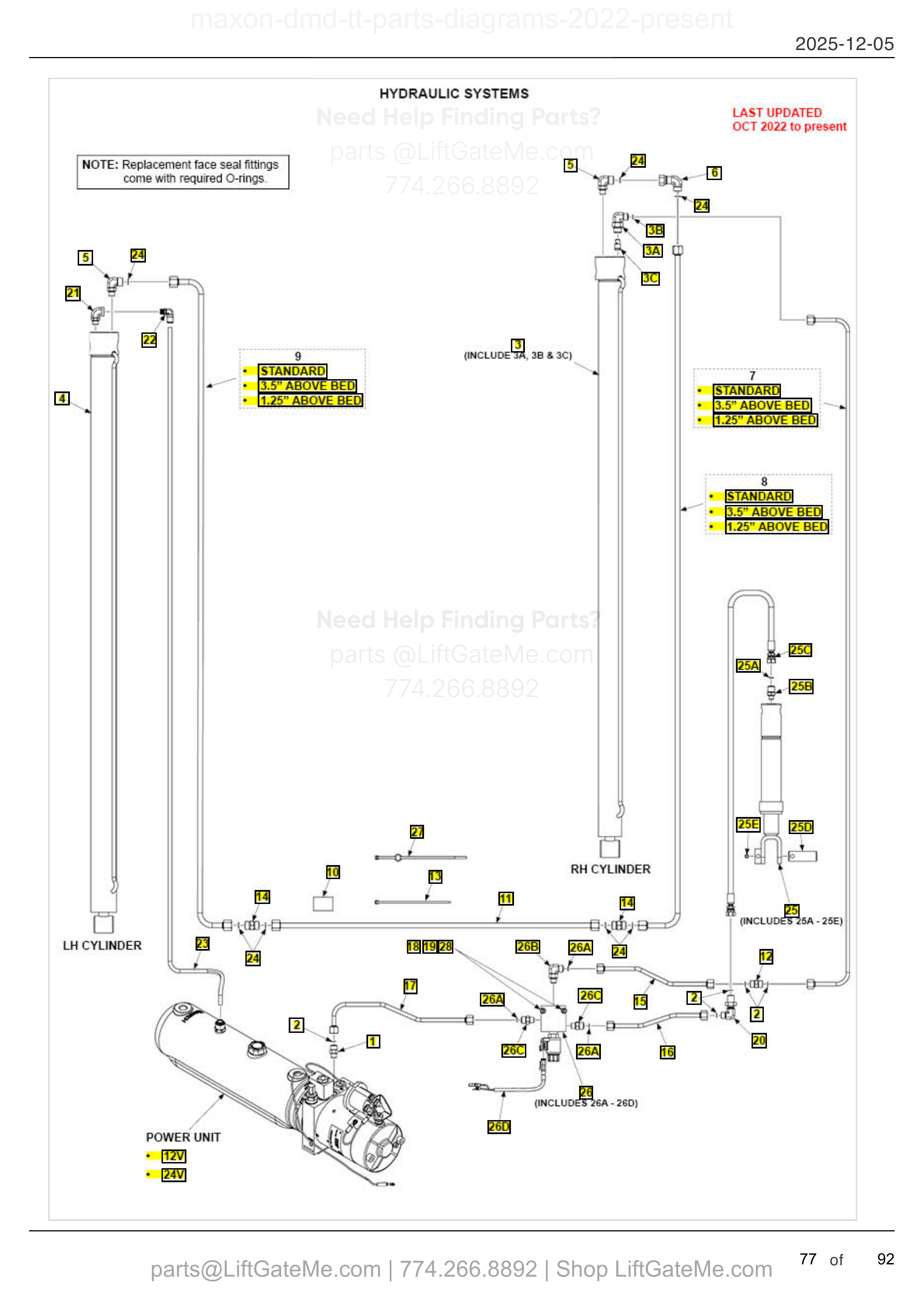

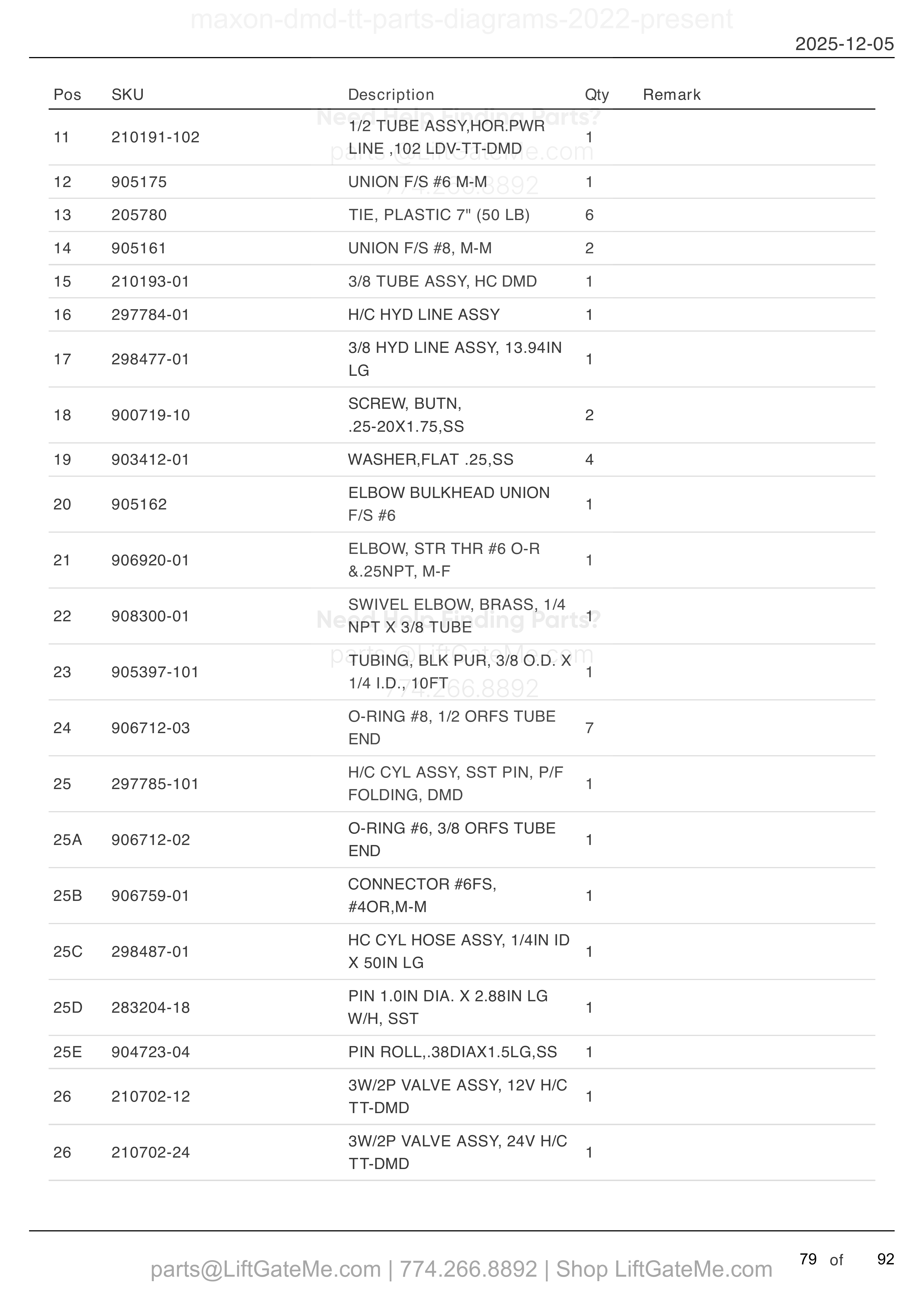

HYDRAULIC SYSTEMS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 905173 | CONNECTOR F/S#6&O-R#6, M-M | |
| 2 | 5 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 3 | 1 | 296916-01 | MASTER CYL, 2.016X52.31X1 | |
| 3A | 1 | 290270 | ELBOW, 90, SAE6-8, ORFS | |
| 3B | 1 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 3C | 1 | 269413 | POPPET ASSY, PCMP FL,GPM2.00 | |
| 4 | 1 | 296917-01 | SLAVE CYL, 2.25X52.31X1 | |
| 5 | 2 | 905158 | ELBOW STRAIGHT, F/S#-O-R #6 | |
| 6 | 1 | 906800-02 | ELBOW, SW NUT, ORFS M/F, #8 | |
| 7-S | 1 | 297001-11 | 3/8 F/S TUBE ASSY, RH, 2AB DMD | |
| 7-3 | 1 | 297001-09 | F/S TUBE ASSY, RH, 3.5 LDV-DMD | |
| 7-1 | 1 | 297001-10 | F/S TUBE ASSY, RH, STD LDV-DMD | |
| 8-S | 1 | 296994-01 | F/S TUBE ASSY, RETURN LINE RH STD | |
| 8-3 | 1 | 296994-06 | F/S TUBE ASSY, RH, 64.88IN LG, 3.5IN AB, TT-DMD | |
| 8-1 | 1 | 296994-08 | F/S TUBE ASSY, RETURN LINE RH, 1.25AB DMD | |
| 9-S | 1 | 296993-01 | F/S TUBE ASSY, COLUMN LH, STD | |
| 9-3 | 1 | 296993-06 | F/S TUBE ASSY, LH, 66.25IN LG, 3.5IN AB, TT-DMD | |
| 9-1 | 1 | 296993-08 | F/S TUBE ASSY, COLUMN LH, 1.25 AB DMD | |
| 10 | 4 | 283717-01 | TUBE ASSY RUBBER, 3/8 X 2" LG | |
| 11 | 1 | 210191-101 | 1/2 TUBE ASSY, HOR. PWR LINE ,99 LDV-TT-DMD |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
HYDRAULIC SYSTEMS (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 11 | 1 | 210191-102 | 1/2 TUBE ASSY,HOR.PWR LINE ,102 LDV-TT-DMD | |
| 12 | 1 | 905175 | UNION F/S #6 M-M | |
| 13 | 6 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 14 | 2 | 905161 | UNION F/S #8, M-M | |
| 15 | 1 | 210193-01 | 3/8 TUBE ASSY, HC DMD | |
| 16 | 1 | 297784-01 | H/C HYD LINE ASSY | |
| 17 | 1 | 298477-01 | 3/8 HYD LINE ASSY, 13.94IN LG | |
| 18 | 2 | 900719-10 | SCREW, BUTN, .25-20X1.75,SS | |
| 19 | 4 | 903412-01 | WASHER,FLAT .25,SS | |
| 20 | 1 | 905162 | ELBOW BULKHEAD UNION F/S #6 | |
| 21 | 1 | 906920-01 | ELBOW, STR THR #6 O-R &.25NPT, M-F | |
| 22 | 1 | 908300-01 | SWIVEL ELBOW, BRASS, 1/4 NPT X 3/8 TUBE | |
| 23 | 1 | 905397-101 | TUBING, BLK PUR, 3/8 O.D. X 1/4 I.D., 10FT | |
| 24 | 7 | 906712-03 | O-RING #8, 1/2 ORFS TUBE END | |
| 25 | 1 | 297785-101 | H/C CYL ASSY, SST PIN, P/F FOLDING, DMD | |
| 25A | 1 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 25B | 1 | 906759-01 | CONNECTOR #6FS, #4OR,M-M | |
| 25C | 1 | 298487-01 | HC CYL HOSE ASSY, 1/4IN ID X 50IN LG | |
| 25D | 1 | 283204-18 | PIN 1.0IN DIA. X 2.88IN LG W/H, SST | |
| 25E | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS | |
| 26 | 1 | 210702-12 | 3W/2P VALVE ASSY, 12V H/C TT-DMD | |
| 26 | 1 | 210702-24 | 3W/2P VALVE ASSY, 24V H/C TT-DMD |

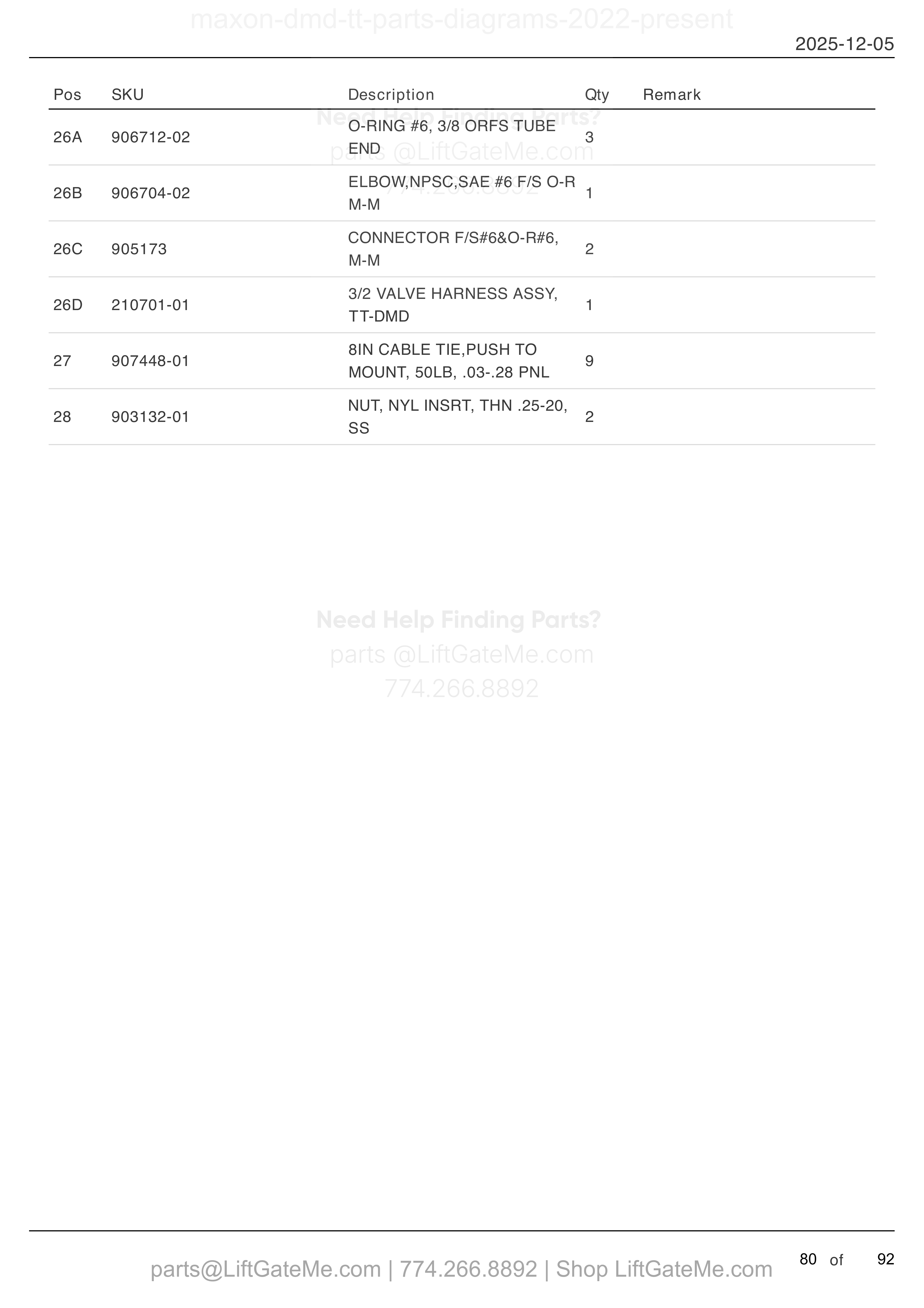

HYDRAULIC SYSTEMS (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 26A | 3 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 26B | 1 | 906704-02 | ELBOW,NPSC,SAE #6 F/S O-R M-M | |
| 26C | 2 | 905173 | CONNECTOR F/S#6&O-R#6, M-M | |
| 26D | 1 | 210701-01 | 3/2 VALVE HARNESS ASSY, TT-DMD | |
| 27 | 9 | 907448-01 | 8IN CABLE TIE,PUSH TO MOUNT, 50LB, .03-.28 PNL | |
| 28 | 2 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

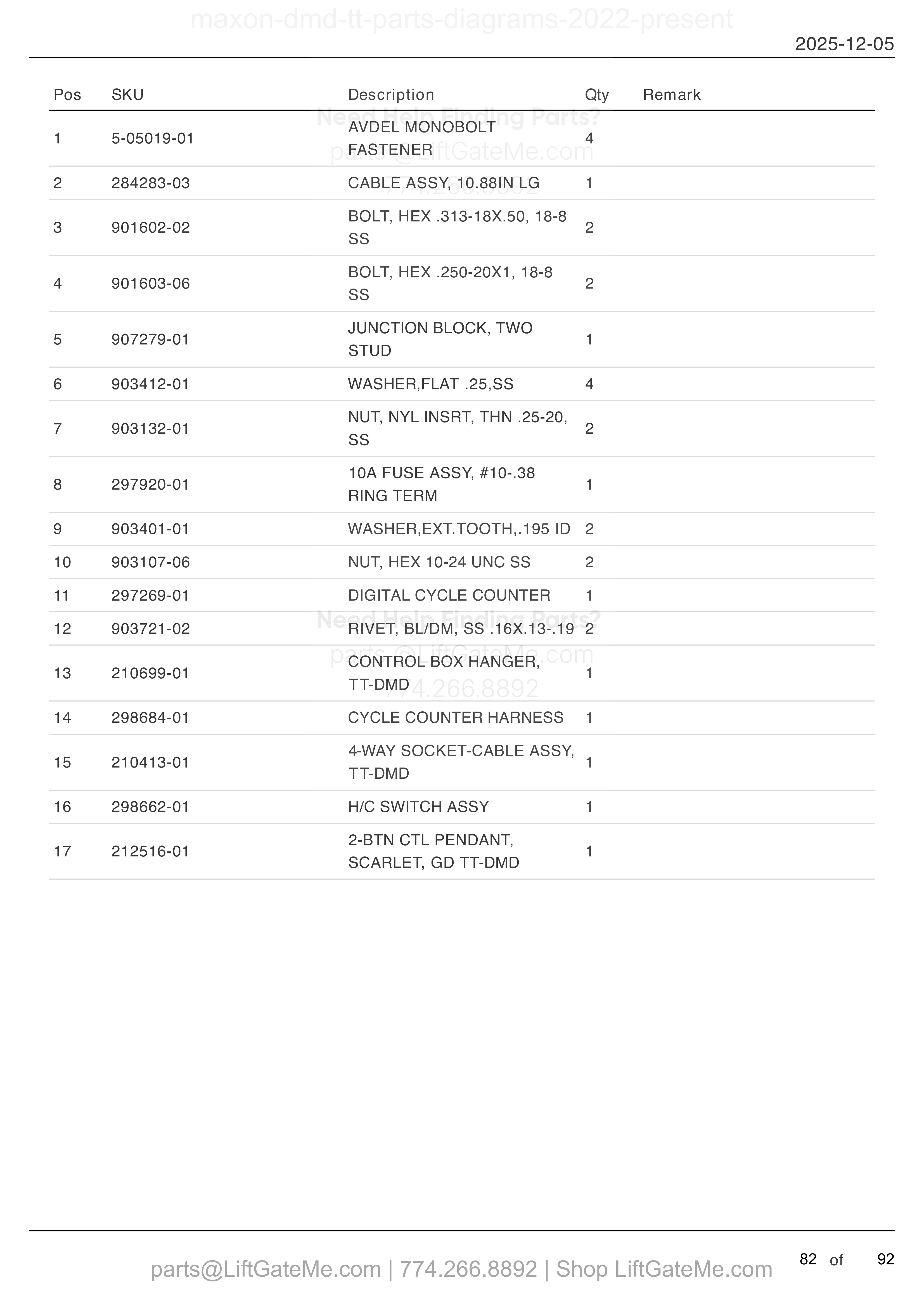

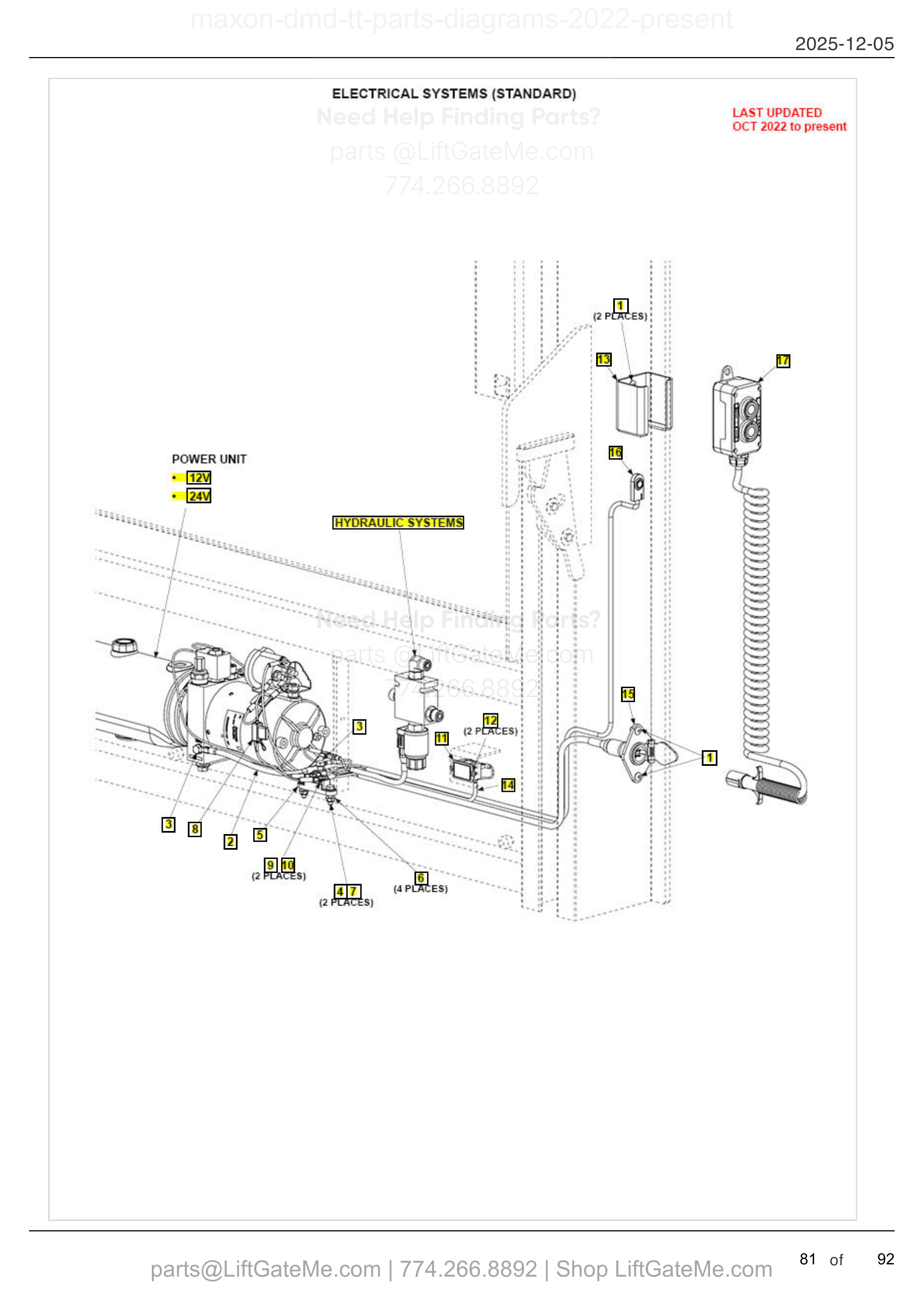

ELECTRICAL SYSTEMS (STANDARD)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 5-05019-01 | AVDEL MONOBOLT FASTENER | |
| 2 | 1 | 284283-03 | CABLE ASSY, 10.88IN LG | |
| 3 | 2 | 901602-02 | BOLT, HEX .313-18X.50, 18-8 SS | |
| 4 | 2 | 901603-06 | BOLT, HEX .250-20X1, 18-8 SS | |
| 5 | 1 | 907279-01 | JUNCTION BLOCK, TWO STUD | |
| 6 | 4 | 903412-01 | WASHER,FLAT .25,SS | |
| 7 | 2 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS | |
| 8 | 1 | 297920-01 | 10A FUSE ASSY, #10-.38 RING TERM | |
| 9 | 2 | 903401-01 | WASHER,EXT.TOOTH,.195 ID | |
| 10 | 2 | 903107-06 | NUT, HEX 10-24 UNC SS | |
| 11 | 1 | 297269-01 | DIGITAL CYCLE COUNTER | |
| 12 | 2 | 903721-02 | RIVET, BL/DM, SS .16X.13-.19 | |
| 13 | 1 | 210699-01 | CONTROL BOX HANGER, TT-DMD | |
| 14 | 1 | 298684-01 | CYCLE COUNTER HARNESS | |
| 15 | 1 | 210413-01 | 4-WAY SOCKET-CABLE ASSY, TT-DMD | |
| 16 | 1 | 298662-01 | H/C SWITCH ASSY | |
| 17 | 1 | 212516-01 | 2-BTN CTL PENDANT, SCARLET, GD TT-DMD |

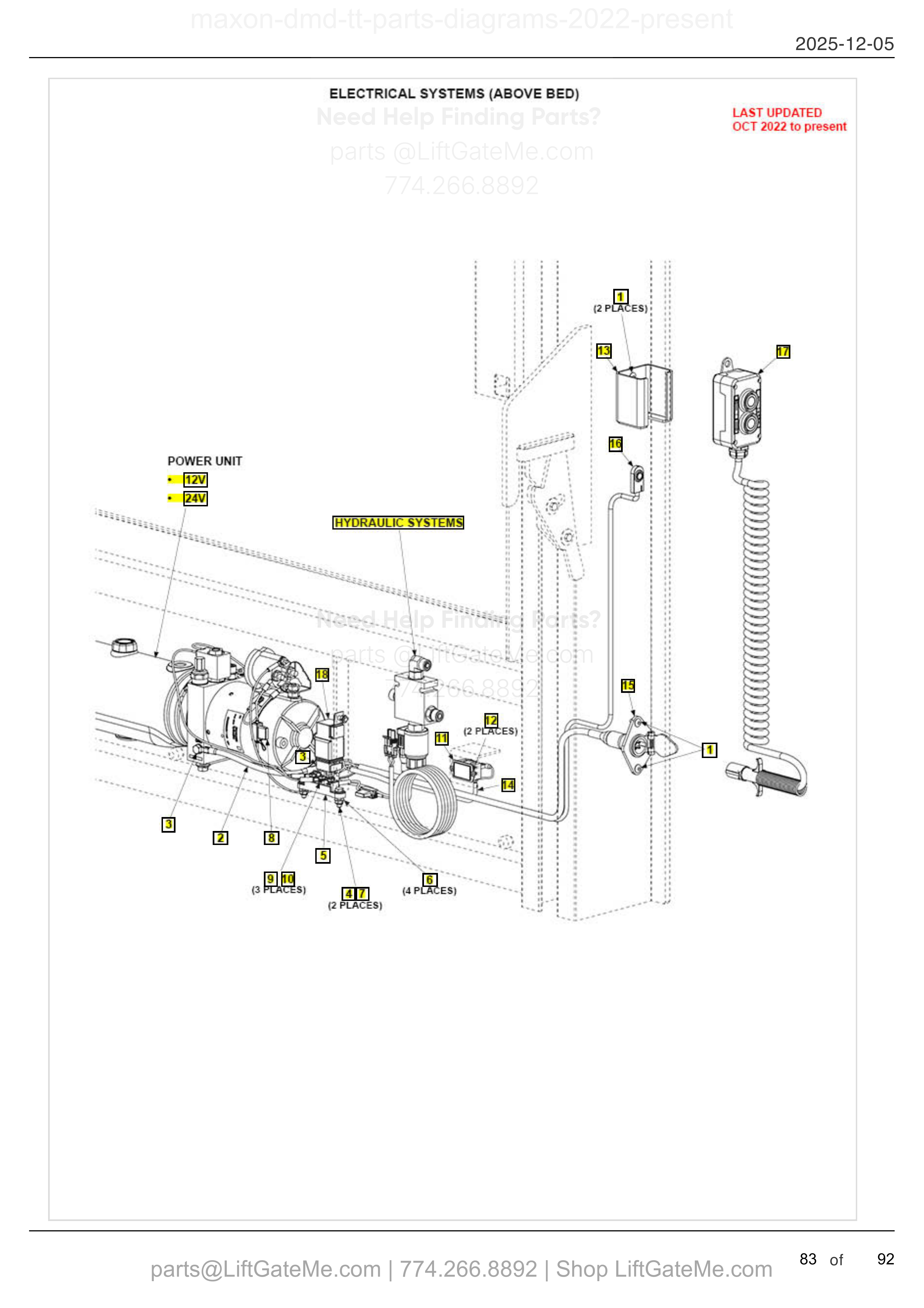

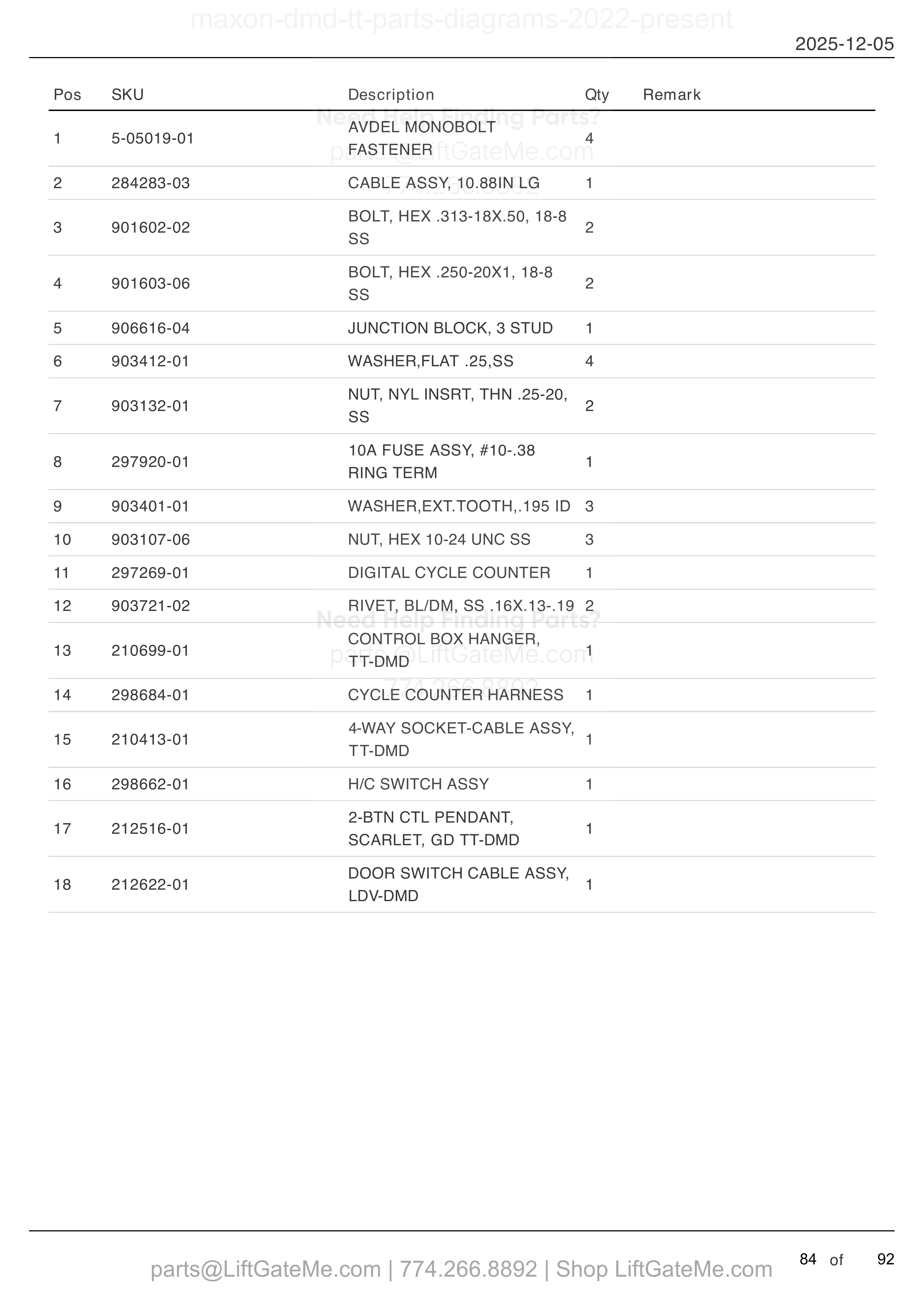

ELECTRICAL SYSTEMS (ABOVE BED)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 5-05019-01 | AVDEL MONOBOLT FASTENER | |
| 2 | 1 | 284283-03 | CABLE ASSY, 10.88IN LG | |
| 3 | 2 | 901602-02 | BOLT, HEX .313-18X.50, 18-8 SS | |
| 4 | 2 | 901603-06 | BOLT, HEX .250-20X1, 18-8 SS | |
| 5 | 1 | 906616-04 | JUNCTION BLOCK, 3 STUD | |
| 6 | 4 | 903412-01 | WASHER,FLAT .25,SS | |
| 7 | 2 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS | |
| 8 | 1 | 297920-01 | 10A FUSE ASSY, #10-.38 RING TERM | |
| 9 | 3 | 903401-01 | WASHER,EXT.TOOTH,.195 ID | |
| 10 | 3 | 903107-06 | NUT, HEX 10-24 UNC SS | |
| 11 | 1 | 297269-01 | DIGITAL CYCLE COUNTER | |
| 12 | 2 | 903721-02 | RIVET, BL/DM, SS .16X.13-.19 | |
| 13 | 1 | 210699-01 | CONTROL BOX HANGER, TT-DMD | |
| 14 | 1 | 298684-01 | CYCLE COUNTER HARNESS | |
| 15 | 1 | 210413-01 | 4-WAY SOCKET-CABLE ASSY, TT-DMD | |
| 16 | 1 | 298662-01 | H/C SWITCH ASSY | |
| 17 | 1 | 212516-01 | 2-BTN CTL PENDANT, SCARLET, GD TT-DMD | |
| 18 | 1 | 212622-01 | DOOR SWITCH CABLE ASSY, LDV-DMD |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

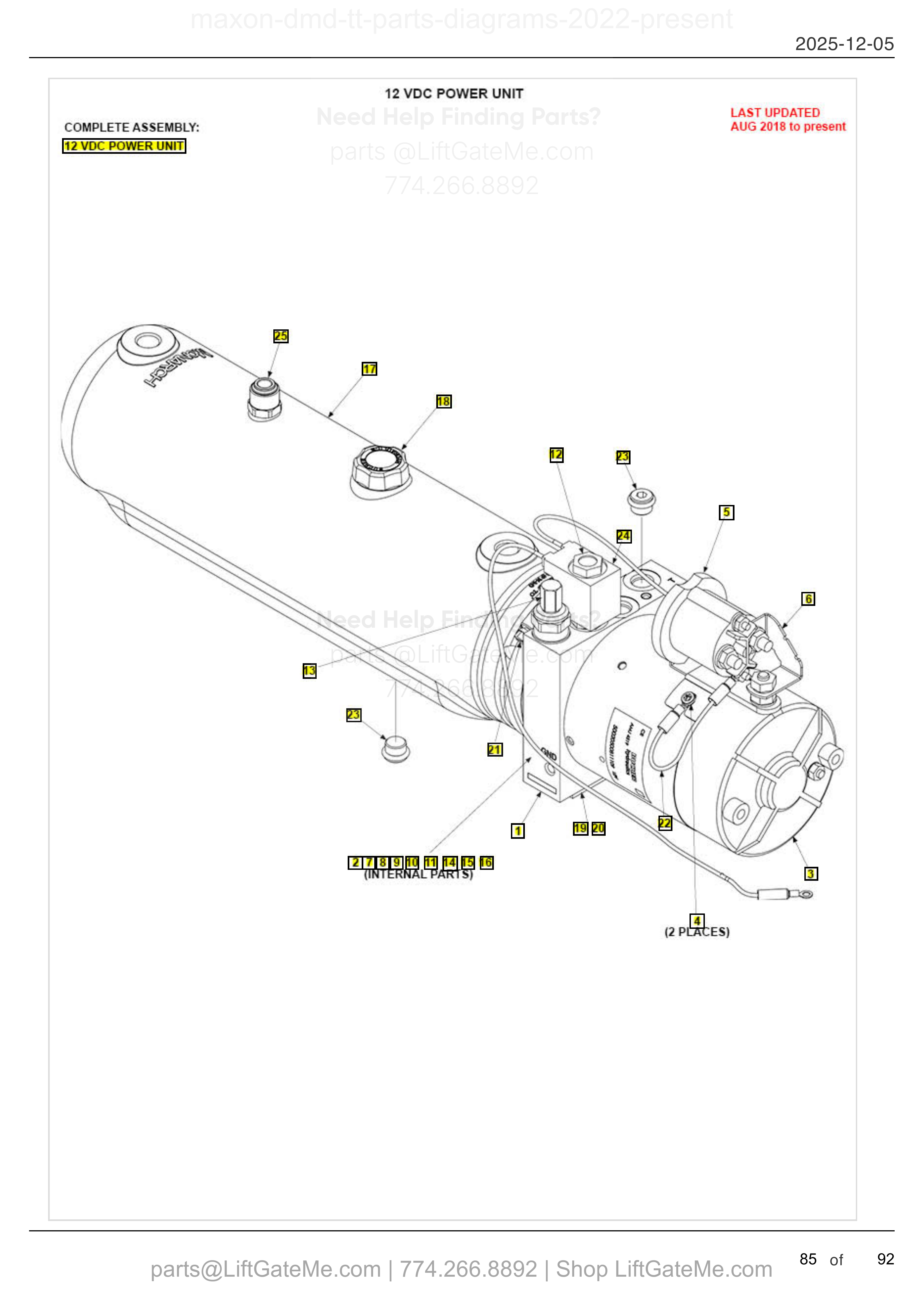

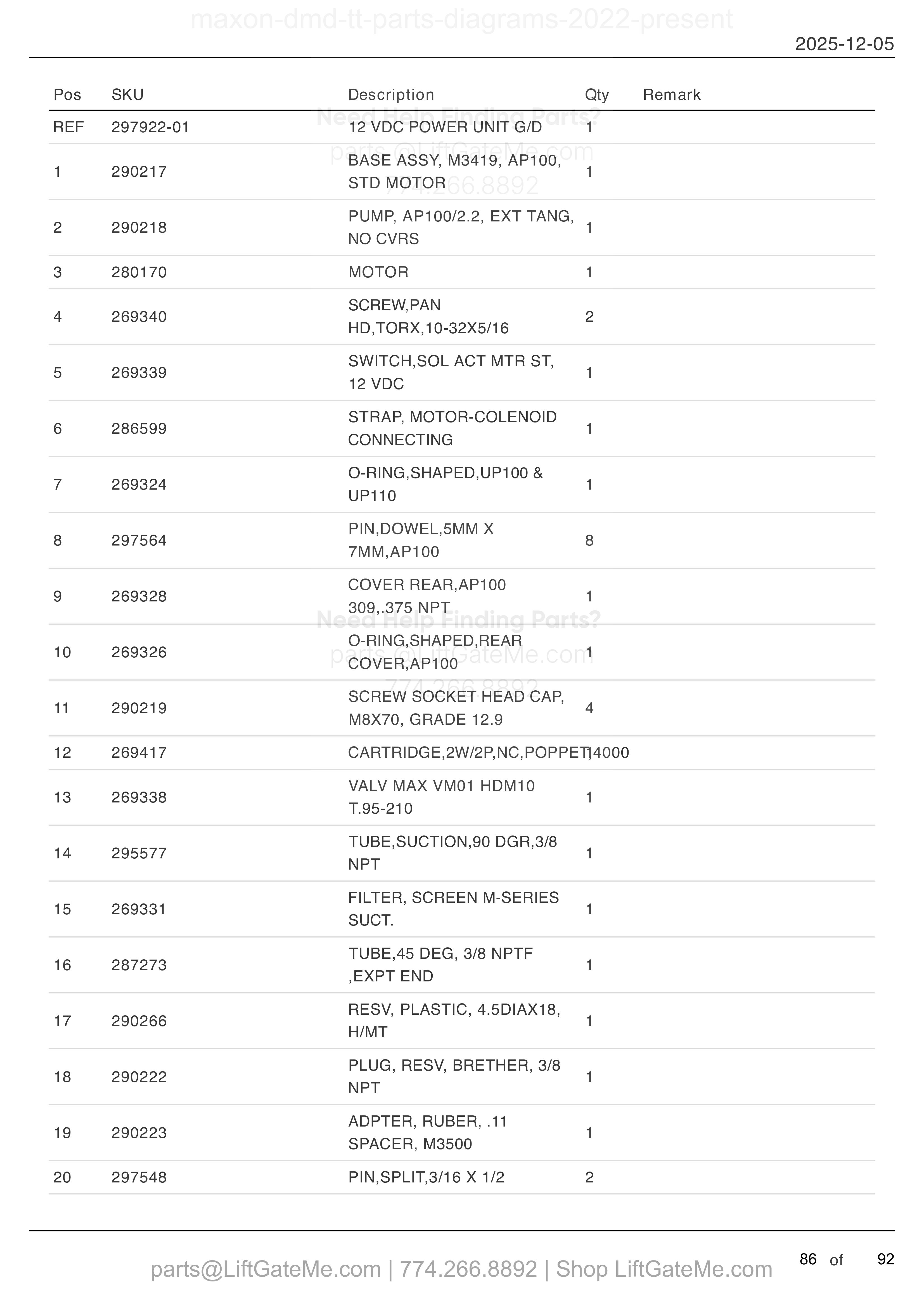

12 VDC POWER UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297922-01 | 12 VDC POWER UNIT G/D | |
| 1 | 1 | 290217 | BASE ASSY, M3419, AP100, STD MOTOR | |
| 2 | 1 | 290218 | PUMP, AP100/2.2, EXT TANG, NO CVRS | |
| 3 | 1 | 280170 | MOTOR | |
| 4 | 2 | 269340 | SCREW,PAN HD,TORX,10-32X5/16 | |
| 5 | 1 | 269339 | SWITCH,SOL ACT MTR ST, 12 VDC | |
| 6 | 1 | 286599 | STRAP, MOTOR-COLENOID CONNECTING | |
| 7 | 1 | 269324 | O-RING,SHAPED,UP100 & UP110 | |
| 8 | 8 | 297564 | PIN,DOWEL,5MM X 7MM,AP100 | |
| 9 | 1 | 269328 | COVER REAR,AP100 309,.375 NPT | |
| 10 | 1 | 269326 | O-RING,SHAPED,REAR COVER,AP100 | |
| 11 | 4 | 290219 | SCREW SOCKET HEAD CAP, M8X70, GRADE 12.9 | |
| 12 | 269417 | CARTRIDGE,2W/2P,NC,POPPET,4000 | ||
| 13 | 1 | 269338 | VALV MAX VM01 HDM10 T.95-210 | |
| 14 | 1 | 295577 | TUBE,SUCTION,90 DGR,3/8 NPT | |
| 15 | 1 | 269331 | FILTER, SCREEN M-SERIES SUCT. | |
| 16 | 1 | 287273 | TUBE,45 DEG, 3/8 NPTF ,EXPT END | |
| 17 | 1 | 290266 | RESV, PLASTIC, 4.5DIAX18, H/MT | |
| 18 | 1 | 290222 | PLUG, RESV, BRETHER, 3/8 NPT | |
| 19 | 1 | 290223 | ADPTER, RUBER, .11 SPACER, M3500 | |
| 20 | 2 | 297548 | PIN,SPLIT,3/16 X 1/2 |

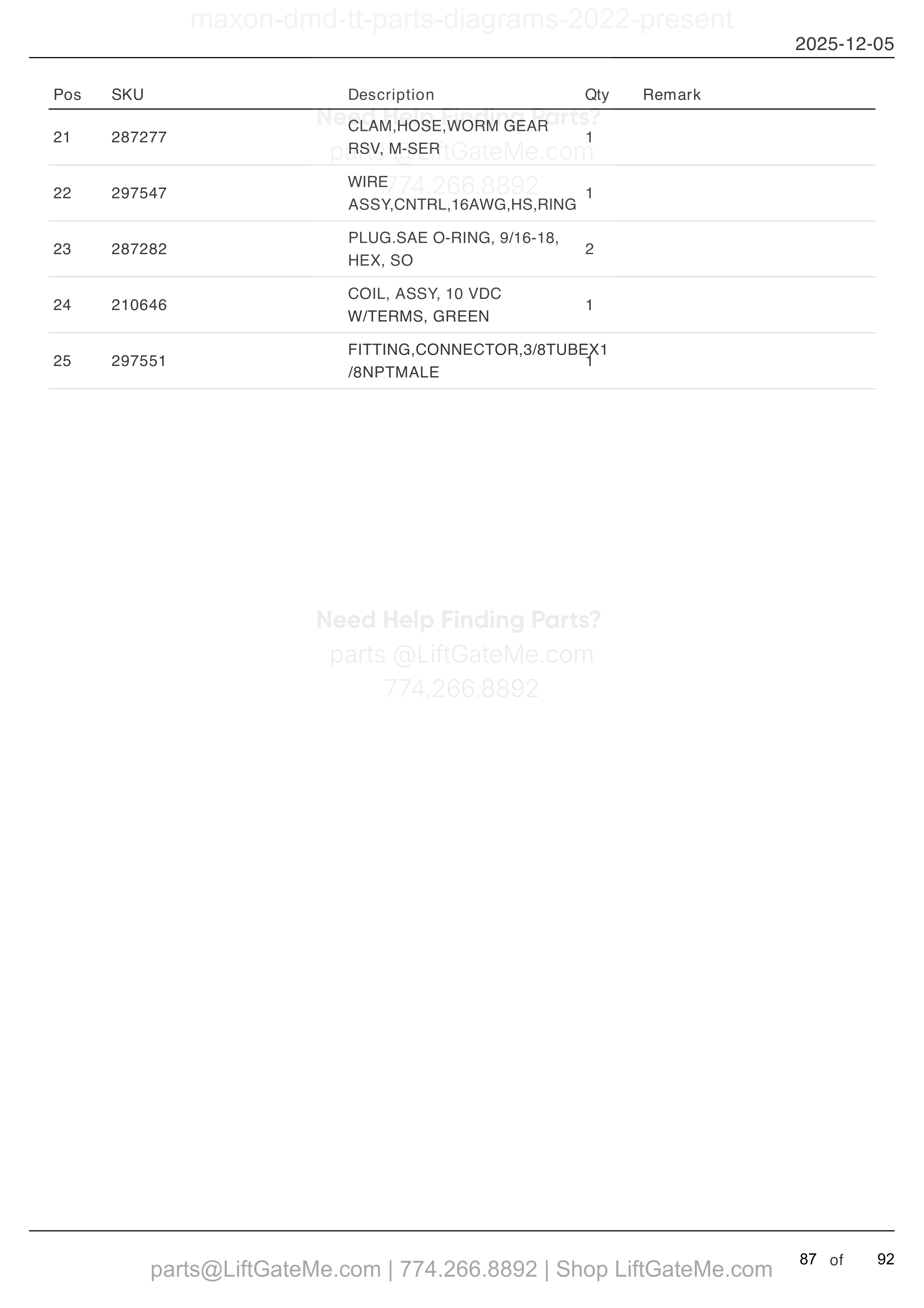

12 VDC POWER UNIT (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 21 | 1 | 287277 | CLAM,HOSE,WORM GEAR RSV, M-SER | |
| 22 | 1 | 297547 | WIRE ASSY,CNTRL,16AWG,HS,RING | |
| 23 | 2 | 287282 | PLUG.SAE O-RING, 9/16-18, HEX, SO | |
| 24 | 1 | 210646 | COIL, ASSY, 10 VDC W/TERMS, GREEN | |
| 25 | 1 | 297551 | FITTING,CONNECTOR,3/8TUBEX1/8NPTMALE |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

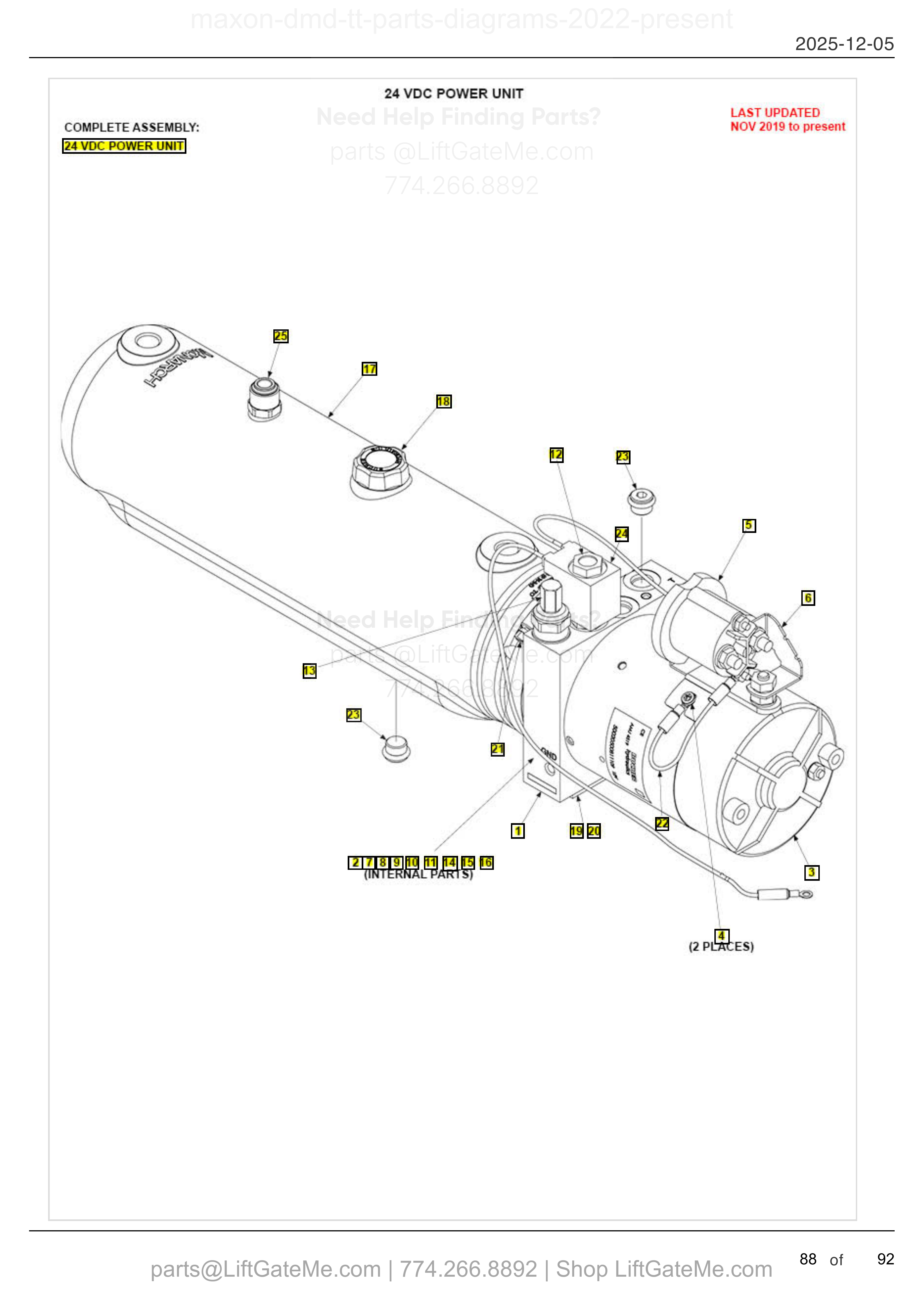

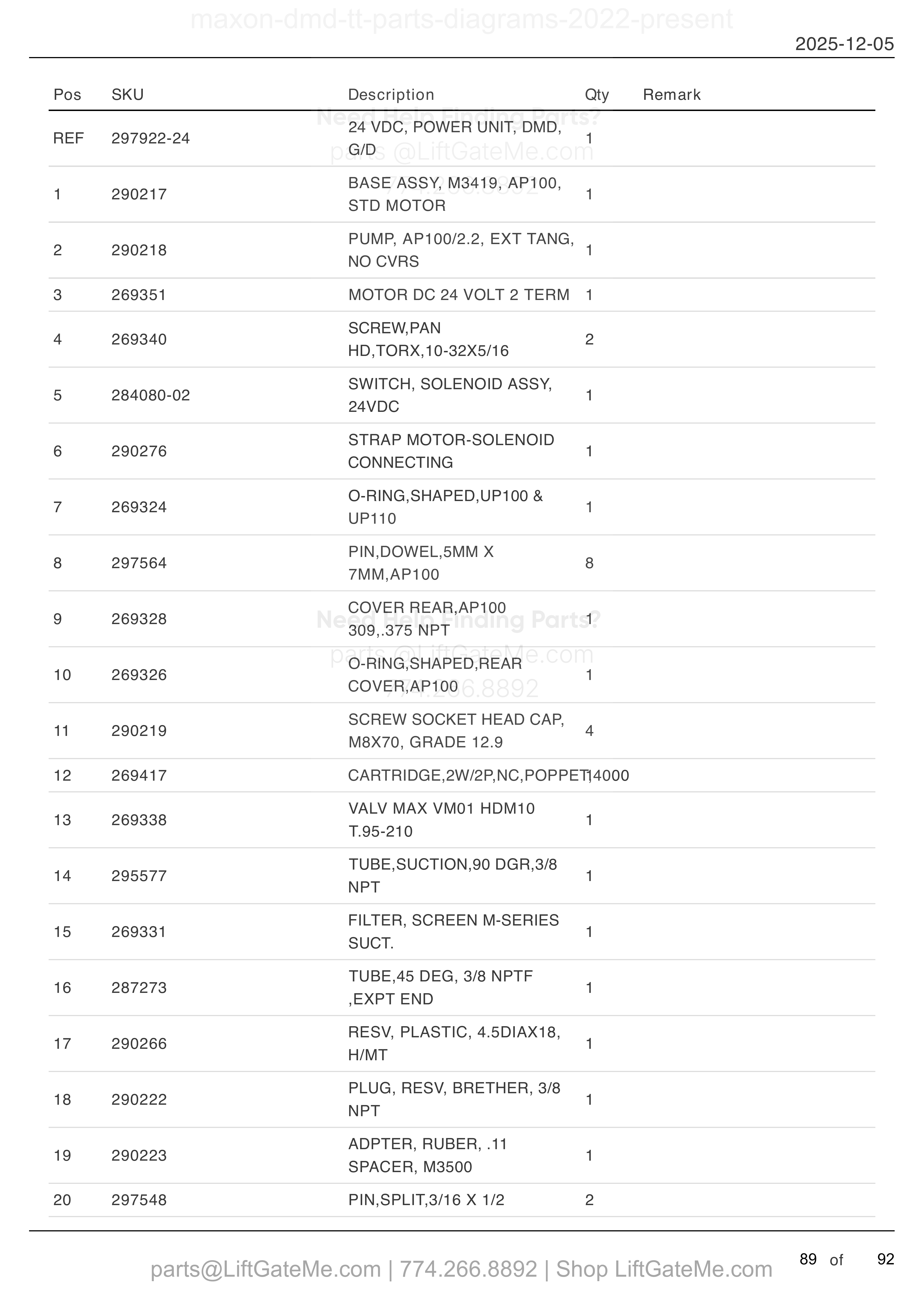

24 VDC POWER UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297922-24 | 24 VDC, POWER UNIT, DMD, G/D | |
| 1 | 1 | 290217 | BASE ASSY, M3419, AP100, STD MOTOR | |
| 2 | 1 | 290218 | PUMP, AP100/2.2, EXT TANG, NO CVRS | |
| 3 | 1 | 269351 | MOTOR DC 24 VOLT 2 TERM | |
| 4 | 2 | 269340 | SCREW,PAN HD,TORX,10-32X5/16 | |
| 5 | 1 | 284080-02 | SWITCH, SOLENOID ASSY, 24VDC | |
| 6 | 1 | 290276 | STRAP MOTOR-SOLENOID CONNECTING | |
| 7 | 1 | 269324 | O-RING,SHAPED,UP100 & UP110 | |
| 8 | 8 | 297564 | PIN,DOWEL,5MM X 7MM,AP100 | |
| 9 | 1 | 269328 | COVER REAR,AP100 309,.375 NPT | |
| 10 | 1 | 269326 | O-RING,SHAPED,REAR COVER,AP100 | |
| 11 | 4 | 290219 | SCREW SOCKET HEAD CAP, M8X70, GRADE 12.9 | |
| 12 | 1 | 269417 | CARTRIDGE,2W/2P,NC,POPPET,4000 | |
| 13 | 1 | 269338 | VALV MAX VM01 HDM10 T.95-210 | |
| 14 | 1 | 295577 | TUBE,SUCTION,90 DGR,3/8 NPT | |
| 15 | 1 | 269331 | FILTER, SCREEN M-SERIES SUCT. | |
| 16 | 1 | 287273 | TUBE,45 DEG, 3/8 NPTF ,EXPT END | |
| 17 | 1 | 290266 | RESV, PLASTIC, 4.5DIAX18, H/MT | |
| 18 | 1 | 290222 | PLUG, RESV, BRETHER, 3/8 NPT | |
| 19 | 1 | 290223 | ADPTER, RUBER, .11 SPACER, M3500 | |
| 20 | 2 | 297548 | PIN,SPLIT,3/16 X 1/2 |

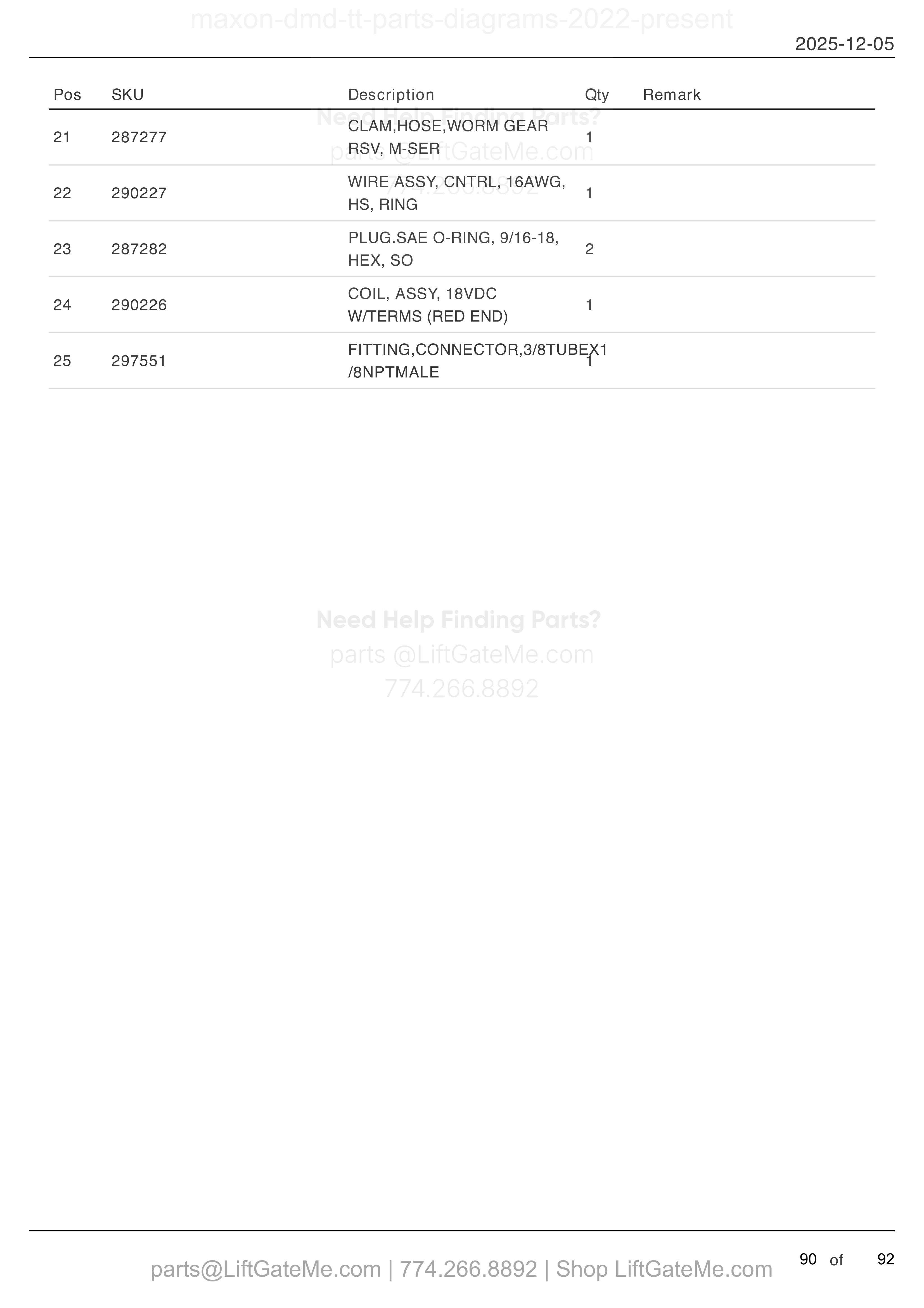

24 VDC POWER UNIT (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 21 | 1 | 287277 | CLAM,HOSE,WORM GEAR RSV, M-SER | |
| 22 | 1 | 290227 | WIRE ASSY, CNTRL, 16AWG, HS, RING | |
| 23 | 2 | 287282 | PLUG,SAE O-RING, 9/16-18, HEX, SO | |
| 24 | 1 | 290226 | COIL, ASSY, 18VDC W/TERMS (RED END) | |
| 25 | 1 | 297551 | FITTING,CONNECTOR,3/8TUBEX1/8NPTMALE |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

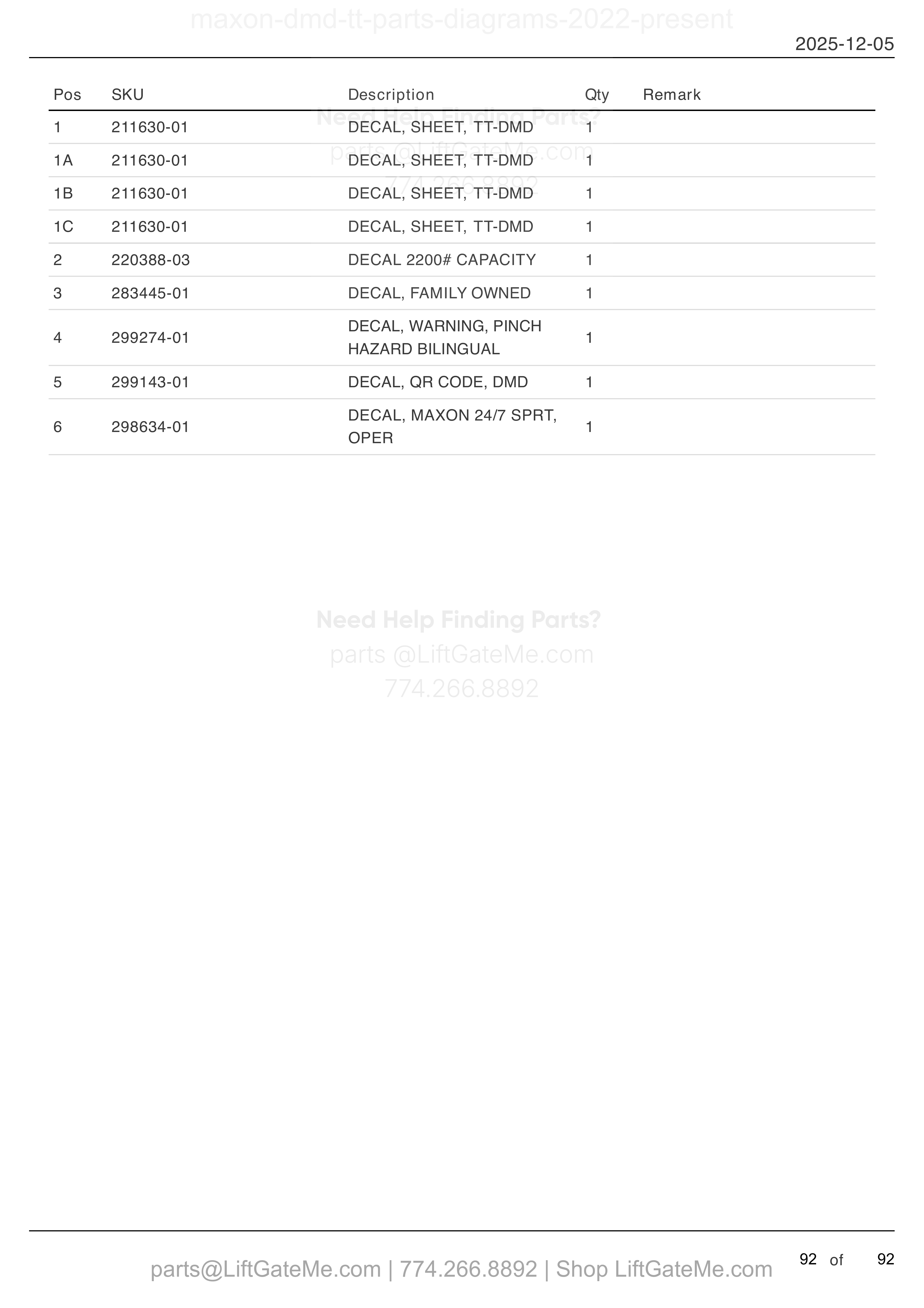

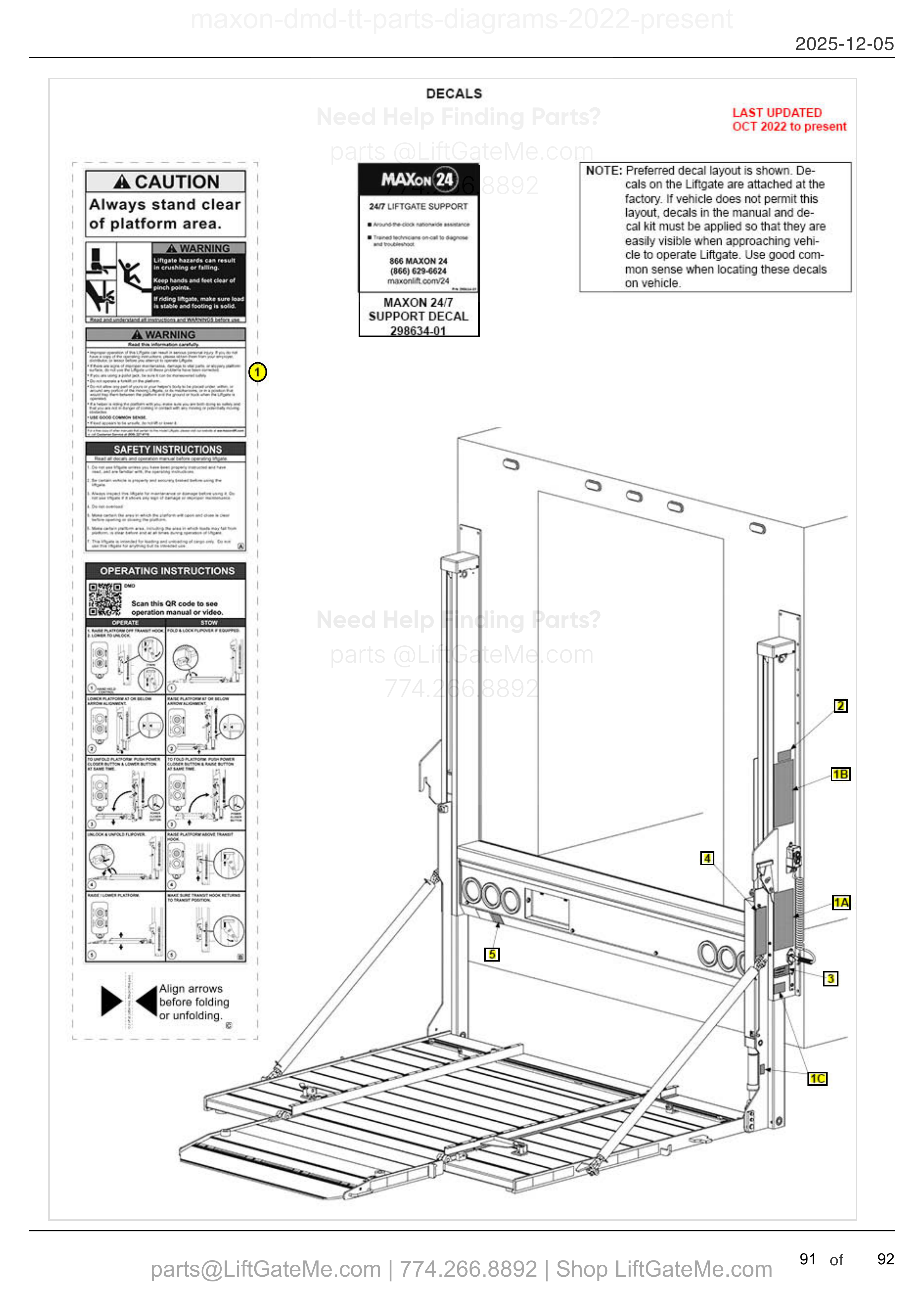

DECALS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 211630-01 | DECAL, SHEET, TT-DMD | |
| 1A | 1 | 211630-01 | DECAL, SHEET, TT-DMD | |
| 1B | 1 | 211630-01 | DECAL, SHEET, TT-DMD | |
| 1C | 1 | 211630-01 | DECAL, SHEET, TT-DMD | |
| 2 | 1 | 220388-03 | DECAL 2200# CAPACITY | |
| 3 | 1 | 283445-01 | DECAL, FAMILY OWNED | |
| 4 | 1 | 299274-01 | DECAL, WARNING, PINCH HAZARD BILINGUAL | |
| 5 | 1 | 299143-01 | DECAL, QR CODE, DMD | |
| 6 | 1 | 298634-01 | DECAL, MAXON 24/7 SPRT, OPER |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
