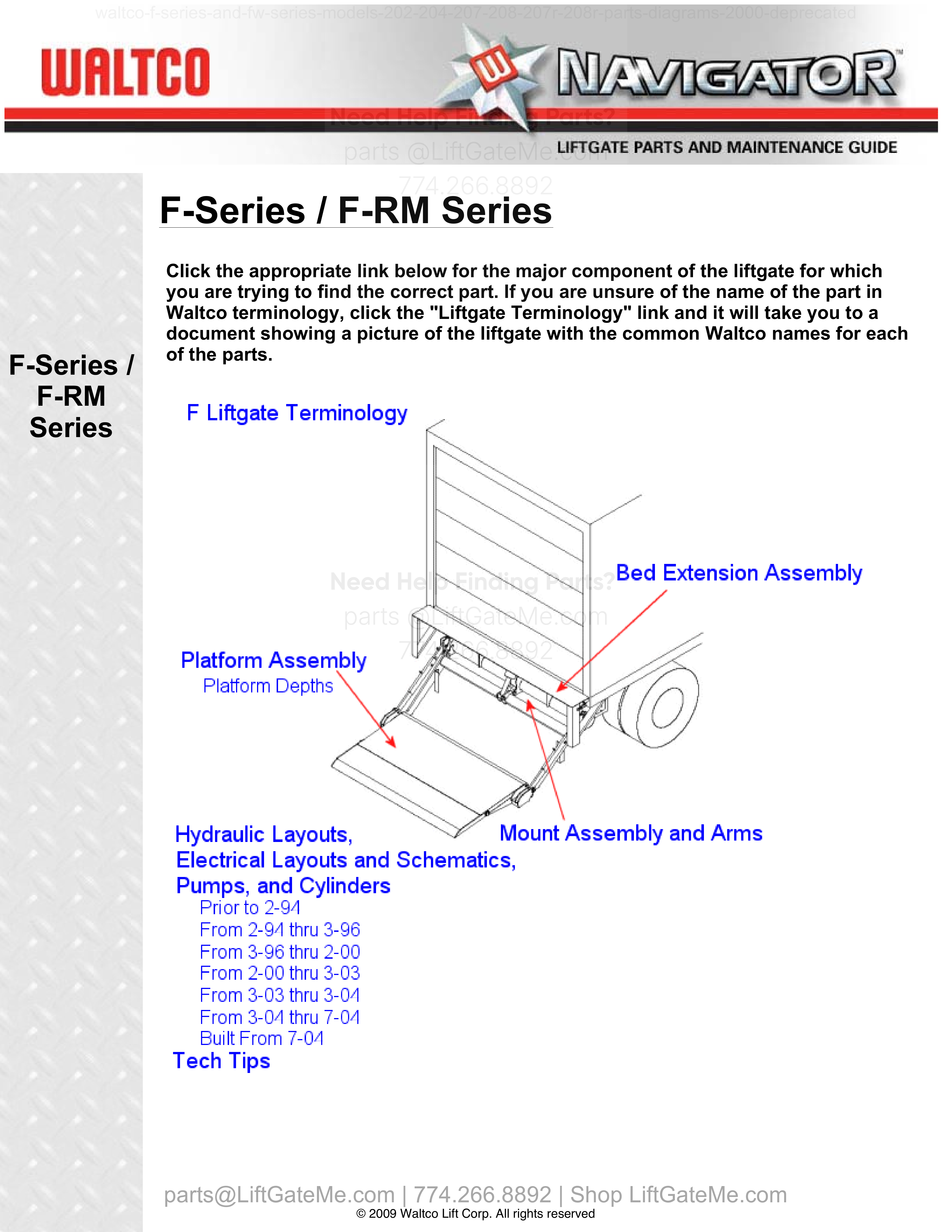

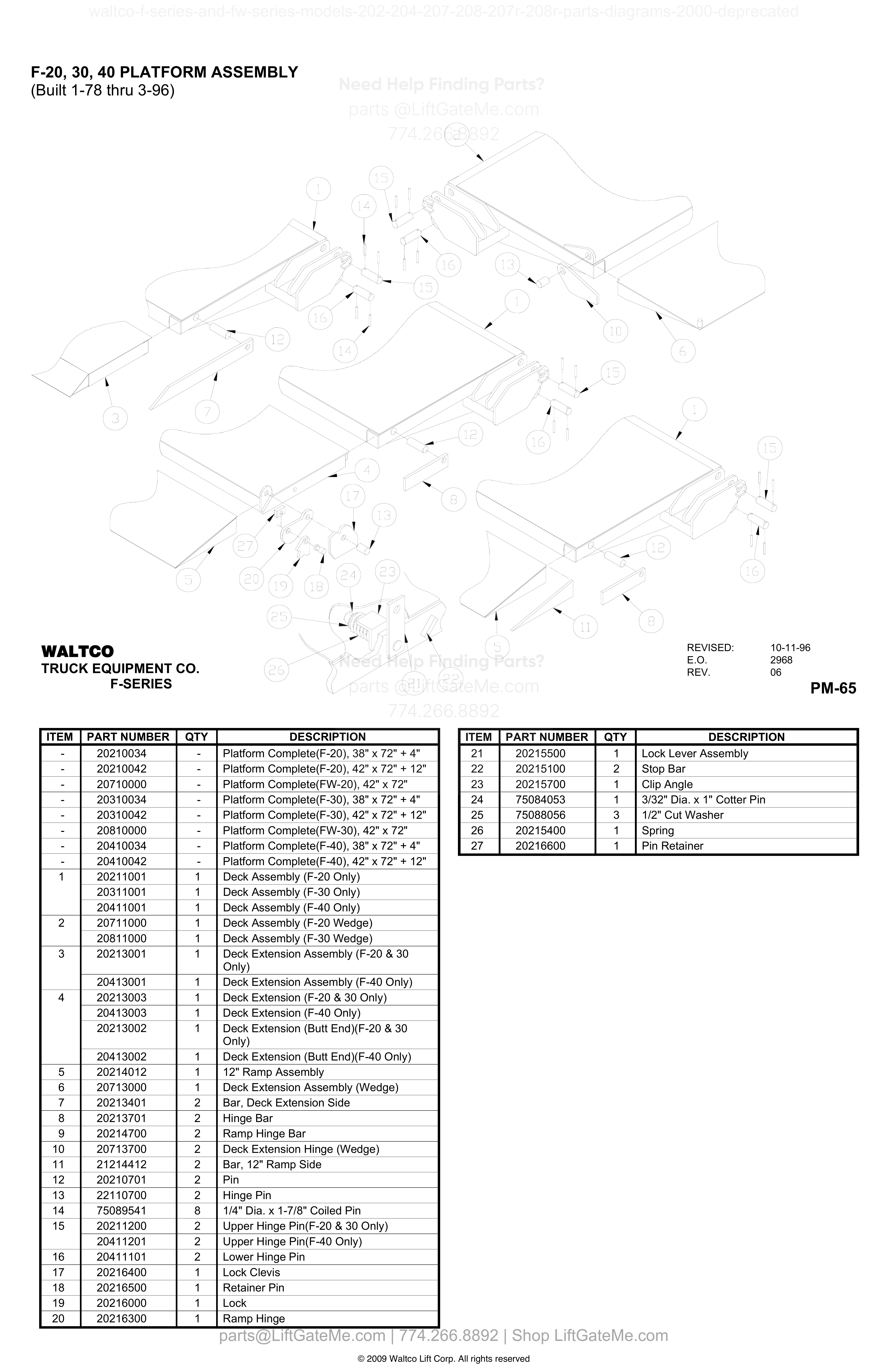

F-20, 30, 40 PLATFORM ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| - | - | 20210034 | Platform Complete(F-20), 38" x 72" + 4" | |
| - | - | 20210042 | Platform Complete(F-20), 42" x 72" + 12" | |
| - | - | 20710000 | Platform Complete(FW-20), 42" x 72" | |
| - | - | 20310034 | Platform Complete(F-30), 38" x 72" + 4" | |
| - | - | 20310042 | Platform Complete(F-30), 42" x 72" + 12" | |
| - | - | 20810000 | Platform Complete(FW-30), 42" x 72" | |
| - | - | 20410034 | Platform Complete(F-40), 38" x 72" + 4" | |
| - | - | 20410042 | Platform Complete(F-40), 42" x 72" + 12" | |
| 1 | 1 | 20211001 | Deck Assembly (F-20 Only) | |
| 1 | 1 | 20311001 | Deck Assembly (F-30 Only) | |
| 1 | 1 | 20411001 | Deck Assembly (F-40 Only) | |
| 2 | 1 | 20711000 | Deck Assembly (F-20 Wedge) | |
| 2 | 1 | 20811000 | Deck Assembly (F-30 Wedge) | |
| 3 | 1 | 20213001 | Deck Extension Assembly (F-20 & 30 Only) | |
| 3 | 1 | 20413001 | Deck Extension Assembly (F-40 Only) | |
| 4 | 1 | 20213003 | Deck Extension (F-20 & 30 Only) | |
| 4 | 1 | 20413003 | Deck Extension (F-40 Only) | |
| 4 | 1 | 20213002 | Deck Extension (Butt End)(F-20 & 30 Only) | |
| 4 | 1 | 20413002 | Deck Extension (Butt End)(F-40 Only) | |
| 5 | 1 | 20214012 | 12" Ramp Assembly | |
| 6 | 1 | 20713000 | Deck Extension Assembly (Wedge) | |
| 7 | 2 | 20213401 | Bar, Deck Extension Side | |
| 8 | 2 | 20213701 | Hinge Bar | |
| 9 | 2 | 20214700 | Ramp Hinge Bar | |
| 10 | 2 | 20713700 | Deck Extension Hinge (Wedge) | |
| 11 | 2 | 21214412 | Bar, 12" Ramp Side | |
| 12 | 2 | 20210701 | Pin | |
| 13 | 2 | 22110700 | Hinge Pin | |
| 14 | 8 | 75089541 | 1/4" Dia. x 1-7/8" Coiled Pin | |
| 15 | 2 | 20211200 | Upper Hinge Pin(F-20 & 30 Only) | |
| 15 | 2 | 20411201 | Upper Hinge Pin(F-40 Only) | |
| 16 | 2 | 20411101 | Lower Hinge Pin | |
| 17 | 1 | 20216400 | Lock Clevis | |
| 18 | 1 | 20216500 | Retainer Pin | |
| 19 | 1 | 20216000 | Lock | |
| 20 | 1 | 20216300 | Ramp Hinge | |
| 21 | 1 | 20215500 | Lock Lever Assembly | |
| 22 | 2 | 20215100 | Stop Bar | |
| 23 | 1 | 20215700 | Clip Angle | |
| 24 | 1 | 75084053 | 3/32" Dia. x 1" Cotter Pin | |
| 25 | 3 | 75088056 | 1/2" Cut Washer | |
| 26 | 1 | 20215400 | Spring | |
| 27 | 1 | 20216600 | Pin Retainer |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

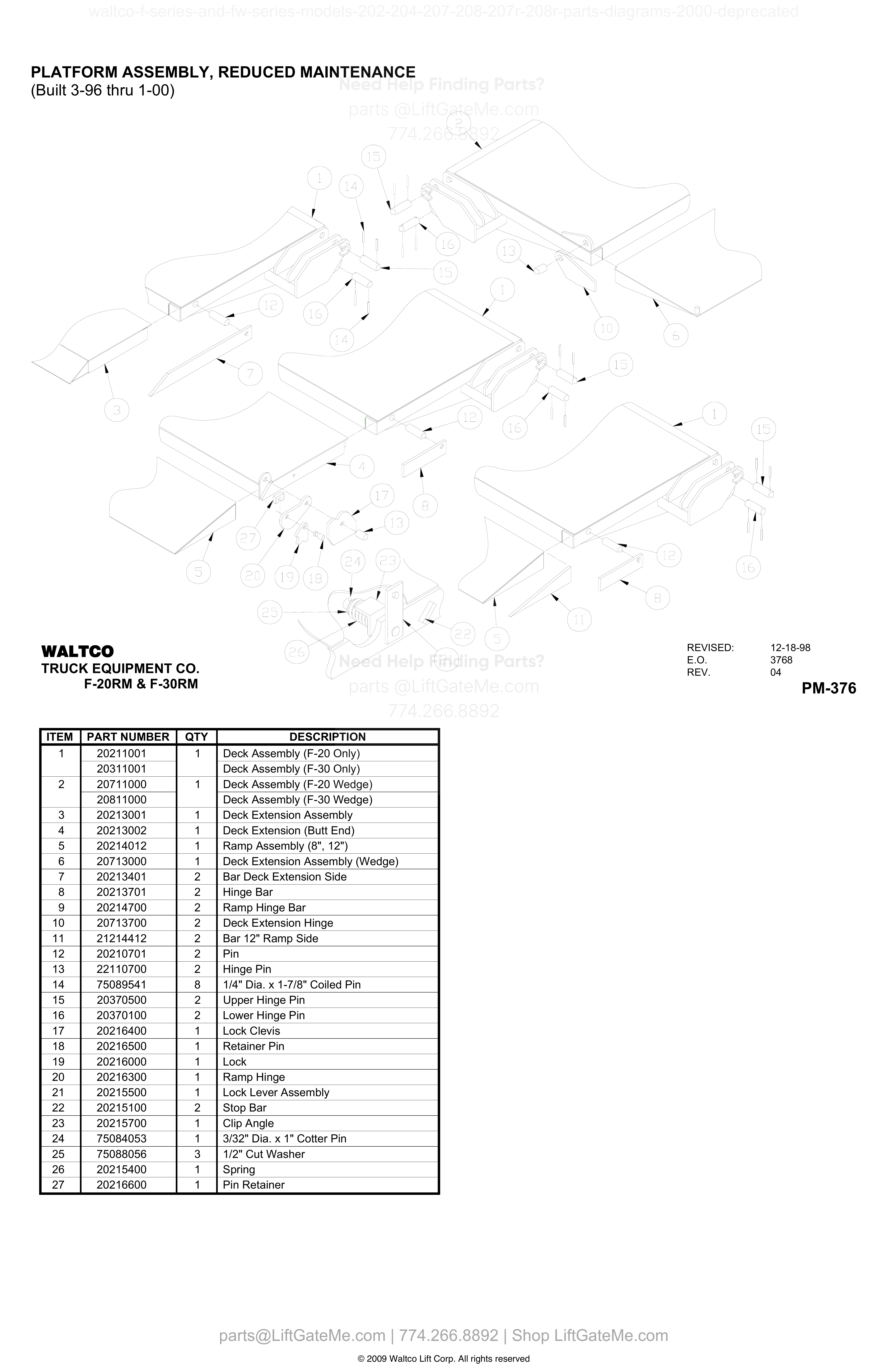

PLATFORM ASSEMBLY, REDUCED MAINTENANCE
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20211001 | Deck Assembly (F-20 Only) | |
| 1 | 20311001 | Deck Assembly (F-30 Only) | ||
| 2 | 1 | 20711000 | Deck Assembly (F-20 Wedge) | |
| 2 | 20811000 | Deck Assembly (F-30 Wedge) | ||
| 3 | 1 | 20213001 | Deck Extension Assembly | |
| 4 | 1 | 20213002 | Deck Extension (Butt End) | |
| 5 | 1 | 20214012 | Ramp Assembly (8", 12") | |
| 6 | 1 | 20713000 | Deck Extension Assembly (Wedge) | |
| 7 | 2 | 20213401 | Bar Deck Extension Side | |
| 8 | 2 | 20213701 | Hinge Bar | |
| 9 | 2 | 20214700 | Ramp Hinge Bar | |
| 10 | 2 | 20713700 | Deck Extension Hinge | |
| 11 | 2 | 21214412 | Bar 12" Ramp Side | |
| 12 | 2 | 20210701 | Pin | |
| 13 | 2 | 22110700 | Hinge Pin | |
| 14 | 8 | 75089541 | 1/4" Dia. x 1-7/8" Coiled Pin | |
| 15 | 2 | 20370500 | Upper Hinge Pin | |
| 16 | 2 | 20370100 | Lower Hinge Pin | |
| 17 | 1 | 20216400 | Lock Clevis | |
| 18 | 1 | 20216500 | Retainer Pin | |
| 19 | 1 | 20216000 | Lock | |
| 20 | 1 | 20216300 | Ramp Hinge | |
| 21 | 1 | 20215500 | Lock Lever Assembly | |
| 22 | 2 | 20215100 | Stop Bar | |
| 23 | 1 | 20215700 | Clip Angle | |
| 24 | 1 | 75084053 | 3/32" Dia. x 1" Cotter Pin | |
| 25 | 3 | 75088056 | 1/2" Cut Washer | |
| 26 | 1 | 20215400 | Spring | |
| 27 | 1 | 20216600 | Pin Retainer |

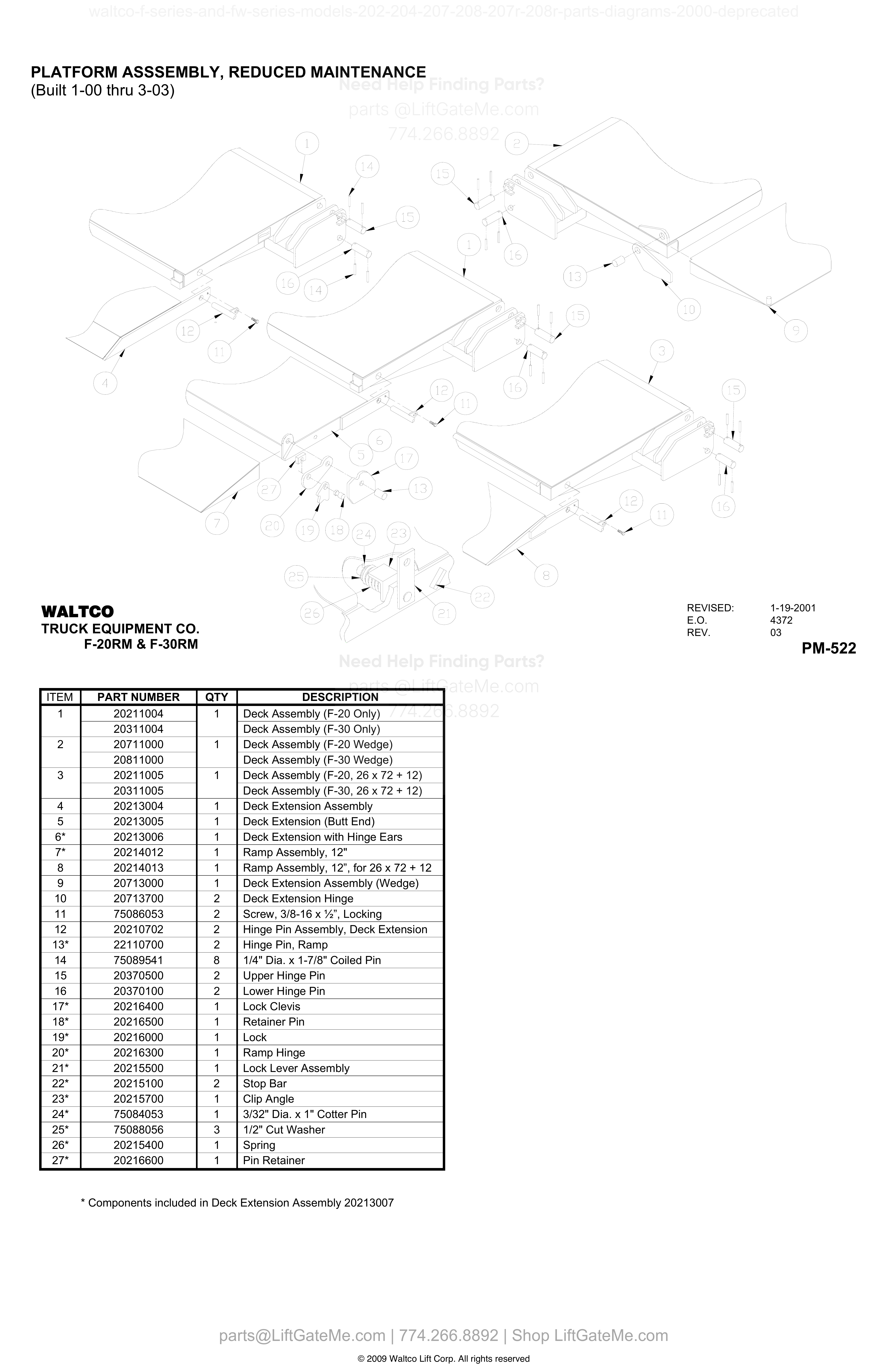

PLATFORM ASSSEMBLY, REDUCED MAINTENANCE
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20211004 | Deck Assembly (F-20 Only) | |
| 1 | 20311004 | Deck Assembly (F-30 Only) | ||
| 2 | 1 | 20711000 | Deck Assembly (F-20 Wedge) | |
| 2 | 20811000 | Deck Assembly (F-30 Wedge) | ||
| 3 | 1 | 20211005 | Deck Assembly (F-20, 26 x 72 + 12) | |
| 3 | 20311005 | Deck Assembly (F-30, 26 x 72 + 12) | ||
| 4 | 1 | 20213004 | Deck Extension Assembly | |
| 5 | 1 | 20213005 | Deck Extension (Butt End) | |
| 6* | 1 | 20213006 | Deck Extension with Hinge Ears | |
| 7* | 1 | 20214012 | Ramp Assembly, 12" | |
| 8 | 1 | 20214013 | Ramp Assembly, 12”, for 26 x 72 + 12 | |
| 9 | 1 | 20713000 | Deck Extension Assembly (Wedge) | |
| 10 | 2 | 20713700 | Deck Extension Hinge | |
| 11 | 2 | 75086053 | Screw, 3/8-16 x ½”, Locking | |
| 12 | 2 | 20210702 | Hinge Pin Assembly, Deck Extension | |
| 13* | 2 | 22110700 | Hinge Pin, Ramp | |
| 14 | 8 | 75089541 | 1/4" Dia. x 1-7/8" Coiled Pin | |
| 15 | 2 | 20370500 | Upper Hinge Pin | |
| 16 | 2 | 20370100 | Lower Hinge Pin | |
| 17* | 1 | 20216400 | Lock Clevis | |
| 18* | 1 | 20216500 | Retainer Pin | |
| 19* | 1 | 20216000 | Lock | |
| 20* | 1 | 20216300 | Ramp Hinge | |
| 21* | 1 | 20215500 | Lock Lever Assembly | |
| 22* | 2 | 20215100 | Stop Bar | |
| 23* | 1 | 20215700 | Clip Angle | |
| 24* | 1 | 75084053 | 3/32" Dia. x 1" Cotter Pin | |
| 25* | 3 | 75088056 | 1/2" Cut Washer | |
| 26* | 1 | 20215400 | Spring | |
| 27* | 1 | 20216600 | Pin Retainer |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

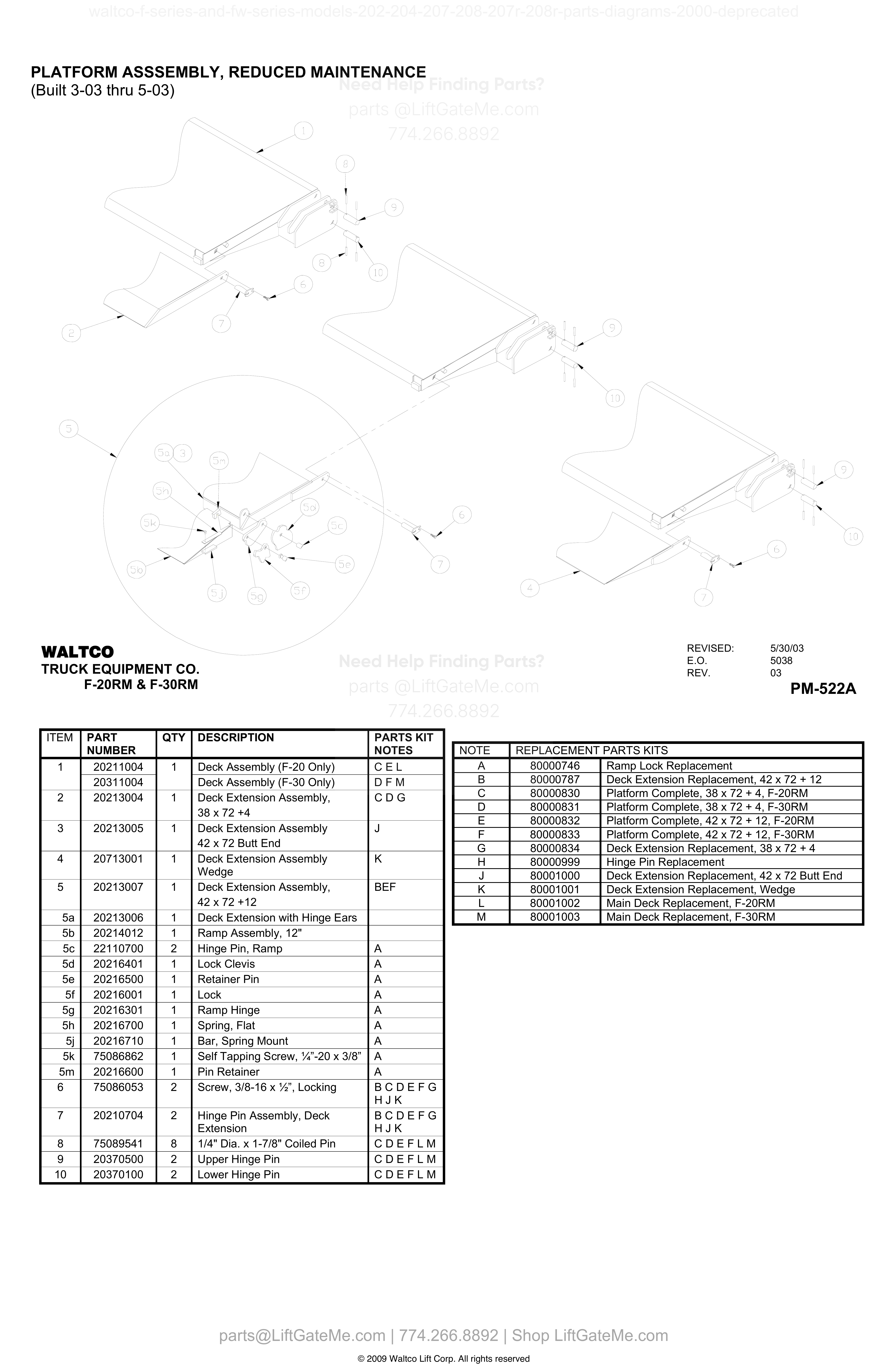

PLATFORM ASSSEMBLY, REDUCED MAINTENANCE (Built 3-03 thru 5-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20211004 | Deck Assembly (F-20 Only) | |
| 1 | 20311004 | Deck Assembly (F-30 Only) | ||
| 2 | 1 | 20213004 | Deck Extension Assembly, 38 x 72 + 4 | |
| 3 | 1 | 20213005 | Deck Extension Assembly 42 x 72 Butt End | |
| 4 | 1 | 20713001 | Deck Extension Assembly Wedge | |
| 5 | 1 | 20213007 | Deck Extension Assembly, 42 x 72 +12 | |
| 5a | 1 | 20213006 | Deck Extension with Hinge Ears | |
| 5b | 1 | 20214012 | Ramp Assembly, 12" | |
| 5c | 2 | 22110700 | Hinge Pin, Ramp | |
| 5d | 1 | 20216401 | Lock Clevis | |
| 5e | 1 | 20216500 | Retainer Pin | |
| 5f | 1 | 20216001 | Lock | |
| 5g | 1 | 20216301 | Ramp Hinge | |
| 5h | 1 | 20216700 | Spring, Flat | |
| 5j | 1 | 20216710 | Bar, Spring Mount | |
| 5k | 1 | 75086862 | Self Tapping Screw, ¼”-20 x 3/8” | |
| 5m | 1 | 20216600 | Pin Retainer | |
| 6 | 2 | 75086053 | Screw, 3/8-16 x ½”, Locking | |
| 7 | 2 | 20210704 | Hinge Pin Assembly, Deck Extension | |
| 8 | 8 | 75089541 | 1/4" Dia. x 1-7/8" Coiled Pin | |
| 9 | 2 | 20370500 | Upper Hinge Pin | |
| 10 | 2 | 20370100 | Lower Hinge Pin |

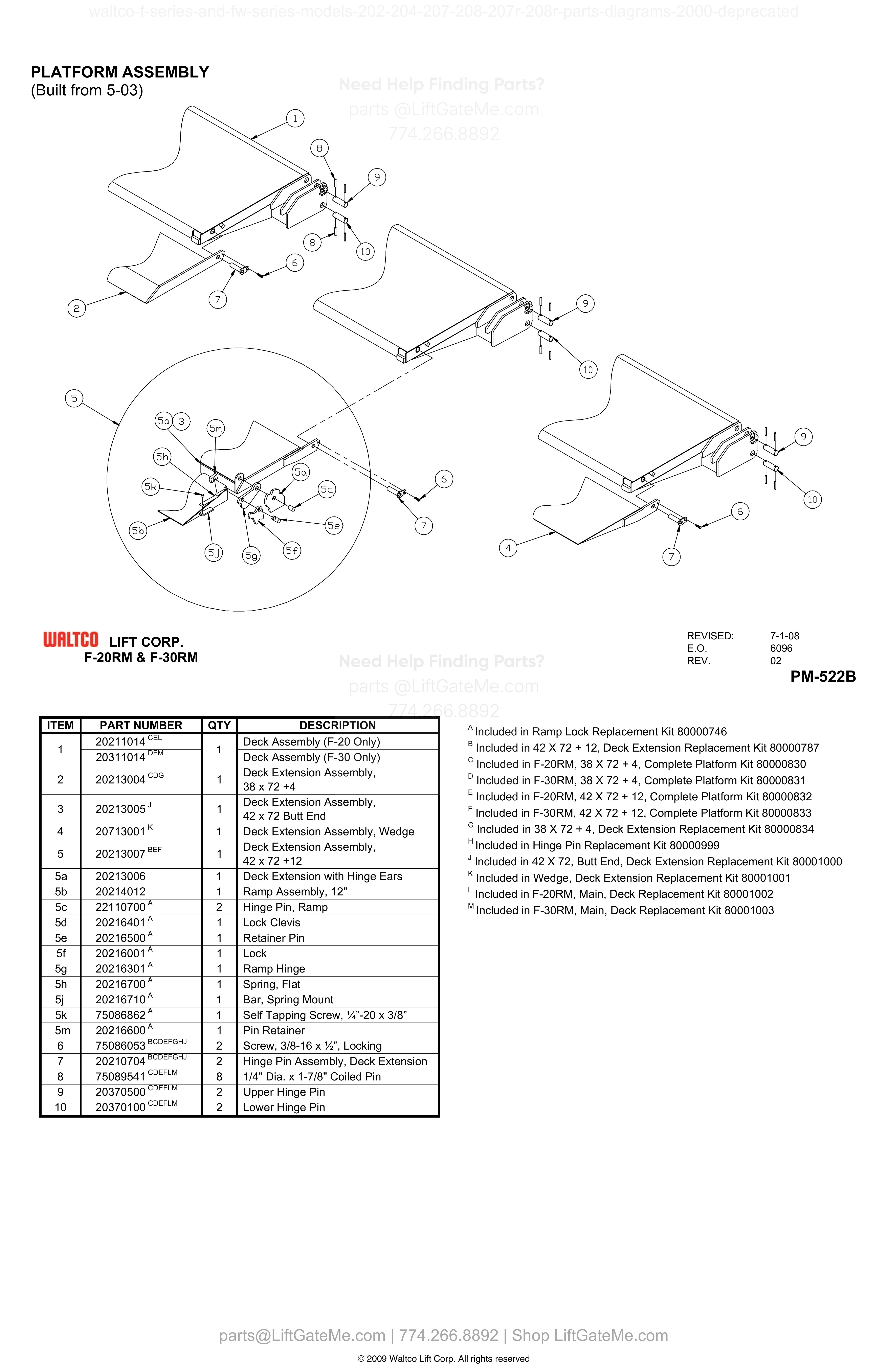

PLATFORM ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20211014^C,E,L | Deck Assembly (F-20 Only) | |
| 1 | 1 | 20311014^D,F,M | Deck Assembly (F-30 Only) | |
| 2 | 1 | 20213004^C,D,G | Deck Extension Assembly, 38 x 72 + 4 | |
| 3 | 1 | 20213005 J | Deck Extension Assembly, 42 x 72 Butt End | |
| 4 | 1 | 20713001 K | Deck Extension Assembly, Wedge | |
| 5 | 1 | 20213007^B,E,F | Deck Extension Assembly, 42 x 72 +12 | |
| 5a | 1 | 20213006 | Deck Extension with Hinge Ears | |
| 5b | 1 | 20214012 A | Ramp Assembly, 12" | |
| 5c | 2 | 22110700 A | Hinge Pin, Ramp | |
| 5d | 1 | 20216401 A | Lock Clevis | |
| 5e | 1 | 20216500 A | Retainer Pin | |
| 5f | 1 | 20216001 A | Lock | |
| 5g | 1 | 20216301 A | Ramp Hinge | |
| 5h | 1 | 20216700 A | Spring, Flat | |
| 5j | 1 | 20216710 A | Bar, Spring Mount | |
| 5k | 1 | 75086862 A | Self Tapping Screw, ¼”-20 x 3/8” | |
| 5m | 1 | 20216600 A | Pin Retainer | |
| 6 | 2 | 75086053^B,C,D,E,F,G,H,J | Screw, 3/8-16 x ½”, Locking | |
| 7 | 2 | 20210704^B,C,D,E,F,G,H,J | Hinge Pin Assembly, Deck Extension | |
| 8 | 8 | 75089541^C,D,E,F,L,M | ||
| 9 | 2 | 20370500^C,D,E,F,L,M | Upper Hinge Pin | |
| 10 | 2 | 20370100^C,D,E,F,L,M | Lower Hinge Pin |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

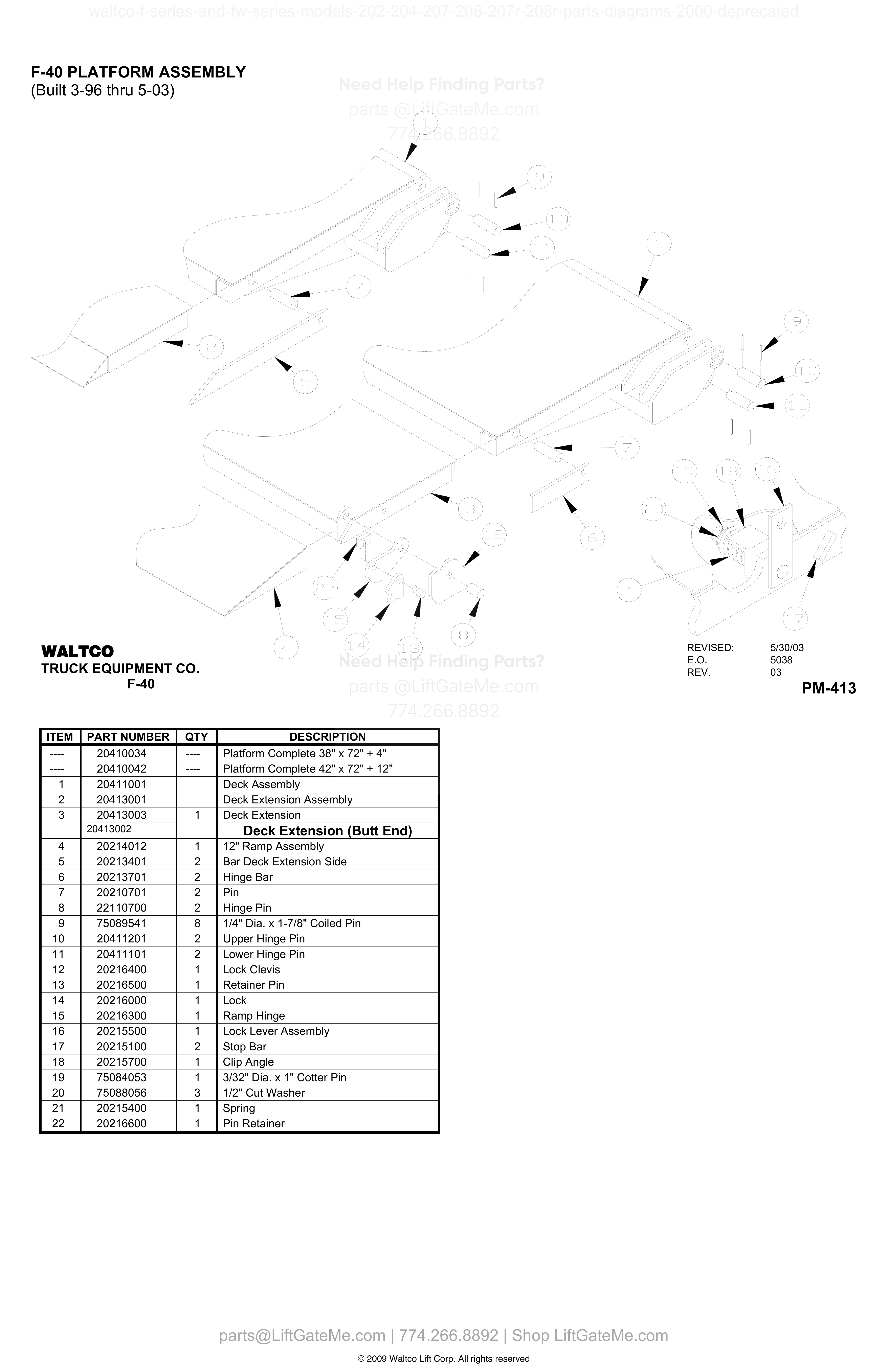

F-40 PLATFORM ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| ---- | ---- | 20410034 | Platform Complete 38" x 72" + 4" | |
| ---- | ---- | 20410042 | Platform Complete 42" x 72" + 12" | |
| 1 | 20411001 | Deck Assembly | ||
| 2 | 20413001 | Deck Extension Assembly | ||
| 3 | 1 | 20413003 | Deck Extension | |
| 3 | 1 | 20413002 | Deck Extension (Butt End) | |
| 4 | 1 | 20214012 | 12" Ramp Assembly | |
| 5 | 2 | 20213401 | Bar Deck Extension Side | |
| 6 | 2 | 20213701 | Hinge Bar | |
| 7 | 2 | 20210701 | Pin | |
| 8 | 2 | 22110700 | Hinge Pin | |
| 9 | 8 | 75089541 | 1/4" Dia. x 1-7/8" Coiled Pin | |
| 10 | 2 | 20411201 | Upper Hinge Pin | |
| 11 | 2 | 20411101 | Lower Hinge Pin | |
| 12 | 1 | 20216400 | Lock Clevis | |
| 13 | 1 | 20216500 | Retainer Pin | |
| 14 | 1 | 20216000 | Lock | |
| 15 | 1 | 20216300 | Ramp Hinge | |
| 16 | 1 | 20215500 | Lock Lever Assembly | |
| 17 | 2 | 20215100 | Stop Bar | |
| 18 | 1 | 20215700 | Clip Angle | |
| 19 | 1 | 75084053 | 3/32" Dia. x 1" Cotter Pin | |
| 20 | 3 | 75088056 | 1/2" Cut Washer | |
| 21 | 1 | 20215400 | Spring | |
| 22 | 1 | 20216600 | Pin Retainer |

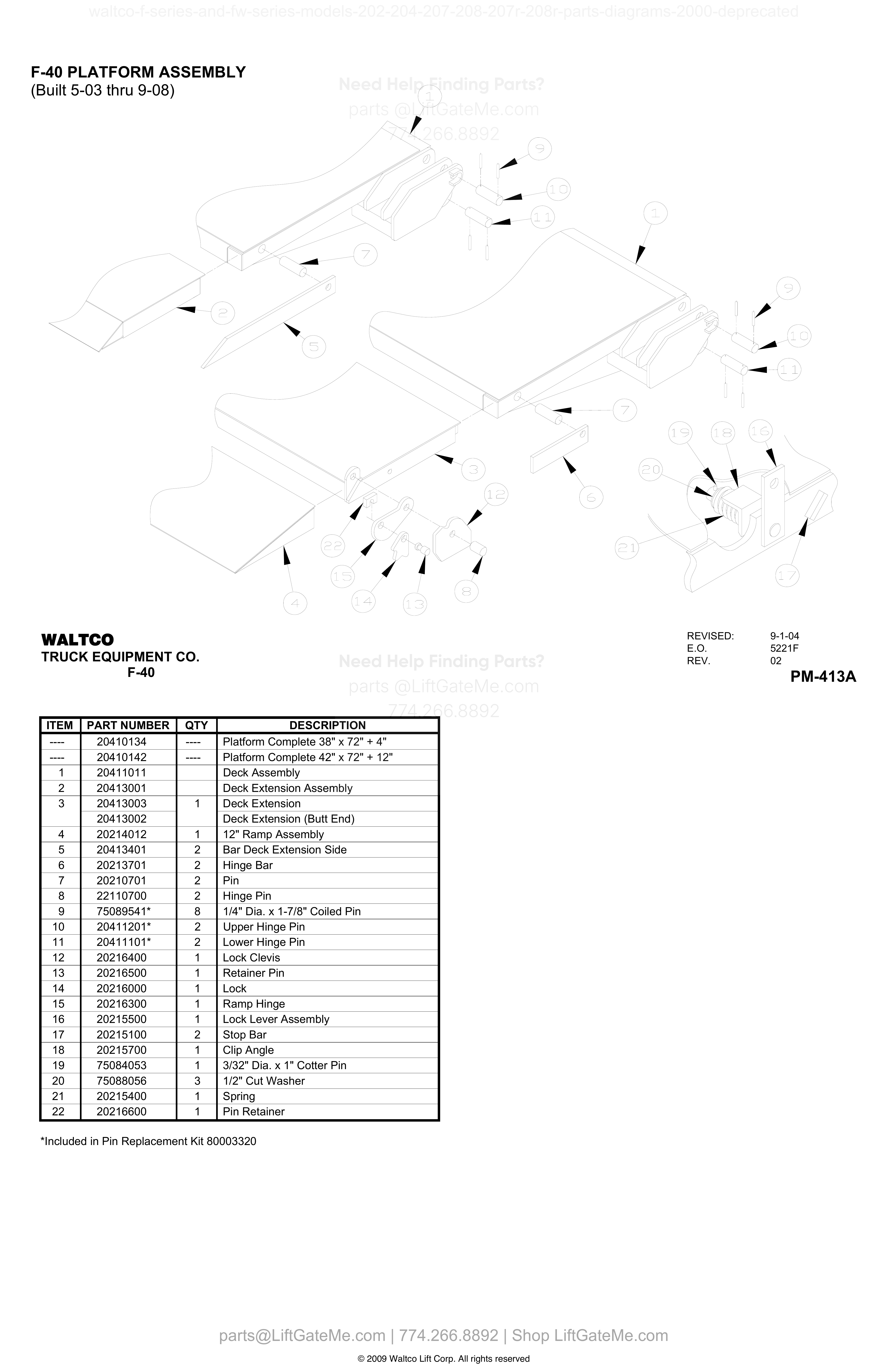

F-40 PLATFORM ASSEMBLY (Built 5-03 thru 9-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| ---- | ---- | 20410134 | Platform Complete 38" x 72" + 4" | |
| ---- | ---- | 20410142 | Platform Complete 42" x 72" + 12" | |
| 1 | 20411011 | Deck Assembly | ||
| 2 | 20413001 | Deck Extension Assembly | ||
| 3 | 1 | 20413003 | Deck Extension | |
| 3 | 20413002 | Deck Extension (Butt End) | ||
| 4 | 1 | 20214012 | 12" Ramp Assembly | |
| 5 | 2 | 20413401 | Bar Deck Extension Side | |
| 6 | 2 | 20213701 | Hinge Bar | |
| 7 | 2 | 20210701 | Pin | |
| 8 | 2 | 22110700 | Hinge Pin | |
| 9 | 8 | 75089541* | 1/4" Dia. x 1-7/8" Coiled Pin | |
| 10 | 2 | 20411201* | Upper Hinge Pin | |
| 11 | 2 | 20411101* | Lower Hinge Pin | |
| 12 | 1 | 20216400 | Lock Clevis | |
| 13 | 1 | 20216500 | Retainer Pin | |
| 14 | 1 | 20216000 | Lock | |
| 15 | 1 | 20216300 | Ramp Hinge | |
| 16 | 1 | 20215500 | Lock Lever Assembly | |
| 17 | 2 | 20215100 | Stop Bar | |
| 18 | 1 | 20215700 | Clip Angle | |
| 19 | 1 | 75084053 | 3/32" Dia. x 1" Cotter Pin | |
| 20 | 3 | 75088056 | 1/2" Cut Washer | |
| 21 | 1 | 20215400 | Spring | |
| 22 | 1 | 20216600 | Pin Retainer |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

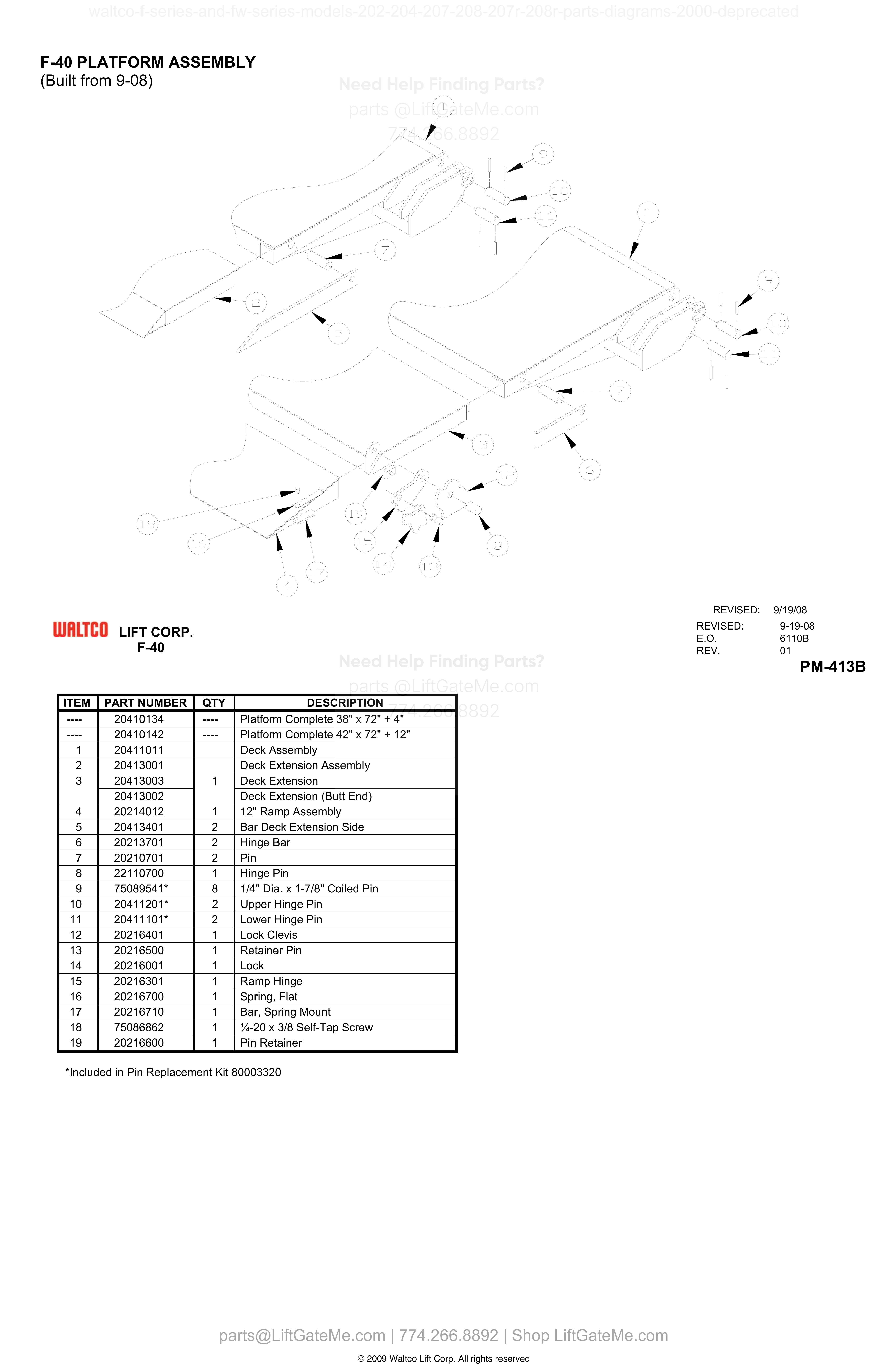

F-40 PLATFORM ASSEMBLY (Built from 9-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| ---- | ---- | 20410134 | Platform Complete 38" x 72" + 4" | |
| ---- | ---- | 20410142 | Platform Complete 42" x 72" + 12" | |
| 1 | 20411011 | Deck Assembly | ||
| 2 | 20413001 | Deck Extension Assembly | ||
| 3 | 1 | 20413003 | Deck Extension | |
| 3 | 20413002 | Deck Extension (Butt End) | ||
| 4 | 1 | 20214012 | 12" Ramp Assembly | |
| 5 | 2 | 20413401 | Bar Deck Extension Side | |
| 6 | 2 | 20213701 | Hinge Bar | |
| 7 | 2 | 20210701 | Pin | |
| 8 | 1 | 22110700 | Hinge Pin | |
| 9 | 8 | 75089541* | 1/4" Dia. x 1-7/8" Coiled Pin | |
| 10 | 2 | 20411201* | Upper Hinge Pin | |
| 11 | 2 | 20411101* | Lower Hinge Pin | |
| 12 | 1 | 20216401 | Lock Clevis | |
| 13 | 1 | 20216500 | Retainer Pin | |
| 14 | 1 | 20216001 | Lock | |
| 15 | 1 | 20216301 | Ramp Hinge | |
| 16 | 1 | 20216700 | Spring, Flat | |
| 17 | 1 | 20216710 | Bar, Spring Mount | |
| 18 | 1 | 75086862 | ¼-20 x 3/8 Self-Tap Screw | |
| 19 | 1 | 20216600 | Pin Retainer | |
| 9 | 8 | 75089541 | 1/4" Dia. x 1-7/8" Coiled Pin | |
| 10 | 2 | 20411201 | Upper Hinge Pin | |
| 11 | 2 | 20411101 | Lower Hinge Pin |
i

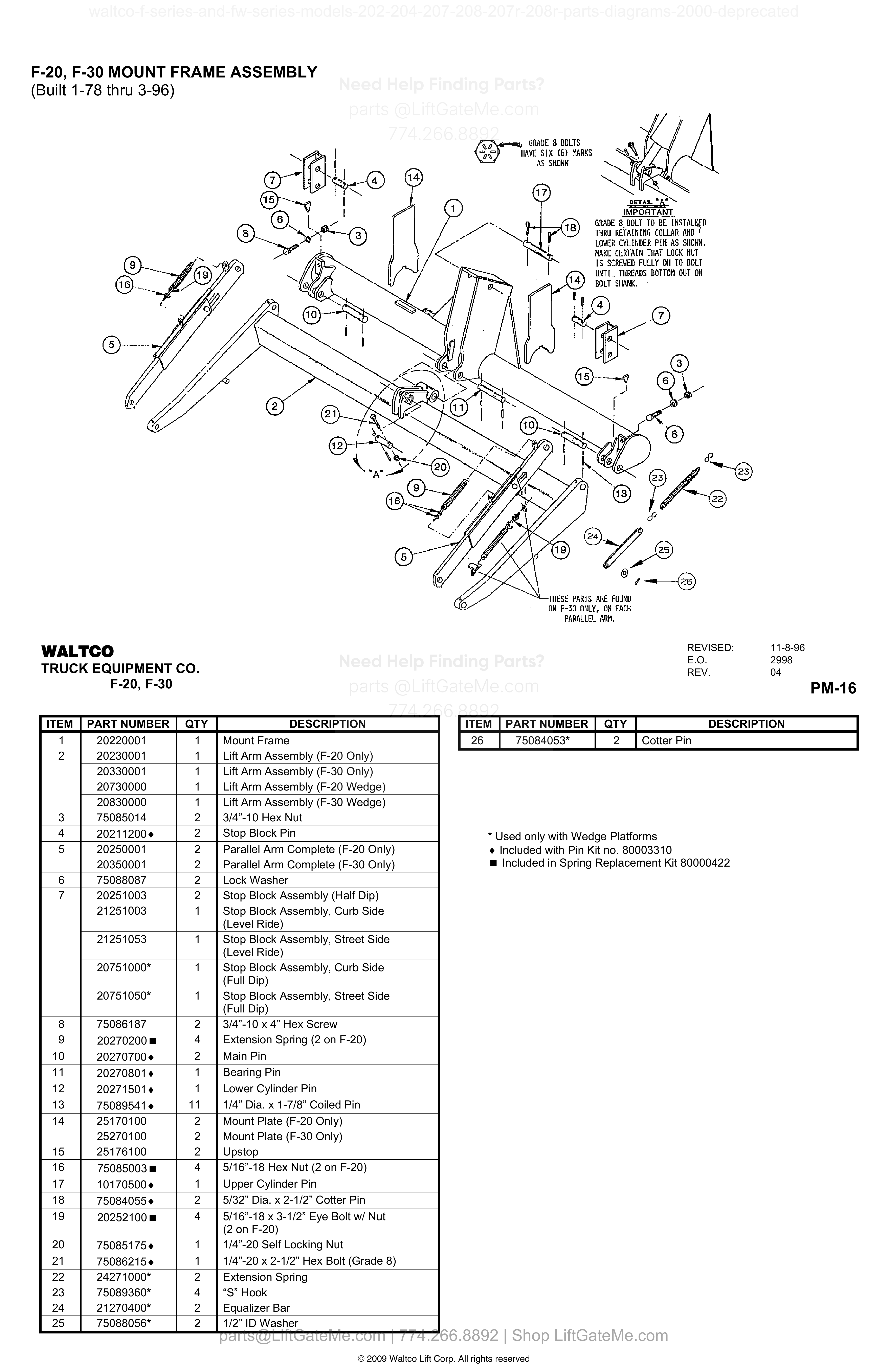

F-20, F-30 MOUNT FRAME ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20220001 | Mount Frame | |
| 2 | 1 | 20230001 | Lift Arm Assembly (F-20 Only) | |
| 2 | 1 | 20330001 | Lift Arm Assembly (F-30 Only) | |
| 2 | 1 | 20730000 | Lift Arm Assembly (F-20 Wedge) | |
| 2 | 1 | 20830000 | Lift Arm Assembly (F-30 Wedge) | |
| 3 | 2 | 75085014 | 3/4”-10 Hex Nut | |
| 4 | 2 | 20211200 | Stop Block Pin | |
| 5 | 2 | 20250001 | Parallel Arm Complete (F-20 Only) | |
| 5 | 2 | 20350001 | Parallel Arm Complete (F-30 Only) | |
| 6 | 2 | 75088087 | Lock Washer | |
| 7 | 2 | 20251003 | Stop Block Assembly (Half Dip) | |
| 7 | 1 | 21251003 | Stop Block Assembly, Curb Side (Level Ride) | |
| 7 | 1 | 21251053 | Stop Block Assembly, Street Side (Level Ride) | |
| 7 | 1 | 20751000 | Stop Block Assembly, Curb Side (Full Dip) | |
| 7 | 1 | 20751050 | Stop Block Assembly, Street Side (Full Dip) | |
| 8 | 2 | 75086187 | 3/4”-10 x 4” Hex Screw | |
| 9 | 4 | 20270200 | Extension Spring (2 on F-20) | |
| 10 | 2 | 20270700 | Main Pin | |
| 11 | 1 | 20270801 | Bearing Pin | |
| 12 | 1 | 20271501 | Lower Cylinder Pin | |
| 13 | 11 | 75089541 | 1/4” Dia. x 1-7/8” Coiled Pin | |
| 14 | 2 | 25170100 | Mount Plate (F-20 Only) | |
| 14 | 2 | 25270100 | Mount Plate (F-30 Only) | |
| 15 | 2 | 25176100 | Upstop | |
| 16 | 4 | 75085003 | 5/16”-18 Hex Nut (2 on F-20) | |
| 17 | 1 | 10170500 | Upper Cylinder Pin | |
| 18 | 2 | 75084055 | 5/32” Dia. x 2-1/2” Cotter Pin | |
| 19 | 4 | 20252100 | 5/16”-18 x 3-1/2” Eye Bolt w/ Nut (2 on F-20) | |
| 20 | 1 | 75085175 | 1/4”-20 Self Locking Nut | |
| 21 | 1 | 75086215 | 1/4”-20 x 2-1/2” Hex Bolt (Grade 8) | |
| 22 | 2 | 24271000 | Extension Spring | |
| 23 | 4 | 75089360 | “S” Hook | |
| 24 | 2 | 21270400 | Equalizer Bar | |
| 25 | 2 | 75088056 | 1/2” ID Washer | |
| 26 | 2 | 75084053 | Cotter Pin |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

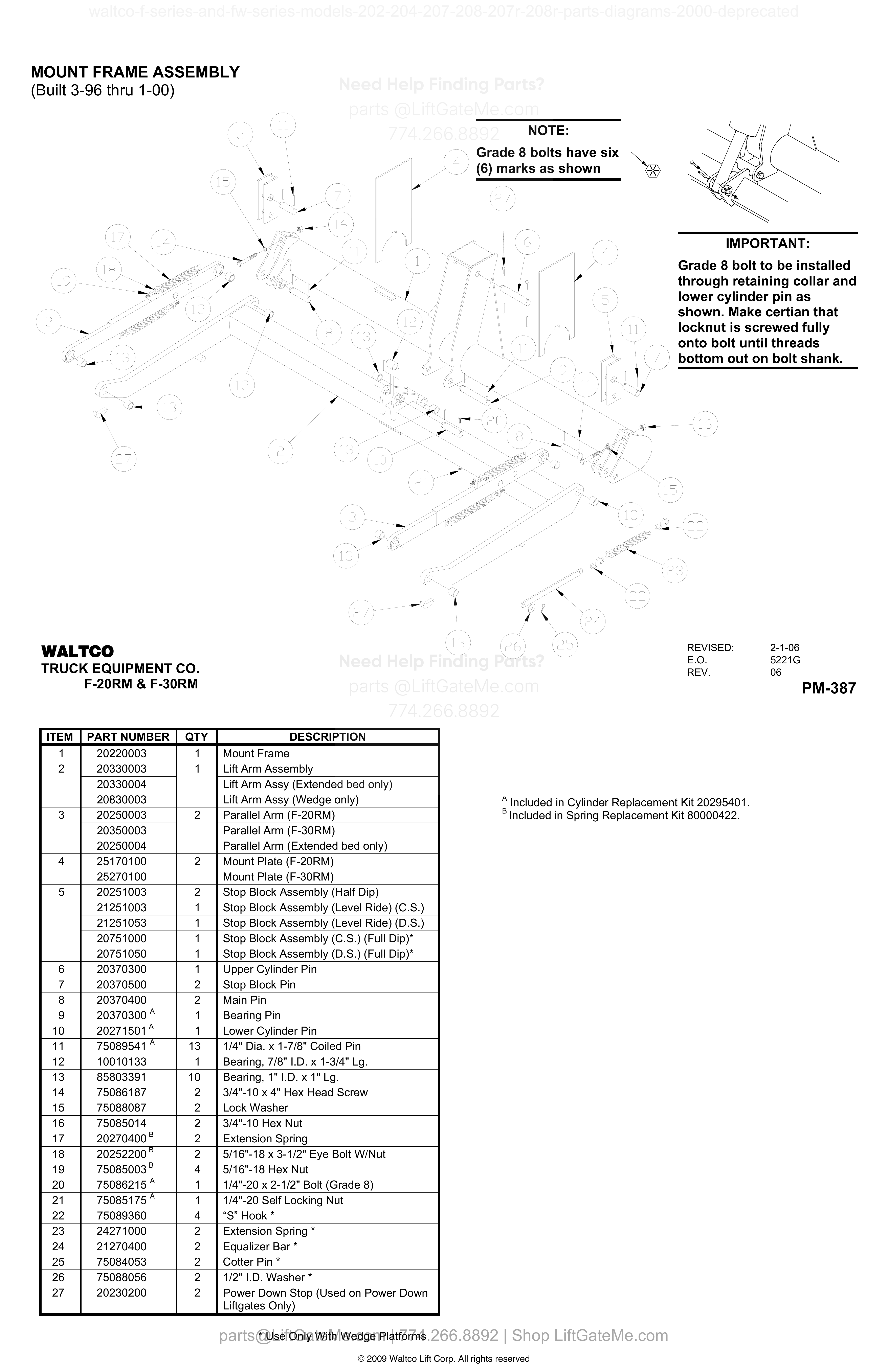

MOUNT FRAME ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20220003 | Mount Frame | |
| 2 | 1 | 20330003 | Lift Arm Assembly | |
| 2 | 1 | 20330004 | Lift Arm Assy (Extended bed only) | |
| 2 | 1 | 20830003 | Lift Arm Assy (Wedge only) | |
| 3 | 2 | 20250003 | Parallel Arm (F-20RM) | |
| 3 | 2 | 20350003 | Parallel Arm (F-30RM) | |
| 3 | 2 | 20250004 | Parallel Arm (Extended bed only) | |
| 4 | 2 | 25170100 | Mount Plate (F-20RM) | |
| 4 | 2 | 25270100 | Mount Plate (F-30RM) | |
| 5 | 2 | 20251003 | Stop Block Assembly (Half Dip) | |
| 5 | 1 | 21251003 | Stop Block Assembly (Level Ride) (C.S.) | |
| 5 | 1 | 21251053 | Stop Block Assembly (Level Ride) (D.S.) | |
| 5 | 1 | 20751000 | Stop Block Assembly (C.S.) (Full Dip)* | |
| 5 | 1 | 20751050 | Stop Block Assembly (D.S.) (Full Dip)* | |
| 6 | 1 | 20370300 | Upper Cylinder Pin | |
| 7 | 2 | 20370500 | Stop Block Pin | |
| 8 | 2 | 20370400 | Main Pin | |
| 9 | 1 | 20370300 A | Bearing Pin | |
| 10 | 1 | 20271501 A | Lower Cylinder Pin | |
| 11 | 13 | 75089541 A | 1/4" Dia. x 1-7/8" Coiled Pin | |
| 12 | 1 | 10010133 | Bearing, 7/8" I.D. x 1-3/4" Lg. | |
| 13 | 10 | 85803391 | Bearing, 1" I.D. x 1" Lg. | |
| 14 | 2 | 75086187 | 3/4"-10 x 4" Hex Head Screw | |
| 15 | 2 | 75088087 | Lock Washer | |
| 16 | 2 | 75085014 | 3/4"-10 Hex Nut | |
| 17 | 2 | 20270400 B | Extension Spring | |
| 18 | 2 | 20252200 B | 5/16"-18 x 3-1/2" Eye Bolt W/Nut | |
| 19 | 4 | 75085003 B | 5/16"-18 Hex Nut | |
| 20 | 1 | 75086215 A | 1/4"-20 x 2-1/2" Bolt (Grade 8) | |
| 21 | 1 | 75085175 A | 1/4"-20 Self Locking Nut | |
| 22 | 4 | 75089360 | “S” Hook * | |
| 23 | 2 | 24271000 | Extension Spring * | |
| 24 | 2 | 21270400 | Equalizer Bar * | |
| 25 | 2 | 75084053 | Cotter Pin * | |
| 26 | 2 | 75088056 | 1/2" I.D. Washer * | |
| 27 | 2 | 20230200 | Power Down Stop (Used on Power Down Liftgates Only) |

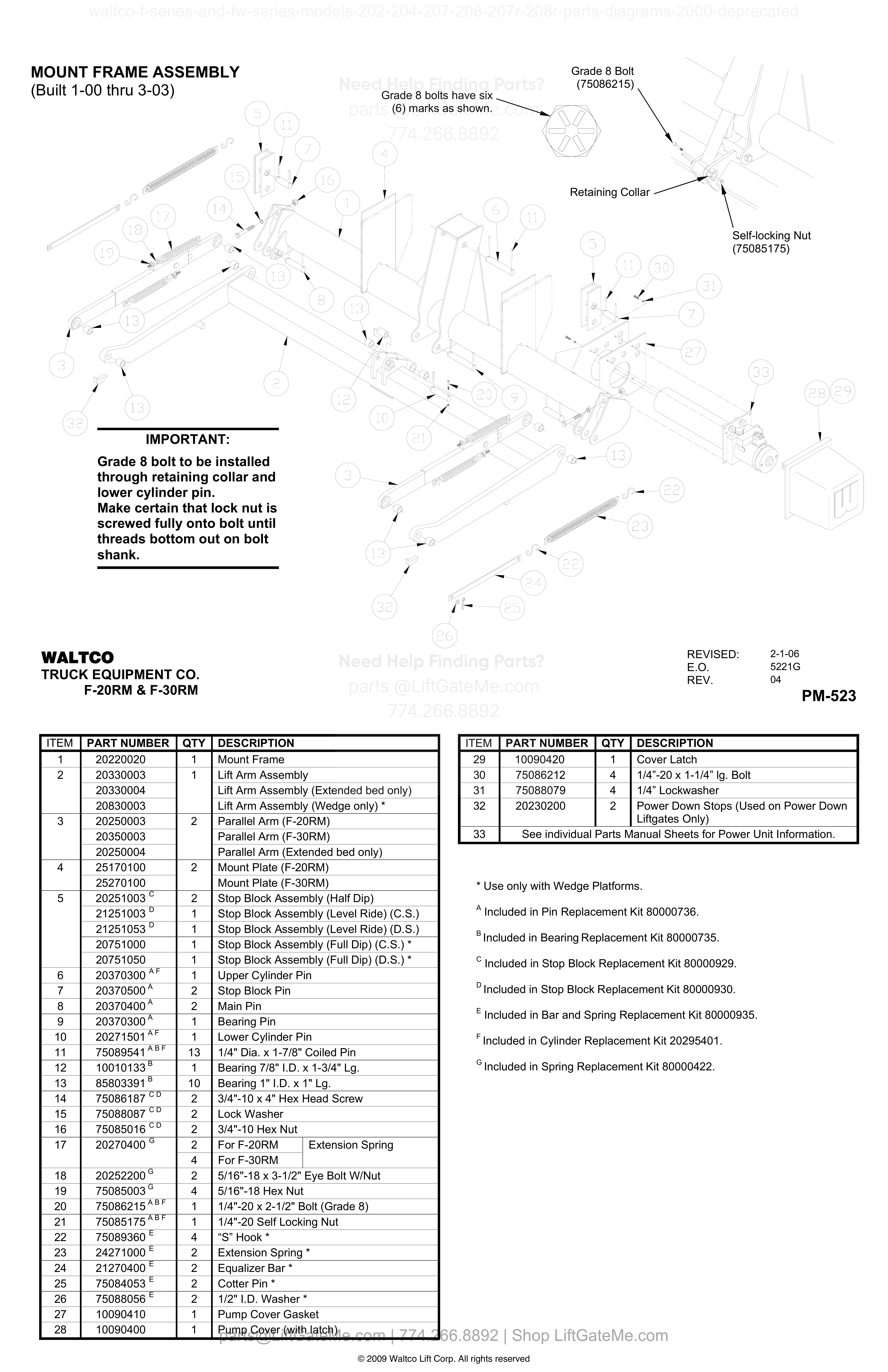

MOUNT FRAME ASSEMBLY (Built 1-00 thru 3-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20220020 | Mount Frame | |
| 2 | 1 | 20330003 | Lift Arm Assembly | |
| 2 | 20330004 | Lift Arm Assembly (Extended bed only) | ||
| 2 | 20830003 | Lift Arm Assembly (Wedge only) * | ||
| 3 | 2 | 20250003 | Parallel Arm (F-20RM) | |
| 3 | 20350003 | Parallel Arm (F-30RM) | ||
| 3 | 20250004 | Parallel Arm (Extended bed only) | ||
| 4 | 2 | 25170100 | Mount Plate (F-20RM) | |
| 4 | 25270100 | Mount Plate (F-30RM) | ||
| 5 | 2 | 20251003 C | Stop Block Assembly (Half Dip) | |
| 5 | 1 | 21251003 D | Stop Block Assembly (Level Ride) (C.S.) | |
| 5 | 1 | 21251053 D | Stop Block Assembly (Level Ride) (D.S.) | |
| 5 | 1 | 20751000 | Stop Block Assembly (Full Dip) (C.S.) * | |
| 5 | 1 | 20751050 A,F | Stop Block Assembly (Full Dip) (D.S.) * | |
| 6 | 1 | 20370300 A | Upper Cylinder Pin | |
| 7 | 2 | 20370500 A | Stop Block Pin | |
| 8 | 2 | 20370400 A | Main Pin | |
| 9 | 1 | 20370300 A | Bearing Pin | |
| 10 | 1 | 20271501 A,F | Lower Cylinder Pin | |
| 11 | 13 | 75089541^A,B,F | 1/4" Dia. x 1-7/8" Coiled Pin | |
| 12 | 1 | 10010133 B | Bearing 7/8" I.D. x 1-3/4" Lg. | |
| 13 | 10 | 85803391 B | Bearing 1" I.D. x 1" Lg. | |
| 14 | 2 | 75086187 C,D | 3/4"-10 x 4" Hex Head Screw | |
| 15 | 2 | 75088087 C,D | Lock Washer | |
| 16 | 2 | 75085016 C,D | 3/4"-10 Hex Nut | |
| 17 | 2 | 20270400 G | For F-20RM Extension Spring | |
| 17 | 4 | 20270400 G | For F-30RM | |
| 18 | 2 | 20252200 G | 5/16"-18 x 3-1/2" Eye Bolt W/Nut | |
| 19 | 4 | 75085003 G | 5/16"-18 Hex Nut | |
| 20 | 1 | 75086215^A,B,F | 1/4"-20 x 2-1/2" Bolt (Grade 8) | |
| 21 | 1 | 75085175^A,B,F | 1/4"-20 Self Locking Nut | |
| 22 | 4 | 75089360 | “S” Hook * | |
| 23 | 2 | 24271000 E | Extension Spring * | |
| 24 | 2 | 21270400 E | Equalizer Bar * | |
| 25 | 2 | 75084053 E | Cotter Pin * | |
| 26 | 2 | 75088056 E | 1/2" I.D. Washer * | |
| 27 | 1 | 10090410 | Pump Cover Gasket | |
| 28 | 1 | 10090400 | Pump Cover (with latch) | |
| 29 | 1 | 10090420 | Cover Latch | |
| 30 | 4 | 75086212 | 1/4”-20 x 1-1/4” lg. Bolt | |
| 31 | 4 | 75088079 | 1/4” Lockwasher | |
| 32 | 2 | 20230200 | Power Down Stops (Used on Power Down Liftgates Only) | |
| 33 | See individual Parts Manual Sheets for Power Unit Information. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

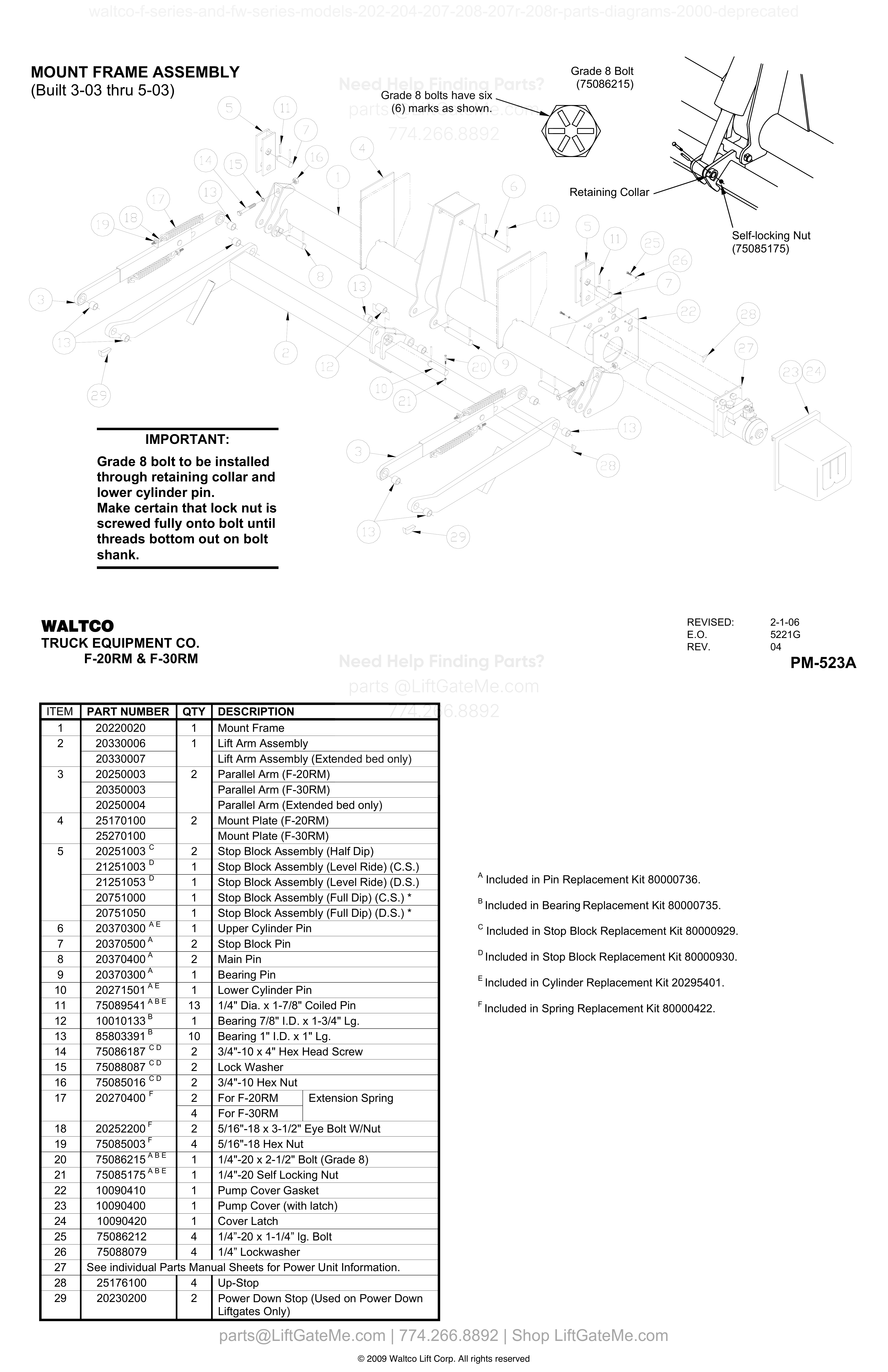

MOUNT FRAME ASSEMBLY (Built 3-03 thru 5-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20220020 | Mount Frame | |
| 2 | 1 | 20330006 | Lift Arm Assembly | |
| 2 | 20330007 | Lift Arm Assembly (Extended bed only) | ||
| 3 | 2 | 20250003 | Parallel Arm (F-20RM) | |
| 3 | 20350003 | Parallel Arm (F-30RM) | ||
| 3 | 20250004 | Parallel Arm (Extended bed only) | ||
| 4 | 2 | 25170100 | Mount Plate (F-20RM) | |
| 4 | 25270100 C | Mount Plate (F-30RM) | ||
| 5 | 2 | 20251003 C | Stop Block Assembly (Half Dip) | |
| 5 | 1 | 21251003 D | Stop Block Assembly (Level Ride) (C.S.) | |
| 5 | 1 | 21251053 D | Stop Block Assembly (Level Ride) (D.S.) | |
| 5 | 1 | 20751000 | Stop Block Assembly (Full Dip) (C.S.) * | |
| 5 | 1 | 20751050 A,E | Stop Block Assembly (Full Dip) (D.S.) * | |
| 6 | 1 | 20370300 A,E | Upper Cylinder Pin | |
| 7 | 2 | 20370500 A | Stop Block Pin | |
| 8 | 2 | 20370400 A | Main Pin | |
| 9 | 1 | 20370300 A | Bearing Pin | |
| 10 | 1 | 20271501 A,E | Lower Cylinder Pin | |
| 11 | 13 | 75089541^A,B,E | 1/4" Dia. x 1-7/8" Coiled Pin | |
| 12 | 1 | 10010133 B | Bearing 7/8" I.D. x 1-3/4" Lg. | |
| 13 | 10 | 85803391 B | Bearing 1" I.D. x 1" Lg. | |
| 14 | 2 | 75086187 C,D | 3/4"-10 x 4" Hex Head Screw | |
| 15 | 2 | 75088087 C,D | Lock Washer | |
| 16 | 2 | 75085016 C,D | 3/4"-10 Hex Nut | |
| 17 | 2 | 20270400 F | For F-20RM Extension Spring | |
| 17 | 4 | 20270400 F | For F-30RM | |
| 18 | 2 | 20252200 F | 5/16"-18 x 3-1/2" Eye Bolt W/Nut | |
| 19 | 4 | 75085003 F | 5/16"-18 Hex Nut | |
| 20 | 1 | 75086215^A,B,E | 1/4"-20 x 2-1/2" Bolt (Grade 8) | |
| 21 | 1 | 75085175^A,B,E | 1/4"-20 Self Locking Nut | |
| 22 | 1 | 10090410 | Pump Cover Gasket | |
| 23 | 1 | 10090400 | Pump Cover (with latch) | |
| 24 | 1 | 10090420 | Cover Latch | |
| 25 | 4 | 75086212 | 1/4”-20 x 1-1/4” lg. Bolt | |
| 26 | 4 | 75088079 | 1/4” Lockwasher | |
| 27 | See individual Parts Manual Sheets for Power Unit Information. | See individual Parts Manual Sheets for Power Unit Information. | ||
| 28 | 4 | 25176100 | Up-Stop | |
| 29 | 2 | 20230200 | Power Down Stop (Used on Power Down Liftgates Only) |

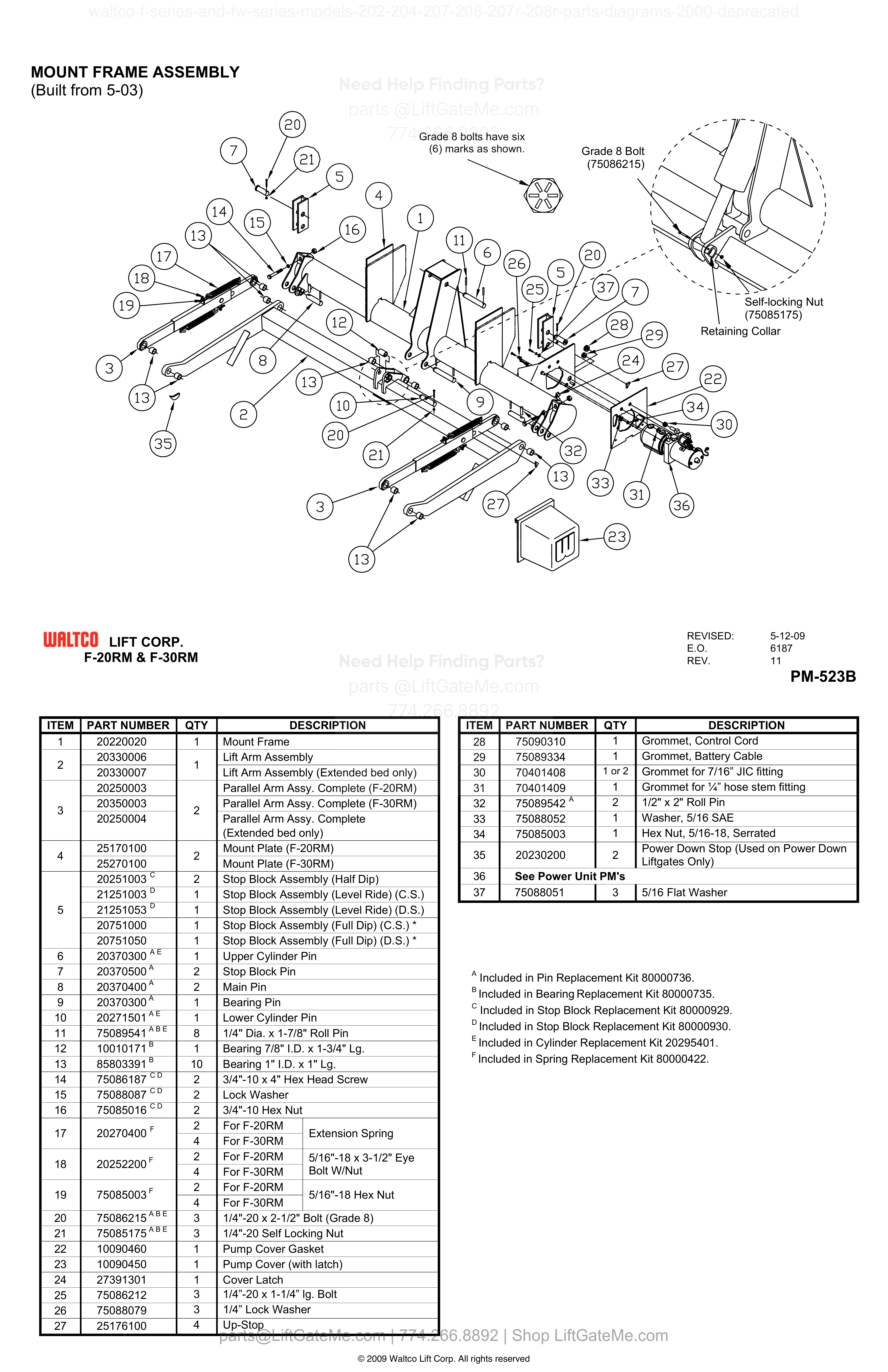

MOUNT FRAME ASSEMBLY (Built from 5-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20220020 | Mount Frame | |
| 2 | 1 | 20330006 | Lift Arm Assembly | |
| 2 | 1 | 20330007 | Lift Arm Assembly (Extended bed only) | |
| 3 | 2 | 20250003 | Parallel Arm Assy. Complete (F-20RM) | |
| 3 | 2 | 20350003 | Parallel Arm Assy. Complete (F-30RM) | |
| 3 | 2 | 20250004 | Parallel Arm Assy. Complete (Extended bed only) | |
| 4 | 2 | 25170100 | Mount Plate (F-20RM) | |
| 4 | 2 | 25270100 | Mount Plate (F-30RM) | |
| 5 | 2 | 20251003 C | Stop Block Assembly (Half Dip) | |
| 5 | 1 | 21251003 D | Stop Block Assembly (Level Ride) (C.S.) | |
| 5 | 1 | 21251053 D | Stop Block Assembly (Level Ride) (D.S.) | |
| 5 | 1 | 20751000 | Stop Block Assembly (Full Dip) (C.S.) * | |
| 5 | 1 | 20751050 | Stop Block Assembly (Full Dip) (D.S.) * | |
| 6 | 1 | 20370300 A,E | Upper Cylinder Pin | |
| 7 | 2 | 20370500 A | Stop Block Pin | |
| 8 | 2 | 20370400 A | Main Pin | |
| 9 | 1 | 20370300 A | Bearing Pin | |
| 10 | 1 | 20271501 A,E | Lower Cylinder Pin | |
| 11 | 8 | 75089541^A,B,E | 1/4" Dia. x 1-7/8" Roll Pin | |
| 12 | 1 | 10010171 B | Bearing 7/8" I.D. x 1-3/4" Lg. | |
| 13 | 10 | 85803391 B | Bearing 1" I.D. x 1" Lg. | |
| 14 | 2 | 75086187 C,D | 3/4"-10 x 4" Hex Head Screw | |
| 15 | 2 | 75088087 C,D | Lock Washer | |
| 16 | 2 | 75085016 C,D | 3/4"-10 Hex Nut | |
| 17 | 2 | 20270400 F | For F-20RM Extension Spring | |
| 17 | 4 | 20270400 F | For F-30RM Extension Spring | |
| 18 | 2 | 20252200 F | For F-20RM 5/16"-18 x 3-1/2" Eye Bolt W/Nut | |
| 18 | 4 | 20252200 F | ||
| 19 | 2 | 75085003 F | For F-20RM 5/16"-18 Hex Nut | |
| 19 | 4 | 75085003 F | For F-30RM 5/16"-18 Hex Nut | |
| 20 | 3 | 75086215^A,B,E | 1/4"-20 x 2-1/2" Bolt (Grade 8) | |
| 21 | 3 | 75085175^A,B,E | 1/4"-20 Self Locking Nut | |
| 22 | 1 | 10090460 | Pump Cover Gasket | |
| 23 | 1 | 10090450 | Pump Cover (with latch) | |
| 24 | 1 | 27391301 | Cover Latch | |
| 25 | 3 | 75086212 | ||
| 26 | 3 | 75088079 | ||
| 27 | 4 | 25176100 | Up-Stop | |
| 28 | 1 | 75090310 | Grommet, Control Cord | |
| 29 | 1 | 75089334 | Grommet, Battery Cable | |
| 30 | 1 or 2 | 70401408 | Grommet for 7/16” JIC fitting | |
| 31 | 1 | 70401409 | Grommet for ¼” hose stem fitting | |
| 32 | 2 | 75089542 A | 1/2" x 2" Roll Pin | |
| 33 | 1 | 75088052 | Washer, 5/16 SAE | |
| 34 | 1 | 75085003 | Hex Nut, 5/16-18, Serrated | |
| 35 | 2 | 20230200 | Power Down Stop (Used on Power Down Liftgates Only) | |
| 36 | See Power Unit PM's | |||
| 37 | 3 | 75088051 | 5/16 Flat Washer |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

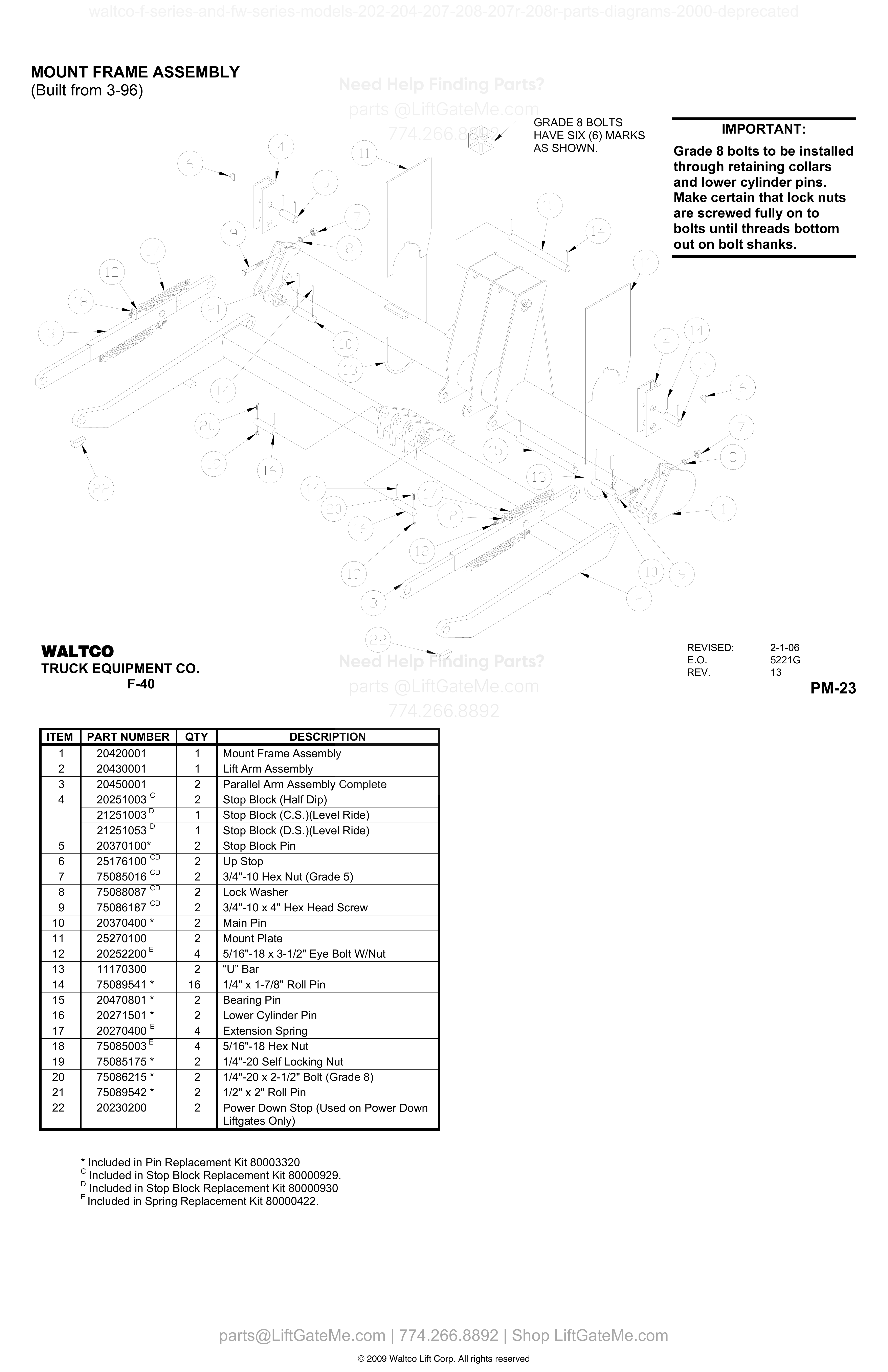

MOUNT FRAME ASSEMBLY (Built from 3-96)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20420001 | Mount Frame Assembly | |
| 2 | 1 | 20430001 | Lift Arm Assembly | |
| 3 | 2 | 20450001 | Parallel Arm Assembly Complete | |
| 4 | 2 | 20251003 C | Stop Block (Half Dip) | |
| 4 | 1 | 21251003 D | Stop Block (C.S.)(Level Ride) | |
| 4 | 1 | 21251053 D | Stop Block (D.S.)(Level Ride) | |
| 5 | 2 | 20370100* | Stop Block Pin | |
| 6 | 2 | 25176100 C,D | Up Stop | |
| 7 | 2 | 75085016 C,D | 3/4"-10 Hex Nut (Grade 5) | |
| 8 | 2 | 75088087 C,D | Lock Washer | |
| 9 | 2 | 75086187 C,D | 3/4"-10 x 4" Hex Head Screw | |
| 10 | 2 | 20370400* | Main Pin | |
| 11 | 2 | 25270100 | Mount Plate | |
| 12 | 4 | 20252200 E | 5/16"-18 x 3-1/2" Eye Bolt W/Nut | |
| 13 | 2 | 11170300 | “U” Bar | |
| 14 | 16 | 75089541* | 1/4" x 1-7/8" Roll Pin | |
| 15 | 2 | 20470801* | Bearing Pin | |
| 16 | 2 | 20271501* | Lower Cylinder Pin | |
| 17 | 4 | 20270400 E | Extension Spring | |
| 18 | 4 | 75085003 E | 5/16"-18 Hex Nut | |
| 19 | 2 | 75085175* | 1/4"-20 Self Locking Nut | |
| 20 | 2 | 75086215* | 1/4"-20 x 2-1/2" Bolt (Grade 8) | |
| 21 | 2 | 75089542* | 1/2" x 2" Roll Pin | |
| 22 | 2 | 20230200 | Power Down Stop (Used on Power Down Liftgates Only) | |
| 5 | 2 | 20370100 | Stop Block Pin | |
| 10 | 2 | 20370400 | Main Pin | |
| 14 | 16 | 75089541 | 1/4" x 1-7/8" Roll Pin | |
| 15 | 2 | 20470801 | Bearing Pin | |
| 16 | 2 | 20271501 | Lower Cylinder Pin | |
| 19 | 2 | 75085175 | 1/4"-20 Self Locking Nut | |
| 20 | 2 | 75086215 | 1/4"-20 x 2-1/2" Bolt (Grade 8) | |
| 21 | 2 | 75089542 | 1/2" x 2" Roll Pin |
i

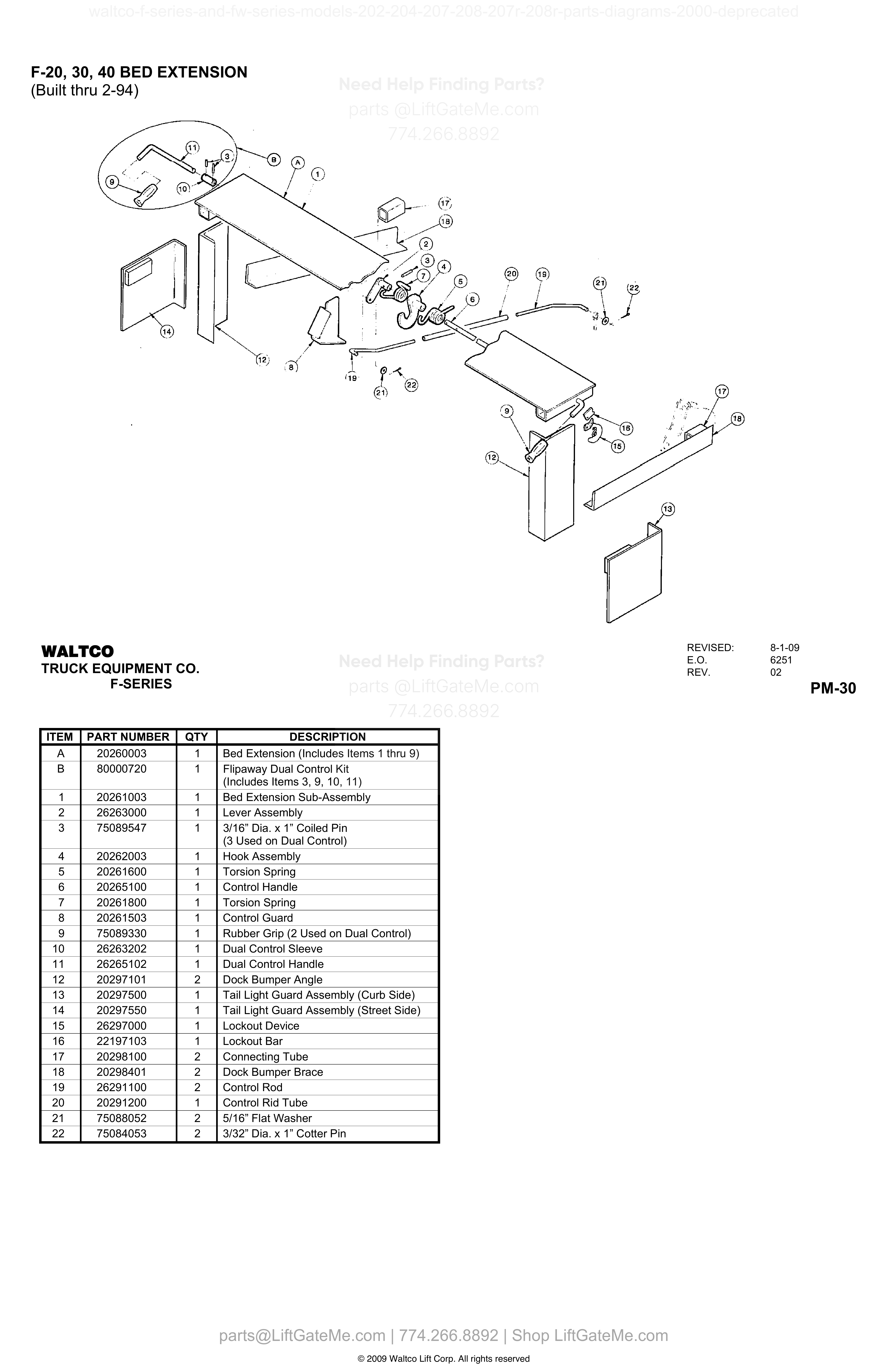

F-20, 30, 40 BED EXTENSION
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| A | 1 | 20260003 | Bed Extension (Includes Items 1 thru 9) | |
| B | 1 | 80000720 | Flipaway Dual Control Kit (Includes Items 3, 9, 10, 11) | |
| 1 | 1 | 20261003 | Bed Extension Sub-Assembly | |
| 2 | 1 | 26263000 | Lever Assembly | |
| 3 | 1 | 75089547 | 3/16” Dia. x 1” Coiled Pin (3 Used on Dual Control) | |
| 4 | 1 | 20262003 | Hook Assembly | |
| 5 | 1 | 20261600 | Torsion Spring | |
| 6 | 1 | 20265100 | Control Handle | |
| 7 | 1 | 20261800 | Torsion Spring | |
| 8 | 1 | 20261503 | Control Guard | |
| 9 | 1 | 75089330 | Rubber Grip (2 Used on Dual Control) | |
| 10 | 1 | 26263202 | Dual Control Sleeve | |
| 11 | 1 | 26265102 | Dual Control Handle | |
| 12 | 2 | 20297101 | Dock Bumper Angle | |
| 13 | 1 | 20297500 | Tail Light Guard Assembly (Curb Side) | |
| 14 | 1 | 20297550 | Tail Light Guard Assembly (Street Side) | |
| 15 | 1 | 26297000 | Lockout Device | |
| 16 | 1 | 22197103 | Lockout Bar | |
| 17 | 2 | 20298100 | Connecting Tube | |
| 18 | 2 | 20298401 | Dock Bumper Brace | |
| 19 | 2 | 26291100 | Control Rod | |
| 20 | 1 | 20291200 | Control Rid Tube | |
| 21 | 2 | 75088052 | 5/16” Flat Washer | |
| 22 | 2 | 75084053 | 3/32” Dia. x 1” Cotter Pin |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

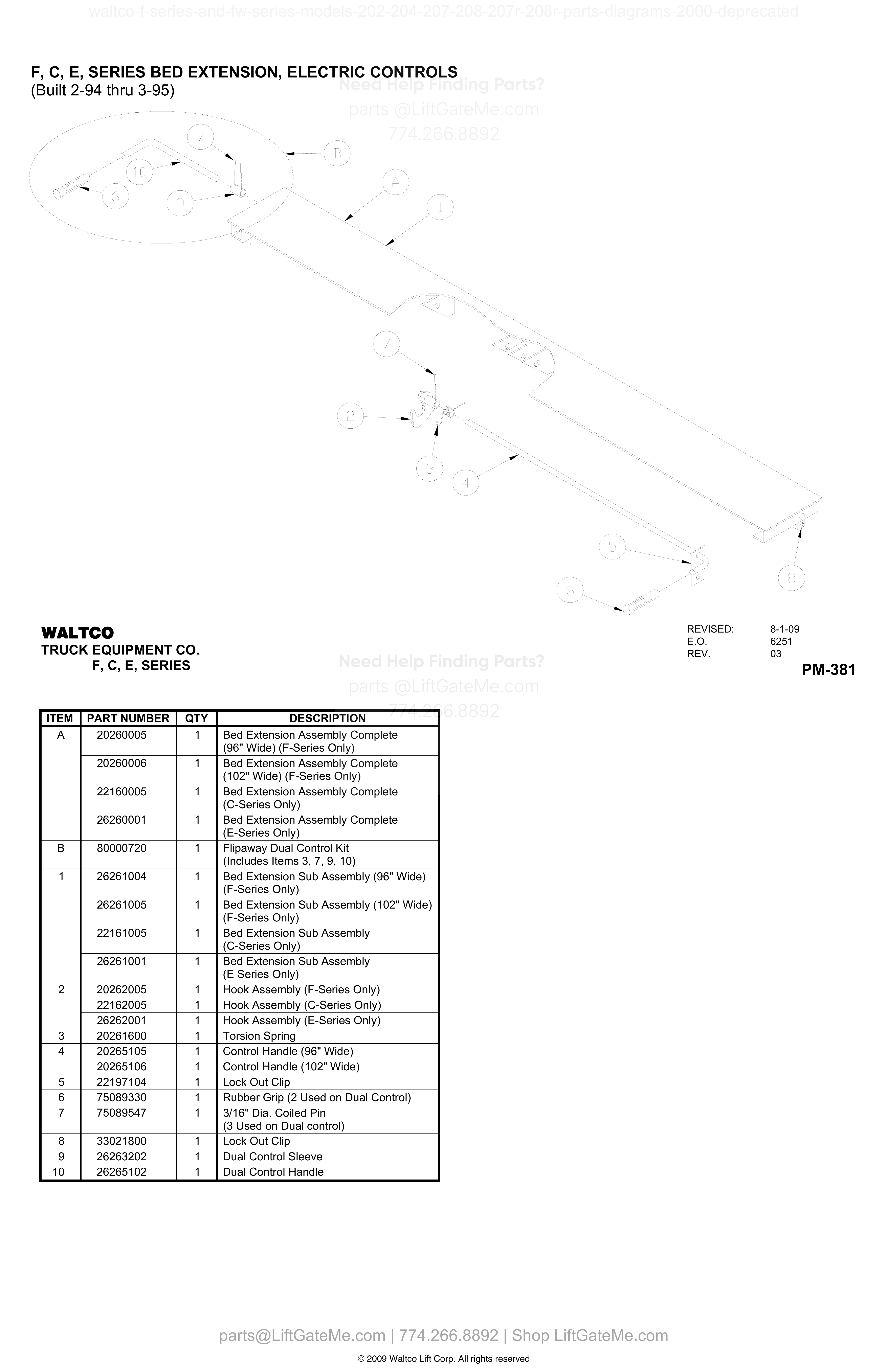

F, C, E, SERIES BED EXTENSION, ELECTRIC CONTROLS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| A | 1 | 20260005 | Bed Extension Assembly Complete (96" Wide) (F-Series Only) | |
| A | 1 | 20260006 | Bed Extension Assembly Complete (102" Wide) (F-Series Only) | |
| A | 1 | 22160005 | Bed Extension Assembly Complete (C-Series Only) | |
| A | 1 | 26260001 | Bed Extension Assembly Complete (E-Series Only) | |
| B | 1 | 80000720 | Flipaway Dual Control Kit (Includes Items 3, 7, 9, 10) | |
| 1 | 1 | 26261004 | Bed Extension Sub Assembly (96" Wide) (F-Series Only) | |
| 1 | 1 | 26261005 | Bed Extension Sub Assembly (102" Wide) (F-Series Only) | |
| 1 | 1 | 22161005 | Bed Extension Sub Assembly (C-Series Only) | |
| 1 | 1 | 26261001 | Bed Extension Sub Assembly (E Series Only) | |
| 2 | 1 | 20262005 | Hook Assembly (F-Series Only) | |
| 2 | 1 | 22162005 | Hook Assembly (C-Series Only) | |
| 2 | 1 | 26262001 | Hook Assembly (E-Series Only) | |
| 3 | 1 | 20261600 | Torsion Spring | |
| 4 | 1 | 20265105 | Control Handle (96" Wide) | |
| 4 | 1 | 20265106 | Control Handle (102" Wide) | |
| 5 | 1 | 22197104 | Lock Out Clip | |
| 6 | 1 | 75089330 | Rubber Grip (2 Used on Dual Control) | |
| 7 | 1 | 75089547 | 3/16" Dia. Coiled Pin (3 Used on Dual control) | |
| 8 | 1 | 33021800 | Lock Out Clip | |
| 9 | 1 | 26263202 | Dual Control Sleeve | |
| 10 | 1 | 26265102 | Dual Control Handle |

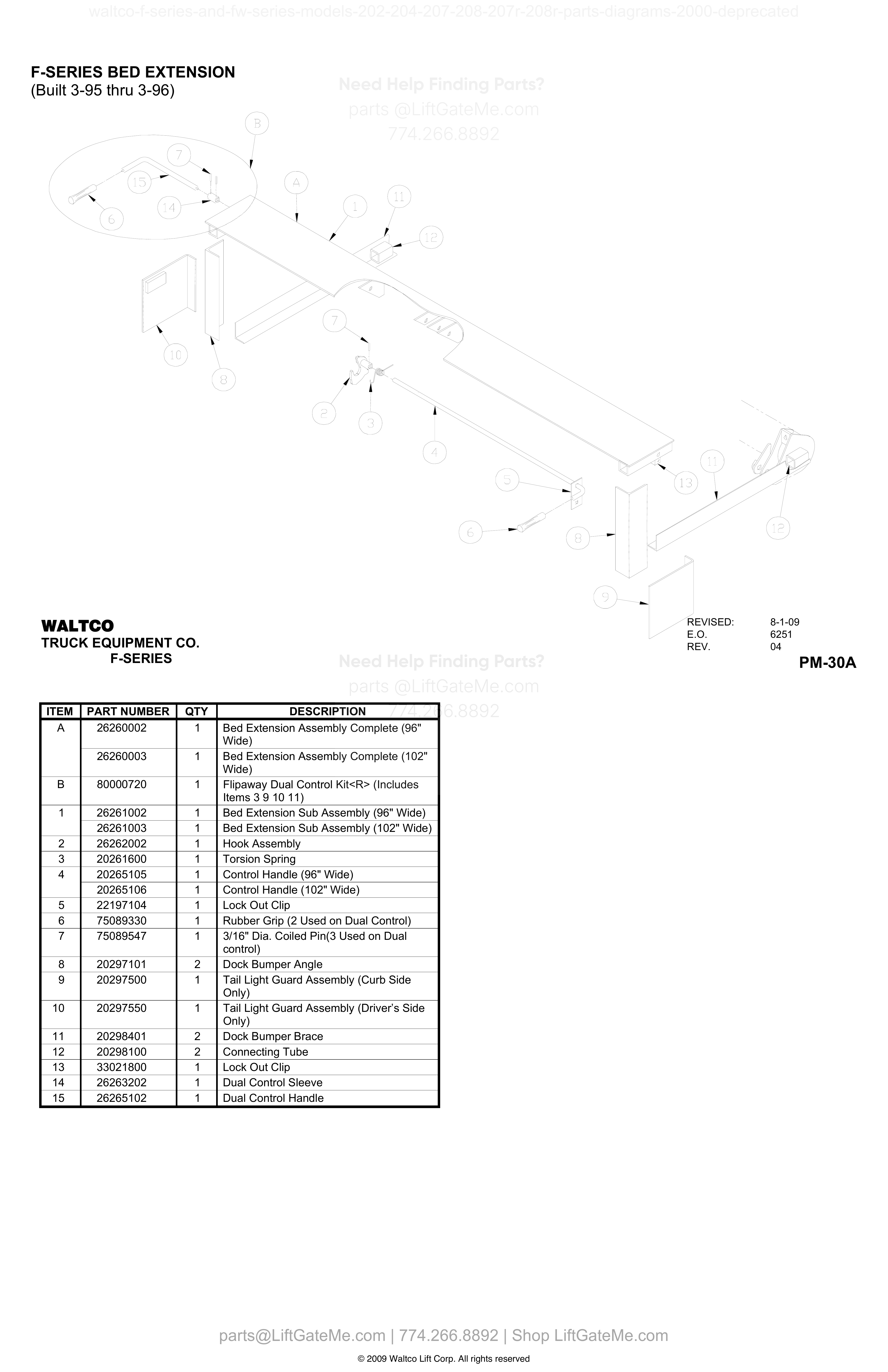

F-SERIES BED EXTENSION
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| A | 1 | 26260002 | Bed Extension Assembly Complete (96" Wide) | |
| A | 1 | 26260003 | Bed Extension Assembly Complete (102" Wide) | |
| B | 1 | 80000720 | Flipaway Dual Control Kit |
|
| 1 | 1 | 26261002 | Bed Extension Sub Assembly (96" Wide) | |
| 1 | 1 | 26261003 | Bed Extension Sub Assembly (102" Wide) | |
| 2 | 1 | 26262002 | Hook Assembly | |
| 3 | 1 | 20261600 | Torsion Spring | |
| 4 | 1 | 20265105 | Control Handle (96" Wide) | |
| 4 | 1 | 20265106 | Control Handle (102" Wide) | |
| 5 | 1 | 22197104 | Lock Out Clip | |
| 6 | 1 | 75089330 | Rubber Grip (2 Used on Dual Control) | |
| 7 | 1 | 75089547 | 3/16" Dia. Coiled Pin(3 Used on Dual control) | |
| 8 | 2 | 20297101 | Dock Bumper Angle | |
| 9 | 1 | 20297500 | Tail Light Guard Assembly (Curb Side Only) | |
| 10 | 1 | 20297550 | Tail Light Guard Assembly (Driver's Side Only) | |
| 11 | 2 | 20298401 | Dock Bumper Brace | |
| 12 | 2 | 20298100 | Connecting Tube | |
| 13 | 1 | 33021800 | Lock Out Clip | |
| 14 | 1 | 26263202 | Dual Control Sleeve | |
| 15 | 1 | 26265102 | Dual Control Handle |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

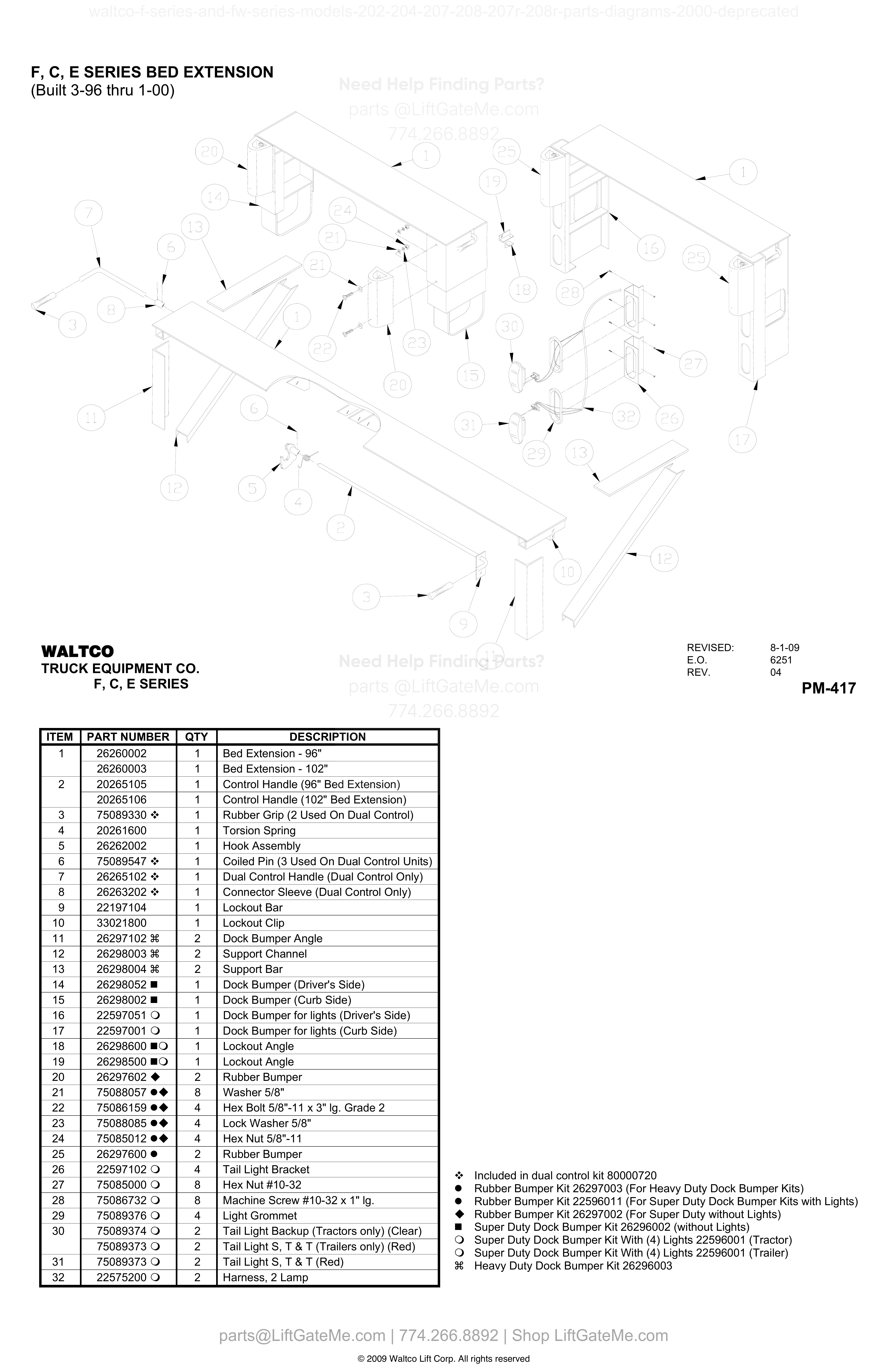

F, C, E SERIES BED EXTENSION (Built 3-96 thru 1-00)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 26260002 | Bed Extension - 96" | |
| 1 | 1 | 26260003 | Bed Extension - 102" | |
| 2 | 1 | 20265105 | Control Handle (96" Bed Extension) | |
| 2 | 1 | 20265106 | Control Handle (102" Bed Extension) | |
| 3 | 1 | 75089330 | Rubber Grip (2 Used On Dual Control) | |
| 4 | 1 | 20261600 | Torsion Spring | |
| 5 | 1 | 26262002 | Hook Assembly | |
| 6 | 1 | 75089547 | Coiled Pin (3 Used On Dual Control Units) | |
| 7 | 1 | 26265102 | Dual Control Handle (Dual Control Only) | |
| 8 | 1 | 26263202 | Connector Sleeve (Dual Control Only) | |
| 9 | 1 | 22197104 | Lockout Bar | |
| 10 | 1 | 33021800 | Lockout Clip | |
| 11 | 2 | 26297102 | Dock Bumper Angle | |
| 12 | 2 | 26298003 | Support Channel | |
| 13 | 2 | 26298004 | Support Bar | |
| 14 | 1 | 26298052 | Dock Bumper (Driver's Side) | |
| 15 | 1 | 26298002 | Dock Bumper (Curb Side) | |
| 16 | 1 | 22597051 | Dock Bumper for lights (Driver's Side) | |
| 17 | 1 | 22597001 | Dock Bumper for lights (Curb Side) | |
| 18 | 1 | 26298600 | Lockout Angle | |
| 19 | 1 | 26298500 | Lockout Angle | |
| 20 | 2 | 26297602 | Rubber Bumper | |
| 21 | 8 | 75088057 | Washer 5/8" | |
| 22 | 4 | 75086159 | Hex Bolt 5/8"-11 x 3" lg. Grade 2 | |
| 23 | 4 | 75088085 | Lock Washer 5/8" | |
| 24 | 4 | 75085012 | Hex Nut 5/8"-11 | |
| 25 | 2 | 26297600 | Rubber Bumper | |
| 26 | 4 | 22597102 | Tail Light Bracket | |
| 27 | 8 | 75085000 | Hex Nut #10-32 | |
| 28 | 8 | 75086732 | Machine Screw #10-32 x 1" lg. | |
| 29 | 4 | 75089376 | Light Grommet | |
| 30 | 2 | 75089374 | Tail Light Backup (Tractors only) (Clear) | |
| 30 | 2 | 75089373 | Tail Light S, T & T (Trailers only) (Red) | |
| 31 | 2 | 75089373 | Tail Light S, T & T (Red) | |
| 32 | 2 | 22575200 | Harness, 2 Lamp |

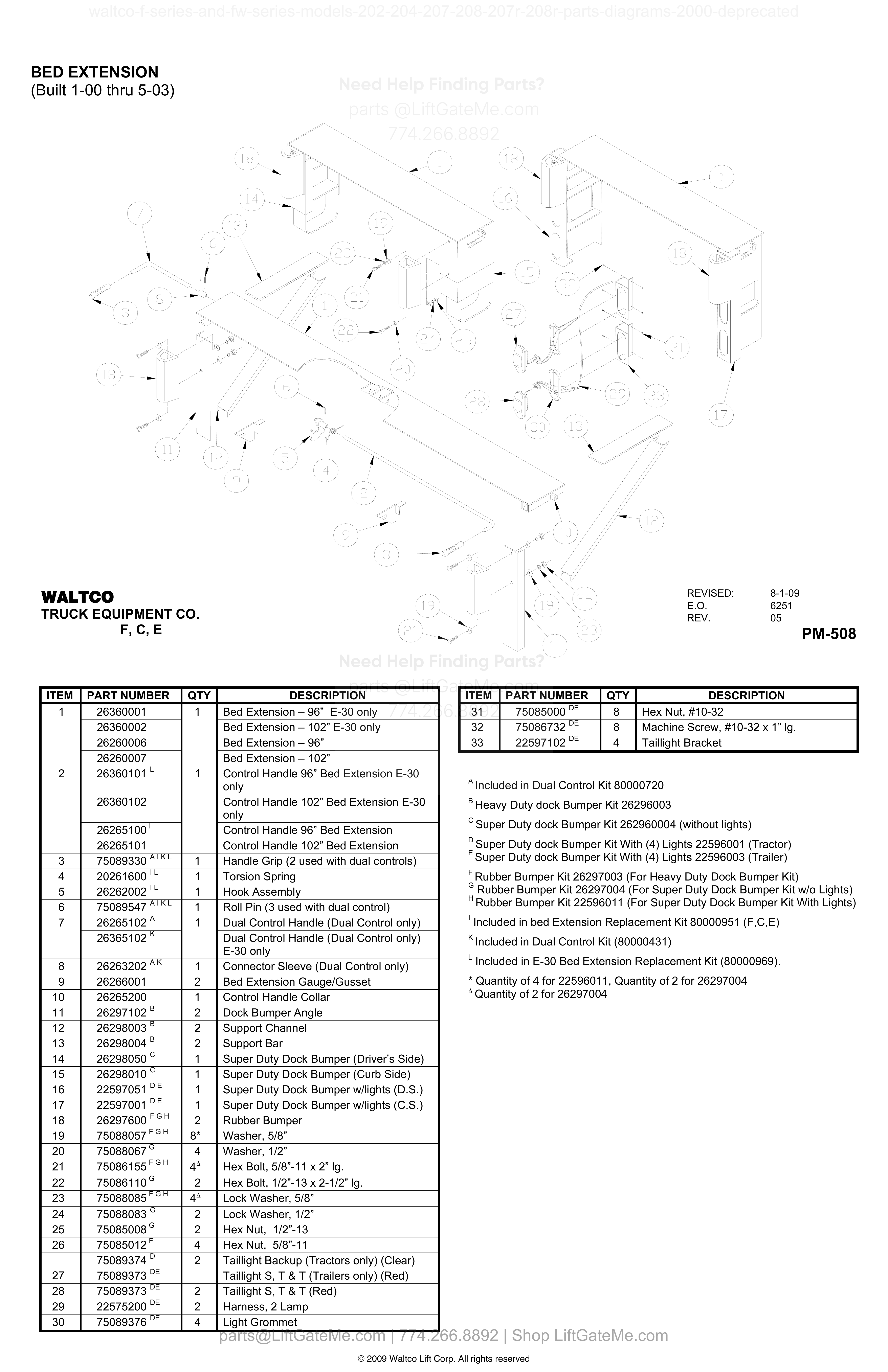

BED EXTENSION (Built 1-00 thru 5-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 26360001 | Bed Extension – 96” E-30 only | |
| 1 | 1 | 26360002 | Bed Extension – 102” E-30 only | |
| 1 | 1 | 26260006 | Bed Extension – 96” | |
| 1 | 1 | 26260007 | Bed Extension – 102” | |
| 2 | 1 | 26360101 L | Control Handle 96” Bed Extension E-30 only | |
| 2 | 1 | 26360102 | Control Handle 102” Bed Extension E-30 only | |
| 2 | 1 | 26265100 I | Control Handle 96” Bed Extension | |
| 2 | 1 | 26265101 | Control Handle 102” Bed Extension | |
| 3 | 1 | 75089330^A,I,K,L | Handle Grip (2 used with dual controls) | |
| 4 | 1 | 20261600 I,L | Torsion Spring | |
| 5 | 1 | 26262002 I,L | Hook Assembly | |
| 6 | 1 | 75089547^A,I,K,L | Roll Pin (3 used with dual control) | |
| 7 | 1 | 26265102 A | Dual Control Handle (Dual Control only) | |
| 7 | 1 | 26365102 K | Dual Control Handle (Dual Control only) E-30 only | |
| 8 | 1 | 26263202 A,K | Connector Sleeve (Dual Control only) | |
| 9 | 2 | 26266001 | Bed Extension Gauge/Gusset | |
| 10 | 1 | 26265200 | Control Handle Collar | |
| 11 | 2 | 26297102 B | Dock Bumper Angle | |
| 12 | 2 | 26298003 B | Support Channel | |
| 13 | 2 | 26298004 B | Support Bar | |
| 14 | 1 | 26298050 C | Super Duty Dock Bumper (Driver’s Side) | |
| 15 | 1 | 26298010 C | Super Duty Dock Bumper (Curb Side) | |
| 16 | 1 | 22597051 D,E | Super Duty Dock Bumper w/lights (D.S.) | |
| 17 | 1 | 22597001 D,E | Super Duty Dock Bumper w/lights (C.S.) | |
| 18 | 2 | 26297600^F,G,H | Rubber Bumper | |
| 19 | 75088057^F,G,H | Washer, 5/8” | ||
| 20 | 4 | 75088067 G | Washer, 1/2” | |
| 21 | 75086155^F,G,H | Hex Bolt, 5/8”-11 x 2” lg. | ||
| 22 | 2 | 75086110 G | Hex Bolt, 1/2”-13 x 2-1/2” lg. | |
| 23 | 75088085^F,G,H | Lock Washer, 5/8” | ||
| 24 | 2 | 75088083 G | Lock Washer, 1/2” | |
| 25 | 2 | 75085008 G | Hex Nut, 1/2”-13 | |
| 26 | 4 | 75085012 F | Hex Nut, 5/8”-11 | |
| 27 | 2 | 75089374 D | Taillight Backup (Tractors only) (Clear) | |
| 27 | 2 | 75089373 D,E | Taillight S, T & T (Trailers only) (Red) | |
| 28 | 2 | 75089373 D,E | Taillight S, T & T (Red) | |
| 29 | 2 | 22575200 D,E | Harness, 2 Lamp | |
| 30 | 4 | 75089376 D,E | Light Grommet | |
| 31 | 8 | 75085000 | Hex Nut, #10-32 | |
| 32 | 8 | 75086732 D,E | Machine Screw, #10-32 x 1” lg. | |
| 33 | 4 | 22597102 D,E | Taillight Bracket |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

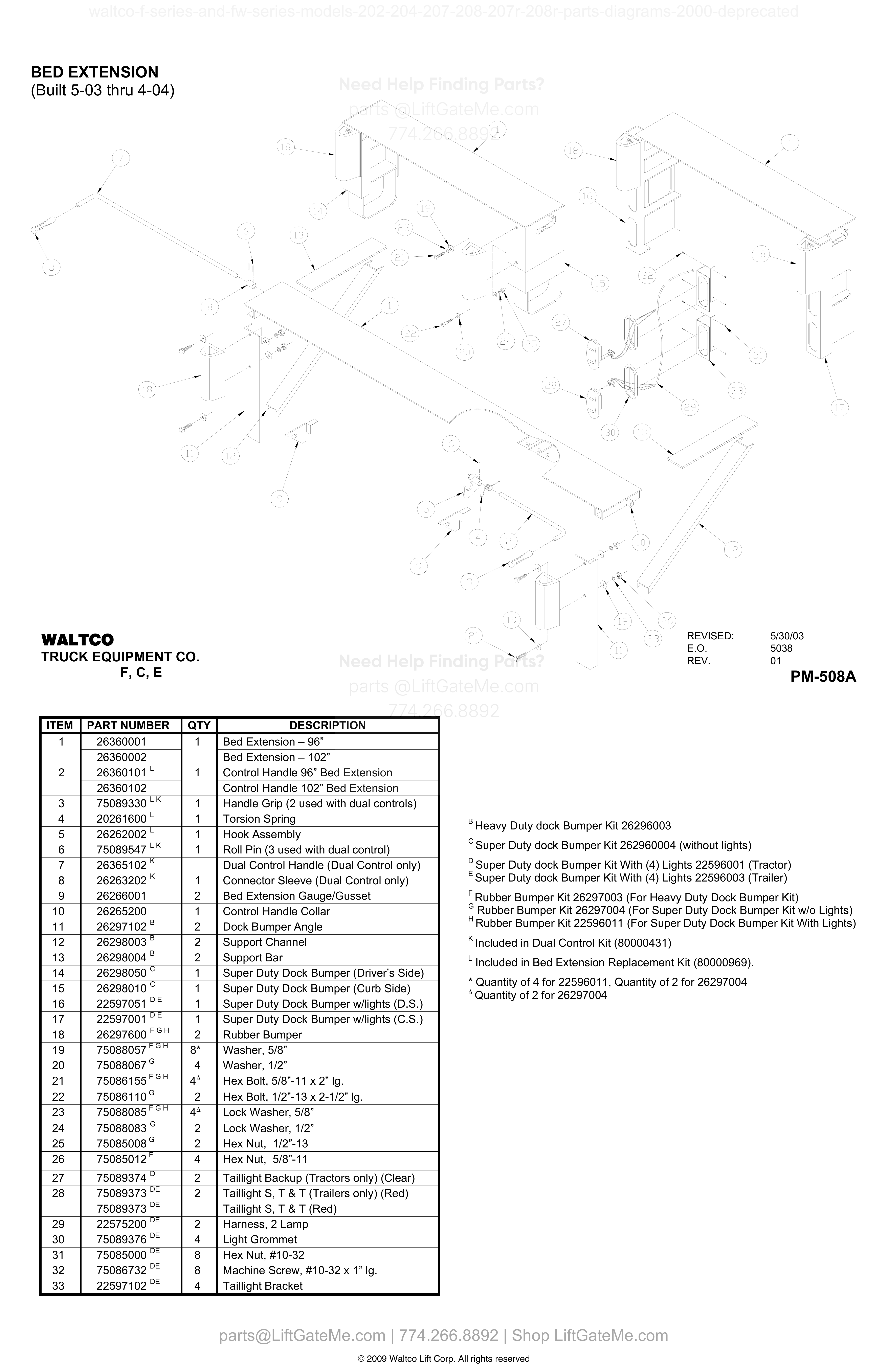

BED EXTENSION (Built 5-03 thru 4-04)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 26360001 | Bed Extension – 96” | |
| 1 | 26360002 | Bed Extension – 102” | ||
| 2 | 1 | 26360101 L | Control Handle 96” Bed Extension | |
| 2 | 26360102 | Control Handle 102” Bed Extension | ||
| 3 | 1 | 75089330 L,K | Handle Grip (2 used with dual controls) | |
| 4 | 1 | 20261600 L | Torsion Spring | |
| 5 | 1 | 26262002 L | Hook Assembly | |
| 6 | 1 | 75089547 L,K | Roll Pin (3 used with dual control) | |
| 7 | 26365102 K | Dual Control Handle (Dual Control only) | ||
| 8 | 1 | 26263202 K | Connector Sleeve (Dual Control only) | |
| 9 | 2 | 26266001 | Bed Extension Gauge/Gusset | |
| 10 | 1 | 26265200 | Control Handle Collar | |
| 11 | 2 | 26297102 B | Dock Bumper Angle | |
| 12 | 2 | 26298003 B | Support Channel | |
| 13 | 2 | 26298004 B | Support Bar | |
| 14 | 1 | 26298050 C | Super Duty Dock Bumper (Driver’s Side) | |
| 15 | 1 | 26298010 C | Super Duty Dock Bumper (Curb Side) | |
| 16 | 1 | 22597051 D,E | Super Duty Dock Bumper w/lights (D.S.) | |
| 17 | 1 | 22597001 D,E | Super Duty Dock Bumper w/lights (C.S.) | |
| 18 | 2 | 26297600^F,G,H | Rubber Bumper | |
| 19 | 75088057^F,G,H | Washer, 5/8” | ||
| 20 | 4 | 75088067 G | Washer, 1/2” | |
| 21 | 75086155^F,G,H | Hex Bolt, 5/8”-11 x 2” lg. | ||
| 22 | 2 | 75086110 G | Hex Bolt, 1/2”-13 x 2-1/2” lg. | |
| 23 | 75088085^F,G,H | Lock Washer, 5/8” | ||
| 24 | 2 | 75088083 G | Lock Washer, 1/2” | |
| 25 | 2 | 75085008 G | Hex Nut, 1/2”-13 | |
| 26 | 4 | 75085012 F | Hex Nut, 5/8”-11 | |
| 27 | 2 | 75089374 | Taillight Backup (Tractors only) (Clear) | |
| 28 | 2 | 75089373 D,E | Taillight S, T & T (Trailers only) (Red) | |
| 28 | 75089373 D,E | Taillight S, T & T (Red) | ||
| 29 | 2 | 22575200 D,E | Harness, 2 Lamp | |
| 30 | 4 | 75089376 D,E | Light Grommet | |
| 31 | 8 | 75085000 D,E | Hex Nut, #10-32 | |
| 32 | 8 | 75086732 D,E | Machine Screw, #10-32 x 1” lg. | |
| 33 | 4 | 22597102 D,E | Taillight Bracket |

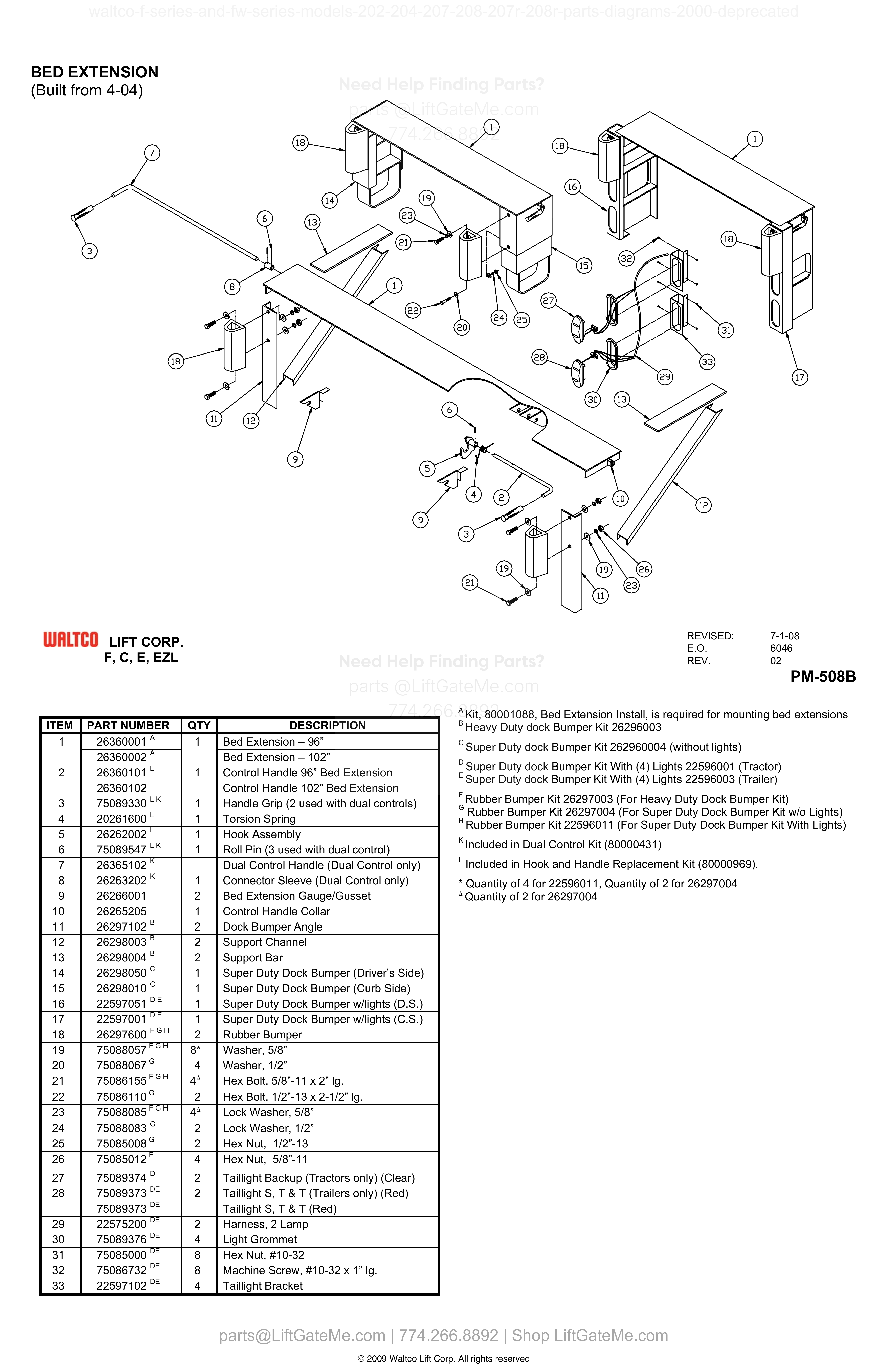

BED EXTENSION (Built from 4-04)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 26360001 A | Bed Extension – 96” | |
| 1 | 26360002 A | Bed Extension – 102” | ||
| 2 | 1 | 26360101 L | Control Handle 96” Bed Extension | |
| 2 | 26360102 | Control Handle 102” Bed Extension | ||
| 3 | 1 | 75089330 L,K | Handle Grip (2 used with dual controls) | |
| 4 | 1 | 20261600 L | Torsion Spring | |
| 5 | 1 | 26262002 L | Hook Assembly | |
| 6 | 1 | 75089547 L,K | Roll Pin (3 used with dual control) | |
| 7 | 26365102 K | Dual Control Handle (Dual Control only) | ||
| 8 | 1 | 26263202 K | Connector Sleeve (Dual Control only) | |
| 9 | 2 | 26266001 | Bed Extension Gauge/Gusset | |
| 10 | 1 | 26265205 | Control Handle Collar | |
| 11 | 2 | 26297102 B | Dock Bumper Angle | |
| 12 | 2 | 26298003 B | Support Channel | |
| 13 | 2 | 26298004 B | Support Bar | |
| 14 | 1 | 26298050 C | Super Duty Dock Bumper (Driver’s Side) | |
| 15 | 1 | 26298010 C | Super Duty Dock Bumper (Curb Side) | |
| 16 | 1 | 22597051 D,E | Super Duty Dock Bumper w/lights (D.S.) | |
| 17 | 1 | 22597001 D,E | Super Duty Dock Bumper w/lights (C.S.) | |
| 18 | 2 | 26297600^F,G,H | Rubber Bumper | |
| 19 | 75088057^F,G,H | Washer, 5/8” | ||
| 20 | 4 | 75088067 G | Washer, 1/2” | |
| 21 | 75086155^F,G,H | Hex Bolt, 5/8”-11 x 2” lg. | ||
| 22 | 2 | 75086110 G | Hex Bolt, 1/2”-13 x 2-1/2” lg. | |
| 23 | 75088085^F,G,H | Lock Washer, 5/8” | ||
| 24 | 2 | 75088083 G | Lock Washer, 1/2” | |
| 25 | 2 | 75085008 G | Hex Nut, 1/2”-13 | |
| 26 | 4 | 75085012 F | Hex Nut, 5/8”-11 | |
| 27 | 2 | 75089374 D | Taillight Backup (Tractors only) (Clear) | |
| 28 | 2 | 75089373 D,E | Taillight S, T & T (Trailers only) (Red) | |
| 28 | 75089373 D,E | Taillight S, T & T (Red) | ||
| 29 | 2 | 22575200 D,E | Harness, 2 Lamp | |
| 30 | 4 | 75089376 D,E | Light Grommet | |
| 31 | 8 | 75085000 D,E | Hex Nut, #10-32 | |
| 32 | 8 | 75086732 D,E | Machine Screw, #10-32 x 1” lg. | |
| 33 | 4 | 22597102 D,E | Taillight Bracket |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

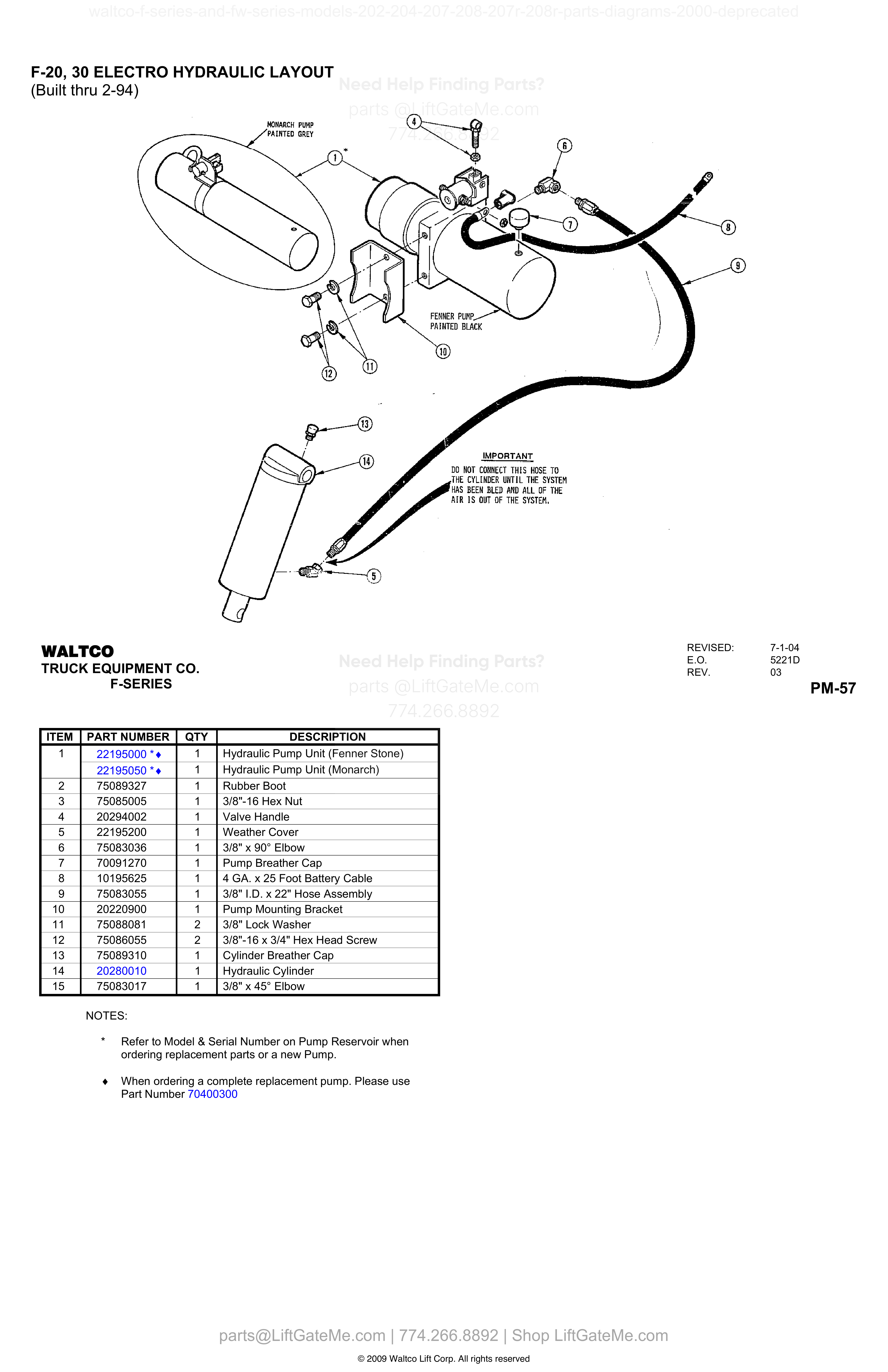

F-20, 30 ELECTRO HYDRAULIC LAYOUT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22195000 | Hydraulic Pump Unit (Fenner Stone) | |
| 1 | 1 | 22195050 | Hydraulic Pump Unit (Monarch) | |
| 2 | 1 | 75089327 | Rubber Boot | |
| 3 | 1 | 75085005 | 3/8”-16 Hex Nut | |
| 4 | 1 | 20294002 | Valve Handle | |
| 5 | 1 | 22195200 | Weather Cover | |
| 6 | 1 | 75083036 | 3/8” x 90° Elbow | |
| 7 | 1 | 70091270 | Pump Breather Cap | |
| 8 | 1 | 10195625 | 4 GA. x 25 Foot Battery Cable | |
| 9 | 1 | 75083055 | 3/8” I.D. x 22” Hose Assembly | |
| 10 | 1 | 20220900 | Pump Mounting Bracket | |
| 11 | 2 | 75088081 | 3/8” Lock Washer | |
| 12 | 2 | 75086055 | 3/8”-16 x 3/4” Hex Head Screw | |
| 13 | 1 | 75089310 | Cylinder Breather Cap | |
| 14 | 1 | 20280010 | Hydraulic Cylinder | |
| 15 | 1 | 75083017 | 3/8” x 45° Elbow |

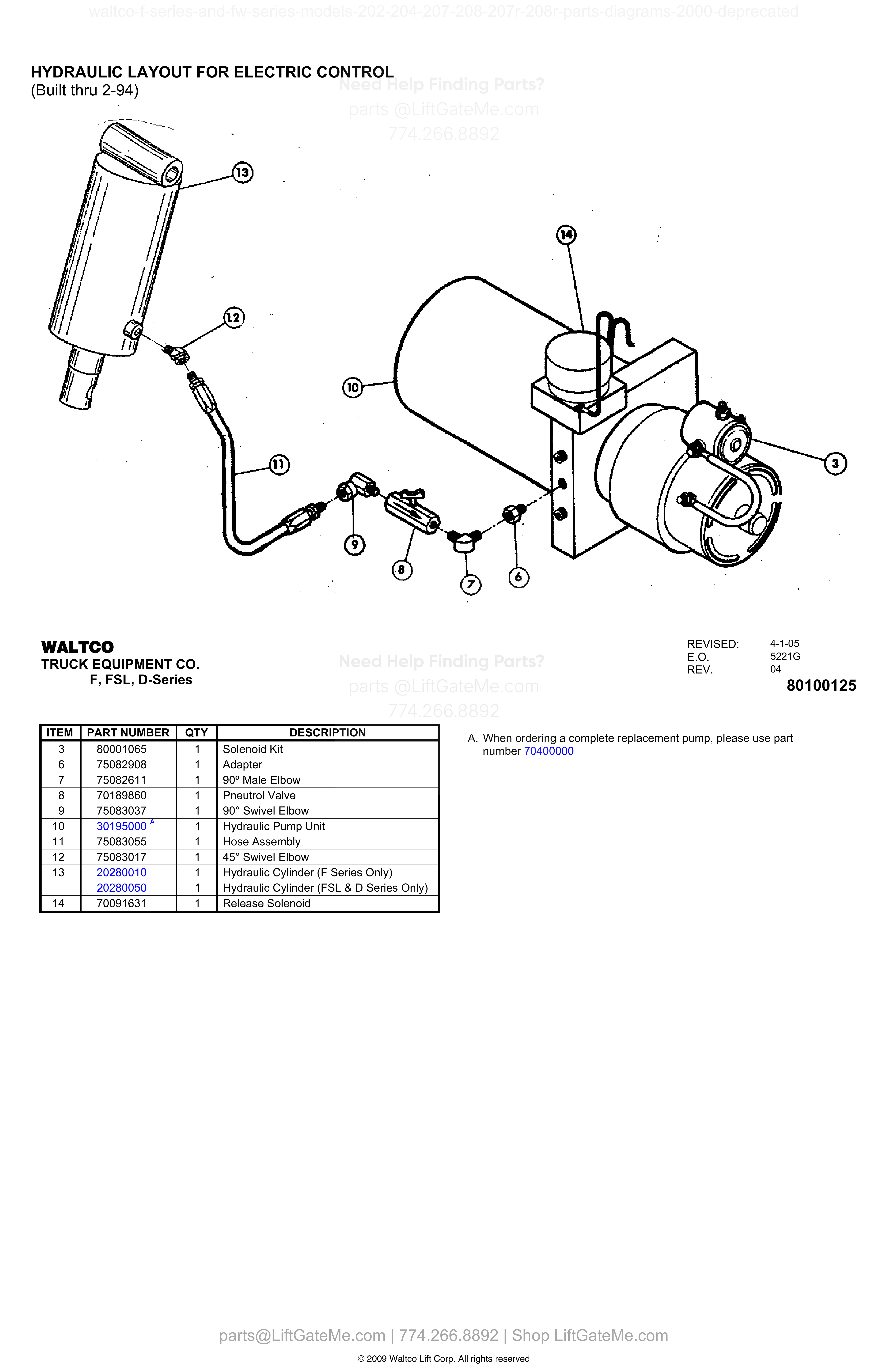

HYDRAULIC LAYOUT FOR ELECTRIC CONTROL
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 3 | 1 | 80001065 | Solenoid Kit | |
| 6 | 1 | 75082908 | Adapter | |
| 7 | 1 | 75082611 | 90° Male Elbow | |
| 8 | 1 | 70189860 | Pneutrol Valve | |
| 9 | 1 | 75083037 | 90° Swivel Elbow | |
| 10 | 1 | 30195000 A | Hydraulic Pump Unit | |
| 11 | 1 | 75083055 | Hose Assembly | |
| 12 | 1 | 75083017 | 45° Swivel Elbow | |
| 13 | 1 | 20280010 | Hydraulic Cylinder (F Series Only) | |
| 13 | 1 | 20280050 | Hydraulic Cylinder (FSL & D Series Only) | |
| 14 | 1 | 70091631 | Release Solenoid |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

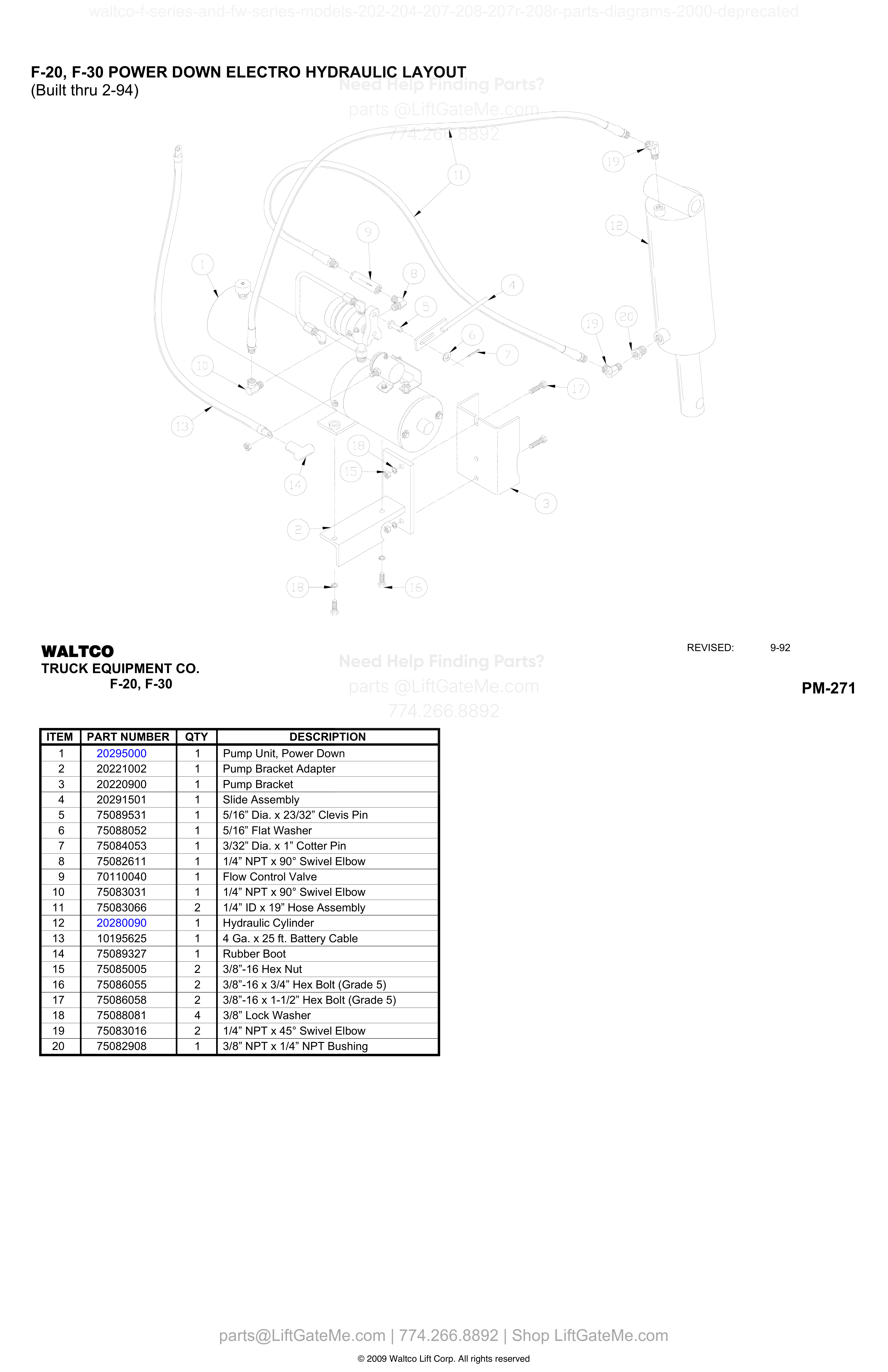

F-20, F-30 POWER DOWN ELECTRO HYDRAULIC LAYOUT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20295000 | Pump Unit, Power Down | |
| 2 | 1 | 20221002 | Pump Bracket Adapter | |
| 3 | 1 | 20220900 | Pump Bracket | |
| 4 | 1 | 20291501 | Slide Assembly | |
| 5 | 1 | 75089531 | 5/16” Dia. x 23/32” Clevis Pin | |
| 6 | 1 | 75088052 | 5/16” Flat Washer | |
| 7 | 1 | 75084053 | 3/32” Dia. x 1” Cotter Pin | |
| 8 | 1 | 75082611 | 1/4” NPT x 90° Swivel Elbow | |
| 9 | 1 | 70110040 | Flow Control Valve | |
| 10 | 1 | 75083031 | 1/4” NPT x 90° Swivel Elbow | |
| 11 | 2 | 75083066 | 1/4” ID x 19” Hose Assembly | |
| 12 | 1 | 20280090 | Hydraulic Cylinder | |
| 13 | 1 | 10195625 | 4 Ga. x 25 ft. Battery Cable | |
| 14 | 1 | 75089327 | Rubber Boot | |
| 15 | 2 | 75085005 | 3/8”-16 Hex Nut | |
| 16 | 2 | 75086055 | 3/8”-16 x 3/4” Hex Bolt (Grade 5) | |
| 17 | 2 | 75086058 | 3/8”-16 x 1-1/2” Hex Bolt (Grade 5) | |
| 18 | 4 | 75088081 | 3/8” Lock Washer | |
| 19 | 2 | 75083016 | 1/4” NPT x 45° Swivel Elbow | |
| 20 | 1 | 75082908 | 3/8” NPT x 1/4” NPT Bushing |

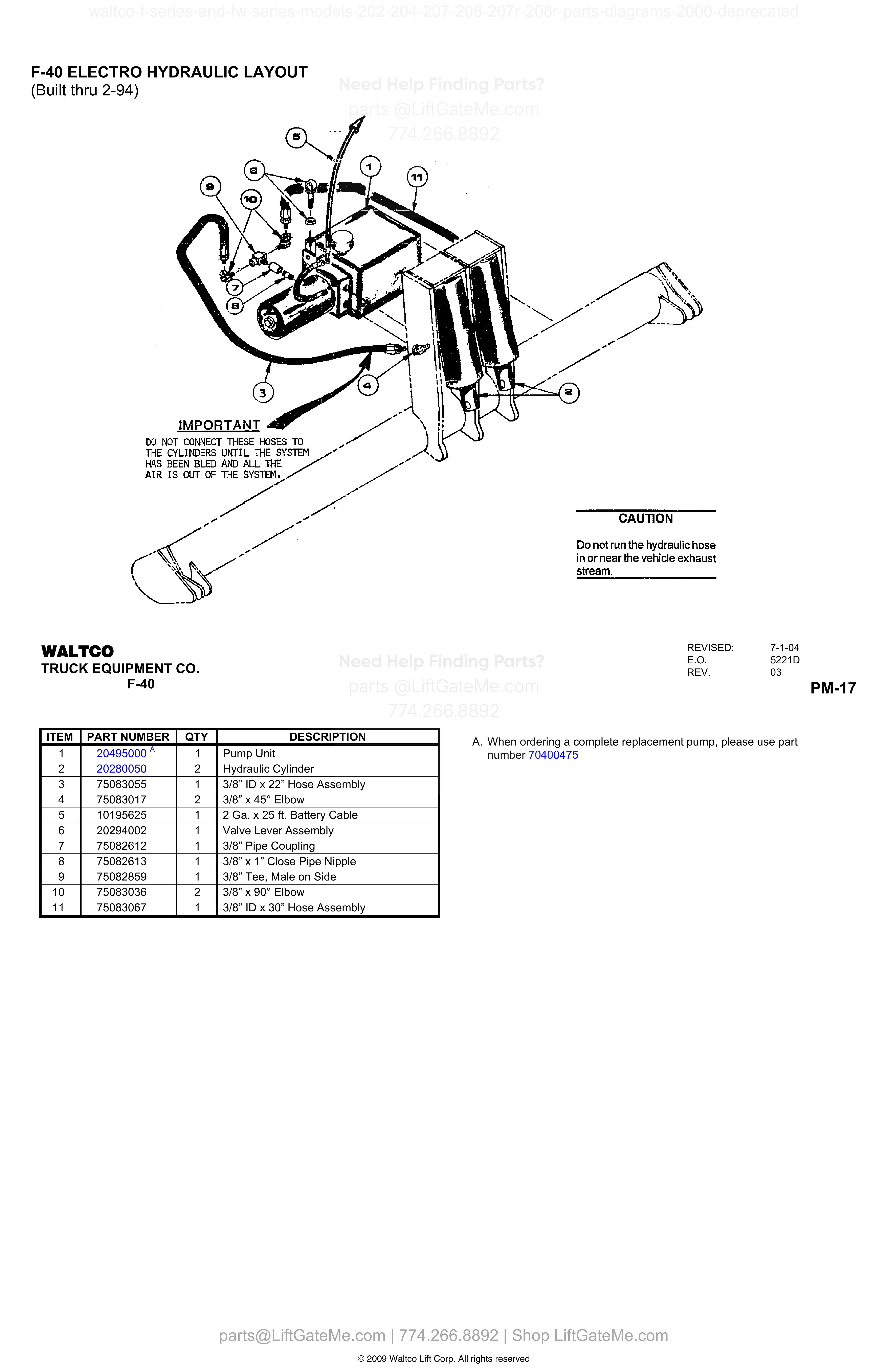

F-40 ELECTRO HYDRAULIC LAYOUT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20495000 A | Pump Unit | |
| 2 | 2 | 20280050 | Hydraulic Cylinder | |
| 3 | 1 | 75083055 | 3/8” ID x 22” Hose Assembly | |
| 4 | 2 | 75083017 | 3/8” x 45° Elbow | |
| 5 | 1 | 10195625 | 2 Ga. x 25 ft. Battery Cable | |
| 6 | 1 | 20294002 | Valve Lever Assembly | |
| 7 | 1 | 75082612 | 3/8” Pipe Coupling | |
| 8 | 1 | 75082613 | 3/8” x 1” Close Pipe Nipple | |
| 9 | 1 | 75082859 | 3/8” Tee, Male on Side | |
| 10 | 2 | 75083036 | 3/8” x 90° Elbow | |
| 11 | 1 | 75083067 | 3/8” ID x 30” Hose Assembly |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

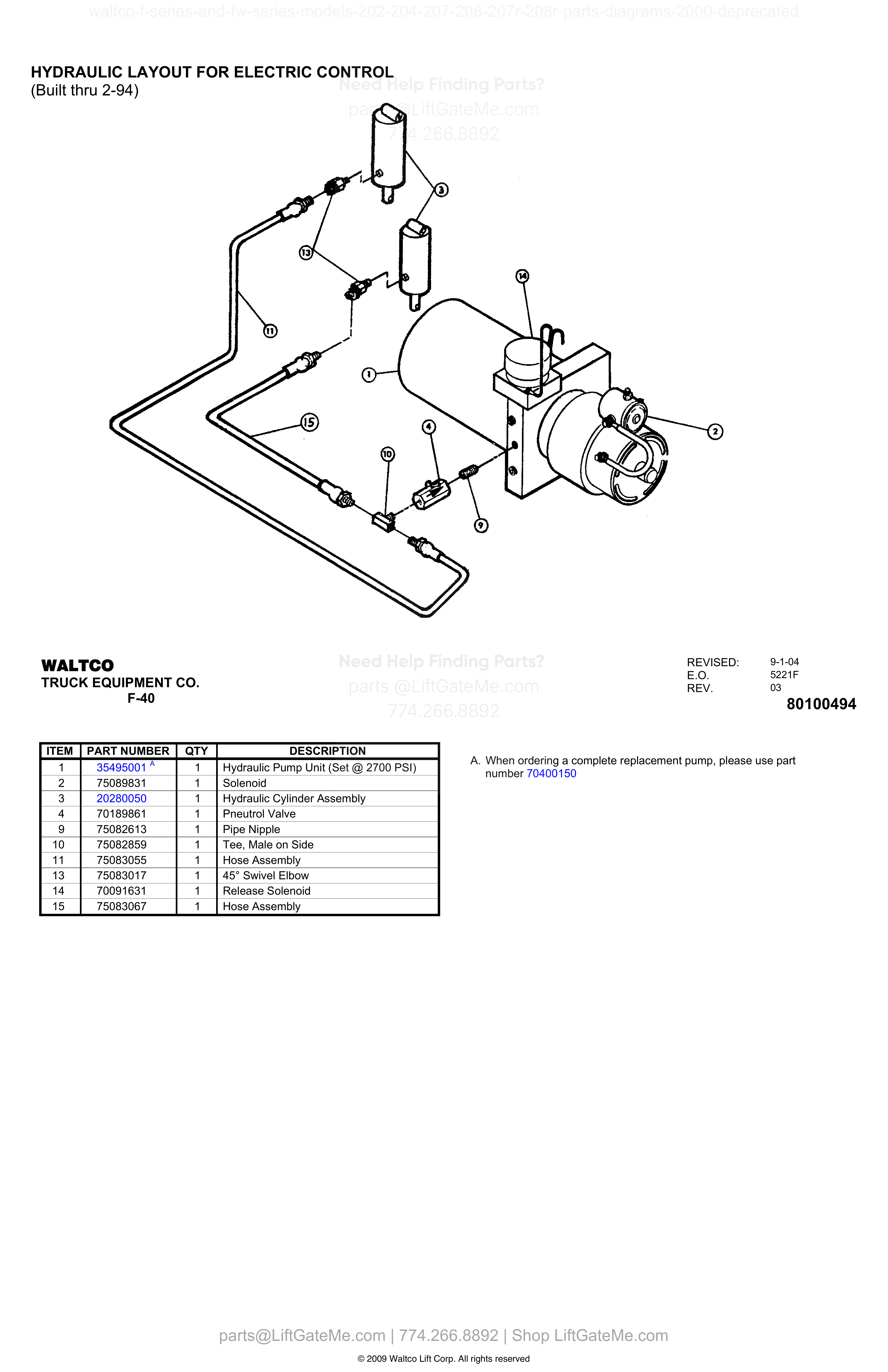

HYDRAULIC LAYOUT FOR ELECTRIC CONTROL
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 35495001 A | Hydraulic Pump Unit (Set @ 2700 PSI) | |
| 2 | 1 | 75089831 | Solenoid | |
| 3 | 1 | 20280050 | Hydraulic Cylinder Assembly | |
| 4 | 1 | 70189861 | Pneutrol Valve | |
| 9 | 1 | 75082613 | Pipe Nipple | |
| 10 | 1 | 75082859 | Tee, Male on Side | |
| 11 | 1 | 75083055 | Hose Assembly | |
| 13 | 1 | 75083017 | 45° Swivel Elbow | |
| 14 | 1 | 70091631 | Release Solenoid | |
| 15 | 1 | 75083067 | Hose Assembly |

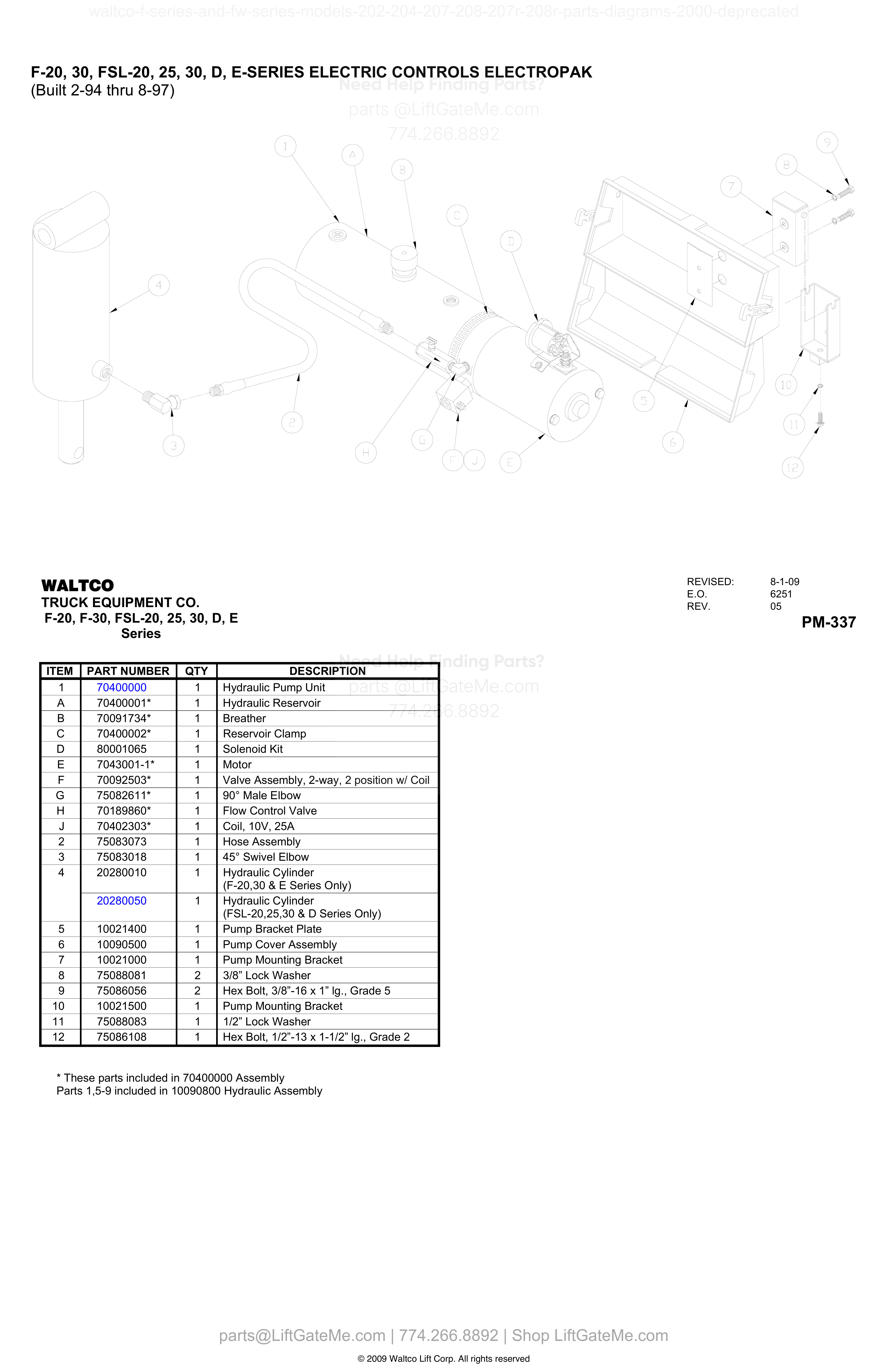

F-20, 30, FSL-20, 25, 30, D, E-SERIES ELECTRIC CONTROLS ELECTROPAK (Built 2-94 thru 8-97)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400000 | Hydraulic Pump Unit | |
| A | 1 | 70400001* | Hydraulic Reservoir | |
| B | 1 | 70091734* | Breather | |
| C | 1 | 70400002* | Reservoir Clamp | |
| D | 1 | 80001065 | Solenoid Kit | |
| E | 1 | 7043001-1* | Motor | |
| F | 1 | 70092503* | Valve Assembly, 2-way, 2 position w/ Coil | |
| G | 1 | 75082611* | 90° Male Elbow | |
| H | 1 | 70189860* | Flow Control Valve | |
| J | 1 | 70402303* | Coil, 10V, 25A | |
| 2 | 1 | 75083073 | Hose Assembly | |
| 3 | 1 | 75083018 | 45° Swivel Elbow | |
| 4 | 1 | 20280010 | Hydraulic Cylinder (F-20,30 & E Series Only) | |
| 4 | 1 | 20280050 | Hydraulic Cylinder (FSL-20,25,30 & D Series Only) | |
| 5 | 1 | 10021400 | Pump Bracket Plate | |
| 6 | 1 | 10090500 | Pump Cover Assembly | |
| 7 | 1 | 10021000 | Pump Mounting Bracket | |
| 8 | 2 | 75088081 | 3/8” Lock Washer | |
| 9 | 2 | 75086056 | Hex Bolt, 3/8”-16 x 1” lg., Grade 5 | |
| 10 | 1 | 10021500 | Pump Mounting Bracket | |
| 11 | 1 | 75088083 | 1/2” Lock Washer | |
| 12 | 1 | 75086108 | Hex Bolt, 1/2”-13 x 1-1/2” lg., Grade 2 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

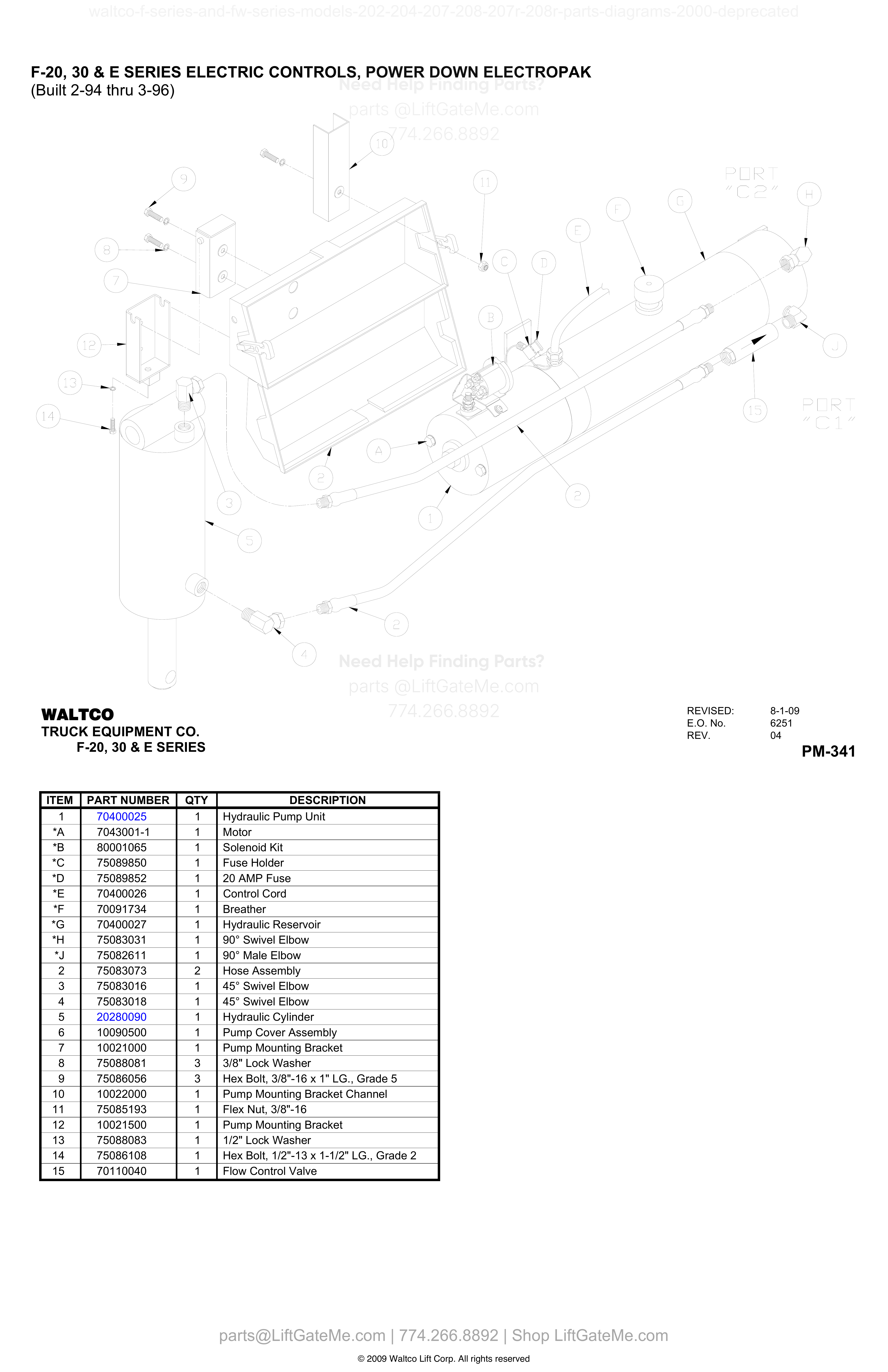

F-20, 30 & E SERIES ELECTRIC CONTROLS, POWER DOWN ELECTROPAK
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400025 | Hydraulic Pump Unit | |
| *A | 1 | 7043001-1 | Motor | |
| *B | 1 | 80001065 | Solenoid Kit | |
| *C | 1 | 75089850 | Fuse Holder | |
| *D | 1 | 75089852 | 20 AMP Fuse | |
| *E | 1 | 70400026 | Control Cord | |
| *F | 1 | 70091734 | Breather | |
| *G | 1 | 70400027 | Hydraulic Reservoir | |
| *H | 1 | 75083031 | 90° Swivel Elbow | |
| *J | 1 | 75082611 | 90° Male Elbow | |
| 2 | 2 | 75083073 | Hose Assembly | |
| 3 | 1 | 75083016 | 45° Swivel Elbow | |
| 4 | 1 | 75083018 | 45° Swivel Elbow | |
| 5 | 1 | 20280090 | Hydraulic Cylinder | |
| 6 | 1 | 10090500 | Pump Cover Assembly | |
| 7 | 1 | 10021000 | Pump Mounting Bracket | |
| 8 | 3 | 75088081 | 3/8" Lock Washer | |
| 9 | 3 | 75086056 | Hex Bolt, 3/8"-16 x 1" LG., Grade 5 | |
| 10 | 1 | 10022000 | Pump Mounting Bracket Channel | |
| 11 | 1 | 75085193 | Flex Nut, 3/8"-16 | |
| 12 | 1 | 10021500 | Pump Mounting Bracket | |
| 13 | 1 | 75088083 | 1/2" Lock Washer | |
| 14 | 1 | 75086108 | Hex Bolt, 1/2"-13 x 1-1/2" LG., Grade 2 | |
| 15 | 1 | 70110040 | Flow Control Valve |

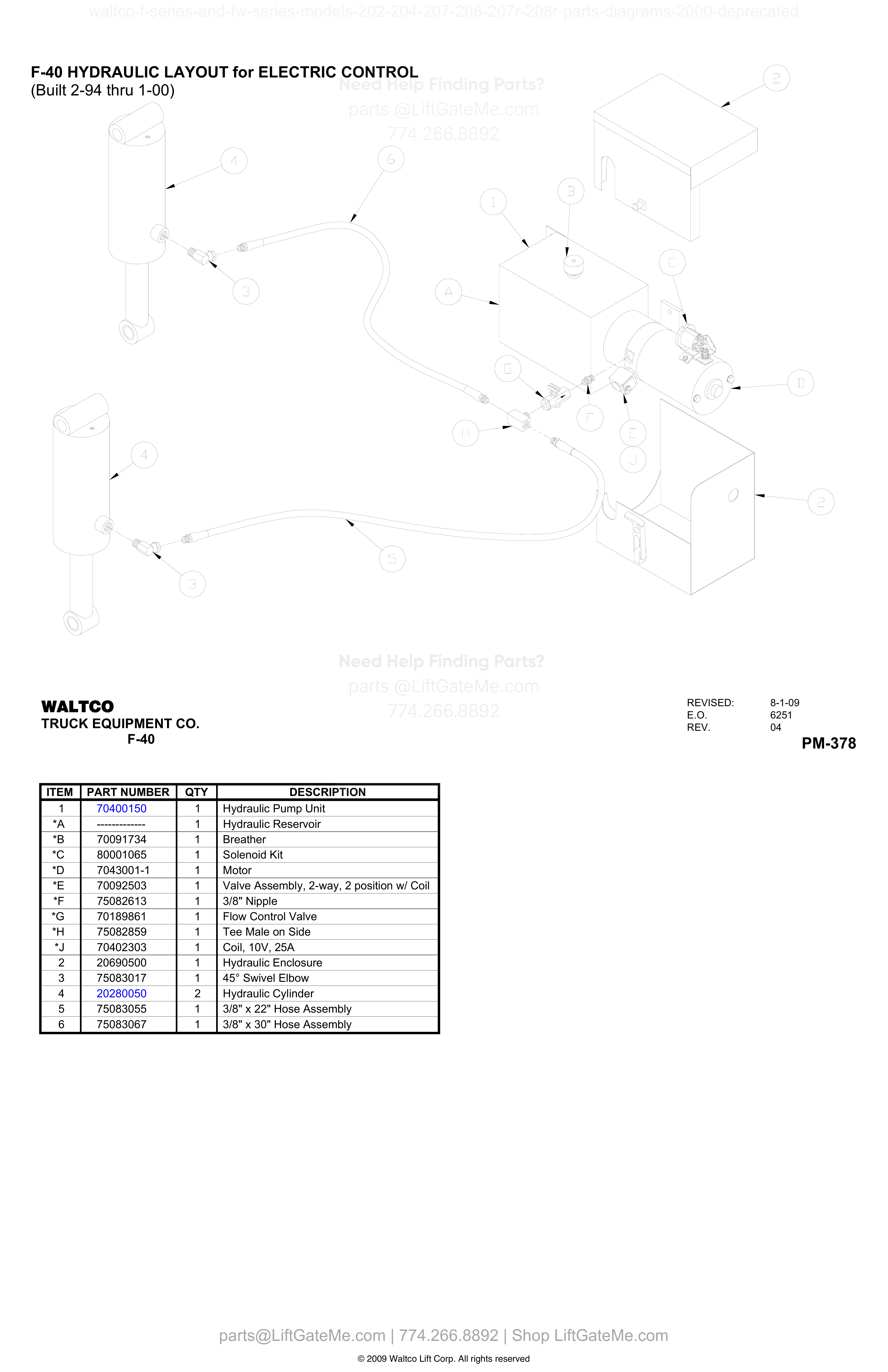

F-40 HYDRAULIC LAYOUT for ELECTRIC CONTROL
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400150 | Hydraulic Pump Unit | |
| *A | 1 | ------------- | Hydraulic Reservoir | |
| *B | 1 | 70091734 | Breather | |
| *C | 1 | 80001065 | Solenoid Kit | |
| *D | 1 | 7043001-1 | Motor | |
| *E | 1 | 70092503 | Valve Assembly, 2-way, 2 position w/ Coil | |
| *F | 1 | 75082613 | 3/8" Nipple | |
| *G | 1 | 70189861 | Flow Control Valve | |
| *H | 1 | 75082859 | Tee Male on Side | |
| *J | 1 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 20690500 | Hydraulic Enclosure | |
| 3 | 1 | 75083017 | 45° Swivel Elbow | |
| 4 | 2 | 20280050 | Hydraulic Cylinder | |
| 5 | 1 | 75083055 | 3/8" x 22" Hose Assembly | |
| 6 | 1 | 75083067 | 3/8" x 30" Hose Assembly |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

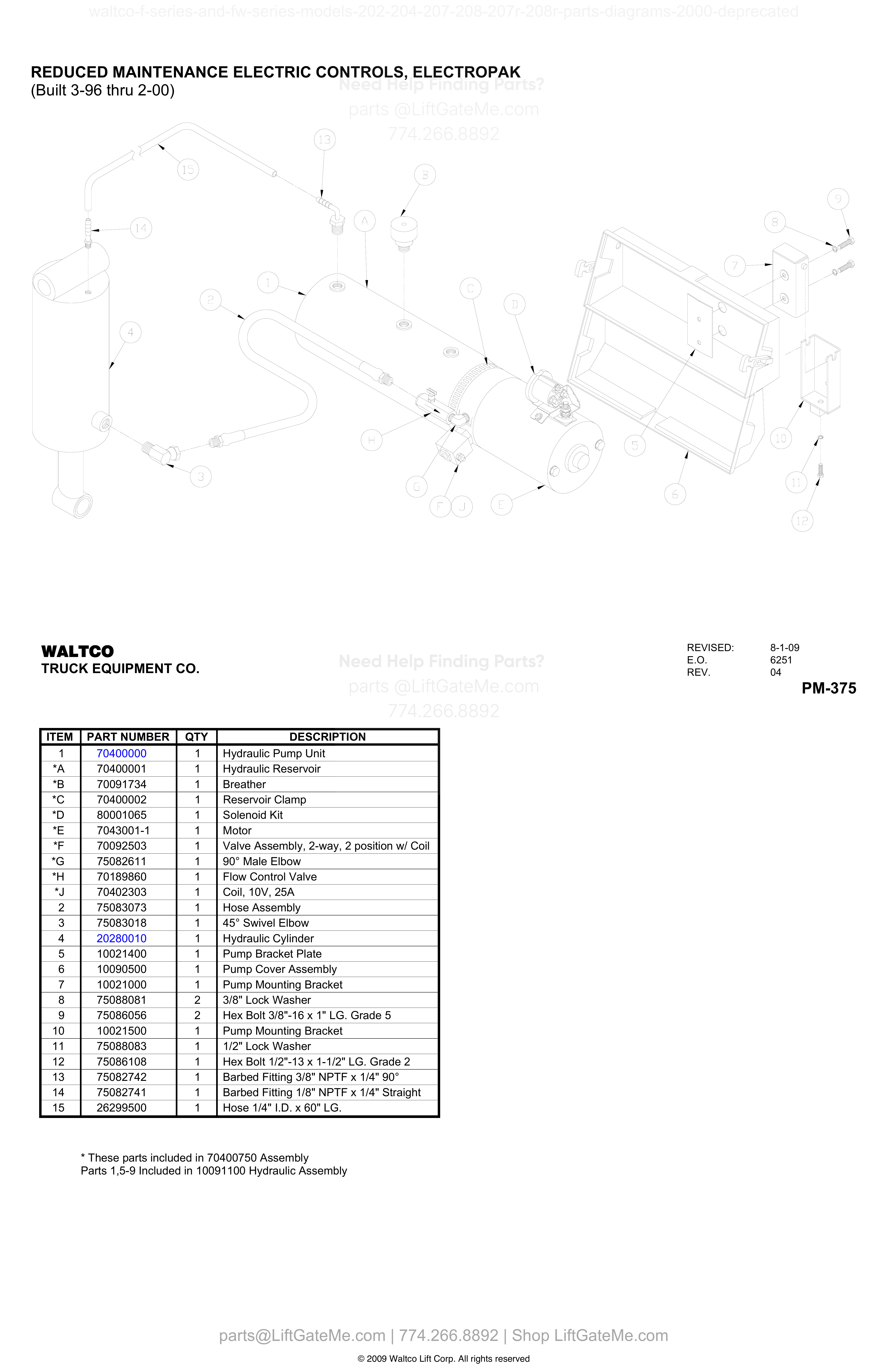

REDUCED MAINTENANCE ELECTRIC CONTROLS, ELECTROPAK
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400000 | Hydraulic Pump Unit | |
| *A | 1 | 70400001 | Hydraulic Reservoir | |
| *B | 1 | 70091734 | Breather | |
| *C | 1 | 70400002 | Reservoir Clamp | |
| *D | 1 | 80001065 | Solenoid Kit | |
| *E | 1 | 7043001-1 | Motor | |
| *F | 1 | 70092503 | Valve Assembly, 2-way, 2 position w/ Coil | |
| *G | 1 | 75082611 | 90° Male Elbow | |
| *H | 1 | 70189860 | Flow Control Valve | |
| *J | 1 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 75083073 | Hose Assembly | |
| 3 | 1 | 75083018 | 45° Swivel Elbow | |
| 4 | 1 | 20280010 | Hydraulic Cylinder | |
| 5 | 1 | 10021400 | Pump Bracket Plate | |
| 6 | 1 | 10090500 | Pump Cover Assembly | |
| 7 | 1 | 10021000 | Pump Mounting Bracket | |
| 8 | 2 | 75088081 | 3/8" Lock Washer | |
| 9 | 2 | 75086056 | Hex Bolt 3/8"-16 x 1" LG. Grade 5 | |
| 10 | 1 | 10021500 | Pump Mounting Bracket | |
| 11 | 1 | 75088083 | 1/2" Lock Washer | |
| 12 | 1 | 75086108 | Hex Bolt 1/2"-13 x 1-1/2" LG. Grade 2 | |
| 13 | 1 | 75082742 | Barbed Fitting 3/8" NPTF x 1/4" 90° | |
| 14 | 1 | 75082741 | Barbed Fitting 1/8" NPTF x 1/4" Straight | |
| 15 | 1 | 26299500 | Hose 1/4" I.D. x 60" LG. |

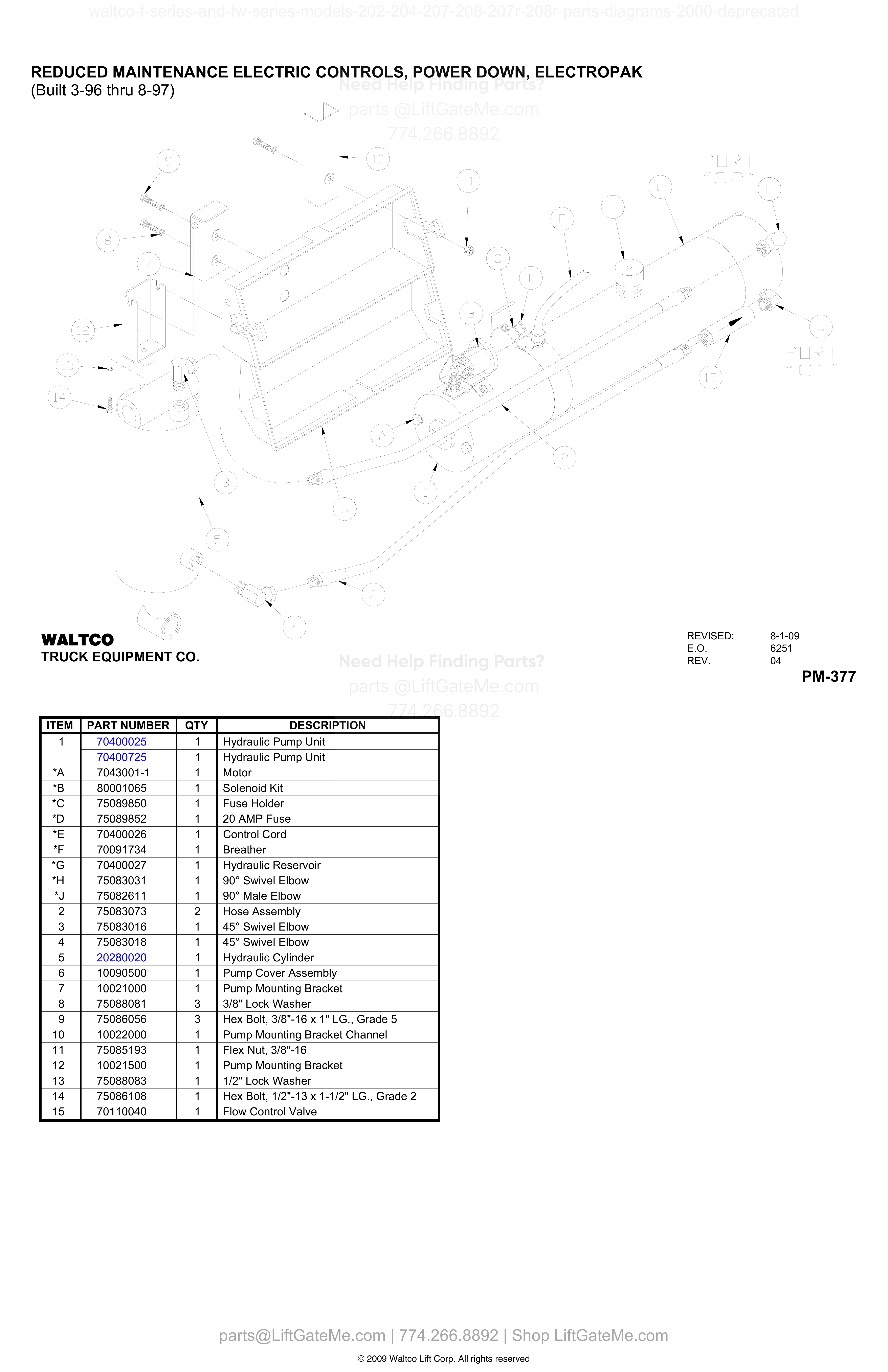

REDUCED MAINTENANCE ELECTRIC CONTROLS, POWER DOWN, ELECTROPAK
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400025 | Hydraulic Pump Unit | |
| 1 | 1 | 70400725 | Hydraulic Pump Unit | |
| *A | 1 | 7043001-1 | Motor | |
| *B | 1 | 80001065 | Solenoid Kit | |
| *C | 1 | 75089850 | Fuse Holder | |
| *D | 1 | 75089852 | 20 AMP Fuse | |
| *E | 1 | 70400026 | Control Cord | |
| *F | 1 | 70091734 | Breather | |
| *G | 1 | 70400027 | Hydraulic Reservoir | |
| *H | 1 | 75083031 | 90° Swivel Elbow | |
| *J | 1 | 75082611 | 90° Male Elbow | |
| 2 | 2 | 75083073 | Hose Assembly | |
| 3 | 1 | 75083016 | 45° Swivel Elbow | |
| 4 | 1 | 75083018 | 45° Swivel Elbow | |
| 5 | 1 | 20280020 | Hydraulic Cylinder | |
| 6 | 1 | 10090500 | Pump Cover Assembly | |
| 7 | 1 | 10021000 | Pump Mounting Bracket | |
| 8 | 3 | 75088081 | 3/8" Lock Washer | |
| 9 | 3 | 75086056 | Hex Bolt, 3/8"-16 x 1" LG., Grade 5 | |
| 10 | 1 | 10022000 | Pump Mounting Bracket Channel | |
| 11 | 1 | 75085193 | Flex Nut, 3/8"-16 | |
| 12 | 1 | 10021500 | Pump Mounting Bracket | |
| 13 | 1 | 75088083 | 1/2" Lock Washer | |
| 14 | 1 | 75086108 | Hex Bolt, 1/2"-13 x 1-1/2" LG., Grade 2 | |
| 15 | 1 | 70110040 | Flow Control Valve |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

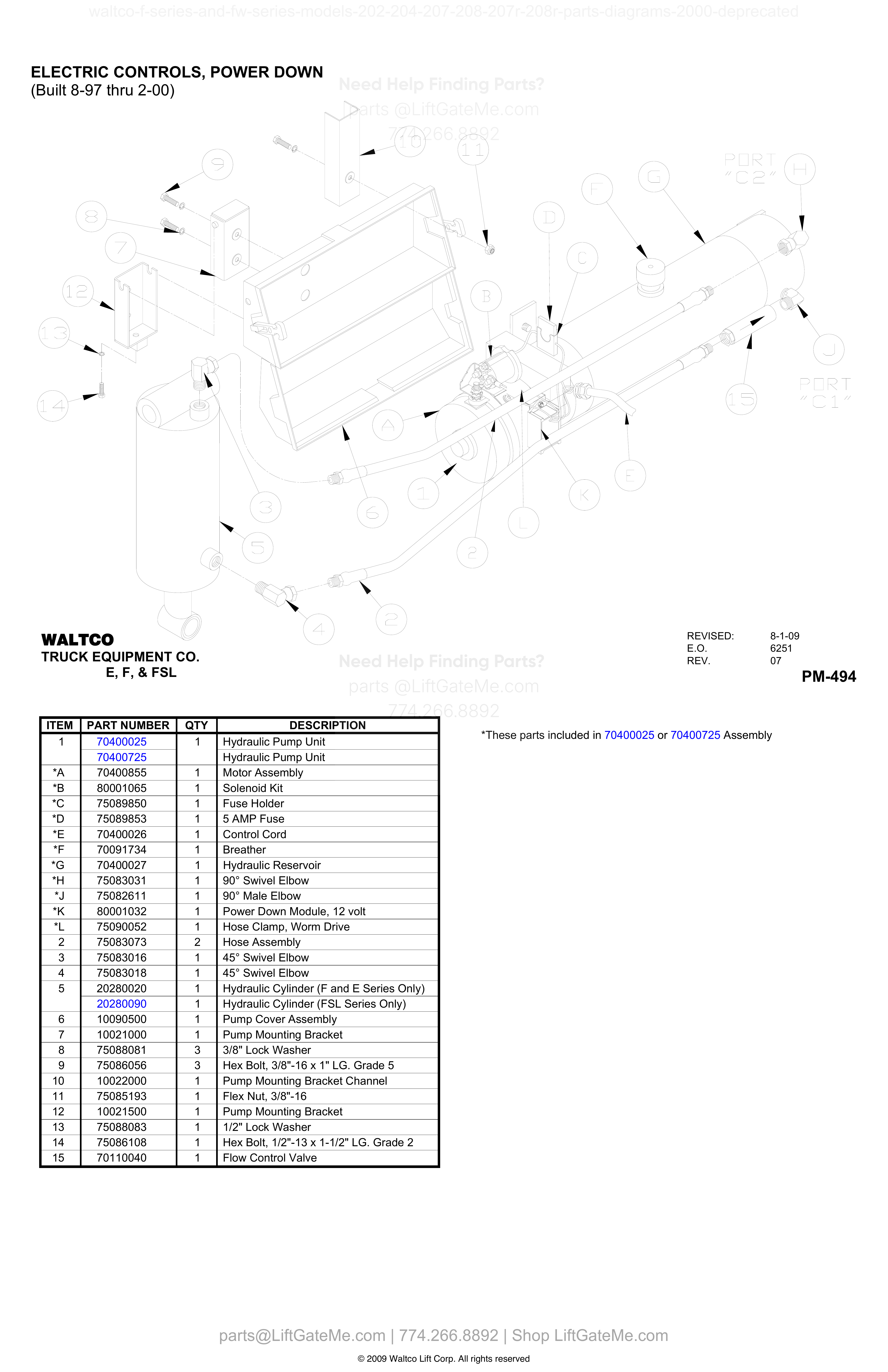

ELECTRIC CONTROLS, POWER DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400025 | Hydraulic Pump Unit | |
| 1 | 70400725 | Hydraulic Pump Unit | ||
| *A | 1 | 70400855 | Motor Assembly | |
| *B | 1 | 80001065 | Solenoid Kit | |
| *C | 1 | 75089850 | Fuse Holder | |
| *D | 1 | 75089853 | 5 AMP Fuse | |
| *E | 1 | 70400026 | Control Cord | |
| *F | 1 | 70091734 | Breather | |
| *G | 1 | 70400027 | Hydraulic Reservoir | |
| *H | 1 | 75083031 | 90° Swivel Elbow | |
| *J | 1 | 75082611 | 90° Male Elbow | |
| *K | 1 | 80001032 | Power Down Module, 12 volt | |
| *L | 1 | 75090052 | Hose Clamp, Worm Drive | |
| 2 | 2 | 75083073 | Hose Assembly | |
| 3 | 1 | 75083016 | 45° Swivel Elbow | |
| 4 | 1 | 75083018 | 45° Swivel Elbow | |
| 5 | 1 | 20280020 | Hydraulic Cylinder (F and E Series Only) | |
| 5 | 1 | 20280090 | Hydraulic Cylinder (FSL Series Only) | |
| 6 | 1 | 10090500 | Pump Cover Assembly | |
| 7 | 1 | 10021000 | Pump Mounting Bracket | |
| 8 | 3 | 75088081 | 3/8" Lock Washer | |
| 9 | 3 | 75086056 | Hex Bolt, 3/8"-16 x 1" LG. Grade 5 | |
| 10 | 1 | 10022000 | Pump Mounting Bracket Channel | |
| 11 | 1 | 75085193 | Flex Nut, 3/8"-16 | |
| 12 | 1 | 10021500 | Pump Mounting Bracket | |
| 13 | 1 | 75088083 | 1/2" Lock Washer | |
| 14 | 1 | 75086108 | Hex Bolt, 1/2"-13 x 1-1/2" LG. Grade 2 | |
| 15 | 1 | 70110040 | Flow Control Valve |

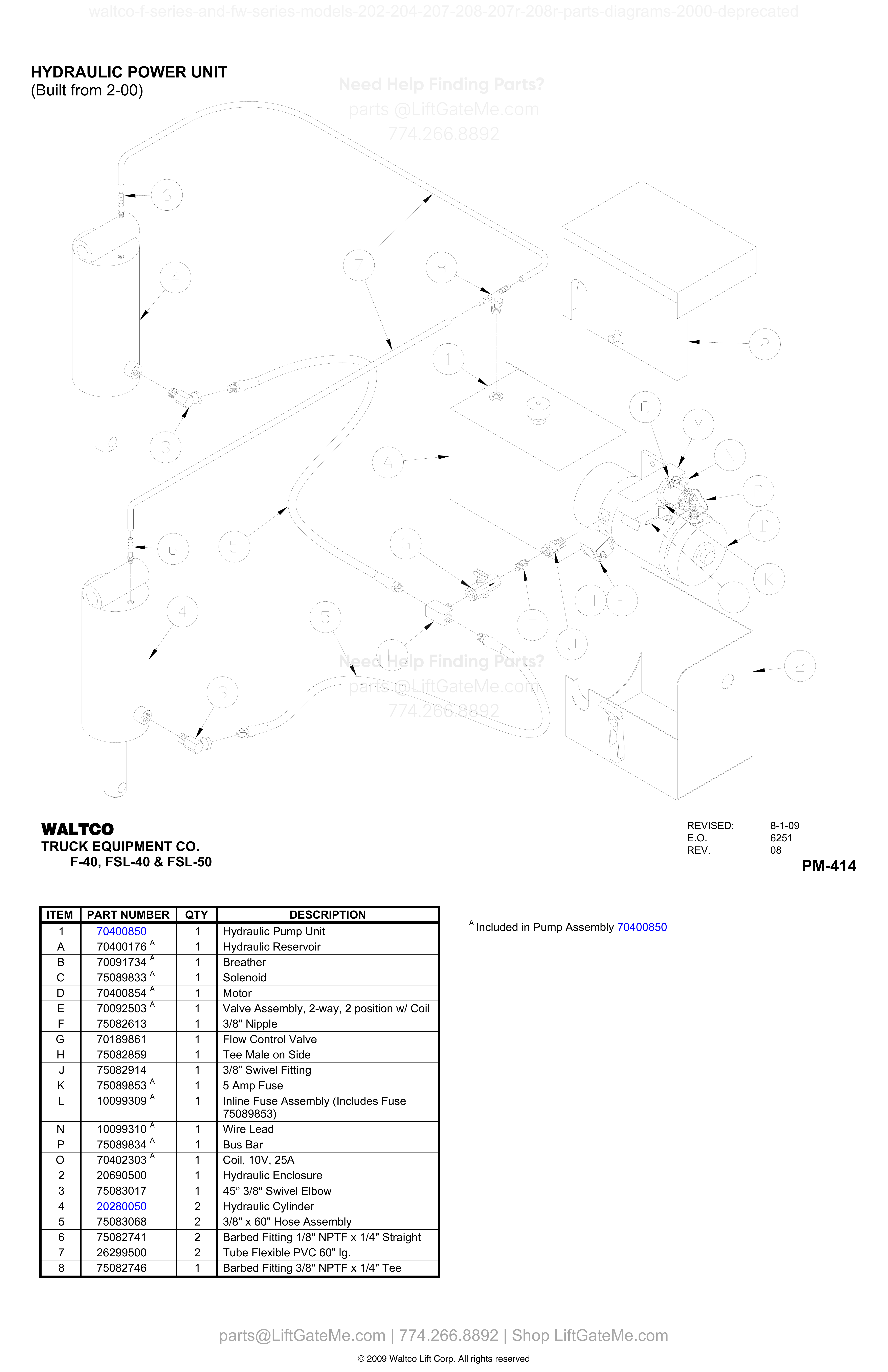

HYDRAULIC POWER UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400850 | Hydraulic Pump Unit | |
| A | 1 | 70400176 A | Hydraulic Reservoir | |
| B | 1 | 70091734 A | Breather | |
| C | 1 | 75089833 A | Solenoid | |
| D | 1 | 70400854 A | Motor | |
| E | 1 | 70092503 A | Valve Assembly, 2-way, 2 position w/ Coil | |
| F | 1 | 75082613 | 3/8" Nipple | |
| G | 1 | 70189861 | Flow Control Valve | |
| H | 1 | 75082859 | Tee Male on Side | |
| J | 1 | 75082914 | 3/8” Swivel Fitting | |
| K | 1 | 75089853 A | 5 Amp Fuse | |
| L | 1 | 10099309 A | Inline Fuse Assembly (Includes Fuse 75089853) | |
| N | 1 | 10099310 A | Wire Lead | |
| P | 1 | 75089834 A | Bus Bar | |
| O | 1 | 70402303 A | Coil, 10V, 25A | |
| 2 | 1 | 20690500 | Hydraulic Enclosure | |
| 3 | 1 | 75083017 | 45° 3/8" Swivel Elbow | |
| 4 | 2 | 20280050 | Hydraulic Cylinder | |
| 5 | 2 | 75083068 | 3/8" x 60" Hose Assembly | |
| 6 | 2 | 75082741 | Barbed Fitting 1/8" NPTF x 1/4" Straight | |
| 7 | 2 | 26299500 | Tube Flexible PVC 60" lg. | |
| 8 | 1 | 75082746 | Barbed Fitting 3/8" NPTF x 1/4" Tee |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

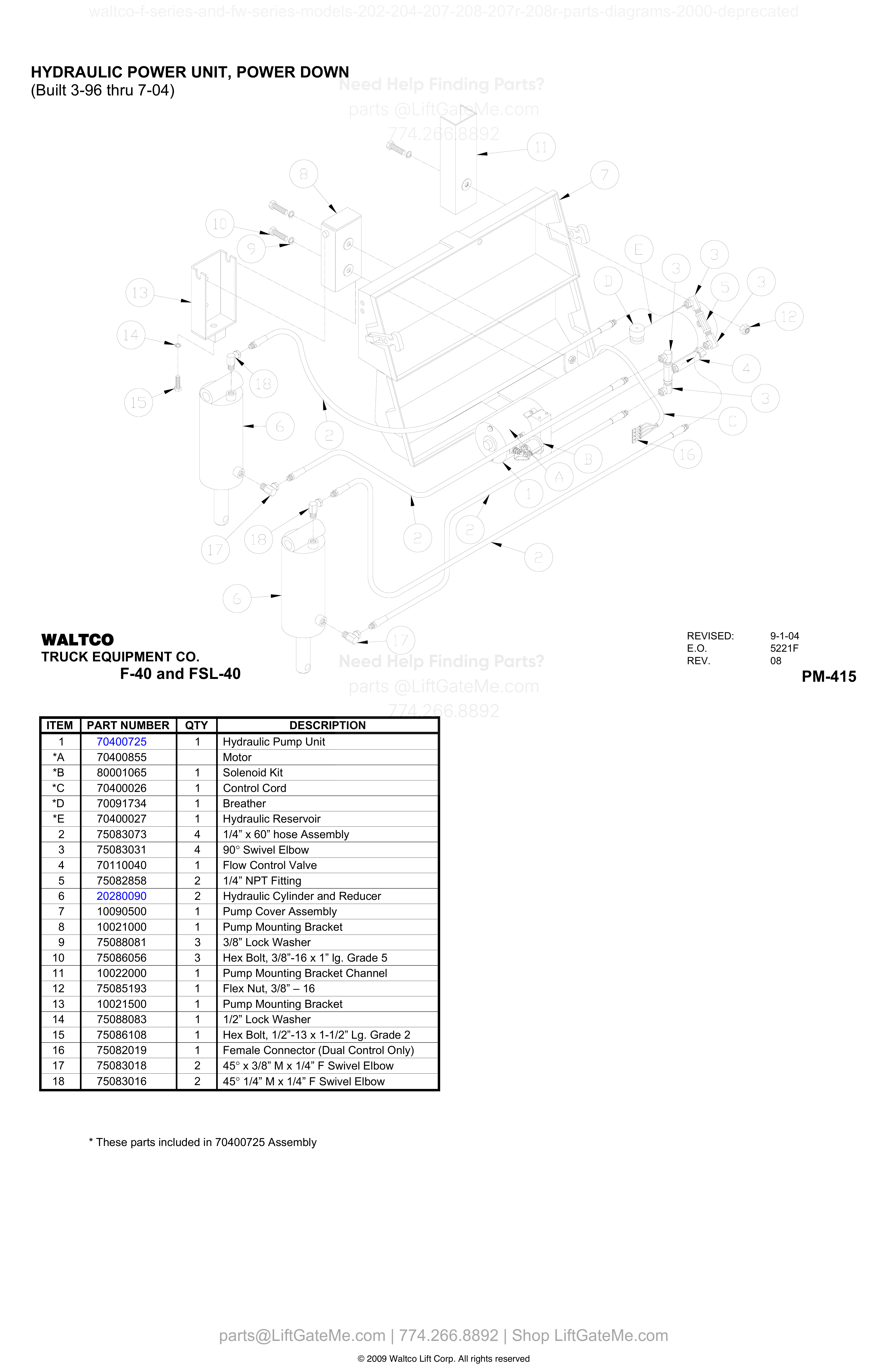

HYDRAULIC POWER UNIT, POWER DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400725 | Hydraulic Pump Unit | |
| *A | 70400855 | Motor | ||
| *B | 1 | 80001065 | Solenoid Kit | |
| *C | 1 | 70400026 | Control Cord | |
| *D | 1 | 70091734 | Breather | |
| *E | 1 | 70400027 | Hydraulic Reservoir | |
| 2 | 4 | 75083073 | 1/4" x 60" hose Assembly | |
| 3 | 4 | 75083031 | 90° Swivel Elbow | |
| 4 | 1 | 70110040 | Flow Control Valve | |
| 5 | 2 | 75082858 | 1/4" NPT Fitting | |
| 6 | 2 | 20280090 | Hydraulic Cylinder and Reducer | |
| 7 | 1 | 10090500 | Pump Cover Assembly | |
| 8 | 1 | 10021000 | Pump Mounting Bracket | |
| 9 | 3 | 75088081 | 3/8" Lock Washer | |
| 10 | 3 | 75086056 | Hex Bolt, 3/8”-16 x 1” lg. Grade 5 | |
| 11 | 1 | 10022000 | Pump Mounting Bracket Channel | |
| 12 | 1 | 75085193 | Flex Nut, 3/8” – 16 | |
| 13 | 1 | 10021500 | Pump Mounting Bracket | |
| 14 | 1 | 75088083 | 1/2" Lock Washer | |
| 15 | 1 | 75086108 | Hex Bolt, 1/2”-13 x 1-1/2” Lg. Grade 2 | |
| 16 | 1 | 75082019 | Female Connector (Dual Control Only) | |
| 17 | 2 | 75083018 | 45° x 3/8" M x 1/4" F Swivel Elbow | |
| 18 | 2 | 75083016 | 45° 1/4" M x 1/4" F Swivel Elbow |

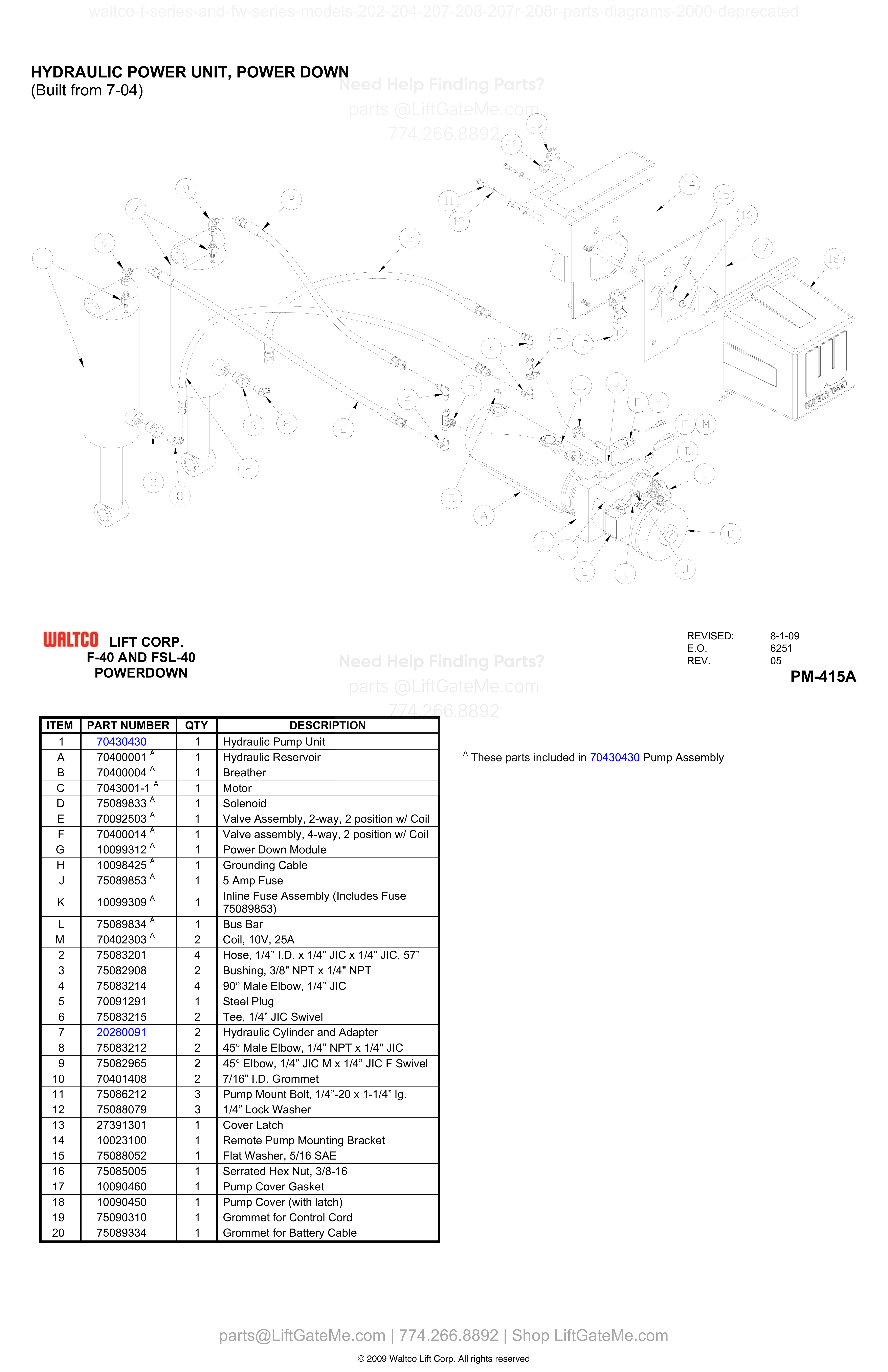

HYDRAULIC POWER UNIT, POWER DOWN (Built from 7-04)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70430430 | Hydraulic Pump Unit | |
| A | 1 | 70400001 A | Hydraulic Reservoir | |
| B | 1 | 70400004 A | Breather | |
| C | 1 | 7043001-1 A | Motor | |
| D | 1 | 75089833 A | Solenoid | |
| E | 1 | 70092503 A | Valve Assembly, 2-way, 2 position w/ Coil | |
| F | 1 | 70400014 A | Valve assembly, 4-way, 2 position w/ Coil | |
| G | 1 | 10099312 A | Power Down Module | |
| H | 1 | 10098425 A | Grounding Cable | |
| J | 1 | 75089853 A | 5 Amp Fuse | |
| K | 1 | 10099309 A | Inline Fuse Assembly (Includes Fuse 75089853) | |
| L | 1 | 75089834 A | Bus Bar | |
| M | 2 | 70402303 A | Coil, 10V, 25A | |
| 2 | 4 | 75083201 | Hose, 1/4” I.D. x 1/4” JIC x 1/4” JIC, 57” | |
| 3 | 2 | 75082908 | Bushing, 3/8" NPT x 1/4" NPT | |
| 4 | 4 | 75083214 | 90° Male Elbow, 1/4” JIC | |
| 5 | 1 | 70091291 | Steel Plug | |
| 6 | 2 | 75083215 | Tee, 1/4” JIC Swivel | |
| 7 | 2 | 20280091 | Hydraulic Cylinder and Adapter | |
| 8 | 2 | 75083212 | 45° Male Elbow, 1/4” NPT x 1/4” JIC | |
| 9 | 2 | 75082965 | 45° Elbow, 1/4” JIC M x 1/4” JIC F Swivel | |
| 10 | 2 | 70401408 | 7/16” I.D. Grommet | |
| 11 | 3 | 75086212 | Pump Mount Bolt, 1/4”-20 x 1-1/4” lg. | |
| 12 | 3 | 75088079 | 1/4” Lock Washer | |
| 13 | 1 | 27391301 | Cover Latch | |
| 14 | 1 | 10023100 | Remote Pump Mounting Bracket | |
| 15 | 1 | 75088052 | Flat Washer, 5/16 SAE | |
| 16 | 1 | 75085005 | Serrated Hex Nut, 3/8-16 | |
| 17 | 1 | 10090460 | Pump Cover Gasket | |
| 18 | 1 | 10090450 | Pump Cover (with latch) | |
| 19 | 1 | 75090310 | Grommet for Control Cord | |
| 20 | 1 | 75089334 | Grommet for Battery Cable |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

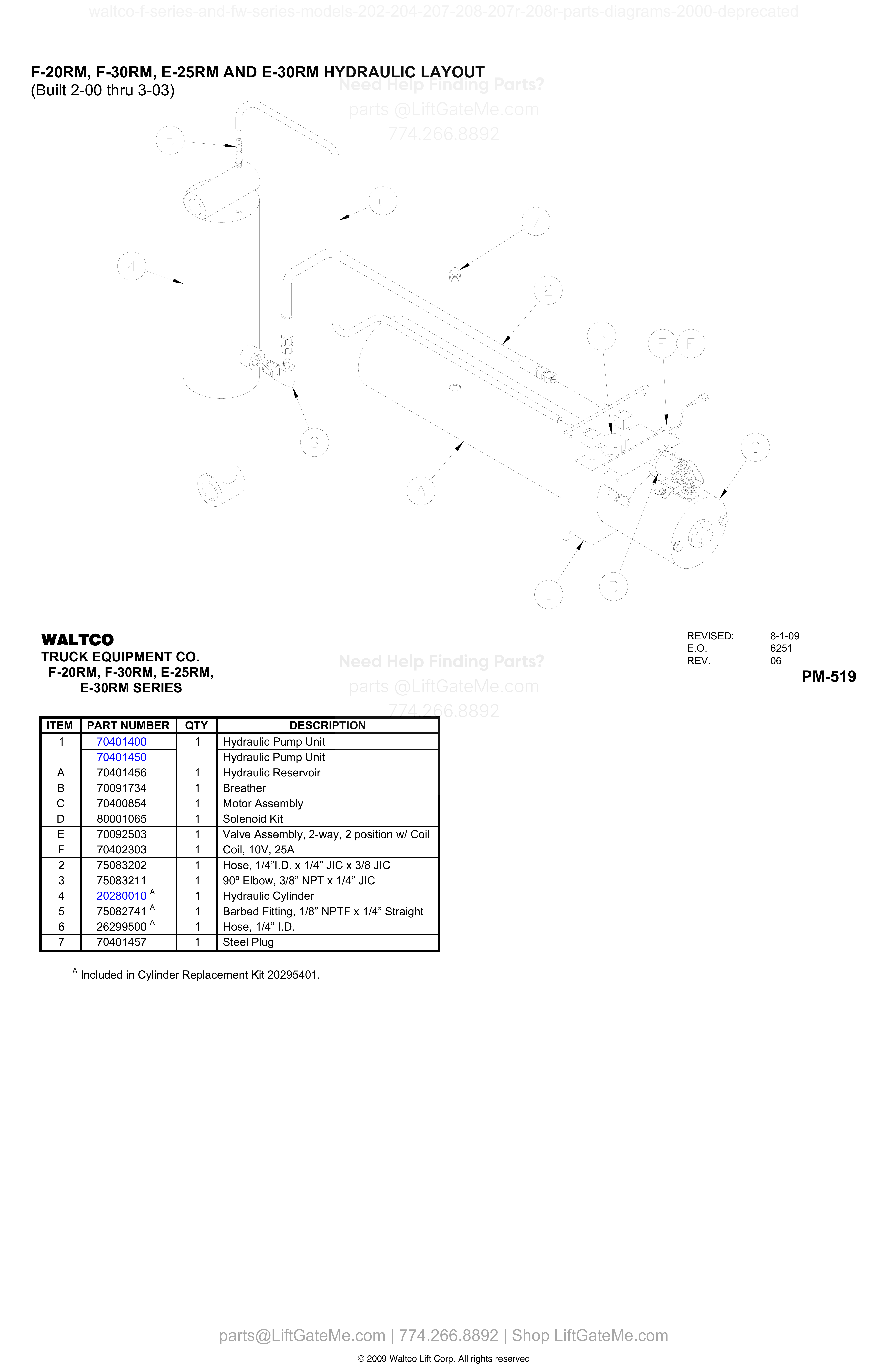

F-20RM, F-30RM, E-25RM AND E-30RM HYDRAULIC LAYOUT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401400 | Hydraulic Pump Unit | |
| 1 | 70401450 | Hydraulic Pump Unit | ||
| A | 1 | 70401456 | Hydraulic Reservoir | |
| B | 1 | 70091734 | Breather | |
| C | 1 | 70400854 | Motor Assembly | |
| D | 1 | 80001065 | Solenoid Kit | |
| E | 1 | 70092503 | Valve Assembly, 2-way, 2 position w/ Coil | |
| F | 1 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 75083202 | Hose, 1/4”I.D. x 1/4” JIC x 3/8 JIC | |
| 3 | 1 | 75083211 | 90° Elbow, 3/8” NPT x 1/4” JIC | |
| 4 | 1 | 20280010 A | Hydraulic Cylinder | |
| 5 | 1 | 75082741 A | Barbed Fitting, 1/8” NPTF x 1/4” Straight | |
| 6 | 1 | 26299500 A | Hose, 1/4” I.D. | |
| 7 | 1 | 70401457 | Steel Plug |

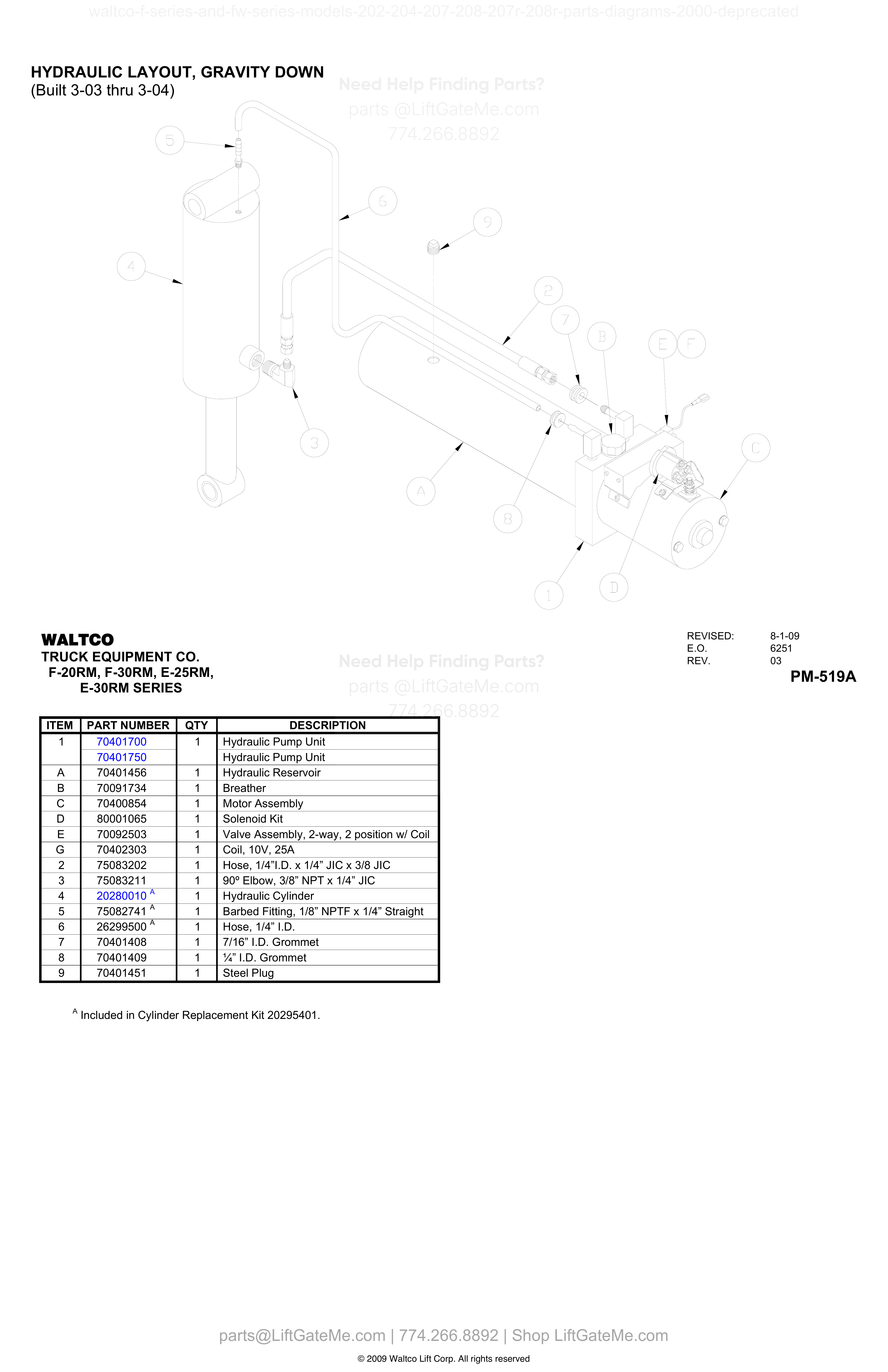

HYDRAULIC LAYOUT, GRAVITY DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401700 | Hydraulic Pump Unit | |
| 1 | 70401750 | Hydraulic Pump Unit | ||
| A | 1 | 70401456 | Hydraulic Reservoir | |
| B | 1 | 70091734 | Breather | |
| C | 1 | 70400854 | Motor Assembly | |
| D | 1 | 80001065 | Solenoid Kit | |
| E | 1 | 70092503 | Valve Assembly, 2-way, 2 position w/ Coil | |
| G | 1 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 75083202 | Hose, 1/4”I.D. x 1/4” JIC x 3/8 JIC | |
| 3 | 1 | 75083211 | 90° Elbow, 3/8” NPT x 1/4” JIC | |
| 4 | 1 | 20280010 A | Hydraulic Cylinder | |
| 5 | 1 | 75082741 A | Barbed Fitting, 1/8” NPTF x 1/4” Straight | |
| 6 | 1 | 26299500 A | Hose, 1/4” I.D. | |
| 7 | 1 | 70401408 | 7/16” I.D. Grommet | |
| 8 | 1 | 70401409 | ¼” I.D. Grommet | |
| 9 | 1 | 70401451 | Steel Plug |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

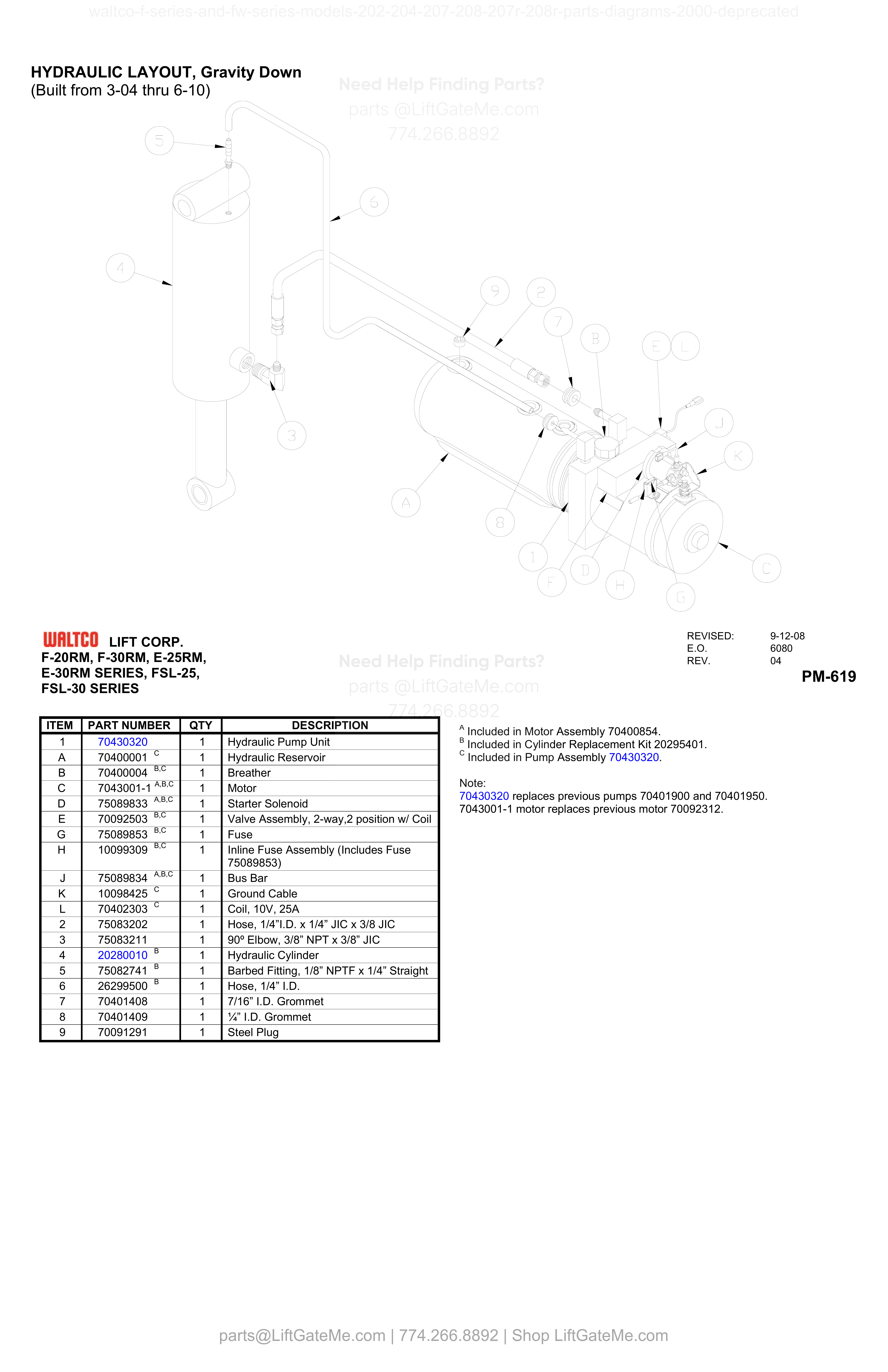

HYDRAULIC LAYOUT, Gravity Down (Built from 3-04 thru 6-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70430320 | Hydraulic Pump Unit | |
| A | 1 | 70400001 C | Hydraulic Reservoir | |
| B | 1 | 70400004 B,C | Breather | |
| C | 1 | 7043001-1^A,B,C | Motor | |
| D | 1 | 75089833^A,B,C | Starter Solenoid | |
| E | 1 | 70092503 B,C | Valve Assembly, 2-way,2 position w/ Coil | |
| G | 1 | 75089853 B,C | Fuse | |
| H | 1 | 10099309 B,C | Inline Fuse Assembly (Includes Fuse 75089853) | |
| J | 1 | 75089834^A,B,C | Bus Bar | |
| K | 1 | 10098425 C | Ground Cable | |
| L | 1 | 70402303 C | Coil, 10V, 25A | |
| 2 | 1 | 75083202 | Hose, 1/4”I.D. x 1/4” JIC x 3/8 JIC | |
| 3 | 1 | 75083211 | 90° Elbow, 3/8” NPT x 3/8” JIC | |
| 4 | 1 | 20280010 B | Hydraulic Cylinder | |
| 5 | 1 | 75082741 B | Barbed Fitting, 1/8” NPTF x 1/4” Straight | |
| 6 | 1 | 26299500 B | Hose, 1/4” I.D. | |
| 7 | 1 | 70401408 | 7/16” I.D. Grommet | |
| 8 | 1 | 70401409 | ¼” I.D. Grommet | |
| 9 | 1 | 70091291 | Steel Plug |

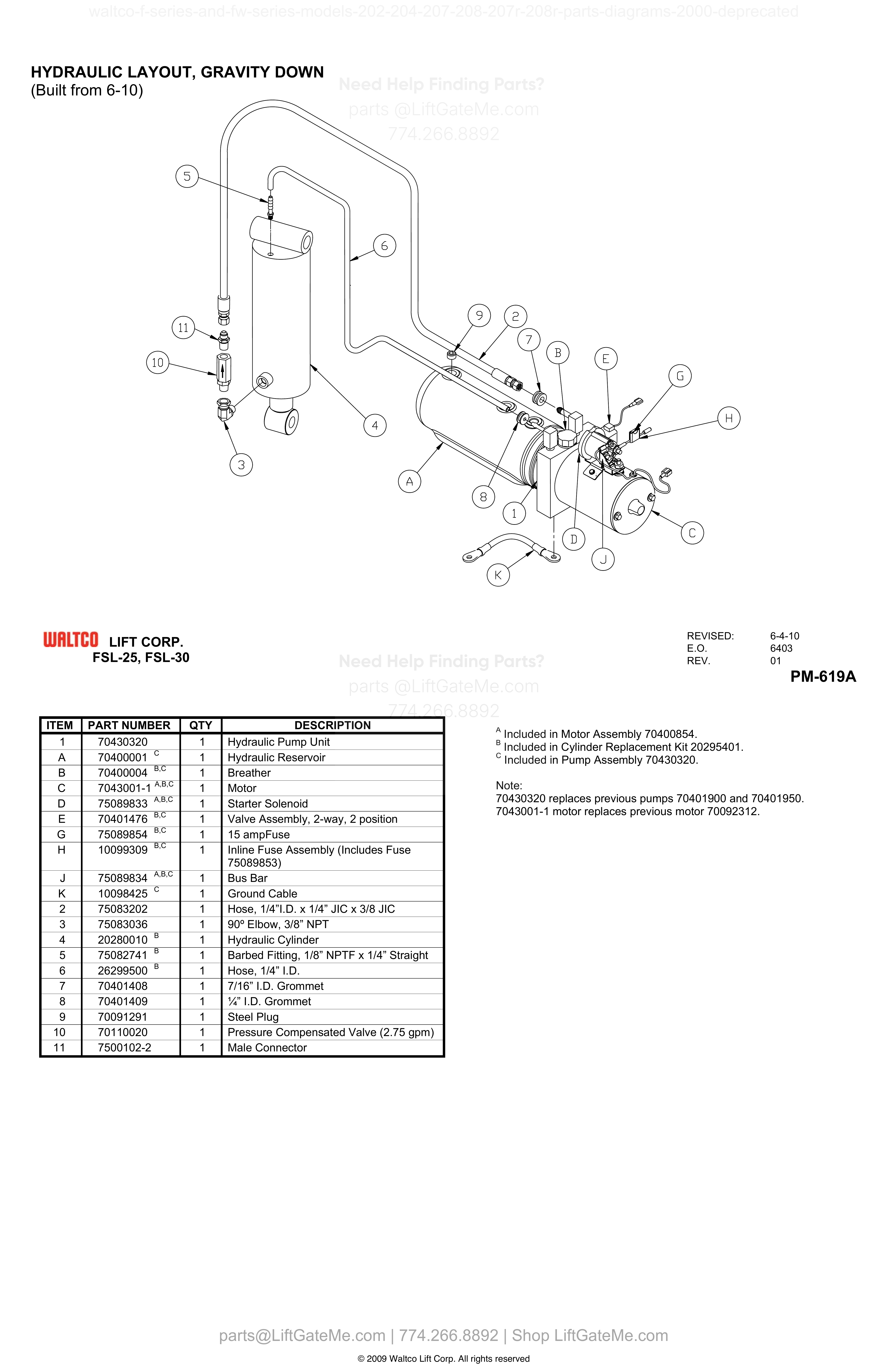

HYDRAULIC LAYOUT, GRAVITY DOWN (Built from 6-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70430320 | Hydraulic Pump Unit | |
| A | 1 | 70400001 C | Hydraulic Reservoir | |
| B | 1 | 70400004 B,C | Breather | |
| C | 1 | 7043001-1^A,B,C | Motor | |
| D | 1 | 75089833^A,B,C | Starter Solenoid | |
| E | 1 | 70401476 B,C | Valve Assembly, 2-way, 2 position | |
| G | 1 | 75089854 B,C | 15 ampFuse | |
| H | 1 | 10099309 B,C | Inline Fuse Assembly (Includes Fuse 75089853) | |
| J | 1 | 75089834^A,B,C | Bus Bar | |
| K | 1 | 10098425 C | Ground Cable | |
| 2 | 1 | 75083202 | Hose, 1/4”I.D. x 1/4” JIC x 3/8 JIC | |
| 3 | 1 | 75083036 | 90º Elbow, 3/8” NPT | |
| 4 | 1 | 20280010 B | Hydraulic Cylinder | |
| 5 | 1 | 75082741 B | Barbed Fitting, 1/8” NPTF x 1/4” Straight | |
| 6 | 1 | 26299500 B | Hose, 1/4” I.D. | |
| 7 | 1 | 70401408 | 7/16” I.D. Grommet | |
| 8 | 1 | 70401409 | ¼” I.D. Grommet | |
| 9 | 1 | 70091291 | Steel Plug | |
| 10 | 1 | 70110020 | Pressure Compensated Valve (2.75 gpm) | |
| 11 | 1 | 7500102-2 | Male Connector |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

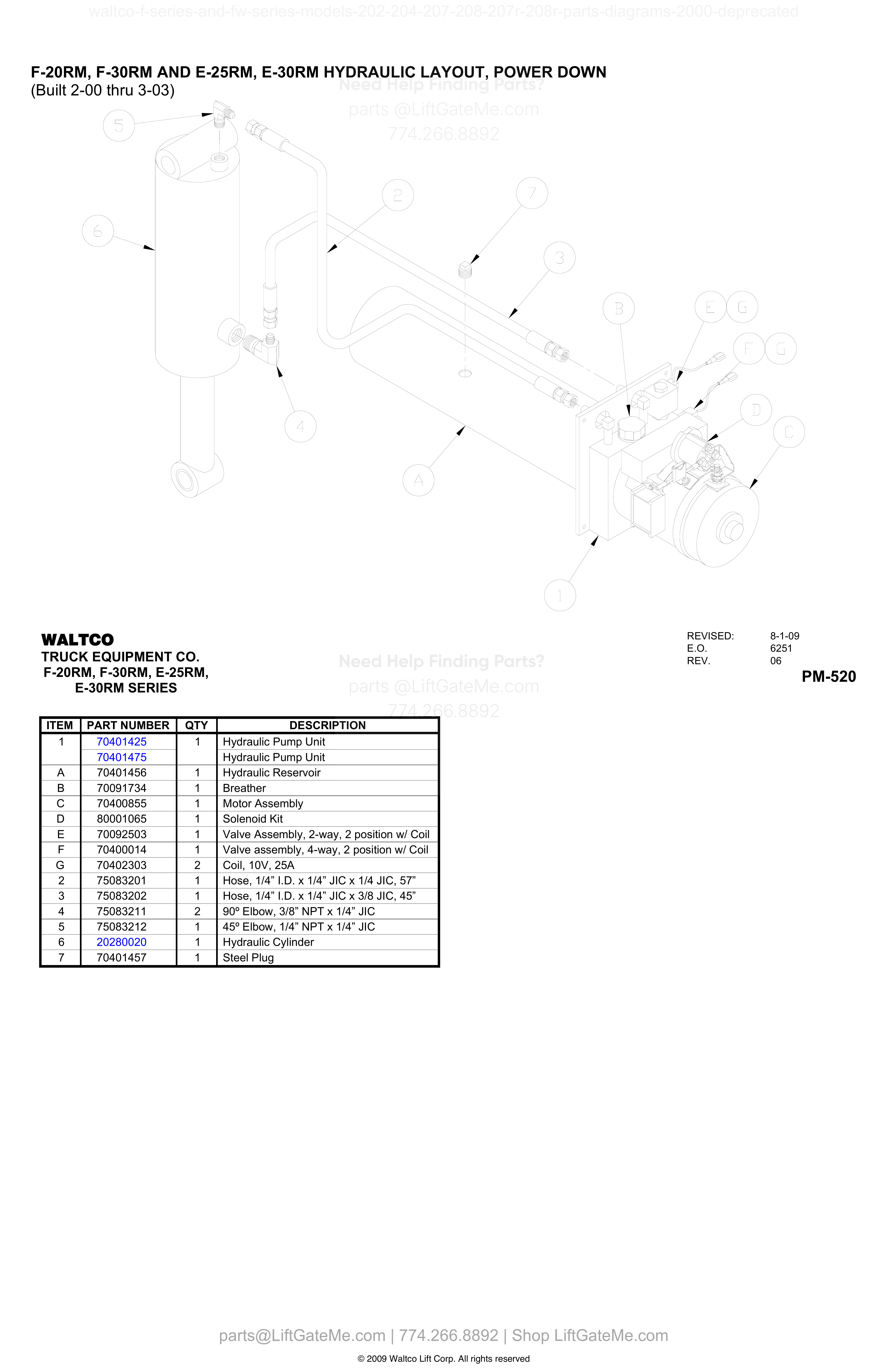

F-20RM, F-30RM AND E-25RM, E-30RM HYDRAULIC LAYOUT, POWER DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401425 | Hydraulic Pump Unit | |
| 1 | 70401475 | Hydraulic Pump Unit | ||
| A | 1 | 70401456 | Hydraulic Reservoir | |
| B | 1 | 70091734 | Breather | |
| C | 1 | 70400855 | Motor Assembly | |
| D | 1 | 80001065 | Solenoid Kit | |
| E | 1 | 70092503 | Valve Assembly, 2-way, 2 position w/ Coil | |
| F | 1 | 70400014 | Valve assembly, 4-way, 2 position w/ Coil | |
| G | 2 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 75083201 | Hose, 1/4” I.D. x 1/4” JIC x 1/4 JIC, 57” | |
| 3 | 1 | 75083202 | Hose, 1/4” I.D. x 1/4” JIC x 3/8 JIC, 45” | |
| 4 | 2 | 75083211 | 90º Elbow, 3/8” NPT x 1/4” JIC | |
| 5 | 1 | 75083212 | 45º Elbow, 1/4” NPT x 1/4” JIC | |
| 6 | 1 | 20280020 | Hydraulic Cylinder | |
| 7 | 1 | 70401457 | Steel Plug |

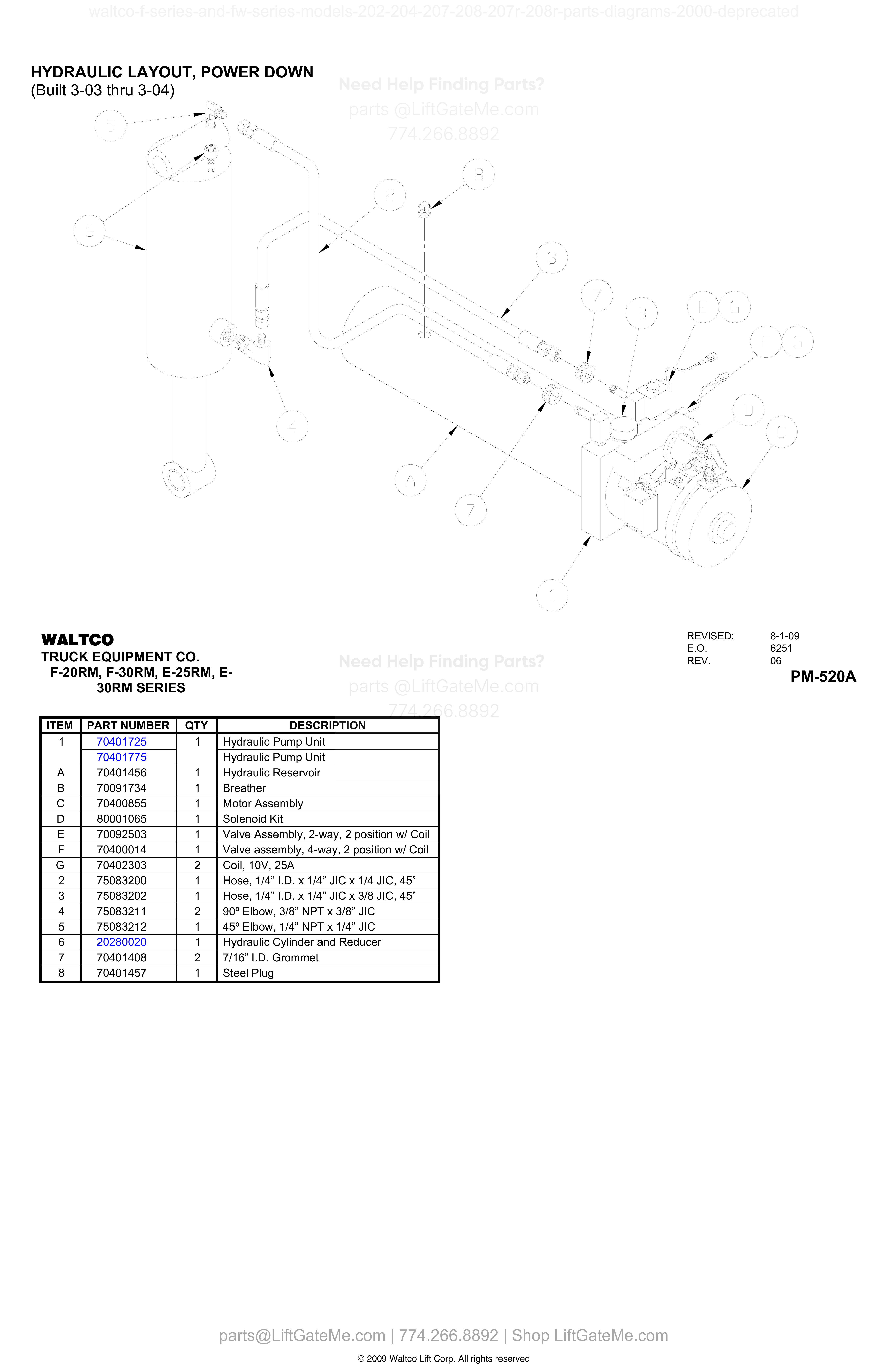

HYDRAULIC LAYOUT, POWER DOWN (Built 3-03 thru 3-04)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401725 | Hydraulic Pump Unit | |
| 1 | 70401775 | Hydraulic Pump Unit | ||
| A | 1 | 70401456 | Hydraulic Reservoir | |
| B | 1 | 70091734 | Breather | |
| C | 1 | 70400855 | Motor Assembly | |
| D | 1 | 80001065 | Solenoid Kit | |
| E | 1 | 70092503 | Valve Assembly, 2-way, 2 position w/ Coil | |
| F | 1 | 70400014 | Valve assembly, 4-way, 2 position w/ Coil | |
| G | 2 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 75083200 | Hose, 1/4” I.D. x 1/4” JIC x 1/4 JIC, 45” | |
| 3 | 1 | 75083202 | Hose, 1/4” I.D. x 1/4” JIC x 3/8 JIC, 45” | |
| 4 | 2 | 75083211 | 90º Elbow, 3/8” NPT x 3/8” JIC | |
| 5 | 1 | 75083212 | 45º Elbow, 1/4” NPT x 1/4” JIC | |
| 6 | 1 | 20280020 | Hydraulic Cylinder and Reducer | |
| 7 | 2 | 70401408 | 7/16” I.D. Grommet | |
| 8 | 1 | 70401457 | Steel Plug |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

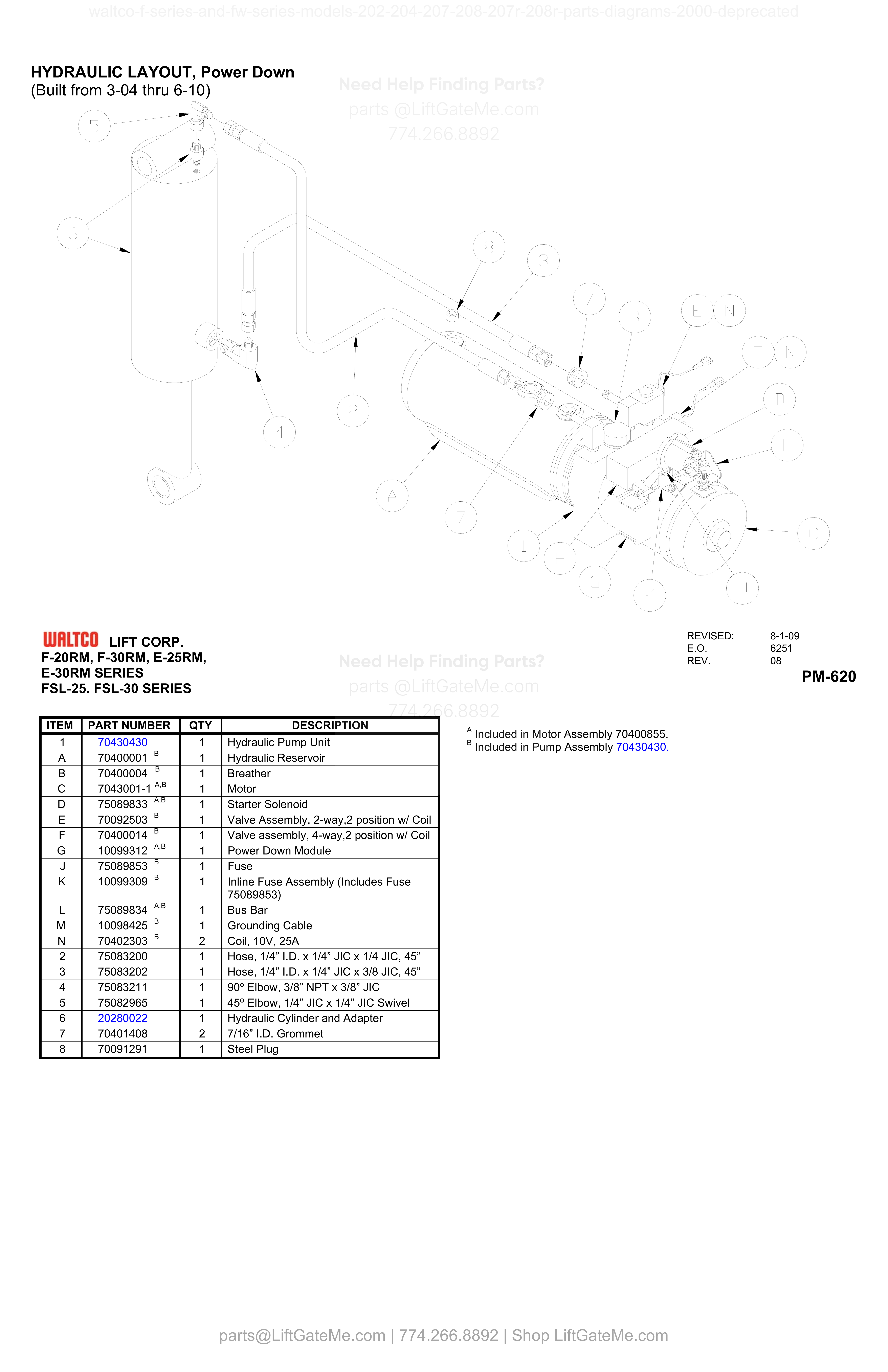

HYDRAULIC LAYOUT, Power Down (Built from 3-04 thru 6-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70430430 B | Hydraulic Pump Unit | |
| A | 1 | 70400001 B | Hydraulic Reservoir | |
| B | 1 | 70400004 B | Breather | |
| C | 1 | 7043001-1 A,B | Motor | |
| D | 1 | 75089833 A,B | Starter Solenoid | |
| E | 1 | 70092503 B | Valve Assembly, 2-way,2 position w/ Coil | |
| F | 1 | 70400014 B | Valve assembly, 4-way,2 position w/ Coil | |
| G | 1 | 10099312 A,B | Power Down Module | |
| J | 1 | 75089853 B | Fuse | |
| K | 1 | 10099309 B | Inline Fuse Assembly (Includes Fuse 75089853) | |
| L | 1 | 75089834 A,B | Bus Bar | |
| M | 1 | 10098425 B | Grounding Cable | |
| N | 2 | 70402303 B | Coil, 10V, 25A | |
| 2 | 1 | 75083200 | Hose, 1/4” I.D. x 1/4” JIC x 1/4 JIC, 45” | |
| 3 | 1 | 75083202 | Hose, 1/4” I.D. x 1/4” JIC x 3/8 JIC, 45” | |
| 4 | 1 | 75083211 | ||
| 5 | 1 | 75082965 | ||
| 6 | 1 | 20280022 | Hydraulic Cylinder and Adapter | |
| 7 | 2 | 70401408 | 7/16” I.D. Grommet | |
| 8 | 1 | 70091291 | Steel Plug |

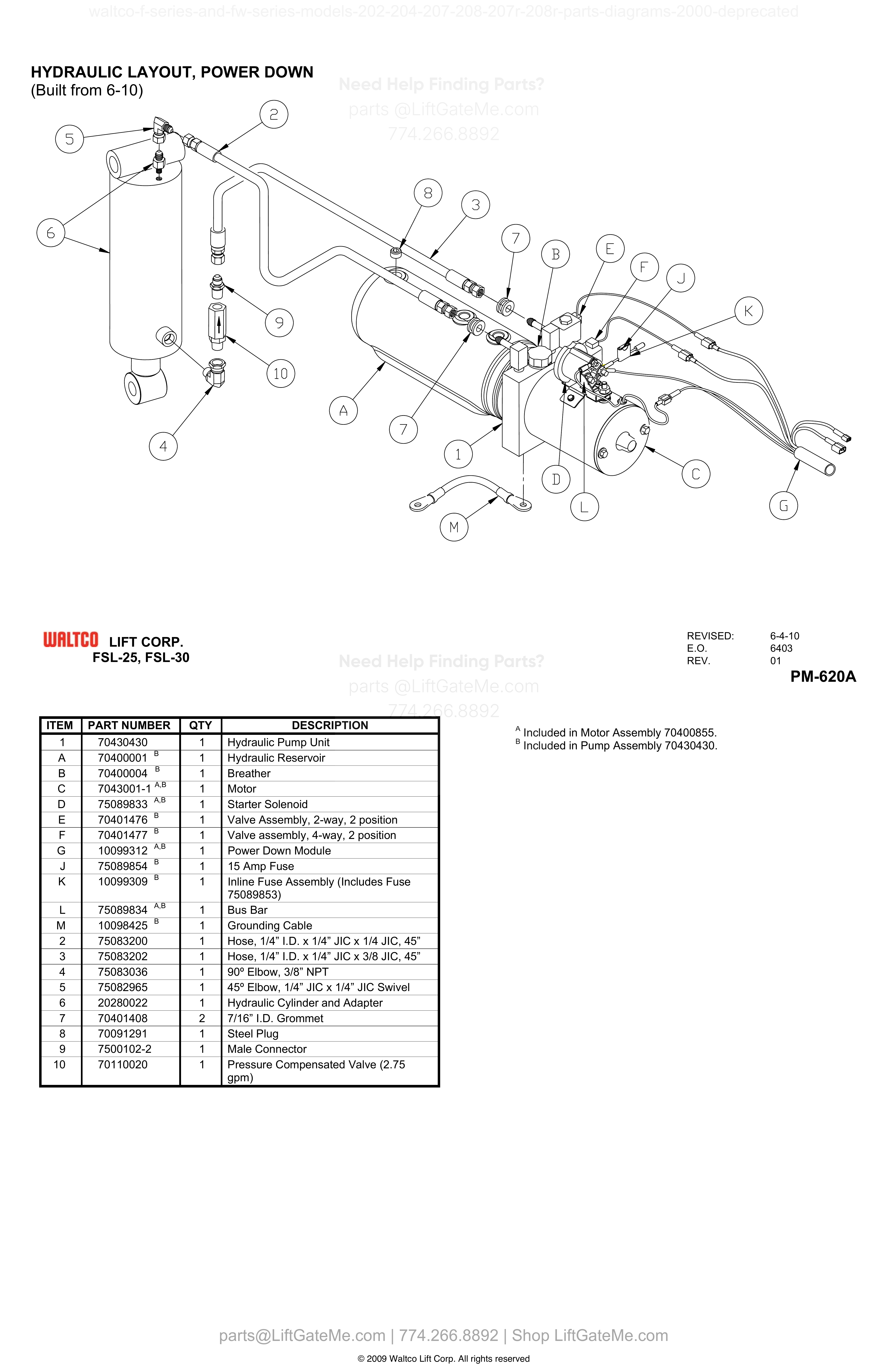

HYDRAULIC LAYOUT, POWER DOWN (Built from 6-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70430430 B | Hydraulic Pump Unit | |
| A | 1 | 70400001 B | Hydraulic Reservoir | |
| B | 1 | 70400004 B | Breather | |
| C | 1 | 7043001-1 A,B | Motor | |
| D | 1 | 75089833 A,B | Starter Solenoid | |
| E | 1 | 70401476 B | Valve Assembly, 2-way, 2 position | |
| F | 1 | 70401477 B | Valve assembly, 4-way, 2 position | |
| G | 1 | 10099312 A,B | Power Down Module | |
| J | 1 | 75089854 B | 15 Amp Fuse | |
| K | 1 | 10099309 B | Inline Fuse Assembly (Includes Fuse 75089853) | |
| L | 1 | 75089834 A,B | Bus Bar | |
| M | 1 | 10098425 B | Grounding Cable | |
| 2 | 1 | 75083200 | Hose, 1/4” I.D. x 1/4” JIC x 1/4 JIC, 45” | |
| 3 | 1 | 75083202 | Hose, 1/4” I.D. x 1/4” JIC x 3/8 JIC, 45” | |
| 4 | 1 | 75083036 | 90º Elbow, 3/8” NPT | |
| 5 | 1 | 75082965 | 45º Elbow, 1/4” JIC x 1/4” JIC Swivel | |
| 6 | 1 | 20280022 | Hydraulic Cylinder and Adapter | |
| 7 | 2 | 70401408 | 7/16” I.D. Grommet | |
| 8 | 1 | 70091291 | Steel Plug | |
| 9 | 1 | 7500102-2 | Male Connector | |
| 10 | 1 | 70110020 | Pressure Compensated Valve (2.75 gpm) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

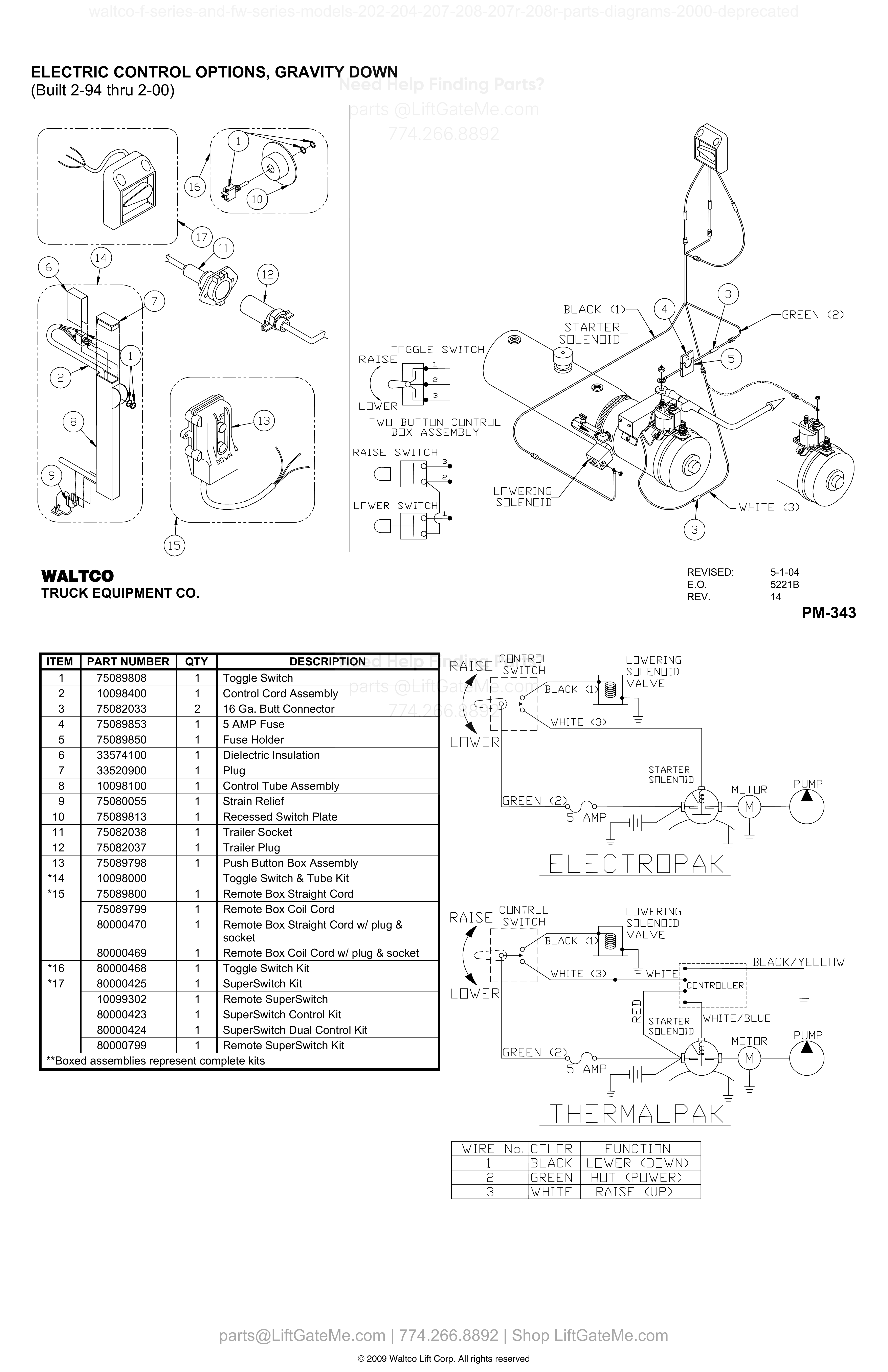

ELECTRIC CONTROL OPTIONS, GRAVITY DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75089808 | Toggle Switch | |
| 2 | 1 | 10098400 | Control Cord Assembly | |
| 3 | 2 | 75082033 | 16 Ga. Butt Connector | |
| 4 | 1 | 75089853 | 5 AMP Fuse | |
| 5 | 1 | 75089850 | Fuse Holder | |
| 6 | 1 | 33574100 | Dielectric Insulation | |
| 7 | 1 | 33520900 | Plug | |
| 8 | 1 | 10098100 | Control Tube Assembly | |
| 9 | 1 | 75080055 | Strain Relief | |
| 10 | 1 | 75089813 | Recessed Switch Plate | |
| 11 | 1 | 75082038 | Trailer Socket | |
| 12 | 1 | 75082037 | Trailer Plug | |
| 13 | 1 | 75089798 | Push Button Box Assembly | |
| *14 | 10098000 | Toggle Switch & Tube Kit | ||
| *15 | 1 | 75089800 | Remote Box Straight Cord | |
| *15 | 1 | 75089799 | Remote Box Coil Cord | |
| *15 | 1 | 80000470 | Remote Box Straight Cord w/ plug & socket | |
| *15 | 1 | 80000469 | Remote Box Coil Cord w/ socket | |
| *16 | 1 | 80000468 | Toggle Switch Kit | |
| *17 | 1 | 80000425 | SuperSwitch Kit | |
| *17 | 1 | 10099302 | Remote SuperSwitch | |
| *17 | 1 | 80000423 | SuperSwitch Control Kit | |
| *17 | 1 | 80000424 | SuperSwitch Dual Control Kit | |
| *17 | 1 | 80000799 | Remote SuperSwitch Kit |

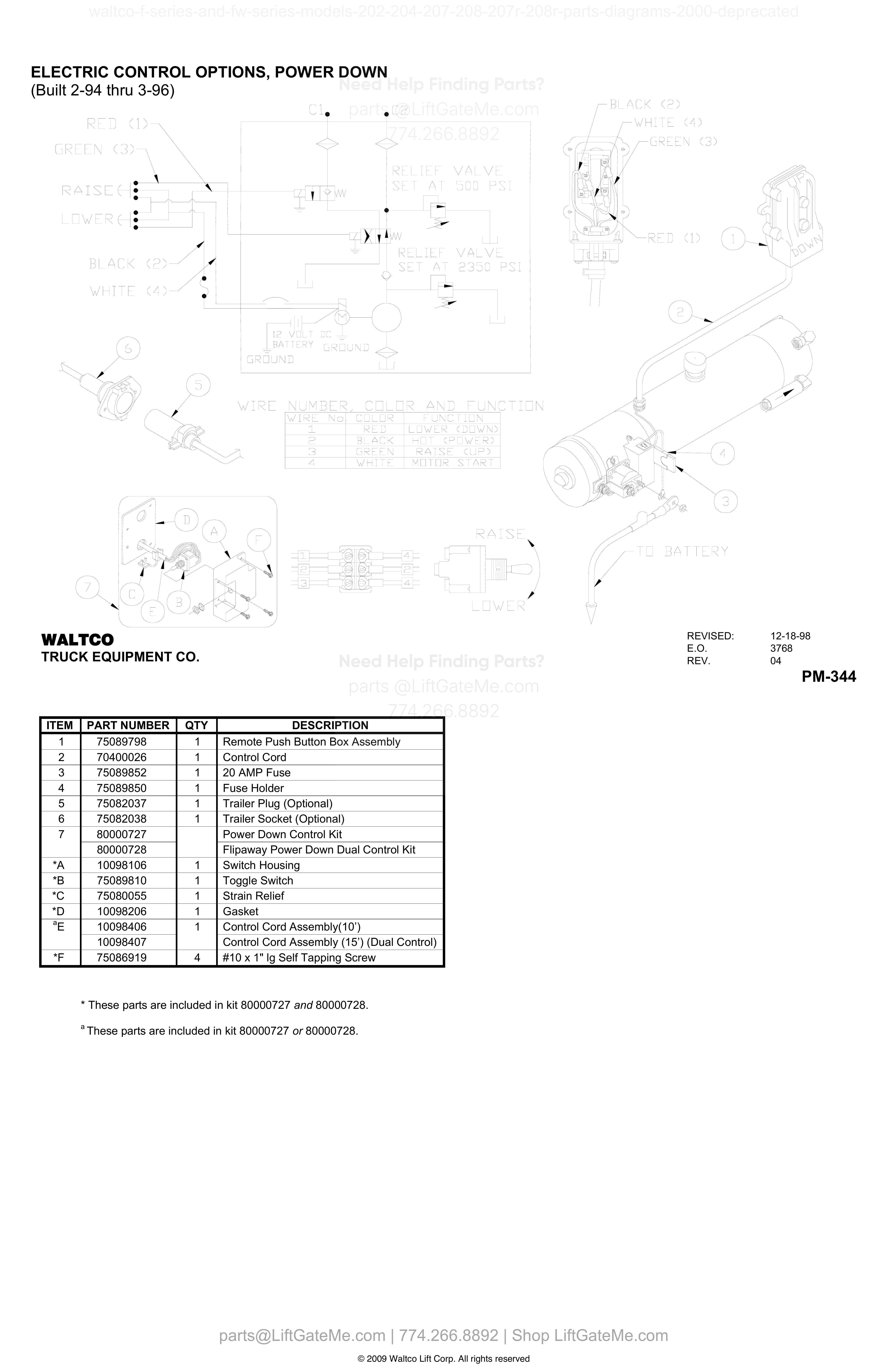

ELECTRIC CONTROL OPTIONS, POWER DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75089798 | Remote Push Button Box Assembly | |
| 2 | 1 | 70400026 | Control Cord | |
| 3 | 1 | 75089852 | 20 AMP Fuse | |
| 4 | 1 | 75089850 | Fuse Holder | |
| 5 | 1 | 75082037 | Trailer Plug (Optional) | |
| 6 | 1 | 75082038 | Trailer Socket (Optional) | |
| 7 | 80000727 | Power Down Control Kit | ||
| 7 | 80000728 | Flipaway Power Down Dual Control Kit | ||
| *A | 1 | 10098106 | Switch Housing | |
| *B | 1 | 75089810 | Toggle Switch | |
| *C | 1 | 75080055 | Strain Relief | |
| *D | 1 | 10098206 | Gasket | |
| *E | 1 | 10098406 A | Control Cord Assembly(10') | |
| *E | 10098407 | Control Cord Assembly (15') (Dual Control) | ||
| *F | 4 | 75086919 | #10 x 1" lg Self Tapping Screw |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

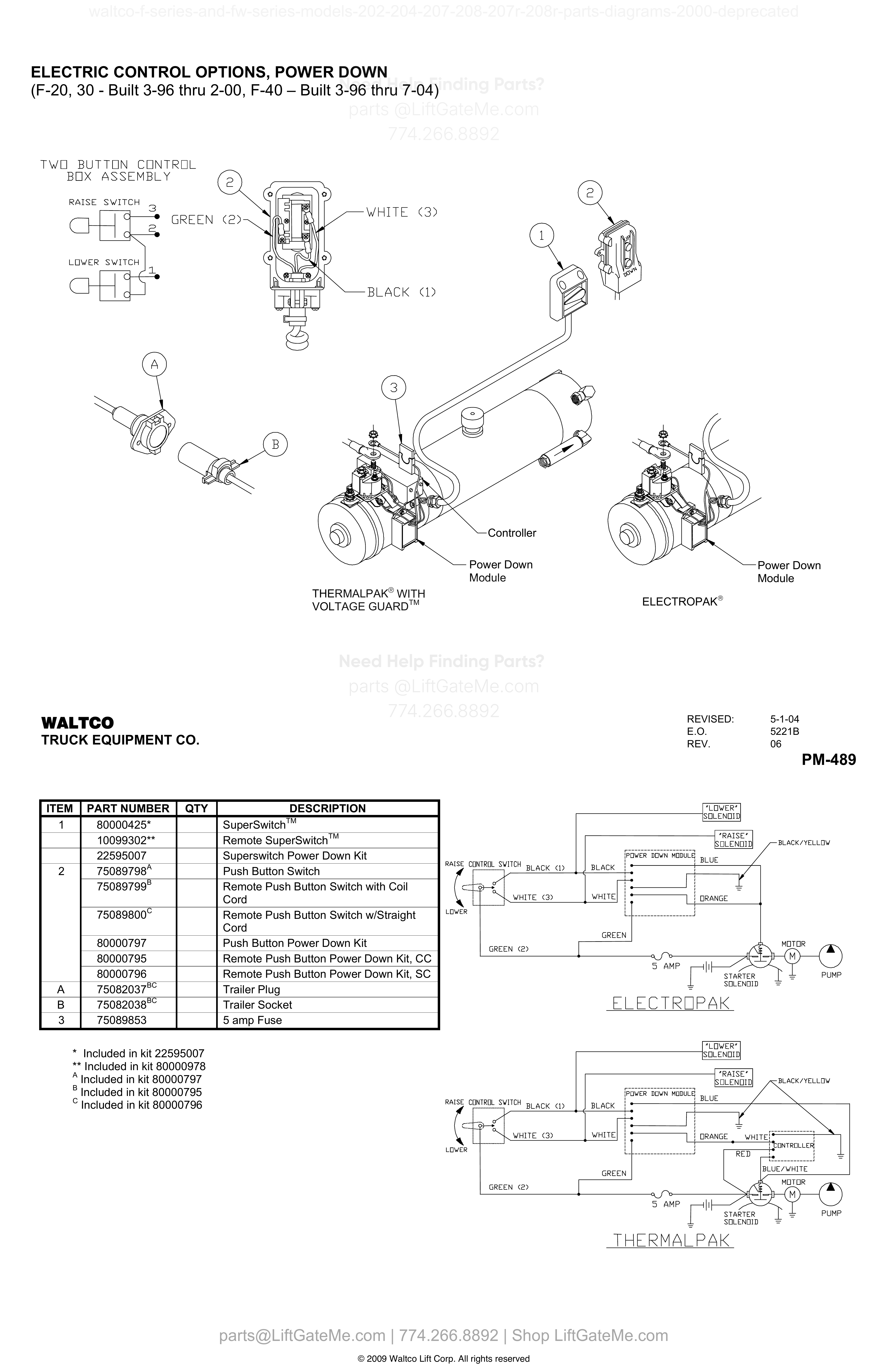

ELECTRIC CONTROL OPTIONS, POWER DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 80000425 | SuperSwitch™ | ||
| 1 | 10099302 | Remote SuperSwitch™ | ||
| 1 | 22595007 | Superswitch Power Down Kit | ||
| 2 | 75089798 A | Push Button Switch | ||
| 2 | 75089799 B | Remote Push Button Switch with Coil Cord | ||
| 2 | 75089800 C | Remote Push Button Switch w/Straight Cord | ||
| 2 | 80000797 | Push Button Power Down Kit | ||
| 2 | 80000795 | Remote Push Button Power Down Kit, CC | ||
| 2 | 80000796 | Remote Push Button Power Down Kit, SC | ||
| A | 75082037 B,C | Trailer Plug | ||
| B | 75082038 B,C | Trailer Socket | ||
| 3 | 75089853 | 5 amp Fuse |

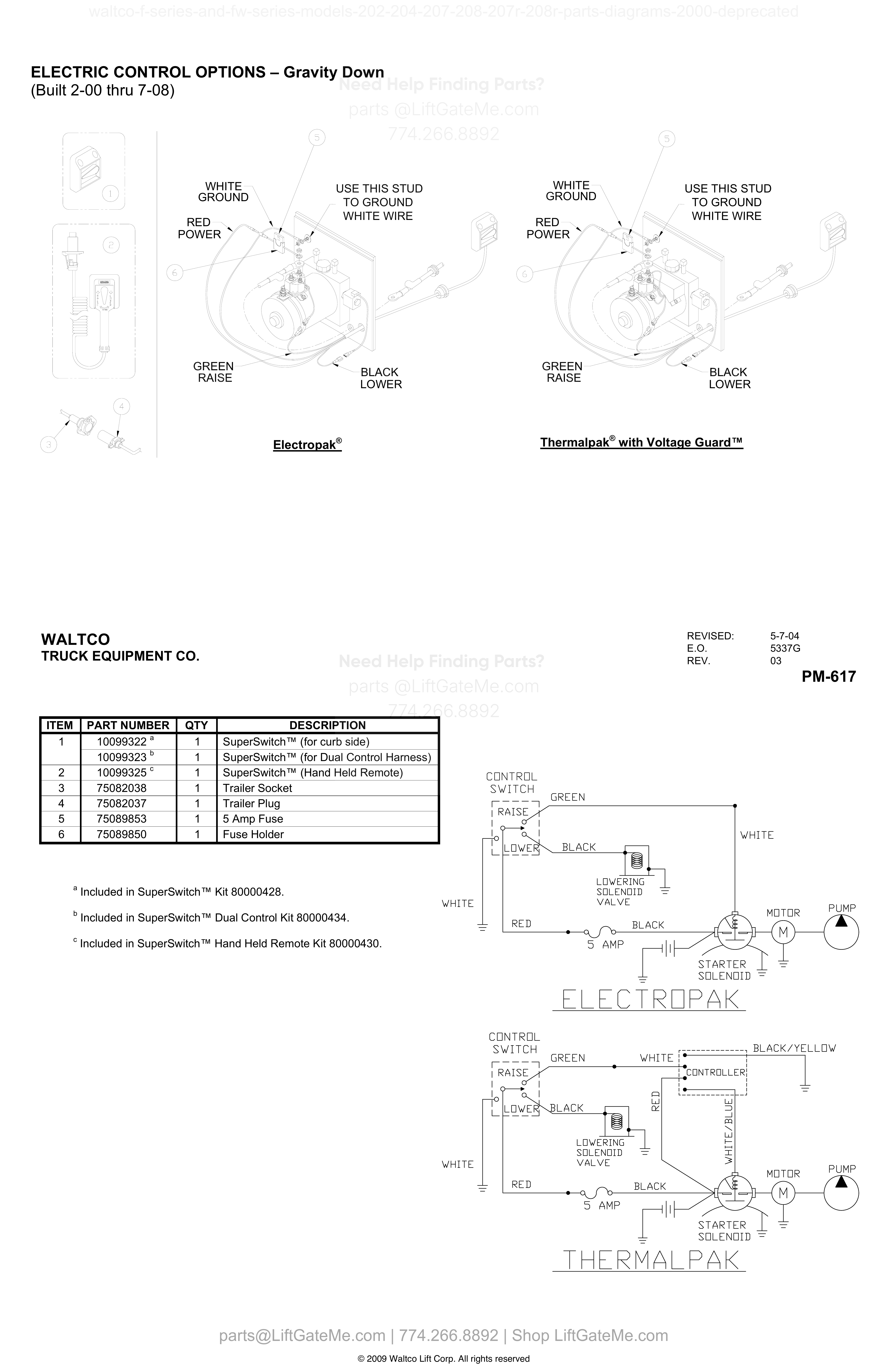

ELECTRIC CONTROL OPTIONS – Gravity Down
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | SuperSwitch™ (for curb side) | |
| 1 | 1 | 10099323 B | SuperSwitch™ (for Dual Control Harness) | |
| 2 | 1 | 10099325 C | SuperSwitch™ (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089853 | 5 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

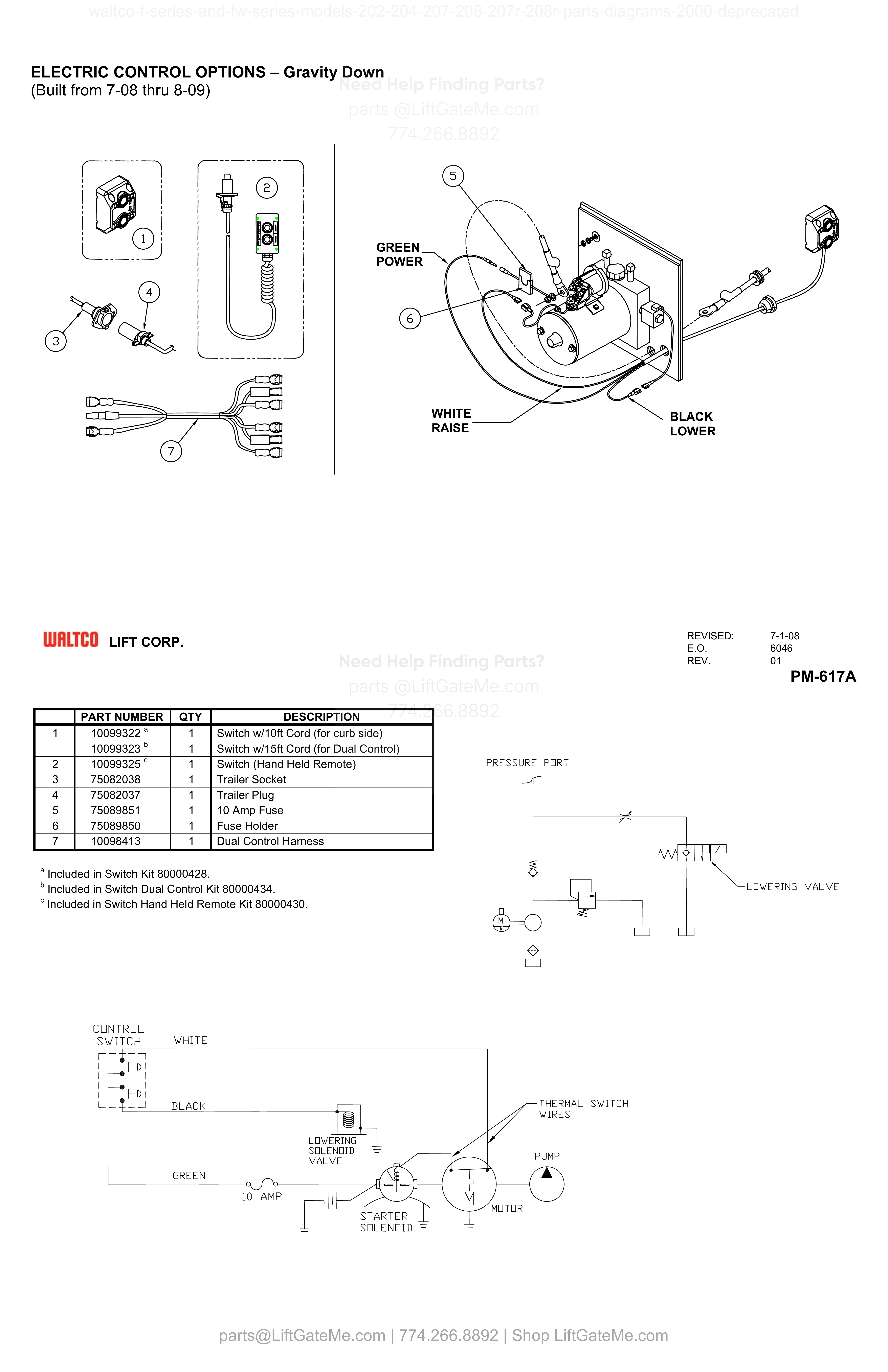

ELECTRIC CONTROL OPTIONS – Gravity Down (Built from 7-08 thru 8-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089851 | 10 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |

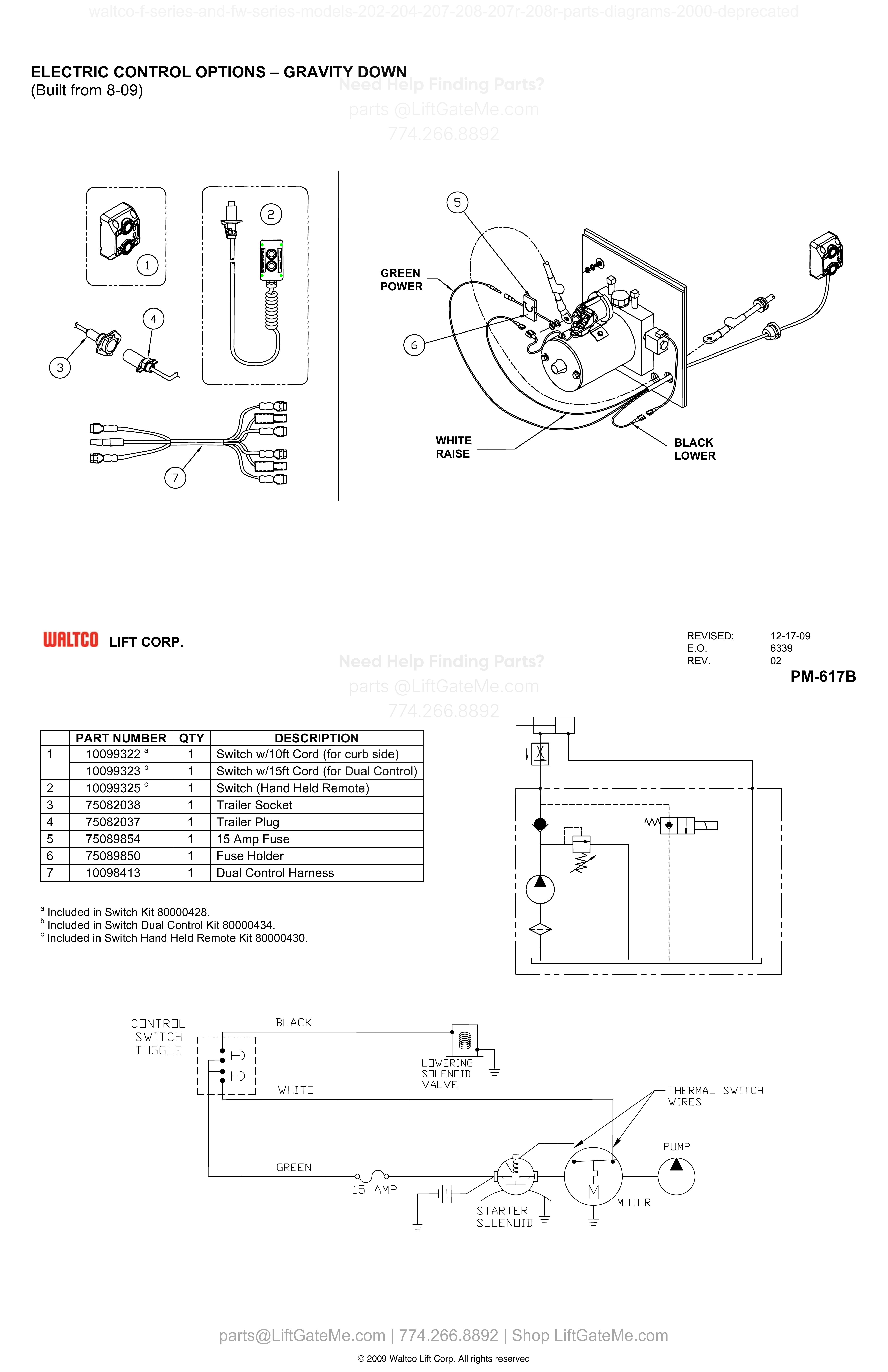

ELECTRIC CONTROL OPTIONS – GRAVITY DOWN (Built from 8-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089854 | 15 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

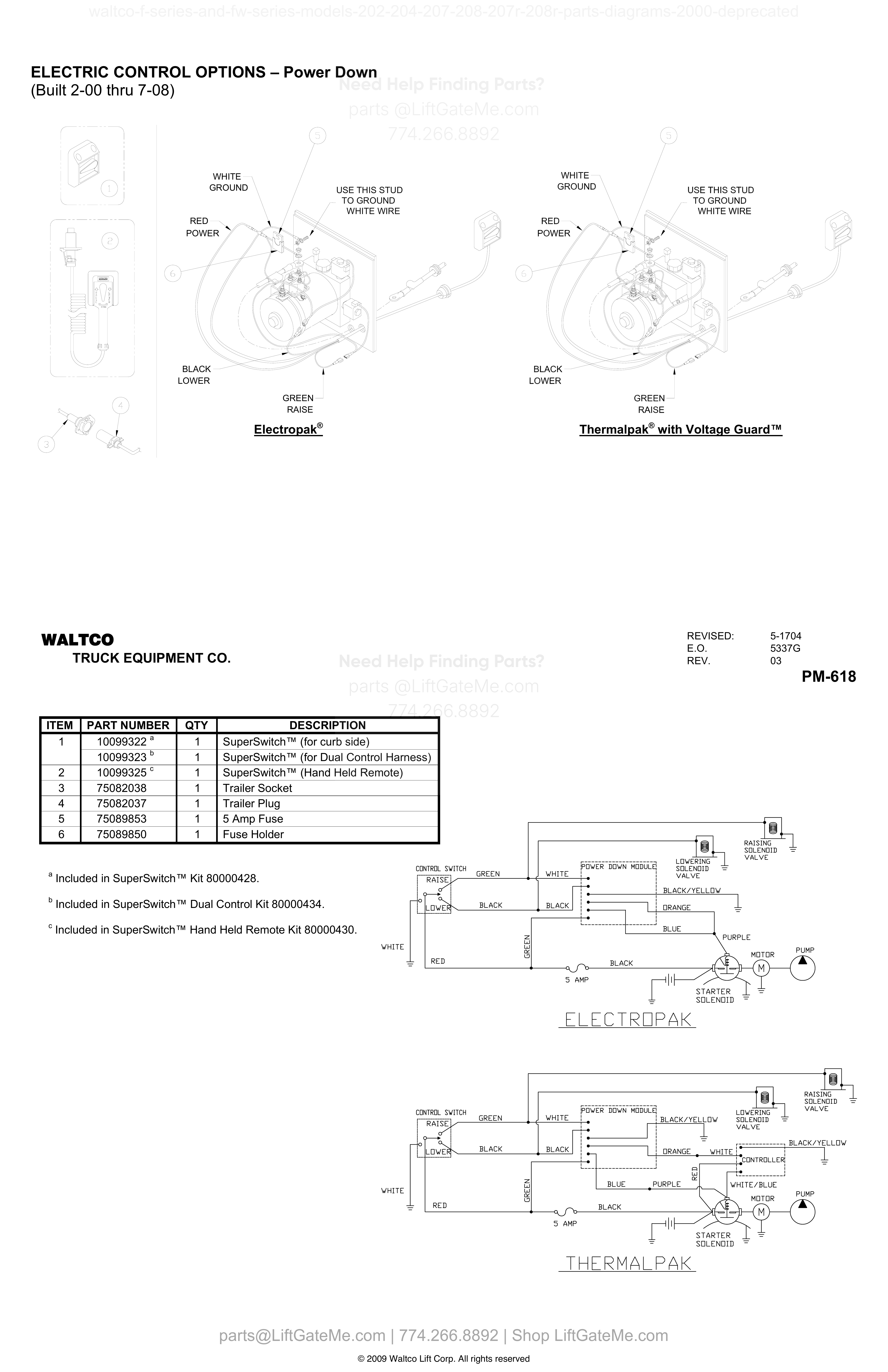

ELECTRIC CONTROL OPTIONS – Power Down
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | SuperSwitch™ (for curb side) | |
| 1 | 1 | 10099323 B | SuperSwitch™ (for Dual Control Harness) | |
| 2 | 1 | 10099325 C | SuperSwitch™ (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089853 | 5 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder |

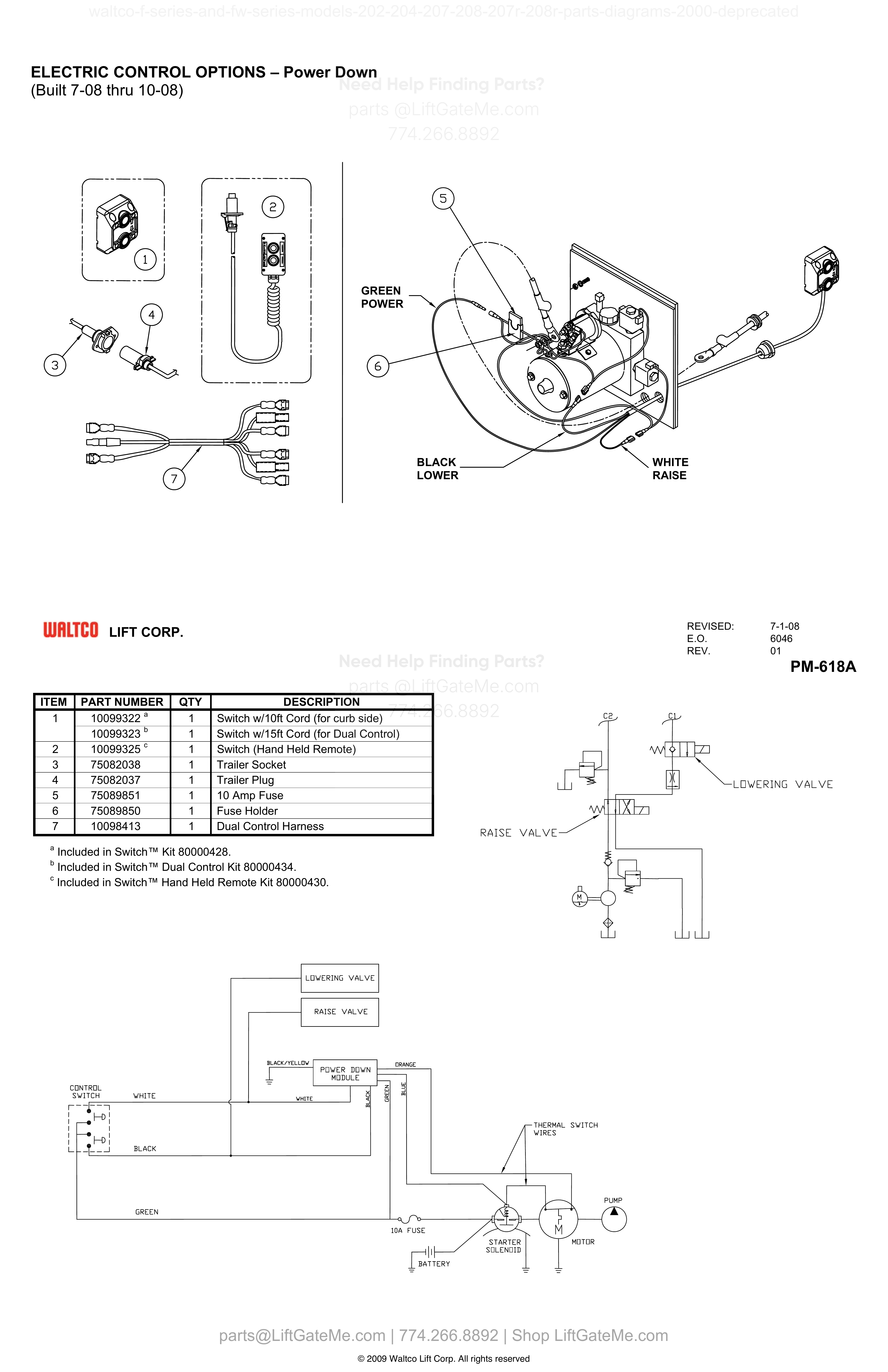

ELECTRIC CONTROL OPTIONS – Power Down (Built 7-08 thru 10-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089851 | 10 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

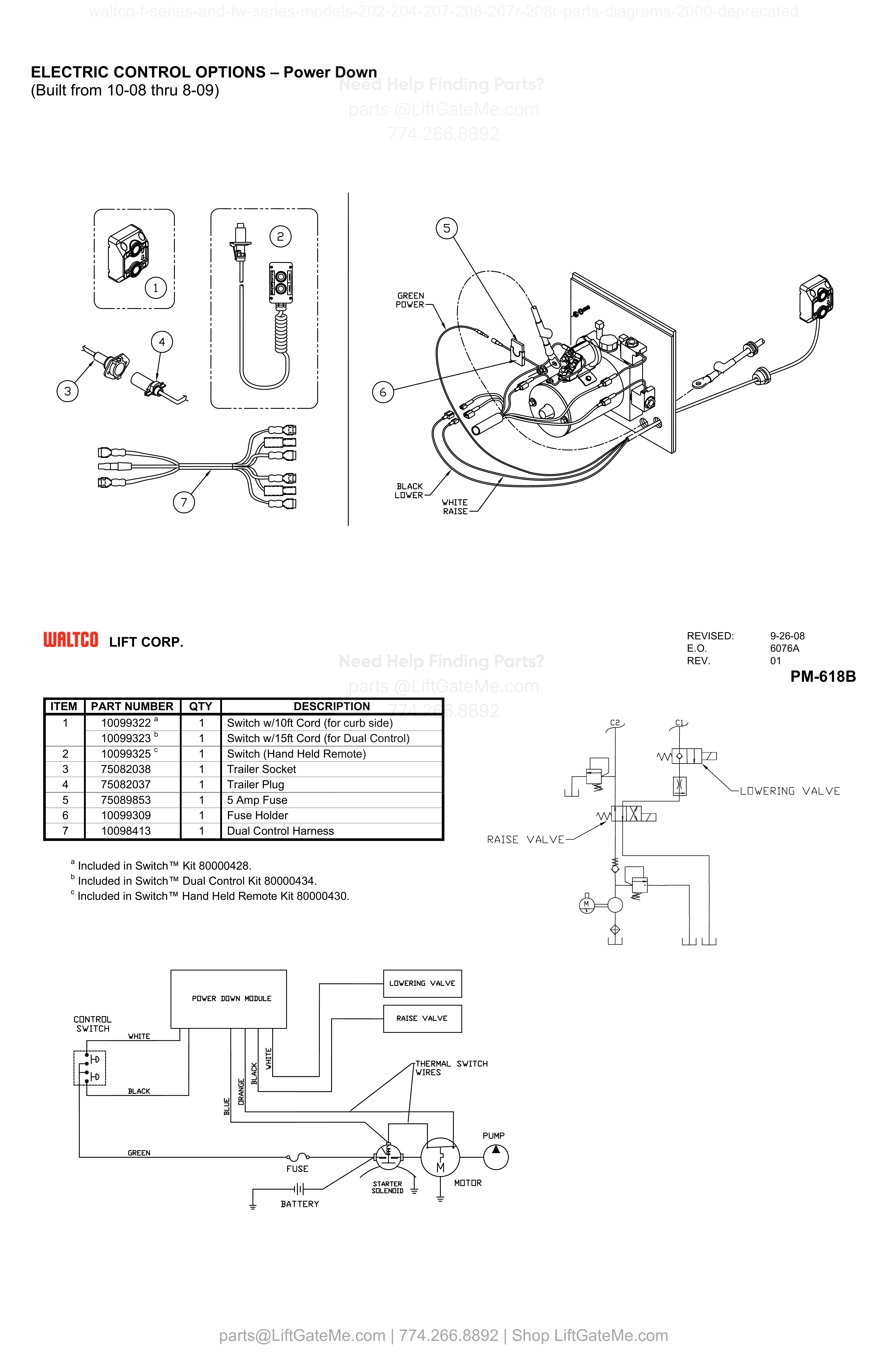

ELECTRIC CONTROL OPTIONS – Power Down (Built from 10-08 thru 8-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089853 | 5 Amp Fuse | |
| 6 | 1 | 10099309 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |

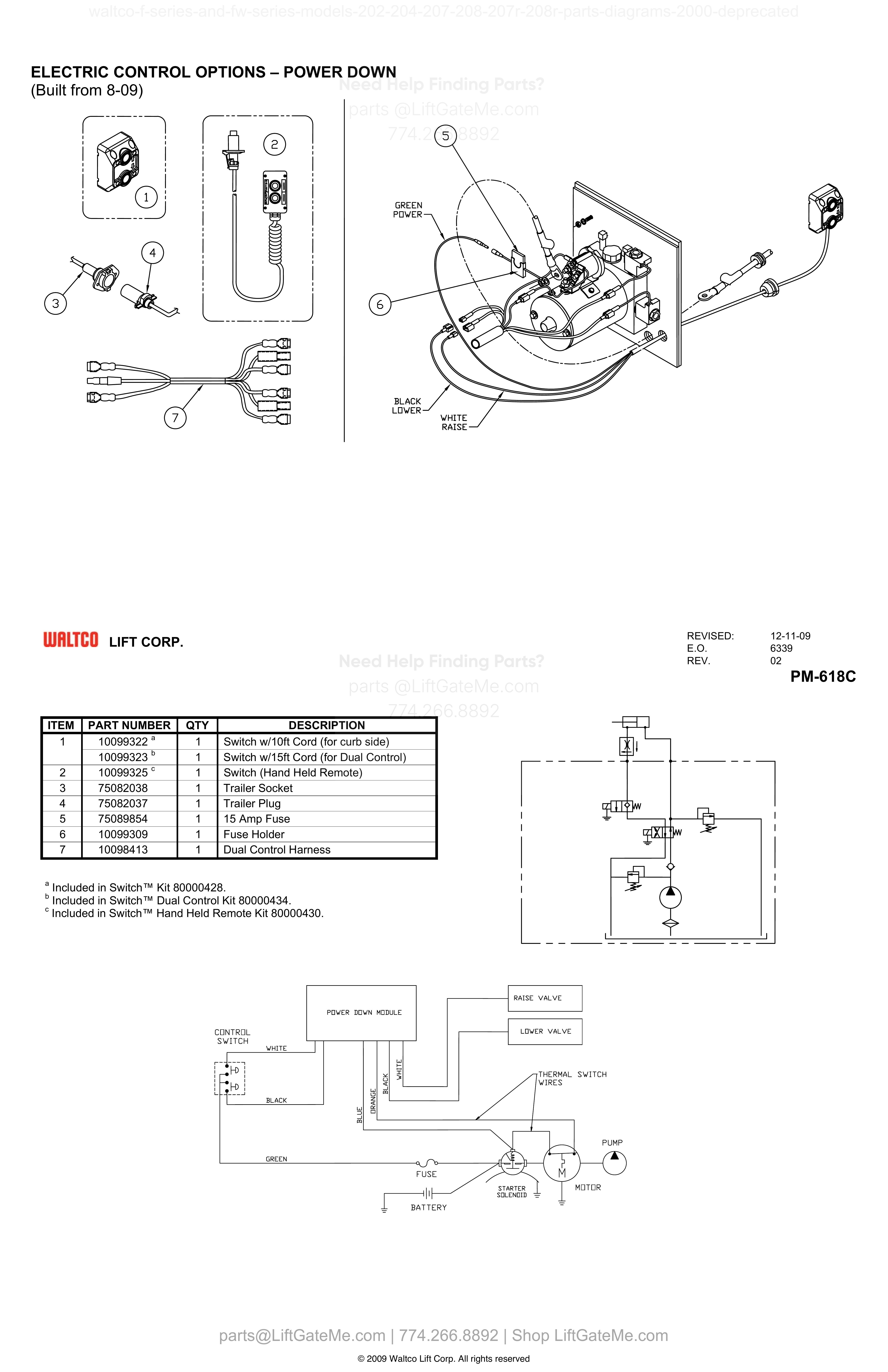

ELECTRIC CONTROL OPTIONS – POWER DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089854 | 15 Amp Fuse | |
| 6 | 1 | 10099309 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

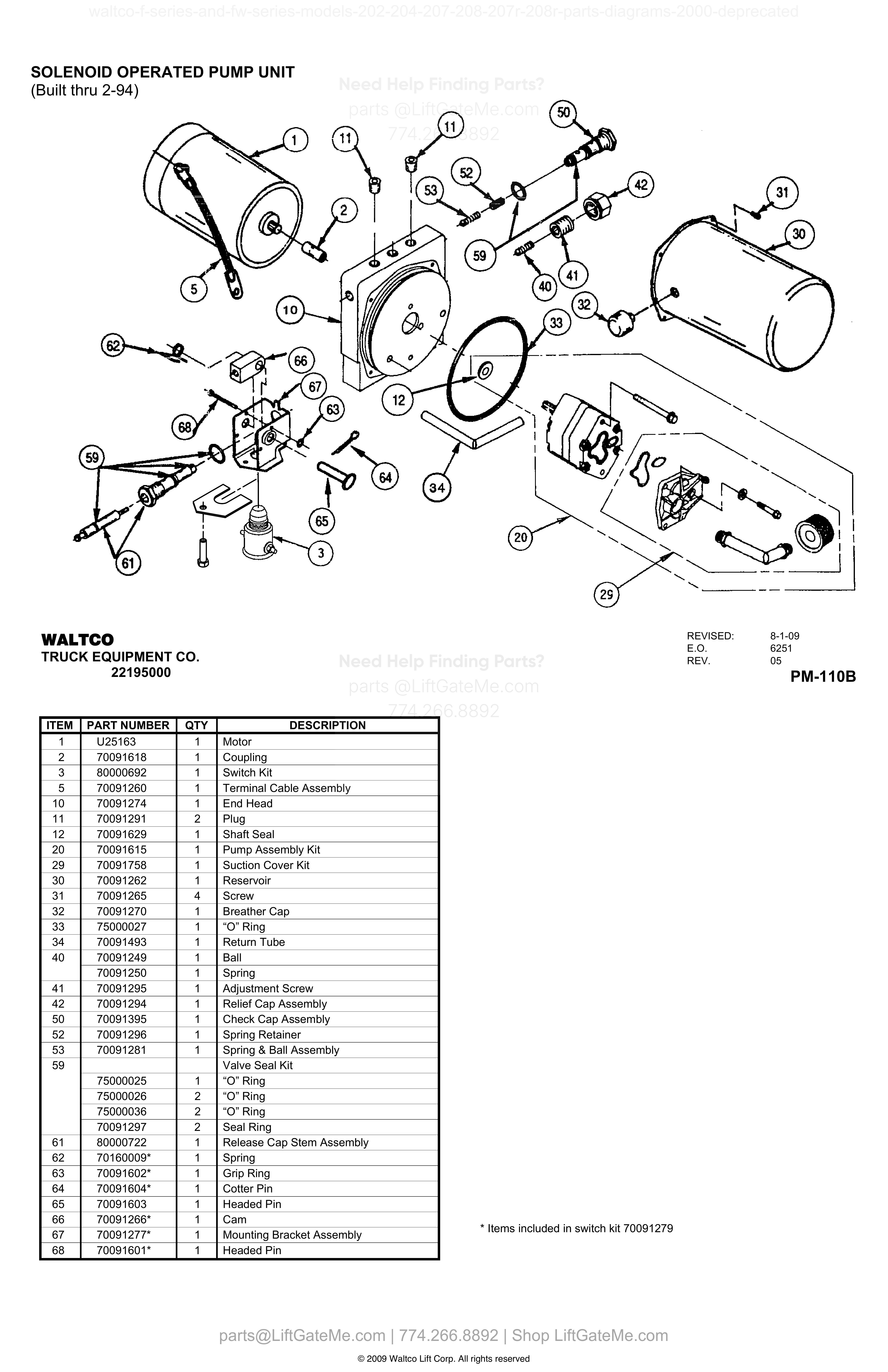

SOLENOID OPERATED PUMP UNIT (Built thru 2-94)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | U25163 | Motor | |
| 2 | 1 | 70091618 | Coupling | |
| 3 | 1 | 80000692 | Switch Kit | |
| 5 | 1 | 70091260 | Terminal Cable Assembly | |
| 10 | 1 | 70091274 | End Head | |
| 11 | 2 | 70091291 | Plug | |
| 12 | 1 | 70091629 | Shaft Seal | |
| 20 | 1 | 70091615 | Pump Assembly Kit | |
| 29 | 1 | 70091758 | Suction Cover Kit | |
| 30 | 1 | 70091262 | Reservoir | |
| 31 | 4 | 70091265 | Screw | |
| 32 | 1 | 70091270 | Breather Cap | |
| 33 | 1 | 75000027 | “O” Ring | |
| 34 | 1 | 70091493 | Return Tube | |
| 40 | 1 | 70091249 | Ball | |
| 40 | 1 | 70091250 | Spring | |
| 41 | 1 | 70091295 | Adjustment Screw | |
| 42 | 1 | 70091294 | Relief Cap Assembly | |
| 50 | 1 | 70091395 | Check Cap Assembly | |
| 52 | 1 | 70091296 | Spring Retainer | |
| 53 | 1 | 70091281 | Spring & Ball Assembly | |
| 59 | Valve Seal Kit | |||
| 59 | 1 | 75000025 | “O” Ring | |
| 59 | 2 | 75000026 | “O” Ring | |
| 59 | 2 | 75000036 | “O” Ring | |
| 59 | 2 | 70091297 | Seal Ring | |
| 61 | 1 | 80000722 | Release Cap Stem Assembly | |
| 62 | 1 | 70160009* | Spring | |
| 63 | 1 | 70091602* | Grip Ring | |
| 64 | 1 | 70091604* | Cotter Pin | |
| 65 | 1 | 70091603 | Headed Pin | |
| 66 | 1 | 70091266* | Cam | |
| 67 | 1 | 70091277* | Mounting Bracket Assembly | |
| 68 | 1 | 70091601* | Headed Pin |

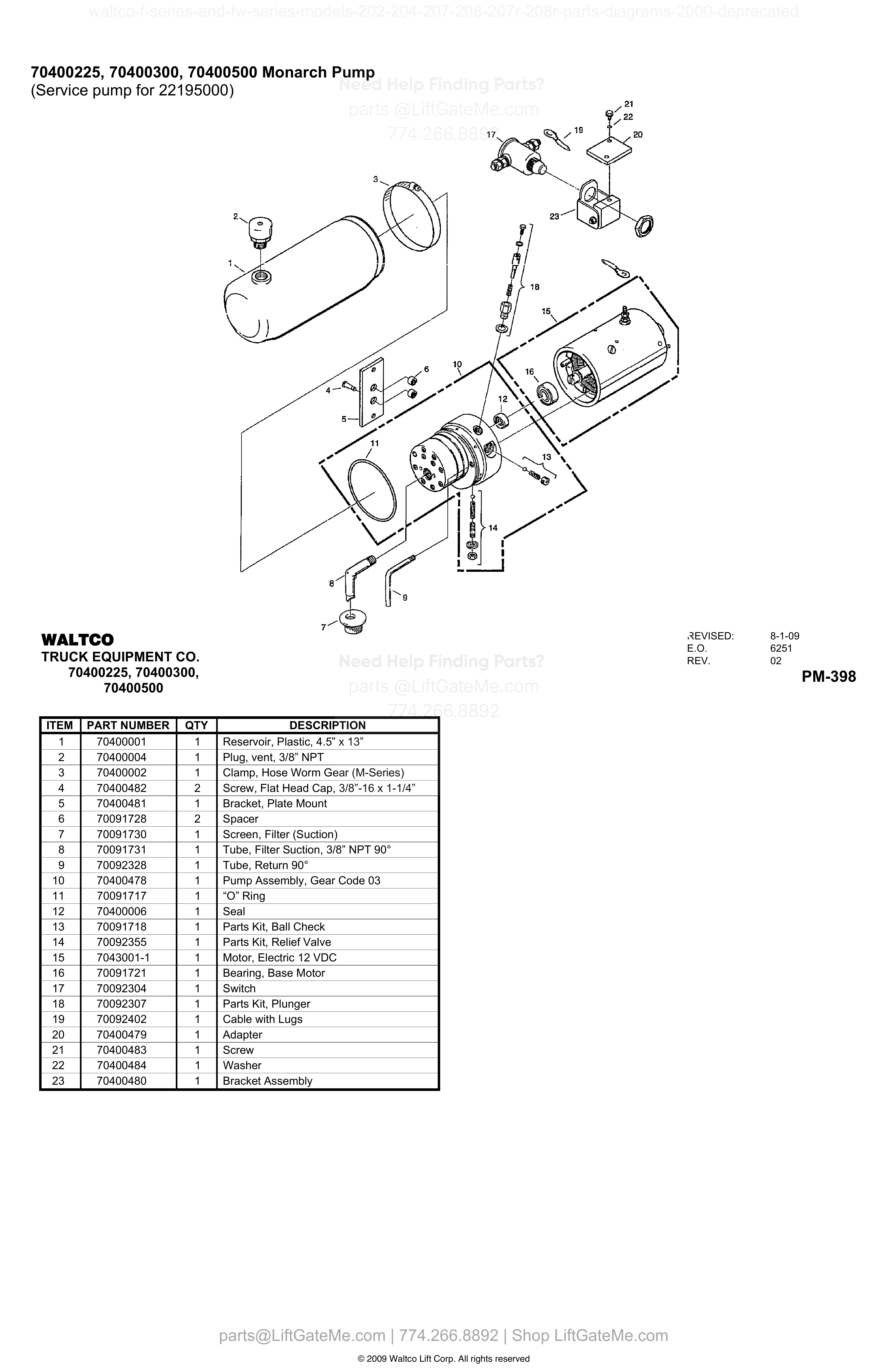

70400225, 70400300, 70400500 Monarch Pump
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400001 | Reservoir, Plastic, 4.5” x 13” | |
| 2 | 1 | 70400004 | Plug, vent, 3/8” NPT | |
| 3 | 1 | 70400002 | Clamp, Hose Worm Gear (M-Series) | |
| 4 | 2 | 70400482 | Screw, Flat Head Cap, 3/8”-16 x 1-1/4” | |
| 5 | 1 | 70400481 | Bracket, Plate Mount | |
| 6 | 2 | 70091728 | Spacer | |
| 7 | 1 | 70091730 | Screen, Filter (Suction) | |
| 8 | 1 | 70091731 | Tube, Filter Suction, 3/8” NPT 90° | |
| 9 | 1 | 70092328 | Tube, Return 90° | |
| 10 | 1 | 70400478 | Pump Assembly, Gear Code 03 | |
| 11 | 1 | 70091717 | “O” Ring | |
| 12 | 1 | 70400006 | Seal | |
| 13 | 1 | 70091718 | Parts Kit, Ball Check | |
| 14 | 1 | 70092355 | Parts Kit, Relief Valve | |
| 15 | 1 | 7043001-1 | Motor, Electric 12 VDC | |
| 16 | 1 | 70091721 | Bearing, Base Motor | |
| 17 | 1 | 70092304 | Switch | |
| 18 | 1 | 70092307 | Parts Kit, Plunger | |
| 19 | 1 | 70092402 | Cable with Lugs | |
| 20 | 1 | 70400479 | Adapter | |
| 21 | 1 | 70400483 | Screw | |
| 22 | 1 | 70400484 | Washer | |
| 23 | 1 | 70400480 | Bracket Assembly |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

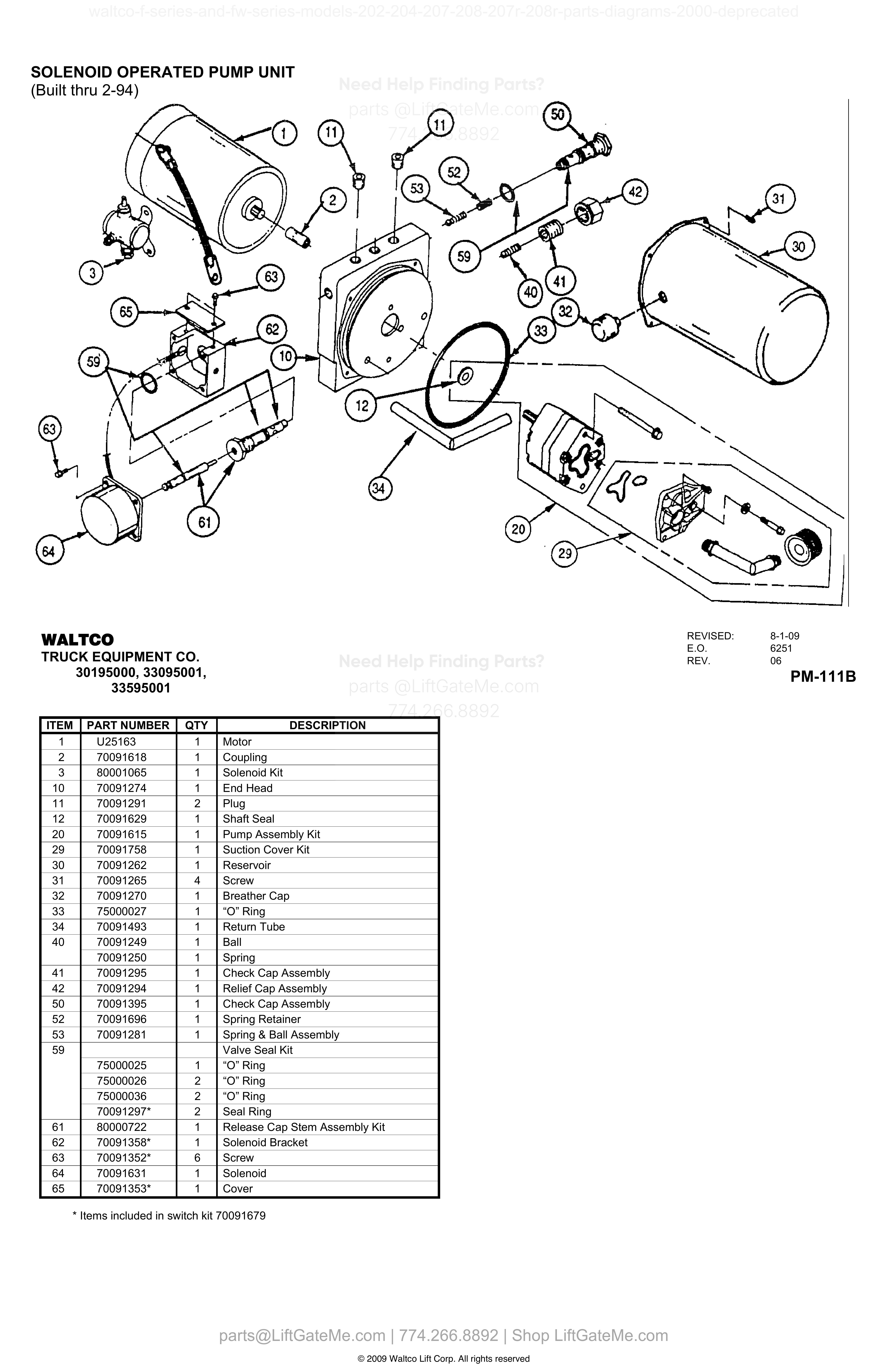

SOLENOID OPERATED PUMP UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | U25163 | Motor | |
| 2 | 1 | 70091618 | Coupling | |
| 3 | 1 | 80001065 | Solenoid Kit | |
| 10 | 1 | 70091274 | End Head | |
| 11 | 2 | 70091291 | Plug | |
| 12 | 1 | 70091629 | Shaft Seal | |
| 20 | 1 | 70091615 | Pump Assembly Kit | |
| 29 | 1 | 70091758 | Suction Cover Kit | |
| 30 | 1 | 70091262 | Reservoir | |
| 31 | 4 | 70091265 | Screw | |
| 32 | 1 | 70091270 | Breather Cap | |
| 33 | 1 | 75000027 | “O” Ring | |
| 34 | 1 | 70091493 | Return Tube | |
| 40 | 1 | 70091249 | Ball | |
| 40 | 1 | 70091250 | Spring | |
| 41 | 1 | 70091295 | Check Cap Assembly | |
| 42 | 1 | 70091294 | Relief Cap Assembly | |
| 50 | 1 | 70091395 | Check Cap Assembly | |
| 52 | 1 | 70091696 | Spring Retainer | |
| 53 | 1 | 70091281 | Spring & Ball Assembly | |
| 59 | Valve Seal Kit | |||
| 59 | 1 | 75000025 | “O” Ring | |
| 59 | 2 | 75000026 | “O” Ring | |
| 59 | 2 | 75000036 | “O” Ring | |
| 59 | 2 | 70091297* | Seal Ring | |
| 61 | 1 | 80000722 | Release Cap Stem Assembly Kit | |
| 62 | 1 | 70091358* | Solenoid Bracket | |
| 63 | 6 | 70091352* | Screw | |
| 64 | 1 | 70091631 | Solenoid | |
| 65 | 1 | 70091353* | Cover |

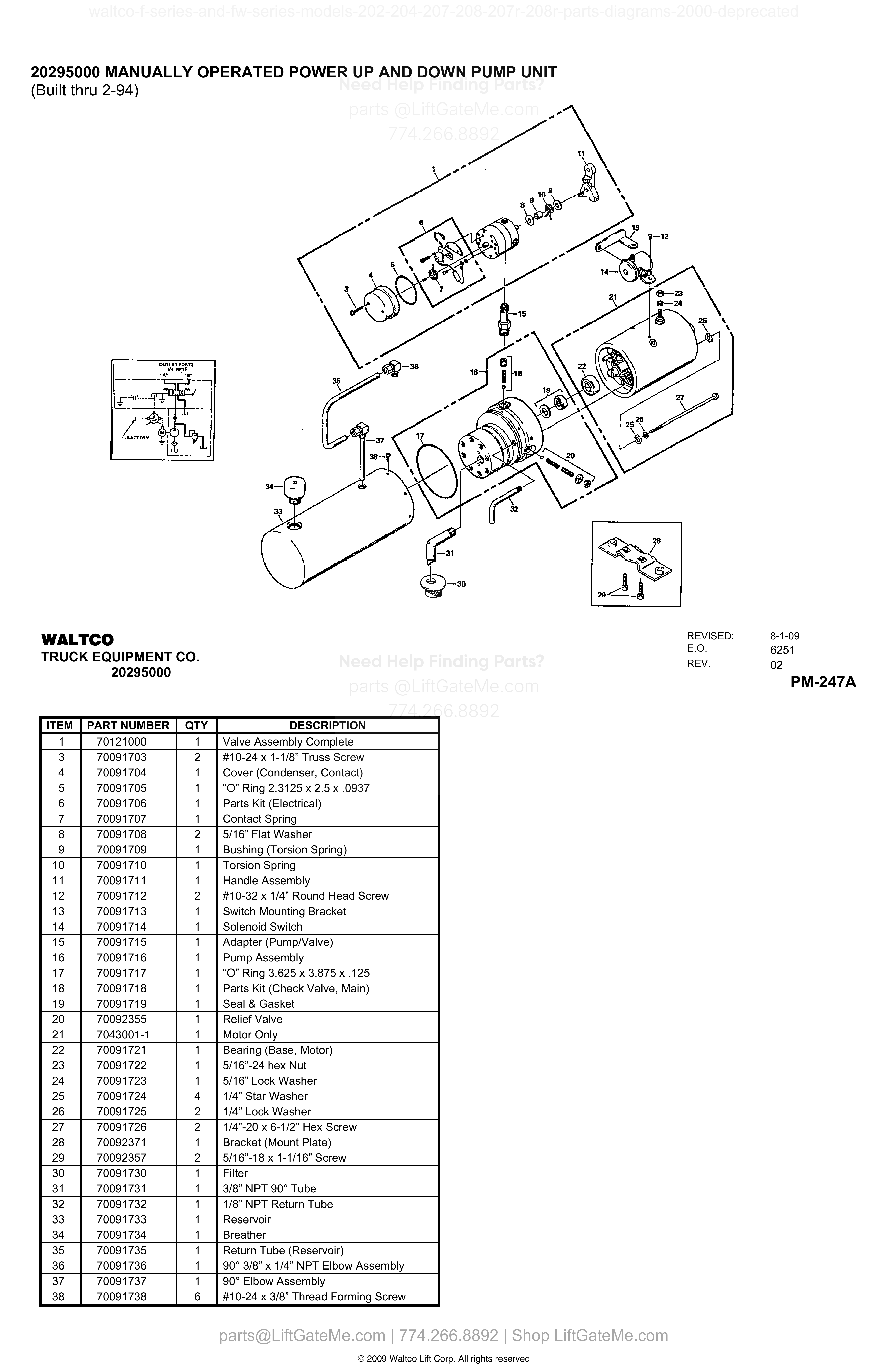

20295000 MANUALLY OPERATED POWER UP AND DOWN PUMP UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70121000 | Valve Assembly Complete | |
| 3 | 2 | 70091703 | #10-24 x 1-1/8” Truss Screw | |
| 4 | 1 | 70091704 | Cover (Condenser, Contact) | |
| 5 | 1 | 70091705 | “O” Ring 2.3125 x 2.5 x .0937 | |
| 6 | 1 | 70091706 | Parts Kit (Electrical) | |
| 7 | 1 | 70091707 | Contact Spring | |
| 8 | 2 | 70091708 | 5/16” Flat Washer | |
| 9 | 1 | 70091709 | Bushing (Torsion Spring) | |
| 10 | 1 | 70091710 | Torsion Spring | |
| 11 | 1 | 70091711 | Handle Assembly | |
| 12 | 2 | 70091712 | #10-32 x 1/4” Round Head Screw | |
| 13 | 1 | 70091713 | Switch Mounting Bracket | |
| 14 | 1 | 70091714 | Solenoid Switch | |
| 15 | 1 | 70091715 | Adapter (Pump/Valve) | |
| 16 | 1 | 70091716 | Pump Assembly | |
| 17 | 1 | 70091717 | “O” Ring 3.625 x 3.875 x .125 | |
| 18 | 1 | 70091718 | Parts Kit (Check Valve, Main) | |
| 19 | 1 | 70091719 | Seal & Gasket | |
| 20 | 1 | 70092355 | Relief Valve | |
| 21 | 1 | 7043001-1 | Motor Only | |
| 22 | 1 | 70091721 | Bearing (Base, Motor) | |
| 23 | 1 | 70091722 | 5/16”-24 hex Nut | |
| 24 | 1 | 70091723 | 5/16” Lock Washer | |
| 25 | 4 | 70091724 | 1/4” Star Washer | |
| 26 | 2 | 70091725 | 1/4” Lock Washer | |
| 27 | 2 | 70091726 | 1/4”-20 x 6-1/2” Hex Screw | |
| 28 | 1 | 70092371 | Bracket (Mount Plate) | |
| 29 | 2 | 70092357 | 5/16”-18 x 1-1/16” Screw | |
| 30 | 1 | 70091730 | Filter | |
| 31 | 1 | 70091731 | 3/8” NPT 90° Tube | |
| 32 | 1 | 70091732 | 1/8” NPT Return Tube | |
| 33 | 1 | 70091733 | Reservoir | |
| 34 | 1 | 70091734 | Breather | |
| 35 | 1 | 70091735 | Return Tube (Reservoir) | |
| 36 | 1 | 70091736 | 90° 3/8” x 1/4” NPT Elbow Assembly | |
| 37 | 1 | 70091737 | 90° Elbow Assembly | |
| 38 | 6 | 70091738 | #10-24 x 3/8” Thread Forming Screw |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

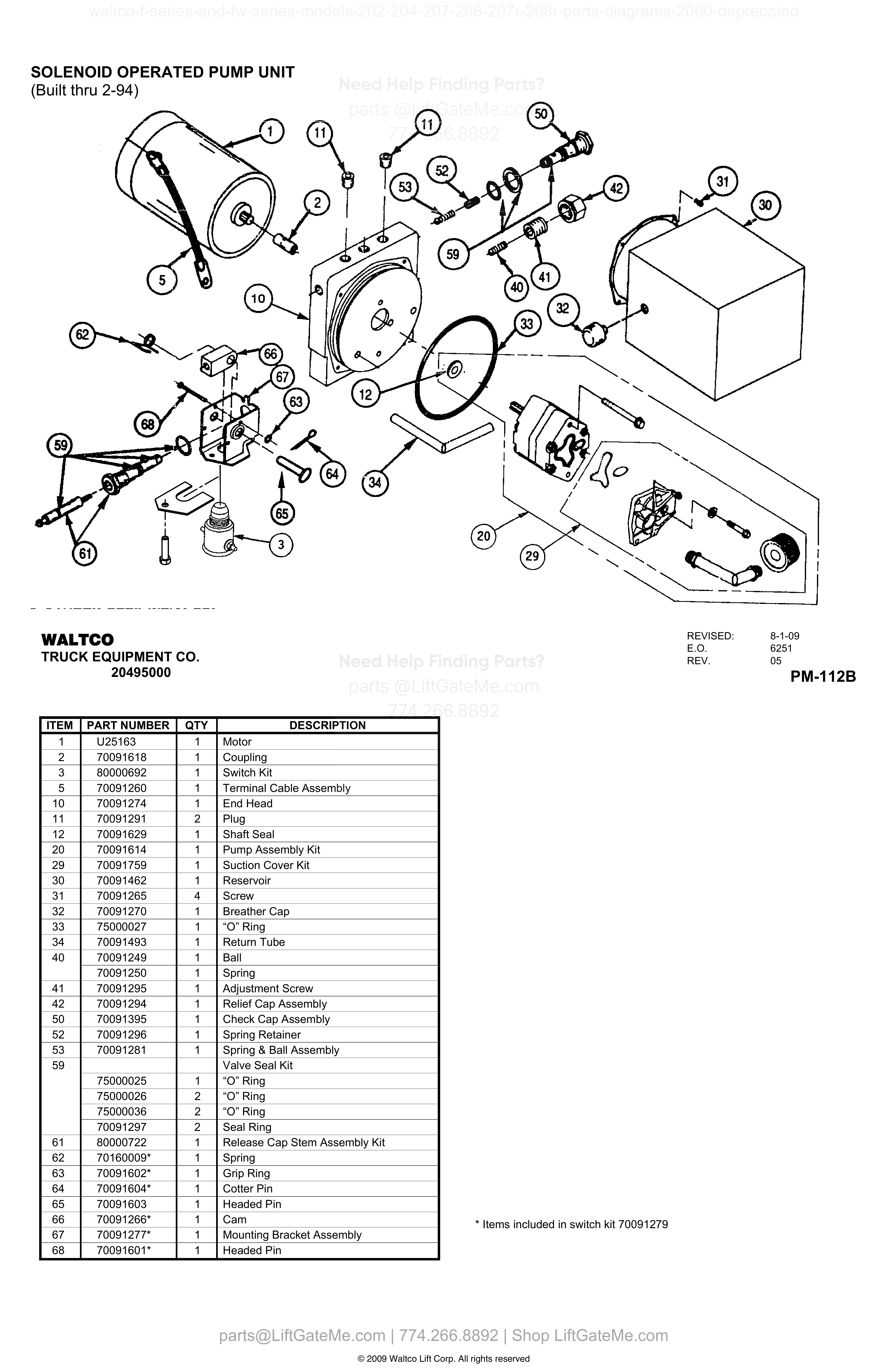

SOLENOID OPERATED PUMP UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | U25163 | Motor | |
| 2 | 1 | 70091618 | Coupling | |
| 3 | 1 | 80000692 | Switch Kit | |
| 5 | 1 | 70091260 | Terminal Cable Assembly | |
| 10 | 1 | 70091274 | End Head | |
| 11 | 2 | 70091291 | Plug | |
| 12 | 1 | 70091629 | Shaft Seal | |
| 20 | 1 | 70091614 | Pump Assembly Kit | |
| 29 | 1 | 70091759 | Suction Cover Kit | |
| 30 | 1 | 70091462 | Reservoir | |
| 31 | 4 | 70091265 | Screw | |
| 32 | 1 | 70091270 | Breather Cap | |
| 33 | 1 | 75000027 | “O” Ring | |
| 34 | 1 | 70091493 | Return Tube | |
| 40 | 1 | 70091249 | Ball | |
| 40 | 1 | 70091250 | Spring | |
| 41 | 1 | 70091295 | Adjustment Screw | |
| 42 | 1 | 70091294 | Relief Cap Assembly | |
| 50 | 1 | 70091395 | Check Cap Assembly | |
| 52 | 1 | 70091296 | Spring Retainer | |
| 53 | 1 | 70091281 | Spring & Ball Assembly | |
| 59 | Valve Seal Kit | |||
| 59 | 1 | 75000025 | “O” Ring | |
| 59 | 2 | 75000026 | “O” Ring | |
| 59 | 2 | 75000036 | “O” Ring | |
| 59 | 2 | 70091297 | Seal Ring | |
| 61 | 1 | 80000722 | Release Cap Stem Assembly Kit | |
| 62 | 1 | 70160009* | Spring | |
| 63 | 1 | 70091602* | Grip Ring | |
| 64 | 1 | 70091604* | Cotter Pin | |
| 65 | 1 | 70091603 | Headed Pin | |
| 66 | 1 | 70091266* | Cam | |
| 67 | 1 | 70091277* | Mounting Bracket Assembly | |
| 68 | 1 | 70091601* | Headed Pin |

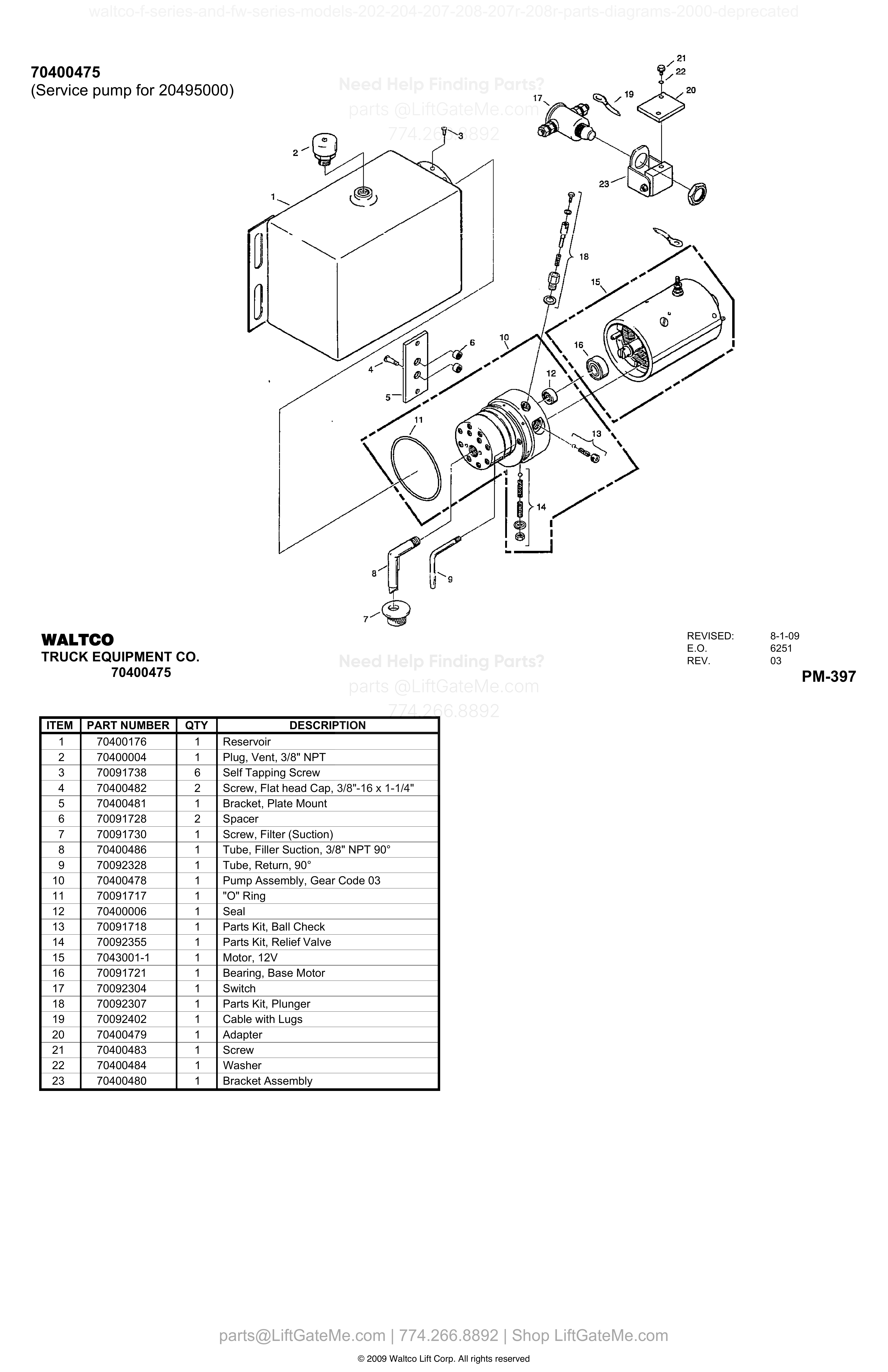

70400475
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400176 | Reservoir | |
| 2 | 1 | 70400004 | Plug, Vent, 3/8" NPT | |
| 3 | 6 | 70091738 | Self Tapping Screw | |
| 4 | 2 | 70400482 | Screw, Flat head Cap, 3/8"-16 x 1-1/4" | |
| 5 | 1 | 70400481 | Bracket, Plate Mount | |
| 6 | 2 | 70091728 | Spacer | |
| 7 | 1 | 70091730 | Screw, Filter (Suction) | |
| 8 | 1 | 70400486 | Tube, Filler Suction, 3/8" NPT 90° | |
| 9 | 1 | 70092328 | Tube, Return, 90° | |
| 10 | 1 | 70400478 | Pump Assembly, Gear Code 03 | |
| 11 | 1 | 70091717 | "O" Ring | |
| 12 | 1 | 70400006 | Seal | |
| 13 | 1 | 70091718 | Parts Kit, Ball Check | |
| 14 | 1 | 70092355 | Parts Kit, Relief Valve | |
| 15 | 1 | 7043001-1 | Motor, 12V | |
| 16 | 1 | 70091721 | Bearing, Base Motor | |
| 17 | 1 | 70092304 | Switch | |
| 18 | 1 | 70092307 | Parts Kit, Plunger | |
| 19 | 1 | 70092402 | Cable with Lugs | |
| 20 | 1 | 70400479 | Adapter | |
| 21 | 1 | 70400483 | Screw | |
| 22 | 1 | 70400484 | Washer | |
| 23 | 1 | 70400480 | Bracket Assembly |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

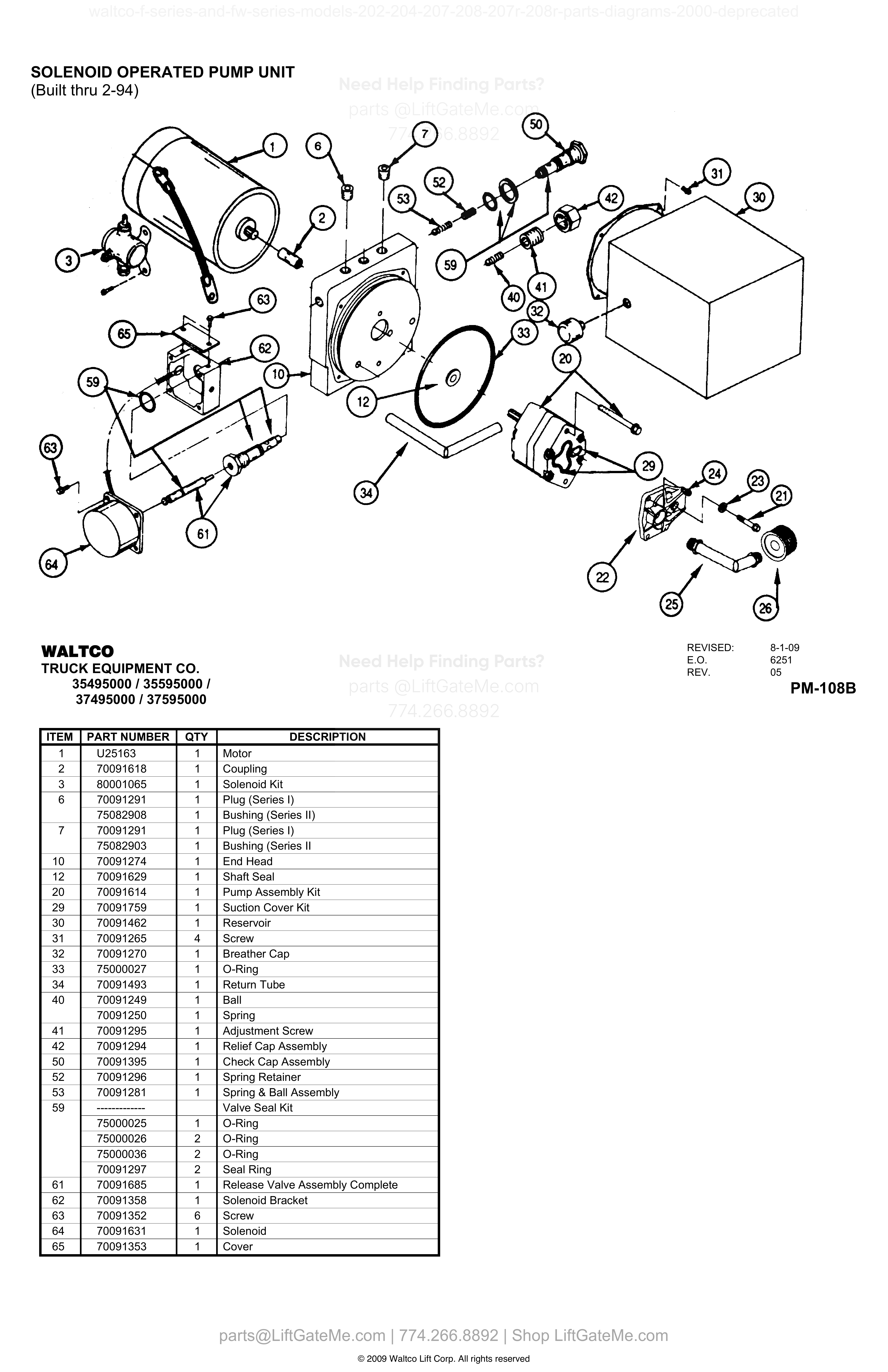

SOLENOID OPERATED PUMP UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | U25163 | Motor | |
| 2 | 1 | 70091618 | Coupling | |
| 3 | 1 | 80001065 | Solenoid Kit | |
| 6 | 1 | 70091291 | Plug (Series I) | |
| 6 | 1 | 75082908 | Bushing (Series II) | |
| 7 | 1 | 70091291 | Plug (Series I) | |
| 7 | 1 | 75082903 | Bushing (Series II) | |
| 10 | 1 | 70091274 | End Head | |
| 12 | 1 | 70091629 | Shaft Seal | |
| 20 | 1 | 70091614 | Pump Assembly Kit | |
| 29 | 1 | 70091759 | Suction Cover Kit | |
| 30 | 1 | 70091462 | Reservoir | |
| 31 | 4 | 70091265 | Screw | |
| 32 | 1 | 70091270 | Breather Cap | |
| 33 | 1 | 75000027 | O-Ring | |
| 34 | 1 | 70091493 | Return Tube | |
| 40 | 1 | 70091249 | Ball | |
| 40 | 1 | 70091250 | Spring | |
| 41 | 1 | 70091295 | Adjustment Screw | |
| 42 | 1 | 70091294 | Relief Cap Assembly | |
| 50 | 1 | 70091395 | Check Cap Assembly | |
| 52 | 1 | 70091296 | Spring Retainer | |
| 53 | 1 | 70091281 | Spring & Ball Assembly | |
| 59 | ------------- | Valve Seal Kit | ||
| 59 | 1 | 75000025 | O-Ring | |
| 59 | 2 | 75000026 | O-Ring | |
| 59 | 2 | 75000036 | O-Ring | |
| 59 | 2 | 70091297 | Seal Ring | |
| 61 | 1 | 70091685 | Release Valve Assembly Complete | |
| 62 | 1 | 70091358 | Solenoid Bracket | |
| 63 | 6 | 70091352 | Screw | |
| 64 | 1 | 70091631 | Solenoid | |
| 65 | 1 | 70091353 | Cover |

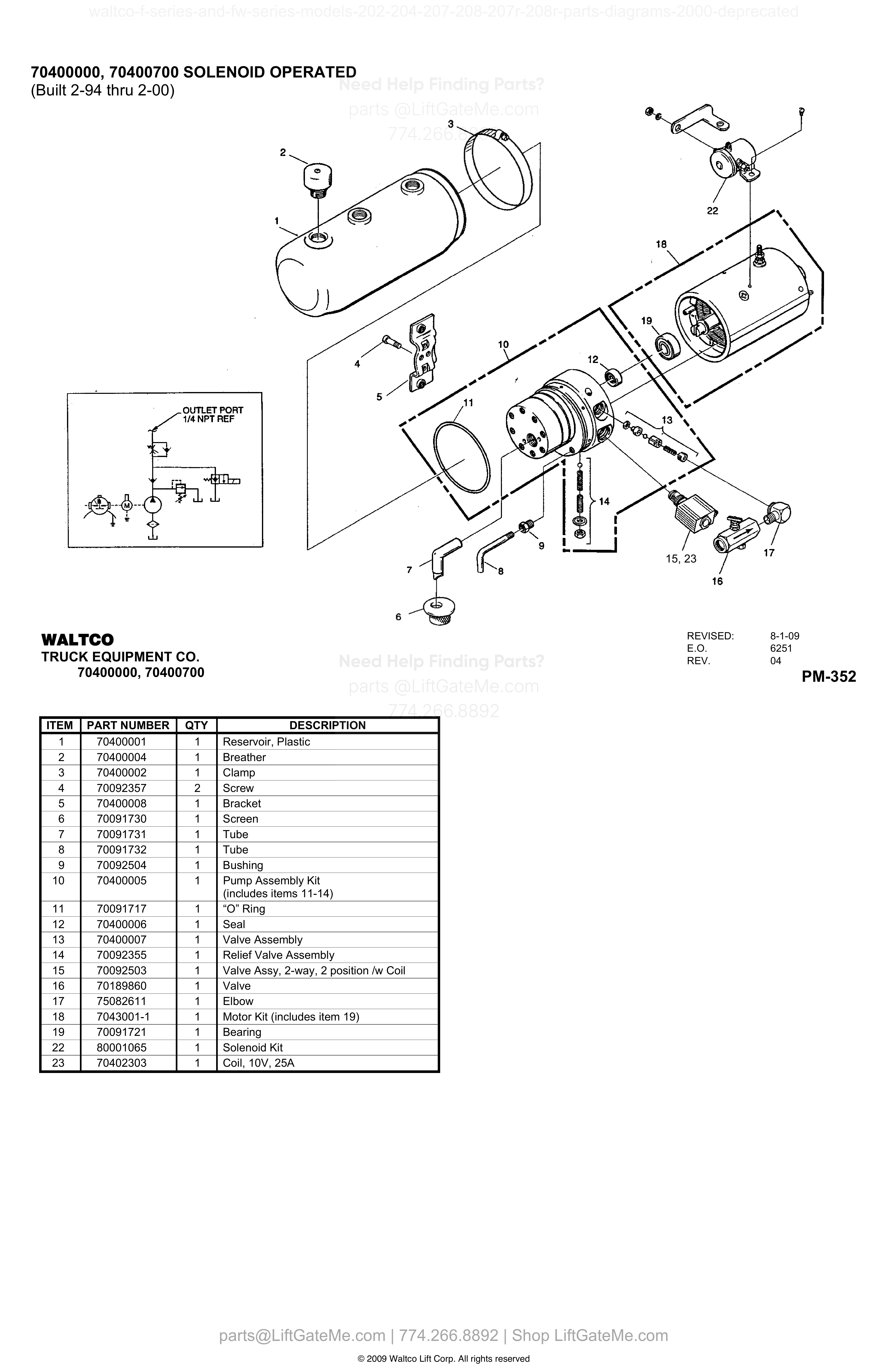

70400000, 70400700 SOLENOID OPERATED
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400001 | Reservoir, Plastic | |
| 2 | 1 | 70400004 | Breather | |
| 3 | 1 | 70400002 | Clamp | |
| 4 | 2 | 70092357 | Screw | |
| 5 | 1 | 70400008 | Bracket | |
| 6 | 1 | 70091730 | Screen | |
| 7 | 1 | 70091731 | Tube | |
| 8 | 1 | 70091732 | Tube | |
| 9 | 1 | 70092504 | Bushing | |
| 10 | 1 | 70400005 | Pump Assembly Kit (includes items 11-14) | |
| 11 | 1 | 70091717 | “O” Ring | |
| 12 | 1 | 70400006 | Seal | |
| 13 | 1 | 70400007 | Valve Assembly | |
| 14 | 1 | 70092355 | Relief Valve Assembly | |
| 15 | 1 | 70092503 | Valve Assy, 2-way, 2 position /w Coil | |
| 16 | 1 | 70189860 | Valve | |
| 17 | 1 | 75082611 | Elbow | |
| 18 | 1 | 7043001-1 | Motor Kit (includes item 19) | |
| 19 | 1 | 70091721 | Bearing | |
| 22 | 1 | 80001065 | Solenoid Kit | |
| 23 | 1 | 70402303 | Coil, 10V, 25A |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

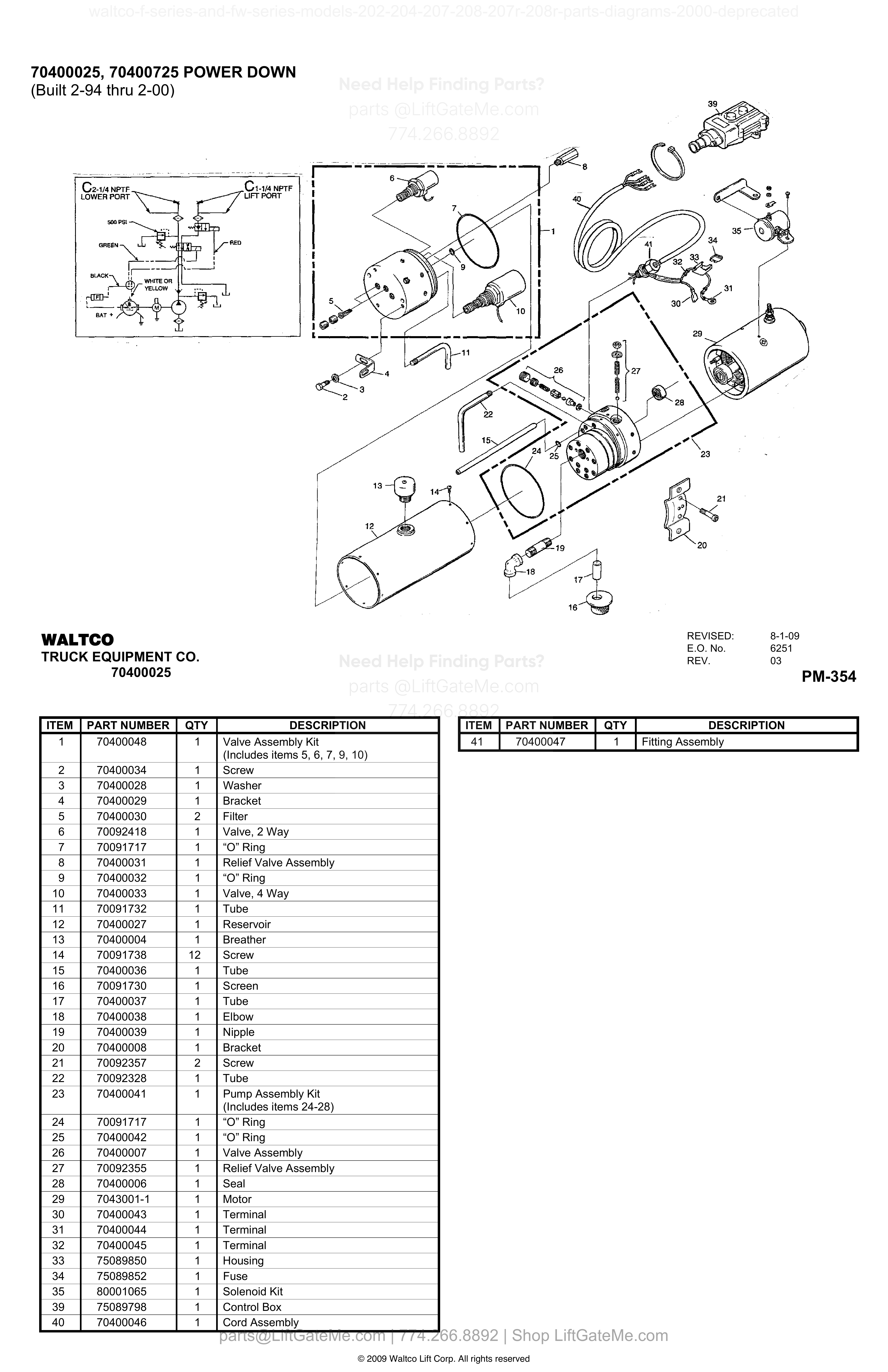

70400025, 70400725 POWER DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400048 | Valve Assembly Kit (Includes items 5, 6, 7, 9, 10) | |
| 2 | 1 | 70400034 | Screw | |
| 3 | 1 | 70400028 | Washer | |
| 4 | 1 | 70400029 | Bracket | |
| 5 | 2 | 70400030 | Filter | |
| 6 | 1 | 70092418 | Valve, 2 Way | |
| 7 | 1 | 70091717 | “O” Ring | |
| 8 | 1 | 70400031 | Relief Valve Assembly | |
| 9 | 1 | 70400032 | “O” Ring | |
| 10 | 1 | 70400033 | Valve, 4 Way | |
| 11 | 1 | 70091732 | Tube | |
| 12 | 1 | 70400027 | Reservoir | |
| 13 | 1 | 70400004 | Breather | |
| 14 | 12 | 70091738 | Screw | |
| 15 | 1 | 70400036 | Tube | |
| 16 | 1 | 70091730 | Screen | |
| 17 | 1 | 70400037 | Tube | |
| 18 | 1 | 70400038 | Elbow | |
| 19 | 1 | 70400039 | Nipple | |
| 20 | 1 | 70400008 | Bracket | |
| 21 | 2 | 70092357 | Screw | |
| 22 | 1 | 70092328 | Tube | |
| 23 | 1 | 70400041 | Pump Assembly Kit (Includes items 24-28) | |
| 24 | 1 | 70091717 | “O” Ring | |
| 25 | 1 | 70400042 | “O” Ring | |
| 26 | 1 | 70400007 | Valve Assembly | |
| 27 | 1 | 70092355 | Relief Valve Assembly | |
| 28 | 1 | 70400006 | Seal | |
| 29 | 1 | 7043001-1 | Motor | |
| 30 | 1 | 70400043 | Terminal | |
| 31 | 1 | 70400044 | Terminal | |
| 32 | 1 | 70400045 | Terminal | |
| 33 | 1 | 75089850 | Housing | |
| 34 | 1 | 75089852 | Fuse | |
| 35 | 1 | 80001065 | Solenoid Kit | |
| 39 | 1 | 75089798 | Control Box | |
| 40 | 1 | 70400046 | Cord Assembly | |
| 41 | 1 | 70400047 | Fitting Assembly |

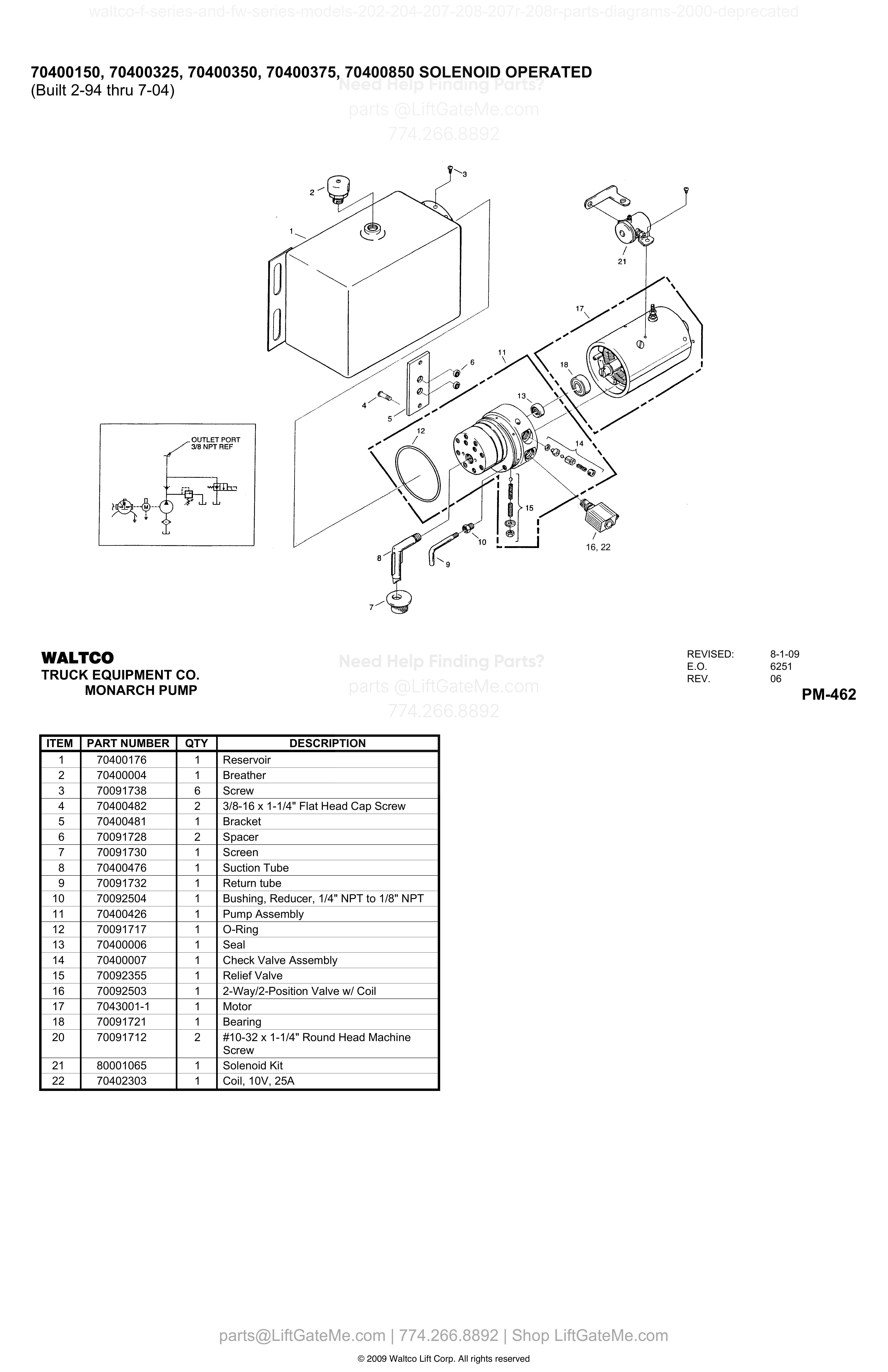

70400150, 70400325, 70400350, 70400375, 70400850 SOLENOID OPERATED
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400176 | Reservoir | |
| 2 | 1 | 70400004 | Breather | |
| 3 | 6 | 70091738 | Screw | |
| 4 | 2 | 70400482 | 3/8-16 x 1-1/4" Flat Head Cap Screw | |
| 5 | 1 | 70400481 | Bracket | |
| 6 | 2 | 70091728 | Spacer | |
| 7 | 1 | 70091730 | Screen | |
| 8 | 1 | 70400476 | Suction Tube | |
| 9 | 1 | 70091732 | Return tube | |
| 10 | 1 | 70092504 | Bushing, Reducer, 1/4" NPT to 1/8" NPT | |
| 11 | 1 | 70400426 | Pump Assembly | |
| 12 | 1 | 70091717 | O-Ring | |
| 13 | 1 | 70400006 | Seal | |
| 14 | 1 | 70400007 | Check Valve Assembly | |
| 15 | 1 | 70092355 | Relief Valve | |
| 16 | 1 | 70092503 | 2-Way/2-Position Valve w/ Coil | |
| 17 | 1 | 7043001-1 | Motor | |
| 18 | 1 | 70091721 | Bearing | |
| 20 | 2 | 70091712 | #10-32 x 1-1/4" Round Head Machine Screw | |
| 21 | 1 | 80001065 | Solenoid Kit | |
| 22 | 1 | 70402303 | Coil, 10V, 25A |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

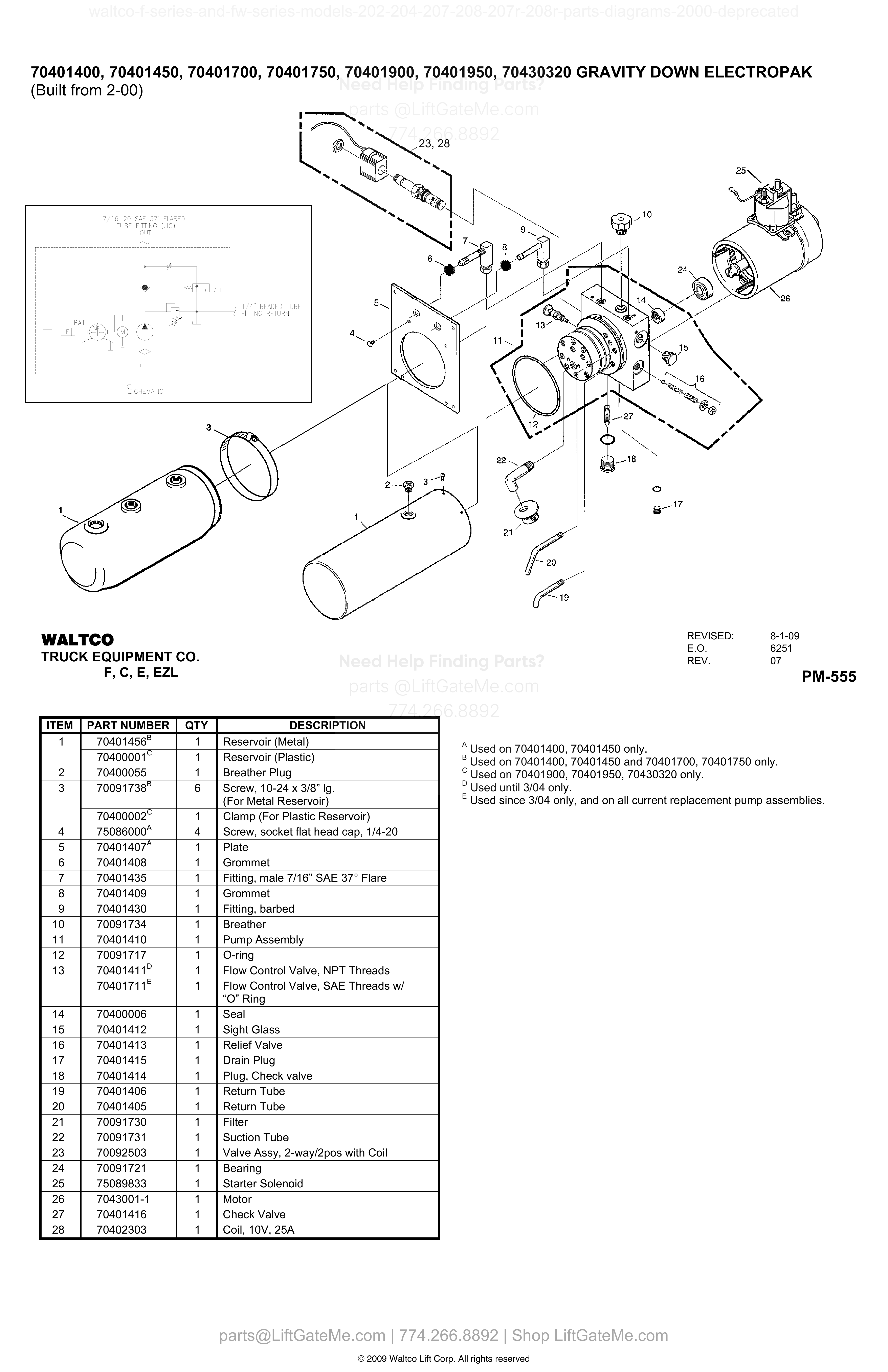

70401400, 70401450, 70401700, 70401750, 70401900, 70401950, 70430320 GRAVITY DOWN ELECTROPAK
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401456 B | Reservoir (Metal) | |
| 1 | 1 | 70400001 C | Reservoir (Plastic) | |
| 2 | 1 | 70400055 | Breather Plug | |
| 3 | 6 | 70091738 B | Screw, 10-24 x 3/8” lg. (For Metal Reservoir) | |
| 3 | 1 | 70400002 C | Clamp (For Plastic Reservoir) | |
| 4 | 4 | 75086000 A | Screw, socket flat head cap, 1/4-20 | |
| 5 | 1 | 70401407 A | Plate | |
| 6 | 1 | 70401408 | Grommet | |
| 7 | 1 | 70401435 | Fitting, male 7/16” SAE 37° Flare | |
| 8 | 1 | 70401409 | Grommet | |
| 9 | 1 | 70401430 | Fitting, barbed | |
| 10 | 1 | 70091734 | Breather | |
| 11 | 1 | 70401410 | Pump Assembly | |
| 12 | 1 | 70091717 | O-ring | |
| 13 | 1 | 70401411 D | Flow Control Valve, NPT Threads | |
| 13 | 1 | 70401711 E | Flow Control Valve, SAE Threads w/ “O” Ring | |
| 14 | 1 | 70400006 | Seal | |
| 15 | 1 | 70401412 | Sight Glass | |
| 16 | 1 | 70401413 | Relief Valve | |
| 17 | 1 | 70401415 | Drain Plug | |
| 18 | 1 | 70401414 | Plug, Check valve | |
| 19 | 1 | 70401406 | Return Tube | |
| 20 | 1 | 70401405 | Return Tube | |
| 21 | 1 | 70091730 | Filter | |
| 22 | 1 | 70091731 | Suction Tube | |
| 23 | 1 | 70092503 | Valve Assy, 2-way/2pos with Coil | |
| 24 | 1 | 70091721 | Bearing | |
| 25 | 1 | 75089833 | Starter Solenoid | |
| 26 | 1 | 7043001-1 | Motor | |
| 27 | 1 | 70401416 | Check Valve | |
| 28 | 1 | 70402303 | Coil, 10V, 25A |

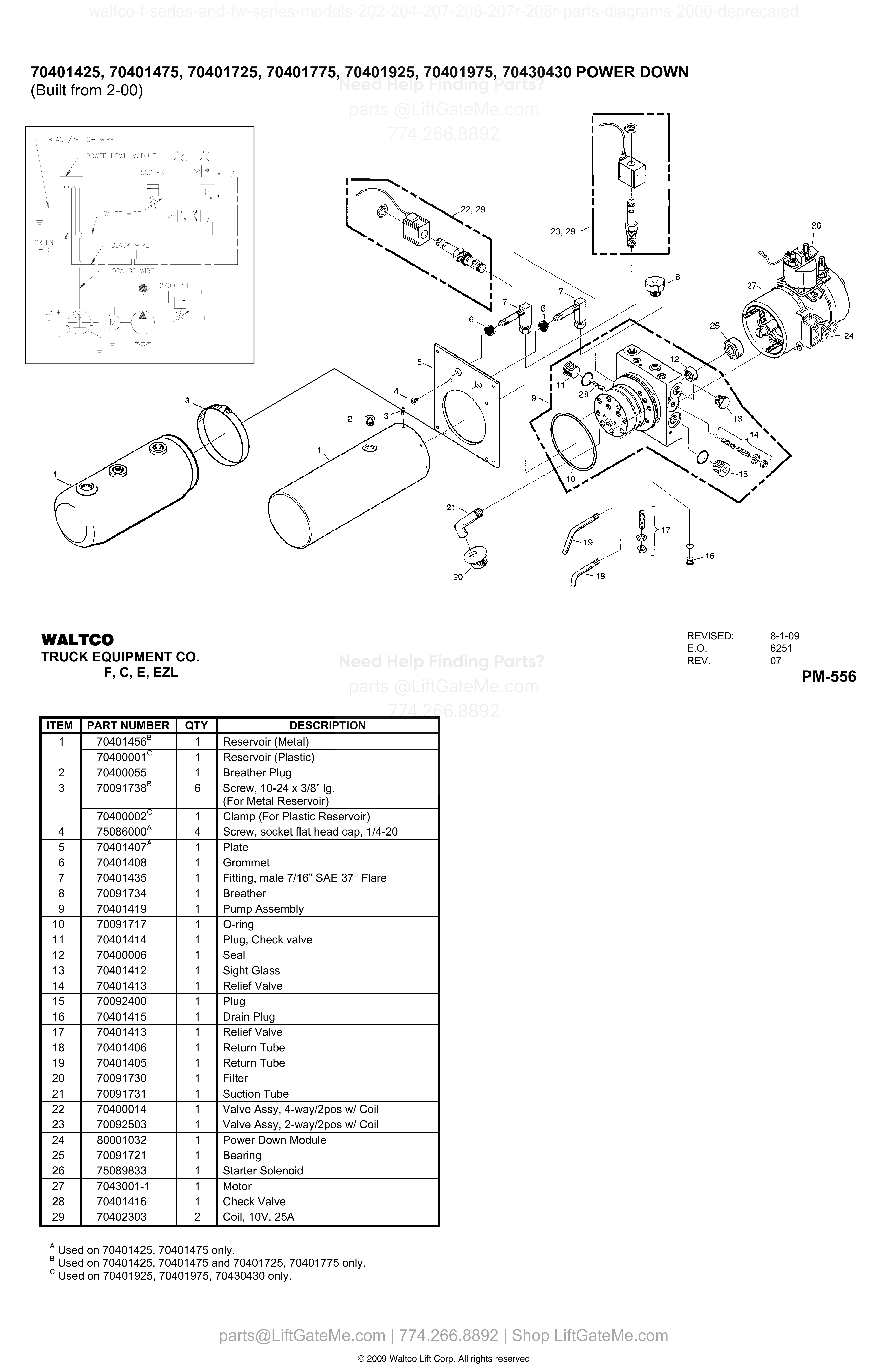

70401425, 70401475, 70401725, 70401775, 70401925, 70401975, 70430430 POWER DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401456 B | Reservoir (Metal) | |
| 1 | 1 | 70400001 C | Reservoir (Plastic) | |
| 2 | 1 | 70400055 | Breather Plug | |
| 3 | 6 | 70091738 B | Screw, 10-24 x 3/8” lg. (For Metal Reservoir) | |
| 3 | 1 | 70400002 C | Clamp (For Plastic Reservoir) | |
| 4 | 4 | 75086000 A | Screw, socket flat head cap, 1/4-20 | |
| 5 | 1 | 70401407 A | Plate | |
| 6 | 1 | 70401408 | Grommet | |
| 7 | 1 | 70401435 | Fitting, male 7/16” SAE 37° Flare | |
| 8 | 1 | 70091734 | Breather | |
| 9 | 1 | 70401419 | Pump Assembly | |
| 10 | 1 | 70091717 | O-ring | |
| 11 | 1 | 70401414 | Plug, Check valve | |
| 12 | 1 | 70400006 | Seal | |
| 13 | 1 | 70401412 | Sight Glass | |
| 14 | 1 | 70401413 | Relief Valve | |
| 15 | 1 | 70092400 | Plug | |
| 16 | 1 | 70401415 | Drain Plug | |
| 17 | 1 | 70401413 | Relief Valve | |
| 18 | 1 | 70401406 | Return Tube | |
| 19 | 1 | 70401405 | Return Tube | |
| 20 | 1 | 70091730 | Filter | |
| 21 | 1 | 70091731 | Suction Tube | |
| 22 | 1 | 70400014 | Valve Assy, 4-way/2pos w/ Coil | |
| 23 | 1 | 70092503 | Valve Assy, 2-way/2pos w/ Coil | |
| 24 | 1 | 80001032 | Power Down Module | |
| 25 | 1 | 70091721 | Bearing | |
| 26 | 1 | 75089833 | Starter Solenoid | |
| 27 | 1 | 7043001-1 | Motor | |
| 28 | 1 | 70401416 | Check Valve | |
| 29 | 2 | 70402303 | Coil, 10V, 25A |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

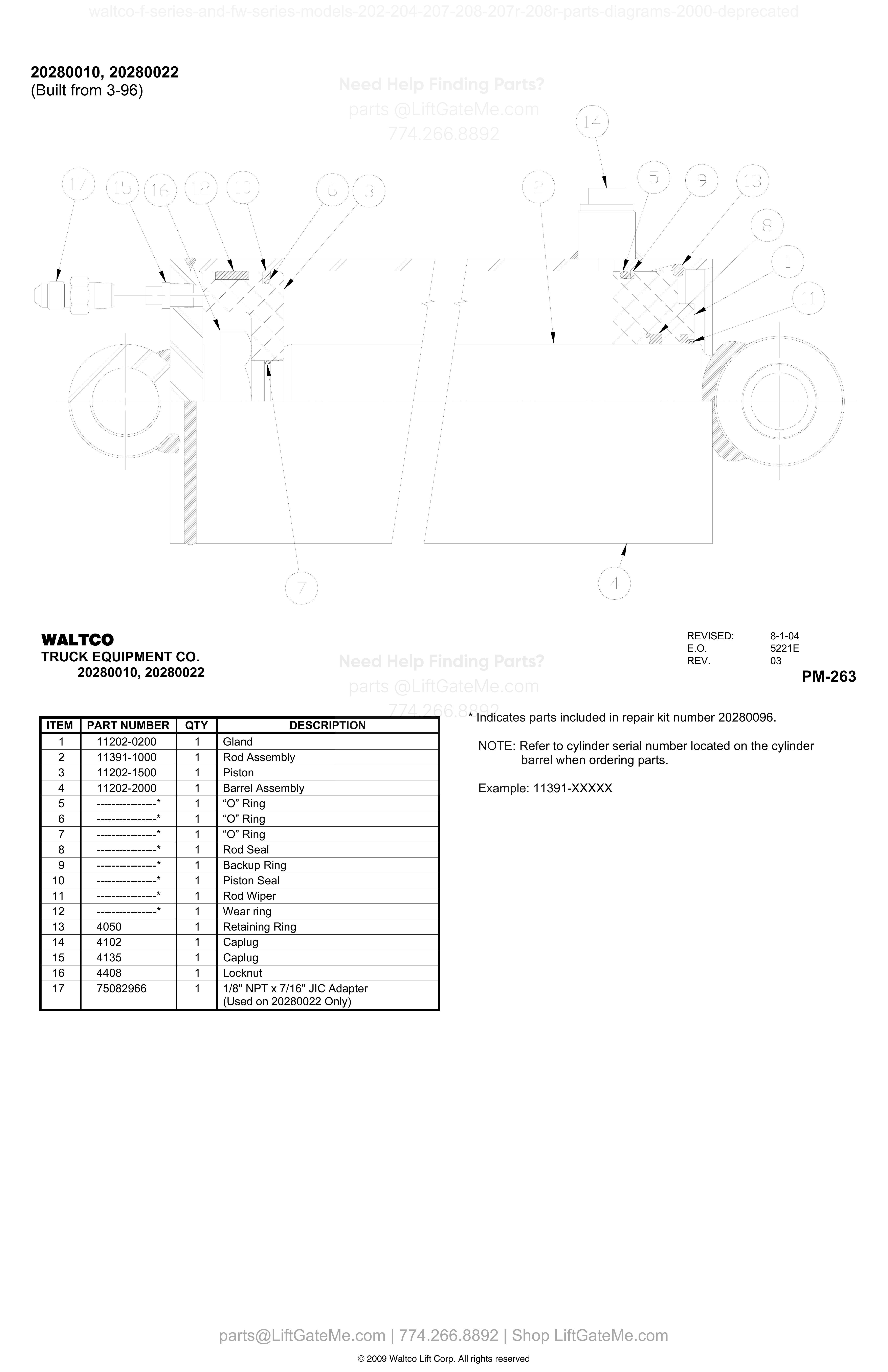

20280010, 20280022
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 11202-0200 | Gland | |
| 2 | 1 | 11391-1000 | Rod Assembly | |
| 3 | 1 | 11202-1500 | Piston | |
| 4 | 1 | 11202-2000 | Barrel Assembly | |
| 5 | 1 | ----------------* | “O” Ring | |
| 6 | 1 | ----------------* | “O” Ring | |
| 7 | 1 | ----------------* | “O” Ring | |
| 8 | 1 | ----------------* | Rod Seal | |
| 9 | 1 | ----------------* | Backup Ring | |
| 10 | 1 | ----------------* | Piston Seal | |
| 11 | 1 | ----------------* | Rod Wiper | |
| 12 | 1 | ----------------* | Wear ring | |
| 13 | 1 | 4050 | Retaining Ring | |
| 14 | 1 | 4102 | Caplug | |
| 15 | 1 | 4135 | Caplug | |
| 16 | 1 | 4408 | Locknut | |
| 17 | 1 | 75082966 | 1/8" NPT x 7/16" JIC Adapter (Used on 20280022 Only) |
20280050, 20280091
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75089310 | Breather (Used on 20280050 Only) | |
| 1 | 1 | 75082966 | 1/8" NPT x 7/16" JIC Adapter (Used on 20280091 Only) | |
| 2 | 1 | 70270502* | Wear Ring | |
| 3 | 1 | 75000031* | “O” Ring | |
| 4 | 1 | 70270620* | Seal Ring | |
| 5 | 1 | 75000043* | “O” Ring | |
| 6 | 1 | 20281550 | Piston | |
| 7 | 1 | 20281150 | Shaft | |
| 8 | 1 | 20282050 | Barrel | |
| 9 | 1 | 75085191 | Lock Nut | |
| 10 | 1 | 75000012* | “O” Ring | |
| 11 | 1 | 20280250 | Nose Bearing | |
| 12 | 1 | 75000009* | “O” Ring | |
| 13 | 1 | 75000505* | Back-up Ring | |
| 14 | 1 | 22282950 | Retaining Ring | |
| 15 | 1 | 70270460* | Rod Wiper | |
| 16 | 1 | 75089305 | Grease Fitting, 65° | |
| 17 | 1 | 75000509* | Back-up Ring | |
| 18 | 1 | 20280095 | Repair Kit (Not Shown) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

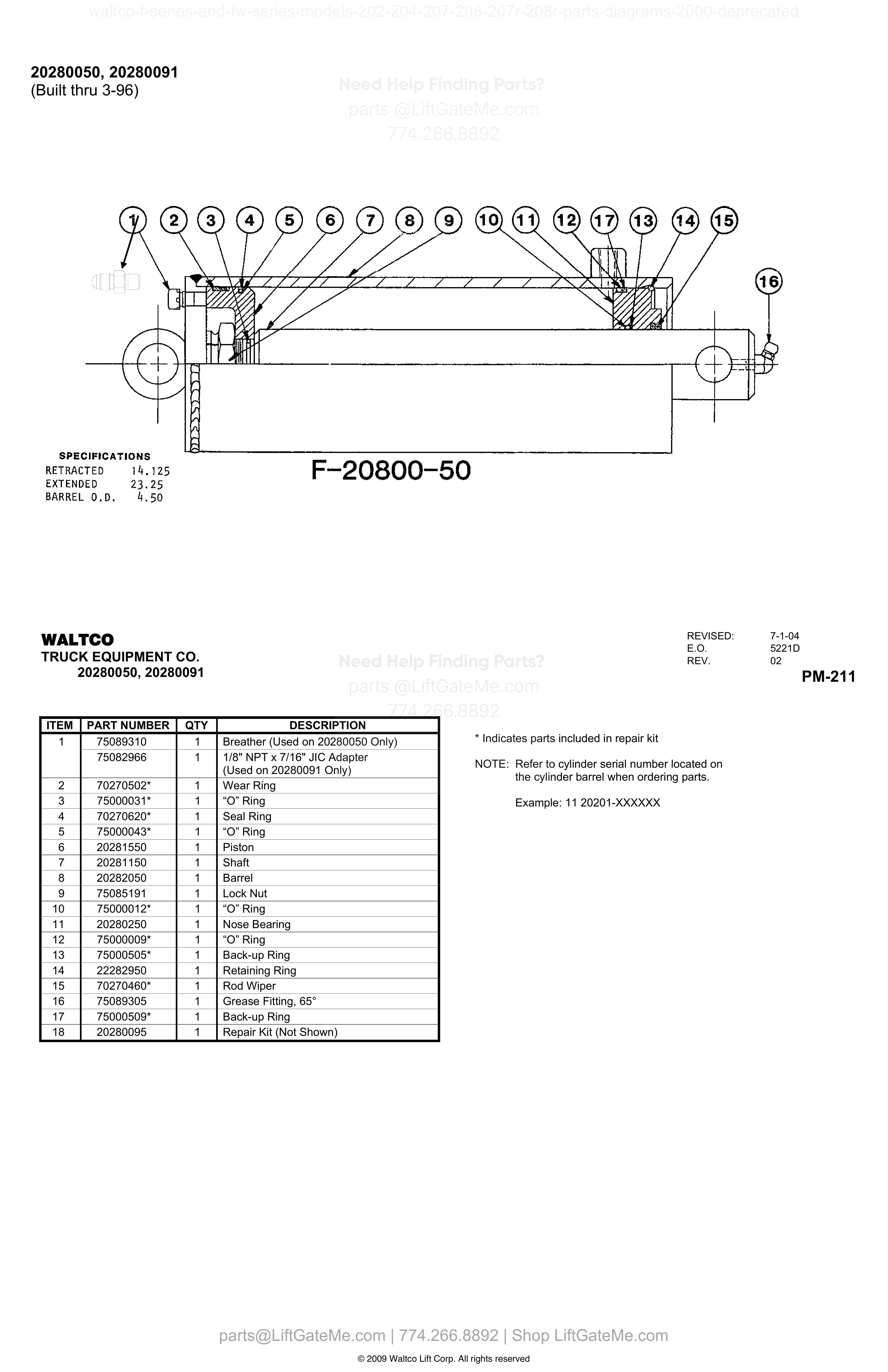

20280050, 20280091 (Built thru 3-96)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75089310 | Breather (Used on 20280050 Only) | |
| 1 | 1 | 75082966 | 1/8" NPT x 7/16" JIC Adapter (Used on 20280091 Only) | |
| 2 | 1 | 70270502 | Wear Ring | |
| 3 | 1 | 75000031 | “O” Ring | |
| 4 | 1 | 70270620 | Seal Ring | |
| 5 | 1 | 75000043 | “O” Ring | |
| 6 | 1 | 20281550 | Piston | |
| 7 | 1 | 20281150 | Shaft | |
| 8 | 1 | 20282050 | Barrel | |
| 9 | 1 | 75085191 | Lock Nut | |
| 10 | 1 | 75000012 | “O” Ring | |
| 11 | 1 | 20280250 | Nose Bearing | |
| 12 | 1 | 75000009 | “O” Ring | |
| 13 | 1 | 75000505 | Back-up Ring | |
| 14 | 1 | 22282950 | Retaining Ring | |
| 15 | 1 | 70270460 | Rod Wiper | |
| 16 | 1 | 75089305 | Grease Fitting, 65° | |
| 17 | 1 | 75000509 | Back-up Ring | |
| 18 | 1 | 20280095 | Repair Kit (Not Shown) |

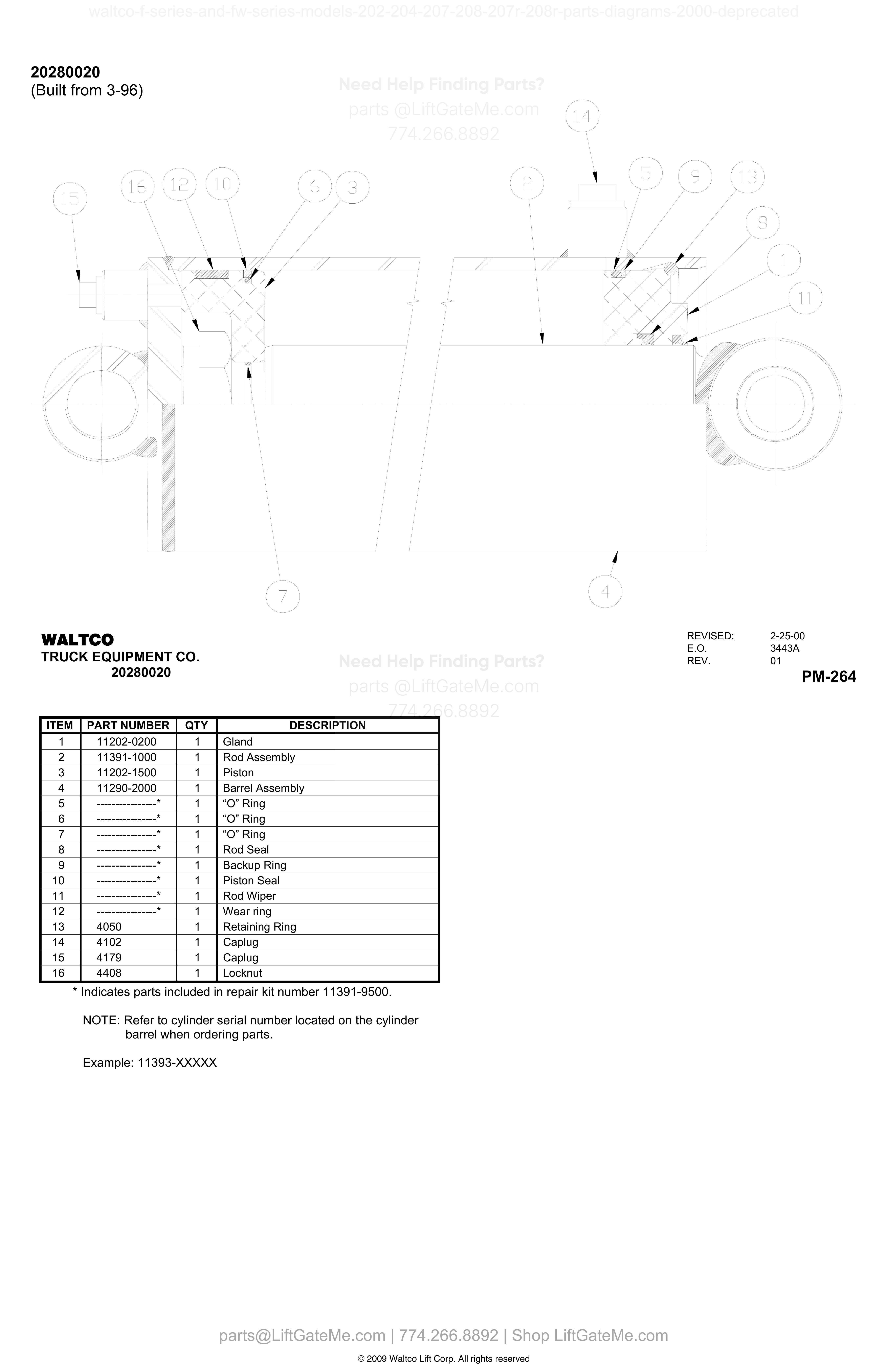

20280020 (Built from 3-96)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 11202-0200 | Gland | |
| 2 | 1 | 11391-1000 | Rod Assembly | |
| 3 | 1 | 11202-1500 | Piston | |
| 4 | 1 | 11290-2000 | Barrel Assembly | |
| 5 | 1 | ---------------- | “O” Ring | |
| 6 | 1 | ---------------- | “O” Ring | |
| 7 | 1 | ---------------- | “O” Ring | |
| 8 | 1 | ---------------- | Rod Seal | |
| 9 | 1 | ---------------- | Backup Ring | |
| 10 | 1 | ---------------- | Piston Seal | |
| 11 | 1 | ---------------- | Rod Wiper | |
| 12 | 1 | ---------------- | Wear ring | |
| 13 | 1 | 4050 | Retaining Ring | |
| 14 | 1 | 4102 | Caplug | |
| 15 | 1 | 4179 | Caplug | |
| 16 | 1 | 4408 | Locknut |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
20280020
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 11202-0200 | Gland | |
| 2 | 1 | 11391-1000 | Rod Assembly | |
| 3 | 1 | 11202-1500 | Piston | |
| 4 | 1 | 11290-2000 | Barrel Assembly | |
| 5 | 1 | ----------------* | “O” Ring | |
| 6 | 1 | ----------------* | “O” Ring | |
| 7 | 1 | ----------------* | “O” Ring | |
| 8 | 1 | ----------------* | Rod Seal | |
| 9 | 1 | ----------------* | Backup Ring | |
| 10 | 1 | ----------------* | Piston Seal | |
| 11 | 1 | ----------------* | Rod Wiper | |
| 12 | 1 | ----------------* | Wear ring | |
| 13 | 1 | 4050 | Retaining Ring | |
| 14 | 1 | 4102 | Caplug | |
| 15 | 1 | 4179 | Caplug | |
| 16 | 1 | 4408 | Locknut |

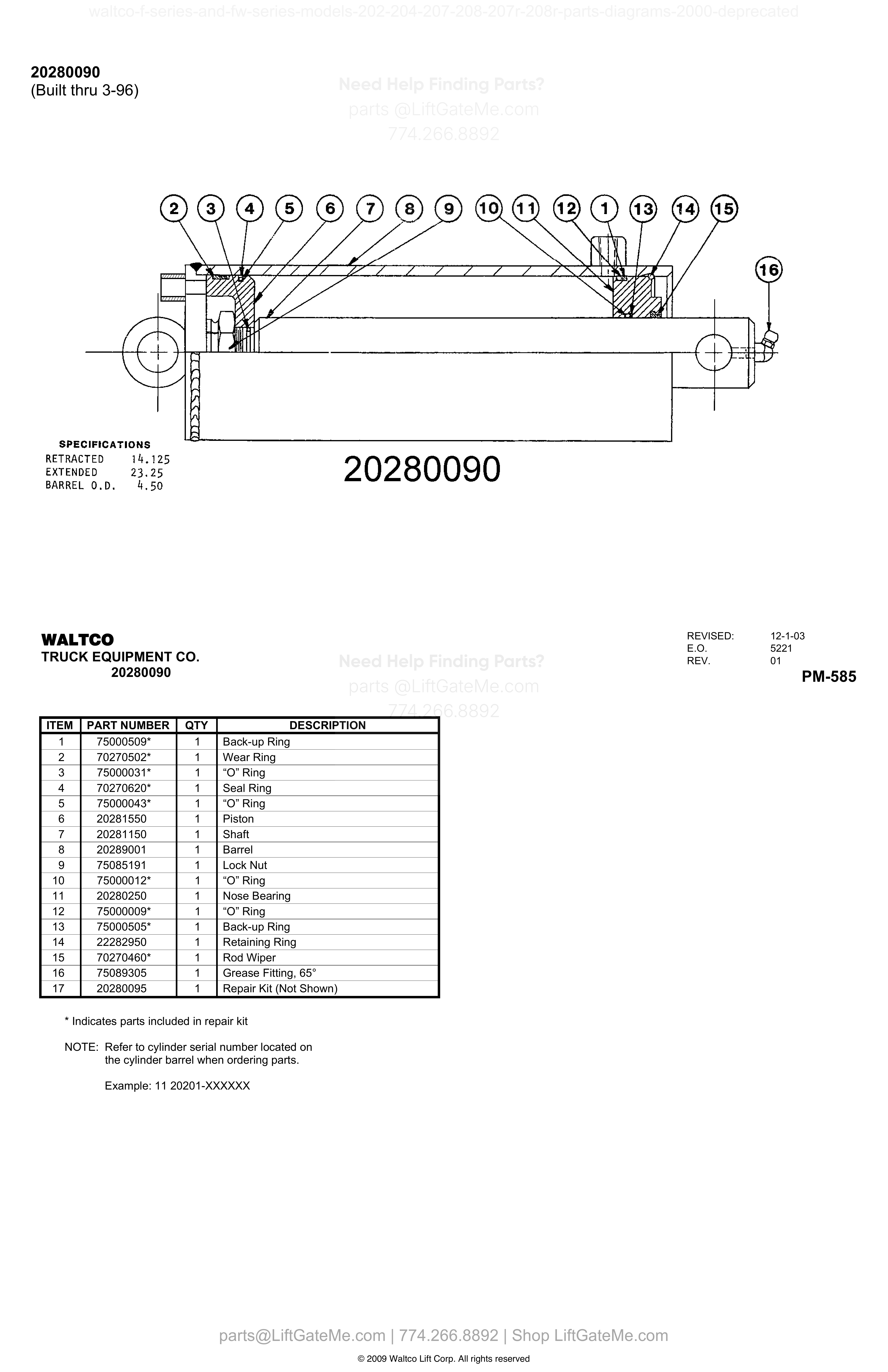

20280090
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75000509* | Back-up Ring | |
| 2 | 1 | 70270502* | Wear Ring | |
| 3 | 1 | 75000031* | “O” Ring | |
| 4 | 1 | 70270620* | Seal Ring | |
| 5 | 1 | 75000043* | “O” Ring | |
| 6 | 1 | 20281550 | Piston | |
| 7 | 1 | 20281150 | Shaft | |
| 8 | 1 | 20289001 | Barrel | |
| 9 | 1 | 75085191 | Lock Nut | |
| 10 | 1 | 75000012* | “O” Ring | |
| 11 | 1 | 20280250 | Nose Bearing | |
| 12 | 1 | 75000009* | “O” Ring | |
| 13 | 1 | 75000505* | Back-up Ring | |
| 14 | 1 | 22282950 | Retaining Ring | |
| 15 | 1 | 70270460* | Rod Wiper | |
| 16 | 1 | 75089305 | Grease Fitting, 65° | |
| 17 | 1 | 20280095 | Repair Kit (Not Shown) |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
