Maxon GPC 22 X1 Liftgate Parts Diagrams
Maxon GPC 22 X1 Cantilever parts diagrams for 2010
Browse Maxon GPC 22 X1 OEM liftgate parts diagrams covering 2010 cantilever models. Use the callouts and tables to locate components before servicing or repairing your liftgate.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

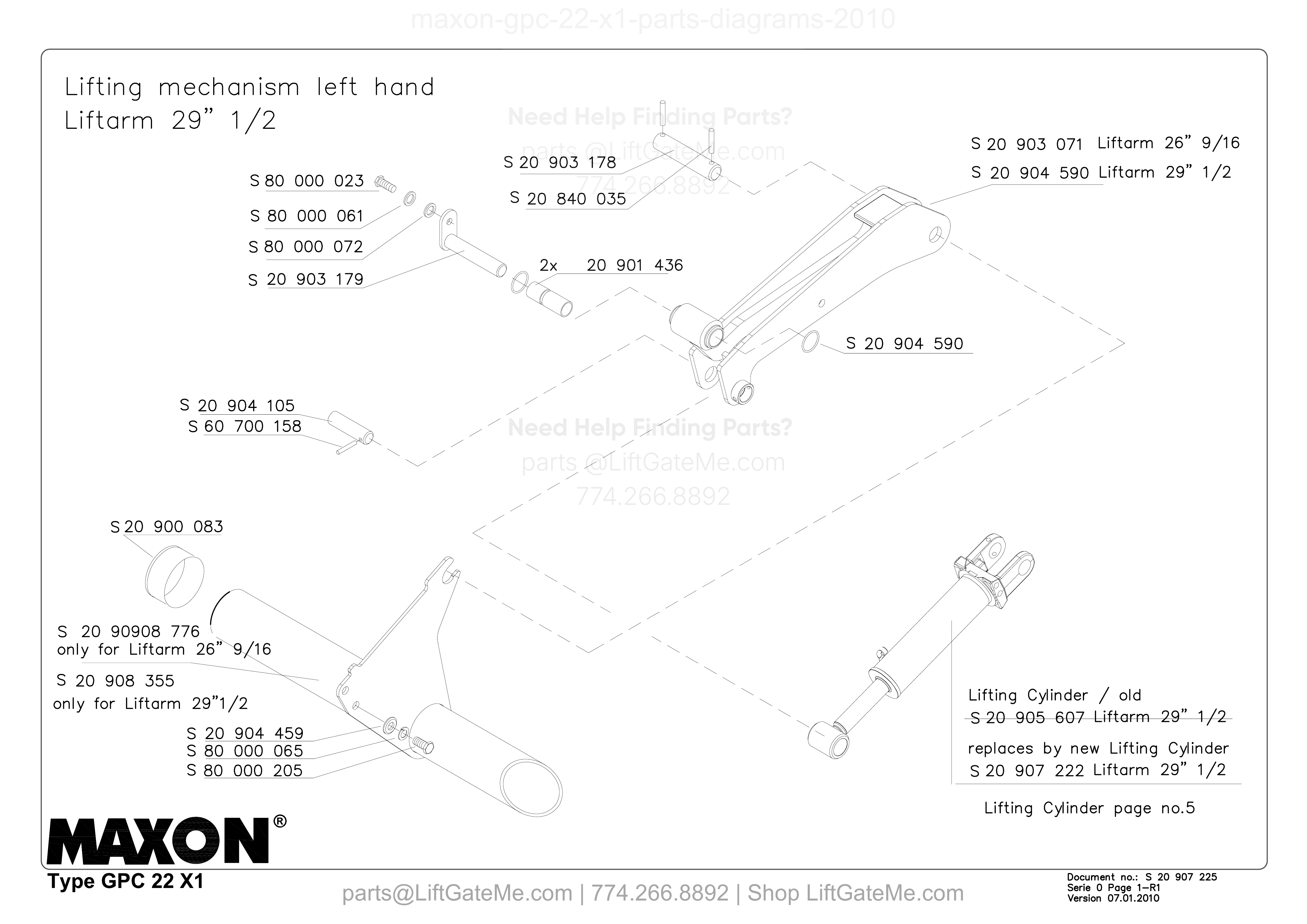

Lifting mechanism left hand
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 023 | Lifting mechanism left hand — part | |
| — | - | S 80 000 061 | Lifting mechanism left hand — part | |
| — | - | S 80 000 072 | Lifting mechanism left hand — part | |
| — | - | S 20 903 179 | Lifting mechanism left hand — part | |
| — | - | S 20 903 178 | Lifting mechanism left hand — part | |
| — | - | S 20 840 035 | Lifting mechanism left hand — part | |
| — | 2x | 20 901 436 | Lifting mechanism left hand — part | |
| — | - | S 20 903 071 | Lifting mechanism left hand — Liftarm 26” 9/16 | |
| — | - | S 20 904 590 | Lifting mechanism left hand — Liftarm 29” 1/2 | |
| — | - | S 20 904 590 | Lifting mechanism left hand — part | |
| — | - | S 20 904 105 | Lifting mechanism left hand — part | |
| — | - | S 60 700 158 | Lifting mechanism left hand — part | |
| — | - | S 20 900 083 | Lifting mechanism left hand — part | |
| — | - | S 20 90908 776 | Lifting mechanism left hand — only for Liftarm 26” 9/16 | |
| — | - | S 20 908 355 | Lifting mechanism left hand — only for Liftarm 29”1/2 | |
| — | - | S 20 904 459 | Lifting mechanism left hand — part | |
| — | - | S 80 000 065 | Lifting mechanism left hand — part | |
| — | - | S 80 000 205 | Lifting mechanism left hand — part | |
| — | - | S 20 907 222 | Lifting mechanism left hand — replaces by new Lifting Cylinder Liftarm 29” 1/2 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

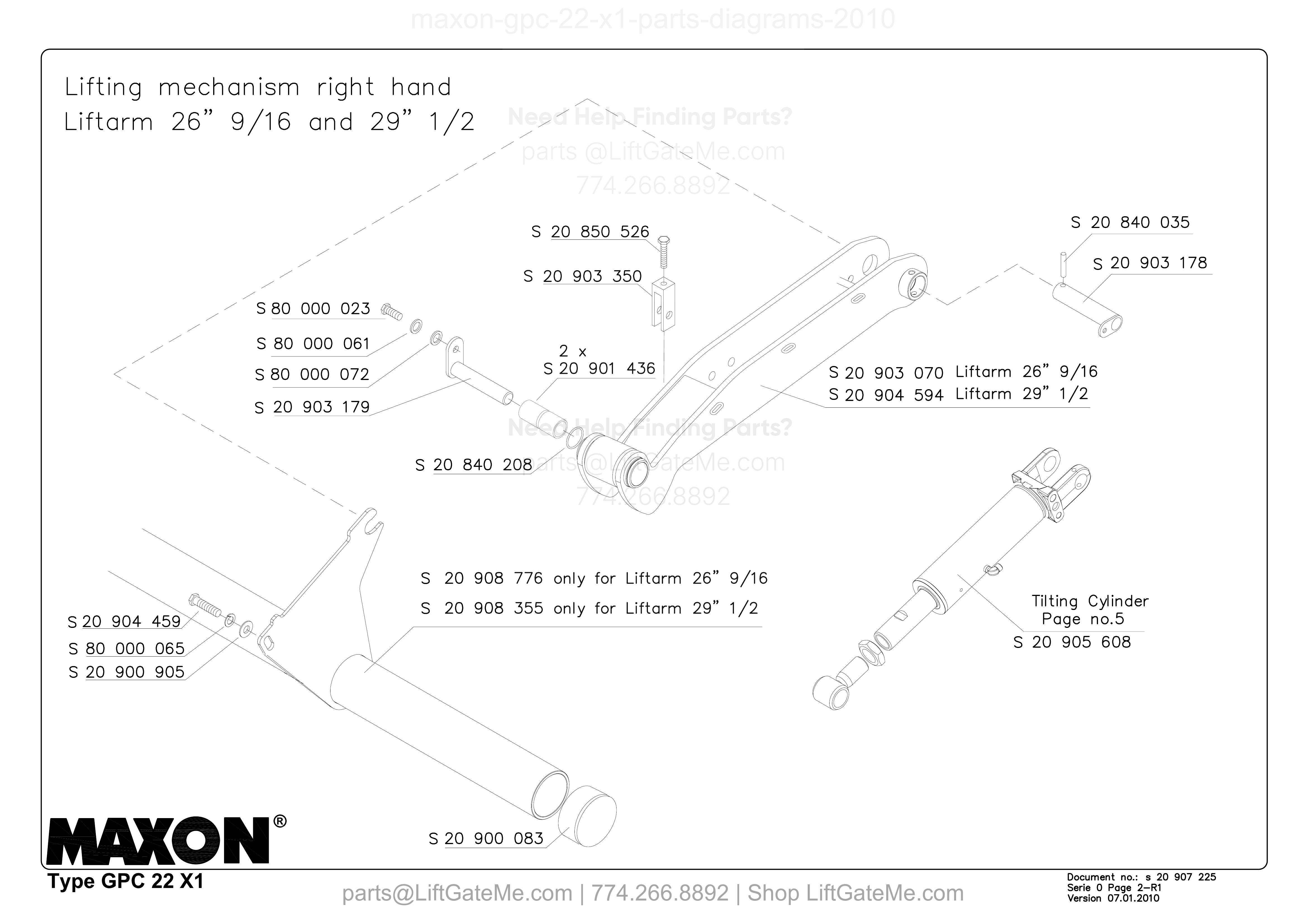

Lifting mechanism right hand
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 023 | Lifting mechanism right hand — part | |
| — | - | S 80 000 061 | Lifting mechanism right hand — part | |
| — | - | S 80 000 072 | Lifting mechanism right hand — part | |
| — | - | S 20 903 179 | Lifting mechanism right hand — part | |
| — | - | S 20 850 526 | Lifting mechanism right hand — part | |
| — | - | S 20 903 350 | Lifting mechanism right hand — part | |
| — | 2 x | S 20 901 436 | Lifting mechanism right hand — part | |
| — | - | S 20 840 208 | Lifting mechanism right hand — part | |
| — | - | S 20 903 070 | Lifting mechanism right hand — Liftarm 26” 9/16 | |
| — | - | S 20 904 594 | Lifting mechanism right hand — Liftarm 29” 1/2 | |
| — | - | S 20 840 035 | Lifting mechanism right hand — part | |
| — | - | S 20 903 178 | Lifting mechanism right hand — part | |
| — | - | S 20 904 459 | Lifting mechanism right hand — part | |
| — | - | S 80 000 065 | Lifting mechanism right hand — part | |
| — | - | S 20 900 905 | Lifting mechanism right hand — part | |
| — | - | S 20 908 776 | Lifting mechanism right hand — only for Liftarm 26” 9/16 | |
| — | - | S 20 908 355 | Lifting mechanism right hand — only for Liftarm 29” 1/2 | |
| — | - | S 20 900 083 | Lifting mechanism right hand — part | |
| — | - | S 20 905 608 | Lifting mechanism right hand — Tilting Cylinder |

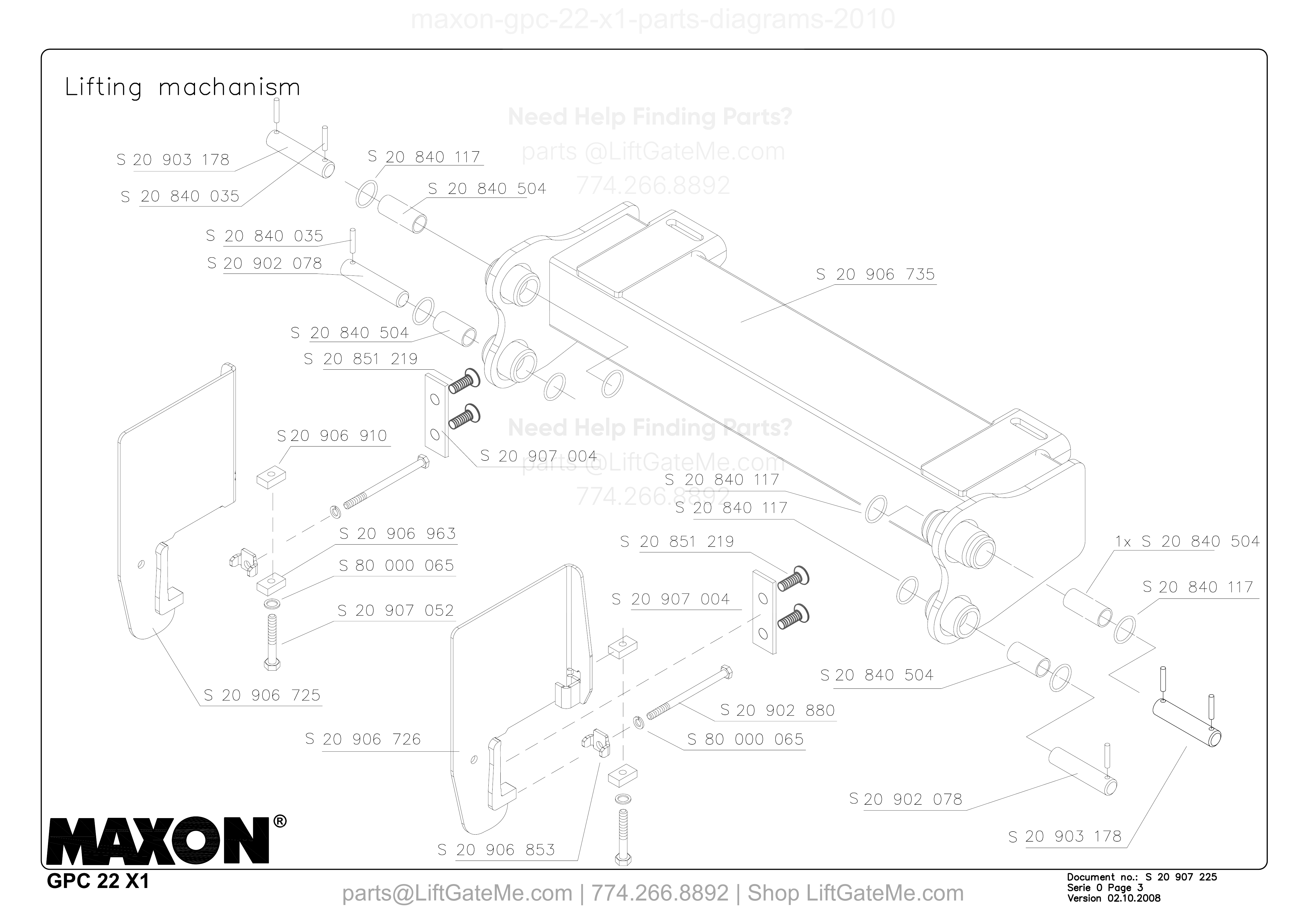

Lifting machanism
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 903 178 | Lifting machanism — part | |
| — | - | S 20 840 035 | Lifting machanism — part | |
| — | - | S 20 840 117 | Lifting machanism — part | |
| — | - | S 20 840 504 | Lifting machanism — part | |
| — | - | S 20 840 035 | Lifting machanism — part | |
| — | - | S 20 902 078 | Lifting machanism — part | |
| — | - | S 20 840 504 | Lifting machanism — part | |
| — | - | S 20 851 219 | Lifting machanism — part | |
| — | - | S 20 906 735 | Lifting machanism — part | |
| — | - | S 20 906 910 | Lifting machanism — part | |
| — | - | S 20 907 004 | Lifting machanism — part | |
| — | - | S 20 906 963 | Lifting machanism — part | |
| — | - | S 80 000 065 | Lifting machanism — part | |
| — | - | S 20 907 052 | Lifting machanism — part | |
| — | - | S 20 906 725 | Lifting machanism — part | |
| — | - | S 20 906 726 | Lifting machanism — part | |
| — | - | S 20 851 219 | Lifting machanism — part | |
| — | - | S 20 907 004 | Lifting machanism — part | |
| — | - | S 20 902 880 | Lifting machanism — part | |
| — | - | S 80 000 065 | Lifting machanism — part | |
| — | - | S 20 906 853 | Lifting machanism — part | |
| — | - | S 20 840 117 | Lifting machanism — part | |
| — | - | S 20 840 117 | Lifting machanism — part | |
| — | - | S 20 851 219 | Lifting machanism — part | |
| — | - | S 20 840 504 | Lifting machanism — part | |
| — | 1x | S 20 840 504 | Lifting machanism — part | |
| — | - | S 20 840 117 | Lifting machanism — part | |
| — | - | S 20 902 078 | Lifting machanism — part | |
| — | - | S 20 903 178 | Lifting machanism — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

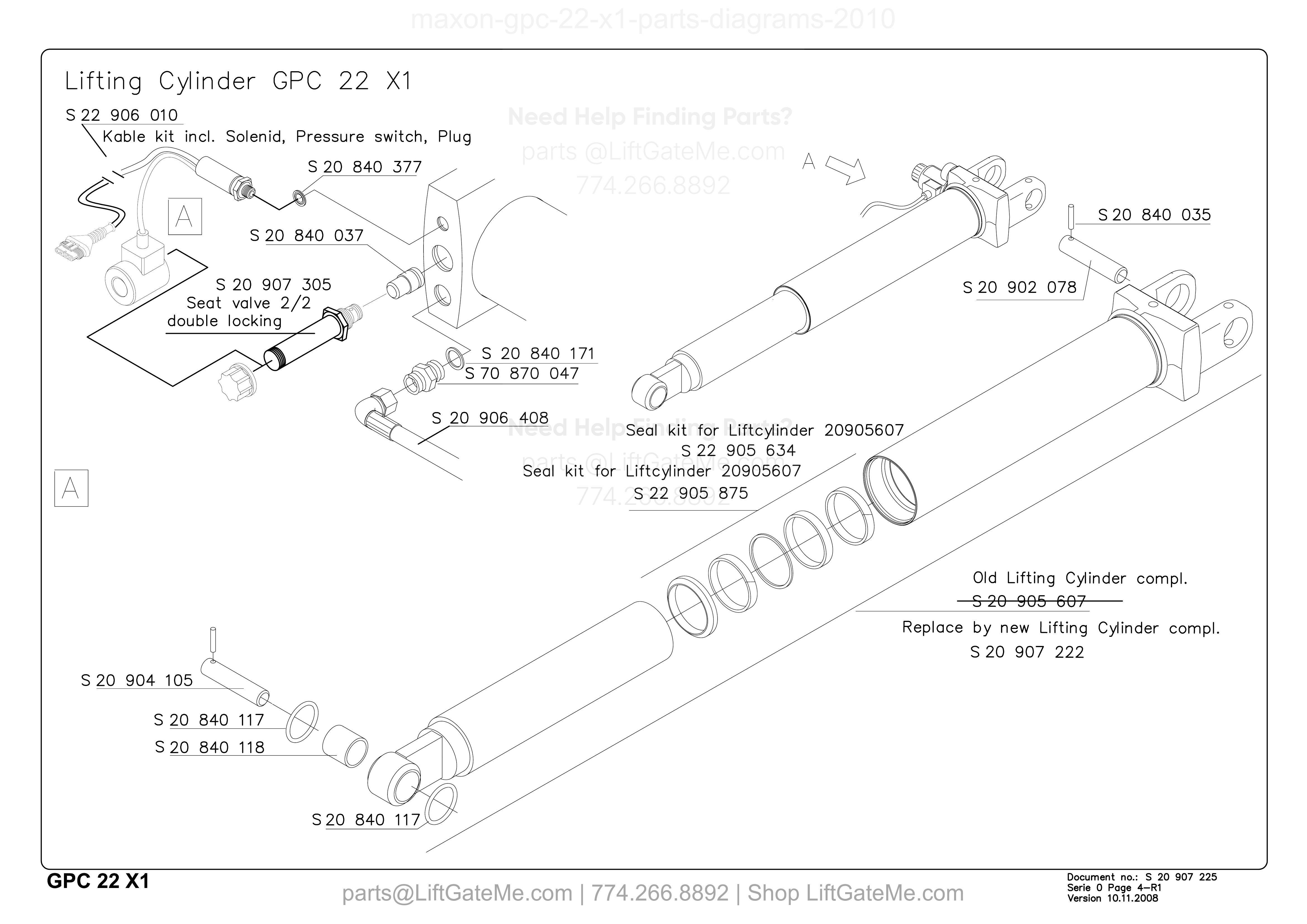

Lifting Cylinder GPC 22 X1
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 22 906 010 | Lifting Cylinder GPC 22 X1 — Kable kit incl. Solenid, Pressure switch, Plug | |
| — | - | S 20 840 377 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 840 037 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 907 305 | Lifting Cylinder GPC 22 X1 — Seat valve 2/2 double locking | |
| — | - | S 20 840 171 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 70 870 047 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 906 408 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 22 905 634 | Lifting Cylinder GPC 22 X1 — Seal kit for Liftcylinder 20905607 | |
| — | - | S 22 905 875 | Lifting Cylinder GPC 22 X1 — Seal kit for Liftcylinder 20905607 | |
| — | - | S 20 840 035 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 902 078 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 904 105 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 840 117 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 840 118 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 840 117 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 907 222 | Lifting Cylinder GPC 22 X1 — Replace by new Lifting Cylinder compl. |

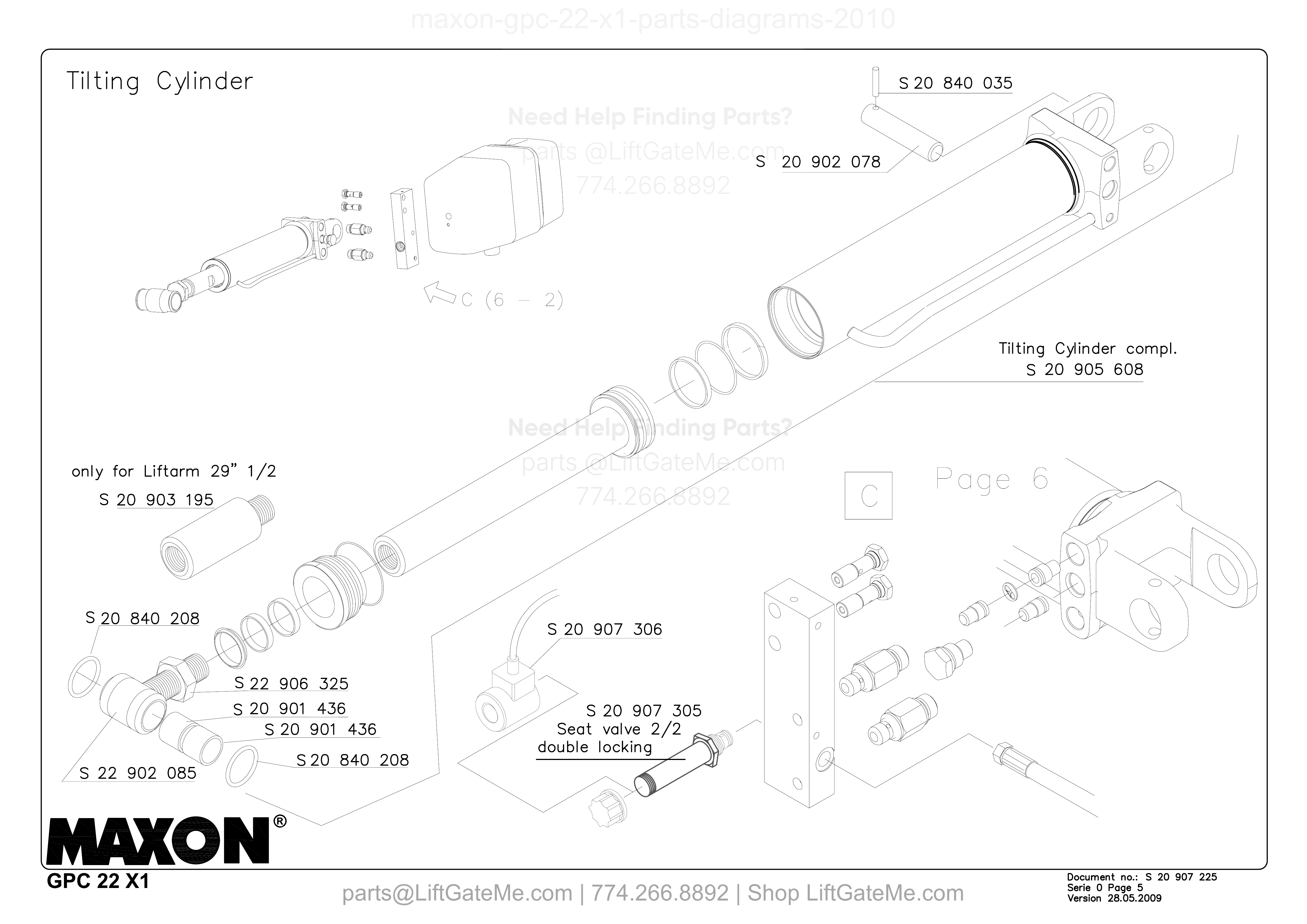

Tilting Cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 035 | Tilting Cylinder — part | |
| — | - | S 20 902 078 | Tilting Cylinder — part | |
| — | - | S 20 905 608 | Tilting Cylinder — Tilting Cylinder compl. | |
| — | - | S 20 903 195 | Tilting Cylinder — only for Liftarm 29" 1/2 | |
| — | - | S 20 840 208 | Tilting Cylinder — part | |
| — | - | S 22 906 325 | Tilting Cylinder — part | |
| — | - | S 20 901 436 | Tilting Cylinder — part | |
| — | - | S 20 901 436 | Tilting Cylinder — part | |
| — | - | S 22 902 085 | Tilting Cylinder — part | |
| — | - | S 20 907 306 | Tilting Cylinder — part | |
| — | - | S 20 907 305 | Tilting Cylinder — Seat valve 2/2 double locking |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

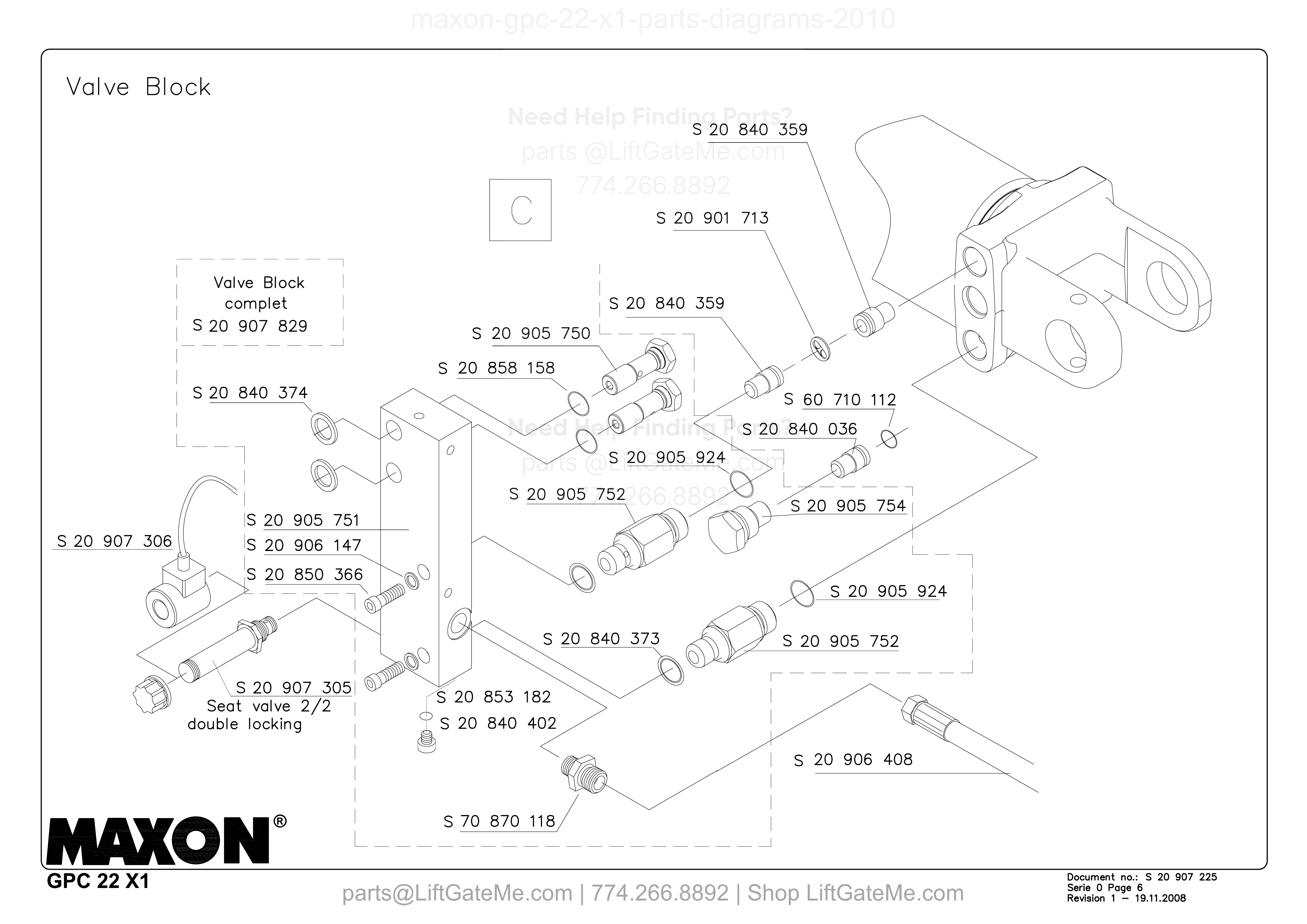

Valve Block
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 829 | Valve Block — Valve Block complet | |
| — | - | S 20 840 374 | Valve Block — part | |
| — | - | S 20 907 306 | Valve Block — part | |
| — | - | S 20 905 751 | Valve Block — part | |
| — | - | S 20 906 147 | Valve Block — part | |
| — | - | S 20 850 366 | Valve Block — part | |
| — | - | S 20 907 305 | Valve Block — Seat valve 2/2 double locking | |
| — | - | S 20 853 182 | Valve Block — part | |
| — | - | S 20 840 402 | Valve Block — part | |
| — | - | S 70 870 118 | Valve Block — part | |
| — | - | S 20 858 158 | Valve Block — part | |
| — | - | S 20 905 750 | Valve Block — part | |
| — | - | S 20 905 924 | Valve Block — part | |
| — | - | S 20 840 359 | Valve Block — part | |
| — | - | S 20 901 713 | Valve Block — part | |
| — | - | S 20 840 359 | Valve Block — part | |
| — | - | S 20 840 036 | Valve Block — part | |
| — | - | S 60 710 112 | Valve Block — part | |
| — | - | S 20 905 752 | Valve Block — part | |
| — | - | S 20 905 754 | Valve Block — part | |
| — | - | S 20 840 373 | Valve Block — part | |
| — | - | S 20 905 924 | Valve Block — part | |
| — | - | S 20 905 752 | Valve Block — part | |
| — | - | S 20 906 408 | Valve Block — part |

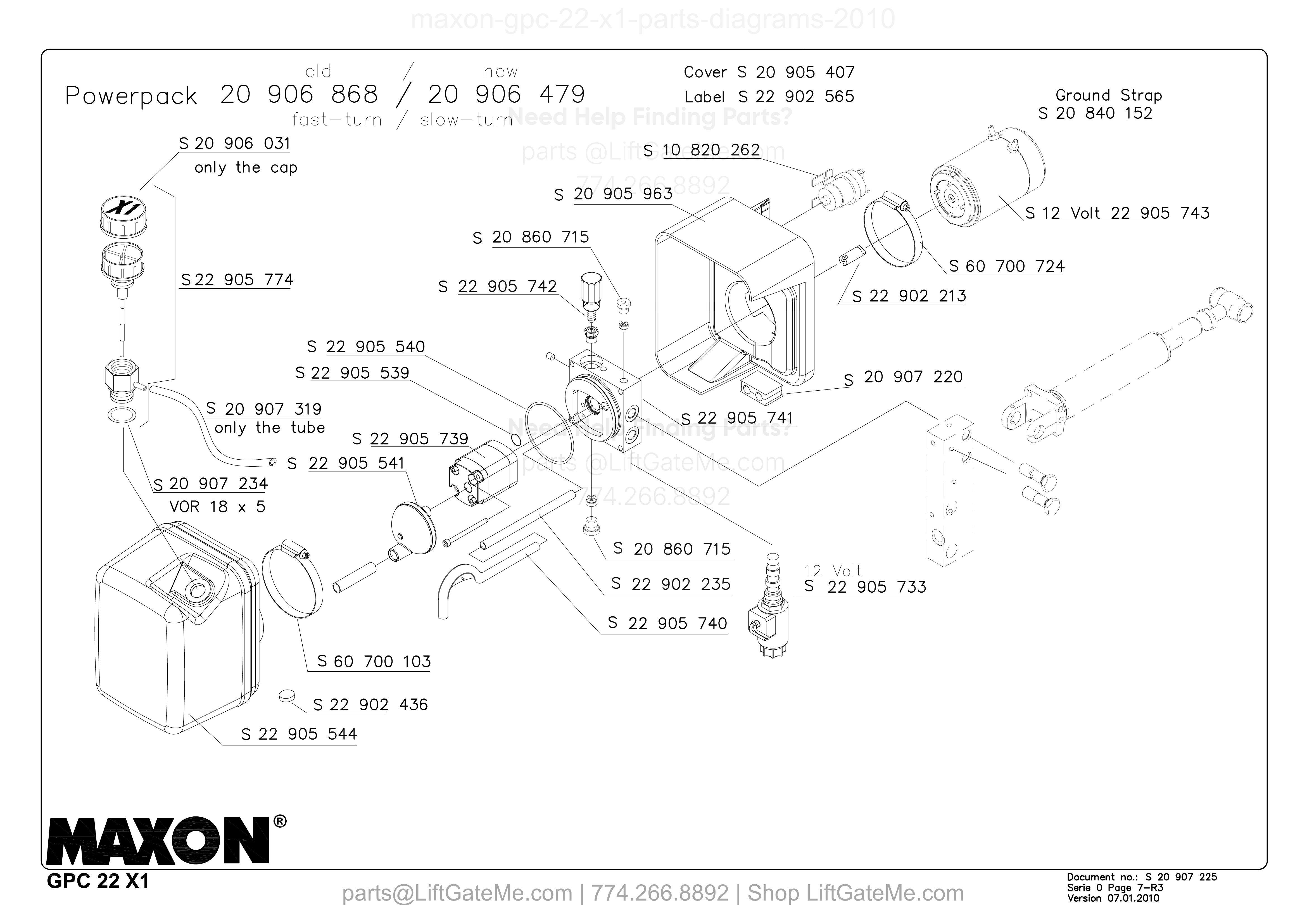

Powerpack 20 906 868 / 20 906 479
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 905 407 | Powerpack 20 906 868 / 20 906 479 — Cover | |
| — | - | S 22 902 565 | Powerpack 20 906 868 / 20 906 479 — Label | |
| — | - | S 20 840 152 | Powerpack 20 906 868 / 20 906 479 — Ground Strap | |
| — | - | 22 905 743 | Powerpack 20 906 868 / 20 906 479 — S 12 Volt | |
| — | - | S 20 906 031 | Powerpack 20 906 868 / 20 906 479 — only the cap | |
| — | - | S 22 905 774 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 20 907 319 | Powerpack 20 906 868 / 20 906 479 — only the tube | |
| — | - | S 20 907 234 | Powerpack 20 906 868 / 20 906 479 — VOR 18 x 5 | |
| — | - | S 22 905 544 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 22 902 436 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 60 700 103 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 22 905 541 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 22 905 739 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 22 905 540 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 22 905 539 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 22 905 742 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 20 860 715 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 20 905 963 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 10 820 262 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 60 700 724 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 22 902 213 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 20 907 220 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 22 905 741 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 20 860 715 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 22 902 235 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 22 905 740 | Powerpack 20 906 868 / 20 906 479 — part | |
| — | - | S 22 905 733 | Powerpack 20 906 868 / 20 906 479 — 12 Volt |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

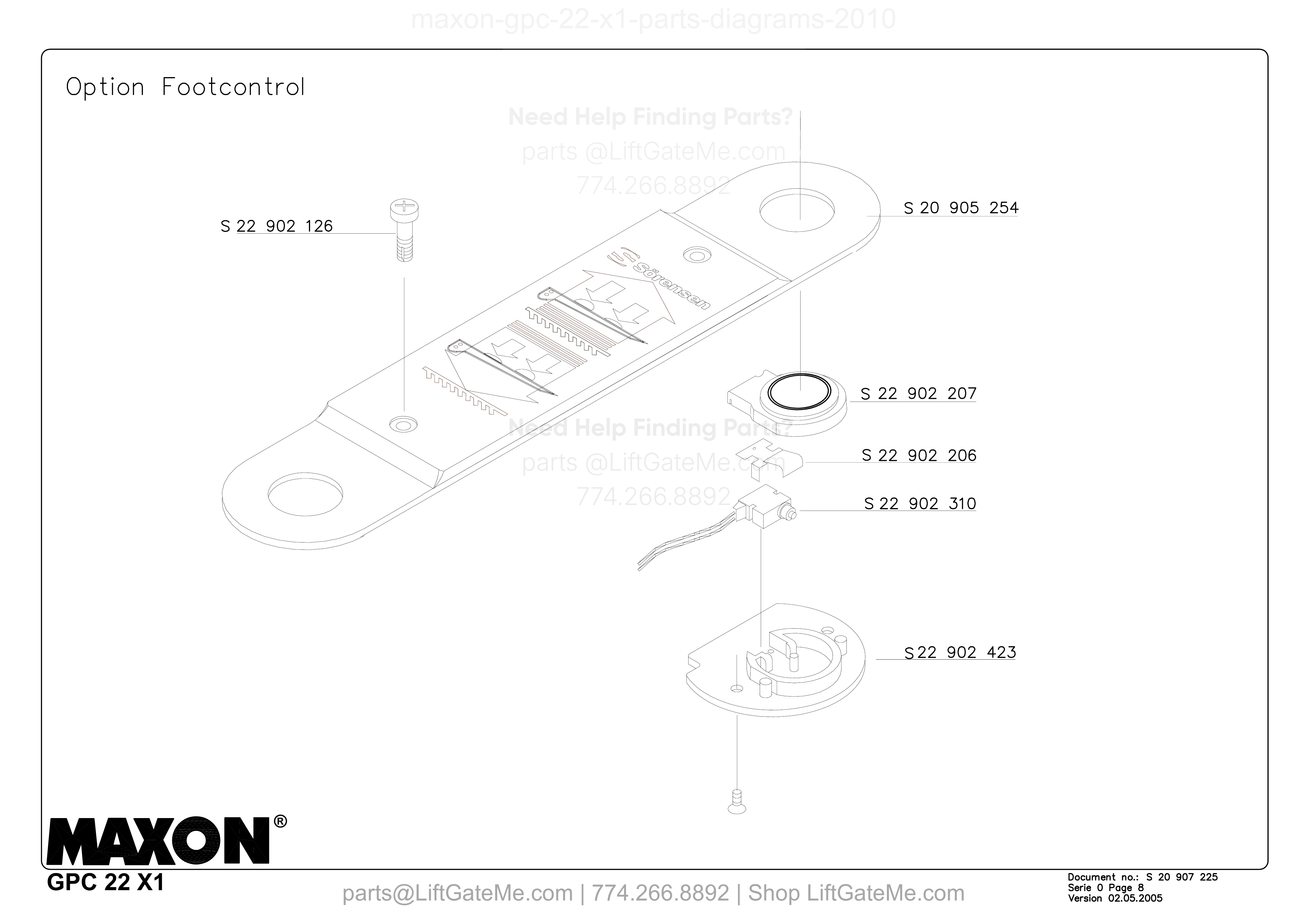

Option Footcontrol
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 22 902 126 | Option Footcontrol — part | |
| — | - | S 20 905 254 | Option Footcontrol — part | |
| — | - | S 22 902 207 | Option Footcontrol — part | |
| — | - | S 22 902 206 | Option Footcontrol — part | |
| — | - | S 22 902 310 | Option Footcontrol — part | |
| — | - | S 22 902 423 | Option Footcontrol — part |

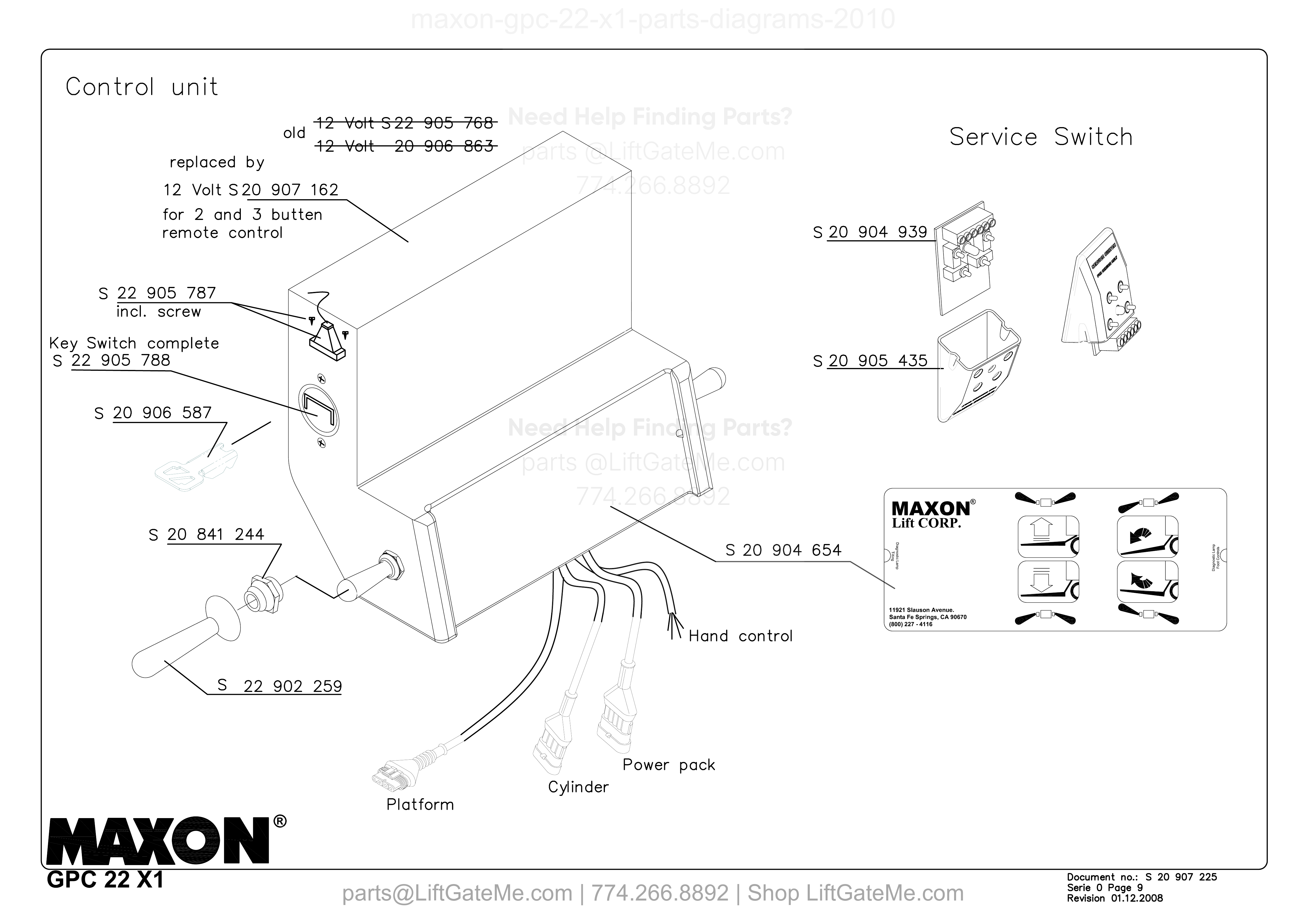

Control unit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 162 | Control unit — replaced by 12 Volt for 2 and 3 button remote control | |
| — | - | S 22 905 787 | Control unit — incl. screw | |
| — | - | S 22 905 788 | Control unit — Key Switch complete | |
| — | - | S 20 906 587 | Control unit — part | |
| — | - | S 20 841 244 | Control unit — part | |
| — | - | S 22 902 259 | Control unit — part | |
| — | - | S 20 904 654 | Control unit — Hand control | |
| — | - | S 20 904 939 | Control unit — Service Switch | |
| — | - | S 20 905 435 | Control unit — Service Switch |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

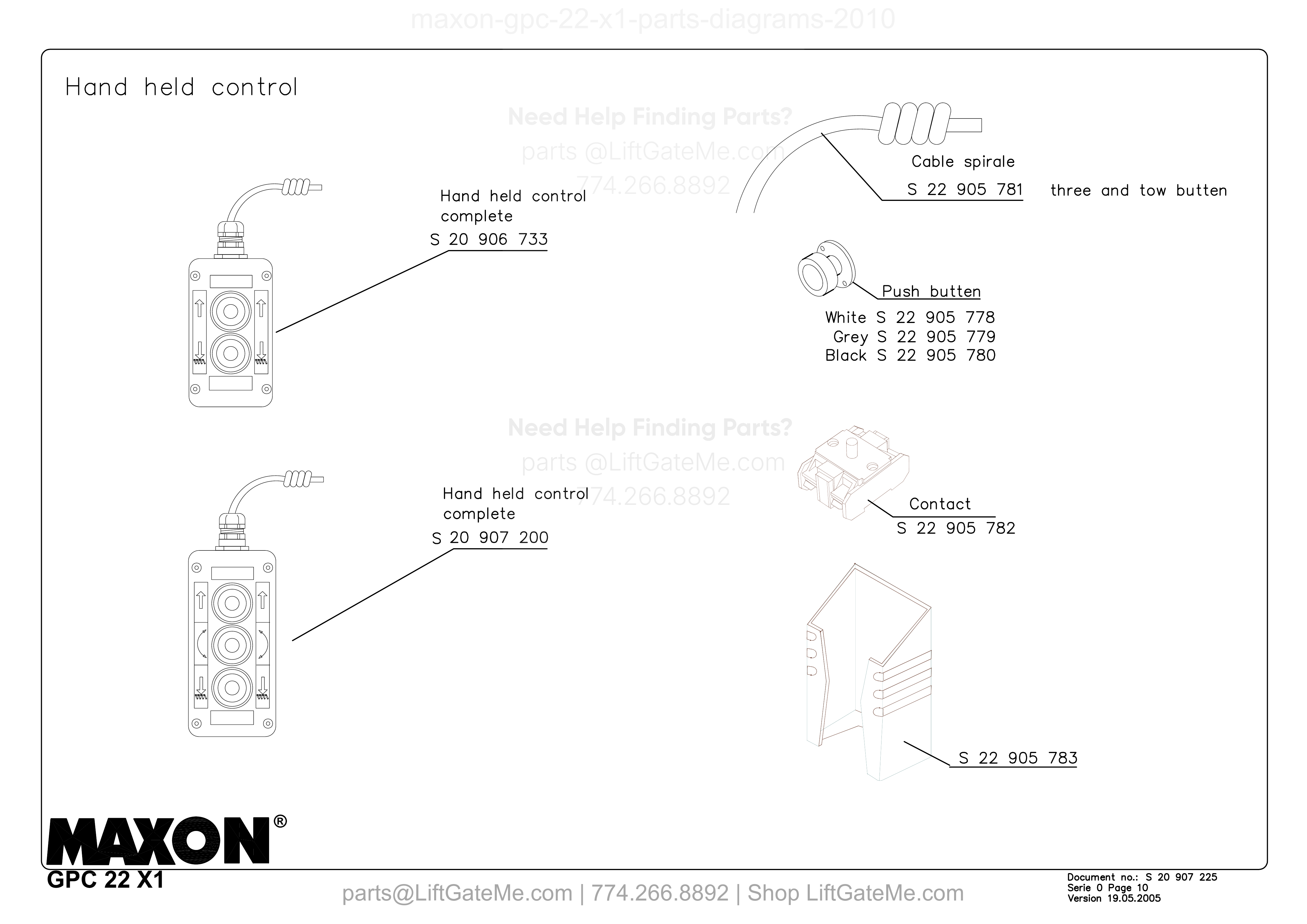

Hand held control
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 906 733 | Hand held control — Hand held control complete | |
| — | - | S 20 907 200 | Hand held control — Hand held control complete | |
| — | - | S 22 905 781 | Hand held control — Cable spirale | |
| — | - | S 22 905 778 | Hand held control — Push button White | |
| — | - | S 22 905 779 | Hand held control — Push button Grey | |
| — | - | S 22 905 780 | Hand held control — Push button Black | |
| — | - | S 22 905 782 | Hand held control — Contact | |
| — | - | S 22 905 783 | Hand held control — part |

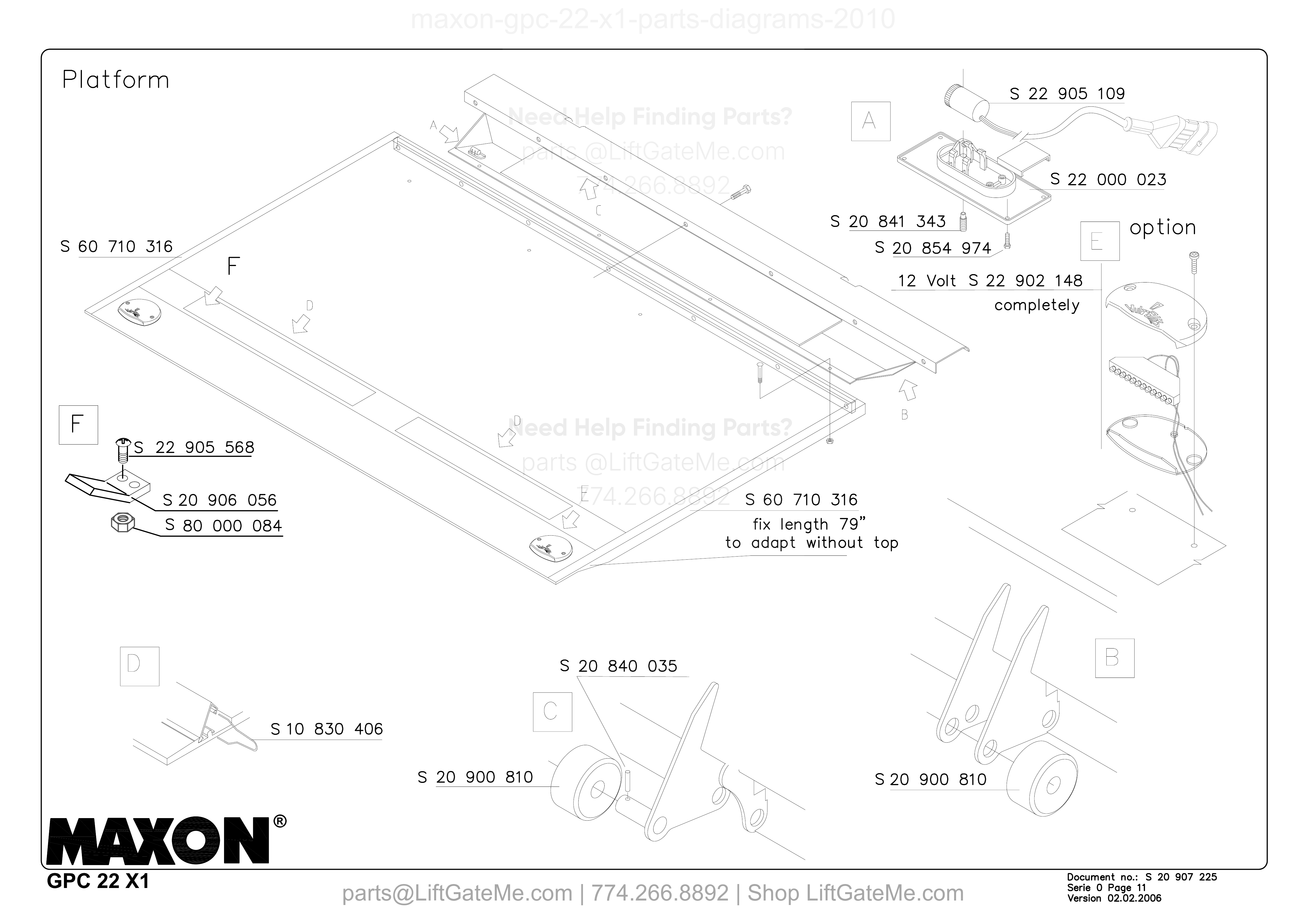

Platform
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 60 710 316 | Platform — part | |
| — | - | S 22 905 109 | Platform — part | |
| — | - | S 22 000 023 | Platform — part | |
| — | - | S 20 841 343 | Platform — part | |
| — | - | S 20 854 974 | Platform — part | |
| — | - | S 22 902 148 | Platform — 12 Volt completely | |
| — | - | S 22 905 568 | Platform — part | |
| — | - | S 20 906 056 | Platform — part | |
| — | - | S 80 000 084 | Platform — part | |
| — | - | S 10 830 406 | Platform — part | |
| — | - | S 20 840 035 | Platform — part | |
| — | - | S 20 900 810 | Platform — part | |
| — | - | S 20 900 810 | Platform — part |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
