Waltco BZ Liftgate Parts Diagrams | Approximate Years 2019
Waltco BZ parts diagrams for 2019
Browse Waltco BZ OEM liftgate parts diagrams covering 2019 conventional models. Use the callouts and tables to locate components before servicing or repairing your liftgate.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

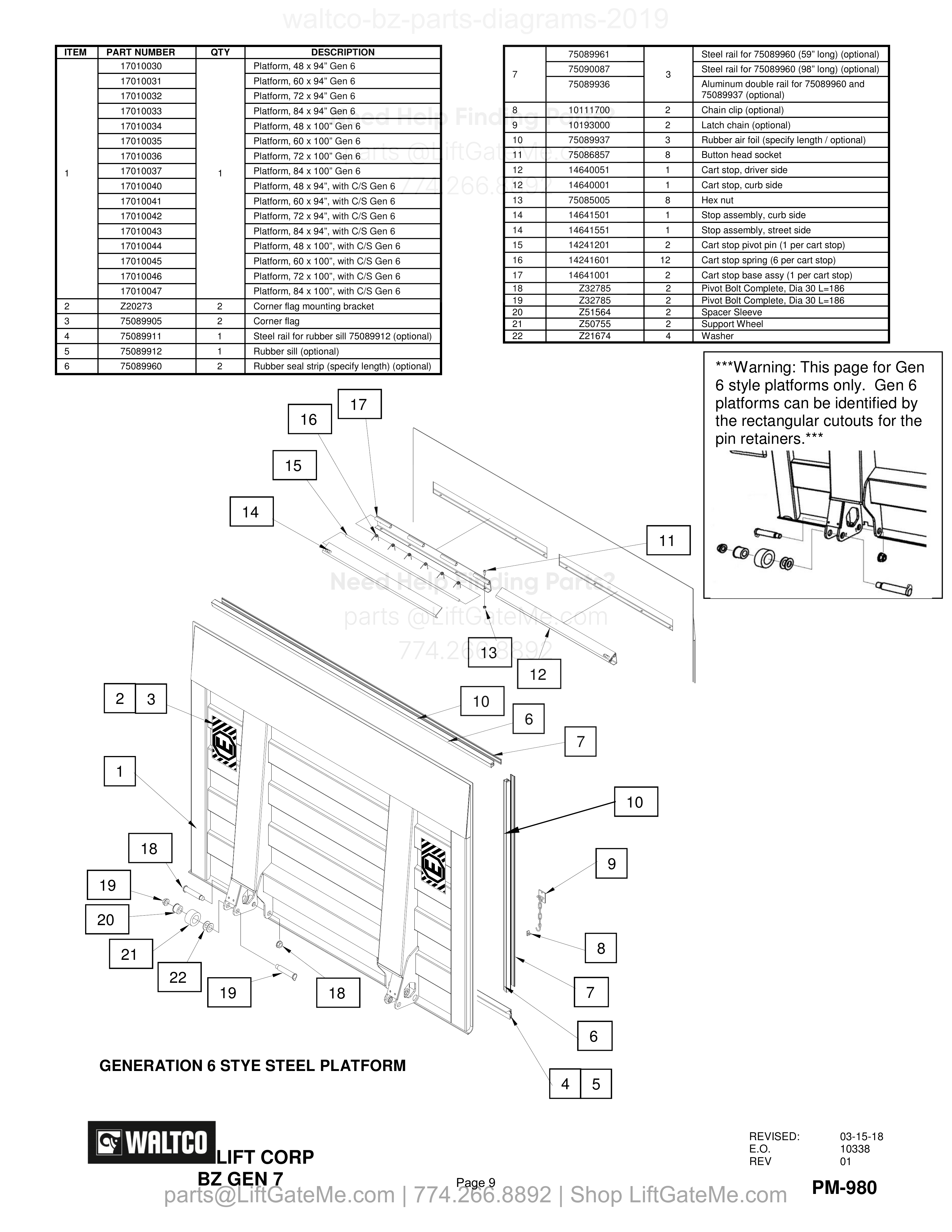

GENERATION 6 STYE STEEL PLATFORM
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 17010030 | Platform, 48 x 94” Gen 6 | |
| 1 | 1 | 17010031 | Platform, 60 x 94” Gen 6 | |
| 1 | 1 | 17010032 | Platform, 72 x 94” Gen 6 | |
| 1 | 1 | 17010033 | Platform, 84 x 94” Gen 6 | |
| 1 | 1 | 17010034 | Platform, 48 x 100” Gen 6 | |
| 1 | 1 | 17010035 | Platform, 60 x 100” Gen 6 | |
| 1 | 1 | 17010036 | Platform, 72 x 100” Gen 6 | |
| 1 | 1 | 17010037 | Platform, 84 x 100” Gen 6 | |
| 1 | 1 | 17010040 | Platform, 48 x 94”, with C/S Gen 6 | |
| 1 | 1 | 17010041 | Platform, 60 x 94”, with C/S Gen 6 | |
| 1 | 1 | 17010042 | Platform, 72 x 94”, with C/S Gen 6 | |
| 1 | 1 | 17010043 | Platform, 84 x 94”, with C/S Gen 6 | |
| 1 | 1 | 17010044 | Platform, 48 x 100”, with C/S Gen 6 | |
| 1 | 1 | 17010045 | Platform, 60 x 100”, with C/S Gen 6 | |
| 1 | 1 | 17010046 | Platform, 72 x 100”, with C/S Gen 6 | |
| 1 | 1 | 17010047 | Platform, 84 x 100”, with C/S Gen 6 | |
| 2 | 2 | Z20273 | Corner flag mounting bracket | |
| 3 | 2 | 75089905 | Corner flag | |
| 4 | 1 | 75089911 | Steel rail for rubber sill 75089912 (optional) | |
| 5 | 1 | 75089912 | Rubber sill (optional) | |
| 6 | 2 | 75089960 | Rubber seal strip (specify length) (optional) | |
| 7 | 3 | 75089961 | Steel rail for 75089960 (59” long) (optional) | |
| 7 | 3 | 75090087 | Steel rail for 75089960 (98” long) (optional) | |
| 7 | 3 | 75089936 | Aluminum double rail for 75089960 and 75089937 (optional) | |
| 8 | 2 | 10111700 | Chain clip (optional) | |
| 9 | 2 | 10193000 | Latch chain (optional) | |
| 10 | 3 | 75089937 | Rubber air foil (specify length / optional) | |
| 11 | 8 | 75086857 | Button head socket | |
| 12 | 1 | 14640051 | Cart stop, driver side | |
| 12 | 1 | 14640001 | Cart stop, curb side | |
| 13 | 8 | 75085005 | Hex nut | |
| 14 | 1 | 14641501 | Stop assembly, curb side | |
| 14 | 1 | 14641551 | Stop assembly, street side | |
| 15 | 2 | 14241201 | Cart stop pivot pin (1 per cart stop) | |
| 16 | 12 | 14241601 | Cart stop spring (6 per cart stop) | |
| 17 | 2 | 14641001 | Cart stop base assy (1 per cart stop) | |
| 18 | 2 | Z32785 | Pivot Bolt Complete, Dia 30 L=186 | |
| 19 | 2 | Z32785 | Pivot Bolt Complete, Dia 30 L=186 | |
| 20 | 2 | Z51564 | Spacer Sleeve | |
| 21 | 2 | Z50755 | Support Wheel | |
| 22 | 4 | Z21674 | Washer |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

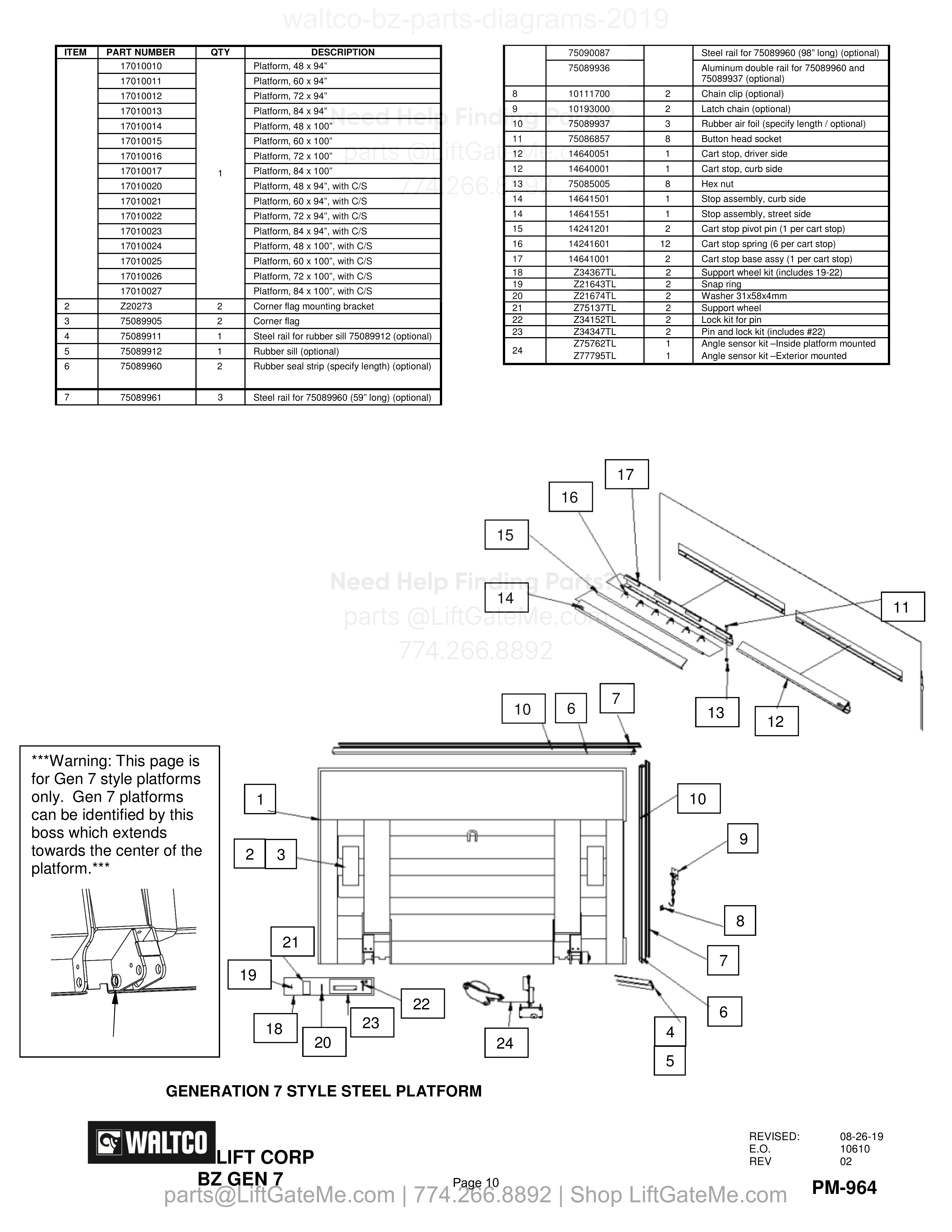

GENERATION 7 STYLE STEEL PLATFORM
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 17010010 | Platform, 48 x 94” | |
| 1 | 1 | 17010011 | Platform, 60 x 94” | |
| 1 | 1 | 17010012 | Platform, 72 x 94” | |
| 1 | 1 | 17010013 | Platform, 84 x 94” | |
| 1 | 1 | 17010014 | Platform, 48 x 100” | |
| 1 | 1 | 17010015 | Platform, 60 x 100” | |
| 1 | 1 | 17010016 | Platform, 72 x 100” | |
| 1 | 1 | 17010017 | Platform, 84 x 100” | |
| 1 | 1 | 17010020 | Platform, 48 x 94”, with C/S | |
| 1 | 1 | 17010021 | Platform, 60 x 94”, with C/S | |
| 1 | 1 | 17010022 | Platform, 72 x 94”, with C/S | |
| 1 | 1 | 17010023 | Platform, 84 x 94”, with C/S | |
| 1 | 1 | 17010024 | Platform, 48 x 100”, with C/S | |
| 1 | 1 | 17010025 | Platform, 60 x 100”, with C/S | |
| 1 | 1 | 17010026 | Platform, 72 x 100”, with C/S | |
| 1 | 1 | 17010027 | Platform, 84 x 100”, with C/S | |
| 2 | 2 | Z20273 | Corner flag mounting bracket | |
| 3 | 2 | 75089905 | Corner flag | |
| 4 | 1 | 75089911 | Steel rail for rubber sill 75089912 (optional) | |
| 5 | 1 | 75089912 | Rubber sill (optional) | |
| 6 | 2 | 75089960 | Rubber seal strip (specify length) (optional) | |
| 7 | 3 | 75089961 | Steel rail for 75089960 (59” long) (optional) | |
| 7 | 3 | 75090087 | Steel rail for 75089960 (98” long) (optional) | |
| 7 | 3 | 75089936 | Aluminum double rail for 75089960 and 75089937 (optional) | |
| 8 | 2 | 10111700 | Chain clip (optional) | |
| 9 | 2 | 10193000 | Latch chain (optional) | |
| 10 | 3 | 75089937 | Rubber air foil (specify length / optional) | |
| 11 | 8 | 75086857 | Button head socket | |
| 12 | 1 | 14640051 | Cart stop, driver side | |
| 12 | 1 | 14640001 | Cart stop, curb side | |
| 13 | 8 | 75085005 | Hex nut | |
| 14 | 1 | 14641501 | Stop assembly, curb side | |
| 14 | 1 | 14641551 | Stop assembly, street side | |
| 15 | 2 | 14241201 | Cart stop pivot pin (1 per cart stop) | |
| 16 | 12 | 14241601 | Cart stop spring (6 per cart stop) | |
| 17 | 2 | 14641001 | Cart stop base assy (1 per cart stop) | |
| 18 | 2 | Z34367TL | Support wheel kit (includes 19-22) | |
| 19 | 2 | Z21643TL | Snap ring | |
| 20 | 2 | Z21674TL | Washer 31x58x4mm | |
| 21 | 2 | Z75137TL | Support wheel | |
| 22 | 2 | Z34152TL | Lock kit for pin | |
| 23 | 2 | Z34347TL | Pin and lock kit (includes #22) | |
| 24 | 1 | Z75762TL | Angle sensor kit –Inside platform mounted | |
| 24 | 1 | Z77795TL | Angle sensor kit –Exterior mounted |

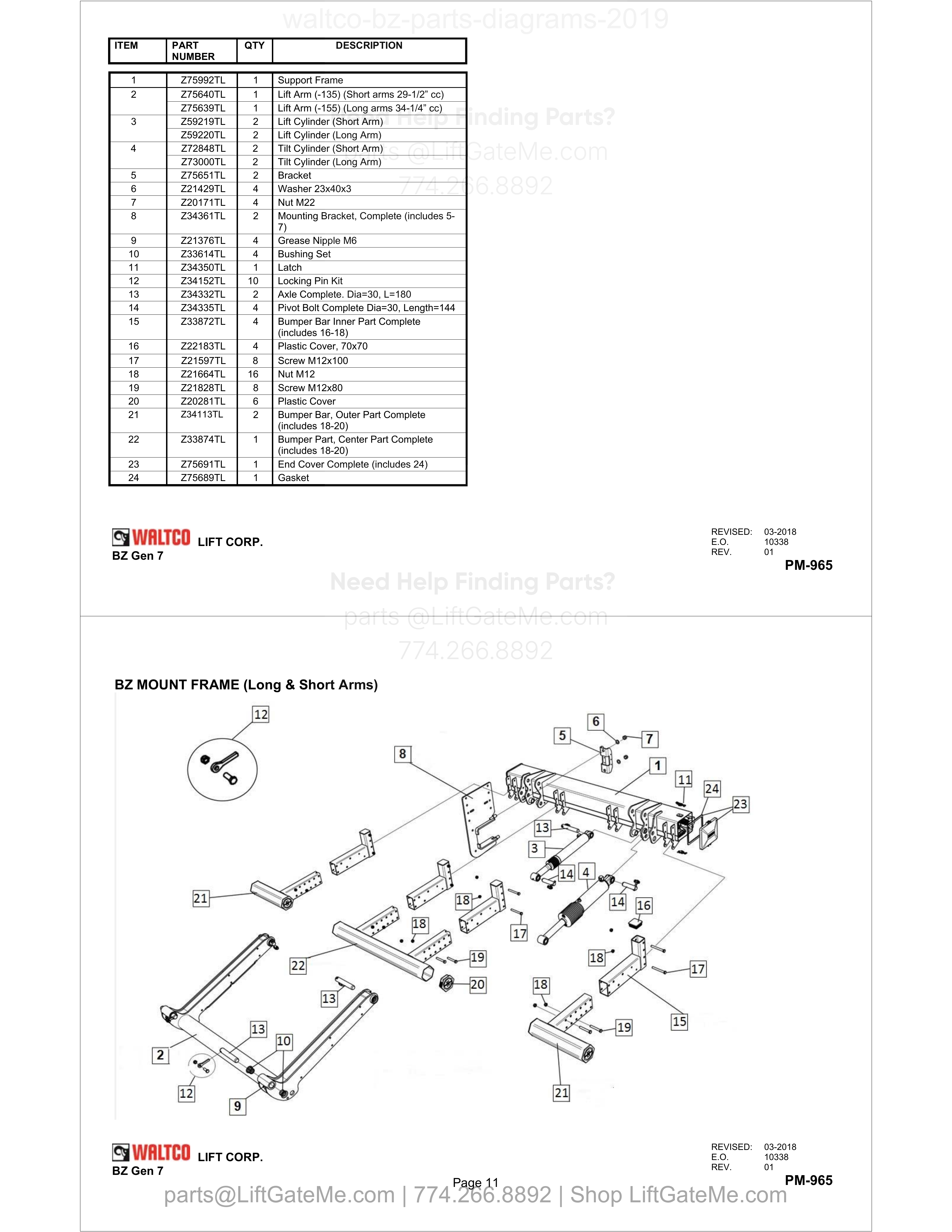

BZ MOUNT FRAME (Long & Short Arms)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | Z75992TL | Support Frame | |
| 2 | 1 | Z75640TL | Lift Arm (-135) (Short arms 29-1/2” cc) | |
| 2 | 1 | Z75639TL | Lift Arm (-155) (Long arms 34-1/4” cc) | |
| 3 | 2 | Z59219TL | Lift Cylinder (Short Arm) | |
| 3 | 2 | Z59220TL | Lift Cylinder (Long Arm) | |
| 4 | 2 | Z72848TL | Tilt Cylinder (Short Arm) | |
| 4 | 2 | Z73000TL | Tilt Cylinder (Long Arm) | |
| 5 | 2 | Z75651TL | Bracket | |
| 6 | 4 | Z21429TL | Washer 23x40x3 | |
| 7 | 4 | Z20171TL | Nut M22 | |
| 8 | 2 | Z34361TL | Mounting Bracket, Complete (includes 5-7) | |
| 9 | 4 | Z21376TL | Grease Nipple M6 | |
| 10 | 4 | Z33614TL | Bushing Set | |
| 11 | 1 | Z34350TL | Latch | |
| 12 | 10 | Z34152TL | Locking Pin Kit | |
| 13 | 2 | Z34332TL | Axle Complete. Dia=30, L=180 | |
| 14 | 4 | Z34335TL | Pivot Bolt Complete Dia=30, Length=144 | |
| 15 | 4 | Z33872TL | Bumper Bar Inner Part Complete (includes 16-18) | |
| 16 | 4 | Z22183TL | Plastic Cover, 70x70 | |
| 17 | 8 | Z21597TL | Screw M12x100 | |
| 18 | 16 | Z21664TL | Nut M12 | |
| 19 | 8 | Z21828TL | Screw M12x80 | |
| 20 | 6 | Z20281TL | Plastic Cover | |
| 21 | 2 | Z34113TL | Bumper Bar, Outer Part Complete (includes 18-20) | |
| 22 | 1 | Z33874TL | Bumper Part, Center Part Complete (includes 18-20) | |
| 23 | 1 | Z75691TL | End Cover Complete (includes 24) | |
| 24 | 1 | Z75689TL | Gasket |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

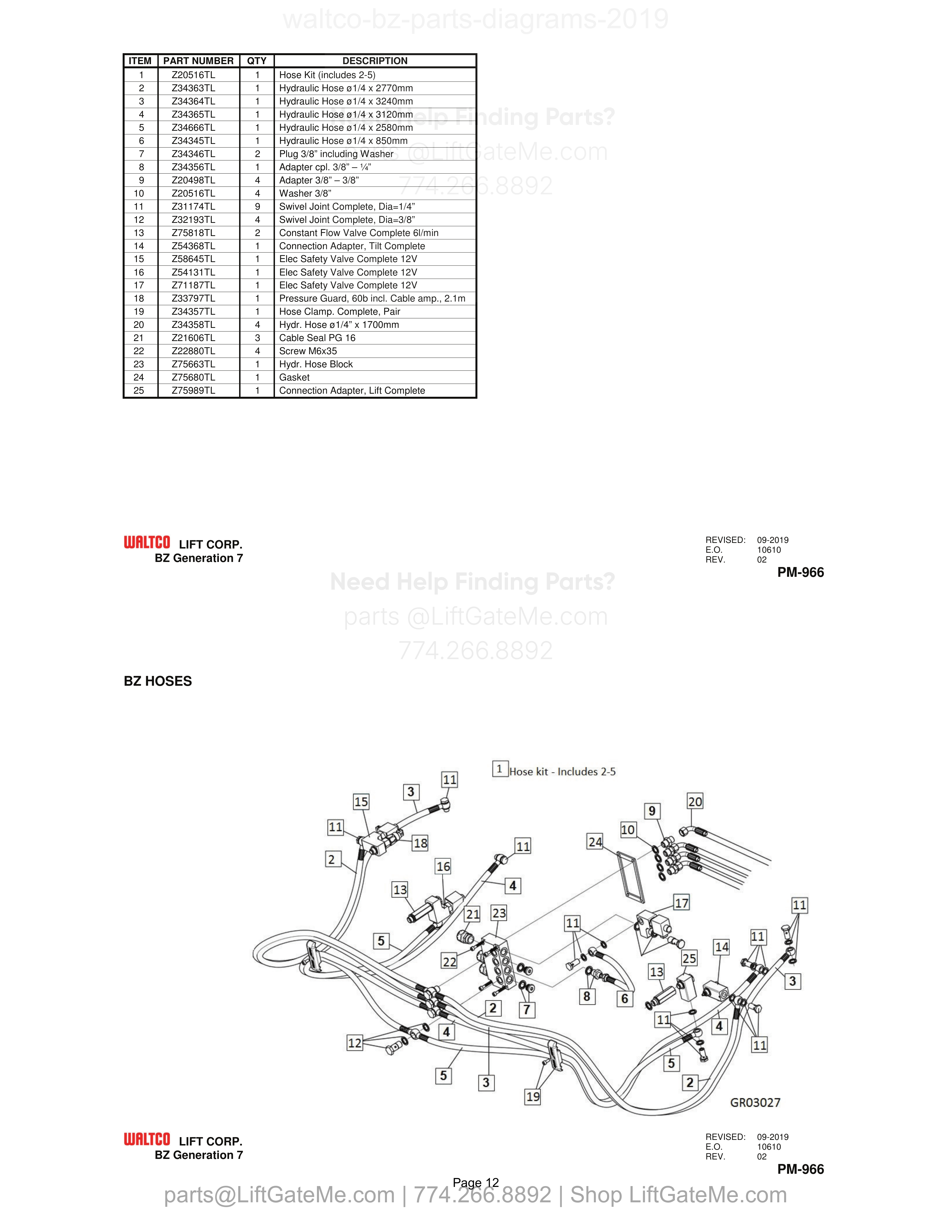

BZ HOSES

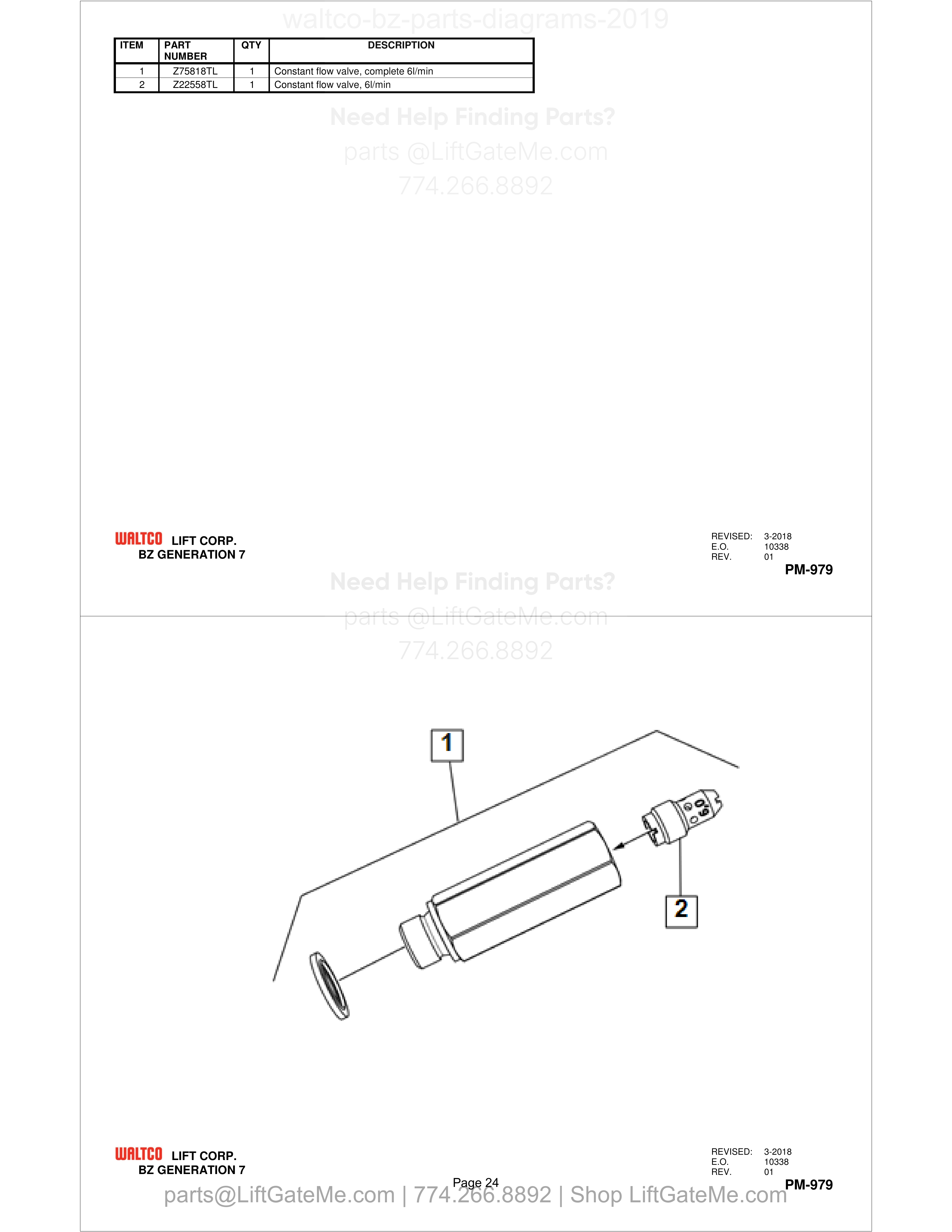

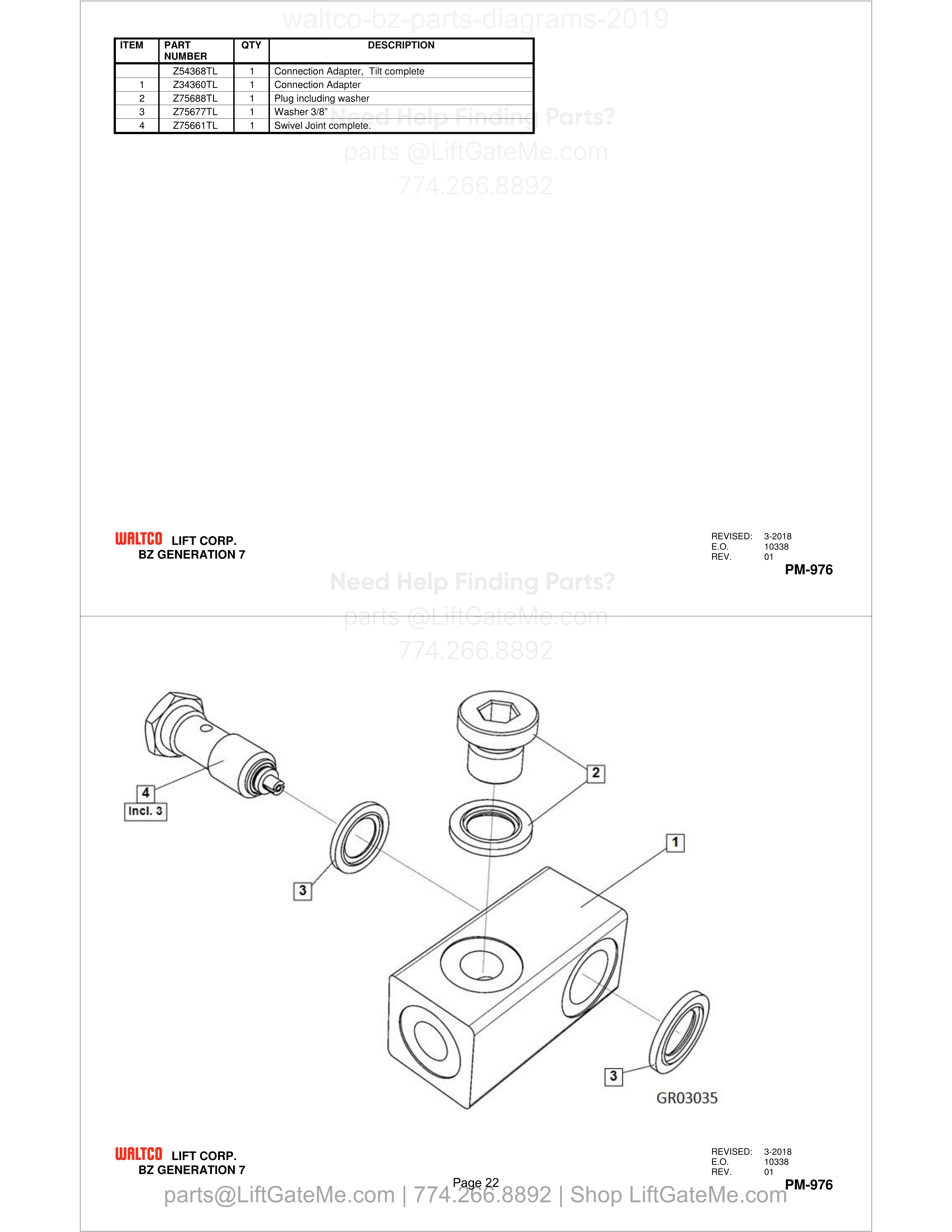

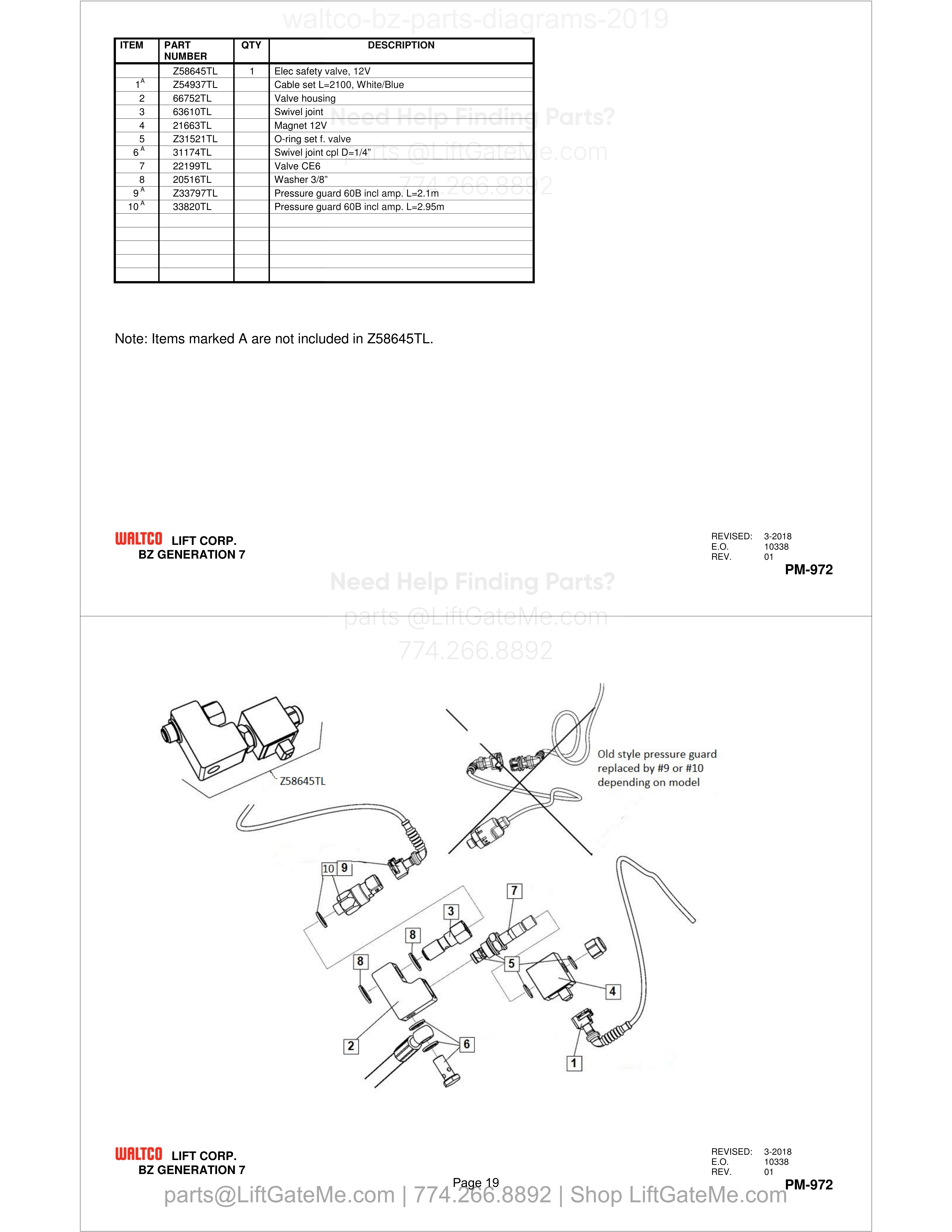

| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | Z20516TL | Hose Kit (includes 2-5) | |
| 2 | 1 | Z34363TL | Hydraulic Hose ø1/4 x 2770mm | |
| 3 | 1 | Z34364TL | Hydraulic Hose ø1/4 x 3240mm | |
| 4 | 1 | Z34365TL | Hydraulic Hose ø1/4 x 3120mm | |
| 5 | 1 | Z34666TL | Hydraulic Hose ø1/4 x 2580mm | |
| 6 | 1 | Z34345TL | Hydraulic Hose ø1/4 x 850mm | |
| 7 | 2 | Z34346TL | Plug 3/8” including Washer | |
| 8 | 1 | Z34356TL | Adapter cpl. 3/8” – ¼” | |
| 9 | 4 | Z20498TL | Adapter 3/8” – 3/8” | |
| 10 | 4 | Z20516TL | Washer 3/8” | |
| 11 | 9 | Z31174TL | Swivel Joint Complete, Dia=1/4” | |
| 12 | 4 | Z32193TL | Swivel Joint Complete, Dia=3/8” | |
| 13 | 2 | Z75818TL | Constant Flow Valve Complete 6l/min | |
| 14 | 1 | Z54368TL | Connection Adapter, Tilt Complete | |
| 15 | 1 | Z58645TL | Elec Safety Valve Complete 12V | |

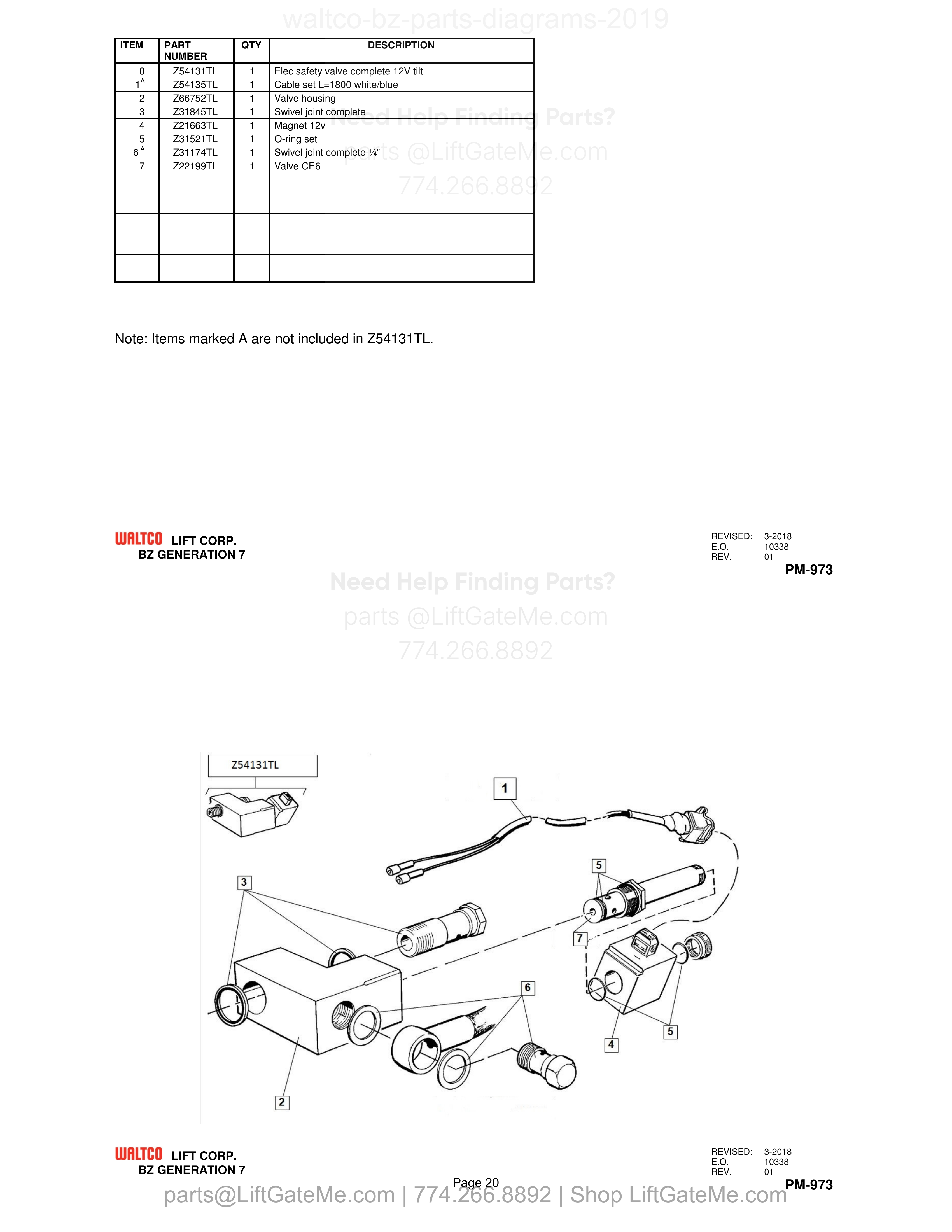

| 16 | 1 | Z54131TL | Elec Safety Valve Complete 12V | |

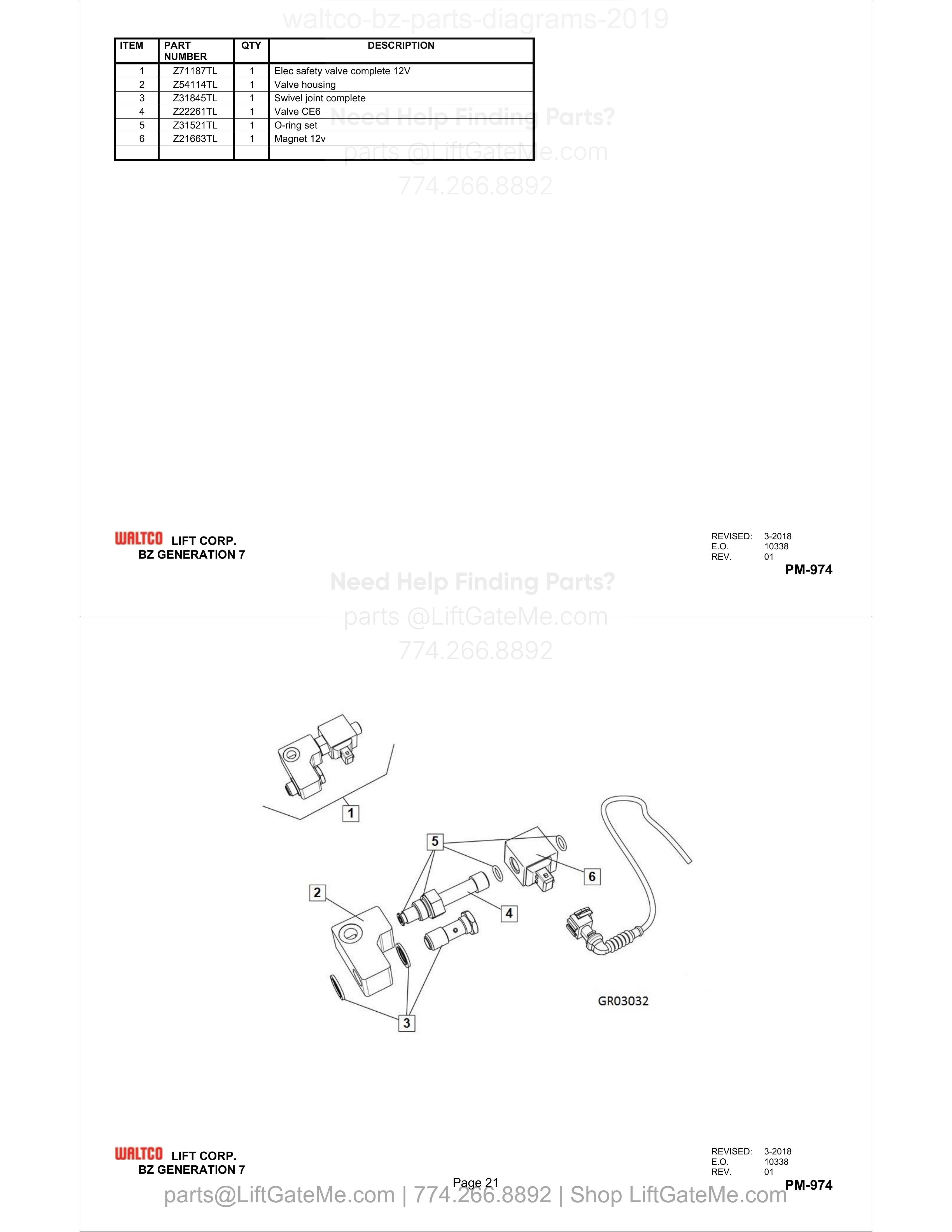

| 17 | 1 | Z71187TL | Elec Safety Valve Complete 12V | |
| 18 | 1 | Z33797TL | Pressure Guard, 60b incl. Cable amp., 2.1m | |
| 19 | 1 | Z34357TL | Hose Clamp. Complete, Pair | |
| 20 | 4 | Z34358TL | Hydr. Hose ø1/4” x 1700mm | |
| 21 | 3 | Z21606TL | Cable Seal PG 16 | |
| 22 | 4 | Z22880TL | Screw M6x35 | |
| 23 | 1 | Z75663TL | Hydr. Hose Block | |
| 24 | 1 | Z75680TL | Gasket | |

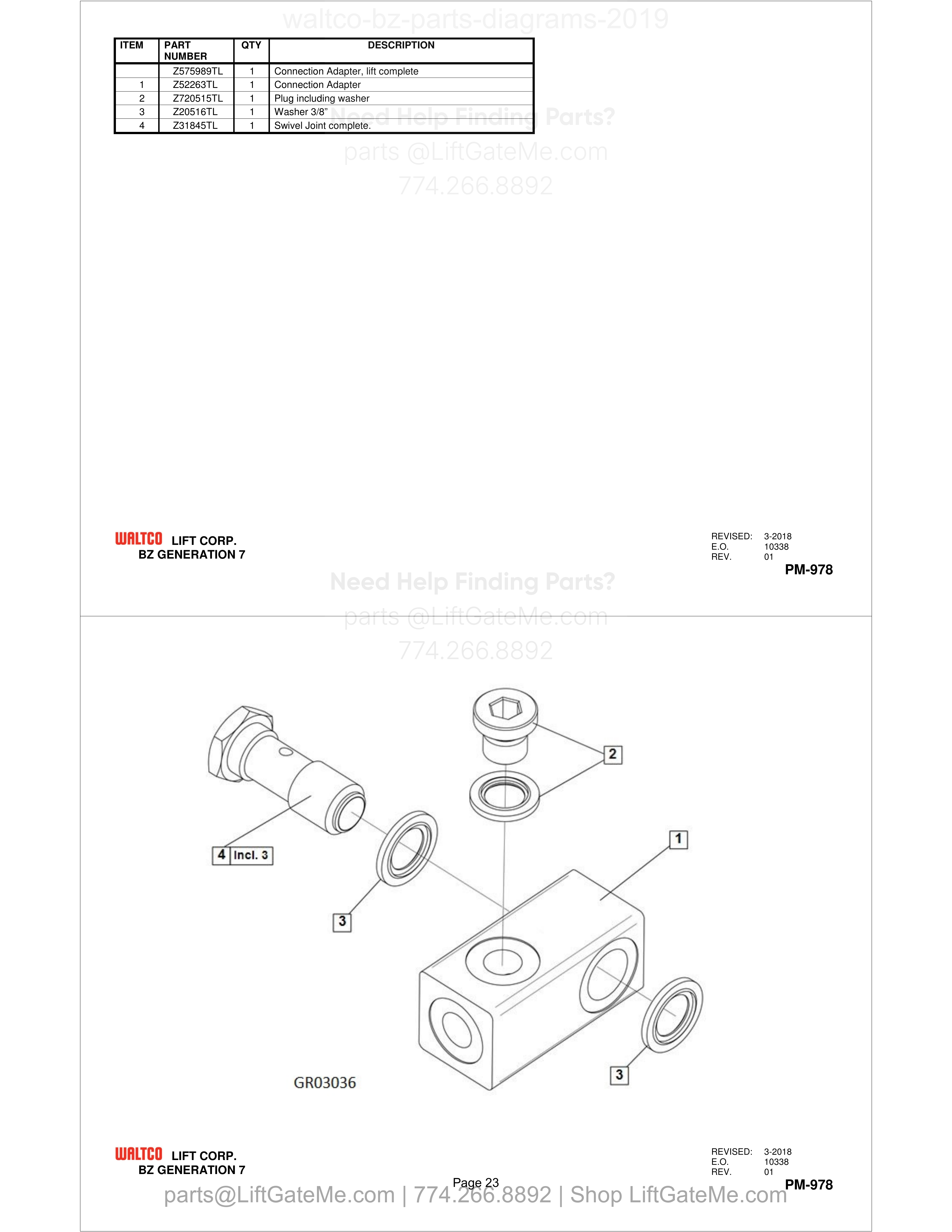

| 25 | 1 | Z75989TL | Connection Adapter, Lift Complete |

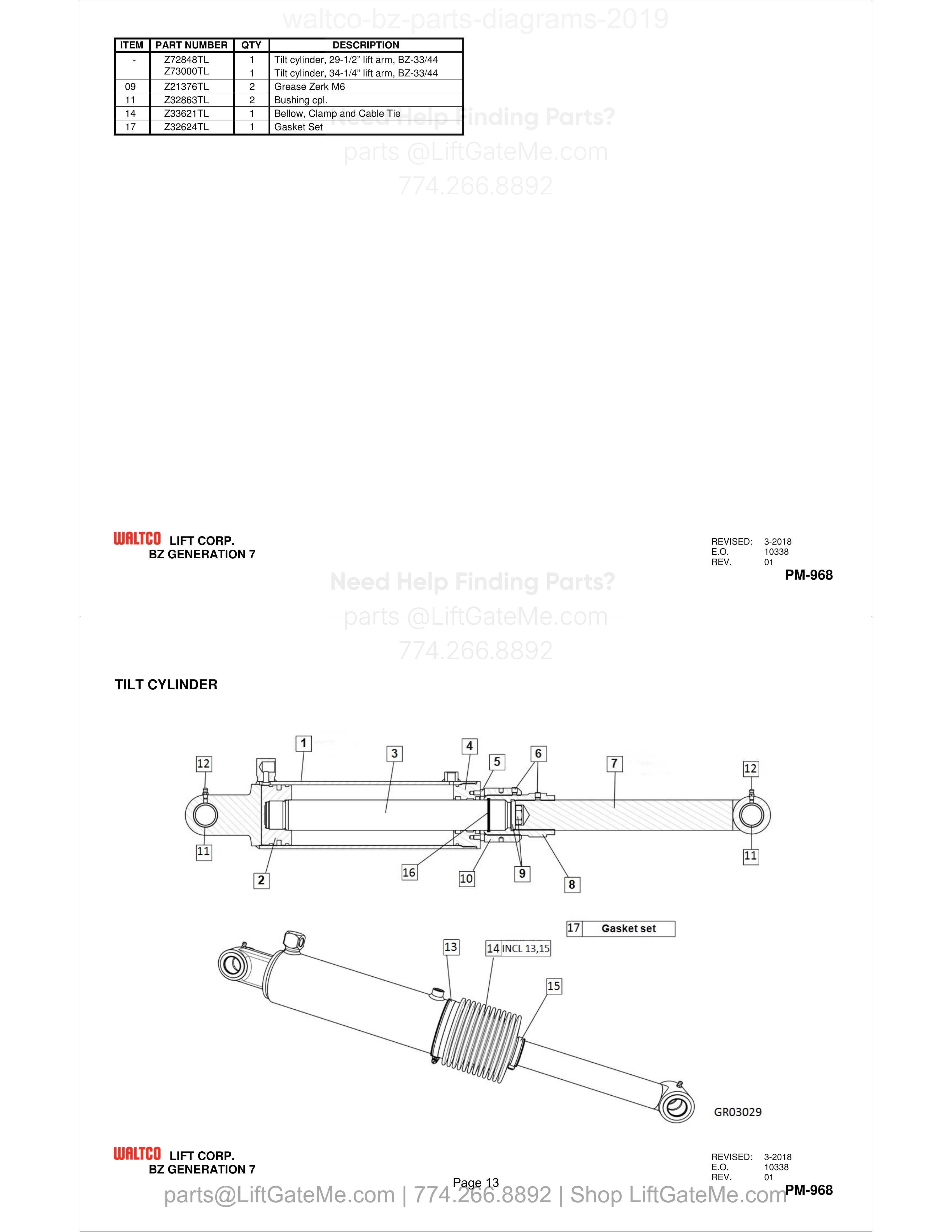

TILT CYLINDER
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| - | 1 | Z72848TL | Tilt cylinder, 29-1/2” lift arm, BZ-33/44 | |
| - | 1 | Z73000TL | Tilt cylinder, 34-1/4” lift arm, BZ-33/44 | |
| 09 | 2 | Z21376TL | Grease Zerk M6 | |
| 11 | 2 | Z32863TL | Bushing cpl. | |
| 14 | 1 | Z33621TL | Bellow, Clamp and Cable Tie | |
| 17 | 1 | Z32624TL | Gasket Set |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

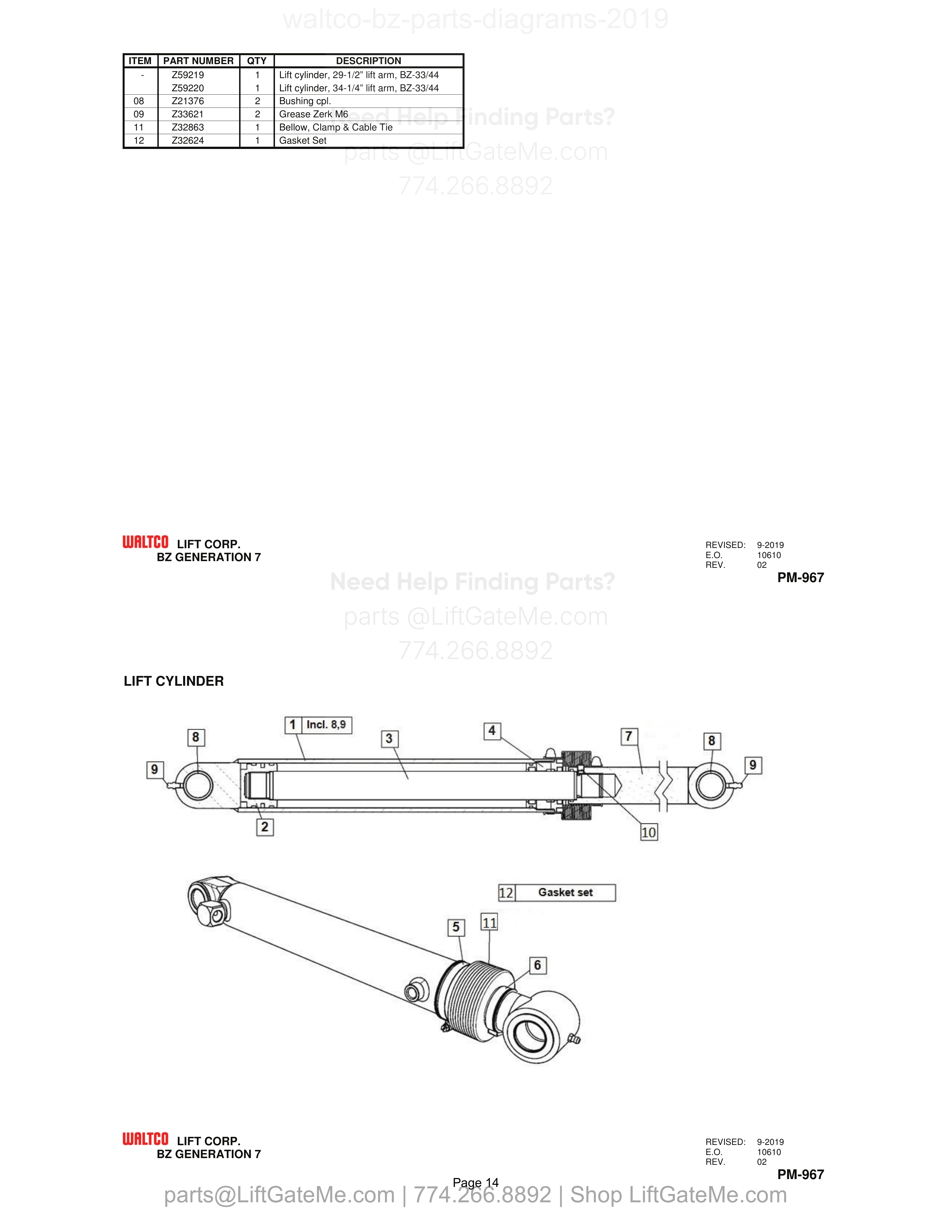

LIFT CYLINDER
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| - | 1 | Z59219 | Lift cylinder, 29-1/2” lift arm, BZ-33/44 | |
| - | 1 | Z59220 | Lift cylinder, 34-1/4” lift arm, BZ-33/44 | |
| 08 | 2 | Z21376 | Bushing cpl. | |
| 09 | 2 | Z33621 | Grease Zerk M6 | |
| 11 | 1 | Z32863 | Bellow, Clamp & Cable Tie | |
| 12 | 1 | Z32624 | Gasket Set |

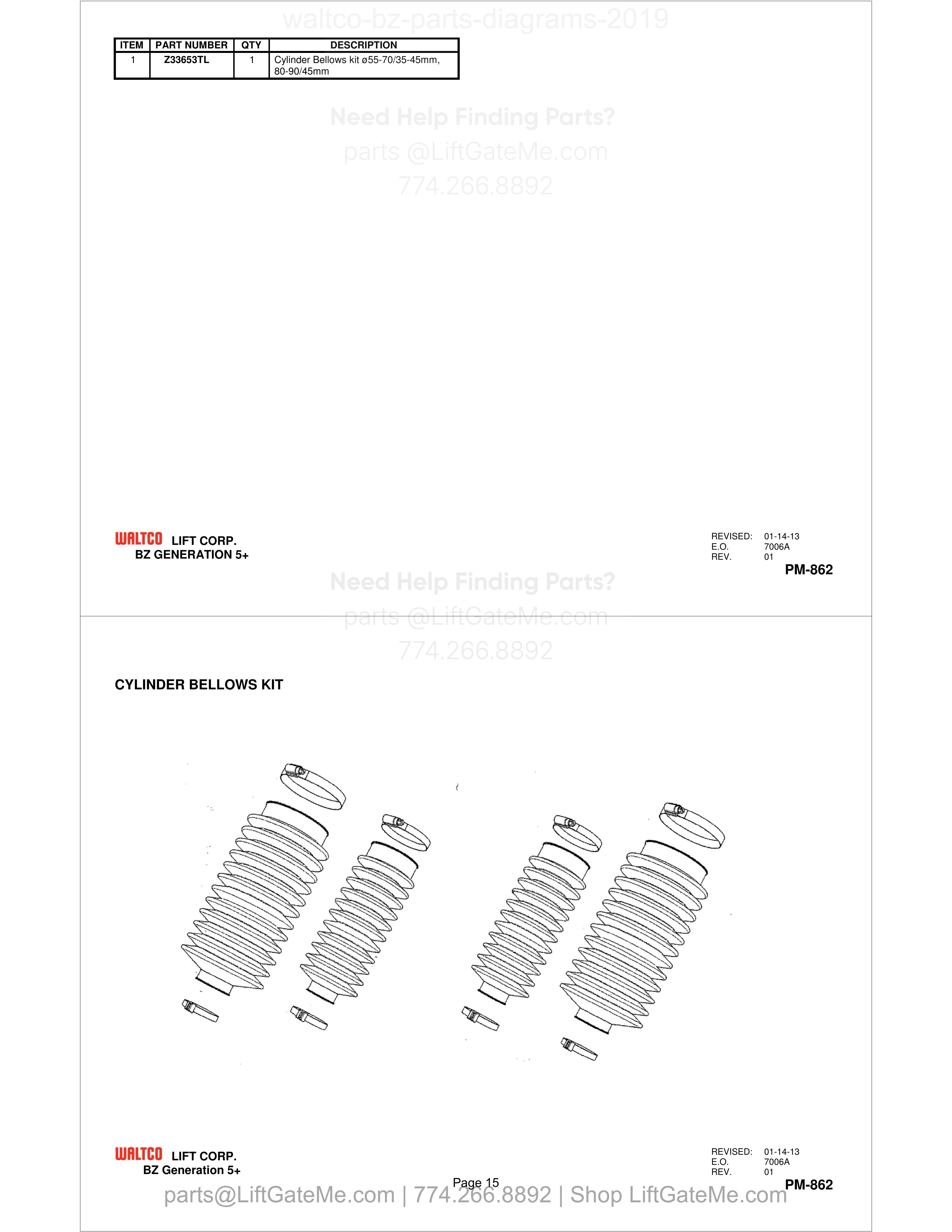

CYLINDER BELLOWS KIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | Z33653TL | Cylinder Bellows kit ø55-70/35-45mm, 80-90/45mm |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

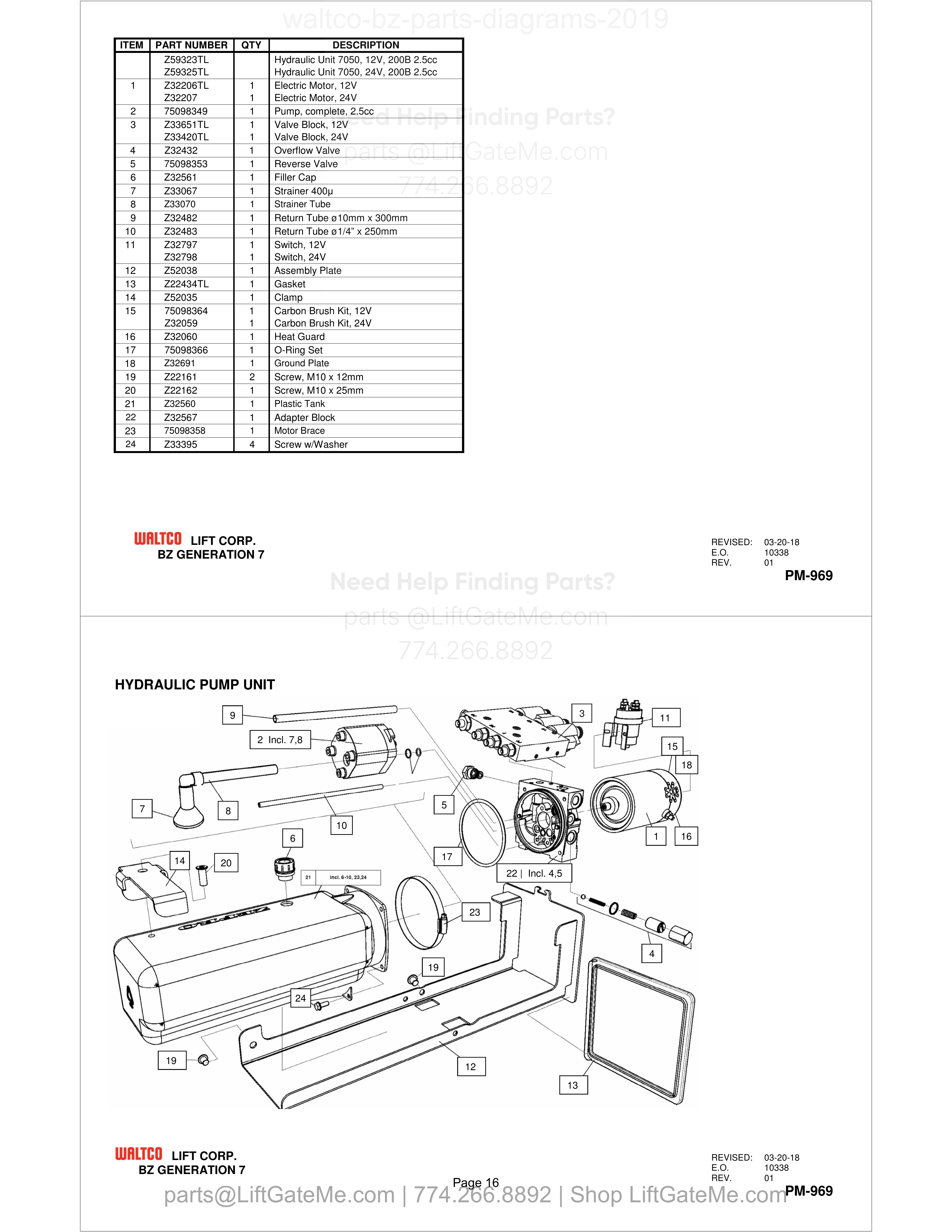

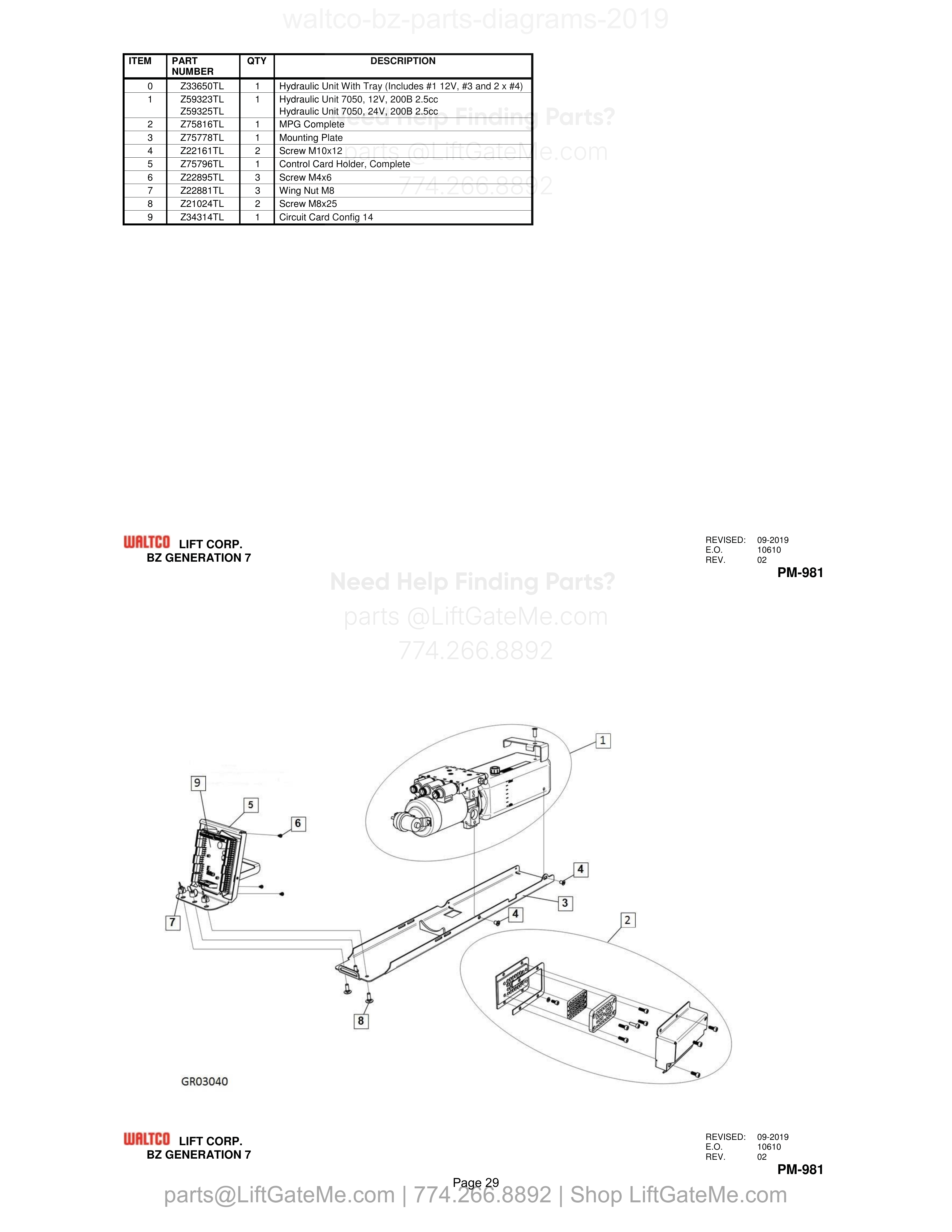

HYDRAULIC PUMP UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| Z59323TL | Hydraulic Unit 7050, 12V, 200B 2.5cc | |||
| Z59325TL | Hydraulic Unit 7050, 24V, 200B 2.5cc | |||
| 1 | 1 | Z32206TL | Electric Motor, 12V | |
| 1 | 1 | Z32207 | Electric Motor, 24V | |
| 2 | 1 | 75098349 | Pump, complete, 2.5cc | |
| 3 | 1 | Z33651TL | Valve Block, 12V | |
| 3 | 1 | Z33420TL | Valve Block, 24V | |
| 4 | 1 | Z32432 | Overflow Valve | |
| 5 | 1 | 75098353 | Reverse Valve | |
| 6 | 1 | Z32561 | Filler Cap | |
| 7 | 1 | Z33067 | Strainer 400µ | |
| 8 | 1 | Z33070 | Strainer Tube | |
| 9 | 1 | Z32482 | Return Tube ø10mm x 300mm | |
| 10 | 1 | Z32483 | Return Tube ø1/4” x 250mm | |
| 11 | 1 | Z32797 | Switch, 12V | |
| 11 | 1 | Z32798 | Switch, 24V | |
| 12 | 1 | Z52038 | Assembly Plate | |
| 13 | 1 | Z22434TL | Gasket | |
| 14 | 1 | Z52035 | Clamp | |
| 15 | 1 | 75098364 | Carbon Brush Kit, 12V | |
| 15 | 1 | Z32059 | Carbon Brush Kit, 24V | |
| 16 | 1 | Z32060 | Heat Guard | |
| 17 | 1 | 75098366 | O-Ring Set | |
| 18 | 1 | Z32691 | Ground Plate | |
| 19 | 2 | Z22161 | Screw, M10 x 12mm | |
| 20 | 1 | Z22162 | Screw, M10 x 25mm | |
| 21 | 1 | Z32560 | Plastic Tank | |
| 22 | 1 | Z32567 | Adapter Block | |
| 23 | 1 | 75098358 | Motor Brace | |
| 24 | 4 | Z33395 | Screw w/Washer |

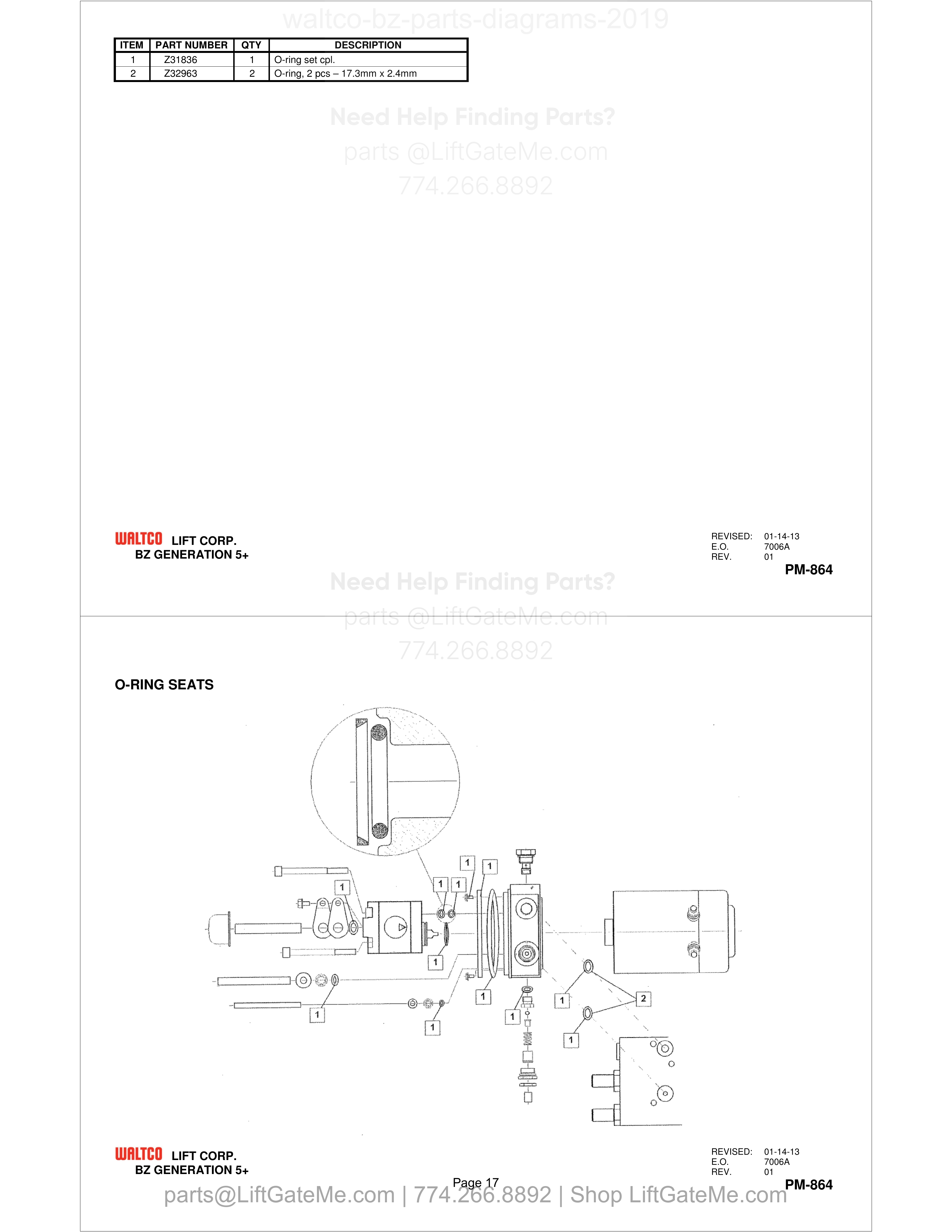

O-RING SEATS
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

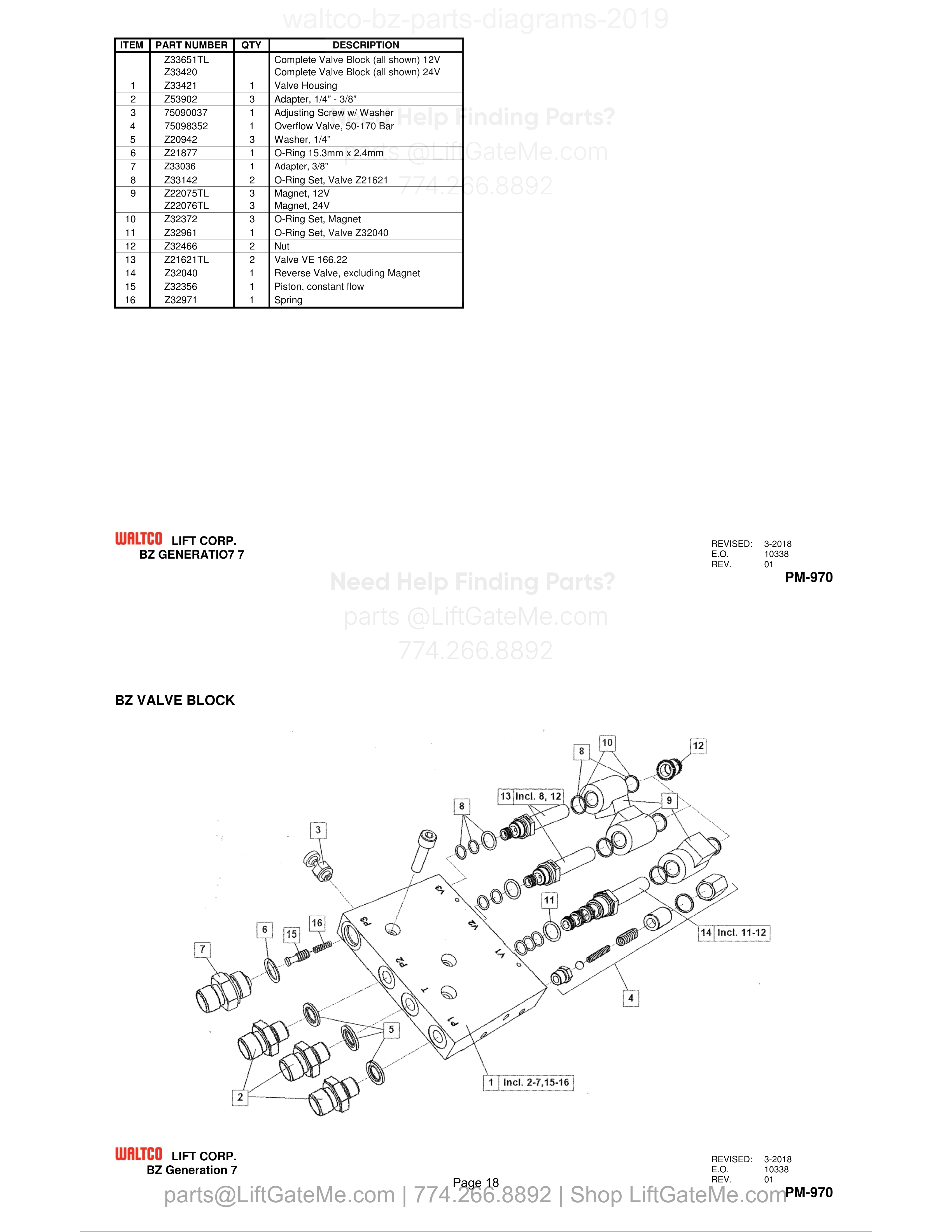

BZ VALVE BLOCK
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| Z33651TL | Complete Valve Block (all shown) 12V | |||
| Z33420 | Complete Valve Block (all shown) 24V | |||
| 1 | 1 | Z33421 | Valve Housing | |
| 2 | 3 | Z53902 | Adapter, 1/4” - 3/8” | |
| 3 | 1 | 75090037 | Adjusting Screw w/ Washer | |
| 4 | 1 | 75098352 | Overflow Valve, 50-170 Bar | |
| 5 | 3 | Z20942 | Washer, 1/4” | |
| 6 | 1 | Z21877 | O-Ring 15.3mm x 2.4mm | |
| 7 | 1 | Z33036 | Adapter, 3/8” | |
| 8 | 2 | Z33142 | O-Ring Set, Valve Z21621 | |
| 9 | 3 | Z22075TL | Magnet, 12V | |
| 9 | 3 | Z22076TL | Magnet, 24V | |
| 10 | 3 | Z32372 | O-Ring Set, Magnet | |
| 11 | 1 | Z32961 | O-Ring Set, Valve Z32040 | |
| 12 | 2 | Z32466 | Nut | |
| 13 | 2 | Z21621TL | Valve VE 166.22 | |
| 14 | 1 | Z32040 | Reverse Valve, excluding Magnet | |
| 15 | 1 | Z32356 | Piston, constant flow | |
| 16 | 1 | Z32971 | Spring |
Diagram Section
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1^A | 1 | Z58645TL | Elec safety valve, 12V | |
| 1 | Z54937TL | Cable set L=2100, White/Blue | ||
| 2 | 66752TL | Valve housing | ||
| 3 | 63610TL | Swivel joint | ||
| 4 | 21663TL | Magnet 12V | ||
| 5 | Z31521TL | O-ring set f. valve | ||
| 6^A | 31174TL | Swivel joint cpl D=1/4” | ||
| 7 | 22199TL | Valve CE6 | ||
| 8 | 20516TL | Washer 3/8” | ||
| 9^A | Z33797TL | Pressure guard 60B incl amp. L=2.1m | ||
| 10^A | 33820TL | Pressure guard 60B incl amp. L=2.95m |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
Diagram Section
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 0 | 1 | Z54131TL | Elec safety valve complete 12V tilt | |
| 1^A | 1 | Z54135TL | Cable set L=1800 white/blue | |
| 2 | 1 | Z66752TL | Valve housing | |
| 3 | 1 | Z31845TL | Swivel joint complete | |
| 4 | 1 | Z21663TL | Magnet 12v | |
| 5 | 1 | Z31521TL | O-ring set | |
| 6^A | 1 | Z31174TL | Swivel joint complete ¼” | |
| 7 | 1 | Z22199TL | Valve CE6 |
Z71187TL
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
PM-976
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | Z54368TL | Connection Adapter, Tilt complete | ||
| 1 | 1 | Z34360TL | Connection Adapter | |
| 2 | 1 | Z75688TL | Plug including washer | |
| 3 | 1 | Z75677TL | Washer 3/8” | |
| 4 | 1 | Z75661TL | Swivel Joint complete. |
PM-978
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
Diagram Section
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | Z75818TL | Constant flow valve, complete 6l/min | |
| 2 | 1 | Z22558TL | Constant flow valve, 6l/min |

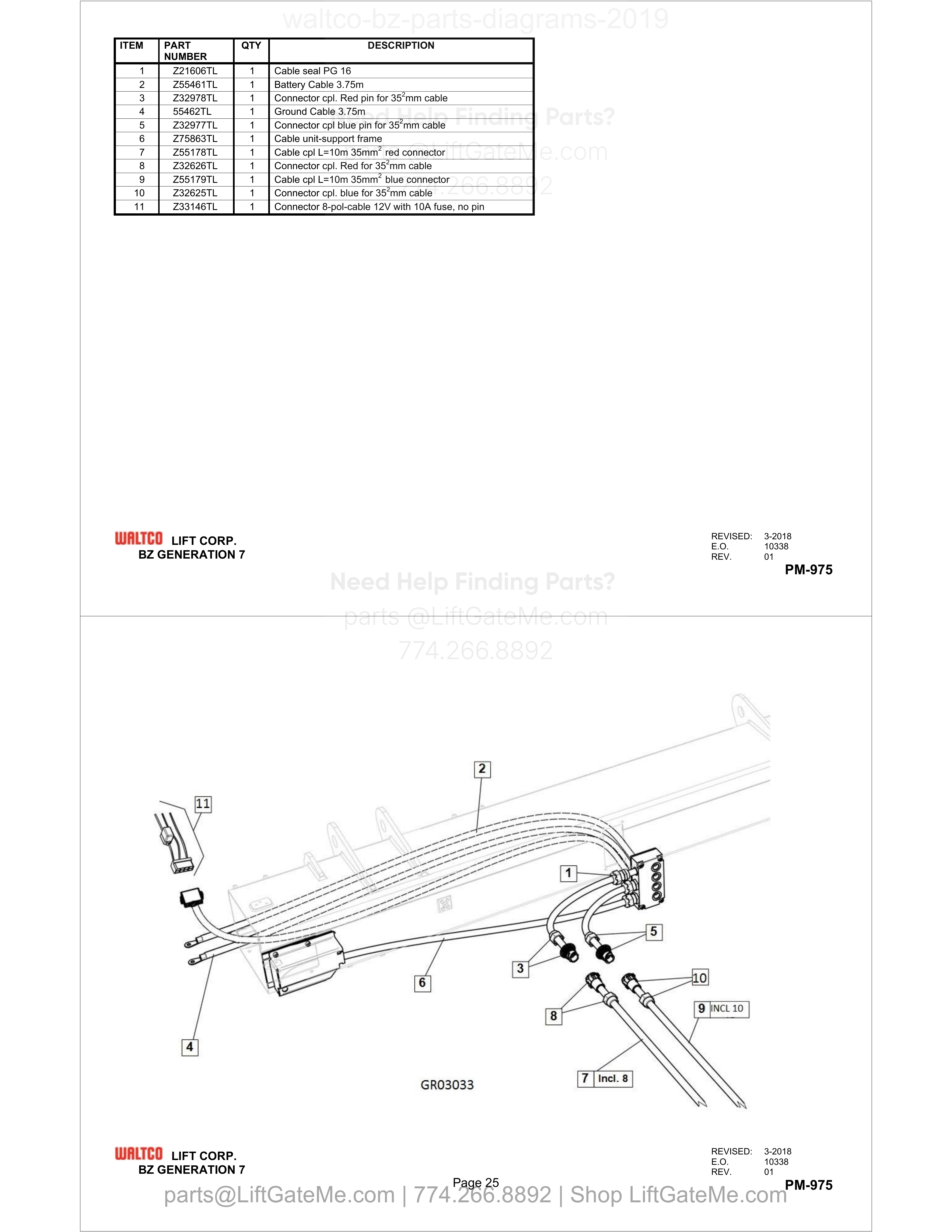

PM-975
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | Z21606TL | Cable seal PG 16 | |
| 2 | 1 | Z55461TL | Battery Cable 3.75m | |
| 3 | 1 | Z32978TL | Connector cpl. Red pin for 35²mm cable | |
| 4 | 1 | 55462TL | Ground Cable 3.75m | |
| 5 | 1 | Z32977TL | Connector cpl blue pin for 35²mm cable | |
| 6 | 1 | Z75863TL | Cable unit-support frame | |
| 7 | 1 | Z55178TL | Cable cpl L=10m 35mm² red connector | |
| 8 | 1 | Z32626TL | Connector cpl. Red for 35²mm cable | |
| 9 | 1 | Z55179TL | Cable cpl L=10m 35mm² blue connector | |
| 10 | 1 | Z32625TL | Connector cpl. blue for 35²mm cable | |
| 11 | 1 | Z33146TL | Connector 8-pol-cable 12V with 10A fuse, no pin |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

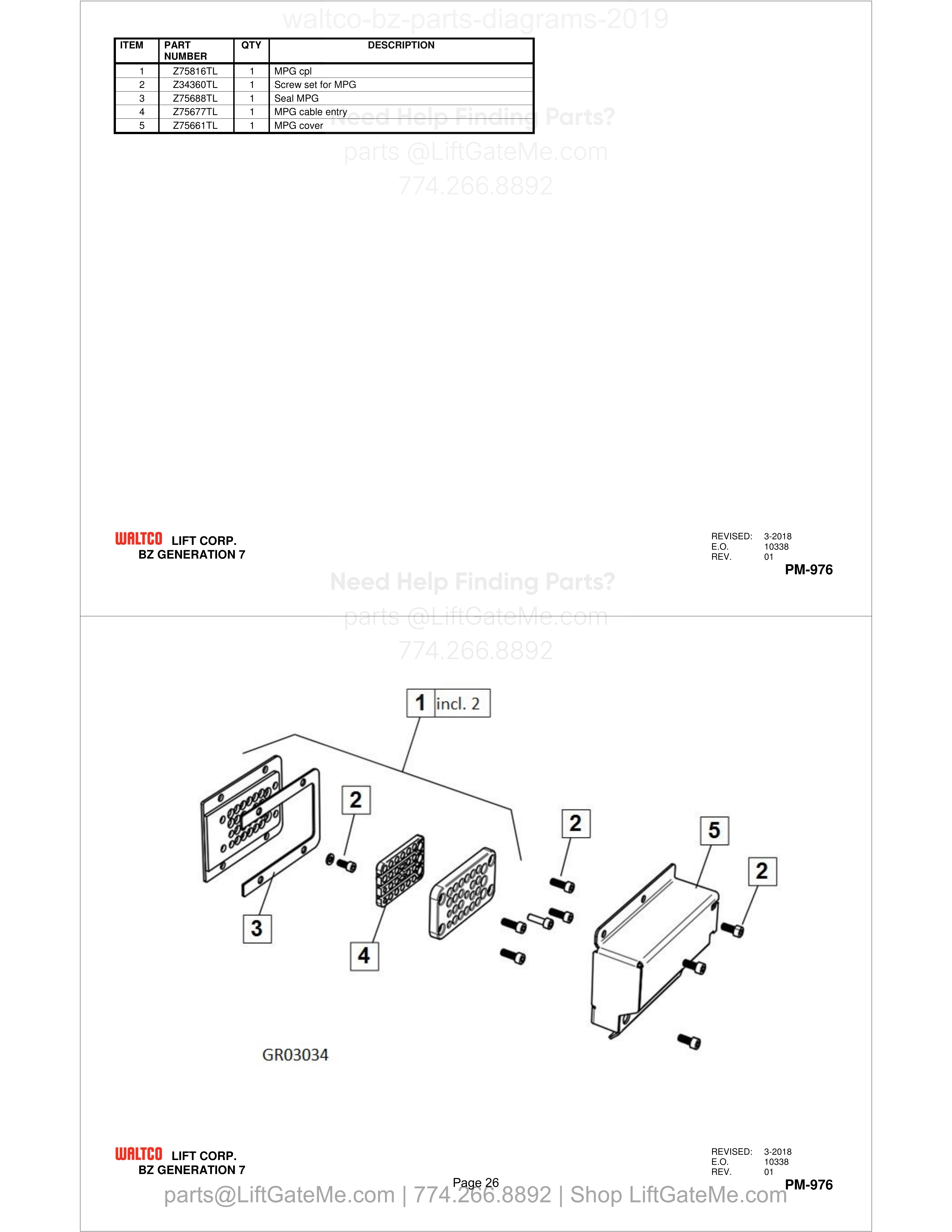

Diagram Section
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | Z75816TL | MPG cpl | |
| 2 | 1 | Z34360TL | Screw set for MPG | |
| 3 | 1 | Z75688TL | Seal MPG | |
| 4 | 1 | Z75677TL | MPG cable entry | |
| 5 | 1 | Z75661TL | MPG cover |

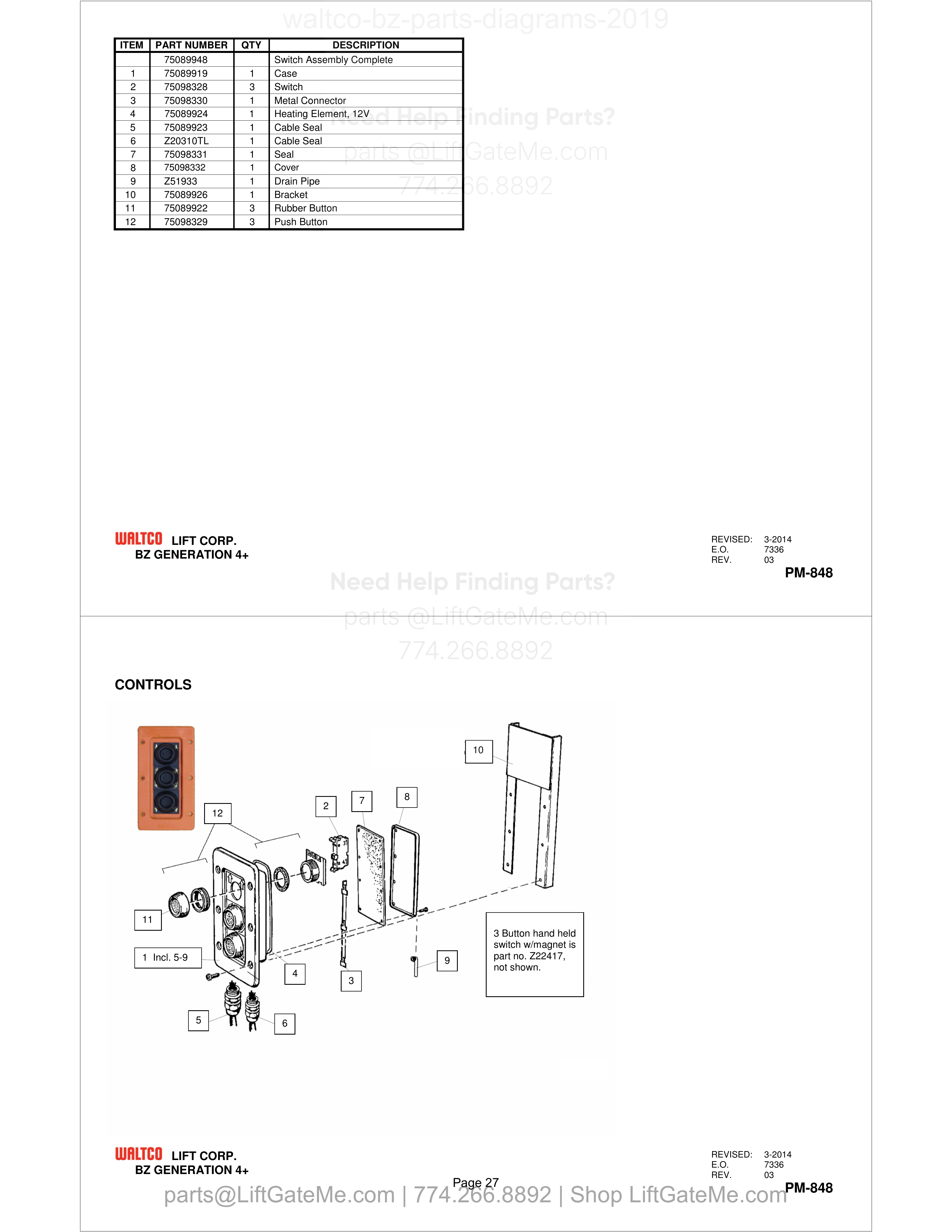

CONTROLS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 75089948 | Switch Assembly Complete | |||
| 1 | 1 | 75089919 | Case | |
| 2 | 3 | 75098328 | Switch | |
| 3 | 1 | 75098330 | Metal Connector | |
| 4 | 1 | 75089924 | Heating Element, 12V | |
| 5 | 1 | 75089923 | Cable Seal | |
| 6 | 1 | Z20310TL | Cable Seal | |
| 7 | 1 | 75098331 | Seal | |
| 8 | 1 | 75098332 | Cover | |
| 9 | 1 | Z51933 | Drain Pipe | |
| 10 | 1 | 75089926 | Bracket | |
| 11 | 3 | 75089922 | Rubber Button | |
| 12 | 3 | 75098329 | Push Button |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

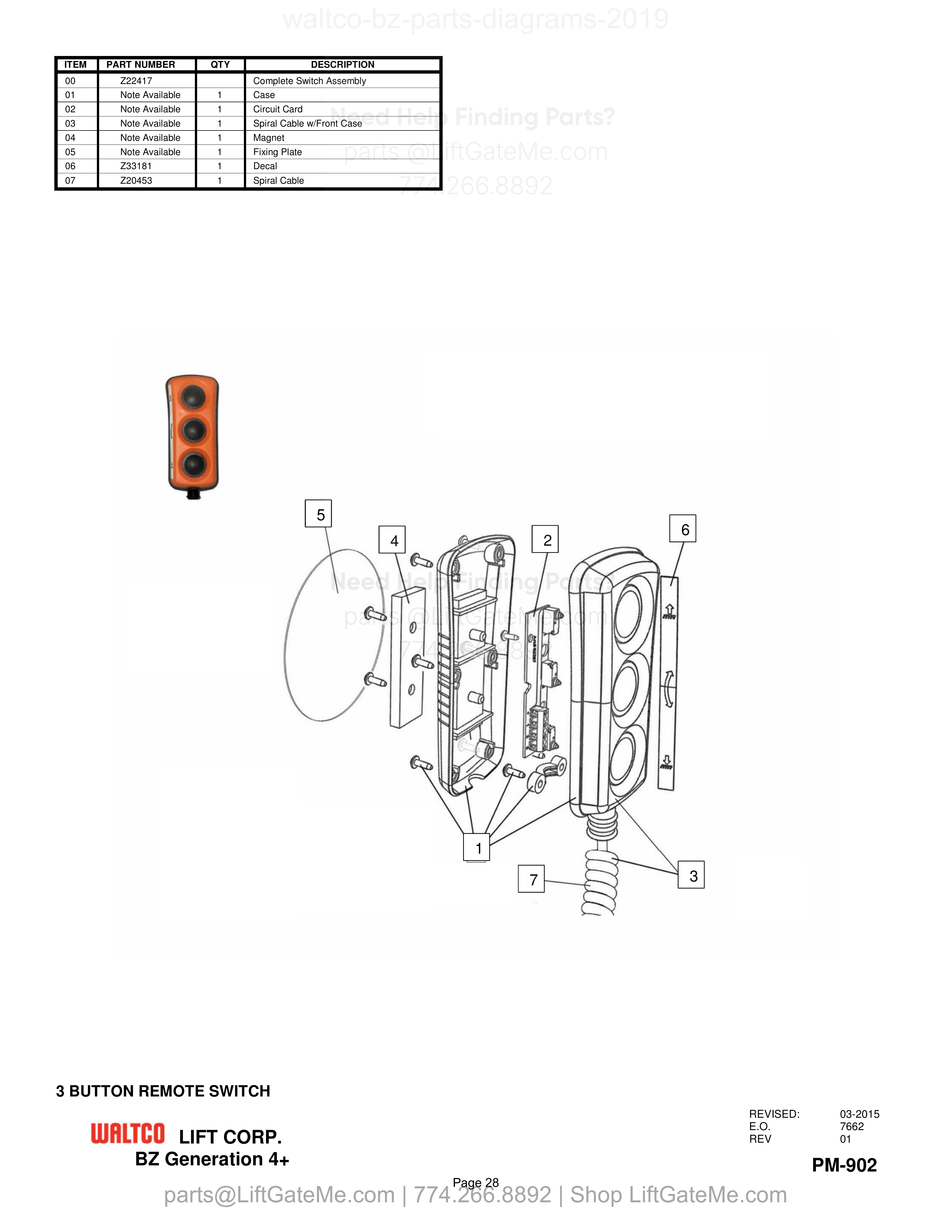

3 BUTTON REMOTE SWITCH
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 00 | Z22417 | Complete Switch Assembly | ||
| 01 | 1 | Note Available | Case | |
| 02 | 1 | Note Available | Circuit Card | |
| 03 | 1 | Note Available | Spiral Cable w/Front Case | |
| 04 | 1 | Note Available | Magnet | |
| 05 | 1 | Note Available | Fixing Plate | |
| 06 | 1 | Z33181 | Decal | |
| 07 | 1 | Z20453 | Spiral Cable |
PM-981
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 0 | 1 | Z33650TL | Hydraulic Unit With Tray (Includes #1 12V, #3 and 2 x #4) | |
| 1 | 1 | Z59323TL | Hydraulic Unit 7050, 12V, 200B 2.5cc | |
| 1 | Z59325TL | Hydraulic Unit 7050, 24V, 200B 2.5cc | ||
| 2 | 1 | Z75816TL | MPG Complete | |
| 3 | 1 | Z75778TL | Mounting Plate | |
| 4 | 2 | Z22161TL | Screw M10x12 | |
| 5 | 1 | Z75796TL | Control Card Holder, Complete | |
| 6 | 3 | Z22895TL | Screw M4x6 | |
| 7 | 3 | Z22881TL | Wing Nut M8 | |
| 8 | 2 | Z21024TL | Screw M8x25 | |
| 9 | 1 | Z34314TL | Circuit Card Config 14 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

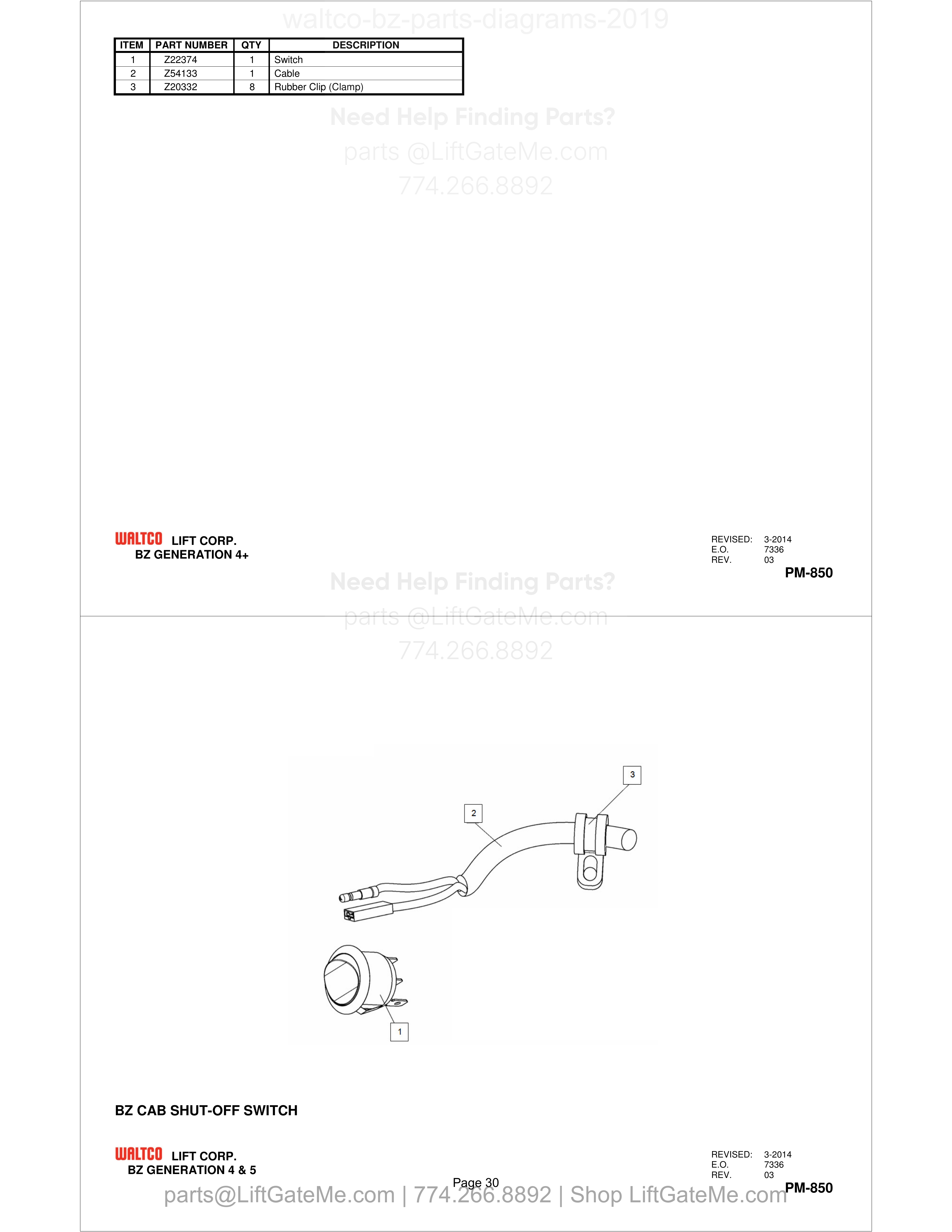

BZ CAB SHUT-OFF SWITCH
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | Z22374 | Switch | |
| 2 | 1 | Z54133 | Cable | |
| 3 | 8 | Z20332 | Rubber Clip (Clamp) |

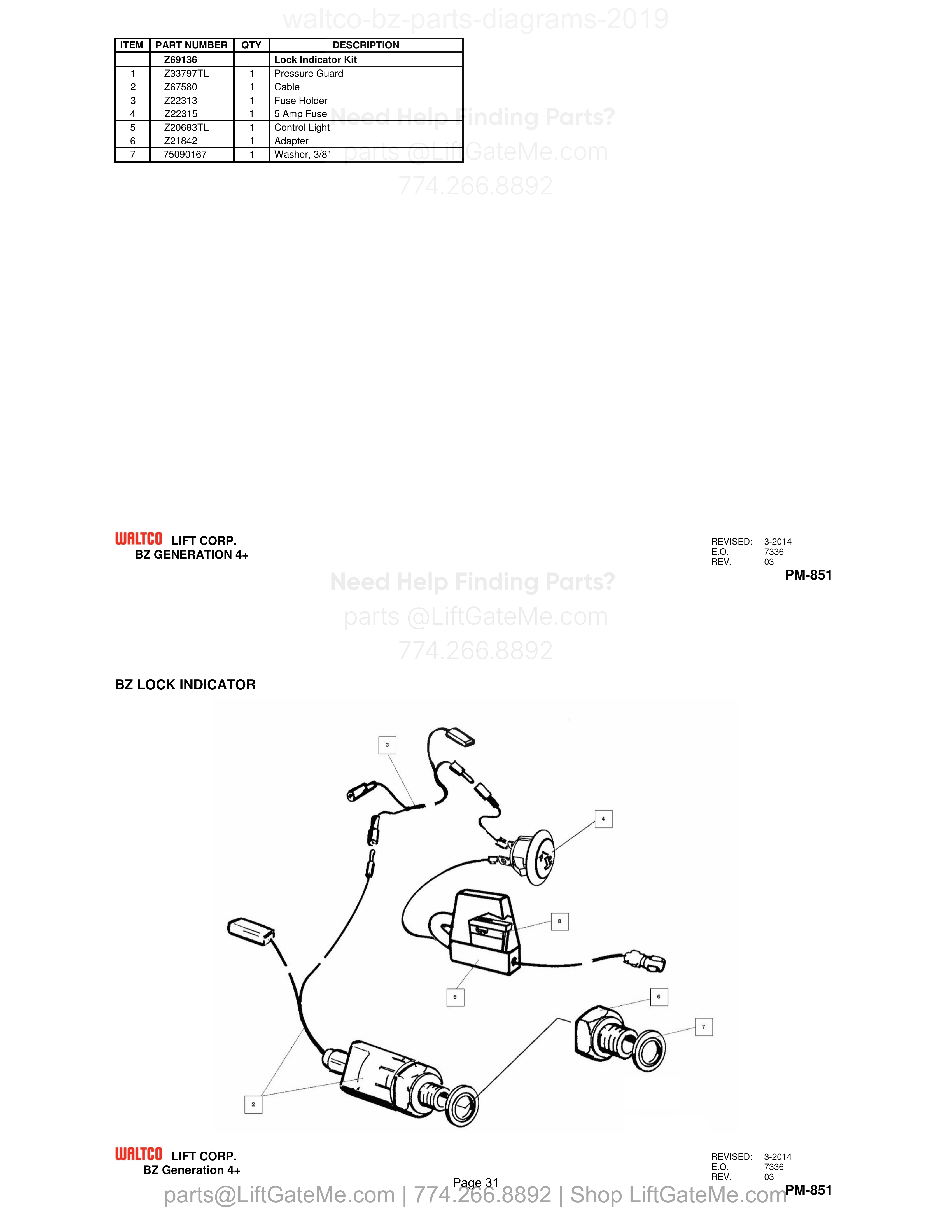

BZ LOCK INDICATOR
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| Z69136 | Lock Indicator Kit | |||
| 1 | 1 | Z33797TL | Pressure Guard | |
| 2 | 1 | Z67580 | Cable | |
| 3 | 1 | Z22313 | Fuse Holder | |
| 4 | 1 | Z22315 | 5 Amp Fuse | |
| 5 | 1 | Z20683TL | Control Light | |
| 6 | 1 | Z21842 | Adapter | |
| 7 | 1 | 75090167 | Washer, 3/8” |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
