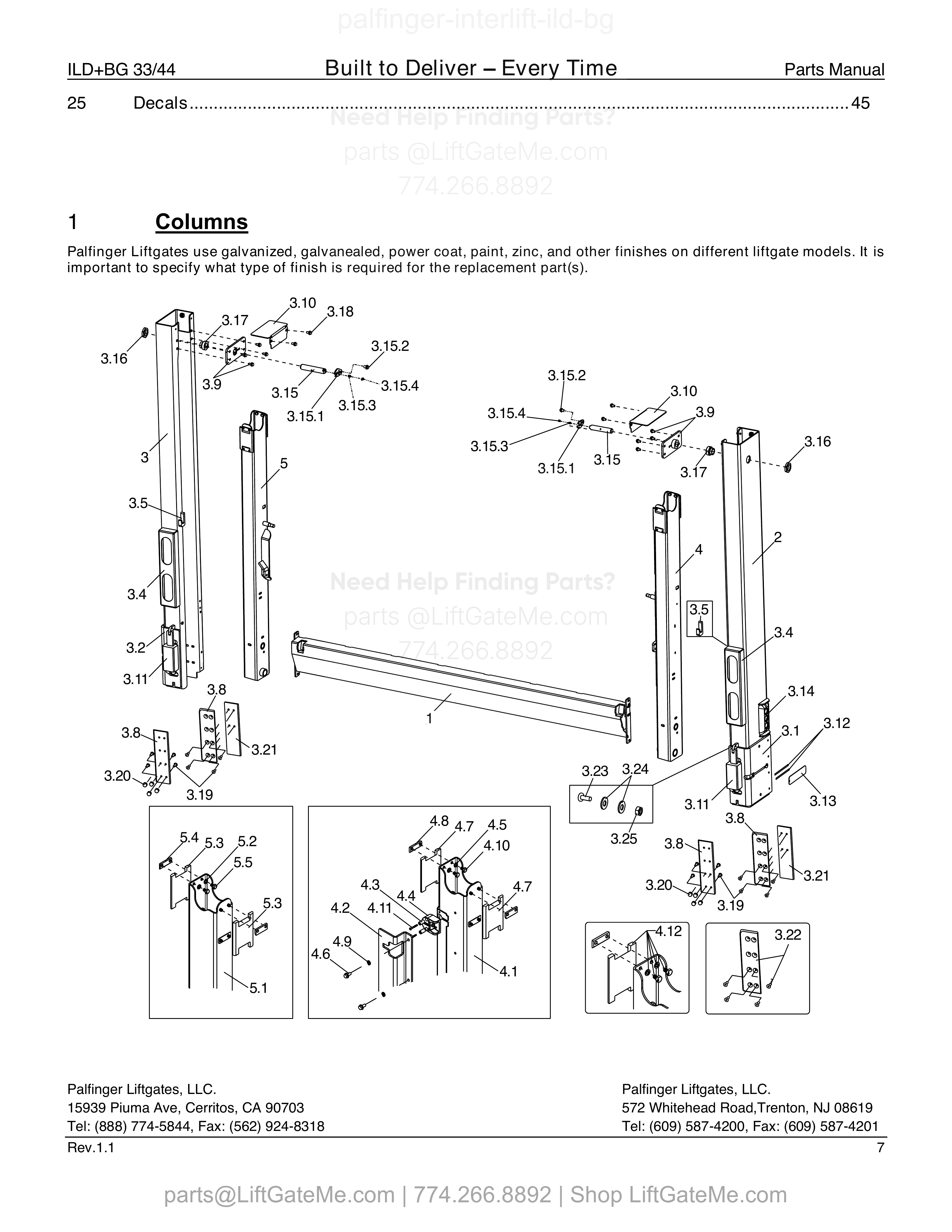

Palfinger Interlift ILD-BG Liftgate Parts Diagrams | Approximate Years 2023
Palfinger Interlift ILD-BG Tuck-Under liftgate parts lookup
Find Palfinger Interlift ILD-BG parts diagrams for 2023 tuck-under liftgates. These breakdowns help you match part numbers, confirm assemblies, and order the correct replacement parts.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i
Columns

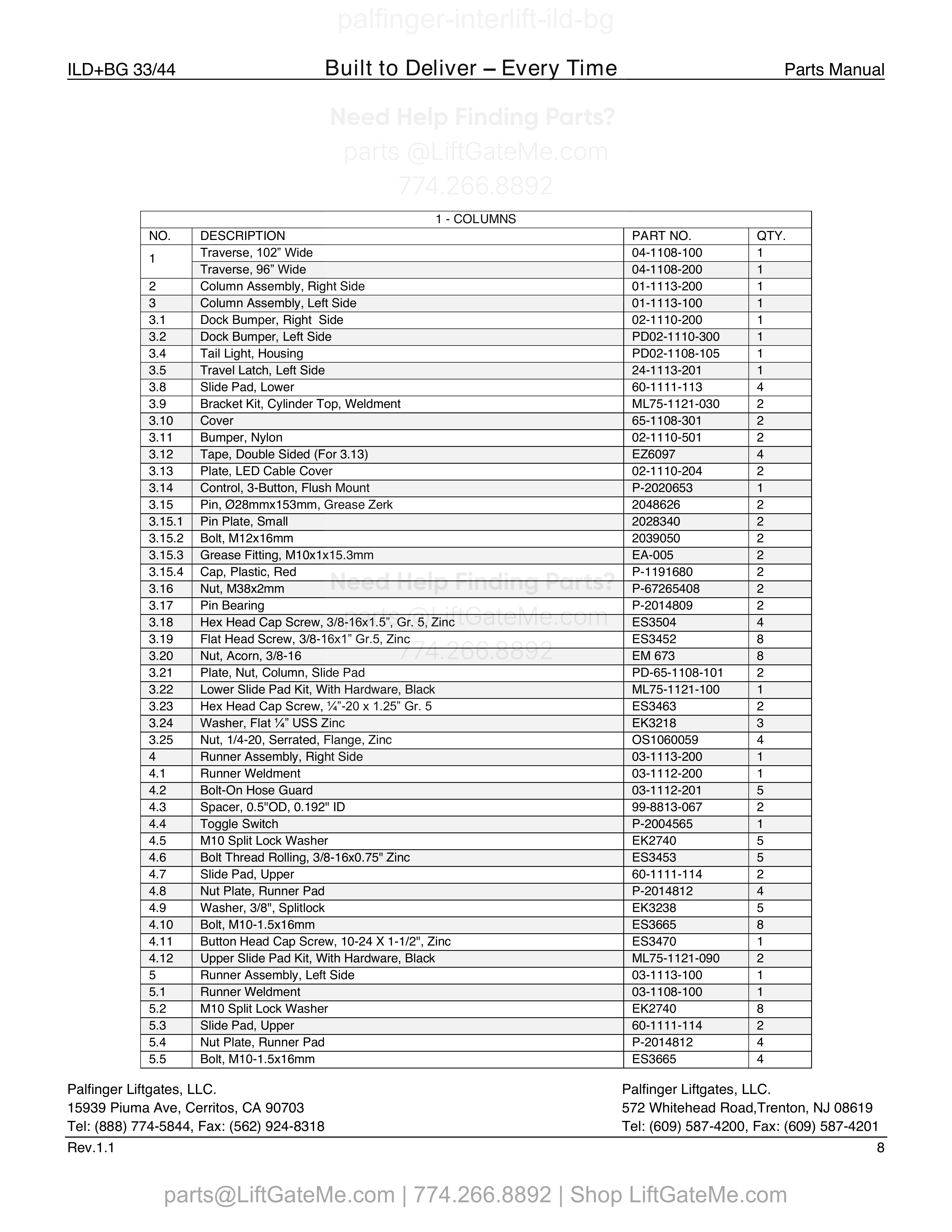

| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 04-1108-100 | Traverse, 102” Wide | |
| 1 | 1 | 04-1108-200 | Traverse, 96” Wide | |
| 2 | 1 | 01-1113-200 | Column Assembly, Right Side | |
| 3 | 1 | 01-1113-100 | Column Assembly, Left Side | |
| 3.1 | 1 | 02-1110-200 | Dock Bumper, Right Side | |
| 3.2 | 1 | PD02-1110-300 | Dock Bumper, Left Side | |
| 3.4 | 1 | PD02-1108-105 | Tail Light, Housing | |
| 3.5 | 1 | 24-1113-201 | Travel Latch, Left Side | |
| 3.8 | 4 | 60-1111-113 | Slide Pad, Lower | |
| 3.9 | 2 | ML75-1121-030 | Bracket Kit, Cylinder Top, Weldment | |
| 3.10 | 2 | 65-1108-301 | Cover | |
| 3.11 | 2 | 02-1110-501 | Bumper, Nylon | |
| 3.12 | 4 | EZ6097 | Tape, Double Sided (For 3.13) | |
| 3.13 | 2 | 02-1110-204 | Plate, LED Cable Cover | |
| 3.14 | 1 | P-2020653 | Control, 3-Button, Flush Mount | |
| 3.15 | 2 | 2048626 | Pin, Ø28mmx153mm, Grease Zerk | |
| 3.15.1 | 2 | 2028340 | Pin Plate, Small | |
| 3.15.2 | 2 | 2039050 | Bolt, M12x16mm | |
| 3.15.3 | 2 | EA-005 | Grease Fitting, M10x1x15.3mm | |
| 3.15.4 | 2 | P-1191680 | Cap, Plastic, Red | |
| 3.16 | 2 | P-67265408 | Nut, M38x2mm | |
| 3.17 | 2 | P-2014809 | Pin Bearing | |
| 3.18 | 4 | ES3504 | Hex Head Cap Screw, 3/8-16x1.5”, Gr. 5, Zinc | |
| 3.19 | 8 | ES3452 | Flat Head Screw, 3/8-16x1” Gr.5, Zinc | |
| 3.20 | 8 | EM 673 | Nut, Acorn, 3/8-16 | |
| 3.21 | 2 | PD-65-1108-101 | Plate, Nut, Column, Slide Pad | |
| 3.22 | 1 | ML75-1121-100 | Lower Slide Pad Kit, With Hardware, Black | |
| 3.23 | 2 | ES3463 | Hex Head Cap Screw, ¼”-20 x 1.25” Gr. 5 | |
| 3.24 | 3 | EK3218 | Washer, Flat ¼” USS Zinc | |
| 3.25 | 4 | OS1060059 | Nut, 1/4-20, Serrated, Flange, Zinc | |
| 4 | 1 | 03-1113-200 | Runner Assembly, Right Side | |
| 4.1 | 1 | 03-1112-200 | Runner Weldment | |
| 4.2 | 5 | 03-1112-201 | Bolt-On Hose Guard | |
| 4.3 | 2 | 99-8813-067 | Spacer, 0.5"OD, 0.192" ID | |
| 4.4 | 1 | P-2004565 | Toggle Switch | |
| 4.5 | 5 | EK2740 | M10 Split Lock Washer | |
| 4.6 | 5 | ES3453 | Bolt Thread Rolling, 3/8-16x0.75" Zinc | |
| 4.7 | 2 | 60-1111-114 | Slide Pad, Upper | |
| 4.8 | 4 | P-2014812 | Nut Plate, Runner Pad | |
| 4.9 | 5 | EK3238 | Washer, 3/8", Splitlock | |
| 4.10 | 8 | ES3665 | Bolt, M10-1.5x16mm | |
| 4.11 | 1 | ES3470 | Button Head Cap Screw, 10-24 X 1-1/2", Zinc | |
| 4.12 | 2 | ML75-1121-090 | Upper Slide Pad Kit, With Hardware, Black | |
| 5 | 1 | 03-1113-100 | Runner Assembly, Left Side | |
| 5.1 | 1 | 03-1108-100 | Runner Weldment | |
| 5.2 | 8 | EK2740 | M10 Split Lock Washer | |
| 5.3 | 2 | 60-1111-114 | Slide Pad, Upper | |
| 5.4 | 4 | P-2014812 | Nut Plate, Runner Pad | |
| 5.5 | 4 | ES3665 | Bolt, M10-1.5x16mm |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

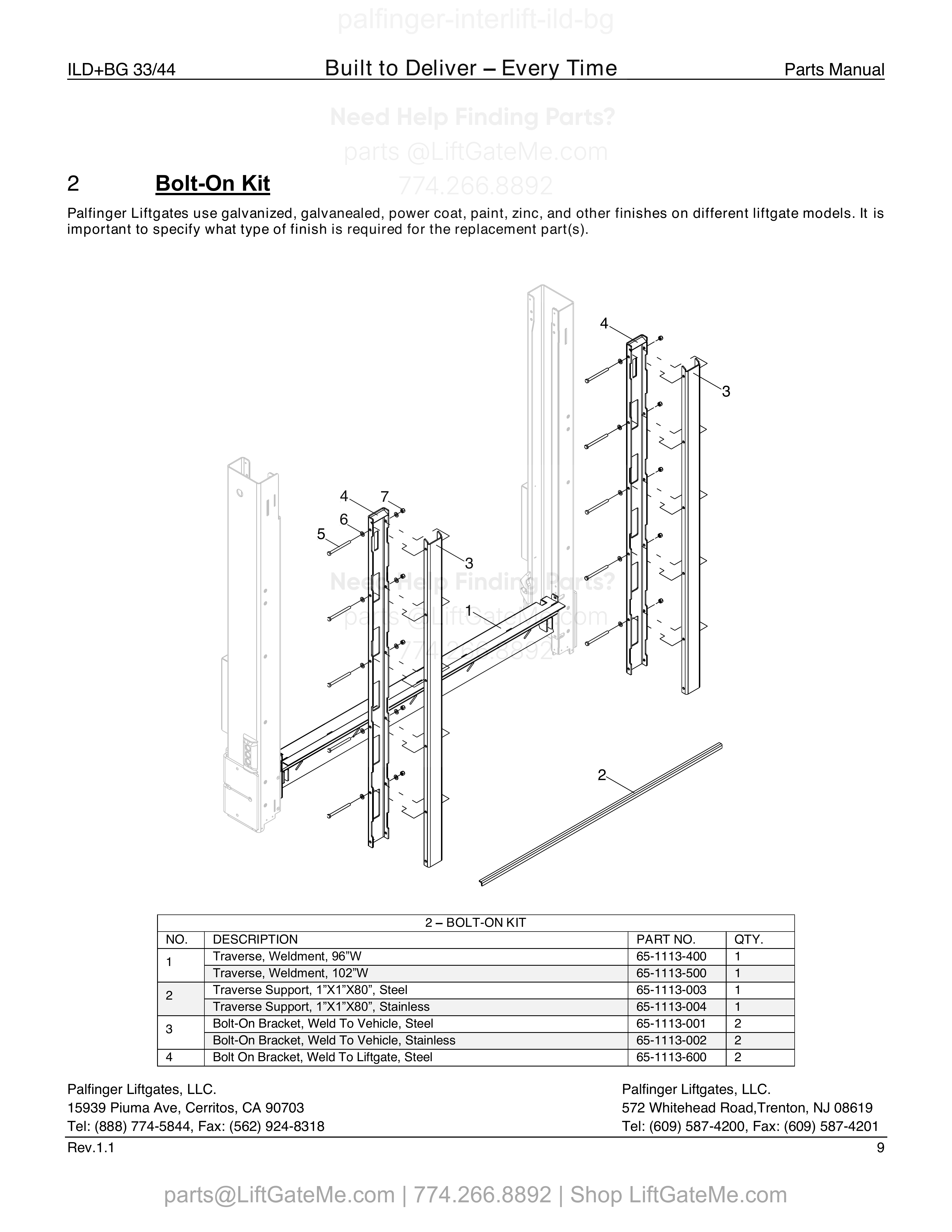

Bolt-On Kit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 65-1113-400 | Traverse, Weldment, 96”W | |
| 1 | 1 | 65-1113-500 | Traverse, Weldment, 102”W | |
| 2 | 1 | 65-1113-003 | Traverse Support, 1”X1”X80”, Steel | |
| 2 | 1 | 65-1113-004 | Traverse Support, 1”X1”X80”, Stainless | |
| 3 | 2 | 65-1113-001 | Bolt-On Bracket, Weld To Vehicle, Steel | |
| 3 | 2 | 65-1113-002 | Bolt-On Bracket, Weld To Vehicle, Stainless | |
| 4 | 2 | 65-1113-600 | Bolt On Bracket, Weld To Liftgate, Steel |
Bolt-On Kit (continued)
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

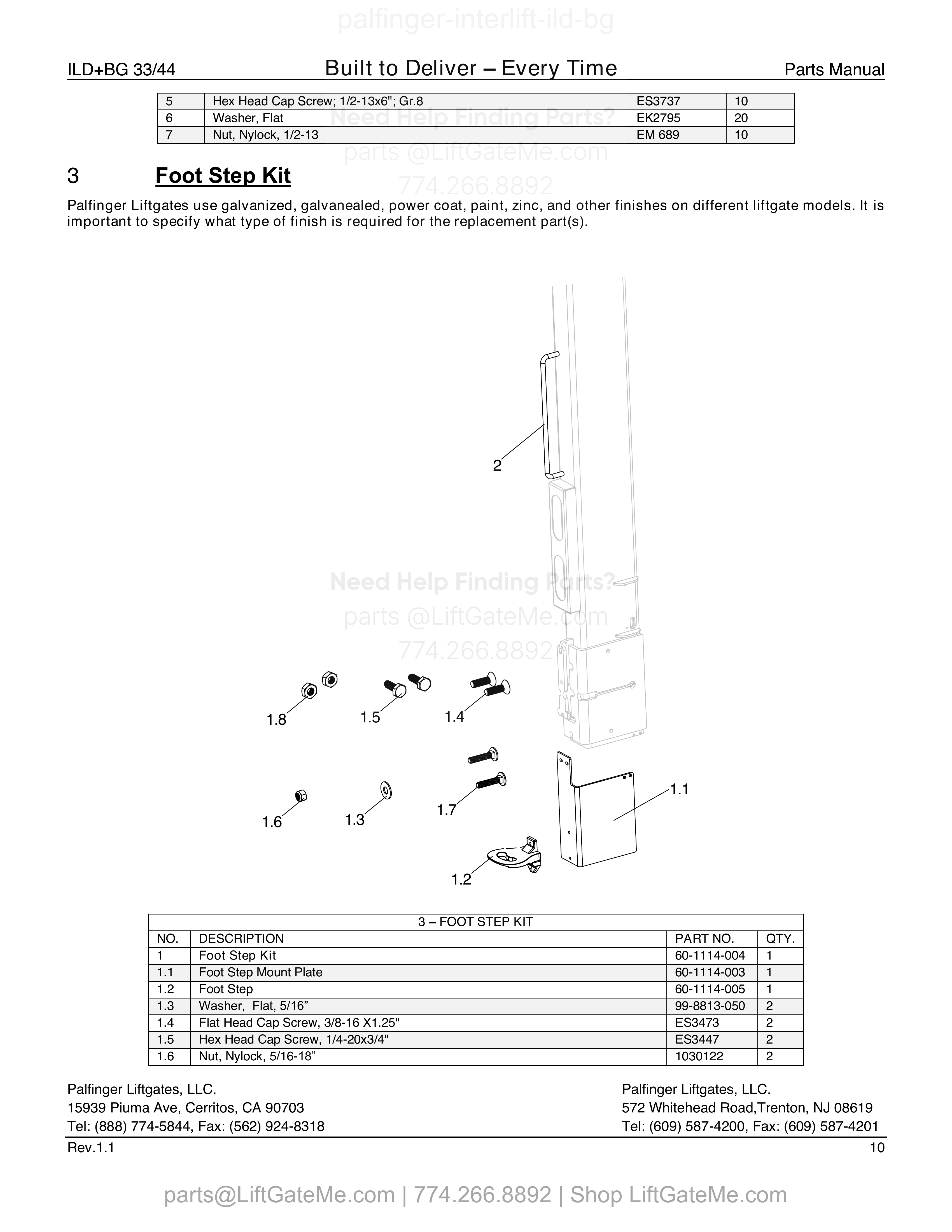

Foot Step Kit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 60-1114-004 | Foot Step Kit | |
| 1.1 | 1 | 60-1114-003 | Foot Step Mount Plate | |
| 1.2 | 1 | 60-1114-005 | Foot Step | |
| 1.3 | 2 | 99-8813-050 | Washer, Flat, 5/16” | |
| 1.4 | 2 | ES3473 | Flat Head Cap Screw, 3/8-16 X1.25" | |
| 1.5 | 2 | ES3447 | Hex Head Cap Screw, 1/4-20x3/4" | |
| 1.6 | 2 | 1030122 | Nut, Nylock, 5/16-18” |
Foot Step Kit (continued)
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

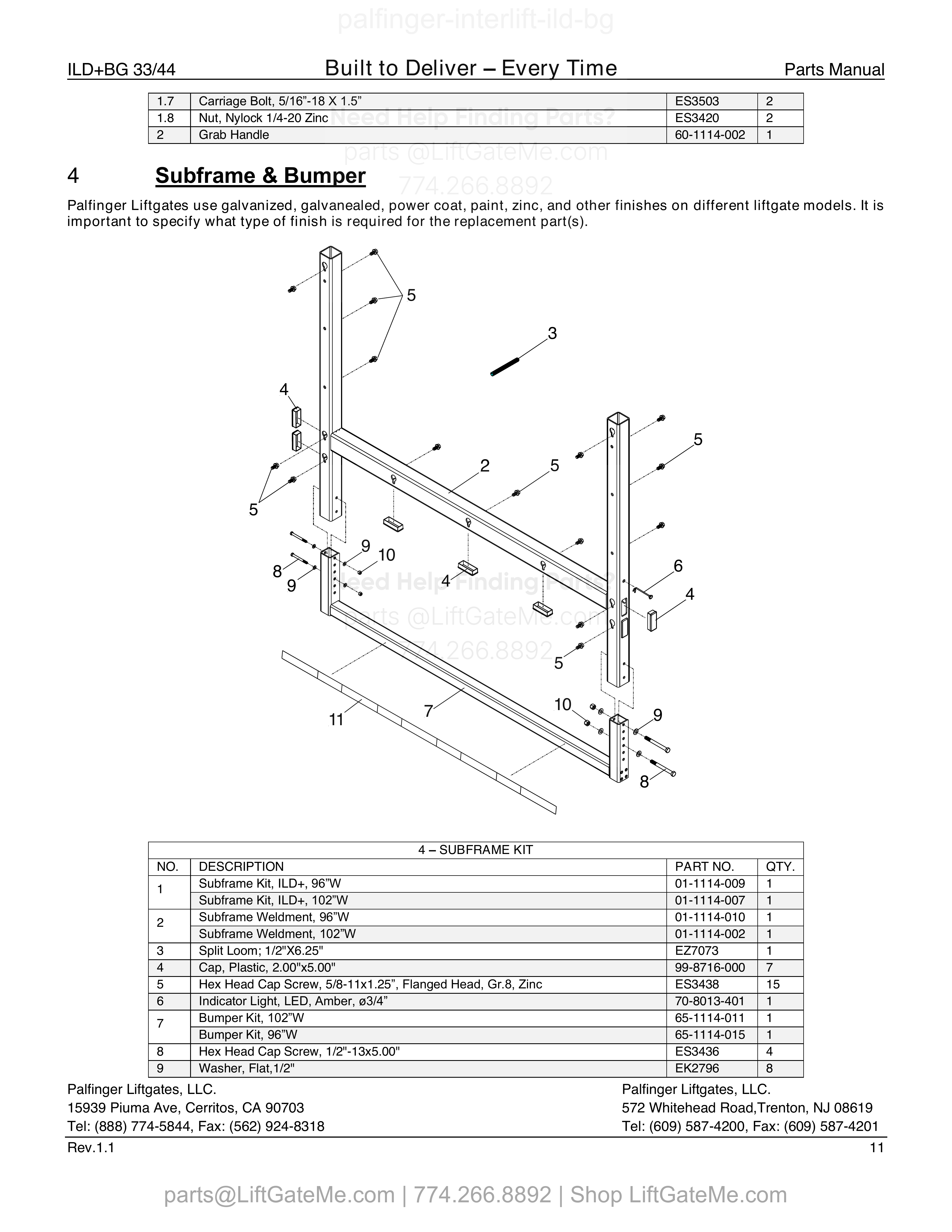

Subframe & Bumper
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 01-1114-009 | Subframe Kit, ILD+, 96”W | |
| 1 | 1 | 01-1114-007 | Subframe Kit, ILD+, 102”W | |
| 2 | 1 | 01-1114-010 | Subframe Weldment, 96”W | |
| 2 | 1 | 01-1114-002 | Subframe Weldment, 102”W | |
| 3 | 1 | EZ7073 | Split Loom; 1/2"X6.25" | |
| 4 | 7 | 99-8716-000 | Cap, Plastic, 2.00"x5.00" | |
| 5 | 15 | ES3438 | Hex Head Cap Screw, 5/8-11x1.25”, Flanged Head, Gr.8, Zinc | |
| 6 | 1 | 70-8013-401 | Indicator Light, LED, Amber, ø3/4” | |
| 7 | 1 | 65-1114-011 | Bumper Kit, 102”W | |
| 7 | 1 | 65-1114-015 | Bumper Kit, 96”W | |
| 8 | 4 | ES3436 | Hex Head Cap Screw, 1/2"-13x5.00" | |
| 9 | 8 | EK2796 | Washer, Flat,1/2" |
Subframe & Bumper (continued)
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

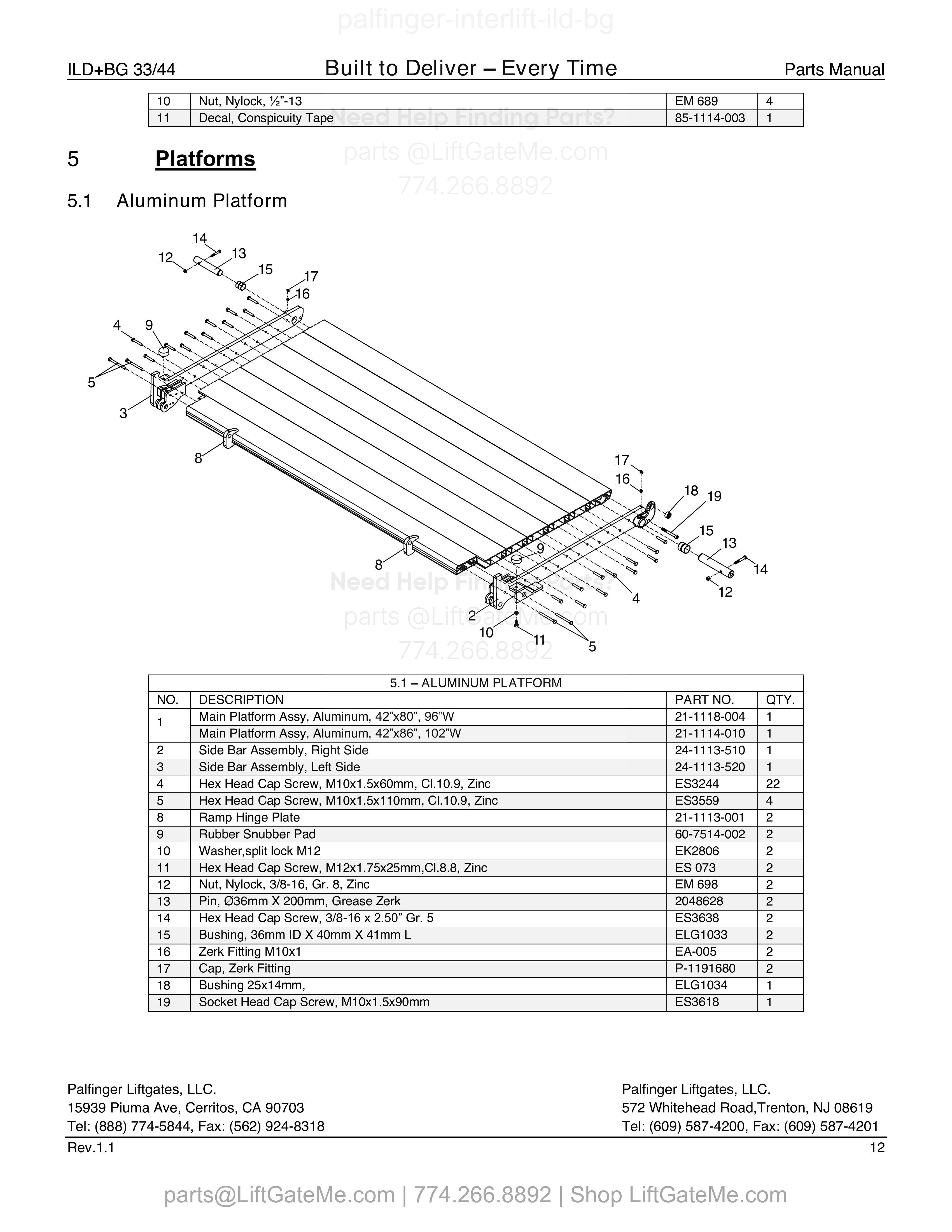

Aluminum Platform
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 21-1118-004 | Main Platform Assy, Aluminum, 42”x80”, 96”W | |
| 1 | 1 | 21-1114-010 | Main Platform Assy, Aluminum, 42”x86”, 102”W | |
| 2 | 1 | 24-1113-510 | Side Bar Assembly, Right Side | |
| 3 | 1 | 24-1113-520 | Side Bar Assembly, Left Side | |
| 4 | 22 | ES3244 | Hex Head Cap Screw, M10x1.5x60mm, Cl.10.9, Zinc | |
| 5 | 4 | ES3559 | Hex Head Cap Screw, M10x1.5x110mm, Cl.10.9, Zinc | |
| 8 | 2 | 21-1113-001 | Ramp Hinge Plate | |
| 9 | 2 | 60-7514-002 | Rubber Snubber Pad | |
| 10 | 2 | EK2806 | Washer,split lock M12 | |
| 11 | 2 | ES 073 | Hex Head Cap Screw, M12x1.75x25mm,Cl.8.8, Zinc | |
| 12 | 2 | EM 698 | Nut, Nylock, 3/8-16, Gr. 8, Zinc | |
| 13 | 2 | 2048628 | Pin, Ø36mm X 200mm, Grease Zerk | |
| 14 | 2 | ES3638 | Hex Head Cap Screw, 3/8-16 x 2.50” Gr. 5 | |
| 15 | 2 | ELG1033 | Bushing, 36mm ID X 40mm X 41mm L | |
| 16 | 2 | EA-005 | Zerk Fitting M10x1 | |
| 17 | 2 | P-1191680 | Cap, Zerk Fitting | |
| 18 | 1 | ELG1034 | Bushing 25x14mm, | |
| 19 | 1 | ES3618 | Socket Head Cap Screw, M10x1.5x90mm |

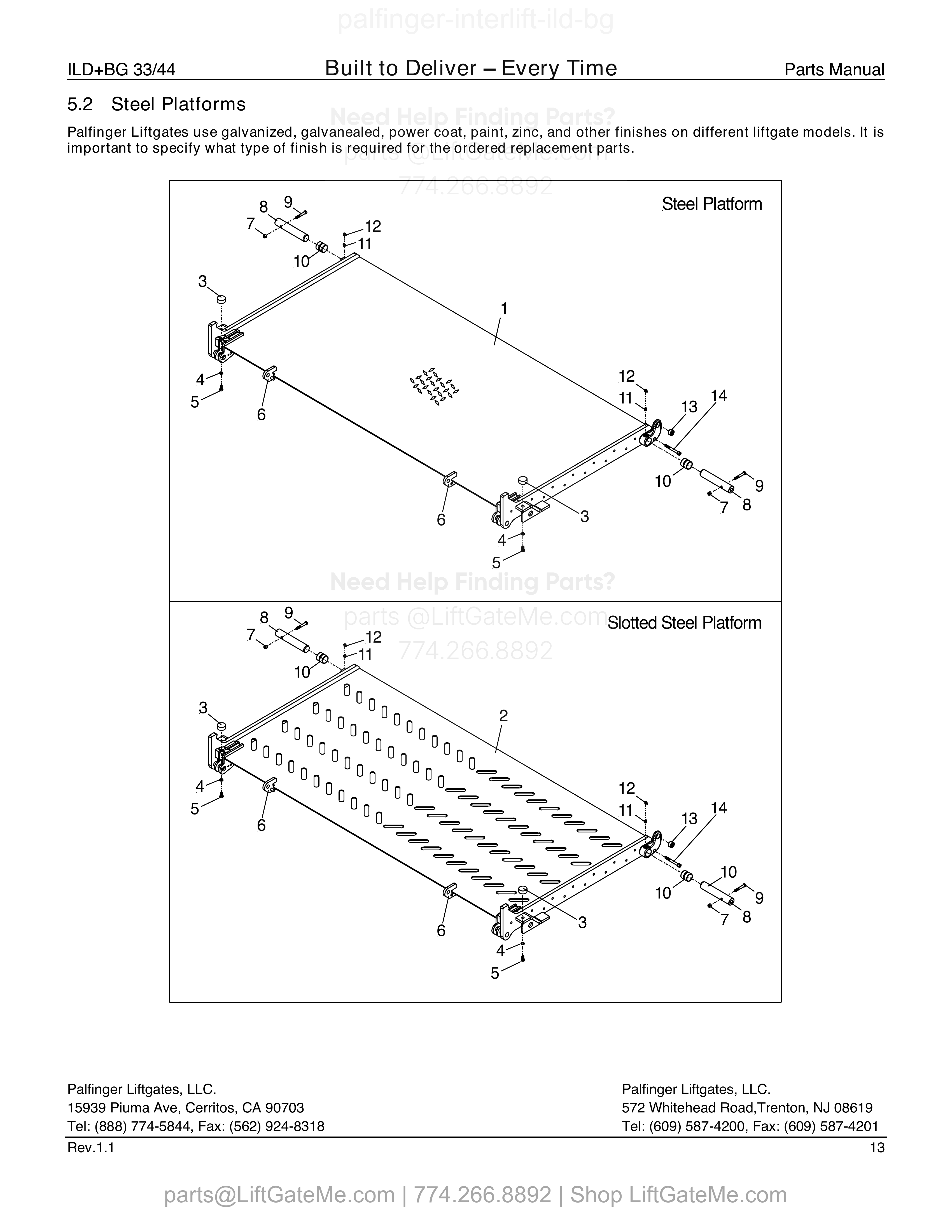

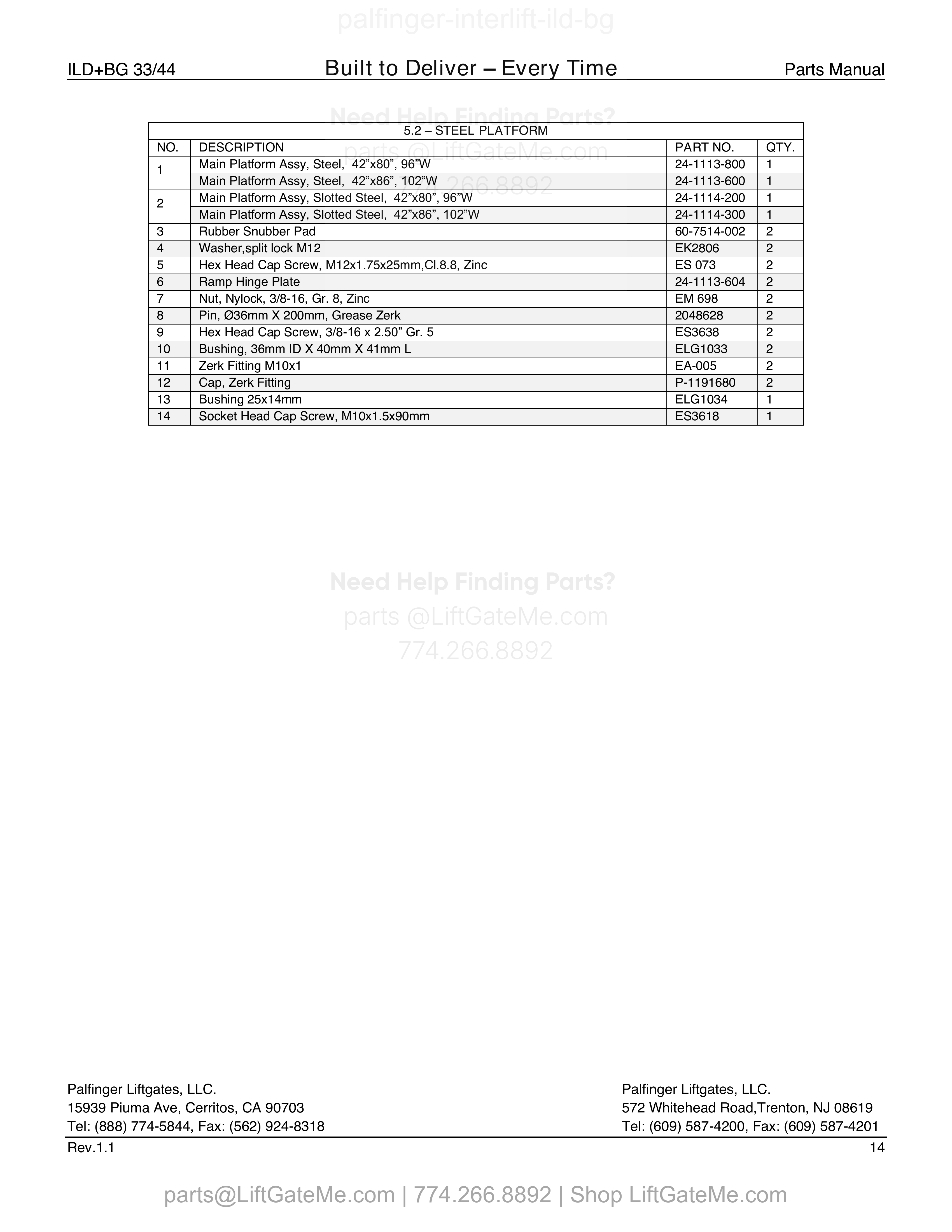

5.2 Steel Platforms
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 24-1113-800 | Main Platform Assy, Steel, 42”x80”, 96”W | |
| 1 | 1 | 24-1113-600 | Main Platform Assy, Steel, 42”x86”, 102”W | |
| 2 | 1 | 24-1114-200 | Main Platform Assy, Slotted Steel, 42”x80”, 96”W | |
| 2 | 1 | 24-1114-300 | Main Platform Assy, Slotted Steel, 42”x86”, 102”W | |
| 3 | 2 | 60-7514-002 | Rubber Snubber Pad | |
| 4 | 2 | EK2806 | Washer,split lock M12 | |
| 5 | 2 | ES 073 | Hex Head Cap Screw, M12x1.75x25mm,Cl.8.8, Zinc | |
| 6 | 2 | 24-1113-604 | Ramp Hinge Plate | |
| 7 | 2 | EM 698 | Nut, Nylock, 3/8-16, Gr. 8, Zinc | |
| 8 | 2 | 2048628 | Pin, Ø36mm X 200mm, Grease Zerk | |
| 9 | 2 | ES3638 | Hex Head Cap Screw, 3/8-16 x 2.50” Gr. 5 | |
| 10 | 2 | ELG1033 | Bushing, 36mm ID X 40mm X 41mm L | |
| 11 | 2 | EA-005 | Zerk Fitting M10x1 | |
| 12 | 2 | P-1191680 | Cap, Zerk Fitting | |
| 13 | 1 | ELG1034 | Bushing 25x14mm | |
| 14 | 1 | ES3618 | Socket Head Cap Screw, M10x1.5x90mm |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

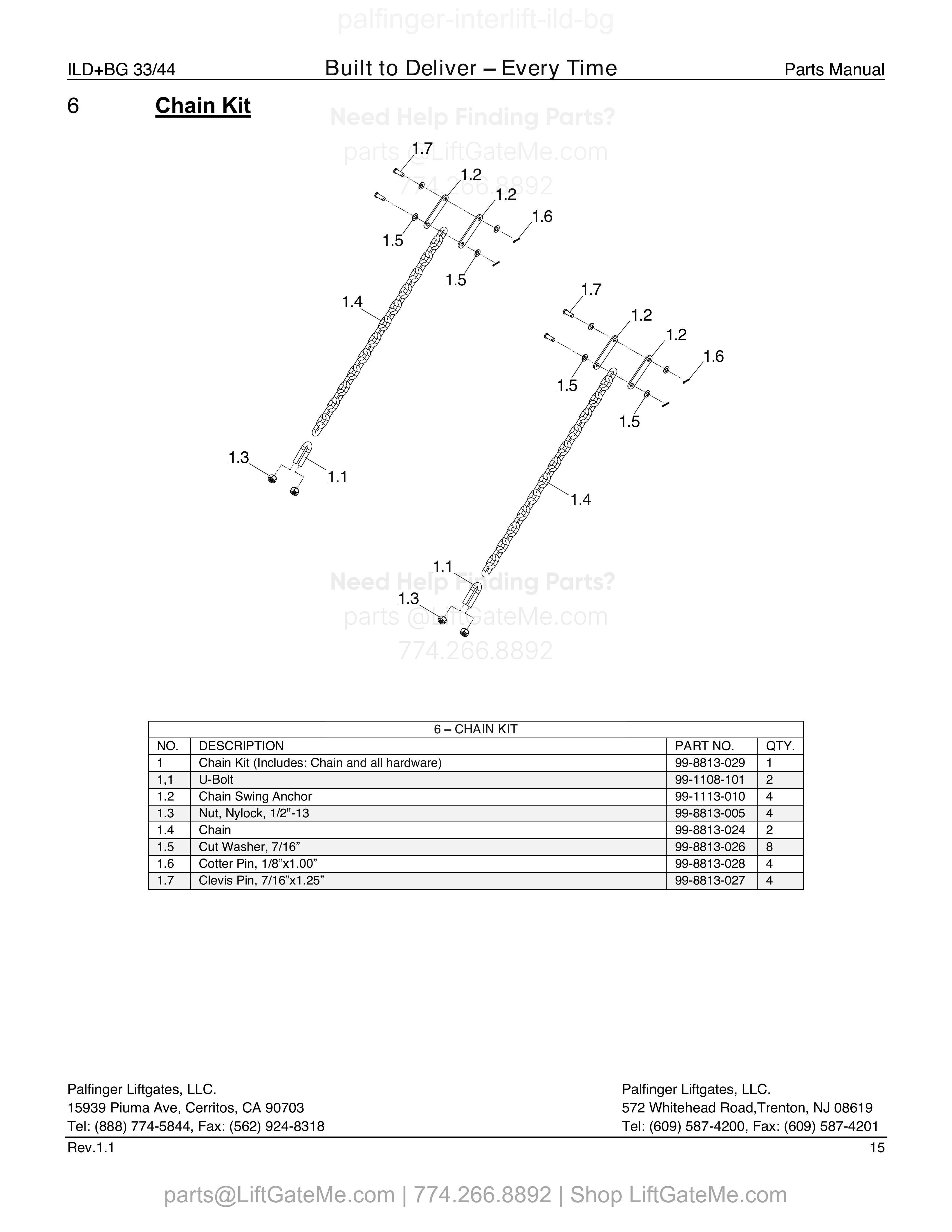

6 Chain Kit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 99-8813-029 | Chain Kit (Includes: Chain and all hardware) | |
| 1,1 | 2 | 99-1108-101 | U-Bolt | |
| 1.2 | 4 | 99-1113-010 | Chain Swing Anchor | |
| 1.3 | 4 | 99-8813-005 | Nut, Nylock, 1/2"-13 | |
| 1.4 | 2 | 99-8813-024 | Chain | |
| 1.5 | 8 | 99-8813-026 | Cut Washer, 7/16” | |
| 1.6 | 4 | 99-8813-028 | Cotter Pin, 1/8”x1.00” | |
| 1.7 | 4 | 99-8813-027 | Clevis Pin, 7/16”x1.25” |

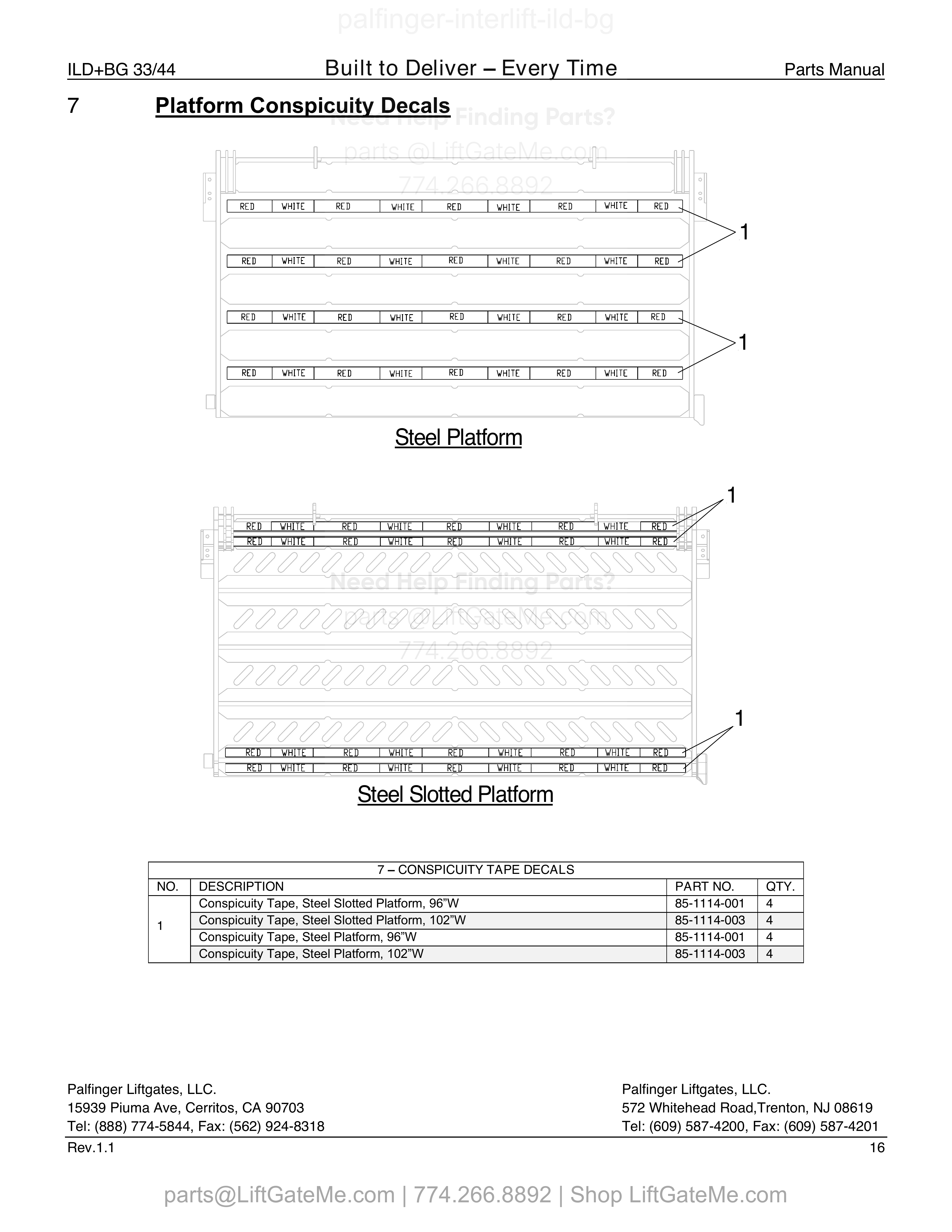

7 Platform Conspicuity Decals
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 85-1114-001 | Conspicuity Tape, Steel Slotted Platform, 96”W | |
| 1 | 4 | 85-1114-003 | Conspicuity Tape, Steel Slotted Platform, 102”W | |
| 1 | 4 | 85-1114-001 | Conspicuity Tape, Steel Platform, 96”W | |
| 1 | 4 | 85-1114-003 | Conspicuity Tape, Steel Platform, 102”W |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

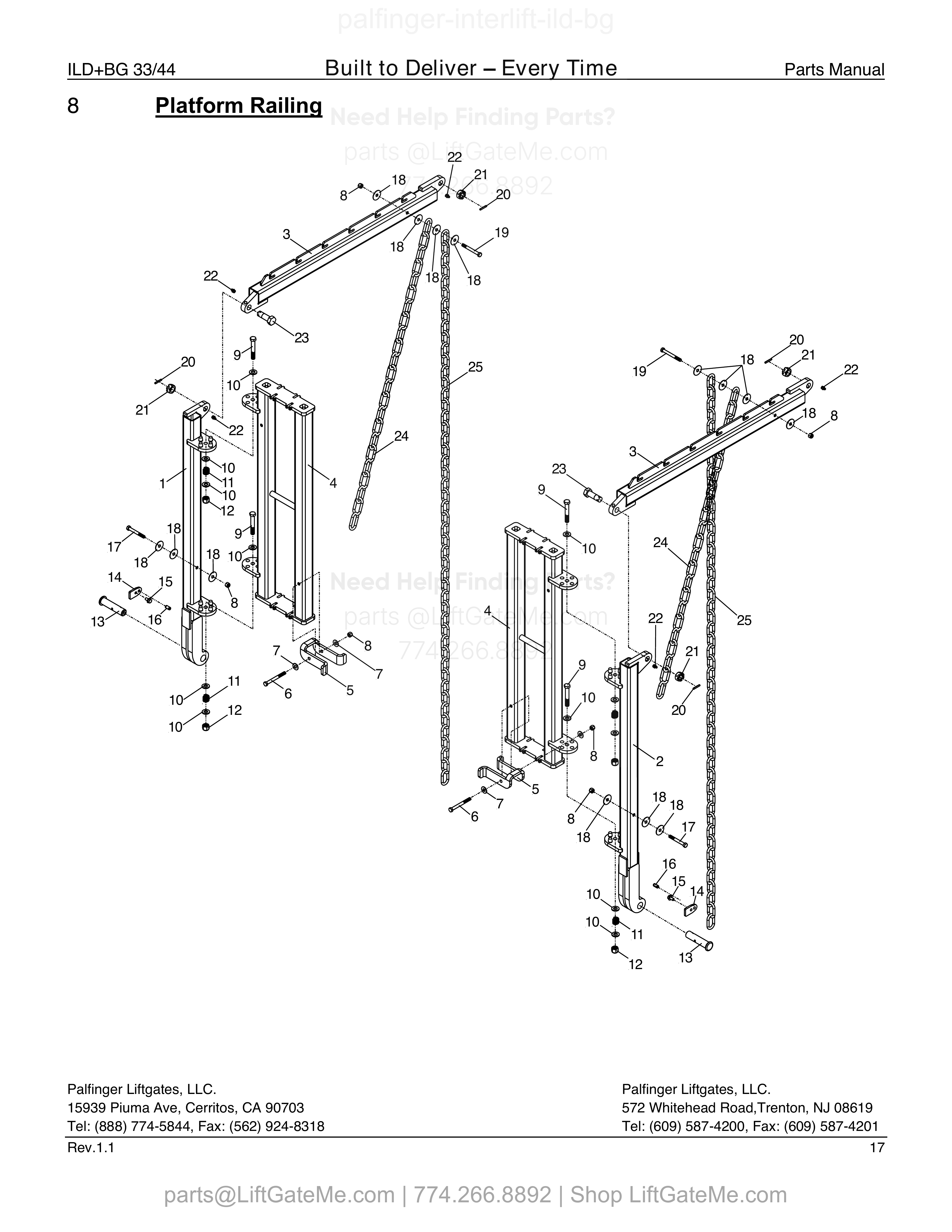

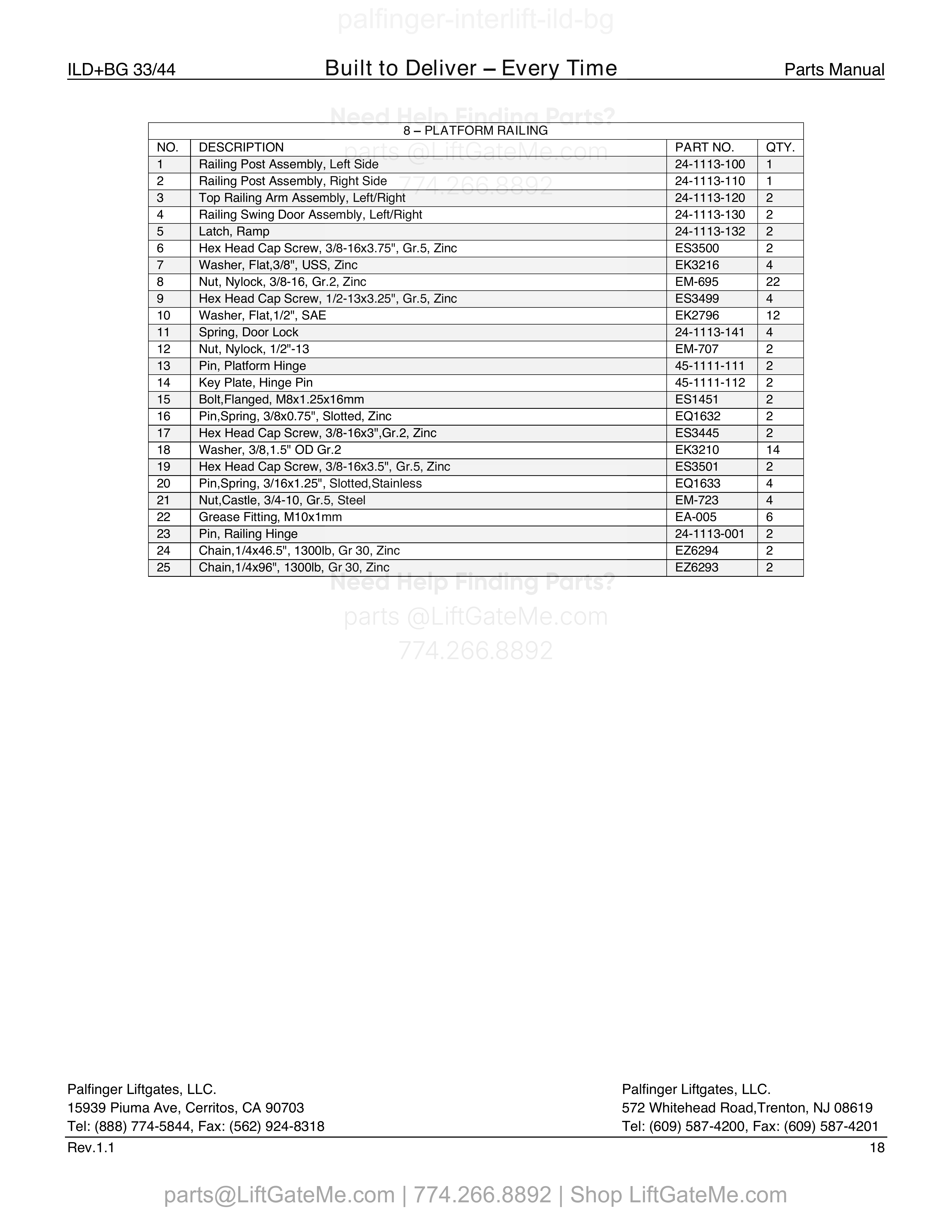

8 – Platform Railing
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 24-1113-100 | Railing Post Assembly, Left Side | |
| 2 | 1 | 24-1113-110 | Railing Post Assembly, Right Side | |
| 3 | 2 | 24-1113-120 | Top Railing Arm Assembly, Left/Right | |
| 4 | 2 | 24-1113-130 | Railing Swing Door Assembly, Left/Right | |
| 5 | 2 | 24-1113-132 | Latch, Ramp | |
| 6 | 2 | ES3500 | Hex Head Cap Screw, 3/8-16x3.75", Gr.5, Zinc | |
| 7 | 4 | EK3216 | Washer, Flat,3/8", USS, Zinc | |
| 8 | 22 | EM-695 | Nut, Nylock, 3/8-16, Gr.2, Zinc | |
| 9 | 4 | ES3499 | Hex Head Cap Screw, 1/2-13x3.25", Gr.5, Zinc | |
| 10 | 12 | EK2796 | Washer, Flat,1/2", SAE | |
| 11 | 4 | 24-1113-141 | Spring, Door Lock | |
| 12 | 2 | EM-707 | Nut, Nylock, 1/2"-13 | |
| 13 | 2 | 45-1111-111 | Pin, Platform Hinge | |
| 14 | 2 | 45-1111-112 | Key Plate, Hinge Pin | |
| 15 | 2 | ES1451 | Bolt,Flanged, M8x1.25x16mm | |
| 16 | 2 | EQ1632 | Pin,Spring, 3/8x0.75", Slotted, Zinc | |
| 17 | 2 | ES3445 | Hex Head Cap Screw, 3/8-16x3",Gr.2, Zinc | |
| 18 | 14 | EK3210 | Washer, 3/8,1.5" OD Gr.2 | |
| 19 | 2 | ES3501 | Hex Head Cap Screw, 3/8-16x3.5", Gr.5, Zinc | |
| 20 | 4 | EQ1633 | Pin,Spring, 3/16x1.25", Slotted,Stainless | |
| 21 | 4 | EM-723 | Nut,Castle, 3/4-10, Gr.5, Steel | |
| 22 | 6 | EA-005 | Grease Fitting, M10x1mm | |
| 23 | 2 | 24-1113-001 | Pin, Railing Hinge | |
| 24 | 2 | EZ6294 | Chain,1/4x46.5", 1300lb, Gr 30, Zinc | |
| 25 | 2 | EZ6293 | Chain,1/4x96", 1300lb, Gr 30, Zinc |

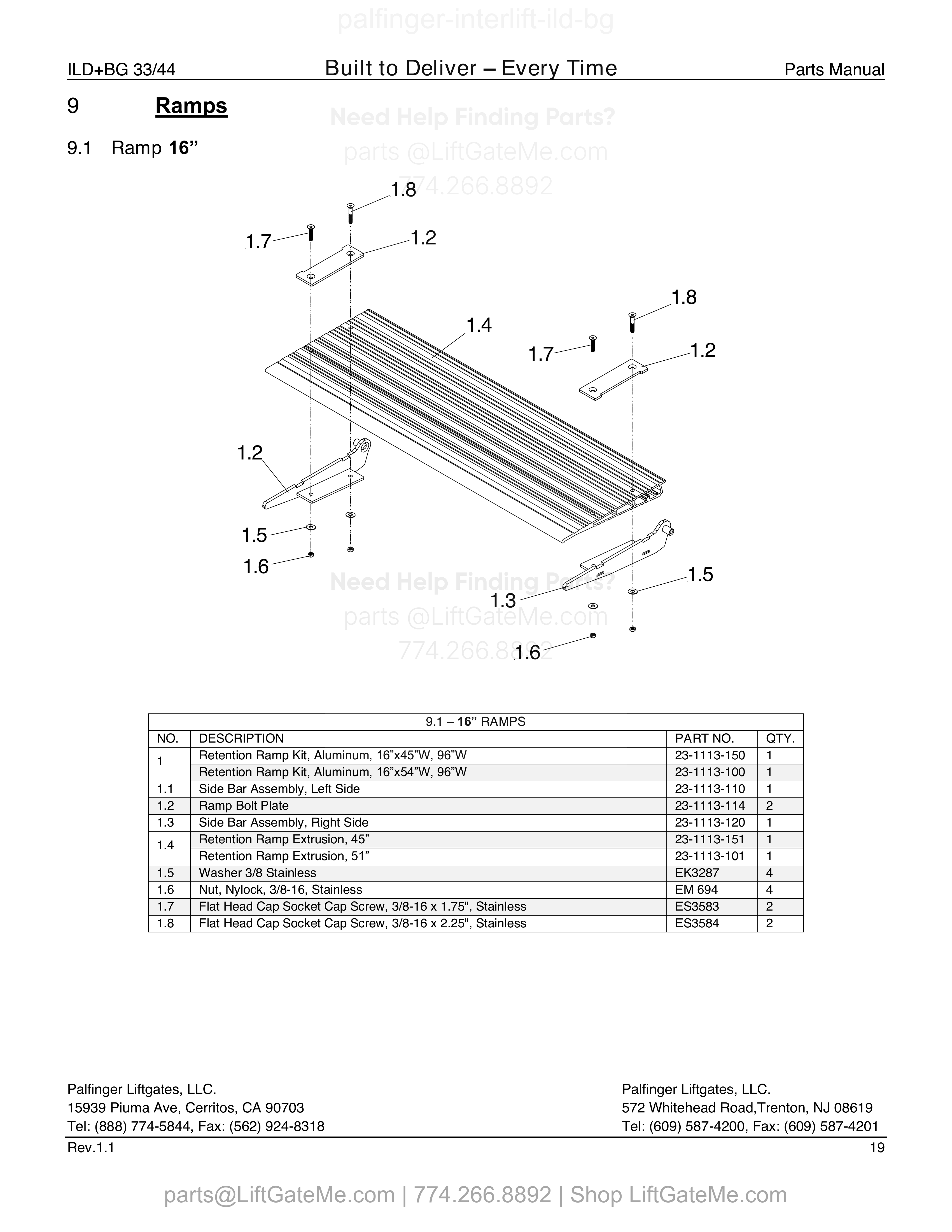

9.1 – 16” RAMPS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 23-1113-150 | Retention Ramp Kit, Aluminum, 16”x45”W, 96”W | |
| 1 | 1 | 23-1113-100 | Retention Ramp Kit, Aluminum, 16”x54”W, 96”W | |
| 1.1 | 1 | 23-1113-110 | Side Bar Assembly, Left Side | |
| 1.2 | 2 | 23-1113-114 | Ramp Bolt Plate | |
| 1.3 | 1 | 23-1113-120 | Side Bar Assembly, Right Side | |
| 1.4 | 1 | 23-1113-151 | Retention Ramp Extrusion, 45” | |
| 1.4 | 1 | 23-1113-101 | Retention Ramp Extrusion, 51” | |
| 1.5 | 4 | EK3287 | Washer 3/8 Stainless | |
| 1.6 | 4 | EM 694 | Nut, Nylock, 3/8-16, Stainless | |
| 1.7 | 2 | ES3583 | Flat Head Cap Socket Cap Screw, 3/8-16 x 1.75", Stainless | |
| 1.8 | 2 | ES3584 | Flat Head Cap Socket Cap Screw, 3/8-16 x 2.25", Stainless |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

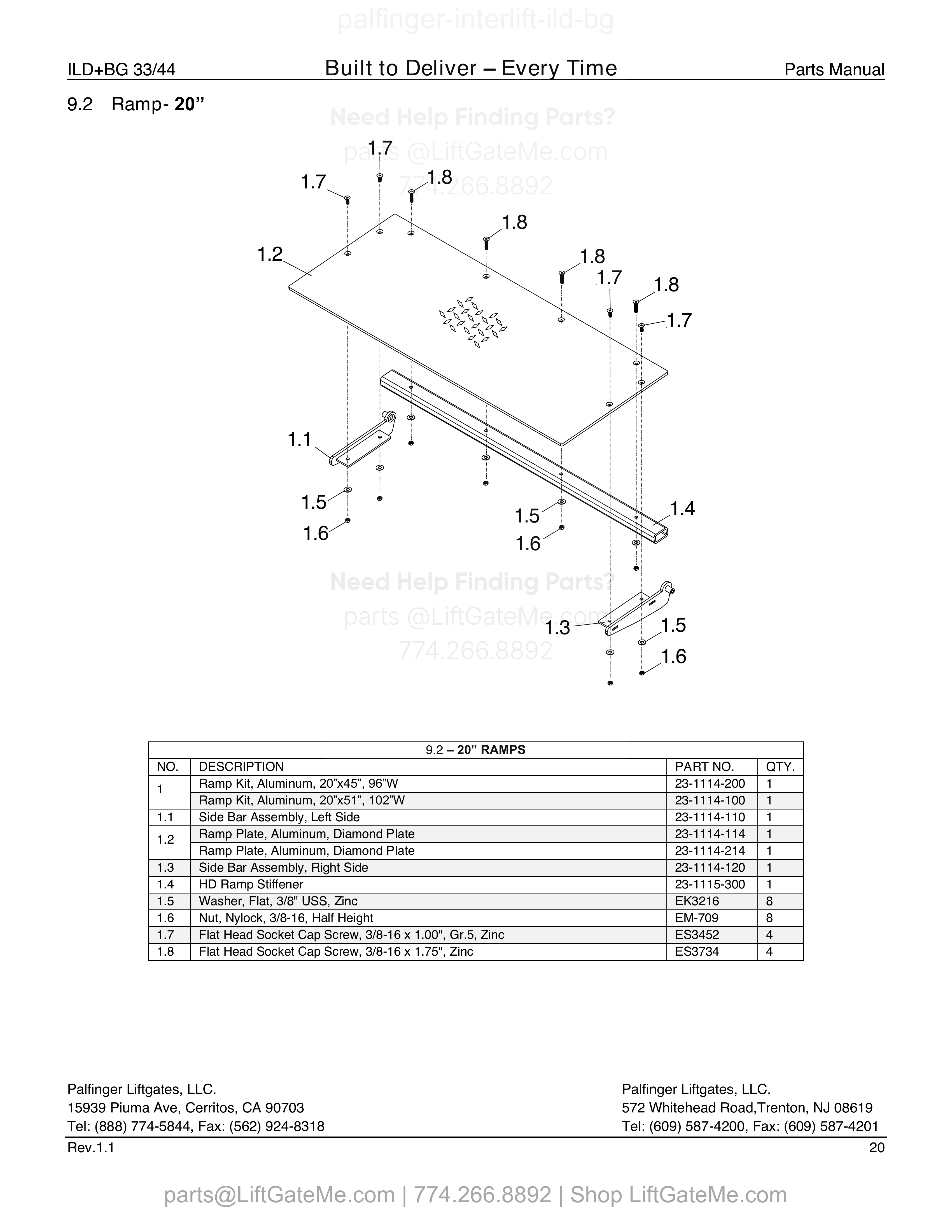

9.2 – 20” RAMPS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 23-1114-200 | Ramp Kit, Aluminum, 20”x45”, 96”W | |
| 1 | 1 | 23-1114-100 | Ramp Kit, Aluminum, 20”x51”, 102”W | |
| 1.1 | 1 | 23-1114-110 | Side Bar Assembly, Left Side | |
| 1.2 | 1 | 23-1114-114 | Ramp Plate, Aluminum, Diamond Plate | |
| 1.2 | 1 | 23-1114-214 | Ramp Plate, Aluminum, Diamond Plate | |
| 1.3 | 1 | 23-1114-120 | Side Bar Assembly, Right Side | |
| 1.4 | 1 | 23-1115-300 | HD Ramp Stiffener | |
| 1.5 | 8 | EK3216 | Washer, Flat, 3/8" USS, Zinc | |
| 1.6 | 8 | EM-709 | Nut, Nylock, 3/8-16, Half Height | |
| 1.7 | 4 | ES3452 | Flat Head Socket Cap Screw, 3/8-16 x 1.00", Gr.5, Zinc | |
| 1.8 | 4 | ES3734 | Flat Head Socket Cap Screw, 3/8-16 x 1.75", Zinc |

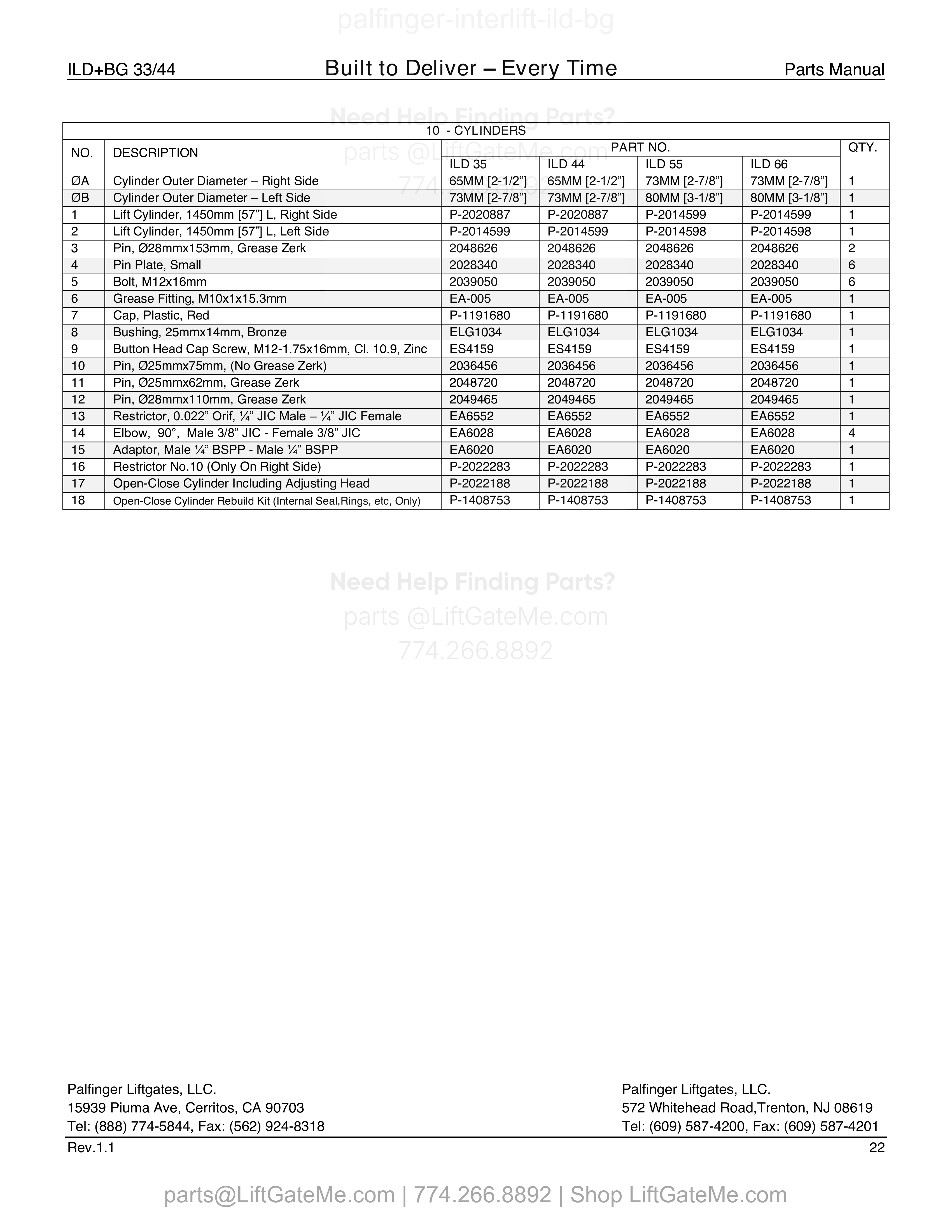

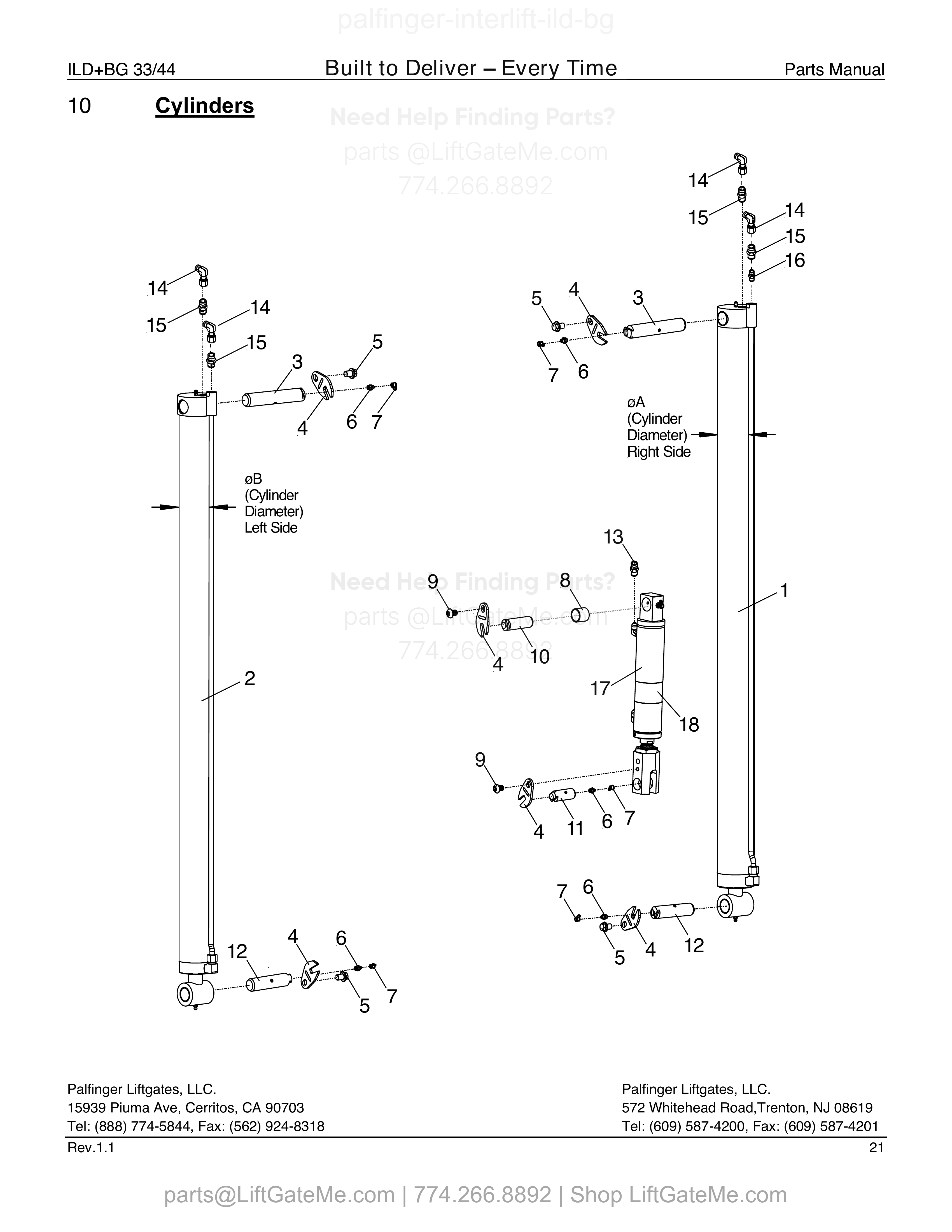

10 Cylinders
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| ØA | 1 | 65MM [2-1/2”] | Cylinder Outer Diameter – Right Side | |
| ØB | 1 | 73MM [2-7/8”] | Cylinder Outer Diameter – Left Side | |
| 1 | 1 | P-2020887 | Lift Cylinder, 1450mm [57”] L, Right Side | |
| 2 | 1 | P-2014599 | Lift Cylinder, 1450mm [57”] L, Left Side | |
| 3 | 2 | 2048626 | Pin, Ø28mmx153mm, Grease Zerk | |
| 4 | 6 | 2028340 | Pin Plate, Small | |
| 5 | 6 | 2039050 | Bolt, M12x16mm | |
| 6 | 1 | EA-005 | Grease Fitting, M10x1x15.3mm | |
| 7 | 1 | P-1191680 | Cap, Plastic, Red | |
| 8 | 1 | ELG1034 | Bushing, 25mmx14mm, Bronze | |
| 9 | 1 | ES4159 | Button Head Cap Screw, M12-1.75x16mm, Cl. 10.9, Zinc | |
| 10 | 1 | 2036456 | Pin, Ø25mmx75mm, (No Grease Zerk) | |
| 11 | 1 | 2048720 | Pin, Ø25mmx62mm, Grease Zerk | |
| 12 | 1 | 2049465 | Pin, Ø28mmx110mm, Grease Zerk | |
| 13 | 1 | EA6552 | Restrictor, 0.022” Orif, ¼” JIC Male – ¼” JIC Female | |
| 14 | 4 | EA6028 | Elbow, 90°, Male 3/8” JIC - Female 3/8” JIC | |
| 15 | 1 | EA6020 | Adaptor, Male ¼” BSPP - Male ¼” BSPP | |
| 16 | 1 | P-2022283 | Restrictor No.10 (Only On Right Side) | |
| 17 | 1 | P-2022188 | Open-Close Cylinder Including Adjusting Head | |
| 18 | 1 | P-1408753 | Open-Close Cylinder Rebuild Kit (Internal Seal,Rings, etc, Only) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

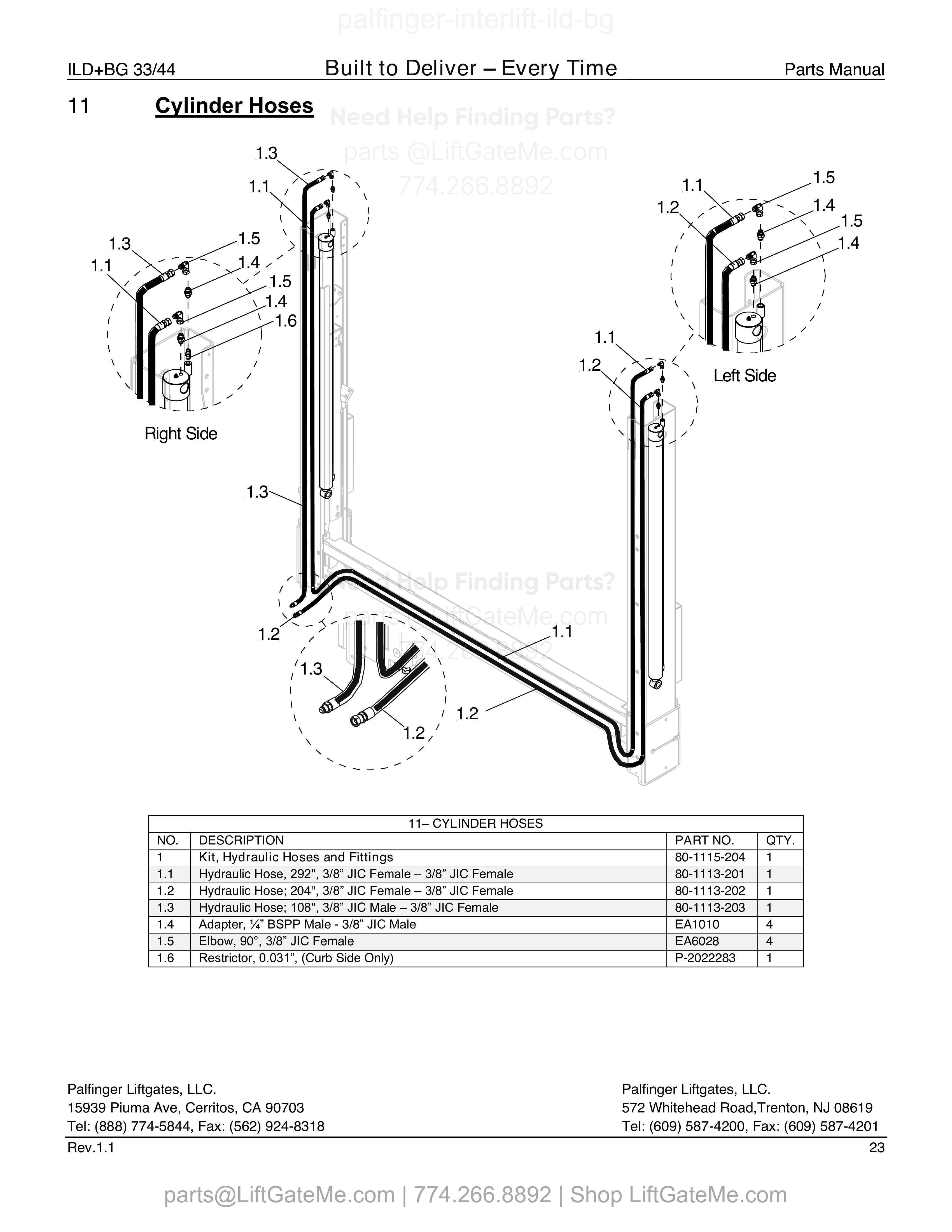

11 Cylinder Hoses
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 80-1115-204 | Kit, Hydraulic Hoses and Fittings | |
| 1.1 | 1 | 80-1113-201 | Hydraulic Hose, 292", 3/8” JIC Female – 3/8” JIC Female | |
| 1.2 | 1 | 80-1113-202 | Hydraulic Hose; 204", 3/8” JIC Female – 3/8” JIC Female | |
| 1.3 | 1 | 80-1113-203 | Hydraulic Hose; 108", 3/8” JIC Male – 3/8” JIC Female | |
| 1.4 | 4 | EA1010 | Adapter, ¼” BSPP Male - 3/8” JIC Male | |
| 1.5 | 4 | EA6028 | Elbow, 90°, 3/8” JIC Female | |
| 1.6 | 1 | P-2022283 | Restrictor, 0.031”, (Curb Side Only) |

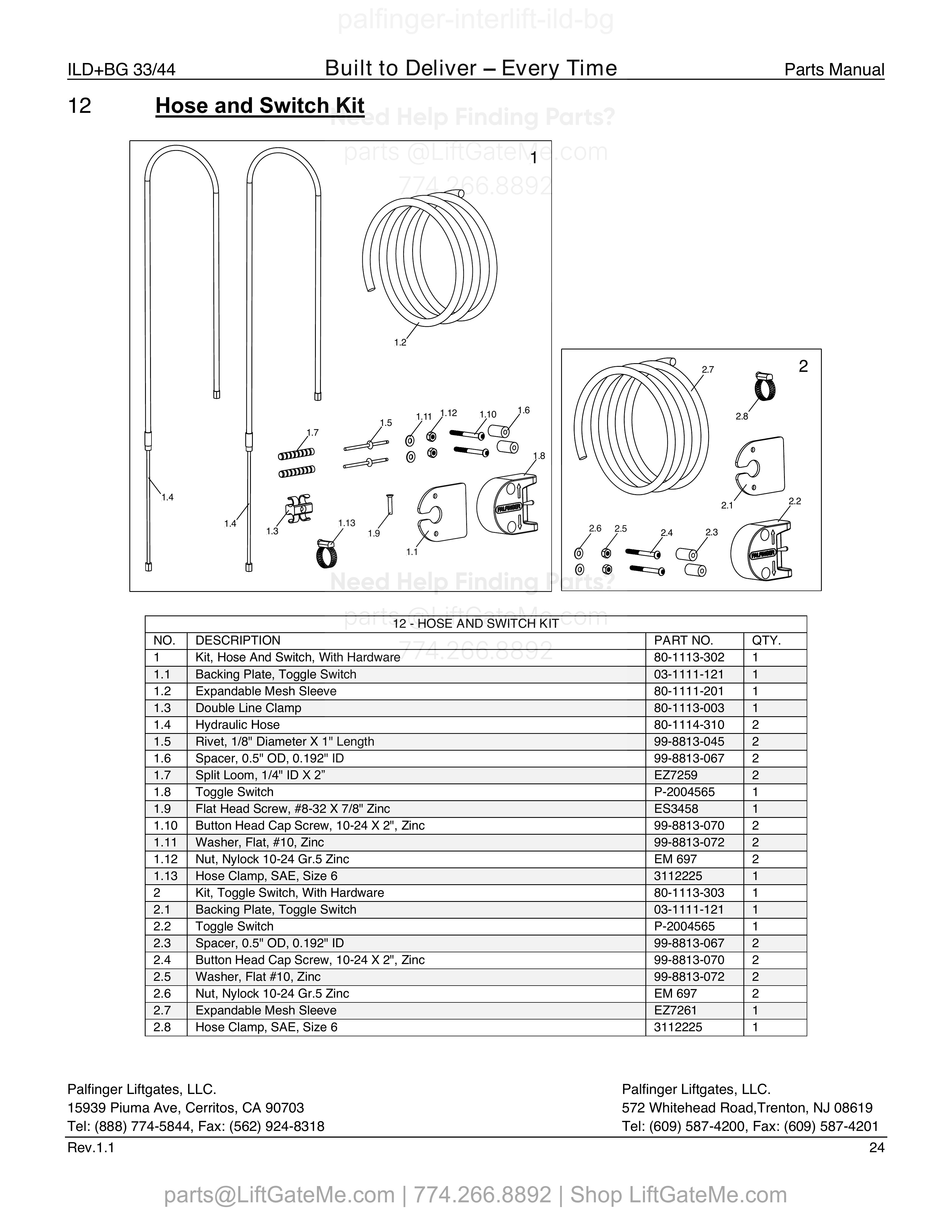

12 Hose and Switch Kit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 80-1113-302 | Kit, Hose And Switch, With Hardware | |
| 1.1 | 1 | 03-1111-121 | Backing Plate, Toggle Switch | |
| 1.2 | 1 | 80-1111-201 | Expandable Mesh Sleeve | |
| 1.3 | 1 | 80-1113-003 | Double Line Clamp | |
| 1.4 | 2 | 80-1114-310 | Hydraulic Hose | |
| 1.5 | 2 | 99-8813-045 | Rivet, 1/8" Diameter X 1" Length | |
| 1.6 | 2 | 99-8813-067 | Spacer, 0.5" OD, 0.192" ID | |
| 1.7 | 2 | EZ7259 | Split Loom, 1/4" ID X 2” | |
| 1.8 | 1 | P-2004565 | Toggle Switch | |
| 1.9 | 1 | ES3458 | Flat Head Screw, #8-32 X 7/8" Zinc | |
| 1.10 | 2 | 99-8813-070 | Button Head Cap Screw, 10-24 X 2", Zinc | |
| 1.11 | 2 | 99-8813-072 | Washer, Flat, #10, Zinc | |
| 1.12 | 2 | EM 697 | Nut, Nylock 10-24 Gr.5 Zinc | |
| 1.13 | 1 | 3112225 | Hose Clamp, SAE, Size 6 | |
| 2 | 1 | 80-1113-303 | Kit, Toggle Switch, With Hardware | |
| 2.1 | 1 | 03-1111-121 | Backing Plate, Toggle Switch | |
| 2.2 | 1 | P-2004565 | Toggle Switch | |
| 2.3 | 2 | 99-8813-067 | Spacer, 0.5" OD, 0.192" ID | |
| 2.4 | 2 | 99-8813-070 | Button Head Cap Screw, 10-24 X 2", Zinc | |
| 2.5 | 2 | 99-8813-072 | Washer, Flat #10, Zinc | |
| 2.6 | 2 | EM 697 | Nut, Nylock 10-24 Gr.5 Zinc | |
| 2.7 | 1 | EZ7261 | Expandable Mesh Sleeve | |
| 2.8 | 1 | 3112225 | Hose Clamp, SAE, Size 6 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

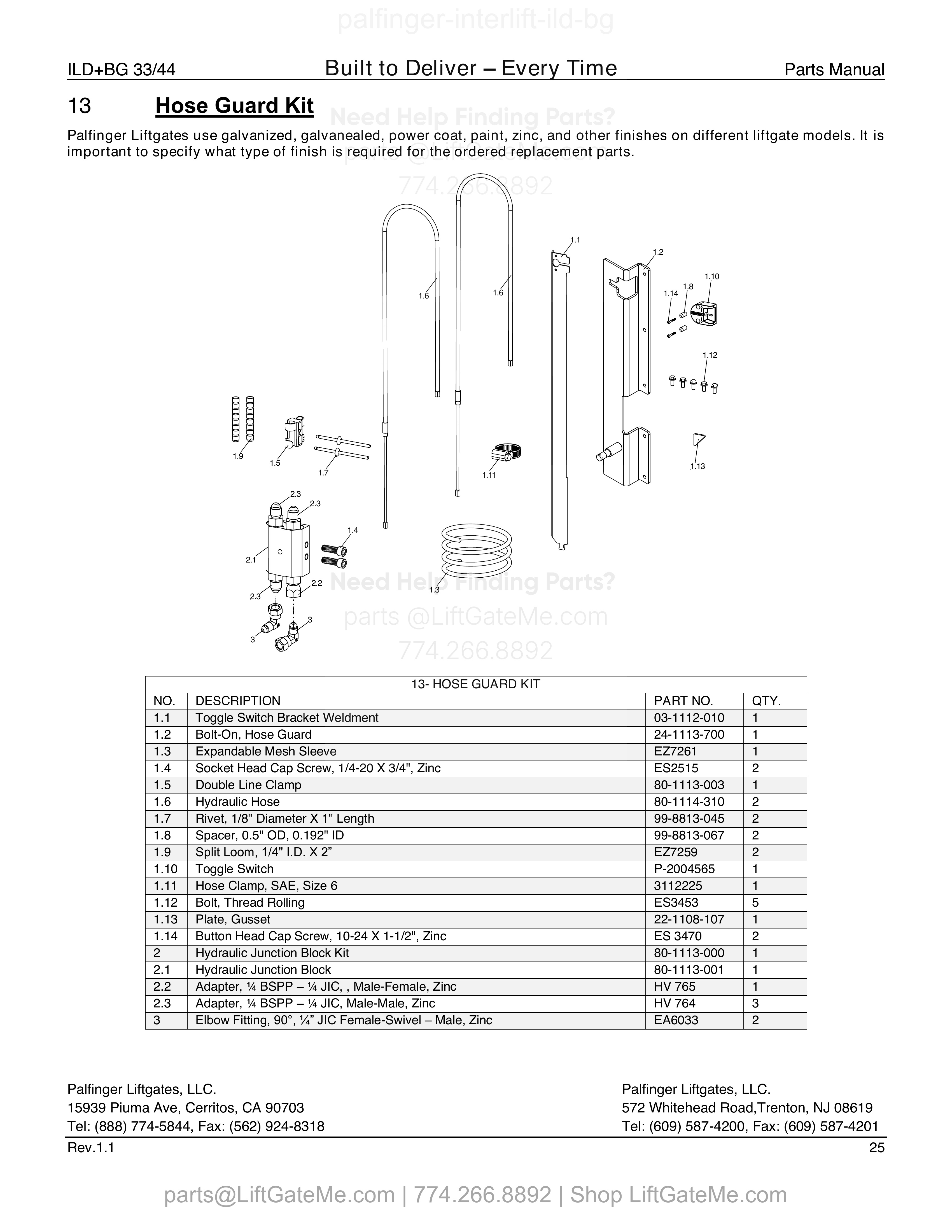

13 Hose Guard Kit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1.1 | 1 | 03-1112-010 | Toggle Switch Bracket Weldment | |
| 1.2 | 1 | 24-1113-700 | Bolt-On, Hose Guard | |
| 1.3 | 1 | EZ7261 | Expandable Mesh Sleeve | |
| 1.4 | 2 | ES2515 | Socket Head Cap Screw, 1/4-20 X 3/4", Zinc | |
| 1.5 | 1 | 80-1113-003 | Double Line Clamp | |
| 1.6 | 2 | 80-1114-310 | Hydraulic Hose | |
| 1.7 | 2 | 99-8813-045 | Rivet, 1/8" Diameter X 1" Length | |
| 1.8 | 2 | 99-8813-067 | Spacer, 0.5" OD, 0.192" ID | |
| 1.9 | 2 | EZ7259 | Split Loom, 1/4" I.D. X 2” | |
| 1.10 | 1 | P-2004565 | Toggle Switch | |
| 1.11 | 1 | 3112225 | Hose Clamp, SAE, Size 6 | |
| 1.12 | 5 | ES3453 | Bolt, Thread Rolling | |
| 1.13 | 1 | 22-1108-107 | Plate, Gusset | |
| 1.14 | 2 | ES 3470 | Button Head Cap Screw, 10-24 X 1-1/2", Zinc | |
| 2 | 1 | 80-1113-000 | Hydraulic Junction Block Kit | |
| 2.1 | 1 | 80-1113-001 | Hydraulic Junction Block | |
| 2.2 | 1 | HV 765 | Adapter, ¼ BSPP – ¼ JIC, , Male-Female, Zinc | |
| 2.3 | 3 | HV 764 | Adapter, ¼ BSPP – ¼ JIC, Male-Male, Zinc | |
| 3 | 2 | EA6033 | Elbow Fitting, 90°, ¼” JIC Female-Swivel – Male, Zinc |

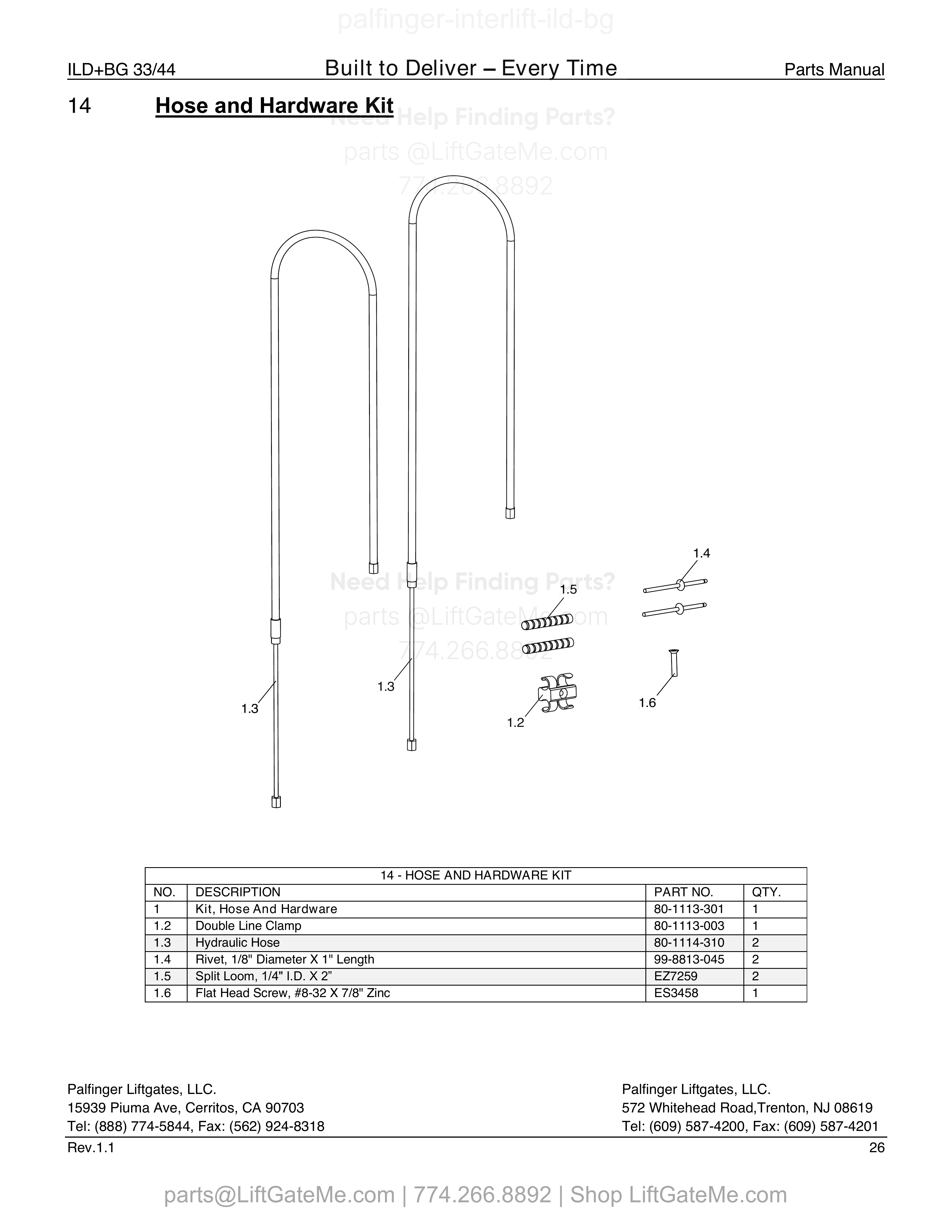

Hose and Hardware Kit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 80-1113-301 | Kit, Hose And Hardware | |
| 1.2 | 1 | 80-1113-003 | Double Line Clamp | |
| 1.3 | 2 | 80-1114-310 | Hydraulic Hose | |
| 1.4 | 2 | 99-8813-045 | Rivet, 1/8" Diameter X 1" Length | |
| 1.5 | 2 | EZ7259 | Split Loom, 1/4" I.D. X 2” | |
| 1.6 | 1 | ES3458 | Flat Head Screw, #8-32 X 7/8" Zinc |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

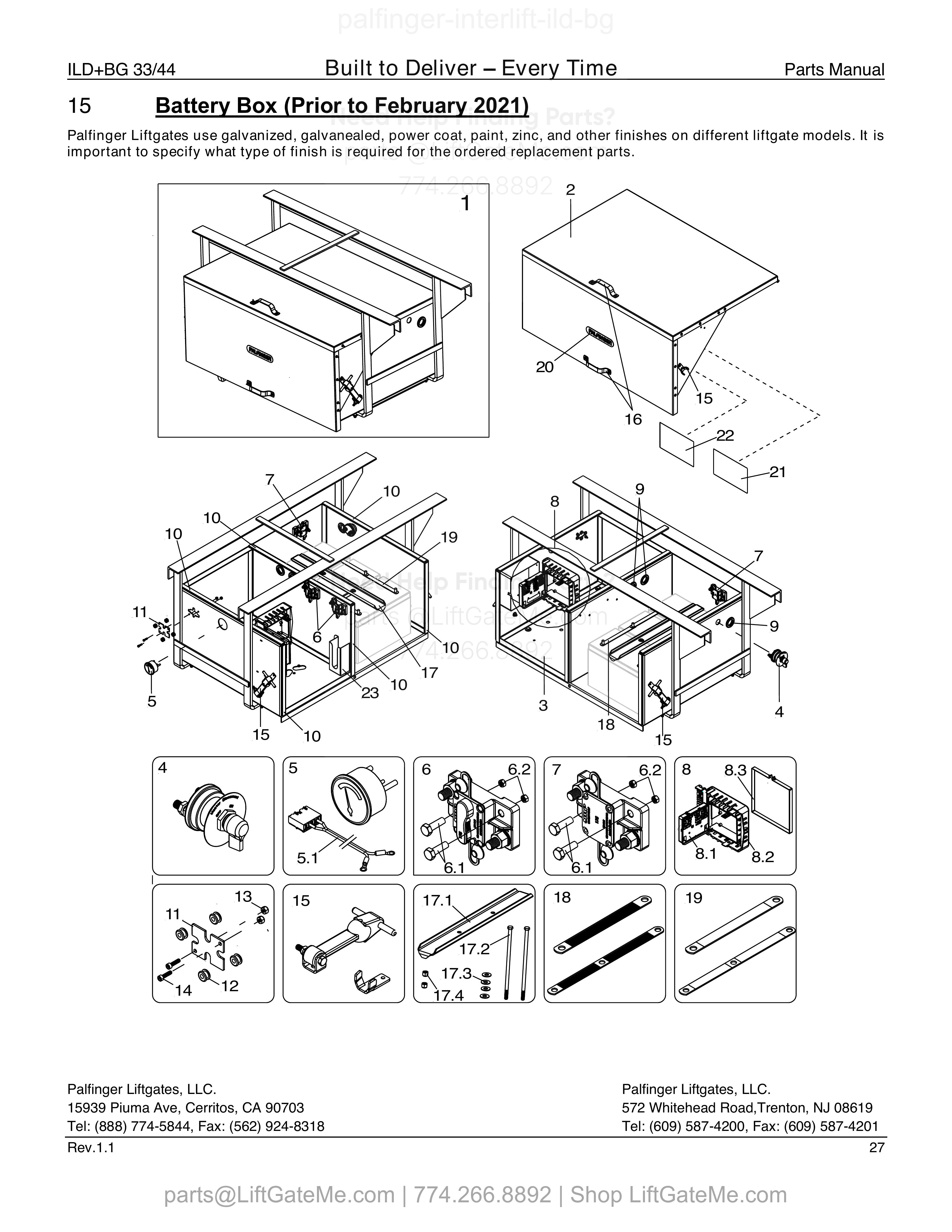

Battery Box (Prior to February 2021)

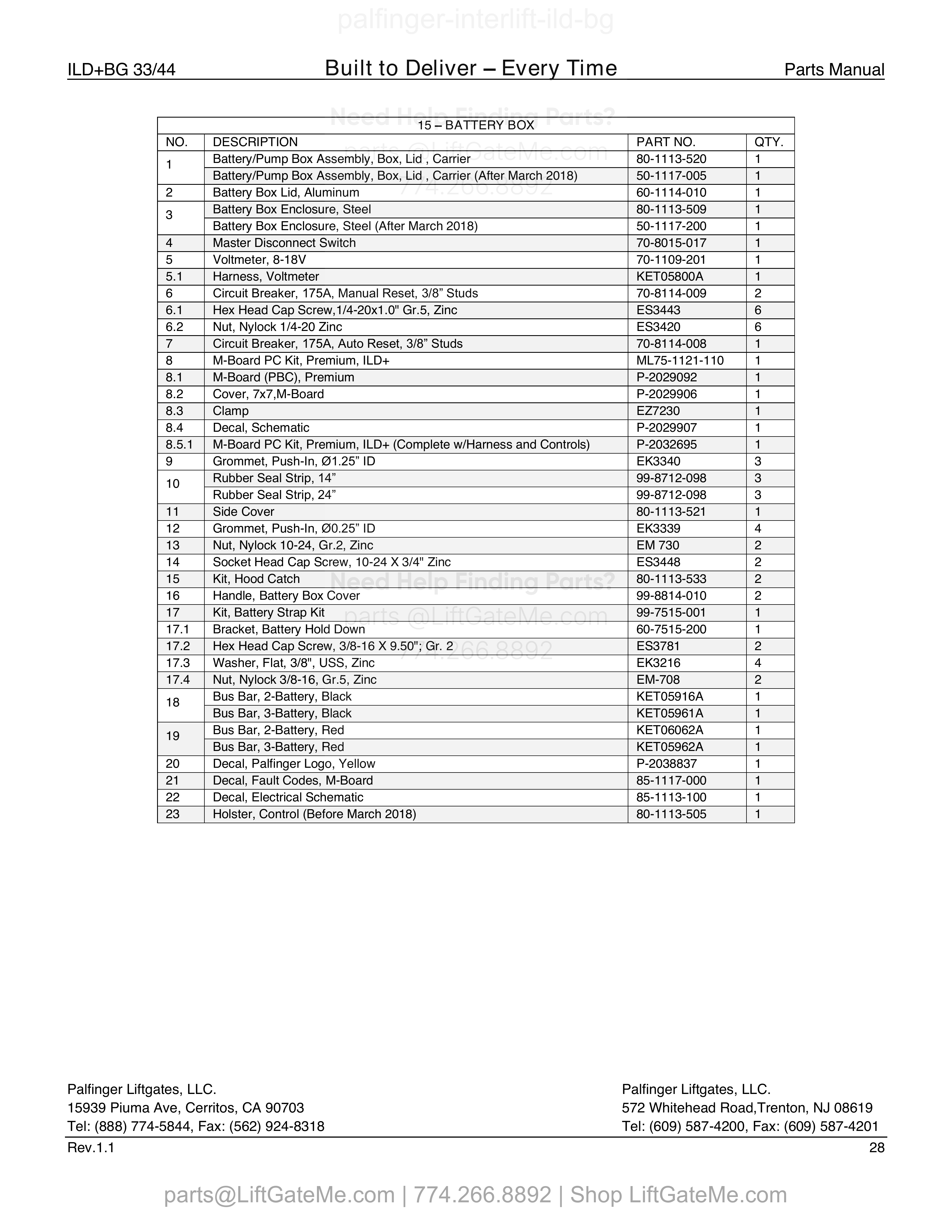

| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 80-1113-520 | Battery/Pump Box Assembly, Box, Lid , Carrier | |
| 1 | 1 | 50-1117-005 | Battery/Pump Box Assembly, Box, Lid , Carrier (After March 2018) | |
| 2 | 1 | 60-1114-010 | Battery Box Lid, Aluminum | |
| 3 | 1 | 80-1113-509 | Battery Box Enclosure, Steel | |
| 3 | 1 | 50-1117-200 | Battery Box Enclosure, Steel (After March 2018) | |
| 4 | 1 | 70-8015-017 | Master Disconnect Switch | |
| 5 | 1 | 70-1109-201 | Voltmeter, 8-18V | |
| 5.1 | 1 | KET05800A | Harness, Voltmeter | |
| 6 | 2 | 70-8114-009 | Circuit Breaker, 175A, Manual Reset, 3/8” Studs | |
| 6.1 | 6 | ES3443 | Hex Head Cap Screw,1/4-20x1.0" Gr.5, Zinc | |
| 6.2 | 6 | ES3420 | Nut, Nylock 1/4-20 Zinc | |
| 7 | 1 | 70-8114-008 | Circuit Breaker, 175A, Auto Reset, 3/8” Studs | |
| 8 | 1 | ML75-1121-110 | M-Board PC Kit, Premium, ILD+ | |
| 8.1 | 1 | P-2029092 | M-Board (PBC), Premium | |
| 8.2 | 1 | P-2029906 | Cover, 7x7,M-Board | |
| 8.3 | 1 | EZ7230 | Clamp | |
| 8.4 | 1 | P-2029907 | Decal, Schematic | |
| 8.5.1 | 1 | P-2032695 | M-Board PC Kit, Premium, ILD+ (Complete w/Harness and Controls) | |
| 9 | 3 | EK3340 | Grommet, Push-In, Ø1.25” ID | |
| 10 | 3 | 99-8712-098 | Rubber Seal Strip, 14” | |
| 10 | 3 | 99-8712-098 | Rubber Seal Strip, 24” | |
| 11 | 1 | 80-1113-521 | Side Cover | |
| 12 | 4 | EK3339 | Grommet, Push-In, Ø0.25” ID | |
| 13 | 2 | EM 730 | Nut, Nylock 10-24, Gr.2, Zinc | |
| 14 | 2 | ES3448 | Socket Head Cap Screw, 10-24 X 3/4" Zinc | |
| 15 | 2 | 80-1113-533 | Kit, Hood Catch | |
| 16 | 2 | 99-8814-010 | Handle, Battery Box Cover | |
| 17 | 1 | 99-7515-001 | Kit, Battery Strap Kit | |
| 17.1 | 1 | 60-7515-200 | Bracket, Battery Hold Down | |
| 17.2 | 2 | ES3781 | Hex Head Cap Screw, 3/8-16 X 9.50"; Gr. 2 | |
| 17.3 | 4 | EK3216 | Washer, Flat, 3/8", USS, Zinc | |
| 17.4 | 2 | EM-708 | Nut, Nylock 3/8-16, Gr.5, Zinc | |
| 18 | 1 | KET05916A | Bus Bar, 2-Battery, Black | |
| 18 | 1 | KET05961A | Bus Bar, 3-Battery, Black | |
| 19 | 1 | KET06062A | Bus Bar, 2-Battery, Red | |
| 19 | 1 | KET05962A | Bus Bar, 3-Battery, Red | |
| 20 | 1 | P-2038837 | Decal, Palfinger Logo, Yellow | |
| 21 | 1 | 85-1117-000 | Decal, Fault Codes, M-Board | |
| 22 | 1 | 85-1113-100 | Decal, Electrical Schematic | |
| 23 | 1 | 80-1113-505 | Holster, Control (Before March 2018) |

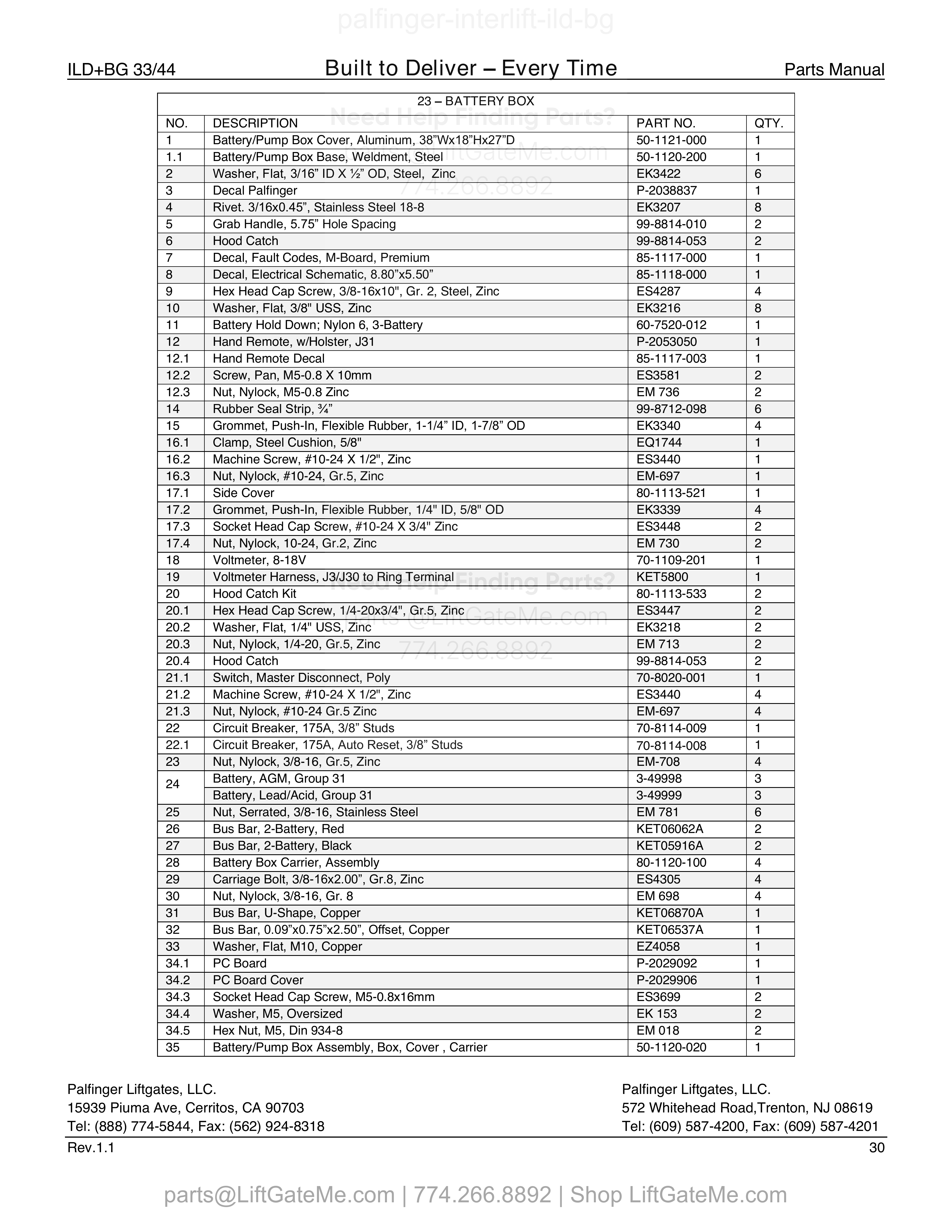

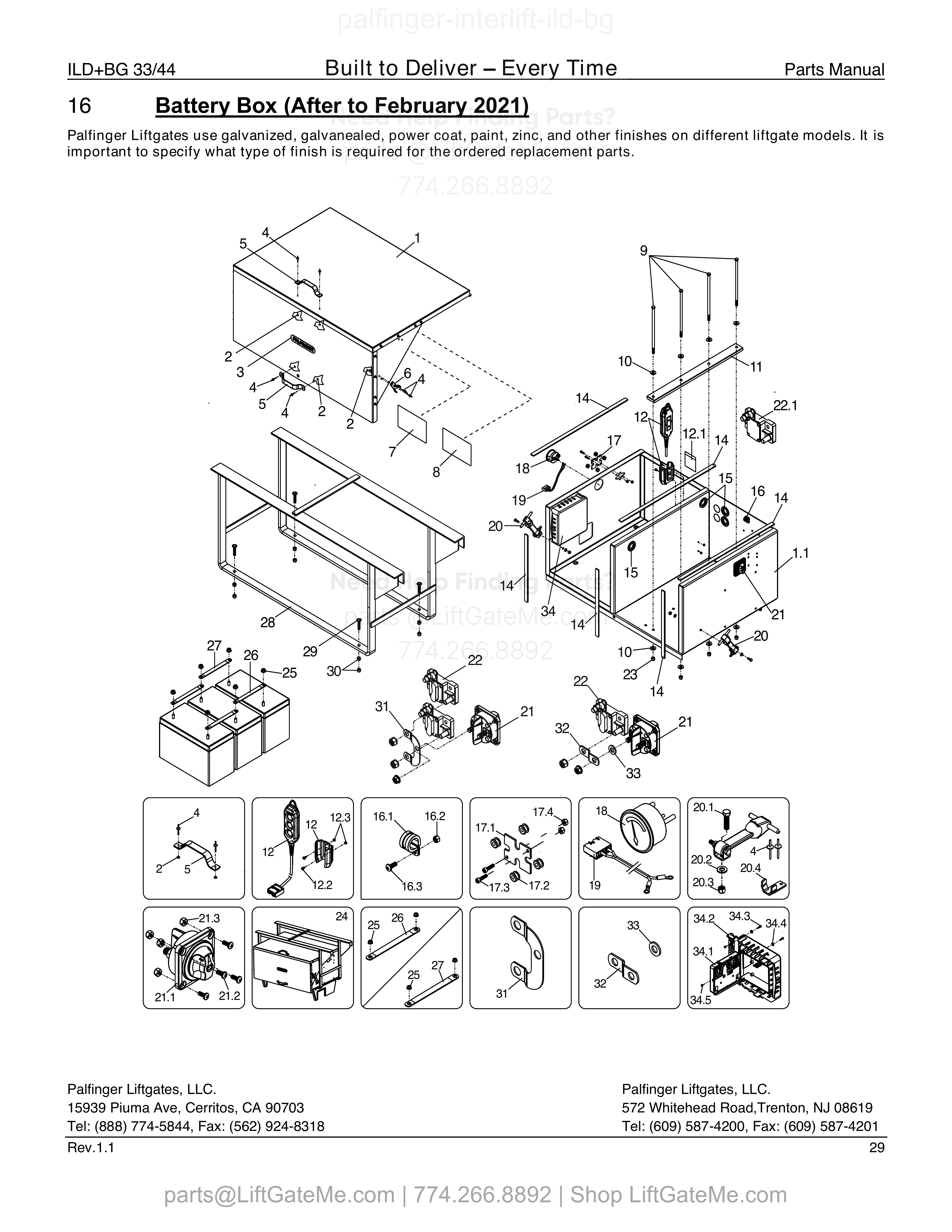

Battery Box (After to February 2021)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 50-1121-000 | Battery/Pump Box Cover, Aluminum, 38”Wx18”Hx27”D | |
| 1.1 | 1 | 50-1120-200 | Battery/Pump Box Base, Weldment, Steel | |
| 2 | 6 | EK3422 | Washer, Flat, 3/16” ID X ½” OD, Steel, Zinc | |
| 3 | 1 | P-2038837 | Decal Palfinger | |
| 4 | 8 | EK3207 | Rivet. 3/16x0.45”, Stainless Steel 18-8 | |
| 5 | 2 | 99-8814-010 | Grab Handle, 5.75” Hole Spacing | |
| 6 | 2 | 99-8814-053 | Hood Catch | |
| 7 | 1 | 85-1117-000 | Decal, Fault Codes, M-Board, Premium | |
| 8 | 1 | 85-1118-000 | Decal, Electrical Schematic, 8.80”x5.50” | |
| 9 | 4 | ES4287 | Hex Head Cap Screw, 3/8-16x10", Gr. 2, Steel, Zinc | |
| 10 | 8 | EK3216 | Washer, Flat, 3/8" USS, Zinc | |
| 11 | 1 | 60-7520-012 | Battery Hold Down; Nylon 6, 3-Battery | |
| 12 | 1 | P-2053050 | Hand Remote, w/Holster, J31 | |
| 12.1 | 1 | 85-1117-003 | Hand Remote Decal | |
| 12.2 | 2 | ES3581 | Screw, Pan, M5-0.8 X 10mm | |
| 12.3 | 2 | EM 736 | Nut, Nylock, M5-0.8 Zinc | |
| 14 | 6 | 99-8712-098 | Rubber Seal Strip, ¾” | |
| 15 | 4 | EK3340 | Grommet, Push-In, Flexible Rubber, 1-1/4” ID, 1-7/8” OD | |
| 16.1 | 1 | EQ1744 | Clamp, Steel Cushion, 5/8" | |
| 16.2 | 1 | ES3440 | Machine Screw, #10-24 X 1/2", Zinc | |
| 16.3 | 1 | EM-697 | Nut, Nylock, #10-24, Gr.5, Zinc | |
| 17.1 | 1 | 80-1113-521 | Side Cover | |
| 17.2 | 4 | EK3339 | Grommet, Push-In, Flexible Rubber, 1/4" ID, 5/8" OD | |
| 17.3 | 2 | ES3448 | Socket Head Cap Screw, #10-24 X 3/4" Zinc | |
| 17.4 | 2 | EM 730 | Nut, Nylock, 10-24, Gr.2, Zinc | |
| 18 | 1 | 70-1109-201 | Voltmeter, 8-18V | |
| 19 | 1 | KET5800 | Voltmeter Harness, J3/J30 to Ring Terminal | |
| 20 | 2 | 80-1113-533 | Hood Catch Kit | |
| 20.1 | 2 | ES3447 | Hex Head Cap Screw, 1/4-20x3/4", Gr.5, Zinc | |
| 20.2 | 2 | EK3218 | Washer, Flat, 1/4" USS, Zinc | |
| 20.3 | 2 | EM 713 | Nut, Nylock, 1/4-20, Gr.5, Zinc | |
| 20.4 | 2 | 99-8814-053 | Hood Catch | |
| 21.1 | 1 | 70-8020-001 | Switch, Master Disconnect, Poly | |
| 21.2 | 4 | ES3440 | Machine Screw, #10-24 X 1/2", Zinc | |
| 21.3 | 4 | EM-697 | Nut, Nylock, #10-24 Gr.5 Zinc | |
| 22 | 1 | 70-8114-009 | Circuit Breaker, 175A, 3/8” Studs | |
| 22.1 | 1 | 70-8114-008 | Circuit Breaker, 175A, Auto Reset, 3/8” Studs | |
| 23 | 4 | EM-708 | Nut, Nylock, 3/8-16, Gr.5, Zinc | |
| 24 | 3 | 3-49998 | Battery, AGM, Group 31 | |
| 24 | 3 | 3-49999 | Battery, Lead/Acid, Group 31 | |
| 25 | 6 | EM 781 | Nut, Serrated, 3/8-16, Stainless Steel | |
| 26 | 2 | KET06062A | Bus Bar, 2-Battery, Red | |
| 27 | 2 | KET05916A | Bus Bar, 2-Battery, Black | |
| 28 | 4 | 80-1120-100 | Battery Box Carrier, Assembly | |
| 29 | 4 | ES4305 | Carriage Bolt, 3/8-16x2.00”, Gr.8, Zinc | |
| 30 | 4 | EM 698 | Nut, Nylock, 3/8-16, Gr. 8 | |
| 31 | 1 | KET06870A | Bus Bar, U-Shape, Copper | |
| 32 | 1 | KET06537A | Bus Bar, 0.09”x0.75”x2.50”, Offset, Copper | |
| 33 | 1 | EZ4058 | Washer, Flat, M10, Copper | |
| 34.1 | 1 | P-2029092 | PC Board | |
| 34.2 | 1 | P-2029906 | PC Board Cover | |
| 34.3 | 2 | ES3699 | Socket Head Cap Screw, M5-0.8x16mm | |
| 34.4 | 2 | EK 153 | Washer, M5, Oversized | |
| 34.5 | 2 | EM 018 | Hex Nut, M5, Din 934-8 | |
| 35 | 1 | 50-1120-020 | Battery/Pump Box Assembly, Box, Cover , Carrier |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

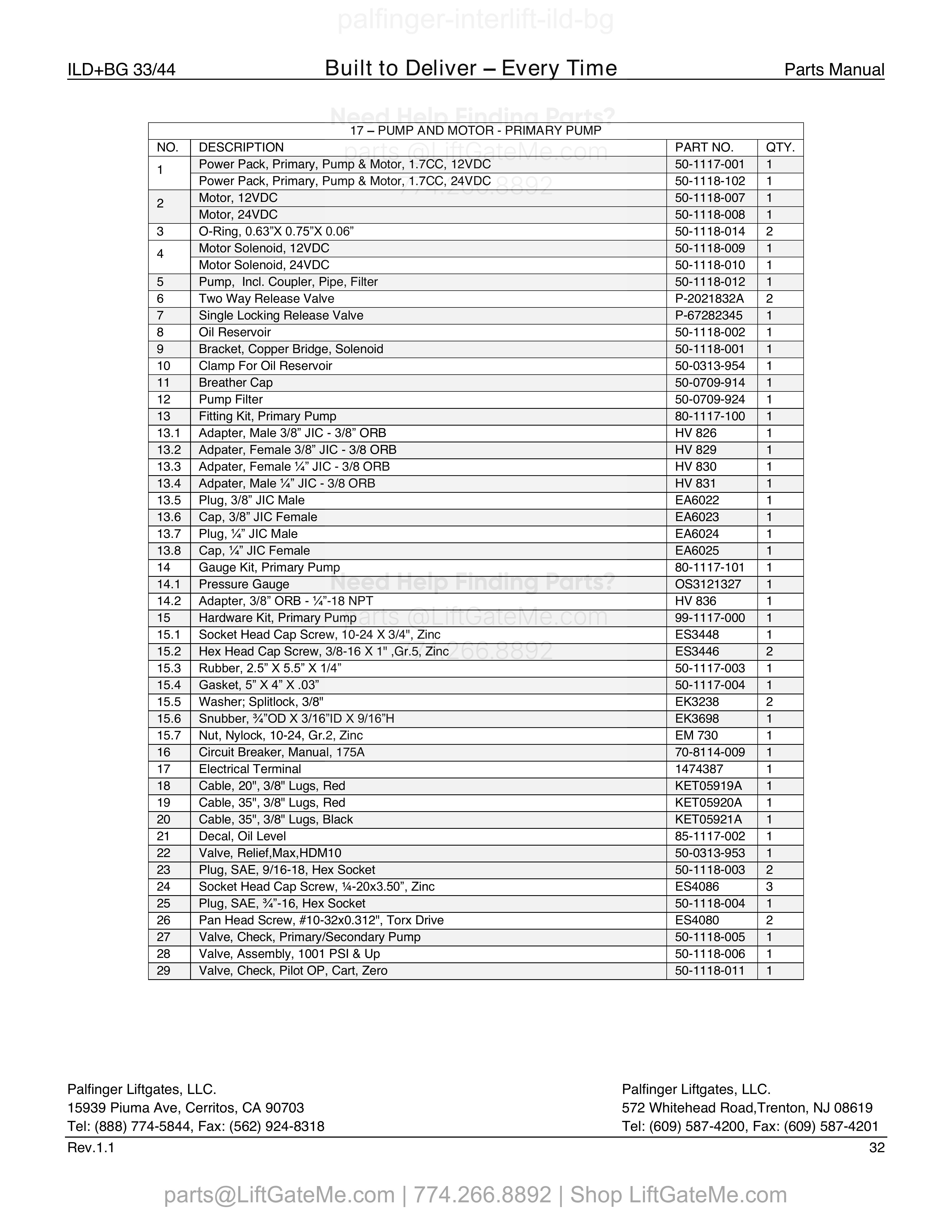

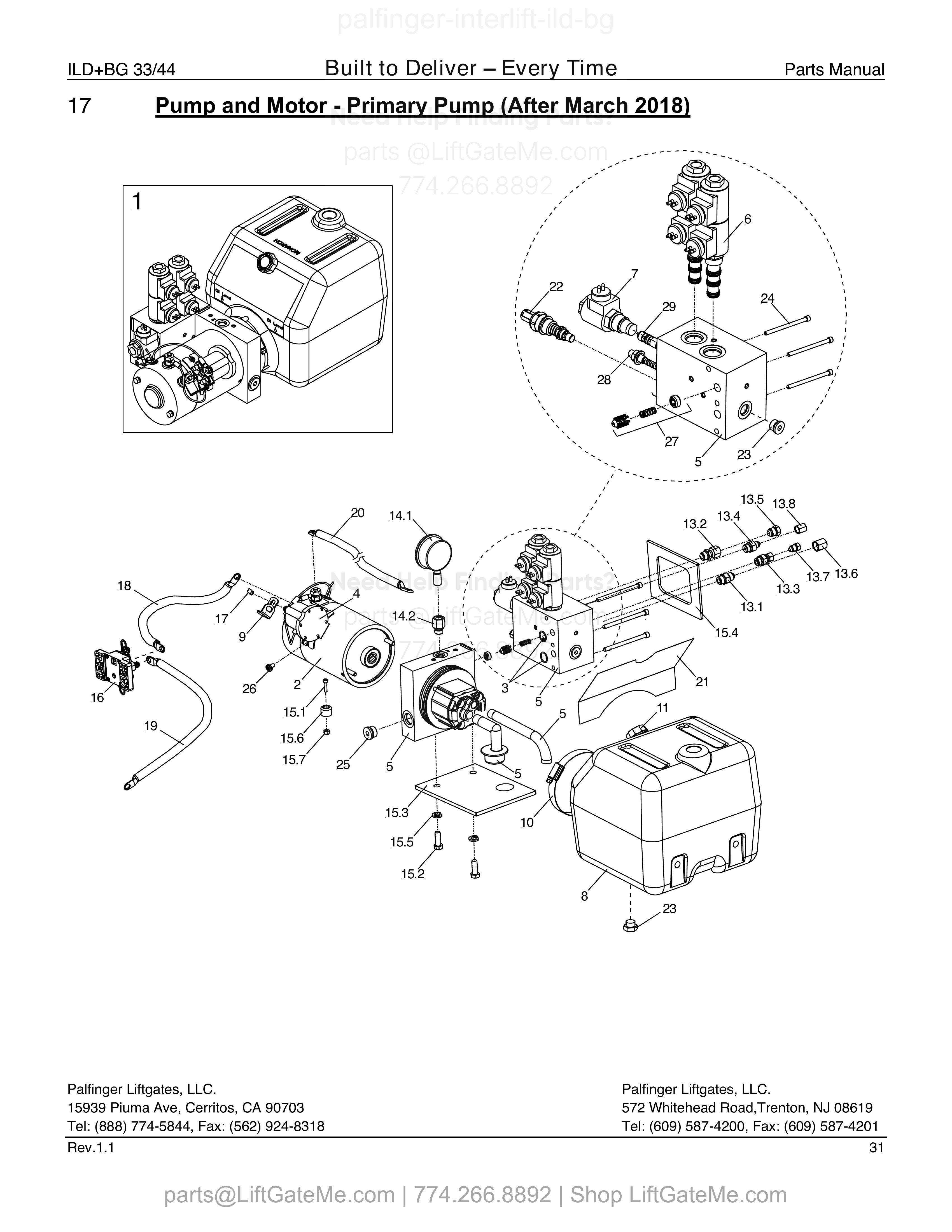

Pump and Motor - Primary Pump (After March 2018)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 50-1117-001 | Power Pack, Primary, Pump & Motor, 1.7CC, 12VDC | |
| 1 | 1 | 50-1118-102 | Power Pack, Primary, Pump & Motor, 1.7CC, 24VDC | |
| 2 | 1 | 50-1118-007 | Motor, 12VDC | |
| 2 | 1 | 50-1118-008 | Motor, 24VDC | |
| 3 | 2 | 50-1118-014 | O-Ring, 0.63”X 0.75”X 0.06” | |
| 4 | 1 | 50-1118-009 | Motor Solenoid, 12VDC | |
| 4 | 1 | 50-1118-010 | Motor Solenoid, 24VDC | |
| 5 | 1 | 50-1118-012 | Pump, Incl. Coupler, Pipe, Filter | |
| 6 | 2 | P-2021832A | Two Way Release Valve | |
| 7 | 1 | P-67282345 | Single Locking Release Valve | |
| 8 | 1 | 50-1118-002 | Oil Reservoir | |
| 9 | 1 | 50-1118-001 | Bracket, Copper Bridge, Solenoid | |
| 10 | 1 | 50-0313-954 | Clamp For Oil Reservoir | |
| 11 | 1 | 50-0709-914 | Breather Cap | |
| 12 | 1 | 50-0709-924 | Pump Filter | |
| 13 | 1 | 80-1117-100 | Fitting Kit, Primary Pump | |
| 13.1 | 1 | HV 826 | Adapter, Male 3/8” JIC - 3/8” ORB | |
| 13.2 | 1 | HV 829 | Adpater, Female 3/8” JIC - 3/8 ORB | |
| 13.3 | 1 | HV 830 | Adpater, Female ¼” JIC - 3/8 ORB | |
| 13.4 | 1 | HV 831 | Adpater, Male ¼” JIC - 3/8 ORB | |
| 13.5 | 1 | EA6022 | Plug, 3/8” JIC Male | |
| 13.6 | 1 | EA6023 | Cap, 3/8” JIC Female | |
| 13.7 | 1 | EA6024 | Plug, ¼” JIC Male | |
| 13.8 | 1 | EA6025 | Cap, ¼” JIC Female | |
| 14 | 1 | 80-1117-101 | Gauge Kit, Primary Pump | |
| 14.1 | 1 | OS3121327 | Pressure Gauge | |
| 14.2 | 1 | HV 836 | Adapter, 3/8” ORB - ¼”-18 NPT | |
| 15 | 1 | 99-1117-000 | Hardware Kit, Primary Pump | |
| 15.1 | 1 | ES3448 | Socket Head Cap Screw, 10-24 X 3/4", Zinc | |
| 15.2 | 2 | ES3446 | Hex Head Cap Screw, 3/8-16 X 1" ,Gr.5, Zinc | |
| 15.3 | 1 | 50-1117-003 | Rubber, 2.5” X 5.5” X 1/4” | |
| 15.4 | 1 | 50-1117-004 | Gasket, 5” X 4” X .03” | |
| 15.5 | 2 | EK3238 | Washer; Splitlock, 3/8" | |
| 15.6 | 1 | EK3698 | Snubber, ¾”OD X 3/16”ID X 9/16”H | |
| 15.7 | 1 | EM 730 | Nut, Nylock, 10-24, Gr.2, Zinc | |
| 16 | 1 | 70-8114-009 | Circuit Breaker, Manual, 175A | |
| 17 | 1 | 1474387 | Electrical Terminal | |
| 18 | 1 | KET05919A | Cable, 20", 3/8" Lugs, Red | |
| 19 | 1 | KET05920A | Cable, 35", 3/8" Lugs, Red | |
| 20 | 1 | KET05921A | Cable, 35", 3/8" Lugs, Black | |
| 21 | 1 | 85-1117-002 | Decal, Oil Level | |
| 22 | 1 | 50-0313-953 | Valve, Relief,Max,HDM10 | |
| 23 | 2 | 50-1118-003 | Plug, SAE, 9/16-18, Hex Socket | |
| 24 | 3 | ES4086 | Socket Head Cap Screw, ¼-20x3.50”, Zinc | |
| 25 | 1 | 50-1118-004 | Plug, SAE, ¾”-16, Hex Socket | |
| 26 | 2 | ES4080 | Pan Head Screw, #10-32x0.312", Torx Drive | |
| 27 | 1 | 50-1118-005 | Valve, Check, Primary/Secondary Pump | |
| 28 | 1 | 50-1118-006 | Valve, Assembly, 1001 PSI & Up | |
| 29 | 1 | 50-1118-011 | Valve, Check, Pilot OP, Cart, Zero |

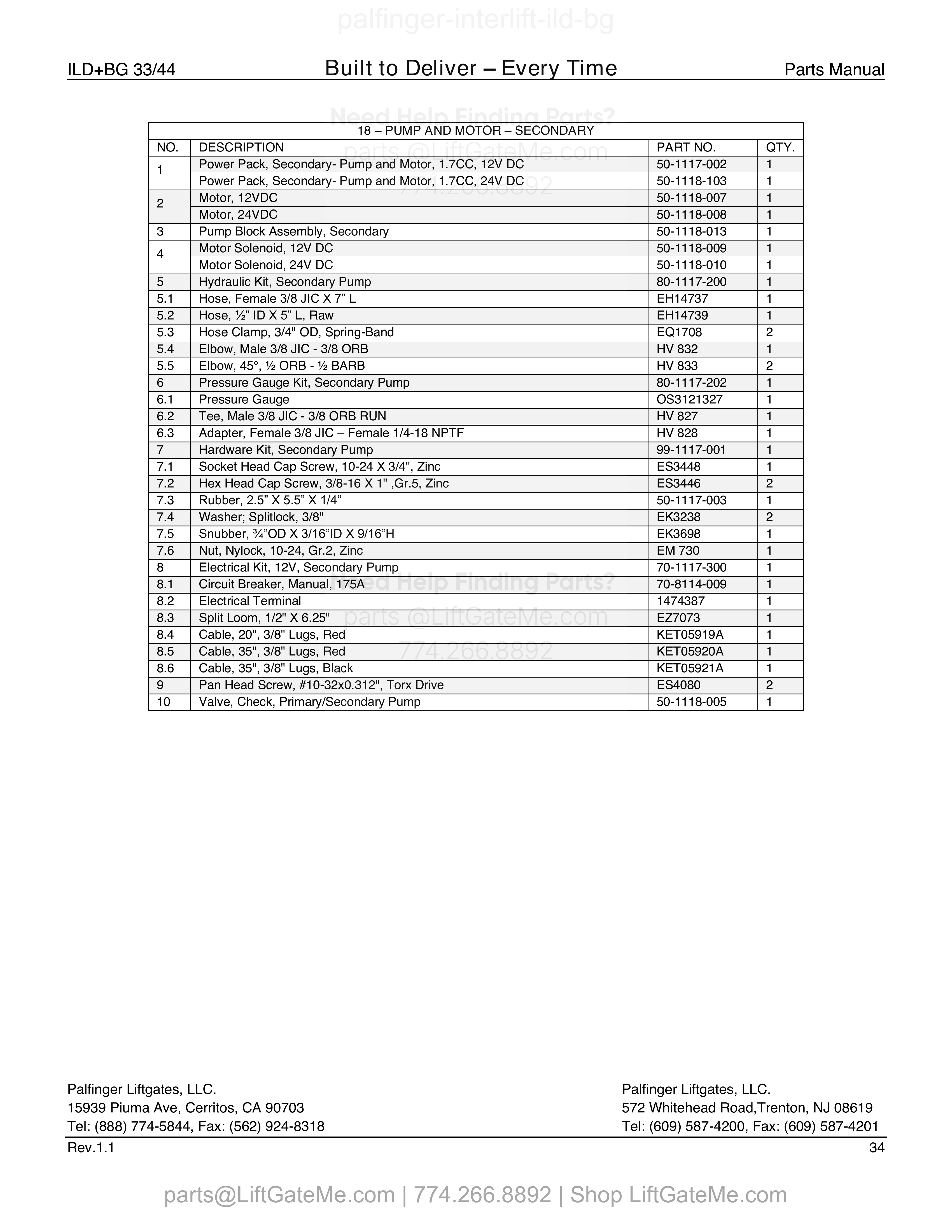

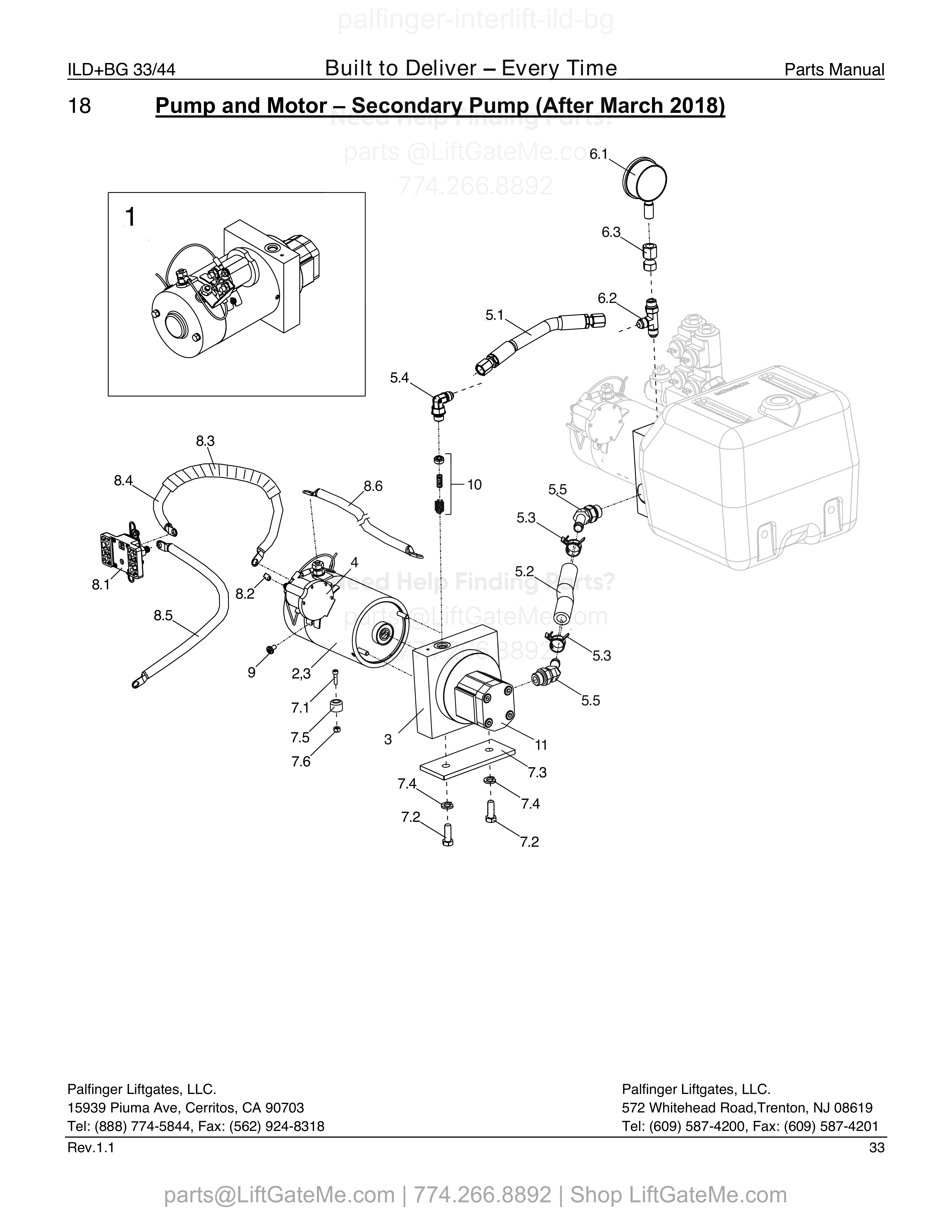

18 – Pump and Motor – Secondary Pump (After March 2018)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 50-1117-002 | Power Pack, Secondary- Pump and Motor, 1.7CC, 12V DC | |
| 1 | 1 | 50-1118-103 | Power Pack, Secondary- Pump and Motor, 1.7CC, 24V DC | |
| 2 | 1 | 50-1118-007 | Motor, 12VDC | |
| 2 | 1 | 50-1118-008 | Motor, 24VDC | |
| 3 | 1 | 50-1118-013 | Pump Block Assembly, Secondary | |
| 4 | 1 | 50-1118-009 | Motor Solenoid, 12V DC | |
| 4 | 1 | 50-1118-010 | Motor Solenoid, 24V DC | |
| 5 | 1 | 80-1117-200 | Hydraulic Kit, Secondary Pump | |
| 5.1 | 1 | EH14737 | Hose, Female 3/8 JIC X 7” L | |
| 5.2 | 1 | EH14739 | Hose, ½” ID X 5” L, Raw | |
| 5.3 | 2 | EQ1708 | Hose Clamp, 3/4" OD, Spring-Band | |
| 5.4 | 1 | HV 832 | Elbow, Male 3/8 JIC - 3/8 ORB | |
| 5.5 | 2 | HV 833 | Elbow, 45°, ½ ORB - ½ BARB | |
| 6 | 1 | 80-1117-202 | Pressure Gauge Kit, Secondary Pump | |
| 6.1 | 1 | OS3121327 | Pressure Gauge | |
| 6.2 | 1 | HV 827 | Tee, Male 3/8 JIC - 3/8 ORB RUN | |
| 6.3 | 1 | HV 828 | Adapter, Female 3/8 JIC – Female 1/4-18 NPTF | |
| 7 | 1 | 99-1117-001 | Hardware Kit, Secondary Pump | |
| 7.1 | 1 | ES3448 | Socket Head Cap Screw, 10-24 X 3/4", Zinc | |
| 7.2 | 2 | ES3446 | Hex Head Cap Screw, 3/8-16 X 1" ,Gr.5, Zinc | |
| 7.3 | 1 | 50-1117-003 | Rubber, 2.5” X 5.5” X 1/4” | |
| 7.4 | 2 | EK3238 | Washer; Splitlock, 3/8" | |
| 7.5 | 1 | EK3698 | Snubber, ¾”OD X 3/16”ID X 9/16”H | |
| 7.6 | 1 | EM 730 | Nut, Nylock, 10-24, Gr.2, Zinc | |
| 8 | 1 | 70-1117-300 | Electrical Kit, 12V, Secondary Pump | |
| 8.1 | 1 | 70-8114-009 | Circuit Breaker, Manual, 175A | |
| 8.2 | 1 | 1474387 | Electrical Terminal | |
| 8.3 | 1 | EZ7073 | Split Loom, 1/2" X 6.25" | |
| 8.4 | 1 | KET05919A | Cable, 20", 3/8" Lugs, Red | |
| 8.5 | 1 | KET05920A | Cable, 35", 3/8" Lugs, Red | |
| 8.6 | 1 | KET05921A | Cable, 35", 3/8" Lugs, Black | |
| 9 | 2 | ES4080 | Pan Head Screw, #10-32x0.312", Torx Drive | |
| 10 | 1 | 50-1118-005 | Valve, Check, Primary/Secondary Pump |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

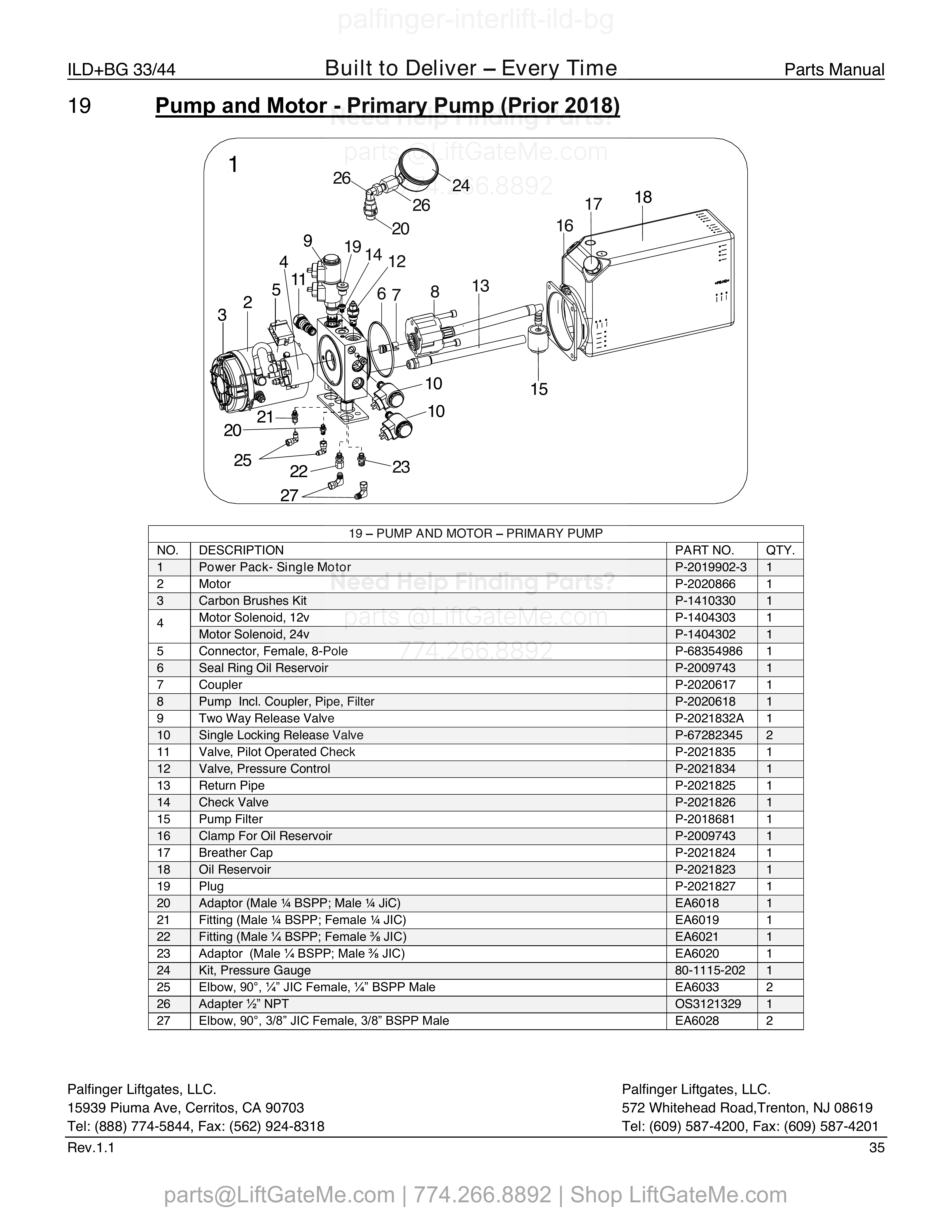

19 – Pump and Motor - Primary Pump (Prior 2018)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | P-2019902-3 | Power Pack- Single Motor | |
| 2 | 1 | P-2020866 | Motor | |
| 3 | 1 | P-1410330 | Carbon Brushes Kit | |
| 4 | 1 | P-1404303 | Motor Solenoid, 12v | |
| 4 | 1 | P-1404302 | Motor Solenoid, 24v | |
| 5 | 1 | P-68354986 | Connector, Female, 8-Pole | |
| 6 | 1 | P-2009743 | Seal Ring Oil Reservoir | |
| 7 | 1 | P-2020617 | Coupler | |
| 8 | 1 | P-2020618 | Pump Incl. Coupler, Pipe, Filter | |
| 9 | 1 | P-2021832A | Two Way Release Valve | |
| 10 | 2 | P-67282345 | Single Locking Release Valve | |
| 11 | 1 | P-2021835 | Valve, Pilot Operated Check | |
| 12 | 1 | P-2021834 | Valve, Pressure Control | |
| 13 | 1 | P-2021825 | Return Pipe | |
| 14 | 1 | P-2021826 | Check Valve | |
| 15 | 1 | P-2018681 | Pump Filter | |
| 16 | 1 | P-2009743 | Clamp For Oil Reservoir | |
| 17 | 1 | P-2021824 | Breather Cap | |
| 18 | 1 | P-2021823 | Oil Reservoir | |
| 19 | 1 | P-2021827 | Plug | |
| 20 | 1 | EA6018 | Adaptor (Male ¼ BSPP; Male ¼ JiC) | |
| 21 | 1 | EA6019 | Fitting (Male ¼ BSPP; Female ¼ JIC) | |
| 22 | 1 | EA6021 | Fitting (Male ¼ BSPP; Female ⅜ JIC) | |
| 23 | 1 | EA6020 | Adaptor (Male ¼ BSPP; Male ⅜ JIC) | |
| 24 | 1 | 80-1115-202 | Kit, Pressure Gauge | |
| 25 | 2 | EA6033 | Elbow, 90°, ¼” JIC Female, ¼” BSPP Male | |
| 26 | 1 | OS3121329 | Adapter ½” NPT | |
| 27 | 2 | EA6028 | Elbow, 90°, 3/8” JIC Female, 3/8” BSPP Male |

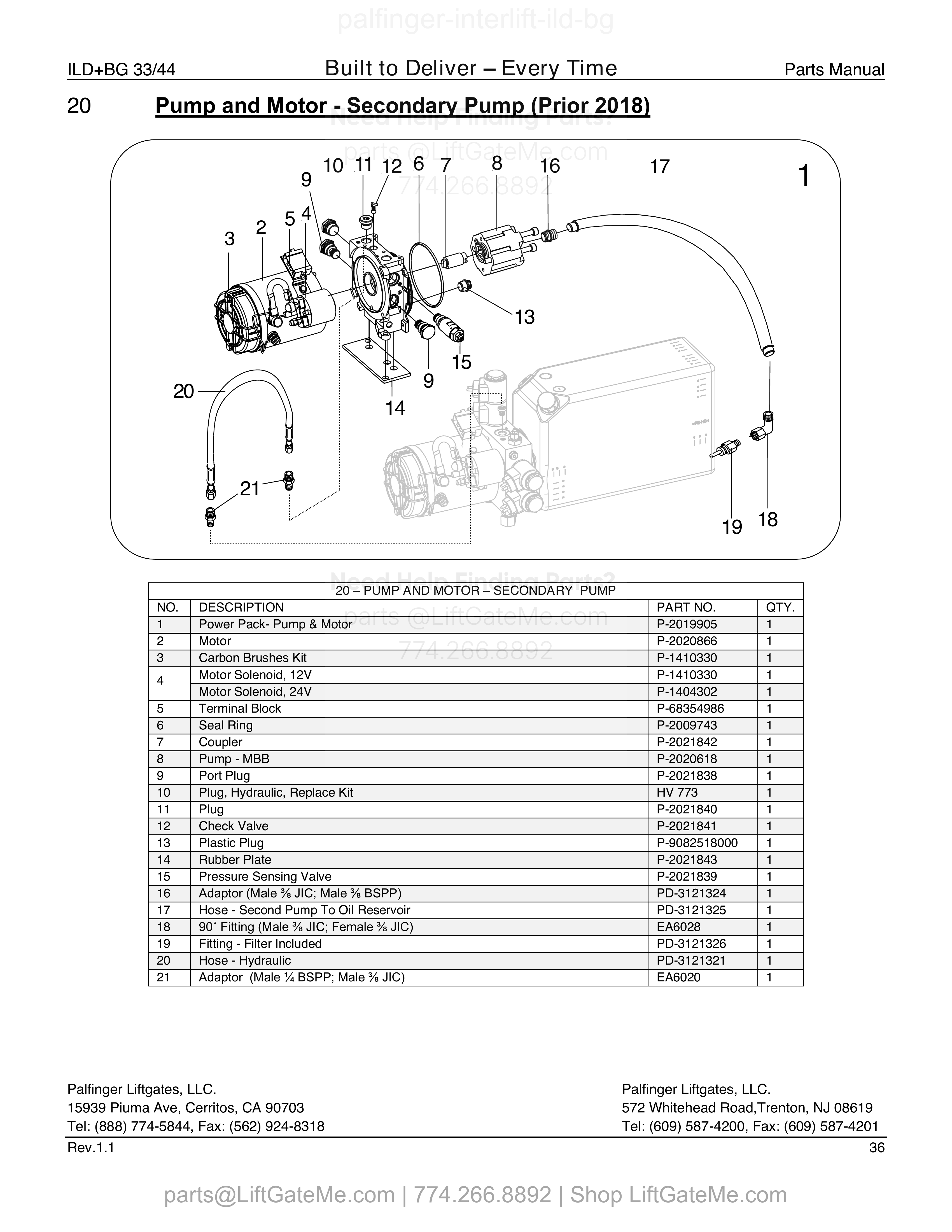

20 – Pump and Motor - Secondary Pump (Prior 2018)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | P-2019905 | Power Pack- Pump & Motor | |
| 2 | 1 | P-2020866 | Motor | |
| 3 | 1 | P-1410330 | Carbon Brushes Kit | |
| 4 | 1 | P-1410330 | Motor Solenoid, 12V | |
| 4 | 1 | P-1404302 | Motor Solenoid, 24V | |
| 5 | 1 | P-68354986 | Terminal Block | |
| 6 | 1 | P-2009743 | Seal Ring | |
| 7 | 1 | P-2021842 | Coupler | |
| 8 | 1 | P-2020618 | Pump - MBB | |
| 9 | 1 | P-2021838 | Port Plug | |
| 10 | 1 | HV 773 | Plug, Hydraulic, Replace Kit | |
| 11 | 1 | P-2021840 | Plug | |
| 12 | 1 | P-2021841 | Check Valve | |
| 13 | 1 | P-9082518000 | Plastic Plug | |
| 14 | 1 | P-2021843 | Rubber Plate | |
| 15 | 1 | P-2021839 | Pressure Sensing Valve | |
| 16 | 1 | PD-3121324 | Adaptor (Male ⅜ JIC; Male ⅜ BSPP) | |
| 17 | 1 | PD-3121325 | Hose - Second Pump To Oil Reservoir | |
| 18 | 1 | EA6028 | 90˚ Fitting (Male ⅜ JIC; Female ⅜ JIC) | |
| 19 | 1 | PD-3121326 | Fitting - Filter Included | |
| 20 | 1 | PD-3121321 | Hose - Hydraulic | |
| 21 | 1 | EA6020 | Adaptor (Male ¼ BSPP; Male ⅜ JIC) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

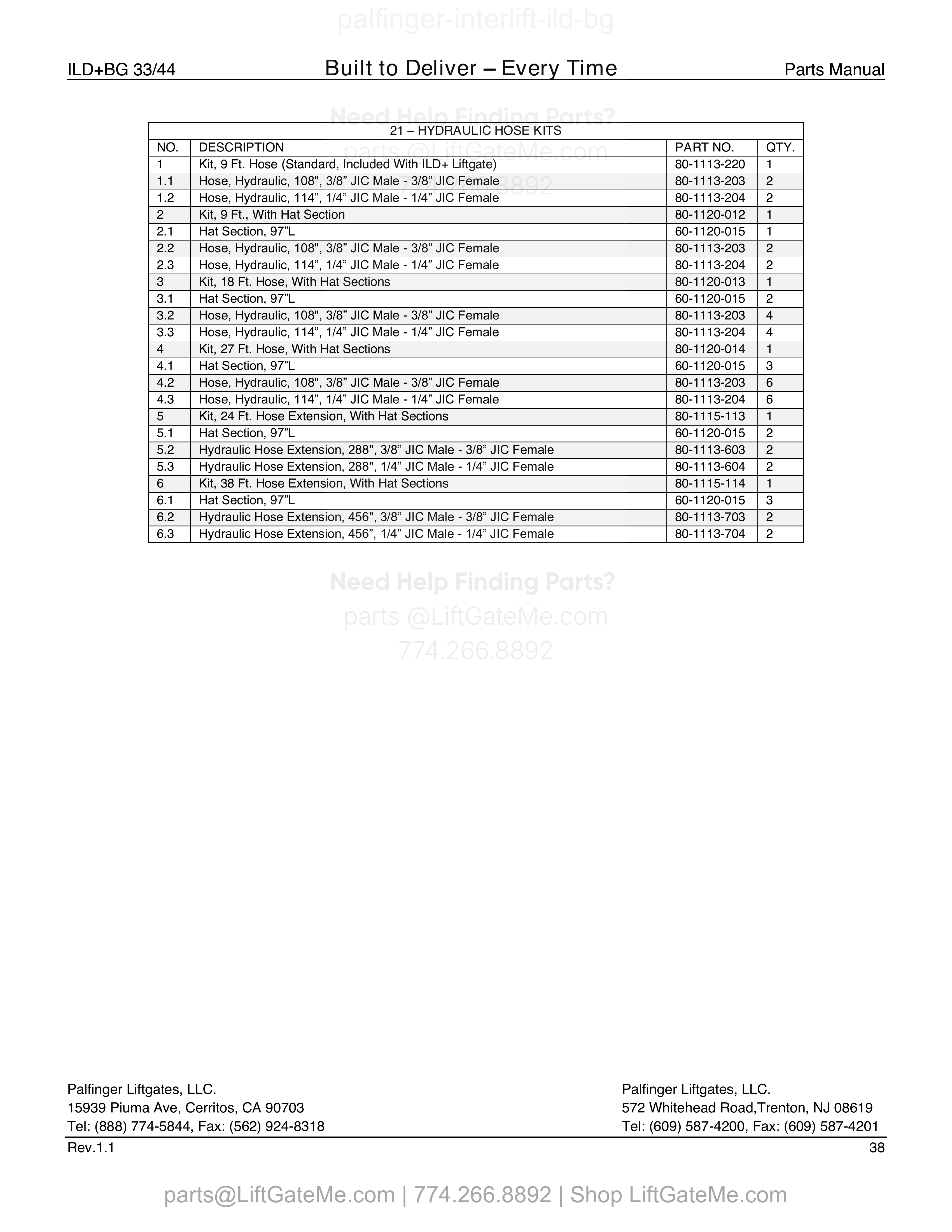

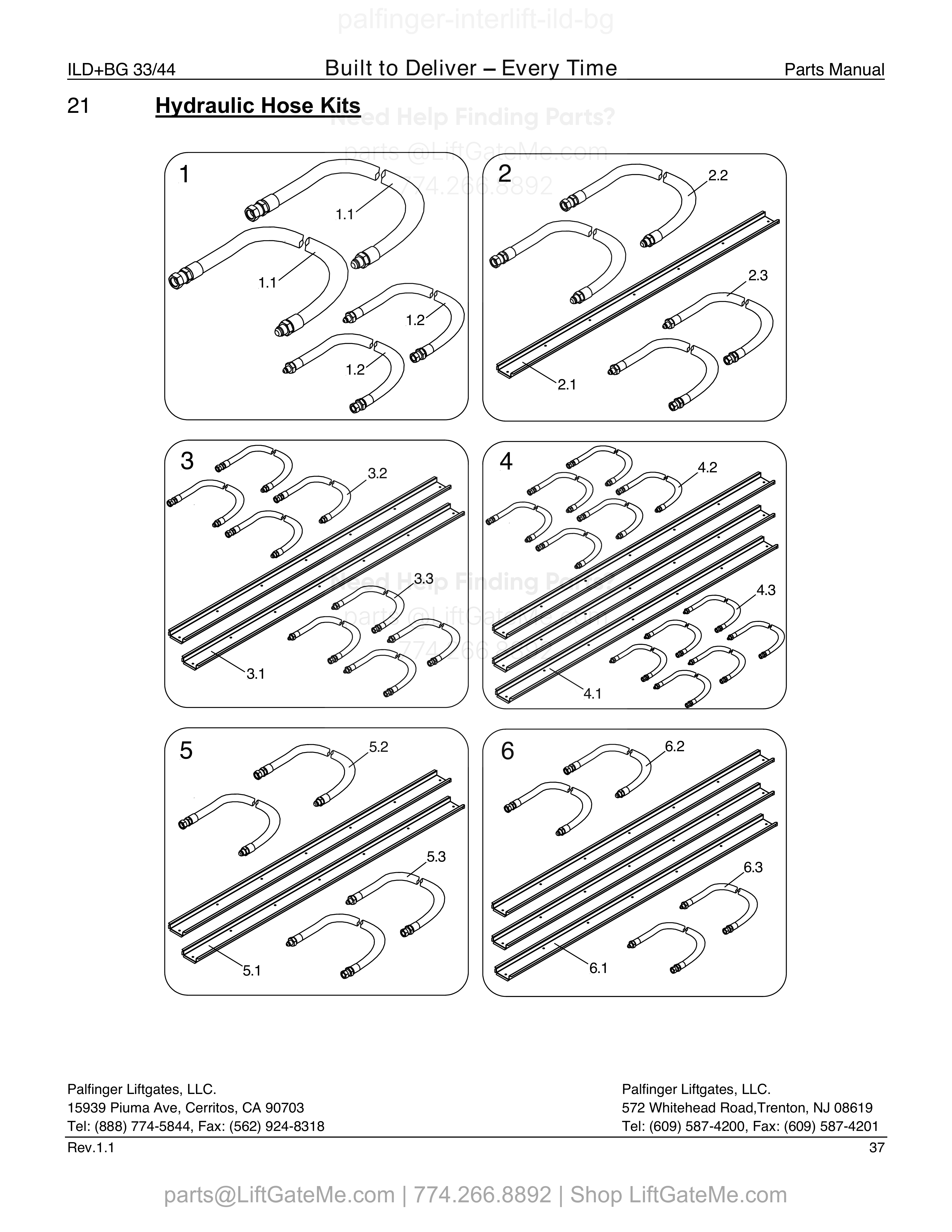

21 – Hydraulic Hose Kits
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 80-1113-220 | Kit, 9 Ft. Hose (Standard, Included With ILD+ Liftgate) | |
| 1.1 | 2 | 80-1113-203 | Hose, Hydraulic, 108", 3/8” JIC Male - 3/8” JIC Female | |
| 1.2 | 2 | 80-1113-204 | Hose, Hydraulic, 114”, 1/4” JIC Male - 1/4” JIC Female | |
| 2 | 1 | 80-1120-012 | Kit, 9 Ft., With Hat Section | |
| 2.1 | 1 | 60-1120-015 | Hat Section, 97”L | |
| 2.2 | 2 | 80-1113-203 | Hose, Hydraulic, 108", 3/8” JIC Male - 3/8” JIC Female | |
| 2.3 | 2 | 80-1113-204 | Hose, Hydraulic, 114”, 1/4” JIC Male - 1/4” JIC Female | |
| 3 | 1 | 80-1120-013 | Kit, 18 Ft. Hose, With Hat Sections | |
| 3.1 | 2 | 60-1120-015 | Hat Section, 97”L | |
| 3.2 | 4 | 80-1113-203 | Hose, Hydraulic, 108", 3/8” JIC Male - 3/8” JIC Female | |
| 3.3 | 4 | 80-1113-204 | Hose, Hydraulic, 114” JIC Male - 1/4” JIC Female | |
| 4 | 1 | 80-1120-014 | Kit, 27 Ft. Hose, With Hat Sections | |
| 4.1 | 3 | 60-1120-015 | Hat Section, 97”L | |
| 4.2 | 6 | 80-1113-203 | Hose, Hydraulic, 108", 3/8” JIC Male - 3/8” JIC Female | |
| 4.3 | 6 | 80-1113-204 | Hose, Hydraulic, 114” JIC Male - 1/4” JIC Female | |
| 5 | 1 | 80-1115-113 | Kit, 24 Ft. Hose Extension, With Hat Sections | |
| 5.1 | 2 | 60-1120-015 | Hat Section, 97”L | |
| 5.2 | 2 | 80-1113-603 | Hydraulic Hose Extension, 288", 3/8” JIC Male - 3/8” JIC Female | |
| 5.3 | 2 | 80-1113-604 | Hydraulic Hose Extension, 288", 1/4” JIC Male - 1/4” JIC Female | |
| 6 | 1 | 80-1115-114 | Kit, 38 Ft. Hose Extension, With Hat Sections | |
| 6.1 | 3 | 60-1120-015 | Hat Section, 97”L | |
| 6.2 | 2 | 80-1113-703 | Hydraulic Hose Extension, 456", 3/8” JIC Male - 3/8” JIC Female | |
| 6.3 | 2 | 80-1113-704 | Hydraulic Hose Extension, 456”, 1/4” JIC Male - 1/4” JIC Female |

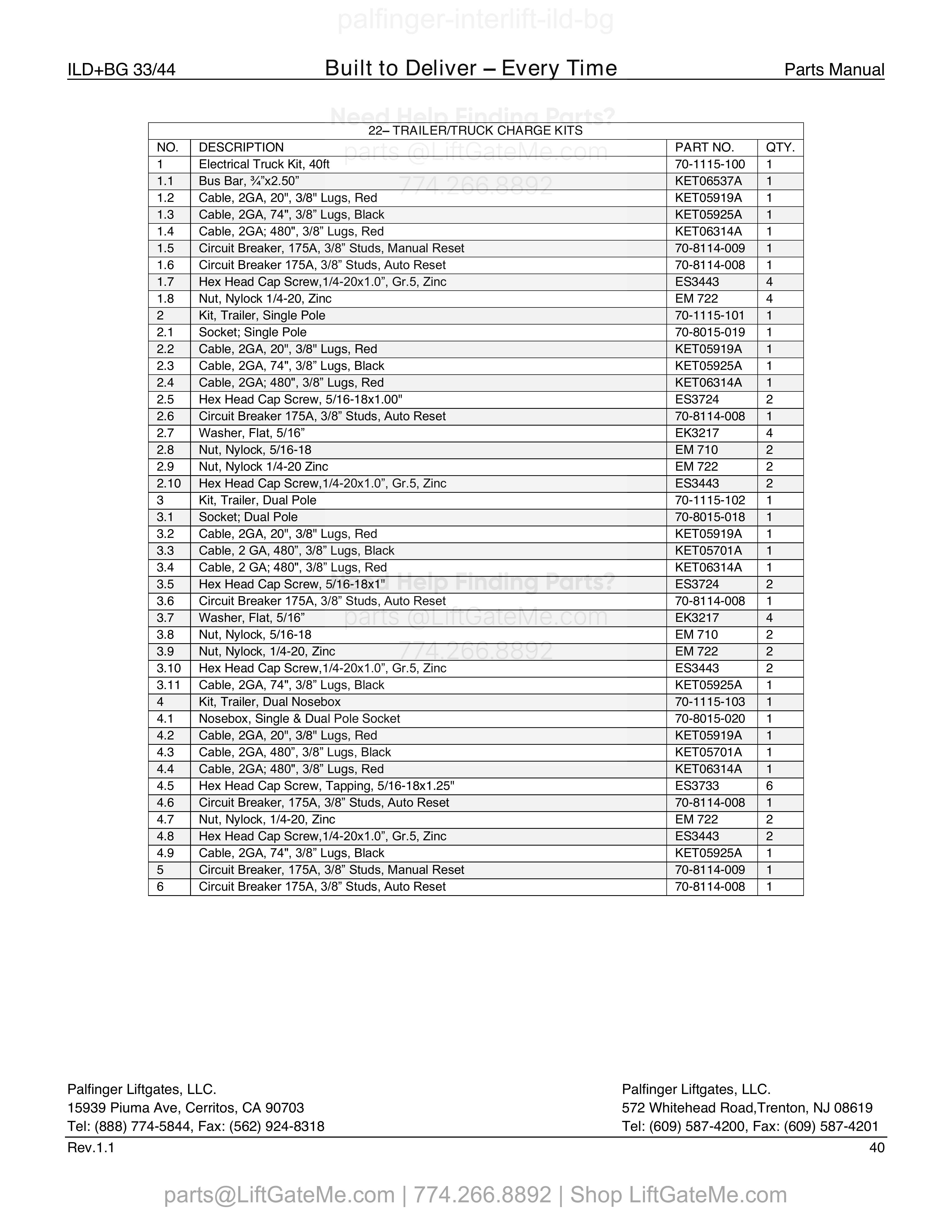

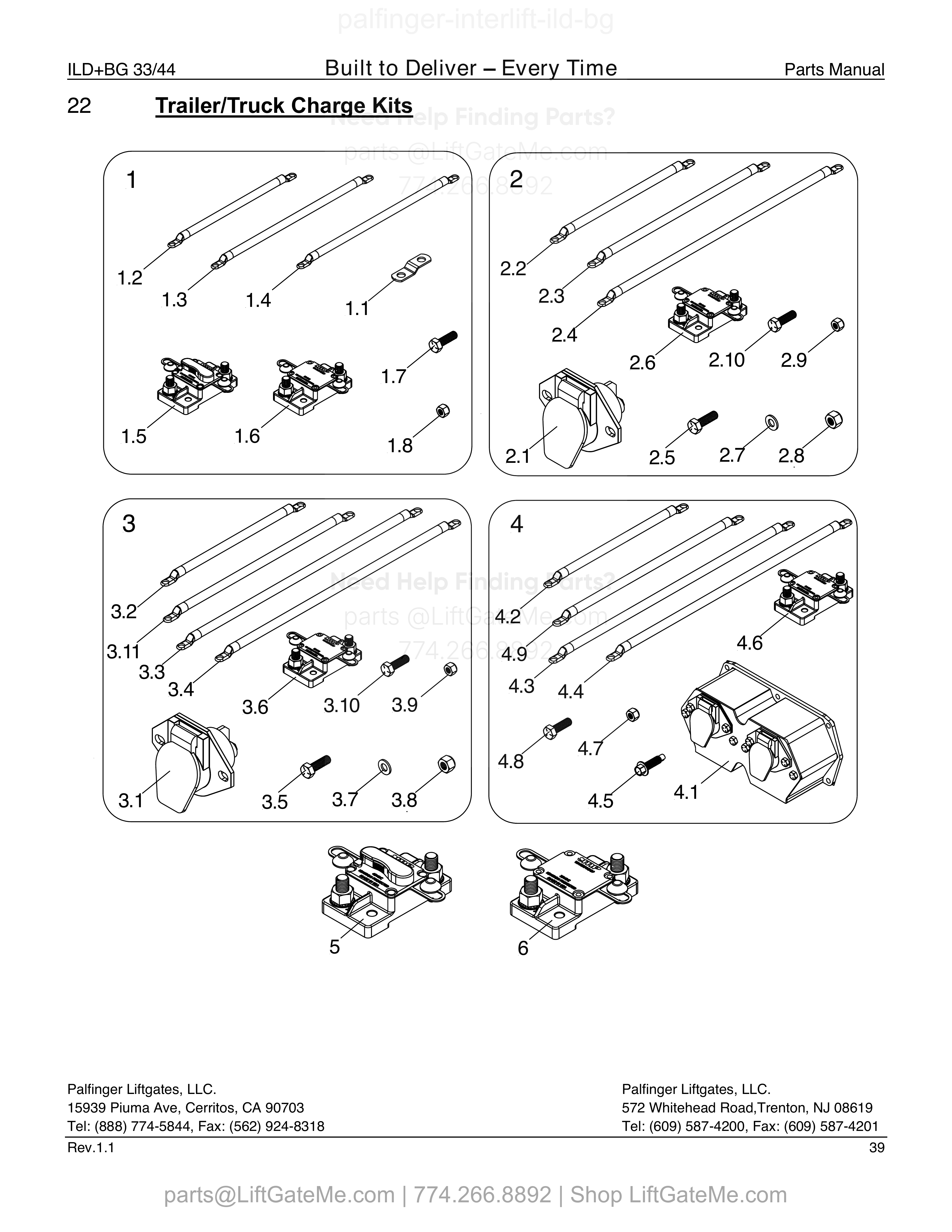

22 – Trailer/Truck Charge Kits
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70-1115-100 | Electrical Truck Kit, 40ft | |
| 1.1 | 1 | KET06537A | Bus Bar, ¾”x2.50” | |
| 1.2 | 1 | KET05919A | Cable, 2GA, 20", 3/8" Lugs, Red | |
| 1.3 | 1 | KET05925A | Cable, 2GA, 74", 3/8” Lugs, Black | |
| 1.4 | 1 | KET06314A | Cable, 2GA; 480", 3/8” Lugs, Red | |
| 1.5 | 1 | 70-8114-009 | Circuit Breaker, 175A, 3/8” Studs, Manual Reset | |
| 1.6 | 1 | 70-8114-008 | Circuit Breaker 175A, 3/8” Studs, Auto Reset | |
| 1.7 | 4 | ES3443 | Hex Head Cap Screw,1/4-20x1.0”, Gr.5, Zinc | |
| 1.8 | 4 | EM 722 | Nut, Nylock 1/4-20, Zinc | |
| 2 | 1 | 70-1115-101 | Kit, Trailer, Single Pole | |
| 2.1 | 1 | 70-8015-019 | Socket; Single Pole | |
| 2.2 | 1 | KET05919A | Cable, 2GA, 20", 3/8" Lugs, Red | |
| 2.3 | 1 | KET05925A | Cable, 2GA, 74", 3/8” Lugs, Black | |
| 2.4 | 1 | KET06314A | Cable, 2GA; 480", 3/8” Lugs, Red | |
| 2.5 | 2 | ES3724 | Hex Head Cap Screw, 5/16-18x1.00" | |
| 2.6 | 1 | 70-8114-008 | Circuit Breaker 175A, 3/8” Studs, Auto Reset | |
| 2.7 | 4 | EK3217 | Washer, Flat, 5/16” | |
| 2.8 | 2 | EM 710 | Nut, Nylock, 5/16-18 | |
| 2.9 | 2 | EM 722 | Nut, Nylock 1/4-20 Zinc | |
| 2.10 | 2 | ES3443 | Hex Head Cap Screw,1/4-20x1.0”, Gr.5, Zinc | |
| 3 | 1 | 70-1115-102 | Kit, Trailer, Dual Pole | |
| 3.1 | 1 | 70-8015-018 | Socket; Dual Pole | |
| 3.2 | 1 | KET05919A | Cable, 2GA, 20", 3/8" Lugs, Red | |
| 3.3 | 1 | KET05701A | Cable, 2 GA, 480”, 3/8” Lugs, Black | |
| 3.4 | 1 | KET06314A | Cable, 2 GA; 480", 3/8” Lugs, Red | |
| 3.5 | 2 | ES3724 | Hex Head Cap Screw, 5/16-18x1" | |
| 3.6 | 1 | 70-8114-008 | Circuit Breaker 175A, 3/8” Studs, Auto Reset | |
| 3.7 | 4 | EK3217 | Washer, Flat, 5/16” | |
| 3.8 | 2 | EM 710 | Nut, Nylock, 5/16-18 | |
| 3.9 | 2 | EM 722 | Nut, Nylock, 1/4-20, Zinc | |
| 3.10 | 2 | ES3443 | Hex Head Cap Screw,1/4-20x1.0”, Gr.5, Zinc | |
| 3.11 | 1 | KET05925A | Cable, 2GA, 74", 3/8” Lugs, Black | |
| 4 | 1 | 70-1115-103 | Kit, Trailer, Dual Nosebox | |
| 4.1 | 1 | 70-8015-020 | Nosebox, Single & Dual Pole Socket | |
| 4.2 | 1 | KET05919A | Cable, 2GA, 20", 3/8" Lugs, Red | |
| 4.3 | 1 | KET05701A | Cable, 2GA, 480”, 3/8” Lugs, Black | |
| 4.4 | 1 | KET06314A | Cable, 2GA; 480", 3/8” Lugs, Red | |
| 4.5 | 6 | ES3733 | Hex Head Cap Screw, Tapping, 5/16-18x1.25" | |
| 4.6 | 1 | 70-8114-008 | Circuit Breaker, 175A, 3/8” Studs, Auto Reset | |
| 4.7 | 2 | EM 722 | Nut, Nylock, 1/4-20, Zinc | |
| 4.8 | 2 | ES3443 | Hex Head Cap Screw,1/4-20x1.0”, Gr.5, Zinc | |
| 4.9 | 1 | KET05925A | Cable, 2GA, 74", 3/8” Lugs, Black | |
| 5 | 1 | 70-8114-009 | Circuit Breaker, 175A, 3/8” Studs, Manual Reset | |
| 6 | 1 | 70-8114-008 | Circuit Breaker 175A, 3/8” Studs, Auto Reset |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

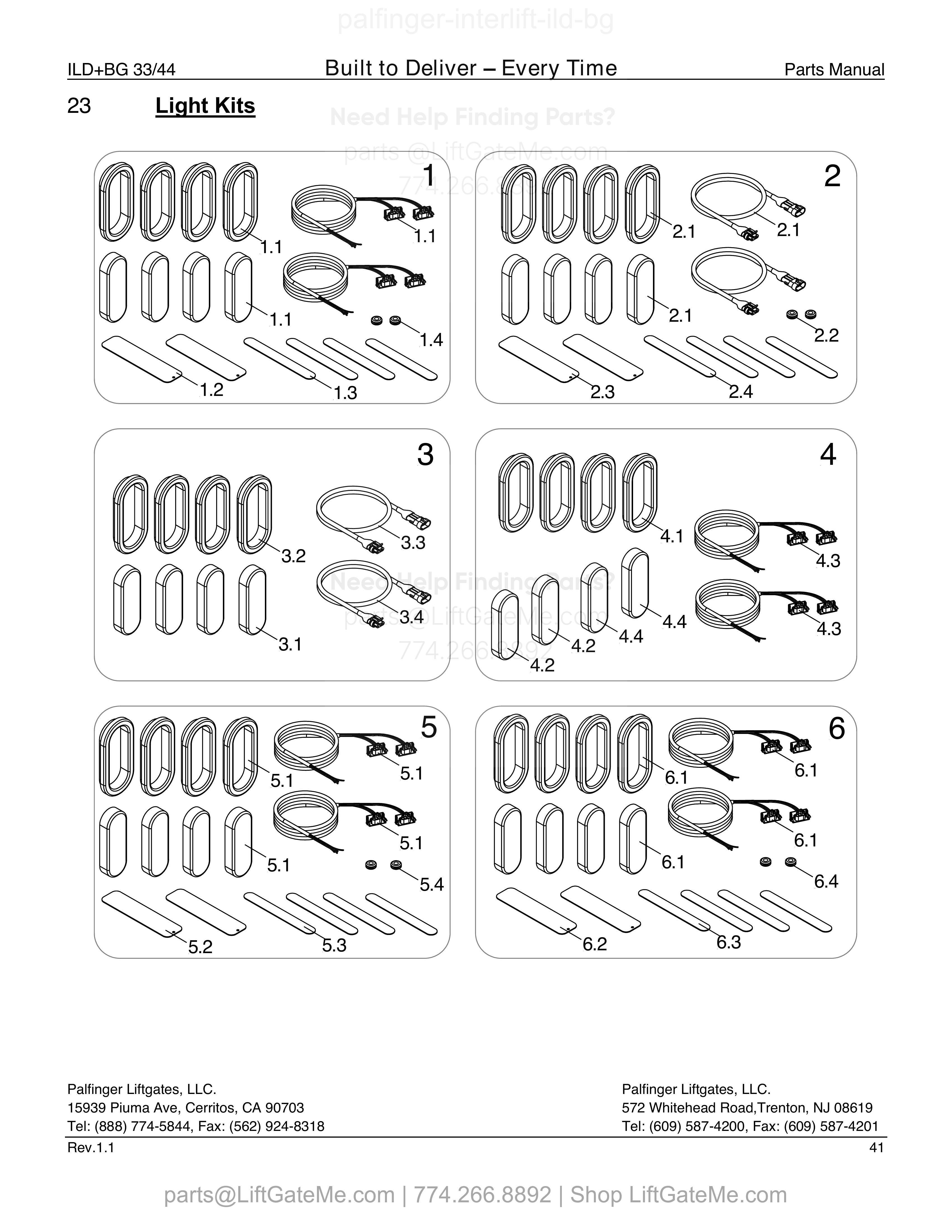

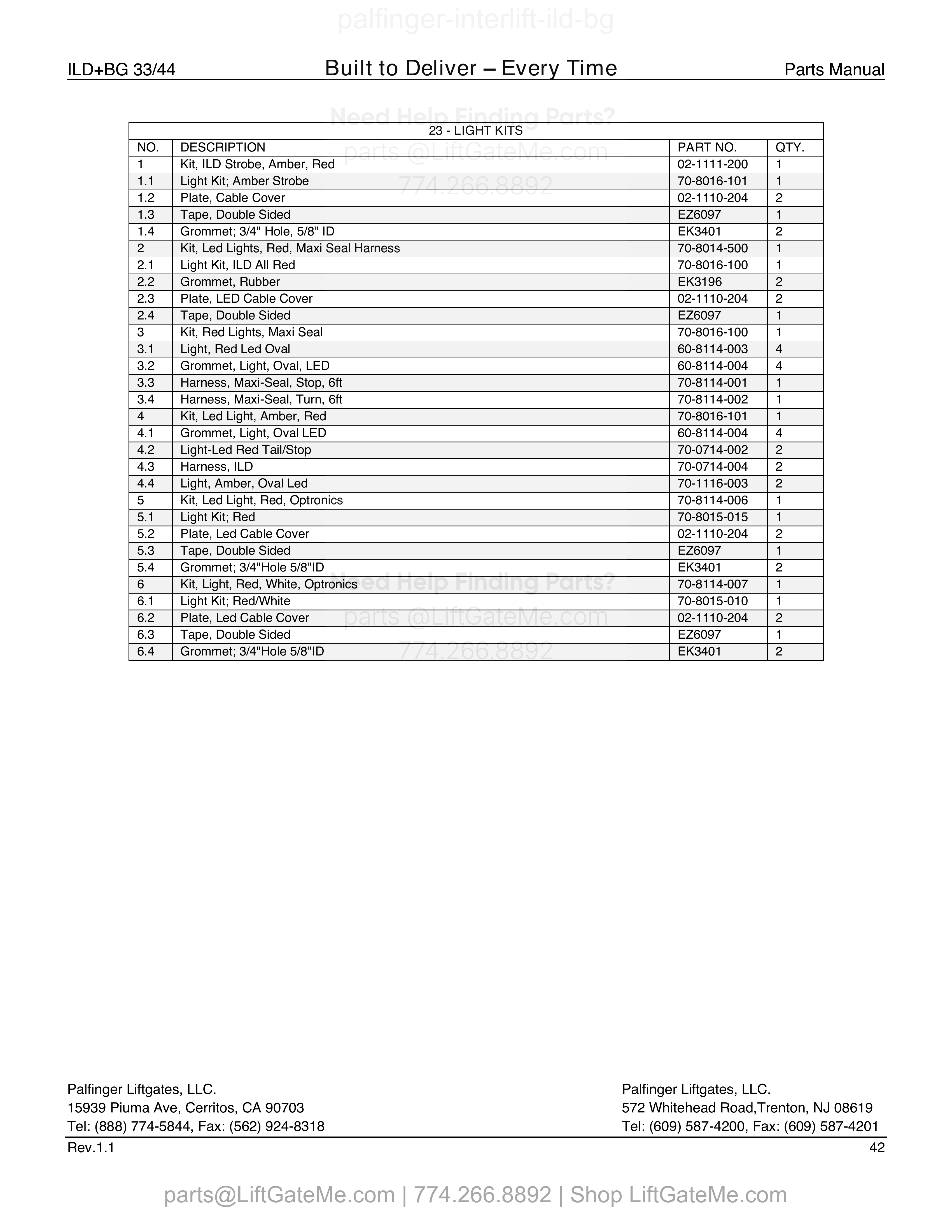

23 - Light Kits
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 02-1111-200 | Kit, ILD Strobe, Amber, Red | |
| 1.1 | 1 | 70-8016-101 | Light Kit; Amber Strobe | |
| 1.2 | 2 | 02-1110-204 | Plate, Cable Cover | |
| 1.3 | 1 | EZ6097 | Tape, Double Sided | |
| 1.4 | 2 | EK3401 | Grommet; 3/4" Hole, 5/8" ID | |
| 2 | 1 | 70-8014-500 | Kit, Led Lights, Red, Maxi Seal Harness | |
| 2.1 | 1 | 70-8016-100 | Light Kit, ILD All Red | |
| 2.2 | 2 | EK3196 | Grommet, Rubber | |
| 2.3 | 2 | 02-1110-204 | Plate, LED Cable Cover | |
| 2.4 | 1 | EZ6097 | Tape, Double Sided | |
| 3 | 1 | 70-8016-100 | Kit, Red Lights, Maxi Seal | |
| 3.1 | 4 | 60-8114-003 | Light, Red Led Oval | |
| 3.2 | 4 | 60-8114-004 | Grommet, Light, Oval, LED | |
| 3.3 | 1 | 70-8114-001 | Harness, Maxi-Seal, Stop, 6ft | |
| 3.4 | 1 | 70-8114-002 | Harness, Maxi-Seal, Turn, 6ft | |
| 4 | 1 | 70-8016-101 | Kit, Led Light, Amber, Red | |
| 4.1 | 4 | 60-8114-004 | Grommet, Light, Oval LED | |
| 4.2 | 2 | 70-0714-002 | Light-Led Red Tail/Stop | |
| 4.3 | 2 | 70-0714-004 | Harness, ILD | |
| 4.4 | 2 | 70-1116-003 | Light, Amber, Oval Led | |
| 5 | 1 | 70-8114-006 | Kit, Led Light, Red, Optronics | |
| 5.1 | 1 | 70-8015-015 | Light Kit; Red | |
| 5.2 | 2 | 02-1110-204 | Plate, Led Cable Cover | |
| 5.3 | 1 | EZ6097 | Tape, Double Sided | |
| 5.4 | 2 | EK3401 | Grommet; 3/4"Hole 5/8"ID | |
| 6 | 1 | 70-8114-007 | Kit, Light, Red, White, Optronics | |
| 6.1 | 1 | 70-8015-010 | Light Kit; Red/White | |
| 6.2 | 2 | 02-1110-204 | Plate, Led Cable Cover | |
| 6.3 | 1 | EZ6097 | Tape, Double Sided | |
| 6.4 | 2 | EK3401 | Grommet; 3/4"Hole 5/8"ID |

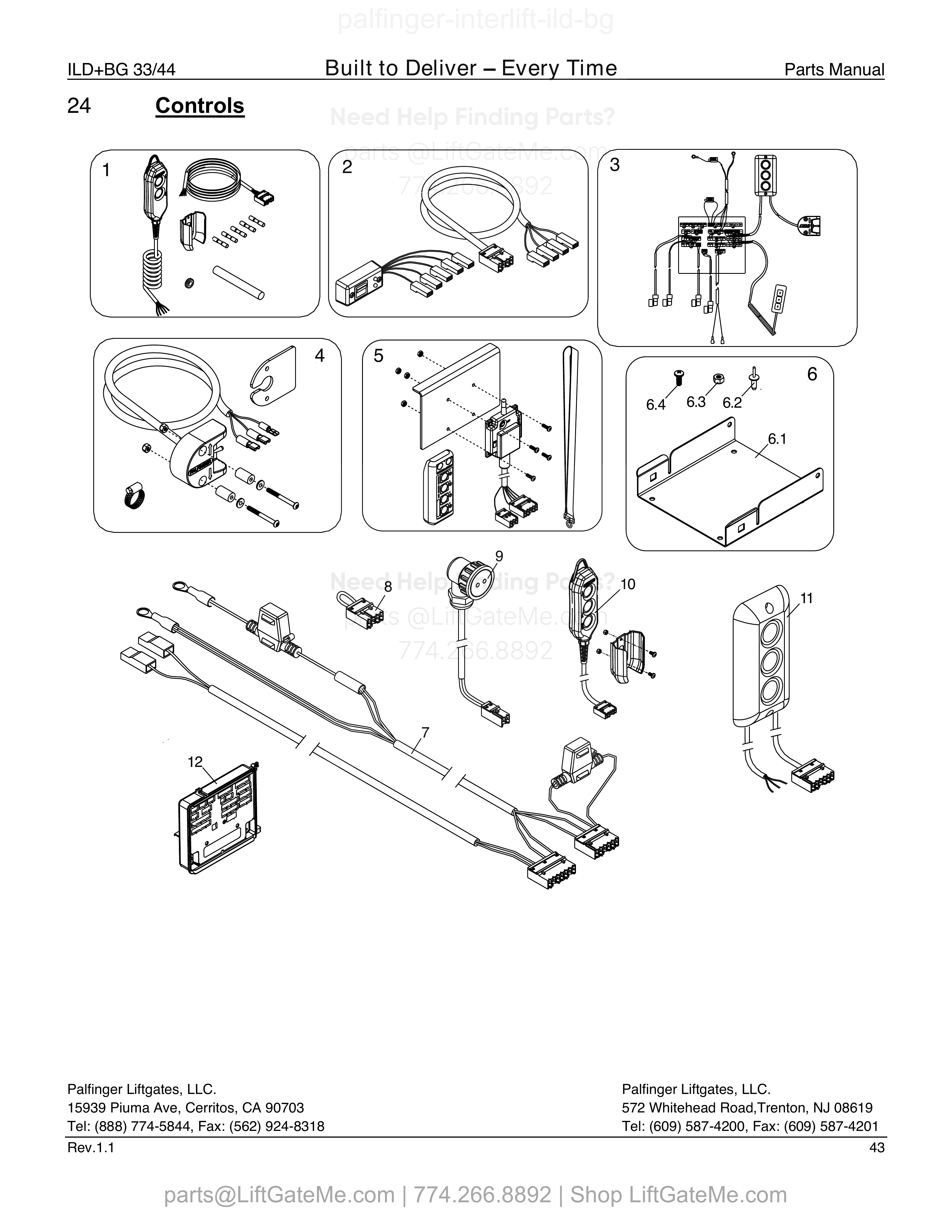

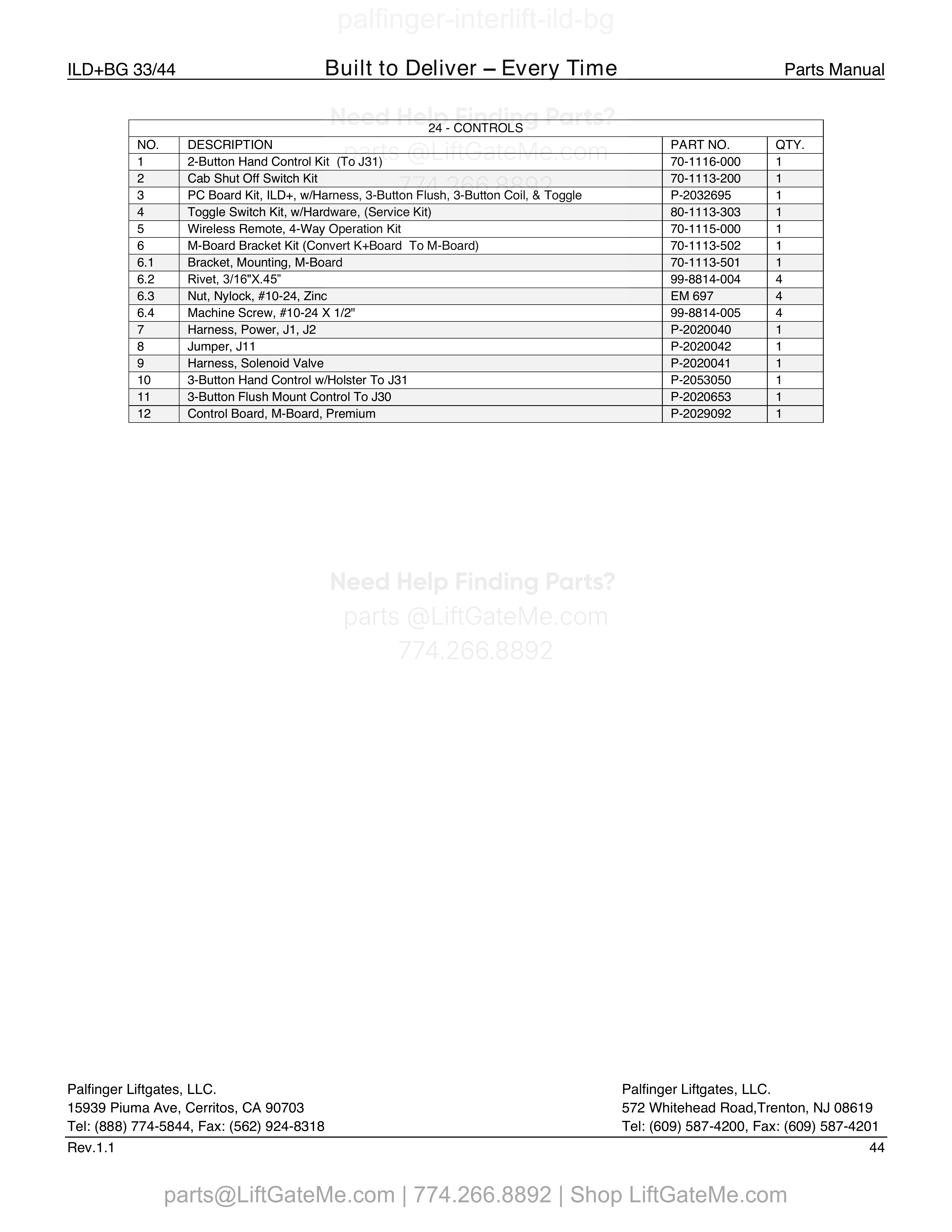

24 - Controls
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70-1116-000 | 2-Button Hand Control Kit (To J31) | |
| 2 | 1 | 70-1113-200 | Cab Shut Off Switch Kit | |
| 3 | 1 | P-2032695 | PC Board Kit, ILD+, w/Harness, 3-Button Flush, 3-Button Coil, & Toggle | |
| 4 | 1 | 80-1113-303 | Toggle Switch Kit, w/Hardware, (Service Kit) | |
| 5 | 1 | 70-1115-000 | Wireless Remote, 4-Way Operation Kit | |
| 6 | 1 | 70-1113-502 | M-Board Bracket Kit (Convert K+Board To M-Board) | |
| 6.1 | 1 | 70-1113-501 | Bracket, Mounting, M-Board | |
| 6.2 | 4 | 99-8814-004 | Rivet, 3/16"X.45” | |
| 6.3 | 4 | EM 697 | Nut, Nylock, #10-24, Zinc | |
| 6.4 | 4 | 99-8814-005 | Machine Screw, #10-24 X 1/2" | |
| 7 | 1 | P-2020040 | Harness, Power, J1, J2 | |
| 8 | 1 | P-2020042 | Jumper, J11 | |
| 9 | 1 | P-2020041 | Harness, Solenoid Valve | |
| 10 | 1 | P-2053050 | 3-Button Hand Control w/Holster To J31 | |
| 11 | 1 | P-2020653 | 3-Button Flush Mount Control To J30 | |
| 12 | 1 | P-2029092 | Control Board, M-Board, Premium |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

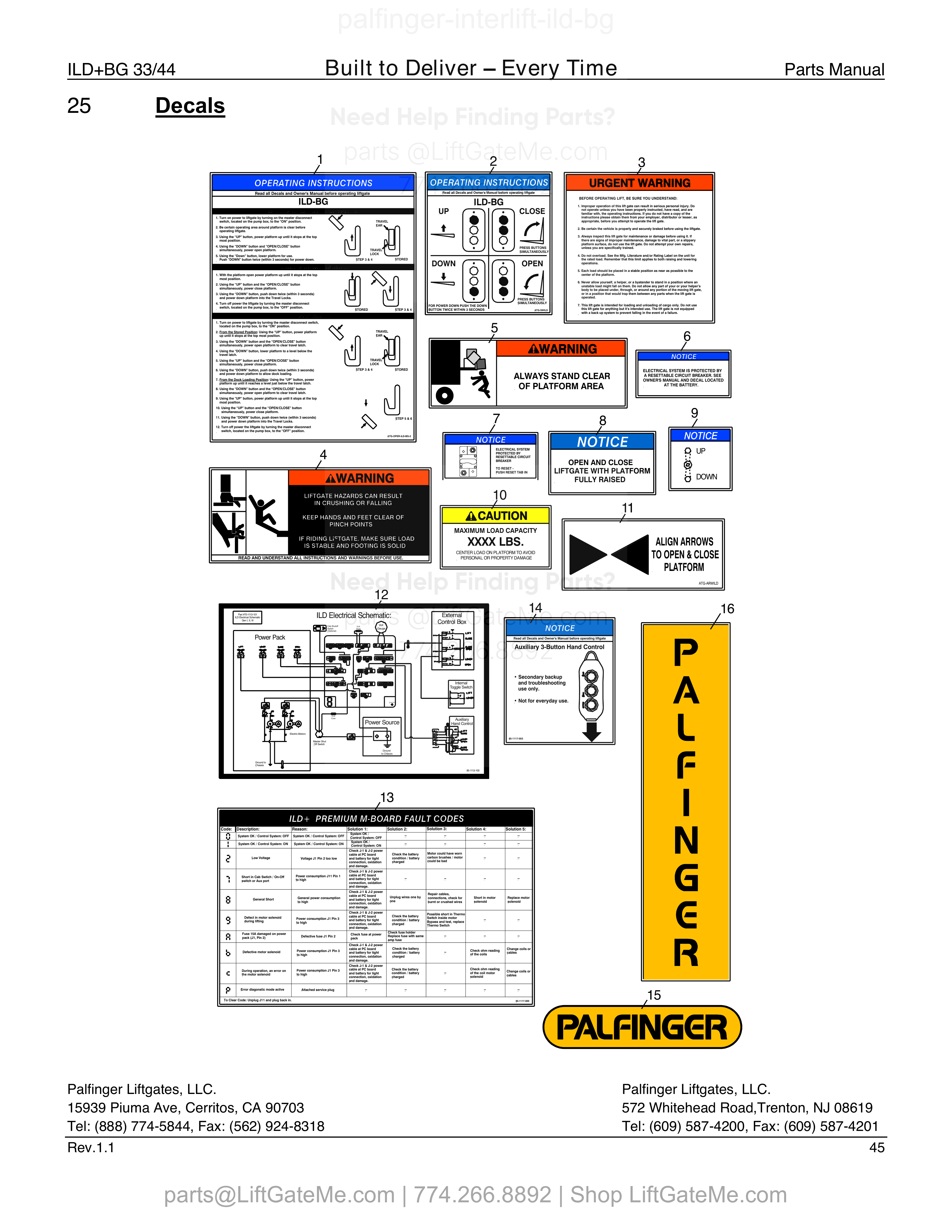

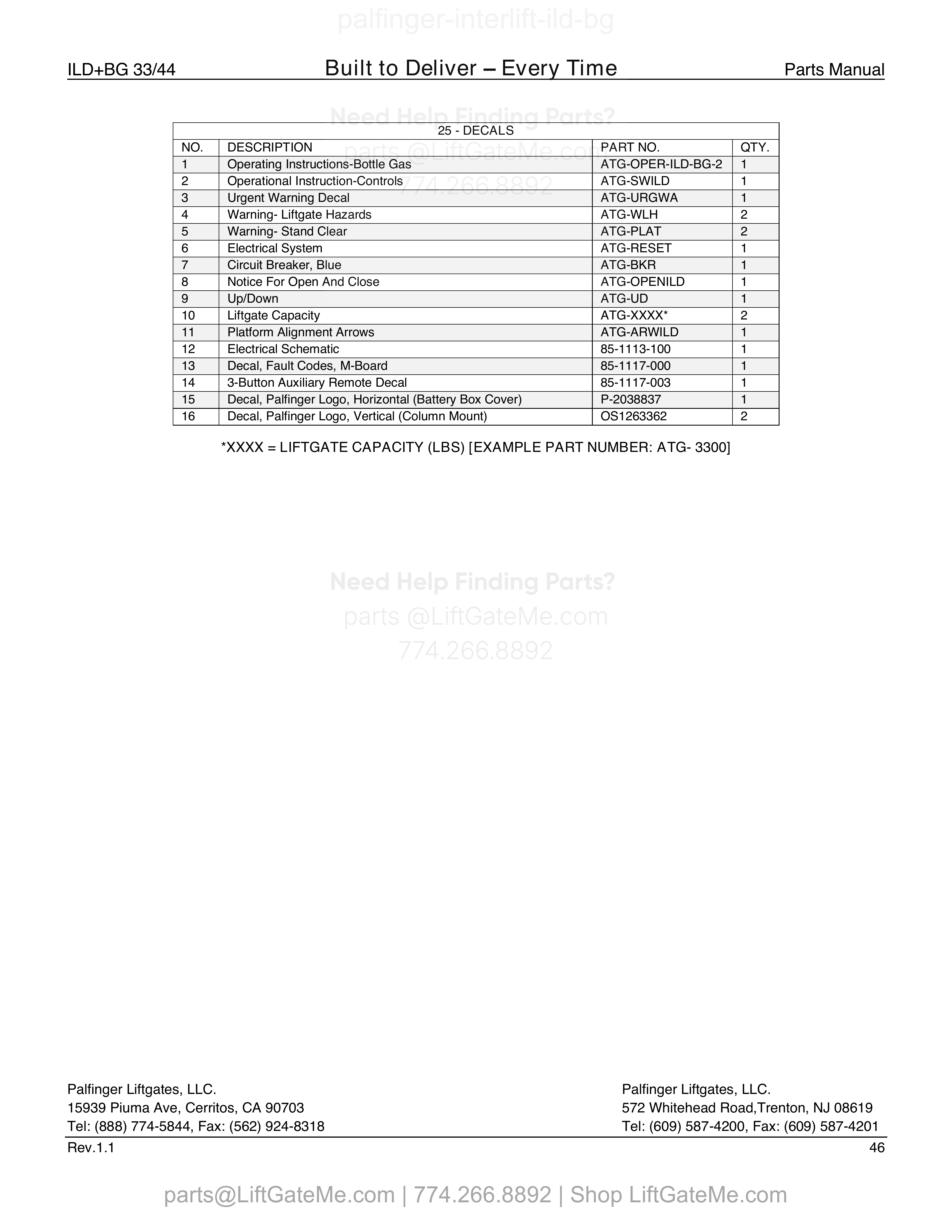

Decals
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | ATG-OPER-ILD-BG-2 | Operating Instructions-Bottle Gas | |
| 2 | 1 | ATG-SWILD | Operational Instruction-Controls | |
| 3 | 1 | ATG-URGWA | Urgent Warning Decal | |
| 4 | 2 | ATG-WLH | Warning- Liftgate Hazards | |
| 5 | 2 | ATG-PLAT | Warning- Stand Clear | |
| 6 | 1 | ATG-RESET | Electrical System | |
| 7 | 1 | ATG-BKR | Circuit Breaker, Blue | |
| 8 | 1 | ATG-OPENILD | Notice For Open And Close | |
| 9 | 1 | ATG-UD | Up/Down | |
| 10 | 2 | ATG-XXXX* | Liftgate Capacity | |
| 11 | 1 | ATG-ARWILD | Platform Alignment Arrows | |
| 12 | 1 | 85-1113-100 | Electrical Schematic | |
| 13 | 1 | 85-1117-000 | Decal, Fault Codes, M-Board | |
| 14 | 1 | 85-1117-003 | 3-Button Auxiliary Remote Decal | |
| 15 | 1 | P-2038837 | Decal, Palfinger Logo, Horizontal (Battery Box Cover) | |
| 16 | 2 | OS1263362 | Decal, Palfinger Logo, Vertical (Column Mount) |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
