Maxon GPS 55 X1 Liftgate Parts Diagrams
Maxon GPS 55 X1 Slider liftgate parts lookup
Use this Maxon GPS 55 X1 liftgate parts diagram page to identify OEM components, review part callouts, and verify replacement parts for slider models.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

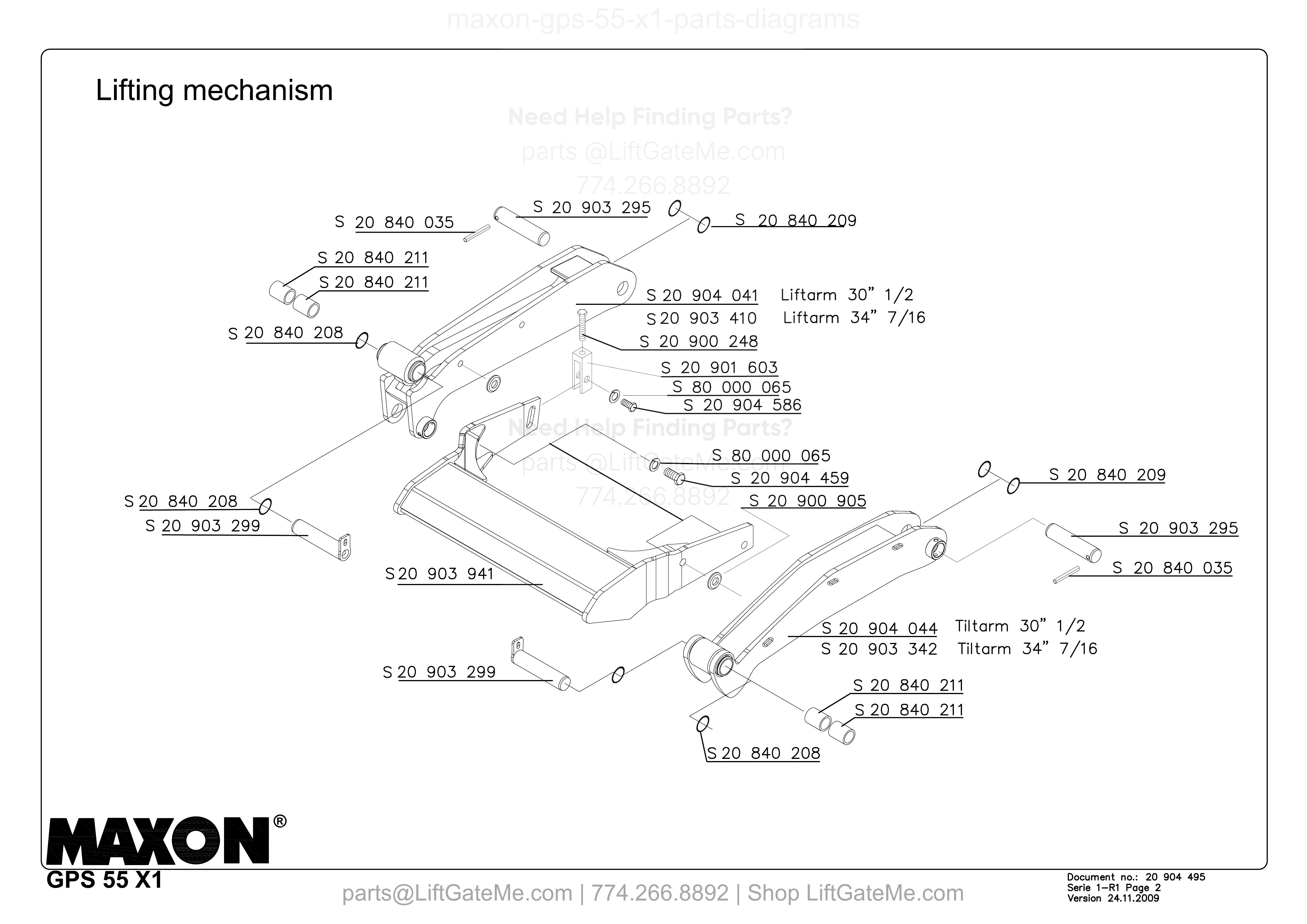

Lifting mechanism
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 035 | Lifting mechanism — part | |
| — | - | S 20 903 295 | Lifting mechanism — part | |
| — | - | S 20 840 209 | Lifting mechanism — part | |
| — | - | S 20 840 211 | Lifting mechanism — part | |
| — | - | S 20 840 211 | Lifting mechanism — part | |
| — | - | S 20 840 208 | Lifting mechanism — part | |
| — | - | S 20 840 208 | Lifting mechanism — part | |
| — | - | S 20 903 299 | Lifting mechanism — part | |
| — | - | S 20 903 299 | Lifting mechanism — part | |
| — | - | S 20 904 041 | Lifting mechanism — Liftarm 30” 1/2 | |
| — | - | S 20 903 410 | Lifting mechanism — Liftarm 34” 7/16 | |
| — | - | S 20 900 248 | Lifting mechanism — part | |
| — | - | S 20 901 603 | Lifting mechanism — part | |
| — | - | S 80 000 065 | Lifting mechanism — part | |
| — | - | S 20 904 586 | Lifting mechanism — part | |
| — | - | S 80 000 065 | Lifting mechanism — part | |
| — | - | S 20 904 459 | Lifting mechanism — part | |
| — | - | S 20 900 905 | Lifting mechanism — part | |
| — | - | S 20 904 044 | Lifting mechanism — Tiltarm 30” 1/2 | |
| — | - | S 20 903 342 | Lifting mechanism — Tiltarm 34” 7/16 | |
| — | - | S 20 903 941 | Lifting mechanism — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

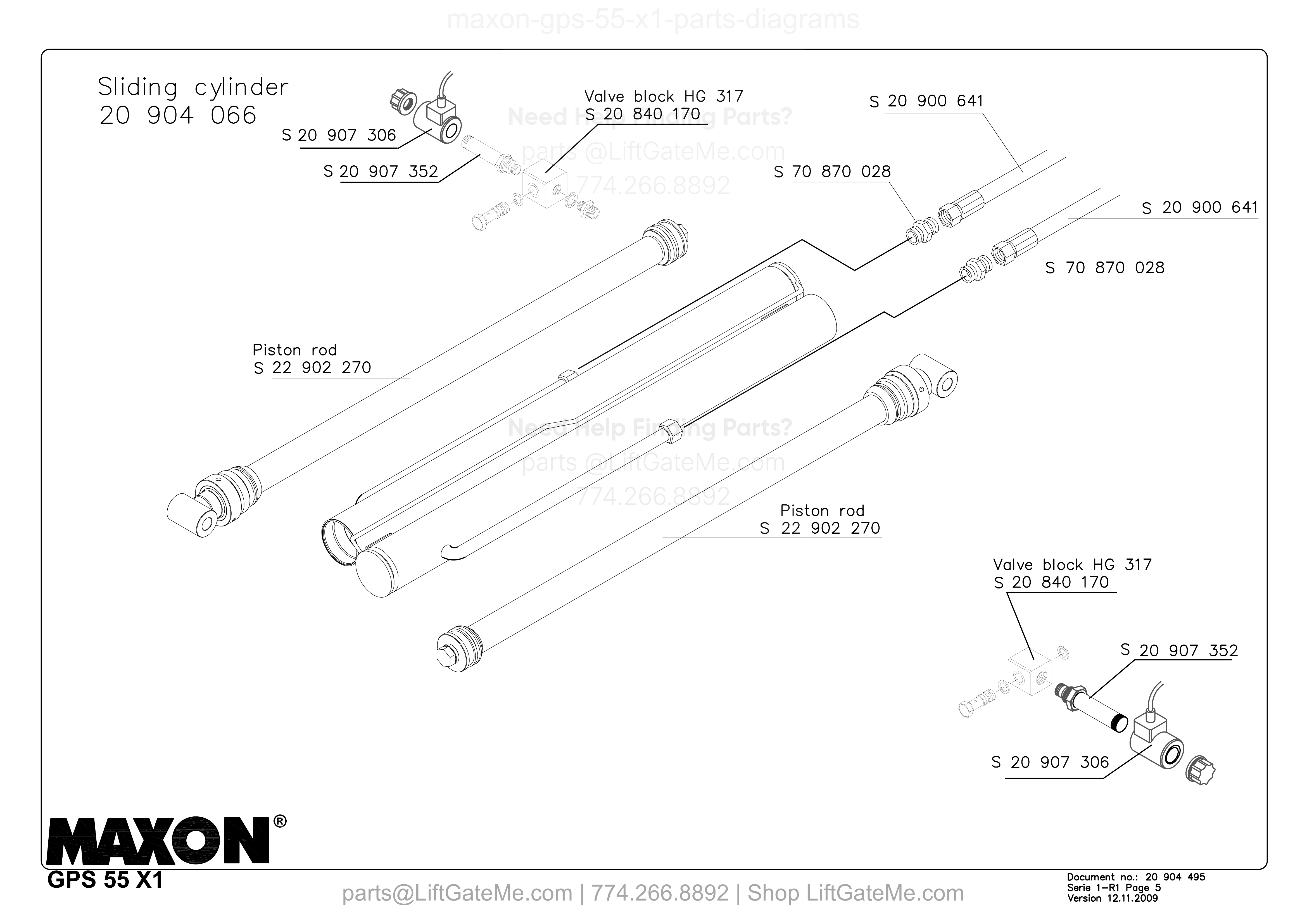

Sliding cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 306 | Sliding cylinder — part | |
| — | - | S 20 907 352 | Sliding cylinder — part | |
| — | - | S 20 840 170 | Sliding cylinder — Valve block HG 317 | |
| — | - | S 20 900 641 | Sliding cylinder — part | |
| — | - | S 70 870 028 | Sliding cylinder — part | |
| — | - | S 20 900 641 | Sliding cylinder — part | |
| — | - | S 70 870 028 | Sliding cylinder — part | |
| — | - | S 22 902 270 | Sliding cylinder — Piston rod | |
| — | - | S 22 902 270 | Sliding cylinder — Piston rod | |
| — | - | S 20 840 170 | Sliding cylinder — Valve block HG 317 | |
| — | - | S 20 907 352 | Sliding cylinder — part | |
| — | - | S 20 907 306 | Sliding cylinder — part |

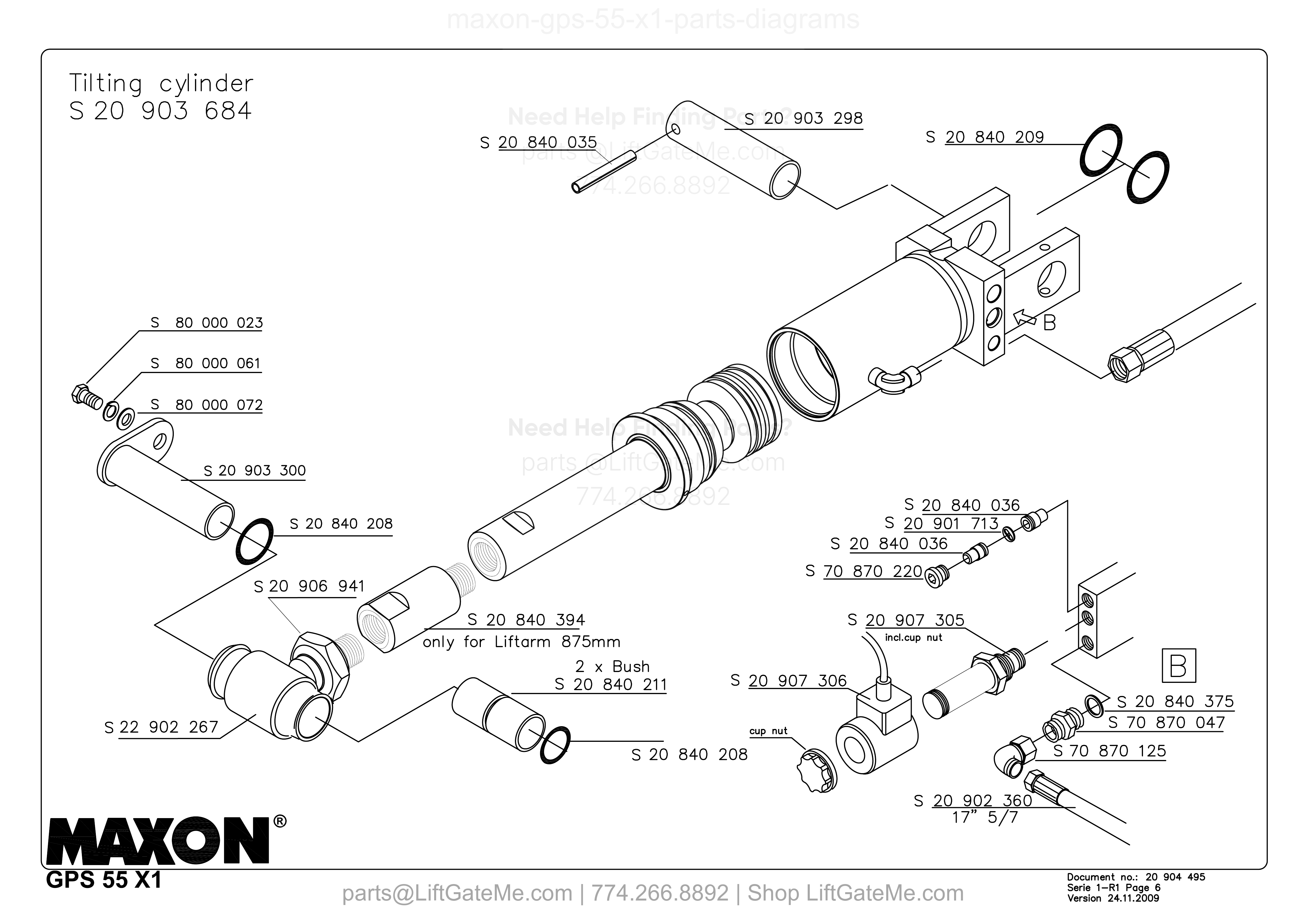

Tilting cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 023 | Tilting cylinder — part | |
| — | - | S 80 000 061 | Tilting cylinder — part | |
| — | - | S 80 000 072 | Tilting cylinder — part | |
| — | - | S 20 903 300 | Tilting cylinder — part | |
| — | - | S 20 840 208 | Tilting cylinder — part | |
| — | - | S 20 906 941 | Tilting cylinder — part | |
| — | - | S 22 902 267 | Tilting cylinder — part | |
| — | - | S 20 840 394 | Tilting cylinder — only for Liftarm 875mm | |
| — | 2 x | S 20 840 211 | Tilting cylinder — Bush | |
| — | - | S 20 840 208 | Tilting cylinder — part | |
| — | - | S 20 840 035 | Tilting cylinder — part | |
| — | - | S 20 903 298 | Tilting cylinder — part | |
| — | - | S 20 840 209 | Tilting cylinder — part | |
| — | - | S 20 840 036 | Tilting cylinder — part | |
| — | - | S 20 901 713 | Tilting cylinder — part | |
| — | - | S 20 840 036 | Tilting cylinder — part | |
| — | - | S 70 870 220 | Tilting cylinder — part | |
| — | - | S 20 907 305 | Tilting cylinder — incl.cup nut | |
| — | - | S 20 907 306 | Tilting cylinder — part | |
| — | - | S 20 902 360 | Tilting cylinder — 17” 5/7 | |
| — | - | S 20 840 375 | Tilting cylinder — part | |
| — | - | S 70 870 047 | Tilting cylinder — part | |
| — | - | S 70 870 125 | Tilting cylinder — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

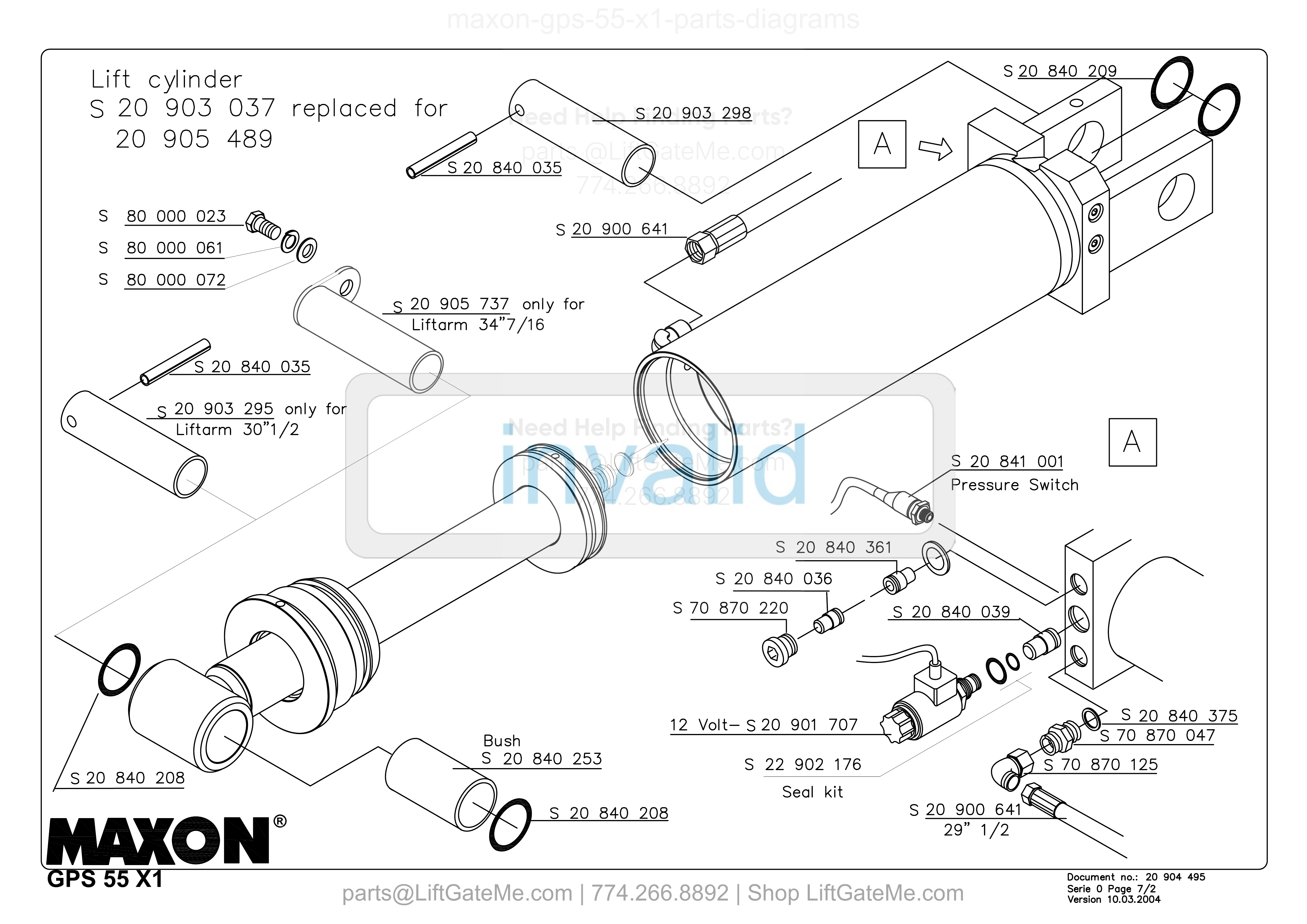

Lift cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 903 037 | Lift cylinder — replaced for 20 905 489 | |
| — | - | S 80 000 023 | Lift cylinder — part | |
| — | - | S 80 000 061 | Lift cylinder — part | |
| — | - | S 80 000 072 | Lift cylinder — part | |
| — | - | S 20 840 035 | Lift cylinder — part | |
| — | - | S 20 903 295 | Lift cylinder — only for Liftarm 30”1/2 | |
| — | - | S 20 905 737 | Lift cylinder — only for Liftarm 34”7/16 | |
| — | - | S 20 840 035 | Lift cylinder — part | |
| — | - | S 20 903 298 | Lift cylinder — part | |
| — | - | S 20 900 641 | Lift cylinder — part | |
| — | - | S 20 840 209 | Lift cylinder — part | |
| — | - | S 20 841 001 | Lift cylinder — Pressure Switch | |
| — | - | S 20 840 361 | Lift cylinder — part | |
| — | - | S 20 840 036 | Lift cylinder — part | |
| — | - | S 70 870 220 | Lift cylinder — part | |
| — | - | S 20 901 707 | Lift cylinder — 12 Volt | |
| — | - | S 22 902 176 | Lift cylinder — Seal kit | |
| — | - | S 20 840 253 | Lift cylinder — Bush | |
| — | - | S 20 840 208 | Lift cylinder — part | |
| — | - | S 20 840 208 | Lift cylinder — part | |
| — | - | S 20 840 039 | Lift cylinder — part | |
| — | - | S 20 840 375 | Lift cylinder — part | |
| — | - | S 70 870 047 | Lift cylinder — part | |
| — | - | S 70 870 125 | Lift cylinder — part | |
| — | - | S 20 900 641 | Lift cylinder — 29” 1/2 |

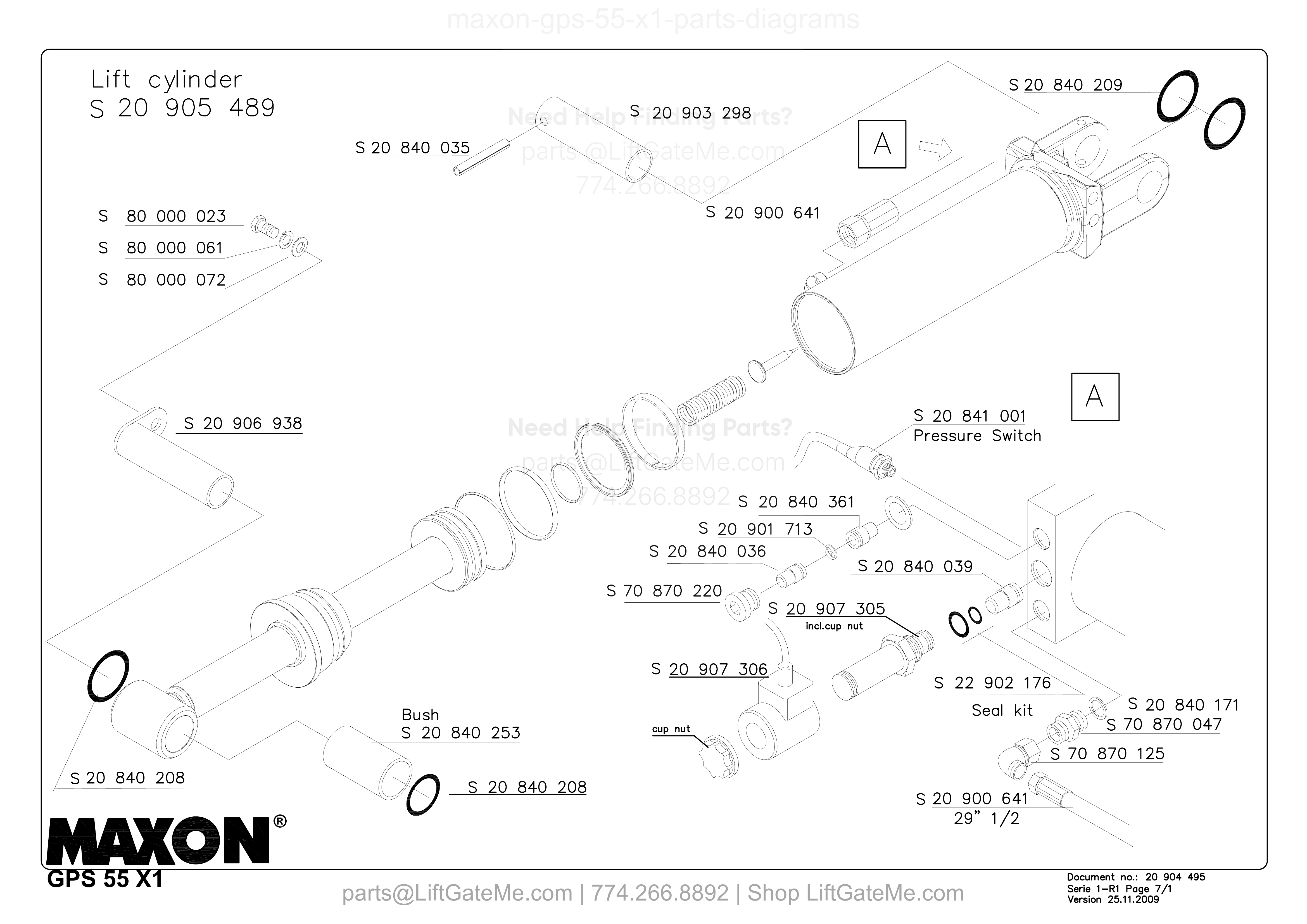

Lift cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 023 | Lift cylinder — part | |
| — | - | S 80 000 061 | Lift cylinder — part | |
| — | - | S 80 000 072 | Lift cylinder — part | |
| — | - | S 20 906 938 | Lift cylinder — part | |
| — | - | S 20 840 208 | Lift cylinder — part | |
| — | - | S 20 840 253 | Lift cylinder — Bush | |
| — | - | S 20 840 208 | Lift cylinder — part | |
| — | - | S 20 840 035 | Lift cylinder — part | |
| — | - | S 20 903 298 | Lift cylinder — part | |
| — | - | S 20 900 641 | Lift cylinder — part | |
| — | - | S 20 840 209 | Lift cylinder — part | |
| — | - | S 20 841 001 | Lift cylinder — Pressure Switch | |
| — | - | S 20 840 361 | Lift cylinder — part | |
| — | - | S 20 901 713 | Lift cylinder — part | |
| — | - | S 20 840 036 | Lift cylinder — part | |
| — | - | S 70 870 220 | Lift cylinder — part | |
| — | - | S 20 907 305 | Lift cylinder — incl.cup nut | |
| — | - | S 20 907 306 | ||
| — | - | S 22 902 176 | Lift cylinder — Seal kit | |
| — | - | S 20 840 171 | Lift cylinder — part | |
| — | - | S 70 870 047 | Lift cylinder — part | |
| — | - | S 70 870 125 | Lift cylinder — part | |
| — | - | S 20 900 641 | Lift cylinder — 29” 1/2 | |
| — | - | S 20 905 489 | Lift cylinder — part | |
| — | - | S 20 840 039 | Lift cylinder — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

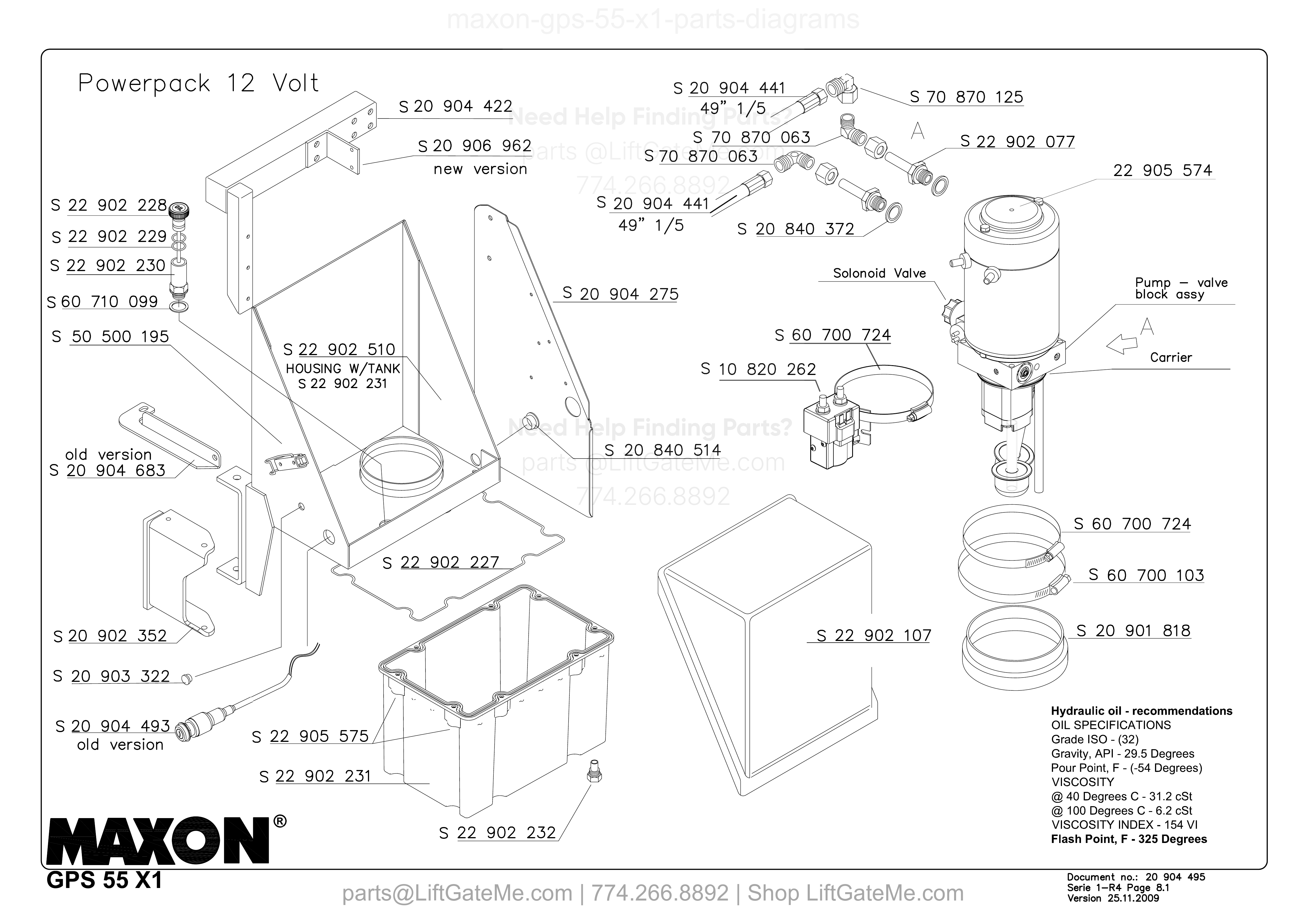

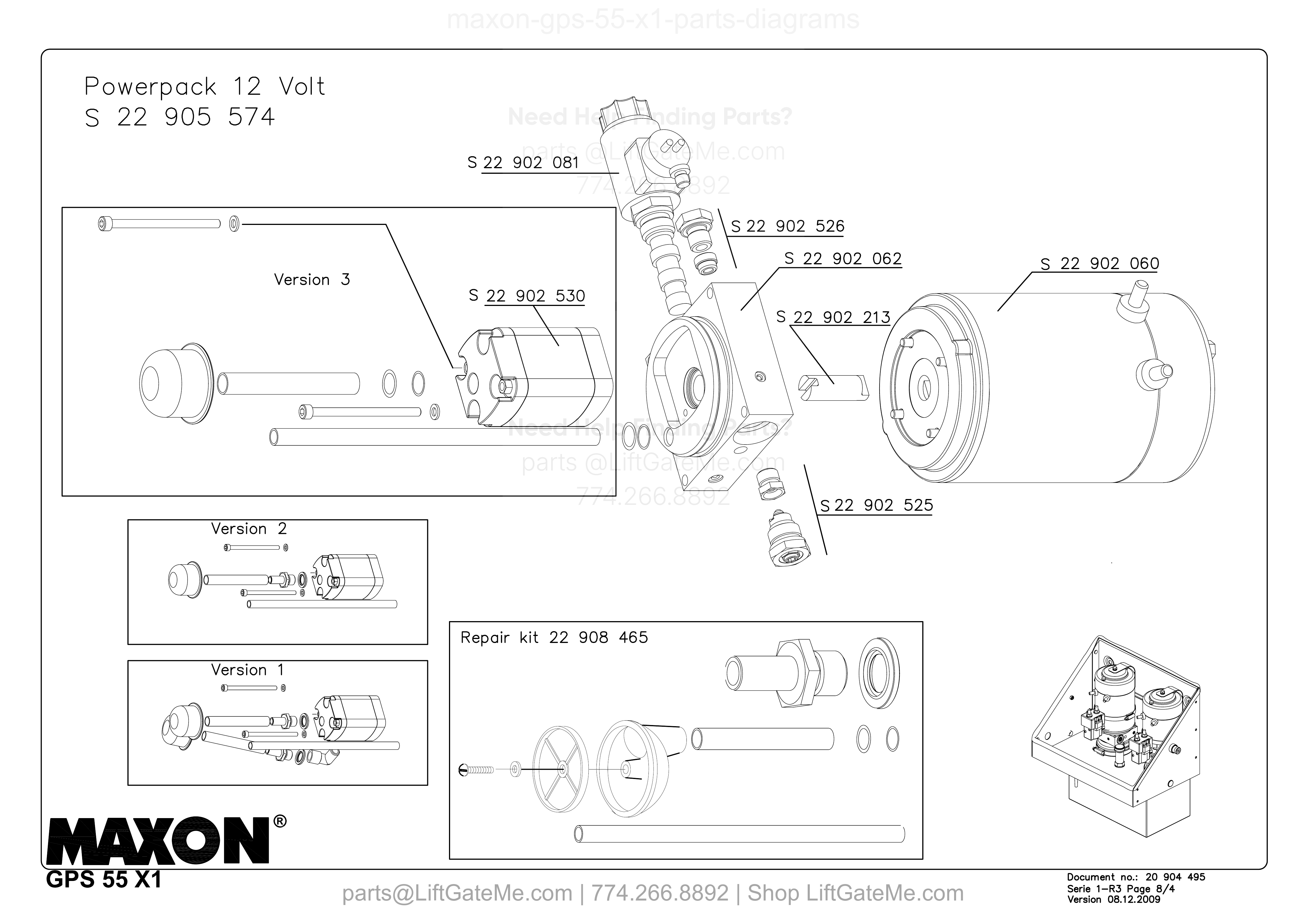

Powerpack 12 Volt
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 904 422 | Powerpack 12 Volt — part | |
| — | - | S 20 906 962 | Powerpack 12 Volt — new version | |
| — | - | S 22 902 228 | Powerpack 12 Volt — part | |
| — | - | S 22 902 229 | Powerpack 12 Volt — part | |
| — | - | S 22 902 230 | Powerpack 12 Volt — part | |
| — | - | S 60 710 099 | Powerpack 12 Volt — part | |
| — | - | S 50 500 195 | Powerpack 12 Volt — part | |
| — | - | S 22 902 510 | Powerpack 12 Volt — HOUSING W/TANK | |
| — | - | S 22 902 231 | Powerpack 12 Volt — HOUSING W/TANK | |
| — | - | S 20 904 683 | Powerpack 12 Volt — old version | |
| — | - | S 20 902 352 | Powerpack 12 Volt — part | |
| — | - | S 20 903 322 | Powerpack 12 Volt — part | |
| — | - | S 20 904 493 | Powerpack 12 Volt — old version | |
| — | - | S 22 905 575 | Powerpack 12 Volt — part | |
| — | - | S 22 902 231 | Powerpack 12 Volt — part | |
| — | - | S 22 902 232 | Powerpack 12 Volt — part | |
| — | - | S 20 904 275 | Powerpack 12 Volt — part | |
| — | - | S 20 840 514 | Powerpack 12 Volt — part | |
| — | - | S 20 904 441 | Powerpack 12 Volt — 49” 1/5 | |
| — | - | S 70 870 125 | Powerpack 12 Volt — part | |
| — | - | S 70 870 063 | Powerpack 12 Volt — part | |
| — | - | S 22 902 077 | Powerpack 12 Volt — part | |
| — | - | S 20 840 372 | Powerpack 12 Volt — part | |
| — | - | 22 905 574 | Powerpack 12 Volt — part | |
| — | - | S 60 700 724 | Powerpack 12 Volt — Solonoid Valve | |
| — | - | S 10 820 262 | Powerpack 12 Volt — part | |
| — | - | S 60 700 724 | Powerpack 12 Volt — part | |
| — | - | S 60 700 103 | Powerpack 12 Volt — part | |
| — | - | S 20 901 818 | Powerpack 12 Volt — part | |
| — | - | S 22 902 107 | Powerpack 12 Volt — part |

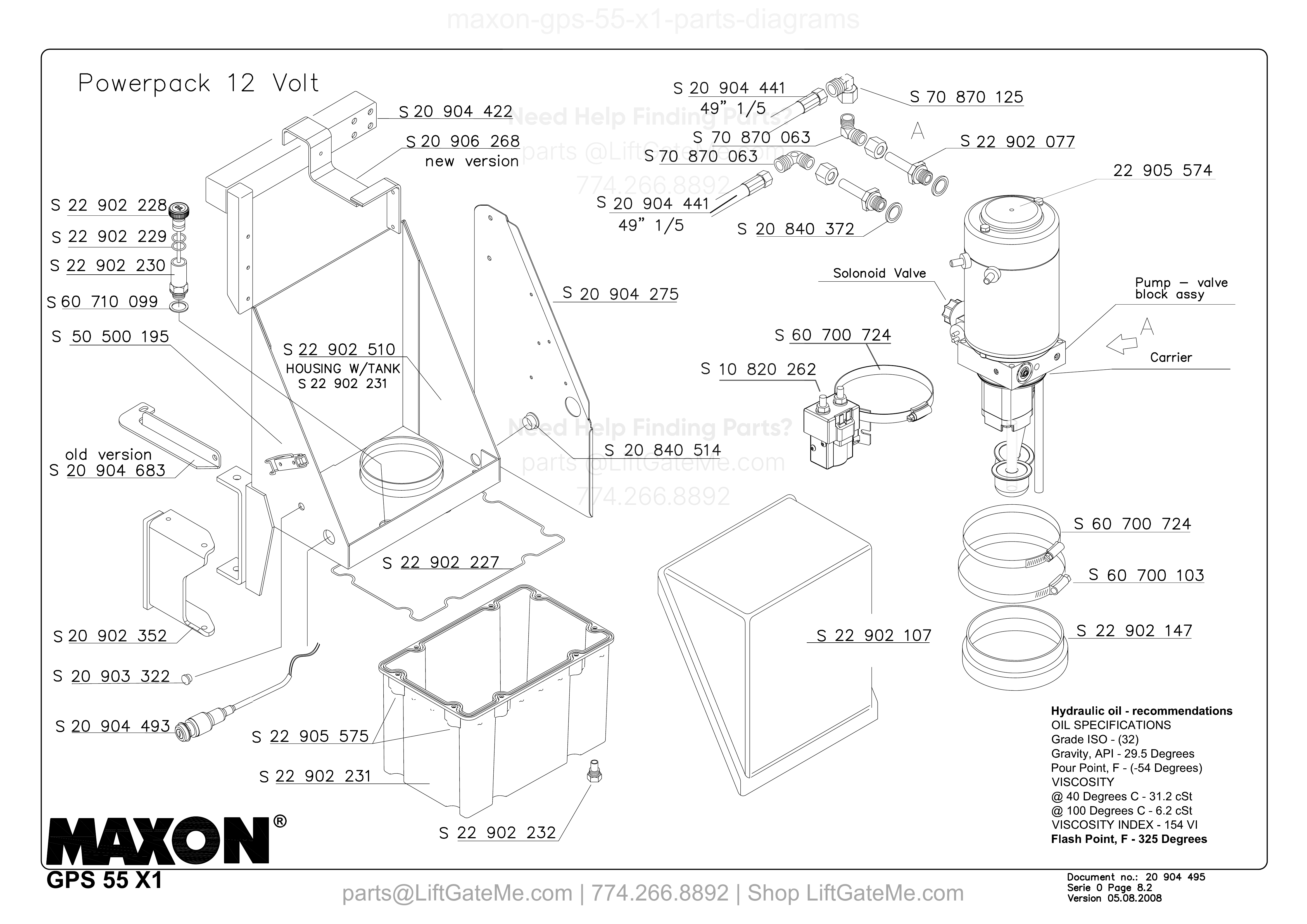

Powerpack 12 Volt
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 904 422 | Powerpack 12 Volt — part | |
| — | - | S 20 906 268 | Powerpack 12 Volt — new version | |
| — | - | S 22 902 228 | Powerpack 12 Volt — part | |
| — | - | S 22 902 229 | Powerpack 12 Volt — part | |
| — | - | S 22 902 230 | Powerpack 12 Volt — part | |
| — | - | S 60 710 099 | Powerpack 12 Volt — part | |
| — | - | S 50 500 195 | Powerpack 12 Volt — part | |
| — | - | S 22 902 510 | Powerpack 12 Volt — HOUSING W/TANK | |
| — | - | S 22 902 231 | Powerpack 12 Volt — HOUSING W/TANK | |
| — | - | S 20 904 683 | Powerpack 12 Volt — old version | |
| — | - | S 20 902 352 | Powerpack 12 Volt — part | |
| — | - | S 20 903 322 | Powerpack 12 Volt — part | |
| — | - | S 20 904 493 | Powerpack 12 Volt — part | |
| — | - | S 22 905 575 | Powerpack 12 Volt — part | |
| — | - | S 22 902 231 | Powerpack 12 Volt — part | |
| — | - | S 22 902 232 | Powerpack 12 Volt — part | |
| — | - | S 20 904 275 | Powerpack 12 Volt — part | |
| — | - | S 20 840 514 | Powerpack 12 Volt — part | |
| — | - | S 20 904 441 | Powerpack 12 Volt — 49” 1/5 | |
| — | - | S 70 870 125 | Powerpack 12 Volt — part | |
| — | - | S 70 870 063 | Powerpack 12 Volt — part | |
| — | - | S 22 902 077 | Powerpack 12 Volt — part | |
| — | - | S 20 840 372 | Powerpack 12 Volt — part | |
| — | - | 22 905 574 | Powerpack 12 Volt — part | |
| — | - | S 60 700 724 | Powerpack 12 Volt — Solonoid Valve | |
| — | - | S 10 820 262 | Powerpack 12 Volt — part | |
| — | - | S 60 700 724 | Powerpack 12 Volt — part | |
| — | - | S 60 700 103 | Powerpack 12 Volt — part | |
| — | - | S 22 902 147 | Powerpack 12 Volt — part | |
| — | - | S 22 902 107 | Powerpack 12 Volt — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

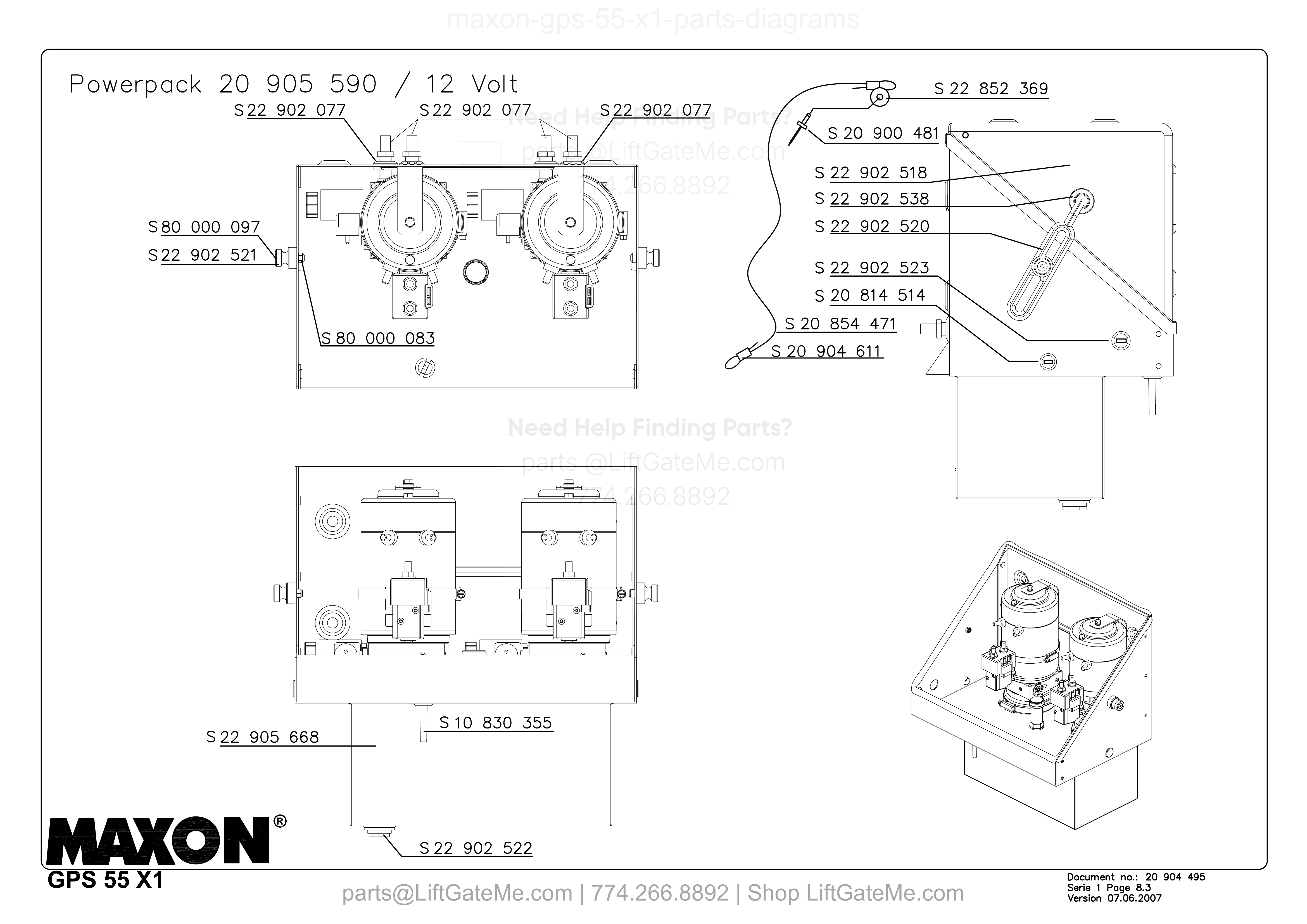

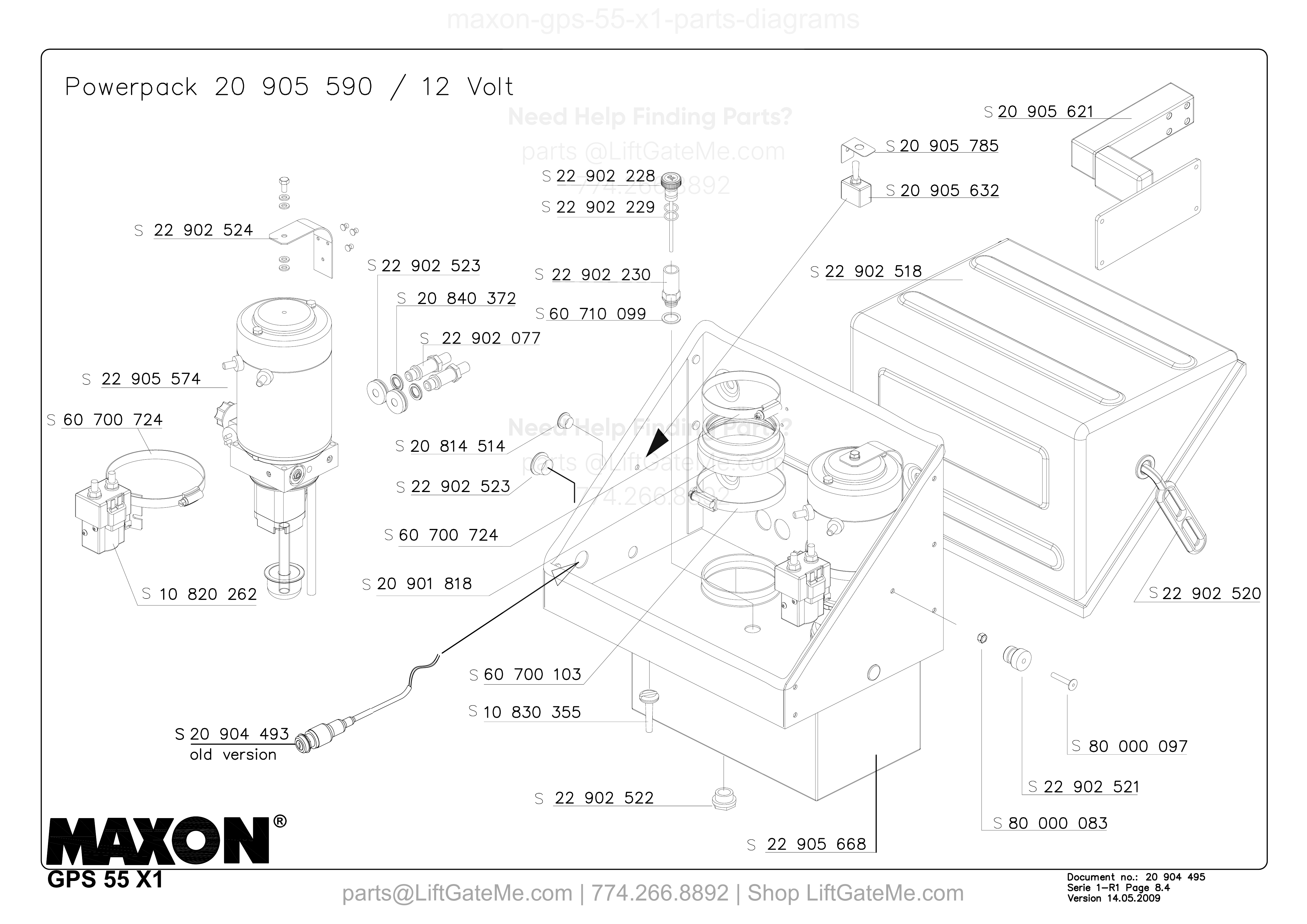

Powerpack 20 905 590 / 12 Volt
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 22 902 077 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 80 000 097 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 521 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 80 000 083 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 852 369 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 20 900 481 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 518 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 538 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 520 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 523 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 20 814 514 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 20 854 471 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 20 904 611 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 905 668 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 10 830 355 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 522 | Powerpack 20 905 590 / 12 Volt — part |
Powerpack 20 905 590 / 12 Volt
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 22 902 524 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 905 574 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 60 700 724 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 10 820 262 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 20 904 493 | Powerpack 20 905 590 / 12 Volt — old version | |
| — | - | S 22 902 523 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 20 840 372 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 077 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 228 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 229 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 230 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 60 710 099 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 20 905 785 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 20 905 632 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 20 905 621 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 518 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 520 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 60 700 103 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 10 830 355 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 522 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 905 668 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 20 901 818 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 80 000 097 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 22 902 521 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 80 000 083 | Powerpack 20 905 590 / 12 Volt — part | |
| — | - | S 20 814 514 | Powerpack 20 905 590 / 12 Volt — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
Powerpack 12 Volt
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 22 905 574 | Powerpack 12 Volt — part | |
| — | - | S 22 902 081 | Powerpack 12 Volt — part | |
| — | - | S 22 902 526 | Powerpack 12 Volt — part | |
| — | - | S 22 902 062 | Powerpack 12 Volt — part | |
| — | - | S 22 902 213 | Powerpack 12 Volt — part | |
| — | - | S 22 902 060 | Powerpack 12 Volt — part | |
| — | - | S 22 902 525 | Powerpack 12 Volt — part | |
| — | - | S 22 902 530 | Powerpack 12 Volt — part | |
| — | - | 22 908 465 | Powerpack 12 Volt — Repair kit |

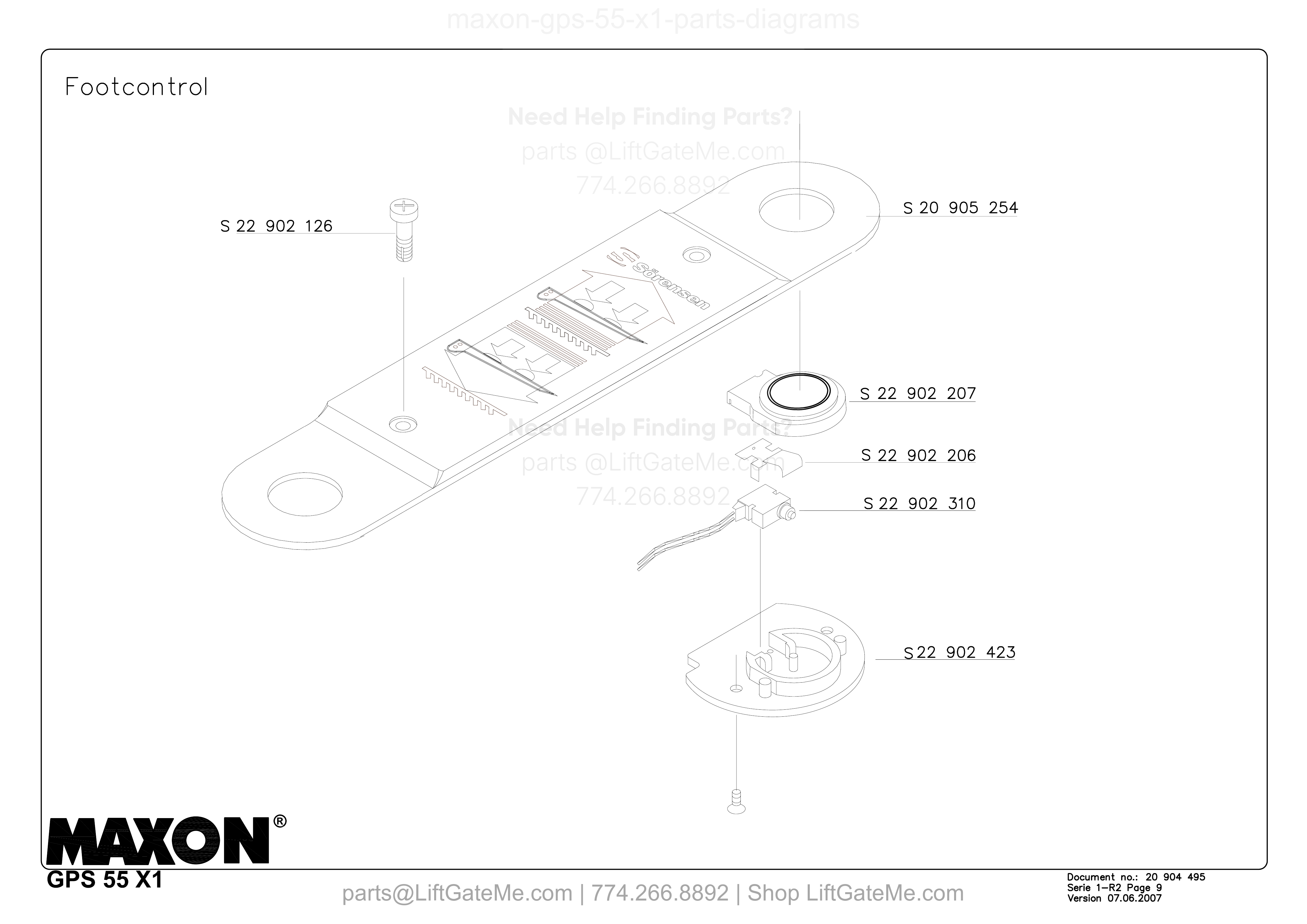

Footcontrol
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 22 902 126 | Footcontrol — part | |
| — | - | S 20 905 254 | Footcontrol — part | |
| — | - | S 22 902 207 | Footcontrol — part | |
| — | - | S 22 902 206 | Footcontrol — part | |
| — | - | S 22 902 310 | Footcontrol — part | |
| — | - | S 22 902 423 | Footcontrol — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

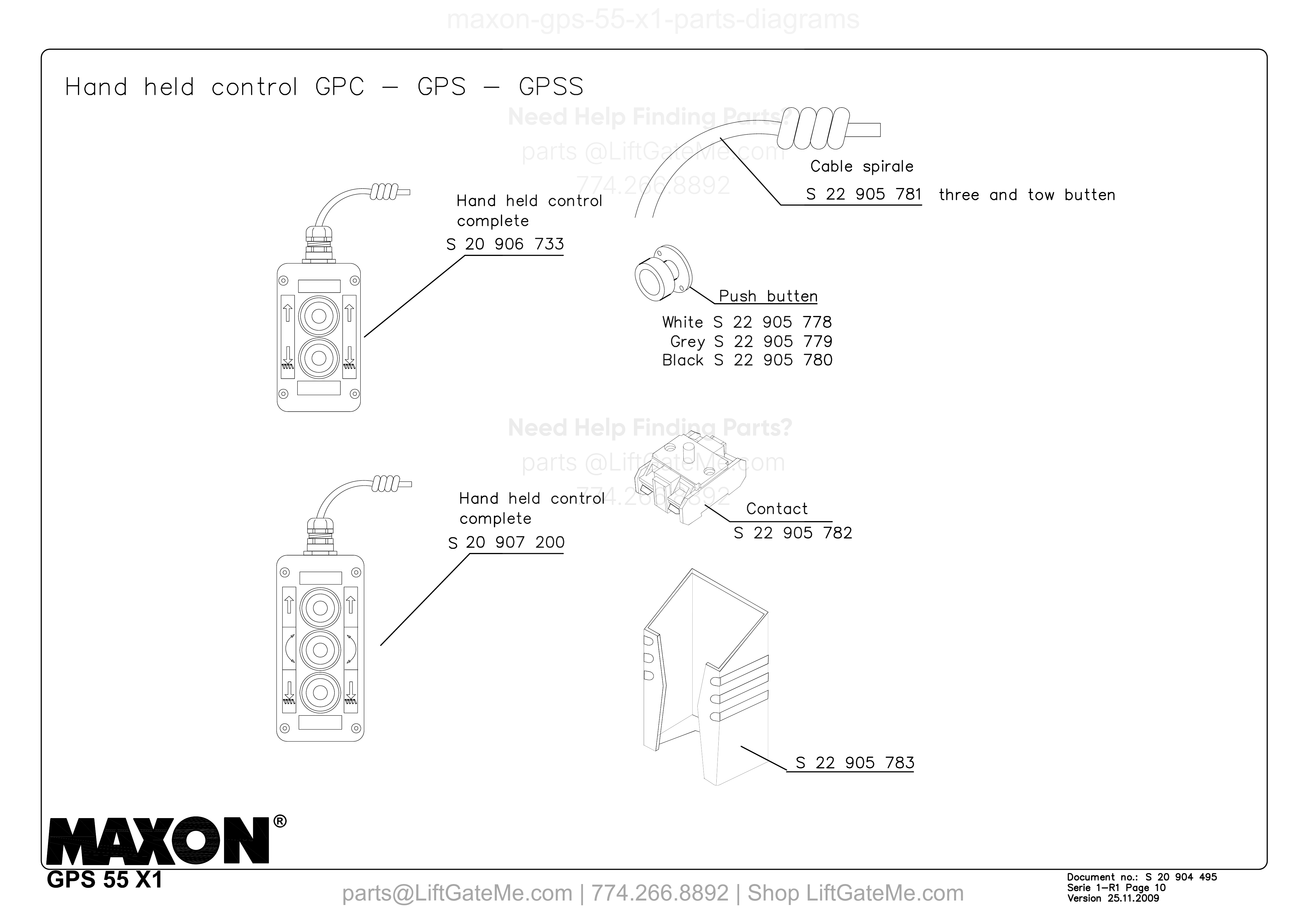

Hand held control GPC - GPS - GPSS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 906 733 | Hand held control GPC - GPS - GPSS — Hand held control complete | |
| — | - | S 22 905 781 | Hand held control GPC - GPS - GPSS — Cable spirale three and tow butten | |
| — | - | S 22 905 778 | Hand held control GPC - GPS - GPSS — Push button White | |
| — | - | S 22 905 779 | Hand held control GPC - GPS - GPSS — Push button Grey | |
| — | - | S 22 905 780 | Hand held control GPC - GPS - GPSS — Push button Black | |
| — | - | S 20 907 200 | Hand held control GPC - GPS - GPSS — Hand held control complete | |
| — | - | S 22 905 782 | Hand held control GPC - GPS - GPSS — Contact | |
| — | - | S 22 905 783 | Hand held control GPC - GPS - GPSS — part |

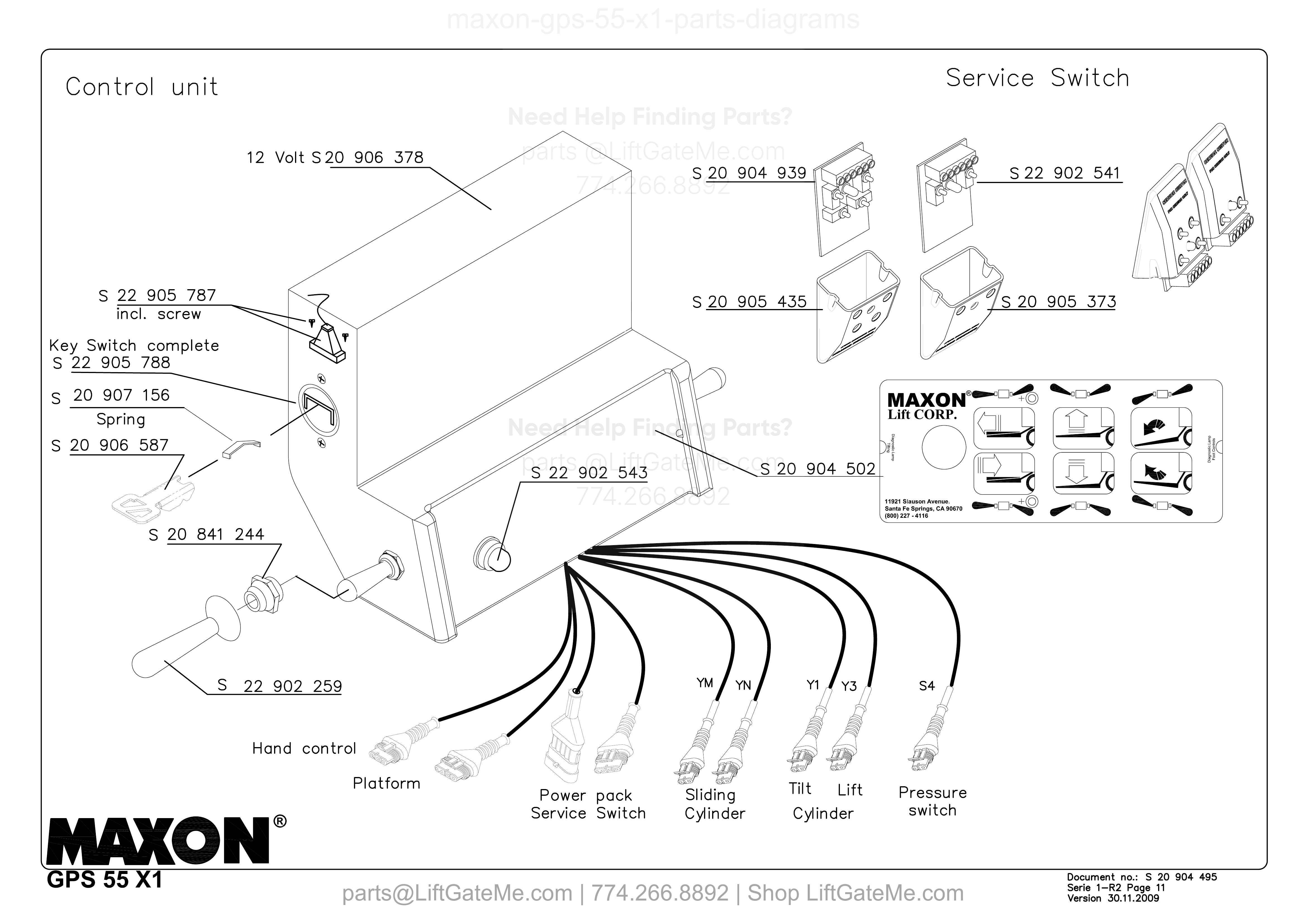

Control unit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | S 20 906 378 | |||
| — | - | S 22 905 787 | Control unit — incl. screw | |
| — | - | S 22 905 788 | Control unit — Key Switch complete | |
| — | - | S 20 907 156 | ||
| — | - | S 20 906 587 | ||
| — | - | S 20 841 244 | Control unit — part | |
| — | - | S 22 902 259 | ||
| — | - | S 22 902 543 | ||
| — | - | S 20 904 502 | Control unit — part | |
| — | - | S 20 904 939 | Control unit — Service Switch | |
| — | - | S 22 902 541 | Control unit — Service Switch | |
| — | - | S 20 905 435 | Control unit — Service Switch | |
| — | - | S 20 905 373 | Control unit — Service Switch |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

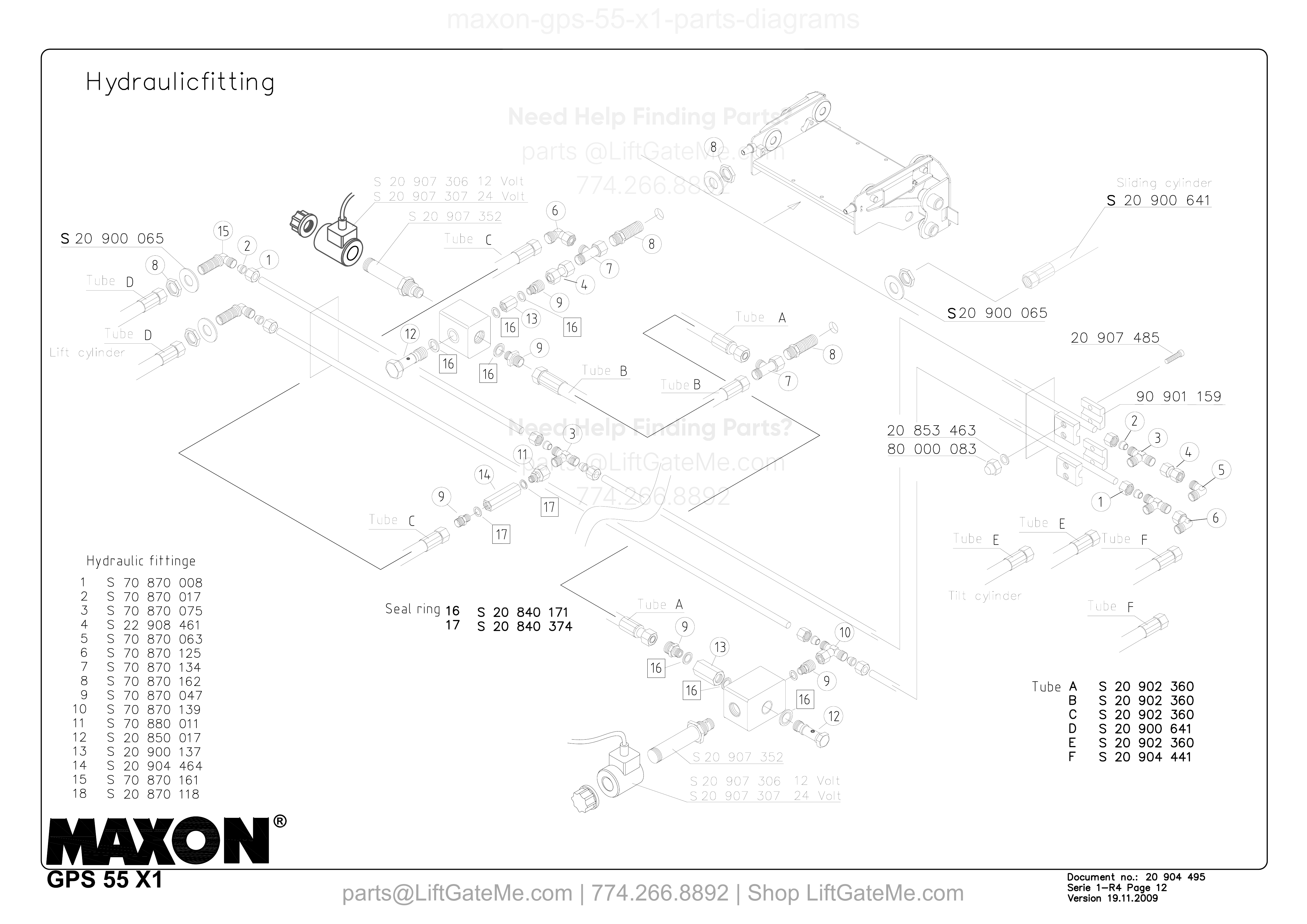

Hydraulic fitting
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | - | S 70 870 008 | Hydraulic fitting — Hydraulic fitting | |
| 2 | - | S 70 870 017 | Hydraulic fitting — Hydraulic fitting | |
| 3 | - | S 70 870 075 | Hydraulic fitting — Hydraulic fitting | |
| 4 | - | S 22 908 461 | Hydraulic fitting — Hydraulic fitting | |
| 5 | - | S 70 870 063 | Hydraulic fitting — Hydraulic fitting | |
| 6 | - | S 70 870 125 | Hydraulic fitting — Hydraulic fitting | |
| 7 | - | S 70 870 134 | Hydraulic fitting — Hydraulic fitting | |
| 8 | - | S 70 870 162 | Hydraulic fitting — Hydraulic fitting | |
| 9 | - | S 70 870 047 | Hydraulic fitting — Hydraulic fitting | |
| 10 | - | S 70 870 139 | Hydraulic fitting — Hydraulic fitting | |
| 11 | - | S 70 880 011 | Hydraulic fitting — Hydraulic fitting | |
| 12 | - | S 20 850 017 | Hydraulic fitting — Hydraulic fitting | |
| 13 | - | S 20 900 137 | Hydraulic fitting — Hydraulic fitting | |
| 14 | - | S 20 904 464 | Hydraulic fitting — Hydraulic fitting | |
| 15 | - | S 70 870 161 | Hydraulic fitting — Hydraulic fitting | |
| 18 | - | S 20 870 118 | Hydraulic fitting — Hydraulic fitting | |
| 16 | - | S 20 840 171 | Hydraulic fitting — Seal ring | |
| 17 | - | S 20 840 374 | Hydraulic fitting — Seal ring | |
| A | - | S 20 902 360 | Hydraulic fitting — Tube A | |
| B | - | S 20 902 360 | Hydraulic fitting — Tube B | |
| C | - | S 20 902 360 | Hydraulic fitting — Tube C | |
| D | - | S 20 900 641 | Hydraulic fitting — Tube D | |
| E | - | S 20 902 360 | Hydraulic fitting — Tube E | |
| F | - | S 20 904 441 | Hydraulic fitting — Tube F |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
