Anthony ETU Liftgate Parts Diagrams
Anthony ETU liftgate parts lookup
Use this Anthony ETU liftgate parts diagram page to identify OEM components, review part callouts, and verify replacement liftgate parts.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

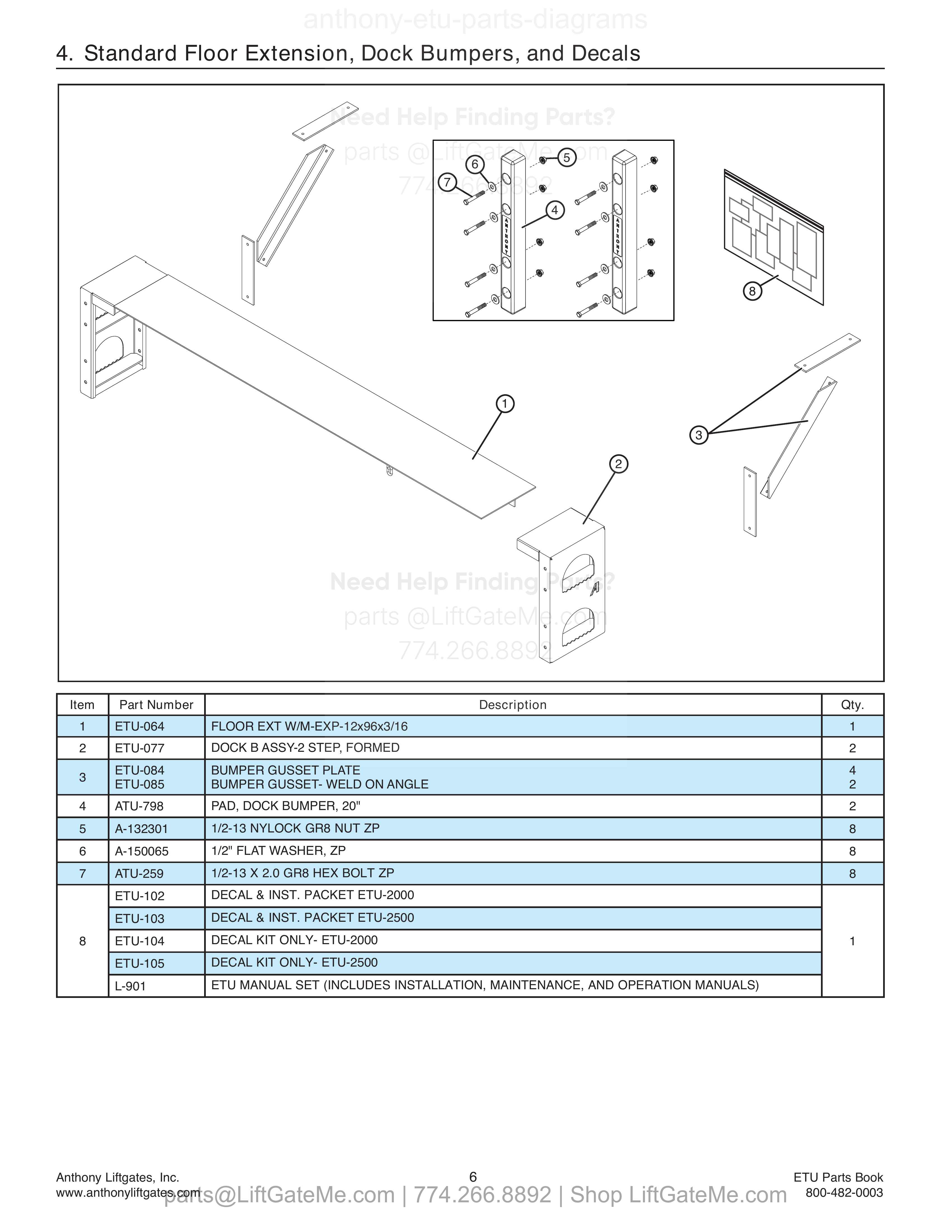

4. Standard Floor Extension, Dock Bumpers, and Decals
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | ETU-064 | FLOOR EXT W/M-EXP-12x96x3/16 | |
| 2 | 2 | ETU-077 | DOCK B ASSY-2 STEP, FORMED | |
| 3 | 4 | ETU-084 | BUMPER GUSSET PLATE | |
| 3 | 2 | ETU-085 | BUMPER GUSSET- WELD ON ANGLE | |
| 4 | 2 | ATU-798 | PAD, DOCK BUMPER, 20" | |
| 5 | 8 | A-132301 | 1/2-13 NYLOCK GR8 NUT ZP | |
| 6 | 8 | A-150065 | 1/2" FLAT WASHER, ZP | |
| 7 | 8 | ATU-259 | 1/2-13 X 2.0 GR8 HEX BOLT ZP | |
| 8 | ETU-102 | DECAL & INST. PACKET ETU-2000 | ||
| 8 | ETU-103 | DECAL & INST. PACKET ETU-2500 | ||
| 8 | 1 | ETU-104 | DECAL KIT ONLY- ETU-2000 | |
| 8 | ETU-105 | DECAL KIT ONLY- ETU-2500 | ||
| 8 | L-901 | ETU MANUAL SET (INCLUDES INSTALLATION, MAINTENANCE, AND OPERATION MANUALS) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

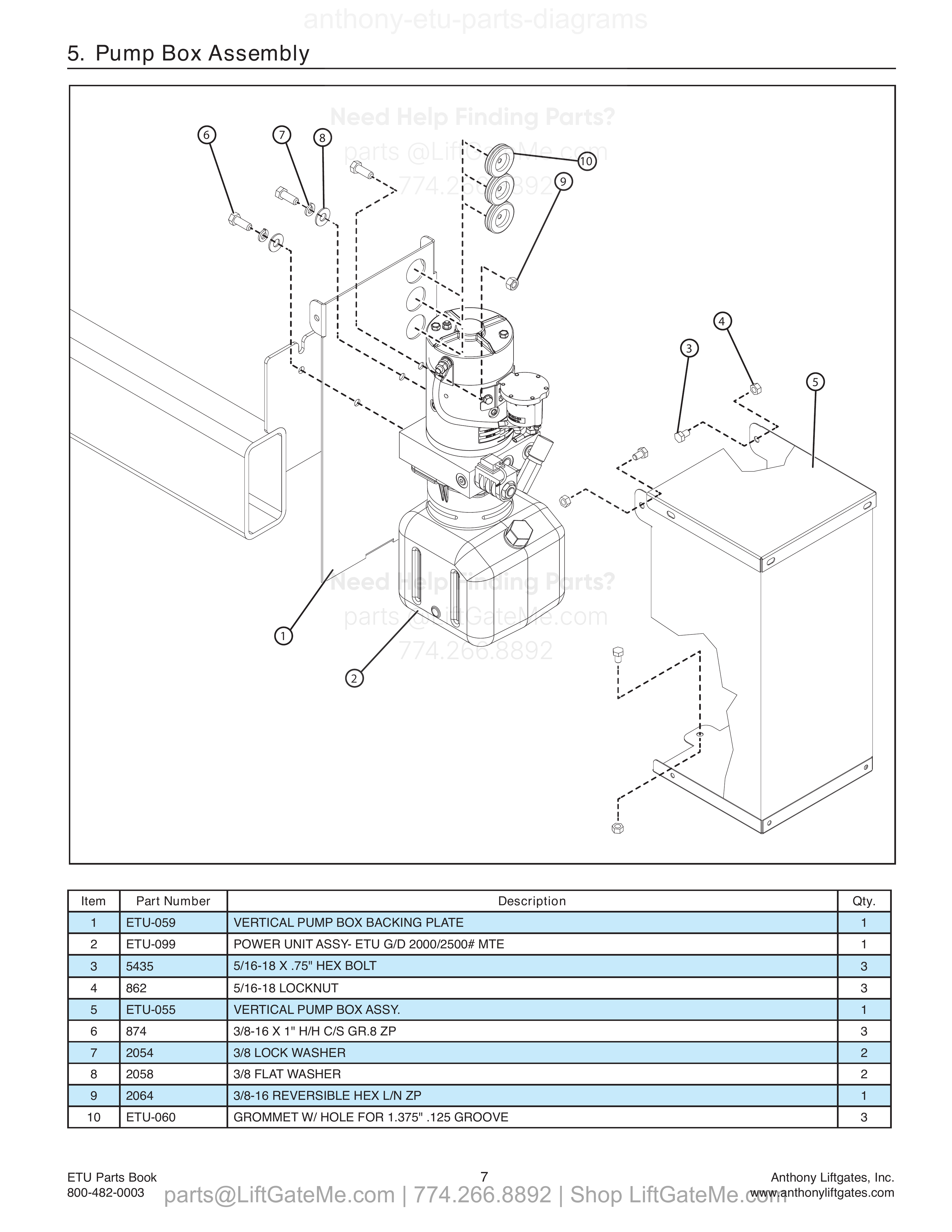

5. Pump Box Assembly
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | ETU-059 | VERTICAL PUMP BOX BACKING PLATE | |
| 2 | 1 | ETU-099 | POWER UNIT ASSY- ETU G/D 2000/2500# MTE | |
| 3 | 3 | 5435 | 5/16-18 X .75" HEX BOLT | |
| 4 | 3 | 862 | 5/16-18 LOCKNUT | |
| 5 | 1 | ETU-055 | VERTICAL PUMP BOX ASSY. | |
| 6 | 3 | 874 | 3/8-16 X 1" H/H C/S GR.8 ZP | |
| 7 | 2 | 2054 | 3/8 LOCK WASHER | |
| 8 | 2 | 2058 | 3/8 FLAT WASHER | |
| 9 | 1 | 2064 | 3/8-16 REVERSIBLE HEX L/N ZP | |
| 10 | 3 | ETU-060 | GROMMET W/ HOLE FOR 1.375" .125 GROOVE |

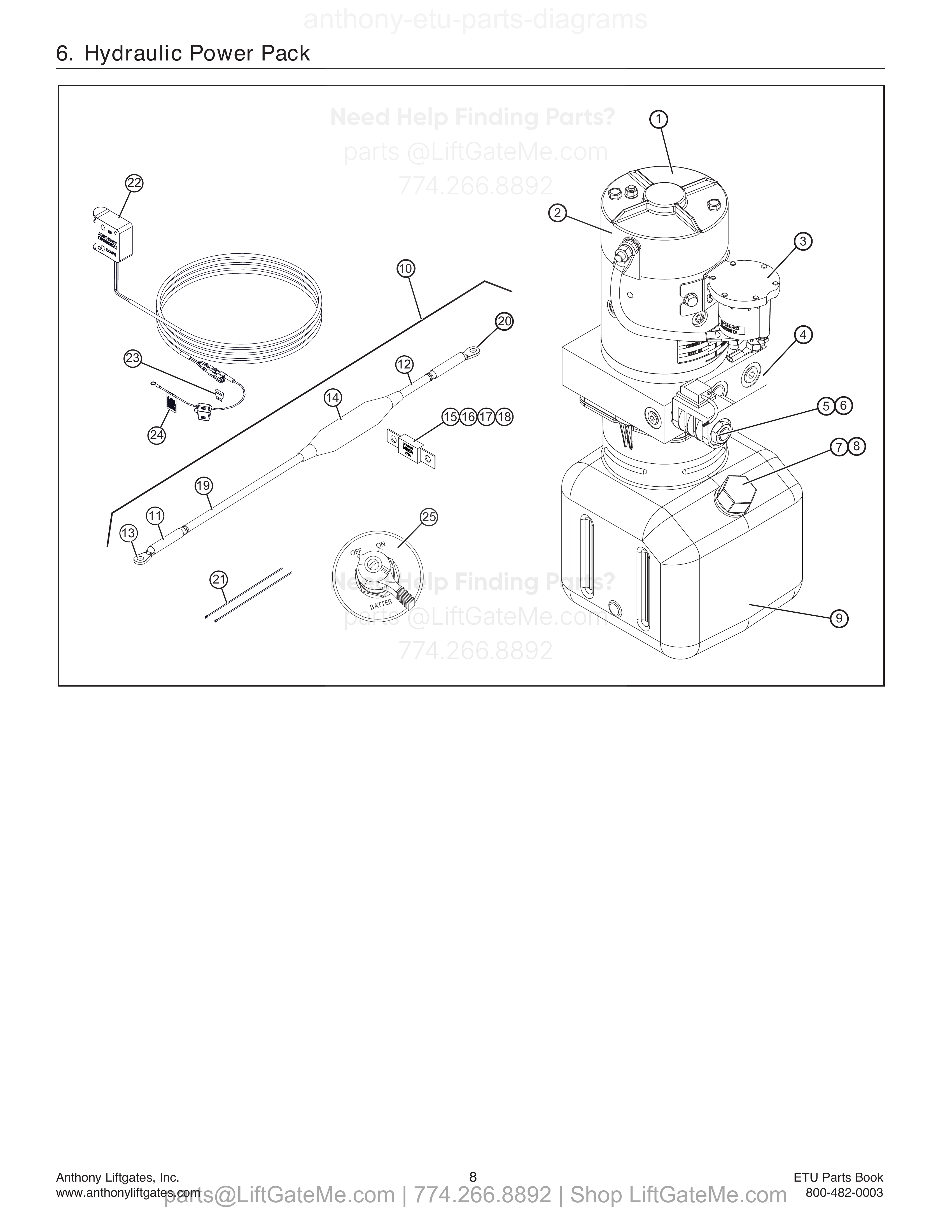

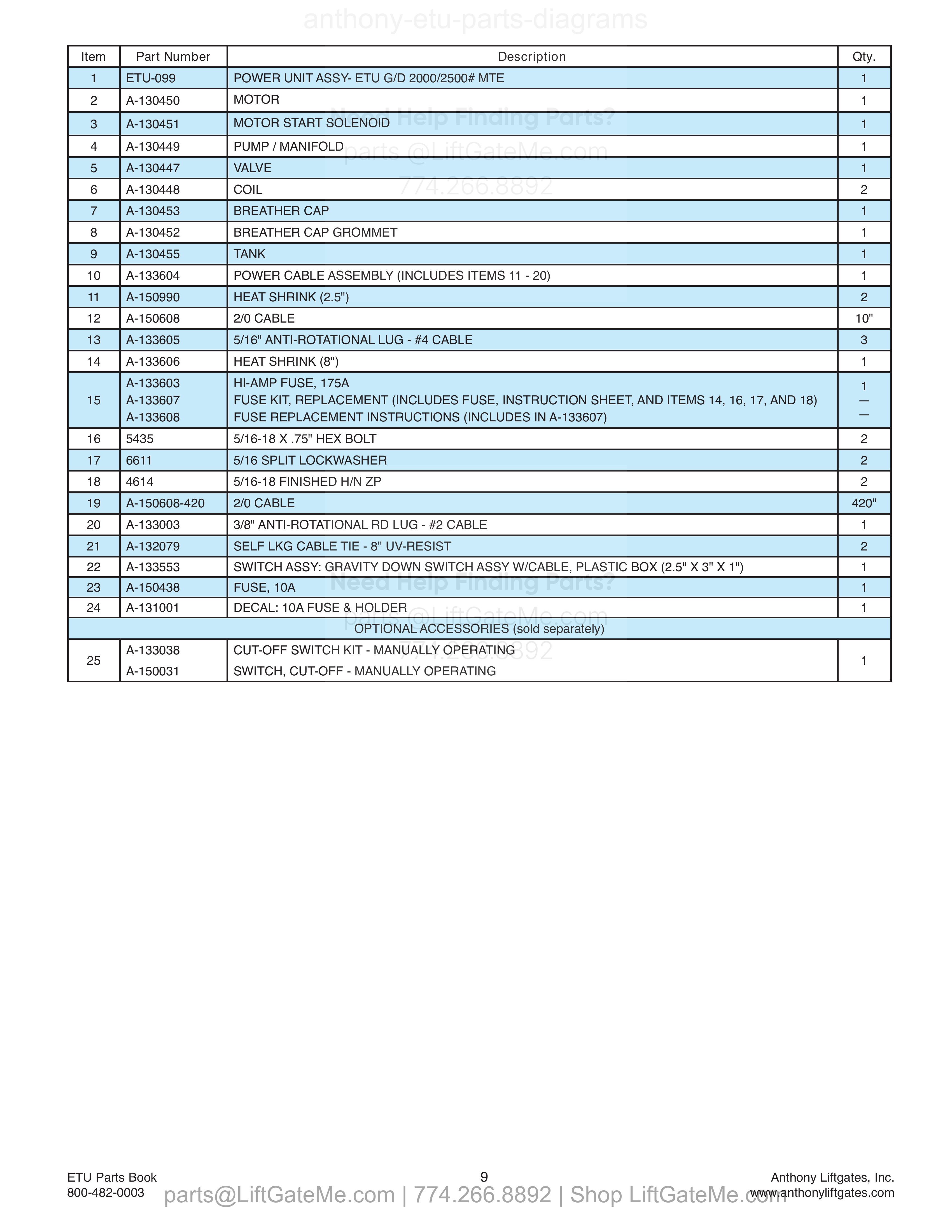

6. Hydraulic Power Pack
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | ETU-099 | POWER UNIT ASSY- ETU G/D 2000/2500# MTE | |
| 2 | 1 | A-130450 | MOTOR | |
| 3 | 1 | A-130451 | MOTOR START SOLENOID | |
| 4 | 1 | A-130449 | PUMP / MANIFOLD | |
| 5 | 1 | A-130447 | VALVE | |
| 6 | 2 | A-130448 | COIL | |
| 7 | 1 | A-130453 | BREATHER CAP | |
| 8 | 1 | A-130452 | BREATHER CAP GROMMET | |
| 9 | 1 | A-130455 | TANK | |
| 10 | 1 | A-133604 | POWER CABLE ASSEMBLY (INCLUDES ITEMS 11 - 20) | |
| 11 | 2 | A-150990 | HEAT SHRINK (2.5") | |
| 12 | 10" | A-150608 | 2/0 CABLE | |
| 13 | 3 | A-133605 | 5/16" ANTI-ROTATIONAL LUG - #4 CABLE | |
| 14 | 1 | A-133606 | HEAT SHRINK (8") | |
| 15 | 1 | A-133603 | HI-AMP FUSE, 175A | |
| 15 | - | A-133607 | FUSE KIT, REPLACEMENT (INCLUDES FUSE, INSTRUCTION SHEET, AND ITEMS 14, 16, 17, AND 18) | |
| 15 | - | A-133608 | FUSE REPLACEMENT INSTRUCTIONS (INCLUDES IN A-133607) | |
| 16 | 2 | 5435 | 5/16-18 X .75" HEX BOLT | |
| 17 | 2 | 6611 | 5/16 SPLIT LOCKWASHER | |
| 18 | 2 | 4614 | 5/16-18 FINISHED H/N ZP | |
| 19 | 420" | A-150608-420 | 2/0 CABLE | |
| 20 | 1 | A-133003 | 3/8" ANTI-ROTATIONAL RD LUG - #2 CABLE | |
| 21 | 2 | A-132079 | SELF LKG CABLE TIE - 8" UV-RESIST | |
| 22 | 1 | A-133553 | SWITCH ASSY: GRAVITY DOWN SWITCH ASSY W/CABLE, PLASTIC BOX (2.5" X 3" X 1") | |
| 23 | 1 | A-150438 | FUSE, 10A | |
| 24 | 1 | A-131001 | DECAL: 10A FUSE & HOLDER | |
| 25 | 1 | A-133038 | CUT-OFF SWITCH KIT - MANUALLY OPERATING | |
| 25 | A-150031 | SWITCH, CUT-OFF - MANUALLY OPERATING |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

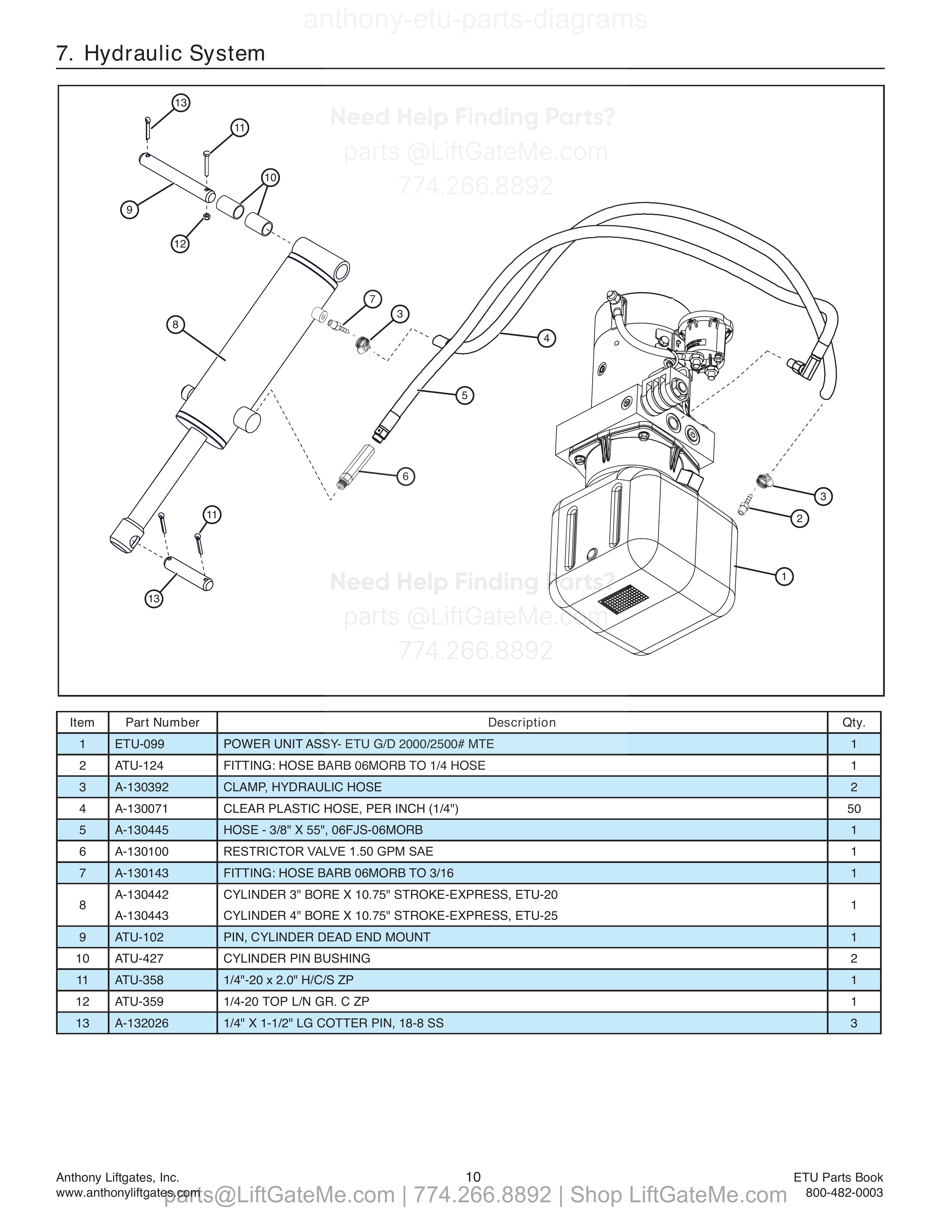

7. Hydraulic System
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | ETU-099 | POWER UNIT ASSY- ETU G/D 2000/2500# MTE | |
| 2 | 1 | ATU-124 | FITTING: HOSE BARB 06MORB TO 1/4 HOSE | |
| 3 | 2 | A-130392 | CLAMP, HYDRAULIC HOSE | |
| 4 | 50 | A-130071 | CLEAR PLASTIC HOSE, PER INCH (1/4") | |
| 5 | 1 | A-130445 | HOSE - 3/8" X 55", 06FJS-06MORB | |
| 6 | 1 | A-130100 | RESTRICTOR VALVE 1.50 GPM SAE | |
| 7 | 1 | A-130143 | FITTING: HOSE BARB 06MORB TO 3/16 | |
| 8 | 1 | A-130442 | CYLINDER 3" BORE X 10.75" STROKE-EXPRESS, ETU-20 | |
| 8 | 1 | A-130443 | CYLINDER 4" BORE X 10.75" STROKE-EXPRESS, ETU-25 | |
| 9 | 1 | ATU-102 | PIN, CYLINDER DEAD END MOUNT | |
| 10 | 2 | ATU-427 | CYLINDER PIN BUSHING | |
| 11 | 1 | ATU-358 | 1/4"-20 x 2.0" H/C/S ZP | |
| 12 | 1 | ATU-359 | 1/4-20 TOP L/N GR. C ZP | |
| 13 | 3 | A-132026 | 1/4" X 1-1/2" LG COTTER PIN, 18-8 SS |

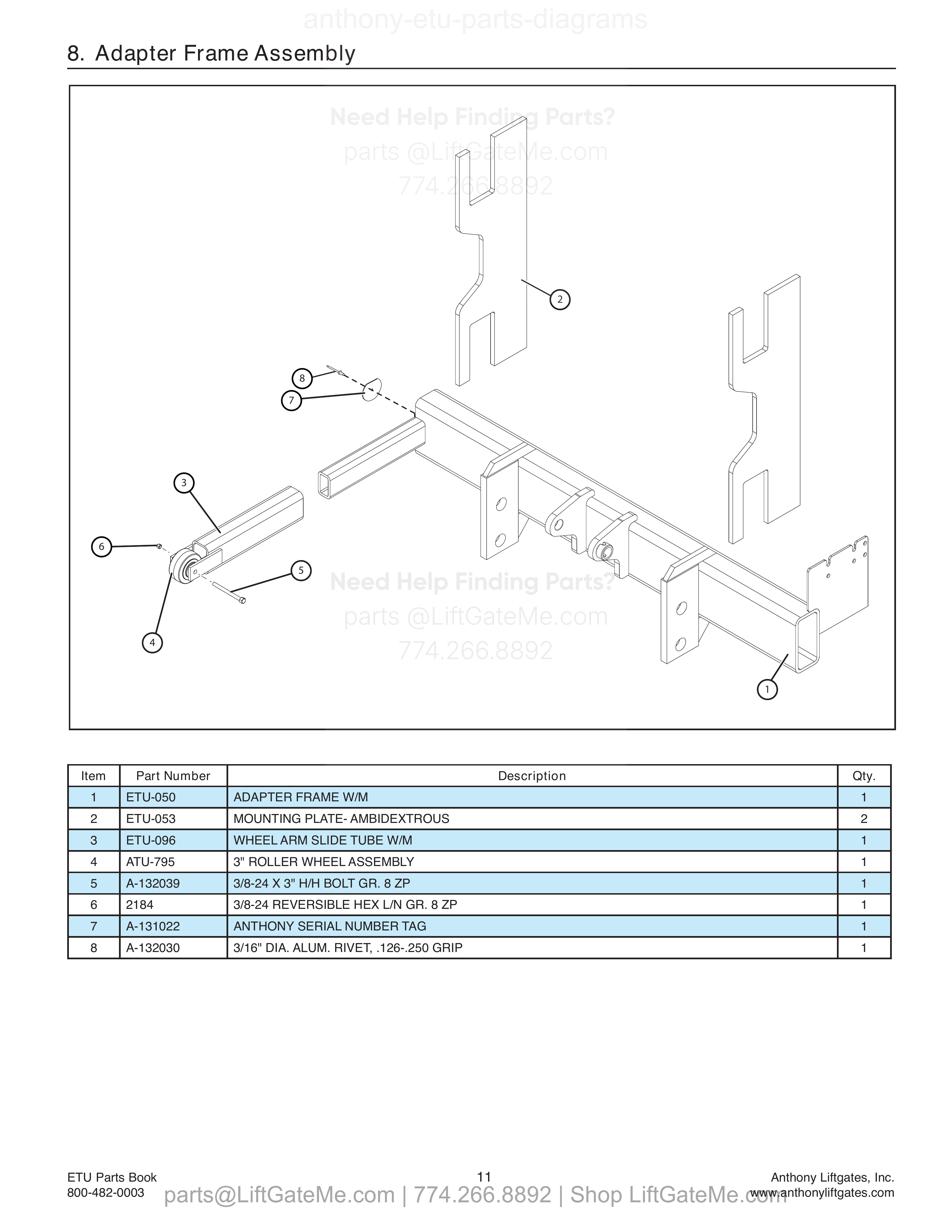

8. Adapter Frame Assembly
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | ETU-050 | ADAPTER FRAME W/M | |
| 2 | 2 | ETU-053 | MOUNTING PLATE- AMBIDEXTROUS | |
| 3 | 1 | ETU-096 | WHEEL ARM SLIDE TUBE W/M | |
| 4 | 1 | ATU-795 | 3" ROLLER WHEEL ASSEMBLY | |
| 5 | 1 | A-132039 | 3/8-24 X 3" H/H BOLT GR. 8 ZP | |
| 6 | 1 | 2184 | 3/8-24 REVERSIBLE HEX L/N GR. 8 ZP | |
| 7 | 1 | A-131022 | ANTHONY SERIAL NUMBER TAG | |
| 8 | 1 | A-132030 | 3/16" DIA. ALUM. RIVET, .126-.250 GRIP |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

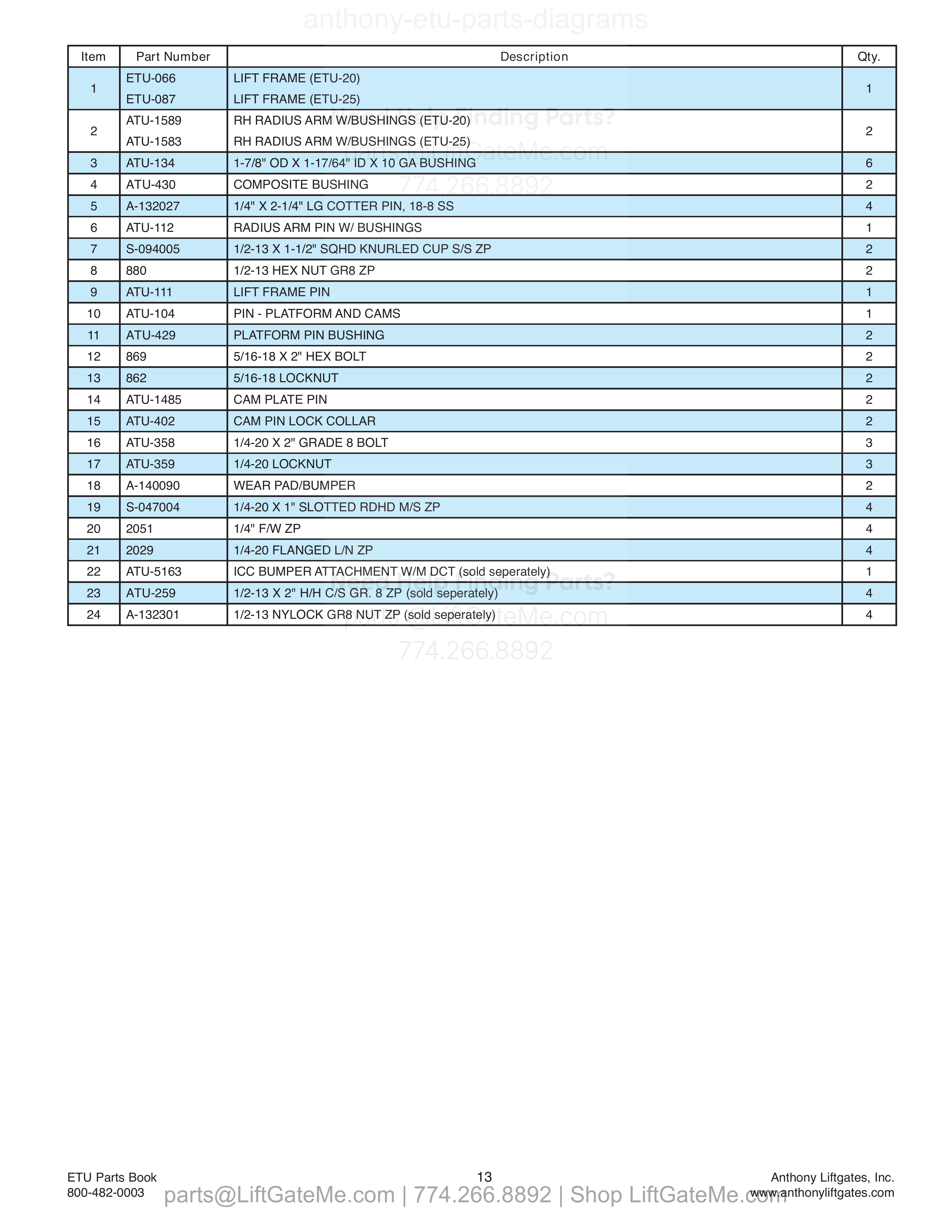

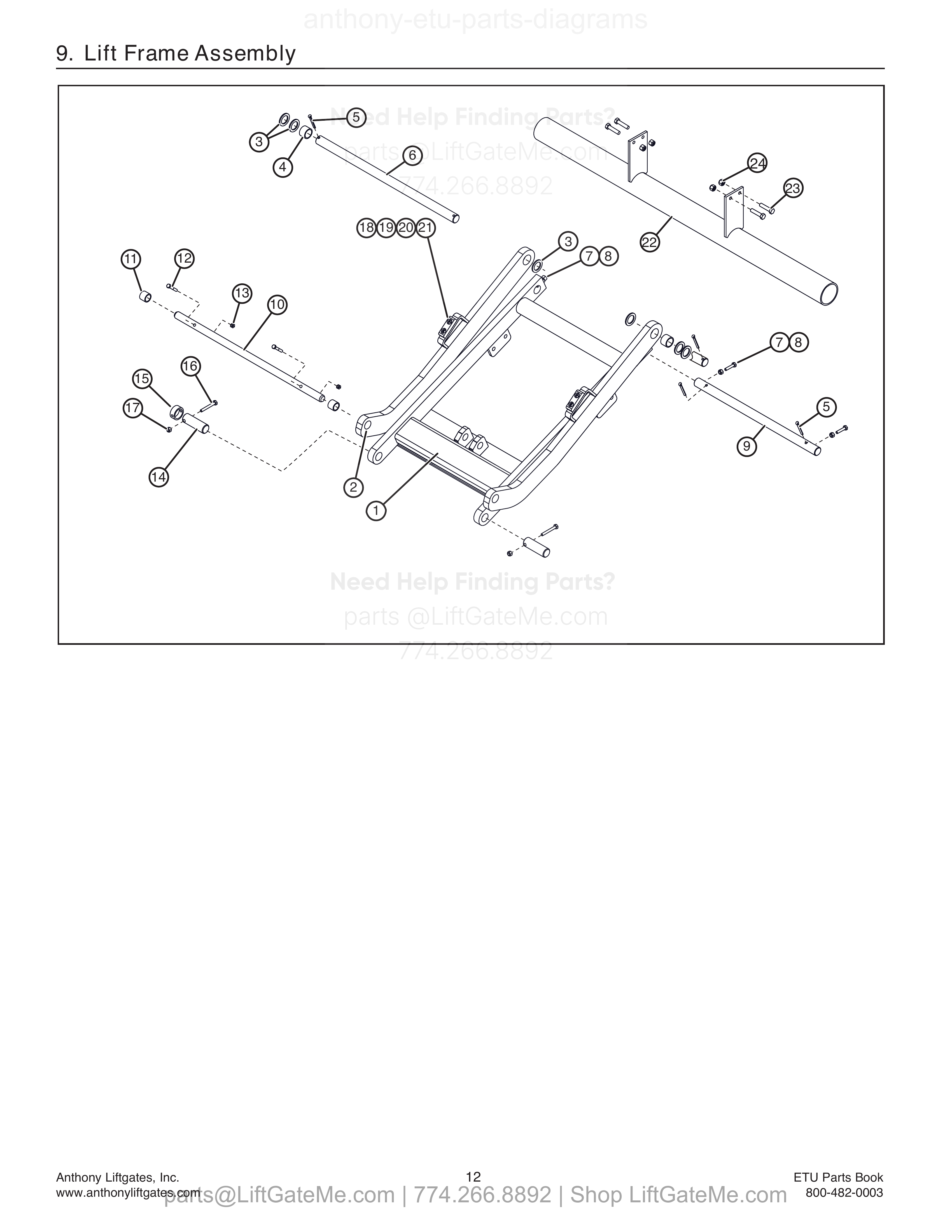

9. Lift Frame Assembly
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | ETU-066 | LIFT FRAME (ETU-20) | |
| 1 | 1 | ETU-087 | LIFT FRAME (ETU-25) | |
| 2 | 2 | ATU-1589 | RH RADIUS ARM W/BUSHINGS (ETU-20) | |
| 2 | 2 | ATU-1583 | RH RADIUS ARM W/BUSHINGS (ETU-25) | |
| 3 | 6 | ATU-134 | 1-7/8" OD X 1-17/64" ID X 10 GA BUSHING | |
| 4 | 2 | ATU-430 | COMPOSITE BUSHING | |
| 5 | 4 | A-132027 | 1/4" X 2-1/4" LG COTTER PIN, 18-8 SS | |
| 6 | 1 | ATU-112 | RADIUS ARM PIN W/ BUSHINGS | |
| 7 | 2 | S-094005 | 1/2-13 X 1-1/2" SQHD KNURLED CUP S/S ZP | |
| 8 | 2 | 880 | 1/2-13 HEX NUT GR8 ZP | |
| 9 | 1 | ATU-111 | LIFT FRAME PIN | |
| 10 | 1 | ATU-104 | PIN - PLATFORM AND CAMS | |
| 11 | 2 | ATU-429 | PLATFORM PIN BUSHING | |
| 12 | 2 | 869 | 5/16-18 X 2" HEX BOLT | |
| 13 | 2 | 862 | 5/16-18 LOCKNUT | |
| 14 | 2 | ATU-1485 | CAM PLATE PIN | |
| 15 | 2 | ATU-402 | CAM PIN LOCK COLLAR | |
| 16 | 3 | ATU-358 | 1/4-20 X 2" GRADE 8 BOLT | |
| 17 | 3 | ATU-359 | 1/4-20 LOCKNUT | |
| 18 | 2 | A-140090 | WEAR PAD/BUMPER | |
| 19 | 4 | S-047004 | 1/4-20 X 1" SLOTTED RDHD M/S ZP | |
| 20 | 4 | 2051 | 1/4" F/W ZP | |
| 21 | 4 | 2029 | 1/4-20 FLANGED L/N ZP | |
| 22 | 1 | ATU-5163 | ICC BUMPER ATTACHMENT W/M DCT (sold seperately) | |
| 23 | 4 | ATU-259 | 1/2-13 X 2" H/H C/S GR. 8 ZP (sold seperately) | |
| 24 | 4 | A-132301 | 1/2-13 NYLOCK GR8 NUT ZP (sold seperately) |

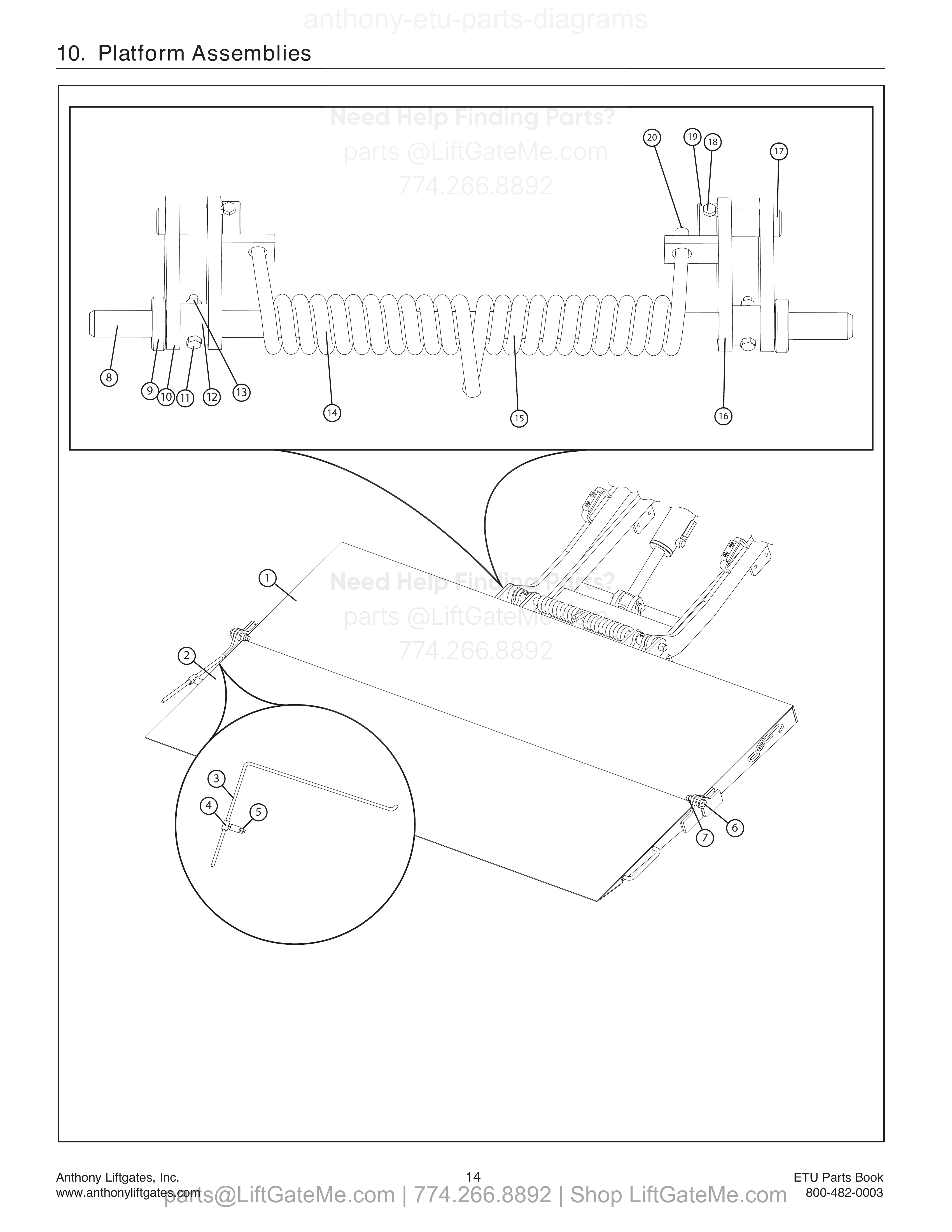

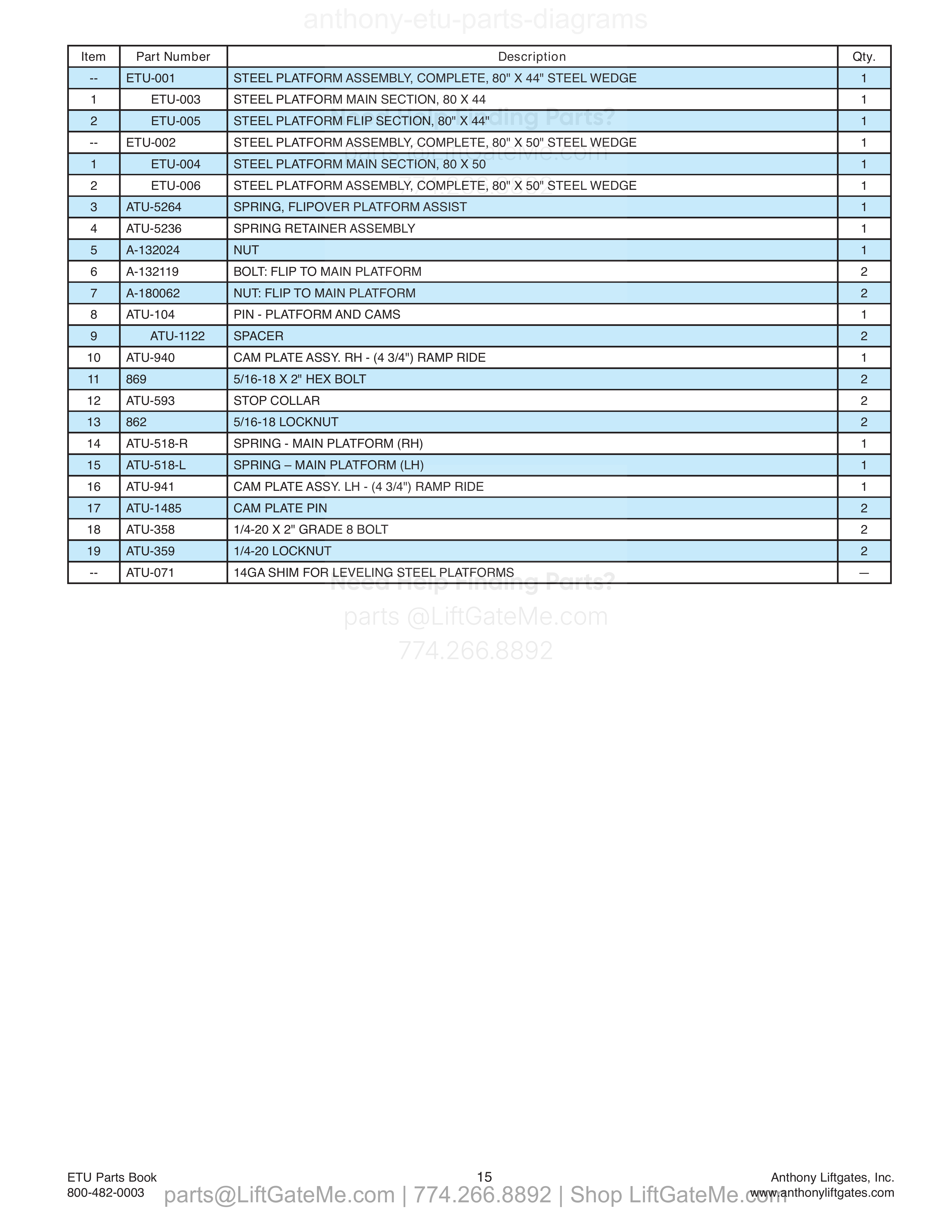

10. Platform Assemblies
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| -- | 1 | ETU-001 | STEEL PLATFORM ASSEMBLY, COMPLETE, 80" X 44" STEEL WEDGE | |
| 1 | 1 | ETU-003 | STEEL PLATFORM MAIN SECTION, 80 X 44 | |
| 2 | 1 | ETU-005 | STEEL PLATFORM FLIP SECTION, 80" X 44" | |
| -- | 1 | ETU-002 | STEEL PLATFORM ASSEMBLY, COMPLETE, 80" X 50" STEEL WEDGE | |
| 1 | 1 | ETU-004 | STEEL PLATFORM MAIN SECTION, 80 X 50 | |
| 2 | 1 | ETU-006 | STEEL PLATFORM ASSEMBLY, COMPLETE, 80" X 50" STEEL WEDGE | |
| 3 | 1 | ATU-5264 | SPRING, FLIPOVER PLATFORM ASSIST | |
| 4 | 1 | ATU-5236 | SPRING RETAINER ASSEMBLY | |
| 5 | 1 | A-132024 | NUT | |
| 6 | 2 | A-132119 | BOLT: FLIP TO MAIN PLATFORM | |
| 7 | 2 | A-180062 | NUT: FLIP TO MAIN PLATFORM | |
| 8 | 1 | ATU-104 | PIN - PLATFORM AND CAMS | |
| 9 | 2 | ATU-1122 | SPACER | |
| 10 | 1 | ATU-940 | CAM PLATE ASSY. RH - (4 3/4") RAMP RIDE | |
| 11 | 2 | 869 | 5/16-18 X 2" HEX BOLT | |
| 12 | 2 | ATU-593 | STOP COLLAR | |
| 13 | 2 | 862 | 5/16-18 LOCKNUT | |
| 14 | 1 | ATU-518-R | SPRING - MAIN PLATFORM (RH) | |
| 15 | 1 | ATU-518-L | SPRING – MAIN PLATFORM (LH) | |
| 16 | 1 | ATU-941 | CAM PLATE ASSY. LH - (4 3/4") RAMP RIDE | |
| 17 | 2 | ATU-1485 | CAM PLATE PIN | |
| 18 | 2 | ATU-358 | 1/4-20 X 2" GRADE 8 BOLT | |
| 19 | 2 | ATU-359 | 1/4-20 LOCKNUT | |
| -- | — | ATU-071 | 14GA SHIM FOR LEVELING STEEL PLATFORMS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

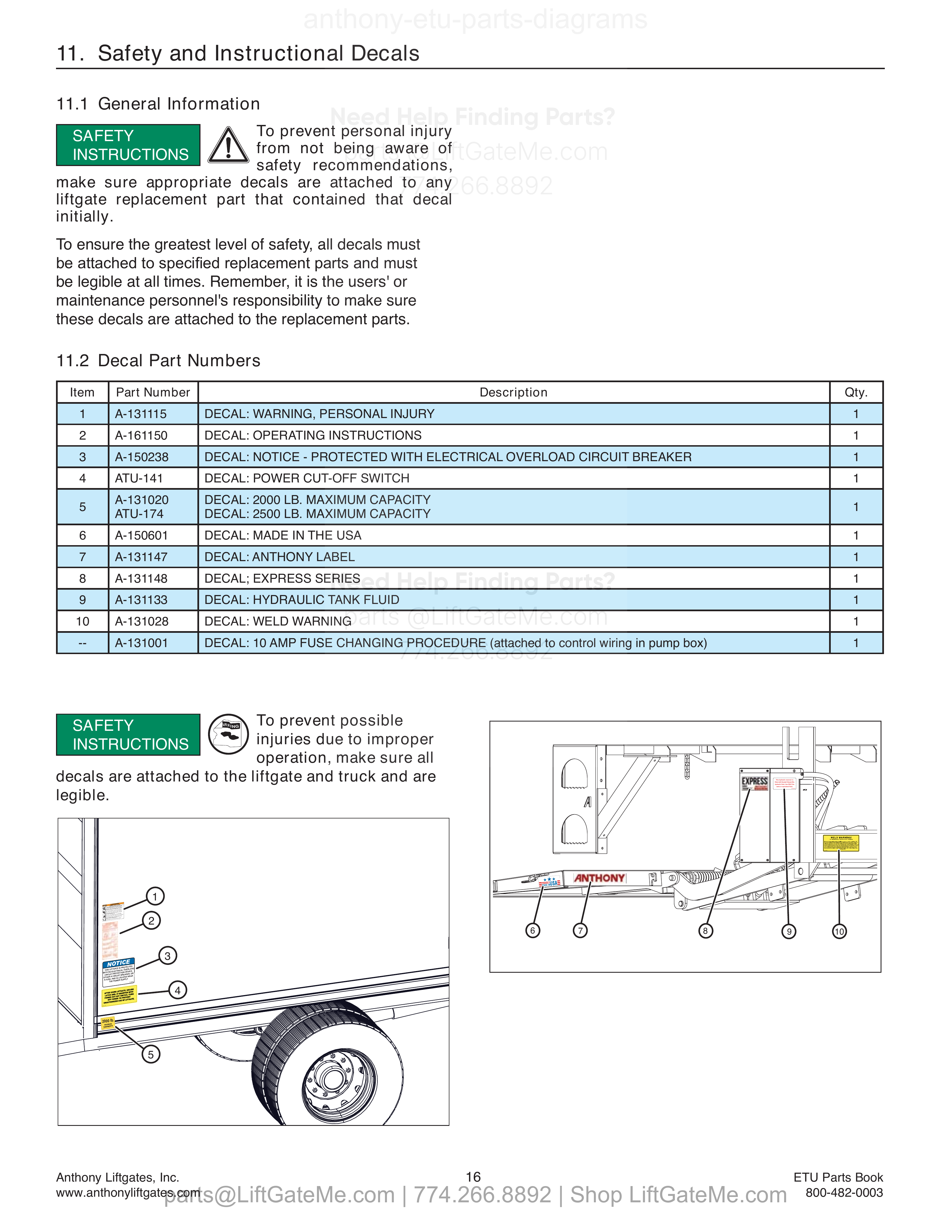

11.2 Decal Part Numbers
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | A-131115 | DECAL: WARNING, PERSONAL INJURY | |
| 2 | 1 | A-161150 | DECAL: OPERATING INSTRUCTIONS | |
| 3 | 1 | A-150238 | DECAL: NOTICE - PROTECTED WITH ELECTRICAL OVERLOAD CIRCUIT BREAKER | |
| 4 | 1 | ATU-141 | DECAL: POWER CUT-OFF SWITCH | |
| 5 | 1 | A-131020 | DECAL: 2000 LB. MAXIMUM CAPACITY DECAL: 2500 LB. MAXIMUM CAPACITY | |
| 5 | 1 | ATU-174 | DECAL: 2000 LB. MAXIMUM CAPACITY DECAL: 2500 LB. MAXIMUM CAPACITY | |
| 6 | 1 | A-150601 | DECAL: MADE IN THE USA | |
| 7 | 1 | A-131147 | DECAL: ANTHONY LABEL | |
| 8 | 1 | A-131148 | DECAL; EXPRESS SERIES | |
| 9 | 1 | A-131133 | DECAL: HYDRAULIC TANK FLUID | |
| 10 | 1 | A-131028 | DECAL: WELD WARNING | |
| -- | 1 | A-131001 | DECAL: 10 AMP FUSE CHANGING PROCEDURE (attached to control wiring in pump box) |
