Maxon GPC 44 X1 Liftgate Parts Diagrams
Maxon GPC 44 X1 Cantilever parts diagrams for 2010
Browse Maxon GPC 44 X1 OEM liftgate parts diagrams covering 2010 cantilever models. Use the callouts and tables to locate components before servicing or repairing your liftgate.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

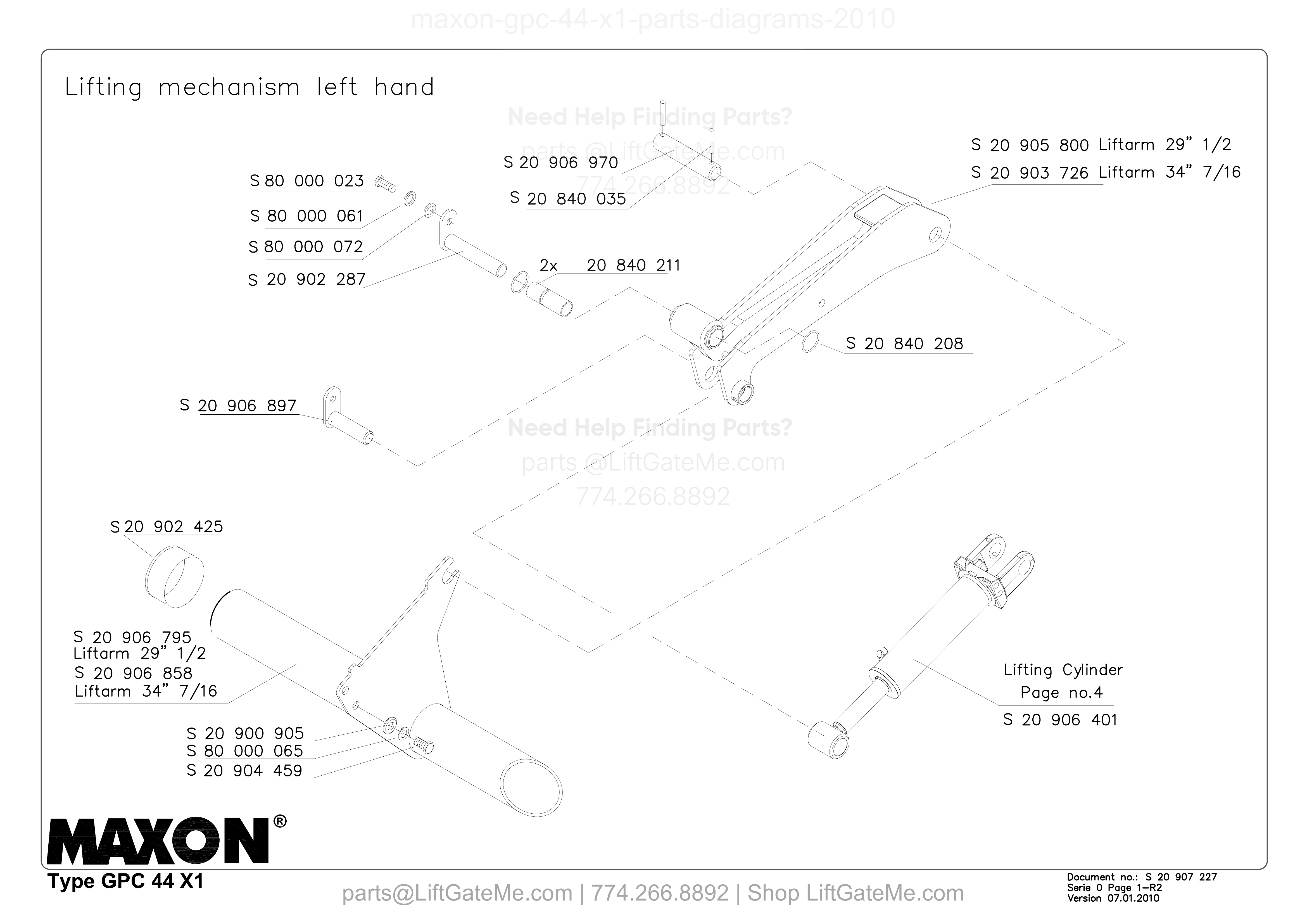

Lifting mechanism left hand
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 023 | Lifting mechanism left hand — part | |
| — | - | S 80 000 061 | Lifting mechanism left hand — part | |
| — | - | S 80 000 072 | Lifting mechanism left hand — part | |
| — | - | S 20 902 287 | Lifting mechanism left hand — part | |
| — | - | S 20 906 970 | Lifting mechanism left hand — part | |
| — | - | S 20 840 035 | Lifting mechanism left hand — part | |
| — | 2x | 20 840 211 | Lifting mechanism left hand — part | |
| — | - | S 20 905 800 | Lifting mechanism left hand — Liftarm 29” 1/2 | |
| — | - | S 20 903 726 | Lifting mechanism left hand — Liftarm 34” 7/16 | |
| — | - | S 20 840 208 | Lifting mechanism left hand — part | |
| — | - | S 20 906 897 | Lifting mechanism left hand — part | |
| — | - | S 20 902 425 | Lifting mechanism left hand — part | |
| — | - | S 20 906 795 | Lifting mechanism left hand — Liftarm 29” 1/2 | |
| — | - | S 20 906 858 | Lifting mechanism left hand — Liftarm 34” 7/16 | |
| — | - | S 20 900 905 | Lifting mechanism left hand — part | |
| — | - | S 80 000 065 | Lifting mechanism left hand — part | |
| — | - | S 20 904 459 | Lifting mechanism left hand — part | |
| — | - | S 20 906 401 | Lifting mechanism left hand — Lifting Cylinder |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

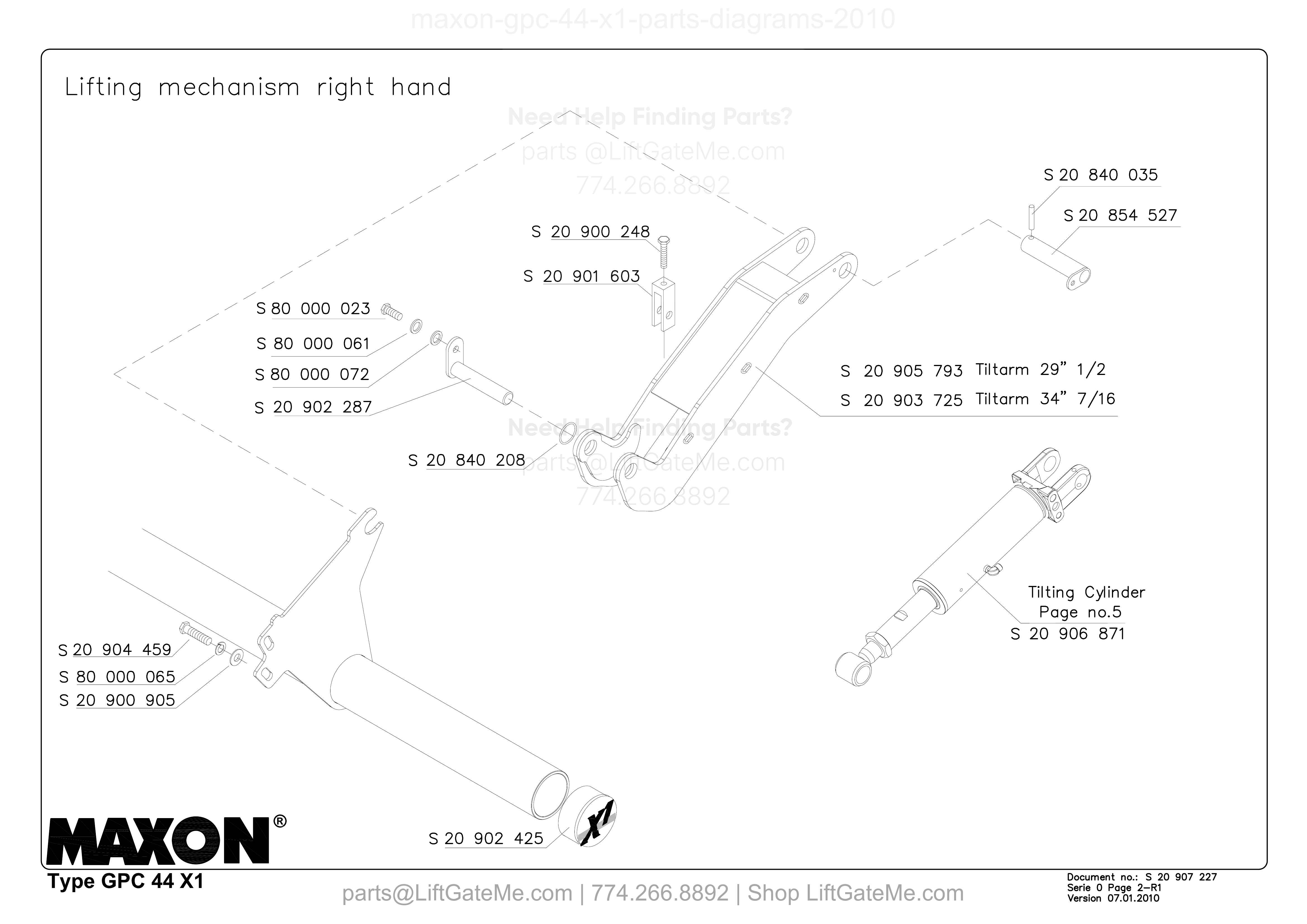

Lifting mechanism right hand
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 023 | Lifting mechanism right hand — part | |
| — | - | S 80 000 061 | Lifting mechanism right hand — part | |
| — | - | S 80 000 072 | Lifting mechanism right hand — part | |
| — | - | S 20 902 287 | Lifting mechanism right hand — part | |
| — | - | S 20 900 248 | Lifting mechanism right hand — part | |
| — | - | S 20 901 603 | Lifting mechanism right hand — part | |
| — | - | S 20 840 208 | Lifting mechanism right hand — part | |
| — | - | S 20 840 035 | Lifting mechanism right hand — part | |
| — | - | S 20 854 527 | Lifting mechanism right hand — part | |
| — | - | S 20 905 793 | Lifting mechanism right hand — Tiltarm 29” 1/2 | |
| — | - | S 20 903 725 | Lifting mechanism right hand — Tiltarm 34” 7/16 | |
| — | - | S 20 904 459 | Lifting mechanism right hand — part | |
| — | - | S 80 000 065 | Lifting mechanism right hand — part | |
| — | - | S 20 900 905 | Lifting mechanism right hand — part | |
| — | - | S 20 902 425 | Lifting mechanism right hand — part | |
| — | - | S 20 906 871 | Lifting mechanism right hand — Tilting Cylinder |

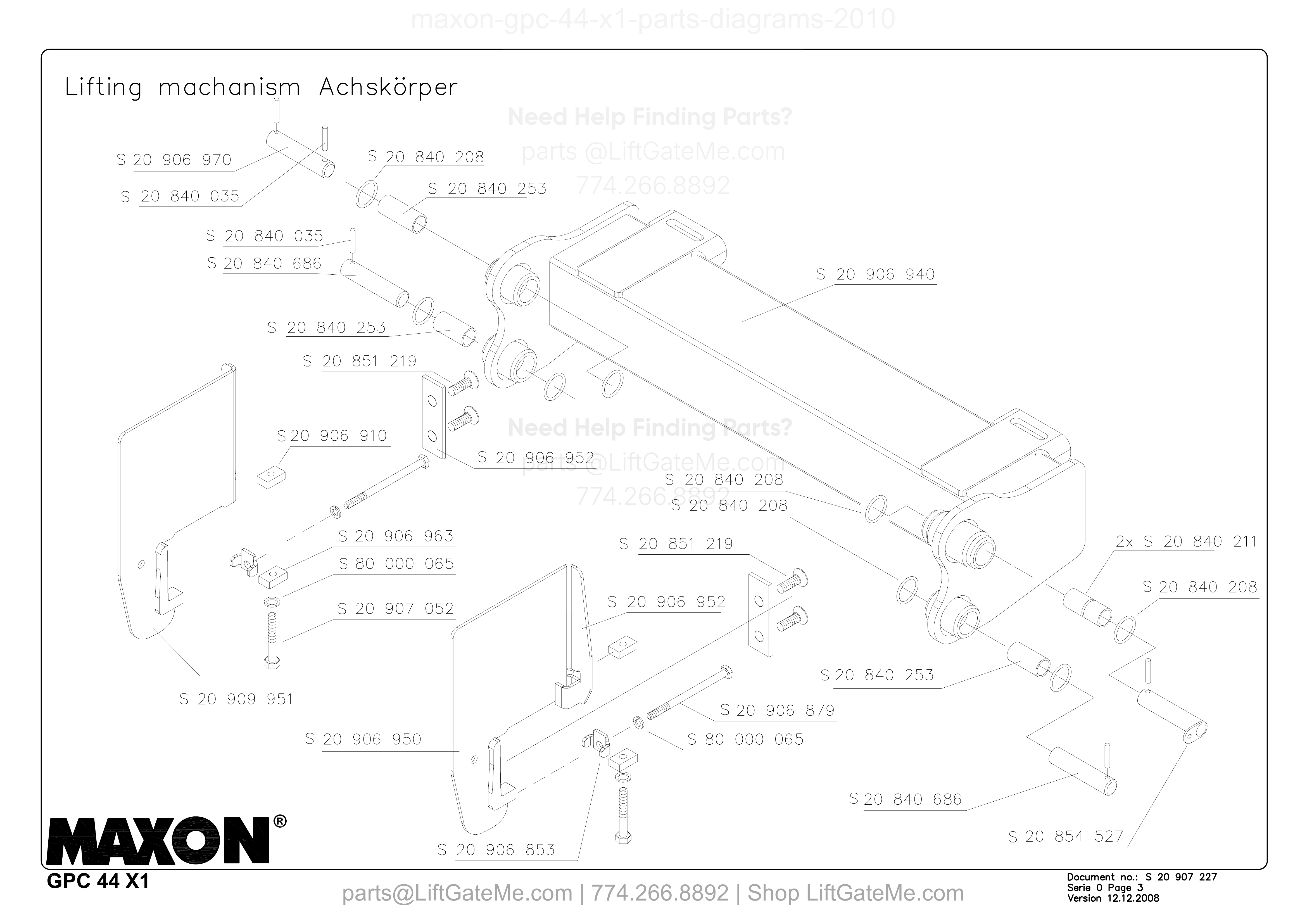

Lifting machanism Achskörper
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 906 970 | Lifting machanism Achskörper — part | |
| — | - | S 20 840 035 | Lifting machanism Achskörper — part | |
| — | - | S 20 840 208 | Lifting machanism Achskörper — part | |
| — | - | S 20 840 253 | Lifting machanism Achskörper — part | |
| — | - | S 20 840 035 | Lifting machanism Achskörper — part | |
| — | - | S 20 840 686 | Lifting machanism Achskörper — part | |
| — | - | S 20 840 253 | Lifting machanism Achskörper — part | |
| — | - | S 20 851 219 | Lifting machanism Achskörper — part | |
| — | - | S 20 906 940 | Lifting machanism Achskörper — part | |
| — | - | S 20 906 910 | Lifting machanism Achskörper — part | |
| — | - | S 20 906 952 | Lifting machanism Achskörper — part | |
| — | - | S 20 906 963 | Lifting machanism Achskörper — part | |
| — | - | S 80 000 065 | Lifting machanism Achskörper — part | |
| — | - | S 20 907 052 | Lifting machanism Achskörper — part | |
| — | - | S 20 909 951 | Lifting machanism Achskörper — part | |
| — | - | S 20 906 950 | Lifting machanism Achskörper — part | |
| — | - | S 20 906 853 | Lifting machanism Achskörper — part | |
| — | - | S 20 851 219 | Lifting machanism Achskörper — part | |
| — | - | S 20 906 952 | Lifting machanism Achskörper — part | |
| — | - | S 20 906 879 | Lifting machanism Achskörper — part | |
| — | - | S 80 000 065 | Lifting machanism Achskörper — part | |
| — | - | S 20 840 208 | Lifting machanism Achskörper — part | |
| — | - | S 20 840 208 | Lifting machanism Achskörper — part | |
| — | 2x | 2x S 20 840 211 | Lifting machanism Achskörper — part | |
| — | - | S 20 840 208 | Lifting machanism Achskörper — part | |
| — | - | S 20 840 253 | Lifting machanism Achskörper — part | |
| — | - | S 20 840 686 | Lifting machanism Achskörper — part | |
| — | - | S 20 854 527 | Lifting machanism Achskörper — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

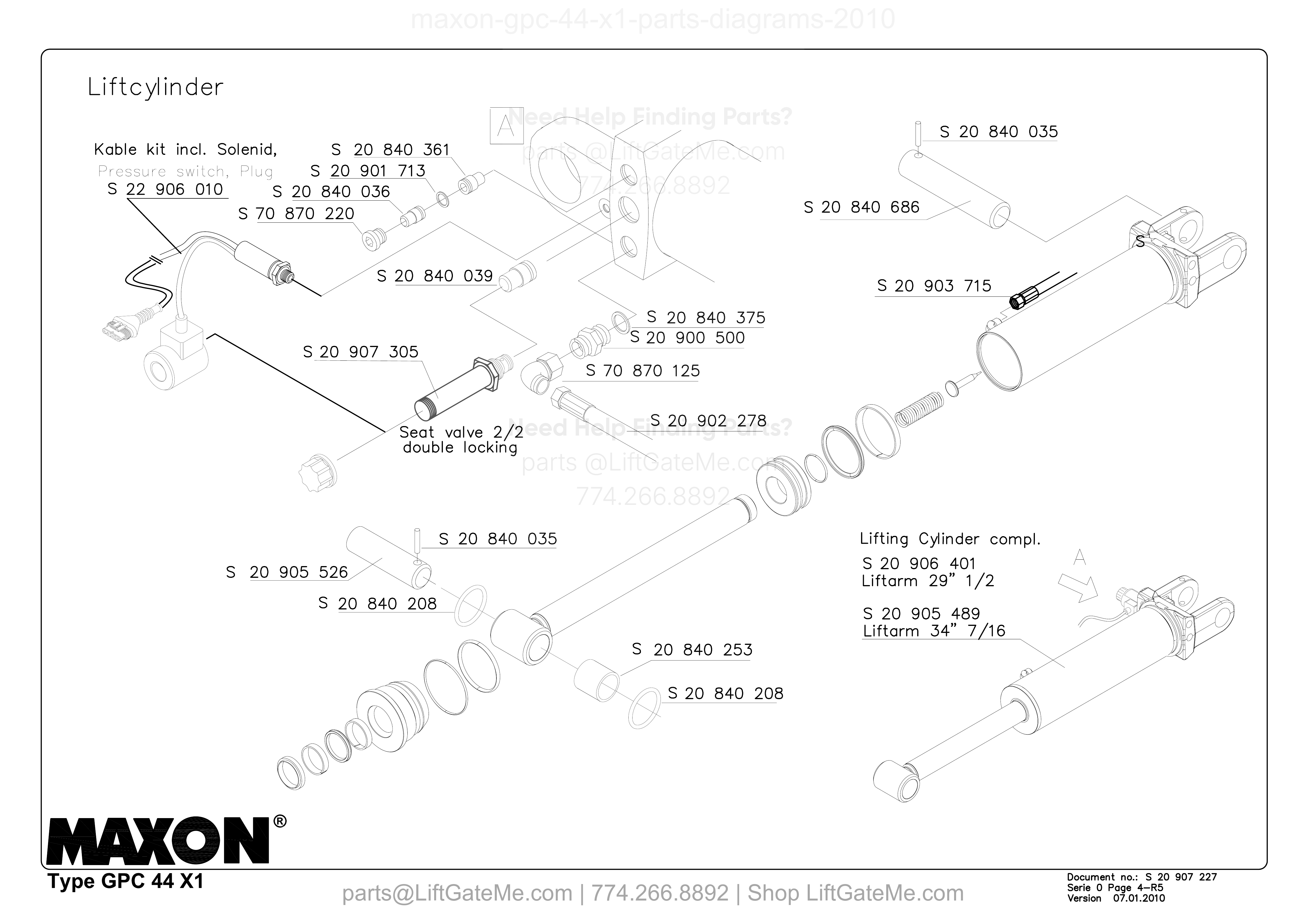

Liftcylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 361 | ||
| — | - | S 20 901 713 | ||
| — | - | S 22 906 010 | Liftcylinder — part | |
| — | - | S 20 840 036 | Liftcylinder — part | |
| — | - | S 70 870 220 | Liftcylinder — part | |
| — | - | S 20 840 039 | Liftcylinder — part | |
| — | - | S 20 907 305 | Liftcylinder — Seat valve 2/2 double locking | |
| — | - | S 20 840 375 | Liftcylinder — part | |
| — | - | S 20 900 500 | Liftcylinder — part | |
| — | - | S 70 870 125 | Liftcylinder — part | |
| — | - | S 20 902 278 | Liftcylinder — part | |
| — | - | S 20 840 035 | Liftcylinder — part | |
| — | - | S 20 840 686 | Liftcylinder — part | |
| — | - | S 20 903 715 | Liftcylinder — part | |
| — | - | S 20 905 526 | Liftcylinder — part | |
| — | - | S 20 840 208 | Liftcylinder — part | |
| — | - | S 20 840 035 | Liftcylinder — part | |
| — | - | S 20 840 253 | Liftcylinder — part | |
| — | - | S 20 840 208 | Liftcylinder — part | |
| — | - | S 20 906 401 | Liftcylinder — Lifting Cylinder compl. Liftarm 29” 1/2 | |
| — | - | S 20 905 489 | Liftcylinder — Liftarm 34” 7/16 |

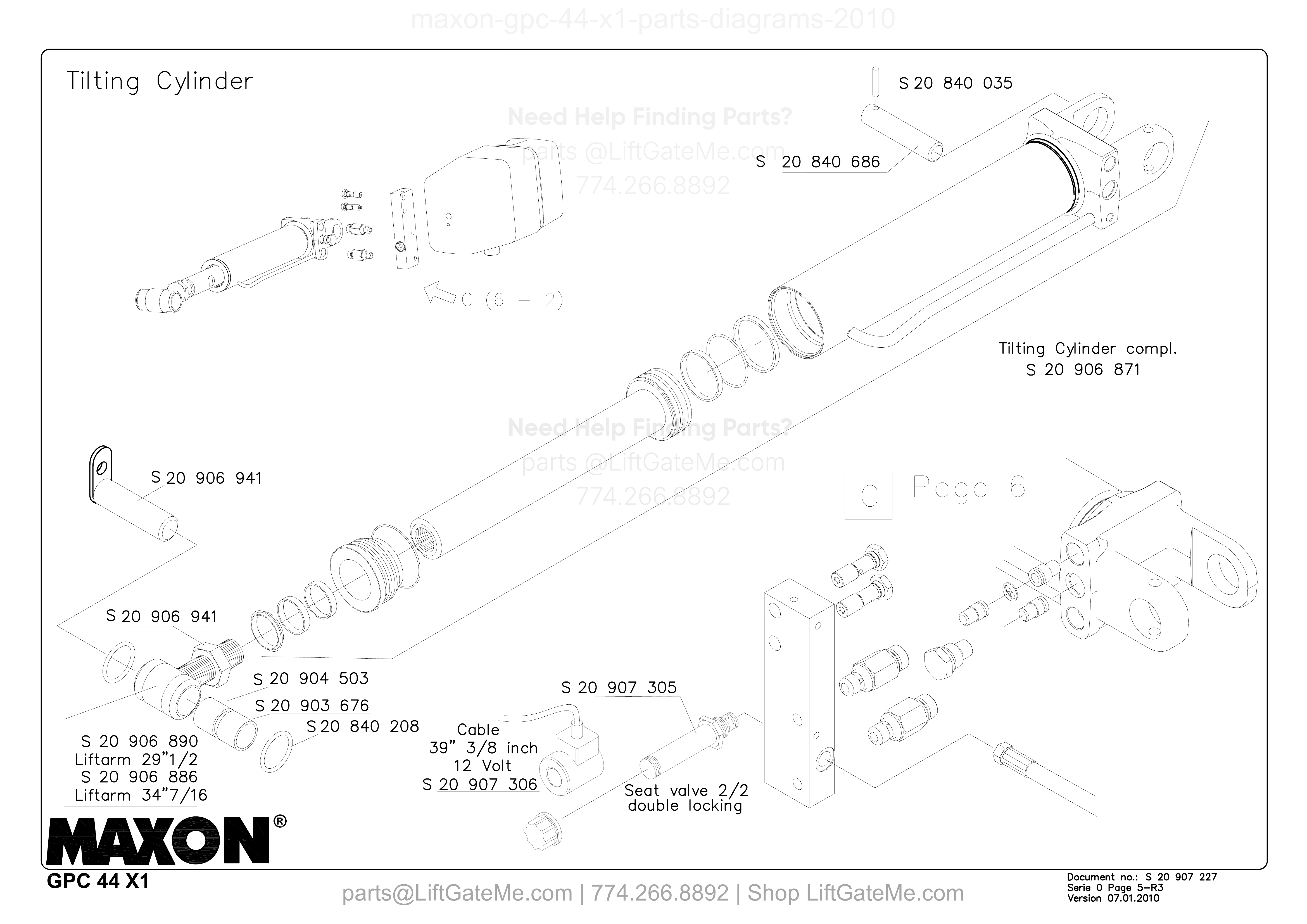

Tilting Cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 035 | Tilting Cylinder — part | |
| — | - | S 20 840 686 | Tilting Cylinder — part | |
| — | - | S 20 906 871 | Tilting Cylinder — Tilting Cylinder compl. | |
| — | - | S 20 906 941 | Tilting Cylinder — part | |
| — | - | S 20 904 503 | Tilting Cylinder — part | |
| — | - | S 20 903 676 | Tilting Cylinder — part | |
| — | - | S 20 840 208 | Tilting Cylinder — part | |
| — | - | S 20 906 890 | Tilting Cylinder — Liftarm 29”1/2 | |
| — | - | S 20 906 886 | Tilting Cylinder — Liftarm 34”7/16 | |
| — | - | S 20 907 305 | Tilting Cylinder — Seat valve 2/2 double locking | |
| — | - | S 20 907 306 | Tilting Cylinder — Cable 39” 3/8 inch 12 Volt |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

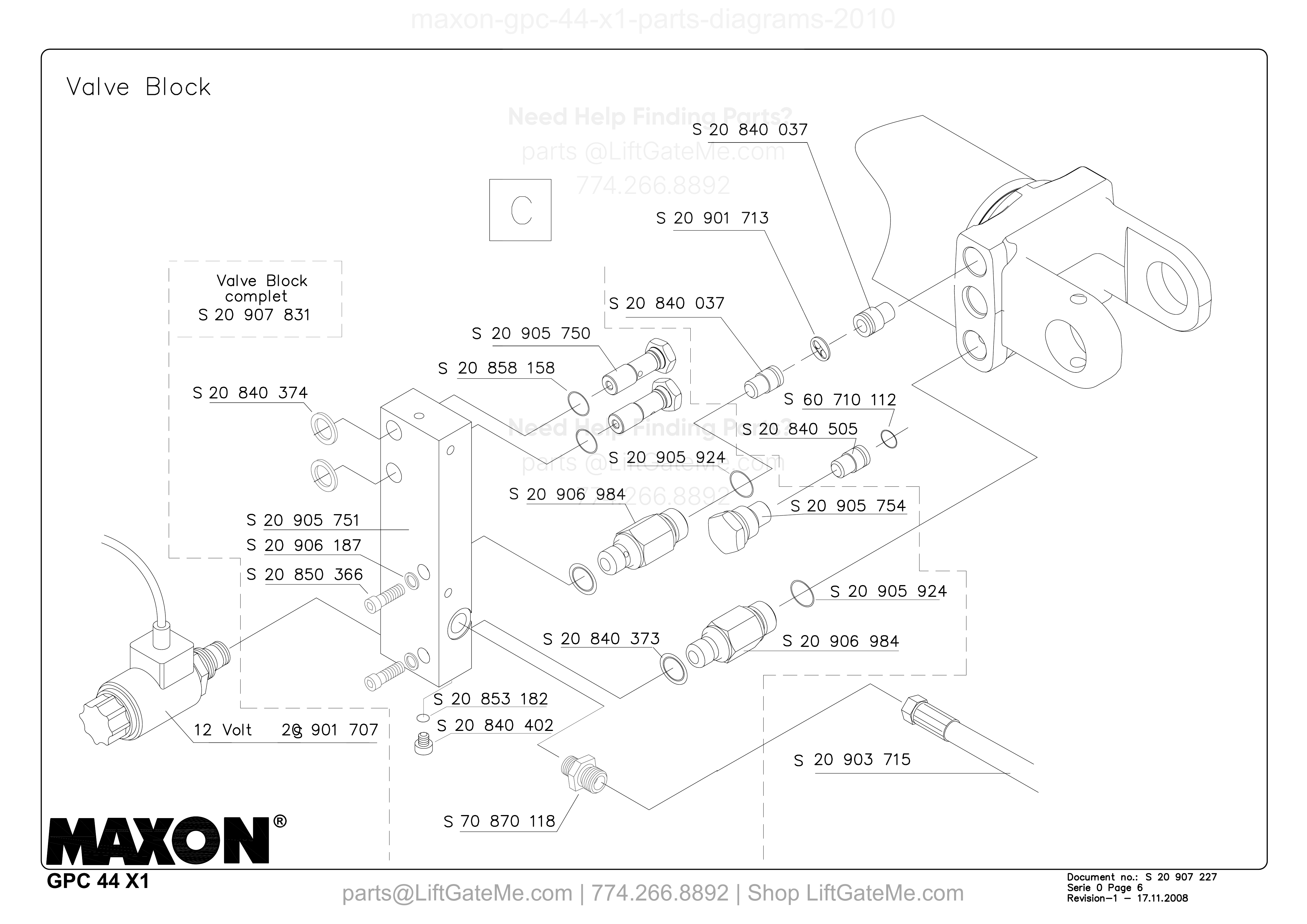

Valve Block
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 831 | Valve Block — Valve Block complet | |
| — | - | S 20 840 374 | Valve Block — part | |
| — | - | S 20 905 751 | Valve Block — part | |
| — | - | S 20 906 187 | Valve Block — part | |
| — | - | S 20 850 366 | Valve Block — part | |
| — | - | S 20 901 707 | Valve Block — 12 Volt | |
| — | - | S 20 853 182 | Valve Block — part | |
| — | - | S 20 840 402 | Valve Block — part | |
| — | - | S 70 870 118 | Valve Block — part | |
| — | - | S 20 858 158 | Valve Block — part | |
| — | - | S 20 905 750 | Valve Block — part | |
| — | - | S 20 905 924 | Valve Block — part | |
| — | - | S 20 906 984 | Valve Block — part | |
| — | - | S 20 840 373 | Valve Block — part | |
| — | - | S 20 840 037 | Valve Block — part | |
| — | - | S 20 901 713 | Valve Block — part | |
| — | - | S 60 710 112 | Valve Block — part | |
| — | - | S 20 840 505 | Valve Block — part | |
| — | - | S 20 905 754 | Valve Block — part | |
| — | - | S 20 903 715 | Valve Block — part |

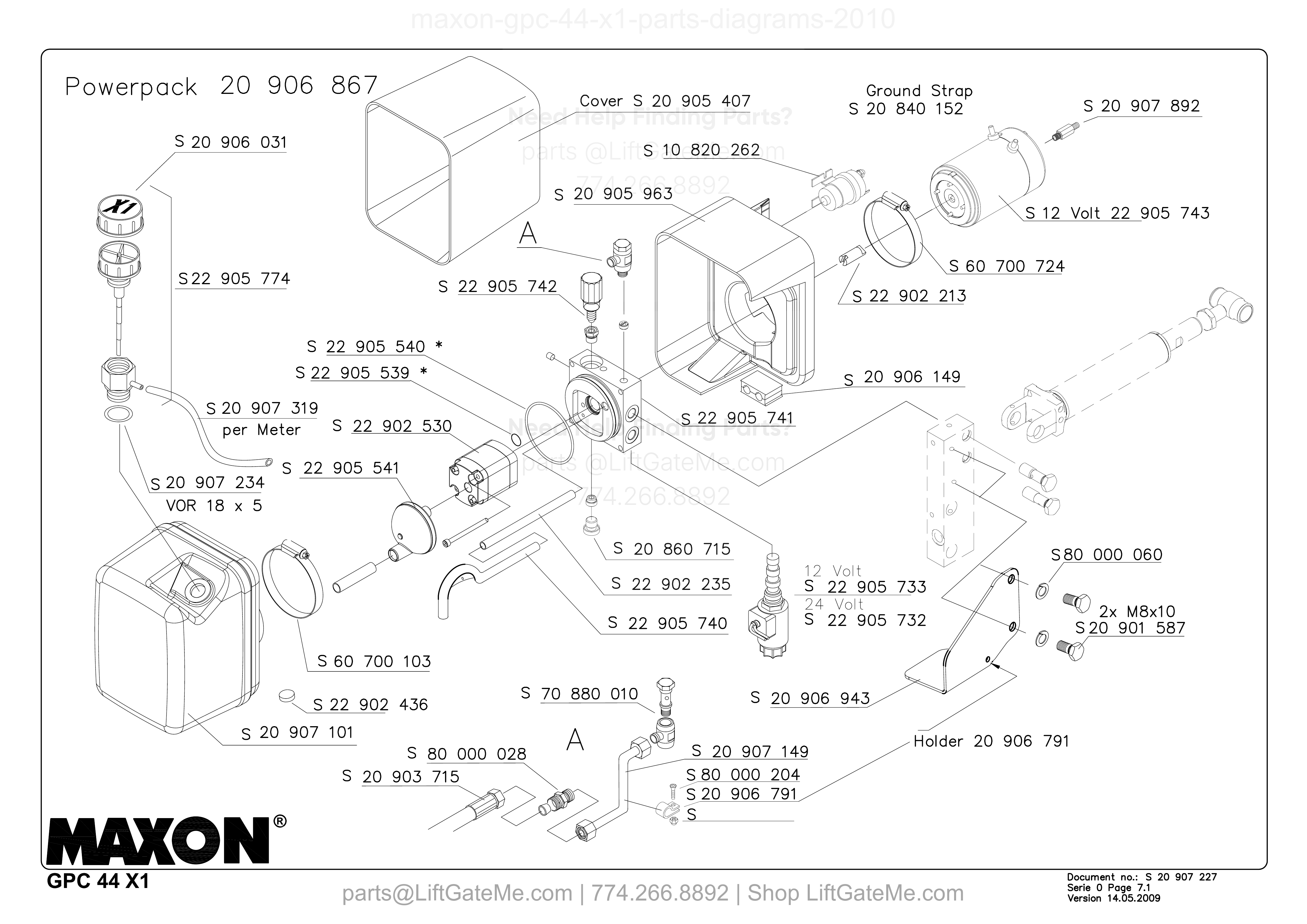

Powerpack 20 906 867
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 906 031 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 774 | Powerpack 20 906 867 — part | |
| — | - | S 20 907 319 | Powerpack 20 906 867 — per Meter | |
| — | - | S 20 907 234 | Powerpack 20 906 867 — VOR 18 x 5 | |
| — | - | S 20 907 101 | Powerpack 20 906 867 — part | |
| — | - | S 60 700 103 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 436 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 541 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 530 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 540 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 539 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 742 | Powerpack 20 906 867 — part | |
| — | - | S 20 905 963 | Powerpack 20 906 867 — part | |
| — | - | S 20 905 407 | Powerpack 20 906 867 — Cover | |
| — | - | S 10 820 262 | Powerpack 20 906 867 — part | |
| — | - | S 20 840 152 | Powerpack 20 906 867 — Ground Strap | |
| — | - | S 20 907 892 | Powerpack 20 906 867 — part | |
| — | - | 22 905 743 | Powerpack 20 906 867 — S 12 Volt | |
| — | - | S 60 700 724 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 213 | Powerpack 20 906 867 — part | |
| — | - | S 20 906 149 | Powerpack 20 906 867 — part | |
| — | - | S 20 860 715 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 235 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 740 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 733 | Powerpack 20 906 867 — 12 Volt | |
| — | - | S 22 905 732 | Powerpack 20 906 867 — 24 Volt | |
| — | - | S 80 000 060 | Powerpack 20 906 867 — part | |
| — | 2x | S 20 901 587 | Powerpack 20 906 867 — M8x10 | |
| — | - | S 20 906 943 | Powerpack 20 906 867 — part | |
| — | - | 20 906 791 | Powerpack 20 906 867 — Holder | |
| — | - | S 70 880 010 | Powerpack 20 906 867 — part | |
| — | - | S 20 907 149 | Powerpack 20 906 867 — part | |
| — | - | S 80 000 204 | Powerpack 20 906 867 — part | |
| — | - | S 20 906 791 | Powerpack 20 906 867 — part | |
| — | - | S 20 903 715 | Powerpack 20 906 867 — part | |
| — | - | S 80 000 028 | Powerpack 20 906 867 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

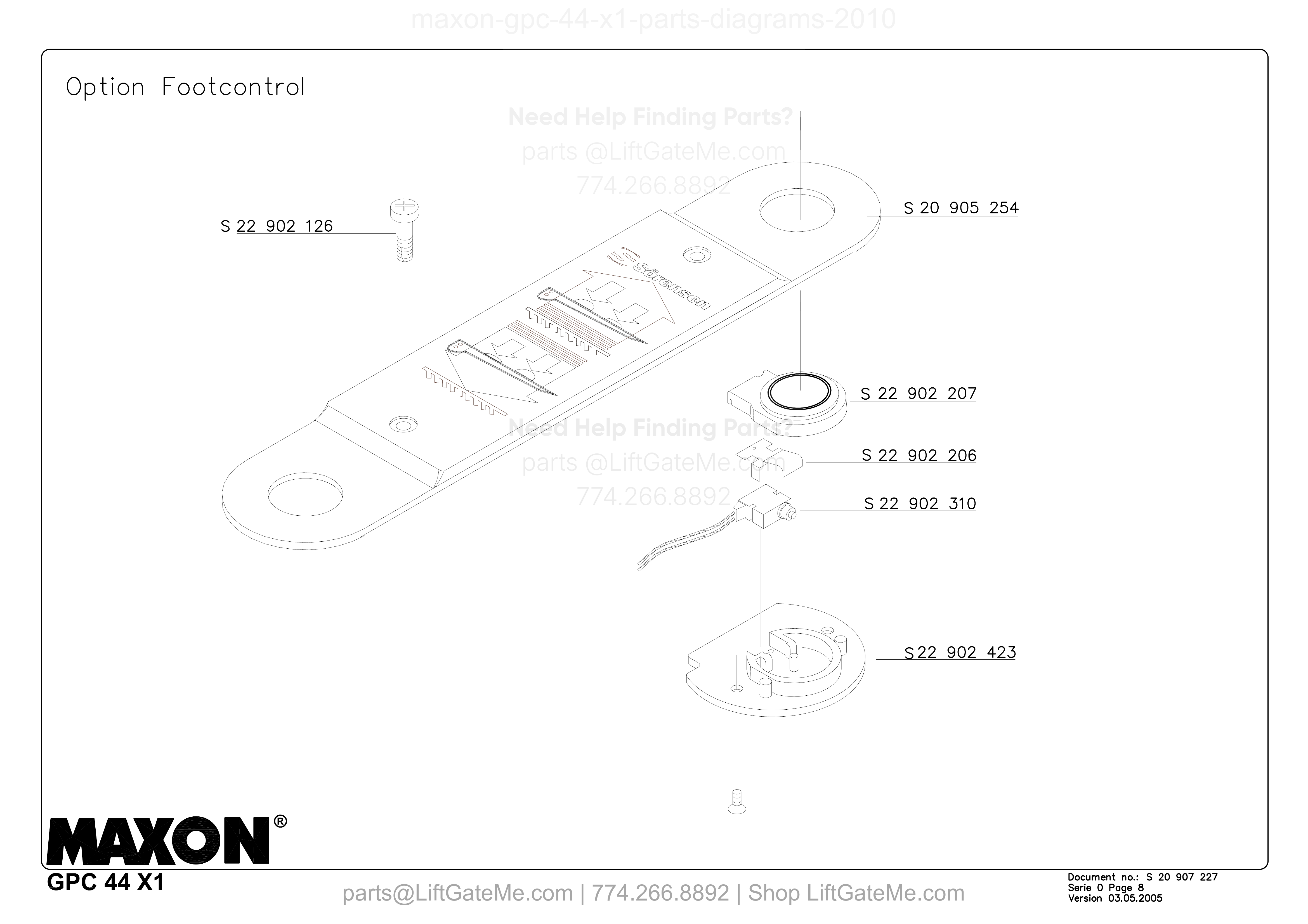

Option Footcontrol
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 22 902 126 | Option Footcontrol — part | |
| — | - | S 20 905 254 | Option Footcontrol — part | |
| — | - | S 22 902 207 | Option Footcontrol — part | |
| — | - | S 22 902 206 | Option Footcontrol — part | |
| — | - | S 22 902 310 | Option Footcontrol — part | |
| — | - | S 22 902 423 | Option Footcontrol — part |

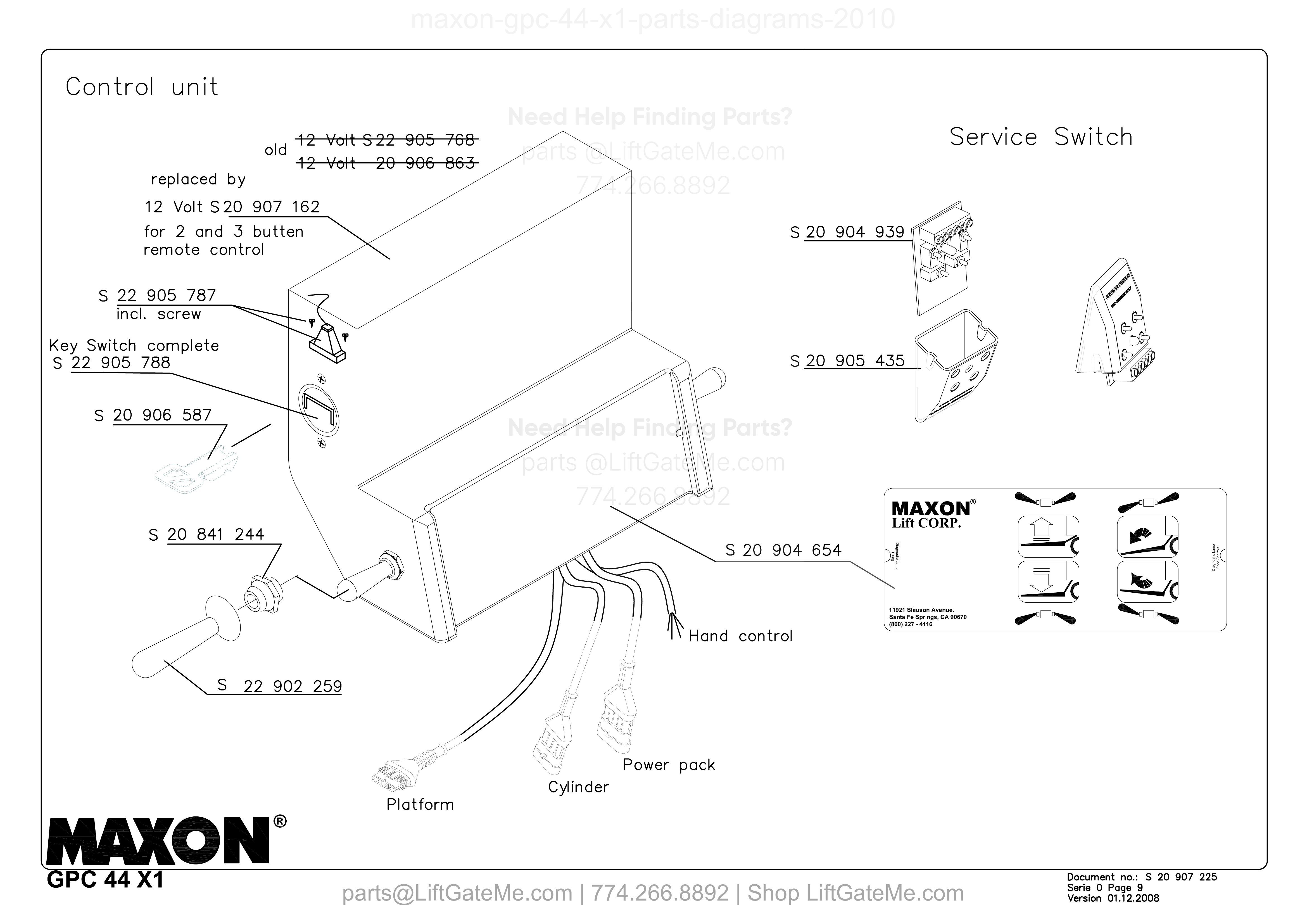

Control unit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 162 | Control unit — 12 Volt replaced by for 2 and 3 button remote control | |
| — | - | S 22 905 787 | Control unit — incl. screw | |
| — | - | S 22 905 788 | Control unit — Key Switch complete | |
| — | - | S 20 906 587 | Control unit — part | |
| — | - | S 20 841 244 | Control unit — part | |
| — | - | S 22 902 259 | Control unit — part | |
| — | - | S 20 904 654 | Control unit — Hand control | |
| — | - | S 20 904 939 | Control unit — Service Switch | |
| — | - | S 20 905 435 | Control unit — Service Switch |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

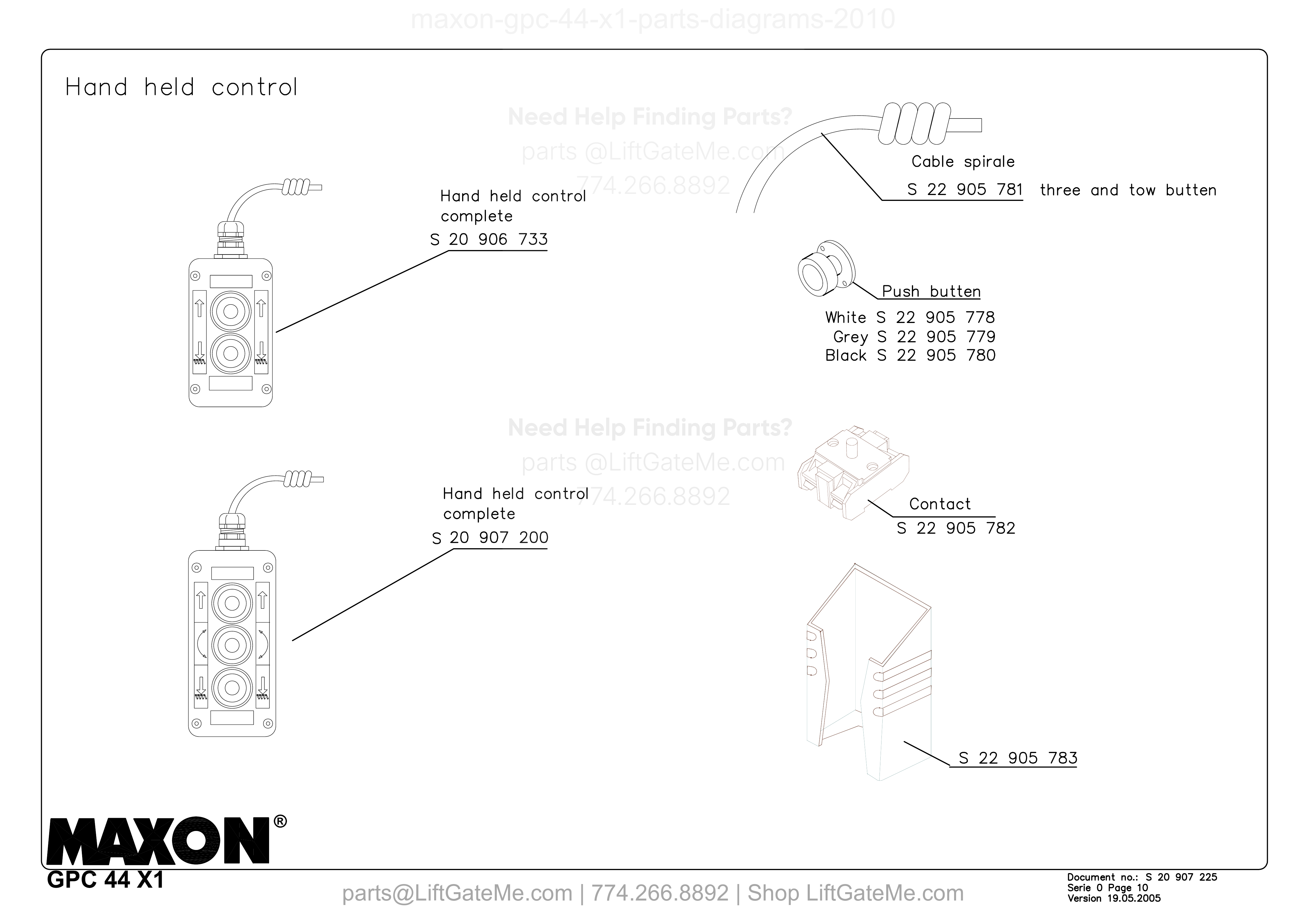

Hand held control
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 906 733 | Hand held control — Hand held control complete | |
| — | - | S 20 907 200 | Hand held control — Hand held control complete | |
| — | - | S 22 905 781 | Hand held control — Cable spirale three and tow button | |
| — | - | S 22 905 778 | Hand held control — Push button White | |
| — | - | S 22 905 779 | Hand held control — Push button Grey | |
| — | - | S 22 905 780 | Hand held control — Push button Black | |
| — | - | S 22 905 782 | Hand held control — Contact | |
| — | - | S 22 905 783 | Hand held control — part |

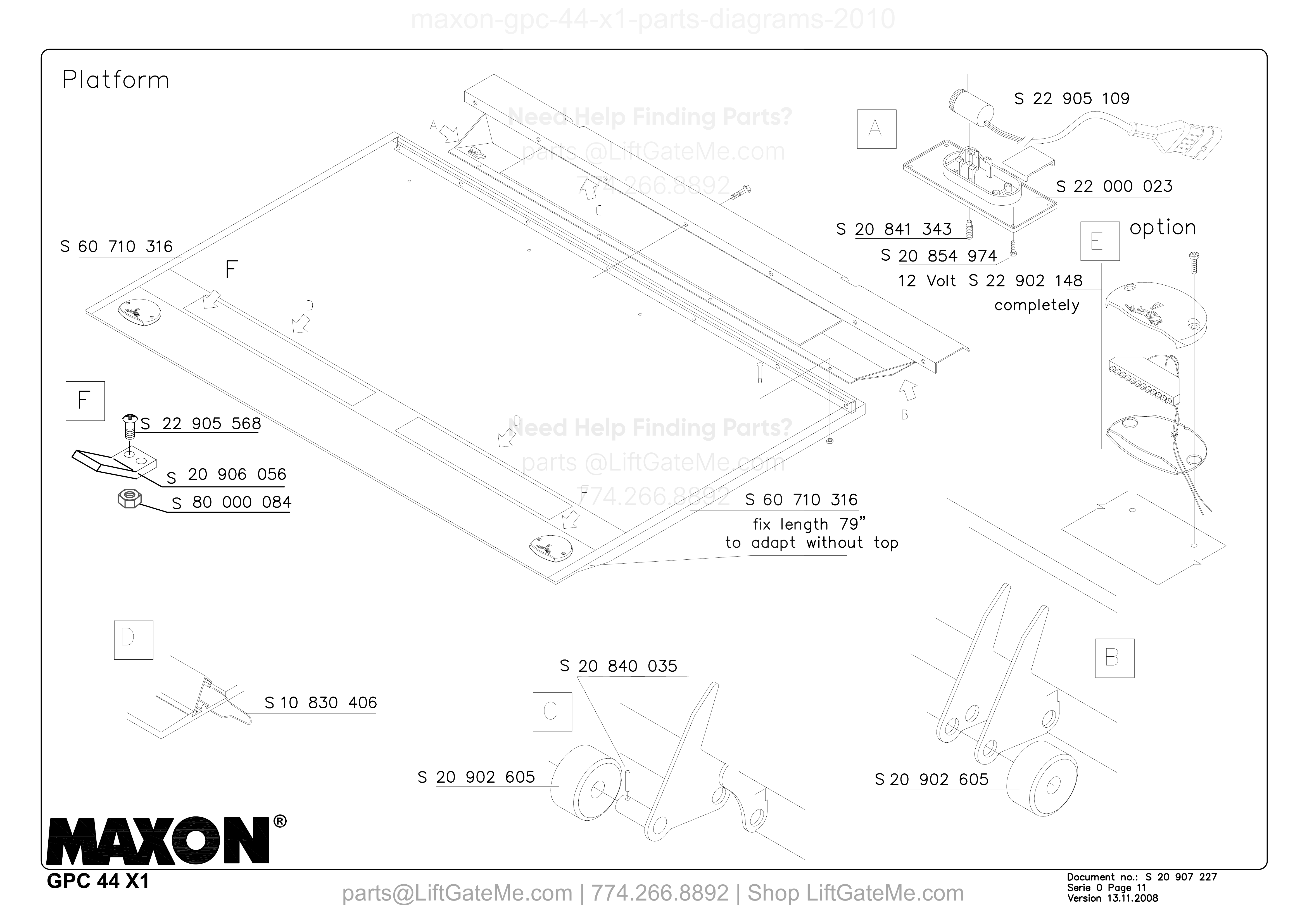

Platform
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 60 710 316 | Platform — part | |
| — | - | S 22 905 109 | Platform — part | |
| — | - | S 22 000 023 | Platform — part | |
| — | - | S 20 841 343 | Platform — part | |
| — | - | S 20 854 974 | Platform — part | |
| — | - | S 22 902 148 | Platform — 12 Volt completely | |
| — | - | S 22 905 568 | Platform — part | |
| — | - | S 20 906 056 | Platform — part | |
| — | - | S 80 000 084 | Platform — part | |
| — | - | S 10 830 406 | Platform — part | |
| — | - | S 20 840 035 | Platform — part | |
| — | - | S 20 902 605 | Platform — part | |
| — | - | S 20 902 605 | Platform — part |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
