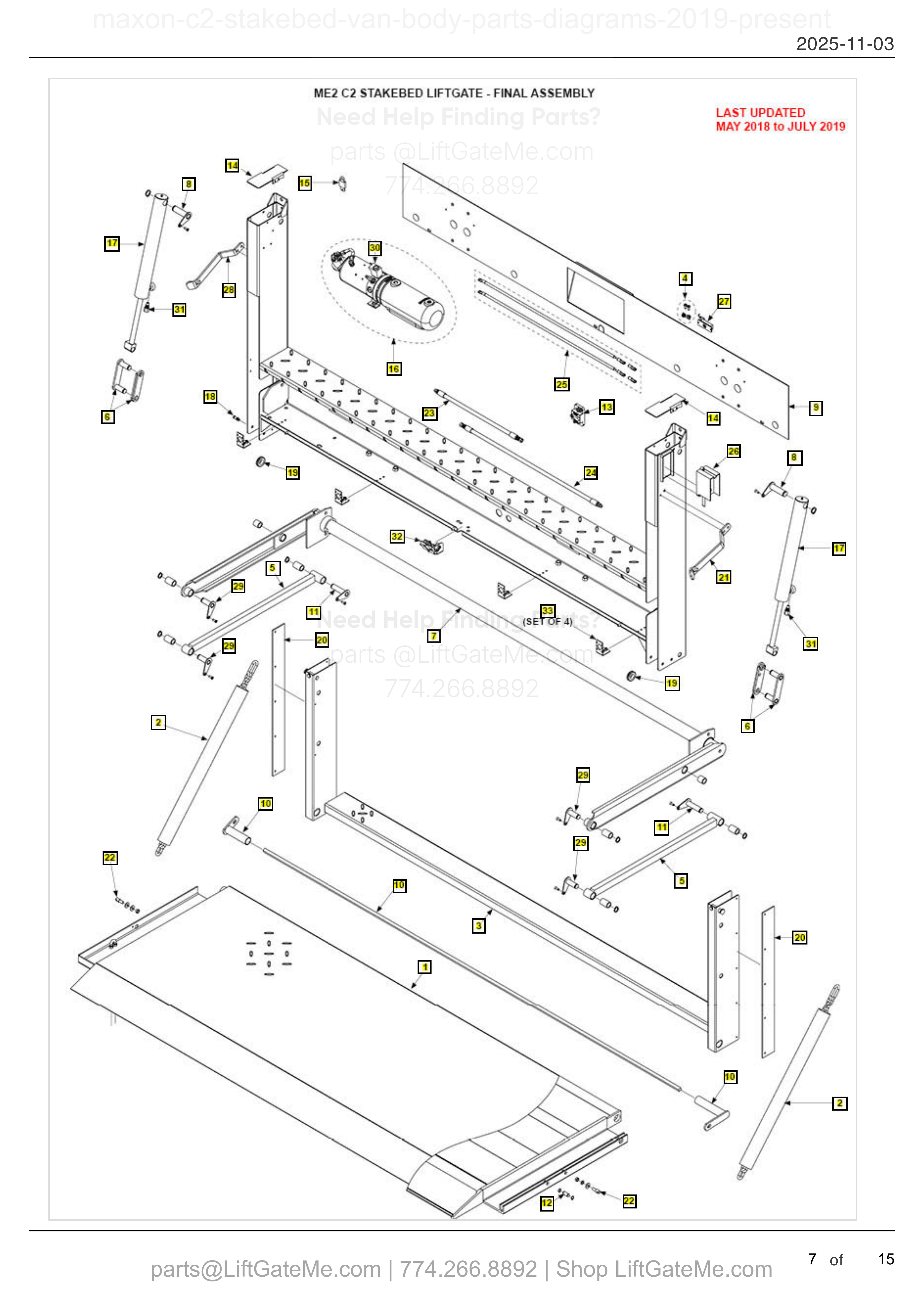

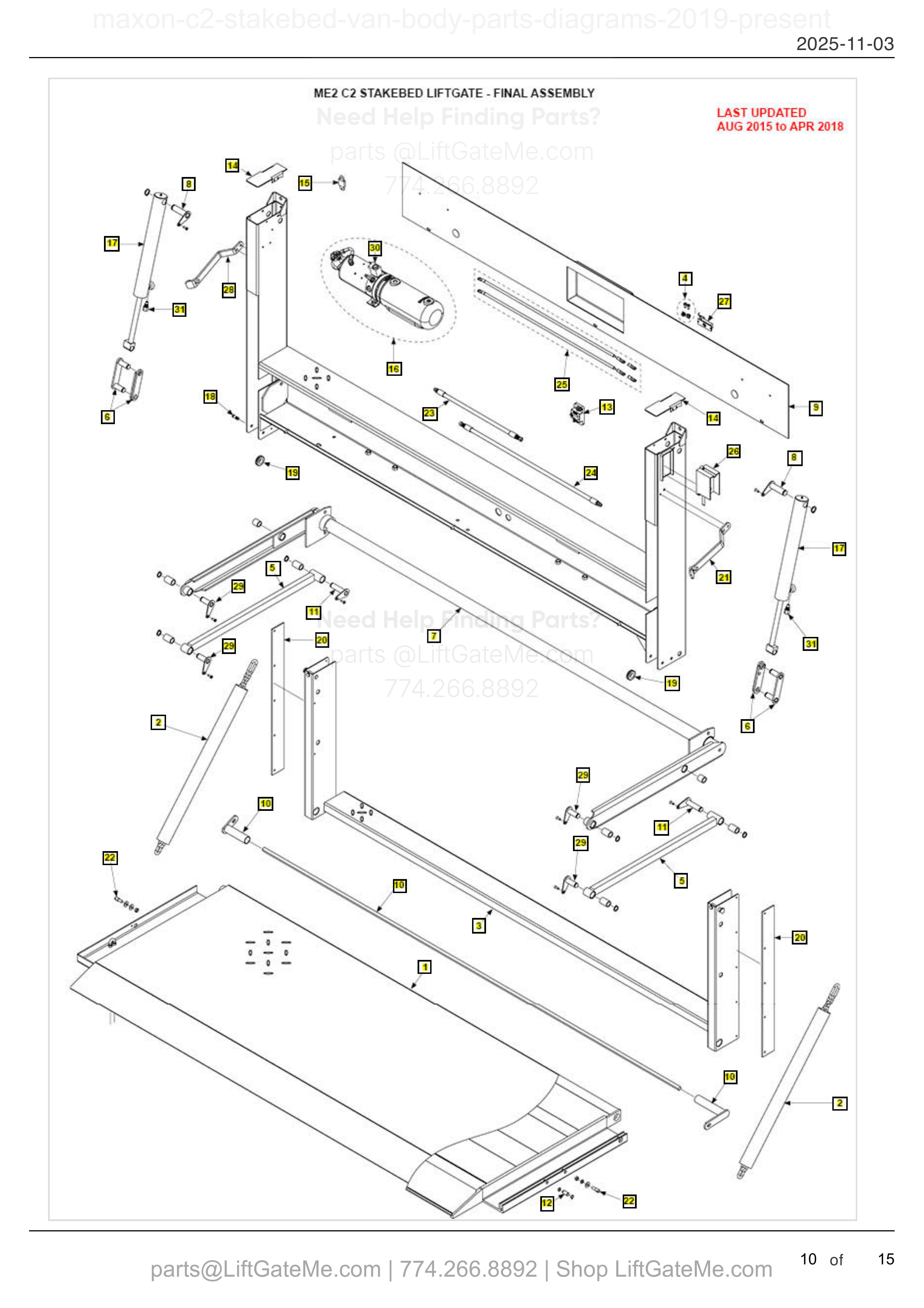

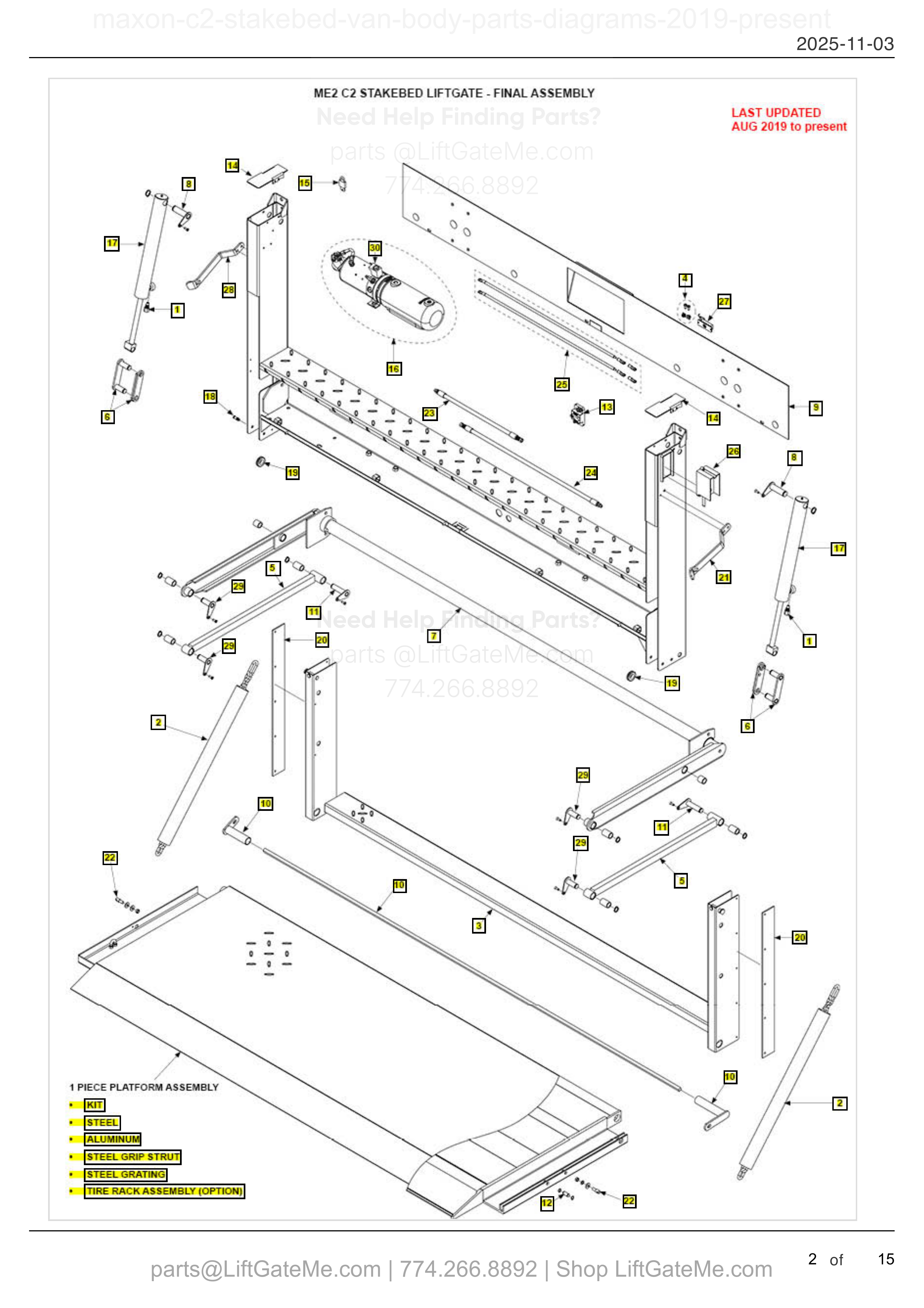

ME2 C2 STAKEBED LIFTGATE - FINAL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 906934-01 | CYL, FLOW VALVE | |
| 2 | 2 | 295436-02 | C2 RPLC CHN & SLV ASSY (40 LINKS) (13651) | |
| 2 | 2 | 295437-02 | C2 RPLC CHN & SLV P/F AL (33 LINKS) (13650) | |
| 3 | 1 | 295481-01 | C2 92 RPLC PIN MOUNT ASSY, 92IN LG (2538) | |
| 3 | 1 | 295481-01G | C2 92 RPLC PIN MOUNT ASSY, 92IN LG, GALV (2538) | |
| 4 | 1 | 295440-01 | LICENSE PLATE MOUNT KIT (1111) | |
| 5 | 2 | 295482-01 | C2 92 RPLC PARALLEL ARM ASSY (2539) | |
| 5 | 2 | 295482-01G | C2 92 RPLC PARALLEL ARM ASSY, GALV (2539) | |
| 6 | 2 | 295483-01 | C2 92 RPLC LINK PLATE (2540) | |
| 7 | 1 | 295484-01 | C2 RPLC LIFTFRAME, 91" LG (2544) | |
| 8 | 2 | 295444-01 | C2 7/8" RPLC CYLINDER PIN (2180) | |
| 9 | 1 | 299665-01 | M/F COVER ASSY, STKBD 92IN | |
| 9 | 1 | 299665-11 | M/F COVER ASSY, STKBD 92IN, GALV | |
| 10 | 1 | 295486-01 | C2 92 SQ.TORSION SPRING KIT (8119) | |
| 10 | 1 | 295487-01 | C2 92 TORSION SPRING KIT AL (8033) | |
| 11 | 2 | 295449-01 | C2 3/4" RPLC BACK ARM PIN (2181) | |
| 12 | 2 | 295473-01 | RPLC PLATFORM CHAIN PIN (4712) | |
| 13 | 1 | 295450-01 | RPLCMNT 150 AMP CIRCUIT BREAKER (998) | |
| 14 | 2 | 295451-01 | C2 RPLC COLUMN COVER (2015) | |
| 15 | 1 | 908221-01 | PAD LOCK, 3/16 SHACKLE |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

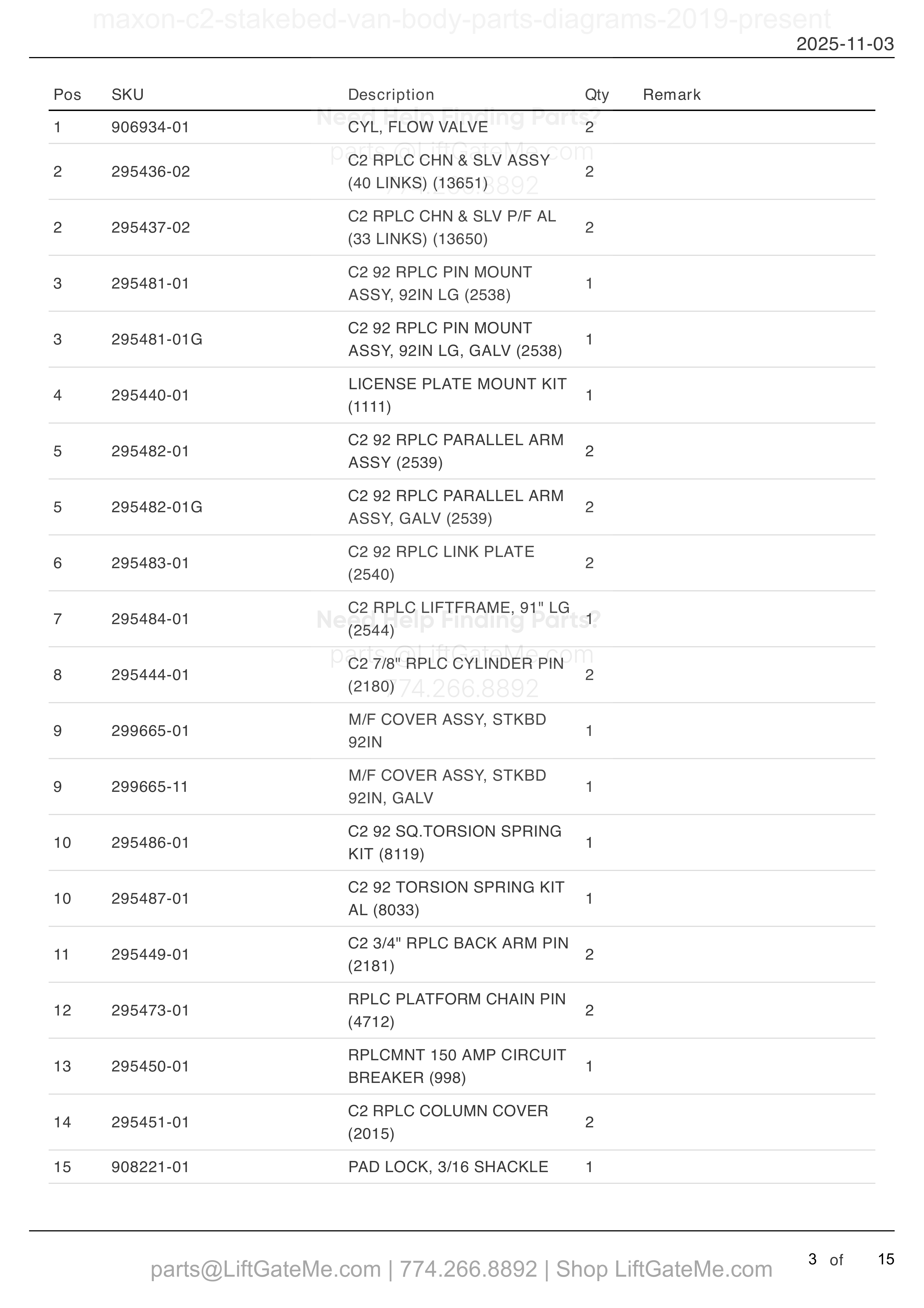

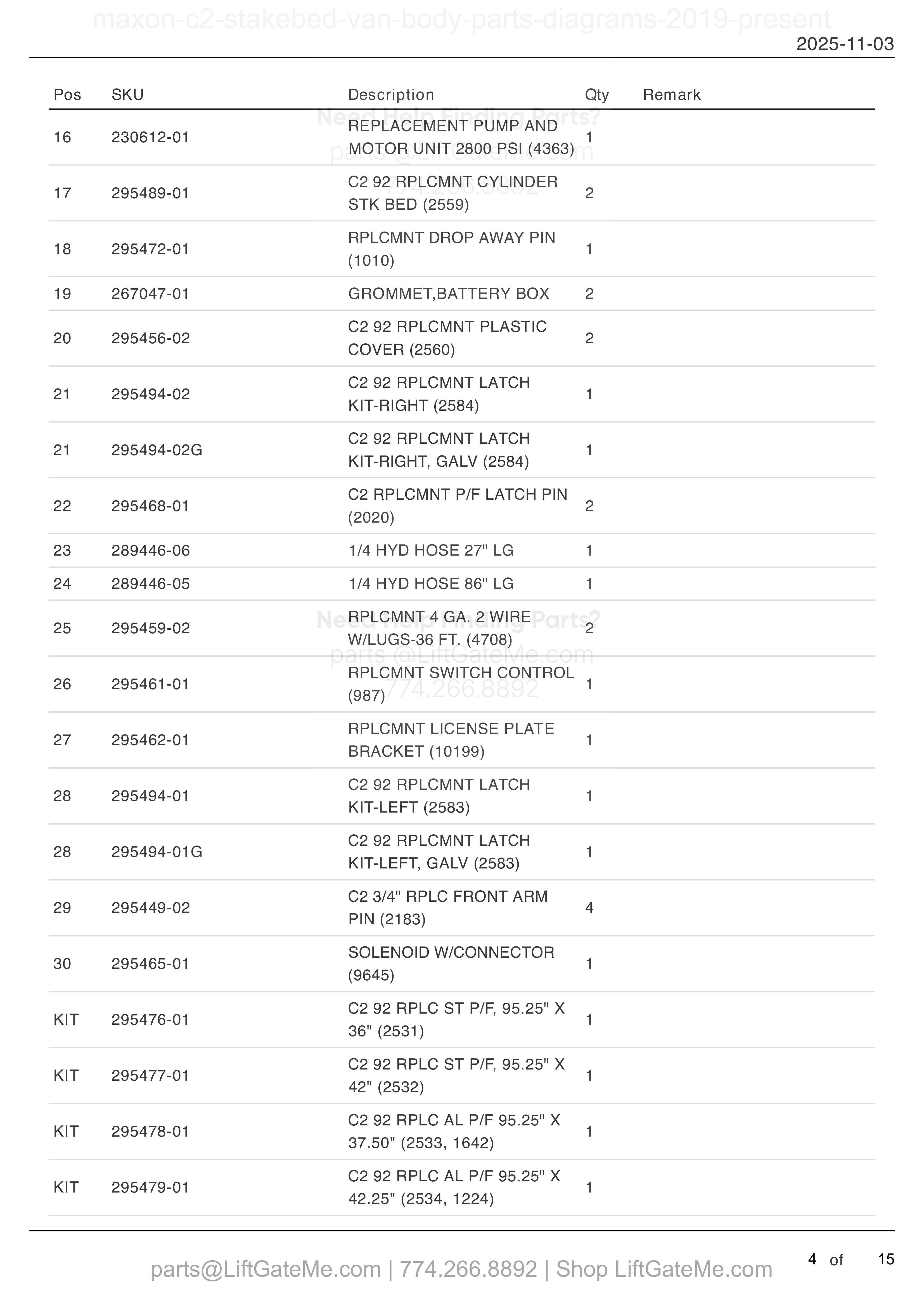

ME2 C2 STAKEBED LIFTGATE - FINAL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 16 | 1 | 230612-01 | REPLACEMENT PUMP AND MOTOR UNIT 2800 PSI (4363) | |
| 17 | 2 | 295489-01 | C2 92 RPLCMNT CYLINDER STK BED (2559) | |
| 18 | 1 | 295472-01 | RPLCMNT DROP AWAY PIN (1010) | |
| 19 | 2 | 267047-01 | GROMMET,BATTERY BOX | |
| 20 | 2 | 295456-02 | C2 92 RPLCMNT PLASTIC COVER (2560) | |
| 21 | 1 | 295494-02 | C2 92 RPLCMNT LATCH KIT-RIGHT (2584) | |
| 21 | 1 | 295494-02G | C2 92 RPLCMNT LATCH KIT-RIGHT, GALV (2584) | |
| 22 | 2 | 295468-01 | C2 RPLCMNT P/F LATCH PIN (2020) | |
| 23 | 1 | 289446-06 | 1/4 HYD HOSE 27" LG | |
| 24 | 1 | 289446-05 | 1/4 HYD HOSE 86" LG | |
| 25 | 2 | 295459-02 | RPLCMNT 4 GA. 2 WIRE W/LUGS-36 FT. (4708) | |
| 26 | 1 | 295461-01 | RPLCMNT SWITCH CONTROL (987) | |
| 27 | 1 | 295462-01 | RPLCMNT LICENSE PLATE BRACKET (10199) | |
| 28 | 1 | 295494-01 | C2 92 RPLCMNT LATCH KIT-LEFT (2583) | |
| 28 | 1 | 295494-01G | C2 92 RPLCMNT LATCH KIT-LEFT, GALV (2583) | |
| 29 | 4 | 295449-02 | C2 3/4" RPLC FRONT ARM PIN (2183) | |
| 30 | 1 | 295465-01 | SOLENOID W/CONNECTOR (9645) | |
| KIT | 1 | 295476-01 | C2 92 RPLC ST P/F, 95.25" X 36" (2531) | |
| KIT | 1 | 295477-01 | C2 92 RPLC ST P/F, 95.25" X 42" (2532) | |
| KIT | 1 | 295478-01 | C2 92 RPLC AL P/F 95.25" X 37.50" (2533, 1642) | |
| KIT | 1 | 295479-01 | C2 92 RPLC AL P/F 95.25" X 42.25" (2534, 1224) |

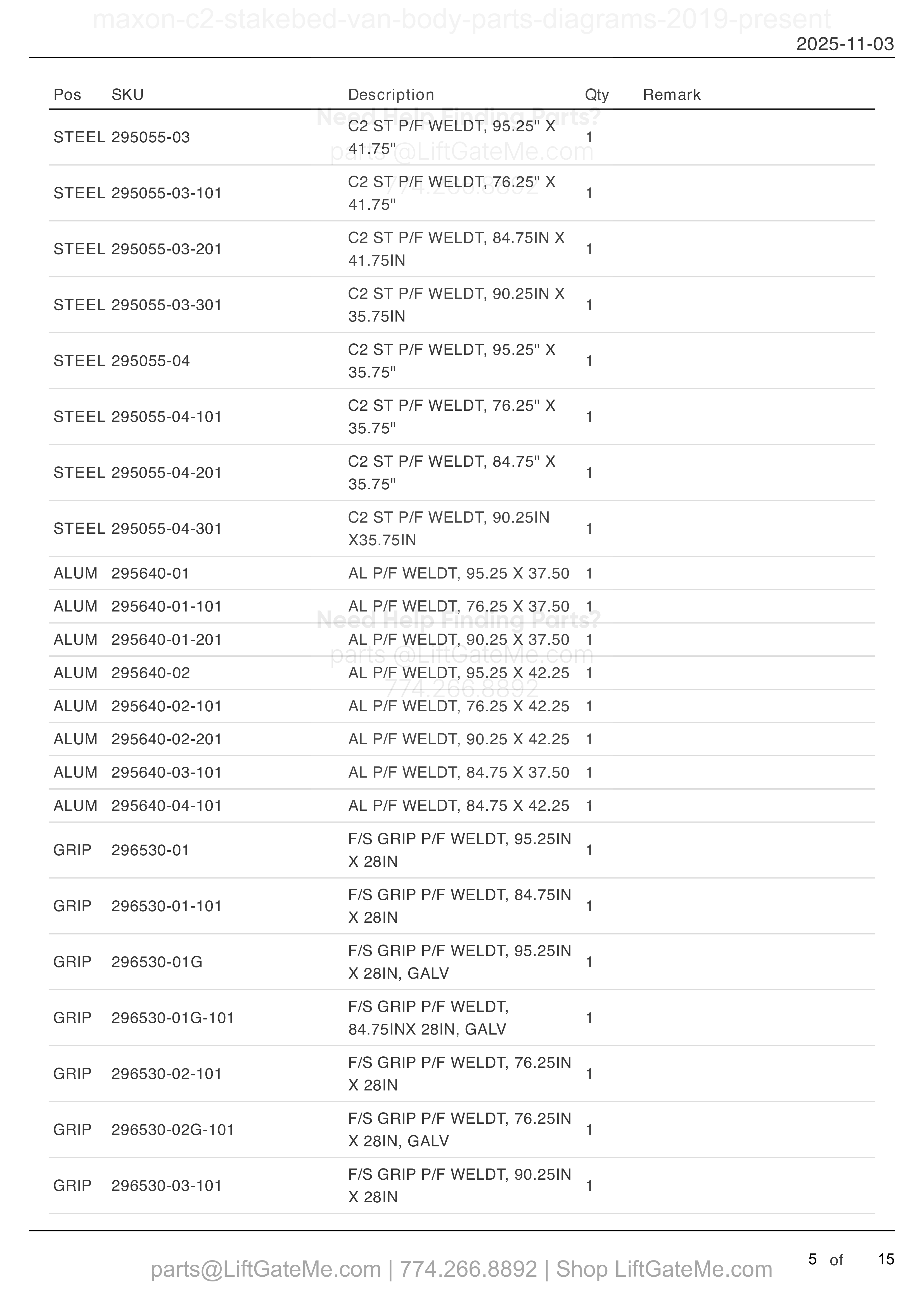

ME2 C2 STAKEBED LIFTGATE - FINAL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| STEEL | 1 | 295055-03 | C2 ST P/F WELDT, 95.25" X 41.75" | |
| STEEL | 1 | 295055-03-101 | C2 ST P/F WELDT, 76.25" X 41.75" | |
| STEEL | 1 | 295055-03-201 | C2 ST P/F WELDT, 84.75IN X 41.75IN | |
| STEEL | 1 | 295055-03-301 | C2 ST P/F WELDT, 90.25IN X 35.75IN | |
| STEEL | 1 | 295055-04 | C2 ST P/F WELDT, 95.25" X 35.75" | |
| STEEL | 1 | 295055-04-101 | C2 ST P/F WELDT, 76.25" X 35.75" | |
| STEEL | 1 | 295055-04-201 | C2 ST P/F WELDT, 84.75" X 35.75" | |
| STEEL | 1 | 295055-04-301 | C2 ST P/F WELDT, 90.25IN X35.75IN | |
| ALUM | 1 | 295640-01 | AL P/F WELDT, 95.25 X 37.50 | |
| ALUM | 1 | 295640-01-101 | AL P/F WELDT, 76.25 X 37.50 | |
| ALUM | 1 | 295640-01-201 | AL P/F WELDT, 90.25 X 37.50 | |
| ALUM | 1 | 295640-02 | AL P/F WELDT, 95.25 X 42.25 | |
| ALUM | 1 | 295640-02-101 | AL P/F WELDT, 76.25 X 42.25 | |
| ALUM | 1 | 295640-02-201 | AL P/F WELDT, 90.25 X 42.25 | |
| ALUM | 1 | 295640-03-101 | AL P/F WELDT, 84.75 X 37.50 | |
| ALUM | 1 | 295640-04-101 | AL P/F WELDT, 84.75 X 42.25 | |
| GRIP | 1 | 296530-01 | F/S GRIP P/F WELDT, 95.25IN X 28IN | |
| GRIP | 1 | 296530-01-101 | F/S GRIP P/F WELDT, 84.75IN X 28IN | |
| GRIP | 1 | 296530-01G | F/S GRIP P/F WELDT, 95.25IN X 28IN, GALV | |
| GRIP | 1 | 296530-01G-101 | F/S GRIP P/F WELDT, 84.75INX 28IN, GALV | |
| GRIP | 1 | 296530-02-101 | F/S GRIP P/F WELDT, 76.25IN X 28IN | |
| GRIP | 1 | 296530-02G-101 | F/S GRIP P/F WELDT, 76.25IN X 28IN, GALV | |
| GRIP | 1 | 296530-03-101 | F/S GRIP P/F WELDT, 90.25IN X 28IN |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

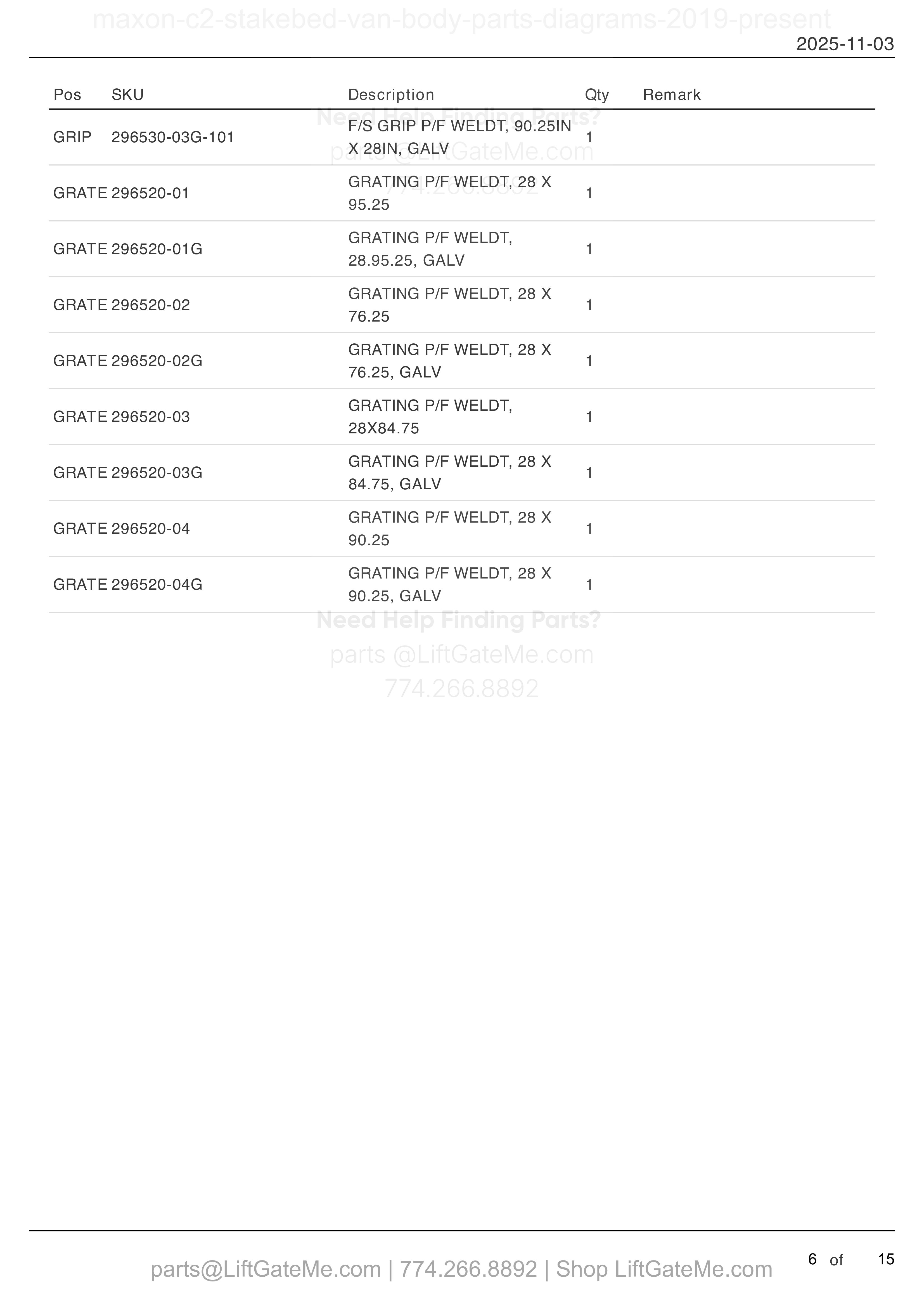

ME2 C2 STAKEBED LIFTGATE - FINAL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| GRIP | 1 | 296530-03G-101 | F/S GRIP P/F WELDT, 90.25IN X 28IN, GALV | |
| GRATE | 1 | 296520-01 | GRATING P/F WELDT, 28 X 95.25 | |
| GRATE | 1 | 296520-01G | GRATING P/F WELDT, 28.95.25, GALV | |
| GRATE | 1 | 296520-02 | GRATING P/F WELDT, 28 X 76.25 | |
| GRATE | 1 | 296520-02G | GRATING P/F WELDT, 28 X 76.25, GALV | |
| GRATE | 1 | 296520-03 | GRATING P/F WELDT, 28X84.75 | |
| GRATE | 1 | 296520-03G | GRATING P/F WELDT, 28 X 84.75, GALV | |
| GRATE | 1 | 296520-04 | GRATING P/F WELDT, 28 X 90.25 | |
| GRATE | 1 | 296520-04G | GRATING P/F WELDT, 28 X 90.25, GALV |

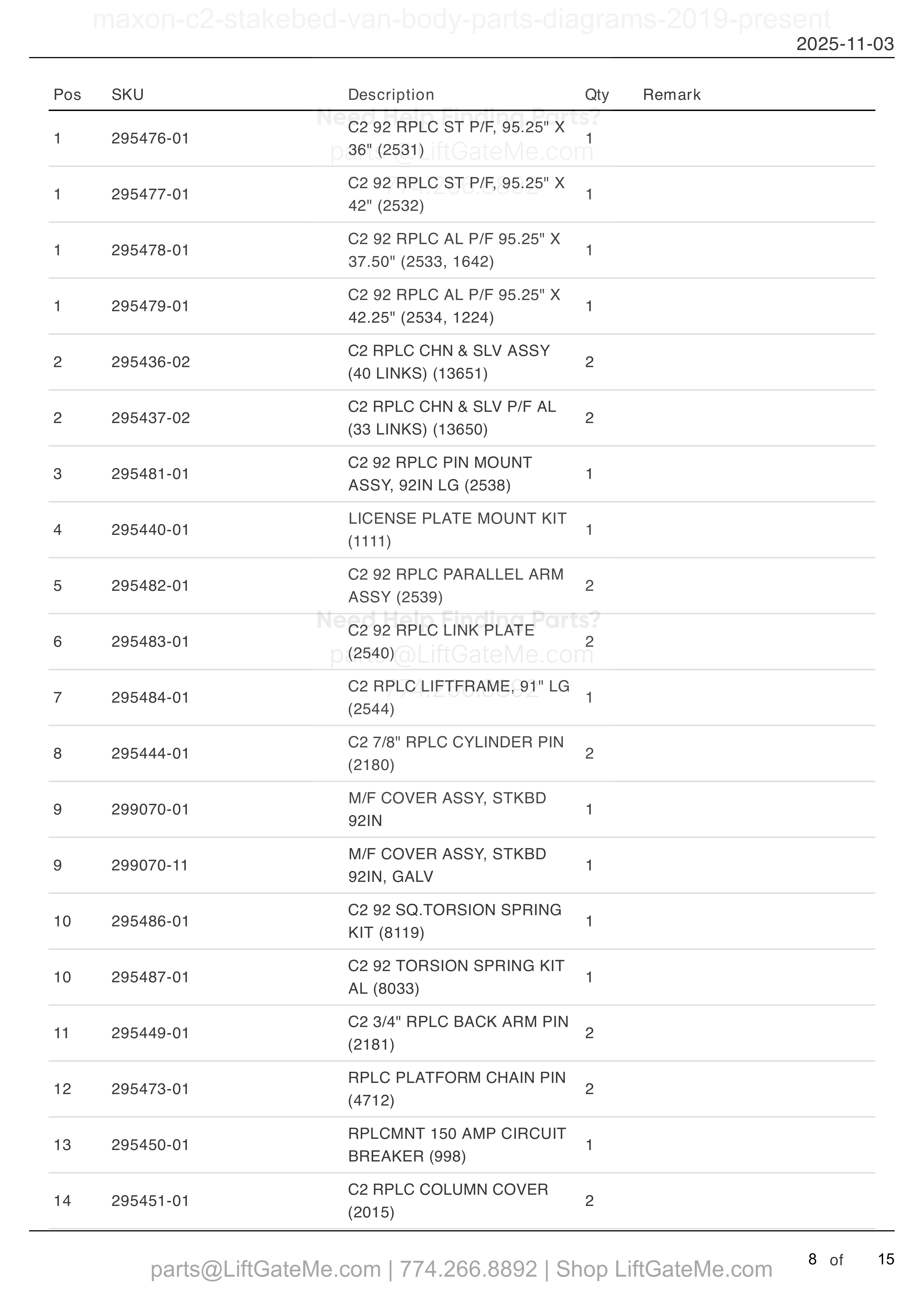

ME2 C2 STAKEBED LIFTGATE - FINAL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 295476-01 | C2 92 RPLC ST P/F, 95.25" X 36" (2531) | |
| 1 | 1 | 295477-01 | C2 92 RPLC ST P/F, 95.25" X 42" (2532) | |
| 1 | 1 | 295478-01 | C2 92 RPLC AL P/F 95.25" X 37.50" (2533, 1642) | |
| 1 | 1 | 295479-01 | C2 92 RPLC AL P/F 95.25" X 42.25" (2534, 1224) | |
| 2 | 2 | 295436-02 | C2 RPLC CHN & SLV ASSY (40 LINKS) (13651) | |
| 2 | 2 | 295437-02 | C2 RPLC CHN & SLV P/F AL (33 LINKS) (13650) | |
| 3 | 1 | 295481-01 | C2 92 RPLC PIN MOUNT ASSY, 92IN LG (2538) | |
| 4 | 1 | 295440-01 | LICENSE PLATE MOUNT KIT (1111) | |
| 5 | 2 | 295482-01 | C2 92 RPLC PARALLEL ARM ASSY (2539) | |
| 6 | 2 | 295483-01 | C2 92 RPLC LINK PLATE (2540) | |
| 7 | 1 | 295484-01 | C2 RPLC LIFTFRAME, 91" LG (2544) | |
| 8 | 2 | 295444-01 | C2 7/8" RPLC CYLINDER PIN (2180) | |
| 9 | 1 | 299070-01 | M/F COVER ASSY, STKBD 92IN | |
| 9 | 1 | 299070-11 | M/F COVER ASSY, STKBD 92IN, GALV | |
| 10 | 1 | 295486-01 | C2 92 SQ.TORSION SPRING KIT (8119) | |
| 10 | 1 | 295487-01 | C2 92 TORSION SPRING KIT AL (8033) | |
| 11 | 2 | 295449-01 | C2 3/4" RPLC BACK ARM PIN (2181) | |
| 12 | 2 | 295473-01 | RPLC PLATFORM CHAIN PIN (4712) | |
| 13 | 1 | 295450-01 | RPLCMNT 150 AMP CIRCUIT BREAKER (998) | |
| 14 | 2 | 295451-01 | C2 RPLC COLUMN COVER (2015) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

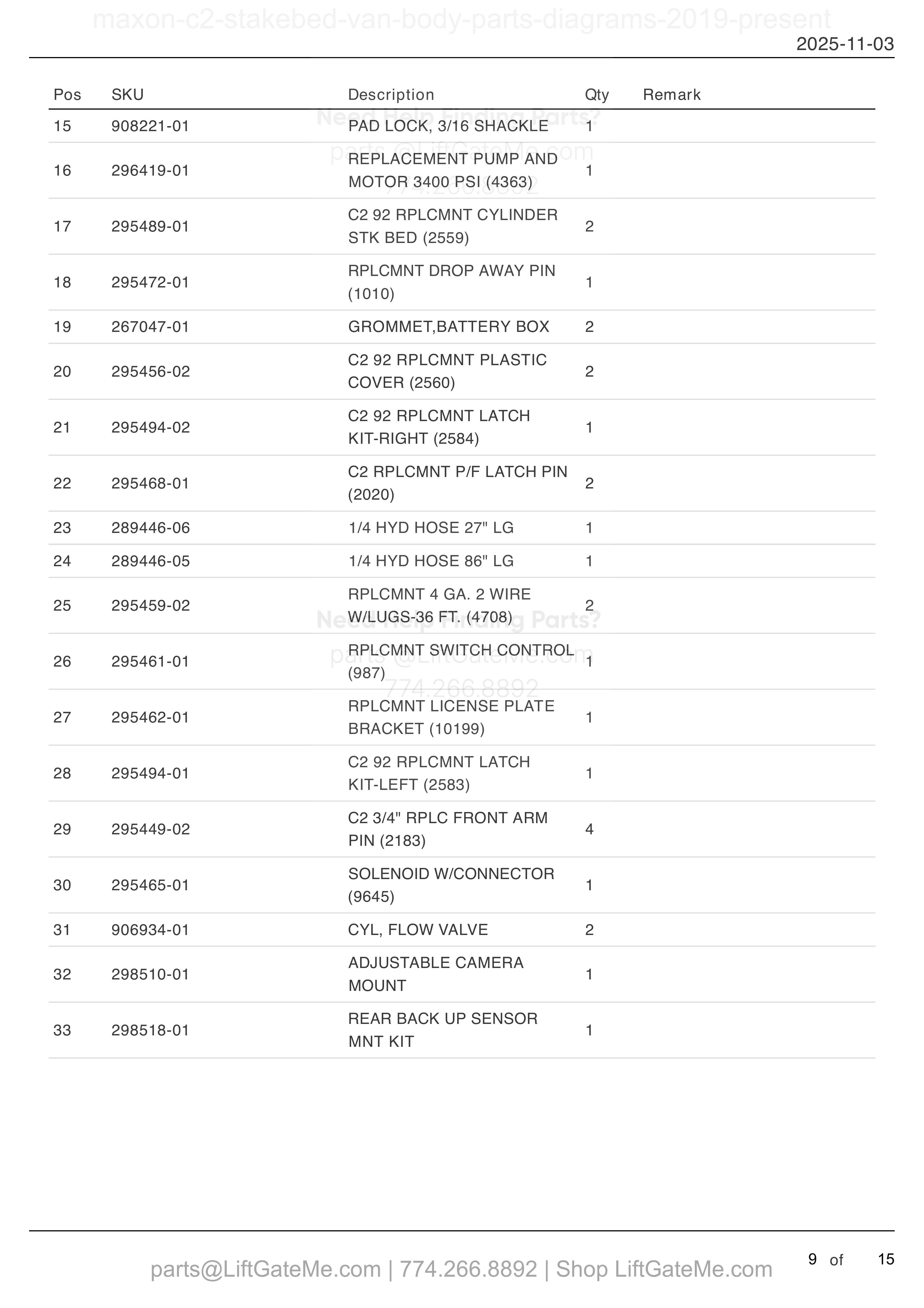

ME2 C2 STAKEBED LIFTGATE - FINAL ASSEMBLY (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 15 | 1 | 908221-01 | PAD LOCK, 3/16 SHACKLE | |
| 16 | 1 | 296419-01 | REPLACEMENT PUMP AND MOTOR 3400 PSI (4363) | |
| 17 | 2 | 295489-01 | C2 92 RPLCMNT CYLINDER STK BED (2559) | |
| 18 | 1 | 295472-01 | RPLCMNT DROP AWAY PIN (1010) | |
| 19 | 2 | 267047-01 | GROMMET,BATTERY BOX | |
| 20 | 2 | 295456-02 | C2 92 RPLCMNT PLASTIC COVER (2560) | |
| 21 | 1 | 295494-02 | C2 92 RPLCMNT LATCH KIT-RIGHT (2584) | |
| 22 | 2 | 295468-01 | C2 RPLCMNT P/F LATCH PIN (2020) | |
| 23 | 1 | 289446-06 | 1/4 HYD HOSE 27" LG | |
| 24 | 1 | 289446-05 | 1/4 HYD HOSE 86" LG | |
| 25 | 2 | 295459-02 | RPLCMNT 4 GA. 2 WIRE W/LUGS-36 FT. (4708) | |
| 26 | 1 | 295461-01 | RPLCMNT SWITCH CONTROL (987) | |
| 27 | 1 | 295462-01 | RPLCMNT LICENSE PLATE BRACKET (10199) | |
| 28 | 1 | 295494-01 | C2 92 RPLCMNT LATCH KIT-LEFT (2583) | |
| 29 | 4 | 295449-02 | C2 3/4" RPLC FRONT ARM PIN (2183) | |
| 30 | 1 | 295465-01 | SOLENOID W/CONNECTOR (9645) | |
| 31 | 2 | 906934-01 | CYL, FLOW VALVE | |
| 32 | 1 | 298510-01 | ADJUSTABLE CAMERA MOUNT | |
| 33 | 1 | 298518-01 | REAR BACK UP SENSOR MNT KIT |

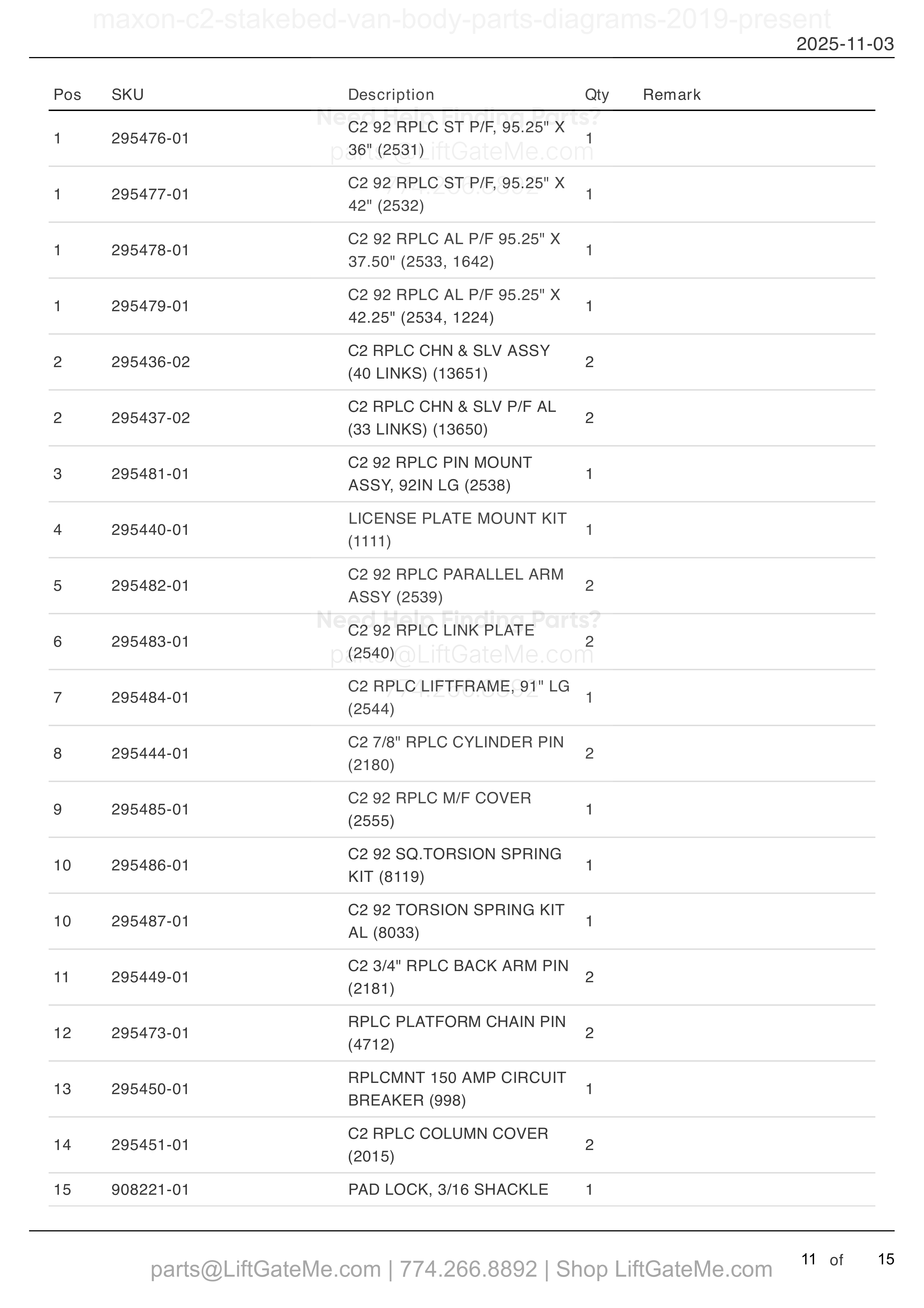

ME2 C2 STAKEBED LIFTGATE - FINAL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 295476-01 | C2 92 RPLC ST P/F, 95.25" X 36" (2531) | |
| 1 | 1 | 295477-01 | C2 92 RPLC ST P/F, 95.25" X 42" (2532) | |
| 1 | 1 | 295478-01 | C2 92 RPLC AL P/F 95.25" X 37.50" (2533, 1642) | |
| 1 | 1 | 295479-01 | C2 92 RPLC AL P/F 95.25" X 42.25" (2534, 1224) | |
| 2 | 2 | 295436-02 | C2 RPLC CHN & SLV ASSY (40 LINKS) (13651) | |
| 2 | 2 | 295437-02 | C2 RPLC CHN & SLV P/F AL (33 LINKS) (13650) | |
| 3 | 1 | 295481-01 | C2 92 RPLC PIN MOUNT ASSY, 92IN LG (2538) | |
| 4 | 1 | 295440-01 | LICENSE PLATE MOUNT KIT (1111) | |
| 5 | 2 | 295482-01 | C2 92 RPLC PARALLEL ARM ASSY (2539) | |
| 6 | 2 | 295483-01 | C2 92 RPLC LINK PLATE (2540) | |
| 7 | 1 | 295484-01 | C2 RPLC LIFTFRAME, 91" LG (2544) | |
| 8 | 2 | 295444-01 | C2 7/8" RPLC CYLINDER PIN (2180) | |
| 9 | 1 | 295485-01 | C2 92 RPLC M/F COVER (2555) | |
| 10 | 1 | 295486-01 | C2 92 SQ.TORSION SPRING KIT (8119) | |
| 10 | 1 | 295487-01 | C2 92 TORSION SPRING KIT AL (8033) | |
| 11 | 2 | 295449-01 | C2 3/4" RPLC BACK ARM PIN (2181) | |
| 12 | 2 | 295473-01 | RPLC PLATFORM CHAIN PIN (4712) | |
| 13 | 1 | 295450-01 | RPLCMNT 150 AMP CIRCUIT BREAKER (998) | |
| 14 | 2 | 295451-01 | C2 RPLC COLUMN COVER (2015) | |
| 15 | 1 | 908221-01 | PAD LOCK, 3/16 SHACKLE |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

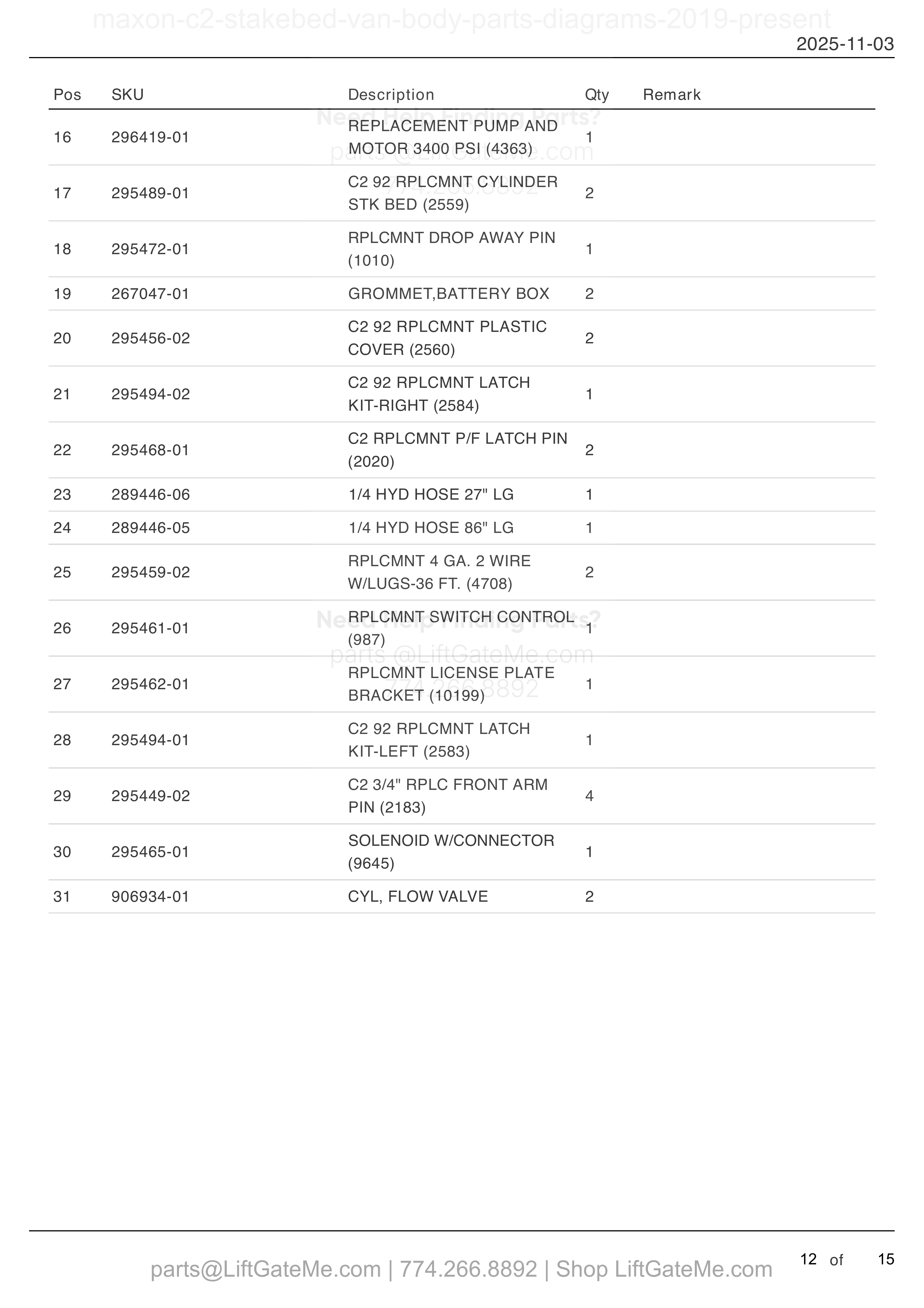

ME2 C2 STAKEBED LIFTGATE - FINAL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 16 | 1 | 296419-01 | REPLACEMENT PUMP AND MOTOR 3400 PSI (4363) | |
| 17 | 2 | 295489-01 | C2 92 RPLCMNT CYLINDER STK BED (2559) | |
| 18 | 1 | 295472-01 | RPLCMNT DROP AWAY PIN (1010) | |
| 19 | 2 | 267047-01 | GROMMET,BATTERY BOX | |
| 20 | 2 | 295456-02 | C2 92 RPLCMNT PLASTIC COVER (2560) | |
| 21 | 1 | 295494-02 | C2 92 RPLCMNT LATCH KIT-RIGHT (2584) | |
| 22 | 2 | 295468-01 | C2 RPLCMNT P/F LATCH PIN (2020) | |
| 23 | 1 | 289446-06 | 1/4 HYD HOSE 27" LG | |
| 24 | 1 | 289446-05 | 1/4 HYD HOSE 86" LG | |
| 25 | 2 | 295459-02 | RPLCMNT 4 GA. 2 WIRE W/LUGS-36 FT. (4708) | |
| 26 | 1 | 295461-01 | RPLCMNT SWITCH CONTROL (987) | |
| 27 | 1 | 295462-01 | RPLCMNT LICENSE PLATE BRACKET (10199) | |
| 28 | 1 | 295494-01 | C2 92 RPLCMNT LATCH KIT-LEFT (2583) | |
| 29 | 4 | 295449-02 | C2 3/4" RPLC FRONT ARM PIN (2183) | |
| 30 | 1 | 295465-01 | SOLENOID W/CONNECTOR (9645) | |
| 31 | 2 | 906934-01 | CYL, FLOW VALVE |

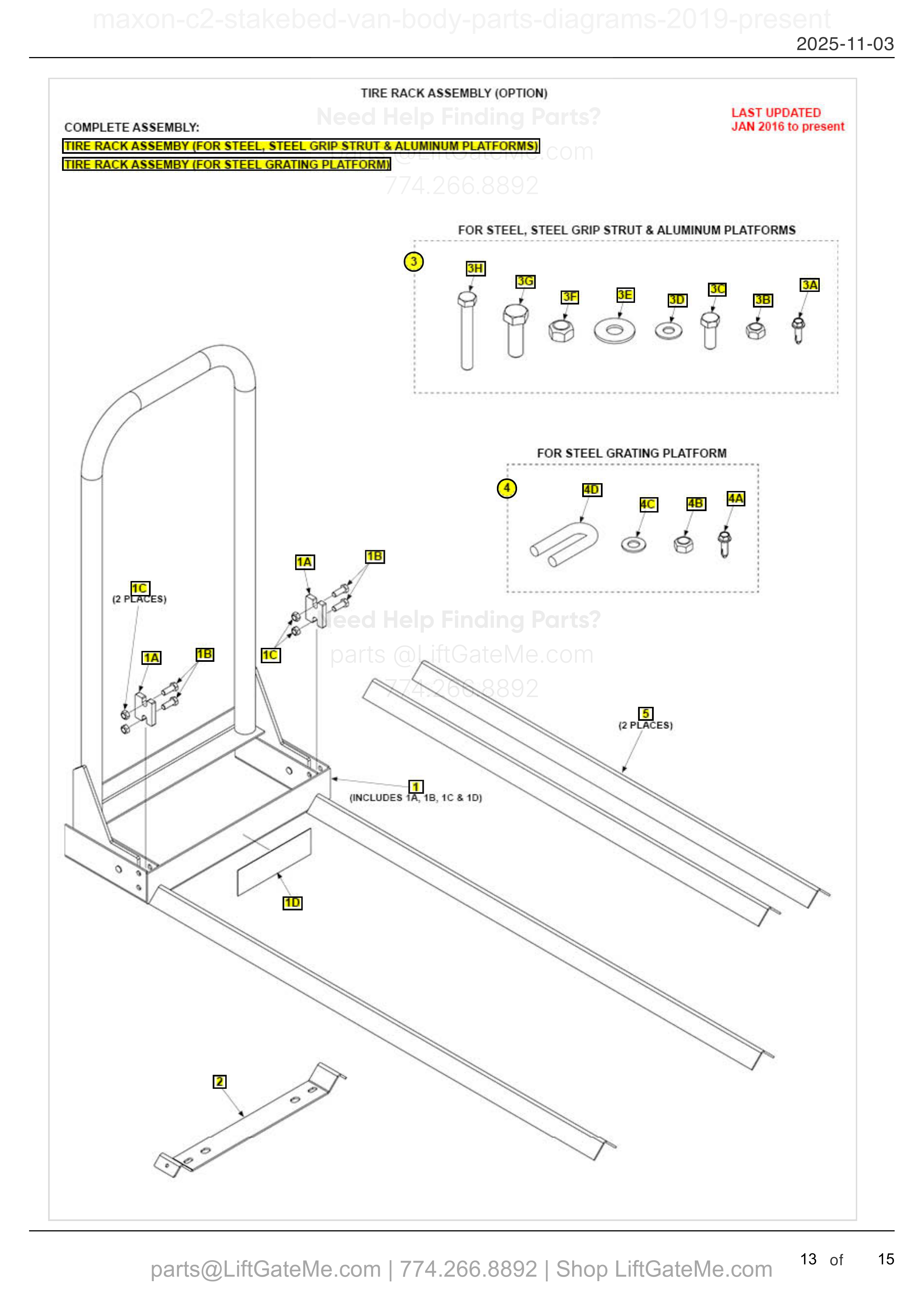

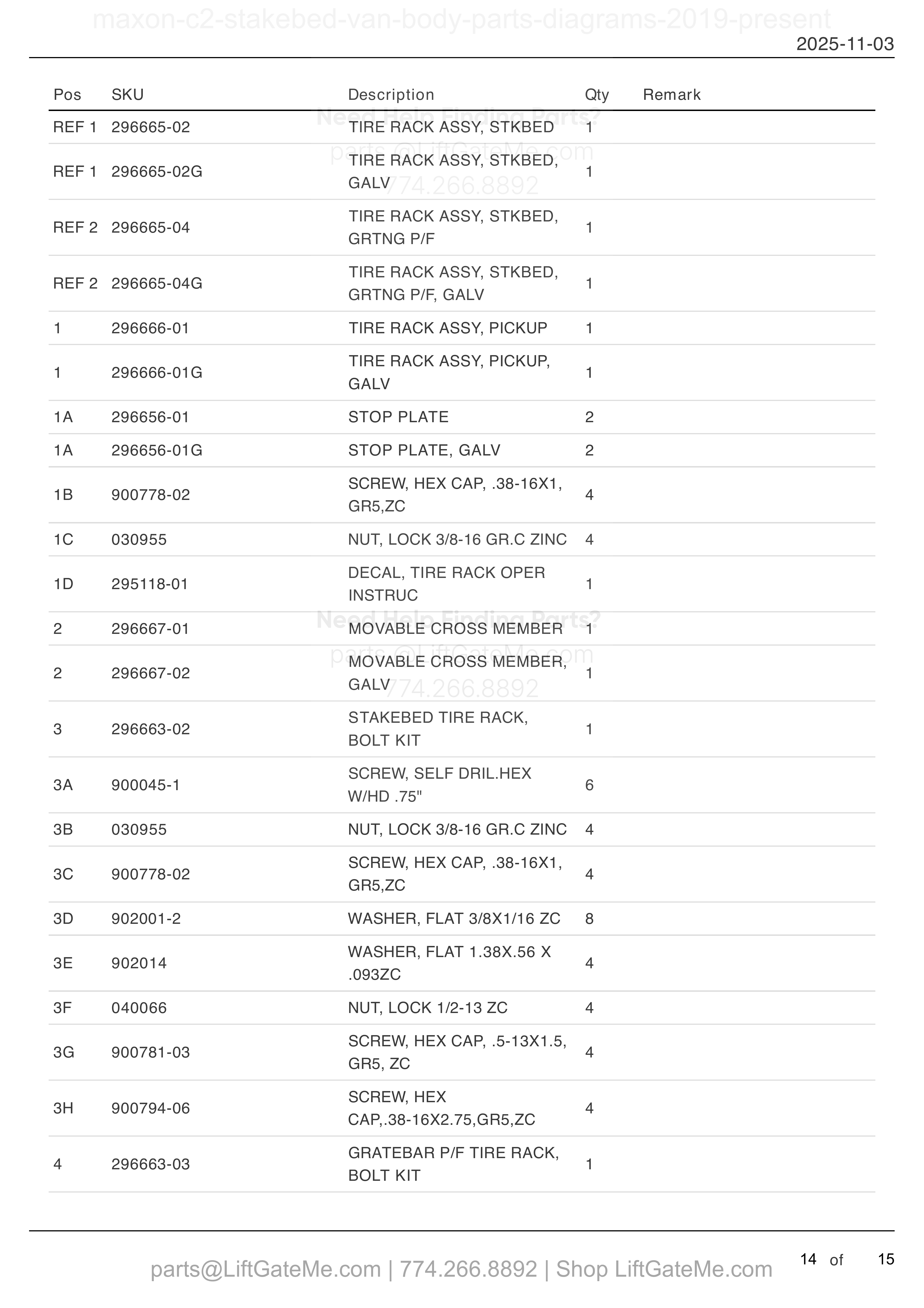

TIRE RACK ASSEMBLY (OPTION)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF 1 | 1 | 296665-02 | TIRE RACK ASSY, STKBED | |
| REF 1 | 1 | 296665-02G | TIRE RACK ASSY, STKBED, GALV | |
| REF 2 | 1 | 296665-04 | TIRE RACK ASSY, STKBED, GRTNG P/F | |
| REF 2 | 1 | 296665-04G | TIRE RACK ASSY, STKBED, GRTNG P/F, GALV | |
| 1 | 1 | 296666-01 | TIRE RACK ASSY, PICKUP | |
| 1 | 1 | 296666-01G | TIRE RACK ASSY, PICKUP, GALV | |
| 1A | 2 | 296656-01 | STOP PLATE | |
| 1A | 2 | 296656-01G | STOP PLATE, GALV | |
| 1B | 4 | 900778-02 | SCREW, HEX CAP, .38-16X1, GR5,ZC | |
| 1C | 4 | 030955 | NUT, LOCK 3/8-16 GR.C ZINC | |
| 1D | 1 | 295118-01 | DECAL, TIRE RACK OPER INSTRUC | |
| 2 | 1 | 296667-01 | MOVABLE CROSS MEMBER | |
| 2 | 1 | 296667-02 | MOVABLE CROSS MEMBER, GALV | |
| 3 | 1 | 296663-02 | STAKEBED TIRE RACK, BOLT KIT | |
| 3A | 6 | 900045-1 | SCREW, SELF DRIL.HEX W/HD .75" | |
| 3B | 4 | 030955 | NUT, LOCK 3/8-16 GR.C ZINC | |
| 3C | 4 | 900778-02 | SCREW, HEX CAP, .38-16X1, GR5,ZC | |
| 3D | 8 | 902001-2 | WASHER, FLAT 3/8X1/16 ZC | |
| 3E | 4 | 902014 | WASHER, FLAT 1.38X.56 X .093ZC | |
| 3F | 4 | 040066 | NUT, LOCK 1/2-13 ZC | |
| 3G | 4 | 900781-03 | SCREW, HEX CAP, .5-13X1.5, GR5, ZC | |
| 3H | 4 | 900794-06 | SCREW, HEX CAP,.38-16X2.75,GR5,ZC | |
| 4 | 1 | 296663-03 | GRATEBAR P/F TIRE RACK, BOLT KIT |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

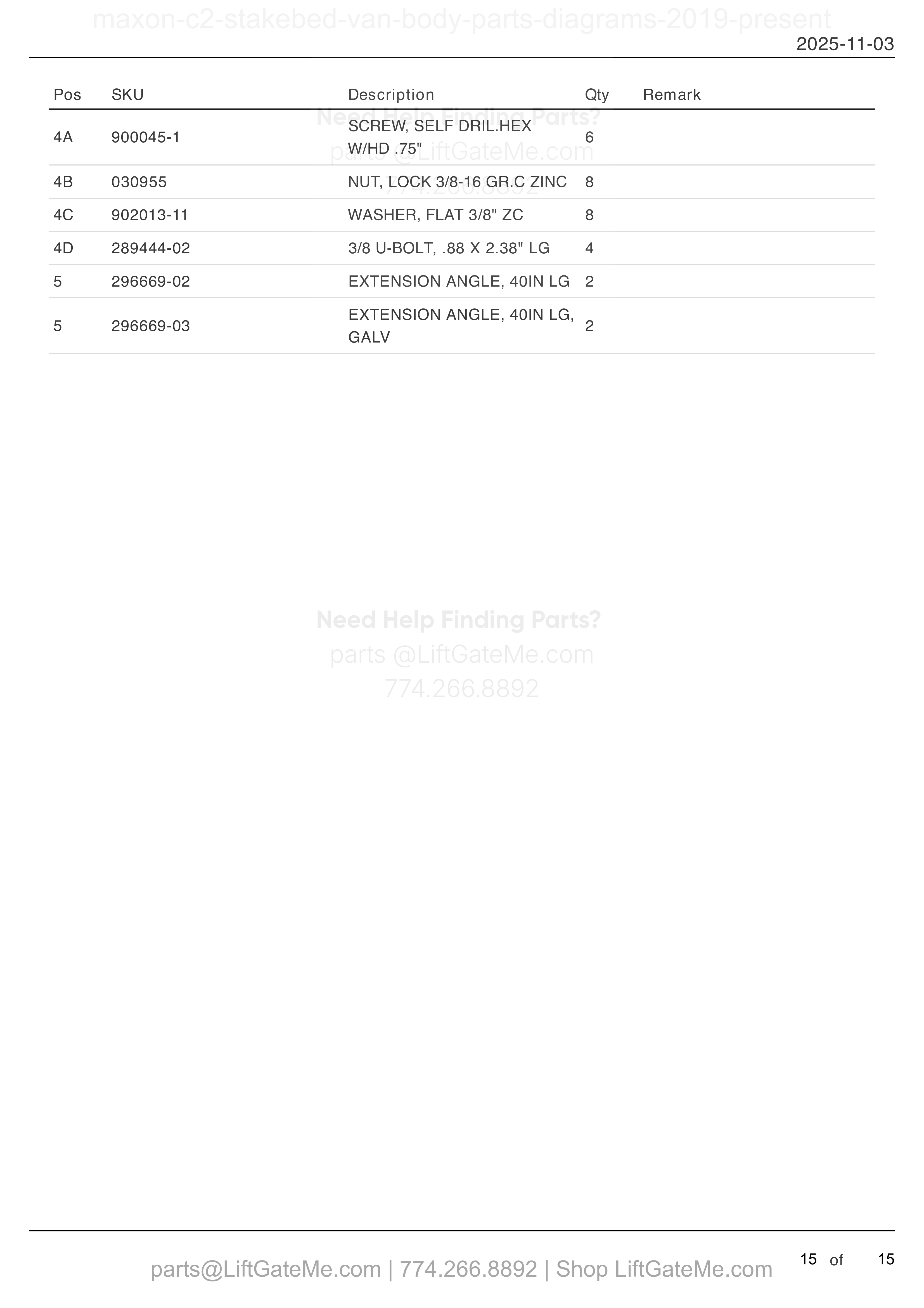

TIRE RACK ASSEMBLY (OPTION)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 4A | 6 | 900045-1 | SCREW, SELF DRIL.HEX W/HD .75" | |
| 4B | 8 | 030955 | NUT, LOCK 3/8-16 GR.C ZINC | |
| 4C | 8 | 902013-11 | WASHER, FLAT 3/8" ZC | |
| 4D | 4 | 289444-02 | 3/8 U-BOLT, .88 X 2.38" LG | |
| 5 | 2 | 296669-02 | EXTENSION ANGLE, 40IN LG | |
| 5 | 2 | 296669-03 | EXTENSION ANGLE, 40IN LG, GALV |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
