Palfinger Interlift PLR Liftgate Parts Diagrams | Approximate Years 2017
Palfinger Interlift PLR OEM parts diagram reference
Explore Palfinger Interlift PLR parts diagrams for 2017 tuck-under liftgates. Use this reference to compare diagram callouts, verify part numbers, and support maintenance or repairs.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

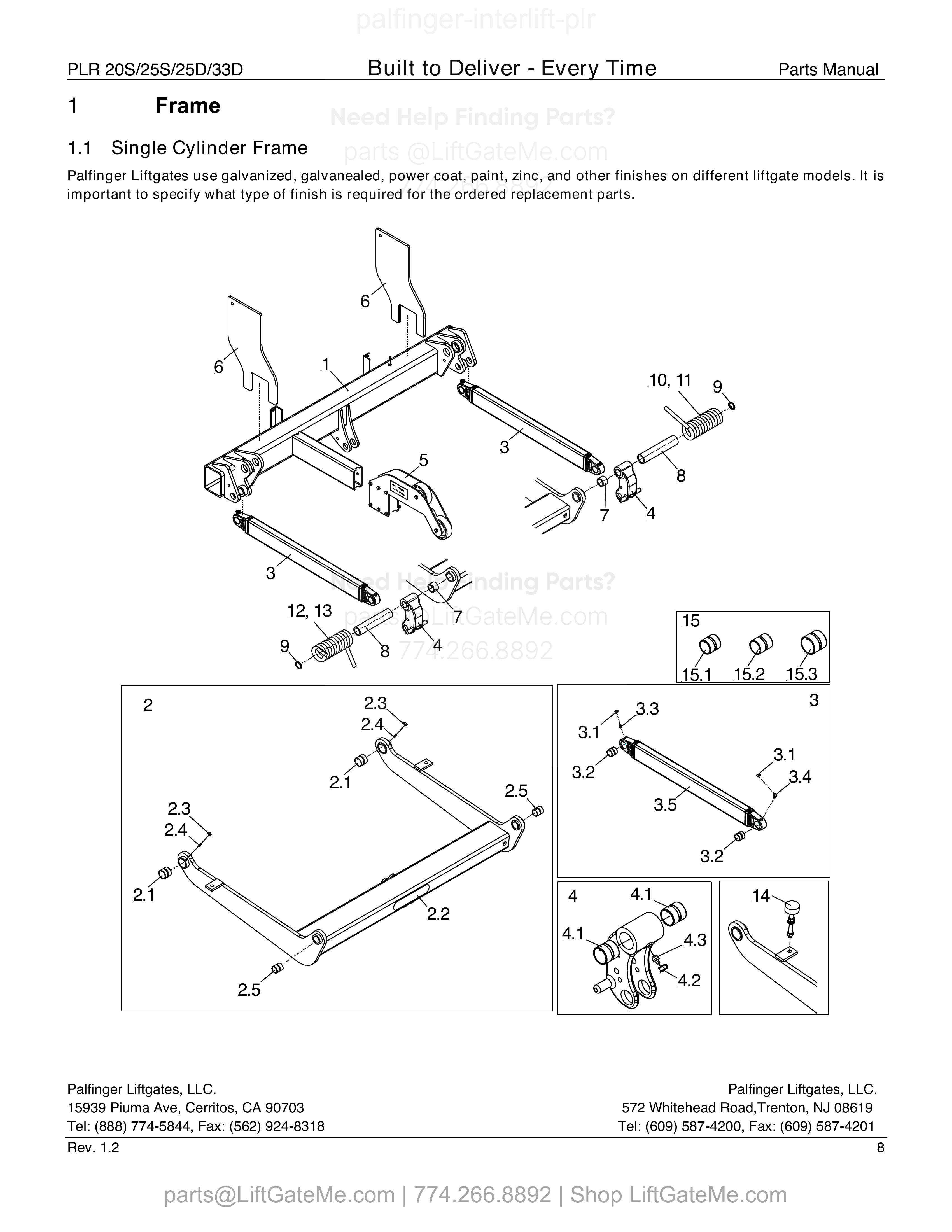

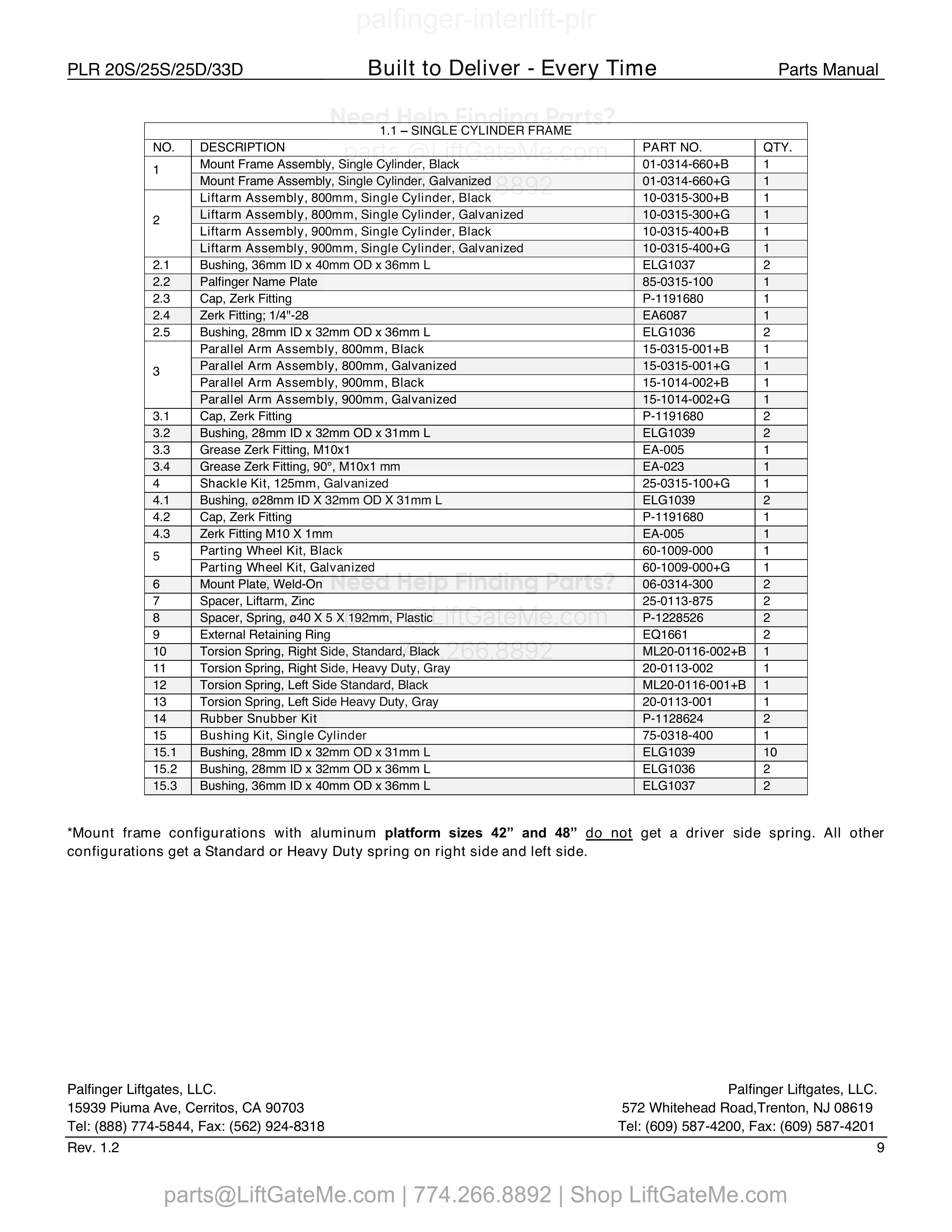

1.1 Single Cylinder Frame
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 01-0314-660+B | Mount Frame Assembly, Single Cylinder, Black | |
| 1 | 1 | 01-0314-660+G | Mount Frame Assembly, Single Cylinder, Galvanized | |
| 2 | 1 | 10-0315-300+B | Liftarm Assembly, 800mm, Single Cylinder, Black | |
| 2 | 1 | 10-0315-300+G | Liftarm Assembly, 800mm, Single Cylinder, Galvanized | |
| 2 | 1 | 10-0315-400+B | Liftarm Assembly, 900mm, Single Cylinder, Black | |
| 2 | 1 | 10-0315-400+G | Liftarm Assembly, 900mm, Single Cylinder, Galvanized | |
| 2.1 | 2 | ELG1037 | Bushing, 36mm ID x 40mm OD x 36mm L | |
| 2.2 | 1 | 85-0315-100 | Palfinger Name Plate | |
| 2.3 | 1 | P-1191680 | Cap, Zerk Fitting | |
| 2.4 | 1 | EA6087 | Zerk Fitting; 1/4"-28 | |
| 2.5 | 2 | ELG1036 | Bushing, 28mm ID x 32mm OD x 36mm L | |
| 3 | 1 | 15-0315-001+B | Parallel Arm Assembly, 800mm, Black | |
| 3 | 1 | 15-0315-001+G | Parallel Arm Assembly, 800mm, Galvanized | |
| 3 | 1 | 15-1014-002+B | Parallel Arm Assembly, 900mm, Black | |
| 3 | 1 | 15-1014-002+G | Parallel Arm Assembly, 900mm, Galvanized | |
| 3.1 | 2 | P-1191680 | Cap, Zerk Fitting | |
| 3.2 | 2 | ELG1039 | Bushing, 28mm ID x 32mm OD x 31mm L | |
| 3.3 | 1 | EA-005 | Grease Zerk Fitting, M10x1 | |
| 3.4 | 1 | EA-023 | Grease Zerk Fitting, 90°, M10x1 mm | |
| 4 | 1 | 25-0315-100+G | Shackle Kit, 125mm, Galvanized | |
| 4.1 | 2 | ELG1039 | Bushing, ø28mm ID X 32mm OD X 31mm L | |
| 4.2 | 1 | P-1191680 | Cap, Zerk Fitting | |
| 4.3 | 1 | EA-005 | Zerk Fitting M10 X 1mm | |
| 5 | 1 | 60-1009-000 | Parting Wheel Kit, Black | |
| 5 | 1 | 60-1009-000+G | Parting Wheel Kit, Galvanized | |
| 6 | 2 | 06-0314-300 | Mount Plate, Weld-On | |
| 7 | 2 | 25-0113-875 | Spacer, Liftarm, Zinc | |
| 8 | 2 | P-1228526 | Spacer, Spring, ø40 X 5 X 192mm, Plastic | |
| 9 | 2 | EQ1661 | External Retaining Ring | |
| 10 | 1 | ML20-0116-002+B | Torsion Spring, Right Side, Standard, Black | |
| 11 | 1 | 20-0113-002 | Torsion Spring, Right Side, Heavy Duty, Gray | |
| 12 | 1 | ML20-0116-001+B | Torsion Spring, Left Side Standard, Black | |
| 13 | 1 | 20-0113-001 | Torsion Spring, Left Side Heavy Duty, Gray | |
| 14 | 2 | P-1128624 | Rubber Snubber Kit | |
| 15 | 1 | 75-0318-400 | Bushing Kit, Single Cylinder | |
| 15.1 | 10 | ELG1039 | Bushing, 28mm ID x 32mm OD x 31mm L | |
| 15.2 | 2 | ELG1036 | Bushing, 28mm ID x 32mm OD x 36mm L | |
| 15.3 | 2 | ELG1037 | Bushing, 36mm ID x 40mm OD x 36mm L |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

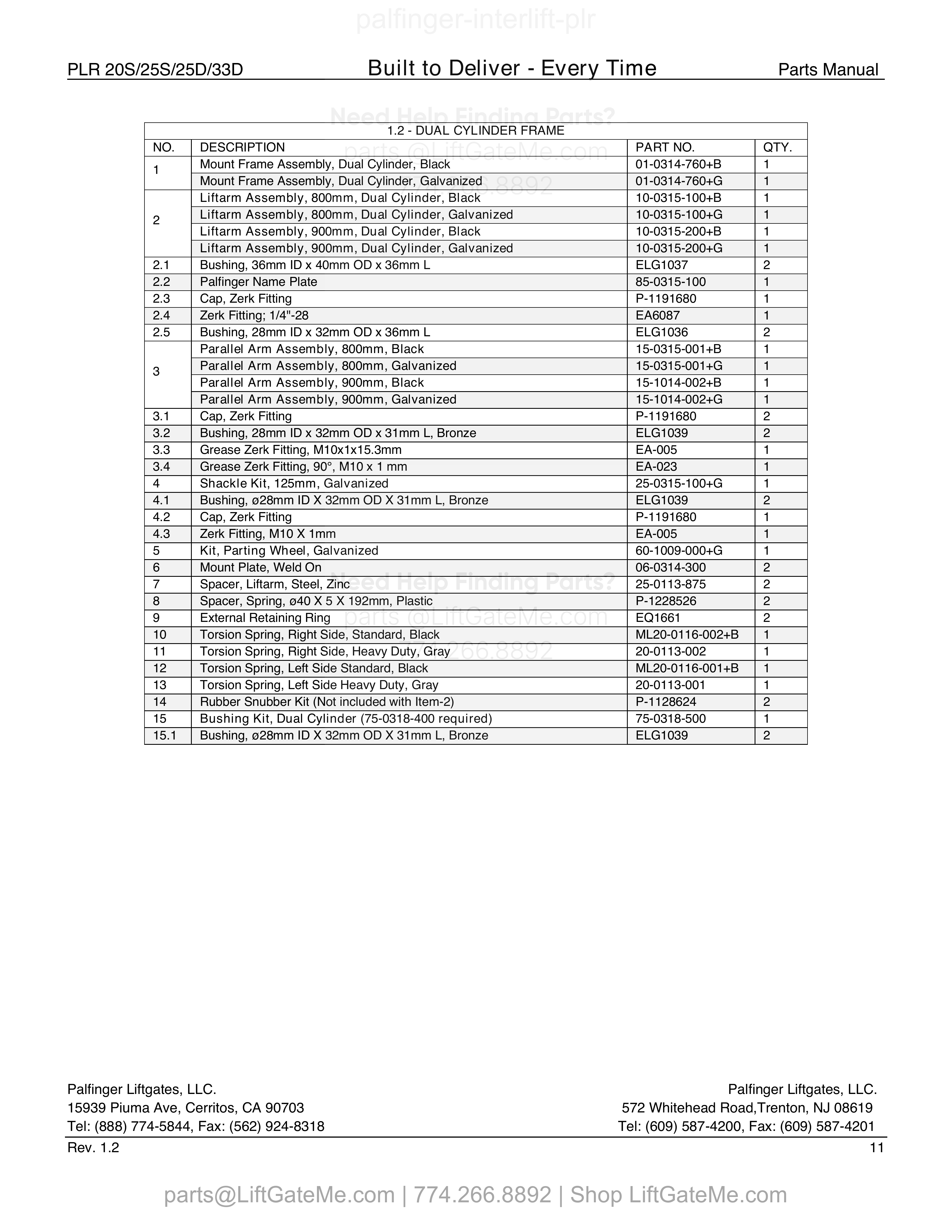

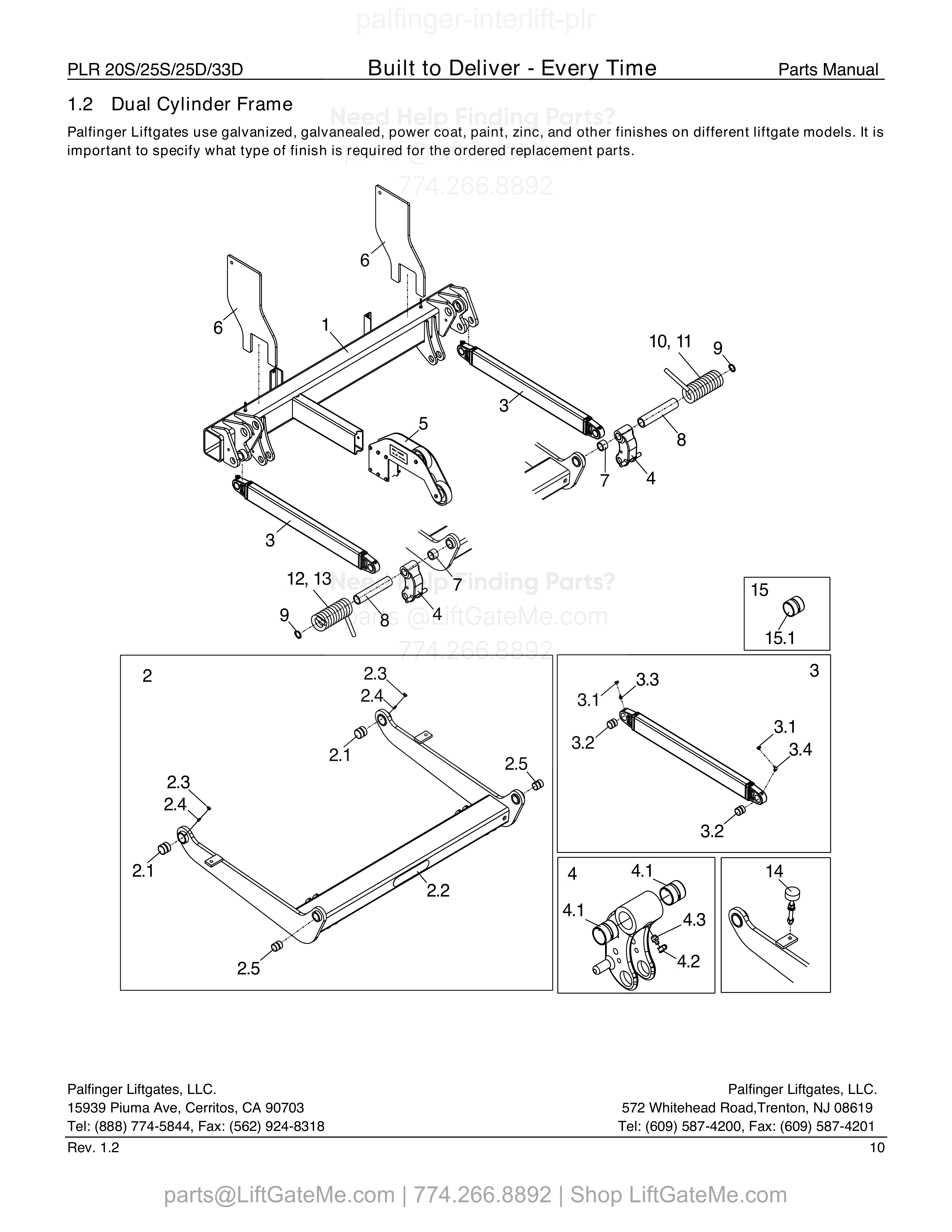

1.2 Dual Cylinder Frame
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 01-0314-760+B | Mount Frame Assembly, Dual Cylinder, Black | |
| 1 | 1 | 01-0314-760+G | Mount Frame Assembly, Dual Cylinder, Galvanized | |
| 2 | 1 | 10-0315-100+B | Liftarm Assembly, 800mm, Dual Cylinder, Black | |
| 2 | 1 | 10-0315-100+G | Liftarm Assembly, 800mm, Dual Cylinder, Galvanized | |
| 2 | 1 | 10-0315-200+B | Liftarm Assembly, 900mm, Dual Cylinder, Black | |
| 2 | 1 | 10-0315-200+G | Liftarm Assembly, 900mm, Dual Cylinder, Galvanized | |
| 2.1 | 2 | ELG1037 | Bushing, 36mm ID x 40mm OD x 36mm L | |
| 2.2 | 1 | 85-0315-100 | Palfinger Name Plate | |
| 2.3 | 1 | P-1191680 | Cap, Zerk Fitting | |
| 2.4 | 1 | EA6087 | Zerk Fitting; 1/4"-28 | |
| 2.5 | 2 | ELG1036 | Bushing, 28mm ID x 32mm OD x 36mm L | |
| 3 | 1 | 15-0315-001+B | Parallel Arm Assembly, 800mm, Black | |
| 3 | 1 | 15-0315-001+G | Parallel Arm Assembly, 800mm, Galvanized | |
| 3 | 1 | 15-1014-002+B | Parallel Arm Assembly, 900mm, Black | |
| 3 | 1 | 15-1014-002+G | Parallel Arm Assembly, 900mm, Galvanized | |
| 3.1 | 2 | P-1191680 | Cap, Zerk Fitting | |
| 3.2 | 2 | ELG1039 | Bushing, 28mm ID x 32mm OD x 31mm L, Bronze | |
| 3.3 | 1 | EA-005 | Grease Zerk Fitting, M10x1x15.3mm | |
| 3.4 | 1 | EA-023 | Grease Zerk Fitting, 90°, M10 x 1 mm | |
| 4 | 1 | 25-0315-100+G | Shackle Kit, 125mm, Galvanized | |
| 4.1 | 2 | ELG1039 | Bushing, ø28mm ID X 32mm OD X 31mm L, Bronze | |
| 4.2 | 1 | P-1191680 | Cap, Zerk Fitting | |
| 4.3 | 1 | EA-005 | Zerk Fitting, M10 X 1mm | |
| 5 | 1 | 60-1009-000+G | Kit, Parting Wheel, Galvanized | |
| 6 | 2 | 06-0314-300 | Mount Plate, Weld On | |
| 7 | 2 | 25-0113-875 | Spacer, Liftarm, Steel, Zinc | |
| 8 | 2 | P-1228526 | Spacer, Spring, ø40 X 5 X 192mm, Plastic | |
| 9 | 2 | EQ1661 | External Retaining Ring | |
| 10 | 1 | ML20-0116-002+B | Torsion Spring, Right Side, Standard, Black | |
| 11 | 1 | 20-0113-002 | Torsion Spring, Right Side, Heavy Duty, Gray | |
| 12 | 1 | ML20-0116-001+B | Torsion Spring, Left Side Standard, Black | |
| 13 | 1 | 20-0113-001 | Torsion Spring, Left Side Heavy Duty, Gray | |
| 14 | 2 | P-1128624 | Rubber Snubber Kit (Not included with Item-2) | |
| 15 | 1 | 75-0318-500 | Bushing Kit, Dual Cylinder (75-0318-400 required) | |
| 15.1 | 2 | ELG1039 | Bushing, ø28mm ID X 32mm OD X 31mm L, Bronze |

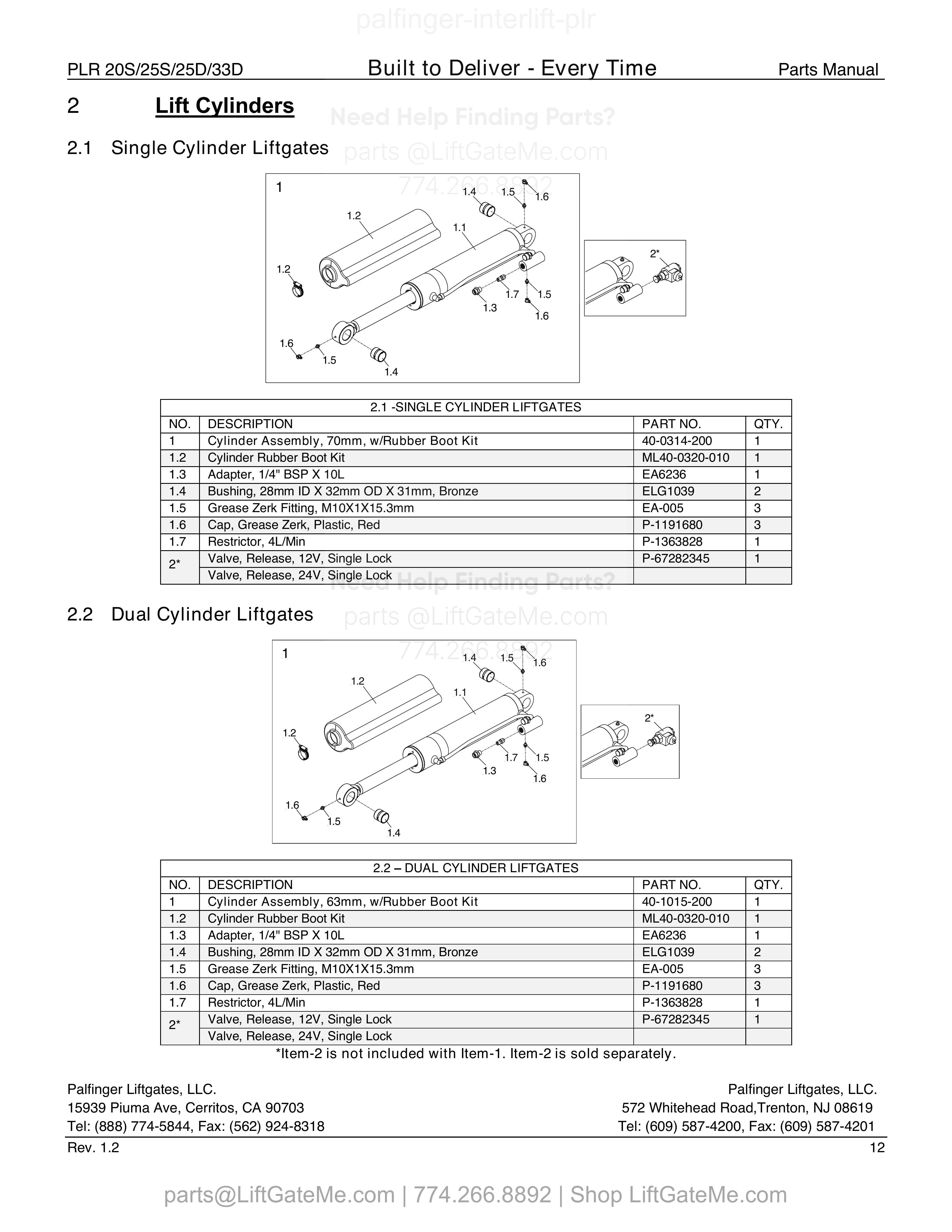

2.1 -SINGLE CYLINDER LIFTGATES
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 40-0314-200 | Cylinder Assembly, 70mm, w/Rubber Boot Kit | |
| 1.2 | 1 | ML40-0320-010 | Cylinder Rubber Boot Kit | |
| 1.3 | 1 | EA6236 | Adapter, 1/4" BSP X 10L | |
| 1.4 | 2 | ELG1039 | Bushing, 28mm ID X 32mm OD X 31mm, Bronze | |
| 1.5 | 3 | EA-005 | Grease Zerk Fitting, M10X1X15.3mm | |
| 1.6 | 3 | P-1191680 | Cap, Grease Zerk, Plastic, Red | |
| 1.7 | 1 | P-1363828 | Restrictor, 4L/Min | |
| 2* | 1 | P-67282345 | Valve, Release, 12V, Single Lock |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
2.2 – DUAL CYLINDER LIFTGATES
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 40-1015-200 | Cylinder Assembly, 63mm, w/Rubber Boot Kit | |
| 1.2 | 1 | ML40-0320-010 | Cylinder Rubber Boot Kit | |
| 1.3 | 1 | EA6236 | Adapter, 1/4" BSP X 10L | |
| 1.4 | 2 | ELG1039 | Bushing, 28mm ID X 32mm OD X 31mm, Bronze | |
| 1.5 | 3 | EA-005 | Grease Zerk Fitting, M10X1X15.3mm | |
| 1.6 | 3 | P-1191680 | Cap, Grease Zerk, Plastic, Red | |
| 1.7 | 1 | P-1363828 | Restrictor, 4L/Min | |
| 2* | 1 | P-67282345 | Valve, Release, 12V, Single Lock |
i

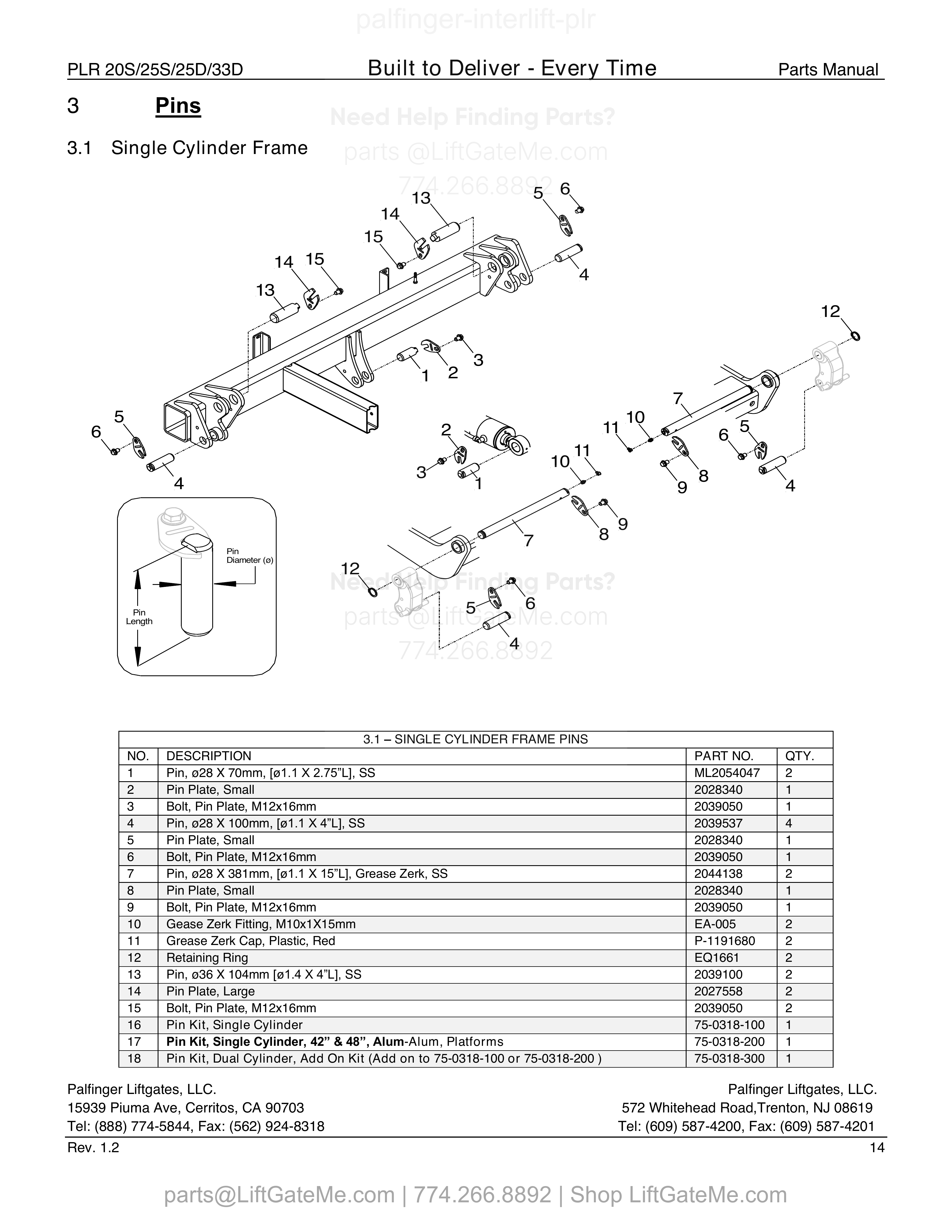

3.1 Single Cylinder Frame
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | ML2054047 | Pin, ø28 X 70mm, [ø1.1 X 2.75”L], SS | |
| 2 | 1 | 2028340 | Pin Plate, Small | |
| 3 | 1 | 2039050 | Bolt, Pin Plate, M12x16mm | |
| 4 | 4 | 2039537 | Pin, ø28 X 100mm, [ø1.1 X 4”L], SS | |
| 5 | 1 | 2028340 | Pin Plate, Small | |
| 6 | 1 | 2039050 | Bolt, Pin Plate, M12x16mm | |
| 7 | 2 | 2044138 | Pin, ø28 X 381mm, [ø1.1 X 15”L], Grease Zerk, SS | |
| 8 | 1 | 2028340 | Pin Plate, Small | |
| 9 | 1 | 2039050 | Bolt, Pin Plate, M12x16mm | |
| 10 | 2 | EA-005 | Gease Zerk Fitting, M10x1X15mm | |
| 11 | 2 | P-1191680 | Grease Zerk Cap, Plastic, Red | |
| 12 | 2 | EQ1661 | Retaining Ring | |
| 13 | 2 | 2039100 | Pin, ø36 X 104mm [ø1.4 X 4”L], SS | |
| 14 | 2 | 2027558 | Pin Plate, Large | |
| 15 | 2 | 2039050 | Bolt, Pin Plate, M12x16mm | |
| 16 | 1 | 75-0318-100 | Pin Kit, Single Cylinder | |
| 17 | 1 | 75-0318-200 | Pin Kit, Single Cylinder, 42” & 48”, Alum-Alum, Platforms | |
| 18 | 1 | 75-0318-300 | Pin Kit, Dual Cylinder, Add On Kit (Add on to 75-0318-100 or 75-0318-200 ) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

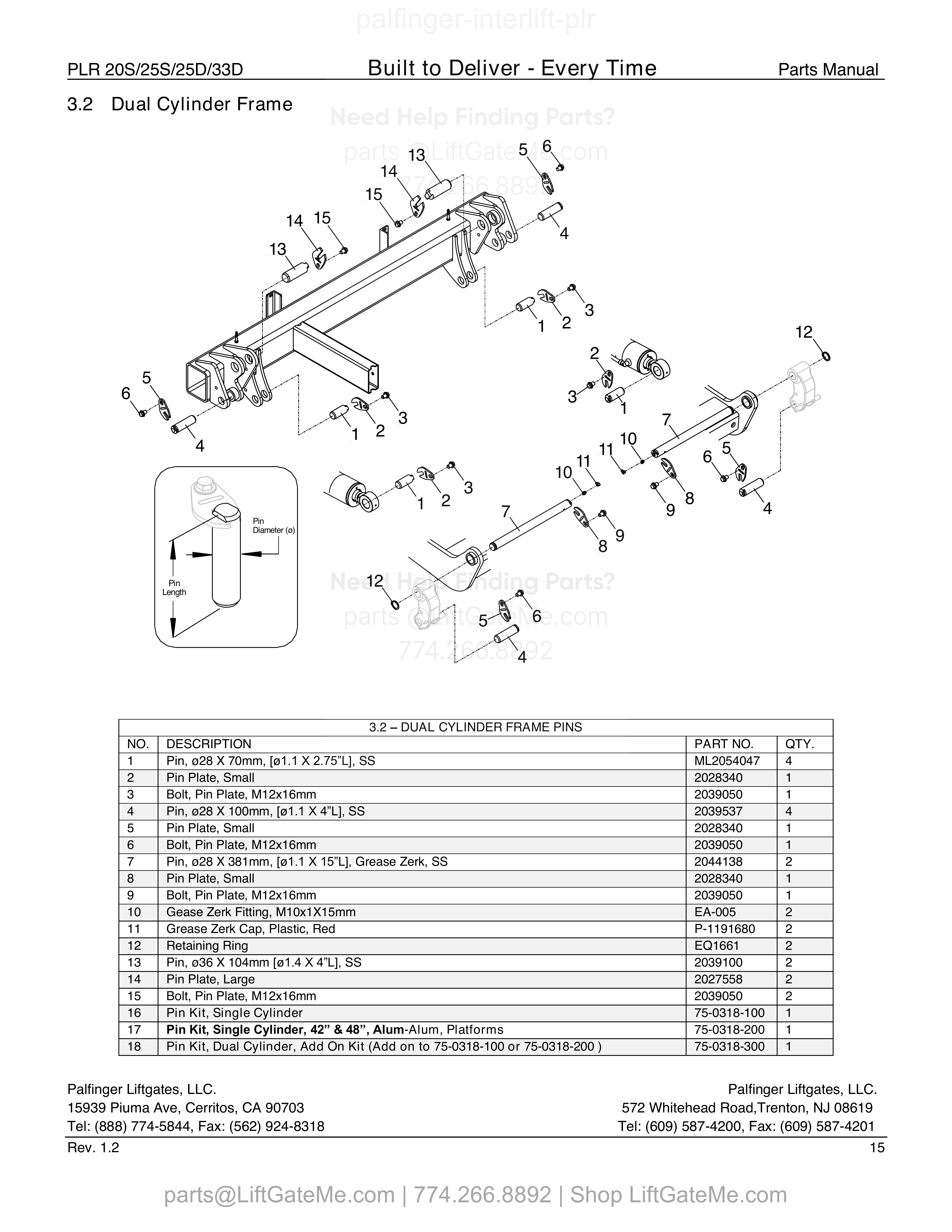

3.2 Dual Cylinder Frame
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | ML2054047 | Pin, ø28 X 70mm, [ø1.1 X 2.75”L], SS | |
| 2 | 1 | 2028340 | Pin Plate, Small | |
| 3 | 1 | 2039050 | Bolt, Pin Plate, M12x16mm | |
| 4 | 4 | 2039537 | Pin, ø28 X 100mm, [ø1.1 X 4”L], SS | |
| 5 | 1 | 2028340 | Pin Plate, Small | |
| 6 | 1 | 2039050 | Bolt, Pin Plate, M12x16mm | |
| 7 | 2 | 2044138 | Pin, ø28 X 381mm, [ø1.1 X 15”L], Grease Zerk, SS | |
| 8 | 1 | 2028340 | Pin Plate, Small | |
| 9 | 1 | 2039050 | Bolt, Pin Plate, M12x16mm | |
| 10 | 2 | EA-005 | Gease Zerk Fitting, M10x1X15mm | |
| 11 | 2 | P-1191680 | Grease Zerk Cap, Plastic, Red | |
| 12 | 2 | EQ1661 | Retaining Ring | |
| 13 | 2 | 2039100 | Pin, ø36 X 104mm [ø1.4 X 4”L], SS | |
| 14 | 2 | 2027558 | Pin Plate, Large | |
| 15 | 2 | 2039050 | Bolt, Pin Plate, M12x16mm | |
| 16 | 1 | 75-0318-100 | Pin Kit, Single Cylinder | |
| 17 | 1 | 75-0318-200 | Pin Kit, Single Cylinder, 42” & 48”, Alum-Alum, Platforms | |
| 18 | 1 | 75-0318-300 | Pin Kit, Dual Cylinder, Add On Kit (Add on to 75-0318-100 or 75-0318-200 ) |

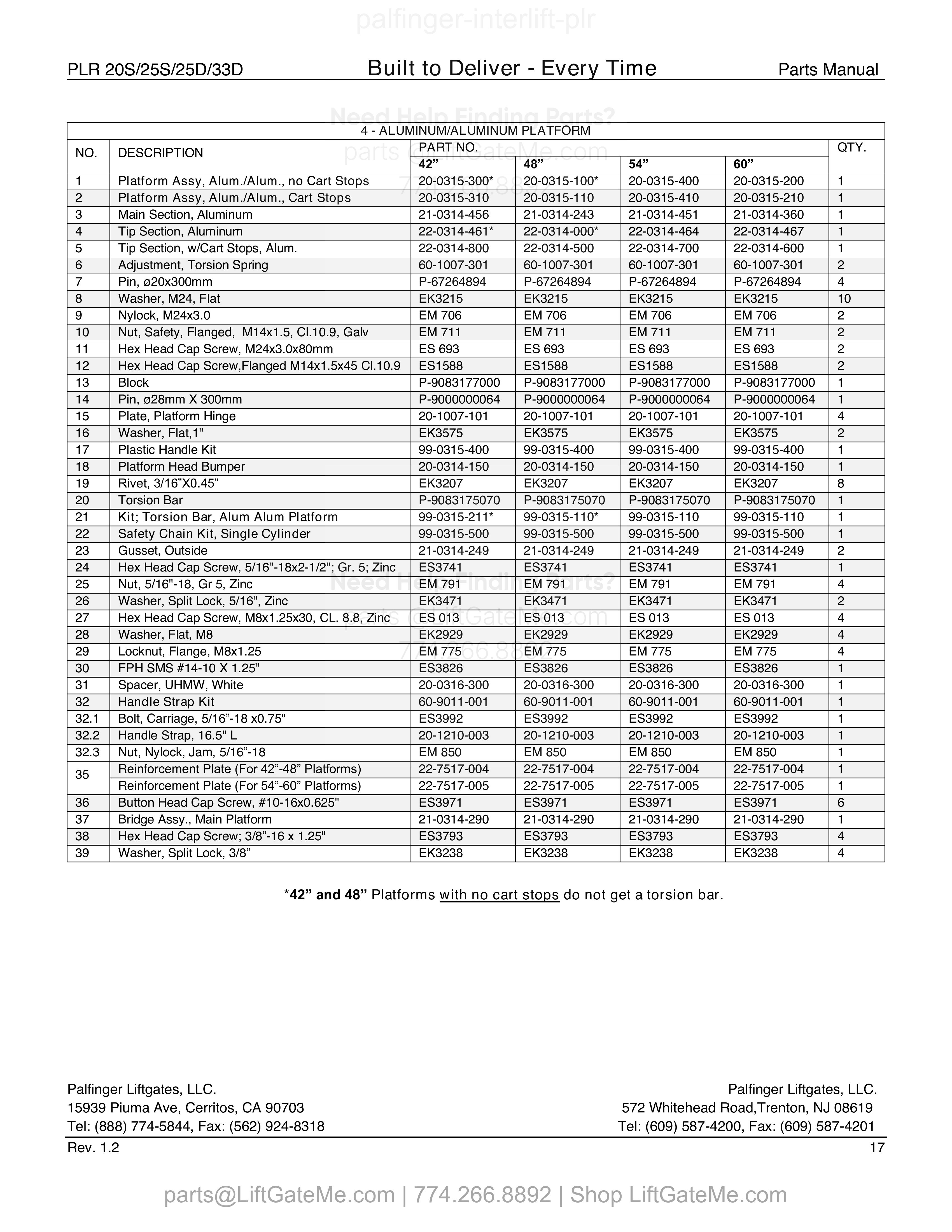

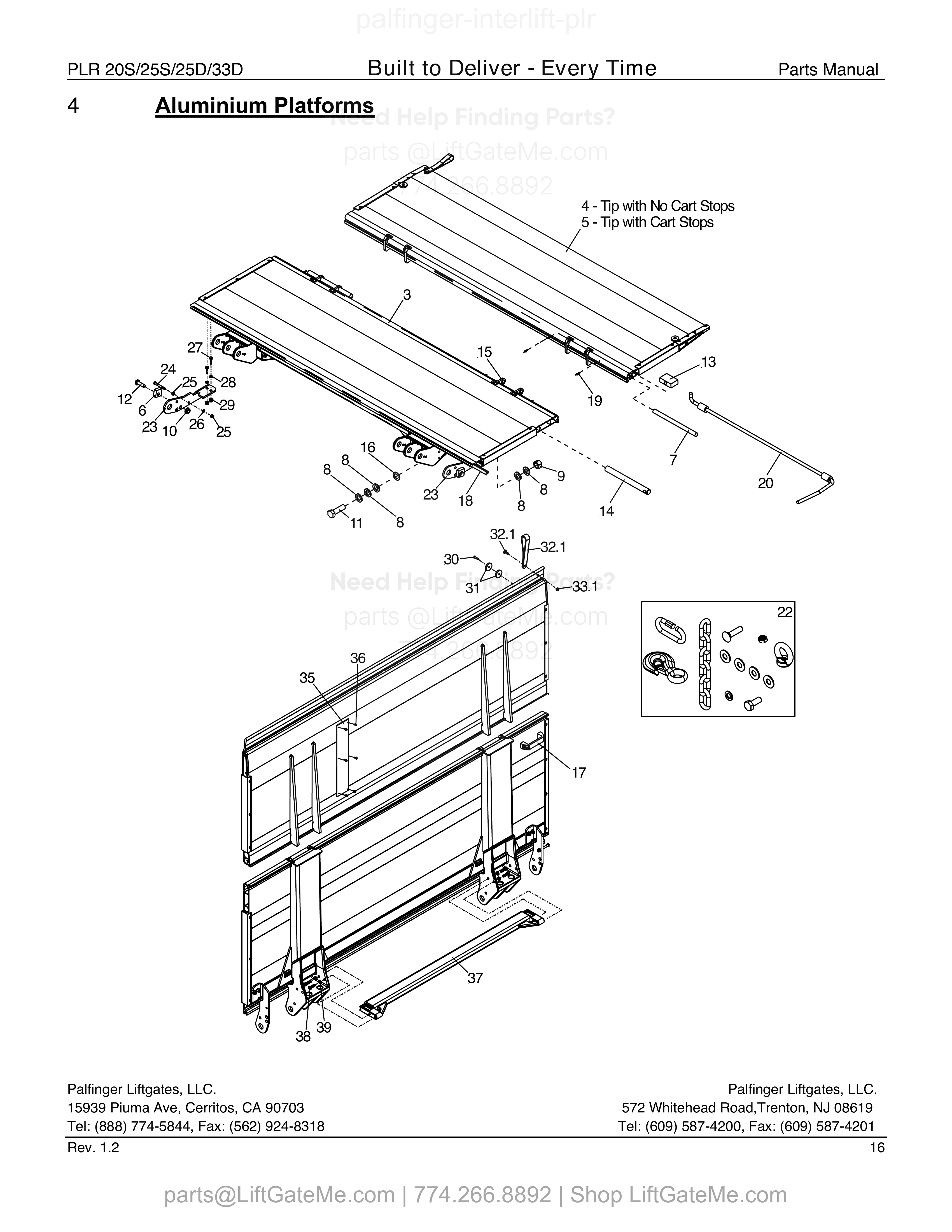

4 Aluminium Platforms
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20-0315-300* | Platform Assy, Alum./Alum., no Cart Stops | |
| 1 | 1 | 20-0315-100* | Platform Assy, Alum./Alum., no Cart Stops | |
| 1 | 1 | 20-0315-400 | Platform Assy, Alum./Alum., no Cart Stops | |
| 1 | 1 | 20-0315-200 | Platform Assy, Alum./Alum., no Cart Stops | |
| 2 | 1 | 20-0315-310 | Platform Assy, Alum./Alum., Cart Stops | |
| 2 | 1 | 20-0315-110 | Platform Assy, Alum./Alum., Cart Stops | |
| 2 | 1 | 20-0315-410 | Platform Assy, Alum./Alum., Cart Stops | |
| 2 | 1 | 20-0315-210 | Platform Assy, Alum./Alum., Cart Stops | |
| 3 | 1 | 21-0314-456 | Main Section, Aluminum | |
| 3 | 1 | 21-0314-243 | Main Section, Aluminum | |
| 3 | 1 | 21-0314-451 | Main Section, Aluminum | |
| 3 | 1 | 21-0314-360 | Main Section, Aluminum | |
| 4 | 1 | 22-0314-461* | Tip Section, Aluminum | |
| 4 | 1 | 22-0314-000* | Tip Section, Aluminum | |
| 4 | 1 | 22-0314-464 | Tip Section, Aluminum | |
| 4 | 1 | 22-0314-467 | Tip Section, Aluminum | |
| 5 | 1 | 22-0314-800 | Tip Section, w/Cart Stops, Alum. | |
| 5 | 1 | 22-0314-500 | Tip Section, w/Cart Stops, Alum. | |
| 5 | 1 | 22-0314-700 | Tip Section, w/Cart Stops, Alum. | |
| 5 | 1 | 22-0314-600 | Tip Section, w/Cart Stops, Alum. | |
| 6 | 2 | 60-1007-301 | Adjustment, Torsion Spring | |
| 6 | 2 | 60-1007-301 | Adjustment, Torsion Spring | |
| 6 | 2 | 60-1007-301 | Adjustment, Torsion Spring | |
| 6 | 2 | 60-1007-301 | Adjustment, Torsion Spring | |
| 7 | 4 | P-67264894 | Pin, ø20x300mm | |
| 7 | 4 | P-67264894 | Pin, ø20x300mm | |
| 7 | 4 | P-67264894 | Pin, ø20x300mm | |
| 7 | 4 | P-67264894 | Pin, ø20x300mm | |
| 8 | 10 | EK3215 | Washer, M24, Flat | |
| 8 | 10 | EK3215 | Washer, M24, Flat | |
| 8 | 10 | EK3215 | Washer, M24, Flat | |
| 8 | 10 | EK3215 | Washer, M24, Flat | |
| 9 | 2 | EM 706 | Nylock, M24x3.0 | |
| 9 | 2 | EM 706 | Nylock, M24x3.0 | |
| 9 | 2 | EM 706 | Nylock, M24x3.0 | |
| 9 | 2 | EM 706 | Nylock, M24x3.0 | |
| 10 | 2 | EM 711 | Nut, Safety, Flanged, M14x1.5, Cl.10.9, Galv | |
| 10 | 2 | EM 711 | Nut, Safety, Flanged, M14x1.5, Cl.10.9, Galv | |
| 10 | 2 | EM 711 | Nut, Safety, Flanged, M14x1.5, Cl.10.9, Galv | |
| 10 | 2 | EM 711 | Nut, Safety, Flanged, M14x1.5, Cl.10.9, Galv | |
| 11 | 2 | ES 693 | Hex Head Cap Screw, M24x3.0x80mm | |
| 11 | 2 | ES 693 | Hex Head Cap Screw, M24x3.0x80mm | |
| 11 | 2 | ES 693 | Hex Head Cap Screw, M24x3.0x80mm | |
| 11 | 2 | ES 693 | Hex Head Cap Screw, M24x3.0x80mm | |
| 12 | 2 | ES1588 | Hex Head Cap Screw,Flanged M14x1.5x45 Cl.10.9 | |
| 12 | 2 | ES1588 | Hex Head Cap Screw,Flanged M14x1.5x45 Cl.10.9 | |
| 12 | 2 | ES1588 | Hex Head Cap Screw,Flanged M14x1.5x45 Cl.10.9 | |
| 12 | 2 | ES1588 | Hex Head Cap Screw,Flanged M14x1.5x45 Cl.10.9 | |
| 13 | 1 | P-9083177000 | Block | |
| 13 | 1 | P-9083177000 | Block | |
| 13 | 1 | P-9083177000 | Block | |
| 13 | 1 | P-9083177000 | Block | |
| 14 | 1 | P-9000000064 | Pin, ø28mm X 300mm | |
| 14 | 1 | P-9000000064 | Pin, ø28mm X 300mm | |
| 14 | 1 | P-9000000064 | Pin, ø28mm X 300mm | |
| 14 | 1 | P-9000000064 | Pin, ø28mm X 300mm | |
| 15 | 4 | 20-1007-101 | Plate, Platform Hinge | |
| 15 | 4 | 20-1007-101 | Plate, Platform Hinge | |
| 15 | 4 | 20-1007-101 | Plate, Platform Hinge | |
| 15 | 4 | 20-1007-101 | Plate, Platform Hinge | |
| 16 | 2 | EK3575 | Washer, Flat,1" | |
| 16 | 2 | EK3575 | Washer, Flat,1" | |
| 16 | 2 | EK3575 | Washer, Flat,1" | |
| 16 | 2 | EK3575 | Washer, Flat,1" | |
| 17 | 1 | 99-0315-400 | Plastic Handle Kit | |
| 17 | 1 | 99-0315-400 | Plastic Handle Kit | |
| 17 | 1 | 99-0315-400 | Plastic Handle Kit | |
| 17 | 1 | 99-0315-400 | Plastic Handle Kit | |
| 18 | 1 | 20-0314-150 | Platform Head Bumper | |
| 18 | 1 | 20-0314-150 | Platform Head Bumper | |
| 18 | 1 | 20-0314-150 | Platform Head Bumper | |
| 18 | 1 | 20-0314-150 | Platform Head Bumper | |
| 19 | 8 | EK3207 | Rivet, 3/16”X0.45” | |
| 19 | 8 | EK3207 | Rivet, 3/16”X0.45” | |
| 19 | 8 | EK3207 | Rivet, 3/16”X0.45” | |
| 19 | 8 | EK3207 | Rivet, 3/16”X0.45” | |
| 20 | 1 | P-9083175070 | Torsion Bar | |
| 20 | 1 | P-9083175070 | Torsion Bar | |
| 20 | 1 | P-9083175070 | Torsion Bar | |
| 20 | 1 | P-9083175070 | Torsion Bar | |
| 21 | 1 | 99-0315-211* | Kit; Torsion Bar, Alum Alum Platform | |
| 21 | 1 | 99-0315-110* | Kit; Torsion Bar, Alum Alum Platform | |
| 21 | 1 | 99-0315-110 | Kit; Torsion Bar, Alum Alum Platform | |
| 21 | 1 | 99-0315-110 | Kit; Torsion Bar, Alum Alum Platform | |
| 22 | 1 | 99-0315-500 | Safety Chain Kit, Single Cylinder | |
| 22 | 1 | 99-0315-500 | Safety Chain Kit, Single Cylinder | |
| 22 | 1 | 99-0315-500 | Safety Chain Kit, Single Cylinder | |
| 22 | 1 | 99-0315-500 | Safety Chain Kit, Single Cylinder | |
| 23 | 2 | 21-0314-249 | Gusset, Outside | |
| 23 | 2 | 21-0314-249 | Gusset, Outside | |
| 23 | 2 | 21-0314-249 | Gusset, Outside | |
| 23 | 2 | 21-0314-249 | Gusset, Outside | |
| 24 | 1 | ES3741 | Hex Head Cap Screw, 5/16"-18x2-1/2"; Gr. 5; Zinc | |
| 24 | 1 | ES3741 | Hex Head Cap Screw, 5/16"-18x2-1/2"; Gr. 5; Zinc | |
| 24 | 1 | ES3741 | Hex Head Cap Screw, 5/16"-18x2-1/2"; Gr. 5; Zinc | |
| 24 | 1 | ES3741 | Hex Head Cap Screw, 5/16"-18x2-1/2"; Gr. 5; Zinc | |
| 25 | 4 | EM 791 | Nut, 5/16"-18, Gr 5, Zinc | |
| 25 | 4 | EM 791 | Nut, 5/16"-18, Gr 5, Zinc | |
| 25 | 4 | EM 791 | Nut, 5/16"-18, Gr 5, Zinc | |
| 25 | 4 | EM 791 | Nut, 5/16"-18, Gr 5, Zinc | |
| 26 | 2 | EK3471 | Washer, Split Lock, 5/16", Zinc | |
| 26 | 2 | EK3471 | Washer, Split Lock, 5/16", Zinc | |
| 26 | 2 | EK3471 | Washer, Split Lock, 5/16", Zinc | |
| 26 | 2 | EK3471 | Washer, Split Lock, 5/16", Zinc | |
| 27 | 4 | ES 013 | Hex Head Cap Screw, M8x1.25x30, CL. 8.8, Zinc | |
| 27 | 4 | ES 013 | Hex Head Cap Screw, M8x1.25x30, CL. 8.8, Zinc | |
| 27 | 4 | ES 013 | Hex Head Cap Screw, M8x1.25x30, CL. 8.8, Zinc | |
| 27 | 4 | ES 013 | Hex Head Cap Screw, M8x1.25x30, CL. 8.8, Zinc | |
| 28 | 4 | EK2929 | Washer, Flat, M8 | |
| 28 | 4 | EK2929 | Washer, Flat, M8 | |
| 28 | 4 | EK2929 | Washer, Flat, M8 | |
| 28 | 4 | EK2929 | Washer, Flat, M8 | |
| 29 | 4 | EM 775 | Locknut, Flange, M8x1.25 | |
| 29 | 4 | EM 775 | Locknut, Flange, M8x1.25 | |
| 29 | 4 | EM 775 | Locknut, Flange, M8x1.25 | |
| 29 | 4 | EM 775 | Locknut, Flange, M8x1.25 | |
| 30 | 1 | ES3826 | FPH SMS #14-10 X 1.25" | |
| 30 | 1 | ES3826 | FPH SMS #14-10 X 1.25" | |
| 30 | 1 | ES3826 | FPH SMS #14-10 X 1.25" | |
| 30 | 1 | ES3826 | FPH SMS #14-10 X 1.25" | |
| 31 | 1 | 20-0316-300 | Spacer, UHMW, White | |
| 31 | 1 | 20-0316-300 | Spacer, UHMW, White | |
| 31 | 1 | 20-0316-300 | Spacer, UHMW, White | |
| 31 | 1 | 20-0316-300 | Spacer, UHMW, White | |
| 32 | 1 | 60-9011-001 | Handle Strap Kit | |
| 32 | 1 | 60-9011-001 | Handle Strap Kit | |
| 32 | 1 | 60-9011-001 | Handle Strap Kit | |
| 32 | 1 | 60-9011-001 | Handle Strap Kit | |
| 32.1 | 1 | ES3992 | Bolt, Carriage, 5/16”-18 x0.75" | |
| 32.1 | 1 | ES3992 | Bolt, Carriage, 5/16”-18 x0.75" | |
| 32.1 | 1 | ES3992 | Bolt, Carriage, 5/16”-18 x0.75" | |
| 32.1 | 1 | ES3992 | Bolt, Carriage, 5/16”-18 x0.75" | |
| 32.2 | 1 | 20-1210-003 | Handle Strap, 16.5" L | |
| 32.2 | 1 | 20-1210-003 | Handle Strap, 16.5" L | |
| 32.2 | 1 | 20-1210-003 | Handle Strap, 16.5" L | |
| 32.2 | 1 | 20-1210-003 | Handle Strap, 16.5" L | |
| 32.3 | 1 | EM 850 | Nut, Nylock, Jam, 5/16”-18 | |
| 32.3 | 1 | EM 850 | Nut, Nylock, Jam, 5/16”-18 | |
| 32.3 | 1 | EM 850 | Nut, Nylock, Jam, 5/16”-18 | |
| 32.3 | 1 | EM 850 | Nut, Nylock, Jam, 5/16”-18 | |
| 35 | 1 | 22-7517-004 | Reinforcement Plate (For 42”-48” Platforms) | |
| 35 | 1 | 22-7517-004 | Reinforcement Plate (For 42”-48” Platforms) | |
| 35 | 1 | 22-7517-004 | Reinforcement Plate (For 42”-48” Platforms) | |
| 35 | 1 | 22-7517-004 | Reinforcement Plate (For 42”-48” Platforms) | |
| 35 | 1 | 22-7517-005 | Reinforcement Plate (For 54”-60” Platforms) | |
| 35 | 1 | 22-7517-005 | Reinforcement Plate (For 54”-60” Platforms) | |
| 35 | 1 | 22-7517-005 | Reinforcement Plate (For 54”-60” Platforms) | |
| 35 | 1 | 22-7517-005 | Reinforcement Plate (For 54”-60” Platforms) | |
| 36 | 6 | ES3971 | Button Head Cap Screw, #10-16x0.625" | |
| 36 | 6 | ES3971 | Button Head Cap Screw, #10-16x0.625" | |
| 36 | 6 | ES3971 | Button Head Cap Screw, #10-16x0.625" | |
| 36 | 6 | ES3971 | Button Head Cap Screw, #10-16x0.625" | |
| 37 | 1 | 21-0314-290 | Bridge Assy., Main Platform | |
| 37 | 1 | 21-0314-290 | Bridge Assy., Main Platform | |
| 37 | 1 | 21-0314-290 | Bridge Assy., Main Platform | |
| 37 | 1 | 21-0314-290 | Bridge Assy., Main Platform | |
| 38 | 4 | ES3793 | Hex Head Cap Screw; 3/8”-16 x 1.25" | |
| 38 | 4 | ES3793 | Hex Head Cap Screw; 3/8”-16 x 1.25" | |
| 38 | 4 | ES3793 | Hex Head Cap Screw; 3/8”-16 x 1.25" | |
| 38 | 4 | ES3793 | Hex Head Cap Screw; 3/8”-16 x 1.25" | |
| 39 | 4 | EK3238 | Washer, Split Lock, 3/8” | |
| 39 | 4 | EK3238 | Washer, Split Lock, 3/8” | |
| 39 | 4 | EK3238 | Washer, Split Lock, 3/8” | |
| 39 | 4 | EK3238 | Washer, Split Lock, 3/8” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
4 - ALUMINUM/ALUMINUM PLATFORM
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20-0315-300* | Platform Assy, Alum./Alum., no Cart Stops | |
| 1 | 1 | 20-0315-100* | Platform Assy, Alum./Alum., no Cart Stops | |
| 1 | 1 | 20-0315-400 | Platform Assy, Alum./Alum., no Cart Stops | |
| 1 | 1 | 20-0315-200 | Platform Assy, Alum./Alum., no Cart Stops | |
| 2 | 1 | 20-0315-310 | Platform Assy, Alum./Alum., Cart Stops | |
| 2 | 1 | 20-0315-110 | Platform Assy, Alum./Alum., Cart Stops | |
| 2 | 1 | 20-0315-410 | Platform Assy, Alum./Alum., Cart Stops | |
| 2 | 1 | 20-0315-210 | Platform Assy, Alum./Alum., Cart Stops | |
| 3 | 1 | 21-0314-456 | Main Section, Aluminum | |
| 3 | 1 | 21-0314-243 | Main Section, Aluminum | |
| 3 | 1 | 21-0314-451 | Main Section, Aluminum | |
| 3 | 1 | 21-0314-360 | Main Section, Aluminum | |
| 4 | 1 | 22-0314-461* | Tip Section, Aluminum | |
| 4 | 1 | 22-0314-000* | Tip Section, Aluminum | |
| 4 | 1 | 22-0314-464 | Tip Section, Aluminum | |
| 4 | 1 | 22-0314-467 | Tip Section, Aluminum | |
| 5 | 1 | 22-0314-800 | Tip Section, w/Cart Stops, Alum. | |
| 5 | 1 | 22-0314-500 | Tip Section, w/Cart Stops, Alum. | |
| 5 | 1 | 22-0314-700 | Tip Section, w/Cart Stops, Alum. | |
| 5 | 1 | 22-0314-600 | Tip Section, w/Cart Stops, Alum. | |
| 6 | 2 | 60-1007-301 | Adjustment, Torsion Spring | |
| 7 | 4 | P-67264894 | Pin, ø20x300mm | |
| 8 | 10 | EK3215 | Washer, M24, Flat | |
| 9 | 2 | EM 706 | Nylock, M24x3.0 | |
| 10 | 2 | EM 711 | Nut, Safety, Flanged, M14x1.5, Cl.10.9, Galv | |
| 11 | 2 | ES 693 | Hex Head Cap Screw, M24x3.0x80mm | |
| 12 | 2 | ES1588 | Hex Head Cap Screw,Flanged M14x1.5x45 Cl.10.9 | |
| 13 | 1 | P-9083177000 | Block | |
| 14 | 1 | P-9000000064 | Pin, ø28mm X 300mm | |
| 15 | 4 | 20-1007-101 | Plate, Platform Hinge | |
| 16 | 2 | EK3575 | Washer, Flat,1" | |
| 17 | 1 | 99-0315-400 | Plastic Handle Kit | |
| 18 | 1 | 20-0314-150 | Platform Head Bumper | |
| 19 | 8 | EK3207 | Rivet, 3/16”X0.45” | |
| 20 | 1 | P-9083175070 | Torsion Bar | |
| 21 | 1 | 99-0315-211* | Kit; Torsion Bar, Alum Alum Platform | |
| 21 | 1 | 99-0315-110* | Kit; Torsion Bar, Alum Alum Platform | |
| 21 | 1 | 99-0315-110 | Kit; Torsion Bar, Alum Alum Platform | |
| 21 | 1 | 99-0315-110 | Kit; Torsion Bar, Alum Alum Platform | |
| 22 | 1 | 99-0315-500 | Safety Chain Kit, Single Cylinder | |
| 23 | 2 | 21-0314-249 | Gusset, Outside | |
| 24 | 1 | ES3741 | Hex Head Cap Screw, 5/16"-18x2-1/2"; Gr. 5; Zinc | |
| 25 | 4 | EM 791 | Nut, 5/16"-18, Gr 5, Zinc | |
| 26 | 2 | EK3471 | Washer, Split Lock, 5/16", Zinc | |
| 27 | 4 | ES 013 | Hex Head Cap Screw, M8x1.25x30, CL. 8.8, Zinc | |
| 28 | 4 | EK2929 | Washer, Flat, M8 | |
| 29 | 4 | EM 775 | Locknut, Flange, M8x1.25 | |
| 30 | 1 | ES3826 | FPH SMS #14-10 X 1.25" | |
| 31 | 1 | 20-0316-300 | Spacer, UHMW, White | |
| 32 | 1 | 60-9011-001 | Handle Strap Kit | |
| 32.1 | 1 | ES3992 | Bolt, Carriage, 5/16”-18 x0.75" | |
| 32.2 | 1 | 20-1210-003 | Handle Strap, 16.5" L | |
| 32.3 | 1 | EM 850 | Nut, Nylock, Jam, 5/16”-18 | |
| 35 | 1 | 22-7517-004 | Reinforcement Plate (For 42”-48” Platforms) | |
| 35 | 1 | 22-7517-005 | Reinforcement Plate (For 54”-60” Platforms) | |
| 36 | 6 | ES3971 | Button Head Cap Screw, #10-16x0.625" | |
| 37 | 1 | 21-0314-290 | Bridge Assy., Main Platform | |
| 38 | 4 | ES3793 | Hex Head Cap Screw; 3/8”-16 x 1.25" | |
| 39 | 4 | EK3238 | Washer, Split Lock, 3/8” |

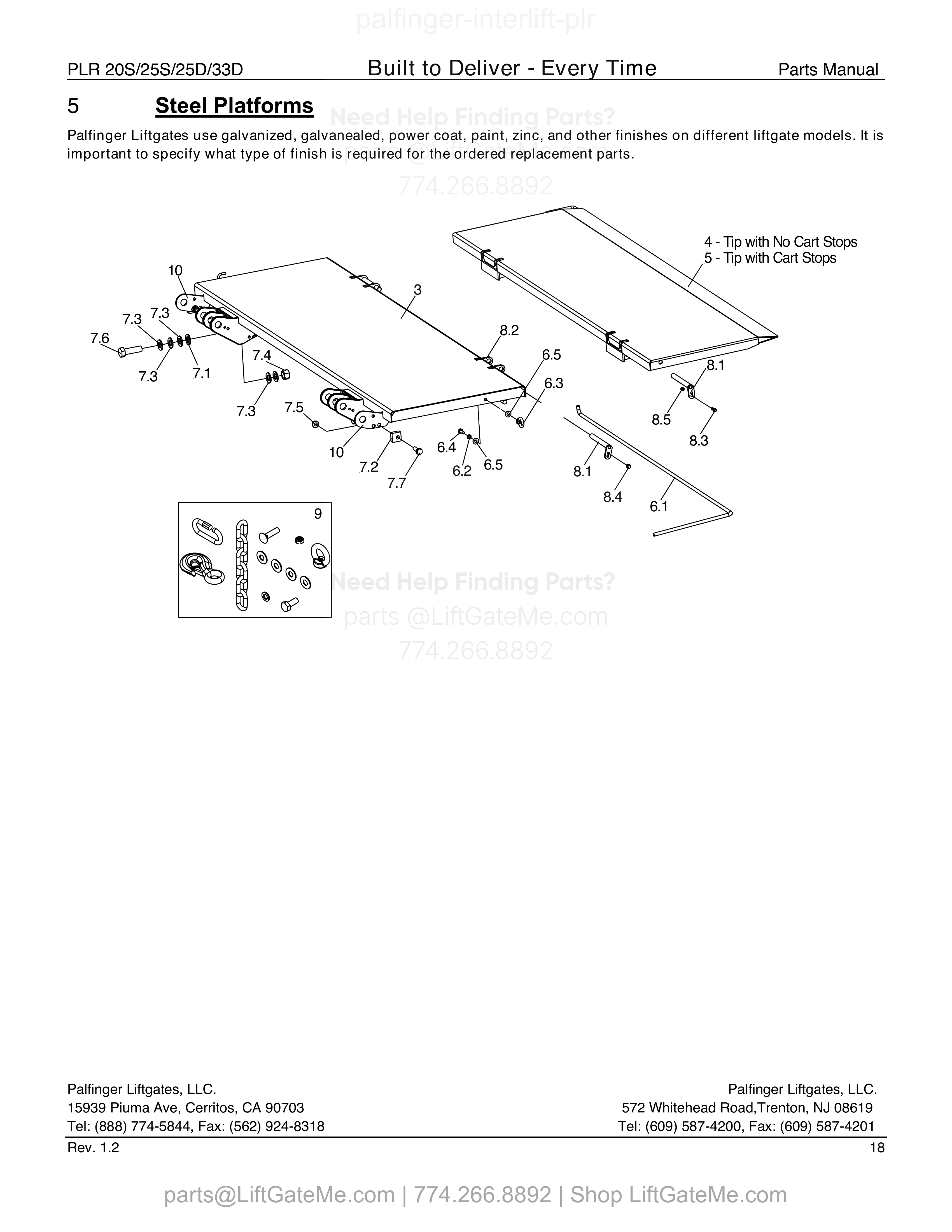

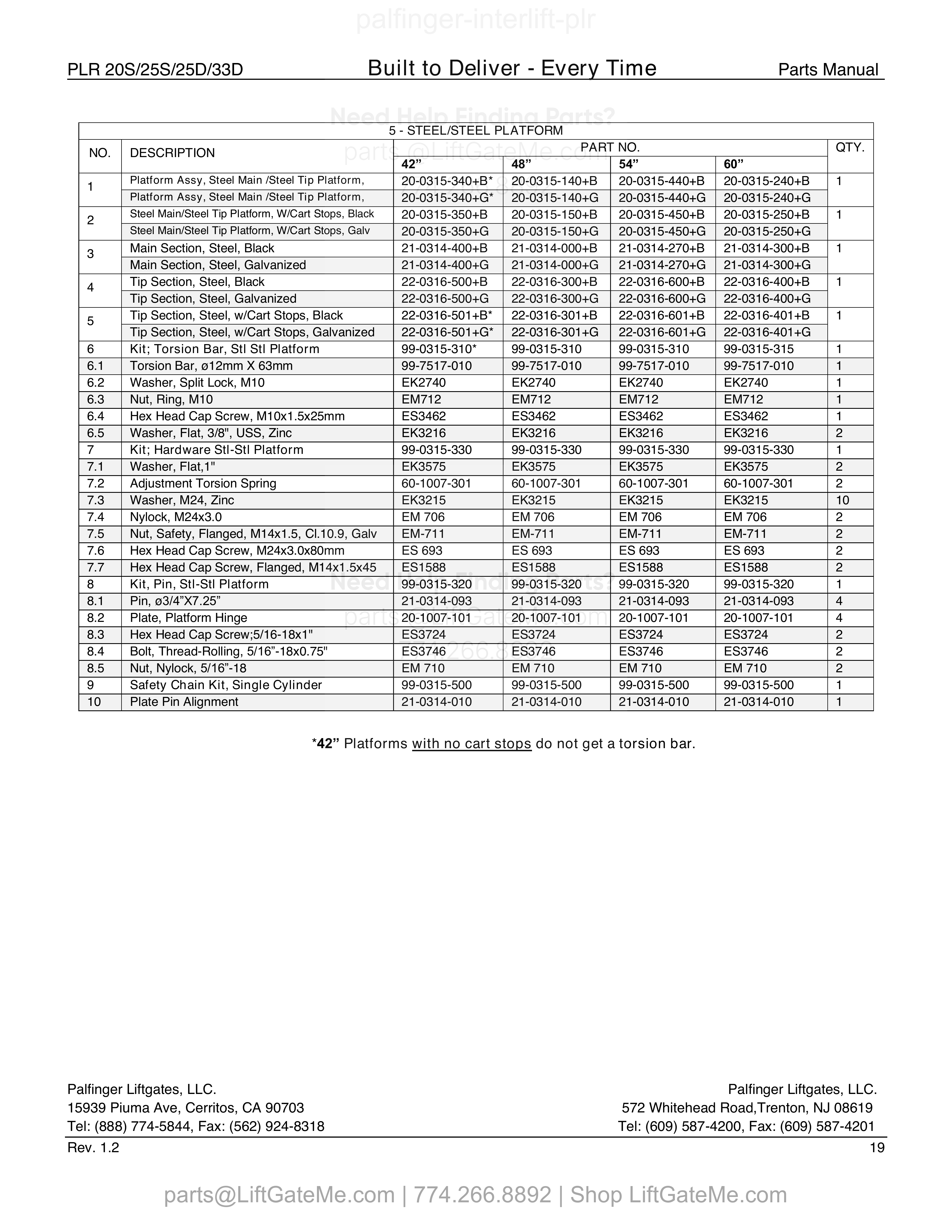

5 - STEEL/STEEL PLATFORM
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20-0315-340+B* | Platform Assy, Steel Main /Steel Tip Platform, | |
| 1 | 1 | 20-0315-140+B | Platform Assy, Steel Main /Steel Tip Platform, | |
| 1 | 1 | 20-0315-440+B | Platform Assy, Steel Main /Steel Tip Platform, | |
| 1 | 1 | 20-0315-240+B | Platform Assy, Steel Main /Steel Tip Platform, | |
| 1 | 1 | 20-0315-340+G* | Platform Assy, Steel Main /Steel Tip Platform, | |
| 1 | 1 | 20-0315-140+G | Platform Assy, Steel Main /Steel Tip Platform, | |
| 1 | 1 | 20-0315-440+G | Platform Assy, Steel Main /Steel Tip Platform, | |
| 1 | 1 | 20-0315-240+G | Platform Assy, Steel Main /Steel Tip Platform, | |
| 2 | 1 | 20-0315-350+B | Steel Main/Steel Tip Platform, W/Cart Stops, Black | |
| 2 | 1 | 20-0315-150+B | Steel Main/Steel Tip Platform, W/Cart Stops, Black | |
| 2 | 1 | 20-0315-450+B | Steel Main/Steel Tip Platform, W/Cart Stops, Black | |
| 2 | 1 | 20-0315-250+B | Steel Main/Steel Tip Platform, W/Cart Stops, Black | |
| 2 | 1 | 20-0315-350+G | Steel Main/Steel Tip Platform, W/Cart Stops, Galv | |
| 2 | 1 | 20-0315-150+G | Steel Main/Steel Tip Platform, W/Cart Stops, Galv | |
| 2 | 1 | 20-0315-450+G | Steel Main/Steel Tip Platform, W/Cart Stops, Galv | |
| 2 | 1 | 20-0315-250+G | Steel Main/Steel Tip Platform, W/Cart Stops, Galv | |
| 3 | 1 | 21-0314-400+B | Main Section, Steel, Black | |
| 3 | 1 | 21-0314-000+B | Main Section, Steel, Black | |
| 3 | 1 | 21-0314-270+B | Main Section, Steel, Black | |
| 3 | 1 | 21-0314-300+B | Main Section, Steel, Black | |
| 3 | 1 | 21-0314-400+G | Main Section, Steel, Galvanized | |
| 3 | 1 | 21-0314-000+G | Main Section, Steel, Galvanized | |
| 3 | 1 | 21-0314-270+G | Main Section, Steel, Galvanized | |
| 3 | 1 | 21-0314-300+G | Main Section, Steel, Galvanized | |
| 4 | 1 | 22-0316-500+B | Tip Section, Steel, Black | |
| 4 | 1 | 22-0316-300+B | Tip Section, Steel, Black | |
| 4 | 1 | 22-0316-600+B | Tip Section, Steel, Black | |
| 4 | 1 | 22-0316-400+B | Tip Section, Steel, Black | |
| 4 | 1 | 22-0316-500+G | Tip Section, Steel, Galvanized | |
| 4 | 1 | 22-0316-300+G | Tip Section, Steel, Galvanized | |
| 4 | 1 | 22-0316-600+G | Tip Section, Steel, Galvanized | |
| 4 | 1 | 22-0316-400+G | Tip Section, Steel, Galvanized | |
| 5 | 1 | 22-0316-501+B* | Tip Section, Steel, w/Cart Stops, Black | |
| 5 | 1 | 22-0316-301+B | Tip Section, Steel, w/Cart Stops, Black | |
| 5 | 1 | 22-0316-601+B | Tip Section, Steel, w/Cart Stops, Black | |
| 5 | 1 | 22-0316-401+B | Tip Section, Steel, w/Cart Stops, Black | |
| 5 | 1 | 22-0316-501+G* | Tip Section, Steel, w/Cart Stops, Galvanized | |
| 5 | 1 | 22-0316-301+G | Tip Section, Steel, w/Cart Stops, Galvanized | |
| 5 | 1 | 22-0316-601+G | Tip Section, Steel, w/Cart Stops, Galvanized | |
| 5 | 1 | 22-0316-401+G | Tip Section, Steel, w/Cart Stops, Galvanized | |
| 6 | 1 | 99-0315-310* | Kit; Torsion Bar, Stl Stl Platform | |
| 6 | 1 | 99-0315-310 | Kit; Torsion Bar, Stl Stl Platform | |
| 6 | 1 | 99-0315-310 | Kit; Torsion Bar, Stl Stl Platform | |
| 6 | 1 | 99-0315-315 | Kit; Torsion Bar, Stl Stl Platform | |
| 6.1 | 1 | 99-7517-010 | Torsion Bar, ø12mm X 63mm | |
| 6.2 | 1 | EK2740 | Washer, Split Lock, M10 | |
| 6.3 | 1 | EM712 | Nut, Ring, M10 | |
| 6.4 | 1 | ES3462 | Hex Head Cap Screw, M10x1.5x25mm | |
| 6.5 | 2 | EK3216 | Washer, Flat, 3/8", USS, Zinc | |
| 7 | 1 | 99-0315-330 | Kit; Hardware Stl-Stl Platform | |
| 7.1 | 2 | EK3575 | Washer, Flat,1" | |
| 7.2 | 2 | 60-1007-301 | Adjustment Torsion Spring | |
| 7.3 | 10 | EK3215 | Washer, M24, Zinc | |
| 7.4 | 2 | EM 706 | Nylock, M24x3.0 | |
| 7.5 | 2 | EM-711 | Nut, Safety, Flanged, M14x1.5, Cl.10.9, Galv | |
| 7.6 | 2 | ES 693 | Hex Head Cap Screw, M24x3.0x80mm | |
| 7.7 | 2 | ES1588 | Hex Head Cap Screw, Flanged, M14x1.5x45 | |
| 8 | 1 | 99-0315-320 | Kit, Pin, Stl-Stl Platform | |
| 8.1 | 4 | 21-0314-093 | Pin, ø3/4”X7.25” | |
| 8.2 | 4 | 20-1007-101 | Plate, Platform Hinge | |
| 8.3 | 2 | ES3724 | Hex Head Cap Screw;5/16-18x1" | |
| 8.4 | 2 | ES3746 | Bolt, Thread-Rolling, 5/16”-18x0.75" | |
| 8.5 | 2 | EM 710 | Nut, Nylock, 5/16”-18 | |
| 9 | 1 | 99-0315-500 | Safety Chain Kit, Single Cylinder | |
| 10 | 1 | 21-0314-010 | Plate Pin Alignment |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

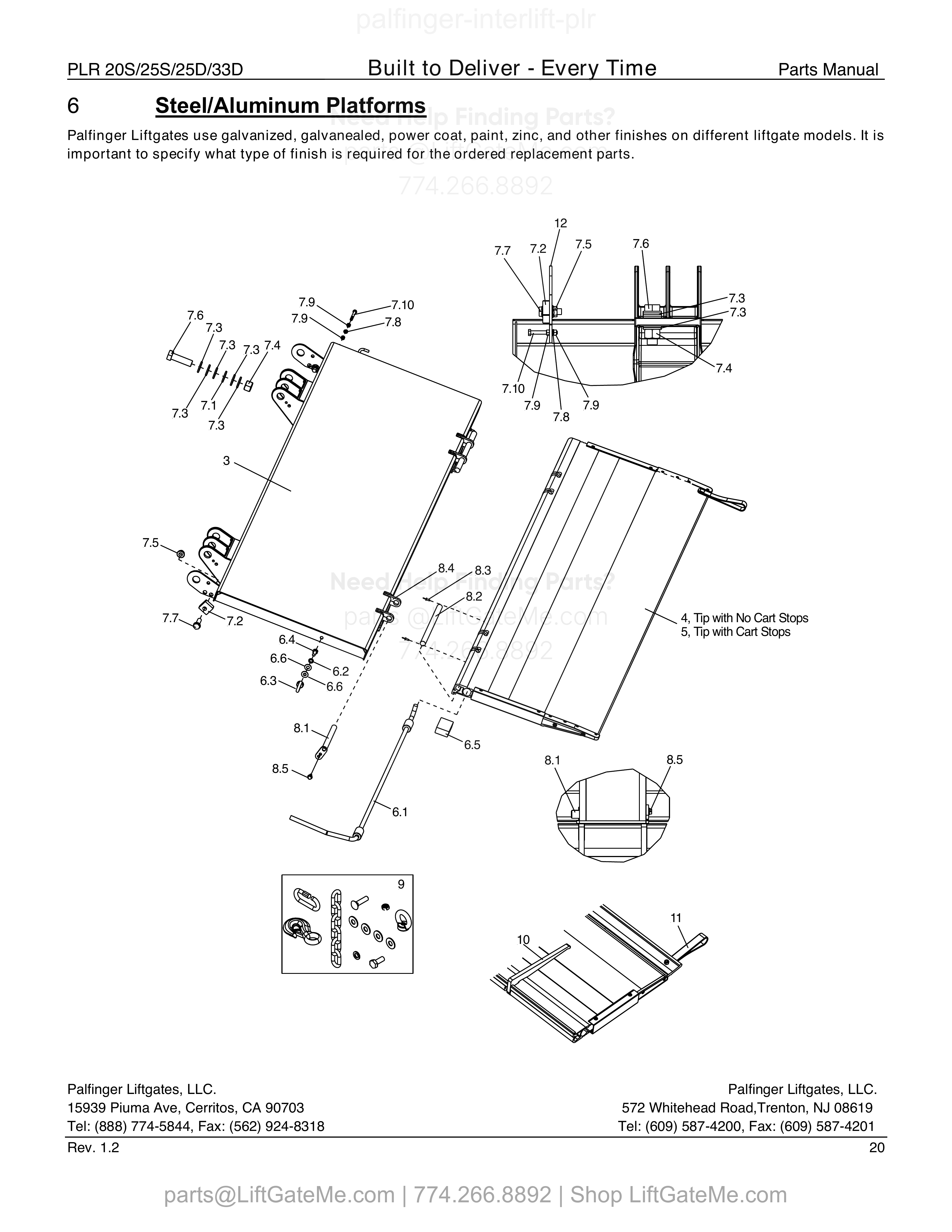

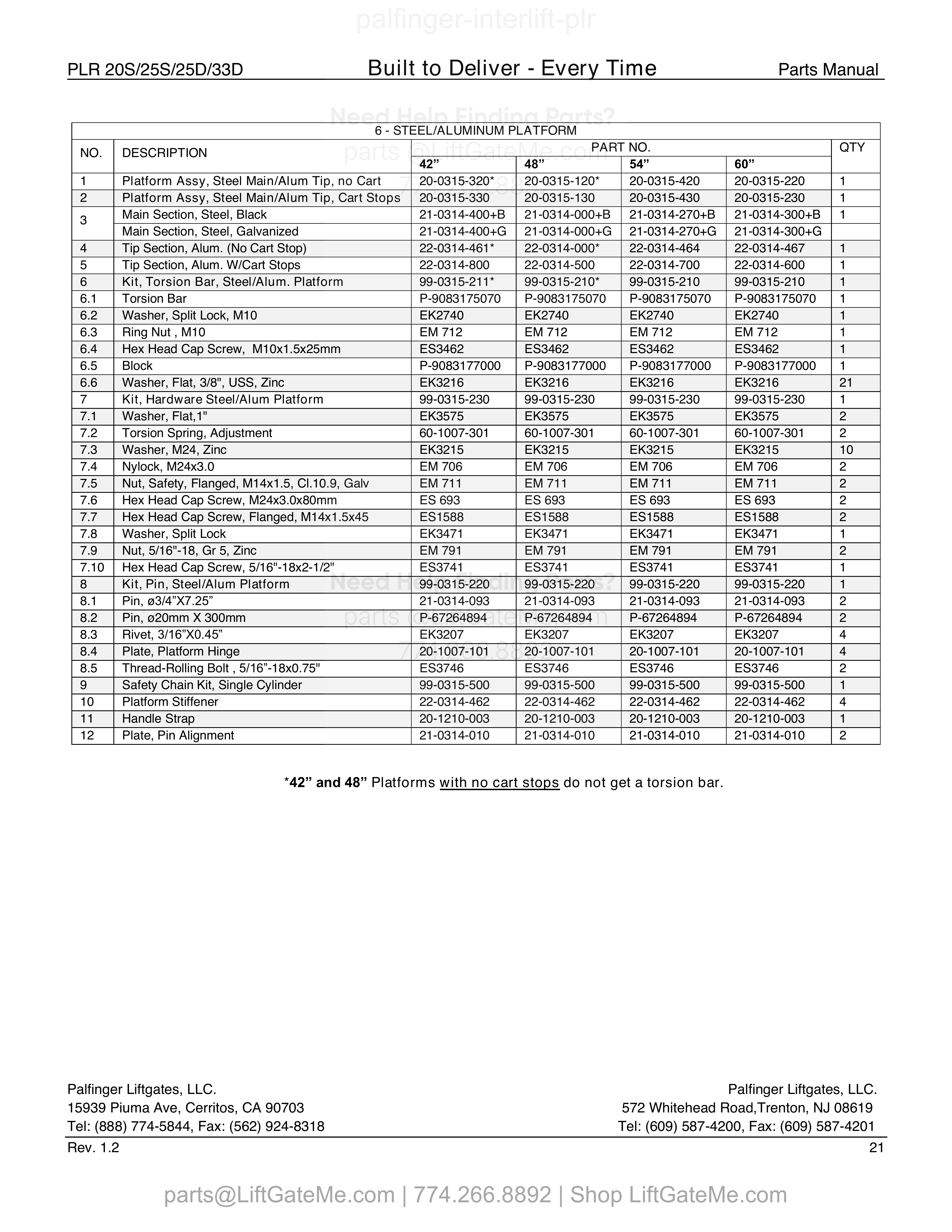

6 - STEEL/ALUMINUM PLATFORM
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20-0315-320* | Platform Assy, Steel Main/Alum Tip, no Cart | |
| 1 | 1 | 20-0315-120* | Platform Assy, Steel Main/Alum Tip, no Cart | |
| 1 | 1 | 20-0315-420 | Platform Assy, Steel Main/Alum Tip, no Cart | |
| 1 | 1 | 20-0315-220 | Platform Assy, Steel Main/Alum Tip, no Cart | |
| 2 | 1 | 20-0315-330 | Platform Assy, Steel Main/Alum Tip, Cart Stops | |
| 2 | 1 | 20-0315-130 | Platform Assy, Steel Main/Alum Tip, Cart Stops | |
| 2 | 1 | 20-0315-430 | Platform Assy, Steel Main/Alum Tip, Cart Stops | |
| 2 | 1 | 20-0315-230 | Platform Assy, Steel Main/Alum Tip, Cart Stops | |
| 3 | 1 | 21-0314-400+B | Main Section, Steel, Black | |
| 3 | 1 | 21-0314-000+B | Main Section, Steel, Black | |
| 3 | 1 | 21-0314-270+B | Main Section, Steel, Black | |
| 3 | 1 | 21-0314-300+B | Main Section, Steel, Black | |
| 3 | 1 | 21-0314-400+G | Main Section, Steel, Galvanized | |
| 3 | 1 | 21-0314-000+G | Main Section, Steel, Galvanized | |
| 3 | 1 | 21-0314-270+G | Main Section, Steel, Galvanized | |
| 3 | 1 | 21-0314-300+G | Main Section, Steel, Galvanized | |
| 4 | 1 | 22-0314-461* | Tip Section, Alum. (No Cart Stop) | |
| 4 | 1 | 22-0314-000* | Tip Section, Alum. (No Cart Stop) | |
| 4 | 1 | 22-0314-464 | Tip Section, Alum. (No Cart Stop) | |
| 4 | 1 | 22-0314-467 | Tip Section, Alum. (No Cart Stop) | |
| 5 | 1 | 22-0314-800 | Tip Section, Alum. W/Cart Stops | |
| 5 | 1 | 22-0314-500 | Tip Section, Alum. W/Cart Stops | |
| 5 | 1 | 22-0314-700 | Tip Section, Alum. W/Cart Stops | |
| 5 | 1 | 22-0314-600 | Tip Section, Alum. W/Cart Stops | |
| 6 | 1 | 99-0315-211* | Kit, Torsion Bar, Steel/Alum. Platform | |
| 6 | 1 | 99-0315-210* | Kit, Torsion Bar, Steel/Alum. Platform | |
| 6 | 1 | 99-0315-210 | Kit, Torsion Bar, Steel/Alum. Platform | |
| 6 | 1 | 99-0315-210 | Kit, Torsion Bar, Steel/Alum. Platform | |
| 6.1 | 1 | P-9083175070 | Torsion Bar | |
| 6.2 | 1 | EK2740 | Washer, Split Lock, M10 | |
| 6.3 | 1 | EM 712 | Ring Nut , M10 | |
| 6.4 | 1 | ES3462 | Hex Head Cap Screw, M10x1.5x25mm | |
| 6.5 | 1 | P-9083177000 | Block | |
| 6.6 | 21 | EK3216 | Washer, Flat, 3/8", USS, Zinc | |
| 7 | 1 | 99-0315-230 | Kit, Hardware Steel/Alum Platform | |
| 7.1 | 2 | EK3575 | Washer, Flat,1" | |
| 7.2 | 2 | 60-1007-301 | Torsion Spring, Adjustment | |
| 7.3 | 10 | EK3215 | Washer, M24, Zinc | |
| 7.4 | 2 | EM 706 | Nylock, M24x3.0 | |
| 7.5 | 2 | EM 711 | Nut, Safety, Flanged, M14x1.5, Cl.10.9, Galv | |
| 7.6 | 2 | ES 693 | Hex Head Cap Screw, M24x3.0x80mm | |
| 7.7 | 2 | ES1588 | Hex Head Cap Screw, Flanged, M14x1.5x45 | |
| 7.8 | 1 | EK3471 | Washer, Split Lock | |
| 7.9 | 2 | EM 791 | Nut, 5/16"-18, Gr 5, Zinc | |
| 7.10 | 1 | ES3741 | Hex Head Cap Screw, 5/16"-18x2-1/2" | |
| 8 | 1 | 99-0315-220 | Kit, Pin, Steel/Alum Platform | |
| 8.1 | 2 | 21-0314-093 | Pin, ø3/4”X7.25” | |
| 8.2 | 2 | P-67264894 | Pin, ø20mm X 300mm | |
| 8.3 | 4 | EK3207 | Rivet, 3/16”X0.45” | |
| 8.4 | 4 | 20-1007-101 | Plate, Platform Hinge | |
| 8.5 | 2 | ES3746 | Thread-Rolling Bolt , 5/16”-18x0.75" | |
| 9 | 1 | 99-0315-500 | Safety Chain Kit, Single Cylinder | |
| 10 | 4 | 22-0314-462 | Platform Stiffener | |
| 11 | 1 | 20-1210-003 | Handle Strap | |
| 12 | 2 | 21-0314-010 | Plate, Pin Alignment |

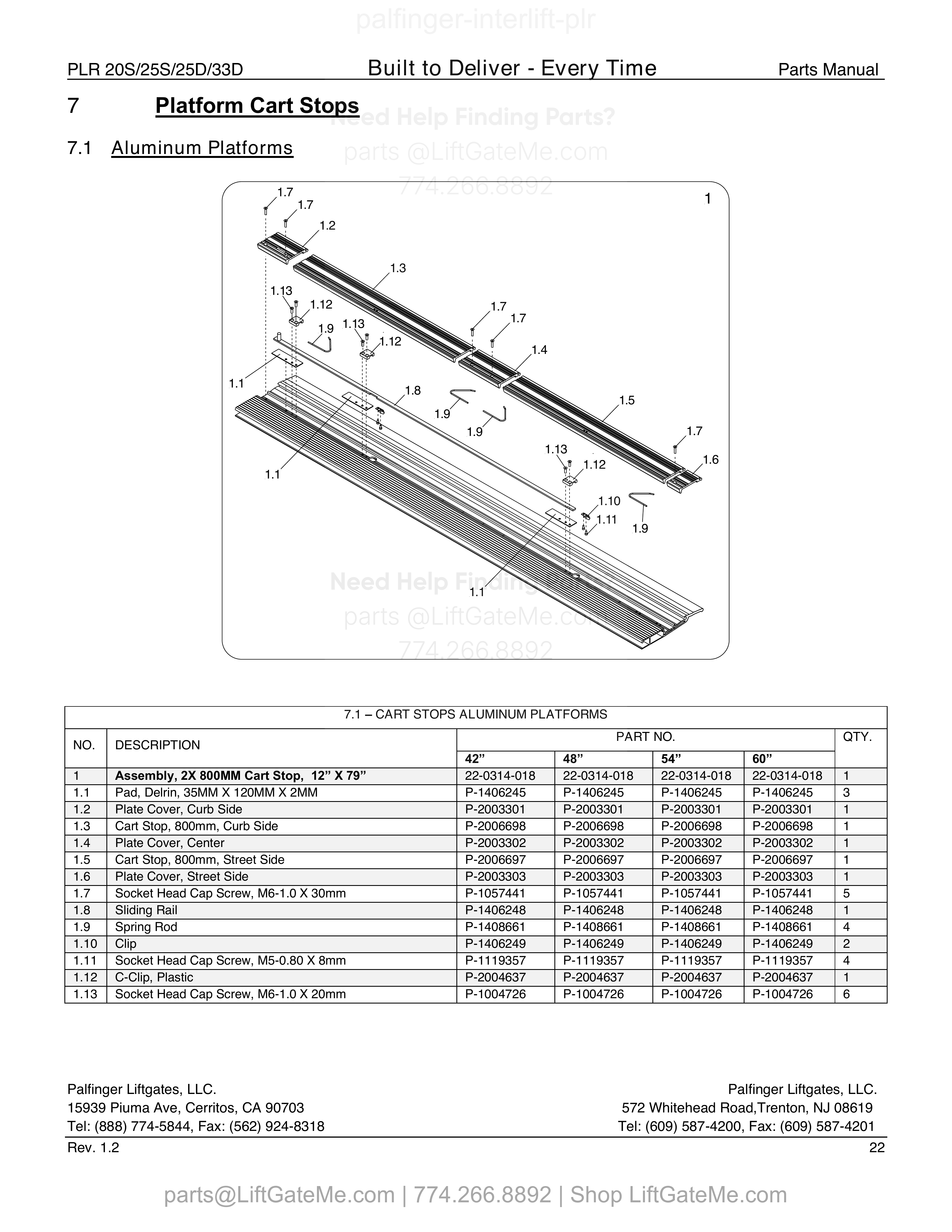

7.1 - Cart Stops Aluminum Platforms
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22-0314-018 | Assembly, 2X 800MM Cart Stop, 12” X 79” | |
| 1.1 | 3 | P-1406245 | Pad, Delrin, 35MM X 120MM X 2MM | |
| 1.2 | 1 | P-2003301 | Plate Cover, Curb Side | |
| 1.3 | 1 | P-2006698 | Cart Stop, 800mm, Curb Side | |
| 1.4 | 1 | P-2003302 | Plate Cover, Center | |
| 1.5 | 1 | P-2006697 | Cart Stop, 800mm, Street Side | |
| 1.6 | 1 | P-2003303 | Plate Cover, Street Side | |
| 1.7 | 5 | P-1057441 | Socket Head Cap Screw, M6-1.0 X 30mm | |
| 1.8 | 1 | P-1406248 | Sliding Rail | |
| 1.9 | 4 | P-1408661 | Spring Rod | |
| 1.10 | 2 | P-1406249 | Clip | |
| 1.11 | 4 | P-1119357 | Socket Head Cap Screw, M5-0.80 X 8mm | |
| 1.12 | 1 | P-2004637 | C-Clip, Plastic | |
| 1.13 | 6 | P-1004726 | Socket Head Cap Screw, M6-1.0 X 20mm |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

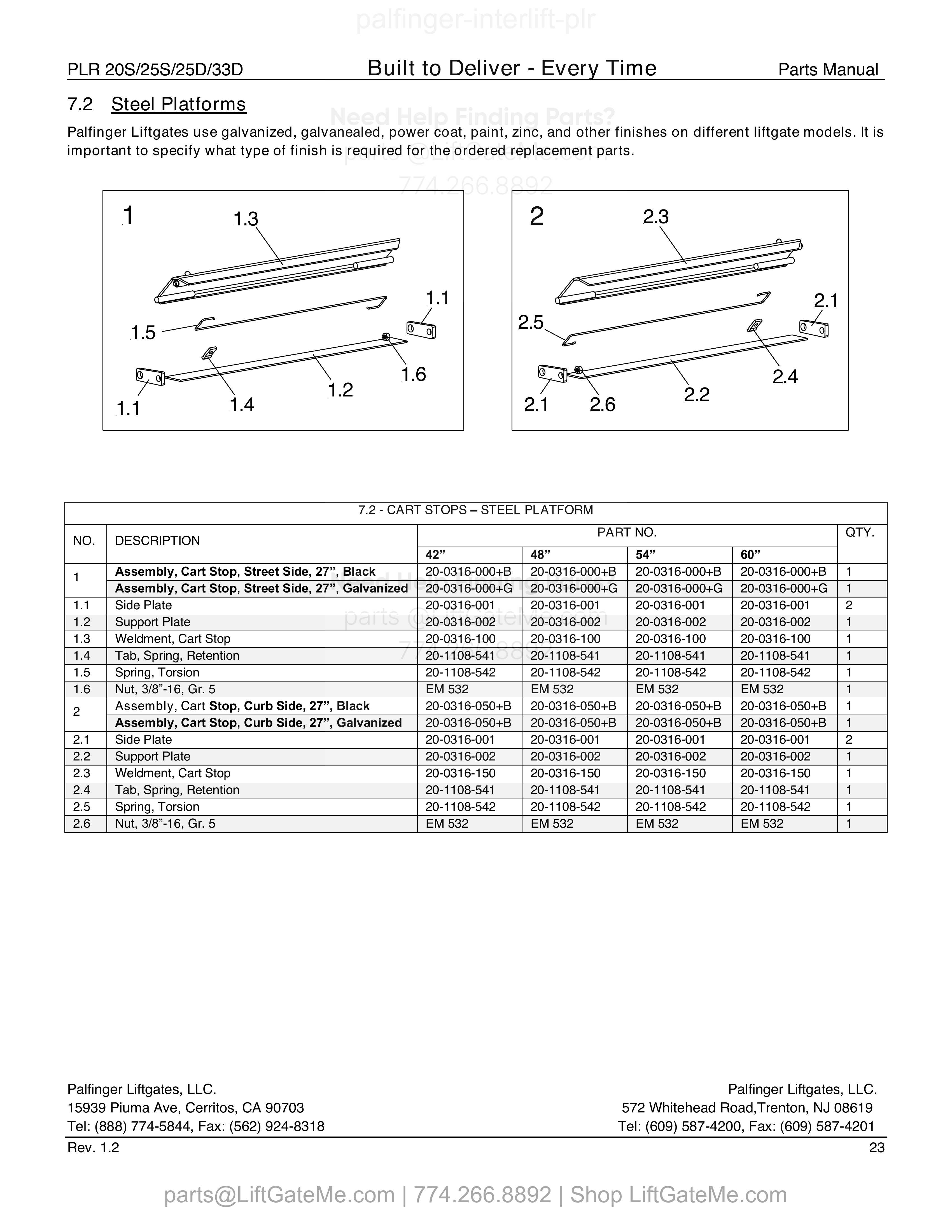

7.2 - Cart Stops – Steel Platform
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20-0316-000+B | Assembly, Cart Stop, Street Side, 27”, Black | |
| 1 | 1 | 20-0316-000+G | Assembly, Cart Stop, Street Side, 27”, Galvanized | |
| 1.1 | 2 | 20-0316-001 | Side Plate | |
| 1.2 | 1 | 20-0316-002 | Support Plate | |
| 1.3 | 1 | 20-0316-100 | Weldment, Cart Stop | |
| 1.4 | 1 | 20-1108-541 | Tab, Spring, Retention | |
| 1.5 | 1 | 20-1108-542 | Spring, Torsion | |
| 1.6 | 1 | EM 532 | Nut, 3/8”-16, Gr. 5 | |
| 2 | 1 | 20-0316-050+B | Assembly, Cart Stop, Curb Side, 27”, Black | |
| 2 | 1 | 20-0316-050+B | Assembly, Cart Stop, Curb Side, 27”, Galvanized | |
| 2.1 | 2 | 20-0316-001 | Side Plate | |
| 2.2 | 1 | 20-0316-002 | Support Plate | |
| 2.3 | 1 | 20-0316-150 | Weldment, Cart Stop | |
| 2.4 | 1 | 20-1108-541 | Tab, Spring, Retention | |
| 2.5 | 1 | 20-1108-542 | Spring, Torsion | |
| 2.6 | 1 | EM 532 | Nut, 3/8”-16, Gr. 5 |

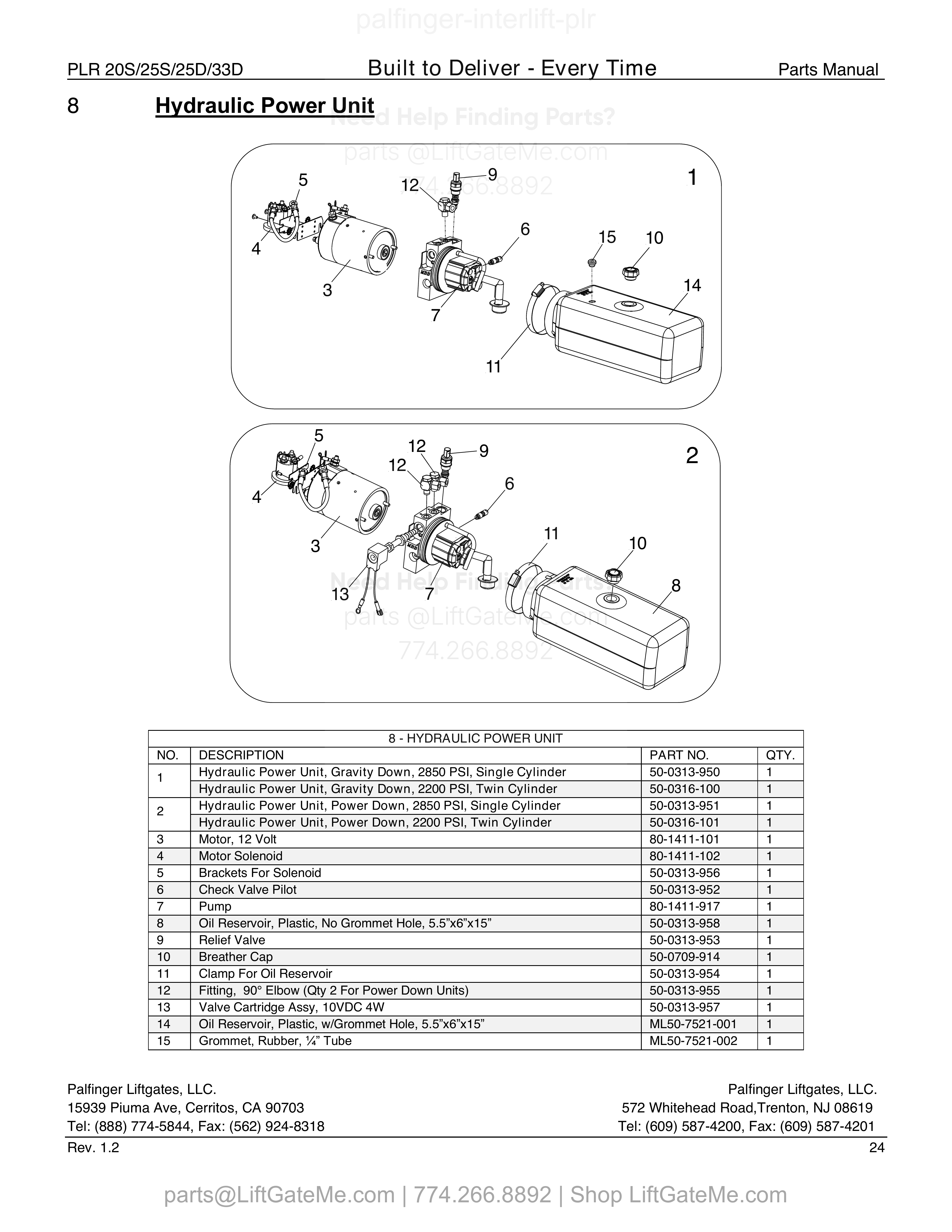

8 - Hydraulic Power Unit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 50-0313-950 | Hydraulic Power Unit, Gravity Down, 2850 PSI, Single Cylinder | |
| 1 | 1 | 50-0316-100 | Hydraulic Power Unit, Gravity Down, 2200 PSI, Twin Cylinder | |
| 2 | 1 | 50-0313-951 | Hydraulic Power Unit, Power Down, 2850 PSI, Single Cylinder | |
| 2 | 1 | 50-0316-101 | Hydraulic Power Unit, Power Down, 2200 PSI, Twin Cylinder | |
| 3 | 1 | 80-1411-101 | Motor, 12 Volt | |
| 4 | 1 | 80-1411-102 | Motor Solenoid | |
| 5 | 1 | 50-0313-956 | Brackets For Solenoid | |
| 6 | 1 | 50-0313-952 | Check Valve Pilot | |
| 7 | 1 | 80-1411-917 | Pump | |
| 8 | 1 | 50-0313-958 | Oil Reservoir, Plastic, No Grommet Hole, 5.5”x6”x15” | |
| 9 | 1 | 50-0313-953 | Relief Valve | |
| 10 | 1 | 50-0709-914 | Breather Cap | |
| 11 | 1 | 50-0313-954 | Clamp For Oil Reservoir | |
| 12 | 1 | 50-0313-955 | Fitting, 90° Elbow (Qty 2 For Power Down Units) | |
| 13 | 1 | 50-0313-957 | Valve Cartridge Assy, 10VDC 4W | |
| 14 | 1 | ML50-7521-001 | Oil Reservoir, Plastic, w/Grommet Hole, 5.5”x6”x15” | |
| 15 | 1 | ML50-7521-002 | Grommet, Rubber, ¼” Tube |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

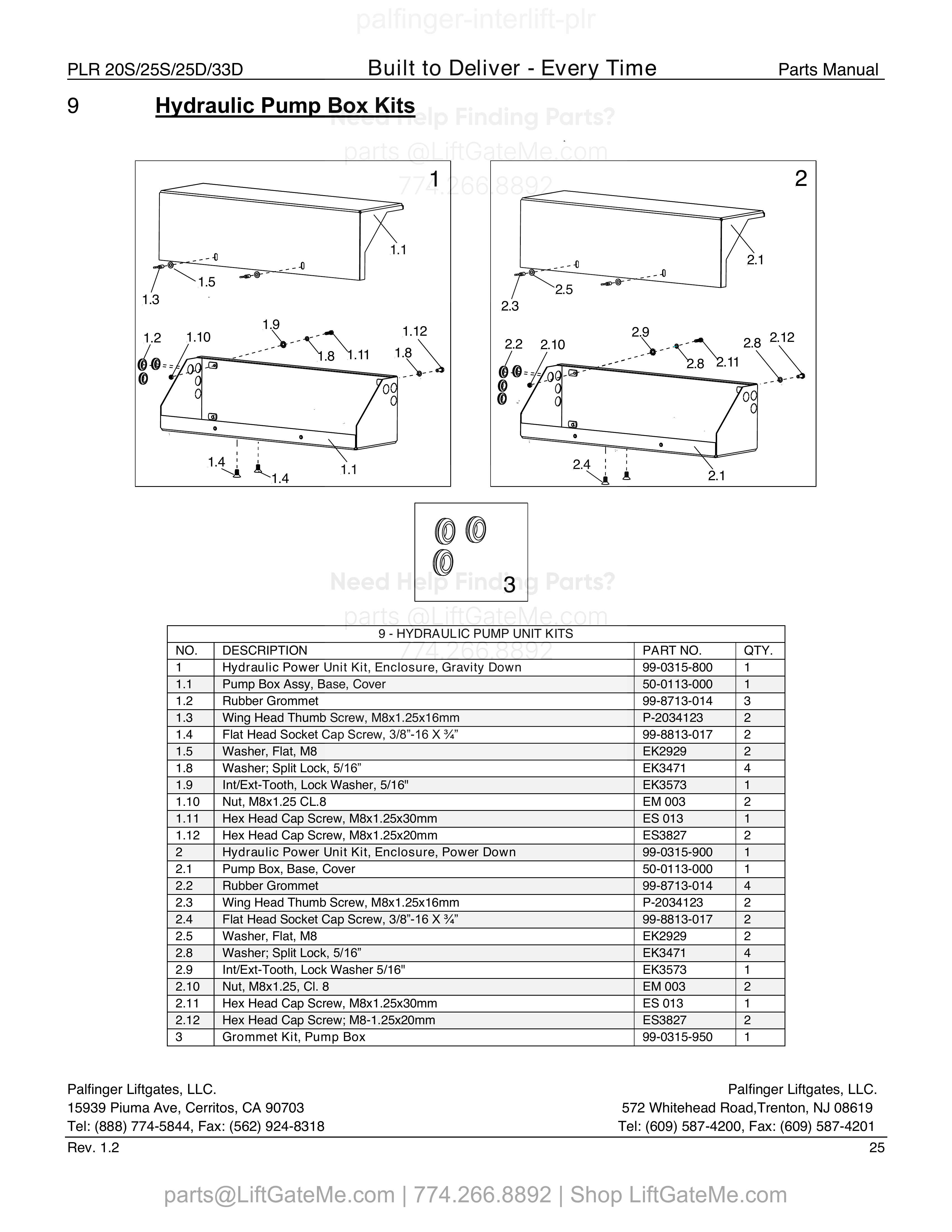

9 - Hydraulic Pump Unit Kits
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 99-0315-800 | Hydraulic Power Unit Kit, Enclosure, Gravity Down | |
| 1.1 | 1 | 50-0113-000 | Pump Box Assy, Base, Cover | |
| 1.2 | 3 | 99-8713-014 | Rubber Grommet | |
| 1.3 | 2 | P-2034123 | Wing Head Thumb Screw, M8x1.25x16mm | |
| 1.4 | 2 | 99-8813-017 | Flat Head Socket Cap Screw, 3/8”-16 X ¾” | |
| 1.5 | 2 | EK2929 | Washer, Flat, M8 | |
| 1.8 | 4 | EK3471 | Washer; Split Lock, 5/16” | |
| 1.9 | 1 | EK3573 | Int/Ext-Tooth, Lock Washer, 5/16" | |
| 1.10 | 2 | EM 003 | Nut, M8x1.25 CL.8 | |
| 1.11 | 1 | ES 013 | Hex Head Cap Screw, M8x1.25x30mm | |
| 1.12 | 2 | ES3827 | Hex Head Cap Screw, M8x1.25x20mm | |
| 2 | 1 | 99-0315-900 | Hydraulic Power Unit Kit, Enclosure, Power Down | |
| 2.1 | 1 | 50-0113-000 | Pump Box, Base, Cover | |
| 2.2 | 4 | 99-8713-014 | Rubber Grommet | |
| 2.3 | 2 | P-2034123 | Wing Head Thumb Screw, M8x1.25x16mm | |
| 2.4 | 2 | 99-8813-017 | Flat Head Socket Cap Screw, 3/8”-16 X ¾” | |
| 2.5 | 2 | EK2929 | Washer, Flat, M8 | |
| 2.8 | 4 | EK3471 | Washer; Split Lock, 5/16” | |
| 2.9 | 1 | EK3573 | Int/Ext-Tooth, Lock Washer 5/16" | |
| 2.10 | 2 | EM 003 | Nut, M8x1.25, Cl. 8 | |
| 2.11 | 1 | ES 013 | Hex Head Cap Screw, M8x1.25x30mm | |
| 2.12 | 2 | ES3827 | Hex Head Cap Screw; M8-1.25x20mm | |
| 3 | 1 | 99-0315-950 | Grommet Kit, Pump Box |

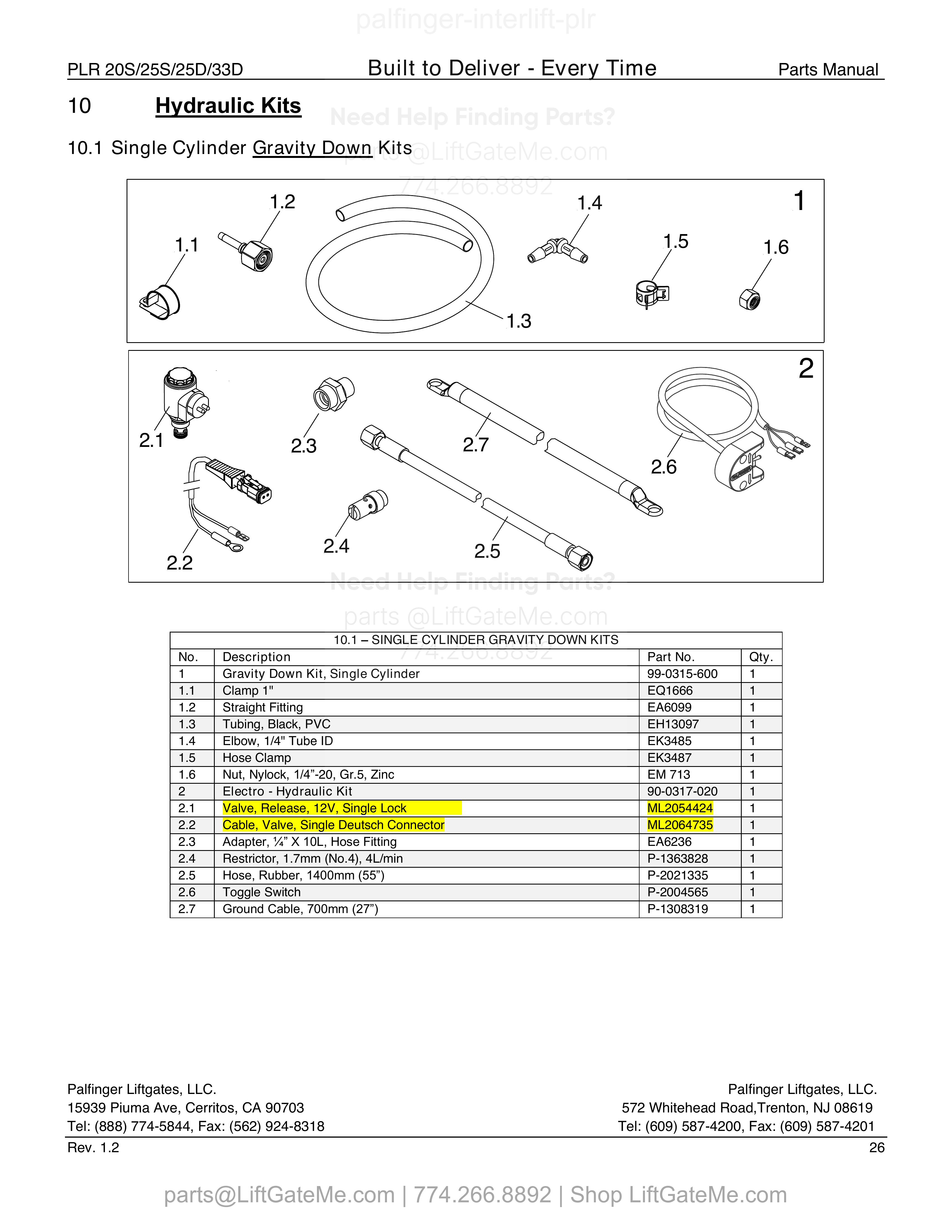

10.1 Single Cylinder Gravity Down Kits
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 99-0315-600 | Gravity Down Kit, Single Cylinder | |
| 1.1 | 1 | EQ1666 | Clamp 1" | |
| 1.2 | 1 | EA6099 | Straight Fitting | |
| 1.3 | 1 | EH13097 | Tubing, Black, PVC | |
| 1.4 | 1 | EK3485 | Elbow, 1/4" Tube ID | |
| 1.5 | 1 | EK3487 | Hose Clamp | |
| 1.6 | 1 | EM 713 | Nut, Nylock, 1/4”-20, Gr.5, Zinc | |
| 2 | 1 | 90-0317-020 | Electro - Hydraulic Kit | |
| 2.1 | 1 | ML2054424 | Valve, Release, 12V, Single Lock | |
| 2.2 | 1 | ML2064735 | Cable, Valve, Single Deutsch Connector | |
| 2.3 | 1 | EA6236 | Adapter, ¼” X 10L, Hose Fitting | |
| 2.4 | 1 | P-1363828 | Restrictor, 1.7mm (No.4), 4L/min | |
| 2.5 | 1 | P-2021335 | Hose, Rubber, 1400mm (55”) | |
| 2.6 | 1 | P-2004565 | Toggle Switch | |
| 2.7 | 1 | P-1308319 | Ground Cable, 700mm (27”) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

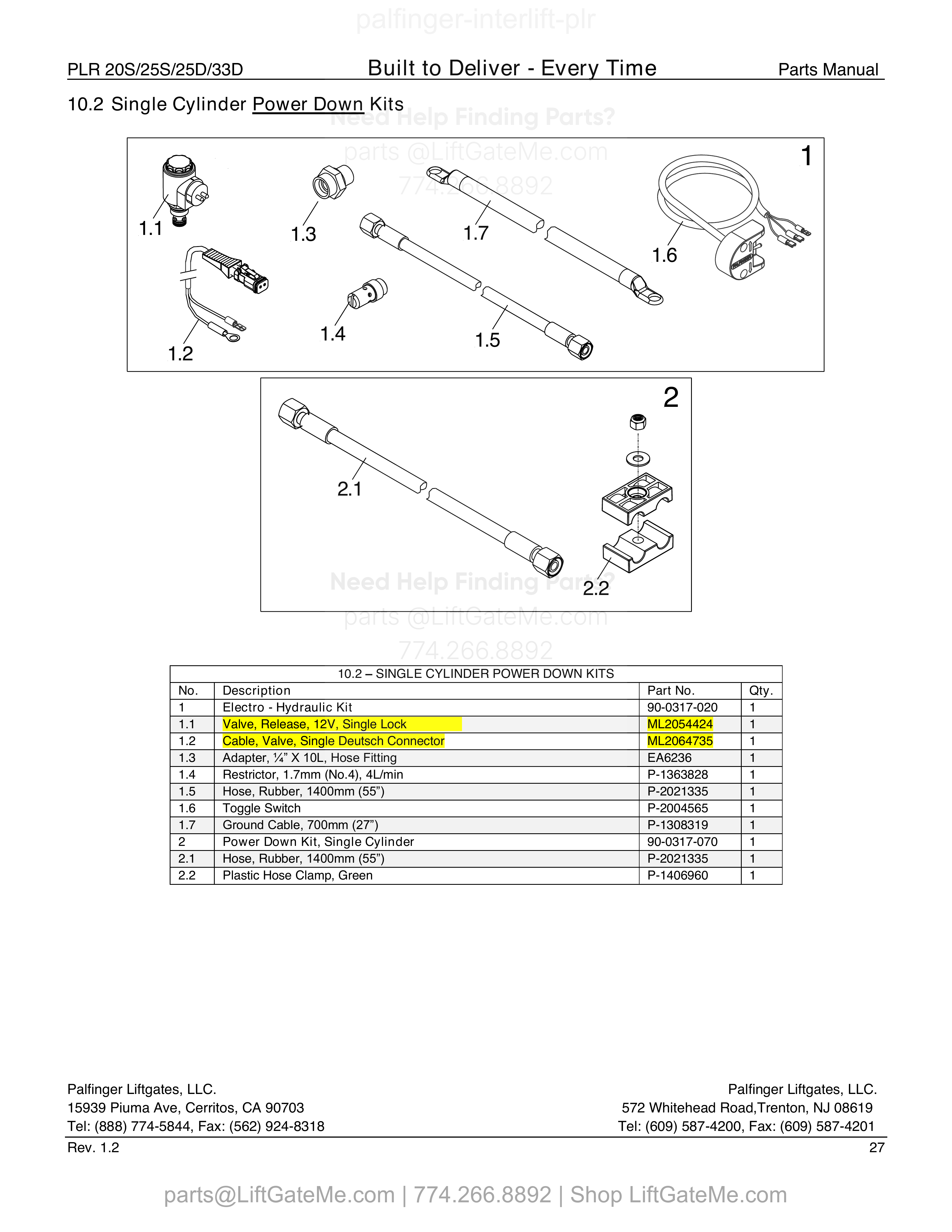

10.2 Single Cylinder Power Down Kits
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90-0317-020 | Electro - Hydraulic Kit | |
| 1.1 | 1 | ML2054424 | Valve, Release, 12V, Single Lock | |
| 1.2 | 1 | ML2064735 | Cable, Valve, Single Deutsch Connector | |
| 1.3 | 1 | EA6236 | Adapter, ¼” X 10L, Hose Fitting | |
| 1.4 | 1 | P-1363828 | Restrictor, 1.7mm (No.4), 4L/min | |
| 1.5 | 1 | P-2021335 | Hose, Rubber, 1400mm (55”) | |
| 1.6 | 1 | P-2004565 | Toggle Switch | |
| 1.7 | 1 | P-1308319 | Ground Cable, 700mm (27”) | |
| 2 | 1 | 90-0317-070 | Power Down Kit, Single Cylinder | |
| 2.1 | 1 | P-2021335 | Hose, Rubber, 1400mm (55”) | |
| 2.2 | 1 | P-1406960 | Plastic Hose Clamp, Green |

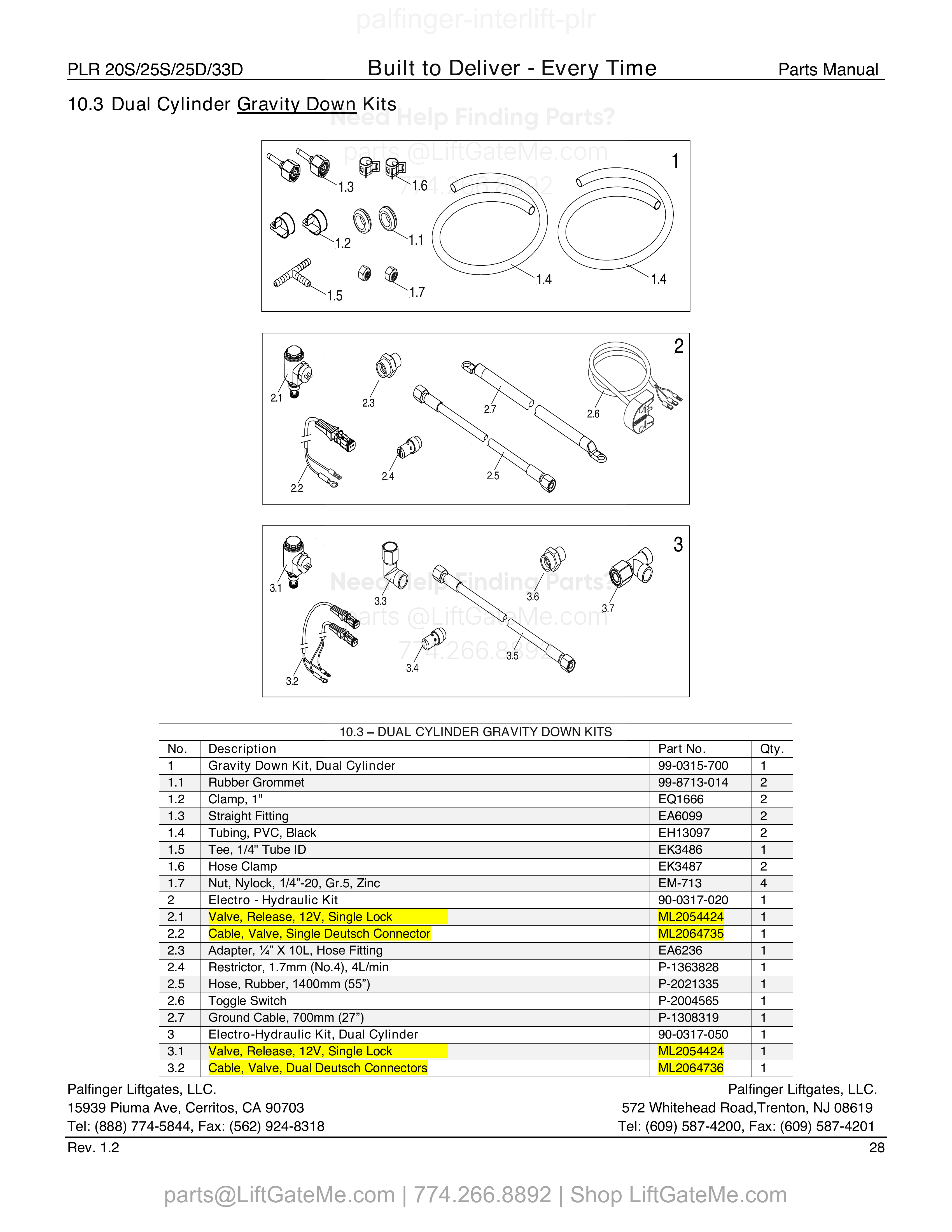

10.3 Dual Cylinder Gravity Down Kits
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 99-0315-700 | Gravity Down Kit, Dual Cylinder | |
| 1.1 | 2 | 99-8713-014 | Rubber Grommet | |
| 1.2 | 2 | EQ1666 | Clamp, 1" | |
| 1.3 | 2 | EA6099 | Straight Fitting | |
| 1.4 | 2 | EH13097 | Tubing, PVC, Black | |
| 1.5 | 1 | EK3486 | Tee, 1/4" Tube ID | |
| 1.6 | 2 | EK3487 | Hose Clamp | |
| 1.7 | 4 | EM-713 | Nut, Nylock, 1/4”-20, Gr.5, Zinc | |
| 2 | 1 | 90-0317-020 | Electro - Hydraulic Kit | |
| 2.1 | 1 | ML2054424 | Valve, Release, 12V, Single Lock | |
| 2.2 | 1 | ML2064735 | Cable, Valve, Single Deutsch Connector | |
| 2.3 | 1 | EA6236 | Adapter, ¼” X 10L, Hose Fitting | |
| 2.4 | 1 | P-1363828 | Restrictor, 1.7mm (No.4), 4L/min | |
| 2.5 | 1 | P-2021335 | Hose, Rubber, 1400mm (55”) | |
| 2.6 | 1 | P-2004565 | Toggle Switch | |
| 2.7 | 1 | P-1308319 | Ground Cable, 700mm (27”) | |
| 3 | 1 | 90-0317-050 | Electro-Hydraulic Kit, Dual Cylinder | |
| 3.1 | 1 | ML2054424 | Valve, Release, 12V, Single Lock | |
| 3.2 | 1 | ML2064736 | Cable, Valve, Dual Deutsch Connectors |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

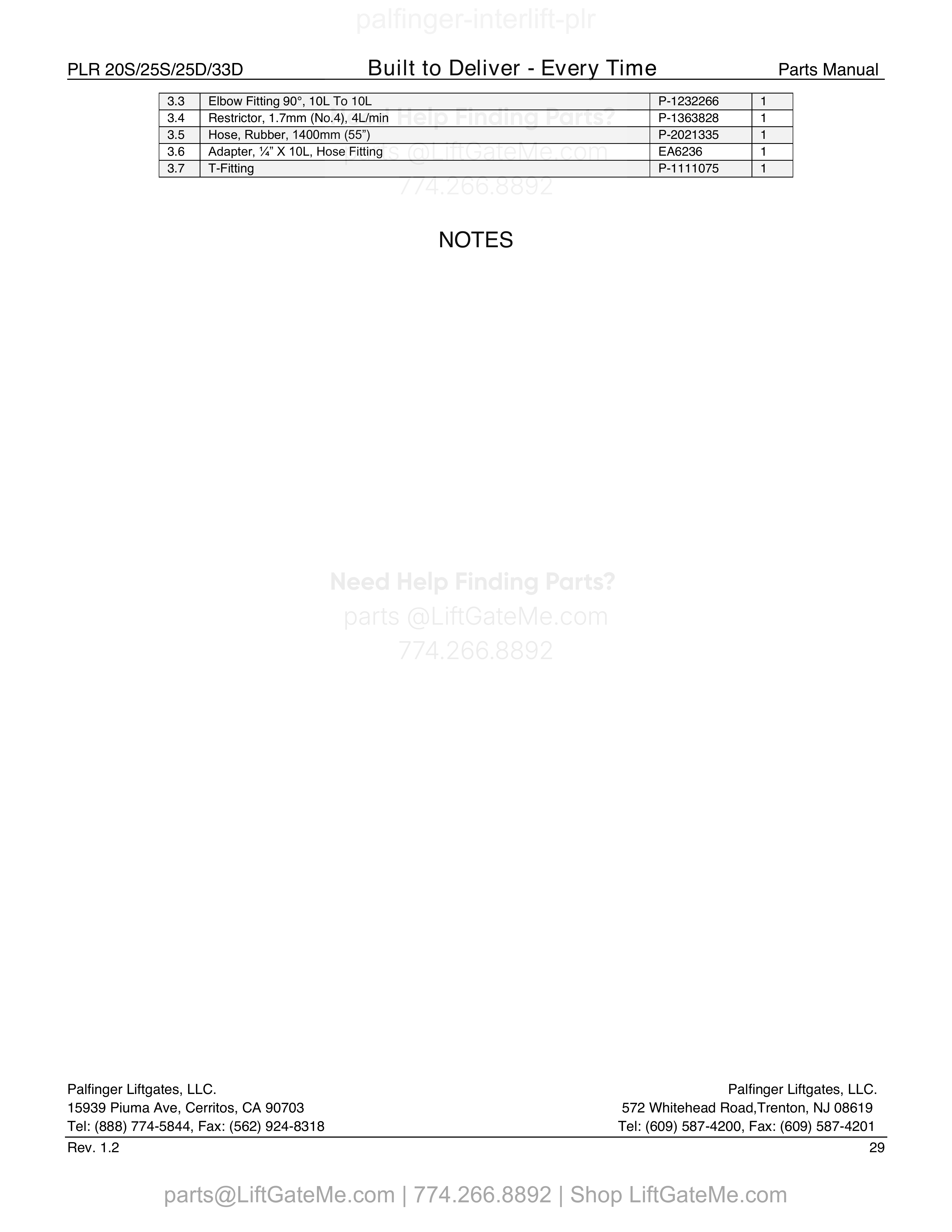

10.3 Dual Cylinder Gravity Down Kits (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 3.3 | 1 | P-1232266 | Elbow Fitting 90°, 10L To 10L | |
| 3.4 | 1 | P-1363828 | Restrictor, 1.7mm (No.4), 4L/min | |
| 3.5 | 1 | P-2021335 | Hose, Rubber, 1400mm (55”) | |
| 3.6 | 1 | EA6236 | Adapter, ¼” X 10L, Hose Fitting | |
| 3.7 | 1 | P-1111075 | T-Fitting |

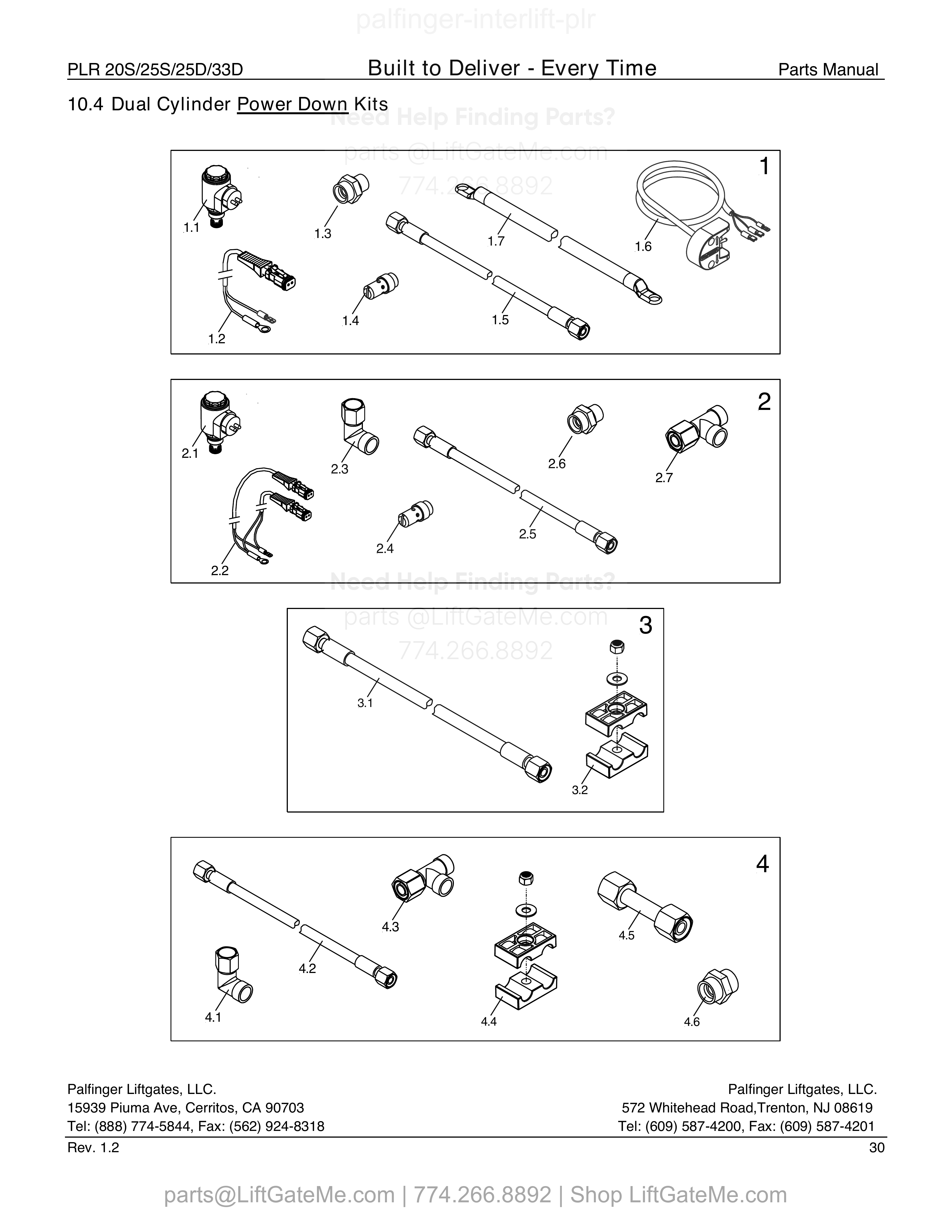

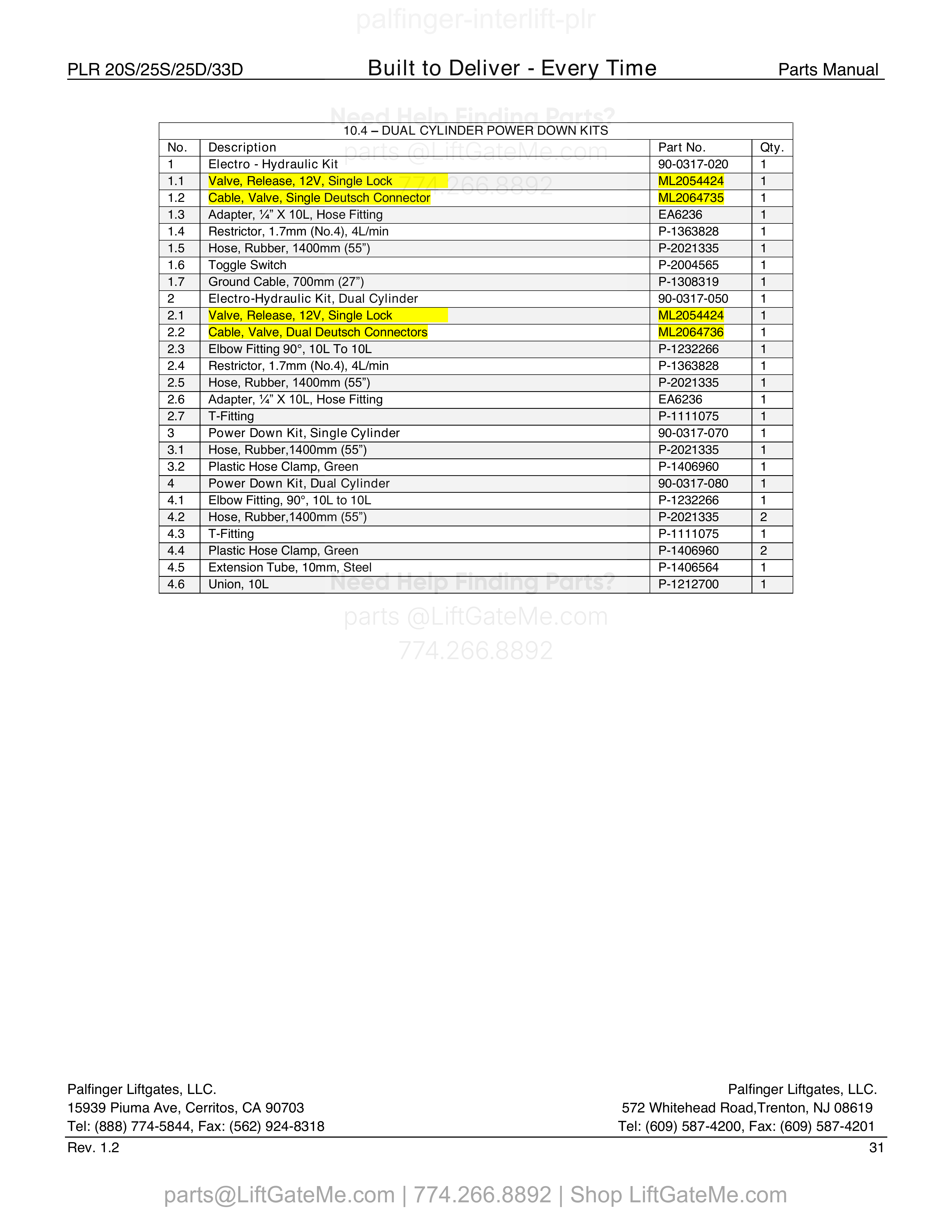

10.4 Dual Cylinder Power Down Kits
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90-0317-020 | Electro - Hydraulic Kit | |
| 1.1 | 1 | ML2054424 | Valve, Release, 12V, Single Lock | |
| 1.2 | 1 | ML2064735 | Cable, Valve, Single Deutsch Connector | |
| 1.3 | 1 | EA6236 | Adapter, ¼” X 10L, Hose Fitting | |
| 1.4 | 1 | P-1363828 | Restrictor, 1.7mm (No.4), 4L/min | |
| 1.5 | 1 | P-2021335 | Hose, Rubber, 1400mm (55”) | |
| 1.6 | 1 | P-2004565 | Toggle Switch | |
| 1.7 | 1 | P-1308319 | Ground Cable, 700mm (27”) | |
| 2 | 1 | 90-0317-050 | Electro-Hydraulic Kit, Dual Cylinder | |
| 2.1 | 1 | ML2054424 | Valve, Release, 12V, Single Lock | |
| 2.2 | 1 | ML2064736 | Cable, Valve, Dual Deutsch Connectors | |
| 2.3 | 1 | P-1232266 | Elbow Fitting 90°, 10L To 10L | |
| 2.4 | 1 | P-1363828 | Restrictor, 1.7mm (No.4), 4L/min | |
| 2.5 | 1 | P-2021335 | Hose, Rubber, 1400mm (55”) | |
| 2.6 | 1 | EA6236 | Adapter, ¼” X 10L, Hose Fitting | |
| 2.7 | 1 | P-1111075 | T-Fitting | |
| 3 | 1 | 90-0317-070 | Power Down Kit, Single Cylinder | |
| 3.1 | 1 | P-2021335 | Hose, Rubber,1400mm (55”) | |
| 3.2 | 1 | P-1406960 | Plastic Hose Clamp, Green | |
| 4 | 1 | 90-0317-080 | Power Down Kit, Dual Cylinder | |
| 4.1 | 1 | P-1232266 | Elbow Fitting, 90°, 10L to 10L | |
| 4.2 | 2 | P-2021335 | Hose, Rubber,1400mm (55”) | |
| 4.3 | 1 | P-1111075 | T-Fitting | |
| 4.4 | 2 | P-1406960 | Plastic Hose Clamp, Green | |
| 4.5 | 1 | P-1406564 | Extension Tube, 10mm, Steel | |
| 4.6 | 1 | P-1212700 | Union, 10L |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

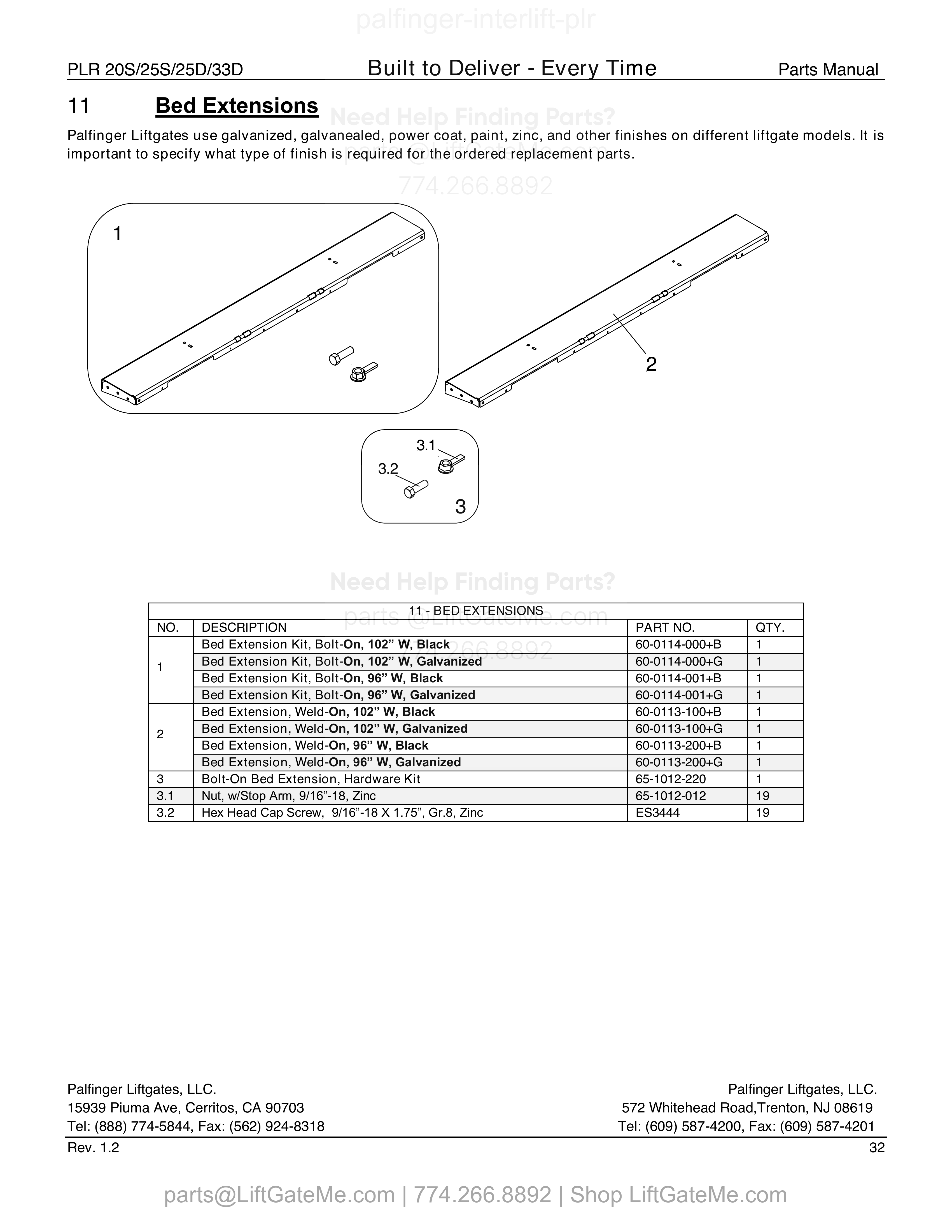

11 Bed Extensions
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 60-0114-000+B | Bed Extension Kit, Bolt-On, 102” W, Black | |
| 1 | 1 | 60-0114-000+G | Bed Extension Kit, Bolt-On, 102” W, Galvanized | |
| 1 | 1 | 60-0114-001+B | Bed Extension Kit, Bolt-On, 96” W, Black | |
| 1 | 1 | 60-0114-001+G | Bed Extension Kit, Bolt-On, 96” W, Galvanized | |
| 2 | 1 | 60-0113-100+B | Bed Extension, Weld-On, 102” W, Black | |
| 2 | 1 | 60-0113-100+G | Bed Extension, Weld-On, 102” W, Galvanized | |
| 2 | 1 | 60-0113-200+B | Bed Extension, Weld-On, 96” W, Black | |
| 2 | 1 | 60-0113-200+G | Bed Extension, Weld-On, 96” W, Galvanized | |
| 3 | 1 | 65-1012-220 | Bolt-On Bed Extension, Hardware Kit | |
| 3.1 | 19 | 65-1012-012 | Nut, w/Stop Arm, 9/16”-18, Zinc | |
| 3.2 | 19 | ES3444 | Hex Head Cap Screw, 9/16”-18 X 1.75”, Gr.8, Zinc |

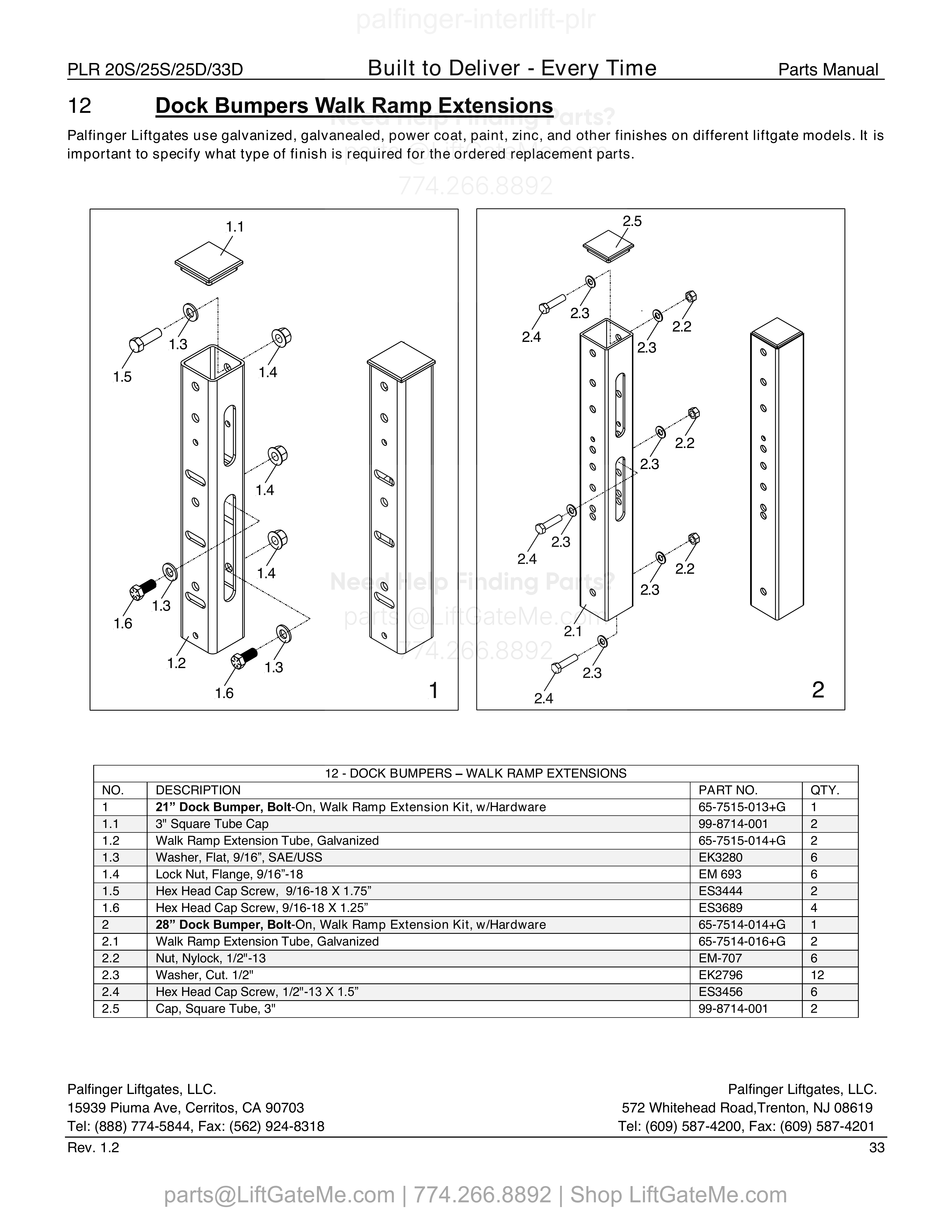

12 Dock Bumpers Walk Ramp Extensions
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 65-7515-013+G | 21” Dock Bumper, Bolt-On, Walk Ramp Extension Kit, w/Hardware | |
| 1.1 | 2 | 99-8714-001 | 3" Square Tube Cap | |
| 1.2 | 2 | 65-7515-014+G | Walk Ramp Extension Tube, Galvanized | |
| 1.3 | 6 | EK3280 | Washer, Flat, 9/16”, SAE/USS | |
| 1.4 | 6 | EM 693 | Lock Nut, Flange, 9/16”-18 | |
| 1.5 | 2 | ES3444 | Hex Head Cap Screw, 9/16-18 X 1.75” | |
| 1.6 | 4 | ES3689 | Hex Head Cap Screw, 9/16-18 X 1.25” | |
| 2 | 1 | 65-7514-014+G | 28” Dock Bumper, Bolt-On, Walk Ramp Extension Kit, w/Hardware | |
| 2.1 | 2 | 65-7514-016+G | Walk Ramp Extension Tube, Galvanized | |
| 2.2 | 6 | EM-707 | Nut, Nylock, 1/2"-13 | |
| 2.3 | 12 | EK2796 | Washer, Cut. 1/2" | |
| 2.4 | 6 | ES3456 | Hex Head Cap Screw, 1/2"-13 X 1.5” | |
| 2.5 | 2 | 99-8714-001 | Cap, Square Tube, 3" |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

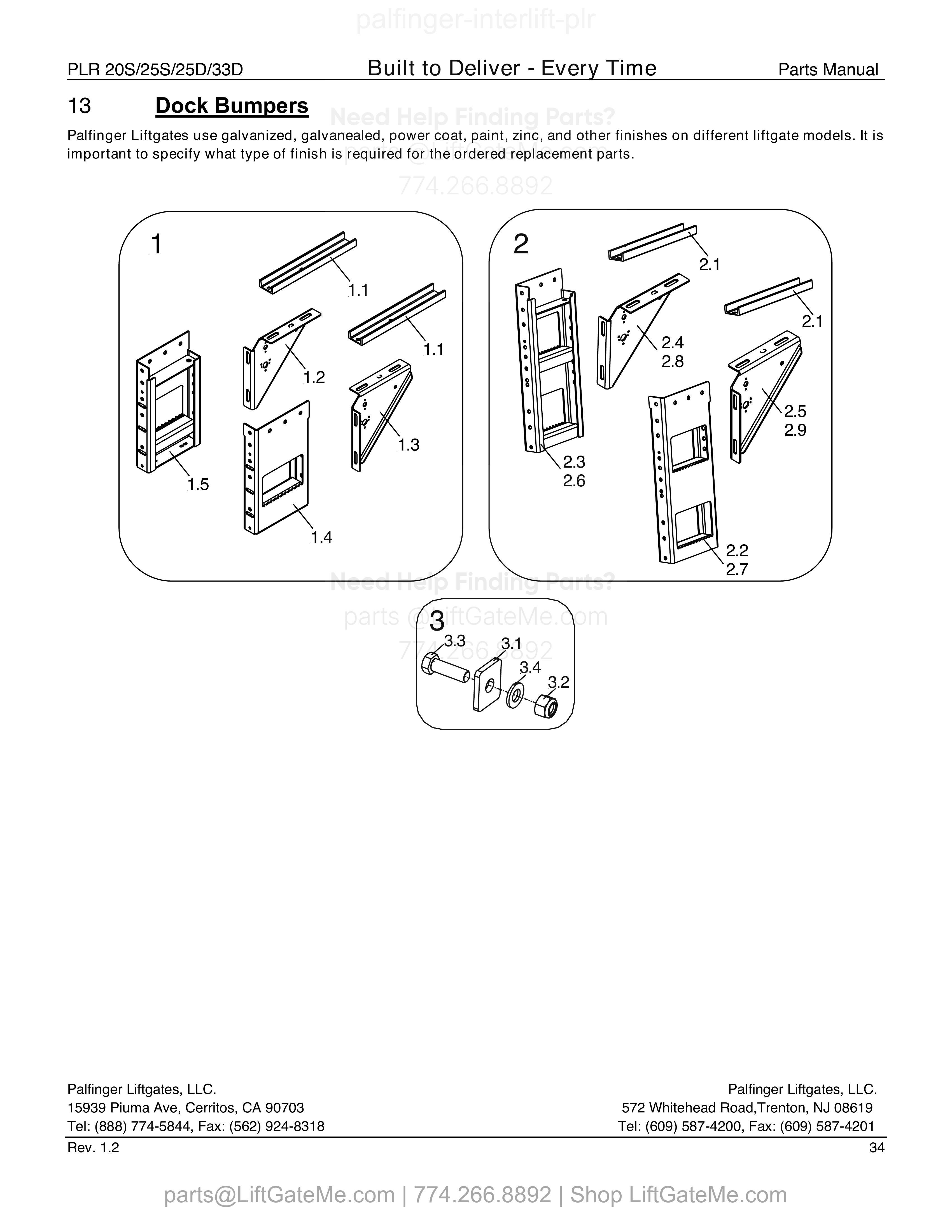

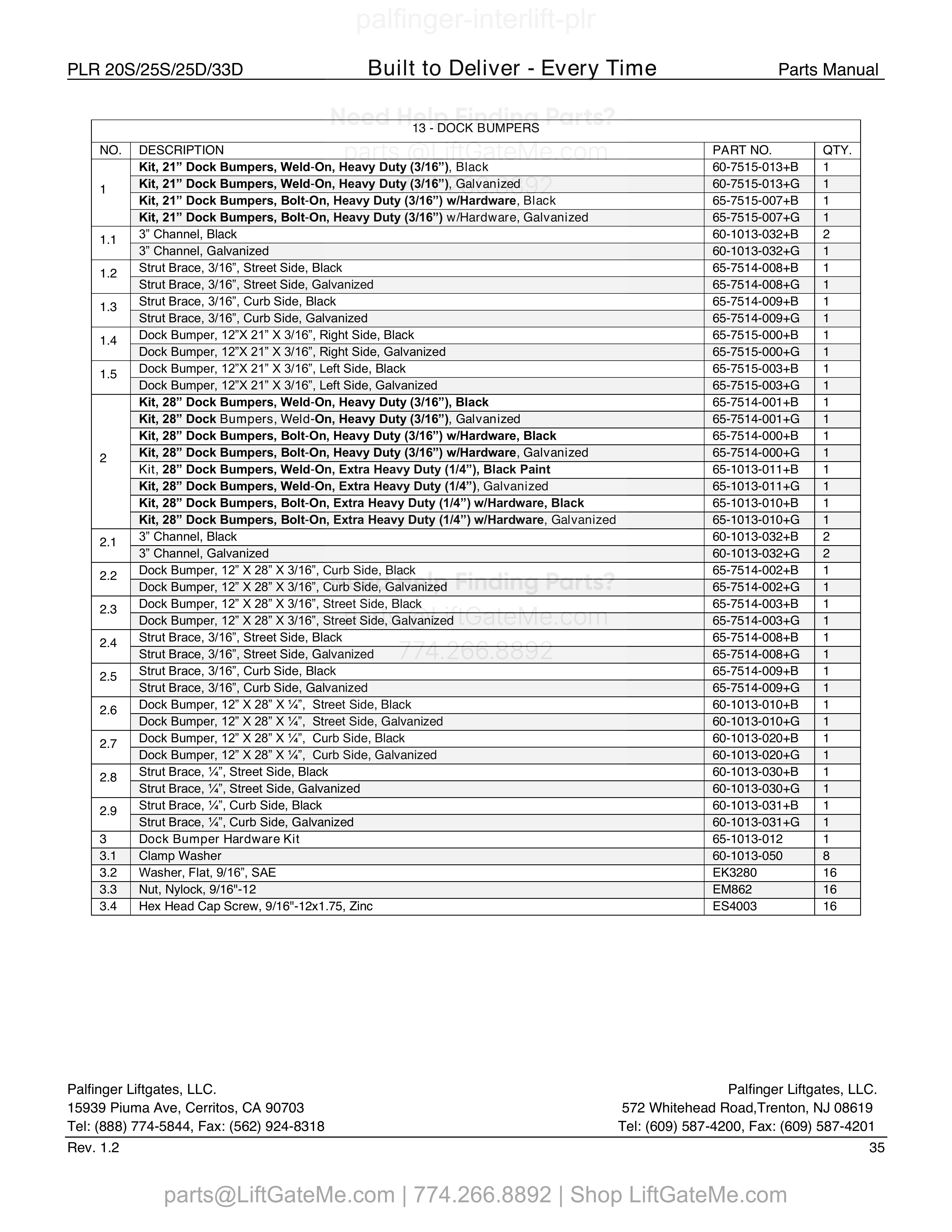

Dock Bumpers
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 60-7515-013+B | Kit, 21” Dock Bumpers, Weld-On, Heavy Duty (3/16”), Black | |
| 1 | 1 | 60-7515-013+G | Kit, 21” Dock Bumpers, Weld-On, Heavy Duty (3/16”), Galvanized | |
| 1 | 1 | 65-7515-007+B | Kit, 21” Dock Bumpers, Bolt-On, Heavy Duty (3/16”) w/Hardware, Black | |
| 1 | 1 | 65-7515-007+G | Kit, 21” Dock Bumpers, Bolt-On, Heavy Duty (3/16”) w/Hardware, Galvanized | |
| 1.1 | 2 | 60-1013-032+B | 3” Channel, Black | |
| 1.1 | 1 | 60-1013-032+G | 3” Channel, Galvanized | |
| 1.2 | 1 | 65-7514-008+B | Strut Brace, 3/16”, Street Side, Black | |
| 1.2 | 1 | 65-7514-008+G | Strut Brace, 3/16”, Street Side, Galvanized | |
| 1.3 | 1 | 65-7514-009+B | Strut Brace, 3/16”, Curb Side, Black | |
| 1.3 | 1 | 65-7514-009+G | Strut Brace, 3/16”, Curb Side, Galvanized | |
| 1.4 | 1 | 65-7515-000+B | Dock Bumper, 12”X 21” X 3/16”, Right Side, Black | |
| 1.4 | 1 | 65-7515-000+G | Dock Bumper, 12”X 21” X 3/16”, Right Side, Galvanized | |
| 1.5 | 1 | 65-7515-003+B | Dock Bumper, 12”X 21” X 3/16”, Left Side, Black | |
| 1.5 | 1 | 65-7515-003+G | Dock Bumper, 12”X 21” X 3/16”, Left Side, Galvanized | |
| 2 | 1 | 65-7514-001+B | Kit, 28” Dock Bumpers, Weld-On, Heavy Duty (3/16”), Black | |
| 2 | 1 | 65-7514-001+G | Kit, 28” Dock Bumpers, Weld-On, Heavy Duty (3/16”), Galvanized | |
| 2 | 1 | 65-7514-000+B | Kit, 28” Dock Bumpers, Bolt-On, Heavy Duty (3/16”) w/Hardware, Black | |
| 2 | 1 | 65-7514-000+G | Kit, 28” Dock Bumpers, Bolt-On, Heavy Duty (3/16”) w/Hardware, Galvanized | |
| 2 | 1 | 65-1013-011+B | Kit, 28” Dock Bumpers, Weld-On, Extra Heavy Duty (1/4”), Black Paint | |
| 2 | 1 | 65-1013-011+G | Kit, 28” Dock Bumpers, Weld-On, Extra Heavy Duty (1/4”), Galvanized | |
| 2 | 1 | 65-1013-010+B | Kit, 28” Dock Bumpers, Bolt-On, Extra Heavy Duty (1/4”) w/Hardware, Black | |
| 2 | 1 | 65-1013-010+G | Kit, 28” Dock Bumpers, Bolt-On, Extra Heavy Duty (1/4”) w/Hardware, Galvanized | |
| 2.1 | 2 | 60-1013-032+B | 3” Channel, Black | |
| 2.1 | 2 | 60-1013-032+G | 3” Channel, Galvanized | |
| 2.2 | 1 | 65-7514-002+B | Dock Bumper, 12” X 28” X 3/16”, Curb Side, Black | |
| 2.2 | 1 | 65-7514-002+G | Dock Bumper, 12” X 28” X 3/16”, Curb Side, Galvanized | |
| 2.3 | 1 | 65-7514-003+B | Dock Bumper, 12” X 28” X 3/16”, Street Side, Black | |
| 2.3 | 1 | 65-7514-003+G | Dock Bumper, 12” X 28” X 3/16”, Street Side, Galvanized | |
| 2.4 | 1 | 65-7514-008+B | Strut Brace, 3/16”, Street Side, Black | |
| 2.4 | 1 | 65-7514-008+G | Strut Brace, 3/16”, Street Side, Galvanized | |
| 2.5 | 1 | 65-7514-009+B | Strut Brace, 3/16”, Curb Side, Black | |
| 2.5 | 1 | 65-7514-009+G | Strut Brace, 3/16”, Curb Side, Galvanized | |
| 2.6 | 1 | 60-1013-010+B | Dock Bumper, 12” X 28” X ¼”, Street Side, Black | |
| 2.6 | 1 | 60-1013-010+G | Dock Bumper, 12” X 28” X ¼”, Street Side, Galvanized | |
| 2.7 | 1 | 60-1013-020+B | Dock Bumper, 12” X 28” X ¼”, Curb Side, Black | |
| 2.7 | 1 | 60-1013-020+G | Dock Bumper, 12” X 28” X ¼”, Curb Side, Galvanized | |
| 2.8 | 1 | 60-1013-030+B | Strut Brace, ¼”, Street Side, Black | |
| 2.8 | 1 | 60-1013-030+G | Strut Brace, ¼”, Street Side, Galvanized | |
| 2.9 | 1 | 60-1013-031+B | Strut Brace, ¼”, Curb Side, Black | |
| 2.9 | 1 | 60-1013-031+G | Strut Brace, ¼”, Curb Side, Galvanized | |
| 3 | 1 | 65-1013-012 | Dock Bumper Hardware Kit | |
| 3.1 | 8 | 60-1013-050 | Clamp Washer | |
| 3.2 | 16 | EK3280 | Washer, Flat, 9/16”, SAE | |
| 3.3 | 16 | EM862 | Nut, Nylock, 9/16"-12 | |
| 3.4 | 16 | ES4003 | Hex Head Cap Screw, 9/16"-12x1.75, Zinc |

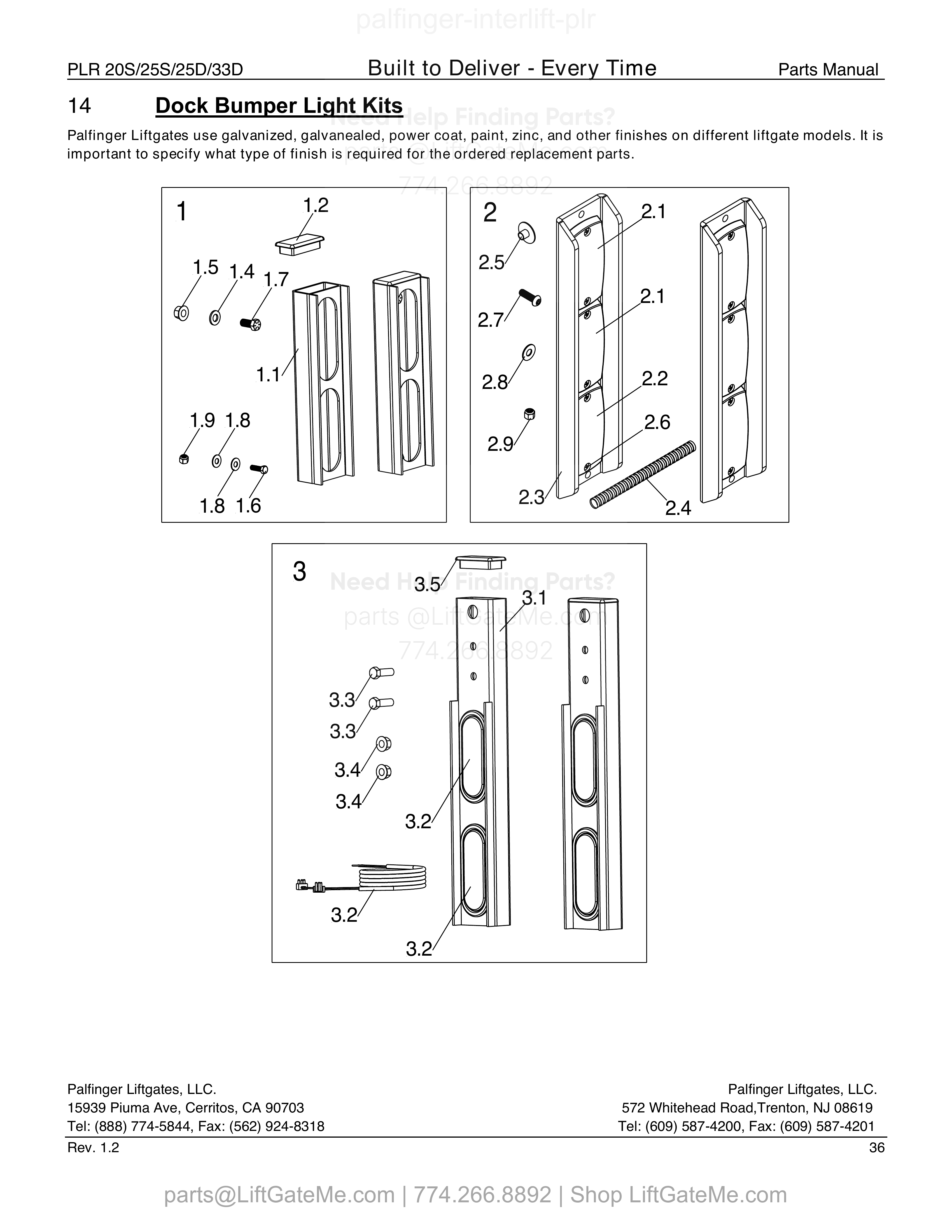

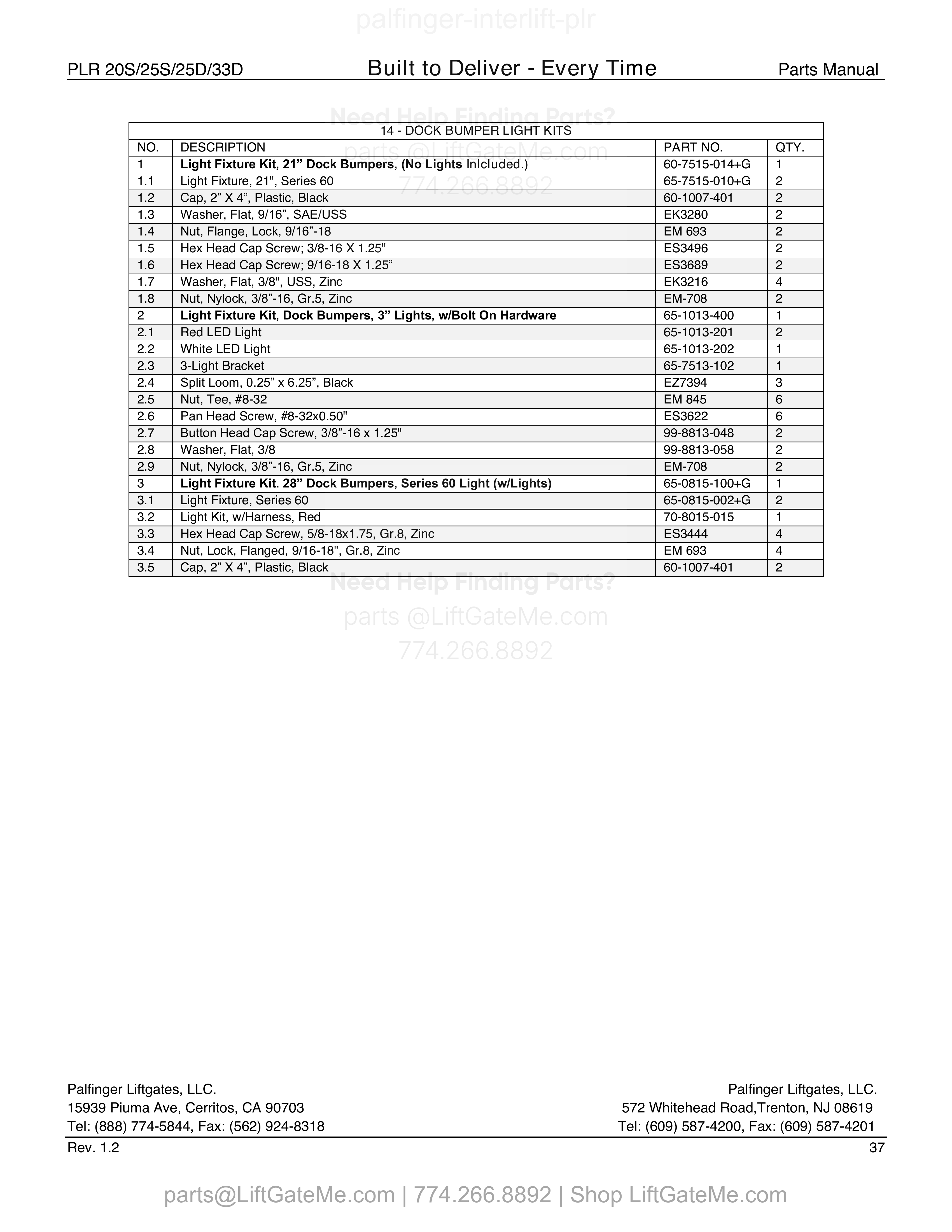

Dock Bumper Light Kits
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 60-7515-014+G | Light Fixture Kit, 21” Dock Bumpers, (No Lights Inlcluded.) | |
| 1.1 | 2 | 65-7515-010+G | Light Fixture, 21", Series 60 | |
| 1.2 | 2 | 60-1007-401 | Cap, 2” X 4”, Plastic, Black | |
| 1.3 | 2 | EK3280 | Washer, Flat, 9/16”, SAE/USS | |
| 1.4 | 2 | EM 693 | Nut, Flange, Lock, 9/16”-18 | |
| 1.5 | 2 | ES3496 | Hex Head Cap Screw; 3/8-16 X 1.25" | |
| 1.6 | 2 | ES3689 | Hex Head Cap Screw; 9/16-18 X 1.25” | |
| 1.7 | 4 | EK3216 | Washer, Flat, 3/8", USS, Zinc | |
| 1.8 | 2 | EM-708 | Nut, Nylock, 3/8”-16, Gr.5, Zinc | |
| 2 | 1 | 65-1013-400 | Light Fixture Kit, Dock Bumpers, 3” Lights, w/Bolt On Hardware | |
| 2.1 | 2 | 65-1013-201 | Red LED Light | |
| 2.2 | 1 | 65-1013-202 | White LED Light | |
| 2.3 | 1 | 65-7513-102 | 3-Light Bracket | |
| 2.4 | 3 | EZ7394 | Split Loom, 0.25” x 6.25”, Black | |
| 2.5 | 6 | EM 845 | Nut, Tee, #8-32 | |
| 2.6 | 6 | ES3622 | Pan Head Screw, #8-32x0.50" | |
| 2.7 | 2 | 99-8813-048 | Button Head Cap Screw, 3/8”-16 x 1.25" | |
| 2.8 | 2 | 99-8813-058 | Washer, Flat, 3/8 | |
| 2.9 | 2 | EM-708 | Nut, Nylock, 3/8”-16, Gr.5, Zinc | |
| 3 | 1 | 65-0815-100+G | Light Fixture Kit. 28” Dock Bumpers, Series 60 Light (w/Lights) | |
| 3.1 | 2 | 65-0815-002+G | Light Fixture, Series 60 | |
| 3.2 | 1 | 70-8015-015 | Light Kit, w/Harness, Red | |
| 3.3 | 4 | ES3444 | Hex Head Cap Screw, 5/8-18x1.75, Gr.8, Zinc | |
| 3.4 | 4 | EM 693 | Nut, Lock, Flanged, 9/16-18", Gr.8, Zinc | |
| 3.5 | 2 | 60-1007-401 | Cap, 2” X 4”, Plastic, Black |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

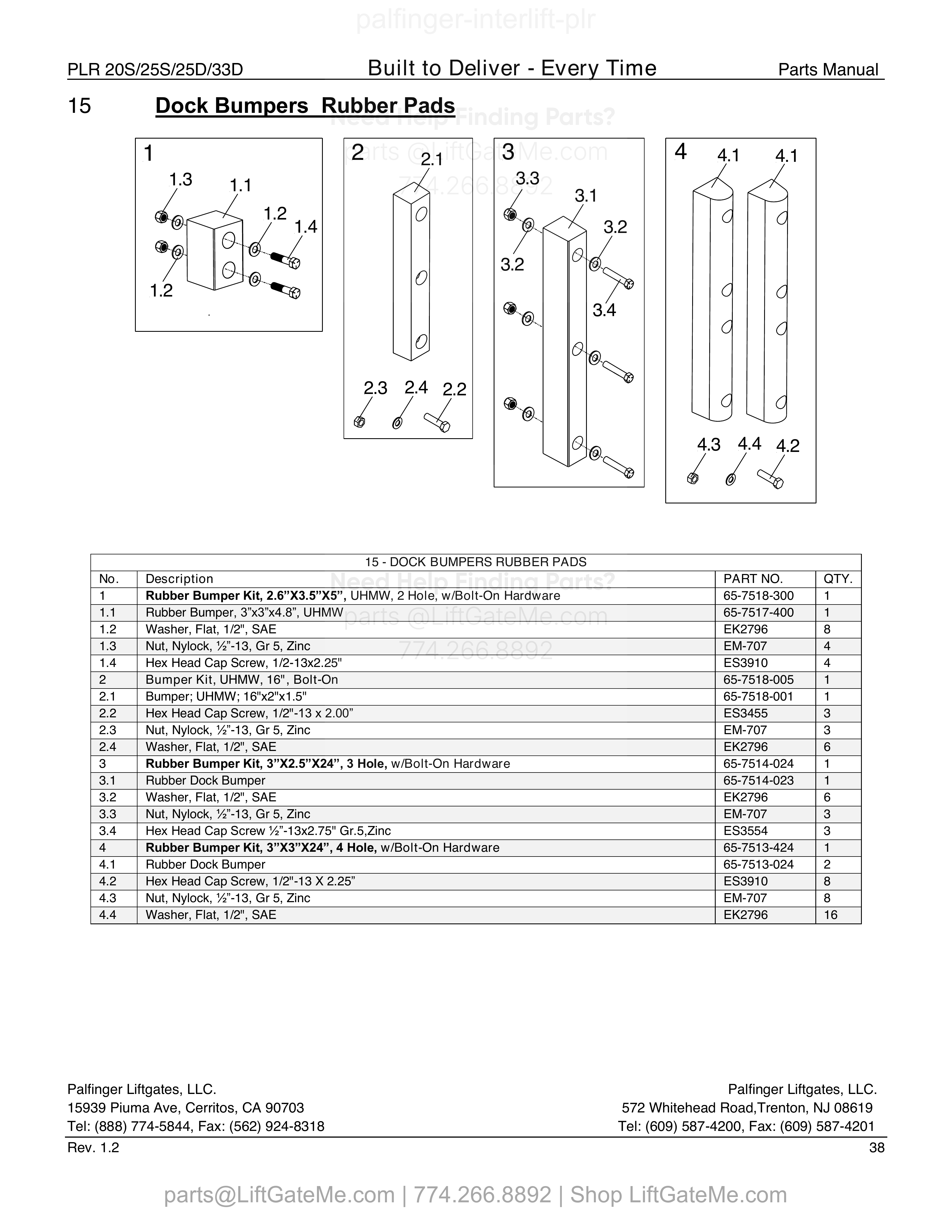

15 - DOCK BUMPERS RUBBER PADS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 65-7518-300 | Rubber Bumper Kit, 2.6”X3.5”X5”, UHMW, 2 Hole, w/Bolt-On Hardware | |
| 1.1 | 1 | 65-7517-400 | Rubber Bumper, 3”x3”x4.8”, UHMW | |
| 1.2 | 8 | EK2796 | Washer, Flat, 1/2", SAE | |
| 1.3 | 4 | EM-707 | Nut, Nylock, ½”-13, Gr 5, Zinc | |
| 1.4 | 4 | ES3910 | Hex Head Cap Screw, 1/2-13x2.25" | |
| 2 | 1 | 65-7518-005 | Bumper Kit, UHMW, 16", Bolt-On | |
| 2.1 | 1 | 65-7518-001 | Bumper; UHMW; 16"x2"x1.5" | |
| 2.2 | 3 | ES3455 | Hex Head Cap Screw, 1/2"-13 x 2.00” | |
| 2.3 | 3 | EM-707 | Nut, Nylock, ½”-13, Gr 5, Zinc | |
| 2.4 | 6 | EK2796 | Washer, Flat, 1/2", SAE | |
| 3 | 1 | 65-7514-024 | Rubber Bumper Kit, 3”X2.5”X24”, 3 Hole, w/Bolt-On Hardware | |
| 3.1 | 1 | 65-7514-023 | Rubber Dock Bumper | |
| 3.2 | 6 | EK2796 | Washer, Flat, 1/2", SAE | |
| 3.3 | 3 | EM-707 | Nut, Nylock, ½”-13, Gr 5, Zinc | |
| 3.4 | 3 | ES3554 | Hex Head Cap Screw ½”-13x2.75" Gr.5,Zinc | |
| 4 | 1 | 65-7513-424 | Rubber Bumper Kit, 3”X3”X24”, 4 Hole, w/Bolt-On Hardware | |
| 4.1 | 2 | 65-7513-024 | Rubber Dock Bumper | |
| 4.2 | 8 | ES3910 | Hex Head Cap Screw, 1/2"-13 X 2.25” | |
| 4.3 | 8 | EM-707 | Nut, Nylock, ½”-13, Gr 5, Zinc | |
| 4.4 | 16 | EK2796 | Washer, Flat, 1/2", SAE |

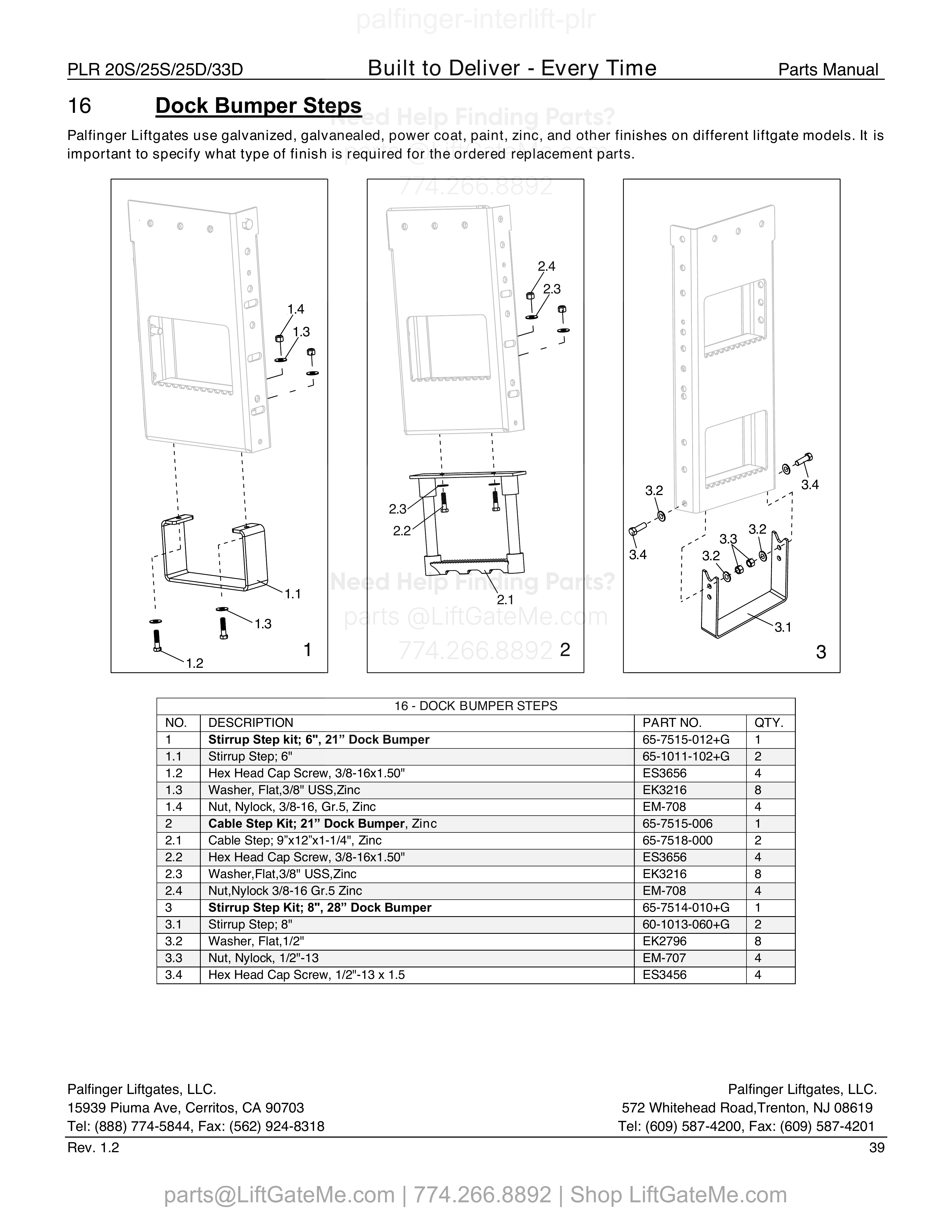

16 - DOCK BUMPER STEPS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 65-7515-012+G | Stirrup Step kit; 6", 21” Dock Bumper | |
| 1.1 | 2 | 65-1011-102+G | Stirrup Step; 6" | |
| 1.2 | 4 | ES3656 | Hex Head Cap Screw, 3/8-16x1.50" | |
| 1.3 | 8 | EK3216 | Washer, Flat,3/8" USS,Zinc | |
| 1.4 | 4 | EM-708 | Nut, Nylock, 3/8-16, Gr.5, Zinc | |
| 2 | 1 | 65-7515-006 | Cable Step Kit; 21” Dock Bumper, Zinc | |
| 2.1 | 2 | 65-7518-000 | Cable Step; 9”x12”x1-1/4", Zinc | |
| 2.2 | 4 | ES3656 | Hex Head Cap Screw, 3/8-16x1.50" | |
| 2.3 | 8 | EK3216 | Washer,Flat,3/8" USS,Zinc | |
| 2.4 | 4 | EM-708 | Nut,Nylock 3/8-16 Gr.5 Zinc | |
| 3 | 1 | 65-7514-010+G | Stirrup Step Kit; 8", 28” Dock Bumper | |
| 3.1 | 2 | 60-1013-060+G | Stirrup Step; 8" | |
| 3.2 | 8 | EK2796 | Washer, Flat,1/2" | |
| 3.3 | 4 | EM-707 | Nut, Nylock, 1/2"-13 | |
| 3.4 | 4 | ES3456 | Hex Head Cap Screw, 1/2"-13 x 1.5 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

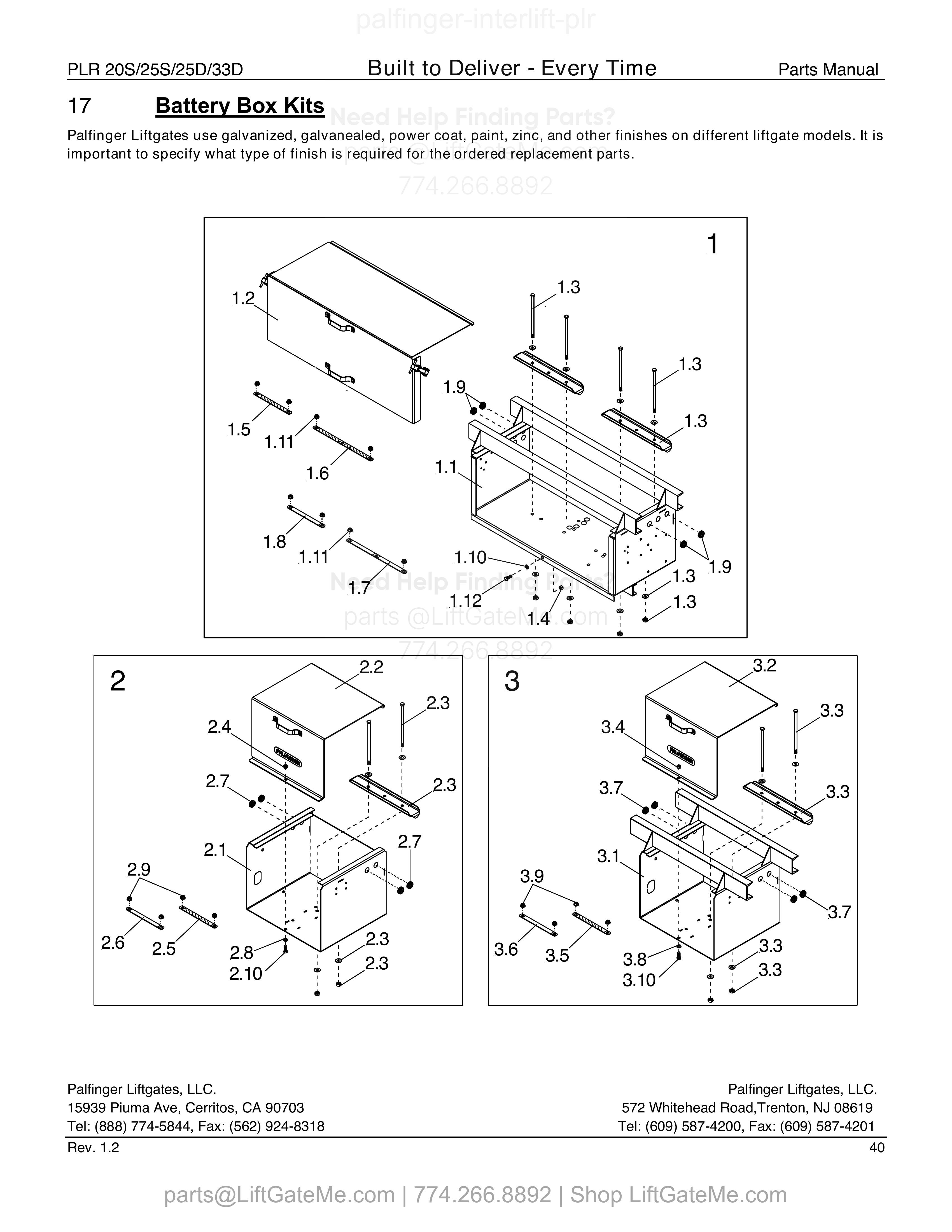

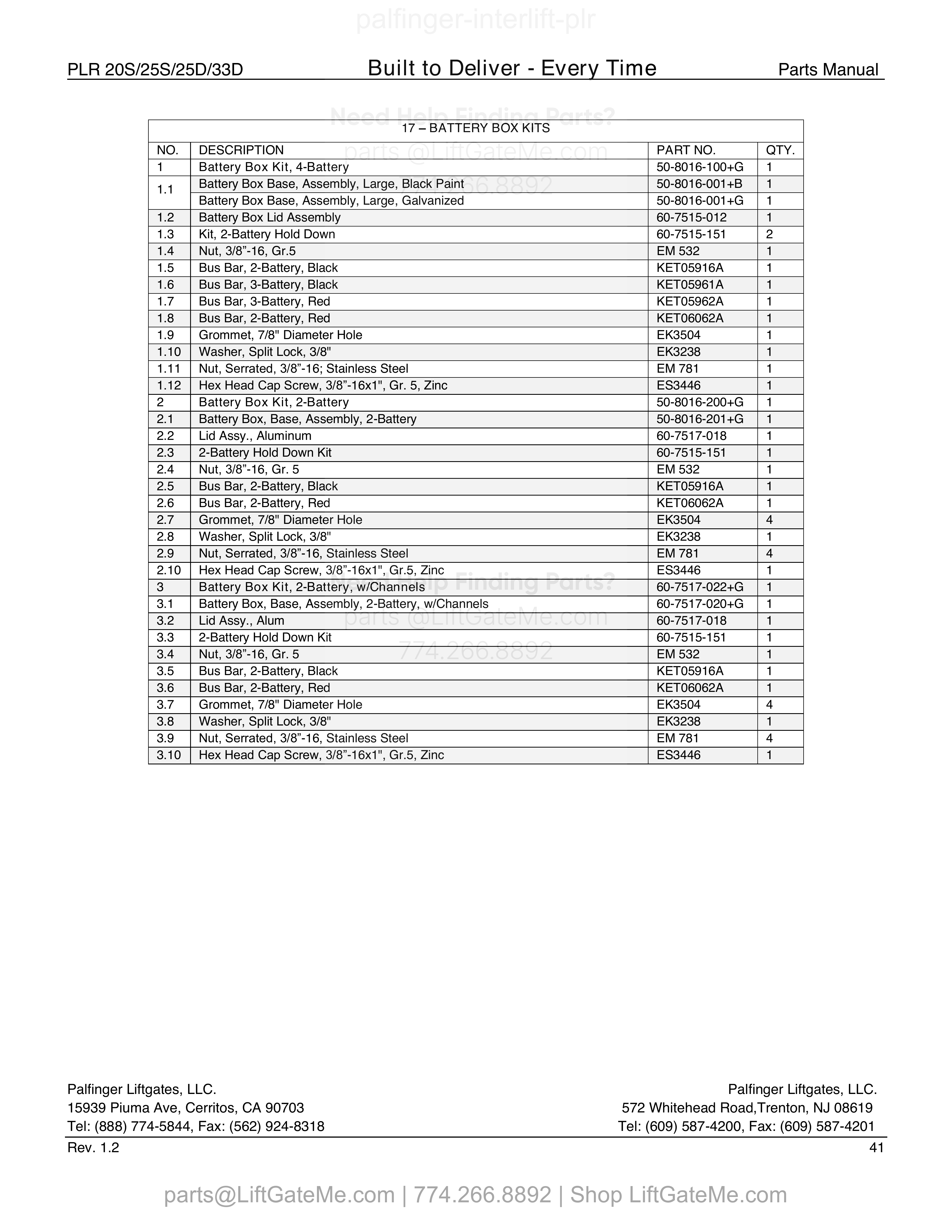

17 - BATTERY BOX KITS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 50-8016-100+G | Battery Box Kit, 4-Battery | |
| 1.1 | 1 | 50-8016-001+B | Battery Box Base, Assembly, Large, Black Paint | |
| 1.1 | 1 | 50-8016-001+G | Battery Box Base, Assembly, Large, Galvanized | |
| 1.2 | 1 | 60-7515-012 | Battery Box Lid Assembly | |
| 1.3 | 2 | 60-7515-151 | Kit, 2-Battery Hold Down | |
| 1.4 | 1 | EM 532 | Nut, 3/8”-16, Gr.5 | |
| 1.5 | 1 | KET05916A | Bus Bar, 2-Battery, Black | |
| 1.6 | 1 | KET05961A | Bus Bar, 3-Battery, Black | |
| 1.7 | 1 | KET05962A | Bus Bar, 3-Battery, Red | |
| 1.8 | 1 | KET06062A | Bus Bar, 2-Battery, Red | |
| 1.9 | 1 | EK3504 | Grommet, 7/8" Diameter Hole | |
| 1.10 | 1 | EK3238 | Washer, Split Lock, 3/8" | |
| 1.11 | 1 | EM 781 | Nut, Serrated, 3/8”-16; Stainless Steel | |
| 1.12 | 1 | ES3446 | Hex Head Cap Screw, 3/8”-16x1", Gr. 5, Zinc | |
| 2 | 1 | 50-8016-200+G | Battery Box Kit, 2-Battery | |
| 2.1 | 1 | 50-8016-201+G | Battery Box, Base, Assembly, 2-Battery | |
| 2.2 | 1 | 60-7517-018 | Lid Assy., Aluminum | |
| 2.3 | 1 | 60-7515-151 | 2-Battery Hold Down Kit | |
| 2.4 | 1 | EM 532 | Nut, 3/8”-16, Gr. 5 | |
| 2.5 | 1 | KET05916A | Bus Bar, 2-Battery, Black | |
| 2.6 | 1 | KET06062A | Bus Bar, 2-Battery, Red | |
| 2.7 | 4 | EK3504 | Grommet, 7/8" Diameter Hole | |
| 2.8 | 1 | EK3238 | Washer, Split Lock, 3/8" | |
| 2.9 | 4 | EM 781 | Nut, Serrated, 3/8”-16, Stainless Steel | |
| 2.10 | 1 | ES3446 | Hex Head Cap Screw, 3/8”-16x1", Gr.5, Zinc | |
| 3 | 1 | 60-7517-022+G | Battery Box Kit, 2-Battery, w/Channels | |
| 3.1 | 1 | 60-7517-020+G | Battery Box, Base, Assembly, 2-Battery, w/Channels | |
| 3.2 | 1 | 60-7517-018 | Lid Assy., Alum | |
| 3.3 | 1 | 60-7515-151 | 2-Battery Hold Down Kit | |
| 3.4 | 1 | EM 532 | Nut, 3/8”-16, Gr. 5 | |
| 3.5 | 1 | KET05916A | Bus Bar, 2-Battery, Black | |
| 3.6 | 1 | KET06062A | Bus Bar, 2-Battery, Red | |
| 3.7 | 4 | EK3504 | Grommet, 7/8" Diameter Hole | |
| 3.8 | 1 | EK3238 | Washer, Split Lock, 3/8" | |
| 3.9 | 4 | EM 781 | Nut, Serrated, 3/8”-16, Stainless Steel | |
| 3.10 | 1 | ES3446 | Hex Head Cap Screw, 3/8”-16x1", Gr.5, Zinc |

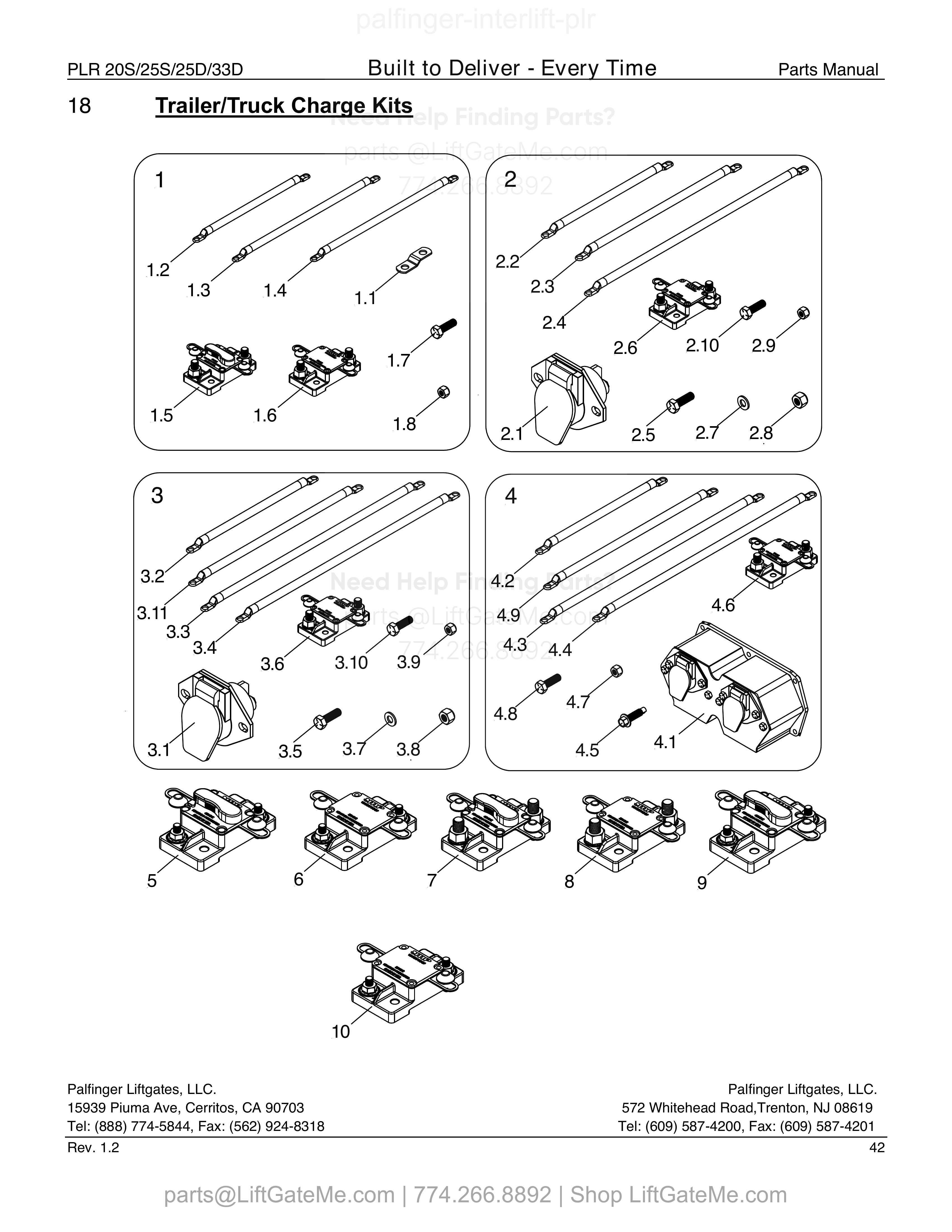

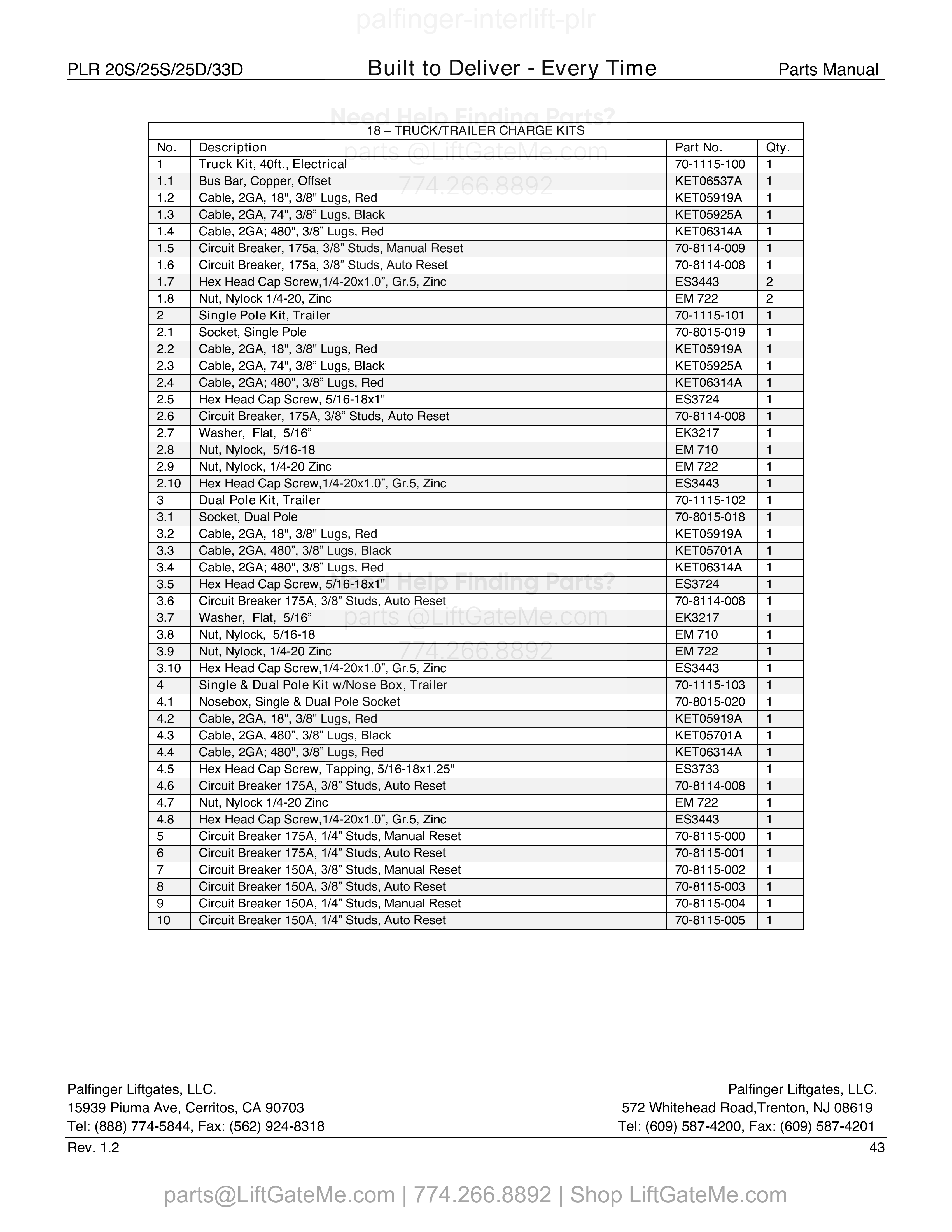

18 - TRUCK/TRAILER CHARGE KITS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70-1115-100 | Truck Kit, 40ft., Electrical | |
| 1.1 | 1 | KET06537A | Bus Bar, Copper, Offset | |
| 1.2 | 1 | KET05919A | Cable, 2GA, 18", 3/8" Lugs, Red | |
| 1.3 | 1 | KET05925A | Cable, 2GA, 74", 3/8" Lugs, Black | |
| 1.4 | 1 | KET06314A | Cable, 2GA; 480", 3/8" Lugs, Red | |
| 1.5 | 1 | 70-8114-009 | Circuit Breaker, 175a, 3/8” Studs, Manual Reset | |
| 1.6 | 1 | 70-8114-008 | Circuit Breaker, 175a, 3/8” Studs, Auto Reset | |
| 1.7 | 2 | ES3443 | Hex Head Cap Screw,1/4-20x1.0”, Gr.5, Zinc | |
| 1.8 | 2 | EM 722 | Nut, Nylock 1/4-20, Zinc | |
| 2 | 1 | 70-1115-101 | Single Pole Kit, Trailer | |
| 2.1 | 1 | 70-8015-019 | Socket, Single Pole | |
| 2.2 | 1 | KET05919A | Cable, 2GA, 18", 3/8" Lugs, Red | |
| 2.3 | 1 | KET05925A | Cable, 2GA, 74", 3/8" Lugs, Black | |
| 2.4 | 1 | KET06314A | Cable, 2GA; 480", 3/8" Lugs, Red | |
| 2.5 | 1 | ES3724 | Hex Head Cap Screw, 5/16-18x1" | |
| 2.6 | 1 | 70-8114-008 | Circuit Breaker, 175A, 3/8” Studs, Auto Reset | |
| 2.7 | 1 | EK3217 | Washer, Flat, 5/16” | |
| 2.8 | 1 | EM 710 | Nut, Nylock, 5/16-18 | |
| 2.9 | 1 | EM 722 | Nut, Nylock, 1/4-20 Zinc | |
| 2.10 | 1 | ES3443 | Hex Head Cap Screw,1/4-20x1.0”, Gr.5, Zinc | |
| 3 | 1 | 70-1115-102 | Dual Pole Kit, Trailer | |
| 3.1 | 1 | 70-8015-018 | Socket, Dual Pole | |
| 3.2 | 1 | KET05919A | Cable, 2GA, 18", 3/8" Lugs, Red | |
| 3.3 | 1 | KET05701A | Cable, 2GA, 480”, 3/8” Lugs, Black | |
| 3.4 | 1 | KET06314A | Cable, 2GA; 480", 3/8” Lugs, Red | |
| 3.5 | 1 | ES3724 | Hex Head Cap Screw, 5/16-18x1" | |
| 3.6 | 1 | 70-8114-008 | Circuit Breaker 175A, 3/8” Studs, Auto Reset | |
| 3.7 | 1 | EK3217 | Washer, Flat, 5/16” | |
| 3.8 | 1 | EM 710 | Nut, Nylock, 5/16-18 | |
| 3.9 | 1 | EM 722 | Nut, Nylock, 1/4-20 Zinc | |
| 3.10 | 1 | ES3443 | Hex Head Cap Screw,1/4-20x1.0”, Gr.5, Zinc | |
| 4 | 1 | 70-1115-103 | Single & Dual Pole Kit w/Nose Box, Trailer | |
| 4.1 | 1 | 70-8015-020 | Nosebox, Single & Dual Pole Socket | |
| 4.2 | 1 | KET05919A | Cable, 2GA, 18", 3/8" Lugs, Red | |
| 4.3 | 1 | KET05701A | Cable, 2GA, 480”, 3/8” Lugs, Black | |
| 4.4 | 1 | KET06314A | Cable, 2GA; 480", 3/8” Lugs, Red | |
| 4.5 | 1 | ES3733 | Hex Head Cap Screw, Tapping, 5/16-18x1.25" | |
| 4.6 | 1 | 70-8114-008 | Circuit Breaker 175A, 3/8” Studs, Auto Reset | |
| 4.7 | 1 | EM 722 | Nut, Nylock 1/4-20 Zinc | |
| 4.8 | 1 | ES3443 | Hex Head Cap Screw,1/4-20x1.0”, Gr.5, Zinc | |
| 5 | 1 | 70-8115-000 | Circuit Breaker 175A, 1/4” Studs, Manual Reset | |
| 6 | 1 | 70-8115-001 | Circuit Breaker 175A, 1/4” Studs, Auto Reset | |
| 7 | 1 | 70-8115-002 | Circuit Breaker 150A, 3/8” Studs, Manual Reset | |
| 8 | 1 | 70-8115-003 | Circuit Breaker 150A, 3/8” Studs, Auto Reset | |
| 9 | 1 | 70-8115-004 | Circuit Breaker 150A, 1/4” Studs, Manual Reset | |
| 10 | 1 | 70-8115-005 | Circuit Breaker 150A, 1/4” Studs, Auto Reset |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

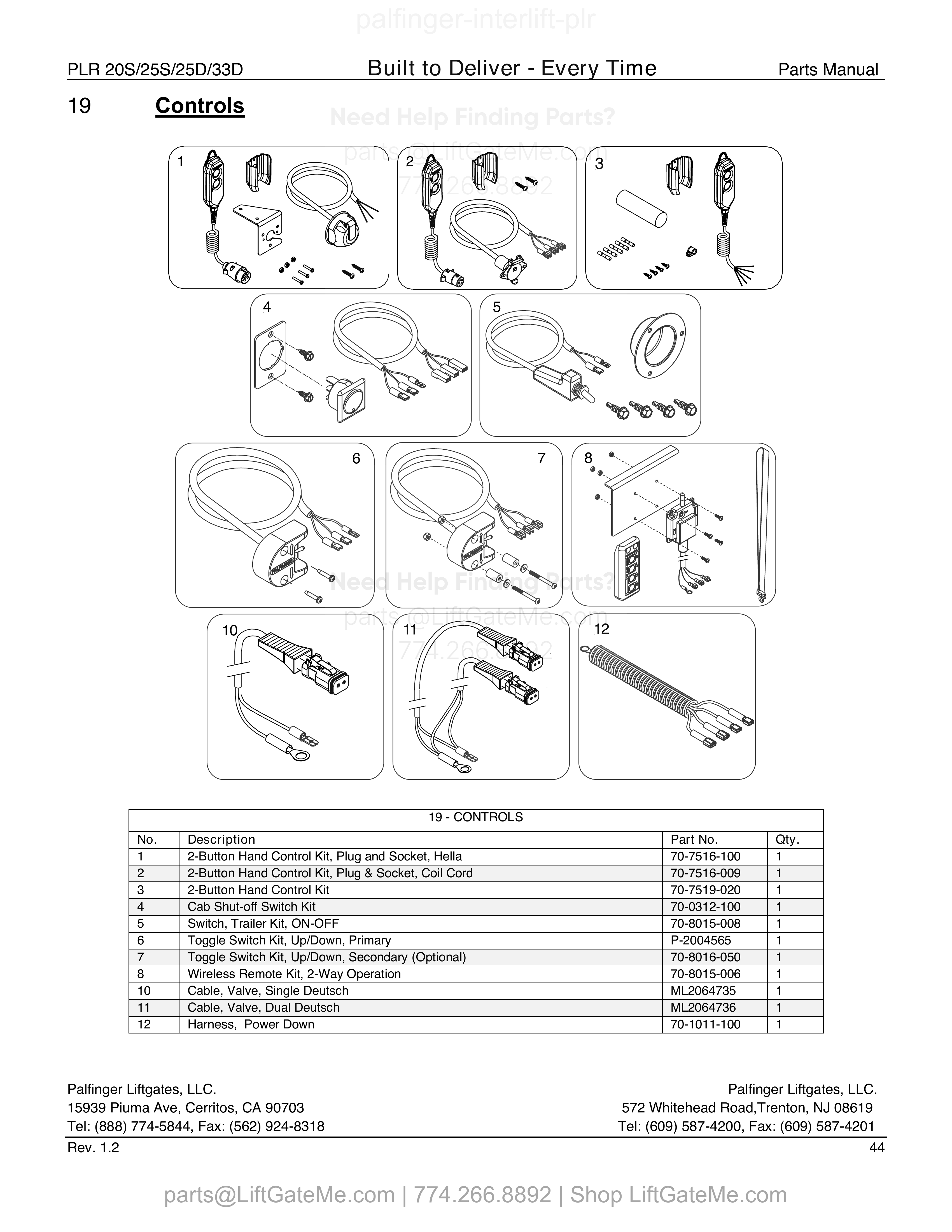

19 - CONTROLS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70-7516-100 | 2-Button Hand Control Kit, Plug and Socket, Hella | |
| 2 | 1 | 70-7516-009 | 2-Button Hand Control Kit, Plug & Socket, Coil Cord | |
| 3 | 1 | 70-7519-020 | 2-Button Hand Control Kit | |
| 4 | 1 | 70-0312-100 | Cab Shut-off Switch Kit | |
| 5 | 1 | 70-8015-008 | Switch, Trailer Kit, ON-OFF | |
| 6 | 1 | P-2004565 | Toggle Switch Kit, Up/Down, Primary | |
| 7 | 1 | 70-8016-050 | Toggle Switch Kit, Up/Down, Secondary (Optional) | |
| 8 | 1 | 70-8015-006 | Wireless Remote Kit, 2-Way Operation | |
| 10 | 1 | ML2064735 | Cable, Valve, Single Deutsch | |
| 11 | 1 | ML2064736 | Cable, Valve, Dual Deutsch | |
| 12 | 1 | 70-1011-100 | Harness, Power Down |

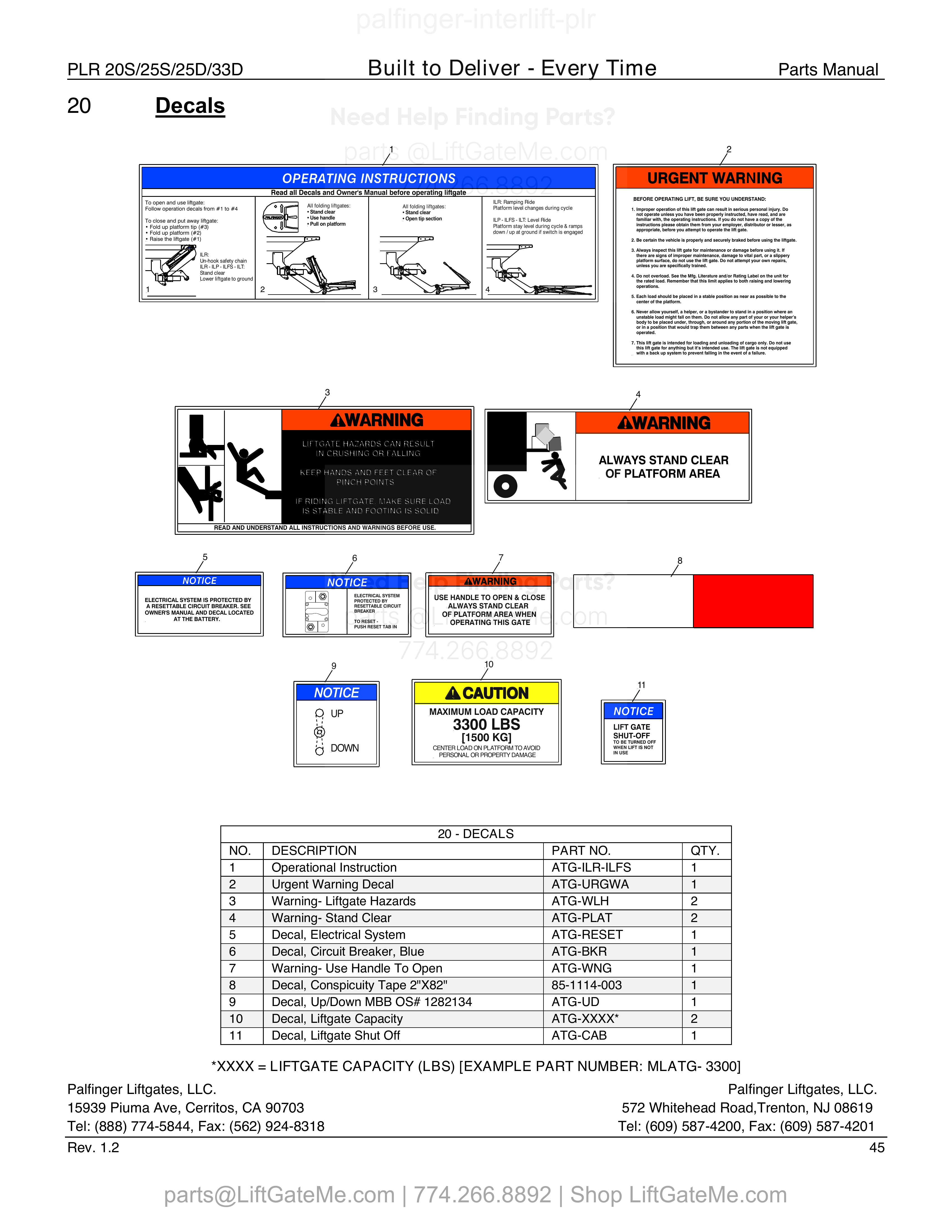

20 - DECALS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | ATG-ILR-ILFS | Operational Instruction | |
| 2 | 1 | ATG-URGWA | Urgent Warning Decal | |
| 3 | 2 | ATG-WLH | Warning- Liftgate Hazards | |
| 4 | 2 | ATG-PLAT | Warning- Stand Clear | |
| 5 | 1 | ATG-RESET | Decal, Electrical System | |
| 6 | 1 | ATG-BKR | Decal, Circuit Breaker, Blue | |
| 7 | 1 | ATG-WNG | Warning- Use Handle To Open | |
| 8 | 1 | 85-1114-003 | Decal, Conspicuity Tape 2"X82" | |
| 9 | 1 | ATG-UD | Decal, Up/Down MBB OS# 1282134 | |
| 10 | 2 | ATG-XXXX* | Decal, Liftgate Capacity | |
| 11 | 1 | ATG-CAB | Decal, Liftgate Shut Off |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
