Maxon GPC 55 X1 Liftgate Parts Diagrams
Maxon GPC 55 X1 Cantilever parts diagrams for 2010
Browse Maxon GPC 55 X1 OEM liftgate parts diagrams covering 2010 cantilever models. Use the callouts and tables to locate components before servicing or repairing your liftgate.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

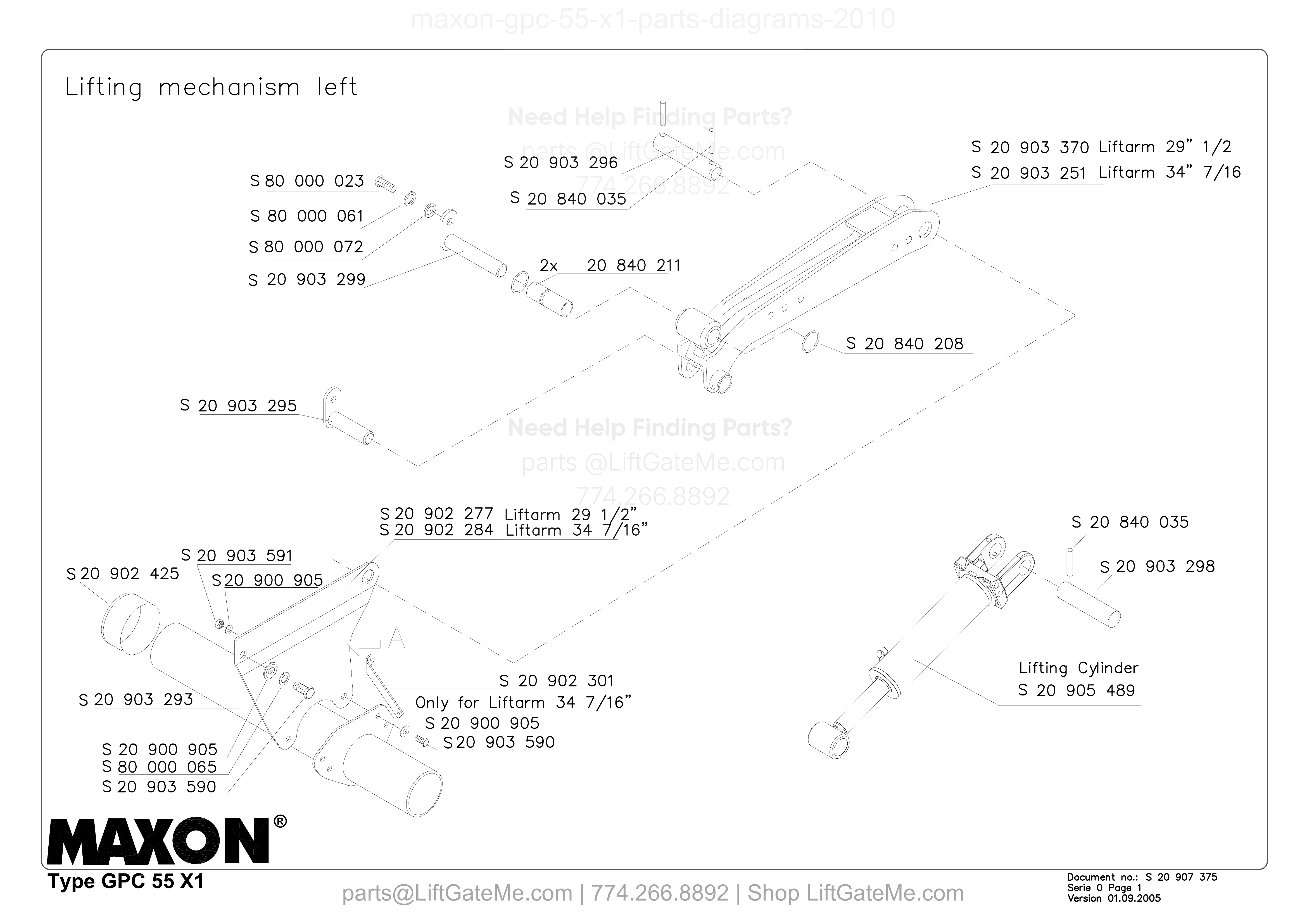

Lifting mechanism left
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 023 | Lifting mechanism left — part | |
| — | - | S 80 000 061 | Lifting mechanism left — part | |
| — | - | S 80 000 072 | Lifting mechanism left — part | |
| — | - | S 20 903 299 | Lifting mechanism left — part | |
| — | - | S 20 903 296 | Lifting mechanism left — part | |
| — | - | S 20 840 035 | Lifting mechanism left — part | |
| — | 2x | 20 840 211 | Lifting mechanism left — part | |
| — | - | S 20 903 370 | Lifting mechanism left — Liftarm 29” 1/2 | |
| — | - | S 20 903 251 | Lifting mechanism left — Liftarm 34” 7/16 | |
| — | - | S 20 840 208 | Lifting mechanism left — part | |
| — | - | S 20 903 295 | Lifting mechanism left — part | |
| — | - | S 20 902 277 | Lifting mechanism left — Liftarm 29 1/2” | |
| — | - | S 20 902 284 | Lifting mechanism left — Liftarm 34 7/16” | |
| — | - | S 20 902 425 | Lifting mechanism left — part | |
| — | - | S 20 903 591 | Lifting mechanism left — part | |
| — | - | S 20 900 905 | Lifting mechanism left — part | |
| — | - | S 20 903 293 | Lifting mechanism left — part | |
| — | - | S 80 000 065 | Lifting mechanism left — part | |
| — | - | S 20 903 590 | Lifting mechanism left — part | |
| — | - | S 20 902 301 | Lifting mechanism left — Only for Liftarm 34 7/16” | |
| — | - | S 20 905 489 | Lifting mechanism left — Lifting Cylinder | |
| — | - | S 20 903 298 | Lifting mechanism left — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

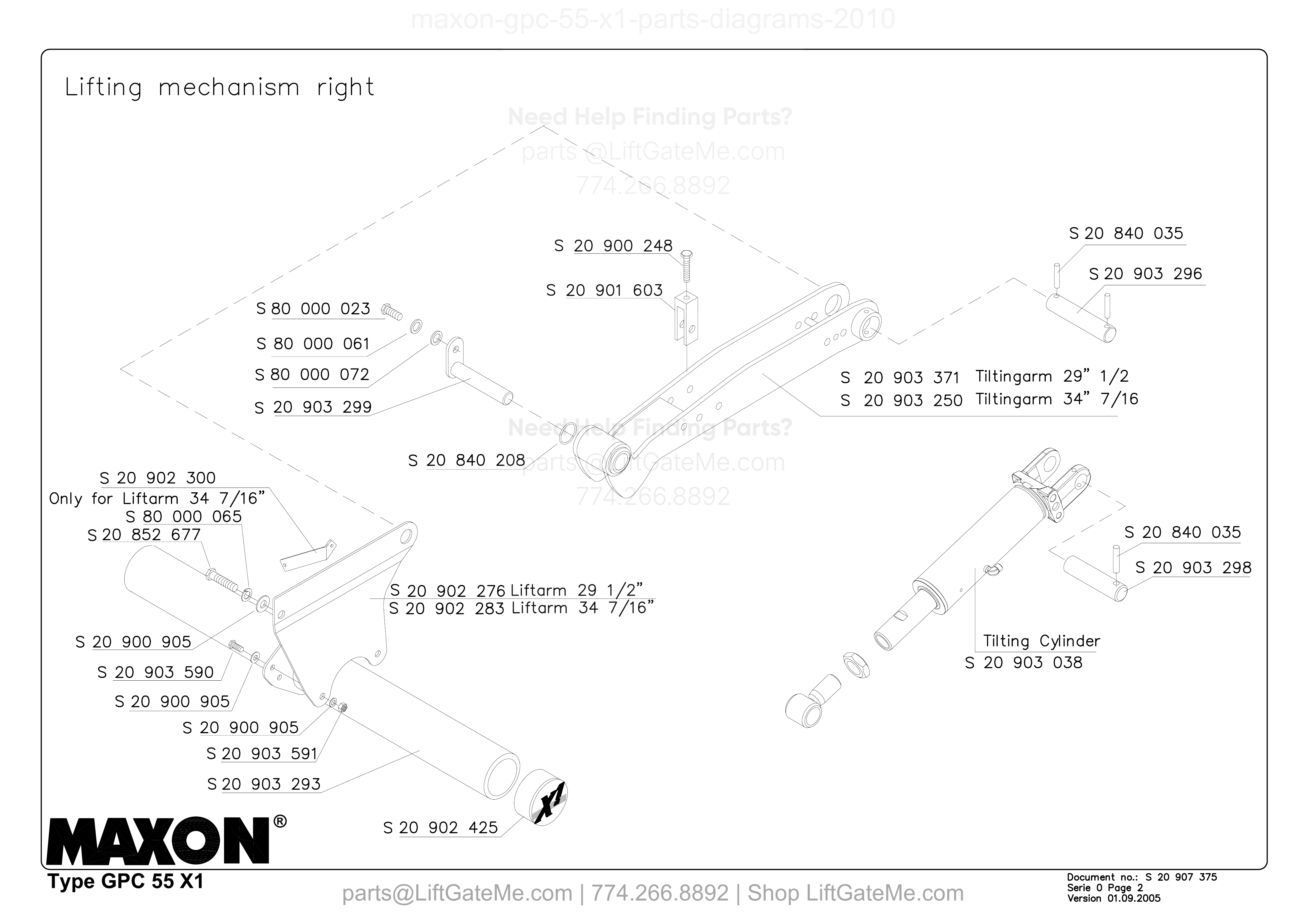

Lifting mechanism right
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 023 | Lifting mechanism right — part | |
| — | - | S 80 000 061 | Lifting mechanism right — part | |
| — | - | S 80 000 072 | Lifting mechanism right — part | |
| — | - | S 20 903 299 | Lifting mechanism right — part | |
| — | - | S 20 900 248 | Lifting mechanism right — part | |
| — | - | S 20 901 603 | Lifting mechanism right — part | |
| — | - | S 20 840 035 | Lifting mechanism right — part | |
| — | - | S 20 903 296 | Lifting mechanism right — part | |
| — | - | S 20 903 371 | Lifting mechanism right — Tiltingarm 29” 1/2 | |
| — | - | S 20 903 250 | Lifting mechanism right — Tiltingarm 34” 7/16 | |
| — | - | S 20 840 208 | Lifting mechanism right — part | |
| — | - | S 20 902 300 | Lifting mechanism right — Only for Liftarm 34 7/16” | |
| — | - | S 80 000 065 | Lifting mechanism right — part | |
| — | - | S 20 852 677 | Lifting mechanism right — part | |
| — | - | S 20 900 905 | Lifting mechanism right — part | |
| — | - | S 20 903 590 | Lifting mechanism right — part | |
| — | - | S 20 902 276 | Lifting mechanism right — Liftarm 29 1/2” | |
| — | - | S 20 902 283 | Lifting mechanism right — Liftarm 34 7/16” | |
| — | - | S 20 903 591 | Lifting mechanism right — part | |
| — | - | S 20 903 293 | Lifting mechanism right — part | |
| — | - | S 20 902 425 | Lifting mechanism right — part | |
| — | - | S 20 903 038 | Lifting mechanism right — Tilting Cylinder | |
| — | - | S 20 903 298 | Lifting mechanism right — part |

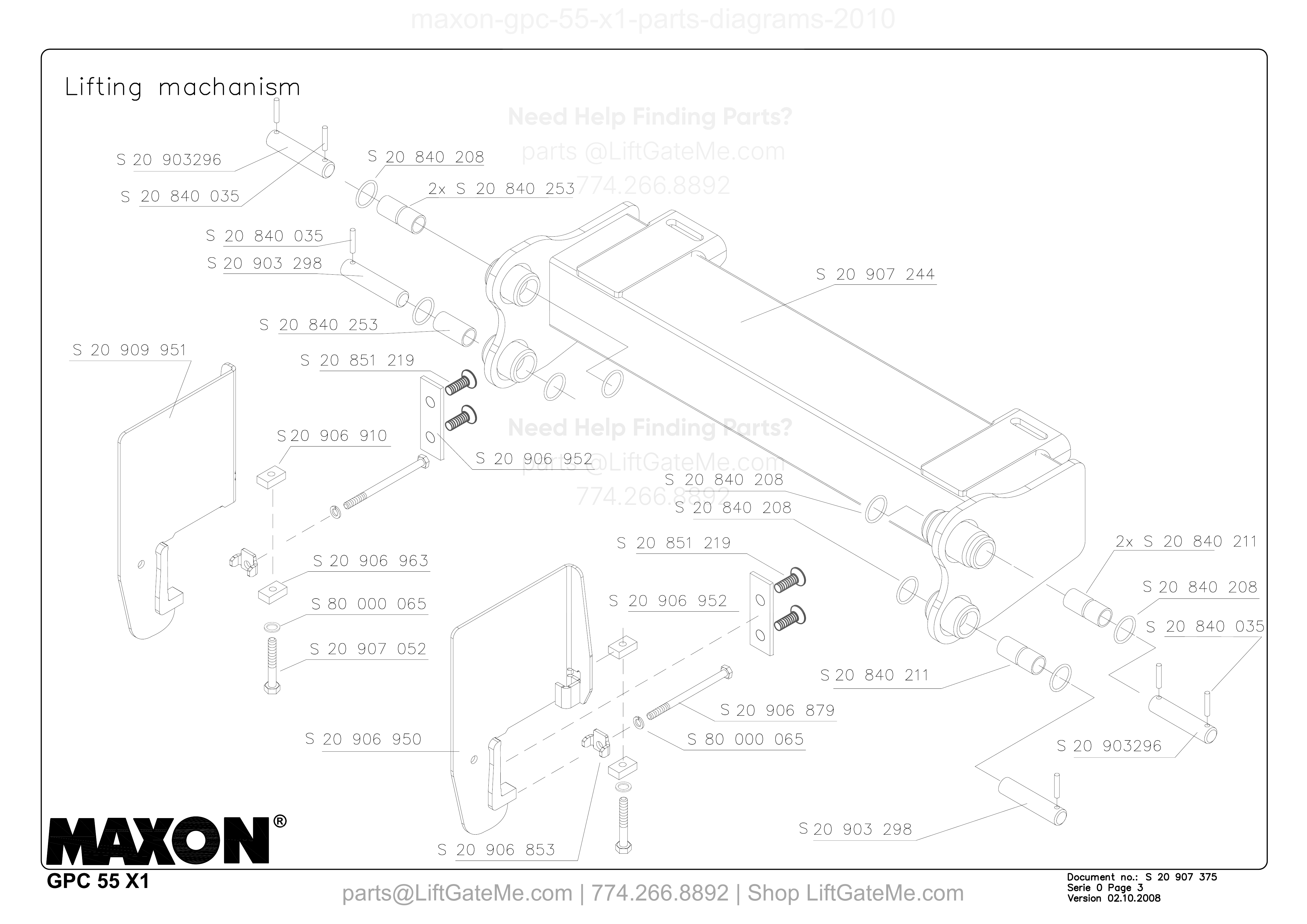

Lifting machanism
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 903296 | Lifting machanism — part | |
| — | - | S 20 840 035 | Lifting machanism — part | |
| — | - | S 20 840 208 | Lifting machanism — part | |
| — | 2x | S 20 840 253 | Lifting machanism — part | |
| — | - | S 20 903 298 | Lifting machanism — part | |
| — | - | S 20 907 244 | Lifting machanism — part | |
| — | - | S 20 909 951 | Lifting machanism — part | |
| — | - | S 20 906 910 | Lifting machanism — part | |
| — | - | S 20 851 219 | Lifting machanism — part | |
| — | - | S 20 906 952 | Lifting machanism — part | |
| — | - | S 20 906 963 | Lifting machanism — part | |
| — | - | S 80 000 065 | Lifting machanism — part | |
| — | - | S 20 907 052 | Lifting machanism — part | |
| — | - | S 20 906 950 | Lifting machanism — part | |
| — | - | S 20 906 853 | Lifting machanism — part | |
| — | - | S 20 906 879 | Lifting machanism — part | |
| — | 2x | S 20 840 211 | Lifting machanism — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

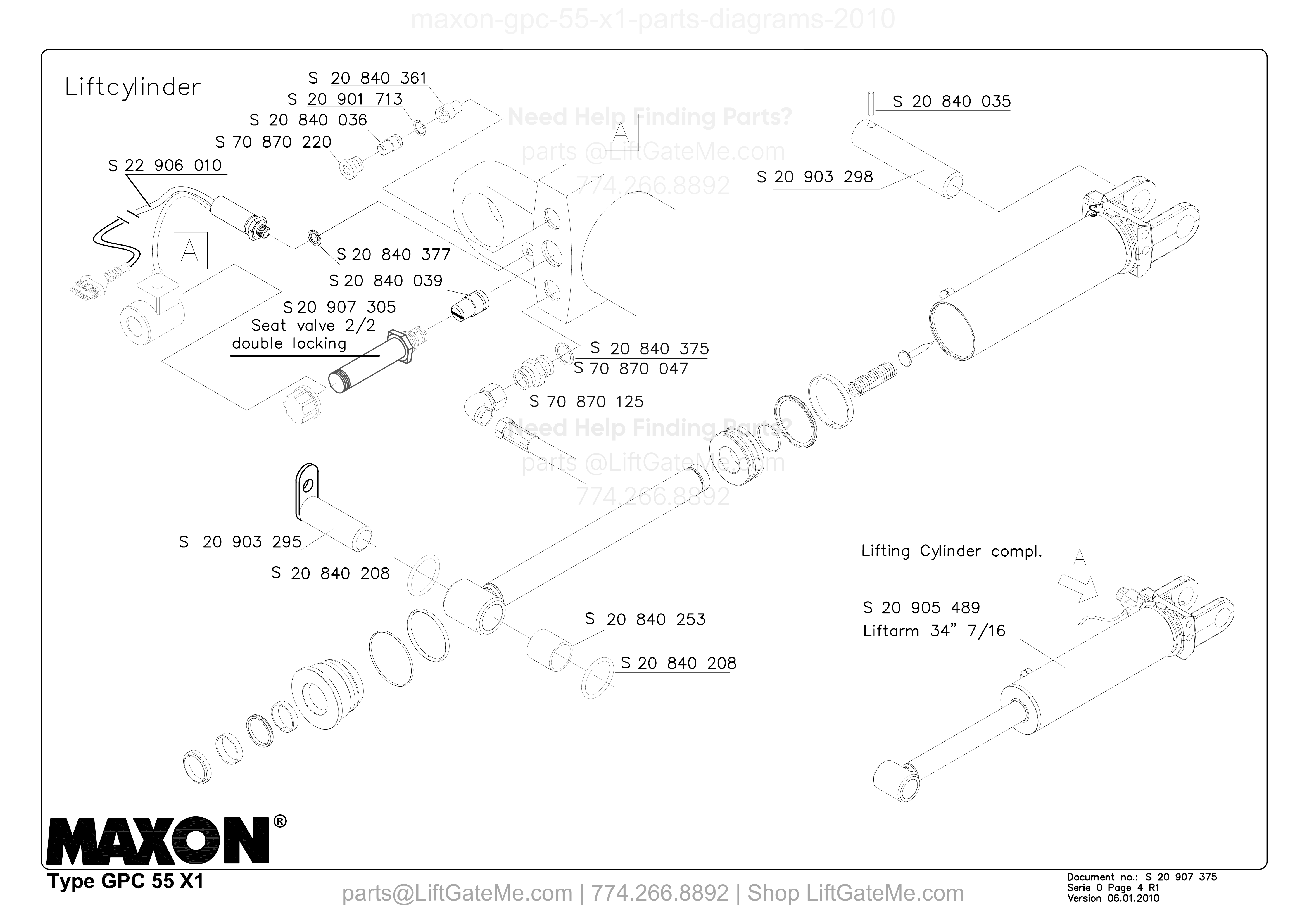

Liftcylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 361 | Liftcylinder — part | |
| — | - | S 20 901 713 | Liftcylinder — part | |
| — | - | S 20 840 036 | Liftcylinder — part | |
| — | - | S 70 870 220 | Liftcylinder — part | |
| — | - | S 22 906 010 | Liftcylinder — part | |
| — | - | S 20 840 377 | Liftcylinder — part | |
| — | - | S 20 840 039 | ||
| — | - | S 20 907 305 | Liftcylinder — Seat valve 2/2 double locking | |
| — | - | S 20 840 375 | Liftcylinder — part | |
| — | - | S 70 870 047 | Liftcylinder — part | |
| — | - | S 70 870 125 | Liftcylinder — part | |
| — | - | S 20 903 298 | Liftcylinder — part | |
| — | - | S 20 840 035 | Liftcylinder — part | |
| — | - | S 20 903 295 | Liftcylinder — part | |
| — | - | S 20 840 208 | Liftcylinder — part | |
| — | - | S 20 840 253 | Liftcylinder — part | |
| — | - | S 20 905 489 | ||
| — | - | S 20 840 208 | Liftcylinder — part |

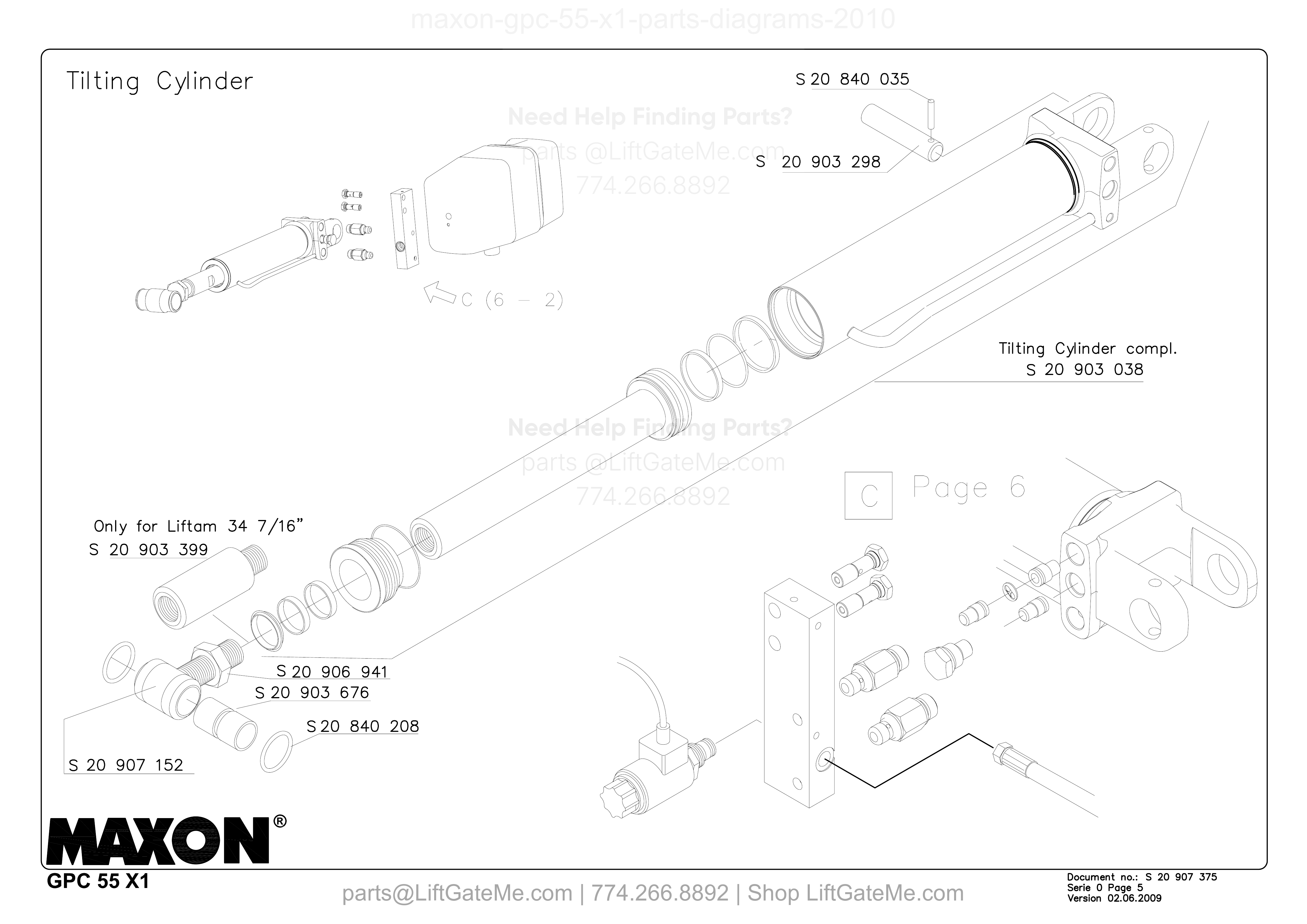

Tilting Cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 035 | Tilting Cylinder — part | |
| — | - | S 20 903 298 | Tilting Cylinder — part | |
| — | - | S 20 903 038 | Tilting Cylinder — Tilting Cylinder compl. | |
| — | - | S 20 903 399 | Tilting Cylinder — Only for Liftam 34 7/16” | |
| — | - | S 20 906 941 | Tilting Cylinder — part | |
| — | - | S 20 903 676 | Tilting Cylinder — part | |
| — | - | S 20 840 208 | Tilting Cylinder — part | |
| — | - | S 20 907 152 | Tilting Cylinder — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

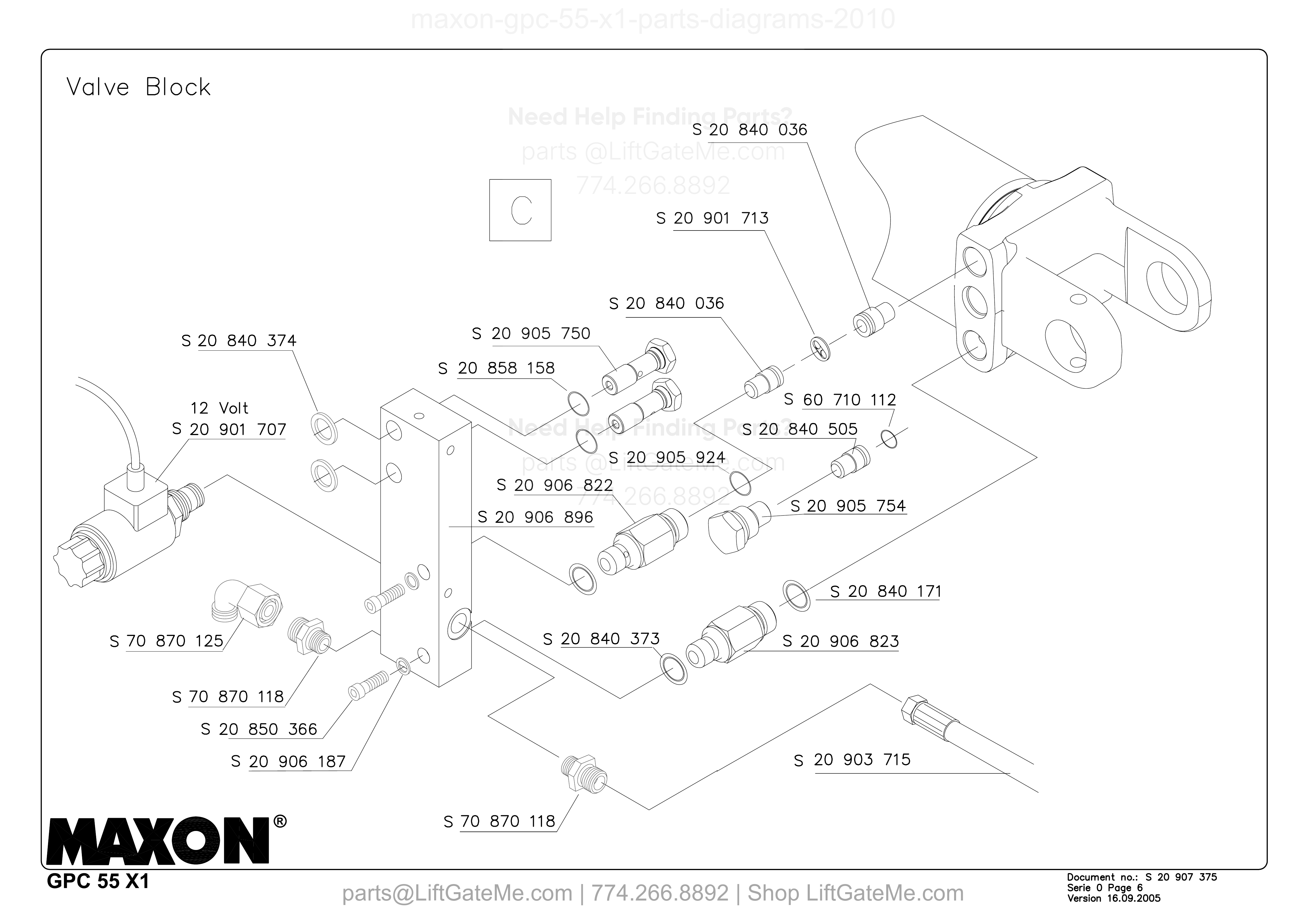

Valve Block
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 374 | Valve Block — part | |
| — | - | S 20 901 707 | Valve Block — 12 Volt | |
| — | - | S 70 870 125 | Valve Block — part | |
| — | - | S 70 870 118 | Valve Block — part | |
| — | - | S 20 850 366 | Valve Block — part | |
| — | - | S 20 906 187 | Valve Block — part | |
| — | - | S 70 870 118 | Valve Block — part | |
| — | - | S 20 840 373 | Valve Block — part | |
| — | - | S 20 906 896 | Valve Block — part | |
| — | - | S 20 906 822 | Valve Block — part | |
| — | - | S 20 858 158 | Valve Block — part | |
| — | - | S 20 905 750 | Valve Block — part | |
| — | - | S 20 905 924 | Valve Block — part | |
| — | - | S 20 840 036 | Valve Block — part | |
| — | - | S 20 901 713 | Valve Block — part | |
| — | - | S 20 840 036 | Valve Block — part | |
| — | - | S 60 710 112 | Valve Block — part | |
| — | - | S 20 840 505 | Valve Block — part | |
| — | - | S 20 905 754 | Valve Block — part | |
| — | - | S 20 840 171 | Valve Block — part | |
| — | - | S 20 906 823 | Valve Block — part | |
| — | - | S 20 903 715 | Valve Block — part |

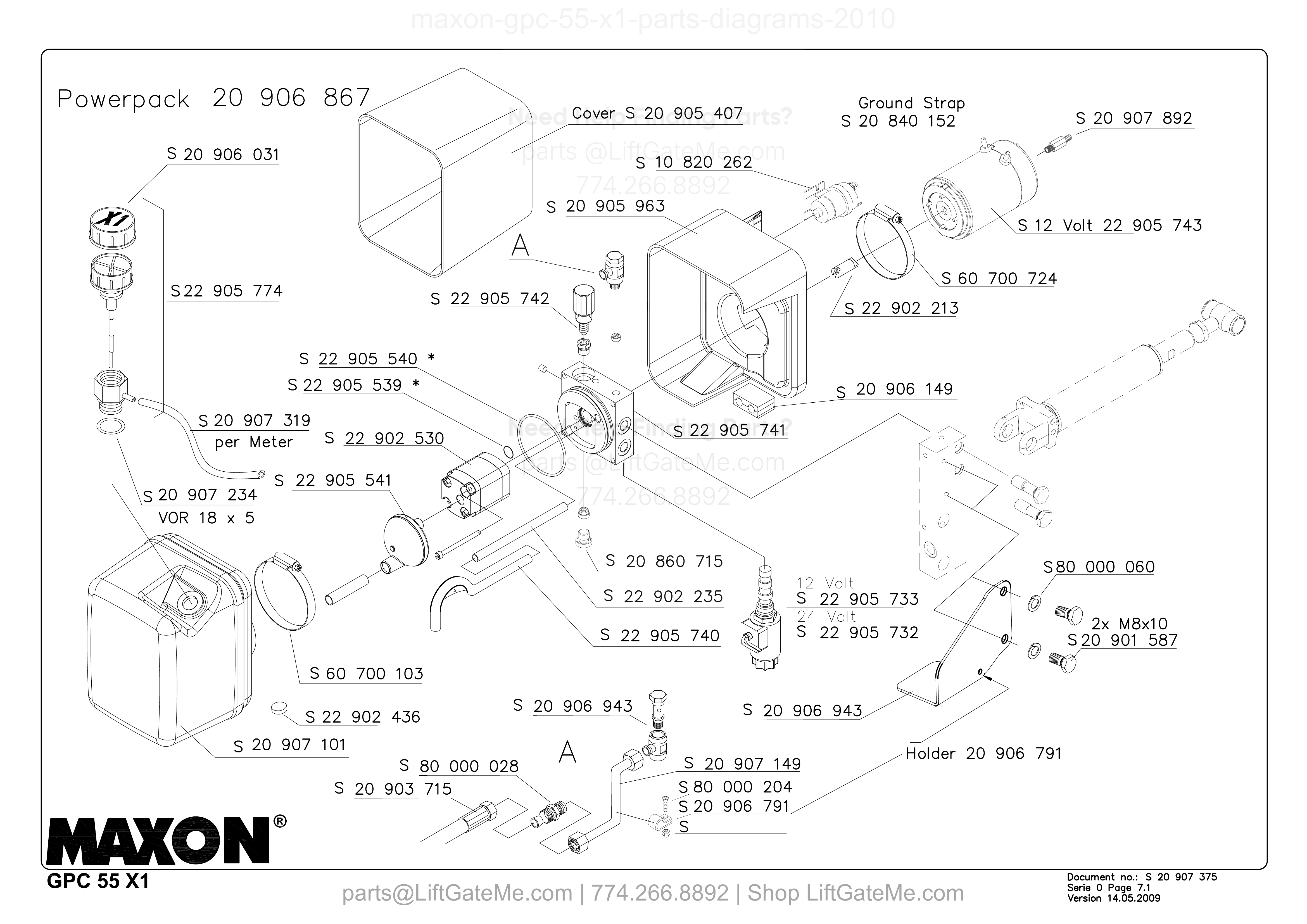

Powerpack 20 906 867
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 906 031 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 774 | Powerpack 20 906 867 — part | |
| — | - | S 20 907 319 | Powerpack 20 906 867 — per Meter | |
| — | - | S 20 907 234 | Powerpack 20 906 867 — VOR 18 x 5 | |
| — | - | S 20 907 101 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 436 | Powerpack 20 906 867 — part | |
| — | - | S 60 700 103 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 541 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 530 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 540 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 539 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 742 | Powerpack 20 906 867 — part | |
| — | - | S 20 905 963 | Powerpack 20 906 867 — part | |
| — | - | S 20 905 407 | Powerpack 20 906 867 — Cover | |
| — | - | S 10 820 262 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 213 | Powerpack 20 906 867 — part | |
| — | - | S 60 700 724 | Powerpack 20 906 867 — part | |
| — | - | S 20 840 152 | Powerpack 20 906 867 — Ground Strap | |
| — | - | S 20 907 892 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 743 | Powerpack 20 906 867 — 12 Volt | |
| — | - | S 20 906 149 | Powerpack 20 906 867 — part | |
| — | - | S 80 000 060 | Powerpack 20 906 867 — part | |
| — | 2x | S 20 901 587 | Powerpack 20 906 867 — M8x10 | |
| — | - | S 22 905 733 | Powerpack 20 906 867 — 12 Volt | |
| — | - | S 22 905 732 | Powerpack 20 906 867 — 24 Volt | |
| — | - | S 22 905 740 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 235 | Powerpack 20 906 867 — part | |
| — | - | S 20 860 715 | Powerpack 20 906 867 — part | |
| — | - | S 20 906 943 | Powerpack 20 906 867 — part | |
| — | - | S 20 906 943 | Powerpack 20 906 867 — part | |
| — | - | S 20 907 149 | Powerpack 20 906 867 — part | |
| — | - | S 80 000 204 | Powerpack 20 906 867 — part | |
| — | - | S 20 906 791 | Powerpack 20 906 867 — Holder 20 906 791 | |
| — | - | S 80 000 028 | Powerpack 20 906 867 — part | |
| — | - | S 20 903 715 | Powerpack 20 906 867 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

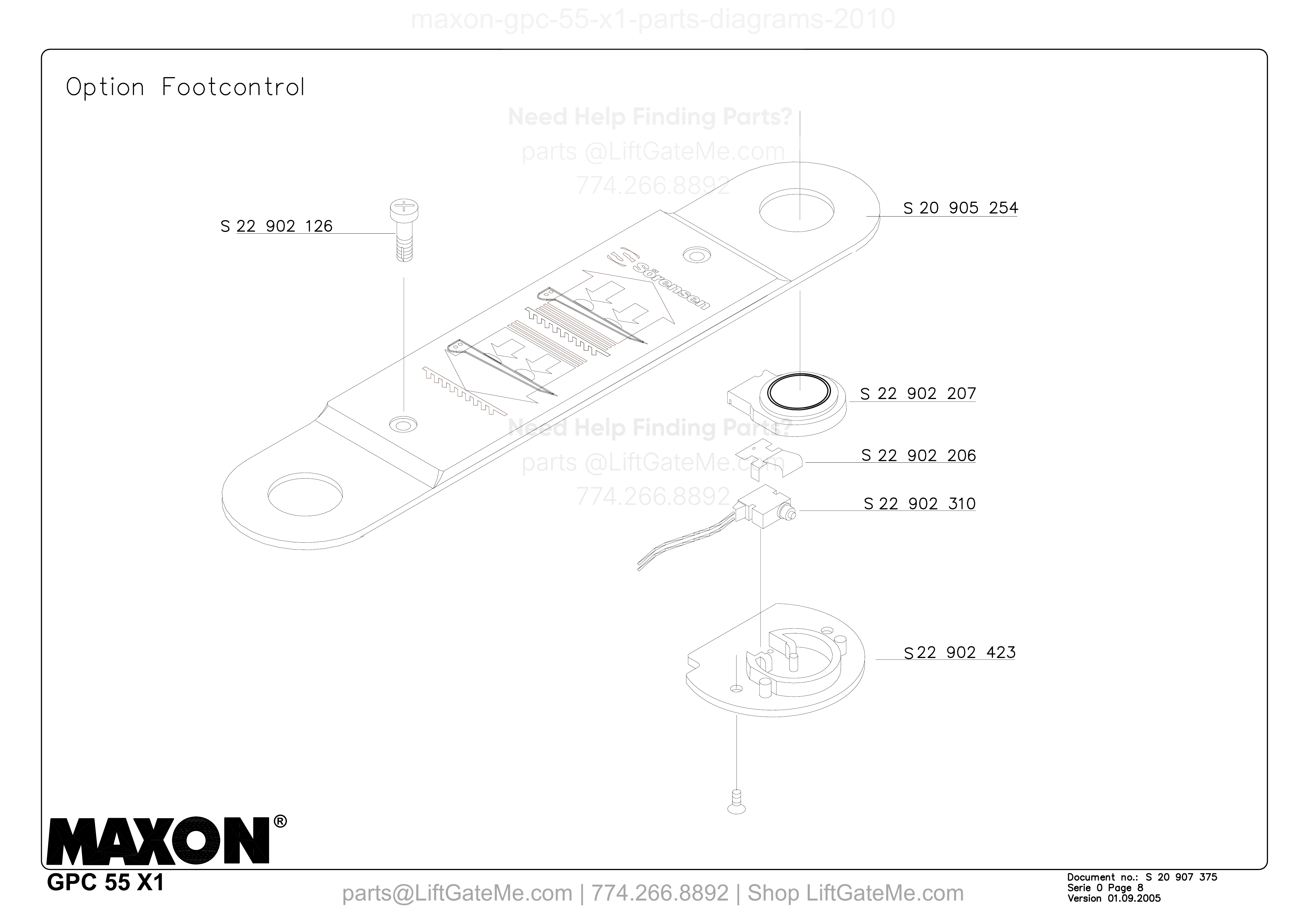

Option Footcontrol
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 22 902 126 | Option Footcontrol — part | |
| — | - | S 20 905 254 | Option Footcontrol — part | |
| — | - | S 22 902 207 | Option Footcontrol — part | |
| — | - | S 22 902 206 | Option Footcontrol — part | |
| — | - | S 22 902 310 | Option Footcontrol — part | |
| — | - | S 22 902 423 | Option Footcontrol — part |

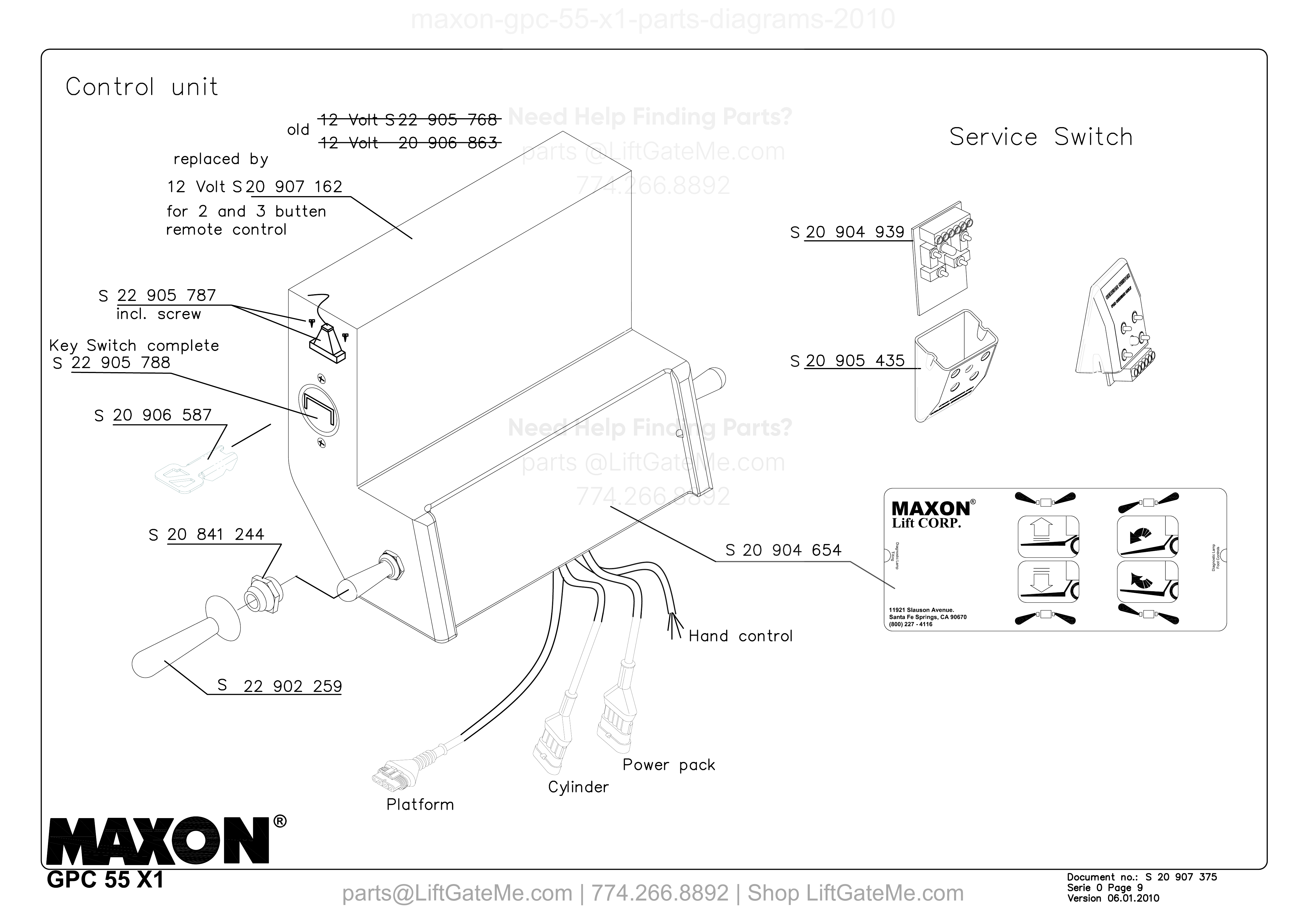

Control unit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 162 | Control unit — 12 Volt replaced by for 2 and 3 button remote control | |
| — | - | S 22 905 787 | Control unit — incl. screw | |
| — | - | S 22 905 788 | Control unit — Key Switch complete | |
| — | - | S 20 906 587 | Control unit — part | |
| — | - | S 20 841 244 | Control unit — part | |
| — | - | S 22 902 259 | Control unit — part | |
| — | - | S 20 904 654 | Control unit — Hand control | |
| — | - | S 20 904 939 | Control unit — Service Switch | |
| — | - | S 20 905 435 | Control unit — Service Switch |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

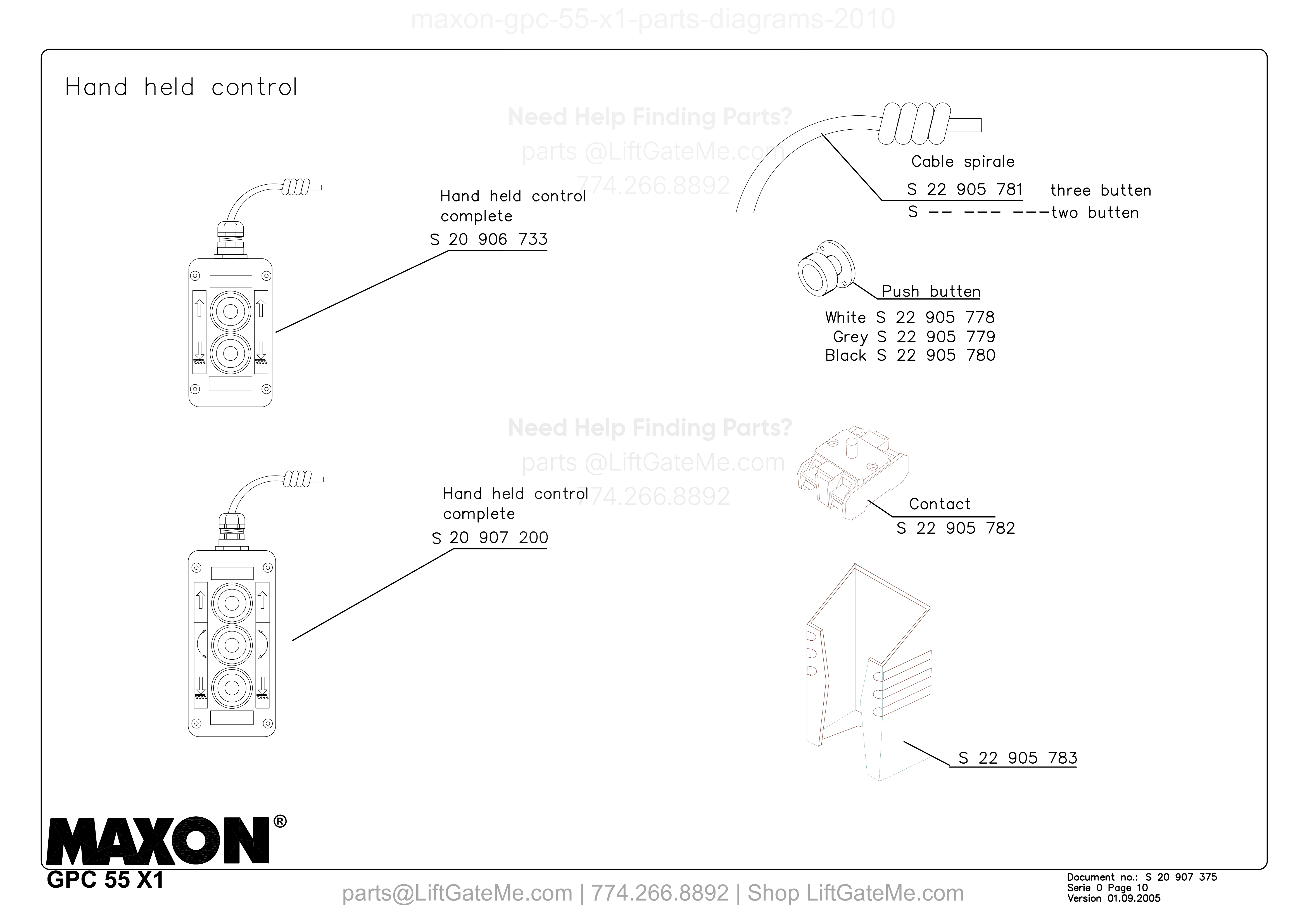

Hand held control
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 906 733 | Hand held control — Hand held control complete | |
| — | - | S 20 907 200 | Hand held control — Hand held control complete | |
| — | - | S 22 905 781 | Hand held control — Cable spirale three button | |
| — | - | S 22 905 778 | Hand held control — Push button White | |
| — | - | S 22 905 779 | Hand held control — Push button Grey | |
| — | - | S 22 905 780 | Hand held control — Push button Black | |
| — | - | S 22 905 782 | Hand held control — Contact | |
| — | - | S 22 905 783 | Hand held control — part |

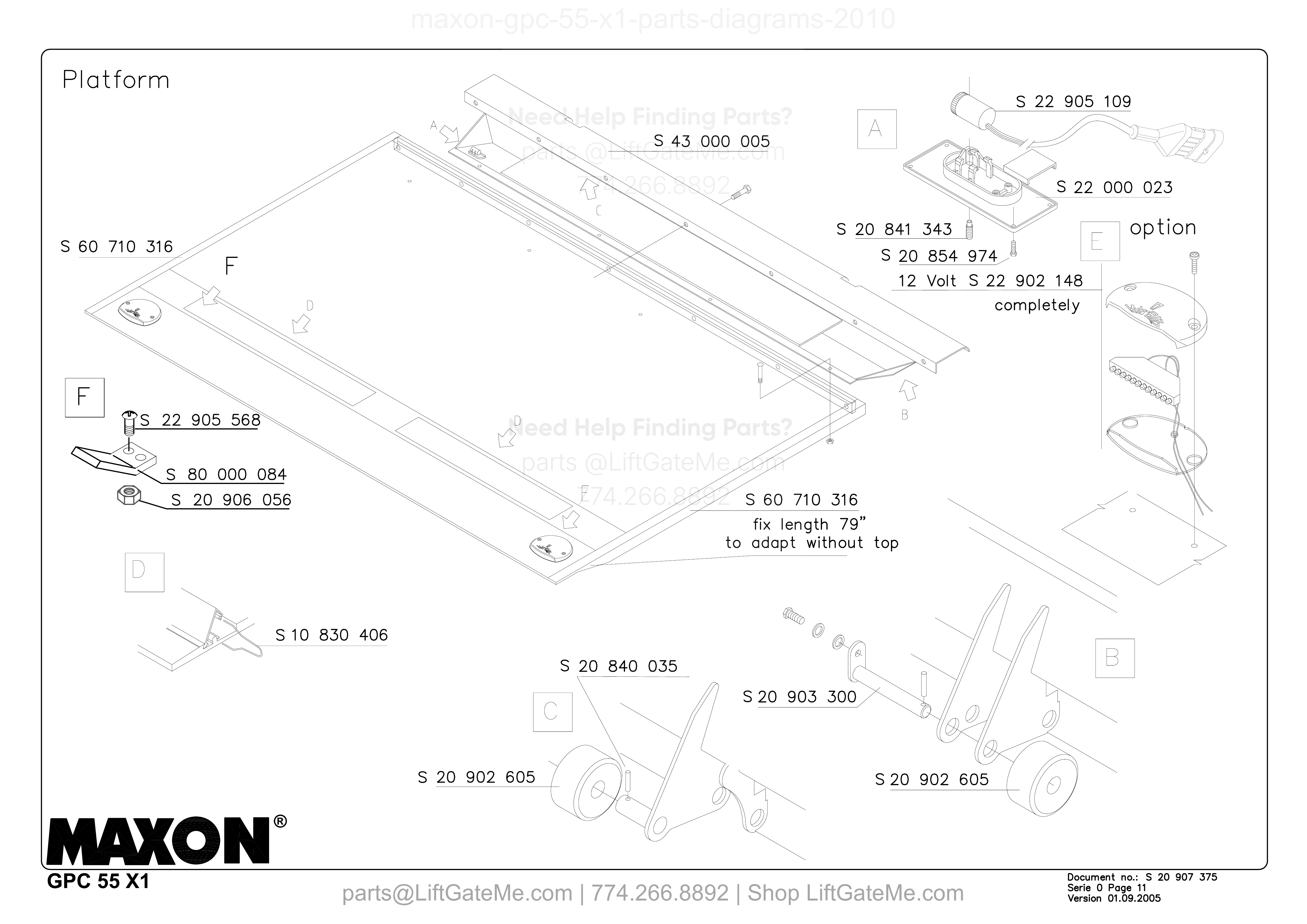

Platform
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 60 710 316 | Platform — part | |
| — | - | S 43 000 005 | Platform — part | |
| — | - | S 22 905 109 | Platform — part | |
| — | - | S 22 000 023 | Platform — part | |
| — | - | S 20 841 343 | Platform — part | |
| — | - | S 20 854 974 | Platform — part | |
| — | - | S 22 902 148 | Platform — 12 Volt completely | |
| — | - | S 22 905 568 | Platform — part | |
| — | - | S 80 000 084 | Platform — part | |
| — | - | S 20 906 056 | Platform — part | |
| — | - | S 10 830 406 | Platform — part | |
| — | - | S 20 840 035 | Platform — part | |
| — | - | S 20 903 300 | Platform — part | |
| — | - | S 20 902 605 | Platform — part | |
| — | - | S 20 902 605 | Platform — part |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
