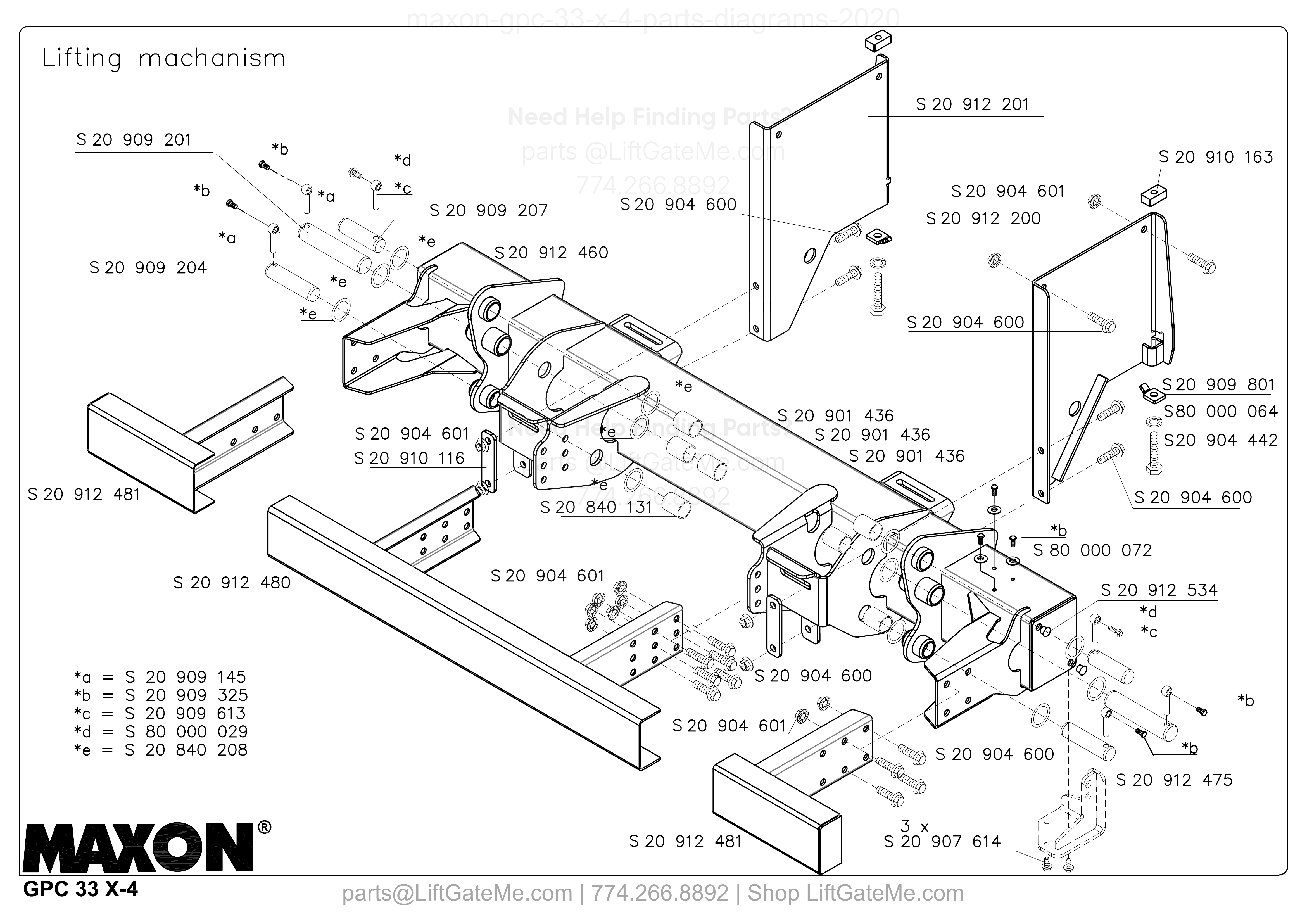

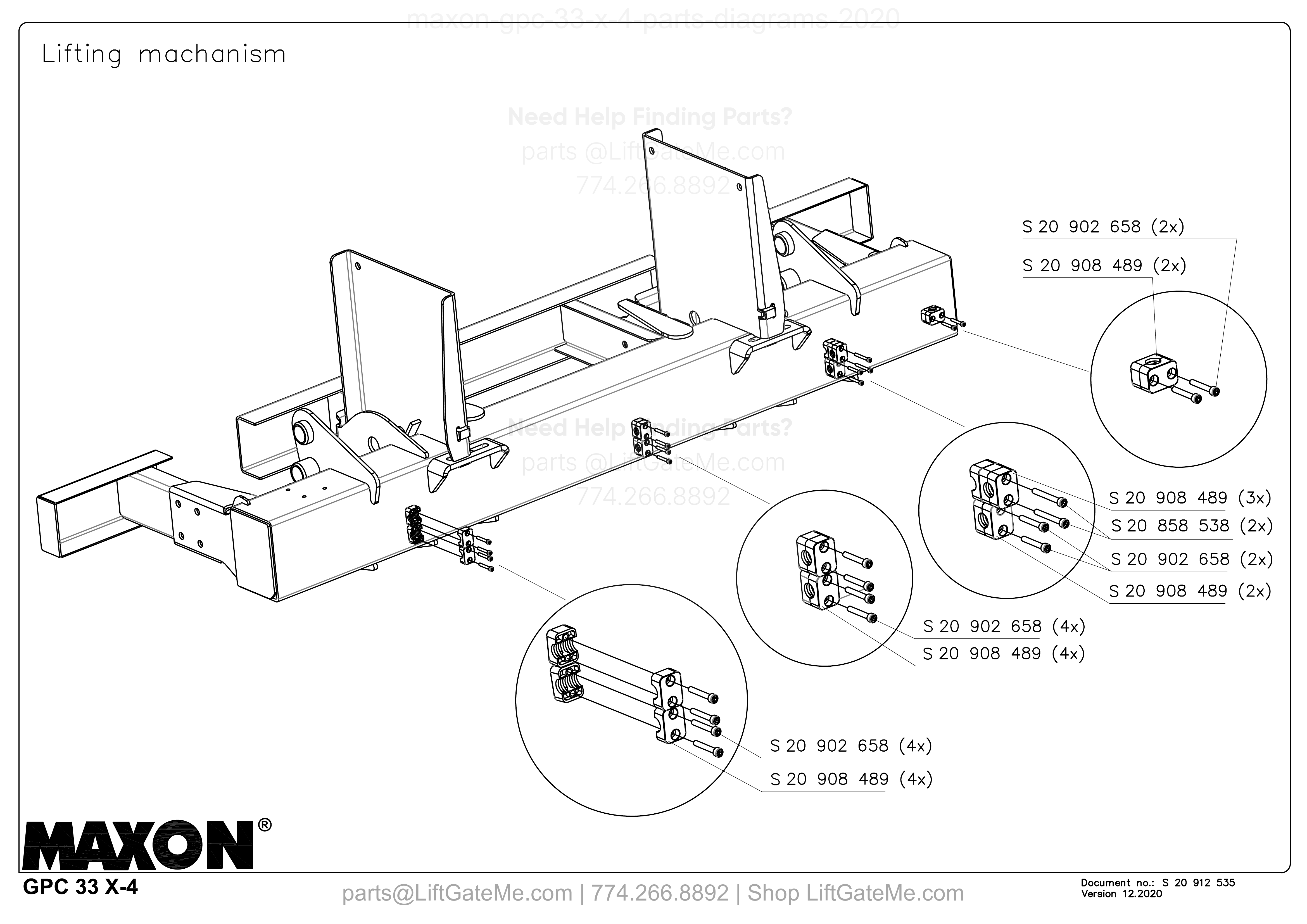

Lifting mechanism
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 909 201 | Lifting mechanism — part | |
| — | - | S 20 909 204 | Lifting mechanism — part | |
| — | - | S 20 909 207 | Lifting mechanism — part | |
| — | - | S 20 912 460 | Lifting mechanism — part | |
| — | - | S 20 912 481 | Lifting mechanism — part | |
| — | - | S 20 912 480 | Lifting mechanism — part | |
| — | - | S 20 912 201 | Lifting mechanism — part | |
| — | - | S 20 904 600 | Lifting mechanism — part | |
| — | - | S 20 904 601 | Lifting mechanism — part | |
| — | - | S 20 912 200 | Lifting mechanism — part | |
| — | - | S 20 910 163 | Lifting mechanism — part | |
| — | - | S 20 909 801 | Lifting mechanism — part | |
| — | - | S80 000 064 | Lifting mechanism — part | |
| — | - | S 20 904 442 | Lifting mechanism — part | |
| — | - | S 20 901 436 | Lifting mechanism — part | |
| — | - | S 20 840 131 | Lifting mechanism — part | |
| — | - | S80 000 072 | Lifting mechanism — part | |
| — | - | S 20 912 534 | Lifting mechanism — part | |
| — | - | S 20 912 475 | Lifting mechanism — part | |
| — | 3 x | S 20 907 614 | Lifting mechanism — part | |
| — | - | S 20 909 145 | Lifting mechanism — part | |
| — | - | S 20 909 325 | Lifting mechanism — part | |
| — | - | S 20 909 613 | Lifting mechanism — part | |
| — | - | S 80 000 029 | Lifting mechanism — part | |
| — | - | S 20 840 208 | Lifting mechanism — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
Lifting mechanism
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | 2x | S 20 902 658 | Lifting mechanism — part | |
| — | 2x | S 20 908 489 | Lifting mechanism — part | |
| — | 3x | S 20 908 489 | Lifting mechanism — part | |
| — | 2x | S 20 858 538 | Lifting mechanism — part | |
| — | 2x | S 20 902 658 | Lifting mechanism — part | |
| — | 2x | S 20 908 489 | Lifting mechanism — part | |
| — | 4x | S 20 902 658 | Lifting mechanism — part | |
| — | 4x | S 20 908 489 | Lifting mechanism — part | |
| — | 4x | S 20 902 658 | Lifting mechanism — part | |
| — | 4x | S 20 908 489 | Lifting mechanism — part |

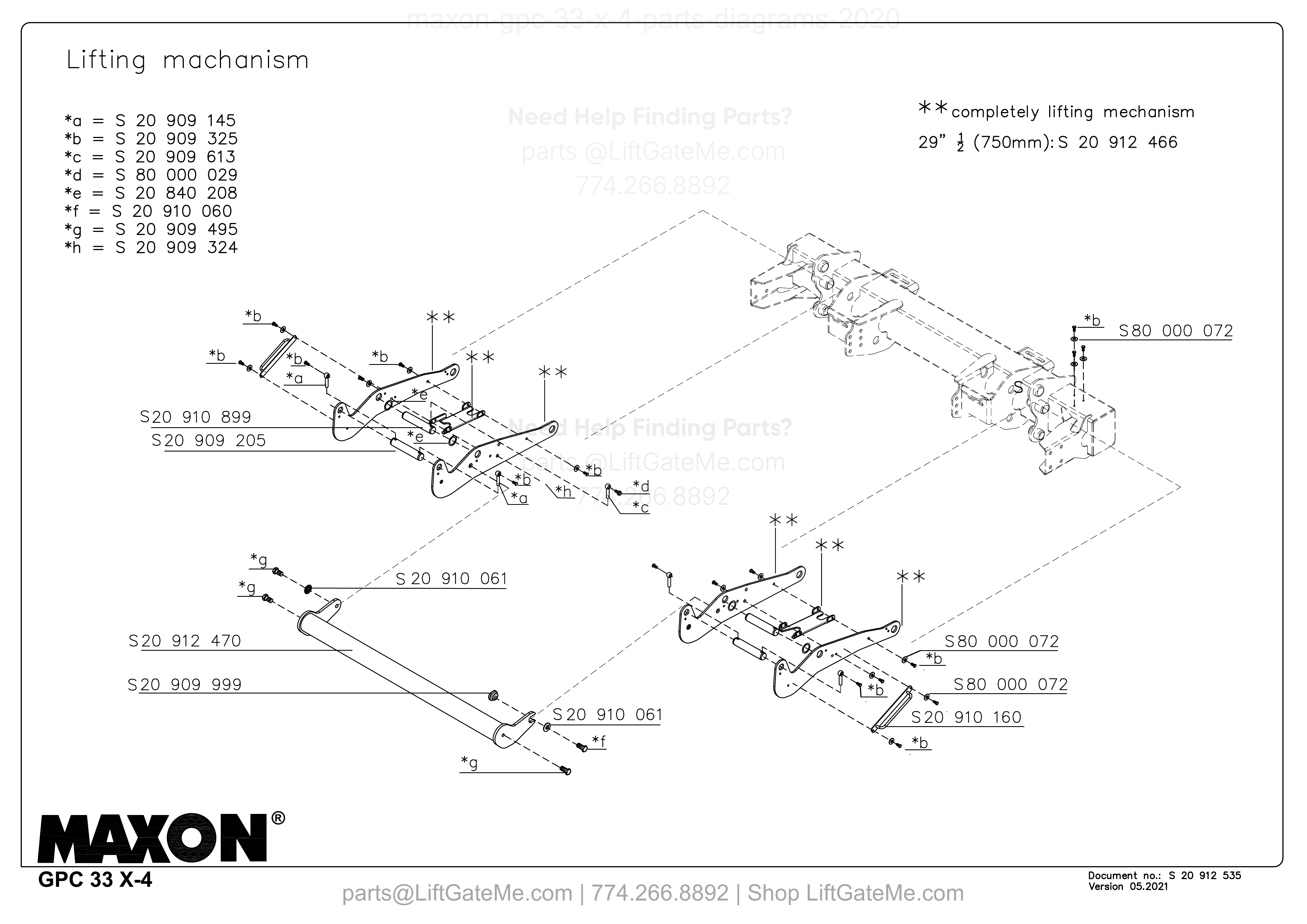

Lifting mechanism
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 909 145 | Lifting mechanism — part | |
| — | - | S 20 909 325 | Lifting mechanism — part | |
| — | - | S 20 909 613 | Lifting mechanism — part | |
| — | - | S 80 000 029 | Lifting mechanism — part | |
| — | - | S 20 840 208 | Lifting mechanism — part | |
| — | - | S 20 910 060 | Lifting mechanism — part | |
| — | - | S 20 909 495 | Lifting mechanism — part | |
| — | - | S 20 909 324 | Lifting mechanism — part | |
| — | - | S 20 912 466 | Lifting mechanism — completely lifting mechanism | |
| — | - | S20 910 899 | Lifting mechanism — part | |
| — | - | S20 909 205 | Lifting mechanism — part | |
| — | - | S80 000 072 | Lifting mechanism — part | |
| — | - | S 20 912 470 | Lifting mechanism — part | |
| — | - | S 20 909 999 | Lifting mechanism — part | |
| — | - | S 20 910 061 | Lifting mechanism — part | |
| — | - | S20 910 160 | Lifting mechanism — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

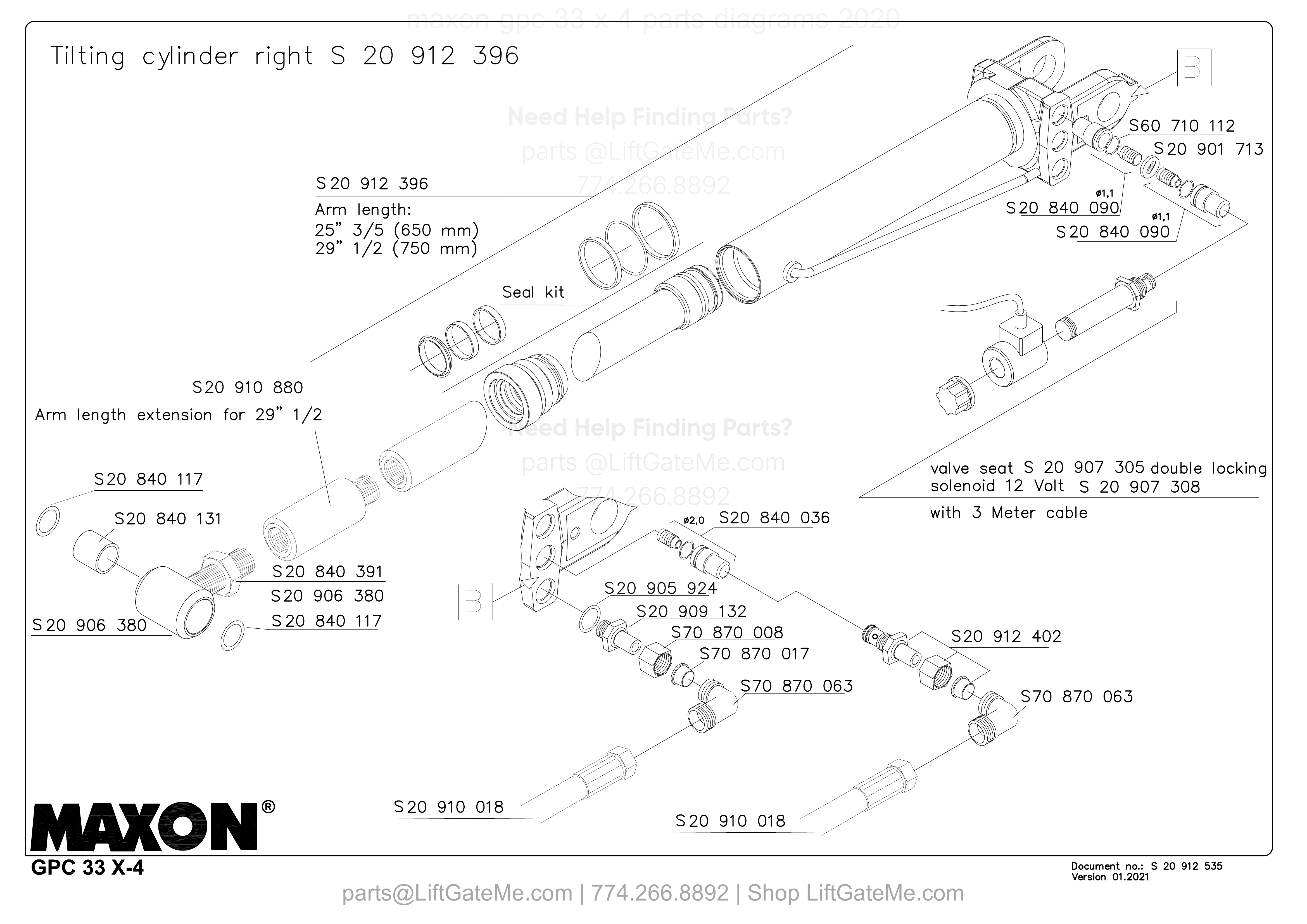

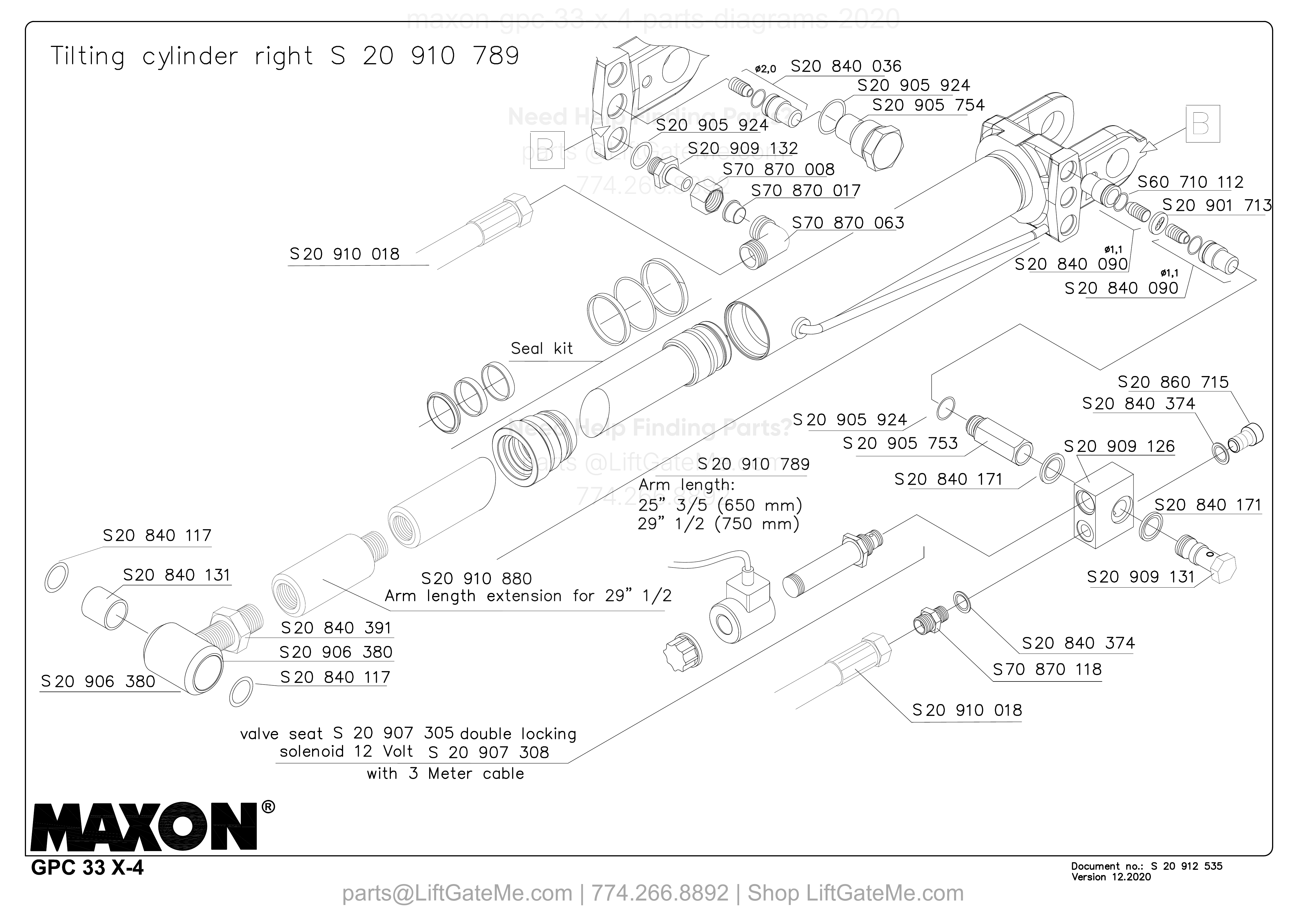

Tilting cylinder right S 20 912 396
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 912 396 | ||
| — | - | S20 910 880 | Tilting cylinder right S 20 912 396 — Arm length extension for 29” 1/2 | |
| — | - | S20 840 117 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 840 131 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 840 391 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 906 380 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 906 380 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S 20 840 036 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 905 924 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 909 132 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S70 870 008 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S70 870 017 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S70 870 063 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 912 402 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S70 870 063 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S 20 910 018 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S 20 910 018 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S60 710 112 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 901 713 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 840 090 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 840 090 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S 20 907 305 | Tilting cylinder right S 20 912 396 — valve seat | |
| — | - | S 20 907 308 | Tilting cylinder right S 20 912 396 — double locking solenoid 12 Volt with 3 Meter cable | |
| — | - | S20 840 117 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 907 305 | Tilting cylinder right S 20 912 396 — valve seat | |
| — | - | S20 907 308 | Tilting cylinder right S 20 912 396 — solenoid 12 Volt with 3 Meter cable | |
| — | - | S20 840 036 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 910 018 | Tilting cylinder right S 20 912 396 — part | |
| — | - | S20 910 018 | Tilting cylinder right S 20 912 396 — part |

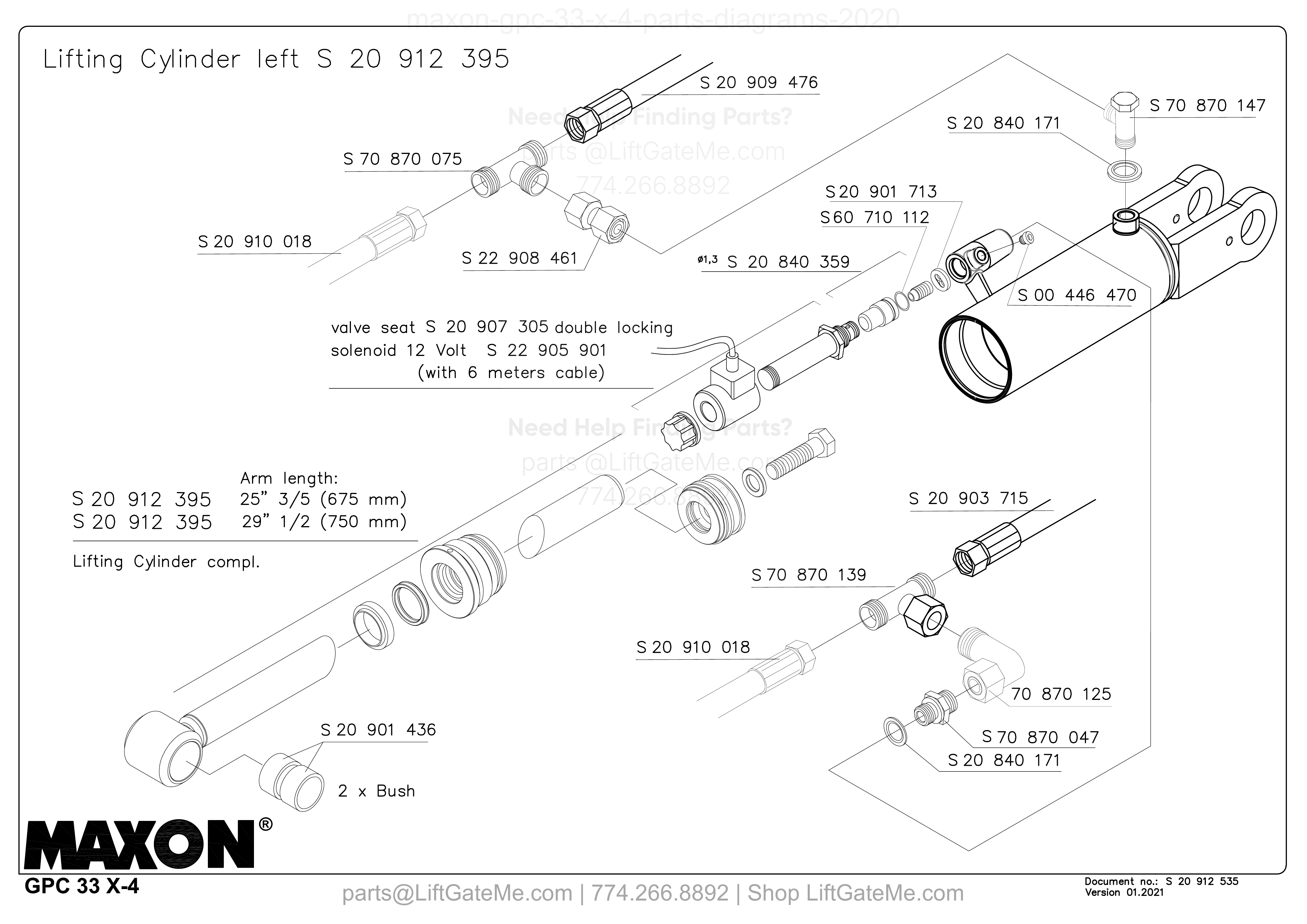

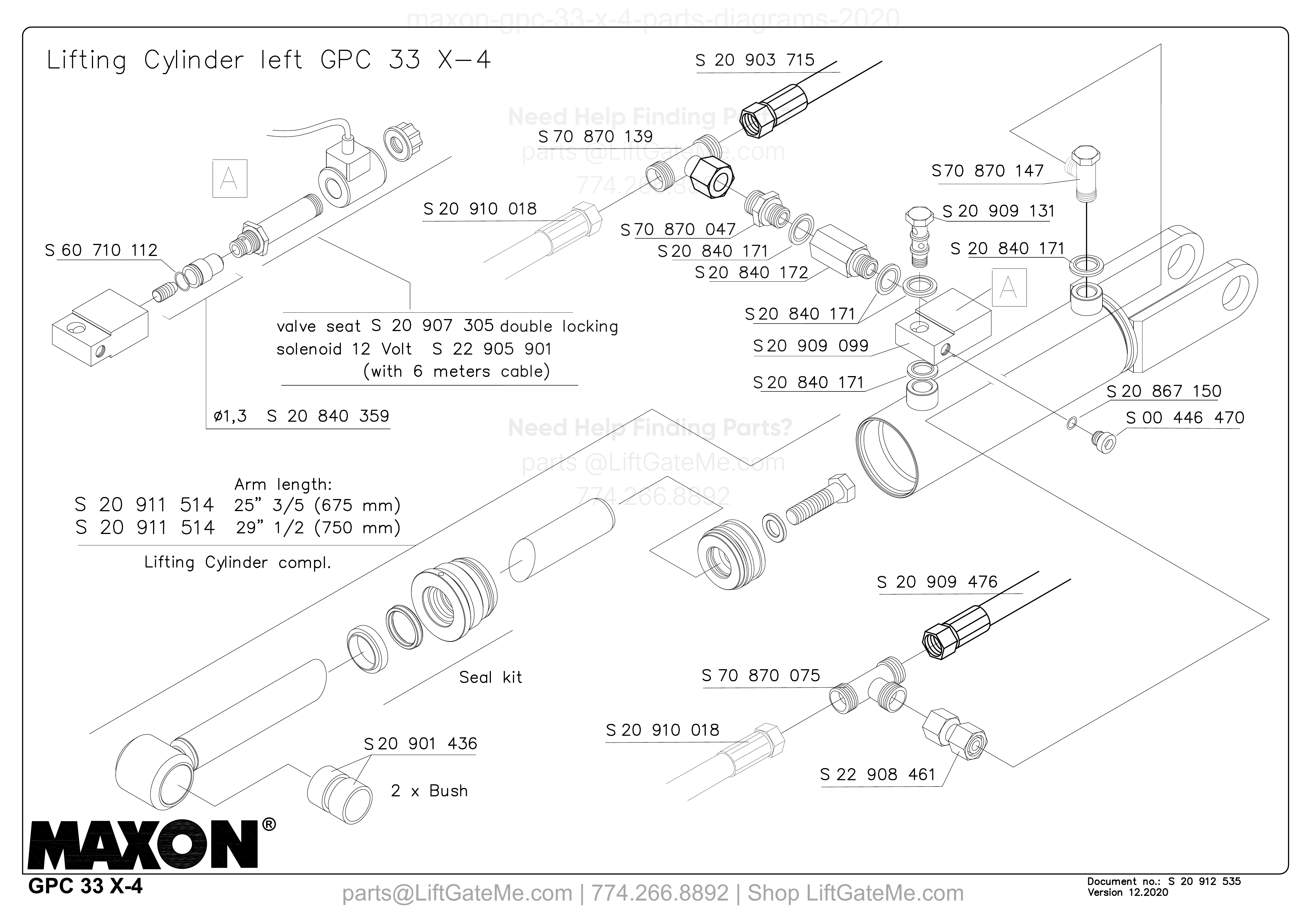

Lifting Cylinder left S 20 912 395
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 909 476 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S70 870 075 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S20 910 018 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S22 908 461 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S20 840 171 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S70 870 147 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S20 901 713 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S60 710 112 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S20 840 359 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S20 907 305 | Lifting Cylinder left S 20 912 395 — valve seat double locking | |
| — | - | S22 905 901 | Lifting Cylinder left S 20 912 395 — solenoid 12 Volt (with 6 meters cable) | |
| — | - | S20 912 395 | Lifting Cylinder left S 20 912 395 — Lifting Cylinder compl. | |
| — | - | S20 912 395 | Lifting Cylinder left S 20 912 395 — Lifting Cylinder compl. | |
| — | 2 | S20 901 436 | Lifting Cylinder left S 20 912 395 — Bush | |
| — | - | S20 903 715 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S70 870 139 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S20 910 018 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S70 870 125 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S70 870 047 | Lifting Cylinder left S 20 912 395 — part | |
| — | - | S20 840 171 | Lifting Cylinder left S 20 912 395 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

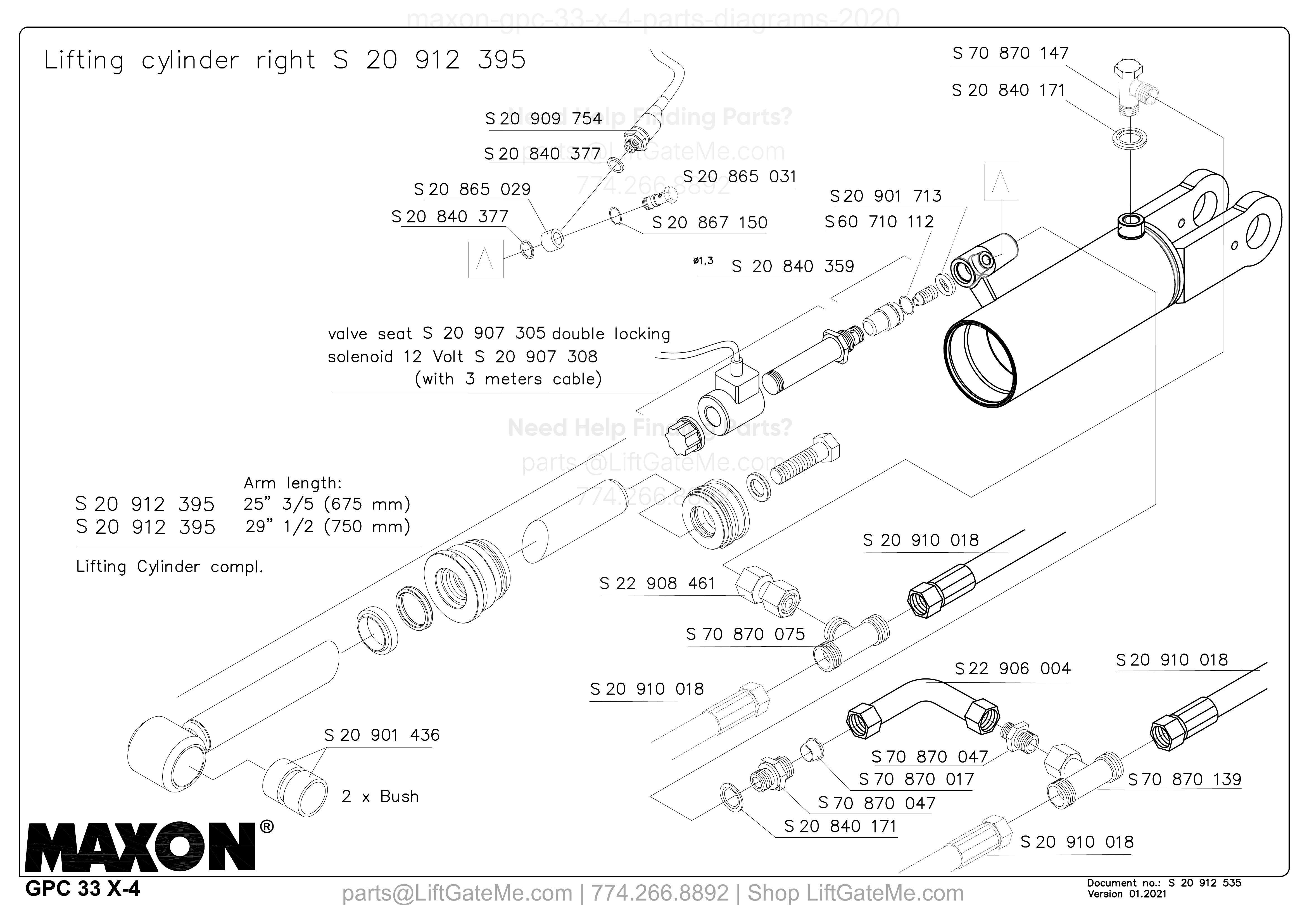

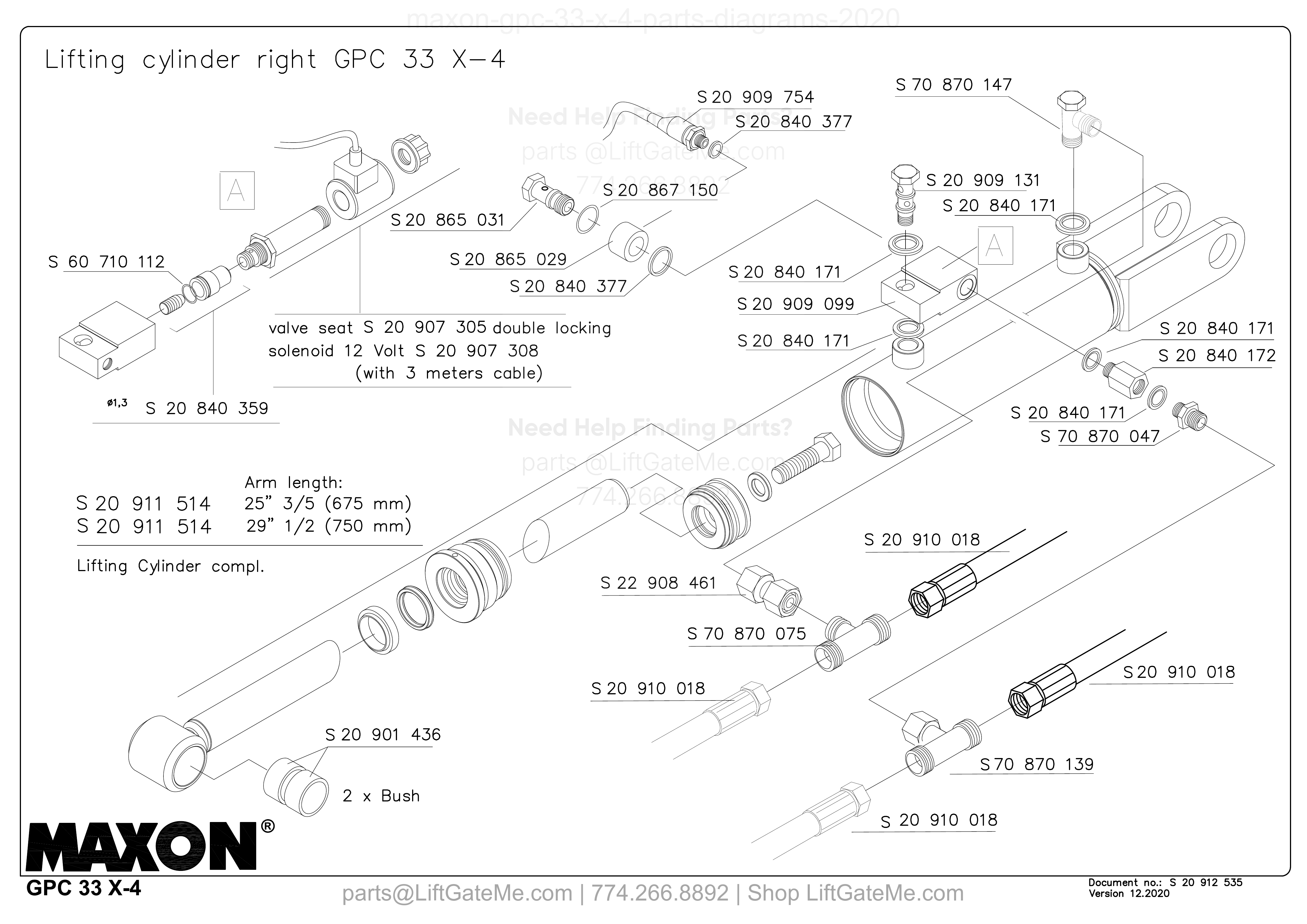

Lifting cylinder right S 20 912 395
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 909 754 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 840 377 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 865 029 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 840 377 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 865 031 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 867 150 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S70 870 147 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 840 171 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 901 713 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S60 710 112 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 840 359 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 907 305 | Lifting cylinder right S 20 912 395 — valve seat double locking | |
| — | - | S20 907 308 | Lifting cylinder right S 20 912 395 — solenoid 12 Volt (with 3 meters cable) | |
| — | - | S20 912 395 | Lifting cylinder right S 20 912 395 — Lifting Cylinder compl. | |
| — | - | S20 912 395 | Lifting cylinder right S 20 912 395 — Lifting Cylinder compl. | |
| — | 2 | S20 901 436 | Lifting cylinder right S 20 912 395 — Bush | |
| — | - | S22 908 461 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S70 870 075 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 910 018 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S22 906 004 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S70 870 047 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S70 870 017 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 840 171 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 910 018 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S70 870 139 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 910 018 | Lifting cylinder right S 20 912 395 — part | |
| — | - | S20 910 018 | Lifting cylinder right S 20 912 395 — part |

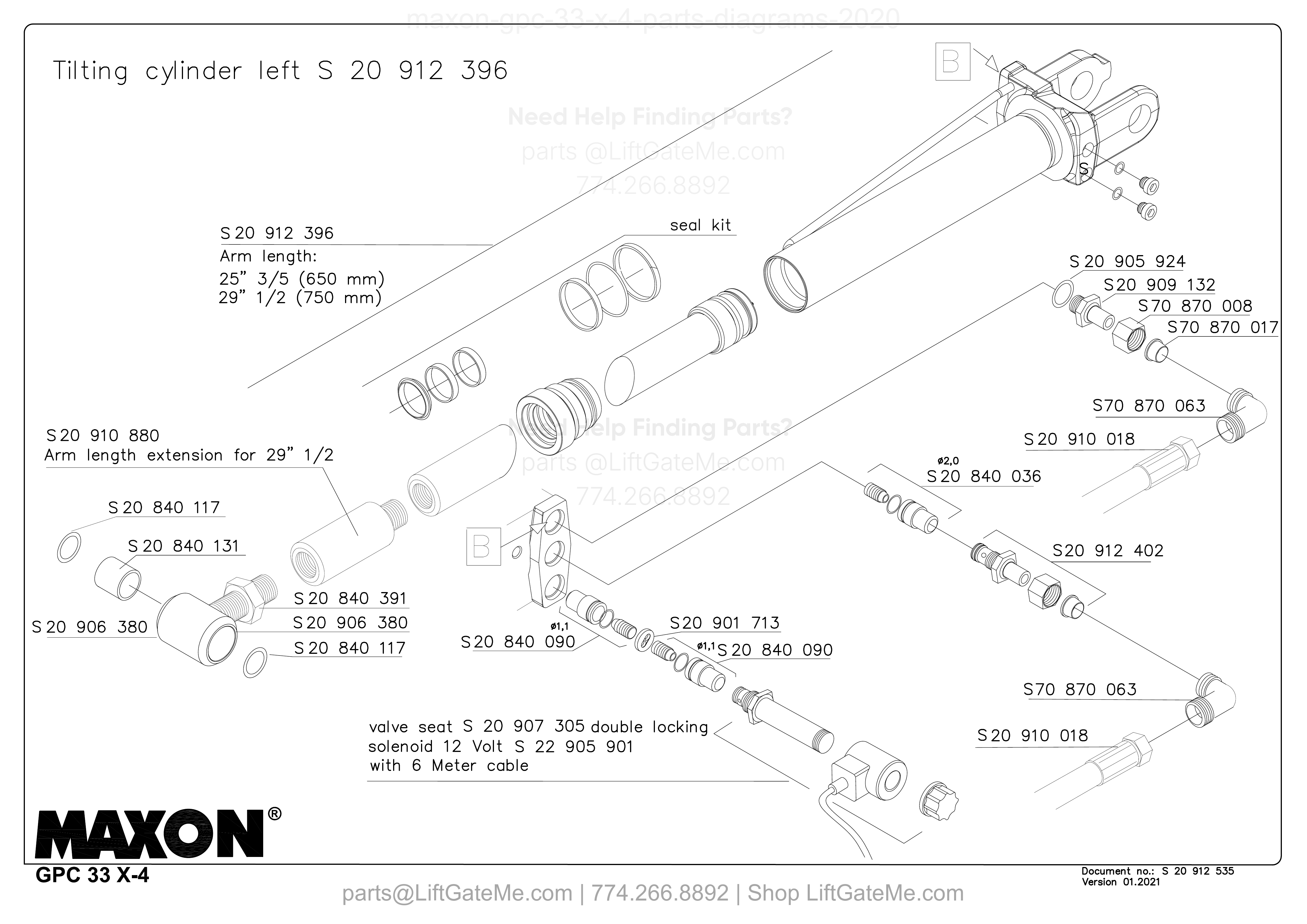

Tilting cylinder left S 20 912 396
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 912 396 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 910 880 | Tilting cylinder left S 20 912 396 — Arm length extension for 29” 1/2 | |
| — | - | S20 840 117 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 840 131 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 906 380 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 840 391 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 906 380 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 840 117 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 905 924 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 909 132 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S70 870 008 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S70 870 017 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S70 870 063 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 910 018 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 840 036 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 912 402 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S70 870 063 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 910 018 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 840 090 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 901 713 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 840 090 | Tilting cylinder left S 20 912 396 — part | |
| — | - | S20 907 305 | Tilting cylinder left S 20 912 396 — valve seat double locking | |
| — | - | S22 905 901 | Tilting cylinder left S 20 912 396 — solenoid 12 Volt with 6 Meter cable |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

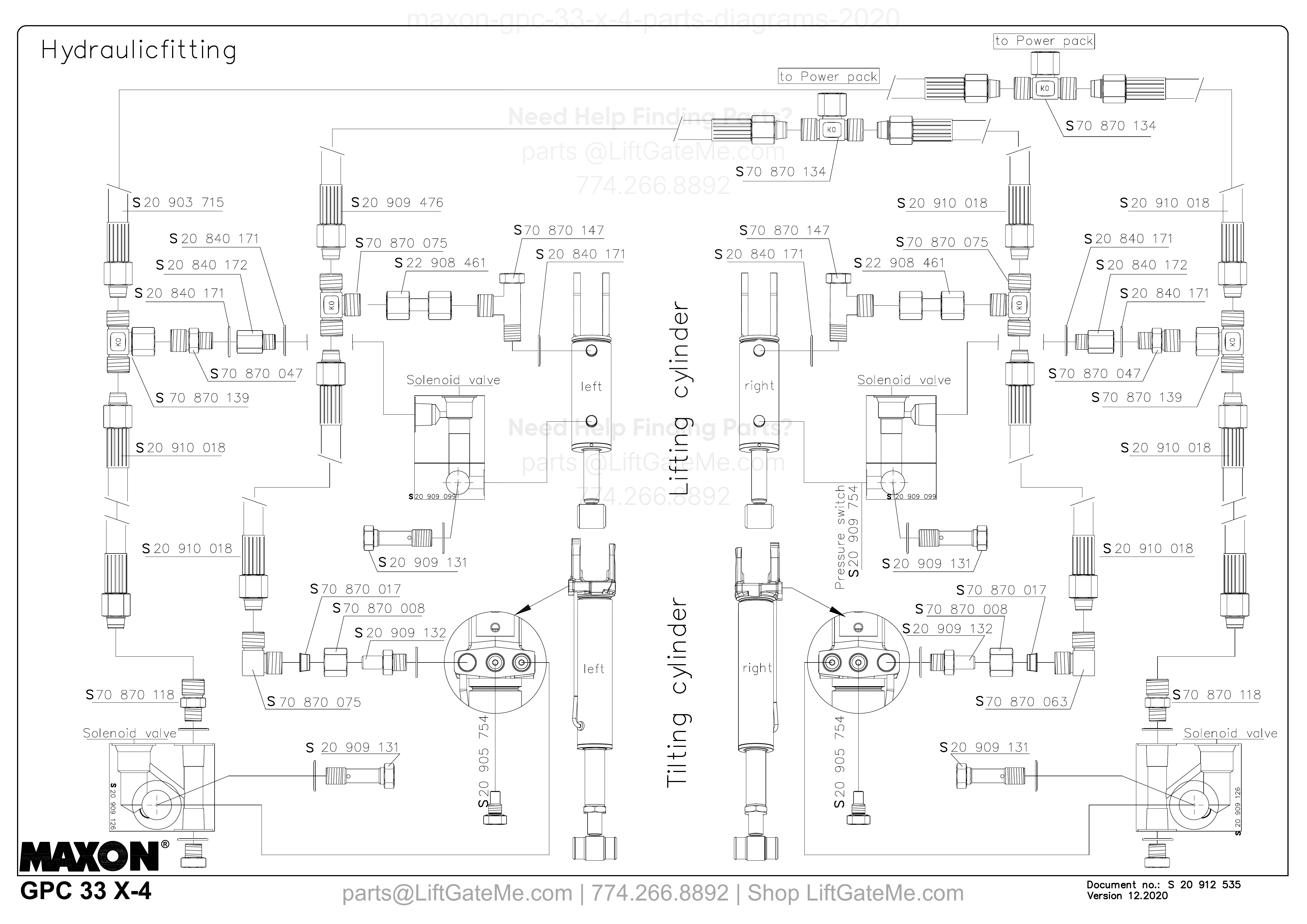

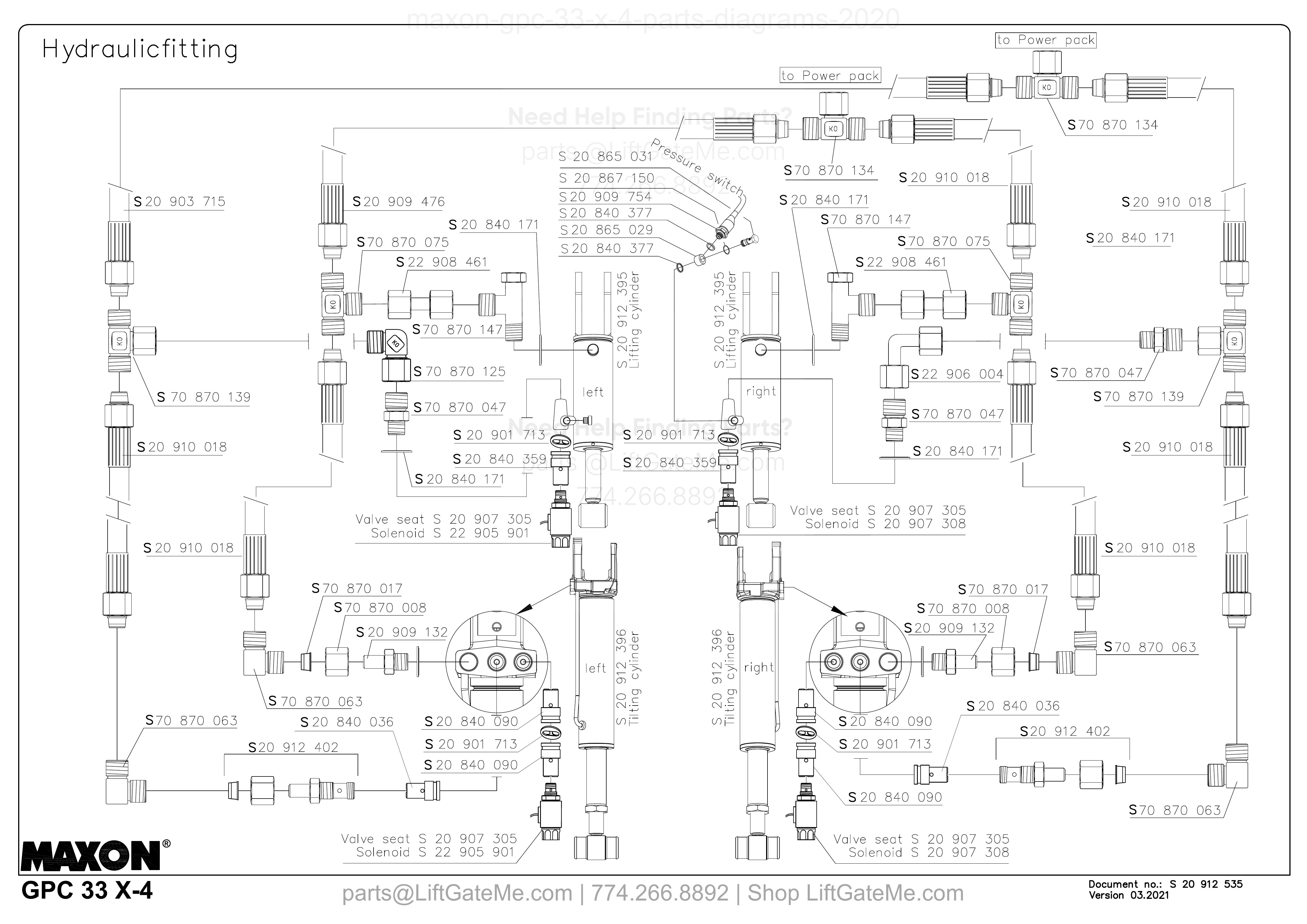

Hydraulicfitting
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 903 715 | Hydraulicfitting — part | |
| — | - | S20 910 018 | Hydraulicfitting — part | |
| — | - | S20 910 018 | Hydraulicfitting — part | |
| — | - | S70 870 063 | Hydraulicfitting — part | |
| — | - | S20 912 402 | Hydraulicfitting — part | |
| — | - | S20 840 036 | Hydraulicfitting — part | |
| — | - | S20 901 713 | Hydraulicfitting — part | |
| — | - | S20 840 090 | Hydraulicfitting — part | |
| — | - | S20 907 305 | Hydraulicfitting — Valve seat | |
| — | - | S22 905 901 | Hydraulicfitting — Solenoid | |
| — | - | S20 901 713 | Hydraulicfitting — part | |
| — | - | S20 840 359 | Hydraulicfitting — part | |
| — | - | S70 870 047 | Hydraulicfitting — part | |
| — | - | S70 870 125 | Hydraulicfitting — part | |
| — | - | S70 870 147 | Hydraulicfitting — part | |
| — | - | S22 908 461 | Hydraulicfitting — part | |
| — | - | S70 870 075 | Hydraulicfitting — part | |
| — | - | S20 840 171 | Hydraulicfitting — part | |
| — | - | S20 865 031 | Hydraulicfitting — Pressure switch | |
| — | - | S20 867 150 | Hydraulicfitting — Pressure switch | |
| — | - | S20 909 754 | Hydraulicfitting — Pressure switch | |
| — | - | S20 840 377 | Hydraulicfitting — Pressure switch | |
| — | - | S20 865 029 | Hydraulicfitting — Pressure switch | |
| — | - | S20 840 377 | Hydraulicfitting — Pressure switch | |
| — | - | S70 870 134 | Hydraulicfitting — to Power pack | |
| — | - | S20 910 018 | Hydraulicfitting — to Power pack | |
| — | - | S20 840 171 | Hydraulicfitting — to Power pack | |
| — | - | S70 870 147 | Hydraulicfitting — part | |
| — | - | S22 908 461 | Hydraulicfitting — part | |
| — | - | S70 870 075 | Hydraulicfitting — part | |
| — | - | S22 906 004 | Hydraulicfitting — part | |
| — | - | S70 870 047 | Hydraulicfitting — part | |
| — | - | S70 870 139 | Hydraulicfitting — part | |
| — | - | S20 840 171 | Hydraulicfitting — part | |
| — | - | S20 910 018 | Hydraulicfitting — part | |
| — | - | S20 910 018 | Hydraulicfitting — part | |
| — | - | S70 870 017 | Hydraulicfitting — part | |
| — | - | S70 870 008 | Hydraulicfitting — part | |
| — | - | S20 909 132 | Hydraulicfitting — part | |
| — | - | S20 840 090 | Hydraulicfitting — part | |
| — | - | S20 907 305 | Hydraulicfitting — Valve seat | |
| — | - | S22 905 901 | Hydraulicfitting — Solenoid | |
| — | - | S20 907 305 | Hydraulicfitting — Valve seat | |
| — | - | S20 907 308 | Hydraulicfitting — Soenoid | |
| — | - | S20 907 305 | Hydraulicfitting — Valve sect | |
| — | - | S20 907 308 | Hydraulicfitting — Soenoid | |
| — | - | S70 870 063 | Hydraulicfitting — part | |
| — | - | S20 910 018 | Hydraulicfitting — part | |
| — | - | S70 870 134 | Hydraulicfitting — to Power pack | |
| — | - | S20 910 018 | Hydraulicfitting — to Power pack |
Hydraulic fitting
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 903 715 | Hydraulic fitting — part | |
| — | - | S 20 909 476 | Hydraulic fitting — part | |
| — | - | S 70 870 075 | Hydraulic fitting — part | |
| — | - | S 22 908 461 | Hydraulic fitting — part | |
| — | - | S 20 840 171 | Hydraulic fitting — part | |
| — | - | S 70 870 147 | Hydraulic fitting — part | |
| — | - | S 70 870 125 | Hydraulic fitting — part | |
| — | - | S 70 870 047 | Hydraulic fitting — part | |
| — | - | S 20 901 713 | Hydraulic fitting — part | |
| — | - | S 20 840 359 | Hydraulic fitting — part | |
| — | - | S 20 907 305 | Hydraulic fitting — Valve seat | |
| — | - | S 22 905 901 | Hydraulic fitting — Solenoid | |
| — | - | S 20 865 031 | Hydraulic fitting — Pressure switch | |
| — | - | S 20 867 150 | Hydraulic fitting — Pressure switch | |
| — | - | S 20 909 754 | Hydraulic fitting — Pressure switch | |
| — | - | S 20 840 377 | Hydraulic fitting — Pressure switch | |
| — | - | S 20 865 029 | Hydraulic fitting — Pressure switch | |
| — | - | S 20 912 395 | Hydraulic fitting — Lifting cylinder | |
| — | - | S 22 906 004 | Hydraulic fitting — part | |
| — | - | S 20 909 132 | Hydraulic fitting — part | |
| — | - | S 70 870 017 | Hydraulic fitting — part | |
| — | - | S 70 870 008 | Hydraulic fitting — part | |
| — | - | S 70 870 063 | Hydraulic fitting — part | |
| — | - | S 20 840 036 | Hydraulic fitting — part | |
| — | - | S 20 840 090 | Hydraulic fitting — part | |
| — | - | S 20 912 402 | Hydraulic fitting — part | |
| — | - | S 70 870 134 | Hydraulic fitting — to Power pack | |
| — | - | S 20 910 018 | Hydraulic fitting — part | |
| — | - | S 70 870 139 | Hydraulic fitting — part | |
| — | - | S 20 907 308 | Hydraulic fitting — Solenoid |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
Lifting cylinder right GPC 33 X-4
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 60 710 112 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 840 359 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 865 031 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 907 305 | Lifting cylinder right GPC 33 X-4 — valve seat | |
| — | - | S 20 907 308 | Lifting cylinder right GPC 33 X-4 — solenoid 12 Volt | |
| — | - | S 20 865 029 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 867 150 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 909 754 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 840 377 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 909 131 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 840 171 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 909 099 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 70 870 147 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 840 172 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 70 870 047 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 22 908 461 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 70 870 075 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 910 018 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 70 870 139 | Lifting cylinder right GPC 33 X-4 — part | |
| — | - | S 20 911 514 | Lifting cylinder right GPC 33 X-4 — Lifting Cylinder compl. | |
| — | 2 | S 20 901 436 | Lifting cylinder right GPC 33 X-4 — Bush |
Lifting Cylinder left GPC 33 X-4
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 60 710 112 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 20 907 305 | Lifting Cylinder left GPC 33 X-4 — valve seat | |
| — | - | S 22 905 901 | Lifting Cylinder left GPC 33 X-4 — solenoid 12 Volt | |
| — | - | S 20 840 359 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 20 911 514 | Lifting Cylinder left GPC 33 X-4 — Lifting Cylinder compl. | |
| — | 2 | S 20 901 436 | Lifting Cylinder left GPC 33 X-4 — Bush | |
| — | - | S 20 903 715 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 70 870 139 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 20 910 018 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 70 870 047 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 20 840 171 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 20 840 172 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 20 909 099 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 70 870 147 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 20 909 131 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 20 867 150 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 00 446 470 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 20 909 476 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 70 870 075 | Lifting Cylinder left GPC 33 X-4 — part | |
| — | - | S 22 908 461 | Lifting Cylinder left GPC 33 X-4 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
Tilting cylinder right S 20 910 789
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 840 117 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 840 131 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 906 380 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 840 391 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S 20 907 305 | Tilting cylinder right S 20 910 789 — valve seat | |
| — | - | S 20 907 308 | Tilting cylinder right S 20 910 789 — solenoid 12 Volt | |
| — | - | S20 910 018 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 840 036 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 905 924 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 905 754 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 909 132 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S70 870 008 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S70 870 017 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S70 870 063 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S 60 710 112 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S 20 901 713 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 840 090 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 860 715 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 840 374 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 909 126 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 905 753 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 840 171 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 909 131 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S70 870 118 | Tilting cylinder right S 20 910 789 — part | |
| — | - | S20 910 789 | Tilting cylinder right S 20 910 789 — Arm length | |
| — | - | S20 910 880 | Tilting cylinder right S 20 910 789 — Arm length extension for 29” 1/2 |

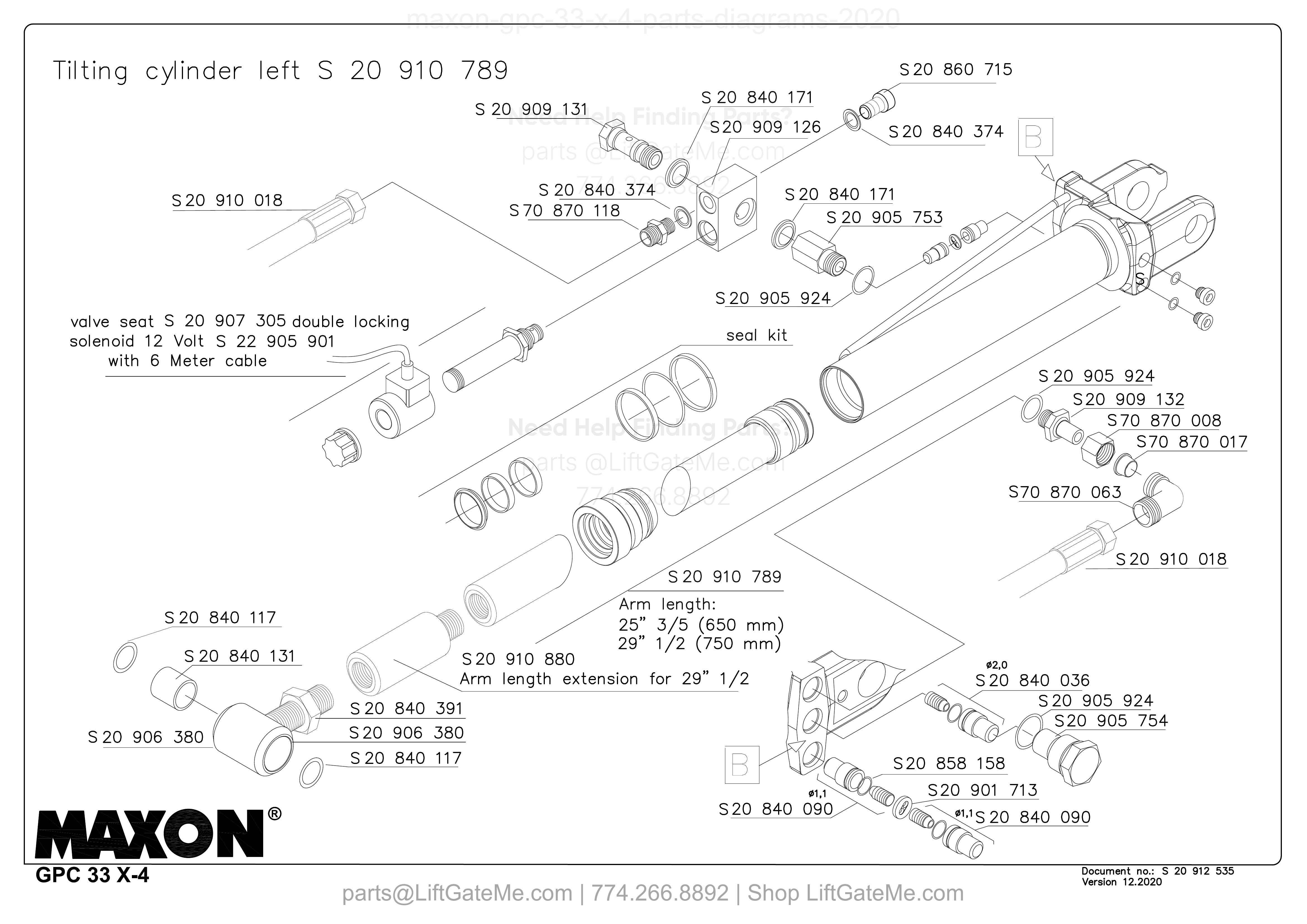

Tilting cylinder left S 20 910 789
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 910 018 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 907 305 | Tilting cylinder left S 20 910 789 — valve seat | |
| — | - | S 22 905 901 | Tilting cylinder left S 20 910 789 — solenoid 12 Volt | |
| — | - | S 20 909 131 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 840 171 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 909 126 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 860 715 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 840 374 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 905 753 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 905 924 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 909 132 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 70 870 008 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 70 870 017 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 70 870 063 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 840 117 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 840 131 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 906 380 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 840 391 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 910 880 | Tilting cylinder left S 20 910 789 — Arm length extension for 29” 1/2 | |
| — | - | S 20 910 789 | Tilting cylinder left S 20 910 789 — Arm length | |
| — | - | S 20 840 036 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 905 754 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 858 158 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 901 713 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 840 090 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 70 870 118 | Tilting cylinder left S 20 910 789 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
Tilting cylinder left S 20 910 789
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 910 018 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 909 131 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 840 171 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S20 909 126 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 860 715 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 840 374 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S70 870 118 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 905 753 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 905 924 | Tilting cylinder left S 20 910 789 — seal kit | |
| — | - | S 20 909 132 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S70 870 008 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S70 870 017 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S70 870 063 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 840 117 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 840 131 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 906 380 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 840 391 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 910 880 | Tilting cylinder left S 20 910 789 — Arm length extension for 29” 1/2 | |
| — | - | S 20 840 036 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S20 905 754 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S20 858 158 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S20 901 713 | Tilting cylinder left S 20 910 789 — part | |
| — | - | S 20 907 305 | Tilting cylinder left S 20 910 789 — valve seat double locking | |
| — | - | S 22 905 901 | Tilting cylinder left S 20 910 789 — solenoid 12 Volt with 6 Meter cable |
Hydraulicfitting
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 903 715 | Hydraulicfitting — part | |
| — | - | S20 840 171 | Hydraulicfitting — part | |
| — | - | S20 840 172 | Hydraulicfitting — part | |
| — | - | S70 870 047 | Hydraulicfitting — part | |
| — | - | S70 870 139 | Hydraulicfitting — part | |
| — | - | S20 910 018 | Hydraulicfitting — part | |
| — | - | S20 909 476 | Hydraulicfitting — part | |
| — | - | S70 870 075 | Hydraulicfitting — part | |
| — | - | S22 908 461 | Hydraulicfitting — part | |
| — | - | S70 870 147 | Hydraulicfitting — part | |
| — | - | S20 909 131 | Hydraulicfitting — part | |
| — | - | S70 870 017 | Hydraulicfitting — part | |
| — | - | S70 870 008 | Hydraulicfitting — part | |
| — | - | S20 909 132 | Hydraulicfitting — part | |
| — | - | S70 870 063 | Hydraulicfitting — part | |
| — | - | S70 870 118 | Hydraulicfitting — part | |
| — | - | S20 909 754 | Hydraulicfitting — Pressure switch | |
| — | - | S70 870 134 | Hydraulicfitting — to Power pack |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

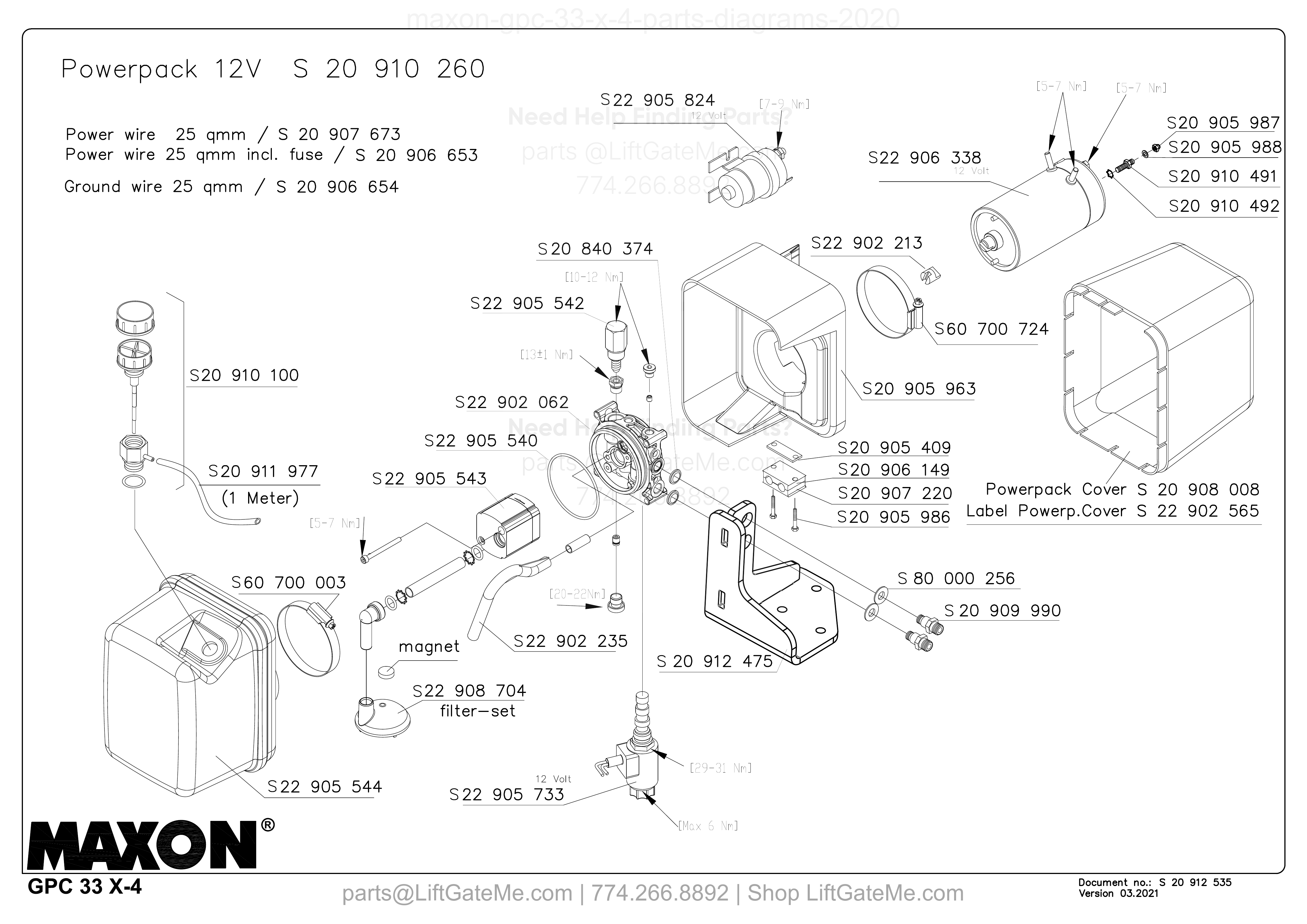

Powerpack 12V S 20 910 260
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 673 | Powerpack 12V S 20 910 260 — Power wire 25 qmm | |
| — | - | S 20 906 653 | Powerpack 12V S 20 910 260 — Power wire 25 qmm incl. fuse | |
| — | - | S 20 906 654 | Powerpack 12V S 20 910 260 — Ground wire 25 qmm | |
| — | - | S20 910 100 | Powerpack 12V S 20 910 260 — part | |
| — | - | S20 911 977 | Powerpack 12V S 20 910 260 — 1 Meter | |
| — | - | S60 700 003 | Powerpack 12V S 20 910 260 — part | |
| — | - | S22 908 704 | Powerpack 12V S 20 910 260 — filter-set | |
| — | - | S22 905 733 | Powerpack 12V S 20 910 260 — 12 Volt | |
| — | - | S22 902 235 | Powerpack 12V S 20 910 260 — part | |
| — | - | S22 905 543 | Powerpack 12V S 20 910 260 — part | |
| — | - | S22 905 540 | Powerpack 12V S 20 910 260 — part | |
| — | - | S22 902 062 | Powerpack 12V S 20 910 260 — part | |
| — | - | S22 905 542 | Powerpack 12V S 20 910 260 — part | |
| — | - | S20 840 374 | Powerpack 12V S 20 910 260 — part | |
| — | - | S22 905 824 | Powerpack 12V S 20 910 260 — 12 Vol. | |
| — | - | S20 905 963 | Powerpack 12V S 20 910 260 — part | |
| — | - | S20 905 409 | Powerpack 12V S 20 910 260 — part | |
| — | - | S20 906 149 | Powerpack 12V S 20 910 260 — part | |
| — | - | S20 907 220 | Powerpack 12V S 20 910 260 — part | |
| — | - | S20 905 986 | Powerpack 12V S 20 910 260 — part | |
| — | - | S20 912 475 | Powerpack 12V S 20 910 260 — part | |
| — | - | S 80 000 256 | Powerpack 12V S 20 910 260 — part | |
| — | - | S 20 909 990 | Powerpack 12V S 20 910 260 — part | |
| — | - | S22 902 213 | Powerpack 12V S 20 910 260 — part | |
| — | - | S60 700 724 | Powerpack 12V S 20 910 260 — part | |
| — | - | S22 906 338 | Powerpack 12V S 20 910 260 — 12 Volt | |
| — | - | S20 905 987 | Powerpack 12V S 20 910 260 — part | |
| — | - | S20 905 988 | Powerpack 12V S 20 910 260 — part | |
| — | - | S20 910 491 | Powerpack 12V S 20 910 260 — part | |
| — | - | S20 910 492 | Powerpack 12V S 20 910 260 — part | |
| — | - | S 20 908 008 | Powerpack 12V S 20 910 260 — Powerpack Cover | |
| — | - | S 22 902 565 | Powerpack 12V S 20 910 260 — Label Powerp.Cover |

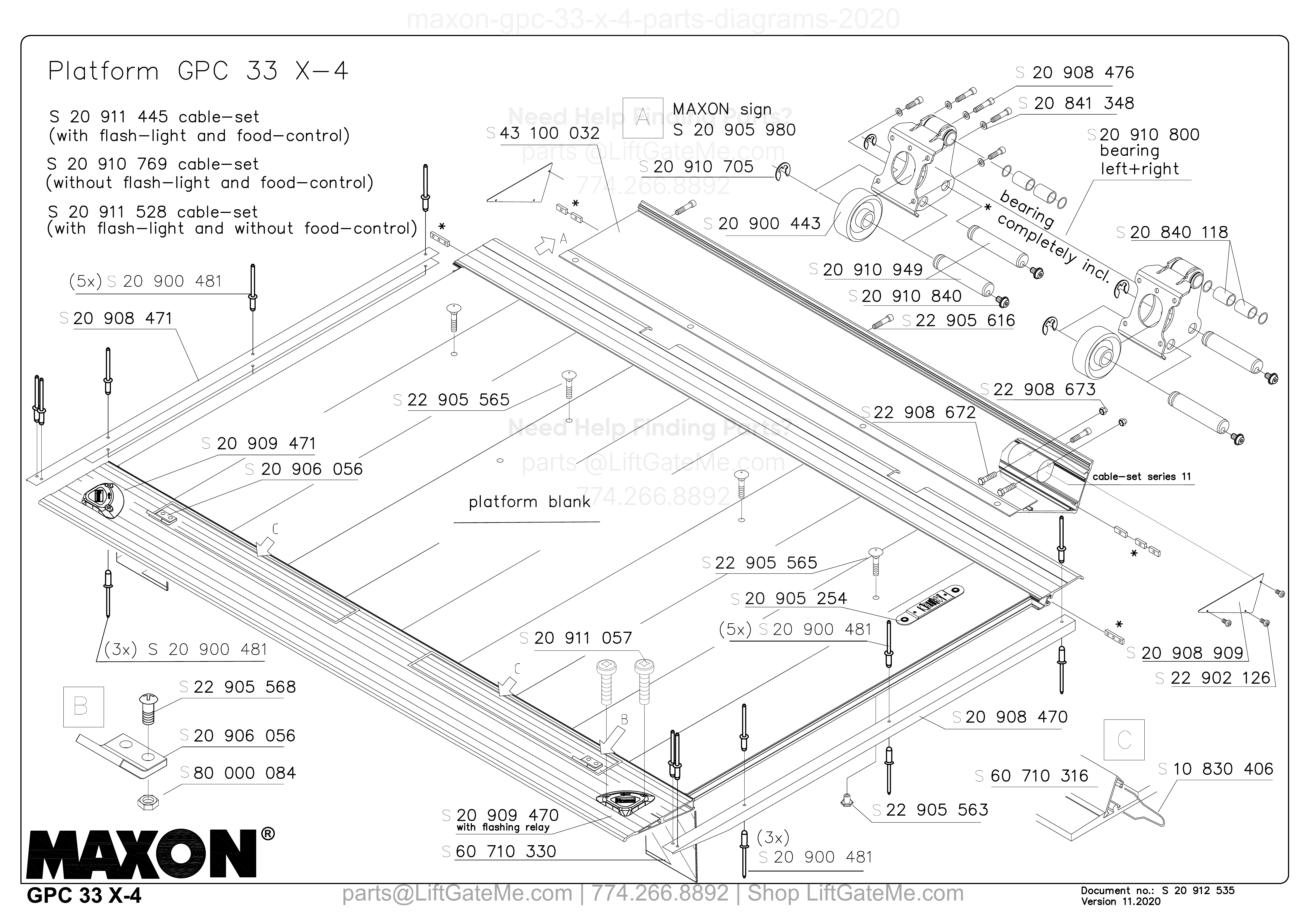

Platform GPC 33 X-4
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 911 445 | Platform GPC 33 X-4 — cable-set (with flash-light and food-control) | |
| — | - | S 20 910 769 | Platform GPC 33 X-4 — cable-set (without flash-light and food-control) | |
| — | - | S 20 911 528 | Platform GPC 33 X-4 — cable-set (with flash-light and without food-control) | |
| — | 5x | S 20 900 481 | Platform GPC 33 X-4 — part | |
| — | - | S 20 908 471 | Platform GPC 33 X-4 — part | |
| — | - | S 20 909 471 | Platform GPC 33 X-4 — part | |
| — | - | S 20 906 056 | Platform GPC 33 X-4 — part | |
| — | - | S 22 905 568 | Platform GPC 33 X-4 — part | |
| — | - | S 80 000 084 | Platform GPC 33 X-4 — part | |
| — | - | S 20 911 057 | Platform GPC 33 X-4 — part | |
| — | - | S 20 909 470 | Platform GPC 33 X-4 — with flashing relay | |
| — | - | S 60 710 330 | Platform GPC 33 X-4 — part | |
| — | - | S 22 905 565 | Platform GPC 33 X-4 — part | |
| — | - | S 43 100 032 | Platform GPC 33 X-4 — part | |
| — | - | S 20 905 980 | Platform GPC 33 X-4 — MAXON sign | |
| — | - | S 20 910 705 | Platform GPC 33 X-4 — part | |
| — | - | S 20 900 443 | Platform GPC 33 X-4 — part | |
| — | - | S 20 910 949 | Platform GPC 33 X-4 — part | |
| — | - | S 20 910 840 | Platform GPC 33 X-4 — part | |
| — | - | S 22 905 616 | Platform GPC 33 X-4 — part | |
| — | - | S 22 908 672 | Platform GPC 33 X-4 — part | |
| — | - | S 22 908 673 | Platform GPC 33 X-4 — cable-set series 11 | |
| — | - | S 20 908 909 | Platform GPC 33 X-4 — part | |
| — | - | S 22 902 126 | Platform GPC 33 X-4 — part | |
| — | - | S 20 908 470 | Platform GPC 33 X-4 — part | |
| — | - | S 60 710 316 | Platform GPC 33 X-4 — part | |
| — | - | S 10 830 406 | Platform GPC 33 X-4 — part | |
| — | - | S 22 905 563 | Platform GPC 33 X-4 — part | |
| — | - | S 20 908 476 | Platform GPC 33 X-4 — part | |
| — | - | S 20 841 348 | Platform GPC 33 X-4 — part | |
| — | - | S 20 910 800 | Platform GPC 33 X-4 — bearing left-right | |
| — | - | S 20 840 118 | Platform GPC 33 X-4 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

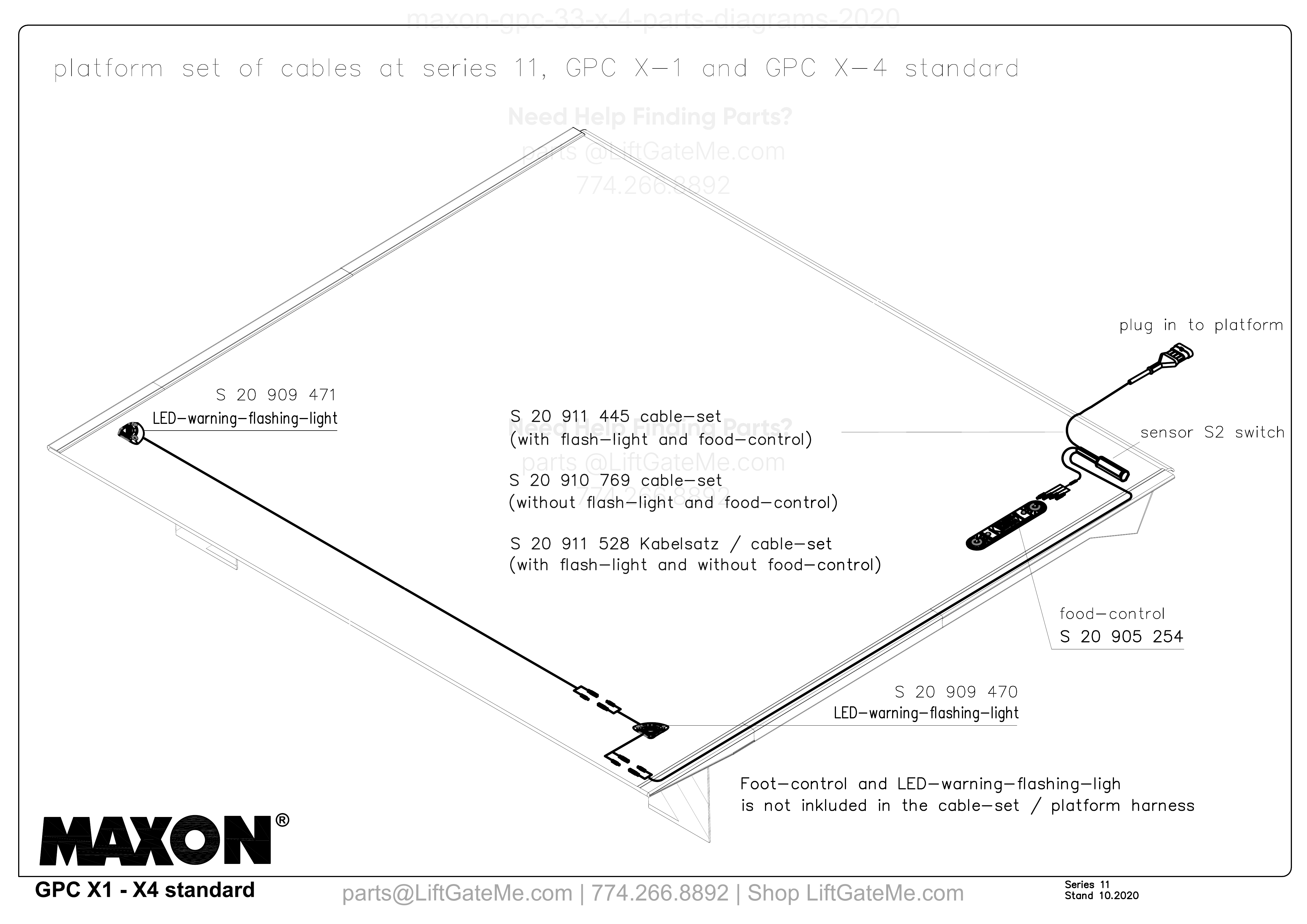

platform set of cables at series 11, GPC X-1 and GPC X-4 standard
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 909 471 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — LED-warning-flashing-light | |
| — | - | S 20 911 445 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — cable-set (with flash-light and food-control) | |
| — | - | S 20 910 769 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — cable-set (without flash-light and food-control) | |
| — | - | S 20 911 528 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — Kabelsatz / cable-set (with flash-light and without food-control) | |
| — | - | S 20 905 254 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — food-control | |
| — | - | S 20 909 470 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — LED-warning-flashing-light |

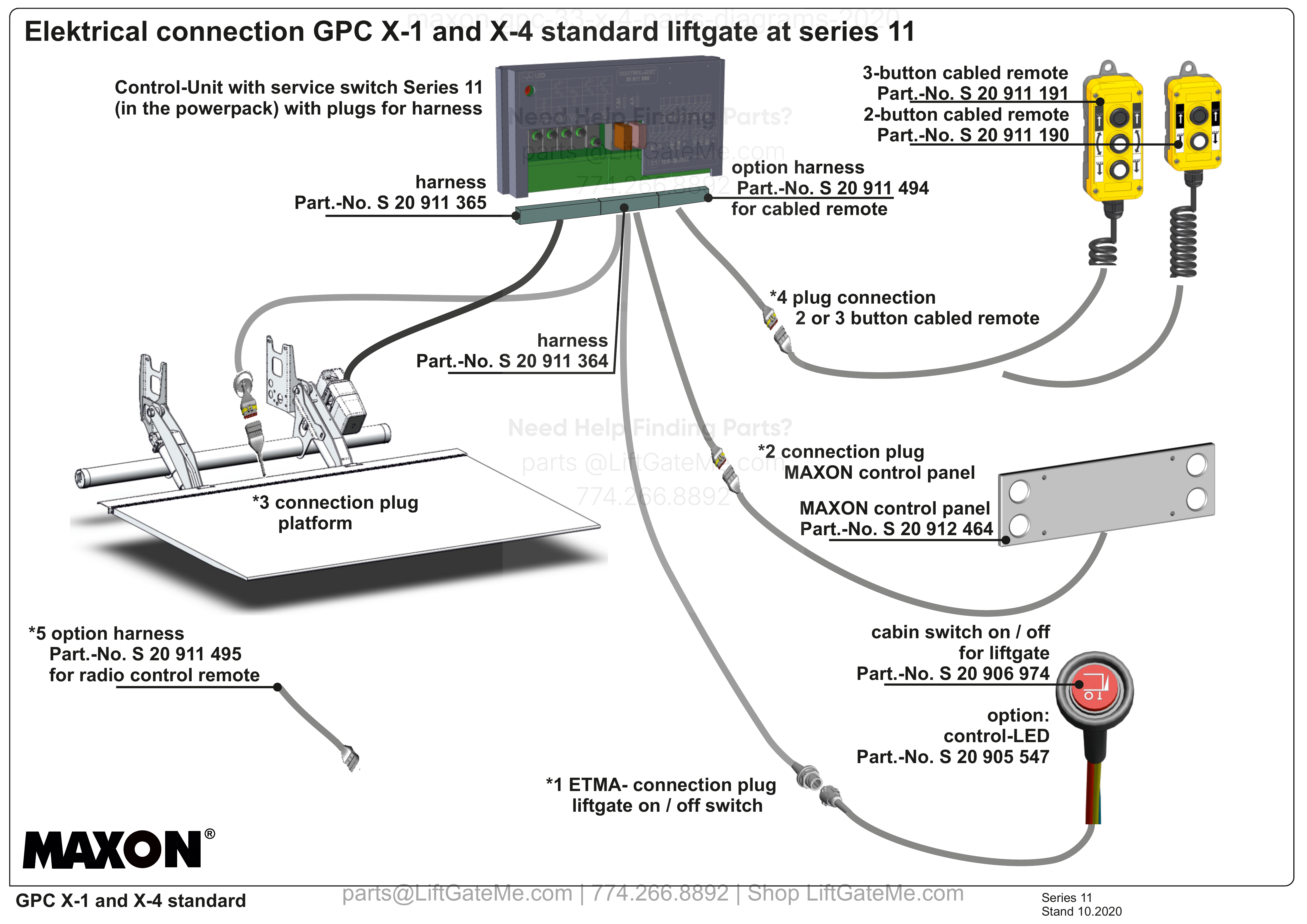

Elektrical connection GPC X-1 and X-4 standard liftgate at series 11
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 911 365 | Elektrical connection GPC X-1 and X-4 standard liftgate at series 11 — harness | |
| — | - | S 20 911 494 | Elektrical connection GPC X-1 and X-4 standard liftgate at series 11 — option harness for cabled remote | |
| — | - | S 20 911 191 | Elektrical connection GPC X-1 and X-4 standard liftgate at series 11 — 3-button cabled remote | |
| — | - | S 20 911 190 | Elektrical connection GPC X-1 and X-4 standard liftgate at series 11 — 2-button cabled remote | |
| — | - | S 20 911 364 | Elektrical connection GPC X-1 and X-4 standard liftgate at series 11 — harness | |
| — | - | S 20 912 464 | Elektrical connection GPC X-1 and X-4 standard liftgate at series 11 — MAXON control panel | |
| — | - | S 20 911 495 | Elektrical connection GPC X-1 and X-4 standard liftgate at series 11 — option harness for radio control remote | |
| — | - | S 20 906 974 | Elektrical connection GPC X-1 and X-4 standard liftgate at series 11 — cabin switch on / off for liftgate | |
| — | - | S 20 905 547 | Elektrical connection GPC X-1 and X-4 standard liftgate at series 11 — option: control-LED |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

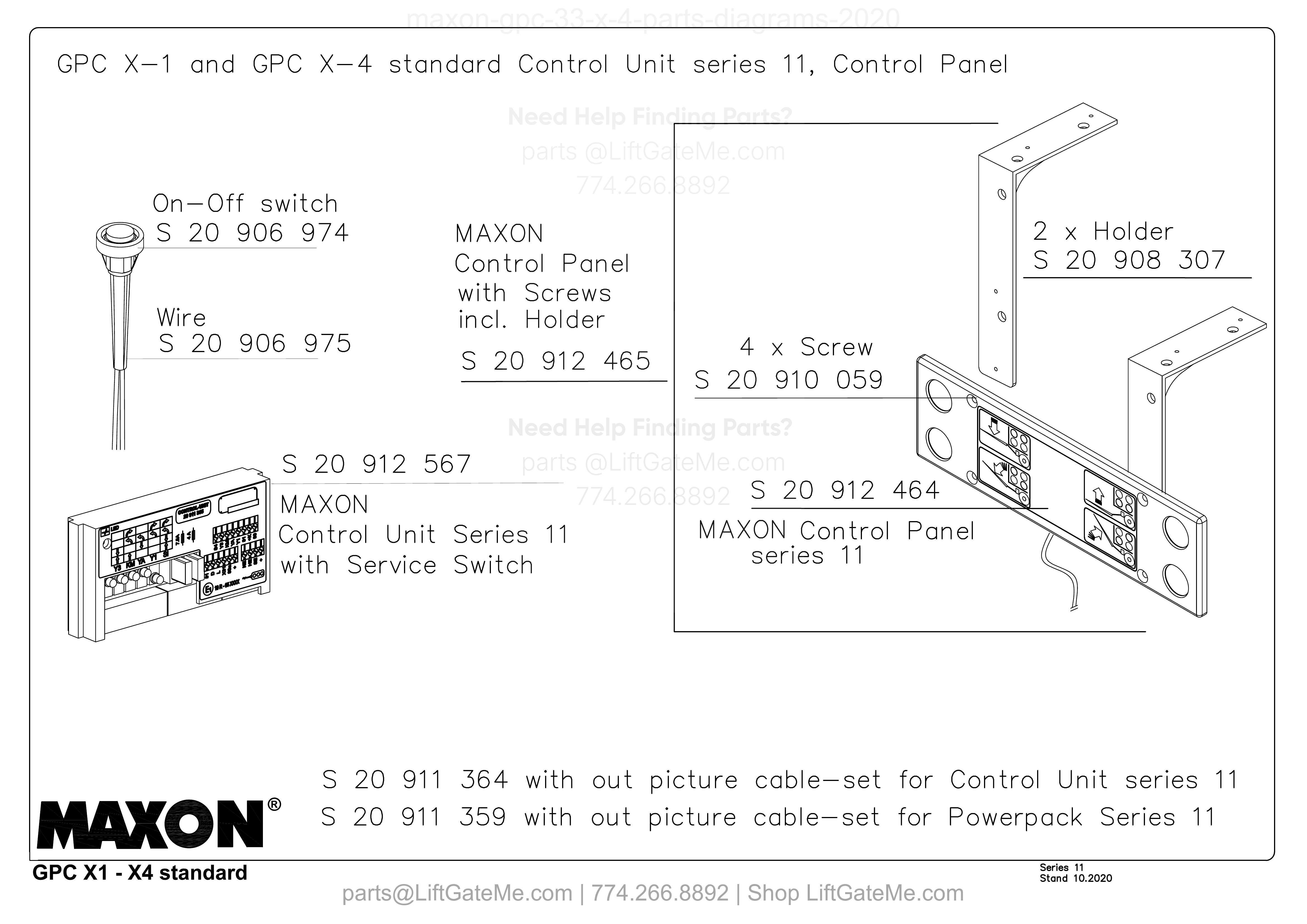

GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 906 974 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — On-Off switch | |
| — | - | S 20 906 975 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — Wire | |
| — | - | S 20 912 465 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — MAXON Control Panel with Screws incl. Holder | |
| — | 4 x | S 20 910 059 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — Screw | |
| — | 2 x | S 20 908 307 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — Holder | |
| — | - | S 20 912 464 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — MAXON Control Panel series 11 | |
| — | - | S 20 912 567 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — MAXON Control Unit Series 11 with Service Switch | |
| — | - | S 20 911 364 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — with out picture cable-set for Control Unit series 11 | |
| — | - | S 20 911 359 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — with out picture cable-set for Powerpack Series 11 |

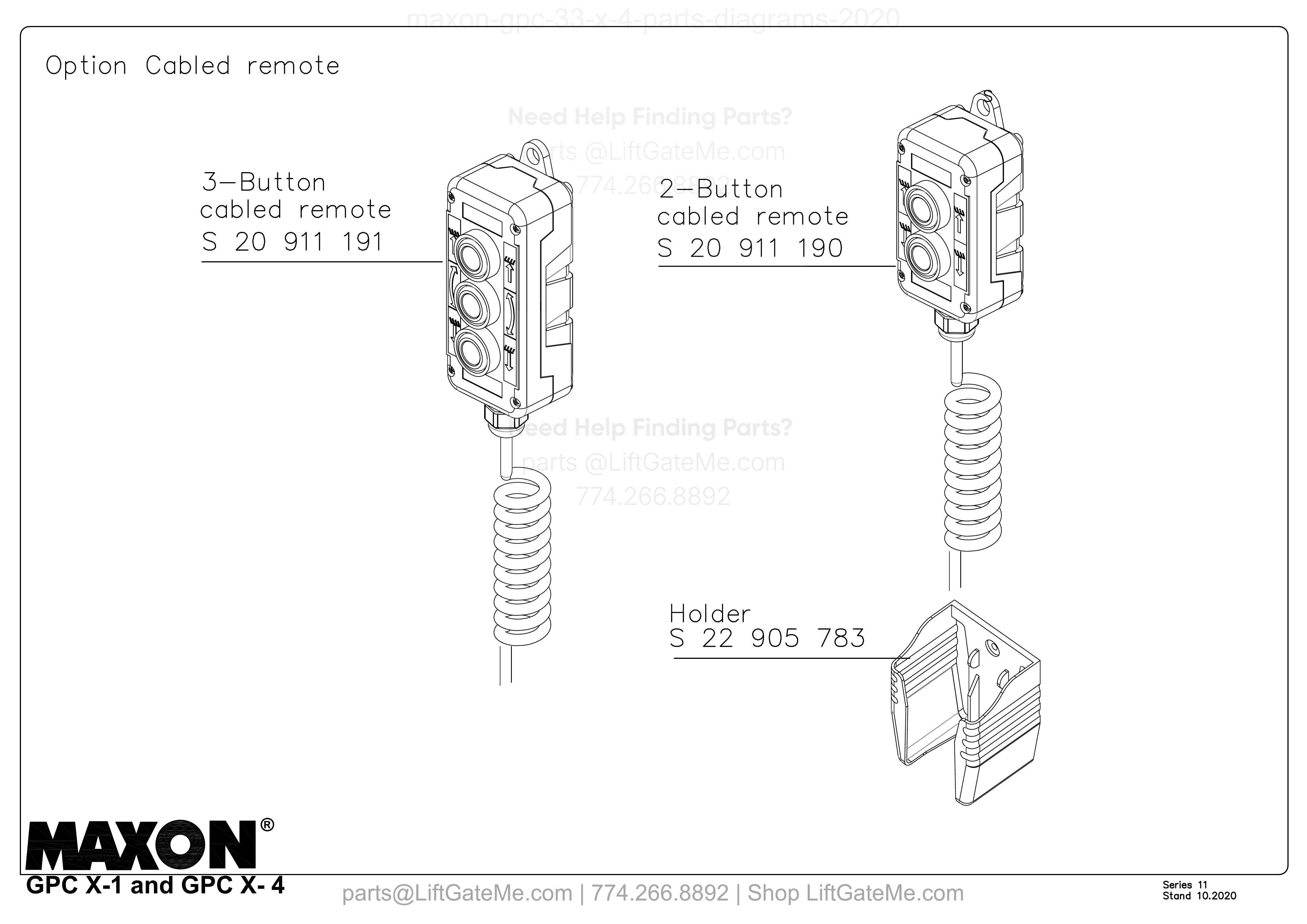

Option Cabled remote
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
