Palfinger Interlift MiniFix Liftgate Parts Diagrams | Approximate Years 2021
Palfinger Interlift MiniFix parts diagrams for 2021
Browse Palfinger Interlift MiniFix OEM liftgate parts diagrams covering 2021 van lift models. Use the callouts and tables to locate components before servicing or repairing your liftgate.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

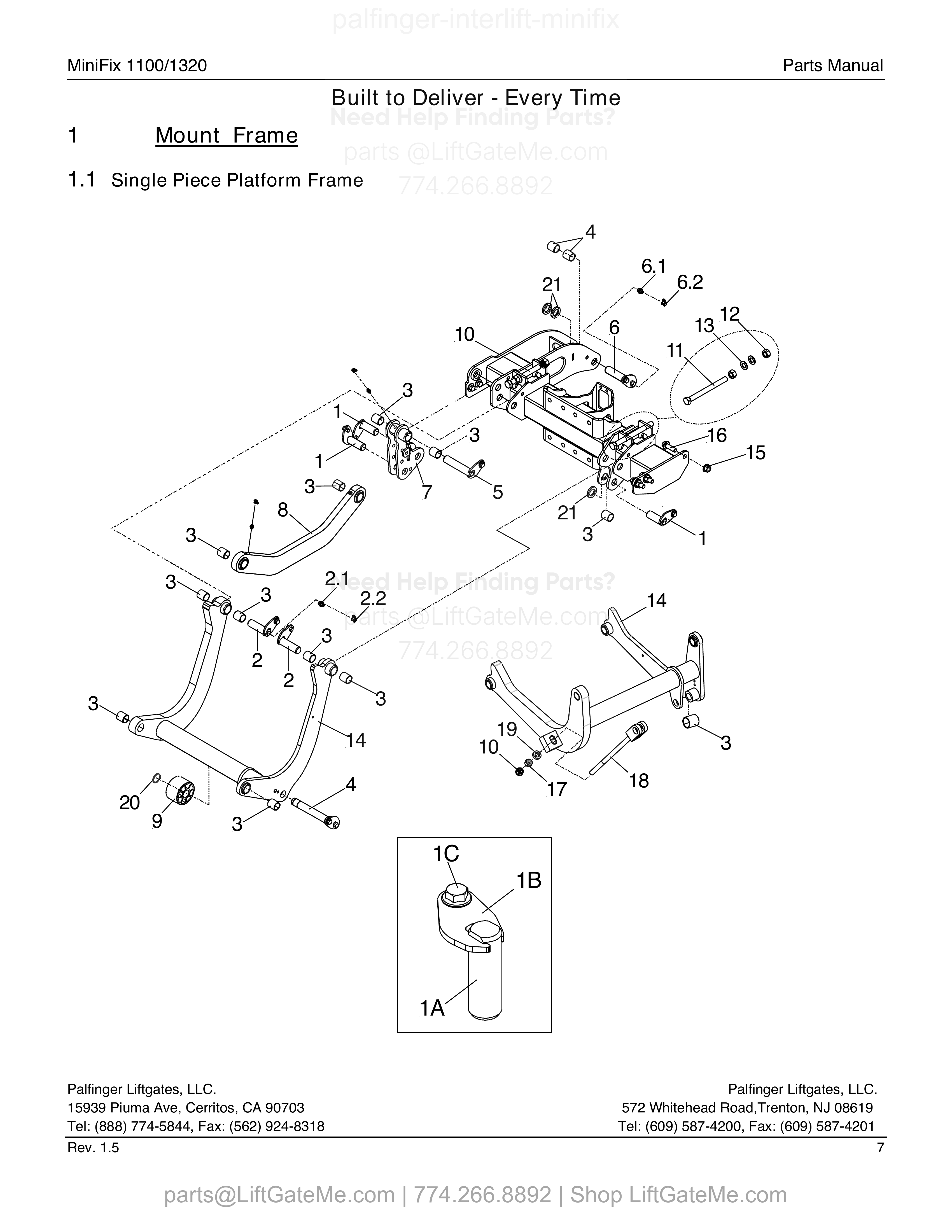

1.1 - MOUNT FRAME – SINGLE PIECE PLATFORM
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1A | 3 | 2036456 | Pin, 25x75mm, Stainless Steel | |
| 1B | 3 | 2028340 | Pin Plate, Small | |
| 1C | 3 | 2039049 | Bolt, M12x12 | |
| 2A | 2 | 2048353 | Pin, 25x90mm, Grease Zerk, Stainless Steel | |
| 2B | 2 | 2028340 | Pin Plate, Small | |
| 2C | 2 | 2039049 | Bolt, M12x12 | |
| 2.1 | 2 | 69064337 | Grease Zerk, M10x1 | |
| 2.2 | 2 | 1191680 | Cap, Red | |
| 3 | 10 | 1403365 | Bushing, 25x29x31mm, Bronze | |
| 4A | 1 | 2041064 | Pin, 25x179mm, Stainless Steel | |
| 4B | 1 | 2028340 | Pin Plate, Small | |
| 4C | 1 | 2039049 | Bolt, M12x12 | |
| 5A | 2 | 2040319 | Pin, 25x128mm, Stainless Steel | |
| 5B | 2 | 2028340 | Pin Plate, Small | |
| 5C | 2 | 2039049 | Bolt, M12x12 | |
| 6A | 2 | 2048354 | Pin, 25x128mm, Grease Zerk, Stainless Steel | |
| 6B | 2 | 2028340 | Pin Plate, Small | |
| 6C | 2 | 2039049 | Bolt, M12x12 | |
| 6.1 | 2 | 69064337 | Grease Zerk, M10x1 | |
| 6.2 | 2 | 1191680 | Cap, Red | |
| 7 | 1 | 2053405 | Shackle, Parallel Arm, Tilt Cylinder | |
| 8 | 1 | 2034701 | Parallel Arm | |
| 9 | 1 | 1217715 | Roller, 80x50x25mm | |
| 10 | 1 | 1150492 | Nut, Nylock, M16 | |
| 11 | 2 | 2040559 | Hex Head Cap Screw M16x180mm | |
| 12 | 2 | 1026311 | Nut, M16 | |
| 13 | 4 | 68186307 | Washer, Flat, 17mm | |
| 14 | 1 | 2034708 | Liftarm Assembly (Single Piece Platform, No Pull Bar) | |
| 14 | 1 | 2045972 | Liftarm Assembly (Single Piece Platform, with Pull Bar) | |
| 15 | 6 | EM 711 | Nut, Flange, M14x1.5, ST-10.9 DIN 6927 | |
| 16 | 6 | ES1588 | Bolt, Flange, M14x1.5x45mm, ST-10.9 DIN 6921 | |
| 17 | 1 | 1026311 | Jam Nut, M16 | |
| 18 | 1 | 2048207 | Pull Bar | |
| 19 | 1 | 6724172 | Spacer, M16 | |
| 20 | 1 | 10280003 | Retaining Ring, 25x1,2 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

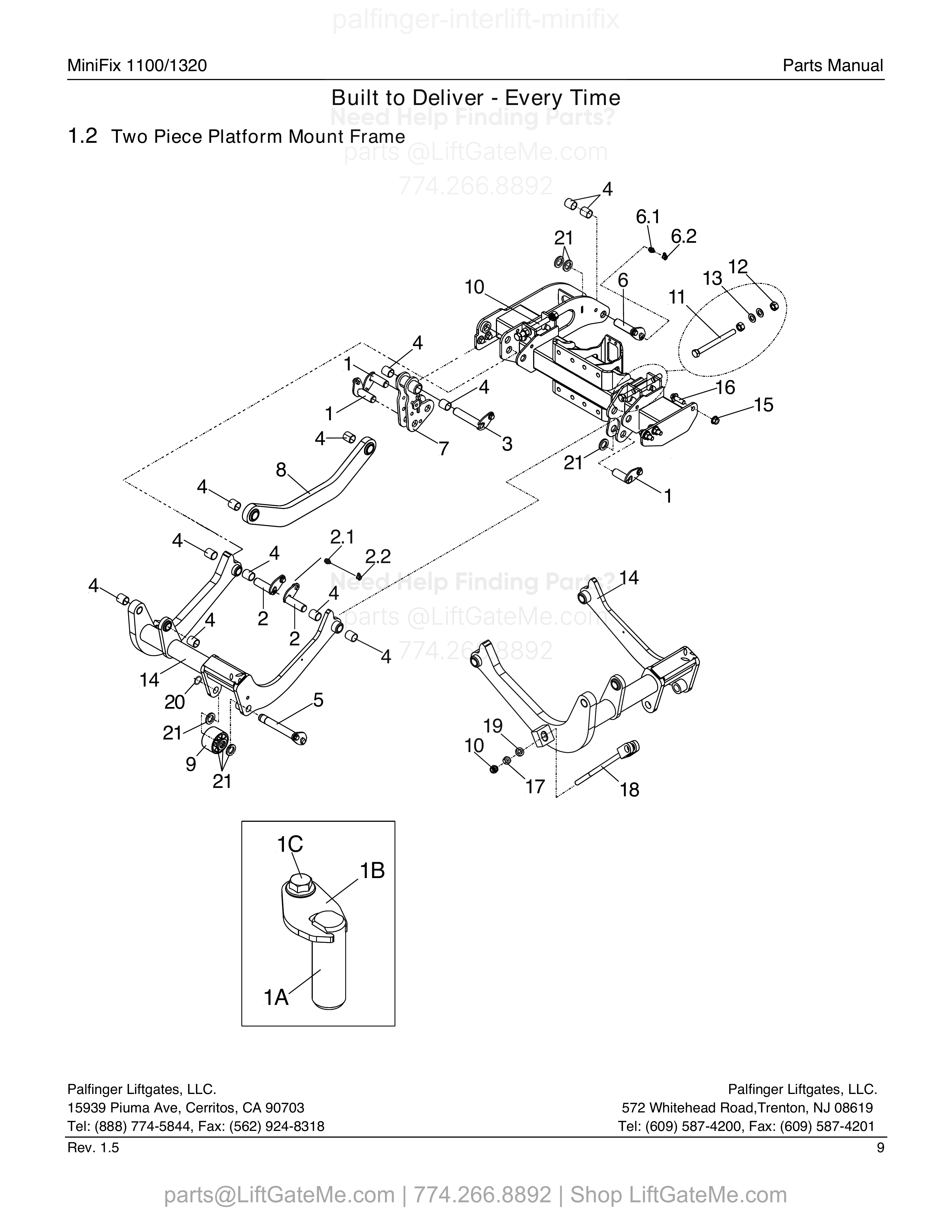

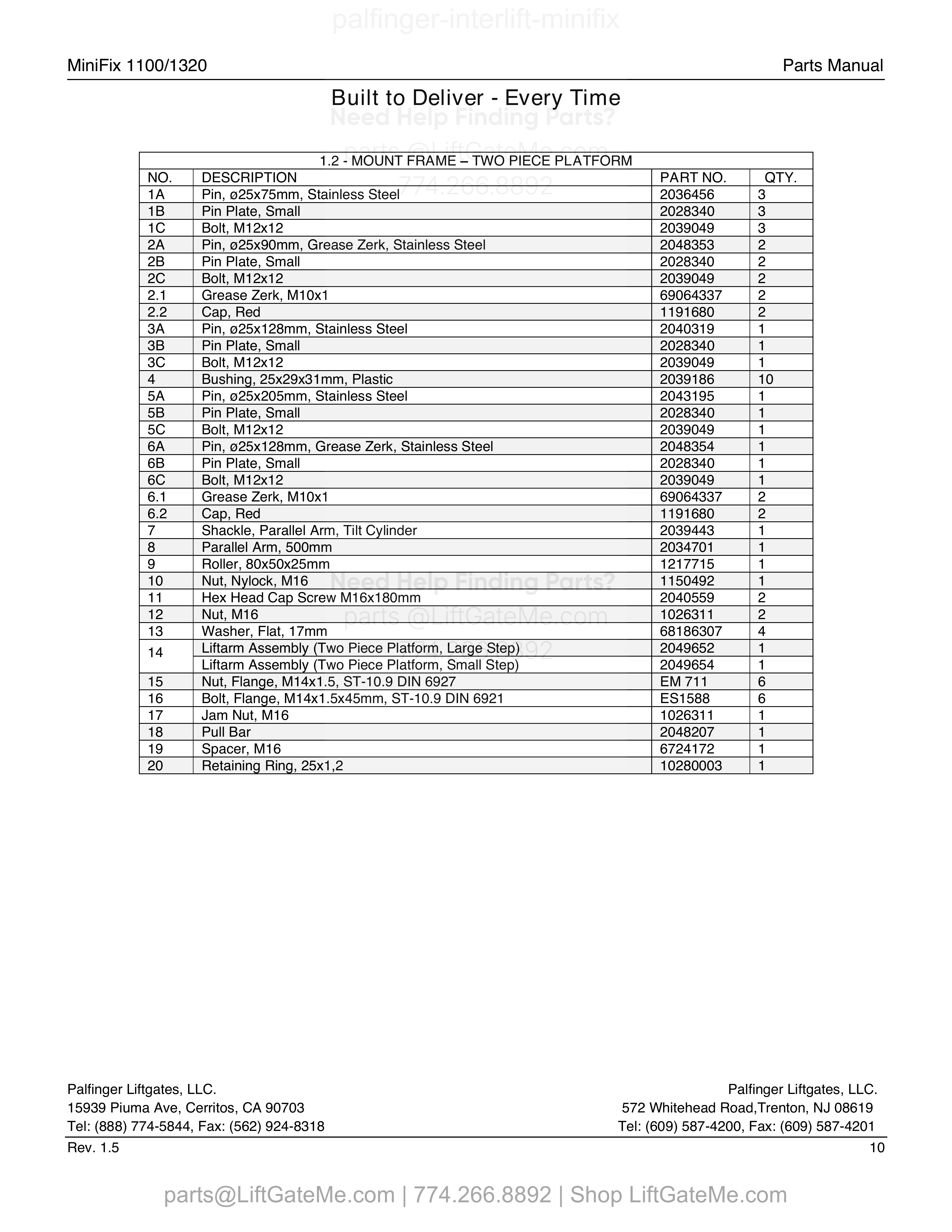

1.2 Two Piece Platform Mount Frame
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1A | 3 | 2036456 | Pin, ø25x75mm, Stainless Steel | |
| 1B | 3 | 2028340 | Pin Plate, Small | |
| 1C | 3 | 2039049 | Bolt, M12x12 | |
| 2A | 2 | 2048353 | Pin, ø25x90mm, Grease Zerk, Stainless Steel | |
| 2B | 2 | 2028340 | Pin Plate, Small | |
| 2C | 2 | 2039049 | Bolt, M12x12 | |
| 2.1 | 2 | 69064337 | Grease Zerk, M10x1 | |
| 2.2 | 2 | 1191680 | Cap, Red | |
| 3A | 1 | 2040319 | Pin, ø25x128mm, Stainless Steel | |
| 3B | 1 | 2028340 | Pin Plate, Small | |
| 3C | 1 | 2039049 | Bolt, M12x12 | |
| 4 | 10 | 2039186 | Bushing, 25x29x31mm, Plastic | |
| 5A | 1 | 2043195 | Pin, ø25x205mm, Stainless Steel | |
| 5B | 1 | 2028340 | Pin Plate, Small | |
| 5C | 1 | 2039049 | Bolt, M12x12 | |
| 6A | 1 | 2048354 | Pin, ø25x128mm, Grease Zerk, Stainless Steel | |
| 6B | 1 | 2028340 | Pin Plate, Small | |
| 6C | 1 | 2039049 | Bolt, M12x12 | |
| 6.1 | 2 | 69064337 | Grease Zerk, M10x1 | |
| 6.2 | 2 | 1191680 | Cap, Red | |
| 7 | 1 | 2039443 | Shackle, Parallel Arm, Tilt Cylinder | |
| 8 | 1 | 2034701 | Parallel Arm, 500mm | |
| 9 | 1 | 1217715 | Roller, 80x50x25mm | |
| 10 | 1 | 1150492 | Nut, Nylock, M16 | |
| 11 | 2 | 2040559 | Hex Head Cap Screw M16x180mm | |
| 12 | 2 | 1026311 | Nut, M16 | |
| 13 | 4 | 68186307 | Washer, Flat, 17mm | |
| 14 | 1 | 2049652 | Liftarm Assembly (Two Piece Platform, Large Step) | |
| 14 | 1 | 2049654 | Liftarm Assembly (Two Piece Platform, Small Step) | |
| 15 | 6 | EM 711 | Nut, Flange, M14x1.5, ST-10.9 DIN 6927 | |
| 16 | 6 | ES1588 | Bolt, Flange, M14x1.5x45mm, ST-10.9 DIN 6921 | |
| 17 | 1 | 1026311 | Jam Nut, M16 | |
| 18 | 1 | 2048207 | Pull Bar | |
| 19 | 1 | 6724172 | Spacer, M16 | |
| 20 | 1 | 10280003 | Retaining Ring, 25x1,2 |

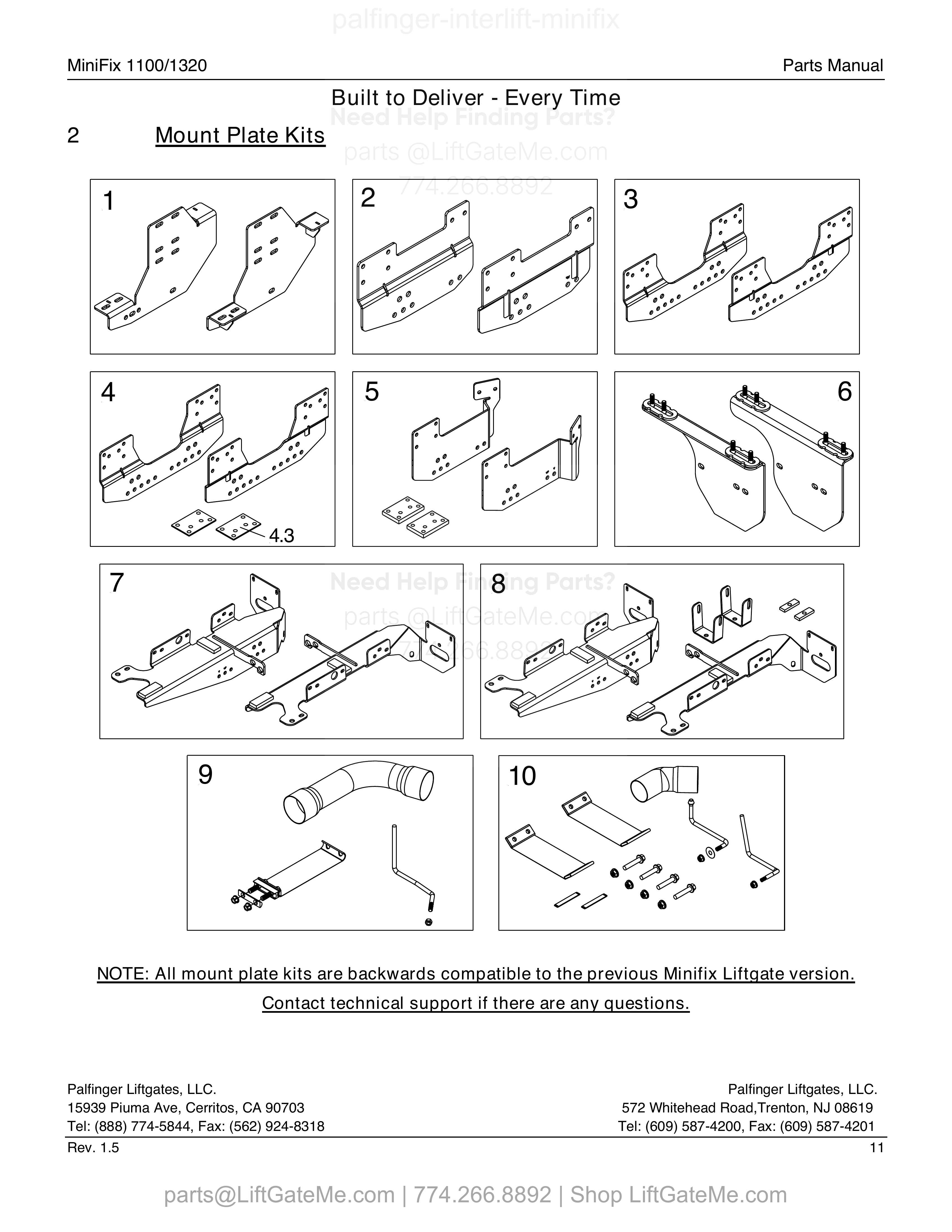

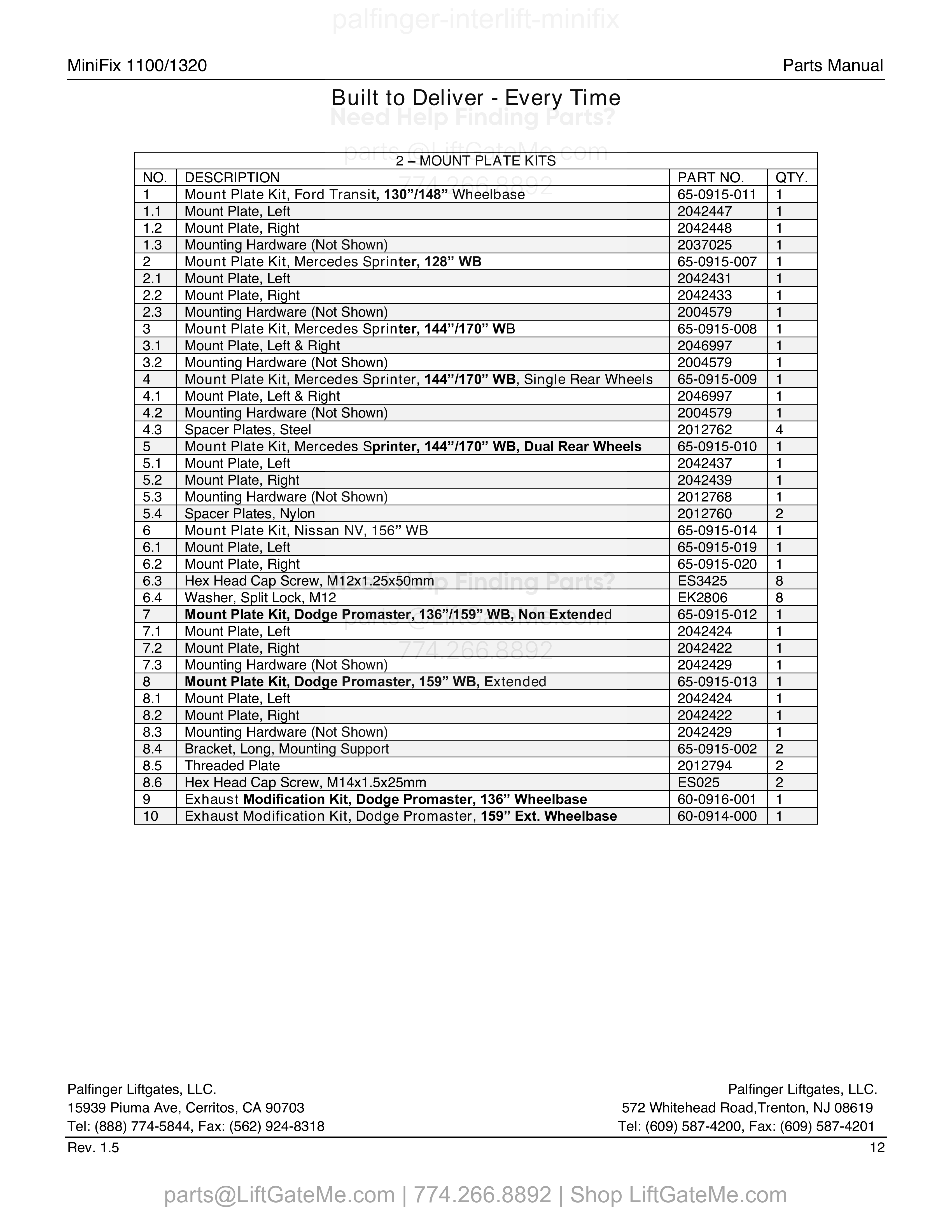

2 Mount Plate Kits
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 65-0915-011 | Mount Plate Kit, Ford Transit, 130”/148” Wheelbase | |
| 1.1 | 1 | 2042447 | Mount Plate, Left | |
| 1.2 | 1 | 2042448 | Mount Plate, Right | |
| 1.3 | 1 | 2037025 | Mounting Hardware (Not Shown) | |
| 2 | 1 | 65-0915-007 | Mount Plate Kit, Mercedes Sprinter, 128” WB | |
| 2.1 | 1 | 2042431 | Mount Plate, Left | |
| 2.2 | 1 | 2042433 | Mount Plate, Right | |
| 2.3 | 1 | 2004579 | Mounting Hardware (Not Shown) | |
| 3 | 1 | 65-0915-008 | Mount Plate Kit, Mercedes Sprinter, 144”/170” WB | |
| 3.1 | 1 | 2046997 | Mount Plate, Left & Right | |
| 3.2 | 1 | 2004579 | Mounting Hardware (Not Shown) | |
| 4 | 1 | 65-0915-009 | Mount Plate Kit, Mercedes Sprinter, 144”/170” WB, Single Rear Wheels | |
| 4.1 | 1 | 2046997 | Mount Plate, Left & Right | |
| 4.2 | 1 | 2004579 | Mounting Hardware (Not Shown) | |
| 4.3 | 4 | 2012762 | Spacer Plates, Steel | |
| 5 | 1 | 65-0915-010 | Mount Plate Kit, Mercedes Sprinter, 144”/170” WB, Dual Rear Wheels | |
| 5.1 | 1 | 2042437 | Mount Plate, Left | |
| 5.2 | 1 | 2042439 | Mount Plate, Right | |
| 5.3 | 1 | 2012768 | Mounting Hardware (Not Shown) | |
| 5.4 | 2 | 2012760 | Spacer Plates, Nylon | |
| 6 | 1 | 65-0915-014 | Mount Plate Kit, Nissan NV, 156” WB | |
| 6.1 | 1 | 65-0915-019 | Mount Plate, Left | |
| 6.2 | 1 | 65-0915-020 | Mount Plate, Right | |
| 6.3 | 8 | ES3425 | Hex Head Cap Screw, M12x1.25x50mm | |
| 6.4 | 8 | EK2806 | Washer, Split Lock, M12 | |
| 7 | 1 | 65-0915-012 | Mount Plate Kit, Dodge Promaster, 136”/159” WB, Non Extended | |
| 7.1 | 1 | 2042424 | Mount Plate, Left | |
| 7.2 | 1 | 2042422 | Mount Plate, Right | |
| 7.3 | 1 | 2042429 | Mounting Hardware (Not Shown) | |
| 8 | 1 | 65-0915-013 | Mount Plate Kit, Dodge Promaster, 159” WB, Extended | |
| 8.1 | 1 | 2042424 | Mount Plate, Left | |
| 8.2 | 1 | 2042422 | Mount Plate, Right | |
| 8.3 | 1 | 2042429 | Mounting Hardware (Not Shown) | |
| 8.4 | 2 | 65-0915-002 | Bracket, Long, Mounting Support | |
| 8.5 | 2 | 2012794 | Threaded Plate | |
| 8.6 | 2 | ES025 | Hex Head Cap Screw, M14x1.5x25mm | |
| 9 | 1 | 60-0916-001 | Exhaust Modification Kit, Dodge Promaster, 136” Wheelbase | |
| 10 | 1 | 60-0914-000 | Exhaust Modification Kit, Dodge Promaster, 159” Ext. Wheelbase |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

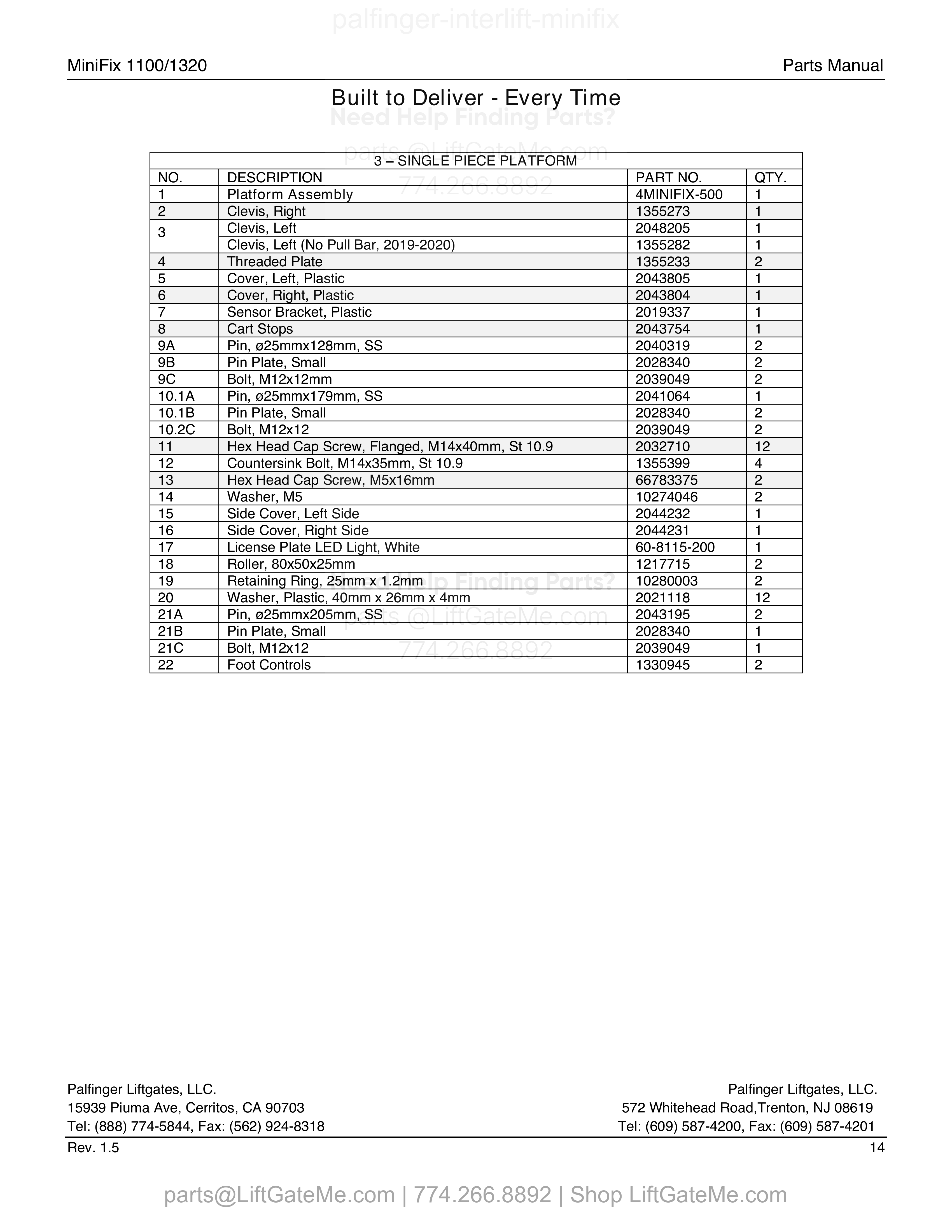

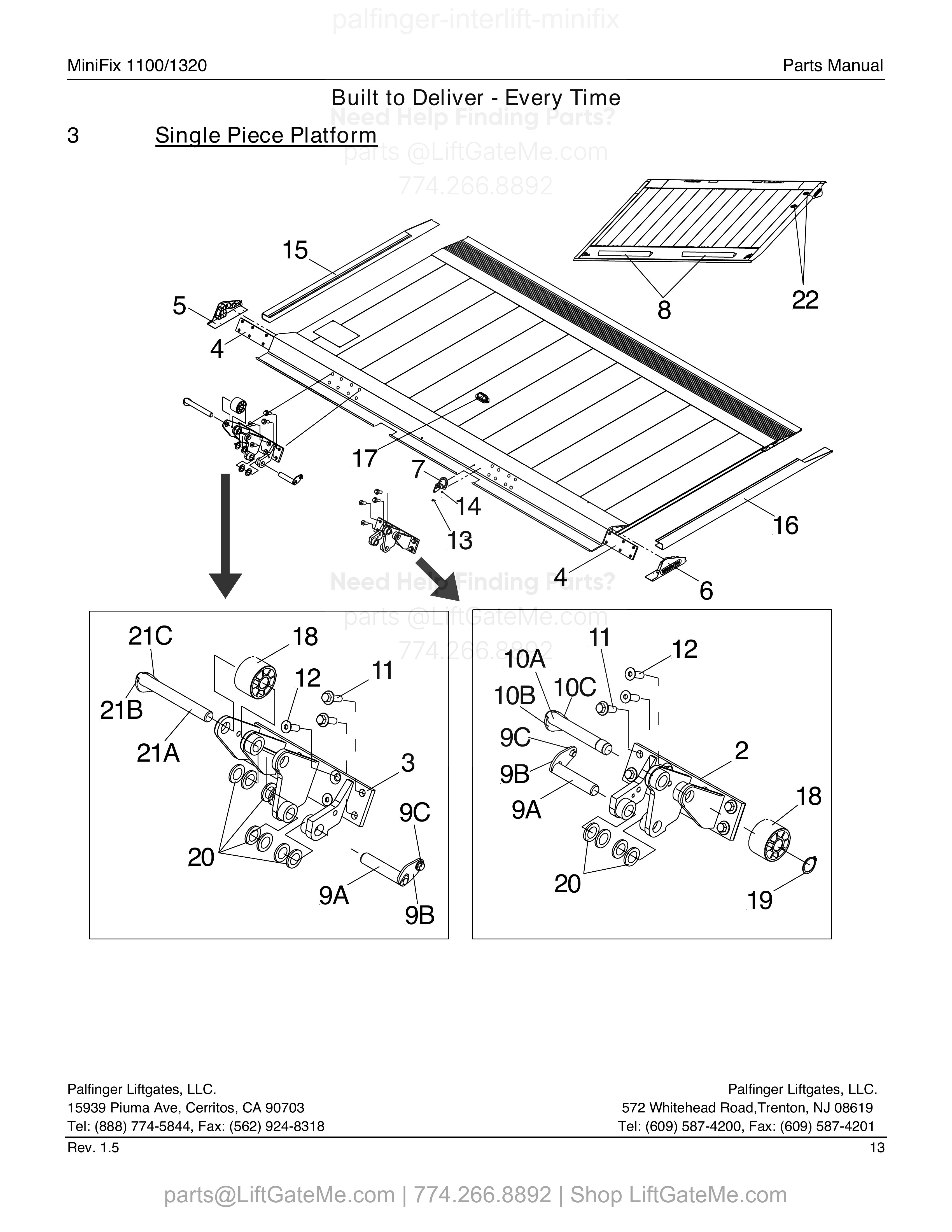

Single Piece Platform
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 4MINIFIX-500 | Platform Assembly | |
| 2 | 1 | 1355273 | Clevis, Right | |
| 3 | 1 | 2048205 | Clevis, Left | |
| 3 | 1 | 1355282 | Clevis, Left (No Pull Bar, 2019-2020) | |
| 4 | 2 | 1355233 | Threaded Plate | |
| 5 | 1 | 2043805 | Cover, Left, Plastic | |
| 6 | 1 | 2043804 | Cover, Right, Plastic | |
| 7 | 1 | 2019337 | Sensor Bracket, Plastic | |
| 8 | 1 | 2043754 | Cart Stops | |
| 9A | 2 | 2040319 | Pin, ø25mmx128mm, SS | |
| 9B | 2 | 2028340 | Pin Plate, Small | |
| 9C | 2 | 2039049 | Bolt, M12x12mm | |
| 10.1A | 1 | 2041064 | Pin, ø25mmx179mm, SS | |
| 10.1B | 2 | 2028340 | Pin Plate, Small | |
| 10.2C | 2 | 2039049 | Bolt, M12x12 | |
| 11 | 12 | 2032710 | Hex Head Cap Screw, Flanged, M14x40mm, St 10.9 | |
| 12 | 4 | 1355399 | Countersink Bolt, M14x35mm, St 10.9 | |
| 13 | 2 | 66783375 | Hex Head Cap Screw, M5x16mm | |
| 14 | 2 | 10274046 | Washer, M5 | |
| 15 | 1 | 2044232 | Side Cover, Left Side | |
| 16 | 1 | 2044231 | Side Cover, Right Side | |
| 17 | 1 | 60-8115-200 | License Plate LED Light, White | |
| 18 | 2 | 1217715 | Roller, 80x50x25mm | |
| 19 | 2 | 10280003 | Retaining Ring, 25mm x 1.2mm | |
| 20 | 12 | 2021118 | Washer, Plastic, 40mm x 26mm x 4mm | |
| 21A | 2 | 2043195 | Pin, ø25mmx205mm, SS | |
| 21B | 1 | 2028340 | Pin Plate, Small | |
| 21C | 1 | 2039049 | Bolt, M12x12 | |
| 22 | 2 | 1330945 | Foot Controls |

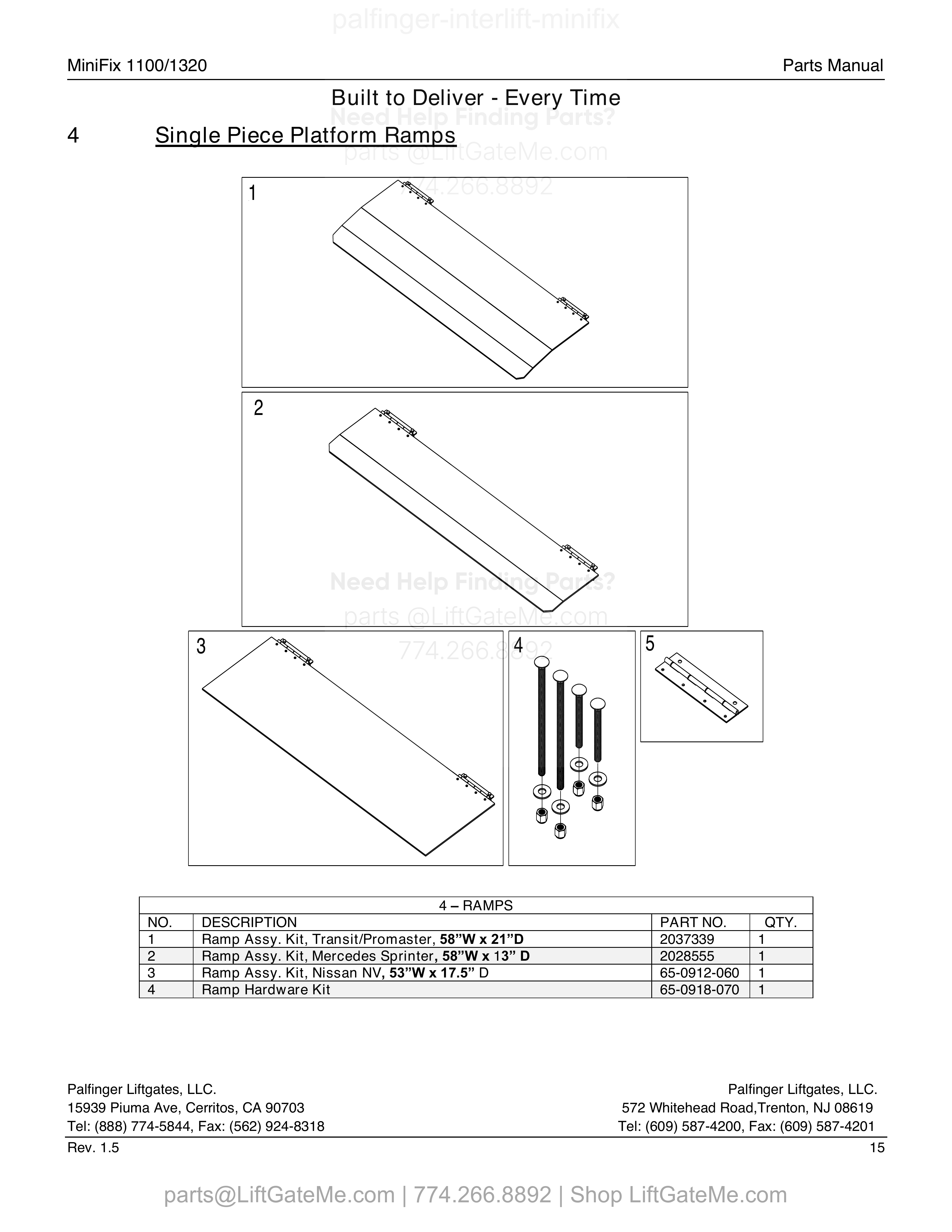

Single Piece Platform Ramps
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

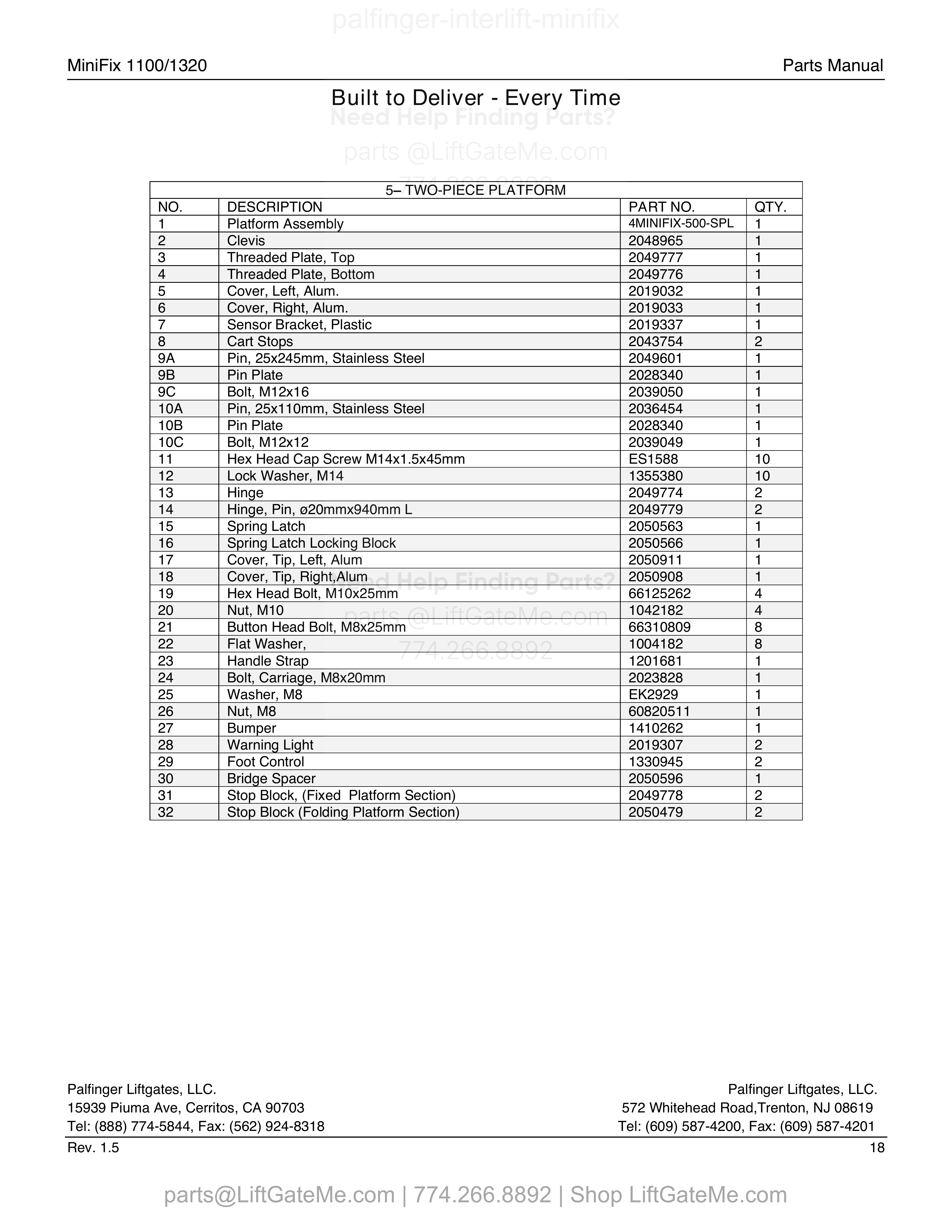

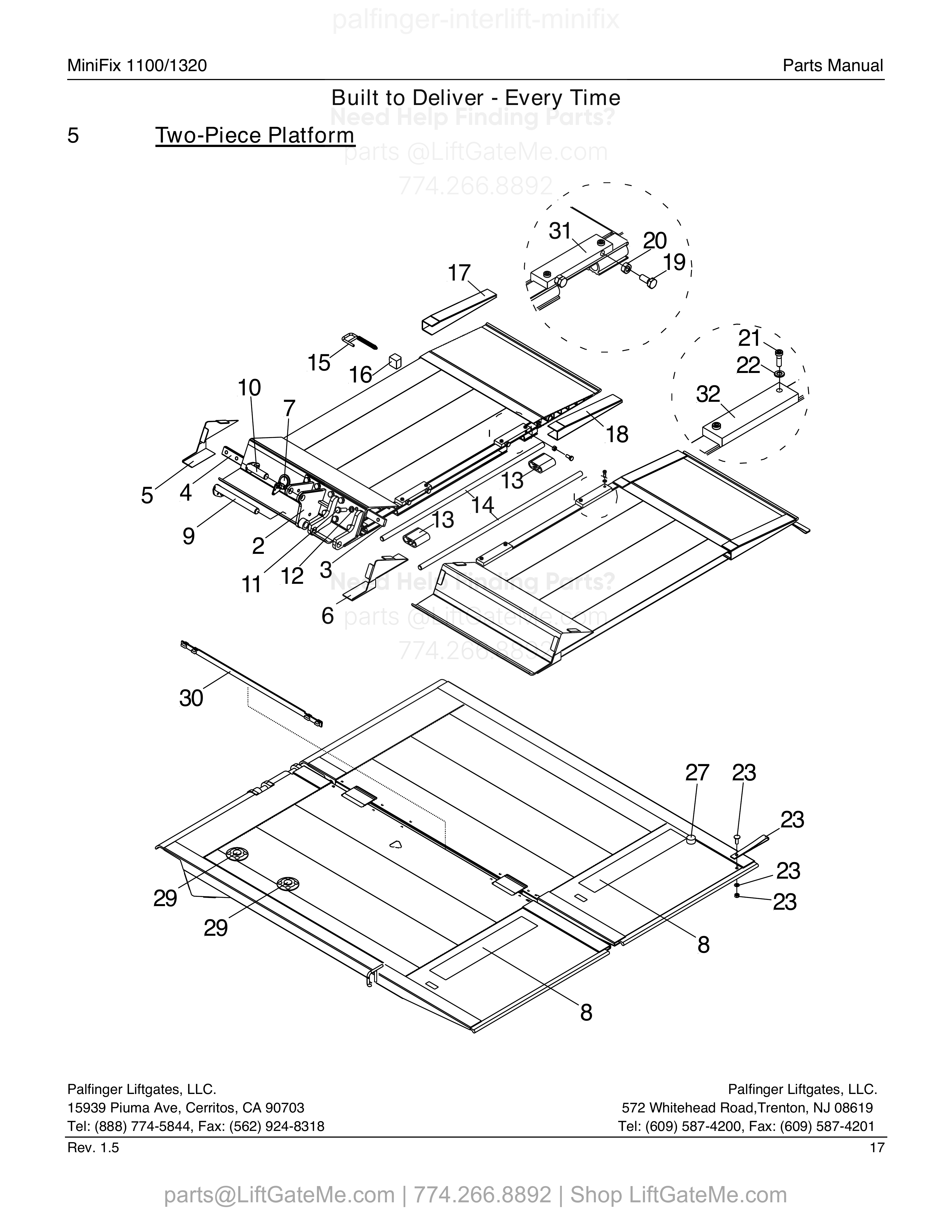

Two-Piece Platform
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 4MINIFIX-500-SPL | Platform Assembly | |
| 2 | 1 | 2048965 | Clevis | |
| 3 | 1 | 2049777 | Threaded Plate, Top | |
| 4 | 1 | 2049776 | Threaded Plate, Bottom | |
| 5 | 1 | 2019032 | Cover, Left, Alum. | |
| 6 | 1 | 2019033 | Cover, Right, Alum. | |
| 7 | 1 | 2019337 | Sensor Bracket, Plastic | |
| 8 | 2 | 2043754 | Cart Stops | |
| 9A | 1 | 2049601 | Pin, 25x245mm, Stainless Steel | |
| 9B | 1 | 2028340 | Pin Plate | |
| 9C | 1 | 2039050 | Bolt, M12x16 | |
| 10A | 1 | 2036454 | Pin, 25x110mm, Stainless Steel | |
| 10B | 1 | 2028340 | Pin Plate | |
| 10C | 1 | 2039049 | Bolt, M12x12 | |
| 11 | 10 | ES1588 | Hex Head Cap Screw M14x1.5x45mm | |
| 12 | 10 | 1355380 | Lock Washer, M14 | |
| 13 | 2 | 2049774 | Hinge | |
| 14 | 2 | 2049779 | Hinge, Pin, ø20mmx940mm L | |
| 15 | 1 | 2050563 | Spring Latch | |
| 16 | 1 | 2050566 | Spring Latch Locking Block | |
| 17 | 1 | 2050911 | Cover, Tip, Left, Alum | |
| 18 | 1 | 2050908 | Cover, Tip, Right,Alum | |
| 19 | 4 | 66125262 | Hex Head Bolt, M10x25mm | |
| 20 | 4 | 1042182 | Nut, M10 | |
| 21 | 8 | 66310809 | Button Head Bolt, M8x25mm | |
| 22 | 8 | 1004182 | Flat Washer, | |
| 23 | 1 | 1201681 | Handle Strap | |
| 24 | 1 | 2023828 | Bolt, Carriage, M8x20mm | |
| 25 | 1 | EK2929 | Washer, M8 | |
| 26 | 1 | 60820511 | Nut, M8 | |
| 27 | 1 | 1410262 | Bumper | |
| 28 | 2 | 2019307 | Warning Light | |
| 29 | 2 | 1330945 | Foot Control | |
| 30 | 1 | 2050596 | Bridge Spacer | |
| 31 | 2 | 2049778 | Stop Block, (Fixed Platform Section) | |
| 32 | 2 | 2050479 | Stop Block (Folding Platform Section) |

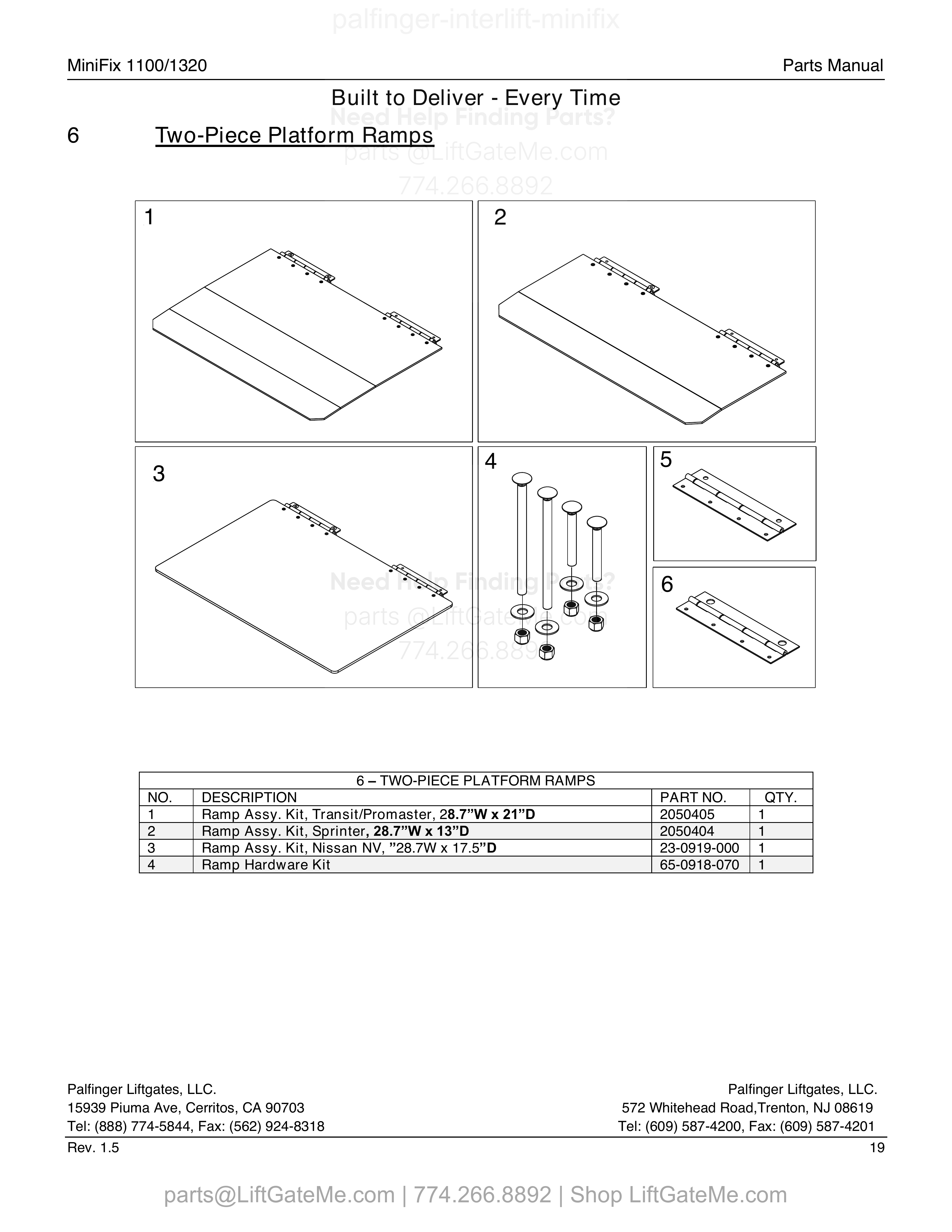

Two-Piece Platform Ramps
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

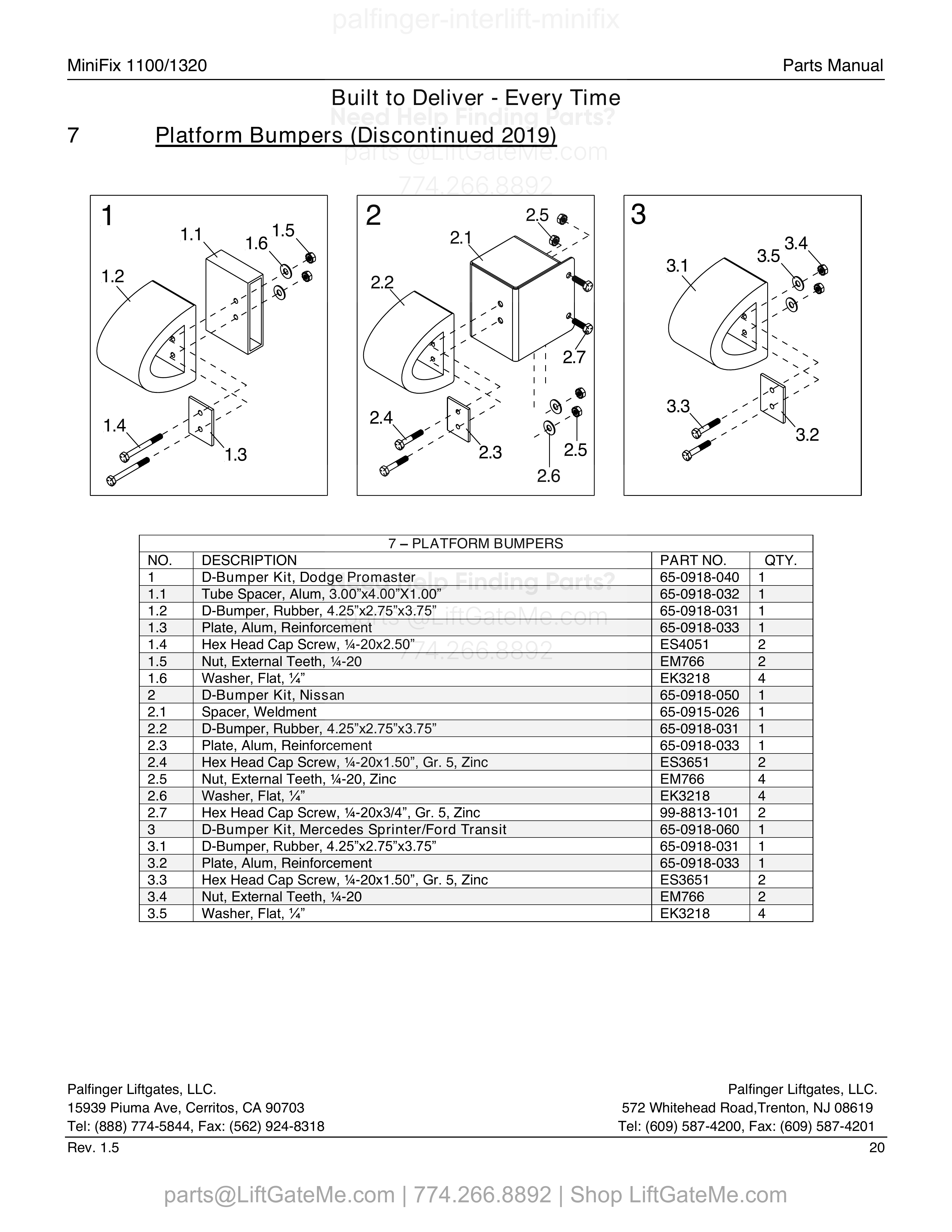

Platform Bumpers (Discontinued 2019)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 65-0918-040 | D-Bumper Kit, Dodge Promaster | |
| 1.1 | 1 | 65-0918-032 | Tube Spacer, Alum, 3.00”x4.00”X1.00” | |
| 1.2 | 1 | 65-0918-031 | D-Bumper, Rubber, 4.25”x2.75”x3.75” | |
| 1.3 | 1 | 65-0918-033 | Plate, Alum, Reinforcement | |
| 1.4 | 2 | ES4051 | Hex Head Cap Screw, ¼-20x2.50” | |
| 1.5 | 2 | EM766 | Nut, External Teeth, ¼-20 | |
| 1.6 | 4 | EK3218 | Washer, Flat, ¼” | |
| 2 | 1 | 65-0918-050 | D-Bumper Kit, Nissan | |
| 2.1 | 1 | 65-0915-026 | Spacer, Weldment | |
| 2.2 | 1 | 65-0918-031 | D-Bumper, Rubber, 4.25”x2.75”x3.75” | |
| 2.3 | 1 | 65-0918-033 | Plate, Alum, Reinforcement | |
| 2.4 | 2 | ES3651 | Hex Head Cap Screw, ¼-20x1.50”, Gr. 5, Zinc | |
| 2.5 | 4 | EM766 | Nut, External Teeth, ¼-20, Zinc | |
| 2.6 | 4 | EK3218 | Washer, Flat, ¼” | |
| 2.7 | 2 | 99-8813-101 | Hex Head Cap Screw, ¼-20x3/4”, Gr. 5, Zinc | |
| 3 | 1 | 65-0918-060 | D-Bumper Kit, Mercedes Sprinter/Ford Transit | |
| 3.1 | 1 | 65-0918-031 | D-Bumper, Rubber, 4.25”x2.75”x3.75” | |
| 3.2 | 1 | 65-0918-033 | Plate, Alum, Reinforcement | |
| 3.3 | 2 | ES3651 | Hex Head Cap Screw, ¼-20x1.50”, Gr. 5, Zinc | |
| 3.4 | 2 | EM766 | Nut, External Teeth, ¼-20 | |
| 3.5 | 4 | EK3218 | Washer, Flat, ¼” |

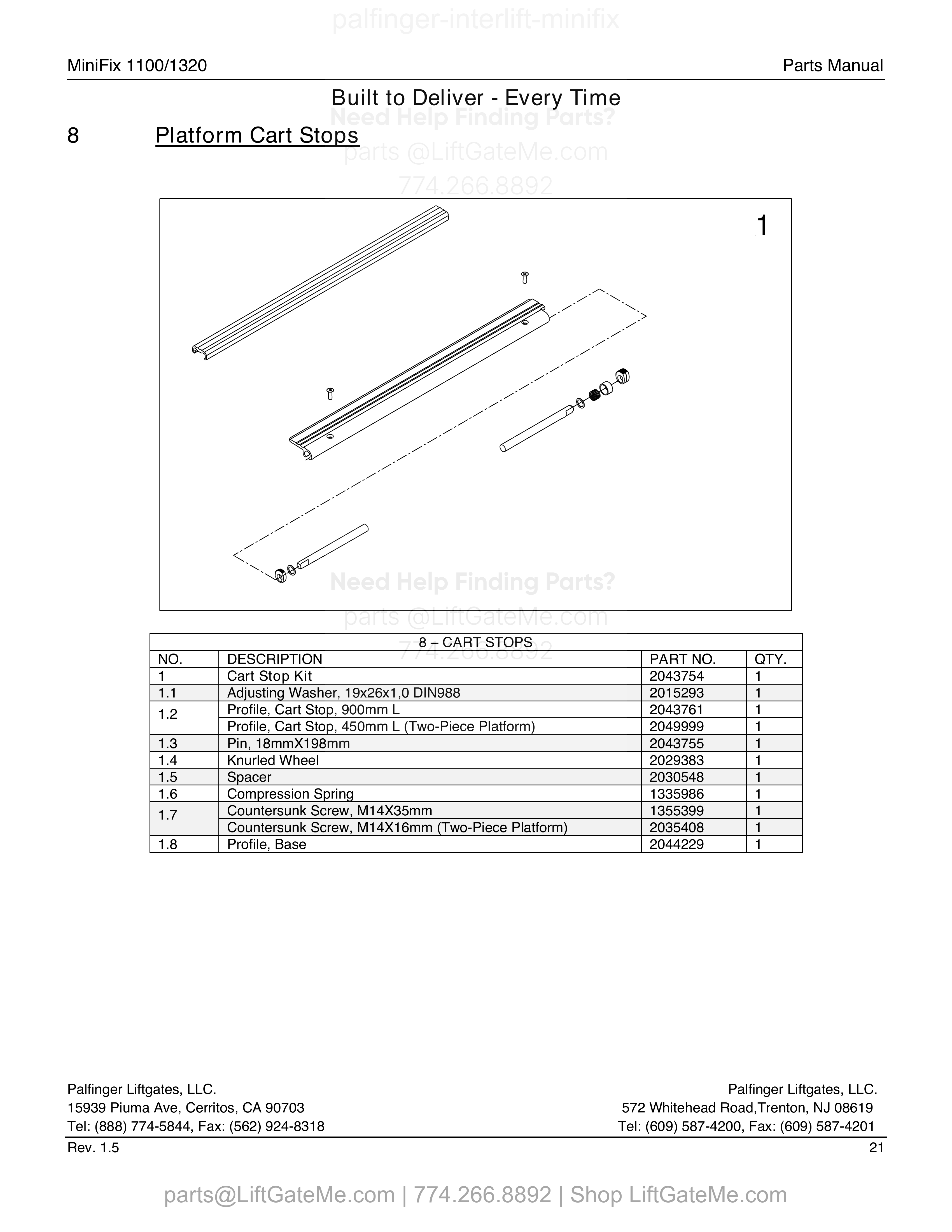

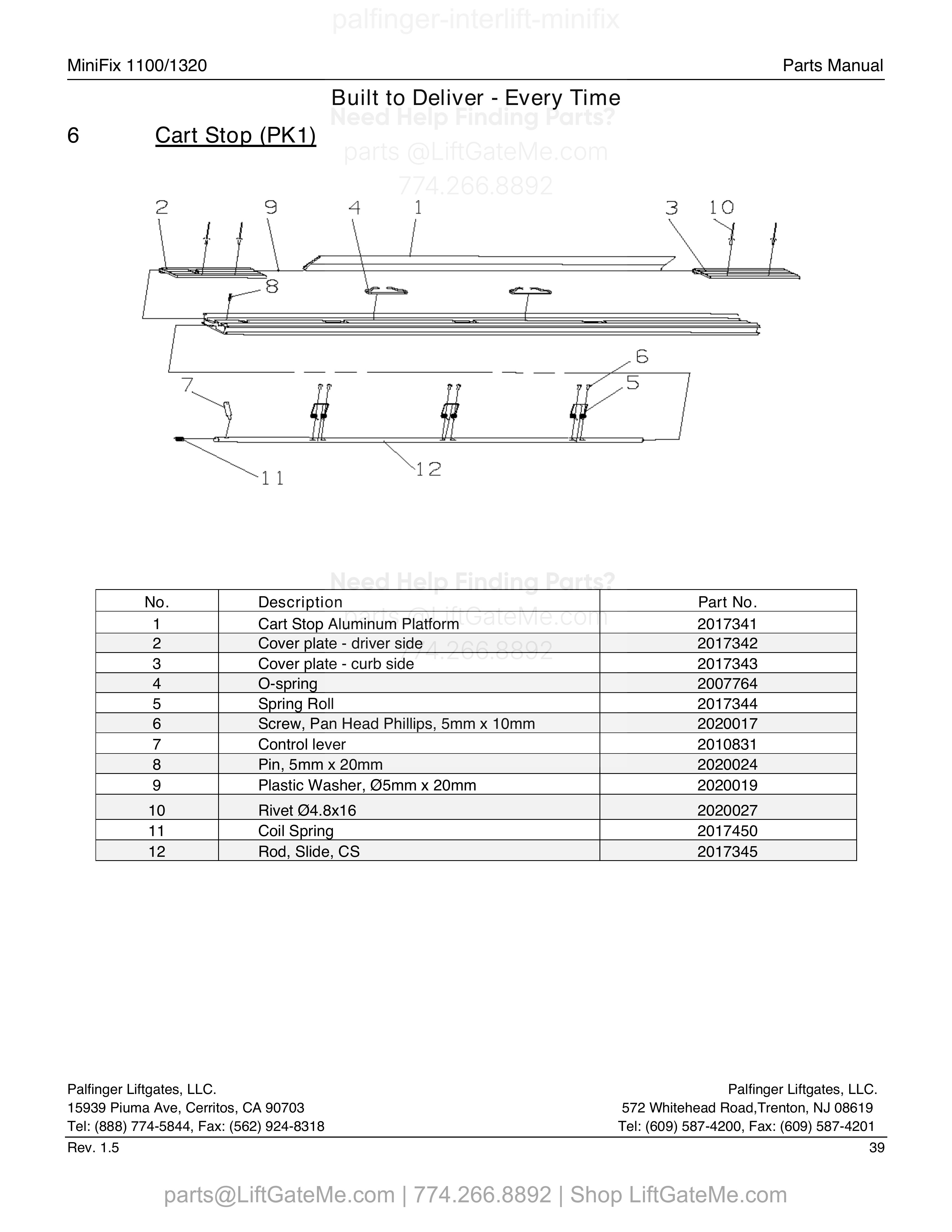

Platform Cart Stops
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 2043754 | Cart Stop Kit | |
| 1.1 | 1 | 2015293 | Adjusting Washer, 19x26x1,0 DIN988 | |
| 1.2 | 1 | 2043761 | Profile, Cart Stop, 900mm L | |
| 1.2 | 1 | 2049999 | Profile, Cart Stop, 450mm L (Two-Piece Platform) | |
| 1.3 | 1 | 2043755 | Pin, 18mmX198mm | |
| 1.4 | 1 | 2029383 | Knurled Wheel | |
| 1.5 | 1 | 2030548 | Spacer | |
| 1.6 | 1 | 1335986 | Compression Spring | |
| 1.7 | 1 | 1355399 | Countersunk Screw, M14X35mm | |
| 1.7 | 1 | 2035408 | Countersunk Screw, M14X16mm (Two-Piece Platform) | |
| 1.8 | 1 | 2044229 | Profile, Base |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

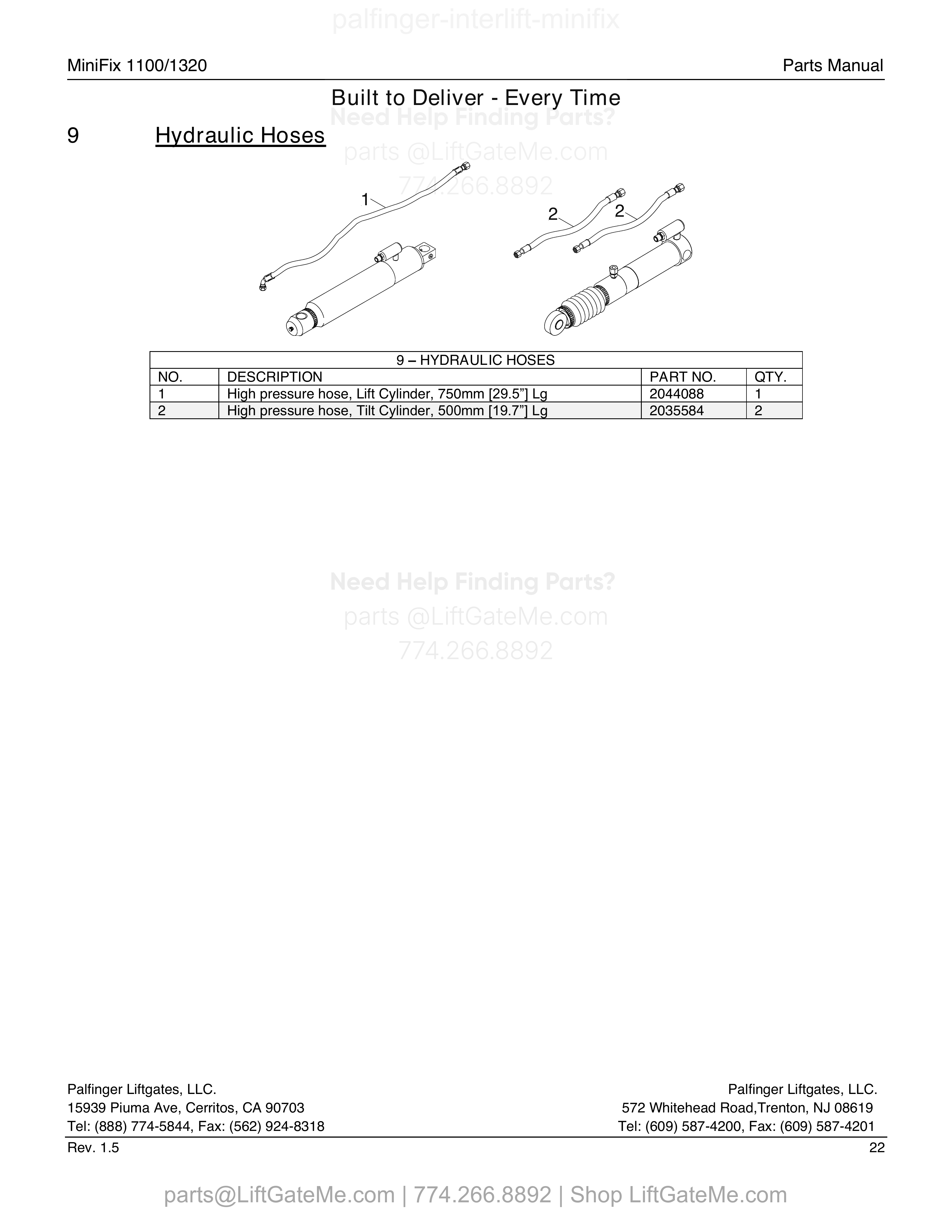

Hydraulic Hoses
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 2044088 | High pressure hose, Lift Cylinder, 750mm [29.5”] Lg | |
| 2 | 2 | 2035584 | High pressure hose, Tilt Cylinder, 500mm [19.7”] Lg |

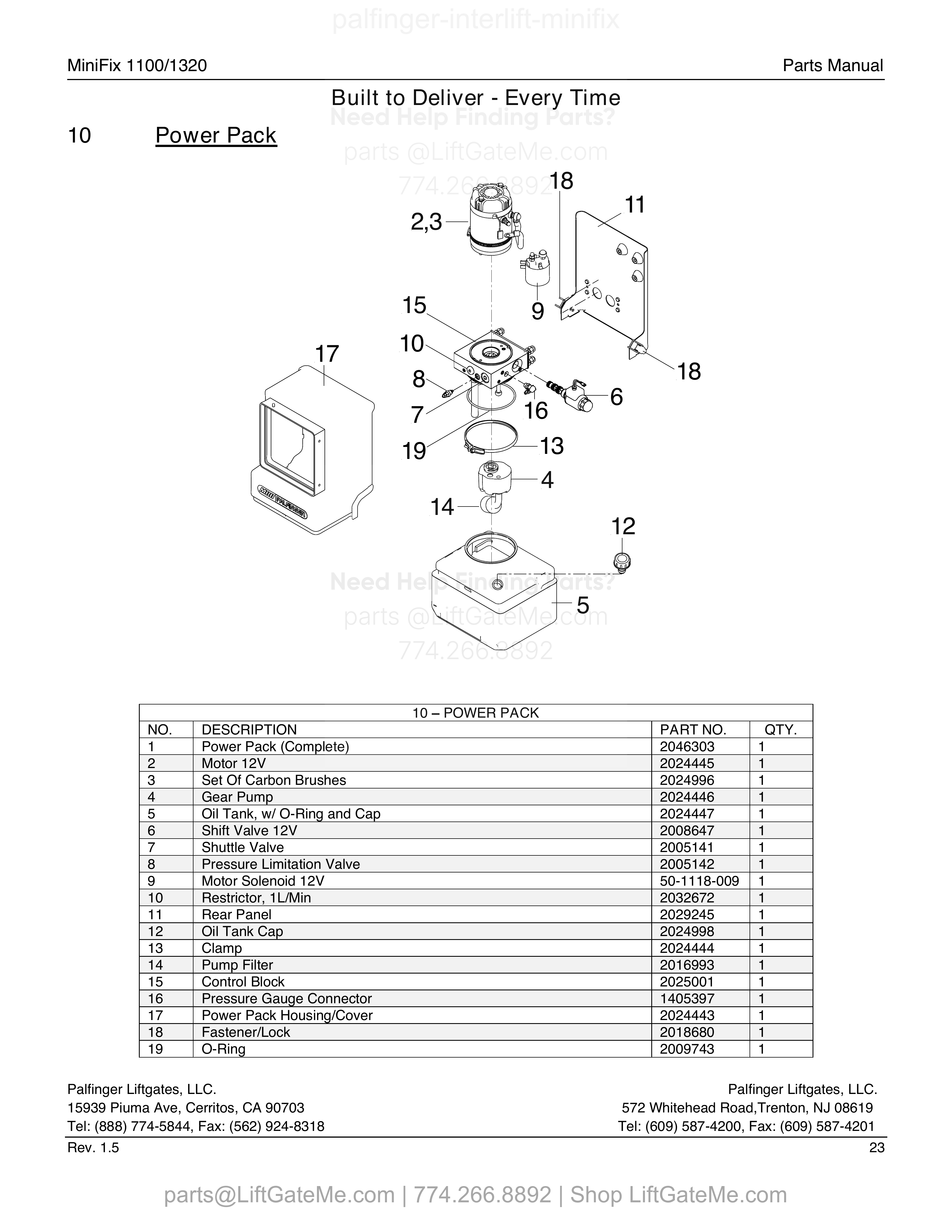

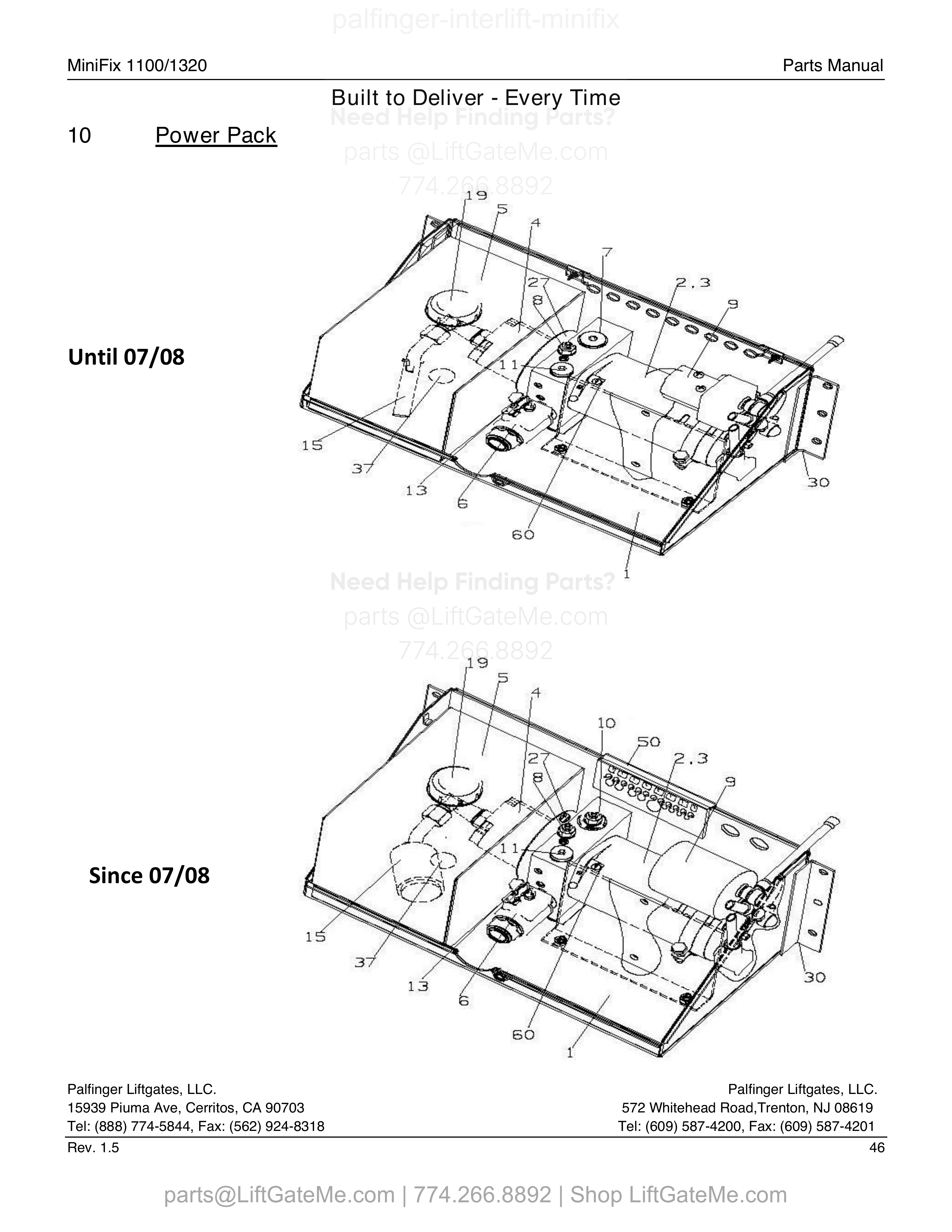

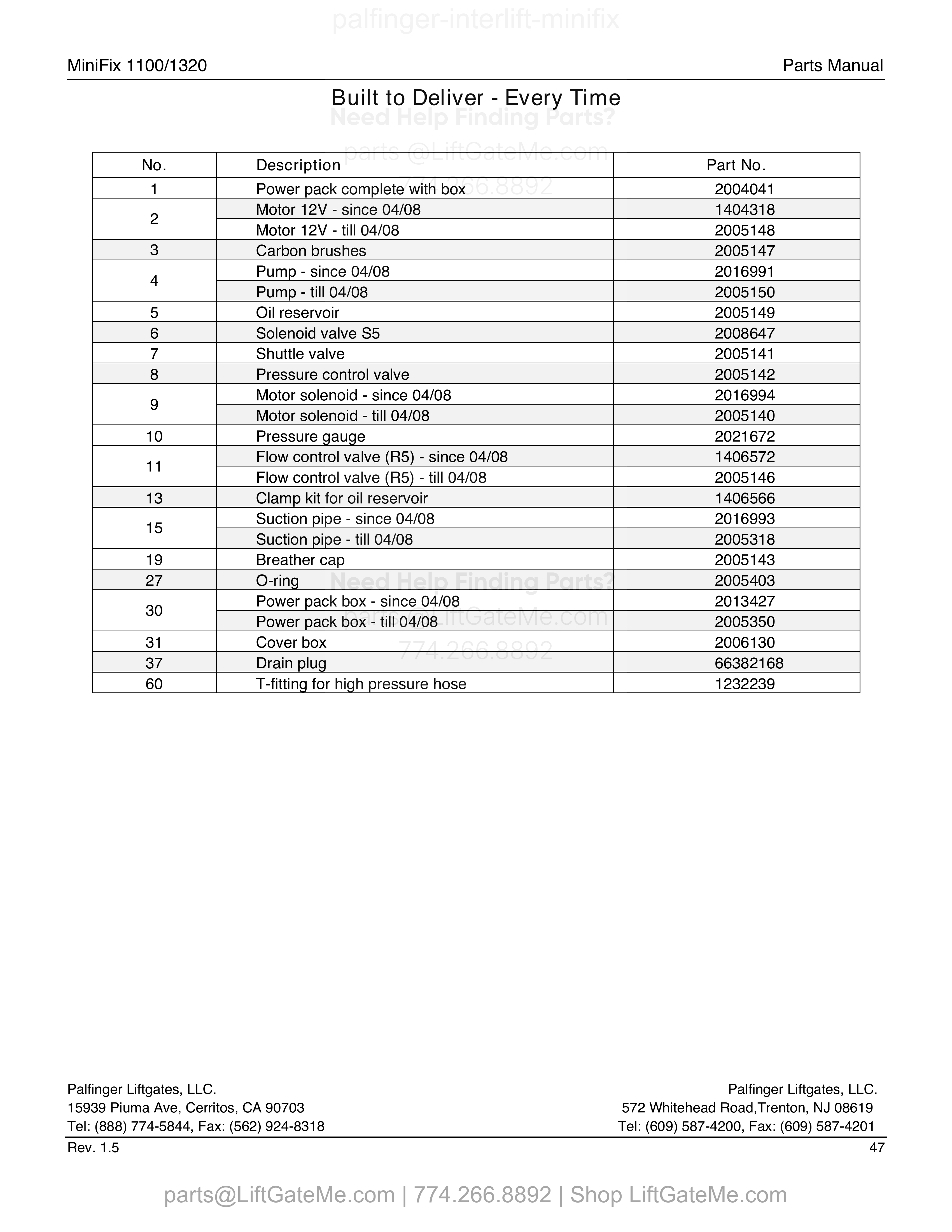

Power Pack
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 2046303 | Power Pack (Complete) | |
| 2 | 1 | 2024445 | Motor 12V | |
| 3 | 1 | 2024996 | Set Of Carbon Brushes | |
| 4 | 1 | 2024446 | Gear Pump | |
| 5 | 1 | 2024447 | Oil Tank, w/ O-Ring and Cap | |
| 6 | 1 | 2008647 | Shift Valve 12V | |
| 7 | 1 | 2005141 | Shuttle Valve | |
| 8 | 1 | 2005142 | Pressure Limitation Valve | |
| 9 | 1 | 50-1118-009 | Motor Solenoid 12V | |
| 10 | 1 | 2032672 | Restrictor, 1L/Min | |
| 11 | 1 | 2029245 | Rear Panel | |
| 12 | 1 | 2024998 | Oil Tank Cap | |
| 13 | 1 | 2024444 | Clamp | |
| 14 | 1 | 2016993 | Pump Filter | |
| 15 | 1 | 2025001 | Control Block | |
| 16 | 1 | 1405397 | Pressure Gauge Connector | |
| 17 | 1 | 2024443 | Power Pack Housing/Cover | |
| 18 | 1 | 2018680 | Fastener/Lock | |
| 19 | 1 | 2009743 | O-Ring |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

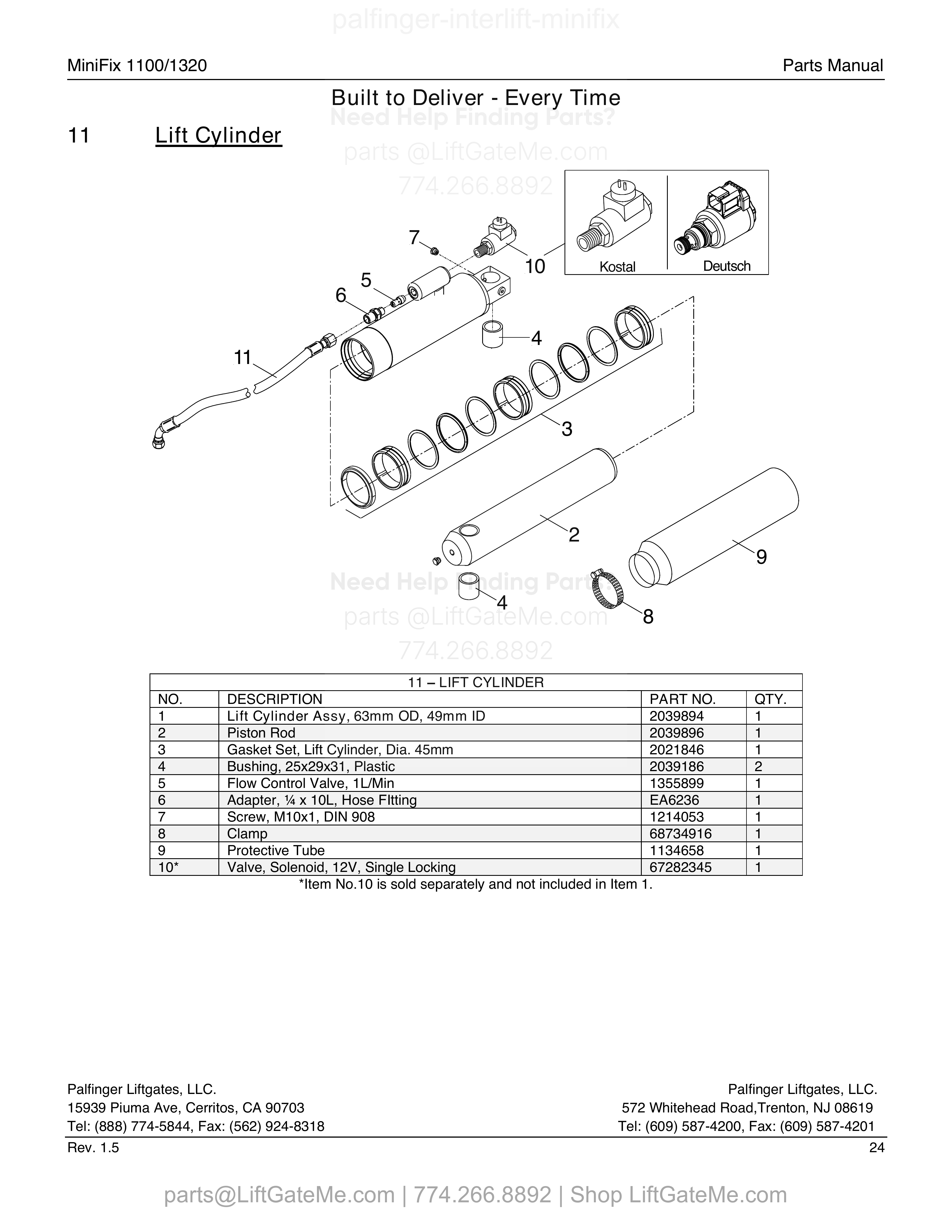

Lift Cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 2039894 | Lift Cylinder Assy, 63mm OD, 49mm ID | |
| 2 | 1 | 2039896 | Piston Rod | |
| 3 | 1 | 2021846 | Gasket Set, Lift Cylinder, Dia. 45mm | |
| 4 | 2 | 2039186 | Bushing, 25x29x31, Plastic | |
| 5 | 1 | 1355899 | Flow Control Valve, 1L/Min | |
| 6 | 1 | EA6236 | Adapter, ¼ x 10L, Hose Fitting | |
| 7 | 1 | 1214053 | Screw, M10x1, DIN 908 | |
| 8 | 1 | 68734916 | Clamp | |
| 9 | 1 | 1134658 | Protective Tube | |
| 10* | 1 | 67282345 | Valve, Solenoid, 12V, Single Locking |

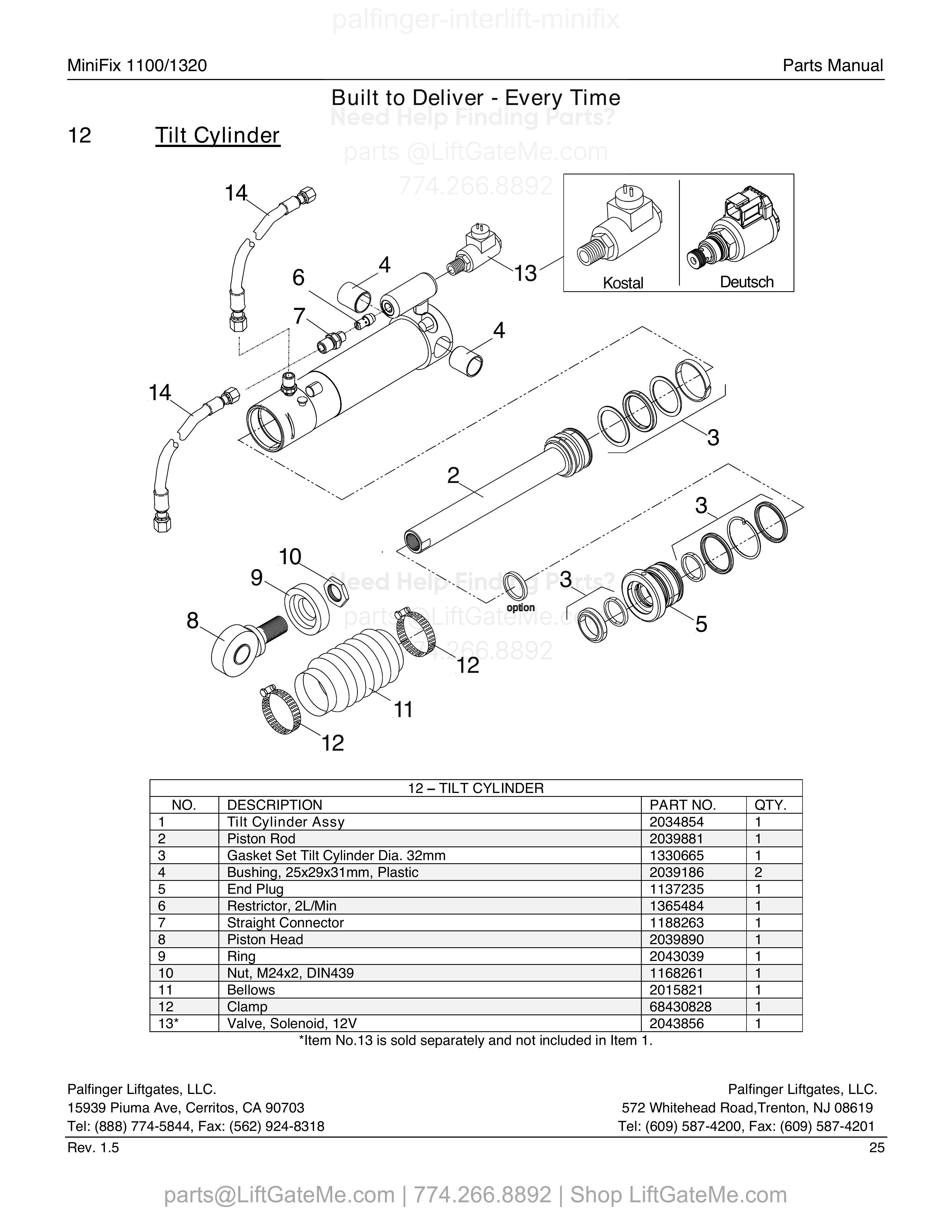

Tilt Cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 2034854 | Tilt Cylinder Assy | |
| 2 | 1 | 2039881 | Piston Rod | |
| 3 | 1 | 1330665 | Gasket Set Tilt Cylinder Dia. 32mm | |
| 4 | 2 | 2039186 | Bushing, 25x29x31mm, Plastic | |
| 5 | 1 | 1137235 | End Plug | |
| 6 | 1 | 1365484 | Restrictor, 2L/Min | |
| 7 | 1 | 1188263 | Straight Connector | |
| 8 | 1 | 2039890 | Piston Head | |
| 9 | 1 | 2043039 | Ring | |
| 10 | 1 | 1168261 | Nut, M24x2, DIN439 | |
| 11 | 1 | 2015821 | Bellows | |
| 12 | 1 | 68430828 | Clamp | |
| 13* | 1 | 2043856 | Valve, Solenoid, 12V |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

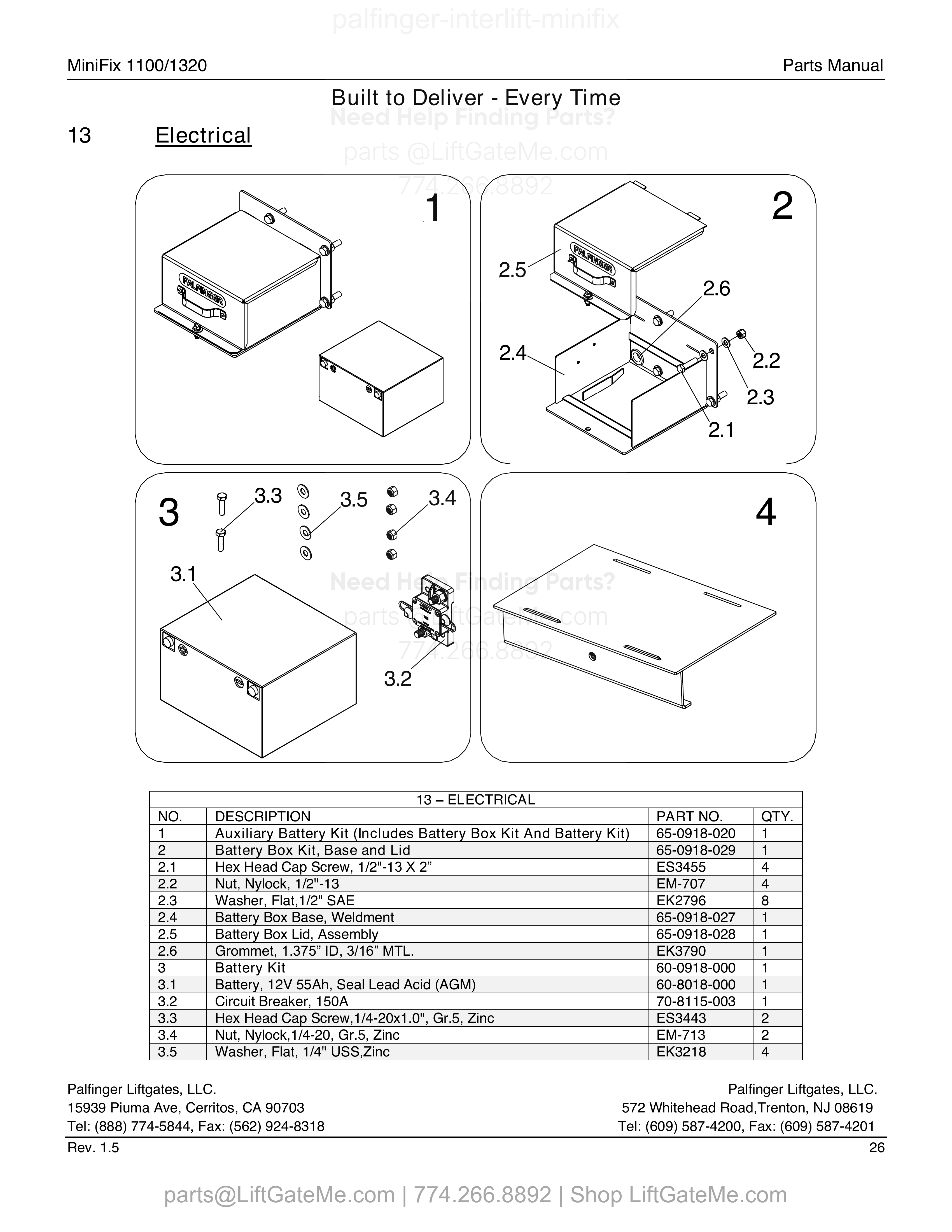

Electrical
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 65-0918-020 | Auxiliary Battery Kit (Includes Battery Box Kit And Battery Kit) | |
| 2 | 1 | 65-0918-029 | Battery Box Kit, Base and Lid | |
| 2.1 | 4 | ES3455 | Hex Head Cap Screw, 1/2"-13 X 2” | |
| 2.2 | 4 | EM-707 | Nut, Nylock, 1/2"-13 | |
| 2.3 | 8 | EK2796 | Washer, Flat,1/2" SAE | |
| 2.4 | 1 | 65-0918-027 | Battery Box Base, Weldment | |
| 2.5 | 1 | 65-0918-028 | Battery Box Lid, Assembly | |
| 2.6 | 1 | EK3790 | Grommet, 1.375” ID, 3/16” MTL. | |
| 3 | 1 | 60-0918-000 | Battery Kit | |
| 3.1 | 1 | 60-8018-000 | Battery, 12V 55Ah, Seal Lead Acid (AGM) | |
| 3.2 | 1 | 70-8115-003 | Circuit Breaker, 150A | |
| 3.3 | 2 | ES3443 | Hex Head Cap Screw,1/4-20x1.0", Gr.5, Zinc | |
| 3.4 | 2 | EM-713 | Nut, Nylock,1/4-20, Gr.5, Zinc | |
| 3.5 | 4 | EK3218 | Washer, Flat, 1/4" USS,Zinc |

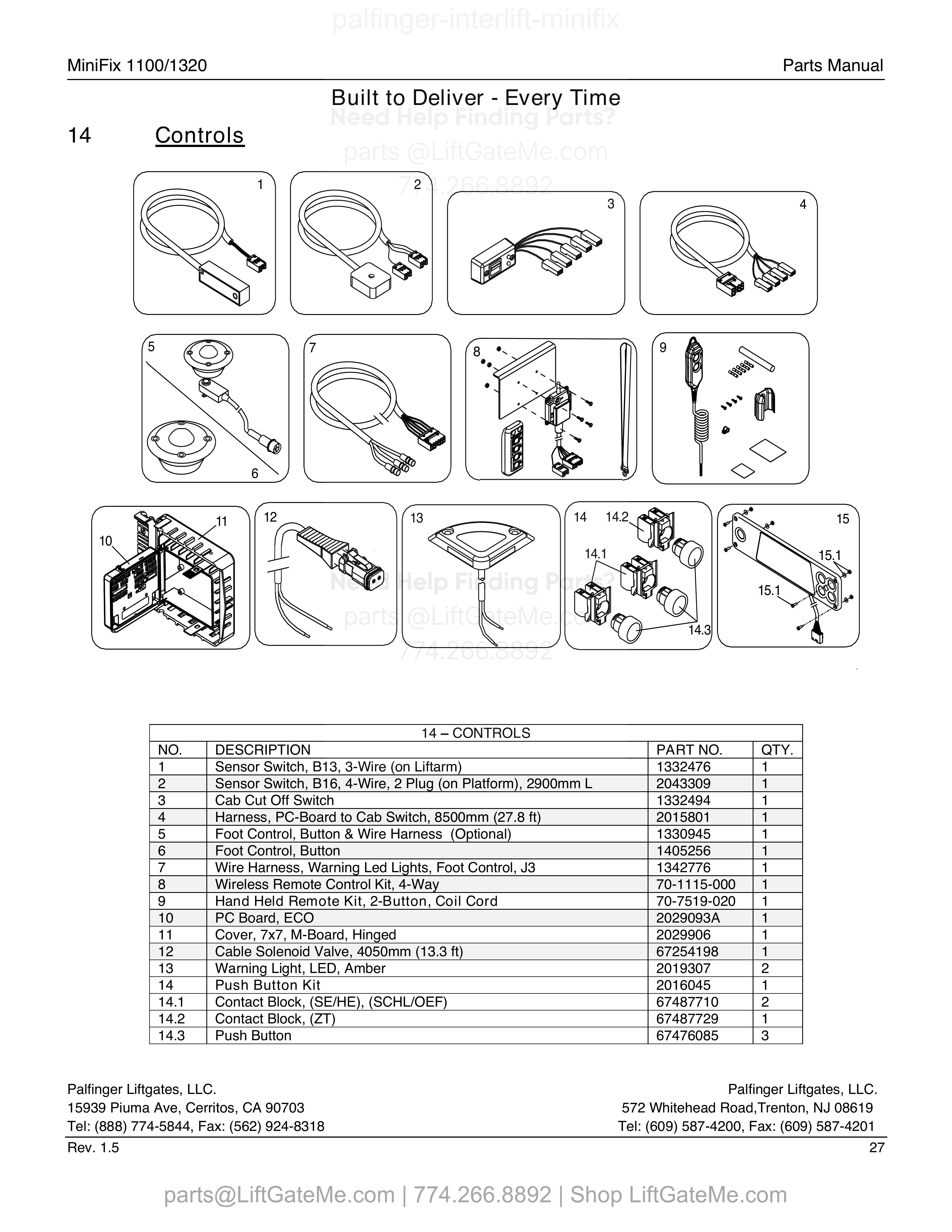

Controls
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 1332476 | Sensor Switch, B13, 3-Wire (on Liftarm) | |
| 2 | 1 | 2043309 | Sensor Switch, B16, 4-Wire, 2 Plug (on Platform), 2900mm L | |
| 3 | 1 | 1332494 | Cab Cut Off Switch | |
| 4 | 1 | 2015801 | Harness, PC-Board to Cab Switch, 8500mm (27.8 ft) | |
| 5 | 1 | 1330945 | Foot Control, Button & Wire Harness (Optional) | |
| 6 | 1 | 1405256 | Foot Control, Button | |
| 7 | 1 | 1342776 | Wire Harness, Warning Led Lights, Foot Control, J3 | |
| 8 | 1 | 70-1115-000 | Wireless Remote Control Kit, 4-Way | |
| 9 | 1 | 70-7519-020 | Hand Held Remote Kit, 2-Button, Coil Cord | |
| 10 | 1 | 2029093A | PC Board, ECO | |
| 11 | 1 | 2029906 | Cover, 7x7, M-Board, Hinged | |
| 12 | 1 | 67254198 | Cable Solenoid Valve, 4050mm (13.3 ft) | |
| 13 | 2 | 2019307 | Warning Light, LED, Amber | |
| 14 | 1 | 2016045 | Push Button Kit | |
| 14.1 | 2 | 67487710 | Contact Block, (SE/HE), (SCHL/OEF) | |
| 14.2 | 1 | 67487729 | Contact Block, (ZT) | |
| 14.3 | 3 | 67476085 | Push Button |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

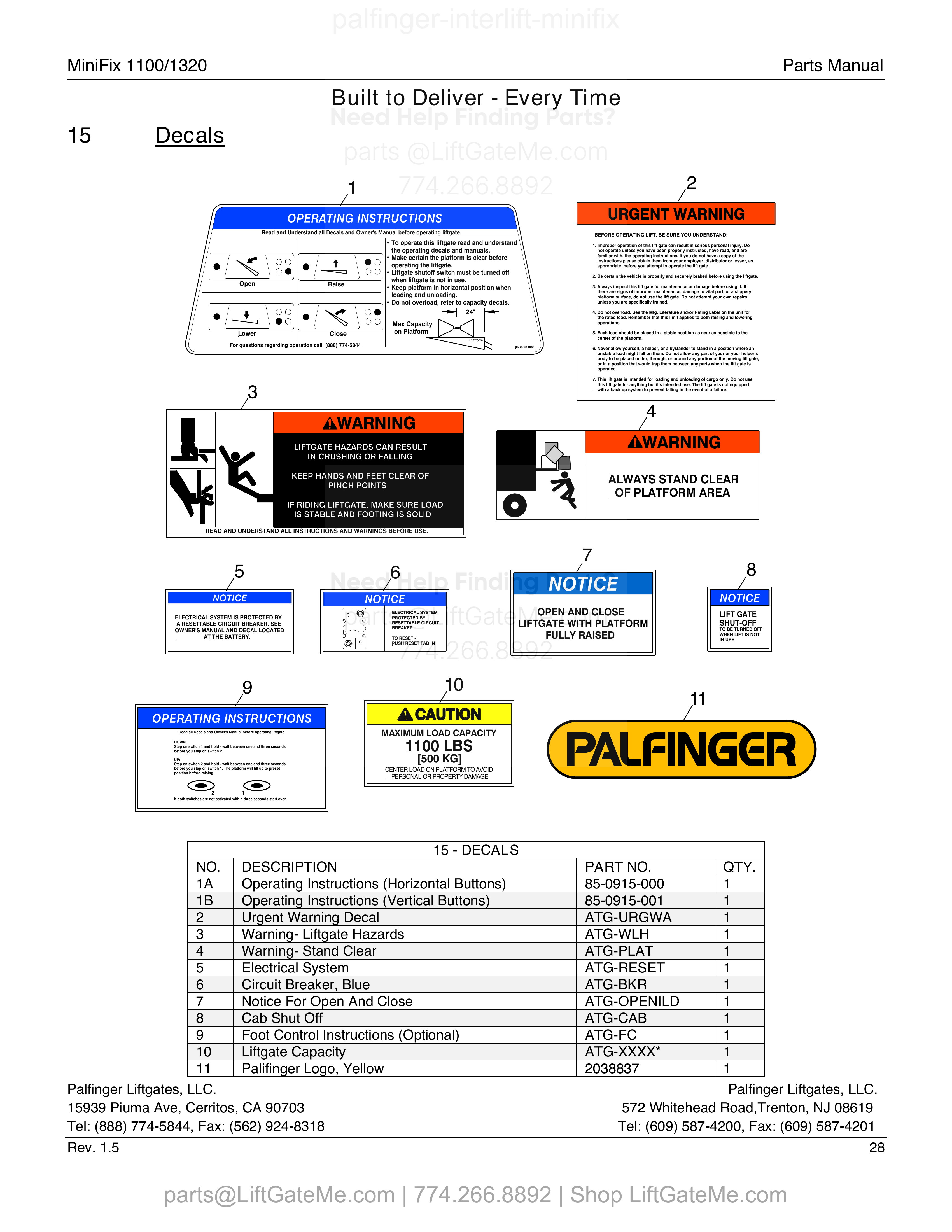

Decals
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1A | 1 | 85-0915-000 | Operating Instructions (Horizontal Buttons) | |
| 1B | 1 | 85-0915-001 | Operating Instructions (Vertical Buttons) | |
| 2 | 1 | ATG-URGWA | Urgent Warning Decal | |
| 3 | 1 | ATG-WLH | Warning- Liftgate Hazards | |
| 4 | 1 | ATG-PLAT | Warning- Stand Clear | |
| 5 | 1 | ATG-RESET | Electrical System | |
| 6 | 1 | ATG-BKR | Circuit Breaker, Blue | |
| 7 | 1 | ATG-OPENILD | Notice For Open And Close | |
| 8 | 1 | ATG-CAB | Cab Shut Off | |
| 9 | 1 | ATG-FC | Foot Control Instructions (Optional) | |
| 10 | 1 | ATG-XXXX* | Liftgate Capacity | |
| 11 | 1 | 2038837 | Palifinger Logo, Yellow |
i

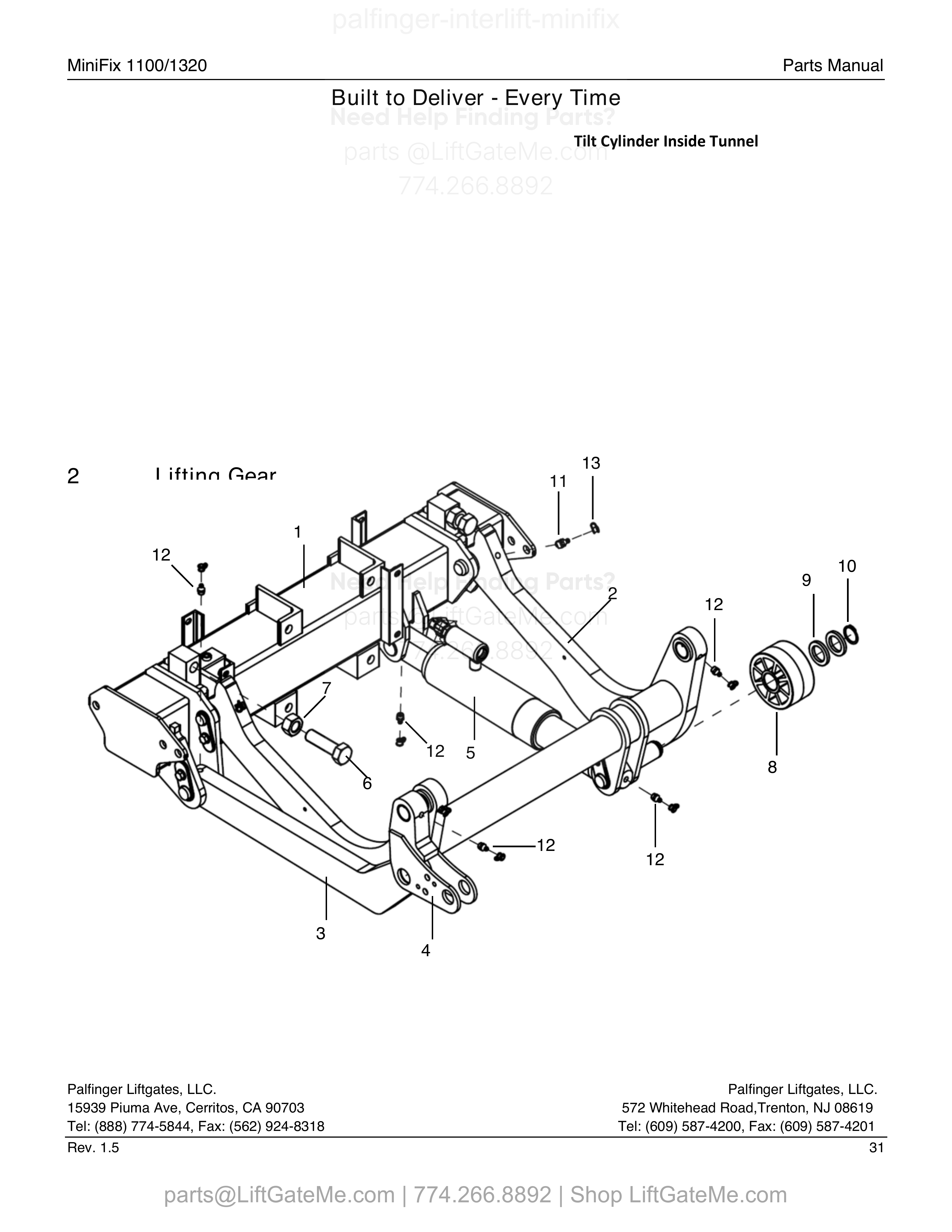

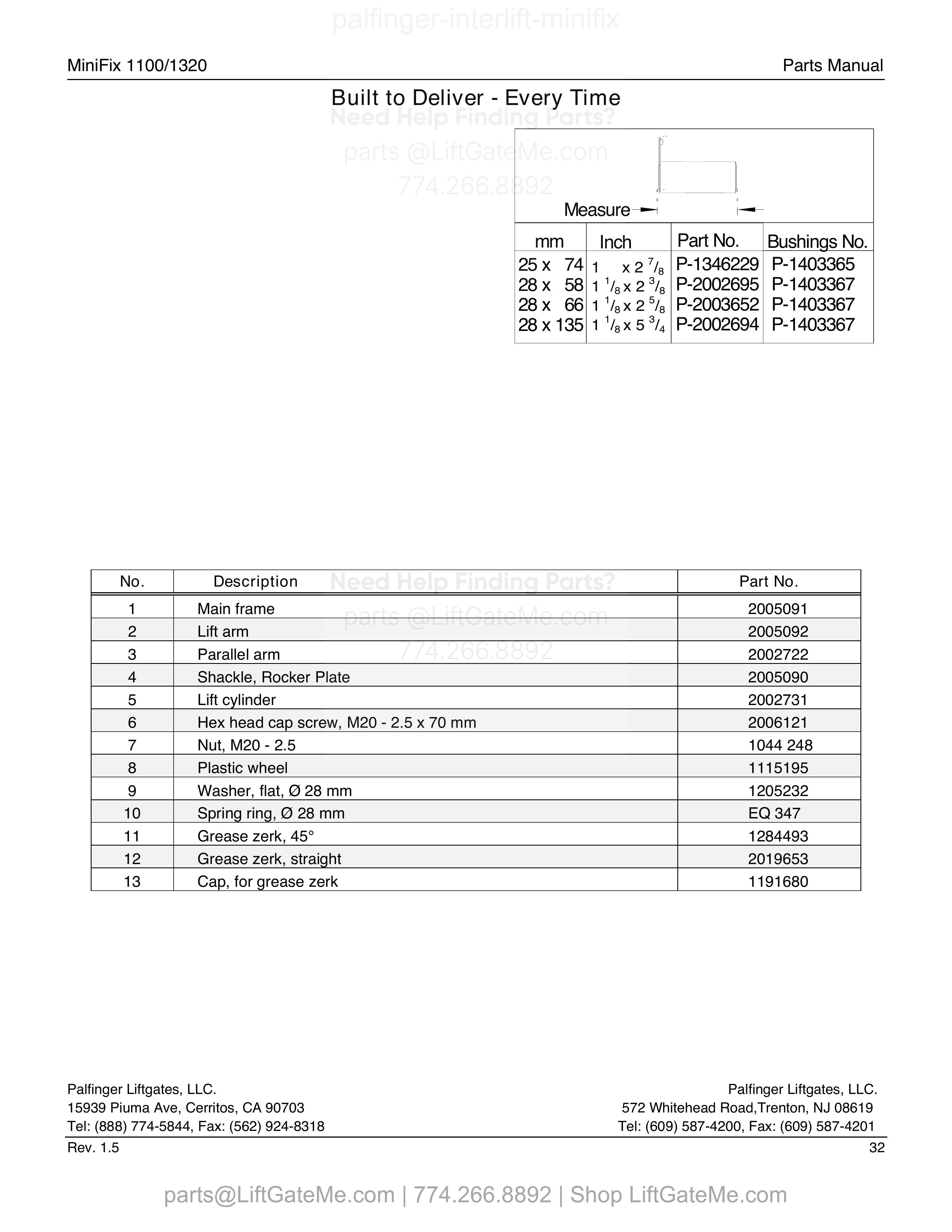

Tilt Cylinder Inside Tunnel
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2005091 | Main frame | ||
| 2 | 2005092 | Lift arm | ||
| 3 | 2002722 | Parallel arm | ||
| 4 | 2005090 | Shackle, Rocker Plate | ||
| 5 | 2002731 | Lift cylinder | ||
| 6 | 2006121 | Hex head cap screw, M20 - 2.5 x 70 mm | ||
| 7 | 1044 248 | Nut, M20 - 2.5 | ||
| 8 | 1115195 | Plastic wheel | ||
| 9 | 1205232 | Washer, flat, Ø 28 mm | ||
| 10 | EQ 347 | Spring ring, Ø 28 mm | ||
| 11 | 1284493 | Grease zerk, 45° | ||
| 12 | 2019653 | Grease zerk, straight | ||
| 13 | 1191680 | Cap, for grease zerk |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

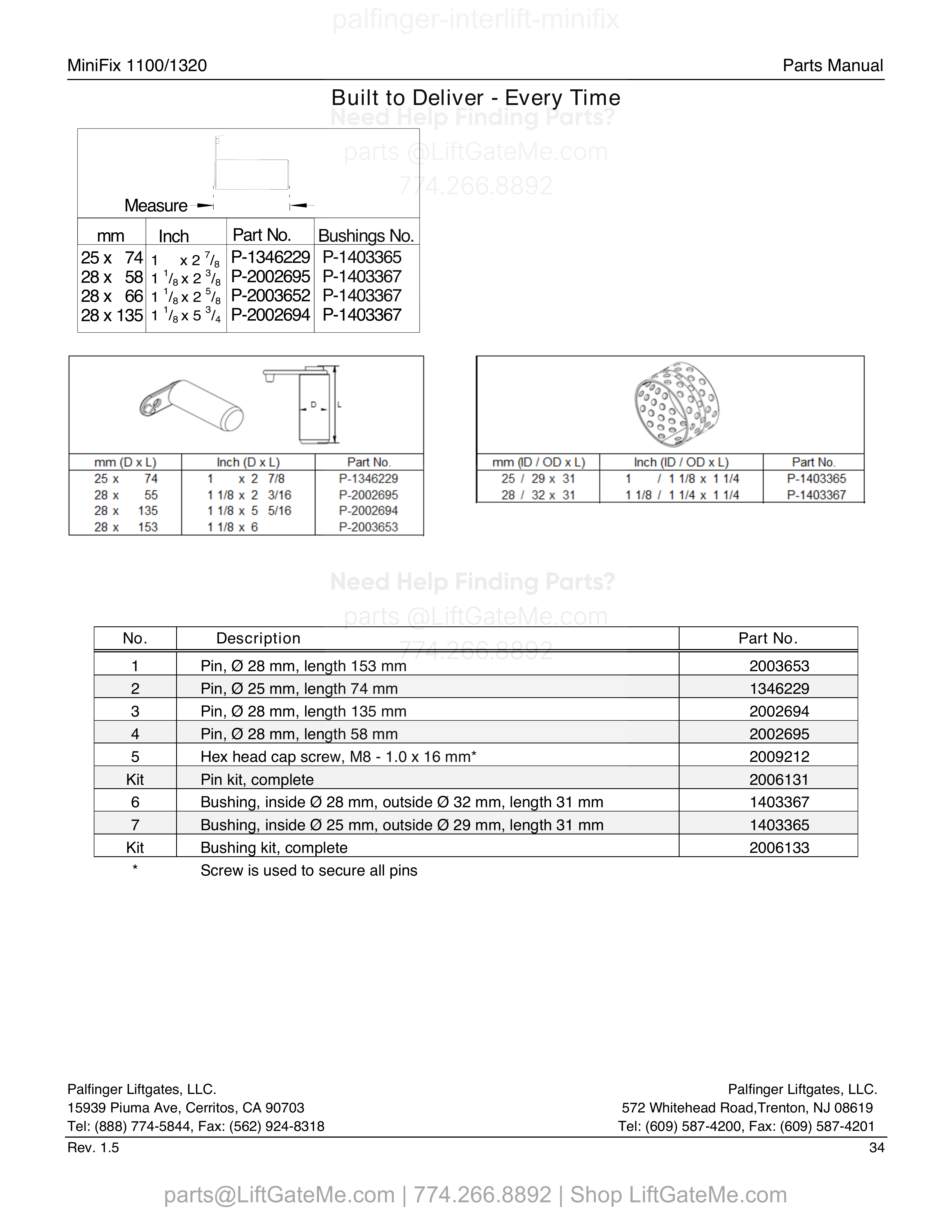

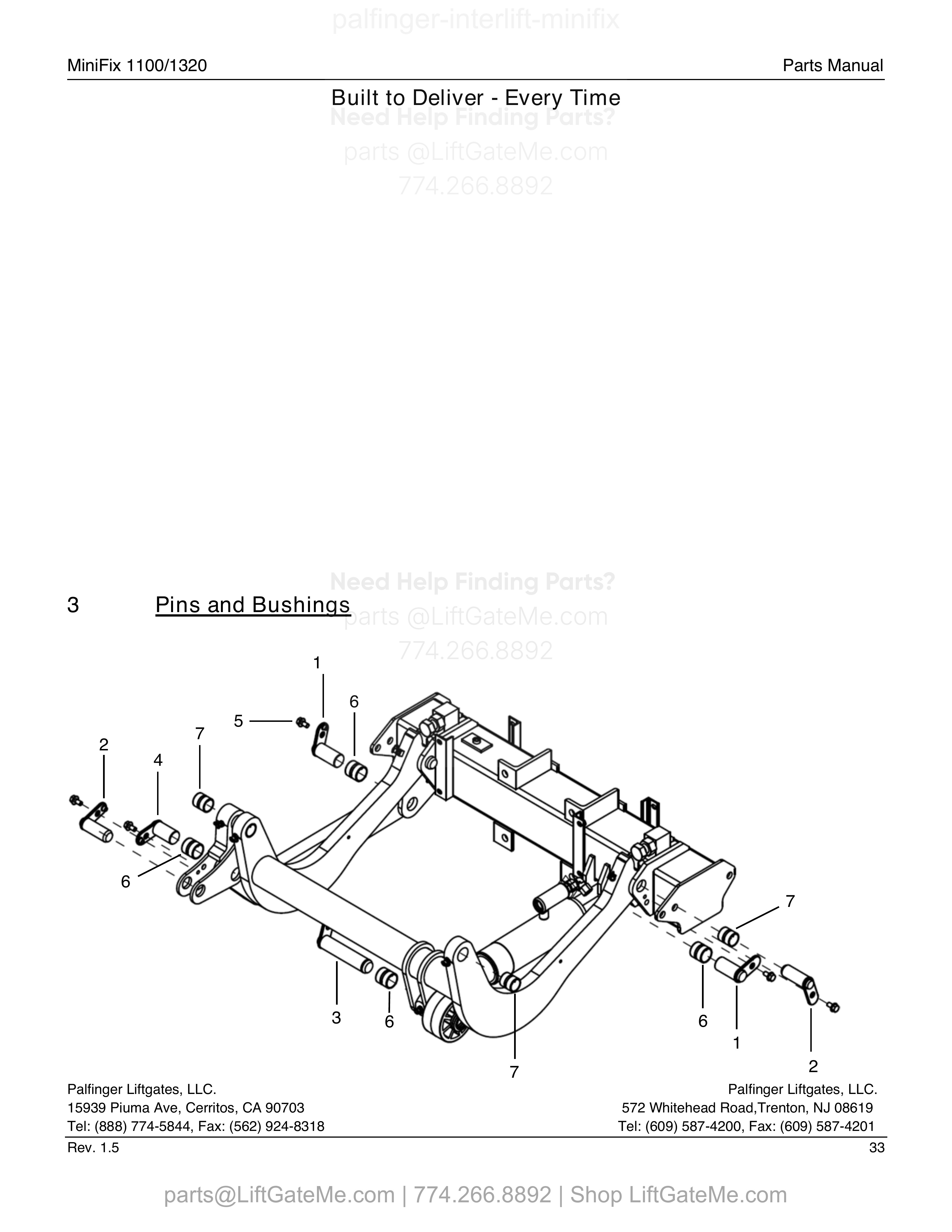

Pins and Bushings
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2003653 | Pin, Ø 28 mm, length 153 mm | ||
| 2 | 1346229 | Pin, Ø 25 mm, length 74 mm | ||
| 3 | 2002694 | Pin, Ø 28 mm, length 135 mm | ||
| 4 | 2002695 | Pin, Ø 28 mm, length 58 mm | ||
| 5 | 2009212 | Hex head cap screw, M8 - 1.0 x 16 mm* | ||
| Kit | 2006131 | Pin kit, complete | ||
| 6 | 1403367 | Bushing, inside Ø 28 mm, outside Ø 32 mm, length 31 mm | ||
| 7 | 1403365 | Bushing, inside Ø 25 mm, outside Ø 29 mm, length 31 mm | ||
| Kit | 2006133 | Bushing kit, complete |
i

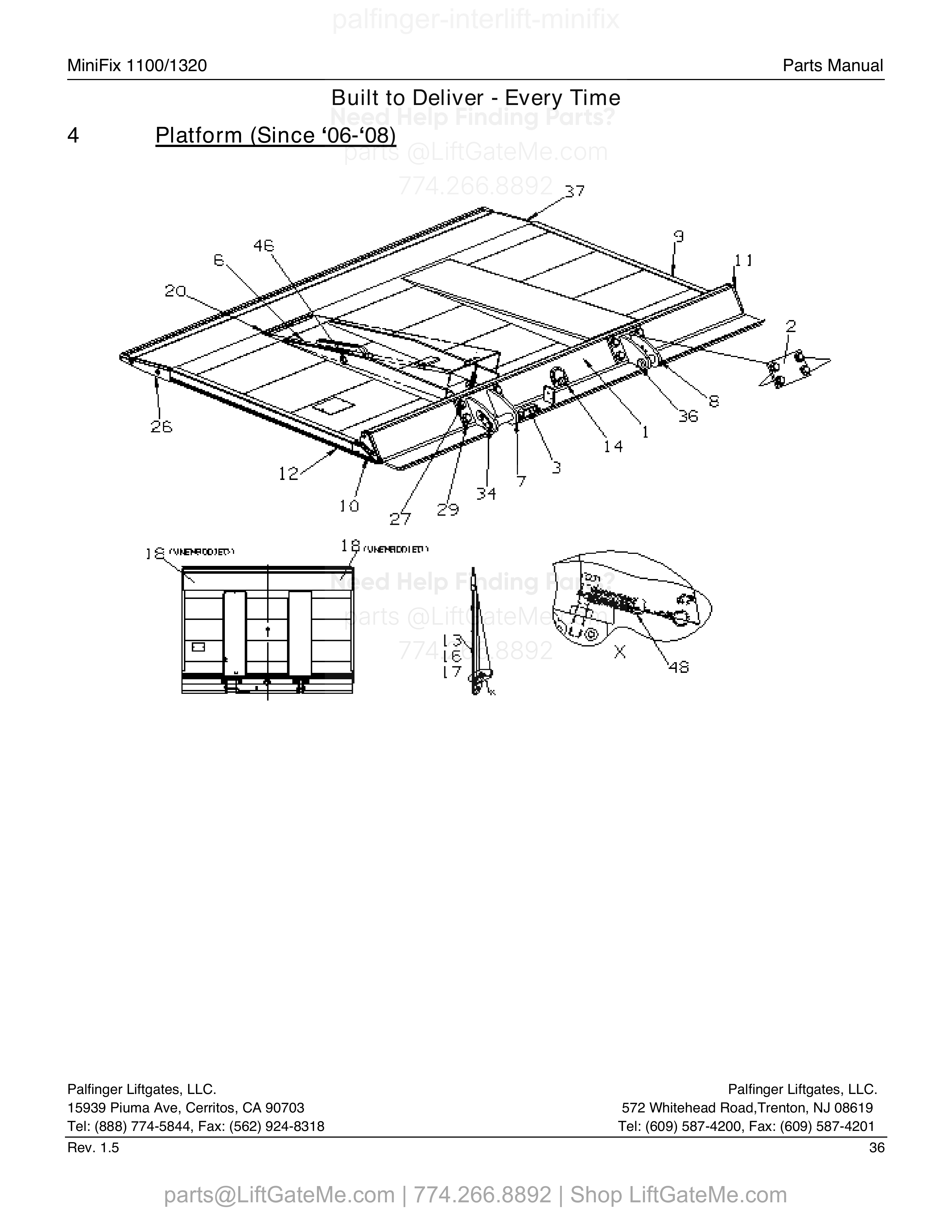

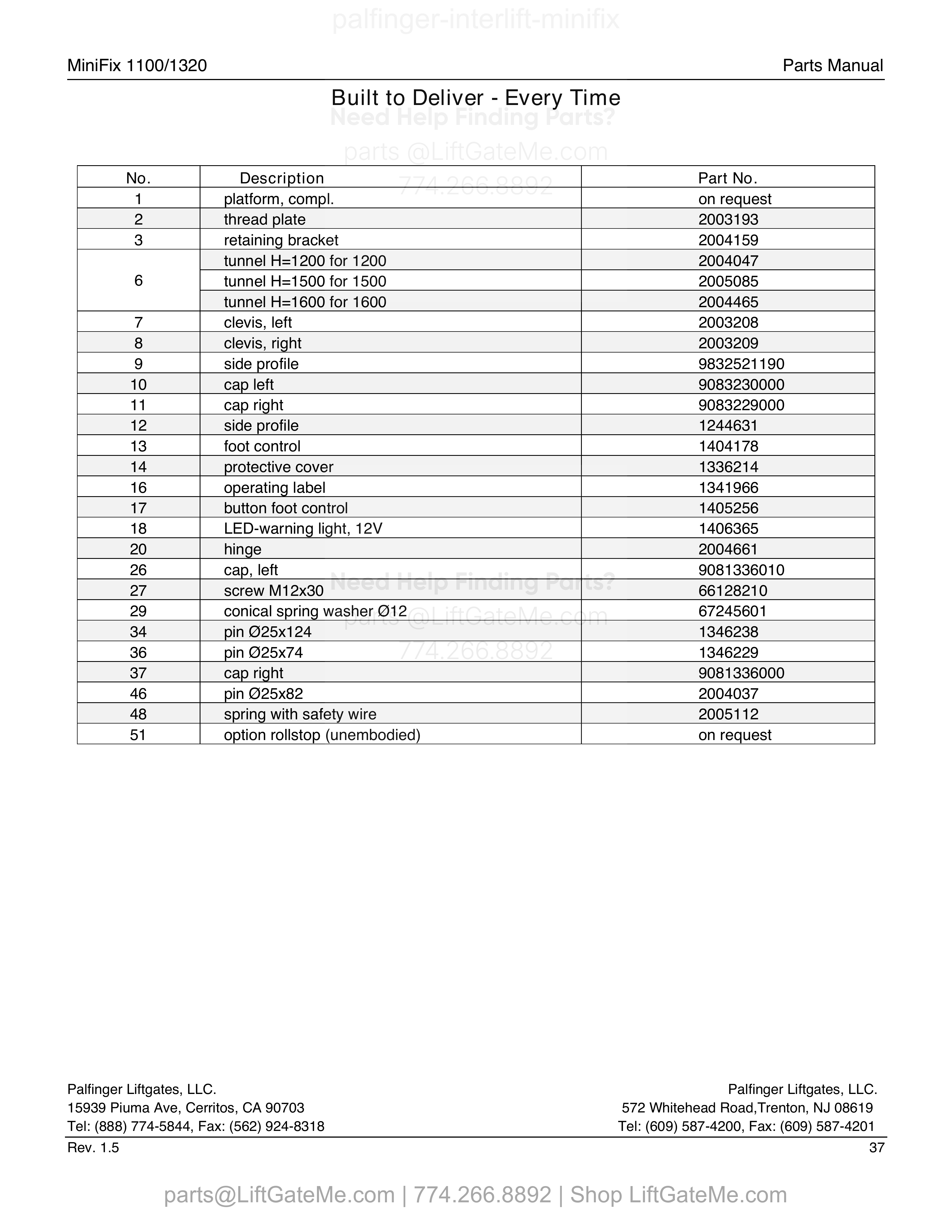

Platform (Since ‘06-‘08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | on request | platform, compl. | ||
| 2 | 2003193 | thread plate | ||
| 3 | 2004159 | retaining bracket | ||
| 6 | 2004047 | tunnel H=1200 for 1200 | ||
| 6 | 2005085 | tunnel H=1500 for 1500 | ||
| 6 | 2004465 | tunnel H=1600 for 1600 | ||
| 7 | 2003208 | clevis, left | ||
| 8 | 2003209 | clevis, right | ||
| 9 | 9832521190 | side profile | ||
| 10 | 9083230000 | cap left | ||
| 11 | 9083229000 | cap right | ||
| 12 | 1244631 | side profile | ||
| 13 | 1404178 | foot control | ||
| 14 | 1336214 | protective cover | ||
| 16 | 1341966 | operating label | ||
| 17 | 1405256 | button foot control | ||
| 18 | 1406365 | LED-warning light, 12V | ||
| 20 | 2004661 | hinge | ||
| 26 | 9081336010 | cap, left | ||
| 27 | 66128210 | screw M12x30 | ||
| 29 | 67245601 | conical spring washer Ø12 | ||
| 34 | 1346238 | pin Ø25x124 | ||
| 36 | 1346229 | pin Ø25x74 | ||
| 37 | 9081336000 | cap right | ||
| 46 | 2004037 | pin Ø25x82 | ||
| 48 | 2005112 | spring with safety wire | ||
| 51 | on request | option rollstop (unembodied) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

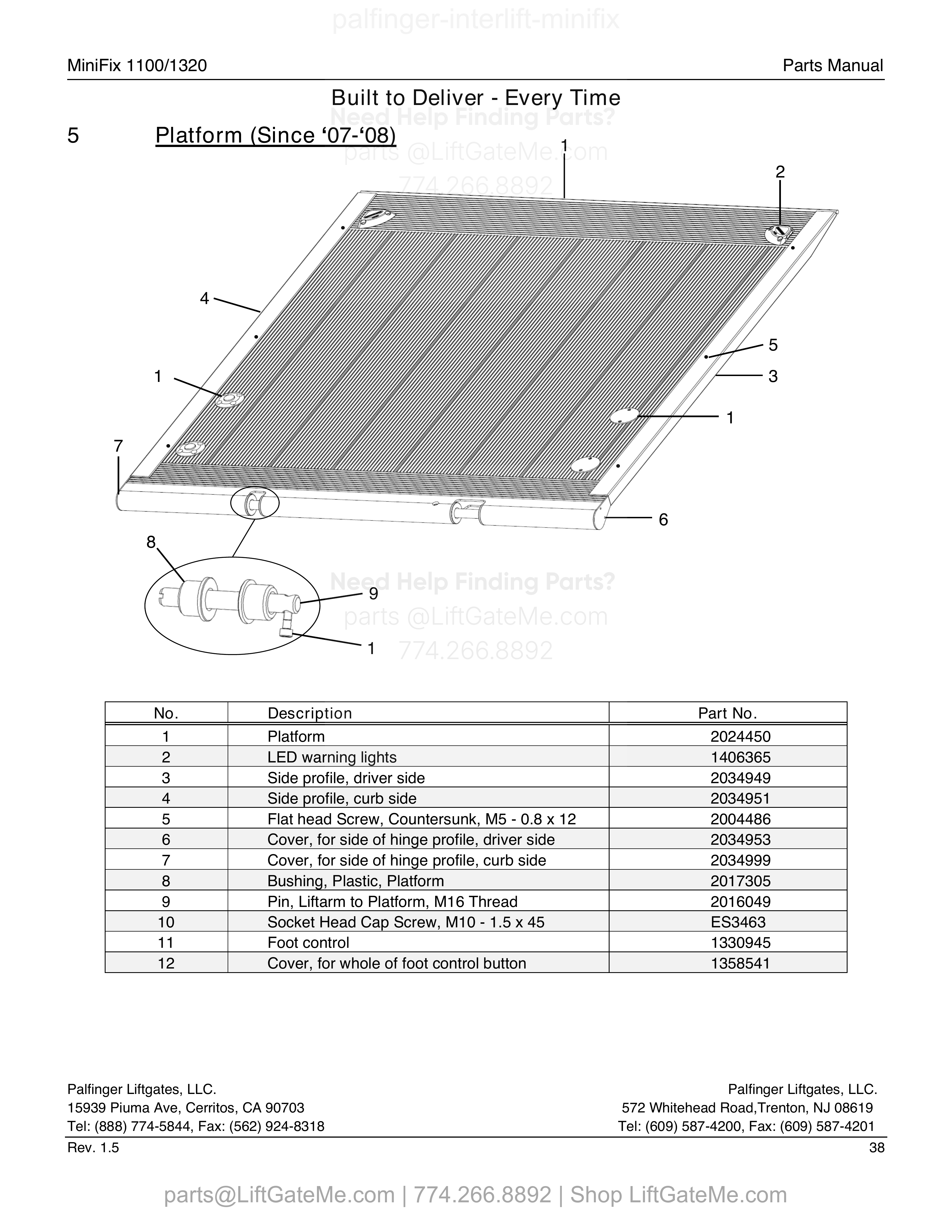

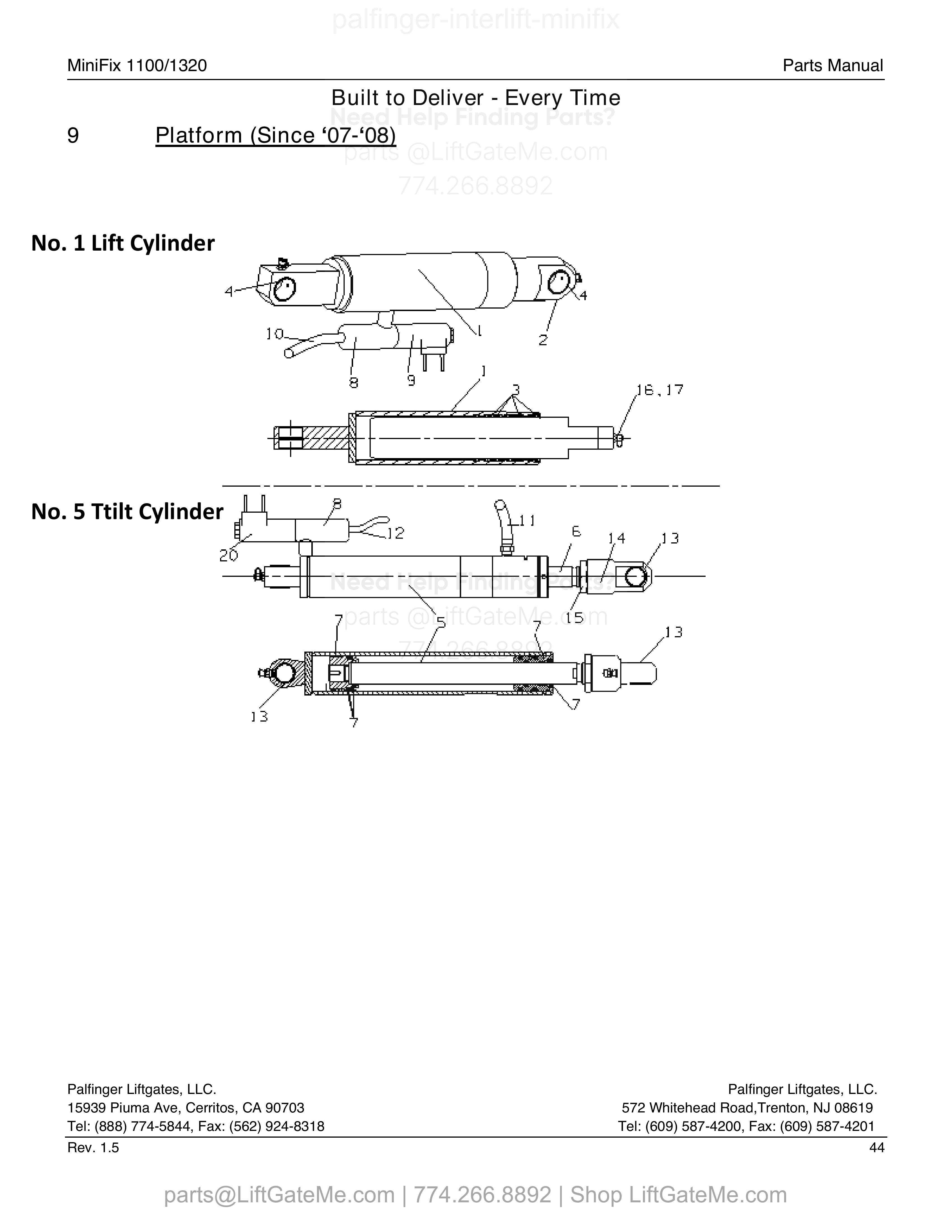

Platform (Since ‘07-‘08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2024450 | Platform | ||
| 2 | 1406365 | LED warning lights | ||
| 3 | 2034949 | Side profile, driver side | ||
| 4 | 2034951 | Side profile, curb side | ||
| 5 | 2004486 | Flat head Screw, Countersunk, M5 - 0.8 x 12 | ||
| 6 | 2034953 | Cover, for side of hinge profile, driver side | ||
| 7 | 2034999 | Cover, for side of hinge profile, curb side | ||
| 8 | 2017305 | Bushing, Plastic, Platform | ||
| 9 | 2016049 | Pin, Liftarm to Platform, M16 Thread | ||
| 10 | ES3463 | Socket Head Cap Screw, M10 - 1.5 x 45 | ||
| 11 | 1330945 | Foot control | ||
| 12 | 1358541 | Cover, for whole of foot control button |
Cart Stop (PK1)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2017341 | Cart Stop Aluminum Platform | ||
| 2 | 2017342 | Cover plate - driver side | ||
| 3 | 2017343 | Cover plate - curb side | ||
| 4 | 2007764 | O-spring | ||
| 5 | 2017344 | Spring Roll | ||
| 6 | 2020017 | Screw, Pan Head Phillips, 5mm x 10mm | ||
| 7 | 2010831 | Control lever | ||
| 8 | 2020024 | Pin, 5mm x 20mm | ||
| 9 | 2020019 | Plastic Washer, Ø5mm x 20mm | ||
| 10 | 2020027 | Rivet Ø4.8x16 | ||
| 11 | 2017450 | Coil Spring | ||
| 12 | 2017345 | Rod, Slide, CS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

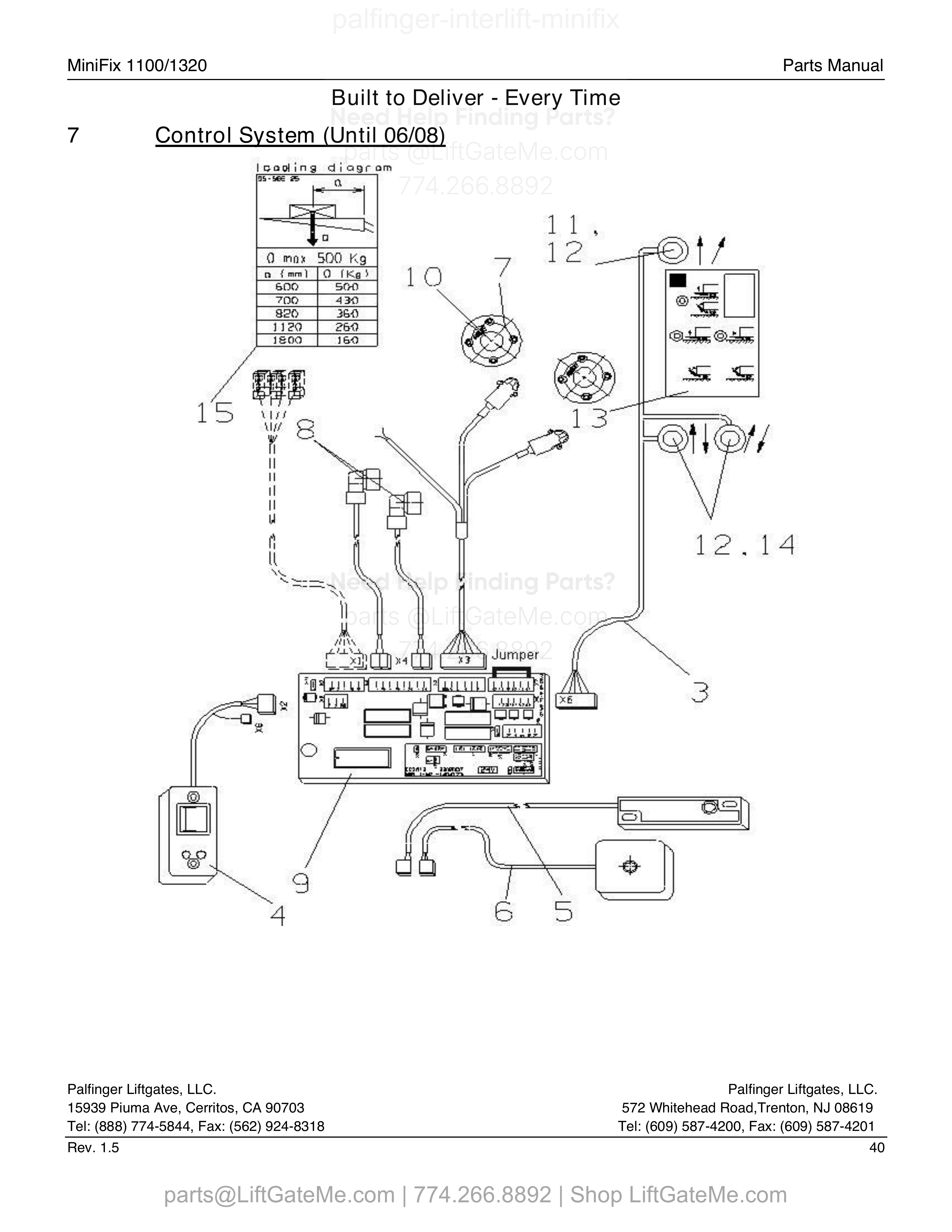

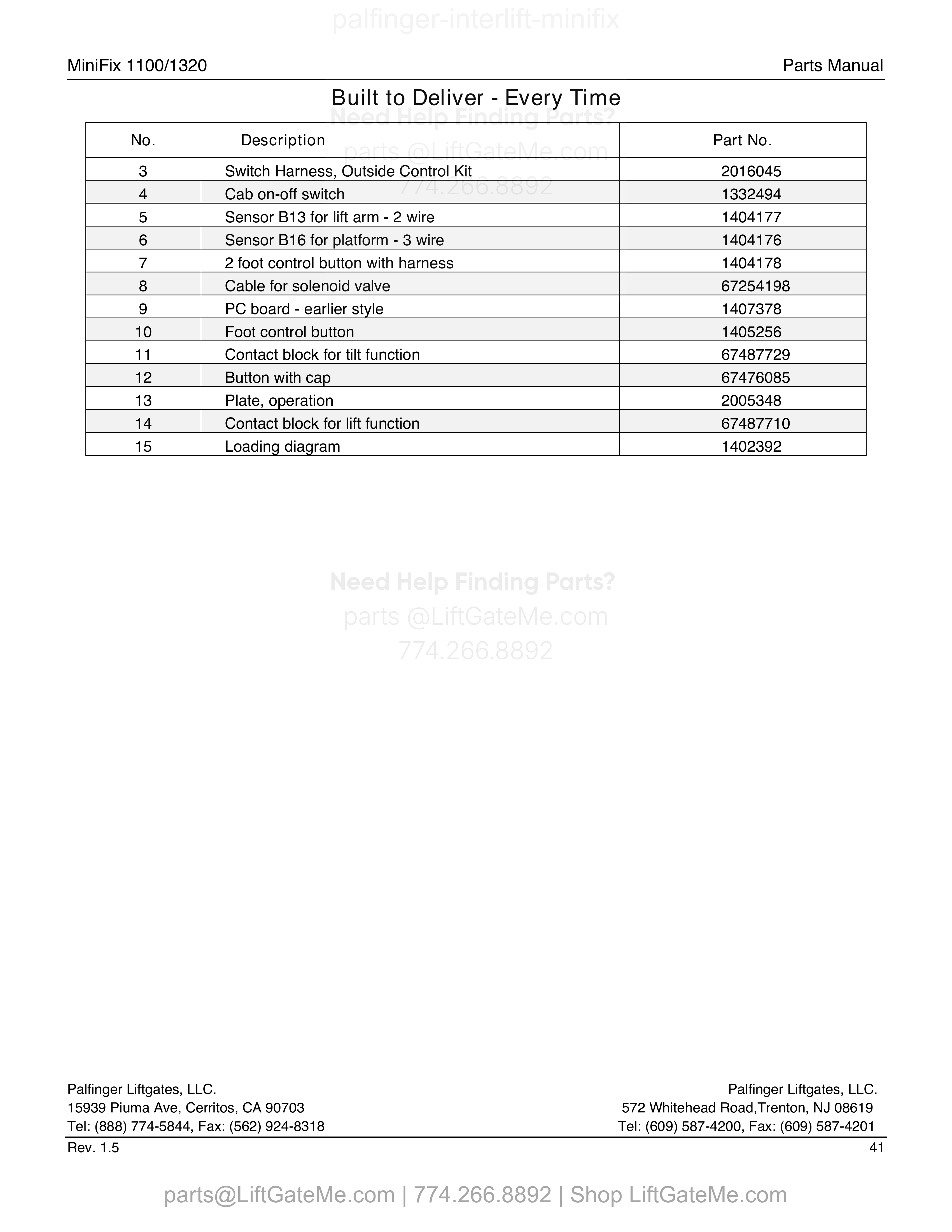

Control System (Until 06/08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 3 | 2016045 | Switch Harness, Outside Control Kit | ||
| 4 | 1332494 | Cab on-off switch | ||
| 5 | 1404177 | Sensor B13 for lift arm - 2 wire | ||
| 6 | 1404176 | Sensor B16 for platform - 3 wire | ||
| 7 | 1404178 | 2 foot control button with harness | ||
| 8 | 67254198 | Cable for solenoid valve | ||
| 9 | 1407378 | PC board - earlier style | ||
| 10 | 1405256 | Foot control button | ||
| 11 | 67487729 | Contact block for tilt function | ||
| 12 | 67476085 | Button with cap | ||
| 13 | 2005348 | Plate, operation | ||
| 14 | 67487710 | Contact block for lift function | ||
| 15 | 1402392 | Loading diagram |

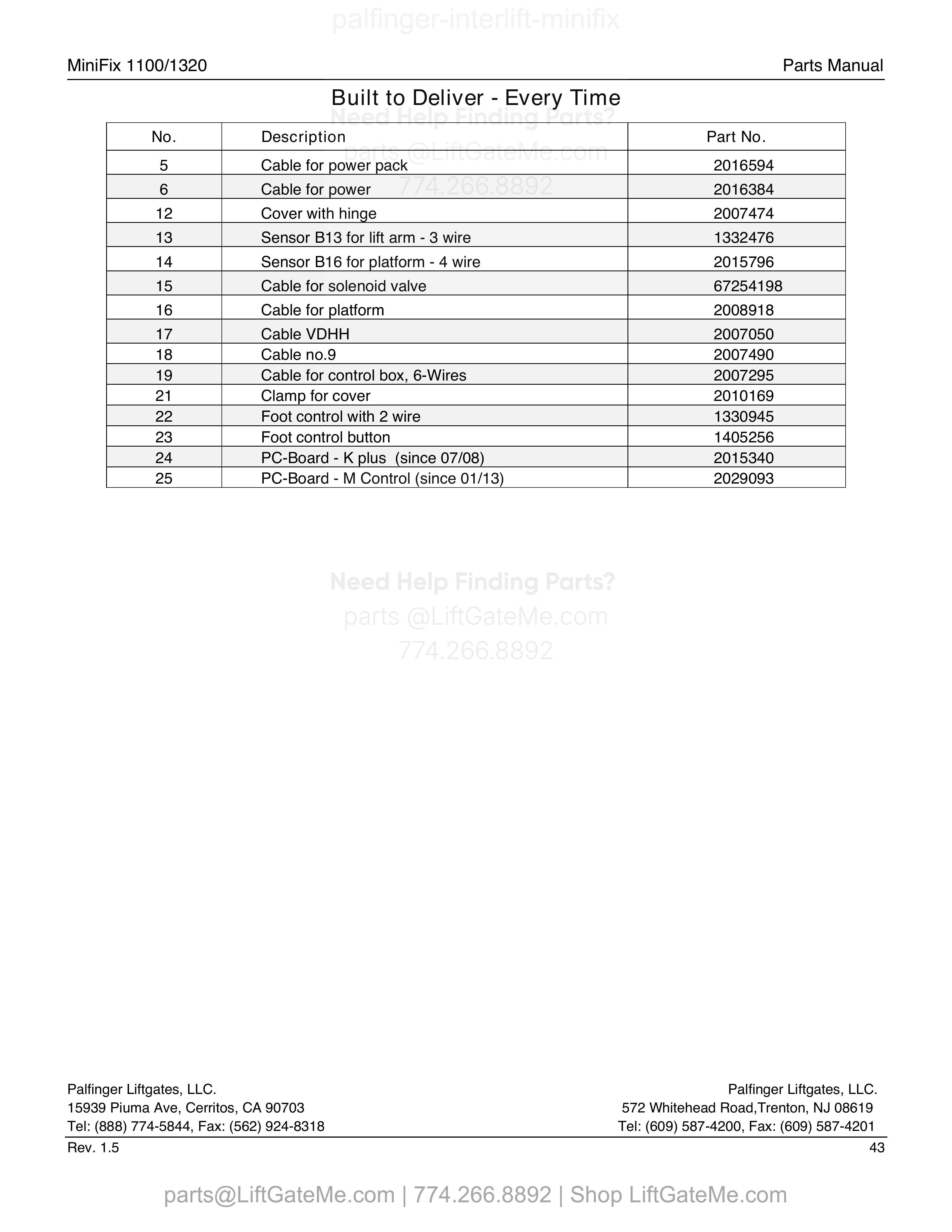

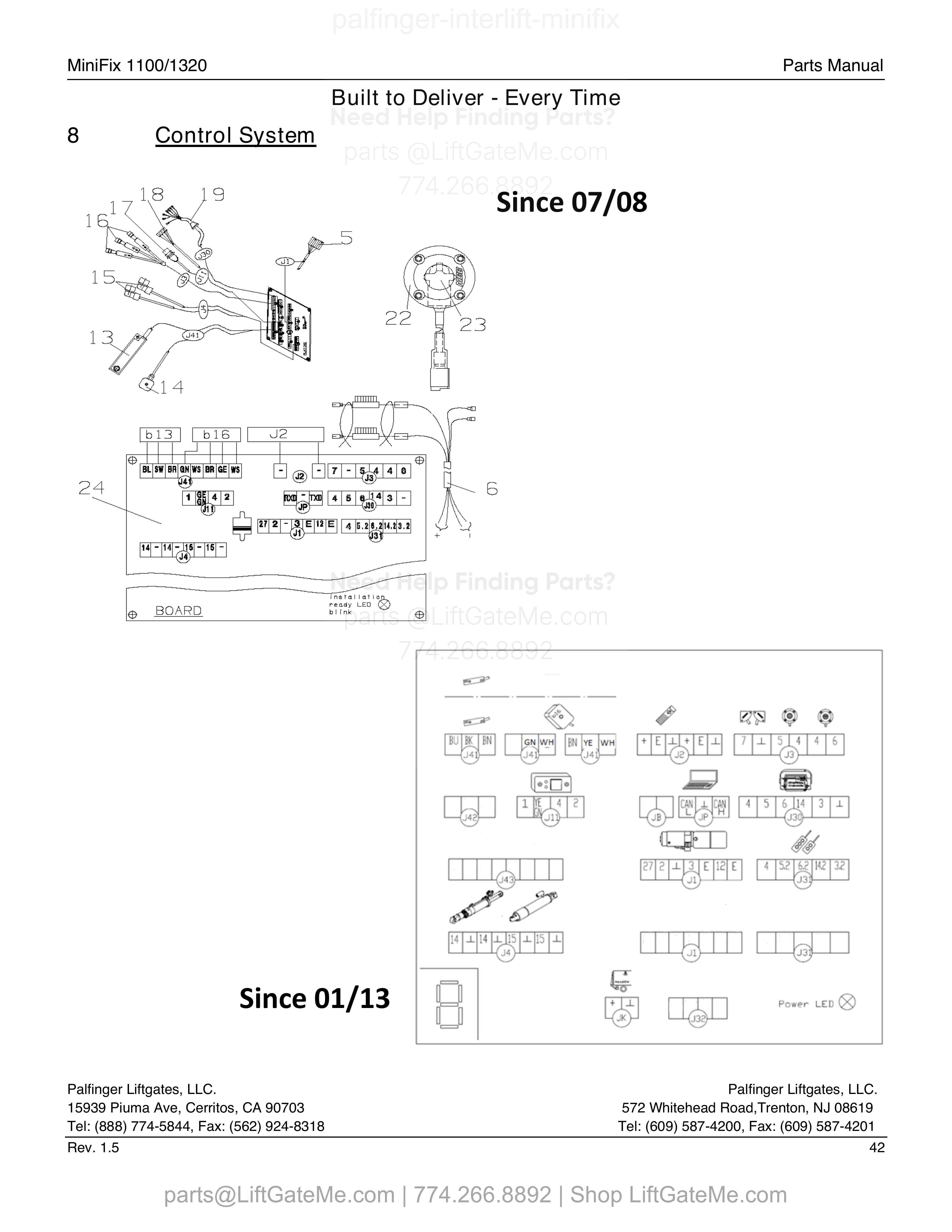

Control System
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 5 | 2016594 | Cable for power pack | ||
| 6 | 2016384 | Cable for power | ||
| 12 | 2007474 | Cover with hinge | ||
| 13 | 1332476 | Sensor B13 for lift arm - 3 wire | ||
| 14 | 2015796 | Sensor B16 for platform - 4 wire | ||
| 15 | 67254198 | Cable for solenoid valve | ||
| 16 | 2008918 | Cable for platform | ||
| 17 | 2007050 | Cable VDHH | ||
| 18 | 2007490 | Cable no.9 | ||
| 19 | 2007295 | Cable for control box, 6-Wires | ||
| 21 | 2010169 | Clamp for cover | ||
| 22 | 1330945 | Foot control with 2 wire | ||
| 23 | 1405256 | Foot control button | ||
| 24 | 2015340 | PC-Board - K plus (since 07/08) | ||
| 25 | 2029093 | PC-Board - M Control (since 01/13) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
Platform (Since ‘07-‘08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2002731 | Lift cylinder without release valve | ||
| 2 | 2015576 | Piston rod | ||
| 3 | 2005323 | Rebuild kit - lift cylinder | ||
| 4 | 1403367 | Bushing | ||
| 5 | 2013545 | Tilt cylinder without release valve | ||
| 6 | 2003178 | Piston rod - tilt cylinder | ||
| 7 | 1408753 | Rebuild kit - tilt cylinder | ||
| 8 | 1365484 | Restricor control valve (no.2) | ||
| 9 | 67282345 | Release valve | ||
| 10 | 2004472 | Hose, high pressure - 600mm | ||
| 11 | 2004473 | Hose, high pressure, w/T-Fitting - 2000mm | ||
| 12 | 2004474 | Hose, high pressure - 2400mm | ||
| 13 | 1346229 | Pin 25x74 | ||
| 13 | 1403365 | Bushing 29/25 x 31 | ||
| 14 | 2004594 | Adjusting head | ||
| 15 | 1112072 | Nut M30x1.5 | ||
| 16 | 2019653 | Grease zerk | ||
| 17 | 1191680 | Red cap | ||
| 20 | 2008069 | Release valve | ||
| 21 | 2015821 | Rubber bellow - tilt cylinder | ||
| 22 | 1099010 | Sleeve - lift cylinder | ||
| 23 | 68430828 | Clamp for rubber bellow and sleeve |
Power Pack
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2004041 | Power pack complete with box | ||
| 2 | 1404318 | Motor 12V - since 04/08 | ||
| 2 | 2005148 | Motor 12V - till 04/08 | ||
| 3 | 2005147 | Carbon brushes | ||
| 4 | 2016991 | Pump - since 04/08 | ||
| 4 | 2005150 | Pump - till 04/08 | ||
| 5 | 2005149 | Oil reservoir | ||
| 6 | 2008647 | Solenoid valve S5 | ||
| 7 | 2005141 | Shuttle valve | ||
| 8 | 2005142 | Pressure control valve | ||
| 9 | 2016994 | Motor solenoid - since 04/08 | ||
| 9 | 2005140 | Motor solenoid - till 04/08 | ||
| 10 | 2021672 | Pressure gauge | ||
| 11 | 1406572 | Flow control valve (R5) - since 04/08 | ||
| 11 | 2005146 | Flow control valve (R5) - till 04/08 | ||
| 13 | 1406566 | Clamp kit for oil reservoir | ||
| 15 | 2016993 | Suction pipe - since 04/08 | ||
| 15 | 2005318 | Suction pipe - till 04/08 | ||
| 19 | 2005143 | Breather cap | ||
| 27 | 2005403 | O-ring | ||
| 30 | 2013427 | Power pack box - since 04/08 | ||
| 30 | 2005350 | Power pack box - till 04/08 | ||
| 31 | 2006130 | Cover box | ||
| 37 | 66382168 | Drain plug | ||
| 60 | 1232239 | T-fitting for high pressure hose |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
