Maxon DMD Liftgate Parts Diagrams | Approximate Years 2014-2018
Maxon DMD OEM parts diagram reference
Review Maxon DMD liftgate parts breakdowns for 2014-2018 rail lift units. This page is built to help identify liftgate components and confirm the right OEM replacement parts.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

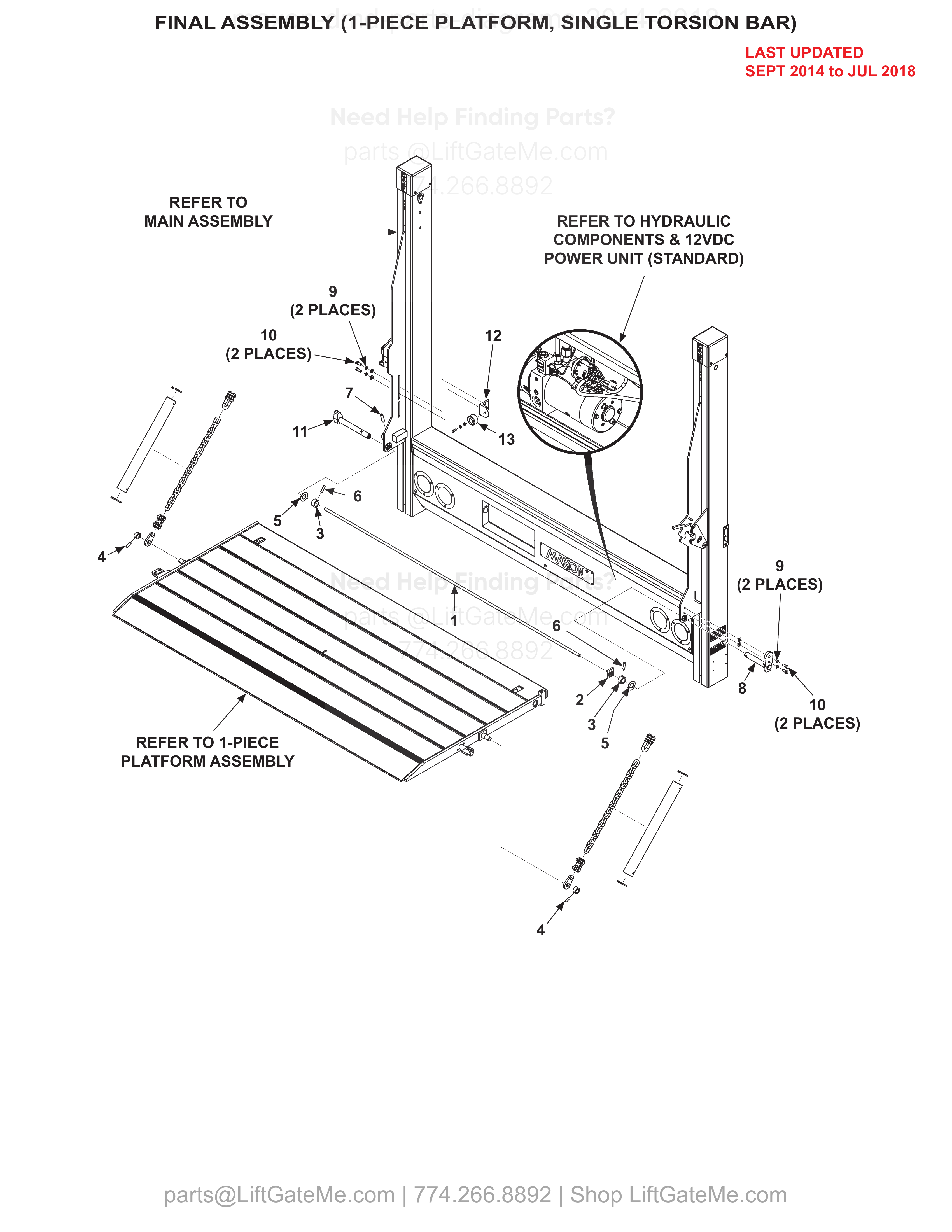

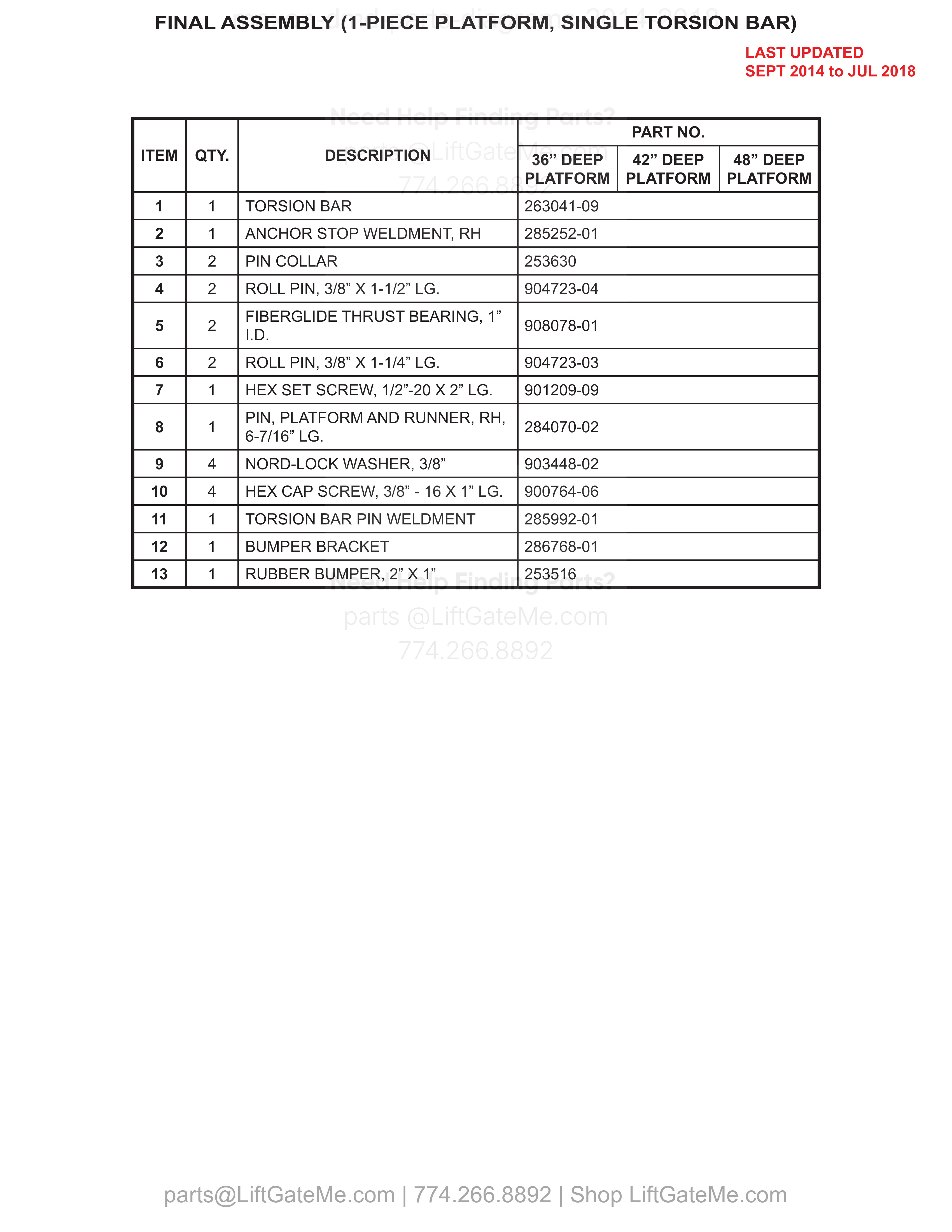

FINAL ASSEMBLY (1-PIECE PLATFORM, SINGLE TORSION BAR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 263041-09 | TORSION BAR | |
| 2 | 1 | 285252-01 | ANCHOR STOP WELDMENT, RH | |
| 3 | 2 | 253630 | PIN COLLAR | |
| 4 | 2 | 904723-04 | ROLL PIN, 3/8” X 1-1/2” LG. | |
| 5 | 2 | 908078-01 | FIBERGLIDE THRUST BEARING, 1” I.D. | |
| 6 | 2 | 904723-03 | ROLL PIN, 3/8” X 1-1/4” LG. | |
| 7 | 1 | 901209-09 | HEX SET SCREW, 1/2”-20 X 2” LG. | |
| 8 | 1 | 284070-02 | PIN, PLATFORM AND RUNNER, RH, 6-7/16” LG. | |
| 9 | 4 | 903448-02 | NORD-LOCK WASHER, 3/8” | |
| 10 | 4 | 900764-06 | HEX CAP SCREW, 3/8” - 16 X 1” LG. | |
| 11 | 1 | 285992-01 | TORSION BAR PIN WELDMENT | |
| 12 | 1 | 286768-01 | BUMPER BRACKET | |
| 13 | 1 | 253516 | RUBBER BUMPER, 2” X 1” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

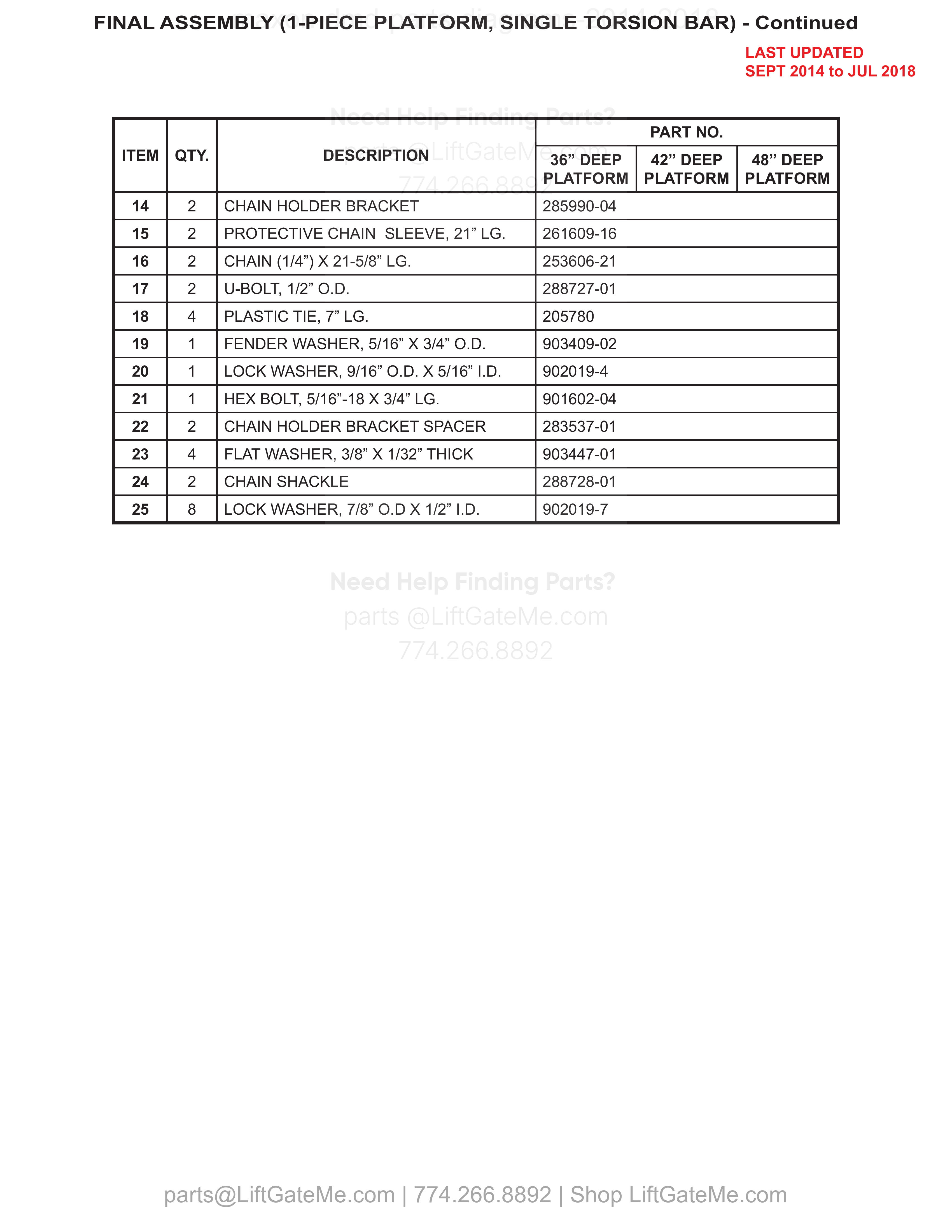

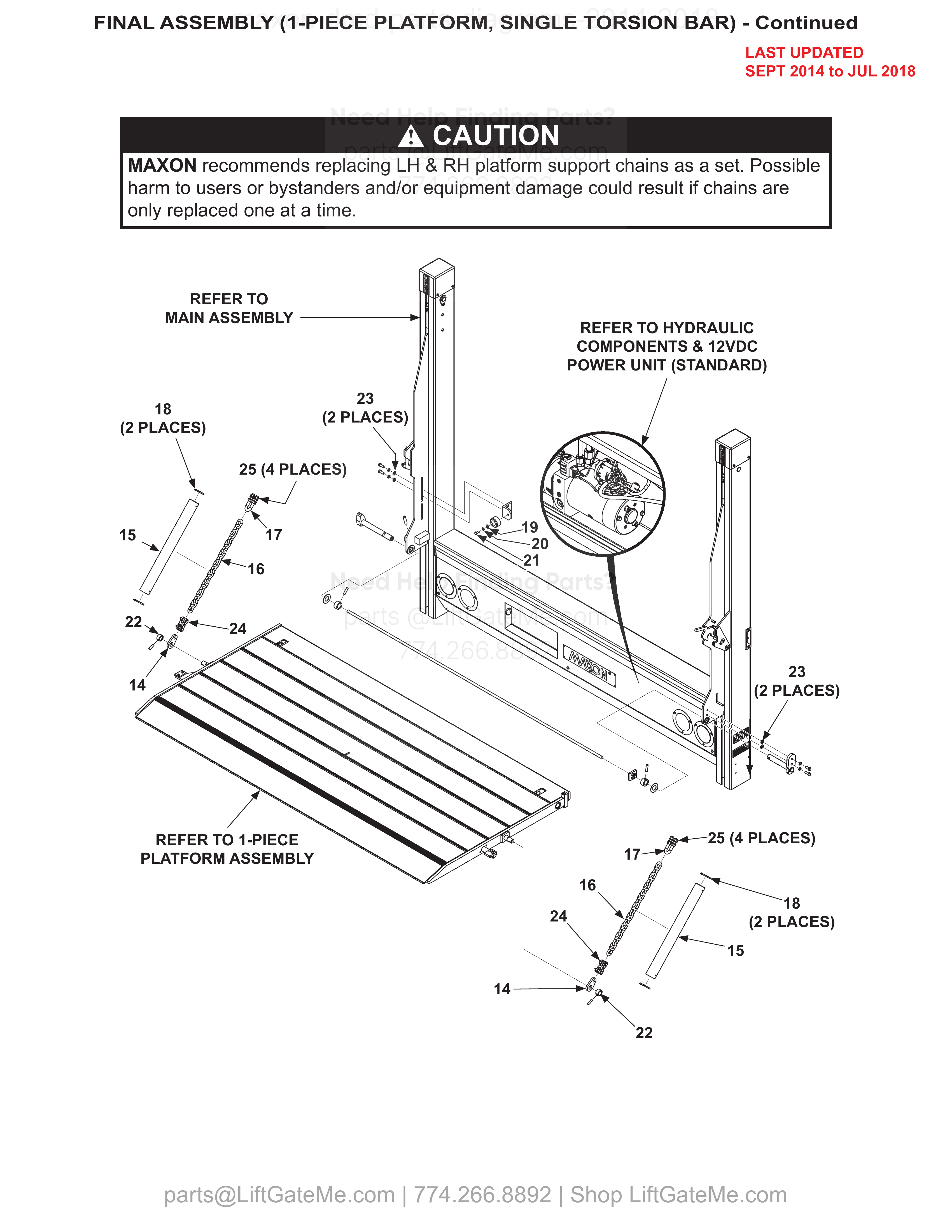

FINAL ASSEMBLY (1-PIECE PLATFORM, SINGLE TORSION BAR) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 14 | 2 | 285990-04 | CHAIN HOLDER BRACKET | |
| 15 | 2 | 261609-16 | PROTECTIVE CHAIN SLEEVE, 21” LG. | |
| 16 | 2 | 253606-21 | CHAIN (1/4”) X 21-5/8” LG. | |
| 17 | 2 | 288727-01 | U-BOLT, 1/2” O.D. | |
| 18 | 4 | 205780 | PLASTIC TIE, 7” LG. | |
| 19 | 1 | 903409-02 | FENDER WASHER, 5/16” X 3/4” O.D. | |
| 20 | 1 | 902019-4 | LOCK WASHER, 9/16” O.D. X 5/16” I.D. | |
| 21 | 1 | 901602-04 | HEX BOLT, 5/16”-18 X 3/4” LG. | |
| 22 | 2 | 283537-01 | CHAIN HOLDER BRACKET SPACER | |
| 23 | 4 | 903447-01 | FLAT WASHER, 3/8” X 1/32” THICK | |
| 24 | 2 | 288728-01 | CHAIN SHACKLE | |
| 25 | 8 | 902019-7 | LOCK WASHER, 7/8” O.D X 1/2” I.D. |

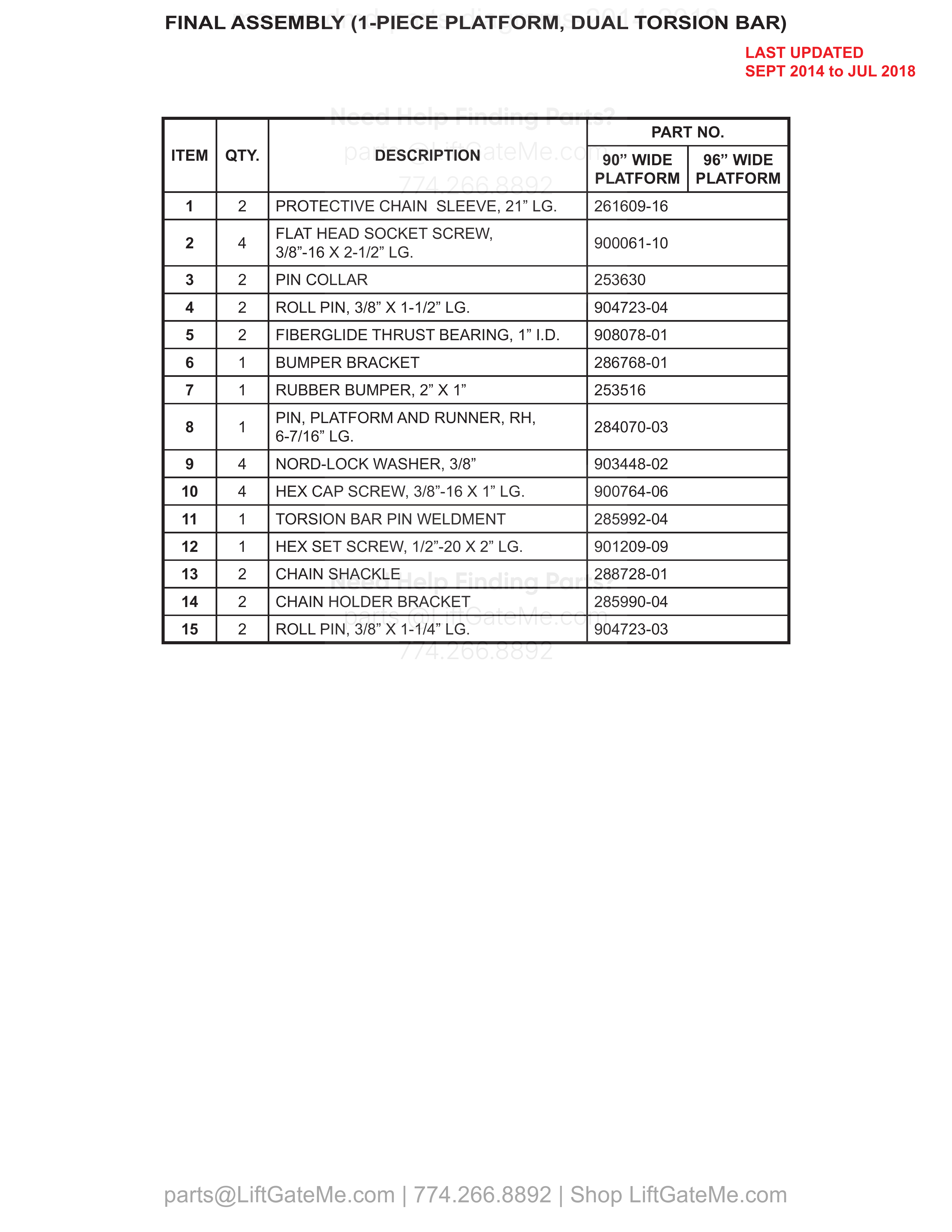

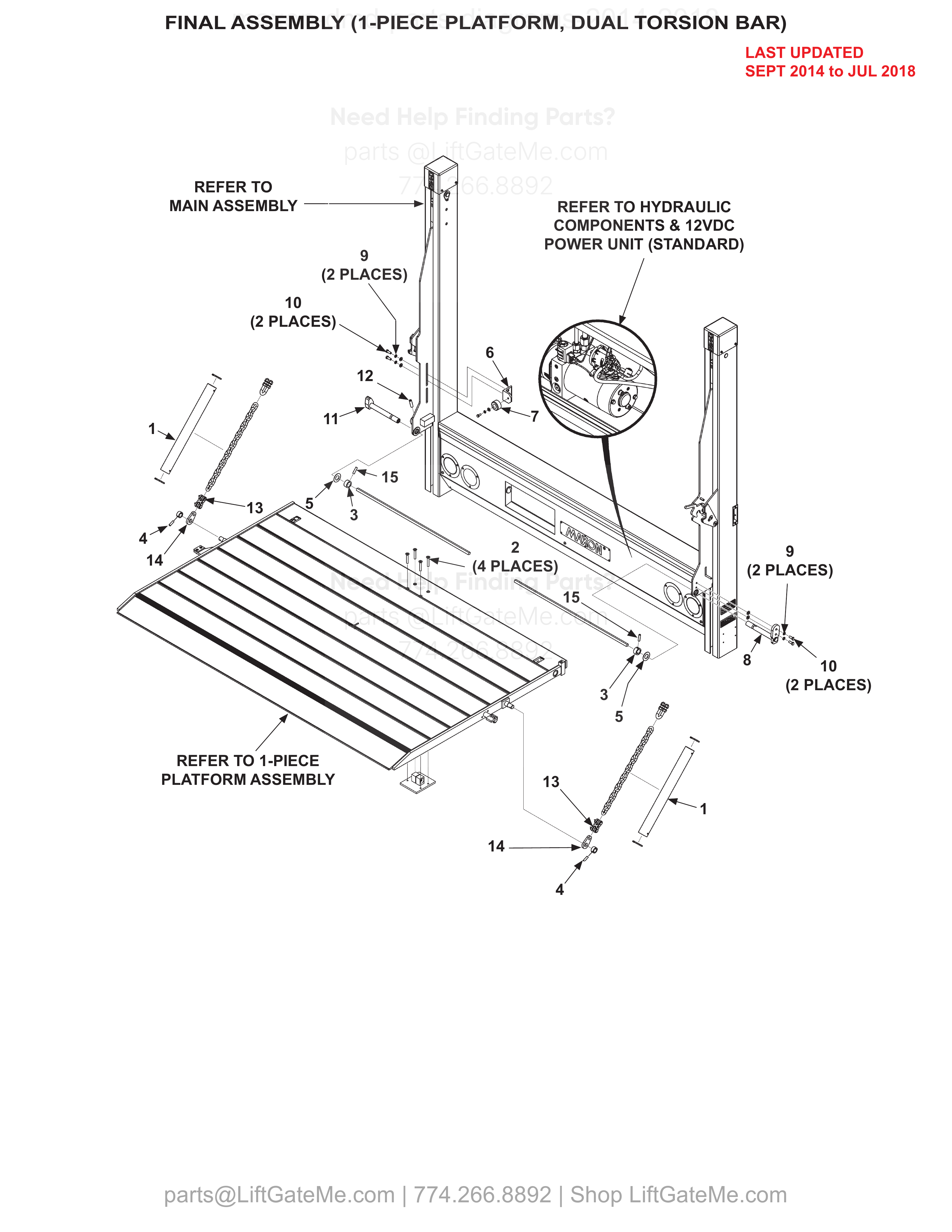

FINAL ASSEMBLY (1-PIECE PLATFORM, DUAL TORSION BAR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 261609-16 | PROTECTIVE CHAIN SLEEVE, 21” LG. | |
| 2 | 4 | 900061-10 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 2-1/2” LG. | |
| 3 | 2 | 253630 | PIN COLLAR | |
| 4 | 2 | 904723-04 | ROLL PIN, 3/8” X 1-1/2” LG. | |
| 5 | 2 | 908078-01 | FIBERGLIDE THRUST BEARING, 1” I.D. | |
| 6 | 1 | 286768-01 | BUMPER BRACKET | |
| 7 | 1 | 253516 | RUBBER BUMPER, 2” X 1” | |
| 8 | 1 | 284070-03 | PIN, PLATFORM AND RUNNER, RH, 6-7/16” LG. | |
| 9 | 4 | 903448-02 | NORD-LOCK WASHER, 3/8” | |
| 10 | 4 | 900764-06 | HEX CAP SCREW, 3/8”-16 X 1” LG. | |
| 11 | 1 | 285992-04 | TORSION BAR PIN WELDMENT | |
| 12 | 1 | 901209-09 | HEX SET SCREW, 1/2”-20 X 2” LG. | |
| 13 | 2 | 288728-01 | CHAIN SHACKLE | |
| 14 | 2 | 285990-04 | CHAIN HOLDER BRACKET | |
| 15 | 2 | 904723-03 | ROLL PIN, 3/8” X 1-1/4” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

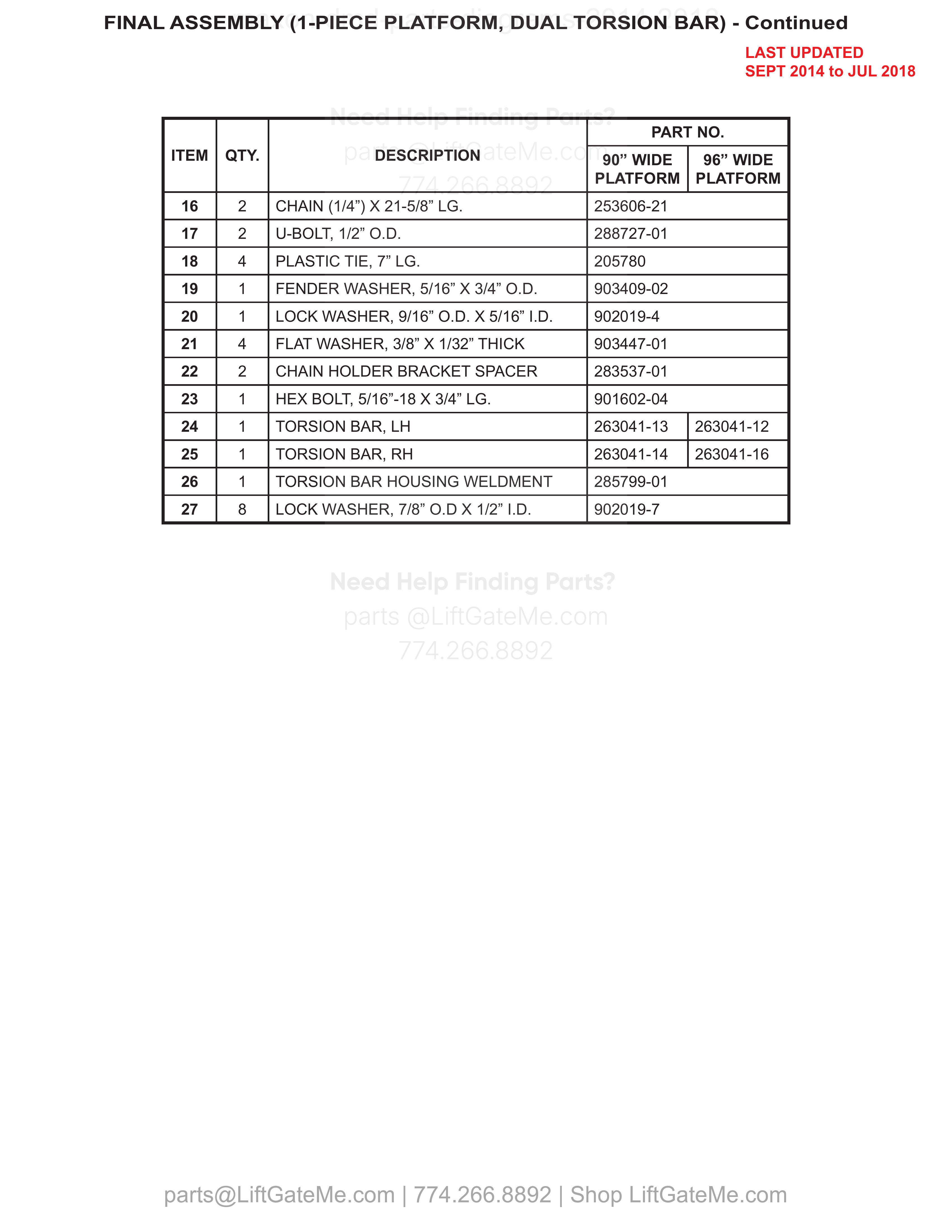

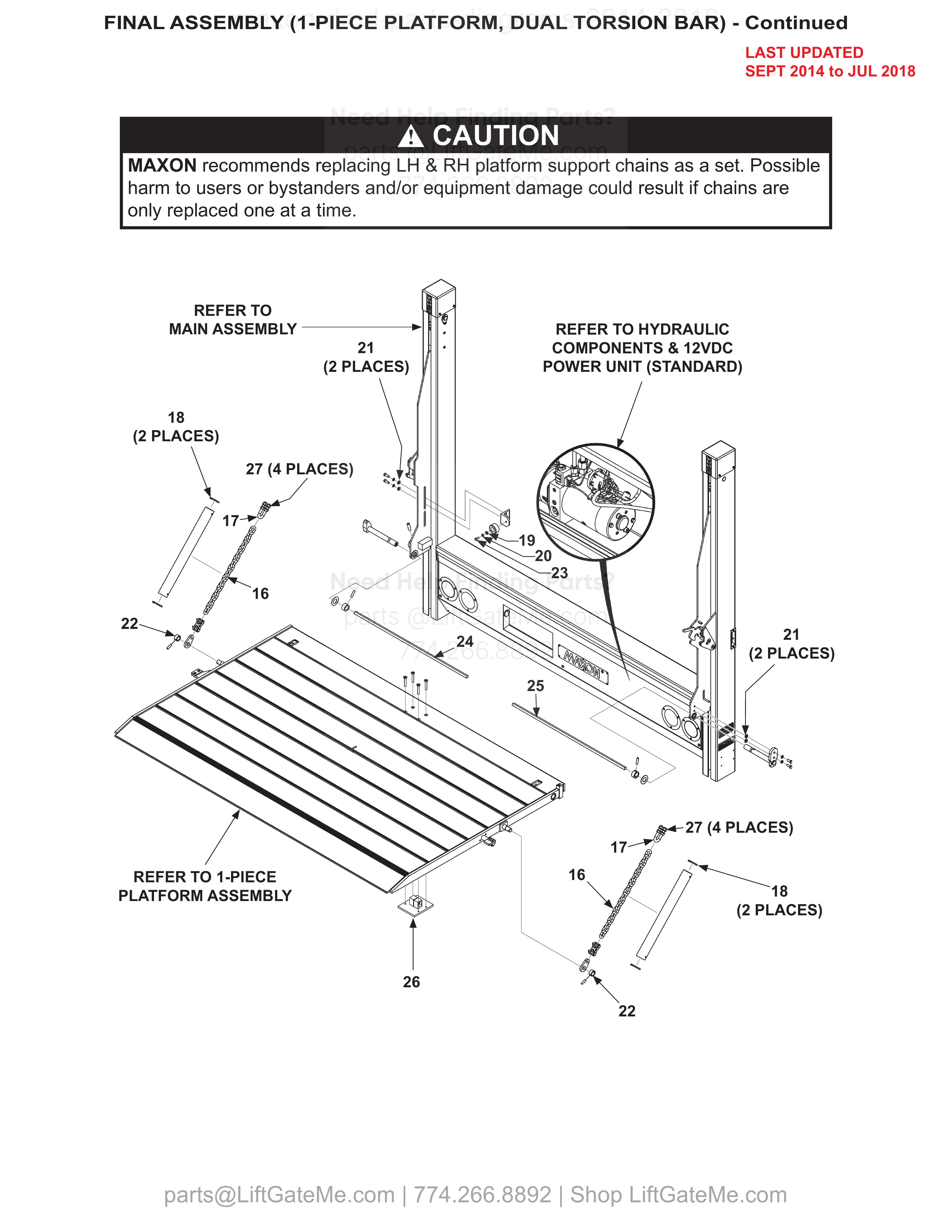

FINAL ASSEMBLY (1-PIECE PLATFORM, DUAL TORSION BAR) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 16 | 2 | 253606-21 | CHAIN (1/4”) X 21-5/8” LG. | |
| 17 | 2 | 288727-01 | U-BOLT, 1/2” O.D. | |
| 18 | 4 | 205780 | PLASTIC TIE, 7” LG. | |
| 19 | 1 | 903409-02 | FENDER WASHER, 5/16” X 3/4” O.D. | |
| 20 | 1 | 902019-4 | LOCK WASHER, 9/16” O.D. X 5/16” I.D. | |
| 21 | 4 | 903447-01 | FLAT WASHER, 3/8” X 1/32” THICK | |
| 22 | 2 | 283537-01 | CHAIN HOLDER BRACKET SPACER | |
| 23 | 1 | 901602-04 | HEX BOLT, 5/16”-18 X 3/4” LG. | |
| 24 | 1 | 263041-13 | TORSION BAR, LH | |
| 24 | 1 | 263041-12 | TORSION BAR, LH | |
| 25 | 1 | 263041-14 | TORSION BAR, RH | |
| 25 | 1 | 263041-16 | TORSION BAR, RH | |
| 26 | 1 | 285799-01 | TORSION BAR HOUSING WELDMENT | |
| 27 | 8 | 902019-7 | LOCK WASHER, 7/8” O.D X 1/2” I.D. |

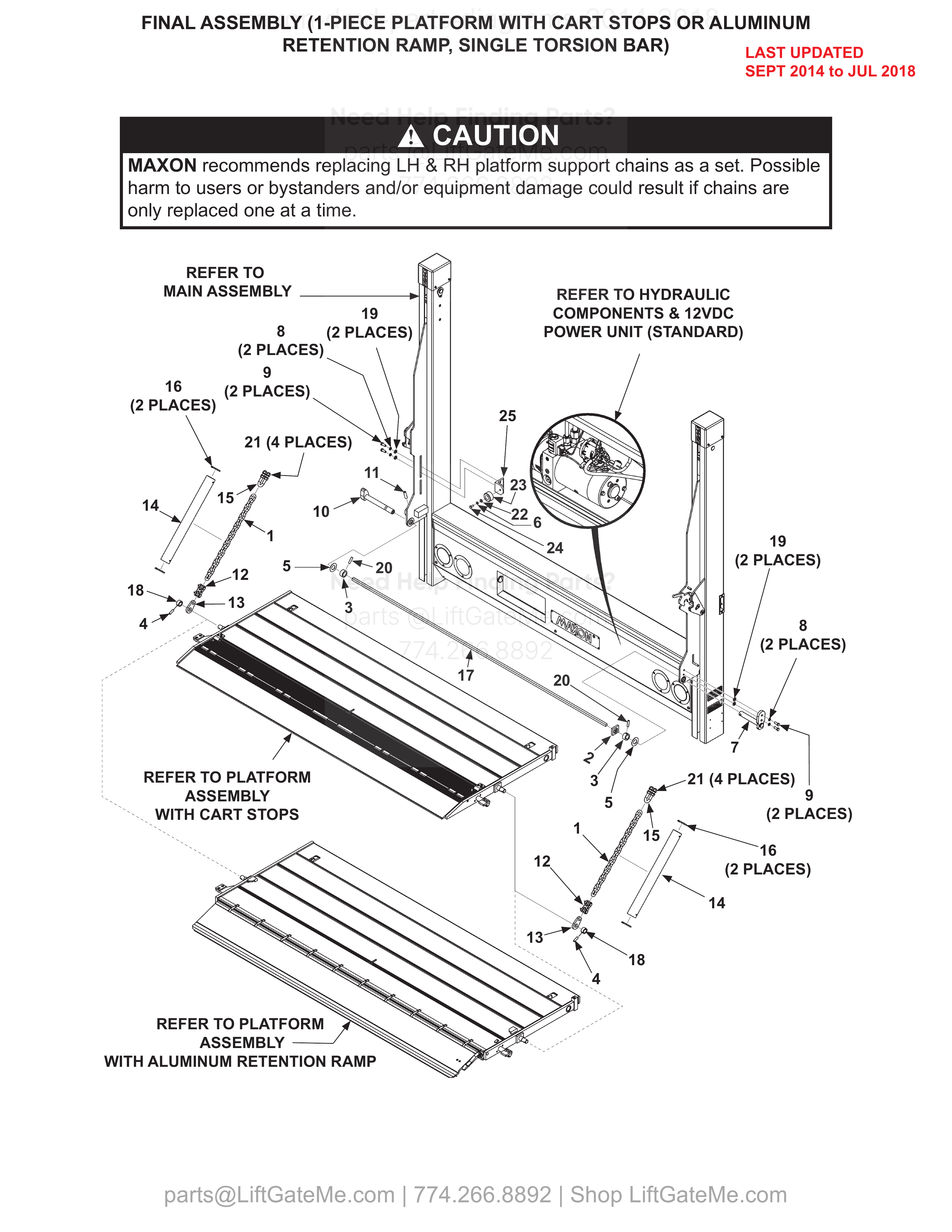

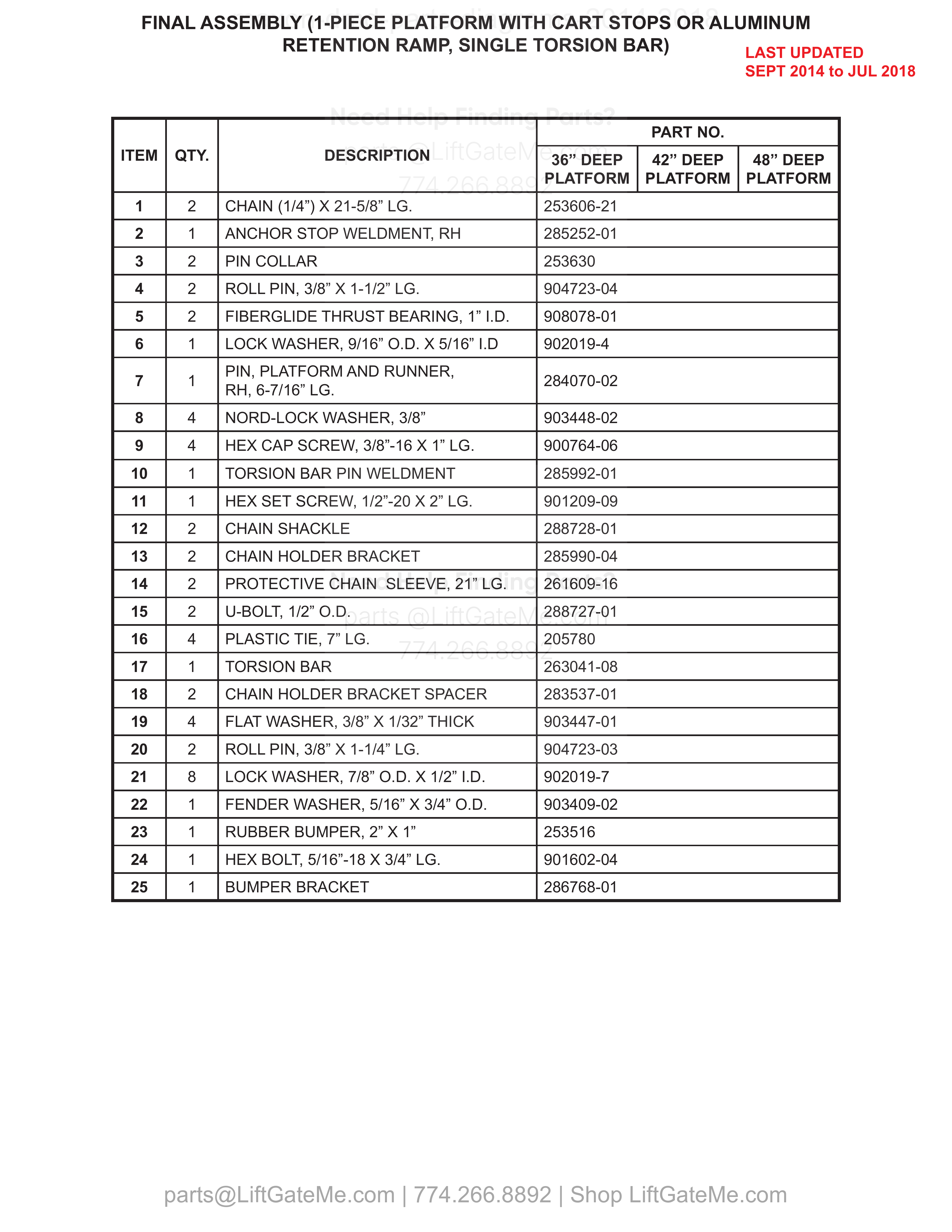

FINAL ASSEMBLY (1-PIECE PLATFORM WITH CART STOPS OR ALUMINUM RETENTION RAMP, SINGLE TORSION BAR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 253606-21 | CHAIN (1/4”) X 21-5/8” LG. | |
| 2 | 1 | 285252-01 | ANCHOR STOP WELDMENT, RH | |
| 3 | 2 | 253630 | PIN COLLAR | |
| 4 | 2 | 904723-04 | ROLL PIN, 3/8” X 1-1/2” LG. | |
| 5 | 2 | 908078-01 | FIBERGLIDE THRUST BEARING, 1” I.D. | |
| 6 | 1 | 902019-4 | LOCK WASHER, 9/16” O.D. X 5/16” I.D | |
| 7 | 1 | 284070-02 | PIN, PLATFORM AND RUNNER, RH, 6-7/16” LG. | |
| 8 | 4 | 903448-02 | NORD-LOCK WASHER, 3/8” | |
| 9 | 4 | 900764-06 | HEX CAP SCREW, 3/8”-16 X 1” LG. | |
| 10 | 1 | 285992-01 | TORSION BAR PIN WELDMENT | |
| 11 | 1 | 901209-09 | HEX SET SCREW, 1/2”-20 X 2” LG. | |
| 12 | 2 | 288728-01 | CHAIN SHACKLE | |
| 13 | 2 | 285990-04 | CHAIN HOLDER BRACKET | |
| 14 | 2 | 261609-16 | PROTECTIVE CHAIN SLEEVE, 21” LG. | |
| 15 | 2 | 288727-01 | U-BOLT, 1/2” O.D. | |
| 16 | 4 | 205780 | PLASTIC TIE, 7” LG. | |
| 17 | 1 | 263041-08 | TORSION BAR | |
| 18 | 2 | 283537-01 | CHAIN HOLDER BRACKET SPACER | |
| 19 | 4 | 903447-01 | FLAT WASHER, 3/8” X 1/32” THICK | |
| 20 | 2 | 904723-03 | ROLL PIN, 3/8” X 1-1/4” LG. | |
| 21 | 8 | 902019-7 | LOCK WASHER, 7/8” O.D. X 1/2” I.D. | |
| 22 | 1 | 903409-02 | FENDER WASHER, 5/16” X 3/4” O.D. | |
| 23 | 1 | 253516 | RUBBER BUMPER, 2” X 1” | |
| 24 | 1 | 901602-04 | HEX BOLT, 5/16”-18 X 3/4” LG. | |
| 25 | 1 | 286768-01 | BUMPER BRACKET |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

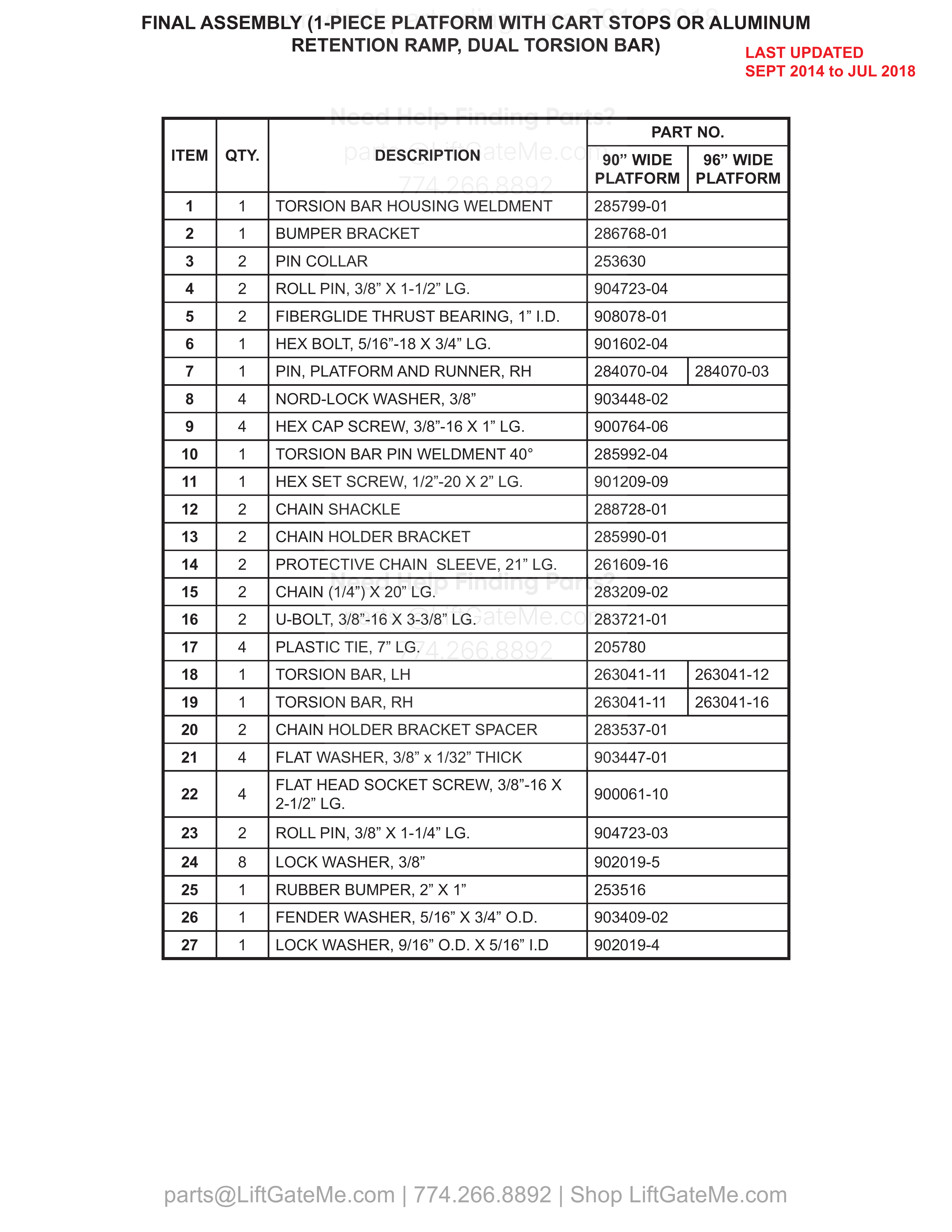

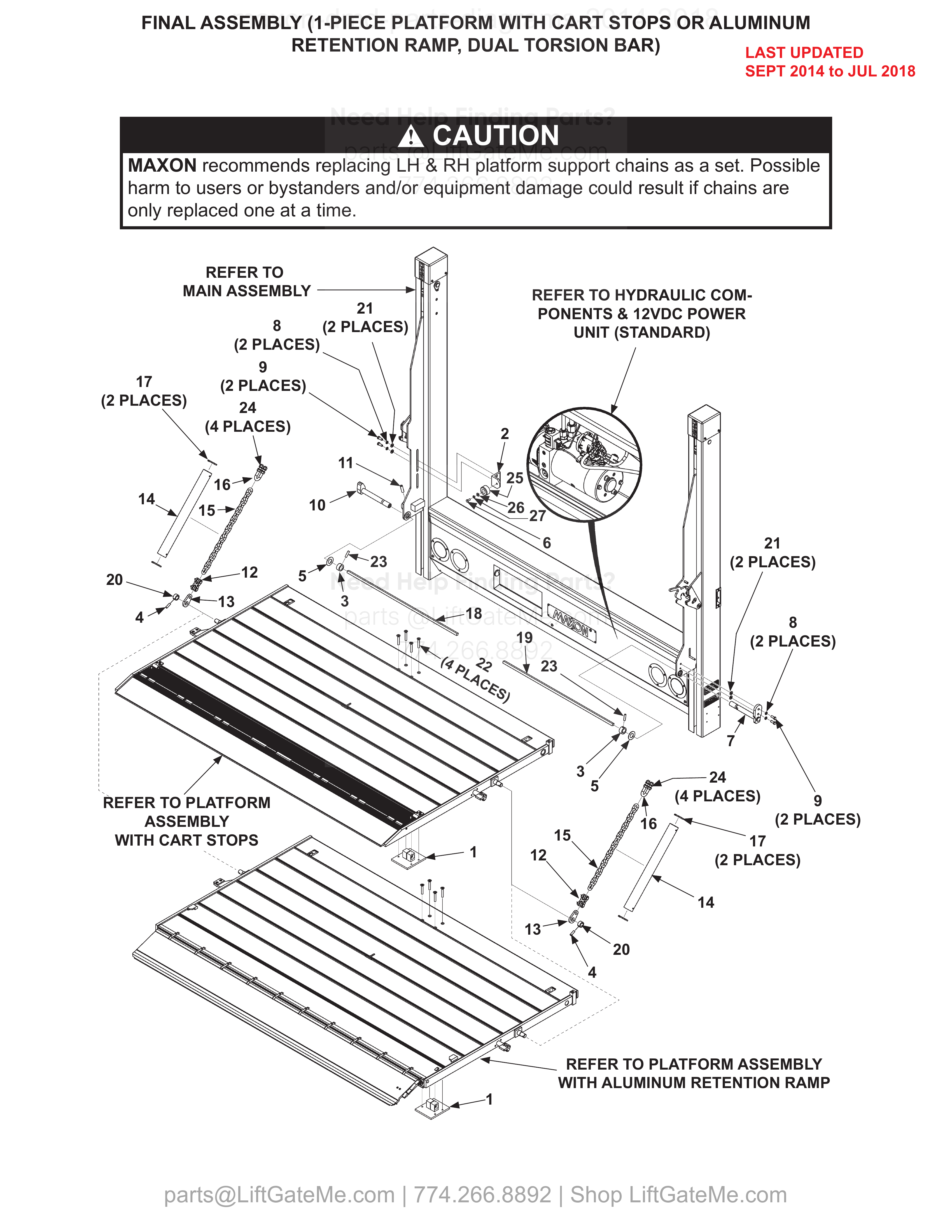

FINAL ASSEMBLY (1-PIECE PLATFORM WITH CART STOPS OR ALUMINUM RETENTION RAMP, DUAL TORSION BAR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 285799-01 | TORSION BAR HOUSING WELDMENT | |
| 2 | 1 | 286768-01 | BUMPER BRACKET | |
| 3 | 2 | 253630 | PIN COLLAR | |
| 4 | 2 | 904723-04 | ROLL PIN, 3/8” X 1-1/2” LG. | |
| 5 | 2 | 908078-01 | FIBERGLIDE THRUST BEARING, 1” I.D. | |
| 6 | 1 | 901602-04 | HEX BOLT, 5/16”-18 X 3/4” LG. | |
| 7 | 1 | 284070-04 | PIN, PLATFORM AND RUNNER, RH | |
| 7 | 1 | 284070-03 | PIN, PLATFORM AND RUNNER, RH | |
| 8 | 4 | 903448-02 | NORD-LOCK WASHER, 3/8” | |
| 9 | 4 | 900764-06 | HEX CAP SCREW, 3/8”-16 X 1” LG. | |
| 10 | 1 | 285992-04 | TORSION BAR PIN WELDMENT 40° | |
| 11 | 1 | 901209-09 | HEX SET SCREW, 1/2”-20 X 2” LG. | |
| 12 | 2 | 288728-01 | CHAIN SHACKLE | |
| 13 | 2 | 285990-01 | CHAIN HOLDER BRACKET | |
| 14 | 2 | 261609-16 | PROTECTIVE CHAIN SLEEVE, 21” LG. | |
| 15 | 2 | 283209-02 | CHAIN (1/4”) X 20” LG. | |
| 16 | 2 | 283721-01 | U-BOLT, 3/8”-16 X 3-3/8” LG. | |
| 17 | 4 | 205780 | PLASTIC TIE, 7” LG. | |
| 18 | 1 | 263041-11 | TORSION BAR, LH | |
| 18 | 1 | 263041-12 | TORSION BAR, LH | |
| 19 | 1 | 263041-11 | TORSION BAR, RH | |
| 19 | 1 | 263041-16 | TORSION BAR, RH | |
| 20 | 2 | 283537-01 | CHAIN HOLDER BRACKET SPACER | |
| 21 | 4 | 903447-01 | FLAT WASHER, 3/8” x 1/32” THICK | |
| 22 | 4 | 900061-10 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 2-1/2” LG. | |
| 23 | 2 | 904723-03 | ROLL PIN, 3/8” X 1-1/4” LG. | |
| 24 | 8 | 902019-5 | LOCK WASHER, 3/8” | |
| 25 | 1 | 253516 | RUBBER BUMPER, 2” X 1” | |
| 26 | 1 | 903409-02 | FENDER WASHER, 5/16” X 3/4” O.D. | |
| 27 | 1 | 902019-4 | LOCK WASHER, 9/16” O.D. X 5/16” I.D |

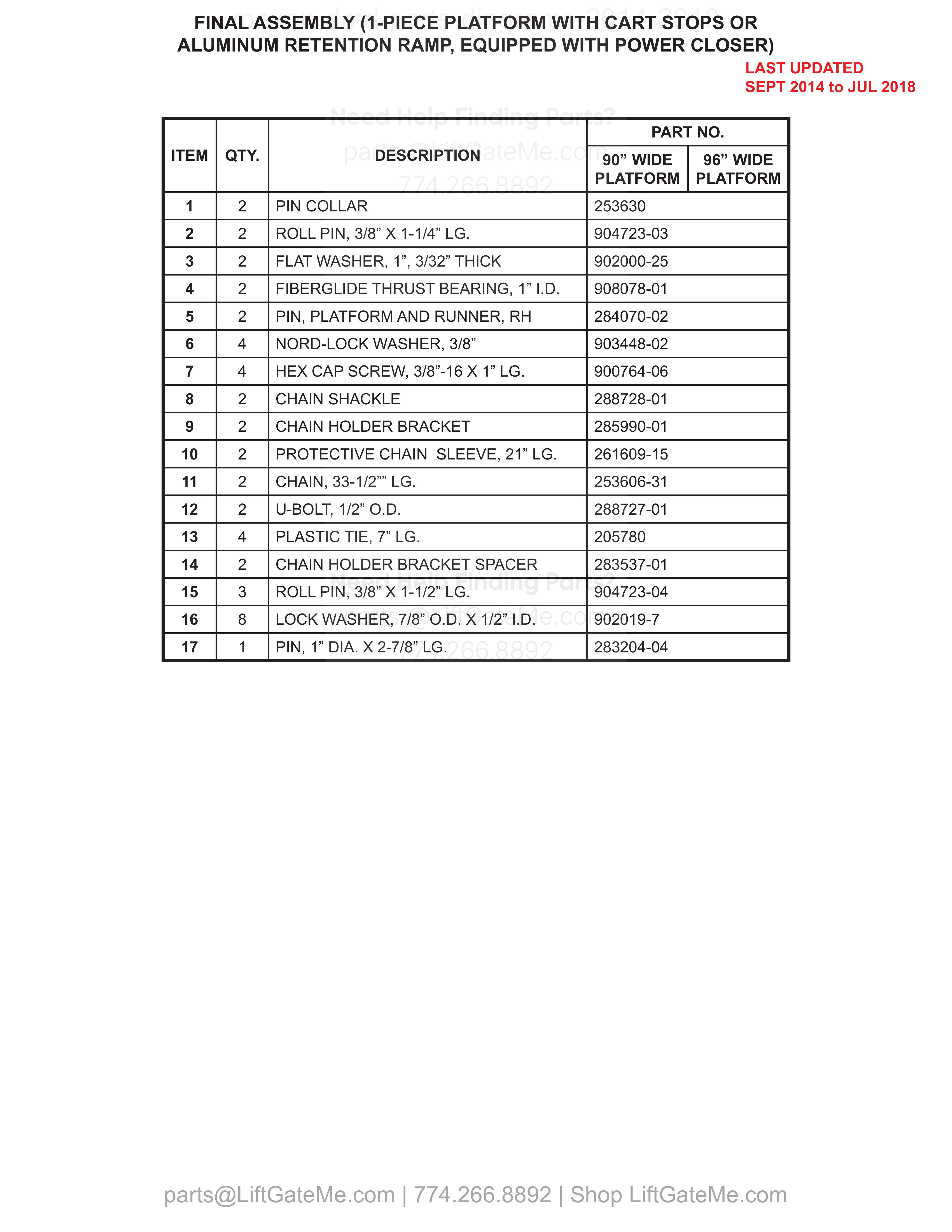

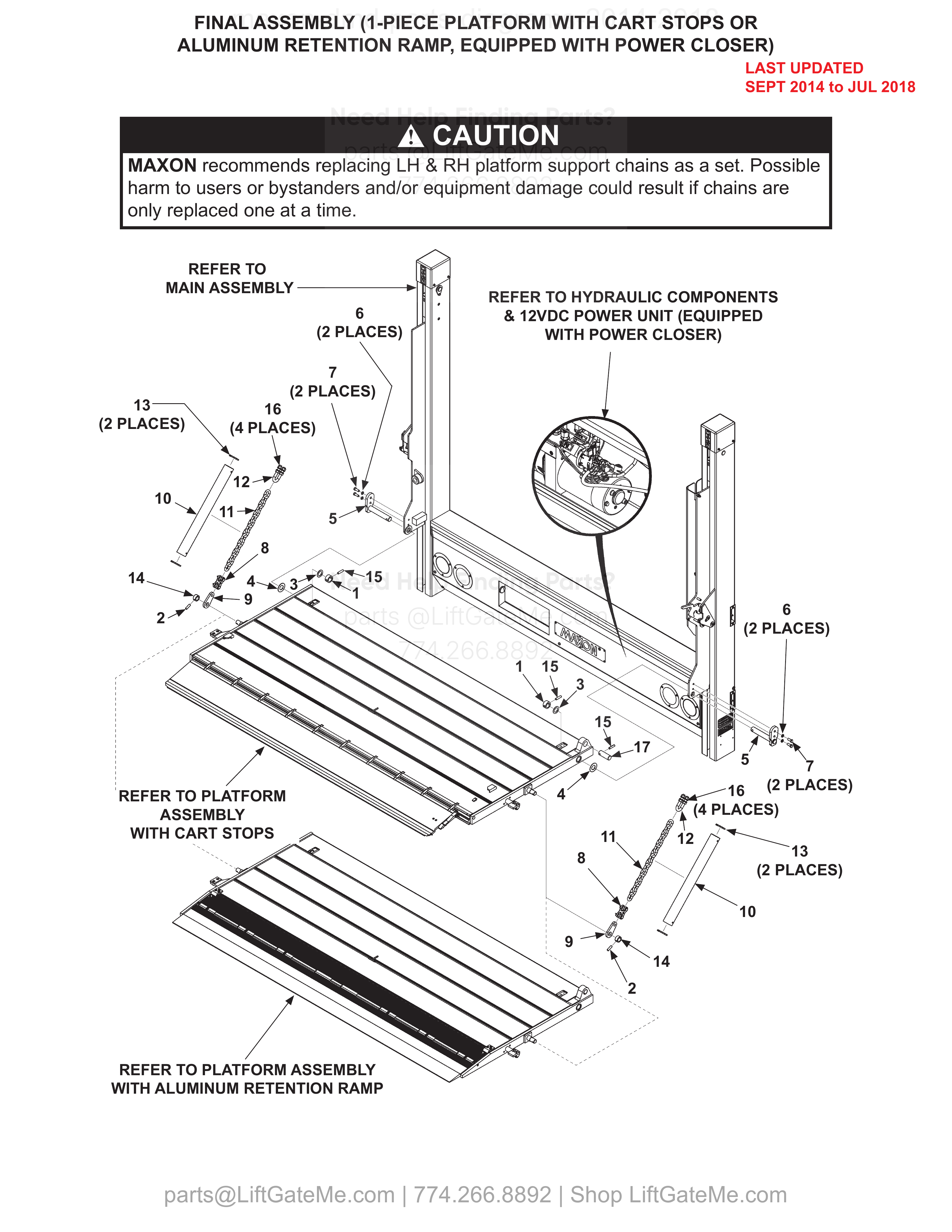

FINAL ASSEMBLY (1-PIECE PLATFORM WITH CART STOPS OR ALUMINUM RETENTION RAMP, EQUIPPED WITH POWER CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 253630 | PIN COLLAR | |
| 2 | 2 | 904723-03 | ROLL PIN, 3/8” X 1-1/4” LG. | |
| 3 | 2 | 902000-25 | FLAT WASHER, 1”, 3/32” THICK | |
| 4 | 2 | 908078-01 | FIBERGLIDE THRUST BEARING, 1” I.D. | |
| 5 | 2 | 284070-02 | PIN, PLATFORM AND RUNNER, RH | |
| 6 | 4 | 903448-02 | NORD-LOCK WASHER, 3/8” | |
| 7 | 4 | 900764-06 | HEX CAP SCREW, 3/8”-16 X 1” LG. | |
| 8 | 2 | 288728-01 | CHAIN SHACKLE | |
| 9 | 2 | 285990-01 | CHAIN HOLDER BRACKET | |
| 10 | 2 | 261609-15 | PROTECTIVE CHAIN SLEEVE, 21” LG. | |
| 11 | 2 | 253606-31 | CHAIN, 33-1/2”” LG. | |
| 12 | 2 | 288727-01 | U-BOLT, 1/2” O.D. | |
| 13 | 4 | 205780 | PLASTIC TIE, 7” LG. | |
| 14 | 2 | 283537-01 | CHAIN HOLDER BRACKET SPACER | |
| 15 | 3 | 904723-04 | ROLL PIN, 3/8” X 1-1/2” LG. | |
| 16 | 8 | 902019-7 | LOCK WASHER, 7/8” O.D. X 1/2” I.D. | |
| 17 | 1 | 283204-04 | PIN, 1” DIA. X 2-7/8” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

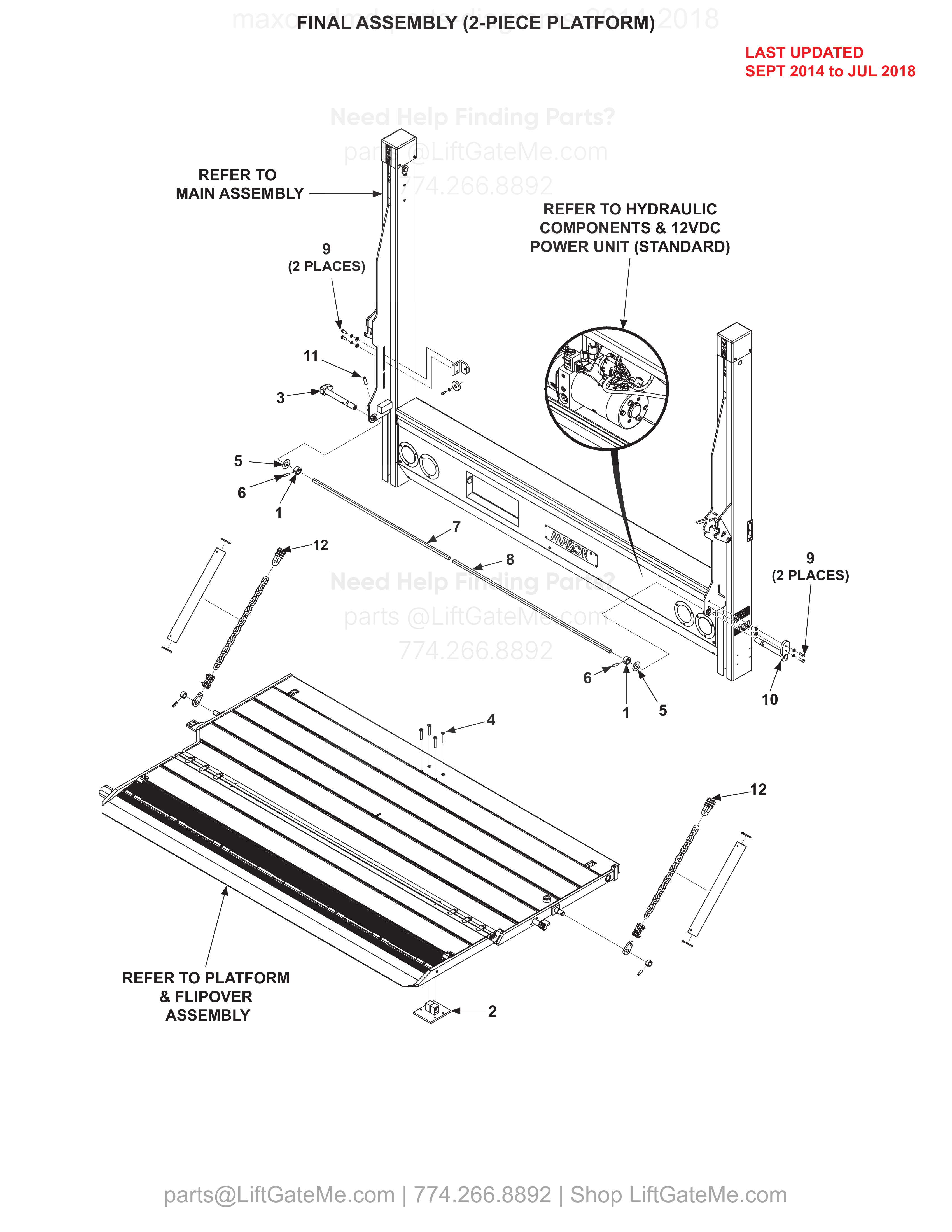

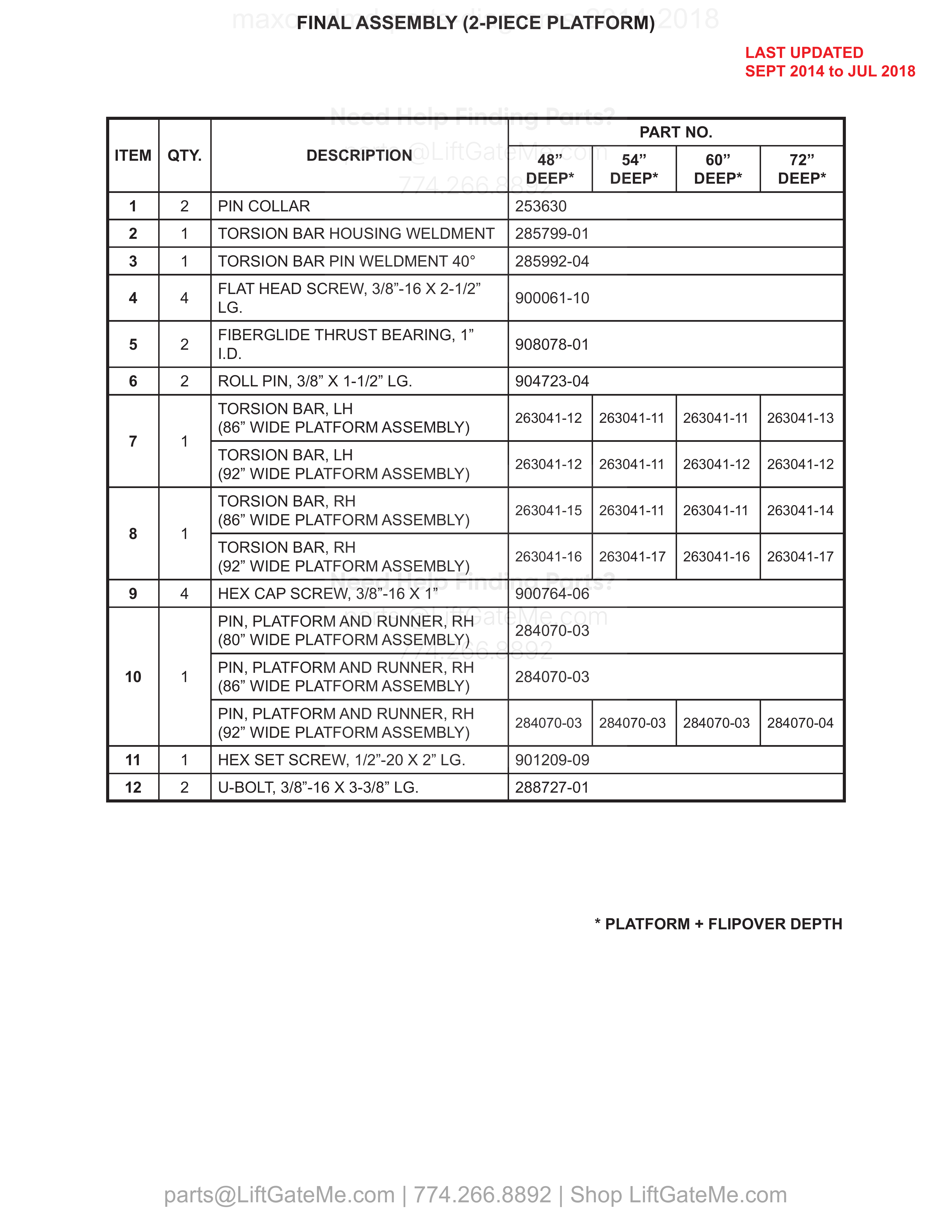

FINAL ASSEMBLY (2-PIECE PLATFORM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 253630 | PIN COLLAR | |
| 2 | 1 | 285799-01 | TORSION BAR HOUSING WELDMENT | |
| 3 | 1 | 285992-04 | TORSION BAR PIN WELDMENT 40° | |
| 4 | 4 | 900061-10 | FLAT HEAD SCREW, 3/8”-16 X 2-1/2” LG. | |
| 5 | 2 | 908078-01 | FIBERGLIDE THRUST BEARING, 1” I.D. | |
| 6 | 2 | 904723-04 | ROLL PIN, 3/8” X 1-1/2” LG. | |
| 7 | 1 | 263041-12 | TORSION BAR, LH (86” WIDE PLATFORM ASSEMBLY) | |
| 7 | 1 | 263041-11 | TORSION BAR, LH (86” WIDE PLATFORM ASSEMBLY) | |
| 7 | 1 | 263041-11 | TORSION BAR, LH (86” WIDE PLATFORM ASSEMBLY) | |
| 7 | 1 | 263041-13 | TORSION BAR, LH (86” WIDE PLATFORM ASSEMBLY) | |
| 7 | 1 | 263041-12 | TORSION BAR, LH (92” WIDE PLATFORM ASSEMBLY) | |
| 7 | 1 | 263041-11 | TORSION BAR, LH (92” WIDE PLATFORM ASSEMBLY) | |
| 7 | 1 | 263041-12 | TORSION BAR, LH (92” WIDE PLATFORM ASSEMBLY) | |
| 7 | 1 | 263041-12 | TORSION BAR, LH (92” WIDE PLATFORM ASSEMBLY) | |
| 8 | 1 | 263041-15 | TORSION BAR, RH (86” WIDE PLATFORM ASSEMBLY) | |
| 8 | 1 | 263041-11 | TORSION BAR, RH (86” WIDE PLATFORM ASSEMBLY) | |
| 8 | 1 | 263041-11 | TORSION BAR, RH (86” WIDE PLATFORM ASSEMBLY) | |
| 8 | 1 | 263041-14 | TORSION BAR, RH (86” WIDE PLATFORM ASSEMBLY) | |
| 8 | 1 | 263041-16 | TORSION BAR, RH (92” WIDE PLATFORM ASSEMBLY) | |
| 8 | 1 | 263041-17 | TORSION BAR, RH (92” WIDE PLATFORM ASSEMBLY) | |
| 8 | 1 | 263041-16 | TORSION BAR, RH (92” WIDE PLATFORM ASSEMBLY) | |
| 8 | 1 | 263041-17 | TORSION BAR, RH (92” WIDE PLATFORM ASSEMBLY) | |
| 9 | 4 | 900764-06 | HEX CAP SCREW, 3/8”-16 X 1” | |
| 10 | 1 | 284070-03 | PIN, PLATFORM AND RUNNER, RH (80” WIDE PLATFORM ASSEMBLY) | |
| 10 | 1 | 284070-03 | PIN, PLATFORM AND RUNNER, RH (86” WIDE PLATFORM ASSEMBLY) | |
| 10 | 1 | 284070-03 | PIN, PLATFORM AND RUNNER, RH (92” WIDE PLATFORM ASSEMBLY) | |
| 10 | 1 | 284070-03 | PIN, PLATFORM AND RUNNER, RH (92” WIDE PLATFORM ASSEMBLY) | |
| 10 | 1 | 284070-03 | PIN, PLATFORM AND RUNNER, RH (92” WIDE PLATFORM ASSEMBLY) | |
| 10 | 1 | 284070-04 | PIN, PLATFORM AND RUNNER, RH (92” WIDE PLATFORM ASSEMBLY) | |
| 11 | 1 | 901209-09 | HEX SET SCREW, 1/2”-20 X 2” LG. | |
| 12 | 2 | 288727-01 | U-BOLT, 3/8”-16 X 3-3/8” LG. |

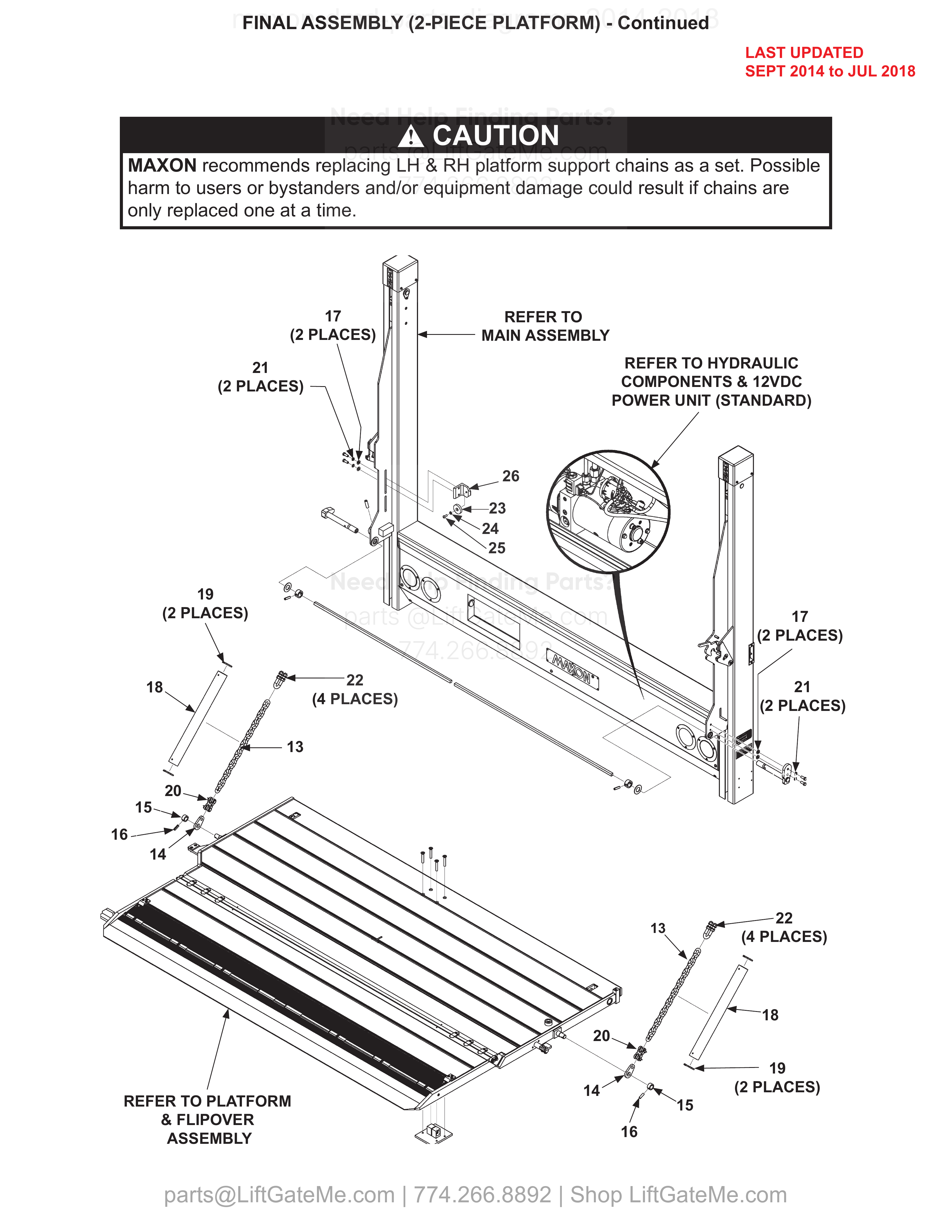

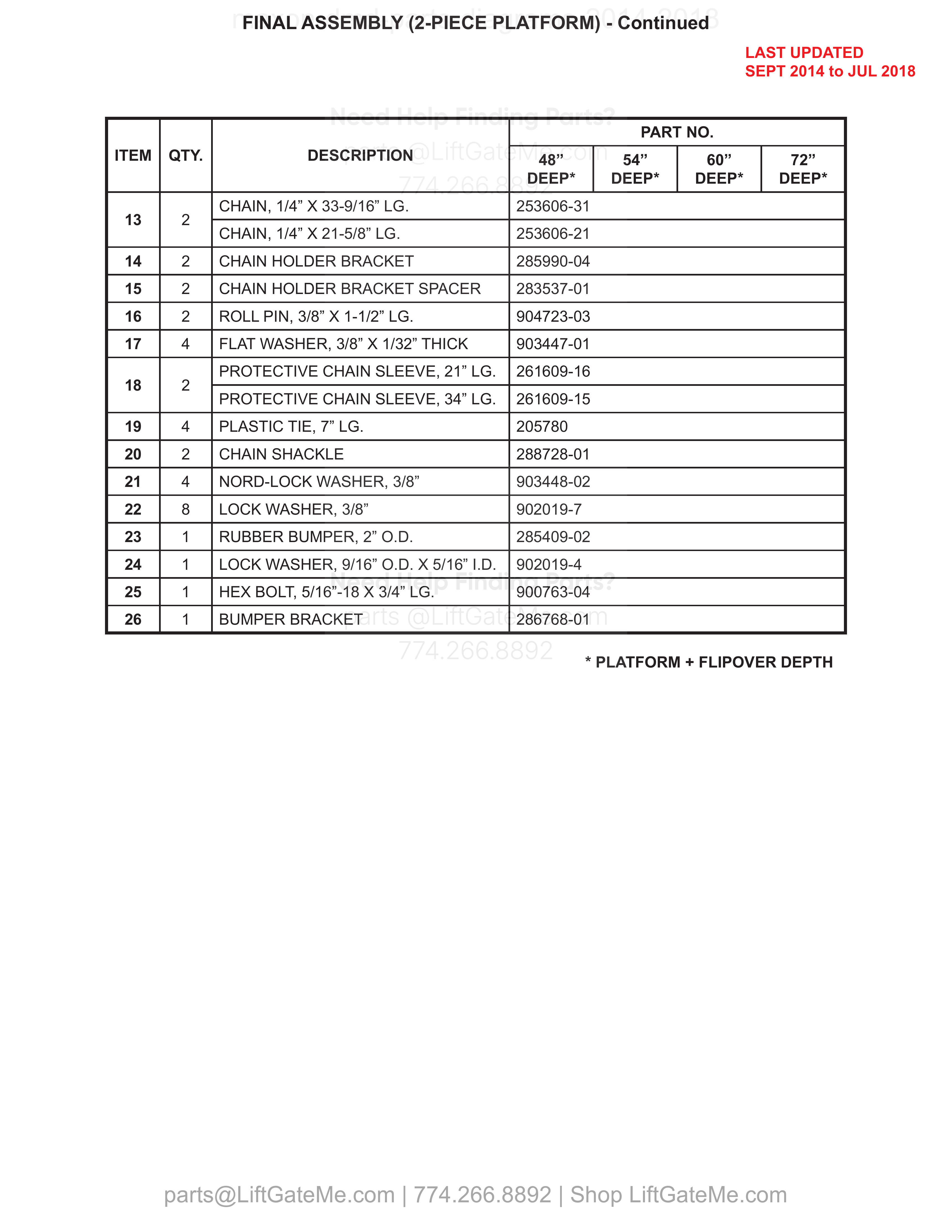

FINAL ASSEMBLY (2-PIECE PLATFORM) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 13 | 2 | 253606-31 | CHAIN, 1/4” X 33-9/16” LG. | |
| 13 | 2 | 253606-21 | CHAIN, 1/4” X 21-5/8” LG. | |
| 14 | 2 | 285990-04 | CHAIN HOLDER BRACKET | |
| 15 | 2 | 283537-01 | CHAIN HOLDER BRACKET SPACER | |
| 16 | 2 | 904723-03 | ROLL PIN, 3/8” X 1-1/2” LG. | |
| 17 | 4 | 903447-01 | FLAT WASHER, 3/8” X 1/32” THICK | |
| 18 | 2 | 261609-16 | PROTECTIVE CHAIN SLEEVE, 21” LG. | |
| 18 | 2 | 261609-15 | PROTECTIVE CHAIN SLEEVE, 34” LG. | |
| 19 | 4 | 205780 | PLASTIC TIE, 7” LG. | |
| 20 | 2 | 288728-01 | CHAIN SHACKLE | |
| 21 | 4 | 903448-02 | NORD-LOCK WASHER, 3/8” | |
| 22 | 8 | 902019-7 | LOCK WASHER, 3/8” | |
| 23 | 1 | 285409-02 | RUBBER BUMPER, 2” O.D. | |
| 24 | 1 | 902019-4 | LOCK WASHER, 9/16” O.D. X 5/16” I.D. | |
| 25 | 1 | 900763-04 | HEX BOLT, 5/16”-18 X 3/4” LG. | |
| 26 | 1 | 286768-01 | BUMPER BRACKET |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

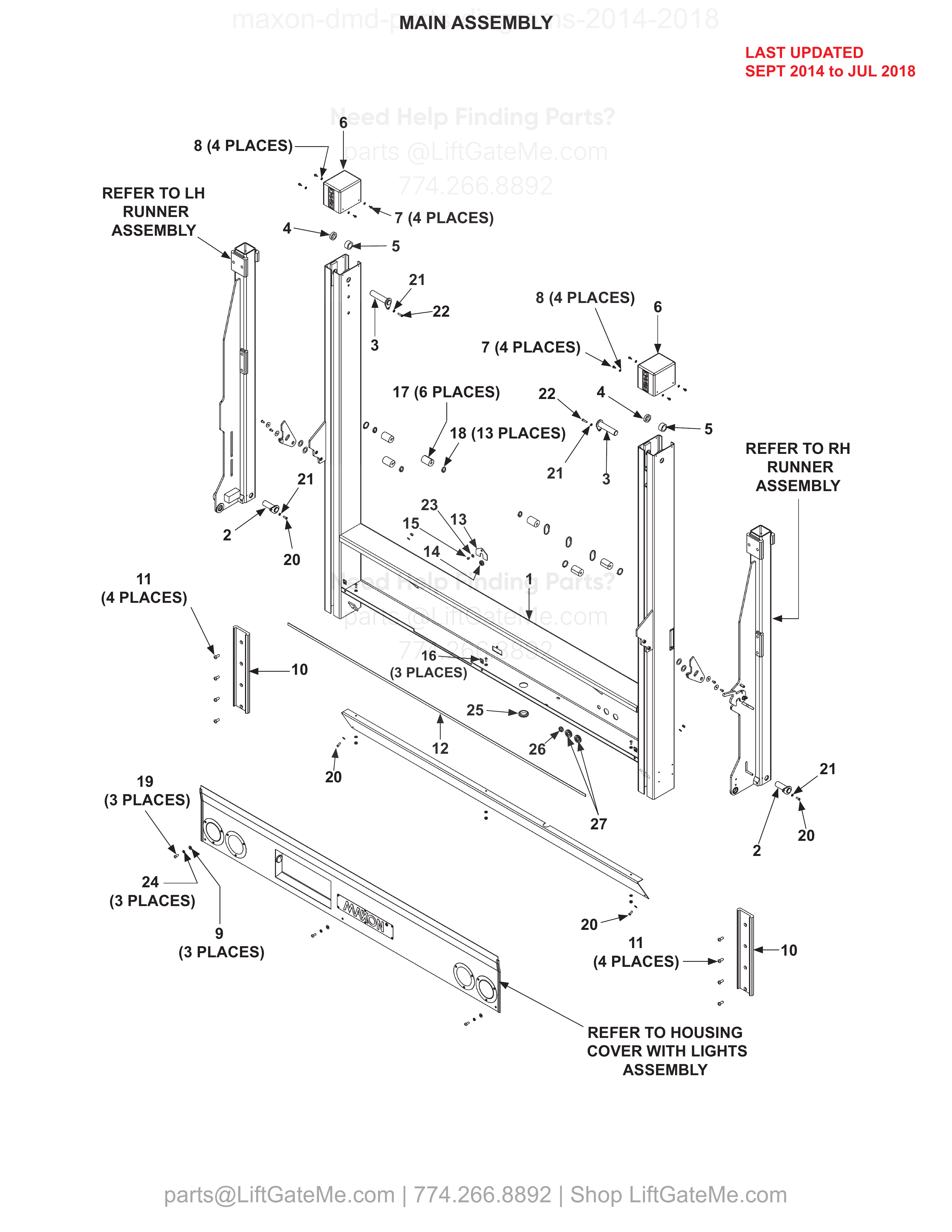

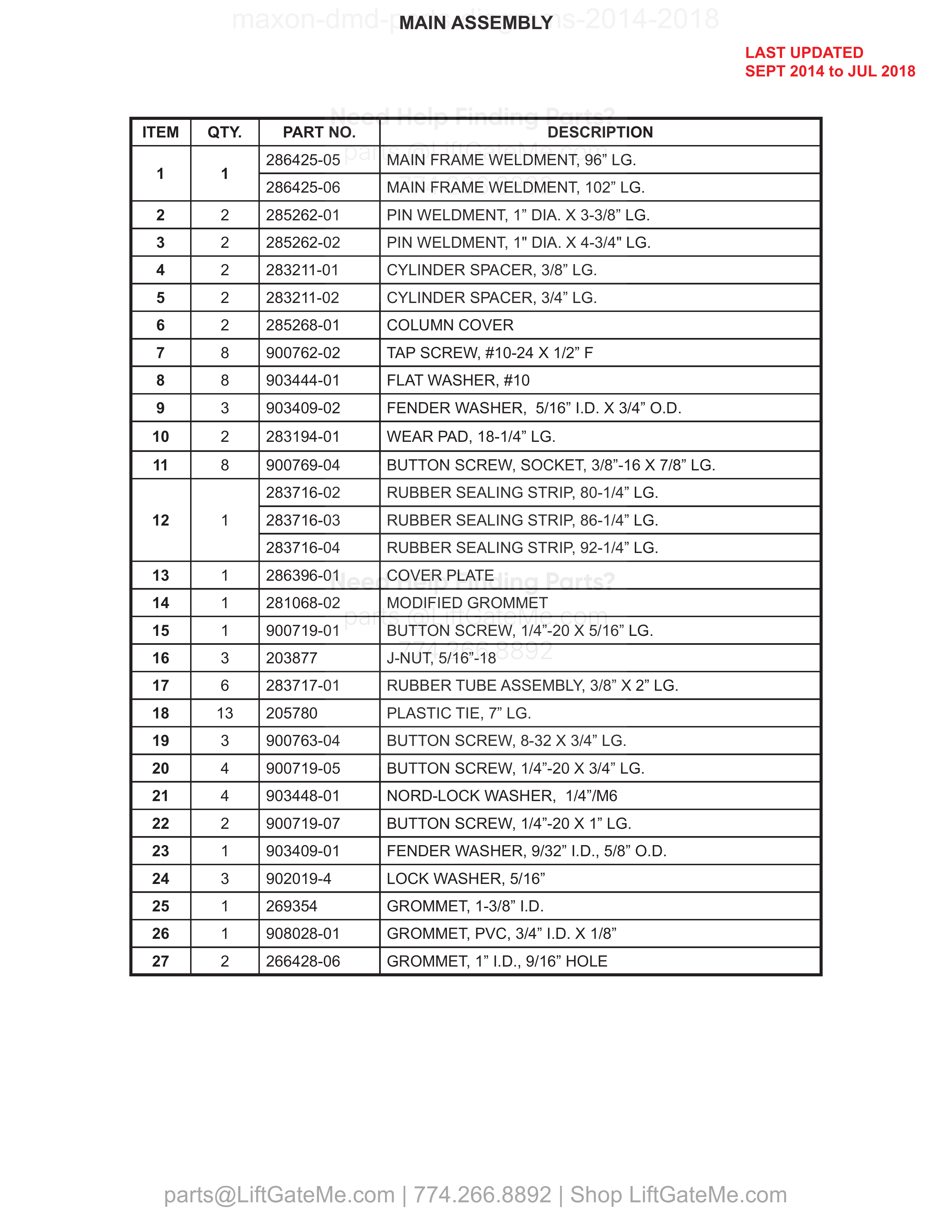

MAIN ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 286425-05 | MAIN FRAME WELDMENT, 96” LG. | |
| 1 | 1 | 286425-06 | MAIN FRAME WELDMENT, 102” LG. | |
| 2 | 2 | 285262-01 | PIN WELDMENT, 1” DIA. X 3-3/8” LG. | |
| 3 | 2 | 285262-02 | PIN WELDMENT, 1" DIA. X 4-3/4" LG. | |
| 4 | 2 | 283211-01 | CYLINDER SPACER, 3/8” LG. | |
| 5 | 2 | 283211-02 | CYLINDER SPACER, 3/4” LG. | |
| 6 | 2 | 285268-01 | COLUMN COVER | |
| 7 | 8 | 900762-02 | TAP SCREW, #10-24 X 1/2” F | |
| 8 | 8 | 903444-01 | FLAT WASHER, #10 | |
| 9 | 3 | 903409-02 | FENDER WASHER, 5/16” I.D. X 3/4” O.D. | |
| 10 | 2 | 283194-01 | WEAR PAD, 18-1/4” LG. | |
| 11 | 8 | 900769-04 | BUTTON SCREW, SOCKET, 3/8”-16 X 7/8” LG. | |
| 12 | 1 | 283716-02 | RUBBER SEALING STRIP, 80-1/4” LG. | |
| 12 | 1 | 283716-03 | RUBBER SEALING STRIP, 86-1/4” LG. | |
| 12 | 1 | 283716-04 | RUBBER SEALING STRIP, 92-1/4” LG. | |
| 13 | 1 | 286396-01 | COVER PLATE | |
| 14 | 1 | 281068-02 | MODIFIED GROMMET | |
| 15 | 1 | 900719-01 | BUTTON SCREW, 1/4”-20 X 5/16” LG. | |
| 16 | 3 | 203877 | J-NUT, 5/16”-18 | |
| 17 | 6 | 283717-01 | RUBBER TUBE ASSEMBLY, 3/8” X 2” LG. | |
| 18 | 13 | 205780 | PLASTIC TIE, 7” LG. | |
| 19 | 3 | 900763-04 | BUTTON SCREW, 8-32 X 3/4” LG. | |
| 20 | 4 | 900719-05 | BUTTON SCREW, 1/4”-20 X 3/4” LG. | |
| 21 | 4 | 903448-01 | NORD-LOCK WASHER, 1/4”/M6 | |
| 22 | 2 | 900719-07 | BUTTON SCREW, 1/4”-20 X 1” LG. | |
| 23 | 1 | 903409-01 | FENDER WASHER, 9/32” I.D., 5/8” O.D. | |
| 24 | 3 | 902019-4 | LOCK WASHER, 5/16” | |
| 25 | 1 | 269354 | GROMMET, 1-3/8” I.D. | |
| 26 | 1 | 908028-01 | GROMMET, PVC, 3/4” I.D. X 1/8” | |
| 27 | 2 | 266428-06 | GROMMET, 1” I.D., 9/16” HOLE |

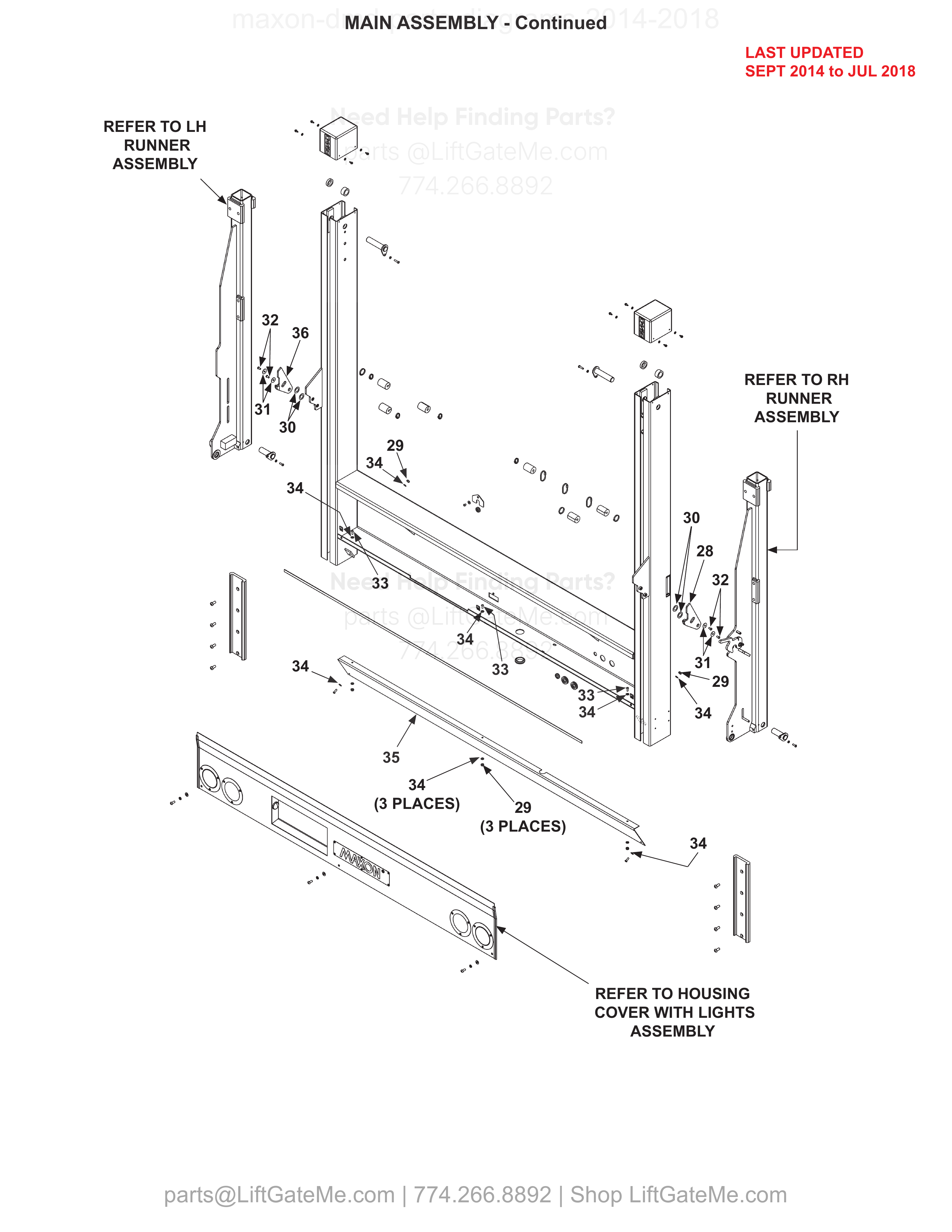

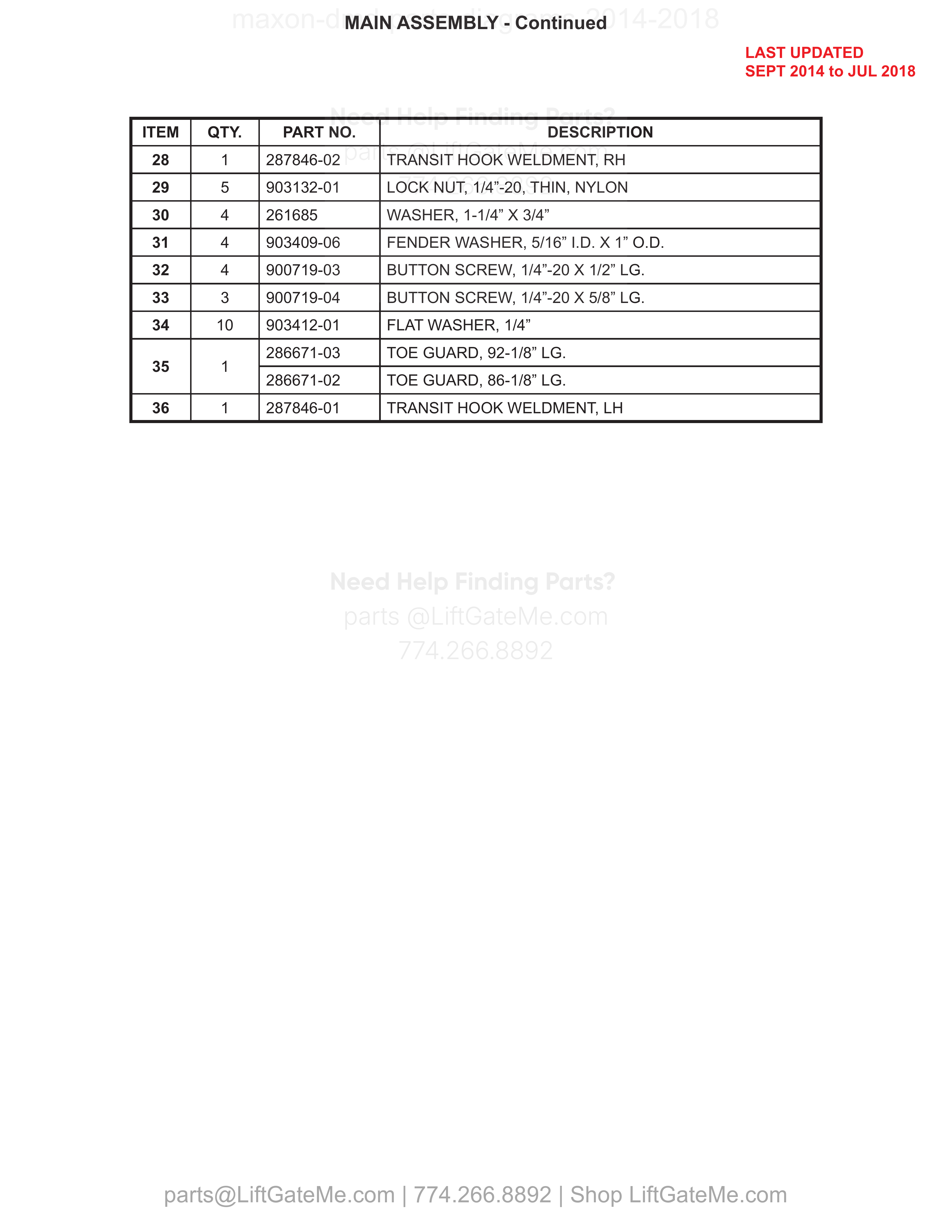

MAIN ASSEMBLY - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 28 | 1 | 287846-02 | TRANSIT HOOK WELDMENT, RH | |
| 29 | 5 | 903132-01 | LOCK NUT, 1/4”-20, THIN, NYLON | |
| 30 | 4 | 261685 | WASHER, 1-1/4” X 3/4” | |
| 31 | 4 | 903409-06 | FENDER WASHER, 5/16” I.D. X 1” O.D. | |
| 32 | 4 | 900719-03 | BUTTON SCREW, 1/4”-20 X 1/2” LG. | |
| 33 | 3 | 900719-04 | BUTTON SCREW, 1/4”-20 X 5/8” LG. | |
| 34 | 10 | 903412-01 | FLAT WASHER, 1/4” | |
| 35 | 1 | 286671-03 | TOE GUARD, 92-1/8” LG. | |
| 35 | 1 | 286671-02 | TOE GUARD, 86-1/8” LG. | |
| 36 | 1 | 287846-01 | TRANSIT HOOK WELDMENT, LH |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

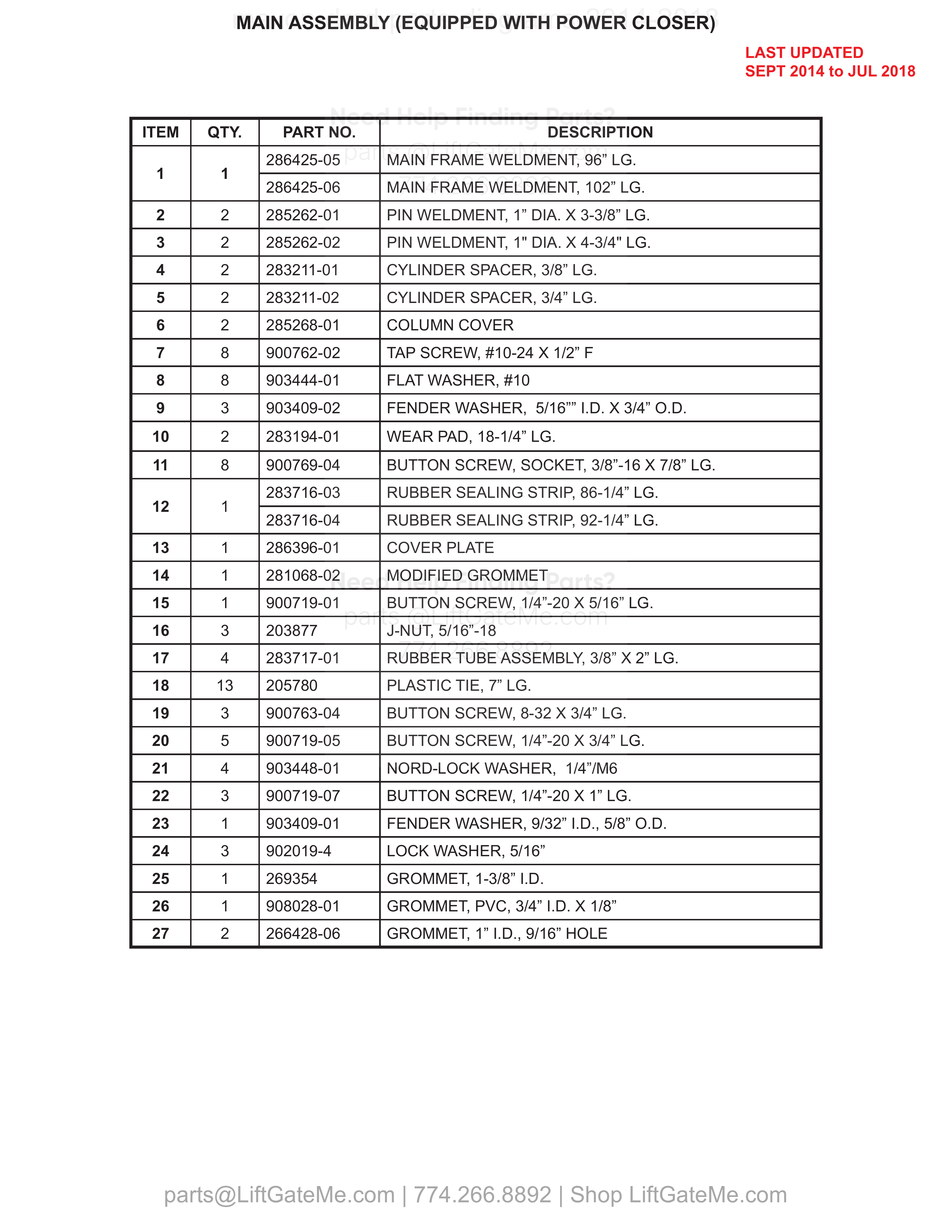

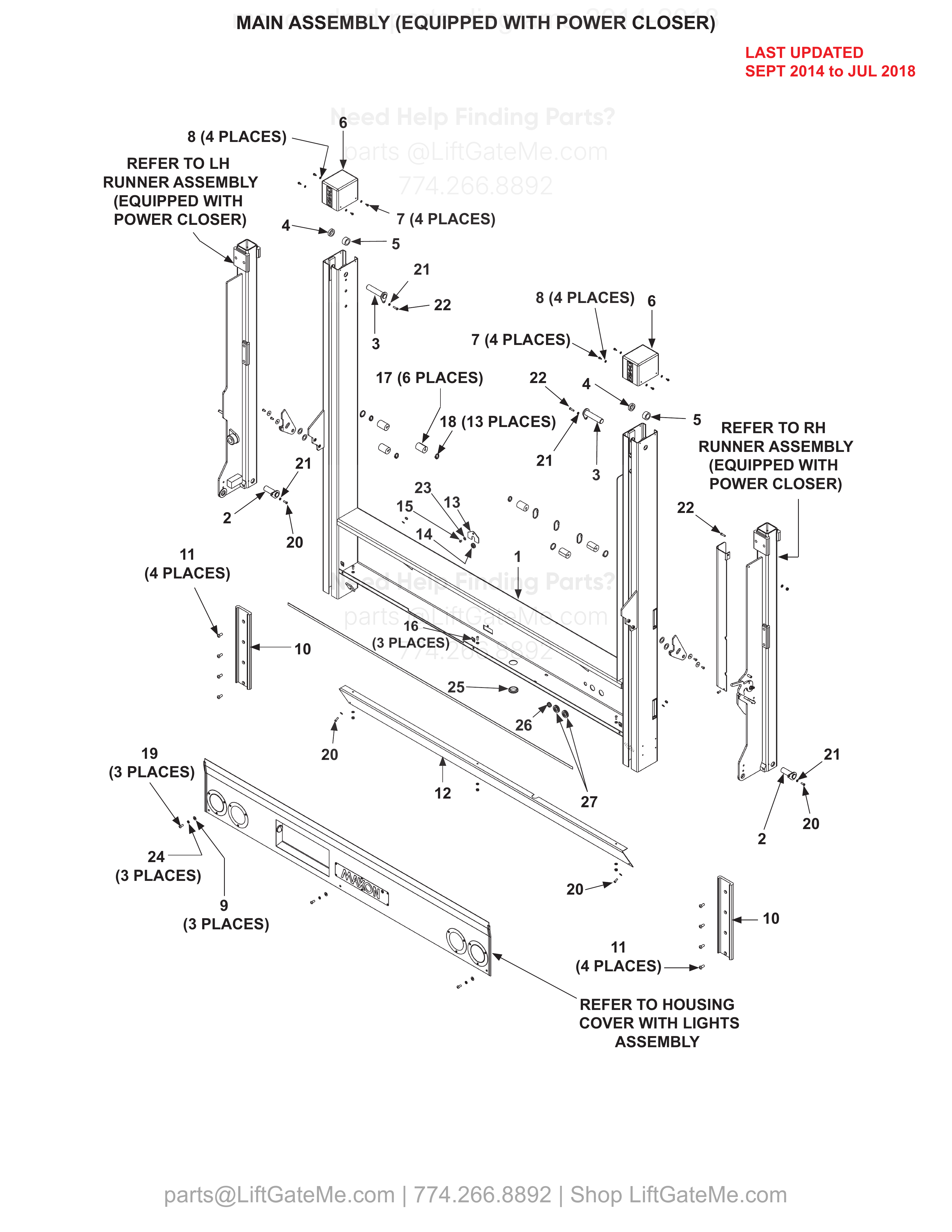

MAIN ASSEMBLY (EQUIPPED WITH POWER CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 286425-05 | MAIN FRAME WELDMENT, 96” LG. | |
| 1 | 1 | 286425-06 | MAIN FRAME WELDMENT, 102” LG. | |
| 2 | 2 | 285262-01 | PIN WELDMENT, 1” DIA. X 3-3/8” LG. | |
| 3 | 2 | 285262-02 | PIN WELDMENT, 1" DIA. X 4-3/4" LG. | |
| 4 | 2 | 283211-01 | CYLINDER SPACER, 3/8” LG. | |
| 5 | 2 | 283211-02 | CYLINDER SPACER, 3/4” LG. | |
| 6 | 2 | 285268-01 | COLUMN COVER | |
| 7 | 8 | 900762-02 | TAP SCREW, #10-24 X 1/2” F | |
| 8 | 8 | 903444-01 | FLAT WASHER, #10 | |
| 9 | 3 | 903409-02 | FENDER WASHER, 5/16”” I.D. X 3/4” O.D. | |
| 10 | 2 | 283194-01 | WEAR PAD, 18-1/4” LG. | |
| 11 | 8 | 900769-04 | BUTTON SCREW, SOCKET, 3/8”-16 X 7/8” LG. | |
| 12 | 1 | 283716-03 | RUBBER SEALING STRIP, 86-1/4” LG. | |
| 12 | 1 | 283716-04 | RUBBER SEALING STRIP, 92-1/4” LG. | |
| 13 | 1 | 286396-01 | COVER PLATE | |
| 14 | 1 | 281068-02 | MODIFIED GROMMET | |
| 15 | 1 | 900719-01 | BUTTON SCREW, 1/4”-20 X 5/16” LG. | |
| 16 | 3 | 203877 | J-NUT, 5/16”-18 | |
| 17 | 4 | 283717-01 | RUBBER TUBE ASSEMBLY, 3/8” X 2” LG. | |
| 18 | 13 | 205780 | PLASTIC TIE, 7” LG. | |
| 19 | 3 | 900763-04 | BUTTON SCREW, 8-32 X 3/4” LG. | |
| 20 | 5 | 900719-05 | BUTTON SCREW, 1/4”-20 X 3/4” LG. | |
| 21 | 4 | 903448-01 | NORD-LOCK WASHER, 1/4”/M6 | |
| 22 | 3 | 900719-07 | BUTTON SCREW, 1/4”-20 X 1” LG. | |
| 23 | 1 | 903409-01 | FENDER WASHER, 9/32” I.D., 5/8” O.D. | |
| 24 | 3 | 902019-4 | LOCK WASHER, 5/16” | |
| 25 | 1 | 269354 | GROMMET, 1-3/8” I.D. | |
| 26 | 1 | 908028-01 | GROMMET, PVC, 3/4” I.D. X 1/8” | |
| 27 | 2 | 266428-06 | GROMMET, 1” I.D., 9/16” HOLE |

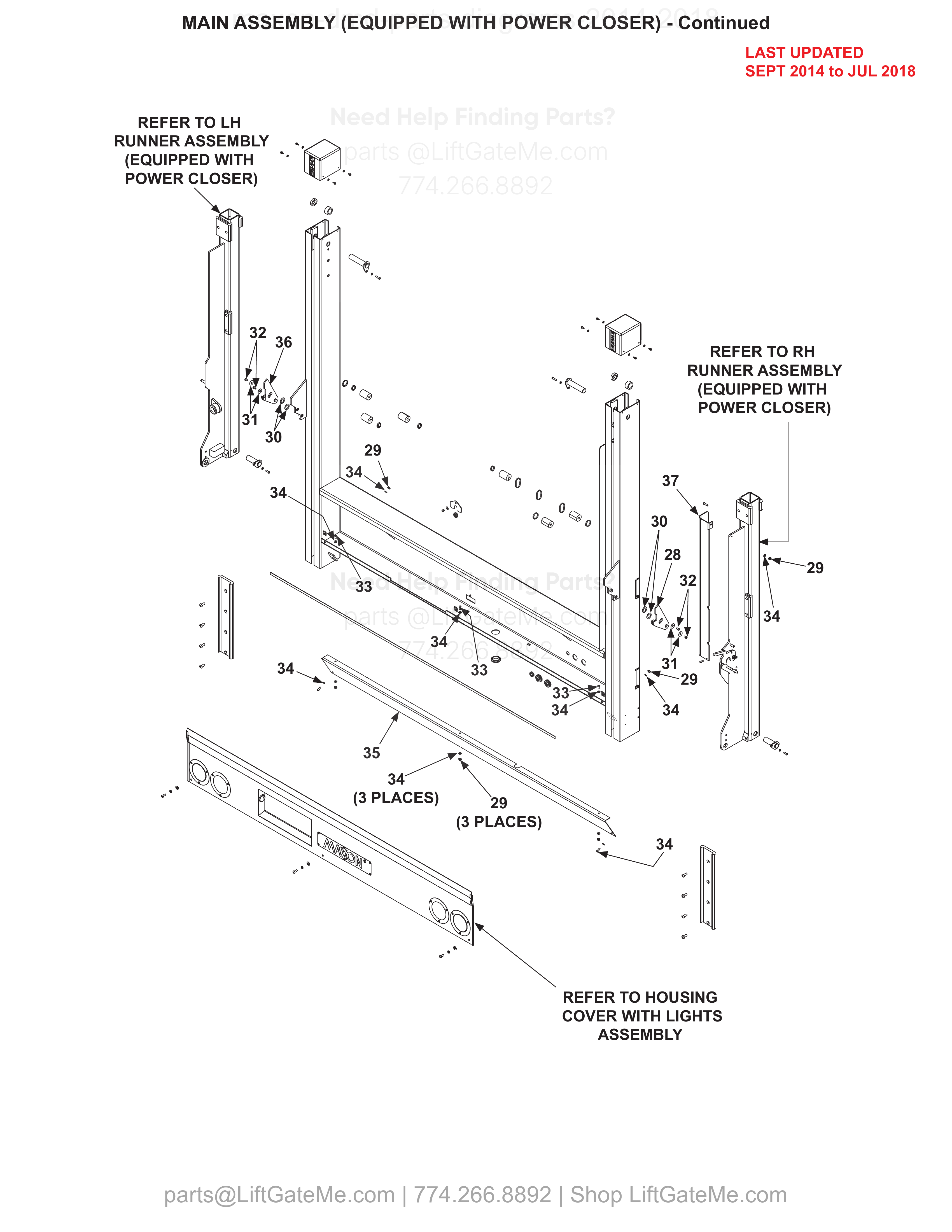

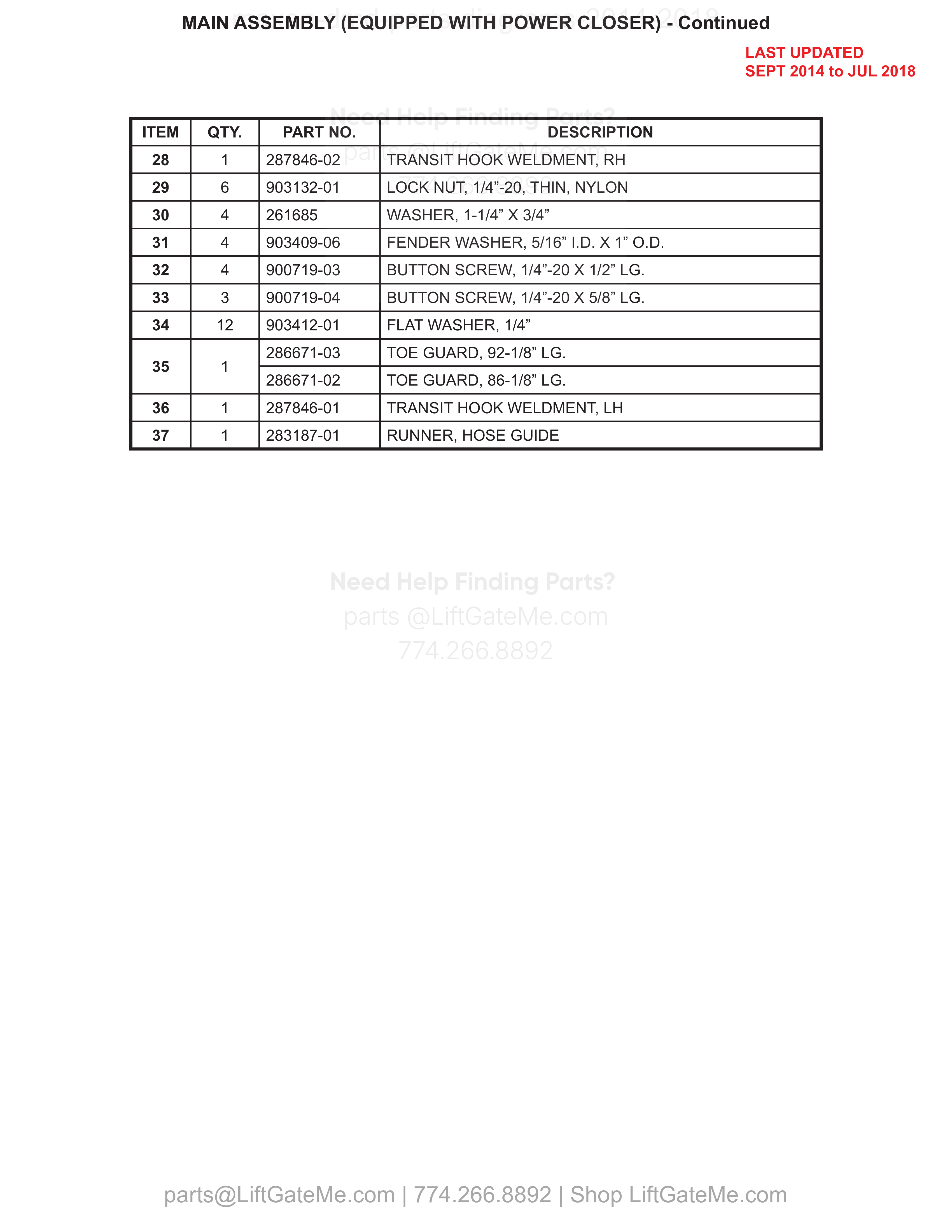

MAIN ASSEMBLY (EQUIPPED WITH POWER CLOSER) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 28 | 1 | 287846-02 | TRANSIT HOOK WELDMENT, RH | |
| 29 | 6 | 903132-01 | LOCK NUT, 1/4”-20, THIN, NYLON | |
| 30 | 4 | 261685 | WASHER, 1-1/4” X 3/4” | |
| 31 | 4 | 903409-06 | FENDER WASHER, 5/16” I.D. X 1” O.D. | |
| 32 | 4 | 900719-03 | BUTTON SCREW, 1/4”-20 X 1/2” LG. | |
| 33 | 3 | 900719-04 | BUTTON SCREW, 1/4”-20 X 5/8” LG. | |
| 34 | 12 | 903412-01 | FLAT WASHER, 1/4” | |
| 35 | 1 | 286671-03 | TOE GUARD, 92-1/8” LG. | |
| 35 | 1 | 286671-02 | TOE GUARD, 86-1/8” LG. | |
| 36 | 1 | 287846-01 | TRANSIT HOOK WELDMENT, LH | |
| 37 | 1 | 283187-01 | RUNNER, HOSE GUIDE |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

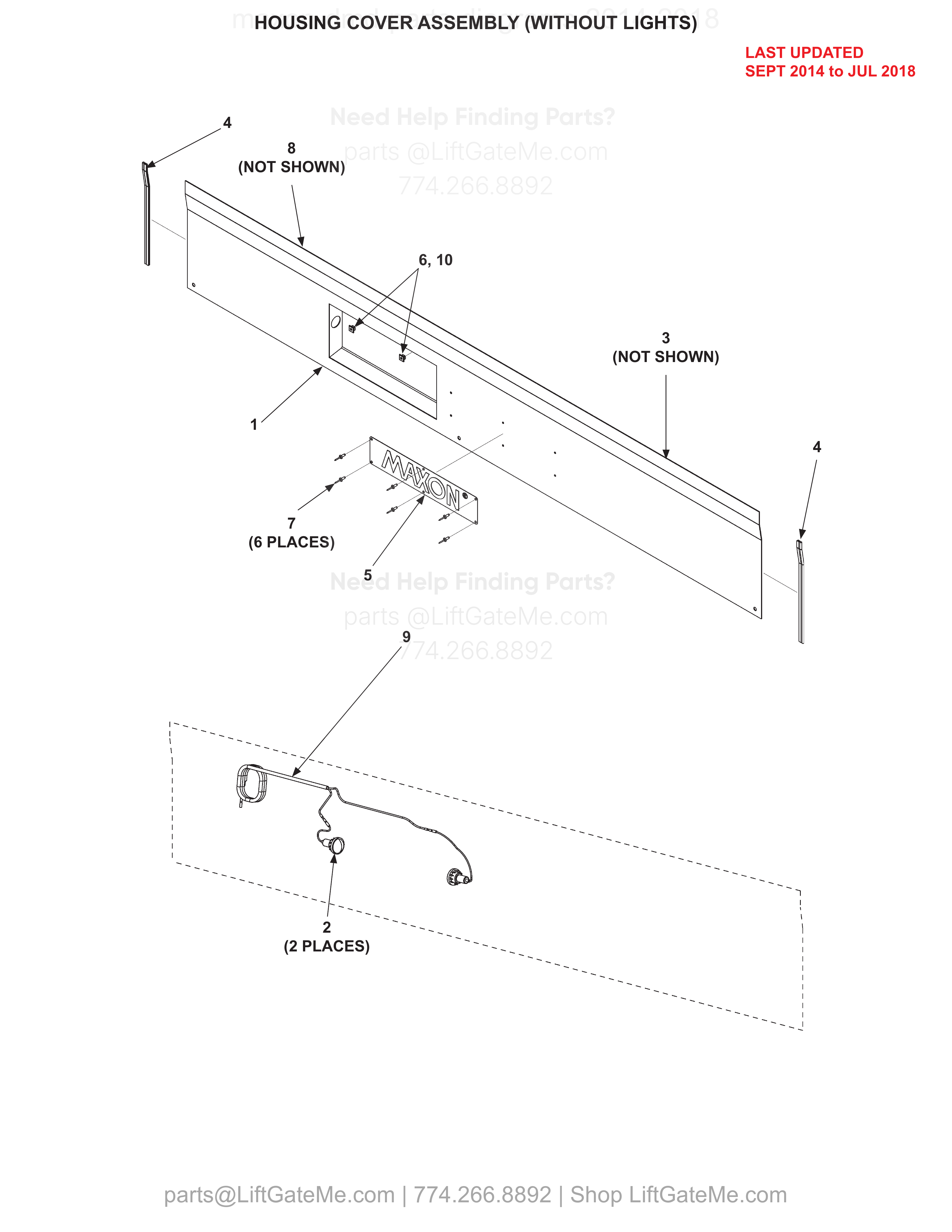

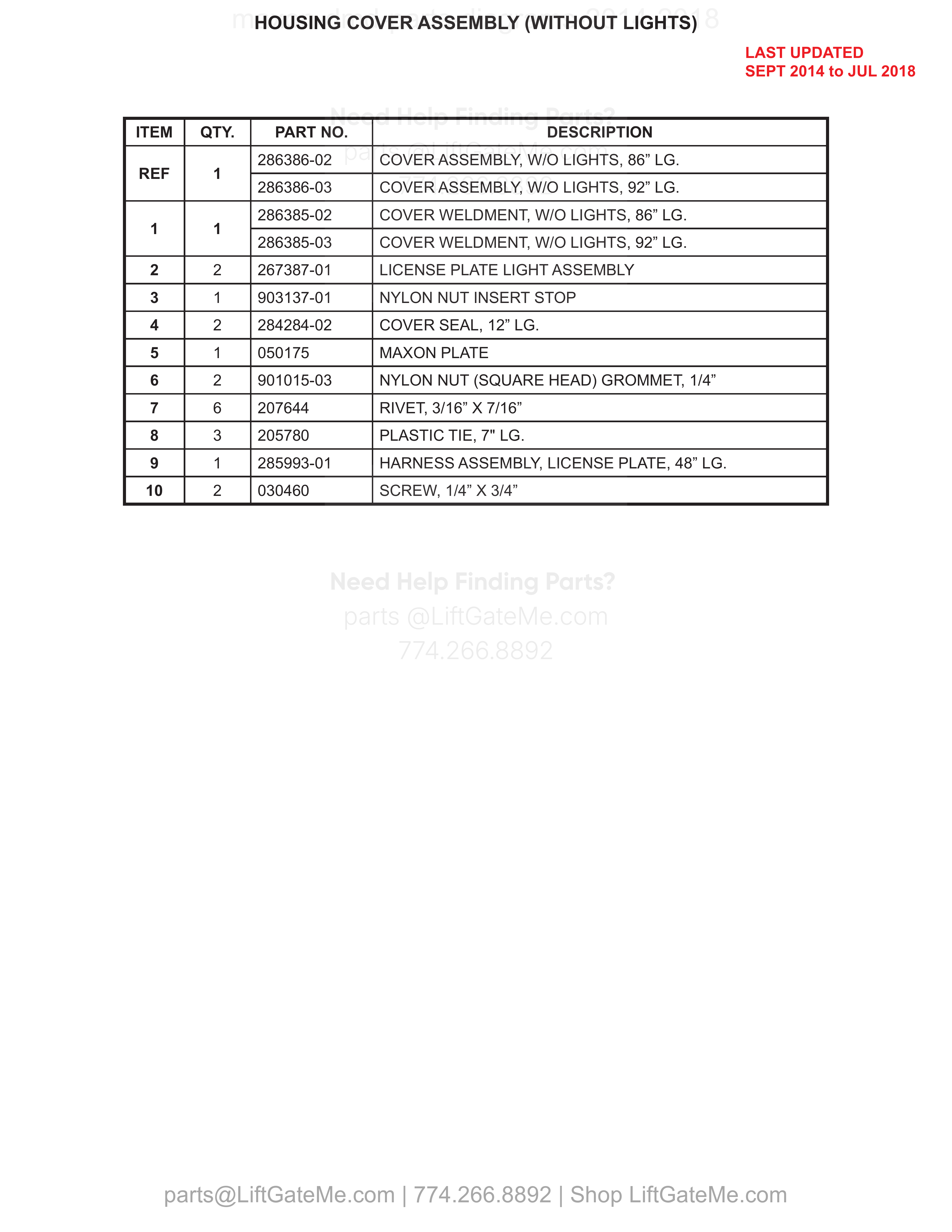

HOUSING COVER ASSEMBLY (WITHOUT LIGHTS)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 286386-02 | COVER ASSEMBLY, W/O LIGHTS, 86” LG. | |
| REF | 1 | 286386-03 | COVER ASSEMBLY, W/O LIGHTS, 92” LG. | |
| 1 | 1 | 286385-02 | COVER WELDMENT, W/O LIGHTS, 86” LG. | |
| 1 | 1 | 286385-03 | COVER WELDMENT, W/O LIGHTS, 92” LG. | |
| 2 | 2 | 267387-01 | LICENSE PLATE LIGHT ASSEMBLY | |
| 3 | 1 | 903137-01 | NYLON NUT INSERT STOP | |
| 4 | 2 | 284284-02 | COVER SEAL, 12” LG. | |
| 5 | 1 | 050175 | MAXON PLATE | |
| 6 | 2 | 901015-03 | NYLON NUT (SQUARE HEAD) GROMMET, 1/4” | |
| 7 | 6 | 207644 | RIVET, 3/16” X 7/16” | |
| 8 | 3 | 205780 | PLASTIC TIE, 7" LG. | |
| 9 | 1 | 285993-01 | HARNESS ASSEMBLY, LICENSE PLATE, 48” LG. | |
| 10 | 2 | 030460 | SCREW, 1/4” X 3/4” |

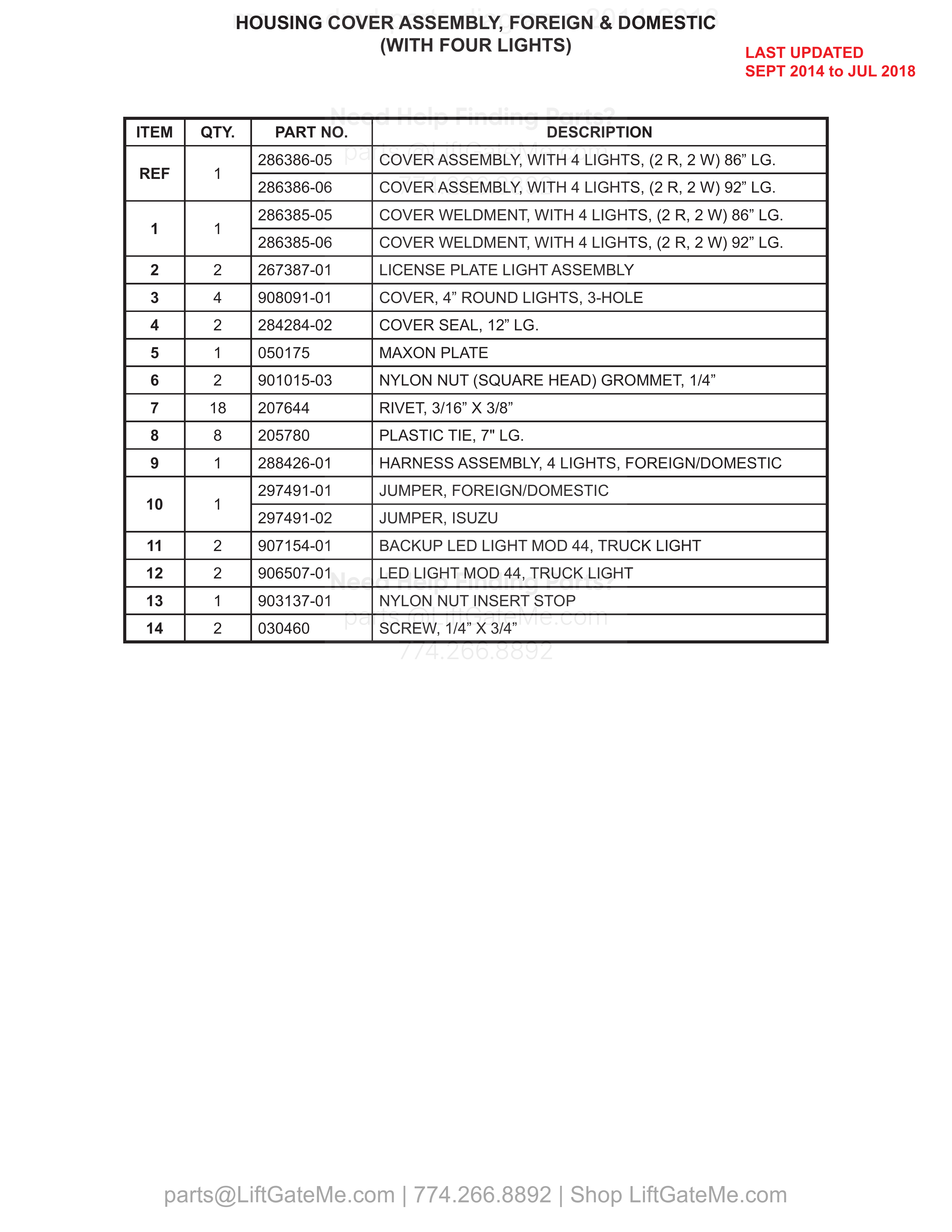

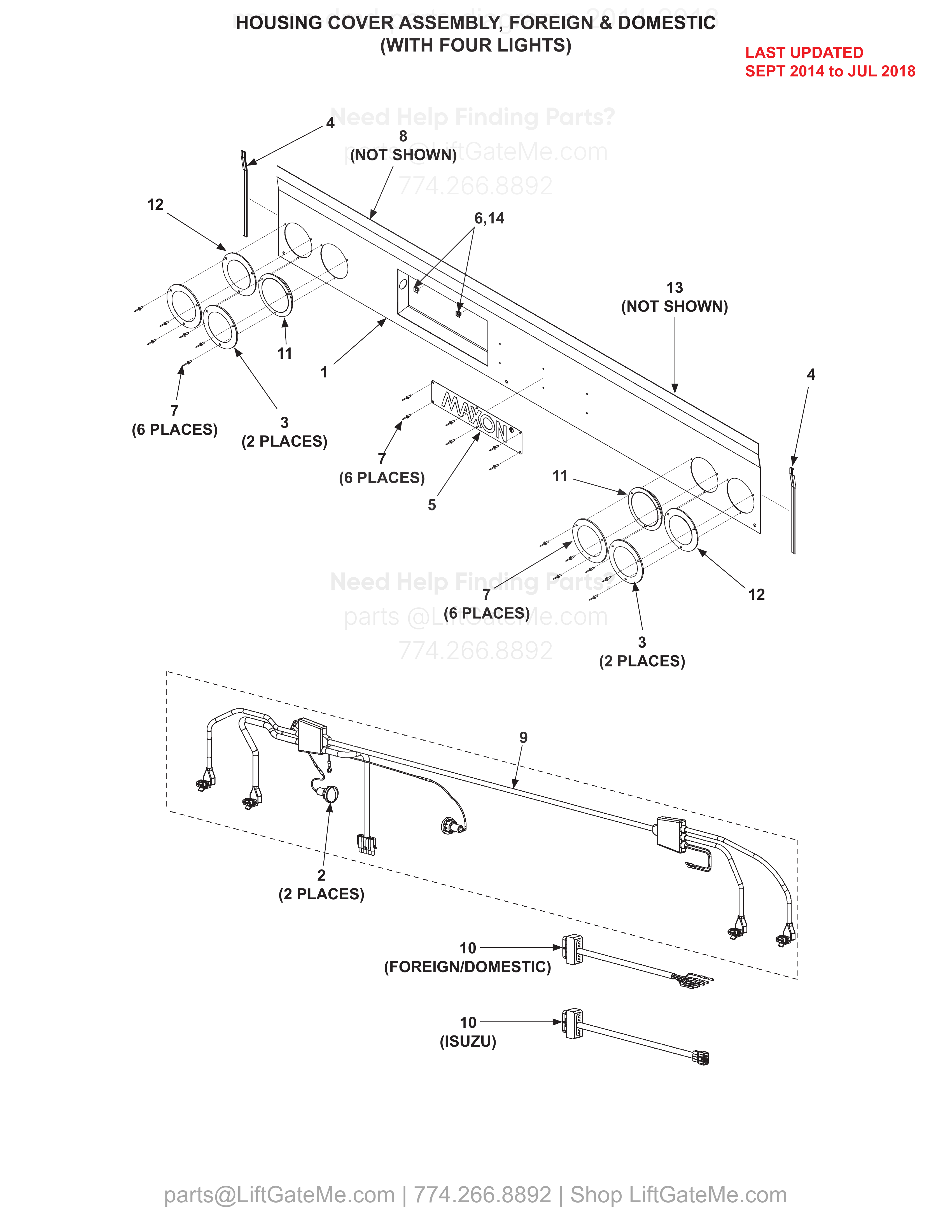

HOUSING COVER ASSEMBLY, FOREIGN & DOMESTIC (WITH FOUR LIGHTS)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 286386-05 | COVER ASSEMBLY, WITH 4 LIGHTS, (2 R, 2 W) 86” LG. | |
| REF | 1 | 286386-06 | COVER ASSEMBLY, WITH 4 LIGHTS, (2 R, 2 W) 92” LG. | |
| 1 | 1 | 286385-05 | COVER WELDMENT, WITH 4 LIGHTS, (2 R, 2 W) 86” LG. | |
| 1 | 1 | 286385-06 | COVER WELDMENT, WITH 4 LIGHTS, (2 R, 2 W) 92” LG. | |
| 2 | 2 | 267387-01 | LICENSE PLATE LIGHT ASSEMBLY | |
| 3 | 4 | 908091-01 | COVER, 4” ROUND LIGHTS, 3-HOLE | |
| 4 | 2 | 284284-02 | COVER SEAL, 12” LG. | |
| 5 | 1 | 050175 | MAXON PLATE | |
| 6 | 2 | 901015-03 | NYLON NUT (SQUARE HEAD) GROMMET, 1/4” | |
| 7 | 18 | 207644 | RIVET, 3/16” X 3/8” | |
| 8 | 8 | 205780 | PLASTIC TIE, 7" LG. | |
| 9 | 1 | 288426-01 | HARNESS ASSEMBLY, 4 LIGHTS, FOREIGN/DOMESTIC | |
| 10 | 1 | 297491-01 | JUMPER, FOREIGN/DOMESTIC | |
| 10 | 1 | 297491-02 | JUMPER, ISUZU | |
| 11 | 2 | 907154-01 | BACKUP LED LIGHT MOD 44, TRUCK LIGHT | |
| 12 | 2 | 906507-01 | LED LIGHT MOD 44, TRUCK LIGHT | |
| 13 | 1 | 903137-01 | NYLON NUT INSERT STOP | |
| 14 | 2 | 030460 | SCREW, 1/4” X 3/4” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

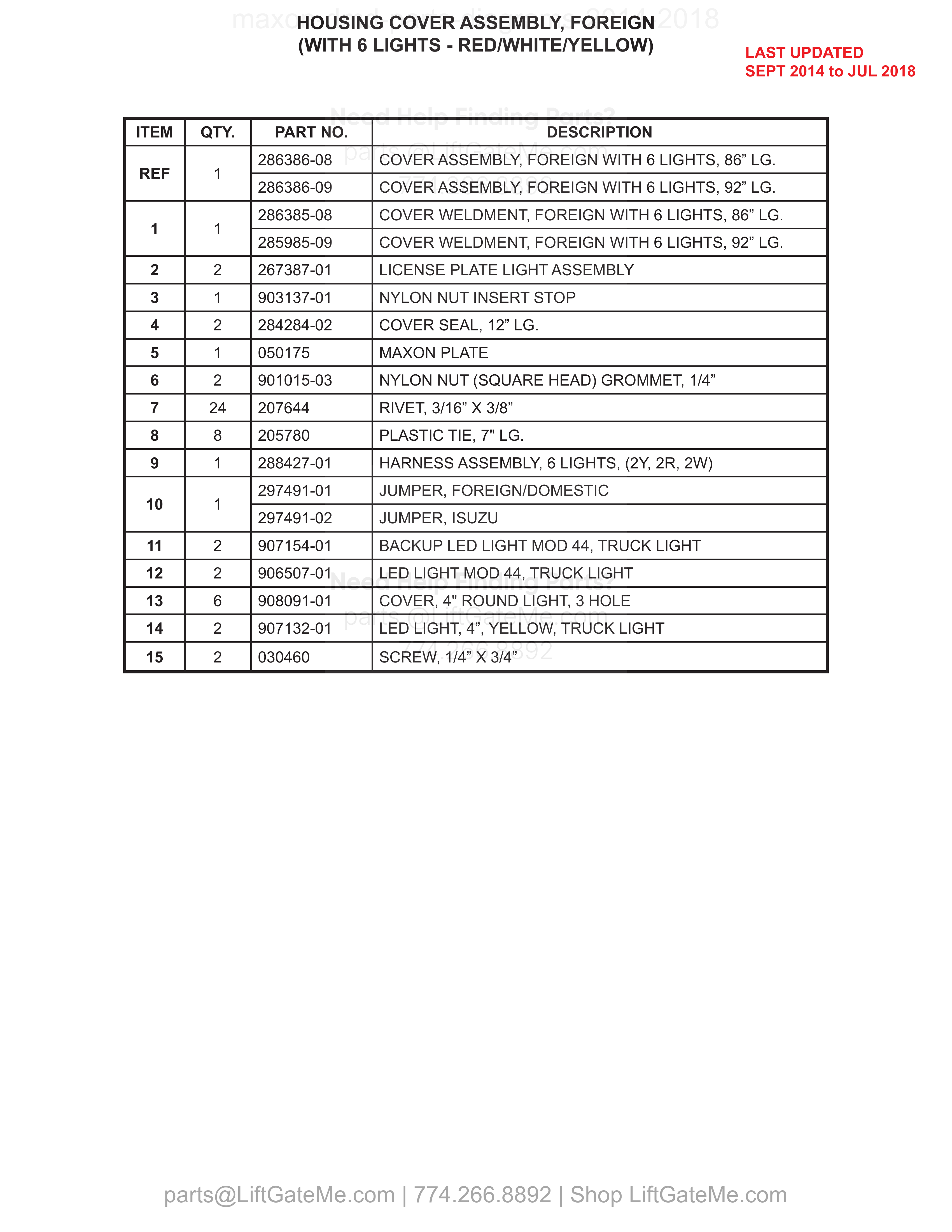

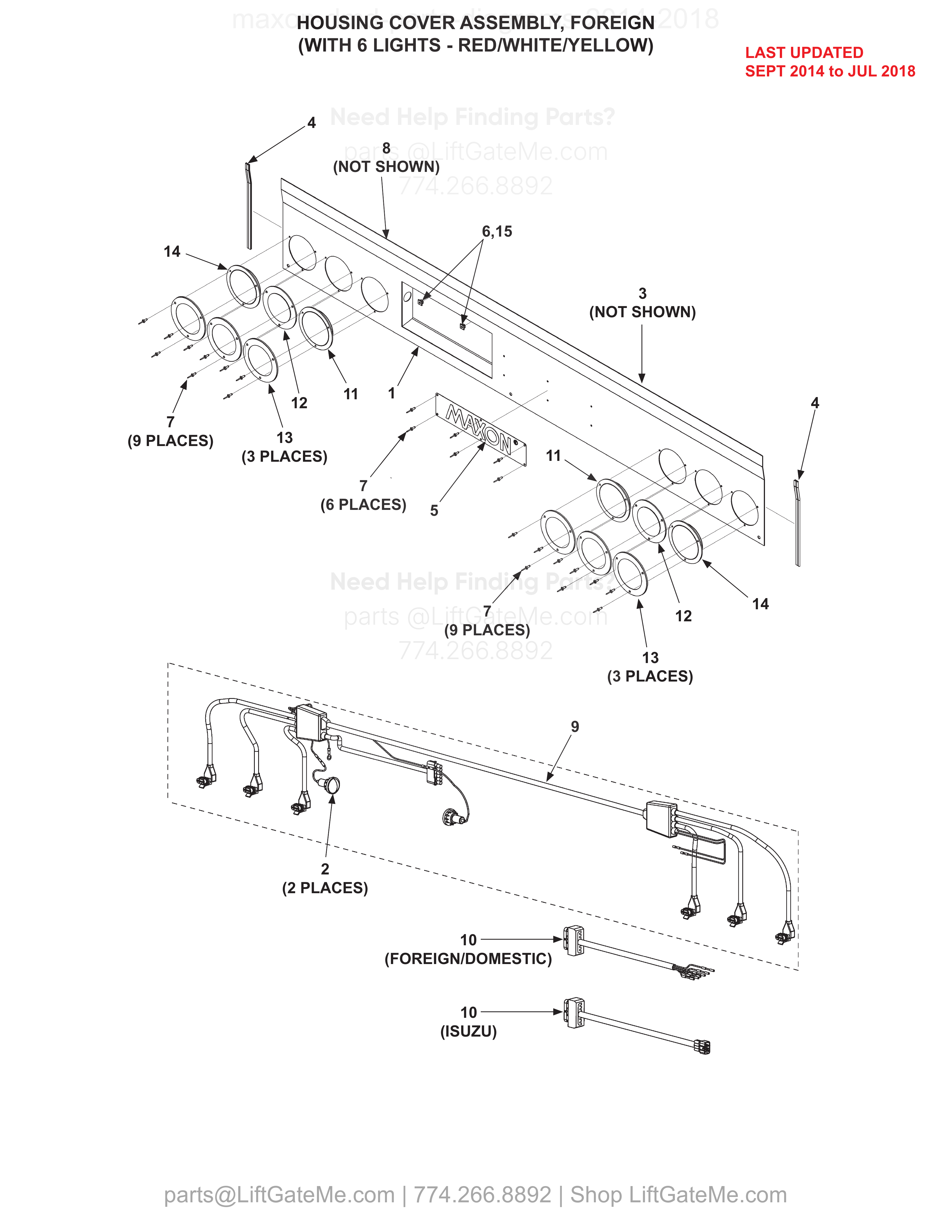

HOUSING COVER ASSEMBLY, FOREIGN (WITH 6 LIGHTS - RED/WHITE/YELLOW)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 286386-08 | COVER ASSEMBLY, FOREIGN WITH 6 LIGHTS, 86” LG. | |
| REF | 1 | 286386-09 | COVER ASSEMBLY, FOREIGN WITH 6 LIGHTS, 92” LG. | |
| 1 | 1 | 286385-08 | COVER WELDMENT, FOREIGN WITH 6 LIGHTS, 86” LG. | |
| 1 | 1 | 285985-09 | COVER WELDMENT, FOREIGN WITH 6 LIGHTS, 92” LG. | |
| 2 | 2 | 267387-01 | LICENSE PLATE LIGHT ASSEMBLY | |
| 3 | 1 | 903137-01 | NYLON NUT INSERT STOP | |
| 4 | 2 | 284284-02 | COVER SEAL, 12” LG. | |
| 5 | 1 | 050175 | MAXON PLATE | |
| 6 | 2 | 901015-03 | NYLON NUT (SQUARE HEAD) GROMMET, 1/4” | |
| 7 | 24 | 207644 | RIVET, 3/16” X 3/8” | |
| 8 | 8 | 205780 | PLASTIC TIE, 7" LG. | |
| 9 | 1 | 288427-01 | HARNESS ASSEMBLY, 6 LIGHTS, (2Y, 2R, 2W) | |
| 10 | 1 | 297491-01 | JUMPER, FOREIGN/DOMESTIC | |
| 10 | 1 | 297491-02 | JUMPER, ISUZU | |
| 11 | 2 | 907154-01 | BACKUP LED LIGHT MOD 44, TRUCK LIGHT | |
| 12 | 2 | 906507-01 | LED LIGHT MOD 44, TRUCK LIGHT | |
| 13 | 6 | 908091-01 | COVER, 4" ROUND LIGHT, 3 HOLE | |
| 14 | 2 | 907132-01 | LED LIGHT, 4”, YELLOW, TRUCK LIGHT | |
| 15 | 2 | 030460 | SCREW, 1/4” X 3/4” |

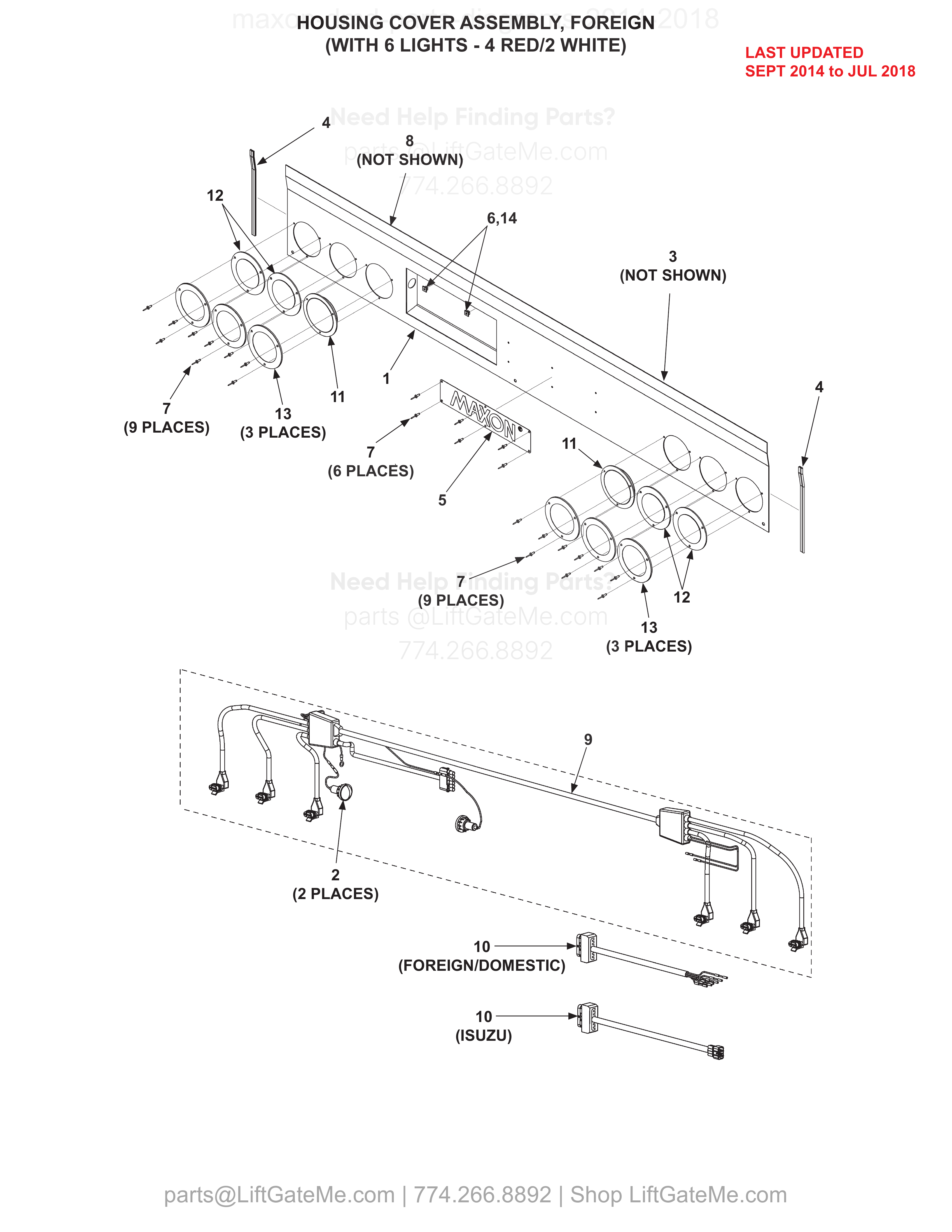

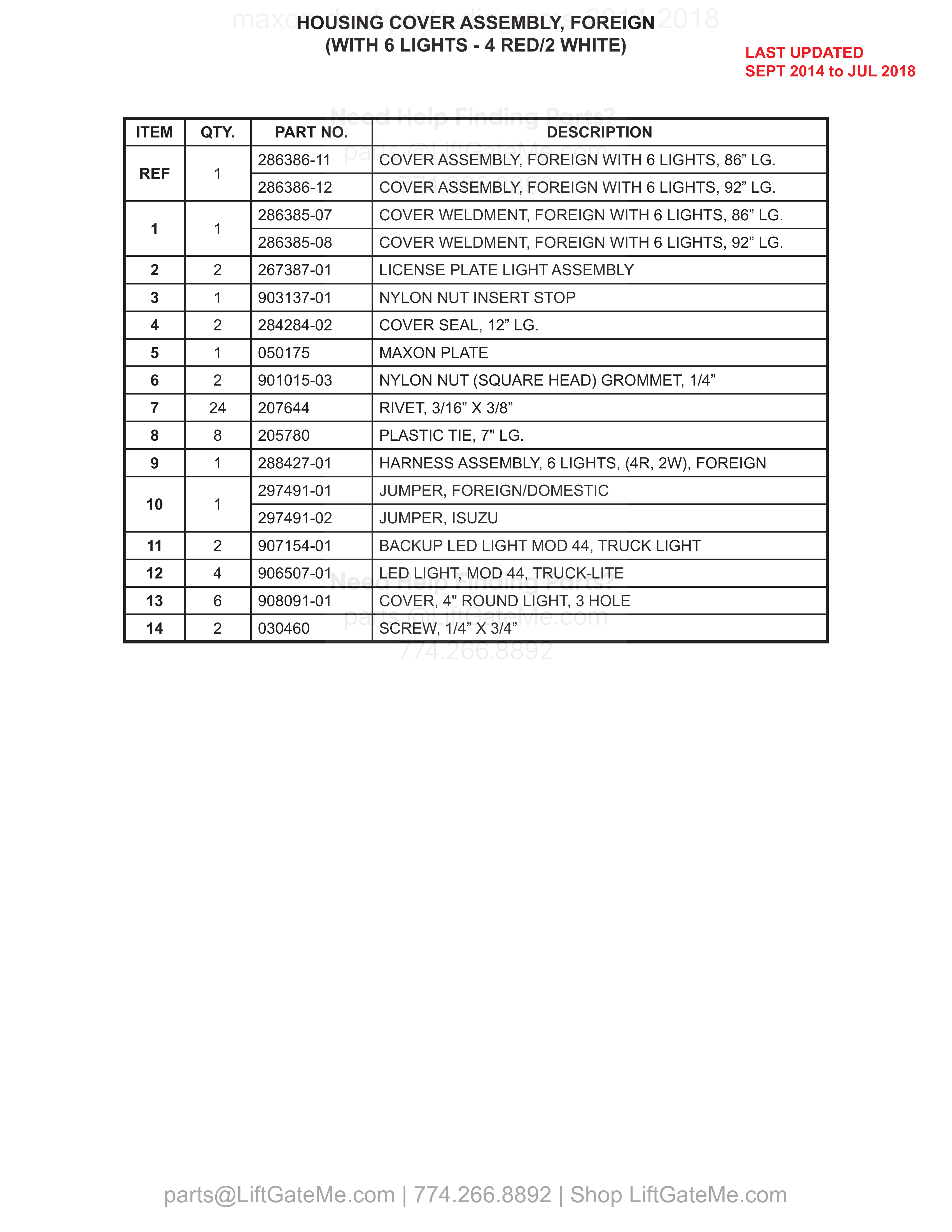

HOUSING COVER ASSEMBLY, FOREIGN (WITH 6 LIGHTS - 4 RED/2 WHITE)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 286386-11 | COVER ASSEMBLY, FOREIGN WITH 6 LIGHTS, 86” LG. | |
| REF | 1 | 286386-12 | COVER ASSEMBLY, FOREIGN WITH 6 LIGHTS, 92” LG. | |
| 1 | 1 | 286385-07 | COVER WELDMENT, FOREIGN WITH 6 LIGHTS, 86” LG. | |
| 1 | 1 | 286385-08 | COVER WELDMENT, FOREIGN WITH 6 LIGHTS, 92” LG. | |
| 2 | 2 | 267387-01 | LICENSE PLATE LIGHT ASSEMBLY | |
| 3 | 1 | 903137-01 | NYLON NUT INSERT STOP | |
| 4 | 2 | 284284-02 | COVER SEAL, 12” LG. | |
| 5 | 1 | 050175 | MAXON PLATE | |
| 6 | 2 | 901015-03 | NYLON NUT (SQUARE HEAD) GROMMET, 1/4” | |
| 7 | 24 | 207644 | RIVET, 3/16” X 3/8” | |
| 8 | 8 | 205780 | PLASTIC TIE, 7" LG. | |
| 9 | 1 | 288427-01 | HARNESS ASSEMBLY, 6 LIGHTS, (4R, 2W), FOREIGN | |
| 10 | 1 | 297491-01 | JUMPER, FOREIGN/DOMESTIC | |
| 10 | 1 | 297491-02 | JUMPER, ISUZU | |
| 11 | 2 | 907154-01 | BACKUP LED LIGHT MOD 44, TRUCK LIGHT | |
| 12 | 4 | 906507-01 | LED LIGHT, MOD 44, TRUCK-LITE | |
| 13 | 6 | 908091-01 | COVER, 4" ROUND LIGHT, 3 HOLE | |
| 14 | 2 | 030460 | SCREW, 1/4” X 3/4” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

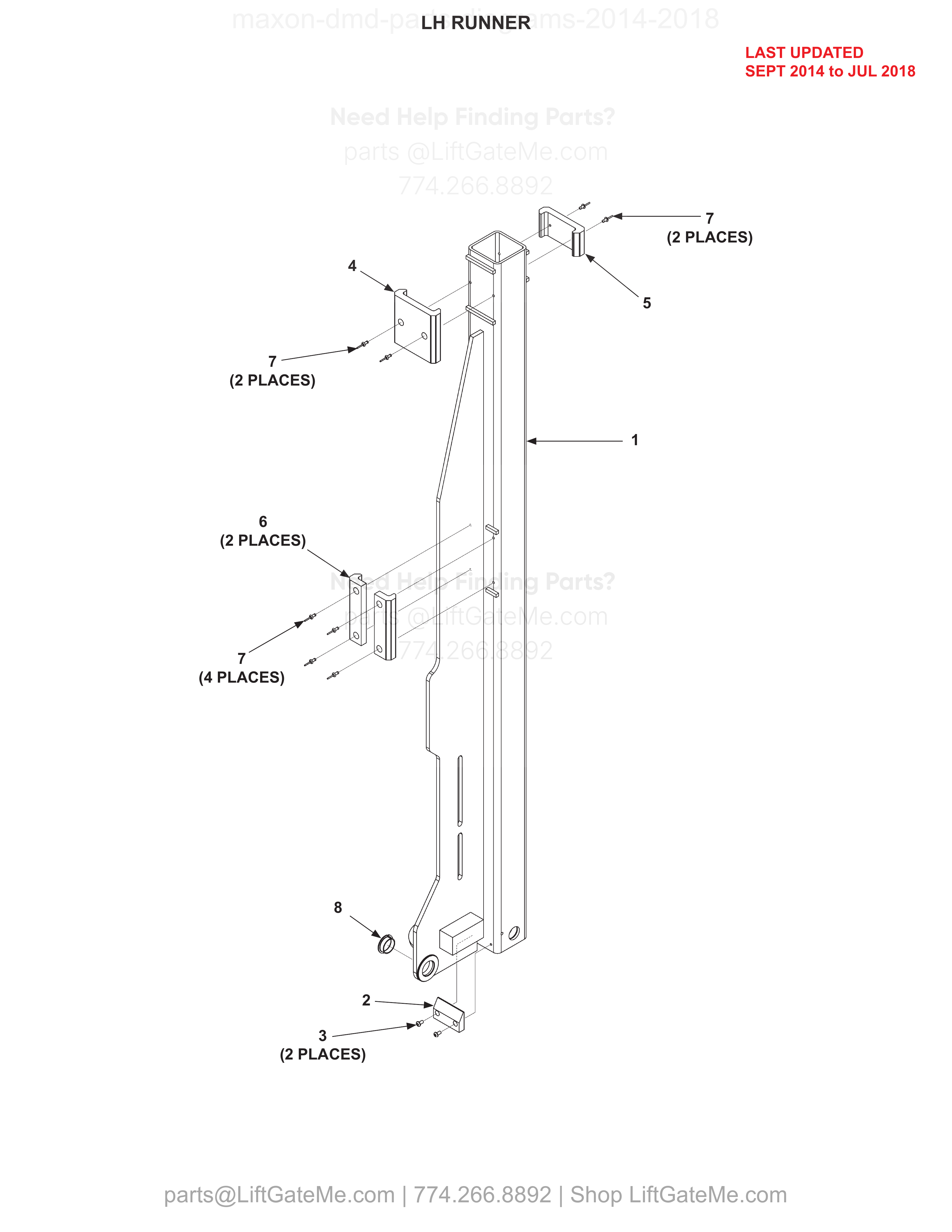

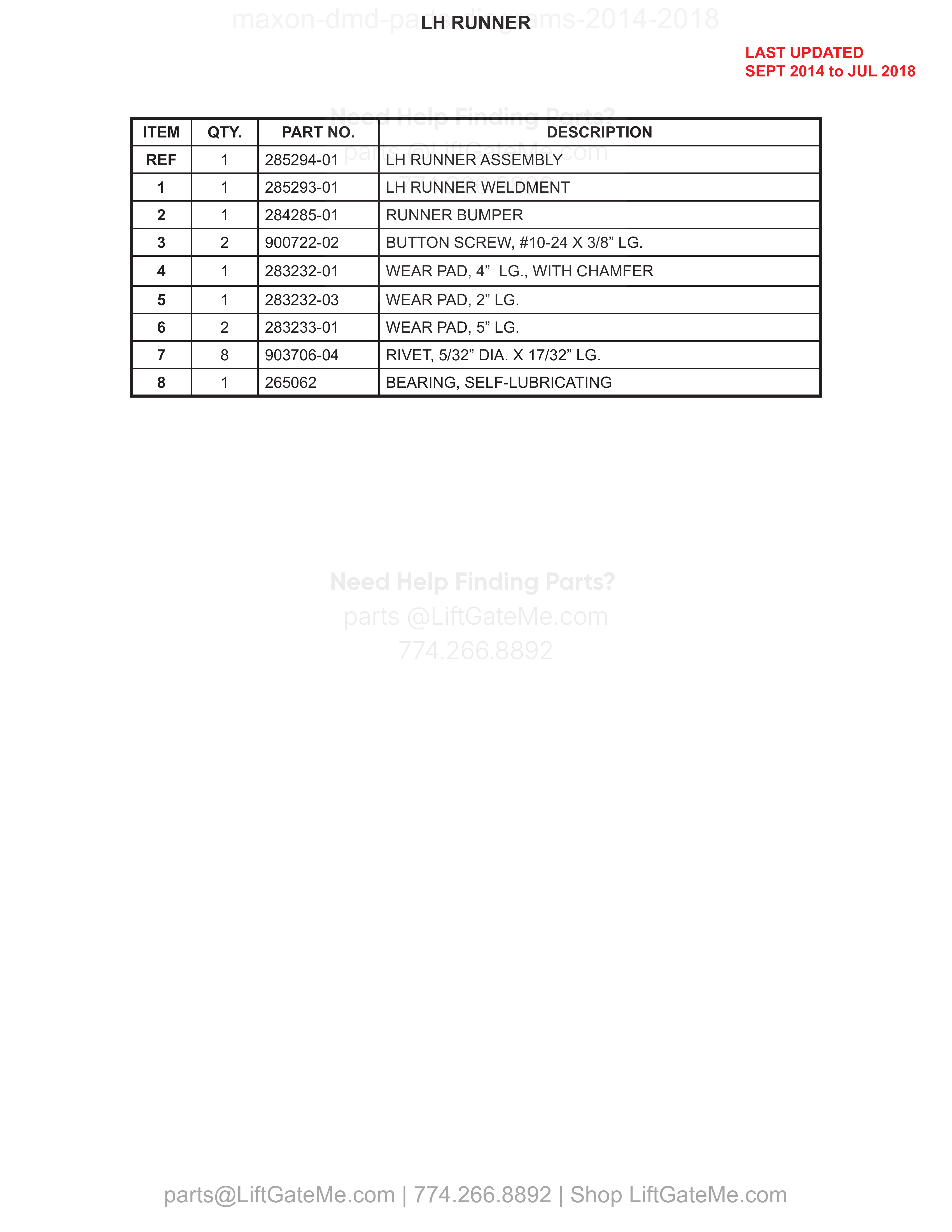

LH RUNNER
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 285294-01 | LH RUNNER ASSEMBLY | |
| 1 | 1 | 285293-01 | LH RUNNER WELDMENT | |
| 2 | 1 | 284285-01 | RUNNER BUMPER | |
| 3 | 2 | 900722-02 | BUTTON SCREW, #10-24 X 3/8” LG. | |
| 4 | 1 | 283232-01 | WEAR PAD, 4” LG., WITH CHAMFER | |
| 5 | 1 | 283232-03 | WEAR PAD, 2” LG. | |
| 6 | 2 | 283233-01 | WEAR PAD, 5” LG. | |
| 7 | 8 | 903706-04 | RIVET, 5/32” DIA. X 17/32” LG. | |
| 8 | 1 | 265062 | BEARING, SELF-LUBRICATING |

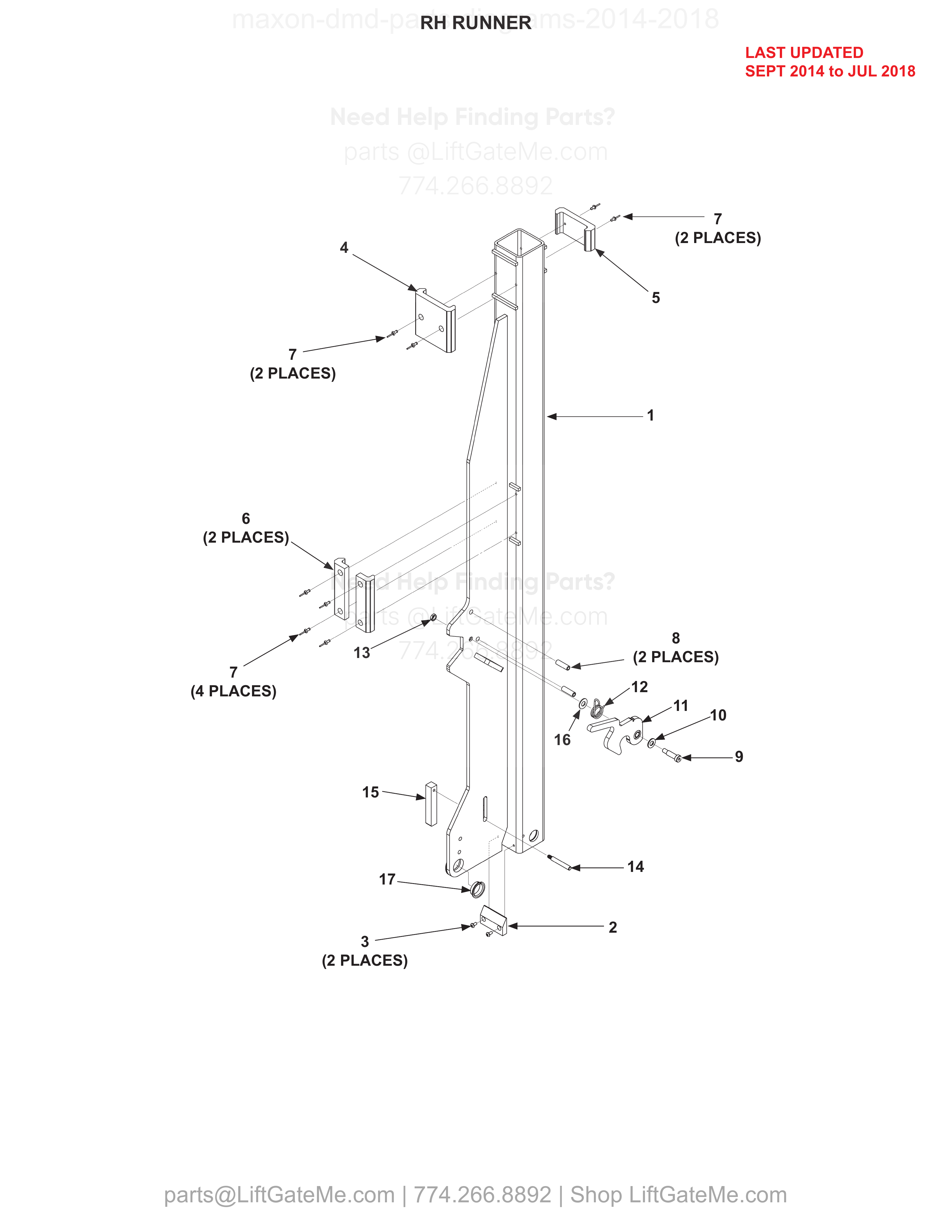

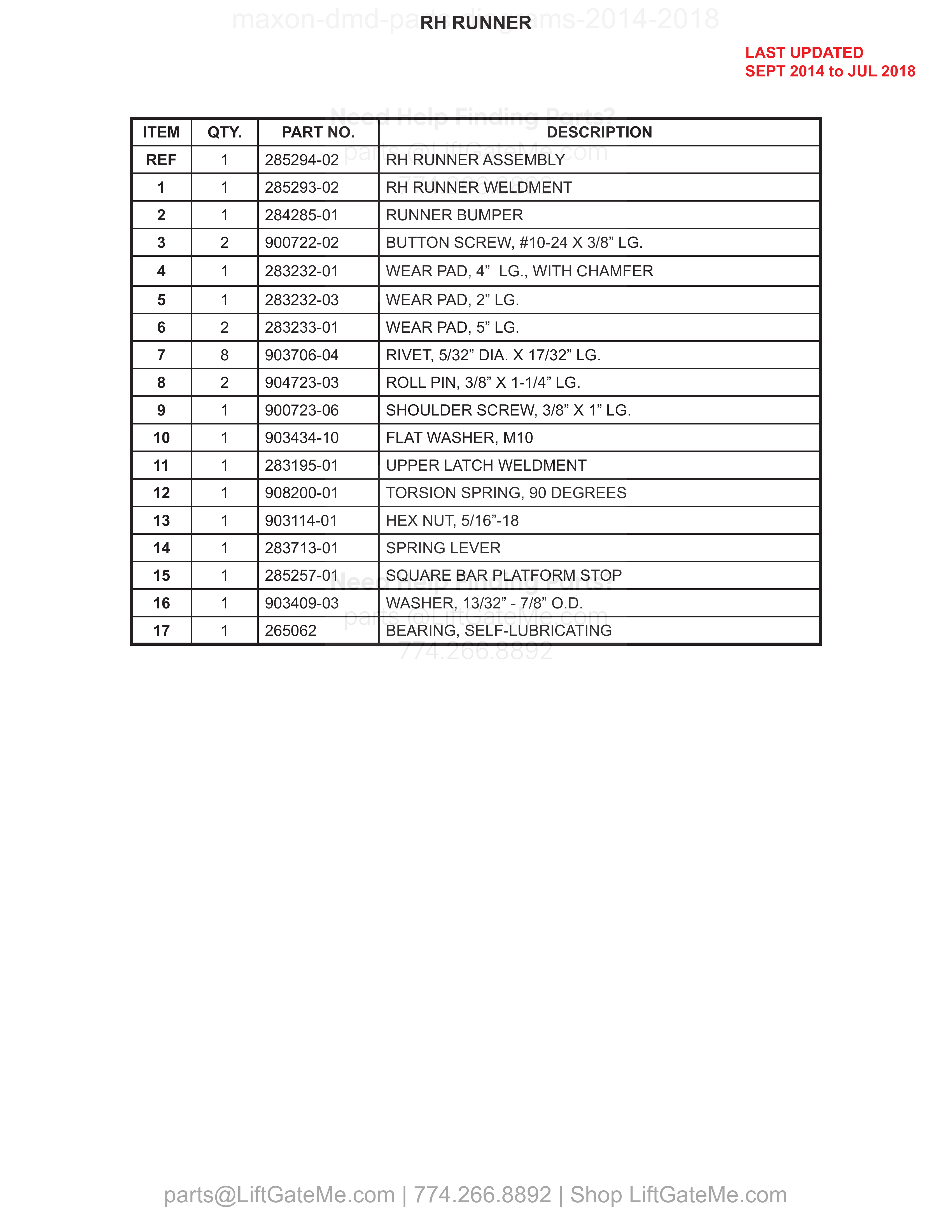

RH RUNNER
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 285294-02 | RH RUNNER ASSEMBLY | |
| 1 | 1 | 285293-02 | RH RUNNER WELDMENT | |
| 2 | 1 | 284285-01 | RUNNER BUMPER | |
| 3 | 2 | 900722-02 | BUTTON SCREW, #10-24 X 3/8” LG. | |
| 4 | 1 | 283232-01 | WEAR PAD, 4” LG., WITH CHAMFER | |
| 5 | 1 | 283232-03 | WEAR PAD, 2” LG. | |
| 6 | 2 | 283233-01 | WEAR PAD, 5” LG. | |
| 7 | 8 | 903706-04 | RIVET, 5/32” DIA. X 17/32” LG. | |
| 8 | 2 | 904723-03 | ROLL PIN, 3/8” X 1-1/4” LG. | |
| 9 | 1 | 900723-06 | SHOULDER SCREW, 3/8” X 1” LG. | |
| 10 | 1 | 903434-10 | FLAT WASHER, M10 | |
| 11 | 1 | 283195-01 | UPPER LATCH WELDMENT | |
| 12 | 1 | 908200-01 | TORSION SPRING, 90 DEGREES | |
| 13 | 1 | 903114-01 | HEX NUT, 5/16”-18 | |
| 14 | 1 | 283713-01 | SPRING LEVER | |
| 15 | 1 | 285257-01 | SQUARE BAR PLATFORM STOP | |
| 16 | 1 | 903409-03 | WASHER, 13/32” - 7/8” O.D. | |
| 17 | 1 | 265062 | BEARING, SELF-LUBRICATING |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

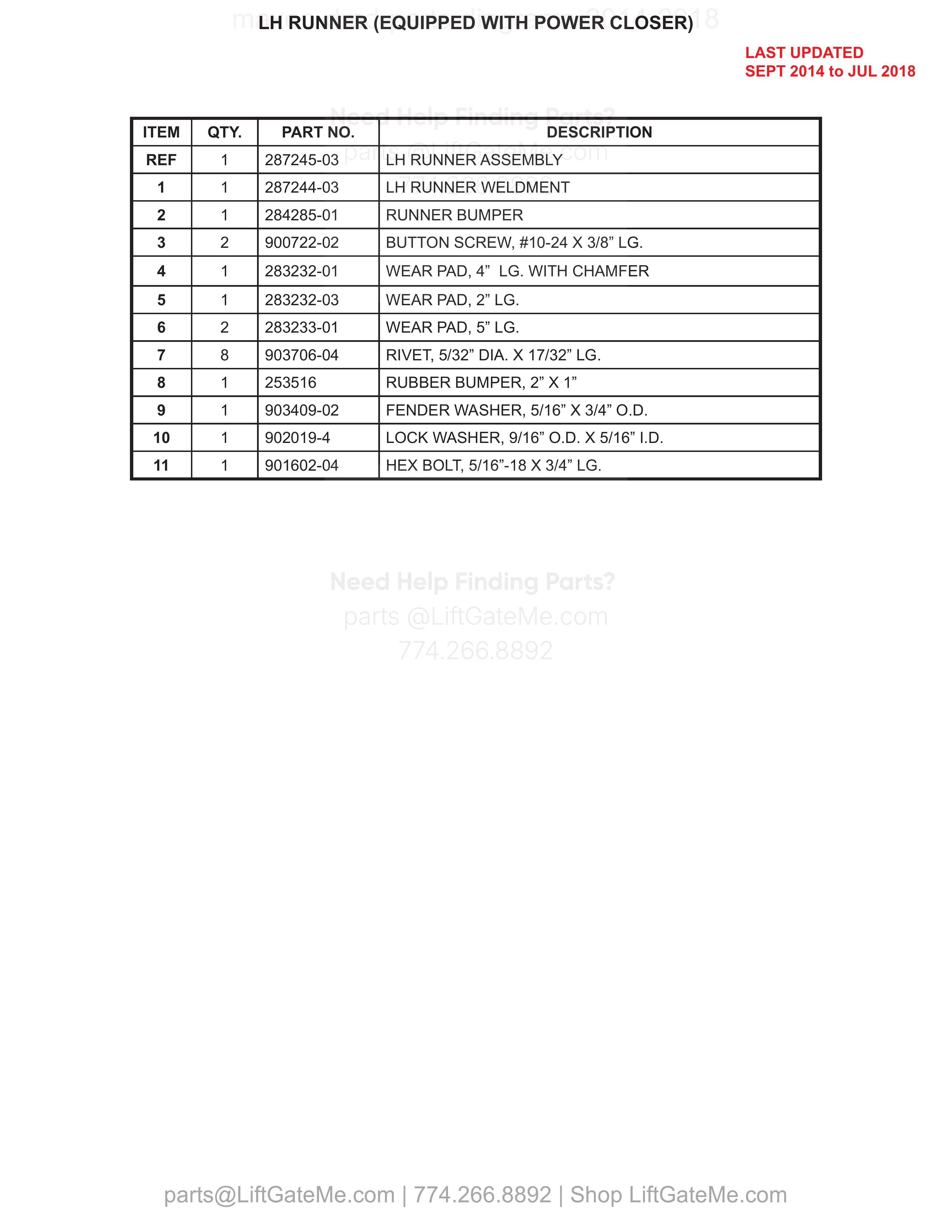

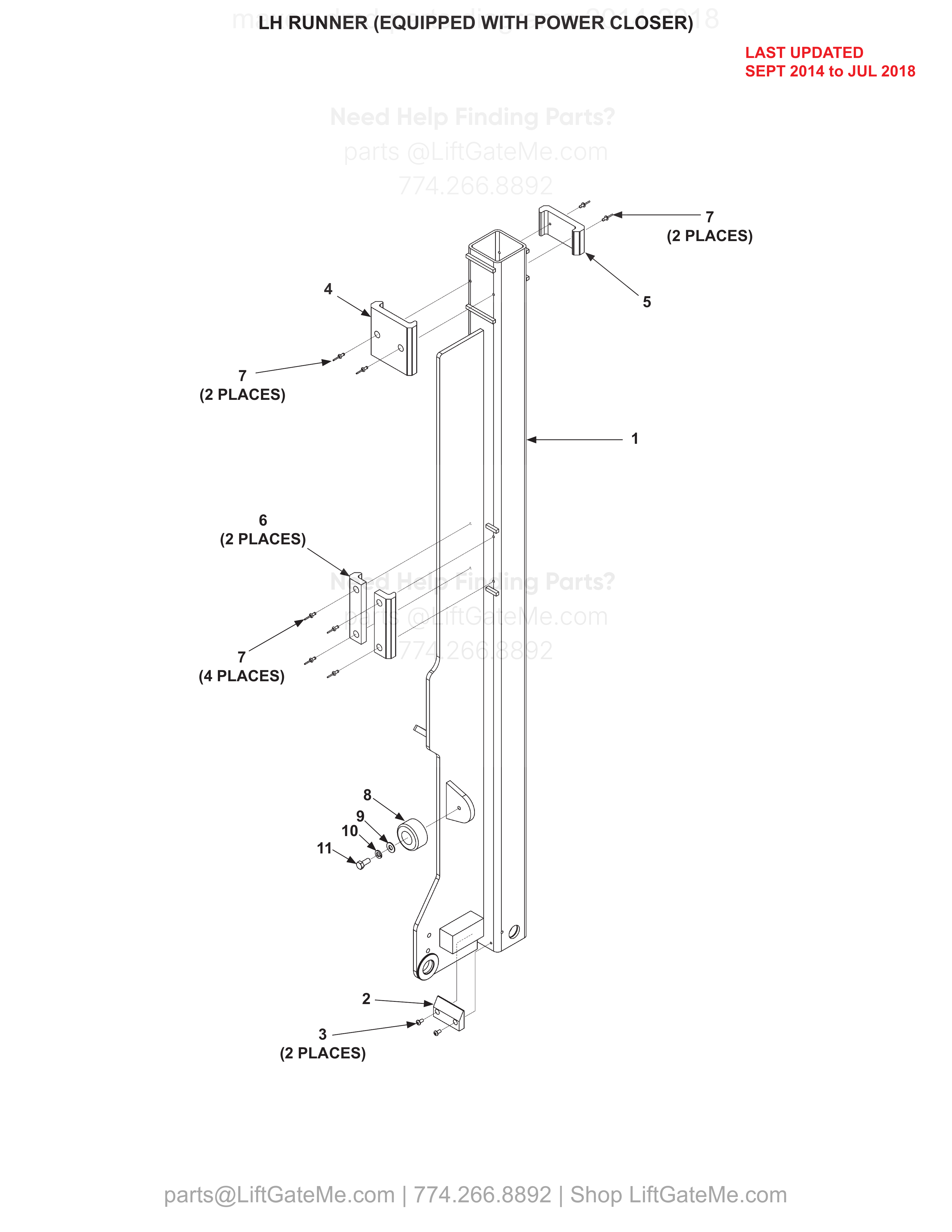

LH RUNNER (EQUIPPED WITH POWER CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 287245-03 | LH RUNNER ASSEMBLY | |
| 1 | 1 | 287244-03 | LH RUNNER WELDMENT | |
| 2 | 1 | 284285-01 | RUNNER BUMPER | |
| 3 | 2 | 900722-02 | BUTTON SCREW, #10-24 X 3/8” LG. | |
| 4 | 1 | 283232-01 | WEAR PAD, 4” LG. WITH CHAMFER | |
| 5 | 1 | 283232-03 | WEAR PAD, 2” LG. | |
| 6 | 2 | 283233-01 | WEAR PAD, 5” LG. | |
| 7 | 8 | 903706-04 | RIVET, 5/32” DIA. X 17/32” LG. | |
| 8 | 1 | 253516 | RUBBER BUMPER, 2” X 1” | |
| 9 | 1 | 903409-02 | FENDER WASHER, 5/16” X 3/4” O.D. | |
| 10 | 1 | 902019-4 | LOCK WASHER, 9/16” O.D. X 5/16” I.D. | |
| 11 | 1 | 901602-04 | HEX BOLT, 5/16”-18 X 3/4” LG. |

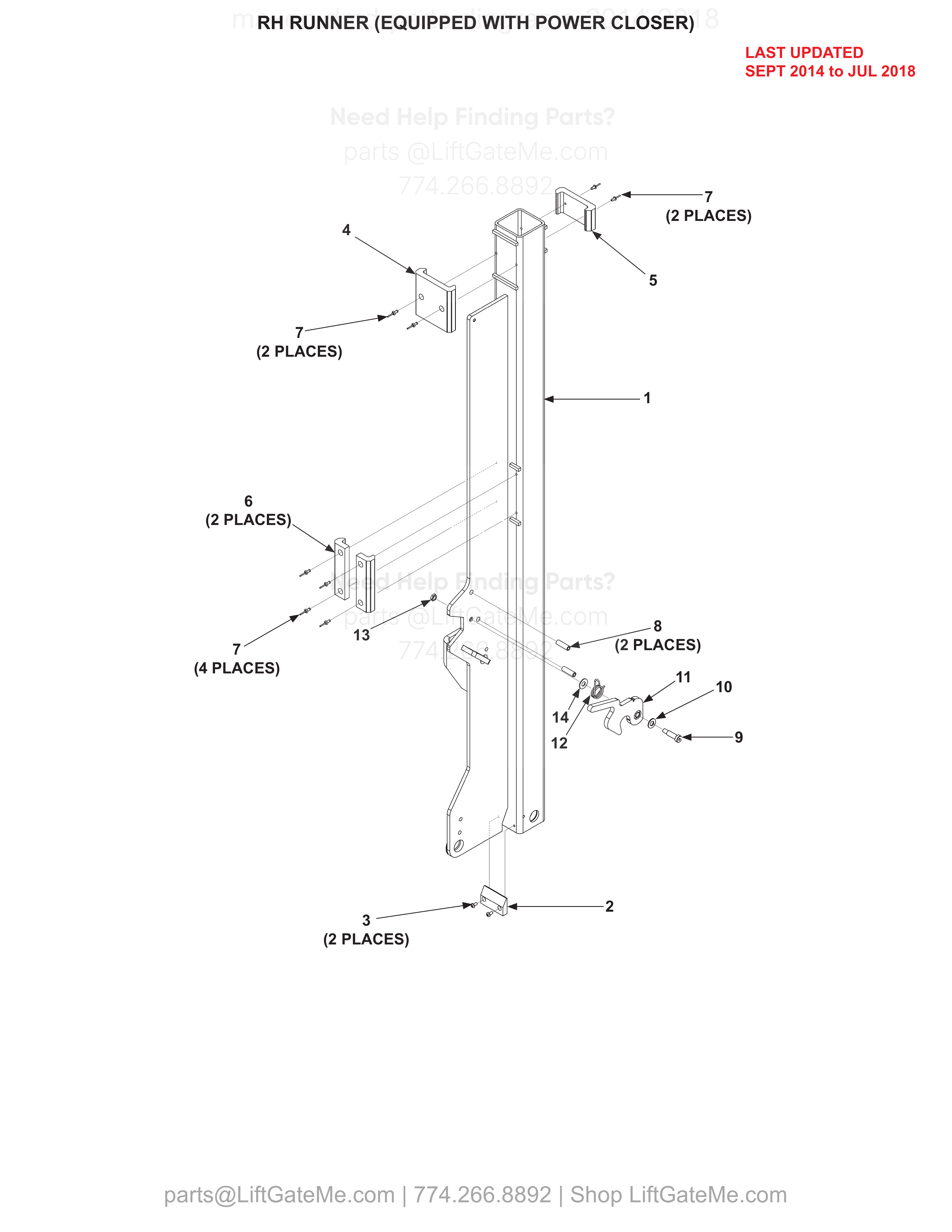

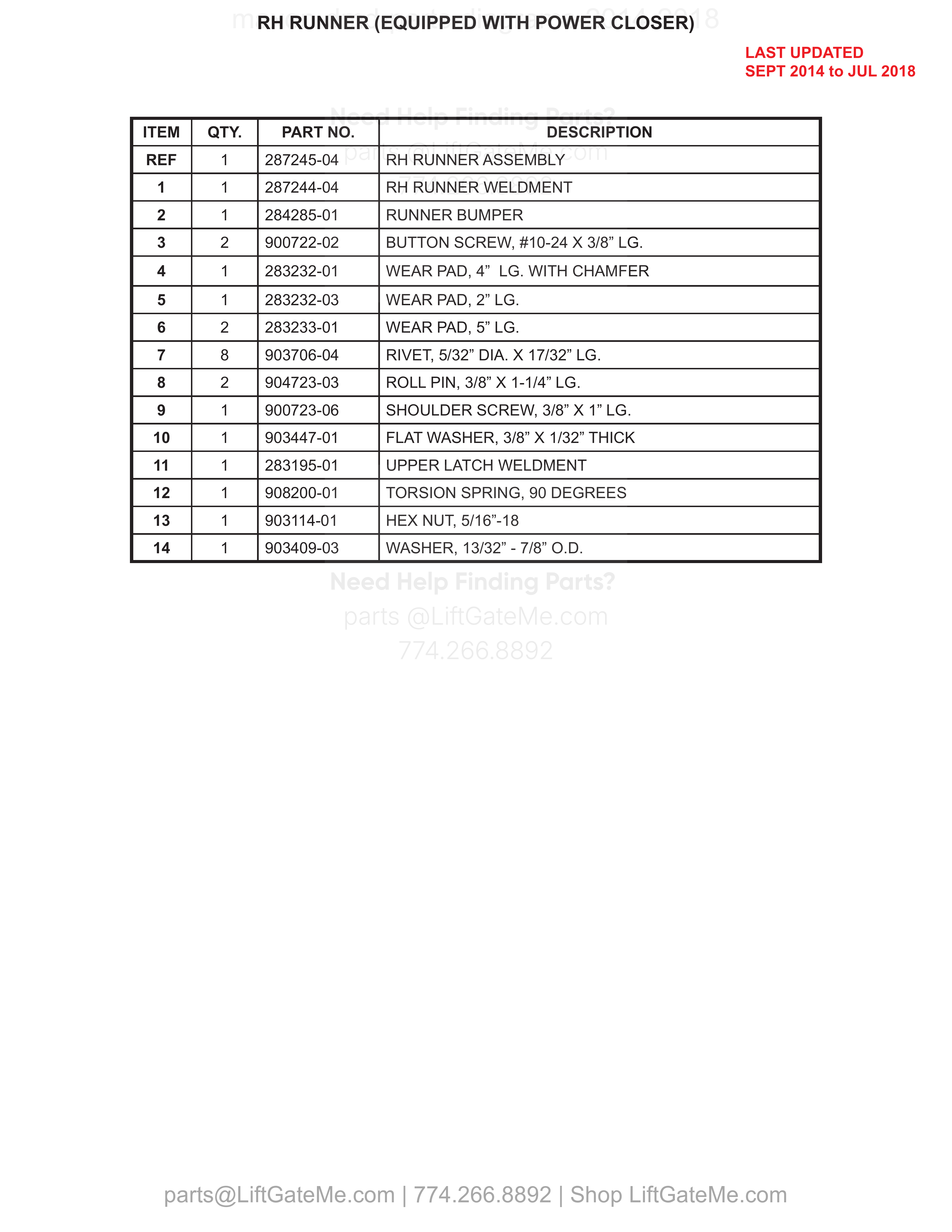

RH RUNNER (EQUIPPED WITH POWER CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 287245-04 | RH RUNNER ASSEMBLY | |
| 1 | 1 | 287244-04 | RH RUNNER WELDMENT | |
| 2 | 1 | 284285-01 | RUNNER BUMPER | |
| 3 | 2 | 900722-02 | BUTTON SCREW, #10-24 X 3/8” LG. | |
| 4 | 1 | 283232-01 | WEAR PAD, 4” LG. WITH CHAMFER | |
| 5 | 1 | 283232-03 | WEAR PAD, 2” LG. | |
| 6 | 2 | 283233-01 | WEAR PAD, 5” LG. | |
| 7 | 8 | 903706-04 | RIVET, 5/32” DIA. X 17/32” LG. | |
| 8 | 2 | 904723-03 | ROLL PIN, 3/8” X 1-1/4” LG. | |
| 9 | 1 | 900723-06 | SHOULDER SCREW, 3/8” X 1” LG. | |
| 10 | 1 | 903447-01 | FLAT WASHER, 3/8” X 1/32” THICK | |
| 11 | 1 | 283195-01 | UPPER LATCH WELDMENT | |
| 12 | 1 | 908200-01 | TORSION SPRING, 90 DEGREES | |
| 13 | 1 | 903114-01 | HEX NUT, 5/16”-18 | |
| 14 | 1 | 903409-03 | WASHER, 13/32” - 7/8” O.D. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

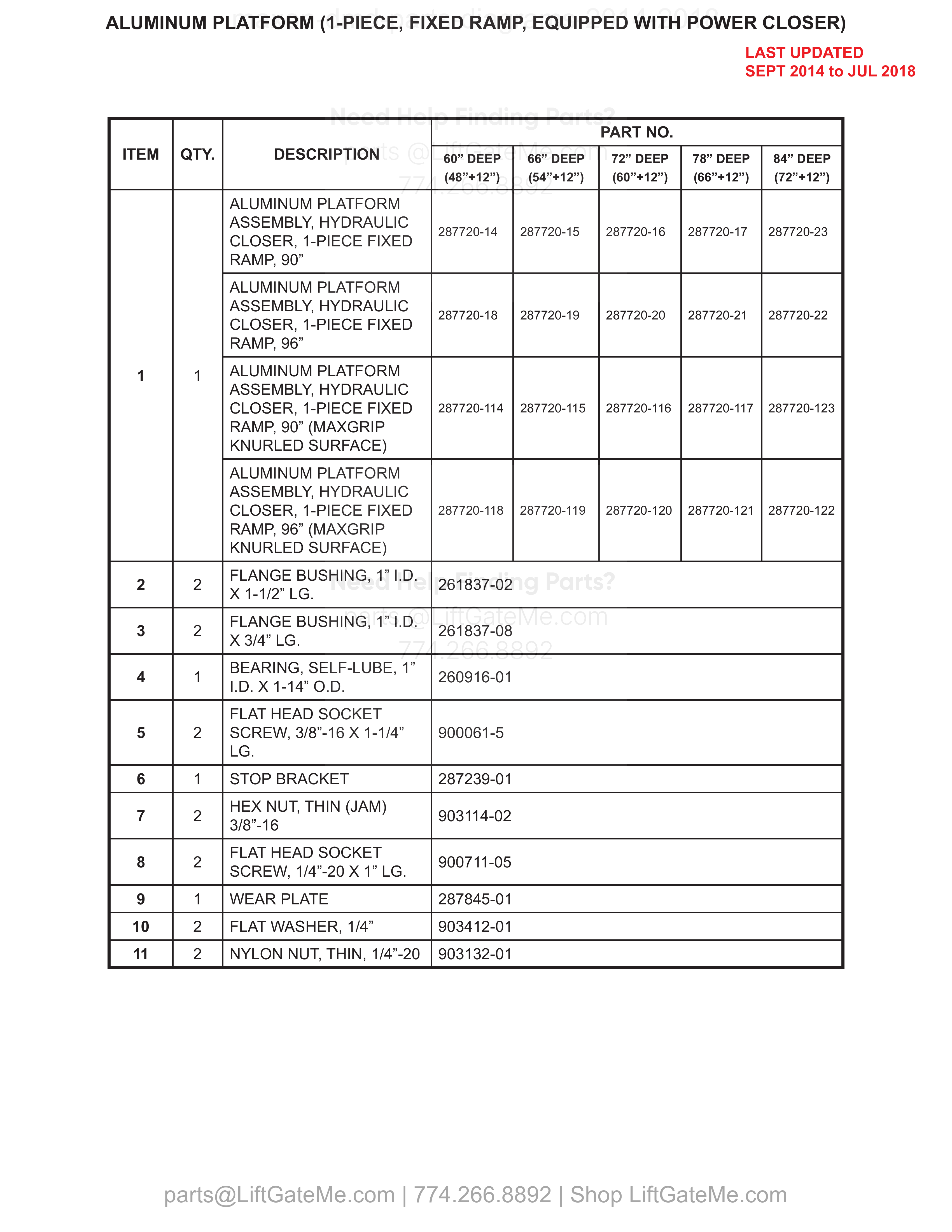

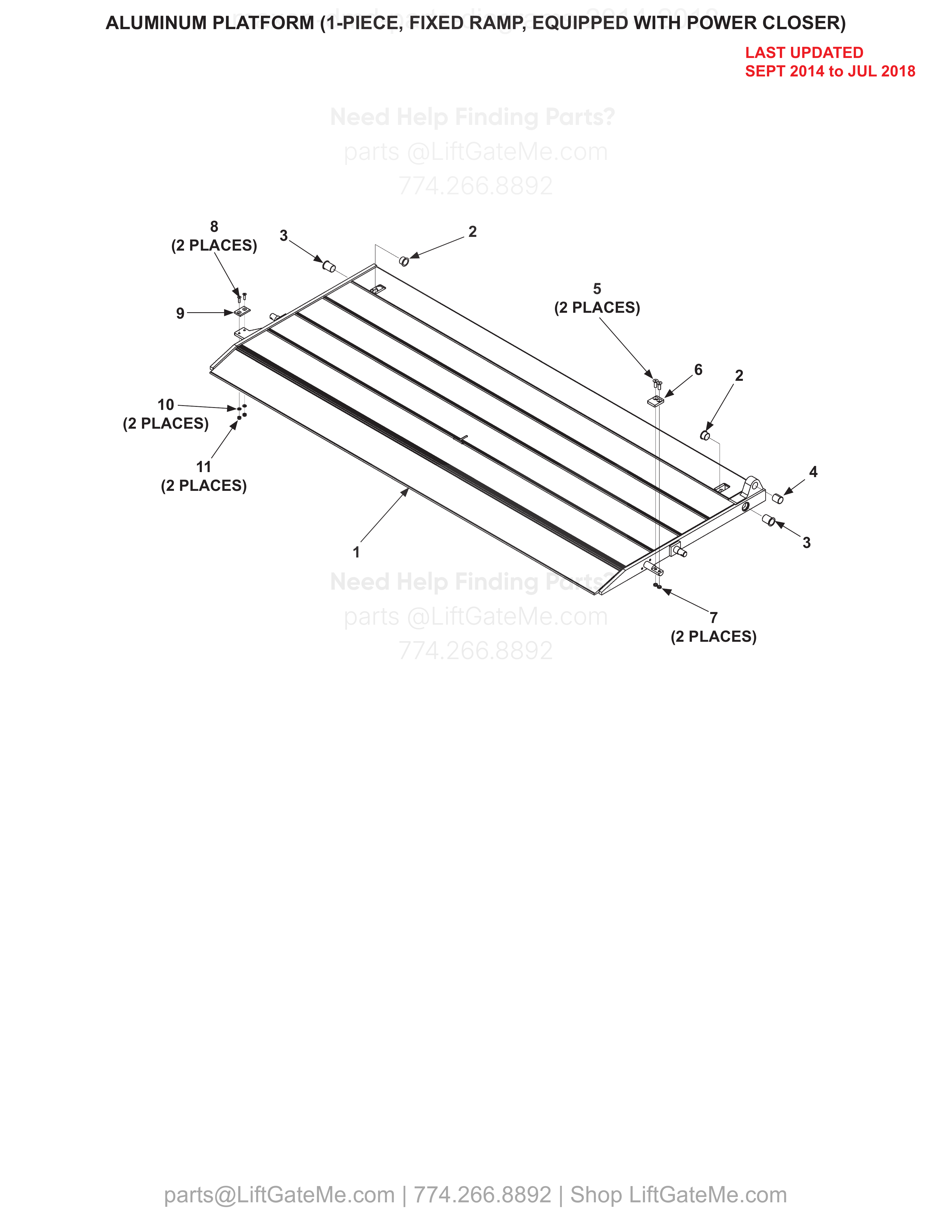

ALUMINUM PLATFORM (1-PIECE, FIXED RAMP, EQUIPPED WITH POWER CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287720-14 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 90” | |
| 1 | 1 | 287720-15 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 90” | |
| 1 | 1 | 287720-16 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 90” | |
| 1 | 1 | 287720-17 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 90” | |
| 1 | 1 | 287720-23 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 90” | |
| 1 | 1 | 287720-18 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 96” | |
| 1 | 1 | 287720-19 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 96” | |
| 1 | 1 | 287720-20 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 96” | |
| 1 | 1 | 287720-21 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 96” | |
| 1 | 1 | 287720-22 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 96” | |
| 1 | 1 | 287720-114 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 90” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287720-115 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 90” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287720-116 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 90” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287720-117 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 90” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287720-123 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 90” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287720-118 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 96” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287720-119 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 96” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287720-120 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 96” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287720-121 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 96” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287720-122 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 1-PIECE FIXED RAMP, 96” (MAXGRIP KNURLED SURFACE) | |
| 2 | 2 | 261837-02 | FLANGE BUSHING, 1” I.D. X 1-1/2” LG. | |
| 3 | 2 | 261837-08 | FLANGE BUSHING, 1” I.D. X 3/4” LG. | |
| 4 | 1 | 260916-01 | BEARING, SELF-LUBE, 1” I.D. X 1-14” O.D. | |
| 5 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 6 | 1 | 287239-01 | STOP BRACKET | |
| 7 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 8 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. | |
| 9 | 1 | 287845-01 | WEAR PLATE | |
| 10 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 11 | 2 | 903132-01 | NYLON NUT, THIN, 1/4”-20 |

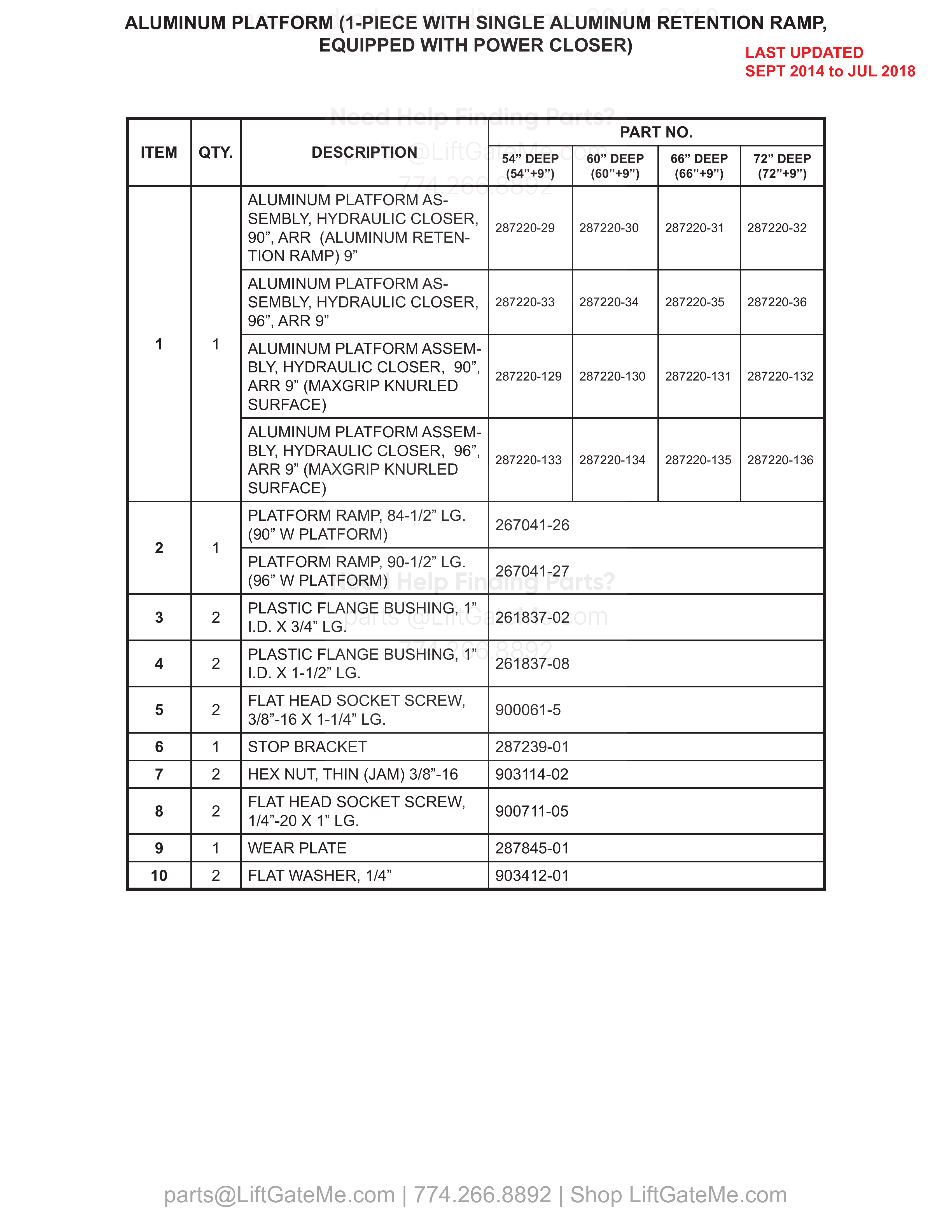

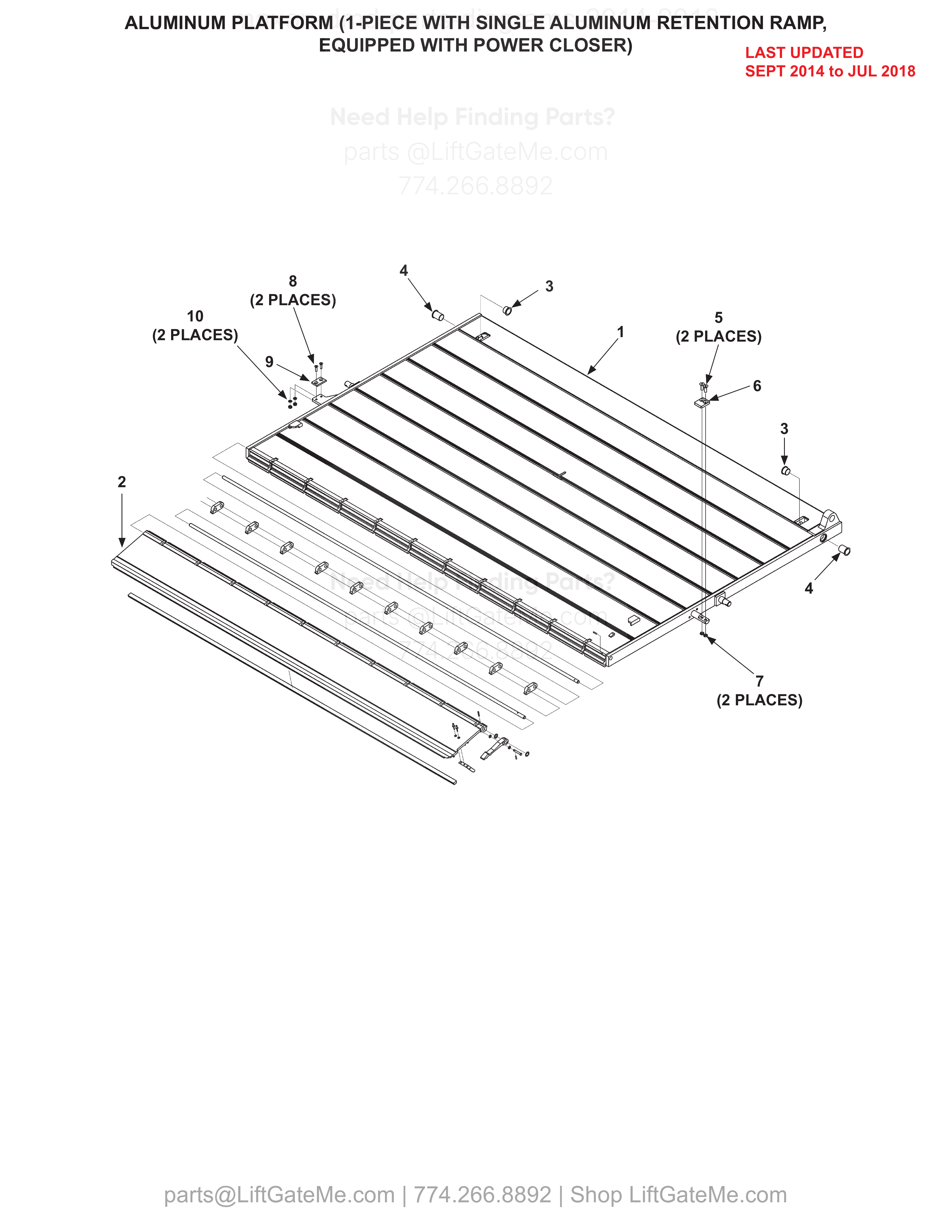

ALUMINUM PLATFORM (1-PIECE WITH SINGLE ALUMINUM RETENTION RAMP, EQUIPPED WITH POWER CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287220-29 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, ARR (ALUMINUM RETENTION RAMP) 9” | |
| 1 | 1 | 287220-30 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, ARR (ALUMINUM RETENTION RAMP) 9” | |
| 1 | 1 | 287220-31 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, ARR (ALUMINUM RETENTION RAMP) 9” | |
| 1 | 1 | 287220-32 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, ARR (ALUMINUM RETENTION RAMP) 9” | |
| 1 | 1 | 287220-33 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, ARR 9” | |
| 1 | 1 | 287220-34 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, ARR 9” | |
| 1 | 1 | 287220-35 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, ARR 9” | |
| 1 | 1 | 287220-36 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, ARR 9” | |
| 1 | 1 | 287220-129 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-130 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-131 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-132 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-133 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-134 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-135 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-136 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 2 | 1 | 267041-26 | PLATFORM RAMP, 84-1/2” LG. (90” W PLATFORM) | |
| 2 | 1 | 267041-27 | PLATFORM RAMP, 90-1/2” LG. (96” W PLATFORM) | |
| 3 | 2 | 261837-02 | PLASTIC FLANGE BUSHING, 1” I.D. X 3/4” LG. | |
| 4 | 2 | 261837-08 | PLASTIC FLANGE BUSHING, 1” I.D. X 1-1/2” LG. | |
| 5 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 6 | 1 | 287239-01 | STOP BRACKET | |
| 7 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 8 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. | |
| 9 | 1 | 287845-01 | WEAR PLATE | |
| 10 | 2 | 903412-01 | FLAT WASHER, 1/4” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

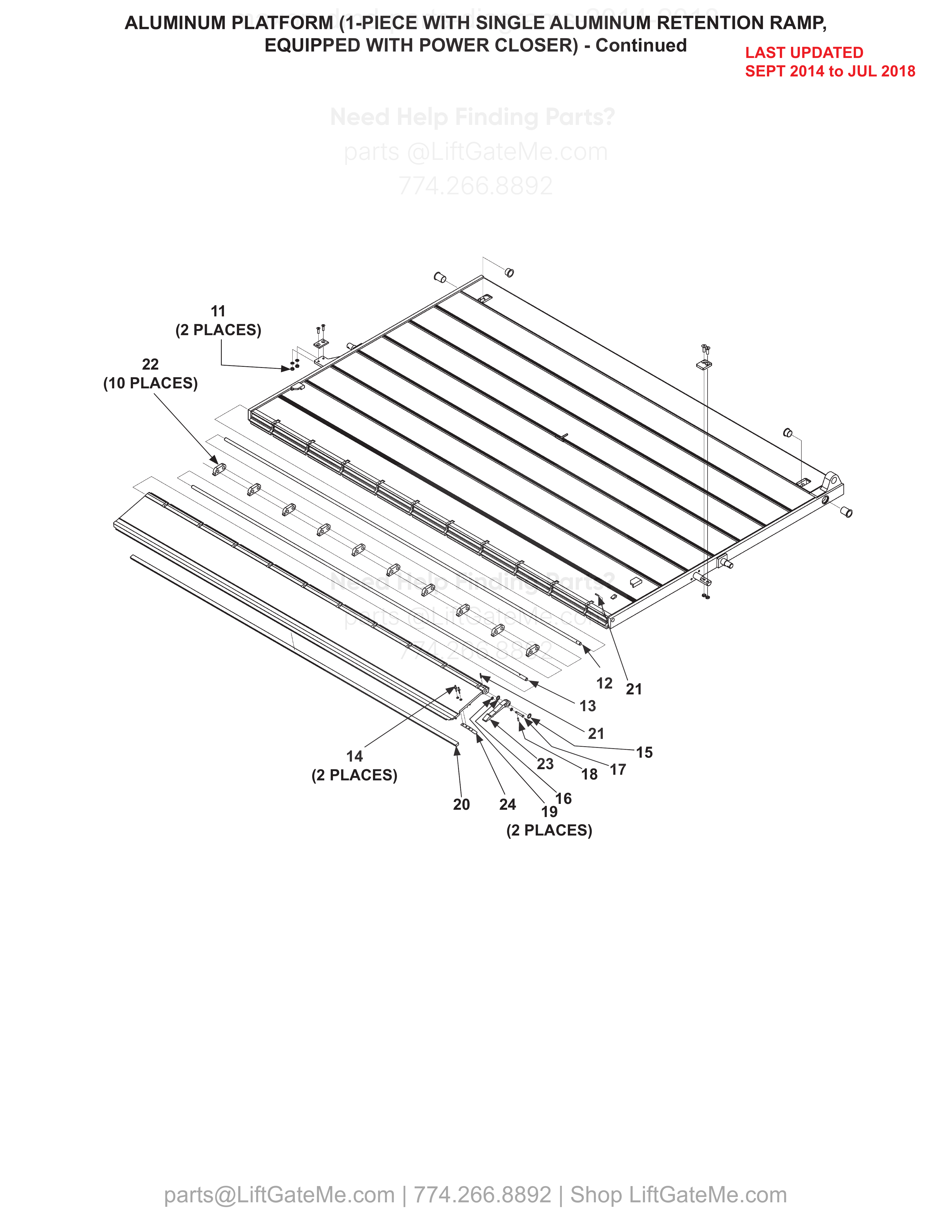

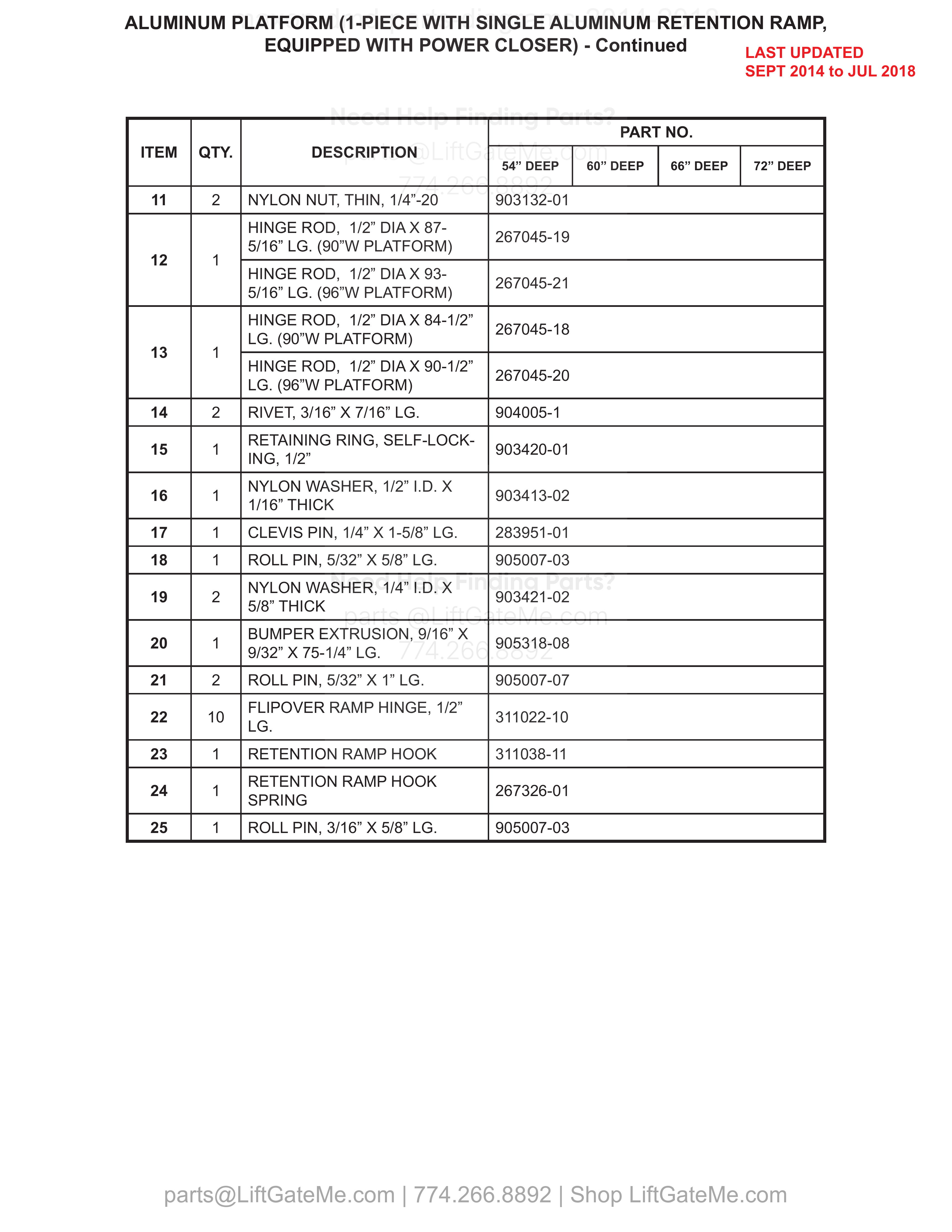

ALUMINUM PLATFORM (1-PIECE WITH SINGLE ALUMINUM RETENTION RAMP, EQUIPPED WITH POWER CLOSER) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 11 | 2 | 903132-01 | NYLON NUT, THIN, 1/4”-20 | |
| 12 | 1 | 267045-19 | HINGE ROD, 1/2” DIA X 87-5/16” LG. (90”W PLATFORM) | |
| 12 | 1 | 267045-21 | HINGE ROD, 1/2” DIA X 93-5/16” LG. (96”W PLATFORM) | |
| 13 | 1 | 267045-18 | HINGE ROD, 1/2” DIA X 84-1/2” LG. (90”W PLATFORM) | |
| 13 | 1 | 267045-20 | HINGE ROD, 1/2” DIA X 90-1/2” LG. (96”W PLATFORM) | |
| 14 | 2 | 904005-1 | RIVET, 3/16” X 7/16” LG. | |
| 15 | 1 | 903420-01 | RETAINING RING, SELF-LOCKING, 1/2” | |
| 16 | 1 | 903413-02 | NYLON WASHER, 1/2” I.D. X 1/16” THICK | |
| 17 | 1 | 283951-01 | CLEVIS PIN, 1/4” X 1-5/8” LG. | |
| 18 | 1 | 905007-03 | ROLL PIN, 5/32” X 5/8” LG. | |
| 19 | 2 | 903421-02 | NYLON WASHER, 1/4” I.D. X 5/8” THICK | |
| 20 | 1 | 905318-08 | BUMPER EXTRUSION, 9/16” X 9/32” X 75-1/4” LG. | |
| 21 | 2 | 905007-07 | ROLL PIN, 5/32” X 1” LG. | |
| 22 | 10 | 311022-10 | FLIPOVER RAMP HINGE, 1/2” LG. | |
| 23 | 1 | 311038-11 | RETENTION RAMP HOOK | |
| 24 | 1 | 267326-01 | RETENTION RAMP HOOK SPRING | |
| 25 | 1 | 905007-03 | ROLL PIN, 3/16” X 5/8” LG. |

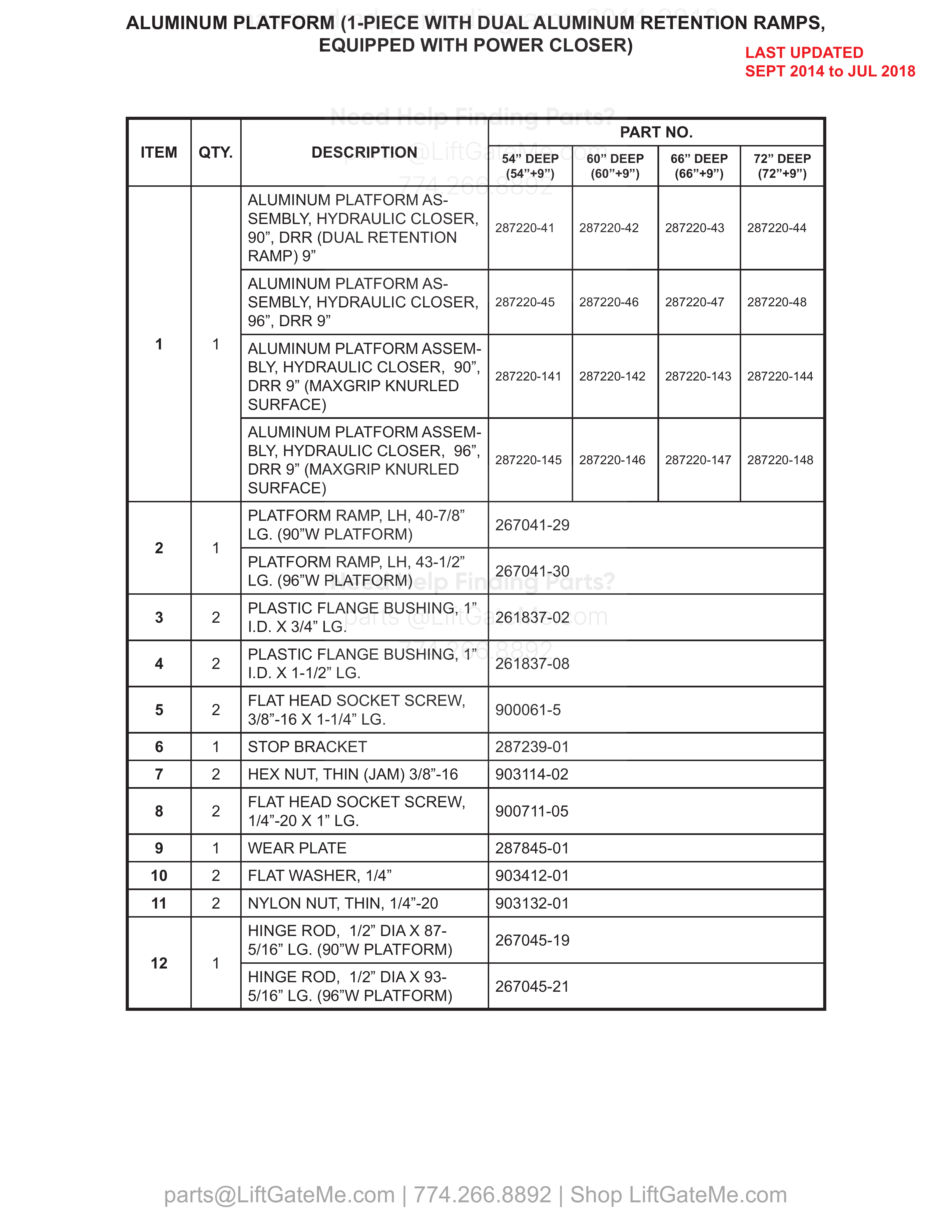

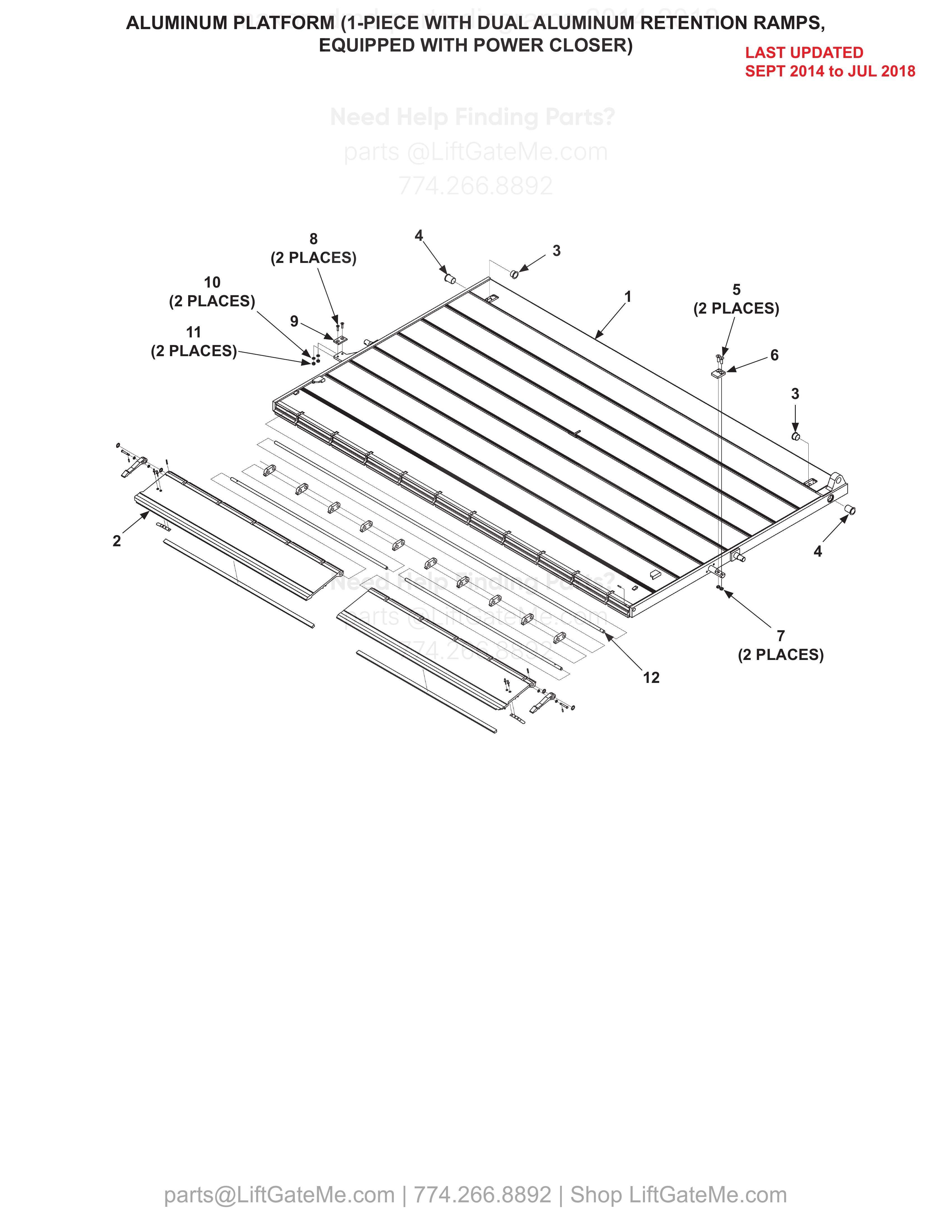

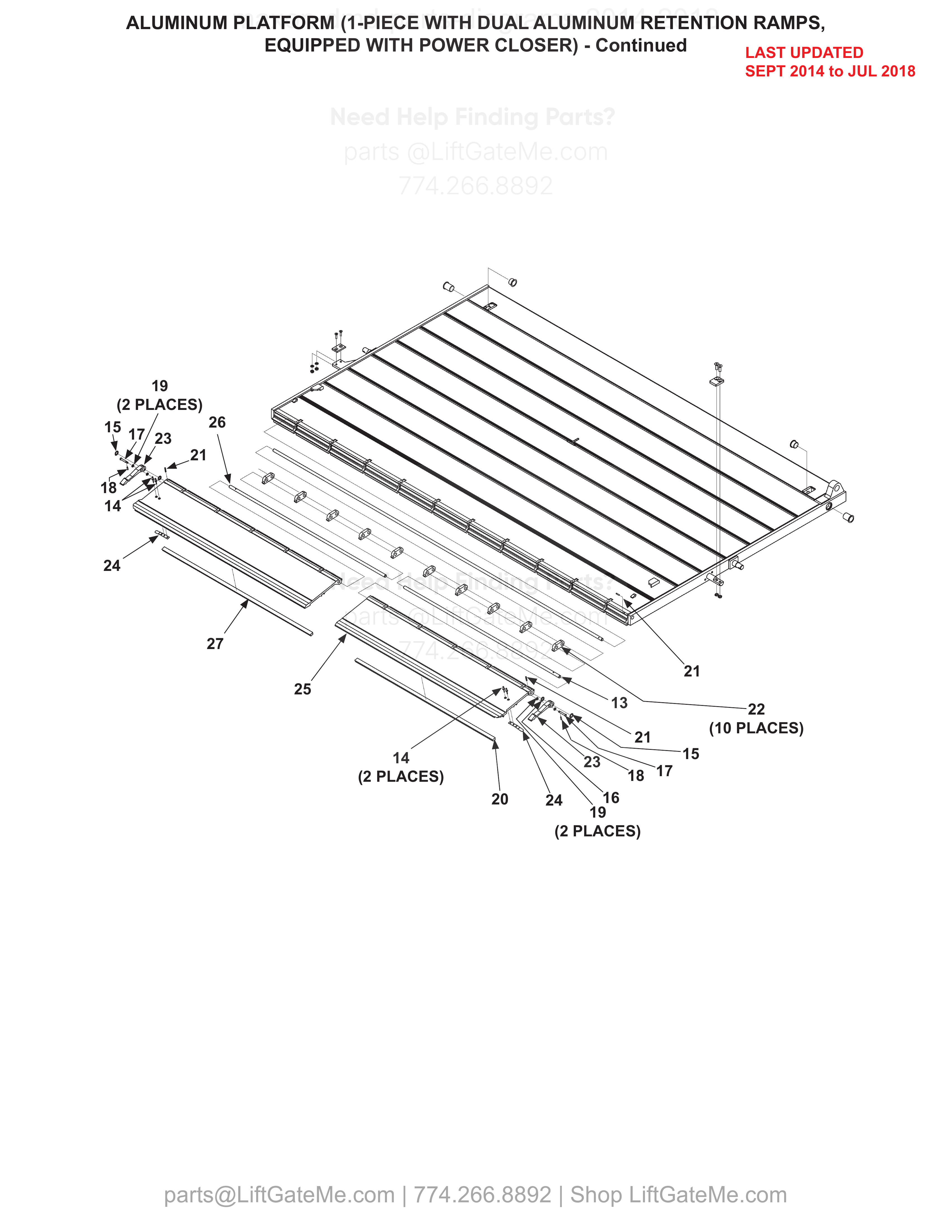

ALUMINUM PLATFORM (1-PIECE WITH DUAL ALUMINUM RETENTION RAMPS, EQUIPPED WITH POWER CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287220-41 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DRR (DUAL RETENTION RAMP) 9” | |
| 1 | 1 | 287220-42 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DRR (DUAL RETENTION RAMP) 9” | |
| 1 | 1 | 287220-43 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DRR (DUAL RETENTION RAMP) 9” | |
| 1 | 1 | 287220-44 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DRR (DUAL RETENTION RAMP) 9” | |
| 1 | 1 | 287220-45 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DRR 9” | |
| 1 | 1 | 287220-46 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DRR 9” | |
| 1 | 1 | 287220-47 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DRR 9” | |
| 1 | 1 | 287220-48 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DRR 9” | |
| 1 | 1 | 287220-141 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DRR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-142 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DRR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-143 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DRR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-144 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DRR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-145 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DRR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-146 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DRR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-147 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DRR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287220-148 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DRR 9” (MAXGRIP KNURLED SURFACE) | |
| 2 | 1 | 267041-29 | PLATFORM RAMP, LH, 40-7/8” LG. (90”W PLATFORM) | |
| 2 | 1 | 267041-30 | PLATFORM RAMP, LH, 43-1/2” LG. (96”W PLATFORM) | |
| 3 | 2 | 261837-02 | PLASTIC FLANGE BUSHING, 1” I.D. X 3/4” LG. | |
| 4 | 2 | 261837-08 | PLASTIC FLANGE BUSHING, 1” I.D. X 1-1/2” LG. | |
| 5 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 6 | 1 | 287239-01 | STOP BRACKET | |
| 7 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 8 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. | |
| 9 | 1 | 287845-01 | WEAR PLATE | |
| 10 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 11 | 2 | 903132-01 | NYLON NUT, THIN, 1/4”-20 | |
| 12 | 1 | 267045-19 | HINGE ROD, 1/2” DIA X 87-5/16” LG. (90”W PLATFORM) | |
| 12 | 1 | 267045-21 | HINGE ROD, 1/2” DIA X 93-5/16” LG. (96”W PLATFORM) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

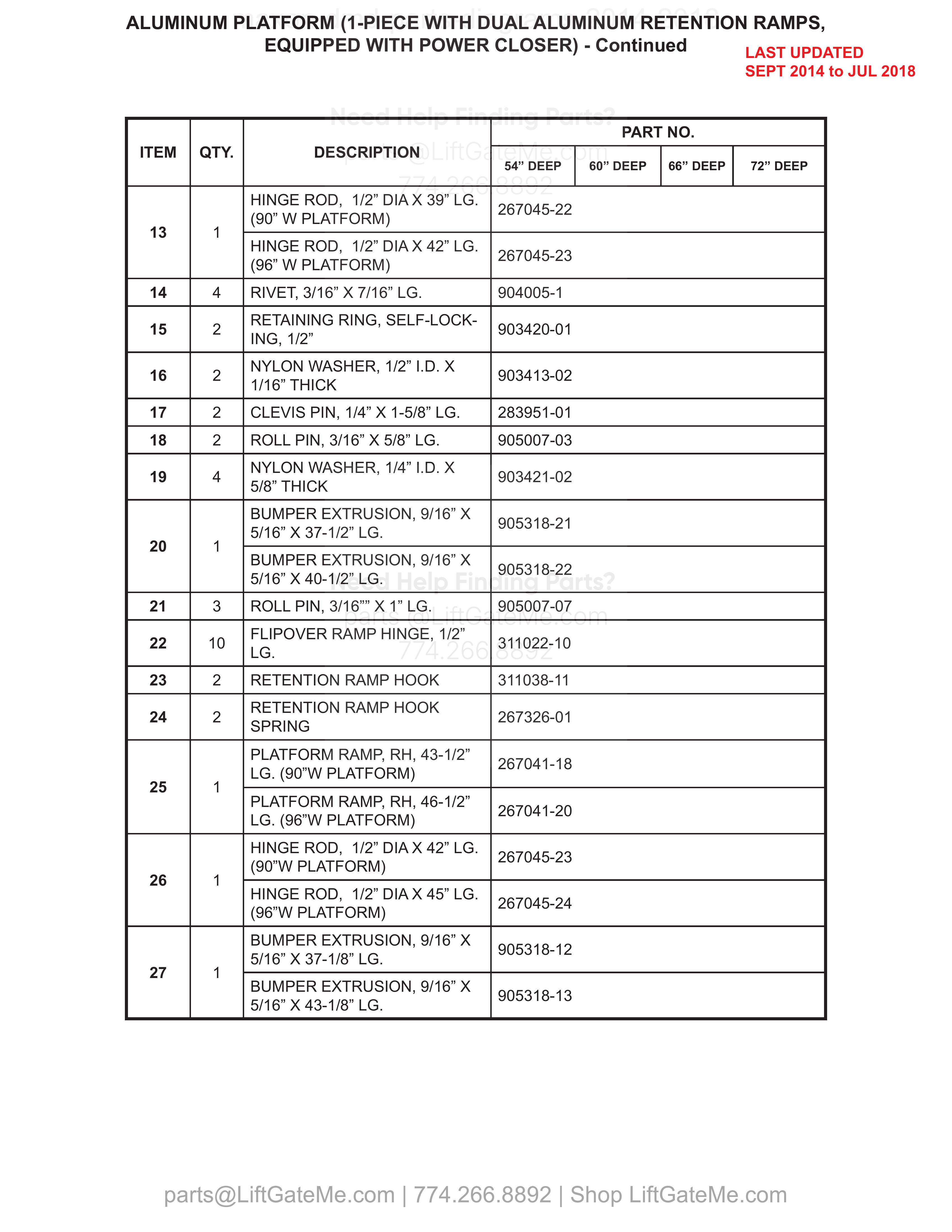

ALUMINUM PLATFORM (1-PIECE WITH DUAL ALUMINUM RETENTION RAMPS, EQUIPPED WITH POWER CLOSER) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 13 | 1 | 267045-22 | HINGE ROD, 1/2” DIA X 39” LG. (90” W PLATFORM) | |
| 13 | 1 | 267045-23 | HINGE ROD, 1/2” DIA X 42” LG. (96” W PLATFORM) | |
| 14 | 4 | 904005-1 | RIVET, 3/16” X 7/16” LG. | |
| 15 | 2 | 903420-01 | RETAINING RING, SELF-LOCKING, 1/2” | |
| 16 | 2 | 903413-02 | NYLON WASHER, 1/2” I.D. X 1/16” THICK | |
| 17 | 2 | 283951-01 | CLEVIS PIN, 1/4” X 1-5/8” LG. | |
| 18 | 2 | 905007-03 | ROLL PIN, 3/16” X 5/8” LG. | |
| 19 | 4 | 903421-02 | NYLON WASHER, 1/4” I.D. X 5/8” THICK | |
| 20 | 1 | 905318-21 | BUMPER EXTRUSION, 9/16” X 5/16” X 37-1/2” LG. | |
| 20 | 1 | 905318-22 | BUMPER EXTRUSION, 9/16” X 5/16” X 40-1/2” LG. | |
| 21 | 3 | 905007-07 | ROLL PIN, 3/16”” X 1” LG. | |
| 22 | 10 | 311022-10 | FLIPOVER RAMP HINGE, 1/2” LG. | |
| 23 | 2 | 311038-11 | RETENTION RAMP HOOK | |
| 24 | 2 | 267326-01 | RETENTION RAMP HOOK SPRING | |
| 25 | 1 | 267041-18 | PLATFORM RAMP, RH, 43-1/2” LG. (90”W PLATFORM) | |
| 25 | 1 | 267041-20 | PLATFORM RAMP, RH, 46-1/2” LG. (96”W PLATFORM) | |
| 26 | 1 | 267045-23 | HINGE ROD, 1/2” DIA X 42” LG. (90”W PLATFORM) | |
| 26 | 1 | 267045-24 | HINGE ROD, 1/2” DIA X 45” LG. (96”W PLATFORM) | |
| 27 | 1 | 905318-12 | BUMPER EXTRUSION, 9/16” X 5/16” X 37-1/8” LG. | |
| 27 | 1 | 905318-13 | BUMPER EXTRUSION, 9/16” X 5/16” X 43-1/8” LG. |

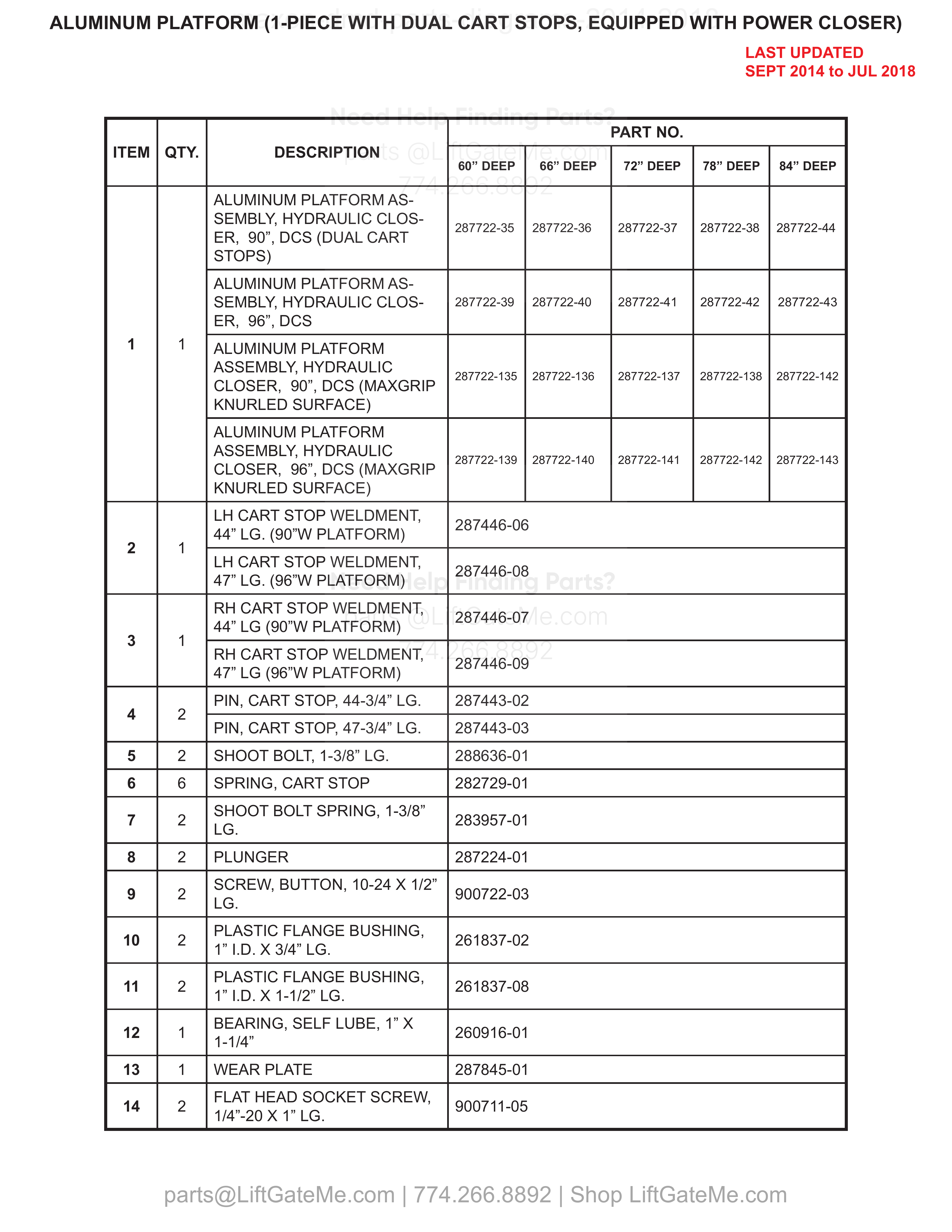

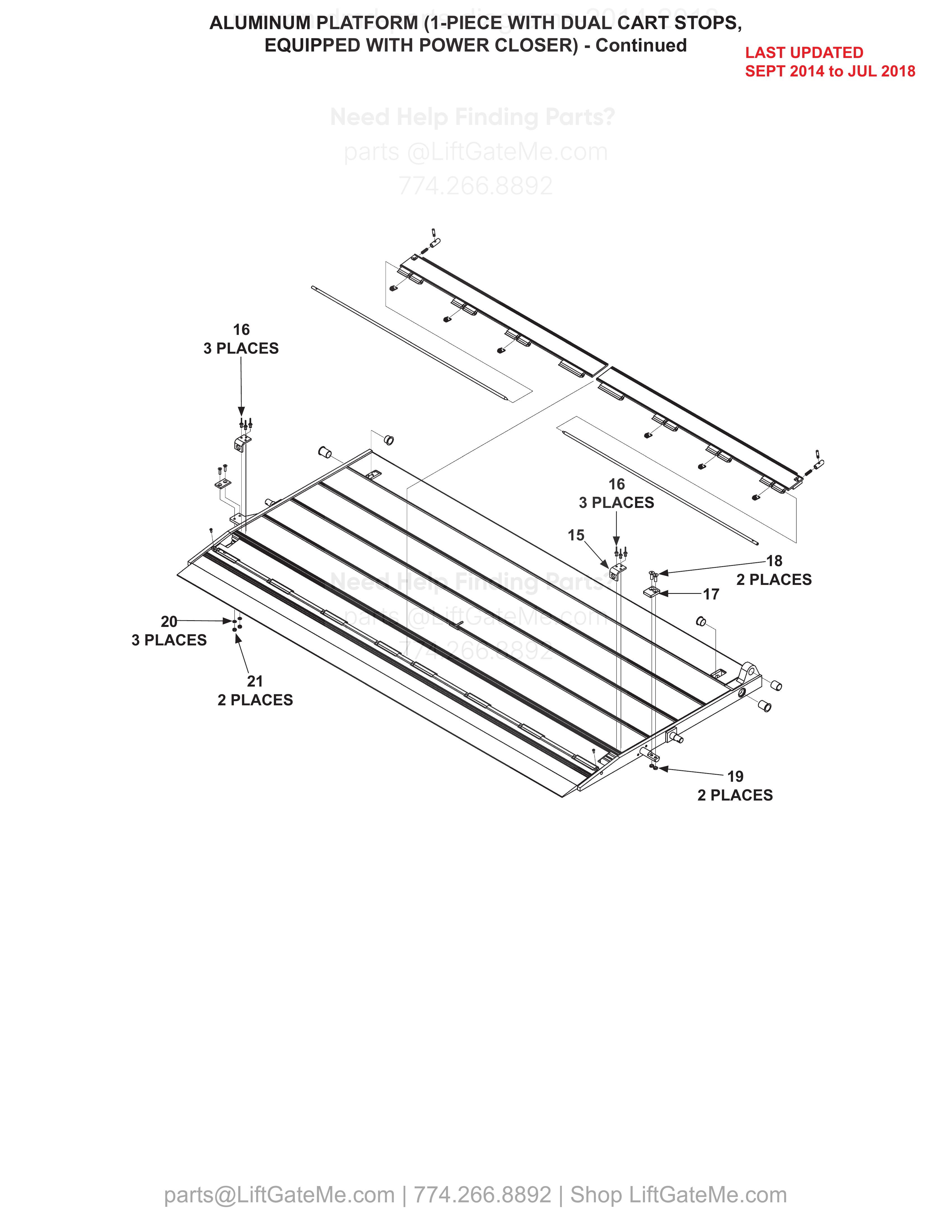

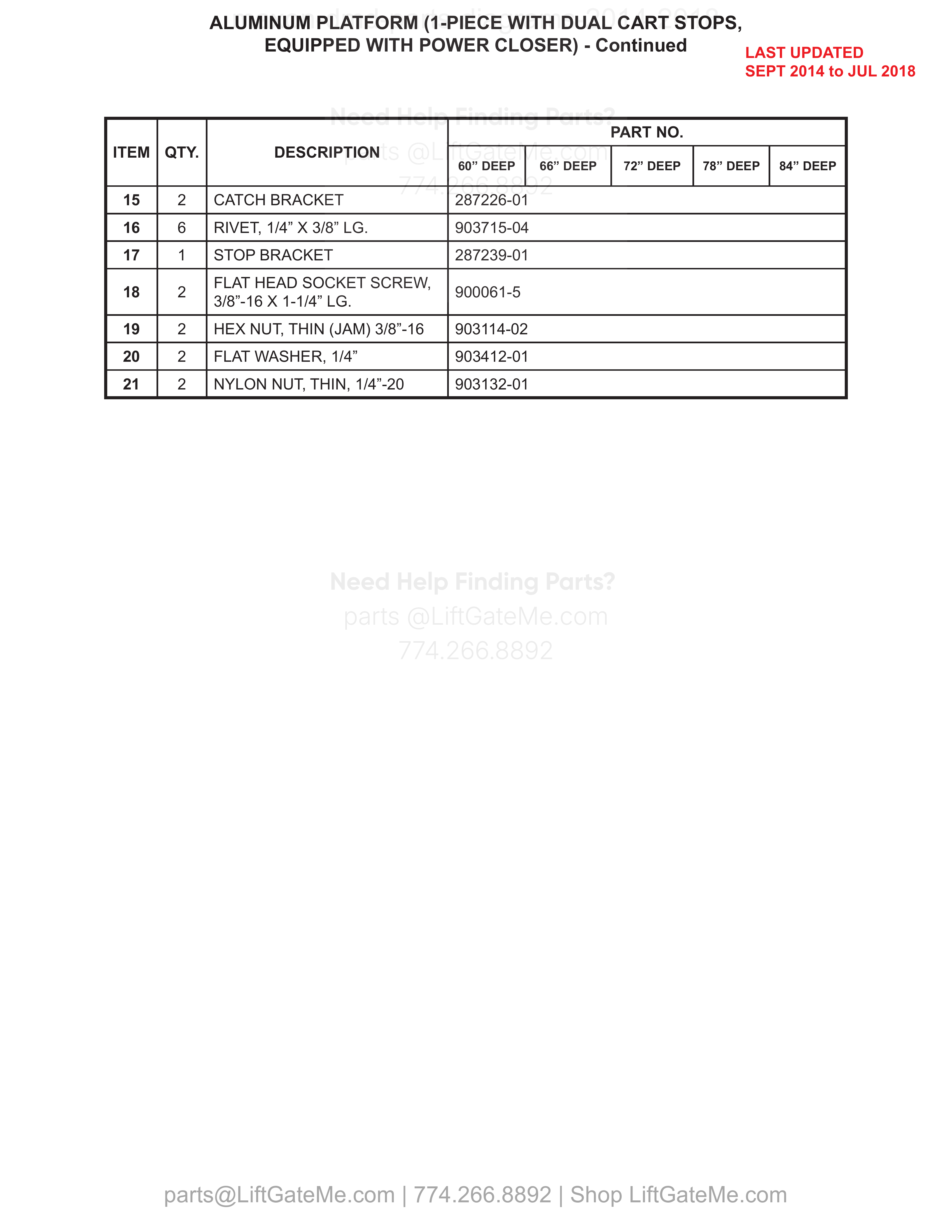

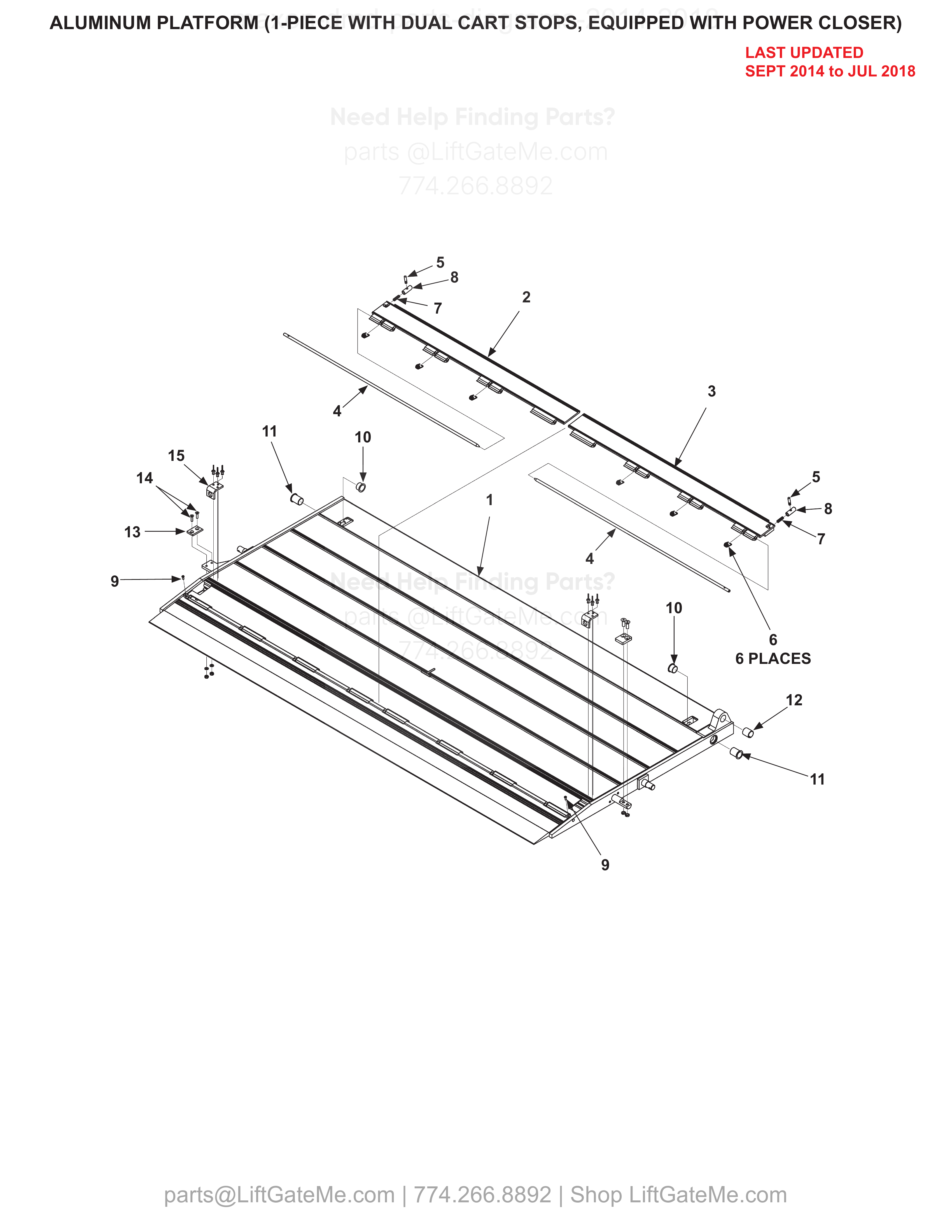

ALUMINUM PLATFORM (1-PIECE WITH DUAL CART STOPS, EQUIPPED WITH POWER CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287722-35 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DCS (DUAL CART STOPS) | |
| 1 | 1 | 287722-36 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DCS (DUAL CART STOPS) | |
| 1 | 1 | 287722-37 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DCS (DUAL CART STOPS) | |
| 1 | 1 | 287722-38 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DCS (DUAL CART STOPS) | |
| 1 | 1 | 287722-44 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DCS (DUAL CART STOPS) | |
| 1 | 1 | 287722-39 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DCS | |
| 1 | 1 | 287722-40 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DCS | |
| 1 | 1 | 287722-41 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DCS | |
| 1 | 1 | 287722-42 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DCS | |
| 1 | 1 | 287722-43 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DCS | |
| 1 | 1 | 287722-135 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287722-136 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287722-137 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287722-138 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287722-142 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 90”, DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287722-139 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287722-140 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287722-141 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287722-142 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287722-143 | ALUMINUM PLATFORM ASSEMBLY, HYDRAULIC CLOSER, 96”, DCS (MAXGRIP KNURLED SURFACE) | |
| 2 | 1 | 287446-06 | LH CART STOP WELDMENT, 44” LG. (90”W PLATFORM) | |
| 2 | 1 | 287446-08 | LH CART STOP WELDMENT, 47” LG. (96”W PLATFORM) | |
| 3 | 1 | 287446-07 | RH CART STOP WELDMENT, 44” LG (90”W PLATFORM) | |
| 3 | 1 | 287446-09 | RH CART STOP WELDMENT, 47” LG (96”W PLATFORM) | |
| 4 | 2 | 287443-02 | PIN, CART STOP, 44-3/4” LG. | |
| 4 | 2 | 287443-03 | PIN, CART STOP, 47-3/4” LG. | |
| 5 | 2 | 288636-01 | SHOOT BOLT, 1-3/8” LG. | |
| 6 | 6 | 282729-01 | SPRING, CART STOP | |
| 7 | 2 | 283957-01 | SHOOT BOLT SPRING, 1-3/8” LG. | |
| 8 | 2 | 287224-01 | PLUNGER | |
| 9 | 2 | 900722-03 | SCREW, BUTTON, 10-24 X 1/2” LG. | |
| 10 | 2 | 261837-02 | PLASTIC FLANGE BUSHING, 1” I.D. X 3/4” LG. | |
| 11 | 2 | 261837-08 | PLASTIC FLANGE BUSHING, 1” I.D. X 1-1/2” LG. | |
| 12 | 1 | 260916-01 | BEARING, SELF LUBE, 1” X 1-1/4” | |
| 13 | 1 | 287845-01 | WEAR PLATE | |
| 14 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
ALUMINUM PLATFORM (1-PIECE WITH DUAL CART STOPS, EQUIPPED WITH POWER CLOSER) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 15 | 2 | 287226-01 | CATCH BRACKET | |
| 16 | 6 | 903715-04 | RIVET, 1/4” X 3/8” LG. | |
| 17 | 1 | 287239-01 | STOP BRACKET | |
| 18 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 19 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 20 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 21 | 2 | 903132-01 | NYLON NUT, THIN, 1/4”-20 |

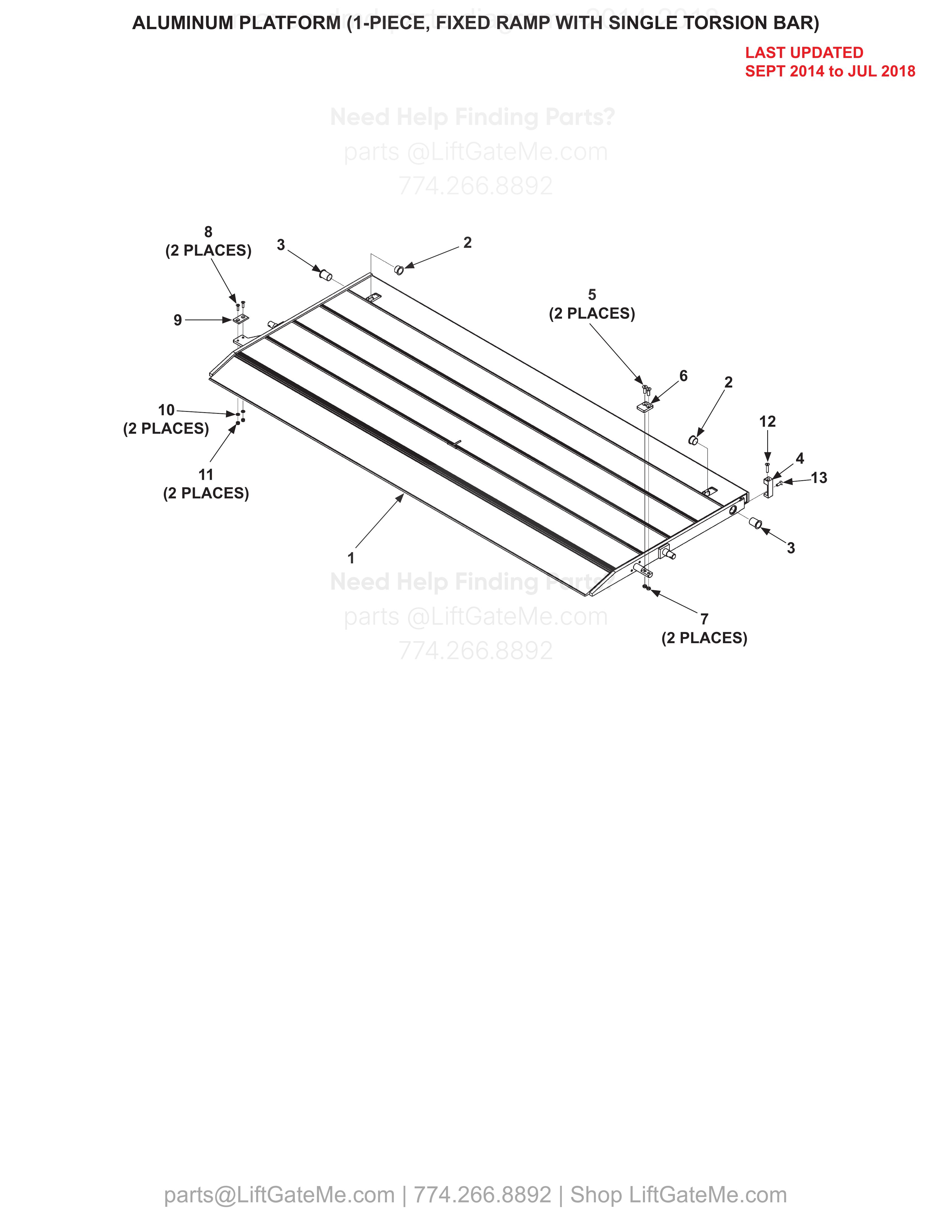

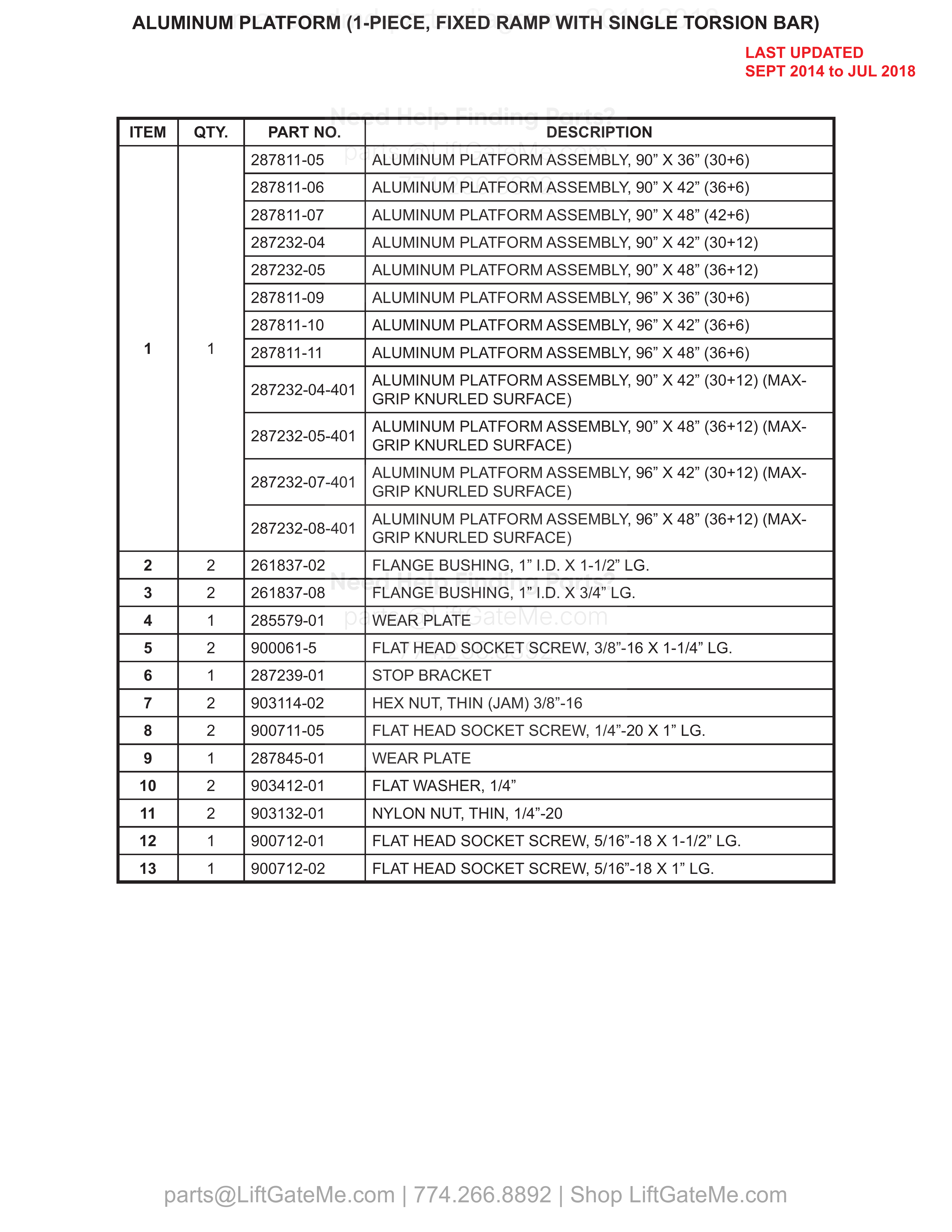

ALUMINUM PLATFORM (1-PIECE, FIXED RAMP WITH SINGLE TORSION BAR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287811-05 | ALUMINUM PLATFORM ASSEMBLY, 90” X 36” (30+6) | |
| 1 | 1 | 287811-06 | ALUMINUM PLATFORM ASSEMBLY, 90” X 42” (36+6) | |
| 1 | 1 | 287811-07 | ALUMINUM PLATFORM ASSEMBLY, 90” X 48” (42+6) | |
| 1 | 1 | 287232-04 | ALUMINUM PLATFORM ASSEMBLY, 90” X 42” (30+12) | |
| 1 | 1 | 287232-05 | ALUMINUM PLATFORM ASSEMBLY, 90” X 48” (36+12) | |
| 1 | 1 | 287811-09 | ALUMINUM PLATFORM ASSEMBLY, 96” X 36” (30+6) | |
| 1 | 1 | 287811-10 | ALUMINUM PLATFORM ASSEMBLY, 96” X 42” (36+6) | |
| 1 | 1 | 287811-11 | ALUMINUM PLATFORM ASSEMBLY, 96” X 48” (36+6) | |
| 1 | 1 | 287232-04-401 | ALUMINUM PLATFORM ASSEMBLY, 90” X 42” (30+12) (MAX-GRIP KNURLED SURFACE) | |
| 1 | 1 | 287232-05-401 | ALUMINUM PLATFORM ASSEMBLY, 90” X 48” (36+12) (MAX-GRIP KNURLED SURFACE) | |
| 1 | 1 | 287232-07-401 | ALUMINUM PLATFORM ASSEMBLY, 96” X 42” (30+12) (MAX-GRIP KNURLED SURFACE) | |
| 1 | 1 | 287232-08-401 | ALUMINUM PLATFORM ASSEMBLY, 96” X 48” (36+12) (MAX-GRIP KNURLED SURFACE) | |
| 2 | 2 | 261837-02 | FLANGE BUSHING, 1” I.D. X 1-1/2” LG. | |
| 3 | 2 | 261837-08 | FLANGE BUSHING, 1” I.D. X 3/4” LG. | |
| 4 | 1 | 285579-01 | WEAR PLATE | |
| 5 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 6 | 1 | 287239-01 | STOP BRACKET | |
| 7 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 8 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. | |
| 9 | 1 | 287845-01 | WEAR PLATE | |
| 10 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 11 | 2 | 903132-01 | NYLON NUT, THIN, 1/4”-20 | |
| 12 | 1 | 900712-01 | FLAT HEAD SOCKET SCREW, 5/16”-18 X 1-1/2” LG. | |
| 13 | 1 | 900712-02 | FLAT HEAD SOCKET SCREW, 5/16”-18 X 1” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

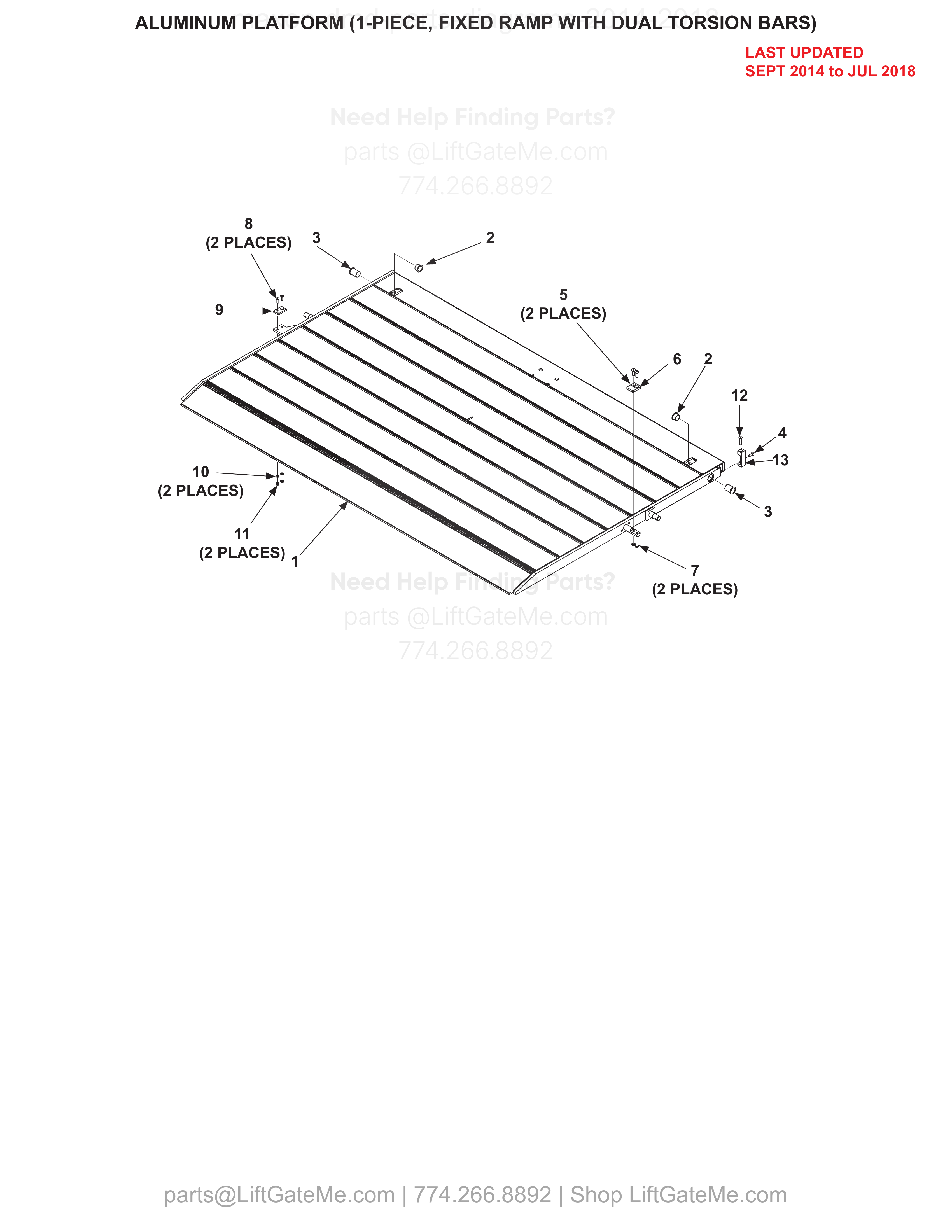

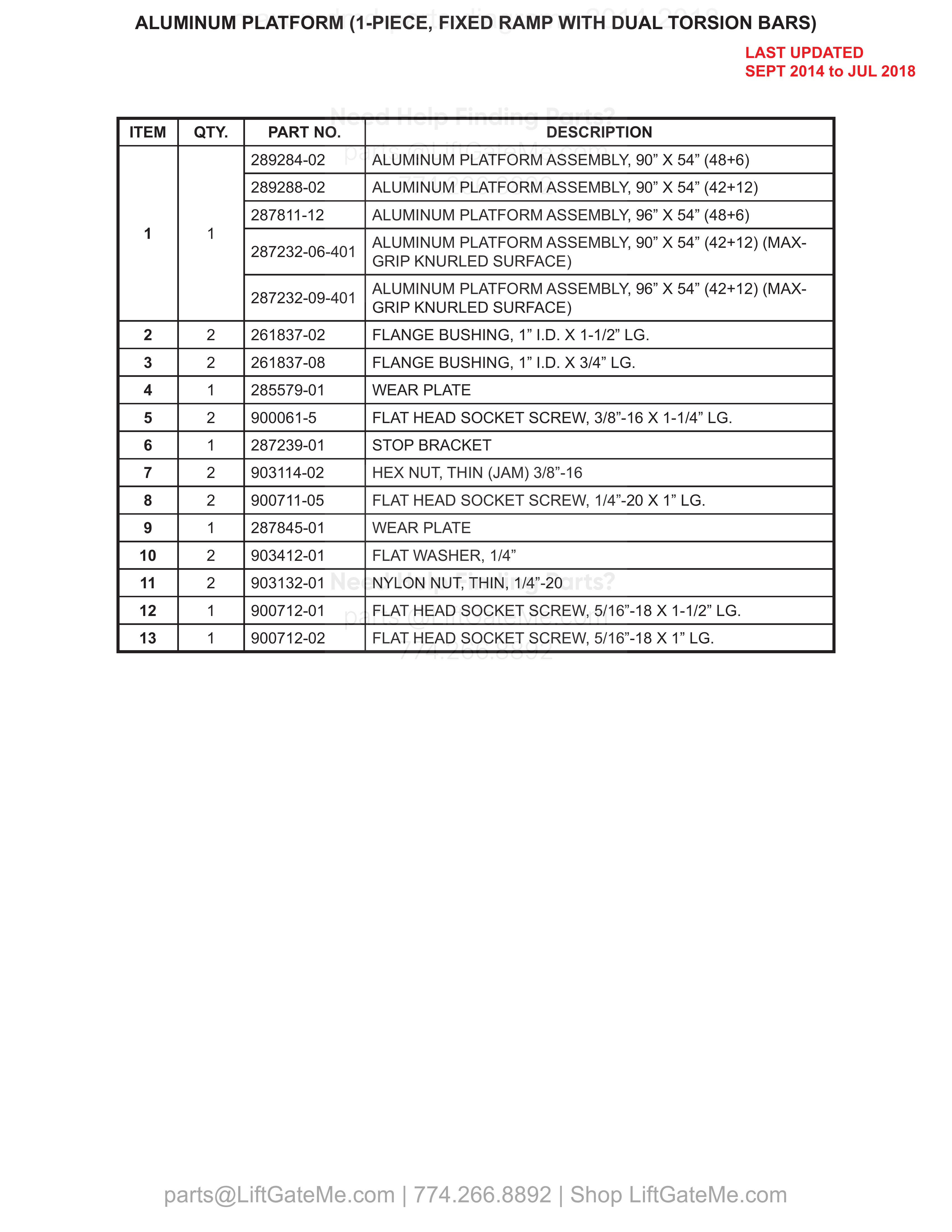

ALUMINUM PLATFORM (1-PIECE, FIXED RAMP WITH DUAL TORSION BARS)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 289284-02 | ALUMINUM PLATFORM ASSEMBLY, 90” X 54” (48+6) | |
| 1 | 1 | 289288-02 | ALUMINUM PLATFORM ASSEMBLY, 90” X 54” (42+12) | |
| 1 | 1 | 287811-12 | ALUMINUM PLATFORM ASSEMBLY, 96” X 54” (48+6) | |
| 1 | 1 | 287232-06-401 | ALUMINUM PLATFORM ASSEMBLY, 90” X 54” (42+12) (MAX-GRIP KNURLED SURFACE) | |
| 1 | 1 | 287232-09-401 | ALUMINUM PLATFORM ASSEMBLY, 96” X 54” (42+12) (MAX-GRIP KNURLED SURFACE) | |
| 2 | 2 | 261837-02 | FLANGE BUSHING, 1” I.D. X 1-1/2” LG. | |
| 3 | 2 | 261837-08 | FLANGE BUSHING, 1” I.D. X 3/4” LG. | |
| 4 | 1 | 285579-01 | WEAR PLATE | |
| 5 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 6 | 1 | 287239-01 | STOP BRACKET | |
| 7 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 8 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. | |
| 9 | 1 | 287845-01 | WEAR PLATE | |
| 10 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 11 | 2 | 903132-01 | NYLON NUT, THIN, 1/4”-20 | |
| 12 | 1 | 900712-01 | FLAT HEAD SOCKET SCREW, 5/16”-18 X 1-1/2” LG. | |
| 13 | 1 | 900712-02 | FLAT HEAD SOCKET SCREW, 5/16”-18 X 1” LG. |

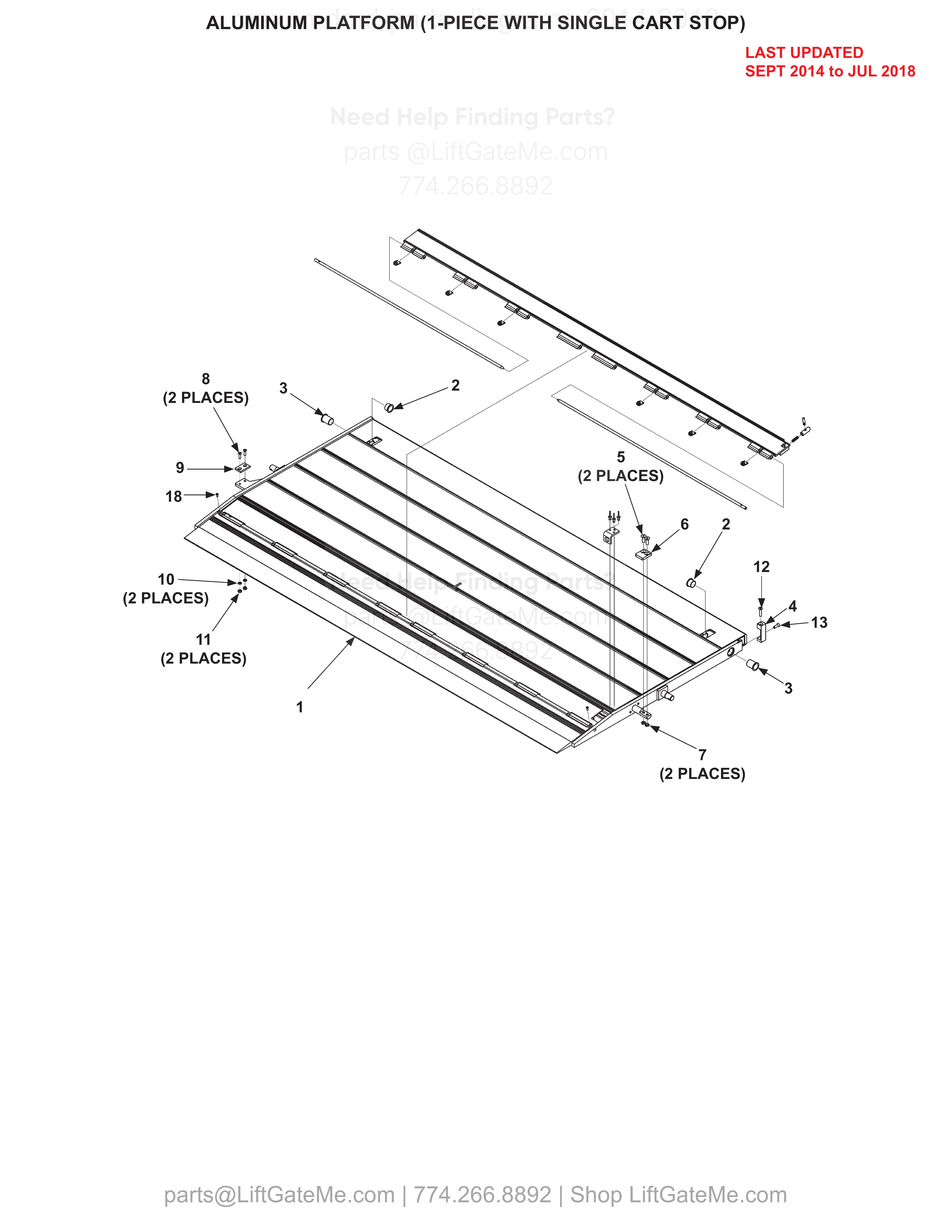

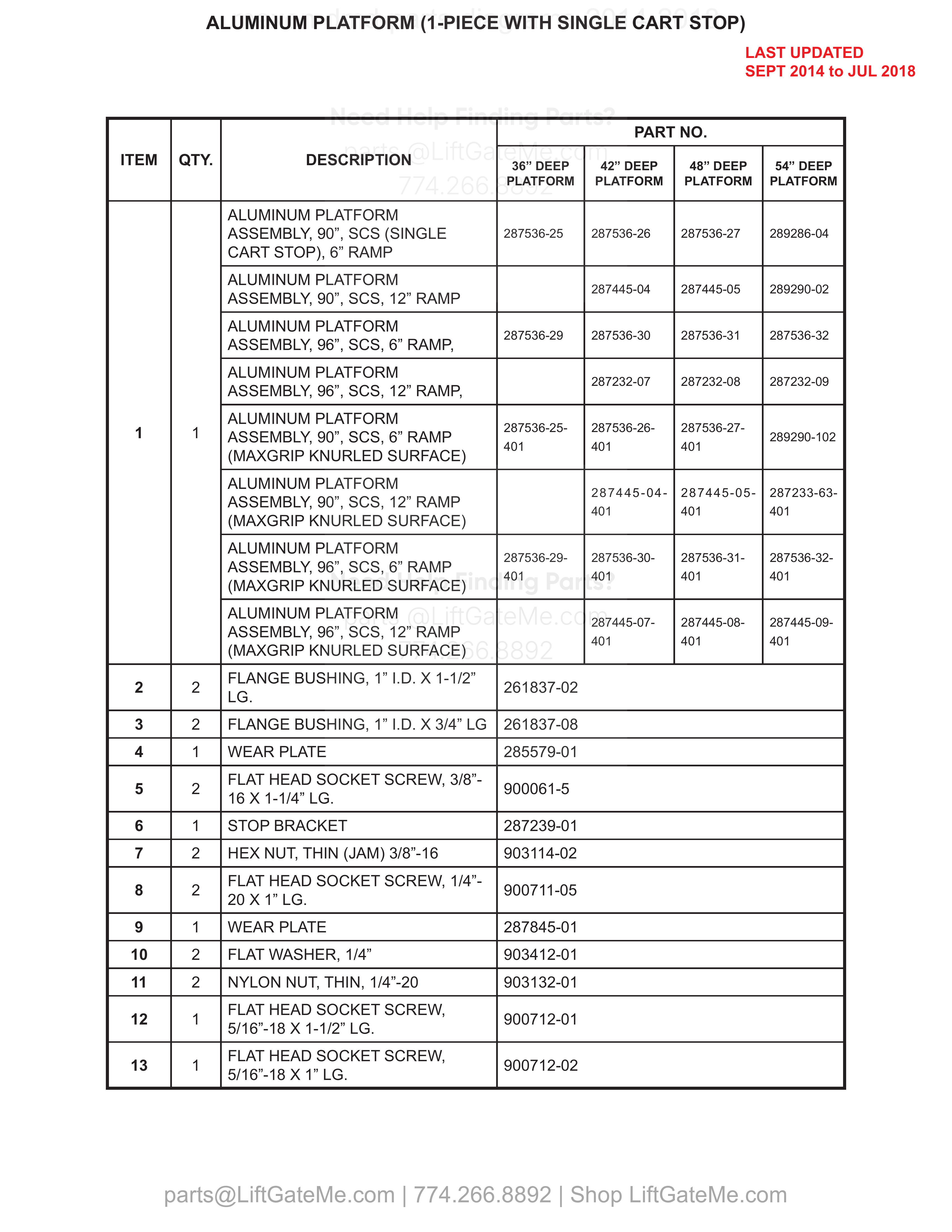

ALUMINUM PLATFORM (1-PIECE WITH SINGLE CART STOP)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287536-25 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS (SINGLE CART STOP), 6” RAMP | |
| 1 | 1 | 287536-26 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS (SINGLE CART STOP), 6” RAMP | |
| 1 | 1 | 287536-27 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS (SINGLE CART STOP), 6” RAMP | |
| 1 | 1 | 289286-04 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS (SINGLE CART STOP), 6” RAMP | |
| 1 | 1 | 287445-04 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS, 12” RAMP | |
| 1 | 1 | 287445-05 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS, 12” RAMP | |
| 1 | 1 | 289290-02 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS, 12” RAMP | |
| 1 | 1 | 287536-29 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 6” RAMP, | |
| 1 | 1 | 287536-30 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 6” RAMP, | |
| 1 | 1 | 287536-31 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 6” RAMP, | |
| 1 | 1 | 287536-32 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 6” RAMP, | |
| 1 | 1 | 287232-07 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 12” RAMP, | |
| 1 | 1 | 287232-08 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 12” RAMP, | |
| 1 | 1 | 287232-09 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 12” RAMP, | |
| 1 | 1 | 287536-25-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-26-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-27-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 289290-102 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287445-04-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287445-05-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287233-63-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, SCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-29-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-30-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-31-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-32-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287445-07-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287445-08-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287445-09-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, SCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 2 | 2 | 261837-02 | FLANGE BUSHING, 1” I.D. X 1-1/2” LG. | |
| 3 | 2 | 261837-08 | FLANGE BUSHING, 1” I.D. X 3/4” LG | |
| 4 | 1 | 285579-01 | WEAR PLATE | |
| 5 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 6 | 1 | 287239-01 | STOP BRACKET | |
| 7 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 8 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. | |
| 9 | 1 | 287845-01 | WEAR PLATE | |
| 10 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 11 | 2 | 903132-01 | NYLON NUT, THIN, 1/4”-20 | |
| 12 | 1 | 900712-01 | FLAT HEAD SOCKET SCREW, 5/16”-18 X 1-1/2” LG. | |
| 13 | 1 | 900712-02 | FLAT HEAD SOCKET SCREW, 5/16”-18 X 1” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

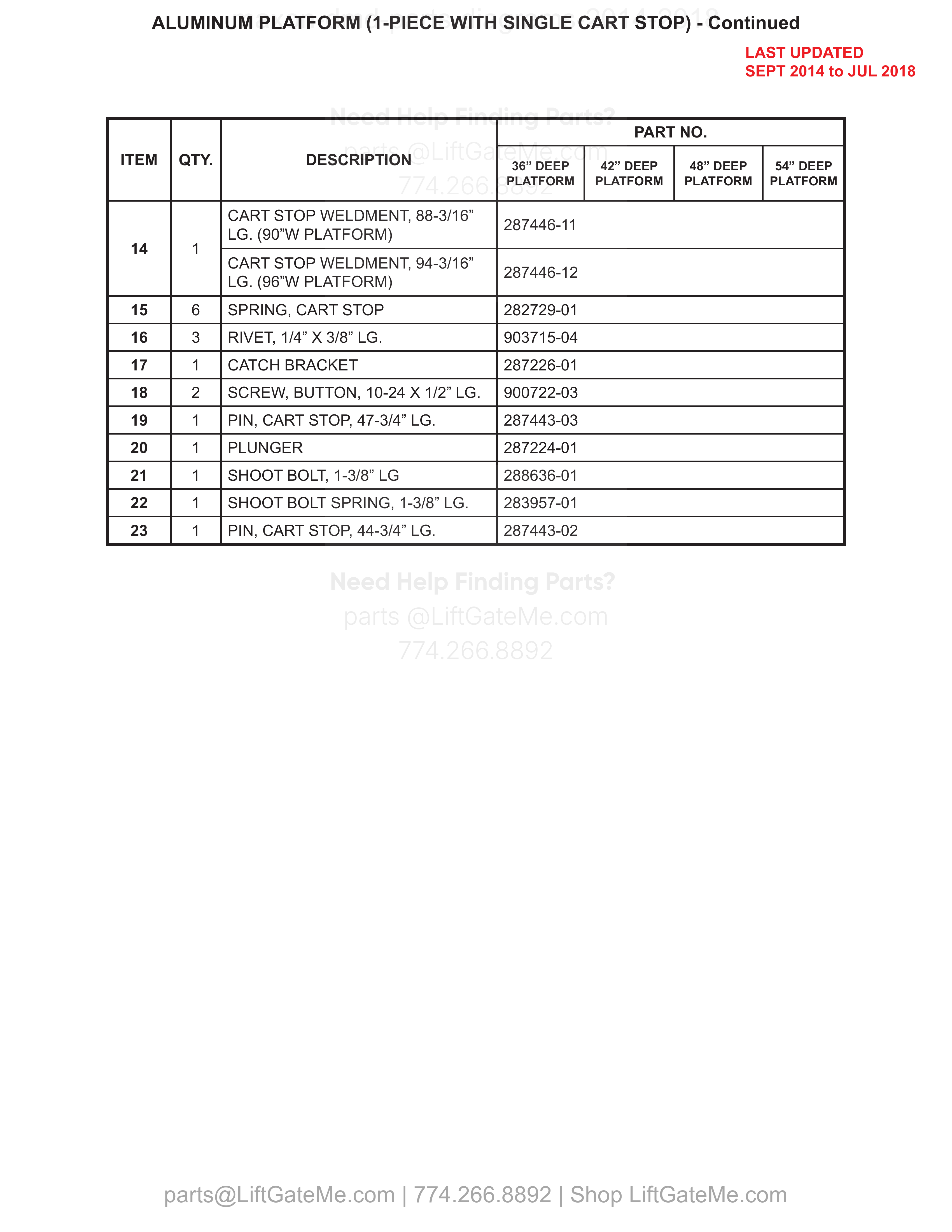

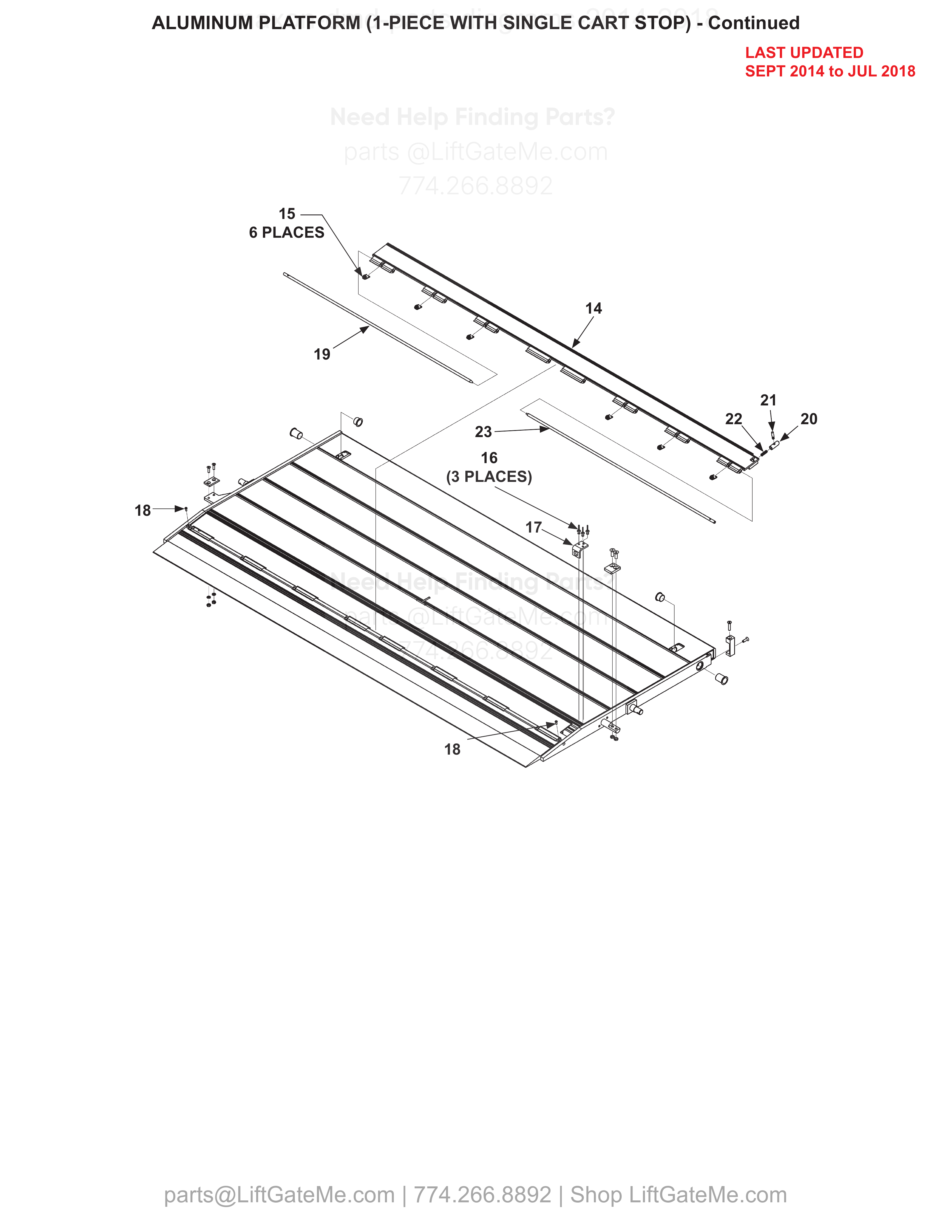

ALUMINUM PLATFORM (1-PIECE WITH SINGLE CART STOP) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 14 | 1 | 287446-11 | CART STOP WELDMENT, 88-3/16” LG. (90”W PLATFORM) | |
| 14 | 1 | 287446-12 | CART STOP WELDMENT, 94-3/16” LG. (96”W PLATFORM) | |
| 15 | 6 | 282729-01 | SPRING, CART STOP | |
| 16 | 3 | 903715-04 | RIVET, 1/4” X 3/8” LG. | |
| 17 | 1 | 287226-01 | CATCH BRACKET | |
| 18 | 2 | 900722-03 | SCREW, BUTTON, 10-24 X 1/2” LG. | |
| 19 | 1 | 287443-03 | PIN, CART STOP, 47-3/4” LG. | |
| 20 | 1 | 287224-01 | PLUNGER | |
| 21 | 1 | 288636-01 | SHOOT BOLT, 1-3/8” LG | |
| 22 | 1 | 283957-01 | SHOOT BOLT SPRING, 1-3/8” LG. | |
| 23 | 1 | 287443-02 | PIN, CART STOP, 44-3/4” LG. |

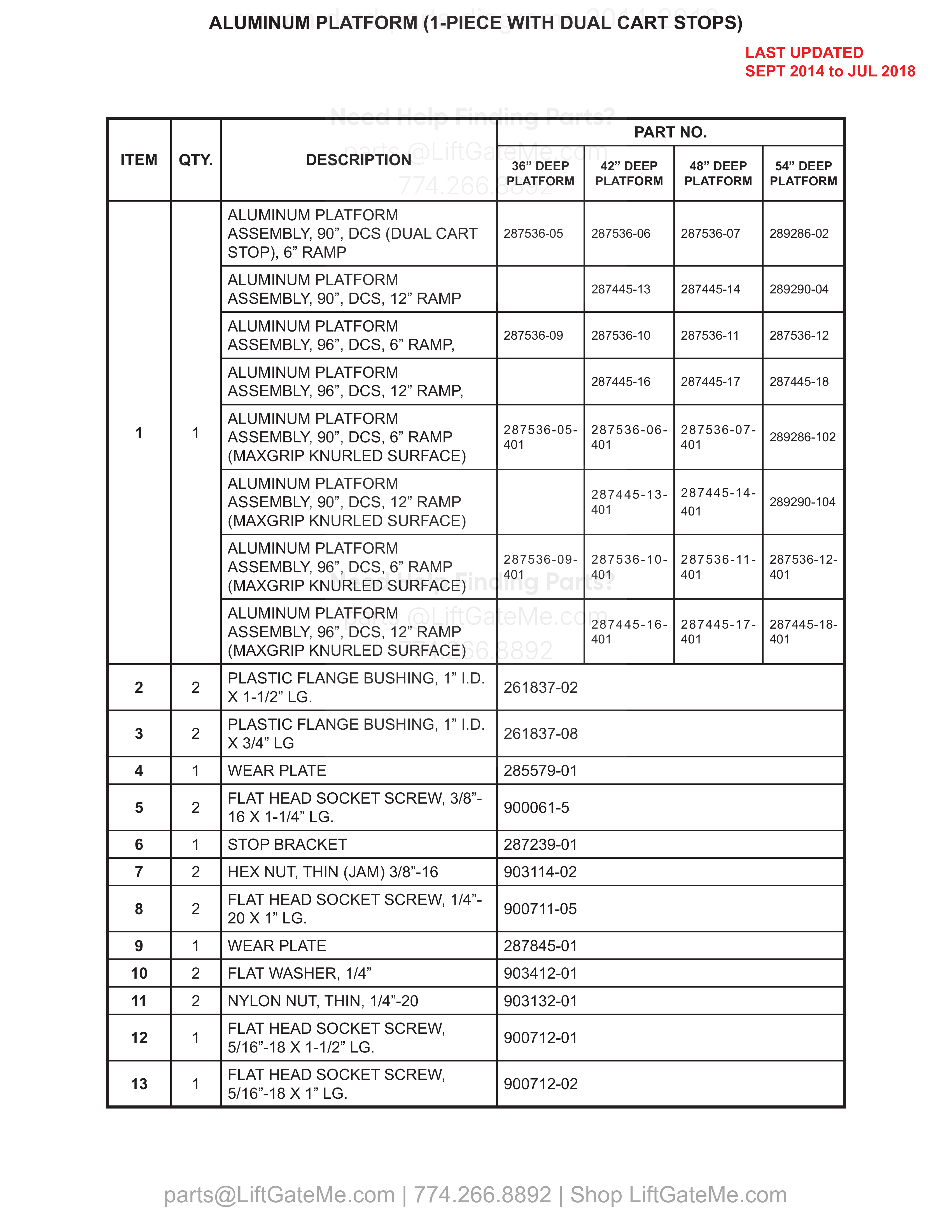

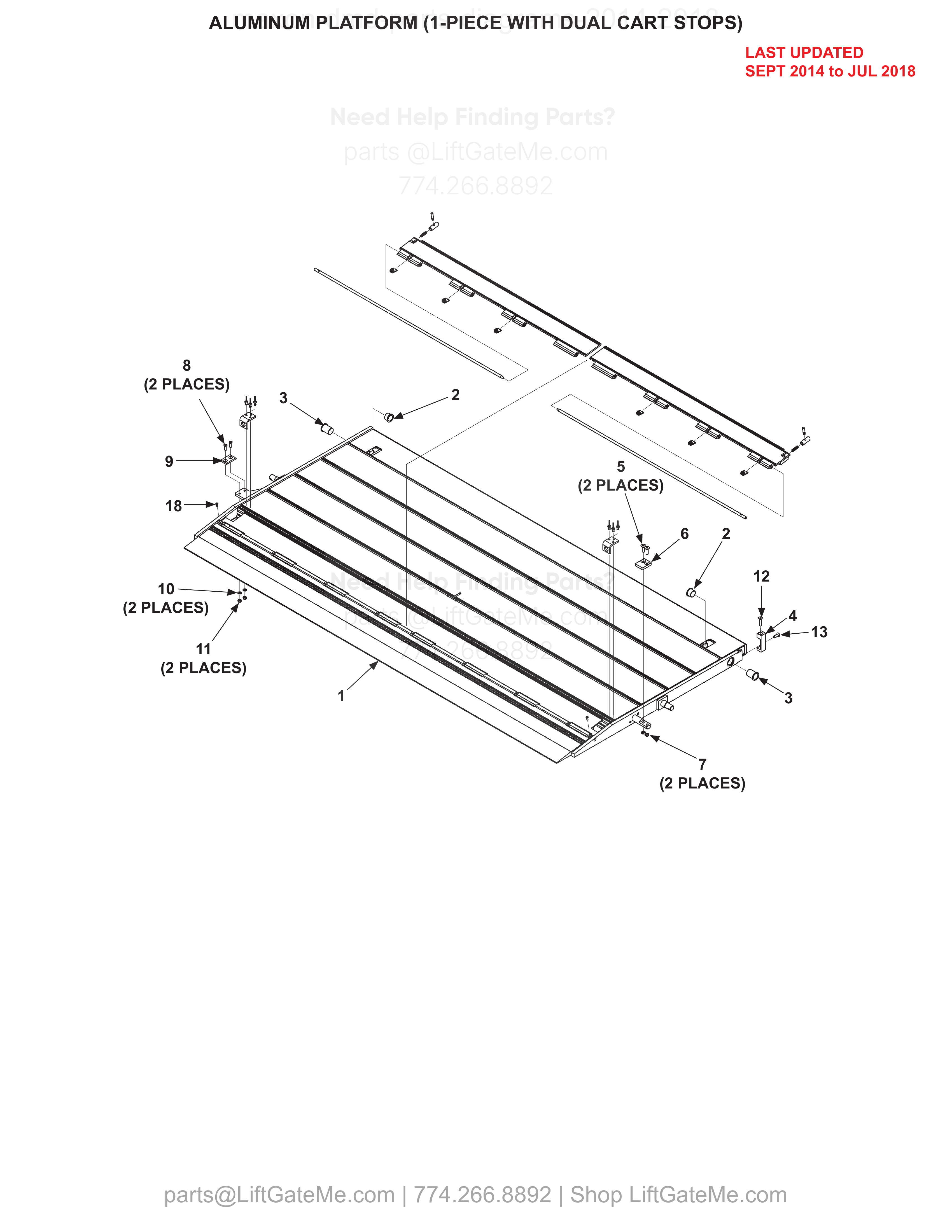

ALUMINUM PLATFORM (1-PIECE WITH DUAL CART STOPS)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287536-05 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS (DUAL CART STOP), 6” RAMP | |
| 1 | 1 | 287536-06 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS (DUAL CART STOP), 6” RAMP | |
| 1 | 1 | 287536-07 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS (DUAL CART STOP), 6” RAMP | |
| 1 | 1 | 289286-02 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS (DUAL CART STOP), 6” RAMP | |
| 1 | 1 | 287445-13 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS, 12” RAMP | |
| 1 | 1 | 287445-14 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS, 12” RAMP | |
| 1 | 1 | 289290-04 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS, 12” RAMP | |
| 1 | 1 | 287536-09 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 6” RAMP, | |
| 1 | 1 | 287536-10 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 6” RAMP, | |
| 1 | 1 | 287536-11 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 6” RAMP, | |
| 1 | 1 | 287536-12 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 6” RAMP, | |
| 1 | 1 | 287445-16 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 12” RAMP, | |
| 1 | 1 | 287445-17 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 12” RAMP, | |
| 1 | 1 | 287445-18 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 12” RAMP, | |
| 1 | 1 | 287536-05-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-06-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-07-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 289286-102 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287445-13-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287445-14-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 289290-104 | ALUMINUM PLATFORM ASSEMBLY, 90”, DCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-09-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-10-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-11-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287536-12-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 6” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287445-16-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287445-17-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287445-18-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, DCS, 12” RAMP (MAXGRIP KNURLED SURFACE) | |
| 2 | 2 | 261837-02 | PLASTIC FLANGE BUSHING, 1” I.D. X 1-1/2” LG. | |
| 3 | 2 | 261837-08 | PLASTIC FLANGE BUSHING, 1” I.D. X 3/4” LG | |
| 4 | 1 | 285579-01 | WEAR PLATE | |
| 5 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 6 | 1 | 287239-01 | STOP BRACKET | |
| 7 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 8 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. | |
| 9 | 1 | 287845-01 | WEAR PLATE | |
| 10 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 11 | 2 | 903132-01 | NYLON NUT, THIN, 1/4”-20 | |
| 12 | 1 | 900712-01 | FLAT HEAD SOCKET SCREW, 5/16”-18 X 1-1/2” LG. | |
| 13 | 1 | 900712-02 | FLAT HEAD SOCKET SCREW, 5/16”-18 X 1” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

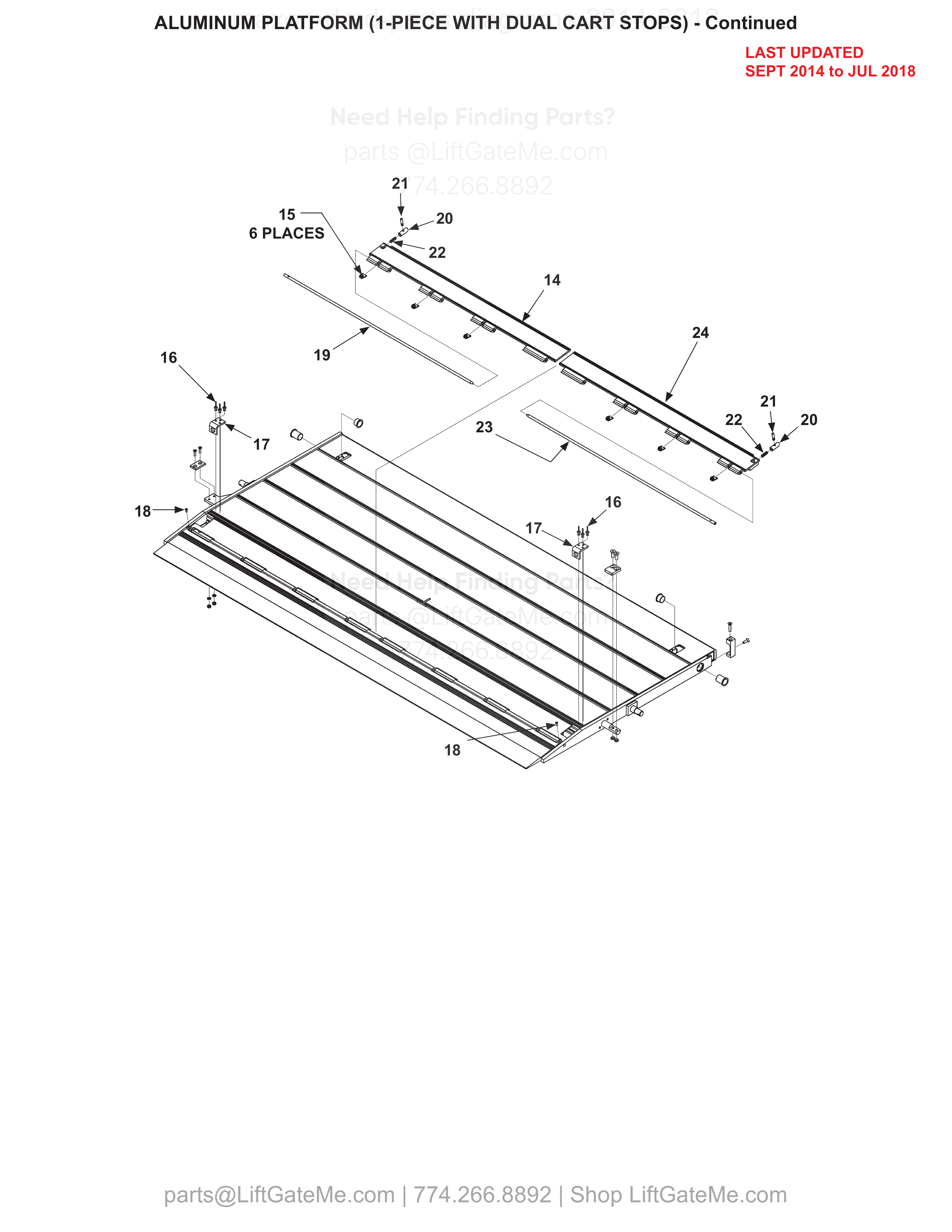

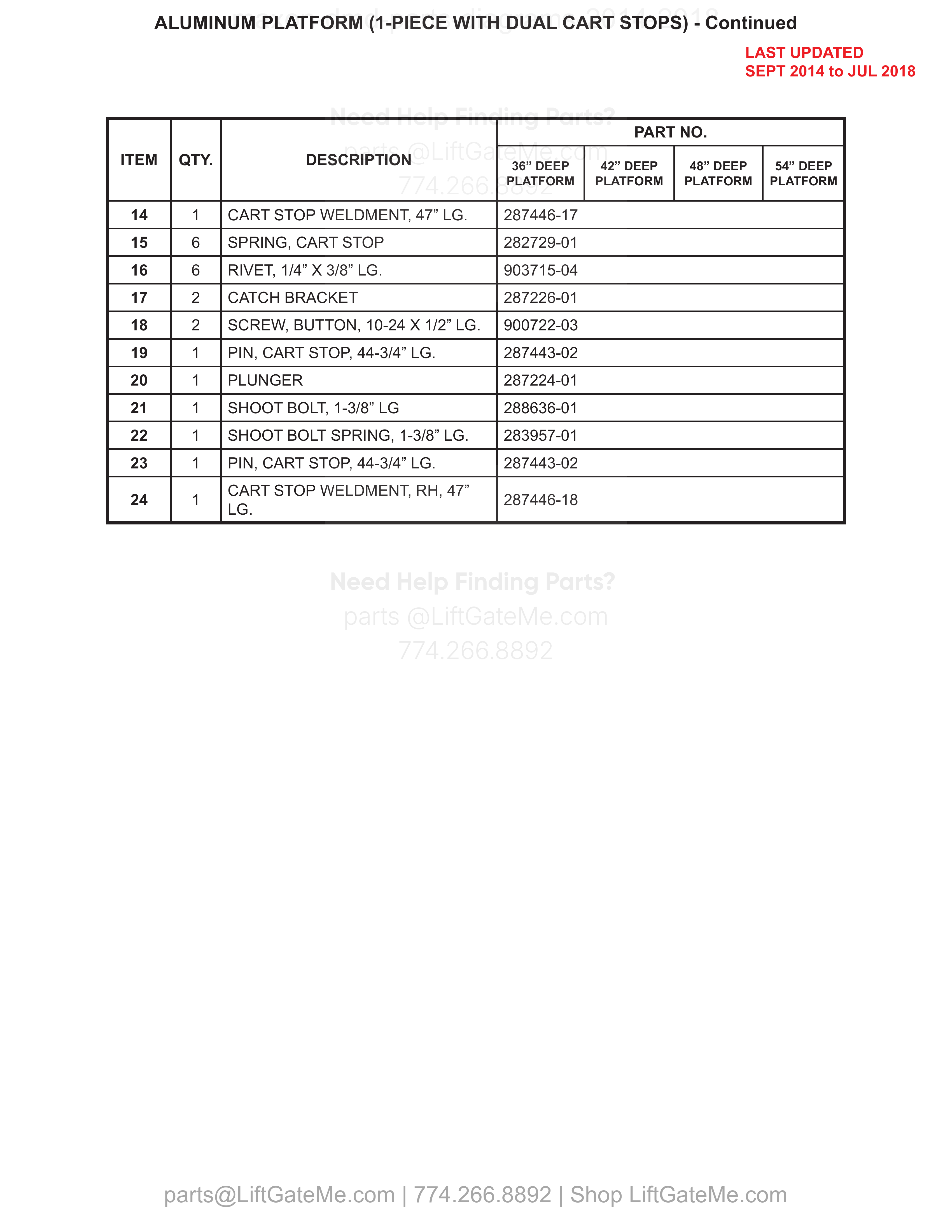

ALUMINUM PLATFORM (1-PIECE WITH DUAL CART STOPS) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 14 | 1 | 287446-17 | CART STOP WELDMENT, 47” LG. | |
| 15 | 6 | 282729-01 | SPRING, CART STOP | |
| 16 | 6 | 903715-04 | RIVET, 1/4” X 3/8” LG. | |
| 17 | 2 | 287226-01 | CATCH BRACKET | |
| 18 | 2 | 900722-03 | SCREW, BUTTON, 10-24 X 1/2” LG. | |
| 19 | 1 | 287443-02 | PIN, CART STOP, 44-3/4” LG. | |
| 20 | 1 | 287224-01 | PLUNGER | |
| 21 | 1 | 288636-01 | SHOOT BOLT, 1-3/8” LG | |
| 22 | 1 | 283957-01 | SHOOT BOLT SPRING, 1-3/8” LG. | |
| 23 | 1 | 287443-02 | PIN, CART STOP, 44-3/4” LG. | |
| 24 | 1 | 287446-18 | CART STOP WELDMENT, RH, 47” LG. |

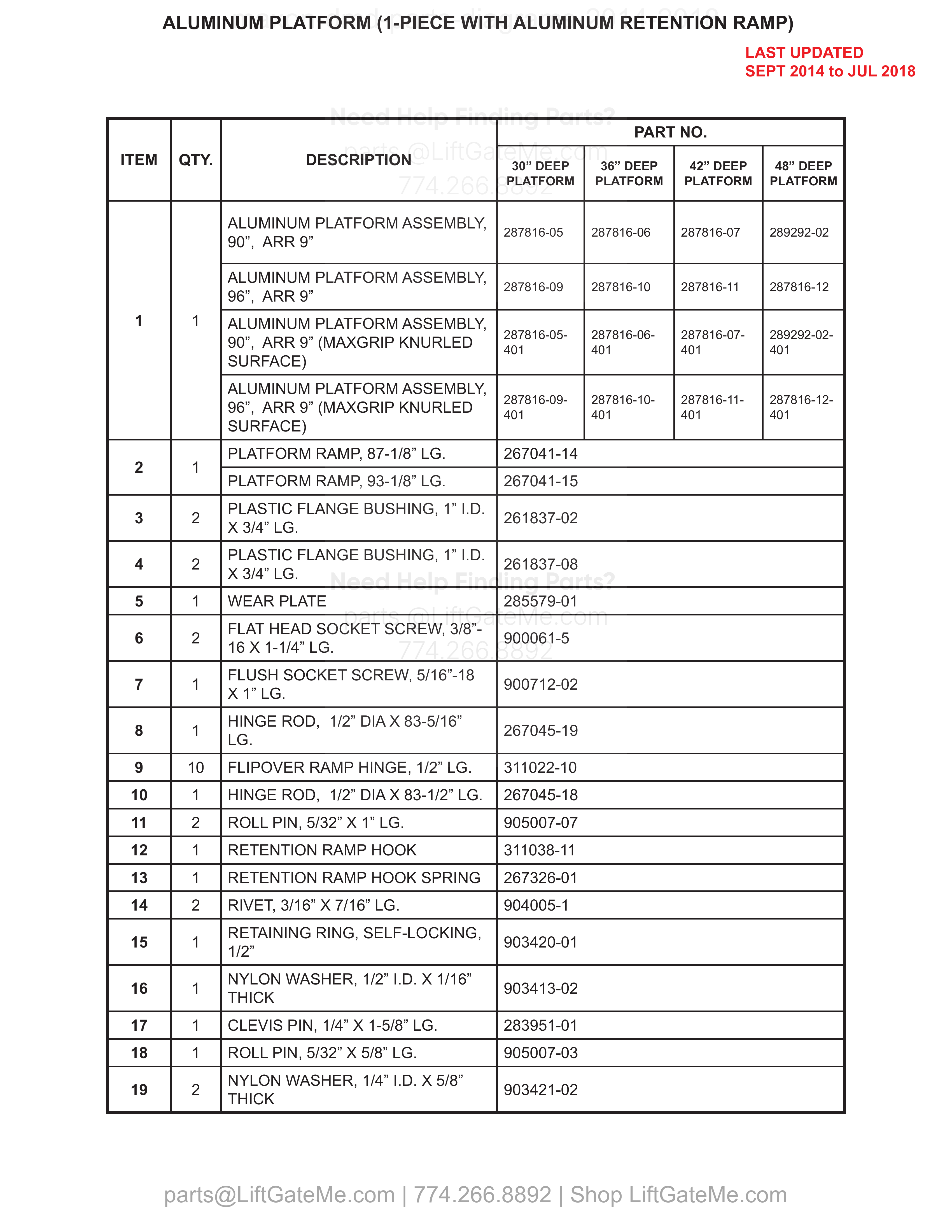

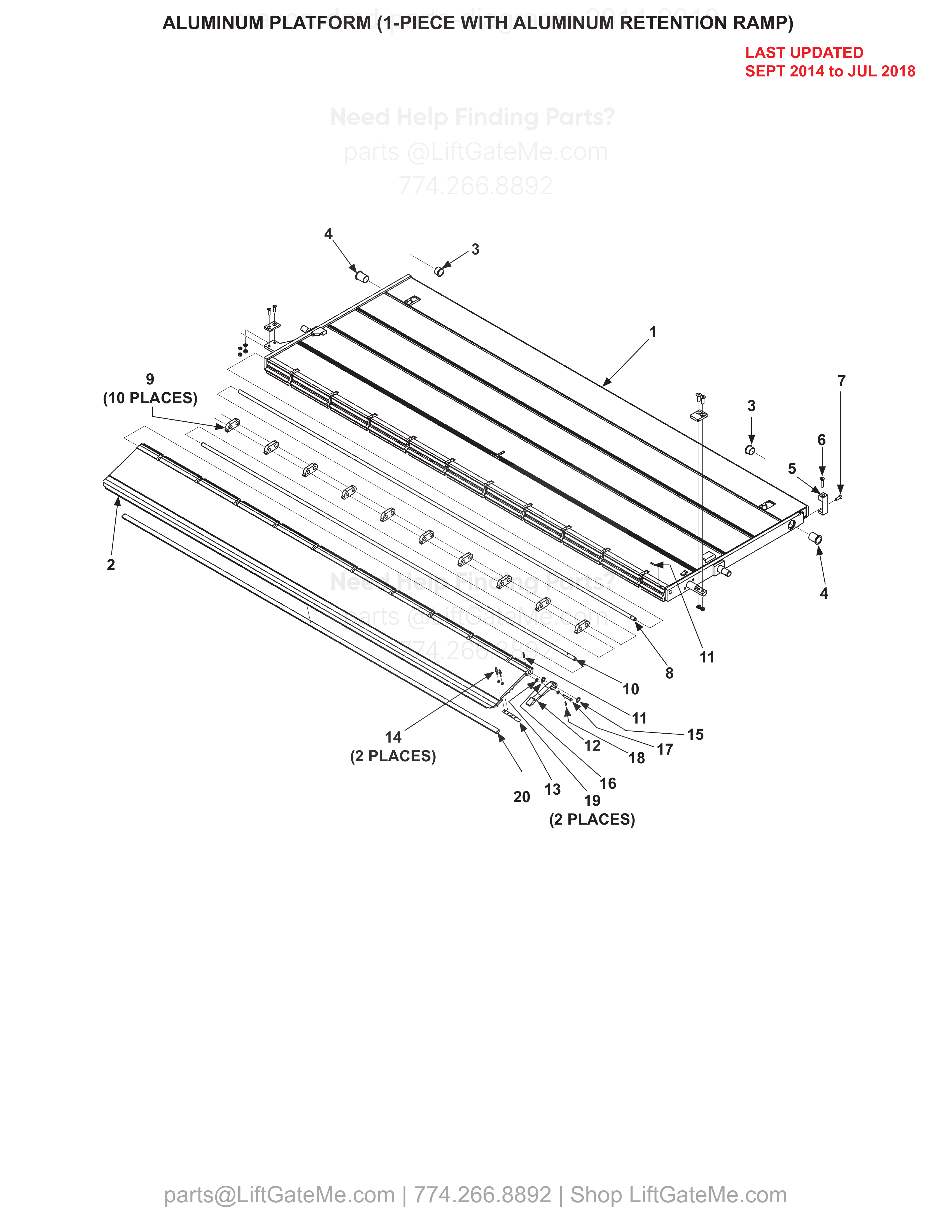

ALUMINUM PLATFORM (1-PIECE WITH ALUMINUM RETENTION RAMP)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287816-05 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” | |
| 1 | 1 | 287816-06 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” | |
| 1 | 1 | 287816-07 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” | |
| 1 | 1 | 289292-02 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” | |
| 1 | 1 | 287816-09 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” | |
| 1 | 1 | 287816-10 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” | |
| 1 | 1 | 287816-11 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” | |
| 1 | 1 | 287816-12 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” | |
| 1 | 1 | 287816-05-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287816-06-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287816-07-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 289292-02-401 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287816-09-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287816-10-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287816-11-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287816-12-401 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” (MAXGRIP KNURLED SURFACE) | |
| 2 | 1 | 267041-14 | PLATFORM RAMP, 87-1/8” LG. | |
| 2 | 1 | 267041-15 | PLATFORM RAMP, 93-1/8” LG. | |
| 3 | 2 | 261837-02 | PLASTIC FLANGE BUSHING, 1” I.D. X 3/4” LG. | |
| 4 | 2 | 261837-08 | PLASTIC FLANGE BUSHING, 1” I.D. X 3/4” LG. | |
| 5 | 1 | 285579-01 | WEAR PLATE | |
| 6 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 7 | 1 | 900712-02 | FLUSH SOCKET SCREW, 5/16”-18 X 1” LG. | |
| 8 | 1 | 267045-19 | HINGE ROD, 1/2” DIA X 83-5/16” LG. | |
| 9 | 10 | 311022-10 | FLIPOVER RAMP HINGE, 1/2” LG. | |
| 10 | 1 | 267045-18 | HINGE ROD, 1/2” DIA X 83-1/2” LG. | |
| 11 | 2 | 905007-07 | ROLL PIN, 5/32” X 1” LG. | |
| 12 | 1 | 311038-11 | RETENTION RAMP HOOK | |
| 13 | 1 | 267326-01 | RETENTION RAMP HOOK SPRING | |
| 14 | 2 | 904005-1 | RIVET, 3/16” X 7/16” LG. | |
| 15 | 1 | 903420-01 | RETAINING RING, SELF-LOCKING, 1/2” | |
| 16 | 1 | 903413-02 | NYLON WASHER, 1/2” I.D. X 1/16” THICK | |
| 17 | 1 | 283951-01 | CLEVIS PIN, 1/4” X 1-5/8” LG. | |
| 18 | 1 | 905007-03 | ROLL PIN, 5/32” X 5/8” LG. | |
| 19 | 2 | 903421-02 | NYLON WASHER, 1/4” I.D. X 5/8” THICK |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

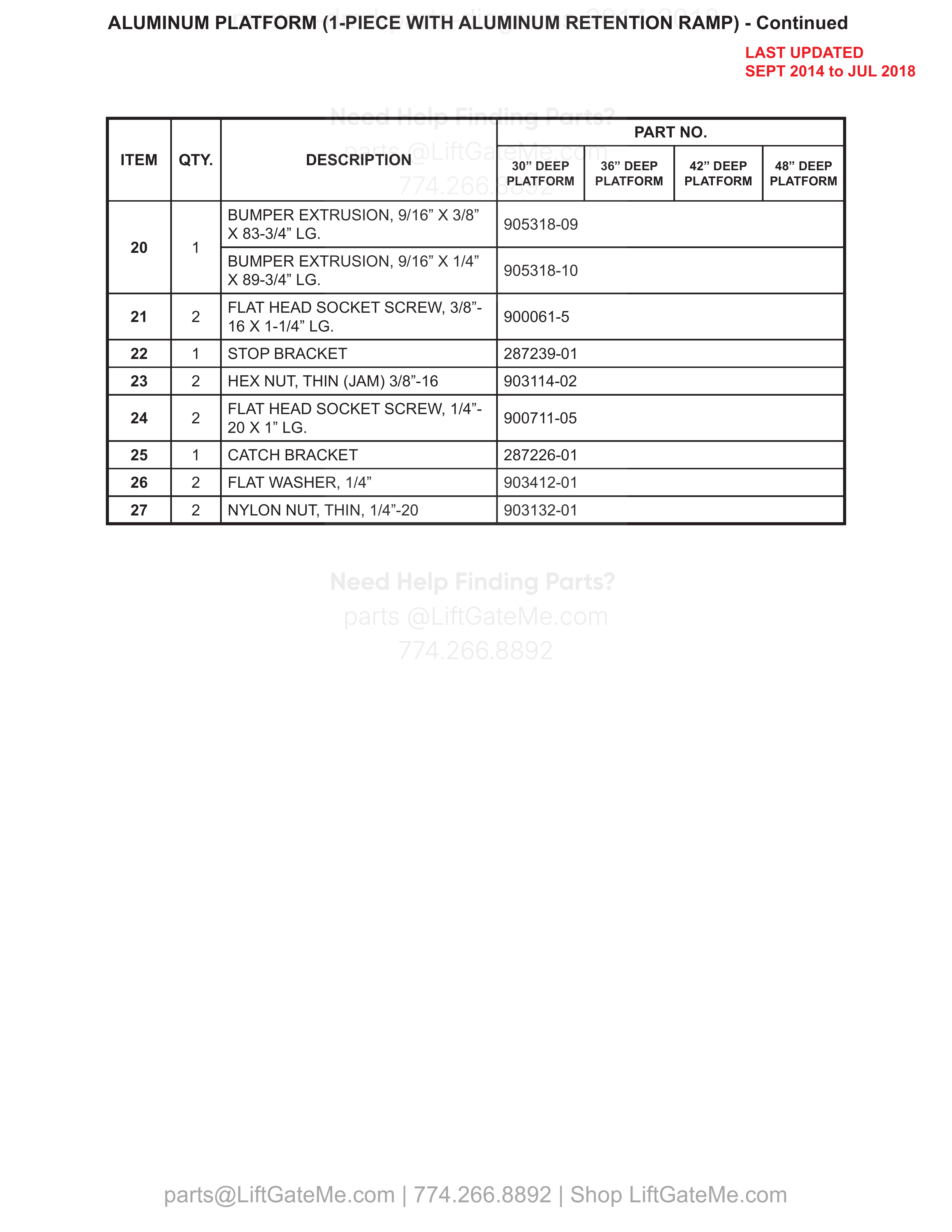

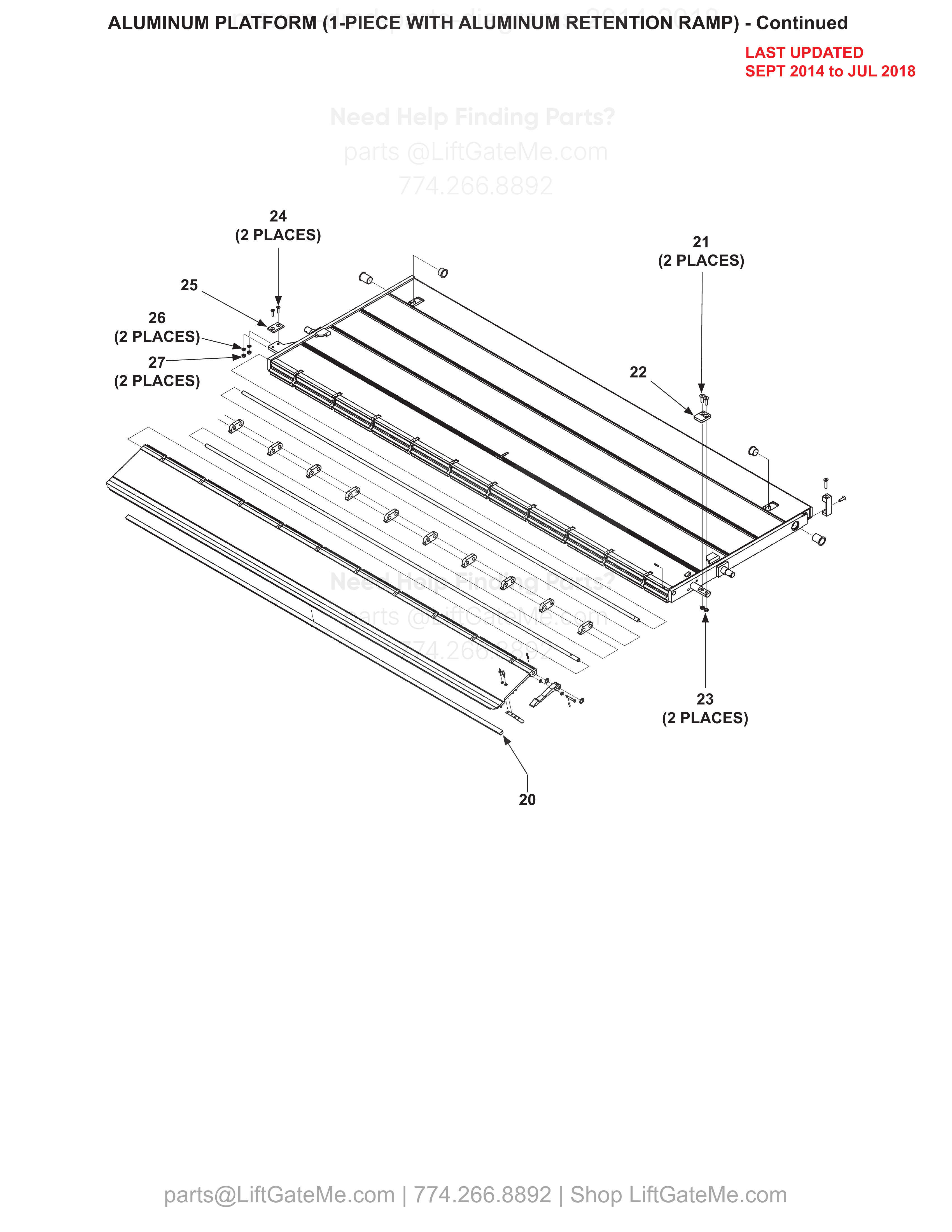

ALUMINUM PLATFORM (1-PIECE WITH ALUMINUM RETENTION RAMP) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 20 | 1 | 905318-09 | BUMPER EXTRUSION, 9/16” X 3/8” X 83-3/4” LG. | |
| 20 | 1 | 905318-10 | BUMPER EXTRUSION, 9/16” X 1/4” X 89-3/4” LG. | |
| 21 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 22 | 1 | 287239-01 | STOP BRACKET | |
| 23 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 24 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. | |
| 25 | 1 | 287226-01 | CATCH BRACKET | |
| 26 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 27 | 2 | 903132-01 | NYLON NUT, THIN, 1/4”-20 |

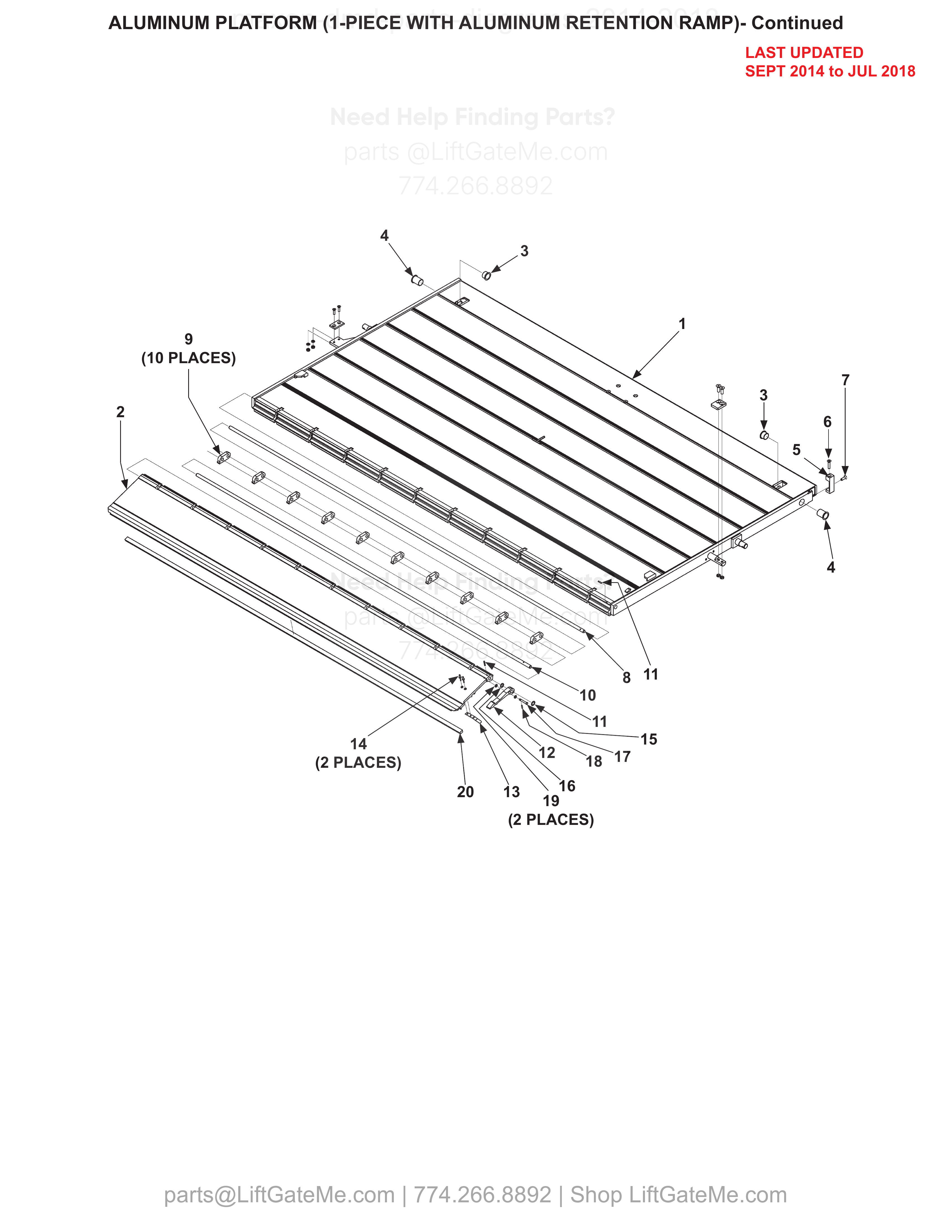

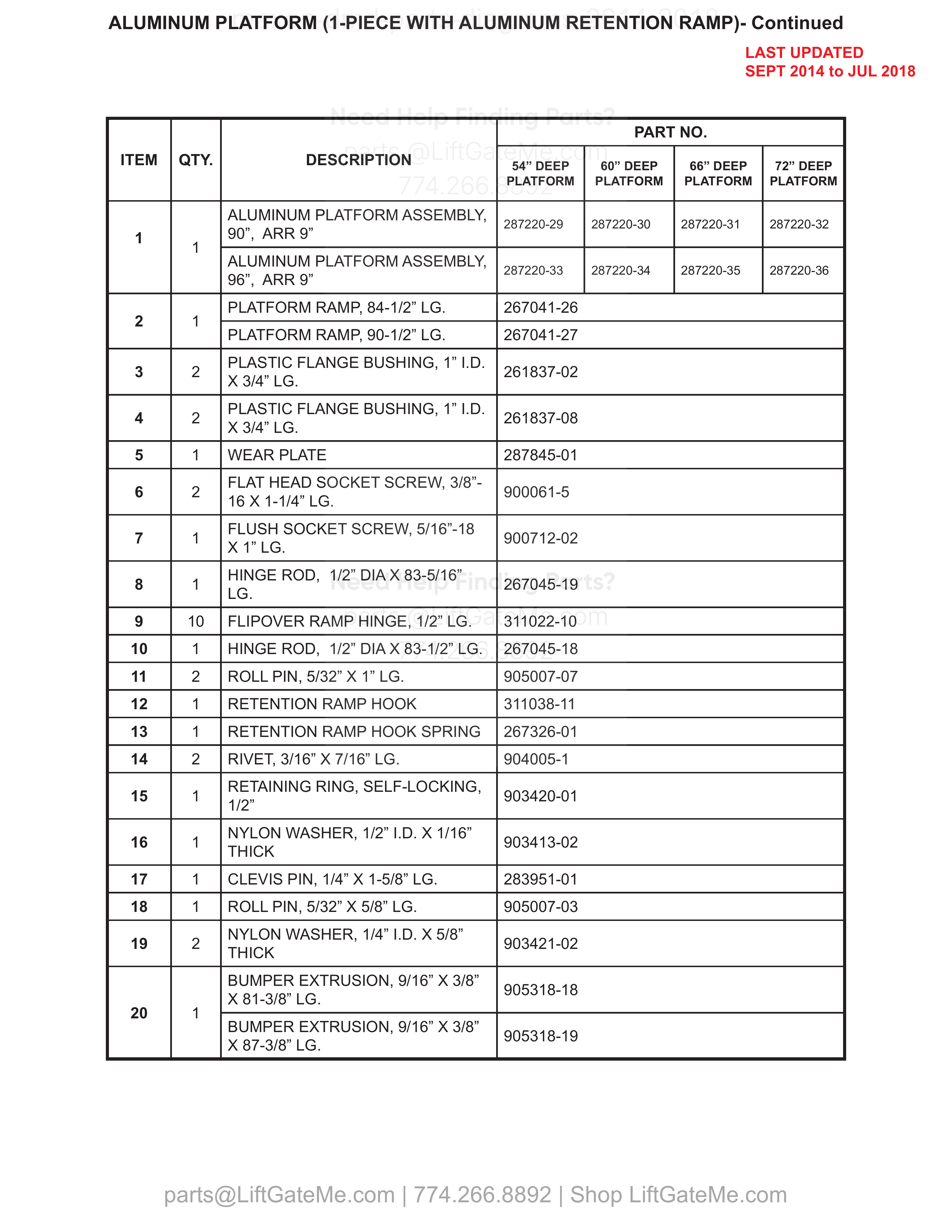

ALUMINUM PLATFORM (1-PIECE WITH ALUMINUM RETENTION RAMP) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287220-29 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” | |
| 1 | 1 | 287220-30 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” | |
| 1 | 1 | 287220-31 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” | |
| 1 | 1 | 287220-32 | ALUMINUM PLATFORM ASSEMBLY, 90”, ARR 9” | |
| 1 | 1 | 287220-33 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” | |
| 1 | 1 | 287220-34 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” | |
| 1 | 1 | 287220-35 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” | |
| 1 | 1 | 287220-36 | ALUMINUM PLATFORM ASSEMBLY, 96”, ARR 9” | |
| 2 | 1 | 267041-26 | PLATFORM RAMP, 84-1/2” LG. | |
| 2 | 1 | 267041-27 | PLATFORM RAMP, 90-1/2” LG. | |
| 3 | 2 | 261837-02 | PLASTIC FLANGE BUSHING, 1” I.D. X 3/4” LG. | |
| 4 | 2 | 261837-08 | PLASTIC FLANGE BUSHING, 1” I.D. X 3/4” LG. | |
| 5 | 1 | 287845-01 | WEAR PLATE | |
| 6 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 7 | 1 | 900712-02 | FLUSH SOCKET SCREW, 5/16”-18 X 1” LG. | |
| 8 | 1 | 267045-19 | HINGE ROD, 1/2” DIA X 83-5/16” LG. | |
| 9 | 10 | 311022-10 | FLIPOVER RAMP HINGE, 1/2” LG. | |
| 10 | 1 | 267045-18 | HINGE ROD, 1/2” DIA X 83-1/2” LG. | |
| 11 | 2 | 905007-07 | ROLL PIN, 5/32” X 1” LG. | |
| 12 | 1 | 311038-11 | RETENTION RAMP HOOK | |
| 13 | 1 | 267326-01 | RETENTION RAMP HOOK SPRING | |
| 14 | 2 | 904005-1 | RIVET, 3/16” X 7/16” LG. | |
| 15 | 1 | 903420-01 | RETAINING RING, SELF-LOCKING, 1/2” | |
| 16 | 1 | 903413-02 | NYLON WASHER, 1/2” I.D. X 1/16” THICK | |
| 17 | 1 | 283951-01 | CLEVIS PIN, 1/4” X 1-5/8” LG. | |
| 18 | 1 | 905007-03 | ROLL PIN, 5/32” X 5/8” LG. | |
| 19 | 2 | 903421-02 | NYLON WASHER, 1/4” I.D. X 5/8” THICK | |
| 20 | 1 | 905318-18 | BUMPER EXTRUSION, 9/16” X 3/8” X 81-3/8” LG. | |
| 20 | 1 | 905318-19 | BUMPER EXTRUSION, 9/16” X 3/8” X 87-3/8” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

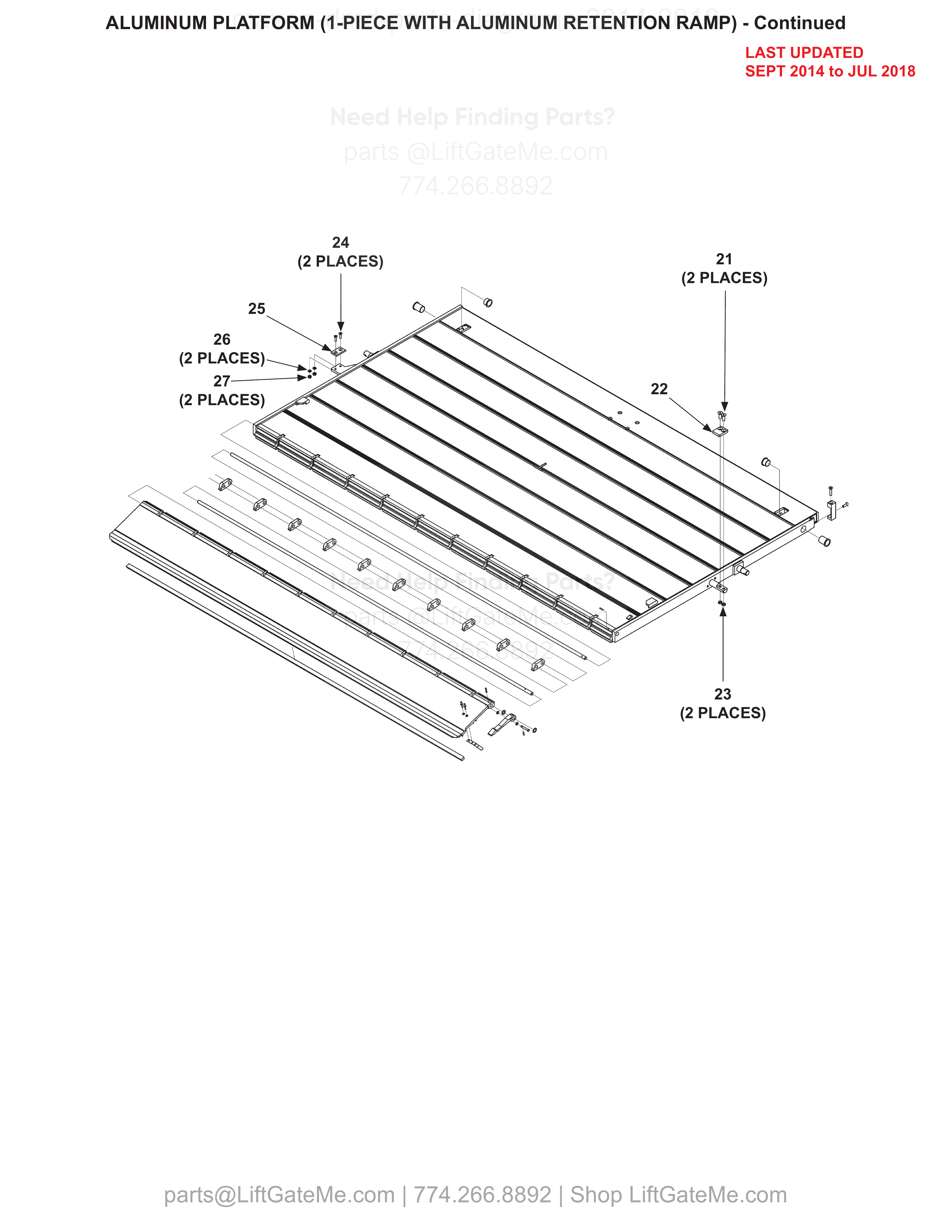

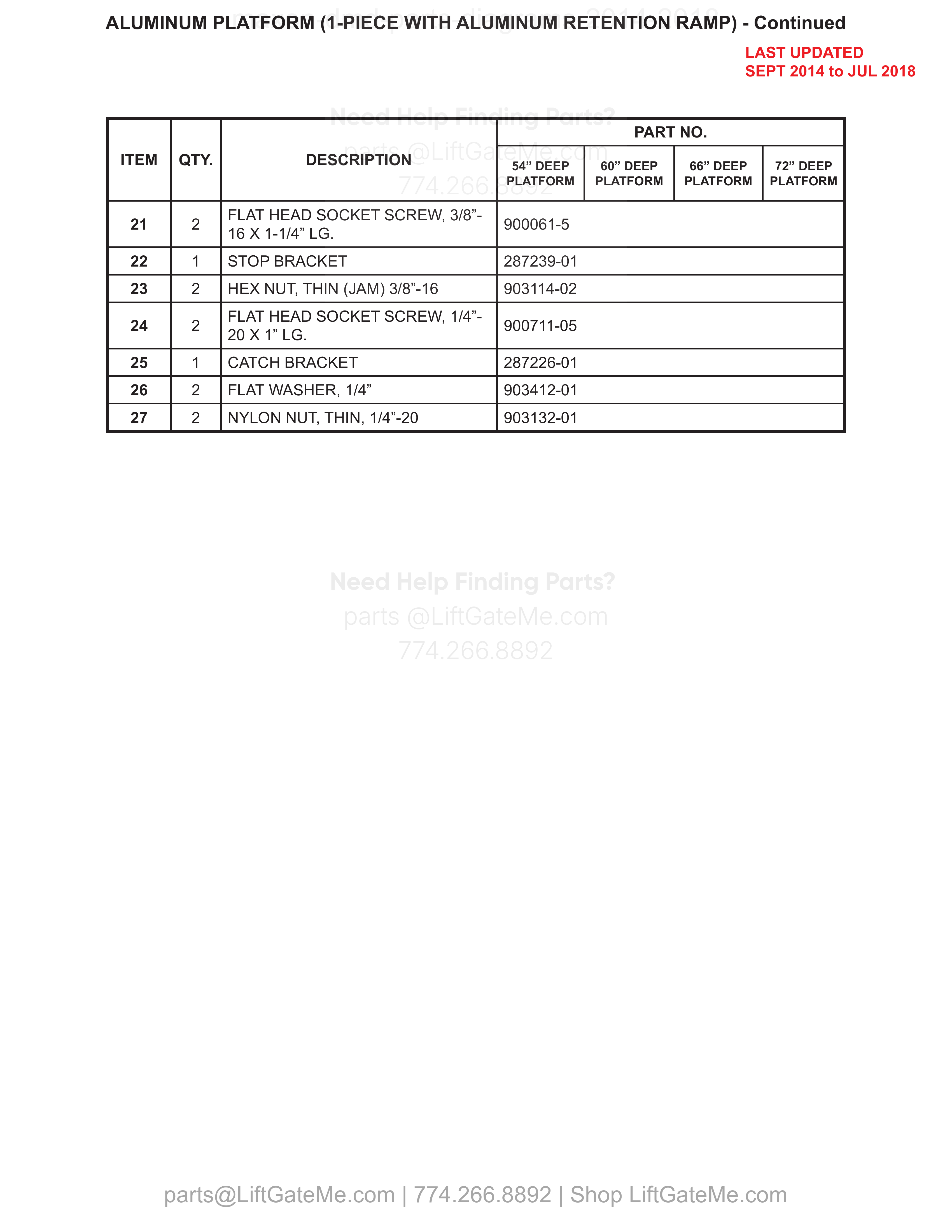

ALUMINUM PLATFORM (1-PIECE WITH ALUMINUM RETENTION RAMP) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 21 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 22 | 1 | 287239-01 | STOP BRACKET | |
| 23 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 24 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. | |
| 25 | 1 | 287226-01 | CATCH BRACKET | |
| 26 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 27 | 2 | 903132-01 | NYLON NUT, THIN, 1/4”-20 |

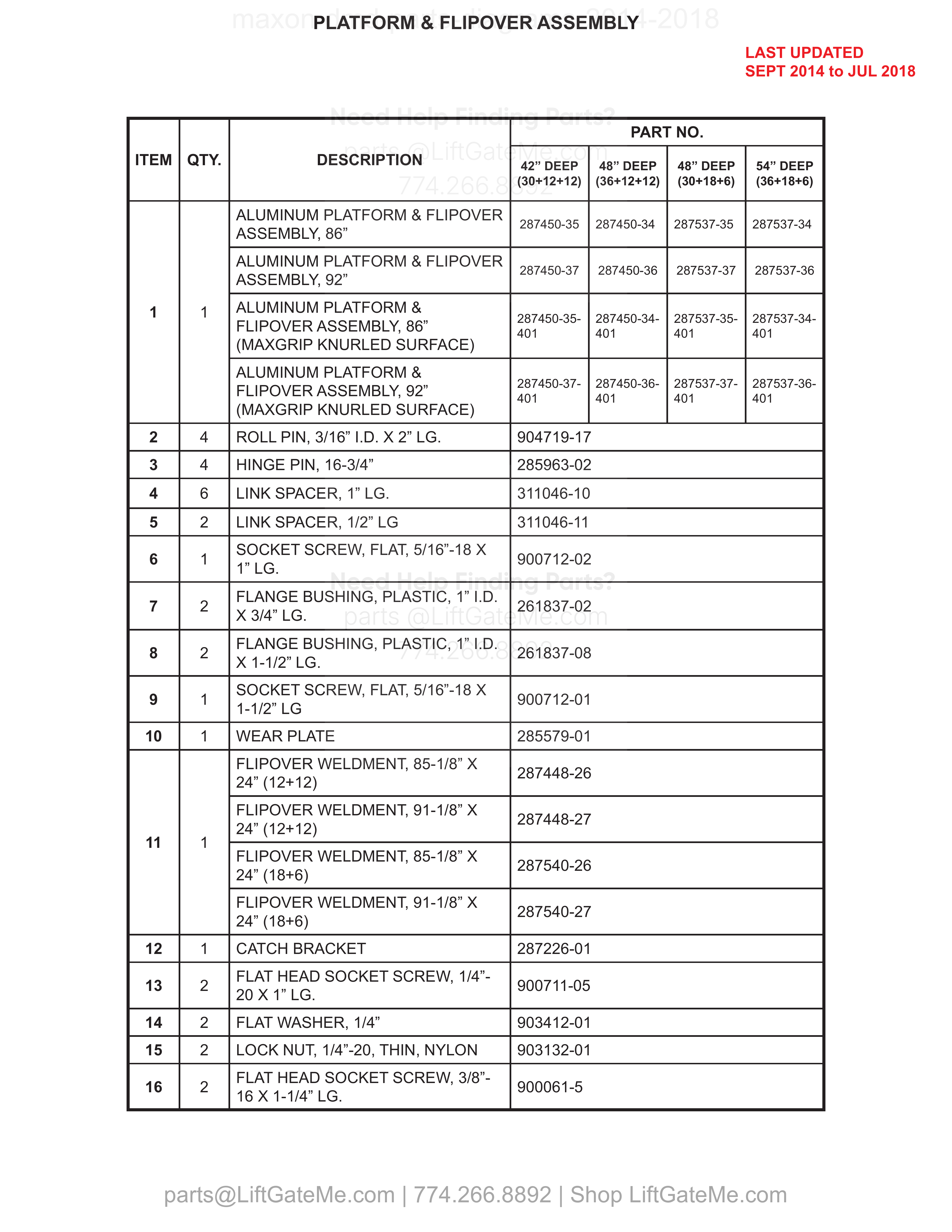

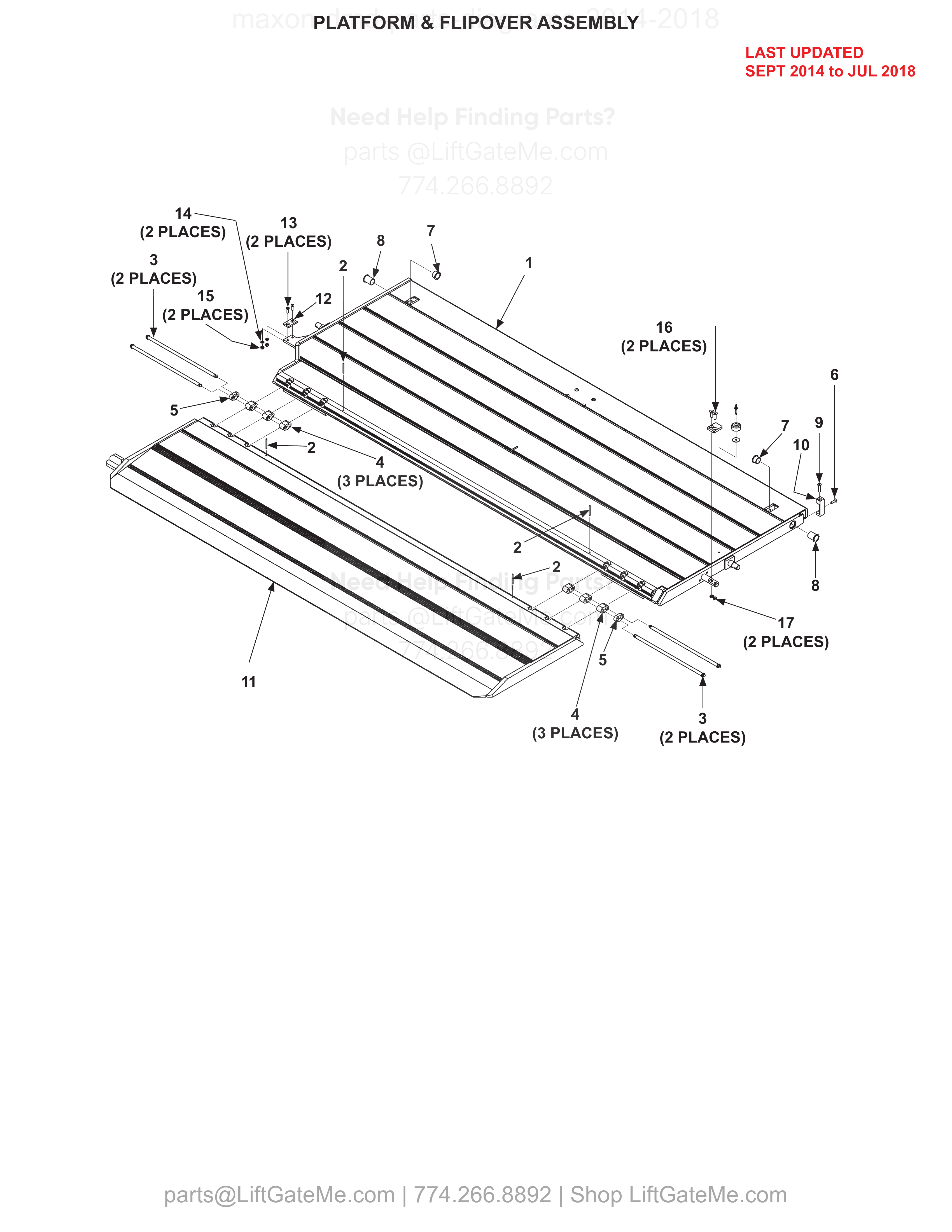

PLATFORM & FLIPOVER ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287450-35 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” | |
| 1 | 1 | 287450-34 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” | |
| 1 | 1 | 287537-35 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” | |
| 1 | 1 | 287537-34 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” | |
| 1 | 1 | 287450-37 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 92” | |
| 1 | 1 | 287450-36 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 92” | |
| 1 | 1 | 287537-37 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 92” | |
| 1 | 1 | 287537-36 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 92” | |
| 1 | 1 | 287450-35-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-34-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-35-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-34-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-37-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-36-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-37-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-36-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 92” (MAXGRIP KNURLED SURFACE) | |
| 2 | 4 | 904719-17 | ROLL PIN, 3/16” I.D. X 2” LG. | |
| 3 | 4 | 285963-02 | HINGE PIN, 16-3/4” | |
| 4 | 6 | 311046-10 | LINK SPACER, 1” LG. | |
| 5 | 2 | 311046-11 | LINK SPACER, 1/2” LG | |
| 6 | 1 | 900712-02 | SOCKET SCREW, FLAT, 5/16”-18 X 1” LG. | |
| 7 | 2 | 261837-02 | FLANGE BUSHING, PLASTIC, 1” I.D. X 3/4” LG. | |
| 8 | 2 | 261837-08 | FLANGE BUSHING, PLASTIC, 1” I.D. X 1-1/2” LG. | |
| 9 | 1 | 900712-01 | SOCKET SCREW, FLAT, 5/16”-18 X 1-1/2” LG | |
| 10 | 1 | 285579-01 | WEAR PLATE | |
| 11 | 1 | 287448-26 | FLIPOVER WELDMENT, 85-1/8” X 24” (12+12) | |
| 11 | 1 | 287448-27 | FLIPOVER WELDMENT, 91-1/8” X 24” (12+12) | |
| 11 | 1 | 287540-26 | FLIPOVER WELDMENT, 85-1/8” X 24” (18+6) | |
| 11 | 1 | 287540-27 | FLIPOVER WELDMENT, 91-1/8” X 24” (18+6) | |
| 12 | 1 | 287226-01 | CATCH BRACKET | |
| 13 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. | |
| 14 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 15 | 2 | 903132-01 | LOCK NUT, 1/4”-20, THIN, NYLON | |
| 16 | 2 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

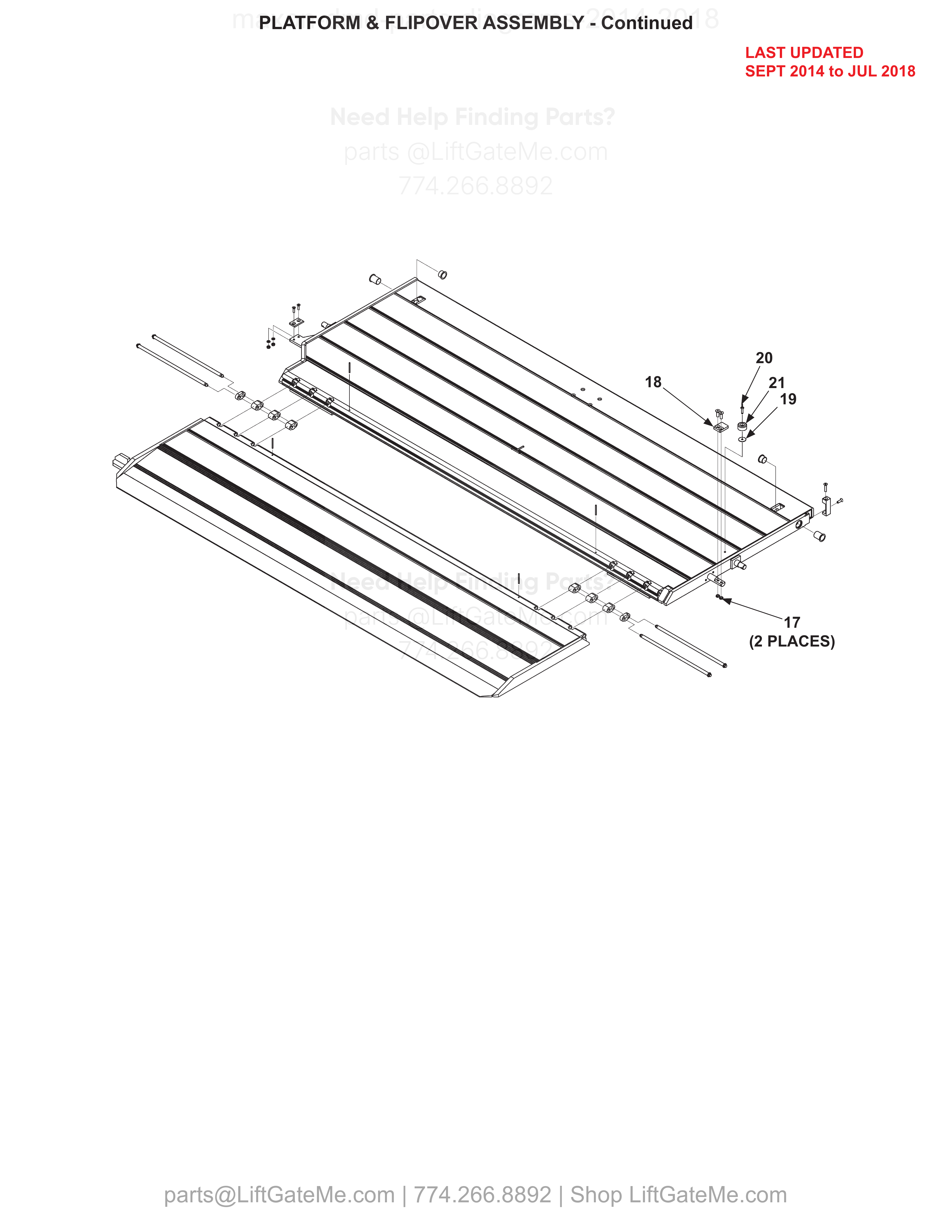

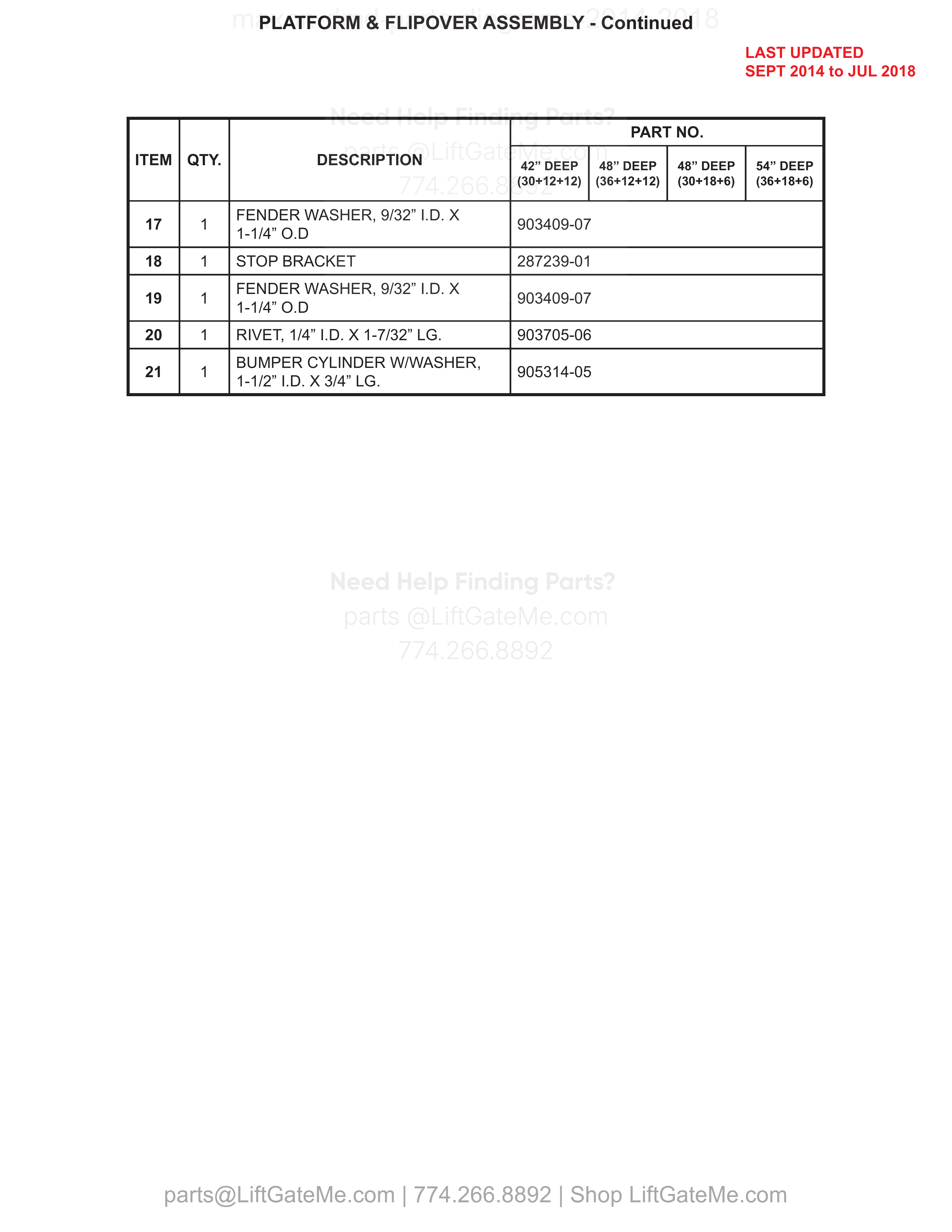

PLATFORM & FLIPOVER ASSEMBLY - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 17 | 1 | 903409-07 | FENDER WASHER, 9/32” I.D. X 1-1/4” O.D | |
| 18 | 1 | 287239-01 | STOP BRACKET | |
| 19 | 1 | 903409-07 | FENDER WASHER, 9/32” I.D. X 1-1/4” O.D | |
| 20 | 1 | 903705-06 | RIVET, 1/4” I.D. X 1-7/32” LG. | |
| 21 | 1 | 905314-05 | BUMPER CYLINDER W/WASHER, 1-1/2” I.D. X 3/4” LG. |

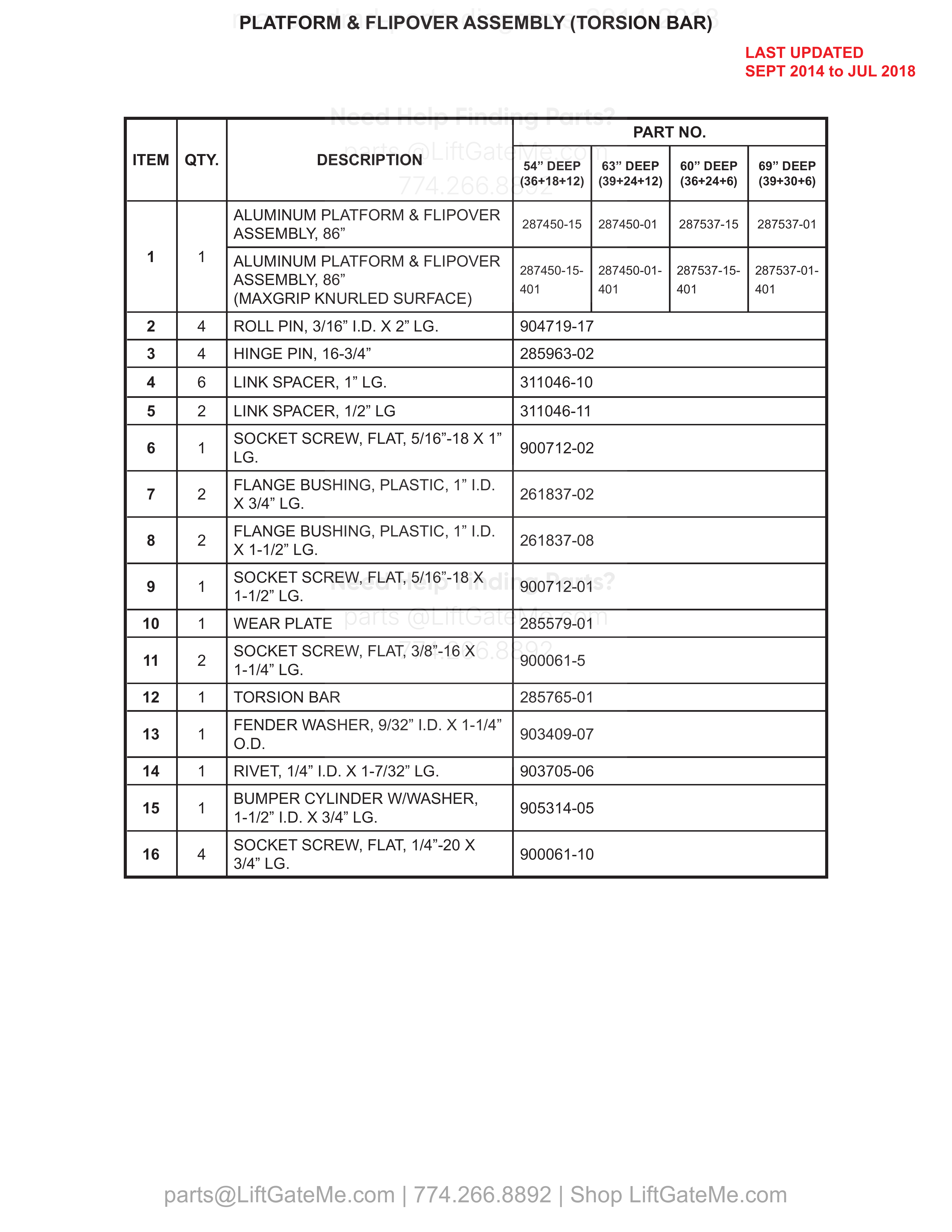

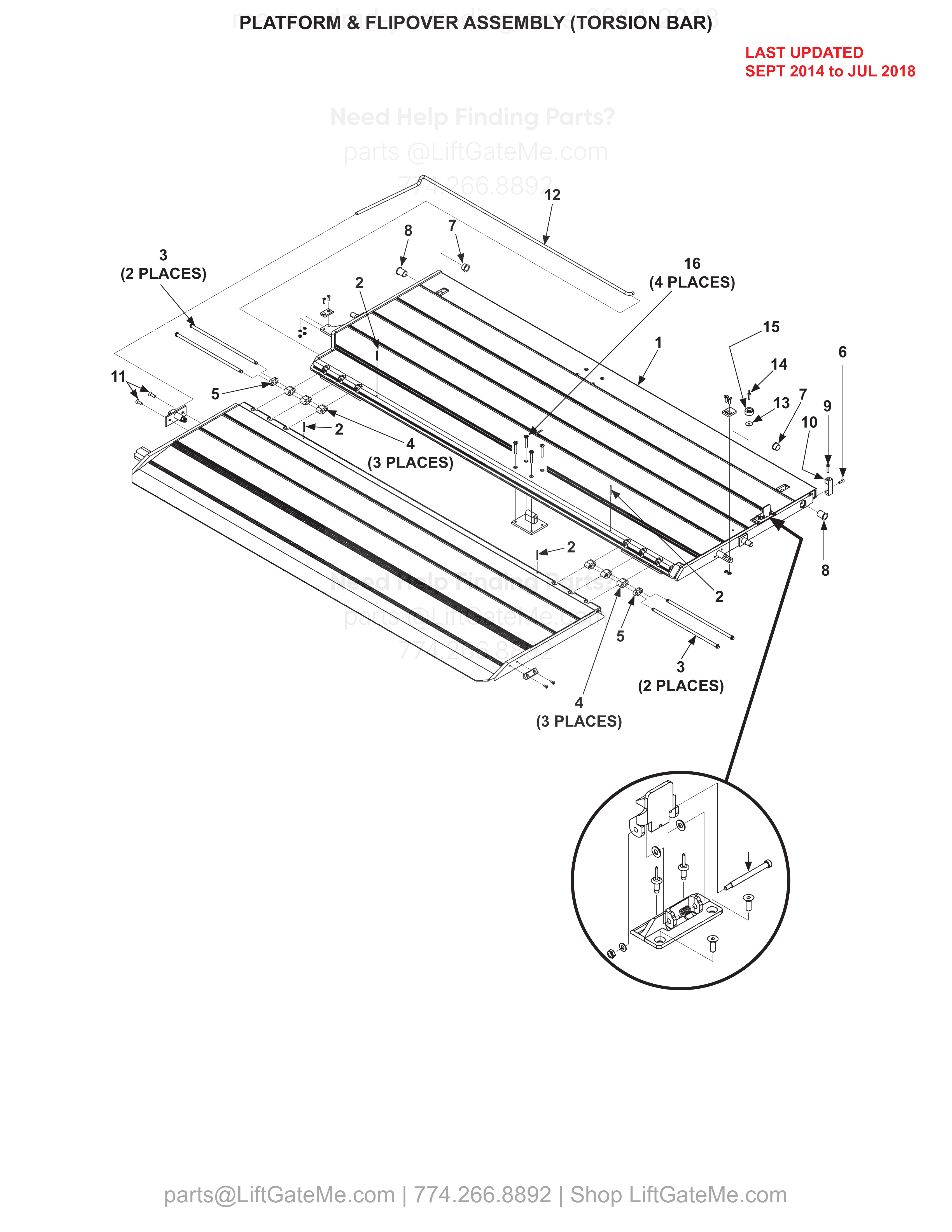

PLATFORM & FLIPOVER ASSEMBLY (TORSION BAR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287450-15 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” | |
| 1 | 1 | 287450-01 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” | |
| 1 | 1 | 287537-15 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” | |
| 1 | 1 | 287537-01 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” | |
| 1 | 1 | 287450-15-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-01-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-15-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-01-401 | ALUMINUM PLATFORM & FLIPOVER ASSEMBLY, 86” (MAXGRIP KNURLED SURFACE) | |
| 2 | 4 | 904719-17 | ROLL PIN, 3/16” I.D. X 2” LG. | |
| 3 | 4 | 285963-02 | HINGE PIN, 16-3/4” | |
| 4 | 6 | 311046-10 | LINK SPACER, 1” LG. | |
| 5 | 2 | 311046-11 | LINK SPACER, 1/2” LG | |
| 6 | 1 | 900712-02 | SOCKET SCREW, FLAT, 5/16”-18 X 1” LG. | |
| 7 | 2 | 261837-02 | FLANGE BUSHING, PLASTIC, 1” I.D. X 3/4” LG. | |
| 8 | 2 | 261837-08 | FLANGE BUSHING, PLASTIC, 1” I.D. X 1-1/2” LG. | |
| 9 | 1 | 900712-01 | SOCKET SCREW, FLAT, 5/16”-18 X 1-1/2” LG. | |
| 10 | 1 | 285579-01 | WEAR PLATE | |
| 11 | 2 | 900061-5 | SOCKET SCREW, FLAT, 3/8”-16 X 1-1/4” LG. | |
| 12 | 1 | 285765-01 | TORSION BAR | |
| 13 | 1 | 903409-07 | FENDER WASHER, 9/32” I.D. X 1-1/4” O.D. | |
| 14 | 1 | 903705-06 | RIVET, 1/4” I.D. X 1-7/32” LG. | |
| 15 | 1 | 905314-05 | BUMPER CYLINDER W/WASHER, 1-1/2” I.D. X 3/4” LG. | |
| 16 | 4 | 900061-10 | SOCKET SCREW, FLAT, 1/4”-20 X 3/4” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

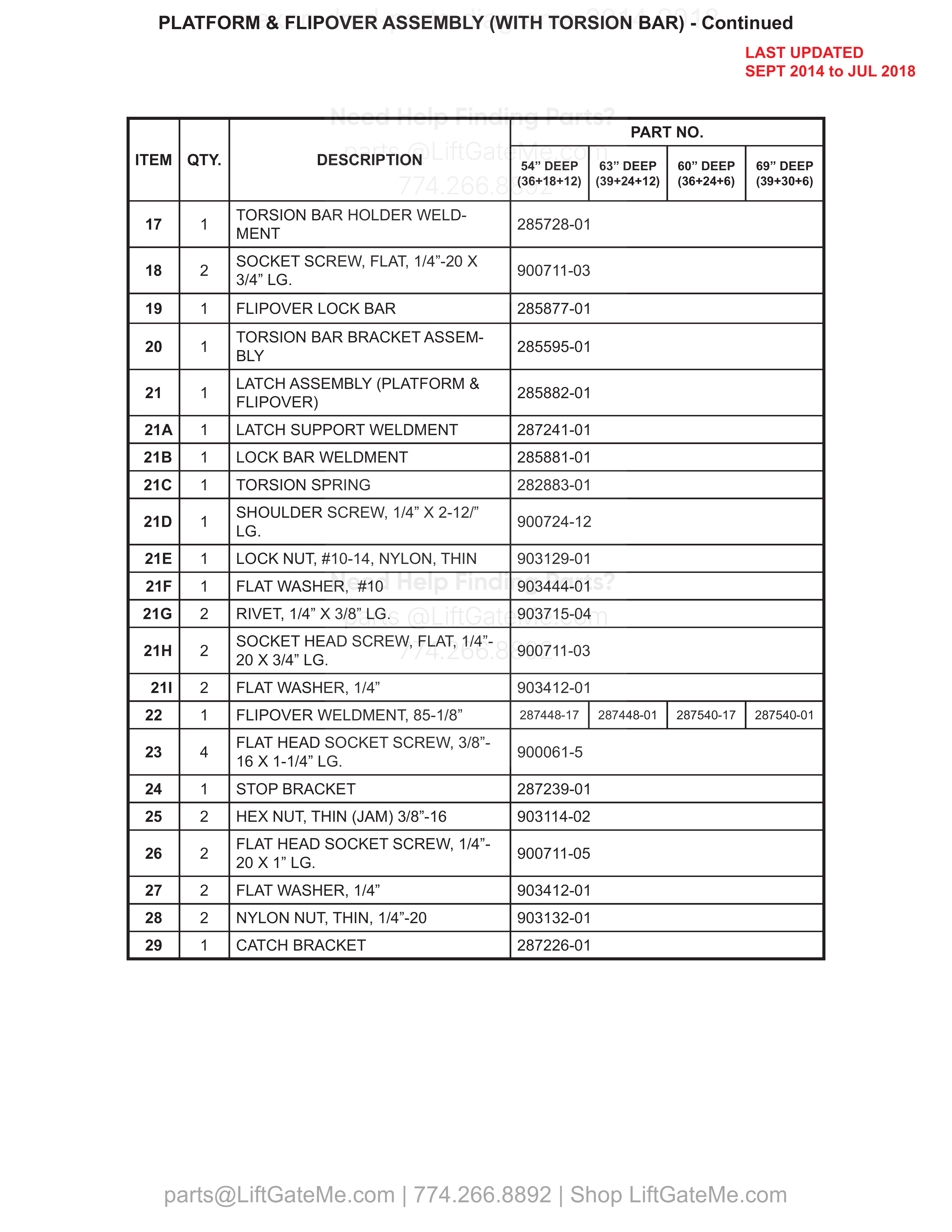

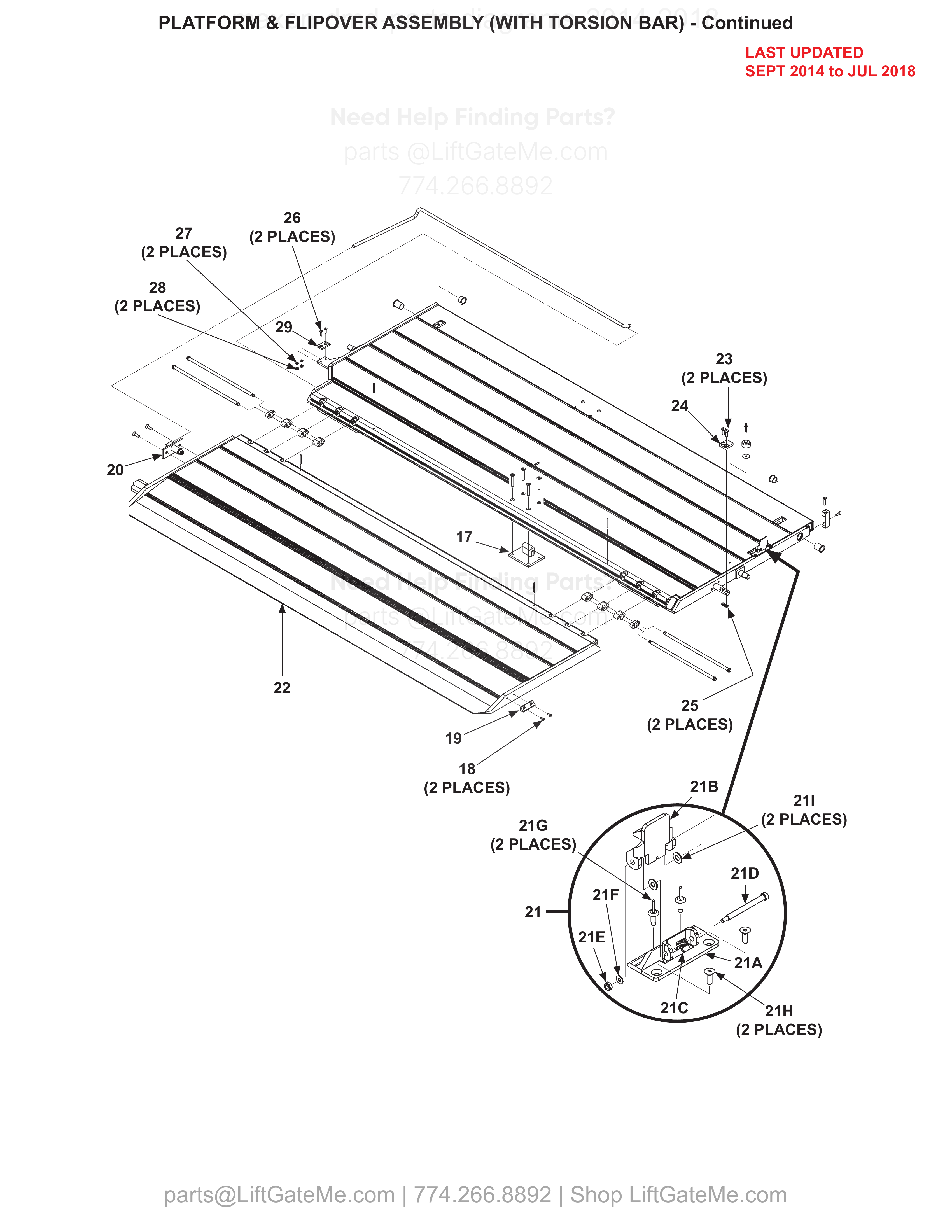

PLATFORM & FLIPOVER ASSEMBLY (WITH TORSION BAR) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 17 | 1 | 285728-01 | TORSION BAR HOLDER WELDMENT | |
| 18 | 2 | 900711-03 | SOCKET SCREW, FLAT, 1/4”-20 X 3/4” LG. | |
| 19 | 1 | 285877-01 | FLIPOVER LOCK BAR | |
| 20 | 1 | 285595-01 | TORSION BAR BRACKET ASSEMBLY | |
| 21 | 1 | 285882-01 | LATCH ASSEMBLY (PLATFORM & FLIPOVER) | |
| 21A | 1 | 287241-01 | LATCH SUPPORT WELDMENT | |
| 21B | 1 | 285881-01 | LOCK BAR WELDMENT | |
| 21C | 1 | 282883-01 | TORSION SPRING | |
| 21D | 1 | 900724-12 | SHOULDER SCREW, 1/4” X 2-12/” LG. | |
| 21E | 1 | 903129-01 | LOCK NUT, #10-14, NYLON, THIN | |
| 21F | 1 | 903444-01 | FLAT WASHER, #10 | |
| 21G | 2 | 903715-04 | RIVET, 1/4” X 3/8” LG. | |
| 21H | 2 | 900711-03 | SOCKET HEAD SCREW, FLAT, 1/4”-20 X 3/4” LG. | |
| 21I | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 22 | 1 | 287448-17 | FLIPOVER WELDMENT, 85-1/8” | |
| 22 | 1 | 287448-01 | FLIPOVER WELDMENT, 85-1/8” | |
| 22 | 1 | 287540-17 | FLIPOVER WELDMENT, 85-1/8” | |
| 22 | 1 | 287540-01 | FLIPOVER WELDMENT, 85-1/8” | |
| 23 | 4 | 900061-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 24 | 1 | 287239-01 | STOP BRACKET | |
| 25 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 26 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. | |
| 27 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 28 | 2 | 903132-01 | NYLON NUT, THIN, 1/4”-20 | |
| 29 | 1 | 287226-01 | CATCH BRACKET |

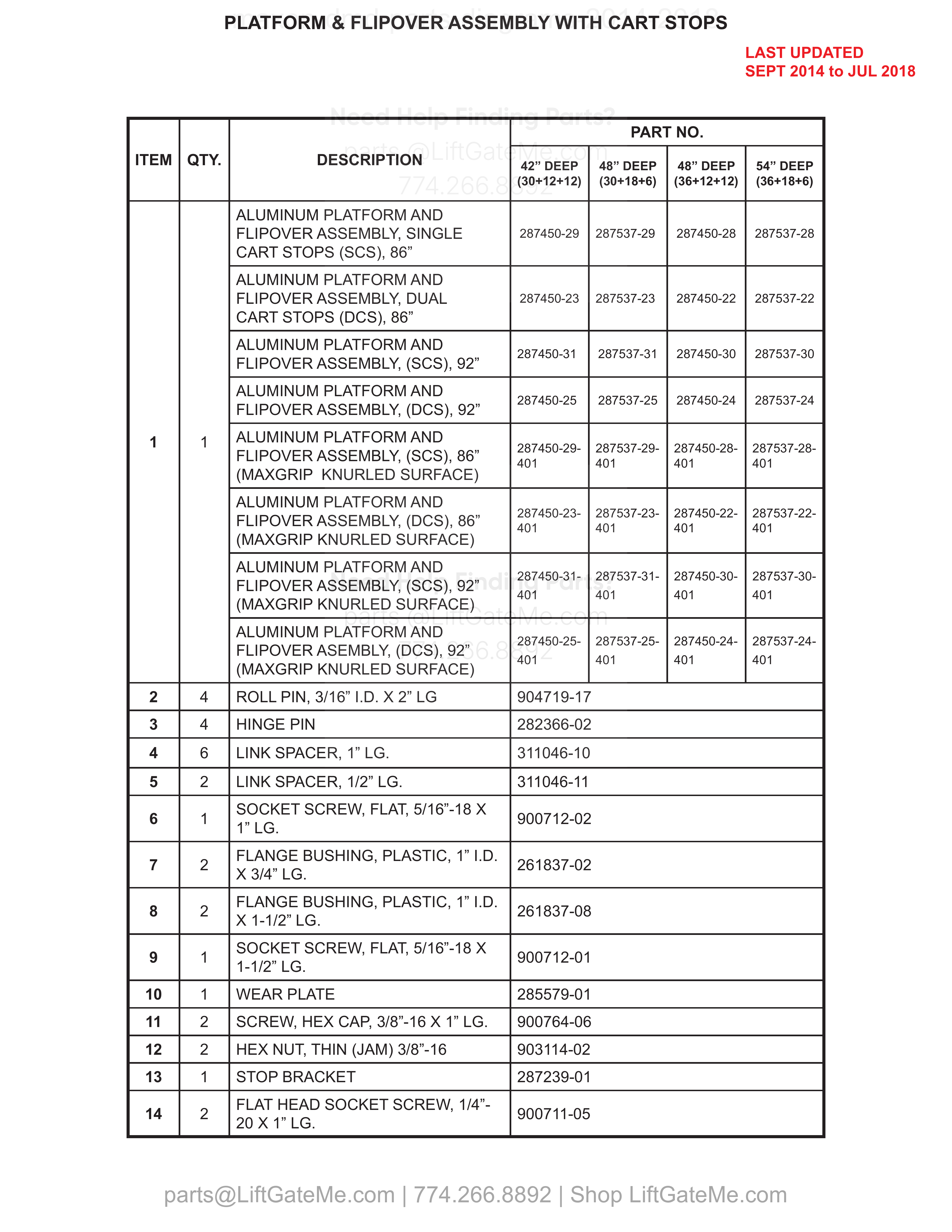

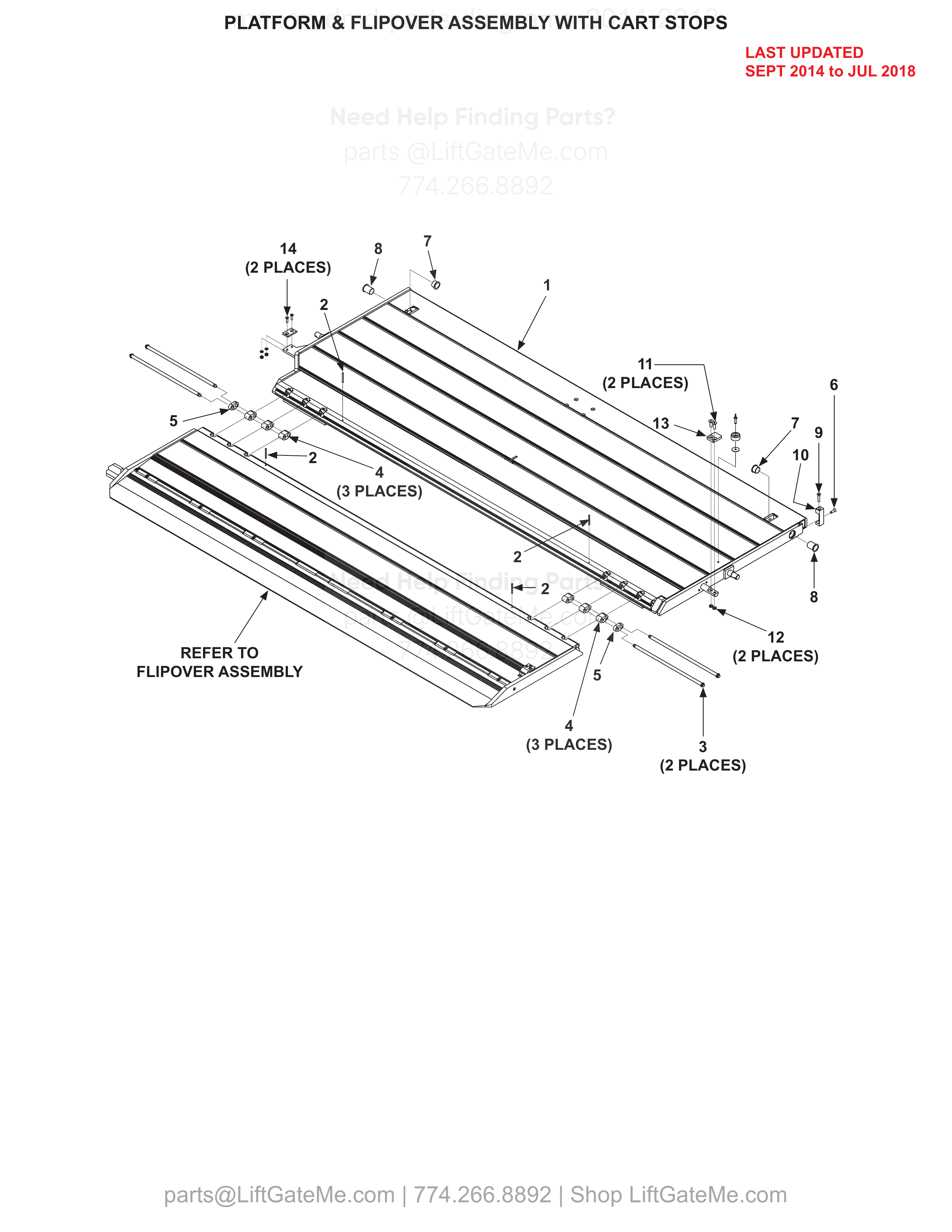

PLATFORM & FLIPOVER ASSEMBLY WITH CART STOPS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287450-29 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, SINGLE CART STOPS (SCS), 86” | |
| 1 | 1 | 287537-29 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, SINGLE CART STOPS (SCS), 86” | |
| 1 | 1 | 287450-28 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, SINGLE CART STOPS (SCS), 86” | |
| 1 | 1 | 287537-28 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, SINGLE CART STOPS (SCS), 86” | |
| 1 | 1 | 287450-23 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, DUAL CART STOPS (DCS), 86” | |
| 1 | 1 | 287537-23 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, DUAL CART STOPS (DCS), 86” | |
| 1 | 1 | 287450-22 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, DUAL CART STOPS (DCS), 86” | |
| 1 | 1 | 287537-22 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, DUAL CART STOPS (DCS), 86” | |
| 1 | 1 | 287450-31 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” | |
| 1 | 1 | 287537-31 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” | |
| 1 | 1 | 287450-30 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” | |
| 1 | 1 | 287537-30 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” | |
| 1 | 1 | 287450-25 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 92” | |
| 1 | 1 | 287537-25 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 92” | |
| 1 | 1 | 287450-24 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 92” | |
| 1 | 1 | 287537-24 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 92” | |
| 1 | 1 | 287450-29-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-29-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-28-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-28-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-23-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-23-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-22-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-22-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-31-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-31-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-30-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-30-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-25-401 | ALUMINUM PLATFORM AND FLIPOVER ASEMBLY, (DCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-25-401 | ALUMINUM PLATFORM AND FLIPOVER ASEMBLY, (DCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-24-401 | ALUMINUM PLATFORM AND FLIPOVER ASEMBLY, (DCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-24-401 | ALUMINUM PLATFORM AND FLIPOVER ASEMBLY, (DCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 2 | 4 | 904719-17 | ROLL PIN, 3/16” I.D. X 2” LG | |
| 3 | 4 | 282366-02 | HINGE PIN | |
| 4 | 6 | 311046-10 | LINK SPACER, 1” LG. | |
| 5 | 2 | 311046-11 | LINK SPACER, 1/2” LG. | |
| 6 | 1 | 900712-02 | SOCKET SCREW, FLAT, 5/16”-18 X 1” LG. | |
| 7 | 2 | 261837-02 | FLANGE BUSHING, PLASTIC, 1” I.D. X 3/4” LG. | |
| 8 | 2 | 261837-08 | FLANGE BUSHING, PLASTIC, 1” I.D. X 1-1/2” LG. | |
| 9 | 1 | 900712-01 | SOCKET SCREW, FLAT, 5/16”-18 X 1-1/2” LG. | |
| 10 | 1 | 285579-01 | WEAR PLATE | |
| 11 | 2 | 900764-06 | SCREW, HEX CAP, 3/8”-16 X 1” LG. | |
| 12 | 2 | 903114-02 | HEX NUT, THIN (JAM) 3/8”-16 | |
| 13 | 1 | 287239-01 | STOP BRACKET | |
| 14 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

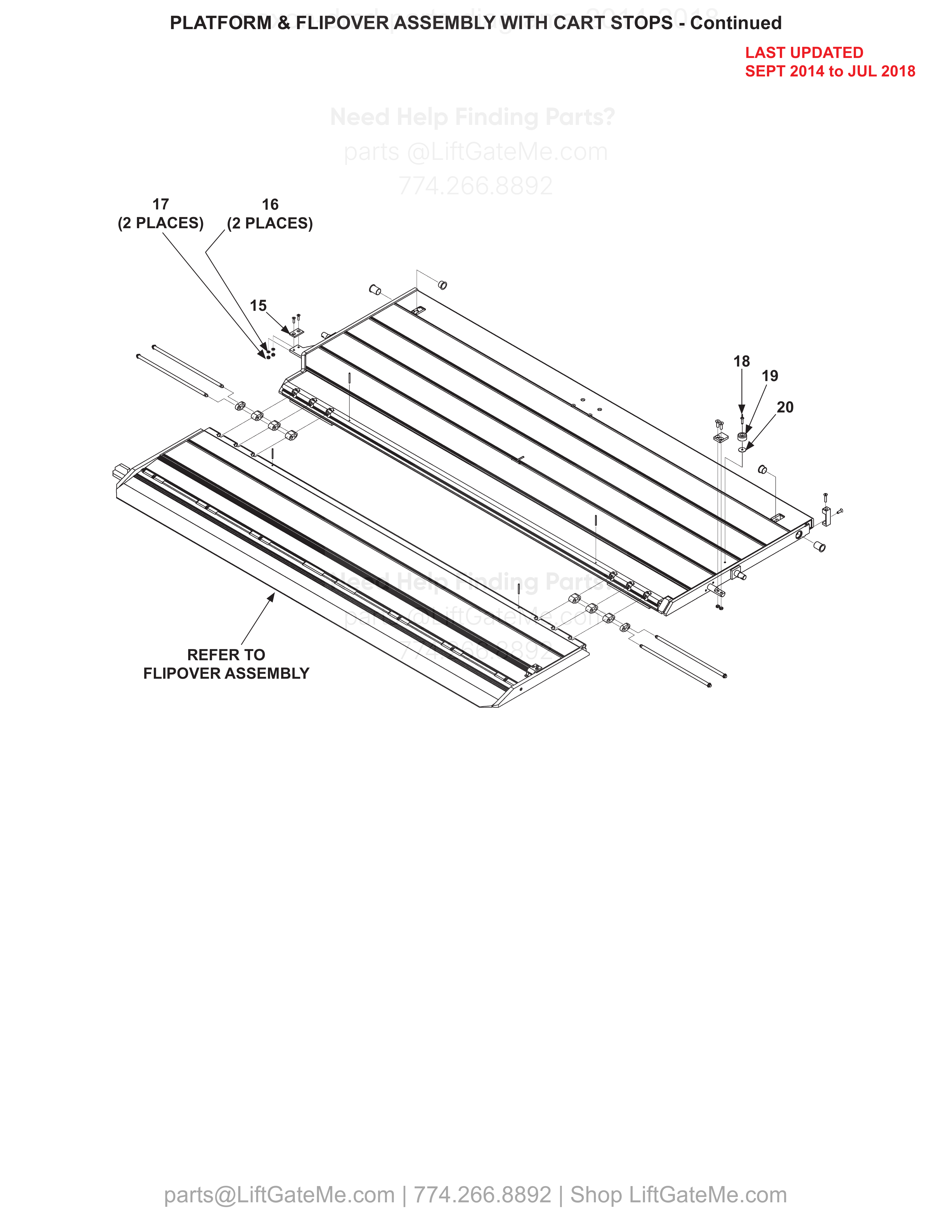

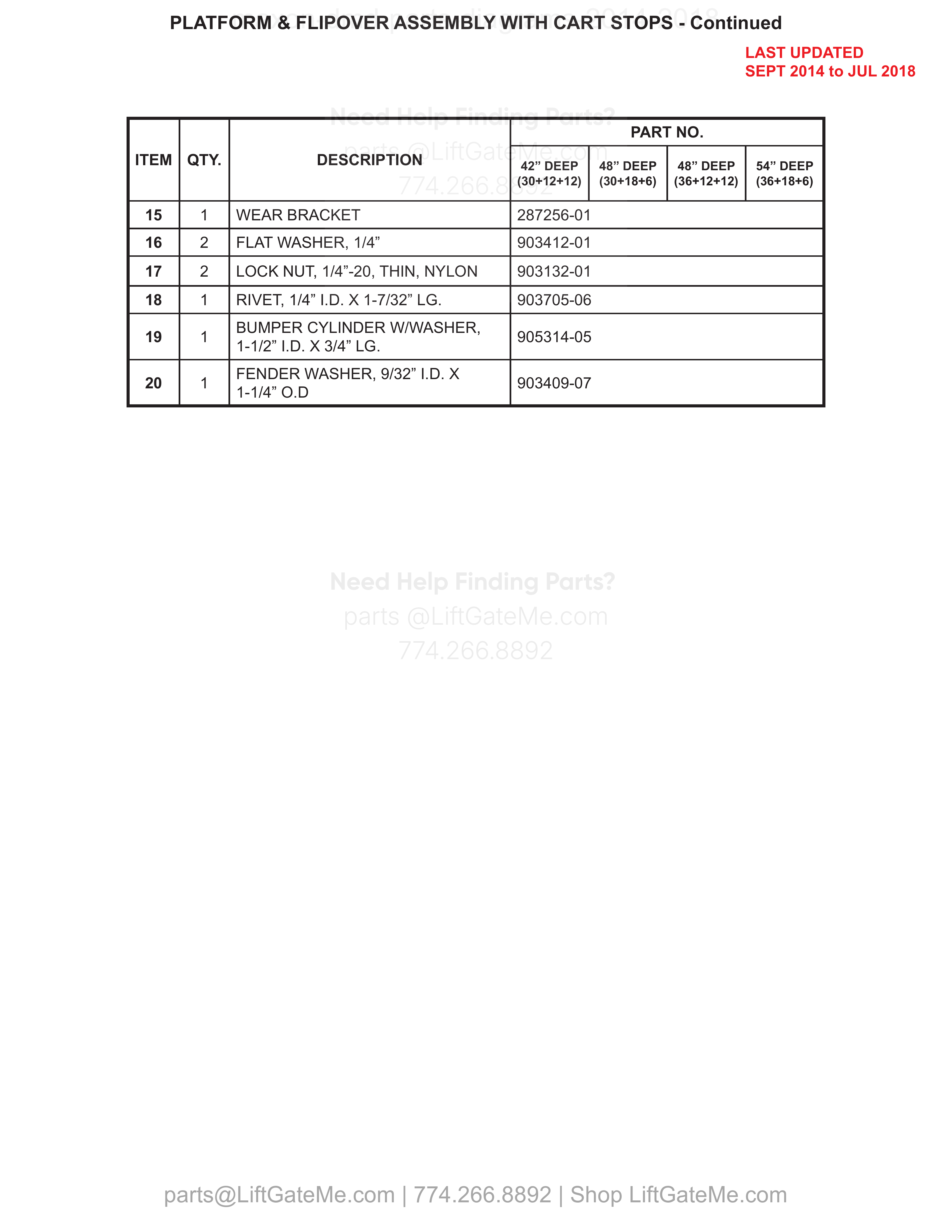

PLATFORM & FLIPOVER ASSEMBLY WITH CART STOPS - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 15 | 1 | 287256-01 | WEAR BRACKET | |
| 16 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 17 | 2 | 903132-01 | LOCK NUT, 1/4”-20, THIN, NYLON | |
| 18 | 1 | 903705-06 | RIVET, 1/4” I.D. X 1-7/32” LG. | |
| 19 | 1 | 905314-05 | BUMPER CYLINDER W/WASHER, 1-1/2” I.D. X 3/4” LG. | |
| 20 | 1 | 903409-07 | FENDER WASHER, 9/32” I.D. X 1-1/4” O.D |

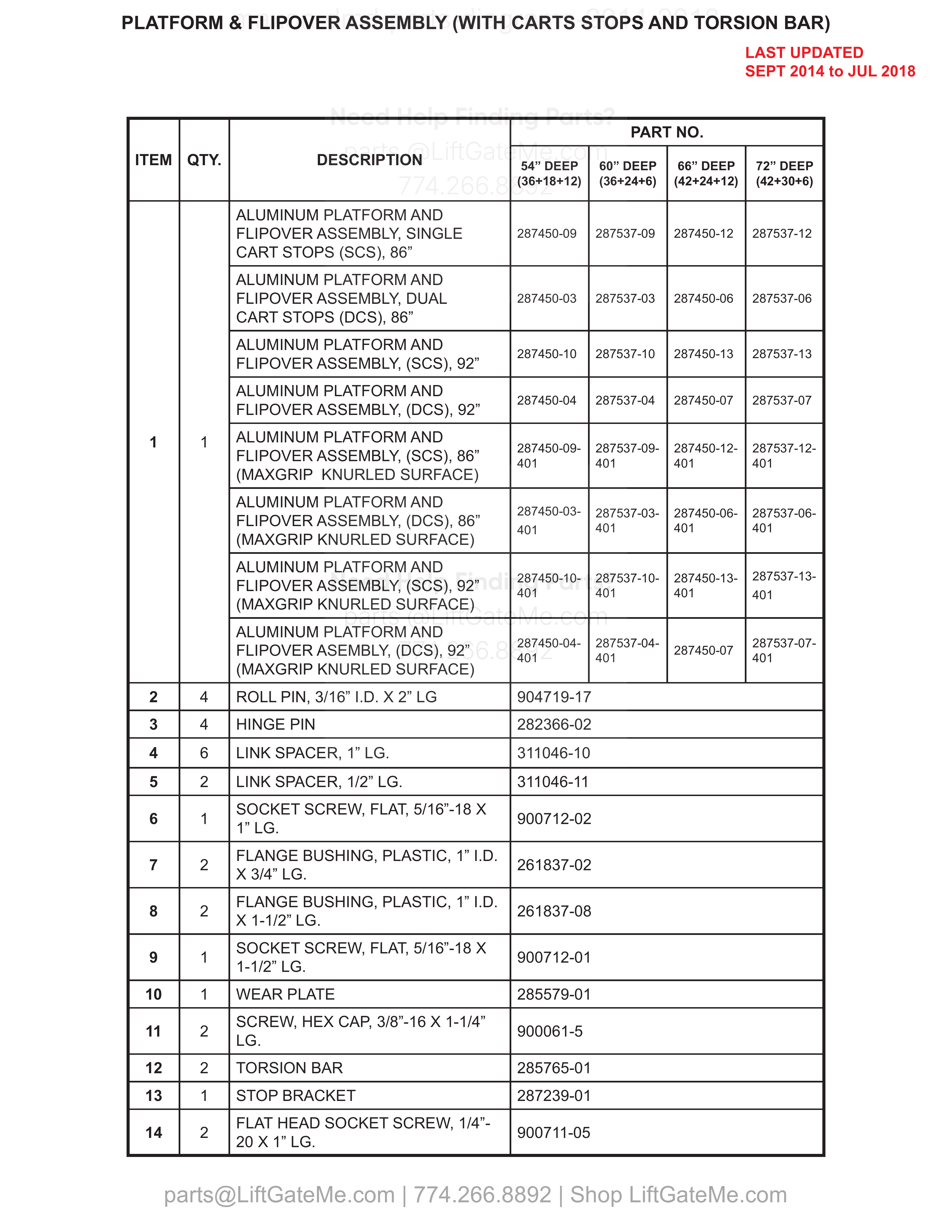

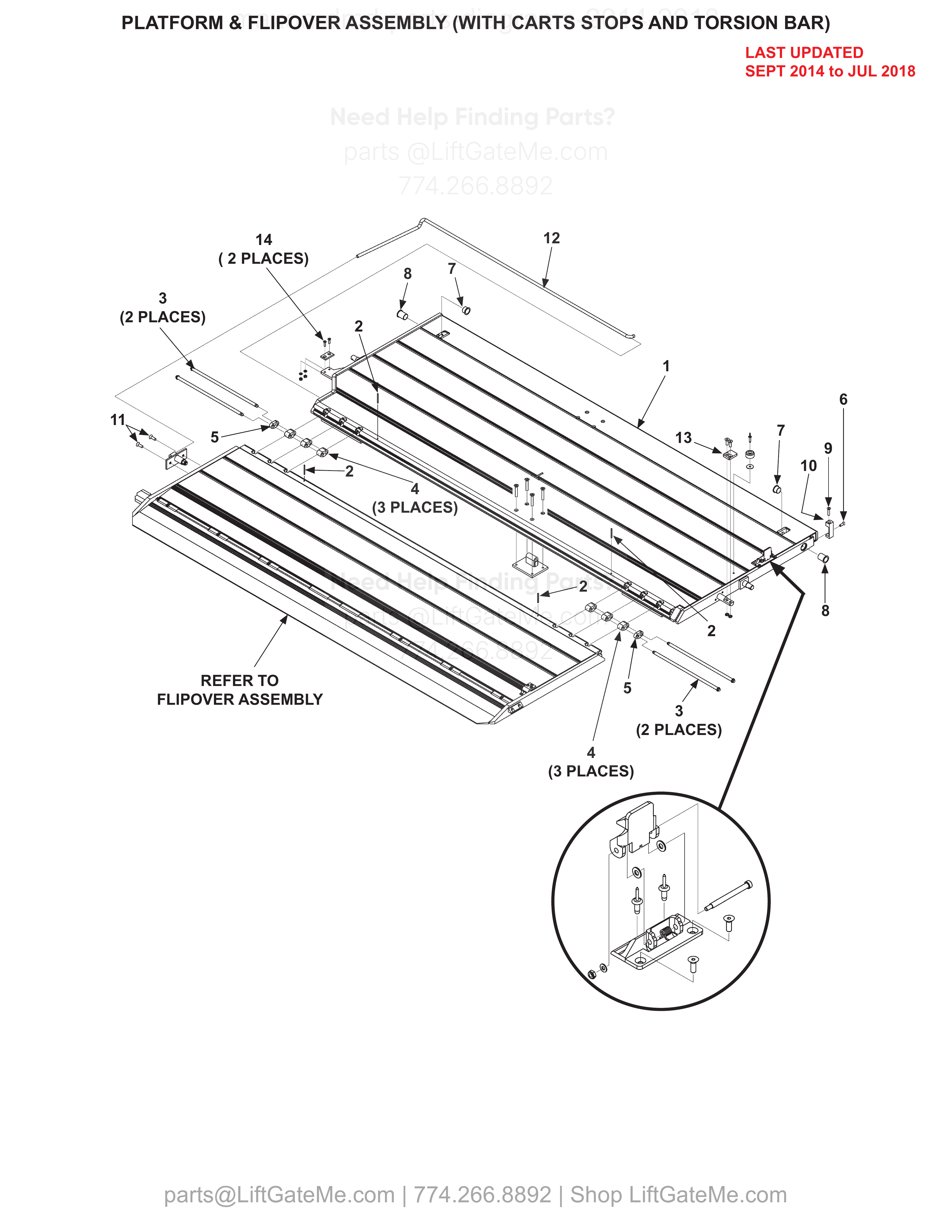

PLATFORM & FLIPOVER ASSEMBLY (WITH CARTS STOPS AND TORSION BAR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287450-09 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, SINGLE CART STOPS (SCS), 86” | |
| 1 | 1 | 287537-09 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, SINGLE CART STOPS (SCS), 86” | |
| 1 | 1 | 287450-12 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, SINGLE CART STOPS (SCS), 86” | |
| 1 | 1 | 287537-12 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, SINGLE CART STOPS (SCS), 86” | |
| 1 | 1 | 287450-03 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, DUAL CART STOPS (DCS), 86” | |
| 1 | 1 | 287537-03 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, DUAL CART STOPS (DCS), 86” | |
| 1 | 1 | 287450-06 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, DUAL CART STOPS (DCS), 86” | |
| 1 | 1 | 287537-06 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, DUAL CART STOPS (DCS), 86” | |
| 1 | 1 | 287450-10 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” | |
| 1 | 1 | 287537-10 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” | |
| 1 | 1 | 287450-13 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” | |
| 1 | 1 | 287537-13 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” | |
| 1 | 1 | 287450-04 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 92” | |
| 1 | 1 | 287537-04 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 92” | |
| 1 | 1 | 287450-07 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 92” | |
| 1 | 1 | 287537-07 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 92” | |
| 1 | 1 | 287450-09-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-09-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-12-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-12-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-03-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-03-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-06-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-06-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (DCS), 86” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-10-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-10-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-13-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-13-401 | ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY, (SCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-04-401 | ALUMINUM PLATFORM AND FLIPOVER ASEMBLY, (DCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-04-401 | ALUMINUM PLATFORM AND FLIPOVER ASEMBLY, (DCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287450-07 | ALUMINUM PLATFORM AND FLIPOVER ASEMBLY, (DCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287537-07-401 | ALUMINUM PLATFORM AND FLIPOVER ASEMBLY, (DCS), 92” (MAXGRIP KNURLED SURFACE) | |
| 2 | 4 | 904719-17 | ROLL PIN, 3/16” I.D. X 2” LG | |
| 3 | 4 | 282366-02 | HINGE PIN | |
| 4 | 6 | 311046-10 | LINK SPACER, 1” LG. | |
| 5 | 2 | 311046-11 | LINK SPACER, 1/2” LG. | |
| 6 | 1 | 900712-02 | SOCKET SCREW, FLAT, 5/16”-18 X 1” LG. | |
| 7 | 2 | 261837-02 | FLANGE BUSHING, PLASTIC, 1” I.D. X 3/4” LG. | |
| 8 | 2 | 261837-08 | FLANGE BUSHING, PLASTIC, 1” I.D. X 1-1/2” LG. | |
| 9 | 1 | 900712-01 | SOCKET SCREW, FLAT, 5/16”-18 X 1-1/2” LG. | |
| 10 | 1 | 285579-01 | WEAR PLATE | |
| 11 | 2 | 900061-5 | SCREW, HEX CAP, 3/8”-16 X 1-1/4” LG. | |
| 12 | 2 | 285765-01 | TORSION BAR | |
| 13 | 1 | 287239-01 | STOP BRACKET | |
| 14 | 2 | 900711-05 | FLAT HEAD SOCKET SCREW, 1/4”-20 X 1” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

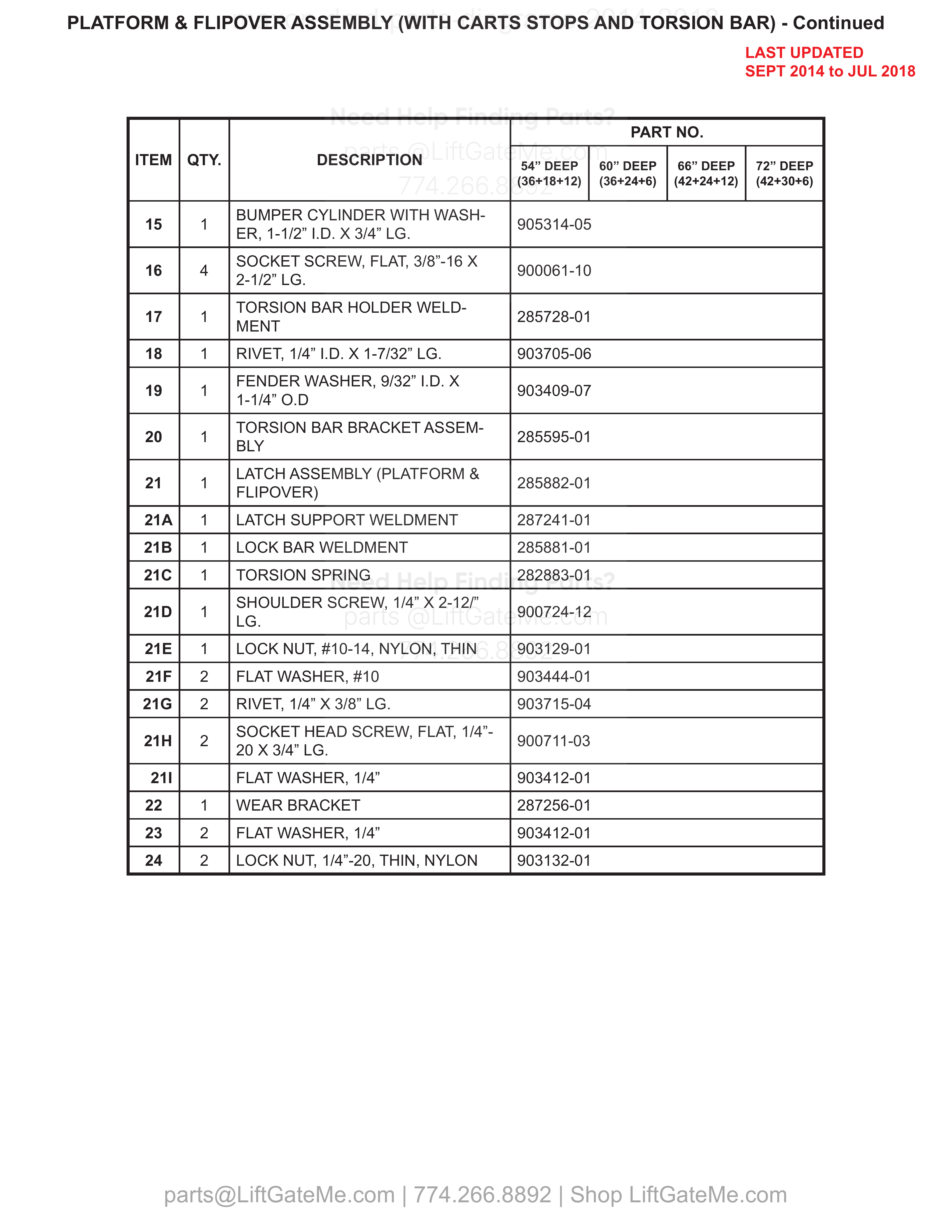

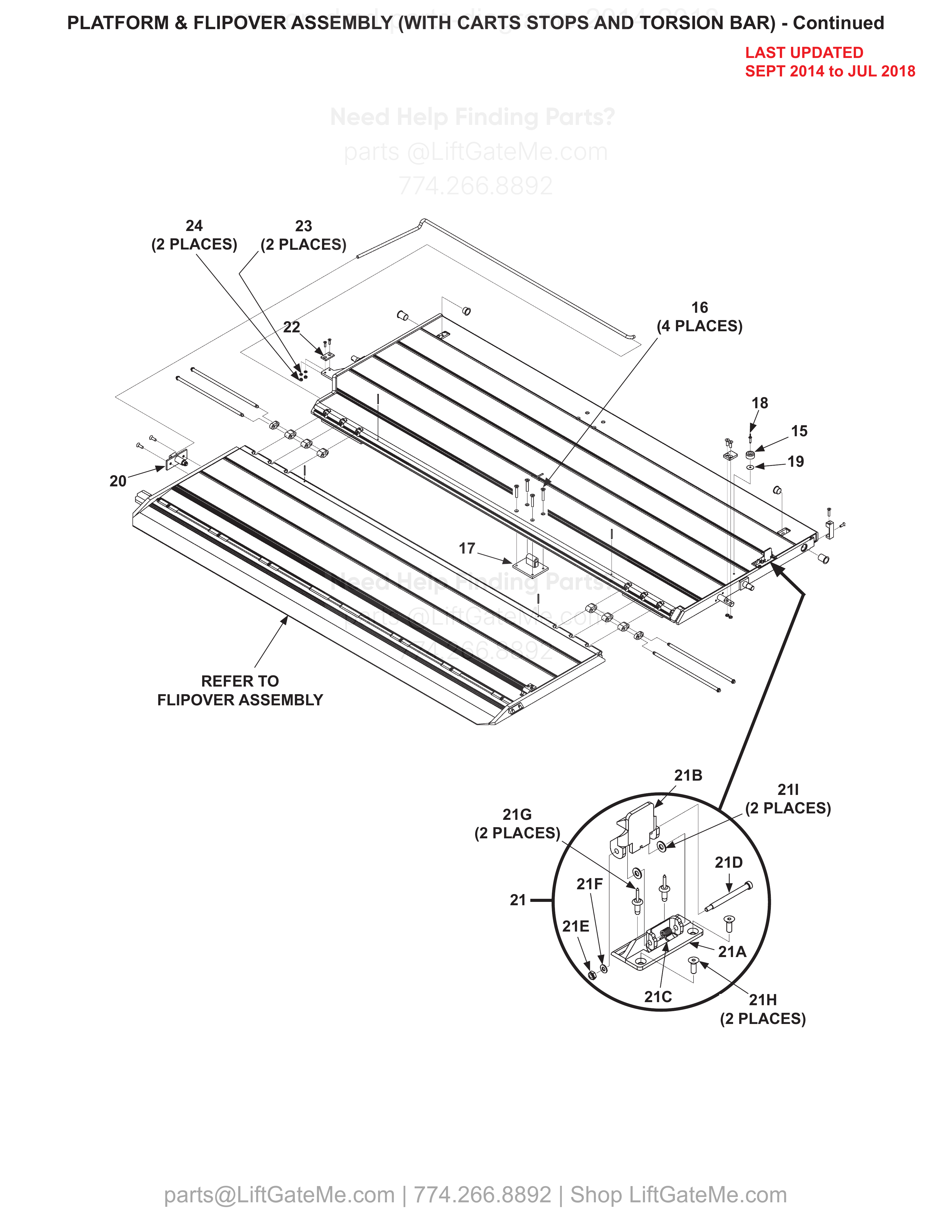

PLATFORM & FLIPOVER ASSEMBLY (WITH CARTS STOPS AND TORSION BAR) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 15 | 1 | 905314-05 | BUMPER CYLINDER WITH WASHER, 1-1/2” I.D. X 3/4” LG. | |
| 16 | 4 | 900061-10 | SOCKET SCREW, FLAT, 3/8”-16 X 2-1/2” LG. | |
| 17 | 1 | 285728-01 | TORSION BAR HOLDER WELDMENT | |
| 18 | 1 | 903705-06 | RIVET, 1/4” I.D. X 1-7/32” LG. | |
| 19 | 1 | 903409-07 | FENDER WASHER, 9/32” I.D. X 1-1/4” O.D | |
| 20 | 1 | 285595-01 | TORSION BAR BRACKET ASSEMBLY | |
| 21 | 1 | 285882-01 | LATCH ASSEMBLY (PLATFORM & FLIPOVER) | |
| 21A | 1 | 287241-01 | LATCH SUPPORT WELDMENT | |
| 21B | 1 | 285881-01 | LOCK BAR WELDMENT | |
| 21C | 1 | 282883-01 | TORSION SPRING | |
| 21D | 1 | 900724-12 | SHOULDER SCREW, 1/4” X 2-12/” LG. | |
| 21E | 1 | 903129-01 | LOCK NUT, #10-14, NYLON, THIN | |
| 21F | 2 | 903444-01 | FLAT WASHER, #10 | |
| 21G | 2 | 903715-04 | RIVET, 1/4” X 3/8” LG. | |
| 21H | 2 | 900711-03 | SOCKET HEAD SCREW, FLAT, 1/4”-20 X 3/4” LG. | |
| 21I | 903412-01 | FLAT WASHER, 1/4” | ||
| 22 | 1 | 287256-01 | WEAR BRACKET | |
| 23 | 2 | 903412-01 | FLAT WASHER, 1/4” | |
| 24 | 2 | 903132-01 | LOCK NUT, 1/4”-20, THIN, NYLON |

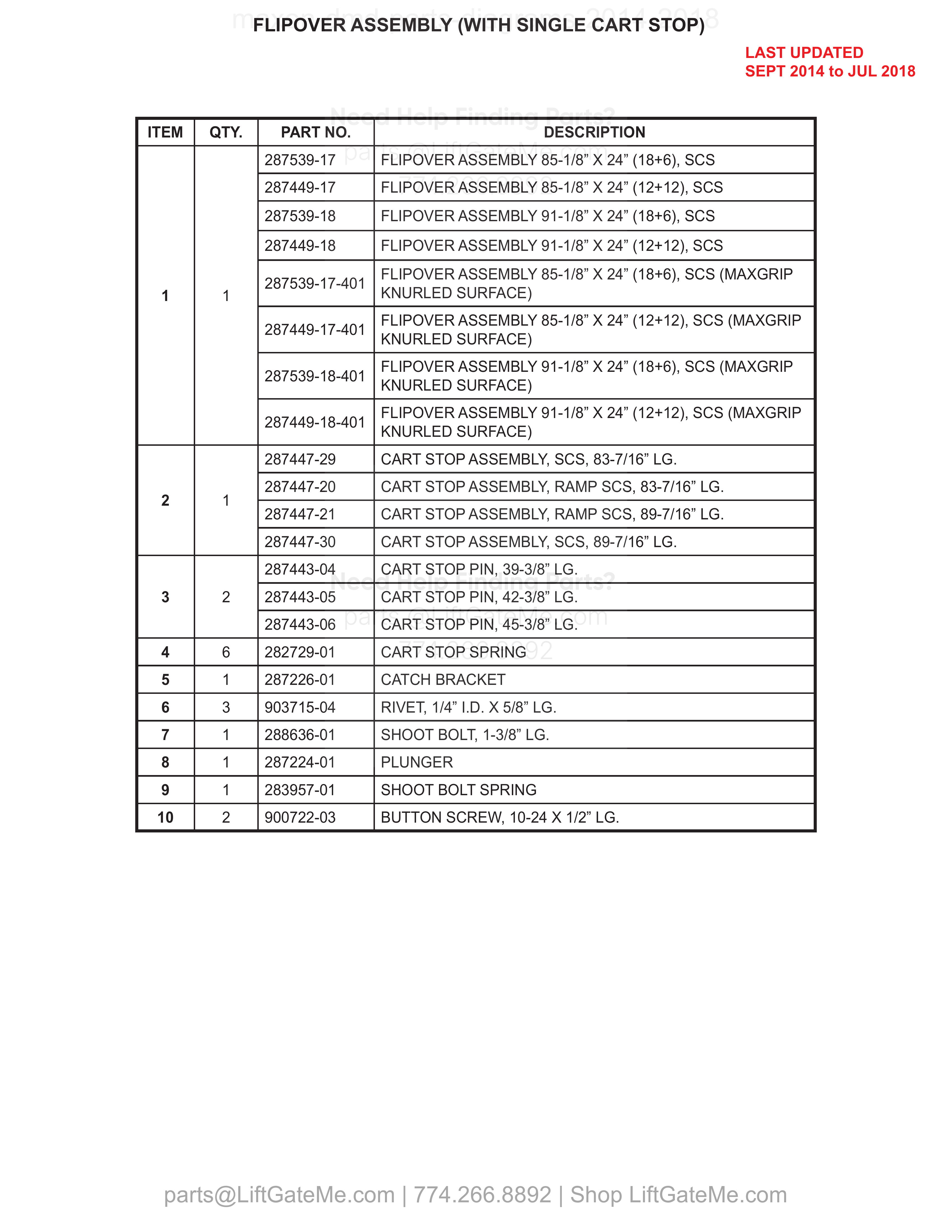

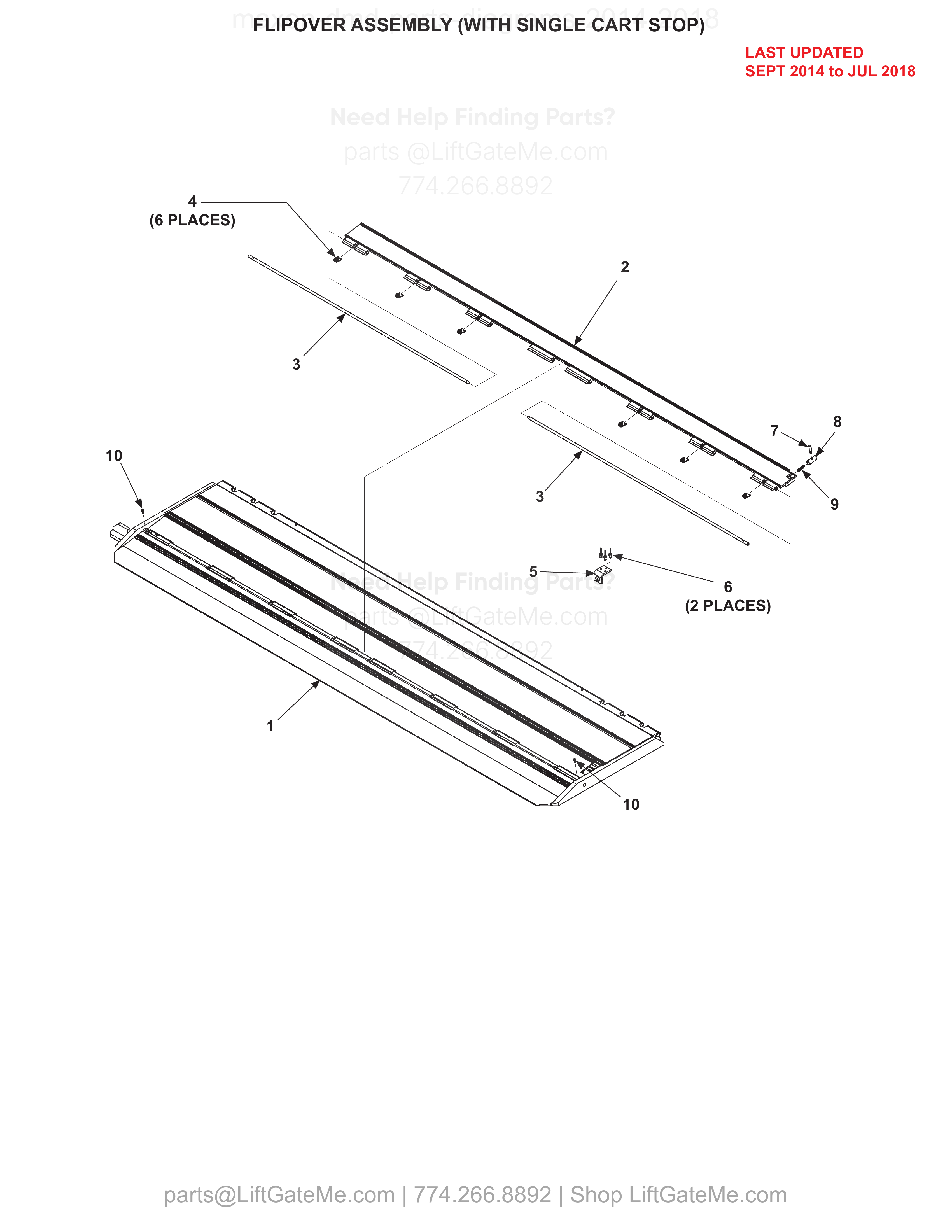

FLIPOVER ASSEMBLY (WITH SINGLE CART STOP)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287539-17 | FLIPOVER ASSEMBLY 85-1/8” X 24” (18+6), SCS | |
| 1 | 1 | 287449-17 | FLIPOVER ASSEMBLY 85-1/8” X 24” (12+12), SCS | |
| 1 | 1 | 287539-18 | FLIPOVER ASSEMBLY 91-1/8” X 24” (18+6), SCS | |
| 1 | 1 | 287449-18 | FLIPOVER ASSEMBLY 91-1/8” X 24” (12+12), SCS | |
| 1 | 1 | 287539-17-401 | FLIPOVER ASSEMBLY 85-1/8” X 24” (18+6), SCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-17-401 | FLIPOVER ASSEMBLY 85-1/8” X 24” (12+12), SCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287539-18-401 | FLIPOVER ASSEMBLY 91-1/8” X 24” (18+6), SCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-18-401 | FLIPOVER ASSEMBLY 91-1/8” X 24” (12+12), SCS (MAXGRIP KNURLED SURFACE) | |
| 2 | 1 | 287447-29 | CART STOP ASSEMBLY, SCS, 83-7/16” LG. | |
| 2 | 1 | 287447-20 | CART STOP ASSEMBLY, RAMP SCS, 83-7/16” LG. | |
| 2 | 1 | 287447-21 | CART STOP ASSEMBLY, RAMP SCS, 89-7/16” LG. | |
| 2 | 1 | 287447-30 | CART STOP ASSEMBLY, SCS, 89-7/16” LG. | |
| 3 | 2 | 287443-04 | CART STOP PIN, 39-3/8” LG. | |
| 3 | 2 | 287443-05 | CART STOP PIN, 42-3/8” LG. | |
| 3 | 2 | 287443-06 | CART STOP PIN, 45-3/8” LG. | |
| 4 | 6 | 282729-01 | CART STOP SPRING | |
| 5 | 1 | 287226-01 | CATCH BRACKET | |
| 6 | 3 | 903715-04 | RIVET, 1/4” I.D. X 5/8” LG. | |
| 7 | 1 | 288636-01 | SHOOT BOLT, 1-3/8” LG. | |
| 8 | 1 | 287224-01 | PLUNGER | |
| 9 | 1 | 283957-01 | SHOOT BOLT SPRING | |
| 10 | 2 | 900722-03 | BUTTON SCREW, 10-24 X 1/2” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

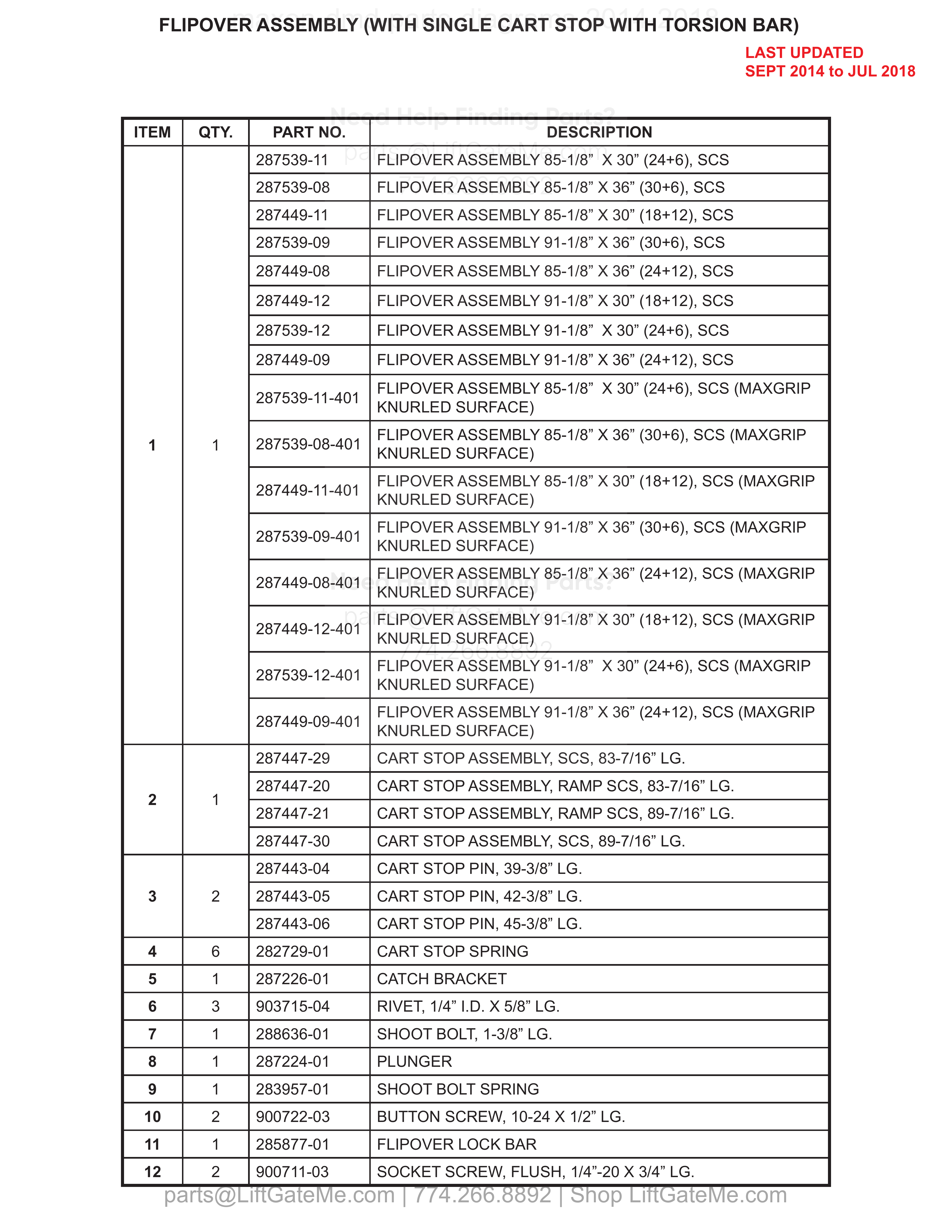

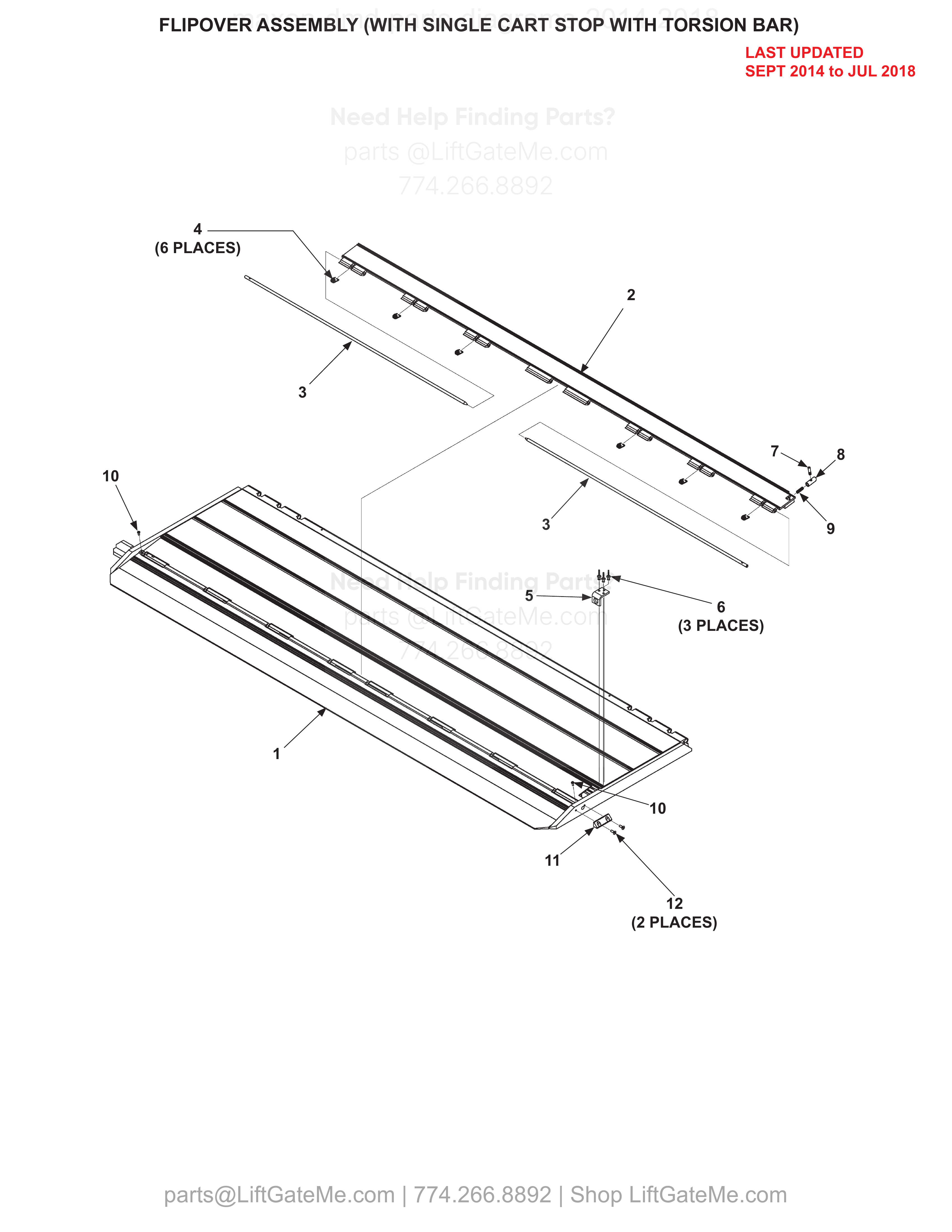

FLIPOVER ASSEMBLY (WITH SINGLE CART STOP WITH TORSION BAR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287539-11 | FLIPOVER ASSEMBLY 85-1/8” X 30” (24+6), SCS | |
| 1 | 1 | 287539-08 | FLIPOVER ASSEMBLY 85-1/8” X 36” (30+6), SCS | |
| 1 | 1 | 287449-11 | FLIPOVER ASSEMBLY 85-1/8” X 30” (18+12), SCS | |
| 1 | 1 | 287539-09 | FLIPOVER ASSEMBLY 91-1/8” X 36” (30+6), SCS | |
| 1 | 1 | 287449-08 | FLIPOVER ASSEMBLY 85-1/8” X 36” (24+12), SCS | |
| 1 | 1 | 287449-12 | FLIPOVER ASSEMBLY 91-1/8” X 30” (18+12), SCS | |
| 1 | 1 | 287539-12 | FLIPOVER ASSEMBLY 91-1/8” X 30” (24+6), SCS | |
| 1 | 1 | 287449-09 | FLIPOVER ASSEMBLY 91-1/8” X 36” (24+12), SCS | |
| 1 | 1 | 287539-11-401 | FLIPOVER ASSEMBLY 85-1/8” X 30” (24+6), SCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287539-08-401 | FLIPOVER ASSEMBLY 85-1/8” X 36” (30+6), SCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-11-401 | FLIPOVER ASSEMBLY 85-1/8” X 30” (18+12), SCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287539-09-401 | FLIPOVER ASSEMBLY 91-1/8” X 36” (30+6), SCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-08-401 | FLIPOVER ASSEMBLY 85-1/8” X 36” (24+12), SCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-12-401 | FLIPOVER ASSEMBLY 91-1/8” X 30” (18+12), SCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287539-12-401 | FLIPOVER ASSEMBLY 91-1/8” X 30” (24+6), SCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-09-401 | FLIPOVER ASSEMBLY 91-1/8” X 36” (24+12), SCS (MAXGRIP KNURLED SURFACE) | |
| 2 | 1 | 287447-29 | CART STOP ASSEMBLY, SCS, 83-7/16” LG. | |
| 2 | 1 | 287447-20 | CART STOP ASSEMBLY, RAMP SCS, 83-7/16” LG. | |
| 2 | 1 | 287447-21 | CART STOP ASSEMBLY, RAMP SCS, 89-7/16” LG. | |
| 2 | 1 | 287447-30 | CART STOP ASSEMBLY, SCS, 89-7/16” LG. | |
| 3 | 2 | 287443-04 | CART STOP PIN, 39-3/8” LG. | |
| 3 | 2 | 287443-05 | CART STOP PIN, 42-3/8” LG. | |
| 3 | 2 | 287443-06 | CART STOP PIN, 45-3/8” LG. | |
| 4 | 6 | 282729-01 | CART STOP SPRING | |
| 5 | 1 | 287226-01 | CATCH BRACKET | |
| 6 | 3 | 903715-04 | RIVET, 1/4” I.D. X 5/8” LG. | |
| 7 | 1 | 288636-01 | SHOOT BOLT, 1-3/8” LG. | |
| 8 | 1 | 287224-01 | PLUNGER | |
| 9 | 1 | 283957-01 | SHOOT BOLT SPRING | |
| 10 | 2 | 900722-03 | BUTTON SCREW, 10-24 X 1/2” LG. | |
| 11 | 1 | 285877-01 | FLIPOVER LOCK BAR | |
| 12 | 2 | 900711-03 | SOCKET SCREW, FLUSH, 1/4”-20 X 3/4” LG. |

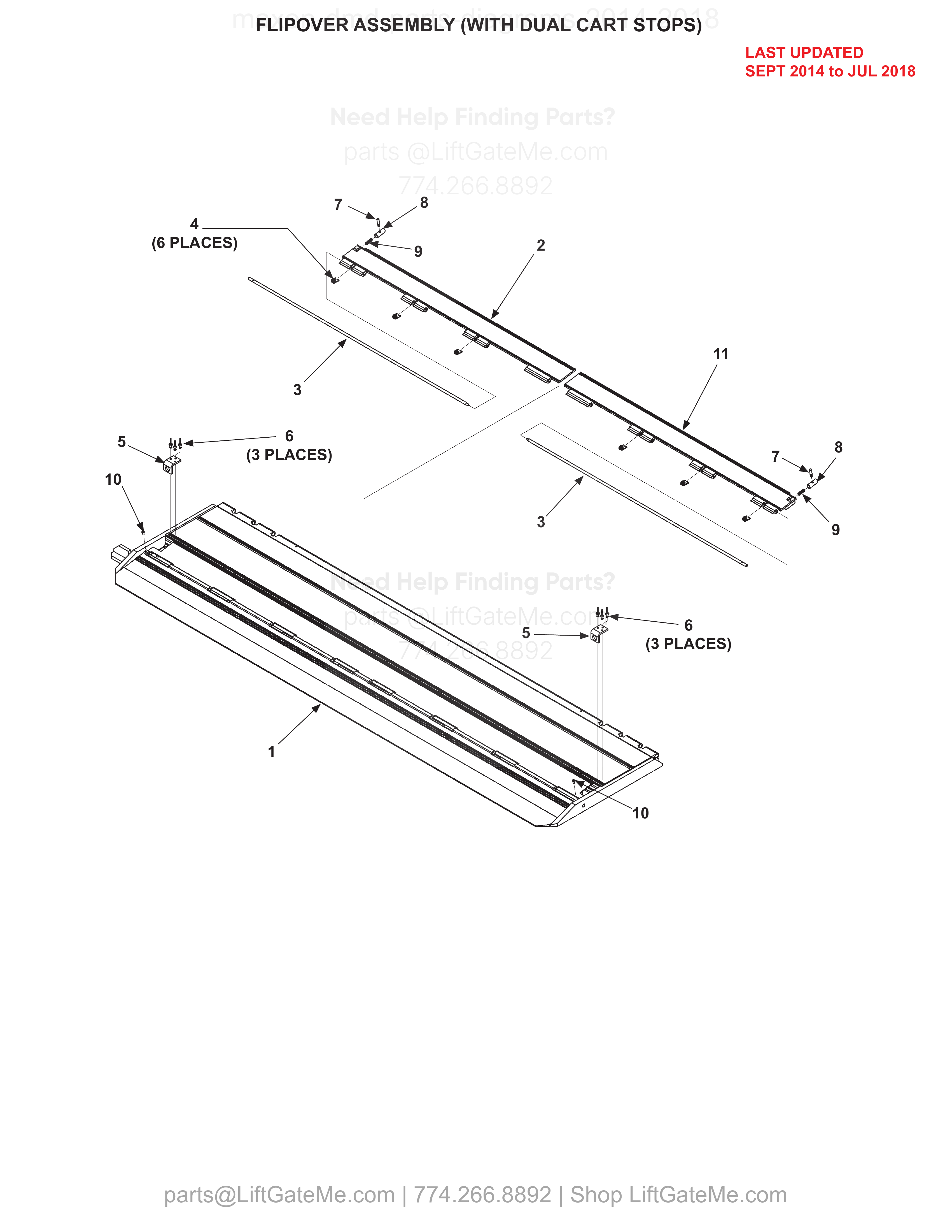

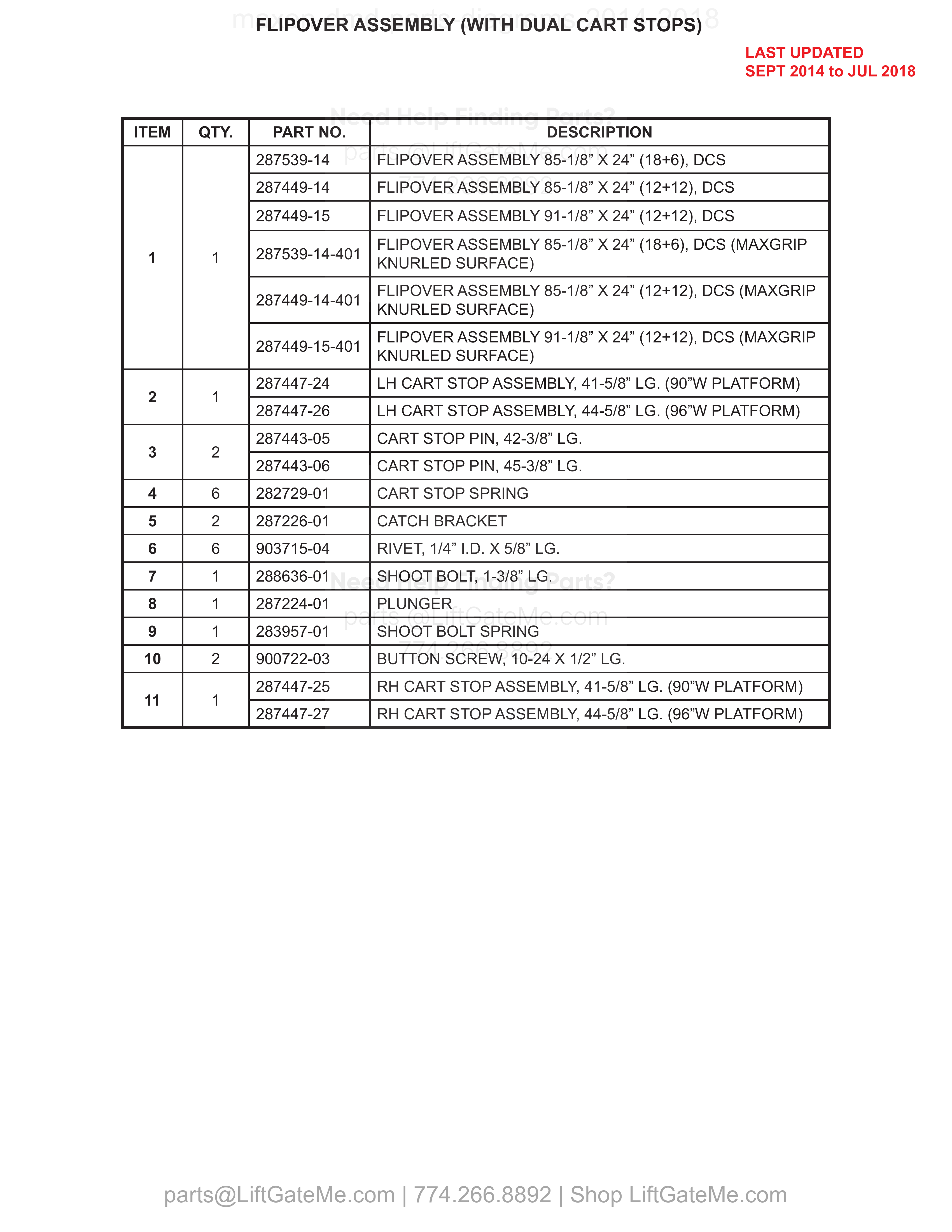

FLIPOVER ASSEMBLY (WITH DUAL CART STOPS)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287539-14 | FLIPOVER ASSEMBLY 85-1/8” X 24” (18+6), DCS | |
| 1 | 1 | 287449-14 | FLIPOVER ASSEMBLY 85-1/8” X 24” (12+12), DCS | |
| 1 | 1 | 287449-15 | FLIPOVER ASSEMBLY 91-1/8” X 24” (12+12), DCS | |
| 1 | 1 | 287539-14-401 | FLIPOVER ASSEMBLY 85-1/8” X 24” (18+6), DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-14-401 | FLIPOVER ASSEMBLY 85-1/8” X 24” (12+12), DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-15-401 | FLIPOVER ASSEMBLY 91-1/8” X 24” (12+12), DCS (MAXGRIP KNURLED SURFACE) | |
| 2 | 1 | 287447-24 | LH CART STOP ASSEMBLY, 41-5/8” LG. (90”W PLATFORM) | |
| 2 | 1 | 287447-26 | LH CART STOP ASSEMBLY, 44-5/8” LG. (96”W PLATFORM) | |
| 3 | 2 | 287443-05 | CART STOP PIN, 42-3/8” LG. | |
| 3 | 2 | 287443-06 | CART STOP PIN, 45-3/8” LG. | |
| 4 | 6 | 282729-01 | CART STOP SPRING | |
| 5 | 2 | 287226-01 | CATCH BRACKET | |
| 6 | 6 | 903715-04 | RIVET, 1/4” I.D. X 5/8” LG. | |
| 7 | 1 | 288636-01 | SHOOT BOLT, 1-3/8” LG. | |
| 8 | 1 | 287224-01 | PLUNGER | |
| 9 | 1 | 283957-01 | SHOOT BOLT SPRING | |
| 10 | 2 | 900722-03 | BUTTON SCREW, 10-24 X 1/2” LG. | |
| 11 | 1 | 287447-25 | RH CART STOP ASSEMBLY, 41-5/8” LG. (90”W PLATFORM) | |
| 11 | 1 | 287447-27 | RH CART STOP ASSEMBLY, 44-5/8” LG. (96”W PLATFORM) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

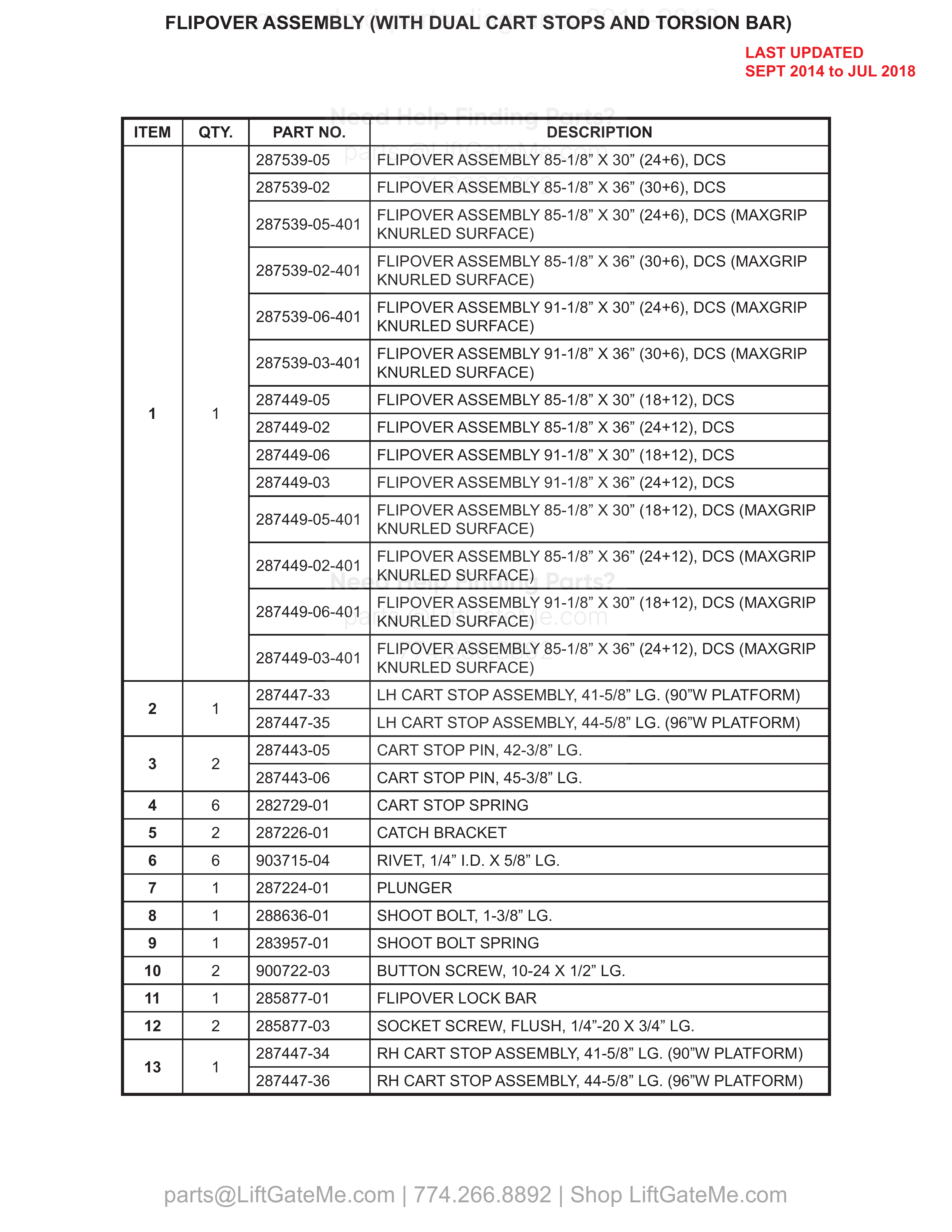

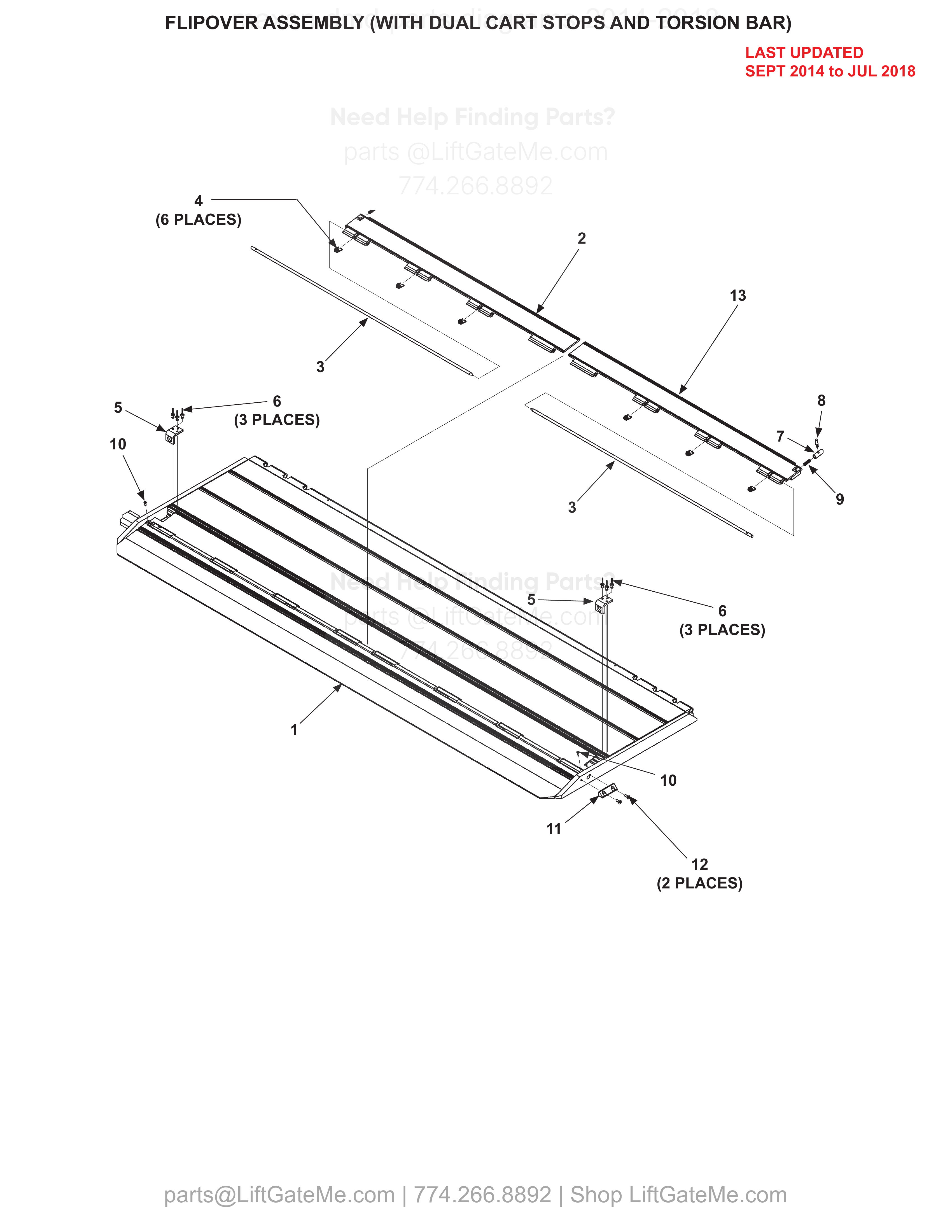

FLIPOVER ASSEMBLY (WITH DUAL CART STOPS AND TORSION BAR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287539-05 | FLIPOVER ASSEMBLY 85-1/8” X 30” (24+6), DCS | |
| 1 | 1 | 287539-02 | FLIPOVER ASSEMBLY 85-1/8” X 36” (30+6), DCS | |
| 1 | 1 | 287539-05-401 | FLIPOVER ASSEMBLY 85-1/8” X 30” (24+6), DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287539-02-401 | FLIPOVER ASSEMBLY 85-1/8” X 36” (30+6), DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287539-06-401 | FLIPOVER ASSEMBLY 91-1/8” X 30” (24+6), DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287539-03-401 | FLIPOVER ASSEMBLY 91-1/8” X 36” (30+6), DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-05 | FLIPOVER ASSEMBLY 85-1/8” X 30” (18+12), DCS | |
| 1 | 1 | 287449-02 | FLIPOVER ASSEMBLY 85-1/8” X 36” (24+12), DCS | |
| 1 | 1 | 287449-06 | FLIPOVER ASSEMBLY 91-1/8” X 30” (18+12), DCS | |
| 1 | 1 | 287449-03 | FLIPOVER ASSEMBLY 91-1/8” X 36” (24+12), DCS | |
| 1 | 1 | 287449-05-401 | FLIPOVER ASSEMBLY 85-1/8” X 30” (18+12), DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-02-401 | FLIPOVER ASSEMBLY 85-1/8” X 36” (24+12), DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-06-401 | FLIPOVER ASSEMBLY 91-1/8” X 30” (18+12), DCS (MAXGRIP KNURLED SURFACE) | |
| 1 | 1 | 287449-03-401 | FLIPOVER ASSEMBLY 85-1/8” X 36” (24+12), DCS (MAXGRIP KNURLED SURFACE) | |
| 2 | 1 | 287447-33 | LH CART STOP ASSEMBLY, 41-5/8” LG. (90”W PLATFORM) | |
| 2 | 1 | 287447-35 | LH CART STOP ASSEMBLY, 44-5/8” LG. (96”W PLATFORM) | |
| 3 | 2 | 287443-05 | CART STOP PIN, 42-3/8” LG. | |
| 3 | 2 | 287443-06 | CART STOP PIN, 45-3/8” LG. | |
| 4 | 6 | 282729-01 | CART STOP SPRING | |
| 5 | 2 | 287226-01 | CATCH BRACKET | |
| 6 | 6 | 903715-04 | RIVET, 1/4” I.D. X 5/8” LG. | |
| 7 | 1 | 287224-01 | PLUNGER | |
| 8 | 1 | 288636-01 | SHOOT BOLT, 1-3/8” LG. | |
| 9 | 1 | 283957-01 | SHOOT BOLT SPRING | |
| 10 | 2 | 900722-03 | BUTTON SCREW, 10-24 X 1/2” LG. | |
| 11 | 1 | 285877-01 | FLIPOVER LOCK BAR | |
| 12 | 2 | 285877-03 | SOCKET SCREW, FLUSH, 1/4”-20 X 3/4” LG. | |
| 13 | 1 | 287447-34 | RH CART STOP ASSEMBLY, 41-5/8” LG. (90”W PLATFORM) | |
| 13 | 1 | 287447-36 | RH CART STOP ASSEMBLY, 44-5/8” LG. (96”W PLATFORM) |

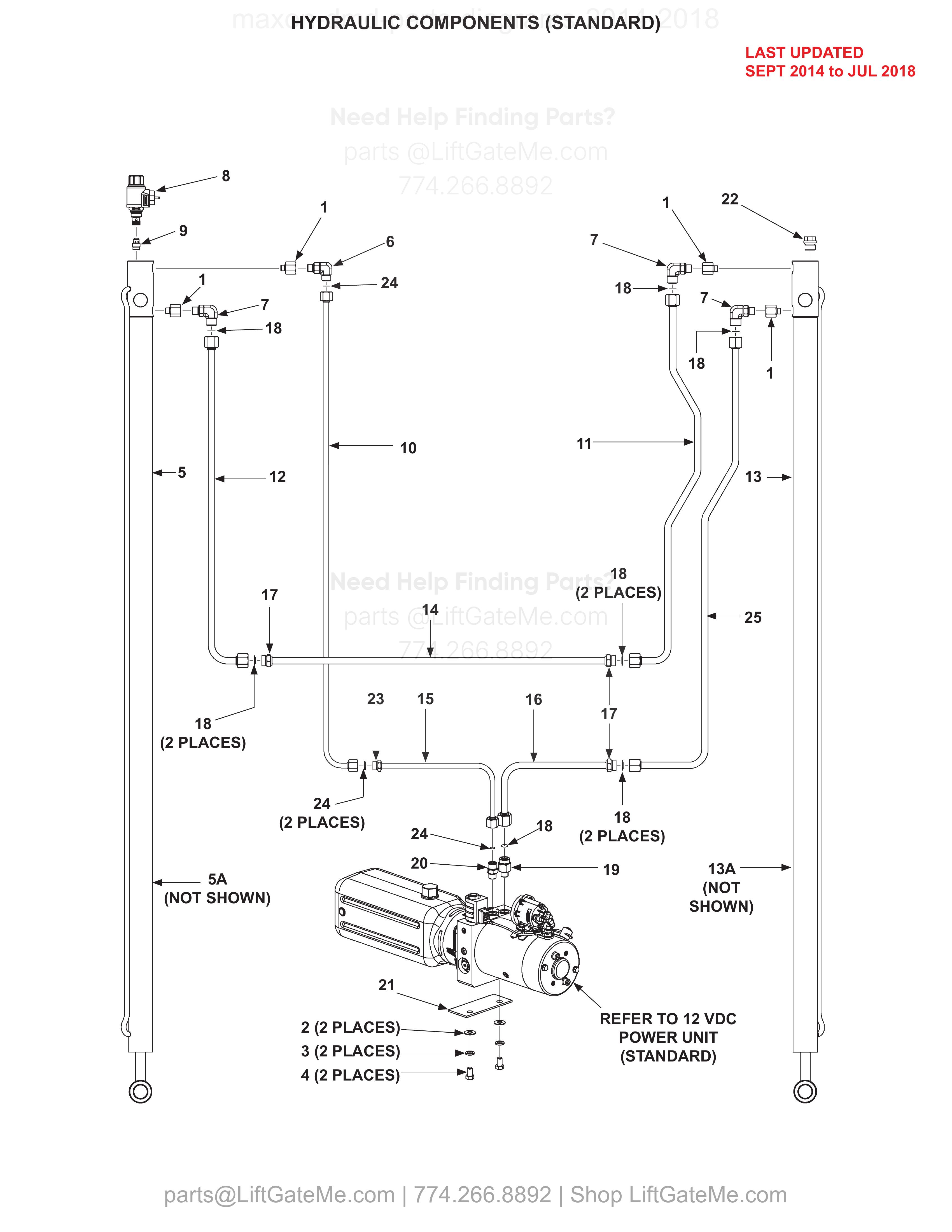

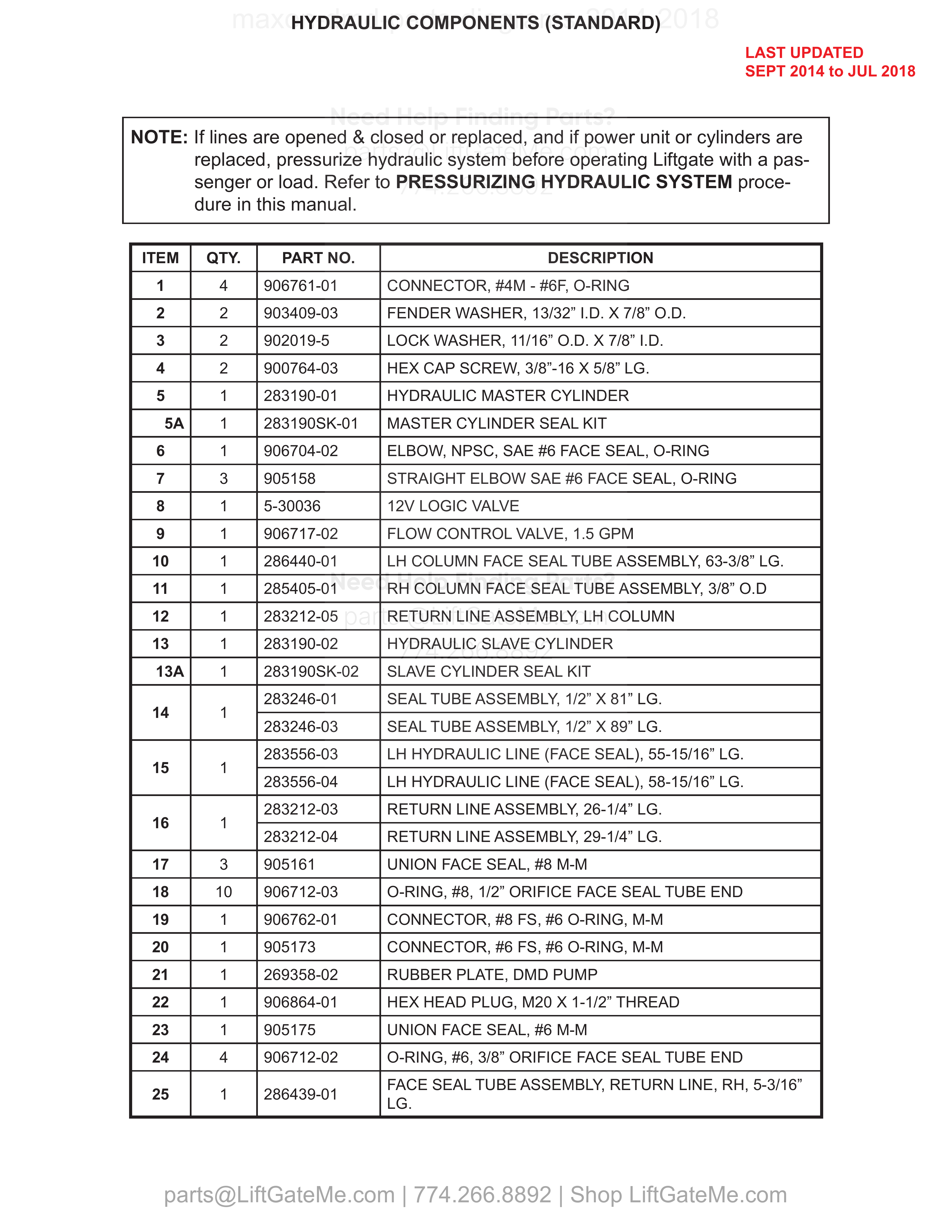

HYDRAULIC COMPONENTS (STANDARD)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 906761-01 | CONNECTOR, #4M - #6F, O-RING | |
| 2 | 2 | 903409-03 | FENDER WASHER, 13/32” I.D. X 7/8” O.D. | |
| 3 | 2 | 902019-5 | LOCK WASHER, 11/16” O.D. X 7/8” I.D. | |
| 4 | 2 | 900764-03 | HEX CAP SCREW, 3/8”-16 X 5/8” LG. | |
| 5 | 1 | 283190-01 | HYDRAULIC MASTER CYLINDER | |
| 5A | 1 | 283190SK-01 | MASTER CYLINDER SEAL KIT | |
| 6 | 1 | 906704-02 | ELBOW, NPSC, SAE #6 FACE SEAL, O-RING | |
| 7 | 3 | 905158 | STRAIGHT ELBOW SAE #6 FACE SEAL, O-RING | |
| 8 | 1 | 5-30036 | 12V LOGIC VALVE | |
| 9 | 1 | 906717-02 | FLOW CONTROL VALVE, 1.5 GPM | |
| 10 | 1 | 286440-01 | LH COLUMN FACE SEAL TUBE ASSEMBLY, 63-3/8” LG. | |
| 11 | 1 | 285405-01 | RH COLUMN FACE SEAL TUBE ASSEMBLY, 3/8” O.D | |
| 12 | 1 | 283212-05 | RETURN LINE ASSEMBLY, LH COLUMN | |
| 13 | 1 | 283190-02 | HYDRAULIC SLAVE CYLINDER | |
| 13A | 1 | 283190SK-02 | SLAVE CYLINDER SEAL KIT | |
| 14 | 1 | 283246-01 | SEAL TUBE ASSEMBLY, 1/2” X 81” LG. | |
| 14 | 1 | 283246-03 | SEAL TUBE ASSEMBLY, 1/2” X 89” LG. | |
| 15 | 1 | 283556-03 | LH HYDRAULIC LINE (FACE SEAL), 55-15/16” LG. | |
| 15 | 1 | 283556-04 | LH HYDRAULIC LINE (FACE SEAL), 58-15/16” LG. | |
| 16 | 1 | 283212-03 | RETURN LINE ASSEMBLY, 26-1/4” LG. | |
| 16 | 1 | 283212-04 | RETURN LINE ASSEMBLY, 29-1/4” LG. | |
| 17 | 3 | 905161 | UNION FACE SEAL, #8 M-M | |
| 18 | 10 | 906712-03 | O-RING, #8, 1/2” ORIFICE FACE SEAL TUBE END | |
| 19 | 1 | 906762-01 | CONNECTOR, #8 FS, #6 O-RING, M-M | |
| 20 | 1 | 905173 | CONNECTOR, #6 FS, #6 O-RING, M-M | |
| 21 | 1 | 269358-02 | RUBBER PLATE, DMD PUMP | |
| 22 | 1 | 906864-01 | HEX HEAD PLUG, M20 X 1-1/2” THREAD | |
| 23 | 1 | 905175 | UNION FACE SEAL, #6 M-M | |
| 24 | 4 | 906712-02 | O-RING, #6, 3/8” ORIFICE FACE SEAL TUBE END | |
| 25 | 1 | 286439-01 | FACE SEAL TUBE ASSEMBLY, RETURN LINE, RH, 5-3/16” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

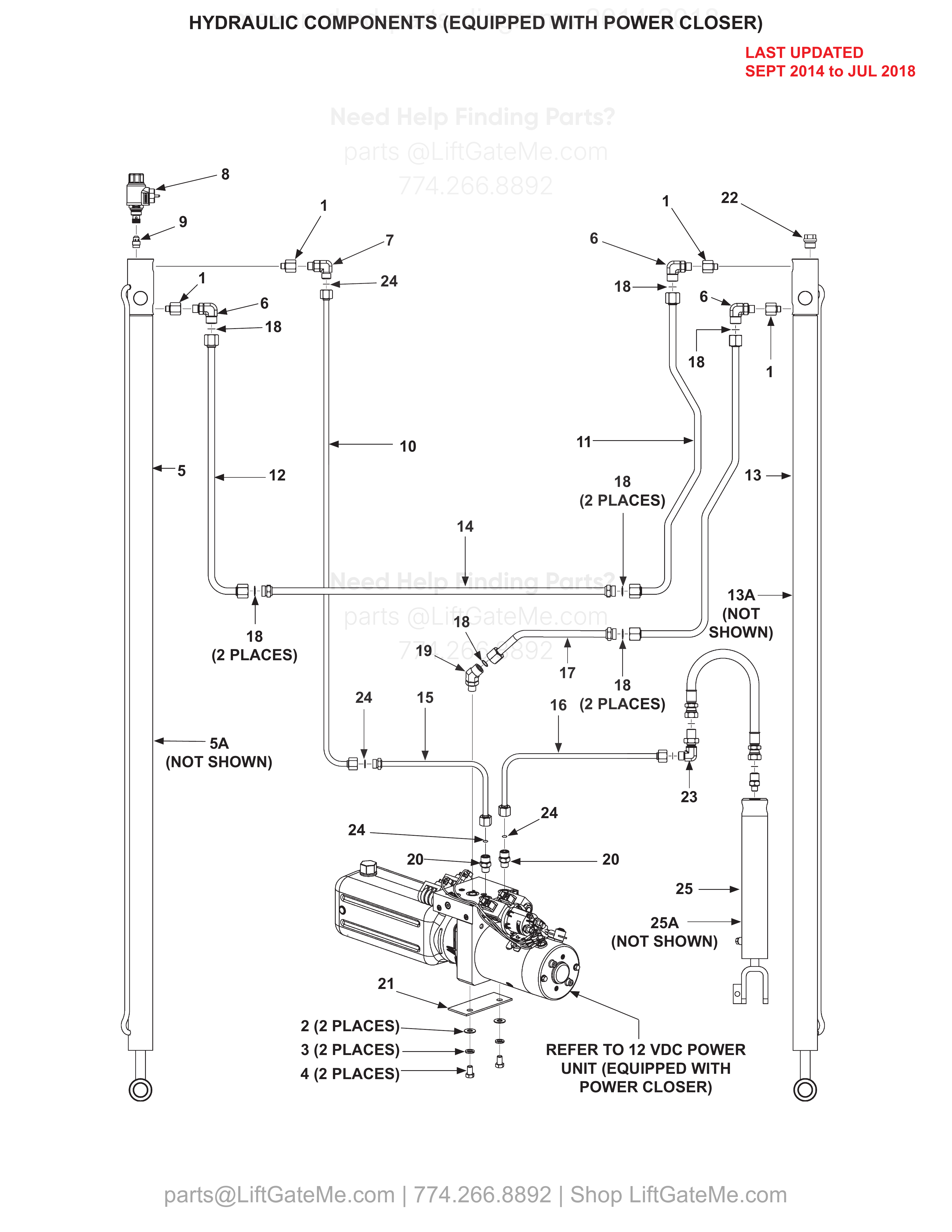

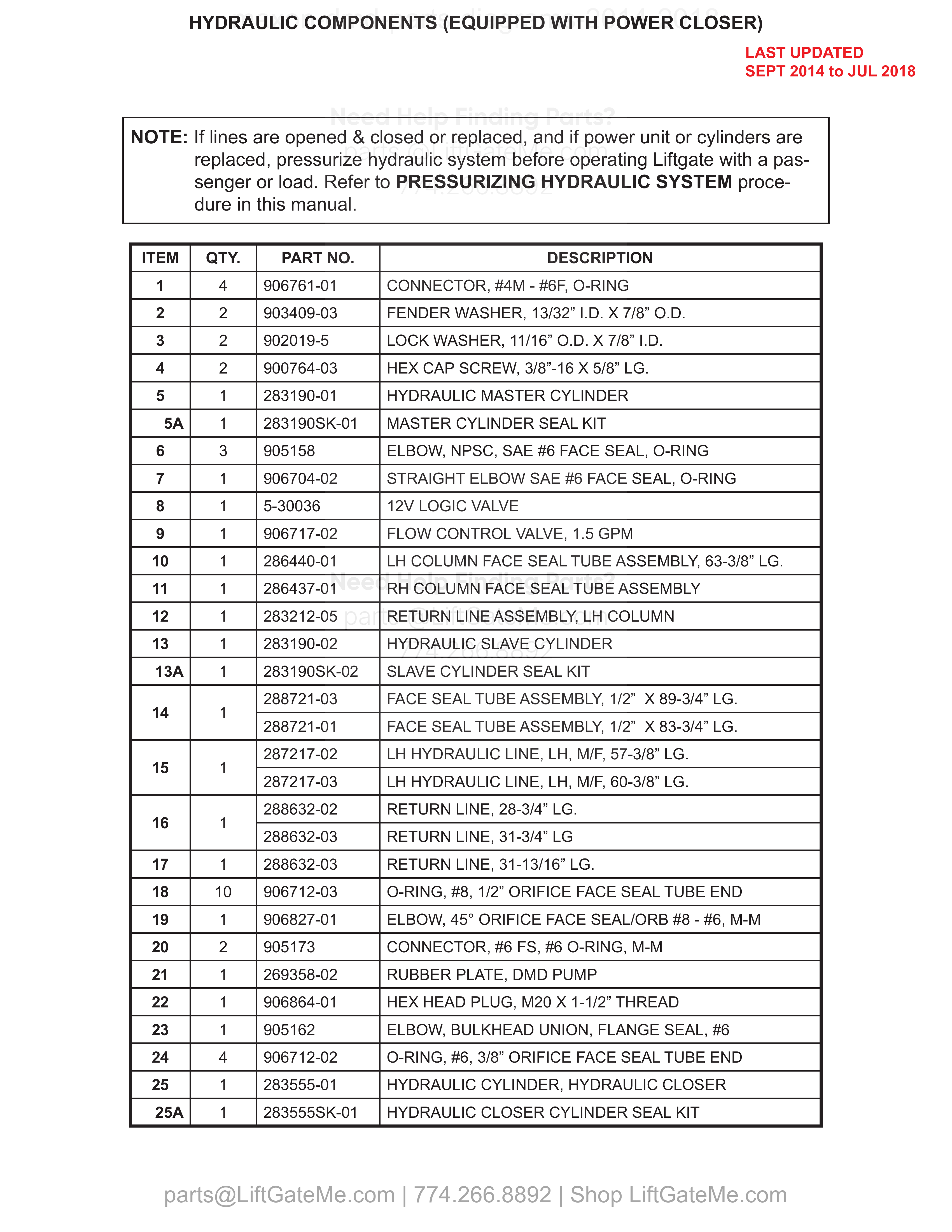

HYDRAULIC COMPONENTS (EQUIPPED WITH POWER CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 906761-01 | CONNECTOR, #4M - #6F, O-RING | |
| 2 | 2 | 903409-03 | FENDER WASHER, 13/32” I.D. X 7/8” O.D. | |
| 3 | 2 | 902019-5 | LOCK WASHER, 11/16” O.D. X 7/8” I.D. | |
| 4 | 2 | 900764-03 | HEX CAP SCREW, 3/8”-16 X 5/8” LG. | |
| 5 | 1 | 283190-01 | HYDRAULIC MASTER CYLINDER | |
| 5A | 1 | 283190SK-01 | MASTER CYLINDER SEAL KIT | |
| 6 | 3 | 905158 | ELBOW, NPSC, SAE #6 FACE SEAL, O-RING | |
| 7 | 1 | 906704-02 | STRAIGHT ELBOW SAE #6 FACE SEAL, O-RING | |
| 8 | 1 | 5-30036 | 12V LOGIC VALVE | |
| 9 | 1 | 906717-02 | FLOW CONTROL VALVE, 1.5 GPM | |
| 10 | 1 | 286440-01 | LH COLUMN FACE SEAL TUBE ASSEMBLY, 63-3/8” LG. | |
| 11 | 1 | 286437-01 | RH COLUMN FACE SEAL TUBE ASSEMBLY | |
| 12 | 1 | 283212-05 | RETURN LINE ASSEMBLY, LH COLUMN | |
| 13 | 1 | 283190-02 | HYDRAULIC SLAVE CYLINDER | |
| 13A | 1 | 283190SK-02 | SLAVE CYLINDER SEAL KIT | |
| 14 | 1 | 288721-03 | FACE SEAL TUBE ASSEMBLY, 1/2” X 89-3/4” LG. | |
| 14 | 1 | 288721-01 | FACE SEAL TUBE ASSEMBLY, 1/2” X 83-3/4” LG. | |
| 15 | 1 | 287217-02 | LH HYDRAULIC LINE, LH, M/F, 57-3/8” LG. | |
| 15 | 1 | 287217-03 | LH HYDRAULIC LINE, LH, M/F, 60-3/8” LG. | |
| 16 | 1 | 288632-02 | RETURN LINE, 28-3/4” LG. | |
| 16 | 1 | 288632-03 | RETURN LINE, 31-3/4” LG | |
| 17 | 1 | 288632-03 | RETURN LINE, 31-13/16” LG. | |
| 18 | 10 | 906712-03 | O-RING, #8, 1/2” ORIFICE FACE SEAL TUBE END | |
| 19 | 1 | 906827-01 | ELBOW, 45° ORIFICE FACE SEAL/ORB #8 - #6, M-M | |
| 20 | 2 | 905173 | CONNECTOR, #6 FS, #6 O-RING, M-M | |
| 21 | 1 | 269358-02 | RUBBER PLATE, DMD PUMP | |
| 22 | 1 | 906864-01 | HEX HEAD PLUG, M20 X 1-1/2” THREAD | |
| 23 | 1 | 905162 | ELBOW, BULKHEAD UNION, FLANGE SEAL, #6 | |
| 24 | 4 | 906712-02 | O-RING, #6, 3/8” ORIFICE FACE SEAL TUBE END | |
| 25 | 1 | 283555-01 | HYDRAULIC CYLINDER, HYDRAULIC CLOSER | |
| 25A | 1 | 283555SK-01 | HYDRAULIC CLOSER CYLINDER SEAL KIT |

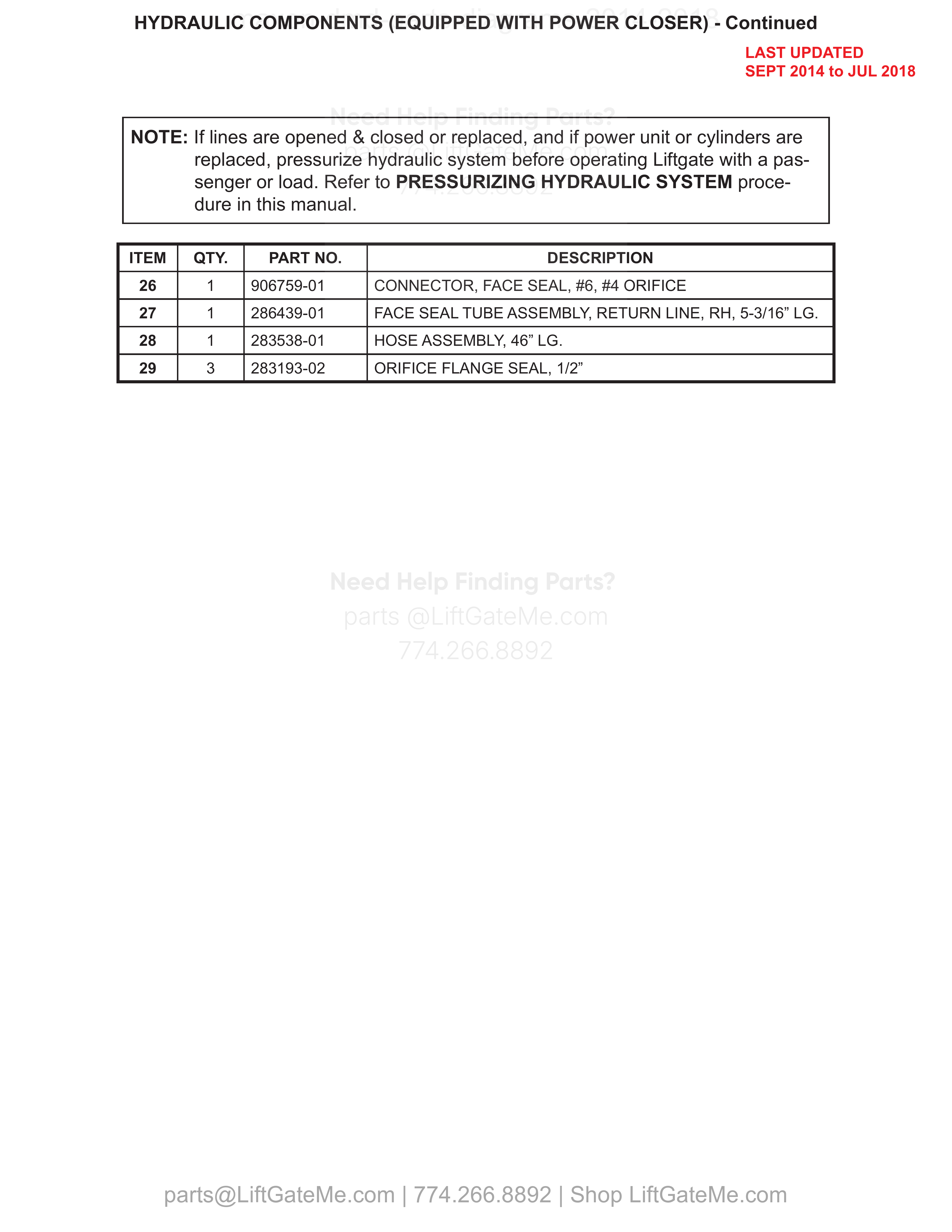

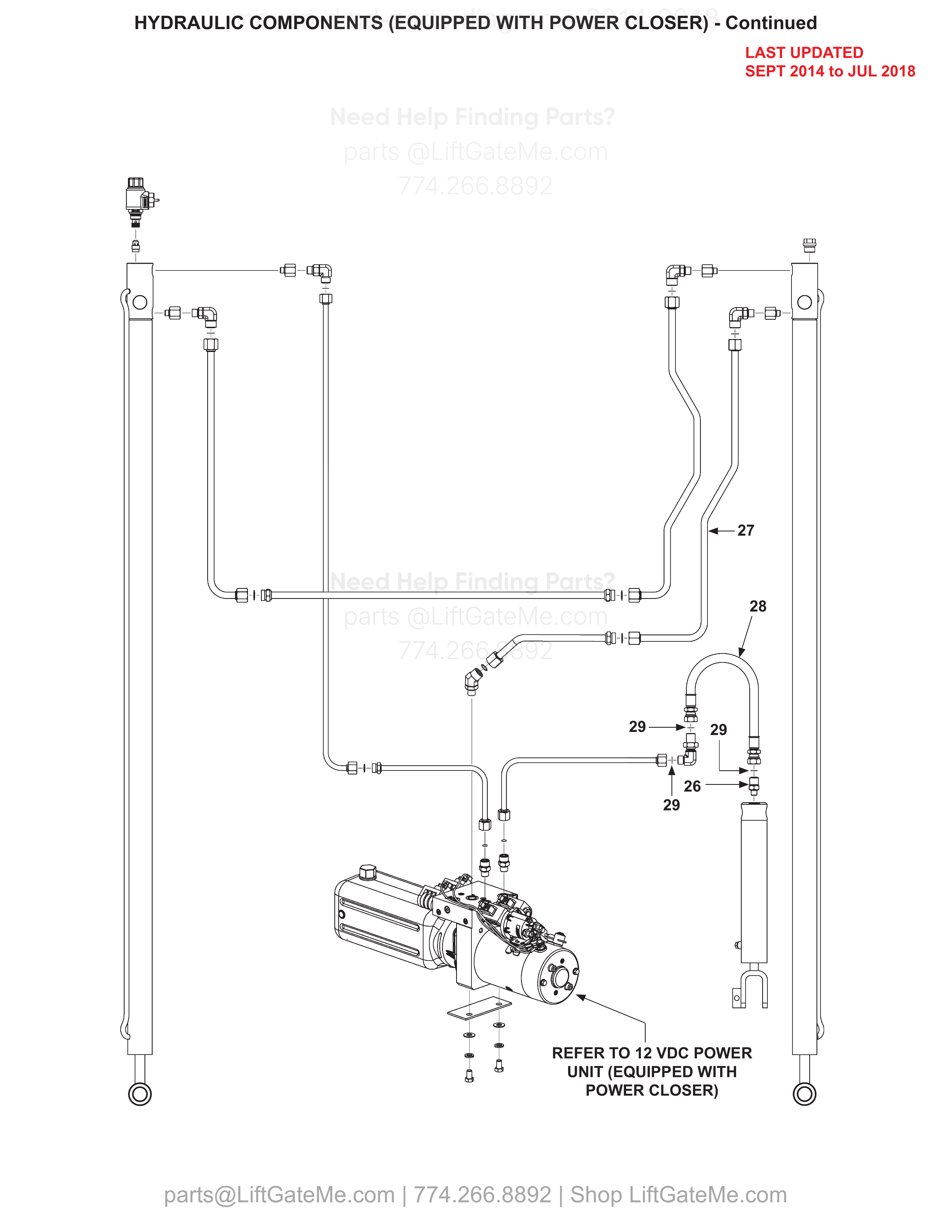

HYDRAULIC COMPONENTS (EQUIPPED WITH POWER CLOSER) - Continued
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

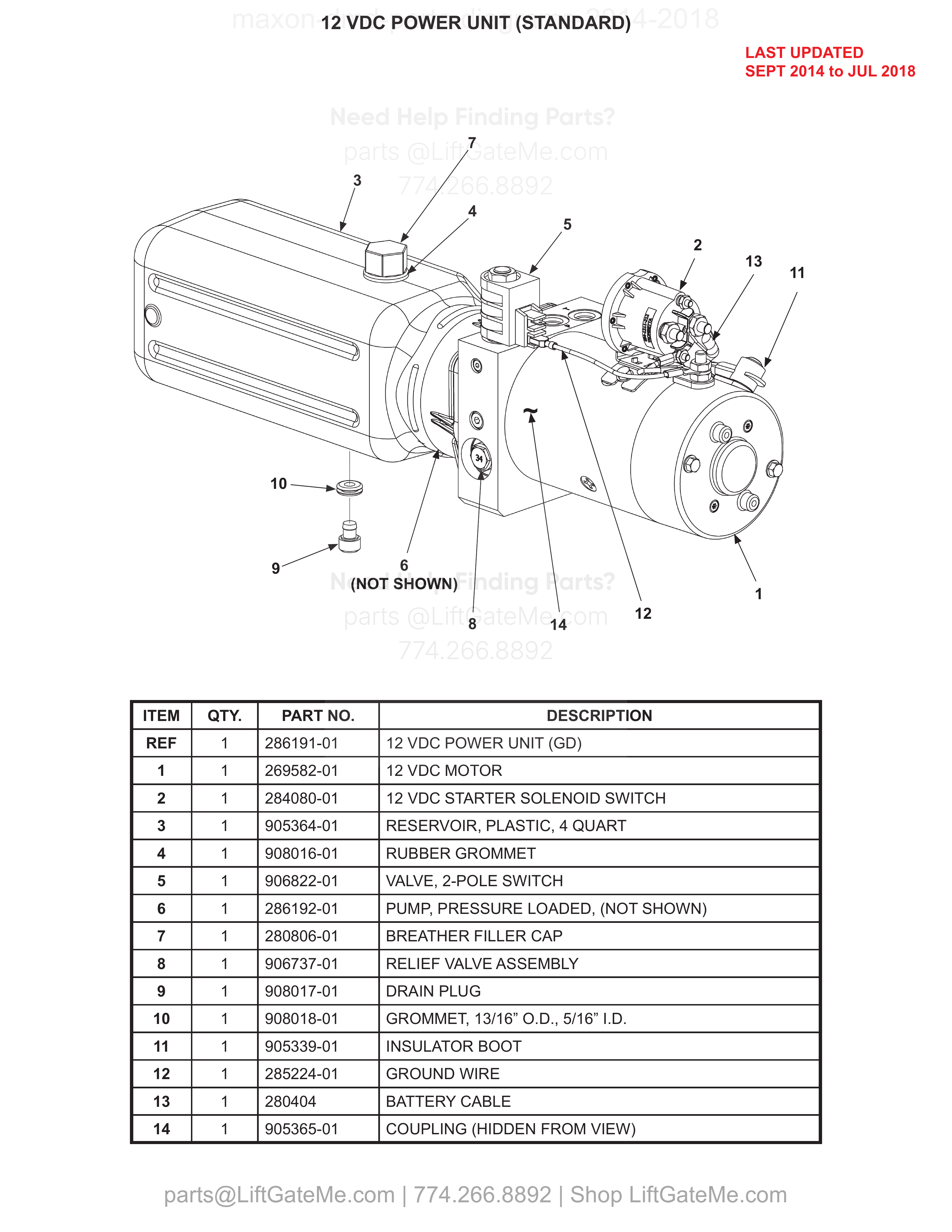

12 VDC POWER UNIT (STANDARD)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 286191-01 | 12 VDC POWER UNIT (GD) | |
| 1 | 1 | 269582-01 | 12 VDC MOTOR | |
| 2 | 1 | 284080-01 | 12 VDC STARTER SOLENOID SWITCH | |
| 3 | 1 | 905364-01 | RESERVOIR, PLASTIC, 4 QUART | |
| 4 | 1 | 908016-01 | RUBBER GROMMET | |
| 5 | 1 | 906822-01 | VALVE, 2-POLE SWITCH | |
| 6 | 1 | 286192-01 | PUMP, PRESSURE LOADED, (NOT SHOWN) | |
| 7 | 1 | 280806-01 | BREATHER FILLER CAP | |
| 8 | 1 | 906737-01 | RELIEF VALVE ASSEMBLY | |
| 9 | 1 | 908017-01 | DRAIN PLUG | |
| 10 | 1 | 908018-01 | GROMMET, 13/16” O.D., 5/16” I.D. | |
| 11 | 1 | 905339-01 | INSULATOR BOOT | |
| 12 | 1 | 285224-01 | GROUND WIRE | |
| 13 | 1 | 280404 | BATTERY CABLE | |
| 14 | 1 | 905365-01 | COUPLING (HIDDEN FROM VIEW) |

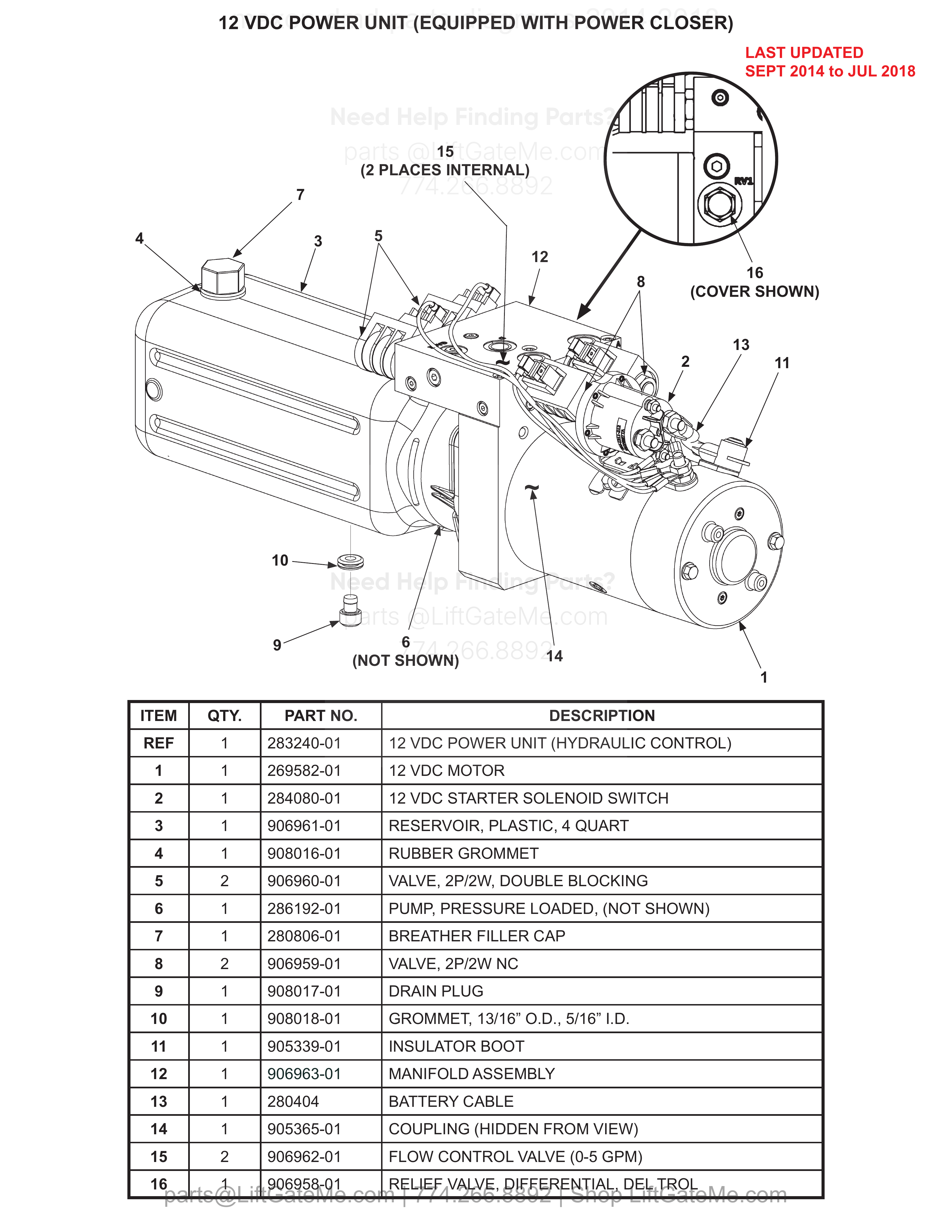

12 VDC POWER UNIT (EQUIPPED WITH POWER CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 283240-01 | 12 VDC POWER UNIT (HYDRAULIC CONTROL) | |
| 1 | 1 | 269582-01 | 12 VDC MOTOR | |
| 2 | 1 | 284080-01 | 12 VDC STARTER SOLENOID SWITCH | |
| 3 | 1 | 906961-01 | RESERVOIR, PLASTIC, 4 QUART | |
| 4 | 1 | 908016-01 | RUBBER GROMMET | |
| 5 | 2 | 906960-01 | VALVE, 2P/2W, DOUBLE BLOCKING | |
| 6 | 1 | 286192-01 | PUMP, PRESSURE LOADED, (NOT SHOWN) | |
| 7 | 1 | 280806-01 | BREATHER FILLER CAP | |
| 8 | 2 | 906959-01 | VALVE, 2P/2W NC | |
| 9 | 1 | 908017-01 | DRAIN PLUG | |
| 10 | 1 | 908018-01 | GROMMET, 13/16” O.D., 5/16” I.D. | |
| 11 | 1 | 905339-01 | INSULATOR BOOT | |
| 12 | 1 | 906963-01 | MANIFOLD ASSEMBLY | |
| 13 | 1 | 280404 | BATTERY CABLE | |
| 14 | 1 | 905365-01 | COUPLING (HIDDEN FROM VIEW) | |
| 15 | 2 | 906962-01 | FLOW CONTROL VALVE (0-5 GPM) | |
| 16 | 1 | 906958-01 | RELIEF VALVE, DIFFERENTIAL, DEL TROL |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

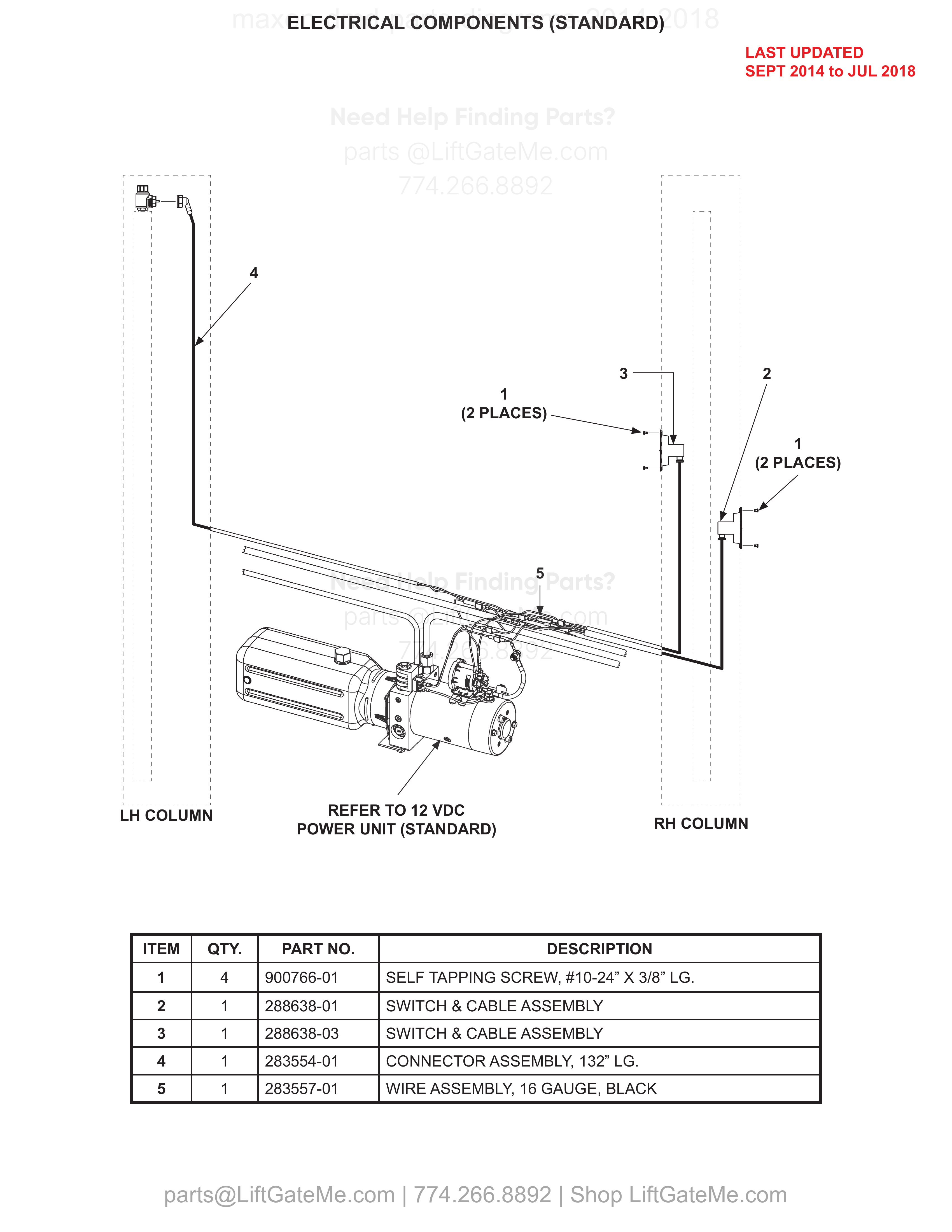

ELECTRICAL COMPONENTS (STANDARD)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 900766-01 | SELF TAPPING SCREW, #10-24” X 3/8” LG. | |
| 2 | 1 | 288638-01 | SWITCH & CABLE ASSEMBLY | |
| 3 | 1 | 288638-03 | SWITCH & CABLE ASSEMBLY | |
| 4 | 1 | 283554-01 | CONNECTOR ASSEMBLY, 132” LG. | |
| 5 | 1 | 283557-01 | WIRE ASSEMBLY, 16 GAUGE, BLACK |

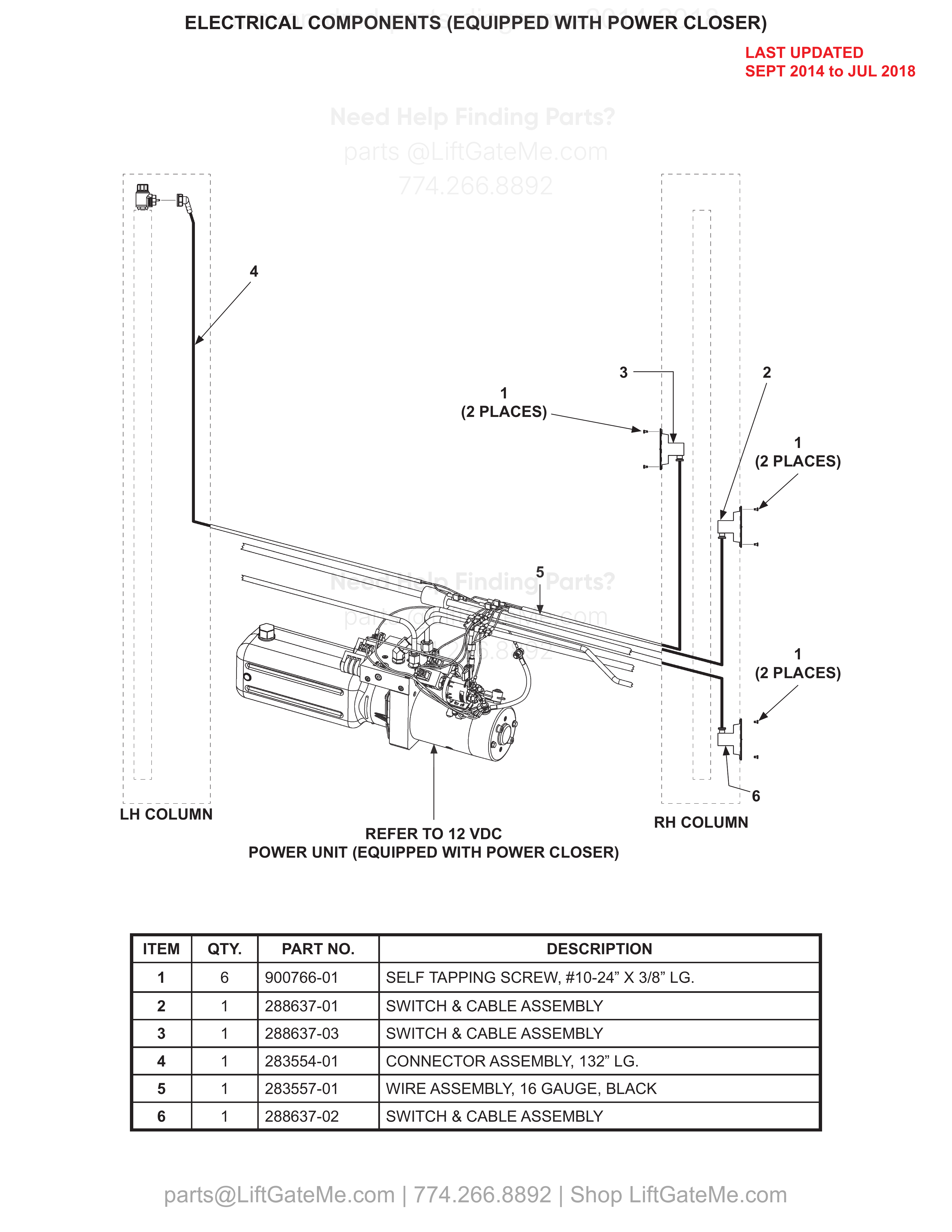

ELECTRICAL COMPONENTS (EQUIPPED WITH POWER CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 6 | 900766-01 | SELF TAPPING SCREW, #10-24” X 3/8” LG. | |
| 2 | 1 | 288637-01 | SWITCH & CABLE ASSEMBLY | |
| 3 | 1 | 288637-03 | SWITCH & CABLE ASSEMBLY | |
| 4 | 1 | 283554-01 | CONNECTOR ASSEMBLY, 132” LG. | |
| 5 | 1 | 283557-01 | WIRE ASSEMBLY, 16 GAUGE, BLACK | |
| 6 | 1 | 288637-02 | SWITCH & CABLE ASSEMBLY |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
