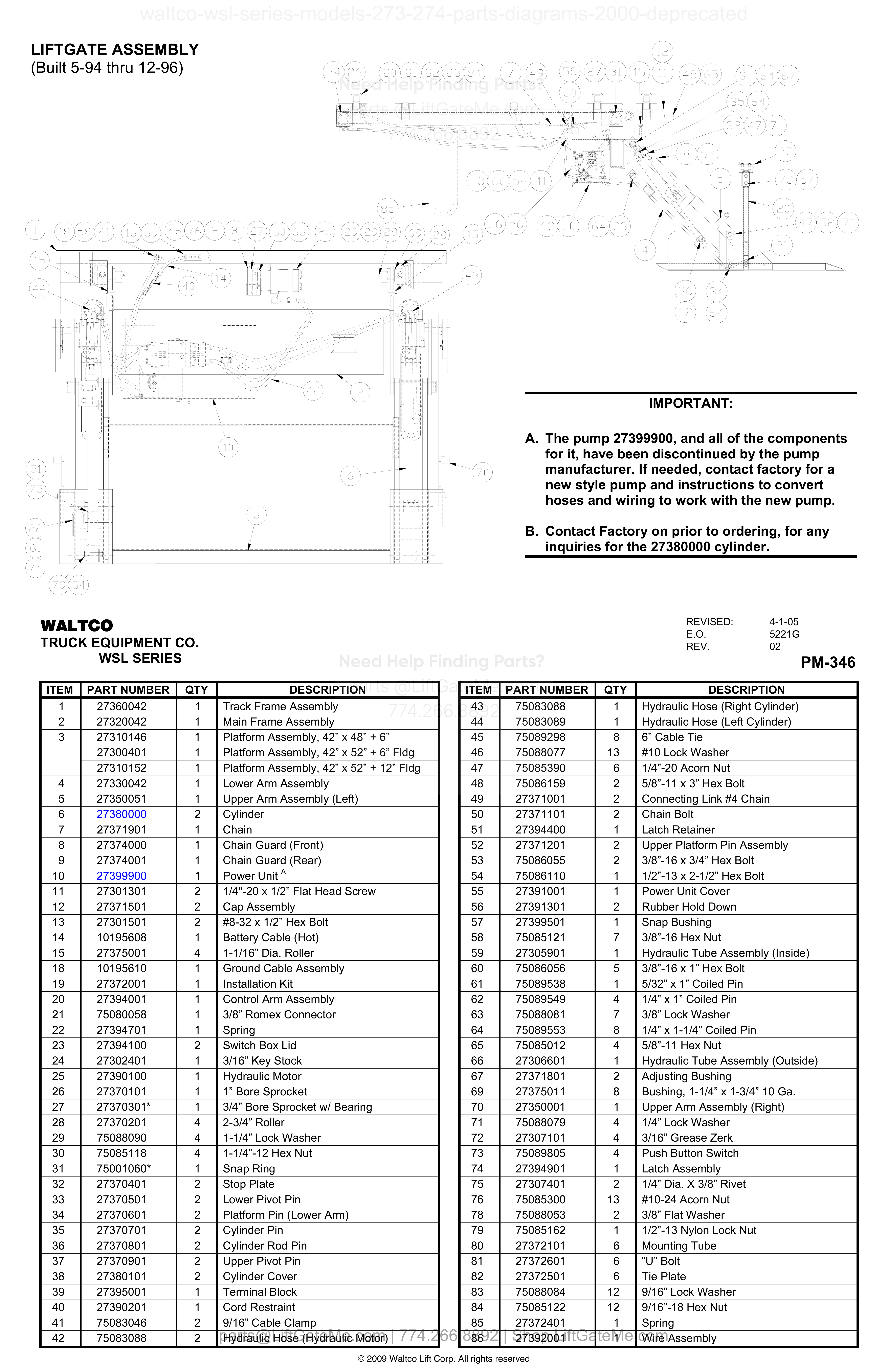

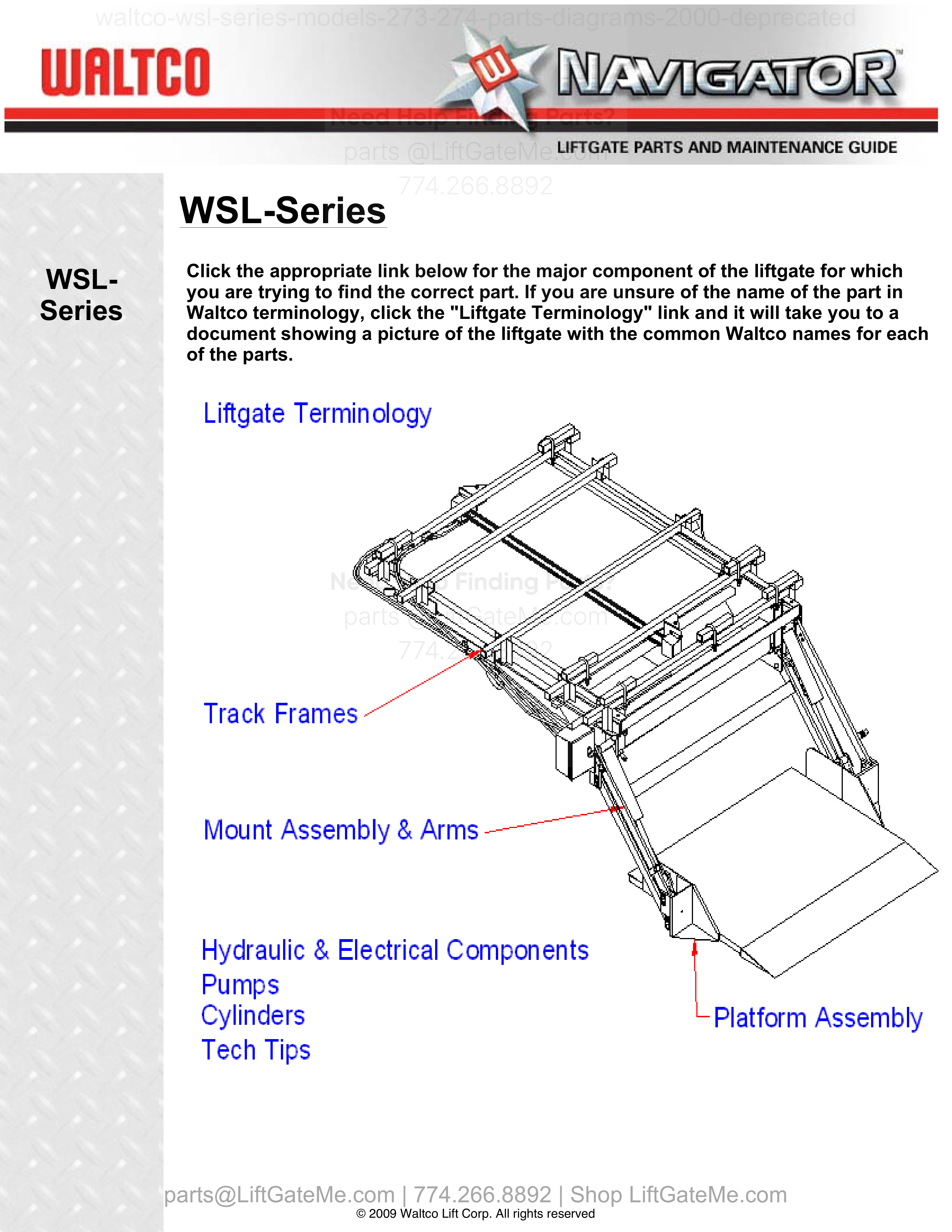

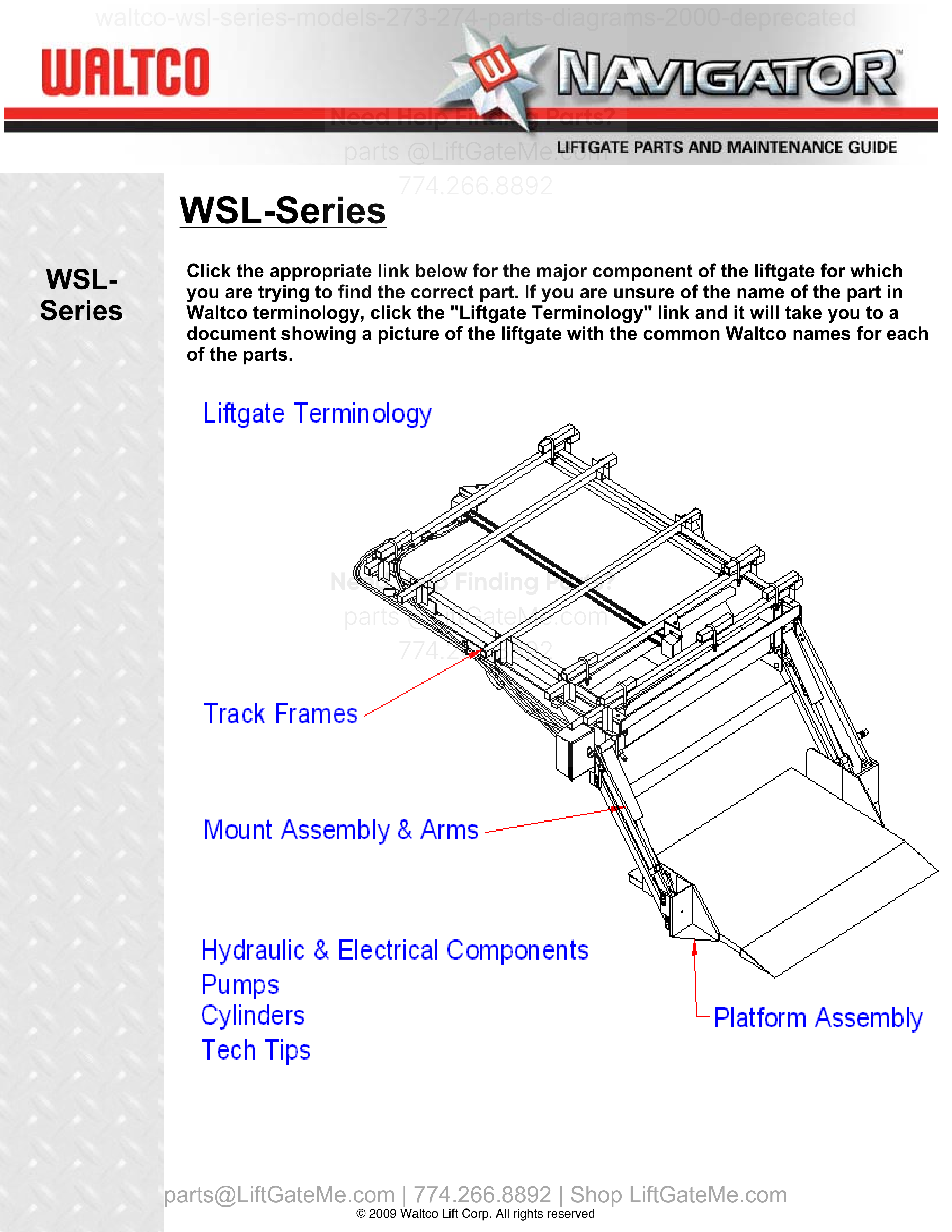

LIFTGATE ASSEMBLY (Built 5-94 thru 12-96)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27360042 | Track Frame Assembly | |
| 2 | 1 | 27320042 | Main Frame Assembly | |
| 3 | 1 | 27310146 | Platform Assembly, 42” x 48” + 6” | |
| 3 | 1 | 27300401 | Platform Assembly, 42” x 52” + 6” Fldg | |
| 3 | 1 | 27310152 | Platform Assembly, 42” x 52” + 12” Fldg | |
| 4 | 1 | 27330042 | Lower Arm Assembly | |
| 5 | 1 | 27350051 | Upper Arm Assembly (Left) | |
| 6 | 2 | 27380000 | Cylinder | |
| 7 | 1 | 27371901 | Chain | |
| 8 | 1 | 27374000 | Chain Guard (Front) | |
| 9 | 1 | 27374001 | Chain Guard (Rear) | |
| 10 | 1 | 27399900 A | Power Unit | |
| 11 | 2 | 27301301 | 1/4"-20 x 1/2” Flat Head Screw | |
| 12 | 2 | 27371501 | Cap Assembly | |
| 13 | 2 | 27301501 | #8-32 x 1/2” Hex Bolt | |
| 14 | 1 | 10195608 | Battery Cable (Hot) | |
| 15 | 4 | 27375001 | 1-1/16” Dia. Roller | |
| 18 | 1 | 10195610 | Ground Cable Assembly | |
| 19 | 1 | 27372001 | Installation Kit | |
| 20 | 1 | 27394001 | Control Arm Assembly | |
| 21 | 1 | 75080058 | 3/8” Romex Connector | |
| 22 | 1 | 27394701 | Spring | |
| 23 | 2 | 27394100 | Switch Box Lid | |
| 24 | 1 | 27302401 | 3/16” Key Stock | |
| 25 | 1 | 27390100 | Hydraulic Motor | |
| 26 | 1 | 27370101 | 1” Bore Sprocket | |
| 27 | 1 | 27370301 | 3/4” Bore Sprocket w/ Bearing | |
| 28 | 4 | 27370201 | 2-3/4” Roller | |
| 29 | 4 | 75088090 | 1-1/4” Lock Washer | |
| 30 | 4 | 75085118 | 1-1/4”-12 Hex Nut | |
| 31 | 1 | 75001060 | Snap Ring | |
| 32 | 2 | 27370401 | Stop Plate | |
| 33 | 2 | 27370501 | Lower Pivot Pin | |
| 34 | 2 | 27370601 | Platform Pin (Lower Arm) | |
| 35 | 2 | 27370701 | Cylinder Pin | |
| 36 | 2 | 27370801 | Cylinder Rod Pin | |
| 37 | 2 | 27370901 | Upper Pivot Pin | |
| 38 | 2 | 27380101 | Cylinder Cover | |
| 39 | 1 | 27395001 | Terminal Block | |
| 40 | 1 | 27390201 | Cord Restraint | |
| 41 | 2 | 75083046 | 9/16” Cable Clamp | |
| 42 | 2 | 75083088 | Hydraulic Hose (Hydraulic Motor) | |
| 43 | 1 | 75083088 | Hydraulic Hose (Right Cylinder) | |
| 44 | 1 | 75083089 | Hydraulic Hose (Left Cylinder) | |
| 45 | 8 | 75089298 | 6” Cable Tie | |
| 46 | 13 | 75088077 | #10 Lock Washer | |
| 47 | 6 | 75085390 | 1/4”-20 Acorn Nut | |
| 48 | 2 | 75086159 | 5/8”-11 x 3” Hex Bolt | |
| 49 | 2 | 27371001 | Connecting Link #4 Chain | |
| 50 | 2 | 27371101 | Chain Bolt | |
| 51 | 1 | 27394400 | Latch Retainer | |
| 52 | 2 | 27371201 | Upper Platform Pin Assembly | |
| 53 | 2 | 75086055 | 3/8”-16 x 3/4” Hex Bolt | |
| 54 | 1 | 75086110 | 1/2”-13 x 2-1/2” Hex Bolt | |
| 55 | 1 | 27391001 | Power Unit Cover | |
| 56 | 2 | 27391301 | Rubber Hold Down | |
| 57 | 1 | 27399501 | Snap Bushing | |
| 58 | 7 | 75085121 | 3/8”-16 Hex Nut | |
| 59 | 1 | 27305901 | Hydraulic Tube Assembly (Inside) | |
| 60 | 5 | 75086056 | 3/8”-16 x 1” Hex Bolt | |
| 61 | 1 | 75089538 | 5/32” x 1” Coiled Pin | |
| 62 | 4 | 75089549 | 1/4” x 1” Coiled Pin | |
| 63 | 7 | 75088081 | 3/8” Lock Washer | |
| 64 | 8 | 75089553 | 1/4” x 1-1/4” Coiled Pin | |
| 65 | 4 | 75085012 | 5/8”-11 Hex Nut | |
| 66 | 1 | 27306601 | Hydraulic Tube Assembly (Outside) | |
| 67 | 2 | 27371801 | Adjusting Bushing | |
| 69 | 8 | 27375011 | Bushing, 1-1/4” x 1-3/4” 10 Ga. | |
| 70 | 1 | 27350001 | Upper Arm Assembly (Right) | |
| 71 | 4 | 75088079 | 1/4” Lock Washer | |
| 72 | 4 | 27307101 | 3/16” Grease Zerk | |
| 73 | 4 | 75089805 | Push Button Switch | |
| 74 | 1 | 27394901 | Latch Assembly | |
| 75 | 2 | 27307401 | 1/4” Dia. X 3/8” Rivet | |
| 76 | 13 | 75085300 | #10-24 Acorn Nut | |
| 78 | 2 | 75088053 | 3/8” Flat Washer | |
| 79 | 1 | 75085162 | 1/2”-13 Nylon Lock Nut | |
| 80 | 6 | 27372101 | Mounting Tube | |
| 81 | 6 | 27372601 | “U” Bolt | |
| 82 | 6 | 27372501 | Tie Plate | |
| 83 | 12 | 75088084 | 9/16” Lock Washer | |
| 84 | 12 | 75085122 | 9/16”-18 Hex Nut | |
| 85 | 1 | 27372401 | Spring | |
| 86 | 1 | 27392001 | Wire Assembly |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

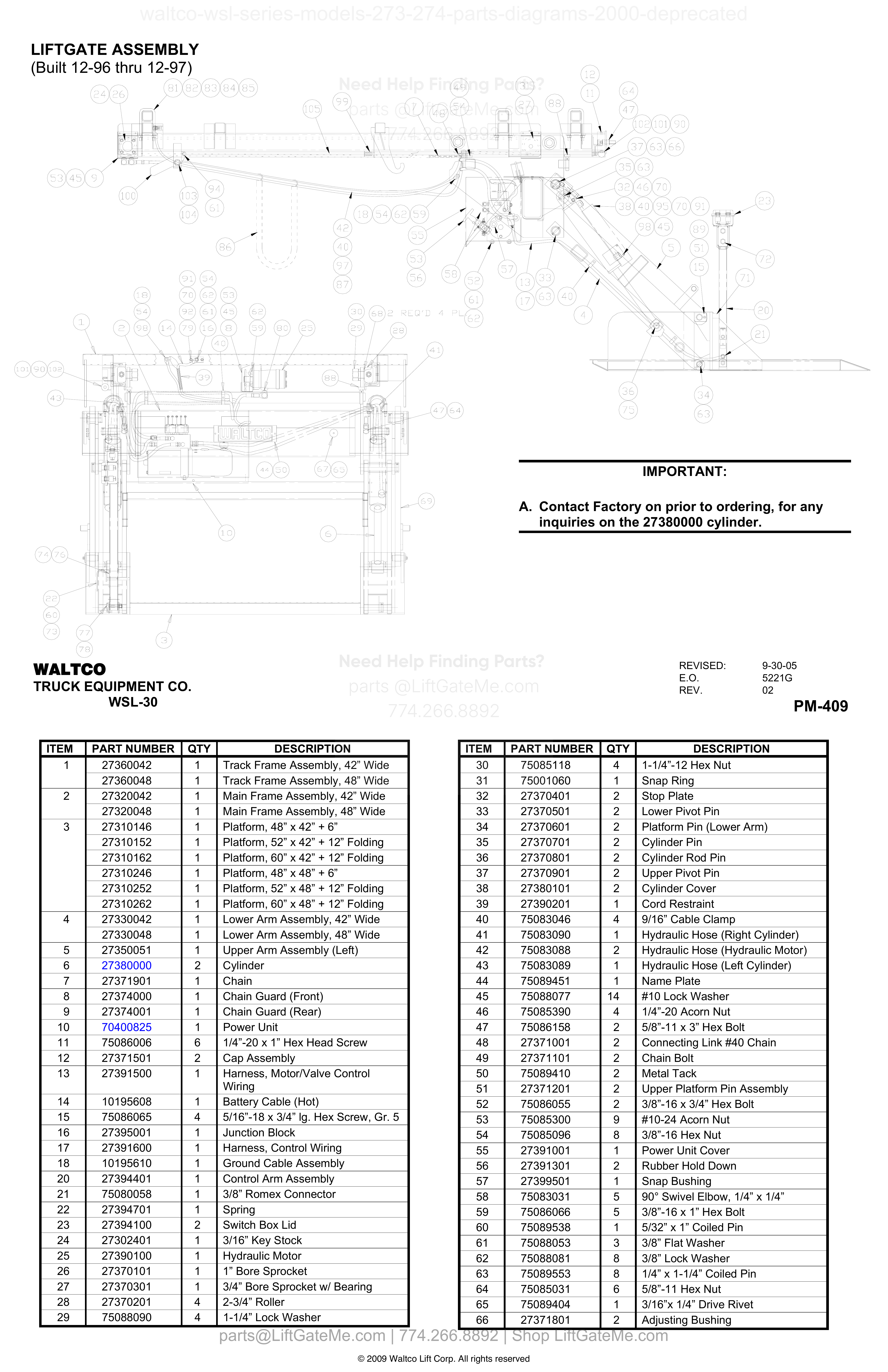

LIFTGATE ASSEMBLY (Built 12-96 thru 12-97)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27360042 | Track Frame Assembly, 42” Wide | |
| 1 | 1 | 27360048 | Track Frame Assembly, 48” Wide | |
| 2 | 1 | 27320042 | Main Frame Assembly, 42” Wide | |
| 2 | 1 | 27320048 | Main Frame Assembly, 48” Wide | |
| 3 | 1 | 27310146 | Platform, 48” x 42” + 6” | |
| 3 | 1 | 27310152 | Platform, 52” x 42” + 12” Folding | |
| 3 | 1 | 27310162 | Platform, 60” x 42” + 12” Folding | |
| 3 | 1 | 27310246 | Platform, 48” x 48” + 6” | |
| 3 | 1 | 27310252 | Platform, 52” x 48” + 12” Folding | |
| 3 | 1 | 27310262 | Platform, 60” x 48” + 12” Folding | |
| 4 | 1 | 27330042 | Lower Arm Assembly, 42” Wide | |
| 4 | 1 | 27330048 | Lower Arm Assembly, 48” Wide | |
| 5 | 1 | 27350051 | Upper Arm Assembly (Left) | |
| 6 | 2 | 27380000 | Cylinder | |
| 7 | 1 | 27371901 | Chain | |
| 8 | 1 | 27374000 | Chain Guard (Front) | |
| 9 | 1 | 27374001 | Chain Guard (Rear) | |
| 10 | 1 | 70400825 | Power Unit | |
| 11 | 6 | 75086006 | 1/4”-20 x 1” Hex Head Screw | |
| 12 | 2 | 27371501 | Cap Assembly | |
| 13 | 1 | 27391500 | Harness, Motor/Valve Control Wiring | |
| 14 | 1 | 10195608 | Battery Cable (Hot) | |
| 15 | 4 | 75086065 | 5/16”-18 x 3/4” lg. Hex Screw, Gr. 5 | |
| 16 | 1 | 27395001 | Junction Block | |
| 17 | 1 | 27391600 | Harness, Control Wiring | |
| 18 | 1 | 10195610 | Ground Cable Assembly | |
| 20 | 1 | 27394401 | Control Arm Assembly | |
| 21 | 1 | 75080058 | 3/8” Romex Connector | |
| 22 | 1 | 27394701 | Spring | |
| 23 | 2 | 27394100 | Switch Box Lid | |
| 24 | 1 | 27302401 | 3/16” Key Stock | |
| 25 | 1 | 27390100 | Hydraulic Motor | |
| 26 | 1 | 27370101 | 1” Bore Sprocket | |
| 27 | 1 | 27370301 | 3/4” Bore Sprocket w/ Bearing | |
| 28 | 4 | 27370201 | 2-3/4” Roller | |
| 29 | 4 | 75088090 | 1-1/4” Lock Washer | |
| 30 | 4 | 75085118 | 1-1/4”-12 Hex Nut | |
| 31 | 1 | 75001060 | Snap Ring | |
| 32 | 2 | 27370401 | Stop Plate | |
| 33 | 2 | 27370501 | Lower Pivot Pin | |
| 34 | 2 | 27370601 | Platform Pin (Lower Arm) | |
| 35 | 2 | 27370701 | Cylinder Pin | |
| 36 | 2 | 27370801 | Cylinder Rod Pin | |
| 37 | 2 | 27370901 | Upper Pivot Pin | |
| 38 | 2 | 27380101 | Cylinder Cover | |
| 39 | 1 | 27390201 | Cord Restraint | |
| 40 | 4 | 75083046 | 9/16” Cable Clamp | |
| 41 | 1 | 75083090 | Hydraulic Hose (Right Cylinder) | |
| 42 | 2 | 75083088 | Hydraulic Hose (Hydraulic Motor) | |
| 43 | 1 | 75083089 | Hydraulic Hose (Left Cylinder) | |
| 44 | 1 | 75089451 | Name Plate | |
| 45 | 14 | 75088077 | #10 Lock Washer | |
| 46 | 4 | 75085390 | 1/4”-20 Acorn Nut | |
| 47 | 2 | 75086158 | 5/8”-11 x 3” Hex Bolt | |
| 48 | 2 | 27371001 | Connecting Link #40 Chain | |
| 49 | 2 | 27371101 | Chain Bolt | |
| 50 | 2 | 75089410 | Metal Tack | |
| 51 | 2 | 27371201 | Upper Platform Pin Assembly | |
| 52 | 2 | 75086055 | 3/8”-16 x 3/4” Hex Bolt | |
| 53 | 9 | 75085300 | #10-24 Acorn Nut | |
| 54 | 8 | 75085096 | 3/8”-16 Hex Nut | |
| 55 | 1 | 27391001 | Power Unit Cover | |
| 56 | 2 | 27391301 | Rubber Hold Down | |
| 57 | 1 | 27399501 | Snap Bushing | |
| 58 | 5 | 75083031 | 90° Swivel Elbow, 1/4” x 1/4” | |
| 59 | 5 | 75086066 | 3/8”-16 x 1” Hex Bolt | |
| 60 | 1 | 75089538 | 5/32” x 1” Coiled Pin | |
| 61 | 3 | 75088053 | 3/8” Flat Washer | |
| 62 | 8 | 75088081 | 3/8” Lock Washer | |
| 63 | 8 | 75089553 | 1/4” x 1-1/4” Coiled Pin | |
| 64 | 6 | 75085031 | 5/8”-11 Hex Nut | |
| 65 | 1 | 75089404 | 3/16”x 1/4” Drive Rivet | |
| 66 | 2 | 27371801 | Adjusting Bushing |

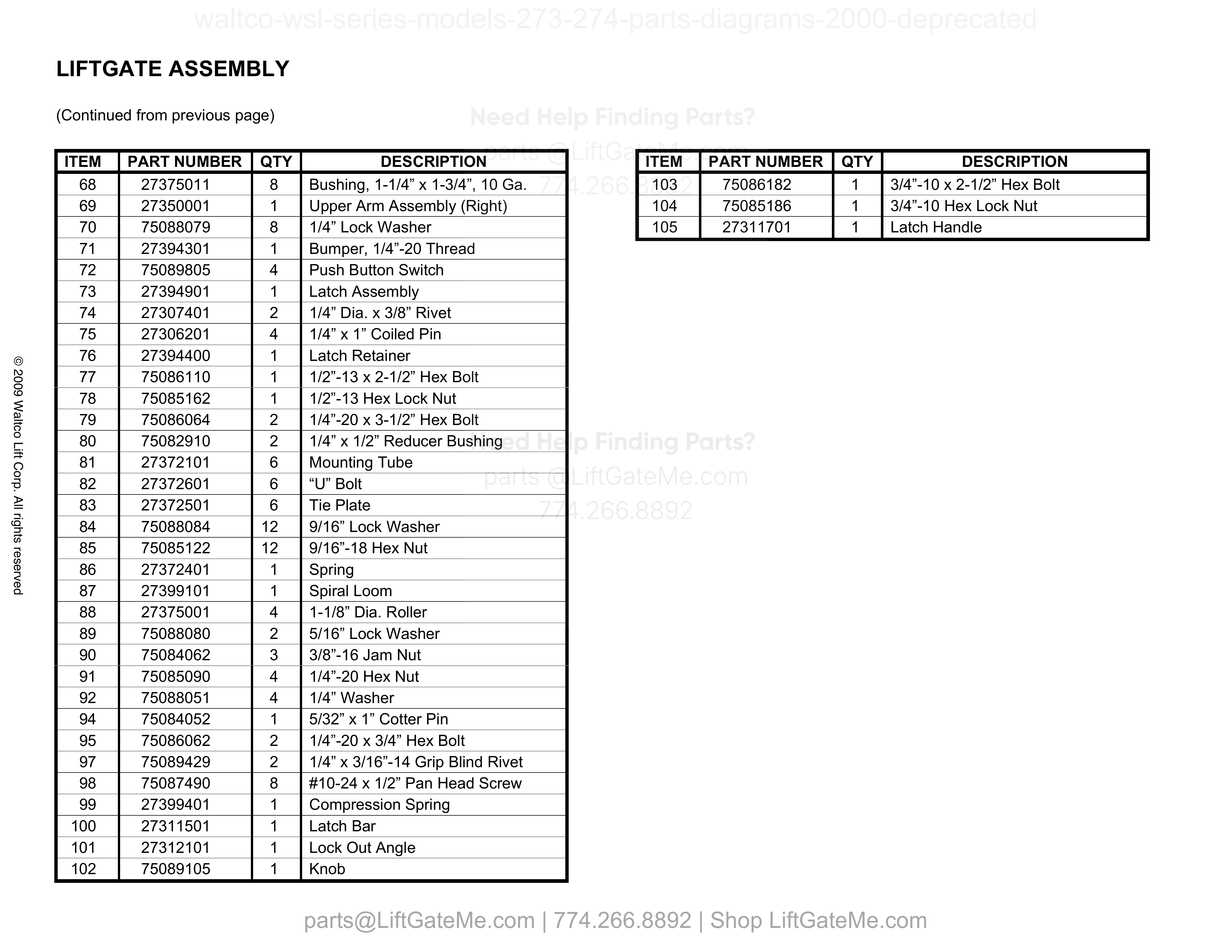

LIFTGATE ASSEMBLY (Continued from previous page)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 68 | 8 | 27375011 | Bushing, 1-1/4” x 1-3/4”, 10 Ga. | |
| 69 | 1 | 27350001 | Upper Arm Assembly (Right) | |
| 70 | 8 | 75088079 | 1/4” Lock Washer | |
| 71 | 1 | 27394301 | Bumper, 1/4”-20 Thread | |
| 72 | 4 | 75089805 | Push Button Switch | |
| 73 | 1 | 27394901 | Latch Assembly | |
| 74 | 2 | 27307401 | 1/4” Dia. x 3/8” Rivet | |
| 75 | 4 | 27306201 | 1/4” x 1” Coiled Pin | |
| 76 | 1 | 27394400 | Latch Retainer | |
| 77 | 1 | 75086110 | 1/2”-13 x 2-1/2” Hex Bolt | |
| 78 | 1 | 75085162 | 1/2”-13 Hex Lock Nut | |
| 79 | 2 | 75086064 | 1/4”-20 x 3-1/2” Hex Bolt | |
| 80 | 2 | 75082910 | 1/4” x 1/2” Reducer Bushing | |
| 81 | 6 | 27372101 | Mounting Tube | |
| 82 | 6 | 27372601 | “U” Bolt | |
| 83 | 6 | 27372501 | Tie Plate | |
| 84 | 12 | 75088084 | 9/16” Lock Washer | |
| 85 | 12 | 75085122 | 9/16”-18 Hex Nut | |
| 86 | 1 | 27372401 | Spring | |
| 87 | 1 | 27399101 | Spiral Loom | |
| 88 | 4 | 27375001 | 1-1/8” Dia. Roller | |
| 89 | 2 | 75088080 | 5/16” Lock Washer | |
| 90 | 3 | 75084062 | 3/8”-16 Jam Nut | |
| 91 | 4 | 75085090 | 1/4”-20 Hex Nut | |
| 92 | 4 | 75088051 | 1/4” Washer | |
| 94 | 1 | 75084052 | 5/32” x 1” Cotter Pin | |
| 95 | 2 | 75086062 | 1/4”-20 x 3/4” Hex Bolt | |
| 97 | 2 | 75089429 | 1/4” x 3/16”-14 Grip Blind Rivet | |
| 98 | 8 | 75087490 | #10-24 x 1/2” Pan Head Screw | |
| 99 | 1 | 27399401 | Compression Spring | |
| 100 | 1 | 27311501 | Latch Bar | |
| 101 | 1 | 27312101 | Lock Out Angle | |
| 102 | 1 | 75089105 | Knob | |
| 103 | 1 | 75086182 | 3/4”-10 x 2-1/2” Hex Bolt | |
| 104 | 1 | 75085186 | 3/4”-10 Hex Lock Nut | |
| 105 | 1 | 27311701 | Latch Handle |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

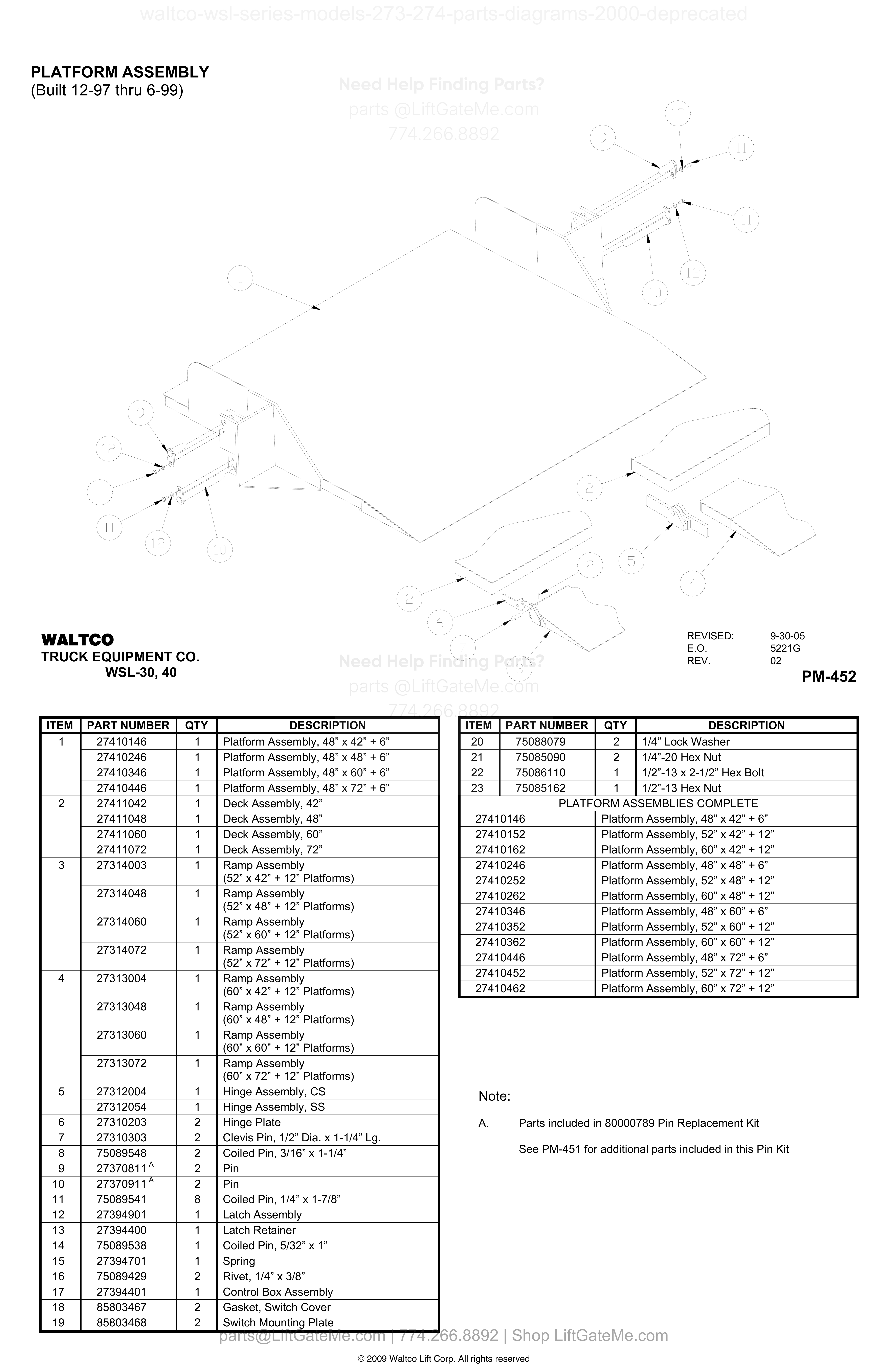

PLATFORM ASSEMBLY (Built 12-97 thru 6-99)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27410146 | Platform Assembly, 48” x 42” + 6” | |
| 1 | 1 | 27410246 | Platform Assembly, 48” x 48” + 6” | |
| 1 | 1 | 27410346 | Platform Assembly, 48” x 60” + 6” | |
| 1 | 1 | 27410446 | Platform Assembly, 48” x 72” + 6” | |
| 2 | 1 | 27411042 | Deck Assembly, 42” | |
| 2 | 1 | 27411048 | Deck Assembly, 48” | |
| 2 | 1 | 27411060 | Deck Assembly, 60” | |
| 2 | 1 | 27411072 | Deck Assembly, 72” | |
| 3 | 1 | 27314003 | Ramp Assembly (52” x 42” + 12” Platforms) | |
| 3 | 1 | 27314048 | Ramp Assembly (52” x 48” + 12” Platforms) | |
| 3 | 1 | 27314060 | Ramp Assembly (52” x 60” + 12” Platforms) | |
| 3 | 1 | 27314072 | Ramp Assembly (52” x 72” + 12” Platforms) | |
| 4 | 1 | 27313004 | Ramp Assembly (60” x 42” + 12” Platforms) | |
| 4 | 1 | 27313048 | Ramp Assembly (60” x 48” + 12” Platforms) | |
| 4 | 1 | 27313060 | Ramp Assembly (60” x 60” + 12” Platforms) | |
| 4 | 1 | 27313072 | Ramp Assembly (60” x 72” + 12” Platforms) | |
| 5 | 1 | 27312004 | Hinge Assembly, CS | |
| 5 | 1 | 27312054 | Hinge Assembly, SS | |
| 6 | 2 | 27310203 | Hinge Plate | |
| 7 | 2 | 27310303 | Clevis Pin, 1/2” Dia. x 1-1/4” Lg. | |
| 8 | 2 | 75089548 | Coiled Pin, 3/16” x 1-1/4” | |
| 9 | 2 | 27370811 A | Pin | |
| 10 | 2 | 27370911 A | Pin | |
| 11 | 8 | 75089541 | Coiled Pin, 1/4” x 1-7/8” | |
| 12 | 1 | 27394901 | Latch Assembly | |
| 13 | 1 | 27394400 | Latch Retainer | |
| 14 | 1 | 75089538 | Coiled Pin, 5/32” x 1” | |
| 15 | 1 | 27394701 | Spring | |
| 16 | 2 | 75089429 | Rivet, 1/4” x 3/8” | |
| 17 | 1 | 27394401 | Control Box Assembly | |
| 18 | 2 | 85803467 | Gasket, Switch Cover | |
| 19 | 2 | 85803468 | Switch Mounting Plate | |
| 20 | 2 | 75088079 | 1/4” Lock Washer | |
| 21 | 2 | 75085090 | 1/4”-20 Hex Nut | |
| 22 | 1 | 75086110 | 1/2”-13 x 2-1/2” Hex Bolt | |
| 23 | 1 | 75085162 | 1/2”-13 Hex Nut |

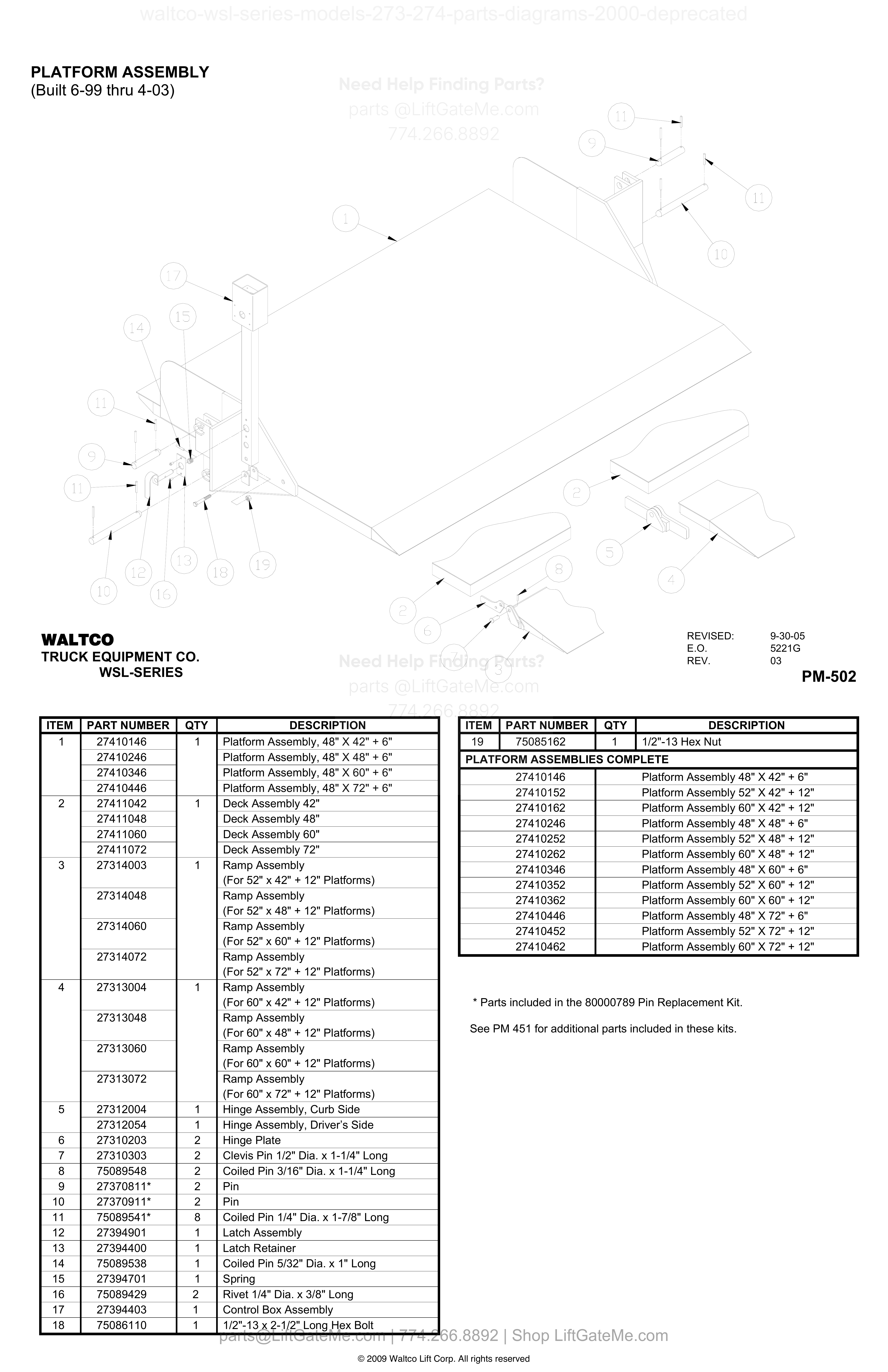

PLATFORM ASSEMBLY (Built 6-99 thru 4-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27410146 | Platform Assembly, 48" X 42" + 6" | |
| 1 | 27410246 | Platform Assembly, 48" X 48" + 6" | ||
| 1 | 27410346 | Platform Assembly, 48" X 60" + 6" | ||
| 1 | 27410446 | Platform Assembly, 48" X 72" + 6" | ||
| 2 | 1 | 27411042 | Deck Assembly 42" | |
| 2 | 27411048 | Deck Assembly 48" | ||
| 2 | 27411060 | Deck Assembly 60" | ||
| 2 | 27411072 | Deck Assembly 72" | ||
| 3 | 1 | 27314003 | Ramp Assembly (For 52" x 42" + 12" Platforms) | |
| 3 | 27314048 | Ramp Assembly (For 52" x 48" + 12" Platforms) | ||
| 3 | 27314060 | Ramp Assembly (For 52" x 60" + 12" Platforms) | ||
| 3 | 27314072 | Ramp Assembly (For 52" x 72" + 12" Platforms) | ||
| 4 | 1 | 27313004 | Ramp Assembly (For 60" x 42" + 12" Platforms) | |
| 4 | 27313048 | Ramp Assembly (For 60" x 48" + 12" Platforms) | ||
| 4 | 27313060 | Ramp Assembly (For 60" x 60" + 12" Platforms) | ||
| 4 | 27313072 | Ramp Assembly (For 60" x 72" + 12" Platforms) | ||
| 5 | 1 | 27312004 | Hinge Assembly, Curb Side | |
| 5 | 1 | 27312054 | Hinge Assembly, Driver’s Side | |
| 6 | 2 | 27310203 | Hinge Plate | |
| 7 | 2 | 27310303 | Clevis Pin 1/2" Dia. x 1-1/4" Long | |
| 8 | 2 | 75089548 | Coiled Pin 3/16" Dia. x 1-1/4" Long | |
| 9 | 2 | 27370811 | Pin | |
| 10 | 2 | 27370911 | Pin | |
| 11 | 8 | 75089541 | Coiled Pin 1/4" Dia. x 1-7/8" Long | |
| 12 | 1 | 27394901 | Latch Assembly | |
| 13 | 1 | 27394400 | Latch Retainer | |
| 14 | 1 | 75089538 | Coiled Pin 5/32" Dia. x 1" Long | |
| 15 | 1 | 27394701 | Spring | |
| 16 | 2 | 75089429 | Rivet 1/4" Dia. x 3/8" Long | |
| 17 | 1 | 27394403 | Control Box Assembly | |
| 18 | 1 | 75086110 | 1/2"-13 x 2-1/2" Long Hex Bolt | |
| 19 | 1 | 75085162 | 1/2"-13 Hex Nut |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

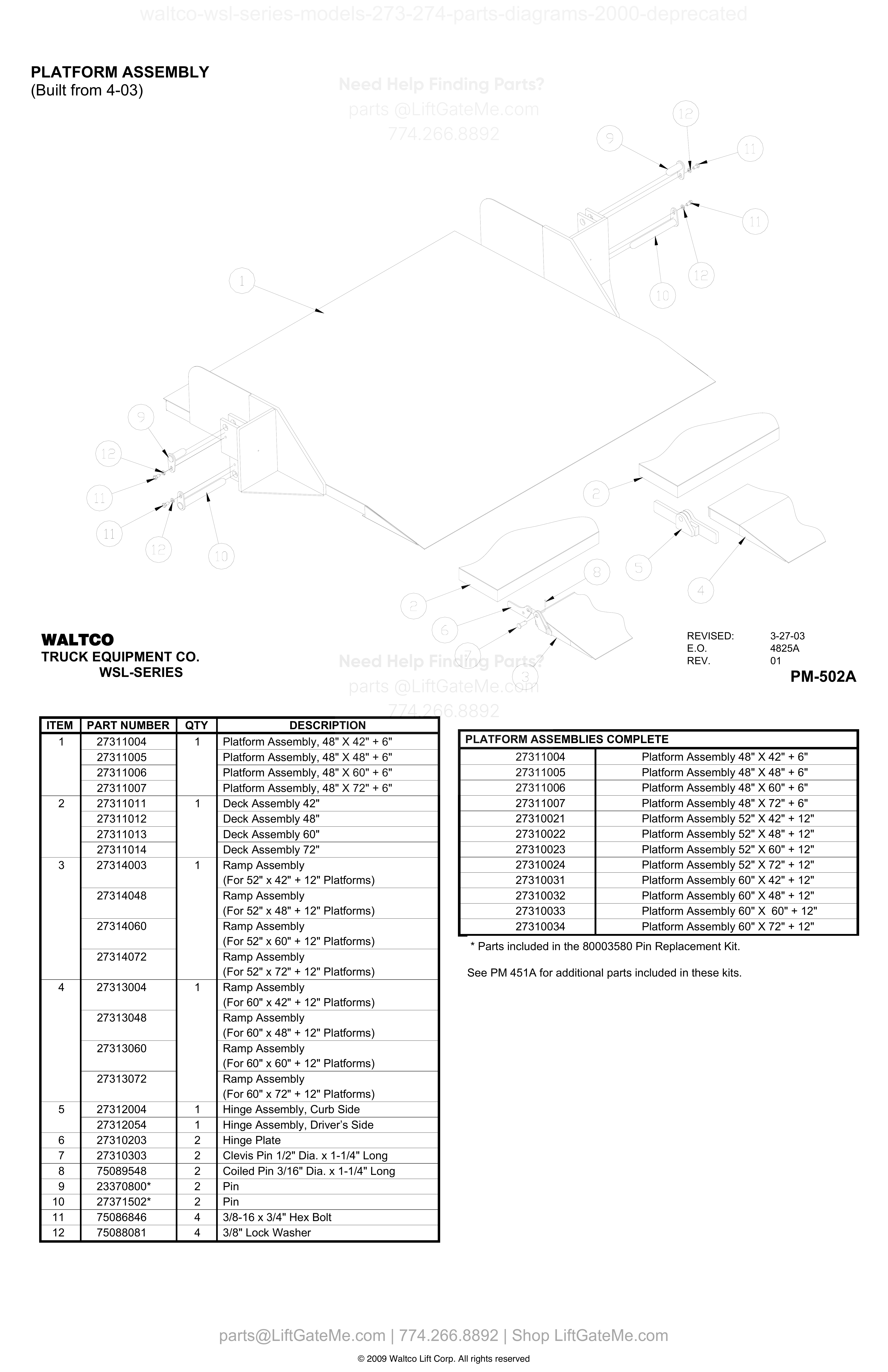

PLATFORM ASSEMBLY (Built from 4-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27311004 | Platform Assembly, 48" X 42" + 6" | |
| 1 | 27311005 | Platform Assembly, 48" X 48" + 6" | ||
| 1 | 27311006 | Platform Assembly, 48" X 60" + 6" | ||
| 1 | 27311007 | Platform Assembly, 48" X 72" + 6" | ||
| 2 | 1 | 27311011 | Deck Assembly 42" | |
| 2 | 27311012 | Deck Assembly 48" | ||
| 2 | 27311013 | Deck Assembly 60" | ||
| 2 | 27311014 | Deck Assembly 72" | ||
| 3 | 1 | 27314003 | Ramp Assembly (For 52" x 42" + 12" Platforms) | |
| 3 | 27314048 | Ramp Assembly (For 52" x 48" + 12" Platforms) | ||
| 3 | 27314060 | Ramp Assembly (For 52" x 60" + 12" Platforms) | ||
| 3 | 27314072 | Ramp Assembly (For 52" x 72" + 12" Platforms) | ||
| 4 | 1 | 27313004 | Ramp Assembly (For 60" x 42" + 12" Platforms) | |
| 4 | 27313048 | Ramp Assembly (For 60" x 48" + 12" Platforms) | ||
| 4 | 27313060 | Ramp Assembly (For 60" x 60" + 12" Platforms) | ||
| 4 | 27313072 | Ramp Assembly (For 60" x 72" + 12" Platforms) | ||
| 5 | 1 | 27312004 | Hinge Assembly, Curb Side | |
| 5 | 1 | 27312054 | Hinge Assembly, Driver’s Side | |
| 6 | 2 | 27310203 | Hinge Plate | |
| 7 | 2 | 27310303 | Clevis Pin 1/2" Dia. x 1-1/4" Long | |
| 8 | 2 | 75089548 | Coiled Pin 3/16" Dia. x 1-1/4" Long | |
| 9 | 2 | 23370800 | Pin | |
| 10 | 2 | 27371502 | Pin | |
| 11 | 4 | 75086846 | 3/8-16 x 3/4" Hex Bolt | |
| 12 | 4 | 75088081 | 3/8" Lock Washer |
i

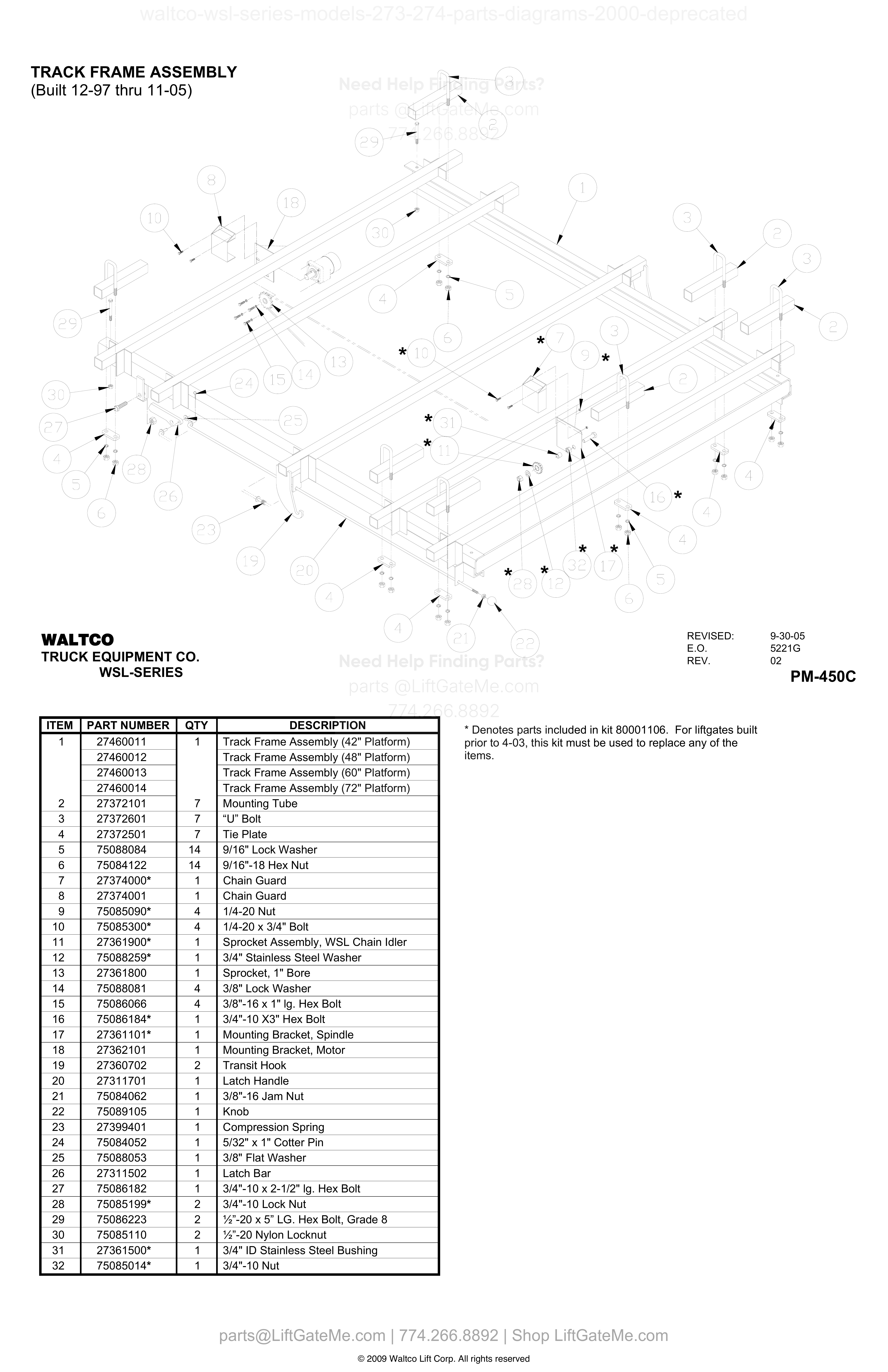

TRACK FRAME ASSEMBLY (Built 12-97 thru 11-05)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27460011 | Track Frame Assembly (42" Platform) | |
| 1 | 27460012 | Track Frame Assembly (48" Platform) | ||
| 1 | 27460013 | Track Frame Assembly (60" Platform) | ||
| 1 | 27460014 | Track Frame Assembly (72" Platform) | ||
| 2 | 7 | 27372101 | Mounting Tube | |
| 3 | 7 | 27372601 | “U” Bolt | |
| 4 | 7 | 27372501 | Tie Plate | |
| 5 | 14 | 75088084 | 9/16" Lock Washer | |
| 6 | 14 | 75084122 | 9/16"-18 Hex Nut | |
| 7 | 1 | 27374000 | Chain Guard | |
| 8 | 1 | 27374001 | Chain Guard | |
| 9 | 4 | 75085090 | 1/4-20 Nut | |
| 10 | 4 | 75085300 | 1/4-20 x 3/4" Bolt | |
| 11 | 1 | 27361900 | Sprocket Assembly, WSL Chain Idler | |
| 12 | 1 | 75088259 | 3/4" Stainless Steel Washer | |
| 13 | 1 | 27361800 | Sprocket, 1" Bore | |
| 14 | 4 | 75088081 | 3/8" Lock Washer | |
| 15 | 4 | 75086066 | 3/8"-16 x 1" lg. Hex Bolt | |
| 16 | 1 | 75086184 | 3/4"-10 X3" Hex Bolt | |
| 17 | 1 | 27361101 | Mounting Bracket, Spindle | |
| 18 | 1 | 27362101 | Mounting Bracket, Motor | |
| 19 | 2 | 27360702 | Transit Hook | |
| 20 | 1 | 27311701 | Latch Handle | |
| 21 | 1 | 75084062 | 3/8"-16 Jam Nut | |
| 22 | 1 | 75089105 | Knob | |
| 23 | 1 | 27399401 | Compression Spring | |
| 24 | 1 | 75084052 | 5/32" x 1" Cotter Pin | |
| 25 | 1 | 75088053 | 3/8" Flat Washer | |
| 26 | 1 | 27311502 | Latch Bar | |
| 27 | 1 | 75086182 | 3/4"-10 x 2-1/2" lg. Hex Bolt | |
| 28 | 2 | 75085199 | 3/4"-10 Lock Nut | |
| 29 | 2 | 75086223 | ½”-20 x 5” LG. Hex Bolt, Grade 8 | |
| 30 | 2 | 75085110 | ½”-20 Nylon Locknut | |
| 31 | 1 | 27361500 | 3/4" ID Stainless Steel Bushing | |
| 32 | 1 | 75085014 | 3/4"-10 Nut |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

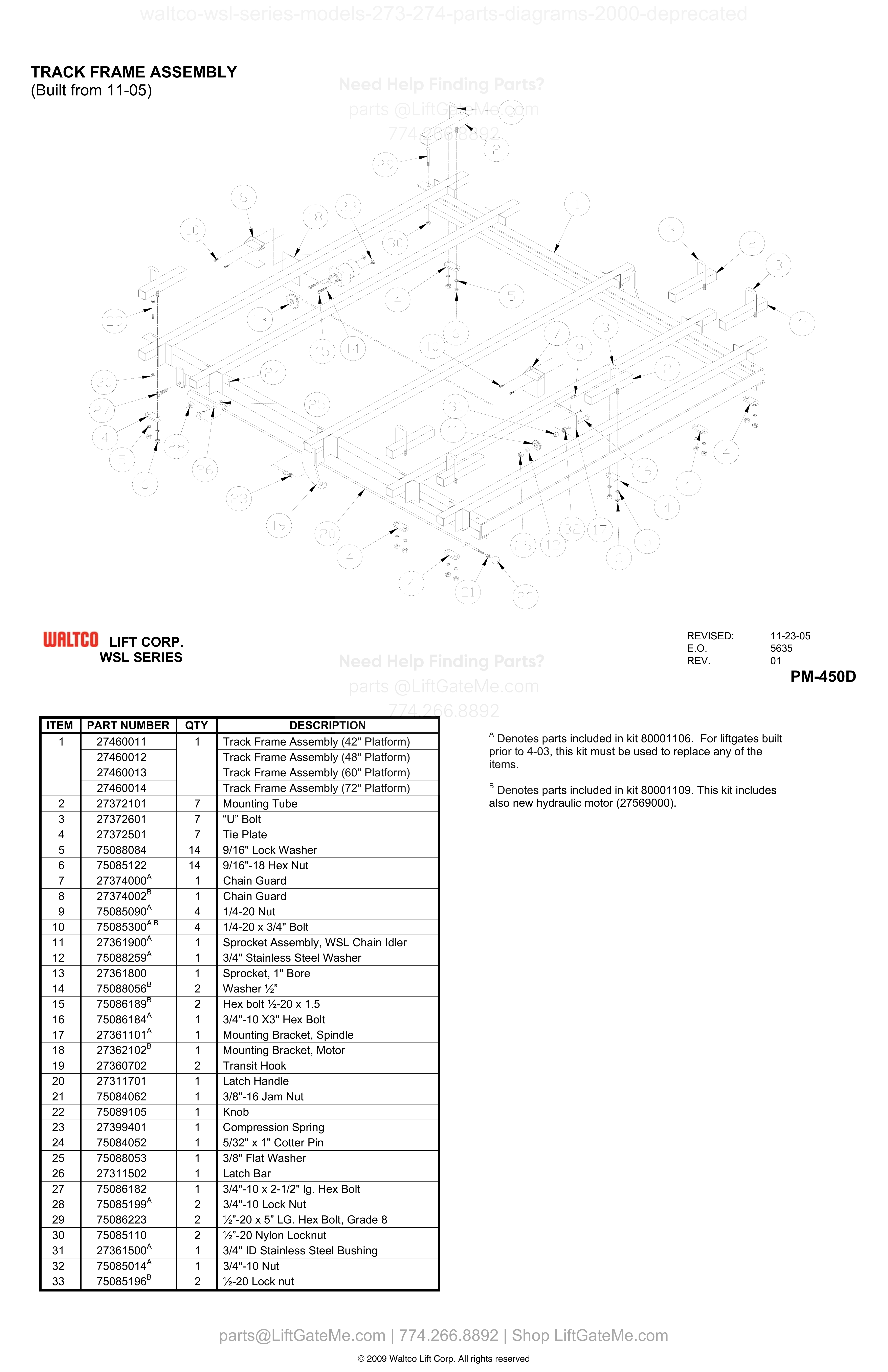

TRACK FRAME ASSEMBLY (Built from 11-05)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27460011 | Track Frame Assembly (42" Platform) | |
| 1 | 27460012 | Track Frame Assembly (48" Platform) | ||
| 1 | 27460013 | Track Frame Assembly (60" Platform) | ||
| 1 | 27460014 | Track Frame Assembly (72" Platform) | ||
| 2 | 7 | 27372101 | Mounting Tube | |
| 3 | 7 | 27372601 | “U” Bolt | |
| 4 | 7 | 27372501 | Tie Plate | |
| 5 | 14 | 75088084 | 9/16" Lock Washer | |
| 6 | 14 | 75085122 | 9/16"-18 Hex Nut | |
| 7 | 1 | 27374000 A | Chain Guard | |
| 8 | 1 | 27374002 B | Chain Guard | |
| 9 | 4 | 75085090 A | 1/4-20 Nut | |
| 10 | 4 | 75085300 A,B | 1/4-20 x 3/4" Bolt | |
| 11 | 1 | 27361900 A | Sprocket Assembly, WSL Chain Idler | |
| 12 | 1 | 75088259 A | 3/4" Stainless Steel Washer | |
| 13 | 1 | 27361800 | Sprocket, 1" Bore | |
| 14 | 2 | 75088056 B | Washer ½” | |
| 15 | 2 | 75086189 B | Hex bolt ½-20 x 1.5 | |
| 16 | 1 | 75086184 A | 3/4"-10 X3" Hex Bolt | |
| 17 | 1 | 27361101 A | Mounting Bracket, Spindle | |
| 18 | 1 | 27362102 B | Mounting Bracket, Motor | |
| 19 | 2 | 27360702 | Transit Hook | |
| 20 | 1 | 27311701 | Latch Handle | |
| 21 | 1 | 75084062 | 3/8"-16 Jam Nut | |
| 22 | 1 | 75089105 | Knob | |
| 23 | 1 | 27399401 | Compression Spring | |
| 24 | 1 | 75084052 | 5/32" x 1" Cotter Pin | |
| 25 | 1 | 75088053 | 3/8" Flat Washer | |
| 26 | 1 | 27311502 | Latch Bar | |
| 27 | 1 | 75086182 | 3/4"-10 x 2-1/2" lg. Hex Bolt | |
| 28 | 2 | 75085199 A | 3/4"-10 Lock Nut | |
| 29 | 2 | 75086223 | ½”-20 x 5” LG. Hex Bolt, Grade 8 | |
| 30 | 2 | 75085110 | ½”-20 Nylon Locknut | |
| 31 | 1 | 27361500 A | 3/4" ID Stainless Steel Bushing | |
| 32 | 1 | 75085014 A | 3/4"-10 Nut | |
| 33 | 2 | 75085196 B | ½-20 Lock nut |
i

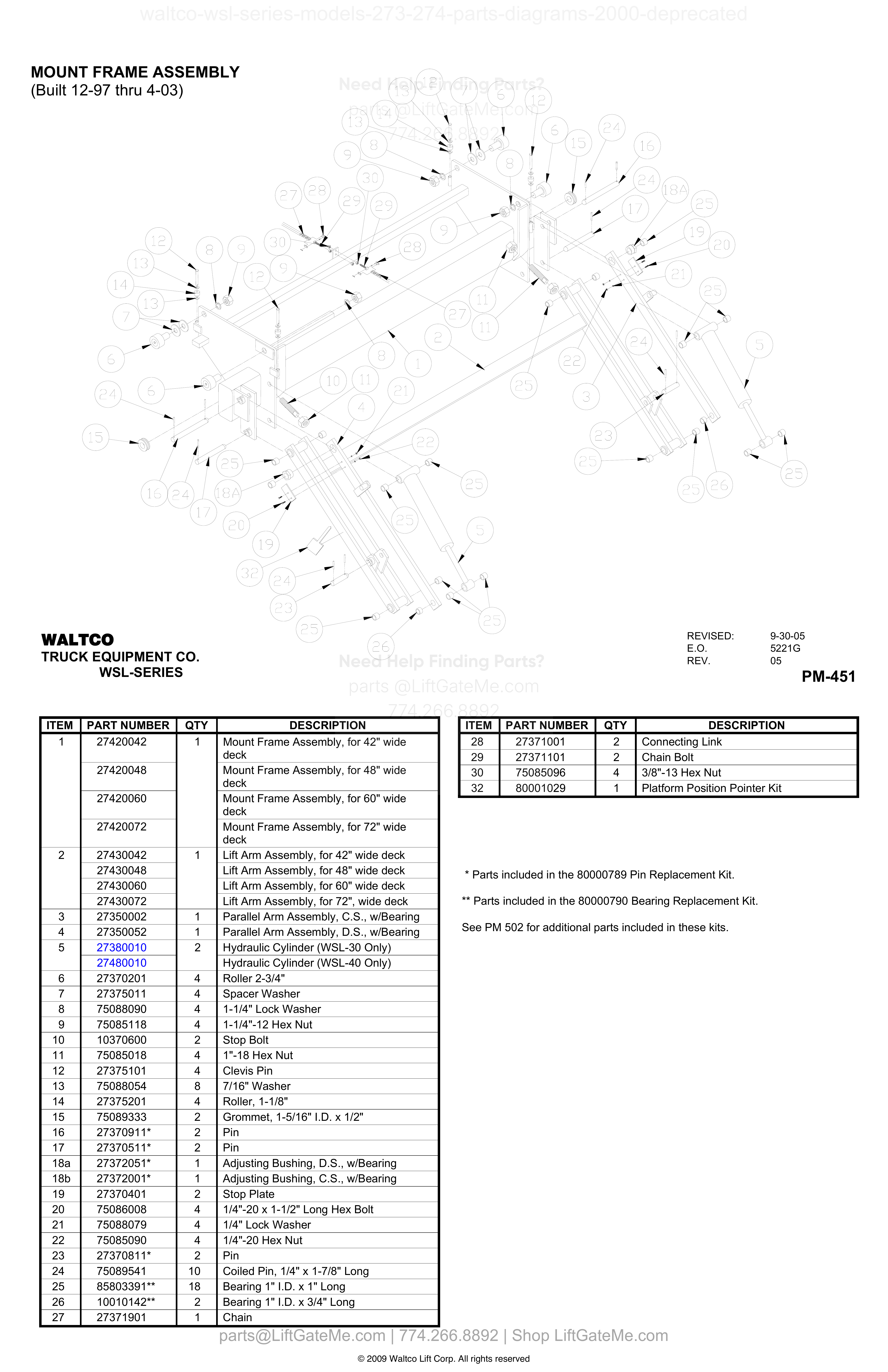

MOUNT FRAME ASSEMBLY (Built 12-97 thru 4-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27420042 | Mount Frame Assembly, for 42" wide deck | |
| 1 | 27420048 | Mount Frame Assembly, for 48" wide deck | ||
| 1 | 27420060 | Mount Frame Assembly, for 60" wide deck | ||
| 1 | 27420072 | Mount Frame Assembly, for 72" wide deck | ||
| 2 | 1 | 27430042 | Lift Arm Assembly, for 42" wide deck | |
| 2 | 27430048 | Lift Arm Assembly, for 48" wide deck | ||
| 2 | 27430060 | Lift Arm Assembly, for 60" wide deck | ||
| 2 | 27430072 | Lift Arm Assembly, for 72", wide deck | ||
| 3 | 1 | 27350002 | Parallel Arm Assembly, C.S., w/Bearing | |
| 4 | 1 | 27350052 | Parallel Arm Assembly, D.S., w/Bearing | |
| 5 | 2 | 27380010 | Hydraulic Cylinder (WSL-30 Only) | |
| 5 | 27480010 | Hydraulic Cylinder (WSL-40 Only) | ||
| 6 | 4 | 27370201 | Roller 2-3/4" | |
| 7 | 4 | 27375011 | Spacer Washer | |
| 8 | 4 | 75088090 | 1-1/4" Lock Washer | |
| 9 | 4 | 75085118 | 1-1/4"-12 Hex Nut | |
| 10 | 2 | 10370600 | Stop Bolt | |
| 11 | 4 | 75085018 | 1"-18 Hex Nut | |
| 12 | 4 | 27375101 | Clevis Pin | |
| 13 | 8 | 75088054 | 7/16" Washer | |
| 14 | 4 | 27375201 | Roller, 1-1/8" | |
| 15 | 2 | 75089333 | Grommet, 1-5/16" I.D. x 1/2" | |
| 16 | 2 | 27370911 | Pin | |
| 17 | 2 | 27370511 | Pin | |
| 18a | 1 | 27372051 | Adjusting Bushing, D.S., w/Bearing | |
| 18b | 1 | 27372001 | Adjusting Bushing, C.S., w/Bearing | |
| 19 | 2 | 27370401 | Stop Plate | |
| 20 | 4 | 75086008 | 1/4"-20 x 1-1/2" Long Hex Bolt | |
| 21 | 4 | 75088079 | 1/4" Lock Washer | |
| 22 | 4 | 75085090 | 1/4"-20 Hex Nut | |
| 23 | 2 | 27370811 | Pin | |
| 24 | 10 | 75089541 | Coiled Pin, 1/4" x 1-7/8" Long | |
| 25 | 18 | 85803391 | Bearing 1" I.D. x 1" Long | |
| 26 | 2 | 10010142 | Bearing 1" I.D. x 3/4" Long | |
| 27 | 1 | 27371901 | Chain | |
| 28 | 2 | 27371001 | Connecting Link | |
| 29 | 2 | 27371101 | Chain Bolt | |
| 30 | 4 | 75085096 | 3/8"-13 Hex Nut | |
| 32 | 1 | 80001029 | Platform Position Pointer Kit |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

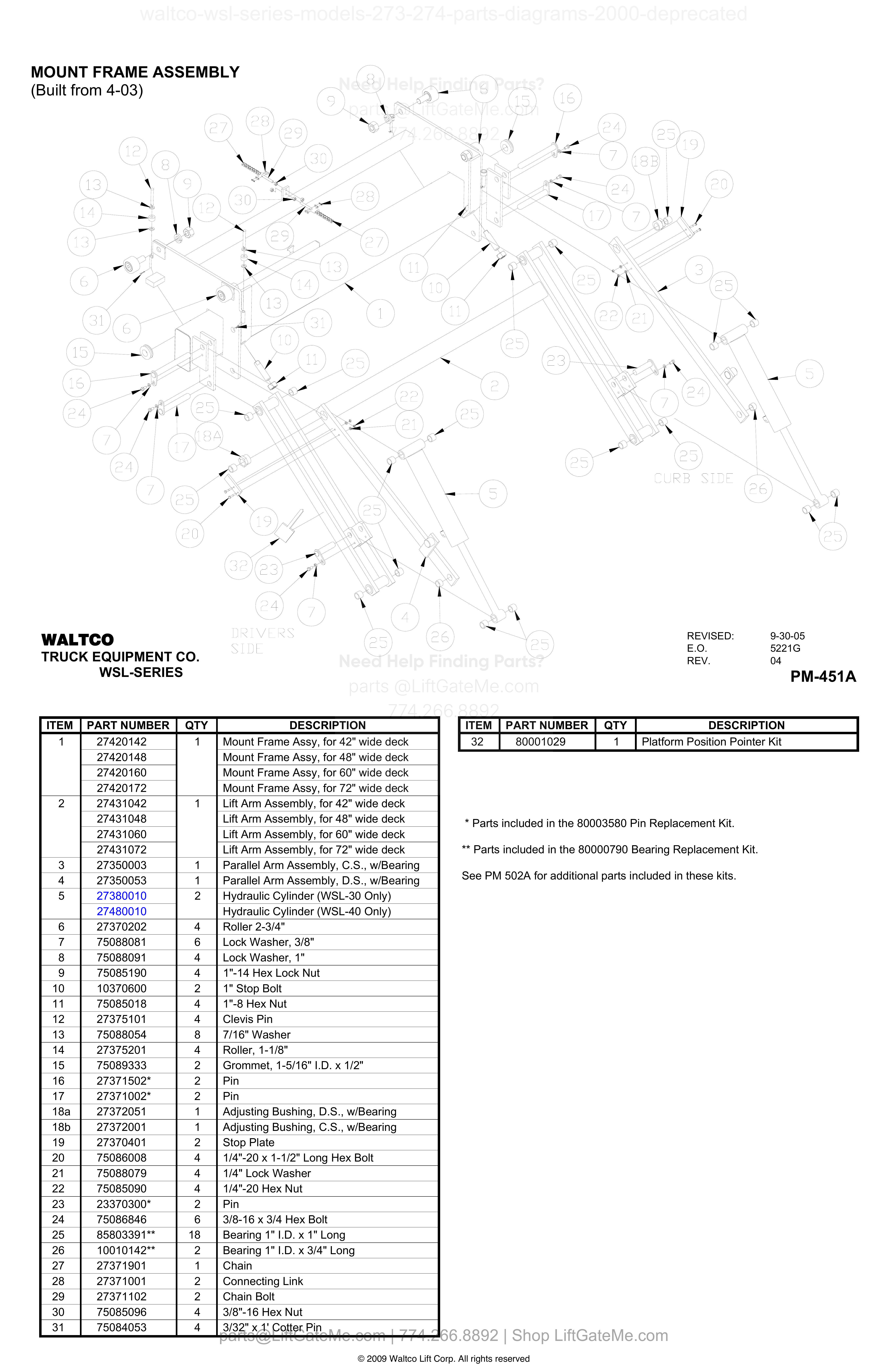

MOUNT FRAME ASSEMBLY (Built from 4-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27420142 | Mount Frame Assy, for 42" wide deck | |
| 1 | 27420148 | Mount Frame Assy, for 48" wide deck | ||
| 1 | 27420160 | Mount Frame Assy, for 60" wide deck | ||
| 1 | 27420172 | Mount Frame Assy, for 72" wide deck | ||
| 2 | 1 | 27431042 | Lift Arm Assembly, for 42" wide deck | |
| 2 | 27431048 | Lift Arm Assembly, for 48" wide deck | ||
| 2 | 27431060 | Lift Arm Assembly, for 60" wide deck | ||
| 2 | 27431072 | Lift Arm Assembly, for 72" wide deck | ||
| 3 | 1 | 27350003 | Parallel Arm Assembly, C.S., w/Bearing | |
| 4 | 1 | 27350053 | Parallel Arm Assembly, D.S., w/Bearing | |
| 5 | 2 | 27380010 | Hydraulic Cylinder (WSL-30 Only) | |
| 5 | 27480010 | Hydraulic Cylinder (WSL-40 Only) | ||
| 6 | 4 | 27370202 | Roller 2-3/4" | |
| 7 | 6 | 75088081 | Lock Washer, 3/8" | |
| 8 | 4 | 75088091 | Lock Washer, 1" | |
| 9 | 4 | 75085190 | 1"-14 Hex Lock Nut | |
| 10 | 2 | 10370600 | 1" Stop Bolt | |
| 11 | 4 | 75085018 | 1"-8 Hex Nut | |
| 12 | 4 | 27375101 | Clevis Pin | |
| 13 | 8 | 75088054 | 7/16" Washer | |
| 14 | 4 | 27375201 | Roller, 1-1/8" | |
| 15 | 2 | 75089333 | Grommet, 1-5/16" I.D. x 1/2" | |
| 16 | 2 | 27371502 | Pin | |
| 17 | 2 | 27371002 | Pin | |
| 18a | 1 | 27372051 | Adjusting Bushing, D.S., w/Bearing | |
| 18b | 1 | 27372001 | Adjusting Bushing, C.S., w/Bearing | |
| 19 | 2 | 27370401 | Stop Plate | |
| 20 | 4 | 75086008 | 1/4"-20 x 1-1/2" Long Hex Bolt | |
| 21 | 4 | 75088079 | 1/4" Lock Washer | |
| 22 | 4 | 75085090 | 1/4"-20 Hex Nut | |
| 23 | 2 | 23370300 | Pin | |
| 24 | 6 | 75086846 | 3/8-16 x 3/4 Hex Bolt | |
| 25 | 18 | 85803391 | Bearing 1" I.D. x 1" Long | |
| 26 | 2 | 10010142 | Bearing 1" I.D. x 3/4" Long | |
| 27 | 1 | 27371901 | Chain | |
| 28 | 2 | 27371001 | Connecting Link | |
| 29 | 2 | 27371102 | Chain Bolt | |
| 30 | 4 | 75085096 | 3/8"-16 Hex Nut | |
| 31 | 4 | 75084053 | 3/32" x 1' Cotter Pin | |
| 32 | 1 | 80001029 | Platform Position Pointer Kit |
i

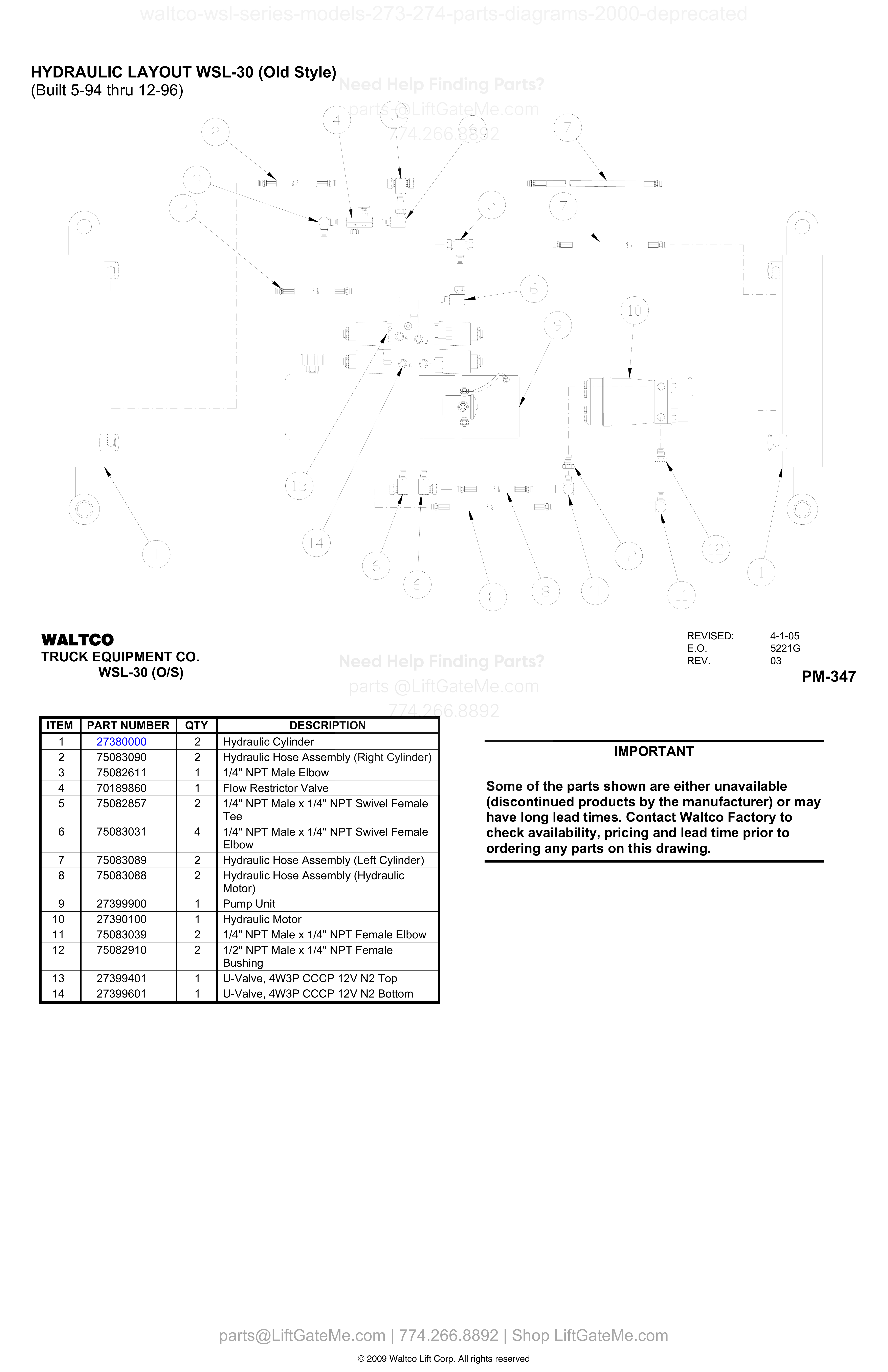

HYDRAULIC LAYOUT WSL-30 (Old Style) (Built 5-94 thru 12-96)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 27380000 | Hydraulic Cylinder | |
| 2 | 2 | 75083090 | Hydraulic Hose Assembly (Right Cylinder) | |
| 3 | 1 | 75082611 | 1/4" NPT Male Elbow | |
| 4 | 1 | 70189860 | Flow Restrictor Valve | |
| 5 | 2 | 75082857 | 1/4" NPT Male x 1/4" NPT Swivel Female Tee | |
| 6 | 4 | 75083031 | 1/4" NPT Male x 1/4" NPT Swivel Female Elbow | |
| 7 | 2 | 75083089 | Hydraulic Hose Assembly (Left Cylinder) | |
| 8 | 2 | 75083088 | Hydraulic Hose Assembly (Hydraulic Motor) | |
| 9 | 1 | 27399900 | Pump Unit | |
| 10 | 1 | 27390100 | Hydraulic Motor | |
| 11 | 2 | 75083039 | 1/4" NPT Male x 1/4" NPT Female Elbow | |
| 12 | 2 | 75082910 | 1/2" NPT Male x 1/4" NPT Female Bushing | |
| 13 | 1 | 27399401 | U-Valve, 4W3P CCCP 12V N2 Top | |
| 14 | 1 | 27399601 | U-Valve, 4W3P CCCP 12V N2 Bottom |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

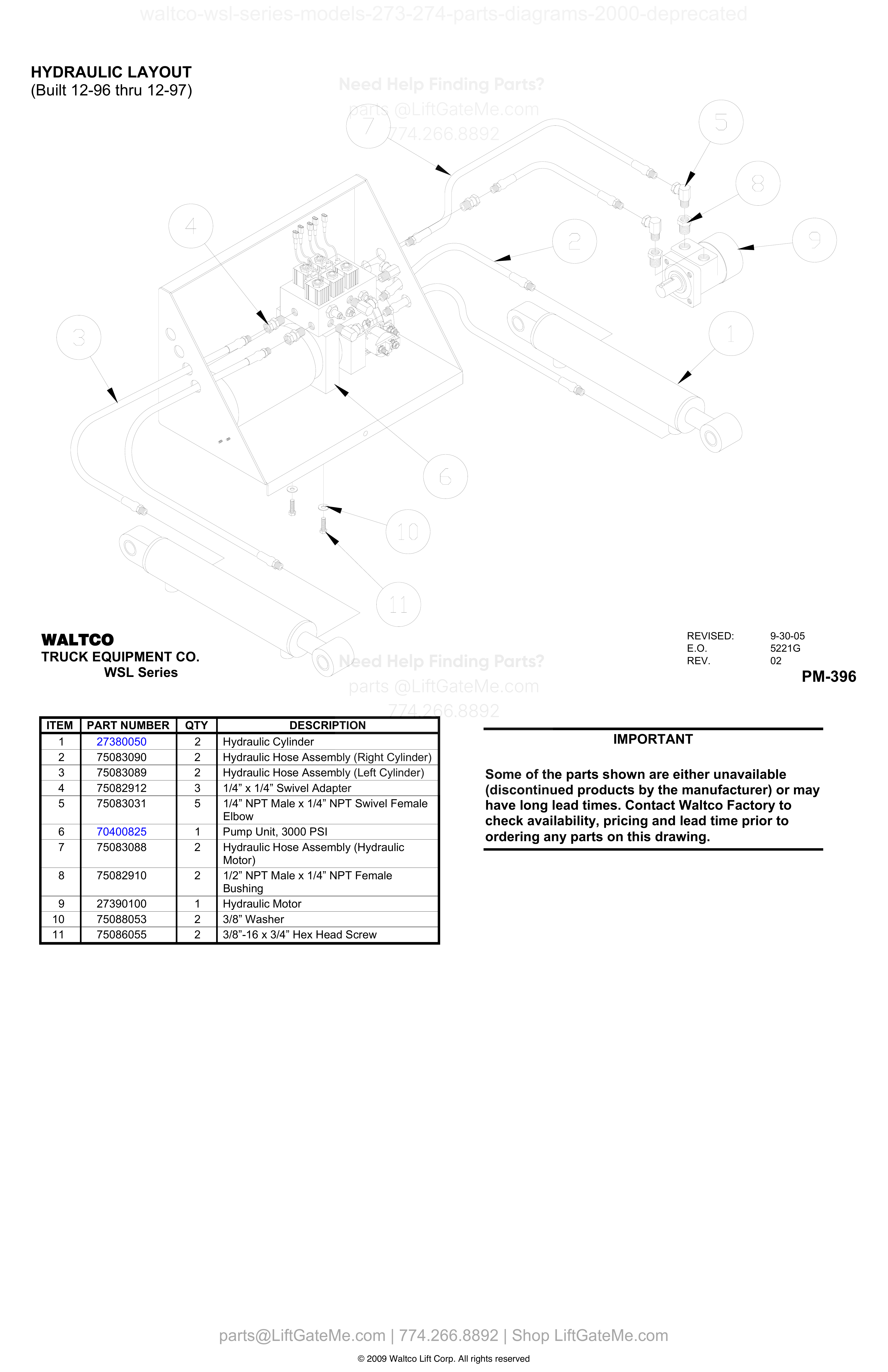

HYDRAULIC LAYOUT (Built 12-96 thru 12-97)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 27380050 | Hydraulic Cylinder | |
| 2 | 2 | 75083090 | Hydraulic Hose Assembly (Right Cylinder) | |
| 3 | 2 | 75083089 | Hydraulic Hose Assembly (Left Cylinder) | |
| 4 | 3 | 75082912 | 1/4” x 1/4” Swivel Adapter | |
| 5 | 5 | 75083031 | 1/4” NPT Male x 1/4” NPT Swivel Female Elbow | |
| 6 | 1 | 70400825 | Pump Unit, 3000 PSI | |
| 7 | 2 | 75083088 | Hydraulic Hose Assembly (Hydraulic Motor) | |
| 8 | 2 | 75082910 | 1/2” NPT Male x 1/4” NPT Female Bushing | |
| 9 | 1 | 27390100 | Hydraulic Motor | |
| 10 | 2 | 75088053 | 3/8” Washer | |
| 11 | 2 | 75086055 | 3/8”-16 x 3/4” Hex Head Screw |

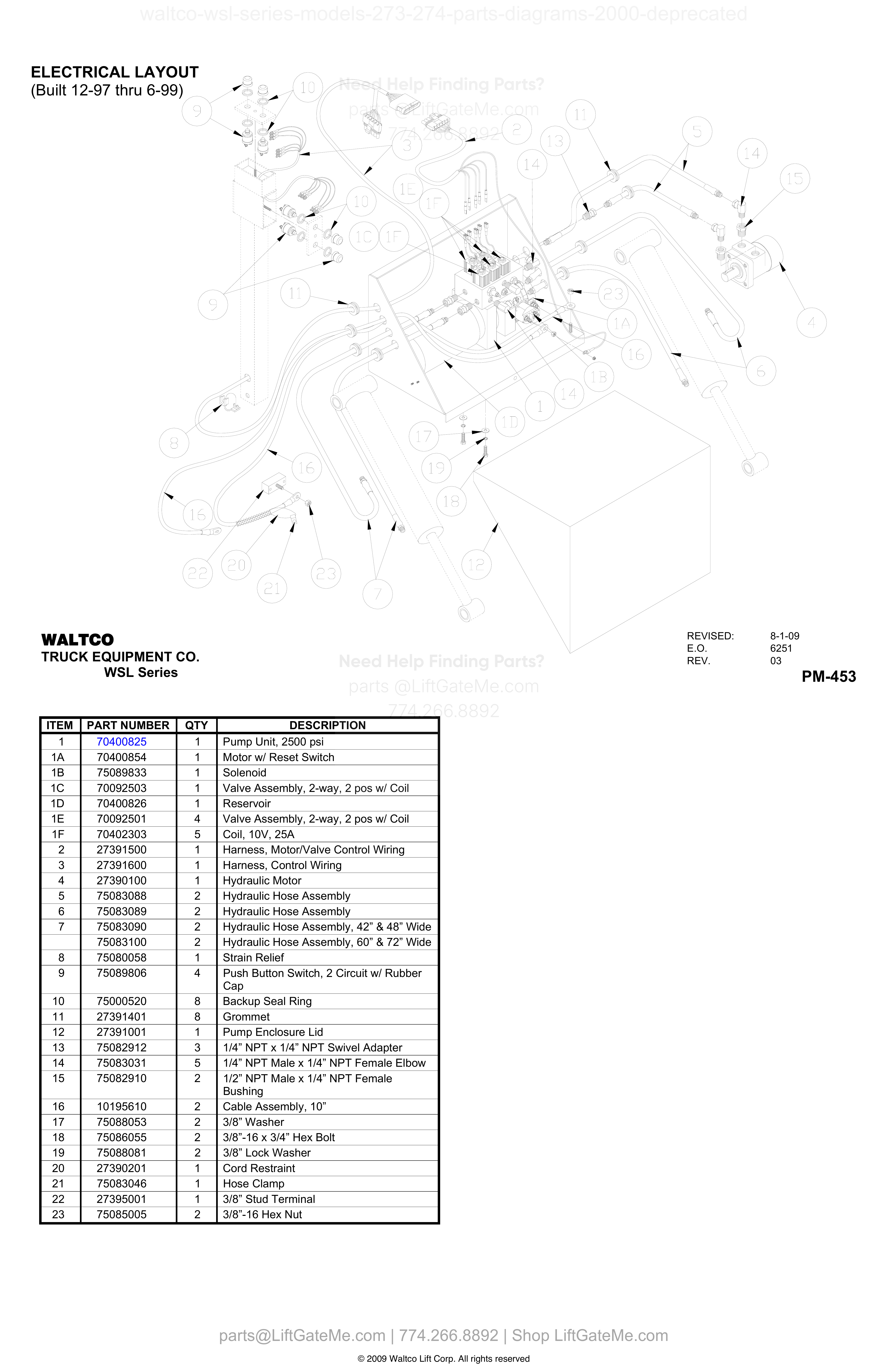

ELECTRICAL LAYOUT (Built 12-97 thru 6-99)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400825 | Pump Unit, 2500 psi | |
| 1A | 1 | 70400854 | Motor w/ Reset Switch | |
| 1B | 1 | 75089833 | Solenoid | |
| 1C | 1 | 70092503 | Valve Assembly, 2-way, 2 pos w/ Coil | |
| 1D | 1 | 70400826 | Reservoir | |
| 1E | 4 | 70092501 | Valve Assembly, 2-way, 2 pos w/ Coil | |
| 1F | 5 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 27391500 | Harness, Motor/Valve Control Wiring | |
| 3 | 1 | 27391600 | Harness, Control Wiring | |
| 4 | 1 | 27390100 | Hydraulic Motor | |
| 5 | 2 | 75083088 | Hydraulic Hose Assembly | |
| 6 | 2 | 75083089 | Hydraulic Hose Assembly | |
| 7 | 2 | 75083090 | Hydraulic Hose Assembly, 42” & 48” Wide | |
| 7 | 2 | 75083100 | Hydraulic Hose Assembly, 60” & 72” Wide | |
| 8 | 1 | 75080058 | Strain Relief | |
| 9 | 4 | 75089806 | Push Button Switch, 2 Circuit w/ Rubber Cap | |
| 10 | 8 | 75000520 | Backup Seal Ring | |
| 11 | 8 | 27391401 | Grommet | |
| 12 | 1 | 27391001 | Pump Enclosure Lid | |
| 13 | 3 | 75082912 | 1/4” NPT x 1/4” NPT Swivel Adapter | |
| 14 | 5 | 75083031 | 1/4” NPT Male x 1/4” NPT Female Elbow | |
| 15 | 2 | 75082910 | 1/2” NPT Male x 1/4” NPT Female Bushing | |
| 16 | 2 | 10195610 | Cable Assembly, 10” | |
| 17 | 2 | 75088053 | 3/8” Washer | |
| 18 | 2 | 75086055 | 3/8”-16 x 3/4” Hex Bolt | |
| 19 | 2 | 75088081 | 3/8” Lock Washer | |
| 20 | 1 | 27390201 | Cord Restraint | |
| 21 | 1 | 75083046 | Hose Clamp | |
| 22 | 1 | 27395001 | 3/8” Stud Terminal | |
| 23 | 2 | 75085005 | 3/8”-16 Hex Nut |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

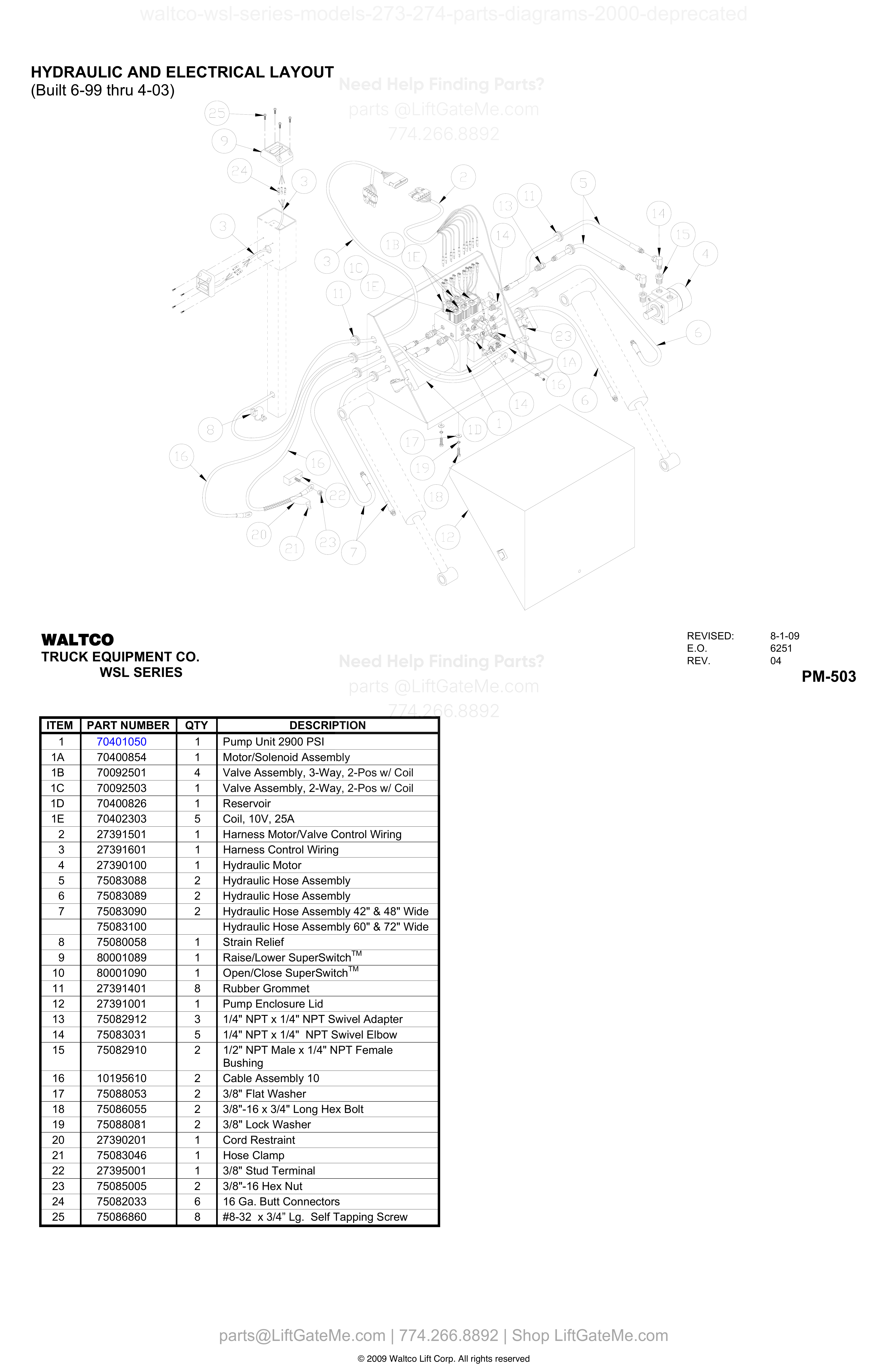

HYDRAULIC AND ELECTRICAL LAYOUT (Built 6-99 thru 4-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401050 | Pump Unit 2900 PSI | |
| 1A | 1 | 70400854 | Motor/Solenoid Assembly | |
| 1B | 4 | 70092501 | Valve Assembly, 3-Way, 2-Pos w/ Coil | |
| 1C | 1 | 70092503 | Valve Assembly, 2-Way, 2-Pos w/ Coil | |
| 1D | 1 | 70400826 | Reservoir | |
| 1E | 5 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 27391501 | Harness Motor/Valve Control Wiring | |
| 3 | 1 | 27391601 | Harness Control Wiring | |
| 4 | 1 | 27390100 | Hydraulic Motor | |
| 5 | 2 | 75083088 | Hydraulic Hose Assembly | |
| 6 | 2 | 75083089 | Hydraulic Hose Assembly | |
| 7 | 2 | 75083090 | Hydraulic Hose Assembly 42" & 48" Wide | |
| 7 | 75083100 | Hydraulic Hose Assembly 60" & 72" Wide | ||
| 8 | 1 | 75080058 | Strain Relief | |
| 9 | 1 | 80001089 | Raise/Lower SuperSwitch | |
| 10 | 1 | 80001090 | Open/Close SuperSwitch | |
| 11 | 8 | 27391401 | Rubber Grommet | |
| 12 | 1 | 27391001 | Pump Enclosure Lid | |
| 13 | 3 | 75082912 | 1/4" NPT x 1/4" NPT Swivel Adapter | |
| 14 | 5 | 75083031 | 1/4" NPT x 1/4" NPT Swivel Elbow | |
| 15 | 2 | 75082910 | 1/2" NPT Male x 1/4" NPT Female Bushing | |
| 16 | 2 | 10195610 | Cable Assembly 10 | |
| 17 | 2 | 75088053 | 3/8" Flat Washer | |
| 18 | 2 | 75086055 | 3/8"-16 x 3/4" Long Hex Bolt | |
| 19 | 2 | 75088081 | 3/8" Lock Washer | |
| 20 | 1 | 27390201 | Cord Restraint | |
| 21 | 1 | 75083046 | Hose Clamp | |
| 22 | 1 | 27395001 | 3/8" Stud Terminal | |
| 23 | 2 | 75085005 | 3/8"-16 Hex Nut | |
| 24 | 6 | 75082033 | 16 Ga. Butt Connectors | |
| 25 | 8 | 75086860 | #8-32 x 3/4” Lg. Self Tapping Screw |

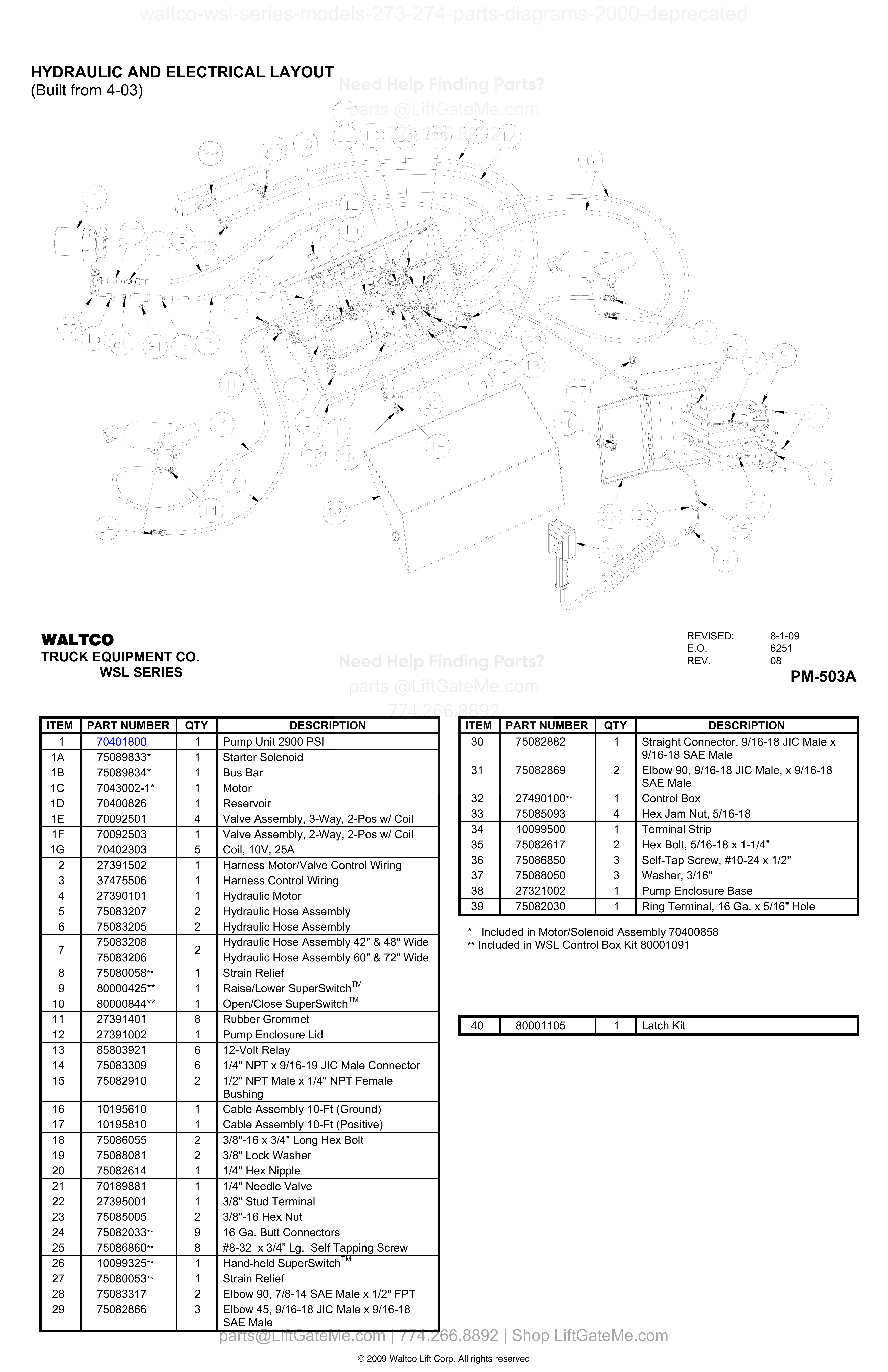

HYDRAULIC AND ELECTRICAL LAYOUT (Built from 4-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401800 | Pump Unit 2900 PSI | |
| 1A | 1 | 75089833 | Starter Solenoid | |
| 1B | 1 | 75089834 | Bus Bar | |
| 1C | 1 | 7043002-1 | Motor | |
| 1D | 1 | 70400826 | Reservoir | |
| 1E | 4 | 70092501 | Valve Assembly, 3-Way, 2-Pos w/ Coil | |
| 1F | 1 | 70092503 | Valve Assembly, 2-Way, 2-Pos w/ Coil | |
| 1G | 5 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 27391502 | Harness Motor/Valve Control Wiring | |
| 3 | 1 | 37475506 | Harness Control Wiring | |
| 4 | 1 | 27390101 | Hydraulic Motor | |
| 5 | 2 | 75083207 | Hydraulic Hose Assembly | |
| 6 | 2 | 75083205 | Hydraulic Hose Assembly | |
| 6 | 2 | 75083208 | Hydraulic Hose Assembly 42" & 48" Wide | |
| 7 | 2 | 75083206 | Hydraulic Hose Assembly 60" & 72" Wide | |
| 8 | 1 | 75080058 | Strain Relief | |
| 9 | 1 | 80000425 | Raise/Lower SuperSwitch | |
| 10 | 1 | 80000844 | Open/Close SuperSwitch | |
| 11 | 8 | 27391401 | Rubber Grommet | |
| 12 | 1 | 27391002 | Pump Enclosure Lid | |
| 13 | 6 | 85803921 | 12-Volt Relay | |
| 14 | 6 | 75083309 | 1/4" NPT x 9/16-19 JIC Male Connector | |
| 15 | 2 | 75082910 | 1/2" NPT Male x 1/4" NPT Female Bushing | |
| 16 | 1 | 10195610 | Cable Assembly 10-Ft (Ground) | |
| 17 | 1 | 10195810 | Cable Assembly 10-Ft (Positive) | |
| 18 | 2 | 75086055 | 3/8"-16 x 3/4" Long Hex Bolt | |
| 19 | 2 | 75088081 | 3/8" Lock Washer | |
| 20 | 1 | 75082614 | 1/4" Hex Nipple | |
| 21 | 1 | 70189881 | 1/4" Needle Valve | |
| 22 | 1 | 27395001 | 3/8" Stud Terminal | |
| 23 | 2 | 75085005 | 3/8"-16 Hex Nut | |
| 24 | 9 | 75082033 | 16 Ga. Butt Connectors | |
| 25 | 8 | 75086860 | #8-32 x 3/4” Lg. Self Tapping Screw | |
| 26 | 1 | 10099325 | Hand-held SuperSwitch | |
| 27 | 1 | 75080053 | Strain Relief | |
| 28 | 2 | 75083317 | Elbow 90, 7/8-14 SAE Male x 1/2" FPT | |
| 29 | 3 | 75082866 | Elbow 45, 9/16-18 JIC Male x 9/16-18 SAE Male | |
| 30 | 1 | 75082882 | Straight Connector, 9/16-18 JIC Male x 9/16-18 SAE Male | |
| 31 | 2 | 75082869 | Elbow 90, 9/16-18 JIC Male, x 9/16-18 SAE Male | |
| 32 | 1 | 27490100 | Control Box | |
| 33 | 4 | 75085093 | Hex Jam Nut, 5/16-18 | |
| 34 | 1 | 10099500 | Terminal Strip | |
| 35 | 2 | 75082617 | Hex Bolt, 5/16-18 x 1-1/4" | |
| 36 | 3 | 75086850 | Self-Tap Screw, #10-24 x 1/2" | |
| 37 | 3 | 75088050 | Washer, 3/16" | |
| 38 | 1 | 27321002 | Pump Enclosure Base | |
| 39 | 1 | 75082030 | Ring Terminal, 16 Ga. x 5/16" Hole | |
| 40 | 1 | 80001105 | Latch Kit |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

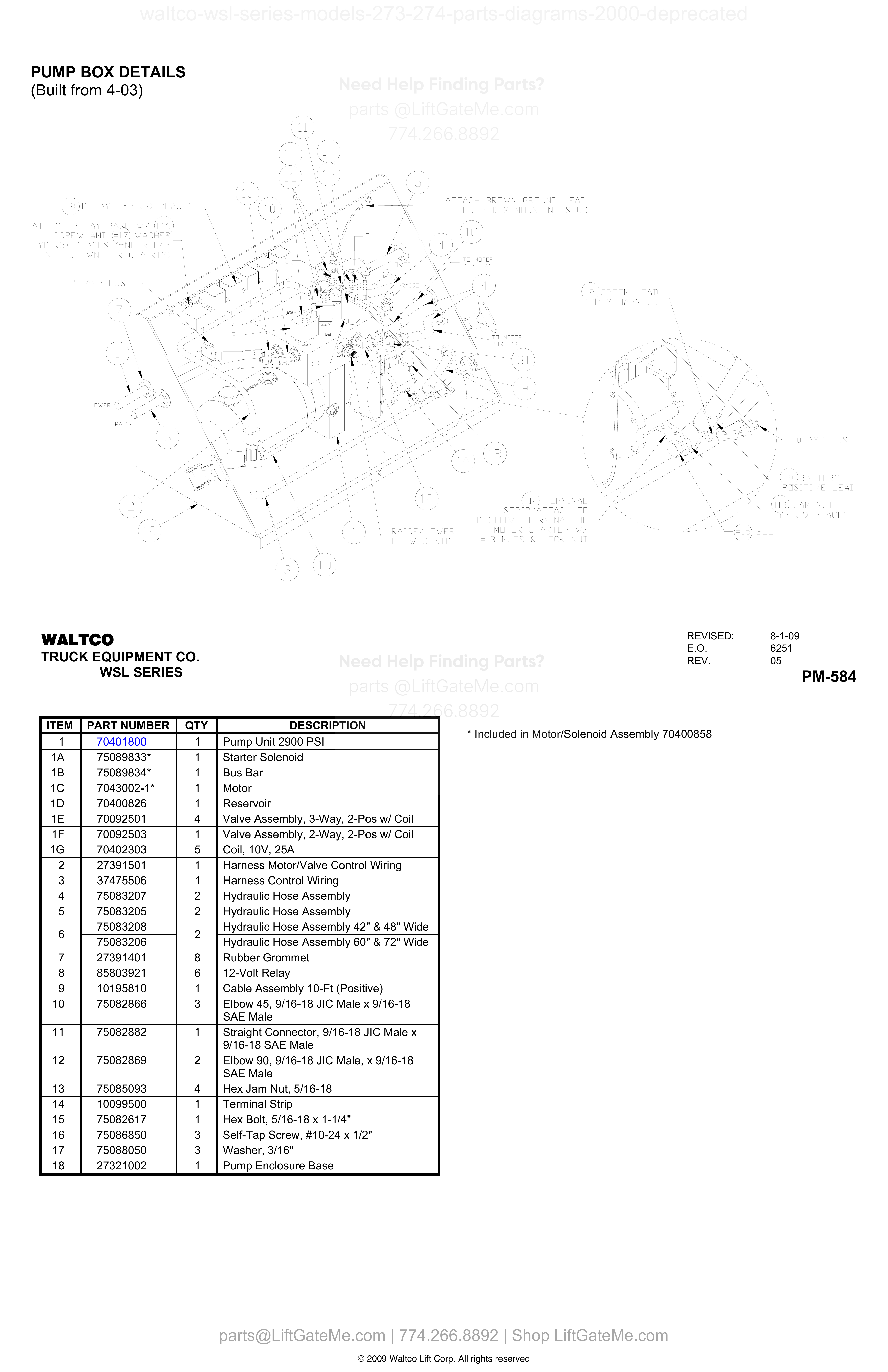

PUMP BOX DETAILS (Built from 4-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401800 | Pump Unit 2900 PSI | |
| 1A | 1 | 75089833 | Starter Solenoid | |
| 1B | 1 | 75089834 | Bus Bar | |
| 1C | 1 | 7043002-1 | Motor | |
| 1D | 1 | 70400826 | Reservoir | |
| 1E | 4 | 70092501 | Valve Assembly, 3-Way, 2-Pos w/ Coil | |
| 1F | 1 | 70092503 | Valve Assembly, 2-Way, 2-Pos w/ Coil | |
| 1G | 5 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 27391501 | Harness Motor/Valve Control Wiring | |
| 3 | 1 | 37475506 | Harness Control Wiring | |
| 4 | 2 | 75083207 | Hydraulic Hose Assembly | |
| 5 | 2 | 75083205 | Hydraulic Hose Assembly | |
| 5 | 75083208 | Hydraulic Hose Assembly 42" & 48" Wide | ||
| 6 | 2 | 75083206 | Hydraulic Hose Assembly 60" & 72" Wide | |
| 7 | 8 | 27391401 | Rubber Grommet | |
| 8 | 6 | 85803921 | 12-Volt Relay | |
| 9 | 1 | 10195810 | Cable Assembly 10-Ft (Positive) | |
| 10 | 3 | 75082866 | Elbow 45, 9/16-18 JIC Male x 9/16-18 SAE Male | |
| 11 | 1 | 75082882 | Straight Connector, 9/16-18 JIC Male x 9/16-18 SAE Male | |
| 12 | 2 | 75082869 | Elbow 90, 9/16-18 JIC Male, x 9/16-18 SAE Male | |
| 13 | 4 | 75085093 | Hex Jam Nut, 5/16-18 | |
| 14 | 1 | 10099500 | Terminal Strip | |
| 15 | 1 | 75082617 | Hex Bolt, 5/16-18 x 1-1/4" | |
| 16 | 3 | 75086850 | Self-Tap Screw, #10-24 x 1/2" | |
| 17 | 3 | 75088050 | Washer, 3/16" | |
| 18 | 1 | 27321002 | Pump Enclosure Base |
i

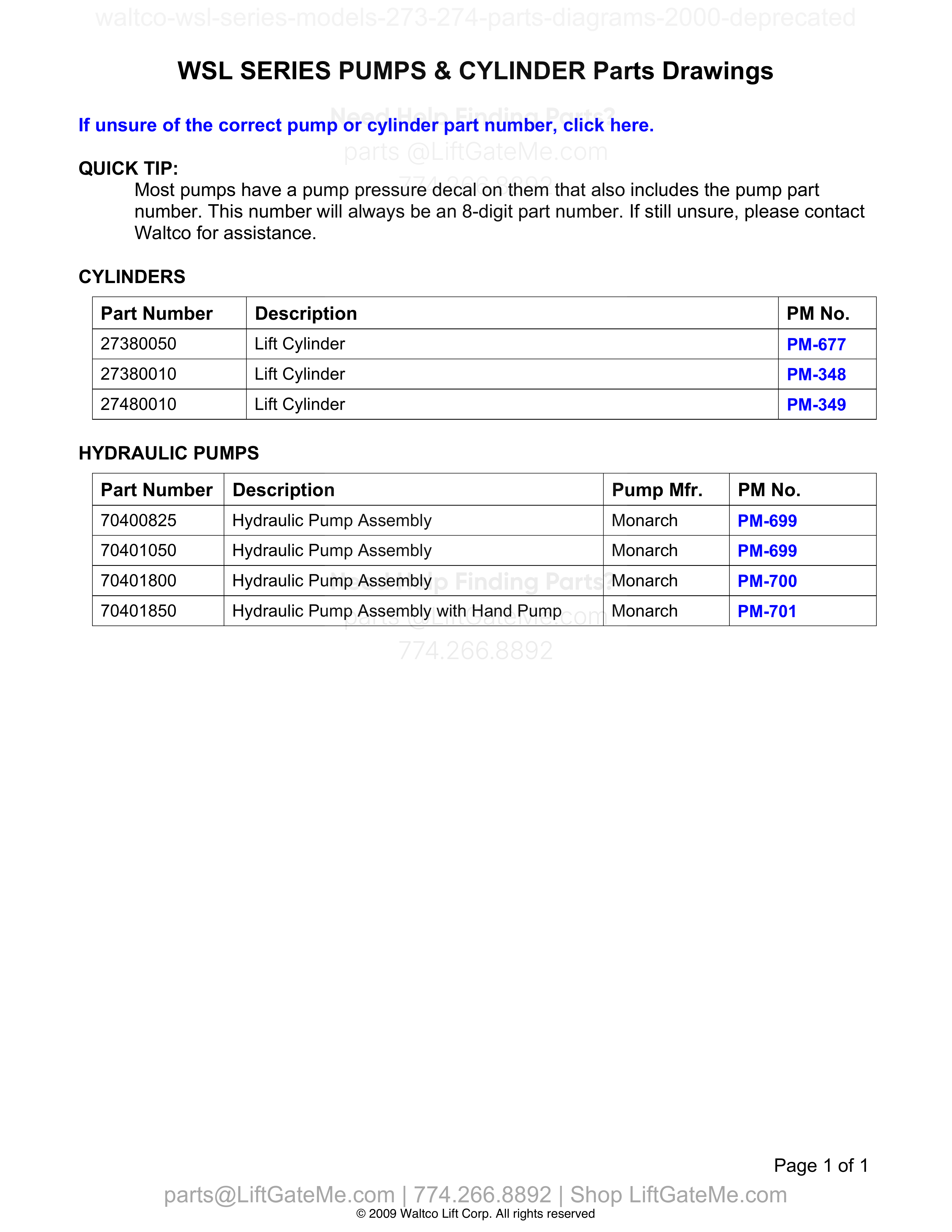

WSL SERIES PUMPS & CYLINDER Parts Drawings
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 27380050 | Lift Cylinder | |||
| 27380010 | Lift Cylinder | |||
| 27480010 | Lift Cylinder | |||
| 70400825 | Hydraulic Pump Assembly | |||
| 70401050 | Hydraulic Pump Assembly | |||
| 70401800 | Hydraulic Pump Assembly | |||
| 70401850 | Hydraulic Pump Assembly with Hand Pump |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

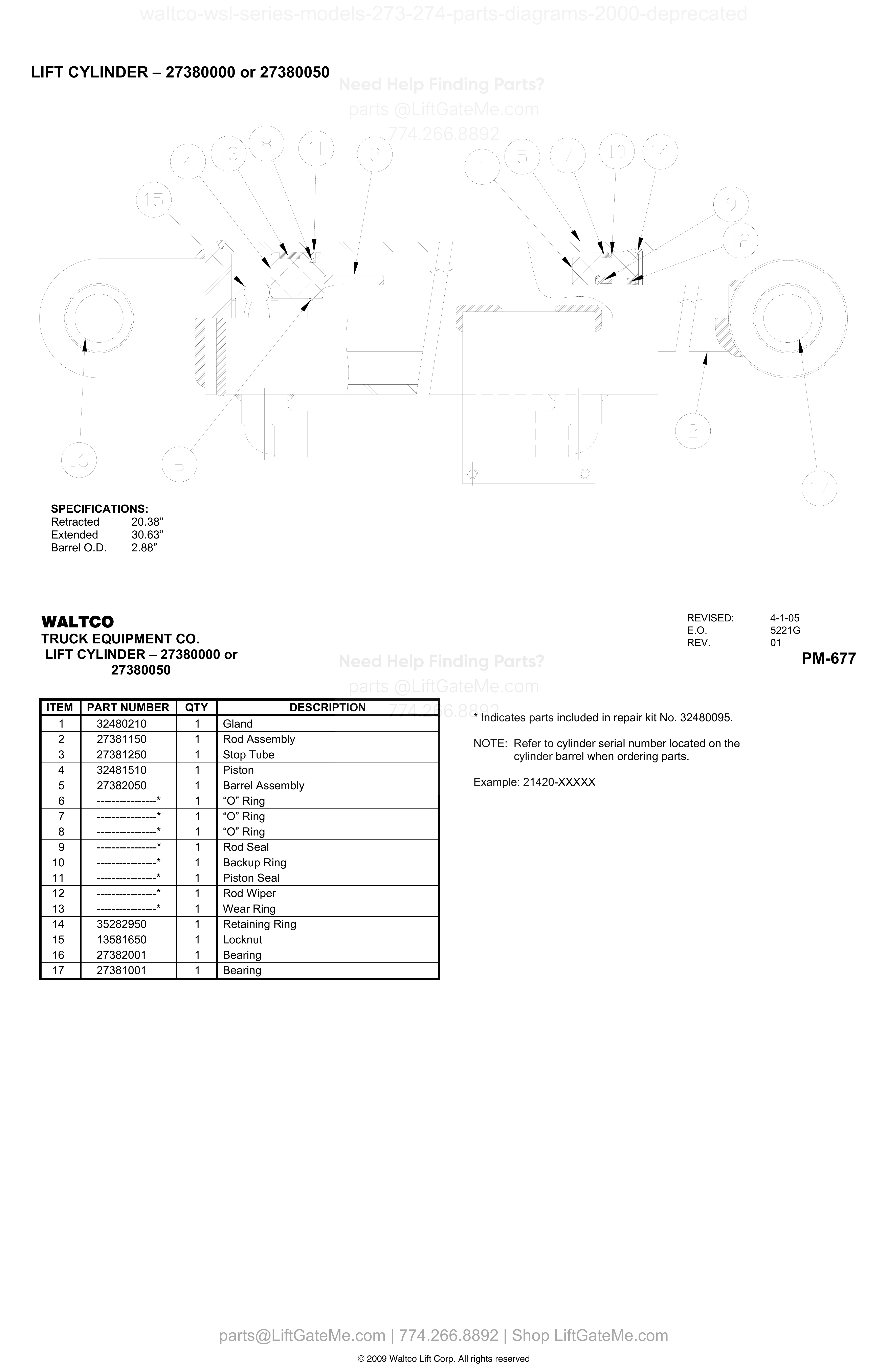

LIFT CYLINDER – 27380000 or 27380050
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 32480210 | Gland | |
| 2 | 1 | 27381150 | Rod Assembly | |
| 3 | 1 | 27381250 | Stop Tube | |
| 4 | 1 | 32481510 | Piston | |
| 5 | 1 | 27382050 | Barrel Assembly | |
| 6 | 1 | ----------------* | “O” Ring | |
| 7 | 1 | ----------------* | “O” Ring | |
| 8 | 1 | ----------------* | “O” Ring | |
| 9 | 1 | ----------------* | Rod Seal | |
| 10 | 1 | ----------------* | Backup Ring | |
| 11 | 1 | ----------------* | Piston Seal | |
| 12 | 1 | ----------------* | Rod Wiper | |
| 13 | 1 | ----------------* | Wear Ring | |
| 14 | 1 | 35282950 | Retaining Ring | |
| 15 | 1 | 13581650 | Locknut | |
| 16 | 1 | 27382001 | Bearing | |
| 17 | 1 | 27381001 | Bearing |

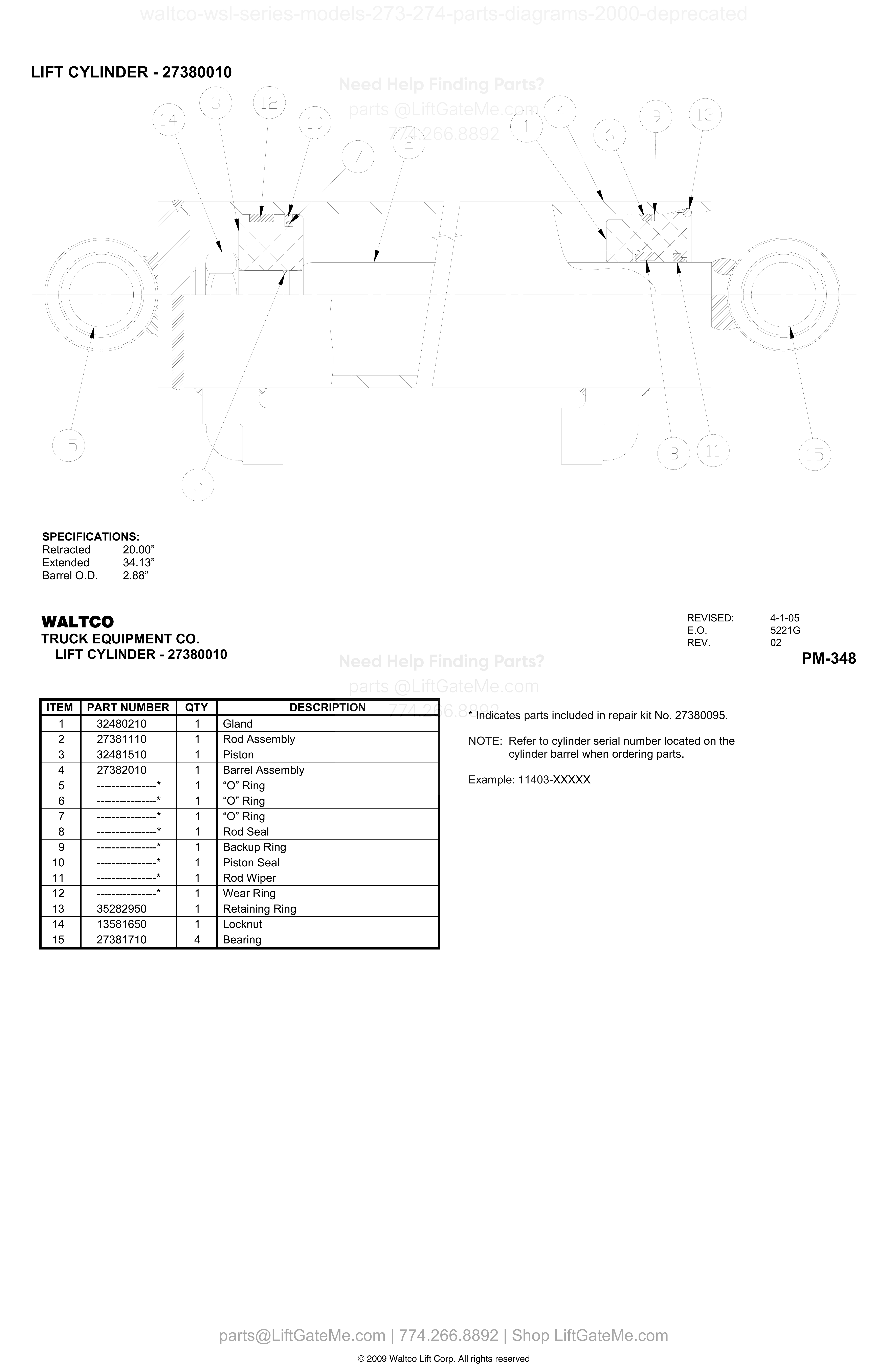

LIFT CYLINDER - 27380010
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 32480210 | Gland | |
| 2 | 1 | 27381110 | Rod Assembly | |
| 3 | 1 | 32481510 | Piston | |
| 4 | 1 | 27382010 | Barrel Assembly | |
| 5 | 1 | ----------------* | “O” Ring | |
| 6 | 1 | ----------------* | “O” Ring | |
| 7 | 1 | ----------------* | “O” Ring | |
| 8 | 1 | ----------------* | Rod Seal | |
| 9 | 1 | ----------------* | Backup Ring | |
| 10 | 1 | ----------------* | Piston Seal | |
| 11 | 1 | ----------------* | Rod Wiper | |
| 12 | 1 | ----------------* | Wear Ring | |
| 13 | 1 | 35282950 | Retaining Ring | |
| 14 | 1 | 13581650 | Locknut | |
| 15 | 4 | 27381710 | Bearing |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
LIFT CYLINDER - 27480010
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27480210 | Nose Bearing | |
| 2 | 1 | 27481110 | Rod Assembly | |
| 3 | 1 | 35481550 | Piston | |
| 4 | 1 | 27482010 | Barrel Assembly | |
| 5 | 1 | ----------------* | “O” Ring | |
| 6 | 1 | ----------------* | “O” Ring | |
| 7 | 1 | ----------------* | “O” Ring | |
| 8 | 1 | ----------------* | Rod Seal | |
| 9 | 1 | ----------------* | Backup Ring | |
| 10 | 1 | ----------------* | Piston Seal | |
| 11 | 1 | ----------------* | Rod Wiper | |
| 12 | 1 | ----------------* | Wear Ring | |
| 13 | 1 | 10182950 | Retaining Ring | |
| 14 | 1 | 35481650 | Locknut | |
| 15 | 4 | 27381710 | Bearing |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
