Maxon DMD Liftgate Parts Diagrams | Approximate Years 2018-Present
Maxon DMD parts diagrams for 2018-Present
Find Maxon DMD parts diagrams for 2018-Present rail lift liftgates. These breakdowns help you match part numbers, confirm assemblies, and order the correct replacement parts.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

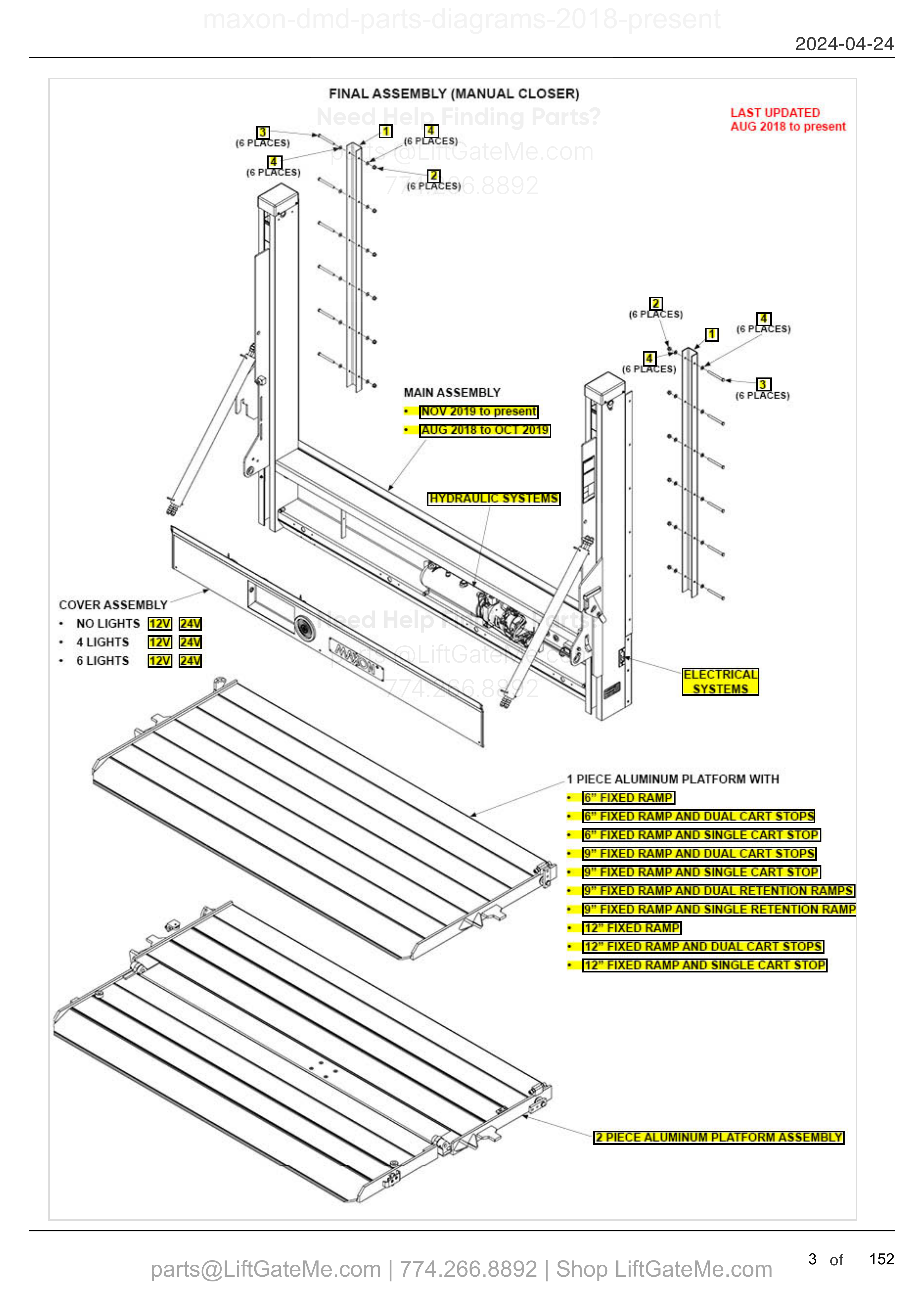

FINAL ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 299001-01 | MOUNTING CHANNEL, STD UNITS | |
| 1 | 2 | 299001-02 | MOUNTING CHANNEL, ABOVE BED UNITS | |
| 1 | 2 | 299001-11 | MOUNTING CHANNEL, SST, STD UNITS | |
| 1 | 2 | 299001-12 | MOUNTING CHANNEL, SST, ABOVE BED UNITS | |
| 2 | 12 | 901023-03 | FLANGE LOCK NUT,38-16,ZC | |
| 3 | 12 | 900014-14 | SCREW,HEX CAP.38-16X4,G8,ZC | |
| 4 | 24 | 903442-03 | WASHER, FLAT, USS, GR8, .38 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

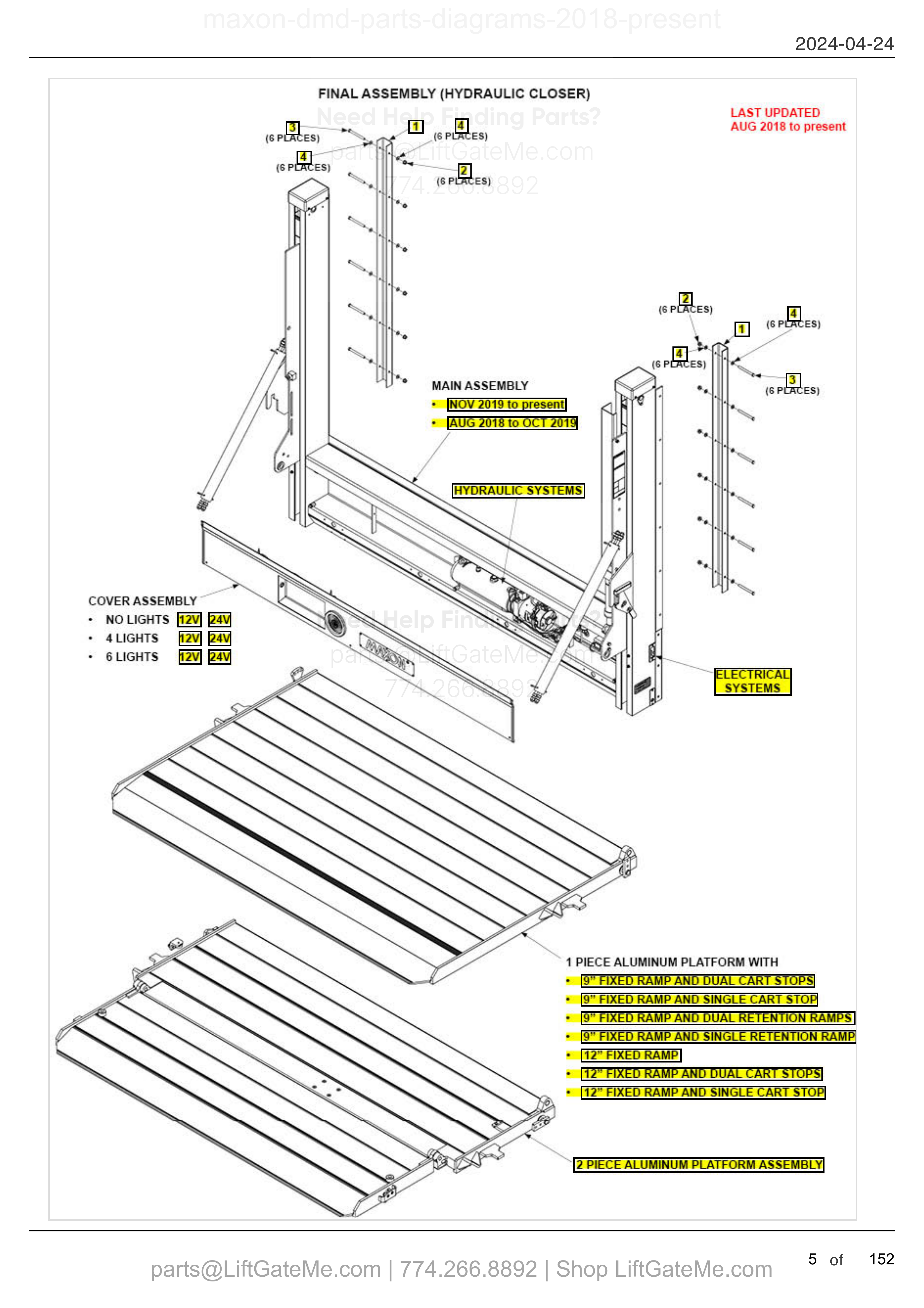

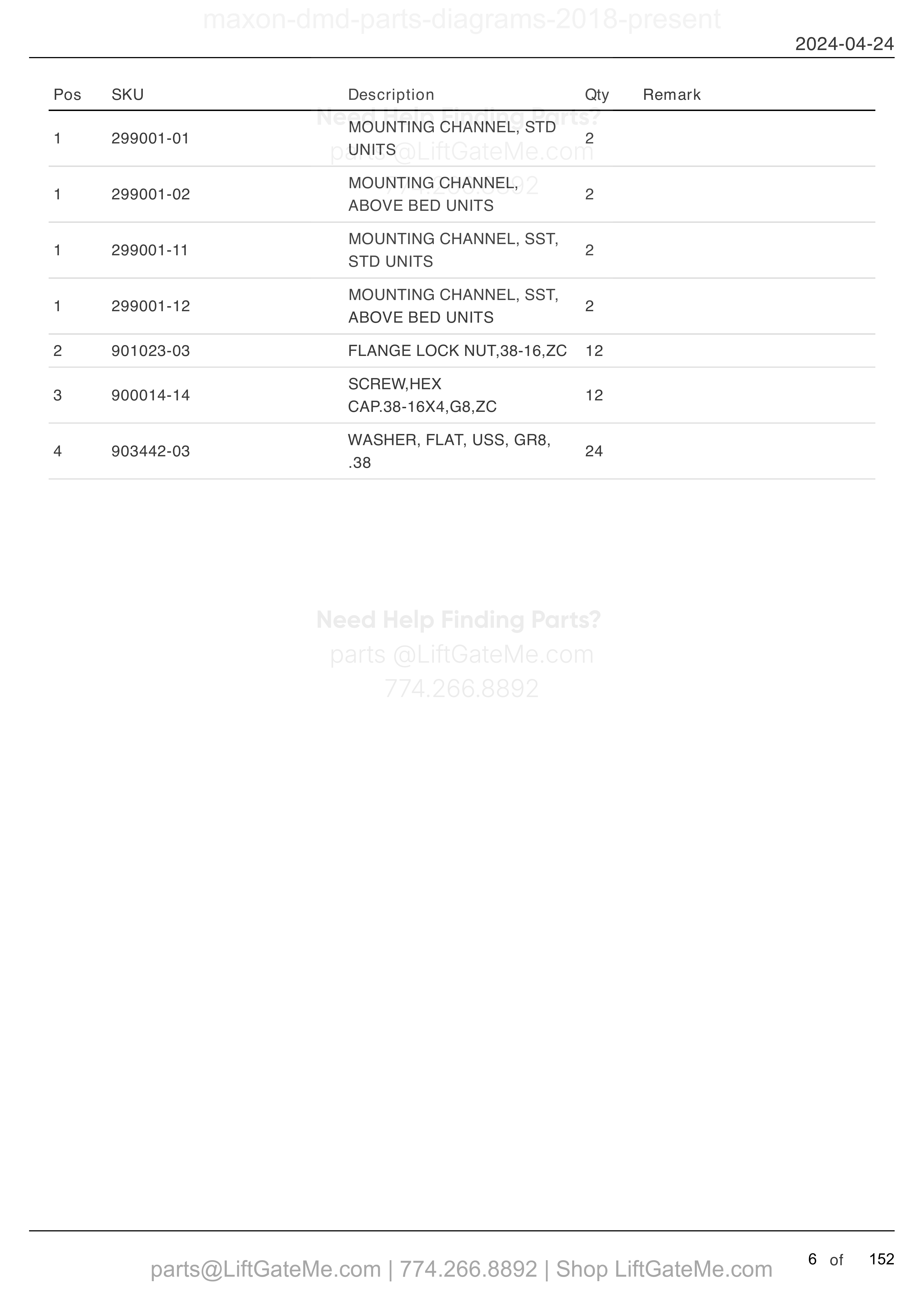

FINAL ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 299001-01 | MOUNTING CHANNEL, STD UNITS | |
| 1 | 2 | 299001-02 | MOUNTING CHANNEL, ABOVE BED UNITS | |
| 1 | 2 | 299001-11 | MOUNTING CHANNEL, SST, STD UNITS | |
| 1 | 2 | 299001-12 | MOUNTING CHANNEL, SST, ABOVE BED UNITS | |
| 2 | 12 | 901023-03 | FLANGE LOCK NUT,38-16,ZC | |
| 3 | 12 | 900014-14 | SCREW,HEX CAP.38-16X4,G8,ZC | |
| 4 | 24 | 903442-03 | WASHER, FLAT, USS, GR8, .38 |

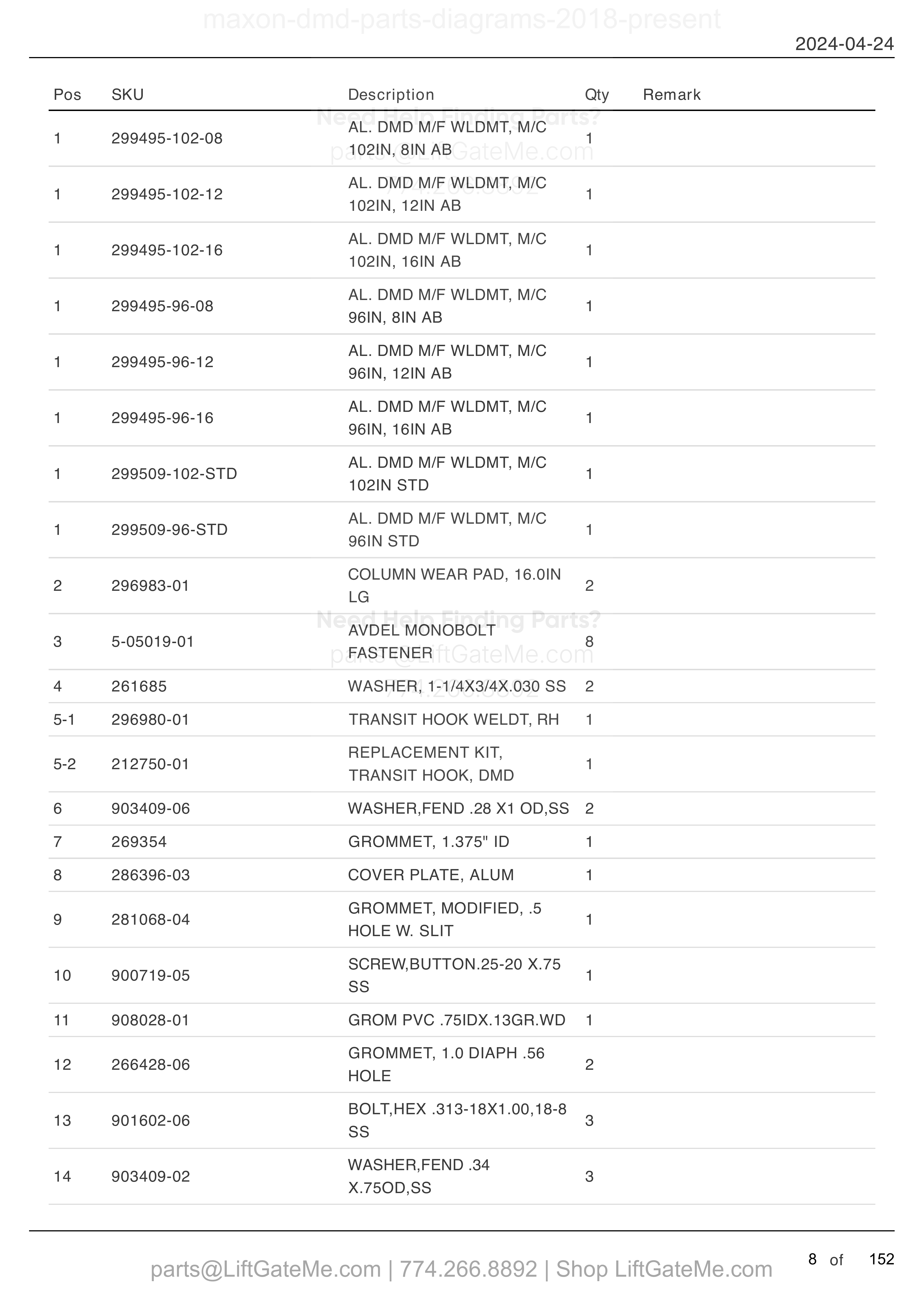

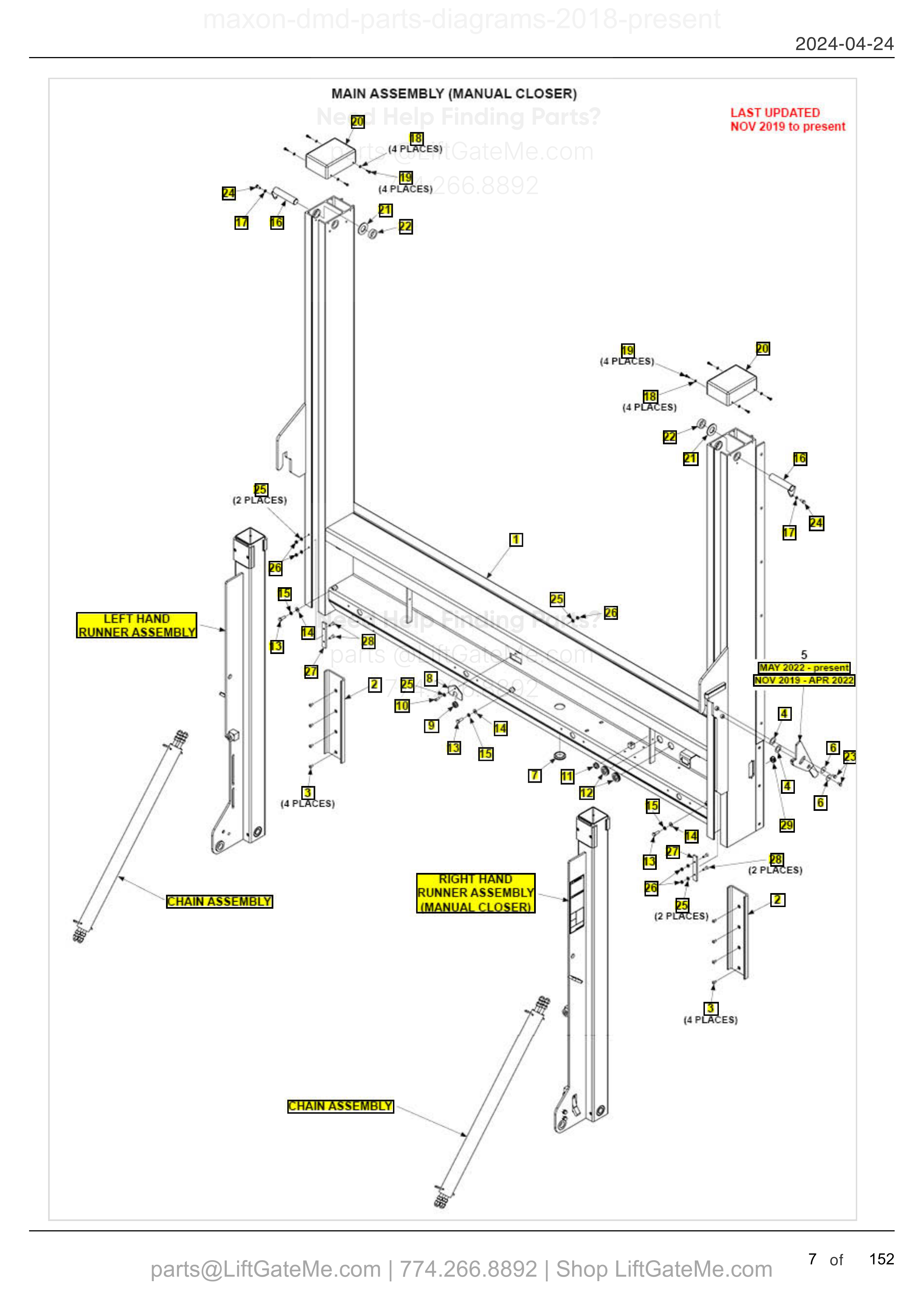

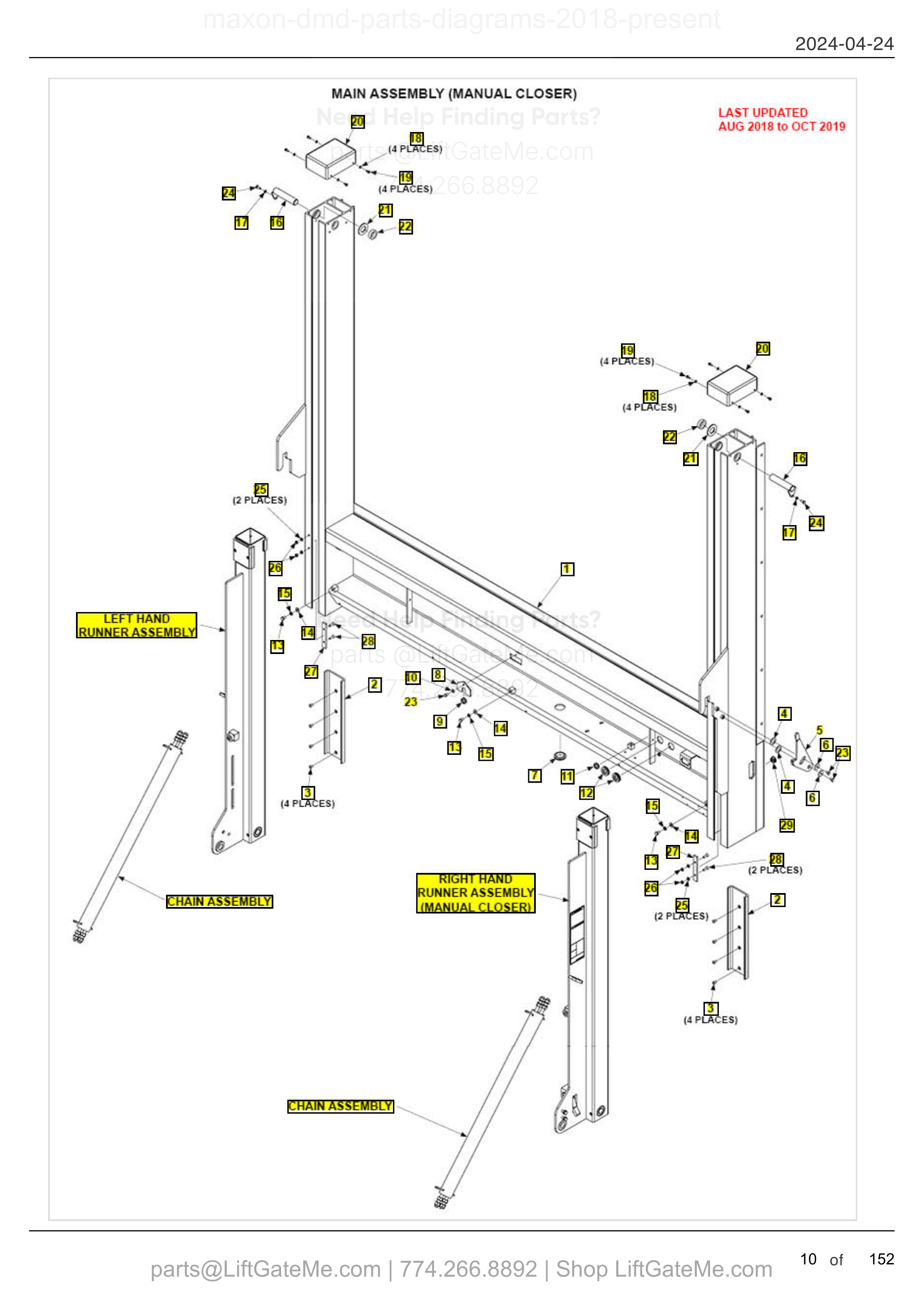

MAIN ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 299495-102-08 | AL. DMD M/F WLDMT, M/C 102IN, 8IN AB | |
| 1 | 1 | 299495-102-12 | AL. DMD M/F WLDMT, M/C 102IN, 12IN AB | |
| 1 | 1 | 299495-102-16 | AL. DMD M/F WLDMT, M/C 102IN, 16IN AB | |
| 1 | 1 | 299495-96-08 | AL. DMD M/F WLDMT, M/C 96IN, 8IN AB | |
| 1 | 1 | 299495-96-12 | AL. DMD M/F WLDMT, M/C 96IN, 12IN AB | |
| 1 | 1 | 299495-96-16 | AL. DMD M/F WLDMT, M/C 96IN, 16IN AB | |
| 1 | 1 | 299509-102-STD | AL. DMD M/F WLDMT, M/C 102IN STD | |
| 1 | 1 | 299509-96-STD | AL. DMD M/F WLDMT, M/C 96IN STD | |
| 2 | 2 | 296983-01 | COLUMN WEAR PAD, 16.0IN LG | |
| 3 | 8 | 5-05019-01 | AVDEL MONOBOLT FASTENER | |
| 4 | 2 | 261685 | WASHER, 1-1/4X3/4X.030 SS | |
| 5-1 | 1 | 296980-01 | TRANSIT HOOK WELDT, RH | |
| 5-2 | 1 | 212750-01 | REPLACEMENT KIT, TRANSIT HOOK, DMD | |
| 6 | 2 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 1 | 269354 | GROMMET, 1.375" ID | |
| 8 | 1 | 286396-03 | COVER PLATE, ALUM | |
| 9 | 1 | 281068-04 | GROMMET, MODIFIED, .5 HOLE W. SLIT | |
| 10 | 1 | 900719-05 | SCREW,BUTTON.25-20 X.75 SS | |
| 11 | 1 | 908028-01 | GROM PVC .75IDX.13GR.WD | |
| 12 | 2 | 266428-06 | GROMMET, 1.0 DIAPH .56 HOLE | |
| 13 | 3 | 901602-06 | BOLT,HEX .313-18X1.00,18-8 SS | |
| 14 | 3 | 903409-02 | WASHER,FEND .34 X.75OD,SS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

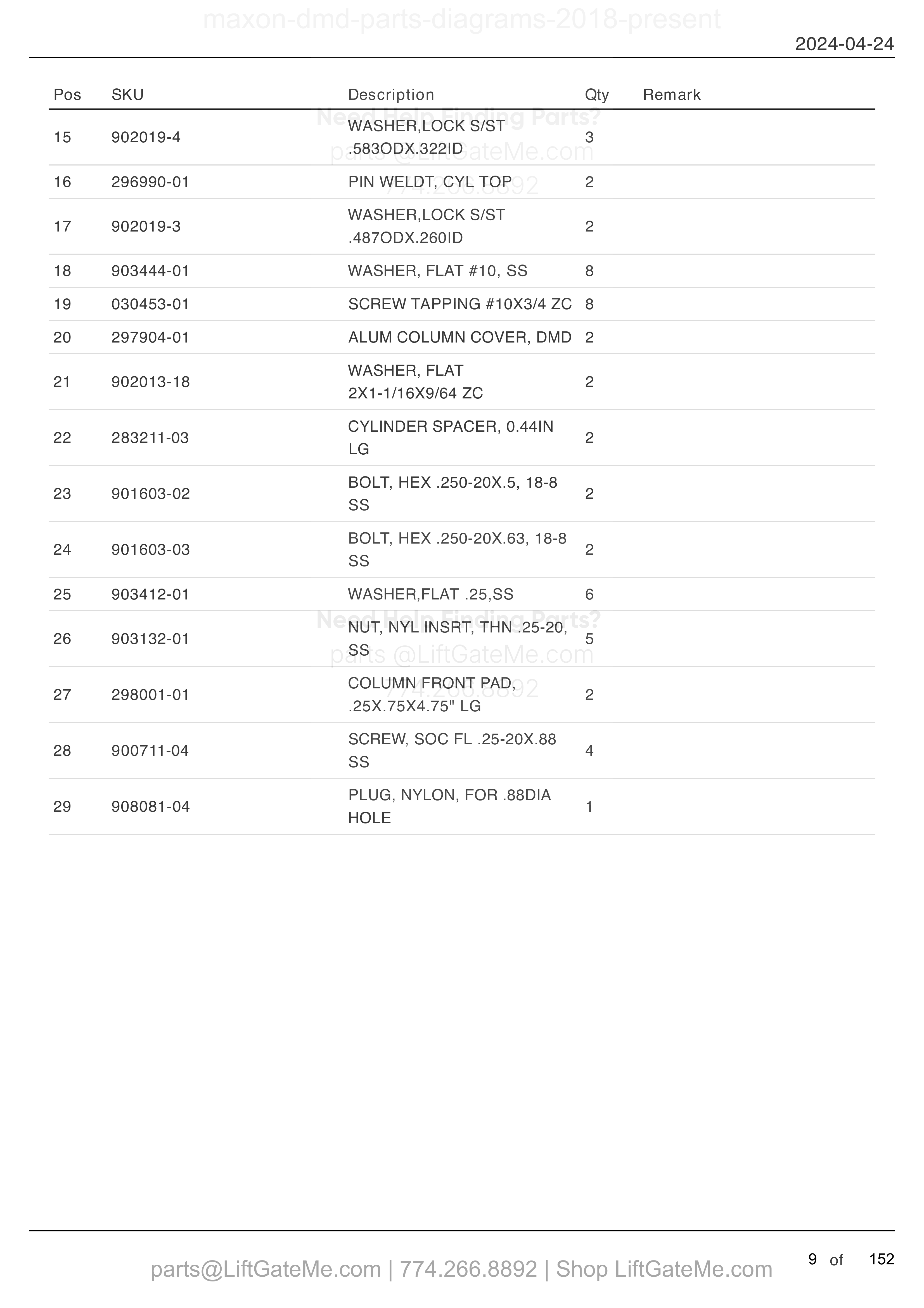

MAIN ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 15 | 3 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 16 | 2 | 296990-01 | PIN WELDT, CYL TOP | |
| 17 | 2 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 18 | 8 | 903444-01 | WASHER, FLAT #10, SS | |
| 19 | 8 | 030453-01 | SCREW TAPPING #10X3/4 ZC | |
| 20 | 2 | 297904-01 | ALUM COLUMN COVER, DMD | |
| 21 | 2 | 902013-18 | WASHER, FLAT 2X1-1/16X9/64 ZC | |
| 22 | 2 | 283211-03 | CYLINDER SPACER, 0.44IN LG | |
| 23 | 2 | 901603-02 | BOLT, HEX .250-20X.5, 18-8 SS | |
| 24 | 2 | 901603-03 | BOLT, HEX .250-20X.63, 18-8 SS | |
| 25 | 6 | 903412-01 | WASHER,FLAT .25,SS | |
| 26 | 5 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS | |
| 27 | 2 | 298001-01 | COLUMN FRONT PAD, .25X.75X4.75" LG | |
| 28 | 4 | 900711-04 | SCREW, SOC FL .25-20X.88 SS | |
| 29 | 1 | 908081-04 | PLUG, NYLON, FOR .88DIA HOLE |

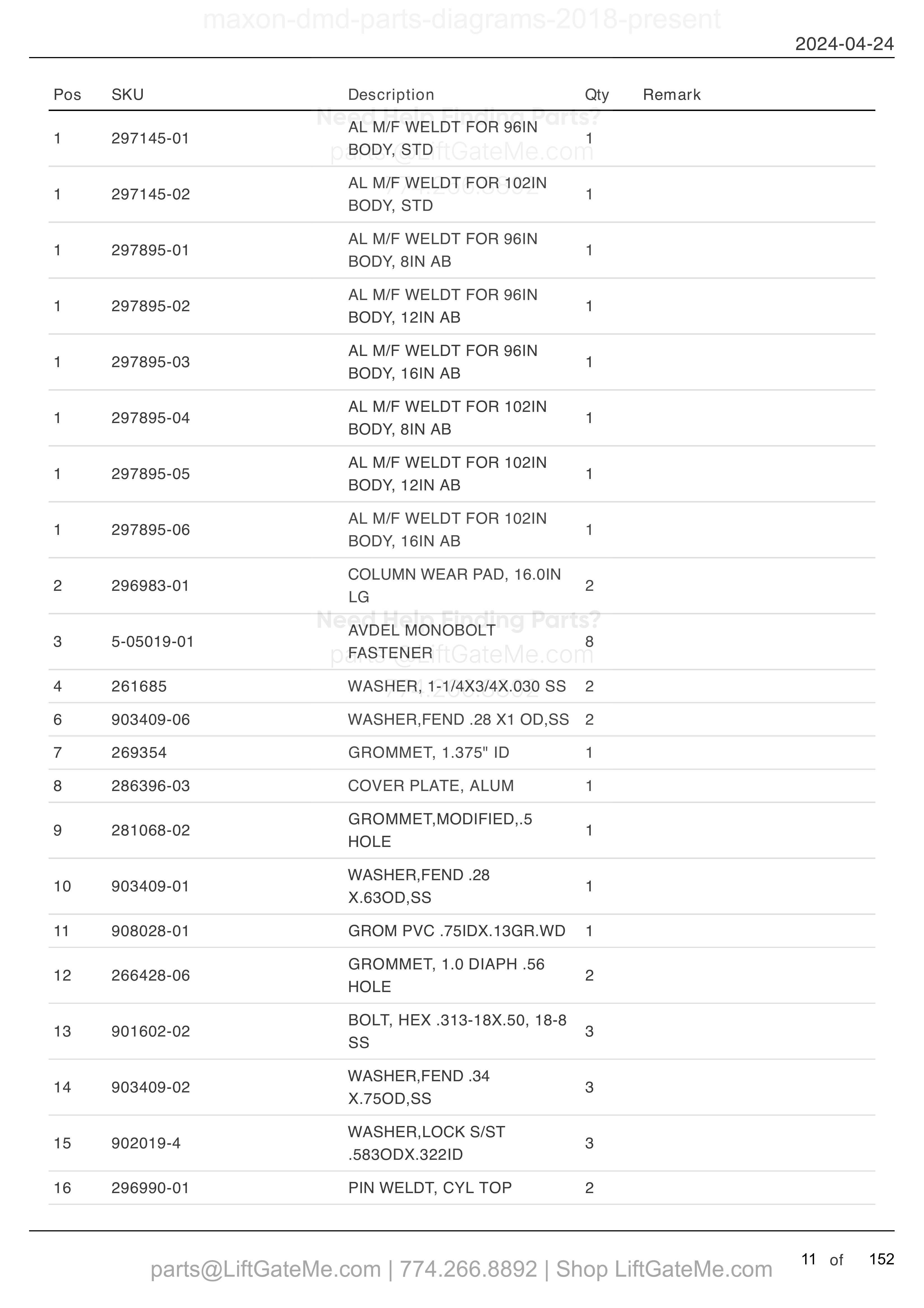

MAIN ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 297145-01 | AL M/F WELDT FOR 96IN BODY, STD | |
| 1 | 1 | 297145-02 | AL M/F WELDT FOR 102IN BODY, STD | |
| 1 | 1 | 297895-01 | AL M/F WELDT FOR 96IN BODY, 8IN AB | |
| 1 | 1 | 297895-02 | AL M/F WELDT FOR 96IN BODY, 12IN AB | |
| 1 | 1 | 297895-03 | AL M/F WELDT FOR 96IN BODY, 16IN AB | |
| 1 | 1 | 297895-04 | AL M/F WELDT FOR 102IN BODY, 8IN AB | |
| 1 | 1 | 297895-05 | AL M/F WELDT FOR 102IN BODY, 12IN AB | |
| 1 | 1 | 297895-06 | AL M/F WELDT FOR 102IN BODY, 16IN AB | |
| 2 | 2 | 296983-01 | COLUMN WEAR PAD, 16.0IN LG | |
| 3 | 8 | 5-05019-01 | AVDEL MONOBOLT FASTENER | |
| 4 | 2 | 261685 | WASHER, 1-1/4X3/4X.030 SS | |
| 6 | 2 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 1 | 269354 | GROMMET, 1.375" ID | |
| 8 | 1 | 286396-03 | COVER PLATE, ALUM | |
| 9 | 1 | 281068-02 | GROMMET,MODIFIED,.5 HOLE | |
| 10 | 1 | 903409-01 | WASHER,FEND .28 X.63OD,SS | |
| 11 | 1 | 908028-01 | GROM PVC .75IDX.13GR.WD | |
| 12 | 2 | 266428-06 | GROMMET, 1.0 DIAPH .56 HOLE | |
| 13 | 3 | 901602-02 | BOLT, HEX .313-18X.50, 18-8 SS | |
| 14 | 3 | 903409-02 | WASHER,FEND .34 X.75OD,SS | |
| 15 | 3 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 16 | 2 | 296990-01 | PIN WELDT, CYL TOP |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

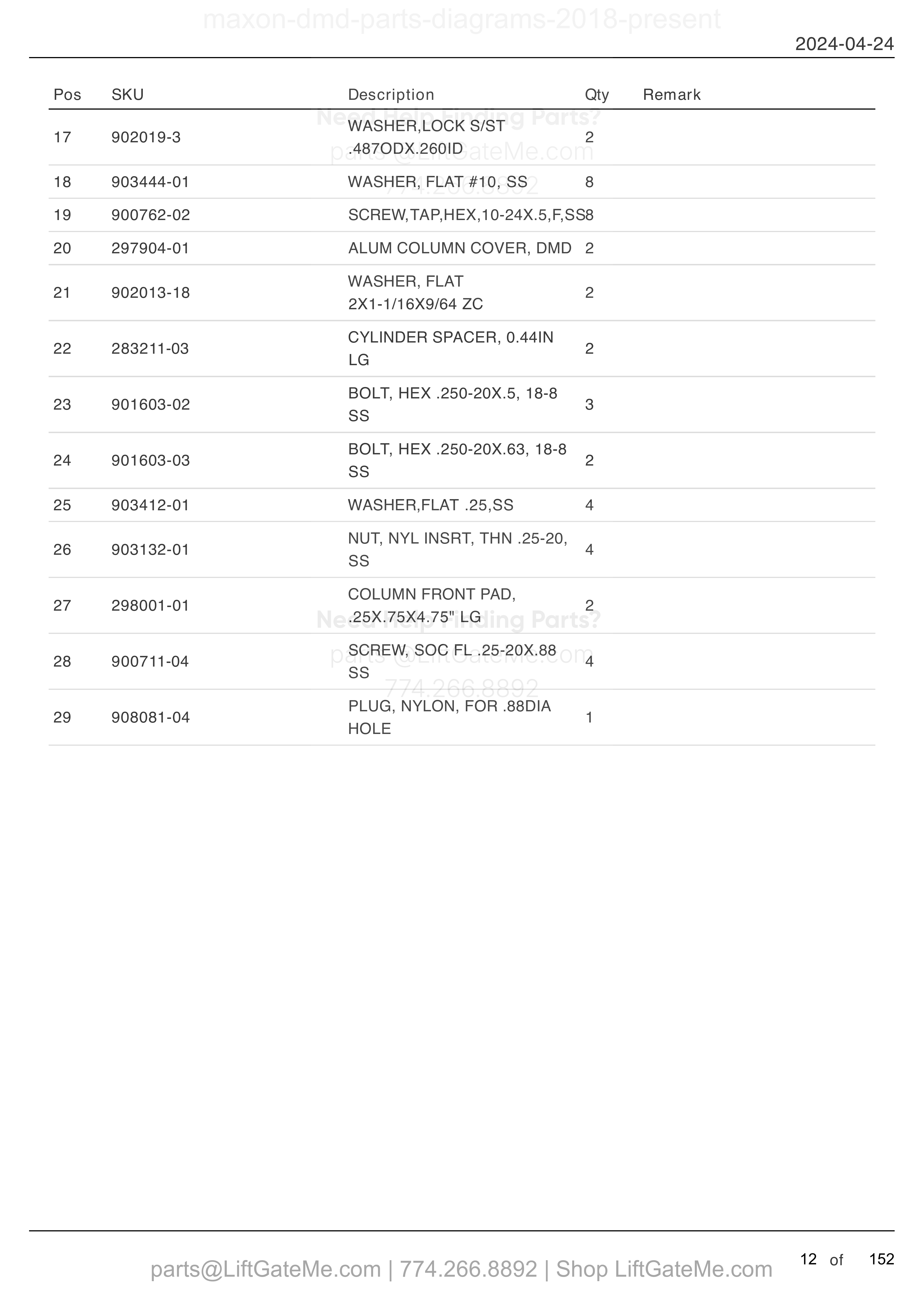

MAIN ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 17 | 2 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 18 | 8 | 903444-01 | WASHER, FLAT #10, SS | |
| 19 | 8 | 900762-02 | SCREW,TAP,HEX,10-24X.5,F,SS | |
| 20 | 2 | 297904-01 | ALUM COLUMN COVER, DMD | |
| 21 | 2 | 902013-18 | WASHER, FLAT 2X1-1/16X9/64 ZC | |
| 22 | 2 | 283211-03 | CYLINDER SPACER, 0.44IN LG | |
| 23 | 3 | 901603-02 | BOLT, HEX .250-20X.5, 18-8 SS | |
| 24 | 2 | 901603-03 | BOLT, HEX .250-20X.63, 18-8 SS | |
| 25 | 4 | 903412-01 | WASHER,FLAT .25,SS | |
| 26 | 4 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS | |
| 27 | 2 | 298001-01 | COLUMN FRONT PAD, .25X.75X4.75" LG | |
| 28 | 4 | 900711-04 | SCREW, SOC FL .25-20X.88 SS | |
| 29 | 1 | 908081-04 | PLUG, NYLON, FOR .88DIA HOLE |

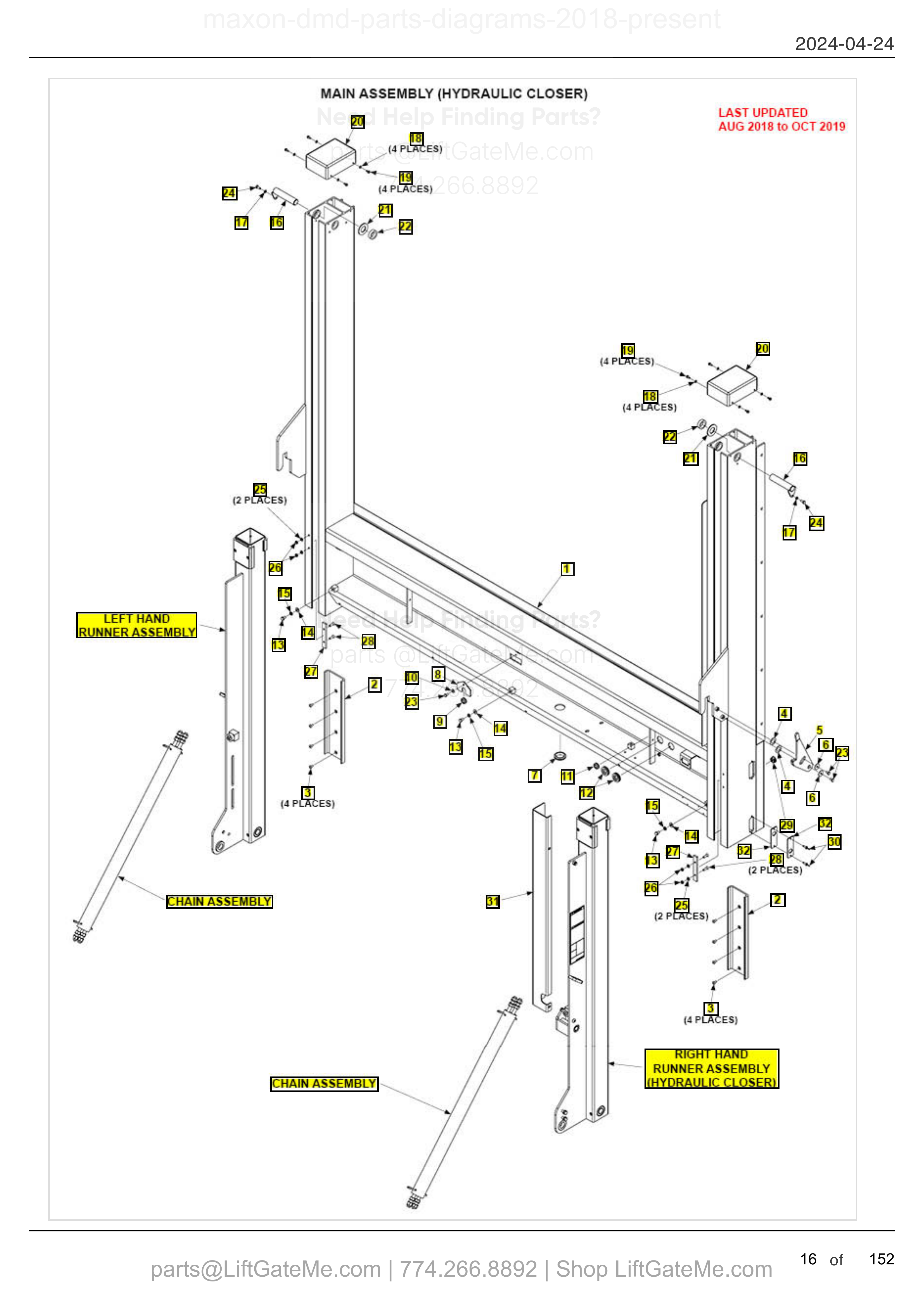

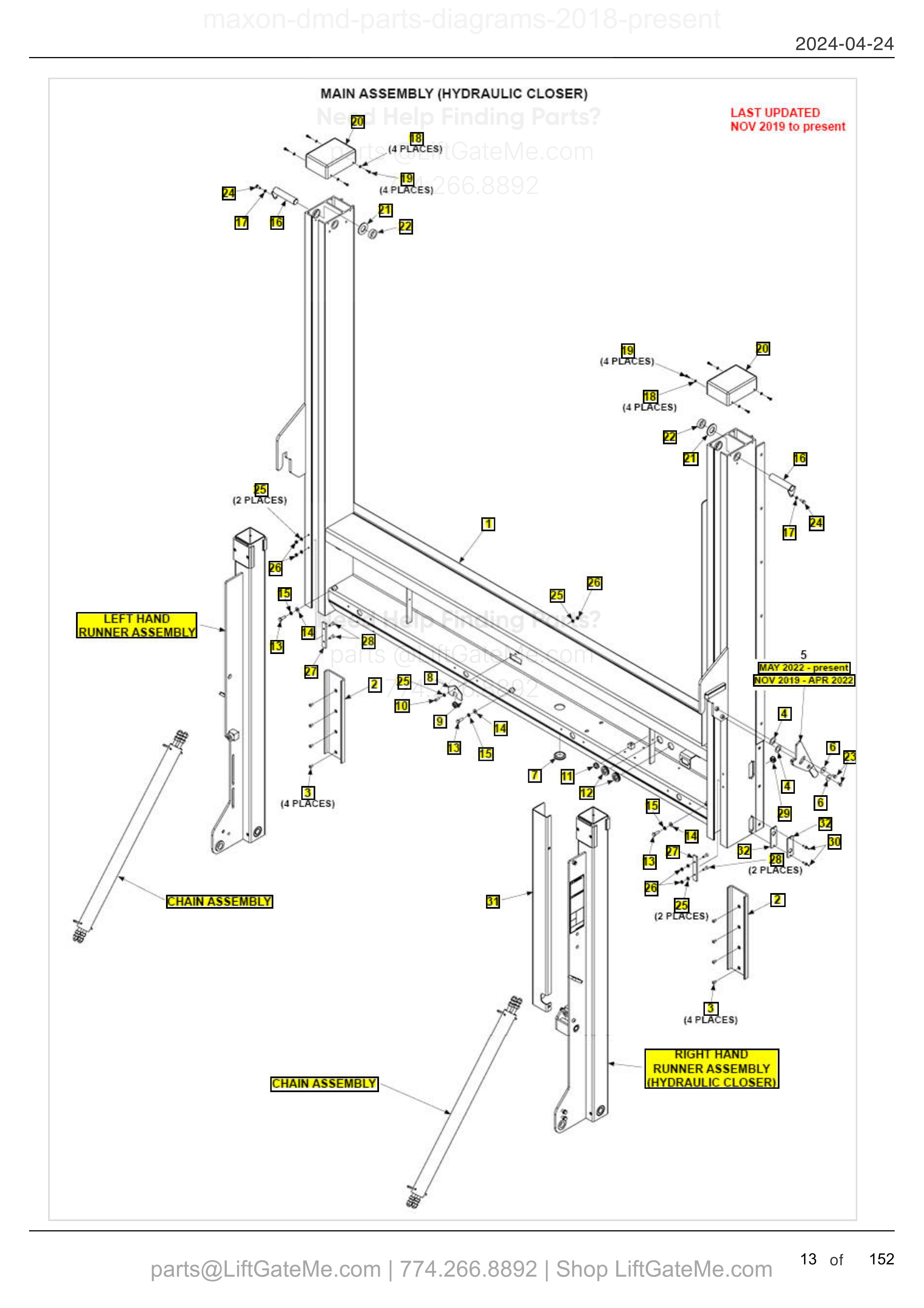

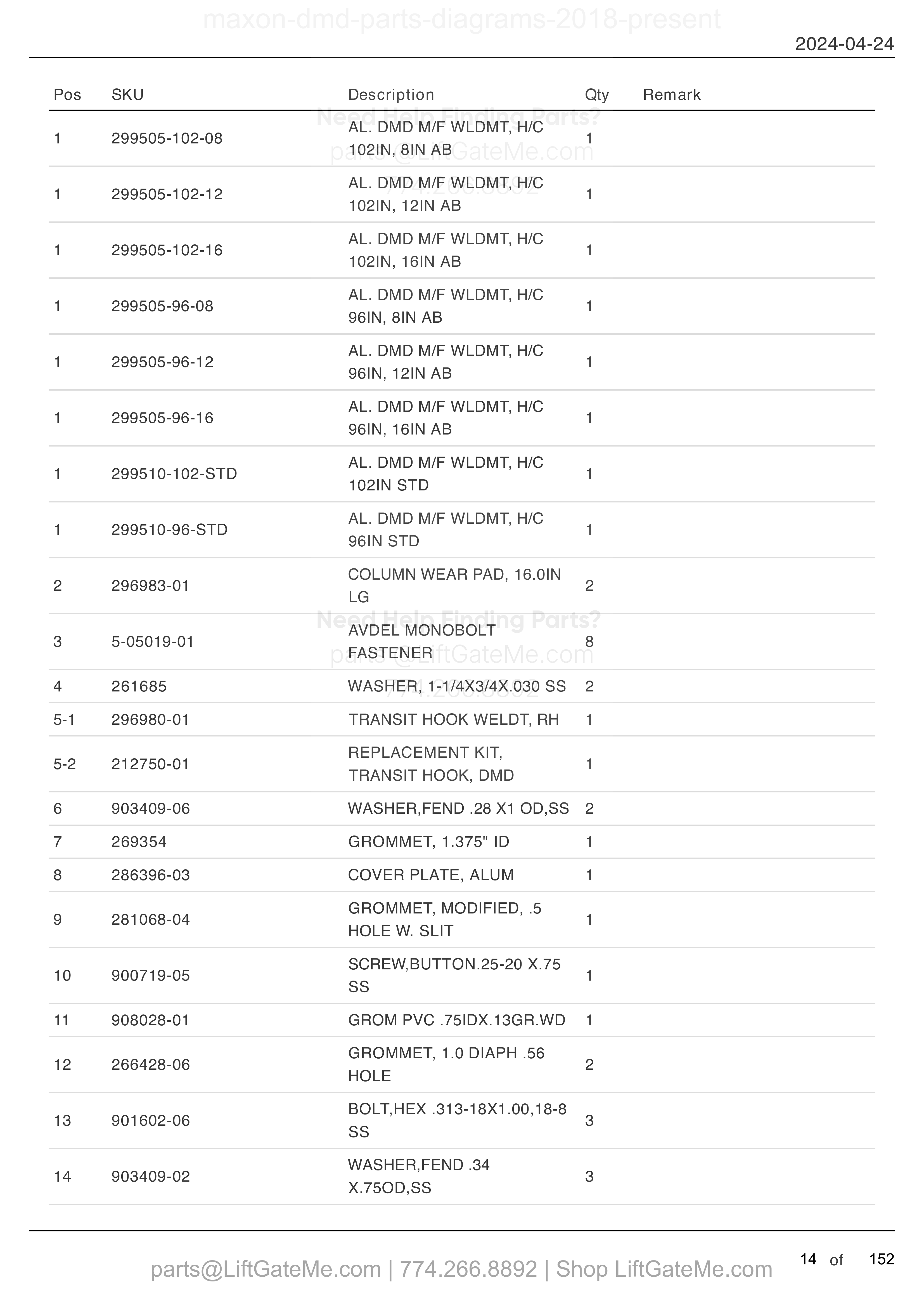

MAIN ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 299505-102-08 | AL. DMD M/F WLDMT, H/C 102IN, 8IN AB | |
| 1 | 1 | 299505-102-12 | AL. DMD M/F WLDMT, H/C 102IN, 12IN AB | |
| 1 | 1 | 299505-102-16 | AL. DMD M/F WLDMT, H/C 102IN, 16IN AB | |
| 1 | 1 | 299505-96-08 | AL. DMD M/F WLDMT, H/C 96IN, 8IN AB | |
| 1 | 1 | 299505-96-12 | AL. DMD M/F WLDMT, H/C 96IN, 12IN AB | |
| 1 | 1 | 299505-96-16 | AL. DMD M/F WLDMT, H/C 96IN, 16IN AB | |
| 1 | 1 | 299510-102-STD | AL. DMD M/F WLDMT, H/C 102IN STD | |
| 1 | 1 | 299510-96-STD | AL. DMD M/F WLDMT, H/C 96IN STD | |
| 2 | 2 | 296983-01 | COLUMN WEAR PAD, 16.0IN LG | |
| 3 | 8 | 5-05019-01 | AVDEL MONOBOLT FASTENER | |
| 4 | 2 | 261685 | WASHER, 1-1/4X3/4X.030 SS | |
| 5-1 | 1 | 296980-01 | TRANSIT HOOK WELDT, RH | |
| 5-2 | 1 | 212750-01 | REPLACEMENT KIT, TRANSIT HOOK, DMD | |
| 6 | 2 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 1 | 269354 | GROMMET, 1.375" ID | |
| 8 | 1 | 286396-03 | COVER PLATE, ALUM | |
| 9 | 1 | 281068-04 | GROMMET, MODIFIED, .5 HOLE W. SLIT | |
| 10 | 1 | 900719-05 | SCREW,BUTTON.25-20 X.75 SS | |
| 11 | 1 | 908028-01 | GROM PVC .75IDX.13GR.WD | |
| 12 | 2 | 266428-06 | GROMMET, 1.0 DIAPH .56 HOLE | |
| 13 | 3 | 901602-06 | BOLT,HEX .313-18X1.00,18-8 SS | |
| 14 | 3 | 903409-02 | WASHER,FEND .34 X.75OD,SS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

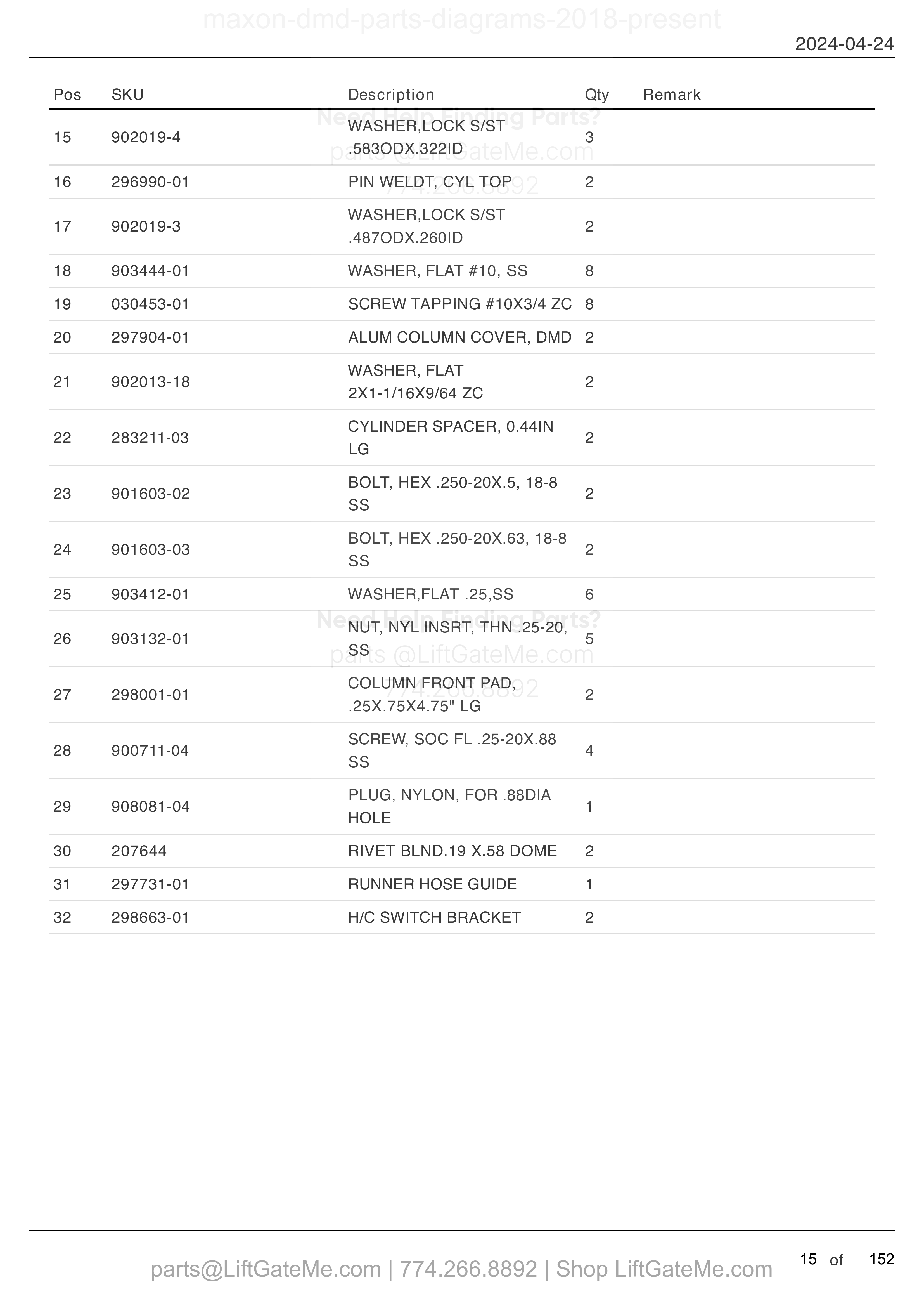

MAIN ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 15 | 3 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 16 | 2 | 296990-01 | PIN WELDT, CYL TOP | |
| 17 | 2 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 18 | 8 | 903444-01 | WASHER, FLAT #10, SS | |
| 19 | 8 | 030453-01 | SCREW TAPPING #10X3/4 ZC | |
| 20 | 2 | 297904-01 | ALUM COLUMN COVER, DMD | |
| 21 | 2 | 902013-18 | WASHER, FLAT 2X1-1/16X9/64 ZC | |
| 22 | 2 | 283211-03 | CYLINDER SPACER, 0.44IN LG | |
| 23 | 2 | 901603-02 | BOLT, HEX .250-20X.5, 18-8 SS | |
| 24 | 2 | 901603-03 | BOLT, HEX .250-20X.63, 18-8 SS | |
| 25 | 6 | 903412-01 | WASHER,FLAT .25,SS | |
| 26 | 5 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS | |
| 27 | 2 | 298001-01 | COLUMN FRONT PAD, .25X.75X4.75" LG | |
| 28 | 4 | 900711-04 | SCREW, SOC FL .25-20X.88 SS | |
| 29 | 1 | 908081-04 | PLUG, NYLON, FOR .88DIA HOLE | |
| 30 | 2 | 207644 | RIVET BLND.19 X.58 DOME | |
| 31 | 1 | 297731-01 | RUNNER HOSE GUIDE | |
| 32 | 2 | 298663-01 | H/C SWITCH BRACKET |

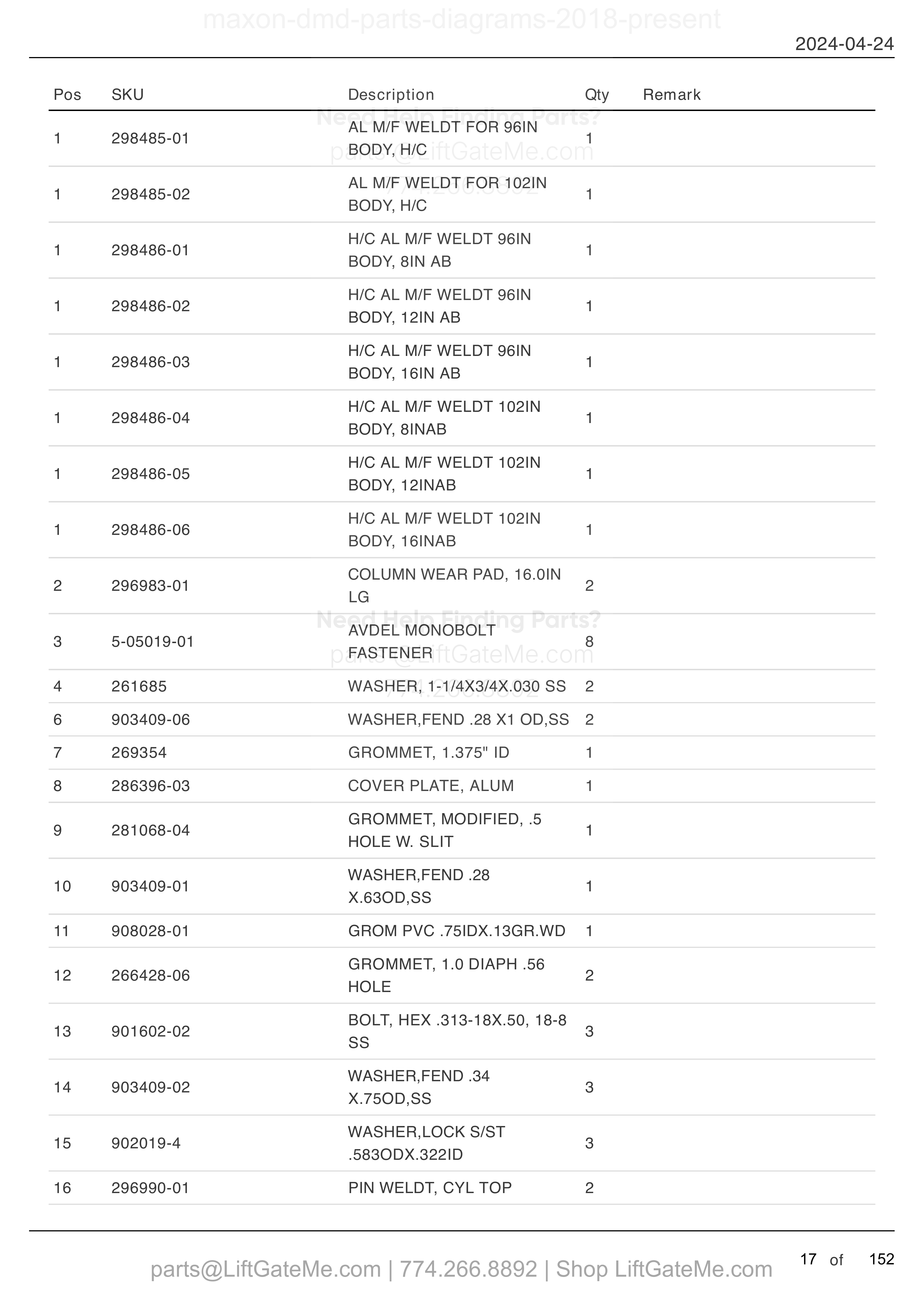

MAIN ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 298485-01 | AL M/F WELDT FOR 96IN BODY, H/C | |
| 1 | 1 | 298485-02 | AL M/F WELDT FOR 102IN BODY, H/C | |
| 1 | 1 | 298486-01 | H/C AL M/F WELDT 96IN BODY, 8IN AB | |
| 1 | 1 | 298486-02 | H/C AL M/F WELDT 96IN BODY, 12IN AB | |
| 1 | 1 | 298486-03 | H/C AL M/F WELDT 96IN BODY, 16IN AB | |
| 1 | 1 | 298486-04 | H/C AL M/F WELDT 102IN BODY, 8INAB | |
| 1 | 1 | 298486-05 | H/C AL M/F WELDT 102IN BODY, 12INAB | |
| 1 | 1 | 298486-06 | H/C AL M/F WELDT 102IN BODY, 16INAB | |
| 2 | 2 | 296983-01 | COLUMN WEAR PAD, 16.0IN LG | |
| 3 | 8 | 5-05019-01 | AVDEL MONOBOLT FASTENER | |
| 4 | 2 | 261685 | WASHER, 1-1/4X3/4X.030 SS | |
| 6 | 2 | 903409-06 | WASHER,FEND .28 X1 OD,SS | |
| 7 | 1 | 269354 | GROMMET, 1.375" ID | |
| 8 | 1 | 286396-03 | COVER PLATE, ALUM | |
| 9 | 1 | 281068-04 | GROMMET, MODIFIED, .5 HOLE W. SLIT | |
| 10 | 1 | 903409-01 | WASHER,FEND .28 X.63OD,SS | |
| 11 | 1 | 908028-01 | GROM PVC .75IDX.13GR.WD | |
| 12 | 2 | 266428-06 | GROMMET, 1.0 DIAPH .56 HOLE | |
| 13 | 3 | 901602-02 | BOLT, HEX .313-18X.50, 18-8 SS | |
| 14 | 3 | 903409-02 | WASHER,FEND .34 X.75OD,SS | |
| 15 | 3 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 16 | 2 | 296990-01 | PIN WELDT, CYL TOP |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

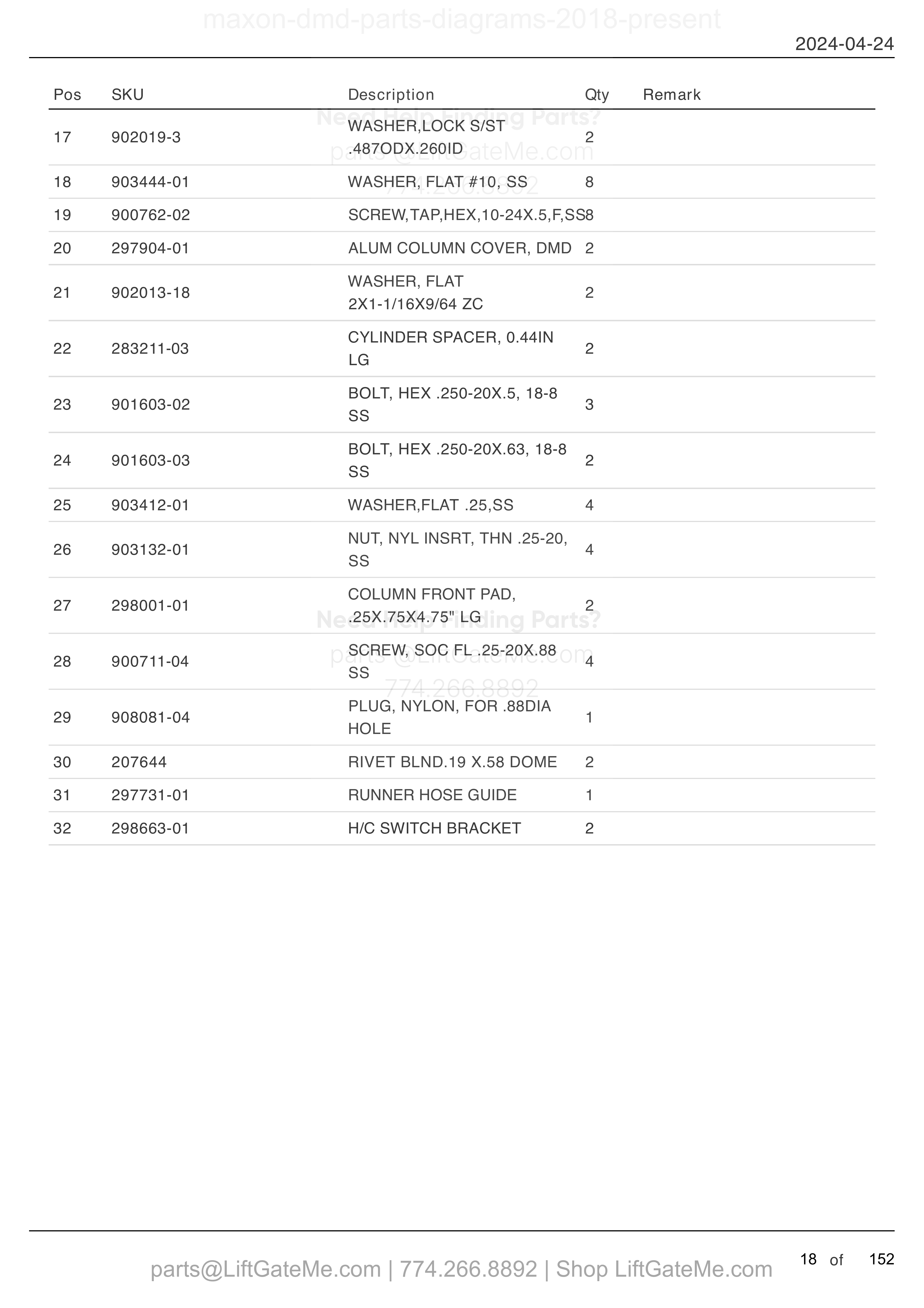

MAIN ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 17 | 2 | 902019-3 | WASHER,LOCK S/ST .487ODX.260ID | |
| 18 | 8 | 903444-01 | WASHER, FLAT #10, SS | |
| 19 | 8 | 900762-02 | SCREW,TAP,HEX,10-24X.5,F,SS | |
| 20 | 2 | 297904-01 | ALUM COLUMN COVER, DMD | |
| 21 | 2 | 902013-18 | WASHER, FLAT 2X1-1/16X9/64 ZC | |
| 22 | 2 | 283211-03 | CYLINDER SPACER, 0.44IN LG | |
| 23 | 3 | 901603-02 | BOLT, HEX .250-20X.5, 18-8 SS | |
| 24 | 2 | 901603-03 | BOLT, HEX .250-20X.63, 18-8 SS | |
| 25 | 4 | 903412-01 | WASHER,FLAT .25,SS | |
| 26 | 4 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS | |
| 27 | 2 | 298001-01 | COLUMN FRONT PAD, .25X.75X4.75" LG | |
| 28 | 4 | 900711-04 | SCREW, SOC FL .25-20X.88 SS | |
| 29 | 1 | 908081-04 | PLUG, NYLON, FOR .88DIA HOLE | |
| 30 | 2 | 207644 | RIVET BLND.19 X.58 DOME | |
| 31 | 1 | 297731-01 | RUNNER HOSE GUIDE | |
| 32 | 2 | 298663-01 | H/C SWITCH BRACKET |

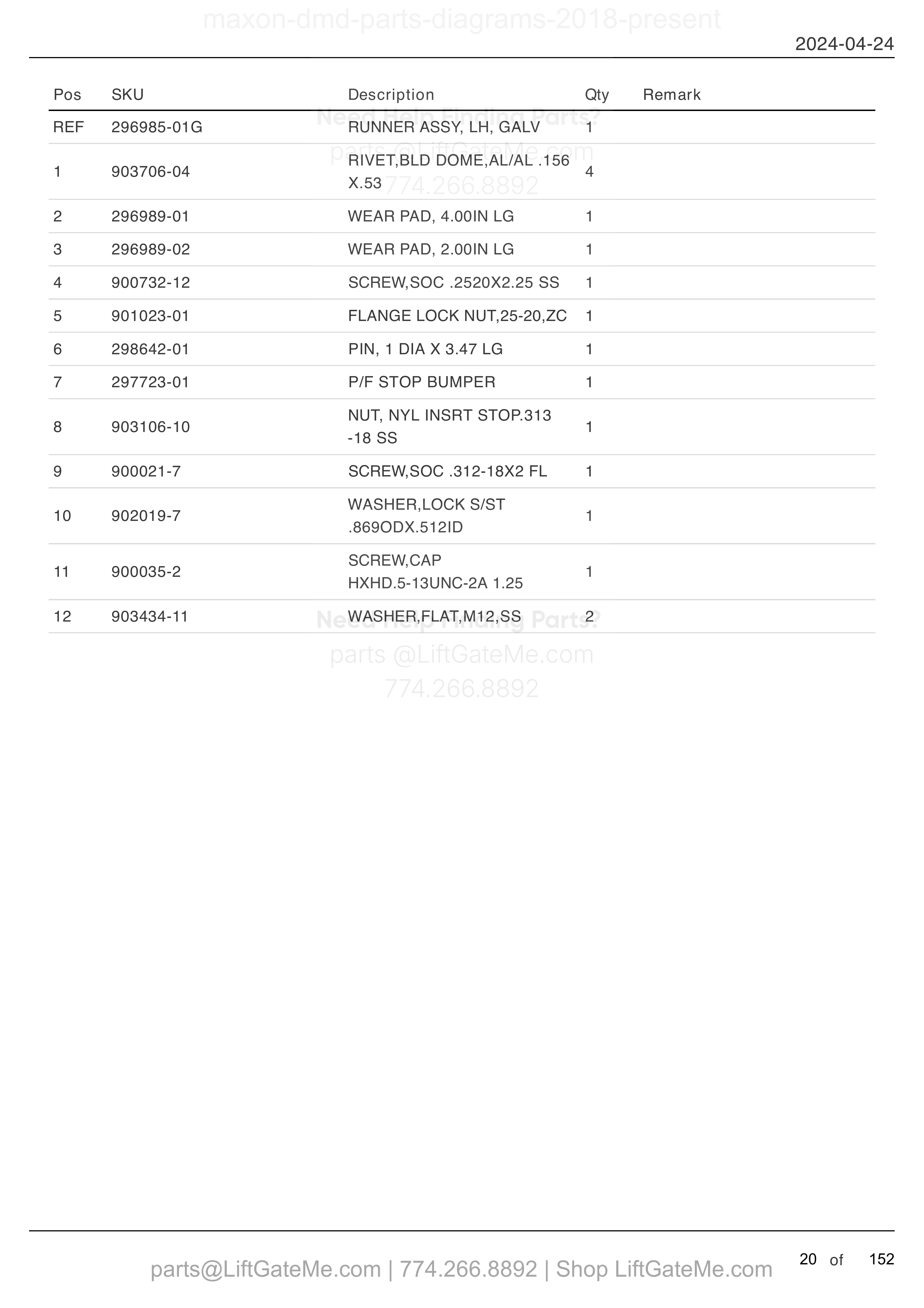

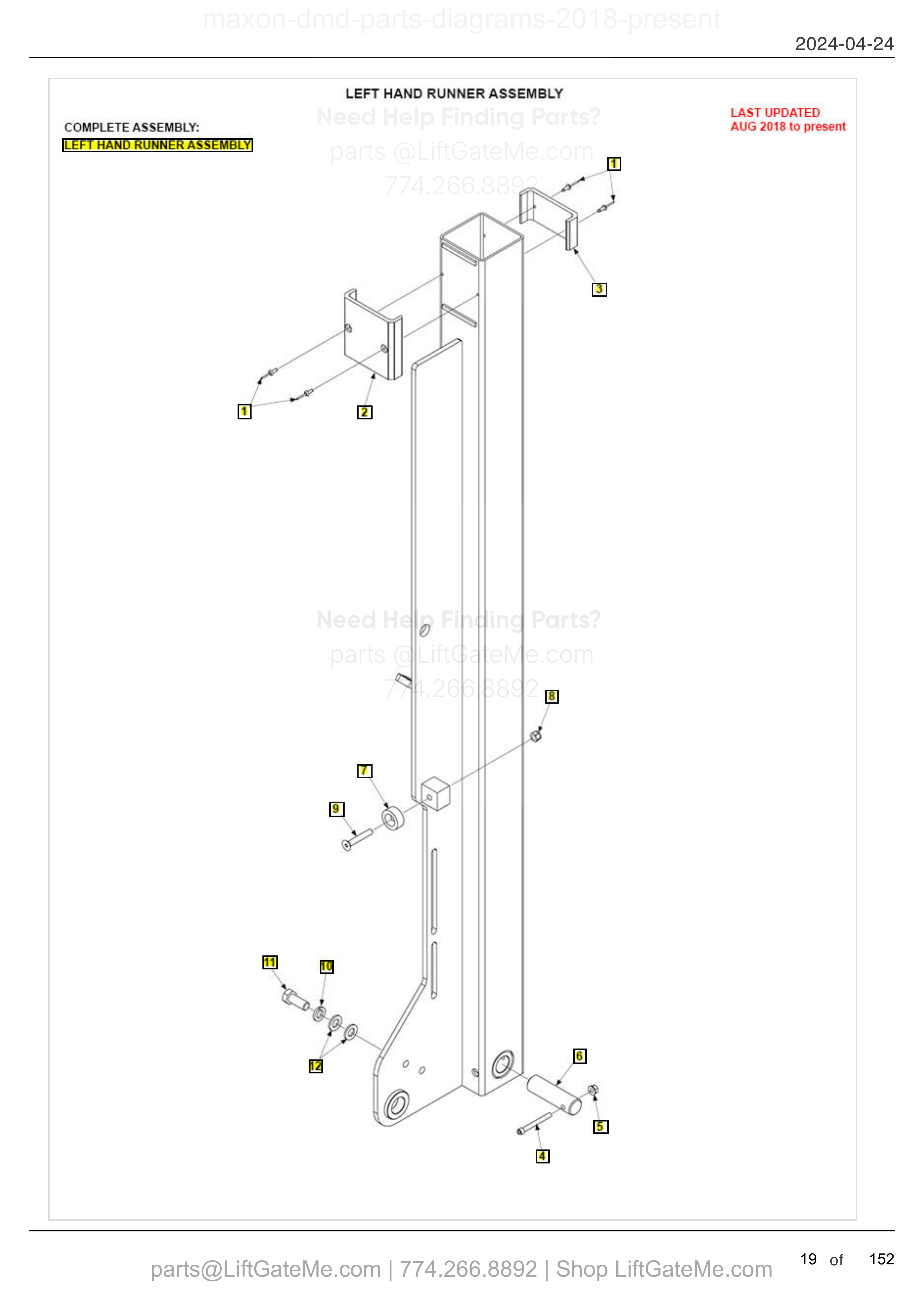

LEFT HAND RUNNER ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 296985-01G | RUNNER ASSY, LH, GALV | |
| 1 | 4 | 903706-04 | RIVET,BLD DOME,AL/AL .156 X.53 | |
| 2 | 1 | 296989-01 | WEAR PAD, 4.00IN LG | |
| 3 | 1 | 296989-02 | WEAR PAD, 2.00IN LG | |
| 4 | 1 | 900732-12 | SCREW,SOC .2520X2.25 SS | |
| 5 | 1 | 901023-01 | FLANGE LOCK NUT,25-20,ZC | |
| 6 | 1 | 298642-01 | PIN, 1 DIA X 3.47 LG | |
| 7 | 1 | 297723-01 | P/F STOP BUMPER | |
| 8 | 1 | 903106-10 | NUT, NYL INSRT STOP.313 -18 SS | |
| 9 | 1 | 900021-7 | SCREW,SOC .312-18X2 FL | |
| 10 | 1 | 902019-7 | WASHER,LOCK S/ST .869ODX.512ID | |
| 11 | 1 | 900035-2 | SCREW,CAP HXHD.5-13UNC-2A 1.25 | |
| 12 | 2 | 903434-11 | WASHER,FLAT,M12,SS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

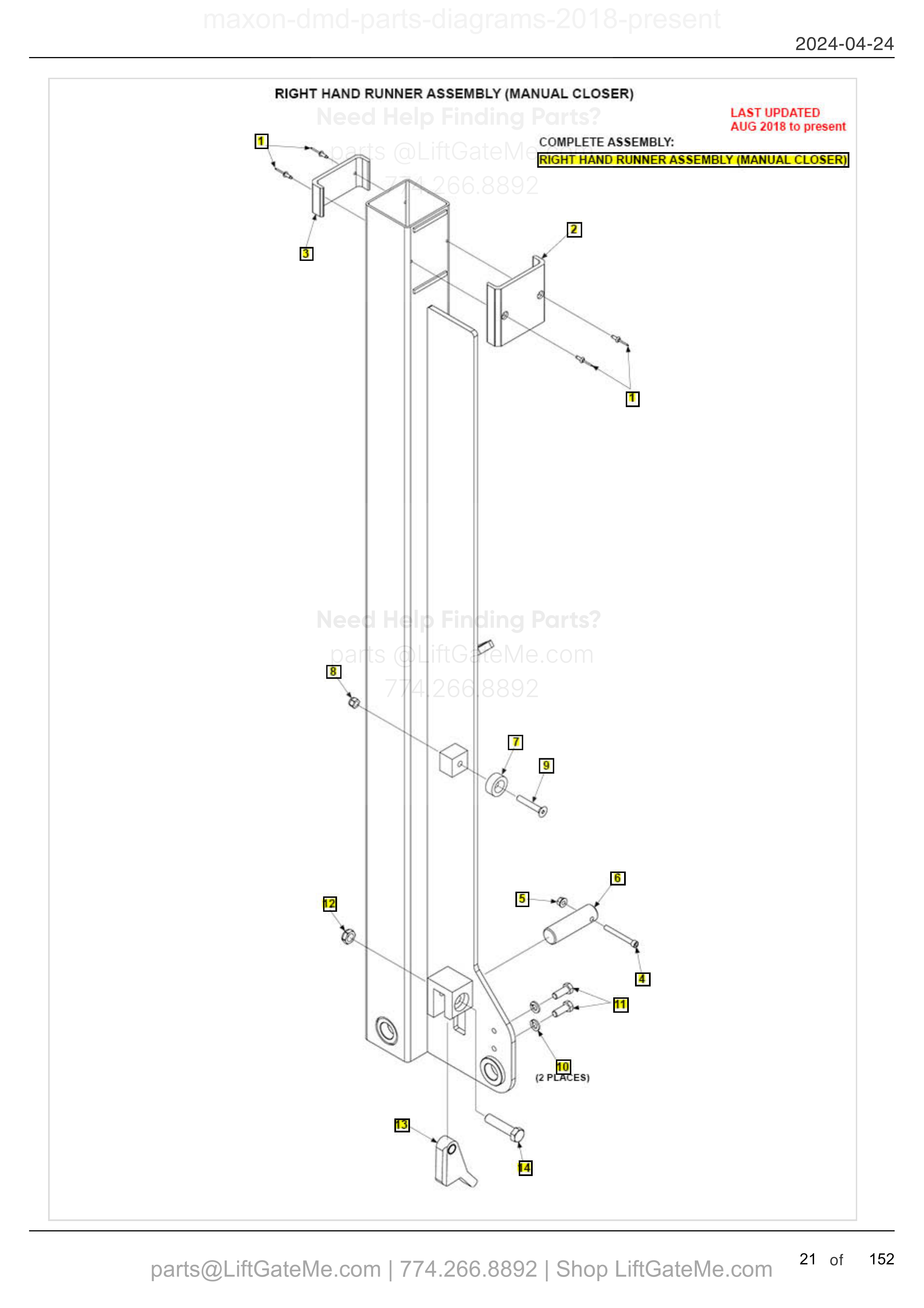

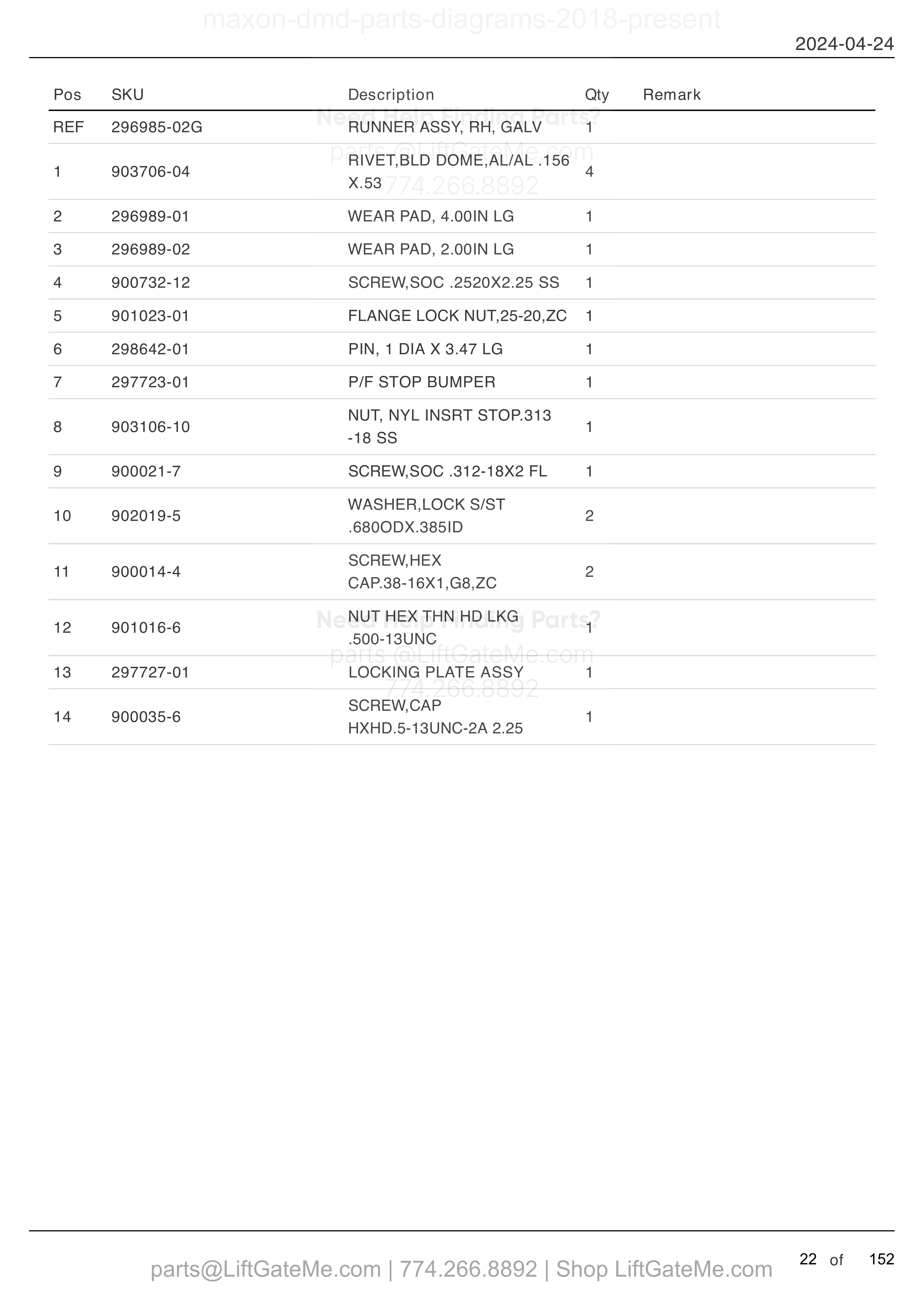

RIGHT HAND RUNNER ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 296985-02G | RUNNER ASSY, RH, GALV | |
| 1 | 4 | 903706-04 | RIVET,BLD DOME,AL/AL .156 X.53 | |
| 2 | 1 | 296989-01 | WEAR PAD, 4.00IN LG | |
| 3 | 1 | 296989-02 | WEAR PAD, 2.00IN LG | |
| 4 | 1 | 900732-12 | SCREW,SOC .2520X2.25 SS | |
| 5 | 1 | 901023-01 | FLANGE LOCK NUT,25-20,ZC | |
| 6 | 1 | 298642-01 | PIN, 1 DIA X 3.47 LG | |
| 7 | 1 | 297723-01 | P/F STOP BUMPER | |
| 8 | 1 | 903106-10 | NUT, NYL INSRT STOP.313 -18 SS | |
| 9 | 1 | 900021-7 | SCREW,SOC .312-18X2 FL | |
| 10 | 2 | 902019-5 | WASHER,LOCK S/ST .680ODX.385ID | |
| 11 | 2 | 900014-4 | SCREW,HEX CAP.38-16X1,G8,ZC | |
| 12 | 1 | 901016-6 | NUT HEX THN HD LKG .500-13UNC | |
| 13 | 1 | 297727-01 | LOCKING PLATE ASSY | |
| 14 | 1 | 900035-6 | SCREW,CAP HXHD.5-13UNC-2A 2.25 |

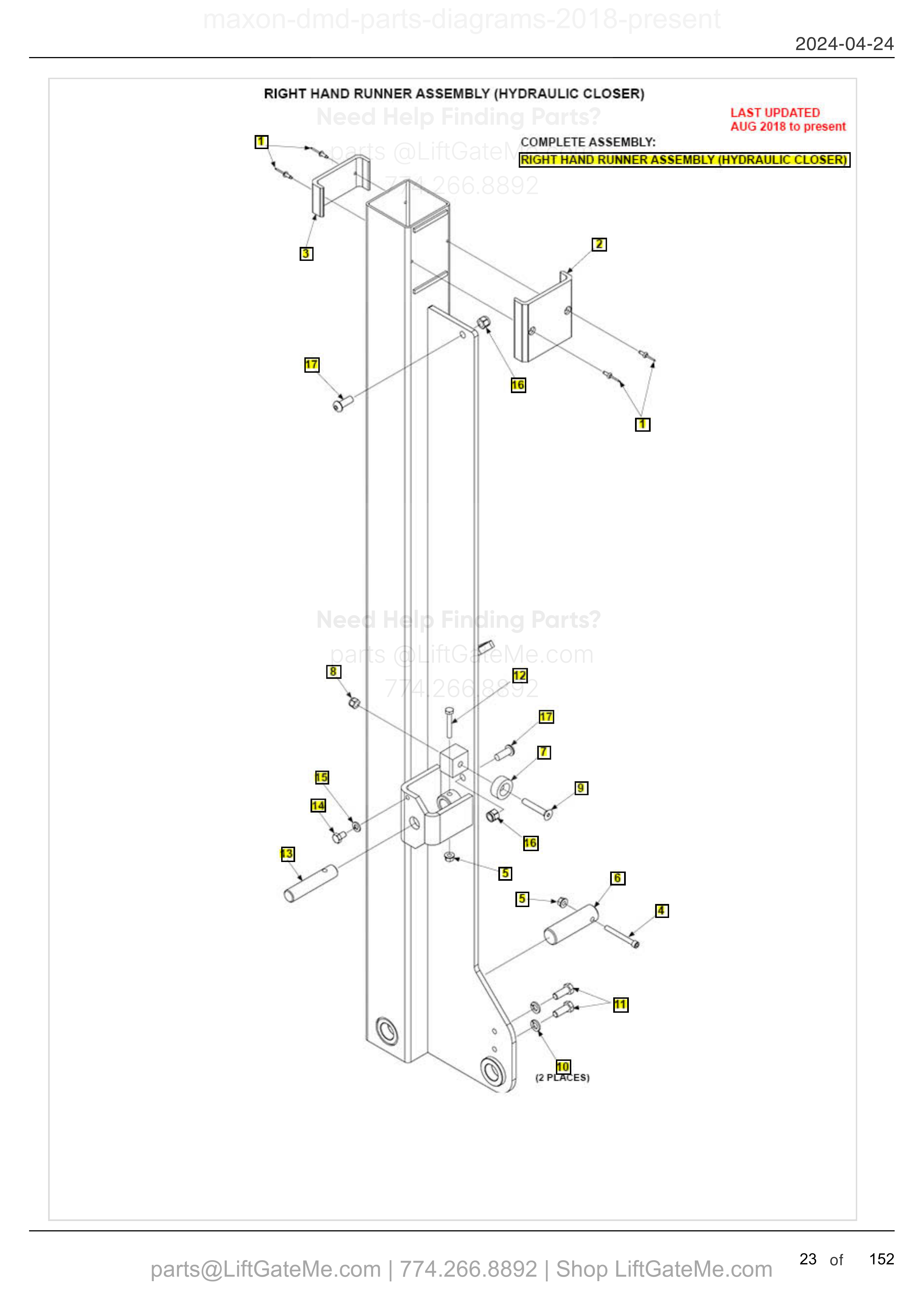

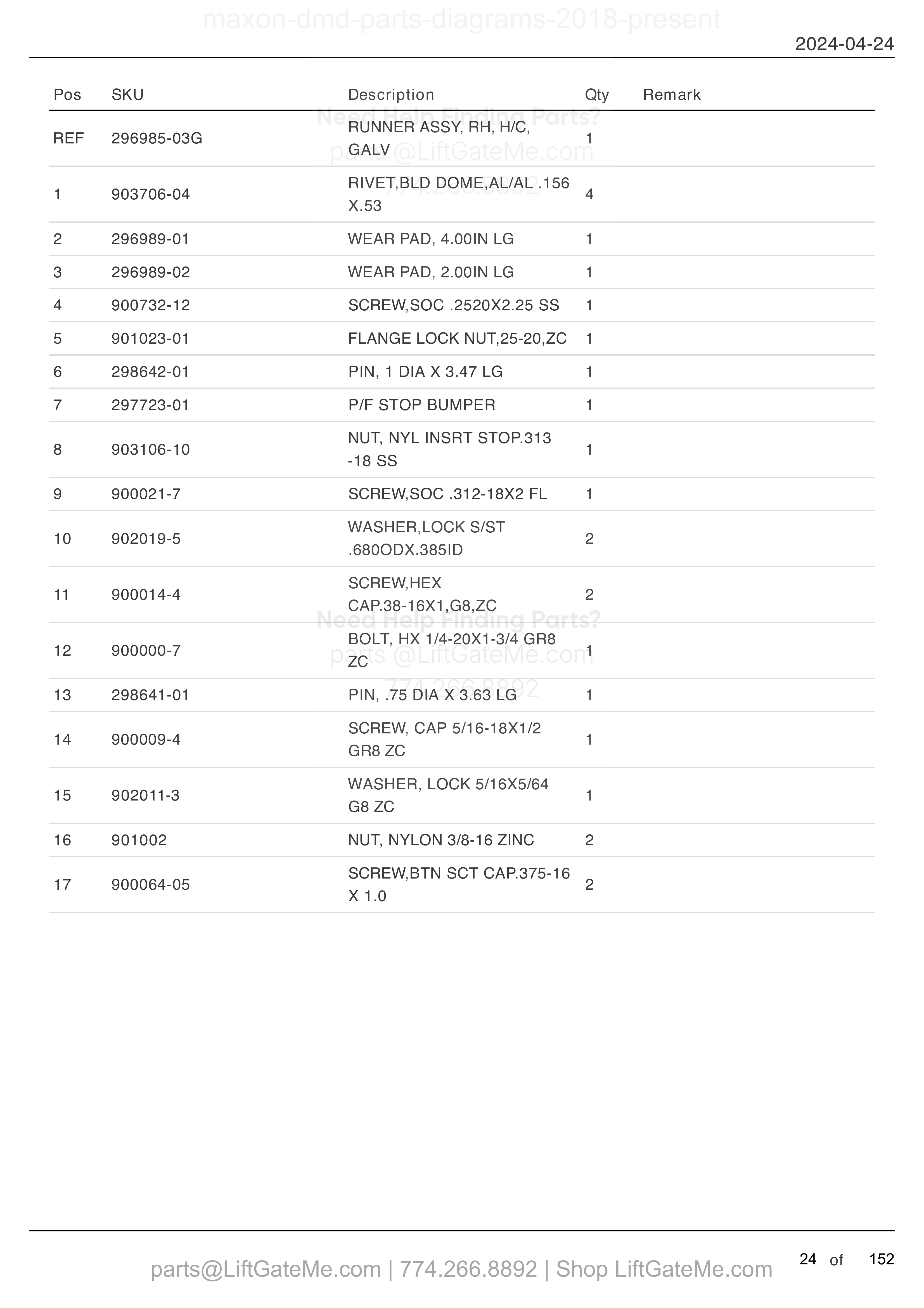

RIGHT HAND RUNNER ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 296985-03G | RUNNER ASSY, RH, H/C, GALV | |
| 1 | 4 | 903706-04 | RIVET,BLD DOME,AL/AL .156 X.53 | |
| 2 | 1 | 296989-01 | WEAR PAD, 4.00IN LG | |
| 3 | 1 | 296989-02 | WEAR PAD, 2.00IN LG | |
| 4 | 1 | 900732-12 | SCREW,SOC .2520X2.25 SS | |
| 5 | 1 | 901023-01 | FLANGE LOCK NUT,25-20,ZC | |
| 6 | 1 | 298642-01 | PIN, 1 DIA X 3.47 LG | |
| 7 | 1 | 297723-01 | P/F STOP BUMPER | |
| 8 | 1 | 903106-10 | NUT, NYL INSRT STOP.313 -18 SS | |
| 9 | 1 | 900021-7 | SCREW,SOC .312-18X2 FL | |
| 10 | 2 | 902019-5 | WASHER,LOCK S/ST .680ODX.385ID | |
| 11 | 2 | 900014-4 | SCREW,HEX CAP.38-16X1,G8,ZC | |
| 12 | 1 | 900000-7 | BOLT, HX 1/4-20X1-3/4 GR8 ZC | |
| 13 | 1 | 298641-01 | PIN, .75 DIA X 3.63 LG | |
| 14 | 1 | 900009-4 | SCREW, CAP 5/16-18X1/2 GR8 ZC | |
| 15 | 1 | 902011-3 | WASHER, LOCK 5/16X5/64 G8 ZC | |
| 16 | 2 | 901002 | NUT, NYLON 3/8-16 ZINC | |
| 17 | 2 | 900064-05 | SCREW,BTN SCT CAP.375-16 X 1.0 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

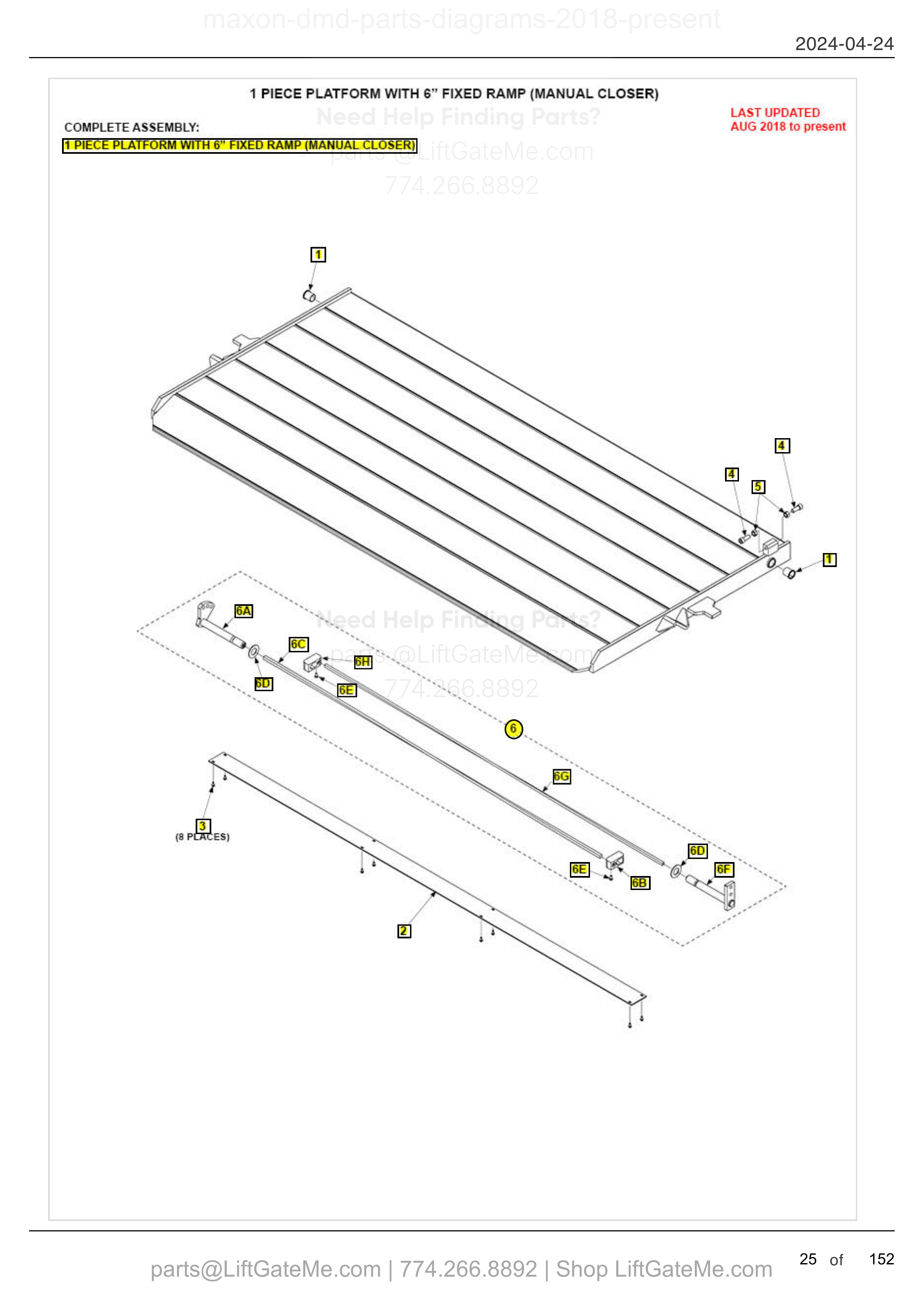

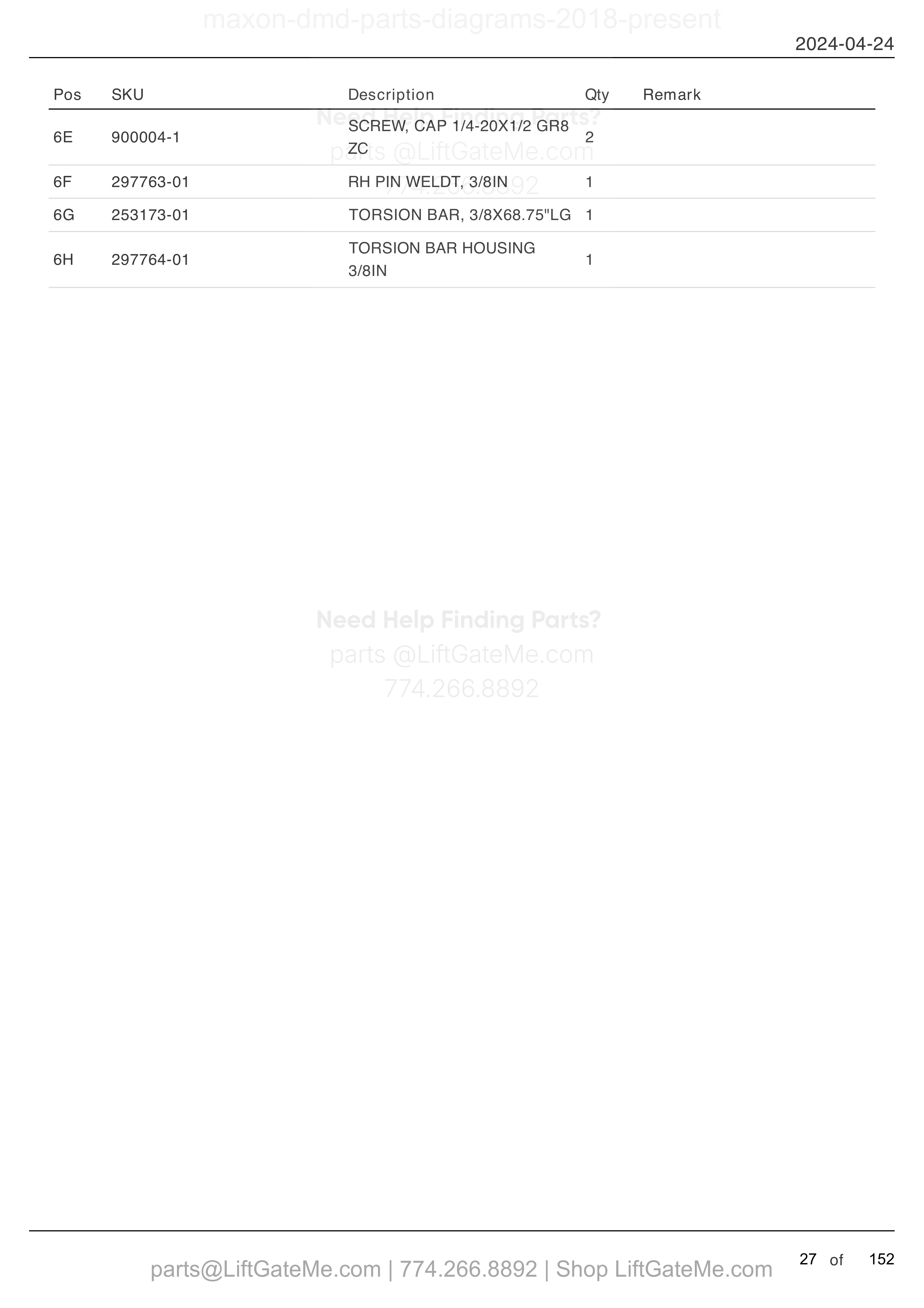

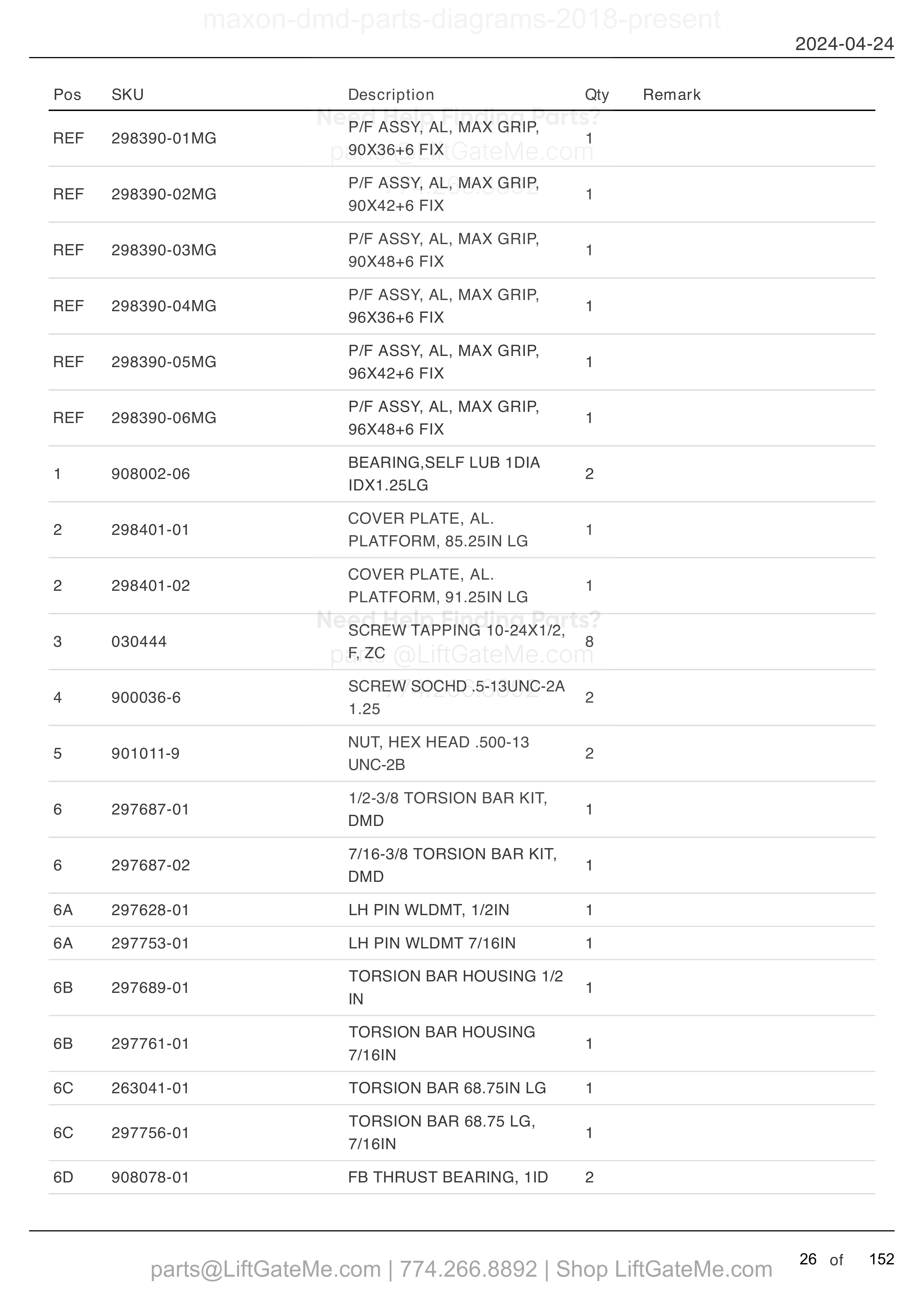

1 PIECE PLATFORM WITH 6” FIXED RAMP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298390-01MG | P/F ASSY, AL, MAX GRIP, 90X36+6 FIX | |
| REF | 1 | 298390-02MG | P/F ASSY, AL, MAX GRIP, 90X42+6 FIX | |
| REF | 1 | 298390-03MG | P/F ASSY, AL, MAX GRIP, 90X48+6 FIX | |
| REF | 1 | 298390-04MG | P/F ASSY, AL, MAX GRIP, 96X36+6 FIX | |
| REF | 1 | 298390-05MG | P/F ASSY, AL, MAX GRIP, 96X42+6 FIX | |
| REF | 1 | 298390-06MG | P/F ASSY, AL, MAX GRIP, 96X48+6 FIX | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 2 | 900036-6 | SCREW SOCHD .5-13UNC-2A 1.25 | |
| 5 | 2 | 901011-9 | NUT, HEX HEAD .500-13 UNC-2B | |
| 6 | 1 | 297687-01 | 1/2-3/8 TORSION BAR KIT, DMD | |
| 6 | 1 | 297687-02 | 7/16-3/8 TORSION BAR KIT, DMD | |
| 6A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 6A | 1 | 297753-01 | LH PIN WLDMT 7/16IN | |
| 6B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 6B | 1 | 297761-01 | TORSION BAR HOUSING 7/16IN | |
| 6C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 6C | 1 | 297756-01 | TORSION BAR 68.75 LG, 7/16IN | |
| 6D | 2 | 908078-01 | FB THRUST BEARING, 1ID |
1 PIECE PLATFORM WITH 6” FIXED RAMP (MANUAL CLOSER)
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

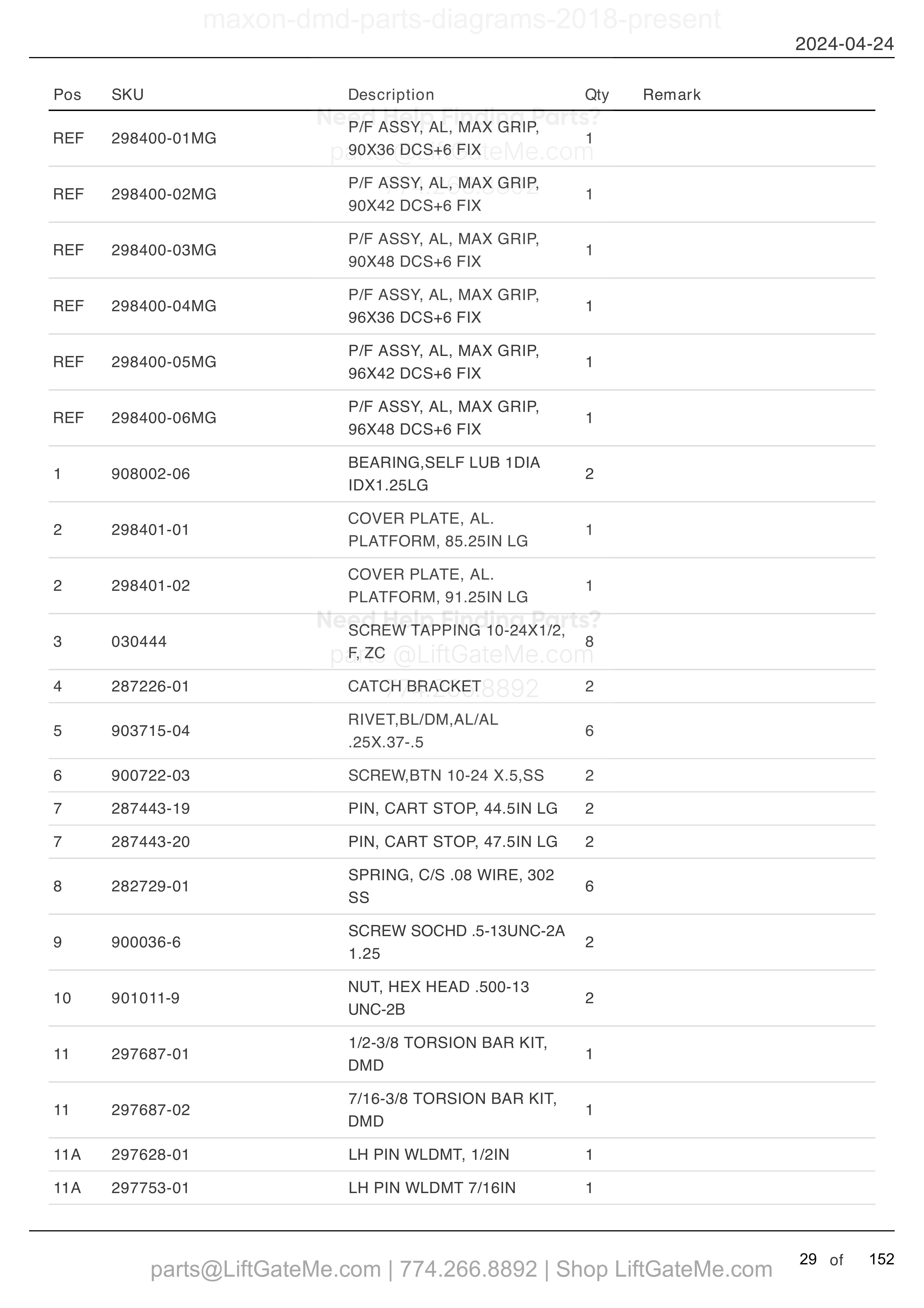

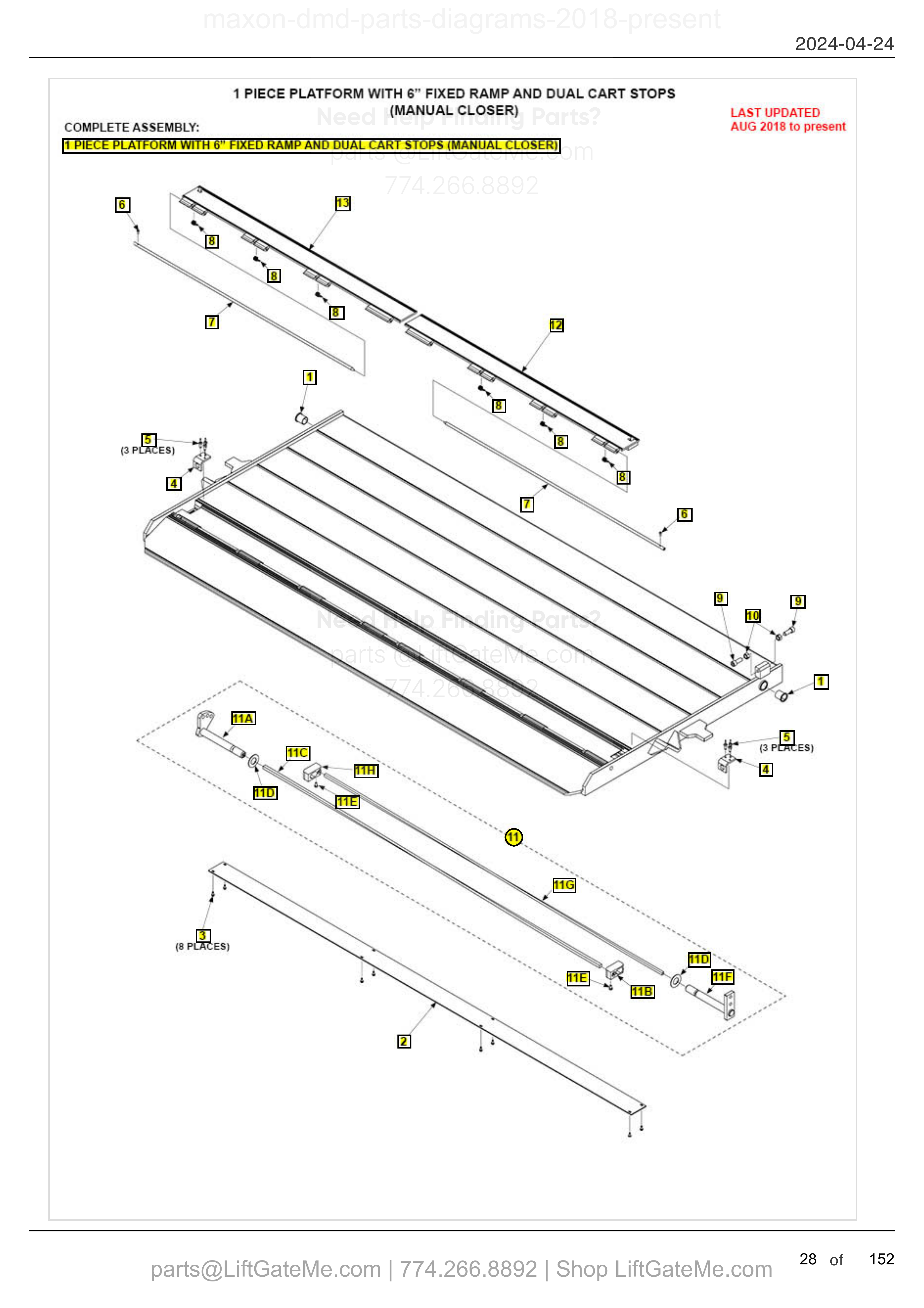

1 PIECE PLATFORM WITH 6” FIXED RAMP AND DUAL CART STOPS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298400-01MG | P/F ASSY, AL, MAX GRIP, 90X36 DCS+6 FIX | |
| REF | 1 | 298400-02MG | P/F ASSY, AL, MAX GRIP, 90X42 DCS+6 FIX | |
| REF | 1 | 298400-03MG | P/F ASSY, AL, MAX GRIP, 90X48 DCS+6 FIX | |
| REF | 1 | 298400-04MG | P/F ASSY, AL, MAX GRIP, 96X36 DCS+6 FIX | |
| REF | 1 | 298400-05MG | P/F ASSY, AL, MAX GRIP, 96X42 DCS+6 FIX | |
| REF | 1 | 298400-06MG | P/F ASSY, AL, MAX GRIP, 96X48 DCS+6 FIX | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 2 | 287226-01 | CATCH BRACKET | |
| 5 | 6 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 6 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 7 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 7 | 2 | 287443-20 | PIN, CART STOP, 47.5IN LG | |
| 8 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 9 | 2 | 900036-6 | SCREW SOCHD .5-13UNC-2A 1.25 | |
| 10 | 2 | 901011-9 | NUT, HEX HEAD .500-13 UNC-2B | |
| 11 | 1 | 297687-01 | 1/2-3/8 TORSION BAR KIT, DMD | |
| 11 | 1 | 297687-02 | 7/16-3/8 TORSION BAR KIT, DMD | |
| 11A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 11A | 1 | 297753-01 | LH PIN WLDMT 7/16IN |

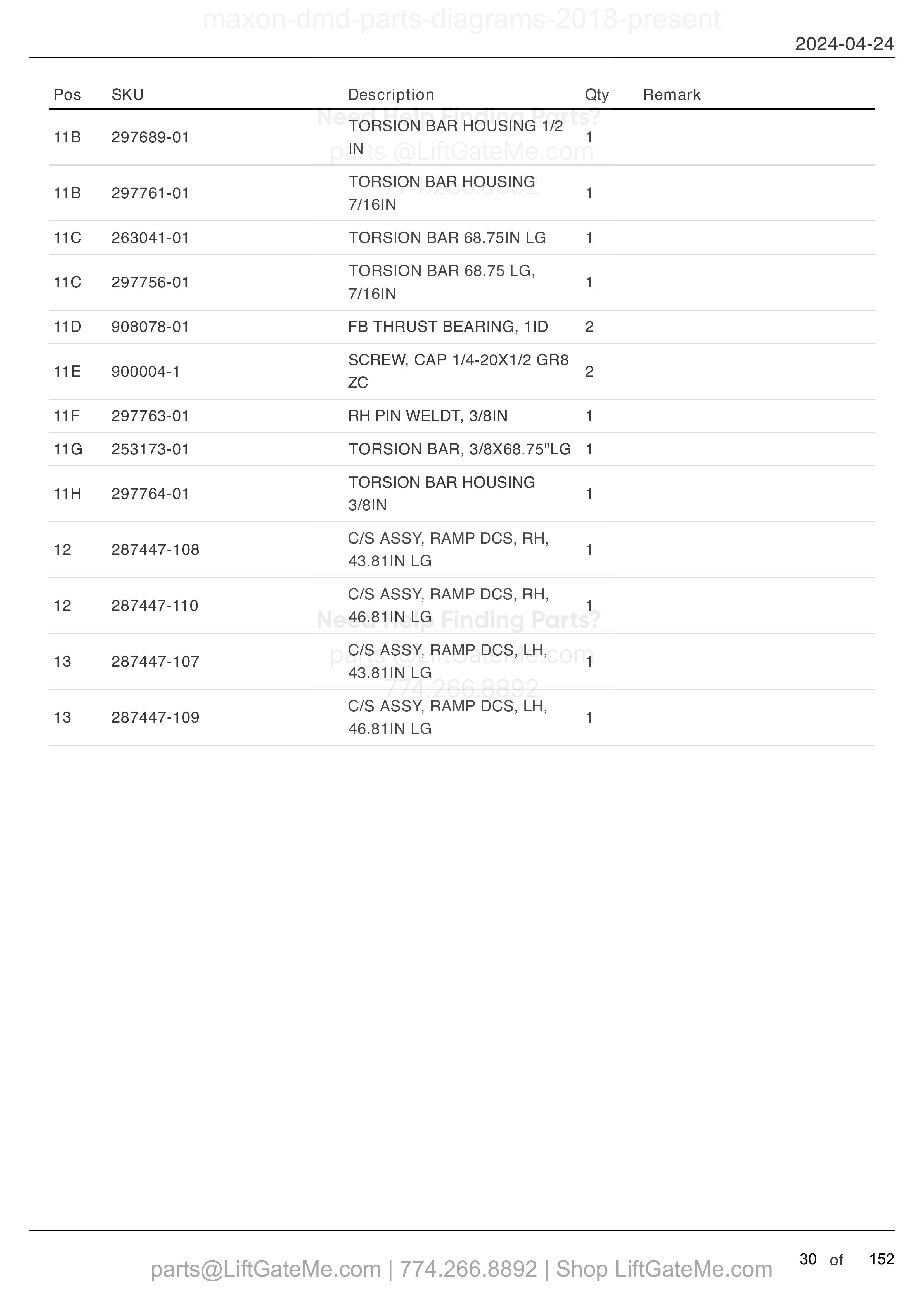

1 PIECE PLATFORM WITH 6” FIXED RAMP AND DUAL CART STOPS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 11B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 11B | 1 | 297761-01 | TORSION BAR HOUSING 7/16IN | |
| 11C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 11C | 1 | 297756-01 | TORSION BAR 68.75 LG, 7/16IN | |
| 11D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 11E | 2 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 11F | 1 | 297763-01 | RH PIN WELDT, 3/8IN | |
| 11G | 1 | 253173-01 | TORSION BAR, 3/8X68.75"LG | |
| 11H | 1 | 297764-01 | TORSION BAR HOUSING 3/8IN | |
| 12 | 1 | 287447-108 | C/S ASSY, RAMP DCS, RH, 43.81IN LG | |
| 12 | 1 | 287447-110 | C/S ASSY, RAMP DCS, RH, 46.81IN LG | |
| 13 | 1 | 287447-107 | C/S ASSY, RAMP DCS, LH, 43.81IN LG | |
| 13 | 1 | 287447-109 | C/S ASSY, RAMP DCS, LH, 46.81IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

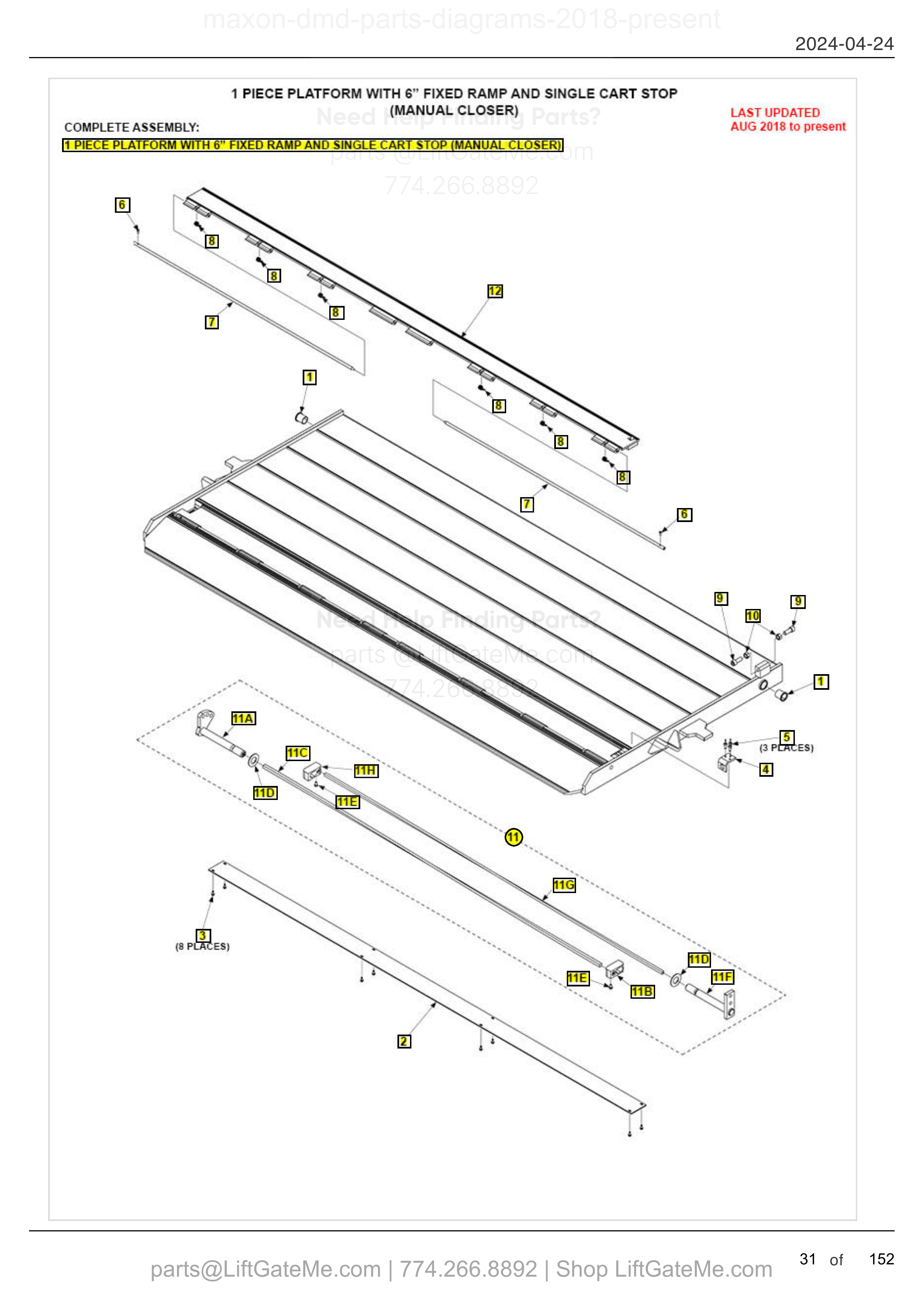

1 PIECE PLATFORM WITH 6” FIXED RAMP AND SINGLE CART STOP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298400-07MG | P/F ASSY, AL, MAX GRIP, 90X36 SCS+6 FIX | |
| REF | 1 | 298400-08MG | P/F ASSY, AL, MAX GRIP, 90X42 SCS+6 FIX | |
| REF | 1 | 298400-09MG | P/F ASSY, AL, MAX GRIP, 90X48 SCS+6 FIX | |
| REF | 1 | 298400-10MG | P/F ASSY, AL, MAX GRIP, 96X36 SCS+6 FIX | |
| REF | 1 | 298400-11MG | P/F ASSY, AL, MAX GRIP, 96X42 SCS+6 FIX | |
| REF | 1 | 298400-12MG | P/F ASSY, AL, MAX GRIP, 96X48 SCS+6 FIX | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 1 | 287226-01 | CATCH BRACKET | |
| 5 | 3 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 6 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 7 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 7 | 2 | 287443-20 | PIN, CART STOP, 47.5IN LG | |
| 8 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 9 | 2 | 900036-6 | SCREW SOCHD .5-13UNC-2A 1.25 | |
| 10 | 2 | 901011-9 | NUT, HEX HEAD .500-13 UNC-2B | |
| 11 | 1 | 297687-01 | 1/2-3/8 TORSION BAR KIT, DMD | |
| 11 | 1 | 297687-02 | 7/16-3/8 TORSION BAR KIT, DMD | |
| 11A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 11A | 1 | 297753-01 | LH PIN WLDMT 7/16IN |

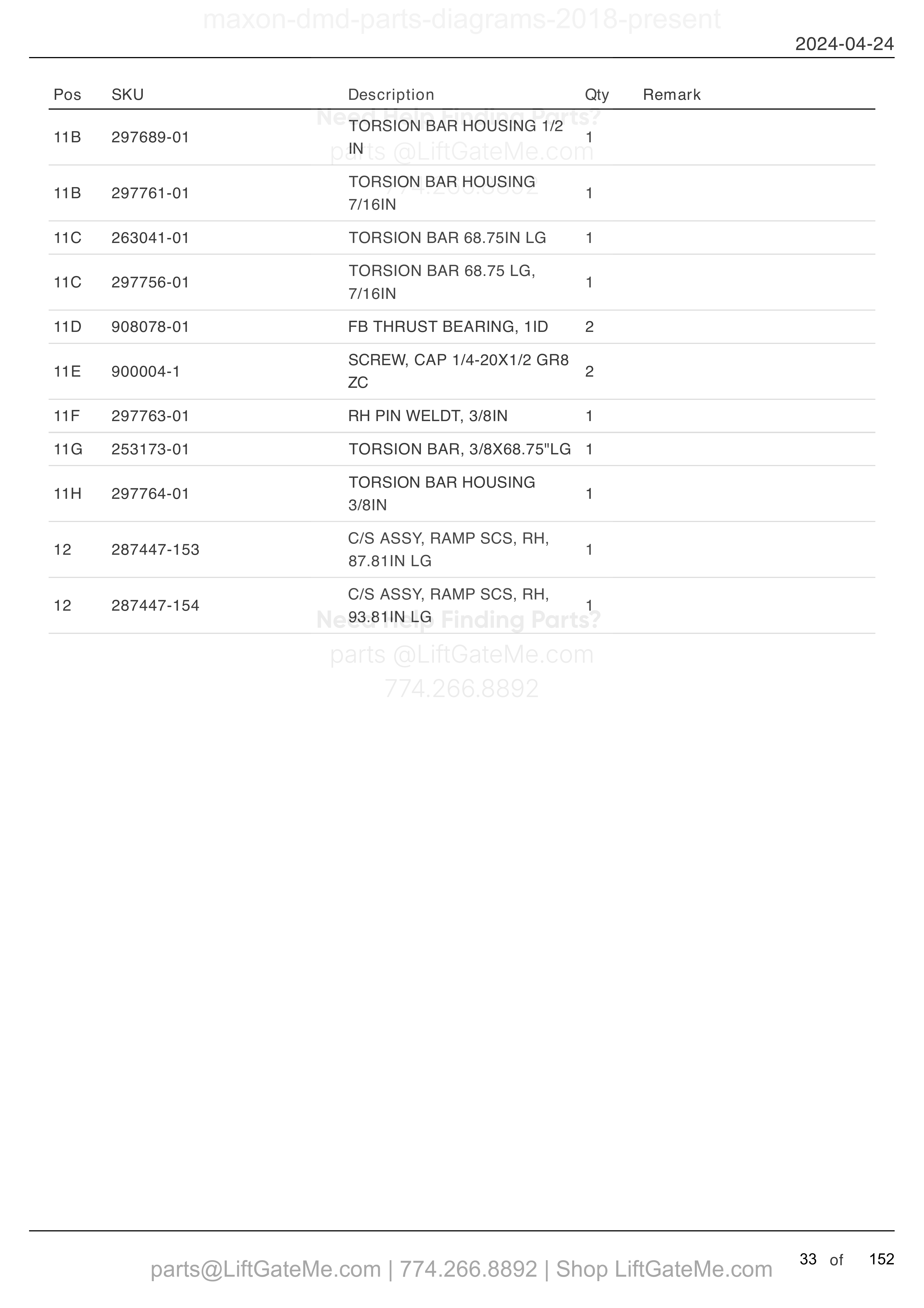

1 PIECE PLATFORM WITH 6” FIXED RAMP AND SINGLE CART STOP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 11B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 11B | 1 | 297761-01 | TORSION BAR HOUSING 7/16IN | |
| 11C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 11C | 1 | 297756-01 | TORSION BAR 68.75 LG, 7/16IN | |
| 11D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 11E | 2 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 11F | 1 | 297763-01 | RH PIN WELDT, 3/8IN | |
| 11G | 1 | 253173-01 | TORSION BAR, 3/8X68.75"LG | |
| 11H | 1 | 297764-01 | TORSION BAR HOUSING 3/8IN | |
| 12 | 1 | 287447-153 | C/S ASSY, RAMP SCS, RH, 87.81IN LG | |
| 12 | 1 | 287447-154 | C/S ASSY, RAMP SCS, RH, 93.81IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

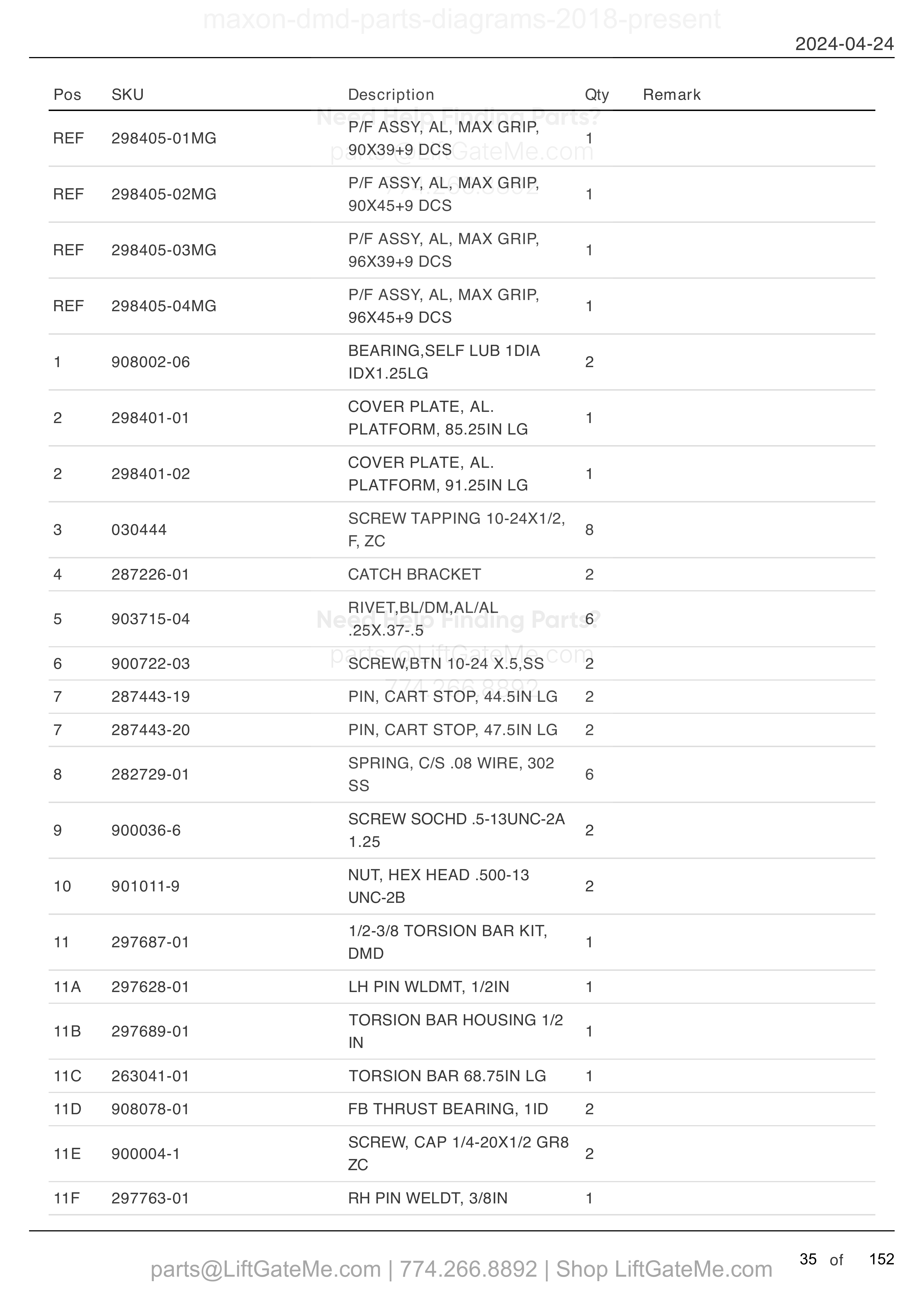

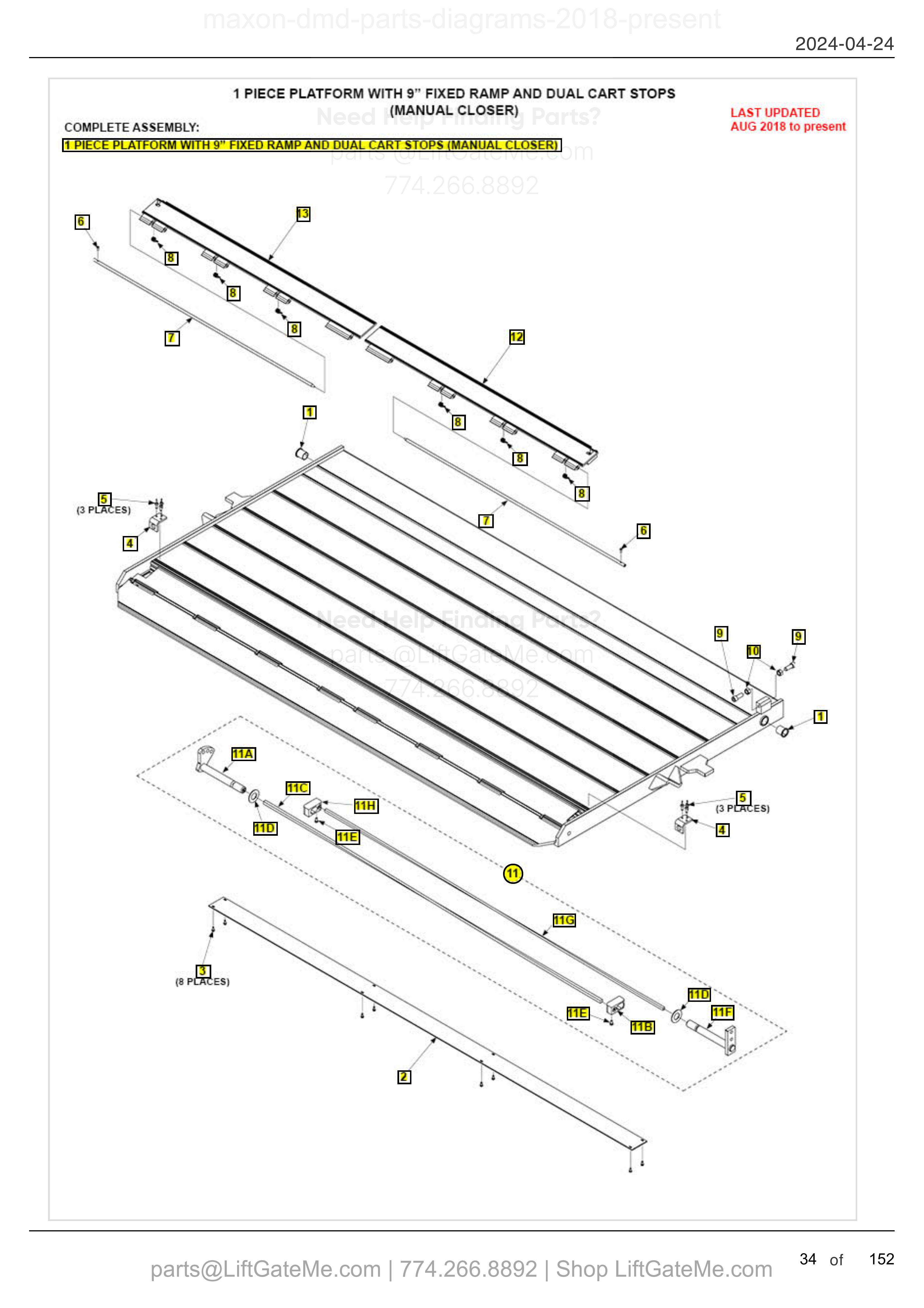

1 PIECE PLATFORM WITH 9" FIXED RAMP AND DUAL CART STOPS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298405-01MG | P/F ASSY, AL, MAX GRIP, 90X39+9 DCS | |
| REF | 1 | 298405-02MG | P/F ASSY, AL, MAX GRIP, 90X45+9 DCS | |
| REF | 1 | 298405-03MG | P/F ASSY, AL, MAX GRIP, 96X39+9 DCS | |
| REF | 1 | 298405-04MG | P/F ASSY, AL, MAX GRIP, 96X45+9 DCS | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 2 | 287226-01 | CATCH BRACKET | |
| 5 | 6 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 6 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 7 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 7 | 2 | 287443-20 | PIN, CART STOP, 47.5IN LG | |
| 8 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 9 | 2 | 900036-6 | SCREW SOCHD .5-13UNC-2A 1.25 | |
| 10 | 2 | 901011-9 | NUT, HEX HEAD .500-13 UNC-2B | |
| 11 | 1 | 297687-01 | 1/2-3/8 TORSION BAR KIT, DMD | |
| 11A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 11B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 11C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 11D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 11E | 2 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 11F | 1 | 297763-01 | RH PIN WELDT, 3/8IN |

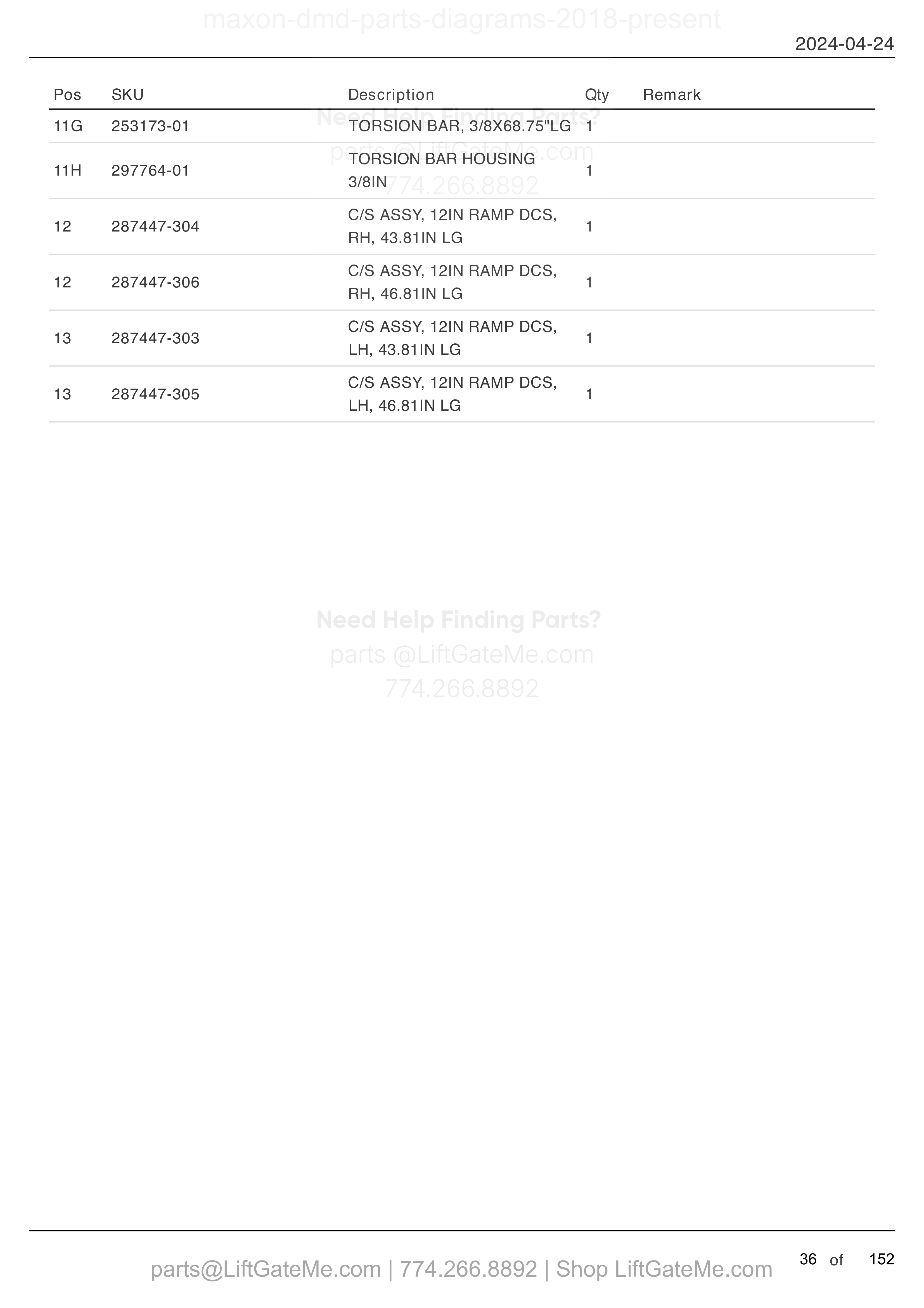

1 PIECE PLATFORM WITH 9" FIXED RAMP AND DUAL CART STOPS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 11G | 1 | 253173-01 | TORSION BAR, 3/8X68.75"LG | |
| 11H | 1 | 297764-01 | TORSION BAR HOUSING 3/8IN | |
| 12 | 1 | 287447-304 | C/S ASSY, 12IN RAMP DCS, RH, 43.81IN LG | |
| 12 | 1 | 287447-306 | C/S ASSY, 12IN RAMP DCS, RH, 46.81IN LG | |
| 13 | 1 | 287447-303 | C/S ASSY, 12IN RAMP DCS, LH, 43.81IN LG | |
| 13 | 1 | 287447-305 | C/S ASSY, 12IN RAMP DCS, LH, 46.81IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

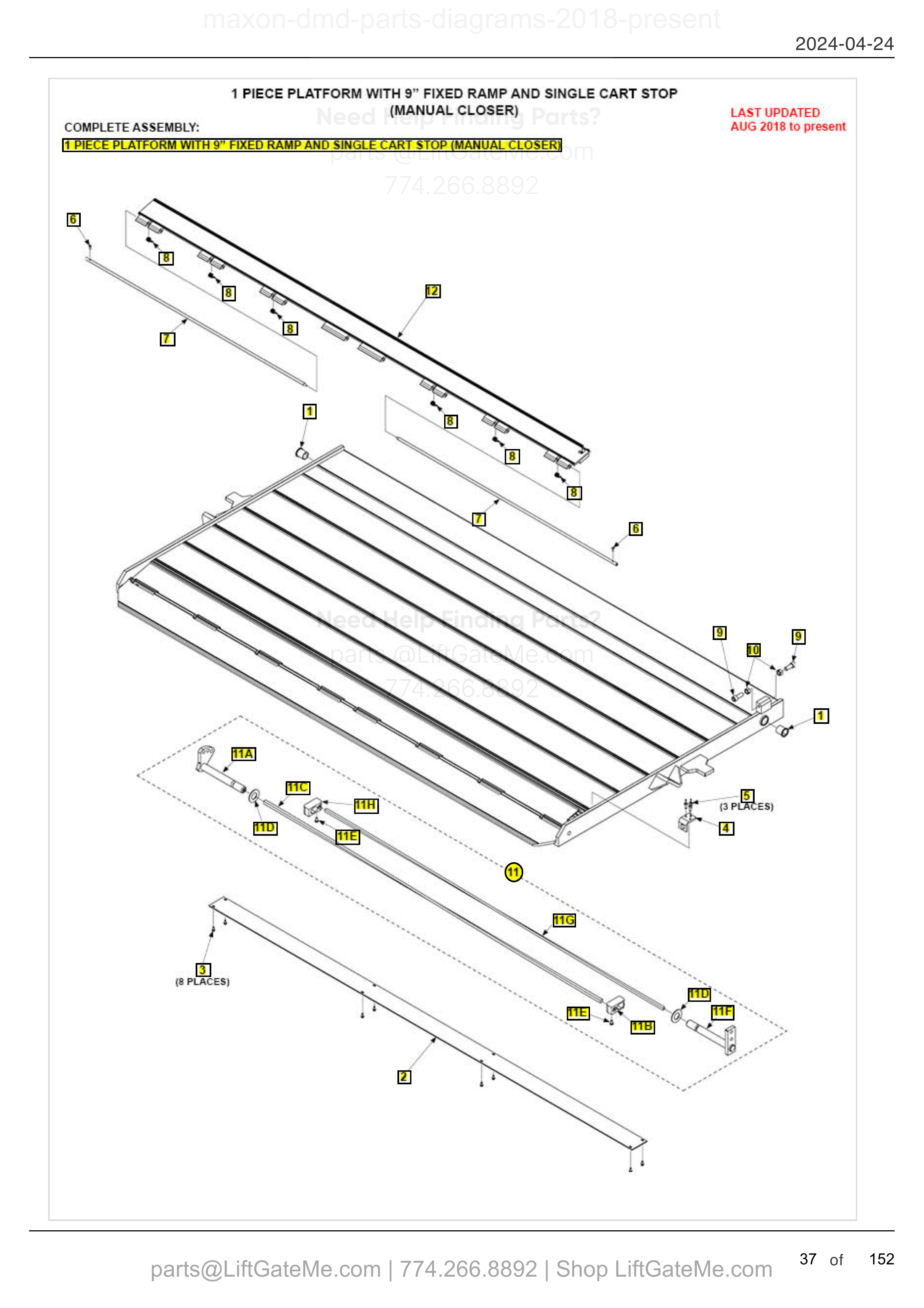

1 PIECE PLATFORM WITH 9” FIXED RAMP AND SINGLE CART STOP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298405-05MG | P/F ASSY, AL, MAX GRIP, 90X39+9 SCS | |
| REF | 1 | 298405-06MG | P/F ASSY, AL, MAX GRIP, 90X45+9 SCS | |
| REF | 1 | 298405-07MG | P/F ASSY, AL, MAX GRIP, 96X39+9 SCS | |
| REF | 1 | 298405-08MG | P/F ASSY, AL, MAX GRIP, 96X45+9 SCS | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 1 | 287226-01 | CATCH BRACKET | |
| 5 | 3 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 6 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 7 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 7 | 2 | 287443-20 | PIN, CART STOP, 47.5IN LG | |
| 8 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 9 | 2 | 900036-6 | SCREW SOCHD .5-13UNC-2A 1.25 | |
| 10 | 2 | 901011-9 | NUT, HEX HEAD .500-13 UNC-2B | |
| 11 | 1 | 297687-01 | 1/2-3/8 TORSION BAR KIT, DMD | |
| 11A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 11B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 11C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 11D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 11E | 2 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 11F | 1 | 297763-01 | RH PIN WELDT, 3/8IN |

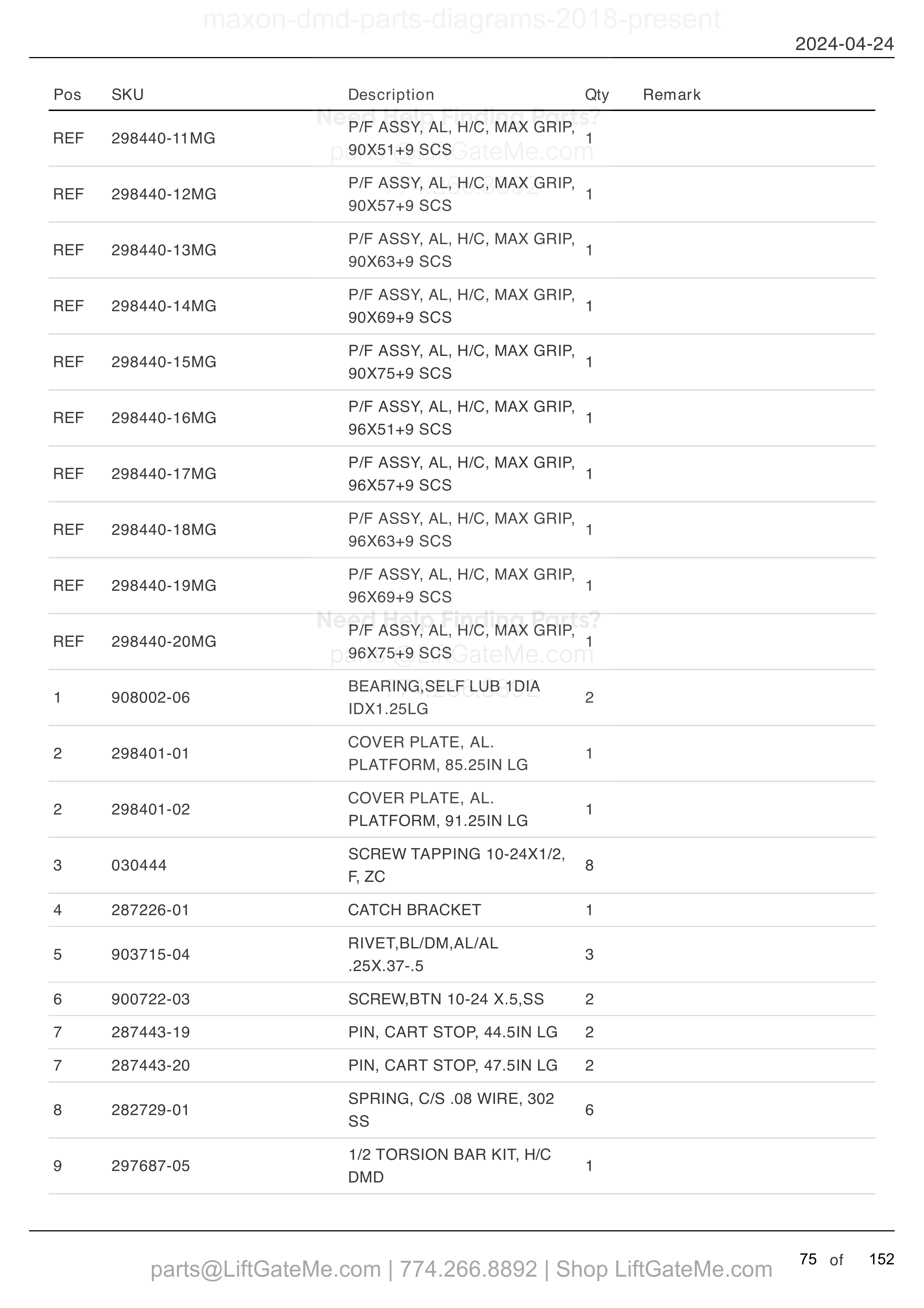

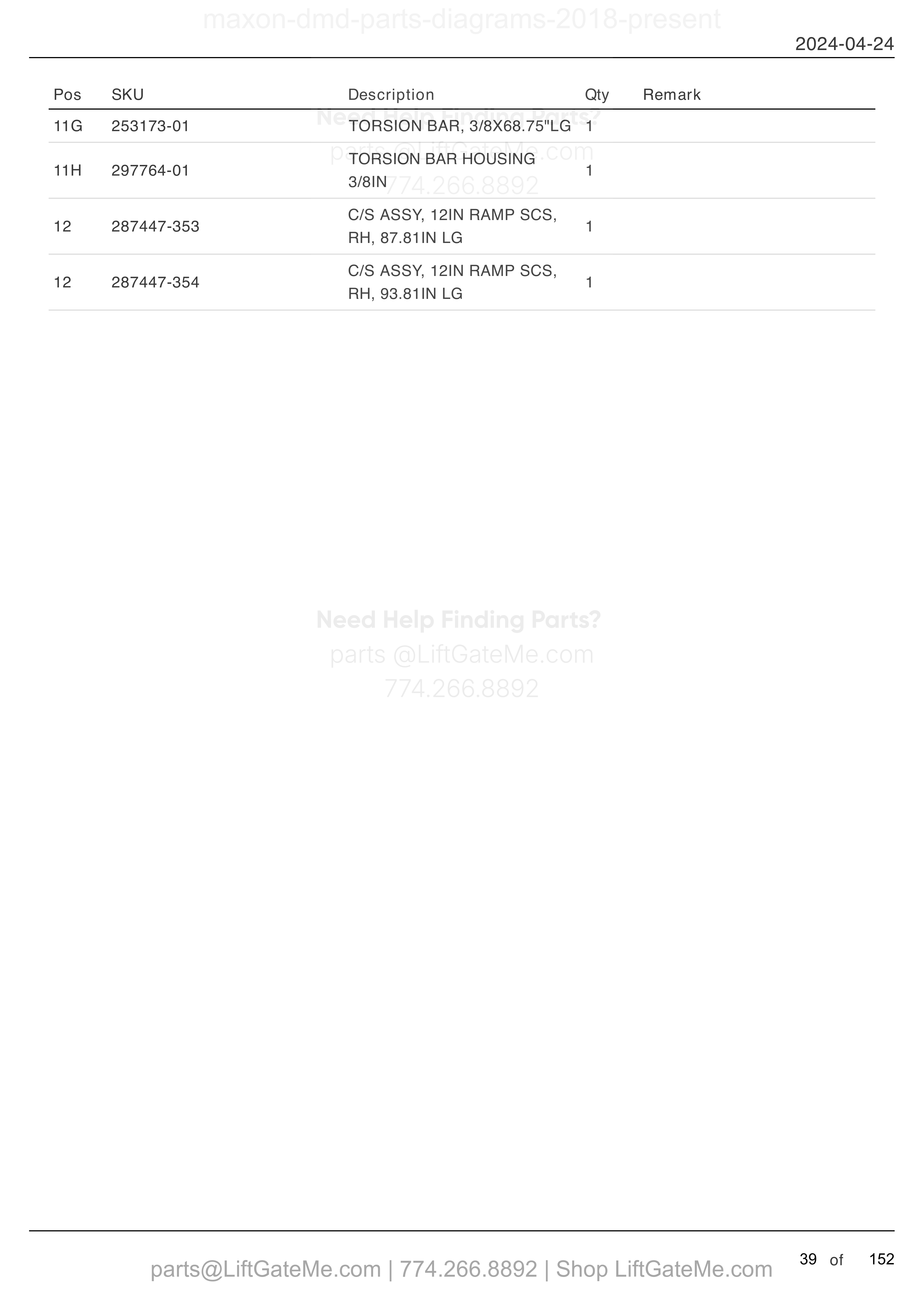

1 PIECE PLATFORM WITH 9” FIXED RAMP AND SINGLE CART STOP (MANUAL CLOSER)
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

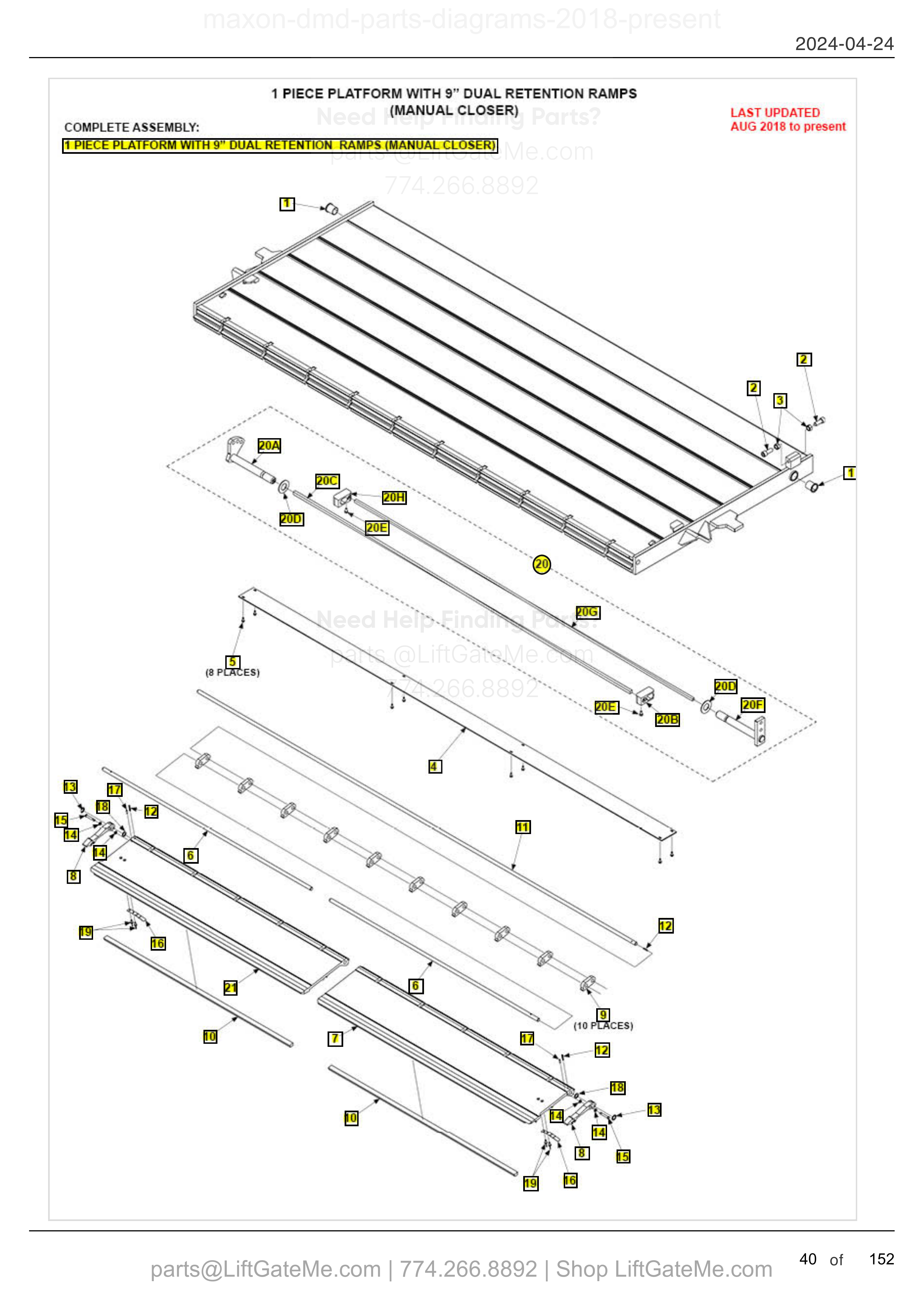

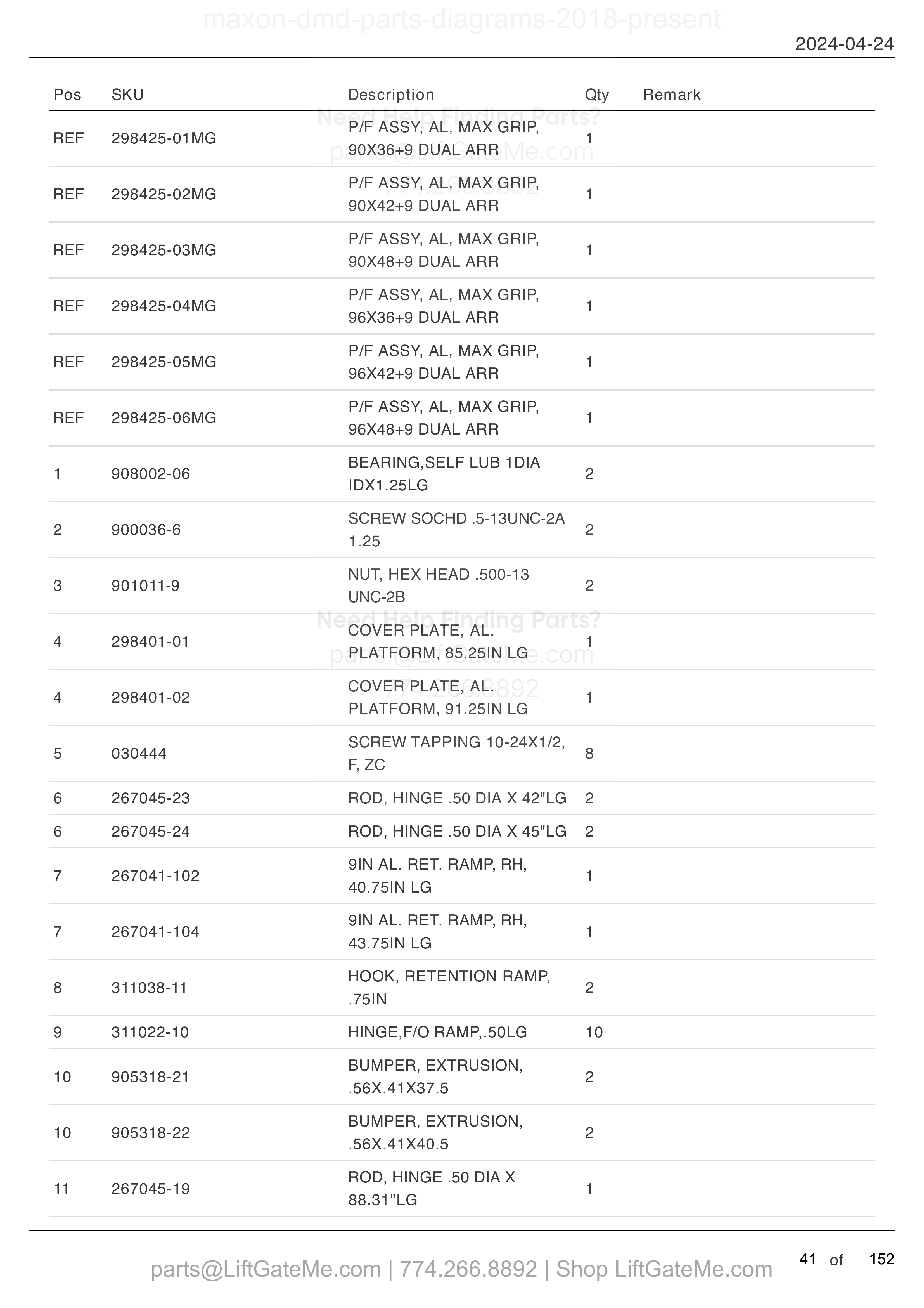

1 PIECE PLATFORM WITH 9” DUAL RETENTION RAMPS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298425-01MG | P/F ASSY, AL, MAX GRIP, 90X36+9 DUAL ARR | |
| REF | 1 | 298425-02MG | P/F ASSY, AL, MAX GRIP, 90X42+9 DUAL ARR | |
| REF | 1 | 298425-03MG | P/F ASSY, AL, MAX GRIP, 90X48+9 DUAL ARR | |
| REF | 1 | 298425-04MG | P/F ASSY, AL, MAX GRIP, 96X36+9 DUAL ARR | |
| REF | 1 | 298425-05MG | P/F ASSY, AL, MAX GRIP, 96X42+9 DUAL ARR | |
| REF | 1 | 298425-06MG | P/F ASSY, AL, MAX GRIP, 96X48+9 DUAL ARR | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 2 | 900036-6 | SCREW SOCHD .5-13UNC-2A 1.25 | |
| 3 | 2 | 901011-9 | NUT, HEX HEAD .500-13 UNC-2B | |
| 4 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 4 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 5 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 6 | 2 | 267045-23 | ROD, HINGE .50 DIA X 42"LG | |
| 6 | 2 | 267045-24 | ROD, HINGE .50 DIA X 45"LG | |
| 7 | 1 | 267041-102 | 9IN AL. RET. RAMP, RH, 40.75IN LG | |
| 7 | 1 | 267041-104 | 9IN AL. RET. RAMP, RH, 43.75IN LG | |
| 8 | 2 | 311038-11 | HOOK, RETENTION RAMP, .75IN | |
| 9 | 10 | 311022-10 | HINGE,F/O RAMP,.50LG | |
| 10 | 2 | 905318-21 | BUMPER, EXTRUSION, .56X.41X37.5 | |
| 10 | 2 | 905318-22 | BUMPER, EXTRUSION, .56X.41X40.5 | |
| 11 | 1 | 267045-19 | ROD, HINGE .50 DIA X 88.31"LG |

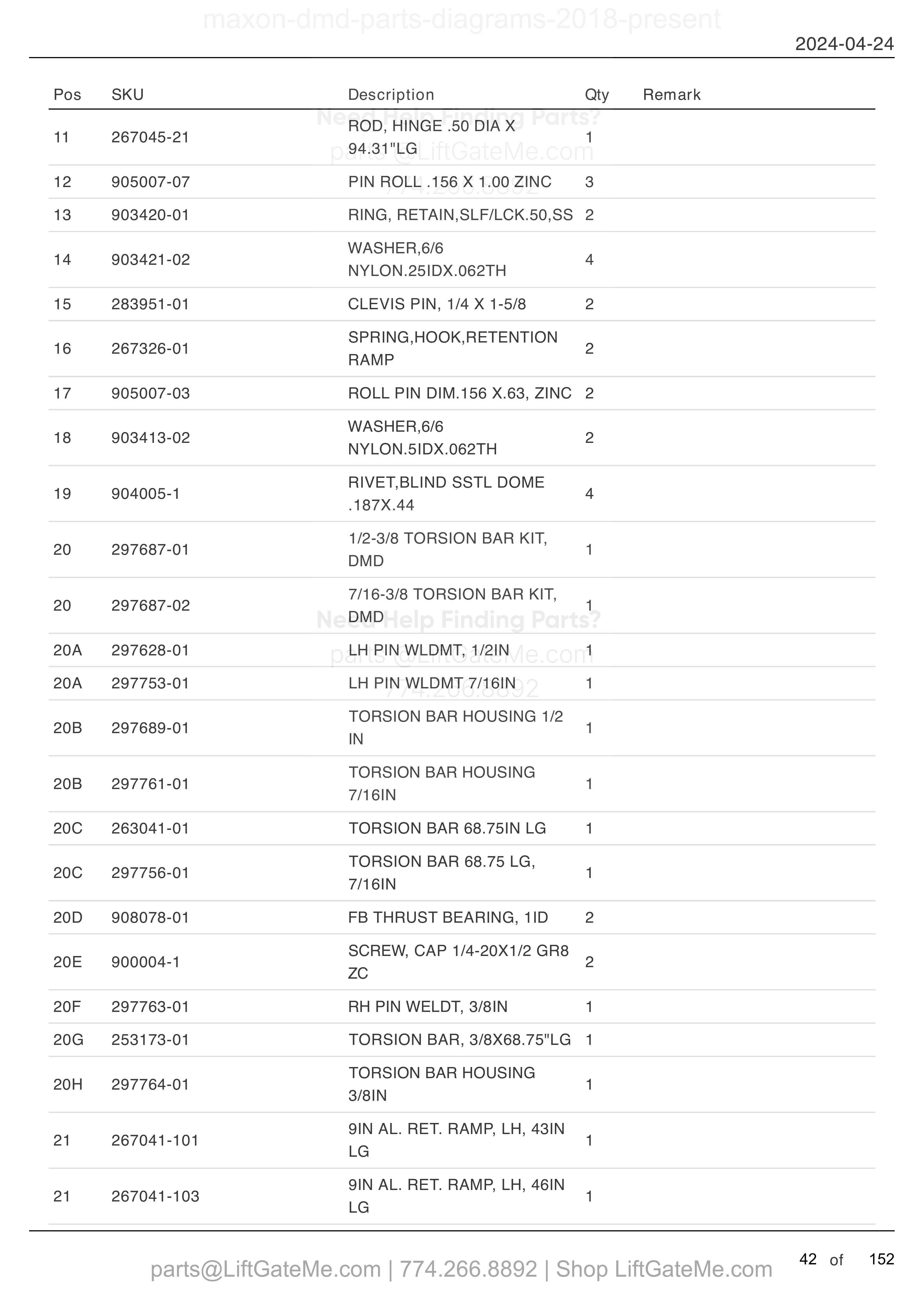

1 PIECE PLATFORM WITH 9” DUAL RETENTION RAMPS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 11 | 1 | 267045-21 | ROD, HINGE .50 DIA X 94.31"LG | |
| 12 | 3 | 905007-07 | PIN ROLL .156 X 1.00 ZINC | |
| 13 | 2 | 903420-01 | RING, RETAIN,SLF/LCK.50,SS | |
| 14 | 4 | 903421-02 | WASHER,6/6 NYLON.25IDX.062TH | |
| 15 | 2 | 283951-01 | CLEVIS PIN, 1/4 X 1-5/8 | |
| 16 | 2 | 267326-01 | SPRING,HOOK,RETENTION RAMP | |
| 17 | 2 | 905007-03 | ROLL PIN DIM.156 X.63, ZINC | |
| 18 | 2 | 903413-02 | WASHER,6/6 NYLON.5IDX.062TH | |
| 19 | 4 | 904005-1 | RIVET,BLIND SSTL DOME .187X.44 | |
| 20 | 1 | 297687-01 | 1/2-3/8 TORSION BAR KIT, DMD | |
| 20 | 1 | 297687-02 | 7/16-3/8 TORSION BAR KIT, DMD | |
| 20A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 20A | 1 | 297753-01 | LH PIN WLDMT 7/16IN | |
| 20B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 20B | 1 | 297761-01 | TORSION BAR HOUSING 7/16IN | |
| 20C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 20C | 1 | 297756-01 | TORSION BAR 68.75 LG, 7/16IN | |
| 20D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 20E | 2 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 20F | 1 | 297763-01 | RH PIN WELDT, 3/8IN | |
| 20G | 1 | 253173-01 | TORSION BAR, 3/8X68.75"LG | |
| 20H | 1 | 297764-01 | TORSION BAR HOUSING 3/8IN | |
| 21 | 1 | 267041-101 | 9IN AL. RET. RAMP, LH, 43IN LG | |
| 21 | 1 | 267041-103 | 9IN AL. RET. RAMP, LH, 46IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

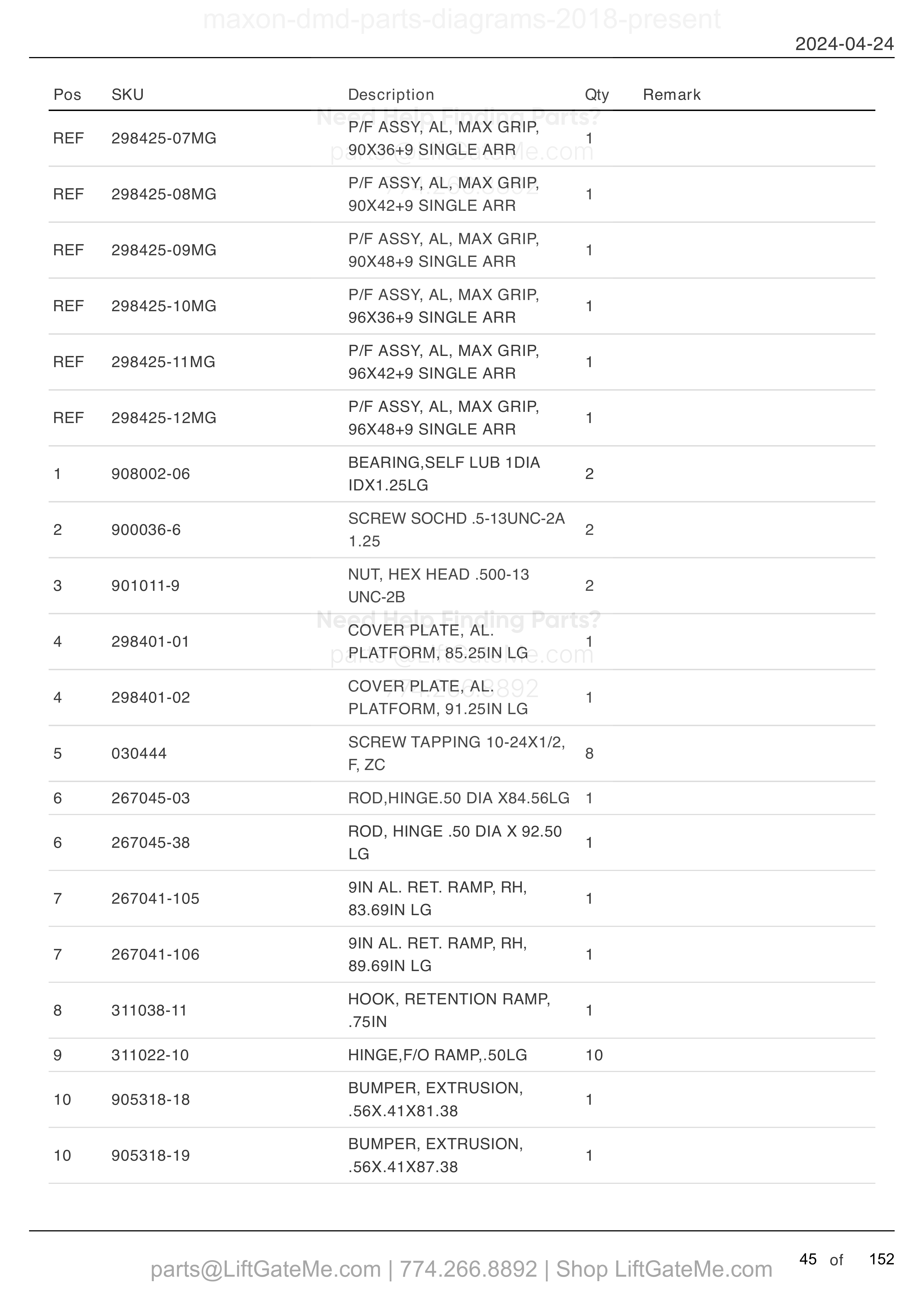

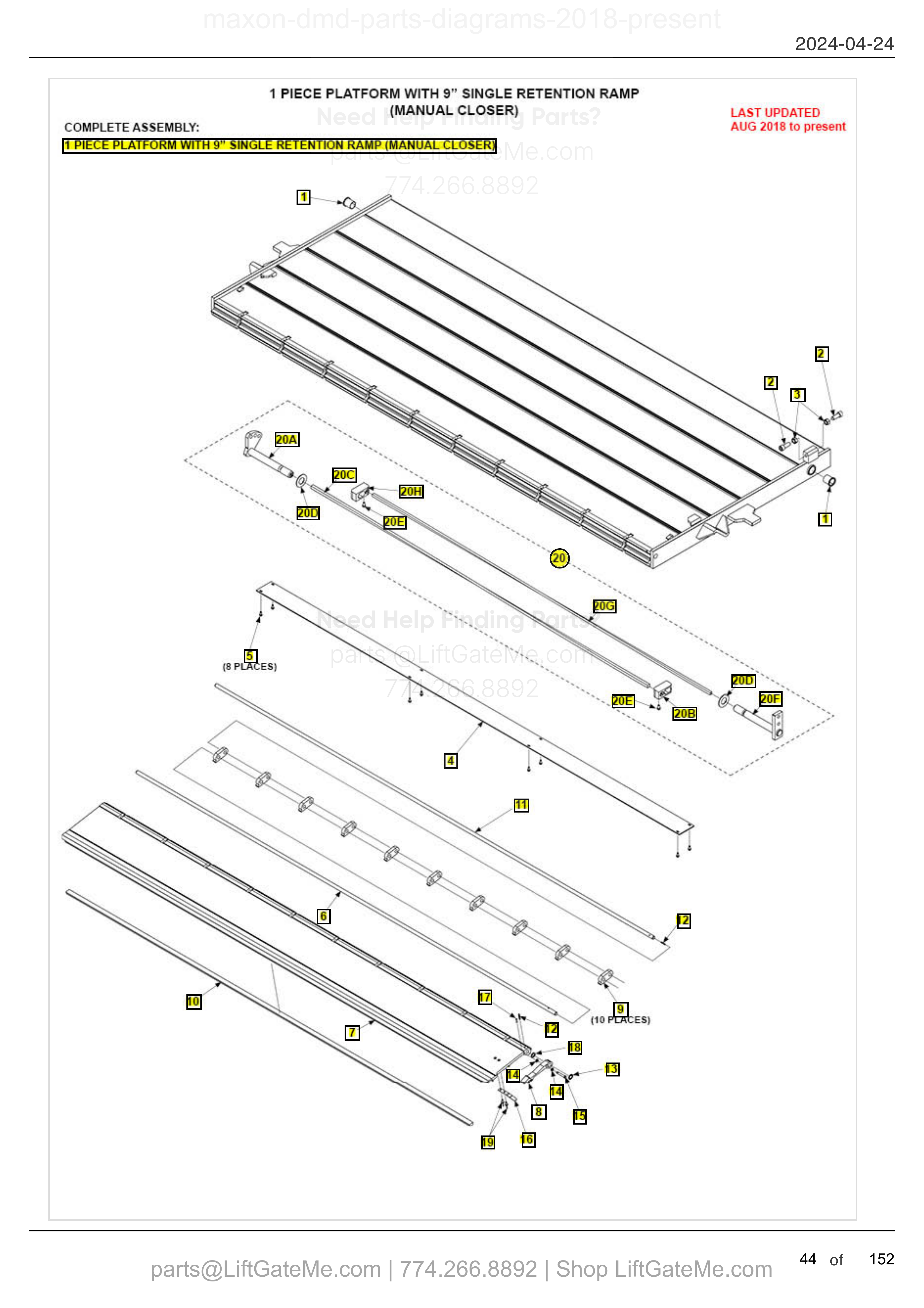

1 PIECE PLATFORM WITH 9” SINGLE RETENTION RAMP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298425-07MG | P/F ASSY, AL, MAX GRIP, 90X36+9 SINGLE ARR | |
| REF | 1 | 298425-08MG | P/F ASSY, AL, MAX GRIP, 90X42+9 SINGLE ARR | |
| REF | 1 | 298425-09MG | P/F ASSY, AL, MAX GRIP, 90X48+9 SINGLE ARR | |
| REF | 1 | 298425-10MG | P/F ASSY, AL, MAX GRIP, 96X36+9 SINGLE ARR | |
| REF | 1 | 298425-11MG | P/F ASSY, AL, MAX GRIP, 96X42+9 SINGLE ARR | |
| REF | 1 | 298425-12MG | P/F ASSY, AL, MAX GRIP, 96X48+9 SINGLE ARR | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 2 | 900036-6 | SCREW SOCHD .5-13UNC-2A 1.25 | |
| 3 | 2 | 901011-9 | NUT, HEX HEAD .500-13 UNC-2B | |
| 4 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 4 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 5 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 6 | 1 | 267045-03 | ROD,HINGE.50 DIA X84.56LG | |
| 6 | 1 | 267045-38 | ROD, HINGE .50 DIA X 92.50 LG | |
| 7 | 1 | 267041-105 | 9IN AL. RET. RAMP, RH, 83.69IN LG | |
| 7 | 1 | 267041-106 | 9IN AL. RET. RAMP, RH, 89.69IN LG | |
| 8 | 1 | 311038-11 | HOOK, RETENTION RAMP, .75IN | |
| 9 | 10 | 311022-10 | HINGE,F/O RAMP,.50LG | |
| 10 | 1 | 905318-18 | BUMPER, EXTRUSION, .56X.41X81.38 | |
| 10 | 1 | 905318-19 | BUMPER, EXTRUSION, .56X.41X87.38 |

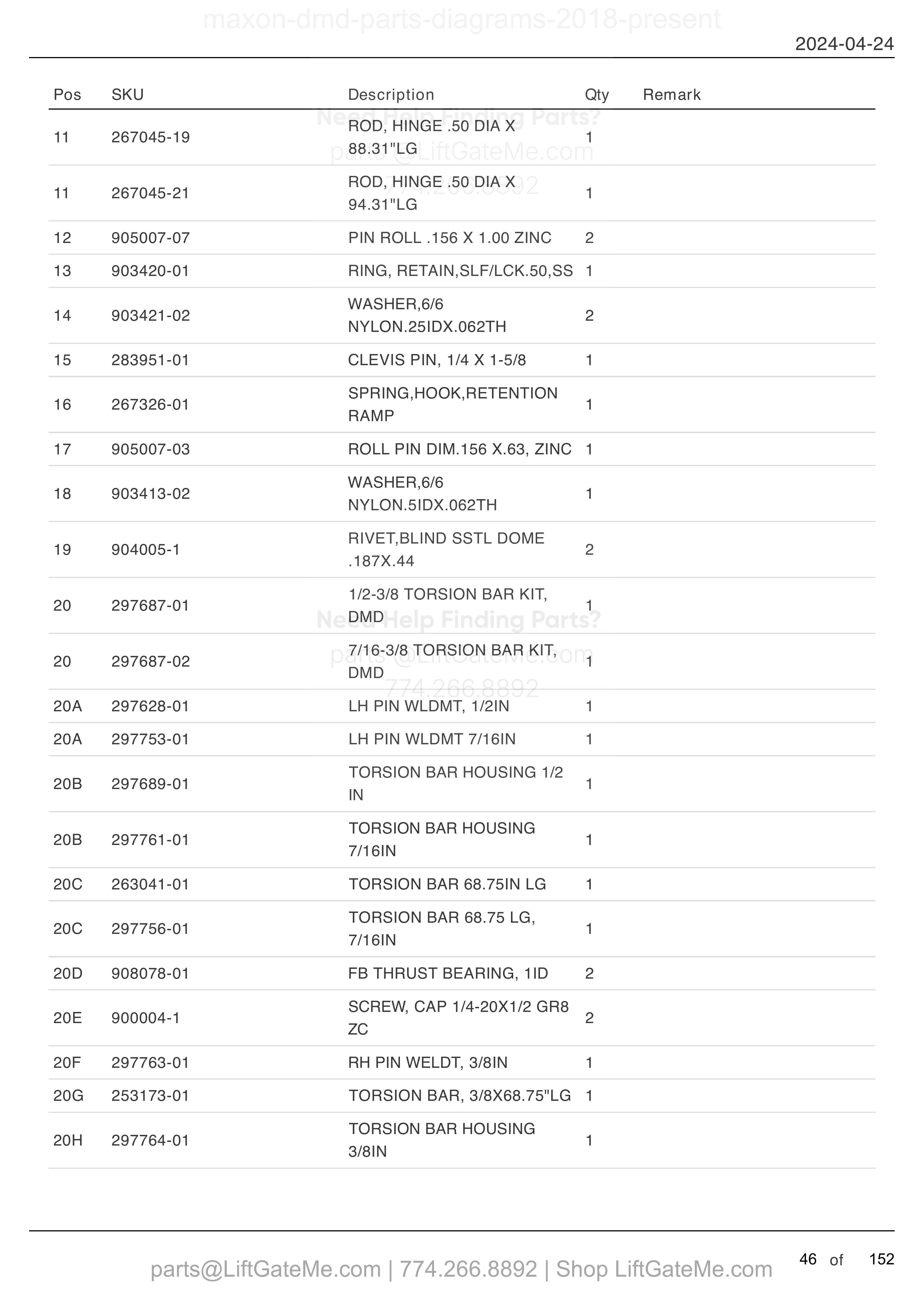

1 PIECE PLATFORM WITH 9” SINGLE RETENTION RAMP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 11 | 1 | 267045-19 | ROD, HINGE .50 DIA X 88.31"LG | |
| 11 | 1 | 267045-21 | ROD, HINGE .50 DIA X 94.31"LG | |
| 12 | 2 | 905007-07 | PIN ROLL .156 X 1.00 ZINC | |
| 13 | 1 | 903420-01 | RING, RETAIN,SLF/LCK.50,SS | |
| 14 | 2 | 903421-02 | WASHER,6/6 NYLON.25IDX.062TH | |
| 15 | 1 | 283951-01 | CLEVIS PIN, 1/4 X 1-5/8 | |
| 16 | 1 | 267326-01 | SPRING,HOOK,RETENTION RAMP | |
| 17 | 1 | 905007-03 | ROLL PIN DIM.156 X.63, ZINC | |
| 18 | 1 | 903413-02 | WASHER,6/6 NYLON.5IDX.062TH | |
| 19 | 2 | 904005-1 | RIVET,BLIND SSTL DOME .187X.44 | |
| 20 | 1 | 297687-01 | 1/2-3/8 TORSION BAR KIT, DMD | |
| 20 | 1 | 297687-02 | 7/16-3/8 TORSION BAR KIT, DMD | |
| 20A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 20A | 1 | 297753-01 | LH PIN WLDMT 7/16IN | |
| 20B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 20B | 1 | 297761-01 | TORSION BAR HOUSING 7/16IN | |
| 20C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 20C | 1 | 297756-01 | TORSION BAR 68.75 LG, 7/16IN | |
| 20D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 20E | 2 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 20F | 1 | 297763-01 | RH PIN WELDT, 3/8IN | |
| 20G | 1 | 253173-01 | TORSION BAR, 3/8X68.75"LG | |
| 20H | 1 | 297764-01 | TORSION BAR HOUSING 3/8IN |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

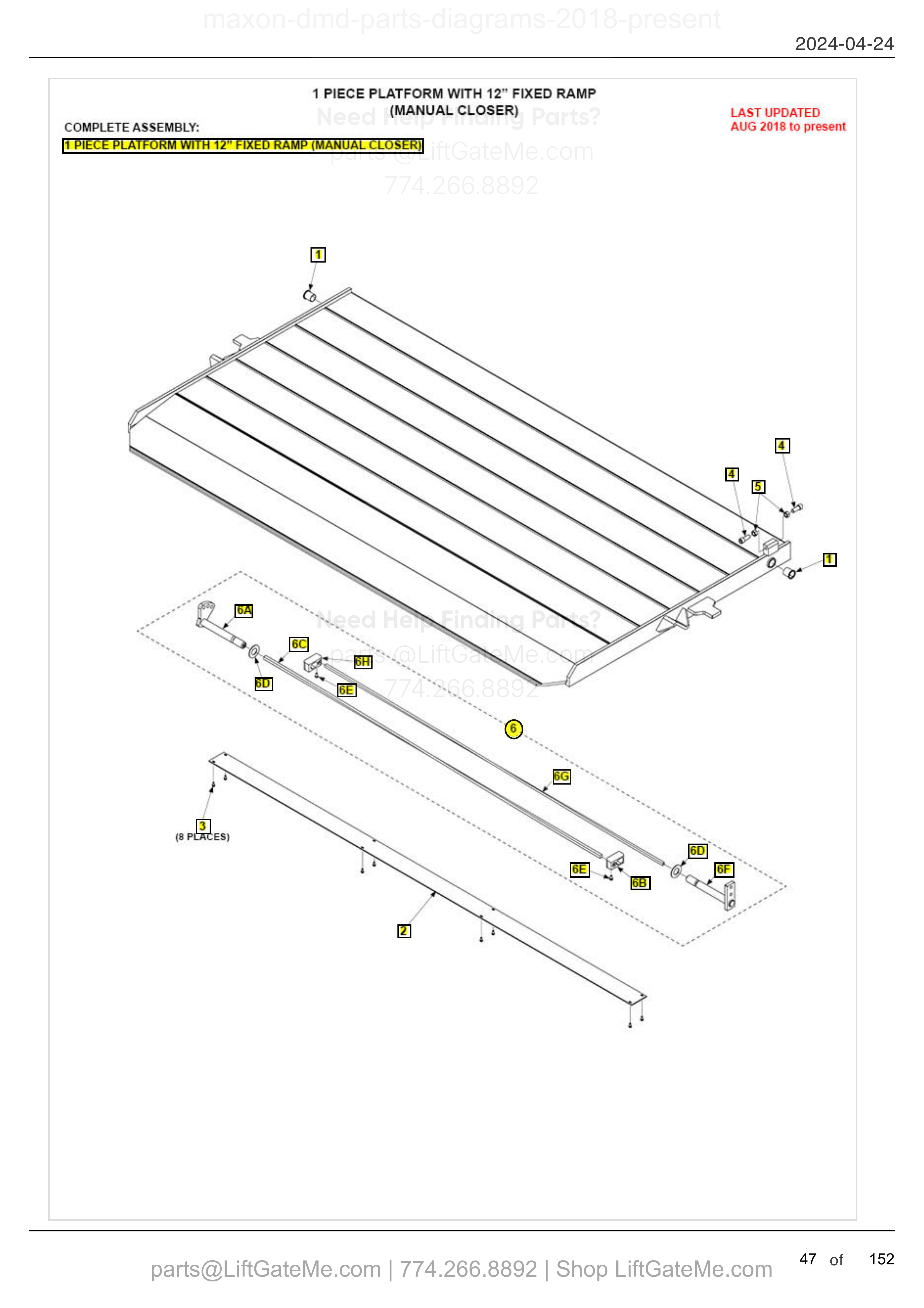

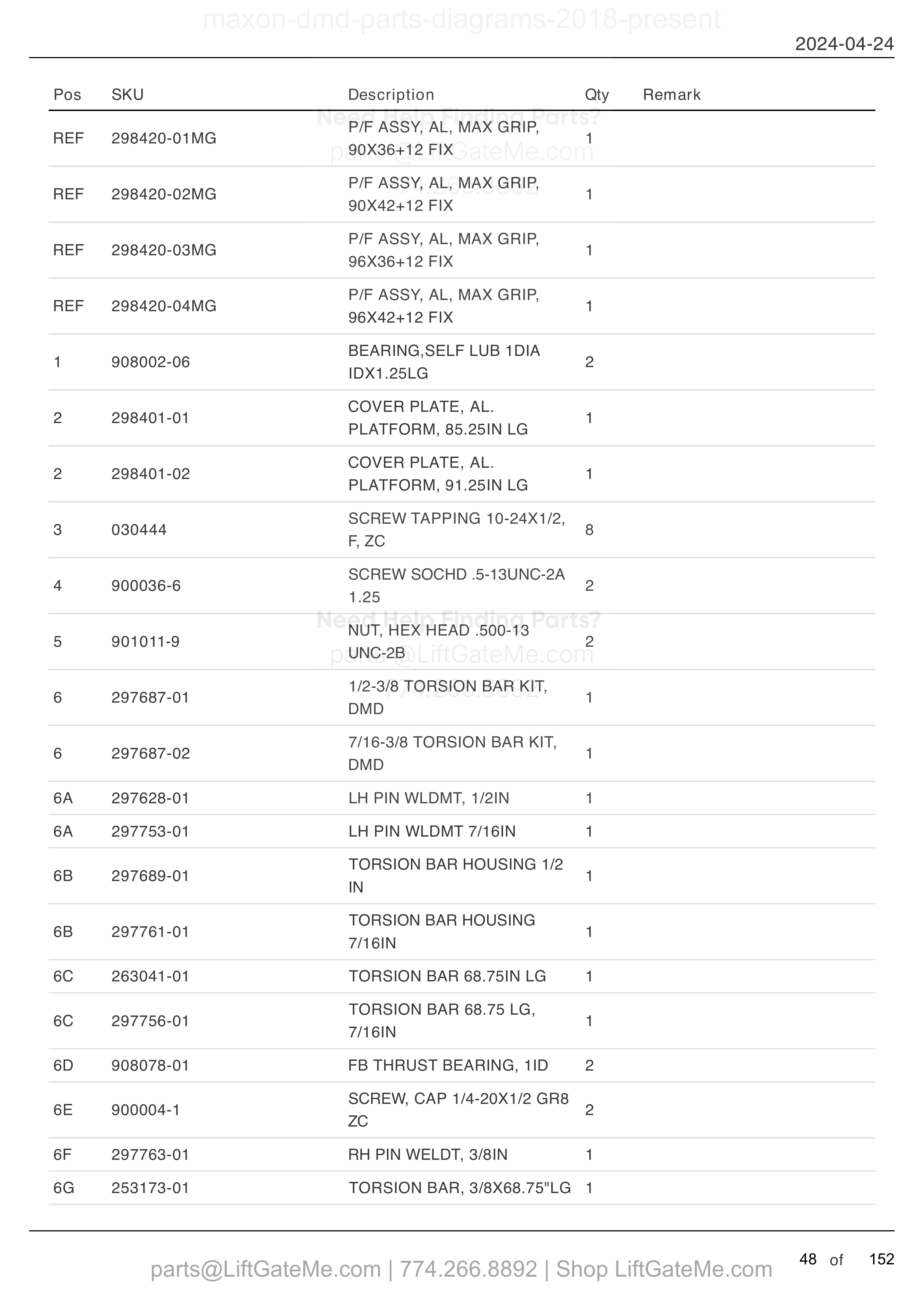

1 PIECE PLATFORM WITH 12” FIXED RAMP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298420-01MG | P/F ASSY, AL, MAX GRIP, 90X36+12 FIX | |
| REF | 1 | 298420-02MG | P/F ASSY, AL, MAX GRIP, 90X42+12 FIX | |
| REF | 1 | 298420-03MG | P/F ASSY, AL, MAX GRIP, 96X36+12 FIX | |
| REF | 1 | 298420-04MG | P/F ASSY, AL, MAX GRIP, 96X42+12 FIX | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 2 | 900036-6 | SCREW SOCHD .5-13UNC-2A 1.25 | |
| 5 | 2 | 901011-9 | NUT, HEX HEAD .500-13 UNC-2B | |
| 6 | 1 | 297687-01 | 1/2-3/8 TORSION BAR KIT, DMD | |
| 6 | 1 | 297687-02 | 7/16-3/8 TORSION BAR KIT, DMD | |
| 6A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 6A | 1 | 297753-01 | LH PIN WLDMT 7/16IN | |
| 6B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 6B | 1 | 297761-01 | TORSION BAR HOUSING 7/16IN | |
| 6C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 6C | 1 | 297756-01 | TORSION BAR 68.75 LG, 7/16IN | |
| 6D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 6E | 2 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 6F | 1 | 297763-01 | RH PIN WELDT, 3/8IN | |
| 6G | 1 | 253173-01 | TORSION BAR, 3/8X68.75"LG |

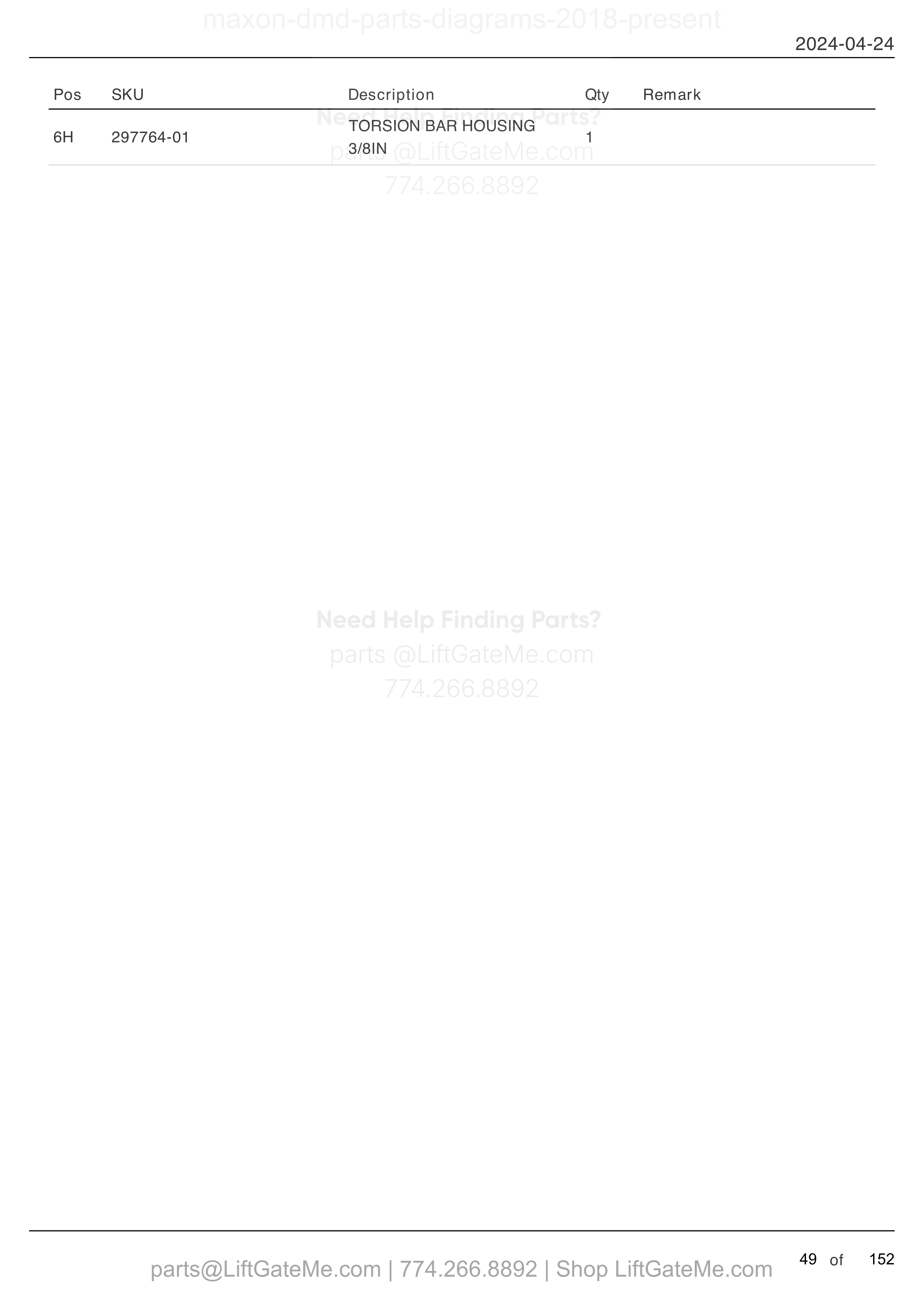

1 PIECE PLATFORM WITH 12” FIXED RAMP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 6H | 1 | 297764-01 | TORSION BAR HOUSING 3/8IN |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

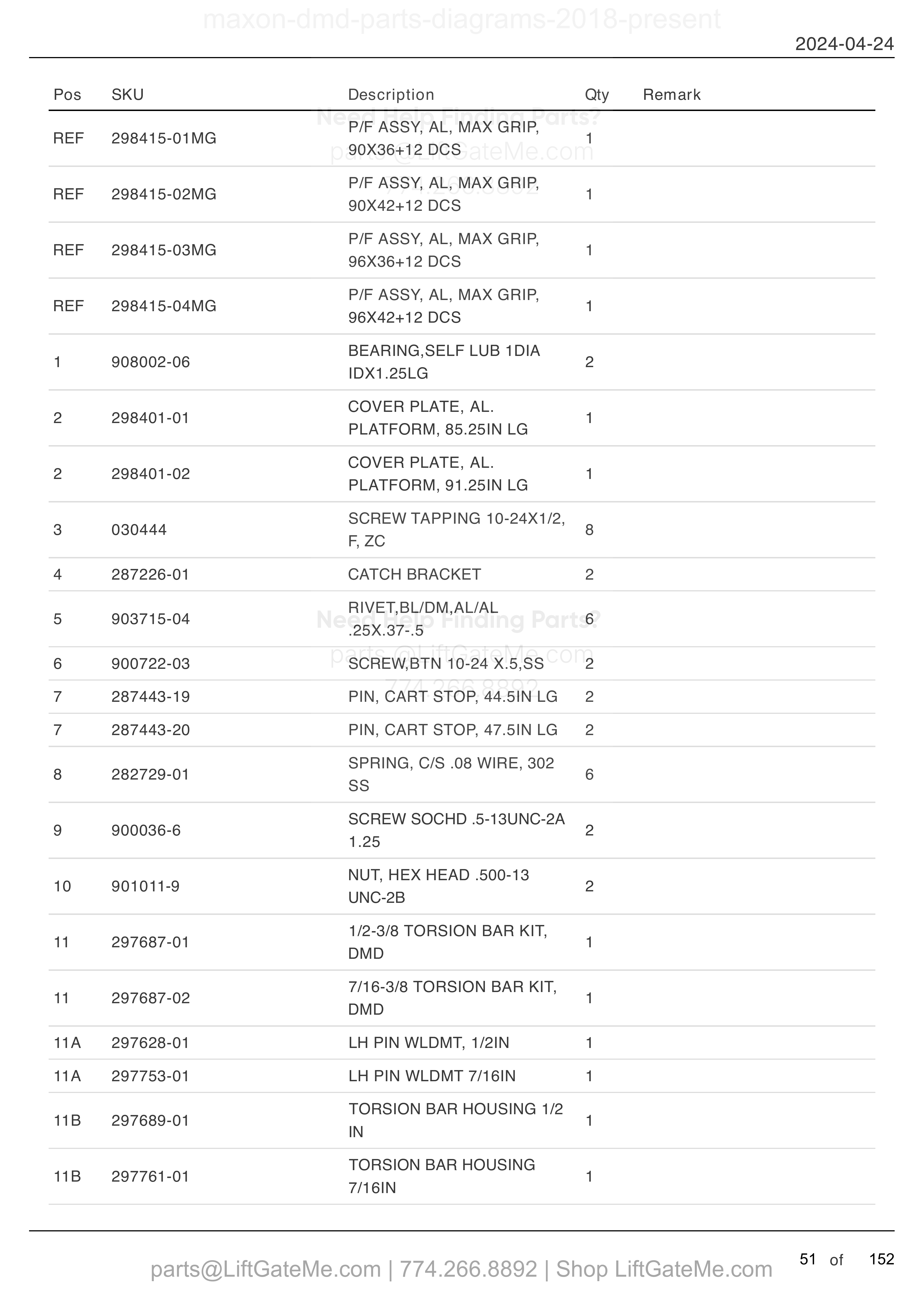

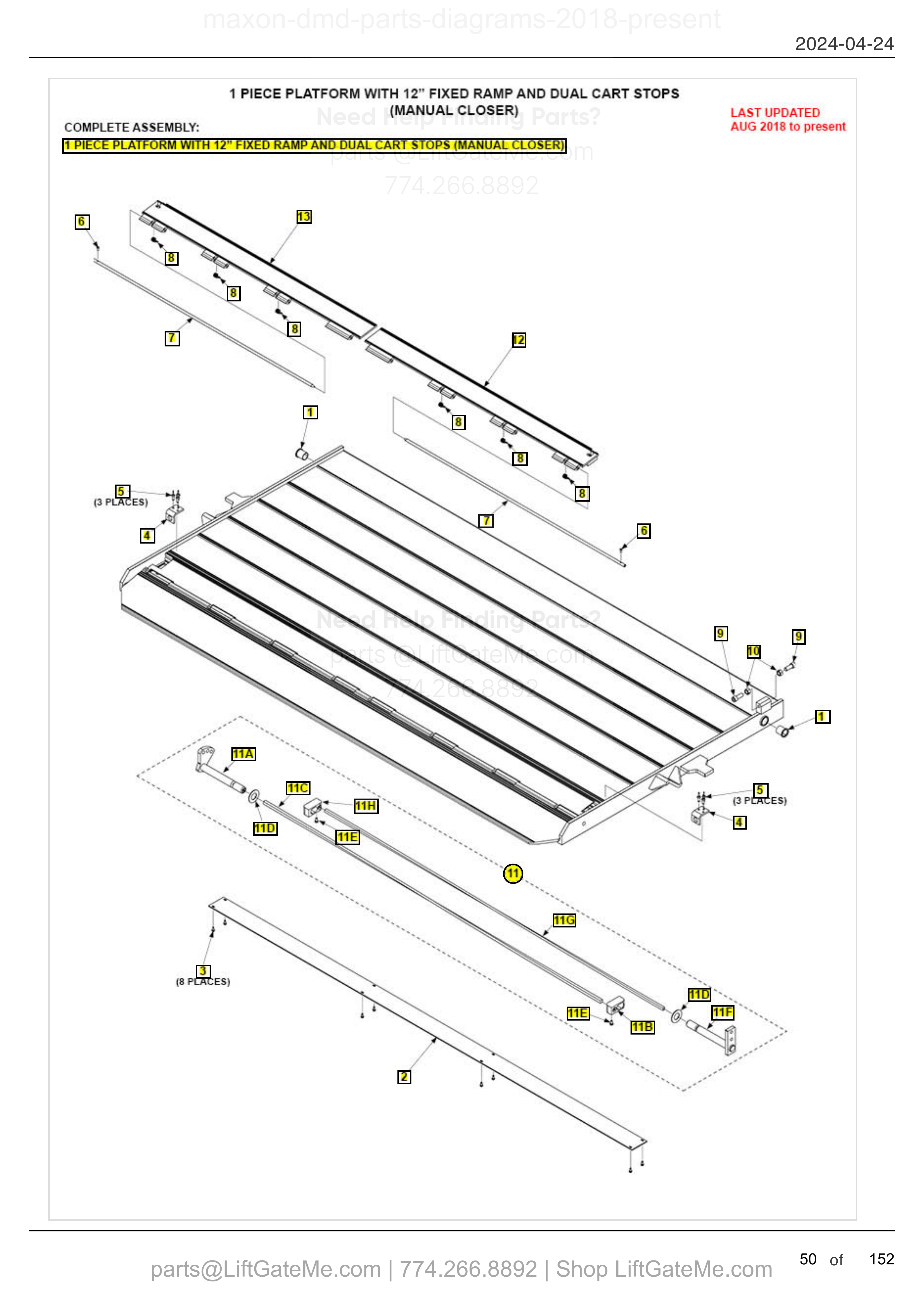

1 PIECE PLATFORM WITH 12” FIXED RAMP AND DUAL CART STOPS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298415-01MG | P/F ASSY, AL, MAX GRIP, 90X36+12 DCS | |
| REF | 1 | 298415-02MG | P/F ASSY, AL, MAX GRIP, 90X42+12 DCS | |
| REF | 1 | 298415-03MG | P/F ASSY, AL, MAX GRIP, 96X36+12 DCS | |
| REF | 1 | 298415-04MG | P/F ASSY, AL, MAX GRIP, 96X42+12 DCS | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 2 | 287226-01 | CATCH BRACKET | |
| 5 | 6 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 6 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 7 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 7 | 2 | 287443-20 | PIN, CART STOP, 47.5IN LG | |
| 8 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 9 | 2 | 900036-6 | SCREW SOCHD .5-13UNC-2A 1.25 | |
| 10 | 2 | 901011-9 | NUT, HEX HEAD .500-13 UNC-2B | |
| 11 | 1 | 297687-01 | 1/2-3/8 TORSION BAR KIT, DMD | |
| 11 | 1 | 297687-02 | 7/16-3/8 TORSION BAR KIT, DMD | |
| 11A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 11A | 1 | 297753-01 | LH PIN WLDMT 7/16IN | |
| 11B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 11B | 1 | 297761-01 | TORSION BAR HOUSING 7/16IN |

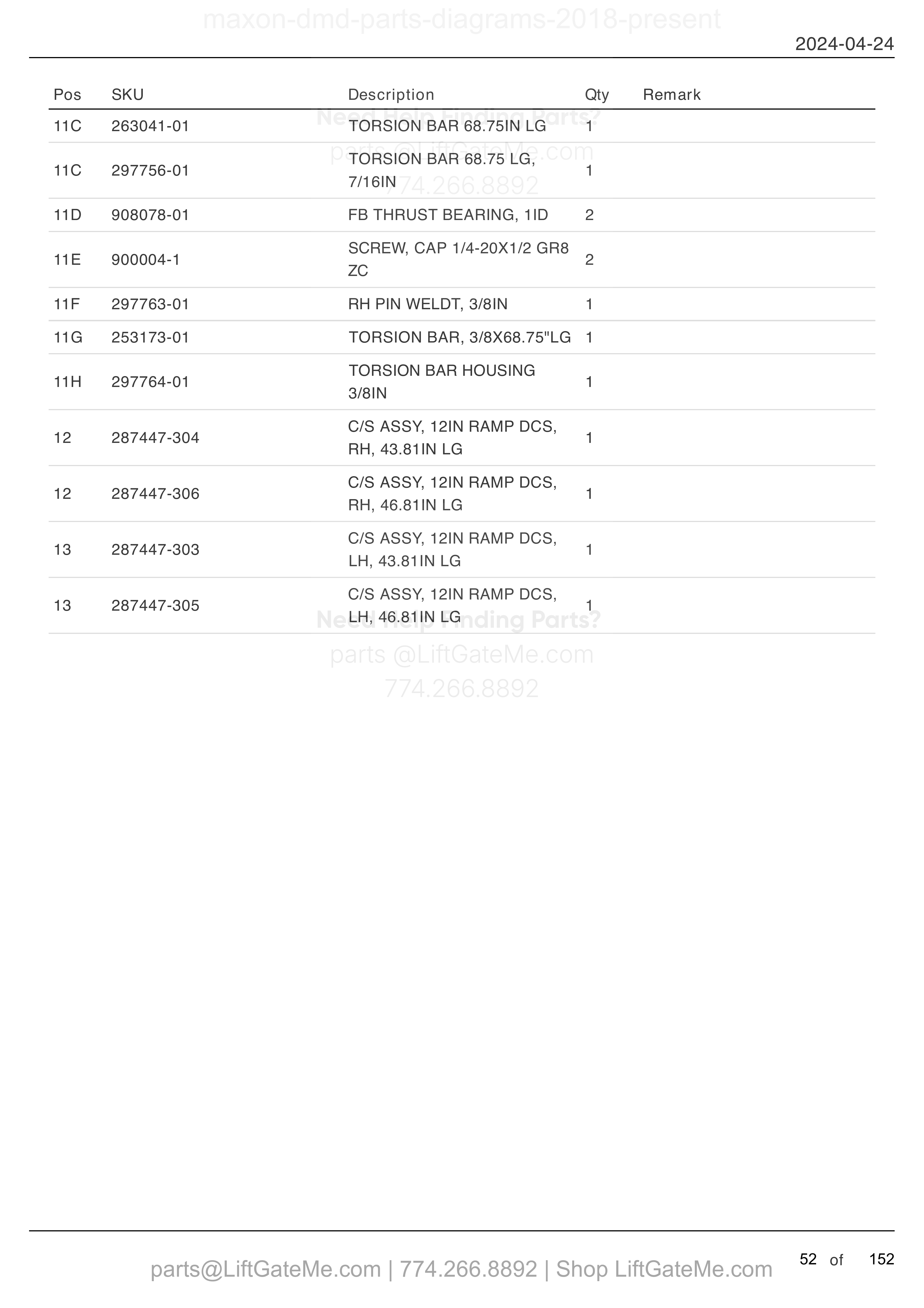

1 PIECE PLATFORM WITH 12” FIXED RAMP AND DUAL CART STOPS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 11C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 11C | 1 | 297756-01 | TORSION BAR 68.75 LG, 7/16IN | |
| 11D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 11E | 2 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 11F | 1 | 297763-01 | RH PIN WELDT, 3/8IN | |
| 11G | 1 | 253173-01 | TORSION BAR, 3/8X68.75"LG | |
| 11H | 1 | 297764-01 | TORSION BAR HOUSING 3/8IN | |
| 12 | 1 | 287447-304 | C/S ASSY, 12IN RAMP DCS, RH, 43.81IN LG | |
| 12 | 1 | 287447-306 | C/S ASSY, 12IN RAMP DCS, RH, 46.81IN LG | |
| 13 | 1 | 287447-303 | C/S ASSY, 12IN RAMP DCS, LH, 43.81IN LG | |
| 13 | 1 | 287447-305 | C/S ASSY, 12IN RAMP DCS, LH, 46.81IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

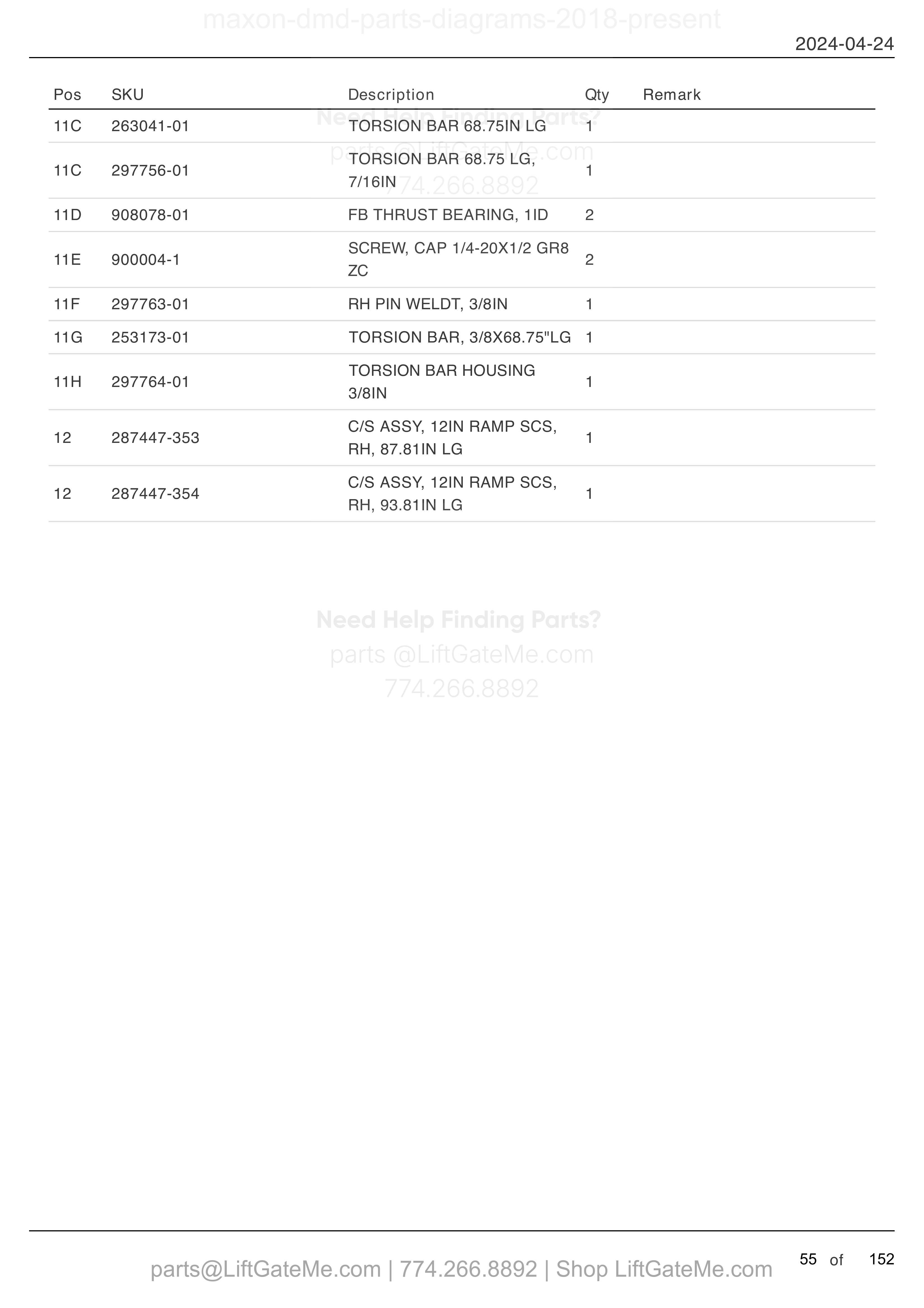

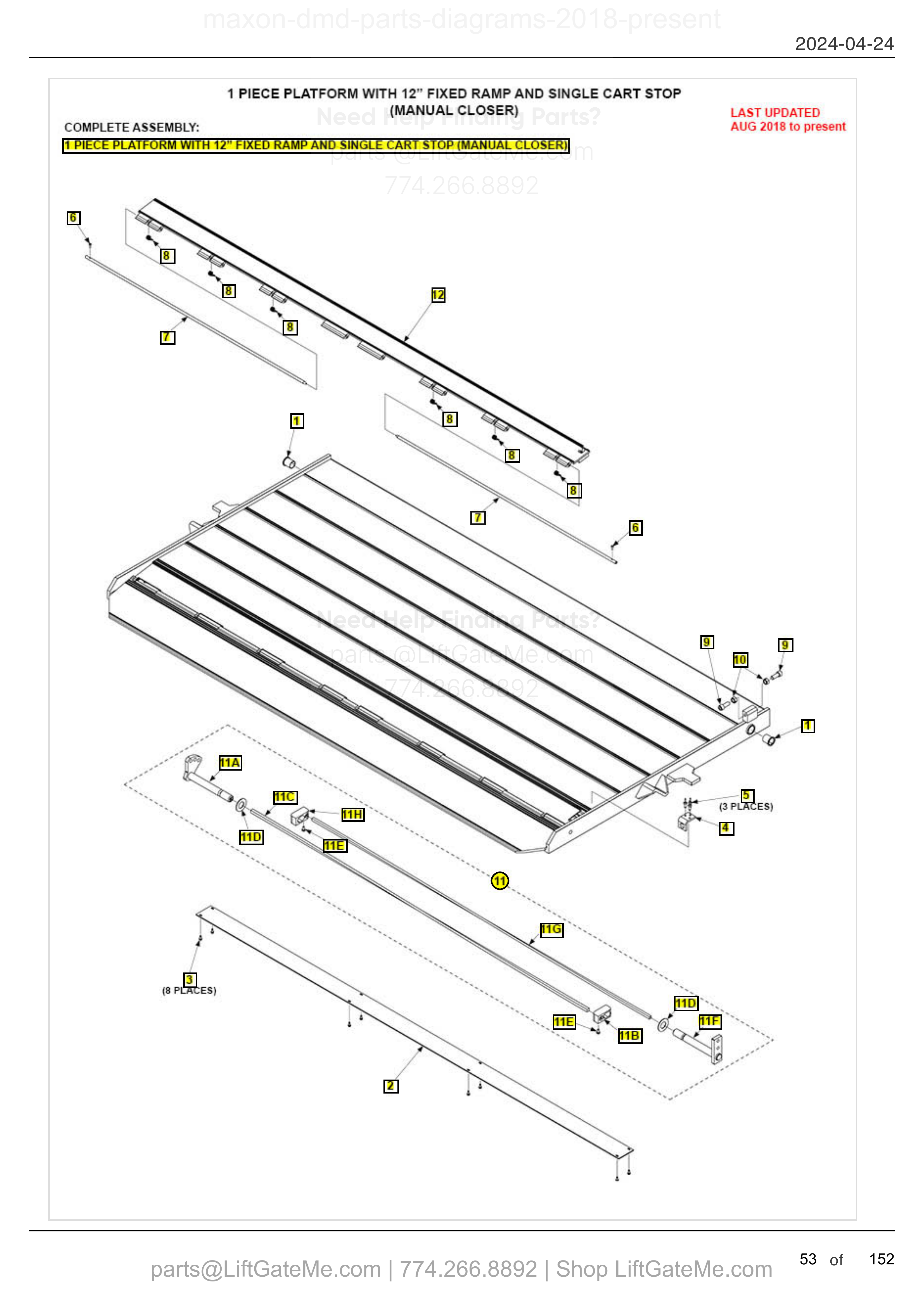

1 PIECE PLATFORM WITH 12" FIXED RAMP AND SINGLE CART STOP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298415-05MG | P/F ASSY, AL, MAX GRIP, 90X36+12 SCS | |
| REF | 1 | 298415-06MG | P/F ASSY, AL, MAX GRIP, 90X42+12 DCS | |
| REF | 1 | 298415-07MG | P/F ASSY, AL, MAX GRIP, 96X36+12 SCS | |
| REF | 1 | 298415-08MG | P/F ASSY, AL, MAX GRIP, 96X42+12 SCS | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 1 | 287226-01 | CATCH BRACKET | |
| 5 | 3 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 6 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 7 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 7 | 2 | 287443-20 | PIN, CART STOP, 47.5IN LG | |
| 8 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 9 | 2 | 900036-6 | SCREW SOCHD .5-13UNC-2A 1.25 | |
| 10 | 2 | 901011-9 | NUT, HEX HEAD .500-13 UNC-2B | |
| 11 | 1 | 297687-01 | 1/2-3/8 TORSION BAR KIT, DMD | |
| 11 | 1 | 297687-02 | 7/16-3/8 TORSION BAR KIT, DMD | |
| 11A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 11A | 1 | 297753-01 | LH PIN WLDMT 7/16IN | |
| 11B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 11B | 1 | 297761-01 | TORSION BAR HOUSING 7/16IN |
1 PIECE PLATFORM WITH 12" FIXED RAMP AND SINGLE CART STOP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 11C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 11C | 1 | 297756-01 | TORSION BAR 68.75 LG, 7/16IN | |
| 11D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 11E | 2 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 11F | 1 | 297763-01 | RH PIN WELDT, 3/8IN | |
| 11G | 1 | 253173-01 | TORSION BAR, 3/8X68.75"LG | |
| 11H | 1 | 297764-01 | TORSION BAR HOUSING 3/8IN | |
| 12 | 1 | 287447-353 | C/S ASSY, 12IN RAMP SCS, RH, 87.81IN LG | |
| 12 | 1 | 287447-354 | C/S ASSY, 12IN RAMP SCS, RH, 93.81IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

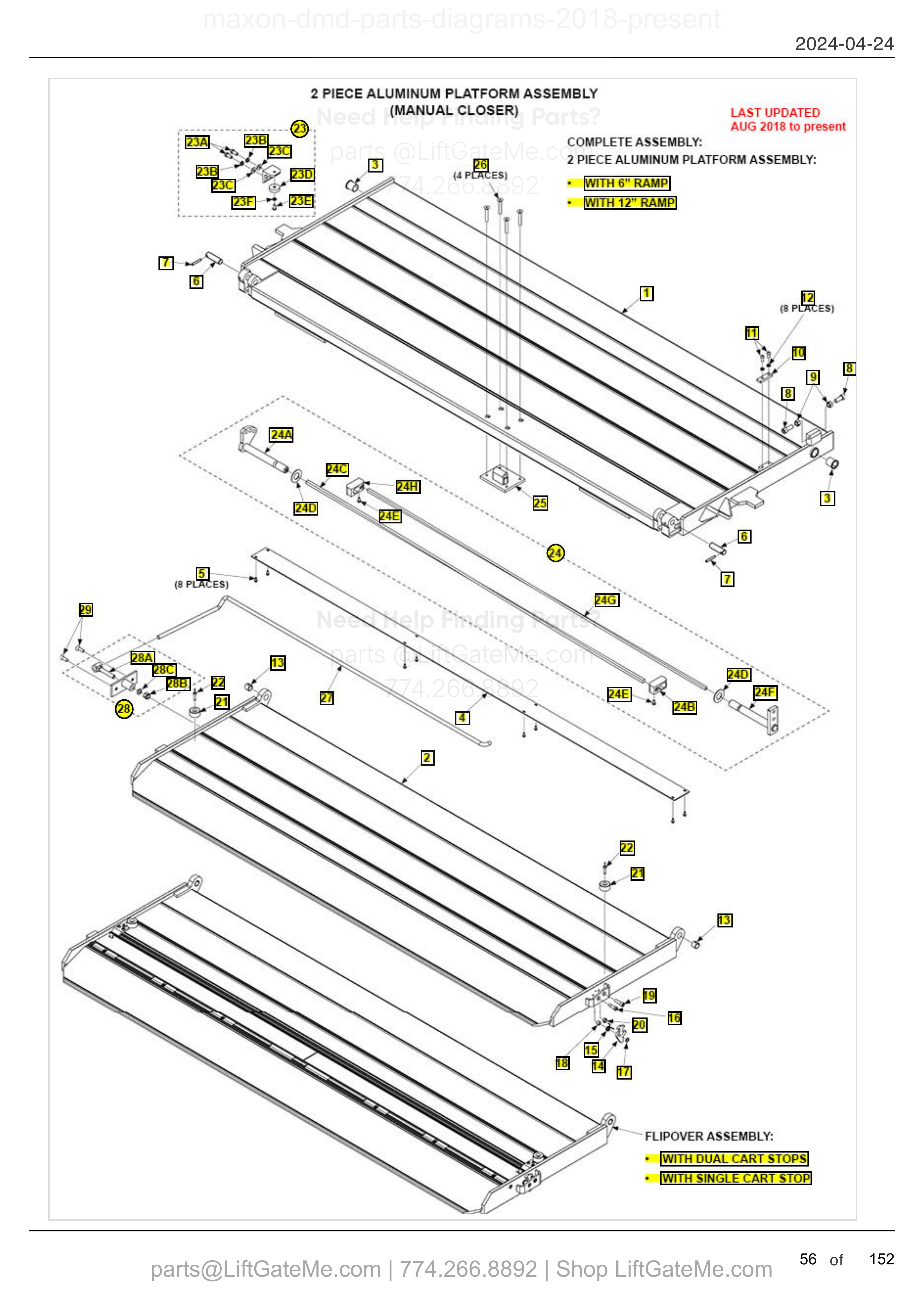

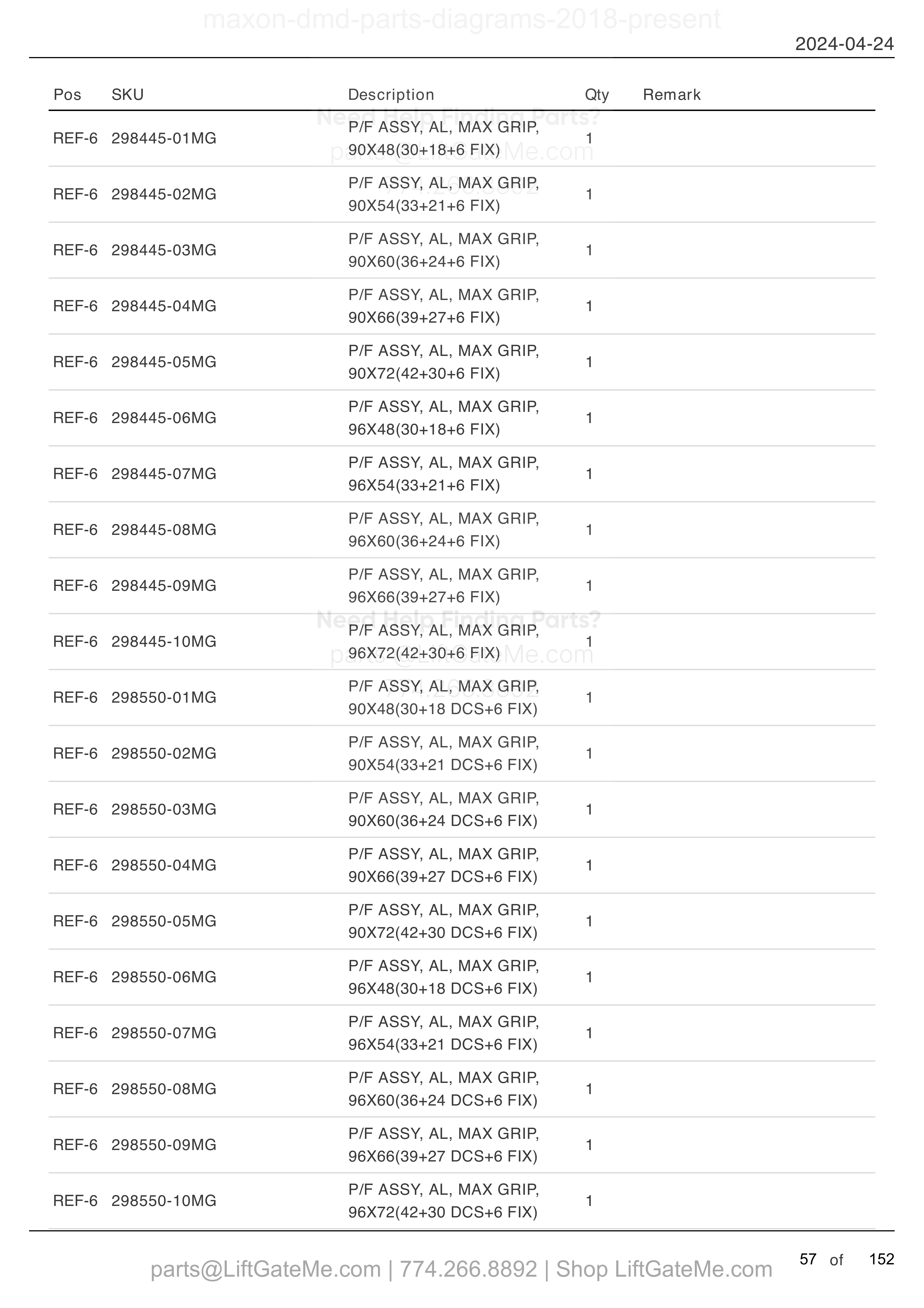

2 PIECE ALUMINUM PLATFORM ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF-6 | 1 | 298445-01MG | P/F ASSY, AL, MAX GRIP, 90X48(30+18+6 FIX) | |
| REF-6 | 1 | 298445-02MG | P/F ASSY, AL, MAX GRIP, 90X54(33+21+6 FIX) | |
| REF-6 | 1 | 298445-03MG | P/F ASSY, AL, MAX GRIP, 90X60(36+24+6 FIX) | |
| REF-6 | 1 | 298445-04MG | P/F ASSY, AL, MAX GRIP, 90X66(39+27+6 FIX) | |
| REF-6 | 1 | 298445-05MG | P/F ASSY, AL, MAX GRIP, 90X72(42+30+6 FIX) | |
| REF-6 | 1 | 298445-06MG | P/F ASSY, AL, MAX GRIP, 96X48(30+18+6 FIX) | |
| REF-6 | 1 | 298445-07MG | P/F ASSY, AL, MAX GRIP, 96X54(33+21+6 FIX) | |
| REF-6 | 1 | 298445-08MG | P/F ASSY, AL, MAX GRIP, 96X60(36+24+6 FIX) | |
| REF-6 | 1 | 298445-09MG | P/F ASSY, AL, MAX GRIP, 96X66(39+27+6 FIX) | |
| REF-6 | 1 | 298445-10MG | P/F ASSY, AL, MAX GRIP, 96X72(42+30+6 FIX) | |
| REF-6 | 1 | 298550-01MG | P/F ASSY, AL, MAX GRIP, 90X48(30+18 DCS+6 FIX) | |
| REF-6 | 1 | 298550-02MG | P/F ASSY, AL, MAX GRIP, 90X54(33+21 DCS+6 FIX) | |
| REF-6 | 1 | 298550-03MG | P/F ASSY, AL, MAX GRIP, 90X60(36+24 DCS+6 FIX) | |
| REF-6 | 1 | 298550-04MG | P/F ASSY, AL, MAX GRIP, 90X66(39+27 DCS+6 FIX) | |
| REF-6 | 1 | 298550-05MG | P/F ASSY, AL, MAX GRIP, 90X72(42+30 DCS+6 FIX) | |
| REF-6 | 1 | 298550-06MG | P/F ASSY, AL, MAX GRIP, 96X48(30+18 DCS+6 FIX) | |
| REF-6 | 1 | 298550-07MG | P/F ASSY, AL, MAX GRIP, 96X54(33+21 DCS+6 FIX) | |
| REF-6 | 1 | 298550-08MG | P/F ASSY, AL, MAX GRIP, 96X60(36+24 DCS+6 FIX) | |
| REF-6 | 1 | 298550-09MG | P/F ASSY, AL, MAX GRIP, 96X66(39+27 DCS+6 FIX) | |
| REF-6 | 1 | 298550-10MG | P/F ASSY, AL, MAX GRIP, 96X72(42+30 DCS+6 FIX) |

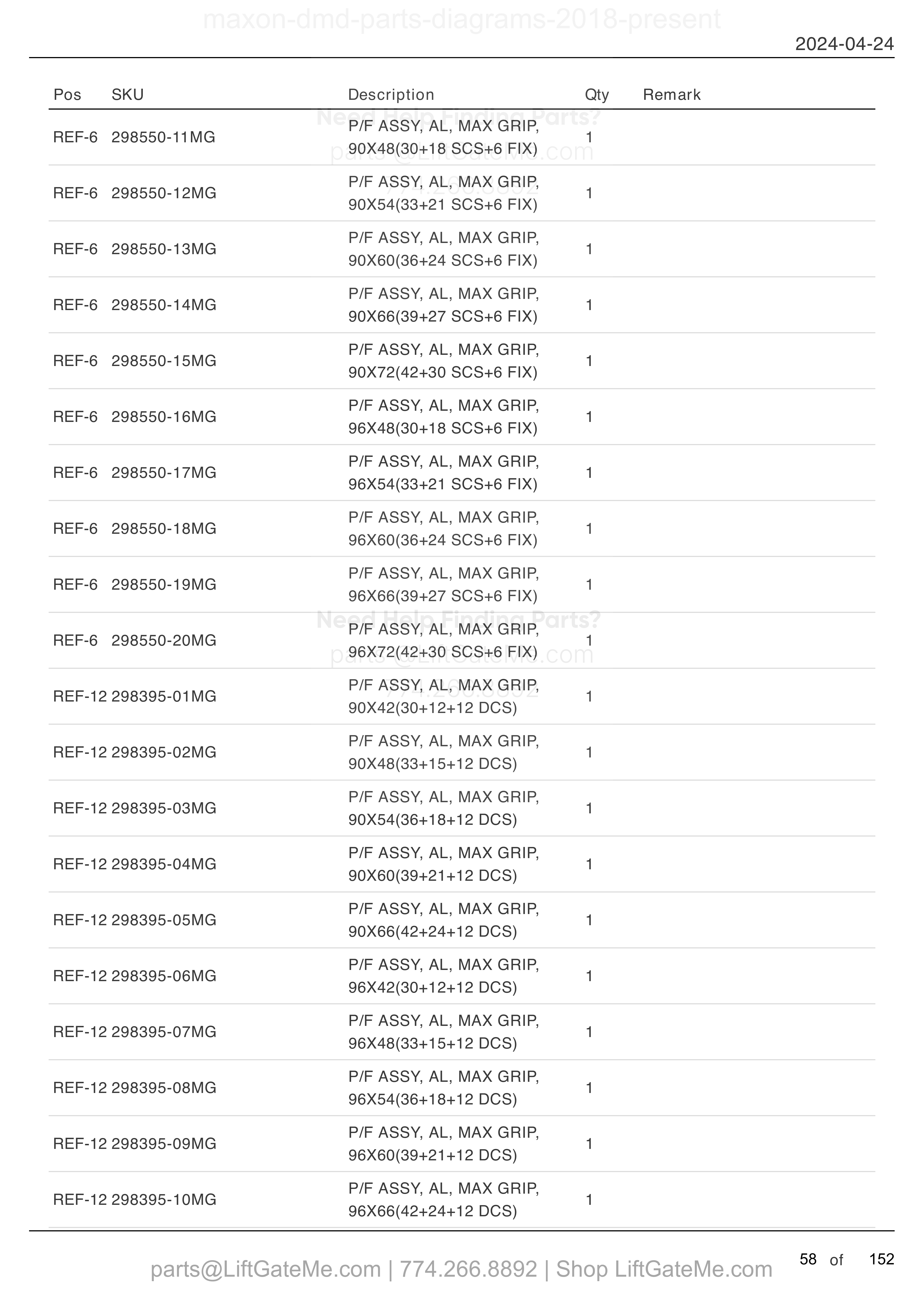

2 PIECE ALUMINUM PLATFORM ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF-6 | 1 | 298550-11MG | P/F ASSY, AL, MAX GRIP, 90X48(30+18 SCS+6 FIX) | |
| REF-6 | 1 | 298550-12MG | P/F ASSY, AL, MAX GRIP, 90X54(33+21 SCS+6 FIX) | |
| REF-6 | 1 | 298550-13MG | P/F ASSY, AL, MAX GRIP, 90X60(36+24 SCS+6 FIX) | |
| REF-6 | 1 | 298550-14MG | P/F ASSY, AL, MAX GRIP, 90X66(39+27 SCS+6 FIX) | |
| REF-6 | 1 | 298550-15MG | P/F ASSY, AL, MAX GRIP, 90X72(42+30 SCS+6 FIX) | |
| REF-6 | 1 | 298550-16MG | P/F ASSY, AL, MAX GRIP, 96X48(30+18 SCS+6 FIX) | |
| REF-6 | 1 | 298550-17MG | P/F ASSY, AL, MAX GRIP, 96X54(33+21 SCS+6 FIX) | |
| REF-6 | 1 | 298550-18MG | P/F ASSY, AL, MAX GRIP, 96X60(36+24 SCS+6 FIX) | |
| REF-6 | 1 | 298550-19MG | P/F ASSY, AL, MAX GRIP, 96X66(39+27 SCS+6 FIX) | |
| REF-6 | 1 | 298550-20MG | P/F ASSY, AL, MAX GRIP, 96X72(42+30 SCS+6 FIX) | |
| REF-12 | 1 | 298395-01MG | P/F ASSY, AL, MAX GRIP, 90X42(30+12+12 DCS) | |
| REF-12 | 1 | 298395-02MG | P/F ASSY, AL, MAX GRIP, 90X48(33+15+12 DCS) | |
| REF-12 | 1 | 298395-03MG | P/F ASSY, AL, MAX GRIP, 90X54(36+18+12 DCS) | |
| REF-12 | 1 | 298395-04MG | P/F ASSY, AL, MAX GRIP, 90X60(39+21+12 DCS) | |
| REF-12 | 1 | 298395-05MG | P/F ASSY, AL, MAX GRIP, 90X66(42+24+12 DCS) | |
| REF-12 | 1 | 298395-06MG | P/F ASSY, AL, MAX GRIP, 96X42(30+12+12 DCS) | |
| REF-12 | 1 | 298395-07MG | P/F ASSY, AL, MAX GRIP, 96X48(33+15+12 DCS) | |
| REF-12 | 1 | 298395-08MG | P/F ASSY, AL, MAX GRIP, 96X54(36+18+12 DCS) | |
| REF-12 | 1 | 298395-09MG | P/F ASSY, AL, MAX GRIP, 96X60(39+21+12 DCS) | |
| REF-12 | 1 | 298395-10MG | P/F ASSY, AL, MAX GRIP, 96X66(42+24+12 DCS) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

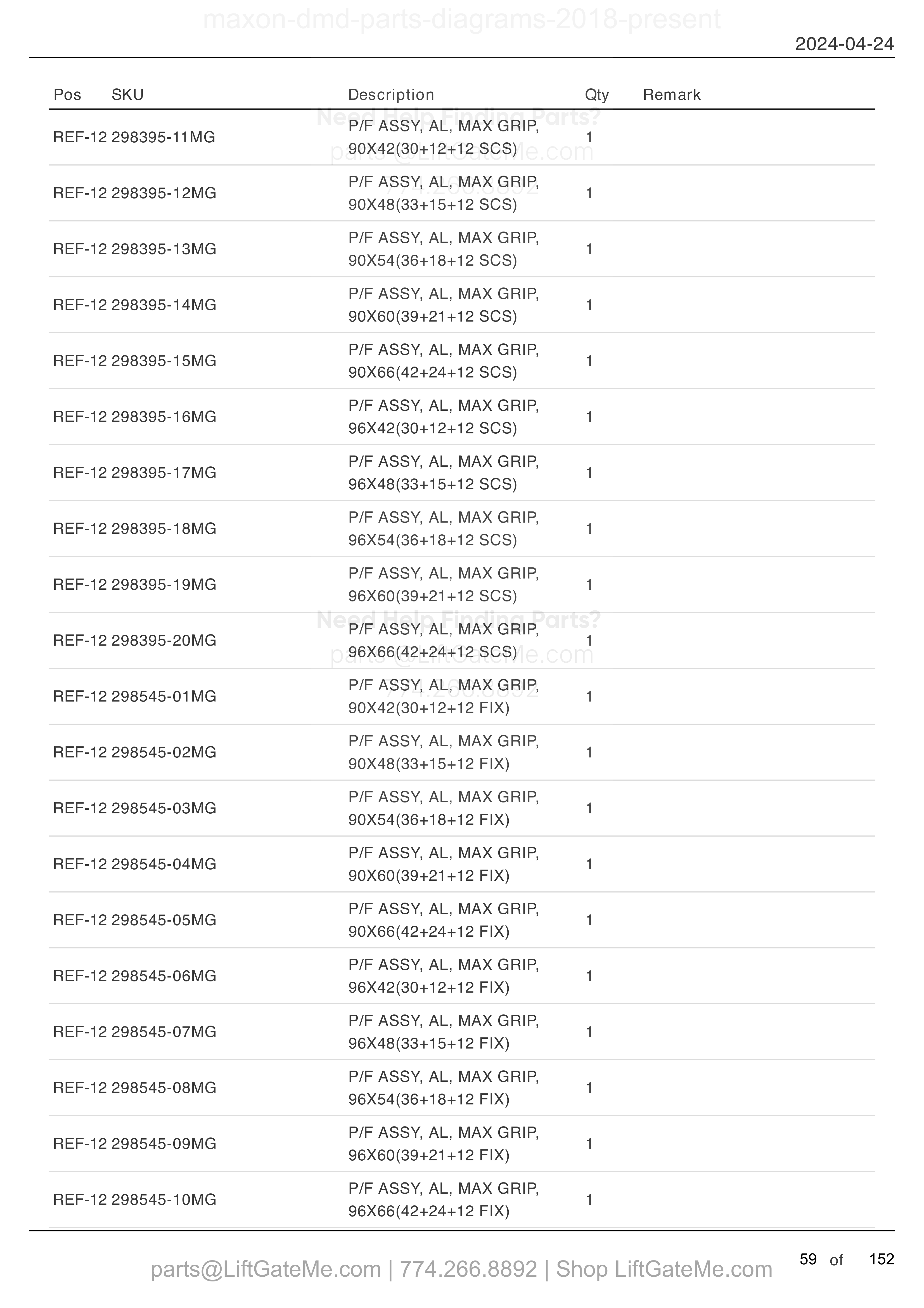

2 PIECE ALUMINUM PLATFORM ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF-12 | 1 | 298395-11MG | P/F ASSY, AL, MAX GRIP, 90X42(30+12+12 SCS) | |
| REF-12 | 1 | 298395-12MG | P/F ASSY, AL, MAX GRIP, 90X48(33+15+12 SCS) | |
| REF-12 | 1 | 298395-13MG | P/F ASSY, AL, MAX GRIP, 90X54(36+18+12 SCS) | |
| REF-12 | 1 | 298395-14MG | P/F ASSY, AL, MAX GRIP, 90X60(39+21+12 SCS) | |
| REF-12 | 1 | 298395-15MG | P/F ASSY, AL, MAX GRIP, 90X66(42+24+12 SCS) | |
| REF-12 | 1 | 298395-16MG | P/F ASSY, AL, MAX GRIP, 96X42(30+12+12 SCS) | |
| REF-12 | 1 | 298395-17MG | P/F ASSY, AL, MAX GRIP, 96X48(33+15+12 SCS) | |
| REF-12 | 1 | 298395-18MG | P/F ASSY, AL, MAX GRIP, 96X54(36+18+12 SCS) | |
| REF-12 | 1 | 298395-19MG | P/F ASSY, AL, MAX GRIP, 96X60(39+21+12 SCS) | |
| REF-12 | 1 | 298395-20MG | P/F ASSY, AL, MAX GRIP, 96X66(42+24+12 SCS) | |
| REF-12 | 1 | 298545-01MG | P/F ASSY, AL, MAX GRIP, 90X42(30+12+12 FIX) | |
| REF-12 | 1 | 298545-02MG | P/F ASSY, AL, MAX GRIP, 90X48(33+15+12 FIX) | |
| REF-12 | 1 | 298545-03MG | P/F ASSY, AL, MAX GRIP, 90X54(36+18+12 FIX) | |
| REF-12 | 1 | 298545-04MG | P/F ASSY, AL, MAX GRIP, 90X60(39+21+12 FIX) | |
| REF-12 | 1 | 298545-05MG | P/F ASSY, AL, MAX GRIP, 90X66(42+24+12 FIX) | |
| REF-12 | 1 | 298545-06MG | P/F ASSY, AL, MAX GRIP, 96X42(30+12+12 FIX) | |
| REF-12 | 1 | 298545-07MG | P/F ASSY, AL, MAX GRIP, 96X48(33+15+12 FIX) | |
| REF-12 | 1 | 298545-08MG | P/F ASSY, AL, MAX GRIP, 96X54(36+18+12 FIX) | |
| REF-12 | 1 | 298545-09MG | P/F ASSY, AL, MAX GRIP, 96X60(39+21+12 FIX) | |
| REF-12 | 1 | 298545-10MG | P/F ASSY, AL, MAX GRIP, 96X66(42+24+12 FIX) |

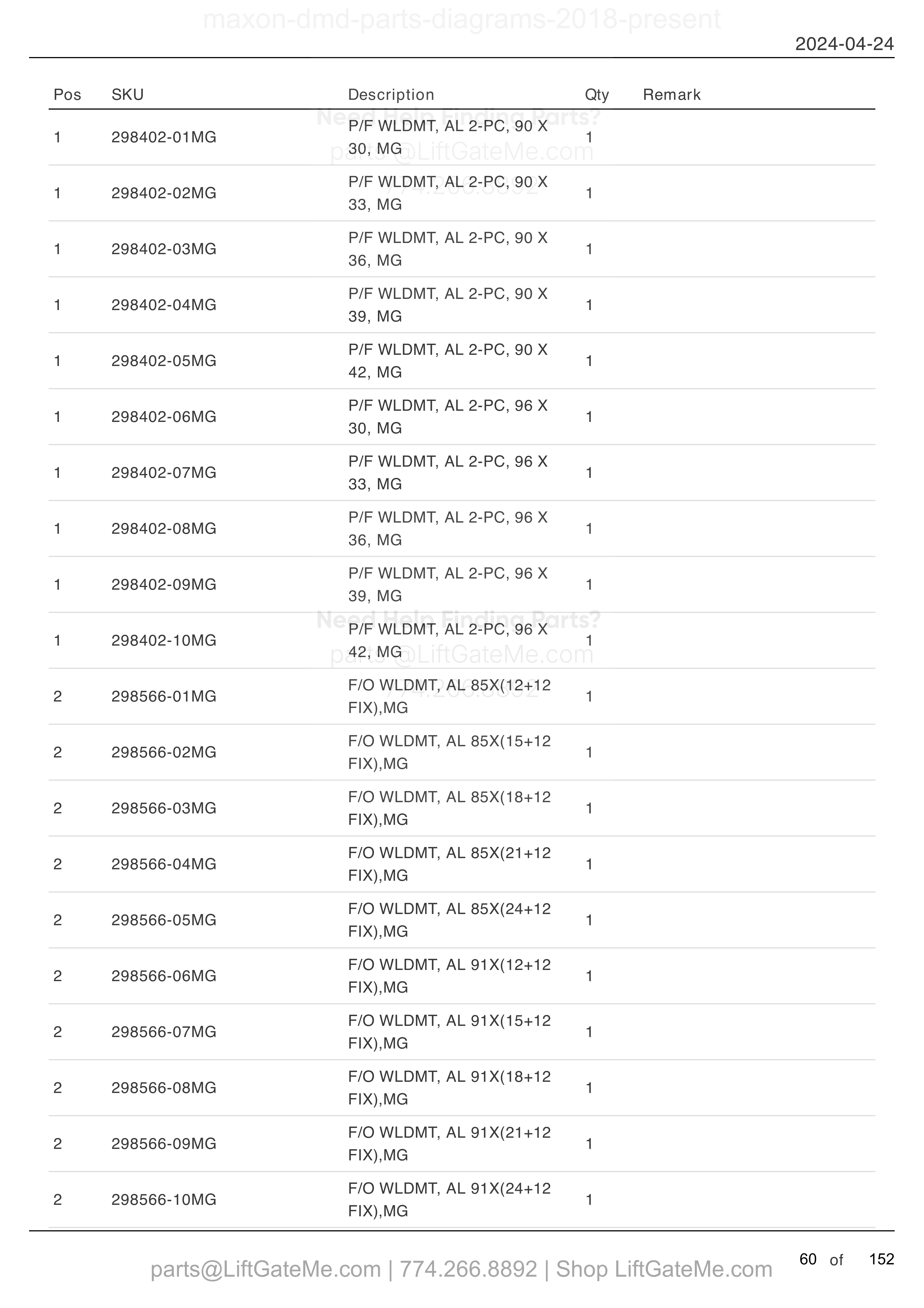

2 PIECE ALUMINUM PLATFORM ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 298402-01MG | P/F WLDMT, AL 2-PC, 90 X 30, MG | |
| 1 | 1 | 298402-02MG | P/F WLDMT, AL 2-PC, 90 X 33, MG | |
| 1 | 1 | 298402-03MG | P/F WLDMT, AL 2-PC, 90 X 36, MG | |
| 1 | 1 | 298402-04MG | P/F WLDMT, AL 2-PC, 90 X 39, MG | |
| 1 | 1 | 298402-05MG | P/F WLDMT, AL 2-PC, 90 X 42, MG | |
| 1 | 1 | 298402-06MG | P/F WLDMT, AL 2-PC, 96 X 30, MG | |
| 1 | 1 | 298402-07MG | P/F WLDMT, AL 2-PC, 96 X 33, MG | |
| 1 | 1 | 298402-08MG | P/F WLDMT, AL 2-PC, 96 X 36, MG | |
| 1 | 1 | 298402-09MG | P/F WLDMT, AL 2-PC, 96 X 39, MG | |
| 1 | 1 | 298402-10MG | P/F WLDMT, AL 2-PC, 96 X 42, MG | |
| 2 | 1 | 298566-01MG | F/O WLDMT, AL 85X(12+12 FIX),MG | |
| 2 | 1 | 298566-02MG | F/O WLDMT, AL 85X(15+12 FIX),MG | |
| 2 | 1 | 298566-03MG | F/O WLDMT, AL 85X(18+12 FIX),MG | |
| 2 | 1 | 298566-04MG | F/O WLDMT, AL 85X(21+12 FIX),MG | |
| 2 | 1 | 298566-05MG | F/O WLDMT, AL 85X(24+12 FIX),MG | |
| 2 | 1 | 298566-06MG | F/O WLDMT, AL 91X(12+12 FIX),MG | |
| 2 | 1 | 298566-07MG | F/O WLDMT, AL 91X(15+12 FIX),MG | |
| 2 | 1 | 298566-08MG | F/O WLDMT, AL 91X(18+12 FIX),MG | |
| 2 | 1 | 298566-09MG | F/O WLDMT, AL 91X(21+12 FIX),MG | |
| 2 | 1 | 298566-10MG | F/O WLDMT, AL 91X(24+12 FIX),MG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

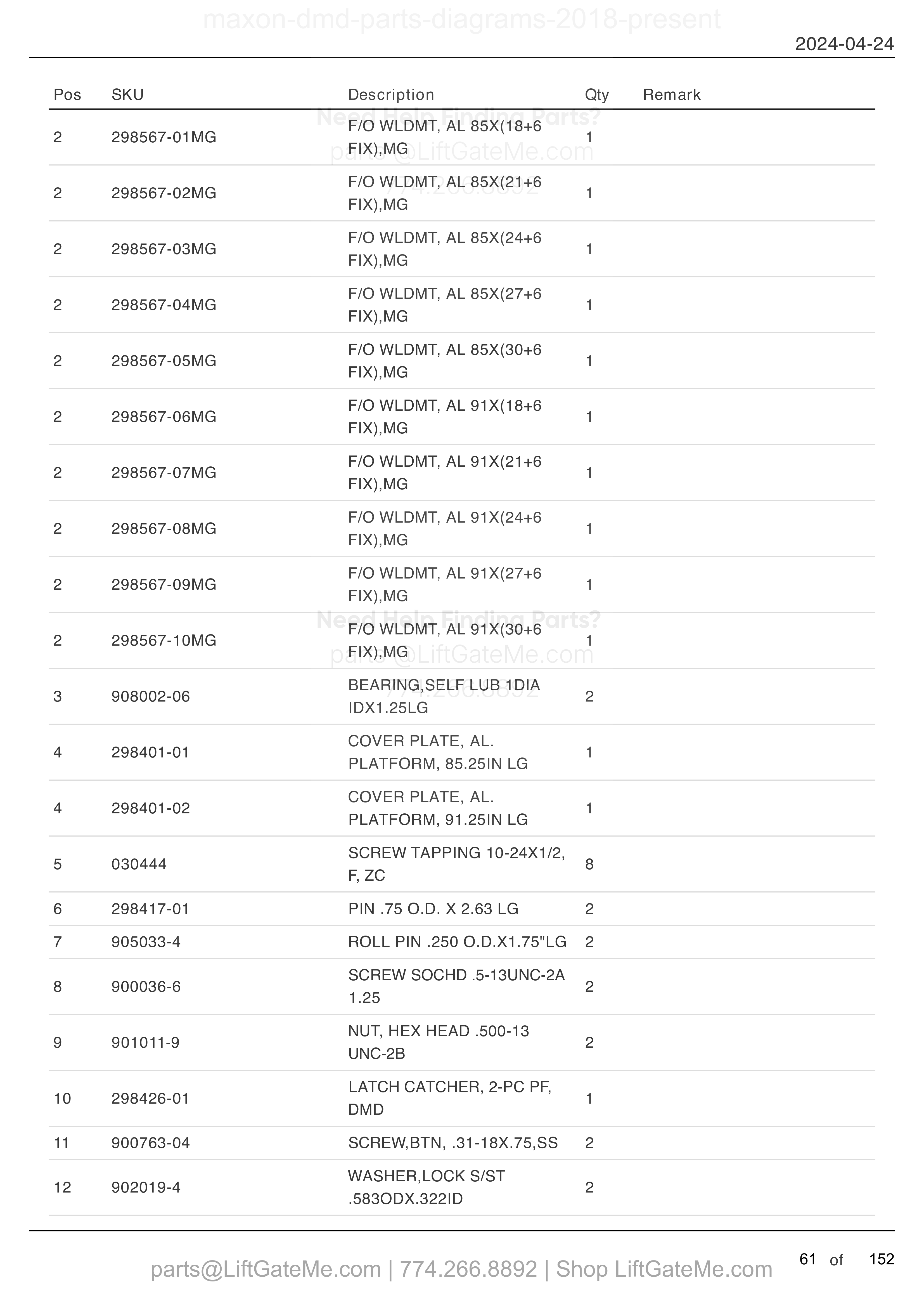

2 PIECE ALUMINUM PLATFORM ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 2 | 1 | 298567-01MG | F/O WLDMT, AL 85X(18+6 FIX),MG | |
| 2 | 1 | 298567-02MG | F/O WLDMT, AL 85X(21+6 FIX),MG | |
| 2 | 1 | 298567-03MG | F/O WLDMT, AL 85X(24+6 FIX),MG | |
| 2 | 1 | 298567-04MG | F/O WLDMT, AL 85X(27+6 FIX),MG | |
| 2 | 1 | 298567-05MG | F/O WLDMT, AL 85X(30+6 FIX),MG | |
| 2 | 1 | 298567-06MG | F/O WLDMT, AL 91X(18+6 FIX),MG | |
| 2 | 1 | 298567-07MG | F/O WLDMT, AL 91X(21+6 FIX),MG | |
| 2 | 1 | 298567-08MG | F/O WLDMT, AL 91X(24+6 FIX),MG | |
| 2 | 1 | 298567-09MG | F/O WLDMT, AL 91X(27+6 FIX),MG | |
| 2 | 1 | 298567-10MG | F/O WLDMT, AL 91X(30+6 FIX),MG | |
| 3 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 4 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 4 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 5 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 6 | 2 | 298417-01 | PIN .75 O.D. X 2.63 LG | |
| 7 | 2 | 905033-4 | ROLL PIN .250 O.D.X1.75"LG | |
| 8 | 2 | 900036-6 | SCREW SOCHD .5-13UNC-2A 1.25 | |
| 9 | 2 | 901011-9 | NUT, HEX HEAD .500-13 UNC-2B | |
| 10 | 1 | 298426-01 | LATCH CATCHER, 2-PC PF, DMD | |
| 11 | 2 | 900763-04 | SCREW,BTN, .31-18X.75,SS | |
| 12 | 2 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID |

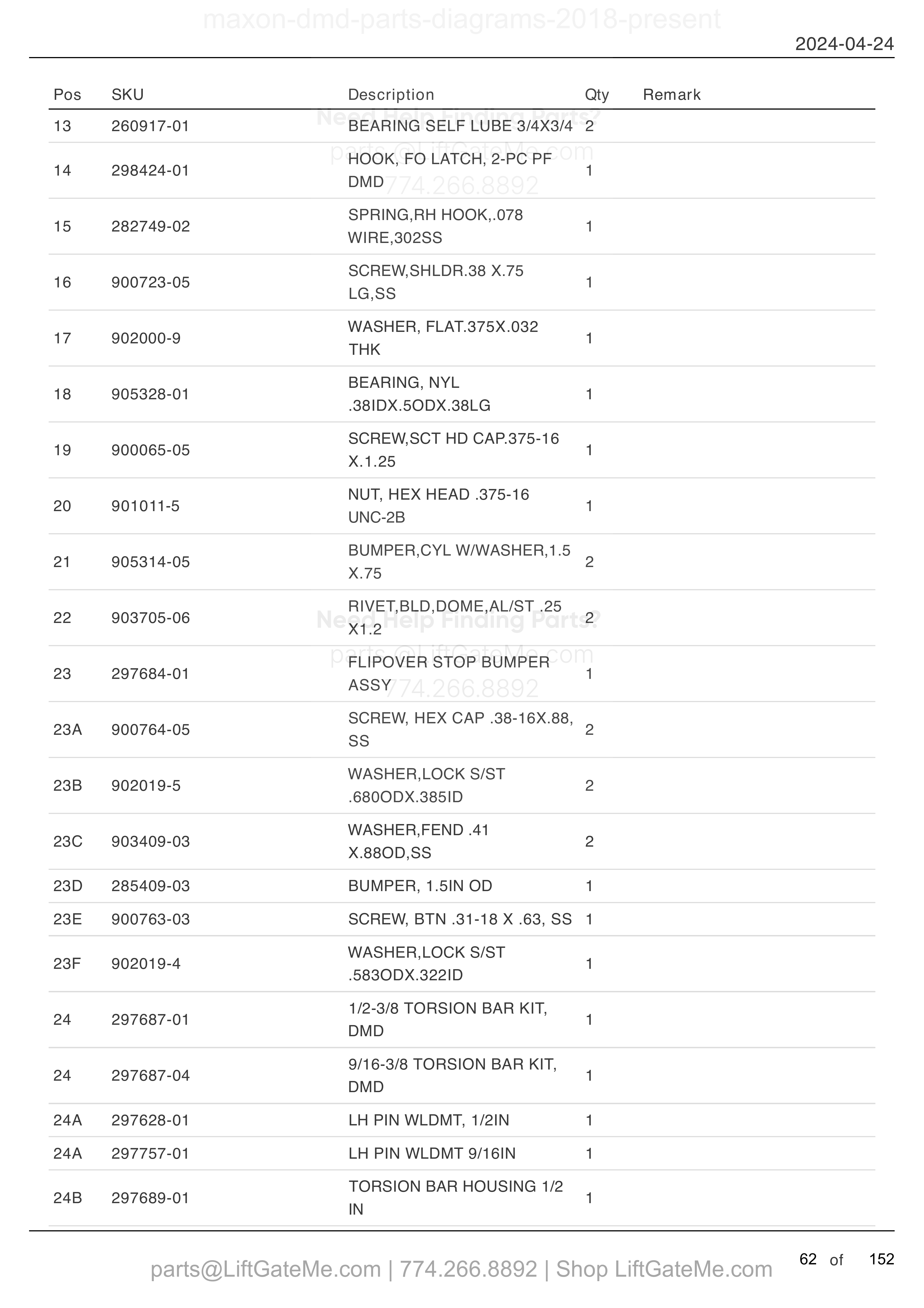

2 PIECE ALUMINUM PLATFORM ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 13 | 2 | 260917-01 | BEARING SELF LUBE 3/4X3/4 | |
| 14 | 1 | 298424-01 | HOOK, FO LATCH, 2-PC PF DMD | |
| 15 | 1 | 282749-02 | SPRING,RH HOOK,.078 WIRE,302SS | |
| 16 | 1 | 900723-05 | SCREW,SHLDR.38 X.75 LG,SS | |
| 17 | 1 | 902000-9 | WASHER, FLAT.375X.032 THK | |
| 18 | 1 | 905328-01 | BEARING, NYL .38IDX.5ODX.38LG | |
| 19 | 1 | 900065-05 | SCREW,SCT HD CAP.375-16 X.1.25 | |
| 20 | 1 | 901011-5 | NUT, HEX HEAD .375-16 UNC-2B | |
| 21 | 2 | 905314-05 | BUMPER,CYL W/WASHER,1.5 X.75 | |
| 22 | 2 | 903705-06 | RIVET,BLD,DOME,AL/ST .25 X1.2 | |
| 23 | 1 | 297684-01 | FLIPOVER STOP BUMPER ASSY | |
| 23A | 2 | 900764-05 | SCREW, HEX CAP .38-16X.88, SS | |
| 23B | 2 | 902019-5 | WASHER,LOCK S/ST .680ODX.385ID | |
| 23C | 2 | 903409-03 | WASHER,FEND .41 X.88OD,SS | |
| 23D | 1 | 285409-03 | BUMPER, 1.5IN OD | |
| 23E | 1 | 900763-03 | SCREW, BTN .31-18 X .63, SS | |
| 23F | 1 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 24 | 1 | 297687-01 | 1/2-3/8 TORSION BAR KIT, DMD | |
| 24 | 1 | 297687-04 | 9/16-3/8 TORSION BAR KIT, DMD | |
| 24A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 24A | 1 | 297757-01 | LH PIN WLDMT 9/16IN | |
| 24B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

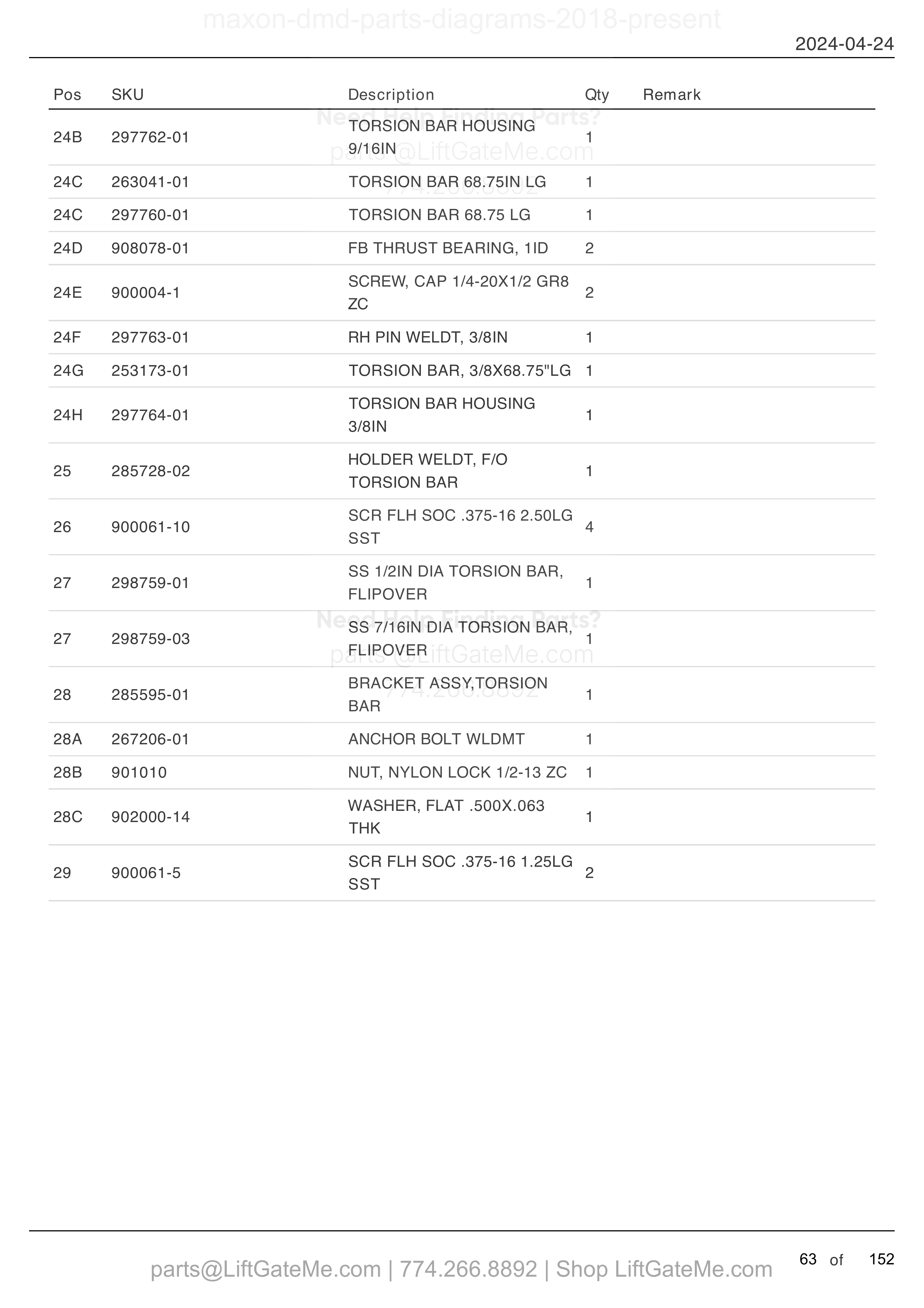

2 PIECE ALUMINUM PLATFORM ASSEMBLY (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 24B | 1 | 297762-01 | TORSION BAR HOUSING 9/16IN | |
| 24C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 24C | 1 | 297760-01 | TORSION BAR 68.75 LG | |
| 24D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 24E | 2 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 24F | 1 | 297763-01 | RH PIN WELDT, 3/8IN | |
| 24G | 1 | 253173-01 | TORSION BAR, 3/8X68.75"LG | |
| 24H | 1 | 297764-01 | TORSION BAR HOUSING 3/8IN | |
| 25 | 1 | 285728-02 | HOLDER WELDT, F/O TORSION BAR | |
| 26 | 4 | 900061-10 | SCR FLH SOC .375-16 2.50LG SST | |
| 27 | 1 | 298759-01 | SS 1/2IN DIA TORSION BAR, FLIPOVER | |
| 27 | 1 | 298759-03 | SS 7/16IN DIA TORSION BAR, FLIPOVER | |
| 28 | 1 | 285595-01 | BRACKET ASSY,TORSION BAR | |
| 28A | 1 | 267206-01 | ANCHOR BOLT WLDMT | |
| 28B | 1 | 901010 | NUT, NYLON LOCK 1/2-13 ZC | |
| 28C | 1 | 902000-14 | WASHER, FLAT .500X.063 THK | |
| 29 | 2 | 900061-5 | SCR FLH SOC .375-16 1.25LG SST |

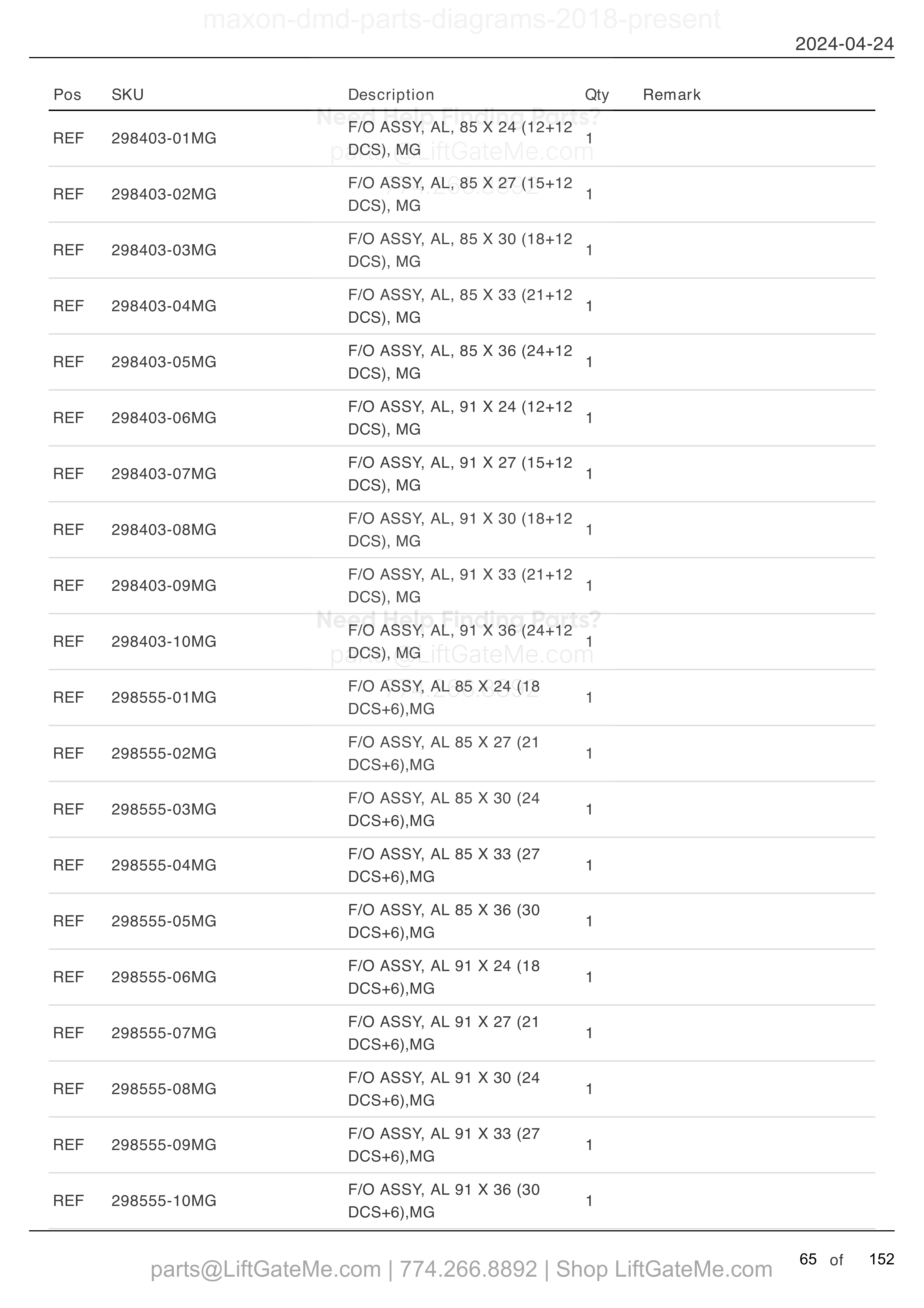

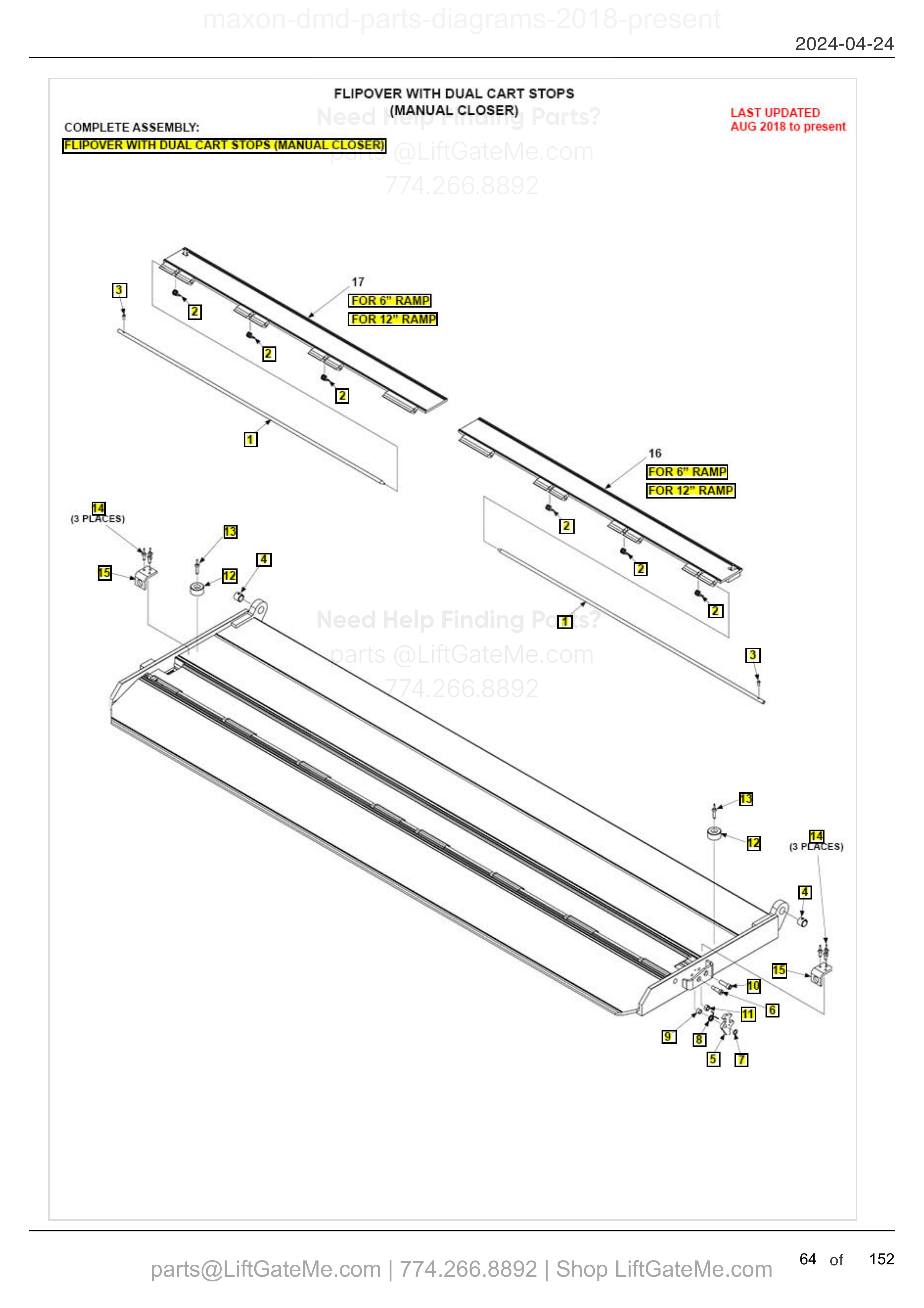

FLIPOVER WITH DUAL CART STOPS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298403-01MG | F/O ASSY, AL, 85 X 24 (12+12 DCS), MG | |
| REF | 1 | 298403-02MG | F/O ASSY, AL, 85 X 27 (15+12 DCS), MG | |
| REF | 1 | 298403-03MG | F/O ASSY, AL, 85 X 30 (18+12 DCS), MG | |
| REF | 1 | 298403-04MG | F/O ASSY, AL, 85 X 33 (21+12 DCS), MG | |
| REF | 1 | 298403-05MG | F/O ASSY, AL, 85 X 36 (24+12 DCS), MG | |
| REF | 1 | 298403-06MG | F/O ASSY, AL, 91 X 24 (12+12 DCS), MG | |
| REF | 1 | 298403-07MG | F/O ASSY, AL, 91 X 27 (15+12 DCS), MG | |
| REF | 1 | 298403-08MG | F/O ASSY, AL, 91 X 30 (18+12 DCS), MG | |
| REF | 1 | 298403-09MG | F/O ASSY, AL, 91 X 33 (21+12 DCS), MG | |
| REF | 1 | 298403-10MG | F/O ASSY, AL, 91 X 36 (24+12 DCS), MG | |
| REF | 1 | 298555-01MG | F/O ASSY, AL 85 X 24 (18 DCS+6),MG | |
| REF | 1 | 298555-02MG | F/O ASSY, AL 85 X 27 (21 DCS+6),MG | |
| REF | 1 | 298555-03MG | F/O ASSY, AL 85 X 30 (24 DCS+6),MG | |
| REF | 1 | 298555-04MG | F/O ASSY, AL 85 X 33 (27 DCS+6),MG | |
| REF | 1 | 298555-05MG | F/O ASSY, AL 85 X 36 (30 DCS+6),MG | |
| REF | 1 | 298555-06MG | F/O ASSY, AL 91 X 24 (18 DCS+6),MG | |
| REF | 1 | 298555-07MG | F/O ASSY, AL 91 X 27 (21 DCS+6),MG | |
| REF | 1 | 298555-08MG | F/O ASSY, AL 91 X 30 (24 DCS+6),MG | |
| REF | 1 | 298555-09MG | F/O ASSY, AL 91 X 33 (27 DCS+6),MG | |
| REF | 1 | 298555-10MG | F/O ASSY, AL 91 X 36 (30 DCS+6),MG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

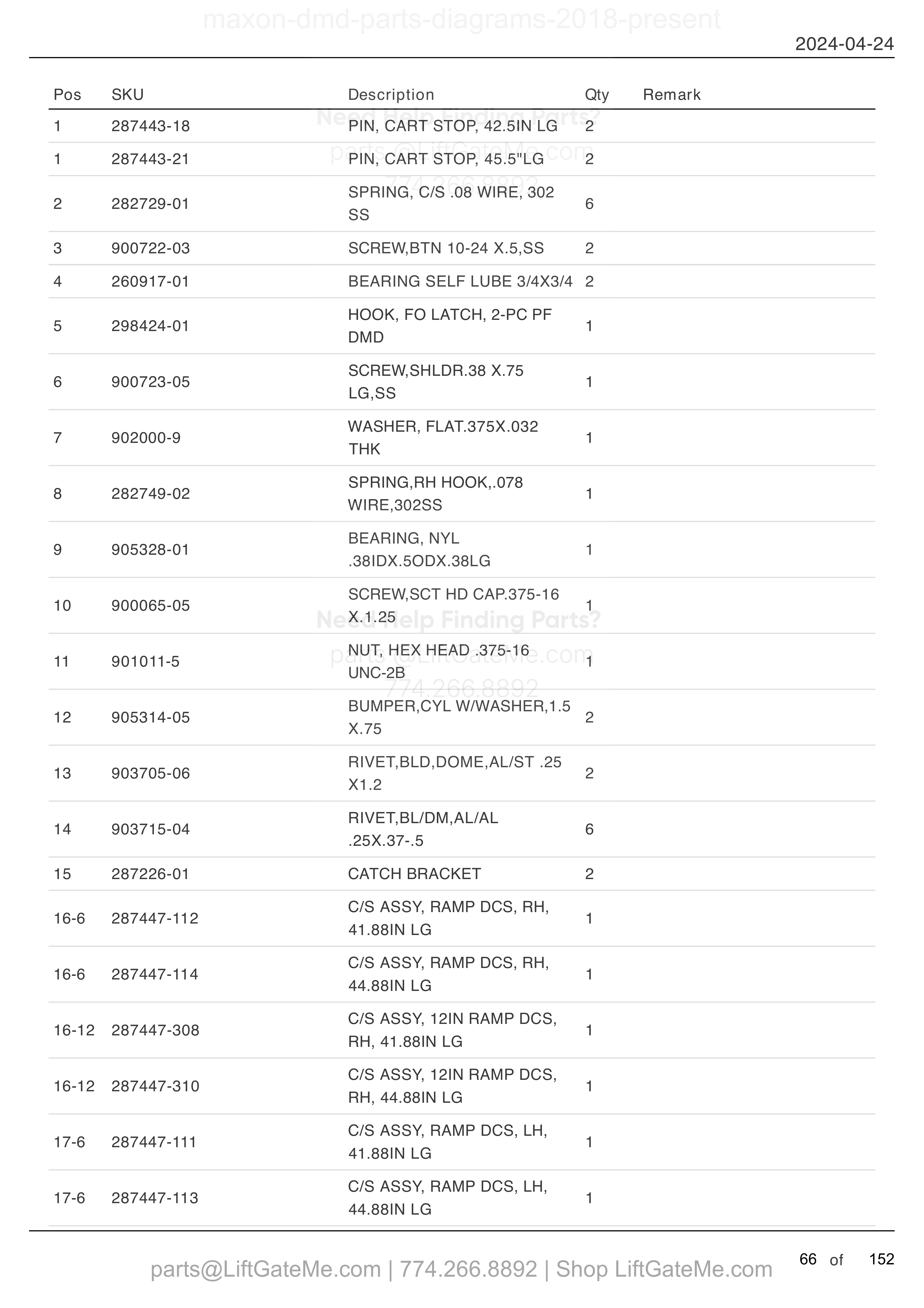

FLIPOVER WITH DUAL CART STOPS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 287443-18 | PIN, CART STOP, 42.5IN LG | |
| 1 | 2 | 287443-21 | PIN, CART STOP, 45.5"LG | |
| 2 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 3 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 4 | 2 | 260917-01 | BEARING SELF LUBE 3/4X3/4 | |
| 5 | 1 | 298424-01 | HOOK, FO LATCH, 2-PC PF DMD | |
| 6 | 1 | 900723-05 | SCREW,SHLDR.38 X.75 LG,SS | |
| 7 | 1 | 902000-9 | WASHER, FLAT.375X.032 THK | |
| 8 | 1 | 282749-02 | SPRING,RH HOOK,.078 WIRE,302SS | |
| 9 | 1 | 905328-01 | BEARING, NYL .38IDX.5ODX.38LG | |
| 10 | 1 | 900065-05 | SCREW,SCT HD CAP.375-16 X.1.25 | |
| 11 | 1 | 901011-5 | NUT, HEX HEAD .375-16 UNC-2B | |
| 12 | 2 | 905314-05 | BUMPER,CYL W/WASHER,1.5 X.75 | |
| 13 | 2 | 903705-06 | RIVET,BLD,DOME,AL/ST .25 X1.2 | |
| 14 | 6 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 15 | 2 | 287226-01 | CATCH BRACKET | |
| 16-6 | 1 | 287447-112 | C/S ASSY, RAMP DCS, RH, 41.88IN LG | |
| 16-6 | 1 | 287447-114 | C/S ASSY, RAMP DCS, RH, 44.88IN LG | |
| 16-12 | 1 | 287447-308 | C/S ASSY, 12IN RAMP DCS, RH, 41.88IN LG | |
| 16-12 | 1 | 287447-310 | C/S ASSY, 12IN RAMP DCS, RH, 44.88IN LG | |
| 17-6 | 1 | 287447-111 | C/S ASSY, RAMP DCS, LH, 41.88IN LG | |
| 17-6 | 1 | 287447-113 | C/S ASSY, RAMP DCS, LH, 44.88IN LG |
FLIPOVER WITH DUAL CART STOPS (MANUAL CLOSER)
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
FLIPOVER WITH SINGLE CART STOP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298403-11MG | F/O ASSY, AL, 85 X 24 (12+12 SCS), MG | |
| REF | 1 | 298403-12MG | F/O ASSY, AL, 85 X 27 (15+12 SCS), MG | |
| REF | 1 | 298403-13MG | F/O ASSY, AL, 85 X 30 (18+12 SCS), MG | |
| REF | 1 | 298403-14MG | F/O ASSY, AL, 85 X 33 (21+12 SCS), MG | |
| REF | 1 | 298403-15MG | F/O ASSY, AL, 85 X 36 (24+12 SCS), MG | |
| REF | 1 | 298403-16MG | F/O ASSY, AL, 91 X 24 (12+12 SCS), MG | |
| REF | 1 | 298403-17MG | F/O ASSY, AL, 91 X 27 (15+12 SCS), MG | |
| REF | 1 | 298403-18MG | F/O ASSY, AL, 91 X 30 (18+12 SCS), MG | |
| REF | 1 | 298403-19MG | F/O ASSY, AL, 91 X 33 (21+12 SCS), MG | |
| REF | 1 | 298403-20MG | F/O ASSY, AL, 91 X 36 (24+12 SCS), MG | |
| REF | 1 | 298555-11MG | F/O ASSY, AL 85 X 24 (18 SCS+6),MG | |
| REF | 1 | 298555-12MG | F/O ASSY, AL 85 X 27 (21 SCS+6),MG | |
| REF | 1 | 298555-13MG | F/O ASSY, AL 85 X 30 (24 SCS+6),MG | |
| REF | 1 | 298555-14MG | F/O ASSY, AL 85 X 33 (27 SCS+6),MG | |
| REF | 1 | 298555-15MG | F/O ASSY, AL 85 X 36 (30 SCS+6),MG | |
| REF | 1 | 298555-16MG | F/O ASSY, AL 91 X 24 (18 SCS+6),MG | |
| REF | 1 | 298555-17MG | F/O ASSY, AL 91 X 27 (21 SCS+6),MG | |
| REF | 1 | 298555-18MG | F/O ASSY, AL 91 X 30 (24 SCS+6),MG | |
| REF | 1 | 298555-19MG | F/O ASSY, AL 91 X 33 (27 SCS+6),MG | |
| REF | 1 | 298555-20MG | F/O ASSY, AL 91 X 36 (30 SCS+6),MG |
FLIPOVER WITH SINGLE CART STOP (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 287443-18 | PIN, CART STOP, 42.5IN LG | |
| 1 | 2 | 287443-21 | PIN, CART STOP, 45.5"LG | |
| 2 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 3 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 4 | 2 | 260917-01 | BEARING SELF LUBE 3/4X3/4 | |
| 5 | 1 | 298424-01 | HOOK, FO LATCH, 2-PC PF DMD | |
| 6 | 1 | 900723-05 | SCREW,SHLDR.38 X.75 LG,SS | |
| 7 | 1 | 902000-9 | WASHER, FLAT.375X.032 THK | |
| 8 | 1 | 282749-02 | SPRING,RH HOOK,.078 WIRE,302SS | |
| 9 | 1 | 905328-01 | BEARING, NYL .38IDX.5ODX.38LG | |
| 10 | 1 | 900065-05 | SCREW,SCT HD CAP.375-16 X.1.25 | |
| 11 | 1 | 901011-5 | NUT, HEX HEAD .375-16 UNC-2B | |
| 12 | 2 | 905314-05 | BUMPER,CYL W/WASHER,1.5 X.75 | |
| 13 | 2 | 903705-06 | RIVET,BLD,DOME,AL/ST .25 X1.2 | |
| 14 | 3 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 15 | 1 | 287226-01 | CATCH BRACKET | |
| 16-6 | 1 | 287447-155 | C/S ASSY, RAMP SCS, RH, 83.88IN LG | |
| 16-6 | 1 | 287447-156 | C/S ASSY, RAMP SCS, RH, 89.88IN LG | |
| 16-12 | 1 | 287447-355 | C/S ASSY, 12IN RAMP SCS, RH, 83.88IN LG | |
| 16-12 | 1 | 287447-356 | C/S ASSY, 12IN RAMP SCS, RH, 89.88IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

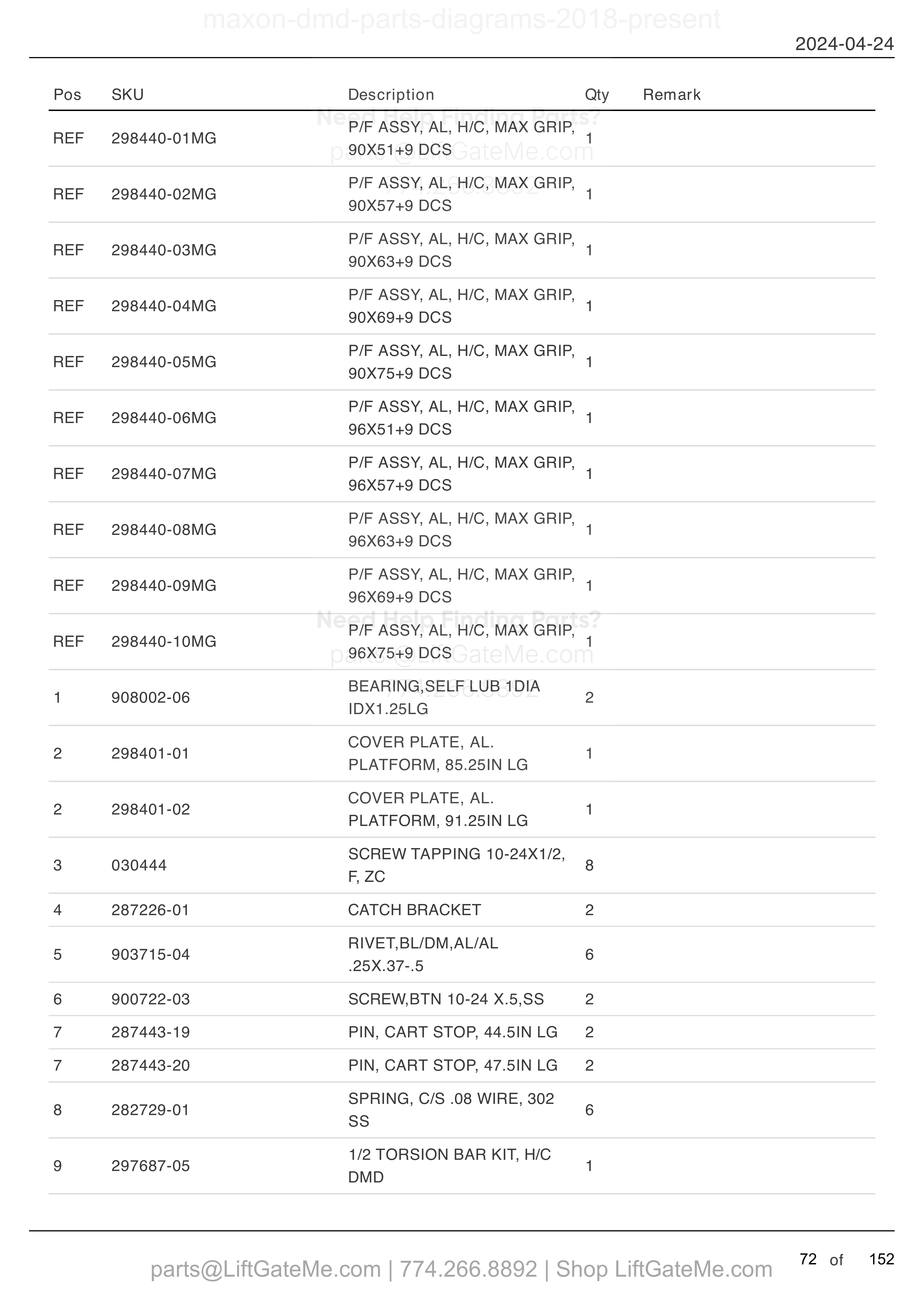

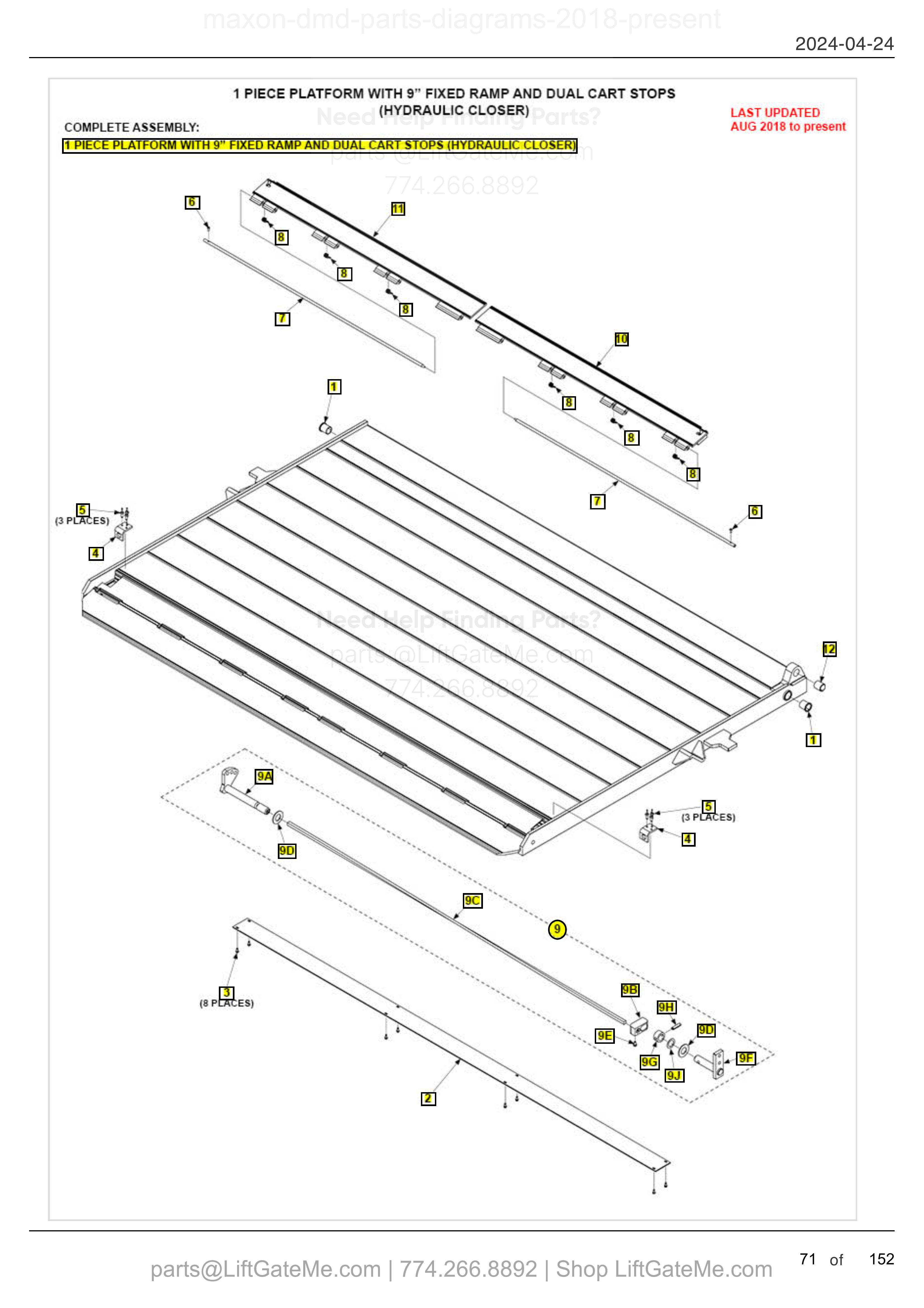

1 PIECE PLATFORM WITH 9" FIXED RAMP AND DUAL CART STOPS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298440-01MG | P/F ASSY, AL, H/C, MAX GRIP, 90X51+9 DCS | |
| REF | 1 | 298440-02MG | P/F ASSY, AL, H/C, MAX GRIP, 90X57+9 DCS | |
| REF | 1 | 298440-03MG | P/F ASSY, AL, H/C, MAX GRIP, 90X63+9 DCS | |
| REF | 1 | 298440-04MG | P/F ASSY, AL, H/C, MAX GRIP, 90X69+9 DCS | |
| REF | 1 | 298440-05MG | P/F ASSY, AL, H/C, MAX GRIP, 90X75+9 DCS | |
| REF | 1 | 298440-06MG | P/F ASSY, AL, H/C, MAX GRIP, 96X51+9 DCS | |
| REF | 1 | 298440-07MG | P/F ASSY, AL, H/C, MAX GRIP, 96X57+9 DCS | |
| REF | 1 | 298440-08MG | P/F ASSY, AL, H/C, MAX GRIP, 96X63+9 DCS | |
| REF | 1 | 298440-09MG | P/F ASSY, AL, H/C, MAX GRIP, 96X69+9 DCS | |
| REF | 1 | 298440-10MG | P/F ASSY, AL, H/C, MAX GRIP, 96X75+9 DCS | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 2 | 287226-01 | CATCH BRACKET | |
| 5 | 6 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 6 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 7 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 7 | 2 | 287443-20 | PIN, CART STOP, 47.5IN LG | |
| 8 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 9 | 1 | 297687-05 | 1/2 TORSION BAR KIT, H/C DMD |

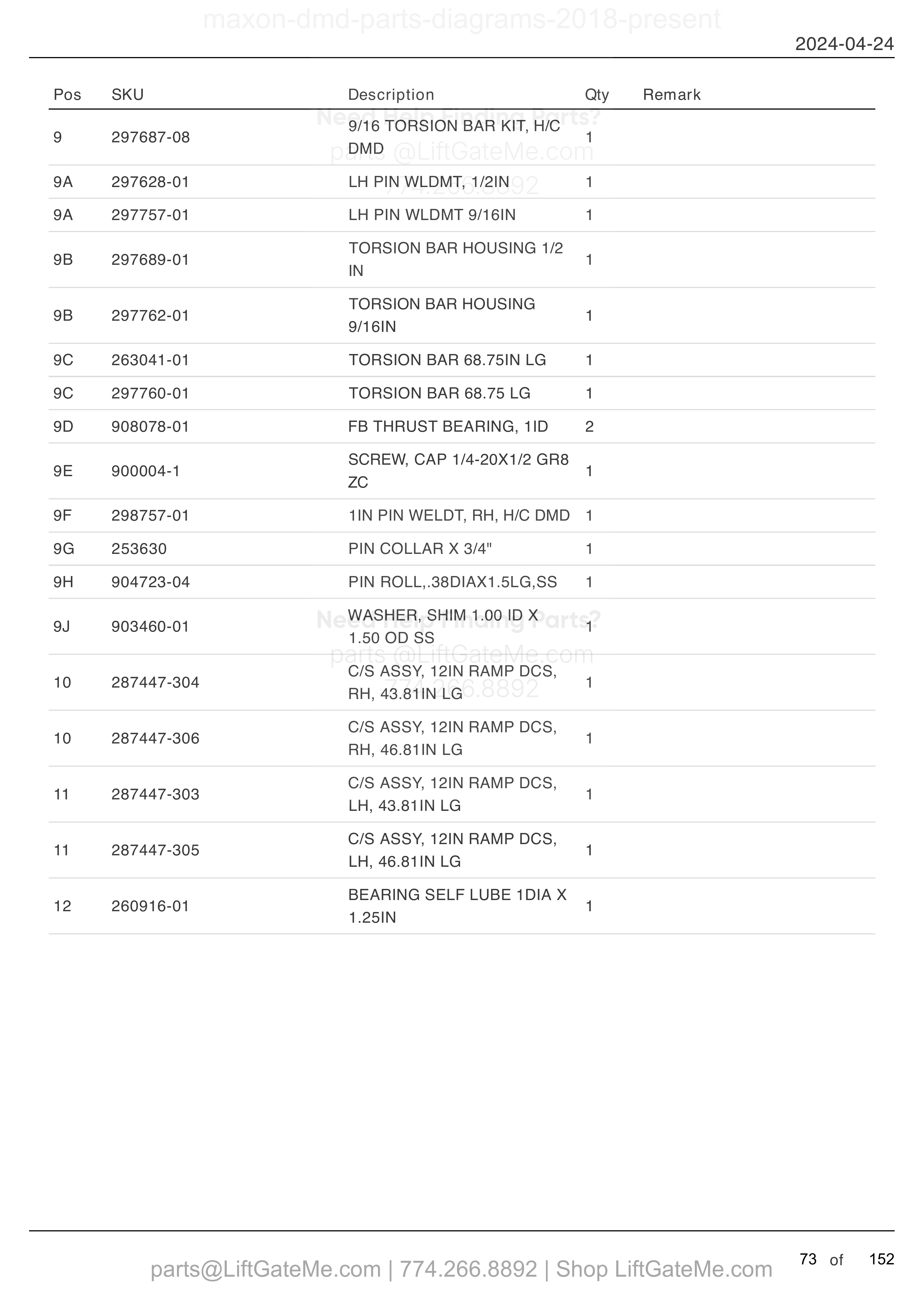

1 PIECE PLATFORM WITH 9" FIXED RAMP AND DUAL CART STOPS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 9 | 1 | 297687-08 | 9/16 TORSION BAR KIT, H/C DMD | |
| 9A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 9A | 1 | 297757-01 | LH PIN WLDMT 9/16IN | |
| 9B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 9B | 1 | 297762-01 | TORSION BAR HOUSING 9/16IN | |
| 9C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 9C | 1 | 297760-01 | TORSION BAR 68.75 LG | |
| 9D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 9E | 1 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 9F | 1 | 298757-01 | 1IN PIN WELDT, RH, H/C DMD | |
| 9G | 1 | 253630 | PIN COLLAR X 3/4" | |
| 9H | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS | |
| 9J | 1 | 903460-01 | WASHER, SHIM 1.00 ID X 1.50 OD SS | |
| 10 | 1 | 287447-304 | C/S ASSY, 12IN RAMP DCS, RH, 43.81IN LG | |
| 10 | 1 | 287447-306 | C/S ASSY, 12IN RAMP DCS, RH, 46.81IN LG | |
| 11 | 1 | 287447-303 | C/S ASSY, 12IN RAMP DCS, LH, 43.81IN LG | |
| 11 | 1 | 287447-305 | C/S ASSY, 12IN RAMP DCS, LH, 46.81IN LG | |
| 12 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

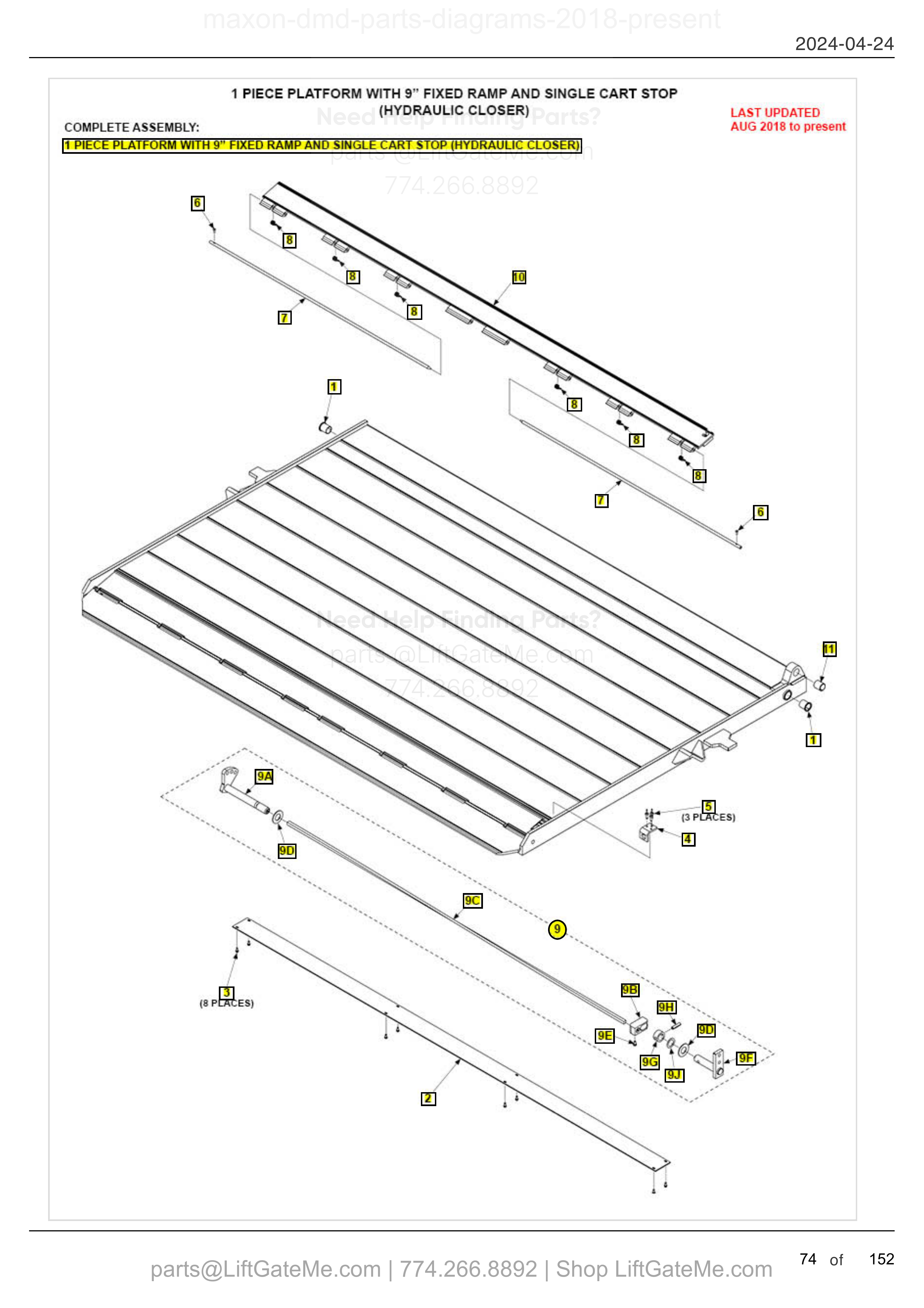

1 PIECE PLATFORM WITH 9” FIXED RAMP AND SINGLE CART STOP (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298440-11MG | P/F ASSY, AL, H/C, MAX GRIP, 90X51+9 SCS | |
| REF | 1 | 298440-12MG | P/F ASSY, AL, H/C, MAX GRIP, 90X57+9 SCS | |
| REF | 1 | 298440-13MG | P/F ASSY, AL, H/C, MAX GRIP, 90X63+9 SCS | |
| REF | 1 | 298440-14MG | P/F ASSY, AL, H/C, MAX GRIP, 90X69+9 SCS | |
| REF | 1 | 298440-15MG | P/F ASSY, AL, H/C, MAX GRIP, 90X75+9 SCS | |
| REF | 1 | 298440-16MG | P/F ASSY, AL, H/C, MAX GRIP, 96X51+9 SCS | |
| REF | 1 | 298440-17MG | P/F ASSY, AL, H/C, MAX GRIP, 96X57+9 SCS | |
| REF | 1 | 298440-18MG | P/F ASSY, AL, H/C, MAX GRIP, 96X63+9 SCS | |
| REF | 1 | 298440-19MG | P/F ASSY, AL, H/C, MAX GRIP, 96X69+9 SCS | |
| REF | 1 | 298440-20MG | P/F ASSY, AL, H/C, MAX GRIP, 96X75+9 SCS | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 1 | 287226-01 | CATCH BRACKET | |
| 5 | 3 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 6 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 7 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 7 | 2 | 287443-20 | PIN, CART STOP, 47.5IN LG | |
| 8 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 9 | 1 | 297687-05 | 1/2 TORSION BAR KIT, H/C DMD |

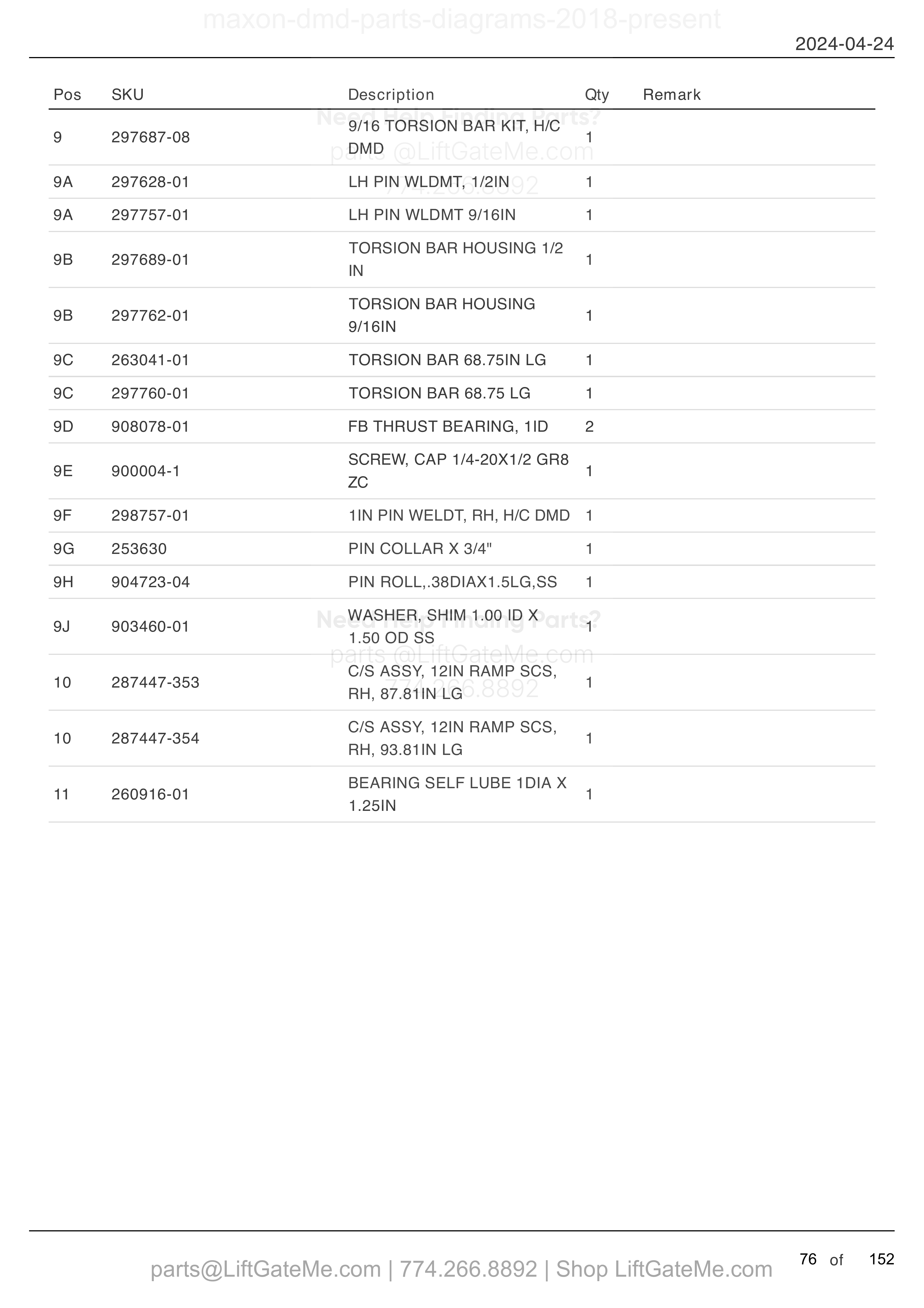

1 PIECE PLATFORM WITH 9” FIXED RAMP AND SINGLE CART STOP (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 9 | 1 | 297687-08 | 9/16 TORSION BAR KIT, H/C DMD | |
| 9A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 9A | 1 | 297757-01 | LH PIN WLDMT 9/16IN | |
| 9B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 9B | 1 | 297762-01 | TORSION BAR HOUSING 9/16IN | |
| 9C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 9C | 1 | 297760-01 | TORSION BAR 68.75 LG | |
| 9D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 9E | 1 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 9F | 1 | 298757-01 | 1IN PIN WELDT, RH, H/C DMD | |
| 9G | 1 | 253630 | PIN COLLAR X 3/4" | |
| 9H | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS | |
| 9J | 1 | 903460-01 | WASHER, SHIM 1.00 ID X 1.50 OD SS | |
| 10 | 1 | 287447-353 | C/S ASSY, 12IN RAMP SCS, RH, 87.81IN LG | |
| 10 | 1 | 287447-354 | C/S ASSY, 12IN RAMP SCS, RH, 93.81IN LG | |
| 11 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

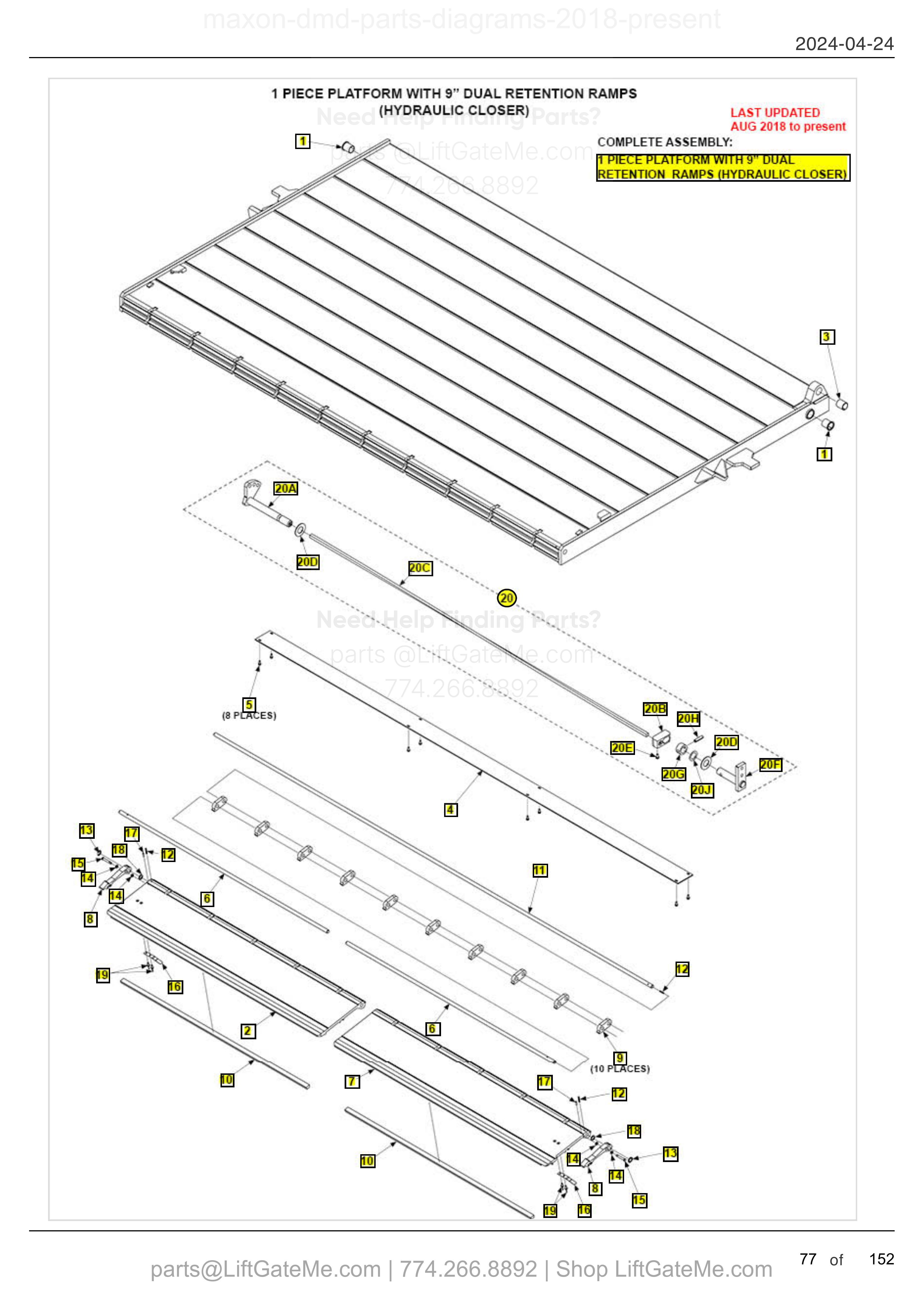

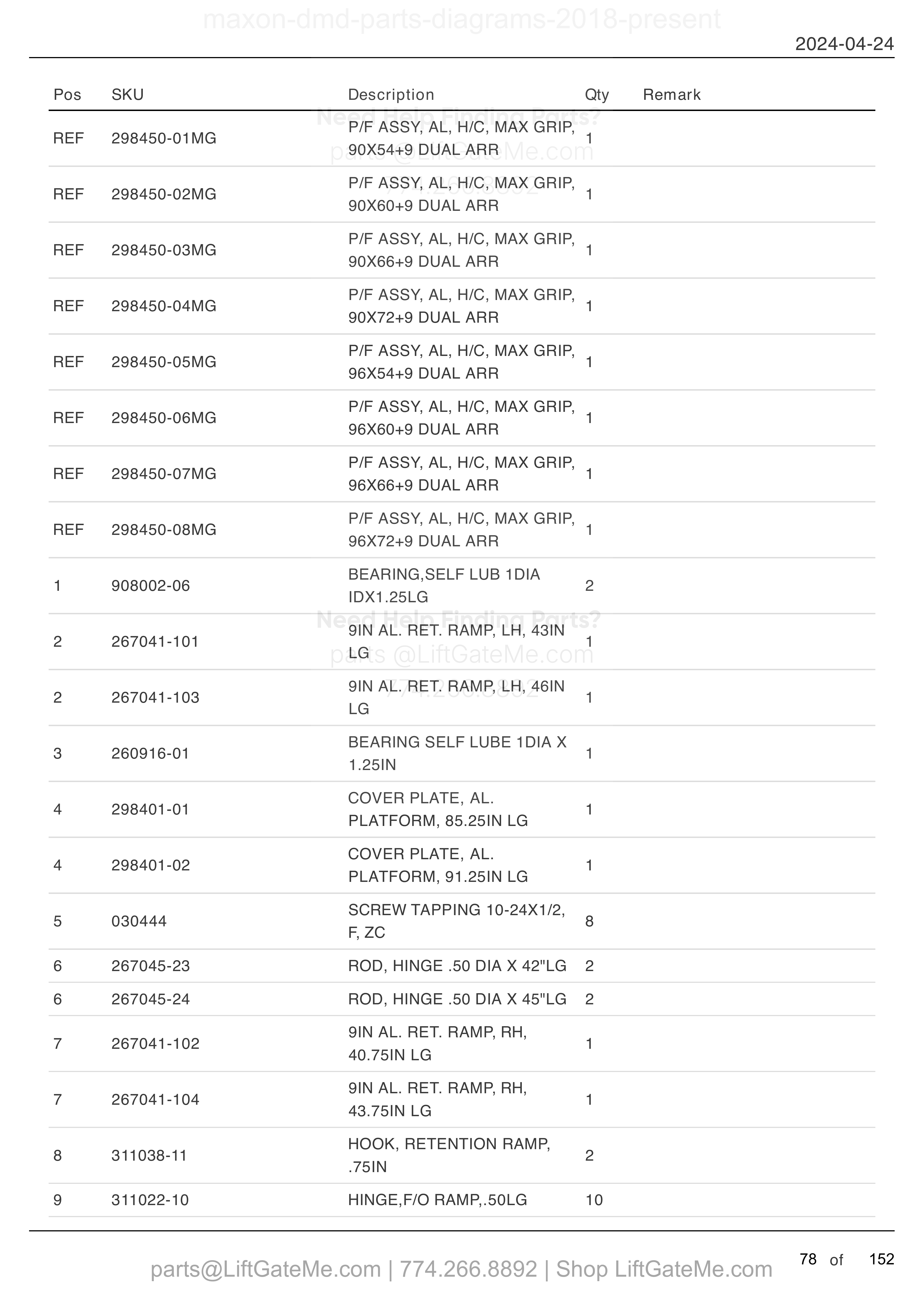

1 PIECE PLATFORM WITH 9” DUAL RETENTION RAMPS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298450-01MG | P/F ASSY, AL, H/C, MAX GRIP, 90X54+9 DUAL ARR | |
| REF | 1 | 298450-02MG | P/F ASSY, AL, H/C, MAX GRIP, 90X60+9 DUAL ARR | |
| REF | 1 | 298450-03MG | P/F ASSY, AL, H/C, MAX GRIP, 90X66+9 DUAL ARR | |
| REF | 1 | 298450-04MG | P/F ASSY, AL, H/C, MAX GRIP, 90X72+9 DUAL ARR | |
| REF | 1 | 298450-05MG | P/F ASSY, AL, H/C, MAX GRIP, 96X54+9 DUAL ARR | |
| REF | 1 | 298450-06MG | P/F ASSY, AL, H/C, MAX GRIP, 96X60+9 DUAL ARR | |
| REF | 1 | 298450-07MG | P/F ASSY, AL, H/C, MAX GRIP, 96X66+9 DUAL ARR | |
| REF | 1 | 298450-08MG | P/F ASSY, AL, H/C, MAX GRIP, 96X72+9 DUAL ARR | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 267041-101 | 9IN AL. RET. RAMP, LH, 43IN LG | |
| 2 | 1 | 267041-103 | 9IN AL. RET. RAMP, LH, 46IN LG | |
| 3 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN | |
| 4 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 4 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 5 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 6 | 2 | 267045-23 | ROD, HINGE .50 DIA X 42"LG | |
| 6 | 2 | 267045-24 | ROD, HINGE .50 DIA X 45"LG | |
| 7 | 1 | 267041-102 | 9IN AL. RET. RAMP, RH, 40.75IN LG | |
| 7 | 1 | 267041-104 | 9IN AL. RET. RAMP, RH, 43.75IN LG | |
| 8 | 2 | 311038-11 | HOOK, RETENTION RAMP, .75IN | |
| 9 | 10 | 311022-10 | HINGE,F/O RAMP,.50LG |

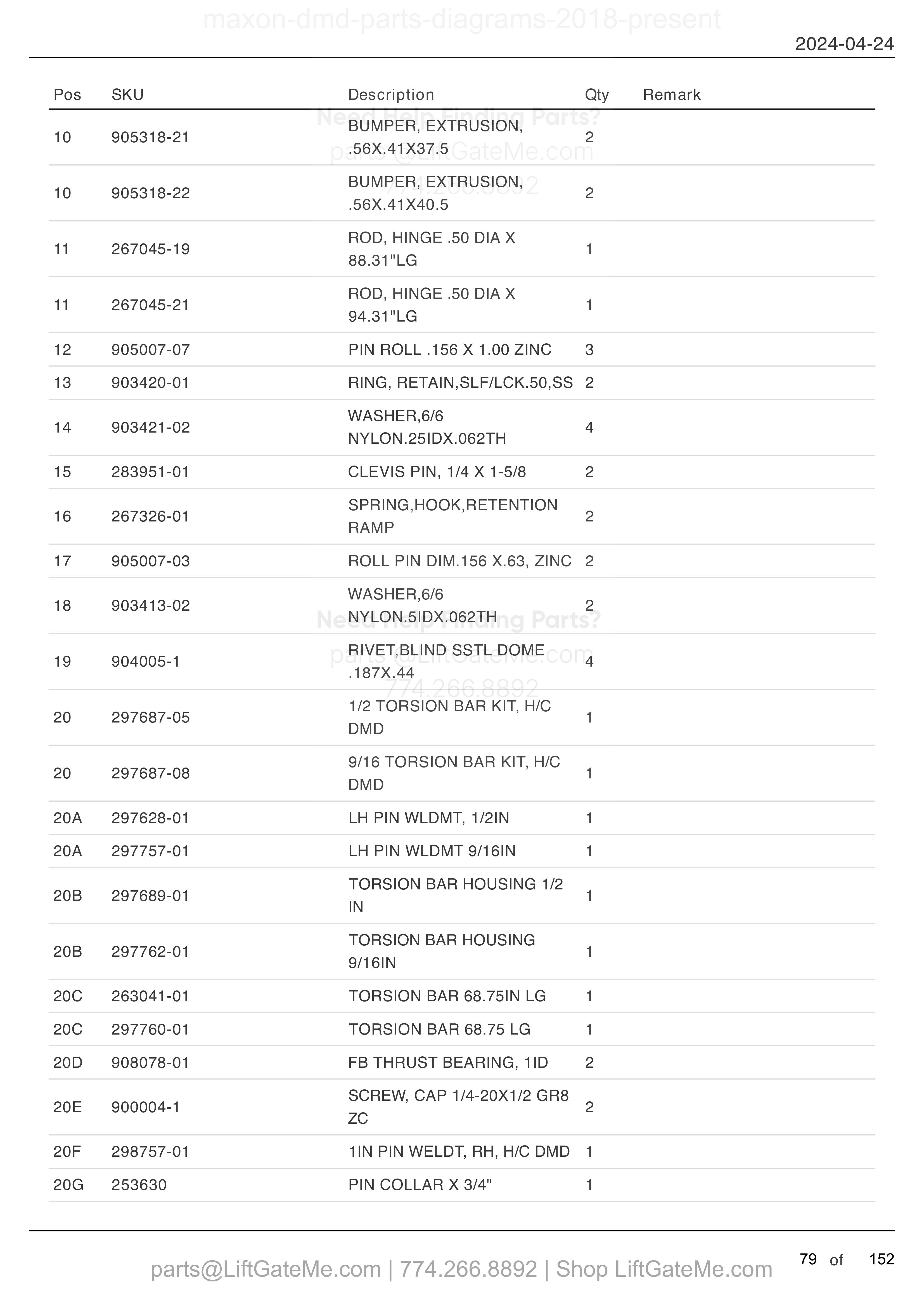

1 PIECE PLATFORM WITH 9” DUAL RETENTION RAMPS (HYDRAULIC CLOSER) (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 10 | 2 | 905318-21 | BUMPER, EXTRUSION, .56X.41X37.5 | |
| 10 | 2 | 905318-22 | BUMPER, EXTRUSION, .56X.41X40.5 | |
| 11 | 1 | 267045-19 | ROD, HINGE .50 DIA X 88.31"LG | |
| 11 | 1 | 267045-21 | ROD, HINGE .50 DIA X 94.31"LG | |
| 12 | 3 | 905007-07 | PIN ROLL .156 X 1.00 ZINC | |
| 13 | 2 | 903420-01 | RING, RETAIN,SLF/LCK.50,SS | |
| 14 | 4 | 903421-02 | WASHER,6/6 NYLON.25IDX.062TH | |
| 15 | 2 | 283951-01 | CLEVIS PIN, 1/4 X 1-5/8 | |
| 16 | 2 | 267326-01 | SPRING,HOOK,RETENTION RAMP | |
| 17 | 2 | 905007-03 | ROLL PIN DIM.156 X.63, ZINC | |
| 18 | 2 | 903413-02 | WASHER,6/6 NYLON.5IDX.062TH | |
| 19 | 4 | 904005-1 | RIVET,BLIND SSTL DOME .187X.44 | |
| 20 | 1 | 297687-05 | 1/2 TORSION BAR KIT, H/C DMD | |
| 20 | 1 | 297687-08 | 9/16 TORSION BAR KIT, H/C DMD | |
| 20A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 20A | 1 | 297757-01 | LH PIN WLDMT 9/16IN | |
| 20B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 20B | 1 | 297762-01 | TORSION BAR HOUSING 9/16IN | |
| 20C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 20C | 1 | 297760-01 | TORSION BAR 68.75 LG | |
| 20D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 20E | 2 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 20F | 1 | 298757-01 | 1IN PIN WELDT, RH, H/C DMD | |
| 20G | 1 | 253630 | PIN COLLAR X 3/4" |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

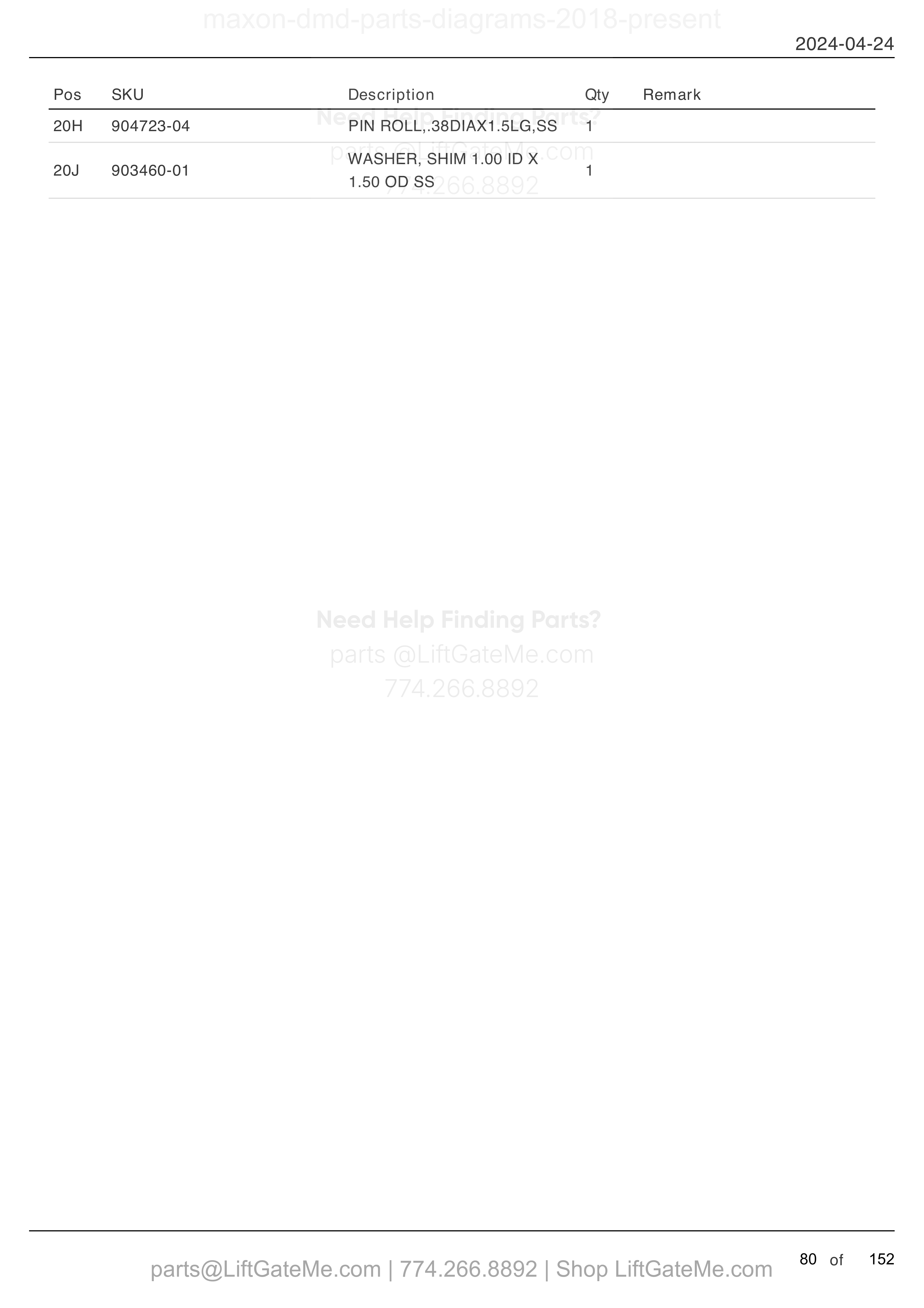

1 PIECE PLATFORM WITH 9” DUAL RETENTION RAMPS (HYDRAULIC CLOSER) (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 20H | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS | |
| 20J | 1 | 903460-01 | WASHER, SHIM 1.00 ID X 1.50 OD SS |

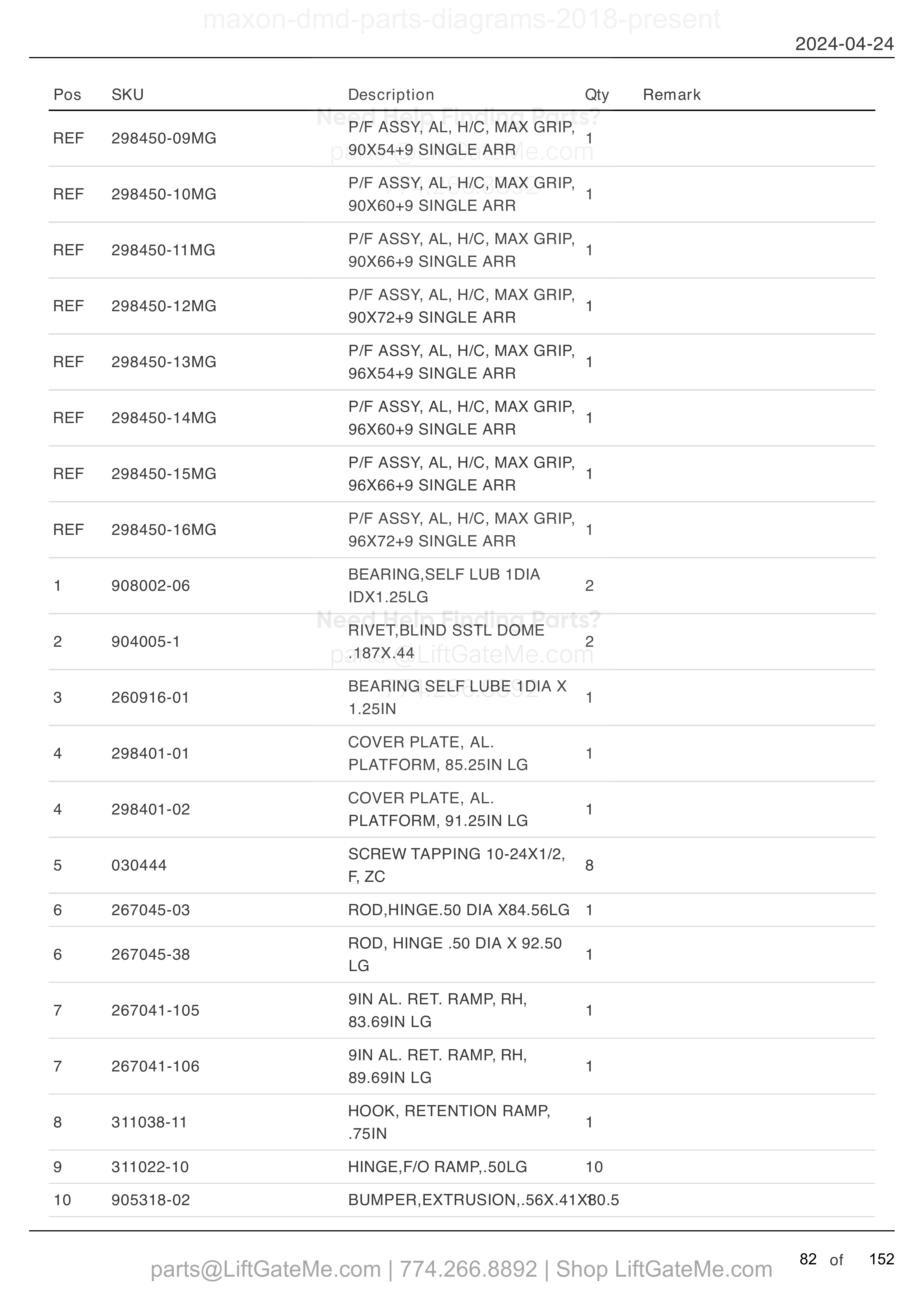

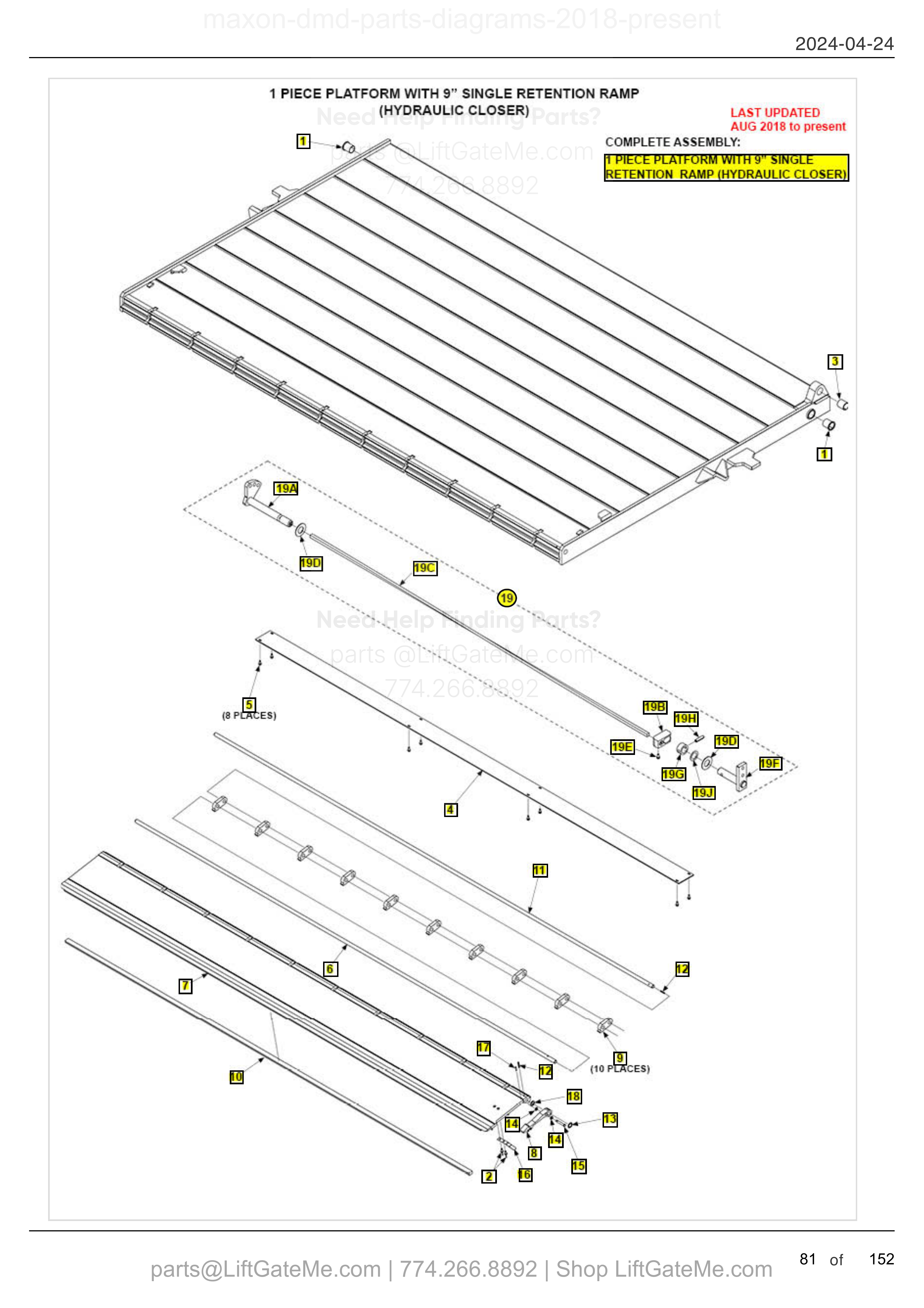

1 PIECE PLATFORM WITH 9” SINGLE RETENTION RAMP (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298450-09MG | P/F ASSY, AL, H/C, MAX GRIP, 90X54+9 SINGLE ARR | |
| REF | 1 | 298450-10MG | P/F ASSY, AL, H/C, MAX GRIP, 90X60+9 SINGLE ARR | |
| REF | 1 | 298450-11MG | P/F ASSY, AL, H/C, MAX GRIP, 90X66+9 SINGLE ARR | |
| REF | 1 | 298450-12MG | P/F ASSY, AL, H/C, MAX GRIP, 90X72+9 SINGLE ARR | |
| REF | 1 | 298450-13MG | P/F ASSY, AL, H/C, MAX GRIP, 96X54+9 SINGLE ARR | |
| REF | 1 | 298450-14MG | P/F ASSY, AL, H/C, MAX GRIP, 96X60+9 SINGLE ARR | |
| REF | 1 | 298450-15MG | P/F ASSY, AL, H/C, MAX GRIP, 96X66+9 SINGLE ARR | |
| REF | 1 | 298450-16MG | P/F ASSY, AL, H/C, MAX GRIP, 96X72+9 SINGLE ARR | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 2 | 904005-1 | RIVET,BLIND SSTL DOME .187X.44 | |
| 3 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN | |
| 4 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 4 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 5 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 6 | 1 | 267045-03 | ROD,HINGE.50 DIA X84.56LG | |
| 6 | 1 | 267045-38 | ROD, HINGE .50 DIA X 92.50 LG | |
| 7 | 1 | 267041-105 | 9IN AL. RET. RAMP, RH, 83.69IN LG | |
| 7 | 1 | 267041-106 | 9IN AL. RET. RAMP, RH, 89.69IN LG | |
| 8 | 1 | 311038-11 | HOOK, RETENTION RAMP, .75IN | |
| 9 | 10 | 311022-10 | HINGE,F/O RAMP,.50LG | |
| 10 | 80.5 | 905318-02 | BUMPER,EXTRUSION,.56X.41X80.5 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

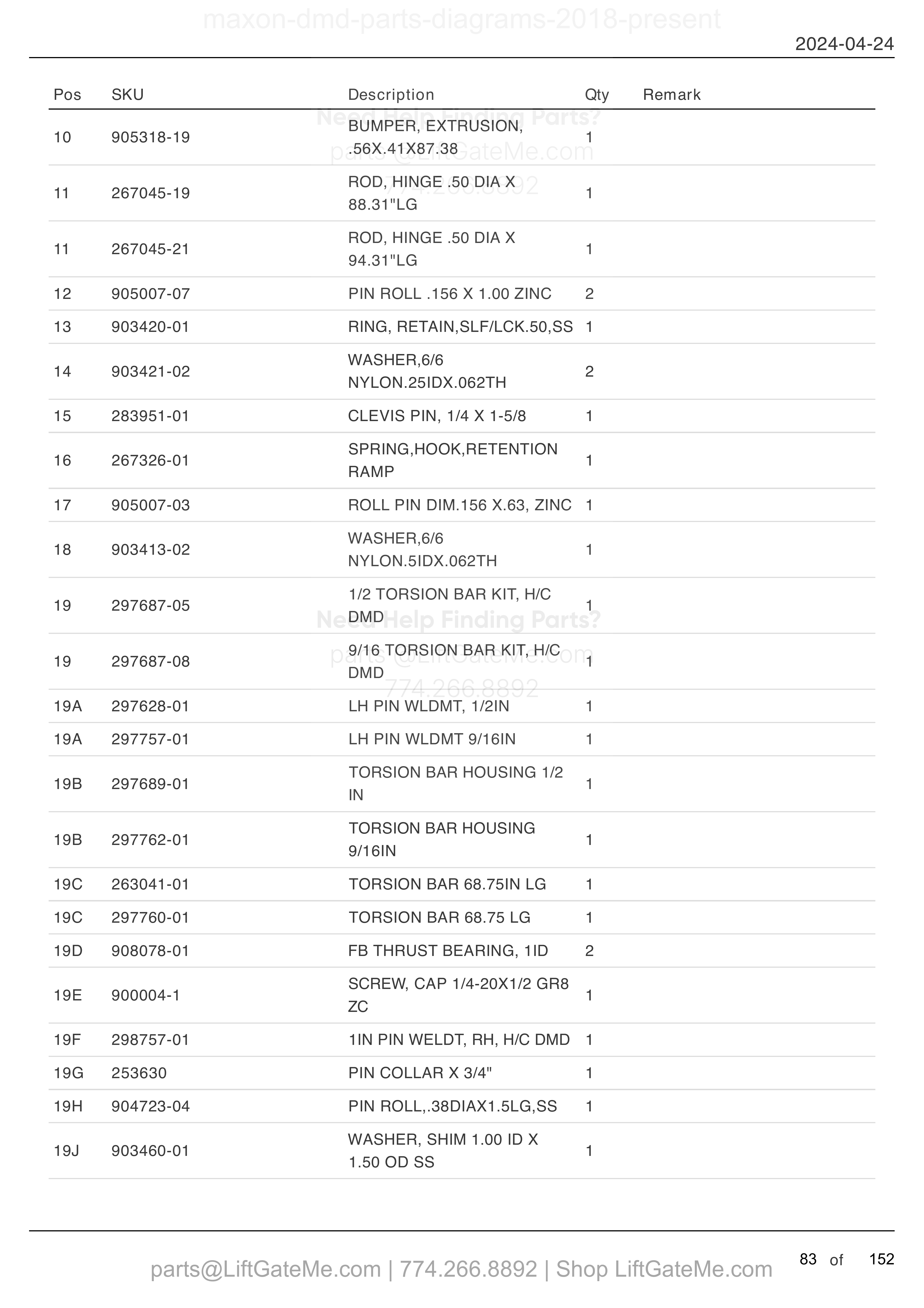

1 PIECE PLATFORM WITH 9” SINGLE RETENTION RAMP (HYDRAULIC CLOSER) (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 10 | 1 | 905318-19 | BUMPER, EXTRUSION, .56X.41X87.38 | |
| 11 | 1 | 267045-19 | ROD, HINGE .50 DIA X 88.31"LG | |
| 11 | 1 | 267045-21 | ROD, HINGE .50 DIA X 94.31"LG | |
| 12 | 2 | 905007-07 | PIN ROLL .156 X 1.00 ZINC | |
| 13 | 1 | 903420-01 | RING, RETAIN,SLF/LCK.50,SS | |
| 14 | 2 | 903421-02 | WASHER,6/6 NYLON.25IDX.062TH | |
| 15 | 1 | 283951-01 | CLEVIS PIN, 1/4 X 1-5/8 | |
| 16 | 1 | 267326-01 | SPRING,HOOK,RETENTION RAMP | |
| 17 | 1 | 905007-03 | ROLL PIN DIM.156 X.63, ZINC | |
| 18 | 1 | 903413-02 | WASHER,6/6 NYLON.5IDX.062TH | |
| 19 | 1 | 297687-05 | 1/2 TORSION BAR KIT, H/C DMD | |
| 19 | 1 | 297687-08 | 9/16 TORSION BAR KIT, H/C DMD | |
| 19A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 19A | 1 | 297757-01 | LH PIN WLDMT 9/16IN | |
| 19B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 19B | 1 | 297762-01 | TORSION BAR HOUSING 9/16IN | |
| 19C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 19C | 1 | 297760-01 | TORSION BAR 68.75 LG | |
| 19D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 19E | 1 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 19F | 1 | 298757-01 | 1IN PIN WELDT, RH, H/C DMD | |
| 19G | 1 | 253630 | PIN COLLAR X 3/4" | |
| 19H | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS | |
| 19J | 1 | 903460-01 | WASHER, SHIM 1.00 ID X 1.50 OD SS |

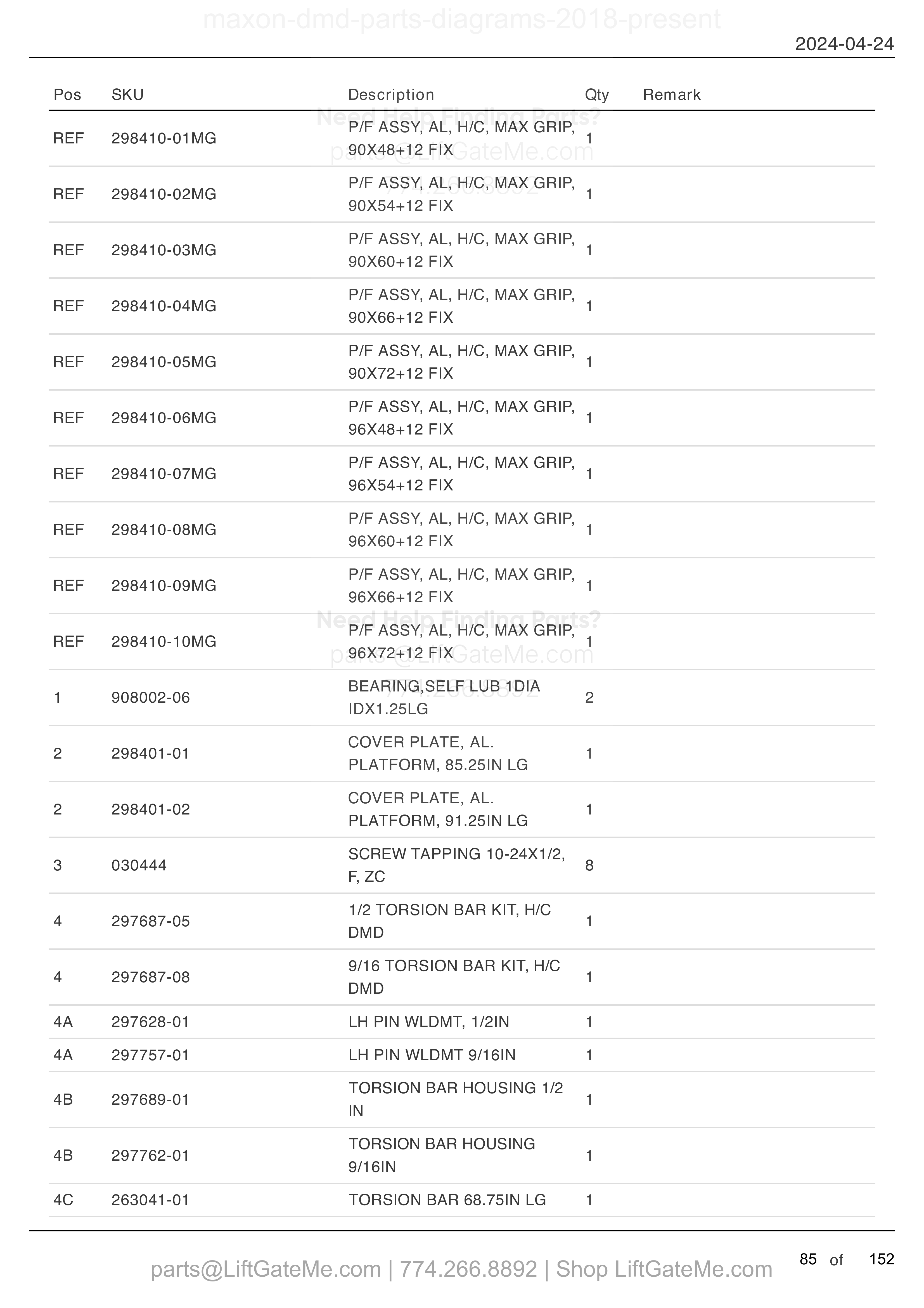

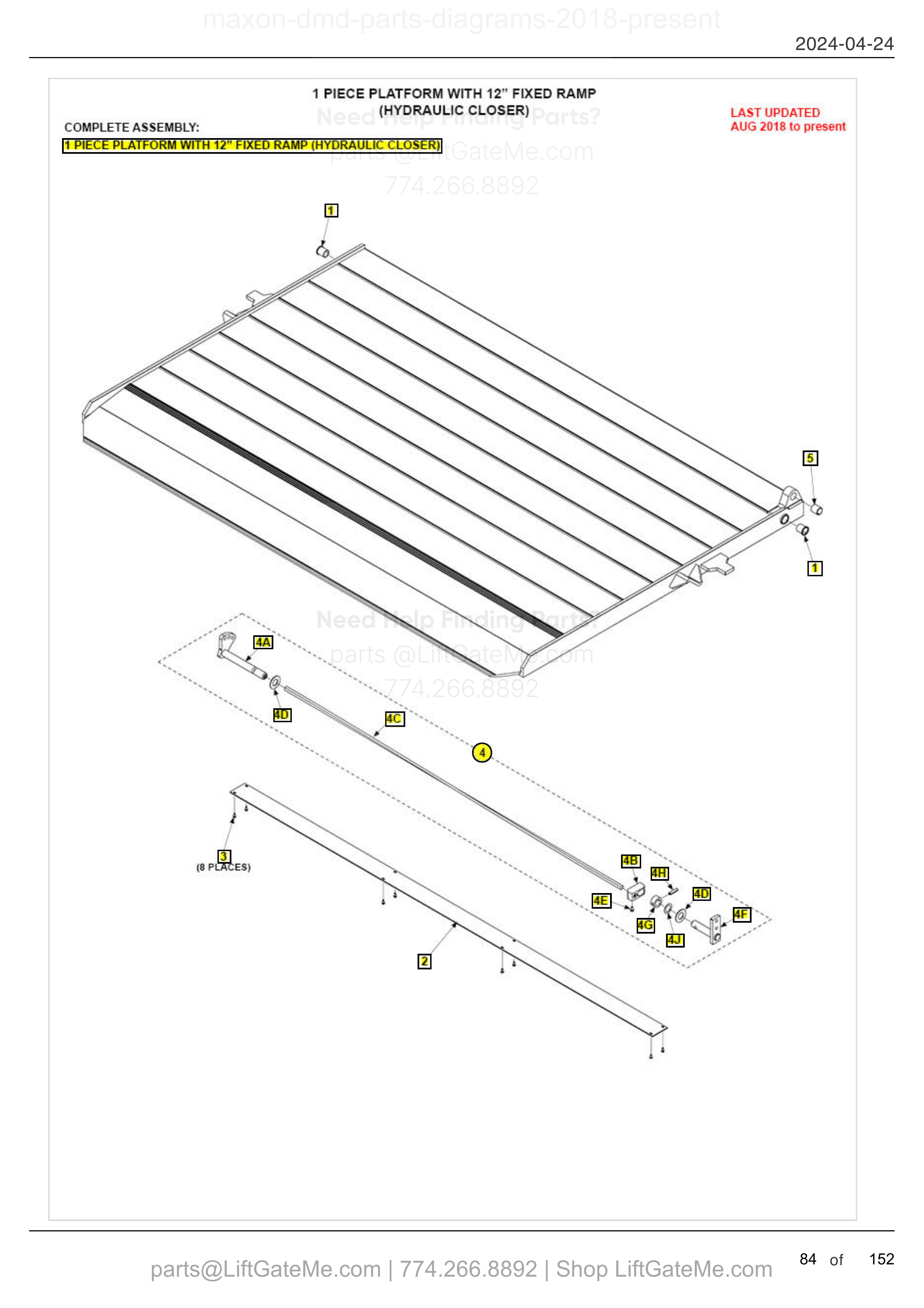

1 PIECE PLATFORM WITH 12" FIXED RAMP (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298410-01MG | P/F ASSY, AL, H/C, MAX GRIP, 90X48+12 FIX | |
| REF | 1 | 298410-02MG | P/F ASSY, AL, H/C, MAX GRIP, 90X54+12 FIX | |
| REF | 1 | 298410-03MG | P/F ASSY, AL, H/C, MAX GRIP, 90X60+12 FIX | |
| REF | 1 | 298410-04MG | P/F ASSY, AL, H/C, MAX GRIP, 90X66+12 FIX | |
| REF | 1 | 298410-05MG | P/F ASSY, AL, H/C, MAX GRIP, 90X72+12 FIX | |
| REF | 1 | 298410-06MG | P/F ASSY, AL, H/C, MAX GRIP, 96X48+12 FIX | |
| REF | 1 | 298410-07MG | P/F ASSY, AL, H/C, MAX GRIP, 96X54+12 FIX | |
| REF | 1 | 298410-08MG | P/F ASSY, AL, H/C, MAX GRIP, 96X60+12 FIX | |
| REF | 1 | 298410-09MG | P/F ASSY, AL, H/C, MAX GRIP, 96X66+12 FIX | |
| REF | 1 | 298410-10MG | P/F ASSY, AL, H/C, MAX GRIP, 96X72+12 FIX | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 1 | 297687-05 | 1/2 TORSION BAR KIT, H/C DMD | |
| 4 | 1 | 297687-08 | 9/16 TORSION BAR KIT, H/C DMD | |
| 4A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 4A | 1 | 297757-01 | LH PIN WLDMT 9/16IN | |
| 4B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 4B | 1 | 297762-01 | TORSION BAR HOUSING 9/16IN | |
| 4C | 1 | 263041-01 | TORSION BAR 68.75IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

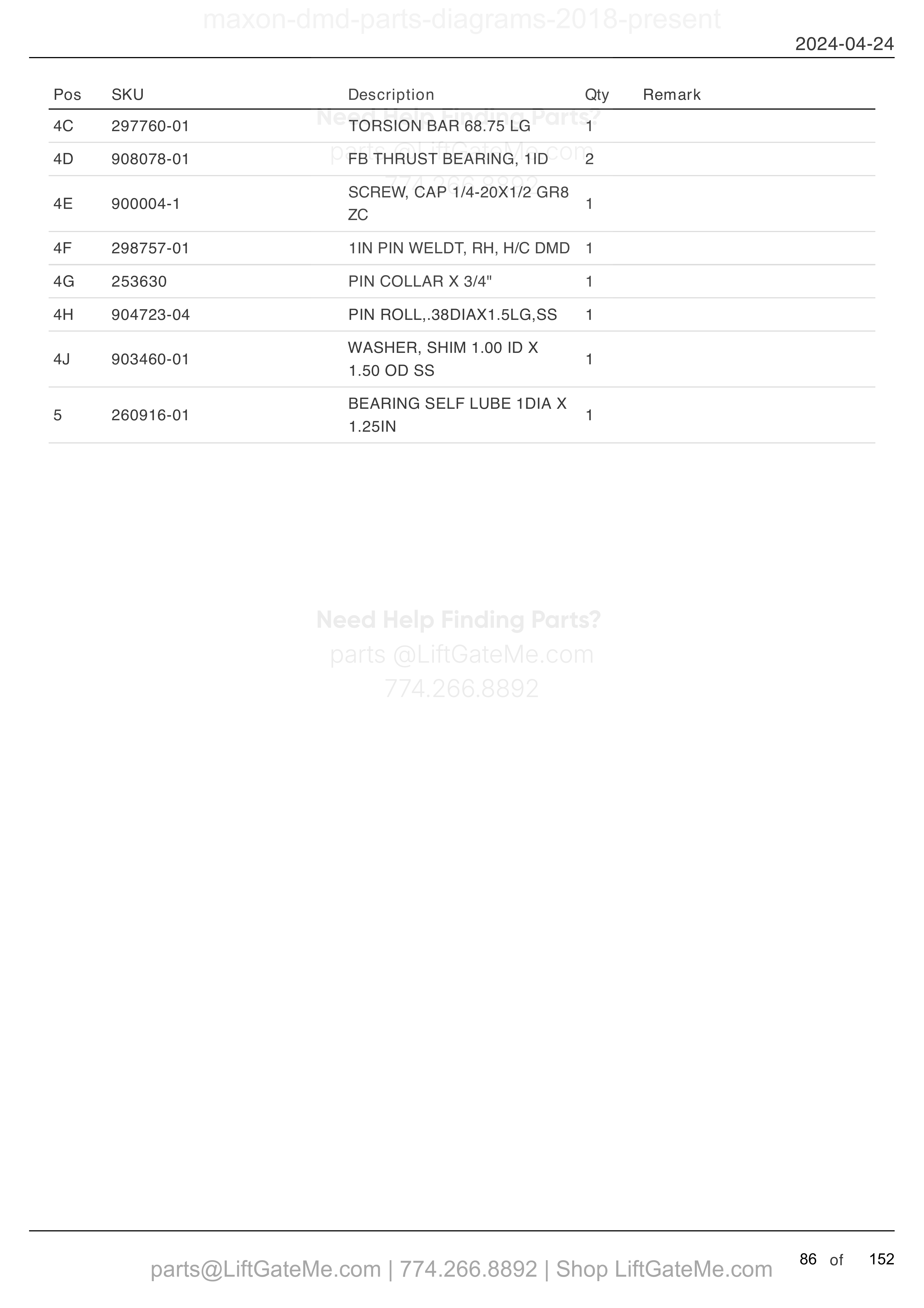

1 PIECE PLATFORM WITH 12" FIXED RAMP (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 4C | 1 | 297760-01 | TORSION BAR 68.75 LG | |
| 4D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 4E | 1 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 4F | 1 | 298757-01 | 1IN PIN WELDT, RH, H/C DMD | |
| 4G | 1 | 253630 | PIN COLLAR X 3/4" | |
| 4H | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS | |
| 4J | 1 | 903460-01 | WASHER, SHIM 1.00 ID X 1.50 OD SS | |
| 5 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN |

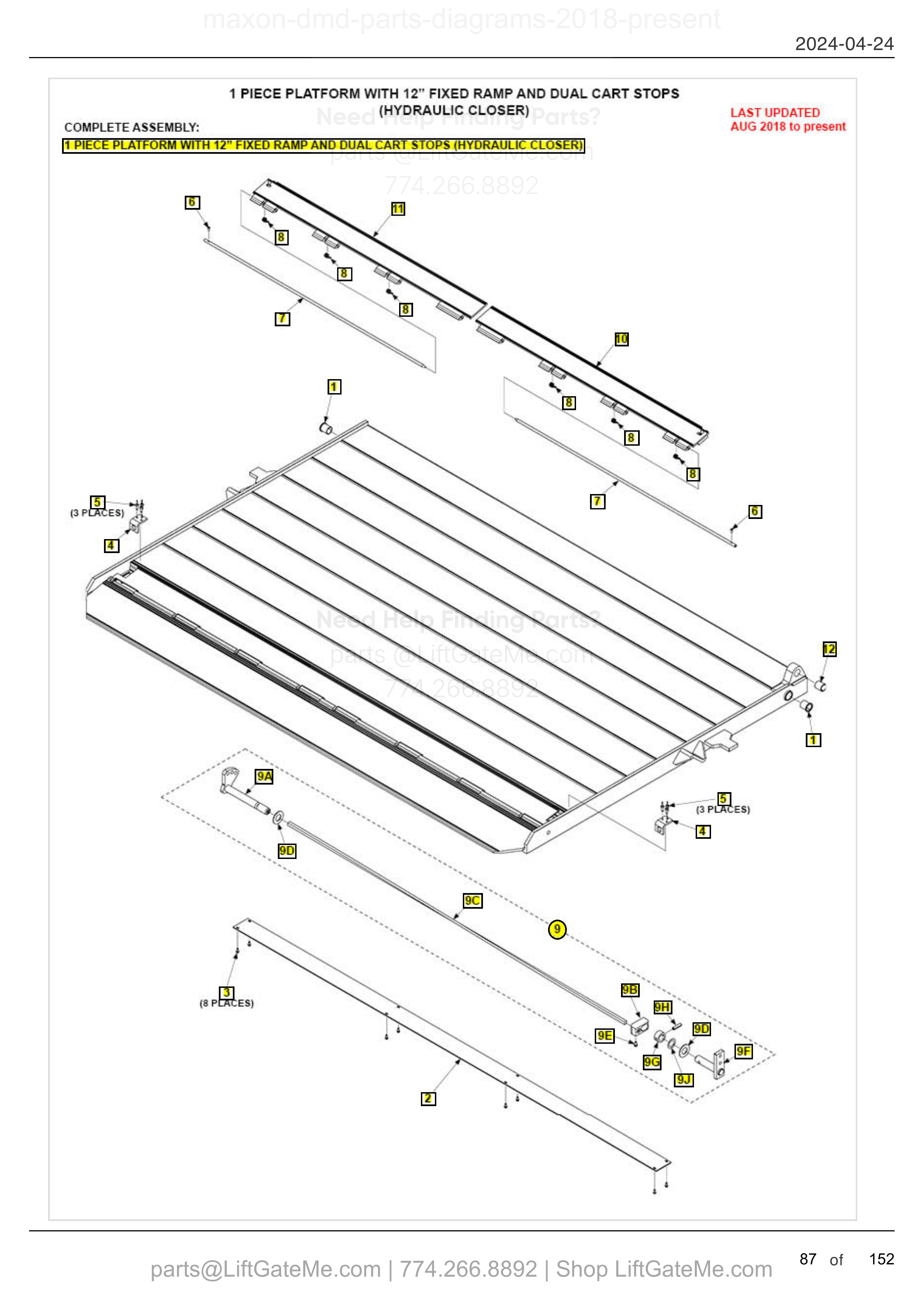

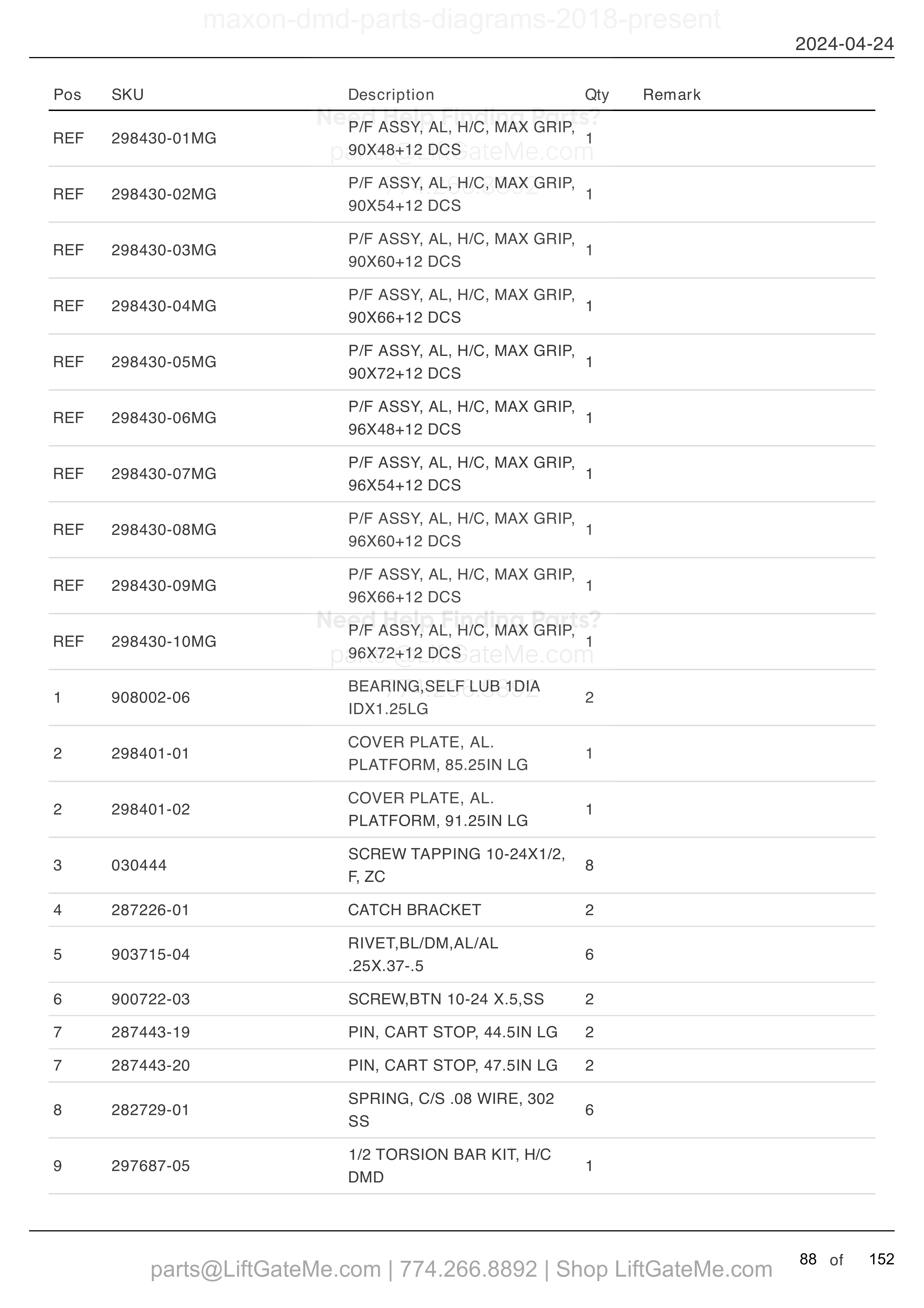

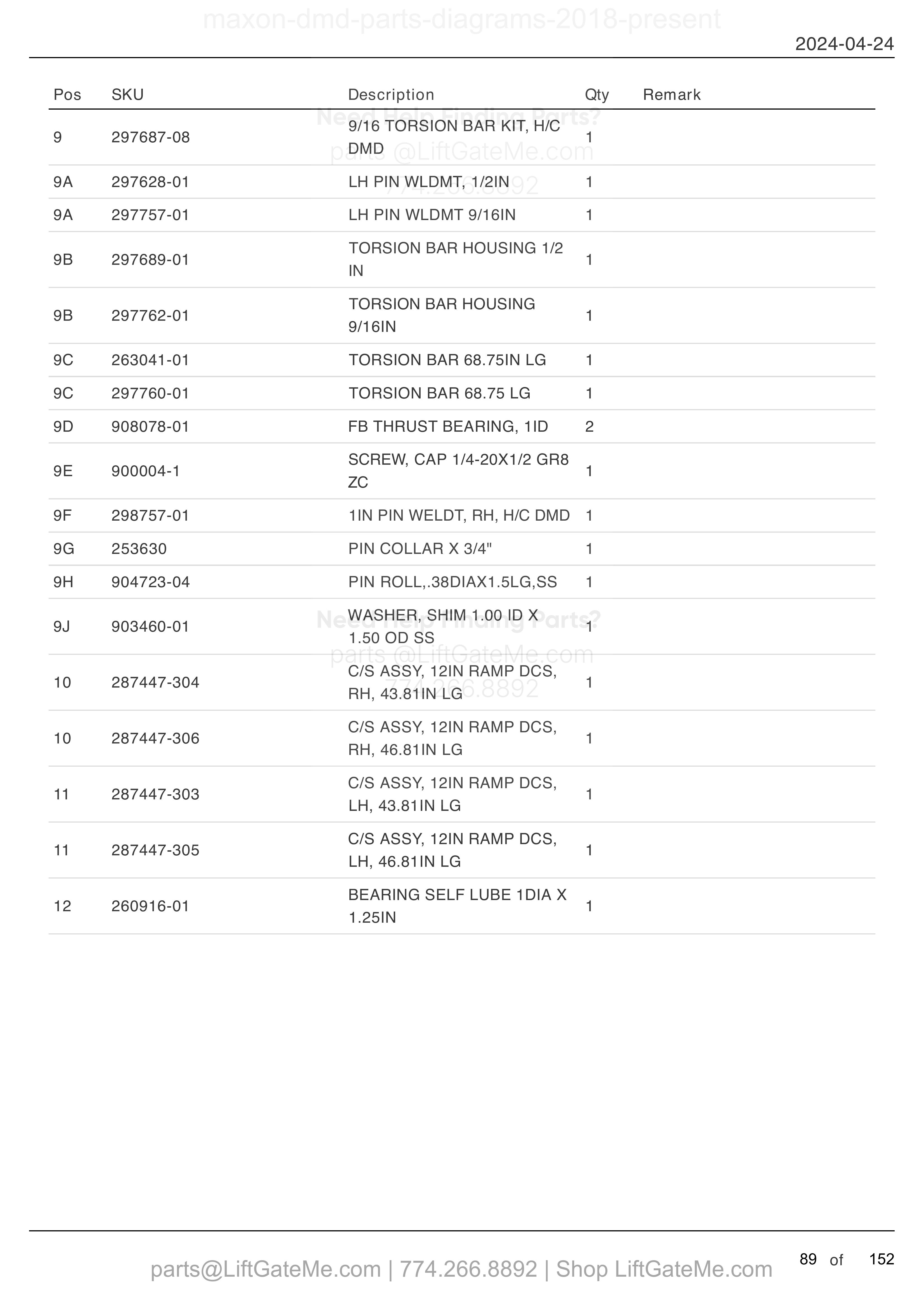

1 PIECE PLATFORM WITH 12” FIXED RAMP AND DUAL CART STOPS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298430-01MG | P/F ASSY, AL, H/C, MAX GRIP, 90X48+12 DCS | |
| REF | 1 | 298430-02MG | P/F ASSY, AL, H/C, MAX GRIP, 90X54+12 DCS | |
| REF | 1 | 298430-03MG | P/F ASSY, AL, H/C, MAX GRIP, 90X60+12 DCS | |
| REF | 1 | 298430-04MG | P/F ASSY, AL, H/C, MAX GRIP, 90X66+12 DCS | |
| REF | 1 | 298430-05MG | P/F ASSY, AL, H/C, MAX GRIP, 90X72+12 DCS | |
| REF | 1 | 298430-06MG | P/F ASSY, AL, H/C, MAX GRIP, 96X48+12 DCS | |
| REF | 1 | 298430-07MG | P/F ASSY, AL, H/C, MAX GRIP, 96X54+12 DCS | |
| REF | 1 | 298430-08MG | P/F ASSY, AL, H/C, MAX GRIP, 96X60+12 DCS | |
| REF | 1 | 298430-09MG | P/F ASSY, AL, H/C, MAX GRIP, 96X66+12 DCS | |
| REF | 1 | 298430-10MG | P/F ASSY, AL, H/C, MAX GRIP, 96X72+12 DCS | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 2 | 287226-01 | CATCH BRACKET | |
| 5 | 6 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 6 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 7 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 7 | 2 | 287443-20 | PIN, CART STOP, 47.5IN LG | |
| 8 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 9 | 1 | 297687-05 | 1/2 TORSION BAR KIT, H/C DMD |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
1 PIECE PLATFORM WITH 12” FIXED RAMP AND DUAL CART STOPS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 9 | 1 | 297687-08 | 9/16 TORSION BAR KIT, H/C DMD | |
| 9A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 9A | 1 | 297757-01 | LH PIN WLDMT 9/16IN | |
| 9B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 9B | 1 | 297762-01 | TORSION BAR HOUSING 9/16IN | |
| 9C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 9C | 1 | 297760-01 | TORSION BAR 68.75 LG | |
| 9D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 9E | 1 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 9F | 1 | 298757-01 | 1IN PIN WELDT, RH, H/C DMD | |
| 9G | 1 | 253630 | PIN COLLAR X 3/4" | |
| 9H | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS | |
| 9J | 1 | 903460-01 | WASHER, SHIM 1.00 ID X 1.50 OD SS | |
| 10 | 1 | 287447-304 | C/S ASSY, 12IN RAMP DCS, RH, 43.81IN LG | |
| 10 | 1 | 287447-306 | C/S ASSY, 12IN RAMP DCS, RH, 46.81IN LG | |
| 11 | 1 | 287447-303 | C/S ASSY, 12IN RAMP DCS, LH, 43.81IN LG | |
| 11 | 1 | 287447-305 | C/S ASSY, 12IN RAMP DCS, LH, 46.81IN LG | |
| 12 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN |

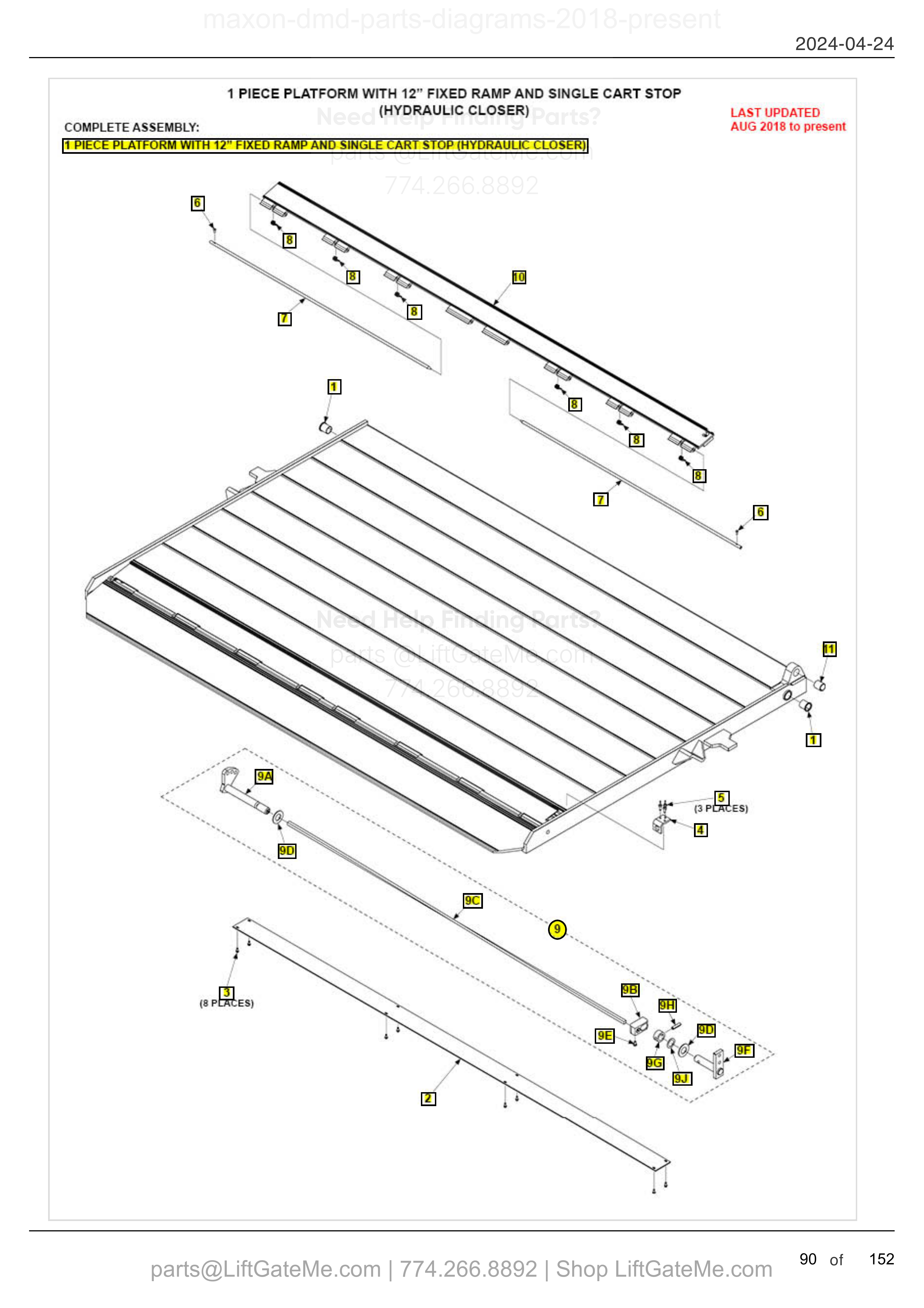

1 PIECE PLATFORM WITH 12" FIXED RAMP AND SINGLE CART STOP (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298430-11MG | P/F ASSY, AL, H/C, MAX GRIP, 90X48+12 SCS | |
| REF | 1 | 298430-12MG | P/F ASSY, AL, H/C, MAX GRIP, 90X54+12 SCS | |
| REF | 1 | 298430-13MG | P/F ASSY, AL, H/C, MAX GRIP, 90X60+12 SCS | |
| REF | 1 | 298430-14MG | P/F ASSY, AL, H/C, MAX GRIP, 90X66+12 SCS | |
| REF | 1 | 298430-15MG | P/F ASSY, AL, H/C, MAX GRIP, 90X72+12 SCS | |
| REF | 1 | 298430-16MG | P/F ASSY, AL, H/C, MAX GRIP, 96X48+12 SCS | |
| REF | 1 | 298430-17MG | P/F ASSY, AL, H/C, MAX GRIP, 96X54+12 SCS | |
| REF | 1 | 298430-18MG | P/F ASSY, AL, H/C, MAX GRIP, 96X60+12 SCS | |
| REF | 1 | 298430-19MG | P/F ASSY, AL, H/C, MAX GRIP, 96X66+12 SCS | |
| REF | 1 | 298430-20MG | P/F ASSY, AL, H/C, MAX GRIP, 96X72+12 SCS | |
| 1 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 2 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 2 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 3 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 4 | 1 | 287226-01 | CATCH BRACKET | |
| 5 | 3 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 6 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 7 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 7 | 2 | 287443-20 | PIN, CART STOP, 47.5IN LG | |
| 8 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 9 | 1 | 297687-05 | 1/2 TORSION BAR KIT, H/C DMD |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
1 PIECE PLATFORM WITH 12" FIXED RAMP AND SINGLE CART STOP (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 9 | 1 | 297687-08 | 9/16 TORSION BAR KIT, H/C DMD | |
| 9A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 9A | 1 | 297757-01 | LH PIN WLDMT 9/16IN | |
| 9B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 9B | 1 | 297762-01 | TORSION BAR HOUSING 9/16IN | |
| 9C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 9C | 1 | 297760-01 | TORSION BAR 68.75 LG | |
| 9D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 9E | 1 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 9F | 1 | 298757-01 | 1IN PIN WELDT, RH, H/C DMD | |
| 9G | 1 | 253630 | PIN COLLAR X 3/4" | |
| 9H | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS | |
| 9J | 1 | 903460-01 | WASHER, SHIM 1.00 ID X 1.50 OD SS | |
| 10 | 1 | 287447-353 | C/S ASSY, 12IN RAMP SCS, RH, 87.81IN LG | |
| 10 | 1 | 287447-354 | C/S ASSY, 12IN RAMP SCS, RH, 93.81IN LG | |
| 11 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN |

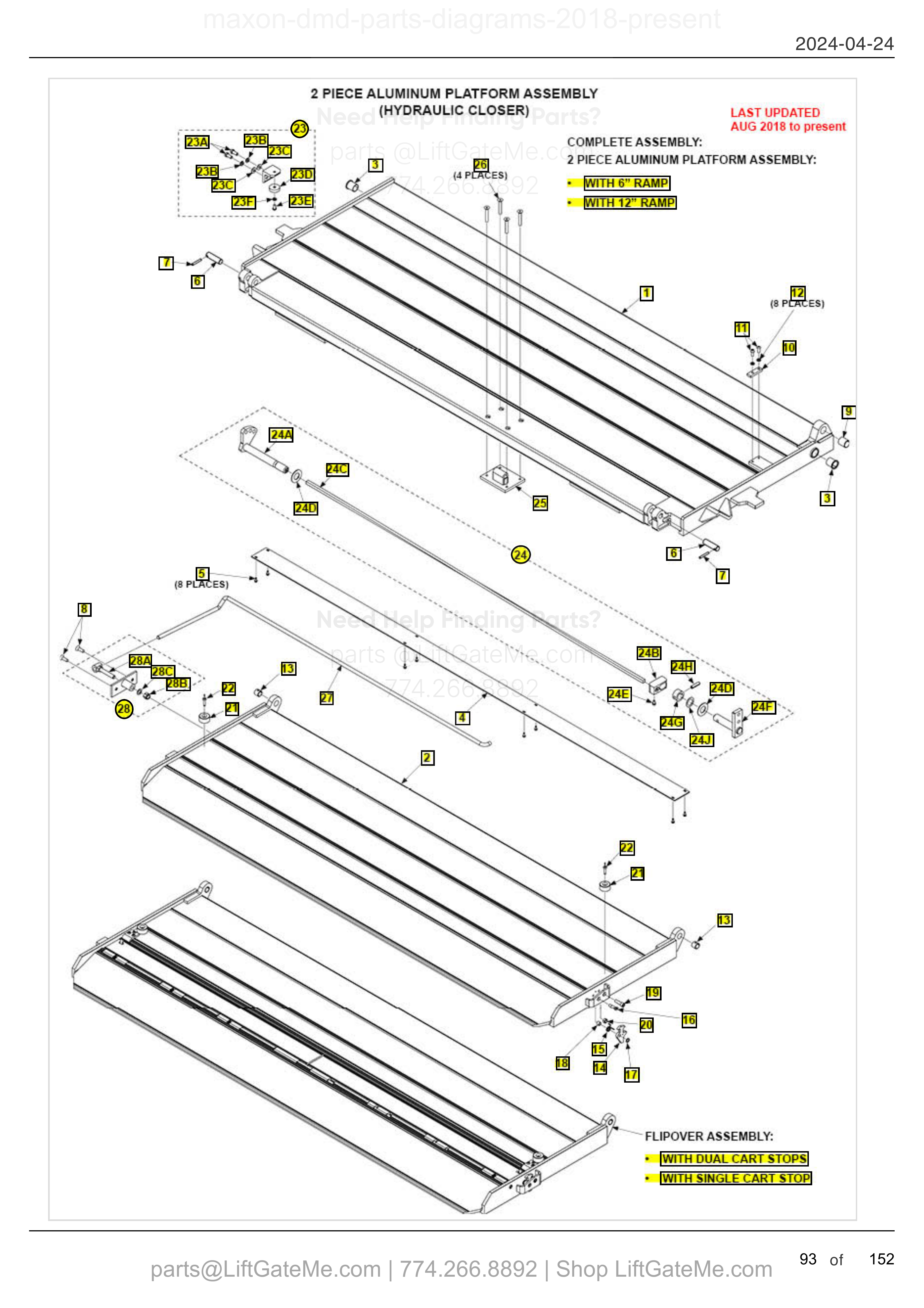

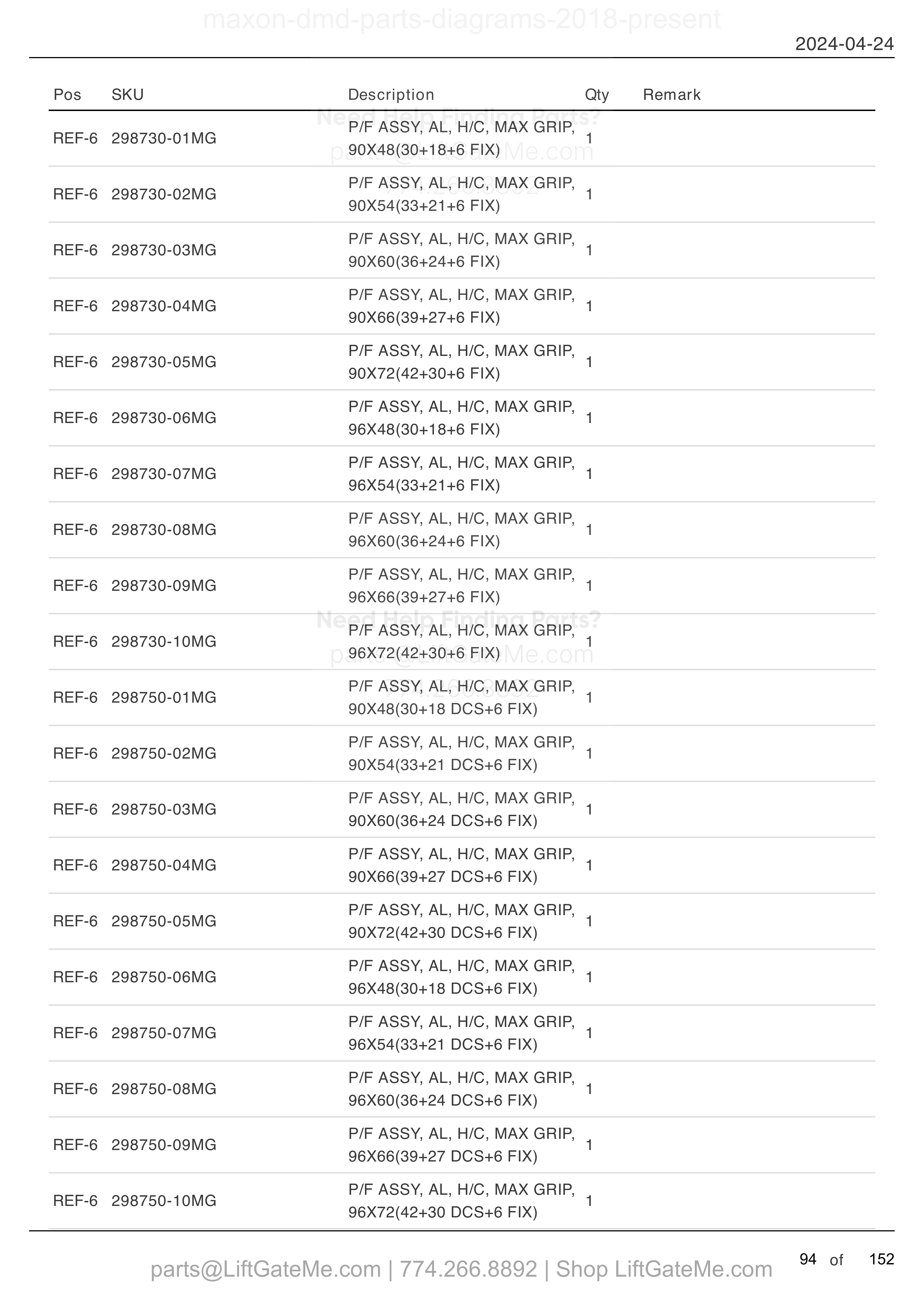

2 PIECE ALUMINUM PLATFORM ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF-6 | 1 | 298730-01MG | P/F ASSY, AL, H/C, MAX GRIP, 90X48(30+18+6 FIX) | |
| REF-6 | 1 | 298730-02MG | P/F ASSY, AL, H/C, MAX GRIP, 90X54(33+21+6 FIX) | |
| REF-6 | 1 | 298730-03MG | P/F ASSY, AL, H/C, MAX GRIP, 90X60(36+24+6 FIX) | |
| REF-6 | 1 | 298730-04MG | P/F ASSY, AL, H/C, MAX GRIP, 90X66(39+27+6 FIX) | |
| REF-6 | 1 | 298730-05MG | P/F ASSY, AL, H/C, MAX GRIP, 90X72(42+30+6 FIX) | |
| REF-6 | 1 | 298730-06MG | P/F ASSY, AL, H/C, MAX GRIP, 96X48(30+18+6 FIX) | |
| REF-6 | 1 | 298730-07MG | P/F ASSY, AL, H/C, MAX GRIP, 96X54(33+21+6 FIX) | |
| REF-6 | 1 | 298730-08MG | P/F ASSY, AL, H/C, MAX GRIP, 96X60(36+24+6 FIX) | |
| REF-6 | 1 | 298730-09MG | P/F ASSY, AL, H/C, MAX GRIP, 96X66(39+27+6 FIX) | |
| REF-6 | 1 | 298730-10MG | P/F ASSY, AL, H/C, MAX GRIP, 96X72(42+30+6 FIX) | |
| REF-6 | 1 | 298750-01MG | P/F ASSY, AL, H/C, MAX GRIP, 90X48(30+18 DCS+6 FIX) | |
| REF-6 | 1 | 298750-02MG | P/F ASSY, AL, H/C, MAX GRIP, 90X54(33+21 DCS+6 FIX) | |
| REF-6 | 1 | 298750-03MG | P/F ASSY, AL, H/C, MAX GRIP, 90X60(36+24 DCS+6 FIX) | |
| REF-6 | 1 | 298750-04MG | P/F ASSY, AL, H/C, MAX GRIP, 90X66(39+27 DCS+6 FIX) | |
| REF-6 | 1 | 298750-05MG | P/F ASSY, AL, H/C, MAX GRIP, 90X72(42+30 DCS+6 FIX) | |
| REF-6 | 1 | 298750-06MG | P/F ASSY, AL, H/C, MAX GRIP, 96X48(30+18 DCS+6 FIX) | |
| REF-6 | 1 | 298750-07MG | P/F ASSY, AL, H/C, MAX GRIP, 96X54(33+21 DCS+6 FIX) | |
| REF-6 | 1 | 298750-08MG | P/F ASSY, AL, H/C, MAX GRIP, 96X60(36+24 DCS+6 FIX) | |
| REF-6 | 1 | 298750-09MG | P/F ASSY, AL, H/C, MAX GRIP, 96X66(39+27 DCS+6 FIX) | |
| REF-6 | 1 | 298750-10MG | P/F ASSY, AL, H/C, MAX GRIP, 96X72(42+30 DCS+6 FIX) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

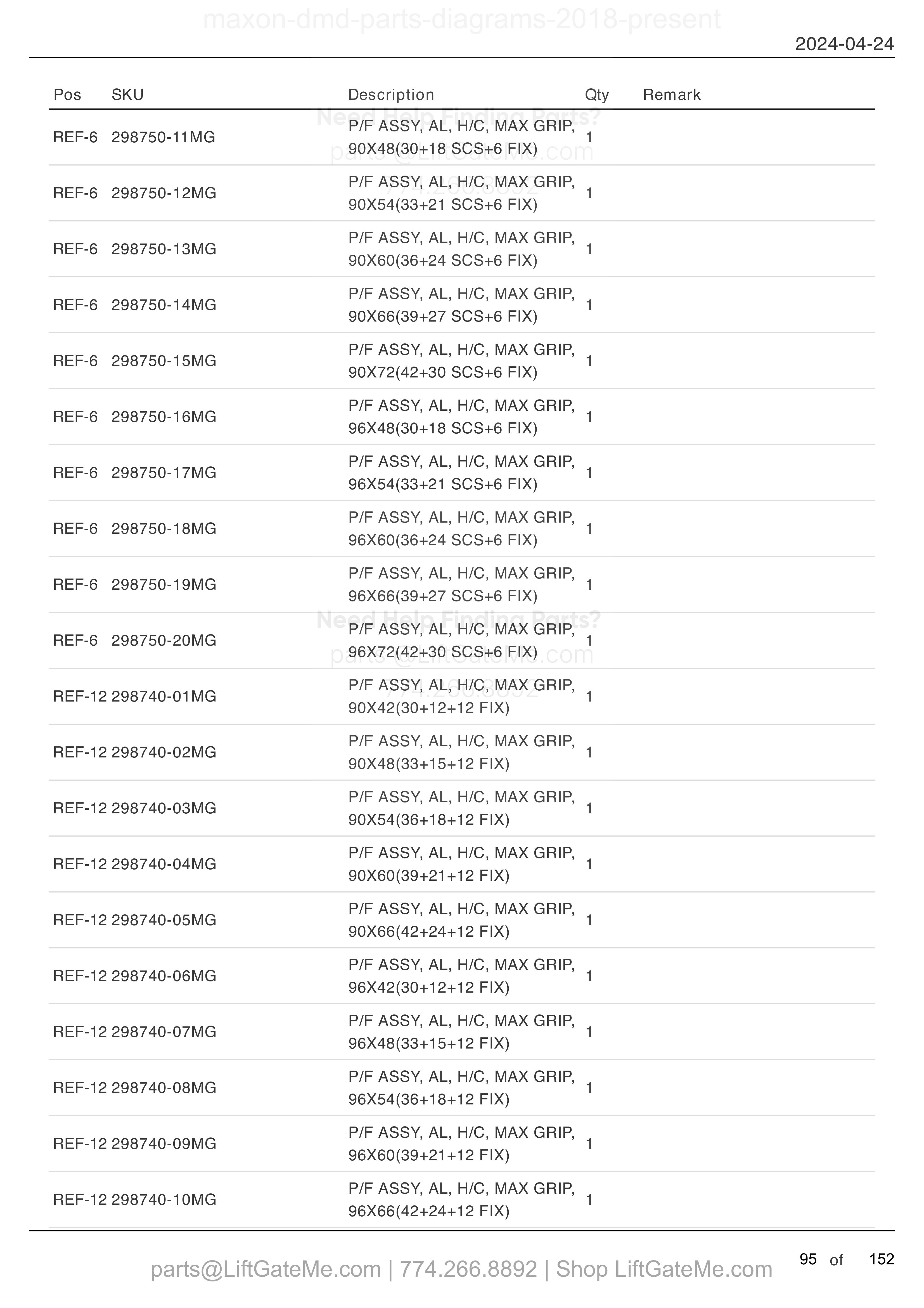

2 PIECE ALUMINUM PLATFORM ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF-6 | 1 | 298750-11MG | P/F ASSY, AL, H/C, MAX GRIP, 90X48(30+18 SCS+6 FIX) | |
| REF-6 | 1 | 298750-12MG | P/F ASSY, AL, H/C, MAX GRIP, 90X54(33+21 SCS+6 FIX) | |
| REF-6 | 1 | 298750-13MG | P/F ASSY, AL, H/C, MAX GRIP, 90X60(36+24 SCS+6 FIX) | |
| REF-6 | 1 | 298750-14MG | P/F ASSY, AL, H/C, MAX GRIP, 90X66(39+27 SCS+6 FIX) | |
| REF-6 | 1 | 298750-15MG | P/F ASSY, AL, H/C, MAX GRIP, 90X72(42+30 SCS+6 FIX) | |
| REF-6 | 1 | 298750-16MG | P/F ASSY, AL, H/C, MAX GRIP, 96X48(30+18 SCS+6 FIX) | |
| REF-6 | 1 | 298750-17MG | P/F ASSY, AL, H/C, MAX GRIP, 96X54(33+21 SCS+6 FIX) | |
| REF-6 | 1 | 298750-18MG | P/F ASSY, AL, H/C, MAX GRIP, 96X60(36+24 SCS+6 FIX) | |
| REF-6 | 1 | 298750-19MG | P/F ASSY, AL, H/C, MAX GRIP, 96X66(39+27 SCS+6 FIX) | |
| REF-6 | 1 | 298750-20MG | P/F ASSY, AL, H/C, MAX GRIP, 96X72(42+30 SCS+6 FIX) | |
| REF-12 | 1 | 298740-01MG | P/F ASSY, AL, H/C, MAX GRIP, 90X42(30+12+12 FIX) | |
| REF-12 | 1 | 298740-02MG | P/F ASSY, AL, H/C, MAX GRIP, 90X48(33+15+12 FIX) | |
| REF-12 | 1 | 298740-03MG | P/F ASSY, AL, H/C, MAX GRIP, 90X54(36+18+12 FIX) | |
| REF-12 | 1 | 298740-04MG | P/F ASSY, AL, H/C, MAX GRIP, 90X60(39+21+12 FIX) | |
| REF-12 | 1 | 298740-05MG | P/F ASSY, AL, H/C, MAX GRIP, 90X66(42+24+12 FIX) | |
| REF-12 | 1 | 298740-06MG | P/F ASSY, AL, H/C, MAX GRIP, 96X42(30+12+12 FIX) | |
| REF-12 | 1 | 298740-07MG | P/F ASSY, AL, H/C, MAX GRIP, 96X48(33+15+12 FIX) | |
| REF-12 | 1 | 298740-08MG | P/F ASSY, AL, H/C, MAX GRIP, 96X54(36+18+12 FIX) | |
| REF-12 | 1 | 298740-09MG | P/F ASSY, AL, H/C, MAX GRIP, 96X60(39+21+12 FIX) | |
| REF-12 | 1 | 298740-10MG | P/F ASSY, AL, H/C, MAX GRIP, 96X66(42+24+12 FIX) |

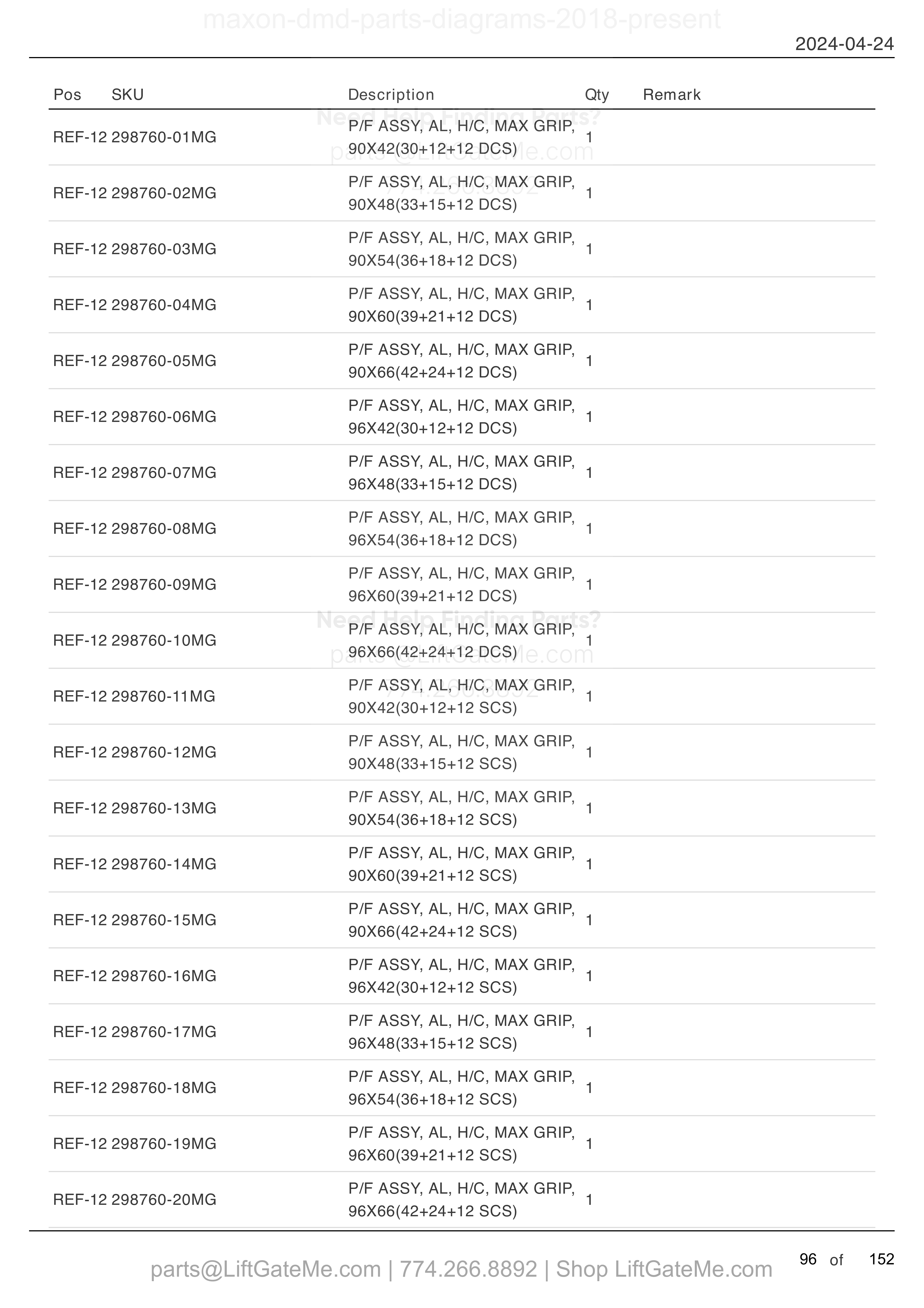

2 PIECE ALUMINUM PLATFORM ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF-12 | 1 | 298760-01MG | P/F ASSY, AL, H/C, MAX GRIP, 90X42(30+12+12 DCS) | |
| REF-12 | 1 | 298760-02MG | P/F ASSY, AL, H/C, MAX GRIP, 90X48(33+15+12 DCS) | |
| REF-12 | 1 | 298760-03MG | P/F ASSY, AL, H/C, MAX GRIP, 90X54(36+18+12 DCS) | |
| REF-12 | 1 | 298760-04MG | P/F ASSY, AL, H/C, MAX GRIP, 90X60(39+21+12 DCS) | |
| REF-12 | 1 | 298760-05MG | P/F ASSY, AL, H/C, MAX GRIP, 90X66(42+24+12 DCS) | |
| REF-12 | 1 | 298760-06MG | P/F ASSY, AL, H/C, MAX GRIP, 96X42(30+12+12 DCS) | |
| REF-12 | 1 | 298760-07MG | P/F ASSY, AL, H/C, MAX GRIP, 96X48(33+15+12 DCS) | |
| REF-12 | 1 | 298760-08MG | P/F ASSY, AL, H/C, MAX GRIP, 96X54(36+18+12 DCS) | |
| REF-12 | 1 | 298760-09MG | P/F ASSY, AL, H/C, MAX GRIP, 96X60(39+21+12 DCS) | |
| REF-12 | 1 | 298760-10MG | P/F ASSY, AL, H/C, MAX GRIP, 96X66(42+24+12 DCS) | |
| REF-12 | 1 | 298760-11MG | P/F ASSY, AL, H/C, MAX GRIP, 90X42(30+12+12 SCS) | |
| REF-12 | 1 | 298760-12MG | P/F ASSY, AL, H/C, MAX GRIP, 90X48(33+15+12 SCS) | |
| REF-12 | 1 | 298760-13MG | P/F ASSY, AL, H/C, MAX GRIP, 90X54(36+18+12 SCS) | |
| REF-12 | 1 | 298760-14MG | P/F ASSY, AL, H/C, MAX GRIP, 90X60(39+21+12 SCS) | |
| REF-12 | 1 | 298760-15MG | P/F ASSY, AL, H/C, MAX GRIP, 90X66(42+24+12 SCS) | |
| REF-12 | 1 | 298760-16MG | P/F ASSY, AL, H/C, MAX GRIP, 96X42(30+12+12 SCS) | |
| REF-12 | 1 | 298760-17MG | P/F ASSY, AL, H/C, MAX GRIP, 96X48(33+15+12 SCS) | |
| REF-12 | 1 | 298760-18MG | P/F ASSY, AL, H/C, MAX GRIP, 96X54(36+18+12 SCS) | |
| REF-12 | 1 | 298760-19MG | P/F ASSY, AL, H/C, MAX GRIP, 96X60(39+21+12 SCS) | |
| REF-12 | 1 | 298760-20MG | P/F ASSY, AL, H/C, MAX GRIP, 96X66(42+24+12 SCS) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

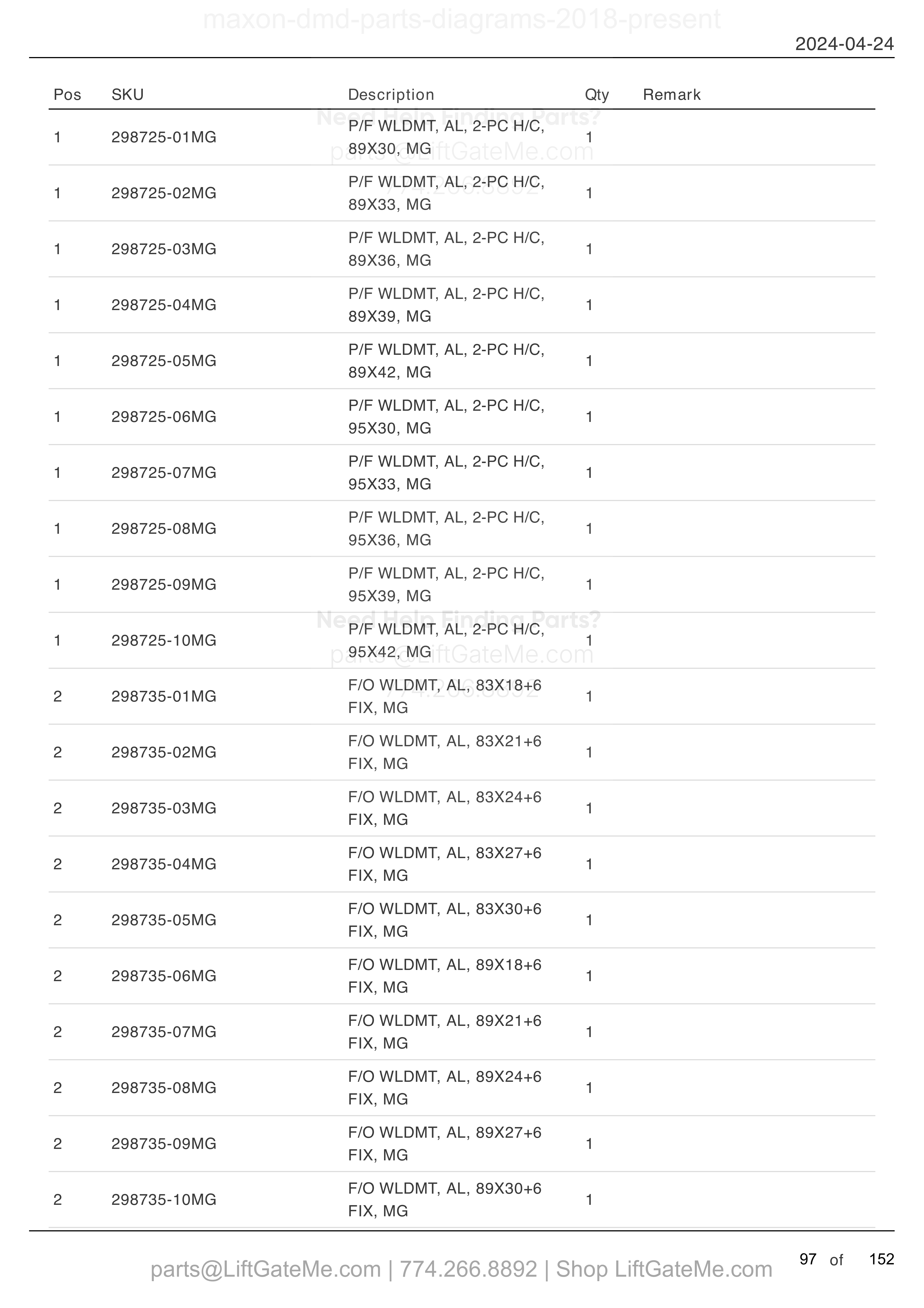

2 PIECE ALUMINUM PLATFORM ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 298725-01MG | P/F WLDMT, AL, 2-PC H/C, 89X30, MG | |
| 1 | 1 | 298725-02MG | P/F WLDMT, AL, 2-PC H/C, 89X33, MG | |
| 1 | 1 | 298725-03MG | P/F WLDMT, AL, 2-PC H/C, 89X36, MG | |
| 1 | 1 | 298725-04MG | P/F WLDMT, AL, 2-PC H/C, 89X39, MG | |
| 1 | 1 | 298725-05MG | P/F WLDMT, AL, 2-PC H/C, 89X42, MG | |
| 1 | 1 | 298725-06MG | P/F WLDMT, AL, 2-PC H/C, 95X30, MG | |
| 1 | 1 | 298725-07MG | P/F WLDMT, AL, 2-PC H/C, 95X33, MG | |
| 1 | 1 | 298725-08MG | P/F WLDMT, AL, 2-PC H/C, 95X36, MG | |
| 1 | 1 | 298725-09MG | P/F WLDMT, AL, 2-PC H/C, 95X39, MG | |
| 1 | 1 | 298725-10MG | P/F WLDMT, AL, 2-PC H/C, 95X42, MG | |
| 2 | 1 | 298735-01MG | F/O WLDMT, AL, 83X18+6 FIX, MG | |
| 2 | 1 | 298735-02MG | F/O WLDMT, AL, 83X21+6 FIX, MG | |
| 2 | 1 | 298735-03MG | F/O WLDMT, AL, 83X24+6 FIX, MG | |
| 2 | 1 | 298735-04MG | F/O WLDMT, AL, 83X27+6 FIX, MG | |
| 2 | 1 | 298735-05MG | F/O WLDMT, AL, 83X30+6 FIX, MG | |
| 2 | 1 | 298735-06MG | F/O WLDMT, AL, 89X18+6 FIX, MG | |
| 2 | 1 | 298735-07MG | F/O WLDMT, AL, 89X21+6 FIX, MG | |
| 2 | 1 | 298735-08MG | F/O WLDMT, AL, 89X24+6 FIX, MG | |
| 2 | 1 | 298735-09MG | F/O WLDMT, AL, 89X27+6 FIX, MG | |
| 2 | 1 | 298735-10MG | F/O WLDMT, AL, 89X30+6 FIX, MG |

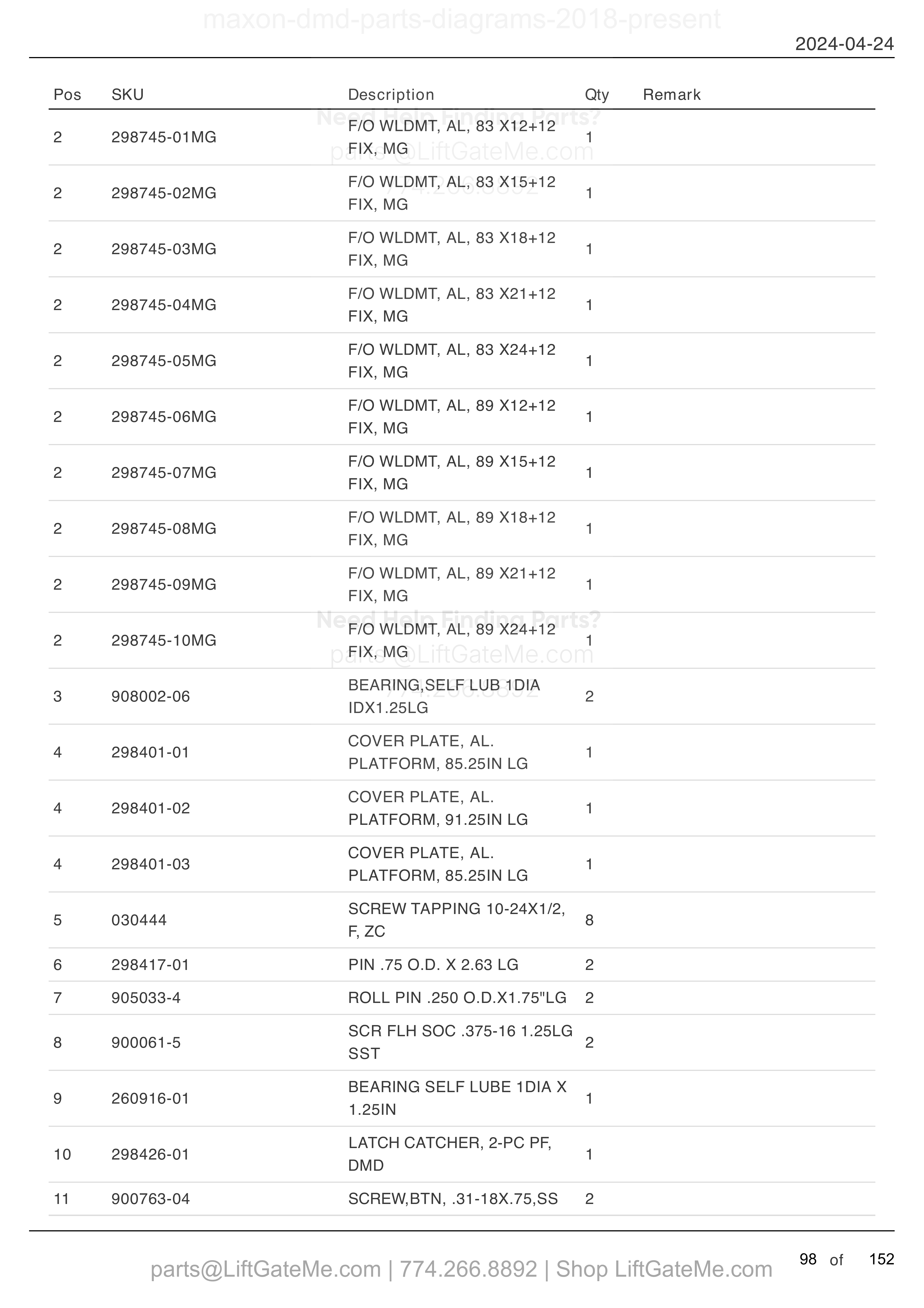

2 PIECE ALUMINUM PLATFORM ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 2 | 1 | 298745-01MG | F/O WLDMT, AL, 83 X12+12 FIX, MG | |
| 2 | 1 | 298745-02MG | F/O WLDMT, AL, 83 X15+12 FIX, MG | |
| 2 | 1 | 298745-03MG | F/O WLDMT, AL, 83 X18+12 FIX, MG | |
| 2 | 1 | 298745-04MG | F/O WLDMT, AL, 83 X21+12 FIX, MG | |
| 2 | 1 | 298745-05MG | F/O WLDMT, AL, 83 X24+12 FIX, MG | |
| 2 | 1 | 298745-06MG | F/O WLDMT, AL, 89 X12+12 FIX, MG | |
| 2 | 1 | 298745-07MG | F/O WLDMT, AL, 89 X15+12 FIX, MG | |
| 2 | 1 | 298745-08MG | F/O WLDMT, AL, 89 X18+12 FIX, MG | |
| 2 | 1 | 298745-09MG | F/O WLDMT, AL, 89 X21+12 FIX, MG | |
| 2 | 1 | 298745-10MG | F/O WLDMT, AL, 89 X24+12 FIX, MG | |
| 3 | 2 | 908002-06 | BEARING,SELF LUB 1DIA IDX1.25LG | |
| 4 | 1 | 298401-01 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 4 | 1 | 298401-02 | COVER PLATE, AL. PLATFORM, 91.25IN LG | |
| 4 | 1 | 298401-03 | COVER PLATE, AL. PLATFORM, 85.25IN LG | |
| 5 | 8 | 030444 | SCREW TAPPING 10-24X1/2, F, ZC | |
| 6 | 2 | 298417-01 | PIN .75 O.D. X 2.63 LG | |
| 7 | 2 | 905033-4 | ROLL PIN .250 O.D.X1.75"LG | |
| 8 | 2 | 900061-5 | SCR FLH SOC .375-16 1.25LG SST | |
| 9 | 1 | 260916-01 | BEARING SELF LUBE 1DIA X 1.25IN | |
| 10 | 1 | 298426-01 | LATCH CATCHER, 2-PC PF, DMD | |
| 11 | 2 | 900763-04 | SCREW,BTN, .31-18X.75,SS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

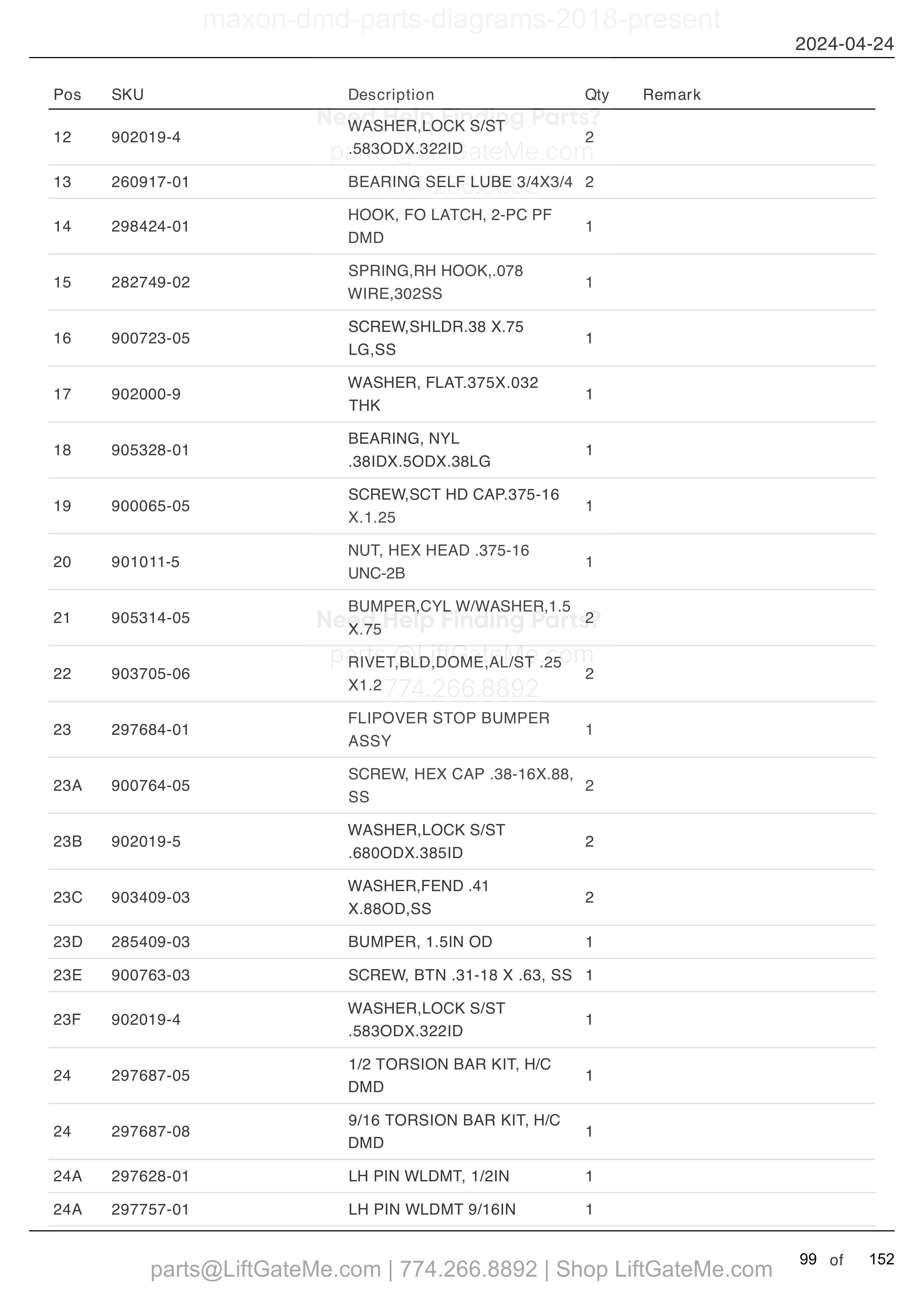

2 PIECE ALUMINUM PLATFORM ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 12 | 2 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 13 | 2 | 260917-01 | BEARING SELF LUBE 3/4X3/4 | |
| 14 | 1 | 298424-01 | HOOK, FO LATCH, 2-PC PF DMD | |
| 15 | 1 | 282749-02 | SPRING,RH HOOK,.078 WIRE,302SS | |
| 16 | 1 | 900723-05 | SCREW,SHLDR.38 X.75 LG,SS | |
| 17 | 1 | 902000-9 | WASHER, FLAT.375X.032 THK | |
| 18 | 1 | 905328-01 | BEARING, NYL .38IDX.5ODX.38LG | |
| 19 | 1 | 900065-05 | SCREW,SCT HD CAP.375-16 X.1.25 | |
| 20 | 1 | 901011-5 | NUT, HEX HEAD .375-16 UNC-2B | |
| 21 | 2 | 905314-05 | BUMPER,CYL W/WASHER,1.5 X.75 | |
| 22 | 2 | 903705-06 | RIVET,BLD,DOME,AL/ST .25 X1.2 | |
| 23 | 1 | 297684-01 | FLIPOVER STOP BUMPER ASSY | |
| 23A | 2 | 900764-05 | SCREW, HEX CAP .38-16X.88, SS | |
| 23B | 2 | 902019-5 | WASHER,LOCK S/ST .680ODX.385ID | |
| 23C | 2 | 903409-03 | WASHER,FEND .41 X.88OD,SS | |
| 23D | 1 | 285409-03 | BUMPER, 1.5IN OD | |
| 23E | 1 | 900763-03 | SCREW, BTN .31-18 X .63, SS | |
| 23F | 1 | 902019-4 | WASHER,LOCK S/ST .583ODX.322ID | |
| 24 | 1 | 297687-05 | 1/2 TORSION BAR KIT, H/C DMD | |
| 24 | 1 | 297687-08 | 9/16 TORSION BAR KIT, H/C DMD | |
| 24A | 1 | 297628-01 | LH PIN WLDMT, 1/2IN | |
| 24A | 1 | 297757-01 | LH PIN WLDMT 9/16IN |

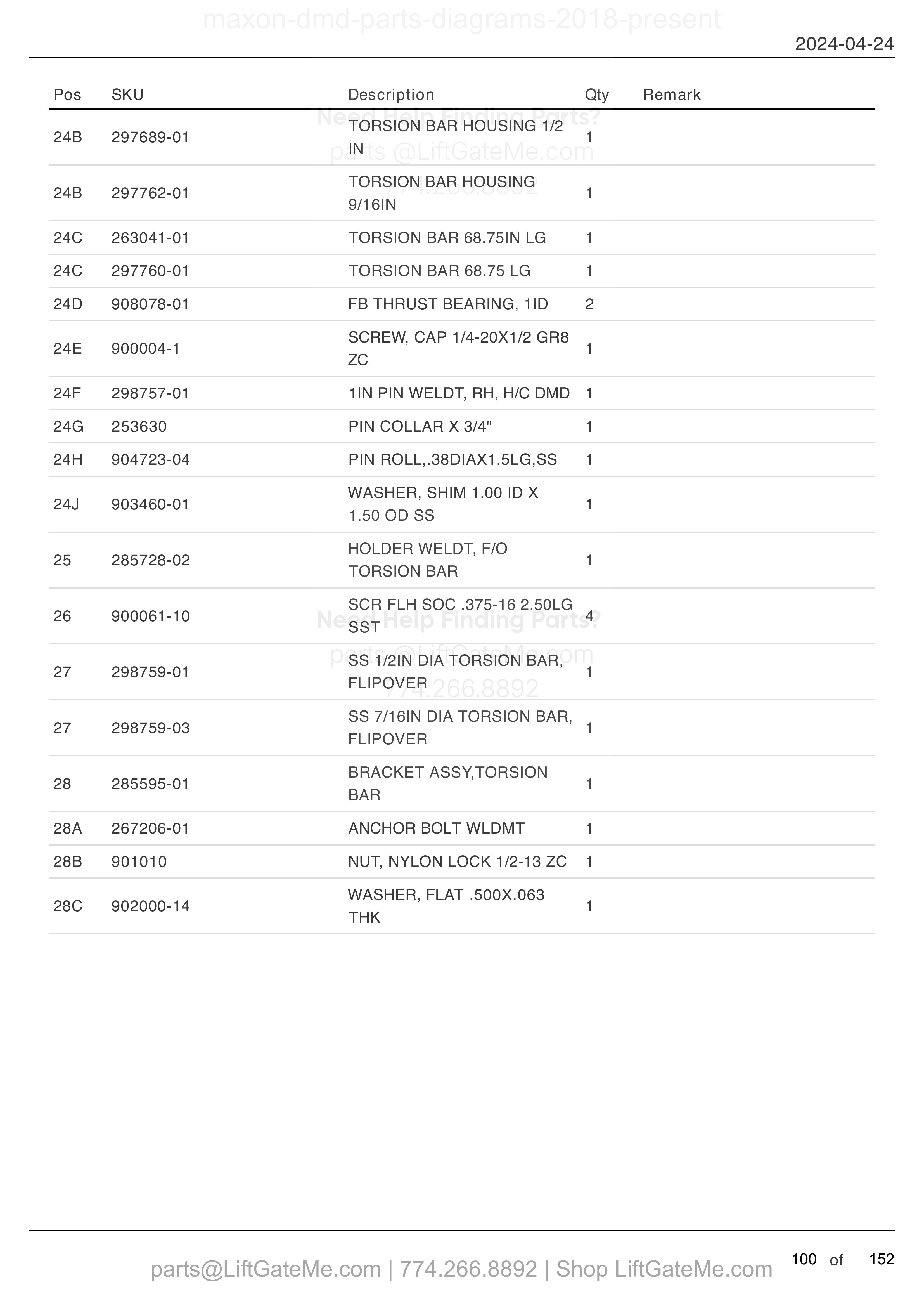

2 PIECE ALUMINUM PLATFORM ASSEMBLY (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 24B | 1 | 297689-01 | TORSION BAR HOUSING 1/2 IN | |
| 24B | 1 | 297762-01 | TORSION BAR HOUSING 9/16IN | |
| 24C | 1 | 263041-01 | TORSION BAR 68.75IN LG | |
| 24C | 1 | 297760-01 | TORSION BAR 68.75 LG | |
| 24D | 2 | 908078-01 | FB THRUST BEARING, 1ID | |
| 24E | 1 | 900004-1 | SCREW, CAP 1/4-20X1/2 GR8 ZC | |
| 24F | 1 | 298757-01 | 1IN PIN WELDT, RH, H/C DMD | |
| 24G | 1 | 253630 | PIN COLLAR X 3/4" | |
| 24H | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS | |
| 24J | 1 | 903460-01 | WASHER, SHIM 1.00 ID X 1.50 OD SS | |
| 25 | 1 | 285728-02 | HOLDER WELDT, F/O TORSION BAR | |
| 26 | 4 | 900061-10 | SCR FLH SOC .375-16 2.50LG SST | |
| 27 | 1 | 298759-01 | SS 1/2IN DIA TORSION BAR, FLIPOVER | |
| 27 | 1 | 298759-03 | SS 7/16IN DIA TORSION BAR, FLIPOVER | |
| 28 | 1 | 285595-01 | BRACKET ASSY,TORSION BAR | |
| 28A | 1 | 267206-01 | ANCHOR BOLT WLDMT | |
| 28B | 1 | 901010 | NUT, NYLON LOCK 1/2-13 ZC | |
| 28C | 1 | 902000-14 | WASHER, FLAT .500X.063 THK |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

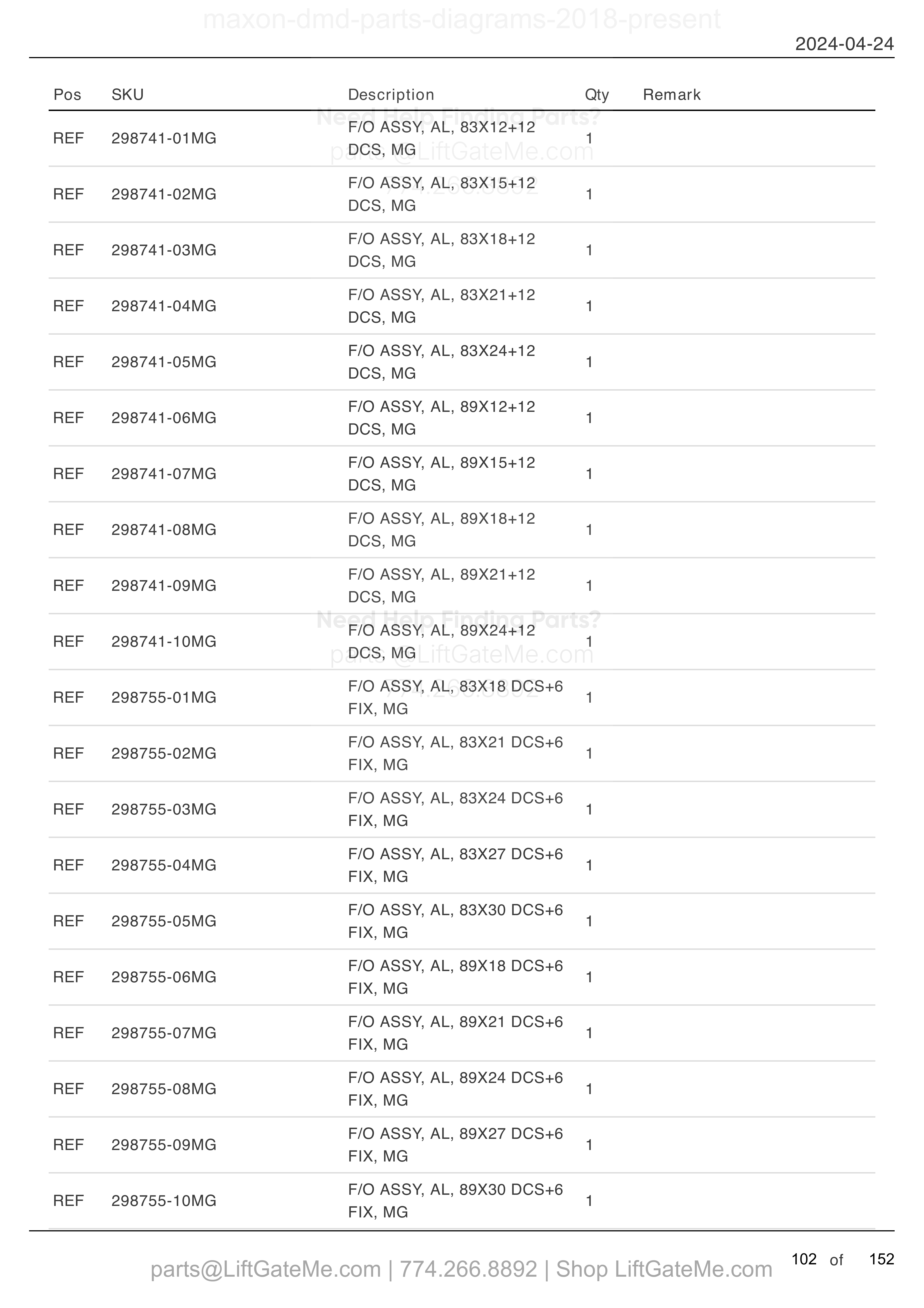

FLIPOVER WITH DUAL CART STOPS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298741-01MG | F/O ASSY, AL, 83X12+12 DCS, MG | |
| REF | 1 | 298741-02MG | F/O ASSY, AL, 83X15+12 DCS, MG | |
| REF | 1 | 298741-03MG | F/O ASSY, AL, 83X18+12 DCS, MG | |
| REF | 1 | 298741-04MG | F/O ASSY, AL, 83X21+12 DCS, MG | |
| REF | 1 | 298741-05MG | F/O ASSY, AL, 83X24+12 DCS, MG | |
| REF | 1 | 298741-06MG | F/O ASSY, AL, 89X12+12 DCS, MG | |
| REF | 1 | 298741-07MG | F/O ASSY, AL, 89X15+12 DCS, MG | |
| REF | 1 | 298741-08MG | F/O ASSY, AL, 89X18+12 DCS, MG | |
| REF | 1 | 298741-09MG | F/O ASSY, AL, 89X21+12 DCS, MG | |
| REF | 1 | 298741-10MG | F/O ASSY, AL, 89X24+12 DCS, MG | |
| REF | 1 | 298755-01MG | F/O ASSY, AL, 83X18 DCS+6 FIX, MG | |
| REF | 1 | 298755-02MG | F/O ASSY, AL, 83X21 DCS+6 FIX, MG | |
| REF | 1 | 298755-03MG | F/O ASSY, AL, 83X24 DCS+6 FIX, MG | |
| REF | 1 | 298755-04MG | F/O ASSY, AL, 83X27 DCS+6 FIX, MG | |
| REF | 1 | 298755-05MG | F/O ASSY, AL, 83X30 DCS+6 FIX, MG | |
| REF | 1 | 298755-06MG | F/O ASSY, AL, 89X18 DCS+6 FIX, MG | |
| REF | 1 | 298755-07MG | F/O ASSY, AL, 89X21 DCS+6 FIX, MG | |
| REF | 1 | 298755-08MG | F/O ASSY, AL, 89X24 DCS+6 FIX, MG | |
| REF | 1 | 298755-09MG | F/O ASSY, AL, 89X27 DCS+6 FIX, MG | |
| REF | 1 | 298755-10MG | F/O ASSY, AL, 89X30 DCS+6 FIX, MG |

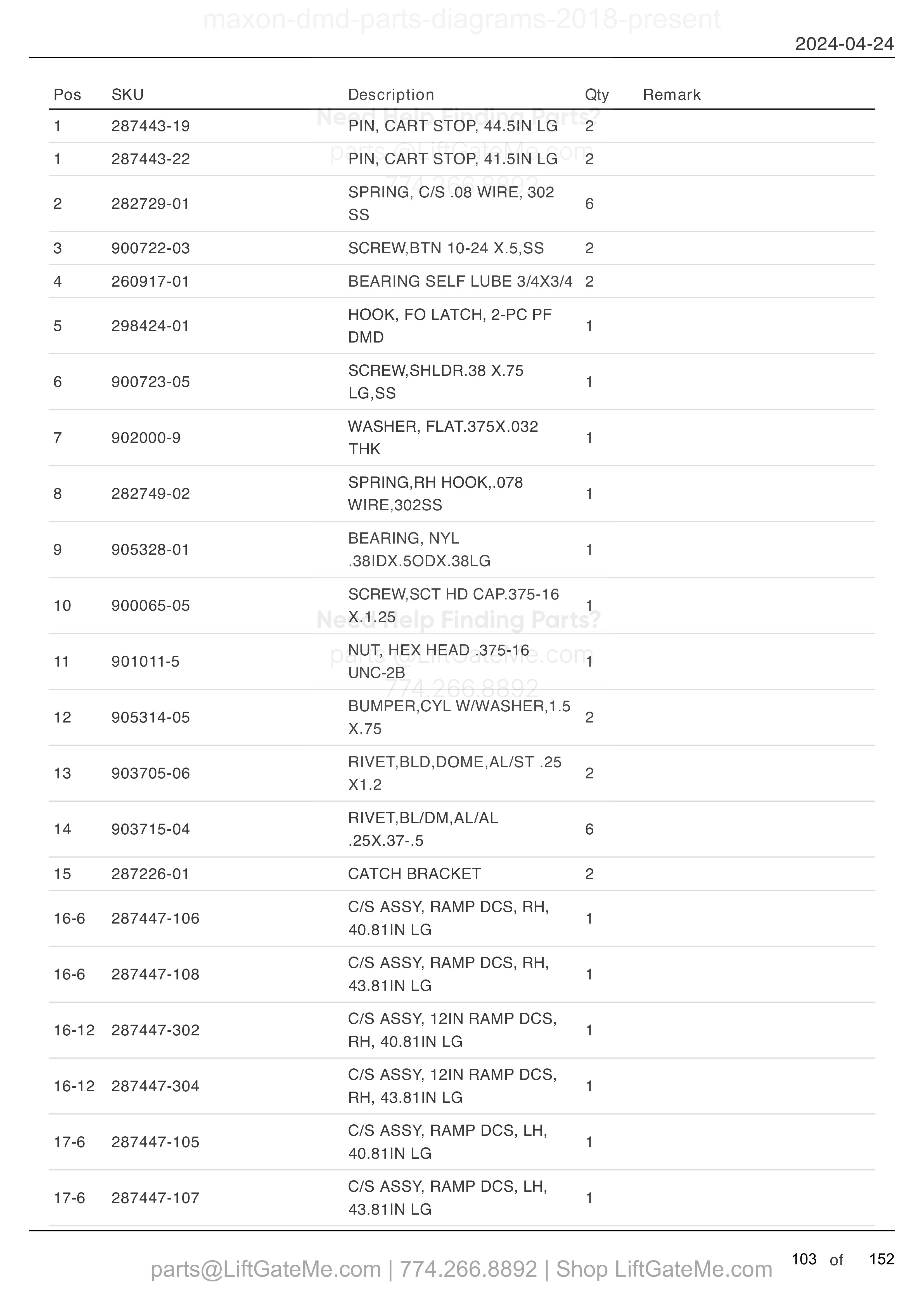

FLIPOVER WITH DUAL CART STOPS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 1 | 2 | 287443-22 | PIN, CART STOP, 41.5IN LG | |
| 2 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 3 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 4 | 2 | 260917-01 | BEARING SELF LUBE 3/4X3/4 | |
| 5 | 1 | 298424-01 | HOOK, FO LATCH, 2-PC PF DMD | |
| 6 | 1 | 900723-05 | SCREW,SHLDR.38 X.75 LG,SS | |
| 7 | 1 | 902000-9 | WASHER, FLAT.375X.032 THK | |
| 8 | 1 | 282749-02 | SPRING,RH HOOK,.078 WIRE,302SS | |
| 9 | 1 | 905328-01 | BEARING, NYL .38IDX.5ODX.38LG | |
| 10 | 1 | 900065-05 | SCREW,SCT HD CAP.375-16 X.1.25 | |
| 11 | 1 | 901011-5 | NUT, HEX HEAD .375-16 UNC-2B | |
| 12 | 2 | 905314-05 | BUMPER,CYL W/WASHER,1.5 X.75 | |
| 13 | 2 | 903705-06 | RIVET,BLD,DOME,AL/ST .25 X1.2 | |
| 14 | 6 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 15 | 2 | 287226-01 | CATCH BRACKET | |
| 16-6 | 1 | 287447-106 | C/S ASSY, RAMP DCS, RH, 40.81IN LG | |
| 16-6 | 1 | 287447-108 | C/S ASSY, RAMP DCS, RH, 43.81IN LG | |
| 16-12 | 1 | 287447-302 | C/S ASSY, 12IN RAMP DCS, RH, 40.81IN LG | |
| 16-12 | 1 | 287447-304 | C/S ASSY, 12IN RAMP DCS, RH, 43.81IN LG | |
| 17-6 | 1 | 287447-105 | C/S ASSY, RAMP DCS, LH, 40.81IN LG | |
| 17-6 | 1 | 287447-107 | C/S ASSY, RAMP DCS, LH, 43.81IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

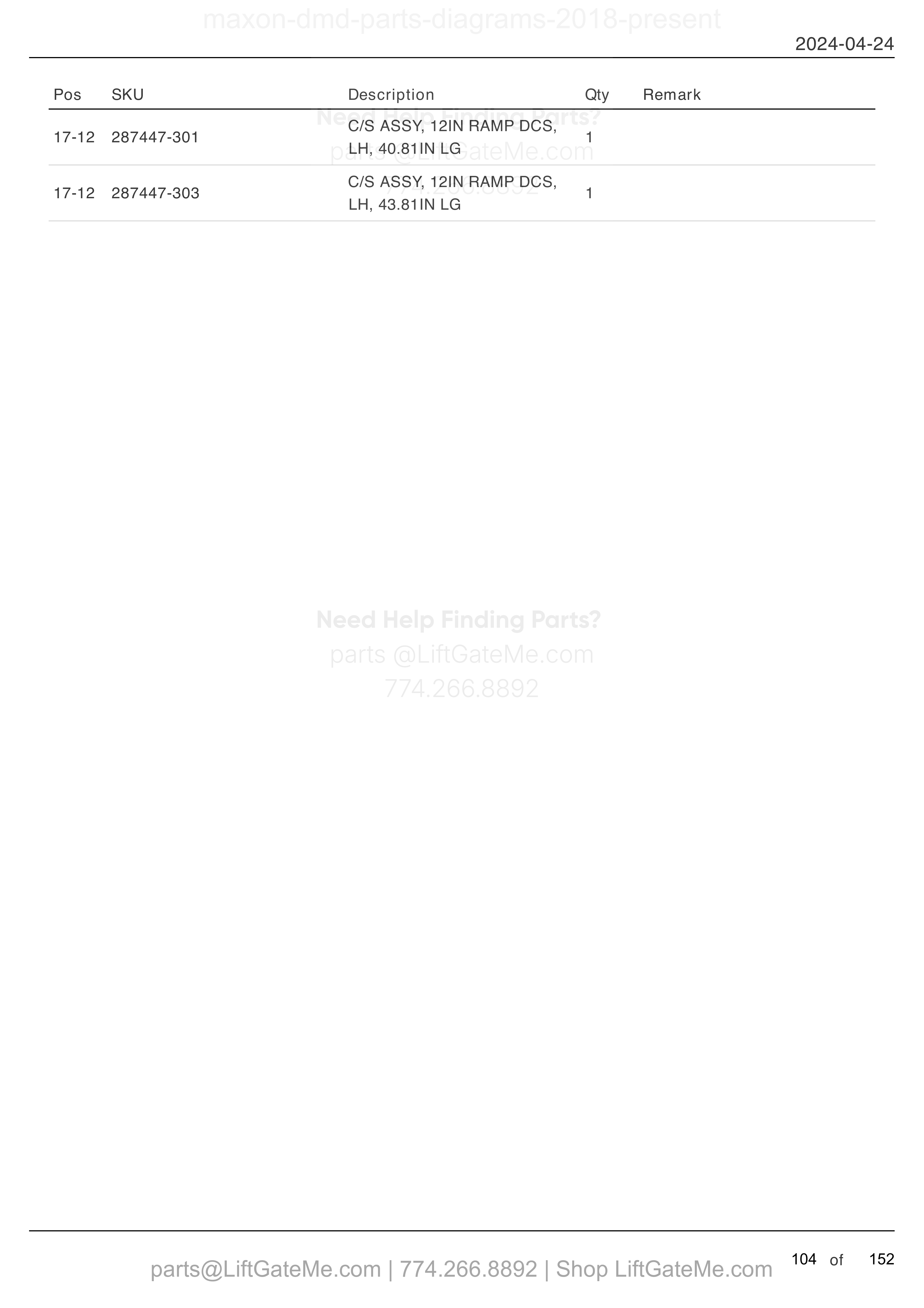

FLIPOVER WITH DUAL CART STOPS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 17-12 | 1 | 287447-301 | C/S ASSY, 12IN RAMP DCS, LH, 40.81IN LG | |
| 17-12 | 1 | 287447-303 | C/S ASSY, 12IN RAMP DCS, LH, 43.81IN LG |

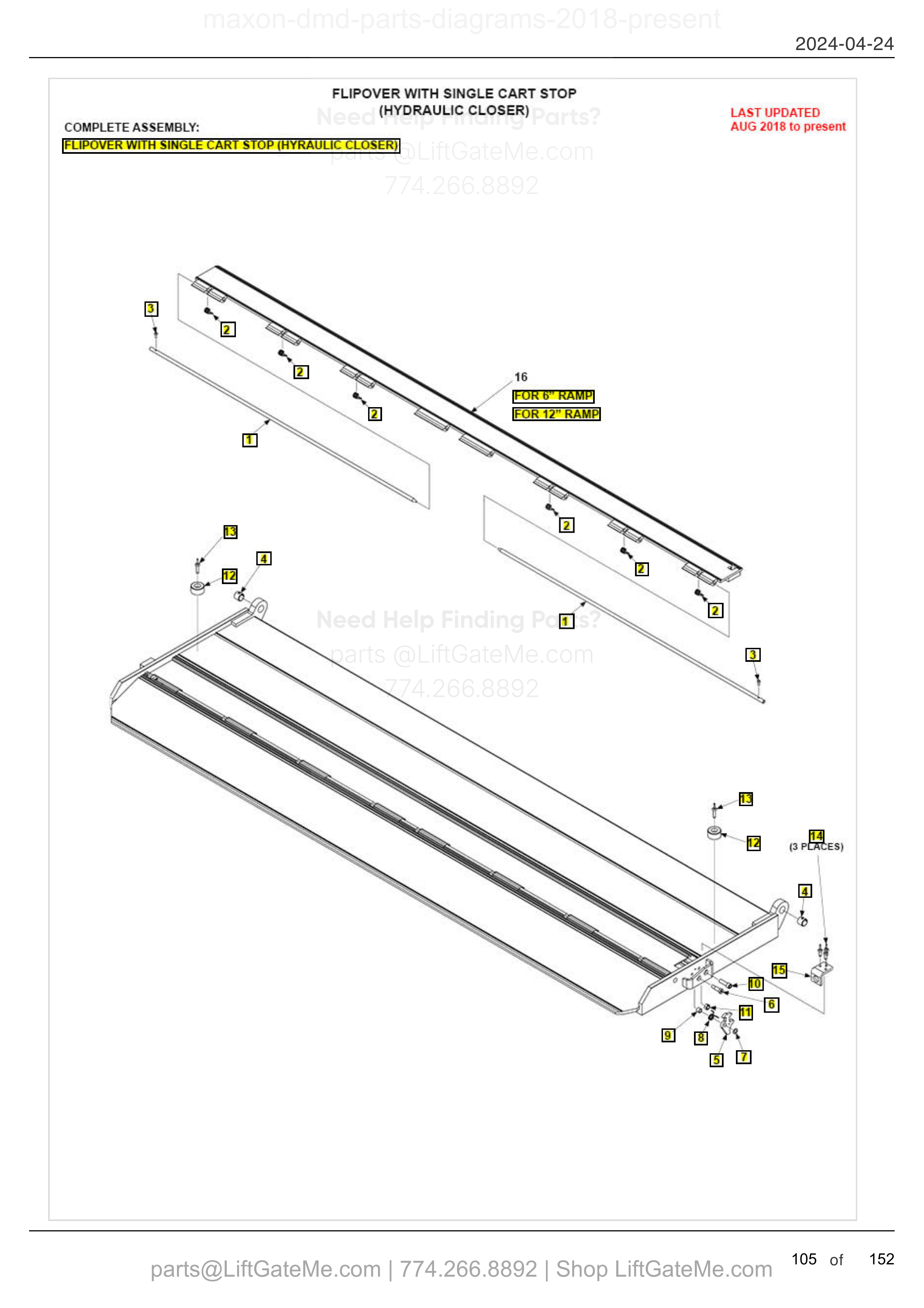

FLIPOVER WITH SINGLE CART STOP (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298741-11MG | F/O ASSY, AL, 83X12+12 SCS, MG | |
| REF | 1 | 298741-12MG | F/O ASSY, AL, 83X15+12 SCS, MG | |
| REF | 1 | 298741-13MG | F/O ASSY, AL, 83X18+12 SCS, MG | |
| REF | 1 | 298741-14MG | F/O ASSY, AL, 83X21+12 SCS, MG | |
| REF | 1 | 298741-15MG | F/O ASSY, AL, 83X24+12 SCS, MG | |
| REF | 1 | 298741-16MG | F/O ASSY, AL, 89X12+12 SCS, MG | |
| REF | 1 | 298741-17MG | F/O ASSY, AL, 89X15+12 SCS, MG | |
| REF | 1 | 298741-18MG | F/O ASSY, AL, 89X18+12 SCS, MG | |
| REF | 1 | 298741-19MG | F/O ASSY, AL, 89X21+12 SCS, MG | |
| REF | 1 | 298741-20MG | F/O ASSY, AL, 89X24+12 SCS, MG | |
| REF | 1 | 298755-11MG | F/O ASSY, AL, 83X18 SCS+6 FIX, MG | |
| REF | 1 | 298755-12MG | F/O ASSY, AL, 83X21 SCS+6 FIX, MG | |
| REF | 1 | 298755-13MG | F/O ASSY, AL, 83X24 SCS+6 FIX, MG | |
| REF | 1 | 298755-14MG | F/O ASSY, AL, 83X27 SCS+6 FIX, MG | |
| REF | 1 | 298755-15MG | F/O ASSY, AL, 83X30 SCS+6 FIX, MG | |
| REF | 1 | 298755-16MG | F/O ASSY, AL, 89X18 SCS+6 FIX, MG | |
| REF | 1 | 298755-17MG | F/O ASSY, AL, 89X21 SCS+6 FIX, MG | |
| REF | 1 | 298755-18MG | F/O ASSY, AL, 89X24 SCS+6 FIX, MG | |
| REF | 1 | 298755-19MG | F/O ASSY, AL, 89X27 SCS+6 FIX, MG | |
| REF | 1 | 298755-20MG | F/O ASSY, AL, 89X30 SCS+6 FIX, MG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

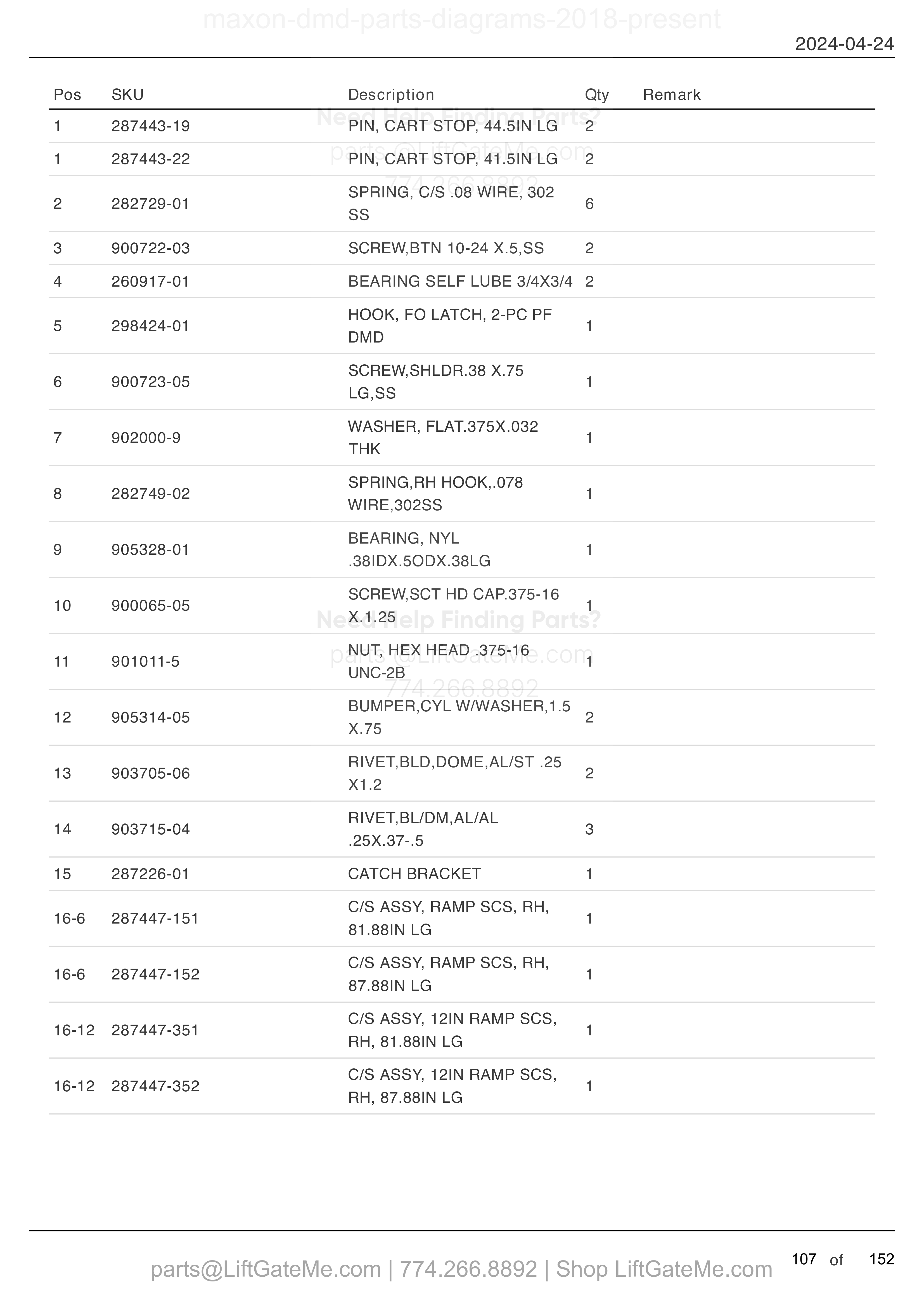

FLIPOVER WITH SINGLE CART STOP (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 287443-19 | PIN, CART STOP, 44.5IN LG | |
| 1 | 2 | 287443-22 | PIN, CART STOP, 41.5IN LG | |
| 2 | 6 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | |
| 3 | 2 | 900722-03 | SCREW,BTN 10-24 X.5,SS | |
| 4 | 2 | 260917-01 | BEARING SELF LUBE 3/4X3/4 | |
| 5 | 1 | 298424-01 | HOOK, FO LATCH, 2-PC PF DMD | |
| 6 | 1 | 900723-05 | SCREW,SHLDR.38 X.75 LG,SS | |
| 7 | 1 | 902000-9 | WASHER, FLAT.375X.032 THK | |
| 8 | 1 | 282749-02 | SPRING,RH HOOK,.078 WIRE,302SS | |
| 9 | 1 | 905328-01 | BEARING, NYL .38IDX.5ODX.38LG | |
| 10 | 1 | 900065-05 | SCREW,SCT HD CAP.375-16 X.1.25 | |
| 11 | 1 | 901011-5 | NUT, HEX HEAD .375-16 UNC-2B | |
| 12 | 2 | 905314-05 | BUMPER,CYL W/WASHER,1.5 X.75 | |
| 13 | 2 | 903705-06 | RIVET,BLD,DOME,AL/ST .25 X1.2 | |
| 14 | 3 | 903715-04 | RIVET,BL/DM,AL/AL .25X.37-.5 | |
| 15 | 1 | 287226-01 | CATCH BRACKET | |
| 16-6 | 1 | 287447-151 | C/S ASSY, RAMP SCS, RH, 81.88IN LG | |
| 16-6 | 1 | 287447-152 | C/S ASSY, RAMP SCS, RH, 87.88IN LG | |
| 16-12 | 1 | 287447-351 | C/S ASSY, 12IN RAMP SCS, RH, 81.88IN LG | |
| 16-12 | 1 | 287447-352 | C/S ASSY, 12IN RAMP SCS, RH, 87.88IN LG |

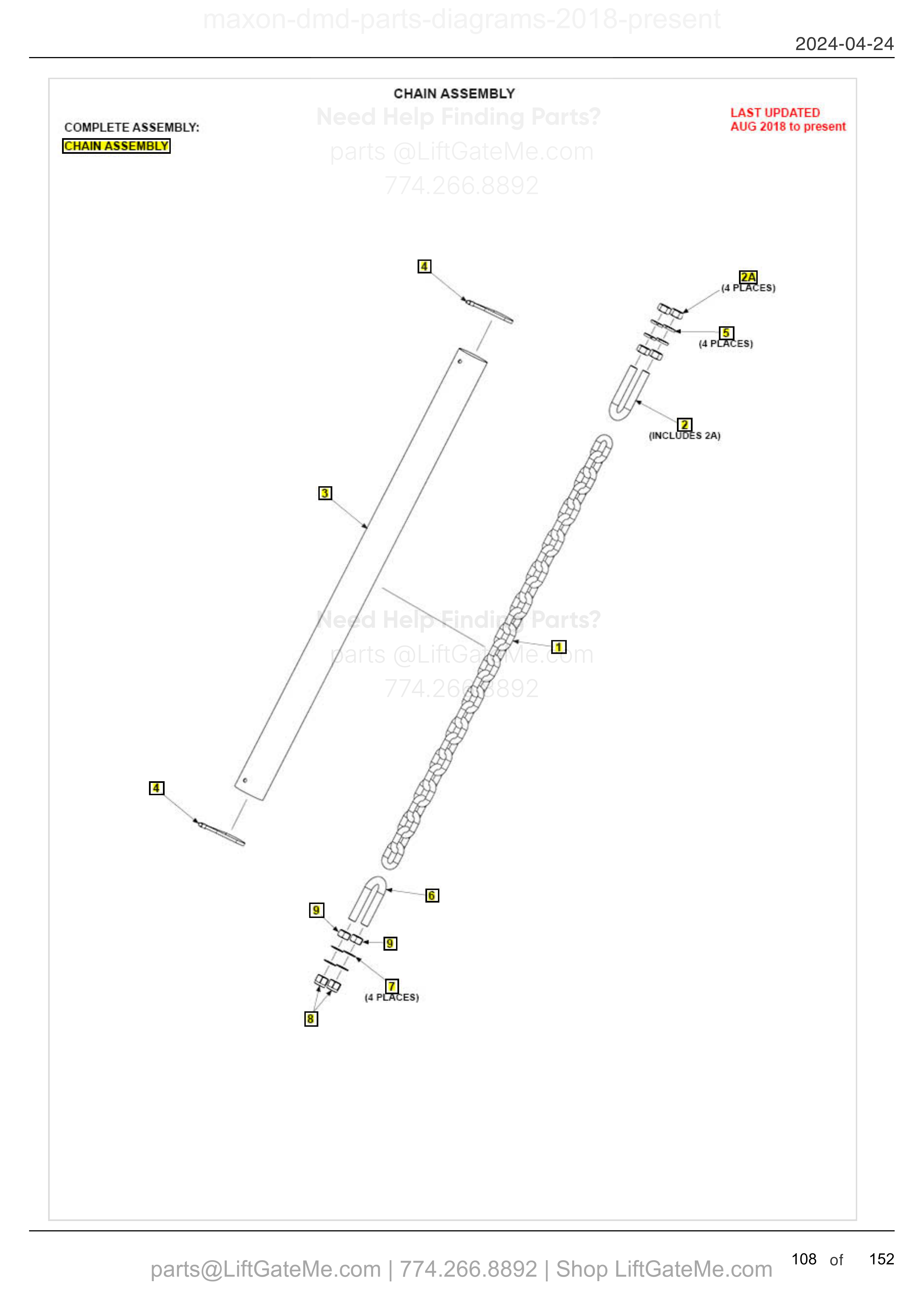

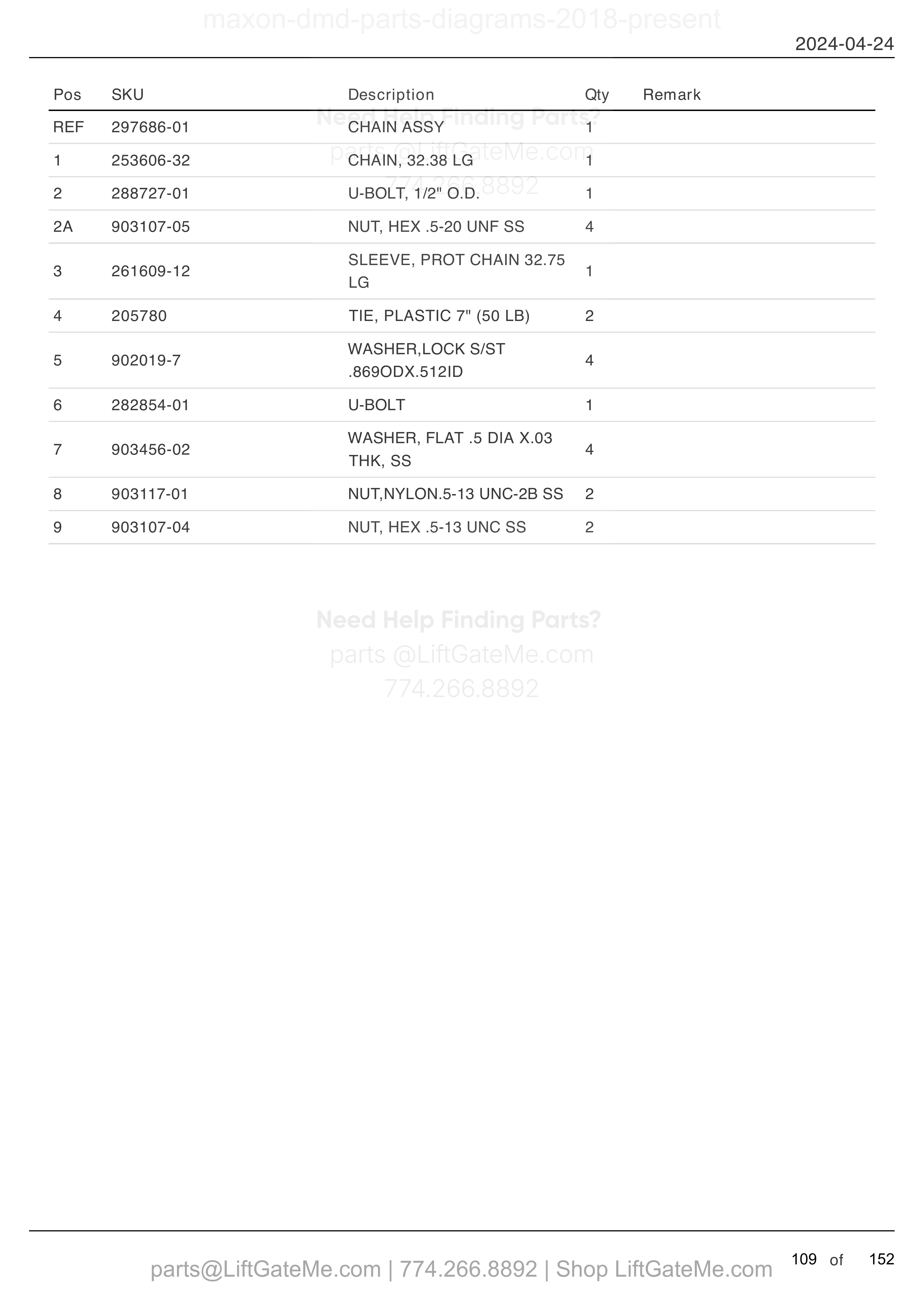

CHAIN ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297686-01 | CHAIN ASSY | |
| 1 | 1 | 253606-32 | CHAIN, 32.38 LG | |
| 2 | 1 | 288727-01 | U-BOLT, 1/2" O.D. | |
| 2A | 4 | 903107-05 | NUT, HEX .5-20 UNF SS | |
| 3 | 1 | 261609-12 | SLEEVE, PROT CHAIN 32.75 LG | |
| 4 | 2 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 5 | 4 | 902019-7 | WASHER,LOCK S/ST .869ODX.512ID | |
| 6 | 1 | 282854-01 | U-BOLT | |
| 7 | 4 | 903456-02 | WASHER, FLAT .5 DIA X.03 THK, SS | |
| 8 | 2 | 903117-01 | NUT,NYLON.5-13 UNC-2B SS | |
| 9 | 2 | 903107-04 | NUT, HEX .5-13 UNC SS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

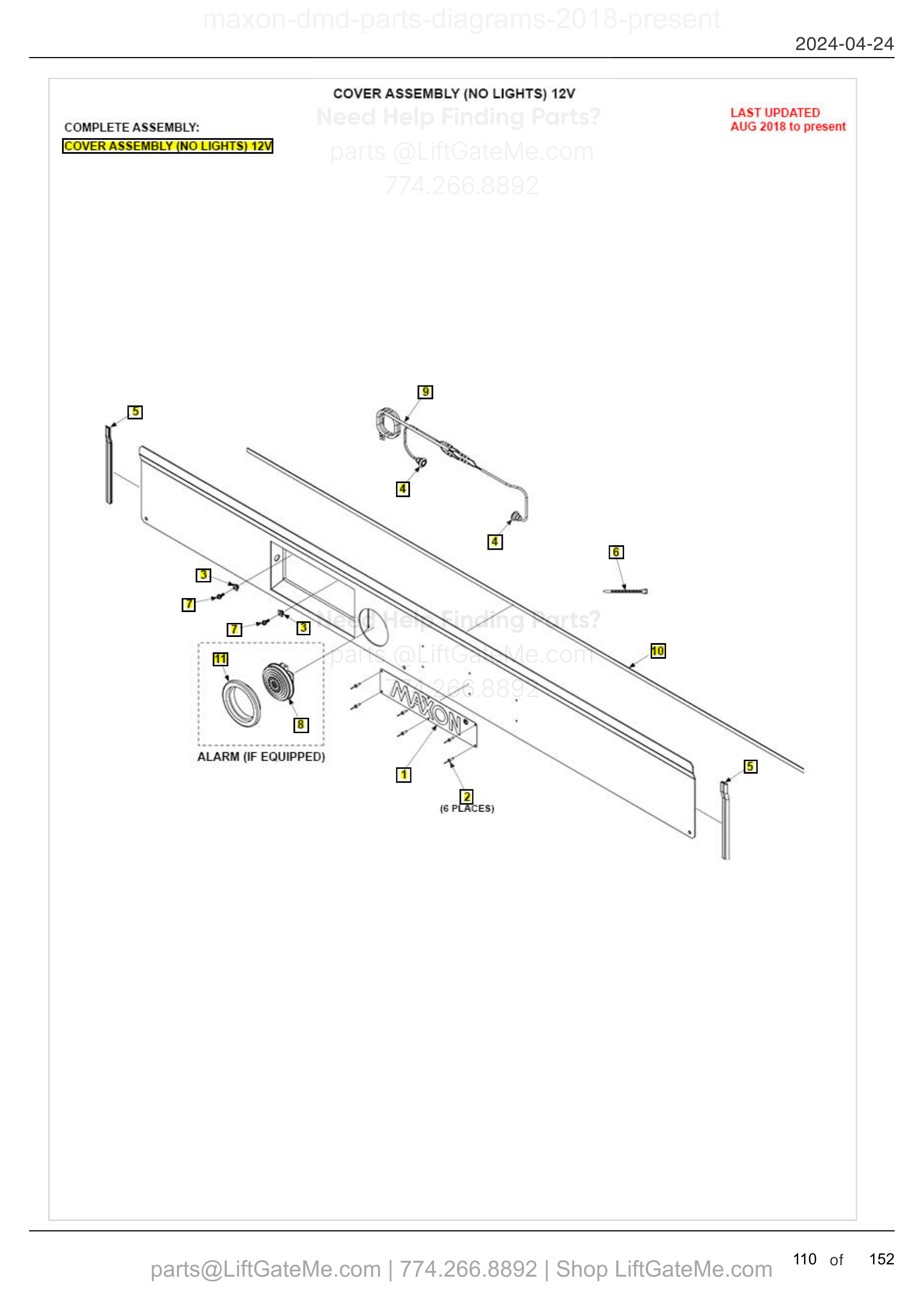

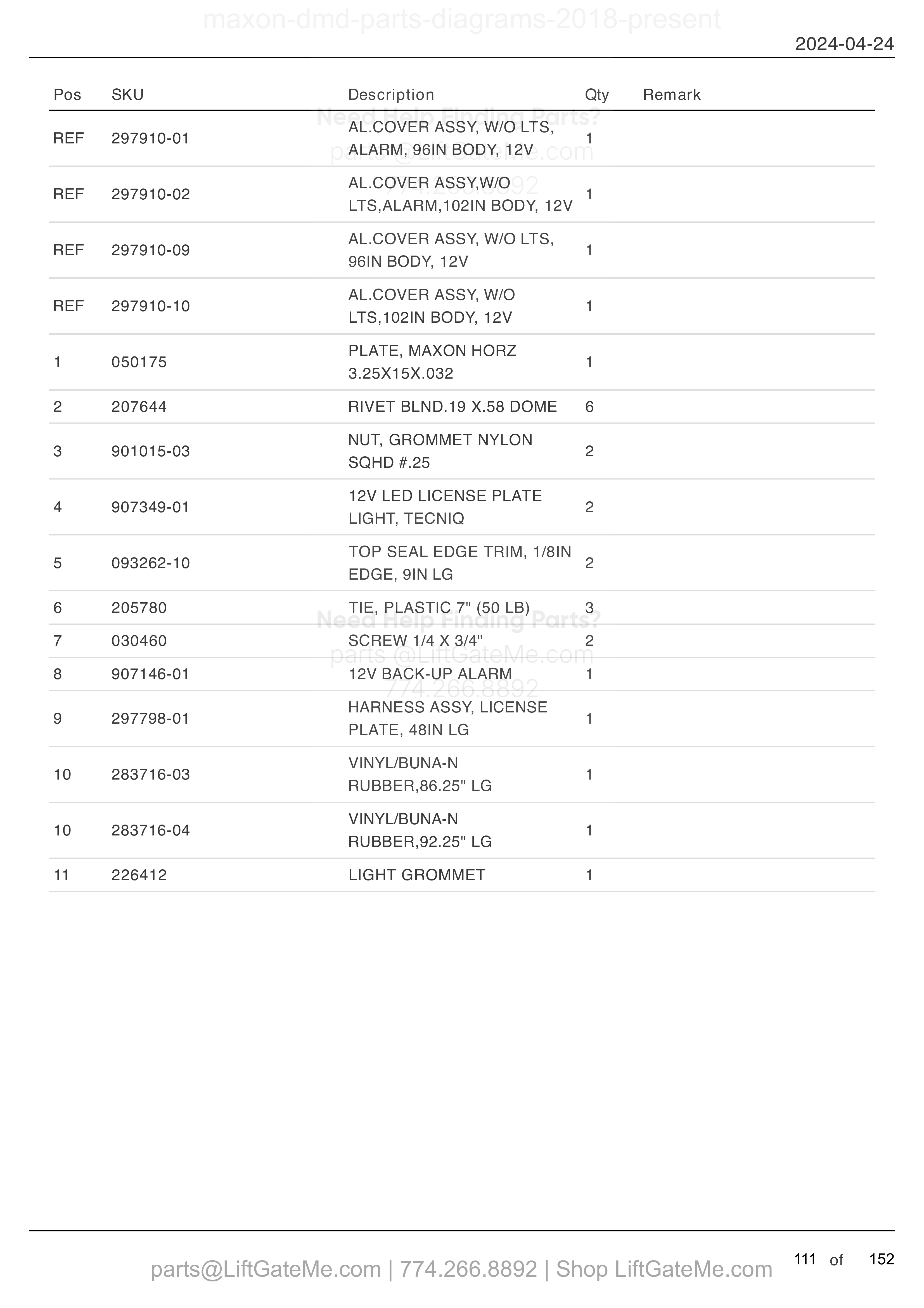

COVER ASSEMBLY (NO LIGHTS) 12V
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297910-01 | AL.COVER ASSY, W/O LTS, ALARM, 96IN BODY, 12V | |
| REF | 1 | 297910-02 | AL.COVER ASSY,W/O LTS,ALARM,102IN BODY, 12V | |
| REF | 1 | 297910-09 | AL.COVER ASSY, W/O LTS, 96IN BODY, 12V | |
| REF | 1 | 297910-10 | AL.COVER ASSY, W/O LTS,102IN BODY, 12V | |
| 1 | 1 | 050175 | PLATE, MAXON HORZ 3.25X15X.032 | |
| 2 | 6 | 207644 | RIVET BLND.19 X.58 DOME | |
| 3 | 2 | 901015-03 | NUT, GROMMET NYLON SQHD #.25 | |
| 4 | 2 | 907349-01 | 12V LED LICENSE PLATE LIGHT, TECNIQ | |
| 5 | 2 | 093262-10 | TOP SEAL EDGE TRIM, 1/8IN EDGE, 9IN LG | |
| 6 | 3 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 7 | 2 | 030460 | SCREW 1/4 X 3/4" | |
| 8 | 1 | 907146-01 | 12V BACK-UP ALARM | |
| 9 | 1 | 297798-01 | HARNESS ASSY, LICENSE PLATE, 48IN LG | |
| 10 | 1 | 283716-03 | VINYL/BUNA-N RUBBER,86.25" LG | |
| 10 | 1 | 283716-04 | VINYL/BUNA-N RUBBER,92.25" LG | |
| 11 | 1 | 226412 | LIGHT GROMMET |

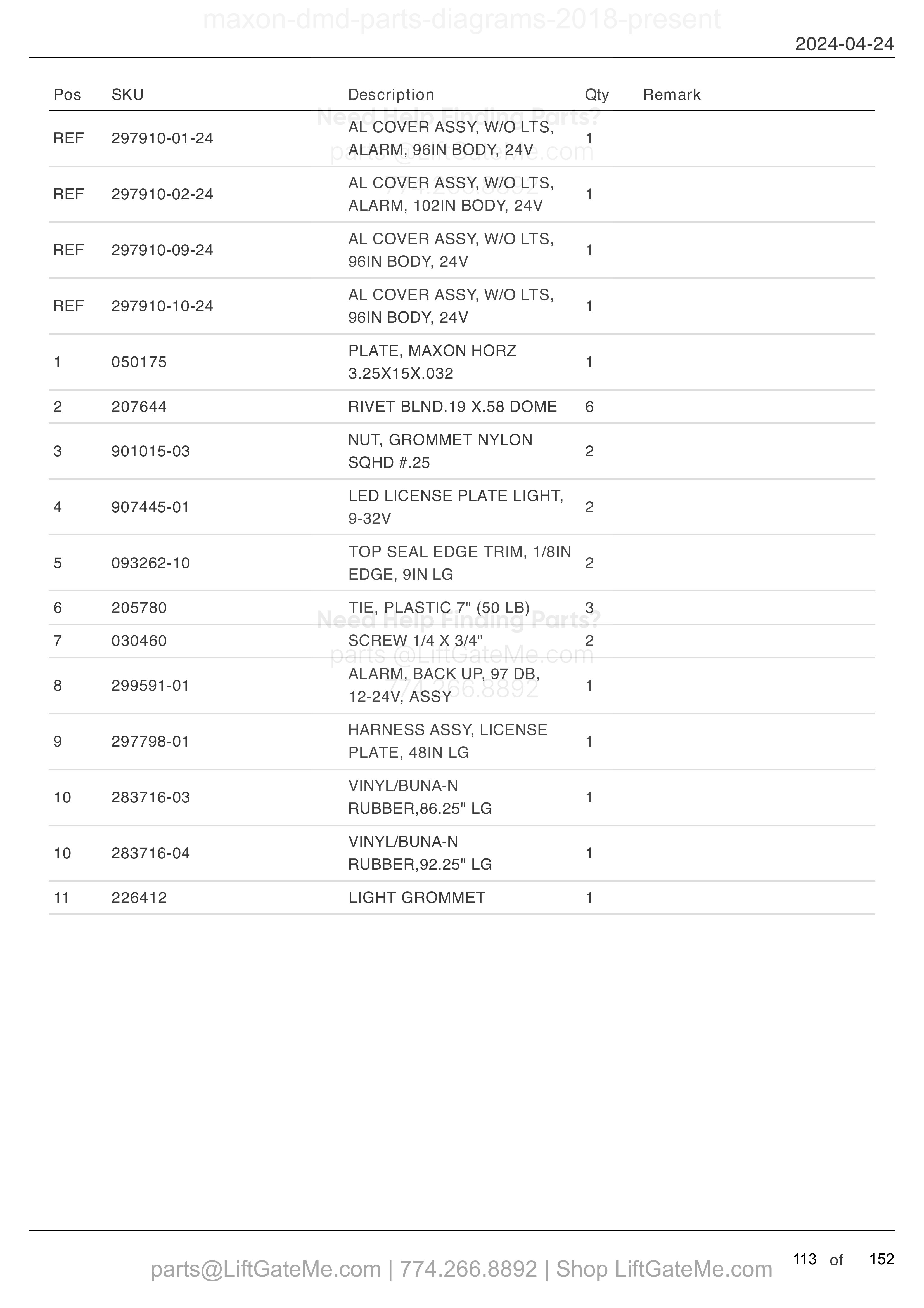

COVER ASSEMBLY (NO LIGHTS) 24V
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297910-01-24 | AL COVER ASSY, W/O LTS, ALARM, 96IN BODY, 24V | |
| REF | 1 | 297910-02-24 | AL COVER ASSY, W/O LTS, ALARM, 102IN BODY, 24V | |
| REF | 1 | 297910-09-24 | AL COVER ASSY, W/O LTS, 96IN BODY, 24V | |
| REF | 1 | 297910-10-24 | AL COVER ASSY, W/O LTS, 96IN BODY, 24V | |
| 1 | 1 | 050175 | PLATE, MAXON HORZ 3.25X15X.032 | |
| 2 | 6 | 207644 | RIVET BLND.19 X.58 DOME | |
| 3 | 2 | 901015-03 | NUT, GROMMET NYLON SQHD #.25 | |
| 4 | 2 | 907445-01 | LED LICENSE PLATE LIGHT, 9-32V | |
| 5 | 2 | 093262-10 | TOP SEAL EDGE TRIM, 1/8IN EDGE, 9IN LG | |
| 6 | 3 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 7 | 2 | 030460 | SCREW 1/4 X 3/4" | |
| 8 | 1 | 299591-01 | ALARM, BACK UP, 97 DB, 12-24V, ASSY | |
| 9 | 1 | 297798-01 | HARNESS ASSY, LICENSE PLATE, 48IN LG | |
| 10 | 1 | 283716-03 | VINYL/BUNA-N RUBBER,86.25" LG | |
| 10 | 1 | 283716-04 | VINYL/BUNA-N RUBBER,92.25" LG | |
| 11 | 1 | 226412 | LIGHT GROMMET |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

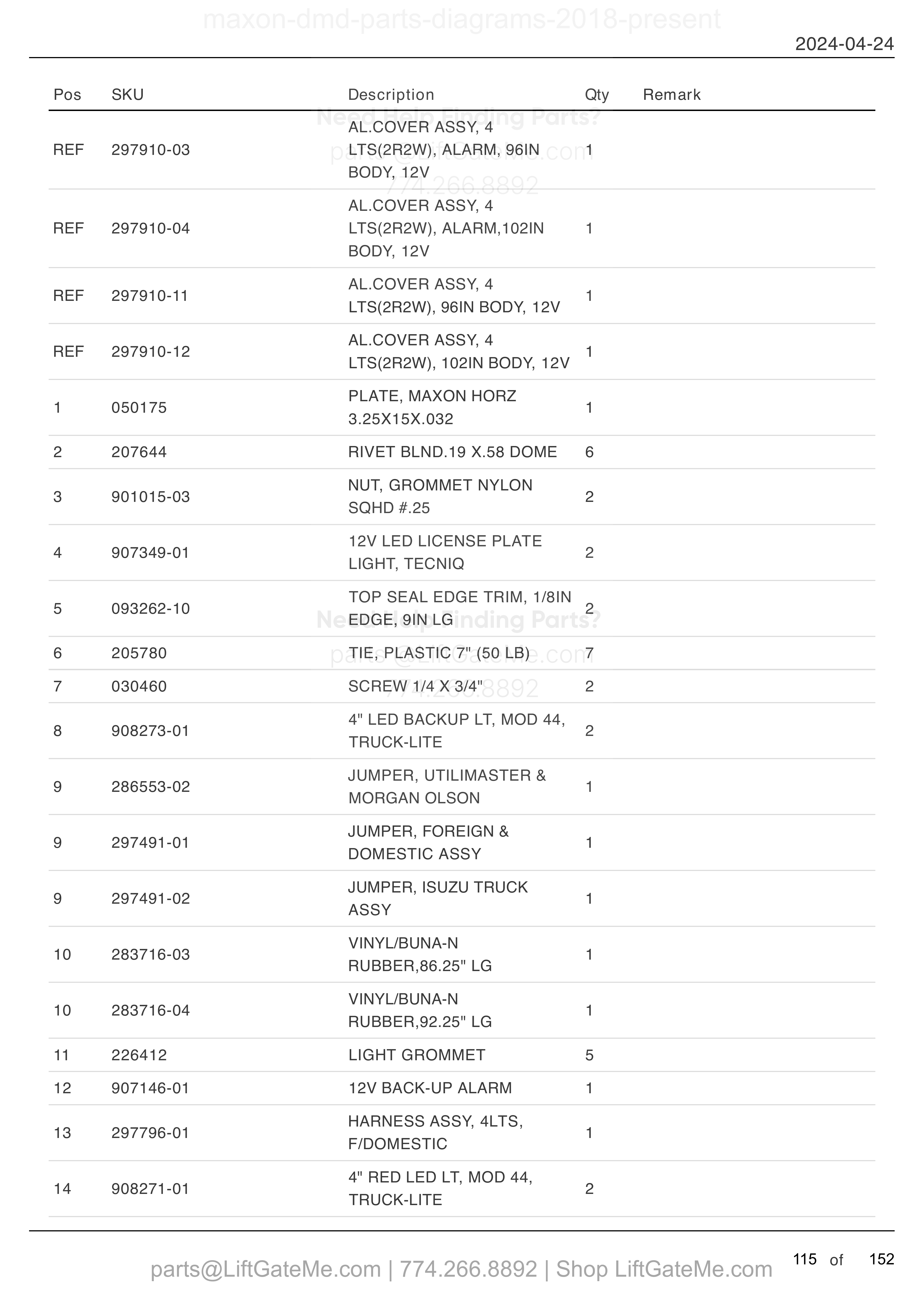

COVER ASSEMBLY (4 LIGHTS) 12V
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297910-03 | AL.COVER ASSY, 4 LTS(2R2W), ALARM, 96IN BODY, 12V | |
| REF | 1 | 297910-04 | AL.COVER ASSY, 4 LTS(2R2W), ALARM,102IN BODY, 12V | |
| REF | 1 | 297910-11 | AL.COVER ASSY, 4 LTS(2R2W), 96IN BODY, 12V | |
| REF | 1 | 297910-12 | AL.COVER ASSY, 4 LTS(2R2W), 102IN BODY, 12V | |
| 1 | 1 | 050175 | PLATE, MAXON HORZ 3.25X15X.032 | |
| 2 | 6 | 207644 | RIVET BLND.19 X.58 DOME | |
| 3 | 2 | 901015-03 | NUT, GROMMET NYLON SQHD #.25 | |
| 4 | 2 | 907349-01 | 12V LED LICENSE PLATE LIGHT, TECNIQ | |
| 5 | 2 | 093262-10 | TOP SEAL EDGE TRIM, 1/8IN EDGE, 9IN LG | |
| 6 | 7 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 7 | 2 | 030460 | SCREW 1/4 X 3/4" | |
| 8 | 2 | 908273-01 | 4" LED BACKUP LT, MOD 44, TRUCK-LITE | |
| 9 | 1 | 286553-02 | JUMPER, UTILIMASTER & MORGAN OLSON | |
| 9 | 1 | 297491-01 | JUMPER, FOREIGN & DOMESTIC ASSY | |
| 9 | 1 | 297491-02 | JUMPER, ISUZU TRUCK ASSY | |
| 10 | 1 | 283716-03 | VINYL/BUNA-N RUBBER,86.25" LG | |
| 10 | 1 | 283716-04 | VINYL/BUNA-N RUBBER,92.25" LG | |
| 11 | 5 | 226412 | LIGHT GROMMET | |
| 12 | 1 | 907146-01 | 12V BACK-UP ALARM | |
| 13 | 1 | 297796-01 | HARNESS ASSY, 4LTS, F/DOMESTIC | |
| 14 | 2 | 908271-01 | 4" RED LED LT, MOD 44, TRUCK-LITE |
i

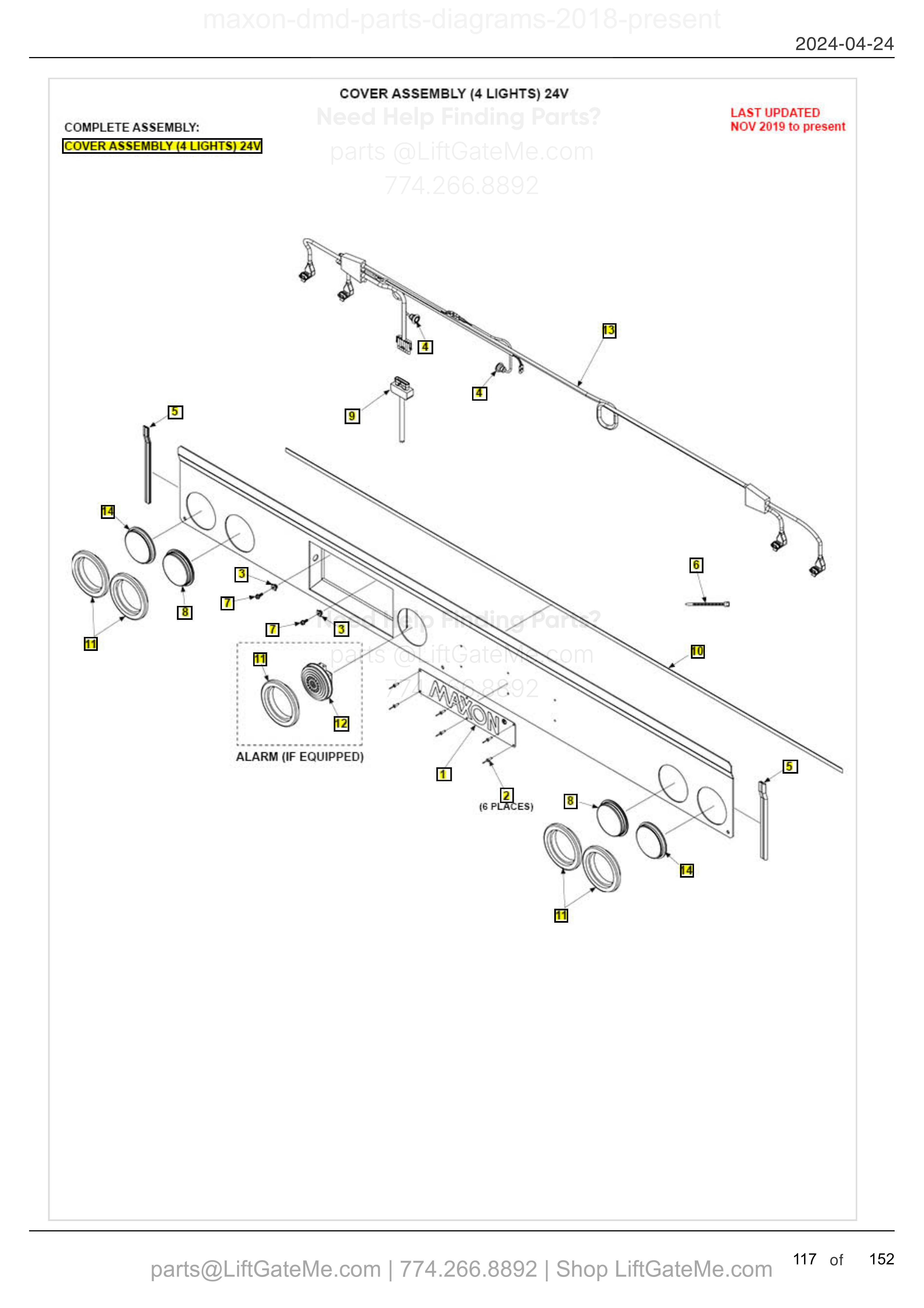

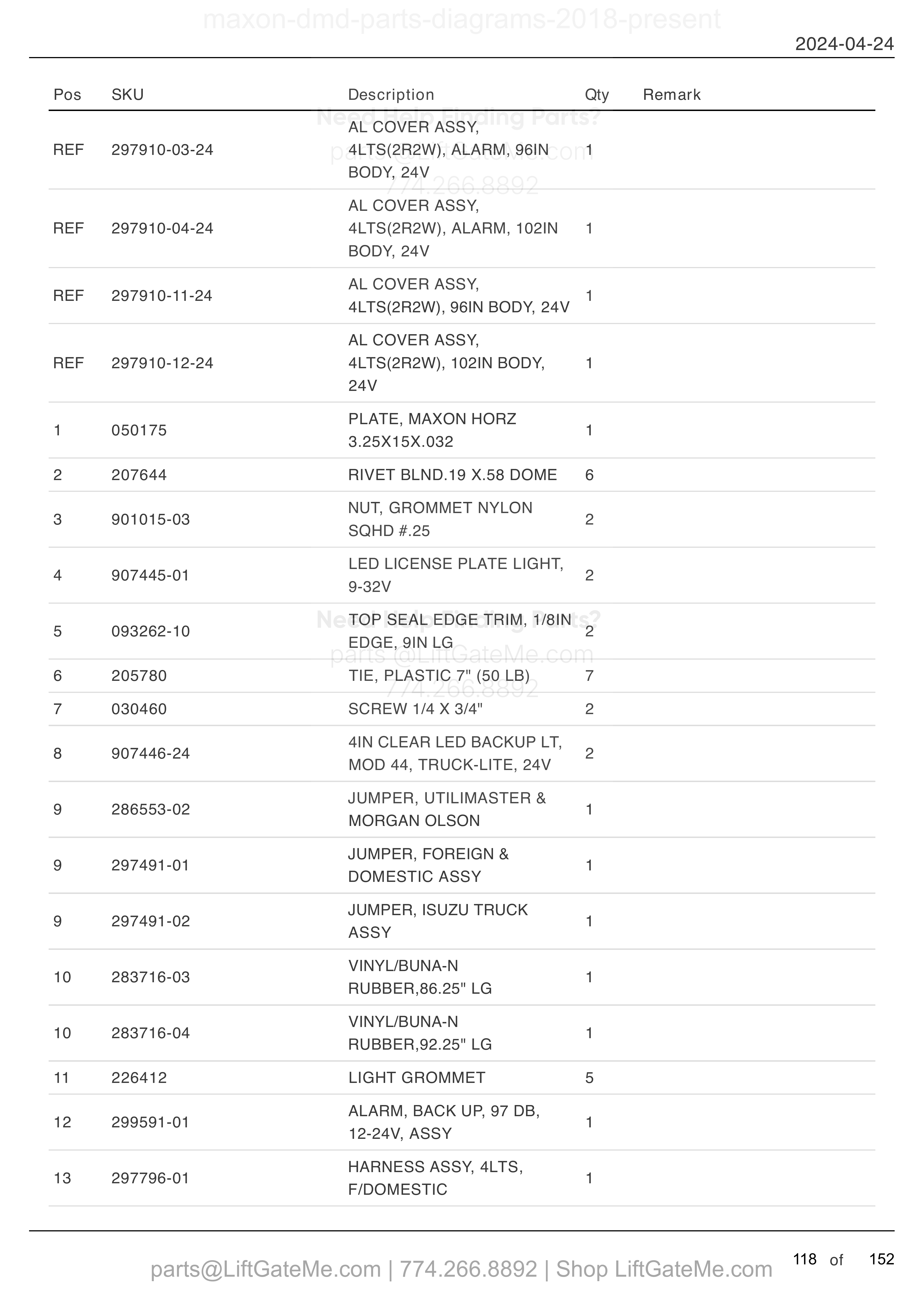

COVER ASSEMBLY (4 LIGHTS) 24V
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297910-03-24 | AL COVER ASSY, 4LTS(2R2W), ALARM, 96IN BODY, 24V | |
| REF | 1 | 297910-04-24 | AL COVER ASSY, 4LTS(2R2W), ALARM, 102IN BODY, 24V | |
| REF | 1 | 297910-11-24 | AL COVER ASSY, 4LTS(2R2W), 96IN BODY, 24V | |
| REF | 1 | 297910-12-24 | AL COVER ASSY, 4LTS(2R2W), 102IN BODY, 24V | |
| 1 | 1 | 050175 | PLATE, MAXON HORZ 3.25X15X.032 | |
| 2 | 6 | 207644 | RIVET BLND.19 X.58 DOME | |
| 3 | 2 | 901015-03 | NUT, GROMMET NYLON SQHD #.25 | |
| 4 | 2 | 907445-01 | LED LICENSE PLATE LIGHT, 9-32V | |
| 5 | 2 | 093262-10 | TOP SEAL EDGE TRIM, 1/8IN EDGE, 9IN LG | |
| 6 | 7 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 7 | 2 | 030460 | SCREW 1/4 X 3/4" | |
| 8 | 2 | 907446-24 | 4IN CLEAR LED BACKUP LT, MOD 44, TRUCK-LITE, 24V | |
| 9 | 1 | 286553-02 | JUMPER, UTILIMASTER & MORGAN OLSON | |
| 9 | 1 | 297491-01 | JUMPER, FOREIGN & DOMESTIC ASSY | |
| 9 | 1 | 297491-02 | JUMPER, ISUZU TRUCK ASSY | |
| 10 | 1 | 283716-03 | VINYL/BUNA-N RUBBER,86.25" LG | |
| 10 | 1 | 283716-04 | VINYL/BUNA-N RUBBER,92.25" LG | |
| 11 | 5 | 226412 | LIGHT GROMMET | |
| 12 | 1 | 299591-01 | ALARM, BACK UP, 97 DB, 12-24V, ASSY | |
| 13 | 1 | 297796-01 | HARNESS ASSY, 4LTS, F/DOMESTIC |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

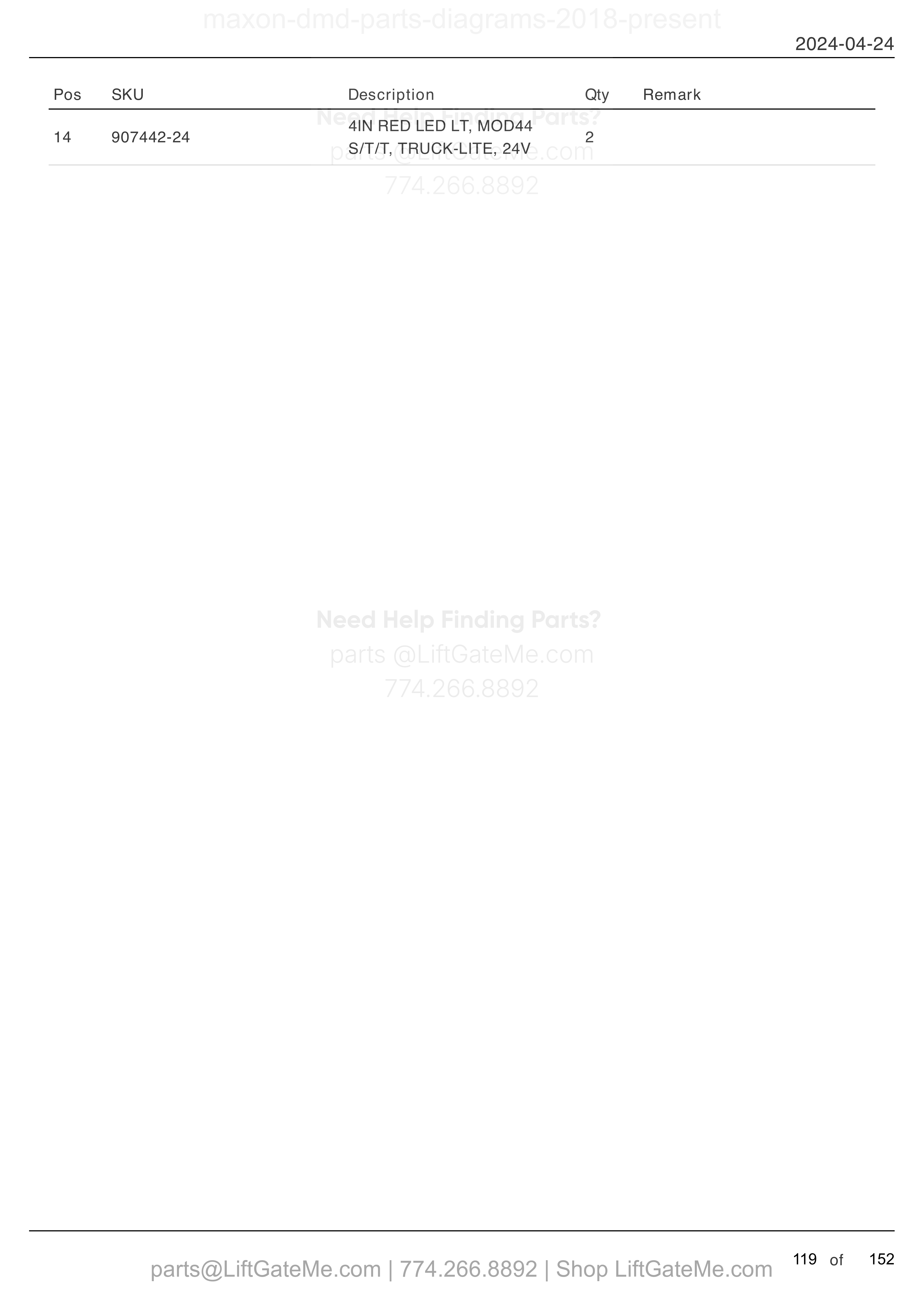

COVER ASSEMBLY (4 LIGHTS) 24V (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 14 | 2 | 907442-24 | 4IN RED LED LT, MOD44 S/T/T, TRUCK-LITE, 24V |

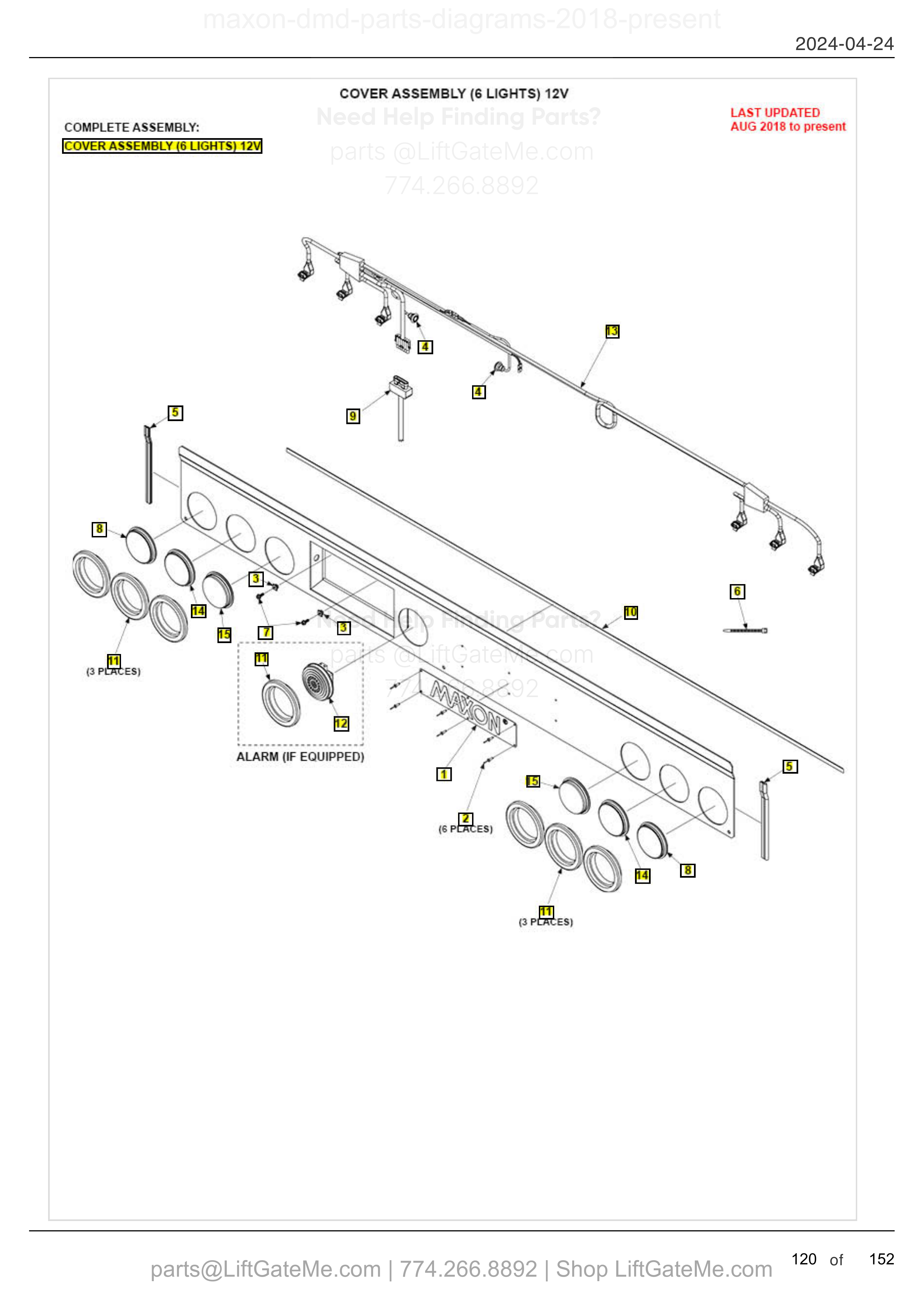

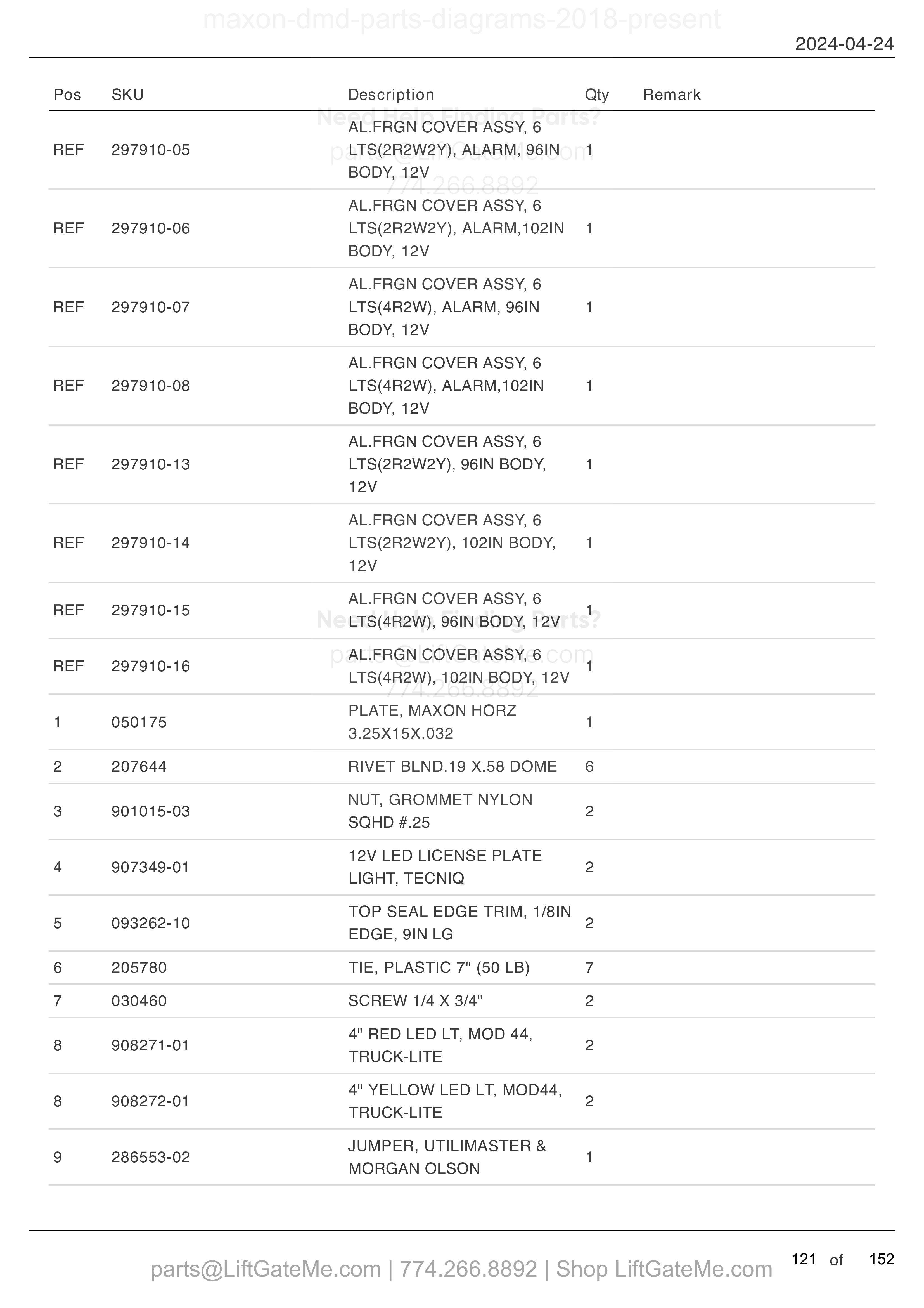

COVER ASSEMBLY (6 LIGHTS) 12V
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297910-05 | AL.FRGN COVER ASSY, 6 LTS(2R2W2Y), ALARM, 96IN BODY, 12V | |
| REF | 1 | 297910-06 | AL.FRGN COVER ASSY, 6 LTS(2R2W2Y), ALARM,102IN BODY, 12V | |
| REF | 1 | 297910-07 | AL.FRGN COVER ASSY, 6 LTS(4R2W), ALARM, 96IN BODY, 12V | |
| REF | 1 | 297910-08 | AL.FRGN COVER ASSY, 6 LTS(4R2W), ALARM,102IN BODY, 12V | |
| REF | 1 | 297910-13 | AL.FRGN COVER ASSY, 6 LTS(2R2W2Y), 96IN BODY, 12V | |
| REF | 1 | 297910-14 | AL.FRGN COVER ASSY, 6 LTS(2R2W2Y), 102IN BODY, 12V | |
| REF | 1 | 297910-15 | AL.FRGN COVER ASSY, 6 LTS(4R2W), 96IN BODY, 12V | |
| REF | 1 | 297910-16 | AL.FRGN COVER ASSY, 6 LTS(4R2W), 102IN BODY, 12V | |
| 1 | 1 | 050175 | PLATE, MAXON HORZ 3.25X15X.032 | |
| 2 | 6 | 207644 | RIVET BLND.19 X.58 DOME | |
| 3 | 2 | 901015-03 | NUT, GROMMET NYLON SQHD #.25 | |
| 4 | 2 | 907349-01 | 12V LED LICENSE PLATE LIGHT, TECNIQ | |
| 5 | 2 | 093262-10 | TOP SEAL EDGE TRIM, 1/8IN EDGE, 9IN LG | |
| 6 | 7 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 7 | 2 | 030460 | SCREW 1/4 X 3/4" | |
| 8 | 2 | 908271-01 | 4" RED LED LT, MOD 44, TRUCK-LITE | |
| 8 | 2 | 908272-01 | 4" YELLOW LED LT, MOD44, TRUCK-LITE | |
| 9 | 1 | 286553-02 | JUMPER, UTILIMASTER & MORGAN OLSON |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

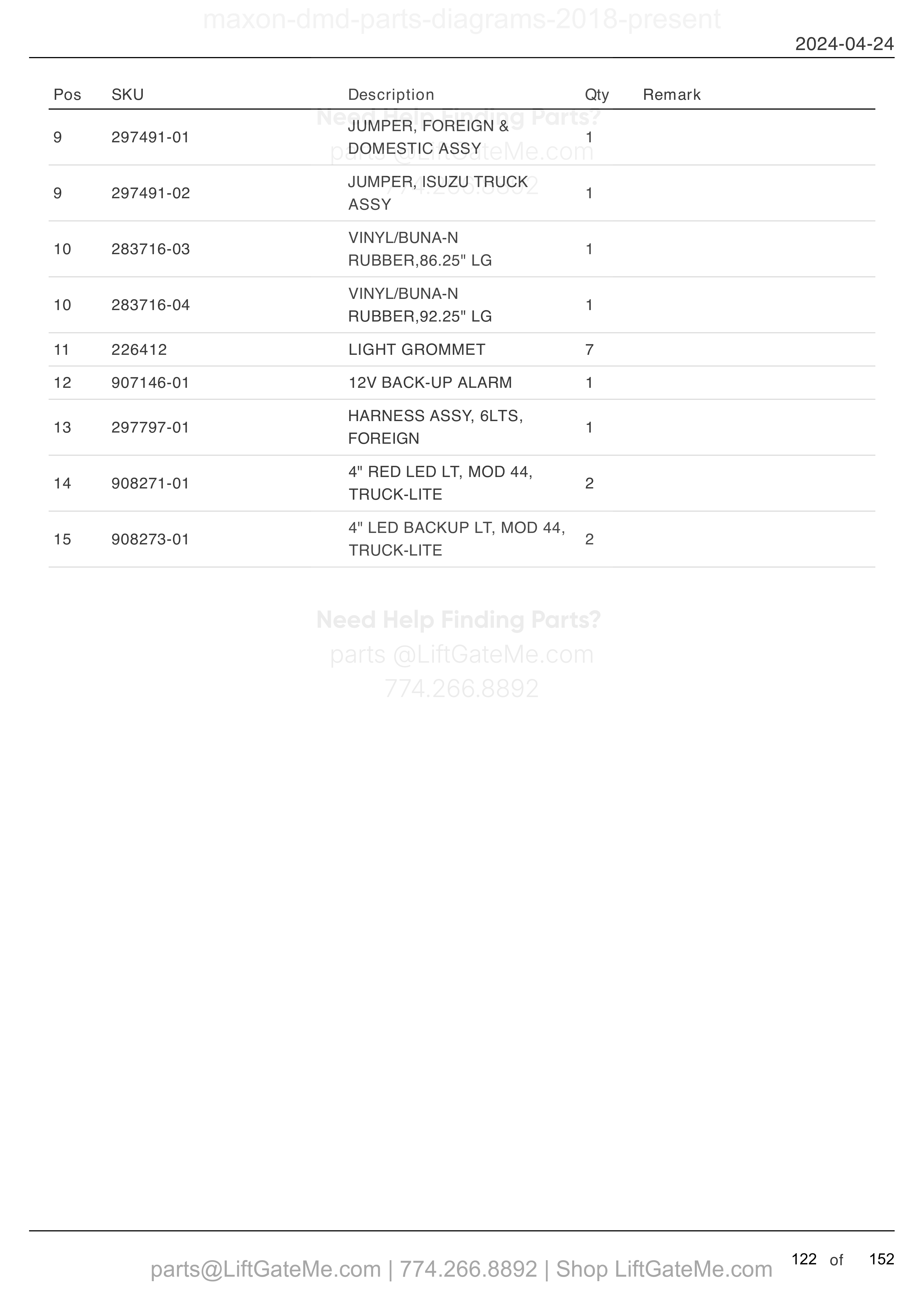

COVER ASSEMBLY (6 LIGHTS) 12V (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 9 | 1 | 297491-01 | JUMPER, FOREIGN & DOMESTIC ASSY | |
| 9 | 1 | 297491-02 | JUMPER, ISUZU TRUCK ASSY | |
| 10 | 1 | 283716-03 | VINYL/BUNA-N RUBBER,86.25" LG | |
| 10 | 1 | 283716-04 | VINYL/BUNA-N RUBBER,92.25" LG | |
| 11 | 7 | 226412 | LIGHT GROMMET | |
| 12 | 1 | 907146-01 | 12V BACK-UP ALARM | |
| 13 | 1 | 297797-01 | HARNESS ASSY, 6LTS, FOREIGN | |
| 14 | 2 | 908271-01 | 4" RED LED LT, MOD 44, TRUCK-LITE | |
| 15 | 2 | 908273-01 | 4" LED BACKUP LT, MOD 44, TRUCK-LITE |

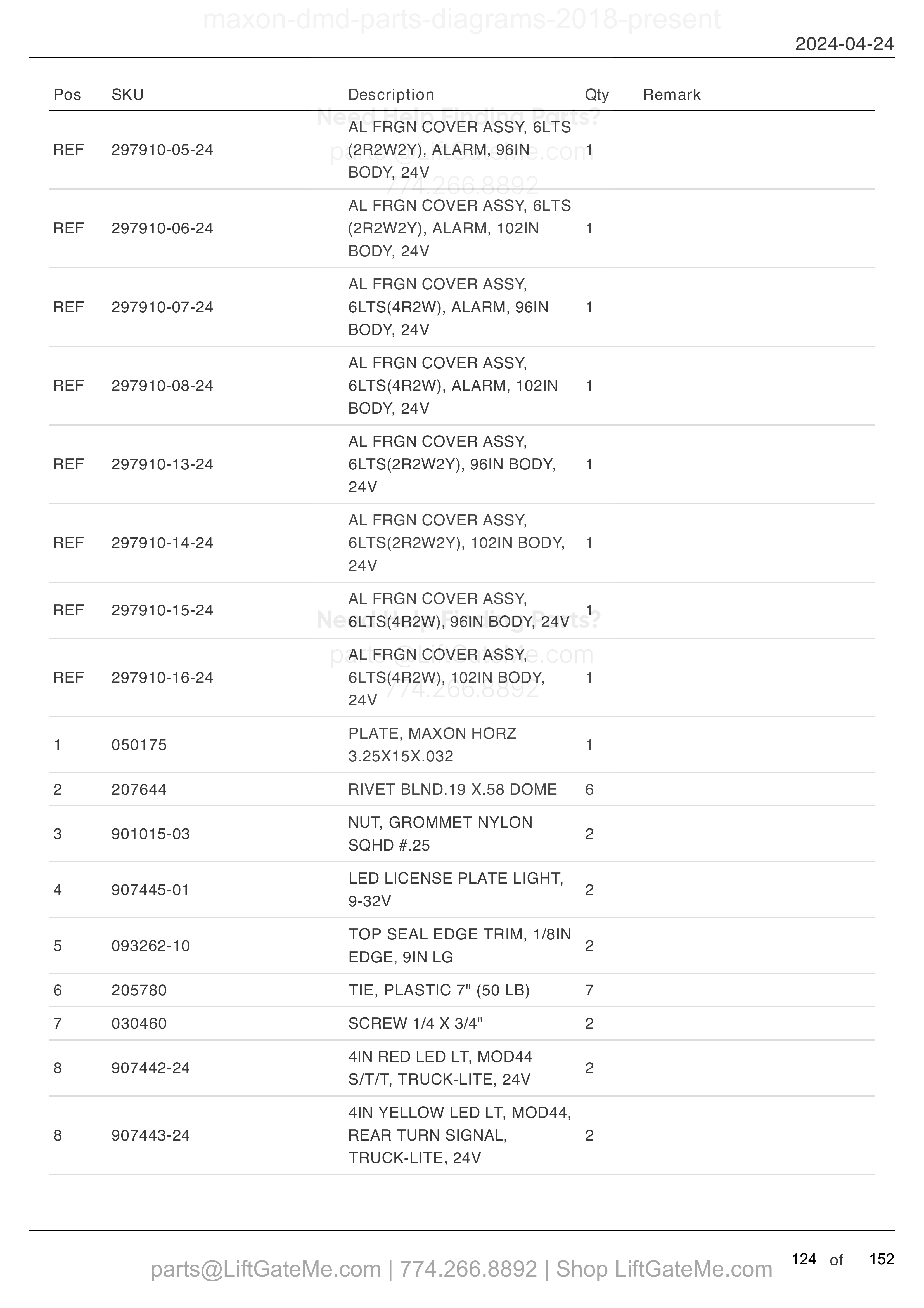

COVER ASSEMBLY (6 LIGHTS) 24V
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297910-05-24 | AL FRGN COVER ASSY, 6LTS (2R2W2Y), ALARM, 96IN BODY, 24V | |
| REF | 1 | 297910-06-24 | AL FRGN COVER ASSY, 6LTS (2R2W2Y), ALARM, 102IN BODY, 24V | |
| REF | 1 | 297910-07-24 | AL FRGN COVER ASSY, 6LTS(4R2W), ALARM, 96IN BODY, 24V | |
| REF | 1 | 297910-08-24 | AL FRGN COVER ASSY, 6LTS(4R2W), ALARM, 102IN BODY, 24V | |
| REF | 1 | 297910-13-24 | AL FRGN COVER ASSY, 6LTS(2R2W2Y), 96IN BODY, 24V | |
| REF | 1 | 297910-14-24 | AL FRGN COVER ASSY, 6LTS(2R2W2Y), 102IN BODY, 24V | |
| REF | 1 | 297910-15-24 | AL FRGN COVER ASSY, 6LTS(4R2W), 96IN BODY, 24V | |
| REF | 1 | 297910-16-24 | AL FRGN COVER ASSY, 6LTS(4R2W), 102IN BODY, 24V | |
| 1 | 1 | 050175 | PLATE, MAXON HORZ 3.25X15X.032 | |
| 2 | 6 | 207644 | RIVET BLND.19 X.58 DOME | |
| 3 | 2 | 901015-03 | NUT, GROMMET NYLON SQHD #.25 | |
| 4 | 2 | 907445-01 | LED LICENSE PLATE LIGHT, 9-32V | |
| 5 | 2 | 093262-10 | TOP SEAL EDGE TRIM, 1/8IN EDGE, 9IN LG | |
| 6 | 7 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 7 | 2 | 030460 | SCREW 1/4 X 3/4" | |
| 8 | 2 | 907442-24 | 4IN RED LED LT, MOD44 S/T/T, TRUCK-LITE, 24V | |
| 8 | 2 | 907443-24 | 4IN YELLOW LED LT, MOD44, REAR TURN SIGNAL, TRUCK-LITE, 24V |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

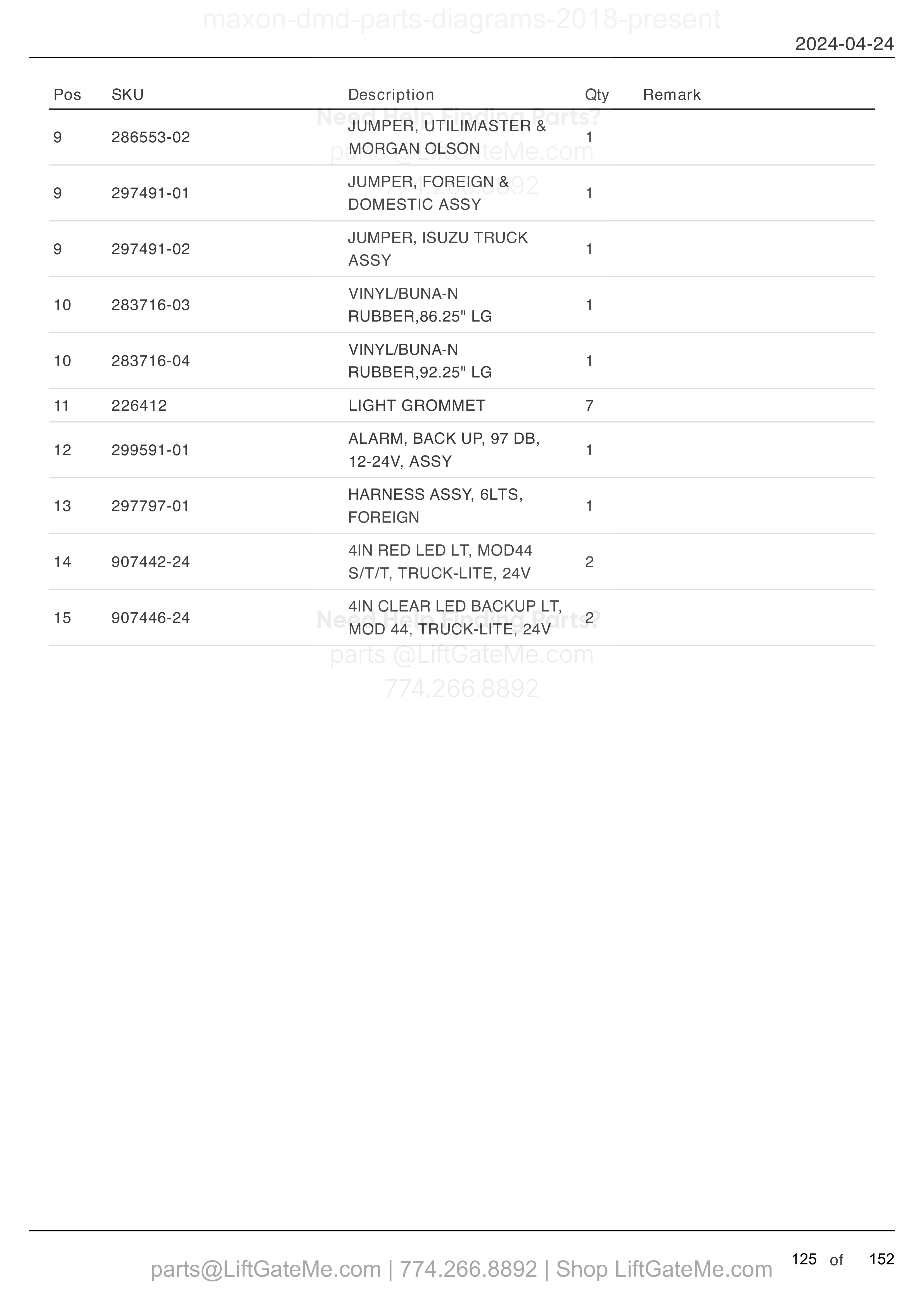

COVER ASSEMBLY (6 LIGHTS) 24V (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 9 | 1 | 286553-02 | JUMPER, UTILIMASTER & MORGAN OLSON | |
| 9 | 1 | 297491-01 | JUMPER, FOREIGN & DOMESTIC ASSY | |
| 9 | 1 | 297491-02 | JUMPER, ISUZU TRUCK ASSY | |
| 10 | 1 | 283716-03 | VINYL/BUNA-N RUBBER,86.25" LG | |
| 10 | 1 | 283716-04 | VINYL/BUNA-N RUBBER,92.25" LG | |
| 11 | 7 | 226412 | LIGHT GROMMET | |
| 12 | 1 | 299591-01 | ALARM, BACK UP, 97 DB, 12-24V, ASSY | |
| 13 | 1 | 297797-01 | HARNESS ASSY, 6LTS, FOREIGN | |
| 14 | 2 | 907442-24 | 4IN RED LED LT, MOD44 S/T/T, TRUCK-LITE, 24V | |
| 15 | 2 | 907446-24 | 4IN CLEAR LED BACKUP LT, MOD 44, TRUCK-LITE, 24V |
i

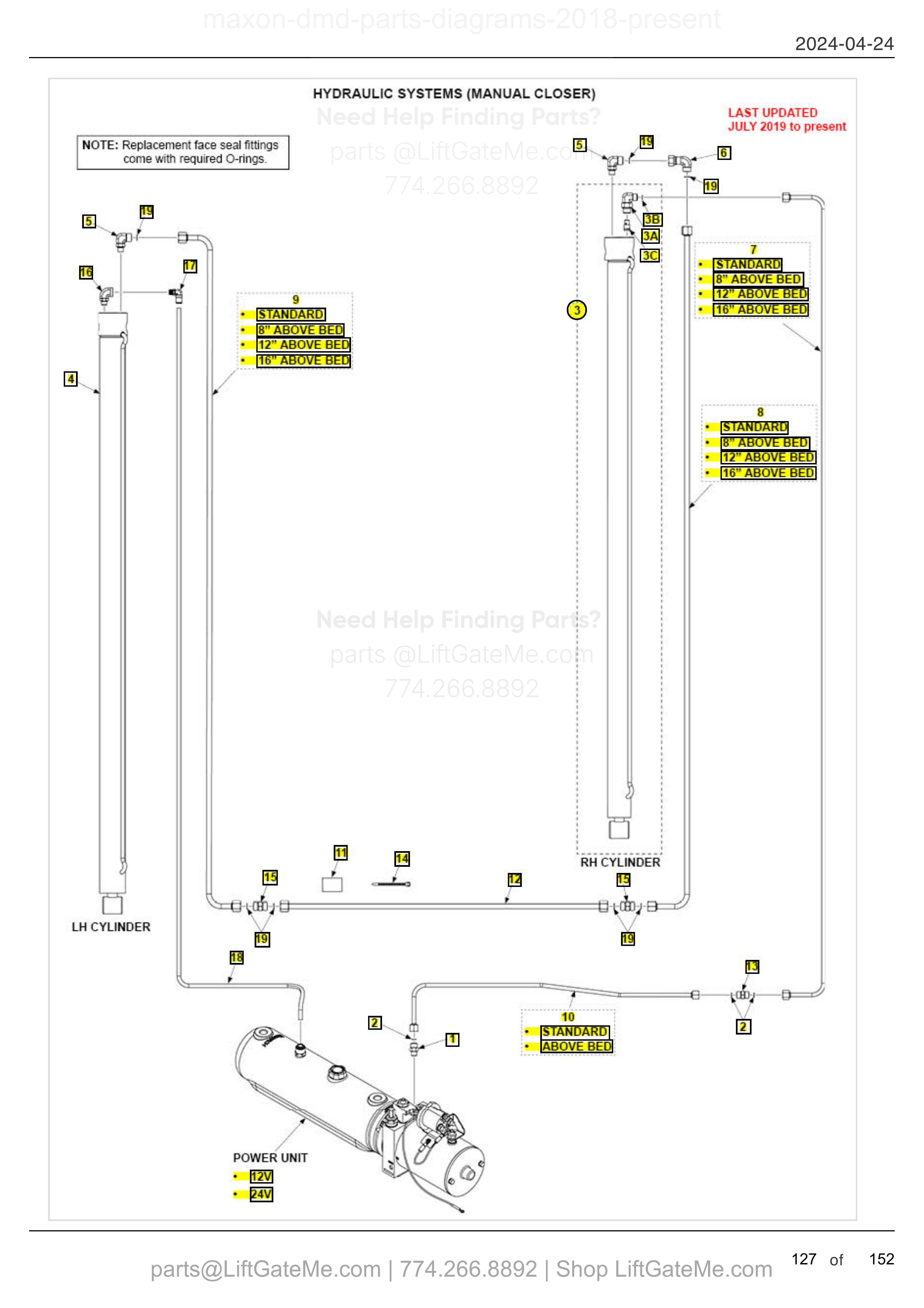

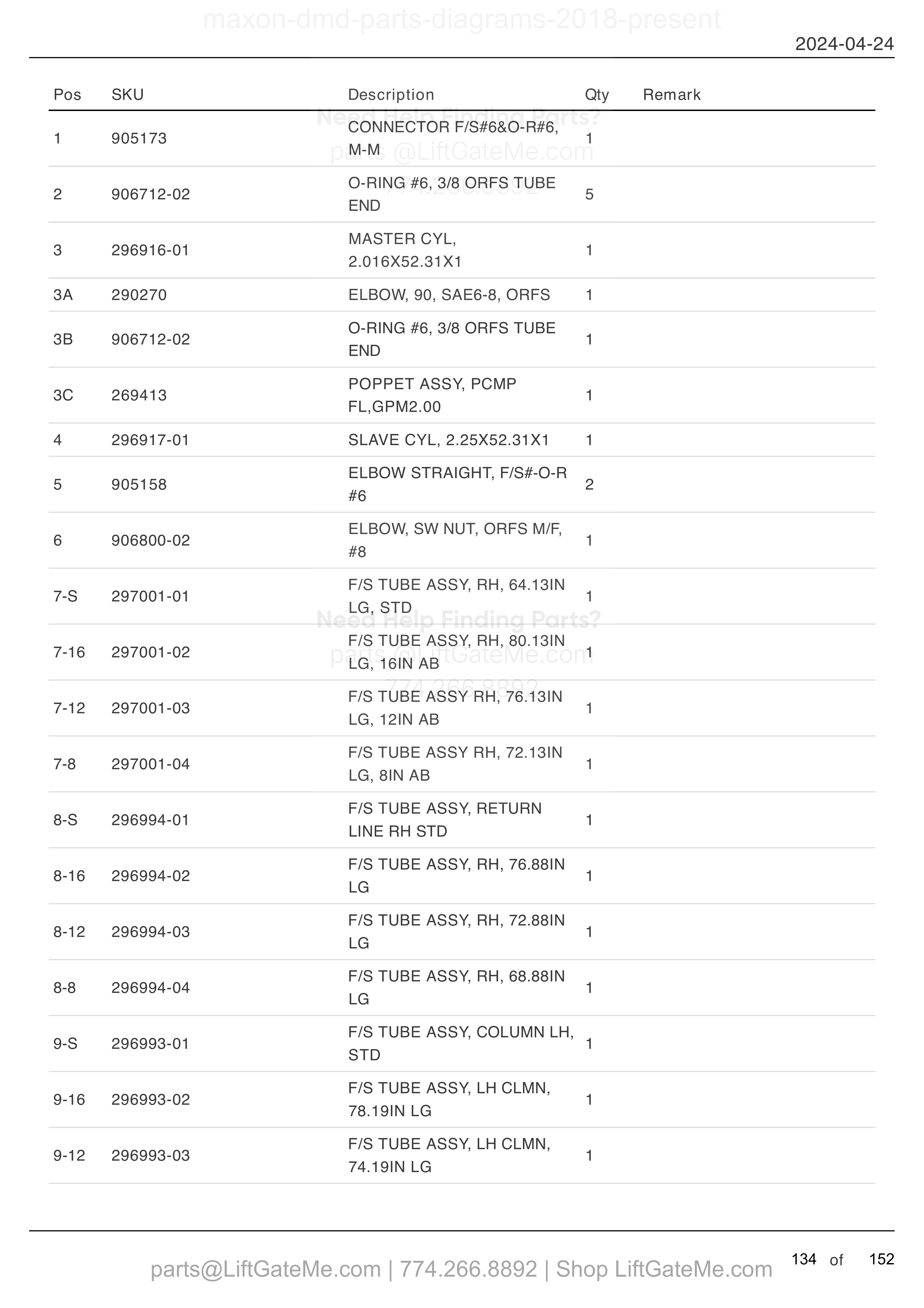

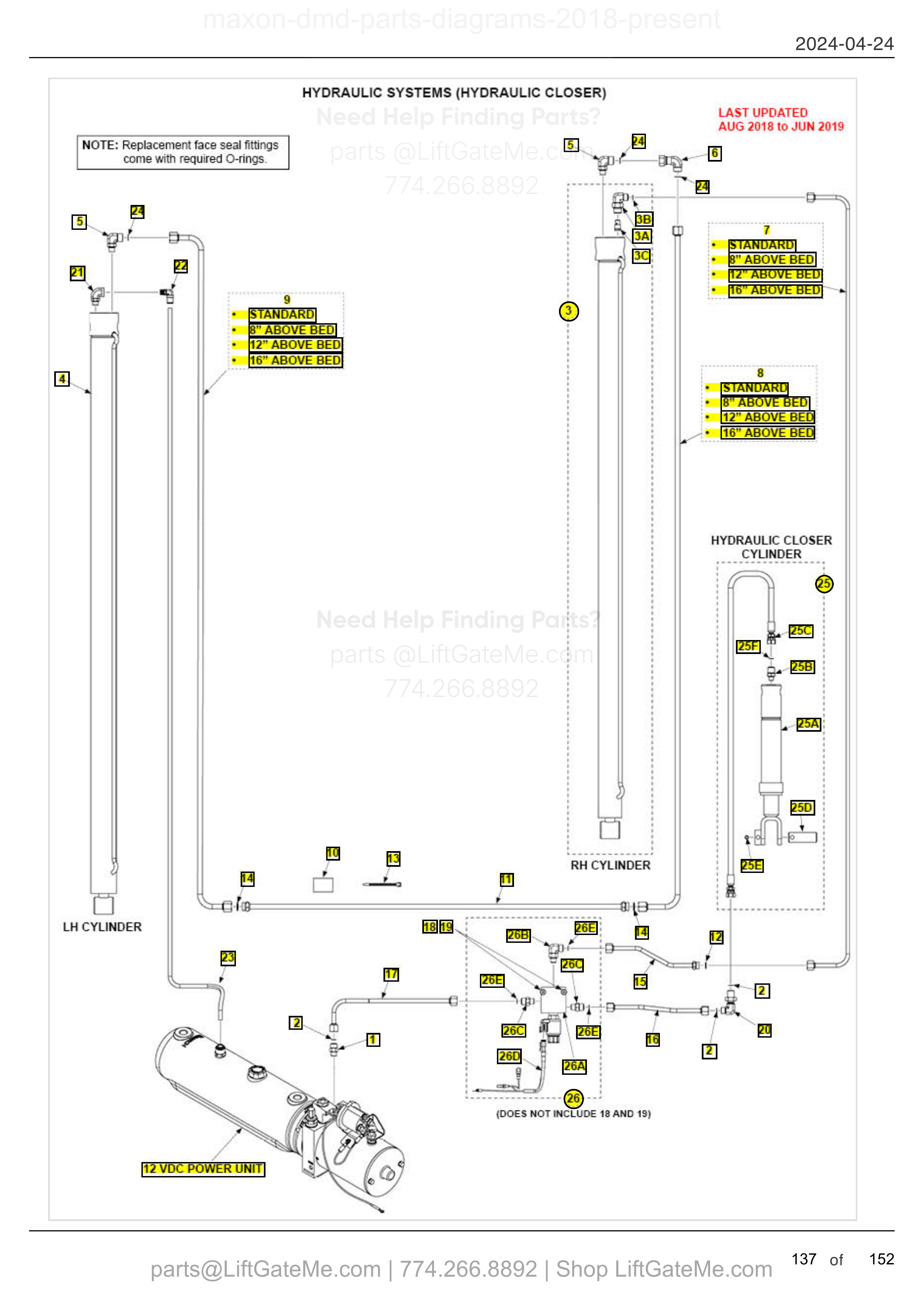

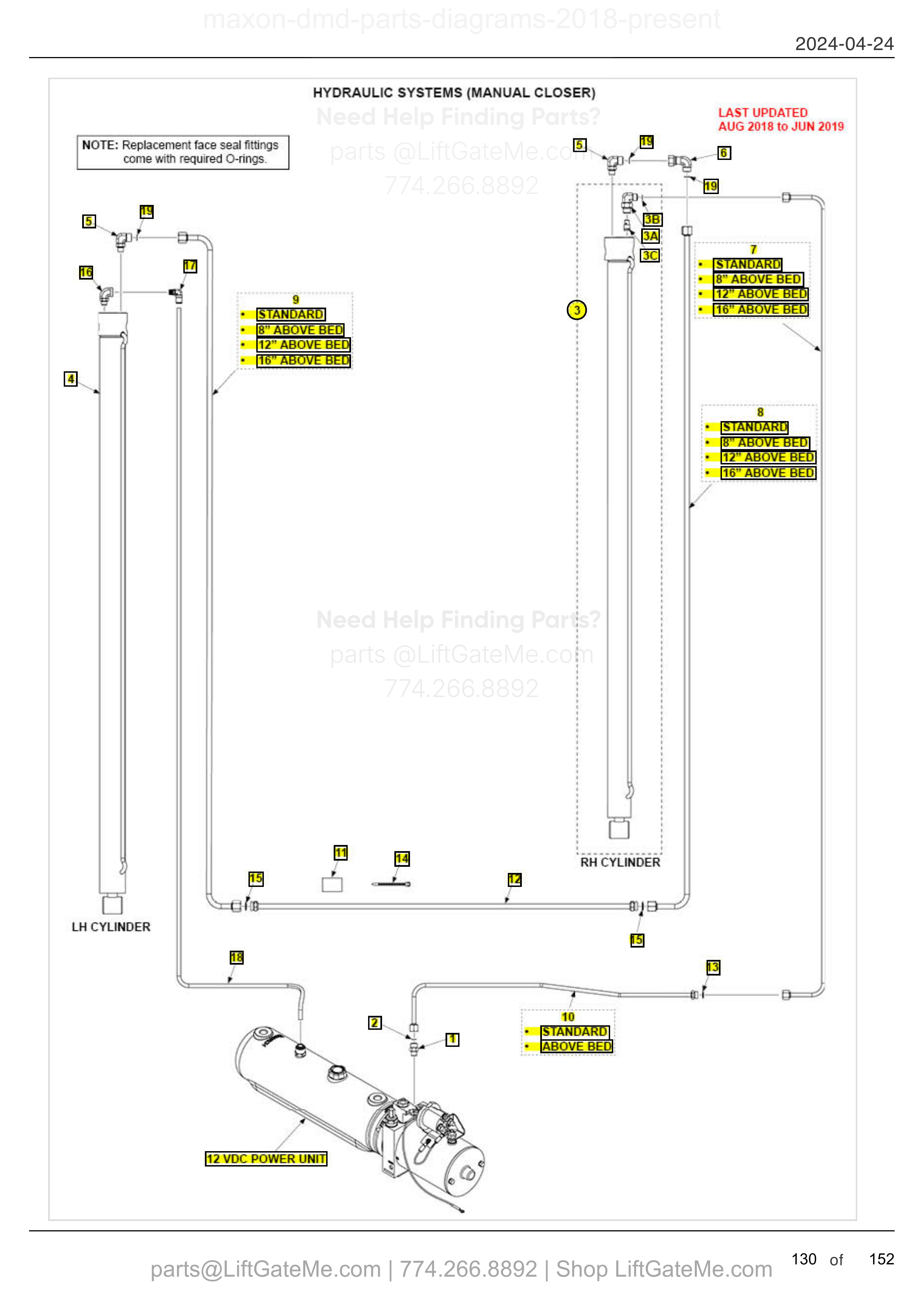

HYDRAULIC SYSTEMS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 905173 | CONNECTOR F/S#6&O-R#6, M-M | |
| 2 | 3 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 3 | 1 | 296916-01 | MASTER CYL, 2.016X52.31X1 | |
| 3A | 1 | 290270 | ELBOW, 90, SAE6-8, ORFS | |
| 3B | 1 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 3C | 1 | 269413 | POPPET ASSY, PCMP FL,GPM2.00 | |
| 4 | 1 | 296917-01 | SLAVE CYL, 2.25X52.31X1 | |
| 5 | 2 | 905158 | ELBOW STRAIGHT, F/S#-O-R #6 | |
| 6 | 1 | 906800-02 | ELBOW, SW NUT, ORFS M/F, #8 | |
| 7-S | 1 | 297001-01 | F/S TUBE ASSY, RH, 64.13IN LG, STD | |
| 7-16 | 1 | 297001-02 | F/S TUBE ASSY, RH, 80.13IN LG, 16IN AB | |
| 7-12 | 1 | 297001-03 | F/S TUBE ASSY RH, 76.13IN LG, 12IN AB | |
| 7-8 | 1 | 297001-04 | F/S TUBE ASSY RH, 72.13IN LG, 8IN AB | |
| 8-S | 1 | 296994-01 | F/S TUBE ASSY, RETURN LINE RH STD | |
| 8-16 | 1 | 296994-02 | F/S TUBE ASSY, RH, 76.88IN LG | |
| 8-12 | 1 | 296994-03 | F/S TUBE ASSY, RH, 72.88IN LG | |
| 8-8 | 1 | 296994-04 | F/S TUBE ASSY, RH, 68.88IN LG | |
| 9-S | 1 | 296993-01 | F/S TUBE ASSY, COLUMN LH, STD | |
| 9-16 | 1 | 296993-02 | F/S TUBE ASSY, LH CLMN, 78.19IN LG | |
| 9-12 | 1 | 296993-03 | F/S TUBE ASSY, LH CLMN, 74.19IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

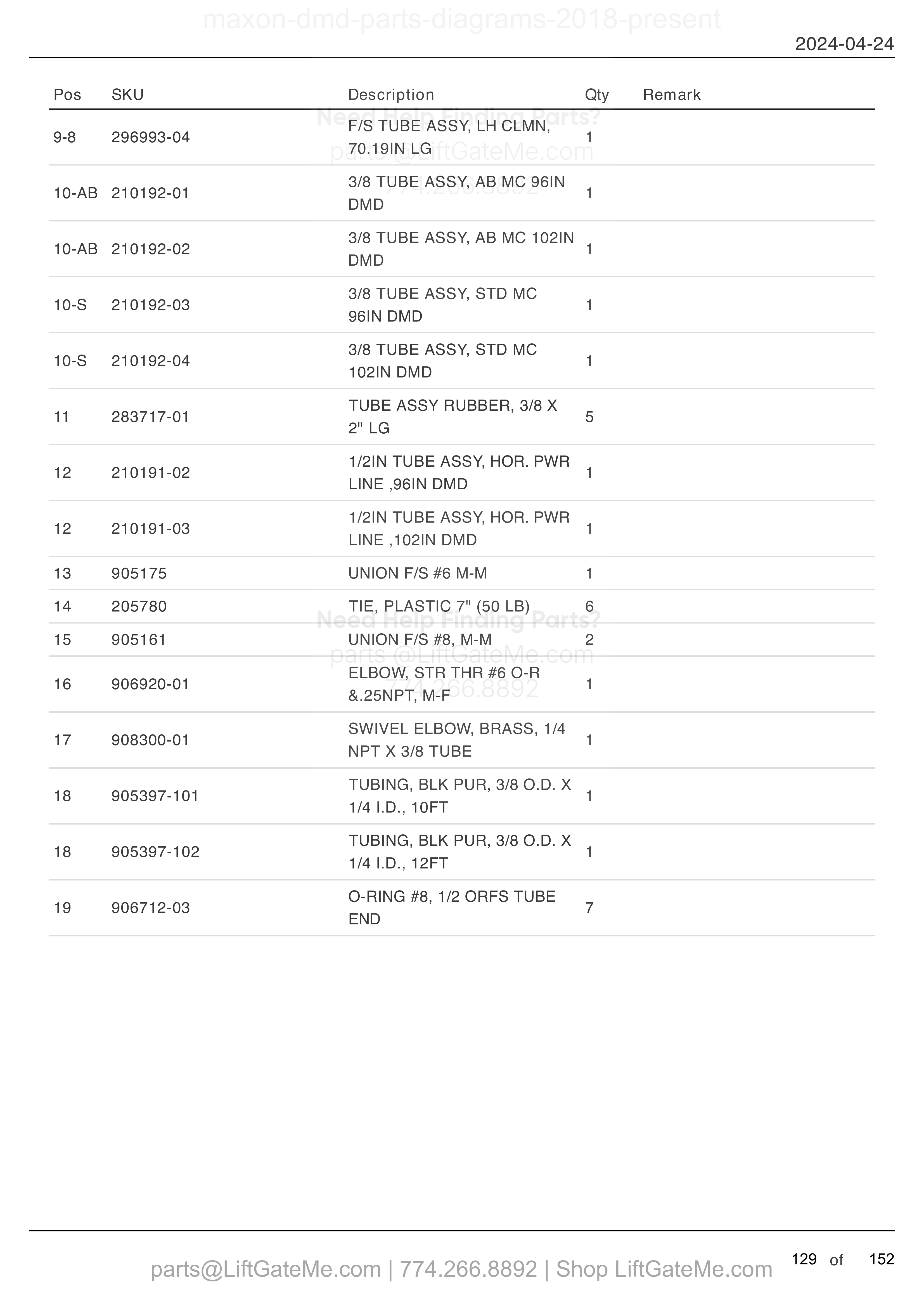

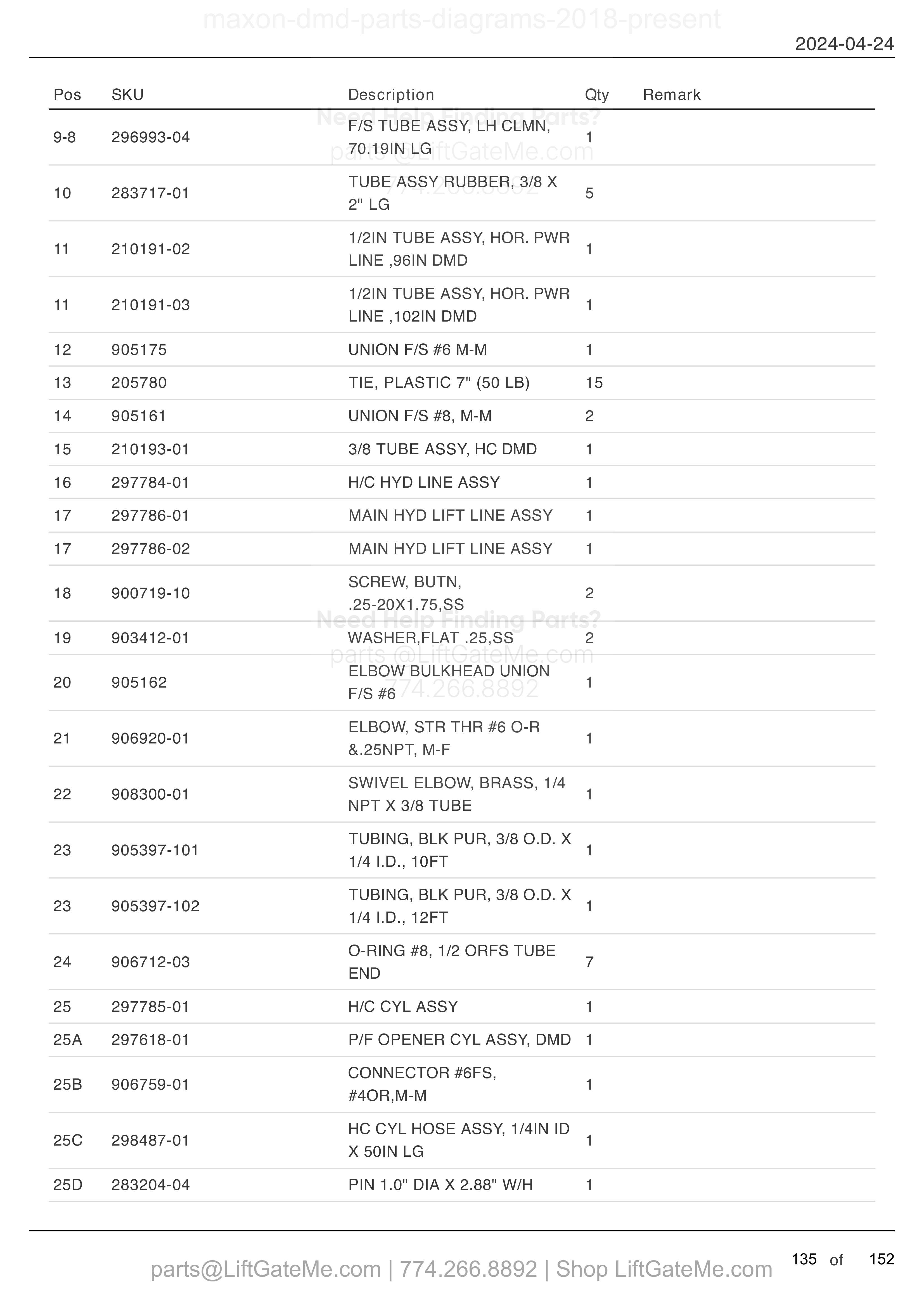

HYDRAULIC SYSTEMS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 9-8 | 1 | 296993-04 | F/S TUBE ASSY, LH CLMN, 70.19IN LG | |
| 10-AB | 1 | 210192-01 | 3/8 TUBE ASSY, AB MC 96IN DMD | |
| 10-AB | 1 | 210192-02 | 3/8 TUBE ASSY, AB MC 102IN DMD | |
| 10-S | 1 | 210192-03 | 3/8 TUBE ASSY, STD MC 96IN DMD | |
| 10-S | 1 | 210192-04 | 3/8 TUBE ASSY, STD MC 102IN DMD | |
| 11 | 5 | 283717-01 | TUBE ASSY RUBBER, 3/8 X 2" LG | |
| 12 | 1 | 210191-02 | 1/2IN TUBE ASSY, HOR. PWR LINE ,96IN DMD | |
| 12 | 1 | 210191-03 | 1/2IN TUBE ASSY, HOR. PWR LINE ,102IN DMD | |
| 13 | 1 | 905175 | UNION F/S #6 M-M | |
| 14 | 6 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 15 | 2 | 905161 | UNION F/S #8, M-M | |
| 16 | 1 | 906920-01 | ELBOW, STR THR #6 O-R &.25NPT, M-F | |
| 17 | 1 | 908300-01 | SWIVEL ELBOW, BRASS, 1/4 NPT X 3/8 TUBE | |
| 18 | 1 | 905397-101 | TUBING, BLK PUR, 3/8 O.D. X 1/4 I.D., 10FT | |
| 18 | 1 | 905397-102 | TUBING, BLK PUR, 3/8 O.D. X 1/4 I.D., 12FT | |
| 19 | 7 | 906712-03 | O-RING #8, 1/2 ORFS TUBE END |

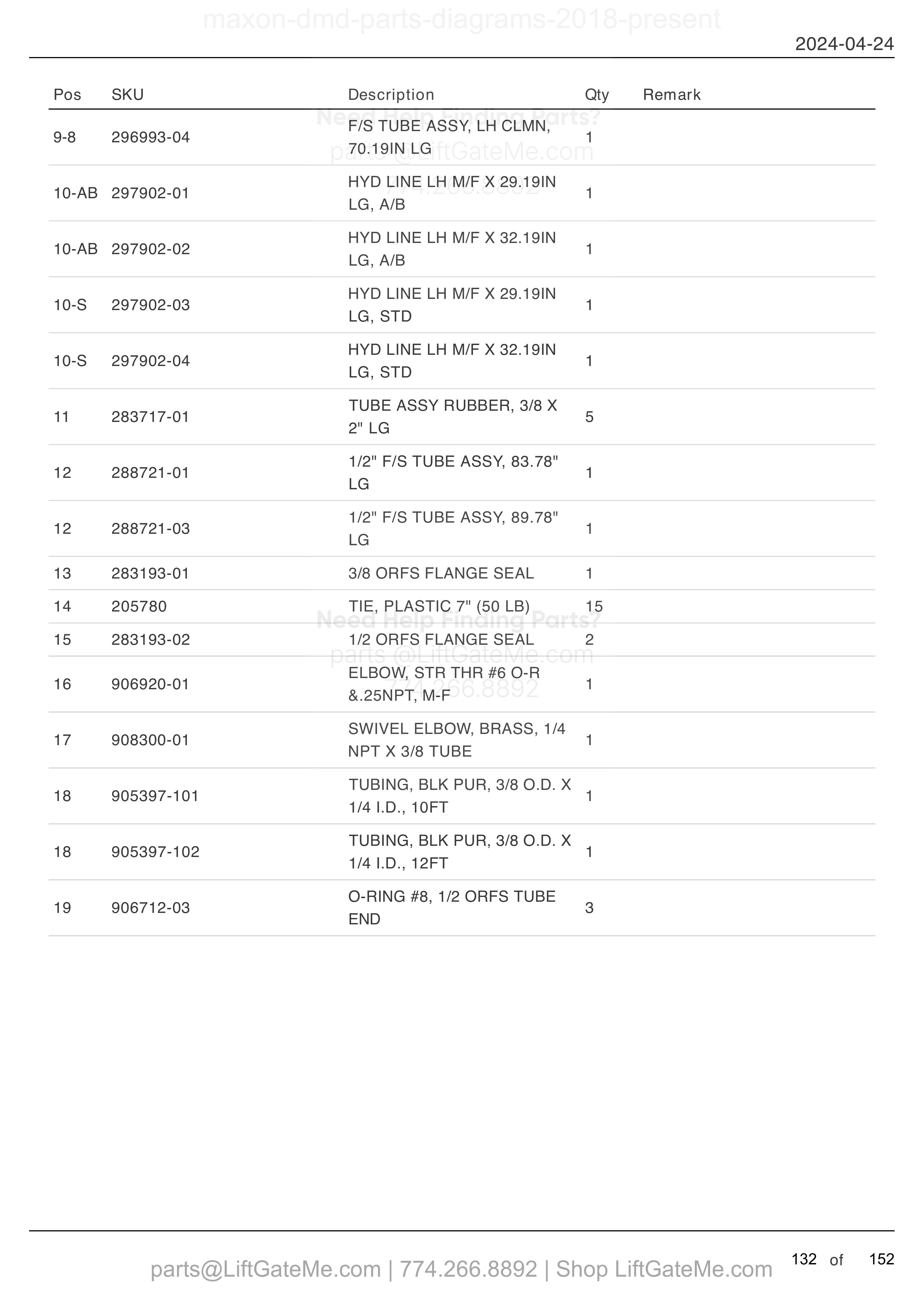

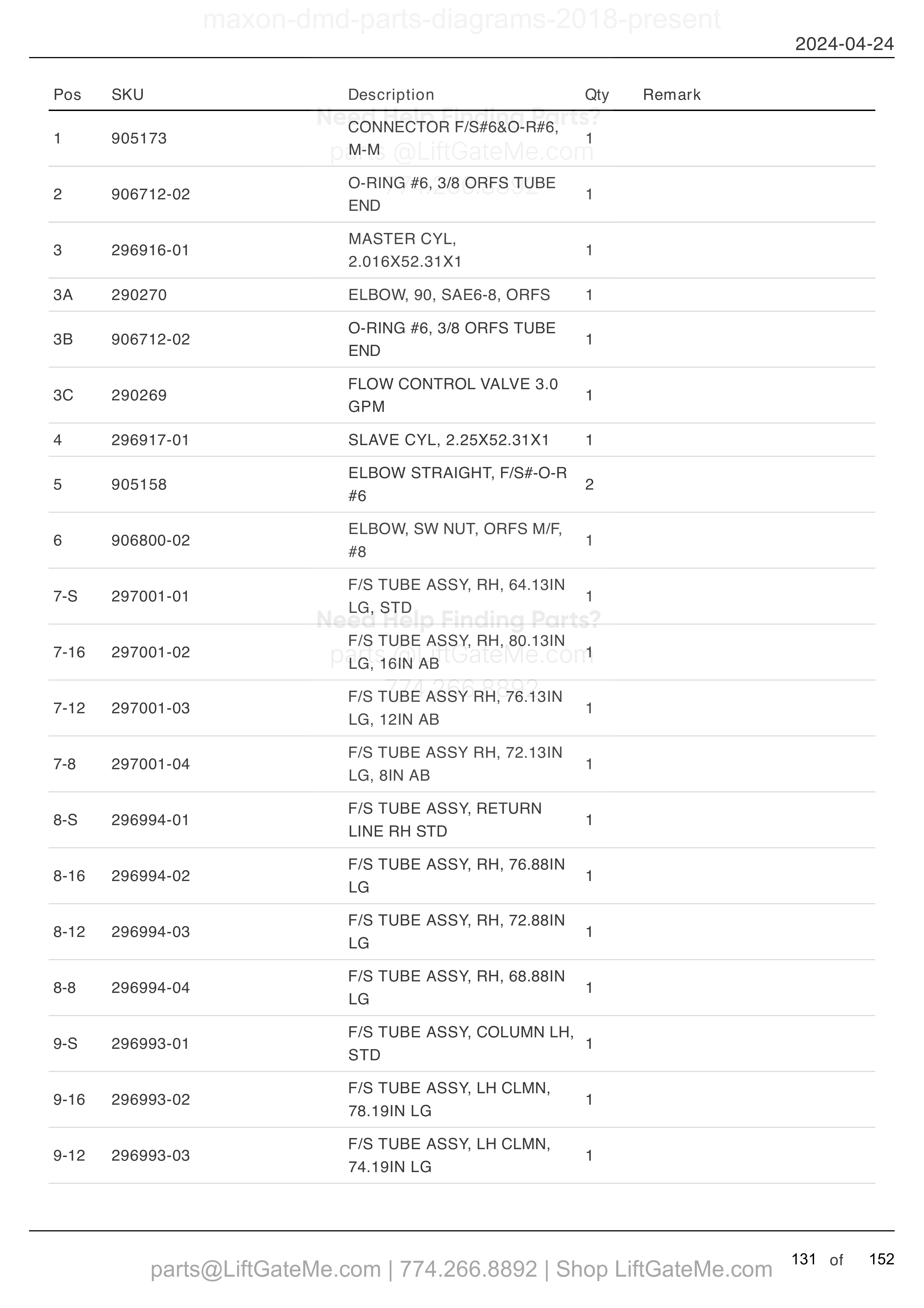

HYDRAULIC SYSTEMS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 905173 | CONNECTOR F/S#6&O-R#6, M-M | |
| 2 | 1 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 3 | 1 | 296916-01 | MASTER CYL, 2.016X52.31X1 | |
| 3A | 1 | 290270 | ELBOW, 90, SAE6-8, ORFS | |
| 3B | 1 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 3C | 1 | 290269 | FLOW CONTROL VALVE 3.0 GPM | |
| 4 | 1 | 296917-01 | SLAVE CYL, 2.25X52.31X1 | |
| 5 | 2 | 905158 | ELBOW STRAIGHT, F/S#-O-R #6 | |
| 6 | 1 | 906800-02 | ELBOW, SW NUT, ORFS M/F, #8 | |
| 7-S | 1 | 297001-01 | F/S TUBE ASSY, RH, 64.13IN LG, STD | |
| 7-16 | 1 | 297001-02 | F/S TUBE ASSY, RH, 80.13IN LG, 16IN AB | |
| 7-12 | 1 | 297001-03 | F/S TUBE ASSY RH, 76.13IN LG, 12IN AB | |
| 7-8 | 1 | 297001-04 | F/S TUBE ASSY RH, 72.13IN LG, 8IN AB | |
| 8-S | 1 | 296994-01 | F/S TUBE ASSY, RETURN LINE RH STD | |
| 8-16 | 1 | 296994-02 | F/S TUBE ASSY, RH, 76.88IN LG | |
| 8-12 | 1 | 296994-03 | F/S TUBE ASSY, RH, 72.88IN LG | |
| 8-8 | 1 | 296994-04 | F/S TUBE ASSY, RH, 68.88IN LG | |
| 9-S | 1 | 296993-01 | F/S TUBE ASSY, COLUMN LH, STD | |
| 9-16 | 1 | 296993-02 | F/S TUBE ASSY, LH CLMN, 78.19IN LG | |
| 9-12 | 1 | 296993-03 | F/S TUBE ASSY, LH CLMN, 74.19IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
HYDRAULIC SYSTEMS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 9-8 | 1 | 296993-04 | F/S TUBE ASSY, LH CLMN, 70.19IN LG | |
| 10-AB | 1 | 297902-01 | HYD LINE LH M/F X 29.19IN LG, A/B | |
| 10-AB | 1 | 297902-02 | HYD LINE LH M/F X 32.19IN LG, A/B | |
| 10-S | 1 | 297902-03 | HYD LINE LH M/F X 29.19IN LG, STD | |
| 10-S | 1 | 297902-04 | HYD LINE LH M/F X 32.19IN LG, STD | |
| 11 | 5 | 283717-01 | TUBE ASSY RUBBER, 3/8 X 2" LG | |
| 12 | 1 | 288721-01 | 1/2" F/S TUBE ASSY, 83.78" LG | |
| 12 | 1 | 288721-03 | 1/2" F/S TUBE ASSY, 89.78" LG | |
| 13 | 1 | 283193-01 | 3/8 ORFS FLANGE SEAL | |
| 14 | 15 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 15 | 2 | 283193-02 | 1/2 ORFS FLANGE SEAL | |
| 16 | 1 | 906920-01 | ELBOW, STR THR #6 O-R &.25NPT, M-F | |
| 17 | 1 | 908300-01 | SWIVEL ELBOW, BRASS, 1/4 NPT X 3/8 TUBE | |
| 18 | 1 | 905397-101 | TUBING, BLK PUR, 3/8 O.D. X 1/4 I.D., 10FT | |
| 18 | 1 | 905397-102 | TUBING, BLK PUR, 3/8 O.D. X 1/4 I.D., 12FT | |
| 19 | 3 | 906712-03 | O-RING #8, 1/2 ORFS TUBE END |

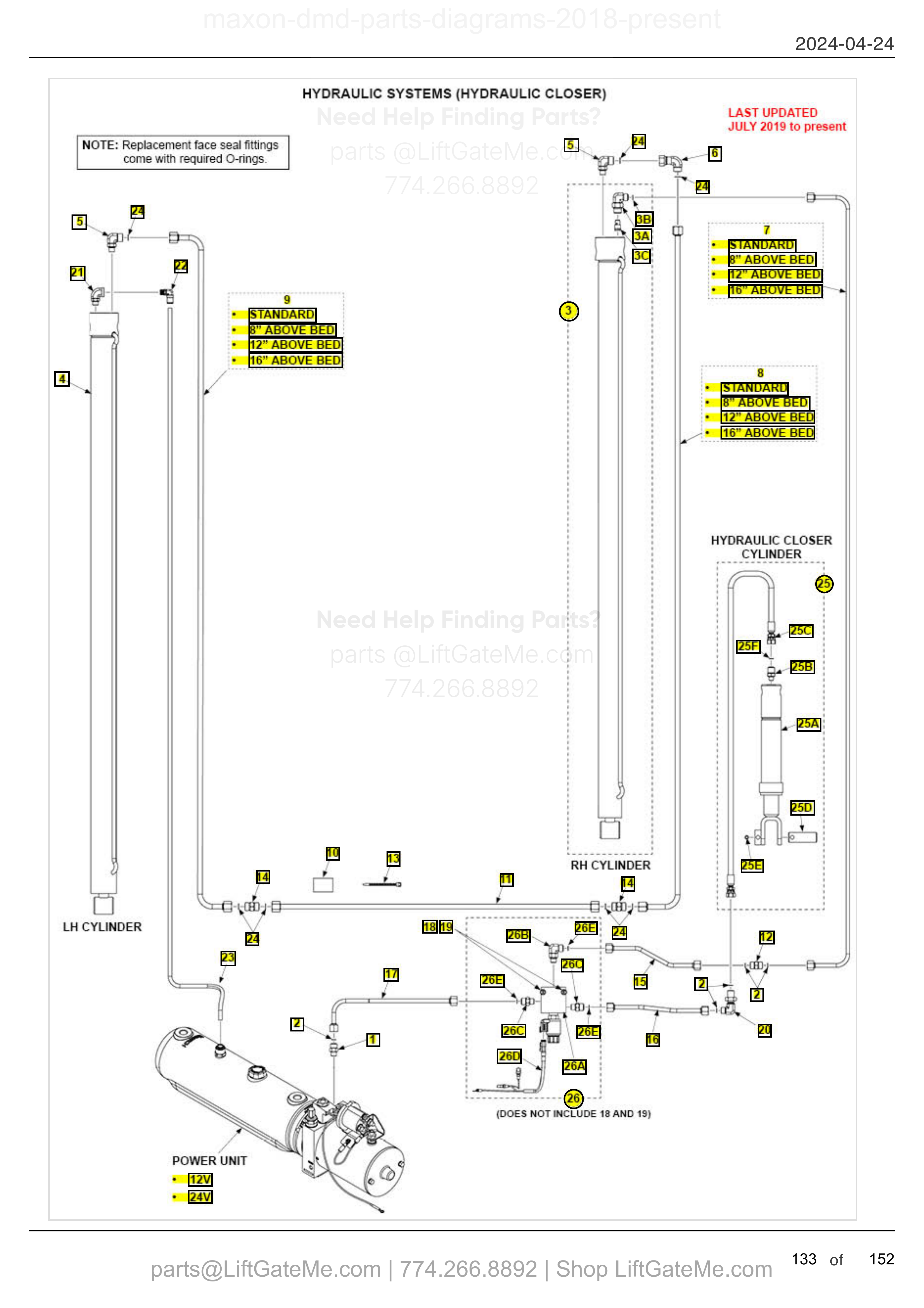

HYDRAULIC SYSTEMS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 905173 | CONNECTOR F/S#6&O-R#6, M-M | |
| 2 | 5 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 3 | 1 | 296916-01 | MASTER CYL, 2.016X52.31X1 | |
| 3A | 1 | 290270 | ELBOW, 90, SAE6-8, ORFS | |
| 3B | 1 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 3C | 1 | 269413 | POPPET ASSY, PCMP FL,GPM2.00 | |
| 4 | 1 | 296917-01 | SLAVE CYL, 2.25X52.31X1 | |
| 5 | 2 | 905158 | ELBOW STRAIGHT, F/S#-O-R #6 | |
| 6 | 1 | 906800-02 | ELBOW, SW NUT, ORFS M/F, #8 | |
| 7-S | 1 | 297001-01 | F/S TUBE ASSY, RH, 64.13IN LG, STD | |
| 7-16 | 1 | 297001-02 | F/S TUBE ASSY, RH, 80.13IN LG, 16IN AB | |
| 7-12 | 1 | 297001-03 | F/S TUBE ASSY RH, 76.13IN LG, 12IN AB | |
| 7-8 | 1 | 297001-04 | F/S TUBE ASSY RH, 72.13IN LG, 8IN AB | |
| 8-S | 1 | 296994-01 | F/S TUBE ASSY, RETURN LINE RH STD | |
| 8-16 | 1 | 296994-02 | F/S TUBE ASSY, RH, 76.88IN LG | |
| 8-12 | 1 | 296994-03 | F/S TUBE ASSY, RH, 72.88IN LG | |
| 8-8 | 1 | 296994-04 | F/S TUBE ASSY, RH, 68.88IN LG | |
| 9-S | 1 | 296993-01 | F/S TUBE ASSY, COLUMN LH, STD | |
| 9-16 | 1 | 296993-02 | F/S TUBE ASSY, LH CLMN, 78.19IN LG | |
| 9-12 | 1 | 296993-03 | F/S TUBE ASSY, LH CLMN, 74.19IN LG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
HYDRAULIC SYSTEMS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 9-8 | 1 | 296993-04 | F/S TUBE ASSY, LH CLMN, 70.19IN LG | |
| 10 | 5 | 283717-01 | TUBE ASSY RUBBER, 3/8 X 2" LG | |
| 11 | 1 | 210191-02 | 1/2IN TUBE ASSY, HOR. PWR LINE ,96IN DMD | |
| 11 | 1 | 210191-03 | 1/2IN TUBE ASSY, HOR. PWR LINE ,102IN DMD | |
| 12 | 1 | 905175 | UNION F/S #6 M-M | |
| 13 | 15 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 14 | 2 | 905161 | UNION F/S #8, M-M | |
| 15 | 1 | 210193-01 | 3/8 TUBE ASSY, HC DMD | |
| 16 | 1 | 297784-01 | H/C HYD LINE ASSY | |
| 17 | 1 | 297786-01 | MAIN HYD LIFT LINE ASSY | |
| 17 | 1 | 297786-02 | MAIN HYD LIFT LINE ASSY | |
| 18 | 2 | 900719-10 | SCREW, BUTN, .25-20X1.75,SS | |
| 19 | 2 | 903412-01 | WASHER,FLAT .25,SS | |
| 20 | 1 | 905162 | ELBOW BULKHEAD UNION F/S #6 | |
| 21 | 1 | 906920-01 | ELBOW, STR THR #6 O-R &.25NPT, M-F | |
| 22 | 1 | 908300-01 | SWIVEL ELBOW, BRASS, 1/4 NPT X 3/8 TUBE | |
| 23 | 1 | 905397-101 | TUBING, BLK PUR, 3/8 O.D. X 1/4 I.D., 10FT | |
| 23 | 1 | 905397-102 | TUBING, BLK PUR, 3/8 O.D. X 1/4 I.D., 12FT | |
| 24 | 7 | 906712-03 | O-RING #8, 1/2 ORFS TUBE END | |
| 25 | 1 | 297785-01 | H/C CYL ASSY | |
| 25A | 1 | 297618-01 | P/F OPENER CYL ASSY, DMD | |
| 25B | 1 | 906759-01 | CONNECTOR #6FS, #4OR,M-M | |
| 25C | 1 | 298487-01 | HC CYL HOSE ASSY, 1/4IN ID X 50IN LG | |
| 25D | 1 | 283204-04 | PIN 1.0" DIA X 2.88" W/H |

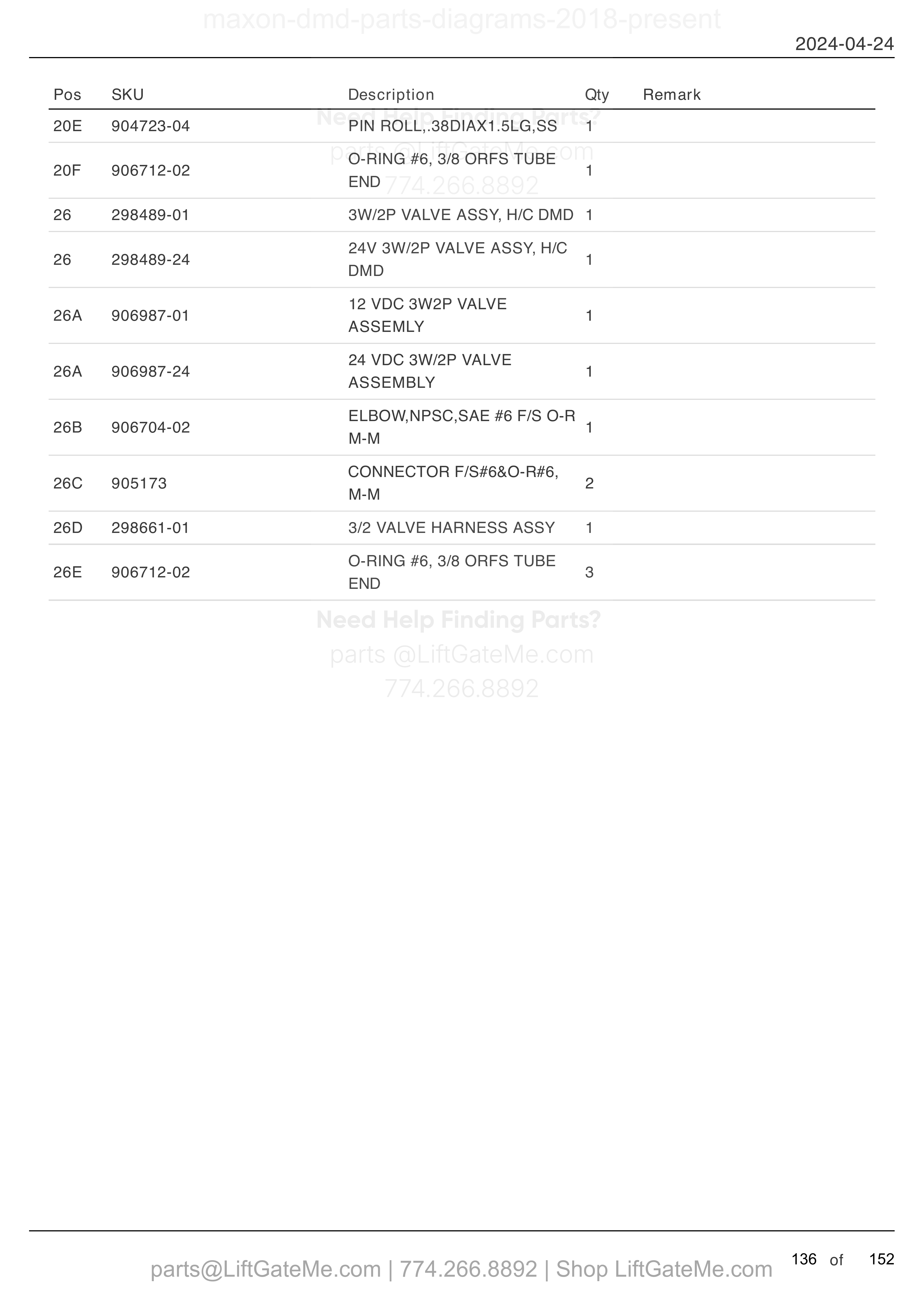

HYDRAULIC SYSTEMS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 20E | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS | |
| 20F | 1 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 26 | 1 | 298489-01 | 3W/2P VALVE ASSY, H/C DMD | |
| 26 | 1 | 298489-24 | 24V 3W/2P VALVE ASSY, H/C DMD | |
| 26A | 1 | 906987-01 | 12 VDC 3W2P VALVE ASSEMBLY | |
| 26A | 1 | 906987-24 | 24 VDC 3W/2P VALVE ASSEMBLY | |
| 26B | 1 | 906704-02 | ELBOW,NPSC,SAE #6 F/S O-R M-M | |
| 26C | 2 | 905173 | CONNECTOR F/S#6&O-R#6, M-M | |
| 26D | 1 | 298661-01 | 3/2 VALVE HARNESS ASSY | |
| 26E | 3 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

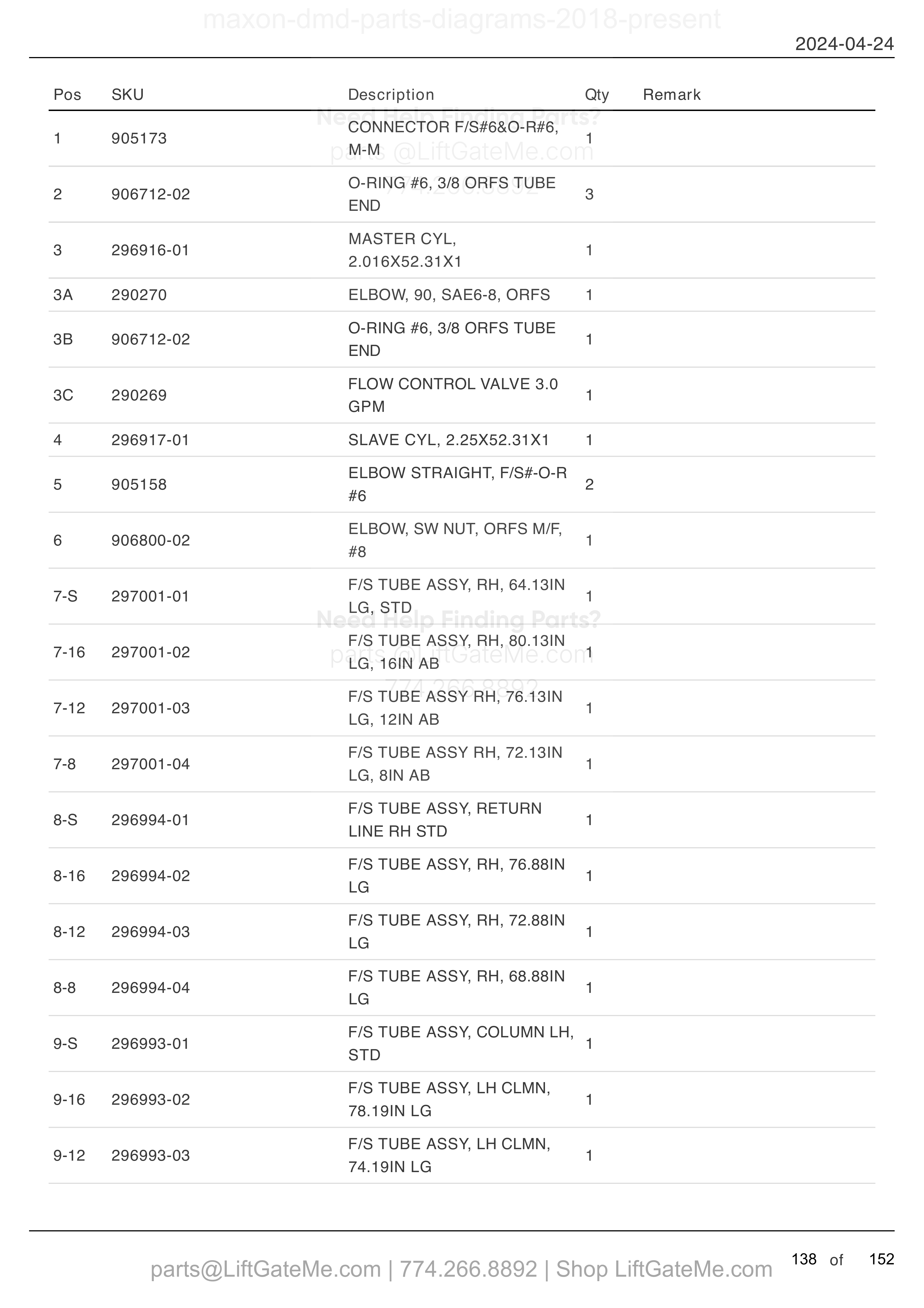

HYDRAULIC SYSTEMS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 905173 | CONNECTOR F/S#6&O-R#6, M-M | |
| 2 | 3 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 3 | 1 | 296916-01 | MASTER CYL, 2.016X52.31X1 | |
| 3A | 1 | 290270 | ELBOW, 90, SAE6-8, ORFS | |
| 3B | 1 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 3C | 1 | 290269 | FLOW CONTROL VALVE 3.0 GPM | |
| 4 | 1 | 296917-01 | SLAVE CYL, 2.25X52.31X1 | |
| 5 | 2 | 905158 | ELBOW STRAIGHT, F/S#-O-R #6 | |
| 6 | 1 | 906800-02 | ELBOW, SW NUT, ORFS M/F, #8 | |
| 7-S | 1 | 297001-01 | F/S TUBE ASSY, RH, 64.13IN LG, STD | |
| 7-16 | 1 | 297001-02 | F/S TUBE ASSY, RH, 80.13IN LG, 16IN AB | |
| 7-12 | 1 | 297001-03 | F/S TUBE ASSY RH, 76.13IN LG, 12IN AB | |
| 7-8 | 1 | 297001-04 | F/S TUBE ASSY RH, 72.13IN LG, 8IN AB | |
| 8-S | 1 | 296994-01 | F/S TUBE ASSY, RETURN LINE RH STD | |
| 8-16 | 1 | 296994-02 | F/S TUBE ASSY, RH, 76.88IN LG | |
| 8-12 | 1 | 296994-03 | F/S TUBE ASSY, RH, 72.88IN LG | |
| 8-8 | 1 | 296994-04 | F/S TUBE ASSY, RH, 68.88IN LG | |
| 9-S | 1 | 296993-01 | F/S TUBE ASSY, COLUMN LH, STD | |
| 9-16 | 1 | 296993-02 | F/S TUBE ASSY, LH CLMN, 78.19IN LG | |
| 9-12 | 1 | 296993-03 | F/S TUBE ASSY, LH CLMN, 74.19IN LG |

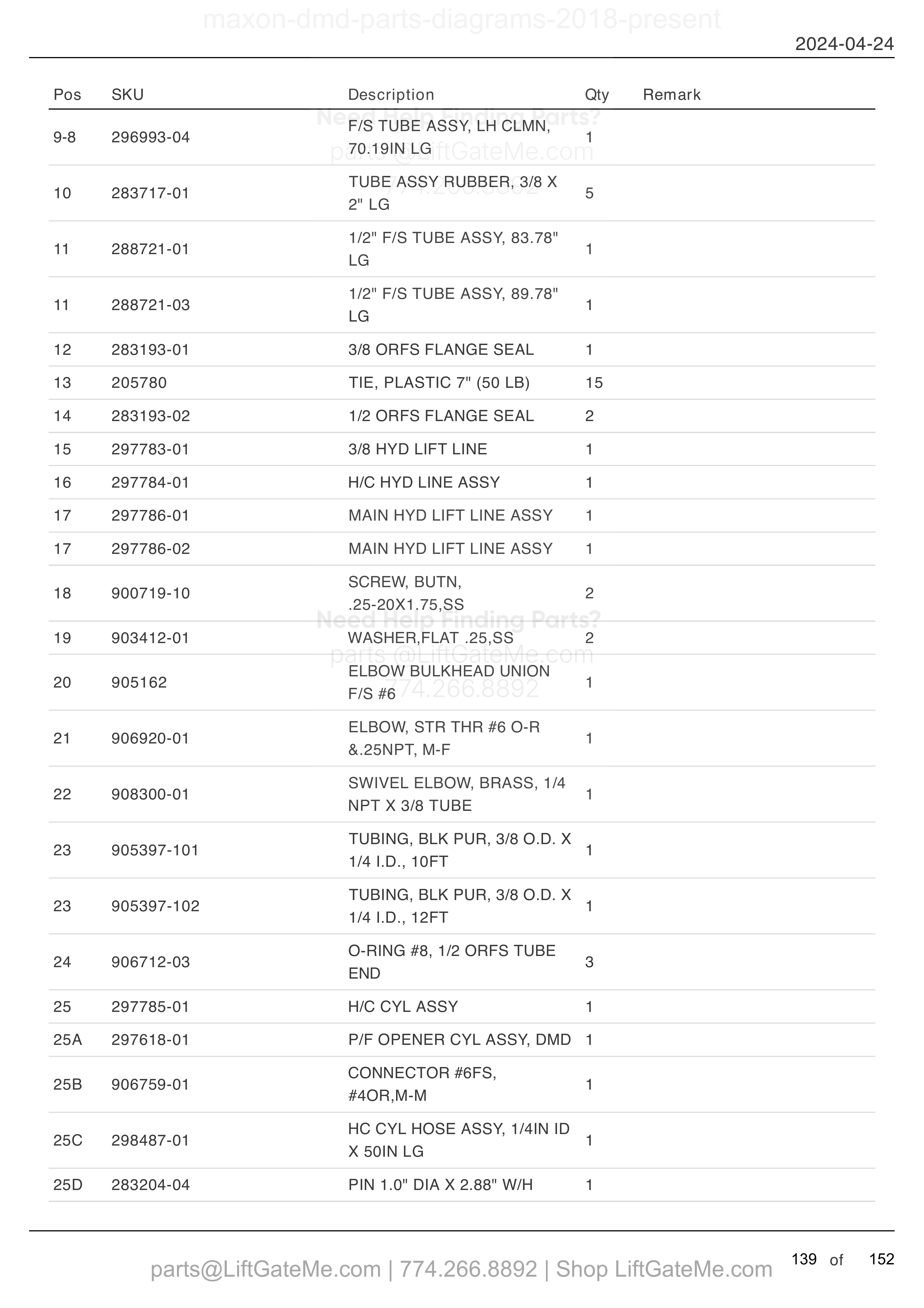

HYDRAULIC SYSTEMS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 9-8 | 1 | 296993-04 | F/S TUBE ASSY, LH CLMN, 70.19IN LG | |
| 10 | 5 | 283717-01 | TUBE ASSY RUBBER, 3/8 X 2" LG | |
| 11 | 1 | 288721-01 | 1/2" F/S TUBE ASSY, 83.78" LG | |
| 11 | 1 | 288721-03 | 1/2" F/S TUBE ASSY, 89.78" LG | |
| 12 | 1 | 283193-01 | 3/8 ORFS FLANGE SEAL | |
| 13 | 15 | 205780 | TIE, PLASTIC 7" (50 LB) | |
| 14 | 2 | 283193-02 | 1/2 ORFS FLANGE SEAL | |
| 15 | 1 | 297783-01 | 3/8 HYD LIFT LINE | |
| 16 | 1 | 297784-01 | H/C HYD LINE ASSY | |
| 17 | 1 | 297786-01 | MAIN HYD LIFT LINE ASSY | |
| 17 | 1 | 297786-02 | MAIN HYD LIFT LINE ASSY | |
| 18 | 2 | 900719-10 | SCREW, BUTN, .25-20X1.75,SS | |
| 19 | 2 | 903412-01 | WASHER,FLAT .25,SS | |
| 20 | 1 | 905162 | ELBOW BULKHEAD UNION F/S #6 | |
| 21 | 1 | 906920-01 | ELBOW, STR THR #6 O-R &.25NPT, M-F | |
| 22 | 1 | 908300-01 | SWIVEL ELBOW, BRASS, 1/4 NPT X 3/8 TUBE | |
| 23 | 1 | 905397-101 | TUBING, BLK PUR, 3/8 O.D. X 1/4 I.D., 10FT | |
| 23 | 1 | 905397-102 | TUBING, BLK PUR, 3/8 O.D. X 1/4 I.D., 12FT | |
| 24 | 3 | 906712-03 | O-RING #8, 1/2 ORFS TUBE END | |
| 25 | 1 | 297785-01 | H/C CYL ASSY | |
| 25A | 1 | 297618-01 | P/F OPENER CYL ASSY, DMD | |
| 25B | 1 | 906759-01 | CONNECTOR #6FS, #4OR,M-M | |
| 25C | 1 | 298487-01 | HC CYL HOSE ASSY, 1/4IN ID X 50IN LG | |
| 25D | 1 | 283204-04 | PIN 1.0" DIA X 2.88" W/H |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

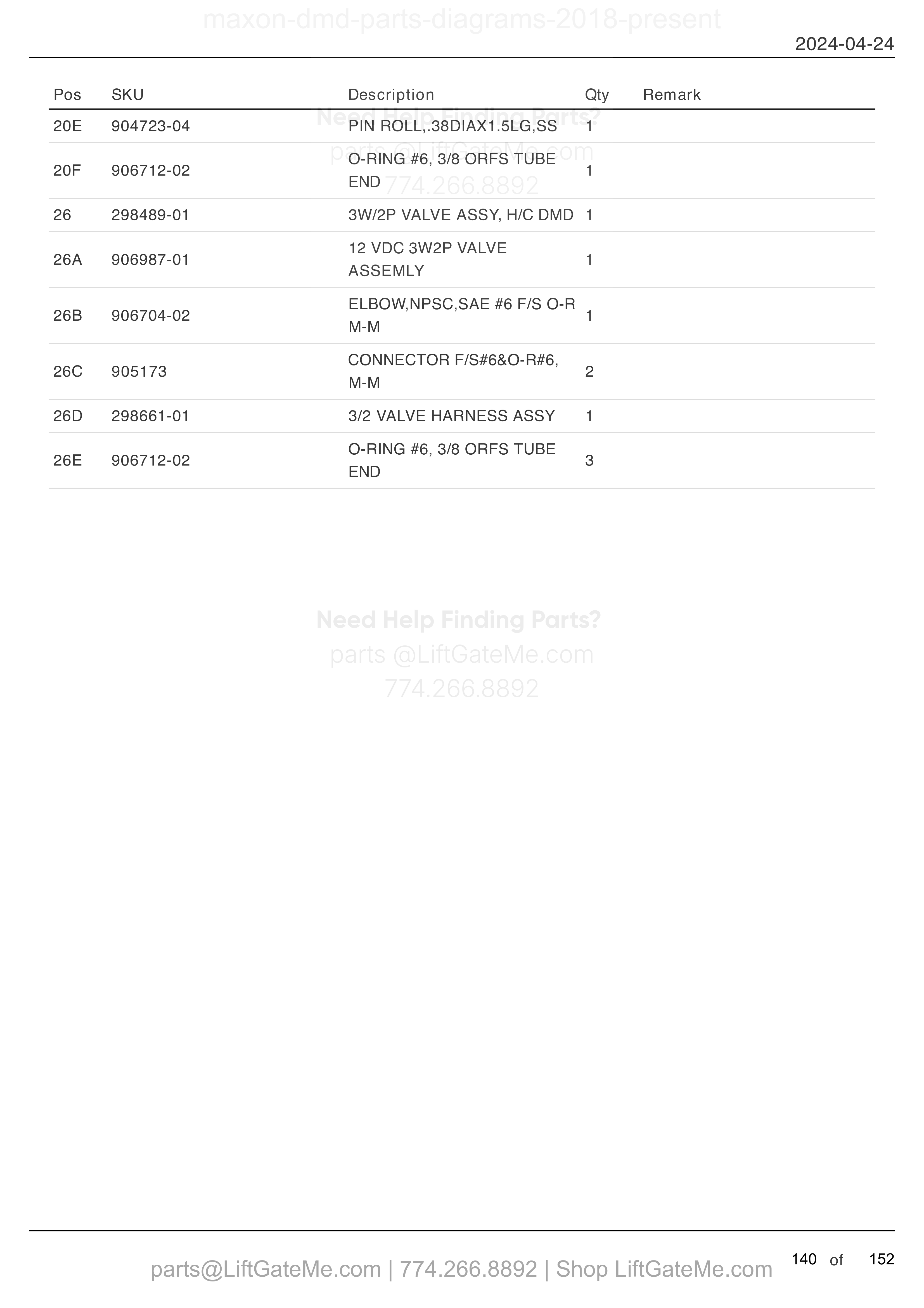

HYDRAULIC SYSTEMS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 20E | 1 | 904723-04 | PIN ROLL,.38DIAX1.5LG,SS | |
| 20F | 1 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | |
| 26 | 1 | 298489-01 | 3W/2P VALVE ASSY, H/C DMD | |
| 26A | 1 | 906987-01 | 12 VDC 3W2P VALVE ASSEMBLY | |
| 26B | 1 | 906704-02 | ELBOW,NPSC,SAE #6 F/S O-R M-M | |
| 26C | 2 | 905173 | CONNECTOR F/S#6&O-R#6, M-M | |
| 26D | 1 | 298661-01 | 3/2 VALVE HARNESS ASSY | |
| 26E | 3 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END |

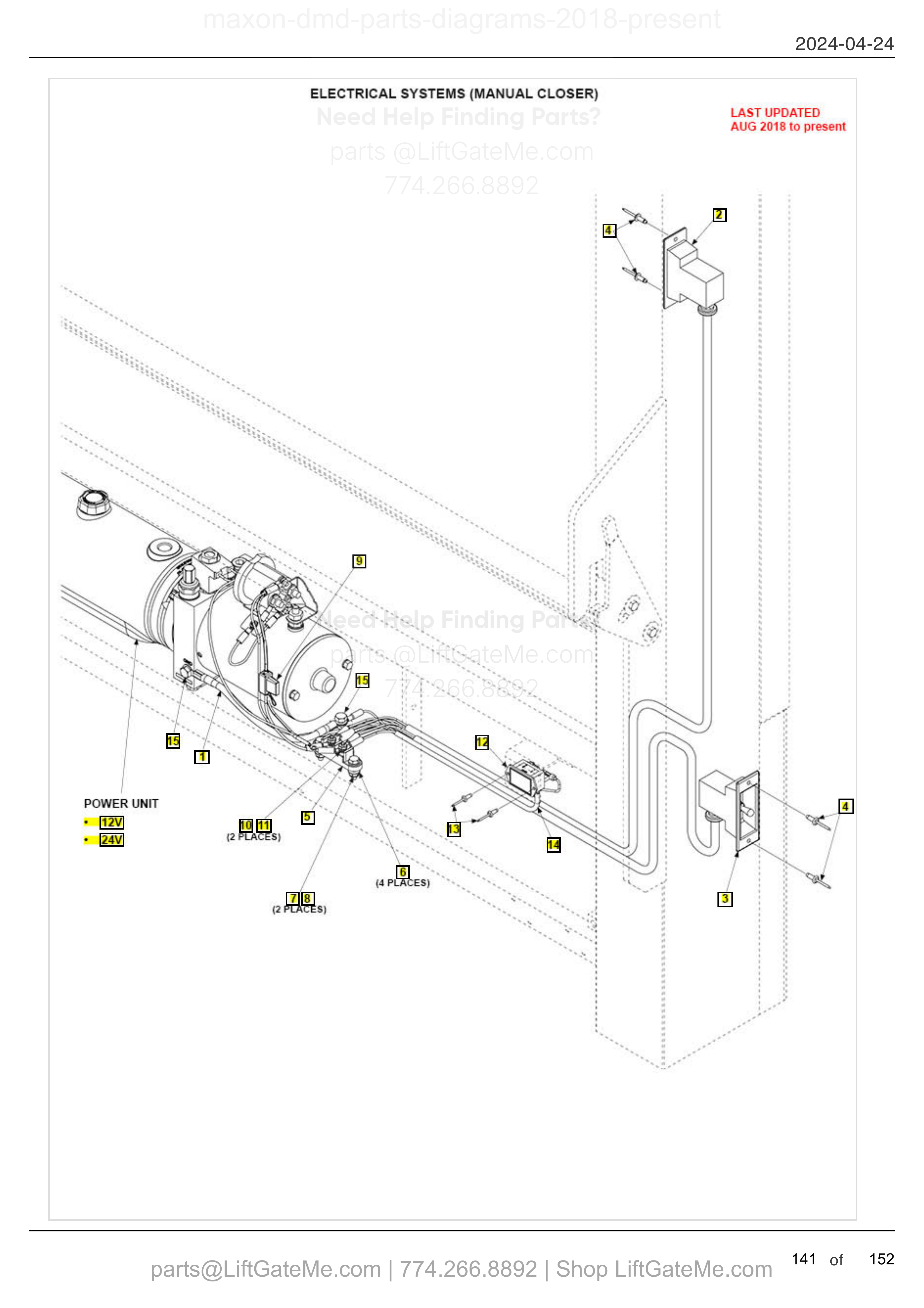

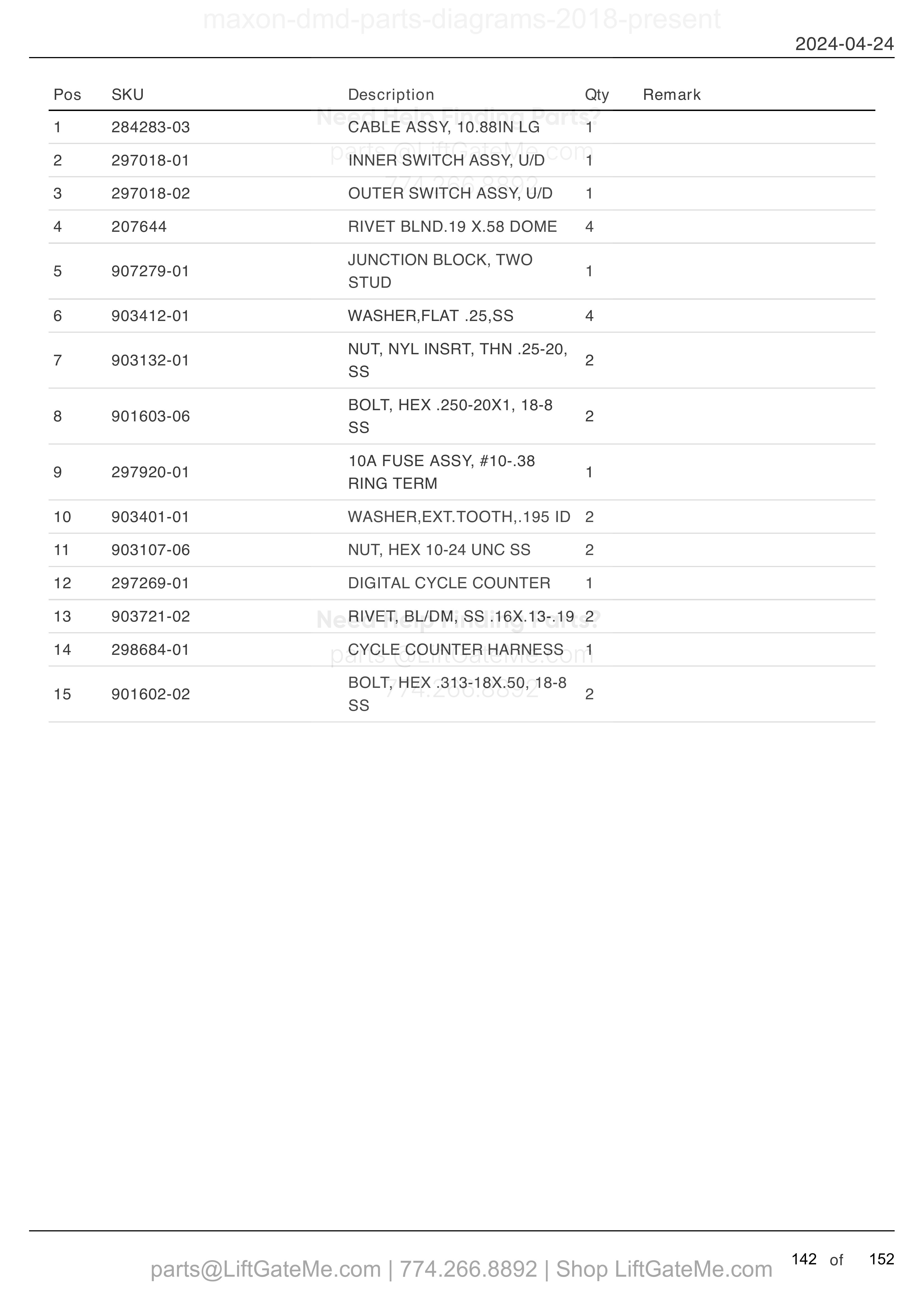

ELECTRICAL SYSTEMS (MANUAL CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 284283-03 | CABLE ASSY, 10.88IN LG | |
| 2 | 1 | 297018-01 | INNER SWITCH ASSY, U/D | |
| 3 | 1 | 297018-02 | OUTER SWITCH ASSY, U/D | |
| 4 | 4 | 207644 | RIVET BLND.19 X.58 DOME | |
| 5 | 1 | 907279-01 | JUNCTION BLOCK, TWO STUD | |
| 6 | 4 | 903412-01 | WASHER,FLAT .25,SS | |
| 7 | 2 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS | |
| 8 | 2 | 901603-06 | BOLT, HEX .250-20X1, 18-8 SS | |
| 9 | 1 | 297920-01 | 10A FUSE ASSY, #10-.38 RING TERM | |
| 10 | 2 | 903401-01 | WASHER,EXT.TOOTH,.195 ID | |
| 11 | 2 | 903107-06 | NUT, HEX 10-24 UNC SS | |
| 12 | 1 | 297269-01 | DIGITAL CYCLE COUNTER | |
| 13 | 2 | 903721-02 | RIVET, BL/DM, SS .16X.13-.19 | |
| 14 | 1 | 298684-01 | CYCLE COUNTER HARNESS | |
| 15 | 2 | 901602-02 | BOLT, HEX .313-18X.50, 18-8 SS |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

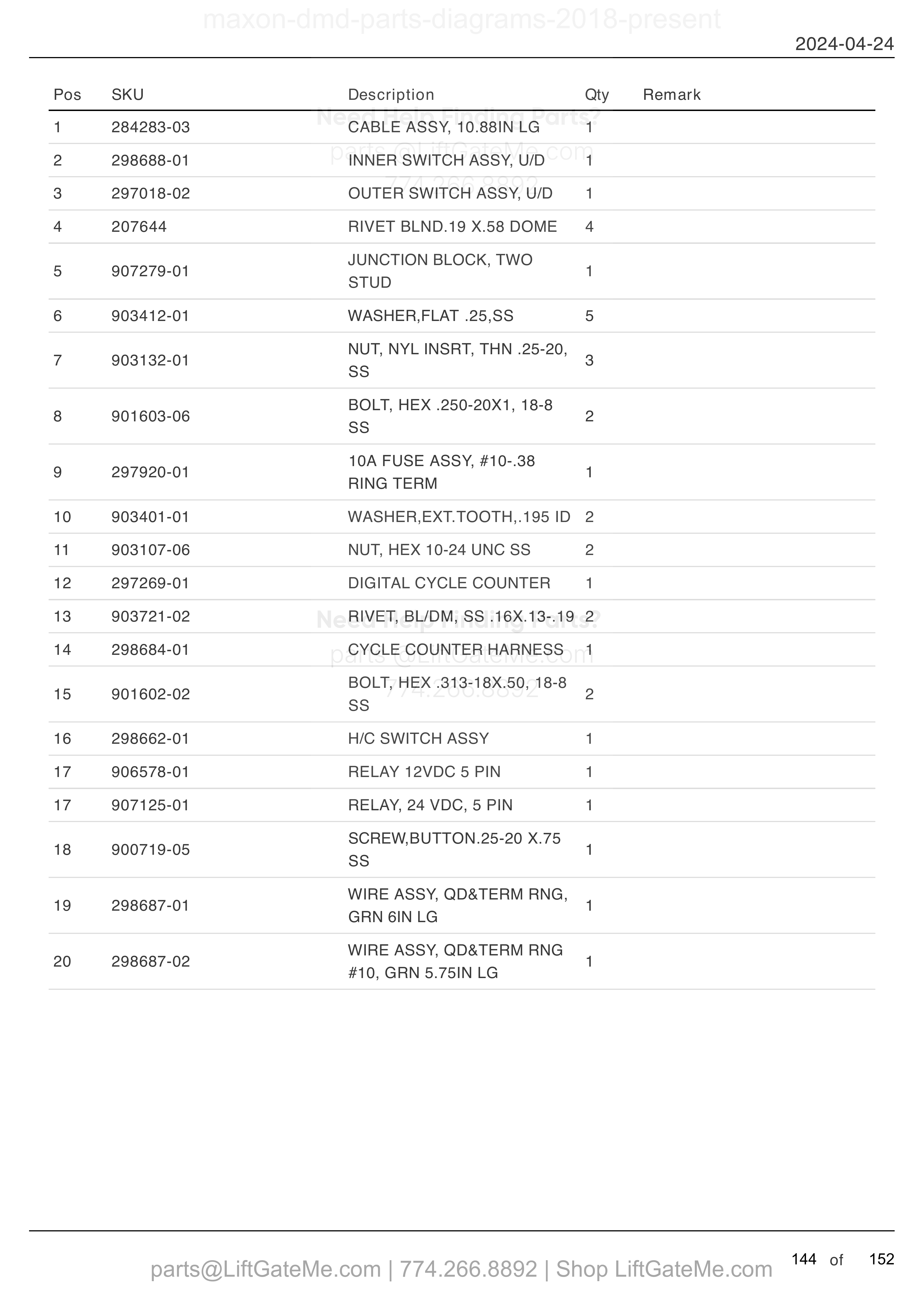

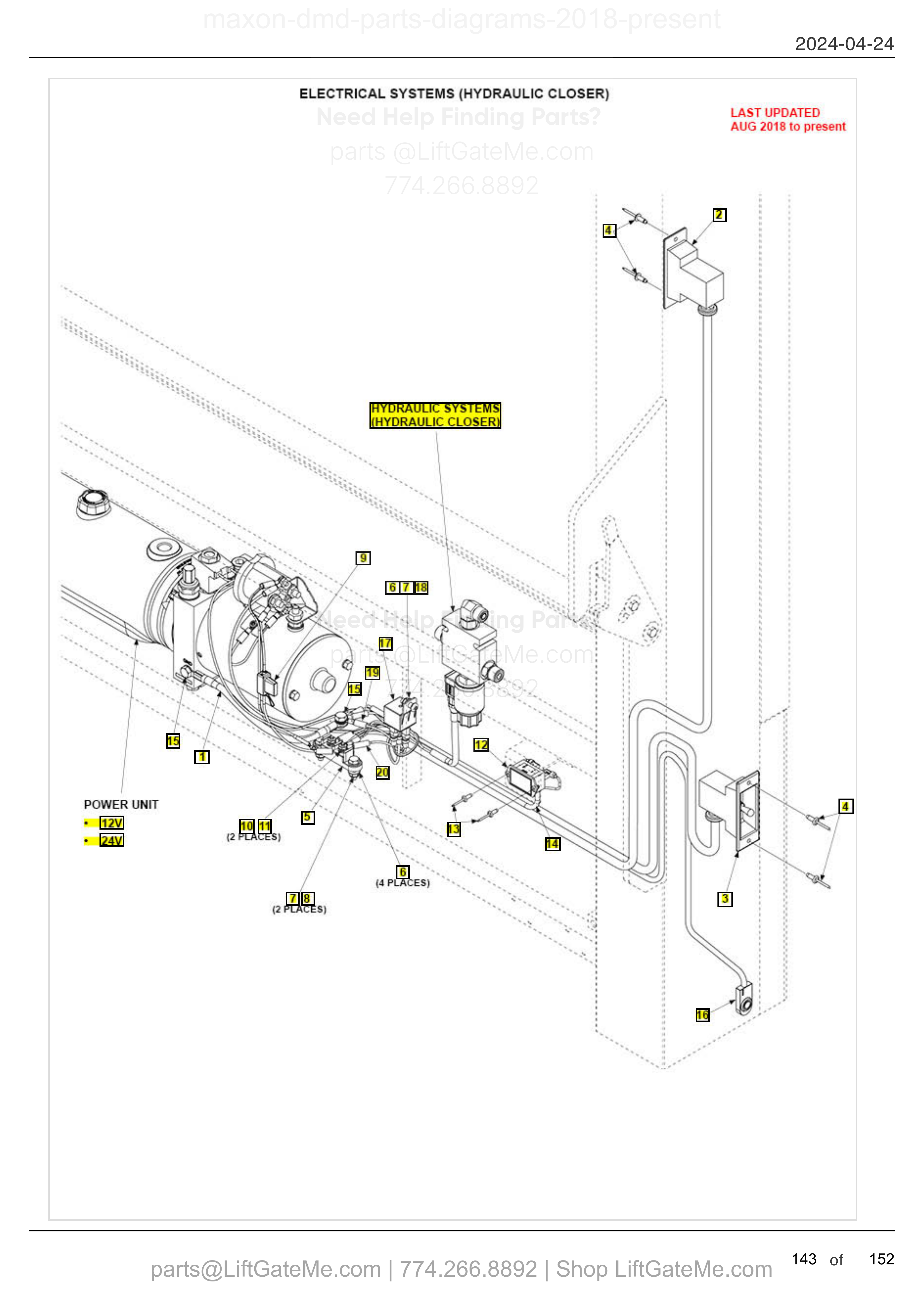

ELECTRICAL SYSTEMS (HYDRAULIC CLOSER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 284283-03 | CABLE ASSY, 10.88IN LG | |
| 2 | 1 | 298688-01 | INNER SWITCH ASSY, U/D | |
| 3 | 1 | 297018-02 | OUTER SWITCH ASSY, U/D | |
| 4 | 4 | 207644 | RIVET BLND.19 X.58 DOME | |
| 5 | 1 | 907279-01 | JUNCTION BLOCK, TWO STUD | |
| 6 | 5 | 903412-01 | WASHER,FLAT .25,SS | |
| 7 | 3 | 903132-01 | NUT, NYL INSRT, THN .25-20, SS | |
| 8 | 2 | 901603-06 | BOLT, HEX .250-20X1, 18-8 SS | |
| 9 | 1 | 297920-01 | 10A FUSE ASSY, #10-.38 RING TERM | |
| 10 | 2 | 903401-01 | WASHER,EXT.TOOTH,.195 ID | |
| 11 | 2 | 903107-06 | NUT, HEX 10-24 UNC SS | |
| 12 | 1 | 297269-01 | DIGITAL CYCLE COUNTER | |
| 13 | 2 | 903721-02 | RIVET, BL/DM, SS .16X.13-.19 | |
| 14 | 1 | 298684-01 | CYCLE COUNTER HARNESS | |
| 15 | 2 | 901602-02 | BOLT, HEX .313-18X.50, 18-8 SS | |
| 16 | 1 | 298662-01 | H/C SWITCH ASSY | |
| 17 | 1 | 906578-01 | RELAY 12VDC 5 PIN | |
| 17 | 1 | 907125-01 | RELAY, 24 VDC, 5 PIN | |
| 18 | 1 | 900719-05 | SCREW,BUTTON.25-20 X.75 SS | |
| 19 | 1 | 298687-01 | WIRE ASSY, QD&TERM RNG, GRN 6IN LG | |
| 20 | 1 | 298687-02 | WIRE ASSY, QD&TERM RNG #10, GRN 5.75IN LG |

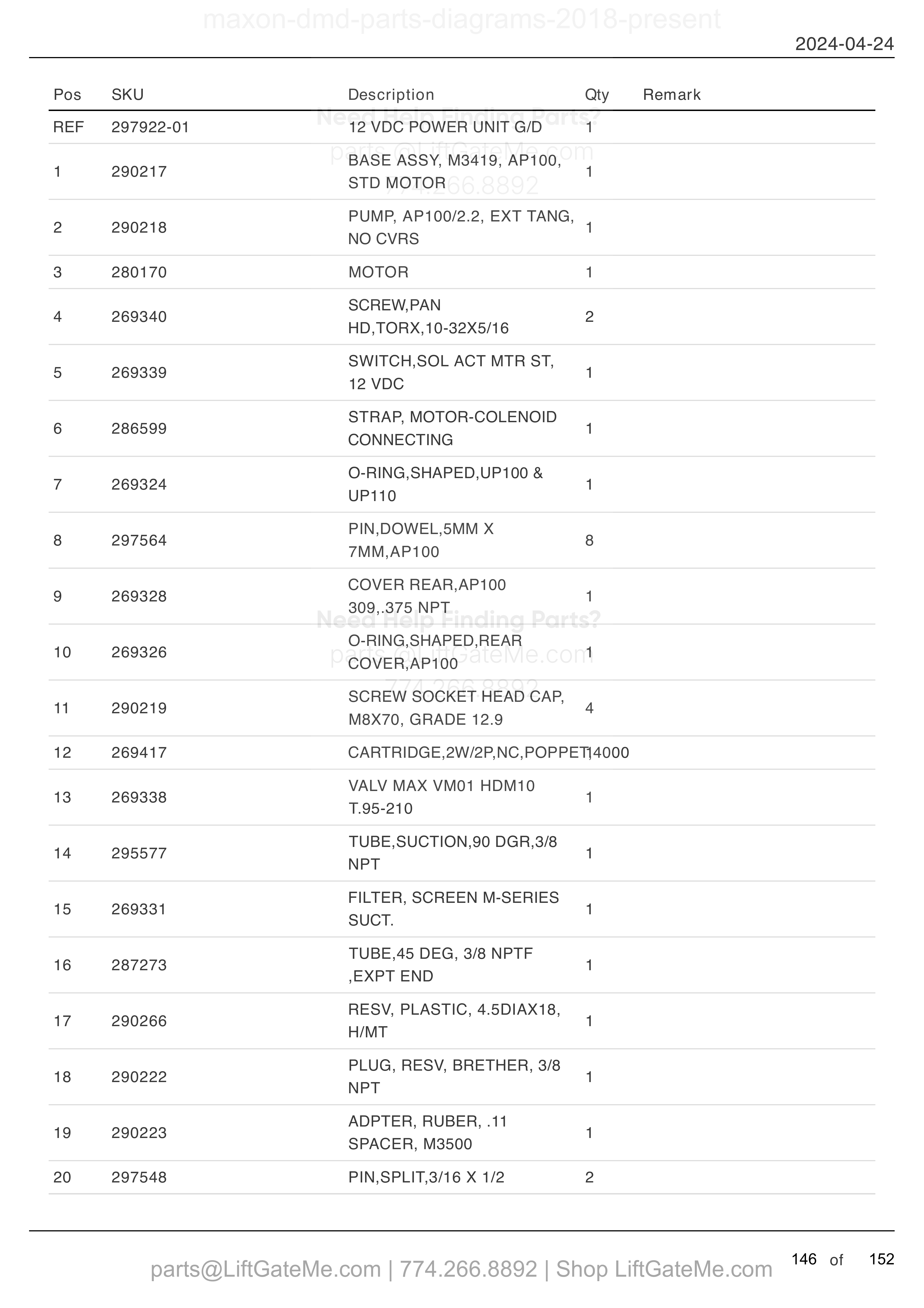

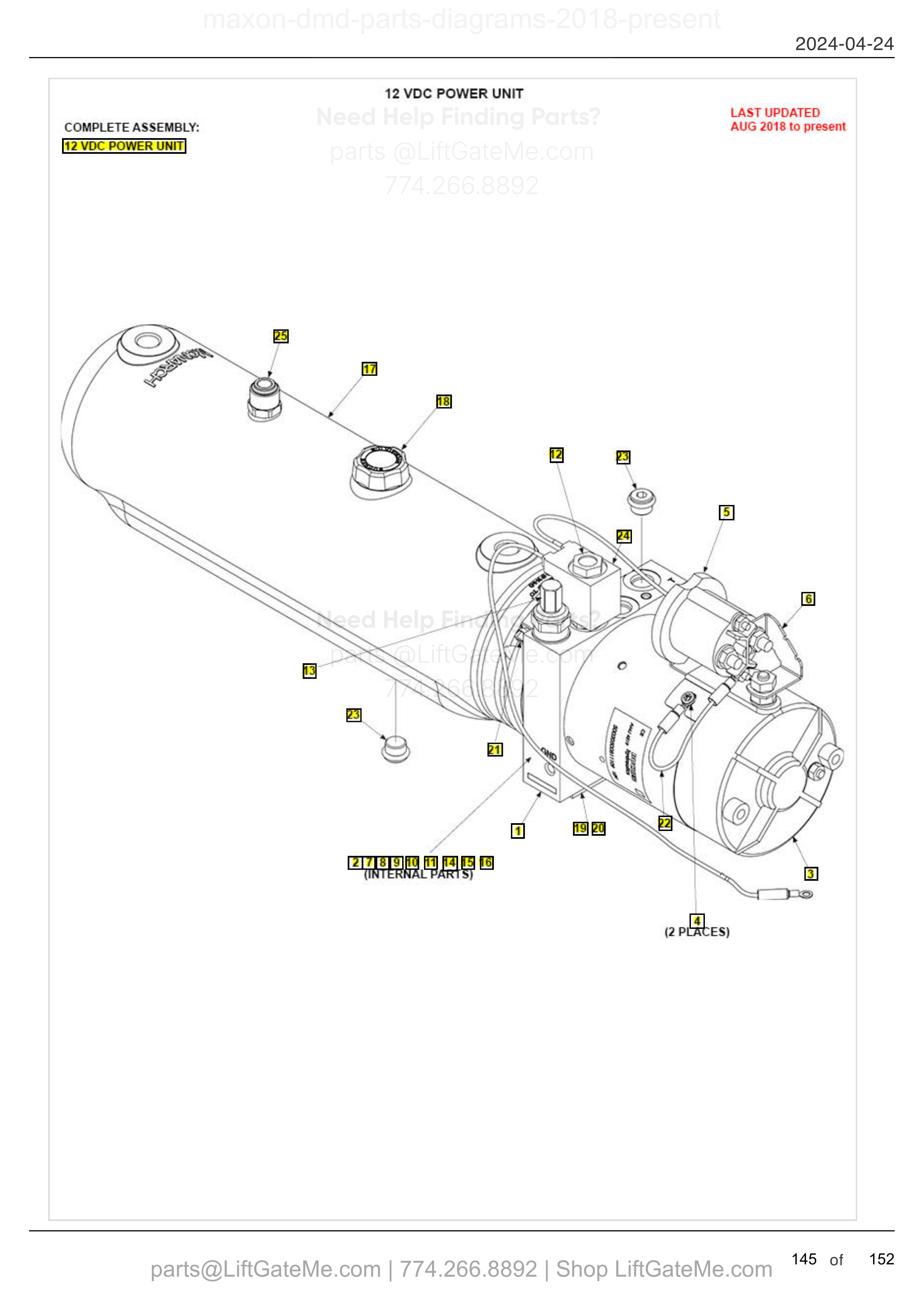

12 VDC POWER UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297922-01 | 12 VDC POWER UNIT G/D | |
| 1 | 1 | 290217 | BASE ASSY, M3419, AP100, STD MOTOR | |
| 2 | 1 | 290218 | PUMP, AP100/2.2, EXT TANG, NO CVRS | |
| 3 | 1 | 280170 | MOTOR | |
| 4 | 2 | 269340 | SCREW,PAN HD,TORX,10-32X5/16 | |
| 5 | 1 | 269339 | SWITCH,SOL ACT MTR ST, 12 VDC | |
| 6 | 1 | 286599 | STRAP, MOTOR-COLENOID CONNECTING | |
| 7 | 1 | 269324 | O-RING,SHAPED,UP100 & UP110 | |
| 8 | 8 | 297564 | PIN,DOWEL,5MM X 7MM,AP100 | |
| 9 | 1 | 269328 | COVER REAR,AP100 309,.375 NPT | |
| 10 | 1 | 269326 | O-RING,SHAPED,REAR COVER,AP100 | |
| 11 | 4 | 290219 | SCREW SOCKET HEAD CAP, M8X70, GRADE 12.9 | |
| 12 | 4000 | 269417 | CARTRIDGE,2W/2P,NC,POPPET | |
| 13 | 1 | 269338 | VALV MAX VM01 HDM10 T.95-210 | |
| 14 | 1 | 295577 | TUBE,SUCTION,90 DGR,3/8 NPT | |
| 15 | 1 | 269331 | FILTER, SCREEN M-SERIES SUCT. | |
| 16 | 1 | 287273 | TUBE,45 DEG, 3/8 NPTF ,EXPT END | |
| 17 | 1 | 290266 | RESV, PLASTIC, 4.5DIAX18, H/MT | |
| 18 | 1 | 290222 | PLUG, RESV, BRETHER, 3/8 NPT | |
| 19 | 1 | 290223 | ADPTER, RUBER, .11 SPACER, M3500 | |
| 20 | 2 | 297548 | PIN,SPLIT,3/16 X 1/2 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

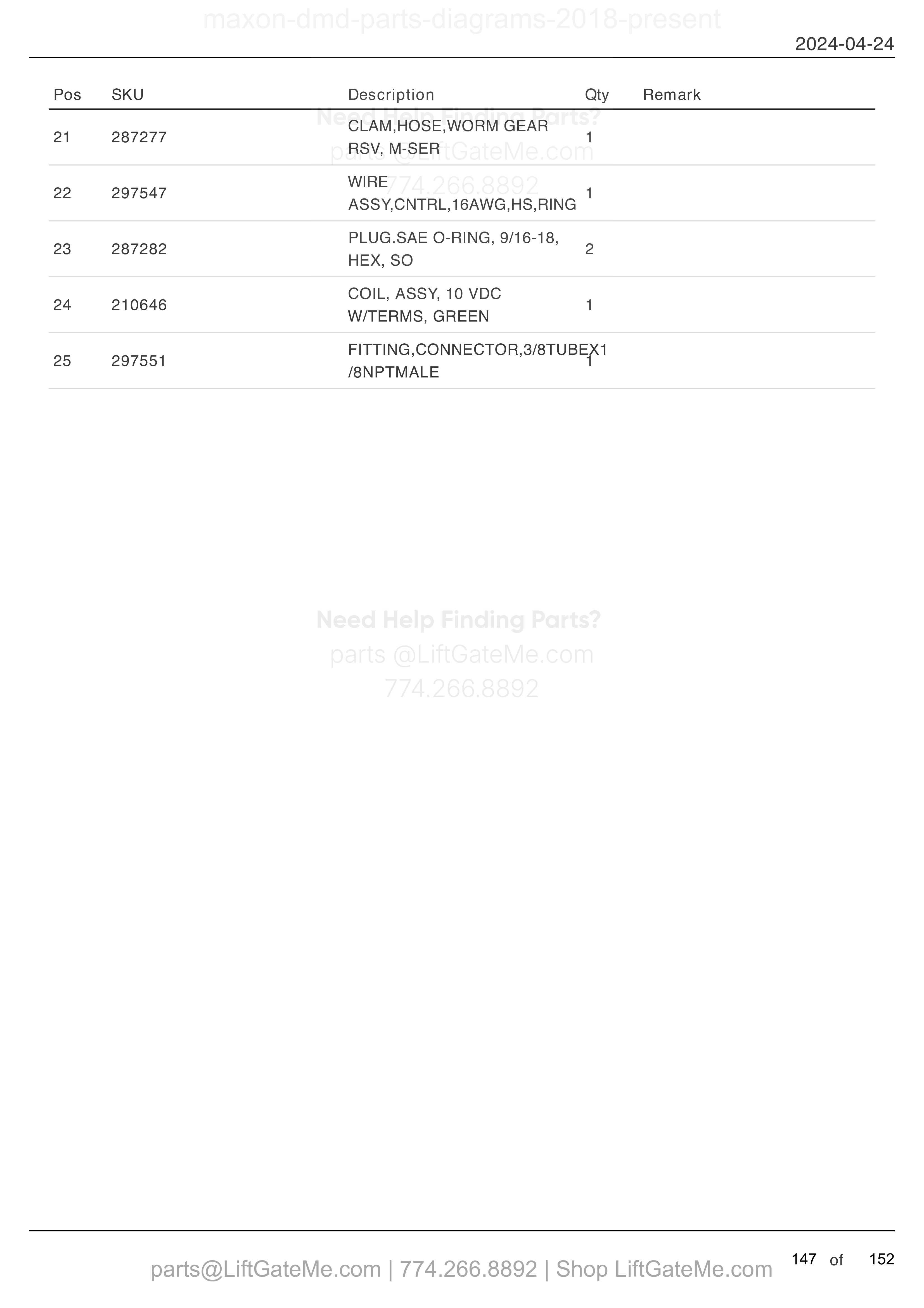

12 VDC POWER UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 21 | 1 | 287277 | CLAM,HOSE,WORM GEAR RSV, M-SER | |
| 22 | 1 | 297547 | WIRE ASSY,CNTRL,16AWG,HS,RING | |
| 23 | 2 | 287282 | PLUG,SAE O-RING, 9/16-18, HEX, SO | |
| 24 | 1 | 210646 | COIL, ASSY, 10 VDC W/TERMS, GREEN | |
| 25 | 1 | 297551 | FITTING,CONNECTOR,3/8TUBEX1/8NPTMALE |

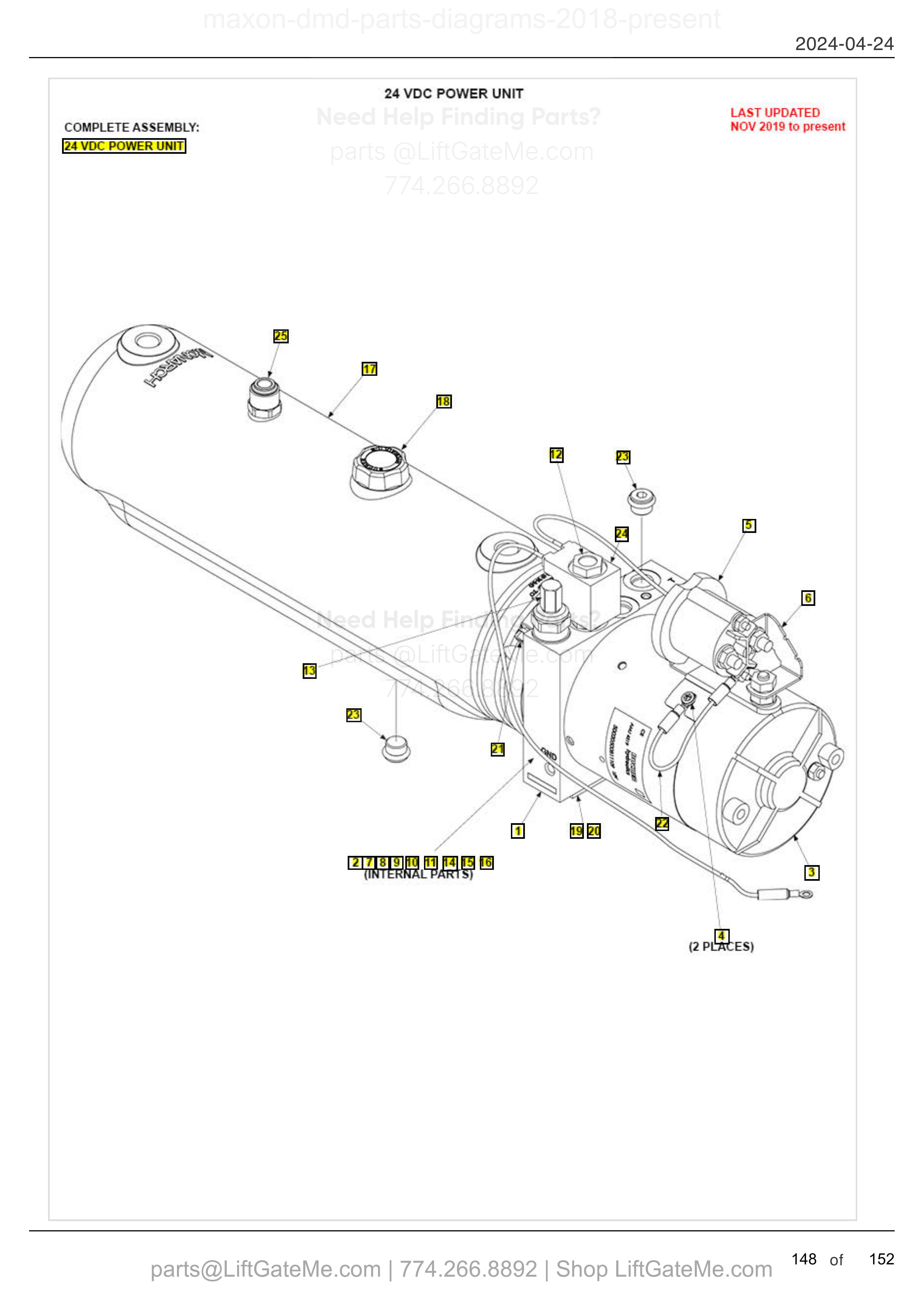

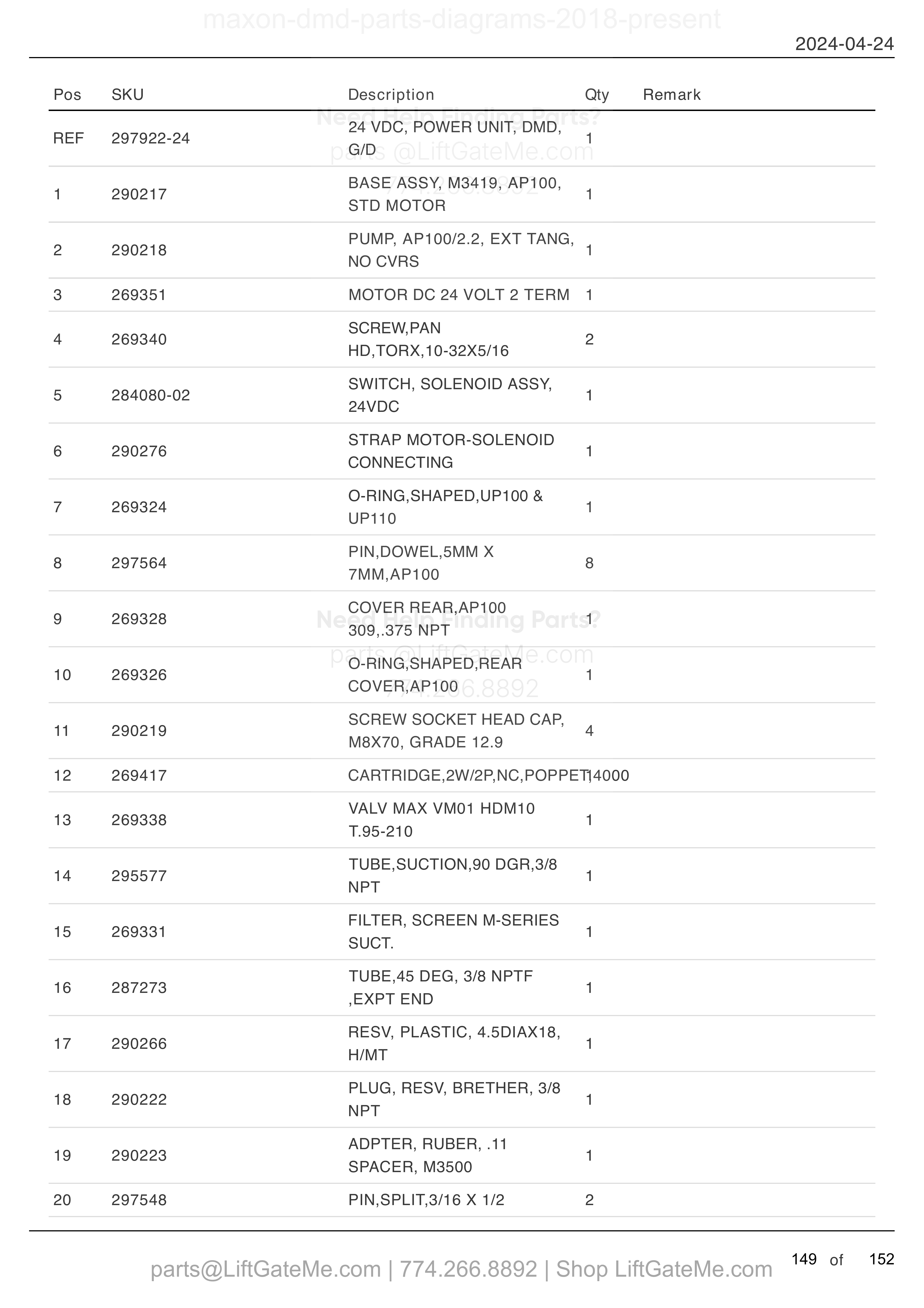

24 VDC POWER UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 297922-24 | 24 VDC, POWER UNIT, DMD, G/D | |
| 1 | 1 | 290217 | BASE ASSY, M3419, AP100, STD MOTOR | |
| 2 | 1 | 290218 | PUMP, AP100/2.2, EXT TANG, NO CVRS | |
| 3 | 1 | 269351 | MOTOR DC 24 VOLT 2 TERM | |
| 4 | 2 | 269340 | SCREW,PAN HD,TORX,10-32X5/16 | |
| 5 | 1 | 284080-02 | SWITCH, SOLENOID ASSY, 24VDC | |
| 6 | 1 | 290276 | STRAP MOTOR-SOLENOID CONNECTING | |
| 7 | 1 | 269324 | O-RING,SHAPED,UP100 & UP110 | |
| 8 | 8 | 297564 | PIN,DOWEL,5MM X 7MM,AP100 | |
| 9 | 1 | 269328 | COVER REAR,AP100 309,.375 NPT | |
| 10 | 1 | 269326 | O-RING,SHAPED,REAR COVER,AP100 | |
| 11 | 4 | 290219 | SCREW SOCKET HEAD CAP, M8X70, GRADE 12.9 | |
| 12 | 4000 | 269417 | CARTRIDGE,2W/2P,NC,POPPET | |
| 13 | 1 | 269338 | VALV MAX VM01 HDM10 T.95-210 | |
| 14 | 1 | 295577 | TUBE,SUCTION,90 DGR,3/8 NPT | |
| 15 | 1 | 269331 | FILTER, SCREEN M-SERIES SUCT. | |
| 16 | 1 | 287273 | TUBE,45 DEG, 3/8 NPTF ,EXPT END | |
| 17 | 1 | 290266 | RESV, PLASTIC, 4.5DIAX18, H/MT | |
| 18 | 1 | 290222 | PLUG, RESV, BRETHER, 3/8 NPT | |
| 19 | 1 | 290223 | ADPTER, RUBER, .11 SPACER, M3500 | |
| 20 | 2 | 297548 | PIN,SPLIT,3/16 X 1/2 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

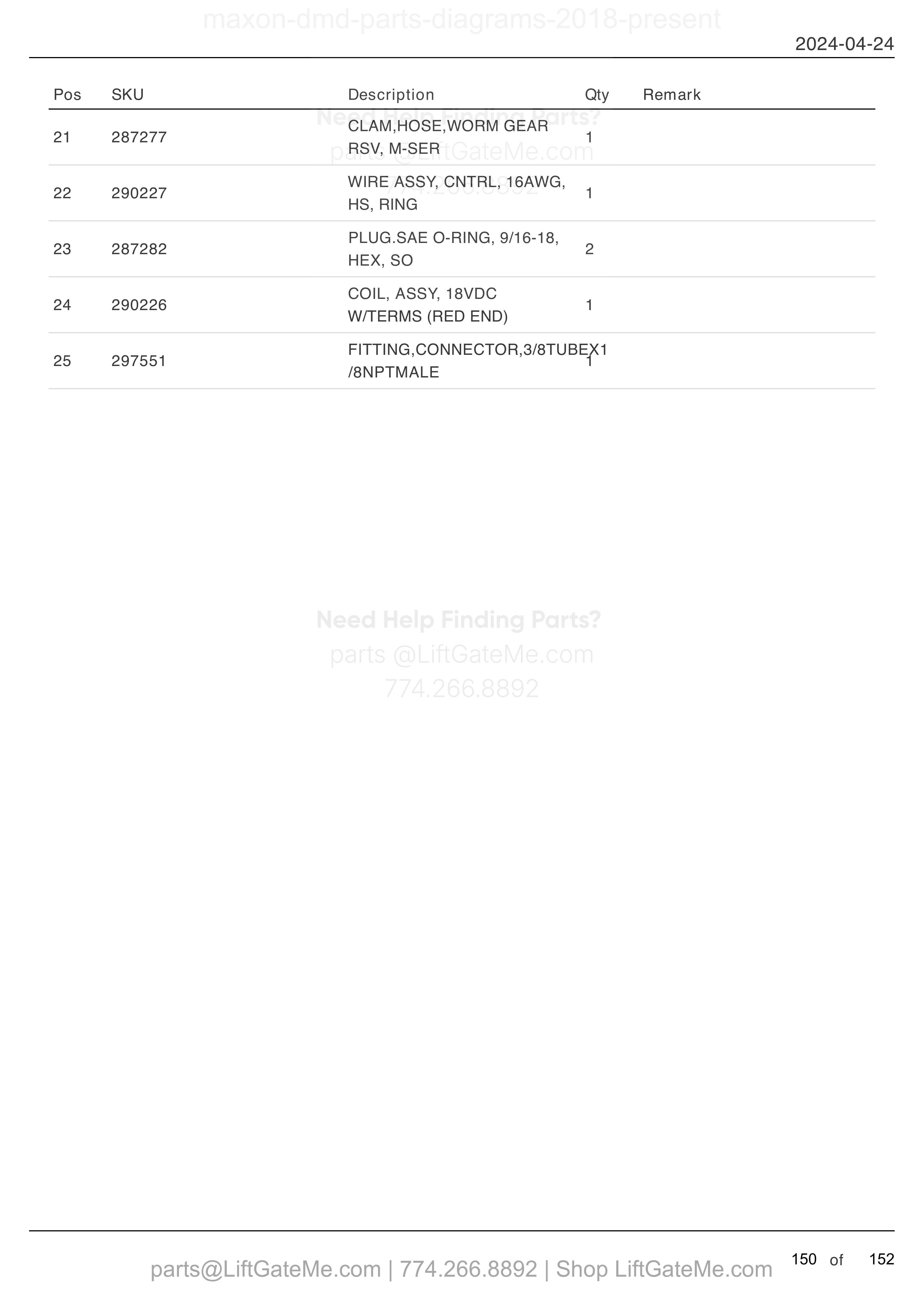

24 VDC POWER UNIT (continued)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 21 | 1 | 287277 | CLAM,HOSE,WORM GEAR RSV, M-SER | |
| 22 | 1 | 290227 | WIRE ASSY, CNTRL, 16AWG, HS, RING | |
| 23 | 2 | 287282 | PLUG.SAE O-RING, 9/16-18, HEX, SO | |
| 24 | 1 | 290226 | COIL, ASSY, 18VDC W/TERMS (RED END) | |
| 25 | 1 | 297551 | FITTING,CONNECTOR,3/8TUBEX1 /8NPTMALE |

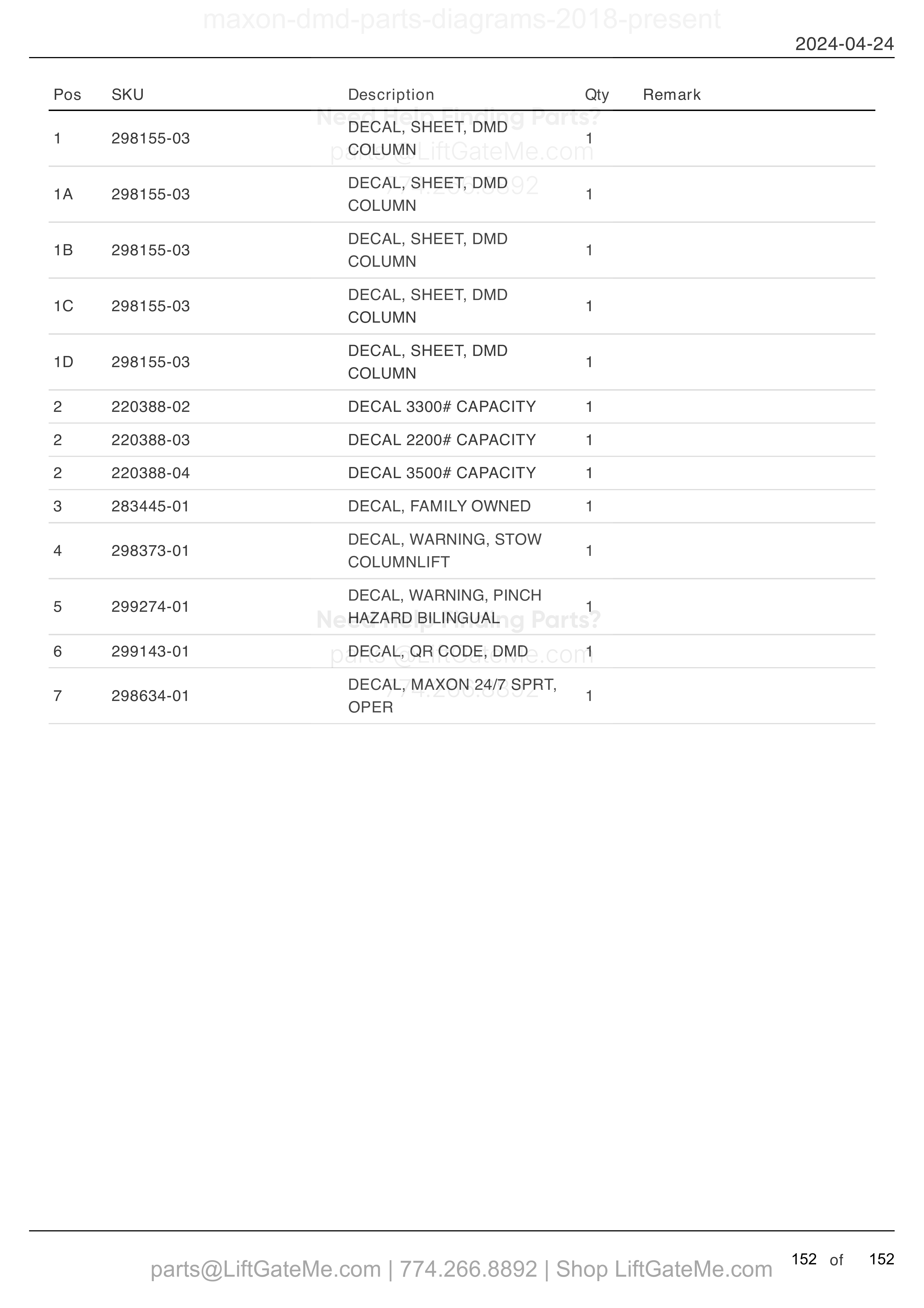

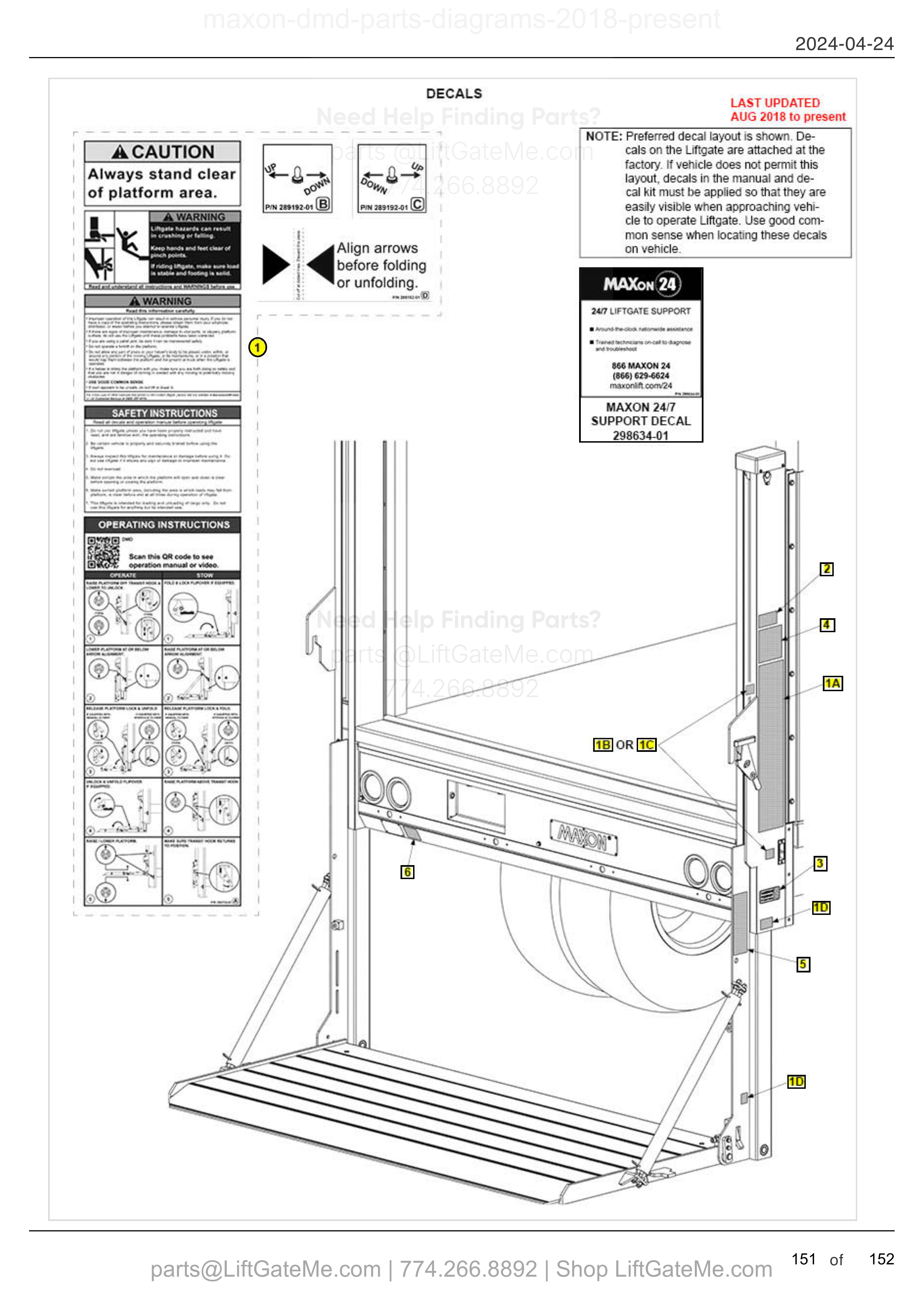

DECALS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 298155-03 | DECAL, SHEET, DMD COLUMN | |
| 1A | 1 | 298155-03 | DECAL, SHEET, DMD COLUMN | |
| 1B | 1 | 298155-03 | DECAL, SHEET, DMD COLUMN | |
| 1C | 1 | 298155-03 | DECAL, SHEET, DMD COLUMN | |
| 1D | 1 | 298155-03 | DECAL, SHEET, DMD COLUMN | |
| 2 | 1 | 220388-02 | DECAL 3300# CAPACITY | |
| 2 | 1 | 220388-03 | DECAL 2200# CAPACITY | |
| 2 | 1 | 220388-04 | DECAL 3500# CAPACITY | |
| 3 | 1 | 283445-01 | DECAL, FAMILY OWNED | |
| 4 | 1 | 298373-01 | DECAL, WARNING, STOW COLUMNLIFT | |
| 5 | 1 | 299274-01 | DECAL, WARNING, PINCH HAZARD BILINGUAL | |
| 6 | 1 | 299143-01 | DECAL, QR CODE, DMD | |
| 7 | 1 | 298634-01 | DECAL, MAXON 24/7 SPRT, OPER |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
