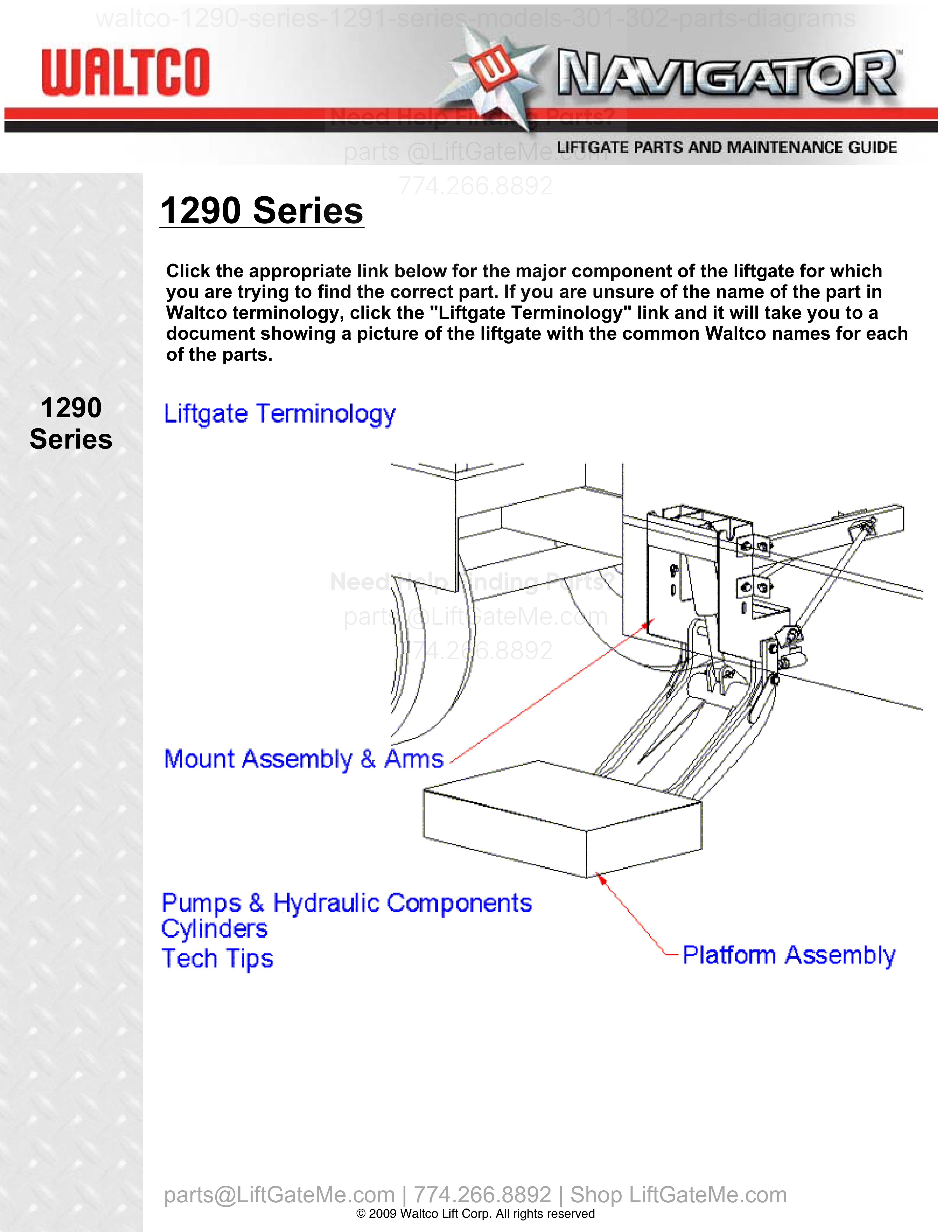

Waltco 1290-Series / 1291-Series Models 301/302 Liftgate Parts Diagrams
Waltco 1290-Series / 1291-Series Models 301/302 OEM liftgate parts breakdown
Browse Waltco 1290-Series / 1291-Series Models 301/302 OEM liftgate parts diagrams. Use the callouts and tables to locate components before servicing or repairing your column lift liftgate.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

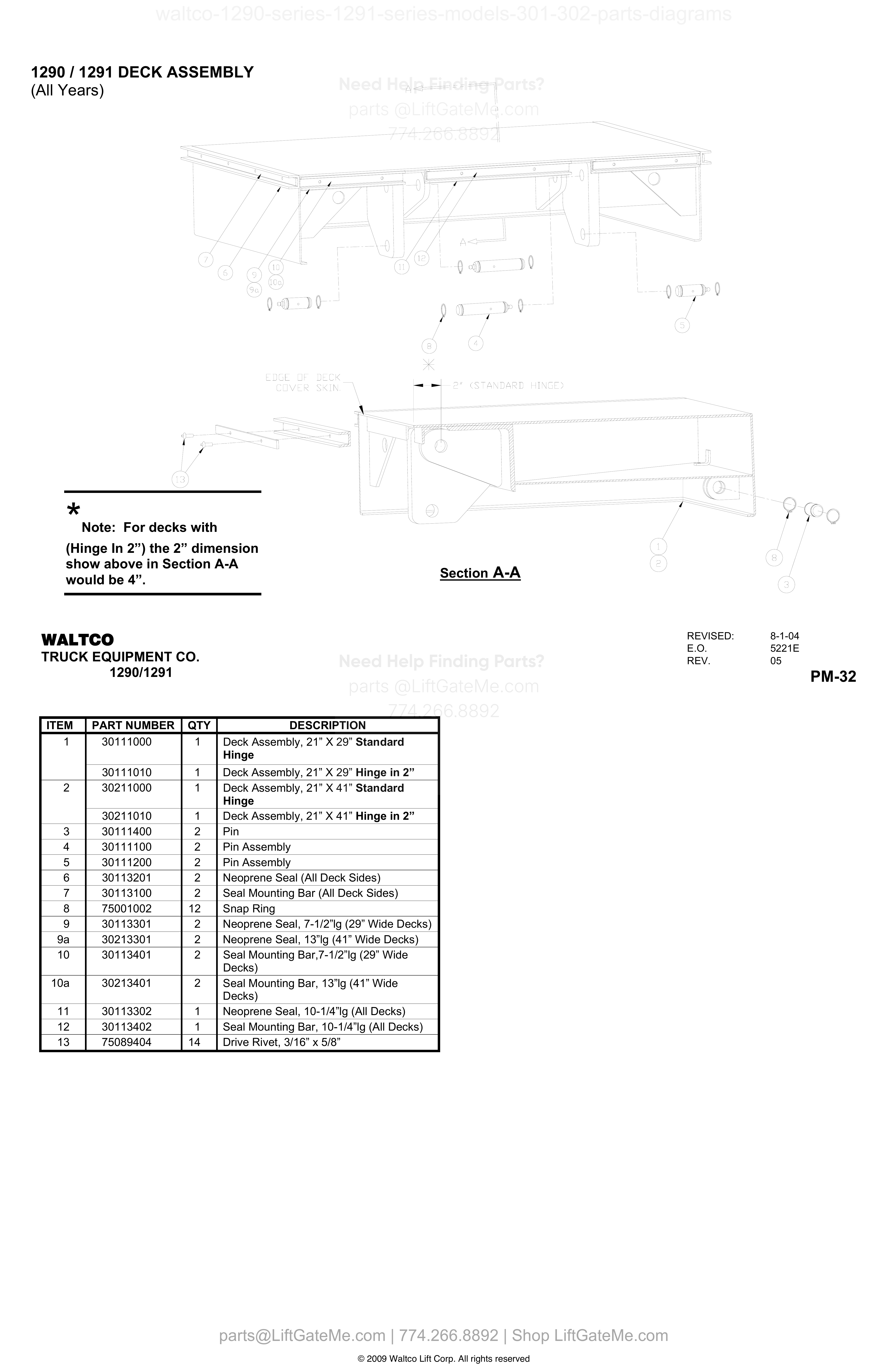

1290 / 1291 DECK ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 30111000 | Deck Assembly, 21” X 29” Standard Hinge | |
| 1 | 1 | 30111010 | Deck Assembly, 21” X 29” Hinge in 2” | |
| 2 | 1 | 30211000 | Deck Assembly, 21” X 41” Standard Hinge | |
| 2 | 1 | 30211010 | Deck Assembly, 21” X 41” Hinge in 2” | |
| 3 | 2 | 30111400 | Pin | |
| 4 | 2 | 30111100 | Pin Assembly | |
| 5 | 2 | 30111200 | Pin Assembly | |
| 6 | 2 | 30113201 | Neoprene Seal (All Deck Sides) | |
| 7 | 2 | 30113100 | Seal Mounting Bar (All Deck Sides) | |
| 8 | 12 | 75001002 | Snap Ring | |
| 9 | 2 | 30113301 | Neoprene Seal, 7-1/2”lg (29” Wide Decks) | |
| 9a | 2 | 30213301 | Neoprene Seal, 13”lg (41” Wide Decks) | |
| 10 | 2 | 30113401 | Seal Mounting Bar,7-1/2”lg (29” Wide Decks) | |
| 10a | 2 | 30213401 | Seal Mounting Bar, 13”lg (41” Wide Decks) | |
| 11 | 1 | 30113302 | Neoprene Seal, 10-1/4”lg (All Decks) | |
| 12 | 1 | 30113402 | Seal Mounting Bar, 10-1/4”lg (All Decks) | |
| 13 | 14 | 75089404 | Drive Rivet, 3/16” x 5/8” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

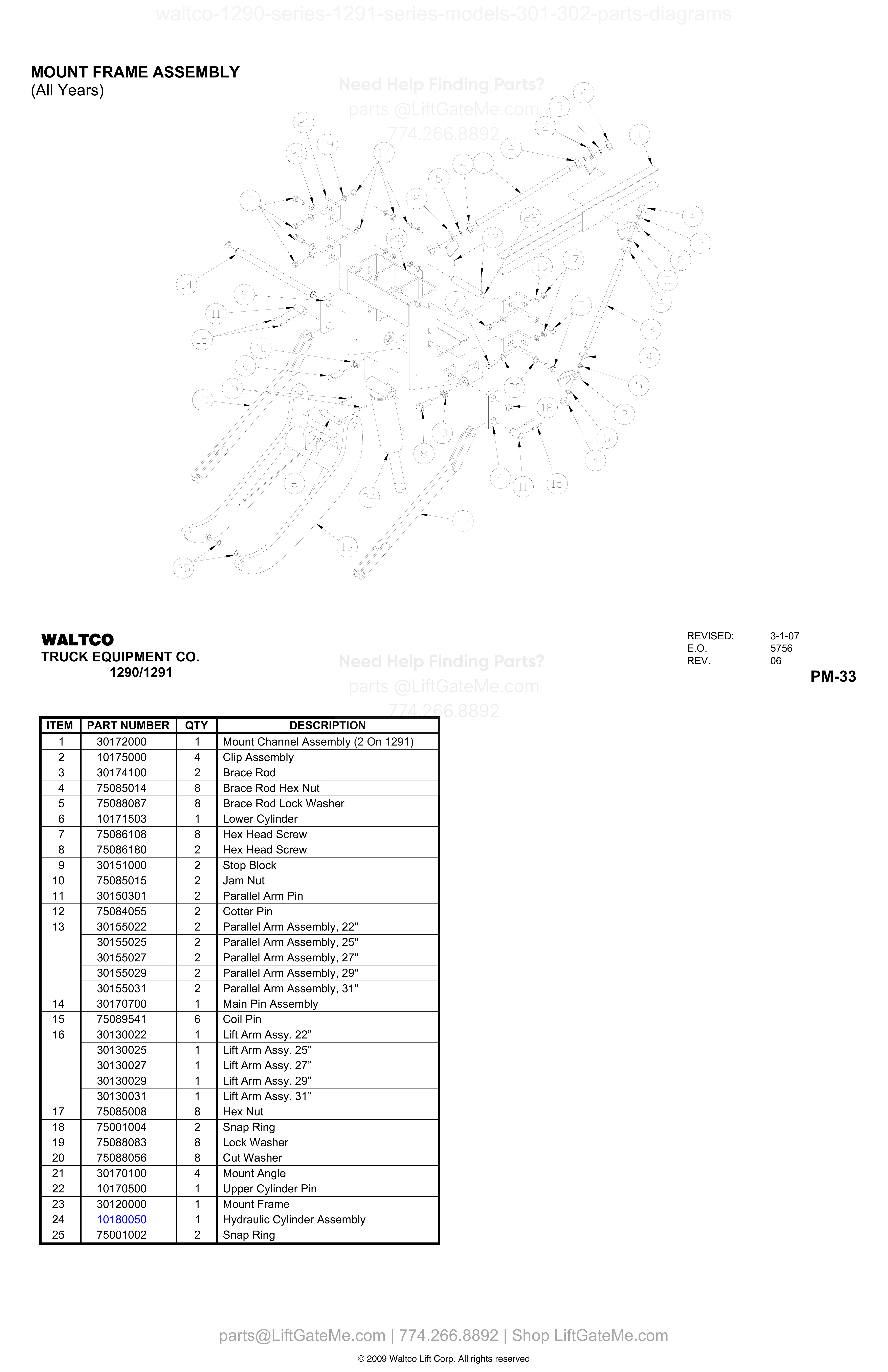

MOUNT FRAME ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 30172000 | Mount Channel Assembly (2 On 1291) | |
| 2 | 4 | 10175000 | Clip Assembly | |
| 3 | 2 | 30174100 | Brace Rod | |
| 4 | 8 | 75085014 | Brace Rod Hex Nut | |
| 5 | 8 | 75088087 | Brace Rod Lock Washer | |
| 6 | 1 | 10171503 | Lower Cylinder | |
| 7 | 8 | 75086108 | Hex Head Screw | |
| 8 | 2 | 75086180 | Hex Head Screw | |
| 9 | 2 | 30151000 | Stop Block | |
| 10 | 2 | 75085015 | Jam Nut | |
| 11 | 2 | 30150301 | Parallel Arm Pin | |
| 12 | 2 | 75084055 | Cotter Pin | |
| 13 | 2 | 30155022 | Parallel Arm Assembly, 22" | |
| 13 | 2 | 30155025 | Parallel Arm Assembly, 25" | |
| 13 | 2 | 30155027 | Parallel Arm Assembly, 27" | |
| 13 | 2 | 30155029 | Parallel Arm Assembly, 29" | |
| 13 | 2 | 30155031 | Parallel Arm Assembly, 31" | |
| 14 | 1 | 30170700 | Main Pin Assembly | |
| 15 | 6 | 75089541 | Coil Pin | |
| 16 | 1 | 30130022 | Lift Arm Assy. 22” | |
| 16 | 1 | 30130025 | Lift Arm Assy. 25” | |
| 16 | 1 | 30130027 | Lift Arm Assy. 27” | |
| 16 | 1 | 30130029 | Lift Arm Assy. 29” | |
| 16 | 1 | 30130031 | Lift Arm Assy. 31” | |
| 17 | 8 | 75085008 | Hex Nut | |
| 18 | 2 | 75001004 | Snap Ring | |
| 19 | 8 | 75088083 | Lock Washer | |
| 20 | 8 | 75088056 | Cut Washer | |
| 21 | 4 | 30170100 | Mount Angle | |
| 22 | 1 | 10170500 | Upper Cylinder Pin | |
| 23 | 1 | 30120000 | Mount Frame | |
| 24 | 1 | 10180050 | Hydraulic Cylinder Assembly | |
| 25 | 2 | 75001002 | Snap Ring |

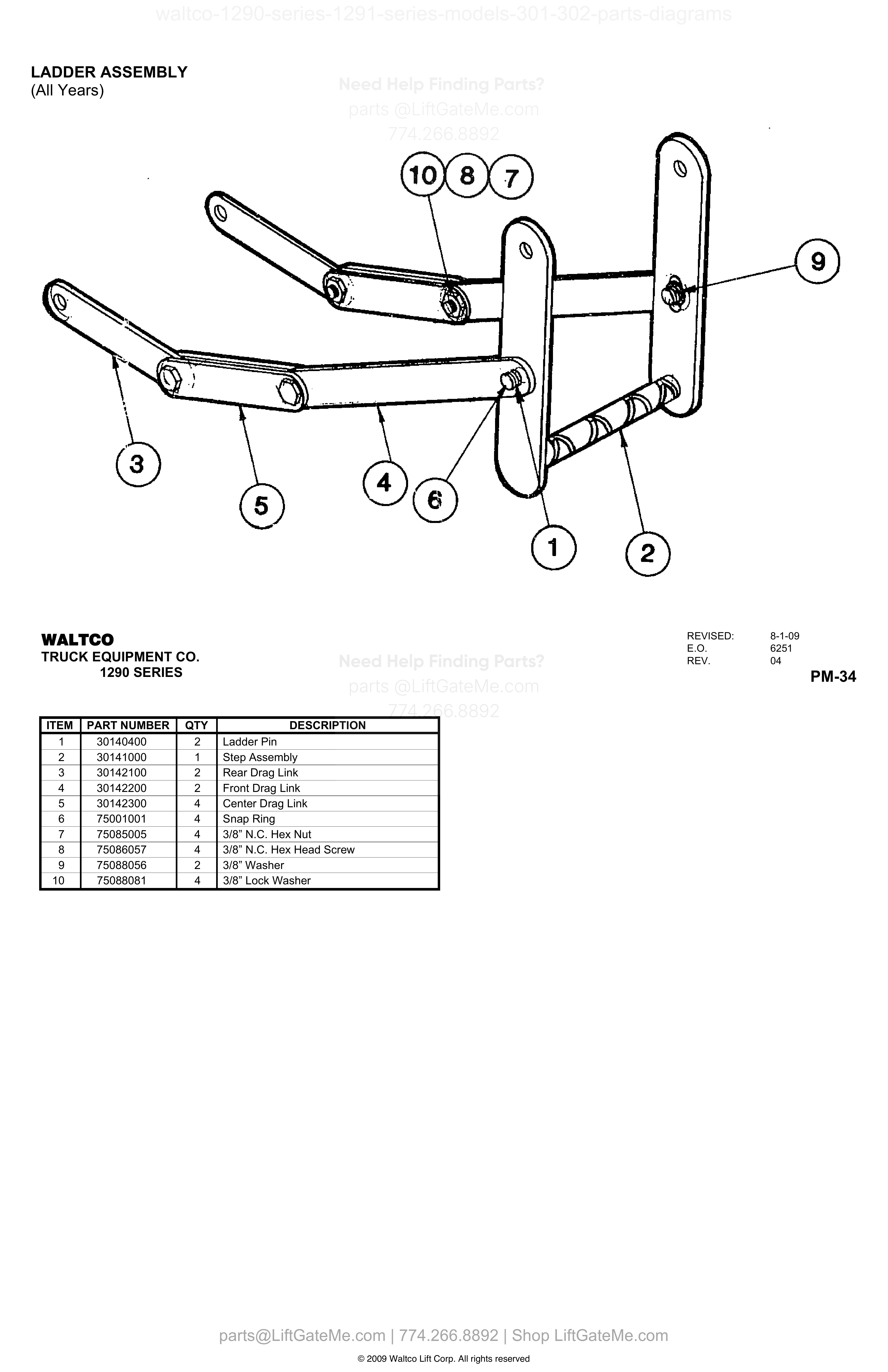

LADDER ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 30140400 | Ladder Pin | |
| 2 | 1 | 30141000 | Step Assembly | |
| 3 | 2 | 30142100 | Rear Drag Link | |
| 4 | 2 | 30142200 | Front Drag Link | |
| 5 | 4 | 30142300 | Center Drag Link | |
| 6 | 4 | 75001001 | Snap Ring | |
| 7 | 4 | 75085005 | 3/8” N.C. Hex Nut | |
| 8 | 4 | 75086057 | 3/8” N.C. Hex Head Screw | |
| 9 | 2 | 75088056 | 3/8” Washer | |
| 10 | 4 | 75088081 | 3/8” Lock Washer |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

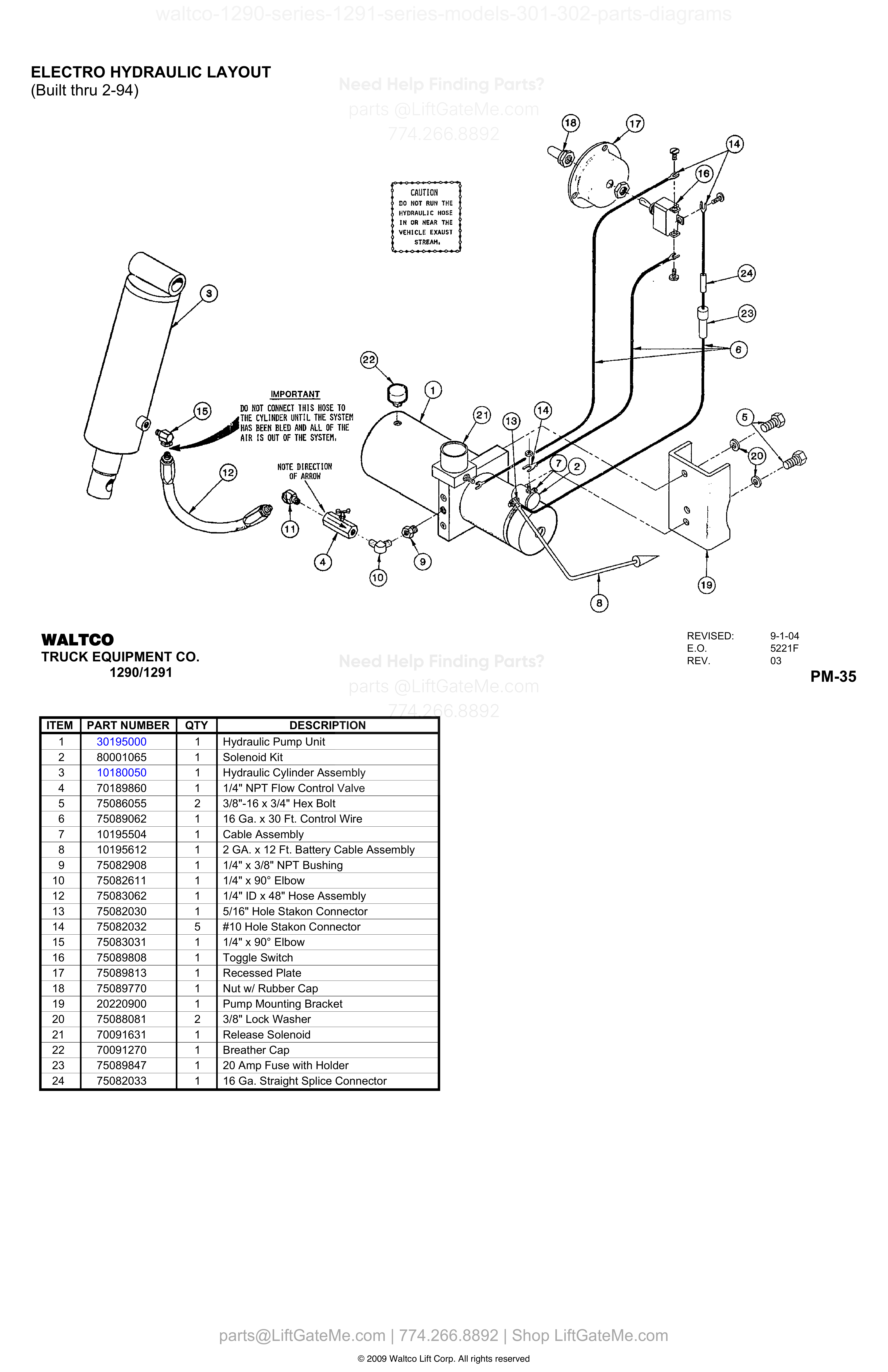

ELECTRO HYDRAULIC LAYOUT (Built thru 2-94)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 30195000 | Hydraulic Pump Unit | |
| 2 | 1 | 80001065 | Solenoid Kit | |
| 3 | 1 | 10180050 | Hydraulic Cylinder Assembly | |
| 4 | 1 | 70189860 | 1/4" NPT Flow Control Valve | |
| 5 | 2 | 75086055 | 3/8"-16 x 3/4" Hex Bolt | |
| 6 | 1 | 75089062 | 16 Ga. x 30 Ft. Control Wire | |
| 7 | 1 | 10195504 | Cable Assembly | |
| 8 | 1 | 10195612 | 2 GA. x 12 Ft. Battery Cable Assembly | |
| 9 | 1 | 75082908 | 1/4" x 3/8" NPT Bushing | |
| 10 | 1 | 75082611 | 1/4" x 90° Elbow | |
| 12 | 1 | 75083062 | 1/4" ID x 48" Hose Assembly | |
| 13 | 1 | 75082030 | 5/16" Hole Stakon Connector | |
| 14 | 5 | 75082032 | #10 Hole Stakon Connector | |
| 15 | 1 | 75083031 | 1/4" x 90° Elbow | |
| 16 | 1 | 75089808 | Toggle Switch | |
| 17 | 1 | 75089813 | Recessed Plate | |
| 18 | 1 | 75089770 | Nut w/ Rubber Cap | |
| 19 | 1 | 20220900 | Pump Mounting Bracket | |
| 20 | 2 | 75088081 | 3/8" Lock Washer | |
| 21 | 1 | 70091631 | Release Solenoid | |
| 22 | 1 | 70091270 | Breather Cap | |
| 23 | 1 | 75089847 | 20 Amp Fuse with Holder | |
| 24 | 1 | 75082033 | 16 Ga. Straight Splice Connector |

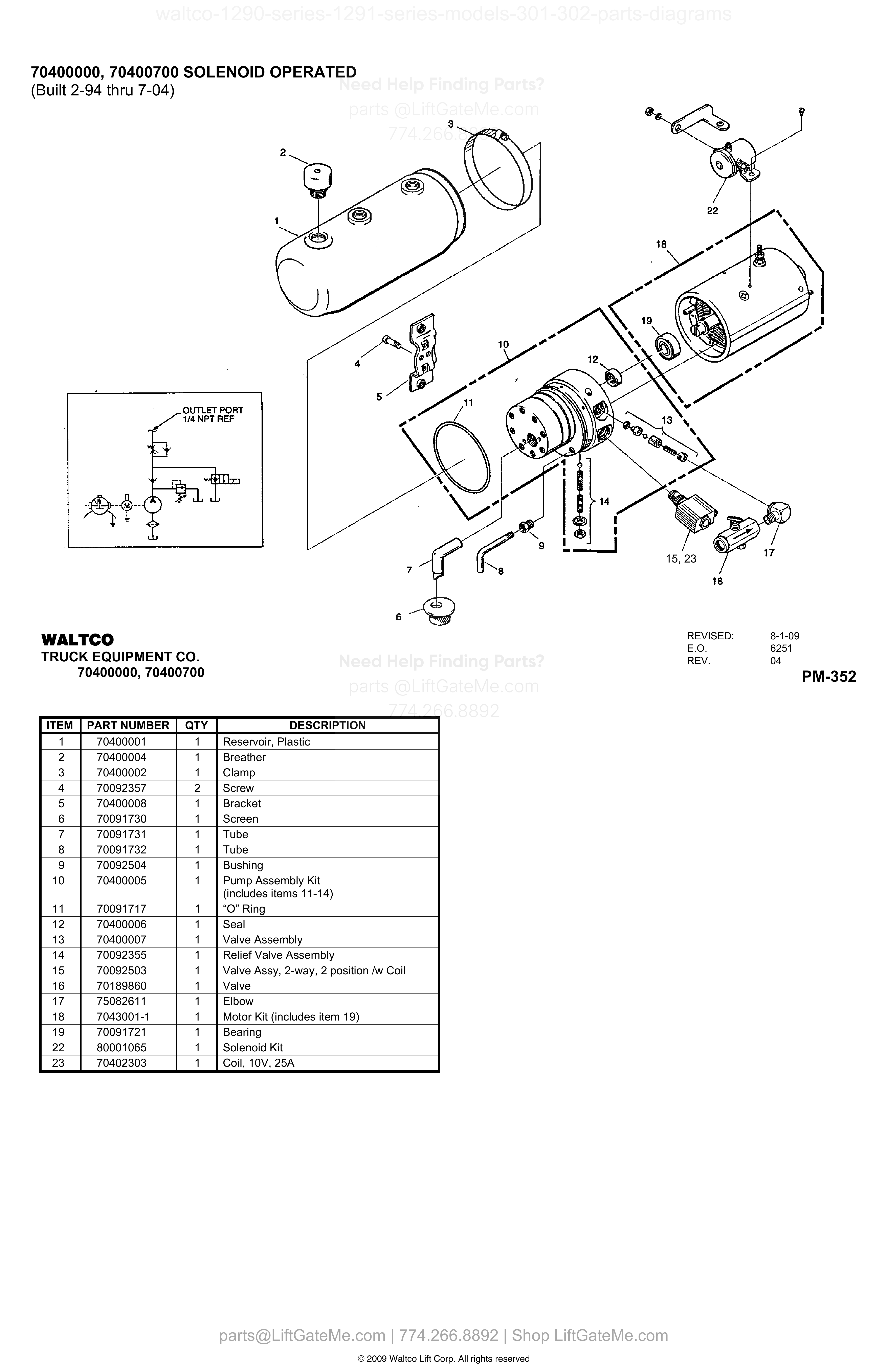

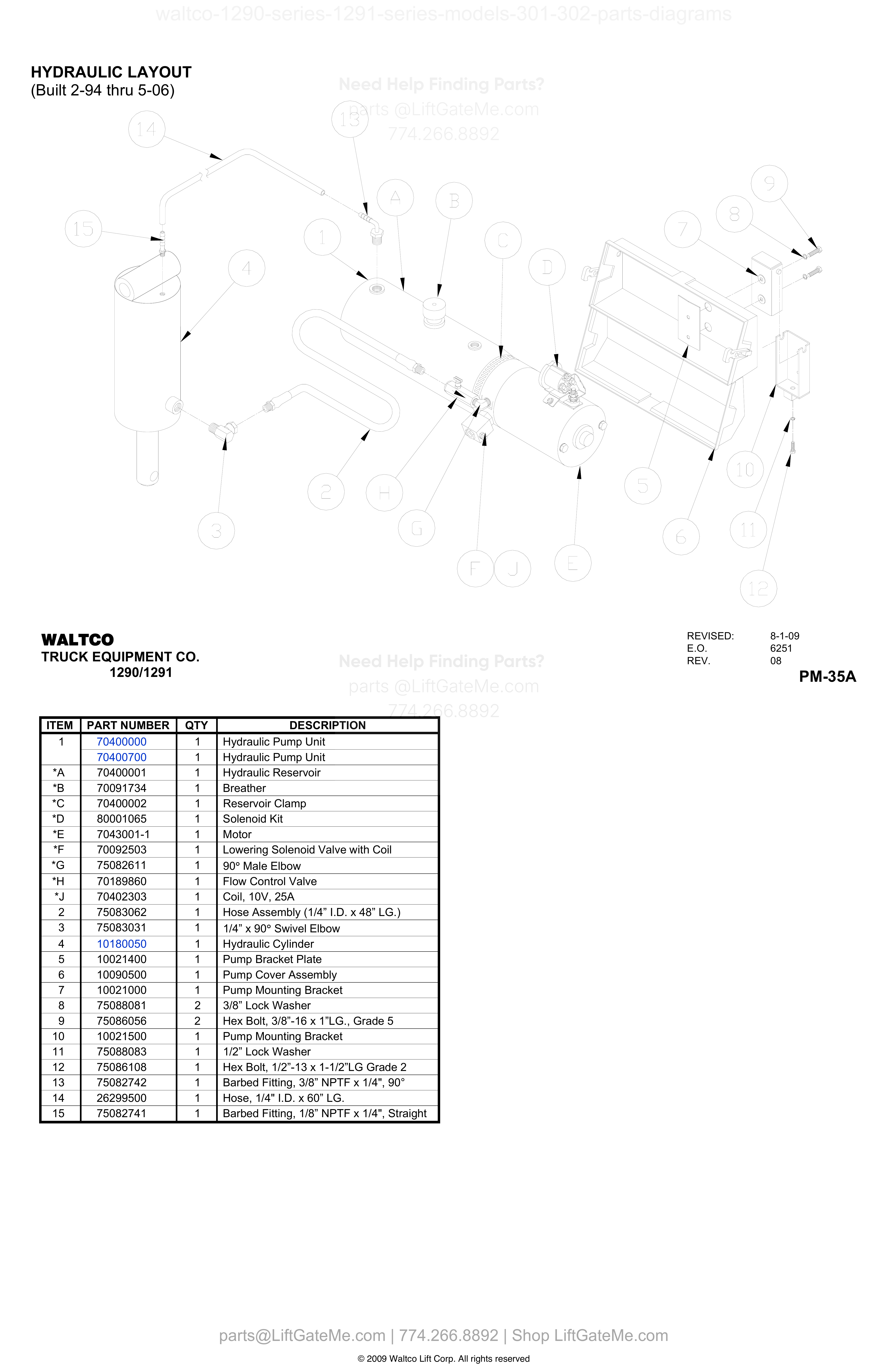

HYDRAULIC LAYOUT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400000 | Hydraulic Pump Unit | |
| 1 | 1 | 70400700 | Hydraulic Pump Unit | |
| *A | 1 | 70400001 | Hydraulic Reservoir | |
| *B | 1 | 70091734 | Breather | |
| *C | 1 | 70400002 | Reservoir Clamp | |
| *D | 1 | 80001065 | Solenoid Kit | |
| *E | 1 | 7043001-1 | Motor | |
| *F | 1 | 70092503 | Lowering Solenoid Valve with Coil | |
| *G | 1 | 75082611 | 90° Male Elbow | |
| *H | 1 | 70189860 | Flow Control Valve | |
| *J | 1 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 75083062 | Hose Assembly (1/4” I.D. x 48” LG.) | |
| 3 | 1 | 75083031 | 1/4” x 90° Swivel Elbow | |
| 4 | 1 | 10180050 | Hydraulic Cylinder | |
| 5 | 1 | 10021400 | Pump Bracket Plate | |
| 6 | 1 | 10090500 | Pump Cover Assembly | |
| 7 | 1 | 10021000 | Pump Mounting Bracket | |
| 8 | 2 | 75088081 | 3/8” Lock Washer | |
| 9 | 2 | 75086056 | Hex Bolt, 3/8”-16 x 1”LG., Grade 5 | |
| 10 | 1 | 10021500 | Pump Mounting Bracket | |
| 11 | 1 | 75088083 | 1/2” Lock Washer | |
| 12 | 1 | 75086108 | Hex Bolt, 1/2"-13 x 1-1/2”LG Grade 2 | |
| 13 | 1 | 75082742 | Barbed Fitting, 3/8” NPTF x 1/4", 90° | |
| 14 | 1 | 26299500 | Hose, 1/4" I.D. x 60” LG. | |
| 15 | 1 | 75082741 | Barbed Fitting, 1/8” NPTF x 1/4", Straight |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

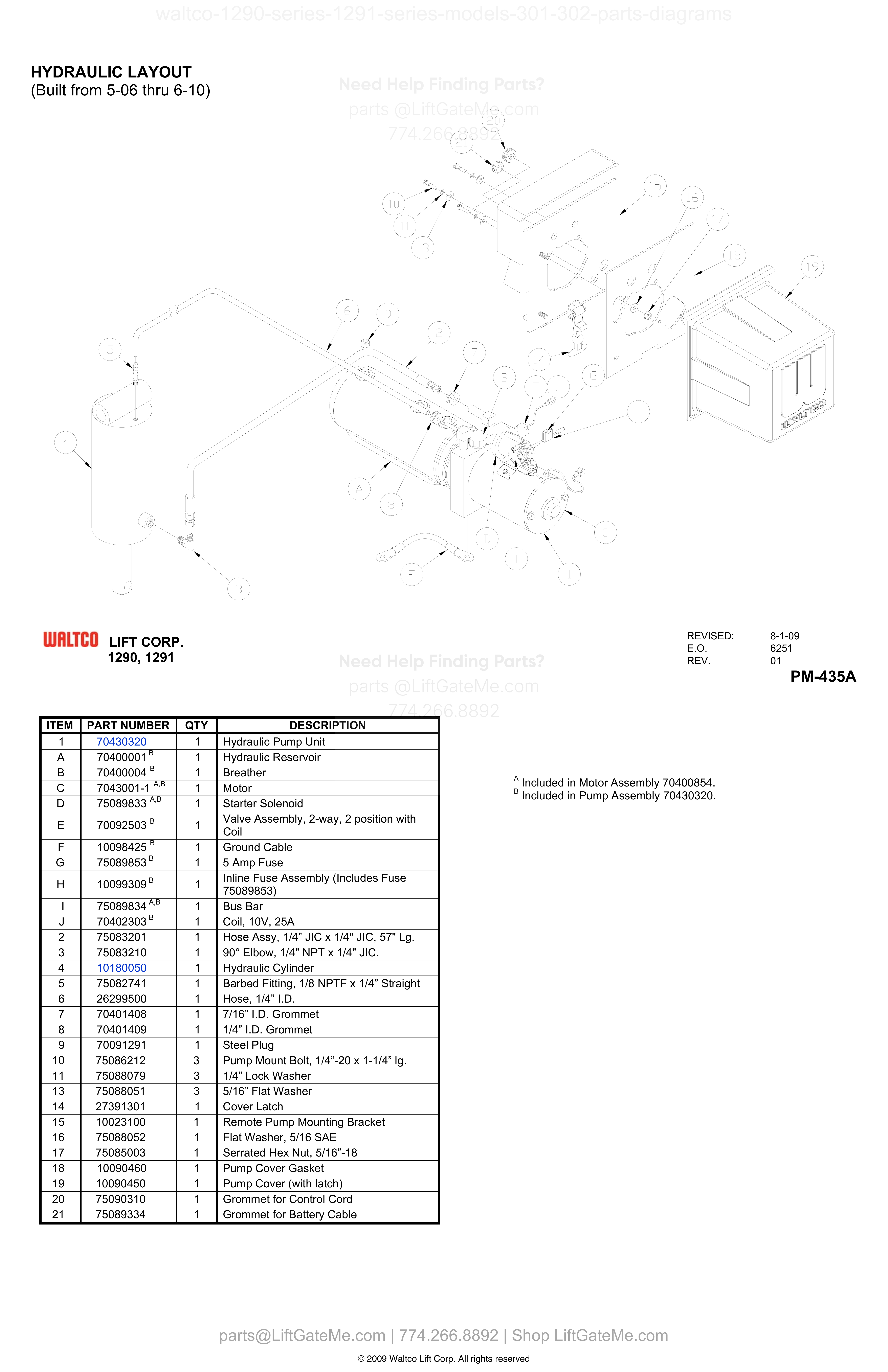

HYDRAULIC LAYOUT (Built from 5-06 thru 6-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70430320 | Hydraulic Pump Unit | |
| A | 1 | 70400001 B | Hydraulic Reservoir | |
| B | 1 | 70400004 B | Breather | |
| C | 1 | 7043001-1 A,B | Motor | |
| D | 1 | 75089833 A,B | Starter Solenoid | |
| E | 1 | 70092503 B | Valve Assembly, 2-way, 2 position with Coil | |
| F | 1 | 10098425 B | Ground Cable | |
| G | 1 | 75089853 B | 5 Amp Fuse | |
| H | 1 | 10099309 B | Inline Fuse Assembly (Includes Fuse 75089853) | |
| I | 1 | 75089834 A,B | Bus Bar | |
| J | 1 | 70402303 B | Coil, 10V, 25A | |
| 2 | 1 | 75083201 | Hose Assy, 1/4” JIC x 1/4” JIC, 57” Lg. | |
| 3 | 1 | 75083210 | 90° Elbow, 1/4” NPT x 1/4” JIC. | |
| 4 | 1 | 10180050 | Hydraulic Cylinder | |
| 5 | 1 | 75082741 | Barbed Fitting, 1/8 NPTF x 1/4” Straight | |
| 6 | 1 | 26299500 | Hose, 1/4” I.D. | |
| 7 | 1 | 70401408 | 7/16” I.D. Grommet | |
| 8 | 1 | 70401409 | 1/4” I.D. Grommet | |
| 9 | 1 | 70091291 | Steel Plug | |
| 10 | 3 | 75086212 | Pump Mount Bolt, 1/4”-20 x 1-1/4” lg. | |
| 11 | 3 | 75088079 | 1/4” Lock Washer | |
| 13 | 3 | 75088051 | 5/16” Flat Washer | |
| 14 | 1 | 27391301 | Cover Latch | |
| 15 | 1 | 10023100 | Remote Pump Mounting Bracket | |
| 16 | 1 | 75088052 | Flat Washer, 5/16 SAE | |
| 17 | 1 | 75085003 | Serrated Hex Nut, 5/16”-18 | |
| 18 | 1 | 10090460 | Pump Cover Gasket | |
| 19 | 1 | 10090450 | Pump Cover (with latch) | |
| 20 | 1 | 75090310 | Grommet for Control Cord | |
| 21 | 1 | 75089334 | Grommet for Battery Cable |

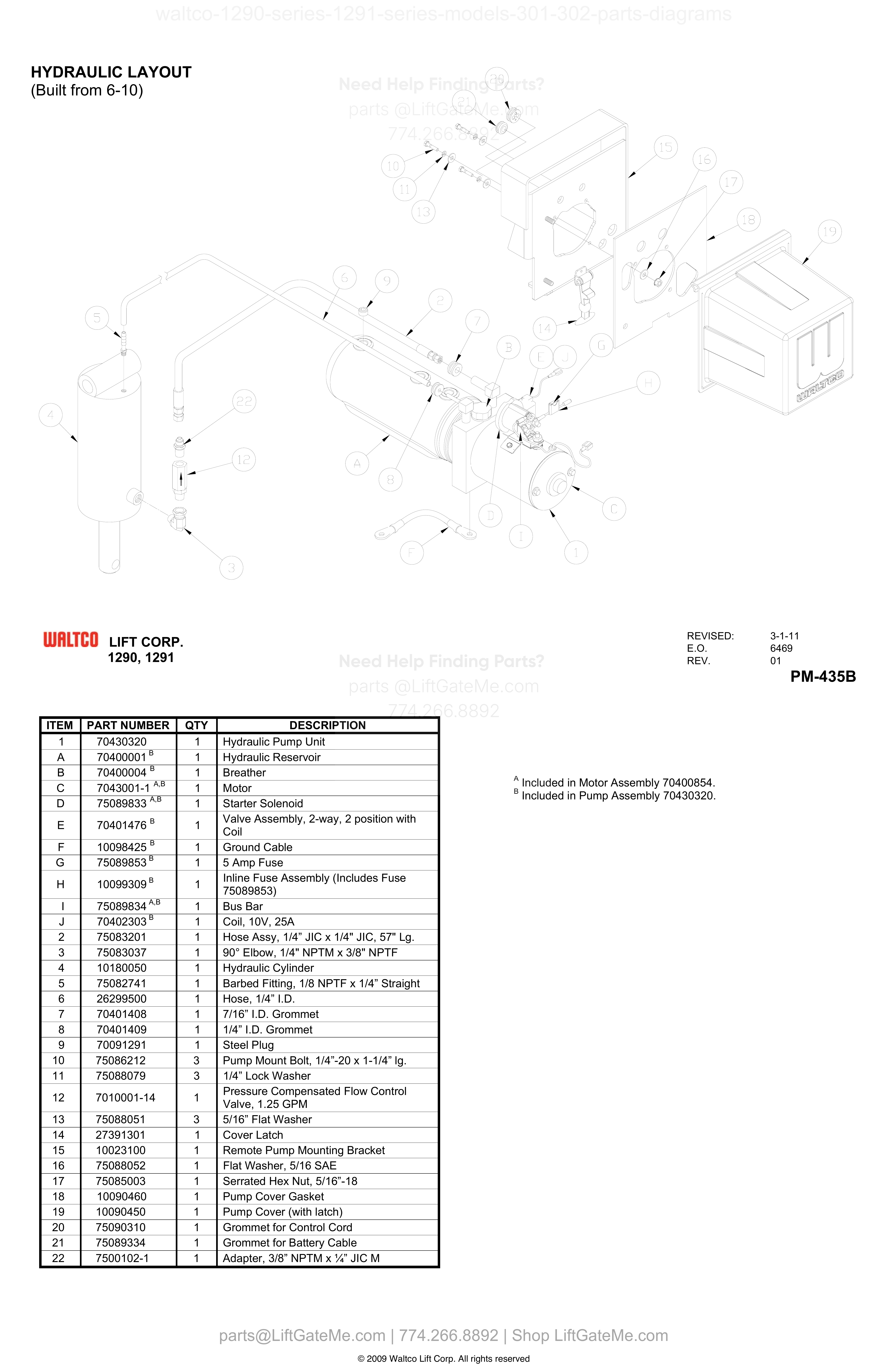

HYDRAULIC LAYOUT (Built from 6-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70430320 | Hydraulic Pump Unit | |
| A | 1 | 70400001 B | Hydraulic Reservoir | |
| B | 1 | 70400004 B | Breather | |
| C | 1 | 7043001-1 A,B | Motor | |
| D | 1 | 75089833 A,B | Starter Solenoid | |
| E | 1 | 70401476 B | Valve Assembly, 2-way, 2 position with Coil | |
| F | 1 | 10098425 B | Ground Cable | |
| G | 1 | 75089853 B | 5 Amp Fuse | |
| H | 1 | 10099309 B | Inline Fuse Assembly (Includes Fuse 75089853) | |
| I | 1 | 75089834 A,B | Bus Bar | |
| J | 1 | 70402303 B | Coil, 10V, 25A | |
| 2 | 1 | 75083201 | Hose Assy, 1/4” JIC x 1/4” JIC, 57” Lg. | |
| 3 | 1 | 75083037 | 90° Elbow, 1/4" NPTM x 3/8" NPTF | |
| 4 | 1 | 10180050 | Hydraulic Cylinder | |
| 5 | 1 | 75082741 | Barbed Fitting, 1/8 NPTF x 1/4” Straight | |
| 6 | 1 | 26299500 | Hose, 1/4” I.D. | |
| 7 | 1 | 70401408 | 7/16” I.D. Grommet | |
| 8 | 1 | 70401409 | 1/4” I.D. Grommet | |
| 9 | 1 | 70091291 | Steel Plug | |
| 10 | 3 | 75086212 | Pump Mount Bolt, 1/4”-20 x 1-1/4” lg. | |
| 11 | 3 | 75088079 | 1/4” Lock Washer | |
| 12 | 1 | 7010001-14 | Pressure Compensated Flow Control Valve, 1.25 GPM | |
| 13 | 3 | 75088051 | 5/16” Flat Washer | |
| 14 | 1 | 27391301 | Cover Latch | |
| 15 | 1 | 10023100 | Remote Pump Mounting Bracket | |
| 16 | 1 | 75088052 | Flat Washer, 5/16 SAE | |
| 17 | 1 | 75085003 | Serrated Hex Nut, 5/16”-18 | |
| 18 | 1 | 10090460 | Pump Cover Gasket | |
| 19 | 1 | 10090450 | Pump Cover (with latch) | |
| 20 | 1 | 75090310 | Grommet for Control Cord | |
| 21 | 1 | 75089334 | Grommet for Battery Cable | |
| 22 | 1 | 7500102-1 | Adapter, 3/8” NPTM x ¼” JIC M |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

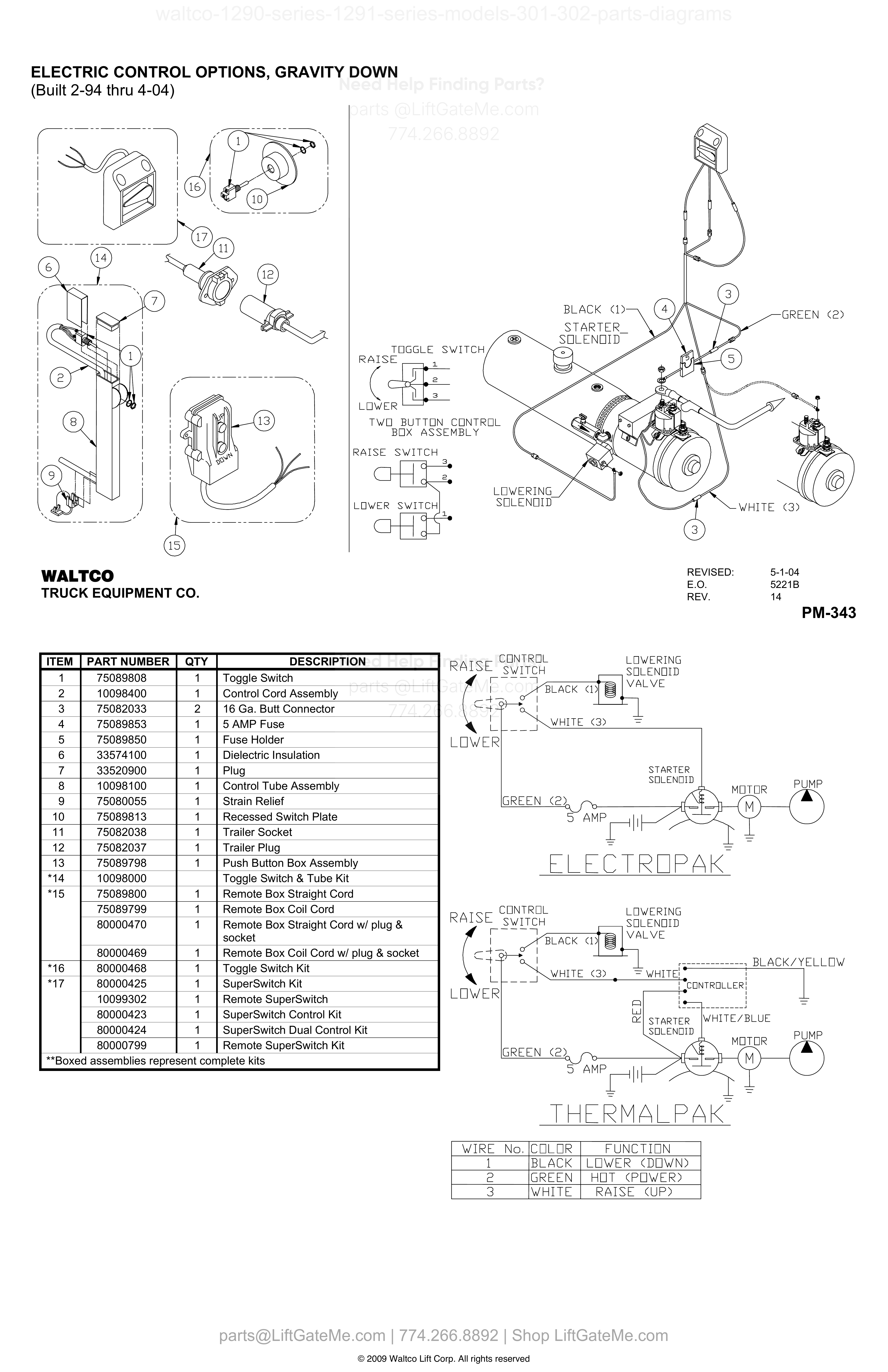

ELECTRIC CONTROL OPTIONS, GRAVITY DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75089808 | Toggle Switch | |
| 2 | 1 | 10098400 | Control Cord Assembly | |
| 3 | 2 | 75082033 | 16 Ga. Butt Connector | |
| 4 | 1 | 75089853 | 5 AMP Fuse | |
| 5 | 1 | 75089850 | Fuse Holder | |
| 6 | 1 | 33574100 | Dielectric Insulation | |
| 7 | 1 | 33520900 | Plug | |
| 8 | 1 | 10098100 | Control Tube Assembly | |
| 9 | 1 | 75080055 | Strain Relief | |
| 10 | 1 | 75089813 | Recessed Switch Plate | |
| 11 | 1 | 75082038 | Trailer Socket | |
| 12 | 1 | 75082037 | Trailer Plug | |
| 13 | 1 | 75089798 | Push Button Box Assembly | |
| *14 | 10098000 | Toggle Switch & Tube Kit | ||
| *15 | 1 | 75089800 | Remote Box Straight Cord | |
| *15 | 1 | 75089799 | Remote Box Coil Cord | |
| *15 | 1 | 80000470 | Remote Box Straight Cord w/ plug & socket | |
| *15 | 1 | 80000469 | Remote Box Coil Cord w/ plug & socket | |
| *16 | 1 | 80000468 | Toggle Switch Kit | |
| *17 | 1 | 80000425 | SuperSwitch Kit | |
| *17 | 1 | 10099302 | Remote SuperSwitch | |
| *17 | 1 | 80000423 | SuperSwitch Control Kit | |
| *17 | 1 | 80000424 | SuperSwitch Dual Control Kit | |
| *17 | 1 | 80000799 | Remote SuperSwitch Kit |

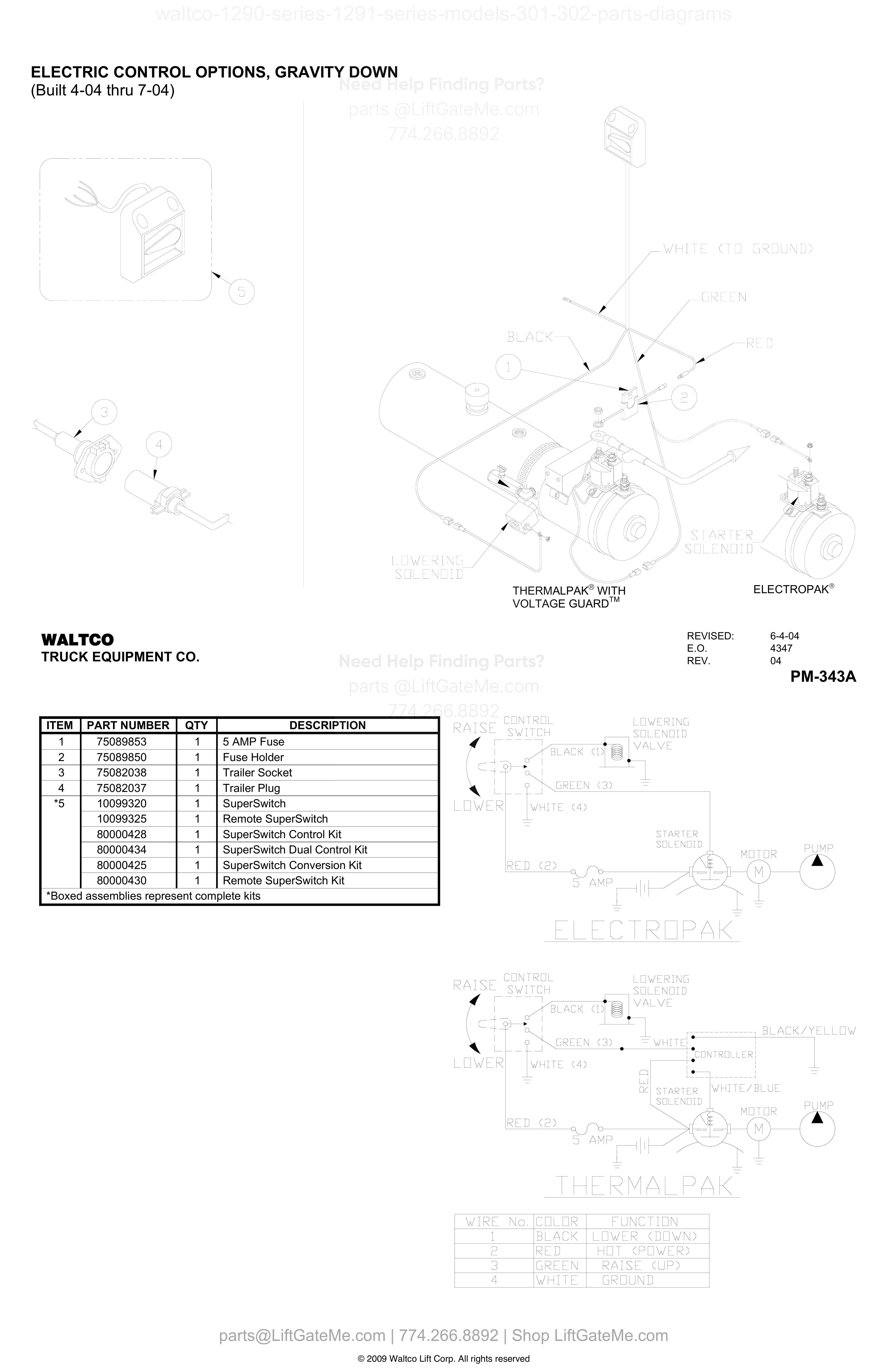

ELECTRIC CONTROL OPTIONS, GRAVITY DOWN (Built 4-04 thru 7-04)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75089853 | 5 AMP Fuse | |
| 2 | 1 | 75089850 | Fuse Holder | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| *5 | 1 | 10099320 | SuperSwitch | |
| *5 | 1 | 10099325 | Remote SuperSwitch | |
| *5 | 1 | 80000428 | SuperSwitch Control Kit | |
| *5 | 1 | 80000434 | SuperSwitch Dual Control Kit | |
| *5 | 1 | 80000425 | SuperSwitch Conversion Kit | |
| *5 | 1 | 80000430 | Remote SuperSwitch Kit |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

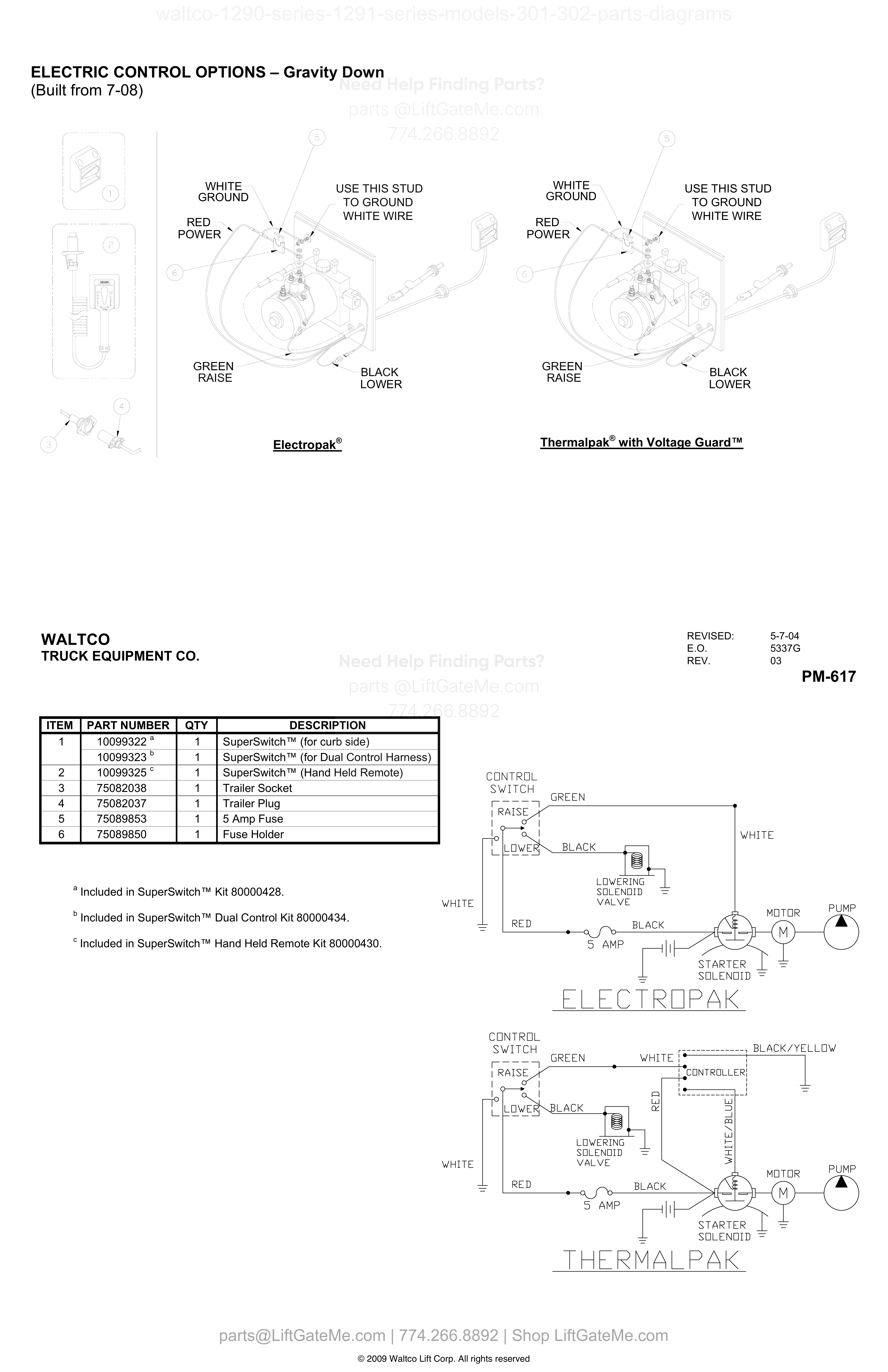

ELECTRIC CONTROL OPTIONS – Gravity Down (Built from 7-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | SuperSwitch™ (for curb side) | |
| 1 | 1 | 10099323 B | SuperSwitch™ (for Dual Control Harness) | |
| 2 | 1 | 10099325 C | SuperSwitch™ (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089853 | 5 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder |

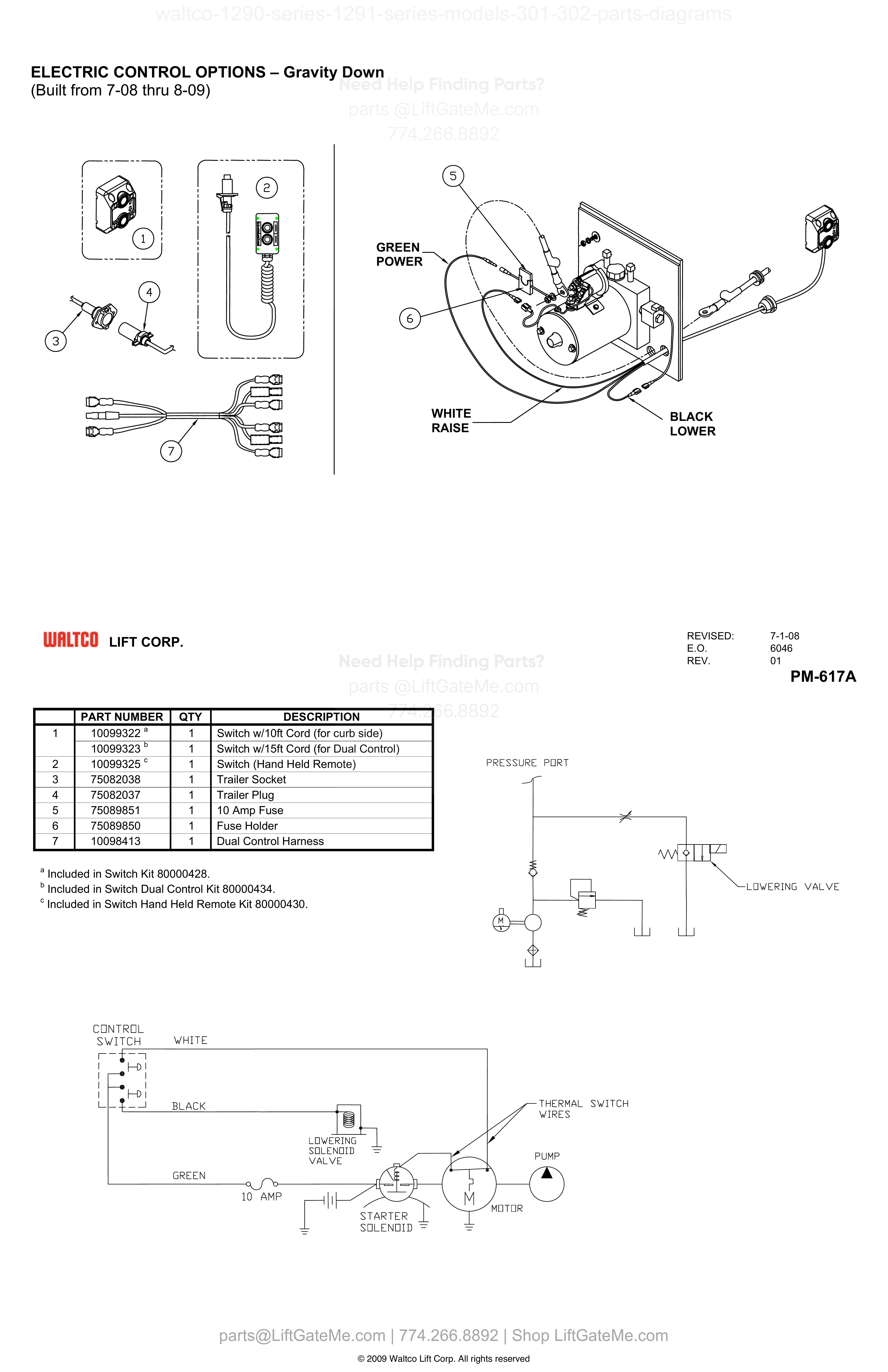

ELECTRIC CONTROL OPTIONS – Gravity Down (Built from 7-08 thru 8-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089851 | 10 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

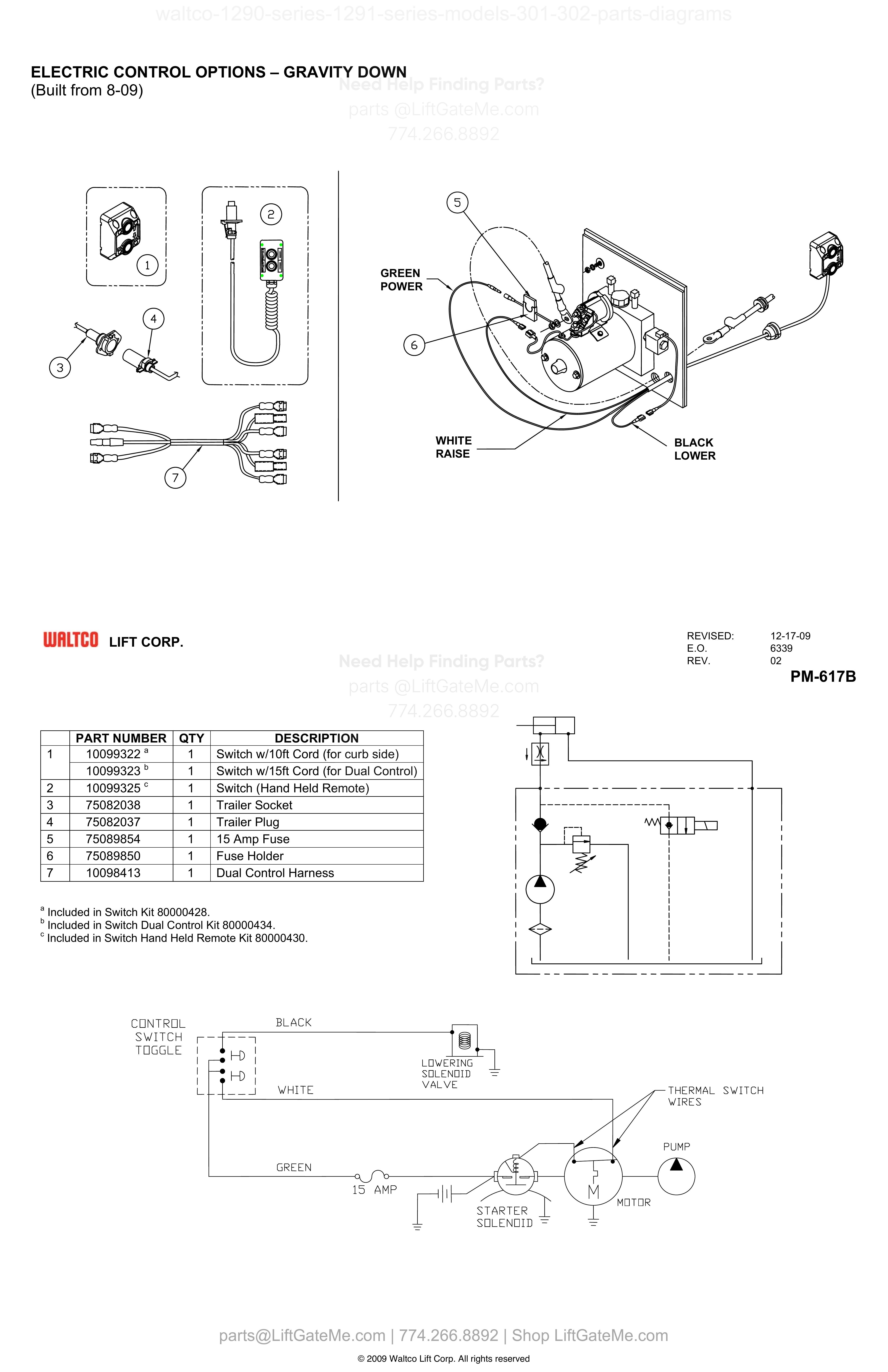

ELECTRIC CONTROL OPTIONS – GRAVITY DOWN (Built from 8-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089854 | 15 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |
i

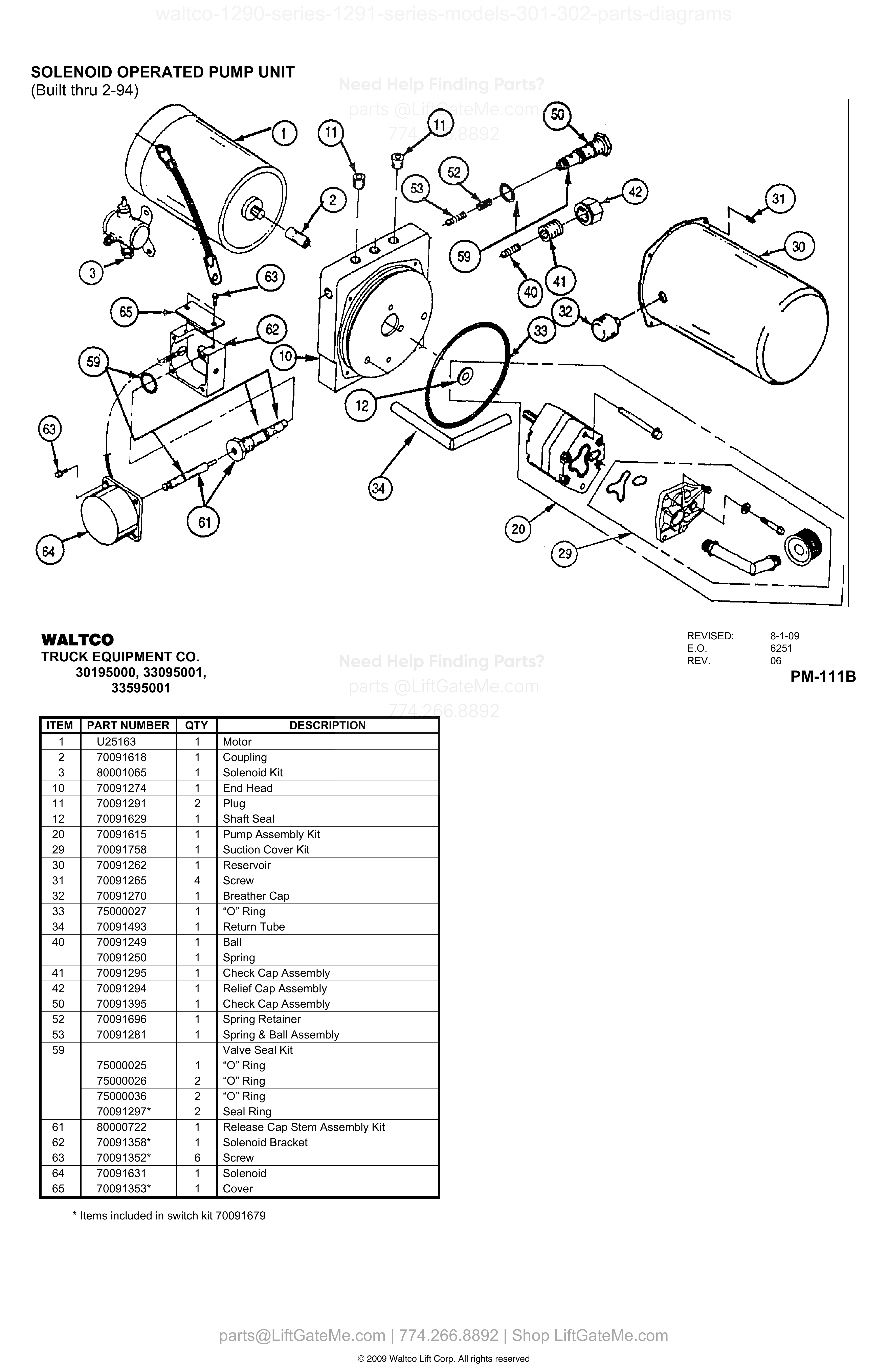

SOLENOID OPERATED PUMP UNIT (Built thru 2-94)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | U25163 | Motor | |
| 2 | 1 | 70091618 | Coupling | |
| 3 | 1 | 80001065 | Solenoid Kit | |
| 10 | 1 | 70091274 | End Head | |
| 11 | 2 | 70091291 | Plug | |
| 12 | 1 | 70091629 | Shaft Seal | |
| 20 | 1 | 70091615 | Pump Assembly Kit | |
| 29 | 1 | 70091758 | Suction Cover Kit | |
| 30 | 1 | 70091262 | Reservoir | |
| 31 | 4 | 70091265 | Screw | |
| 32 | 1 | 70091270 | Breather Cap | |
| 33 | 1 | 75000027 | “O” Ring | |
| 34 | 1 | 70091493 | Return Tube | |
| 40 | 1 | 70091249 | Ball | |
| 40 | 1 | 70091250 | Spring | |
| 41 | 1 | 70091295 | Check Cap Assembly | |
| 42 | 1 | 70091294 | Relief Cap Assembly | |
| 50 | 1 | 70091395 | Check Cap Assembly | |
| 52 | 1 | 70091696 | Spring Retainer | |
| 53 | 1 | 70091281 | Spring & Ball Assembly | |
| 59 | Valve Seal Kit | |||
| 59 | 1 | 75000025 | “O” Ring | |
| 59 | 2 | 75000026 | “O” Ring | |
| 59 | 2 | 75000036 | “O” Ring | |
| 59 | 2 | 70091297* | Seal Ring | |
| 61 | 1 | 80000722 | Release Cap Stem Assembly Kit | |
| 62 | 1 | 70091358* | Solenoid Bracket | |
| 63 | 6 | 70091352* | Screw | |
| 64 | 1 | 70091631 | Solenoid | |
| 65 | 1 | 70091353* | Cover |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
70400000, 70400700 SOLENOID OPERATED
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400001 | Reservoir, Plastic | |
| 2 | 1 | 70400004 | Breather | |
| 3 | 1 | 70400002 | Clamp | |
| 4 | 2 | 70092357 | Screw | |
| 5 | 1 | 70400008 | Bracket | |
| 6 | 1 | 70091730 | Screen | |
| 7 | 1 | 70091731 | Tube | |
| 8 | 1 | 70091732 | Tube | |
| 9 | 1 | 70092504 | Bushing | |
| 10 | 1 | 70400005 | Pump Assembly Kit (includes items 11-14) | |
| 11 | 1 | 70091717 | “O” Ring | |
| 12 | 1 | 70400006 | Seal | |
| 13 | 1 | 70400007 | Valve Assembly | |
| 14 | 1 | 70092355 | Relief Valve Assembly | |
| 15 | 1 | 70092503 | Valve Assy, 2-way, 2 position /w Coil | |
| 16 | 1 | 70189860 | Valve | |
| 17 | 1 | 75082611 | Elbow | |
| 18 | 1 | 7043001-1 | Motor Kit (includes item 19) | |
| 19 | 1 | 70091721 | Bearing | |
| 22 | 1 | 80001065 | Solenoid Kit | |
| 23 | 1 | 70402303 | Coil, 10V, 25A |

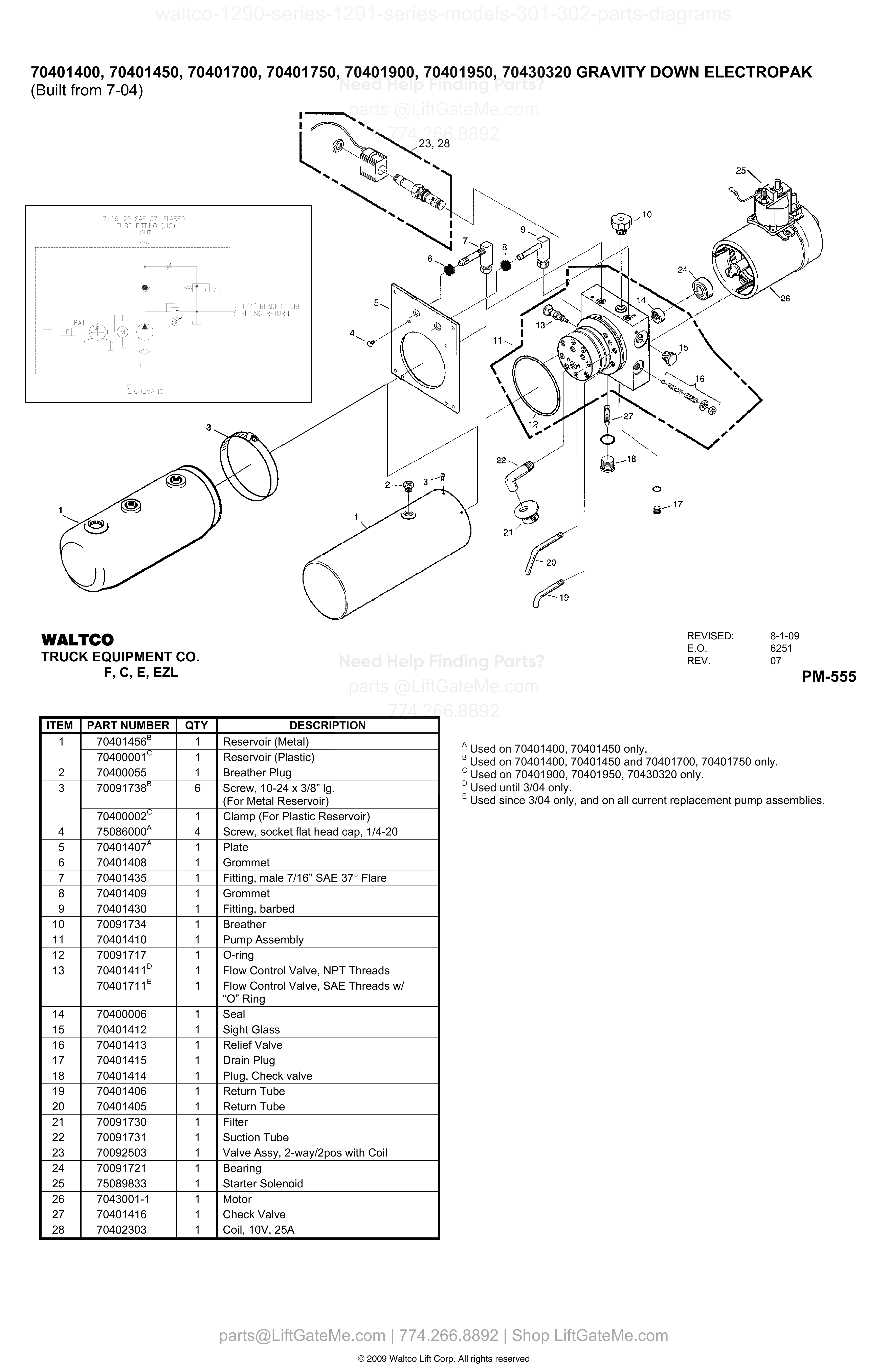

70401400, 70401450, 70401700, 70401750, 70401900, 70401950, 70430320 GRAVITY DOWN ELECTROPAK
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401456 B | Reservoir (Metal) | |
| 1 | 1 | 70400001 C | Reservoir (Plastic) | |
| 2 | 1 | 70400055 B | Breather Plug | |
| 3 | 6 | 70091738 B | Screw, 10-24 x 3/8” lg. (For Metal Reservoir) | |
| 3 | 1 | 70400002 C | Clamp (For Plastic Reservoir) | |
| 4 | 4 | 75086000 A | Screw, socket flat head cap, 1/4-20 | |
| 5 | 1 | 70401407 A | Plate | |
| 6 | 1 | 70401408 | Grommet | |
| 7 | 1 | 70401435 | Fitting, male 7/16” SAE 37° Flare | |
| 8 | 1 | 70401409 | Grommet | |
| 9 | 1 | 70401430 | Fitting, barbed | |
| 10 | 1 | 70091734 | Breather | |
| 11 | 1 | 70401410 | Pump Assembly | |
| 12 | 1 | 70091717 | O-ring | |
| 13 | 1 | 70401411 D | Flow Control Valve, NPT Threads | |
| 13 | 1 | 70401711 E | Flow Control Valve, SAE Threads w/ “O” Ring | |
| 14 | 1 | 70400006 | Seal | |
| 15 | 1 | 70401412 | Sight Glass | |
| 16 | 1 | 70401413 | Relief Valve | |
| 17 | 1 | 70401415 | Drain Plug | |
| 18 | 1 | 70401414 | Plug, Check valve | |
| 19 | 1 | 70401406 | Return Tube | |
| 20 | 1 | 70401405 | Return Tube | |
| 21 | 1 | 70091730 | Filter | |
| 22 | 1 | 70091731 | Suction Tube | |
| 23 | 1 | 70092503 | Valve Assy, 2-way/2pos with Coil | |
| 24 | 1 | 70091721 | Bearing | |
| 25 | 1 | 75089833 | Starter Solenoid | |
| 26 | 1 | 7043001-1 | Motor | |
| 27 | 1 | 70401416 | Check Valve | |
| 28 | 1 | 70402303 | Coil, 10V, 25A |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

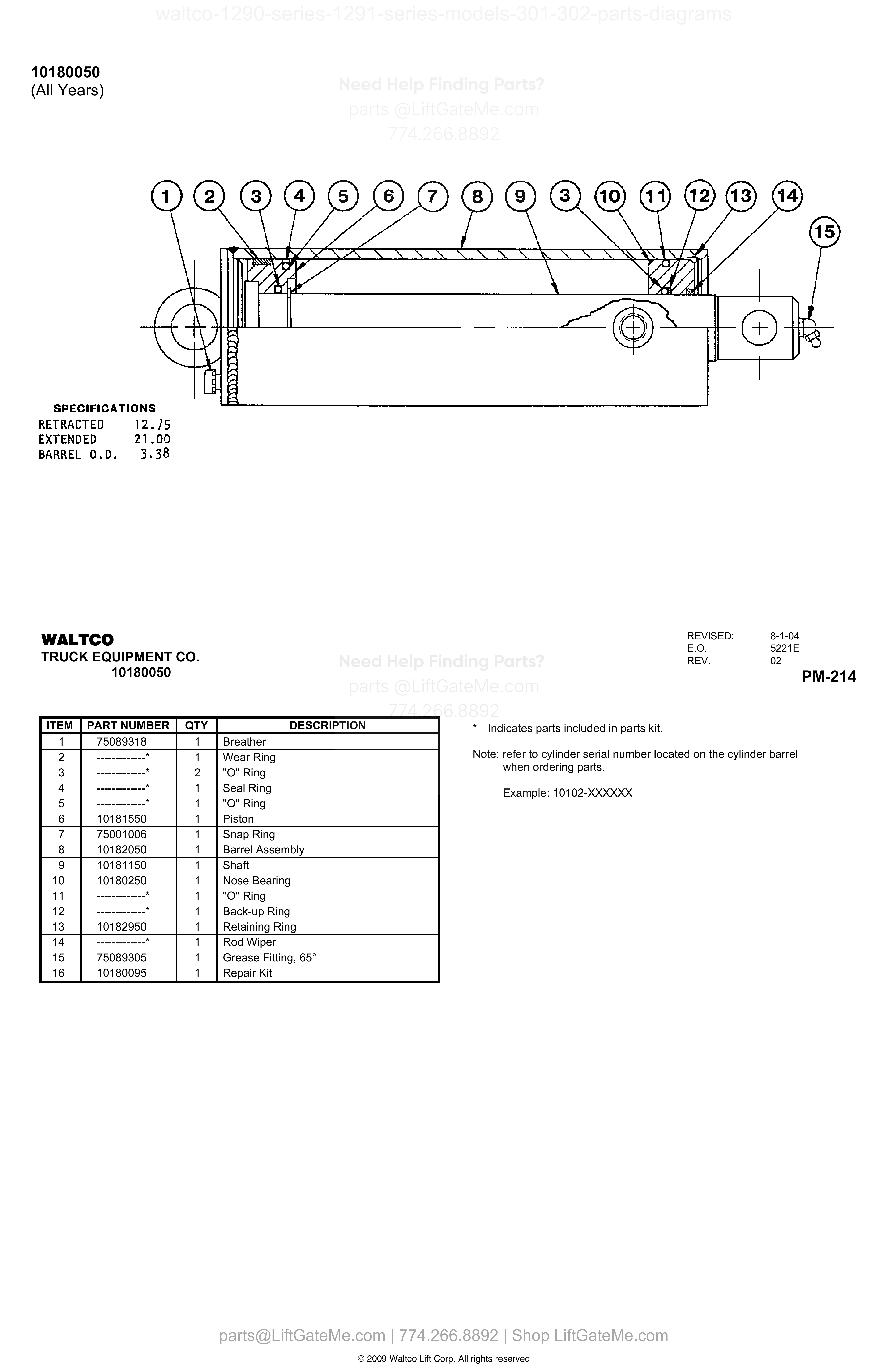

10180050
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75089318 | Breather | |
| 2 | 1 | -------------* | Wear Ring | |
| 3 | 2 | -------------* | "O" Ring | |
| 4 | 1 | -------------* | Seal Ring | |
| 5 | 1 | -------------* | "O" Ring | |
| 6 | 1 | 10181550 | Piston | |
| 7 | 1 | 75001006 | Snap Ring | |
| 8 | 1 | 10182050 | Barrel Assembly | |
| 9 | 1 | 10181150 | Shaft | |
| 10 | 1 | 10180250 | Nose Bearing | |
| 11 | 1 | -------------* | "O" Ring | |
| 12 | 1 | -------------* | Back-up Ring | |
| 13 | 1 | 10182950 | Retaining Ring | |
| 14 | 1 | -------------* | Rod Wiper | |
| 15 | 1 | 75089305 | Grease Fitting, 65° | |
| 16 | 1 | 10180095 | Repair Kit |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
