Waltco EZL-Series Models 235/236 Liftgate Parts Diagrams | Approximate Years Pre-2000

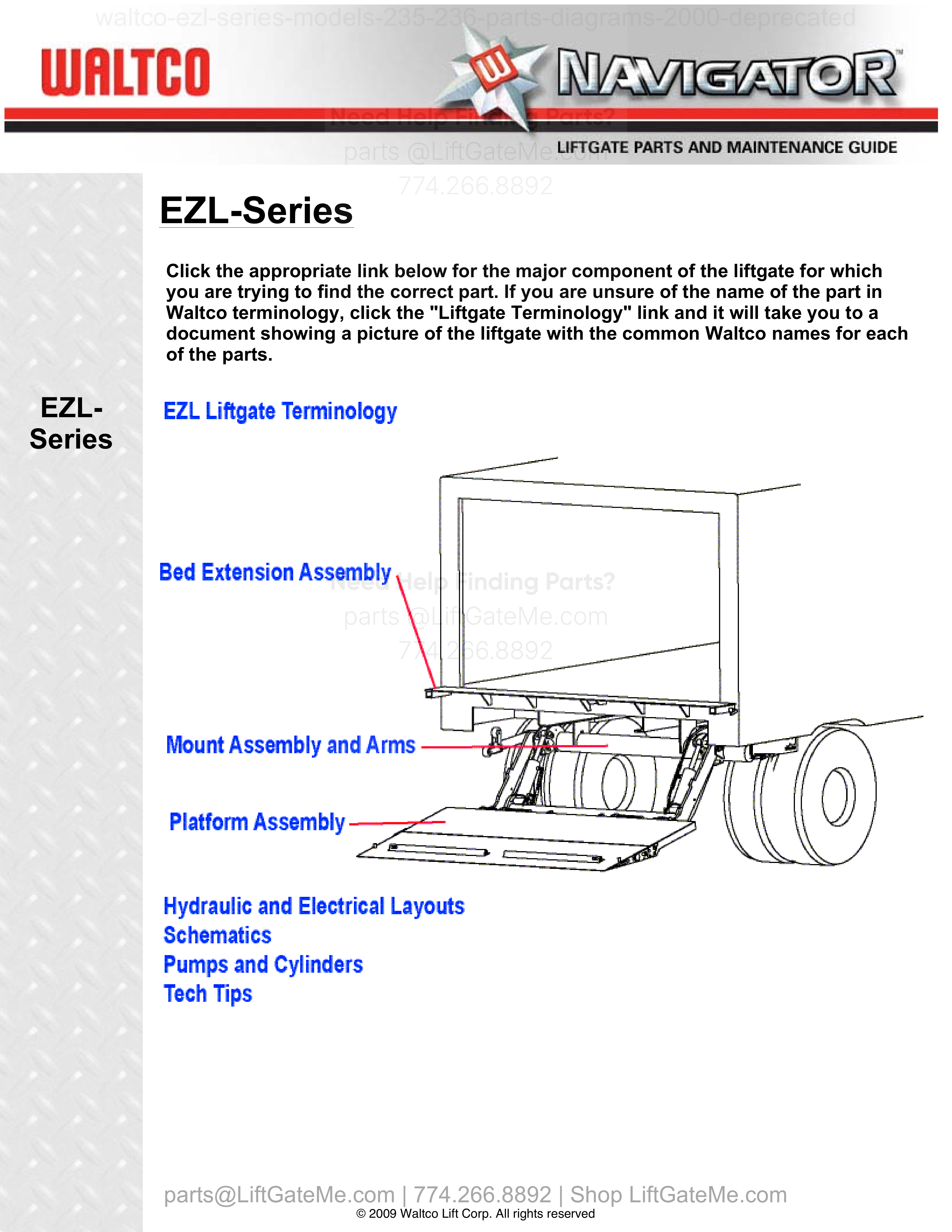

Legacy Waltco EZL-Series Models 235/236 Light-Duty parts diagrams
Find pre-2000 Waltco EZL-Series Models 235/236 parts diagrams for legacy light-duty liftgates. These breakdowns help match part numbers and confirm replacement liftgate parts before ordering.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

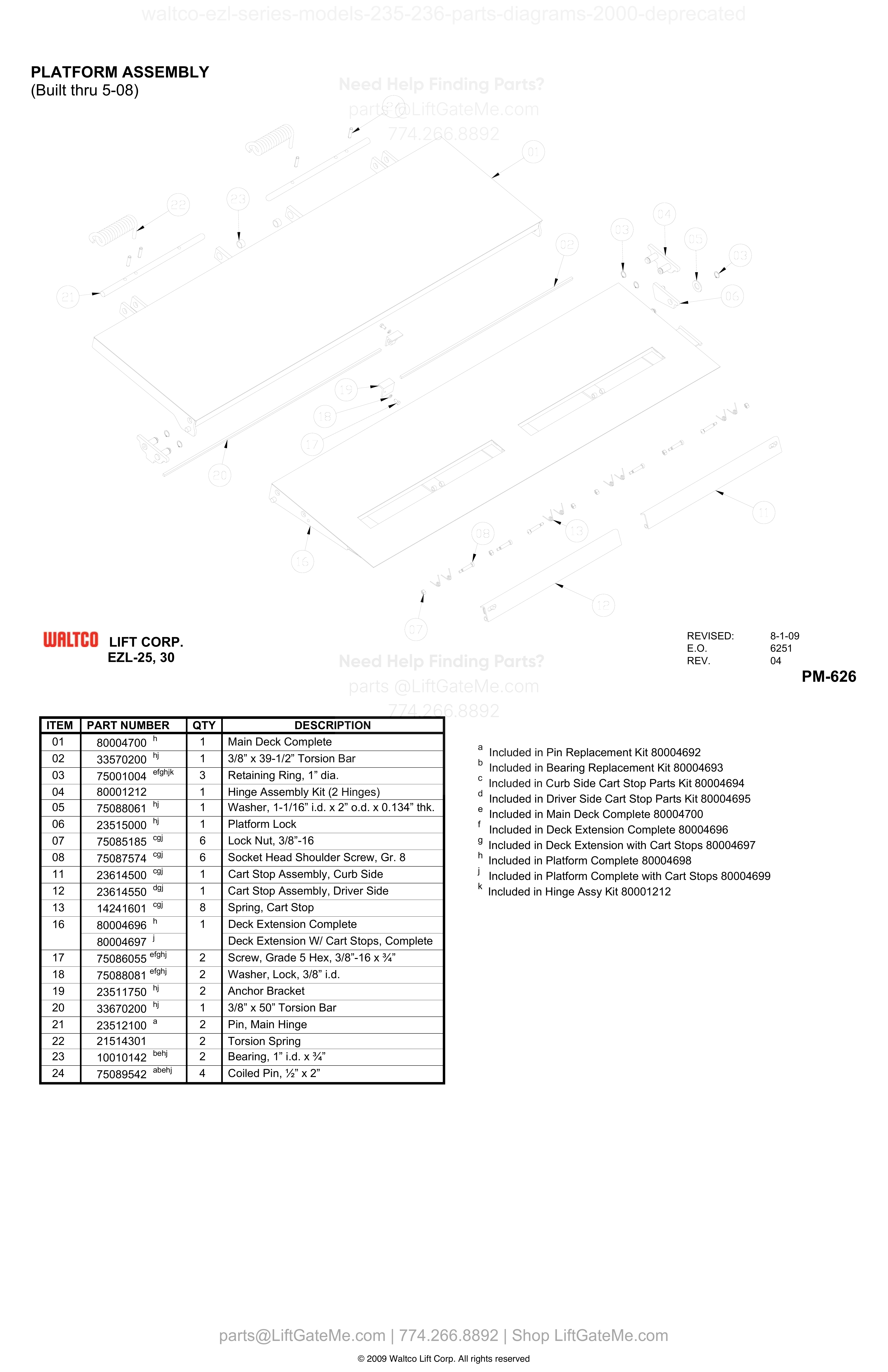

PLATFORM ASSEMBLY (Built thru 5-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 01 | 1 | 80004700 H | Main Deck Complete | |
| 02 | 1 | 33570200 H,J | 3/8” x 39-1/2” Torsion Bar | |
| 03 | 3 | 75001004^E,F,G,H,J,K | Retaining Ring, 1” dia. | |
| 04 | 1 | 80001212 H,J | Hinge Assembly Kit (2 Hinges) | |
| 05 | 1 | 75088061 H,J | Washer, 1-1/16” i.d. x 2” o.d. x 0.134” thk. | |
| 06 | 1 | 23515000 H,J | Platform Lock | |
| 07 | 6 | 75085185^C,G,J | Lock Nut, 3/8”-16 | |
| 08 | 6 | 75087574^C,G,J | Socket Head Shoulder Screw, Gr. 8 | |
| 11 | 1 | 23614500^C,G,J | Cart Stop Assembly, Curb Side | |
| 12 | 1 | 23614550^D,G,J | Cart Stop Assembly, Driver Side | |
| 13 | 8 | 14241601^C,G,J | Spring, Cart Stop | |
| 16 | 1 | 80004696 H | Deck Extension Complete | |
| 16 | 80004697 J | Deck Extension W/ Cart Stops, Complete | ||
| 17 | 2 | 75086055^E,F,G,H,J | Screw, Grade 5 Hex, 3/8”-16 x ¾” | |
| 18 | 2 | 75088081^E,F,G,H,J | Washer, Lock, 3/8” i.d. | |
| 19 | 2 | 23511750 H,J | Anchor Bracket | |
| 20 | 1 | 33670200 H,J | 3/8” x 50” Torsion Bar | |
| 21 | 2 | 23512100 A | Pin, Main Hinge | |
| 22 | 2 | 21514301 | Torsion Spring | |
| 23 | 2 | 10010142^B,E,H,J | Bearing, 1” i.d. x ¾” | |
| 24 | 4 | 75089542^A,B,E,H,J | Coiled Pin, ½” x 2” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

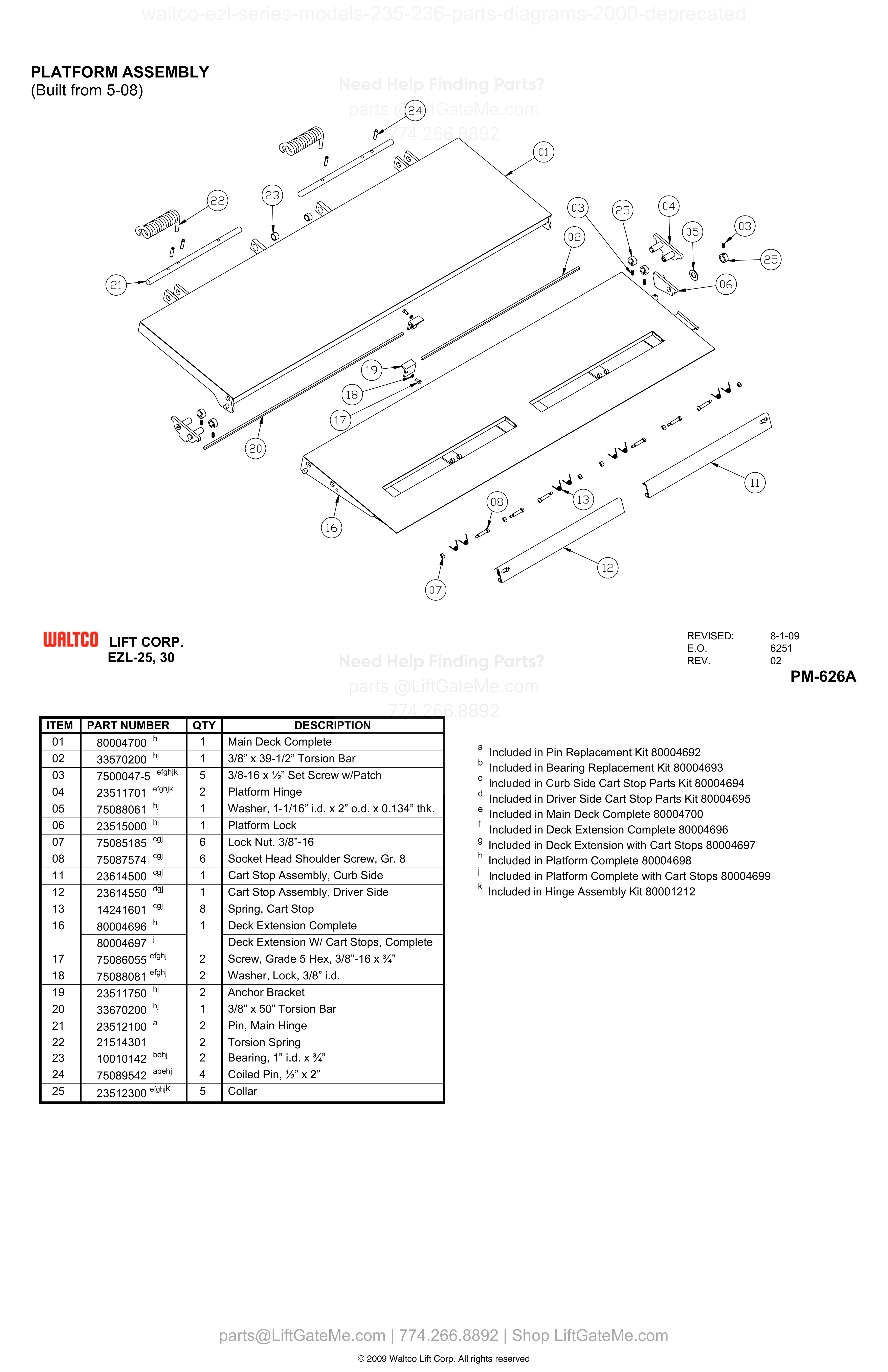

PLATFORM ASSEMBLY (Built from 5-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 01 | 1 | 80004700 H | Main Deck Complete | |
| 02 | 1 | 33570200 H,J | 3/8” x 39-1/2” Torsion Bar | |
| 03 | 5 | 7500047-5^E,F,G,H,J,K | 3/8-16 x ½” Set Screw w/Patch | |
| 04 | 2 | 23511701^E,F,G,H,J,K | Platform Hinge | |
| 05 | 1 | 75088061 H,J | Washer, 1-1/16” i.d. x 2” o.d. x 0.134” thk. | |
| 06 | 1 | 23515000 H,J | Platform Lock | |
| 07 | 6 | 75085185^C,G,J | Lock Nut, 3/8”-16 | |
| 08 | 6 | 75087574^C,G,J | Socket Head Shoulder Screw, Gr. 8 | |
| 11 | 1 | 23614500^C,G,J | Cart Stop Assembly, Curb Side | |
| 12 | 1 | 23614550^D,G,J | Cart Stop Assembly, Driver Side | |
| 13 | 8 | 14241601^C,G,J | Spring, Cart Stop | |
| 16 | 1 | 80004696 H | Deck Extension Complete | |
| 16 | 80004697 J | Deck Extension W/ Cart Stops, Complete | ||
| 17 | 2 | 75086055^E,F,G,H,J | Screw, Grade 5 Hex, 3/8”-16 x ¾” | |
| 18 | 2 | 75088081^E,F,G,H,J | Washer, Lock, 3/8” i.d. | |
| 19 | 2 | 23511750 H,J | Anchor Bracket | |
| 20 | 1 | 33670200 H,J | 3/8” x 50” Torsion Bar | |
| 21 | 2 | 23512100 A | Pin, Main Hinge | |
| 22 | 2 | 21514301 | Torsion Spring | |
| 23 | 2 | 10010142^B,E,H,J | Bearing, 1” i.d. x ¾” | |
| 24 | 4 | 75089542^A,B,E,H,J | Coiled Pin, ½” x 2” | |
| 25 | 5 | 23512300^E,F,G,H,J,K | Collar |
i

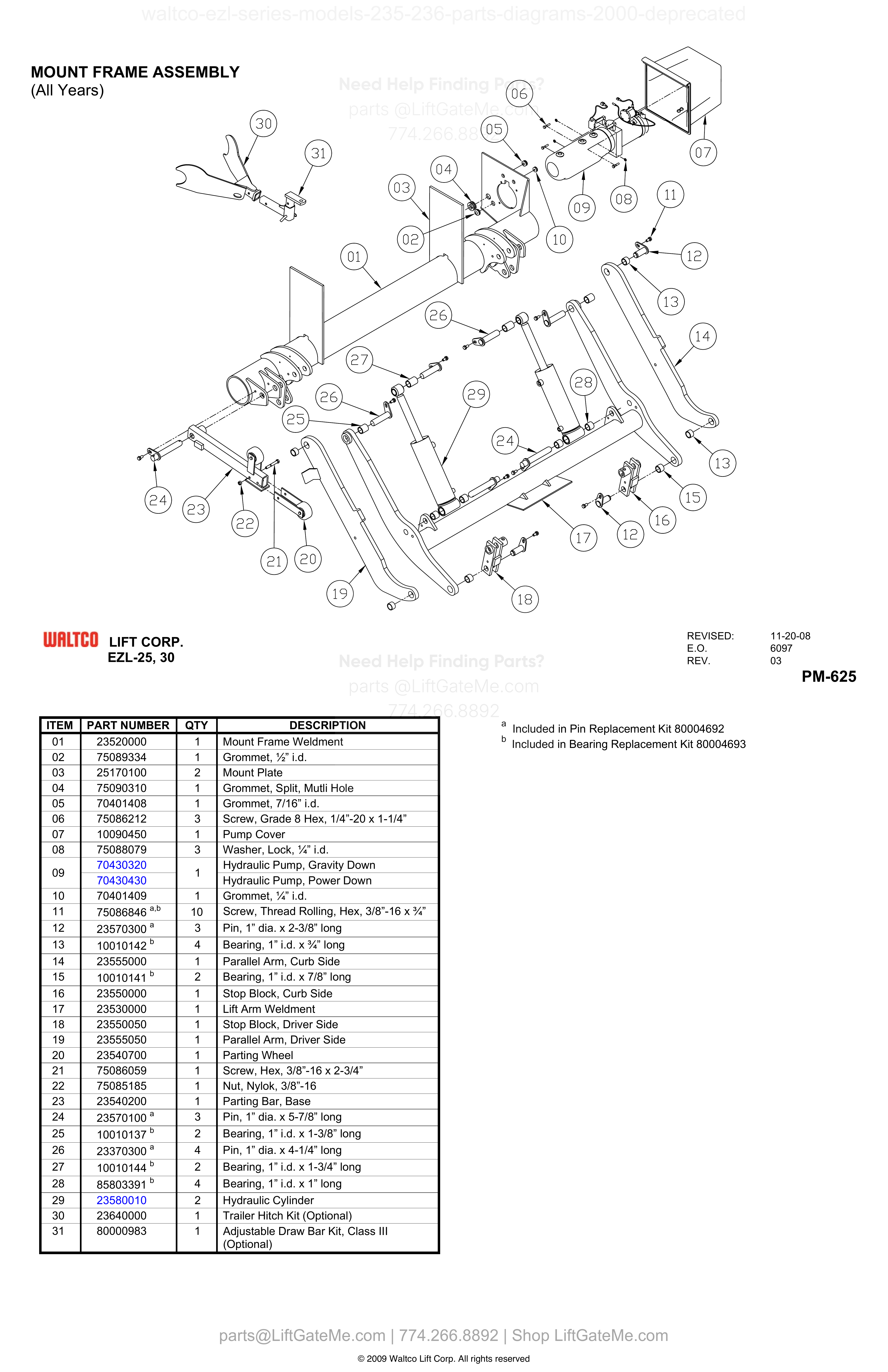

MOUNT FRAME ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 01 | 1 | 23520000 | Mount Frame Weldment | |
| 02 | 1 | 75089334 | Grommet, ½” i.d. | |
| 03 | 2 | 25170100 | Mount Plate | |
| 04 | 1 | 75090310 | Grommet, Split, Mutli Hole | |
| 05 | 1 | 70401408 | Grommet, 7/16” i.d. | |
| 06 | 3 | 75086212 | Screw, Grade 8 Hex, 1/4”-20 x 1-1/4” | |
| 07 | 1 | 10090450 | Pump Cover | |
| 08 | 3 | 75088079 | Washer, Lock, ¼” i.d. | |
| 09 | 1 | 70430320 | Hydraulic Pump, Gravity Down | |
| 09 | 70430430 | Hydraulic Pump, Power Down | ||
| 10 | 1 | 70401409 | Grommet, ¼” i.d. | |
| 11 | 10 | 75086846 A,B | Screw, Thread Rolling, Hex, 3/8”-16 x ¾” | |
| 12 | 3 | 23570300 A | Pin, 1” dia. x 2-3/8” long | |
| 13 | 4 | 10010142 B | Bearing, 1” i.d. x ¾” long | |
| 14 | 1 | 23555000 | Parallel Arm, Curb Side | |
| 15 | 2 | 10010141 B | Bearing, 1” i.d. x 7/8” long | |
| 16 | 1 | 23550000 | Stop Block, Curb Side | |
| 17 | 1 | 23530000 | Lift Arm Weldment | |
| 18 | 1 | 23550050 | Stop Block, Driver Side | |
| 19 | 1 | 23555050 | Parallel Arm, Driver Side | |
| 20 | 1 | 23540700 | Parting Wheel | |
| 21 | 1 | 75086059 | Screw, Hex, 3/8”-16 x 2-3/4” | |
| 22 | 1 | 75085185 | Nut, Nylok, 3/8”-16 | |
| 23 | 1 | 23540200 | Parting Bar, Base | |
| 24 | 3 | 23570100 A | Pin, 1” dia. x 5-7/8” long | |
| 25 | 2 | 10010137 B | Bearing, 1” i.d. x 1-3/8” long | |
| 26 | 4 | 23370300 A | Pin, 1” dia. x 4-1/4” long | |
| 27 | 2 | 10010144 B | Bearing, 1” i.d. x 1-3/4” long | |
| 28 | 4 | 85803391 B | Bearing, 1” i.d. x 1” long | |
| 29 | 2 | 23580010 | Hydraulic Cylinder | |
| 30 | 1 | 23640000 | Trailer Hitch Kit (Optional) | |
| 31 | 1 | 80000983 | Adjustable Draw Bar Kit, Class III (Optional) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

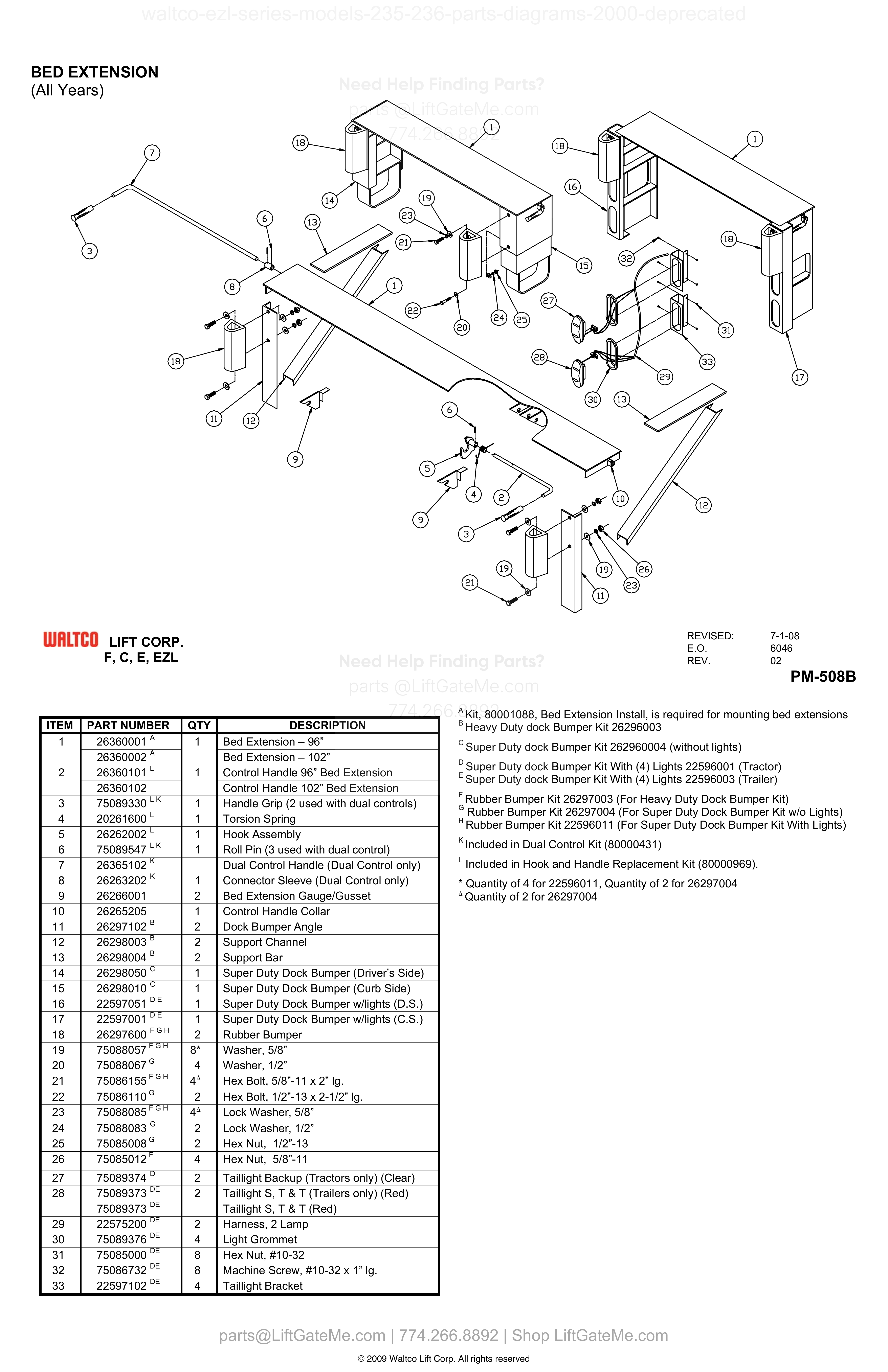

BED EXTENSION
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 26360001 A | Bed Extension – 96” | |
| 1 | 26360002 A | Bed Extension – 102” | ||
| 2 | 1 | 26360101 L | Control Handle 96” Bed Extension | |
| 2 | 26360102 | Control Handle 102” Bed Extension | ||
| 3 | 1 | 75089330 L,K | Handle Grip (2 used with dual controls) | |
| 4 | 1 | 20261600 L | Torsion Spring | |
| 5 | 1 | 26262002 L | Hook Assembly | |
| 6 | 1 | 75089547 L,K | Roll Pin (3 used with dual control) | |
| 7 | 26365102 K | Dual Control Handle (Dual Control only) | ||
| 8 | 1 | 26263202 K | Connector Sleeve (Dual Control only) | |
| 9 | 2 | 26266001 | Bed Extension Gauge/Gusset | |
| 10 | 1 | 26265205 | Control Handle Collar | |
| 11 | 2 | 26297102 B | Dock Bumper Angle | |
| 12 | 2 | 26298003 B | Support Channel | |
| 13 | 2 | 26298004 B | Support Bar | |
| 14 | 1 | 26298050 C | Super Duty Dock Bumper (Driver’s Side) | |
| 15 | 1 | 26298010 C | Super Duty Dock Bumper (Curb Side) | |
| 16 | 1 | 22597051 D,E | Super Duty Dock Bumper w/lights (D.S.) | |
| 17 | 1 | 22597001 D,E | Super Duty Dock Bumper w/lights (C.S.) | |
| 18 | 2 | 26297600^F,G,H | Rubber Bumper | |
| 19 | 8 | 75088057^F,G,H | Washer, 5/8” | |
| 20 | 75088067 G | Washer, 1/2” | ||
| 21 | 75086155^F,G,H | Hex Bolt, 5/8”-11 x 2” lg. | ||
| 22 | 2 | 75086110 G | Hex Bolt, 1/2”-13 x 2-1/2” lg. | |
| 23 | 75088085^F,G,H | Lock Washer, 5/8” | ||
| 24 | 2 | 75088083 G | Lock Washer, 1/2” | |
| 25 | 2 | 75085008 G | Hex Nut, 1/2”-13 | |
| 26 | 4 | 75085012 F | Hex Nut, 5/8”-11 | |
| 27 | 2 | 75089374 D | Taillight Backup (Tractors only) (Clear) | |
| 28 | 2 | 75089373 D,E | Taillight S, T & T (Trailers only) (Red) | |
| 28 | 75089373 D,E | Taillight S, T & T (Red) | ||
| 29 | 2 | 22575200 D,E | Harness, 2 Lamp | |
| 30 | 4 | 75089376 D,E | Light Grommet | |
| 31 | 8 | 75085000 D,E | Hex Nut, #10-32 | |
| 32 | 8 | 75086732 D,E | Machine Screw, #10-32 x 1” lg. | |
| 33 | 4 | 22597102 D,E | Taillight Bracket |
i

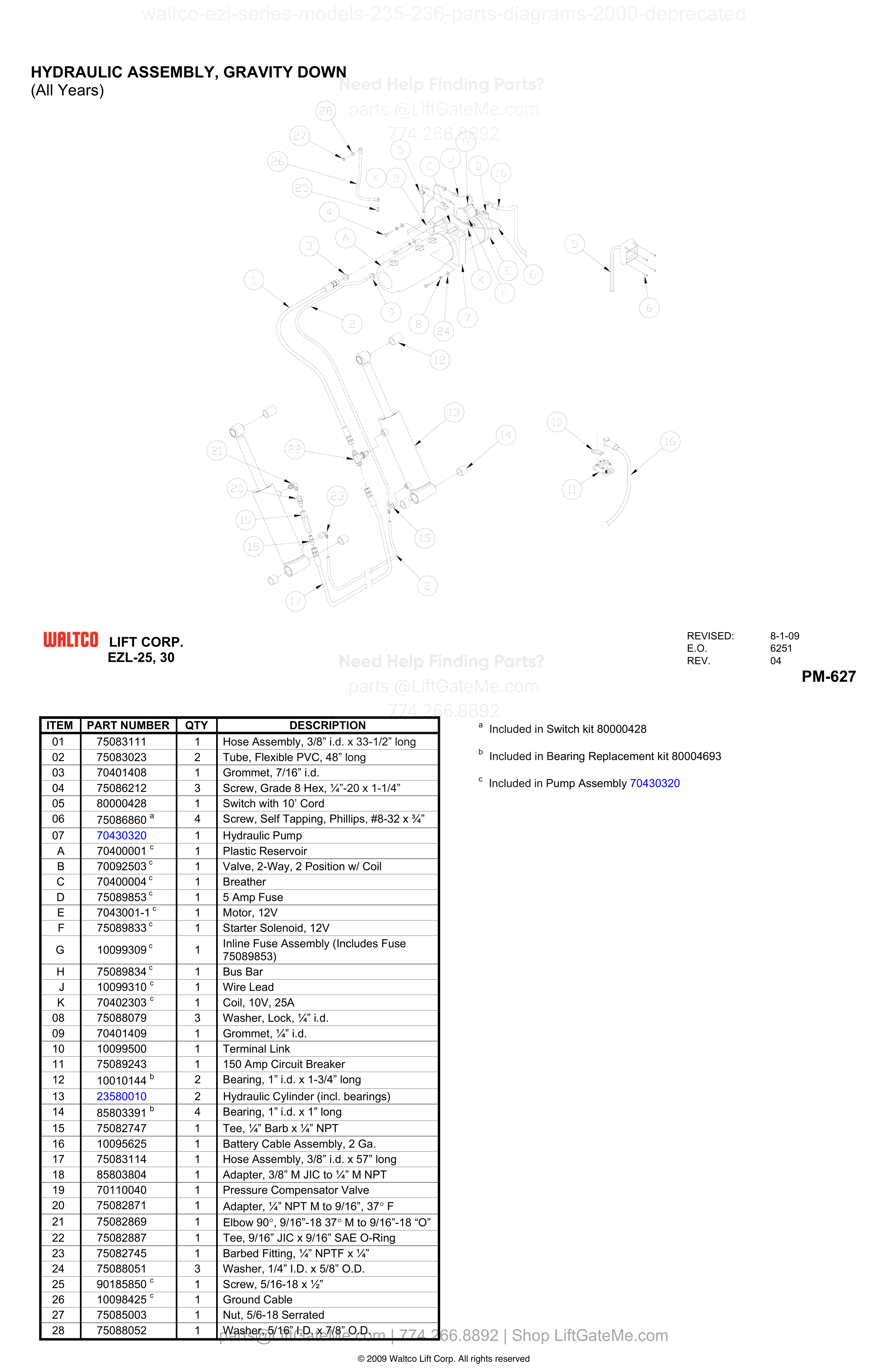

HYDRAULIC ASSEMBLY, GRAVITY DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 01 | 1 | 75083111 | Hose Assembly, 3/8” i.d. x 33-1/2” long | |
| 02 | 2 | 75083023 | Tube, Flexible PVC, 48” long | |
| 03 | 1 | 70401408 | Grommet, 7/16” i.d. | |
| 04 | 3 | 75086212 | Screw, Grade 8 Hex, ¼”-20 x 1-1/4” | |
| 05 | 1 | 80000428 | Switch with 10’ Cord | |
| 06 | 4 | 75086860 A | Screw, Self Tapping, Phillips, #8-32 x ¾” | |
| 07 | 1 | 70430320 | Hydraulic Pump | |
| A | 1 | 70400001 C | Plastic Reservoir | |
| B | 1 | 70092503 C | Valve, 2-Way, 2 Position w/ Coil | |
| C | 1 | 70400004 C | Breather | |
| D | 1 | 75089853 C | 5 Amp Fuse | |
| E | 1 | 7043001-1 C | Motor, 12V | |
| F | 1 | 75089833 C | Starter Solenoid, 12V | |
| G | 1 | 10099309 C | Inline Fuse Assembly (Includes Fuse 75089853) | |
| H | 1 | 75089834 C | Bus Bar | |
| J | 1 | 10099310 C | Wire Lead | |
| K | 1 | 70402303 C | Coil, 10V, 25A | |
| 08 | 3 | 75088079 | Washer, Lock, ¼” i.d. | |
| 09 | 1 | 70401409 | Grommet, ¼” i.d. | |
| 10 | 1 | 10099500 | Terminal Link | |
| 11 | 1 | 75089243 | 150 Amp Circuit Breaker | |
| 12 | 2 | 10010144 B | Bearing, 1” i.d. x 1-3/4” long | |
| 13 | 2 | 23580010 | Hydraulic Cylinder (incl. bearings) | |
| 14 | 4 | 85803391 B | Bearing, 1” i.d. x 1” long | |
| 15 | 1 | 75082747 | Tee, ¼” Barb x ¼” NPT | |
| 16 | 1 | 10095625 | Battery Cable Assembly, 2 Ga. | |
| 17 | 1 | 75083114 | Hose Assembly, 3/8” i.d. x 57” long | |
| 18 | 1 | 85803804 | Adapter, 3/8” M JIC to ¼” M NPT | |
| 19 | 1 | 70110040 | Pressure Compensator Valve | |
| 20 | 1 | 75082871 | Adapter, ¼” NPT M to 9/16”, 37° F | |
| 21 | 1 | 75082869 | Elbow 90°, 9/16”-18 37° M to 9/16”-18 “O” | |
| 22 | 1 | 75082887 | Tee, 9/16” JIC x 9/16” SAE O-Ring | |
| 23 | 1 | 75082745 | Barbed Fitting, ¼” NPTF x ¼” | |
| 24 | 3 | 75088051 | Washer, 1/4” I.D. x 5/8” O.D. | |
| 25 | 1 | 90185850 C | Screw, 5/16-18 x ½” | |
| 26 | 1 | 10098425 C | Ground Cable | |
| 27 | 1 | 75085003 | Nut, 5/6-18 Serrated | |
| 28 | 1 | 75088052 | Washer, 5/16” I.D. x 7/8” O.D. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

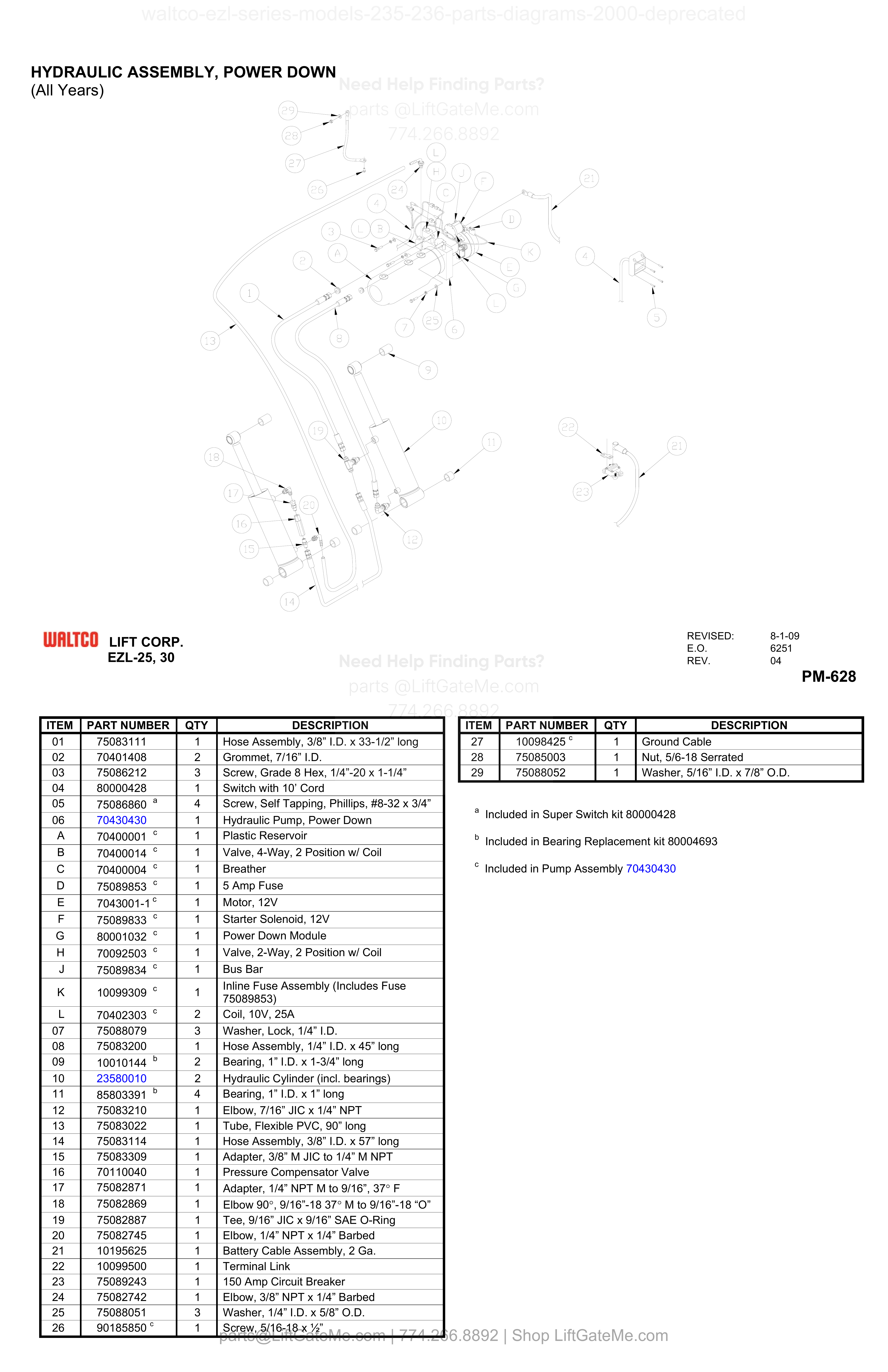

HYDRAULIC ASSEMBLY, POWER DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 01 | 1 | 75083111 | Hose Assembly, 3/8” I.D. x 33-1/2” long | |
| 02 | 2 | 70401408 | Grommet, 7/16” I.D. | |
| 03 | 3 | 75086212 | Screw, Grade 8 Hex, 1/4”-20 x 1-1/4” | |
| 04 | 1 | 80000428 | Switch with 10’ Cord | |
| 05 | 4 | 75086860 A | Screw, Self Tapping, Phillips, #8-32 x 3/4” | |
| 06 | 1 | 70430430 | Hydraulic Pump, Power Down | |
| A | 1 | 70400001 C | Plastic Reservoir | |
| B | 1 | 70400014 C | Valve, 4-Way, 2 Position w/ Coil | |
| C | 1 | 70400004 C | Breather | |
| D | 1 | 75089853 C | 5 Amp Fuse | |
| E | 1 | 7043001-1 C | Motor, 12V | |
| F | 1 | 75089833 C | Starter Solenoid, 12V | |
| G | 1 | 80001032 C | Power Down Module | |
| H | 1 | 70092503 C | Valve, 2-Way, 2 Position w/ Coil | |
| J | 1 | 75089834 C | Bus Bar | |
| K | 1 | 10099309 C | Inline Fuse Assembly (Includes Fuse 75089853) | |
| L | 2 | 70402303 C | Coil, 10V, 25A | |
| 07 | 3 | 75088079 | Washer, Lock, 1/4” I.D. | |
| 08 | 1 | 75083200 | Hose Assembly, 1/4” I.D. x 45” long | |
| 09 | 2 | 10010144 B | Bearing, 1” I.D. x 1-3/4” long | |
| 10 | 2 | 23580010 | Hydraulic Cylinder (incl. bearings) | |
| 11 | 4 | 85803391 B | Bearing, 1” I.D. x 1” long | |
| 12 | 1 | 75083210 | Elbow, 7/16” JIC x 1/4” NPT | |
| 13 | 1 | 75083022 | Tube, Flexible PVC, 90” long | |
| 14 | 1 | 75083114 | Hose Assembly, 3/8” I.D. x 57” long | |
| 15 | 1 | 75083309 | Adapter, 3/8” M JIC to 1/4” M NPT | |
| 16 | 1 | 70110040 | Pressure Compensator Valve | |
| 17 | 1 | 75082871 | Adapter, 1/4” NPT M to 9/16”, 37° F | |
| 18 | 1 | 75082869 | Elbow 90°, 9/16”-18 37° M to 9/16”-18 “O” | |
| 19 | 1 | 75082887 | Tee, 9/16” JIC x 9/16” SAE O-Ring | |
| 20 | 1 | 75082745 | Elbow, 1/4” NPT x 1/4” Barbed | |
| 21 | 1 | 10195625 | Battery Cable Assembly, 2 Ga. | |
| 22 | 1 | 10099500 | Terminal Link | |
| 23 | 1 | 75089243 | 150 Amp Circuit Breaker | |
| 24 | 1 | 75082742 | Elbow, 3/8” NPT x 1/4” Barbed | |
| 25 | 3 | 75088051 | Washer, 1/4” I.D. x 5/8” O.D. | |
| 26 | 1 | 90185850 C | Screw, 5/16-18 x ½” | |
| 27 | 1 | 10098425 C | Ground Cable | |
| 28 | 1 | 75085003 | Nut, 5/6-18 Serrated | |
| 29 | 1 | 75088052 | Washer, 5/16” I.D. x 7/8” O.D. |

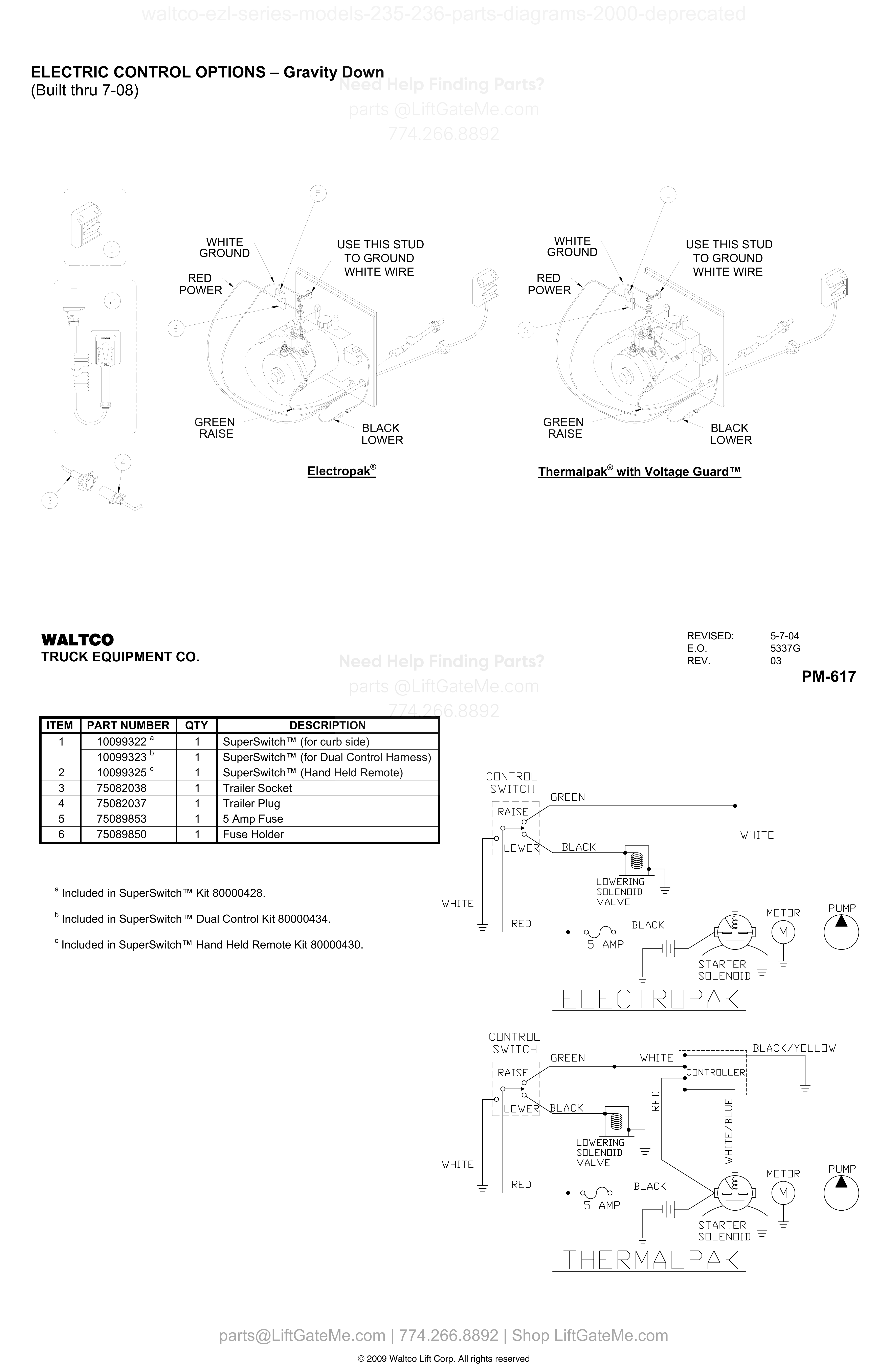

ELECTRIC CONTROL OPTIONS – Gravity Down
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | SuperSwitch™ (for curb side) | |
| 1 | 1 | 10099323 B | SuperSwitch™ (for Dual Control Harness) | |
| 2 | 1 | 10099325 C | SuperSwitch™ (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089853 | 5 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

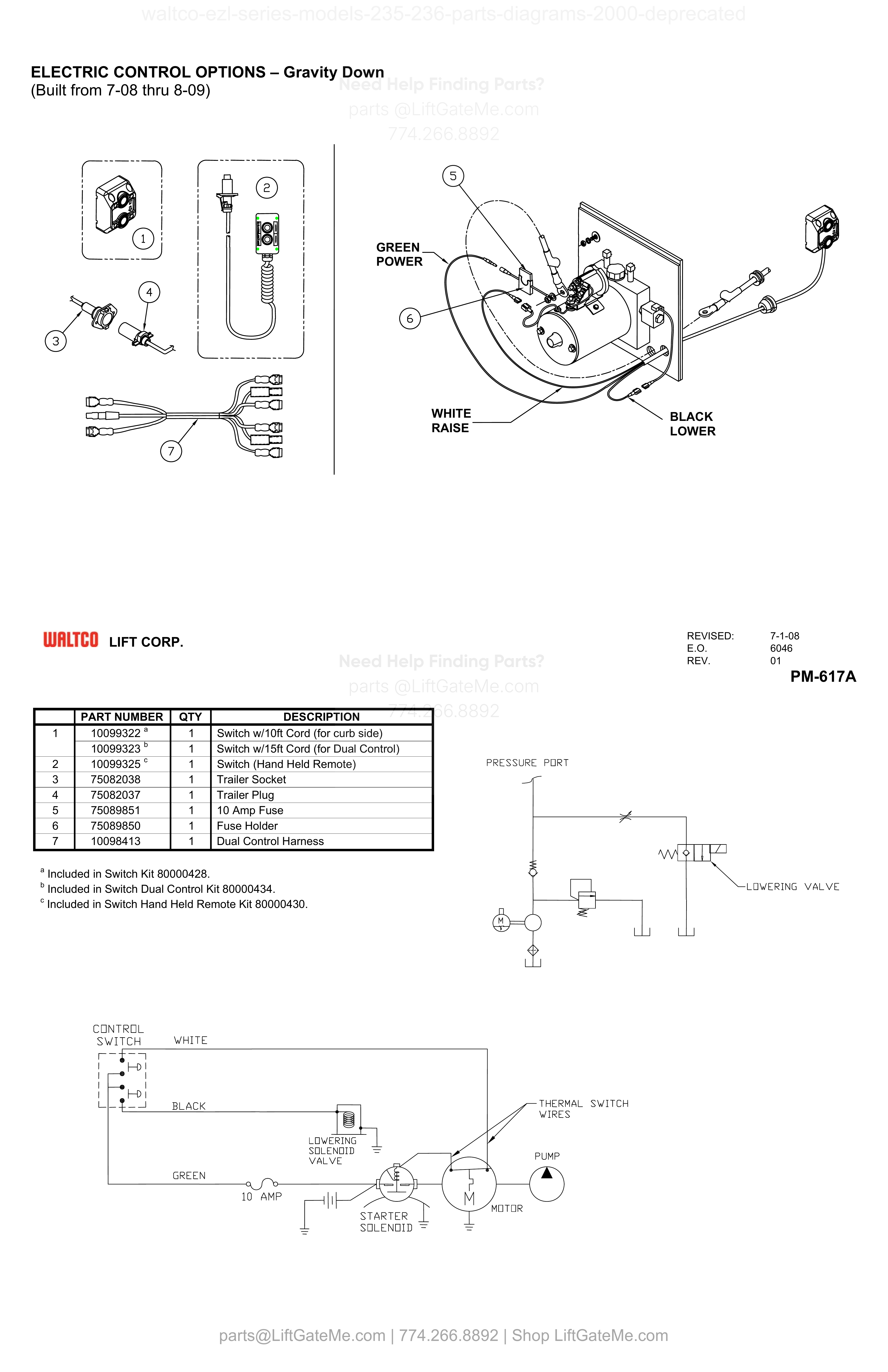

ELECTRIC CONTROL OPTIONS – Gravity Down (Built from 7-08 thru 8-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089851 | 10 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |

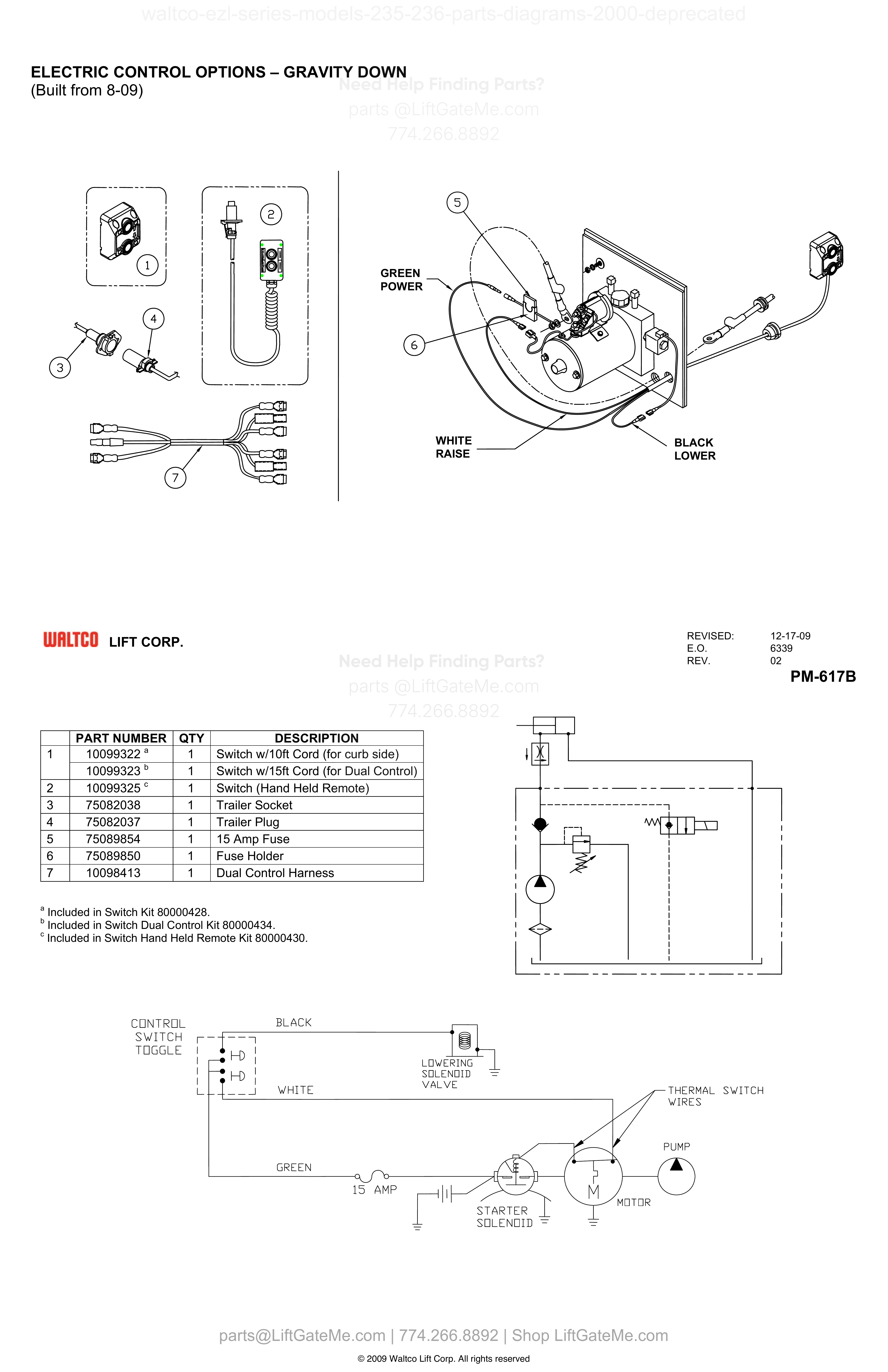

ELECTRIC CONTROL OPTIONS – GRAVITY DOWN (Built from 8-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089854 | 15 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

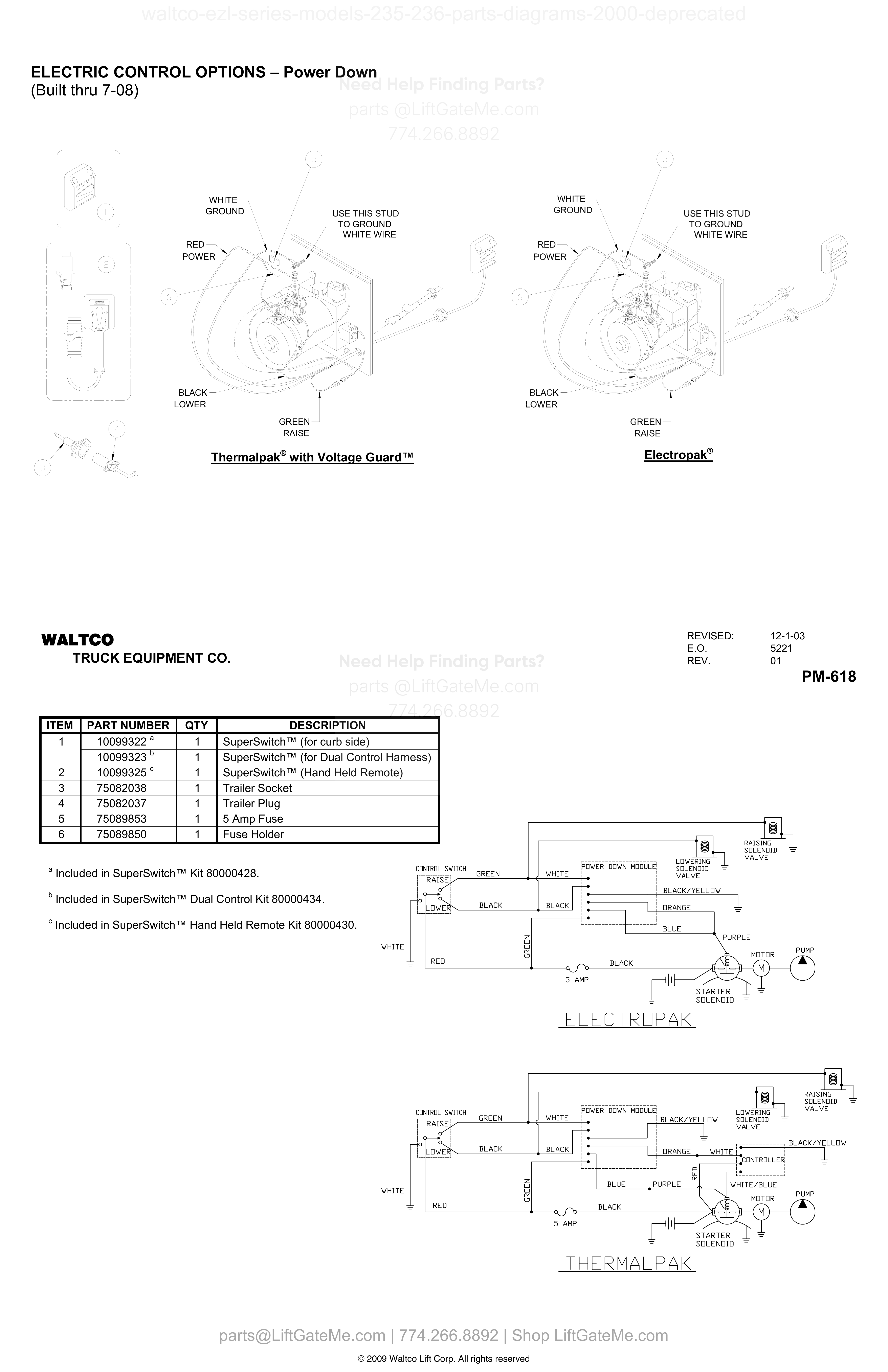

ELECTRIC CONTROL OPTIONS – Power Down (Built thru 7-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | SuperSwitch™ (for curb side) | |
| 1 | 1 | 10099323 B | SuperSwitch™ (for Dual Control Harness) | |
| 2 | 1 | 10099325 C | SuperSwitch™ (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089853 | 5 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder |

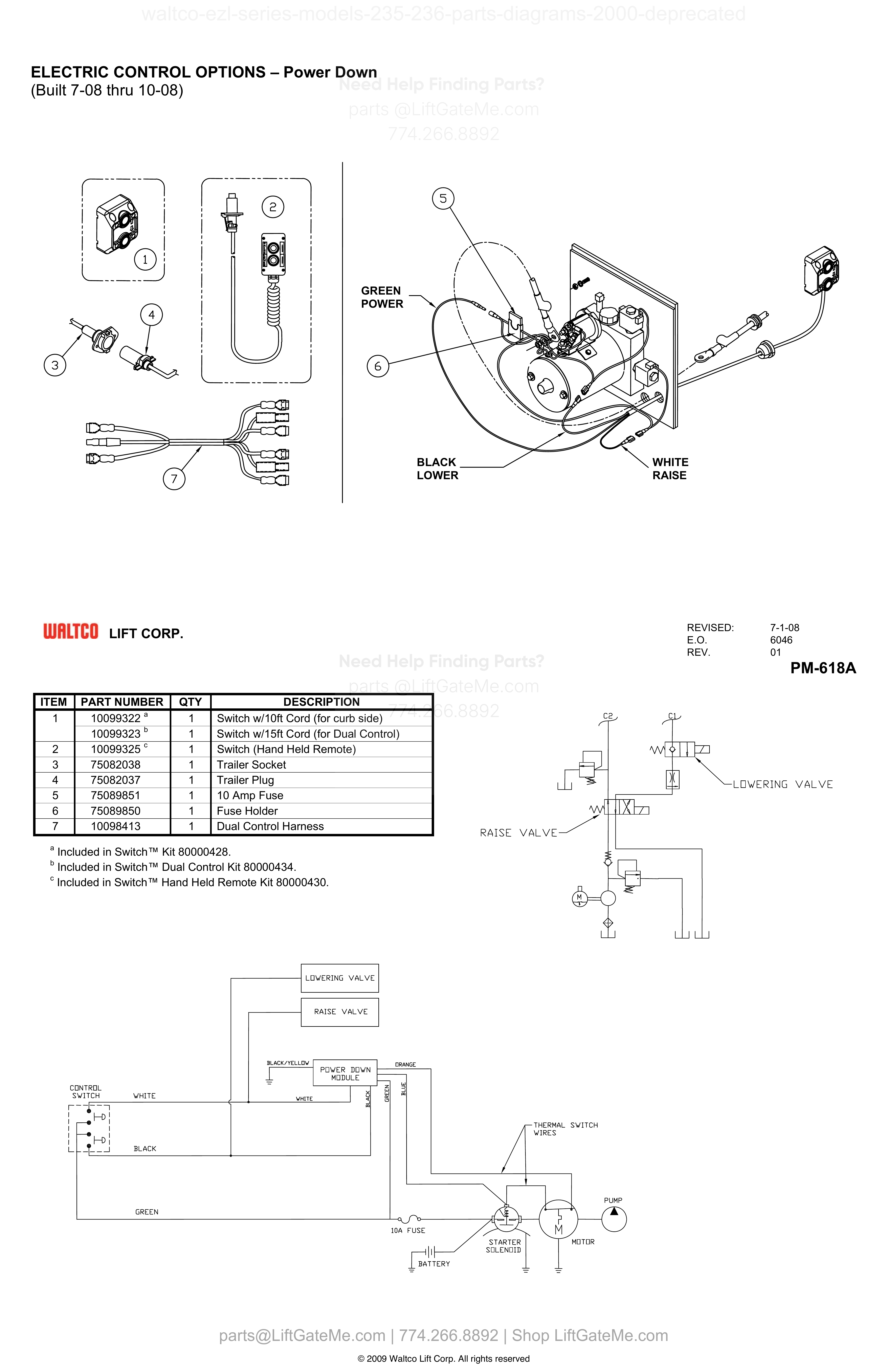

ELECTRIC CONTROL OPTIONS – Power Down (Built 7-08 thru 10-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089851 | 10 Amp Fuse | |
| 6 | 1 | 75089850 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

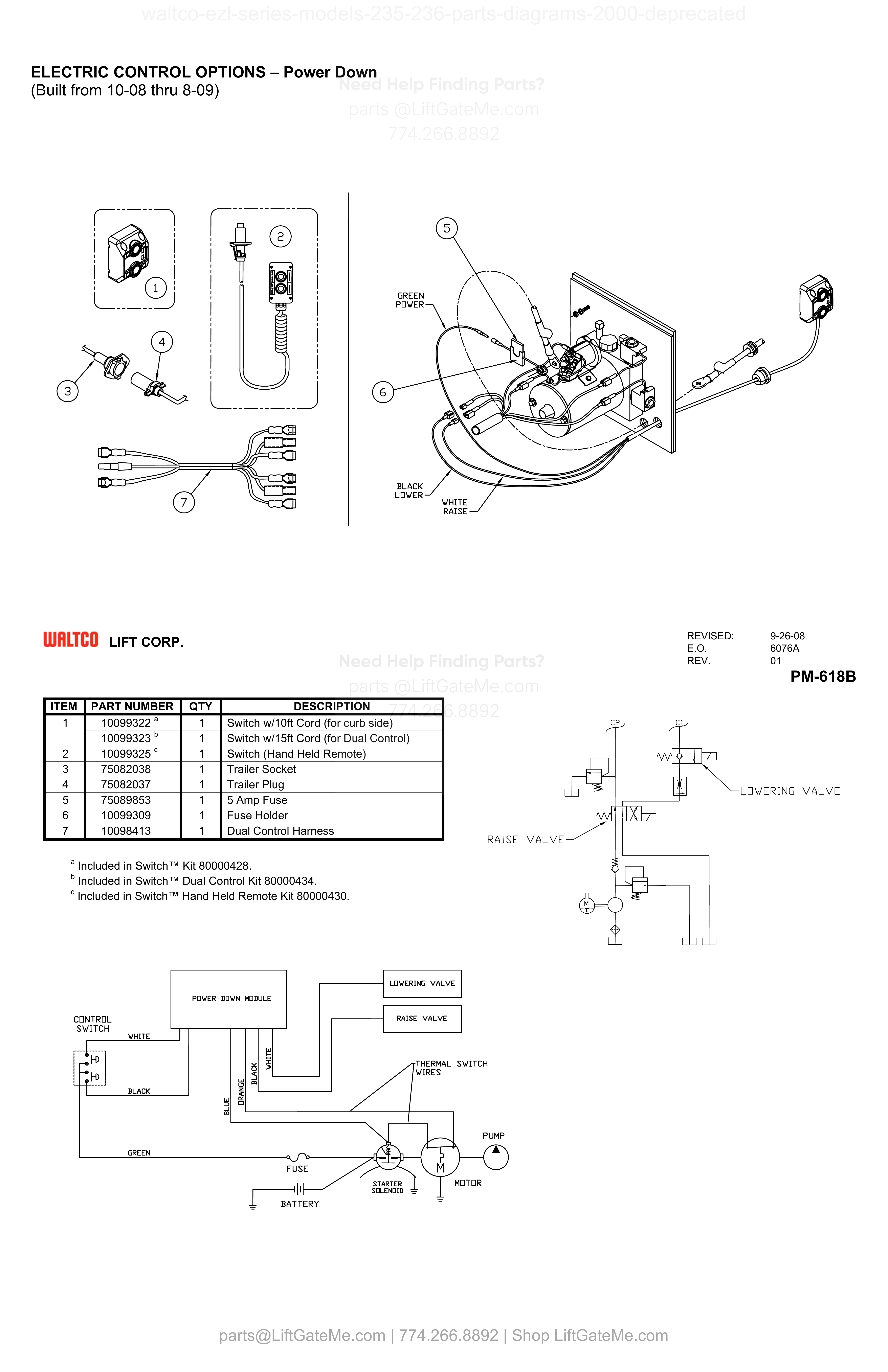

ELECTRIC CONTROL OPTIONS – Power Down (Built from 10-08 thru 8-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089853 | 5 Amp Fuse | |
| 6 | 1 | 10099309 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |

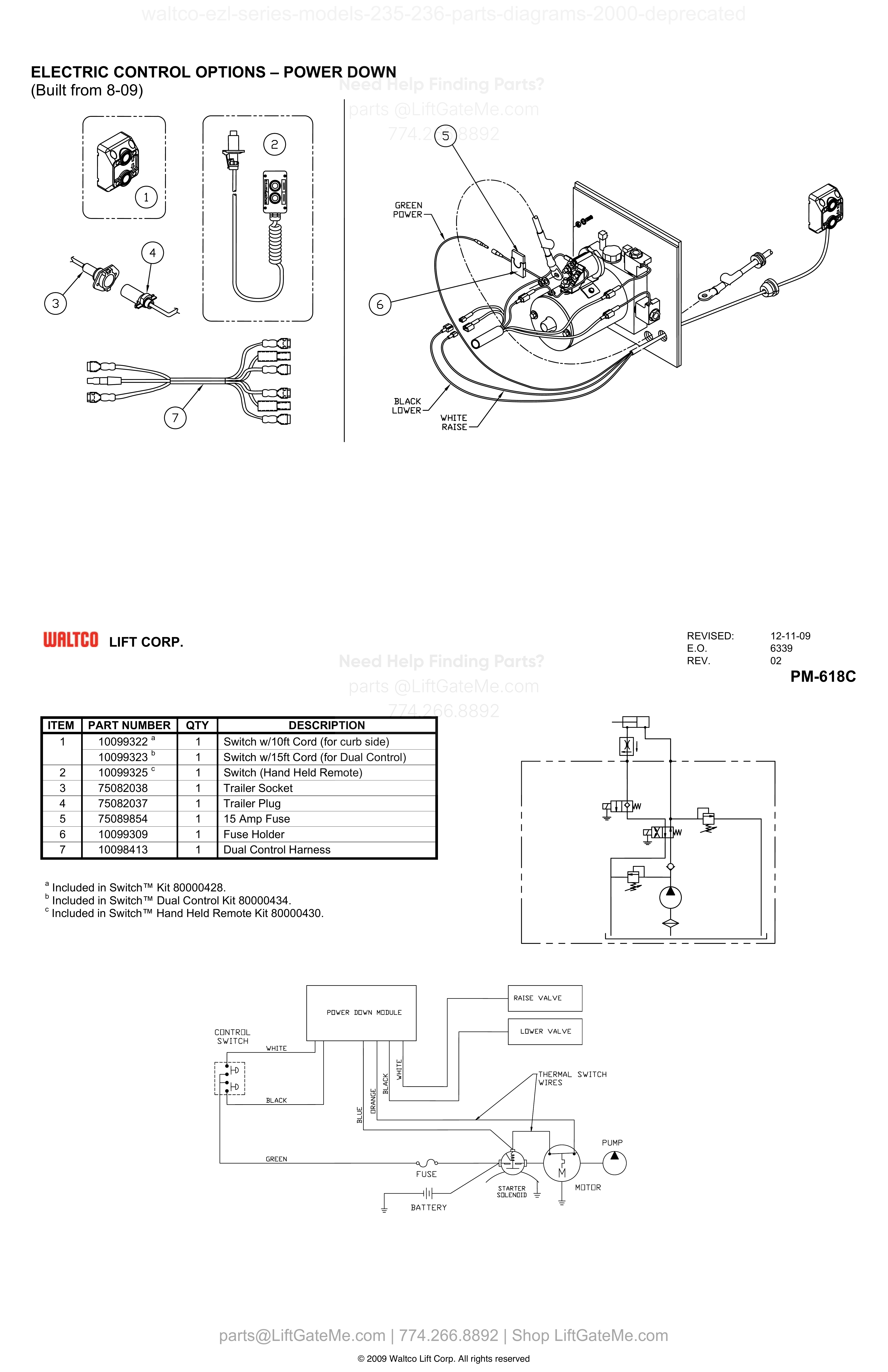

ELECTRIC CONTROL OPTIONS – POWER DOWN (Built from 8-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099322 A | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099323 B | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 10099325 C | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089854 | 15 Amp Fuse | |
| 6 | 1 | 10099309 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

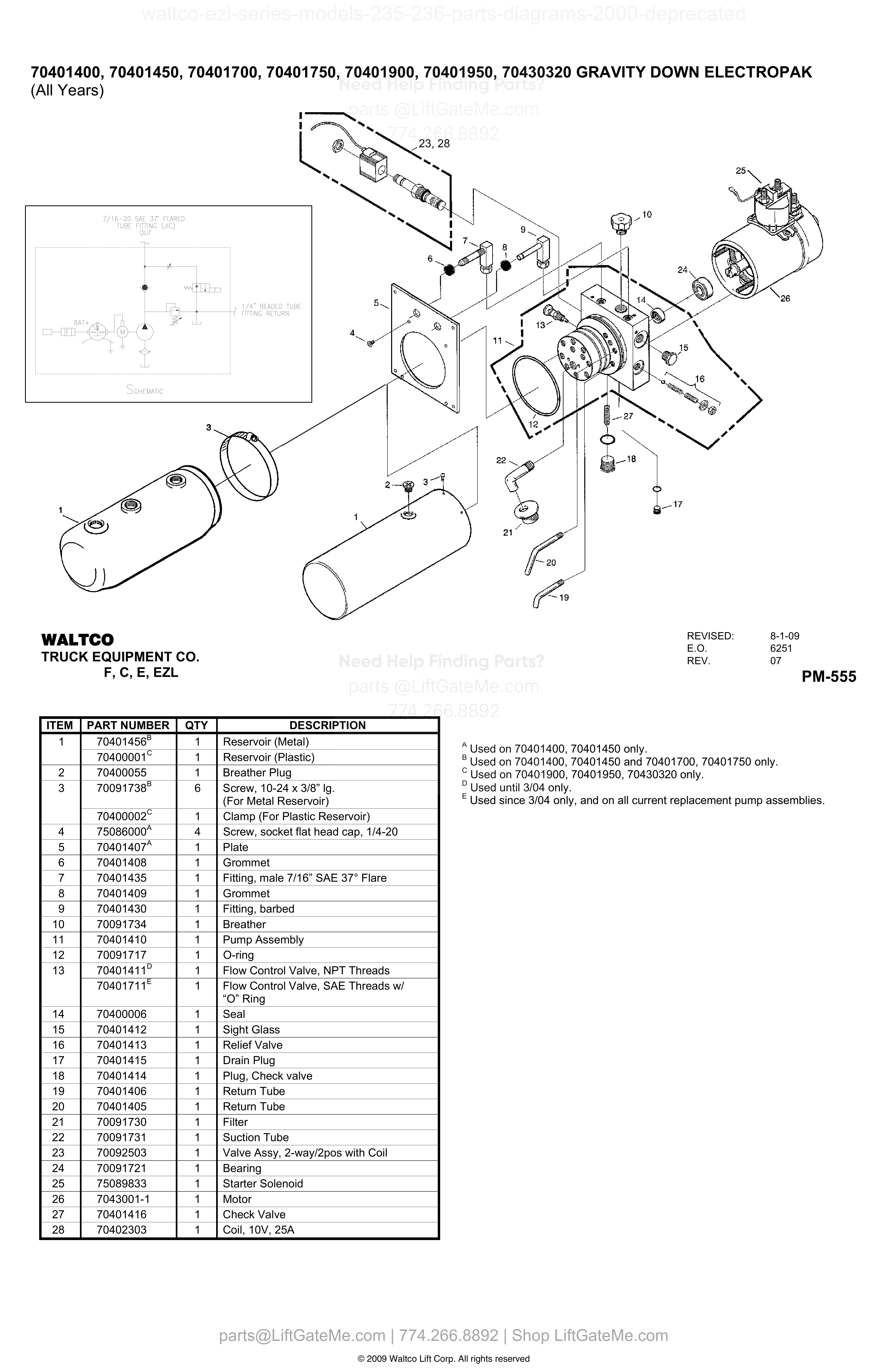

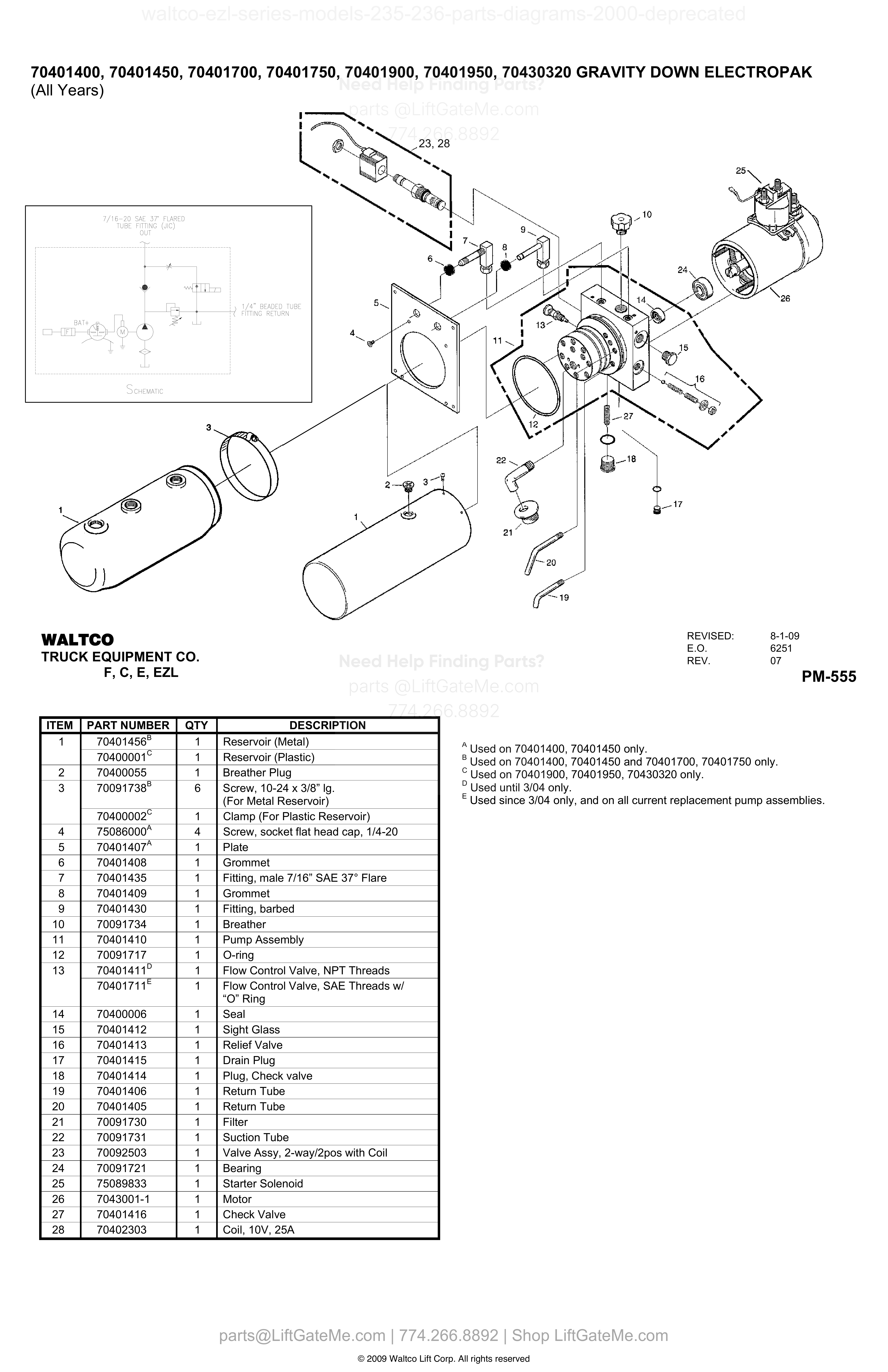

70401400, 70401450, 70401700, 70401750, 70401900, 70401950, 70430320 GRAVITY DOWN ELECTROPAK (All Years)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401456 B | Reservoir (Metal) | |
| 1 | 1 | 70400001 C | Reservoir (Plastic) | |
| 2 | 1 | 70400055 | Breather Plug | |
| 3 | 6 | 70091738 B | Screw, 10-24 x 3/8” lg. (For Metal Reservoir) | |
| 3 | 1 | 70400002 C | Clamp (For Plastic Reservoir) | |
| 4 | 4 | 75086000 A | Screw, socket flat head cap, 1/4-20 | |
| 5 | 1 | 70401407 A | Plate | |
| 6 | 1 | 70401408 | Grommet | |
| 7 | 1 | 70401435 | Fitting, male 7/16” SAE 37° Flare | |
| 8 | 1 | 70401409 | Grommet | |
| 9 | 1 | 70401430 | Fitting, barbed | |
| 10 | 1 | 70091734 | Breather | |
| 11 | 1 | 70401410 | Pump Assembly | |
| 12 | 1 | 70091717 | O-ring | |
| 13 | 1 | 70401411 D | Flow Control Valve, NPT Threads | |
| 13 | 1 | 70401711 E | Flow Control Valve, SAE Threads w/ “O” Ring | |
| 14 | 1 | 70400006 | Seal | |
| 15 | 1 | 70401412 | Sight Glass | |
| 16 | 1 | 70401413 | Relief Valve | |
| 17 | 1 | 70401415 | Drain Plug | |
| 18 | 1 | 70401414 | Plug, Check valve | |
| 19 | 1 | 70401406 | Return Tube | |
| 20 | 1 | 70401405 | Return Tube | |
| 21 | 1 | 70091730 | Filter | |
| 22 | 1 | 70091731 | Suction Tube | |
| 23 | 1 | 70092503 | Valve Assy, 2-way/2pos with Coil | |
| 24 | 1 | 70091721 | Bearing | |
| 25 | 1 | 75089833 | Starter Solenoid | |
| 26 | 1 | 7043001-1 | Motor | |
| 27 | 1 | 70401416 | Check Valve | |
| 28 | 1 | 70402303 | Coil, 10V, 25A |

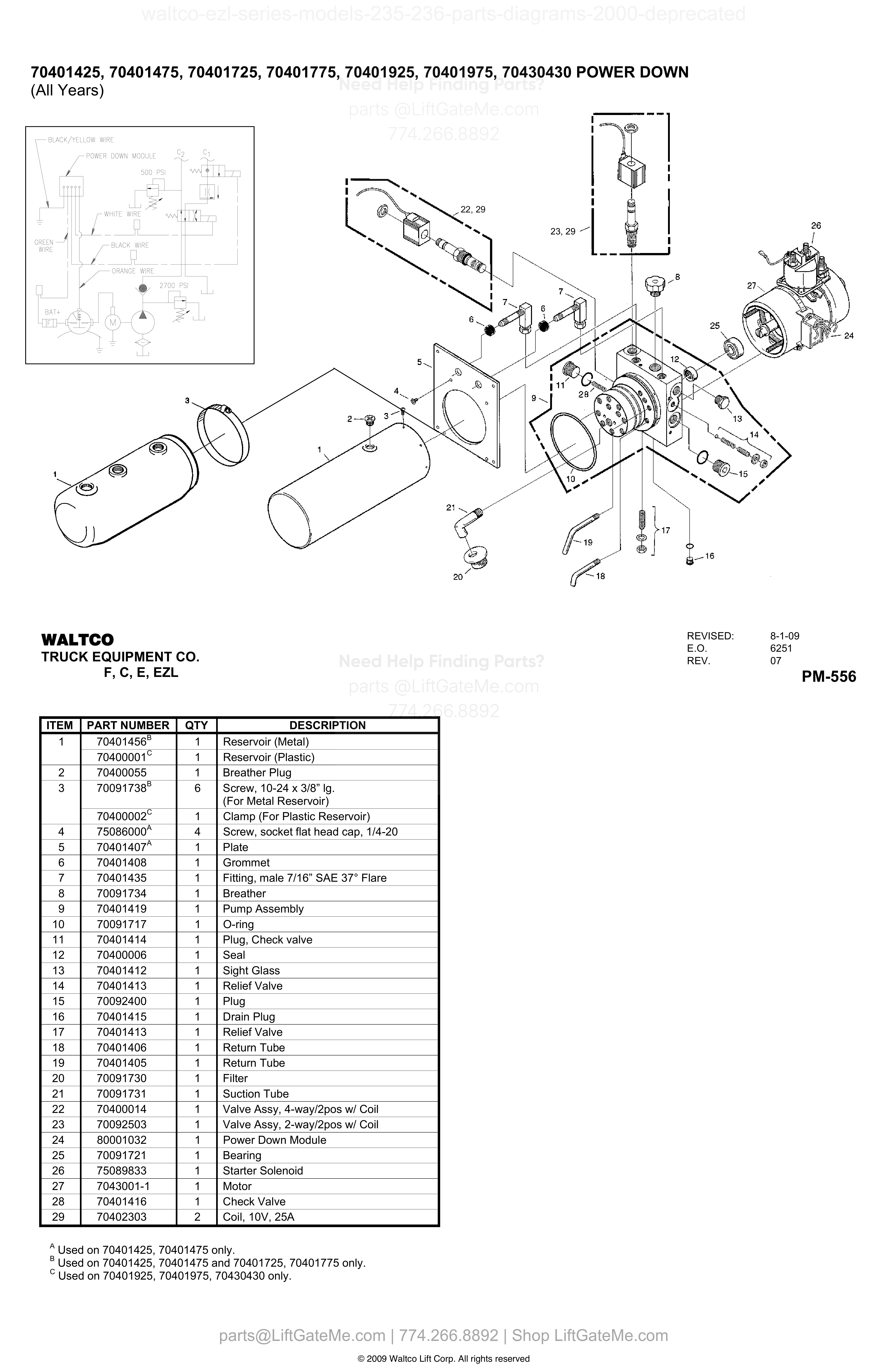

70401425, 70401475, 70401725, 70401775, 70401925, 70401975, 70430430 POWER DOWN
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70401456 B | Reservoir (Metal) | |
| 1 | 1 | 70400001 C | Reservoir (Plastic) | |
| 2 | 1 | 70400055 | Breather Plug | |
| 3 | 6 | 70091738 B | Screw, 10-24 x 3/8” lg. (For Metal Reservoir) | |
| 3 | 1 | 70400002 C | Clamp (For Plastic Reservoir) | |
| 4 | 4 | 75086000 A | Screw, socket flat head cap, 1/4-20 | |
| 5 | 1 | 70401407 A | Plate | |
| 6 | 1 | 70401408 | Grommet | |
| 7 | 1 | 70401435 | Fitting, male 7/16” SAE 37° Flare | |
| 8 | 1 | 70091734 | Breather | |
| 9 | 1 | 70401419 | Pump Assembly | |
| 10 | 1 | 70091717 | O-ring | |
| 11 | 1 | 70401414 | Plug, Check valve | |
| 12 | 1 | 70400006 | Seal | |
| 13 | 1 | 70401412 | Sight Glass | |
| 14 | 1 | 70401413 | Relief Valve | |
| 15 | 1 | 70092400 | Plug | |
| 16 | 1 | 70401415 | Drain Plug | |
| 17 | 1 | 70401413 | Relief Valve | |
| 18 | 1 | 70401406 | Return Tube | |
| 19 | 1 | 70401405 | Return Tube | |
| 20 | 1 | 70091730 | Filter | |
| 21 | 1 | 70091731 | Suction Tube | |
| 22 | 1 | 70400014 | Valve Assy, 4-way/2pos w/ Coil | |
| 23 | 1 | 70092503 | Valve Assy, 2-way/2pos w/ Coil | |
| 24 | 1 | 80001032 | Power Down Module | |
| 25 | 1 | 70091721 | Bearing | |
| 26 | 1 | 75089833 | Starter Solenoid | |
| 27 | 1 | 7043001-1 | Motor | |
| 28 | 1 | 70401416 | Check Valve | |
| 29 | 2 | 70402303 | Coil, 10V, 25A |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

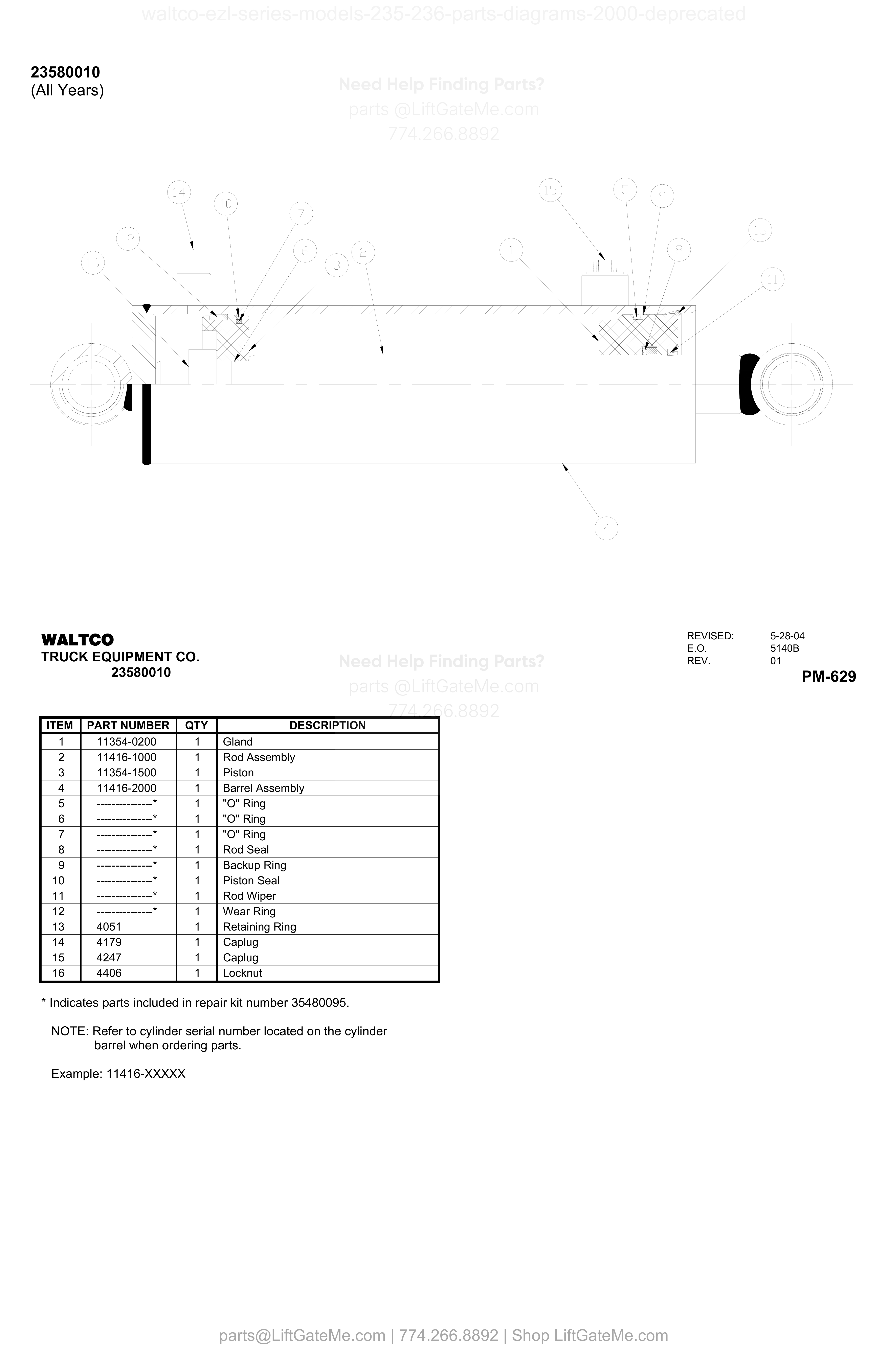

23580010
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 11354-0200 | Gland | |
| 2 | 1 | 11416-1000 | Rod Assembly | |
| 3 | 1 | 11354-1500 | Piston | |
| 4 | 1 | 11416-2000 | Barrel Assembly | |
| 5 | 1 | ---------------* | "O" Ring | |
| 6 | 1 | ---------------* | "O" Ring | |
| 7 | 1 | ---------------* | "O" Ring | |
| 8 | 1 | ---------------* | Rod Seal | |
| 9 | 1 | ---------------* | Backup Ring | |
| 10 | 1 | ---------------* | Piston Seal | |
| 11 | 1 | ---------------* | Rod Wiper | |
| 12 | 1 | ---------------* | Wear Ring | |
| 13 | 1 | 4051 | Retaining Ring | |
| 14 | 1 | 4179 | Caplug | |
| 15 | 1 | 4247 | Caplug | |
| 16 | 1 | 4406 | Locknut |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
