Maxon GPC 22 X1 Series 10-11 Liftgate Parts Diagrams
Maxon GPC 22 X1 Series 10-11 Cantilever parts diagrams for 2015
Browse Maxon GPC 22 X1 Series 10-11 OEM liftgate parts diagrams covering 2015 cantilever models. Use the callouts and tables to locate components before servicing or repairing your liftgate.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

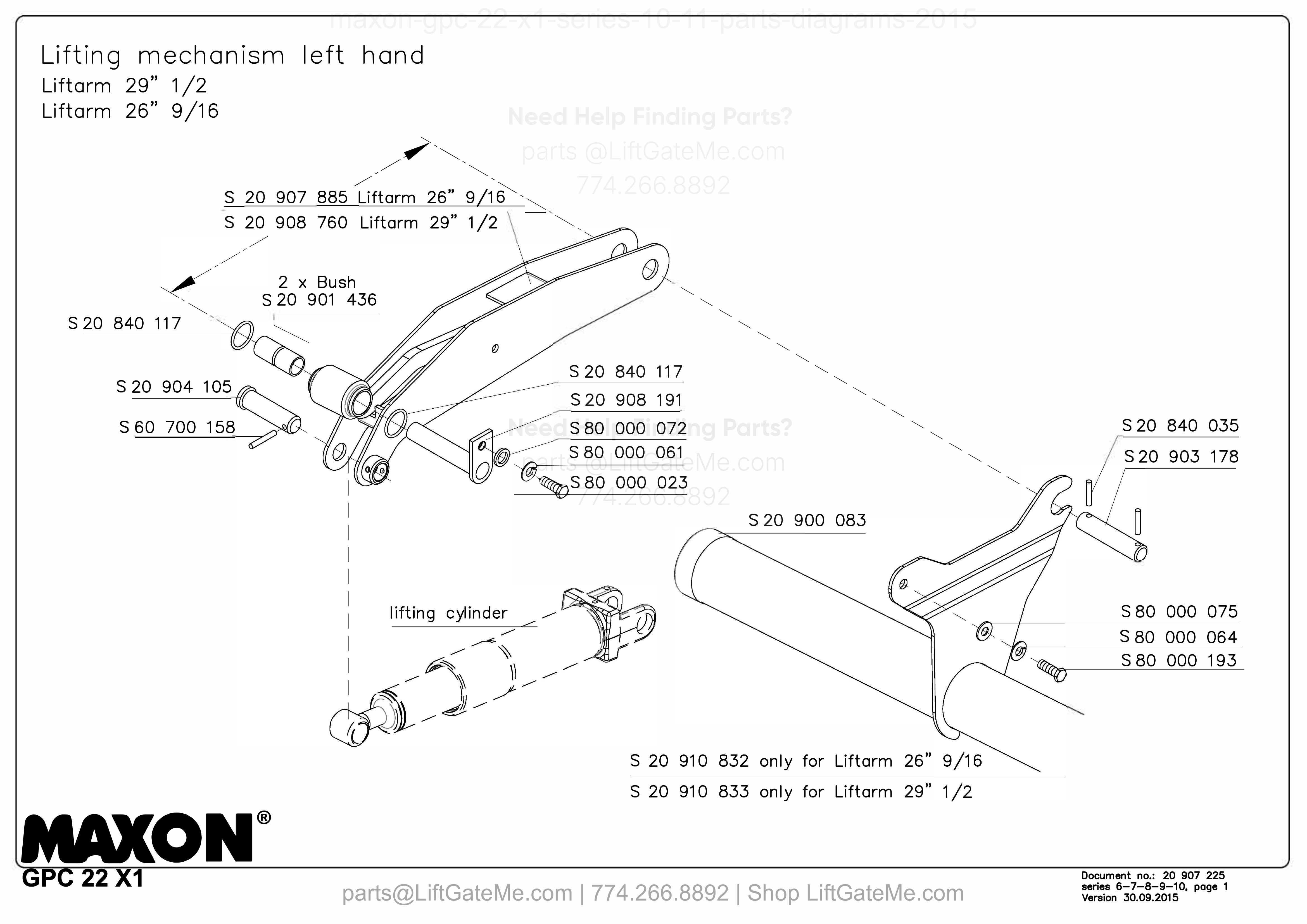

Lifting mechanism left hand
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 885 | Lifting mechanism left hand — Liftarm 26” 9/16 | |
| — | - | S 20 908 760 | Lifting mechanism left hand — Liftarm 29” 1/2 | |
| — | 2 x | S 20 901 436 | Lifting mechanism left hand — Bush | |
| — | - | S 20 840 117 | Lifting mechanism left hand — part | |
| — | - | S 20 904 105 | Lifting mechanism left hand — part | |
| — | - | S 60 700 158 | Lifting mechanism left hand — part | |
| — | - | S 20 908 191 | Lifting mechanism left hand — part | |
| — | - | S 80 000 072 | Lifting mechanism left hand — part | |
| — | - | S 80 000 061 | Lifting mechanism left hand — part | |
| — | - | S 80 000 023 | Lifting mechanism left hand — part | |
| — | - | S 20 900 083 | Lifting mechanism left hand — lifting cylinder | |
| — | - | S 20 840 035 | Lifting mechanism left hand — part | |
| — | - | S 20 903 178 | Lifting mechanism left hand — part | |
| — | - | S 80 000 075 | Lifting mechanism left hand — part | |
| — | - | S 80 000 064 | Lifting mechanism left hand — part | |
| — | - | S 80 000 193 | Lifting mechanism left hand — part | |
| — | - | S 20 910 832 | Lifting mechanism left hand — only for Liftarm 26” 9/16 | |
| — | - | S 20 910 833 | Lifting mechanism left hand — only for Liftarm 29” 1/2 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

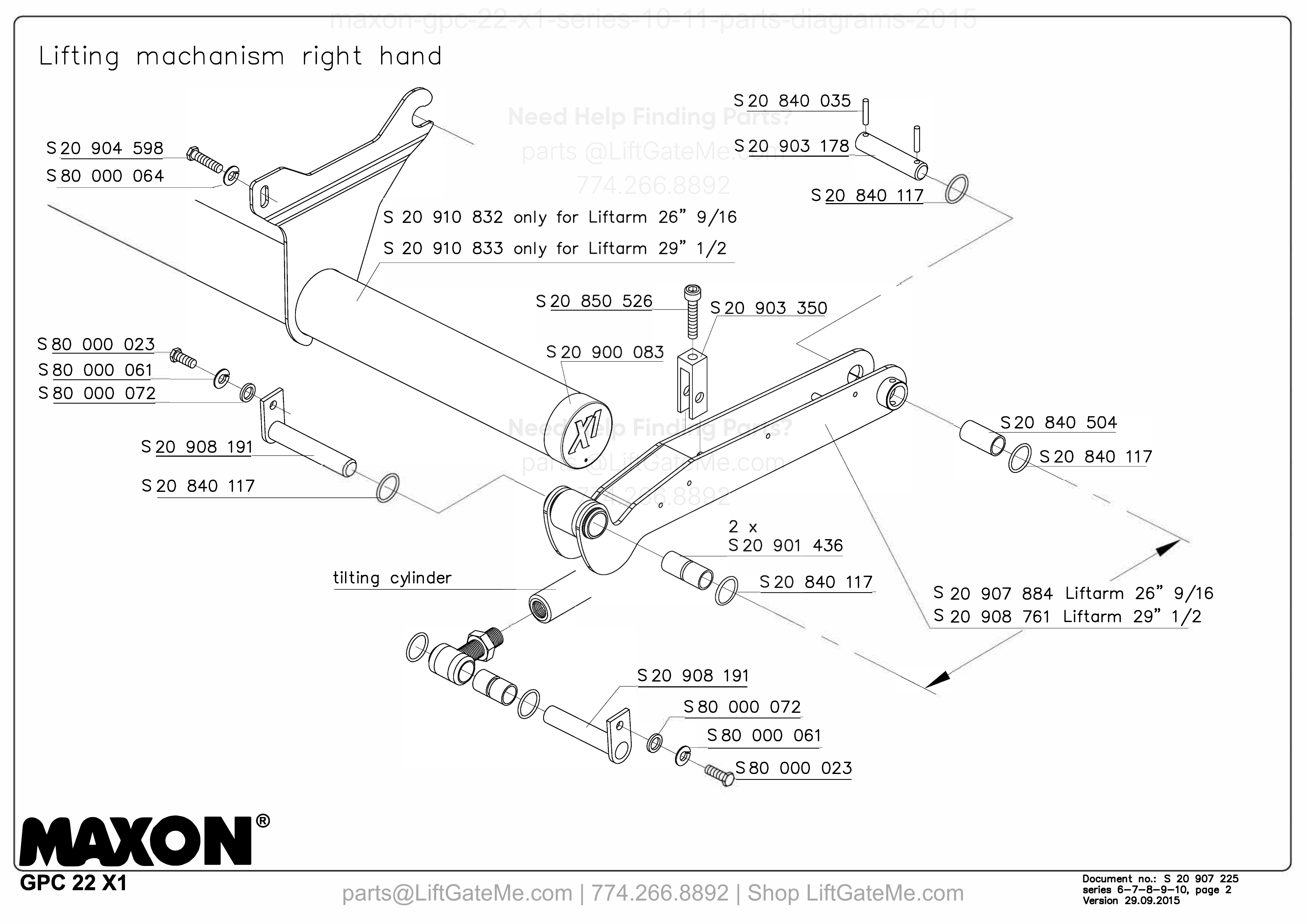

Lifting machanism right hand
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 904 598 | Lifting machanism right hand — part | |
| — | - | S 80 000 064 | Lifting machanism right hand — part | |
| — | - | S 20 910 832 | Lifting machanism right hand — only for Liftarm 26” 9/16 | |
| — | - | S 20 910 833 | Lifting machanism right hand — only for Liftarm 29” 1/2 | |
| — | - | S 20 850 526 | Lifting machanism right hand — part | |
| — | - | S 20 903 350 | Lifting machanism right hand — part | |
| — | - | S 20 900 083 | Lifting machanism right hand — part | |
| — | - | S 20 840 035 | Lifting machanism right hand — part | |
| — | - | S 20 903 178 | Lifting machanism right hand — part | |
| — | - | S 20 840 117 | Lifting machanism right hand — part | |
| — | - | S 20 840 504 | Lifting machanism right hand — part | |
| — | - | S 80 000 023 | Lifting machanism right hand — part | |
| — | - | S 80 000 061 | Lifting machanism right hand — part | |
| — | - | S 80 000 072 | Lifting machanism right hand — part | |
| — | - | S 20 908 191 | Lifting machanism right hand — part | |
| — | 2 x | S 20 901 436 | Lifting machanism right hand — Bush | |
| — | - | S 20 907 884 | Lifting machanism right hand — Liftarm 26” 9/16 | |
| — | - | S 20 908 761 | Lifting machanism right hand — Liftarm 29” 1/2 |

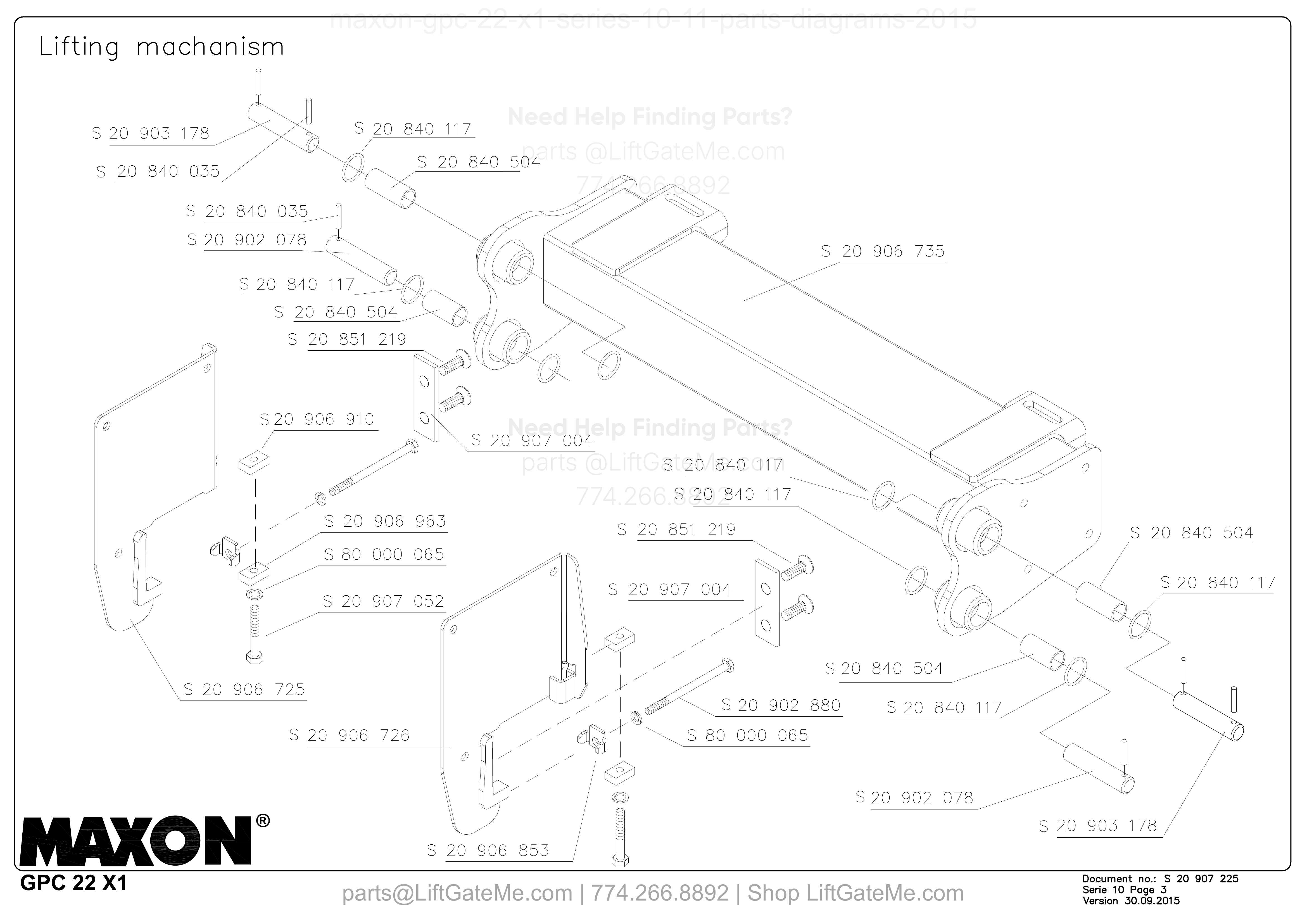

Lifting mechanism
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 903 178 | Lifting mechanism — part | |
| — | - | S 20 840 035 | Lifting mechanism — part | |
| — | - | S 20 840 117 | Lifting mechanism — part | |
| — | - | S 20 840 504 | Lifting mechanism — part | |
| — | - | S 20 902 078 | Lifting mechanism — part | |
| — | - | S 20 851 219 | Lifting mechanism — part | |
| — | - | S 20 906 735 | Lifting mechanism — part | |
| — | - | S 20 906 910 | Lifting mechanism — part | |
| — | - | S 20 907 004 | Lifting mechanism — part | |
| — | - | S 20 906 963 | Lifting mechanism — part | |
| — | - | S 80 000 065 | Lifting mechanism — part | |
| — | - | S 20 907 052 | Lifting mechanism — part | |
| — | - | S 20 906 725 | Lifting mechanism — part | |
| — | - | S 20 906 726 | Lifting mechanism — part | |
| — | - | S 20 906 853 | Lifting mechanism — part | |
| — | - | S 20 902 880 | Lifting mechanism — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

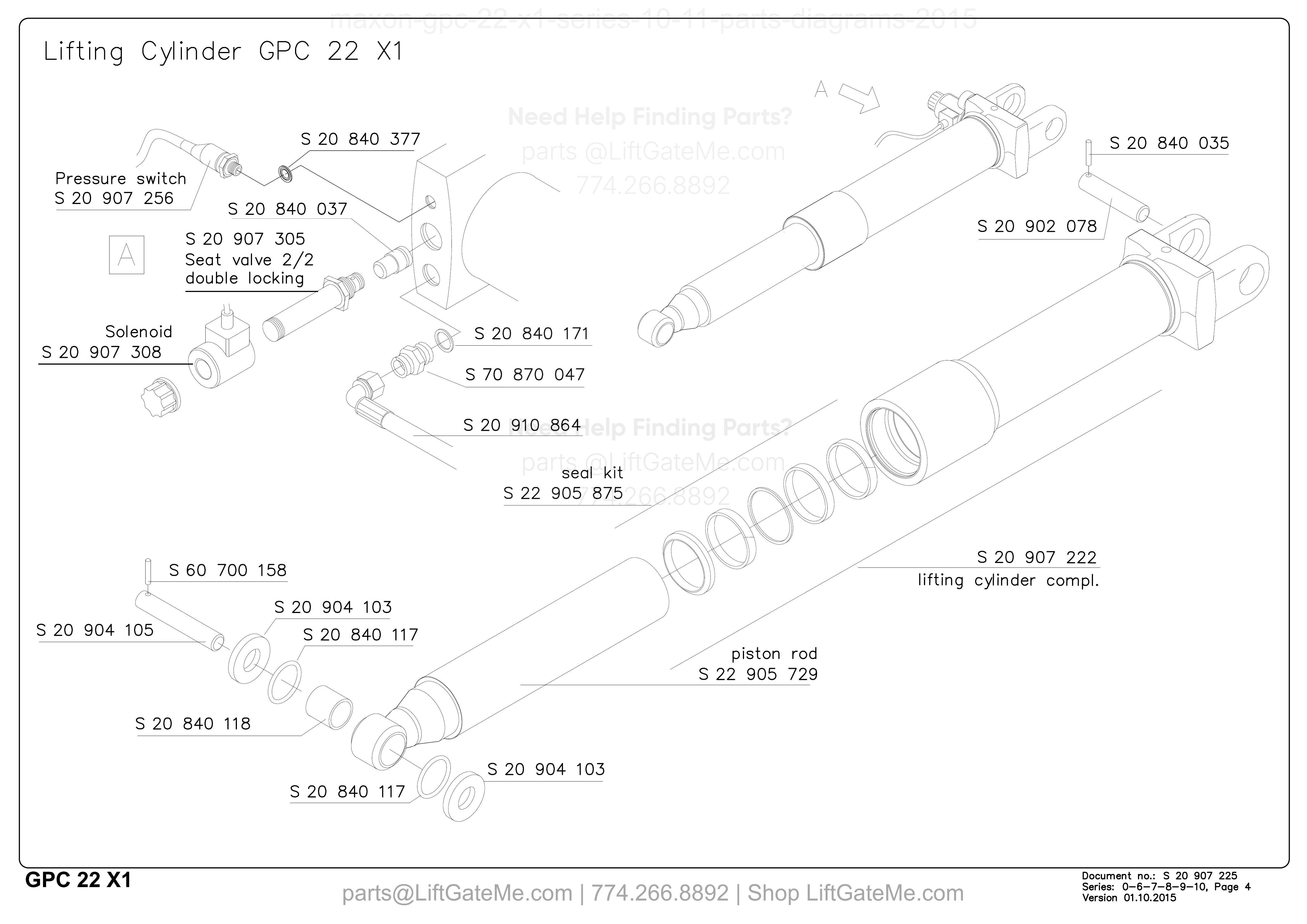

Lifting Cylinder GPC 22 X1
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 256 | Lifting Cylinder GPC 22 X1 — Pressure switch | |
| — | - | S 20 840 377 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 840 037 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 907 305 | Lifting Cylinder GPC 22 X1 — Seat valve 2/2 double locking | |
| — | - | S 20 907 308 | Lifting Cylinder GPC 22 X1 — Solenoid | |
| — | - | S 20 840 171 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 70 870 047 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 910 864 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 22 905 875 | Lifting Cylinder GPC 22 X1 — seal kit | |
| — | - | S 20 840 035 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 902 078 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 907 222 | Lifting Cylinder GPC 22 X1 — lifting cylinder compl. | |
| — | - | S 22 905 729 | Lifting Cylinder GPC 22 X1 — piston rod | |
| — | - | S 60 700 158 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 904 105 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 904 103 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 840 117 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 840 118 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 904 103 | Lifting Cylinder GPC 22 X1 — part | |
| — | - | S 20 840 117 | Lifting Cylinder GPC 22 X1 — part |

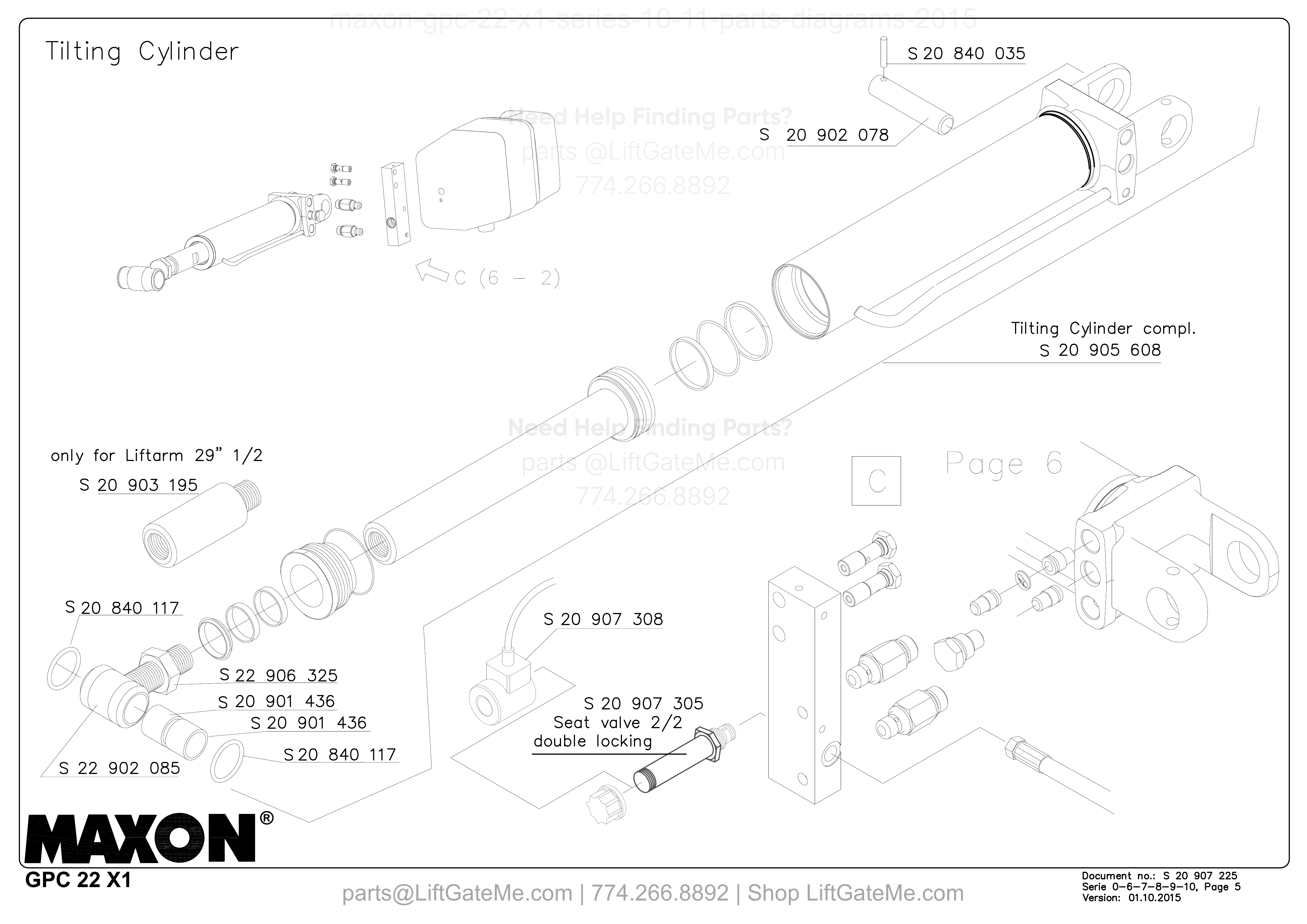

Tilting Cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 035 | Tilting Cylinder — part | |
| — | - | S 20 902 078 | Tilting Cylinder — part | |
| — | - | S 20 905 608 | Tilting Cylinder — Tilting Cylinder compl. | |
| — | - | S 20 903 195 | Tilting Cylinder — only for Liftarm 29” 1/2 | |
| — | - | S 20 840 117 | Tilting Cylinder — part | |
| — | - | S 22 906 325 | Tilting Cylinder — part | |
| — | - | S 20 901 436 | Tilting Cylinder — part | |
| — | - | S 20 901 436 | Tilting Cylinder — part | |
| — | - | S 20 840 117 | Tilting Cylinder — part | |
| — | - | S 22 902 085 | Tilting Cylinder — part | |
| — | - | S 20 907 308 | Tilting Cylinder — part | |
| — | - | S 20 907 305 | Tilting Cylinder — Seat valve 2/2 double locking |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

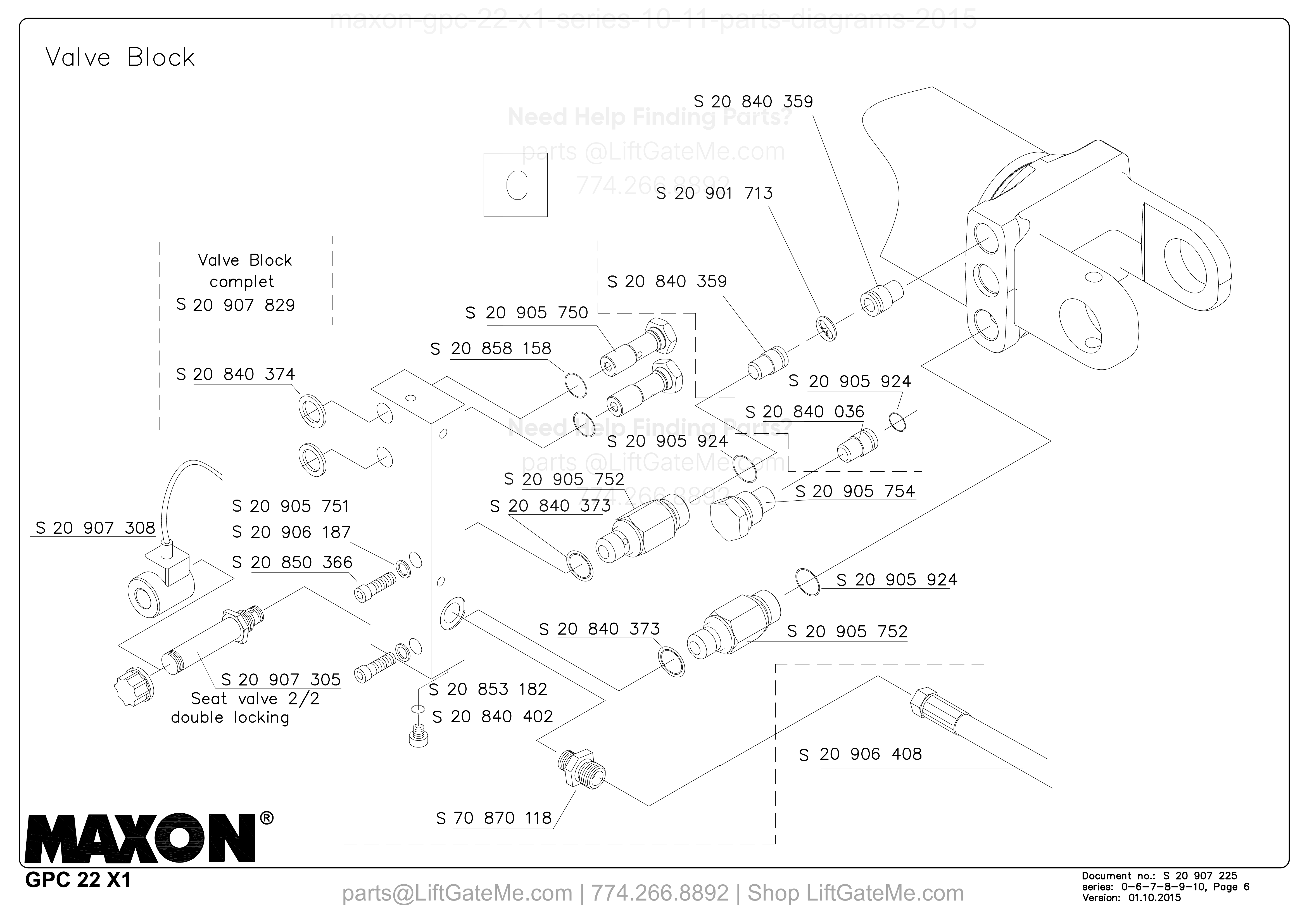

Valve Block
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 829 | Valve Block — Valve Block complet | |
| — | - | S 20 840 374 | Valve Block — part | |
| — | - | S 20 907 308 | Valve Block — part | |
| — | - | S 20 905 751 | Valve Block — part | |
| — | - | S 20 906 187 | Valve Block — part | |
| — | - | S 20 850 366 | Valve Block — part | |
| — | - | S 20 907 305 | Valve Block — Seat valve 2/2 double locking | |
| — | - | S 20 853 182 | Valve Block — part | |
| — | - | S 20 840 402 | Valve Block — part | |
| — | - | S 70 870 118 | Valve Block — part | |
| — | - | S 20 858 158 | Valve Block — part | |
| — | - | S 20 905 750 | Valve Block — part | |
| — | - | S 20 840 359 | Valve Block — part | |
| — | - | S 20 905 924 | Valve Block — part | |
| — | - | S 20 840 359 | Valve Block — part | |
| — | - | S 20 901 713 | Valve Block — part | |
| — | - | S 20 840 036 | Valve Block — part | |
| — | - | S 20 905 924 | Valve Block — part | |
| — | - | S 20 840 373 | Valve Block — part | |
| — | - | S 20 905 752 | Valve Block — part | |
| — | - | S 20 905 754 | Valve Block — part | |
| — | - | S 20 840 373 | Valve Block — part | |
| — | - | S 20 905 752 | Valve Block — part | |
| — | - | S 20 905 924 | Valve Block — part | |
| — | - | S 20 906 408 | Valve Block — part |

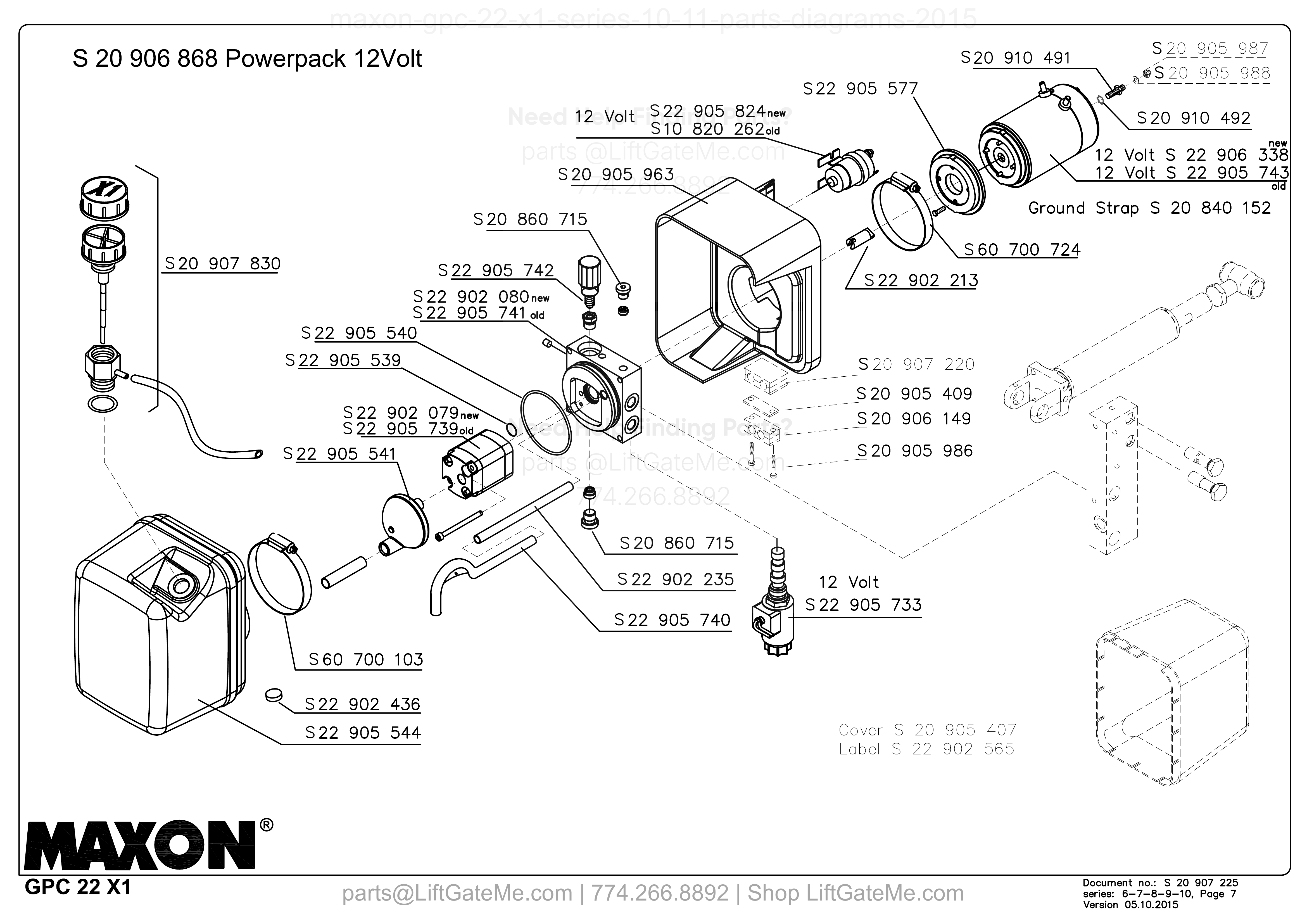

S 20 906 868 Powerpack 12Volt
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S20 907 830 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S 22 905 824 | S 20 906 868 Powerpack 12Volt — 12 Volt | |
| — | - | S10 820 262 | S 20 906 868 Powerpack 12Volt — 12 Volt | |
| — | - | S20 905 963 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S20 860 715 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 905 742 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 902 080 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 905 741 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 905 540 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 905 539 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 902 079 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 905 739 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 905 541 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S60 700 103 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 902 436 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 905 544 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S20 860 715 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 902 235 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 905 740 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 905 733 | S 20 906 868 Powerpack 12Volt — 12 Volt | |
| — | - | S22 905 577 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S60 700 724 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 902 213 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S20 910 491 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S20 905 987 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S20 905 988 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S20 910 492 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S22 906 338 | S 20 906 868 Powerpack 12Volt — 12 Volt | |
| — | - | S22 905 743 | S 20 906 868 Powerpack 12Volt — 12 Volt | |
| — | - | S20 840 152 | S 20 906 868 Powerpack 12Volt — Ground Strap | |
| — | - | S20 907 220 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S20 905 409 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S20 906 149 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S20 905 986 | S 20 906 868 Powerpack 12Volt — part | |
| — | - | S20 905 407 | S 20 906 868 Powerpack 12Volt — Cover | |
| — | - | S22 902 565 | S 20 906 868 Powerpack 12Volt — Label |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

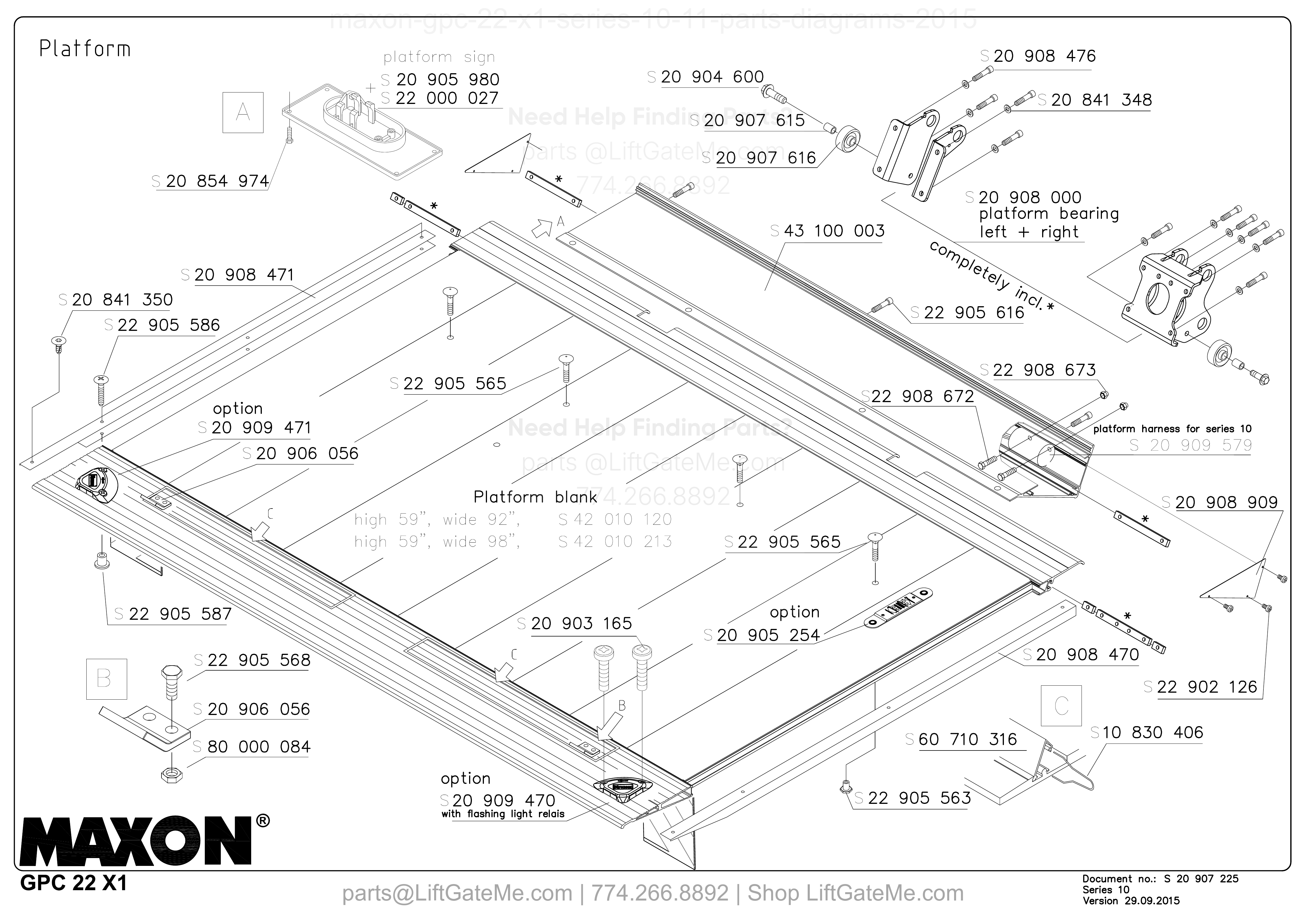

Platform
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 905 980 | Platform — platform sign | |
| — | - | S 22 000 027 | Platform — platform sign | |
| — | - | S 20 854 974 | Platform — part | |
| — | - | S 20 908 476 | Platform — part | |
| — | - | S 20 841 348 | Platform — part | |
| — | - | S 20 908 000 | Platform — platform bearing left + right | |
| — | - | S 20 904 600 | Platform — part | |
| — | - | S 20 907 615 | Platform — part | |
| — | - | S 20 907 616 | Platform — part | |
| — | - | S 22 905 616 | Platform — completely incl.* | |
| — | - | S 43 100 003 | Platform — part | |
| — | - | S 22 908 673 | Platform — part | |
| — | - | S 22 908 672 | Platform — part | |

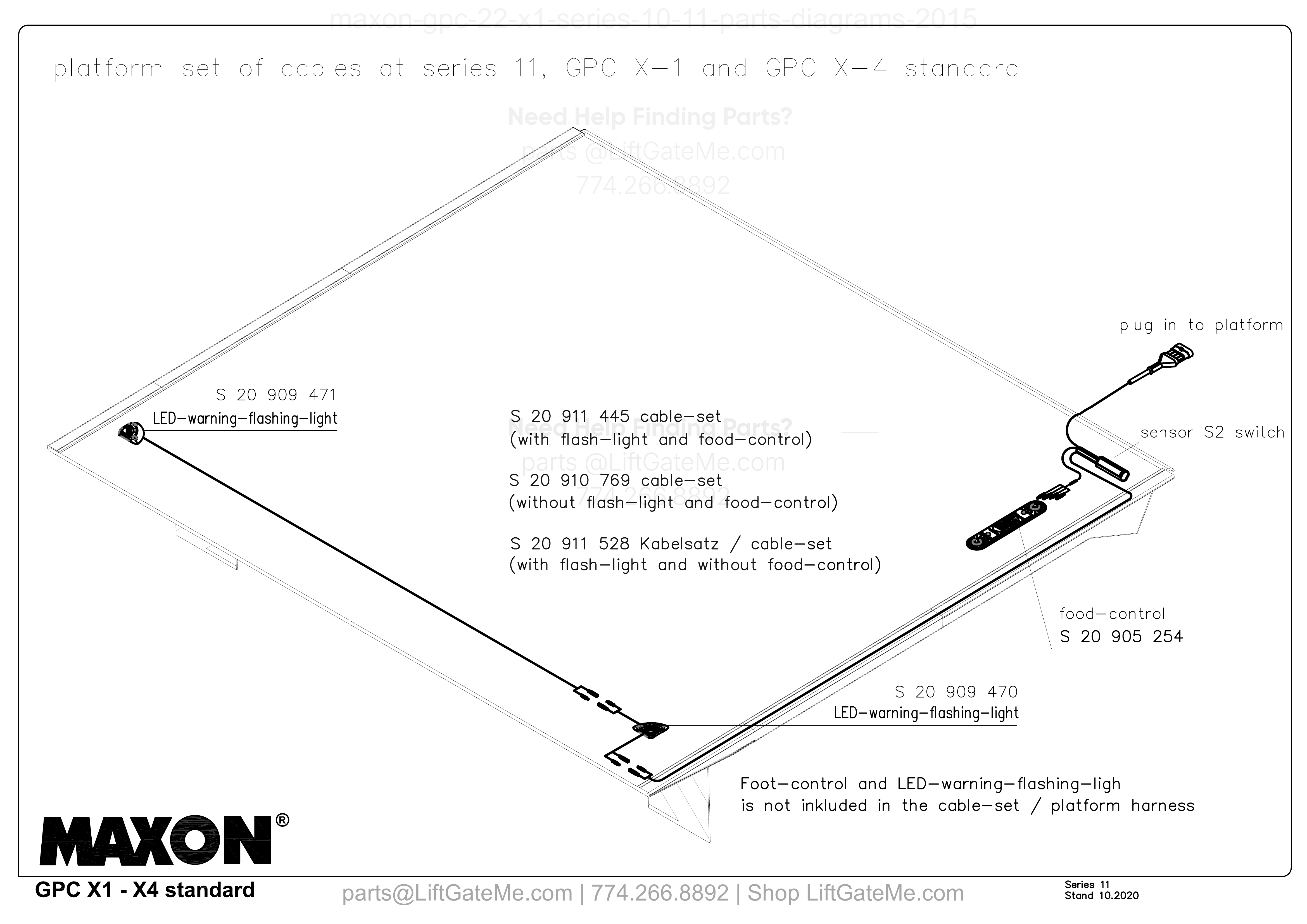

| — | - | S 20 909 579 | Platform — platform harness for series 10 | |
| — | - | S 20 908 909 | Platform — part | |
| — | - | S 22 902 126 | Platform — part | |
| — | - | S 10 830 406 | Platform — part | |
| — | - | S 60 710 316 | Platform — part | |
| — | - | S 22 905 563 | Platform — part | |
| — | - | S 20 908 470 | Platform — part | |
| — | - | S 20 909 470 | Platform — option with flashing light relais | |
| — | - | S 22 905 568 | Platform — part | |
| — | - | S 20 906 056 | Platform — part | |
| — | - | S 80 000 084 | Platform — part | |
| — | - | S 22 905 587 | Platform — part | |
| — | - | S 20 841 350 | Platform — part | |
| — | - | S 22 905 586 | Platform — part | |
| — | - | S 20 908 471 | Platform — part | |
| — | - | S 20 909 471 | Platform — option | |
| — | - | S 20 906 056 | Platform — part | |
| — | - | S 22 905 565 | Platform — part | |
| — | - | S 42 000 120 | Platform — Platform blank | |
| — | - | S 42 010 213 | Platform — Platform blank | |
| — | - | S 20 903 165 | Platform — part | |
| — | - | S 20 905 254 | Platform — option |

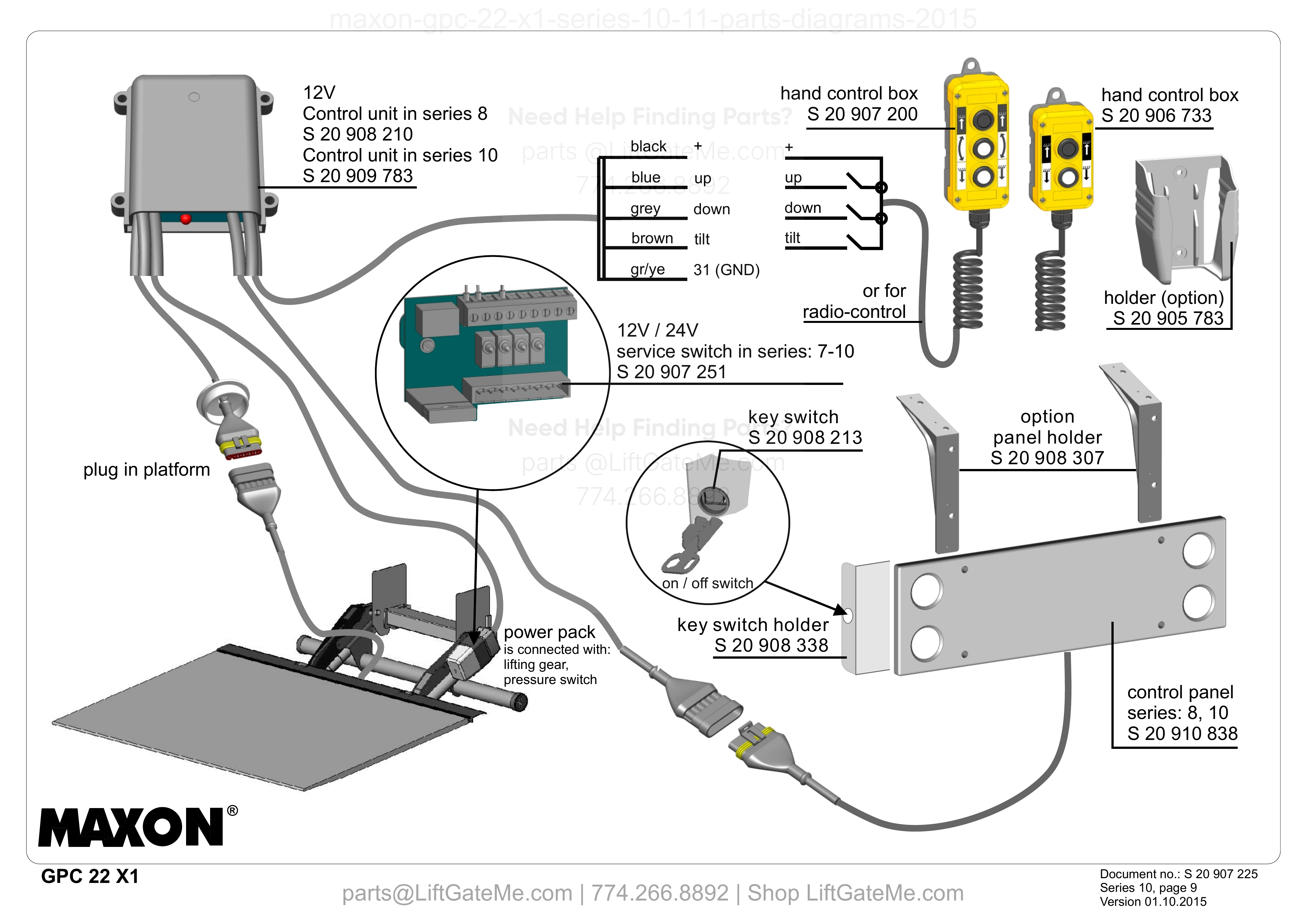

12V
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 908 210 | 12V — Control unit in series 8 | |
| — | - | S 20 909 783 | 12V — Control unit in series 10 | |
| — | - | S 20 907 200 | 12V — hand control box | |
| — | - | S 20 906 733 | 12V — hand control box | |
| — | - | S 20 905 783 | 12V — holder (option) | |
| — | - | S 20 907 251 | 12V — 12V / 24V service switch in series: 7-10 | |
| — | - | S 20 908 213 | 12V — key switch | |
| — | - | S 20 908 307 | 12V — option panel holder | |
| — | - | S 20 908 338 | 12V — key switch holder | |
| — | - | S 20 910 838 | 12V — control panel series: 8, 10 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

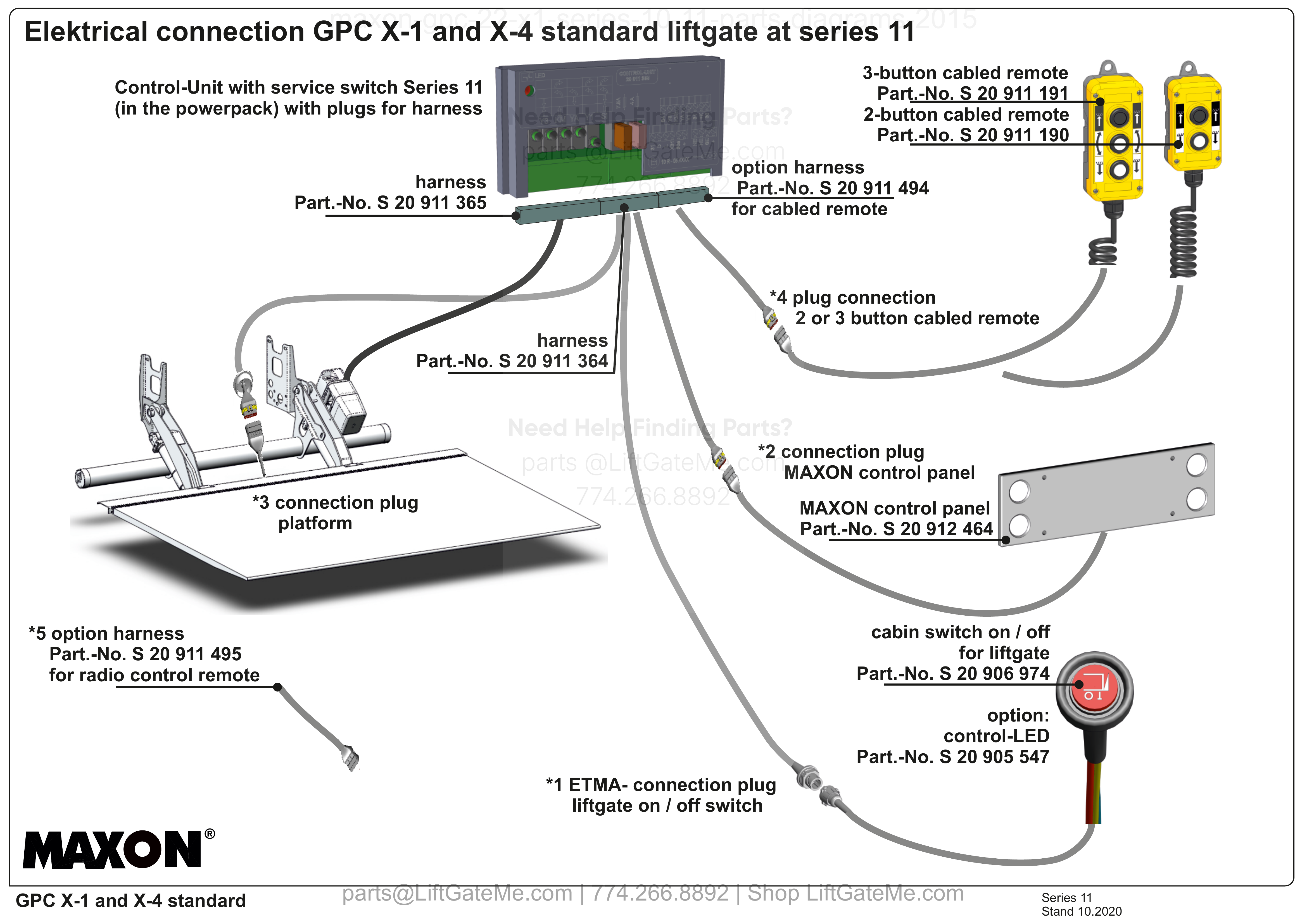

Electrical connection GPC X-1 and X-4 standard liftgate at series 11
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 911 365 | Electrical connection GPC X-1 and X-4 standard liftgate at series 11 — harness | |
| — | - | S 20 911 494 | Electrical connection GPC X-1 and X-4 standard liftgate at series 11 — option harness for cabled remote | |
| — | - | S 20 911 191 | Electrical connection GPC X-1 and X-4 standard liftgate at series 11 — 3-button cabled remote | |
| — | - | S 20 911 190 | Electrical connection GPC X-1 and X-4 standard liftgate at series 11 — 2-button cabled remote | |
| — | - | S 20 911 364 | Electrical connection GPC X-1 and X-4 standard liftgate at series 11 — harness | |
| — | - | S 20 912 464 | Electrical connection GPC X-1 and X-4 standard liftgate at series 11 — MAXON control panel | |
| — | - | S 20 911 495 | Electrical connection GPC X-1 and X-4 standard liftgate at series 11 — option harness for radio control remote | |
| — | - | S 20 906 974 | Electrical connection GPC X-1 and X-4 standard liftgate at series 11 — cabin switch on / off for liftgate | |
| — | - | S 20 905 547 | Electrical connection GPC X-1 and X-4 standard liftgate at series 11 — option: control-LED |
platform set of cables at series 11, GPC X-1 and GPC X-4 standard
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 909 471 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — LED-warning-flashing-light | |
| — | - | S 20 911 445 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — cable-set (with flash-light and food-control) | |
| — | - | S 20 910 769 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — cable-set (without flash-light and food-control) | |
| — | - | S 20 911 528 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — Kabelsatz / cable-set (with flash-light and without food-control) | |
| — | - | S 20 905 254 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — food-control | |
| — | - | S 20 909 470 | platform set of cables at series 11, GPC X-1 and GPC X-4 standard — LED-warning-flashing-light |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

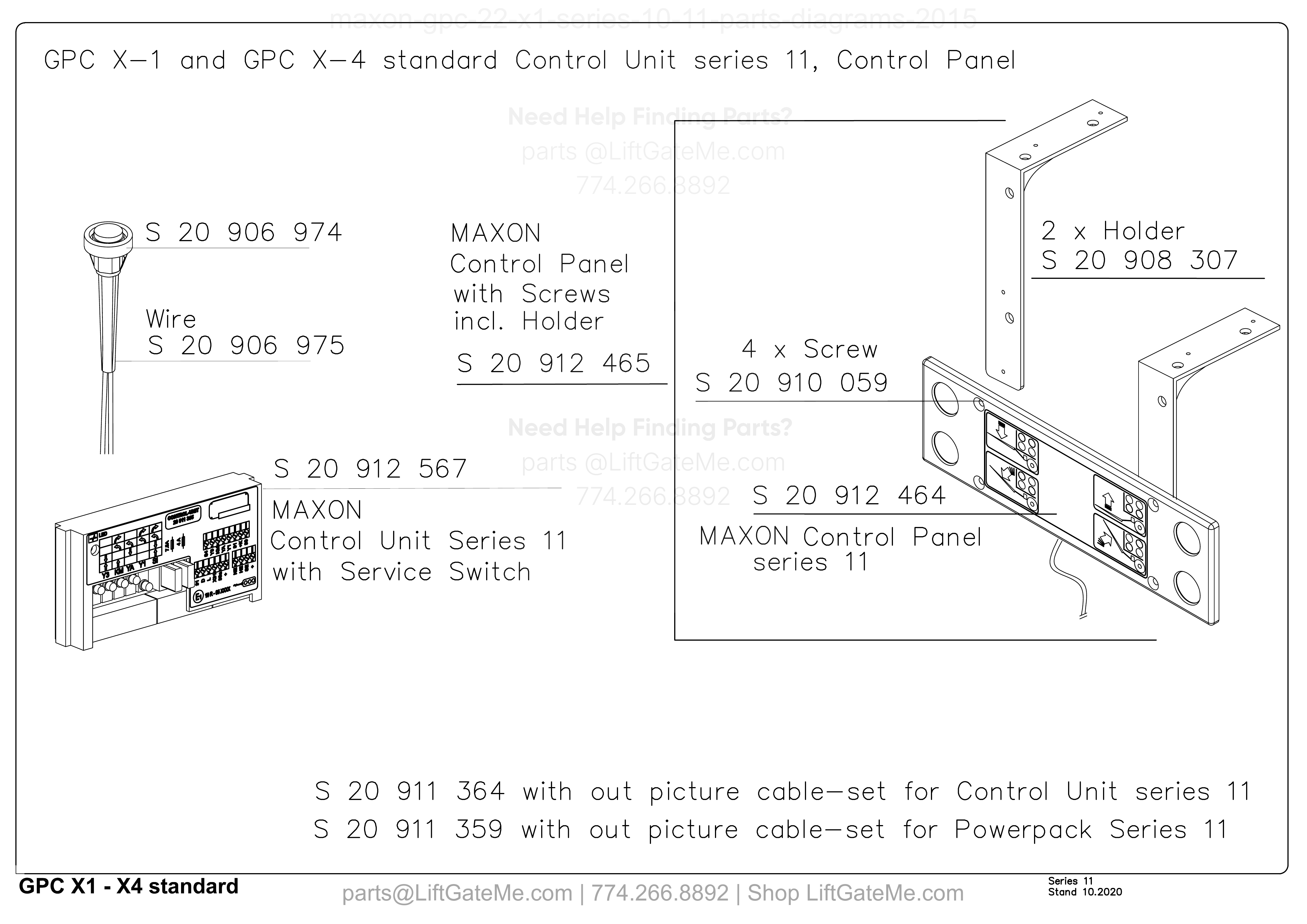

GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 906 974 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — part | |
| — | - | S 20 906 975 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — Wire | |
| — | - | S 20 912 465 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — MAXON Control Panel with Screws incl. Holder | |
| — | 4 x | S 20 910 059 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — Screw | |
| — | 2 x | S 20 908 307 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — Holder | |
| — | - | S 20 912 567 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — MAXON Control Unit Series 11 with Service Switch | |
| — | - | S 20 912 464 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — MAXON Control Panel series 11 | |
| — | - | S 20 911 364 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — with out picture cable-set for Control Unit series 11 | |
| — | - | S 20 911 359 | GPC X-1 and GPC X-4 standard Control Unit series 11, Control Panel — with out picture cable-set for Powerpack Series 11 |

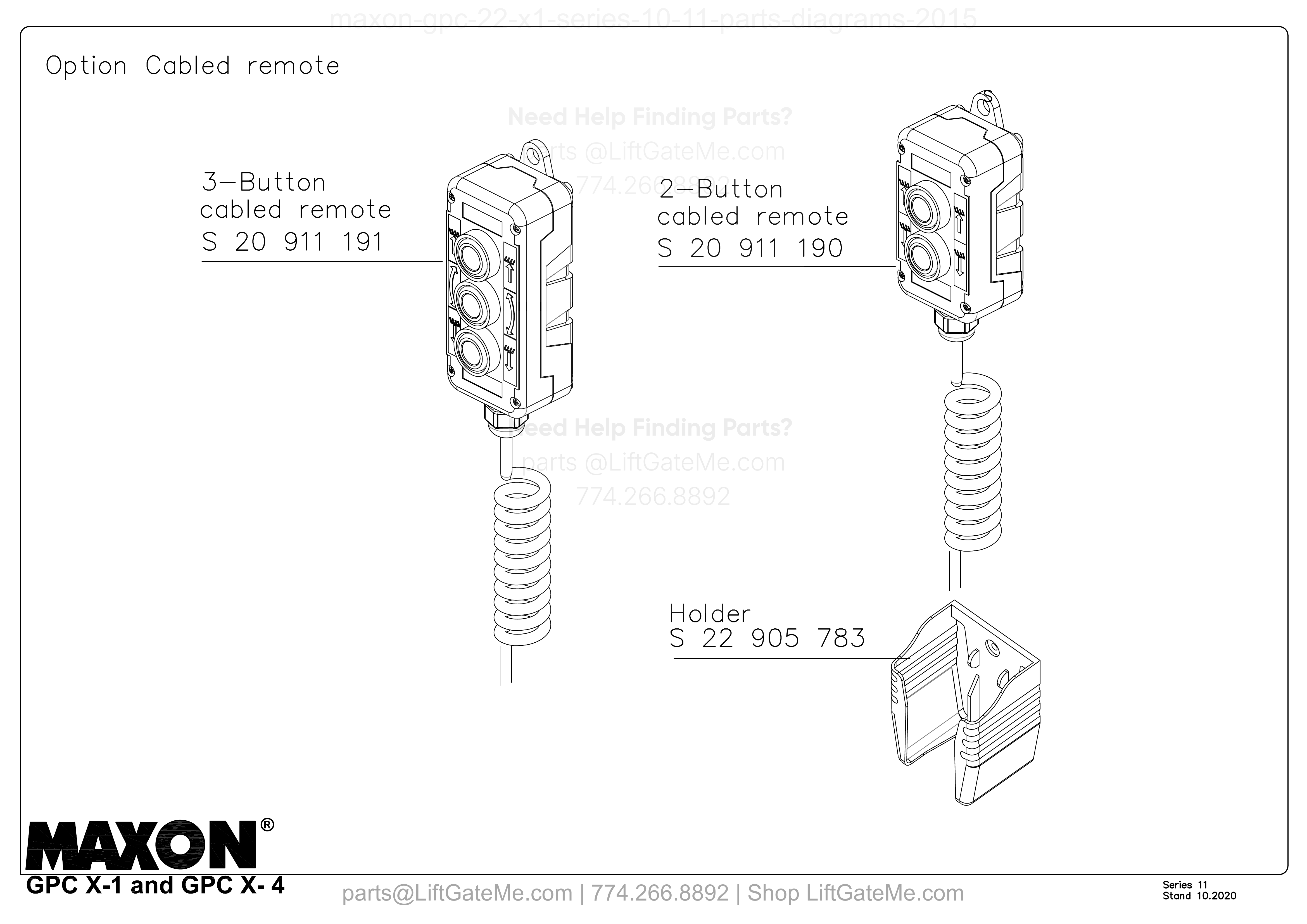

Option Cabled remote
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

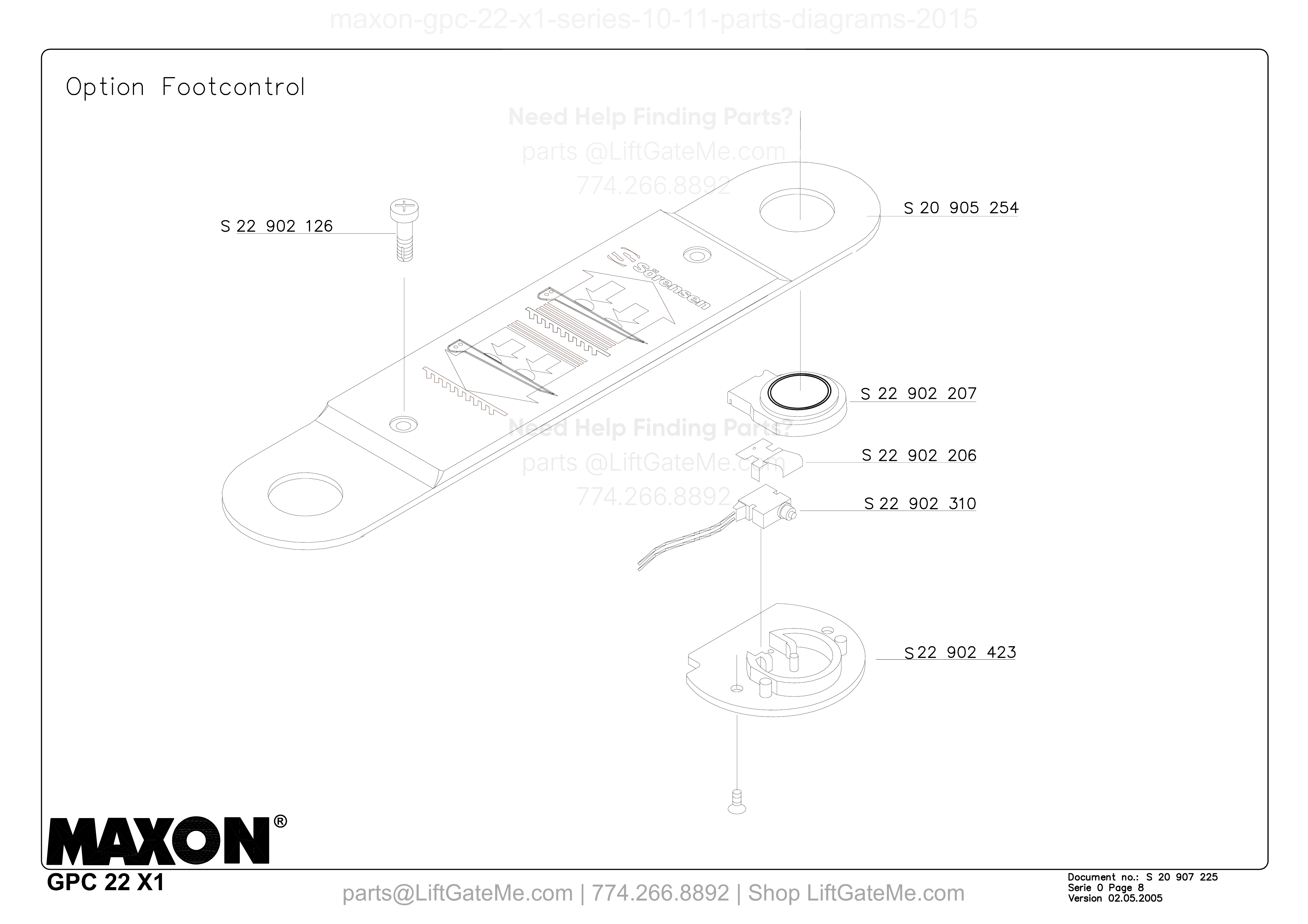

Option Footcontrol
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 22 902 126 | Option Footcontrol — part | |
| — | - | S 20 905 254 | Option Footcontrol — part | |
| — | - | S 22 902 207 | Option Footcontrol — part | |
| — | - | S 22 902 206 | Option Footcontrol — part | |
| — | - | S 22 902 310 | Option Footcontrol — part | |
| — | - | S 22 902 423 | Option Footcontrol — part |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
