Maxon GPC 33 X1 Liftgate Parts Diagrams
Maxon GPC 33 X1 Cantilever parts diagrams for 2010
Browse Maxon GPC 33 X1 OEM liftgate parts diagrams covering 2010 cantilever models. Use the callouts and tables to locate components before servicing or repairing your liftgate.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

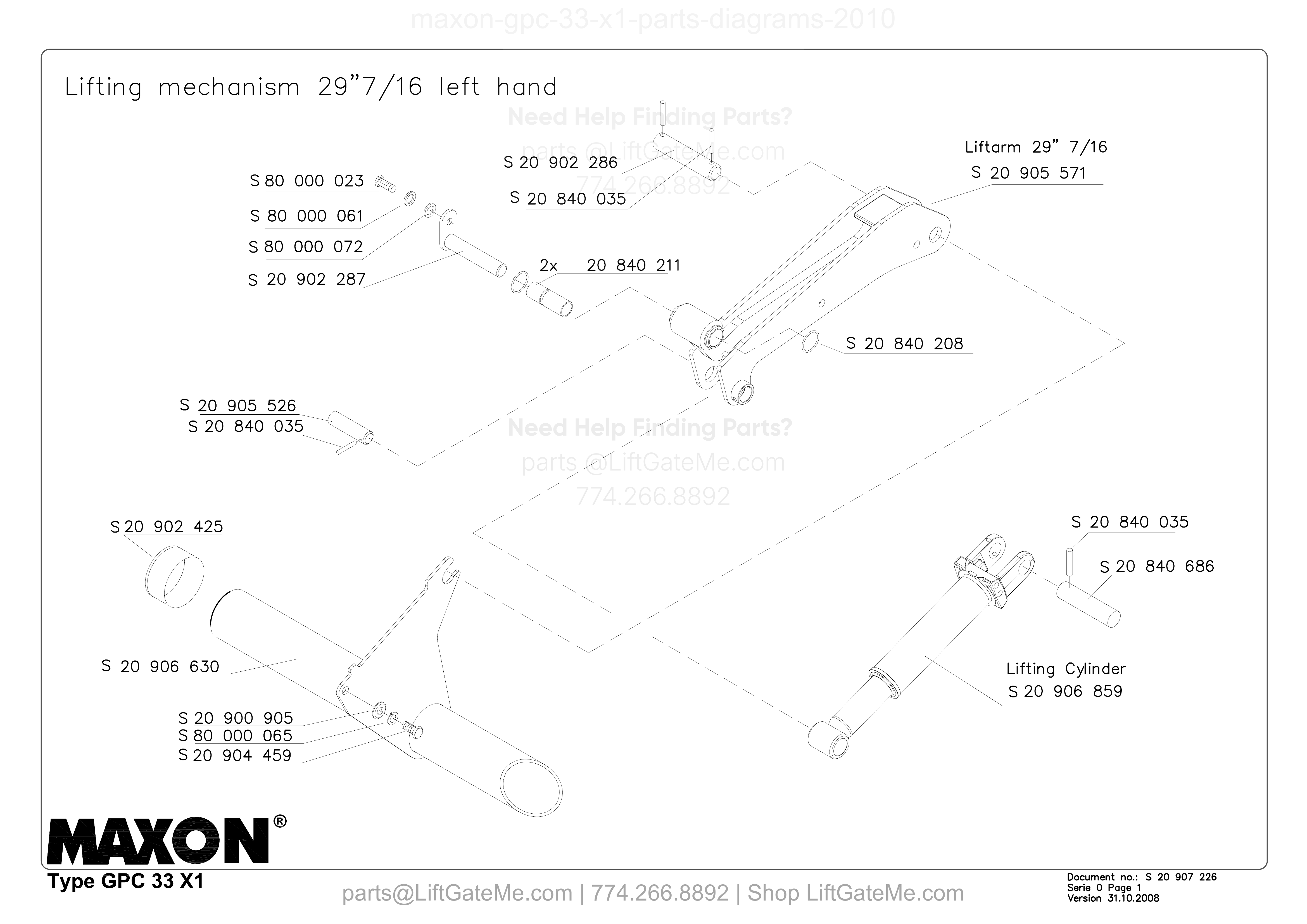

Lifting mechanism 29”7/16 left hand
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 023 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 80 000 061 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 80 000 072 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 20 902 287 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 20 902 286 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 20 840 035 | Lifting mechanism 29”7/16 left hand — part | |
| — | 2x | 20 840 211 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 20 905 571 | Lifting mechanism 29”7/16 left hand — Liftarm 29” 7/16 | |
| — | - | S 20 840 208 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 20 905 526 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 20 902 425 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 20 906 630 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 20 900 905 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 80 000 065 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 20 904 459 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 20 840 686 | Lifting mechanism 29”7/16 left hand — part | |
| — | - | S 20 906 859 | Lifting mechanism 29”7/16 left hand — Lifting Cylinder |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

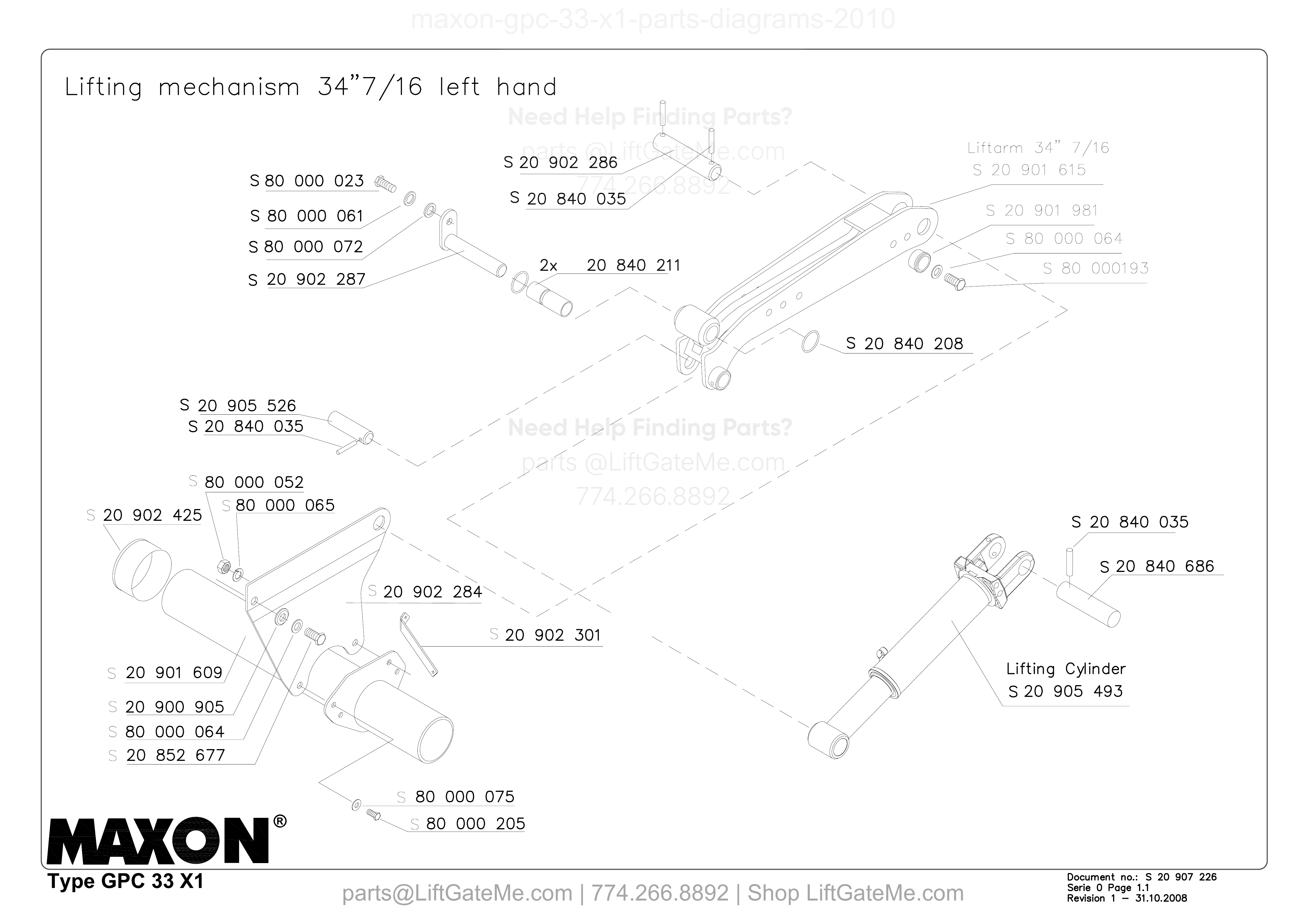

Lifting mechanism 34”7/16 left hand
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 023 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 80 000 061 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 80 000 072 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 902 287 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 902 286 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 840 035 | Lifting mechanism 34”7/16 left hand — part | |
| — | 2x | 20 840 211 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 840 208 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 905 526 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 80 000 052 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 80 000 065 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 902 425 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 901 609 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 900 905 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 80 000 064 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 852 677 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 902 284 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 902 301 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 80 000 075 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 80 000 205 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 901 615 | Lifting mechanism 34”7/16 left hand — Liftarm 34” 7/16 | |
| — | - | S 20 901 981 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 80 000 193 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 840 686 | Lifting mechanism 34”7/16 left hand — part | |
| — | - | S 20 905 493 | Lifting mechanism 34”7/16 left hand — Lifting Cylinder |

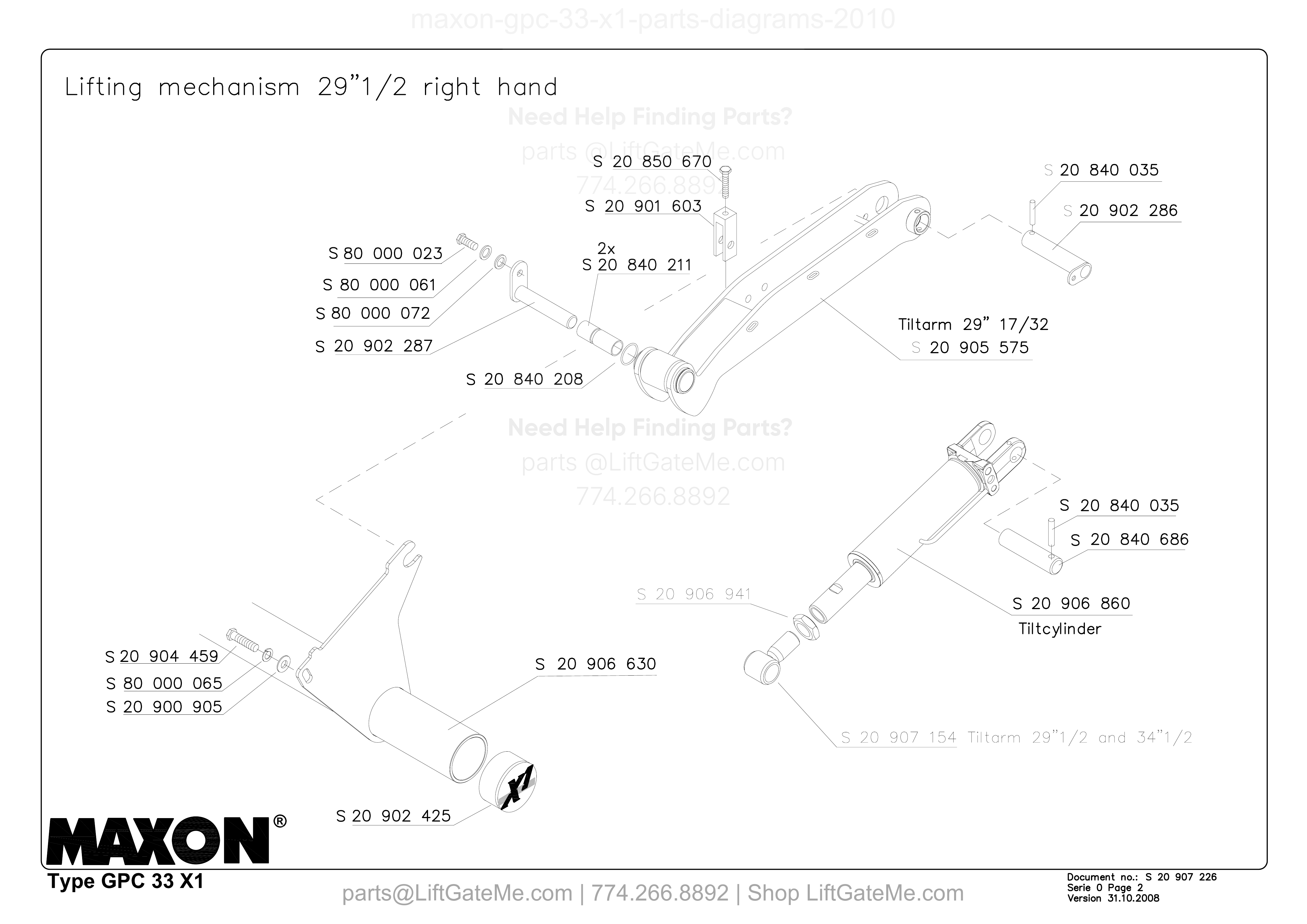

Lifting mechanism 29”1/2 right hand
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 023 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 80 000 061 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 80 000 072 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 902 287 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 850 670 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 901 603 | Lifting mechanism 29”1/2 right hand — part | |
| — | 2x | S 20 840 211 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 840 208 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 840 035 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 902 286 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 905 575 | Lifting mechanism 29”1/2 right hand — Tiltarm 29” 17/32 | |
| — | - | S 20 904 459 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 80 000 065 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 900 905 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 906 630 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 902 425 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 840 686 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 906 860 | Lifting mechanism 29”1/2 right hand — Tiltcylinder | |
| — | - | S 20 906 941 | Lifting mechanism 29”1/2 right hand — part | |
| — | - | S 20 907 154 | Lifting mechanism 29”1/2 right hand — Tiltarm 29”1/2 and 34”1/2 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

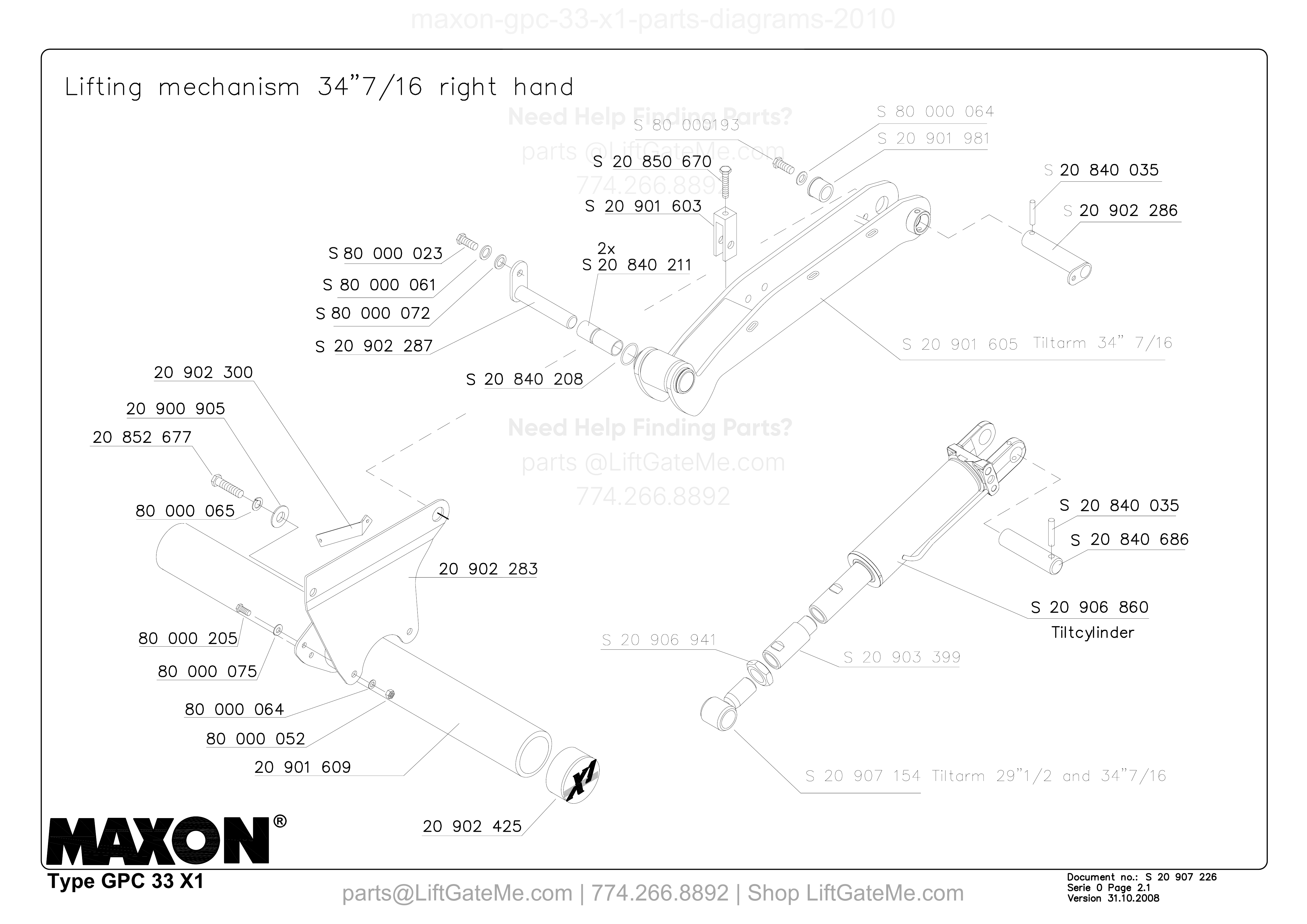

Lifting mechanism 34”7/16 right hand
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 80 000 193 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 850 670 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 901 603 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 80 000 023 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 80 000 061 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 80 000 072 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 902 287 | Lifting mechanism 34”7/16 right hand — part | |
| — | 2x | S 20 840 211 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 840 208 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 80 000 064 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 901 981 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 840 035 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 902 286 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 901 605 | Lifting mechanism 34”7/16 right hand — Tiltarm 34” 7/16 | |
| — | - | 20 902 300 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | 20 900 905 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | 20 852 677 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | 80 000 065 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | 80 000 205 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | 80 000 075 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | 80 000 064 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | 80 000 052 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | 20 901 609 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | 20 902 425 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | 20 902 283 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 840 686 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 906 860 | Lifting mechanism 34”7/16 right hand — Tiltcylinder | |
| — | - | S 20 906 941 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 903 399 | Lifting mechanism 34”7/16 right hand — part | |
| — | - | S 20 907 154 | Lifting mechanism 34”7/16 right hand — Tiltarm 29”1/2 and 34”7/16 | |
| — | - | S 80 000193 | Lifting mechanism 34”7/16 right hand — part |

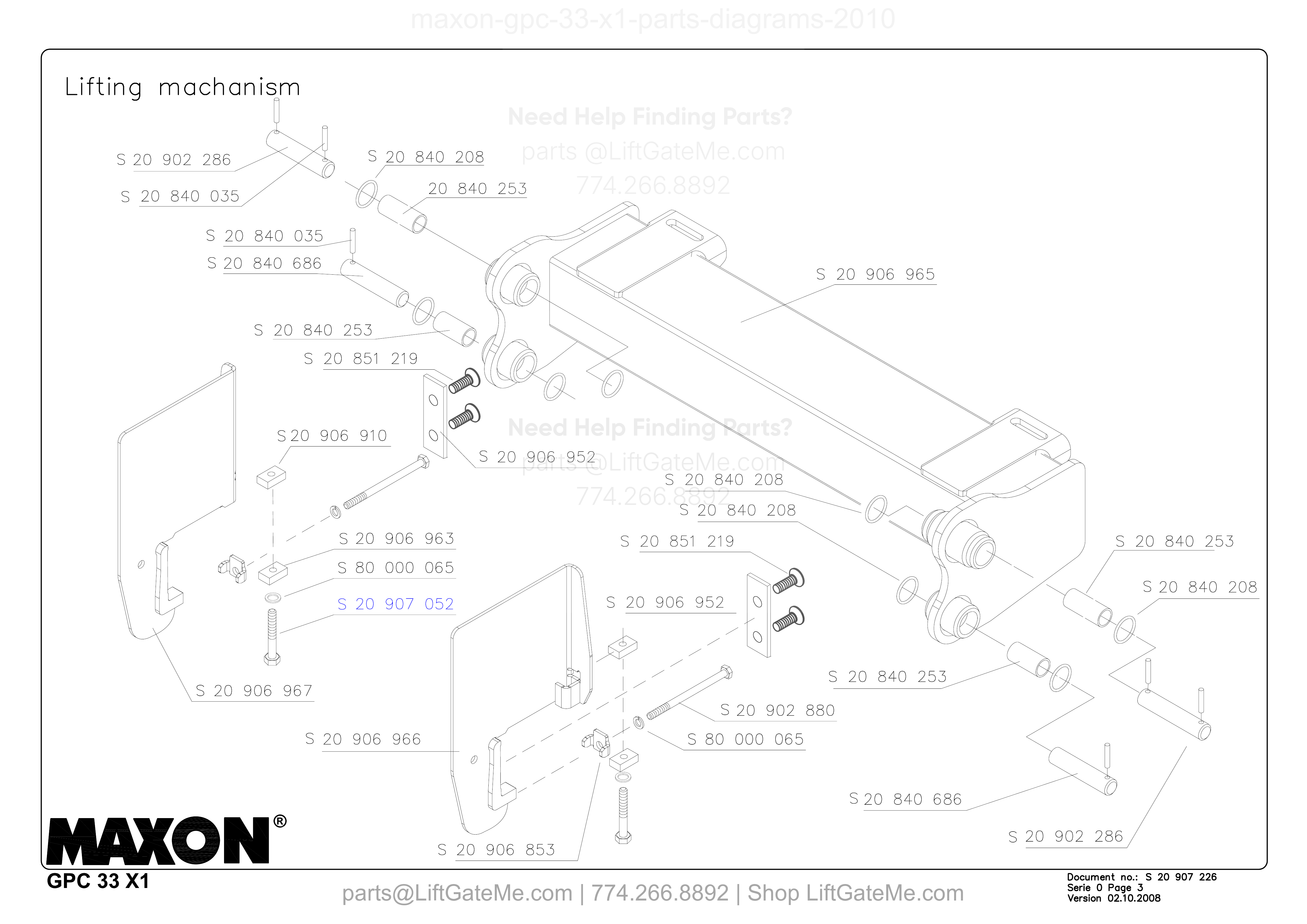

Lifting machanism
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 902 286 | Lifting machanism — part | |
| — | - | S 20 840 035 | Lifting machanism — part | |
| — | - | S 20 840 208 | Lifting machanism — part | |
| — | - | 20 840 253 | Lifting machanism — part | |
| — | - | S 20 840 035 | Lifting machanism — part | |
| — | - | S 20 840 686 | Lifting machanism — part | |
| — | - | S 20 840 253 | Lifting machanism — part | |
| — | - | S 20 851 219 | Lifting machanism — part | |
| — | - | S 20 906 965 | Lifting machanism — part | |
| — | - | S 20 906 910 | Lifting machanism — part | |
| — | - | S 20 906 952 | Lifting machanism — part | |
| — | - | S 20 906 963 | Lifting machanism — part | |
| — | - | S 80 000 065 | Lifting machanism — part | |
| — | - | S 20 907 052 | Lifting machanism — part | |
| — | - | S 20 906 967 | Lifting machanism — part | |
| — | - | S 20 906 966 | Lifting machanism — part | |
| — | - | S 20 906 853 | Lifting machanism — part | |
| — | - | S 20 902 880 | Lifting machanism — part | |
| — | - | S 20 840 253 | Lifting machanism — part | |
| — | - | S 20 840 208 | Lifting machanism — part | |
| — | - | S 20 840 253 | Lifting machanism — part | |
| — | - | S 20 840 686 | Lifting machanism — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

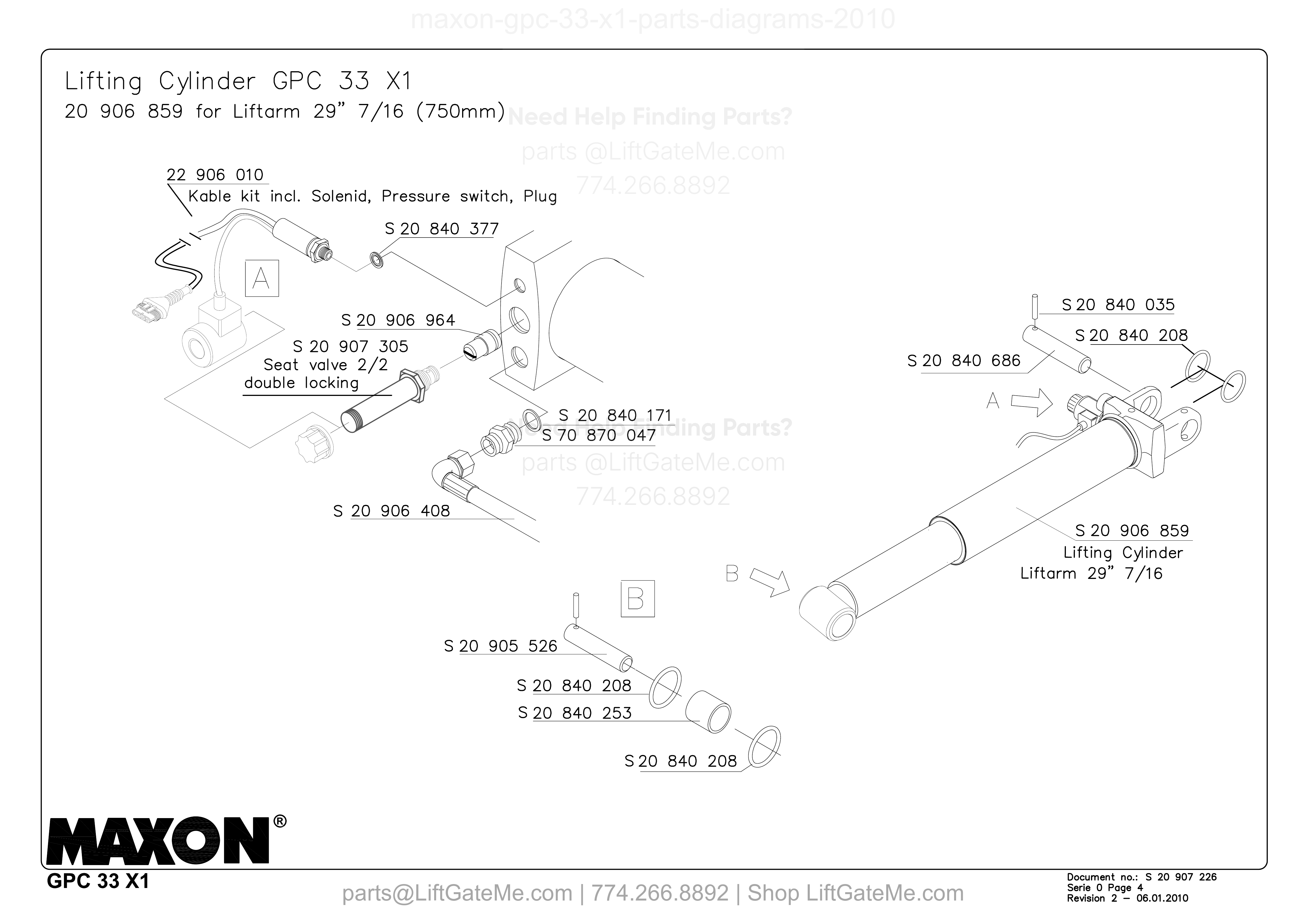

Lifting Cylinder GPC 33 X1
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | 20 906 010 | Lifting Cylinder GPC 33 X1 — Kable kit incl. Solenid, Pressure switch, Plug | |
| — | - | S 20 840 377 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 906 964 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 907 305 | Lifting Cylinder GPC 33 X1 — Seat valve 2/2 double locking | |
| — | - | S 20 840 171 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 70 870 047 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 906 408 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 686 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 035 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 208 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 906 859 | Lifting Cylinder GPC 33 X1 — Lifting Cylinder Liftarm 29” 7/16 | |
| — | - | S 20 905 526 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 208 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 253 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 208 | Lifting Cylinder GPC 33 X1 — part |

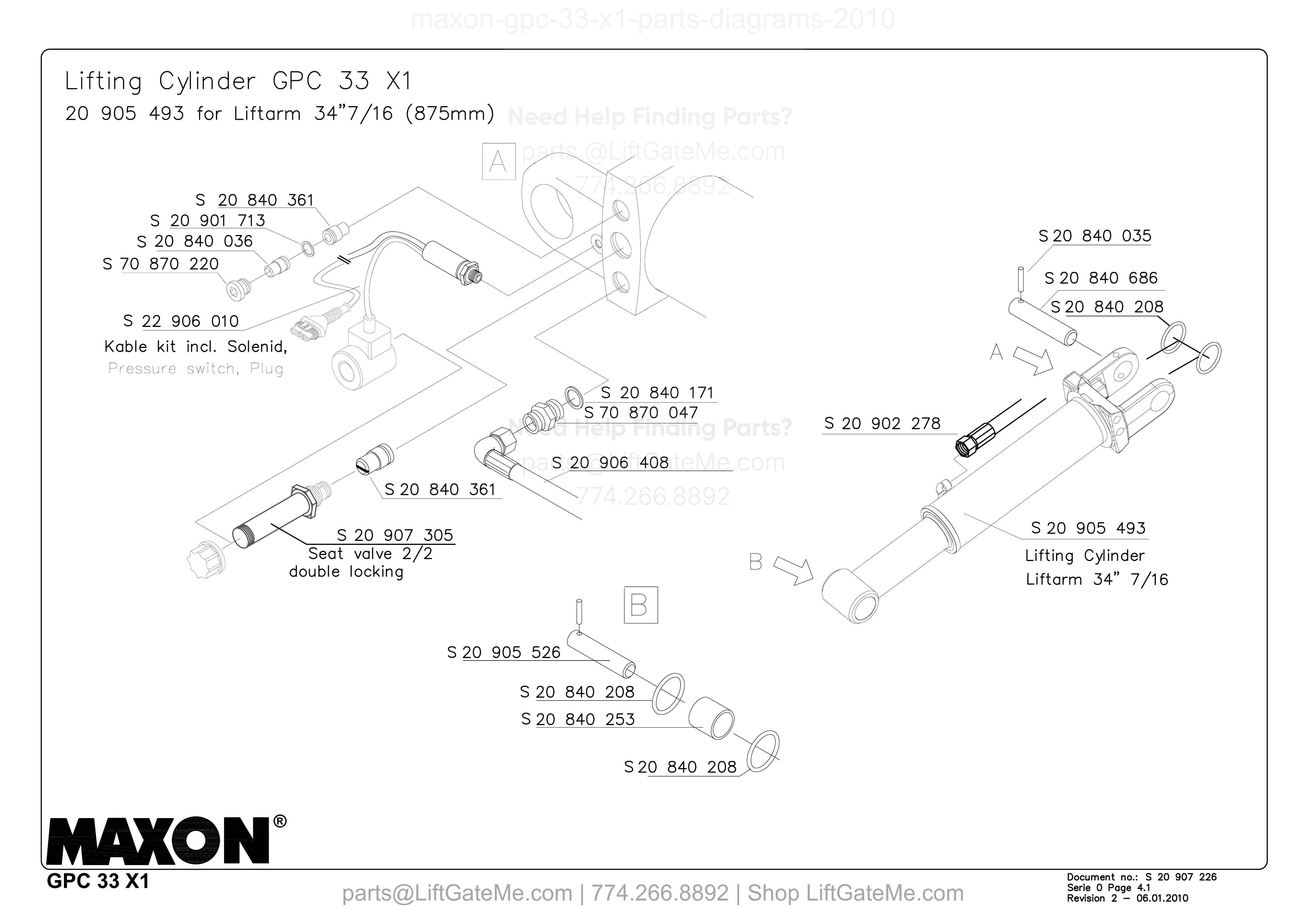

Lifting Cylinder GPC 33 X1
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 361 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 901 713 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 036 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 70 870 220 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 22 906 010 | Lifting Cylinder GPC 33 X1 — Kable kit incl. Solenid | |
| — | - | S 20 840 171 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 70 870 047 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 906 408 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 361 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 907 305 | Lifting Cylinder GPC 33 X1 — Seat valve 2/2 double locking | |
| — | - | S 20 840 035 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 686 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 208 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 902 278 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 905 493 | Lifting Cylinder GPC 33 X1 — Lifting Cylinder Liftarm 34” 7/16 | |
| — | - | S 20 905 526 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 208 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 253 | Lifting Cylinder GPC 33 X1 — part | |
| — | - | S 20 840 208 | Lifting Cylinder GPC 33 X1 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

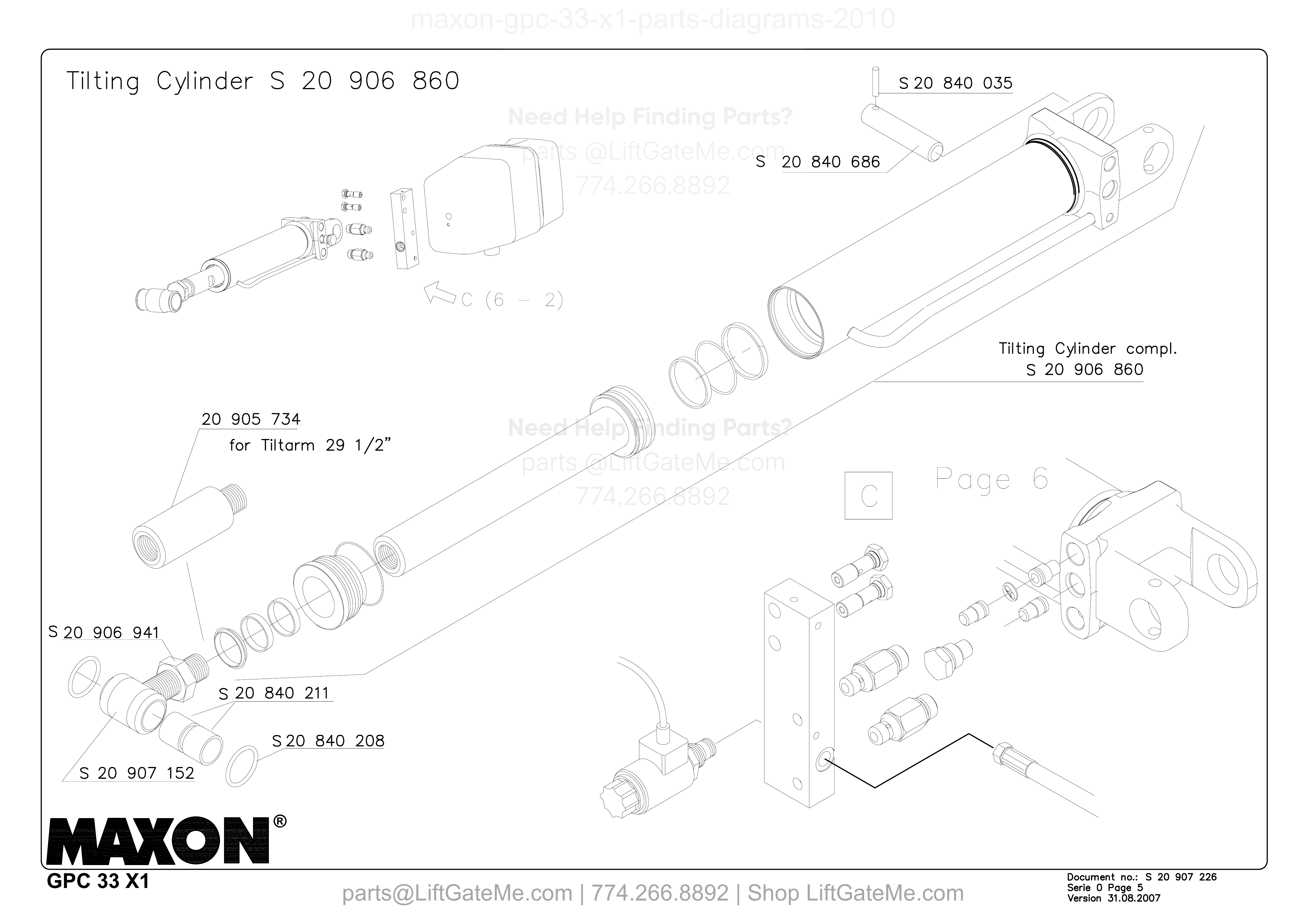

Tilting Cylinder S 20 906 860
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 035 | Tilting Cylinder S 20 906 860 — part | |
| — | - | S 20 840 686 | Tilting Cylinder S 20 906 860 — part | |
| — | - | S 20 906 860 | Tilting Cylinder S 20 906 860 — Tilting Cylinder compl. | |
| — | - | S 20 903 399 | Tilting Cylinder S 20 906 860 — from Lift No. 56567 for Tiltarm 34 1/2” | |
| — | - | S 20 906 941 | Tilting Cylinder S 20 906 860 — part | |
| — | - | S 20 840 211 | Tilting Cylinder S 20 906 860 — part | |
| — | - | S 20 840 208 | Tilting Cylinder S 20 906 860 — part | |
| — | - | S 20 907 306 | Tilting Cylinder S 20 906 860 — part | |
| — | - | S 20 907 305 | Tilting Cylinder S 20 906 860 — Seat valve 2/2 double locking | |
| — | - | S 20 907 152 | Tilting Cylinder S 20 906 860 — Tiltarm 26”1/2 | |
| — | - | S 20 907 154 | Tilting Cylinder S 20 906 860 — Tiltarm 29”1/2 and 34”1/2 |
Tilting Cylinder S 20 906 860
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 840 035 | Tilting Cylinder S 20 906 860 — part | |
| — | - | S 20 840 686 | Tilting Cylinder S 20 906 860 — part | |
| — | - | S 20 906 860 | Tilting Cylinder S 20 906 860 — Tilting Cylinder compl. | |
| — | - | 20 905 734 | Tilting Cylinder S 20 906 860 — for Tiltarm 29 1/2” | |
| — | - | S 20 906 941 | Tilting Cylinder S 20 906 860 — part | |
| — | - | S 20 840 211 | Tilting Cylinder S 20 906 860 — part | |
| — | - | S 20 840 208 | Tilting Cylinder S 20 906 860 — part | |
| — | - | S 20 907 152 | Tilting Cylinder S 20 906 860 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

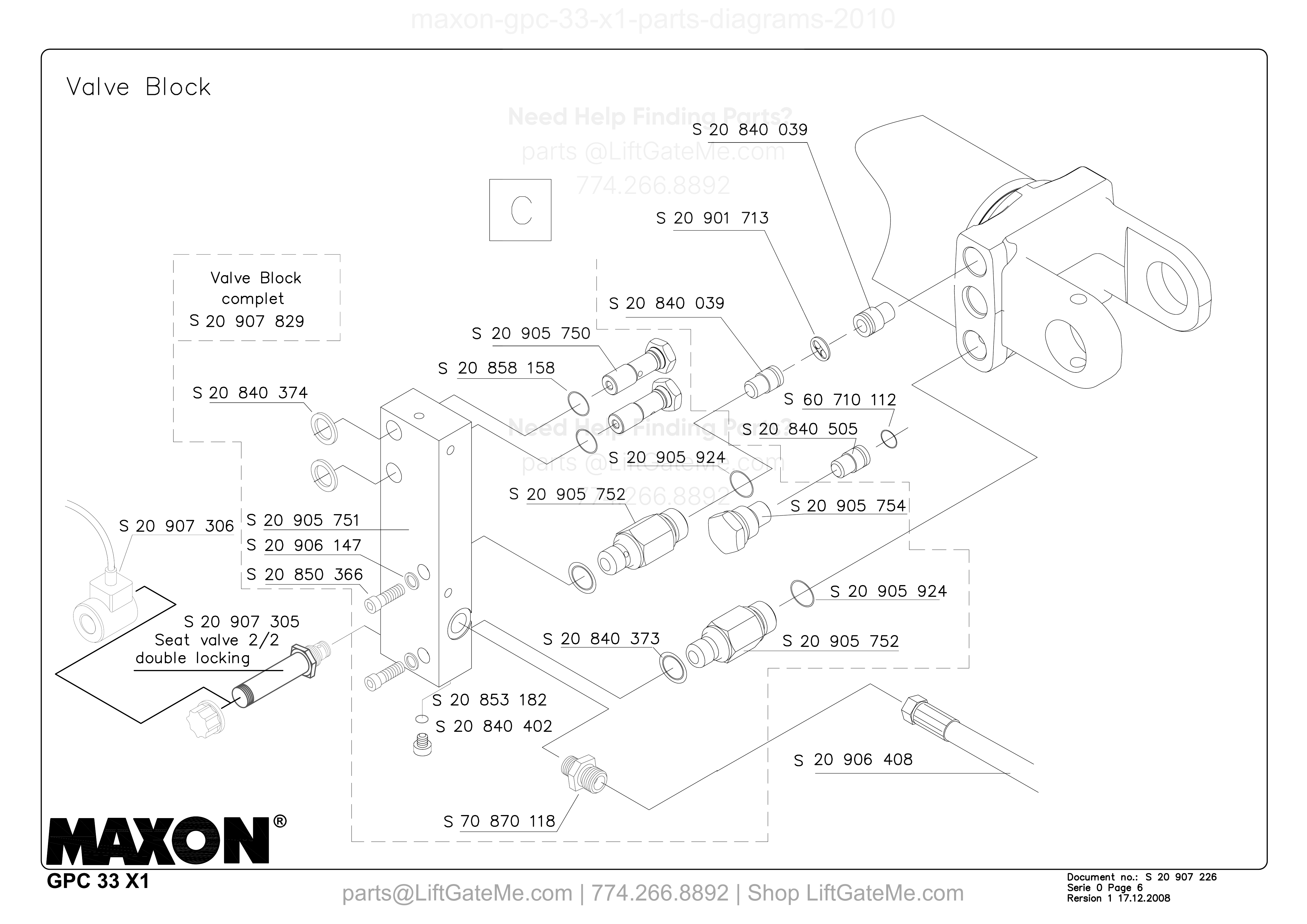

Valve Block
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 829 | Valve Block — Valve Block complet | |
| — | - | S 20 840 374 | Valve Block — part | |
| — | - | S 20 907 306 | Valve Block — part | |
| — | - | S 20 905 751 | Valve Block — part | |
| — | - | S 20 906 147 | Valve Block — part | |
| — | - | S 20 850 366 | Valve Block — part | |
| — | - | S 20 907 305 | Valve Block — Seat valve 2/2 double locking | |
| — | - | S 20 858 158 | Valve Block — part | |
| — | - | S 20 905 750 | Valve Block — part | |
| — | - | S 20 905 924 | Valve Block — part | |
| — | - | S 20 905 752 | Valve Block — part | |
| — | - | S 20 840 373 | Valve Block — part | |
| — | - | S 20 853 182 | Valve Block — part | |
| — | - | S 20 840 402 | Valve Block — part | |
| — | - | S 70 870 118 | Valve Block — part | |
| — | - | S 20 905 752 | Valve Block — part | |
| — | - | S 20 905 924 | Valve Block — part | |
| — | - | S 20 905 754 | Valve Block — part | |
| — | - | S 20 840 505 | Valve Block — part | |
| — | - | S 60 710 112 | Valve Block — part | |
| — | - | S 20 840 039 | Valve Block — part | |
| — | - | S 20 901 713 | Valve Block — part | |
| — | - | S 20 840 039 | Valve Block — part | |
| — | - | S 20 906 408 | Valve Block — part |

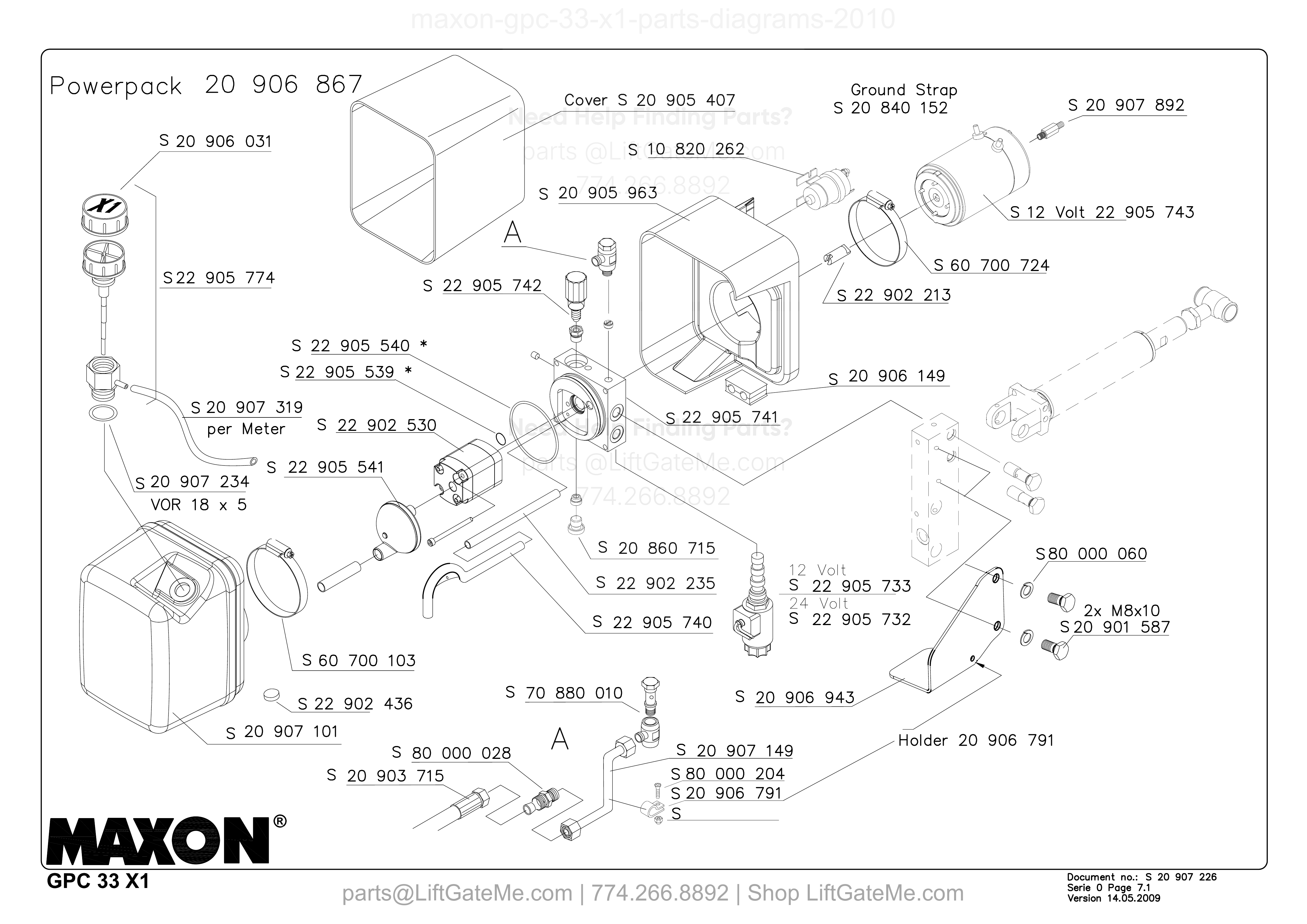

Powerpack 20 906 867
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 906 031 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 774 | Powerpack 20 906 867 — part | |
| — | - | S 20 907 319 | Powerpack 20 906 867 — per Meter | |
| — | - | S 20 907 234 | Powerpack 20 906 867 — VOR 18 x 5 | |
| — | - | S 20 907 101 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 436 | Powerpack 20 906 867 — part | |
| — | - | S 20 905 407 | Powerpack 20 906 867 — Cover | |
| — | - | S 22 905 742 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 540 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 539 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 530 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 541 | Powerpack 20 906 867 — part | |
| — | - | S 20 905 963 | Powerpack 20 906 867 — part | |
| — | - | S 10 820 262 | Powerpack 20 906 867 — part | |
| — | - | S 20 840 152 | Powerpack 20 906 867 — Ground Strap | |
| — | - | S 20 907 892 | Powerpack 20 906 867 — part | |
| — | - | 22 905 743 | Powerpack 20 906 867 — S 12 Volt | |
| — | - | S 60 700 724 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 213 | Powerpack 20 906 867 — part | |
| — | - | S 20 906 149 | Powerpack 20 906 867 — part | |
| — | - | S 20 860 715 | Powerpack 20 906 867 — part | |
| — | - | S 22 902 235 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 740 | Powerpack 20 906 867 — part | |
| — | - | S 22 905 733 | Powerpack 20 906 867 — 12 Volt | |
| — | - | S 22 905 732 | Powerpack 20 906 867 — 24 Volt | |
| — | - | S 20 906 943 | Powerpack 20 906 867 — part | |
| — | - | S80 000 060 | Powerpack 20 906 867 — part | |
| — | 2x | S20 901 587 | Powerpack 20 906 867 — M8x10 | |
| — | - | 20 906 791 | Powerpack 20 906 867 — Holder | |
| — | - | S 70 880 010 | Powerpack 20 906 867 — part | |
| — | - | S 20 907 149 | Powerpack 20 906 867 — part | |
| — | - | S 80 000 204 | Powerpack 20 906 867 — part | |
| — | - | S 20 906 791 | Powerpack 20 906 867 — part | |
| — | - | S 20 903 715 | Powerpack 20 906 867 — part | |
| — | - | S 80 000 028 | Powerpack 20 906 867 — part |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

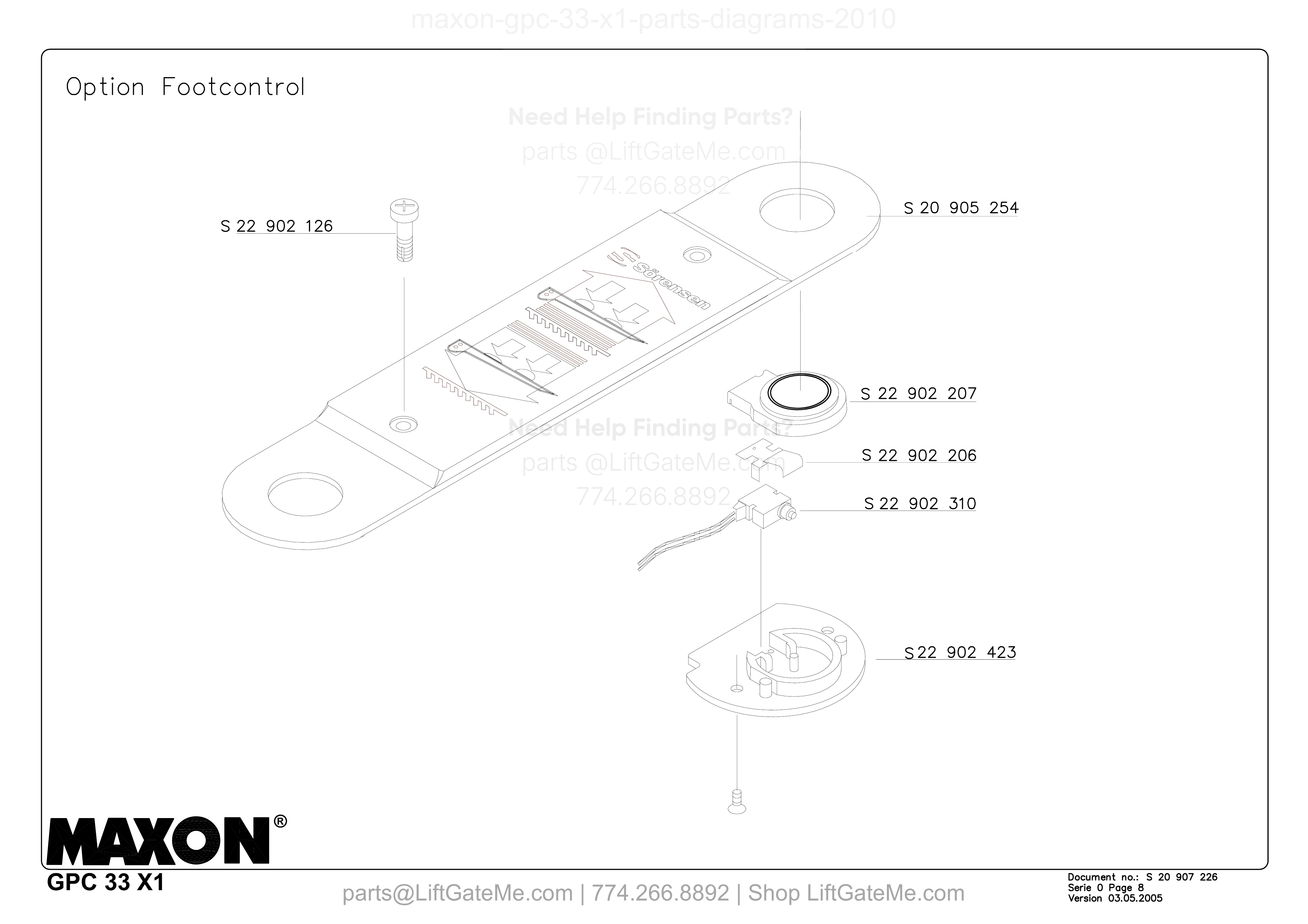

Option Footcontrol
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 22 902 126 | Option Footcontrol — part | |
| — | - | S 20 905 254 | Option Footcontrol — part | |
| — | - | S 22 902 207 | Option Footcontrol — part | |
| — | - | S 22 902 206 | Option Footcontrol — part | |
| — | - | S 22 902 310 | Option Footcontrol — part | |
| — | - | S 22 902 423 | Option Footcontrol — part |

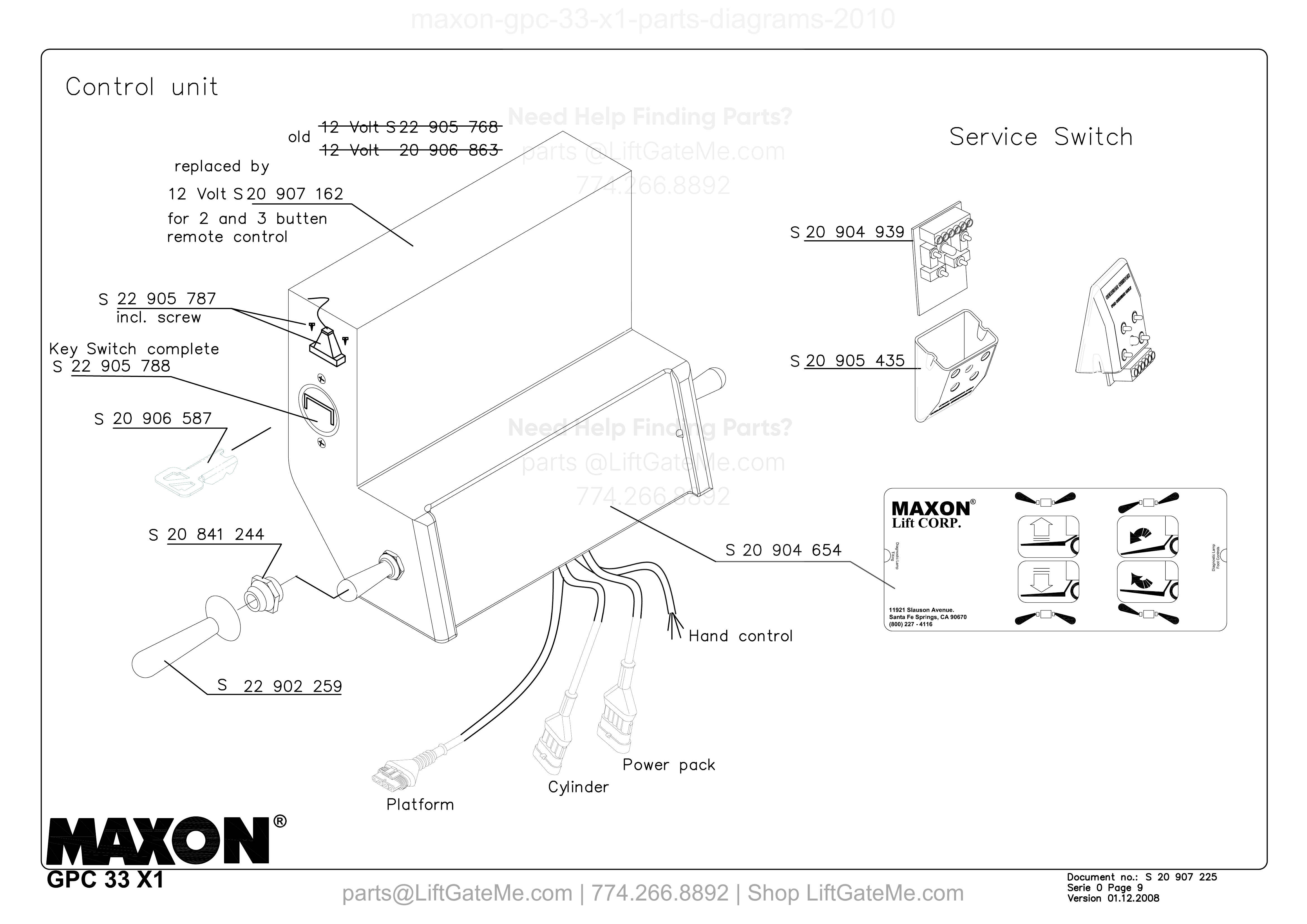

Control unit
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 907 162 | Control unit — 12 Volt for 2 and 3 button remote control | |
| — | - | S 22 905 787 | Control unit — incl. screw | |
| — | - | S 22 905 788 | Control unit — Key Switch complete | |
| — | - | S 20 906 587 | Control unit — part | |
| — | - | S 20 841 244 | Control unit — part | |
| — | - | S 22 902 259 | Control unit — part | |
| — | - | S 20 904 654 | Control unit — Hand control | |
| — | - | S 20 904 939 | Control unit — Service Switch | |
| — | - | S 20 905 435 | Control unit — Service Switch |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

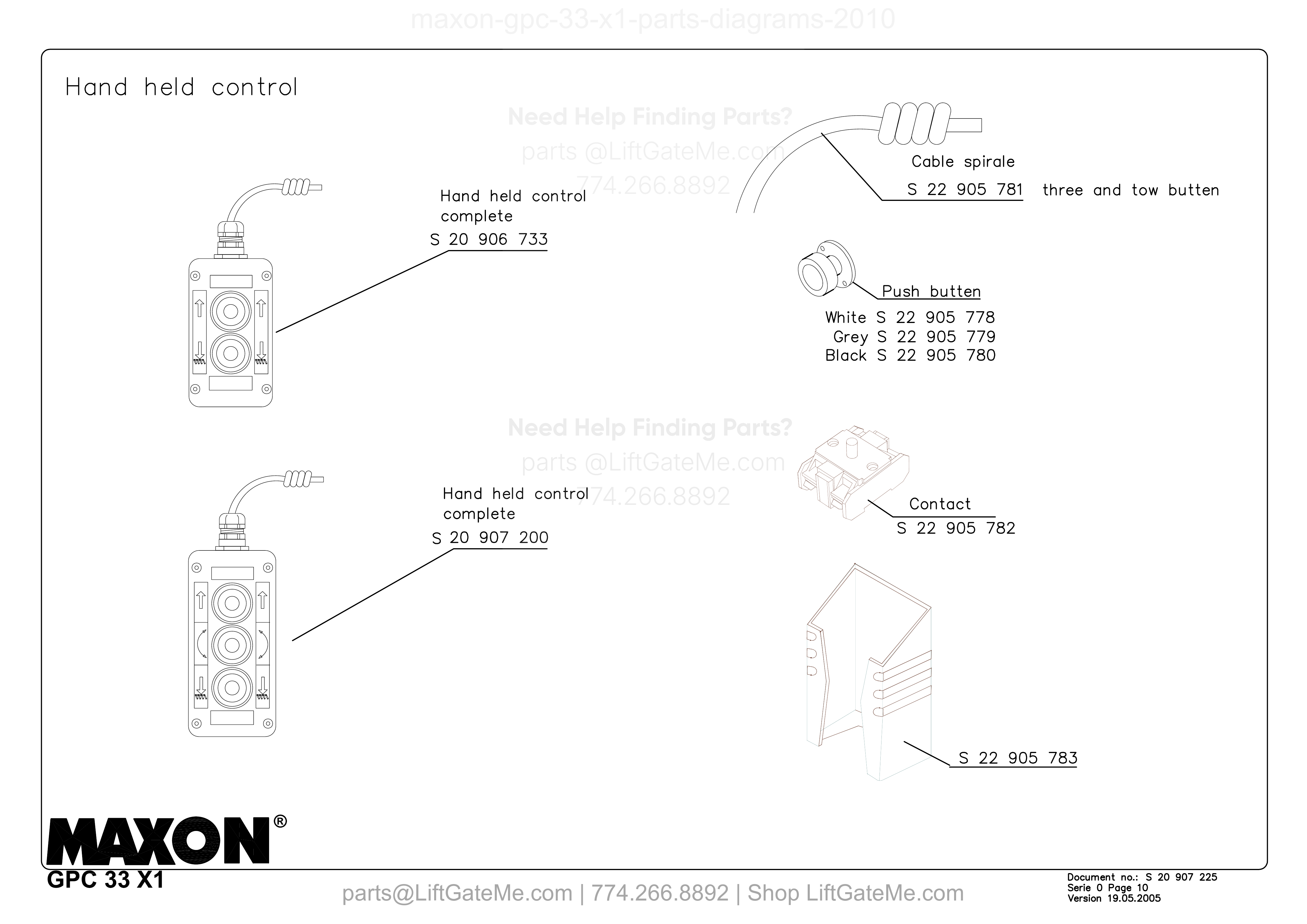

Hand held control
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 20 906 733 | Hand held control — Hand held control complete | |
| — | - | S 20 907 200 | Hand held control — Hand held control complete | |
| — | - | S 22 905 781 | Hand held control — Cable spirale three and tow button | |
| — | - | S 22 905 778 | Hand held control — Push button White | |
| — | - | S 22 905 779 | Hand held control — Push button Grey | |
| — | - | S 22 905 780 | Hand held control — Push button Black | |
| — | - | S 22 905 782 | Hand held control — Contact | |
| — | - | S 22 905 783 | Hand held control — part |

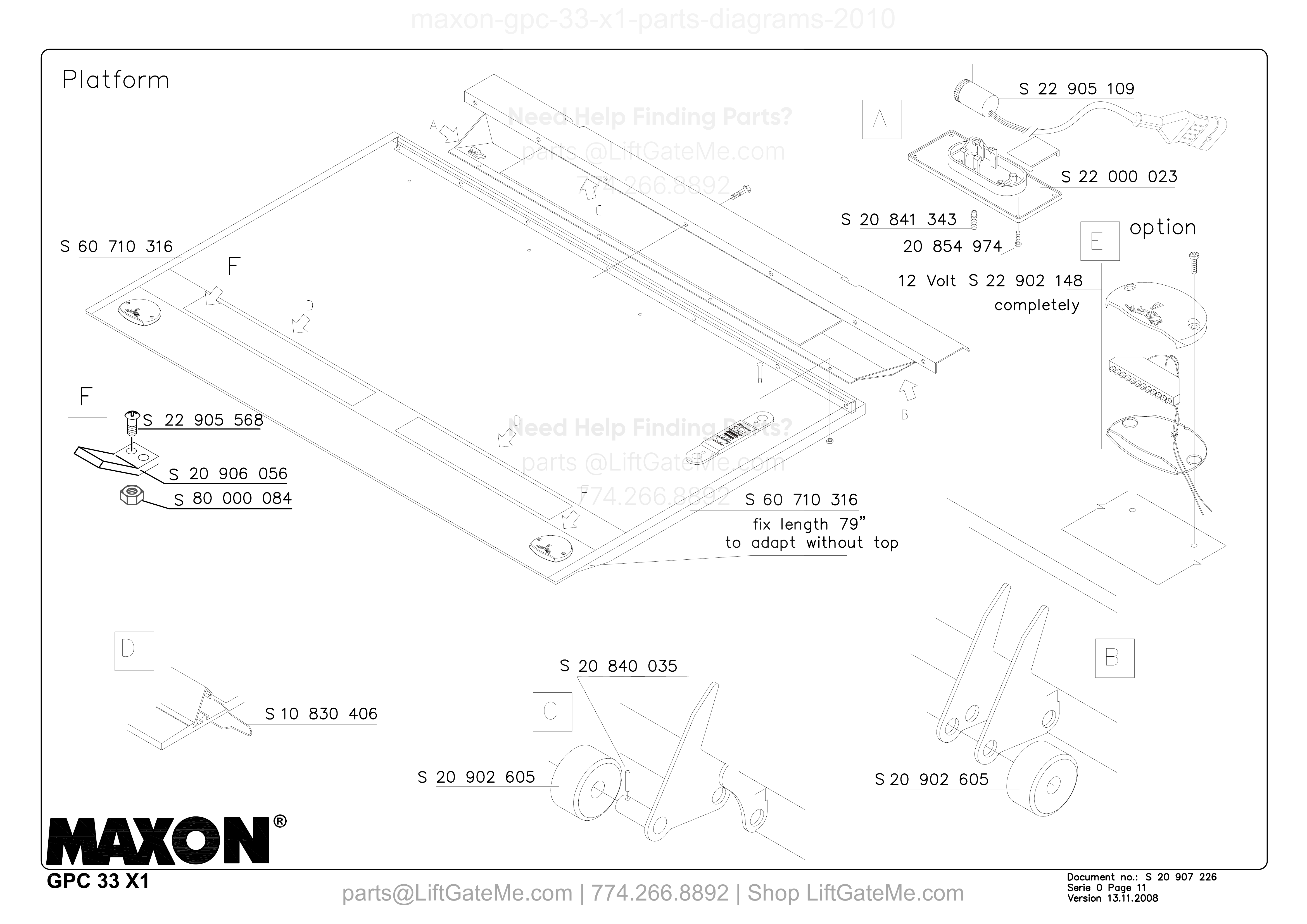

Platform
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | - | S 60 710 316 | Platform — part | |
| — | - | S 22 905 568 | Platform — part | |
| — | - | S 20 906 056 | Platform — part | |
| — | - | S 80 000 084 | Platform — part | |
| — | - | S 10 830 406 | Platform — part | |
| — | - | S 20 840 035 | Platform — part | |
| — | - | S 20 902 605 | Platform — part | |
| — | - | S 22 905 109 | Platform — part | |
| — | - | S 22 000 023 | Platform — part | |
| — | - | S 20 841 343 | Platform — part | |
| — | - | 20 854 974 | Platform — part | |
| — | - | S 22 902 148 | Platform — 12 Volt completely |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
