PRODUCT DETAILS
Liftgate pump unit, power down, ts 2700 psi. This is an OEM product made by Waltco Liftgate.
NEED ASSISTANCE?
Have your liftgate serial number ready for faster assistance. Where to find it
MODELS USING THIS PART
Note
This part appears in the following parts manuals. Always verify compatibility with your specific liftgate model and serial number before ordering.
Find your model and serial numberFound in
WALTCO EM SERIES
1/2010WALTCO EM SERIES / EMTC SERIES (MODELS 264/265)
pre-2000SHIPPING AND RETURNS
Shipping Information
Shipping timelines, transit options, and exceptions can vary by part and location. Please review our official policy page for the most current shipping and return details.
View Shipping PolicyReturn Policy
Return eligibility, time windows, and any applicable fees are outlined on our policy page. Policy terms may be updated there, so please refer to that page before placing your order.
View Return Policy
OEM Parts Diagram References
Find this Waltco Liftgate part in original OEM diagrams. Each link opens directly to the matching section in a new tab.
Reference Notice: Manual links are provided for reference only. If you have any doubt, contact us. We’re happy to verify parts and help you purchase with confidence.
70430560 is found in 3 OEM diagram references across 1 Waltco Liftgate manual.
Waltco EM-Series / EMTC-Series (Models 264/265) Parts Manual
pre-2000| Section | Item # | Pages | Link |
|---|---|---|---|
|
hydraulic layout power down
|
1 |
Diagram p20
Table p20
|
Open diagram View |
|
hydraulic layout power down
|
1 |
Diagram p22
Table p22
|
Open diagram View |
|
mount frame assembly built from 12 09
|
10 |
Diagram p13
Table p13
|
Open diagram View |
OEM Parts Diagram Images
Browse highlighted diagram images for this part, filtered by liftgate model.
Reference Notice: Diagram images are reference material only and may not always be perfectly aligned with every model variation. We're a small team behind a big catalog. If you spot something off or just want a second set of eyes, contact us. Getting your order right matters to us.
- Gallery
- Description
-
-

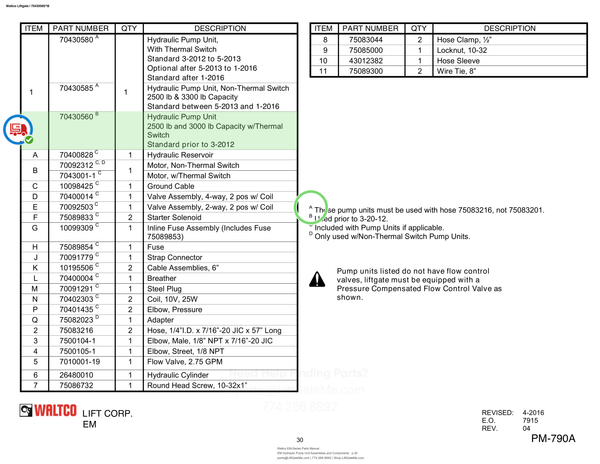

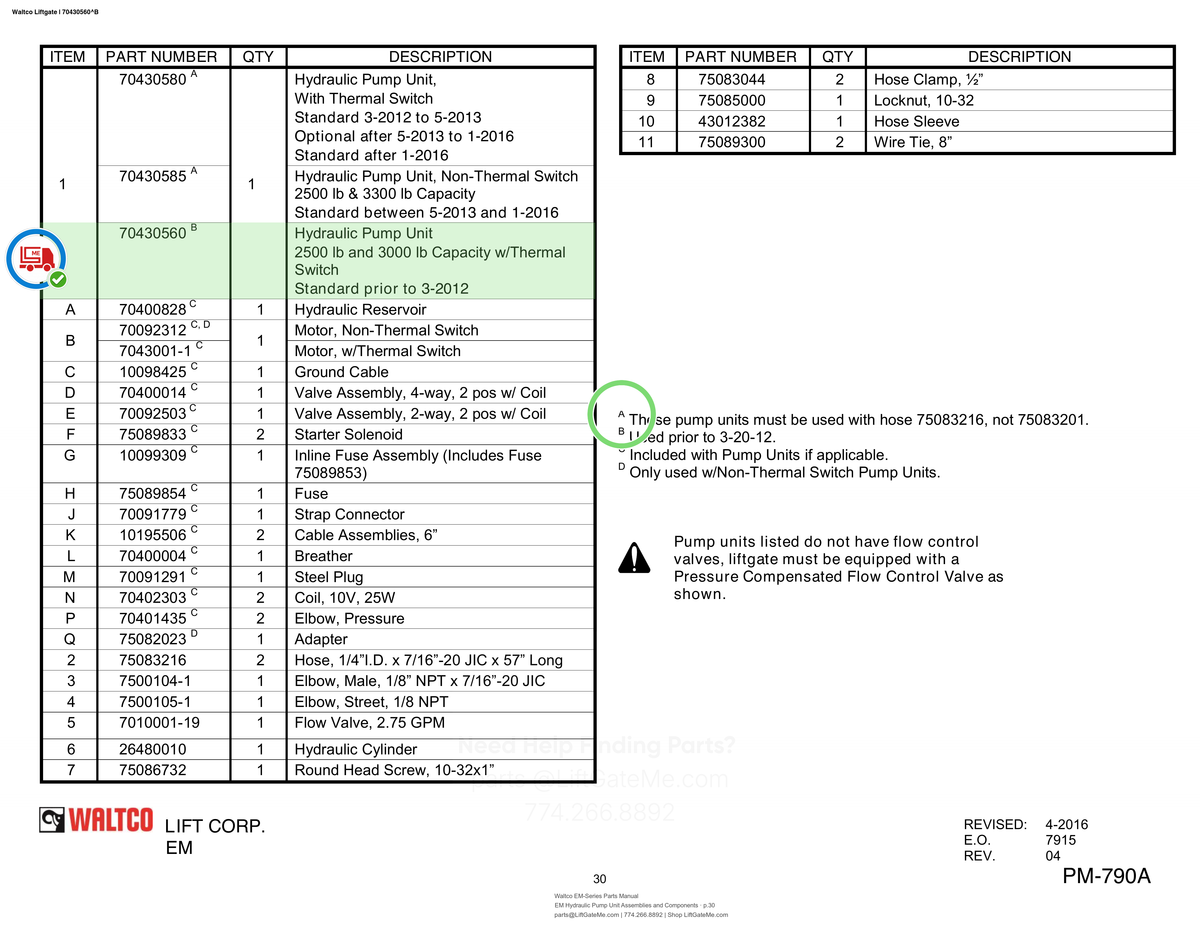

Waltco Liftgate | 70430560 — EM Hydraulic Pump Unit Assemblies and Components · p.30 (Waltco EM-Series Parts Manual) -

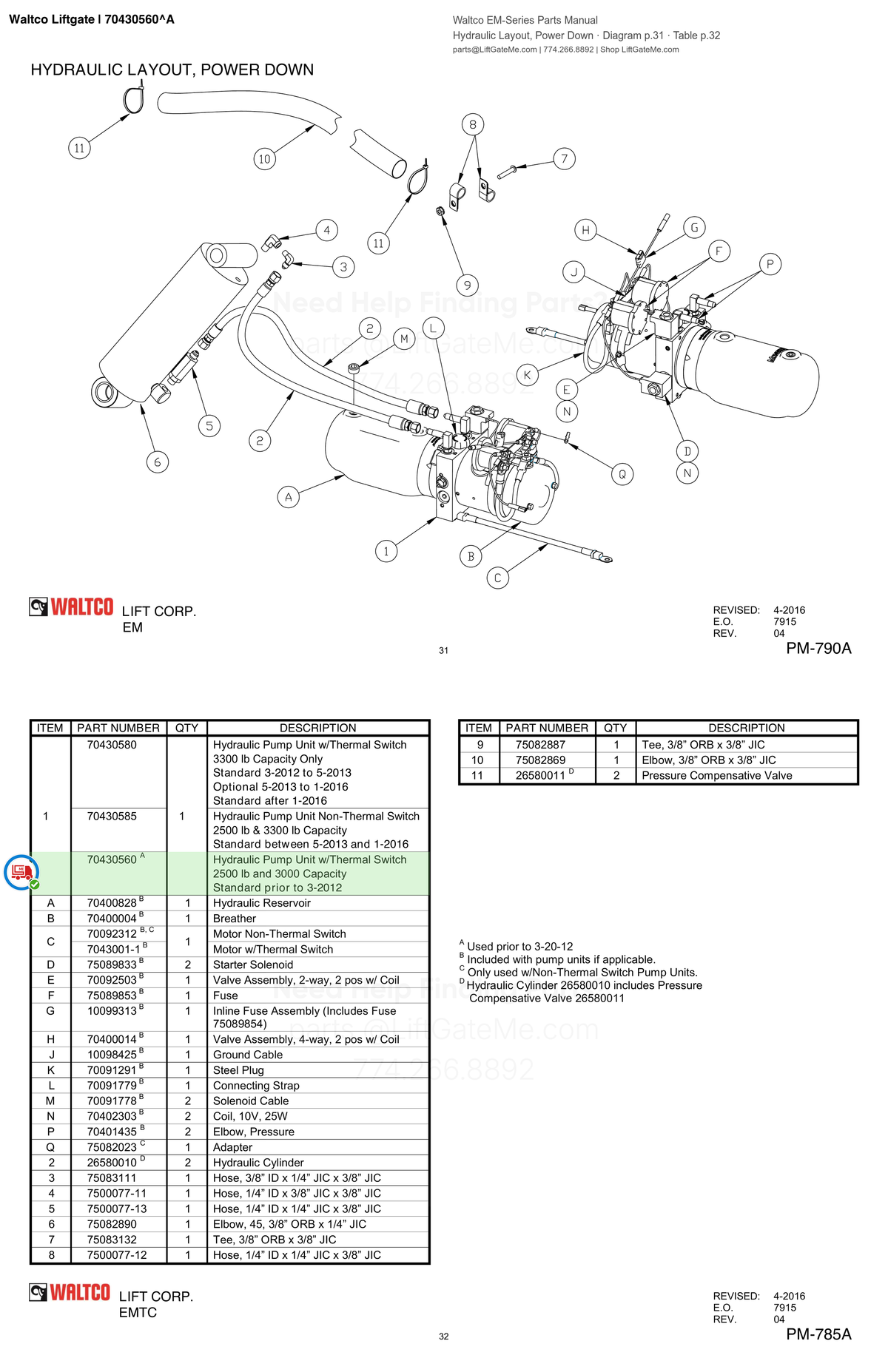

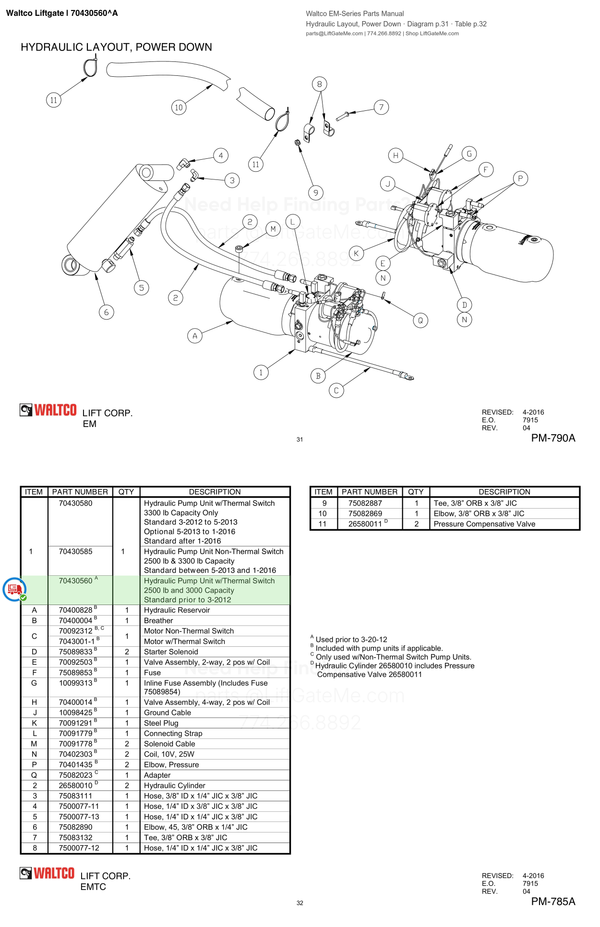

Waltco Liftgate | 70430560 — Hydraulic Layout, Power Down · Diagram p.31 · Table p.32 (Waltco EM-Series Parts Manual)
Liftgate pump unit, power down, ts 2700 psi. This is an OEM product made by Waltco Liftgate.
