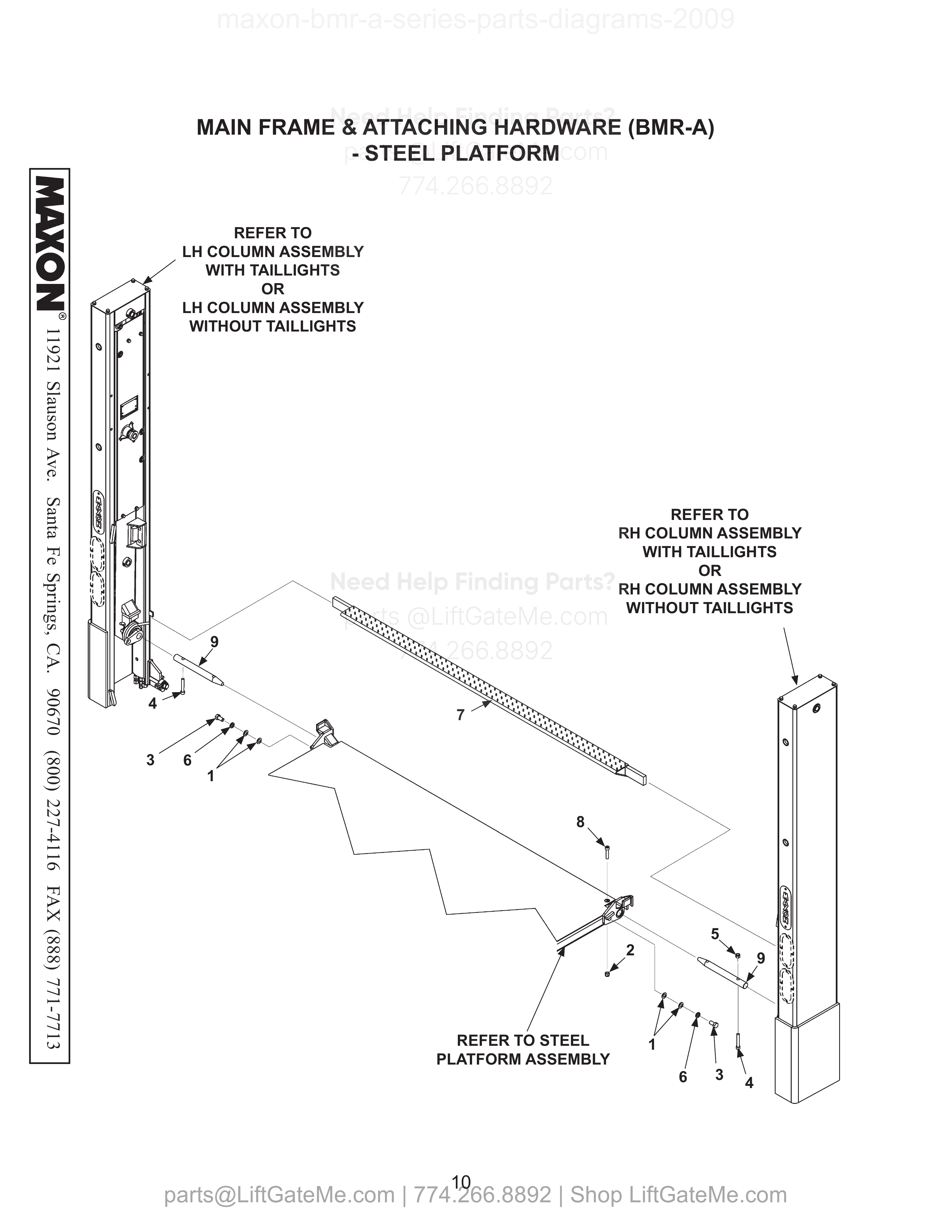

MAIN FRAME & ATTACHING HARDWARE (BMR-A) - STEEL PLATFORM
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 902000-20 | FLAT WASHER, 3/4” | |
| 2 | 1 | 040066 | LOCK NUT, 1/2”-13 | |
| 3 | 2 | 260181 | BOLT, 3/4”-10 X 1-1/4” LG. | |
| 4 | 2 | 900037-11 | SOCKET HEAD CAP SCREW, 1/2”-13 X 2-1/4” LG, GRADE 8 | |
| 5 | 1 | 901008 | NYLON LOCK NUT, 1/2”-20 | |
| 6 | 2 | 902011-9 | LOCK WASHER, 3/4” | |
| 7 | 1 | 280340-01 | EXTENSION PLATE, 96” UNIT | |
| 7 | 1 | 280340-02 | EXTENSION PLATE, 102” UNIT | |
| 8 | 1 | 900036-10 | SOCKET HEAD CAP SCREW, 1/2”-20 X 3” LG, GRADE 8 | |
| 9 | 2 | 280103 | PIN, 13” LG, STAINLESS STEEL |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

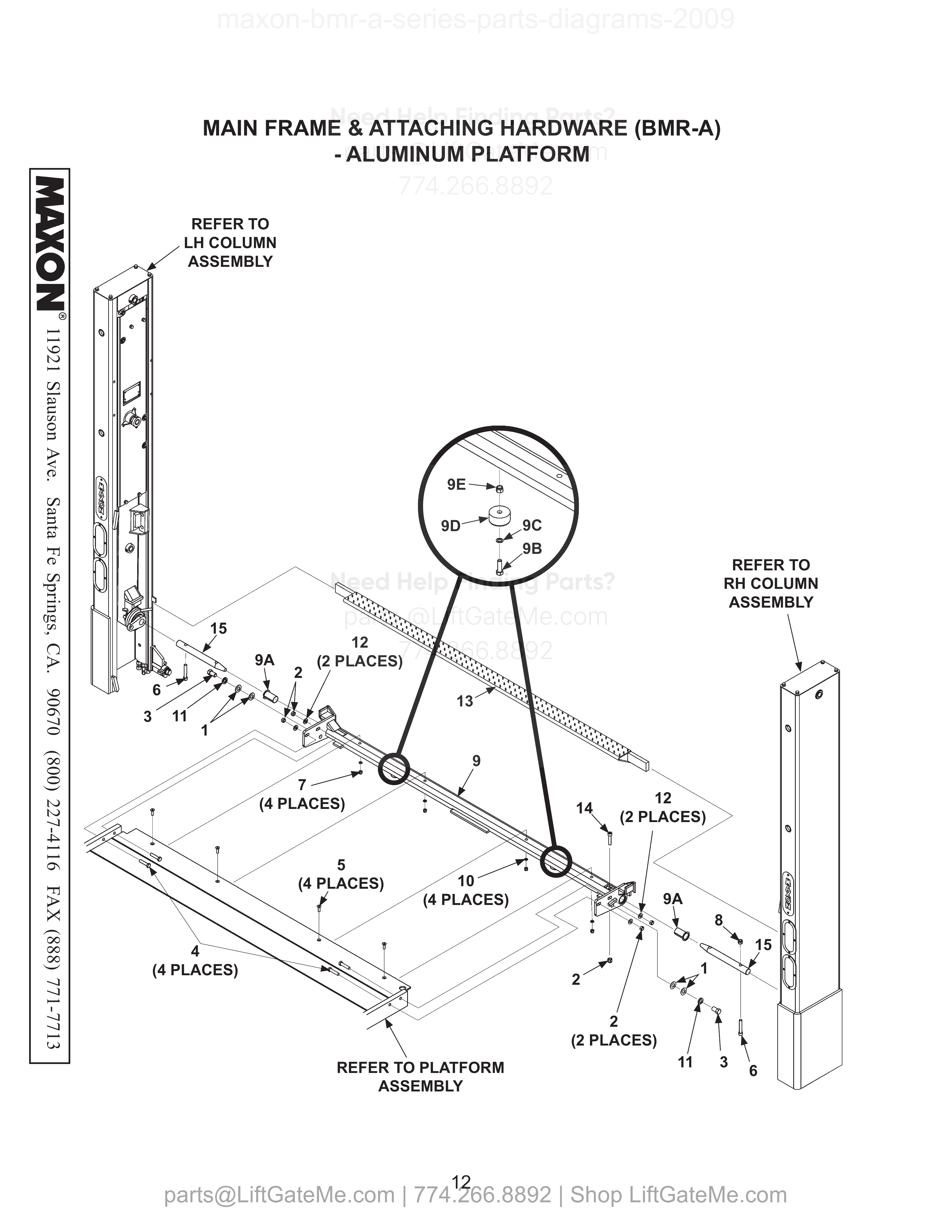

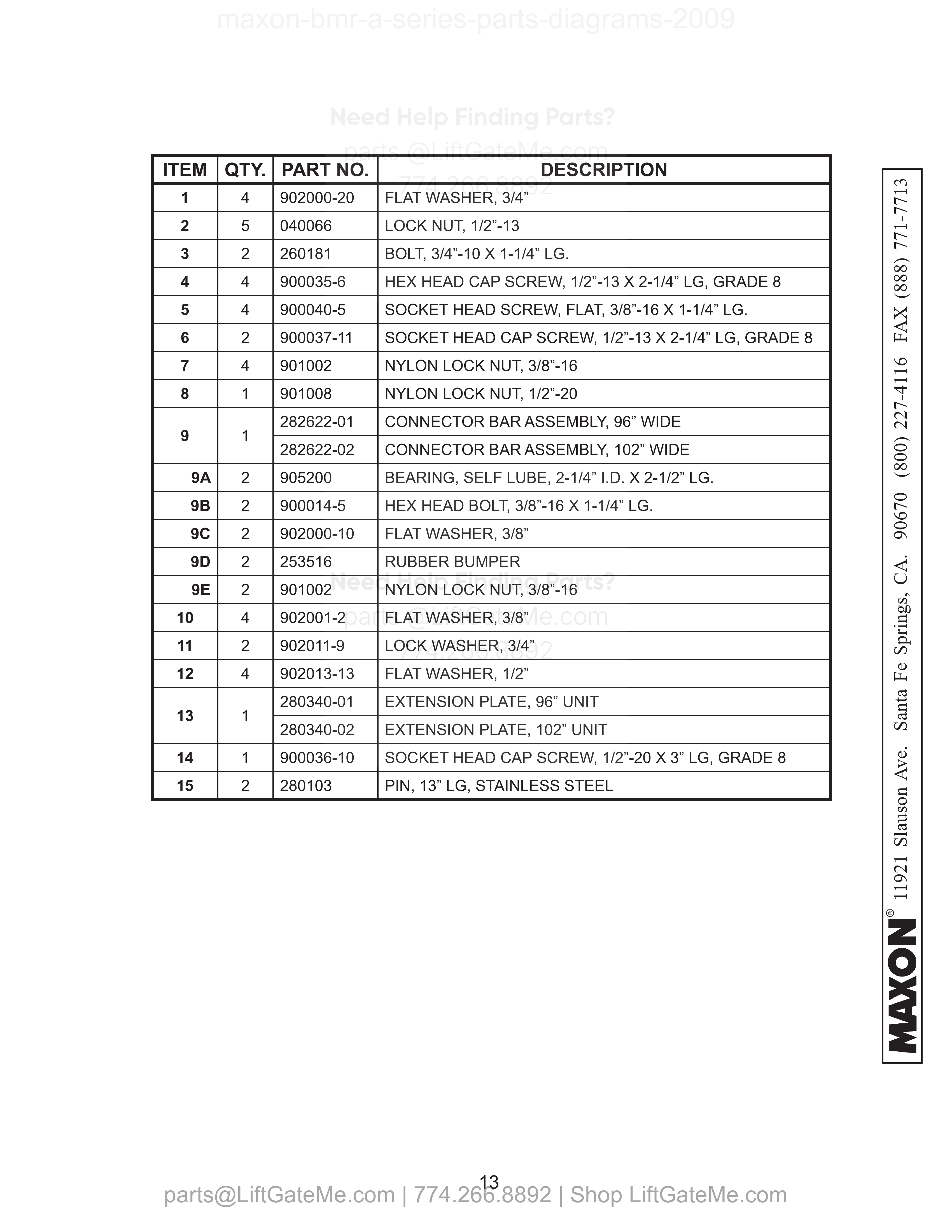

MAIN FRAME & ATTACHING HARDWARE (BMR-A) - ALUMINUM PLATFORM
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 902000-20 | FLAT WASHER, 3/4” | |
| 2 | 5 | 040066 | LOCK NUT, 1/2”-13 | |
| 3 | 2 | 260181 | BOLT, 3/4”-10 X 1-1/4” LG. | |
| 4 | 4 | 900035-6 | HEX HEAD CAP SCREW, 1/2”-13 X 2-1/4” LG, GRADE 8 | |
| 5 | 4 | 900040-5 | SOCKET HEAD SCREW, FLAT, 3/8”-16 X 1-1/4” LG. | |
| 6 | 2 | 900037-11 | SOCKET HEAD CAP SCREW, 1/2”-13 X 2-1/4” LG, GRADE 8 | |
| 7 | 4 | 901002 | NYLON LOCK NUT, 3/8”-16 | |
| 8 | 1 | 901008 | NYLON LOCK NUT, 1/2”-20 | |
| 9 | 1 | 282622-01 | CONNECTOR BAR ASSEMBLY, 96” WIDE | |
| 9 | 1 | 282622-02 | CONNECTOR BAR ASSEMBLY, 102” WIDE | |
| 9A | 2 | 905200 | BEARING, SELF LUBE, 2-1/4” I.D. X 2-1/2” LG. | |
| 9B | 2 | 900014-5 | HEX HEAD BOLT, 3/8”-16 X 1-1/4” LG. | |
| 9C | 2 | 902000-10 | FLAT WASHER, 3/8” | |
| 9D | 2 | 253516 | RUBBER BUMPER | |
| 9E | 2 | 901002 | NYLON LOCK NUT, 3/8”-16 | |
| 10 | 4 | 902001-2 | FLAT WASHER, 3/8” | |
| 11 | 2 | 902011-9 | LOCK WASHER, 3/4” | |
| 12 | 4 | 902013-13 | FLAT WASHER, 1/2” | |
| 13 | 1 | 280340-01 | EXTENSION PLATE, 96” UNIT | |
| 13 | 1 | 280340-02 | EXTENSION PLATE, 102” UNIT | |
| 14 | 1 | 900036-10 | SOCKET HEAD CAP SCREW, 1/2”-20 X 3” LG, GRADE 8 | |
| 15 | 2 | 280103 | PIN, 13” LG, STAINLESS STEEL |

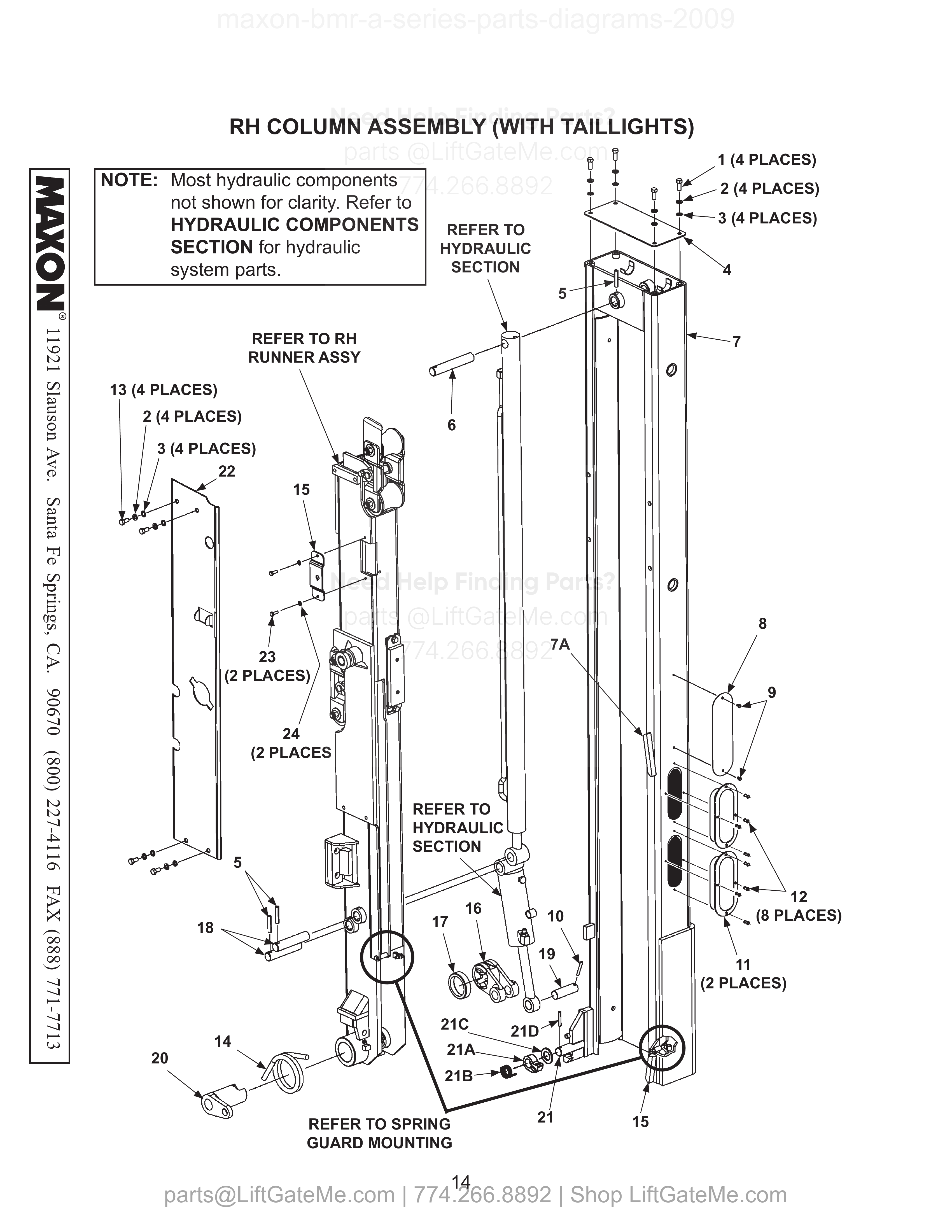

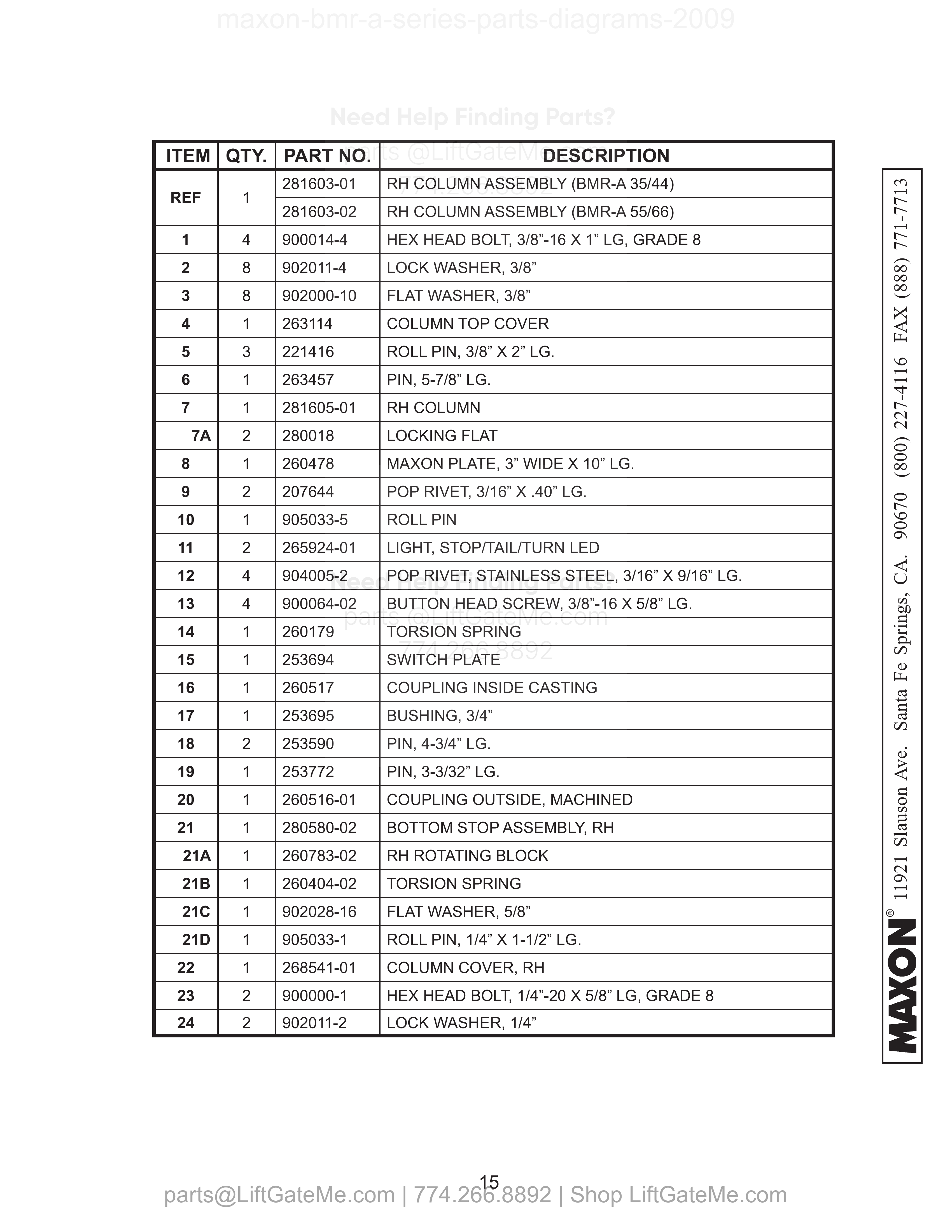

RH COLUMN ASSEMBLY (WITH TAILLIGHTS)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 281603-01 | RH COLUMN ASSEMBLY (BMR-A 35/44) | |
| REF | 1 | 281603-02 | RH COLUMN ASSEMBLY (BMR-A 55/66) | |
| 1 | 4 | 900014-4 | HEX HEAD BOLT, 3/8”-16 X 1” LG, GRADE 8 | |
| 2 | 8 | 902011-4 | LOCK WASHER, 3/8” | |
| 3 | 8 | 902000-10 | FLAT WASHER, 3/8” | |
| 4 | 1 | 263114 | COLUMN TOP COVER | |
| 5 | 3 | 221416 | ROLL PIN, 3/8” X 2” LG. | |
| 6 | 1 | 263457 | PIN, 5-7/8” LG. | |
| 7 | 1 | 281605-01 | RH COLUMN | |
| 7A | 2 | 280018 | LOCKING FLAT | |
| 8 | 1 | 260478 | MAXON PLATE, 3” WIDE X 10” LG. | |
| 9 | 2 | 207644 | POP RIVET, 3/16” X .40” LG. | |
| 10 | 1 | 905033-5 | ROLL PIN | |
| 11 | 2 | 265924-01 | LIGHT, STOP/TAIL/TURN LED | |
| 12 | 4 | 904005-2 | POP RIVET, STAINLESS STEEL, 3/16” X 9/16” LG. | |
| 13 | 4 | 900064-02 | BUTTON HEAD SCREW, 3/8”-16 X 5/8” LG. | |
| 14 | 1 | 260179 | TORSION SPRING | |
| 15 | 1 | 253694 | SWITCH PLATE | |
| 16 | 1 | 260517 | COUPLING INSIDE CASTING | |
| 17 | 1 | 253695 | BUSHING, 3/4” | |
| 18 | 2 | 253590 | PIN, 4-3/4” LG. | |
| 19 | 1 | 253772 | PIN, 3-3/32” LG. | |
| 20 | 1 | 260516-01 | COUPLING OUTSIDE, MACHINED | |
| 21 | 1 | 280580-02 | BOTTOM STOP ASSEMBLY, RH | |
| 21A | 1 | 260783-02 | RH ROTATING BLOCK | |
| 21B | 1 | 260404-02 | TORSION SPRING | |
| 21C | 1 | 902028-16 | FLAT WASHER, 5/8” | |
| 21D | 1 | 905033-1 | ROLL PIN, 1/4” X 1-1/2” LG. | |
| 22 | 1 | 268541-01 | COLUMN COVER, RH | |
| 23 | 2 | 900000-1 | HEX HEAD BOLT, 1/4”-20 X 5/8” LG, GRADE 8 | |
| 24 | 2 | 902011-2 | LOCK WASHER, 1/4” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

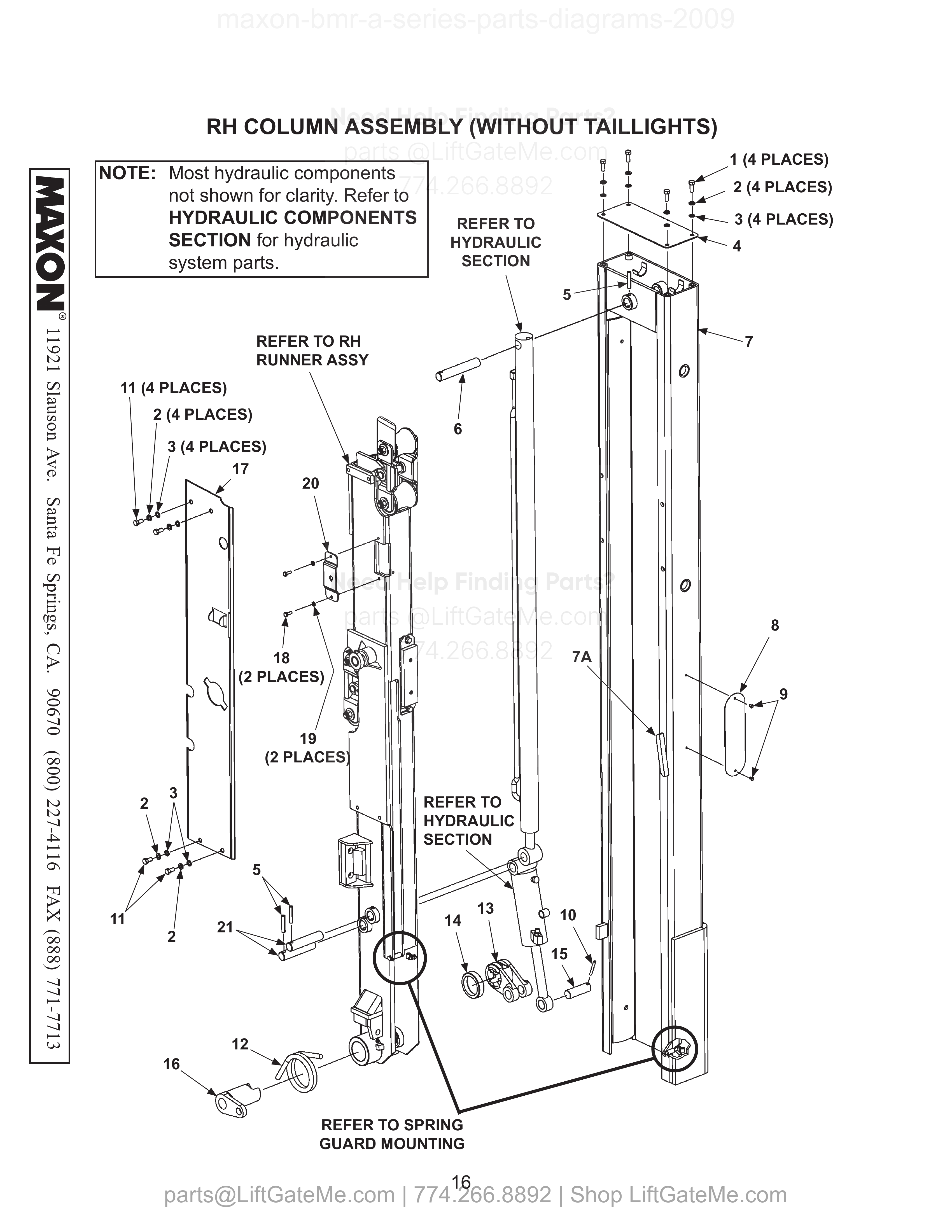

RH COLUMN ASSEMBLY (WITHOUT TAILLIGHTS)

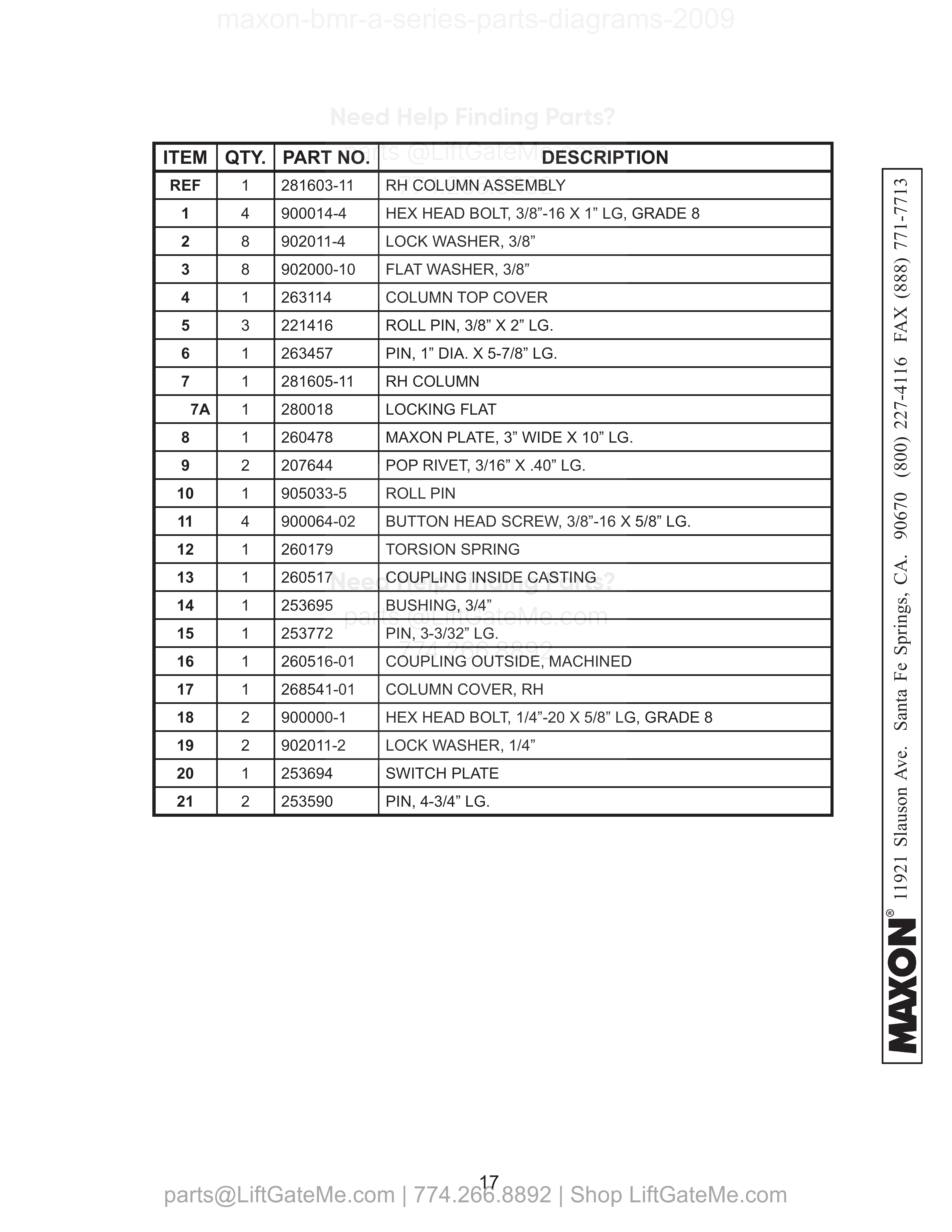

| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 281603-11 | RH COLUMN ASSEMBLY | |
| 1 | 4 | 900014-4 | HEX HEAD BOLT, 3/8”-16 X 1” LG, GRADE 8 | |
| 2 | 8 | 902011-4 | LOCK WASHER, 3/8” | |
| 3 | 8 | 902000-10 | FLAT WASHER, 3/8” | |
| 4 | 1 | 263114 | COLUMN TOP COVER | |
| 5 | 3 | 221416 | ROLL PIN, 3/8” X 2” LG. | |
| 6 | 1 | 263457 | PIN, 1” DIA. X 5-7/8” LG. | |
| 7 | 1 | 281605-11 | RH COLUMN | |
| 7A | 1 | 280018 | LOCKING FLAT | |
| 8 | 1 | 260478 | MAXON PLATE, 3” WIDE X 10” LG. | |
| 9 | 2 | 207644 | POP RIVET, 3/16” X .40” LG. | |
| 10 | 1 | 905033-5 | ROLL PIN | |
| 11 | 4 | 900064-02 | BUTTON HEAD SCREW, 3/8”-16 X 5/8” LG. | |
| 12 | 1 | 260179 | TORSION SPRING | |
| 13 | 1 | 260517 | COUPLING INSIDE CASTING | |
| 14 | 1 | 253695 | BUSHING, 3/4” | |
| 15 | 1 | 253772 | PIN, 3-3/32” LG. | |
| 16 | 1 | 260516-01 | COUPLING OUTSIDE, MACHINED | |
| 17 | 1 | 268541-01 | COLUMN COVER, RH | |
| 18 | 2 | 900000-1 | HEX HEAD BOLT, 1/4”-20 X 5/8” LG, GRADE 8 | |
| 19 | 2 | 902011-2 | LOCK WASHER, 1/4” | |
| 20 | 1 | 253694 | SWITCH PLATE | |
| 21 | 2 | 253590 | PIN, 4-3/4” LG. |

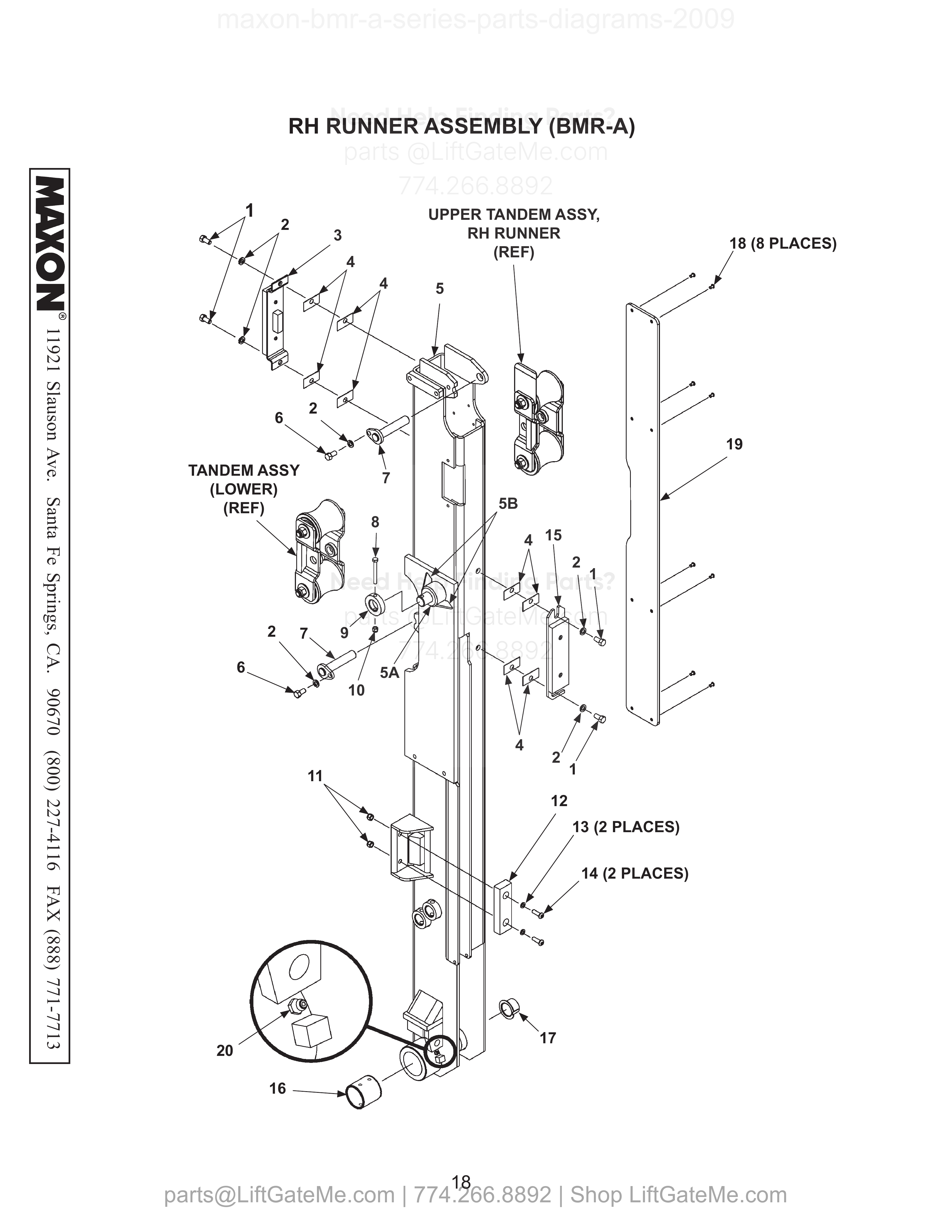

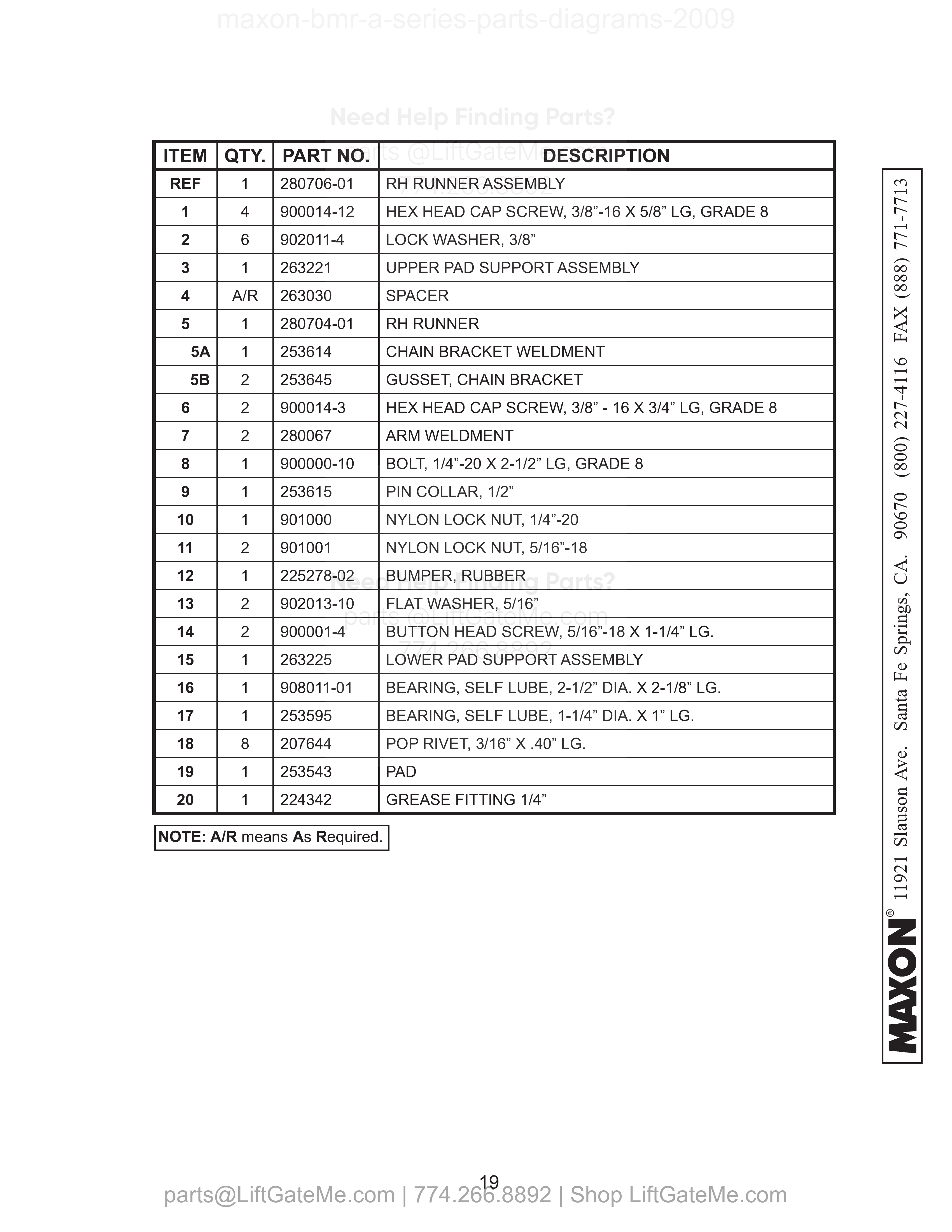

RH RUNNER ASSEMBLY (BMR-A)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280706-01 | RH RUNNER ASSEMBLY | |
| 1 | 4 | 900014-12 | HEX HEAD CAP SCREW, 3/8”-16 X 5/8” LG, GRADE 8 | |
| 2 | 6 | 902011-4 | LOCK WASHER, 3/8” | |
| 3 | 1 | 263221 | UPPER PAD SUPPORT ASSEMBLY | |
| 4 | A/R | 263030 | SPACER | |
| 5 | 1 | 280704-01 | RH RUNNER | |
| 5A | 1 | 253614 | CHAIN BRACKET WELDMENT | |
| 5B | 2 | 253645 | GUSSET, CHAIN BRACKET | |
| 6 | 2 | 900014-3 | HEX HEAD CAP SCREW, 3/8” - 16 X 3/4” LG, GRADE 8 | |
| 7 | 2 | 280067 | ARM WELDMENT | |
| 8 | 1 | 900000-10 | BOLT, 1/4”-20 X 2-1/2” LG, GRADE 8 | |
| 9 | 1 | 253615 | PIN COLLAR, 1/2” | |
| 10 | 1 | 901000 | NYLON LOCK NUT, 1/4”-20 | |
| 11 | 2 | 901001 | NYLON LOCK NUT, 5/16”-18 | |
| 12 | 1 | 225278-02 | BUMPER, RUBBER | |
| 13 | 2 | 902013-10 | FLAT WASHER, 5/16” | |
| 14 | 2 | 900001-4 | BUTTON HEAD SCREW, 5/16”-18 X 1-1/4” LG. | |
| 15 | 1 | 263225 | LOWER PAD SUPPORT ASSEMBLY | |
| 16 | 1 | 908011-01 | BEARING, SELF LUBE, 2-1/2” DIA. X 2-1/8” LG. | |
| 17 | 1 | 253595 | BEARING, SELF LUBE, 1-1/4” DIA. X 1” LG. | |
| 18 | 8 | 207644 | POP RIVET, 3/16” X .40” LG. | |
| 19 | 1 | 253543 | PAD | |
| 20 | 1 | 224342 | GREASE FITTING 1/4” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

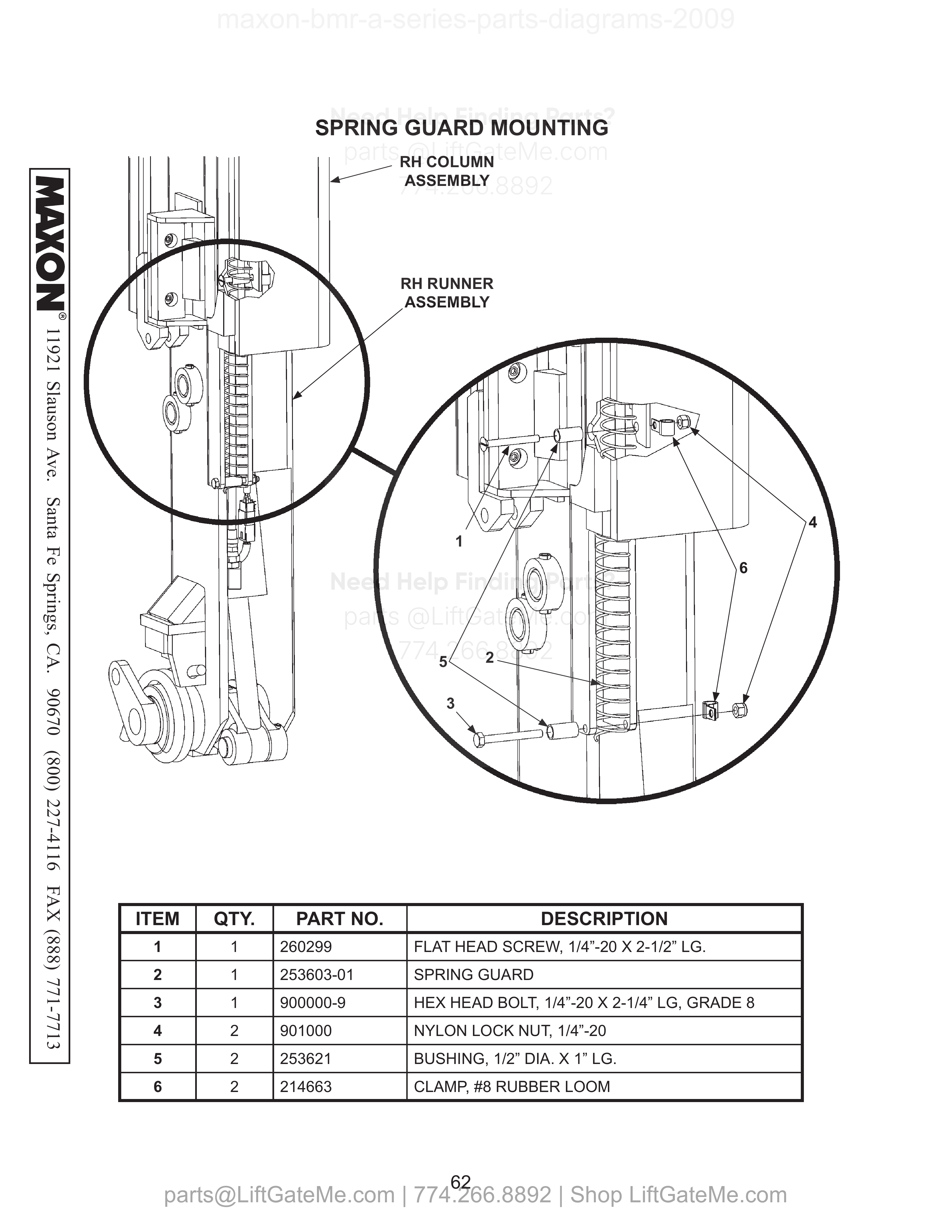

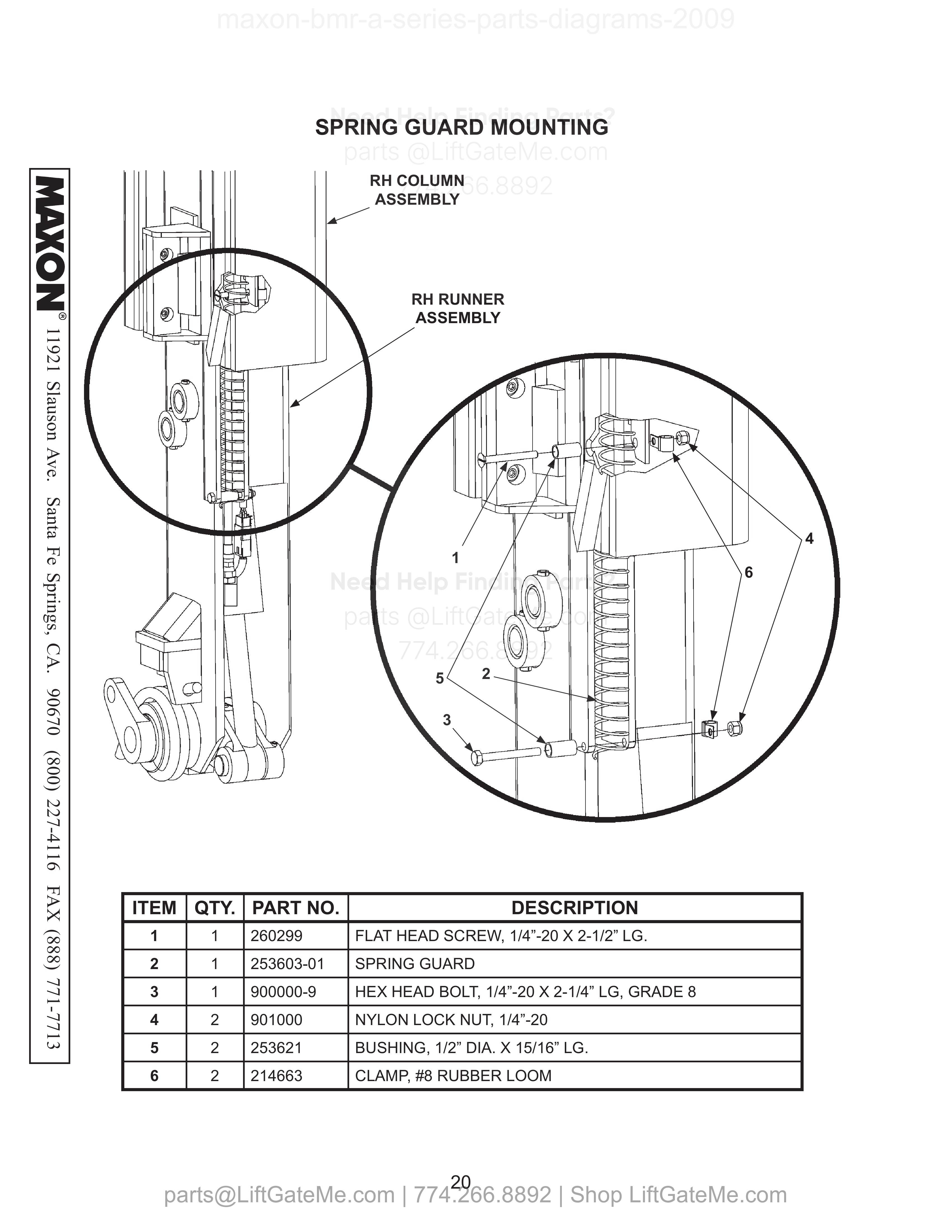

SPRING GUARD MOUNTING
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 260299 | FLAT HEAD SCREW, 1/4”-20 X 2-1/2” LG. | |
| 2 | 1 | 253603-01 | SPRING GUARD | |
| 3 | 1 | 900000-9 | HEX HEAD BOLT, 1/4”-20 X 2-1/4” LG, GRADE 8 | |
| 4 | 2 | 901000 | NYLON LOCK NUT, 1/4”-20 | |
| 5 | 2 | 253621 | BUSHING, 1/2” DIA. X 15/16” LG. | |
| 6 | 2 | 214663 | CLAMP, #8 RUBBER LOOM |

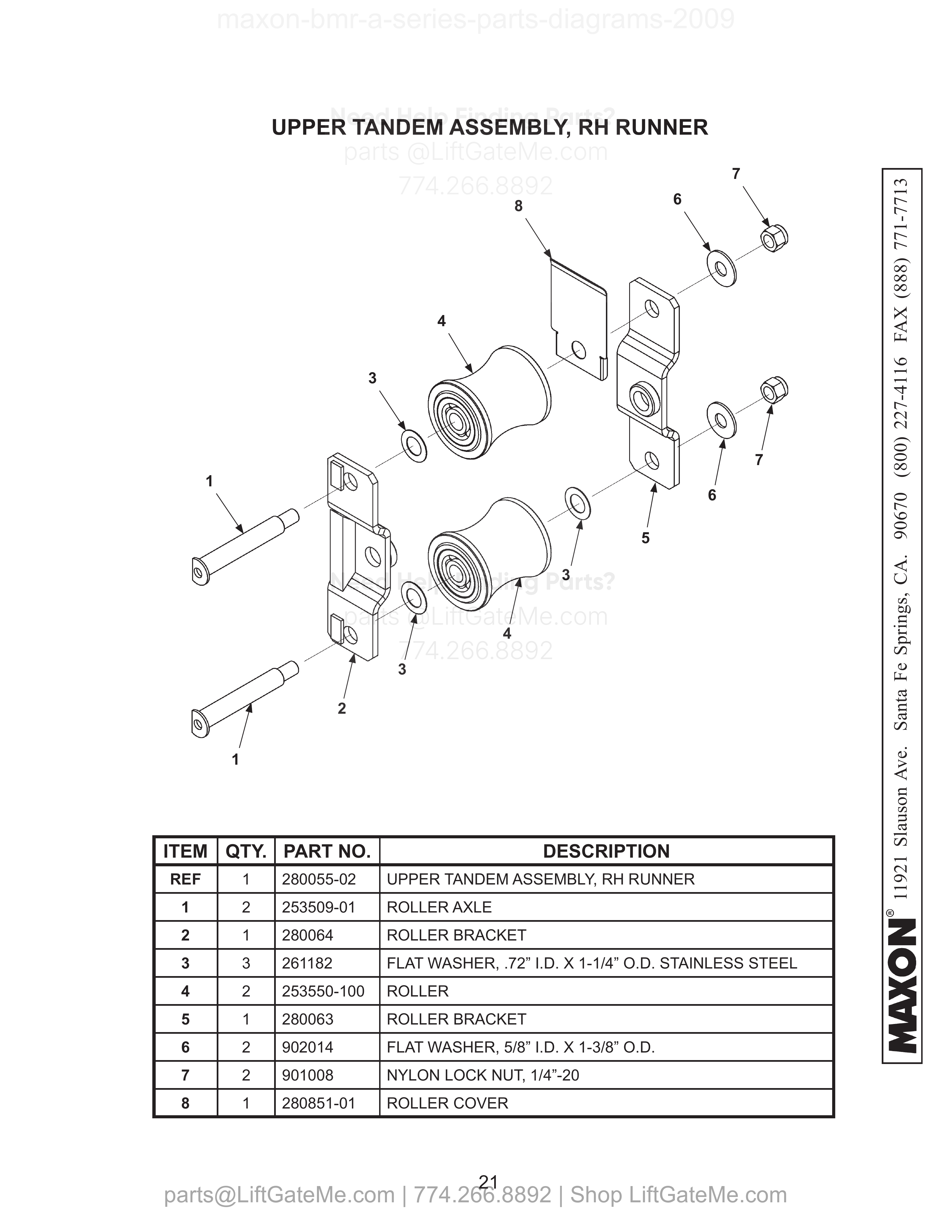

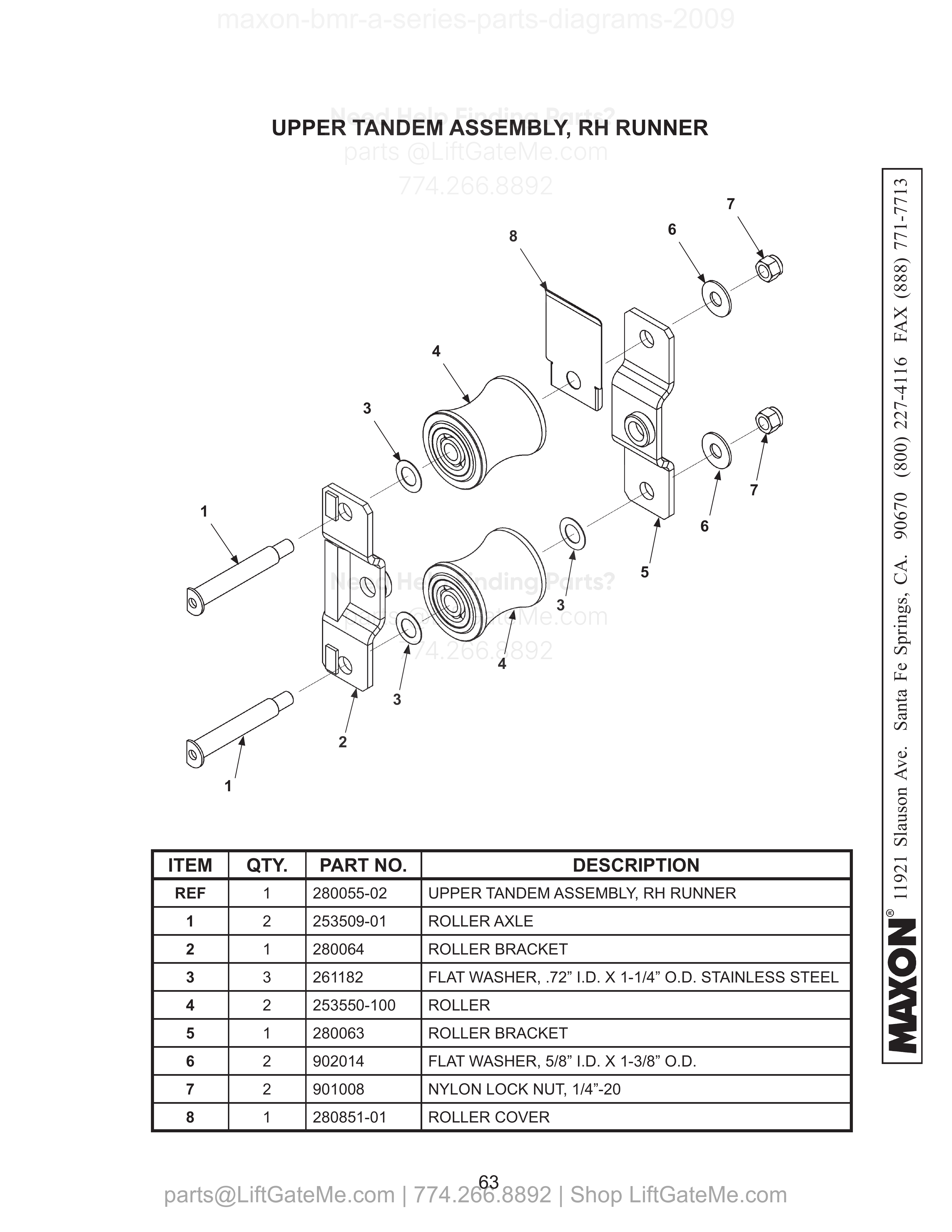

UPPER TANDEM ASSEMBLY, RH RUNNER
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280055-02 | UPPER TANDEM ASSEMBLY, RH RUNNER | |
| 1 | 2 | 253509-01 | ROLLER AXLE | |
| 2 | 1 | 280064 | ROLLER BRACKET | |
| 3 | 3 | 261182 | FLAT WASHER, .72” I.D. X 1-1/4” O.D. STAINLESS STEEL | |
| 4 | 2 | 253550-100 | ROLLER | |
| 5 | 1 | 280063 | ROLLER BRACKET | |
| 6 | 2 | 902014 | FLAT WASHER, 5/8” I.D. X 1-3/8” O.D. | |
| 7 | 2 | 901008 | NYLON LOCK NUT, 1/4”-20 | |
| 8 | 1 | 280851-01 | ROLLER COVER |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

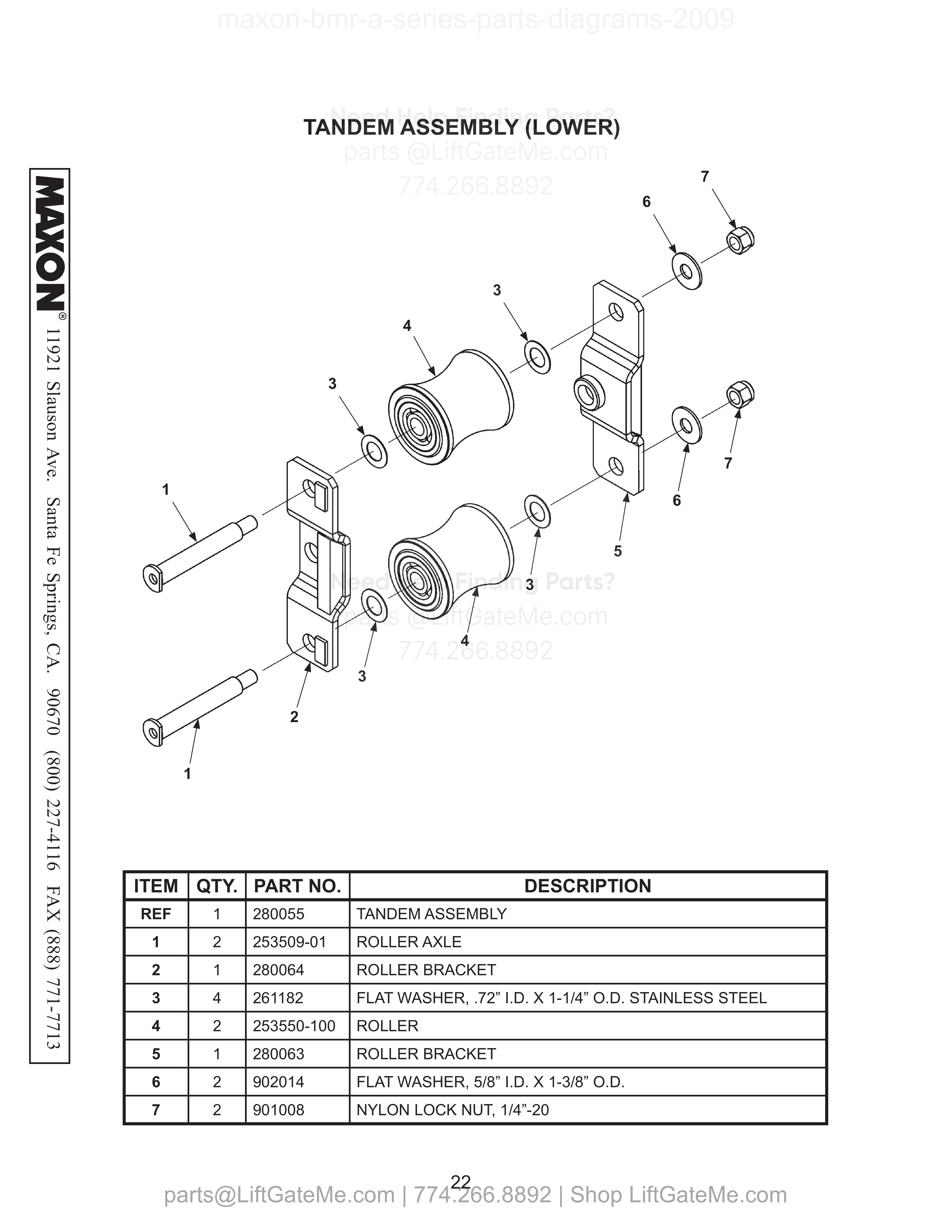

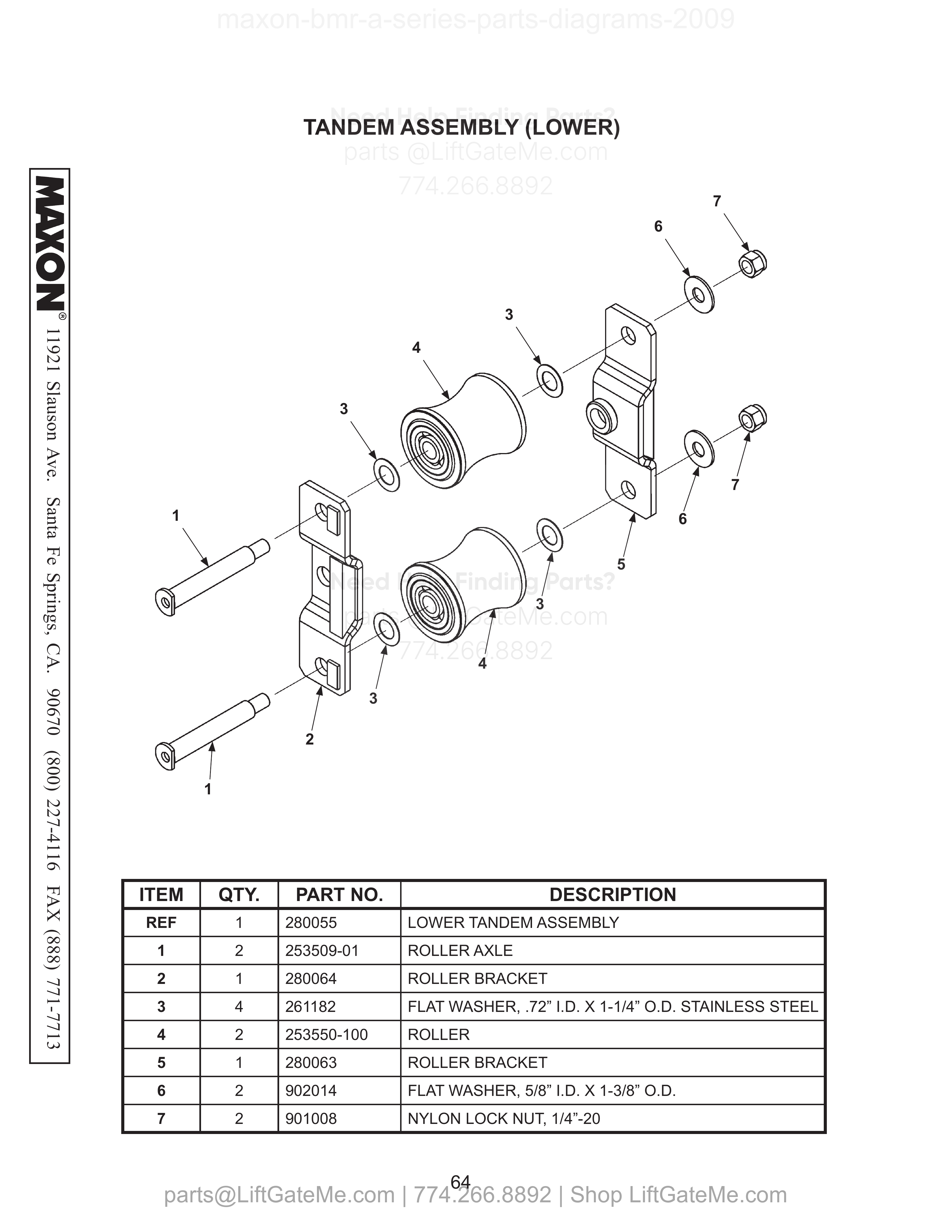

TANDEM ASSEMBLY (LOWER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280055 | TANDEM ASSEMBLY | |
| 1 | 2 | 253509-01 | ROLLER AXLE | |
| 2 | 1 | 280064 | ROLLER BRACKET | |
| 3 | 4 | 261182 | FLAT WASHER, .72” I.D. X 1-1/4” O.D. STAINLESS STEEL | |
| 4 | 2 | 253550-100 | ROLLER | |
| 5 | 1 | 280063 | ROLLER BRACKET | |
| 6 | 2 | 902014 | FLAT WASHER, 5/8” I.D. X 1-3/8” O.D. | |
| 7 | 2 | 901008 | NYLON LOCK NUT, 1/4”-20 |
i

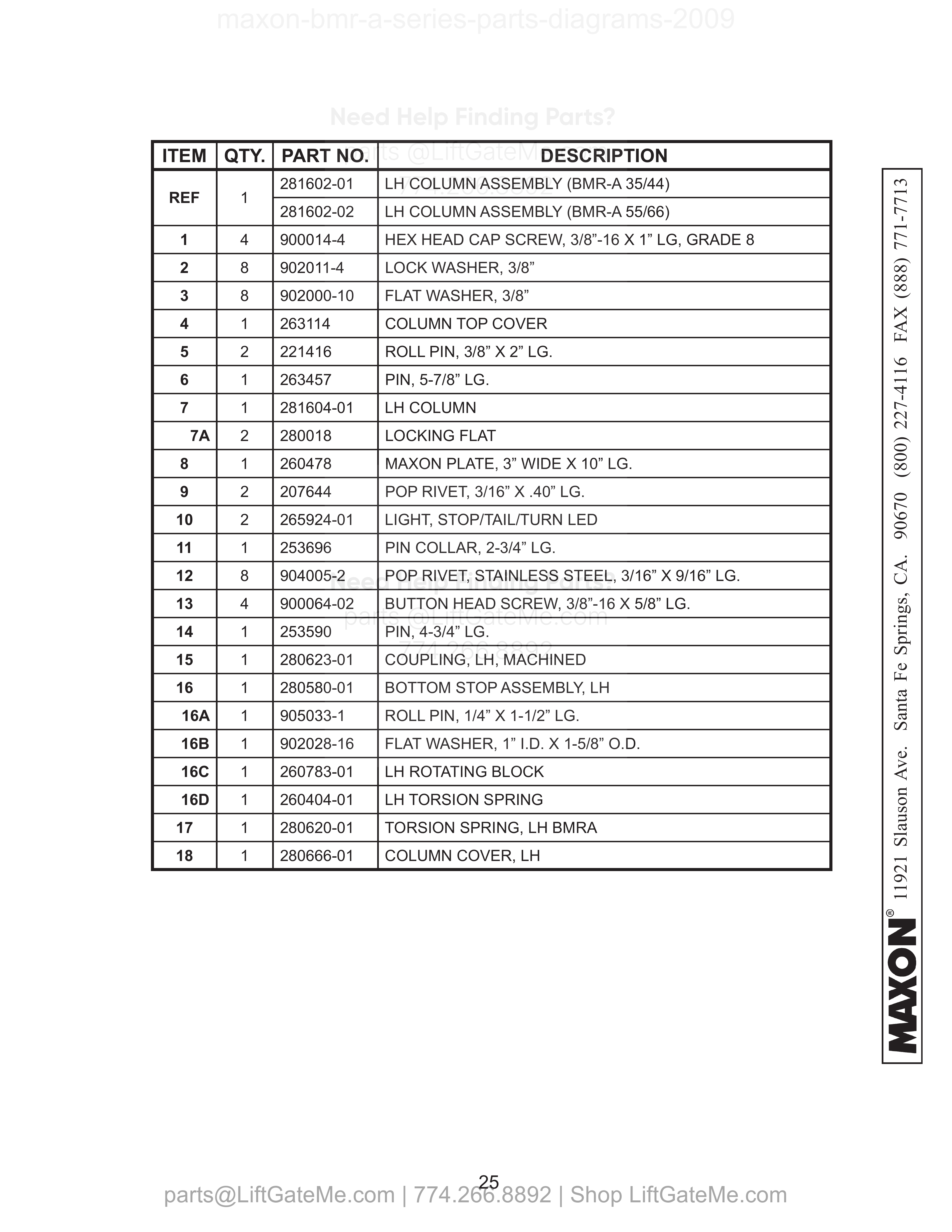

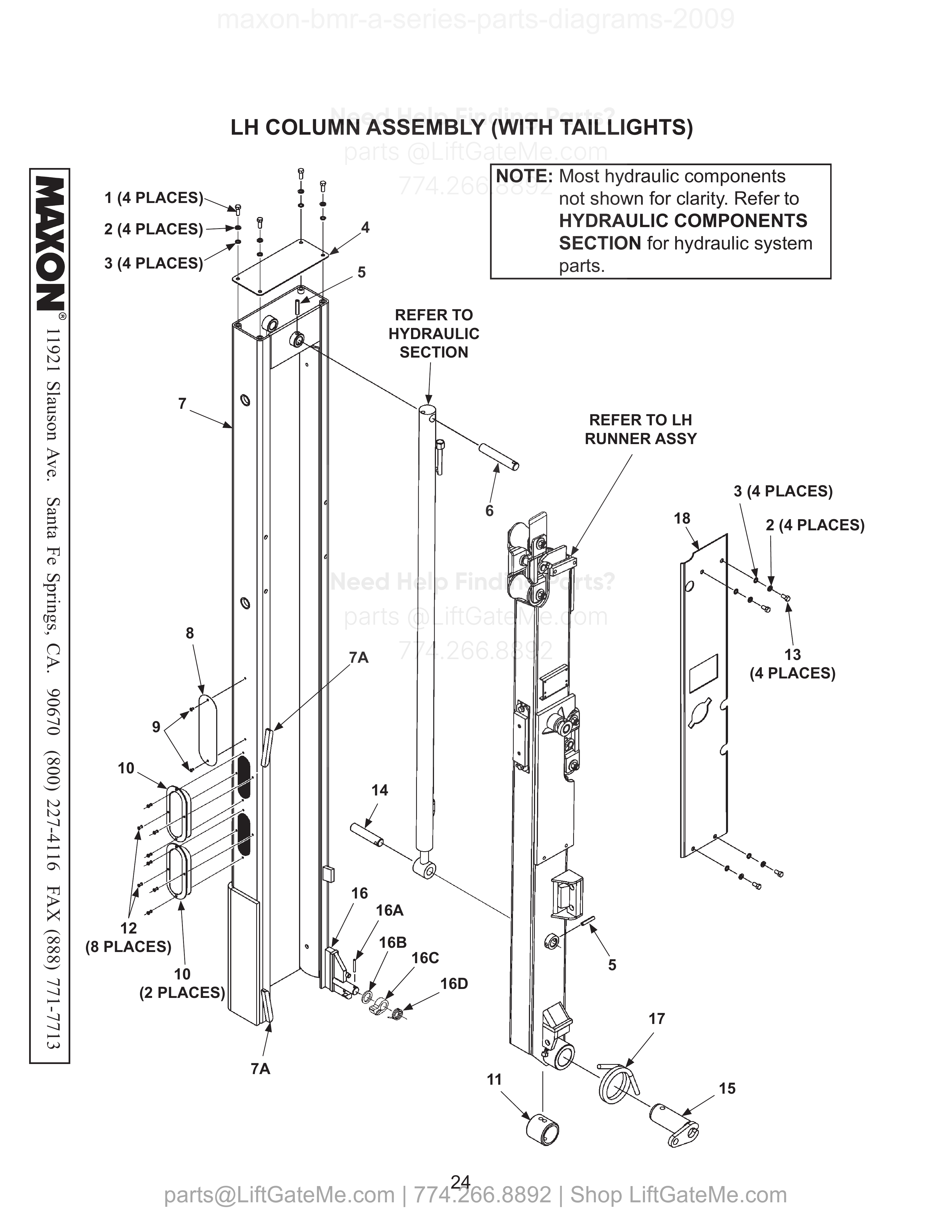

LH COLUMN ASSEMBLY (WITH TAILLIGHTS)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 281602-01 | LH COLUMN ASSEMBLY (BMR-A 35/44) | |
| REF | 1 | 281602-02 | LH COLUMN ASSEMBLY (BMR-A 55/66) | |
| 1 | 4 | 900014-4 | HEX HEAD CAP SCREW, 3/8”-16 X 1” LG, GRADE 8 | |
| 2 | 8 | 902011-4 | LOCK WASHER, 3/8” | |
| 3 | 8 | 902000-10 | FLAT WASHER, 3/8” | |
| 4 | 1 | 263114 | COLUMN TOP COVER | |
| 5 | 2 | 221416 | ROLL PIN, 3/8” X 2” LG. | |
| 6 | 1 | 263457 | PIN, 5-7/8” LG. | |
| 7 | 1 | 281604-01 | LH COLUMN | |
| 7A | 2 | 280018 | LOCKING FLAT | |
| 8 | 1 | 260478 | MAXON PLATE, 3” WIDE X 10” LG. | |
| 9 | 2 | 207644 | POP RIVET, 3/16” X .40” LG. | |
| 10 | 2 | 265924-01 | LIGHT, STOP/TAIL/TURN LED | |
| 11 | 1 | 253696 | PIN COLLAR, 2-3/4” LG. | |
| 12 | 8 | 904005-2 | POP RIVET, STAINLESS STEEL, 3/16” X 9/16” LG. | |
| 13 | 4 | 900064-02 | BUTTON HEAD SCREW, 3/8”-16 X 5/8” LG. | |
| 14 | 1 | 253590 | PIN, 4-3/4” LG. | |
| 15 | 1 | 280623-01 | COUPLING, LH, MACHINED | |
| 16 | 1 | 280580-01 | BOTTOM STOP ASSEMBLY, LH | |
| 16A | 1 | 905033-1 | ROLL PIN, 1/4” X 1-1/2” LG. | |
| 16B | 1 | 902028-16 | FLAT WASHER, 1” I.D. X 1-5/8” O.D. | |
| 16C | 1 | 260783-01 | LH ROTATING BLOCK | |
| 16D | 1 | 260404-01 | LH TORSION SPRING | |
| 17 | 1 | 280620-01 | TORSION SPRING, LH BMRA | |
| 18 | 1 | 280666-01 | COLUMN COVER, LH |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

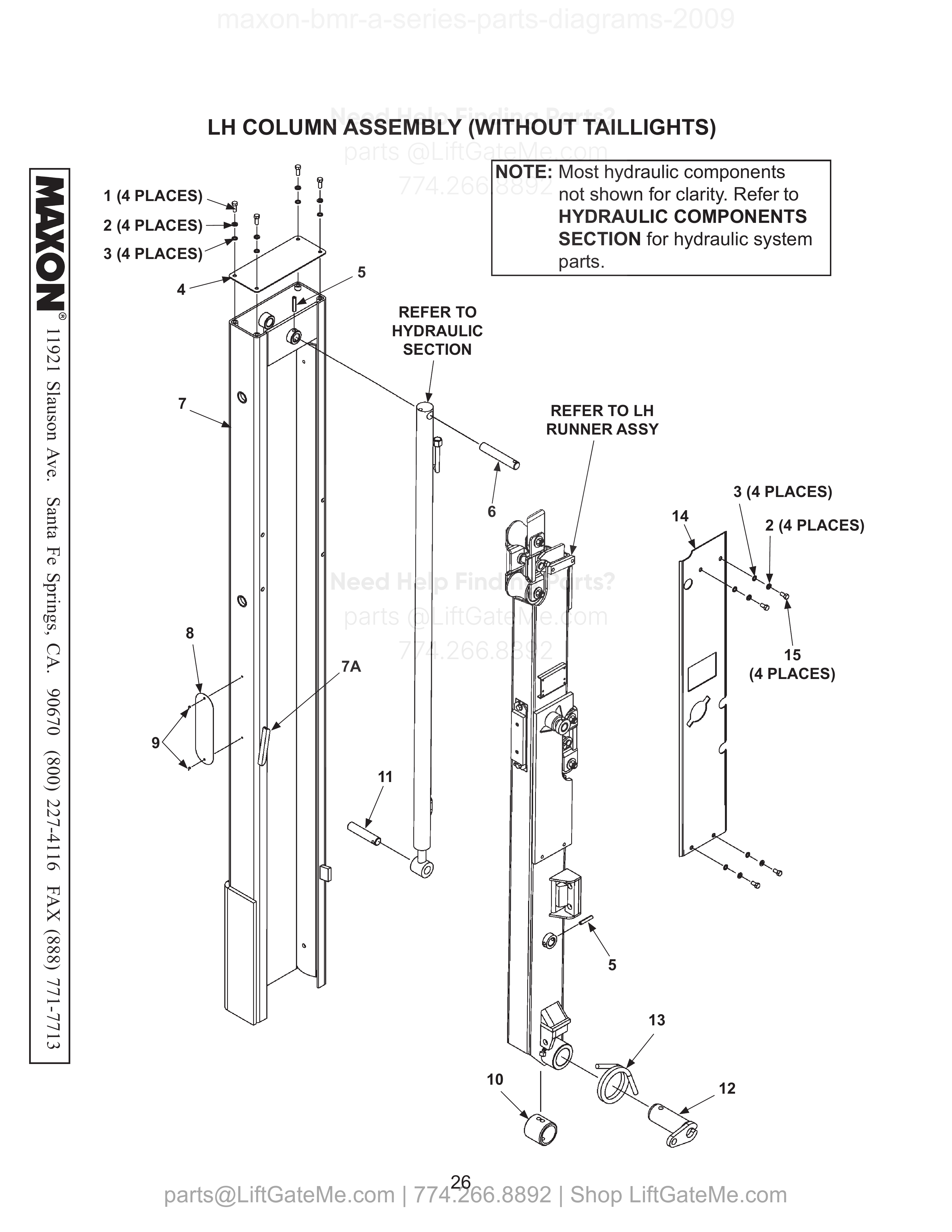

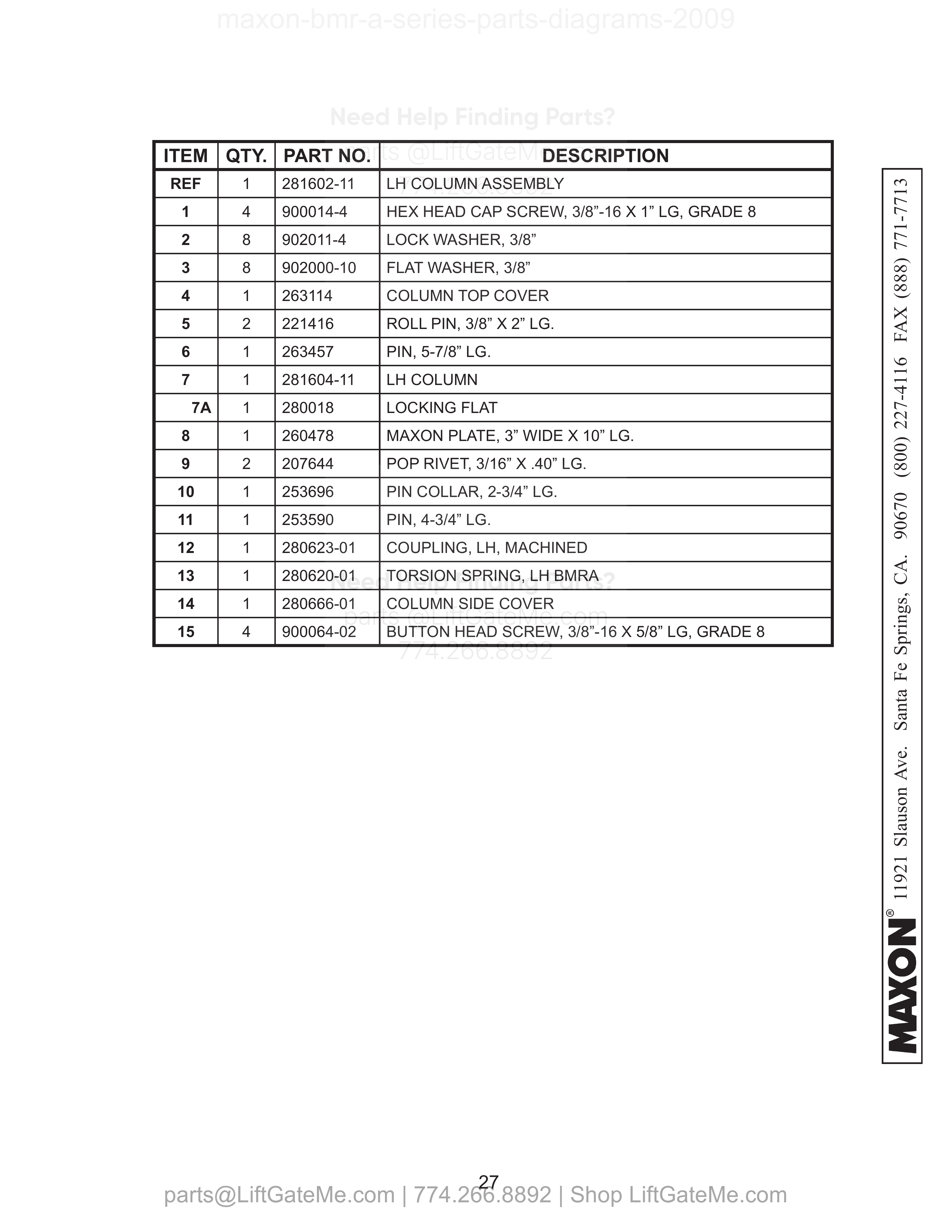

LH COLUMN ASSEMBLY (WITHOUT TAILLIGHTS)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 281602-11 | LH COLUMN ASSEMBLY | |
| 1 | 4 | 900014-4 | HEX HEAD CAP SCREW, 3/8”-16 X 1” LG, GRADE 8 | |
| 2 | 8 | 902011-4 | LOCK WASHER, 3/8” | |
| 3 | 8 | 902000-10 | FLAT WASHER, 3/8” | |
| 4 | 1 | 263114 | COLUMN TOP COVER | |
| 5 | 2 | 221416 | ROLL PIN, 3/8” X 2” LG. | |
| 6 | 1 | 263457 | PIN, 5-7/8” LG. | |
| 7 | 1 | 281604-11 | LH COLUMN | |
| 7A | 1 | 280018 | LOCKING FLAT | |
| 8 | 1 | 260478 | MAXON PLATE, 3” WIDE X 10” LG. | |
| 9 | 2 | 207644 | POP RIVET, 3/16” X .40” LG. | |
| 10 | 1 | 253696 | PIN COLLAR, 2-3/4” LG. | |
| 11 | 1 | 253590 | PIN, 4-3/4” LG. | |
| 12 | 1 | 280623-01 | COUPLING, LH, MACHINED | |
| 13 | 1 | 280620-01 | TORSION SPRING, LH BMRA | |
| 14 | 1 | 280666-01 | COLUMN SIDE COVER | |
| 15 | 4 | 900064-02 | BUTTON HEAD SCREW, 3/8”-16 X 5/8” LG, GRADE 8 |

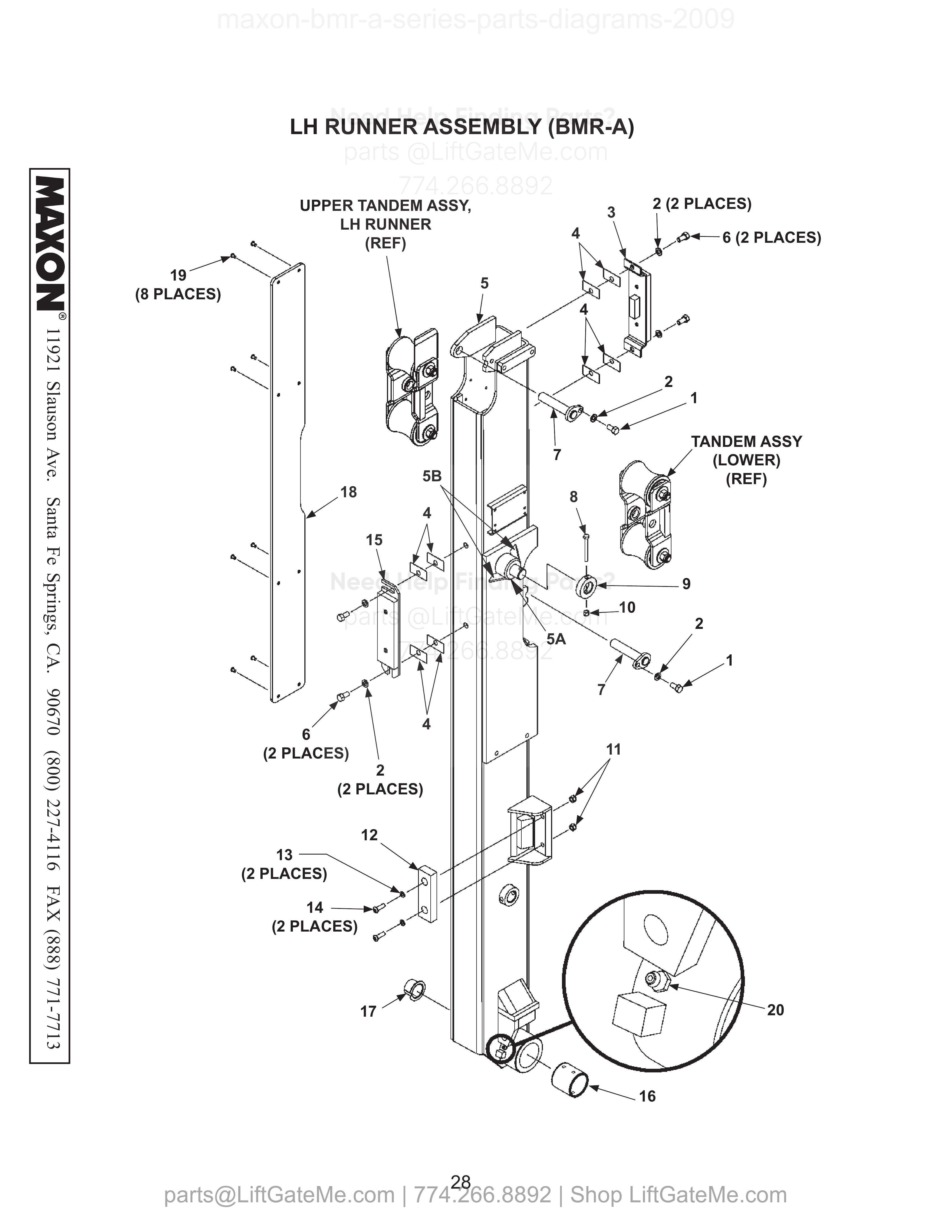

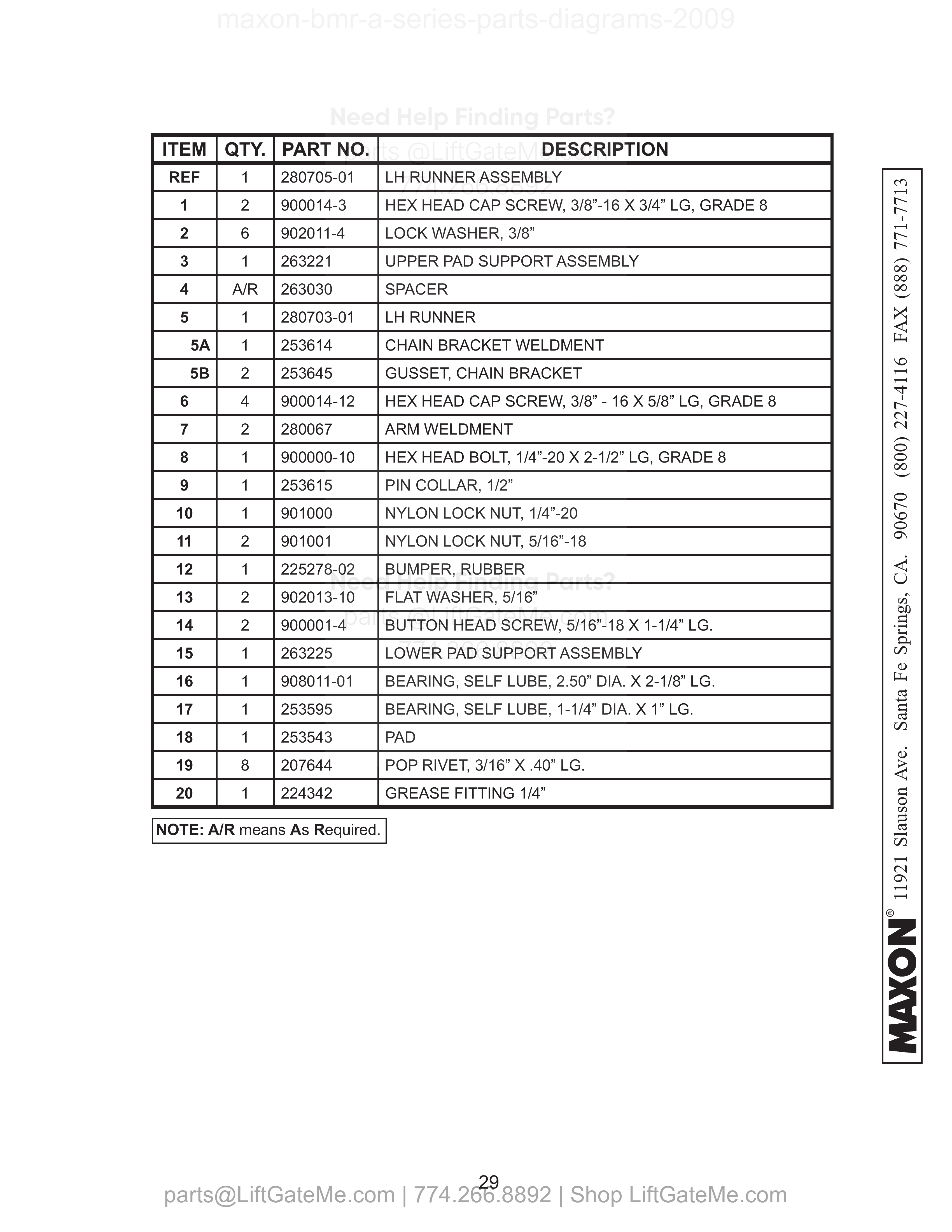

LH RUNNER ASSEMBLY (BMR-A)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280705-01 | LH RUNNER ASSEMBLY | |
| 1 | 2 | 900014-3 | HEX HEAD CAP SCREW, 3/8”-16 X 3/4” LG, GRADE 8 | |
| 2 | 6 | 902011-4 | LOCK WASHER, 3/8” | |
| 3 | 1 | 263221 | UPPER PAD SUPPORT ASSEMBLY | |
| 4 | A/R | 263030 | SPACER | |
| 5 | 1 | 280703-01 | LH RUNNER | |
| 5A | 1 | 253614 | CHAIN BRACKET WELDMENT | |
| 5B | 2 | 253645 | GUSSET, CHAIN BRACKET | |
| 6 | 4 | 900014-12 | HEX HEAD CAP SCREW, 3/8” - 16 X 5/8” LG, GRADE 8 | |
| 7 | 2 | 280067 | ARM WELDMENT | |
| 8 | 1 | 900000-10 | HEX HEAD BOLT, 1/4”-20 X 2-1/2” LG, GRADE 8 | |
| 9 | 1 | 253615 | PIN COLLAR, 1/2” | |
| 10 | 1 | 901000 | NYLON LOCK NUT, 1/4”-20 | |
| 11 | 2 | 901001 | NYLON LOCK NUT, 5/16”-18 | |
| 12 | 1 | 225278-02 | BUMPER, RUBBER | |
| 13 | 2 | 902013-10 | FLAT WASHER, 5/16” | |
| 14 | 2 | 900001-4 | BUTTON HEAD SCREW, 5/16”-18 X 1-1/4” LG. | |
| 15 | 1 | 263225 | LOWER PAD SUPPORT ASSEMBLY | |
| 16 | 1 | 908011-01 | BEARING, SELF LUBE, 2.50” DIA. X 2-1/8” LG. | |
| 17 | 1 | 253595 | BEARING, SELF LUBE, 1-1/4” DIA. X 1” LG. | |
| 18 | 1 | 253543 | PAD | |
| 19 | 8 | 207644 | POP RIVET, 3/16” X .40” LG. | |
| 20 | 1 | 224342 | GREASE FITTING 1/4” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

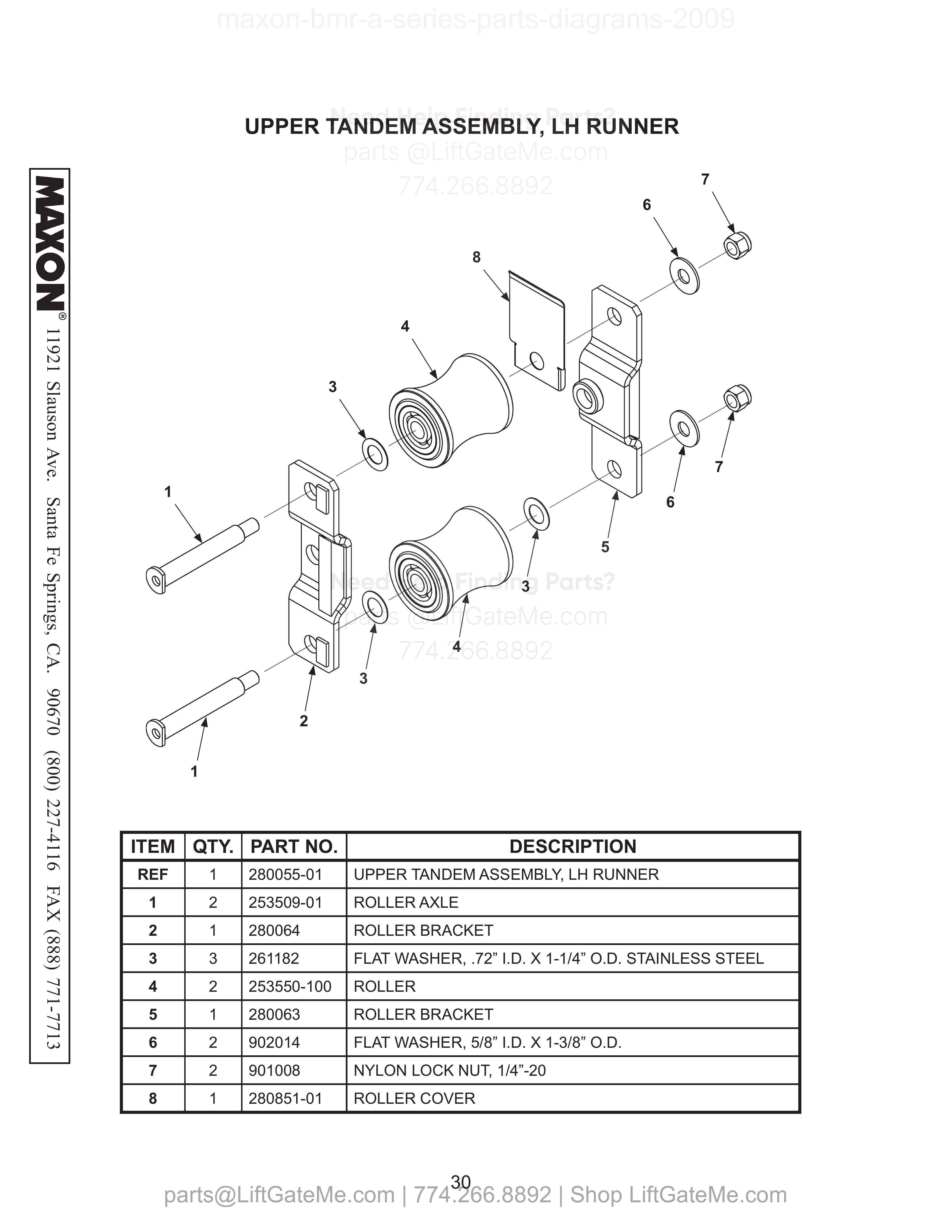

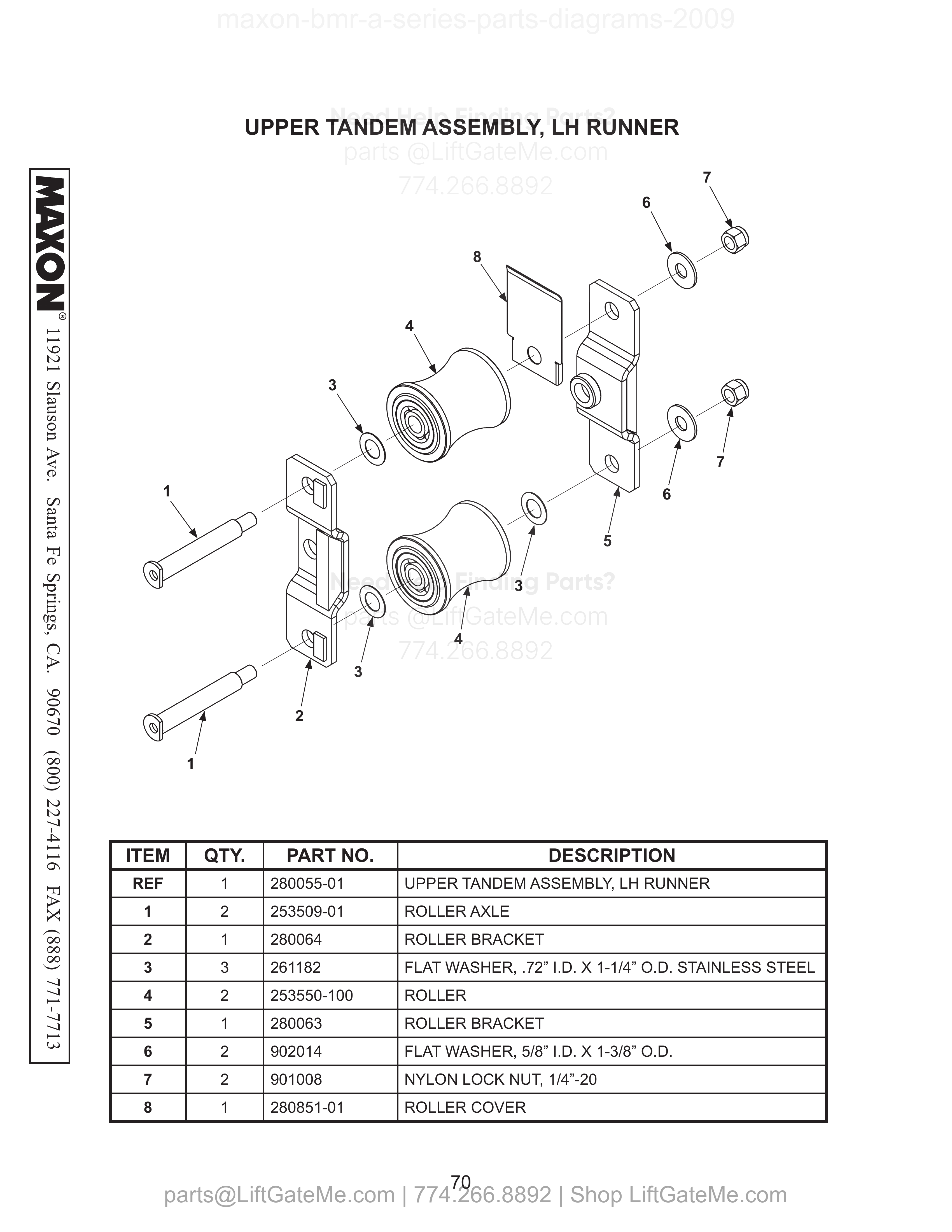

UPPER TANDEM ASSEMBLY, LH RUNNER
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280055-01 | UPPER TANDEM ASSEMBLY, LH RUNNER | |
| 1 | 2 | 253509-01 | ROLLER AXLE | |
| 2 | 1 | 280064 | ROLLER BRACKET | |
| 3 | 3 | 261182 | FLAT WASHER, .72” I.D. X 1-1/4” O.D. STAINLESS STEEL | |
| 4 | 2 | 253550-100 | ROLLER | |
| 5 | 1 | 280063 | ROLLER BRACKET | |
| 6 | 2 | 902014 | FLAT WASHER, 5/8” I.D. X 1-3/8” O.D. | |
| 7 | 2 | 901008 | NYLON LOCK NUT, 1/4”-20 | |
| 8 | 1 | 280851-01 | ROLLER COVER |
i

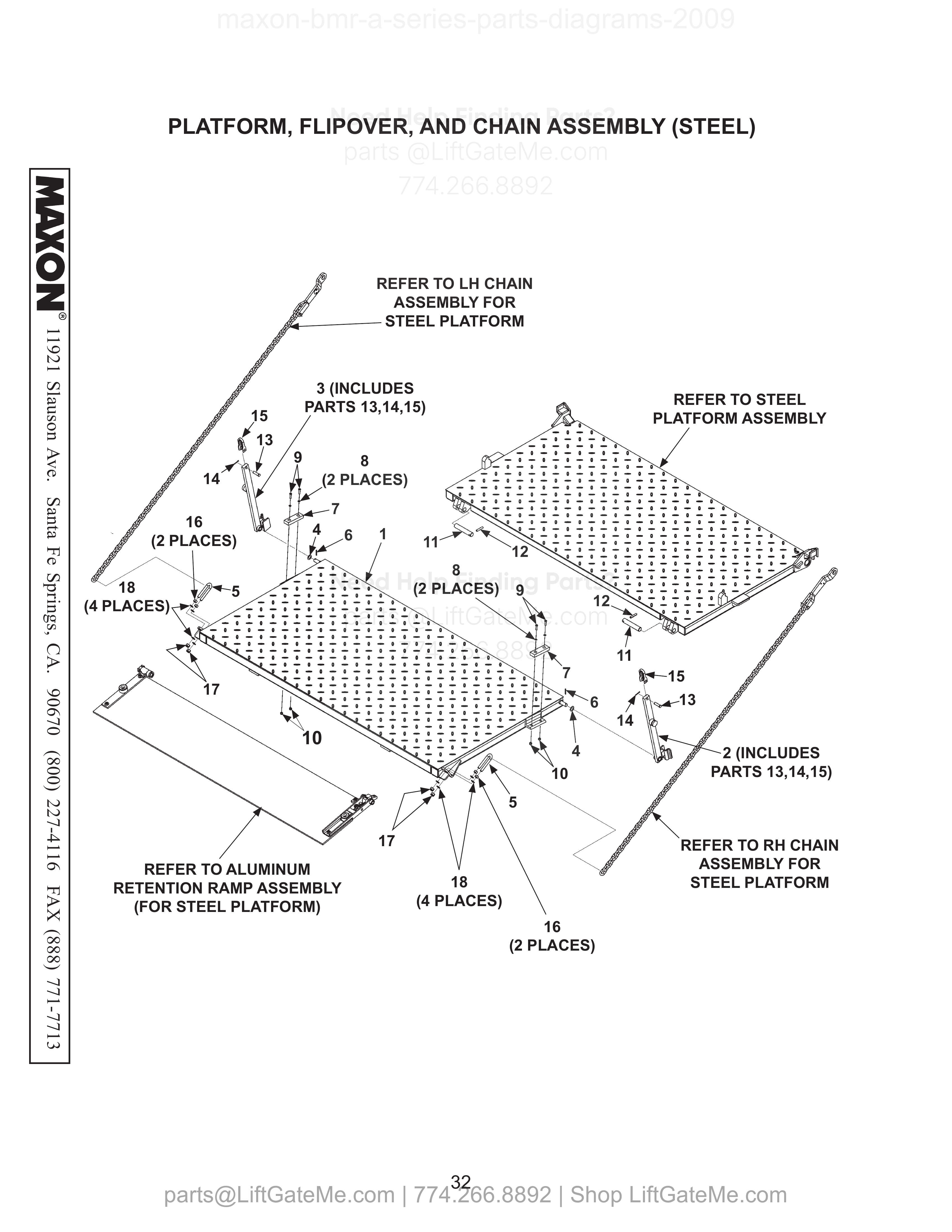

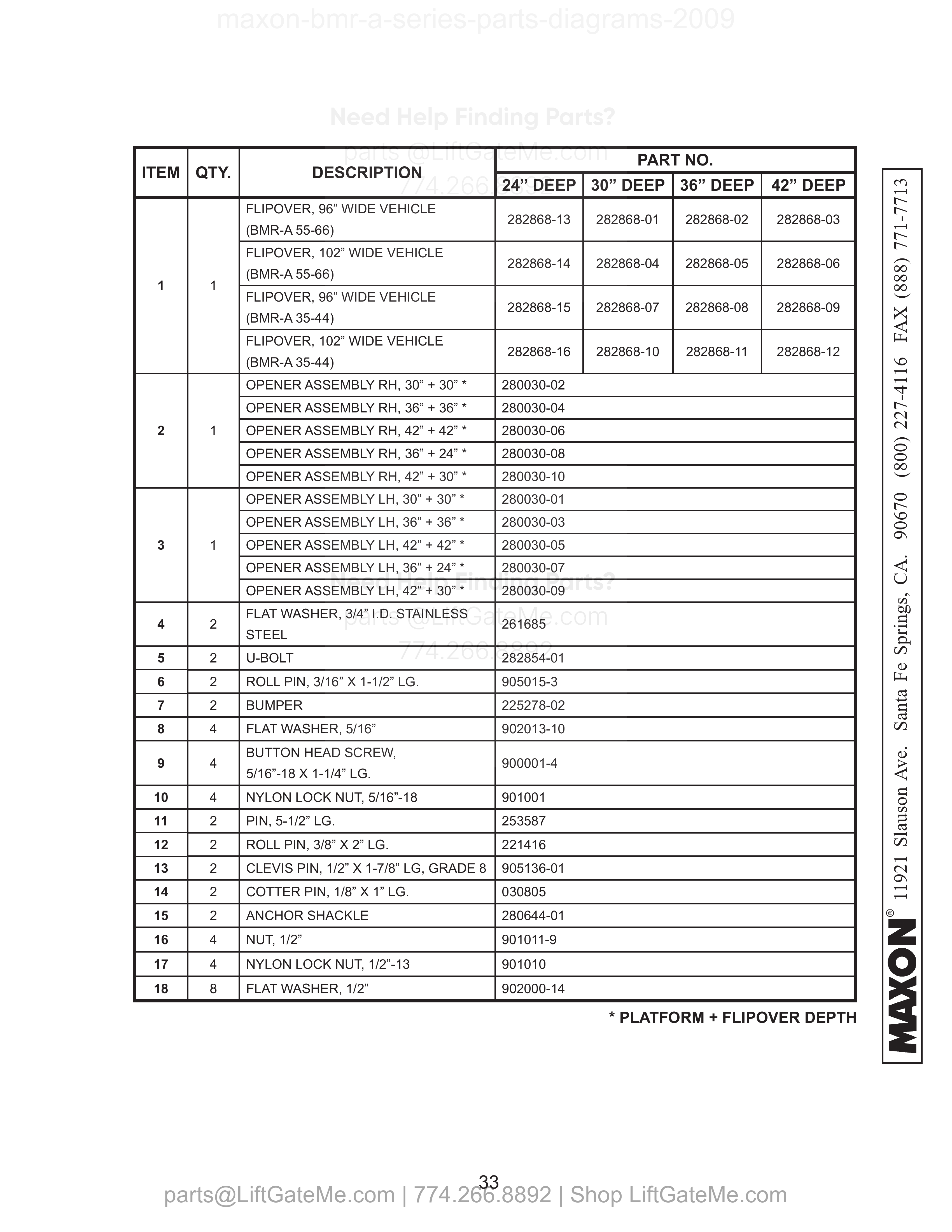

PLATFORM, FLIPOVER, AND CHAIN ASSEMBLY (STEEL)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 282868-13 | FLIPOVER, 96” WIDE VEHICLE (BMR-A 55-66) | |
| 1 | 1 | 282868-01 | FLIPOVER, 96” WIDE VEHICLE (BMR-A 55-66) | |
| 1 | 1 | 282868-02 | FLIPOVER, 96” WIDE VEHICLE (BMR-A 55-66) | |
| 1 | 1 | 282868-03 | FLIPOVER, 96” WIDE VEHICLE (BMR-A 55-66) | |
| 1 | 1 | 282868-14 | FLIPOVER, 102” WIDE VEHICLE (BMR-A 55-66) | |
| 1 | 1 | 282868-04 | FLIPOVER, 102” WIDE VEHICLE (BMR-A 55-66) | |
| 1 | 1 | 282868-05 | FLIPOVER, 102” WIDE VEHICLE (BMR-A 55-66) | |
| 1 | 1 | 282868-06 | FLIPOVER, 102” WIDE VEHICLE (BMR-A 55-66) | |
| 1 | 1 | 282868-15 | FLIPOVER, 96” WIDE VEHICLE (BMR-A 35-44) | |
| 1 | 1 | 282868-07 | FLIPOVER, 96” WIDE VEHICLE (BMR-A 35-44) | |
| 1 | 1 | 282868-08 | FLIPOVER, 96” WIDE VEHICLE (BMR-A 35-44) | |
| 1 | 1 | 282868-09 | FLIPOVER, 96” WIDE VEHICLE (BMR-A 35-44) | |
| 1 | 1 | 282868-16 | FLIPOVER, 102” WIDE VEHICLE (BMR-A 35-44) | |
| 1 | 1 | 282868-10 | FLIPOVER, 102” WIDE VEHICLE (BMR-A 35-44) | |
| 1 | 1 | 282868-11 | FLIPOVER, 102” WIDE VEHICLE (BMR-A 35-44) | |
| 1 | 1 | 282868-12 | FLIPOVER, 102” WIDE VEHICLE (BMR-A 35-44) | |
| 2 | 1 | 280030-02 | OPENER ASSEMBLY RH, 30” + 30” * | |
| 2 | 1 | 280030-04 | OPENER ASSEMBLY RH, 36” + 36” * | |
| 2 | 1 | 280030-06 | OPENER ASSEMBLY RH, 42” + 42” * | |
| 2 | 1 | 280030-08 | OPENER ASSEMBLY RH, 36” + 24” * | |
| 2 | 1 | 280030-10 | OPENER ASSEMBLY RH, 42” + 30” * | |
| 3 | 1 | 280030-01 | OPENER ASSEMBLY LH, 30” + 30” * | |
| 3 | 1 | 280030-03 | OPENER ASSEMBLY LH, 36” + 36” * | |
| 3 | 1 | 280030-05 | OPENER ASSEMBLY LH, 42” + 42” * | |
| 3 | 1 | 280030-07 | OPENER ASSEMBLY LH, 36” + 24” * | |
| 3 | 1 | 280030-09 | OPENER ASSEMBLY LH, 42” + 30” * | |
| 4 | 2 | 261685 | FLAT WASHER, 3/4” I.D. STAINLESS STEEL | |
| 5 | 2 | 282854-01 | U-BOLT | |
| 6 | 2 | 905015-3 | ROLL PIN, 3/16” X 1-1/2” LG. | |
| 7 | 2 | 225278-02 | BUMPER | |
| 8 | 4 | 902013-10 | FLAT WASHER, 5/16” | |
| 9 | 4 | 900001-4 | BUTTON HEAD SCREW, 5/16”-18 X 1-1/4” LG. | |
| 10 | 4 | 901001 | NYLON LOCK NUT, 5/16”-18 | |
| 11 | 2 | 253587 | PIN, 5-1/2” LG. | |
| 12 | 2 | 221416 | ROLL PIN, 3/8” X 2” LG. | |
| 13 | 2 | 905136-01 | CLEVIS PIN, 1/2” X 1-7/8” LG, GRADE 8 | |
| 14 | 2 | 030805 | COTTER PIN, 1/8” X 1” LG. | |
| 15 | 2 | 280644-01 | ANCHOR SHACKLE | |
| 16 | 4 | 901011-9 | NUT, 1/2” | |
| 17 | 4 | 901010 | NYLON LOCK NUT, 1/2”-13 | |
| 18 | 8 | 902000-14 | FLAT WASHER, 1/2” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

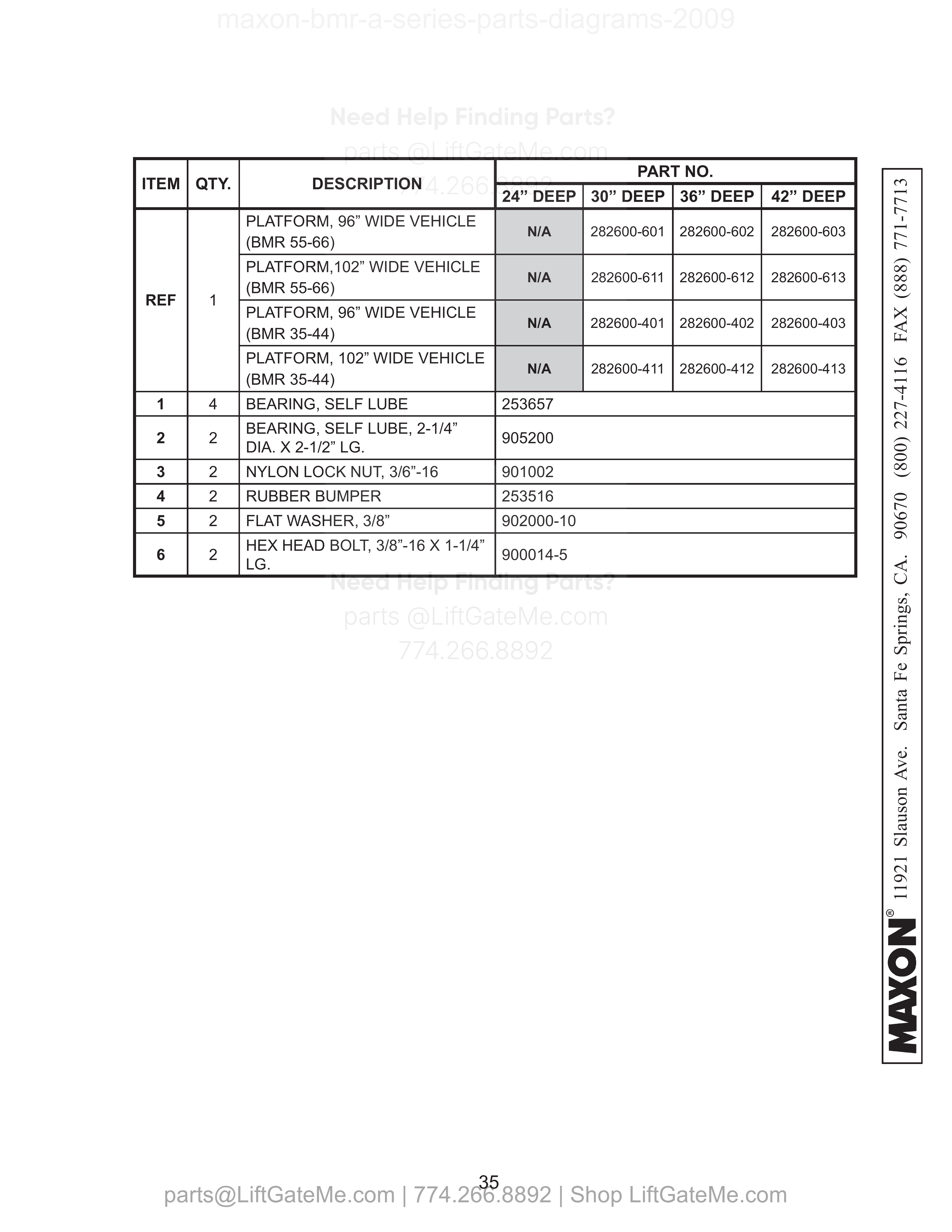

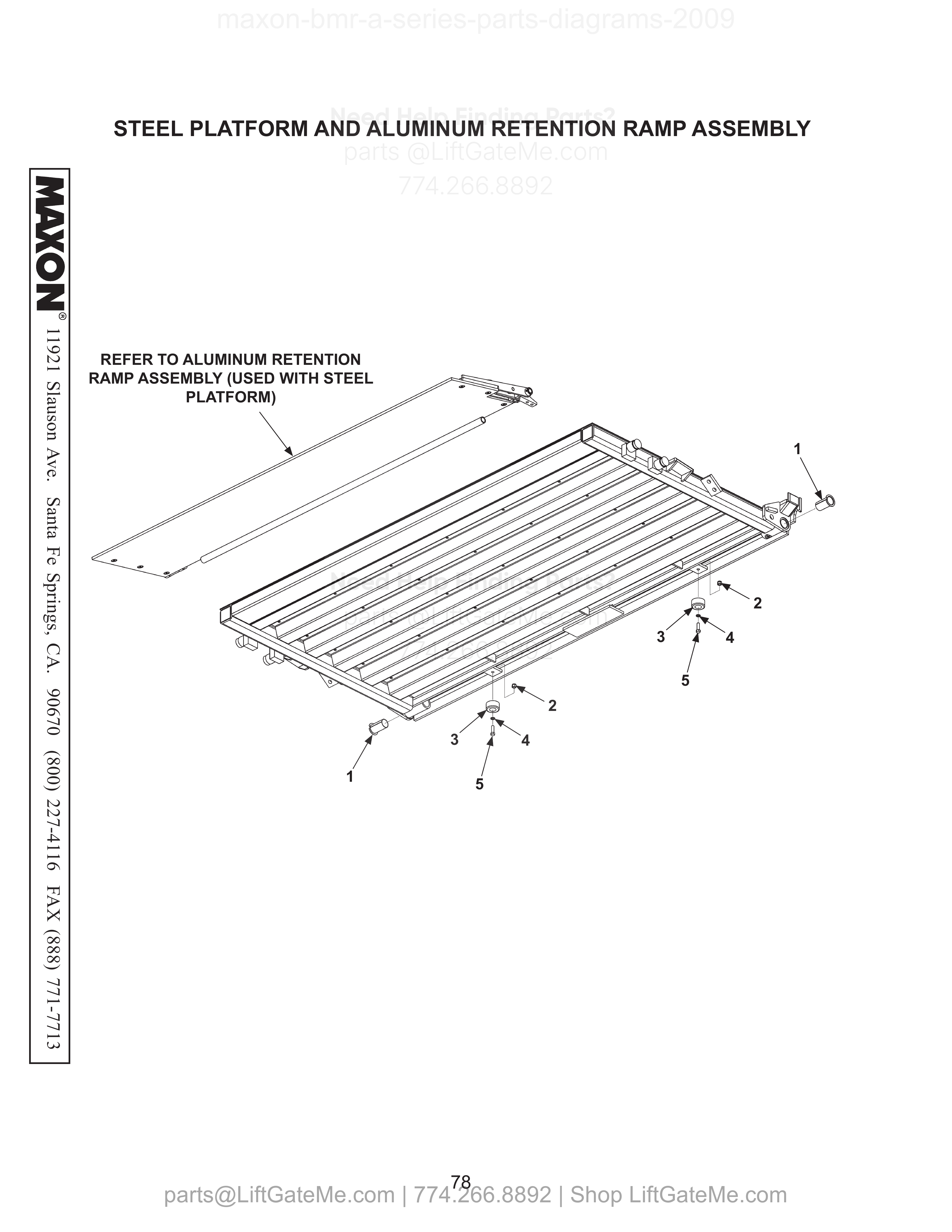

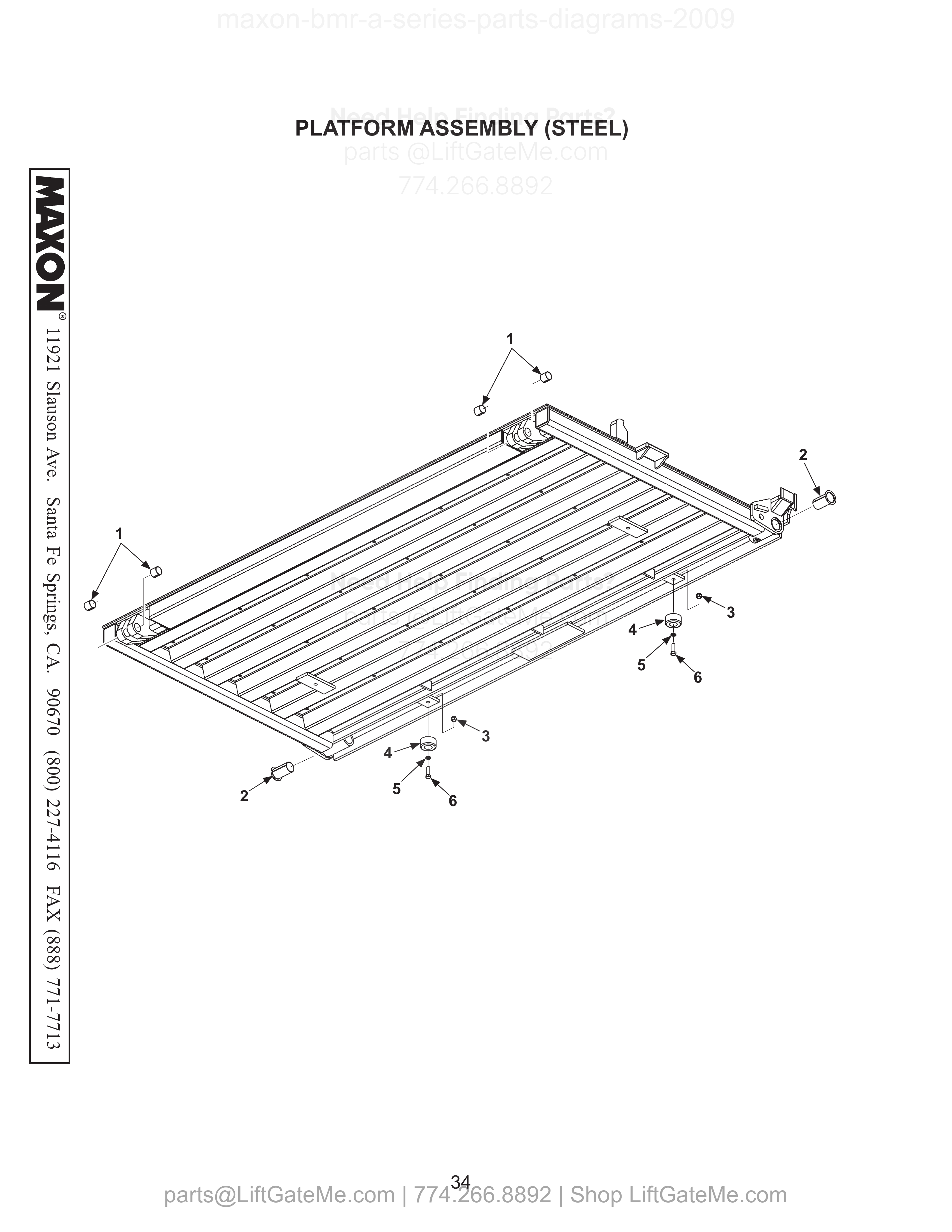

Platform Assembly (Steel)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 282600-601 | PLATFORM, 96” WIDE VEHICLE (BMR 55-66) | |
| REF | 1 | 282600-602 | PLATFORM, 96” WIDE VEHICLE (BMR 55-66) | |
| REF | 1 | 282600-603 | PLATFORM, 96” WIDE VEHICLE (BMR 55-66) | |
| REF | 1 | 282600-611 | PLATFORM,102” WIDE VEHICLE (BMR 55-66) | |
| REF | 1 | 282600-612 | PLATFORM,102” WIDE VEHICLE (BMR 55-66) | |
| REF | 1 | 282600-613 | PLATFORM,102” WIDE VEHICLE (BMR 55-66) | |
| REF | 1 | 282600-401 | PLATFORM, 96” WIDE VEHICLE (BMR 35-44) | |
| REF | 1 | 282600-402 | PLATFORM, 96” WIDE VEHICLE (BMR 35-44) | |
| REF | 1 | 282600-403 | PLATFORM, 96” WIDE VEHICLE (BMR 35-44) | |
| REF | 1 | 282600-411 | PLATFORM, 102” WIDE VEHICLE (BMR 35-44) | |
| REF | 1 | 282600-412 | PLATFORM, 102” WIDE VEHICLE (BMR 35-44) | |
| REF | 1 | 282600-413 | PLATFORM, 102” WIDE VEHICLE (BMR 35-44) | |
| 1 | 4 | 253657 | BEARING, SELF LUBE | |
| 2 | 2 | 905200 | BEARING, SELF LUBE, 2-1/4” DIA. X 2-1/2” LG. | |
| 3 | 2 | 901002 | NYLON LOCK NUT, 3/6”-16 | |
| 4 | 2 | 253516 | RUBBER BUMPER | |
| 5 | 2 | 902000-10 | FLAT WASHER, 3/8” | |
| 6 | 2 | 900014-5 | HEX HEAD BOLT, 3/8”-16 X 1-1/4” LG. |

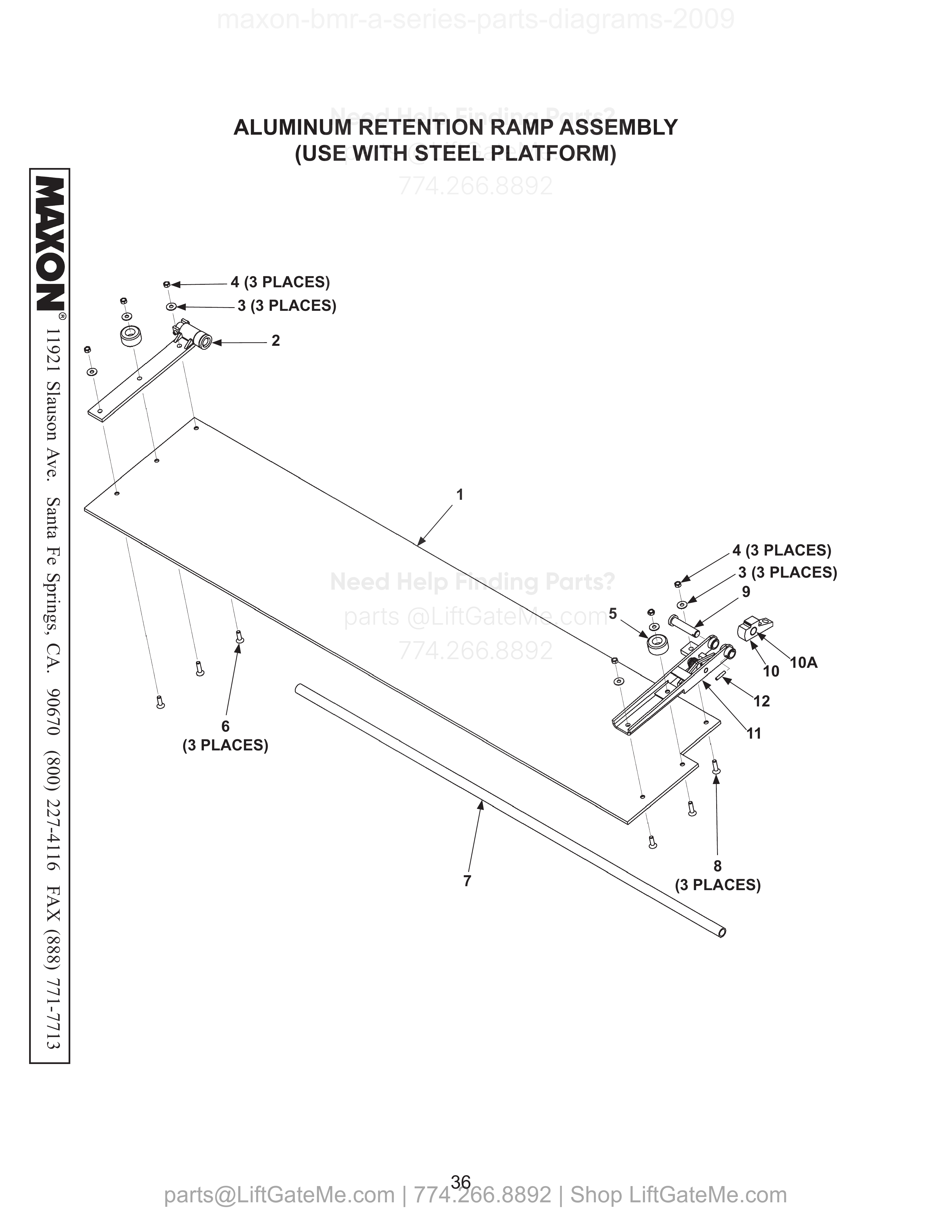

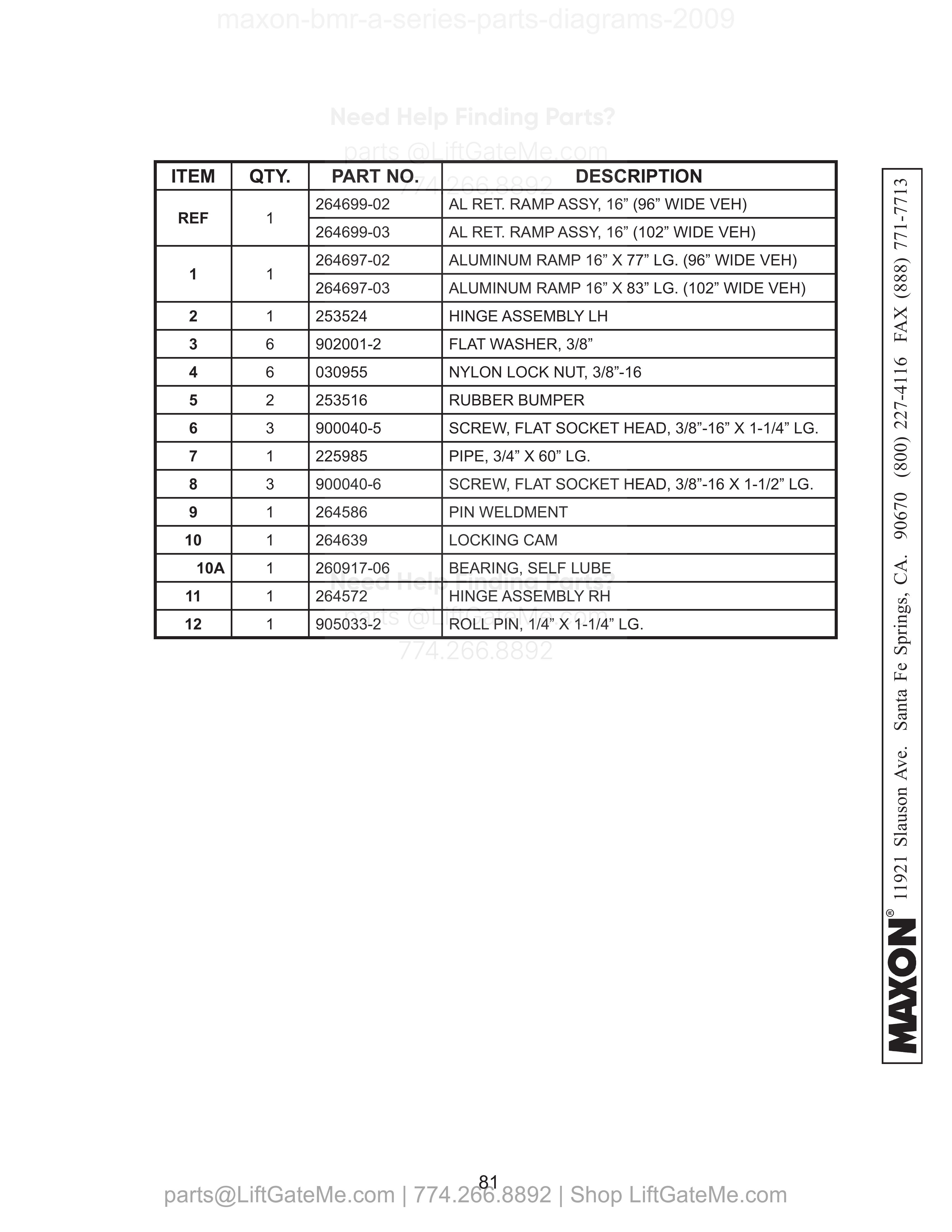

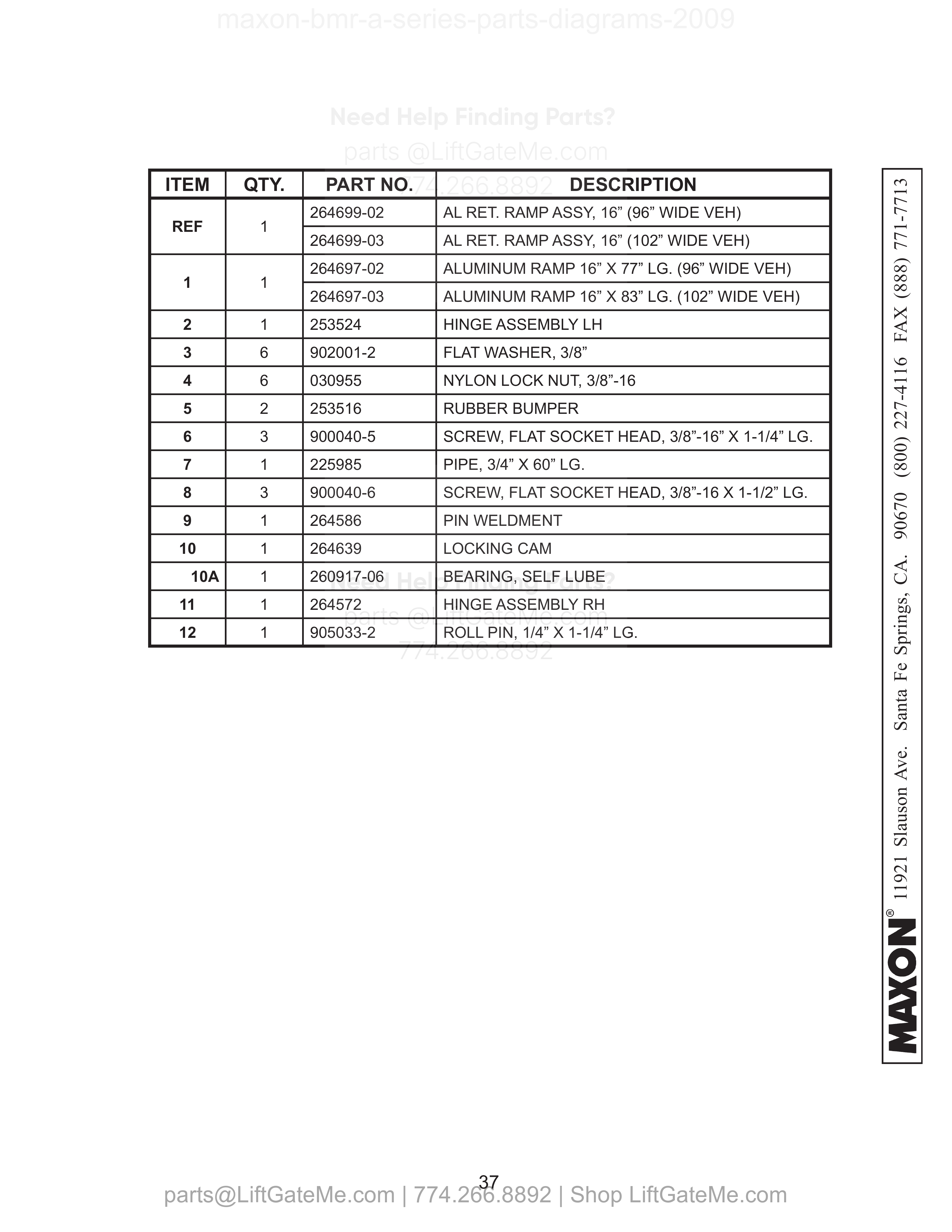

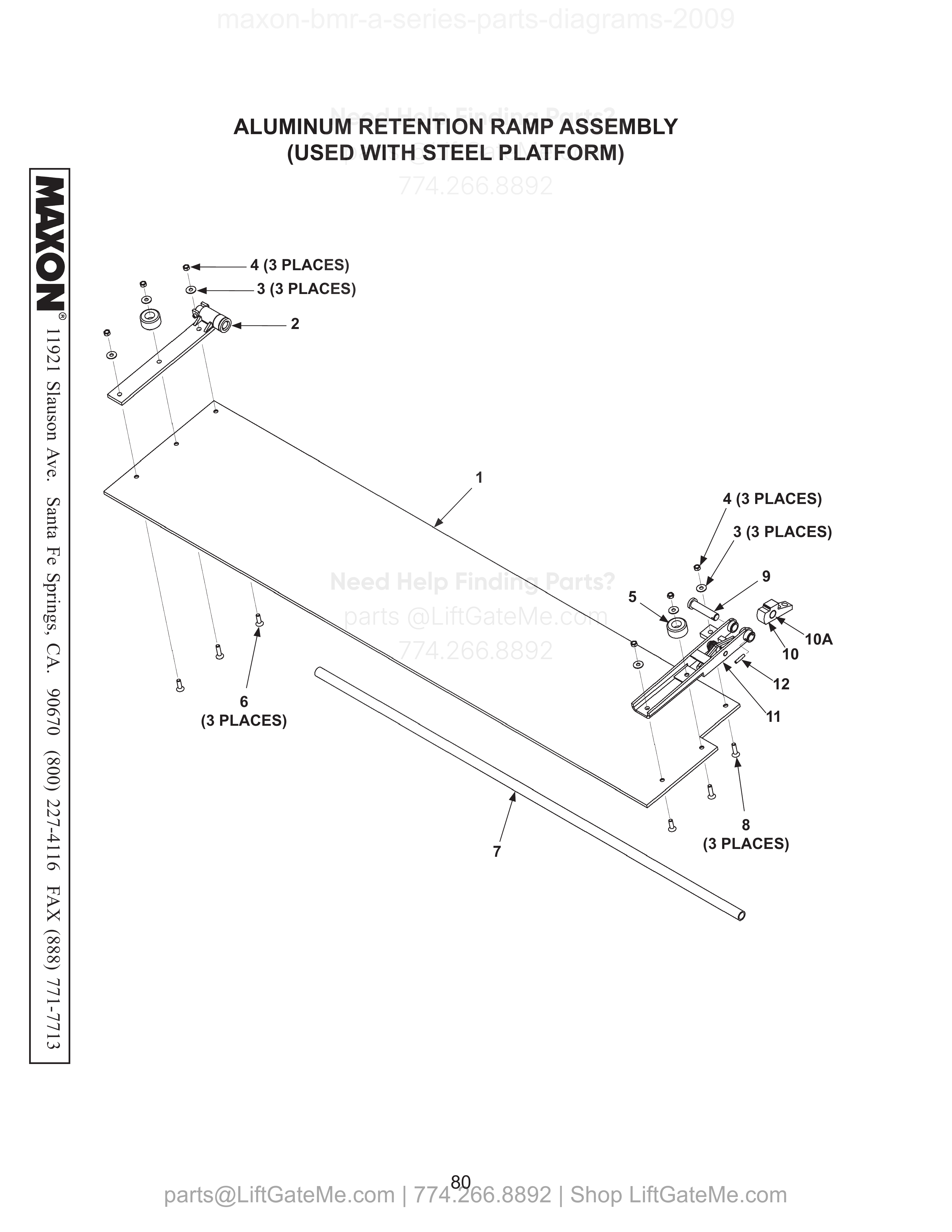

Aluminum Retention Ramp Assembly (Use With Steel Platform)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 264699-02 | AL RET. RAMP ASSY, 16” (96” WIDE VEH) | |
| REF | 1 | 264699-03 | AL RET. RAMP ASSY, 16” (102” WIDE VEH) | |
| 1 | 1 | 264697-02 | ALUMINUM RAMP 16” X 77” LG. (96” WIDE VEH) | |
| 1 | 1 | 264697-03 | ALUMINUM RAMP 16” X 83” LG. (102” WIDE VEH) | |
| 2 | 1 | 253524 | HINGE ASSEMBLY LH | |
| 3 | 6 | 902001-2 | FLAT WASHER, 3/8” | |
| 4 | 6 | 030955 | NYLON LOCK NUT, 3/8”-16 | |
| 5 | 2 | 253516 | RUBBER BUMPER | |
| 6 | 3 | 900040-5 | SCREW, FLAT SOCKET HEAD, 3/8”-16” X 1-1/4” LG. | |
| 7 | 1 | 225985 | PIPE, 3/4” X 60” LG. | |
| 8 | 3 | 900040-6 | SCREW, FLAT SOCKET HEAD, 3/8”-16 X 1-1/2” LG. | |
| 9 | 1 | 264586 | PIN WELDMENT | |
| 10 | 1 | 264639 | LOCKING CAM | |
| 10A | 1 | 260917-06 | BEARING, SELF LUBE | |
| 11 | 1 | 264572 | HINGE ASSEMBLY RH | |
| 12 | 1 | 905033-2 | ROLL PIN, 1/4” X 1-1/4” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

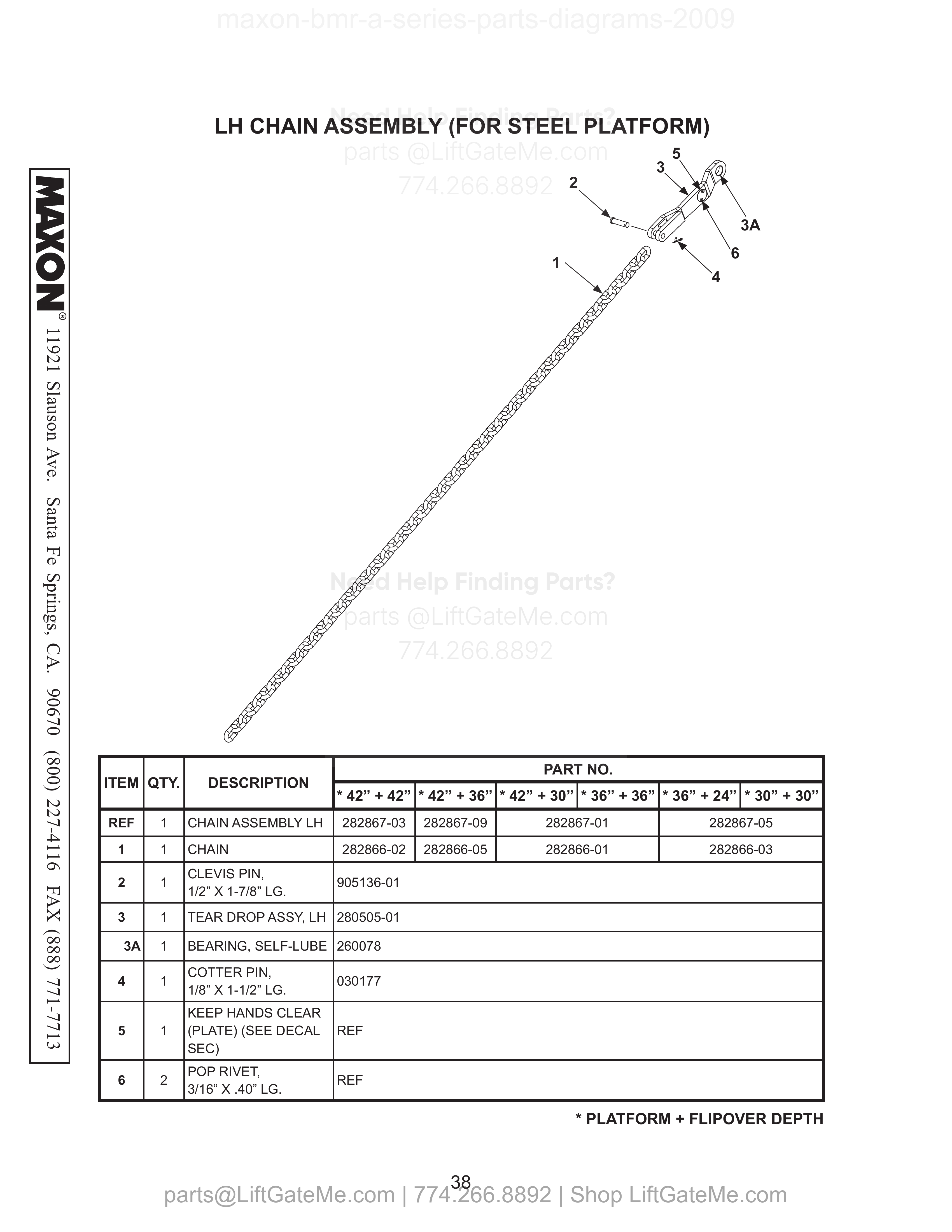

LH CHAIN ASSEMBLY (FOR STEEL PLATFORM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 282867-03 | CHAIN ASSEMBLY LH | |
| REF | 1 | 282867-09 | CHAIN ASSEMBLY LH | |
| REF | 1 | 282867-01 | CHAIN ASSEMBLY LH | |
| REF | 1 | 282867-05 | CHAIN ASSEMBLY LH | |
| 1 | 1 | 282866-02 | CHAIN | |
| 1 | 1 | 282866-05 | CHAIN | |
| 1 | 1 | 282866-01 | CHAIN | |
| 1 | 1 | 282866-03 | CHAIN | |
| 2 | 1 | 905136-01 | CLEVIS PIN, 1/2” X 1-7/8” LG. | |
| 3 | 1 | 280505-01 | TEAR DROP ASSY, LH | |
| 3A | 1 | 260078 | BEARING, SELF-LUBE | |
| 4 | 1 | 030177 | COTTER PIN, 1/8” X 1-1/2” LG. | |
| 5 | 1 | REF | KEEP HANDS CLEAR (PLATE) (SEE DECAL SEC) | |
| 6 | 2 | REF | POP RIVET, 3/16” X .40” LG. |

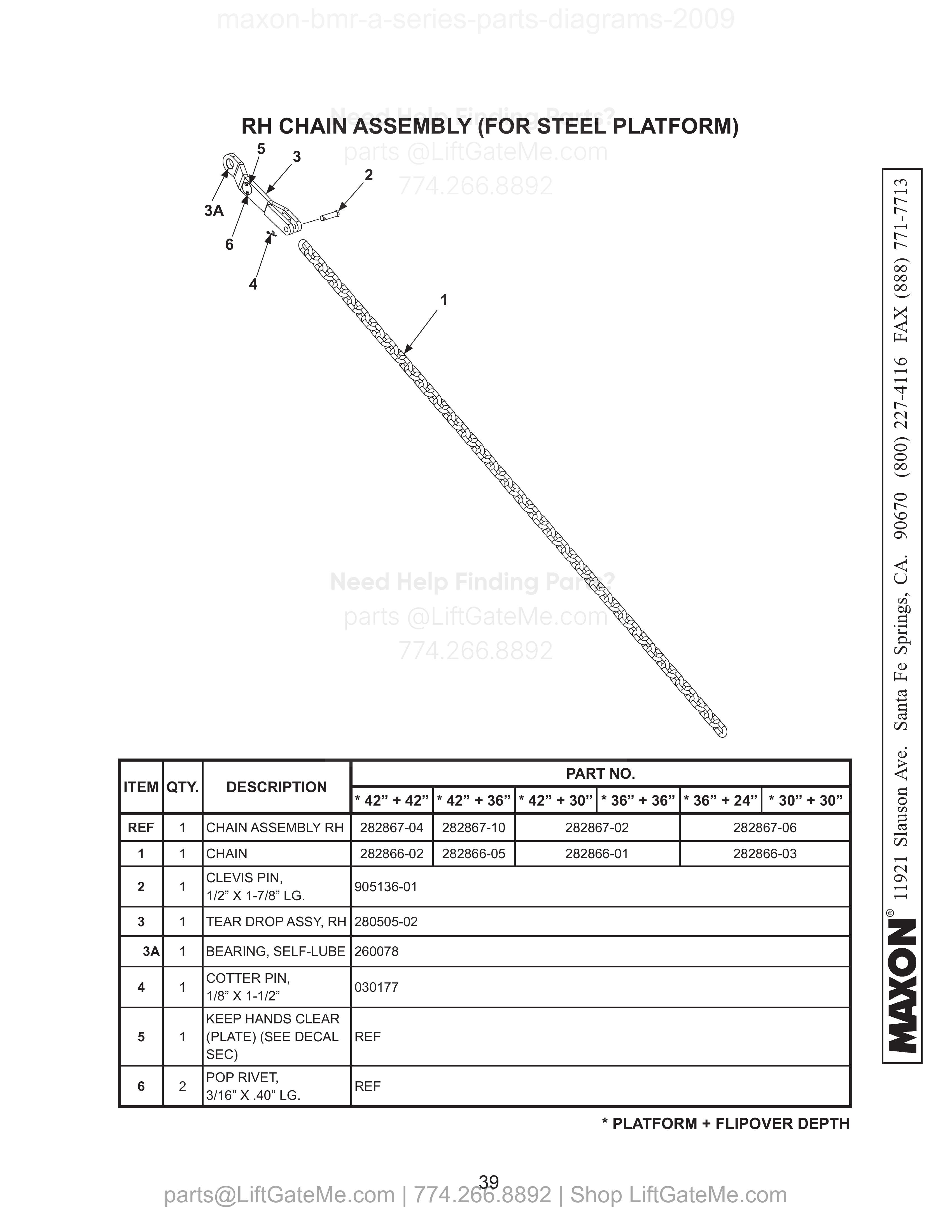

RH CHAIN ASSEMBLY (FOR STEEL PLATFORM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 282867-04 | CHAIN ASSEMBLY RH | |
| REF | 1 | 282867-10 | CHAIN ASSEMBLY RH | |
| REF | 1 | 282867-02 | CHAIN ASSEMBLY RH | |
| REF | 1 | 282867-06 | CHAIN ASSEMBLY RH | |
| 1 | 1 | 282866-02 | CHAIN | |
| 1 | 1 | 282866-05 | CHAIN | |
| 1 | 1 | 282866-01 | CHAIN | |
| 1 | 1 | 282866-03 | CHAIN | |
| 2 | 1 | 905136-01 | CLEVIS PIN, 1/2” X 1-7/8” LG. | |
| 3 | 1 | 280505-02 | TEAR DROP ASSY, RH | |
| 3A | 1 | 260078 | BEARING, SELF-LUBE | |
| 4 | 1 | 030177 | COTTER PIN, 1/8” X 1-1/2” | |
| 5 | 1 | REF | KEEP HANDS CLEAR (PLATE) (SEE DECAL SEC) | |
| 6 | 2 | REF | POP RIVET, 3/16” X .40” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

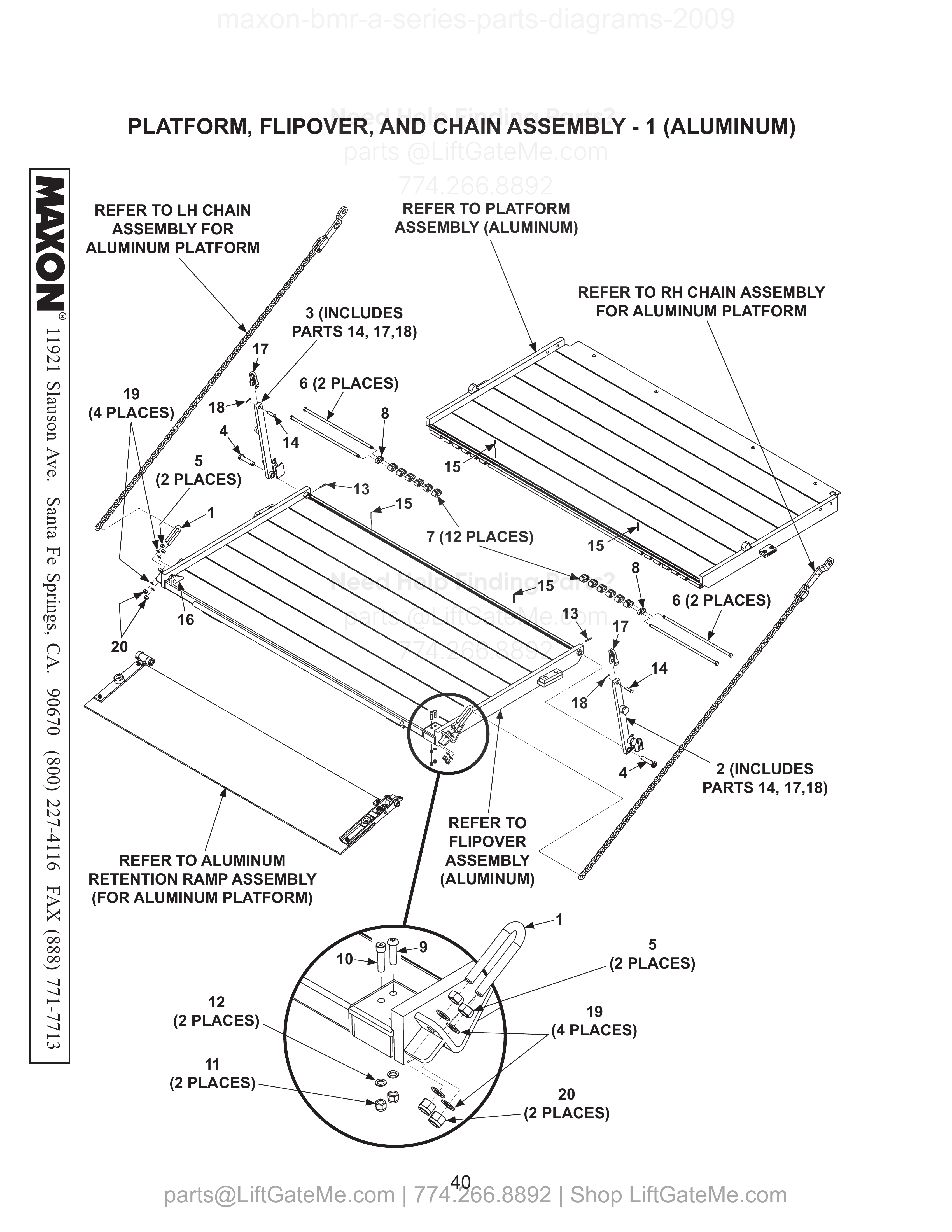

PLATFORM, FLIPOVER, AND CHAIN ASSEMBLY - 1 (ALUMINUM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 282854-01 | U-BOLT | |
| 2 | 1 | 280030-02 | OPENER ASSEMBLY RH, 30” + 30” * | |
| 2 | 1 | 280030-04 | OPENER ASSEMBLY RH, 36” + 36” * | |
| 2 | 1 | 280030-06 | OPENER ASSEMBLY RH, 42” + 42” * | |
| 3 | 1 | 280030-01 | OPENER ASSEMBLY LH, 30” + 30” * | |
| 3 | 1 | 280030-03 | OPENER ASSEMBLY LH, 36” + 36” * | |
| 3 | 1 | 280030-05 | OPENER ASSEMBLY LH, 42” + 42” * | |
| 4 | 2 | 280195 | PIN WELDMENT, 3-5/8” LG. | |
| 5 | 4 | 901011-9 | NUT, 1/2” | |
| 6 | 4 | 282366-01 | PIN, HINGE | |
| 7 | 12 | 311046-10 | LINK SPACER, 1” LG | |
| 8 | 2 | 311046-11 | LINK SPACER, 1/2” LG | |
| 9 | 1 | 900064-13 | BUTTON HEAD SCREW, 3/8”-16 X 1-1/2” LG, GRADE 8 | |
| 10 | 1 | 900065-06 | SOCKET HEAD SCREW, 3/8”-16 X 1-1/2” LG, GRADE 8 | |
| 11 | 2 | 901002 | NYLON LOCK NUT, 3/8”-16 | |
| 12 | 2 | 902000-10 | FLAT WASHER, 3/8” | |
| 13 | 2 | 905033-1 | ROLL PIN, 1/4” X 1-1/2” LG. | |
| 14 | 2 | 905136-01 | CLEVIS PIN, 1/2” X 1-7/8” LG. GRADE 8 | |
| 15 | 4 | 904719-17 | ROLL PIN, 3/16” X 2” LG. | |
| 16 | 1 | 280877-01 | GUSSET | |
| 17 | 2 | 280644-01 | ANCHOR SHACKLE | |
| 18 | 2 | 030805 | COTTER PIN, 1/8” X 1” LG. | |
| 19 | 8 | 902000-14 | FLAT WASHER, 1/2” | |
| 20 | 4 | 901010 | NYLON LOCK NUT, 1/2”-13 |

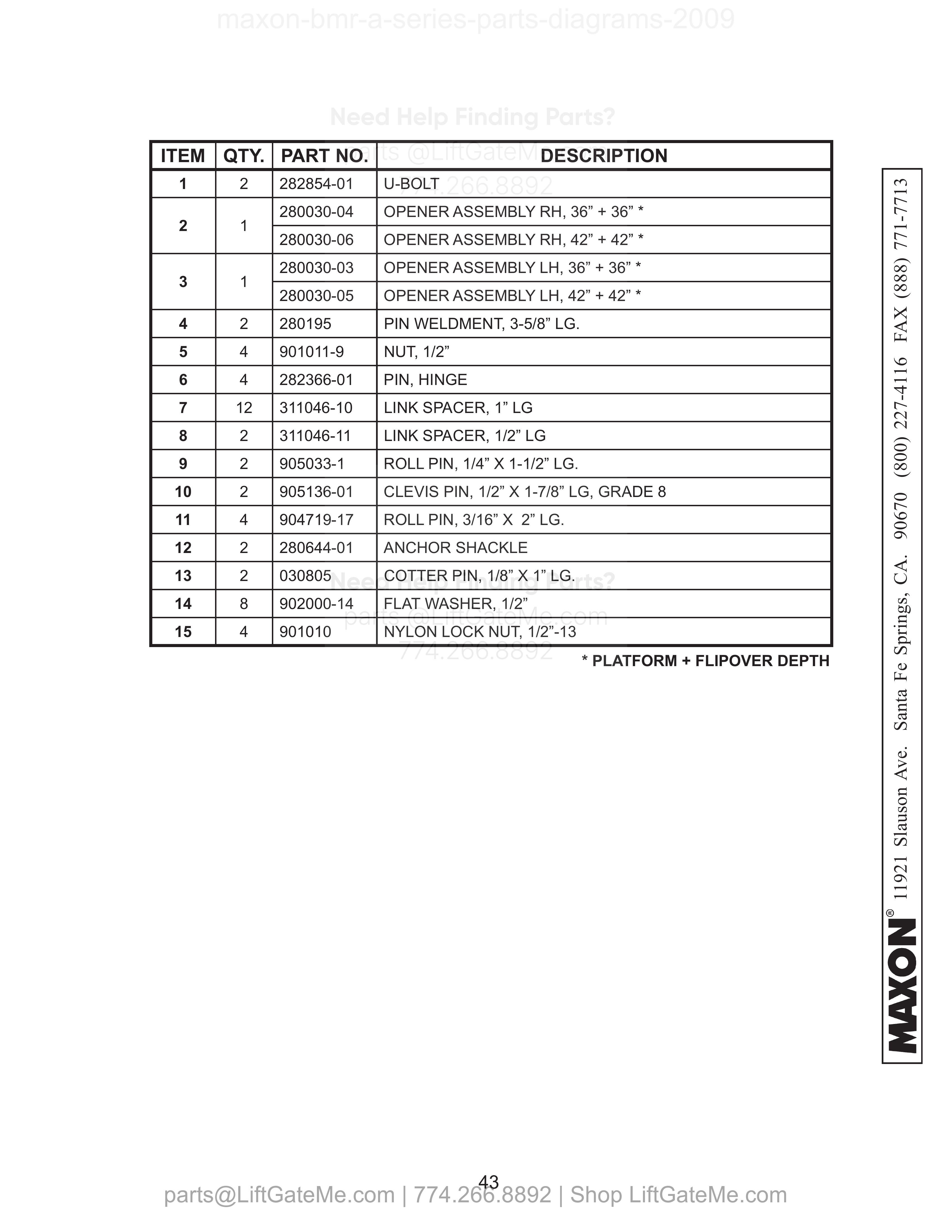

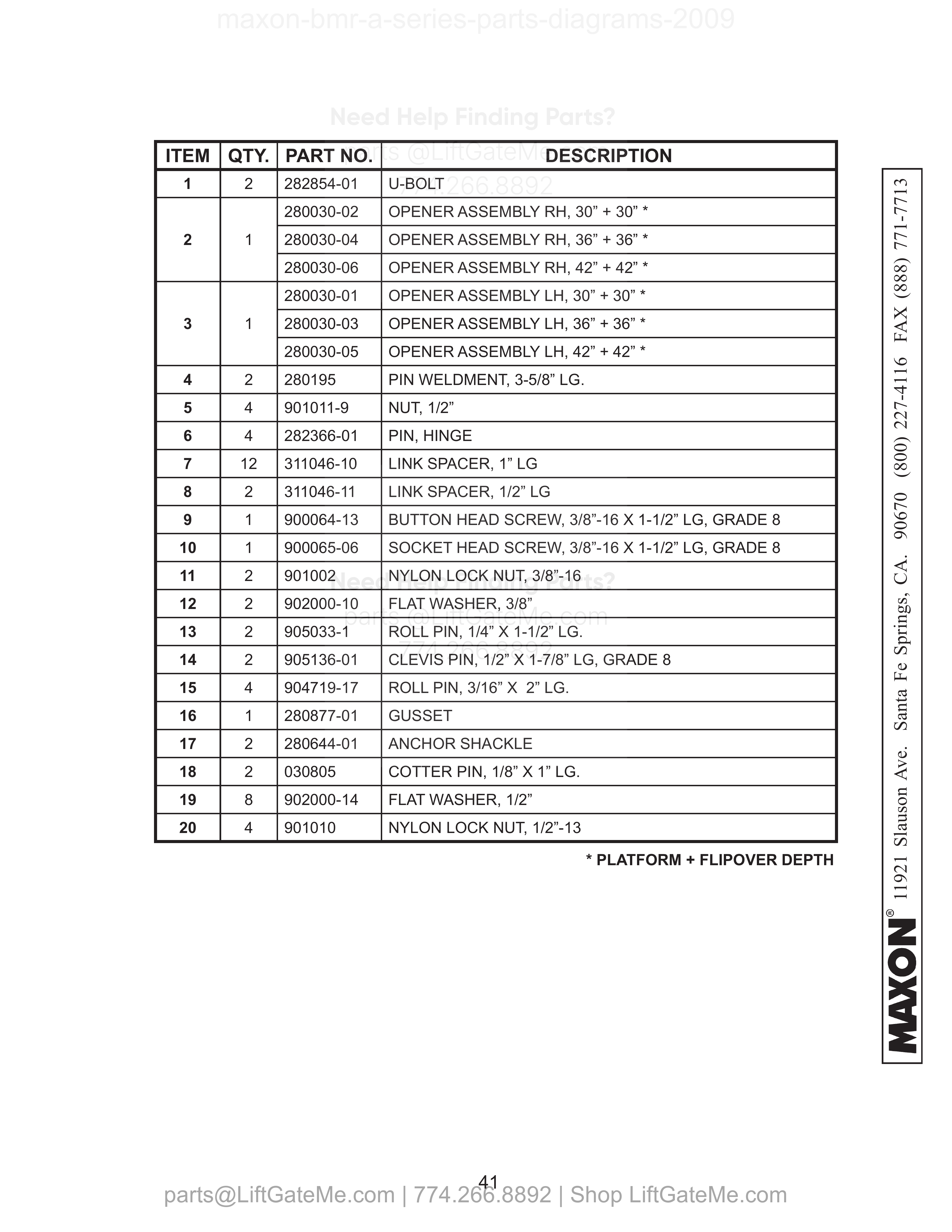

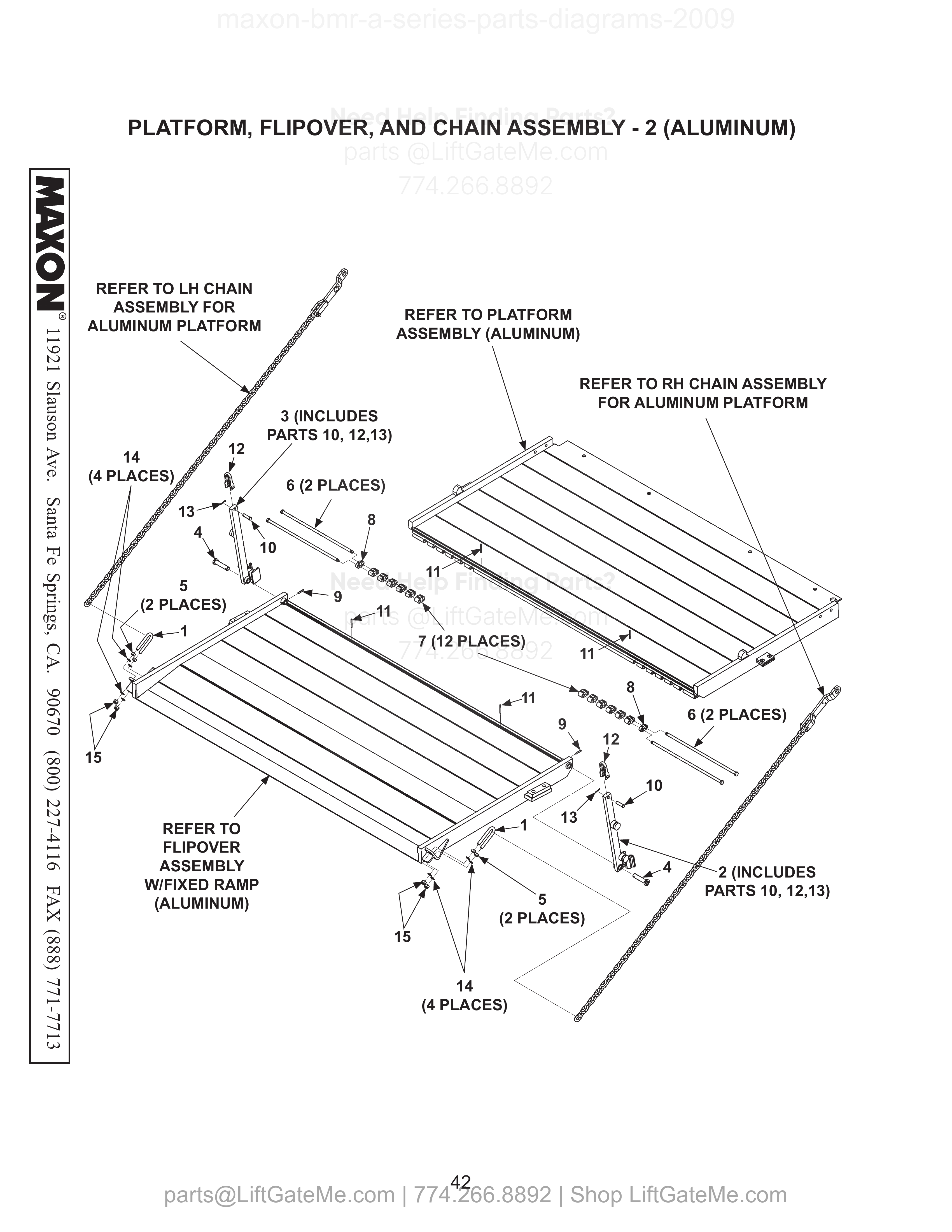

PLATFORM, FLIPOVER, AND CHAIN ASSEMBLY - 2 (ALUMINUM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 282854-01 | U-BOLT | |
| 2 | 1 | 280030-04 | OPENER ASSEMBLY RH, 36” + 36” * | |
| 2 | 1 | 280030-06 | OPENER ASSEMBLY RH, 42” + 42” * | |
| 3 | 1 | 280030-03 | OPENER ASSEMBLY LH, 36” + 36” * | |
| 3 | 1 | 280030-05 | OPENER ASSEMBLY LH, 42” + 42” * | |
| 4 | 2 | 280195 | PIN WELDMENT, 3-5/8” LG. | |
| 5 | 4 | 901011-9 | NUT, 1/2” | |
| 6 | 4 | 282366-01 | PIN, HINGE | |
| 7 | 12 | 311046-10 | LINK SPACER, 1” LG | |
| 8 | 2 | 311046-11 | LINK SPACER, 1/2” LG | |
| 9 | 2 | 905033-1 | ROLL PIN, 1/4” X 1-1/2” LG. | |
| 10 | 2 | 905136-01 | CLEVIS PIN, 1/2” X 1-7/8” LG, GRADE 8 | |
| 11 | 4 | 904719-17 | ROLL PIN, 3/16” X 2” LG. | |
| 12 | 2 | 280644-01 | ANCHOR SHACKLE | |
| 13 | 2 | 030805 | COTTER PIN, 1/8” X 1” LG. | |
| 14 | 8 | 902000-14 | FLAT WASHER, 1/2” | |
| 15 | 4 | 901010 | NYLON LOCK NUT, 1/2”-13 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

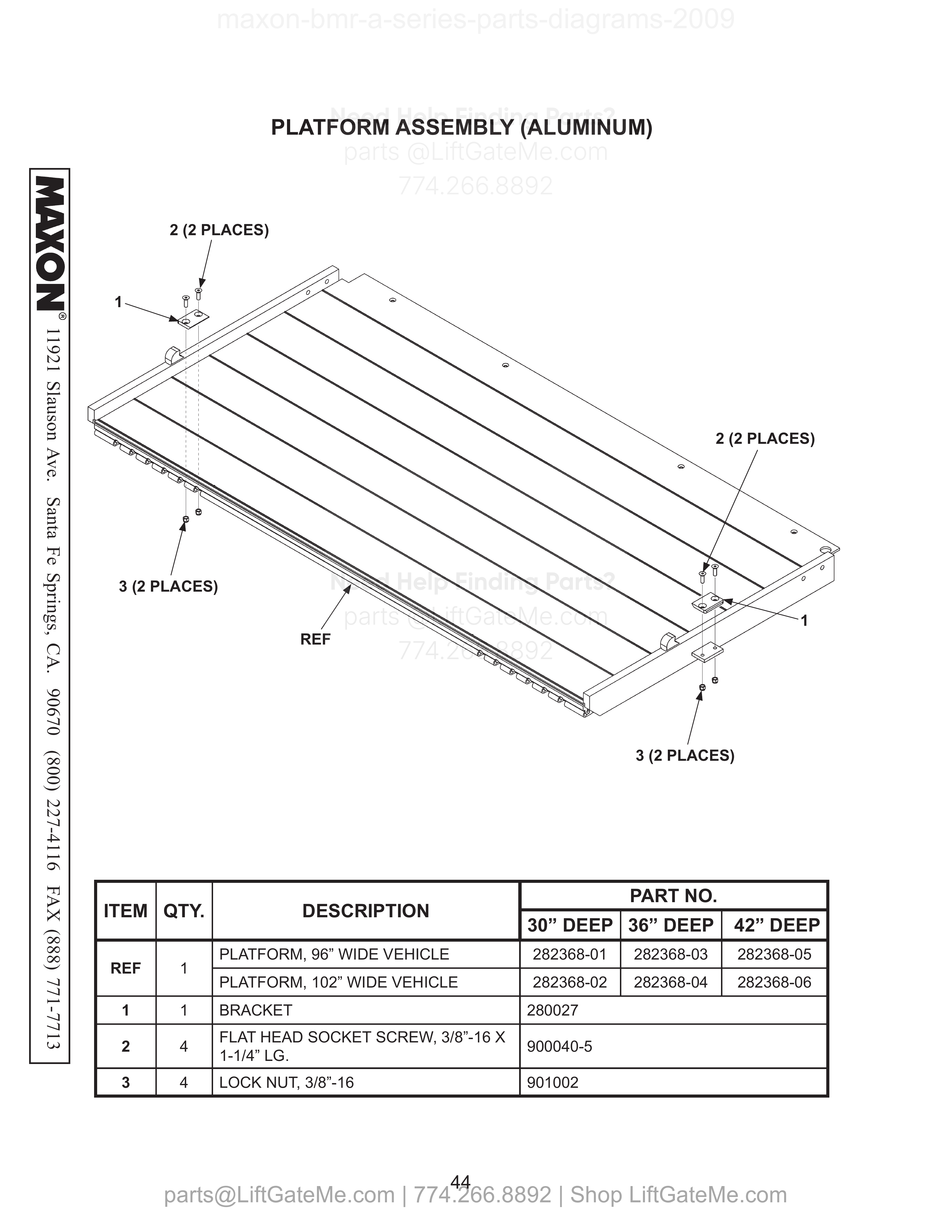

PLATFORM ASSEMBLY (ALUMINUM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 282368-01 | PLATFORM, 96” WIDE VEHICLE | |
| REF | 1 | 282368-03 | PLATFORM, 96” WIDE VEHICLE | |
| REF | 1 | 282368-05 | PLATFORM, 96” WIDE VEHICLE | |
| REF | 1 | 282368-02 | PLATFORM, 102” WIDE VEHICLE | |
| REF | 1 | 282368-04 | PLATFORM, 102” WIDE VEHICLE | |
| REF | 1 | 282368-06 | PLATFORM, 102” WIDE VEHICLE | |
| 1 | 1 | 280027 | BRACKET | |
| 2 | 4 | 900040-5 | FLAT HEAD SOCKET SCREW, 3/8”-16 X 1-1/4” LG. | |
| 3 | 4 | 901002 | LOCK NUT, 3/8”-16 |

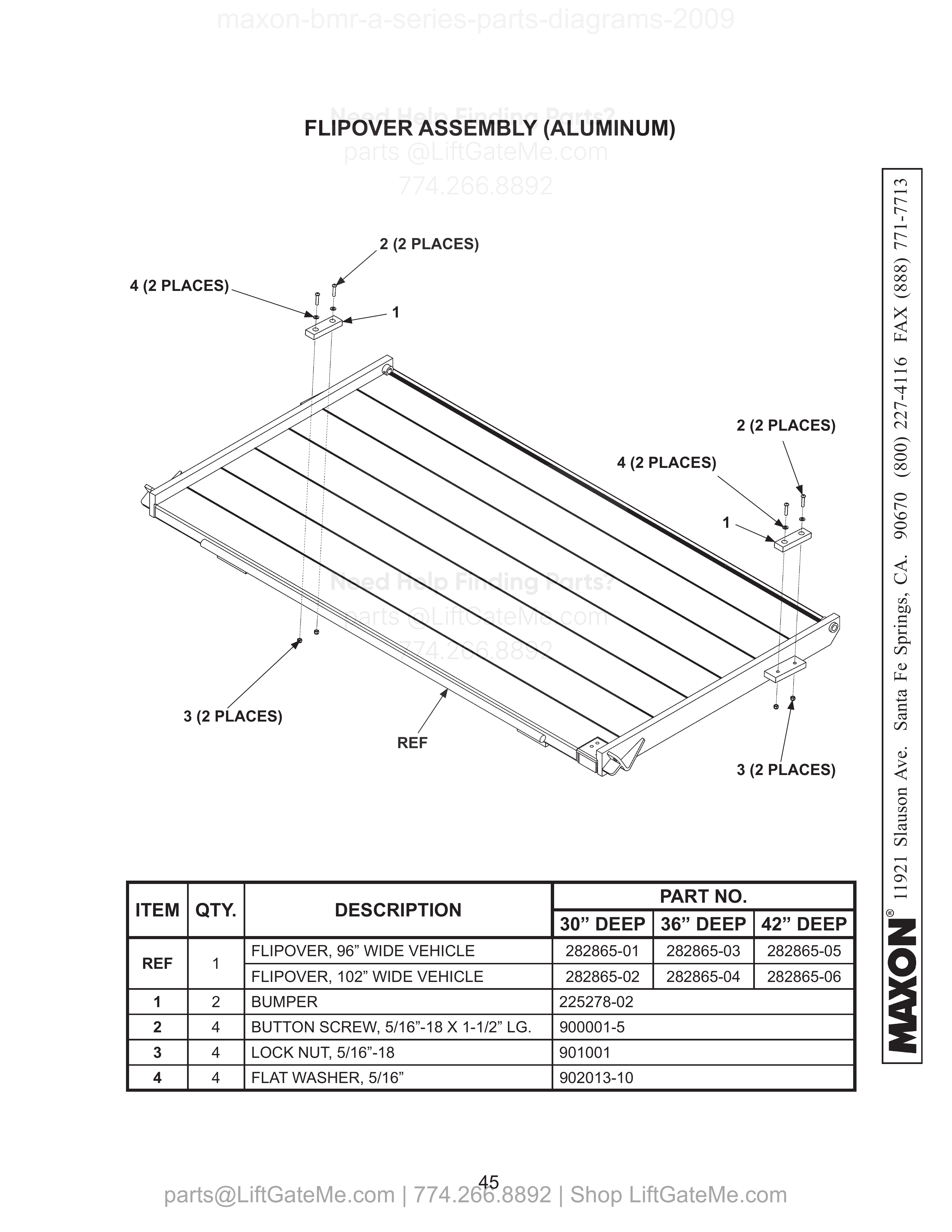

FLIPOVER ASSEMBLY (ALUMINUM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 282865-01 | FLIPOVER, 96” WIDE VEHICLE | |
| REF | 1 | 282865-03 | FLIPOVER, 96” WIDE VEHICLE | |
| REF | 1 | 282865-05 | FLIPOVER, 96” WIDE VEHICLE | |
| REF | 1 | 282865-02 | FLIPOVER, 102” WIDE VEHICLE | |
| REF | 1 | 282865-04 | FLIPOVER, 102” WIDE VEHICLE | |
| REF | 1 | 282865-06 | FLIPOVER, 102” WIDE VEHICLE | |
| 1 | 2 | 225278-02 | BUMPER | |
| 2 | 4 | 900001-5 | BUTTON SCREW, 5/16”-18 X 1-1/2” LG. | |
| 3 | 4 | 901001 | LOCK NUT, 5/16”-18 | |
| 4 | 4 | 902013-10 | FLAT WASHER, 5/16” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

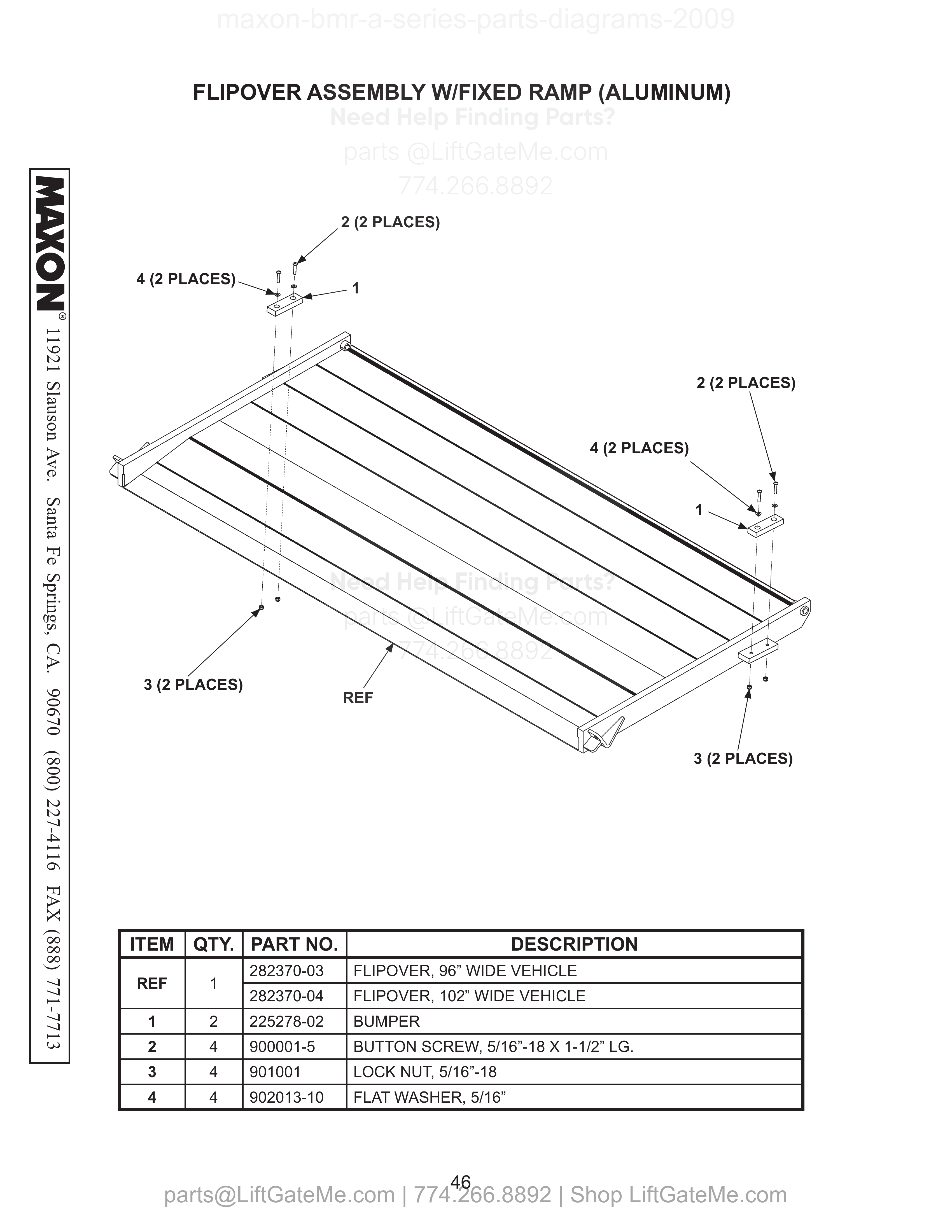

FLIPOVER ASSEMBLY W/FIXED RAMP (ALUMINUM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 282370-03 | FLIPOVER, 96” WIDE VEHICLE | |
| REF | 1 | 282370-04 | FLIPOVER, 102” WIDE VEHICLE | |
| 1 | 2 | 225278-02 | BUMPER | |
| 2 | 4 | 900001-5 | BUTTON SCREW, 5/16”-18 X 1-1/2” LG. | |
| 3 | 4 | 901001 | LOCK NUT, 5/16”-18 | |
| 4 | 4 | 902013-10 | FLAT WASHER, 5/16” |
i

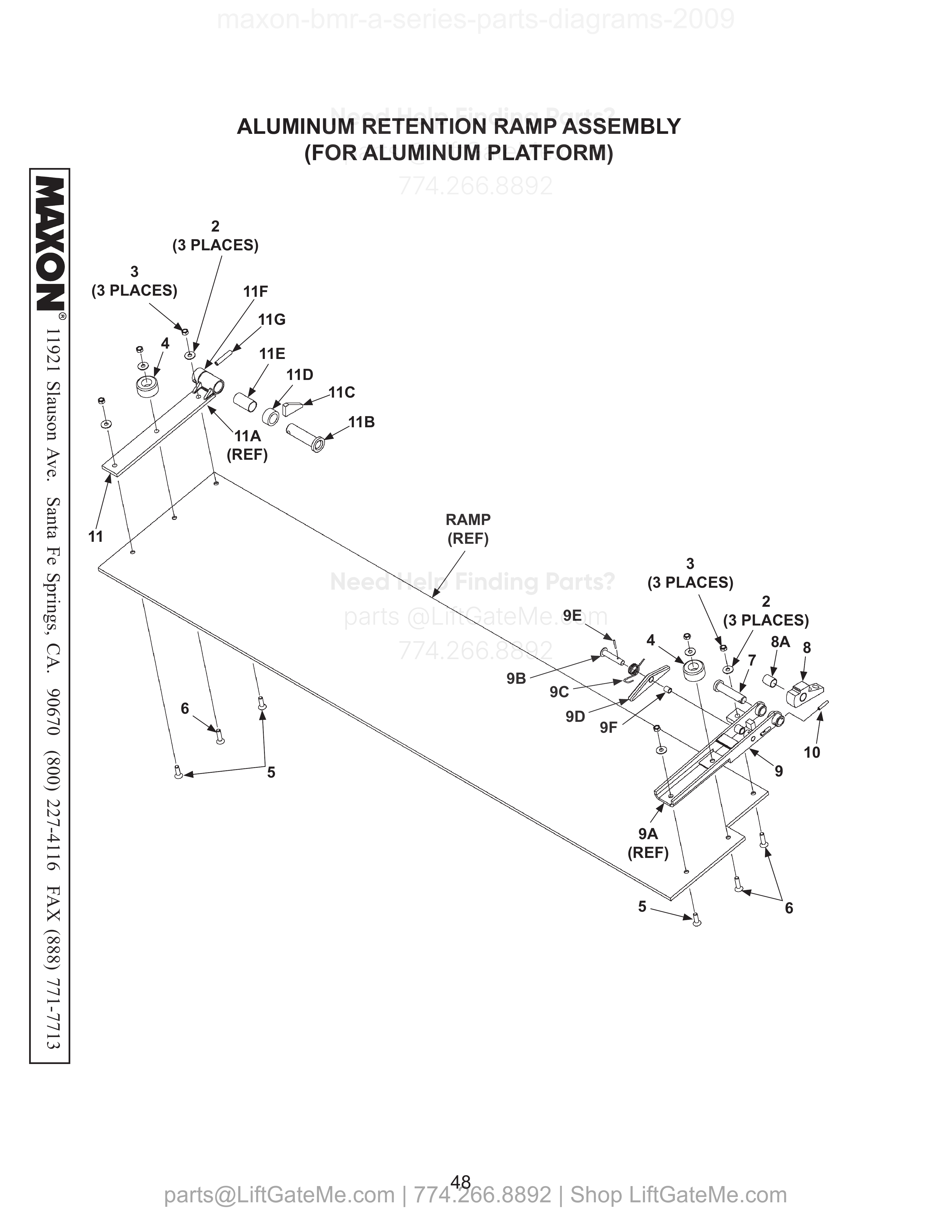

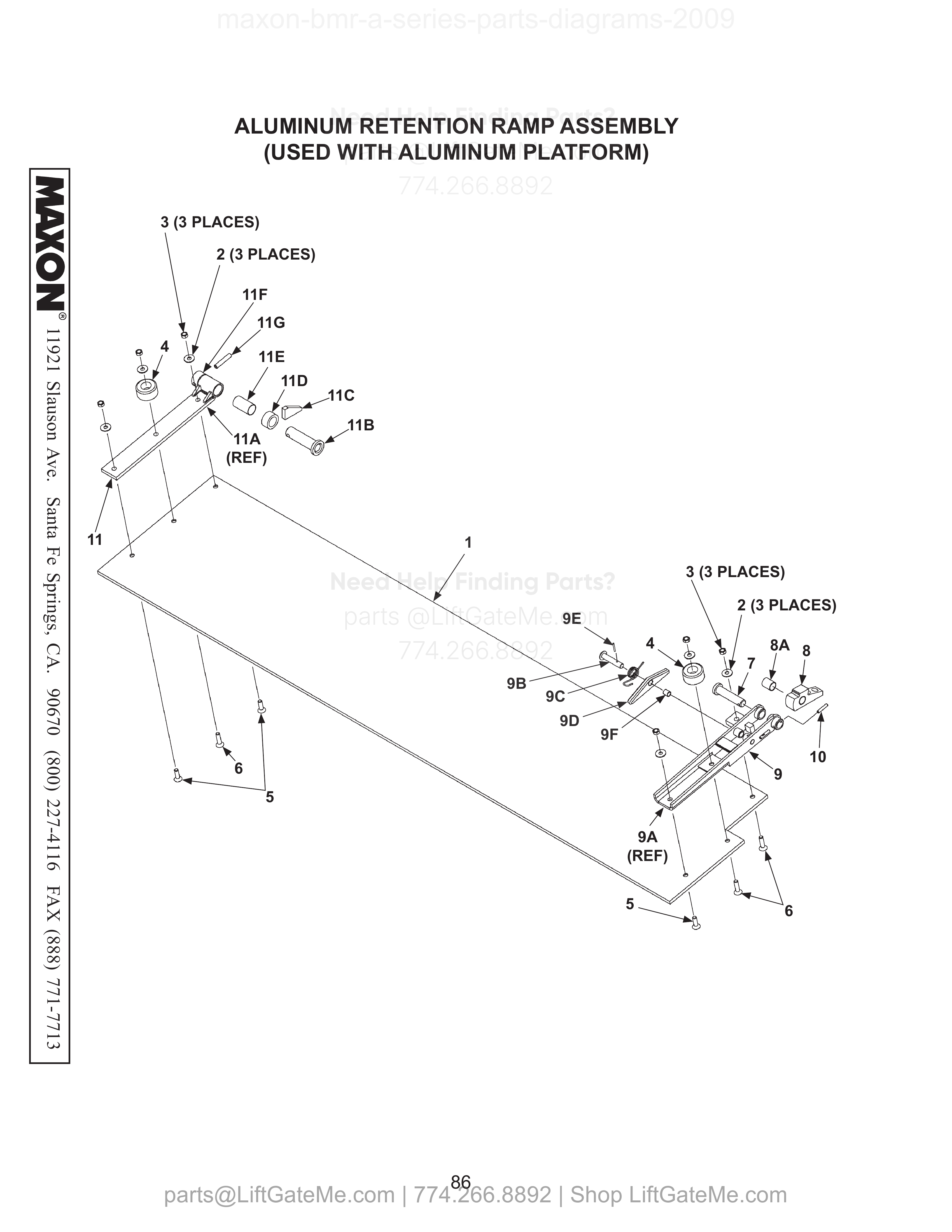

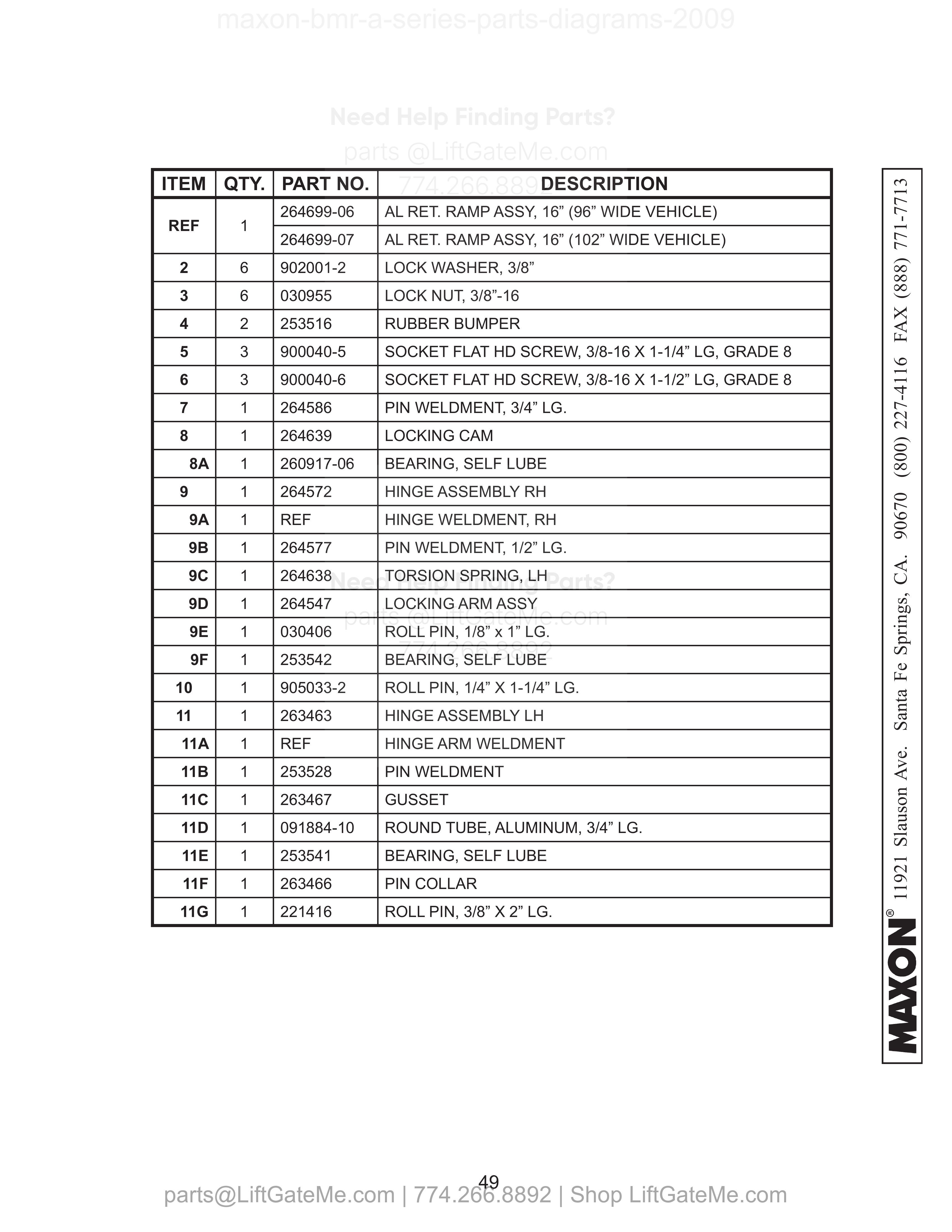

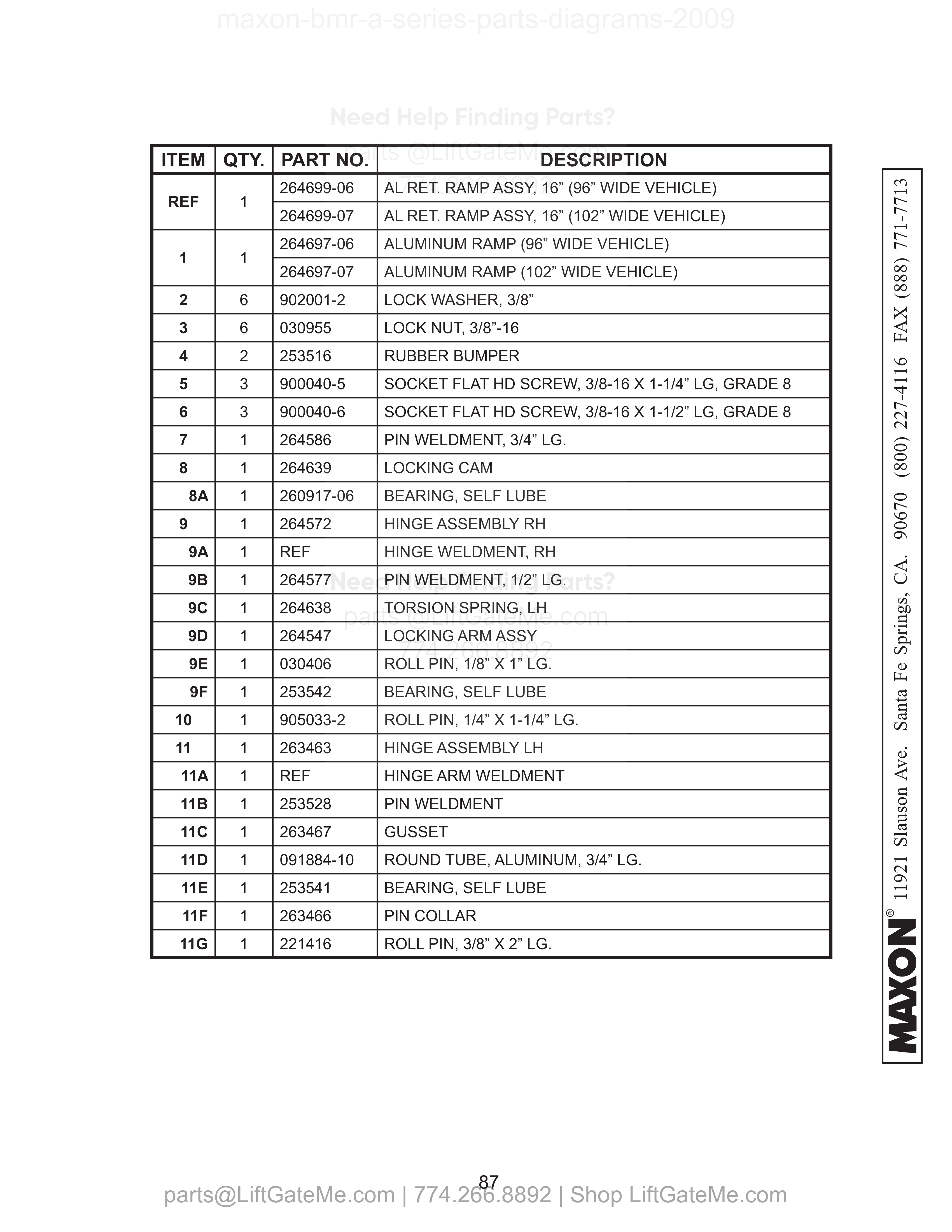

ALUMINUM RETENTION RAMP ASSEMBLY (FOR ALUMINUM PLATFORM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 264699-06 | AL RET. RAMP ASSY, 16” (96” WIDE VEHICLE) | |
| REF | 1 | 264699-07 | AL RET. RAMP ASSY, 16” (102” WIDE VEHICLE) | |
| 2 | 6 | 902001-2 | LOCK WASHER, 3/8” | |
| 3 | 6 | 030955 | LOCK NUT, 3/8”-16 | |
| 4 | 2 | 253516 | RUBBER BUMPER | |
| 5 | 3 | 900040-5 | SOCKET FLAT HD SCREW, 3/8-16 X 1-1/4” LG, GRADE 8 | |
| 6 | 3 | 900040-6 | SOCKET FLAT HD SCREW, 3/8-16 X 1-1/2” LG, GRADE 8 | |
| 7 | 1 | 264586 | PIN WELDMENT, 3/4” LG. | |
| 8 | 1 | 264639 | LOCKING CAM | |
| 8A | 1 | 260917-06 | BEARING, SELF LUBE | |
| 9 | 1 | 264572 | HINGE ASSEMBLY RH | |
| 9A | 1 | REF | HINGE WELDMENT, RH | |
| 9B | 1 | 264577 | PIN WELDMENT, 1/2” LG. | |
| 9C | 1 | 264638 | TORSION SPRING, LH | |
| 9D | 1 | 264547 | LOCKING ARM ASSY | |
| 9E | 1 | 030406 | ROLL PIN, 1/8” x 1” LG. | |
| 9F | 1 | 253542 | BEARING, SELF LUBE | |
| 10 | 1 | 905033-2 | ROLL PIN, 1/4” X 1-1/4” LG. | |
| 11 | 1 | 263463 | HINGE ASSEMBLY LH | |
| 11A | 1 | REF | HINGE ARM WELDMENT | |
| 11B | 1 | 253528 | PIN WELDMENT | |
| 11C | 1 | 263467 | GUSSET | |
| 11D | 1 | 091884-10 | ROUND TUBE, ALUMINUM, 3/4” LG. | |
| 11E | 1 | 253541 | BEARING, SELF LUBE | |
| 11F | 1 | 263466 | PIN COLLAR | |
| 11G | 1 | 221416 | ROLL PIN, 3/8” X 2” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

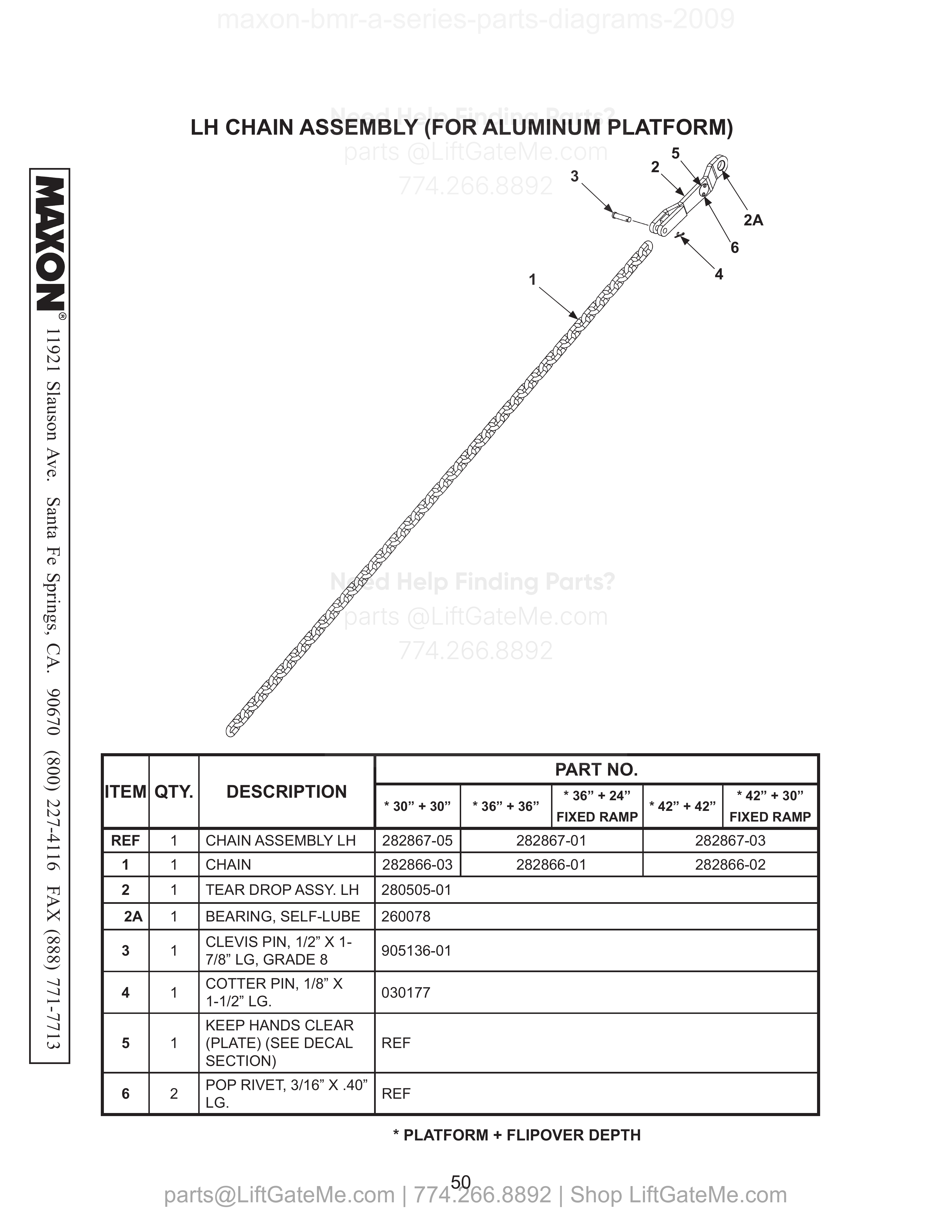

LH CHAIN ASSEMBLY (FOR ALUMINUM PLATFORM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 282867-05 | CHAIN ASSEMBLY LH | |
| REF | 1 | 282867-01 | CHAIN ASSEMBLY LH | |
| REF | 1 | 282867-03 | CHAIN ASSEMBLY LH | |
| 1 | 1 | 282866-03 | CHAIN | |
| 1 | 1 | 282866-01 | CHAIN | |
| 1 | 1 | 282866-02 | CHAIN | |
| 2 | 1 | 280505-01 | TEAR DROP ASSY. LH | |
| 2A | 1 | 260078 | BEARING, SELF-LUBE | |
| 3 | 1 | 905136-01 | CLEVIS PIN, 1/2” X 1-7/8” LG, GRADE 8 | |
| 4 | 1 | 030177 | COTTER PIN, 1/8” X 1-1/2” LG. | |
| 5 | 1 | REF | KEEP HANDS CLEAR (PLATE) (SEE DECAL SECTION) | |
| 6 | 2 | REF | POP RIVET, 3/16” X .40” LG. |

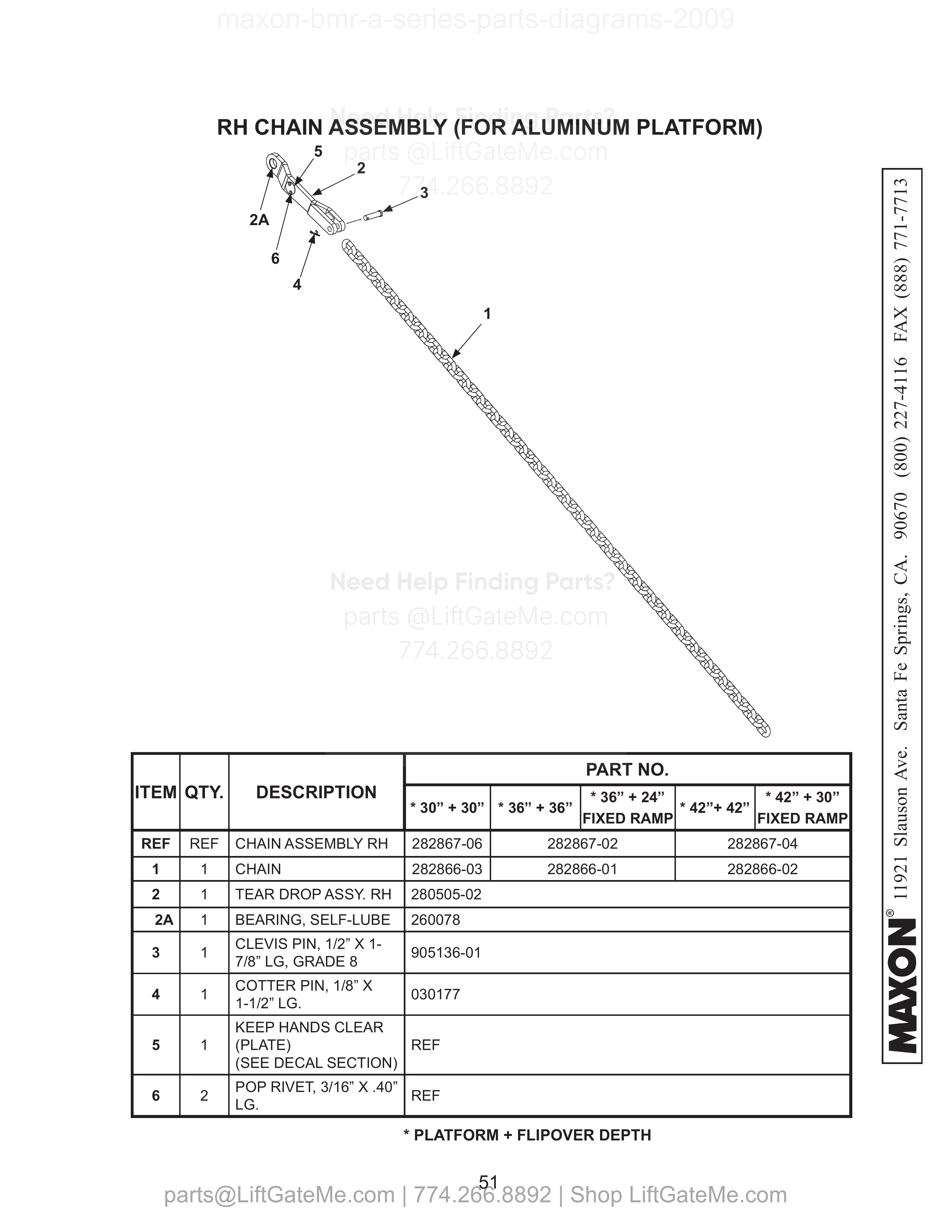

RH CHAIN ASSEMBLY (FOR ALUMINUM PLATFORM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | REF | 282867-06 | CHAIN ASSEMBLY RH | |
| REF | REF | 282867-02 | CHAIN ASSEMBLY RH | |
| REF | REF | 282867-04 | CHAIN ASSEMBLY RH | |
| 1 | 1 | 282866-03 | CHAIN | |
| 1 | 1 | 282866-01 | CHAIN | |
| 1 | 1 | 282866-02 | CHAIN | |
| 2 | 1 | 280505-02 | TEAR DROP ASSY. RH | |
| 2A | 1 | 260078 | BEARING, SELF-LUBE | |
| 3 | 1 | 905136-01 | CLEVIS PIN, 1/2” X 1-7/8” LG, GRADE 8 | |
| 4 | 1 | 030177 | COTTER PIN, 1/8” X 1-1/2” LG. | |
| 5 | 1 | REF | KEEP HANDS CLEAR (PLATE) (SEE DECAL SECTION) | |
| 6 | 2 | REF | POP RIVET, 3/16” X .40” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

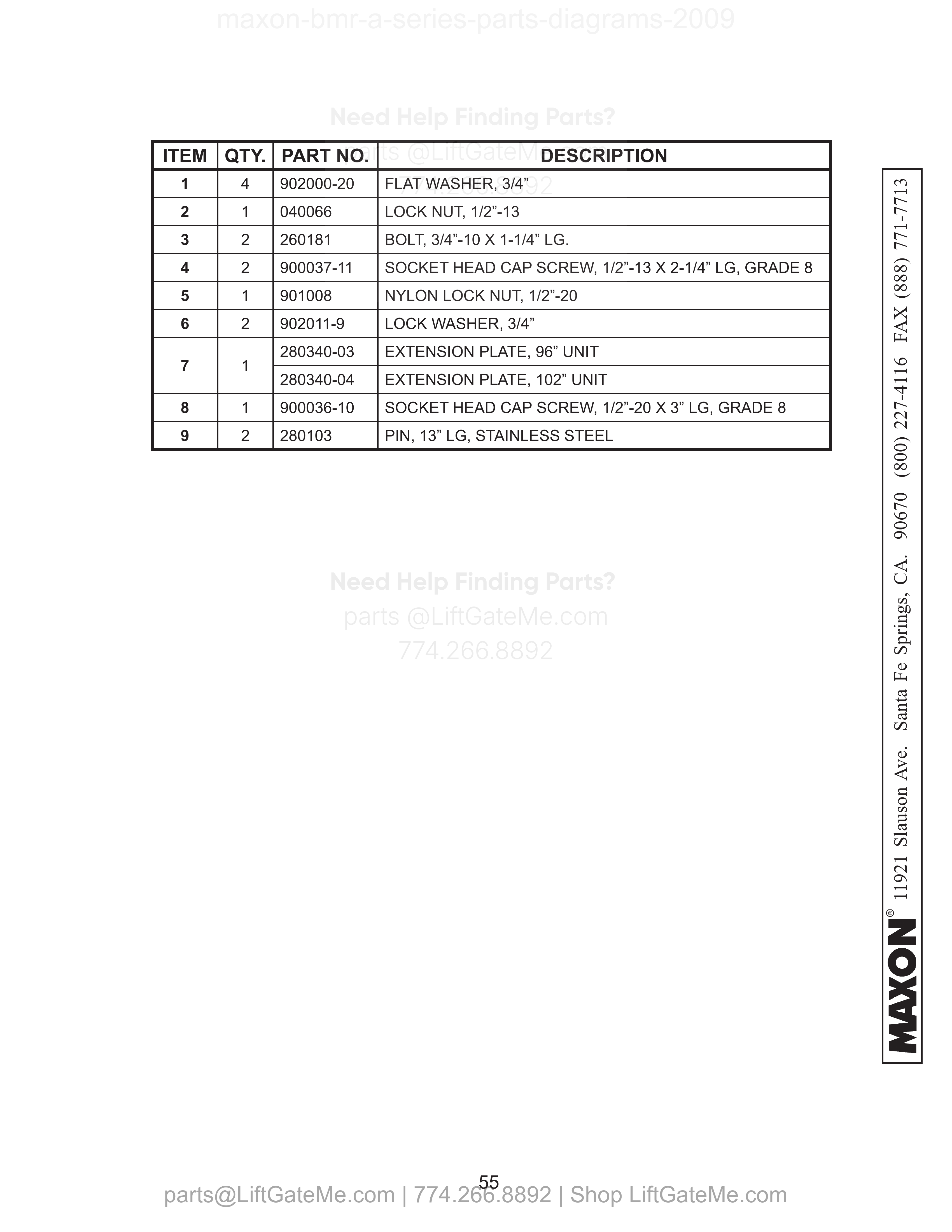

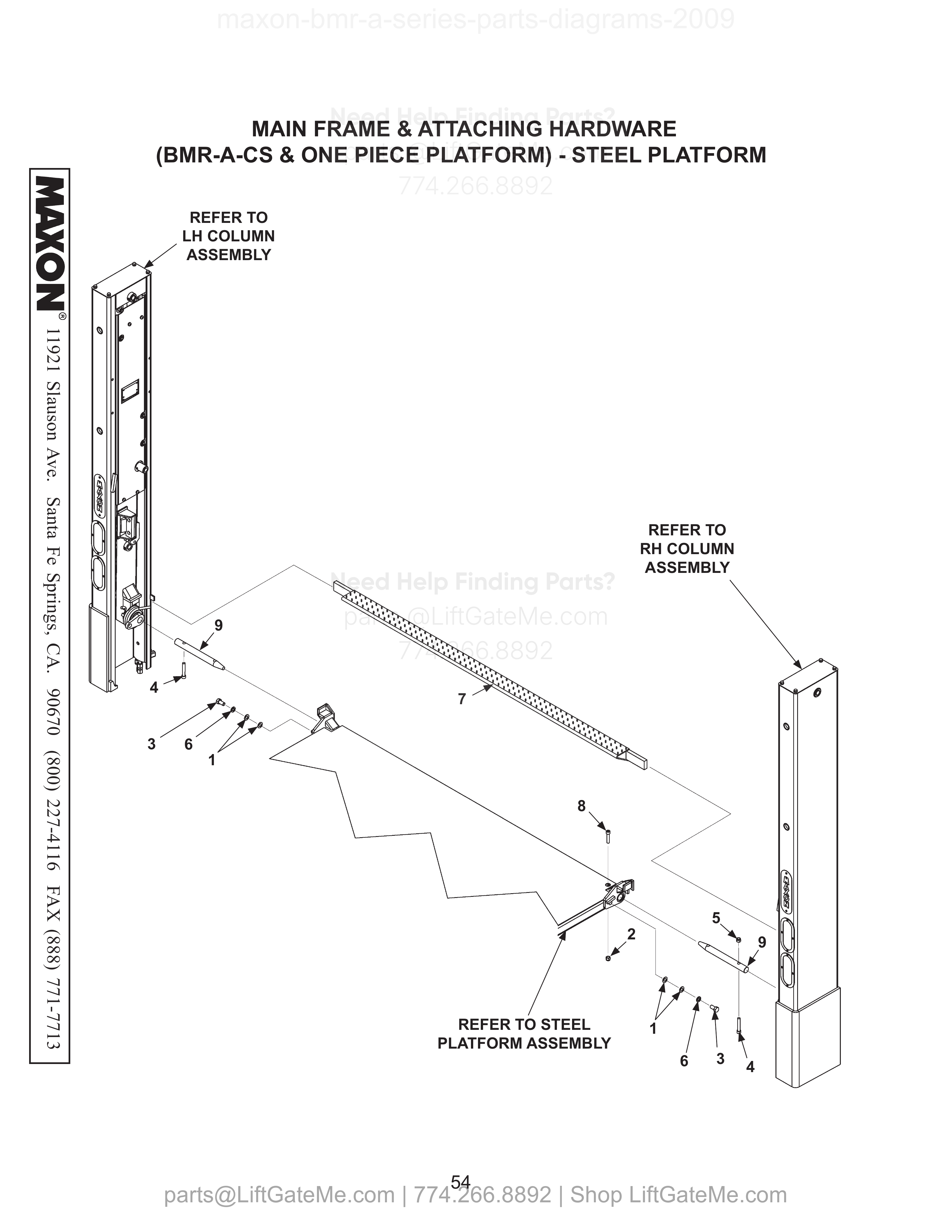

MAIN FRAME & ATTACHING HARDWARE (BMR-A-CS & ONE PIECE PLATFORM) - STEEL PLATFORM
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 902000-20 | FLAT WASHER, 3/4” | |
| 2 | 1 | 040066 | LOCK NUT, 1/2”-13 | |
| 3 | 2 | 260181 | BOLT, 3/4”-10 X 1-1/4” LG. | |
| 4 | 2 | 900037-11 | SOCKET HEAD CAP SCREW, 1/2”-13 X 2-1/4” LG, GRADE 8 | |
| 5 | 1 | 901008 | NYLON LOCK NUT, 1/2”-20 | |
| 6 | 2 | 902011-9 | LOCK WASHER, 3/4” | |
| 7 | 1 | 280340-03 | EXTENSION PLATE, 96” UNIT | |
| 7 | 1 | 280340-04 | EXTENSION PLATE, 102” UNIT | |
| 8 | 1 | 900036-10 | SOCKET HEAD CAP SCREW, 1/2”-20 X 3” LG, GRADE 8 | |
| 9 | 2 | 280103 | PIN, 13” LG, STAINLESS STEEL |

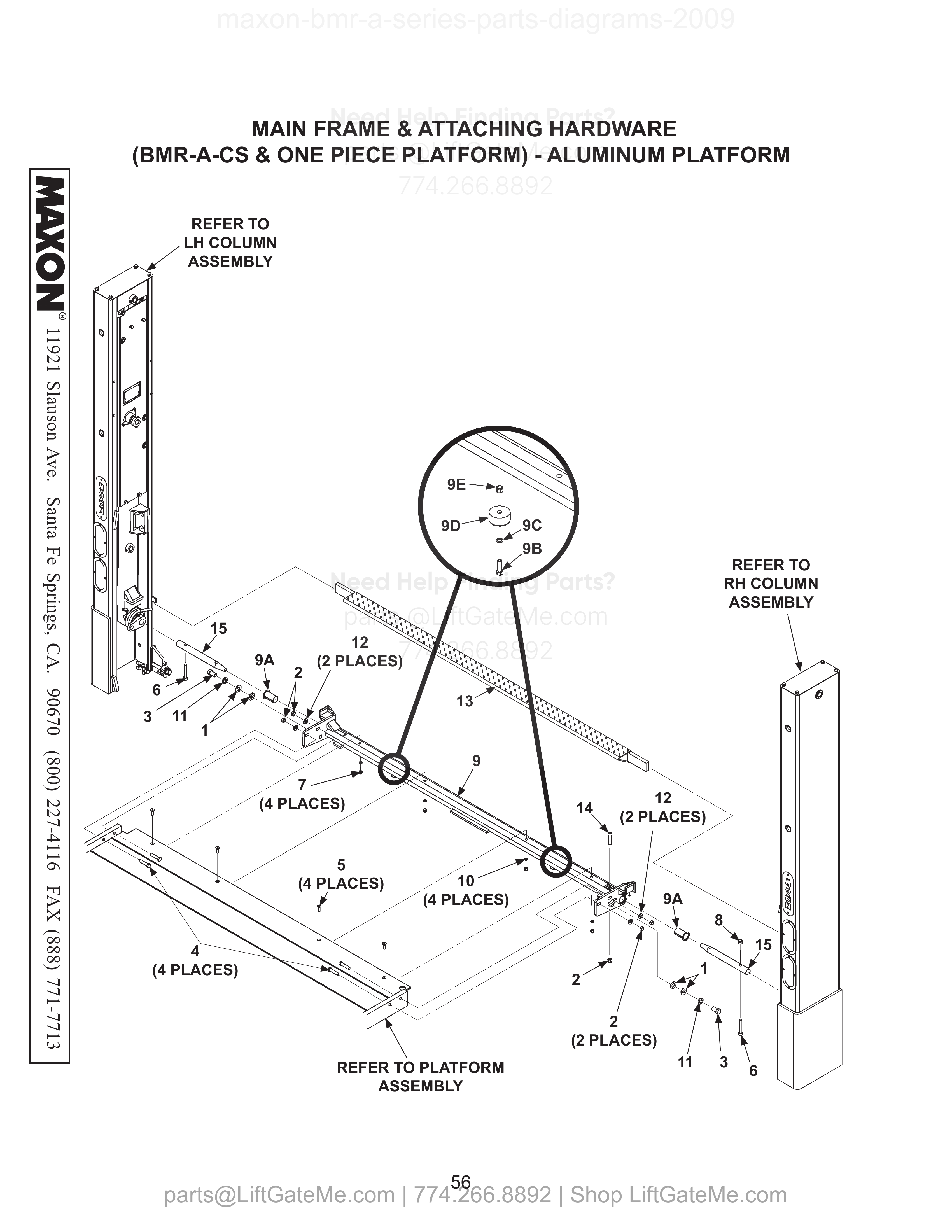

MAIN FRAME & ATTACHING HARDWARE (BMR-A-CS & ONE PIECE PLATFORM) - ALUMINUM PLATFORM
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 902000-20 | FLAT WASHER, 3/4” | |
| 2 | 5 | 040066 | LOCK NUT, 1/2”-13 | |
| 3 | 2 | 260181 | BOLT, 3/4”-10 X 1-1/4” LG, | |
| 4 | 4 | 900035-5 | HEX HEAD CAP SCREW, 1/2”-13 X 2” LG, GRADE 8 | |
| 5 | 4 | 900040-5 | SOCKET HEAD SCREW, FLAT, 3/8”-16 X 1-1/4” LG. | |
| 6 | 2 | 900037-11 | SOCKET HEAD CAP SCREW, 1/2”-13 X 2-1/4” LG, GRADE 8 | |
| 7 | 4 | 901002 | NYLON LOCK NUT, 3/8”-16 | |
| 8 | 1 | 901008 | NYLON LOCK NUT, 1/2”-20 | |
| 9 | 1 | 282622-01 | CONNECTOR BAR ASSEMBLY, 96” WIDE | |
| 9 | 1 | 282622-02 | CONNECTOR BAR ASSEMBLY, 102” WIDE | |
| 9A | 2 | 905200 | BEARING, SELF LUBE, 2-1/4” I.D. X 2-1/2” LG. | |
| 9B | 2 | 900014-5 | HEX HEAD BOLT, 3/8”-16 X 1-1/4” LG. | |
| 9C | 2 | 902000-10 | FLAT WASHER, 3/8” | |
| 9D | 2 | 253516 | RUBBER BUMPER | |
| 9E | 2 | 901002 | NYLON LOCK NUT, 3/8”-16 | |
| 10 | 4 | 902001-2 | FLAT WASHER, 3/8” | |
| 11 | 2 | 902011-9 | LOCK WASHER, 3/4” | |
| 12 | 4 | 902013-13 | FLAT WASHER, 1/2” | |
| 13 | 1 | 280340-03 | EXTENSION PLATE, 96” UNIT | |
| 13 | 1 | 280340-04 | EXTENSION PLATE, 102” UNIT | |
| 14 | 1 | 900036-10 | SOCKET HEAD CAP SCREW, 1/2”-20 X 3” LG, GRADE 8 | |
| 15 | 2 | 280103 | PIN, 13” LG, STAINLESS STEEL |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

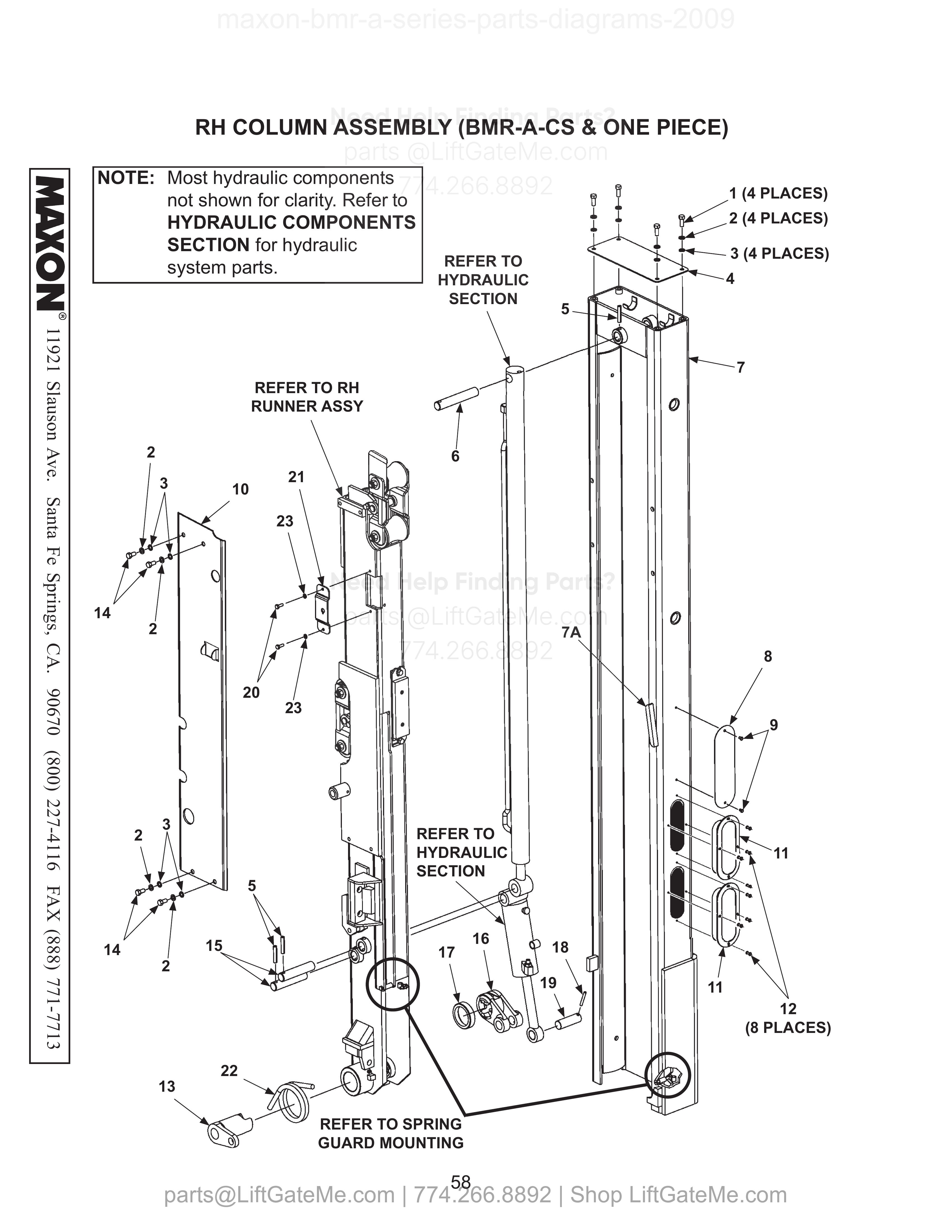

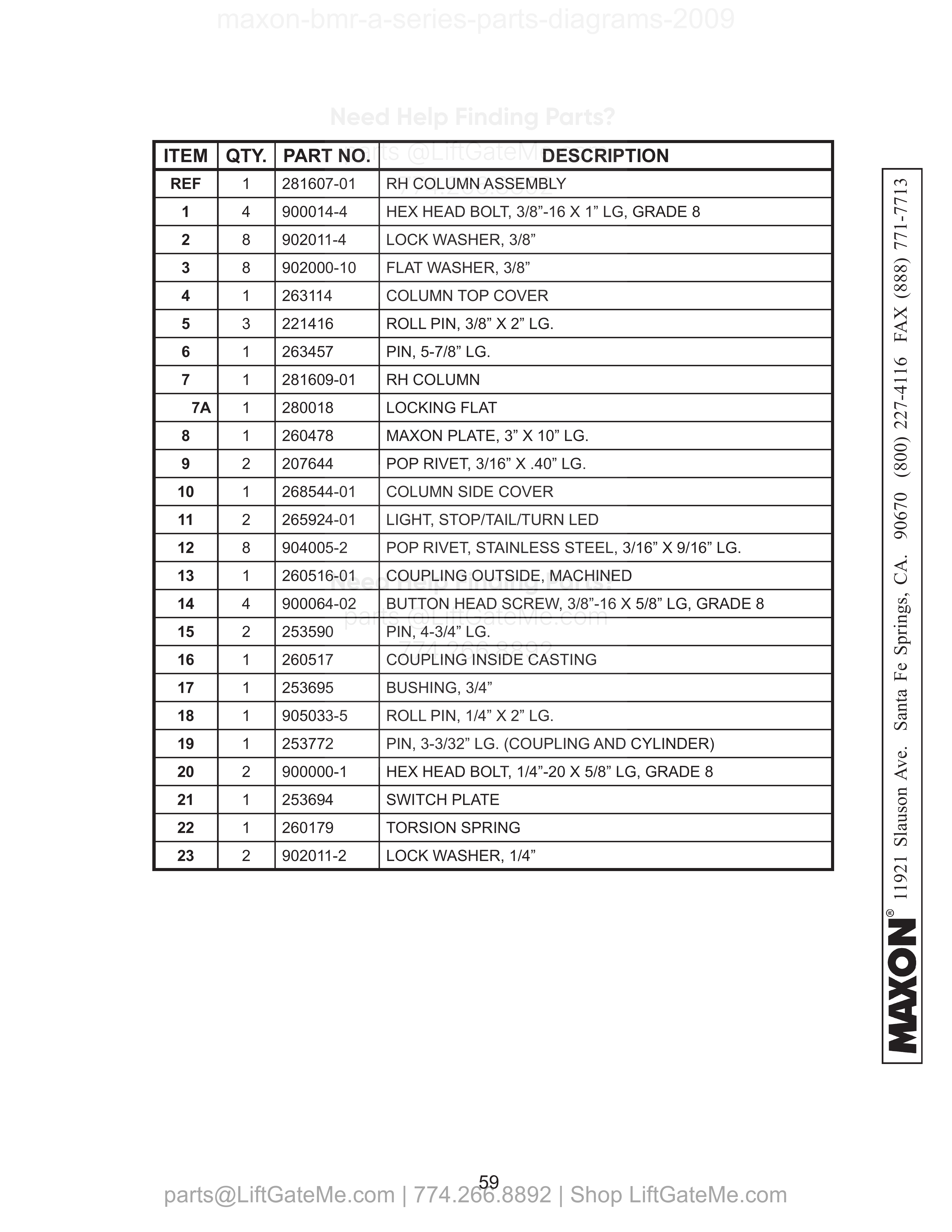

RH COLUMN ASSEMBLY (BMR-A-CS & ONE PIECE)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 281607-01 | RH COLUMN ASSEMBLY | |
| 1 | 4 | 900014-4 | HEX HEAD BOLT, 3/8”-16 X 1” LG, GRADE 8 | |
| 2 | 8 | 902011-4 | LOCK WASHER, 3/8” | |
| 3 | 8 | 902000-10 | FLAT WASHER, 3/8” | |
| 4 | 1 | 263114 | COLUMN TOP COVER | |
| 5 | 3 | 221416 | ROLL PIN, 3/8” X 2” LG. | |
| 6 | 1 | 263457 | PIN, 5-7/8” LG. | |
| 7 | 1 | 281609-01 | RH COLUMN | |
| 7A | 1 | 280018 | LOCKING FLAT | |
| 8 | 1 | 260478 | MAXON PLATE, 3” X 10” LG. | |
| 9 | 2 | 207644 | POP RIVET, 3/16” X .40” LG. | |
| 10 | 1 | 268544-01 | COLUMN SIDE COVER | |
| 11 | 2 | 265924-01 | LIGHT, STOP/TAIL/TURN LED | |
| 12 | 8 | 904005-2 | POP RIVET, STAINLESS STEEL, 3/16” X 9/16” LG. | |
| 13 | 1 | 260516-01 | COUPLING OUTSIDE, MACHINED | |
| 14 | 4 | 900064-02 | BUTTON HEAD SCREW, 3/8”-16 X 5/8” LG, GRADE 8 | |
| 15 | 2 | 253590 | PIN, 4-3/4” LG. | |
| 16 | 1 | 260517 | COUPLING INSIDE CASTING | |
| 17 | 1 | 253695 | BUSHING, 3/4” | |
| 18 | 1 | 905033-5 | ROLL PIN, 1/4” X 2” LG. | |
| 19 | 1 | 253772 | PIN, 3-3/32” LG. (COUPLING AND CYLINDER) | |
| 20 | 2 | 900000-1 | HEX HEAD BOLT, 1/4”-20 X 5/8” LG, GRADE 8 | |
| 21 | 1 | 253694 | SWITCH PLATE | |
| 22 | 1 | 260179 | TORSION SPRING | |
| 23 | 2 | 902011-2 | LOCK WASHER, 1/4” |

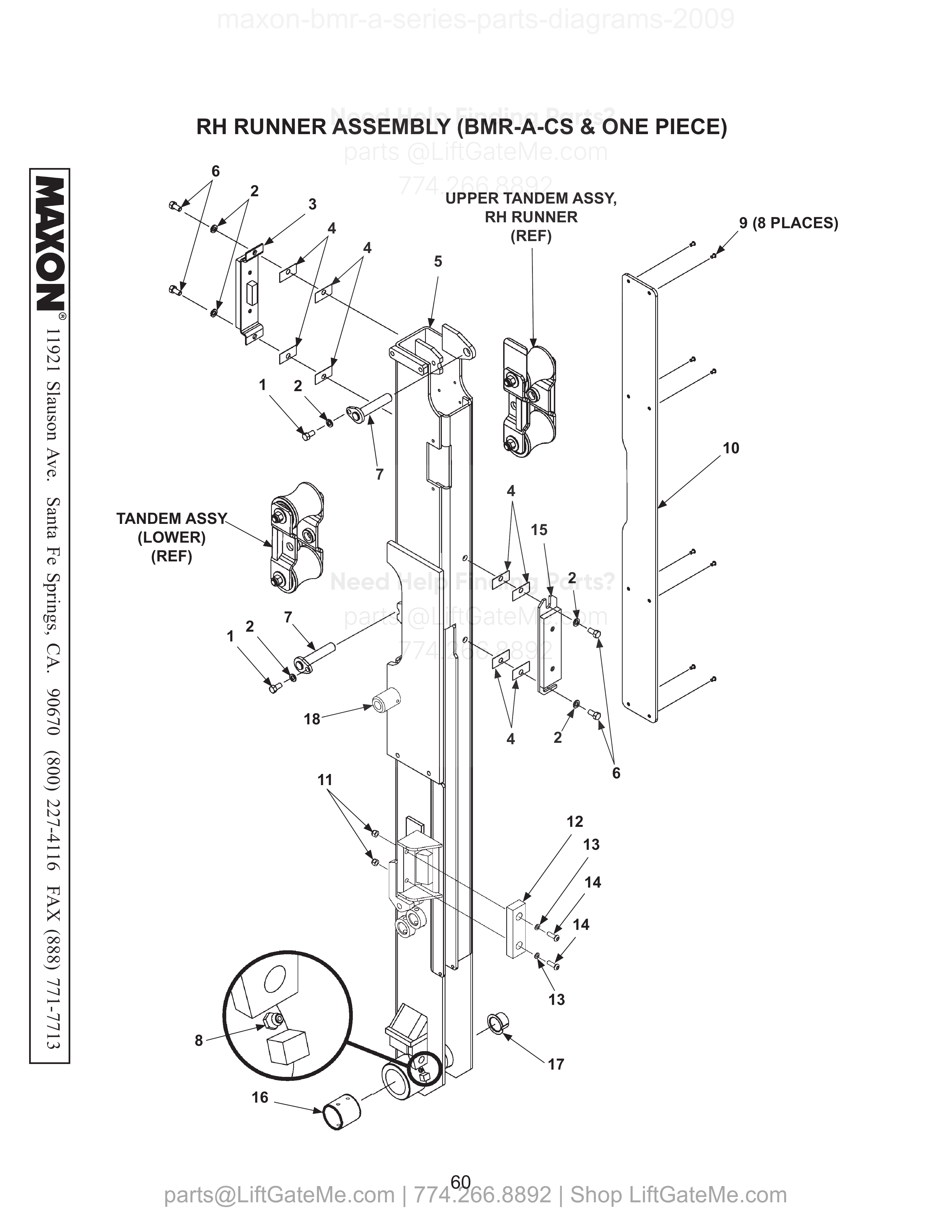

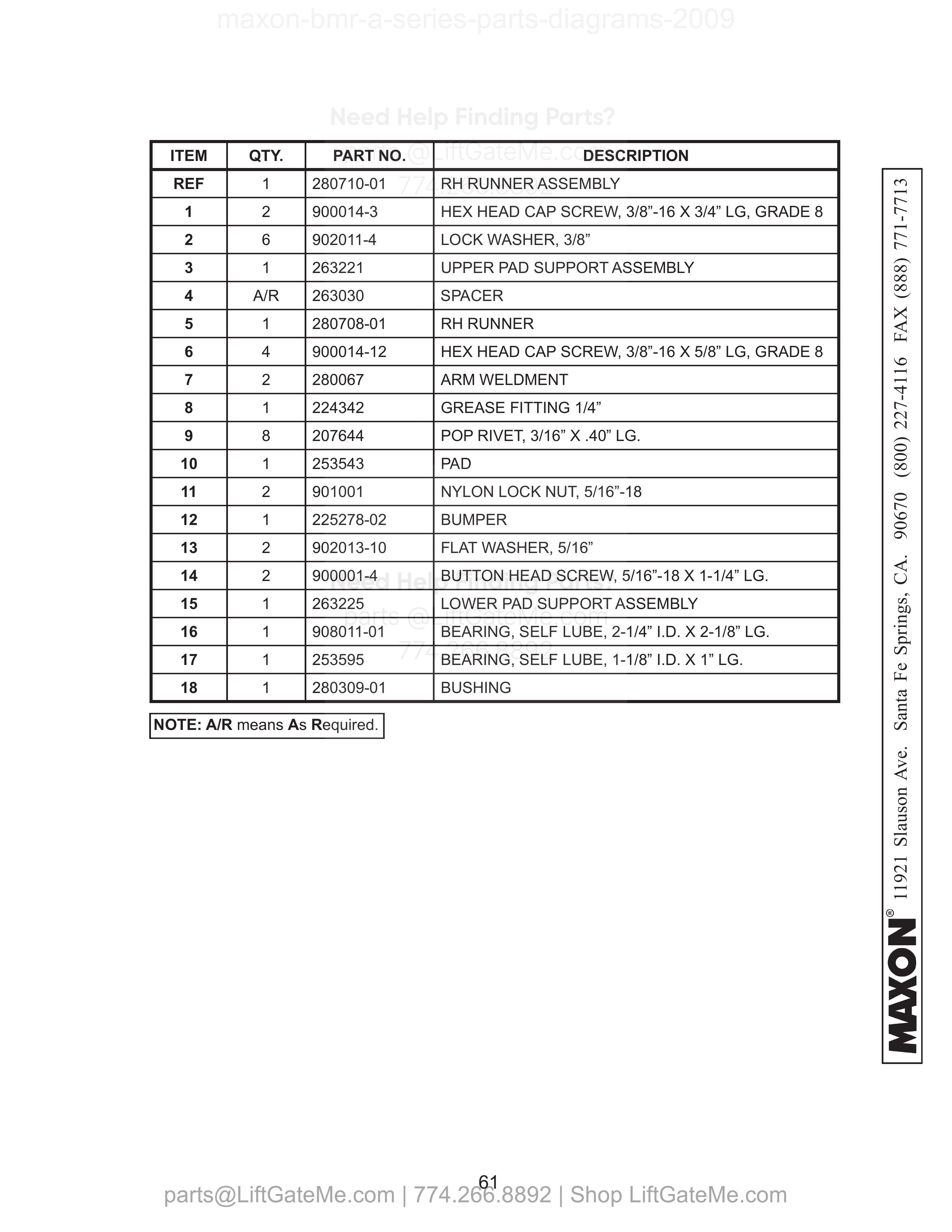

RH RUNNER ASSEMBLY (BMR-A-CS & ONE PIECE)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280710-01 | RH RUNNER ASSEMBLY | |
| 1 | 2 | 900014-3 | HEX HEAD CAP SCREW, 3/8”-16 X 3/4” LG, GRADE 8 | |
| 2 | 6 | 902011-4 | LOCK WASHER, 3/8” | |
| 3 | 1 | 263221 | UPPER PAD SUPPORT ASSEMBLY | |
| 4 | A/R | 263030 | SPACER | |
| 5 | 1 | 280708-01 | RH RUNNER | |
| 6 | 4 | 900014-12 | HEX HEAD CAP SCREW, 3/8”-16 X 5/8” LG, GRADE 8 | |
| 7 | 2 | 280067 | ARM WELDMENT | |
| 8 | 1 | 224342 | GREASE FITTING 1/4” | |
| 9 | 8 | 207644 | POP RIVET, 3/16” X .40” LG. | |
| 10 | 1 | 253543 | PAD | |
| 11 | 2 | 901001 | NYLON LOCK NUT, 5/16”-18 | |
| 12 | 1 | 225278-02 | BUMPER | |
| 13 | 2 | 902013-10 | FLAT WASHER, 5/16” | |
| 14 | 2 | 900001-4 | BUTTON HEAD SCREW, 5/16”-18 X 1-1/4” LG. | |
| 15 | 1 | 263225 | LOWER PAD SUPPORT ASSEMBLY | |
| 16 | 1 | 908011-01 | BEARING, SELF LUBE, 2-1/4” I.D. X 2-1/8” LG. | |
| 17 | 1 | 253595 | BEARING, SELF LUBE, 1-1/8” I.D. X 1” LG. | |
| 18 | 1 | 280309-01 | BUSHING |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
SPRING GUARD MOUNTING
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 260299 | FLAT HEAD SCREW, 1/4”-20 X 2-1/2” LG. | |
| 2 | 1 | 253603-01 | SPRING GUARD | |
| 3 | 1 | 900000-9 | HEX HEAD BOLT, 1/4”-20 X 2-1/4” LG, GRADE 8 | |
| 4 | 2 | 901000 | NYLON LOCK NUT, 1/4”-20 | |
| 5 | 2 | 253621 | BUSHING, 1/2” DIA. X 1” LG. | |
| 6 | 2 | 214663 | CLAMP, #8 RUBBER LOOM |
UPPER TANDEM ASSEMBLY, RH RUNNER
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280055-02 | UPPER TANDEM ASSEMBLY, RH RUNNER | |
| 1 | 2 | 253509-01 | ROLLER AXLE | |
| 2 | 1 | 280064 | ROLLER BRACKET | |
| 3 | 3 | 261182 | FLAT WASHER, .72” I.D. X 1-1/4” O.D. STAINLESS STEEL | |
| 4 | 2 | 253550-100 | ROLLER | |
| 5 | 1 | 280063 | ROLLER BRACKET | |
| 6 | 2 | 902014 | FLAT WASHER, 5/8” I.D. X 1-3/8” O.D. | |
| 7 | 2 | 901008 | NYLON LOCK NUT, 1/4”-20 | |
| 8 | 1 | 280851-01 | ROLLER COVER |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
TANDEM ASSEMBLY (LOWER)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280055 | LOWER TANDEM ASSEMBLY | |
| 1 | 2 | 253509-01 | ROLLER AXLE | |
| 2 | 1 | 280064 | ROLLER BRACKET | |
| 3 | 4 | 261182 | FLAT WASHER, .72” I.D. X 1-1/4” O.D. STAINLESS STEEL | |
| 4 | 2 | 253550-100 | ROLLER | |
| 5 | 1 | 280063 | ROLLER BRACKET | |
| 6 | 2 | 902014 | FLAT WASHER, 5/8” I.D. X 1-3/8” O.D. | |
| 7 | 2 | 901008 | NYLON LOCK NUT, 1/4”-20 |
i

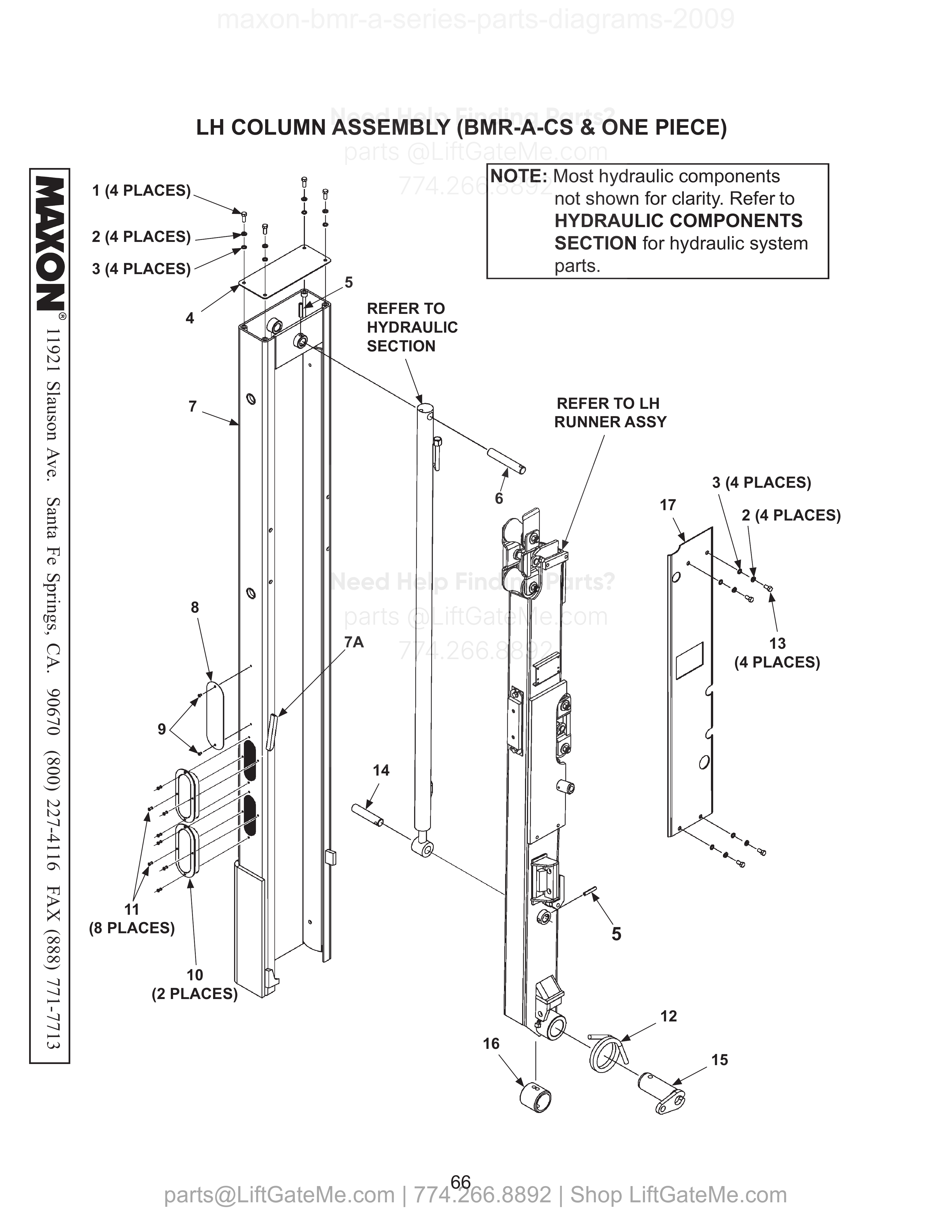

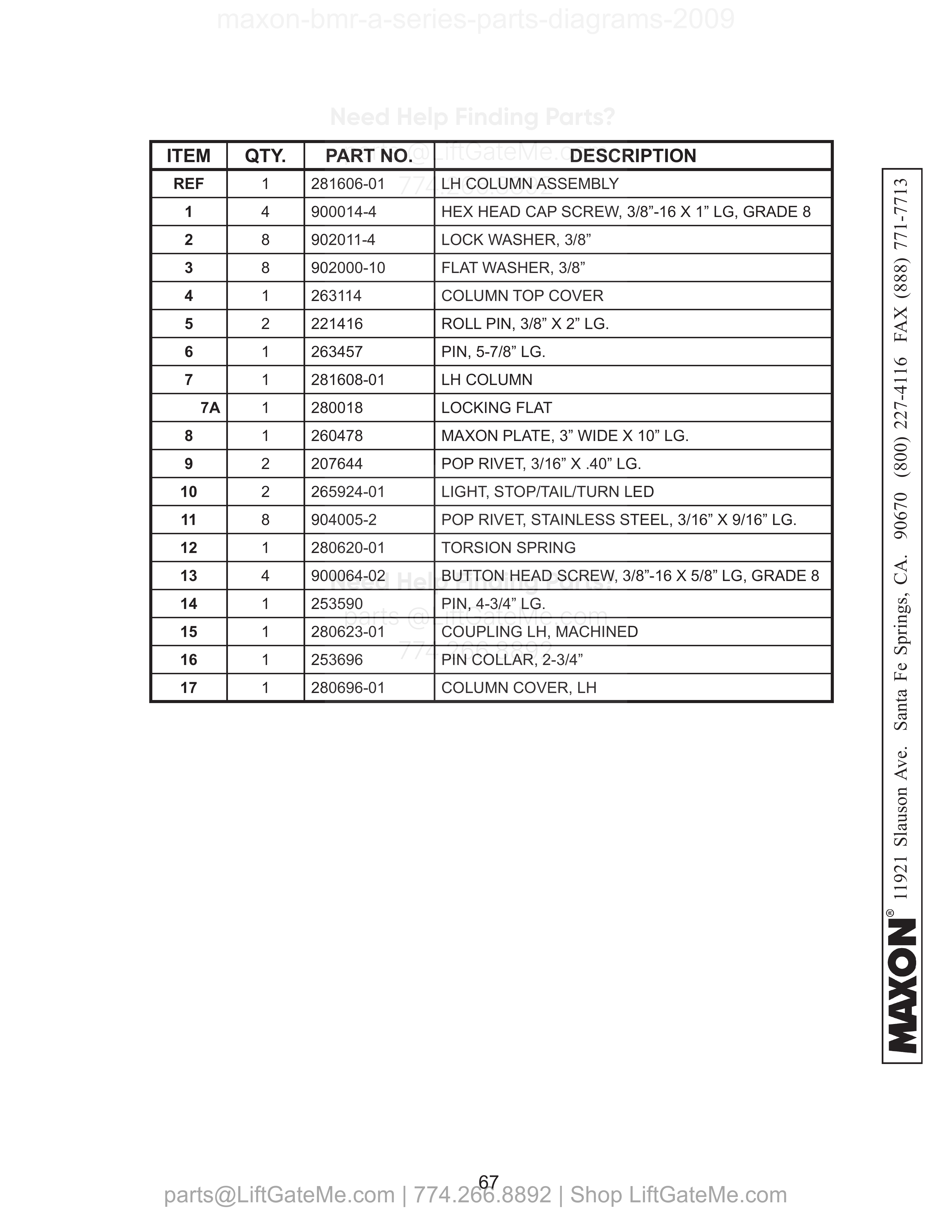

LH COLUMN ASSEMBLY (BMR-A-CS & ONE PIECE)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 281606-01 | LH COLUMN ASSEMBLY | |
| 1 | 4 | 900014-4 | HEX HEAD CAP SCREW, 3/8”-16 X 1” LG, GRADE 8 | |
| 2 | 8 | 902011-4 | LOCK WASHER, 3/8” | |
| 3 | 8 | 902000-10 | FLAT WASHER, 3/8” | |
| 4 | 1 | 263114 | COLUMN TOP COVER | |
| 5 | 2 | 221416 | ROLL PIN, 3/8” X 2” LG. | |
| 6 | 1 | 263457 | PIN, 5-7/8” LG. | |
| 7 | 1 | 281608-01 | LH COLUMN | |
| 7A | 1 | 280018 | LOCKING FLAT | |
| 8 | 1 | 260478 | MAXON PLATE, 3” WIDE X 10” LG. | |
| 9 | 2 | 207644 | POP RIVET, 3/16” X .40” LG. | |
| 10 | 2 | 265924-01 | LIGHT, STOP/TAIL/TURN LED | |
| 11 | 8 | 904005-2 | POP RIVET, STAINLESS STEEL, 3/16” X 9/16” LG. | |
| 12 | 1 | 280620-01 | TORSION SPRING | |
| 13 | 4 | 900064-02 | BUTTON HEAD SCREW, 3/8”-16 X 5/8” LG, GRADE 8 | |
| 14 | 1 | 253590 | PIN, 4-3/4” LG. | |
| 15 | 1 | 280623-01 | COUPLING LH, MACHINED | |
| 16 | 1 | 253696 | PIN COLLAR, 2-3/4” | |
| 17 | 1 | 280696-01 | COLUMN COVER, LH |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

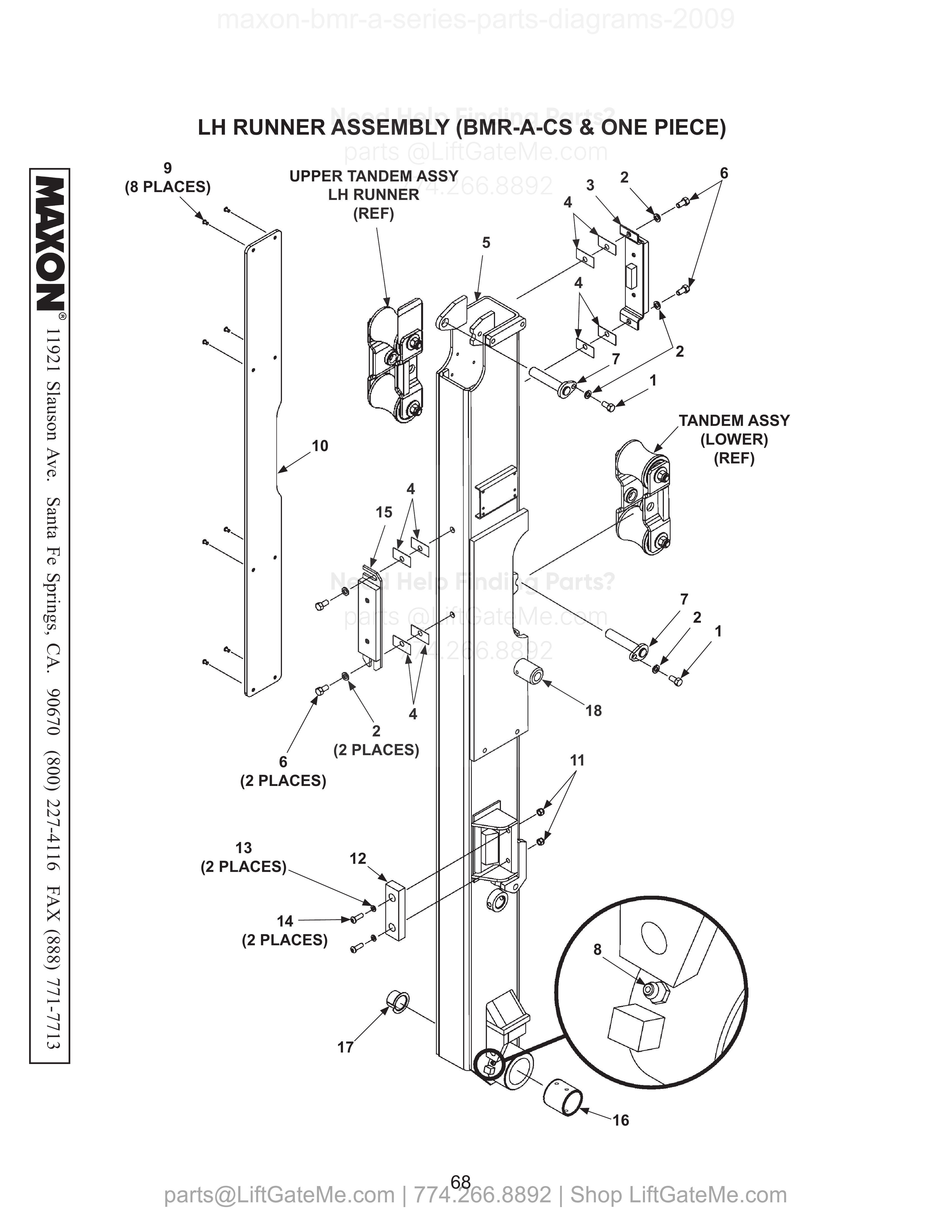

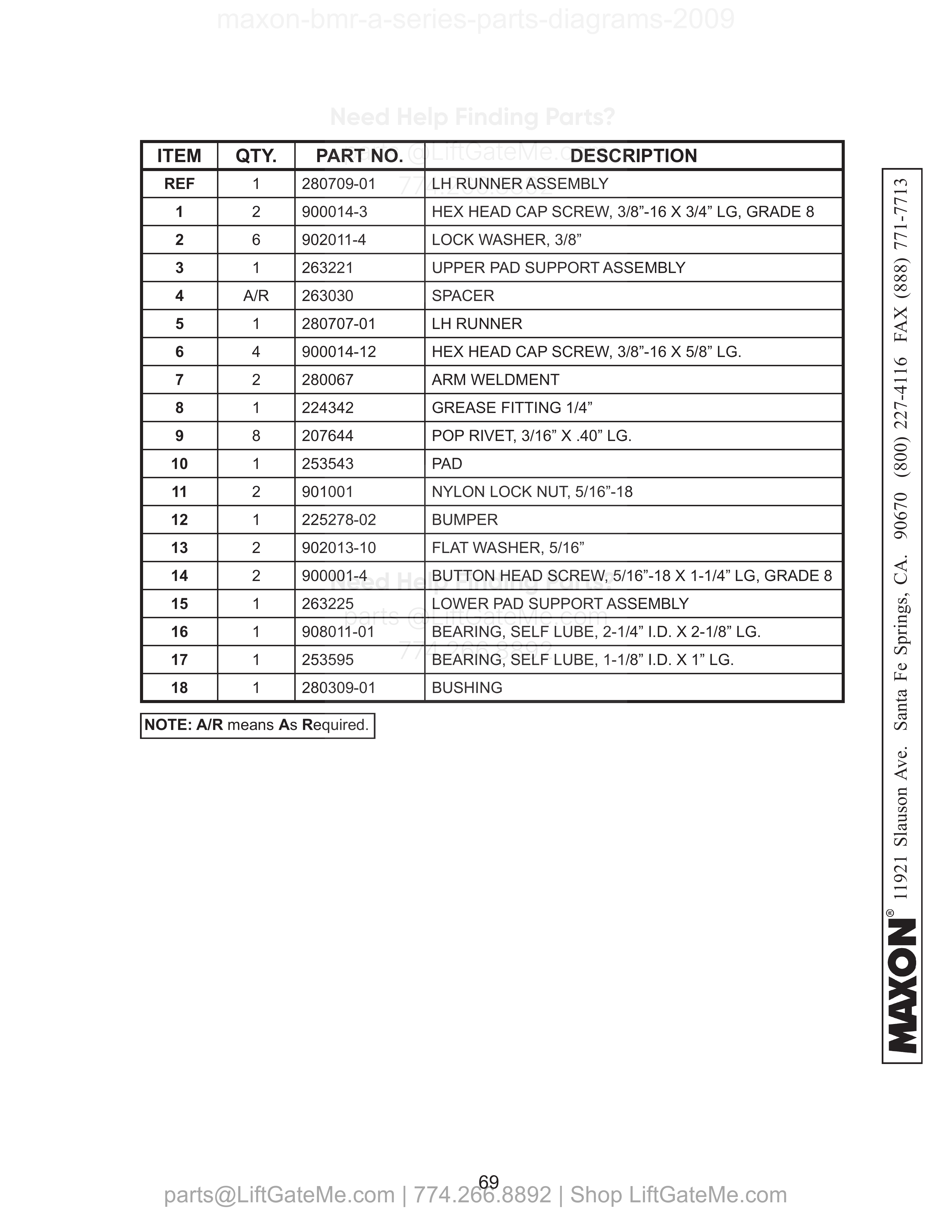

LH RUNNER ASSEMBLY (BMR-A-CS & ONE PIECE)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280709-01 | LH RUNNER ASSEMBLY | |
| 1 | 2 | 900014-3 | HEX HEAD CAP SCREW, 3/8”-16 X 3/4” LG, GRADE 8 | |
| 2 | 6 | 902011-4 | LOCK WASHER, 3/8” | |
| 3 | 1 | 263221 | UPPER PAD SUPPORT ASSEMBLY | |
| 4 | A/R | 263030 | SPACER | |
| 5 | 1 | 280707-01 | LH RUNNER | |
| 6 | 4 | 900014-12 | HEX HEAD CAP SCREW, 3/8”-16 X 5/8” LG. | |
| 7 | 2 | 280067 | ARM WELDMENT | |
| 8 | 1 | 224342 | GREASE FITTING 1/4” | |
| 9 | 8 | 207644 | POP RIVET, 3/16” X .40” LG. | |
| 10 | 1 | 253543 | PAD | |
| 11 | 2 | 901001 | NYLON LOCK NUT, 5/16”-18 | |
| 12 | 1 | 225278-02 | BUMPER | |
| 13 | 2 | 902013-10 | FLAT WASHER, 5/16” | |
| 14 | 2 | 900001-4 | BUTTON HEAD SCREW, 5/16”-18 X 1-1/4” LG, GRADE 8 | |
| 15 | 1 | 263225 | LOWER PAD SUPPORT ASSEMBLY | |
| 16 | 1 | 908011-01 | BEARING, SELF LUBE, 2-1/4” I.D. X 2-1/8” LG. | |
| 17 | 1 | 253595 | BEARING, SELF LUBE, 1-1/8” I.D. X 1” LG. | |
| 18 | 1 | 280309-01 | BUSHING |
UPPER TANDEM ASSEMBLY, LH RUNNER
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280055-01 | UPPER TANDEM ASSEMBLY, LH RUNNER | |
| 1 | 2 | 253509-01 | ROLLER AXLE | |
| 2 | 1 | 280064 | ROLLER BRACKET | |
| 3 | 3 | 261182 | FLAT WASHER, .72” I.D. X 1-1/4” O.D. STAINLESS STEEL | |
| 4 | 2 | 253550-100 | ROLLER | |
| 5 | 1 | 280063 | ROLLER BRACKET | |
| 6 | 2 | 902014 | FLAT WASHER, 5/8” I.D. X 1-3/8” O.D. | |
| 7 | 2 | 901008 | NYLON LOCK NUT, 1/4”-20 | |
| 8 | 1 | 280851-01 | ROLLER COVER |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

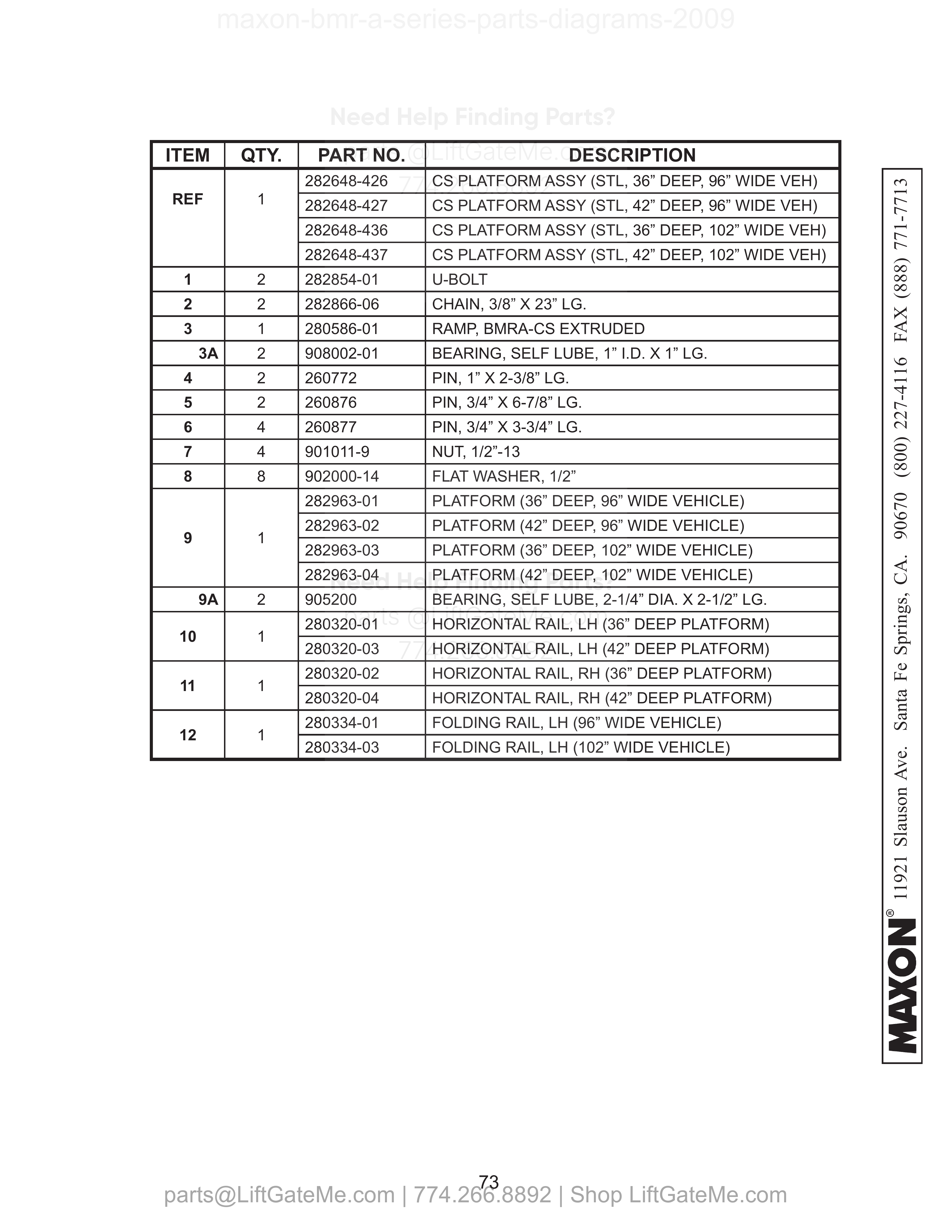

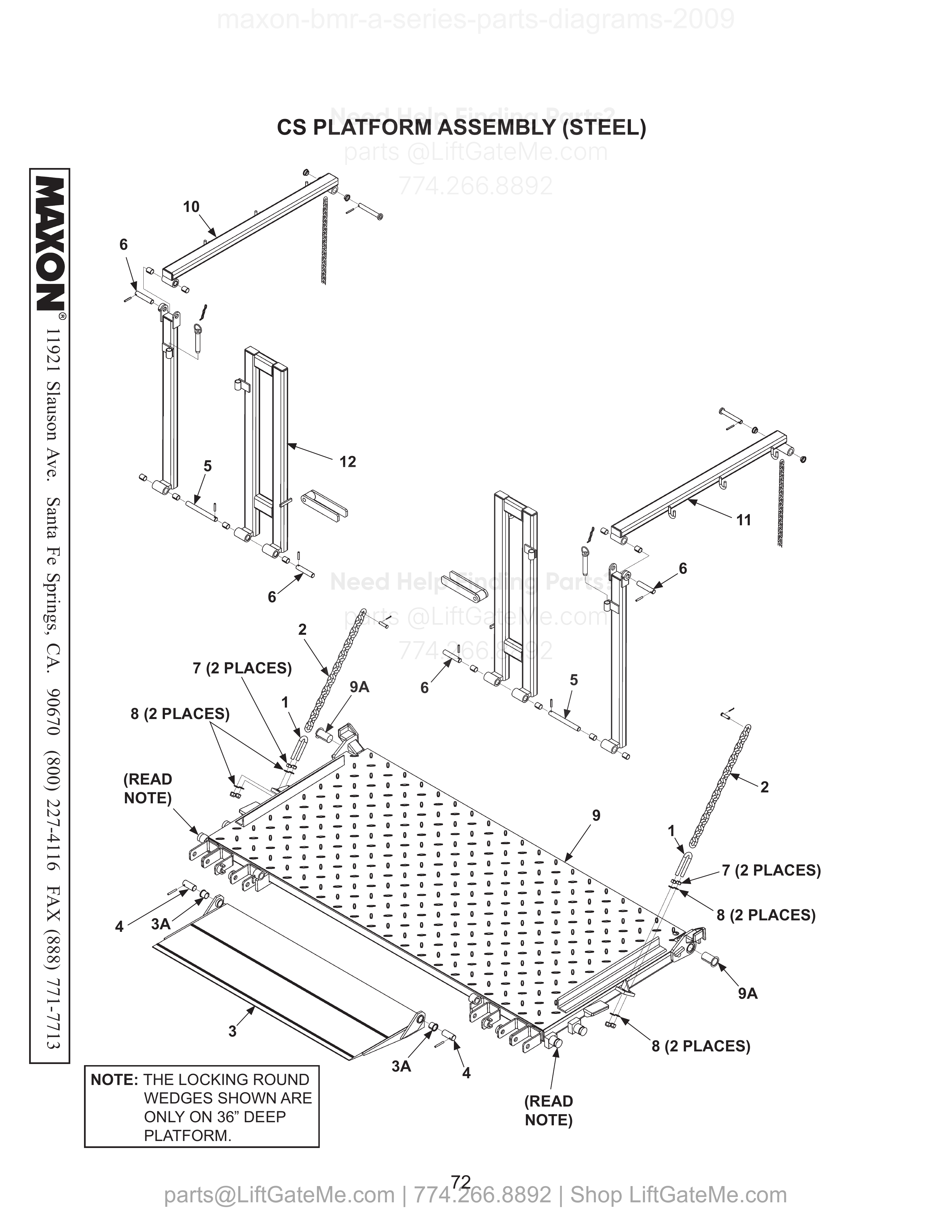

CS PLATFORM ASSEMBLY (STEEL)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 282648-426 | CS PLATFORM ASSY (STL, 36” DEEP, 96” WIDE VEH) | |
| REF | 1 | 282648-427 | CS PLATFORM ASSY (STL, 42” DEEP, 96” WIDE VEH) | |
| REF | 1 | 282648-436 | CS PLATFORM ASSY (STL, 36” DEEP, 102” WIDE VEH) | |
| REF | 1 | 282648-437 | CS PLATFORM ASSY (STL, 42” DEEP, 102” WIDE VEH) | |
| 1 | 2 | 282854-01 | U-BOLT | |
| 2 | 2 | 282866-06 | CHAIN, 3/8” X 23” LG. | |
| 3 | 1 | 280586-01 | RAMP, BMRA-CS EXTRUDED | |
| 3A | 2 | 908002-01 | BEARING, SELF LUBE, 1” I.D. X 1” LG. | |
| 4 | 2 | 260772 | PIN, 1” X 2-3/8” LG. | |
| 5 | 2 | 260876 | PIN, 3/4” X 6-7/8” LG. | |
| 6 | 4 | 260877 | PIN, 3/4” X 3-3/4” LG. | |
| 7 | 4 | 901011-9 | NUT, 1/2”-13 | |
| 8 | 8 | 902000-14 | FLAT WASHER, 1/2” | |
| 9 | 1 | 282963-01 | PLATFORM (36” DEEP, 96” WIDE VEHICLE) | |
| 9 | 1 | 282963-02 | PLATFORM (42” DEEP, 96” WIDE VEHICLE) | |
| 9 | 1 | 282963-03 | PLATFORM (36” DEEP, 102” WIDE VEHICLE) | |
| 9 | 1 | 282963-04 | PLATFORM (42” DEEP, 102” WIDE VEHICLE) | |
| 9A | 2 | 905200 | BEARING, SELF LUBE, 2-1/4” DIA. X 2-1/2” LG. | |
| 10 | 1 | 280320-01 | HORIZONTAL RAIL, LH (36” DEEP PLATFORM) | |
| 10 | 1 | 280320-03 | HORIZONTAL RAIL, LH (42” DEEP PLATFORM) | |
| 11 | 1 | 280320-02 | HORIZONTAL RAIL, RH (36” DEEP PLATFORM) | |
| 11 | 1 | 280320-04 | HORIZONTAL RAIL, RH (42” DEEP PLATFORM) | |
| 12 | 1 | 280334-01 | FOLDING RAIL, LH (96” WIDE VEHICLE) | |
| 12 | 1 | 280334-03 | FOLDING RAIL, LH (102” WIDE VEHICLE) |

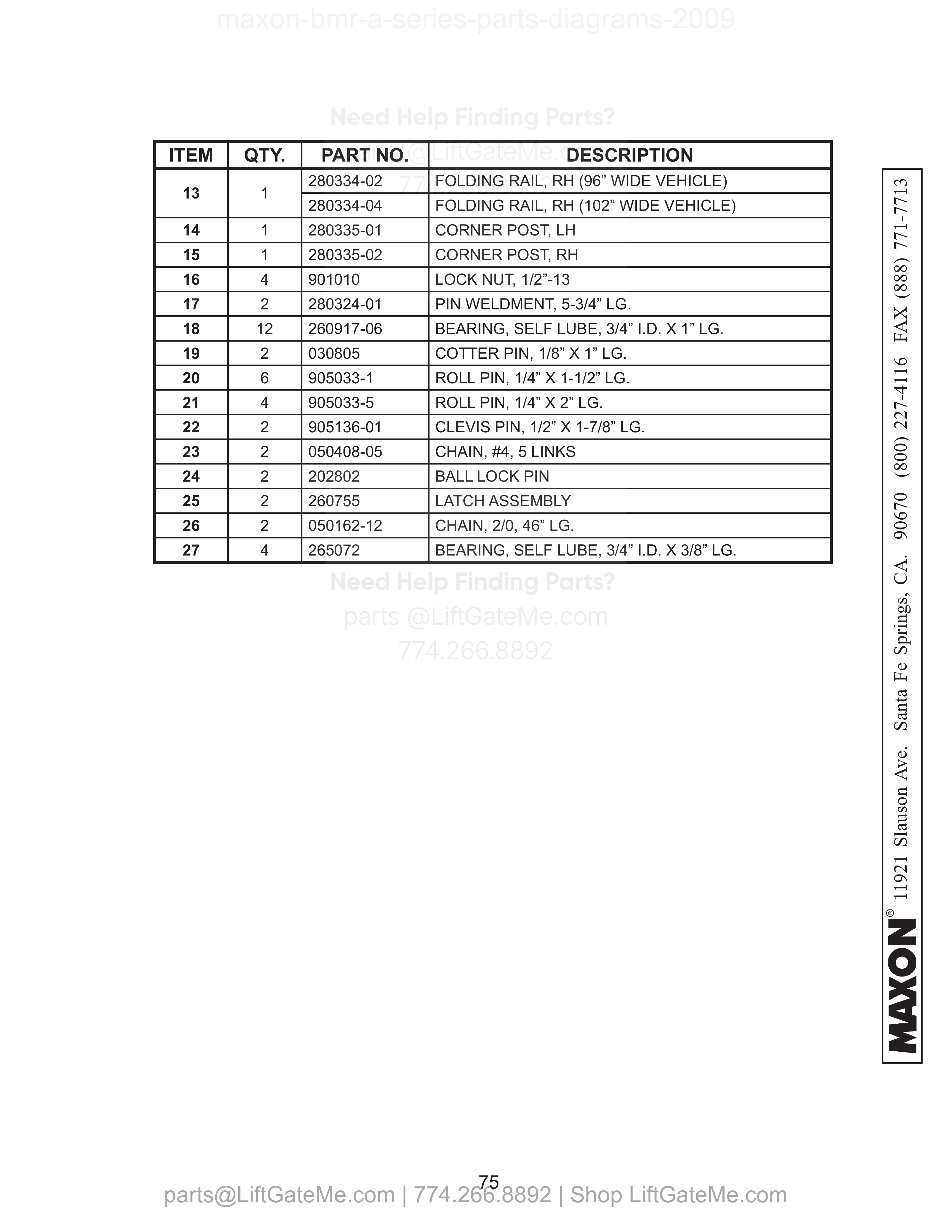

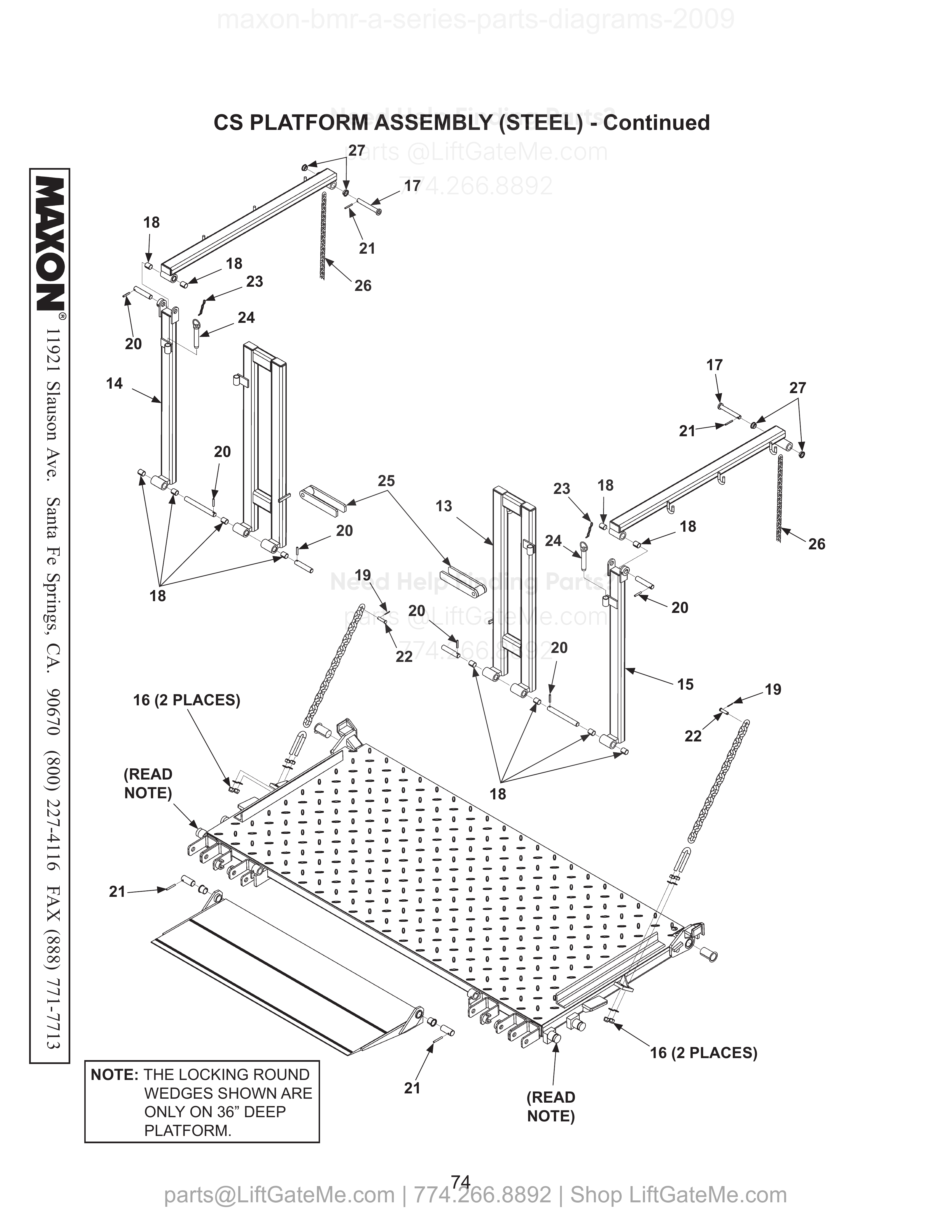

CS PLATFORM ASSEMBLY (STEEL) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 13 | 1 | 280334-02 | FOLDING RAIL, RH (96” WIDE VEHICLE) | |
| 13 | 1 | 280334-04 | FOLDING RAIL, RH (102” WIDE VEHICLE) | |
| 14 | 1 | 280335-01 | CORNER POST, LH | |
| 15 | 1 | 280335-02 | CORNER POST, RH | |
| 16 | 4 | 901010 | LOCK NUT, 1/2”-13 | |
| 17 | 2 | 280324-01 | PIN WELDMENT, 5-3/4” LG. | |
| 18 | 12 | 260917-06 | BEARING, SELF LUBE, 3/4” I.D. X 1” LG. | |
| 19 | 2 | 030805 | COTTER PIN, 1/8” X 1” LG. | |
| 20 | 6 | 905033-1 | ROLL PIN, 1/4” X 1-1/2” LG. | |
| 21 | 4 | 905033-5 | ROLL PIN, 1/4” X 2” LG. | |
| 22 | 2 | 905136-01 | CLEVIS PIN, 1/2” X 1-7/8” LG. | |
| 23 | 2 | 050408-05 | CHAIN, #4, 5 LINKS | |
| 24 | 2 | 202802 | BALL LOCK PIN | |
| 25 | 2 | 260755 | LATCH ASSEMBLY | |
| 26 | 2 | 050162-12 | CHAIN, 2/0, 46” LG. | |
| 27 | 4 | 265072 | BEARING, SELF LUBE, 3/4” I.D. X 3/8” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

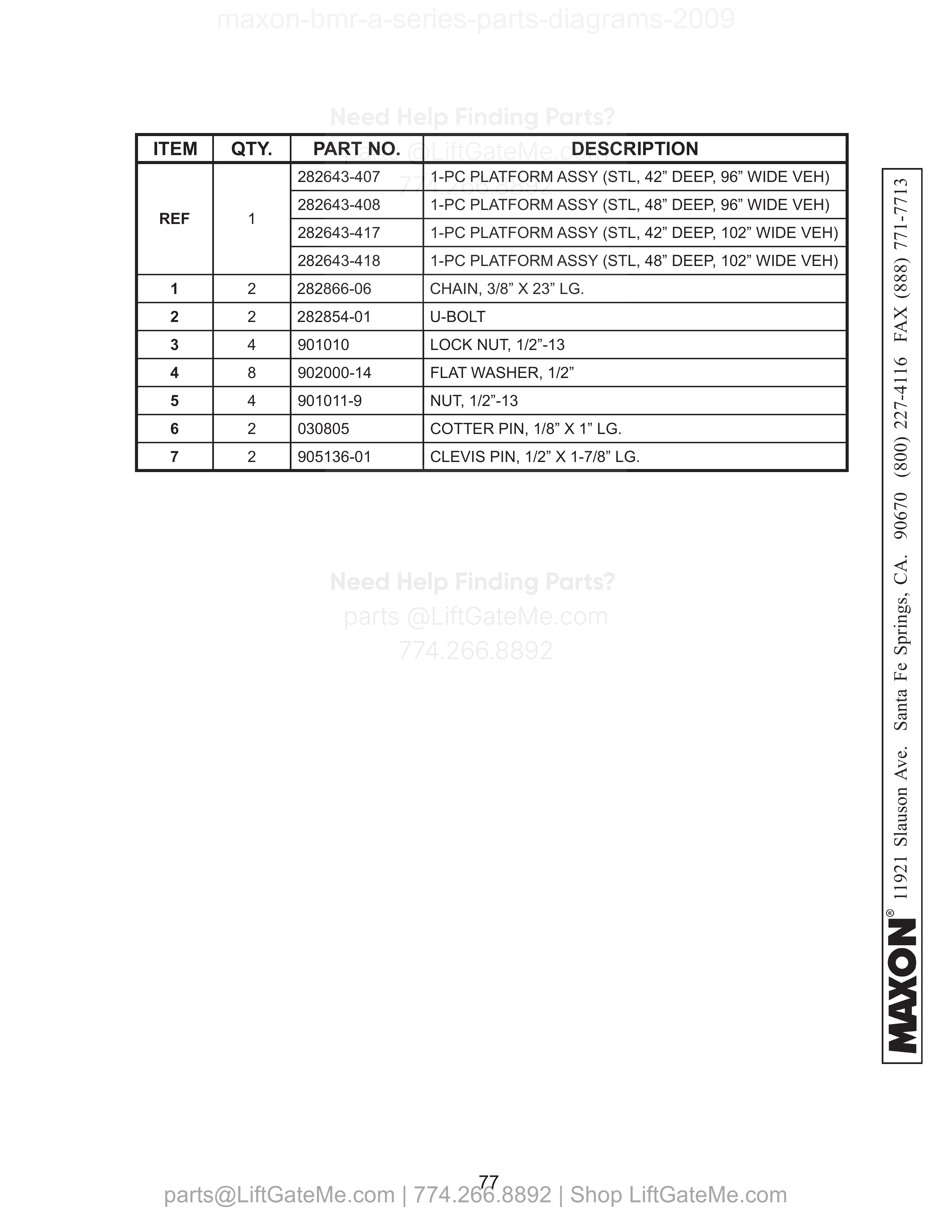

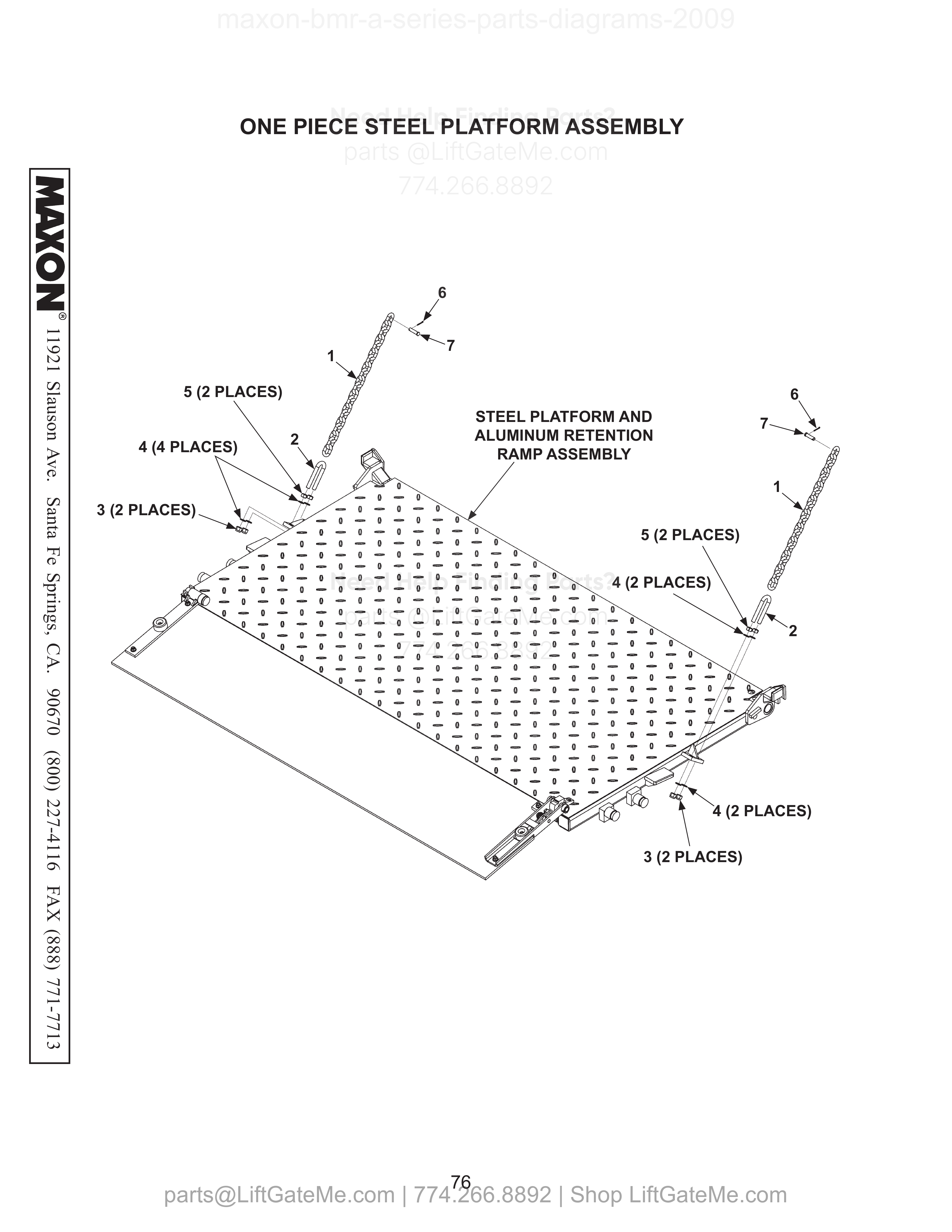

ONE PIECE STEEL PLATFORM ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 282643-407 | 1-PC PLATFORM ASSY (STL, 42” DEEP, 96” WIDE VEH) | |
| REF | 1 | 282643-408 | 1-PC PLATFORM ASSY (STL, 48” DEEP, 96” WIDE VEH) | |
| REF | 1 | 282643-417 | 1-PC PLATFORM ASSY (STL, 42” DEEP, 102” WIDE VEH) | |
| REF | 1 | 282643-418 | 1-PC PLATFORM ASSY (STL, 48” DEEP, 102” WIDE VEH) | |
| 1 | 2 | 282866-06 | CHAIN, 3/8” X 23” LG. | |
| 2 | 2 | 282854-01 | U-BOLT | |
| 3 | 4 | 901010 | LOCK NUT, 1/2”-13 | |
| 4 | 8 | 902000-14 | FLAT WASHER, 1/2” | |
| 5 | 4 | 901011-9 | NUT, 1/2”-13 | |
| 6 | 2 | 030805 | COTTER PIN, 1/8” X 1” LG. | |
| 7 | 2 | 905136-01 | CLEVIS PIN, 1/2” X 1-7/8” LG. |

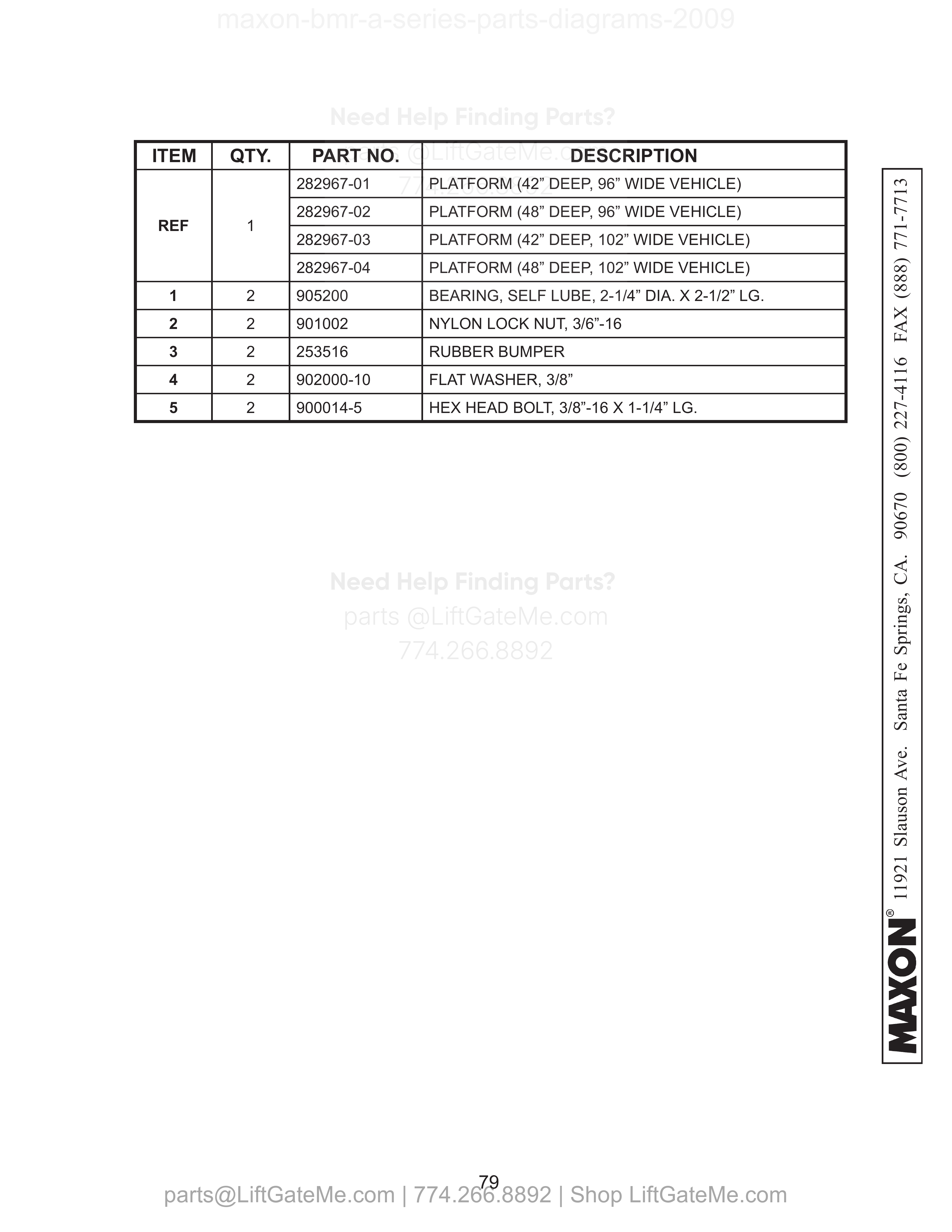

STEEL PLATFORM AND ALUMINUM RETENTION RAMP ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 282967-01 | PLATFORM (42” DEEP, 96” WIDE VEHICLE) | |
| REF | 1 | 282967-02 | PLATFORM (48” DEEP, 96” WIDE VEHICLE) | |
| REF | 1 | 282967-03 | PLATFORM (42” DEEP, 102” WIDE VEHICLE) | |
| REF | 1 | 282967-04 | PLATFORM (48” DEEP, 102” WIDE VEHICLE) | |
| 1 | 2 | 905200 | BEARING, SELF LUBE, 2-1/4” DIA. X 2-1/2” LG. | |
| 2 | 2 | 901002 | NYLON LOCK NUT, 3/6”-16 | |
| 3 | 2 | 253516 | RUBBER BUMPER | |
| 4 | 2 | 902000-10 | FLAT WASHER, 3/8” | |
| 5 | 2 | 900014-5 | HEX HEAD BOLT, 3/8”-16 X 1-1/4” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
ALUMINUM RETENTION RAMP ASSEMBLY (USED WITH STEEL PLATFORM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 264699-02 | AL RET. RAMP ASSY, 16” (96” WIDE VEH) | |
| REF | 1 | 264699-03 | AL RET. RAMP ASSY, 16” (102” WIDE VEH) | |
| 1 | 1 | 264697-02 | ALUMINUM RAMP 16” X 77” LG. (96” WIDE VEH) | |
| 1 | 1 | 264697-03 | ALUMINUM RAMP 16” X 83” LG. (102” WIDE VEH) | |
| 2 | 1 | 253524 | HINGE ASSEMBLY LH | |
| 3 | 6 | 902001-2 | FLAT WASHER, 3/8” | |
| 4 | 6 | 030955 | NYLON LOCK NUT, 3/8”-16 | |
| 5 | 2 | 253516 | RUBBER BUMPER | |
| 6 | 3 | 900040-5 | SCREW, FLAT SOCKET HEAD, 3/8”-16” X 1-1/4” LG. | |
| 7 | 1 | 225985 | PIPE, 3/4” X 60” LG. | |
| 8 | 3 | 900040-6 | SCREW, FLAT SOCKET HEAD, 3/8”-16 X 1-1/2” LG. | |
| 9 | 1 | 264586 | PIN WELDMENT | |
| 10 | 1 | 264639 | LOCKING CAM | |
| 10A | 1 | 260917-06 | BEARING, SELF LUBE | |
| 11 | 1 | 264572 | HINGE ASSEMBLY RH | |
| 12 | 1 | 905033-2 | ROLL PIN, 1/4” X 1-1/4” LG. |

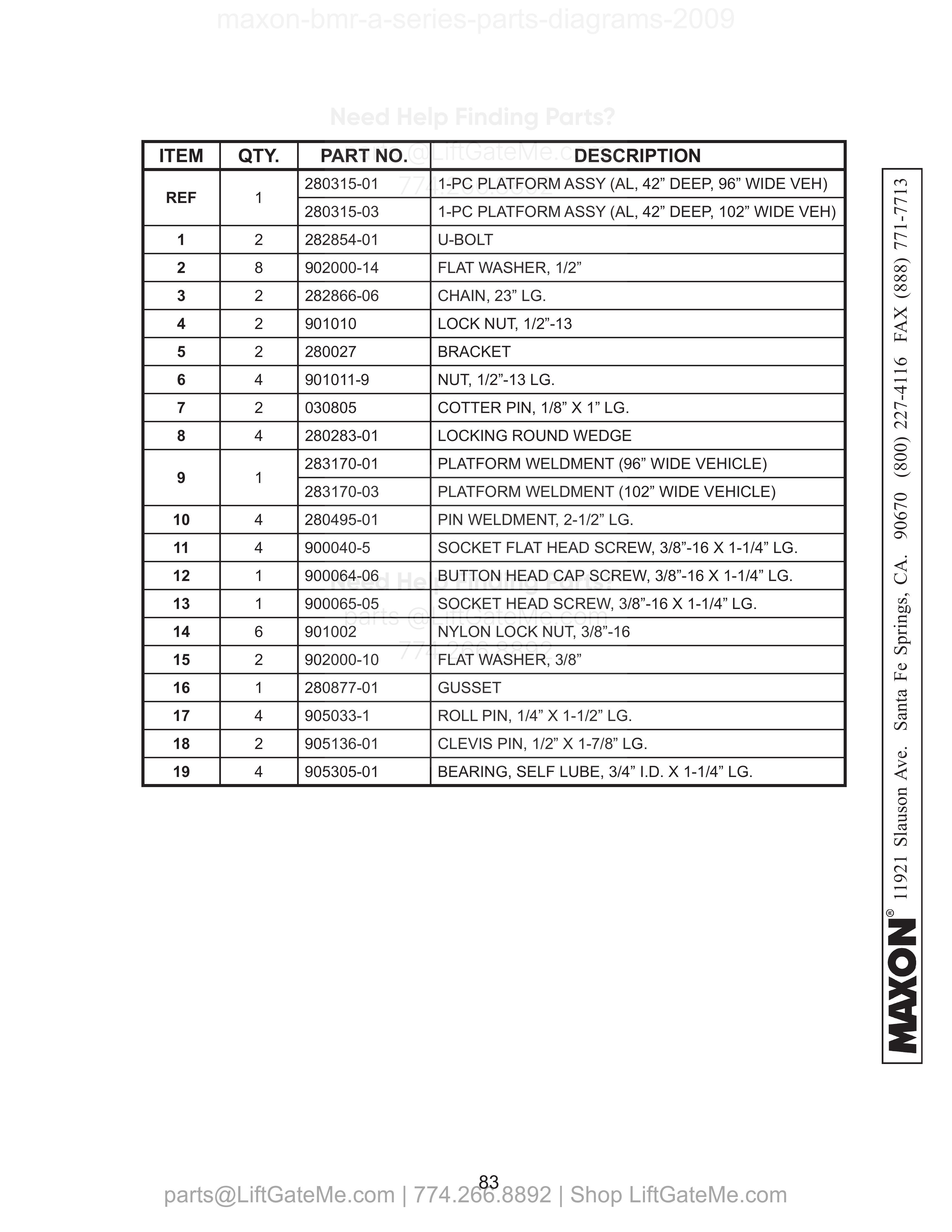

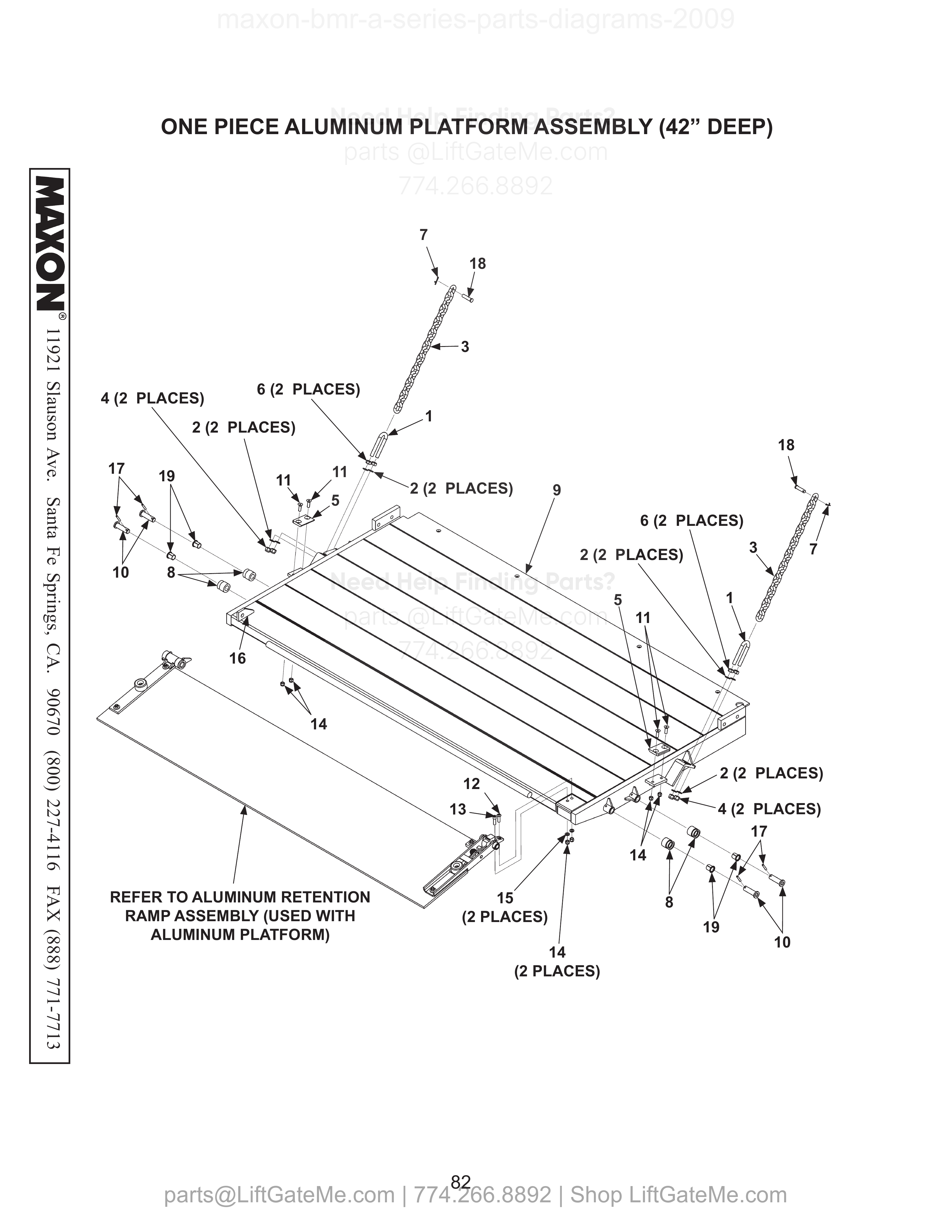

ONE PIECE ALUMINUM PLATFORM ASSEMBLY (42” DEEP)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280315-01 | 1-PC PLATFORM ASSY (AL, 42” DEEP, 96” WIDE VEH) | |
| REF | 1 | 280315-03 | 1-PC PLATFORM ASSY (AL, 42” DEEP, 102” WIDE VEH) | |
| 1 | 2 | 282854-01 | U-BOLT | |
| 2 | 8 | 902000-14 | FLAT WASHER, 1/2” | |
| 3 | 2 | 282866-06 | CHAIN, 23” LG. | |
| 4 | 2 | 901010 | LOCK NUT, 1/2”-13 | |
| 5 | 2 | 280027 | BRACKET | |
| 6 | 4 | 901011-9 | NUT, 1/2”-13 LG. | |
| 7 | 2 | 030805 | COTTER PIN, 1/8” X 1” LG. | |
| 8 | 4 | 280283-01 | LOCKING ROUND WEDGE | |
| 9 | 1 | 283170-01 | PLATFORM WELDMENT (96” WIDE VEHICLE) | |
| 9 | 1 | 283170-03 | PLATFORM WELDMENT (102” WIDE VEHICLE) | |
| 10 | 4 | 280495-01 | PIN WELDMENT, 2-1/2” LG. | |
| 11 | 4 | 900040-5 | SOCKET FLAT HEAD SCREW, 3/8”-16 X 1-1/4” LG. | |
| 12 | 1 | 900064-06 | BUTTON HEAD CAP SCREW, 3/8”-16 X 1-1/4” LG. | |
| 13 | 1 | 900065-05 | SOCKET HEAD SCREW, 3/8”-16 X 1-1/4” LG. | |
| 14 | 6 | 901002 | NYLON LOCK NUT, 3/8”-16 | |
| 15 | 2 | 902000-10 | FLAT WASHER, 3/8” | |
| 16 | 1 | 280877-01 | GUSSET | |
| 17 | 4 | 905033-1 | ROLL PIN, 1/4” X 1-1/2” LG. | |
| 18 | 2 | 905136-01 | CLEVIS PIN, 1/2” X 1-7/8” LG. | |
| 19 | 4 | 905305-01 | BEARING, SELF LUBE, 3/4” I.D. X 1-1/4” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

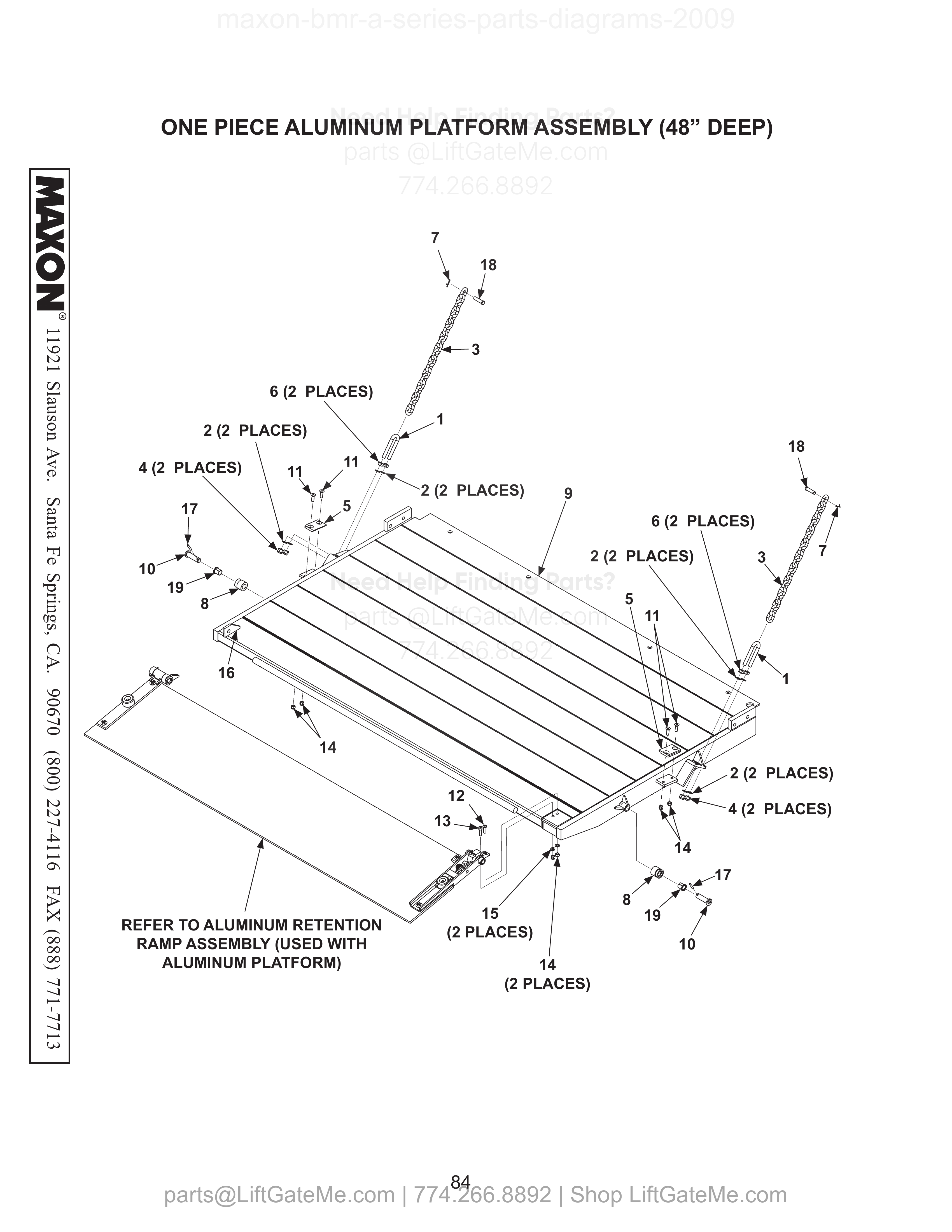

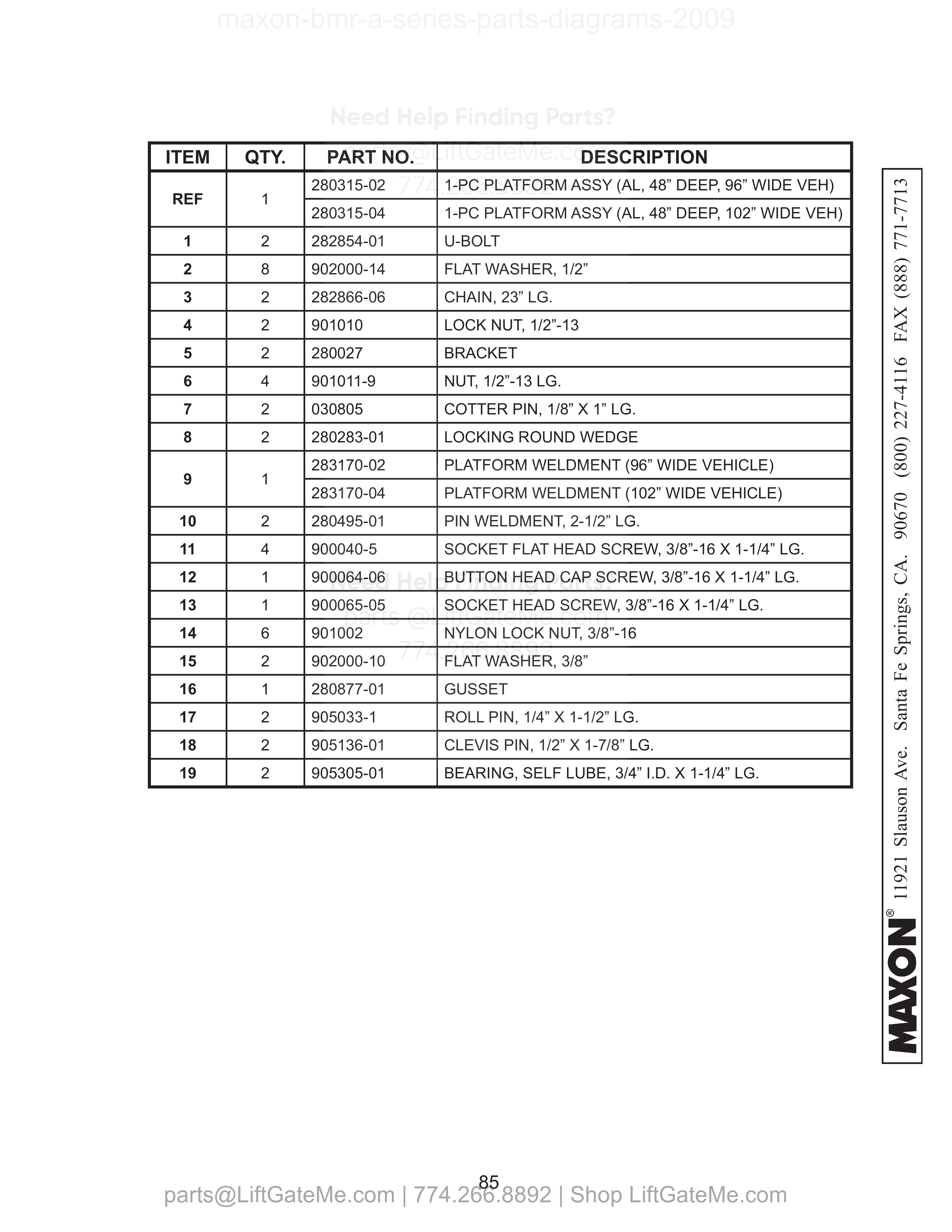

ONE PIECE ALUMINUM PLATFORM ASSEMBLY (48” DEEP)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280315-02 | 1-PC PLATFORM ASSY (AL, 48” DEEP, 96” WIDE VEH) | |
| REF | 1 | 280315-04 | 1-PC PLATFORM ASSY (AL, 48” DEEP, 102” WIDE VEH) | |
| 1 | 2 | 282854-01 | U-BOLT | |
| 2 | 8 | 902000-14 | FLAT WASHER, 1/2” | |
| 3 | 2 | 282866-06 | CHAIN, 23” LG. | |
| 4 | 2 | 901010 | LOCK NUT, 1/2”-13 | |
| 5 | 2 | 280027 | BRACKET | |
| 6 | 4 | 901011-9 | NUT, 1/2”-13 LG. | |
| 7 | 2 | 030805 | COTTER PIN, 1/8” X 1” LG. | |
| 8 | 2 | 280283-01 | LOCKING ROUND WEDGE | |
| 9 | 1 | 283170-02 | PLATFORM WELDMENT (96” WIDE VEHICLE) | |
| 9 | 1 | 283170-04 | PLATFORM WELDMENT (102” WIDE VEHICLE) | |
| 10 | 2 | 280495-01 | PIN WELDMENT, 2-1/2” LG. | |
| 11 | 4 | 900040-5 | SOCKET FLAT HEAD SCREW, 3/8”-16 X 1-1/4” LG. | |
| 12 | 1 | 900064-06 | BUTTON HEAD CAP SCREW, 3/8”-16 X 1-1/4” LG. | |
| 13 | 1 | 900065-05 | SOCKET HEAD SCREW, 3/8”-16 X 1-1/4” LG. | |
| 14 | 6 | 901002 | NYLON LOCK NUT, 3/8”-16 | |
| 15 | 2 | 902000-10 | FLAT WASHER, 3/8” | |
| 16 | 1 | 280877-01 | GUSSET | |
| 17 | 2 | 905033-1 | ROLL PIN, 1/4” X 1-1/2” LG. | |
| 18 | 2 | 905136-01 | CLEVIS PIN, 1/2” X 1-7/8” LG. | |
| 19 | 2 | 905305-01 | BEARING, SELF LUBE, 3/4” I.D. X 1-1/4” LG. |
ALUMINUM RETENTION RAMP ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 264699-06 | AL RET. RAMP ASSY, 16” (96” WIDE VEHICLE) | |
| REF | 1 | 264699-07 | AL RET. RAMP ASSY, 16” (102” WIDE VEHICLE) | |
| 1 | 1 | 264697-06 | ALUMINUM RAMP (96” WIDE VEHICLE) | |
| 1 | 1 | 264697-07 | ALUMINUM RAMP (102” WIDE VEHICLE) | |
| 2 | 6 | 902001-2 | LOCK WASHER, 3/8” | |
| 3 | 6 | 030955 | LOCK NUT, 3/8”-16 | |
| 4 | 2 | 253516 | RUBBER BUMPER | |
| 5 | 3 | 900040-5 | SOCKET FLAT HD SCREW, 3/8-16 X 1-1/4” LG, GRADE 8 | |
| 6 | 3 | 900040-6 | SOCKET FLAT HD SCREW, 3/8-16 X 1-1/2” LG, GRADE 8 | |
| 7 | 1 | 264586 | PIN WELDMENT, 3/4” LG. | |
| 8 | 1 | 264639 | LOCKING CAM | |
| 8A | 1 | 260917-06 | BEARING, SELF LUBE | |
| 9 | 1 | 264572 | HINGE ASSEMBLY RH | |
| 9A | 1 | REF | HINGE WELDMENT, RH | |
| 9B | 1 | 264577 | PIN WELDMENT, 1/2” LG. | |
| 9C | 1 | 264638 | TORSION SPRING, LH | |
| 9D | 1 | 264547 | LOCKING ARM ASSY | |
| 9E | 1 | 030406 | ROLL PIN, 1/8” X 1” LG. | |
| 9F | 1 | 253542 | BEARING, SELF LUBE | |
| 10 | 1 | 905033-2 | ROLL PIN, 1/4” X 1-1/4” LG. | |
| 11 | 1 | 263463 | HINGE ASSEMBLY LH | |
| 11A | 1 | REF | HINGE ARM WELDMENT | |
| 11B | 1 | 253528 | PIN WELDMENT | |
| 11C | 1 | 263467 | GUSSET | |
| 11D | 1 | 091884-10 | ROUND TUBE, ALUMINUM, 3/4” LG. | |
| 11E | 1 | 253541 | BEARING, SELF LUBE | |
| 11F | 1 | 263466 | PIN COLLAR | |
| 11G | 1 | 221416 | ROLL PIN, 3/8” X 2” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

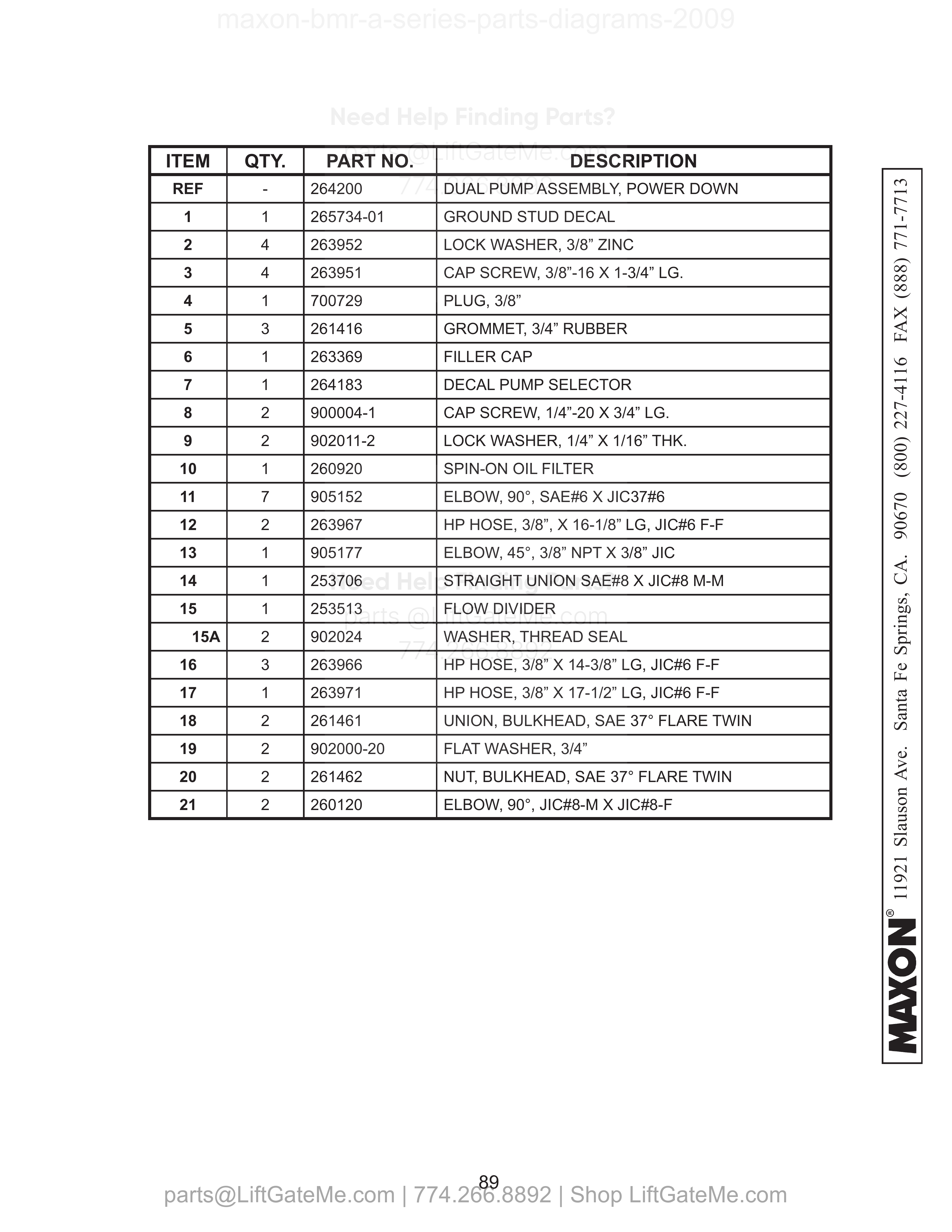

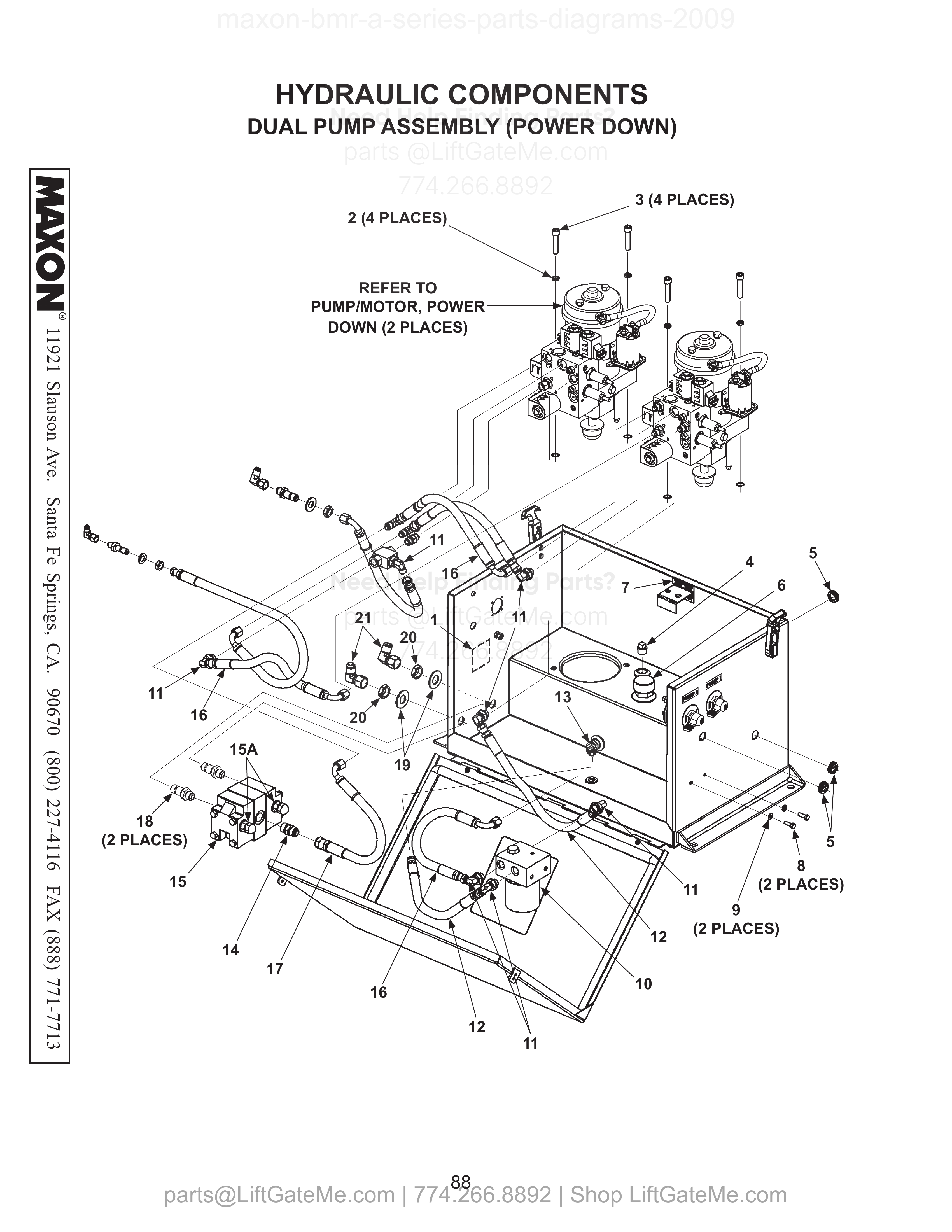

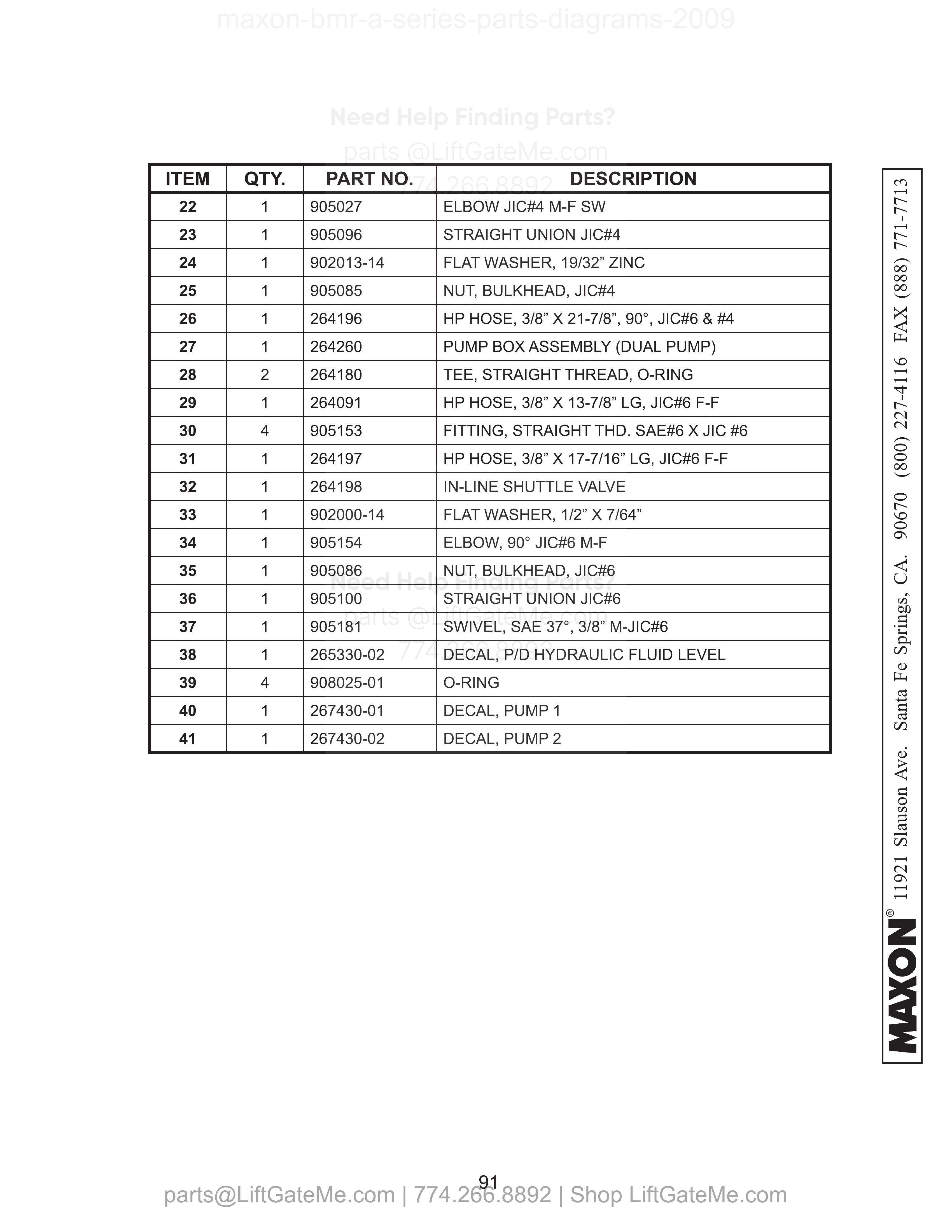

HYDRAULIC COMPONENTS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | - | 264200 | DUAL PUMP ASSEMBLY, POWER DOWN | |
| 1 | 1 | 265734-01 | GROUND STUD DECAL | |
| 2 | 4 | 263952 | LOCK WASHER, 3/8” ZINC | |
| 3 | 4 | 263951 | CAP SCREW, 3/8”-16 X 1-3/4” LG. | |
| 4 | 1 | 700729 | PLUG, 3/8” | |
| 5 | 3 | 261416 | GROMMET, 3/4” RUBBER | |
| 6 | 1 | 263369 | FILLER CAP | |
| 7 | 1 | 264183 | DECAL PUMP SELECTOR | |
| 8 | 2 | 900004-1 | CAP SCREW, 1/4”-20 X 3/4” LG. | |
| 9 | 2 | 902011-2 | LOCK WASHER, 1/4” X 1/16” THK. | |
| 10 | 1 | 260920 | SPIN-ON OIL FILTER | |
| 11 | 7 | 905152 | ELBOW, 90°, SAE#6 X JIC37#6 | |
| 12 | 2 | 263967 | HP HOSE, 3/8”, X 16-1/8” LG, JIC#6 F-F | |
| 13 | 1 | 905177 | ELBOW, 45°, 3/8” NPT X 3/8” JIC | |
| 14 | 1 | 253706 | STRAIGHT UNION SAE#8 X JIC#8 M-M | |
| 15 | 1 | 253513 | FLOW DIVIDER | |
| 15A | 2 | 902024 | WASHER, THREAD SEAL | |
| 16 | 3 | 263966 | HP HOSE, 3/8” X 14-3/8” LG, JIC#6 F-F | |
| 17 | 1 | 263971 | HP HOSE, 3/8” X 17-1/2” LG, JIC#6 F-F | |
| 18 | 2 | 261461 | UNION, BULKHEAD, SAE 37° FLARE TWIN | |
| 19 | 2 | 902000-20 | FLAT WASHER, 3/4” | |
| 20 | 2 | 261462 | NUT, BULKHEAD, SAE 37° FLARE TWIN | |
| 21 | 2 | 260120 | ELBOW, 90°, JIC#8-M X JIC#8-F |

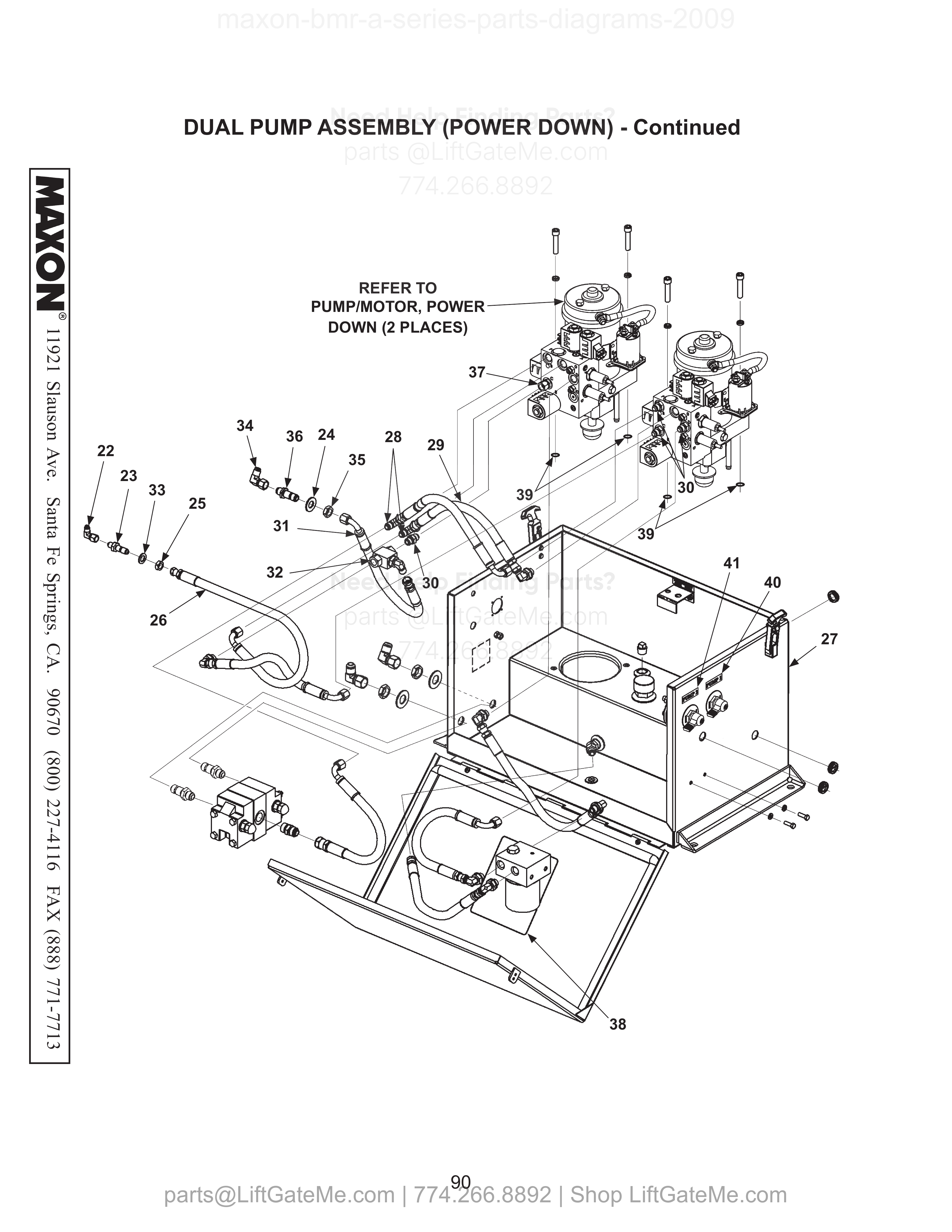

DUAL PUMP ASSEMBLY (POWER DOWN) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 22 | 1 | 905027 | ELBOW JIC#4 M-F SW | |
| 23 | 1 | 905096 | STRAIGHT UNION JIC#4 | |
| 24 | 1 | 902013-14 | FLAT WASHER, 19/32” ZINC | |
| 25 | 1 | 905085 | NUT, BULKHEAD, JIC#4 | |
| 26 | 1 | 264196 | HP HOSE, 3/8” X 21-7/8”, 90°, JIC#6 & #4 | |
| 27 | 1 | 264260 | PUMP BOX ASSEMBLY (DUAL PUMP) | |
| 28 | 2 | 264180 | TEE, STRAIGHT THREAD, O-RING | |
| 29 | 1 | 264091 | HP HOSE, 3/8” X 13-7/8” LG, JIC#6 F-F | |
| 30 | 4 | 905153 | FITTING, STRAIGHT THD. SAE#6 X JIC #6 | |
| 31 | 1 | 264197 | HP HOSE, 3/8” X 17-7/16” LG, JIC#6 F-F | |
| 32 | 1 | 264198 | IN-LINE SHUTTLE VALVE | |
| 33 | 1 | 902000-14 | FLAT WASHER, 1/2” X 7/64” | |
| 34 | 1 | 905154 | ELBOW, 90° JIC#6 M-F | |
| 35 | 1 | 905086 | NUT, BULKHEAD, JIC#6 | |
| 36 | 1 | 905100 | STRAIGHT UNION JIC#6 | |
| 37 | 1 | 905181 | SWIVEL, SAE 37°, 3/8” M-JIC#6 | |
| 38 | 1 | 265330-02 | DECAL, P/D HYDRAULIC FLUID LEVEL | |
| 39 | 4 | 908025-01 | O-RING | |
| 40 | 1 | 267430-01 | DECAL, PUMP 1 | |
| 41 | 1 | 267430-02 | DECAL, PUMP 2 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

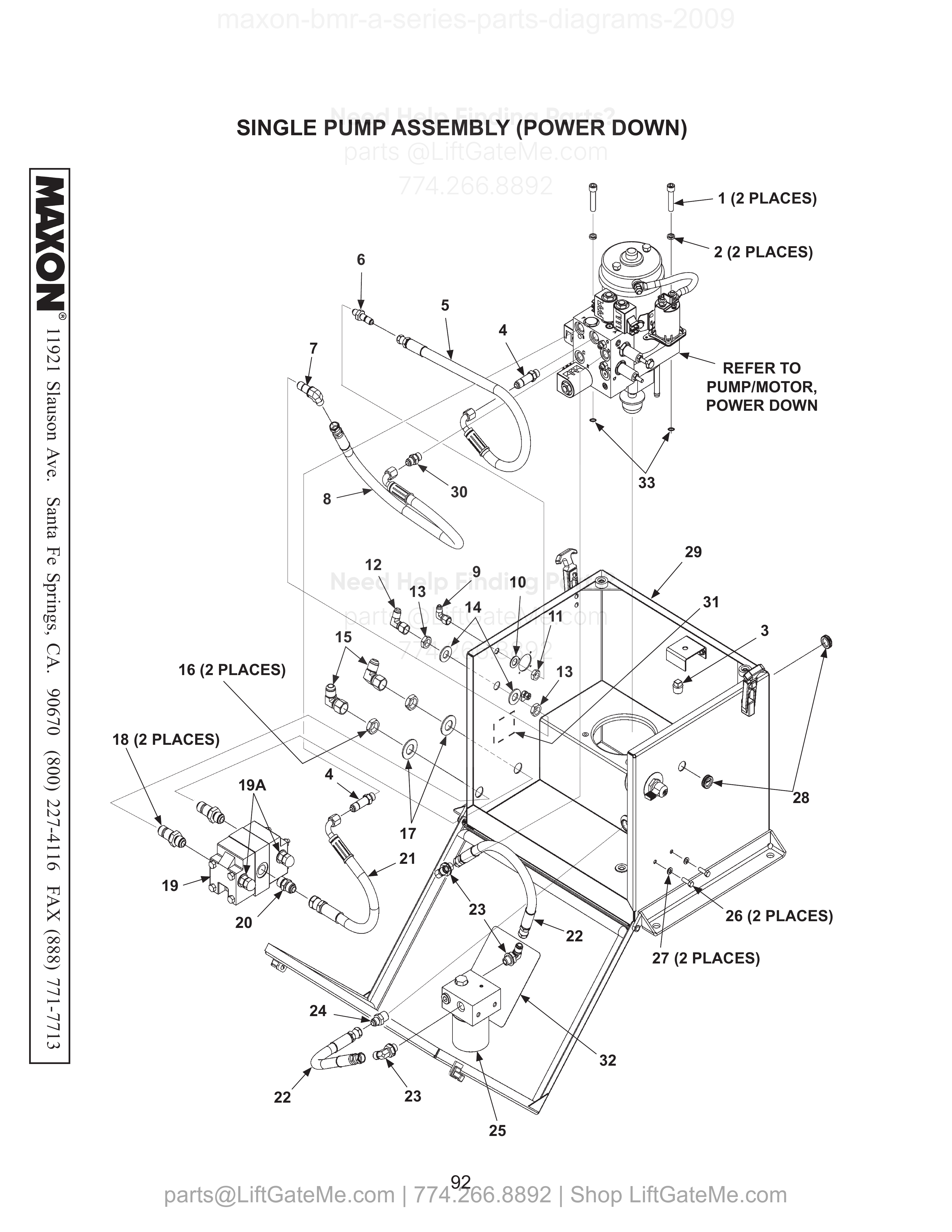

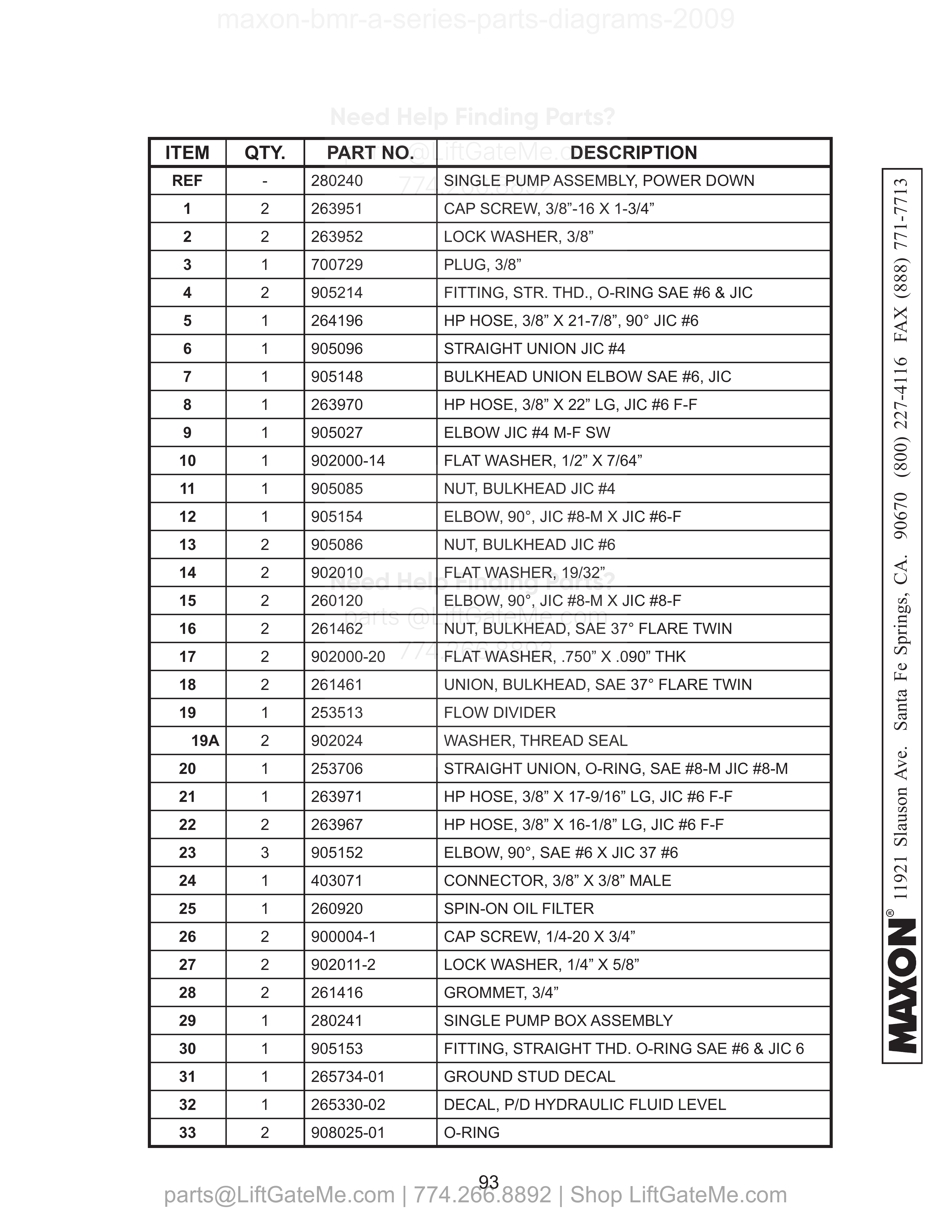

SINGLE PUMP ASSEMBLY (POWER DOWN)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | - | 280240 | SINGLE PUMP ASSEMBLY, POWER DOWN | |
| 1 | 2 | 263951 | CAP SCREW, 3/8”-16 X 1-3/4” | |
| 2 | 2 | 263952 | LOCK WASHER, 3/8” | |
| 3 | 1 | 700729 | PLUG, 3/8” | |
| 4 | 2 | 905214 | FITTING, STR. THD., O-RING SAE #6 & JIC | |
| 5 | 1 | 264196 | HP HOSE, 3/8” X 21-7/8”, 90° JIC #6 | |
| 6 | 1 | 905096 | STRAIGHT UNION JIC #4 | |
| 7 | 1 | 905148 | BULKHEAD UNION ELBOW SAE #6, JIC | |
| 8 | 1 | 263970 | HP HOSE, 3/8” X 22” LG, JIC #6 F-F | |
| 9 | 1 | 905027 | ELBOW JIC #4 M-F SW | |
| 10 | 1 | 902000-14 | FLAT WASHER, 1/2” X 7/64” | |
| 11 | 1 | 905085 | NUT, BULKHEAD JIC #4 | |
| 12 | 1 | 905154 | ELBOW, 90°, JIC #8-M X JIC #6-F | |
| 13 | 2 | 905086 | NUT, BULKHEAD JIC #6 | |
| 14 | 2 | 902010 | FLAT WASHER, 19/32” | |
| 15 | 2 | 260120 | ELBOW, 90°, JIC #8-M X JIC #8-F | |
| 16 | 2 | 261462 | NUT, BULKHEAD, SAE 37° FLARE TWIN | |
| 17 | 2 | 902000-20 | FLAT WASHER, .750” X .090” THK | |
| 18 | 2 | 261461 | UNION, BULKHEAD, SAE 37° FLARE TWIN | |
| 19 | 1 | 253513 | FLOW DIVIDER | |
| 19A | 2 | 902024 | WASHER, THREAD SEAL | |
| 20 | 1 | 253706 | STRAIGHT UNION, O-RING, SAE #8-M JIC #8-M | |
| 21 | 1 | 263971 | HP HOSE, 3/8” X 17-9/16” LG, JIC #6 F-F | |
| 22 | 2 | 263967 | HP HOSE, 3/8” X 16-1/8” LG, JIC #6 F-F | |
| 23 | 3 | 905152 | ELBOW, 90°, SAE #6 X JIC 37 #6 | |
| 24 | 1 | 403071 | CONNECTOR, 3/8” X 3/8” MALE | |
| 25 | 1 | 260920 | SPIN-ON OIL FILTER | |
| 26 | 2 | 900004-1 | CAP SCREW, 1/4-20 X 3/4” | |
| 27 | 2 | 902011-2 | LOCK WASHER, 1/4” X 5/8” | |
| 28 | 2 | 261416 | GROMMET, 3/4” | |
| 29 | 1 | 280241 | SINGLE PUMP BOX ASSEMBLY | |
| 30 | 1 | 905153 | FITTING, STRAIGHT THD. O-RING SAE #6 & JIC 6 | |
| 31 | 1 | 265734-01 | GROUND STUD DECAL | |
| 32 | 1 | 265330-02 | DECAL, P/D HYDRAULIC FLUID LEVEL | |
| 33 | 2 | 908025-01 | O-RING |

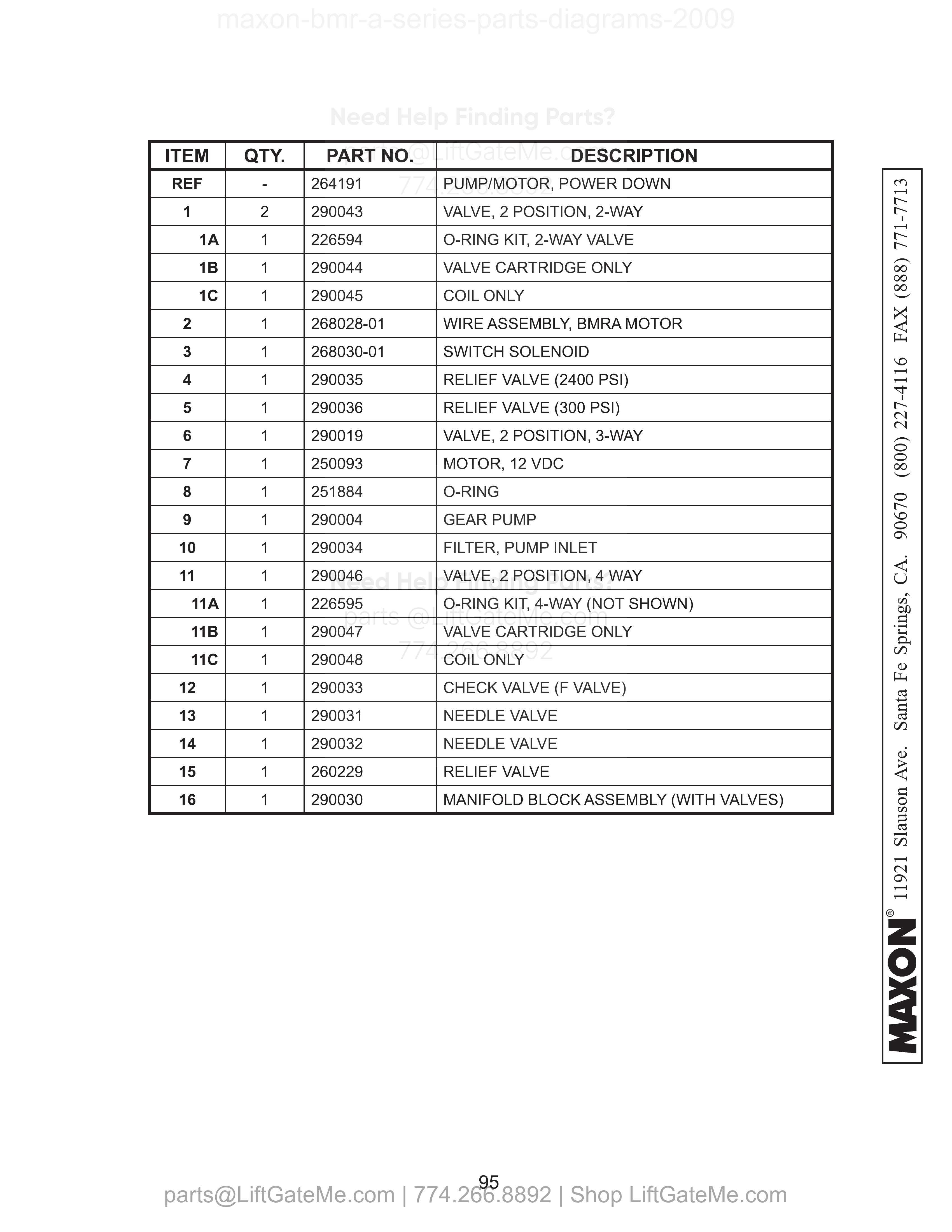

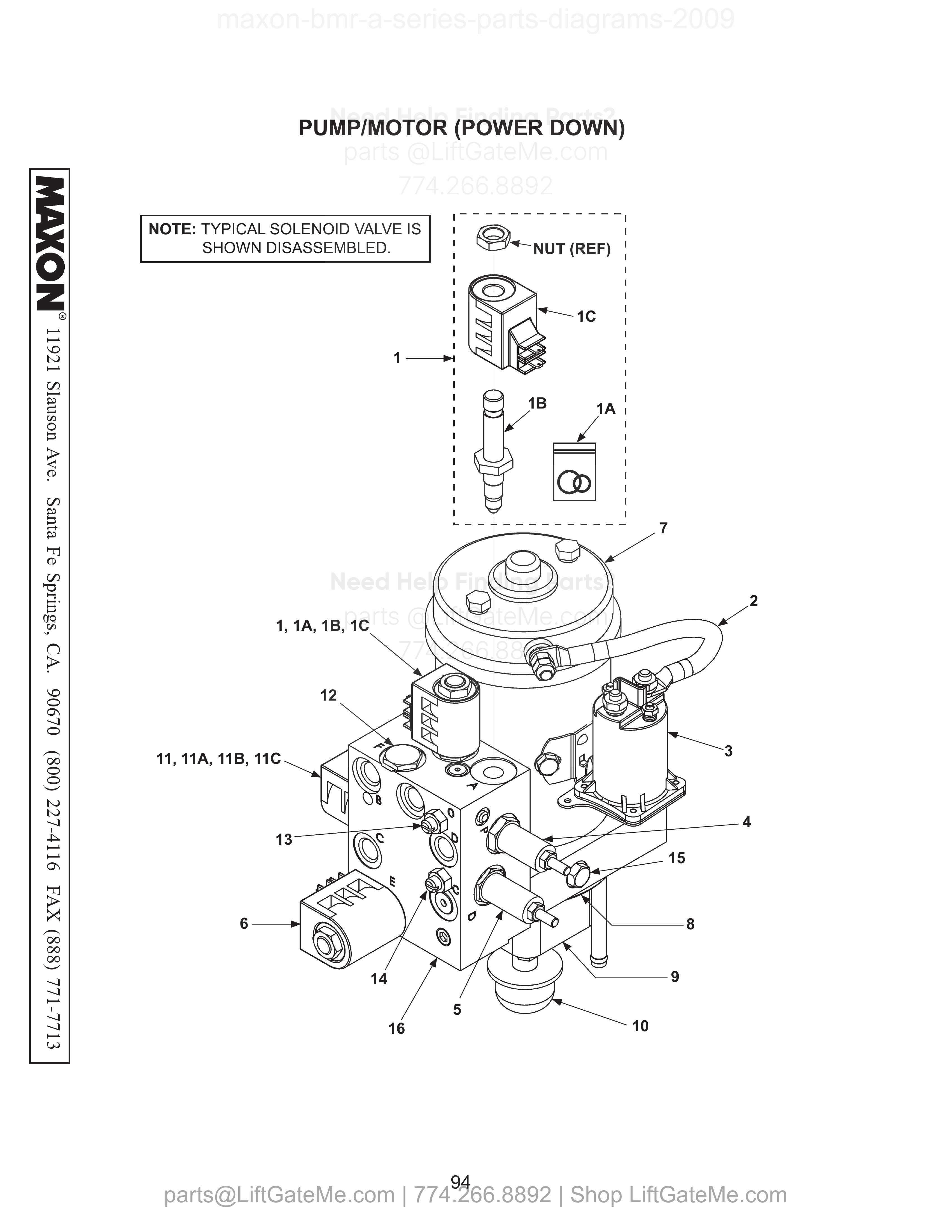

Pump/Motor (Power Down)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | - | 264191 | PUMP/MOTOR, POWER DOWN | |
| 1 | 2 | 290043 | VALVE, 2 POSITION, 2-WAY | |
| 1A | 1 | 226594 | O-RING KIT, 2-WAY VALVE | |
| 1B | 1 | 290044 | VALVE CARTRIDGE ONLY | |
| 1C | 1 | 290045 | COIL ONLY | |
| 2 | 1 | 268028-01 | WIRE ASSEMBLY, BMRA MOTOR | |
| 3 | 1 | 268030-01 | SWITCH SOLENOID | |
| 4 | 1 | 290035 | RELIEF VALVE (2400 PSI) | |
| 5 | 1 | 290036 | RELIEF VALVE (300 PSI) | |
| 6 | 1 | 290019 | VALVE, 2 POSITION, 3-WAY | |
| 7 | 1 | 250093 | MOTOR, 12 VDC | |
| 8 | 1 | 251884 | O-RING | |
| 9 | 1 | 290004 | GEAR PUMP | |
| 10 | 1 | 290034 | FILTER, PUMP INLET | |
| 11 | 1 | 290046 | VALVE, 2 POSITION, 4 WAY | |
| 11A | 1 | 226595 | O-RING KIT, 4-WAY (NOT SHOWN) | |
| 11B | 1 | 290047 | VALVE CARTRIDGE ONLY | |
| 11C | 1 | 290048 | COIL ONLY | |
| 12 | 1 | 290033 | CHECK VALVE (F VALVE) | |
| 13 | 1 | 290031 | NEEDLE VALVE | |
| 14 | 1 | 290032 | NEEDLE VALVE | |
| 15 | 1 | 260229 | RELIEF VALVE | |
| 16 | 1 | 290030 | MANIFOLD BLOCK ASSEMBLY (WITH VALVES) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

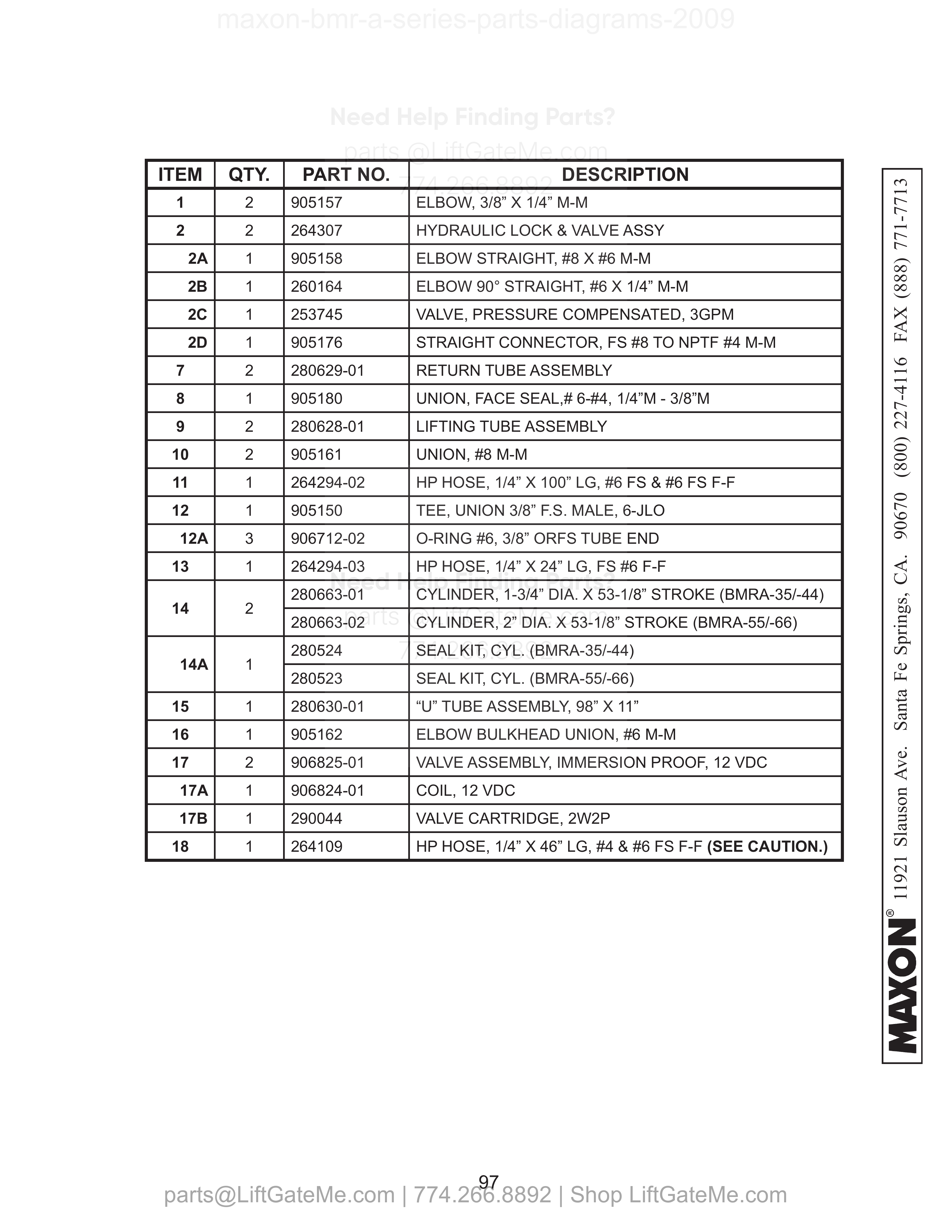

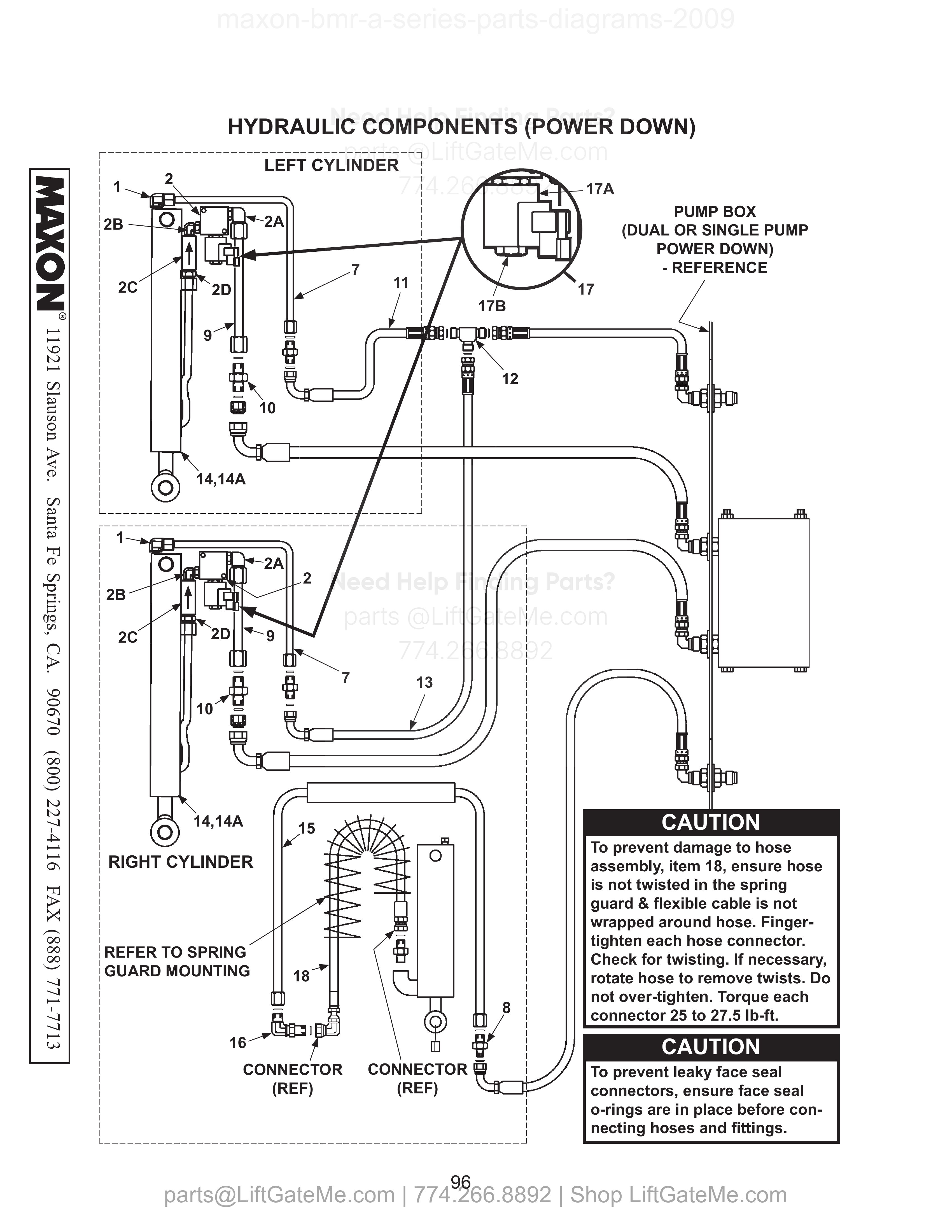

Hydraulic Components (Power Down)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 905157 | ELBOW, 3/8” X 1/4” M-M | |
| 2 | 2 | 264307 | HYDRAULIC LOCK & VALVE ASSY | |
| 2A | 1 | 905158 | ELBOW STRAIGHT, #8 X #6 M-M | |
| 2B | 1 | 260164 | ELBOW 90° STRAIGHT, #6 X 1/4” M-M | |
| 2C | 1 | 253745 | VALVE, PRESSURE COMPENSATED, 3GPM | |
| 2D | 1 | 905176 | STRAIGHT CONNECTOR, FS #8 TO NPTF #4 M-M | |
| 7 | 2 | 280629-01 | RETURN TUBE ASSEMBLY | |
| 8 | 1 | 905180 | UNION, FACE SEAL,# 6-#4, 1/4”M - 3/8”M | |
| 9 | 2 | 280628-01 | LIFTING TUBE ASSEMBLY | |
| 10 | 2 | 905161 | UNION, #8 M-M | |
| 11 | 1 | 264294-02 | HP HOSE, 1/4” X 100” LG, #6 FS & #6 FS F-F | |
| 12 | 1 | 905150 | TEE, UNION 3/8” F.S. MALE, 6-JLO | |
| 12A | 3 | 906712-02 | O-RING #6, 3/8” ORFS TUBE END | |
| 13 | 1 | 264294-03 | HP HOSE, 1/4” X 24” LG, FS #6 F-F | |
| 14 | 2 | 280663-01 | CYLINDER, 1-3/4” DIA. X 53-1/8” STROKE (BMRA-35/-44) | |
| 14 | 2 | 280663-02 | CYLINDER, 2” DIA. X 53-1/8” STROKE (BMRA-55/-66) | |
| 14A | 1 | 280524 | SEAL KIT, CYL. (BMRA-35/-44) | |
| 14A | 1 | 280523 | SEAL KIT, CYL. (BMRA-55/-66) | |
| 15 | 1 | 280630-01 | “U” TUBE ASSEMBLY, 98” X 11” | |
| 16 | 1 | 905162 | ELBOW BULKHEAD UNION, #6 M-M | |
| 17 | 2 | 906825-01 | VALVE ASSEMBLY, IMMERSION PROOF, 12 VDC | |
| 17A | 1 | 906824-01 | COIL, 12 VDC | |
| 17B | 1 | 290044 | VALVE CARTRIDGE, 2W2P | |
| 18 | 1 | 264109 | HP HOSE, 1/4” X 46” LG, #4 & #6 FS F-F (SEE CAUTION.) |

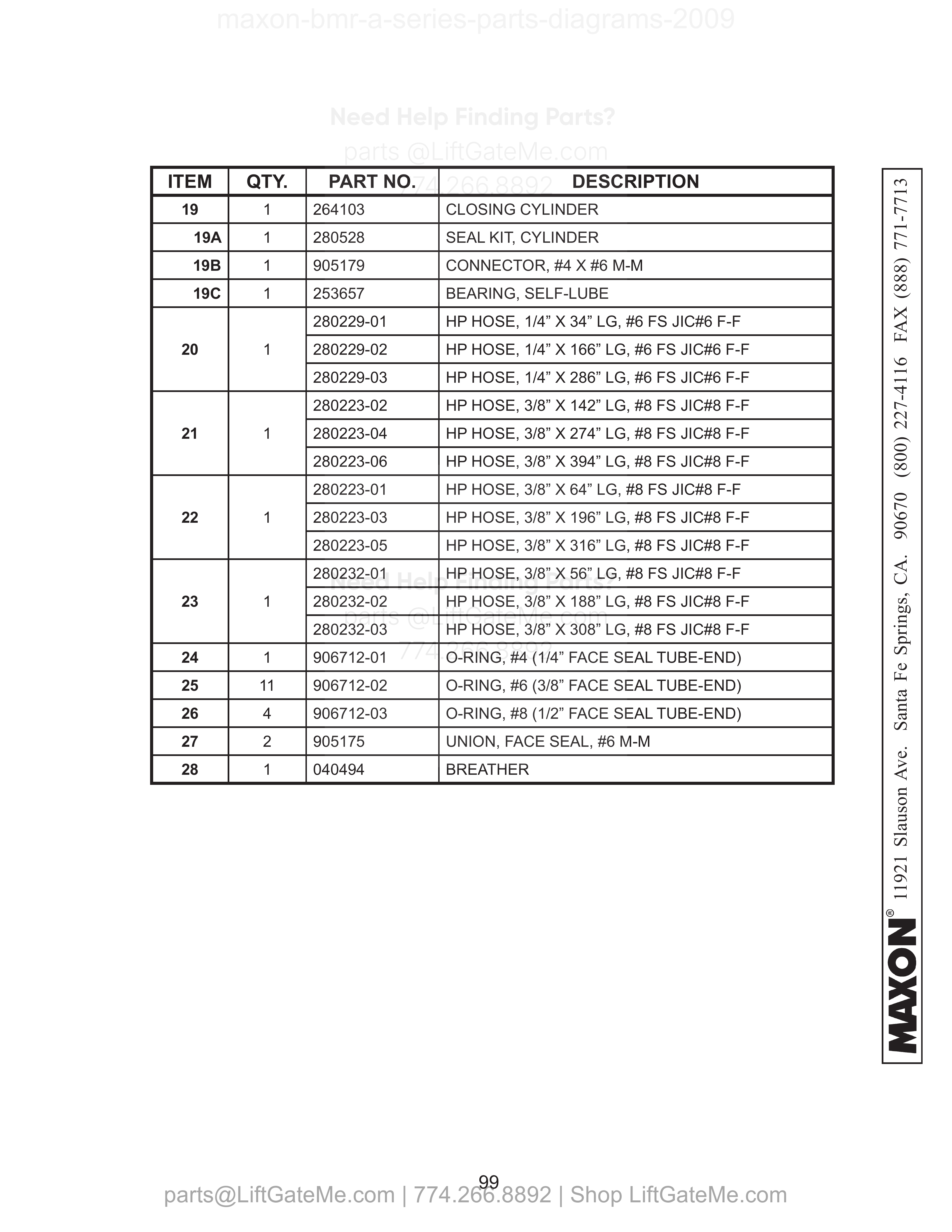

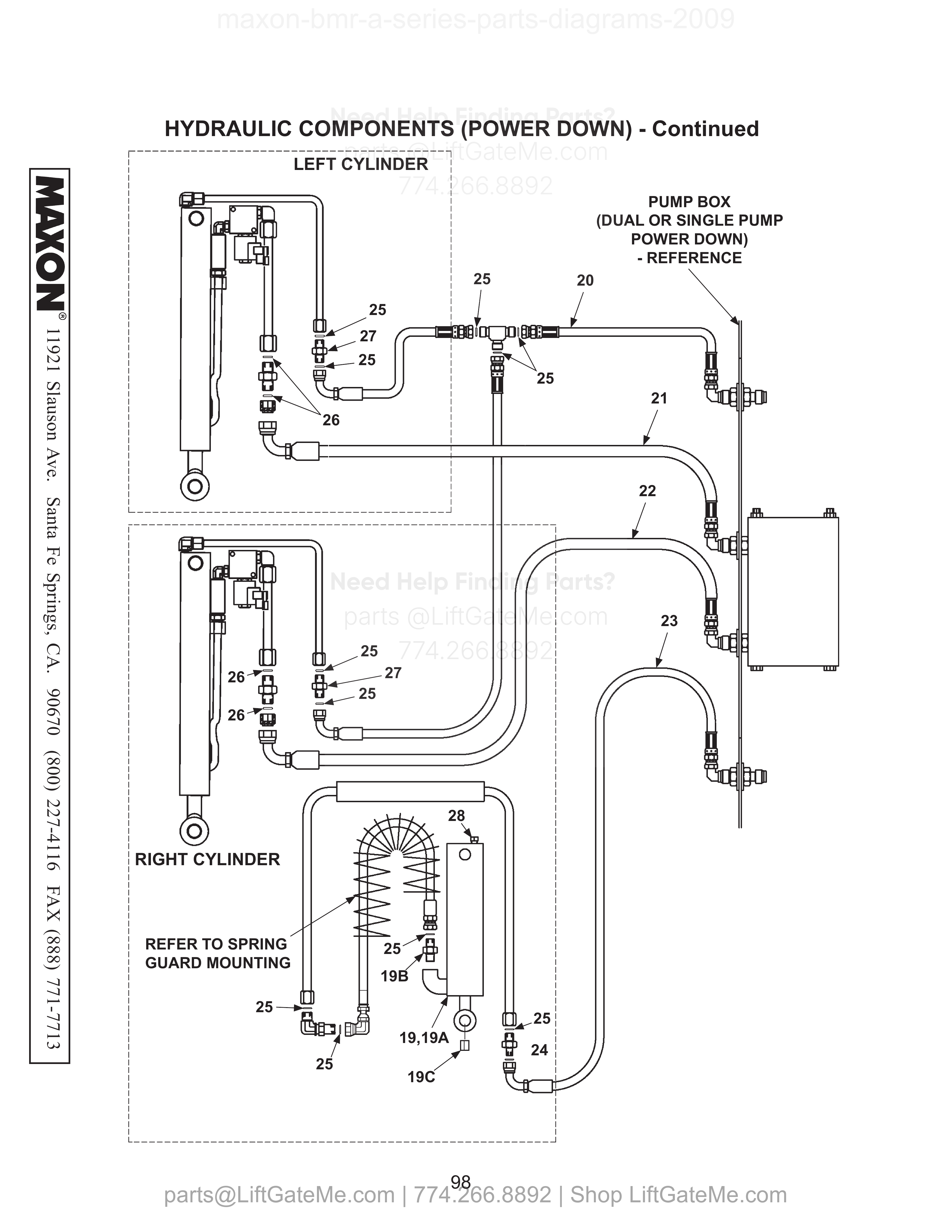

HYDRAULIC COMPONENTS (POWER DOWN) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 19 | 1 | 264103 | CLOSING CYLINDER | |
| 19A | 1 | 280528 | SEAL KIT, CYLINDER | |
| 19B | 1 | 905179 | CONNECTOR, #4 X #6 M-M | |
| 19C | 1 | 253657 | BEARING, SELF-LUBE | |
| 20 | 1 | 280229-01 | HP HOSE, 1/4” X 34” LG, #6 FS JIC#6 F-F | |
| 20 | 1 | 280229-02 | HP HOSE, 1/4” X 166” LG, #6 FS JIC#6 F-F | |
| 20 | 1 | 280229-03 | HP HOSE, 1/4” X 286” LG, #6 FS JIC#6 F-F | |
| 21 | 1 | 280223-02 | HP HOSE, 3/8” X 142” LG, #8 FS JIC#8 F-F | |
| 21 | 1 | 280223-04 | HP HOSE, 3/8” X 274” LG, #8 FS JIC#8 F-F | |
| 21 | 1 | 280223-06 | HP HOSE, 3/8” X 394” LG, #8 FS JIC#8 F-F | |
| 22 | 1 | 280223-01 | HP HOSE, 3/8” X 64” LG, #8 FS JIC#8 F-F | |
| 22 | 1 | 280223-03 | HP HOSE, 3/8” X 196” LG, #8 FS JIC#8 F-F | |
| 22 | 1 | 280223-05 | HP HOSE, 3/8” X 316” LG, #8 FS JIC#8 F-F | |
| 23 | 1 | 280232-01 | HP HOSE, 3/8” X 56” LG, #8 FS JIC#8 F-F | |
| 23 | 1 | 280232-02 | HP HOSE, 3/8” X 188” LG, #8 FS JIC#8 F-F | |
| 23 | 1 | 280232-03 | HP HOSE, 3/8” X 308” LG, #8 FS JIC#8 F-F | |
| 24 | 1 | 906712-01 | O-RING, #4 (1/4” FACE SEAL TUBE-END) | |
| 25 | 11 | 906712-02 | O-RING, #6 (3/8” FACE SEAL TUBE-END) | |
| 26 | 4 | 906712-03 | O-RING, #8 (1/2” FACE SEAL TUBE-END) | |
| 27 | 2 | 905175 | UNION, FACE SEAL, #6 M-M | |
| 28 | 1 | 040494 | BREATHER |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

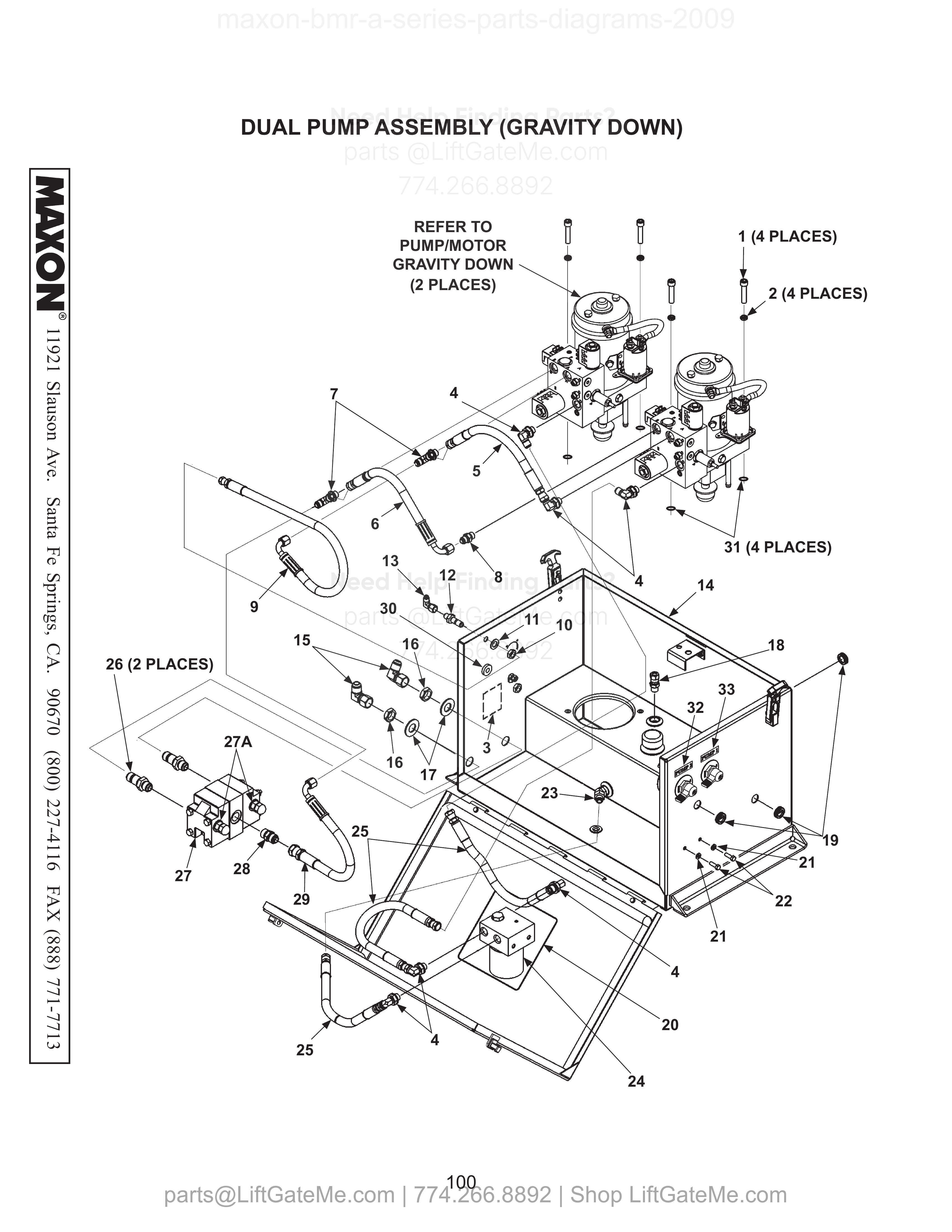

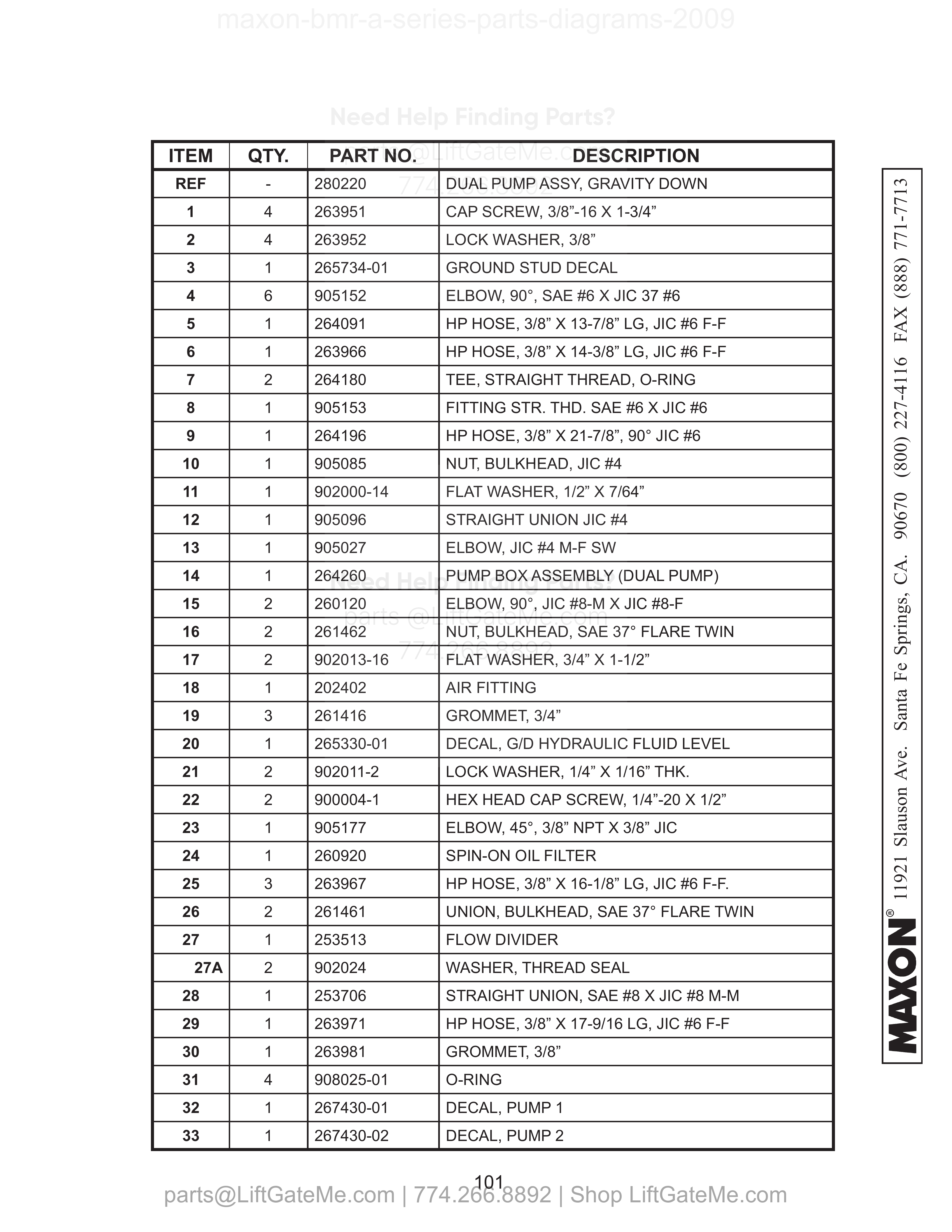

DUAL PUMP ASSEMBLY (GRAVITY DOWN)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | - | 280220 | DUAL PUMP ASSY, GRAVITY DOWN | |
| 1 | 4 | 263951 | CAP SCREW, 3/8”-16 X 1-3/4” | |
| 2 | 4 | 263952 | LOCK WASHER, 3/8” | |
| 3 | 1 | 265734-01 | GROUND STUD DECAL | |
| 4 | 6 | 905152 | ELBOW, 90°, SAE #6 X JIC 37 #6 | |
| 5 | 1 | 264091 | HP HOSE, 3/8” X 13-7/8” LG, JIC #6 F-F | |
| 6 | 1 | 263966 | HP HOSE, 3/8” X 14-3/8” LG, JIC #6 F-F | |
| 7 | 2 | 264180 | TEE, STRAIGHT THREAD, O-RING | |
| 8 | 1 | 905153 | FITTING STR. THD. SAE #6 X JIC #6 | |
| 9 | 1 | 264196 | HP HOSE, 3/8” X 21-7/8”, 90° JIC #6 | |
| 10 | 1 | 905085 | NUT, BULKHEAD, JIC #4 | |
| 11 | 1 | 902000-14 | FLAT WASHER, 1/2” X 7/64” | |
| 12 | 1 | 905096 | STRAIGHT UNION JIC #4 | |
| 13 | 1 | 905027 | ELBOW, JIC #4 M-F SW | |
| 14 | 1 | 264260 | PUMP BOX ASSEMBLY (DUAL PUMP) | |
| 15 | 2 | 260120 | ELBOW, 90°, JIC #8-M X JIC #8-F | |
| 16 | 2 | 261462 | NUT, BULKHEAD, SAE 37° FLARE TWIN | |
| 17 | 2 | 902013-16 | FLAT WASHER, 3/4” X 1-1/2” | |
| 18 | 1 | 202402 | AIR FITTING | |
| 19 | 3 | 261416 | GROMMET, 3/4” | |
| 20 | 1 | 265330-01 | DECAL, G/D HYDRAULIC FLUID LEVEL | |
| 21 | 2 | 902011-2 | LOCK WASHER, 1/4” X 1/16” THK. | |
| 22 | 2 | 900004-1 | HEX HEAD CAP SCREW, 1/4”-20 X 1/2” | |
| 23 | 1 | 905177 | ELBOW, 45°, 3/8” NPT X 3/8” JIC | |
| 24 | 1 | 260920 | SPIN-ON OIL FILTER | |
| 25 | 3 | 263967 | HP HOSE, 3/8” X 16-1/8” LG, JIC #6 F-F. | |
| 26 | 2 | 261461 | UNION, BULKHEAD, SAE 37° FLARE TWIN | |
| 27 | 1 | 253513 | FLOW DIVIDER | |
| 27A | 2 | 902024 | WASHER, THREAD SEAL | |
| 28 | 1 | 253706 | STRAIGHT UNION, SAE #8 X JIC #8 M-M | |
| 29 | 1 | 263971 | HP HOSE, 3/8” X 17-9/16 LG, JIC #6 F-F | |
| 30 | 1 | 263981 | GROMMET, 3/8” | |
| 31 | 4 | 908025-01 | O-RING | |
| 32 | 1 | 267430-01 | DECAL, PUMP 1 | |
| 33 | 1 | 267430-02 | DECAL, PUMP 2 |

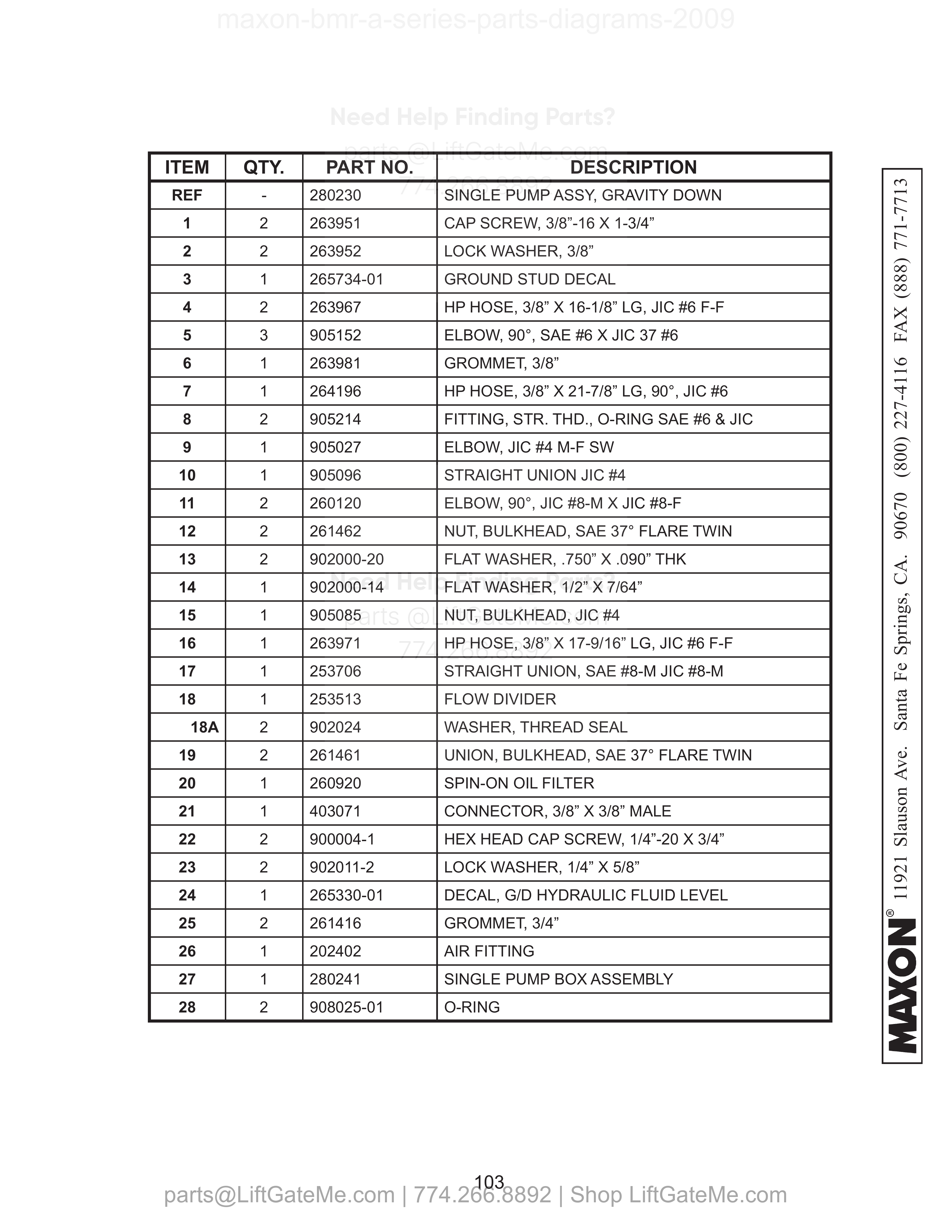

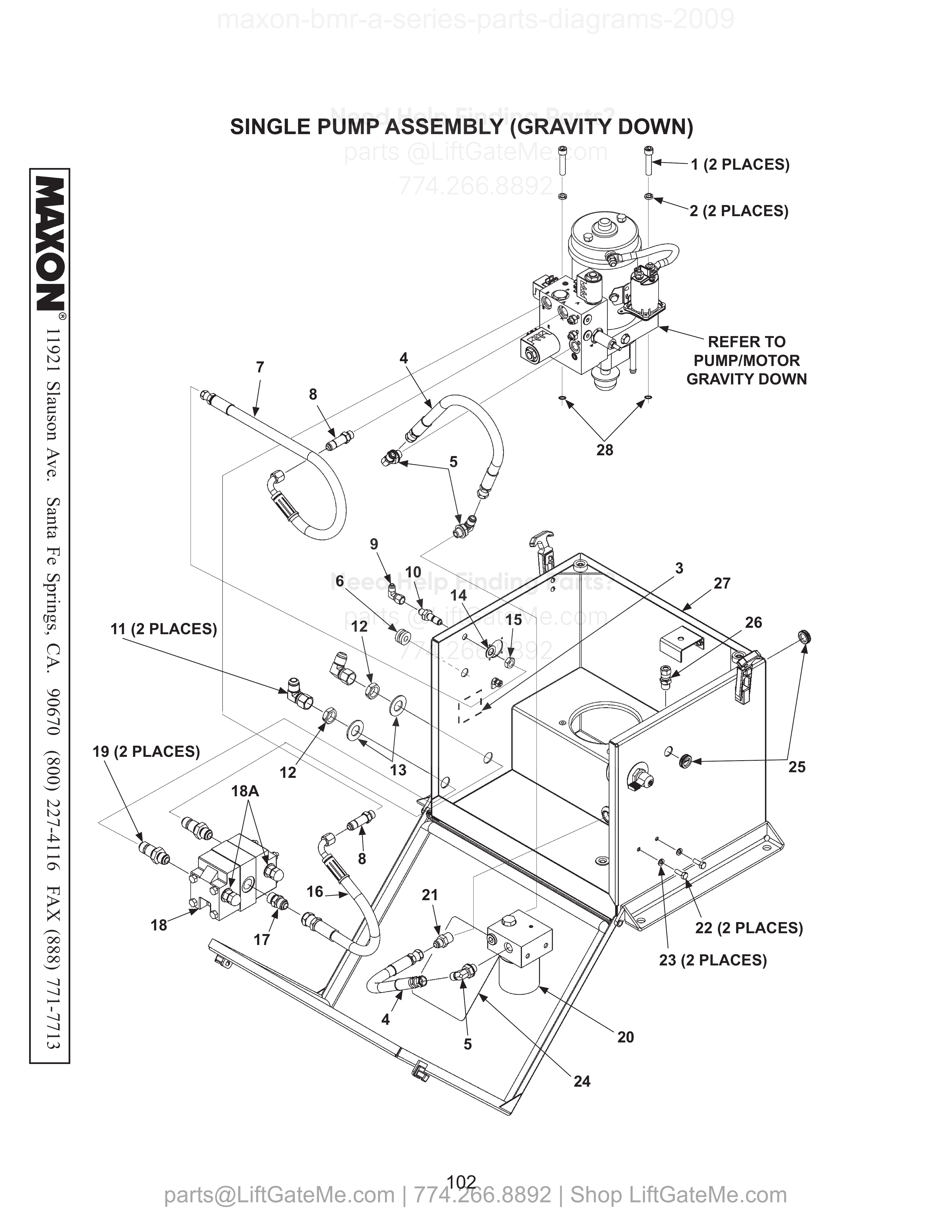

SINGLE PUMP ASSEMBLY (GRAVITY DOWN)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | - | 280230 | SINGLE PUMP ASSY, GRAVITY DOWN | |
| 1 | 2 | 263951 | CAP SCREW, 3/8”-16 X 1-3/4” | |
| 2 | 2 | 263952 | LOCK WASHER, 3/8” | |
| 3 | 1 | 265734-01 | GROUND STUD DECAL | |
| 4 | 2 | 263967 | HP HOSE, 3/8” X 16-1/8” LG, JIC #6 F-F | |
| 5 | 3 | 905152 | ELBOW, 90°, SAE #6 X JIC 37 #6 | |
| 6 | 1 | 263981 | GROMMET, 3/8” | |
| 7 | 1 | 264196 | HP HOSE, 3/8” X 21-7/8” LG, 90°, JIC #6 | |
| 8 | 2 | 905214 | FITTING, STR. THD., O-RING SAE #6 & JIC | |
| 9 | 1 | 905027 | ELBOW, JIC #4 M-F SW | |
| 10 | 1 | 905096 | STRAIGHT UNION JIC #4 | |
| 11 | 2 | 260120 | ELBOW, 90°, JIC #8-M X JIC #8-F | |
| 12 | 2 | 261462 | NUT, BULKHEAD, SAE 37° FLARE TWIN | |
| 13 | 2 | 902000-20 | FLAT WASHER, .750” X .090” THK | |
| 14 | 1 | 902000-14 | FLAT WASHER, 1/2” X 7/64” | |
| 15 | 1 | 905085 | NUT, BULKHEAD, JIC #4 | |
| 16 | 1 | 263971 | HP HOSE, 3/8” X 17-9/16” LG, JIC #6 F-F | |
| 17 | 1 | 253706 | STRAIGHT UNION, SAE #8-M JIC #8-M | |
| 18 | 1 | 253513 | FLOW DIVIDER | |
| 18A | 2 | 902024 | WASHER, THREAD SEAL | |
| 19 | 2 | 261461 | UNION, BULKHEAD, SAE 37° FLARE TWIN | |
| 20 | 1 | 260920 | SPIN-ON OIL FILTER | |
| 21 | 1 | 403071 | CONNECTOR, 3/8” X 3/8” MALE | |
| 22 | 2 | 900004-1 | HEX HEAD CAP SCREW, 1/4”-20 X 3/4” | |
| 23 | 2 | 902011-2 | LOCK WASHER, 1/4” X 5/8” | |
| 24 | 1 | 265330-01 | DECAL, G/D HYDRAULIC FLUID LEVEL | |
| 25 | 2 | 261416 | GROMMET, 3/4” | |
| 26 | 1 | 202402 | AIR FITTING | |
| 27 | 1 | 280241 | SINGLE PUMP BOX ASSEMBLY | |
| 28 | 2 | 908025-01 | O-RING |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

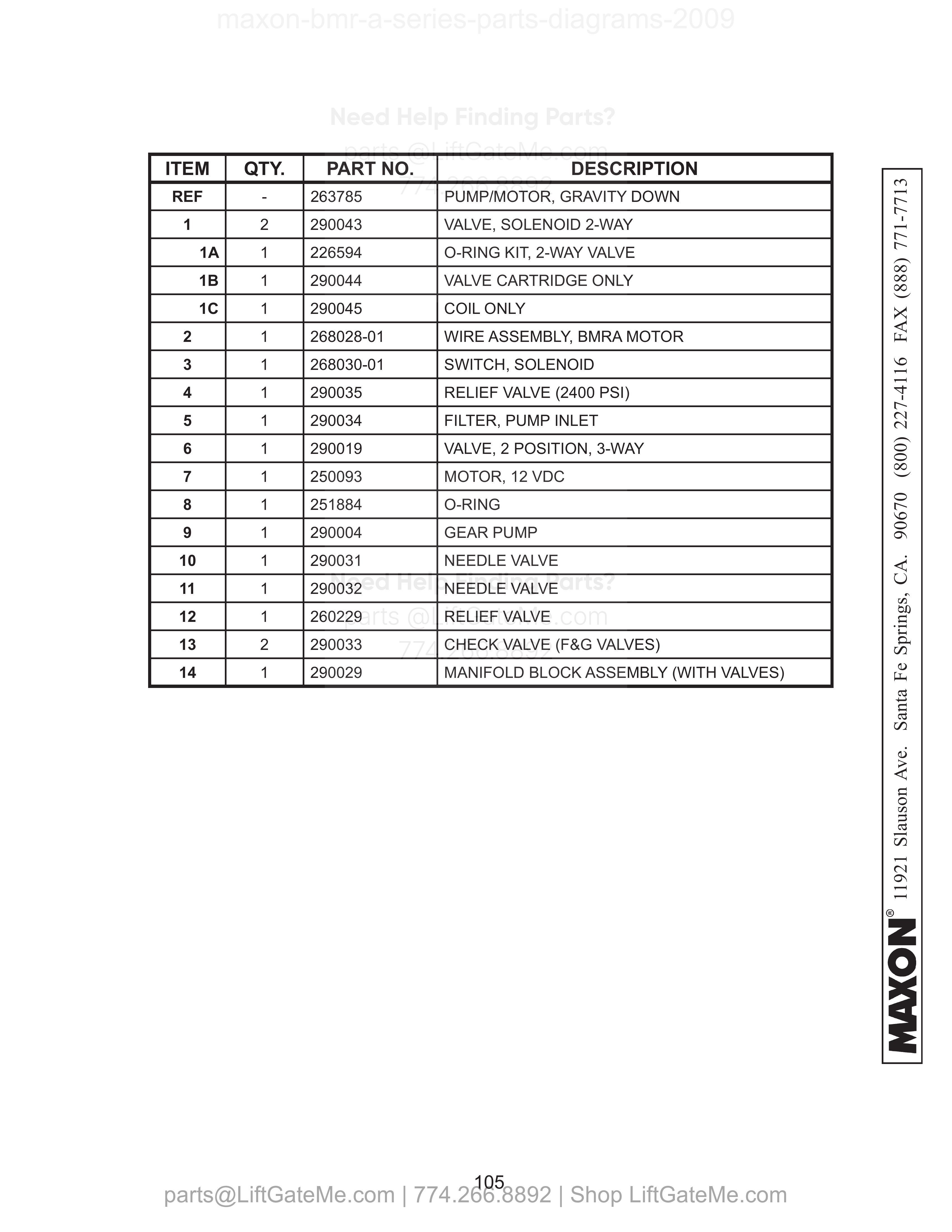

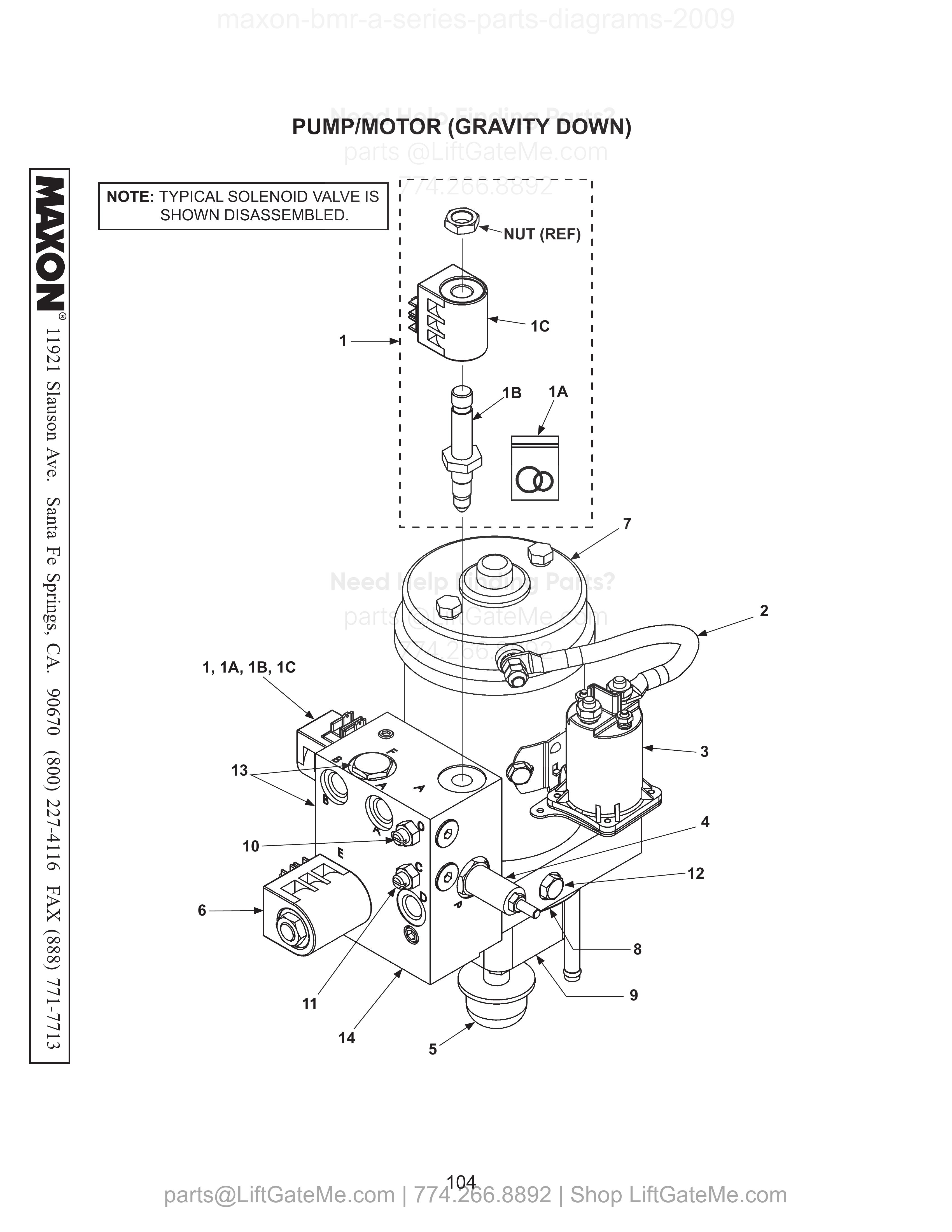

PUMP/MOTOR (GRAVITY DOWN)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | - | 263785 | PUMP/MOTOR, GRAVITY DOWN | |
| 1 | 2 | 290043 | VALVE, SOLENOID 2-WAY | |
| 1A | 1 | 226594 | O-RING KIT, 2-WAY VALVE | |
| 1B | 1 | 290044 | VALVE CARTRIDGE ONLY | |
| 1C | 1 | 290045 | COIL ONLY | |
| 2 | 1 | 268028-01 | WIRE ASSEMBLY, BMRA MOTOR | |
| 3 | 1 | 268030-01 | SWITCH, SOLENOID | |
| 4 | 1 | 290035 | RELIEF VALVE (2400 PSI) | |
| 5 | 1 | 290034 | FILTER, PUMP INLET | |
| 6 | 1 | 290019 | VALVE, 2 POSITION, 3-WAY | |
| 7 | 1 | 250093 | MOTOR, 12 VDC | |
| 8 | 1 | 251884 | O-RING | |
| 9 | 1 | 290004 | GEAR PUMP | |
| 10 | 1 | 290031 | NEEDLE VALVE | |
| 11 | 1 | 290032 | NEEDLE VALVE | |
| 12 | 1 | 260229 | RELIEF VALVE | |
| 13 | 2 | 290033 | CHECK VALVE (F&G VALVES) | |
| 14 | 1 | 290029 | MANIFOLD BLOCK ASSEMBLY (WITH VALVES) |

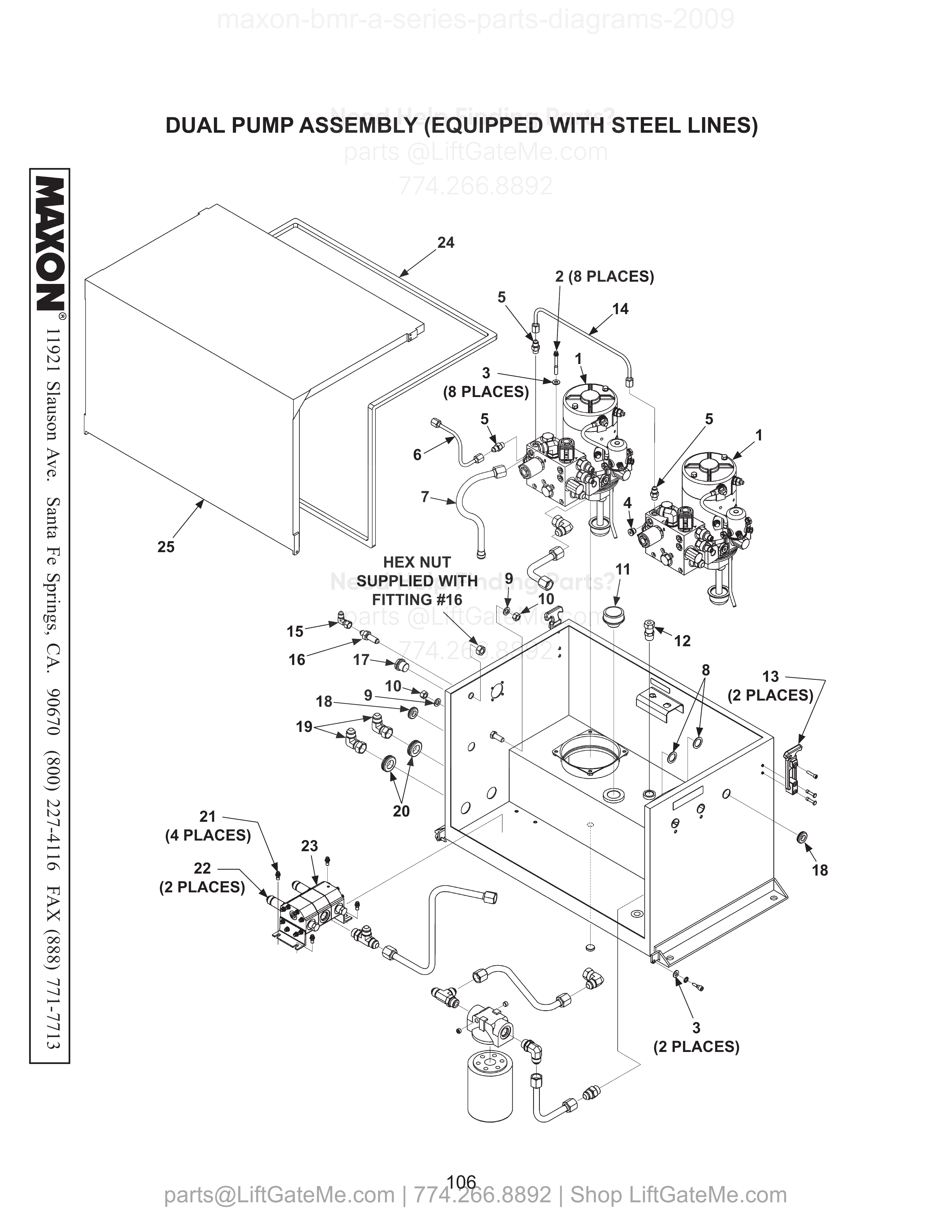

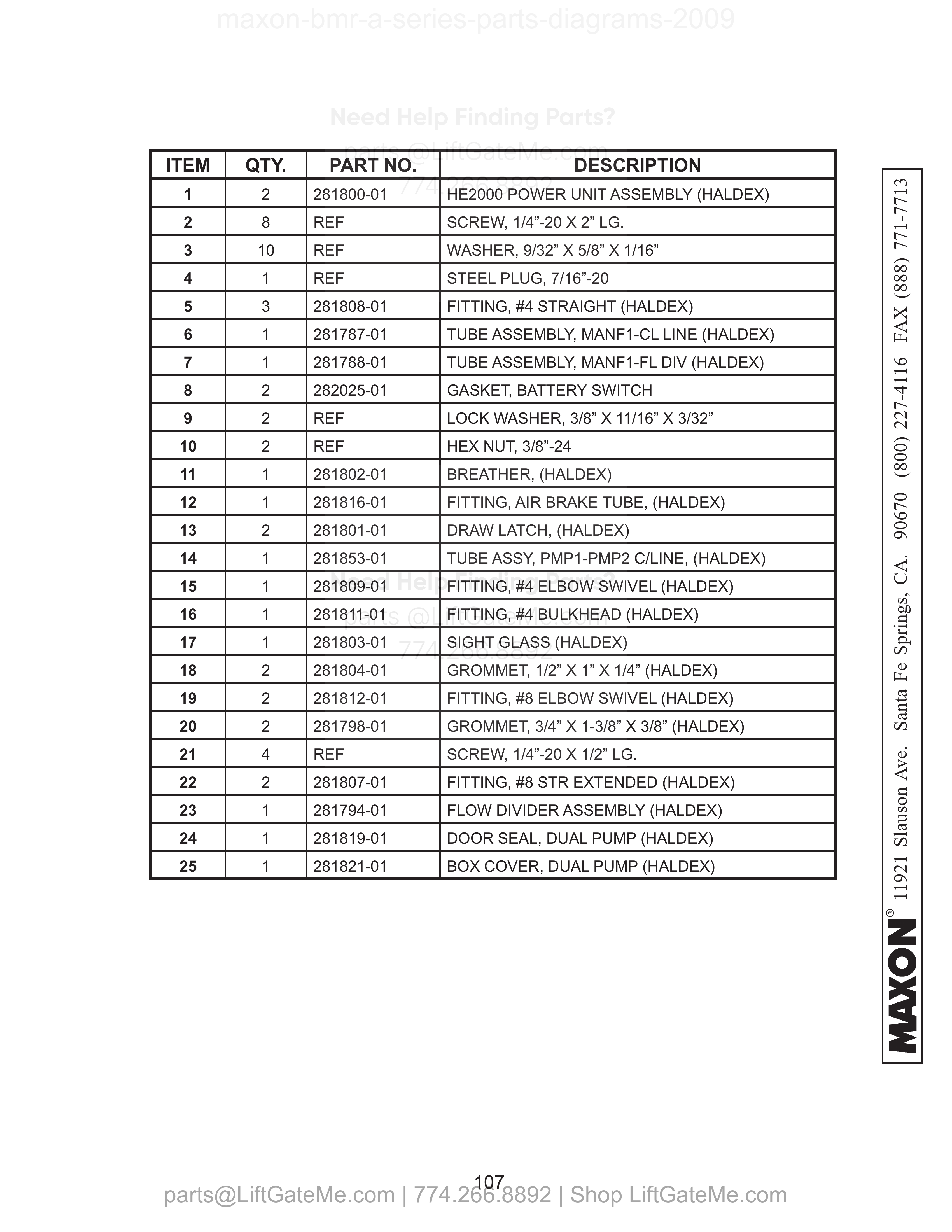

DUAL PUMP ASSEMBLY (EQUIPPED WITH STEEL LINES)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 281800-01 | HE2000 POWER UNIT ASSEMBLY (HALDEX) | |
| 2 | 8 | REF | SCREW, 1/4”-20 X 2” LG. | |
| 3 | 10 | REF | WASHER, 9/32” X 5/8” X 1/16” | |
| 4 | 1 | REF | STEEL PLUG, 7/16”-20 | |
| 5 | 3 | 281808-01 | FITTING, #4 STRAIGHT (HALDEX) | |
| 6 | 1 | 281787-01 | TUBE ASSEMBLY, MANF1-CL LINE (HALDEX) | |
| 7 | 1 | 281788-01 | TUBE ASSEMBLY, MANF1-FL DIV (HALDEX) | |
| 8 | 2 | 282025-01 | GASKET, BATTERY SWITCH | |
| 9 | 2 | REF | LOCK WASHER, 3/8” X 11/16” X 3/32” | |
| 10 | 2 | REF | HEX NUT, 3/8”-24 | |
| 11 | 1 | 281802-01 | BREATHER, (HALDEX) | |
| 12 | 1 | 281816-01 | FITTING, AIR BRAKE TUBE, (HALDEX) | |
| 13 | 2 | 281801-01 | DRAW LATCH, (HALDEX) | |
| 14 | 1 | 281853-01 | TUBE ASSY, PMP1-PMP2 C/LINE, (HALDEX) | |
| 15 | 1 | 281809-01 | FITTING, #4 ELBOW SWIVEL (HALDEX) | |
| 16 | 1 | 281811-01 | FITTING, #4 BULKHEAD (HALDEX) | |
| 17 | 1 | 281803-01 | SIGHT GLASS (HALDEX) | |
| 18 | 2 | 281804-01 | GROMMET, 1/2” X 1” X 1/4” (HALDEX) | |
| 19 | 2 | 281812-01 | FITTING, #8 ELBOW SWIVEL (HALDEX) | |
| 20 | 2 | 281798-01 | GROMMET, 3/4” X 1-3/8” X 3/8” (HALDEX) | |
| 21 | 4 | REF | SCREW, 1/4”-20 X 1/2” LG. | |
| 22 | 2 | 281807-01 | FITTING, #8 STR EXTENDED (HALDEX) | |
| 23 | 1 | 281794-01 | FLOW DIVIDER ASSEMBLY (HALDEX) | |
| 24 | 1 | 281819-01 | DOOR SEAL, DUAL PUMP (HALDEX) | |
| 25 | 1 | 281821-01 | BOX COVER, DUAL PUMP (HALDEX) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

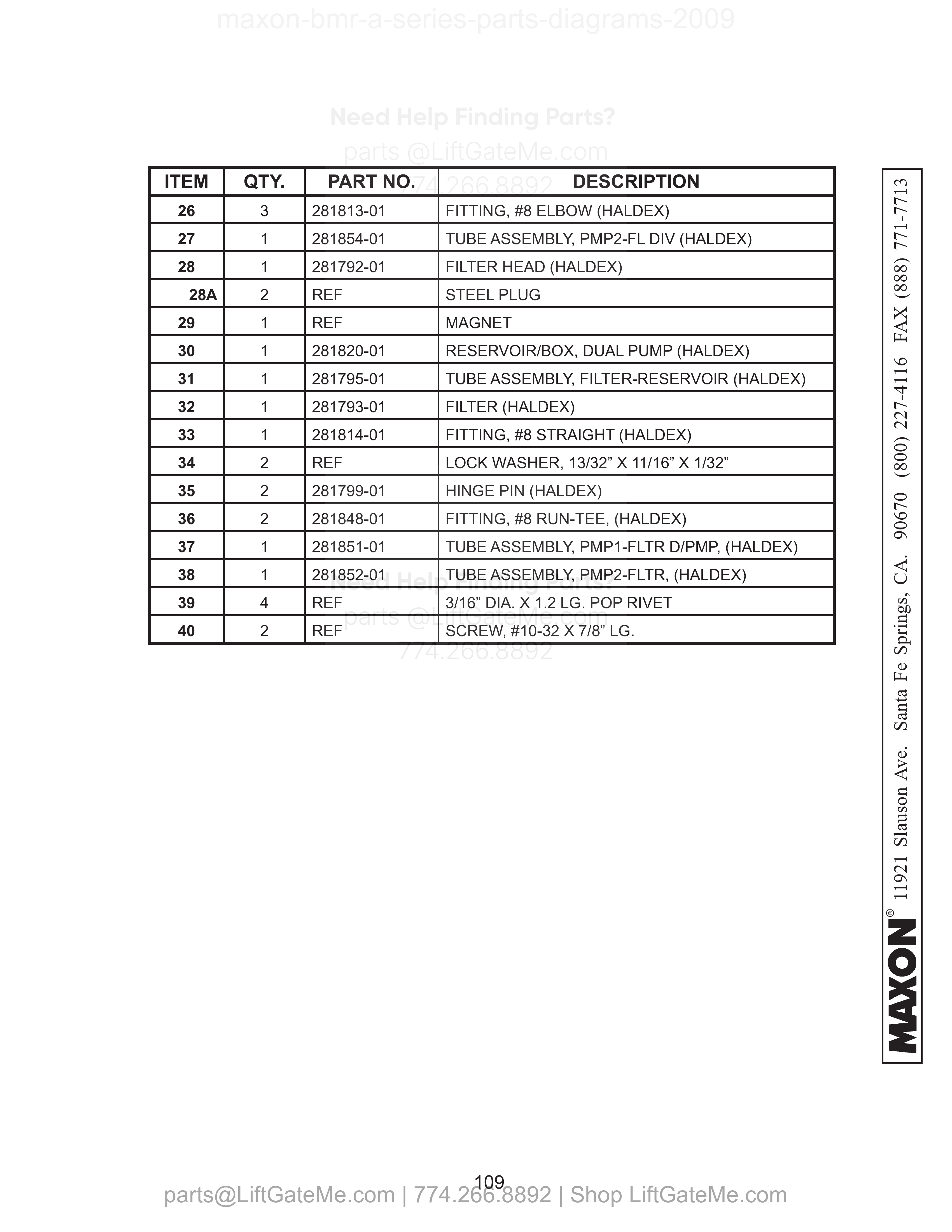

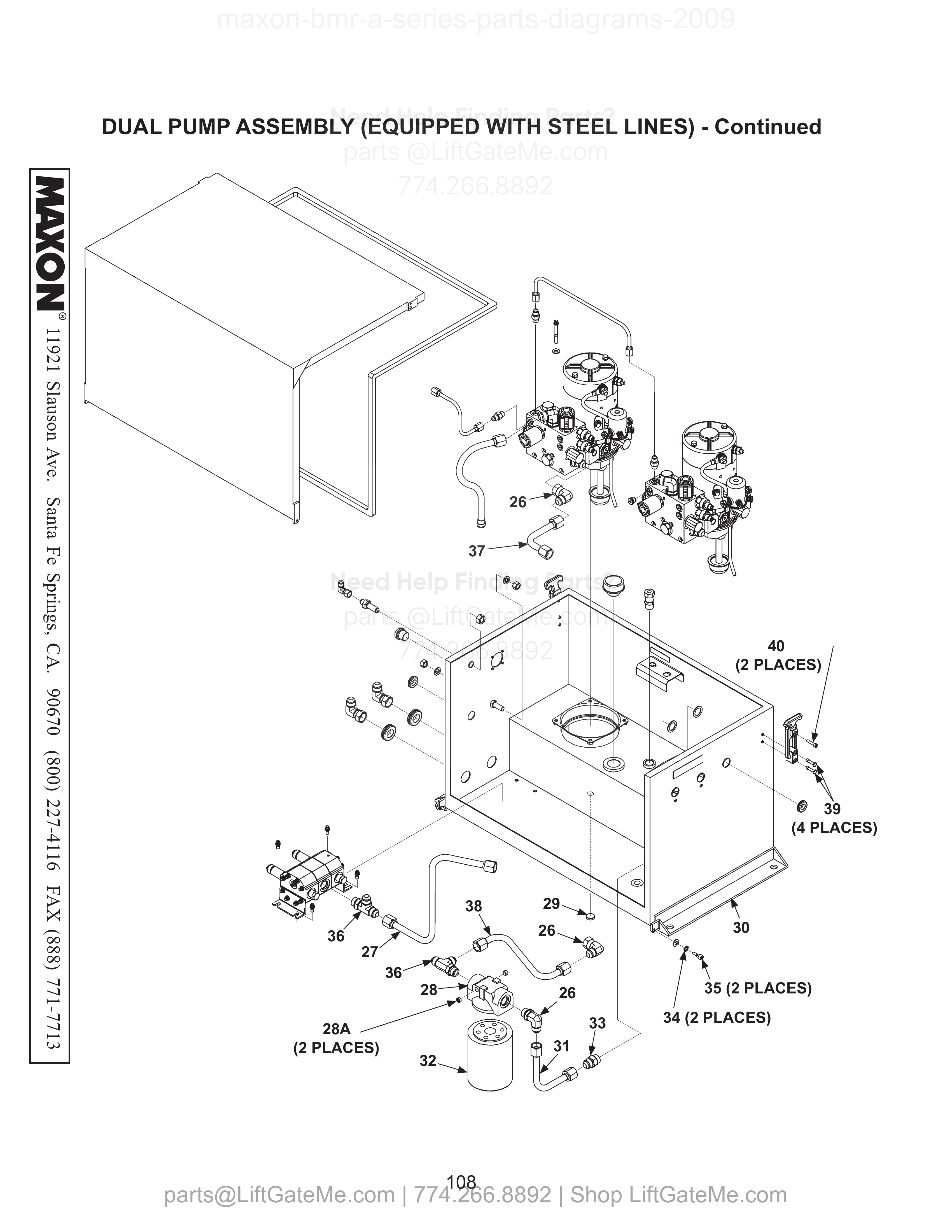

DUAL PUMP ASSEMBLY (EQUIPPED WITH STEEL LINES) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 26 | 3 | 281813-01 | FITTING, #8 ELBOW (HALDEX) | |
| 27 | 1 | 281854-01 | TUBE ASSEMBLY, PMP2-FL DIV (HALDEX) | |
| 28 | 1 | 281792-01 | FILTER HEAD (HALDEX) | |
| 28A | 2 | REF | STEEL PLUG | |
| 29 | 1 | REF | MAGNET | |
| 30 | 1 | 281820-01 | RESERVOIR/BOX, DUAL PUMP (HALDEX) | |
| 31 | 1 | 281795-01 | TUBE ASSEMBLY, FILTER-RESERVOIR (HALDEX) | |
| 32 | 1 | 281793-01 | FILTER (HALDEX) | |
| 33 | 1 | 281814-01 | FITTING, #8 STRAIGHT (HALDEX) | |
| 34 | 2 | REF | LOCK WASHER, 13/32” X 11/16” X 1/32” | |
| 35 | 2 | 281799-01 | HINGE PIN (HALDEX) | |
| 36 | 2 | 281848-01 | FITTING, #8 RUN-TEE, (HALDEX) | |
| 37 | 1 | 281851-01 | TUBE ASSEMBLY, PMP1-FLTR D/PMP, (HALDEX) | |
| 38 | 1 | 281852-01 | TUBE ASSEMBLY, PMP2-FLTR, (HALDEX) | |
| 39 | 4 | REF | 3/16” DIA. X 1.2 LG. POP RIVET | |
| 40 | 2 | REF | SCREW, #10-32 X 7/8” LG. |

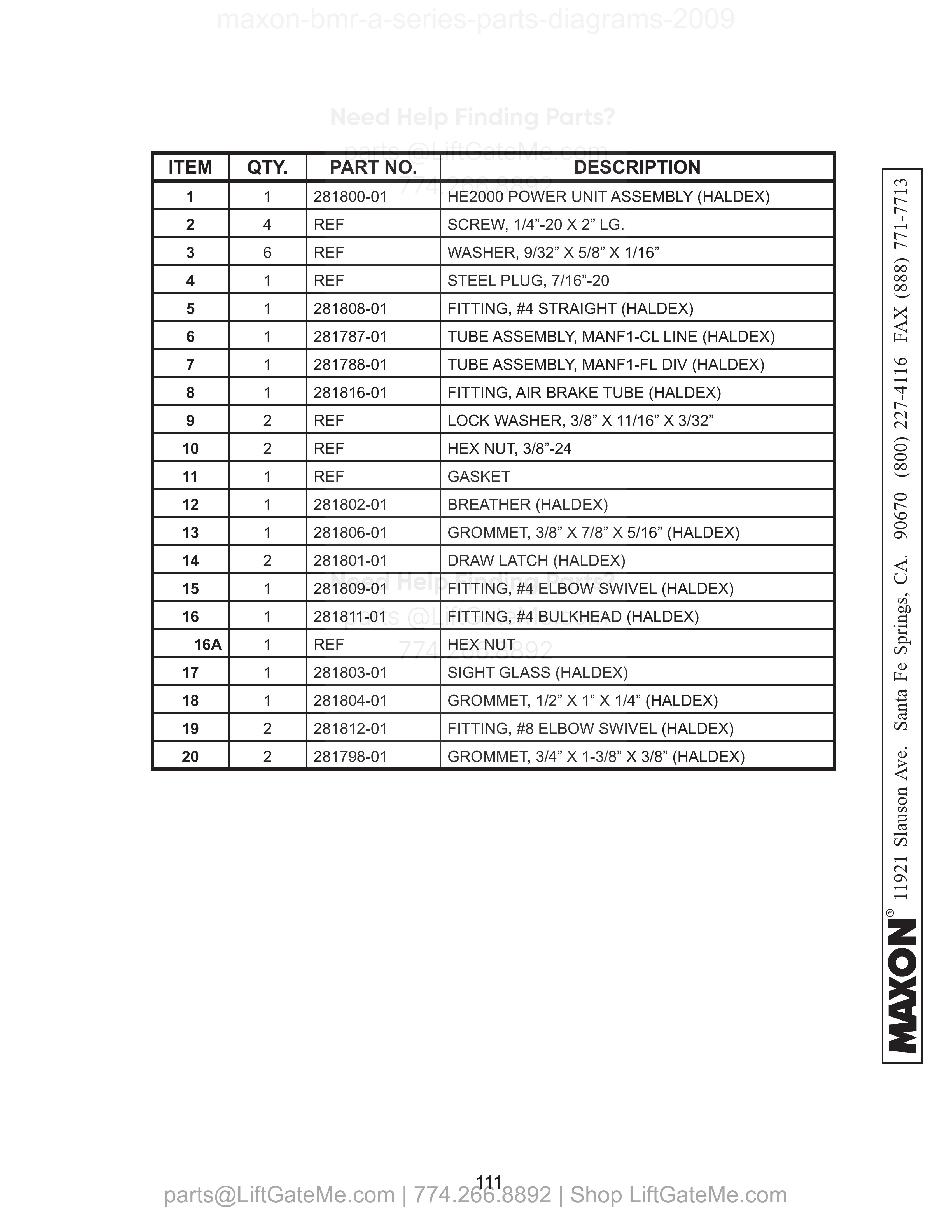

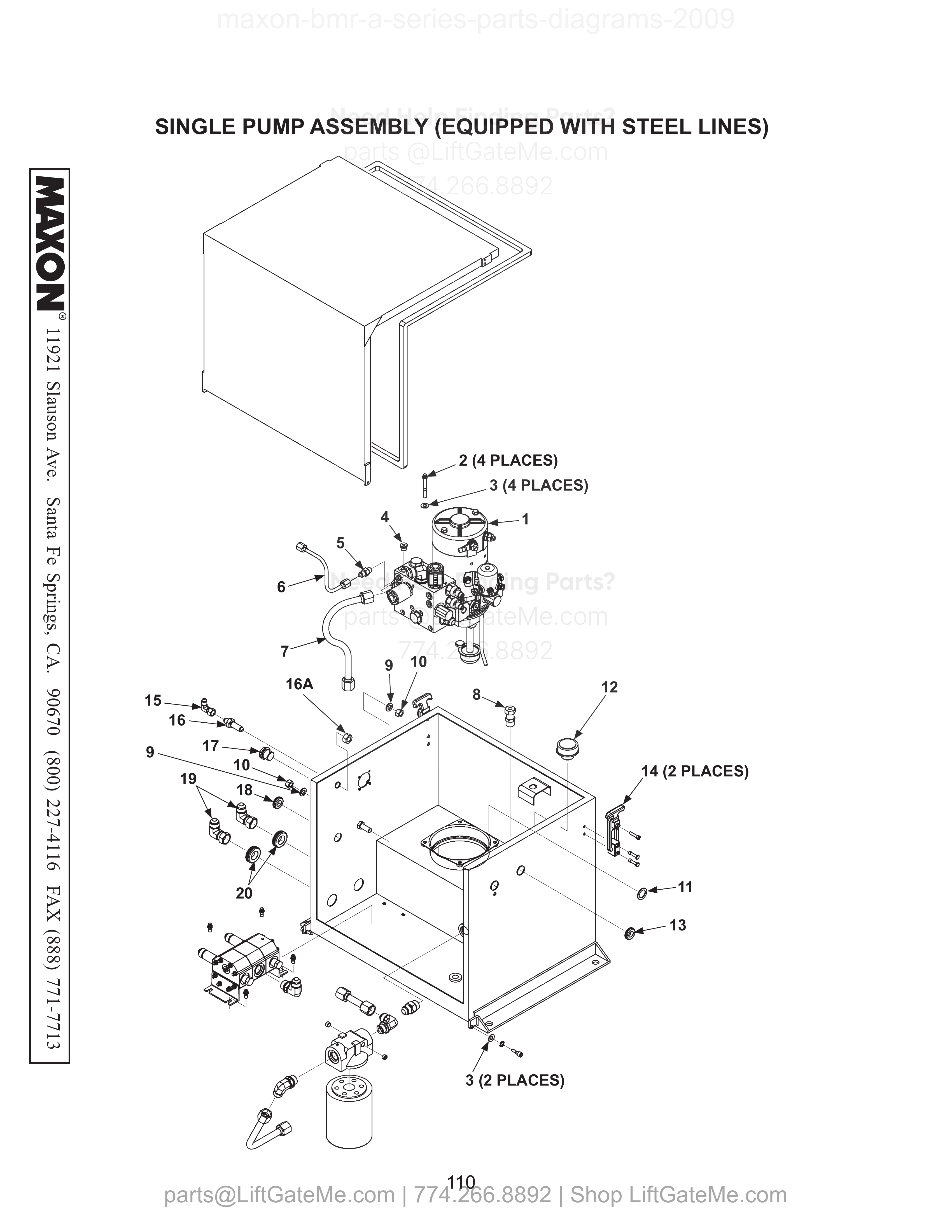

SINGLE PUMP ASSEMBLY (EQUIPPED WITH STEEL LINES)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 281800-01 | HE2000 POWER UNIT ASSEMBLY (HALDEX) | |
| 2 | 4 | REF | SCREW, 1/4”-20 X 2” LG. | |
| 3 | 6 | REF | WASHER, 9/32” X 5/8” X 1/16” | |
| 4 | 1 | REF | STEEL PLUG, 7/16”-20 | |
| 5 | 1 | 281808-01 | FITTING, #4 STRAIGHT (HALDEX) | |
| 6 | 1 | 281787-01 | TUBE ASSEMBLY, MANF1-CL LINE (HALDEX) | |
| 7 | 1 | 281788-01 | TUBE ASSEMBLY, MANF1-FL DIV (HALDEX) | |
| 8 | 1 | 281816-01 | FITTING, AIR BRAKE TUBE (HALDEX) | |
| 9 | 2 | REF | LOCK WASHER, 3/8” X 11/16” X 3/32” | |
| 10 | 2 | REF | HEX NUT, 3/8”-24 | |
| 11 | 1 | REF | GASKET | |
| 12 | 1 | 281802-01 | BREATHER (HALDEX) | |
| 13 | 1 | 281806-01 | GROMMET, 3/8” X 7/8” X 5/16” (HALDEX) | |
| 14 | 2 | 281801-01 | DRAW LATCH (HALDEX) | |
| 15 | 1 | 281809-01 | FITTING, #4 ELBOW SWIVEL (HALDEX) | |
| 16 | 1 | 281811-01 | FITTING #4 BULKHEAD (HALDEX) | |
| 16A | 1 | REF | HEX NUT | |
| 17 | 1 | 281803-01 | SIGHT GLASS (HALDEX) | |
| 18 | 1 | 281804-01 | GROMMET, 1/2” X 1” X 1/4” (HALDEX) | |
| 19 | 2 | 281812-01 | FITTING, #8 ELBOW SWIVEL (HALDEX) | |
| 20 | 2 | 281798-01 | GROMMET, 3/4” X 1-3/8” X 3/8” (HALDEX) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

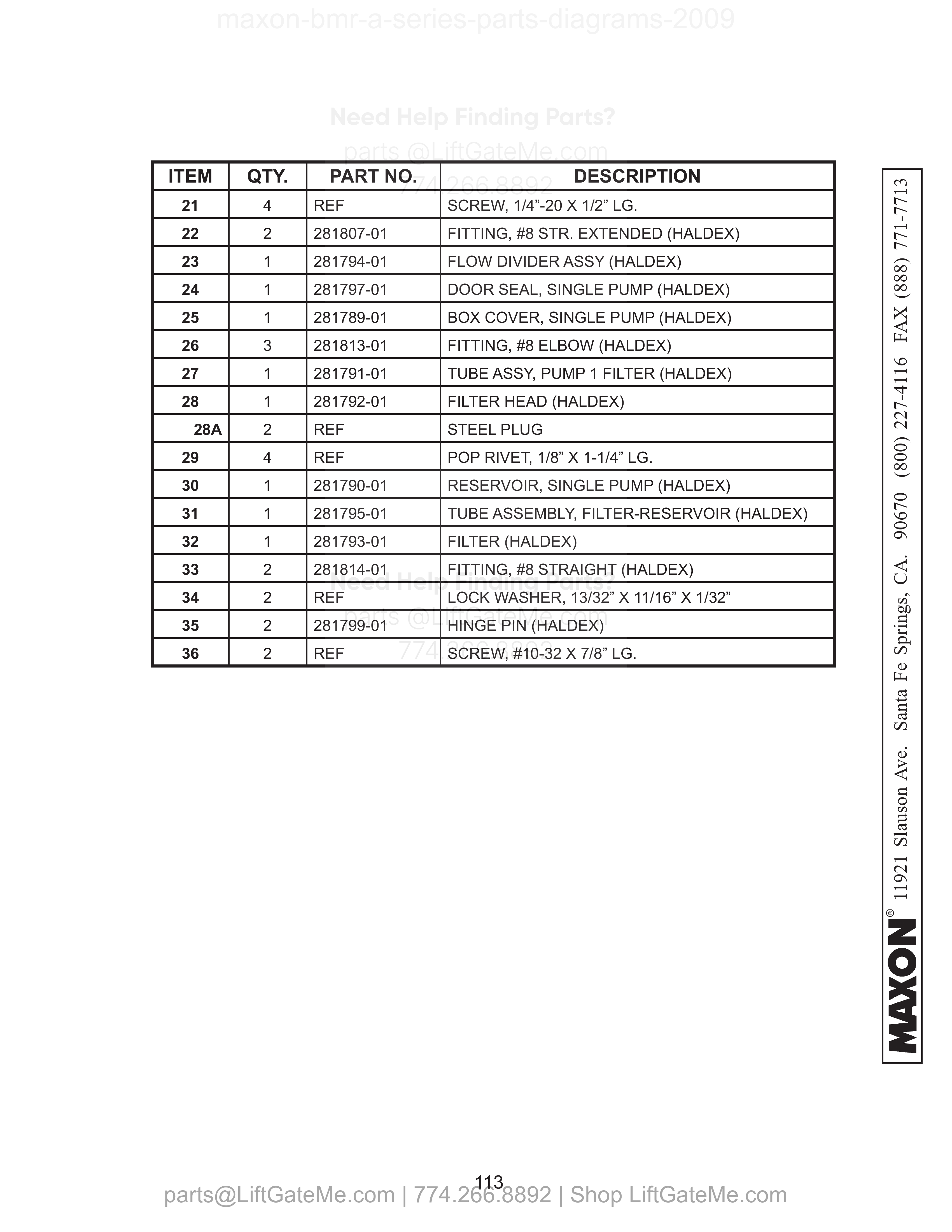

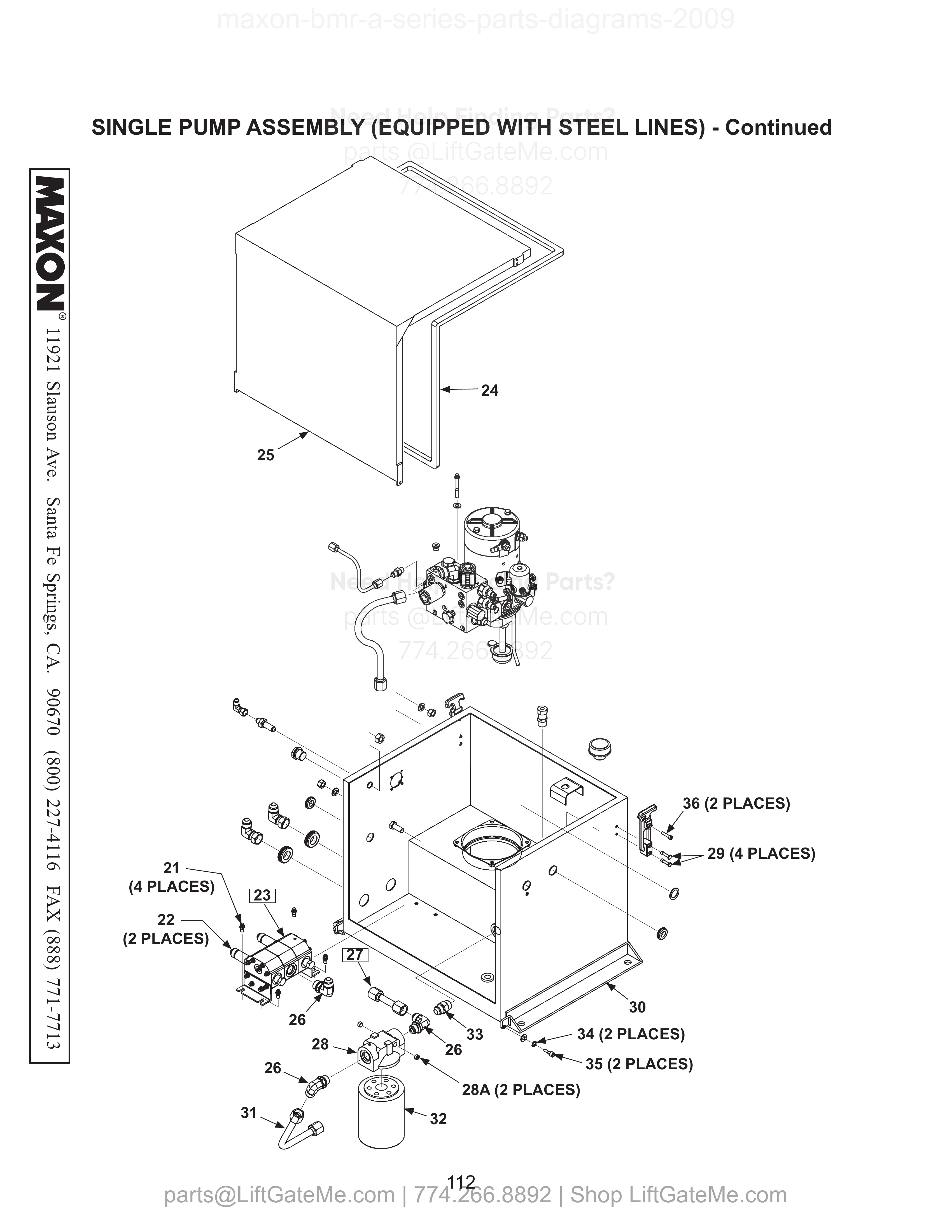

SINGLE PUMP ASSEMBLY (EQUIPPED WITH STEEL LINES) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 21 | 4 | REF | SCREW, 1/4”-20 X 1/2” LG. | |
| 22 | 2 | 281807-01 | FITTING, #8 STR. EXTENDED (HALDEX) | |
| 23 | 1 | 281794-01 | FLOW DIVIDER ASSY (HALDEX) | |
| 24 | 1 | 281797-01 | DOOR SEAL, SINGLE PUMP (HALDEX) | |
| 25 | 1 | 281789-01 | BOX COVER, SINGLE PUMP (HALDEX) | |
| 26 | 3 | 281813-01 | FITTING, #8 ELBOW (HALDEX) | |
| 27 | 1 | 281791-01 | TUBE ASSY, PUMP 1 FILTER (HALDEX) | |
| 28 | 1 | 281792-01 | FILTER HEAD (HALDEX) | |
| 28A | 2 | REF | STEEL PLUG | |
| 29 | 4 | REF | POP RIVET, 1/8” X 1-1/4” LG. | |
| 30 | 1 | 281790-01 | RESERVOIR, SINGLE PUMP (HALDEX) | |
| 31 | 1 | 281795-01 | TUBE ASSEMBLY, FILTER-RESERVOIR (HALDEX) | |
| 32 | 1 | 281793-01 | FILTER (HALDEX) | |
| 33 | 2 | 281814-01 | FITTING, #8 STRAIGHT (HALDEX) | |
| 34 | 2 | REF | LOCK WASHER, 13/32” X 11/16” X 1/32” | |
| 35 | 2 | 281799-01 | HINGE PIN (HALDEX) | |
| 36 | 2 | REF | SCREW, #10-32 X 7/8” LG. |

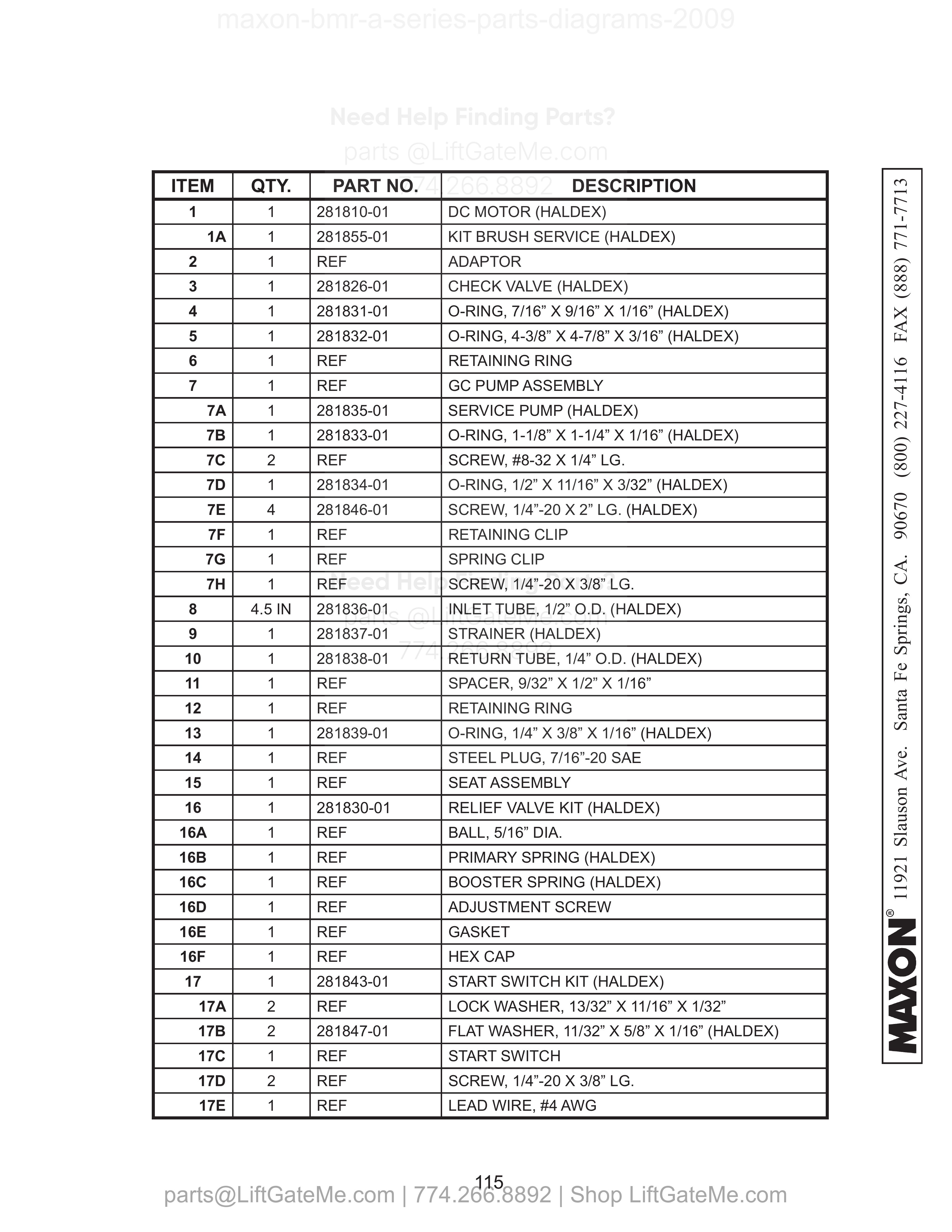

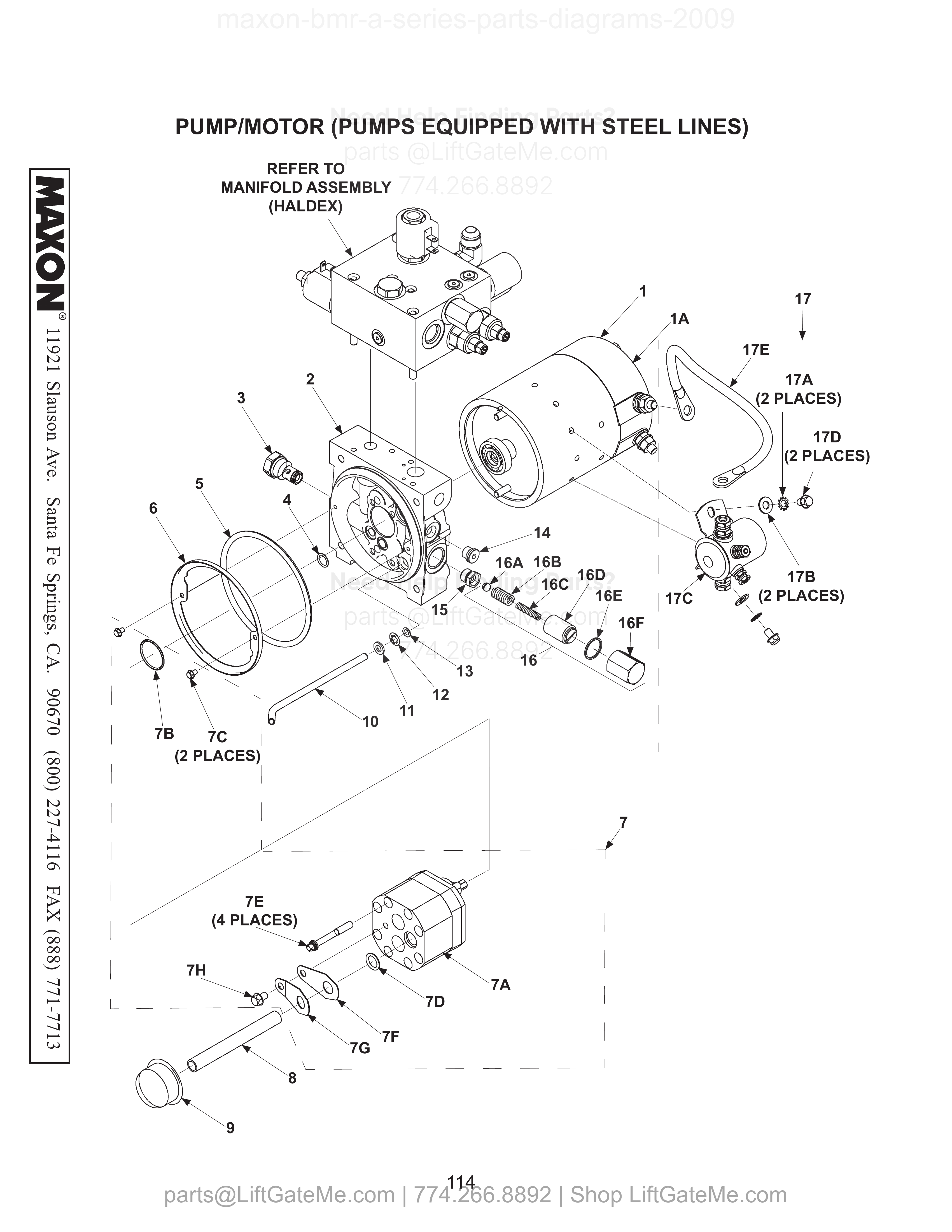

PUMP/MOTOR (PUMPS EQUIPPED WITH STEEL LINES)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 281810-01 | DC MOTOR (HALDEX) | |
| 1A | 1 | 281855-01 | KIT BRUSH SERVICE (HALDEX) | |
| 2 | 1 | REF | ADAPTOR | |
| 3 | 1 | 281826-01 | CHECK VALVE (HALDEX) | |
| 4 | 1 | 281831-01 | O-RING, 7/16” X 9/16” X 1/16” (HALDEX) | |
| 5 | 1 | 281832-01 | O-RING, 4-3/8” X 4-7/8” X 3/16” (HALDEX) | |
| 6 | 1 | REF | RETAINING RING | |
| 7 | 1 | REF | GC PUMP ASSEMBLY | |
| 7A | 1 | 281835-01 | SERVICE PUMP (HALDEX) | |
| 7B | 1 | 281833-01 | O-RING, 1-1/8” X 1-1/4” X 1/16” (HALDEX) | |
| 7C | 2 | REF | SCREW, #8-32 X 1/4” LG. | |
| 7D | 1 | 281834-01 | O-RING, 1/2” X 11/16” X 3/32” (HALDEX) | |
| 7E | 4 | 281846-01 | SCREW, 1/4”-20 X 2” LG. (HALDEX) | |
| 7F | 1 | REF | RETAINING CLIP | |
| 7G | 1 | REF | SPRING CLIP | |
| 7H | 1 | REF | SCREW, 1/4”-20 X 3/8” LG. | |
| 8 | 4.5 IN | 281836-01 | INLET TUBE, 1/2” O.D. (HALDEX) | |
| 9 | 1 | 281837-01 | STRAINER (HALDEX) | |
| 10 | 1 | 281838-01 | RETURN TUBE, 1/4” O.D. (HALDEX) | |
| 11 | 1 | REF | SPACER, 9/32” X 1/2” X 1/16” | |
| 12 | 1 | REF | RETAINING RING | |
| 13 | 1 | 281839-01 | O-RING, 1/4” X 3/8” X 1/16” (HALDEX) | |
| 14 | 1 | REF | STEEL PLUG, 7/16”-20 SAE | |
| 15 | 1 | REF | SEAT ASSEMBLY | |
| 16 | 1 | 281830-01 | RELIEF VALVE KIT (HALDEX) | |
| 16A | 1 | REF | BALL, 5/16” DIA. | |
| 16B | 1 | REF | PRIMARY SPRING (HALDEX) | |
| 16C | 1 | REF | BOOSTER SPRING (HALDEX) | |
| 16D | 1 | REF | ADJUSTMENT SCREW | |
| 16E | 1 | REF | GASKET | |
| 16F | 1 | REF | HEX CAP | |
| 17 | 1 | 281843-01 | START SWITCH KIT (HALDEX) | |
| 17A | 2 | REF | LOCK WASHER, 13/32” X 11/16” X 1/32” | |
| 17B | 2 | 281847-01 | FLAT WASHER, 11/32” X 5/8” X 1/16” (HALDEX) | |
| 17C | 1 | REF | START SWITCH | |
| 17D | 2 | REF | SCREW, 1/4”-20 X 3/8” LG. | |
| 17E | 1 | REF | LEAD WIRE, #4 AWG |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

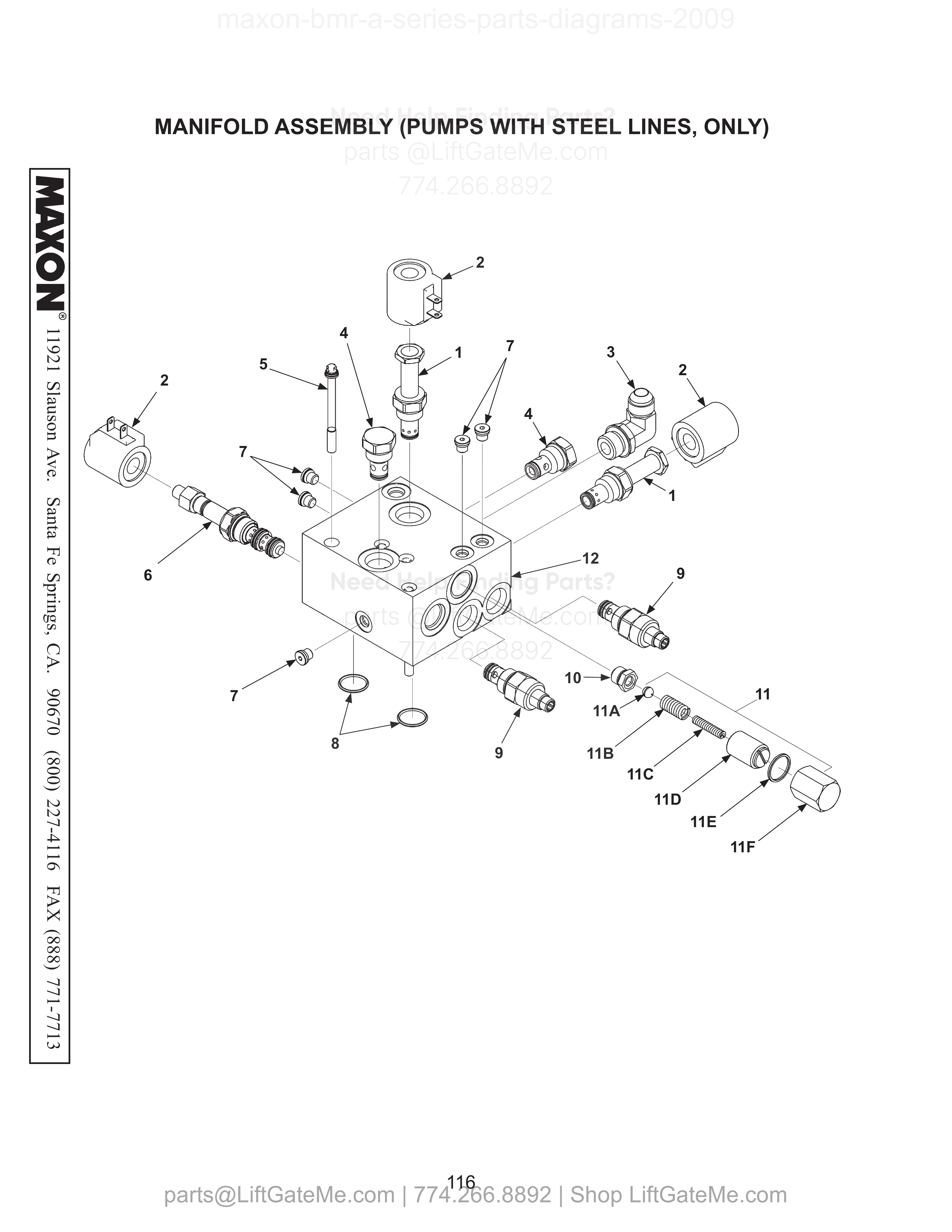

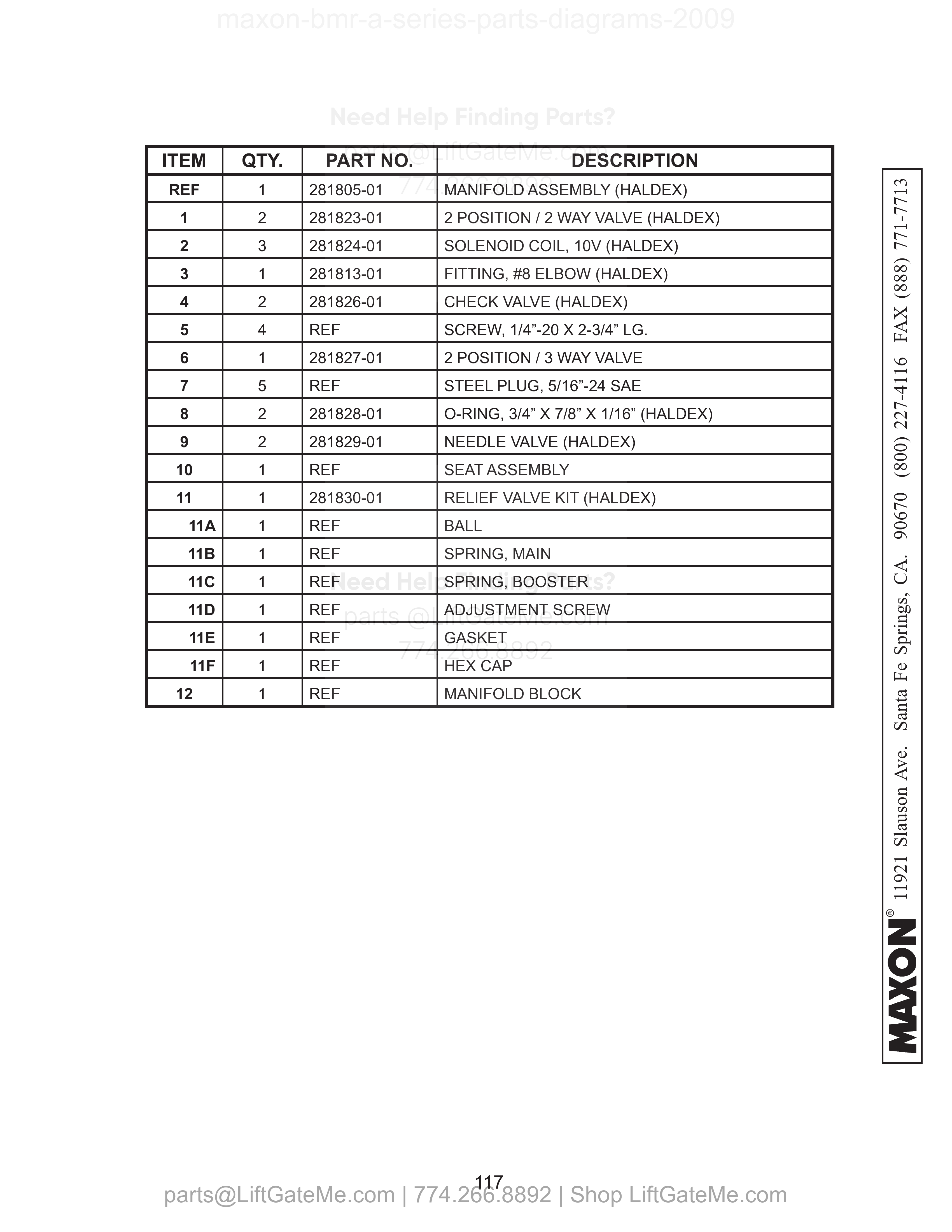

MANIFOLD ASSEMBLY (PUMPS WITH STEEL LINES, ONLY)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 281805-01 | MANIFOLD ASSEMBLY (HALDEX) | |
| 1 | 2 | 281823-01 | 2 POSITION / 2 WAY VALVE (HALDEX) | |
| 2 | 3 | 281824-01 | SOLENOID COIL, 10V (HALDEX) | |
| 3 | 1 | 281813-01 | FITTING, #8 ELBOW (HALDEX) | |
| 4 | 2 | 281826-01 | CHECK VALVE (HALDEX) | |
| 5 | 4 | REF | SCREW, 1/4”-20 X 2-3/4” LG. | |
| 6 | 1 | 281827-01 | 2 POSITION / 3 WAY VALVE | |
| 7 | 5 | REF | STEEL PLUG, 5/16”-24 SAE | |
| 8 | 2 | 281828-01 | O-RING, 3/4” X 7/8” X 1/16” (HALDEX) | |
| 9 | 2 | 281829-01 | NEEDLE VALVE (HALDEX) | |
| 10 | 1 | REF | SEAT ASSEMBLY | |
| 11 | 1 | 281830-01 | RELIEF VALVE KIT (HALDEX) | |
| 11A | 1 | REF | BALL | |
| 11B | 1 | REF | SPRING, MAIN | |
| 11C | 1 | REF | SPRING, BOOSTER | |
| 11D | 1 | REF | ADJUSTMENT SCREW | |
| 11E | 1 | REF | GASKET | |
| 11F | 1 | REF | HEX CAP | |
| 12 | 1 | REF | MANIFOLD BLOCK |

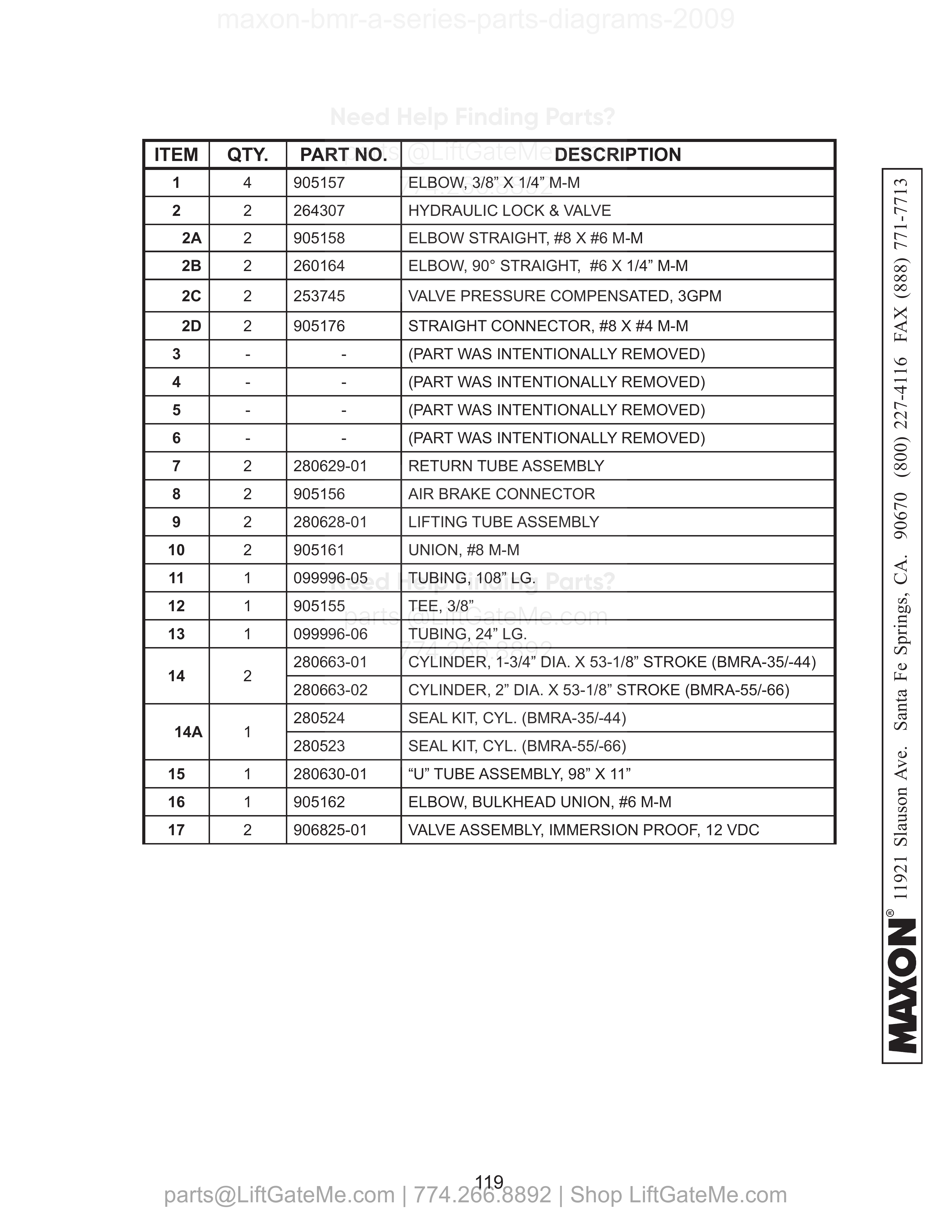

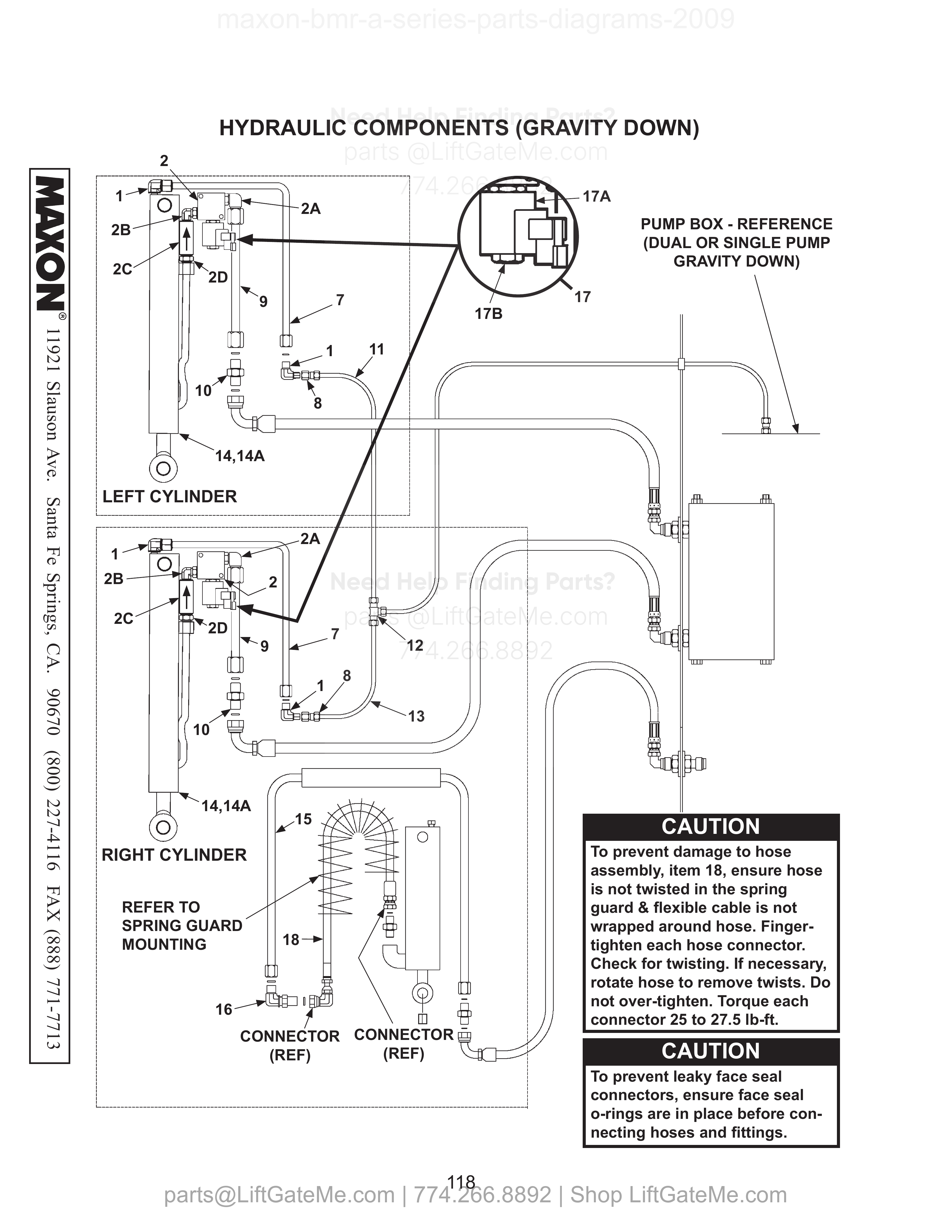

HYDRAULIC COMPONENTS (GRAVITY DOWN)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 905157 | ELBOW, 3/8” X 1/4” M-M | |
| 2 | 2 | 264307 | HYDRAULIC LOCK & VALVE | |
| 2A | 2 | 905158 | ELBOW STRAIGHT, #8 X #6 M-M | |
| 2B | 2 | 260164 | ELBOW, 90° STRAIGHT, #6 X 1/4” M-M | |
| 2C | 2 | 253745 | VALVE PRESSURE COMPENSATED, 3GPM | |
| 2D | 2 | 905176 | STRAIGHT CONNECTOR, #8 X #4 M-M | |
| 3 | - | - | (PART WAS INTENTIONALLY REMOVED) | |
| 4 | - | - | (PART WAS INTENTIONALLY REMOVED) | |
| 5 | - | - | (PART WAS INTENTIONALLY REMOVED) | |
| 6 | - | - | (PART WAS INTENTIONALLY REMOVED) | |
| 7 | 2 | 280629-01 | RETURN TUBE ASSEMBLY | |
| 8 | 2 | 905156 | AIR BRAKE CONNECTOR | |
| 9 | 2 | 280628-01 | LIFTING TUBE ASSEMBLY | |
| 10 | 2 | 905161 | UNION, #8 M-M | |
| 11 | 1 | 099996-05 | TUBING, 108” LG. | |
| 12 | 1 | 905155 | TEE, 3/8” | |
| 13 | 1 | 099996-06 | TUBING, 24” LG. | |
| 14 | 2 | 280663-01 | CYLINDER, 1-3/4” DIA. X 53-1/8” STROKE (BMRA-35/-44) | |
| 14 | 2 | 280663-02 | CYLINDER, 2” DIA. X 53-1/8” STROKE (BMRA-55/-66) | |
| 14A | 1 | 280524 | SEAL KIT, CYL. (BMRA-35/-44) | |
| 14A | 1 | 280523 | SEAL KIT, CYL. (BMRA-55/-66) | |
| 15 | 1 | 280630-01 | “U” TUBE ASSEMBLY, 98” X 11” | |
| 16 | 1 | 905162 | ELBOW, BULKHEAD UNION, #6 M-M | |
| 17 | 2 | 906825-01 | VALVE ASSEMBLY, IMMERSION PROOF, 12 VDC |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

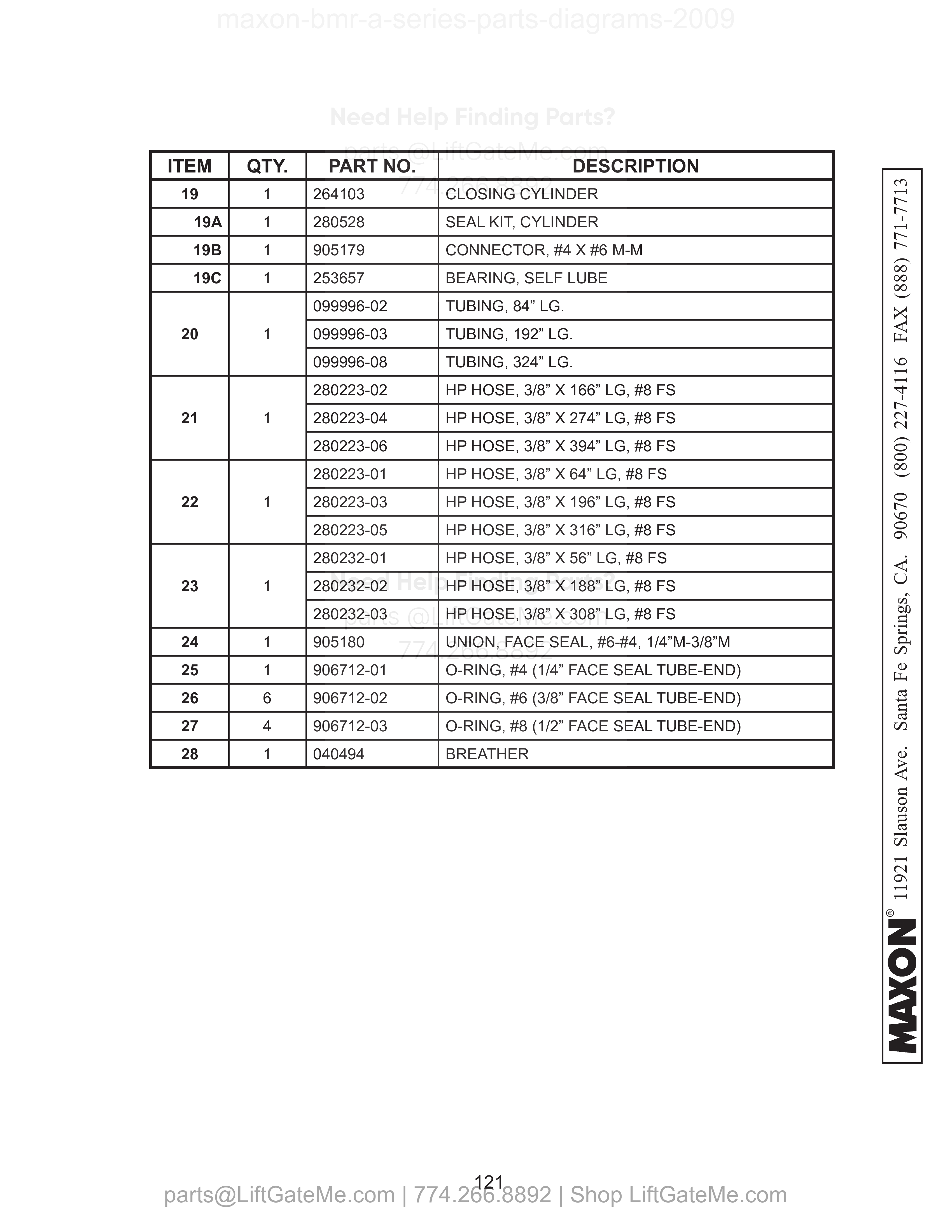

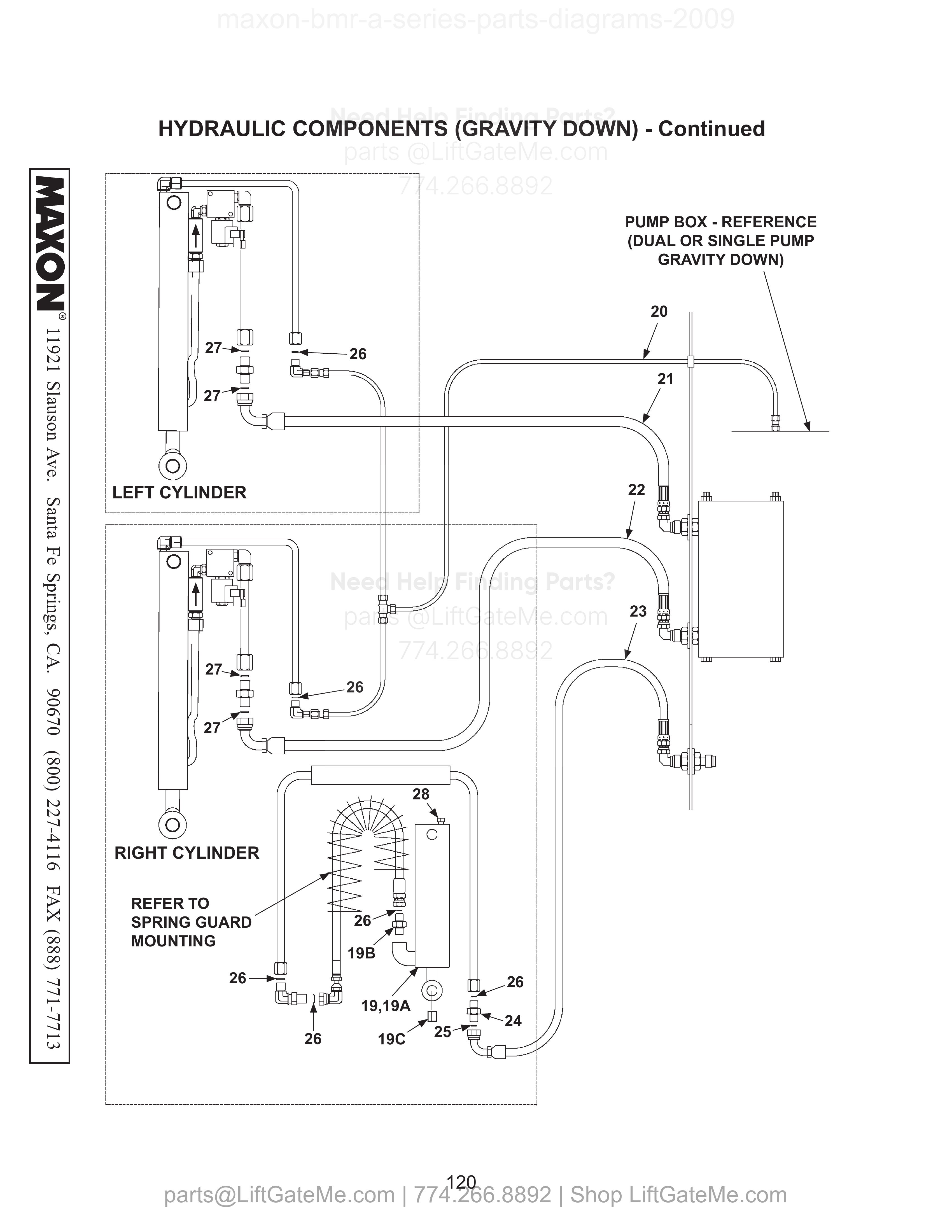

HYDRAULIC COMPONENTS (GRAVITY DOWN) - Continued
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 19 | 1 | 264103 | CLOSING CYLINDER | |
| 19A | 1 | 280528 | SEAL KIT, CYLINDER | |
| 19B | 1 | 905179 | CONNECTOR, #4 X #6 M-M | |
| 19C | 1 | 253657 | BEARING, SELF LUBE | |
| 20 | 1 | 099996-02 | TUBING, 84” LG. | |
| 20 | 1 | 099996-03 | TUBING, 192” LG. | |
| 20 | 1 | 099996-08 | TUBING, 324” LG. | |
| 21 | 1 | 280223-02 | HP HOSE, 3/8” X 166” LG, #8 FS | |
| 21 | 1 | 280223-04 | HP HOSE, 3/8” X 274” LG, #8 FS | |
| 21 | 1 | 280223-06 | HP HOSE, 3/8” X 394” LG, #8 FS | |
| 22 | 1 | 280223-01 | HP HOSE, 3/8” X 64” LG, #8 FS | |
| 22 | 1 | 280223-03 | HP HOSE, 3/8” X 196” LG, #8 FS | |
| 22 | 1 | 280223-05 | HP HOSE, 3/8” X 316” LG, #8 FS | |
| 23 | 1 | 280232-01 | HP HOSE, 3/8” X 56” LG, #8 FS | |
| 23 | 1 | 280232-02 | HP HOSE, 3/8” X 188” LG, #8 FS | |
| 23 | 1 | 280232-03 | HP HOSE, 3/8” X 308” LG, #8 FS | |
| 24 | 1 | 905180 | UNION, FACE SEAL, #6-#4, 1/4”M-3/8”M | |
| 25 | 1 | 906712-01 | O-RING, #4 (1/4” FACE SEAL TUBE-END) | |
| 26 | 6 | 906712-02 | O-RING, #6 (3/8” FACE SEAL TUBE-END) | |
| 27 | 4 | 906712-03 | O-RING, #8 (1/2” FACE SEAL TUBE-END) | |
| 28 | 1 | 040494 | BREATHER |

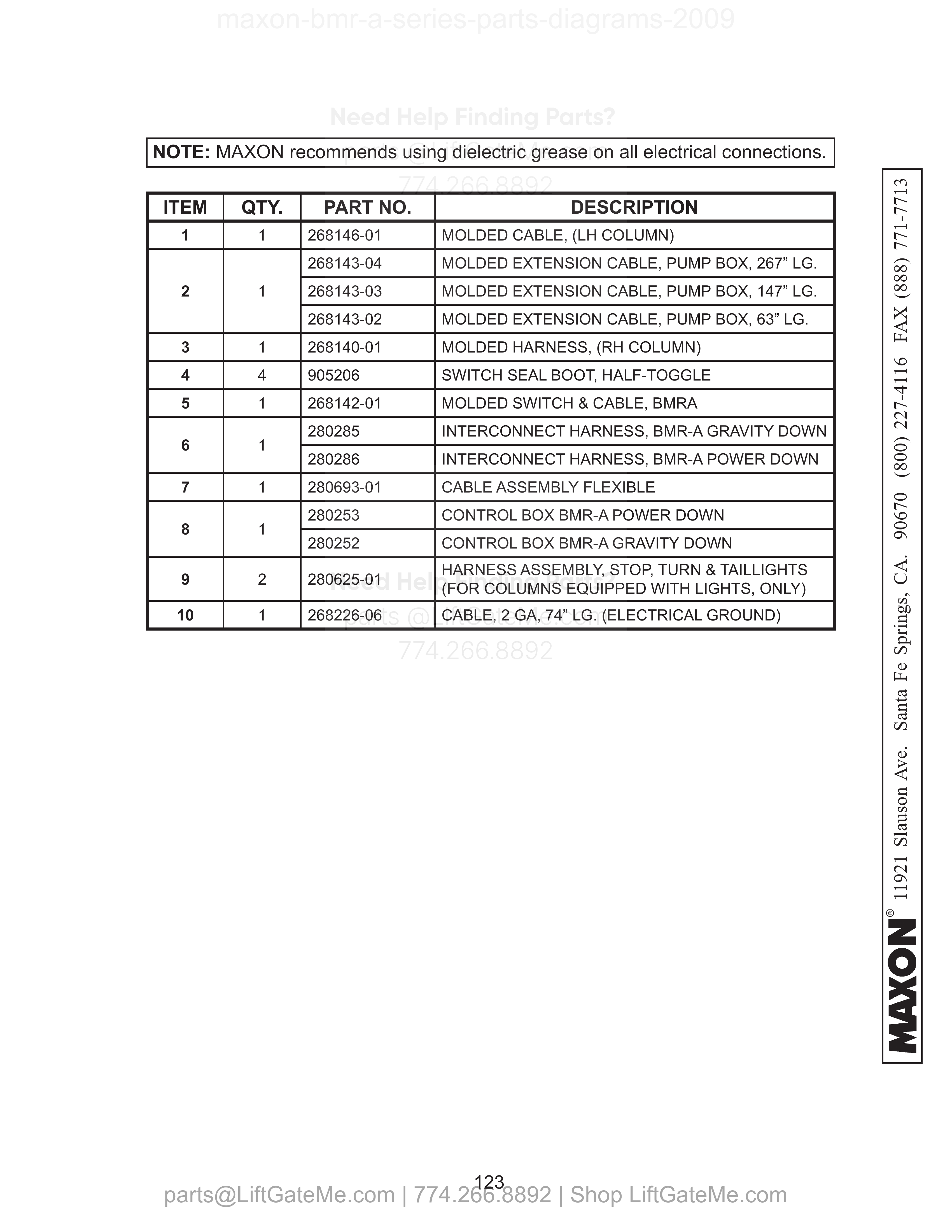

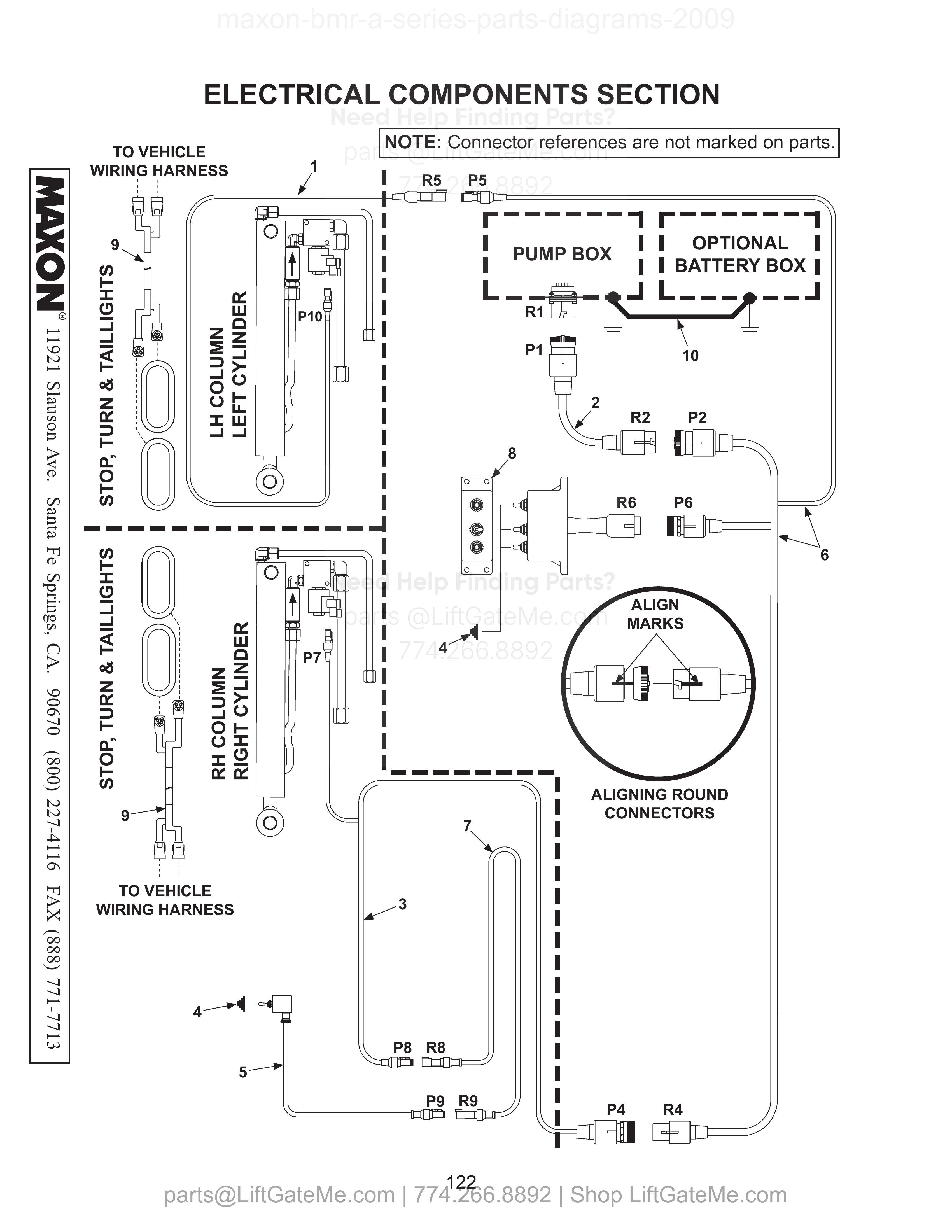

Electrical Components Section
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 268146-01 | MOLDED CABLE, (LH COLUMN) | |
| 2 | 1 | 268143-04 | MOLDED EXTENSION CABLE, PUMP BOX, 267” LG. | |
| 2 | 1 | 268143-03 | MOLDED EXTENSION CABLE, PUMP BOX, 147” LG. | |
| 2 | 1 | 268143-02 | MOLDED EXTENSION CABLE, PUMP BOX, 63” LG. | |
| 3 | 1 | 268140-01 | MOLDED HARNESS, (RH COLUMN) | |
| 4 | 4 | 905206 | SWITCH SEAL BOOT, HALF-TOGGLE | |
| 5 | 1 | 268142-01 | MOLDED SWITCH & CABLE, BMRA | |
| 6 | 1 | 280285 | INTERCONNECT HARNESS, BMR-A GRAVITY DOWN | |
| 6 | 1 | 280286 | INTERCONNECT HARNESS, BMR-A POWER DOWN | |
| 7 | 1 | 280693-01 | CABLE ASSEMBLY FLEXIBLE | |
| 8 | 1 | 280253 | CONTROL BOX BMR-A POWER DOWN | |
| 8 | 1 | 280252 | CONTROL BOX BMR-A GRAVITY DOWN | |
| 9 | 2 | 280625-01 | HARNESS ASSEMBLY, STOP, TURN & TAILLIGHTS (FOR COLUMNS EQUIPPED WITH LIGHTS, ONLY) | |
| 10 | 1 | 268226-06 | CABLE, 2 GA, 74” LG. (ELECTRICAL GROUND) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

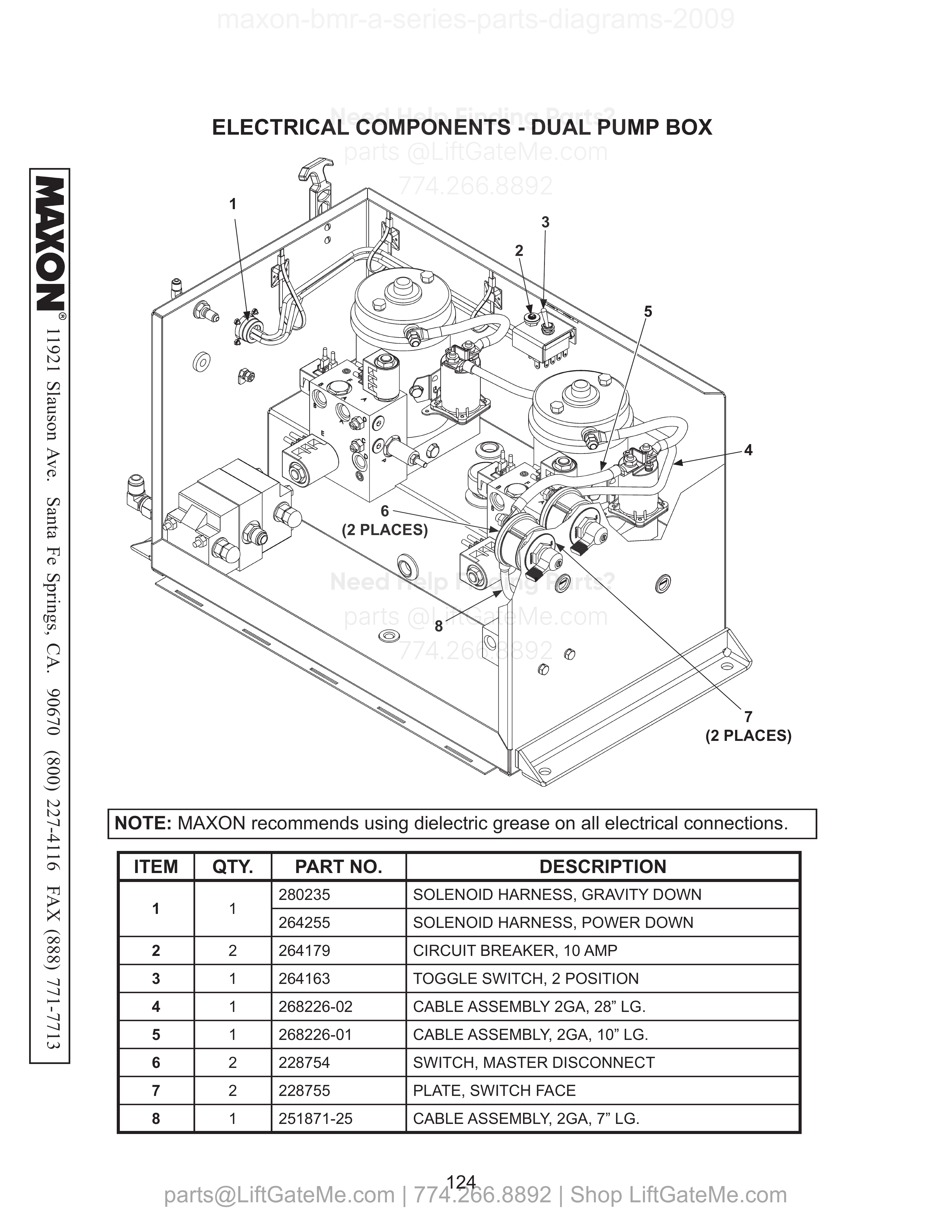

Electrical Components - Dual Pump Box
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 280235 | SOLENOID HARNESS, GRAVITY DOWN | |
| 1 | 1 | 264255 | SOLENOID HARNESS, POWER DOWN | |
| 2 | 2 | 264179 | CIRCUIT BREAKER, 10 AMP | |
| 3 | 1 | 264163 | TOGGLE SWITCH, 2 POSITION | |
| 4 | 1 | 268226-02 | CABLE ASSEMBLY 2GA, 28” LG. | |
| 5 | 1 | 268226-01 | CABLE ASSEMBLY, 2GA, 10” LG. | |
| 6 | 2 | 228754 | SWITCH, MASTER DISCONNECT | |
| 7 | 2 | 228755 | PLATE, SWITCH FACE | |
| 8 | 1 | 251871-25 | CABLE ASSEMBLY, 2GA, 7” LG. |

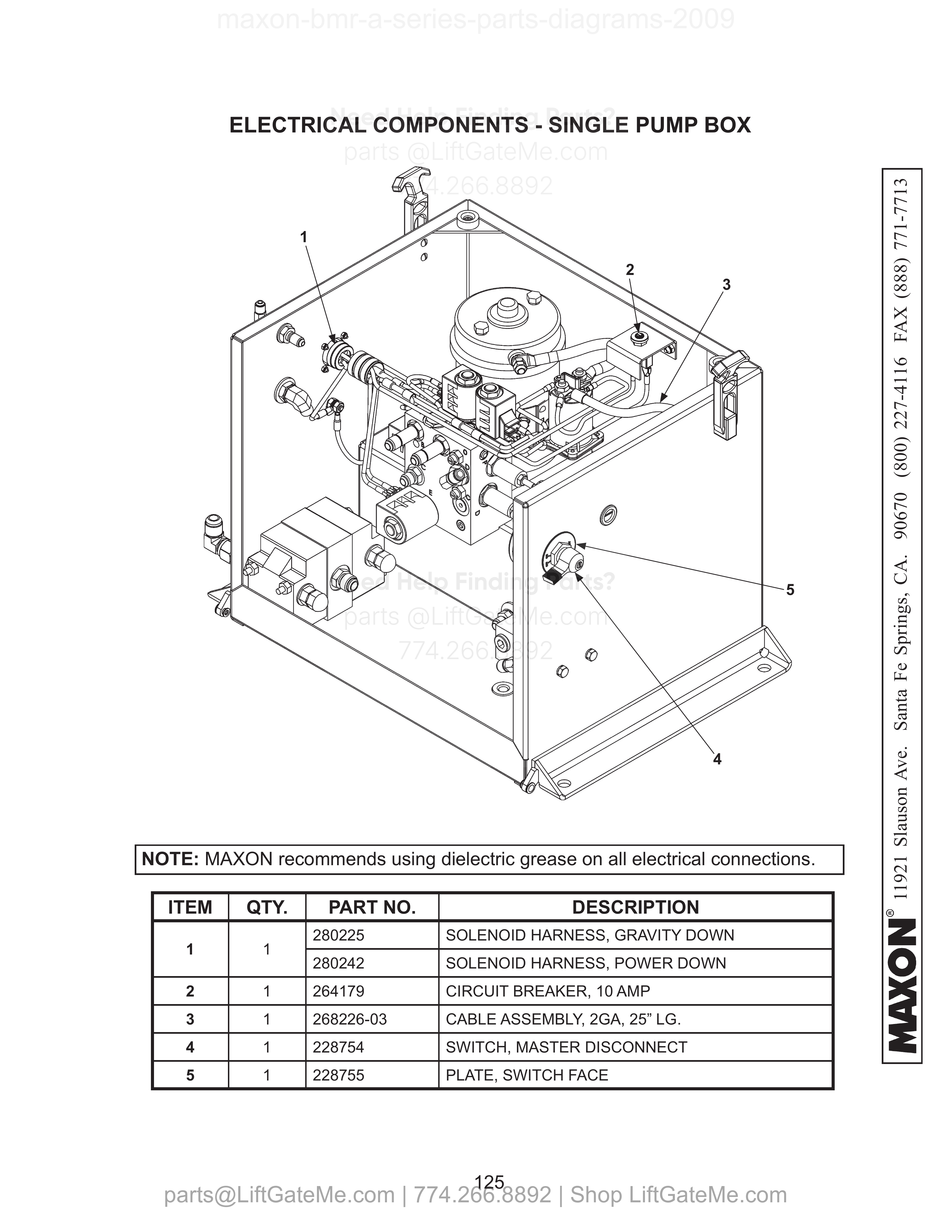

Electrical Components - Single Pump Box
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 280225 | SOLENOID HARNESS, GRAVITY DOWN | |
| 1 | 1 | 280242 | SOLENOID HARNESS, POWER DOWN | |
| 2 | 1 | 264179 | CIRCUIT BREAKER, 10 AMP | |
| 3 | 1 | 268226-03 | CABLE ASSEMBLY, 2GA, 25” LG. | |
| 4 | 1 | 228754 | SWITCH, MASTER DISCONNECT | |
| 5 | 1 | 228755 | PLATE, SWITCH FACE |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

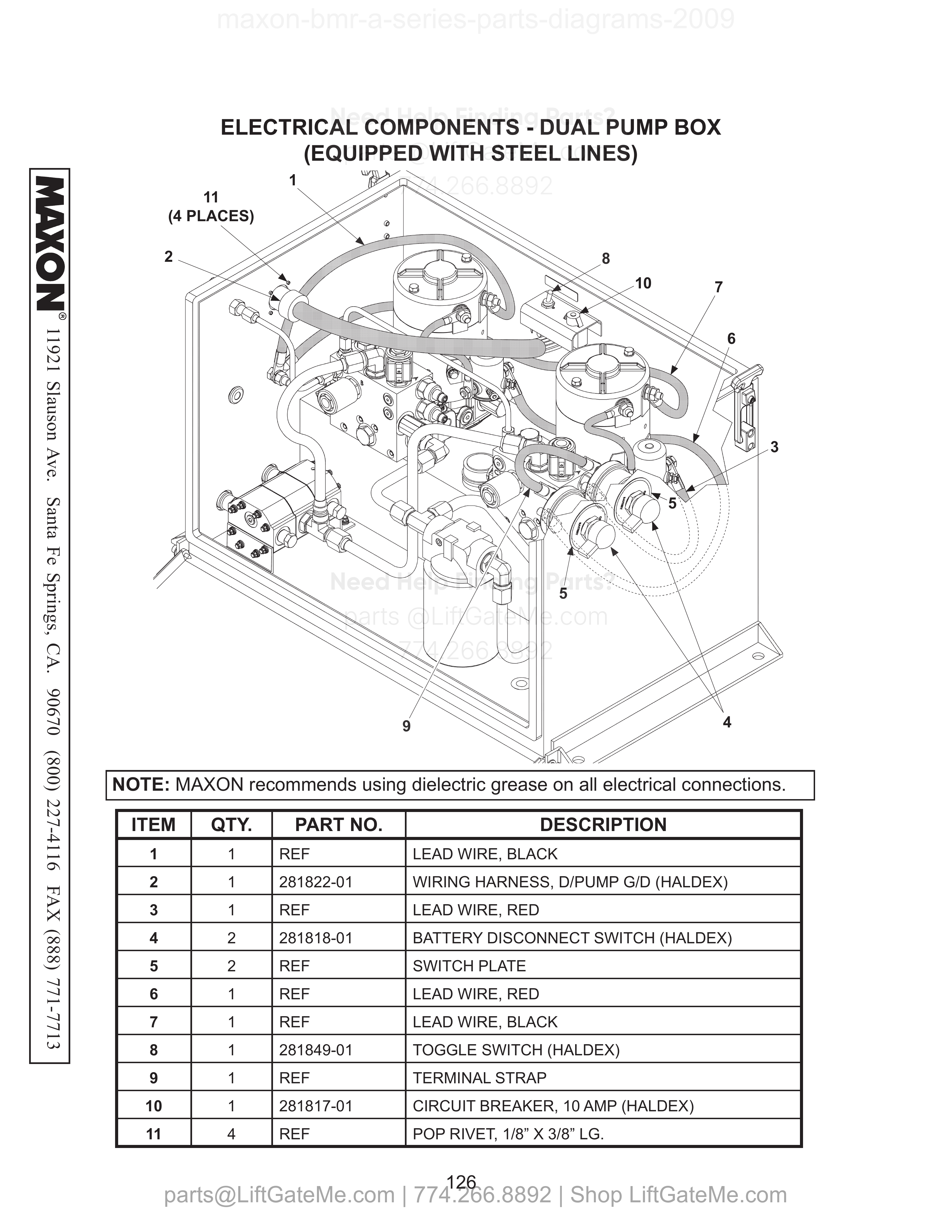

ELECTRICAL COMPONENTS - DUAL PUMP BOX (EQUIPPED WITH STEEL LINES)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | REF | LEAD WIRE, BLACK | |
| 2 | 1 | 281822-01 | WIRING HARNESS, D/PUMP G/D (HALDEX) | |
| 3 | 1 | REF | LEAD WIRE, RED | |
| 4 | 2 | 281818-01 | BATTERY DISCONNECT SWITCH (HALDEX) | |
| 5 | 2 | REF | SWITCH PLATE | |
| 6 | 1 | REF | LEAD WIRE, RED | |
| 7 | 1 | REF | LEAD WIRE, BLACK | |
| 8 | 1 | 281849-01 | TOGGLE SWITCH (HALDEX) | |
| 9 | 1 | REF | TERMINAL STRAP | |
| 10 | 1 | 281817-01 | CIRCUIT BREAKER, 10 AMP (HALDEX) | |
| 11 | 4 | REF | POP RIVET, 1/8” X 3/8” LG. |

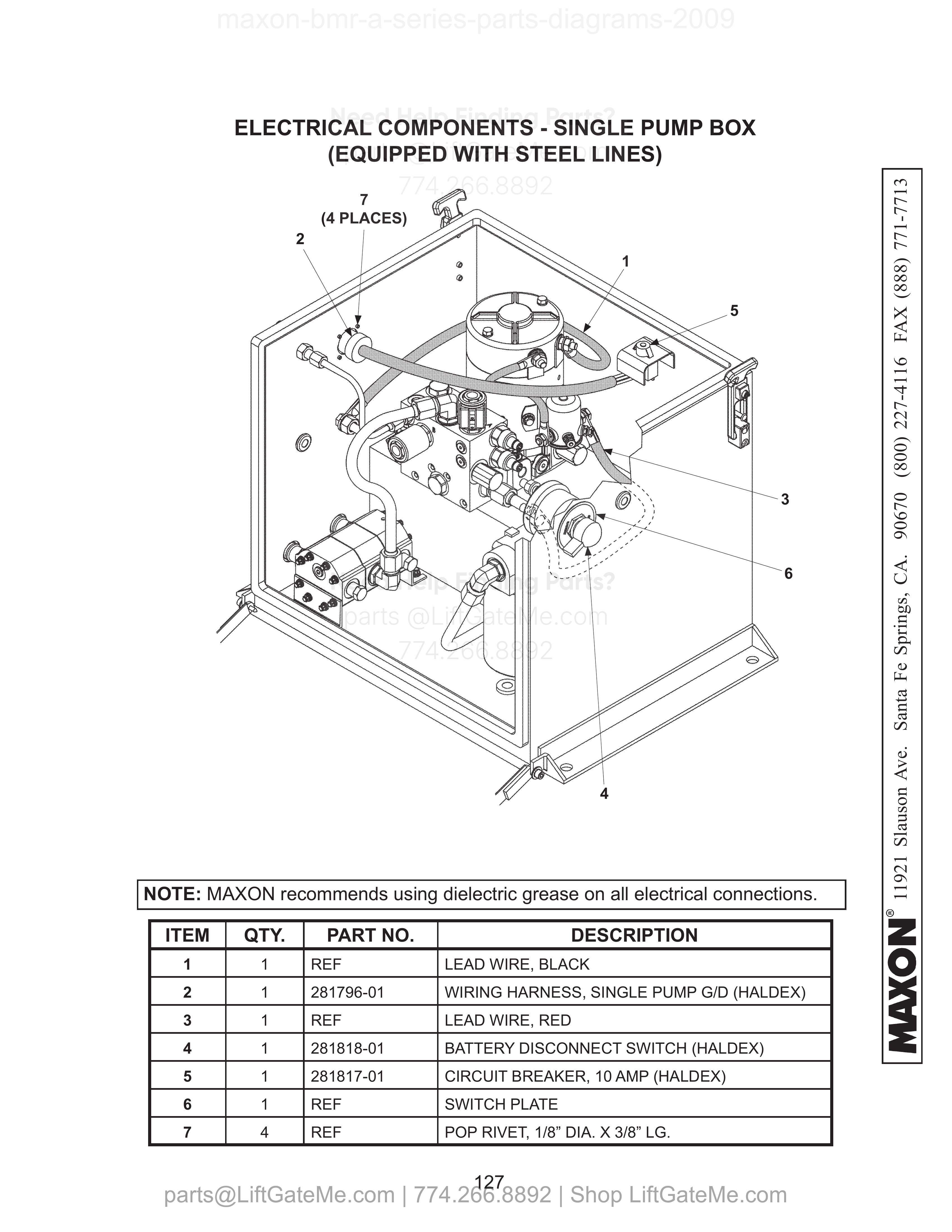

ELECTRICAL COMPONENTS - SINGLE PUMP BOX (EQUIPPED WITH STEEL LINES)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | REF | LEAD WIRE, BLACK | |
| 2 | 1 | 281796-01 | WIRING HARNESS, SINGLE PUMP G/D (HALDEX) | |
| 3 | 1 | REF | LEAD WIRE, RED | |
| 4 | 1 | 281818-01 | BATTERY DISCONNECT SWITCH (HALDEX) | |
| 5 | 1 | 281817-01 | CIRCUIT BREAKER, 10 AMP (HALDEX) | |
| 6 | 1 | REF | SWITCH PLATE | |
| 7 | 4 | REF | POP RIVET, 1/8” DIA. X 3/8” LG. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

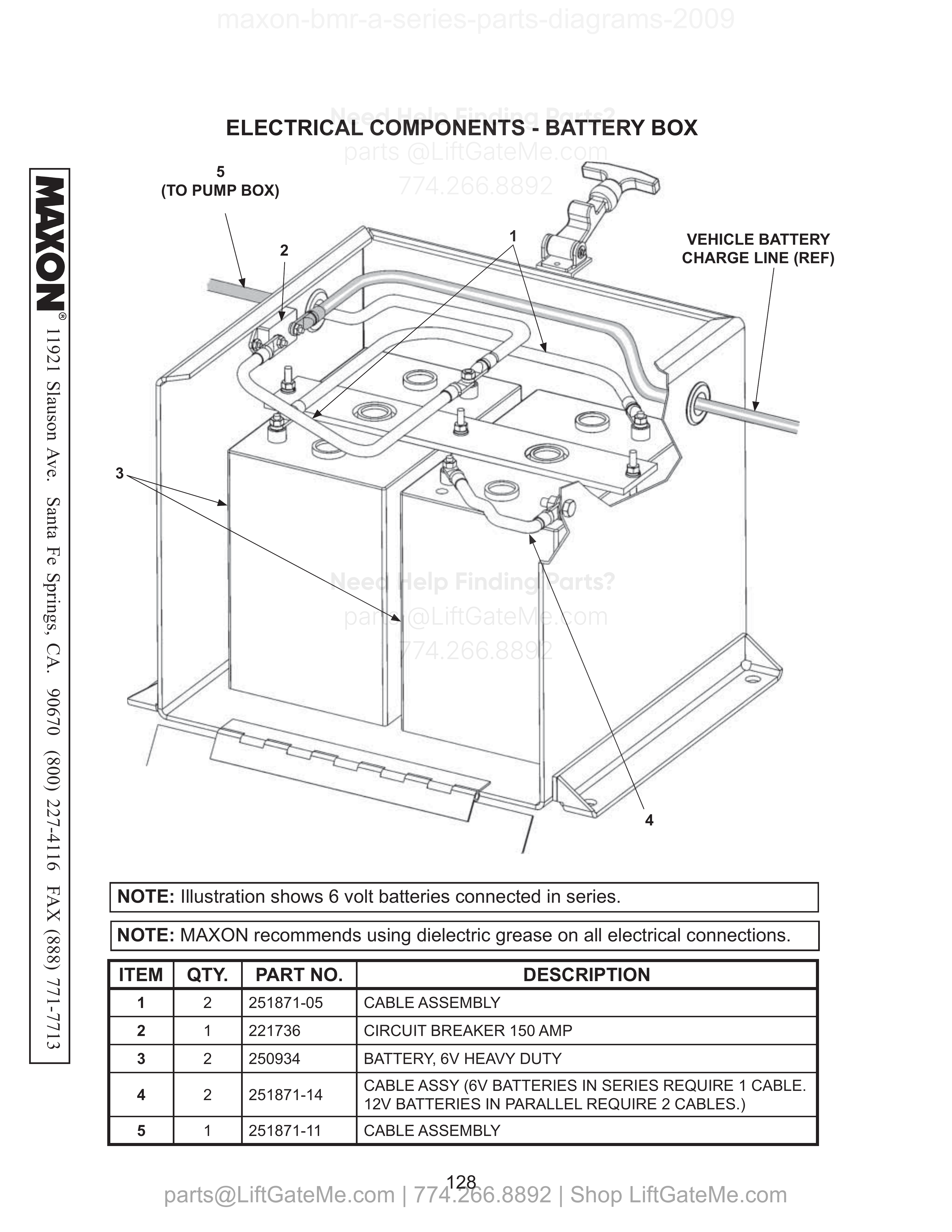

ELECTRICAL COMPONENTS - BATTERY BOX
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 251871-05 | CABLE ASSEMBLY | |
| 2 | 1 | 221736 | CIRCUIT BREAKER 150 AMP | |
| 3 | 2 | 250934 | BATTERY, 6V HEAVY DUTY | |
| 4 | 2 | 251871-14 | CABLE ASSY (6V BATTERIES IN SERIES REQUIRE 1 CABLE. 12V BATTERIES IN PARALLEL REQUIRE 2 CABLES.) | |
| 5 | 1 | 251871-11 | CABLE ASSEMBLY |

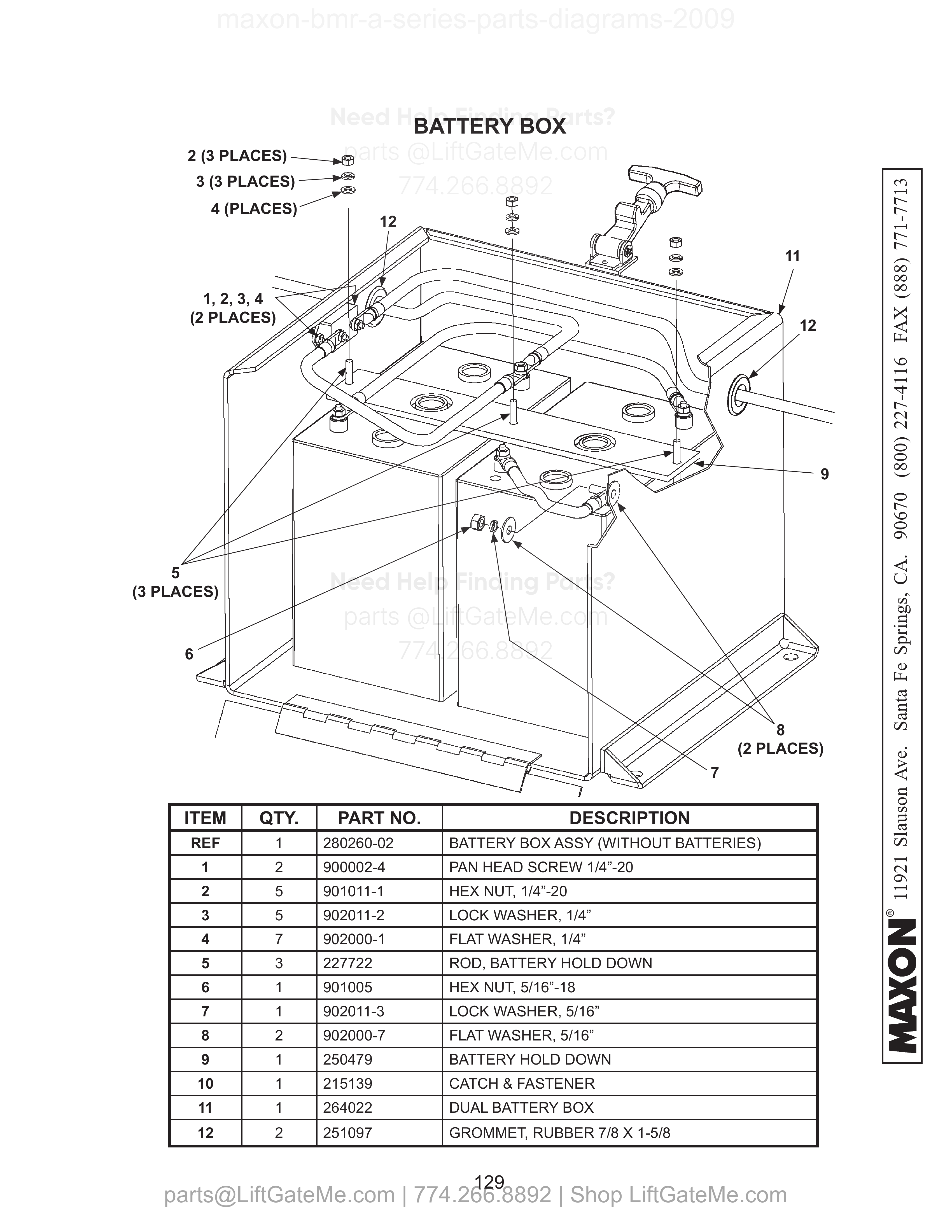

BATTERY BOX
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 280260-02 | BATTERY BOX ASSY (WITHOUT BATTERIES) | |
| 1 | 2 | 900002-4 | PAN HEAD SCREW 1/4”-20 | |
| 2 | 5 | 901011-1 | HEX NUT, 1/4”-20 | |
| 3 | 5 | 902011-2 | LOCK WASHER, 1/4” | |
| 4 | 7 | 902000-1 | FLAT WASHER, 1/4” | |
| 5 | 3 | 227722 | ROD, BATTERY HOLD DOWN | |
| 6 | 1 | 901005 | HEX NUT, 5/16”-18 | |
| 7 | 1 | 902011-3 | LOCK WASHER, 5/16” | |
| 8 | 2 | 902000-7 | FLAT WASHER, 5/16” | |
| 9 | 1 | 250479 | BATTERY HOLD DOWN | |
| 10 | 1 | 215139 | CATCH & FASTENER | |
| 11 | 1 | 264022 | DUAL BATTERY BOX | |
| 12 | 2 | 251097 | GROMMET, RUBBER 7/8 X 1-5/8 |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
