Liftgate hydraulic pump, 2400 psi. This is commonly found on the ACL and MDR models.

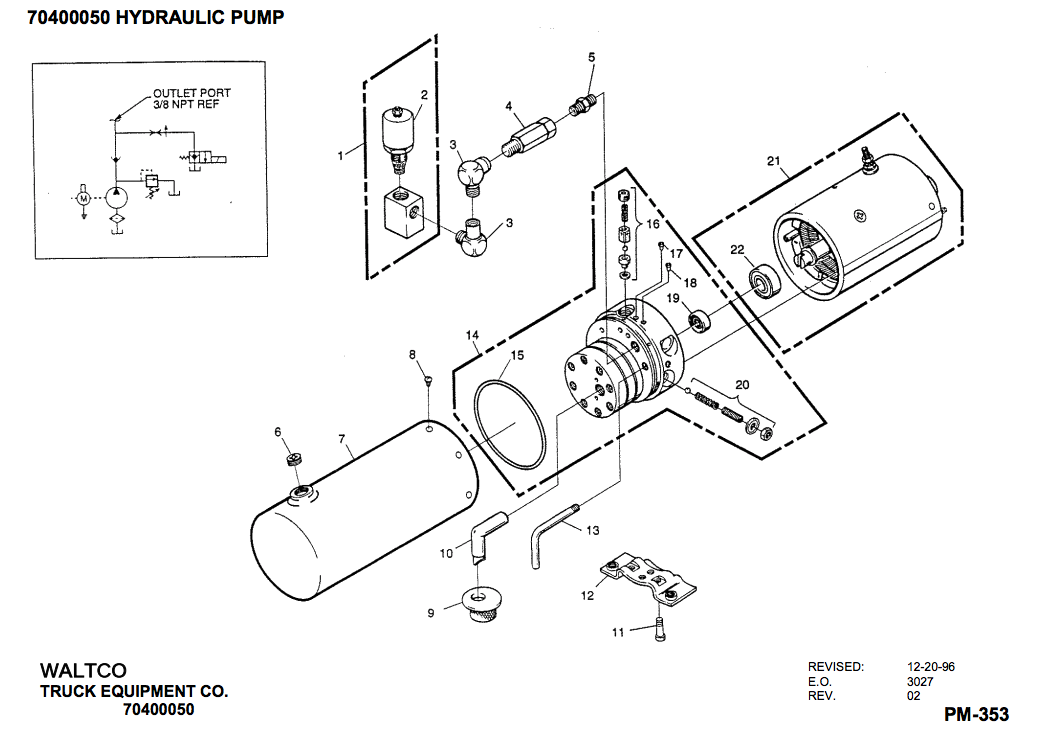

What's included on this power unit?
| ITEM | PART NUMBER | QTY | DESCRIPTION |
| 1 | 70400051 | 1 |
Valve Assembly Kit (Includes Item 2)
|
| 2 | 70092418 | 1 | Valve |
| 3 | 70400052 | 2 | Elbow |
| 4 | 70400053 | 1 |
2.50 Valve Assembly
|
| 5 | 70400054 | 1 | Nipple |
| 6 | 70400055 | 1 | Plug |
| 7 | 70400056 | 1 | Reservoir |
| 8 | 70091738 | 6 | Screw |
| 9 | 70091730 | 1 | Screen |
| 10 | 70091731 | 1 | Tube |
| 11 | 70092357 | 2 |
Screw Fillister Head
|
| 12 | 70400008 | 1 | Bracket |
| 13 | 70091732 | 1 | Tube |
| 14 | 70400057 | 1 |
Pump Assy Kit (Includes Items 15-20)
|
| 15 | 70091717 | 1 | “O” Ring |
| 16 | 70400007 | 1 | Valve Assembly |
| 17 | 70400058 | 1 | Strain Relief |
| 18 | 70400059 | 1 | Strain Relief |
| 19 | 70400006 | 1 | Seal |
| 20 | 70092355 | 1 |
Relief Valve Assembly
|
| 21 | 70092312 | 1 |
Motor (Includes Item 22)
|
| 22 | 70091721 | 1 | Bearing |
- Gallery
- Description
Liftgate hydraulic pump, 2400 psi. This is commonly found on the ACL and MDR models.
What's included on this power unit?
| ITEM | PART NUMBER | QTY | DESCRIPTION |
| 1 | 70400051 | 1 |
Valve Assembly Kit (Includes Item 2)
|
| 2 | 70092418 | 1 | Valve |
| 3 | 70400052 | 2 | Elbow |
| 4 | 70400053 | 1 |
2.50 Valve Assembly
|
| 5 | 70400054 | 1 | Nipple |
| 6 | 70400055 | 1 | Plug |
| 7 | 70400056 | 1 | Reservoir |
| 8 | 70091738 | 6 | Screw |
| 9 | 70091730 | 1 | Screen |
| 10 | 70091731 | 1 | Tube |
| 11 | 70092357 | 2 |
Screw Fillister Head
|
| 12 | 70400008 | 1 | Bracket |
| 13 | 70091732 | 1 | Tube |
| 14 | 70400057 | 1 |
Pump Assy Kit (Includes Items 15-20)
|
| 15 | 70091717 | 1 | “O” Ring |
| 16 | 70400007 | 1 | Valve Assembly |
| 17 | 70400058 | 1 | Strain Relief |
| 18 | 70400059 | 1 | Strain Relief |
| 19 | 70400006 | 1 | Seal |
| 20 | 70092355 | 1 |
Relief Valve Assembly
|
| 21 | 70092312 | 1 |
Motor (Includes Item 22)
|
| 22 | 70091721 | 1 | Bearing |
