PRODUCT DETAILS
Liftgate hydraulic lift cylinder. This is an OEM product made by Waltco Liftgate. This cylinder is found on the GT33 model - liftgate tag that this cylinder is found on is attached.
NEED ASSISTANCE?
Have your liftgate serial number ready for faster assistance. Where to find it
MODELS USING THIS PART
Note
This part appears in the following parts manuals. Always verify compatibility with your specific liftgate model and serial number before ordering.
Find your model and serial numberFound in
WALTCO GTSL
11/2016WALTCO GT
9/2015SHIPPING AND RETURNS
Shipping Information
Shipping timelines, transit options, and exceptions can vary by part and location. Please review our official policy page for the most current shipping and return details.
View Shipping PolicyReturn Policy
Return eligibility, time windows, and any applicable fees are outlined on our policy page. Policy terms may be updated there, so please refer to that page before placing your order.
View Return Policy
OEM Parts Diagram References
Find this Waltco Liftgate part in original OEM diagrams, grouped by liftgate style. Each link opens directly to the matching section in a new tab.
Reference Notice: Diagrams, images, and manuals are reference only and may not line up with every model variation. We're a small team behind a big catalog. We can't be held liable for errors in this material, so if you spot something off or want a second set of eyes, contact us.
Liftgate style
Model
27880020 is found in 4 OEM diagram references across 2 Waltco Liftgate manuals.

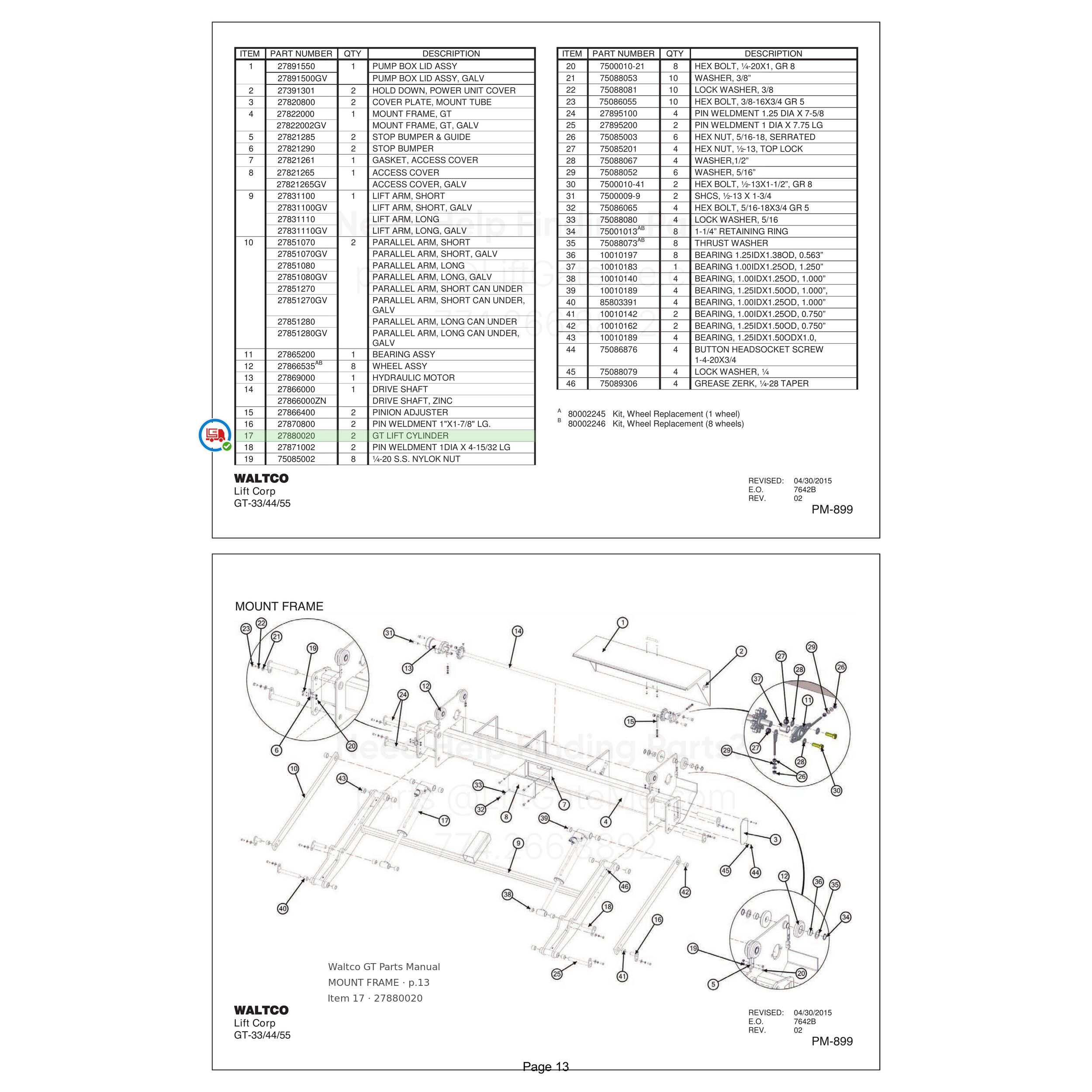

Waltco GT Parts Manual
9/2015| Image | Section | Item # | Pages | Link |
|---|---|---|---|---|
|
mount frame
|
17 |
Diagram p13
Table p13
|
Open diagram View | |
|

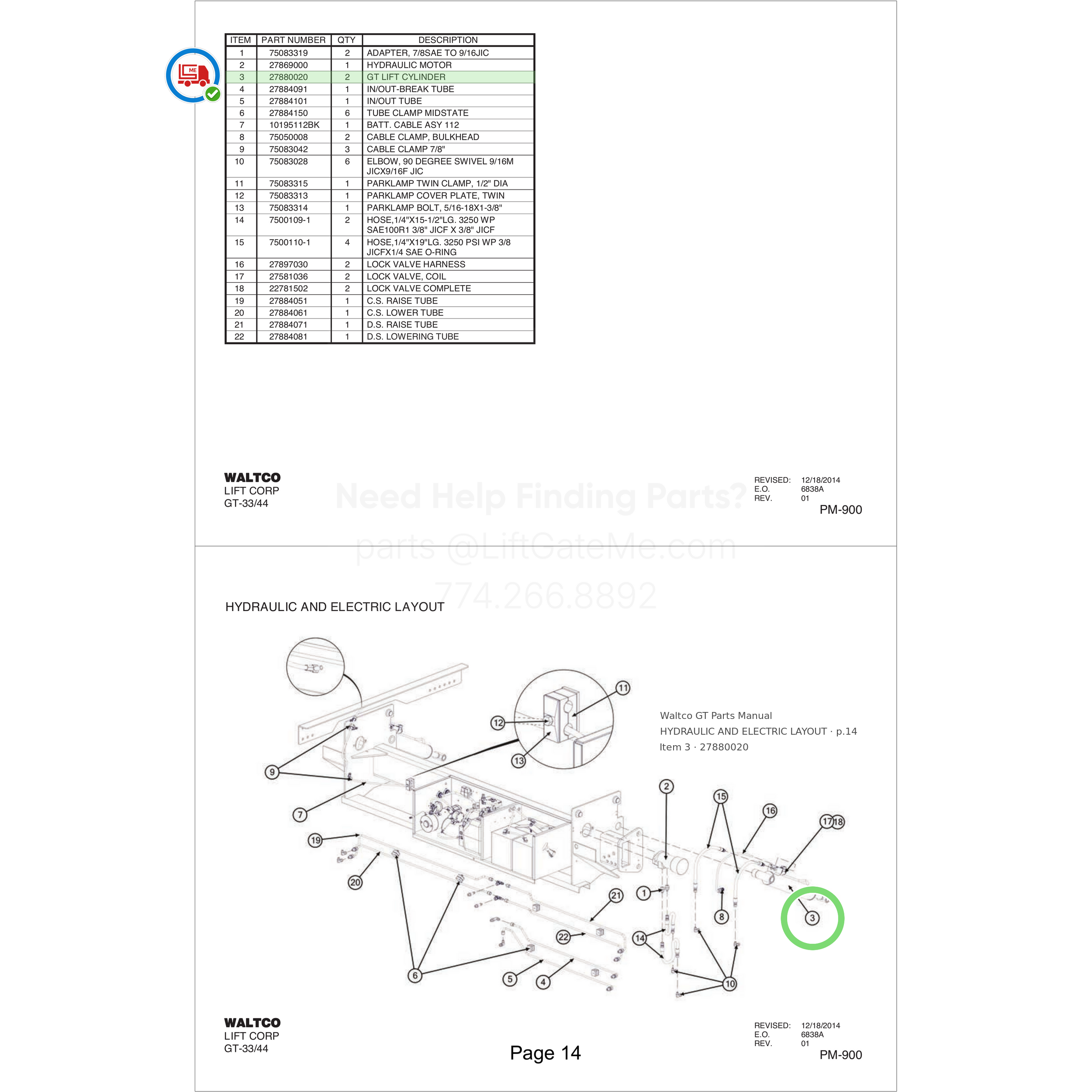

hydraulic and electric layout
|
3 |
Diagram p14
Table p14
|
Open diagram View |
Waltco GTSL Parts Manual
11/2016| Image | Section | Item # | Pages | Link |
|---|---|---|---|---|
|
mount frame
|
17 |
Diagram p13
Table p13
|
Open diagram View | |
|
hydraulic and electric layout
|
11 |
Diagram p14
Table p14
|
Open diagram View |
