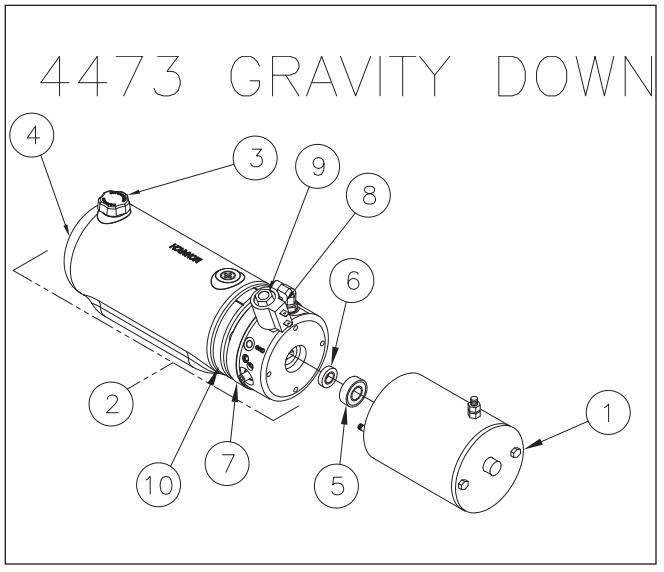

Thieman liftgate power unit. This is part number 4473. We have tagged this as a Thieman power unit.
| Item | Part Number Description | Qty./Model |
| 1 | 4423520 Motor 8111 | 1 |
| 2 | 4481 Pump and Reservoir Only | 1 |
| 3 | 4420409 Breather Cap | 1 |
| 4 | 4459 Reservoir ø4.50 x 12 | 1 |
| 5 | 4421520 Bearing | 1 |
| 6 | 4421530 Seal | 1 |
| 7 | 4421600 O-Ring | 1 |
| 8 | 4452 Solenoid Coil Only | 1 |
| 9 | 4445 Solenoid Valve Asm | 1 |
| 10 | 4488-001 Hose Clamp | 1 |
- Gallery
- Description
Thieman liftgate power unit. This is part number 4473. We have tagged this as a Thieman power unit.
| Item | Part Number Description | Qty./Model |
| 1 | 4423520 Motor 8111 | 1 |
| 2 | 4481 Pump and Reservoir Only | 1 |
| 3 | 4420409 Breather Cap | 1 |
| 4 | 4459 Reservoir ø4.50 x 12 | 1 |
| 5 | 4421520 Bearing | 1 |
| 6 | 4421530 Seal | 1 |
| 7 | 4421600 O-Ring | 1 |
| 8 | 4452 Solenoid Coil Only | 1 |
| 9 | 4445 Solenoid Valve Asm | 1 |
| 10 | 4488-001 Hose Clamp | 1 |
