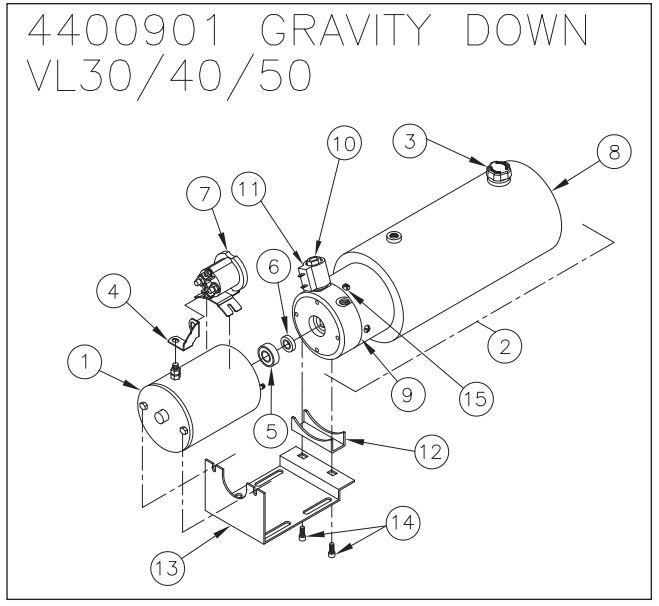

Thieman liftgate power unit - vl. This is part number 4400901. We have tagged this as a Thieman power unit.
| Item | Part Number Description | Qty./Model |
| 1 | 4423520 Motor 8111 | 1 |
| 2 | 4400909 Pump and Reservoir Only | 1 |
| 3 | 4420410 Breather Cap | 1 |
| 4 | 4480 Buss Bar | 1 |
| 5 | 4421520 Bearing | 1 |
| 6 | 4421530 Seal | 1 |
| 7 | 4468 Solenoid | 1 |
| 8 | 4423600 Reservoir ø6.00 x 13.50 | 1 |
| 9 | 4421600 O-Ring | 1 |
| 10 | 4445 Solenoid Valve Asm | 1 |
| 11 | 4452 Solenoid Coil Only | 1 |
| 12 | 4421350 Bracket | 1 |
| 13 | 4421420 Bracket | 1 |
| 14 | 8109-009 Screw .25 x 1.38 | 2 |
| 15 | 4421660 Self Tap Screw #10 x .38 | 6 |
