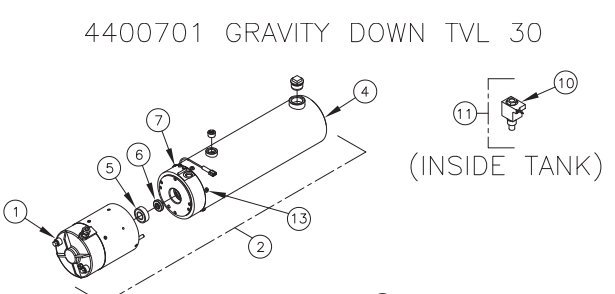

Thieman liftgate power unit. This is part number 4400701. We have tagged this as a Thieman power unit.
| Item | Part Number | Description | Qty./Model |
| 1 | 4423520 | Motor 8111 | 1 |
| 2 | 4400709 | Pump and Reservoir Asm | 1 |
| 3 | 4459 | Reservoir Ø4.50 x 12 (Poly) | 1 |
| 4 | 4406 | Reservoir Ø4.50 x 15 (Steel) | 1 |
| 5 | 4421520 | Bearing | 1 |
| 6 | 4421530 | Seal | 1 |
| 7 | 4421600 | O-Ring | 1 |
| 8 | 4423520 | Motor 8111 | 1 |
| 9 | 4400859 | Pump and Reservoir Asm | 1 |
| 10 | 4491 | Solenoid Coil only | 1 |
| 11 | 4492 | Solenoid Valve Asm | 1 |
| 12 | 4488-001 | Hose Clamp (Poly Reservoir) | 1 |
| 13 | 4421660 | Self Tap Screw #10 x .38 (Steel Rsvr.) | 6 |
