PRODUCT DETAILS
Maxon Liftgate part number 297554 is a screw,5/16-18x5 1/2,h.hd.cap,gr.8 (500206924301)
NEED ASSISTANCE?
Have your liftgate serial number ready for faster assistance. Where to find it
MODELS USING THIS PART
Note
This part appears in the following parts manuals. Always verify compatibility with your specific liftgate model and serial number before ordering.
Find your model and serial numberFound in
MAXON GPT
2019-presentMAXON GPTWR
2019-presentMAXON BMR
2016-presentMAXON BMR CS
2016-presentSHIPPING AND RETURNS
Shipping Information
Shipping timelines, transit options, and exceptions can vary by part and location. Please review our official policy page for the most current shipping and return details.
View Shipping PolicyReturn Policy
Return eligibility, time windows, and any applicable fees are outlined on our policy page. Policy terms may be updated there, so please refer to that page before placing your order.
View Return Policy
OEM Parts Diagram References
Find this Maxon part in original OEM diagrams, grouped by liftgate style. Each link opens directly to the matching section in a new tab.
Reference Notice: Diagrams, images, and manuals are reference only and may not line up with every model variation. We're a small team behind a big catalog. We can't be held liable for errors in this material, so if you spot something off or want a second set of eyes, contact us.
Liftgate style
Model
297554 is found in 6 OEM diagram references across 4 Maxon manuals.

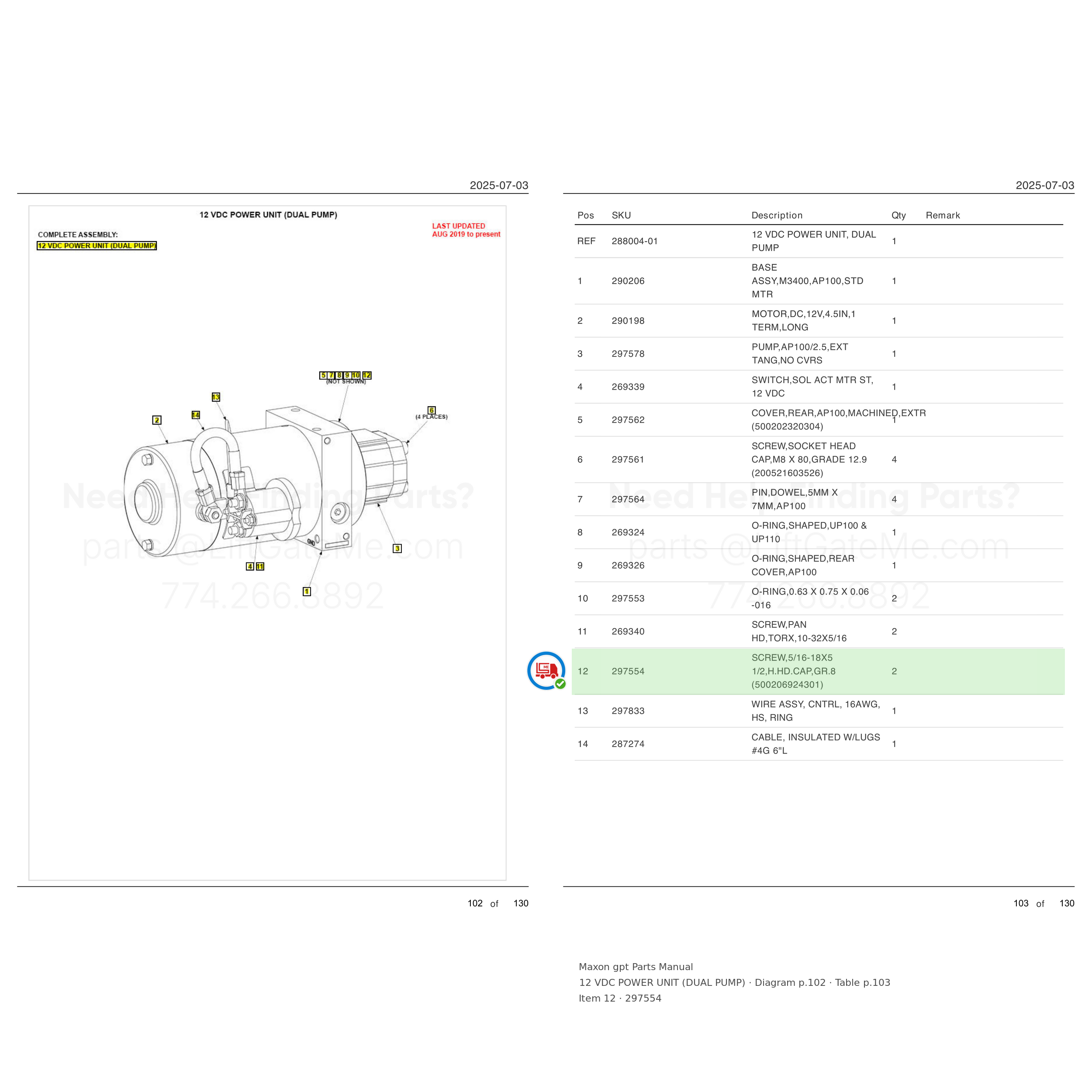

Maxon GPT Parts Manual
2019-present| Image | Section | Item # | Pages | Link |
|---|---|---|---|---|
|
12 vdc power unit dual pump
|
12 |
Diagram p102
Table p103
|
Open diagram View |
Maxon GPTWR Parts Manual
2019-present| Image | Section | Item # | Pages | Link |
|---|---|---|---|---|
|
12 vdc power unit dual pump
|
12 |
Diagram p102
Table p103
|
Open diagram View |
Maxon BMR Parts Manual
2016-present| Image | Section | Item # | Pages | Link |
|---|---|---|---|---|
|
secondary power unit optional
|
3L |
Diagram p211
Table p212
|
Open diagram View | |
|
12 volt dc secondary power unit optional bucher hydraulics
|
3L |
Diagram p213
Table p214
|
Open diagram View |
Maxon BMR-CS Parts Manual
2016-present| Image | Section | Item # | Pages | Link |
|---|---|---|---|---|
|
secondary power unit optional
|
3L |
Diagram p118
Table p119
|
Open diagram View | |
|
12 volt dc secondary power unit optional bucher hydraulics
|
3L |
Diagram p120
Table p121
|
Open diagram View |
