Waltco HLF, F, FSL power unit 70400000

$709.00
  • Waltco HLF, F, FSL power unit 70400000
  • Waltco HLF, F, FSL power unit 70400000

waltco-liftgate

Waltco HLF, F, FSL power unit 70400000

$709.00

Liftgate hydraulic power unit, 2700 psi. This power unit (pump and motor assembly) was built from 2/94 through 3/2000.  If your gate is not between these years please contact us or Waltco direct to find your correct part number.  This item comes with all of the following pictured in the product's diagram.

What models is this found on?

  • HLF-25
  • HLF-30
  • HLF-40
  • HLF-50
  • F-20
  • F-30
  • FSL-20
  • FSL-25
  • FSL-30

What's included?

ITEM PART NUMBER QTY DESCRIPTION
1 70400000 1 Hydraulic Pump Unit
A 70400001* 1 Hydraulic Reservoir
B 70091734* 1 Breather
C 70400002* 1 Reservoir Clamp
D 70092531* 1 Solenoid
E 70092312* 1 Motor
F 70400003* 1 Release Valve
G 75082611* 1 90° Male Elbow
H 70189860* 1 Flow Control Valve
2 75083073 1 Hose Assembly
3 75083018 1 45° Swivel Elbow
4 20280050 1 Hydraulic Cylinder
5 10021400 1 Pump Bracket Plate
6 10090500 1 Pump Cover Assembly
7 10021000 1 Pump Mounting Bracket
8 75088081 2 3/8” Lock Washer
9 75086056 2 Hex Bolt, 3/8”-16 x 1” lg., Grade 5
10 10021500 1 Pump Mounting Bracket
11 75088083 1 1/2” Lock Washer
12 75086108 1
Hex Bolt, 1/2”-13 x 1-1/2” lg., Grade 2





Tech Tip

For this power unit when installing, hook wires here to go down

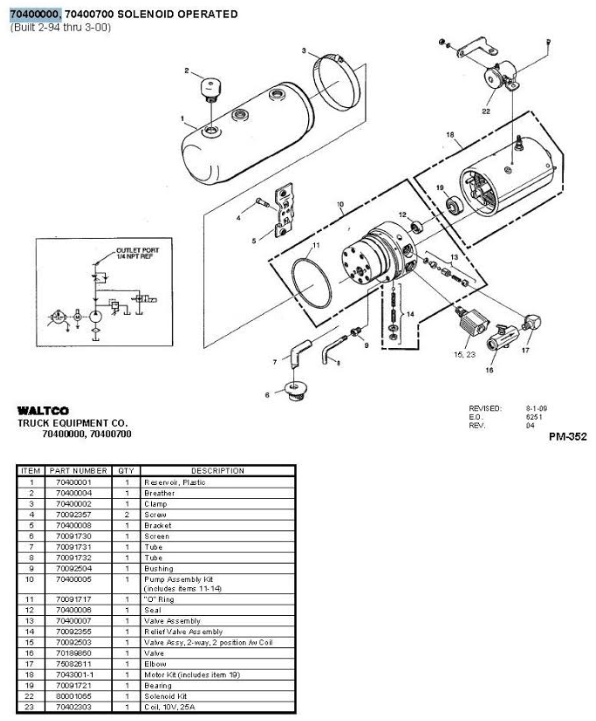

70400000 Waltco Power Unit Diagram
