Need a new solenoid?

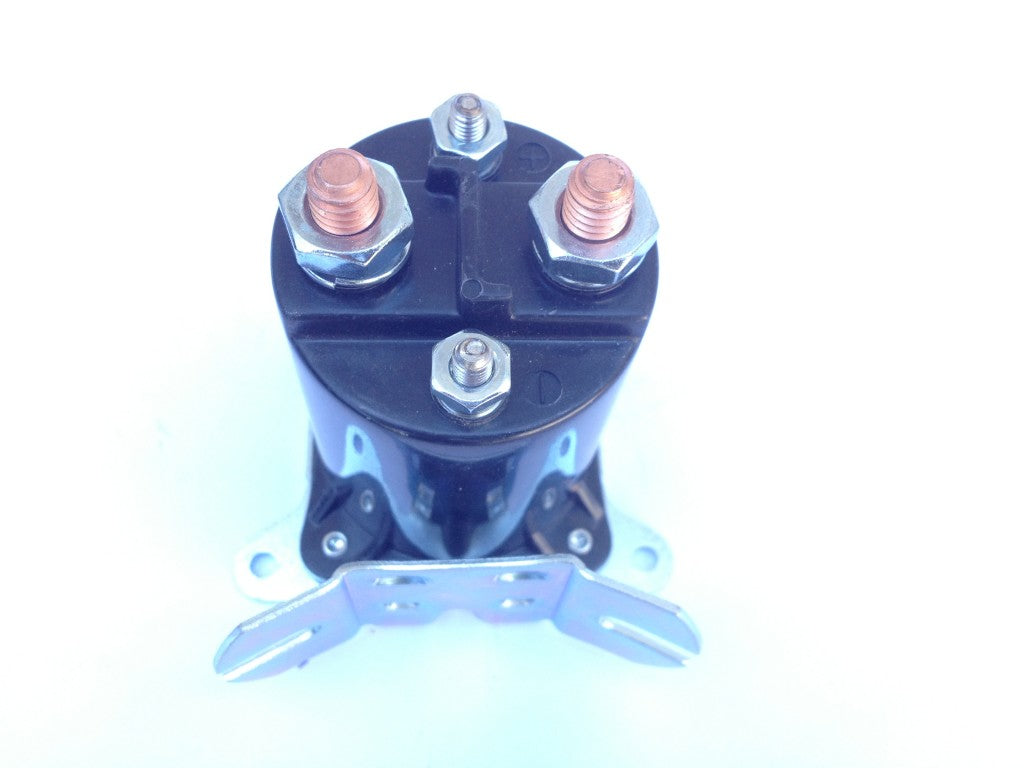

This is an OEM Maxon Liftgate solenoid, part number 268030-01. This solenoid is found on the GPT, BMRA, and BMRSD models (not to say there aren't more out there which contain this solenoid).
SBJ-6255-1
What motors is this found on?
This is found on the following motors:
- 250093 (GPT Heavy duty 12 vdc motor)
- 268337-01 (BMRSD 12 vdc motor)
What power units is this found on?
This solenoid is found on the following power units:
- 262256 (GPT Power Down)
- 268327-01 (BMRSD Power Down)
NEED ASSISTANCE?
Have your liftgate serial number ready for faster assistance. Where to find it
MODELS USING THIS PART
Note
This part appears in the following parts manuals. Always verify compatibility with your specific liftgate model and serial number before ordering.
Find your model and serial numberFound in
MAXON BMRSD SERIES
2009MAXON BMR A SERIES
2009SHIPPING AND RETURNS
Shipping Information
Shipping timelines, transit options, and exceptions can vary by part and location. Please review our official policy page for the most current shipping and return details.
View Shipping PolicyReturn Policy
Return eligibility, time windows, and any applicable fees are outlined on our policy page. Policy terms may be updated there, so please refer to that page before placing your order.
View Return Policy
OEM Parts Diagram References
Find this Maxon part in original OEM diagrams, grouped by liftgate style. Each link opens directly to the matching section in a new tab.
Reference Notice: Diagrams, images, and manuals are reference only and may not line up with every model variation. We're a small team behind a big catalog. We can't be held liable for errors in this material, so if you spot something off or want a second set of eyes, contact us.
Model
268030-01 is found in 3 OEM diagram references across 2 Maxon manuals.
Maxon BMR-A Series Parts Manual
2009| Image | Section | Item # | Pages | Link |
|---|---|---|---|---|
|

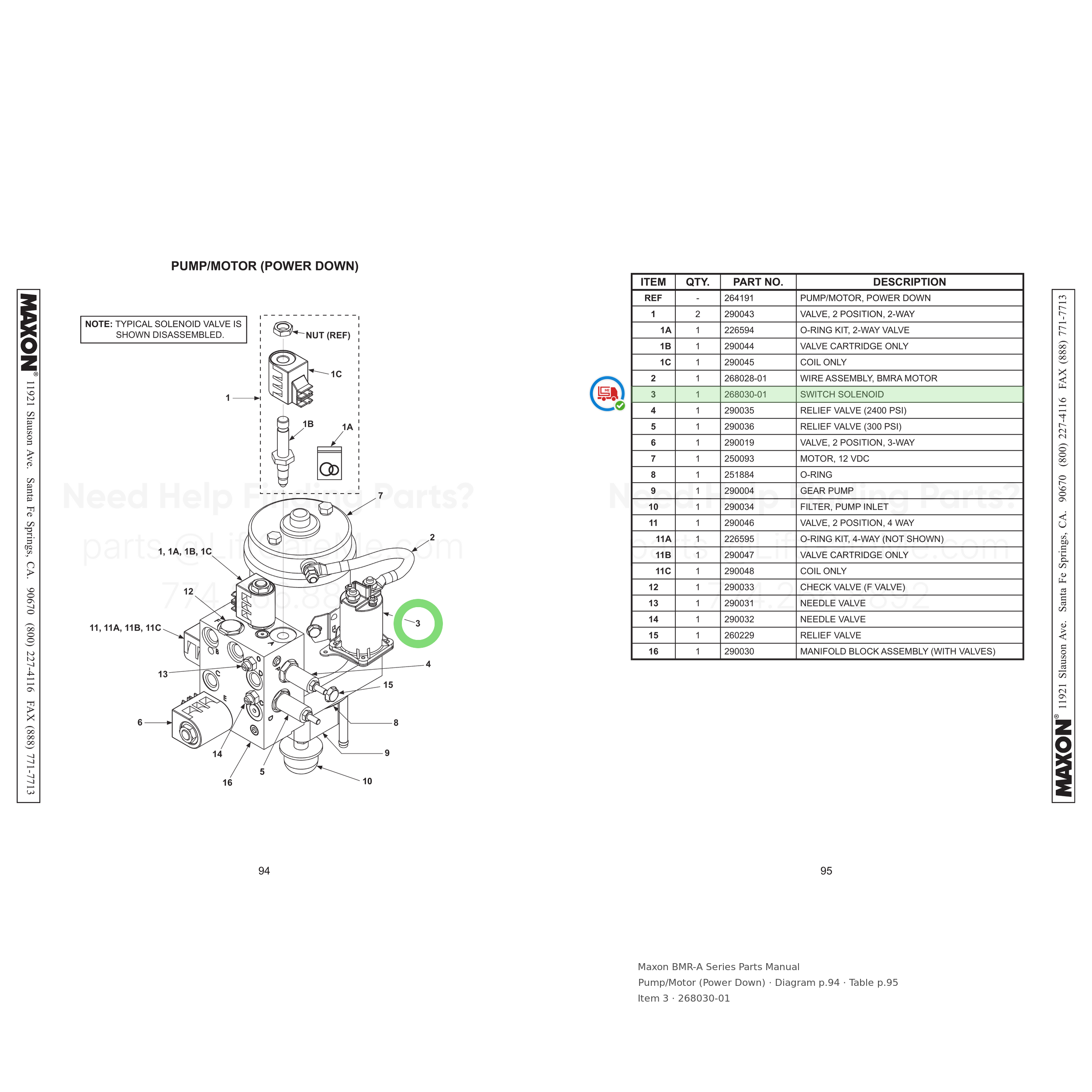

pump motor power down
|
3 |
Diagram p94
Table p95
|
Open diagram View | |
|

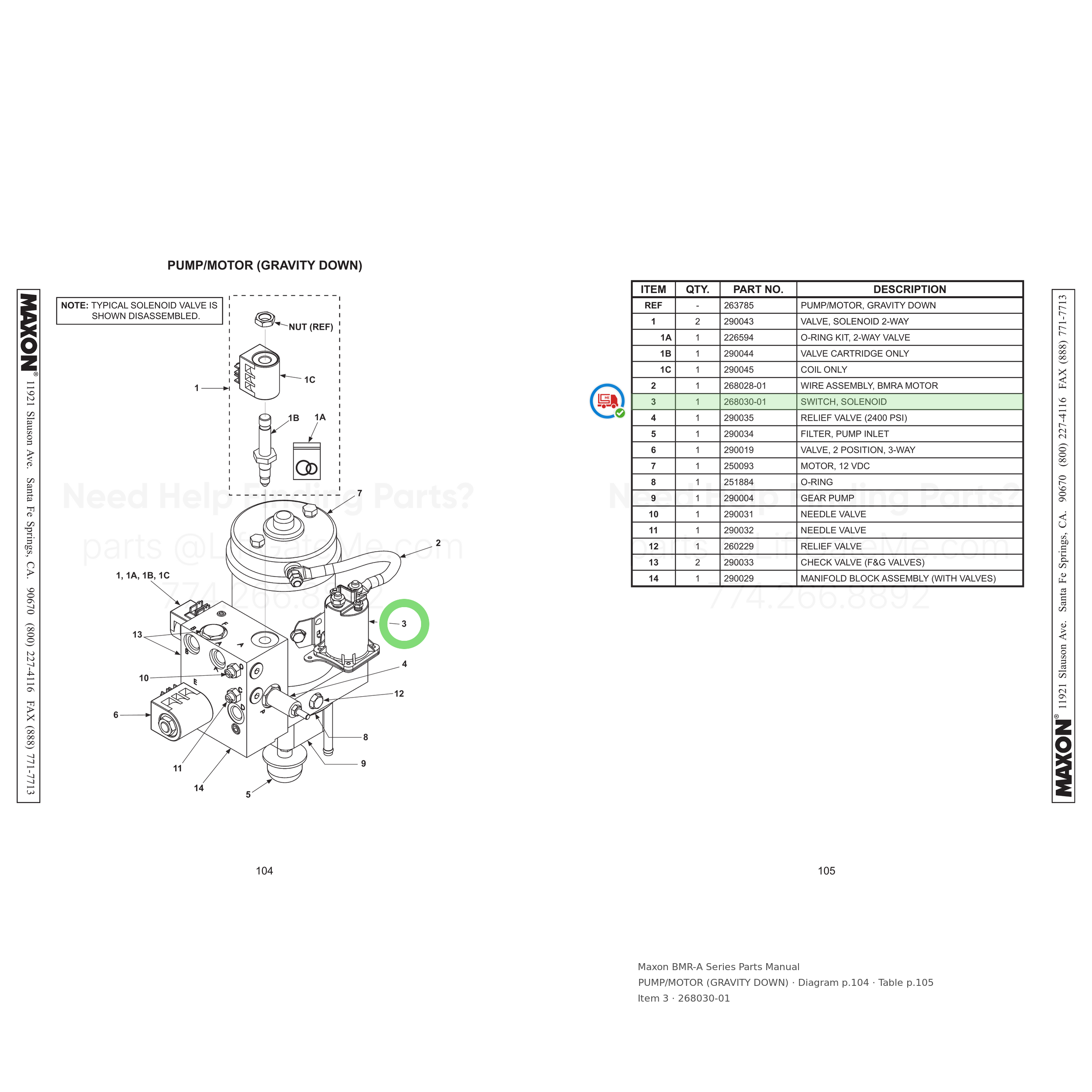

pump motor gravity down
|
3 |
Diagram p104
Table p105
|
Open diagram View |
Maxon BMRSD Series Parts Manual
2009| Image | Section | Item # | Pages | Link |
|---|---|---|---|---|
|
pump motor power down
|
17 |
Diagram p60
Table p61
|
Open diagram View |
