maxon-liftgate

Maxon 3 Wire Tuck Under Switch - 264346

$51.98
  • Maxon 3 Wire Tuck Under Switch - 264346
  • Maxon 3 Wire Tuck Under Switch - 264346
  • Maxon 3 Wire Tuck Under Switch - 264346

maxon-liftgate

Maxon 3 Wire Tuck Under Switch - 264346

$51.98

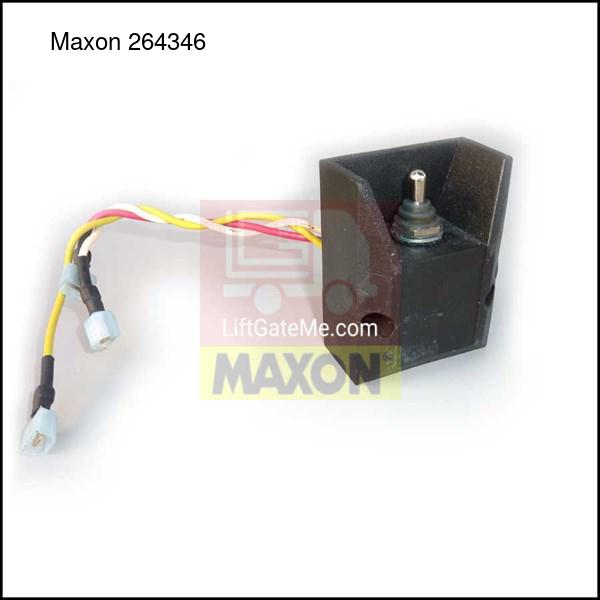

Raise and lower 3 wire 9 inch wire switch and protective rubber assembly found on many tuck under models - part number 264346.

This is one of the most common switches to find on Maxon's tuck under liftgates even though it is found on a few models of the cantilever models as well.

If this isn't the switch you're looking for, follow the link below.

Found on models

This is super common on most tuck under styles gates as well as the conventional cantilever.  You'll find this on:

  • 72-150, 72-25 & 72-30
  • TE-20, TE-25 & TE-25L
  • GPT-25, GPT-3, GPT-4, & GPT-5
  • TG-150
  • TG-20

Is 267959-01 the same switch?

Almost.  For more information on 267959-01, click here.

Connecting your switch

If you're on a GPTLR this is most likely you're setup.  You're brand new switch has yellow, white, and red wires. Where do they go?

Yellow connects with black.

White connects with black.

Red connects with green.



Do you need the connecting harness?

Click here, for part number, 280637-01.  This is a 84” long harness for the gravity down model.

Click here, for part number, 280638-01.  This is a 84” long harness for the power down model.



 Need an old school electrical schematic on this? We got you covered.
