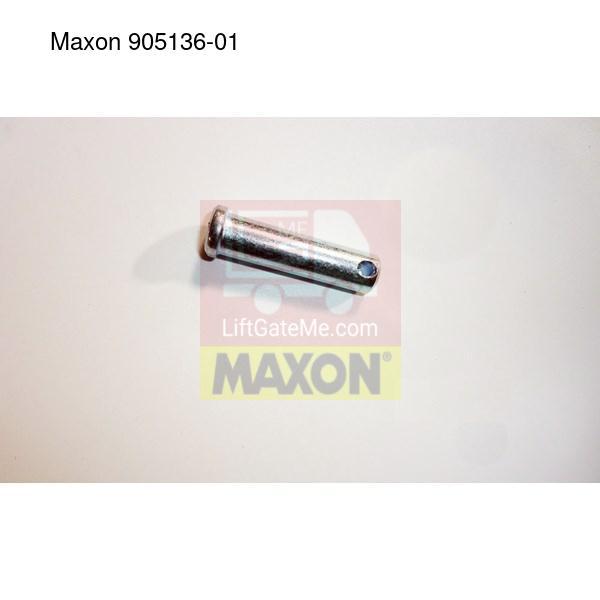

Maxon Liftgate part number 905136-01 is a pin clevis .500 x 1.906 gr8. We have tagged this as a Maxon pin.
