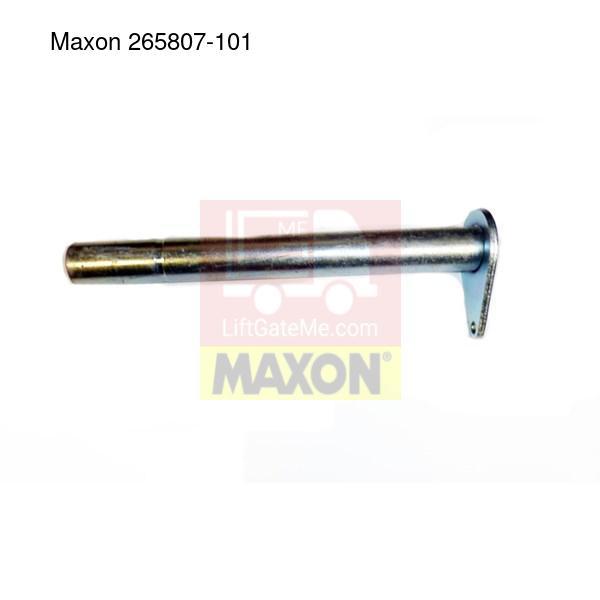

Maxon Liftgate part number 265807-101 is a pin assembly, spring. We have tagged this as a liftgate spring.
Need multiple pins on this gate?
This pin is also sold in a GPT-25/GPT-3 common pin kit.
OEM Diagram References
This part appears in the following OEM exploded diagrams. Links open the exact diagram section in a new tab.
Part Number:
265807-101
2 manuals •
6 total references
| Section | Item # | Pages | Link |
|---|---|---|---|
| main assembly gpt4 gpt5 gptwr4 and gptwr5 | 26 |
Diagram p16
Table p17
|
Open diagram |
| main assembly gpt 25 gpt 3 gptwr 25 and gptwr 3 | 27 |
Diagram p7
Table p8
|
Open diagram |
| main assembly gpt 25 gpt 3 gptwr 25 and gptwr 3 pins and bushings | 9 |
Diagram p14
Table p15
|
Open diagram |
| Section | Item # | Pages | Link |
|---|---|---|---|
| main assembly gpt4 gpt5 gptwr4 and gptwr5 | 26 |
Diagram p16
Table p19
|
Open diagram |
| main assembly gpt 25 gpt 3 gptwr 25 and gptwr 3 | 27 |
Diagram p7
Table p8
|
Open diagram |
| main assembly gpt 25 gpt 3 gptwr 25 and gptwr 3 pins and bushings | 9 |
Diagram p14
Table p15
|
Open diagram |
- Gallery
- Description
Maxon Liftgate part number 265807-101 is a pin assembly, spring. We have tagged this as a liftgate spring.
Need multiple pins on this gate?
This pin is also sold in a GPT-25/GPT-3 common pin kit.
