Palfinger Interlift ILM Plus Liftgate Parts Diagrams | Approximate Years 2019
Palfinger Interlift ILM Plus OEM parts diagram reference
Find Palfinger Interlift ILM Plus parts diagrams for 2019 rail lift liftgates. These breakdowns help you match part numbers, confirm assemblies, and order the correct replacement parts.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

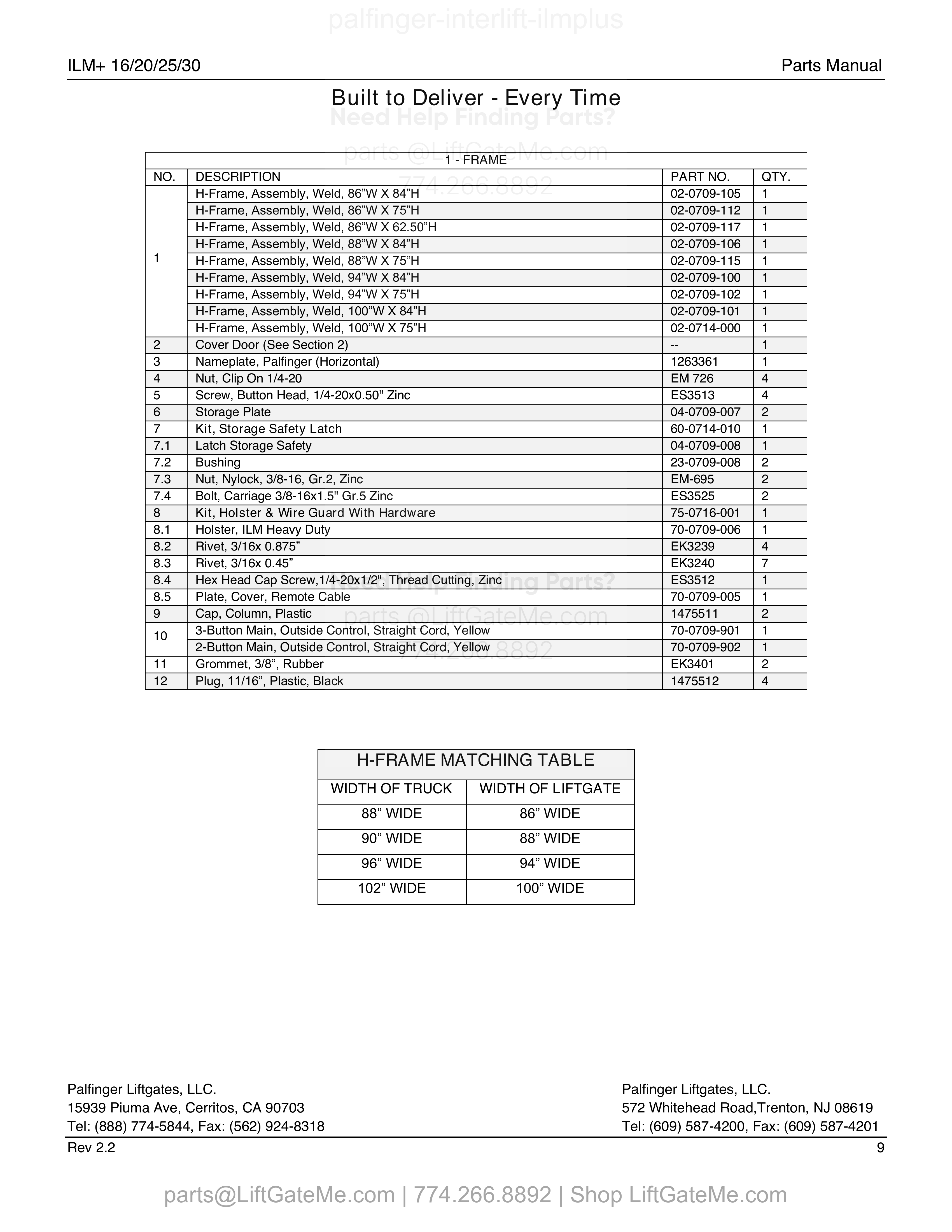

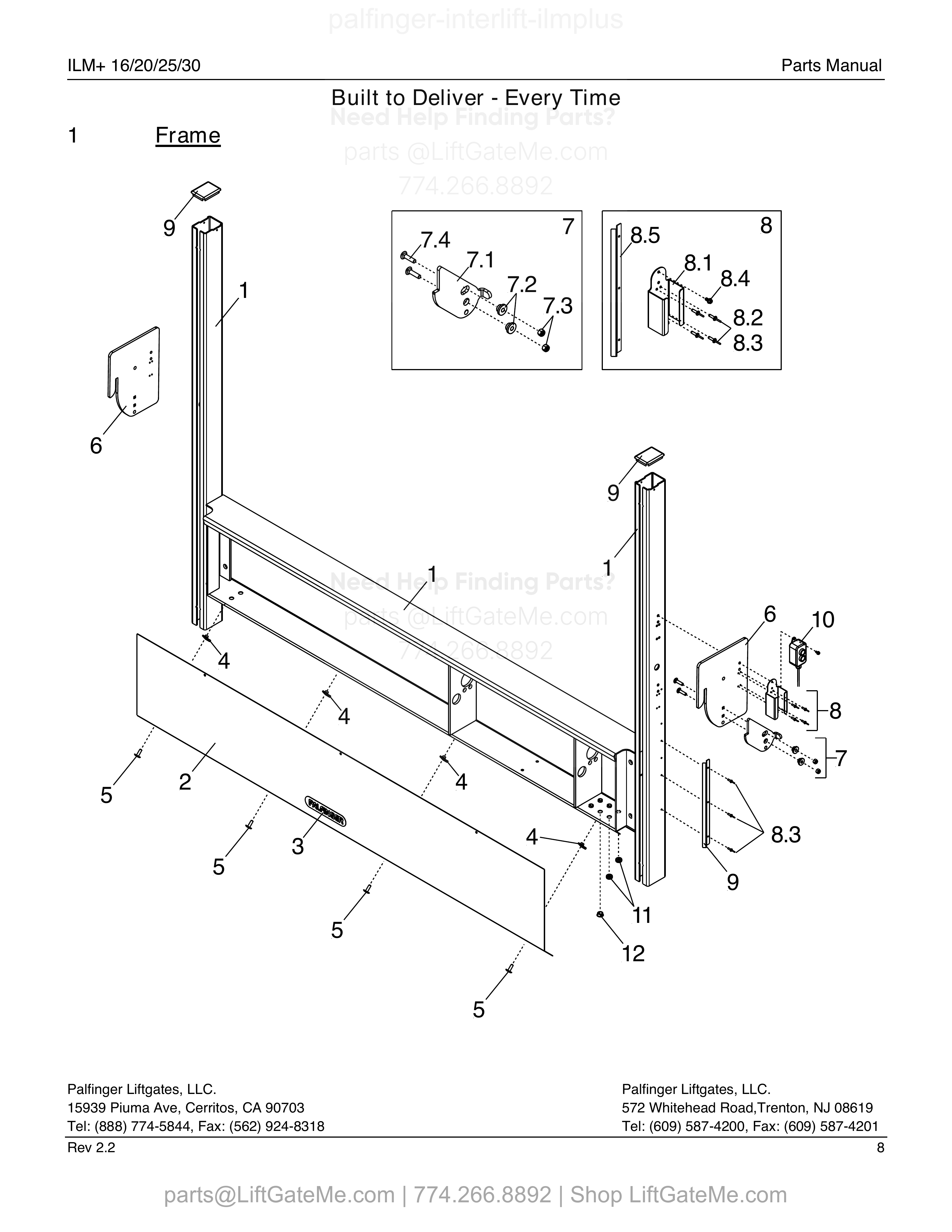

Frame
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 02-0709-105 | H-Frame, Assembly, Weld, 86”W X 84”H | |
| 1 | 1 | 02-0709-112 | H-Frame, Assembly, Weld, 86”W X 75”H | |
| 1 | 1 | 02-0709-117 | H-Frame, Assembly, Weld, 86”W X 62.50”H | |
| 1 | 1 | 02-0709-106 | H-Frame, Assembly, Weld, 88”W X 84”H | |
| 1 | 1 | 02-0709-115 | H-Frame, Assembly, Weld, 88”W X 75”H | |
| 1 | 1 | 02-0709-100 | H-Frame, Assembly, Weld, 94”W X 84”H | |
| 1 | 1 | 02-0709-102 | H-Frame, Assembly, Weld, 94”W X 75”H | |
| 1 | 1 | 02-0709-101 | H-Frame, Assembly, Weld, 100”W X 84”H | |
| 1 | 1 | 02-0714-000 | H-Frame, Assembly, Weld, 100”W X 75”H | |
| 2 | 1 | -- | Cover Door (See Section 2) | |
| 3 | 1 | 1263361 | Nameplate, Palfinger (Horizontal) | |
| 4 | 4 | EM 726 | Nut, Clip On 1/4-20 | |
| 5 | 4 | ES3513 | Screw, Button Head, 1/4-20x0.50" Zinc | |
| 6 | 2 | 04-0709-007 | Storage Plate | |
| 7 | 1 | 60-0714-010 | Kit, Storage Safety Latch | |
| 7.1 | 1 | 04-0709-008 | Latch Storage Safety | |
| 7.2 | 2 | 23-0709-008 | Bushing | |
| 7.3 | 2 | EM-695 | Nut, Nylock, 3/8-16, Gr.2, Zinc | |
| 7.4 | 2 | ES3525 | Bolt, Carriage 3/8-16x1.5" Gr.5 Zinc | |
| 8 | 1 | 75-0716-001 | Kit, Holster & Wire Guard With Hardware | |
| 8.1 | 1 | 70-0709-006 | Holster, ILM Heavy Duty | |
| 8.2 | 4 | EK3239 | Rivet, 3/16x 0.875” | |
| 8.3 | 7 | EK3240 | Rivet, 3/16x 0.45” | |
| 8.4 | 1 | ES3512 | Hex Head Cap Screw,1/4-20x1/2", Thread Cutting, Zinc | |
| 8.5 | 1 | 70-0709-005 | Plate, Cover, Remote Cable | |
| 9 | 2 | 1475511 | Cap, Column, Plastic | |

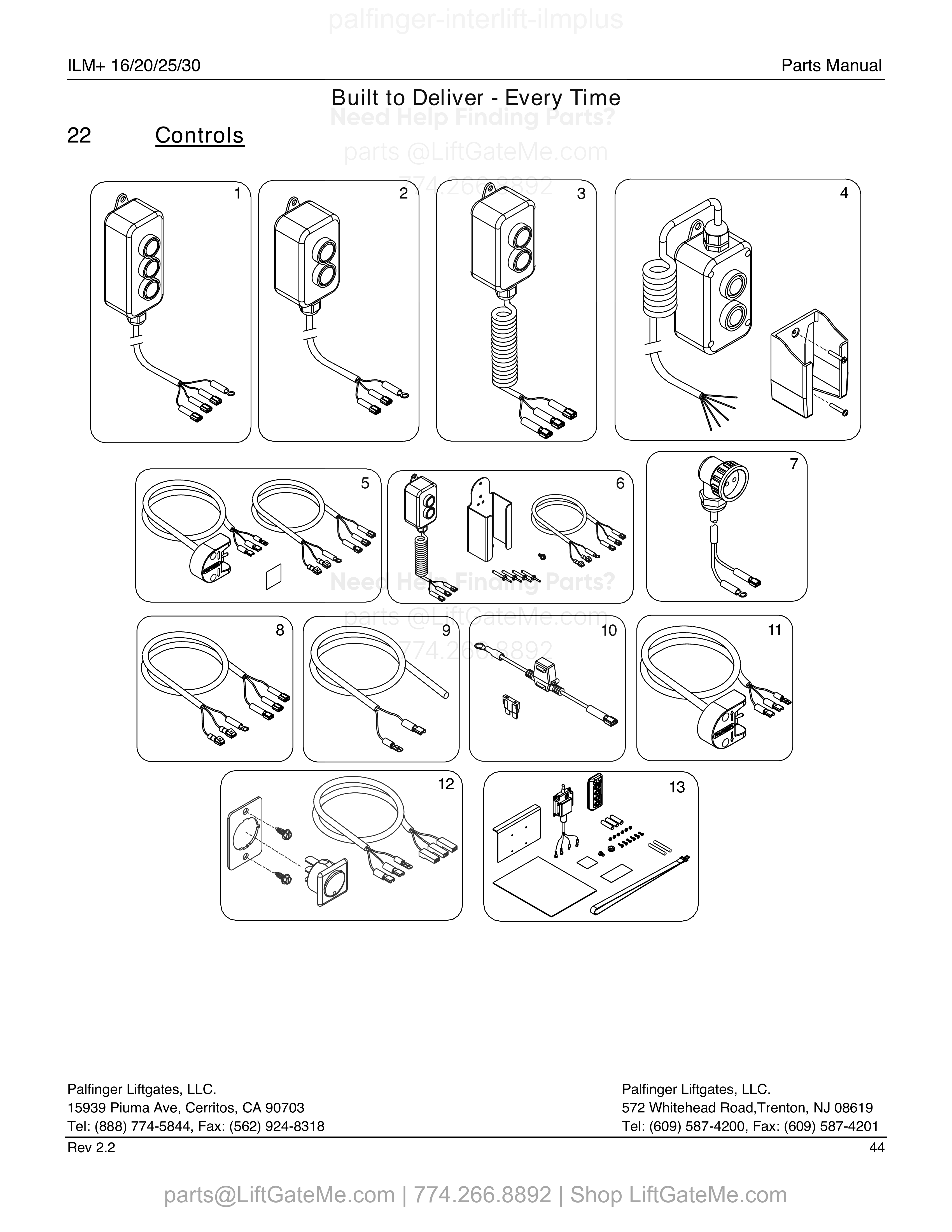

| 10 | 1 | 70-0709-901 | 3-Button Main, Outside Control, Straight Cord, Yellow | |
| 10 | 1 | 70-0709-902 | 2-Button Main, Outside Control, Straight Cord, Yellow | |
| 11 | 2 | EK3401 | Grommet, 3/8”, Rubber | |
| 12 | 4 | 1475512 | Plug, 11/16”, Plastic, Black |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

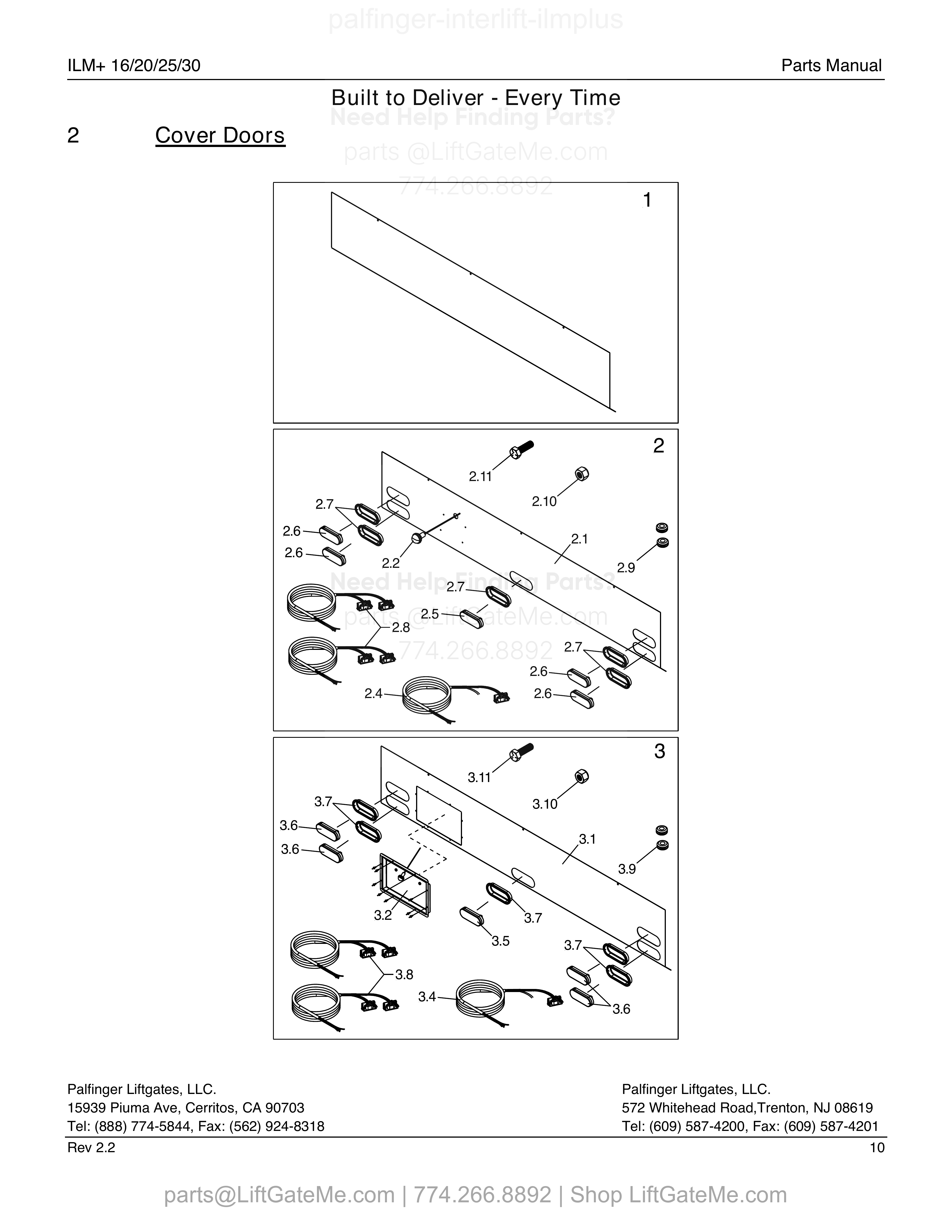

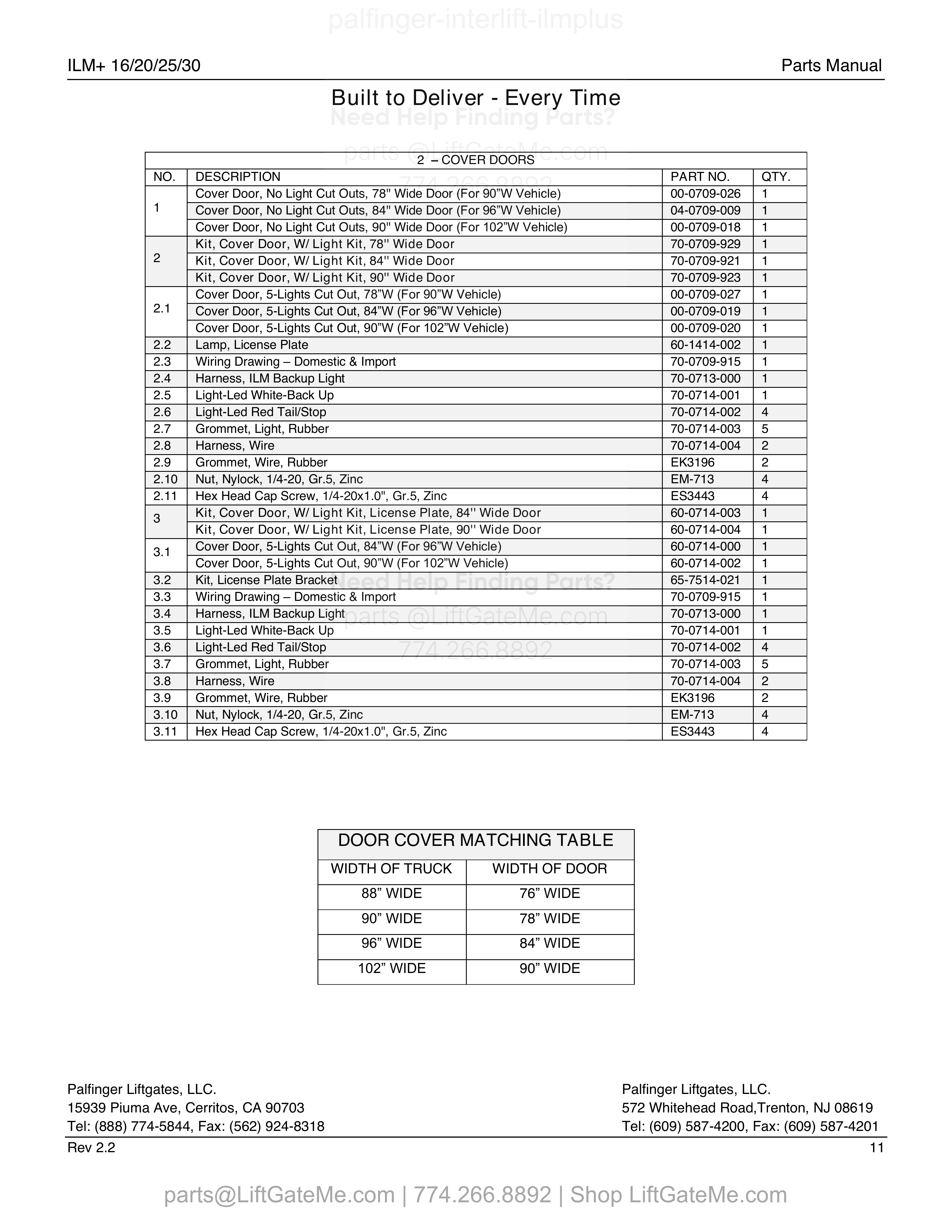

2 - Cover Doors
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 00-0709-026 | Cover Door, No Light Cut Outs, 78'' Wide Door (For 90”W Vehicle) | |
| 1 | 1 | 04-0709-009 | Cover Door, No Light Cut Outs, 84'' Wide Door (For 96”W Vehicle) | |
| 1 | 1 | 00-0709-018 | Cover Door, No Light Cut Outs, 90'' Wide Door (For 102”W Vehicle) | |
| 2 | 1 | 70-0709-929 | Kit, Cover Door, W/ Light Kit, 78'' Wide Door | |
| 2 | 1 | 70-0709-921 | Kit, Cover Door, W/ Light Kit, 84'' Wide Door | |
| 2 | 1 | 70-0709-923 | Kit, Cover Door, W/ Light Kit, 90'' Wide Door | |
| 2.1 | 1 | 00-0709-027 | Cover Door, 5-Lights Cut Out, 78”W (For 90”W Vehicle) | |
| 2.1 | 1 | 00-0709-019 | Cover Door, 5-Lights Cut Out, 84”W (For 96”W Vehicle) | |
| 2.1 | 1 | 00-0709-020 | Cover Door, 5-Lights Cut Out, 90”W (For 102”W Vehicle) | |
| 2.2 | 1 | 60-1414-002 | Lamp, License Plate | |
| 2.3 | 1 | 70-0709-915 | Wiring Drawing – Domestic & Import | |
| 2.4 | 1 | 70-0713-000 | Harness, ILM Backup Light | |
| 2.5 | 1 | 70-0714-001 | Light-Led White-Back Up | |
| 2.6 | 4 | 70-0714-002 | Light-Led Red Tail/Stop | |
| 2.7 | 5 | 70-0714-003 | Grommet, Light, Rubber | |
| 2.8 | 2 | 70-0714-004 | Harness, Wire | |
| 2.9 | 2 | EK3196 | Grommet, Wire, Rubber | |
| 2.10 | 4 | EM-713 | Nut, Nylock, 1/4-20, Gr.5, Zinc | |
| 2.11 | 4 | ES3443 | Hex Head Cap Screw, 1/4-20x1.0", Gr.5, Zinc | |
| 3 | 1 | 60-0714-003 | Kit, Cover Door, W/ Light Kit, License Plate, 84'' Wide Door | |
| 3 | 1 | 60-0714-004 | Kit, Cover Door, W/ Light Kit, License Plate, 90'' Wide Door | |
| 3.1 | 1 | 60-0714-000 | Cover Door, 5-Lights Cut Out, 84”W (For 96”W Vehicle) | |
| 3.1 | 1 | 60-0714-002 | Cover Door, 5-Lights Cut Out, 90”W (For 102”W Vehicle) | |
| 3.2 | 1 | 65-7514-021 | Kit, License Plate Bracket | |
| 3.3 | 1 | 70-0709-915 | Wiring Drawing – Domestic & Import | |
| 3.4 | 1 | 70-0713-000 | Harness, ILM Backup Light | |
| 3.5 | 1 | 70-0714-001 | Light-Led White-Back Up | |
| 3.6 | 4 | 70-0714-002 | Light-Led Red Tail/Stop | |
| 3.7 | 5 | 70-0714-003 | Grommet, Light, Rubber | |
| 3.8 | 2 | 70-0714-004 | Harness, Wire | |
| 3.9 | 2 | EK3196 | Grommet, Wire, Rubber | |
| 3.10 | 4 | EM-713 | Nut, Nylock, 1/4-20, Gr.5, Zinc | |
| 3.11 | 4 | ES3443 | Hex Head Cap Screw, 1/4-20x1.0", Gr.5, Zinc |

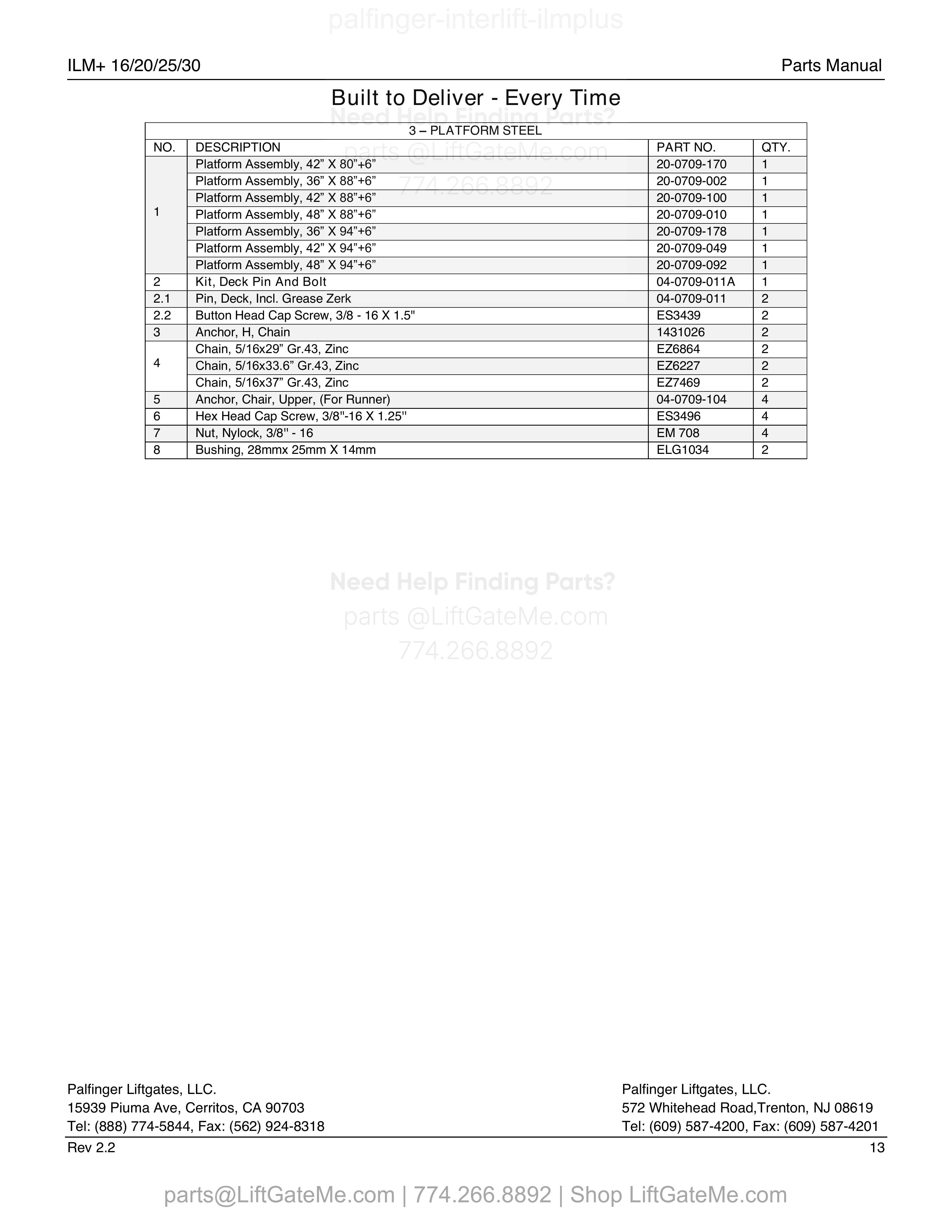

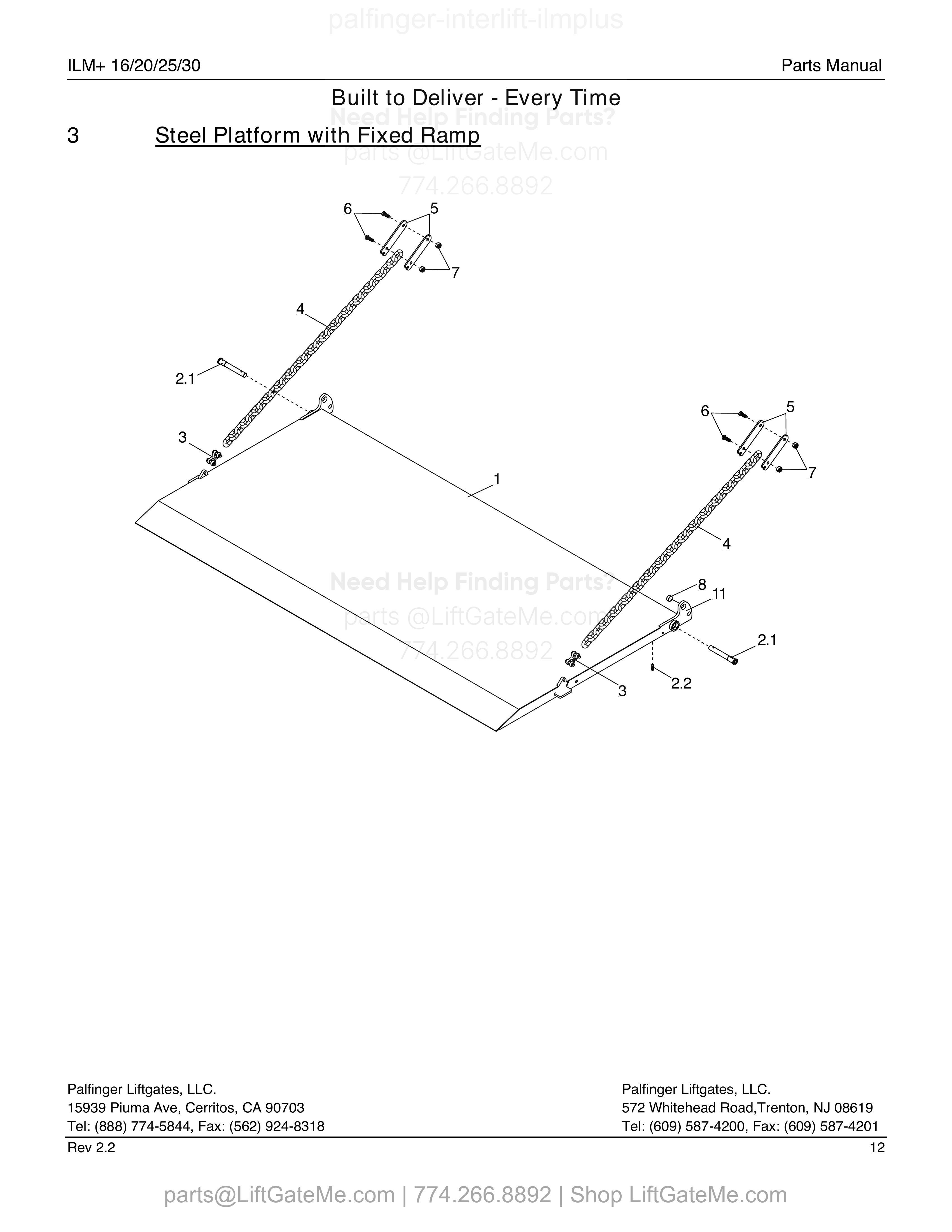

3 - Platform Steel
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20-0709-170 | Platform Assembly, 42” X 80”+6” | |
| 1 | 1 | 20-0709-002 | Platform Assembly, 36” X 88”+6” | |
| 1 | 1 | 20-0709-100 | Platform Assembly, 42” X 88”+6” | |
| 1 | 1 | 20-0709-010 | Platform Assembly, 48” X 88”+6” | |
| 1 | 1 | 20-0709-178 | Platform Assembly, 36” X 94”+6” | |
| 1 | 1 | 20-0709-049 | Platform Assembly, 42” X 94”+6” | |
| 1 | 1 | 20-0709-092 | Platform Assembly, 48” X 94”+6” | |
| 2 | 1 | 04-0709-011A | Kit, Deck Pin And Bolt | |
| 2.1 | 2 | 04-0709-011 | Pin, Deck, Incl. Grease Zerk | |
| 2.2 | 2 | ES3439 | Button Head Cap Screw, 3/8 - 16 X 1.5" | |
| 3 | 2 | 1431026 | Anchor, H, Chain | |
| 4 | 2 | EZ6864 | Chain, 5/16x29” Gr.43, Zinc | |
| 4 | 2 | EZ6227 | Chain, 5/16x33.6” Gr.43, Zinc | |
| 4 | 2 | EZ7469 | Chain, 5/16x37” Gr.43, Zinc | |
| 5 | 4 | 04-0709-104 | Anchor, Chair, Upper, (For Runner) | |
| 6 | 4 | ES3496 | Hex Head Cap Screw, 3/8''-16 X 1.25'' | |
| 7 | 4 | EM 708 | Nut, Nylock, 3/8'' - 16 | |
| 8 | 2 | ELG1034 | Bushing, 28mmx 25mm X 14mm |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

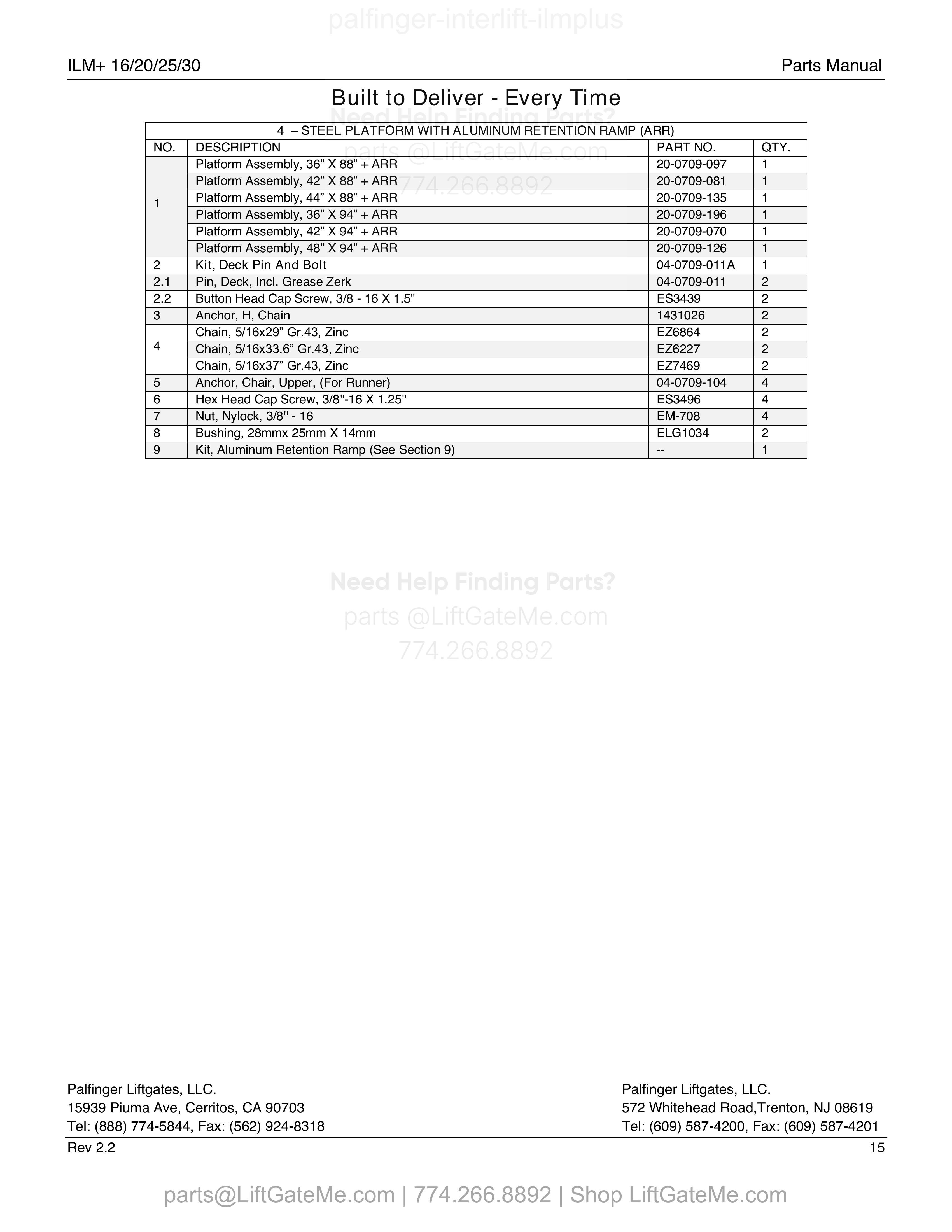

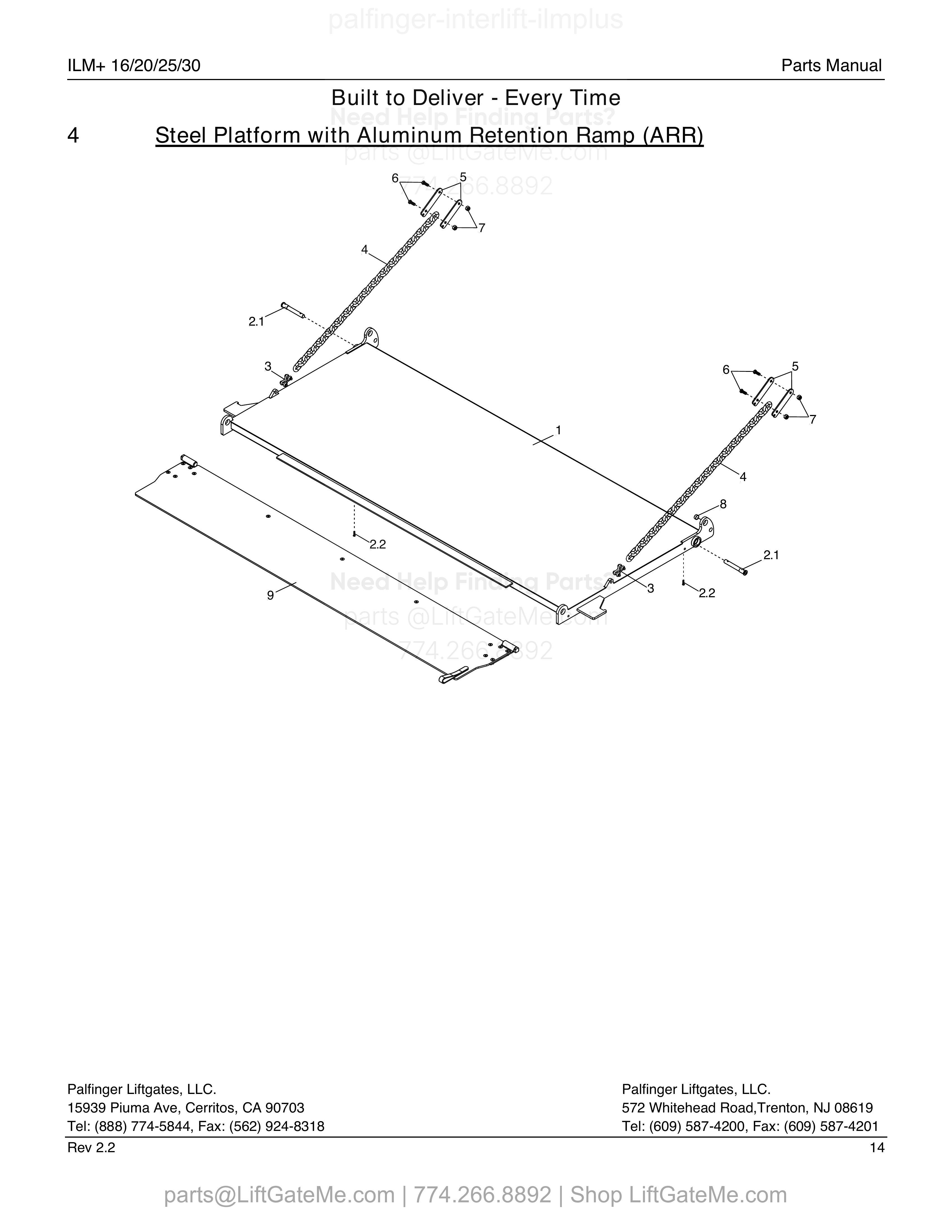

4 – STEEL PLATFORM WITH ALUMINUM RETENTION RAMP (ARR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20-0709-097 | Platform Assembly, 36” X 88” + ARR | |
| 1 | 1 | 20-0709-081 | Platform Assembly, 42” X 88” + ARR | |
| 1 | 1 | 20-0709-135 | Platform Assembly, 44” X 88” + ARR | |
| 1 | 1 | 20-0709-196 | Platform Assembly, 36” X 94” + ARR | |
| 1 | 1 | 20-0709-070 | Platform Assembly, 42” X 94” + ARR | |
| 1 | 1 | 20-0709-126 | Platform Assembly, 48” X 94” + ARR | |
| 2 | 1 | 04-0709-011A | Kit, Deck Pin And Bolt | |
| 2.1 | 2 | 04-0709-011 | Pin, Deck, Incl. Grease Zerk | |
| 2.2 | 2 | ES3439 | Button Head Cap Screw, 3/8 - 16 X 1.5" | |
| 3 | 2 | 1431026 | Anchor, H, Chain | |
| 4 | 2 | EZ6864 | Chain, 5/16x29” Gr.43, Zinc | |
| 4 | 2 | EZ6227 | Chain, 5/16x33.6” Gr.43, Zinc | |
| 4 | 2 | EZ7469 | Chain, 5/16x37” Gr.43, Zinc | |
| 5 | 4 | 04-0709-104 | Anchor, Chair, Upper, (For Runner) | |
| 6 | 4 | ES3496 | Hex Head Cap Screw, 3/8"-16 X 1.25" | |
| 7 | 4 | EM-708 | Nut, Nylock, 3/8" - 16 | |
| 8 | 2 | ELG1034 | Bushing, 28mmx 25mm X 14mm | |

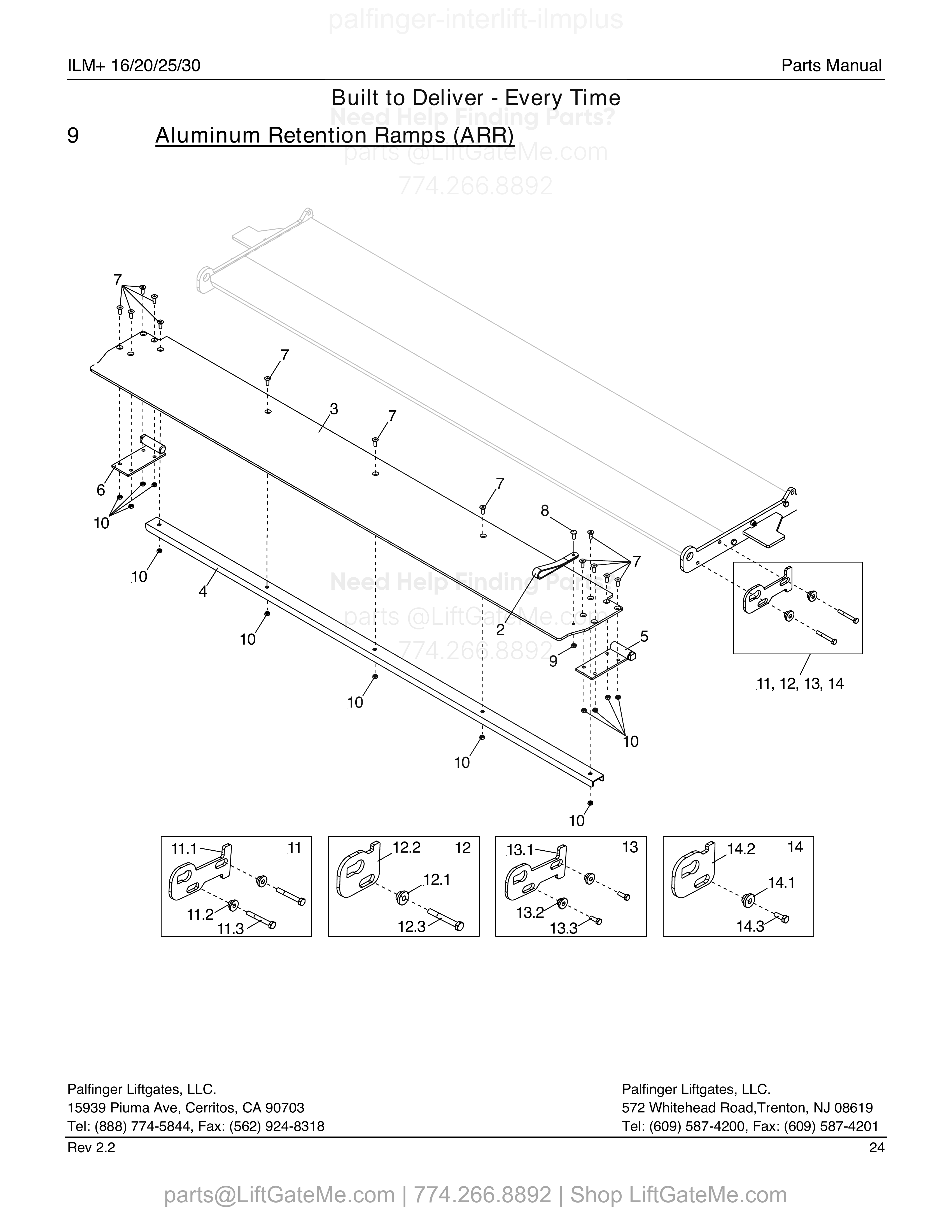

| 9 | 1 | -- | Kit, Aluminum Retention Ramp (See Section 9) |

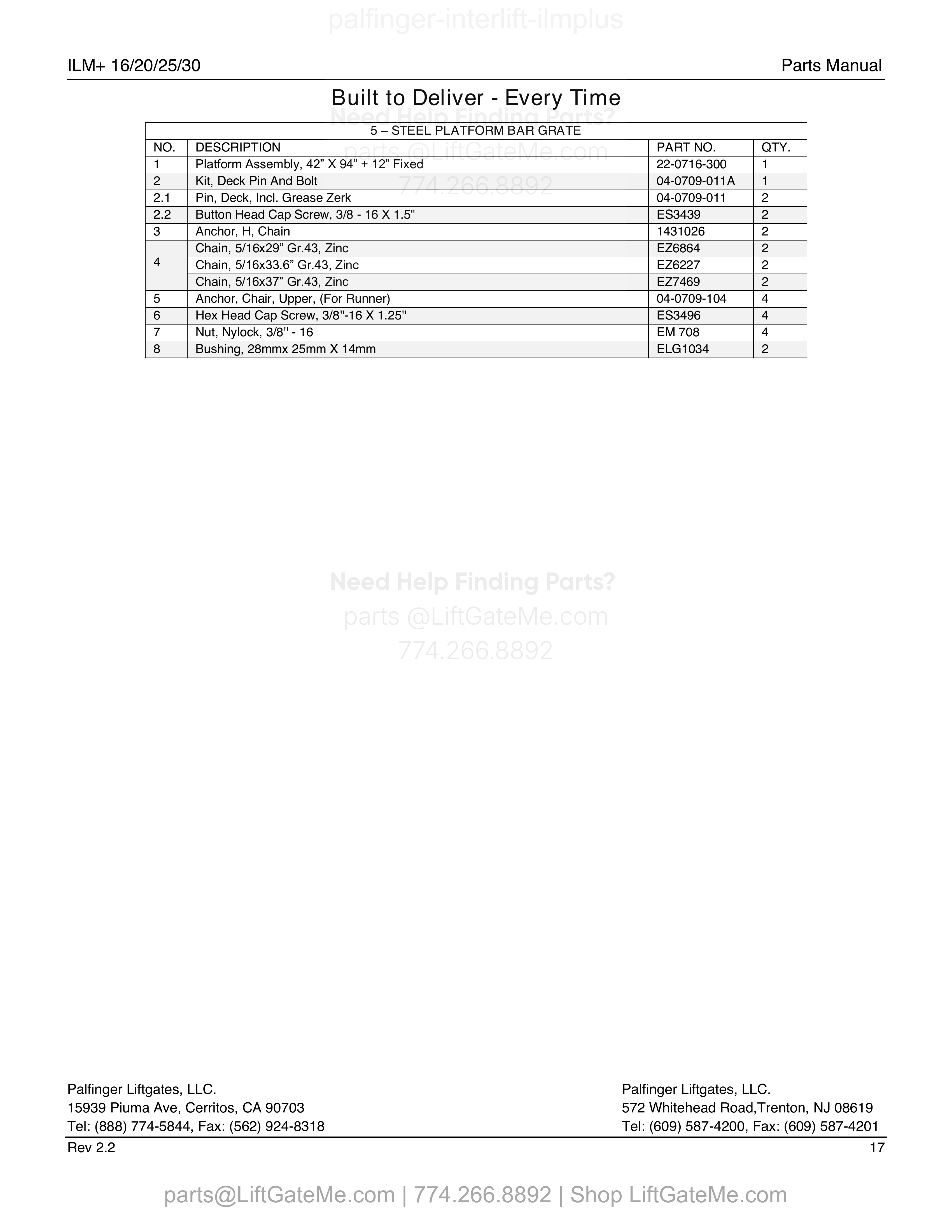

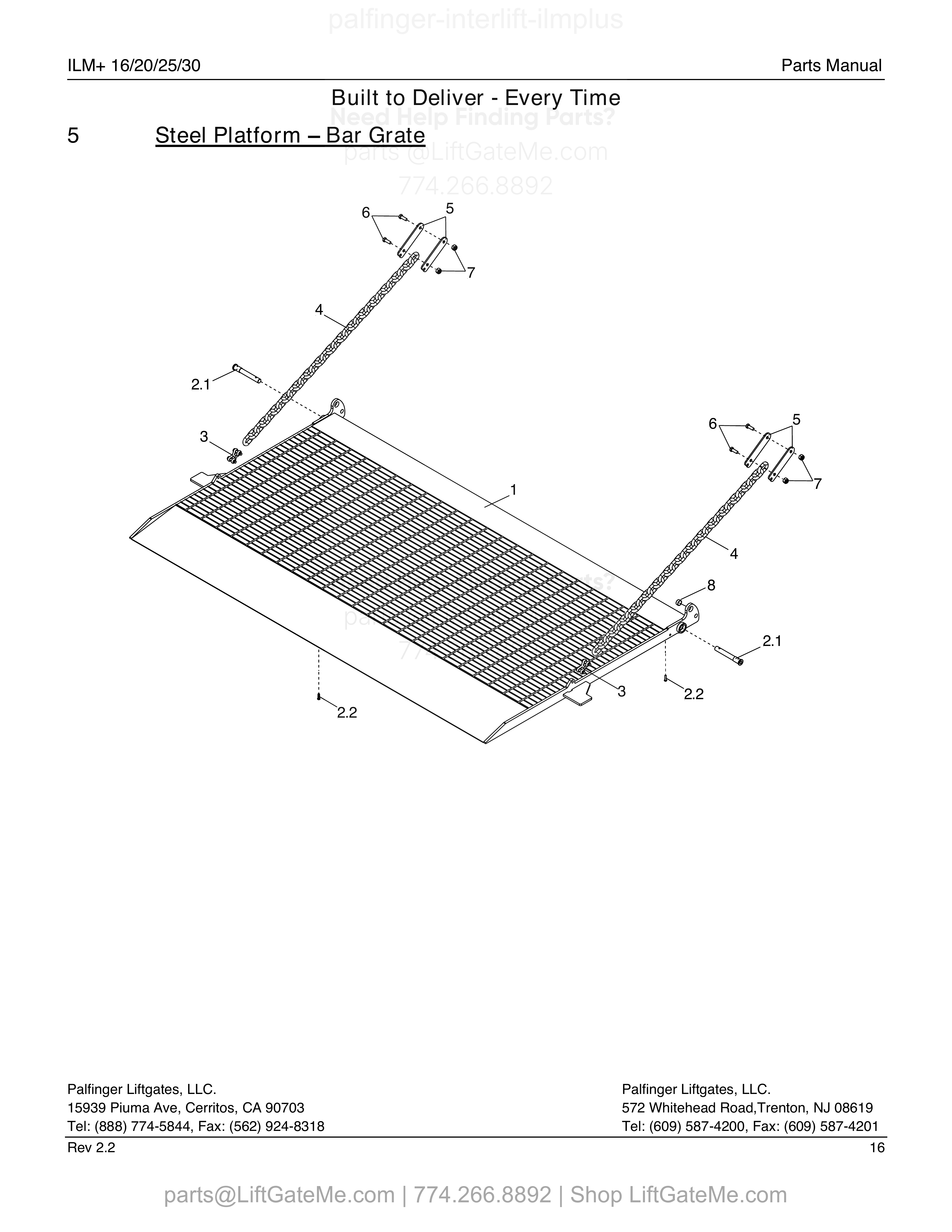

5 – STEEL PLATFORM BAR GRATE
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22-0716-300 | Platform Assembly, 42” X 94” + 12” Fixed | |
| 2 | 1 | 04-0709-011A | Kit, Deck Pin And Bolt | |
| 2.1 | 2 | 04-0709-011 | Pin, Deck, Incl. Grease Zerk | |
| 2.2 | 2 | ES3439 | Button Head Cap Screw, 3/8 - 16 X 1.5" | |
| 3 | 2 | 1431026 | Anchor, H, Chain | |
| 4 | 2 | EZ6864 | Chain, 5/16x29” Gr.43, Zinc | |
| 4 | 2 | EZ6227 | Chain, 5/16x33.6” Gr.43, Zinc | |
| 4 | 2 | EZ7469 | Chain, 5/16x37” Gr.43, Zinc | |
| 5 | 4 | 04-0709-104 | Anchor, Chair, Upper, (For Runner) | |
| 6 | 4 | ES3496 | Hex Head Cap Screw, 3/8"-16 X 1.25" | |
| 7 | 4 | EM 708 | Nut, Nylock, 3/8" - 16 | |
| 8 | 2 | ELG1034 | Bushing, 28mmx 25mm X 14mm |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

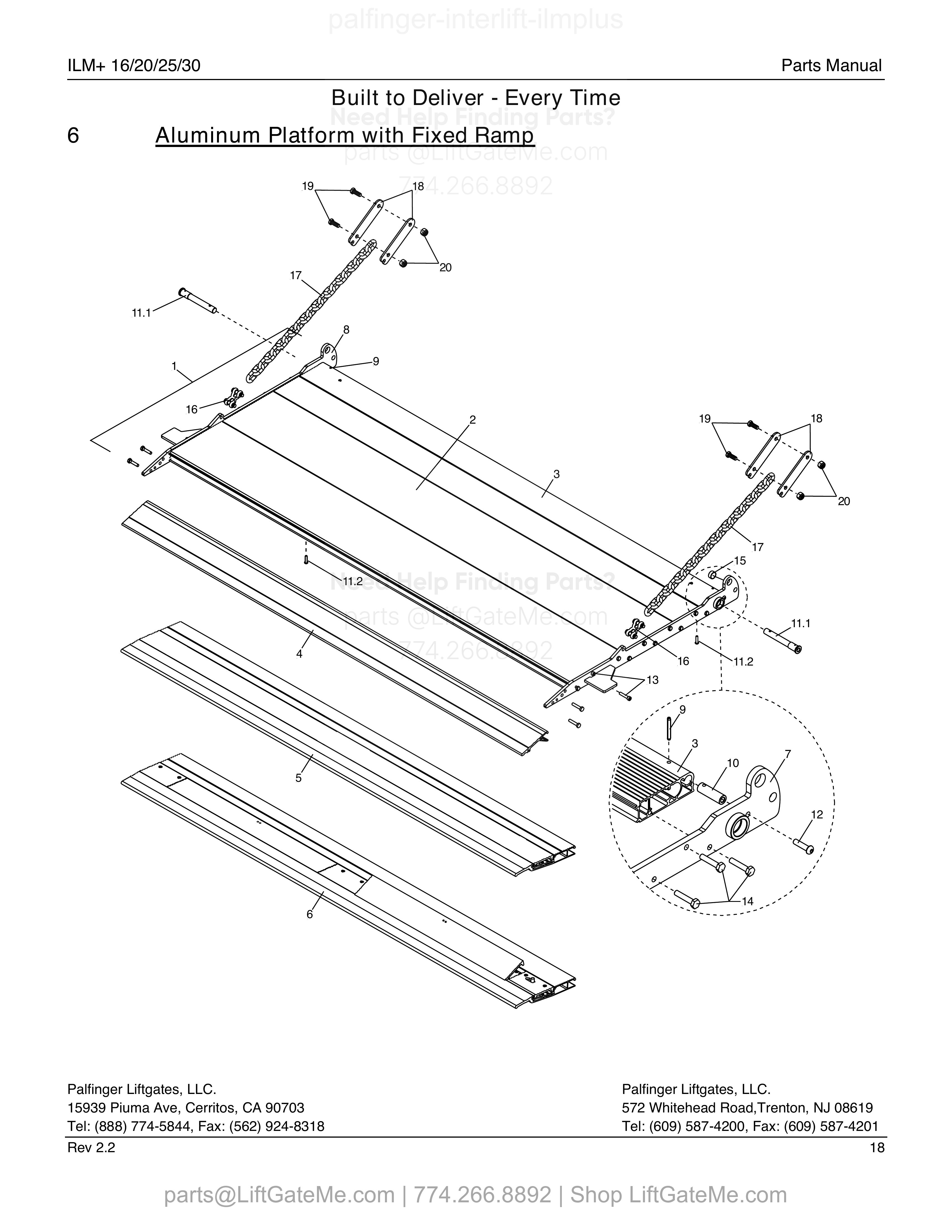

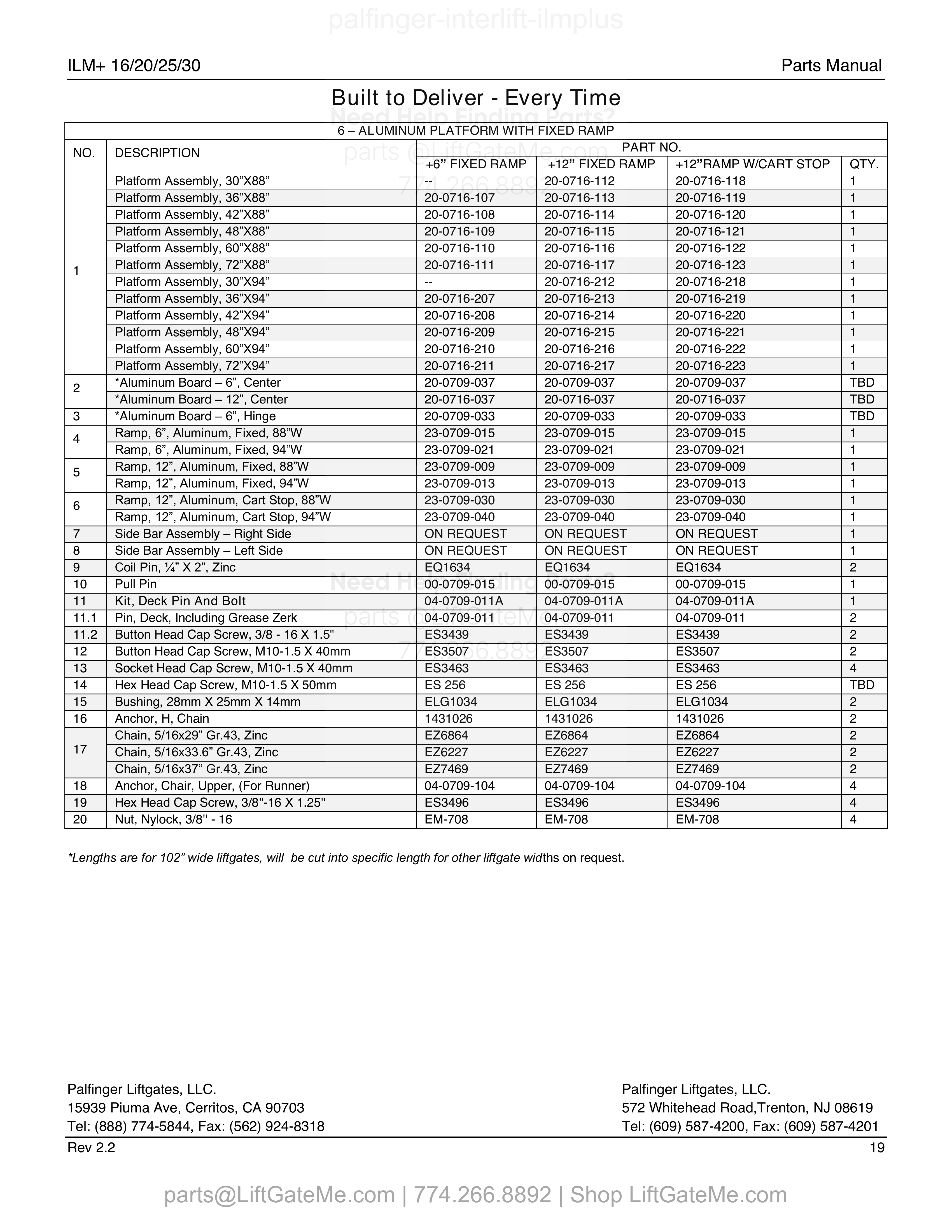

6 – ALUMINUM PLATFORM WITH FIXED RAMP
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | -- | Platform Assembly, 30”X88” | |
| 1 | 1 | 20-0716-112 | Platform Assembly, 30”X88” | |
| 1 | 1 | 20-0716-118 | Platform Assembly, 30”X88” | |
| 1 | 1 | 20-0716-107 | Platform Assembly, 36”X88” | |
| 1 | 1 | 20-0716-113 | Platform Assembly, 36”X88” | |
| 1 | 1 | 20-0716-119 | Platform Assembly, 36”X88” | |
| 1 | 1 | 20-0716-108 | Platform Assembly, 42”X88” | |
| 1 | 1 | 20-0716-114 | Platform Assembly, 42”X88” | |
| 1 | 1 | 20-0716-120 | Platform Assembly, 42”X88” | |
| 1 | 1 | 20-0716-109 | Platform Assembly, 48”X88” | |
| 1 | 1 | 20-0716-115 | Platform Assembly, 48”X88” | |
| 1 | 1 | 20-0716-121 | Platform Assembly, 48”X88” | |
| 1 | 1 | 20-0716-110 | Platform Assembly, 60”X88” | |
| 1 | 1 | 20-0716-116 | Platform Assembly, 60”X88” | |
| 1 | 1 | 20-0716-122 | Platform Assembly, 60”X88” | |
| 1 | 1 | 20-0716-111 | Platform Assembly, 72”X88” | |
| 1 | 1 | 20-0716-117 | Platform Assembly, 72”X88” | |
| 1 | 1 | 20-0716-123 | Platform Assembly, 72”X88” | |
| 1 | 1 | -- | Platform Assembly, 30”X94” | |
| 1 | 1 | 20-0716-212 | Platform Assembly, 30”X94” | |
| 1 | 1 | 20-0716-218 | Platform Assembly, 30”X94” | |
| 1 | 1 | 20-0716-207 | Platform Assembly, 36”X94” | |
| 1 | 1 | 20-0716-213 | Platform Assembly, 36”X94” | |
| 1 | 1 | 20-0716-219 | Platform Assembly, 36”X94” | |
| 1 | 1 | 20-0716-208 | Platform Assembly, 42”X94” | |
| 1 | 1 | 20-0716-214 | Platform Assembly, 42”X94” | |
| 1 | 1 | 20-0716-220 | Platform Assembly, 42”X94” | |
| 1 | 1 | 20-0716-209 | Platform Assembly, 48”X94” | |
| 1 | 1 | 20-0716-215 | Platform Assembly, 48”X94” | |
| 1 | 1 | 20-0716-221 | Platform Assembly, 48”X94” | |
| 1 | 1 | 20-0716-210 | Platform Assembly, 60”X94” | |
| 1 | 1 | 20-0716-216 | Platform Assembly, 60”X94” | |
| 1 | 1 | 20-0716-222 | Platform Assembly, 60”X94” | |
| 1 | 1 | 20-0716-211 | Platform Assembly, 72”X94” | |
| 1 | 1 | 20-0716-217 | Platform Assembly, 72”X94” | |
| 1 | 1 | 20-0716-223 | Platform Assembly, 72”X94” | |
| 2 | TBD | 20-0709-037 | *Aluminum Board – 6”, Center | |
| 2 | TBD | 20-0709-037 | *Aluminum Board – 6”, Center | |
| 2 | TBD | 20-0709-037 | *Aluminum Board – 6”, Center | |
| 2 | TBD | 20-0716-037 | *Aluminum Board – 12”, Center | |
| 2 | TBD | 20-0716-037 | *Aluminum Board – 12”, Center | |
| 2 | TBD | 20-0716-037 | *Aluminum Board – 12”, Center | |
| 3 | TBD | 20-0709-033 | *Aluminum Board – 6”, Hinge | |
| 3 | TBD | 20-0709-033 | *Aluminum Board – 6”, Hinge | |
| 3 | TBD | 20-0709-033 | *Aluminum Board – 6”, Hinge | |
| 4 | 1 | 23-0709-015 | Ramp, 6”, Aluminum, Fixed, 88”W | |
| 4 | 1 | 23-0709-015 | Ramp, 6”, Aluminum, Fixed, 88”W | |
| 4 | 1 | 23-0709-015 | Ramp, 6”, Aluminum, Fixed, 88”W | |
| 4 | 1 | 23-0709-021 | Ramp, 6”, Aluminum, Fixed, 94”W | |
| 4 | 1 | 23-0709-021 | Ramp, 6”, Aluminum, Fixed, 94”W | |
| 4 | 1 | 23-0709-021 | Ramp, 6”, Aluminum, Fixed, 94”W | |
| 5 | 1 | 23-0709-009 | Ramp, 12”, Aluminum, Fixed, 88”W | |
| 5 | 1 | 23-0709-009 | Ramp, 12”, Aluminum, Fixed, 88”W | |
| 5 | 1 | 23-0709-009 | Ramp, 12”, Aluminum, Fixed, 88”W | |
| 5 | 1 | 23-0709-013 | Ramp, 12”, Aluminum, Fixed, 94”W | |
| 5 | 1 | 23-0709-013 | Ramp, 12”, Aluminum, Fixed, 94”W | |
| 5 | 1 | 23-0709-013 | Ramp, 12”, Aluminum, Fixed, 94”W | |
| 6 | 1 | 23-0709-030 | Ramp, 12”, Aluminum, Cart Stop, 88”W | |
| 6 | 1 | 23-0709-030 | Ramp, 12”, Aluminum, Cart Stop, 88”W | |
| 6 | 1 | 23-0709-030 | Ramp, 12”, Aluminum, Cart Stop, 88”W | |
| 6 | 1 | 23-0709-040 | Ramp, 12”, Aluminum, Cart Stop, 94”W | |
| 6 | 1 | 23-0709-040 | Ramp, 12”, Aluminum, Cart Stop, 94”W | |
| 6 | 1 | 23-0709-040 | Ramp, 12”, Aluminum, Cart Stop, 94”W | |
| 7 | 1 | ON REQUEST | Side Bar Assembly – Right Side | |
| 7 | 1 | ON REQUEST | Side Bar Assembly – Right Side | |
| 7 | 1 | ON REQUEST | Side Bar Assembly – Right Side | |
| 8 | 1 | ON REQUEST | Side Bar Assembly – Left Side | |
| 8 | 1 | ON REQUEST | Side Bar Assembly – Left Side | |
| 8 | 1 | ON REQUEST | Side Bar Assembly – Left Side | |
| 9 | 2 | EQ1634 | Coil Pin, ¼” X 2”, Zinc | |
| 9 | 2 | EQ1634 | Coil Pin, ¼” X 2”, Zinc | |
| 9 | 2 | EQ1634 | Coil Pin, ¼” X 2”, Zinc | |
| 10 | 1 | 00-0709-015 | Pull Pin | |
| 10 | 1 | 00-0709-015 | Pull Pin | |
| 10 | 1 | 00-0709-015 | Pull Pin | |
| 11 | 1 | 04-0709-011A | Kit, Deck Pin And Bolt | |
| 11 | 1 | 04-0709-011A | Kit, Deck Pin And Bolt | |
| 11 | 1 | 04-0709-011A | Kit, Deck Pin And Bolt | |
| 11.1 | 2 | 04-0709-011 | Pin, Deck, Including Grease Zerk | |
| 11.1 | 2 | 04-0709-011 | Pin, Deck, Including Grease Zerk | |
| 11.1 | 2 | 04-0709-011 | Pin, Deck, Including Grease Zerk | |
| 11.2 | 2 | ES3439 | Button Head Cap Screw, 3/8 - 16 X 1.5" | |
| 11.2 | 2 | ES3439 | Button Head Cap Screw, 3/8 - 16 X 1.5" | |
| 11.2 | 2 | ES3439 | Button Head Cap Screw, 3/8 - 16 X 1.5" | |
| 12 | 2 | ES3507 | Button Head Cap Screw, M10-1.5 X 40mm | |
| 12 | 2 | ES3507 | Button Head Cap Screw, M10-1.5 X 40mm | |
| 12 | 2 | ES3507 | Button Head Cap Screw, M10-1.5 X 40mm | |
| 13 | 4 | ES3463 | Socket Head Cap Screw, M10-1.5 X 40mm | |
| 13 | 4 | ES3463 | Socket Head Cap Screw, M10-1.5 X 40mm | |
| 13 | 4 | ES3463 | Socket Head Cap Screw, M10-1.5 X 40mm | |
| 14 | TBD | ES 256 | Hex Head Cap Screw, M10-1.5 X 50mm | |
| 14 | TBD | ES 256 | Hex Head Cap Screw, M10-1.5 X 50mm | |
| 14 | TBD | ES 256 | Hex Head Cap Screw, M10-1.5 X 50mm | |
| 15 | 2 | ELG1034 | Bushing, 28mm X 25mm X 14mm | |
| 15 | 2 | ELG1034 | Bushing, 28mm X 25mm X 14mm | |
| 15 | 2 | ELG1034 | Bushing, 28mm X 25mm X 14mm | |
| 16 | 2 | 1431026 | Anchor, H, Chain | |
| 16 | 2 | 1431026 | Anchor, H, Chain | |
| 16 | 2 | 1431026 | Anchor, H, Chain | |
| 17 | 2 | EZ6864 | Chain, 5/16x29” Gr.43, Zinc | |
| 17 | 2 | EZ6864 | Chain, 5/16x29” Gr.43, Zinc | |
| 17 | 2 | EZ6864 | Chain, 5/16x29” Gr.43, Zinc | |
| 17 | 2 | EZ6227 | Chain, 5/16x33.6” Gr.43, Zinc | |
| 17 | 2 | EZ6227 | Chain, 5/16x33.6” Gr.43, Zinc | |
| 17 | 2 | EZ6227 | Chain, 5/16x33.6” Gr.43, Zinc | |
| 17 | 2 | EZ7469 | Chain, 5/16x37” Gr.43, Zinc | |
| 17 | 2 | EZ7469 | Chain, 5/16x37” Gr.43, Zinc | |
| 17 | 2 | EZ7469 | Chain, 5/16x37” Gr.43, Zinc | |
| 18 | 4 | 04-0709-104 | Anchor, Chair, Upper, (For Runner) | |
| 18 | 4 | 04-0709-104 | Anchor, Chair, Upper, (For Runner) | |
| 18 | 4 | 04-0709-104 | Anchor, Chair, Upper, (For Runner) | |
| 19 | 4 | ES3496 | Hex Head Cap Screw, 3/8''-16 X 1.25'' | |
| 19 | 4 | ES3496 | Hex Head Cap Screw, 3/8''-16 X 1.25'' | |
| 19 | 4 | ES3496 | Hex Head Cap Screw, 3/8''-16 X 1.25'' | |
| 20 | 4 | EM-708 | Nut, Nylock, 3/8'' - 16 | |
| 20 | 4 | EM-708 | Nut, Nylock, 3/8'' - 16 | |
| 20 | 4 | EM-708 | Nut, Nylock, 3/8'' - 16 |

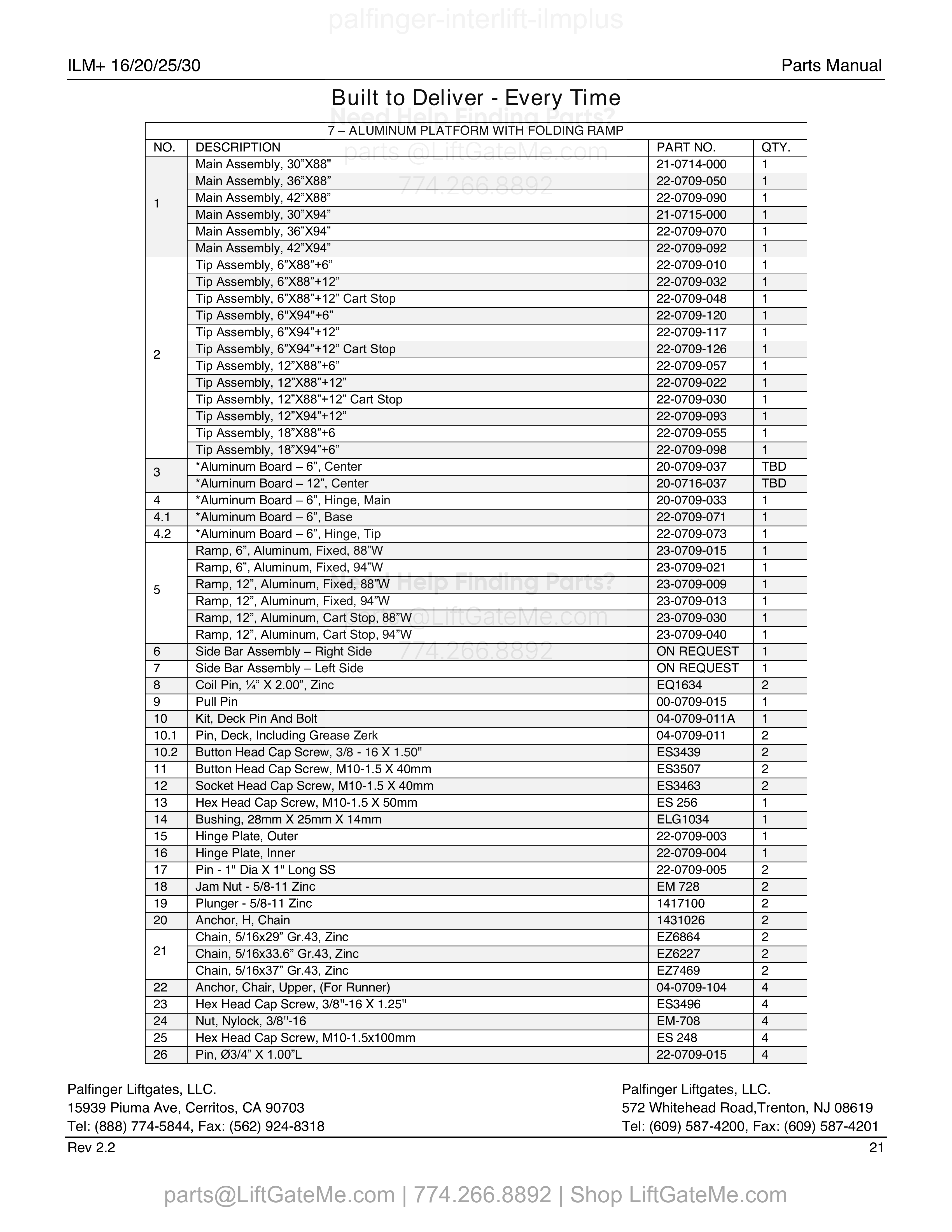

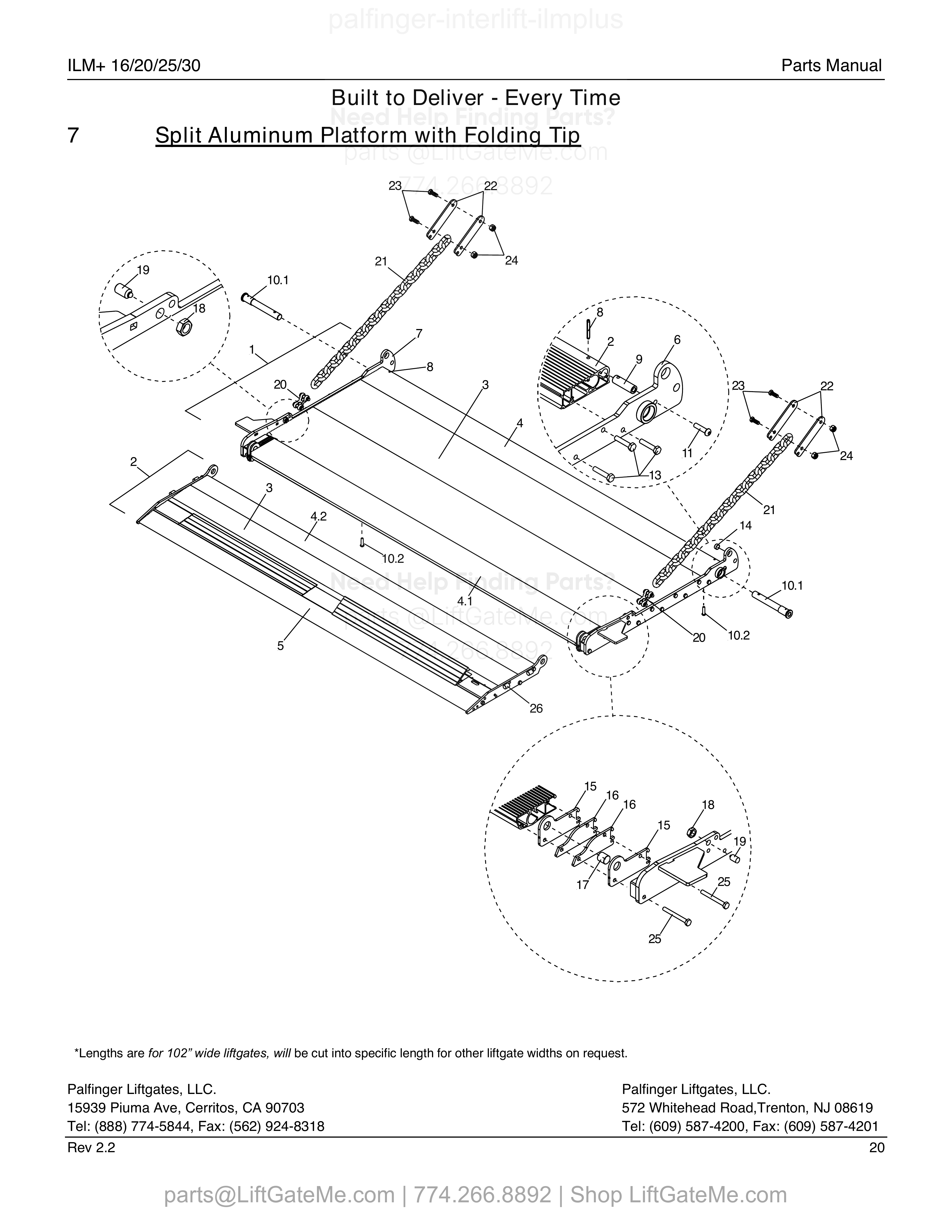

7 – ALUMINUM PLATFORM WITH FOLDING RAMP
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 21-0714-000 | Main Assembly, 30”X88” | |
| 1 | 1 | 22-0709-050 | Main Assembly, 36”X88” | |
| 1 | 1 | 22-0709-090 | Main Assembly, 42”X88” | |
| 1 | 1 | 21-0715-000 | Main Assembly, 30”X94” | |
| 1 | 1 | 22-0709-070 | Main Assembly, 36”X94” | |
| 1 | 1 | 22-0709-092 | Main Assembly, 42”X94” | |
| 2 | 1 | 22-0709-010 | Tip Assembly, 6”X88”+6” | |
| 2 | 1 | 22-0709-032 | Tip Assembly, 6”X88”+12” | |
| 2 | 1 | 22-0709-048 | Tip Assembly, 6”X88”+12” Cart Stop | |
| 2 | 1 | 22-0709-120 | Tip Assembly, 6”X94”+6” | |
| 2 | 1 | 22-0709-117 | Tip Assembly, 6”X94”+12” | |
| 2 | 1 | 22-0709-126 | Tip Assembly, 6”X94”+12” Cart Stop | |
| 2 | 1 | 22-0709-057 | Tip Assembly, 12”X88”+6” | |
| 2 | 1 | 22-0709-022 | Tip Assembly, 12”X88”+12” | |
| 2 | 1 | 22-0709-030 | Tip Assembly, 12”X88”+12” Cart Stop | |
| 2 | 1 | 22-0709-093 | Tip Assembly, 12”X94”+12” | |
| 2 | 1 | 22-0709-055 | Tip Assembly, 18”X88”+6 | |
| 2 | 1 | 22-0709-098 | Tip Assembly, 18”X94”+6” | |
| 3 | TBD | 20-0709-037 | *Aluminum Board – 6”, Center | |
| 3 | TBD | 20-0716-037 | *Aluminum Board – 12”, Center | |
| 4 | 1 | 20-0709-033 | *Aluminum Board – 6”, Hinge, Main | |
| 4.1 | 1 | 22-0709-071 | *Aluminum Board – 6”, Base | |
| 4.2 | 1 | 22-0709-073 | *Aluminum Board – 6”, Hinge, Tip | |
| 5 | 1 | 23-0709-015 | Ramp, 6”, Aluminum, Fixed, 88”W | |
| 5 | 1 | 23-0709-021 | Ramp, 6”, Aluminum, Fixed, 94”W | |
| 5 | 1 | 23-0709-009 | Ramp, 12”, Aluminum, Fixed, 88”W | |
| 5 | 1 | 23-0709-013 | Ramp, 12”, Aluminum, Fixed, 94”W | |
| 5 | 1 | 23-0709-030 | Ramp, 12”, Aluminum, Cart Stop, 88”W | |
| 5 | 1 | 23-0709-040 | Ramp, 12”, Aluminum, Cart Stop, 94”W | |
| 6 | 1 | ON REQUEST | Side Bar Assembly – Right Side | |
| 7 | 1 | ON REQUEST | Side Bar Assembly – Left Side | |
| 8 | 2 | EQ1634 | Coil Pin, ¼” X 2.00”, Zinc | |
| 9 | 1 | 00-0709-015 | Pull Pin | |
| 10 | 1 | 04-0709-011A | Kit, Deck Pin And Bolt | |
| 10.1 | 2 | 04-0709-011 | Pin, Deck, Including Grease Zerk | |
| 10.2 | 2 | ES3439 | Button Head Cap Screw, 3/8 - 16 X 1.50" | |
| 11 | 2 | ES3507 | Button Head Cap Screw, M10-1.5 X 40mm | |
| 12 | 2 | ES3463 | Socket Head Cap Screw, M10-1.5 X 40mm | |
| 13 | 1 | ES 256 | Hex Head Cap Screw, M10-1.5 X 50mm | |
| 14 | 1 | ELG1034 | Bushing, 28mm X 25mm X 14mm | |
| 15 | 1 | 22-0709-003 | Hinge Plate, Outer | |
| 16 | 1 | 22-0709-004 | Hinge Plate, Inner | |
| 17 | 2 | 22-0709-005 | Pin - 1" Dia X 1" Long SS | |
| 18 | 2 | EM 728 | Jam Nut - 5/8-11 Zinc | |
| 19 | 2 | 1417100 | Plunger - 5/8-11 Zinc | |
| 20 | 2 | 1431026 | Anchor, H, Chain | |
| 21 | 2 | EZ6864 | Chain, 5/16x29” Gr.43, Zinc | |
| 21 | 2 | EZ6227 | Chain, 5/16x33.6” Gr.43, Zinc | |
| 21 | 2 | EZ7469 | Chain, 5/16x37” Gr.43, Zinc | |
| 22 | 4 | 04-0709-104 | Anchor, Chair, Upper, (For Runner) | |
| 23 | 4 | ES3496 | Hex Head Cap Screw, 3/8''-16 X 1.25'' | |
| 24 | 4 | EM-708 | Nut, Nylock, 3/8''-16 | |
| 25 | 4 | ES 248 | Hex Head Cap Screw, M10-1.5x100mm | |
| 26 | 4 | 22-0709-015 | Pin, Ø3/4” X 1.00”L |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

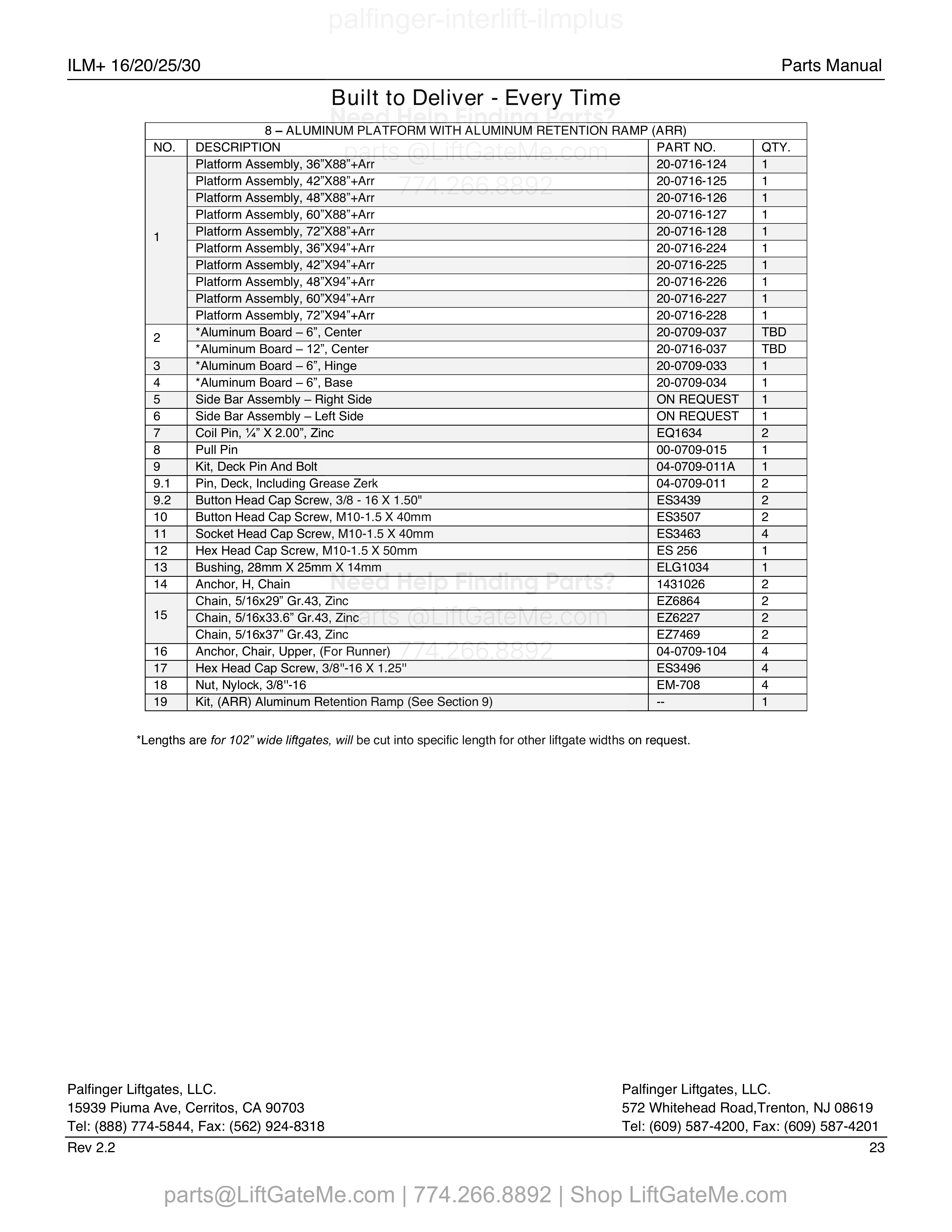

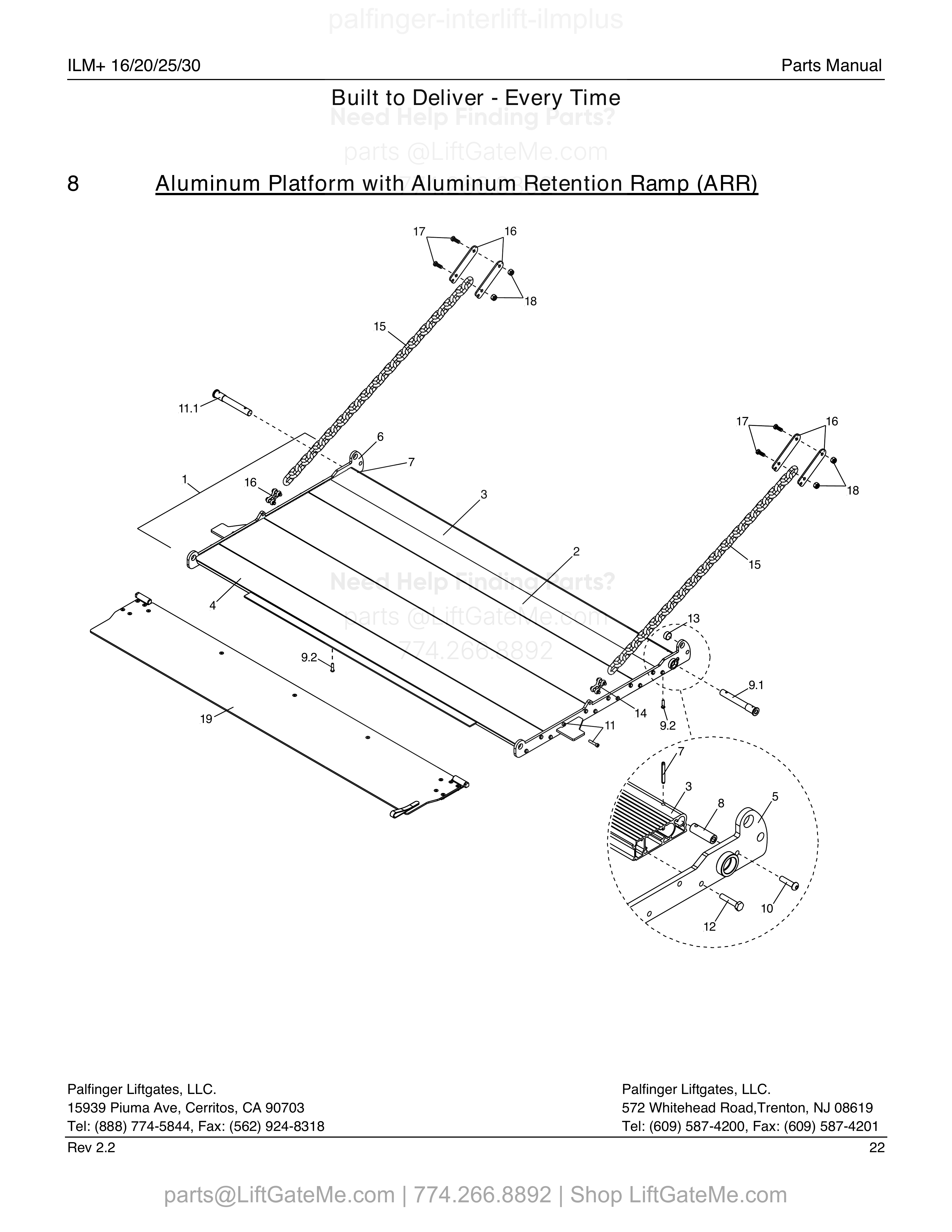

8 – ALUMINUM PLATFORM WITH ALUMINUM RETENTION RAMP (ARR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 20-0716-124 | Platform Assembly, 36”X88”+Arr | |
| 1 | 1 | 20-0716-125 | Platform Assembly, 42”X88”+Arr | |
| 1 | 1 | 20-0716-126 | Platform Assembly, 48”X88”+Arr | |
| 1 | 1 | 20-0716-127 | Platform Assembly, 60”X88”+Arr | |
| 1 | 1 | 20-0716-128 | Platform Assembly, 72”X88”+Arr | |
| 1 | 1 | 20-0716-224 | Platform Assembly, 36”X94”+Arr | |
| 1 | 1 | 20-0716-225 | Platform Assembly, 42”X94”+Arr | |
| 1 | 1 | 20-0716-226 | Platform Assembly, 48”X94”+Arr | |
| 1 | 1 | 20-0716-227 | Platform Assembly, 60”X94”+Arr | |
| 1 | 1 | 20-0716-228 | Platform Assembly, 72”X94”+Arr | |
| 2 | TBD | 20-0709-037 | *Aluminum Board – 6”, Center | |
| 2 | TBD | 20-0716-037 | *Aluminum Board – 12”, Center | |
| 3 | 1 | 20-0709-033 | *Aluminum Board – 6”, Hinge | |
| 4 | 1 | 20-0709-034 | *Aluminum Board – 6”, Base | |
| 5 | 1 | ON REQUEST | Side Bar Assembly – Right Side | |
| 6 | 1 | ON REQUEST | Side Bar Assembly – Left Side | |
| 7 | 2 | EQ1634 | Coil Pin, ¼” X 2.00”, Zinc | |
| 8 | 1 | 00-0709-015 | Pull Pin | |
| 9 | 1 | 04-0709-011A | Kit, Deck Pin And Bolt | |
| 9.1 | 2 | 04-0709-011 | Pin, Deck, Including Grease Zerk | |
| 9.2 | 2 | ES3439 | Button Head Cap Screw, 3/8 - 16 X 1.50" | |
| 10 | 2 | ES3507 | Button Head Cap Screw, M10-1.5 X 40mm | |
| 11 | 4 | ES3463 | Socket Head Cap Screw, M10-1.5 X 40mm | |
| 12 | 1 | ES 256 | Hex Head Cap Screw, M10-1.5 X 50mm | |
| 13 | 1 | ELG1034 | Bushing, 28mm X 25mm X 14mm | |
| 14 | 2 | 1431026 | Anchor, H, Chain | |
| 15 | 2 | EZ6864 | Chain, 5/16x29” Gr.43, Zinc | |
| 15 | 2 | EZ6227 | Chain, 5/16x33.6” Gr.43, Zinc | |
| 15 | 2 | EZ7469 | Chain, 5/16x37” Gr.43, Zinc | |
| 16 | 4 | 04-0709-104 | Anchor, Chair, Upper, (For Runner) | |
| 17 | 4 | ES3496 | Hex Head Cap Screw, 3/8''-16 X 1.25'' | |
| 18 | 4 | EM-708 | Nut, Nylock, 3/8''-16 | |
| 19 | 1 | -- | Kit, (ARR) Aluminum Retention Ramp (See Section 9) |
9 – ALUMINUM RETENSION RAMPS (ARR)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 23-0709-000 | Kit, ARR Assembly, 88”W X 12” D | |
| 1 | 1 | 23-0709-020 | Kit, ARR Assembly, 94”W X 12” D | |
| 1 | 1 | 23-0714-002 | Kit, ARR Assembly, 88”W X 16” D | |
| 1 | 1 | 23-0714-000 | Kit, ARR Assembly, 94”W X 16” D | |
| 2 | 1 | 20-1210-003 | Handle Strap | |
| 3 | 1 | 23-0709-001 | Ramp, Aluminum, Diamond Plate, 88”W X 12”D | |
| 3 | 1 | 23-0714-003 | Ramp, Aluminum, Diamond Plate, 88”W X 16”D | |
| 3 | 1 | 23-0709-017 | Ramp, Aluminum, Diamond Plate, 94”W X 12”D | |
| 3 | 1 | 23-0714-001 | Ramp, Aluminum, Diamond Plate, 94”W X 16”D | |
| 4 | 1 | 23-0709-004 | Center Bar Stiffener | |
| 5 | 1 | 23-0709-005 | Ramp Hinge - Curb Side | |
| 6 | 1 | 23-0709-006 | Ramp Hinge – Driver Side | |
| 7 | 1 | 99-8813-047 | Flat Head Cap Screw, 3/8-16 X1" | |
| 8 | 1 | 99-8814-003 | Carriage Bolt, 5/16-18 X | |
| 9 | 1 | ES3461 | Nut, Nylock, 5/16-18 | |
| 10 | 1 | EM 709 | Nut, Nylock, 3/8-16 Thin | |
| 11 | 1 | 22-0709-110 | Kit, Long Kick Latch, Aluminum Platform | |
| 11.1 | 1 | 23-0709-007 | Ramp Kick Latch | |
| 11.2 | 1 | 23-0709-008 | Bushing | |
| 11.3 | 1 | ES3245 | Hex Head Cap Screw, M10x1.5 X 80mm, Cl12.9, Zinc | |
| 12 | 1 | 22-0709-111 | Kit, Short Kick Latch, Aluminum Platform | |
| 12.1 | 1 | 23-0709-008 | Bushing | |
| 12.2 | 1 | 23-0709-019 | Ramp Kick Latch | |
| 12.3 | 1 | ES3245 | Hex Head Cap Screw, M10x1.5 X 80mm, Cl12.9, Zinc | |
| 13 | 1 | 22-0709-112 | Kit, Long Kick Latch, Steel Platform | |
| 13.1 | 1 | 23-0709-007 | Ramp Kick Latch | |
| 13.2 | 1 | 23-0709-008 | Bushing | |
| 13.3 | 1 | ES3446 | Hex Head Cap Screw, 3/8-16 X 1", Gr.5, Zinc | |
| 14 | 1 | 22-0709-113 | Kit, Short Kick Latch, Steel Platform | |
| 14.1 | 1 | 23-0709-008 | Bushing | |
| 14.2 | 1 | 23-0709-019 | Ramp Kick Latch | |
| 14.3 | 1 | ES3446 | Hex Head Cap Screw, 3/8-16 X 1", Gr.5, Zinc |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

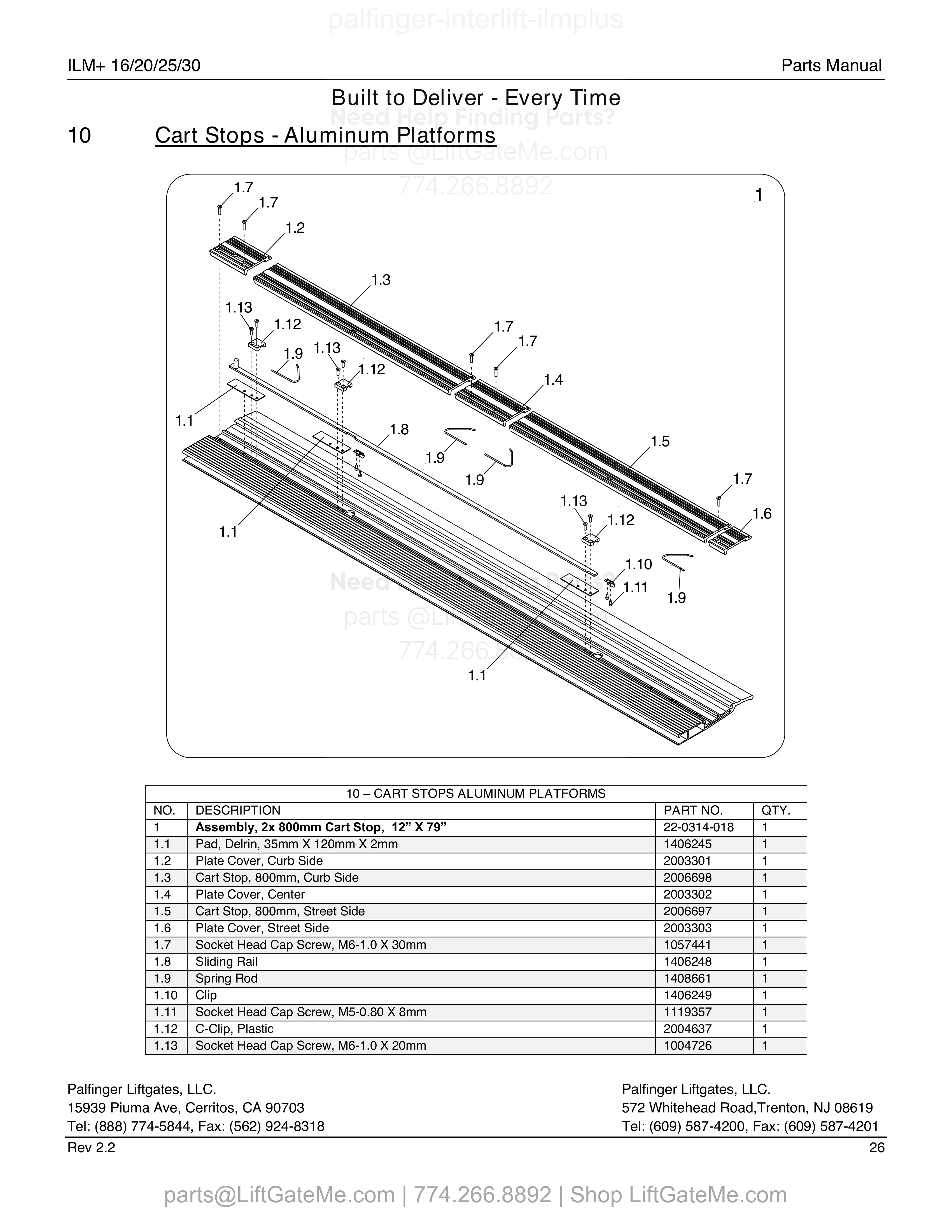

10 – CART STOPS ALUMINUM PLATFORMS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22-0314-018 | Assembly, 2x 800mm Cart Stop, 12” X 79” | |
| 1.1 | 1 | 1406245 | Pad, Delrin, 35mm X 120mm X 2mm | |
| 1.2 | 1 | 2003301 | Plate Cover, Curb Side | |
| 1.3 | 1 | 2006698 | Cart Stop, 800mm, Curb Side | |
| 1.4 | 1 | 2003302 | Plate Cover, Center | |
| 1.5 | 1 | 2006697 | Cart Stop, 800mm, Street Side | |
| 1.6 | 1 | 2003303 | Plate Cover, Street Side | |
| 1.7 | 1 | 1057441 | Socket Head Cap Screw, M6-1.0 X 30mm | |
| 1.8 | 1 | 1406248 | Sliding Rail | |
| 1.9 | 1 | 1408661 | Spring Rod | |
| 1.10 | 1 | 1406249 | Clip | |
| 1.11 | 1 | 1119357 | Socket Head Cap Screw, M5-0.80 X 8mm | |
| 1.12 | 1 | 2004637 | C-Clip, Plastic | |
| 1.13 | 1 | 1004726 | Socket Head Cap Screw, M6-1.0 X 20mm |

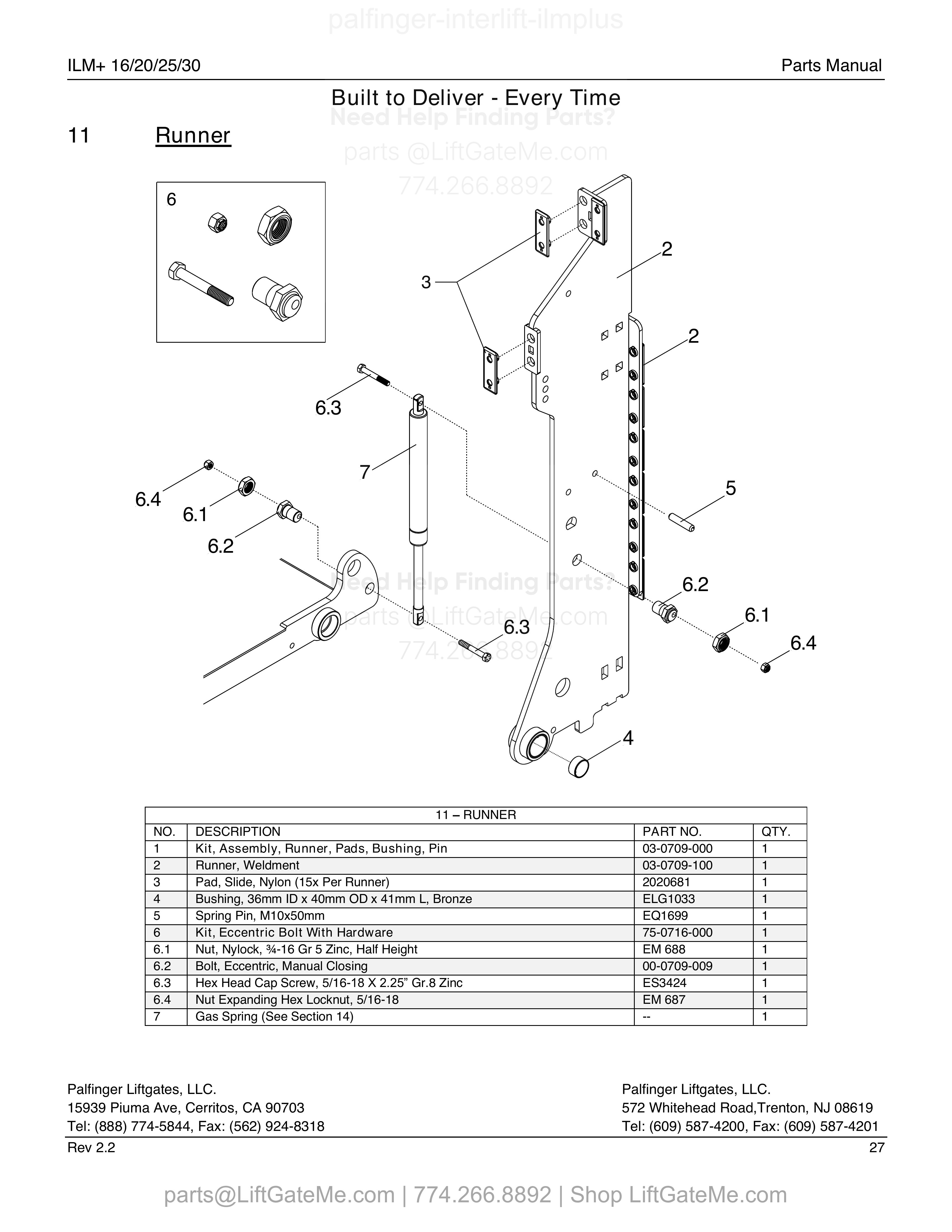

11 – RUNNER
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 03-0709-000 | Kit, Assembly, Runner, Pads, Bushing, Pin | |
| 2 | 1 | 03-0709-100 | Runner, Weldment | |
| 3 | 1 | 2020681 | Pad, Slide, Nylon (15x Per Runner) | |
| 4 | 1 | ELG1033 | Bushing, 36mm ID x 40mm OD x 41mm L, Bronze | |
| 5 | 1 | EQ1699 | Spring Pin, M10x50mm | |
| 6 | 1 | 75-0716-000 | Kit, Eccentric Bolt With Hardware | |
| 6.1 | 1 | EM 688 | Nut, Nylock, ¾-16 Gr 5 Zinc, Half Height | |
| 6.2 | 1 | 00-0709-009 | Bolt, Eccentric, Manual Closing | |
| 6.3 | 1 | ES3424 | Hex Head Cap Screw, 5/16-18 X 2.25” Gr.8 Zinc | |
| 6.4 | 1 | EM 687 | Nut Expanding Hex Locknut, 5/16-18 | |
| 7 | 1 | -- | Gas Spring (See Section 14) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

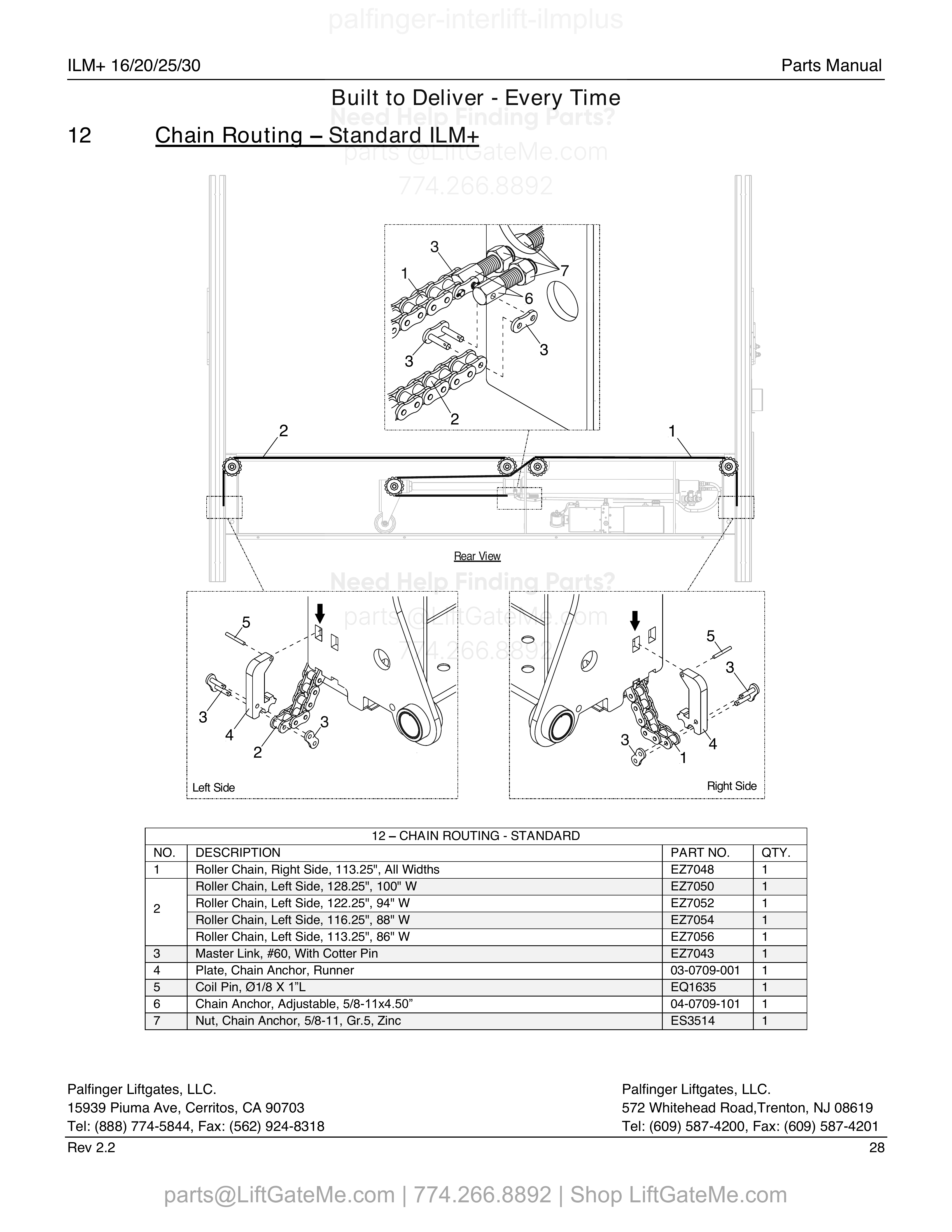

12 – CHAIN ROUTING - STANDARD
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | EZ7048 | Roller Chain, Right Side, 113.25", All Widths | |
| 2 | 1 | EZ7050 | Roller Chain, Left Side, 128.25", 100" W | |
| 2 | 1 | EZ7052 | Roller Chain, Left Side, 122.25", 94" W | |
| 2 | 1 | EZ7054 | Roller Chain, Left Side, 116.25", 88" W | |
| 2 | 1 | EZ7056 | Roller Chain, Left Side, 113.25", 86" W | |
| 3 | 1 | EZ7043 | Master Link, #60, With Cotter Pin | |
| 4 | 1 | 03-0709-001 | Plate, Chain Anchor, Runner | |
| 5 | 1 | EQ1635 | Coil Pin, Ø1/8 X 1”L | |
| 6 | 1 | 04-0709-101 | Chain Anchor, Adjustable, 5/8-11x4.50” | |
| 7 | 1 | ES3514 | Nut, Chain Anchor, 5/8-11, Gr.5, Zinc |

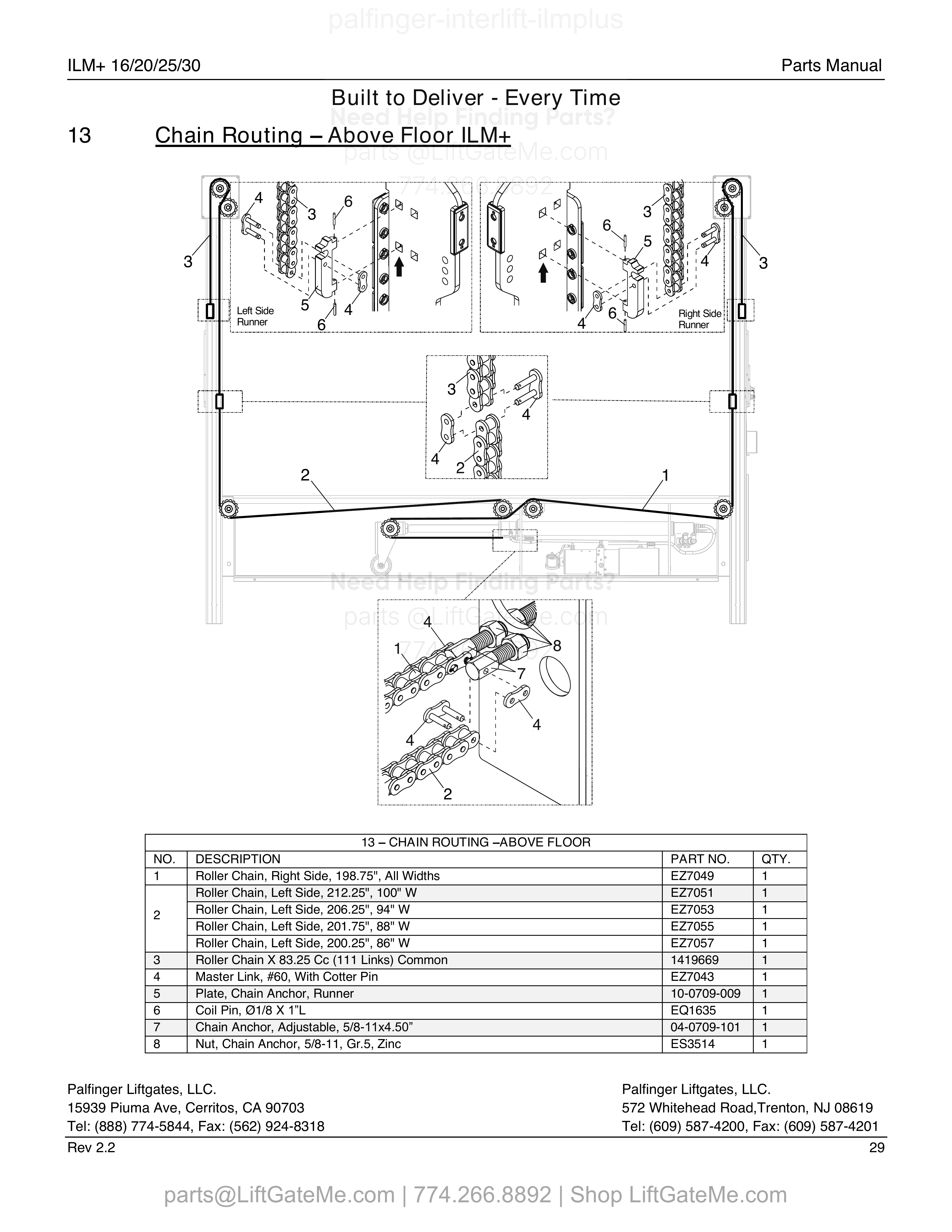

13 – CHAIN ROUTING –ABOVE FLOOR
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | EZ7049 | Roller Chain, Right Side, 198.75", All Widths | |
| 2 | 1 | EZ7051 | Roller Chain, Left Side, 212.25", 100" W | |
| 2 | 1 | EZ7053 | Roller Chain, Left Side, 206.25", 94" W | |
| 2 | 1 | EZ7055 | Roller Chain, Left Side, 201.75", 88" W | |
| 2 | 1 | EZ7057 | Roller Chain, Left Side, 200.25", 86" W | |
| 3 | 1 | 1419669 | Roller Chain X 83.25 Cc (111 Links) Common | |
| 4 | 1 | EZ7043 | Master Link, #60, With Cotter Pin | |
| 5 | 1 | 10-0709-009 | Plate, Chain Anchor, Runner | |
| 6 | 1 | EQ1635 | Coil Pin, Ø1/8 X 1”L | |
| 7 | 1 | 04-0709-101 | Chain Anchor, Adjustable, 5/8-11x4.50” | |
| 8 | 1 | ES3514 | Nut, Chain Anchor, 5/8-11, Gr.5, Zinc |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

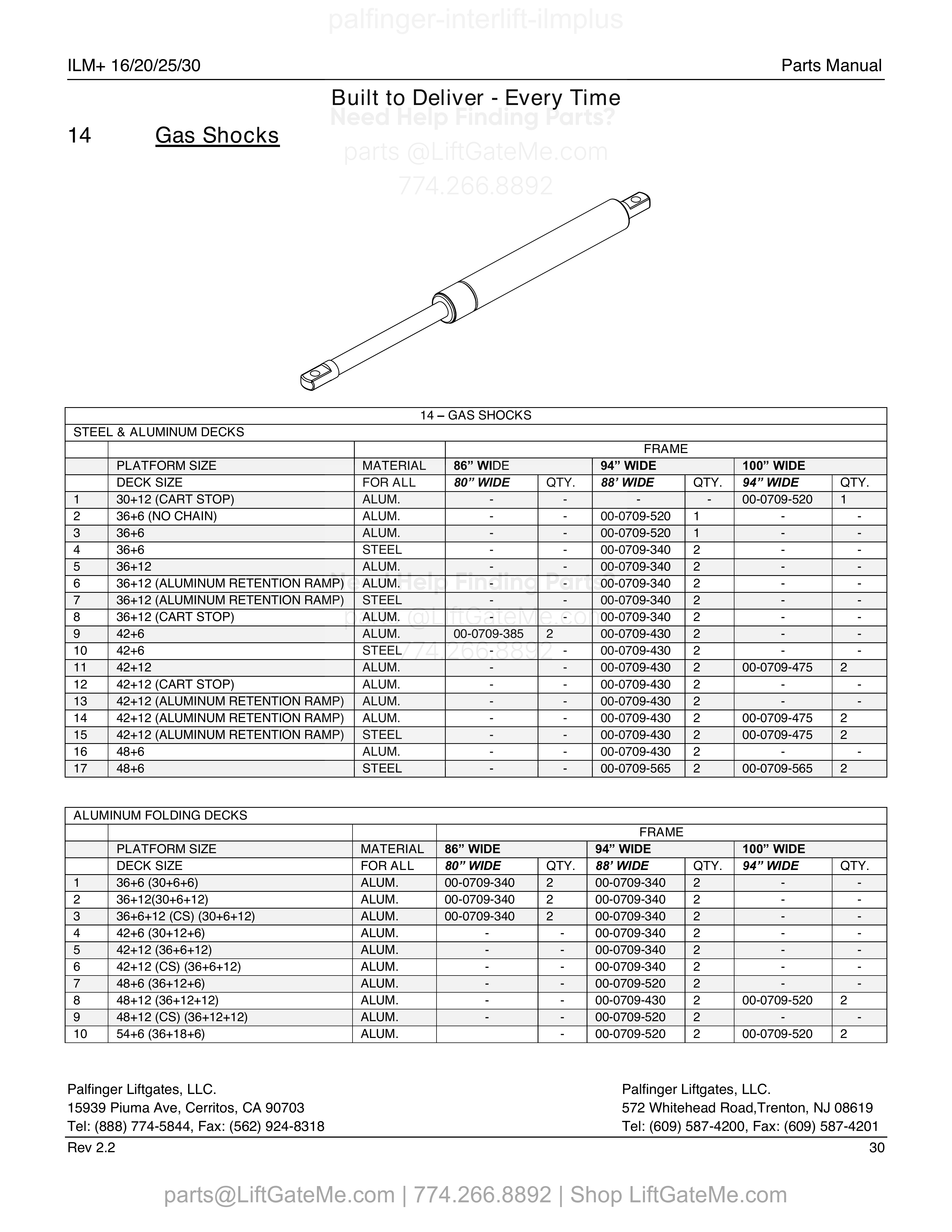

Gas Shocks
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 00-0709-520 | 30+12 (CART STOP) ALUM. | |
| 2 | 1 | 00-0709-520 | 36+6 (NO CHAIN) ALUM. | |
| 3 | 1 | 00-0709-520 | 36+6 ALUM. | |
| 4 | 2 | 00-0709-340 | 36+6 STEEL | |
| 5 | 2 | 00-0709-340 | 36+12 ALUM. | |
| 6 | 2 | 00-0709-340 | 36+12 (ALUMINUM RETENTION RAMP) ALUM. | |
| 7 | 2 | 00-0709-340 | 36+12 (ALUMINUM RETENTION RAMP) STEEL | |
| 8 | 2 | 00-0709-340 | 36+12 (CART STOP) ALUM. | |
| 9 | 2 | 00-0709-385 | 42+6 ALUM. | |
| 9 | 2 | 00-0709-430 | 42+6 ALUM. | |
| 10 | 2 | 00-0709-430 | 42+6 STEEL | |
| 11 | 2 | 00-0709-430 | 42+12 ALUM. | |
| 11 | 2 | 00-0709-475 | 42+12 ALUM. | |
| 12 | 2 | 00-0709-430 | 42+12 (CART STOP) ALUM. | |
| 13 | 2 | 00-0709-430 | 42+12 (ALUMINUM RETENTION RAMP) ALUM. | |
| 14 | 2 | 00-0709-430 | 42+12 (ALUMINUM RETENTION RAMP) ALUM. | |
| 14 | 2 | 00-0709-475 | 42+12 (ALUMINUM RETENTION RAMP) ALUM. | |
| 15 | 2 | 00-0709-430 | 42+12 (ALUMINUM RETENTION RAMP) STEEL | |
| 15 | 2 | 00-0709-475 | 42+12 (ALUMINUM RETENTION RAMP) STEEL | |
| 16 | 2 | 00-0709-430 | 48+6 ALUM. | |
| 17 | 2 | 00-0709-565 | 48+6 STEEL | |
| 17 | 2 | 00-0709-565 | 48+6 STEEL | |
| 1 | 2 | 00-0709-340 | 36+6 (30+6+6) ALUM. | |
| 1 | 2 | 00-0709-340 | 36+6 (30+6+6) ALUM. | |
| 2 | 2 | 00-0709-340 | 36+12(30+6+12) ALUM. | |
| 2 | 2 | 00-0709-340 | 36+12(30+6+12) ALUM. | |
| 3 | 2 | 00-0709-340 | 36+6+12 (CS) (30+6+12) ALUM. | |
| 3 | 2 | 00-0709-340 | 36+6+12 (CS) (30+6+12) ALUM. | |
| 4 | 2 | 00-0709-340 | 42+6 (30+12+6) ALUM. | |
| 5 | 2 | 00-0709-340 | 42+12 (36+6+12) ALUM. | |
| 6 | 2 | 00-0709-340 | 42+12 (CS) (36+6+12) ALUM. | |
| 7 | 2 | 00-0709-520 | 48+6 (36+12+6) ALUM. | |
| 8 | 2 | 00-0709-430 | 48+12 (36+12+12) ALUM. | |
| 8 | 2 | 00-0709-520 | 48+12 (36+12+12) ALUM. | |
| 9 | 2 | 00-0709-520 | 48+12 (CS) (36+12+12) ALUM. | |
| 10 | 2 | 00-0709-520 | 54+6 (36+18+6) ALUM. | |
| 10 | 2 | 00-0709-520 | 54+6 (36+18+6) ALUM. |

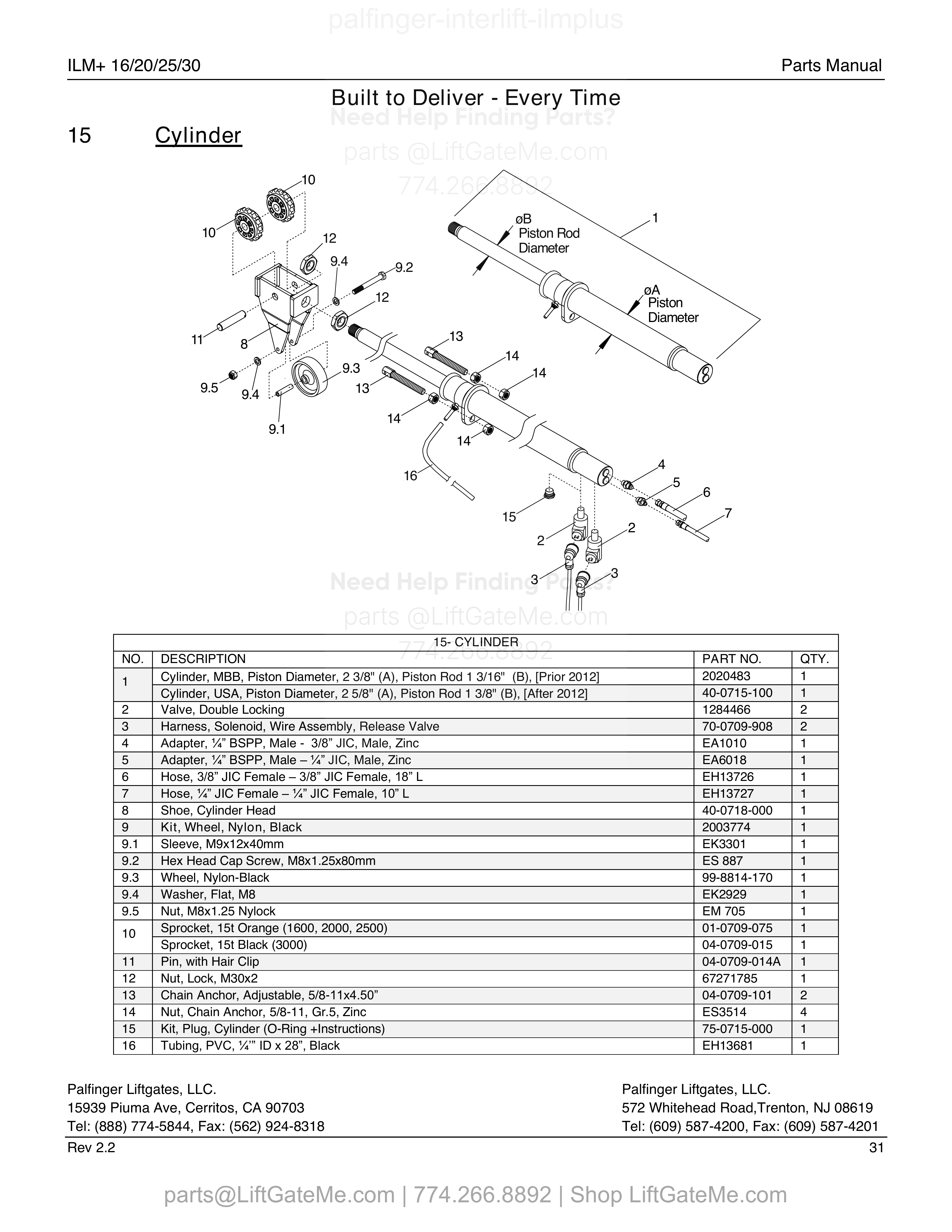

Cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 2020483 | Cylinder, MBB, Piston Diameter, 2 3/8" (A), Piston Rod 1 3/16" (B), [Prior 2012] | |
| 1 | 1 | 40-0715-100 | Cylinder, USA, Piston Diameter, 2 5/8" (A), Piston Rod 1 3/8" (B), [After 2012] | |
| 2 | 2 | 1284466 | Valve, Double Locking | |
| 3 | 2 | 70-0709-908 | Harness, Solenoid, Wire Assembly, Release Valve | |
| 4 | 1 | EA1010 | Adapter, ¼” BSPP, Male - 3/8” JIC, Male, Zinc | |
| 5 | 1 | EA6018 | Adapter, ¼” BSPP, Male – ¼” JIC, Male, Zinc | |
| 6 | 1 | EH13726 | Hose, 3/8” JIC Female – 3/8” JIC Female, 18” L | |
| 7 | 1 | EH13727 | Hose, ¼” JIC Female – ¼” JIC Female, 10” L | |
| 8 | 1 | 40-0718-000 | Shoe, Cylinder Head | |
| 9 | 1 | 2003774 | Kit, Wheel, Nylon, Black | |
| 9.1 | 1 | EK3301 | Sleeve, M9x12x40mm | |
| 9.2 | 1 | ES 887 | Hex Head Cap Screw, M8x1.25x80mm | |
| 9.3 | 1 | 99-8814-170 | Wheel, Nylon-Black | |
| 9.4 | 1 | EK2929 | Washer, Flat, M8 | |
| 9.5 | 1 | EM 705 | Nut, M8x1.25 Nylock | |
| 10 | 1 | 01-0709-075 | Sprocket, 15t Orange (1600, 2000, 2500) | |
| 10 | 1 | 04-0709-015 | Sprocket, 15t Black (3000) | |
| 11 | 1 | 04-0709-014A | Pin, with Hair Clip | |
| 12 | 1 | 67271785 | Nut, Lock, M30x2 | |
| 13 | 2 | 04-0709-101 | Chain Anchor, Adjustable, 5/8-11x4.50” | |
| 14 | 4 | ES3514 | Nut, Chain Anchor, 5/8-11, Gr.5, Zinc | |
| 15 | 1 | 75-0715-000 | Kit, Plug, Cylinder (O-Ring +Instructions) | |
| 16 | 1 | EH13681 | Tubing, PVC, ¼” ID x 28”, Black |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

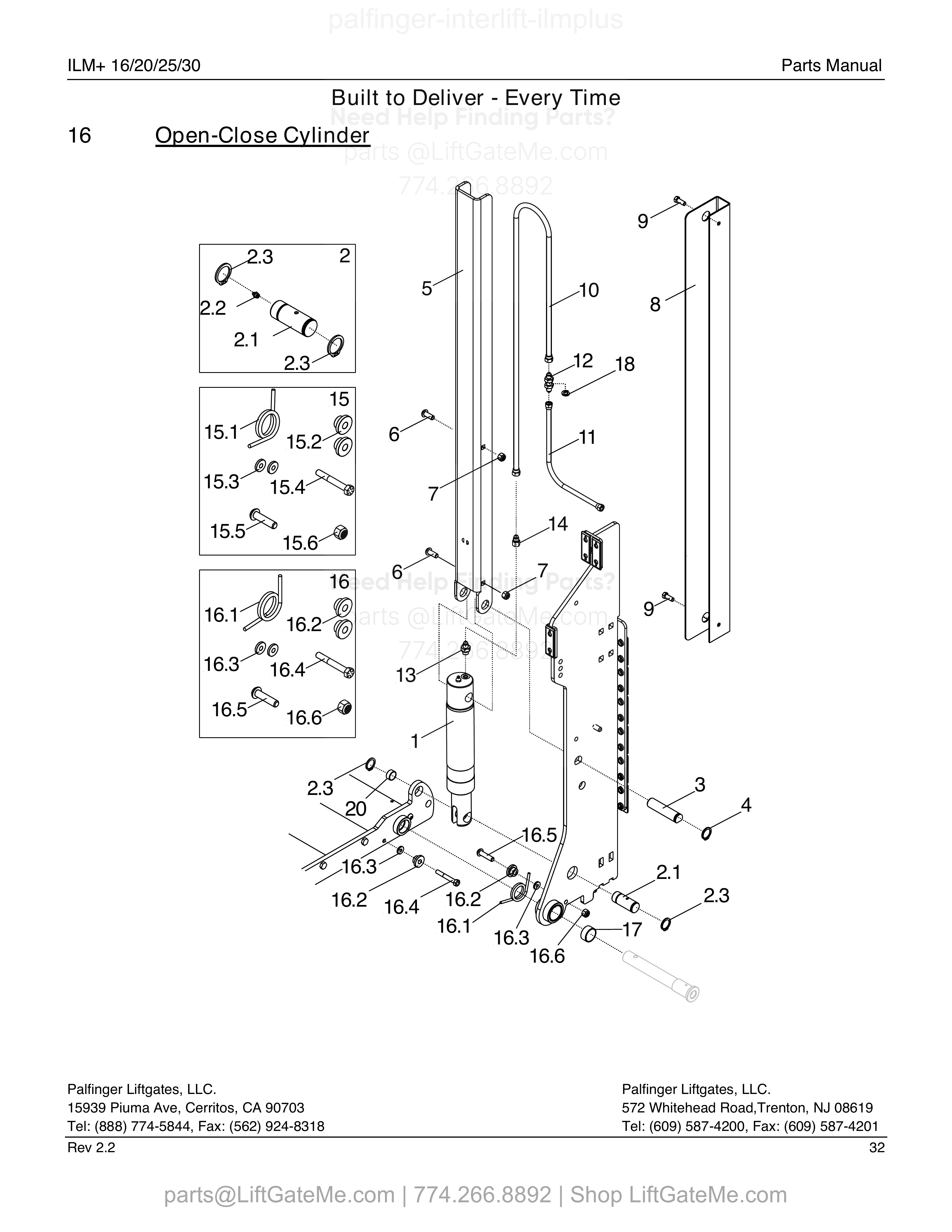

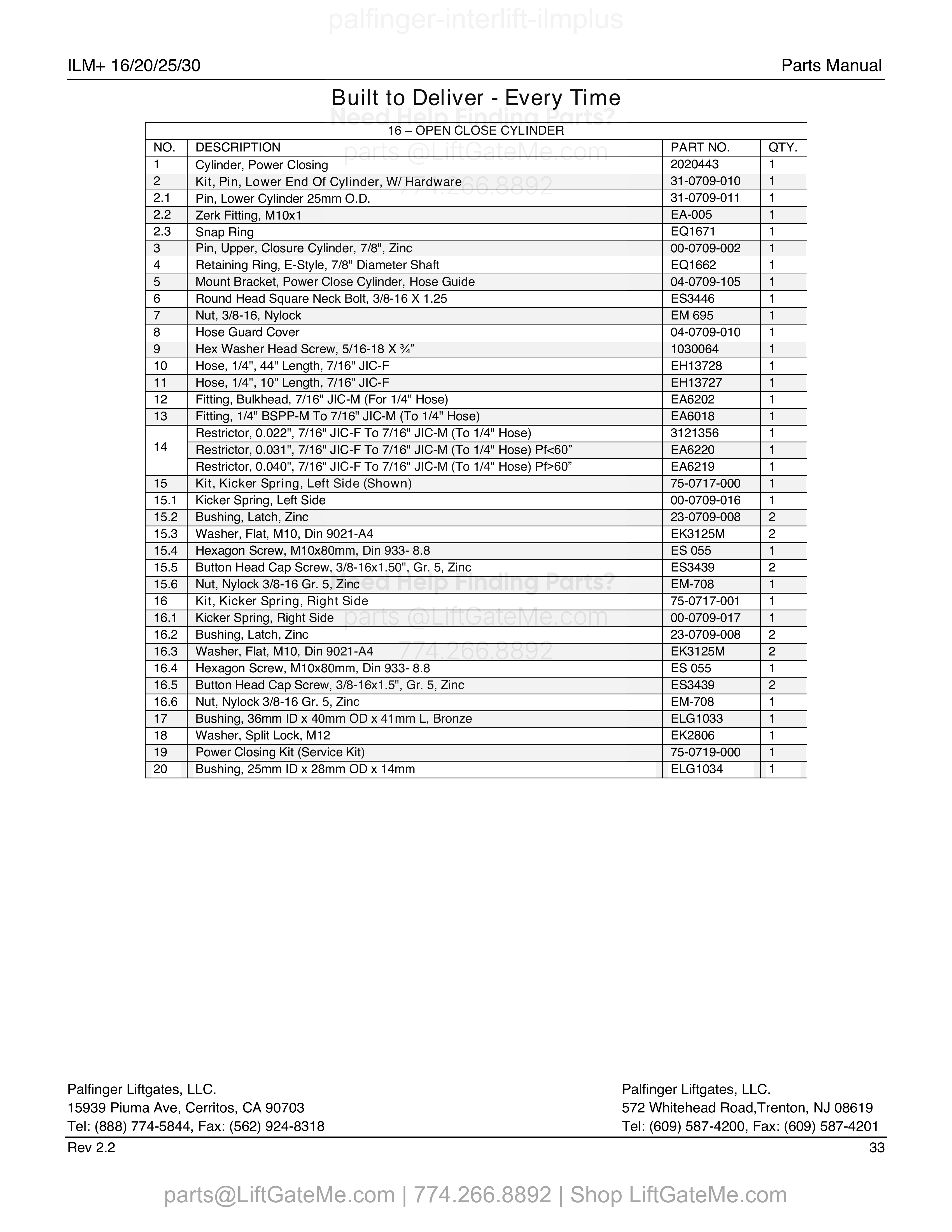

Open-Close Cylinder
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 2020443 | Cylinder, Power Closing | |
| 2 | 1 | 31-0709-010 | Kit, Pin, Lower End Of Cylinder, W/ Hardware | |
| 2.1 | 1 | 31-0709-011 | Pin, Lower Cylinder 25mm O.D. | |
| 2.2 | 1 | EA-005 | Zerk Fitting, M10x1 | |
| 2.3 | 1 | EQ1671 | Snap Ring | |
| 3 | 1 | 00-0709-002 | Pin, Upper, Closure Cylinder, 7/8", Zinc | |
| 4 | 1 | EQ1662 | Retaining Ring, E-Style, 7/8" Diameter Shaft | |
| 5 | 1 | 04-0709-105 | Mount Bracket, Power Close Cylinder, Hose Guide | |
| 6 | 1 | ES3446 | Round Head Square Neck Bolt, 3/8-16 X 1.25 | |
| 7 | 1 | EM 695 | Nut, 3/8-16, Nylock | |
| 8 | 1 | 04-0709-010 | Hose Guard Cover | |
| 9 | 1 | 1030064 | Hex Washer Head Screw, 5/16-18 X ¾” | |
| 10 | 1 | EH13728 | Hose, 1/4", 44" Length, 7/16" JIC-F | |
| 11 | 1 | EH13727 | Hose, 1/4", 10" Length, 7/16" JIC-F | |
| 12 | 1 | EA6202 | Fitting, Bulkhead, 7/16" JIC-M (For 1/4" Hose) | |
| 13 | 1 | EA6018 | Fitting, 1/4" BSPP-M To 7/16" JIC-M (To 1/4" Hose) | |
| 13 | 1 | 3121356 | Restrictor, 0.022", 7/16" JIC-F To 7/16" JIC-M (To 1/4" Hose) | |
| 14 | 1 | EA6220 | Restrictor, 0.031", 7/16" JIC-F To 7/16" JIC-M (To 1/4" Hose) Pf<60” | |
| 14 | 1 | EA6219 | Restrictor, 0.040", 7/16" JIC-F To 7/16" JIC-M (To 1/4" Hose) Pf>60” | |
| 15 | 1 | 75-0717-000 | Kit, Kicker Spring, Left Side (Shown) | |
| 15.1 | 1 | 00-0709-016 | Kicker Spring, Left Side | |
| 15.2 | 2 | 23-0709-008 | Bushing, Latch, Zinc | |
| 15.3 | 2 | EK3125M | Washer, Flat, M10, Din 9021-A4 | |
| 15.4 | 1 | ES 055 | Hexagon Screw, M10x80mm, Din 933- 8.8 | |
| 15.5 | 2 | ES3439 | Button Head Cap Screw, 3/8-16x1.50", Gr. 5, Zinc | |
| 15.6 | 1 | EM-708 | Nut, Nylock 3/8-16 Gr. 5, Zinc | |
| 16 | 1 | 75-0717-001 | Kit, Kicker Spring, Right Side | |
| 16.1 | 1 | 00-0709-017 | Kicker Spring, Right Side | |
| 16.2 | 2 | 23-0709-008 | Bushing, Latch, Zinc | |
| 16.3 | 2 | EK3125M | Washer, Flat, M10, Din 9021-A4 | |
| 16.4 | 1 | ES 055 | Hexagon Screw, M10x80mm, Din 933- 8.8 | |
| 16.5 | 2 | ES3439 | Button Head Cap Screw, 3/8-16x1.5", Gr. 5, Zinc | |
| 16.6 | 1 | EM-708 | Nut, Nylock 3/8-16 Gr. 5, Zinc | |
| 17 | 1 | ELG1033 | Bushing, 36mm ID x 40mm OD x 41mm L, Bronze | |
| 18 | 1 | EK2806 | Washer, Split Lock, M12 | |
| 19 | 1 | 75-0719-000 | Power Closing Kit (Service Kit) | |
| 20 | 1 | ELG1034 | Bushing, 25mm ID x 28mm OD x 14mm |

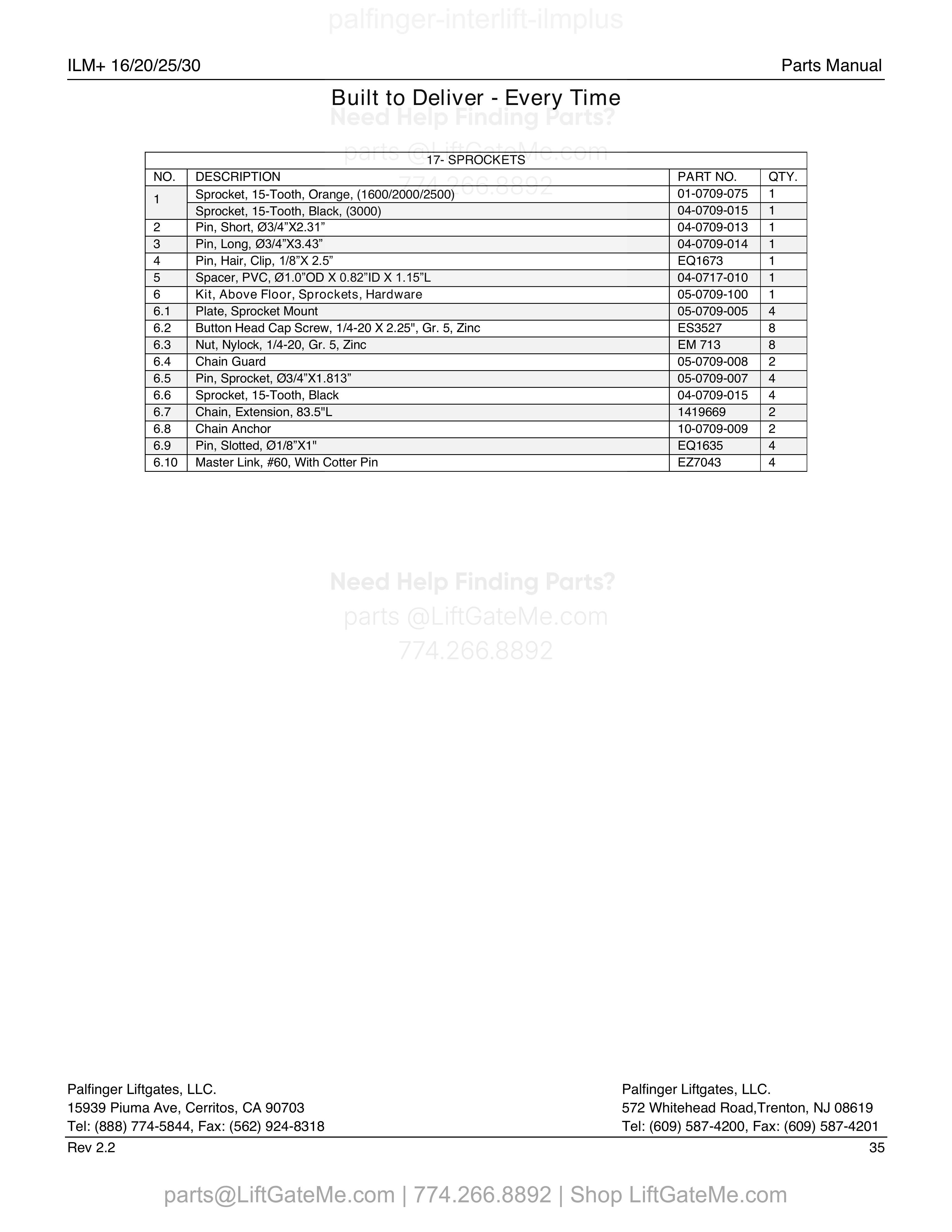

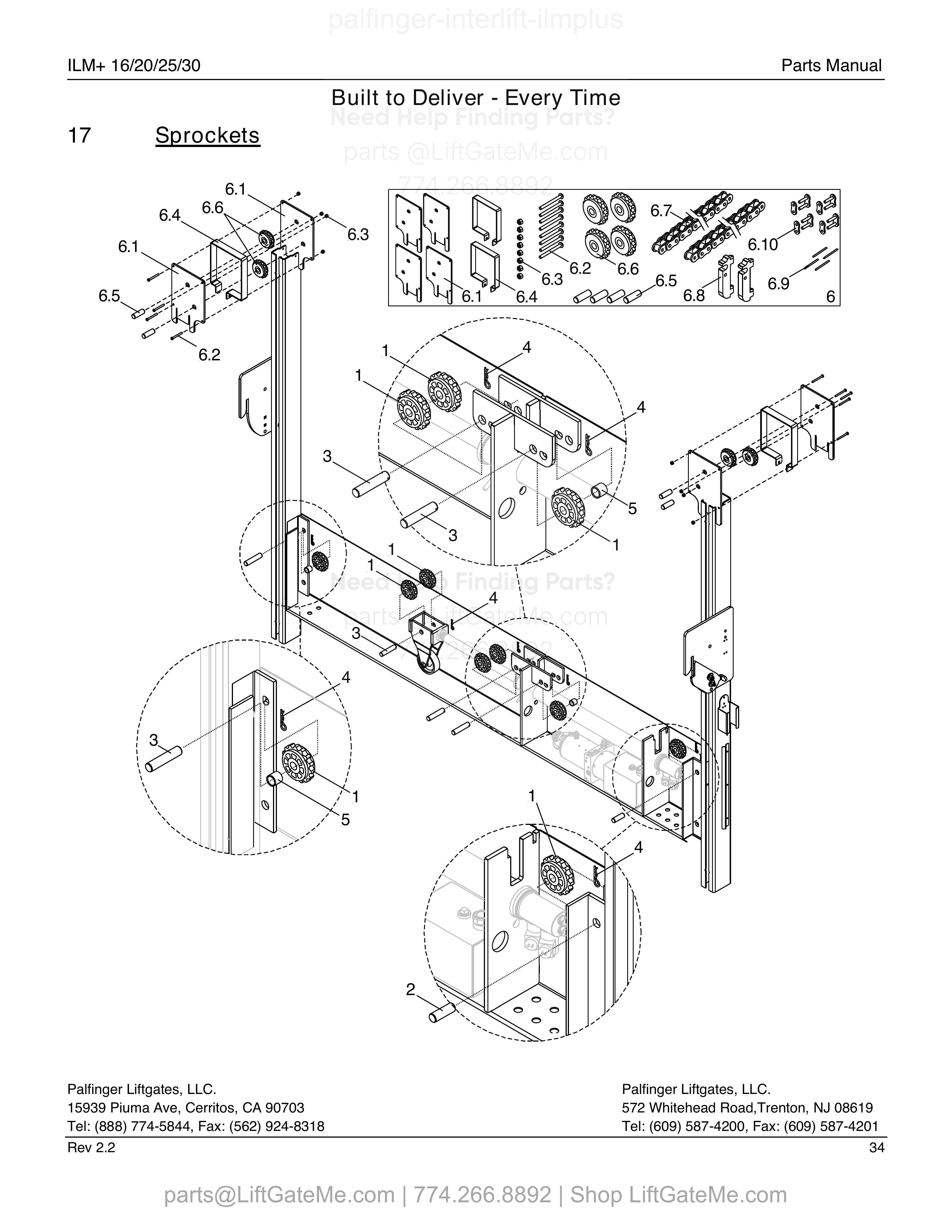

17- SPROCKETS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 01-0709-075 | Sprocket, 15-Tooth, Orange, (1600/2000/2500) | |
| 1 | 1 | 04-0709-015 | Sprocket, 15-Tooth, Black, (3000) | |
| 2 | 1 | 04-0709-013 | Pin, Short, Ø3/4”X2.31” | |
| 3 | 1 | 04-0709-014 | Pin, Long, Ø3/4”X3.43” | |
| 4 | 1 | EQ1673 | Pin, Hair, Clip, 1/8”X 2.5” | |
| 5 | 1 | 04-0717-010 | Spacer, PVC, Ø1.0”OD X 0.82”ID X 1.15”L | |
| 6 | 1 | 05-0709-100 | Kit, Above Floor, Sprockets, Hardware | |
| 6.1 | 4 | 05-0709-005 | Plate, Sprocket Mount | |
| 6.2 | 8 | ES3527 | Button Head Cap Screw, 1/4-20 X 2.25", Gr. 5, Zinc | |
| 6.3 | 8 | EM 713 | Nut, Nylock, 1/4-20, Gr. 5, Zinc | |
| 6.4 | 2 | 05-0709-008 | Chain Guard | |
| 6.5 | 4 | 05-0709-007 | Pin, Sprocket, Ø3/4”X1.813” | |
| 6.6 | 4 | 04-0709-015 | Sprocket, 15-Tooth, Black | |
| 6.7 | 2 | 1419669 | Chain, Extension, 83.5"L | |
| 6.8 | 2 | 10-0709-009 | Chain Anchor | |
| 6.9 | 4 | EQ1635 | Pin, Slotted, Ø1/8”X1" | |
| 6.10 | 4 | EZ7043 | Master Link, #60, With Cotter Pin |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

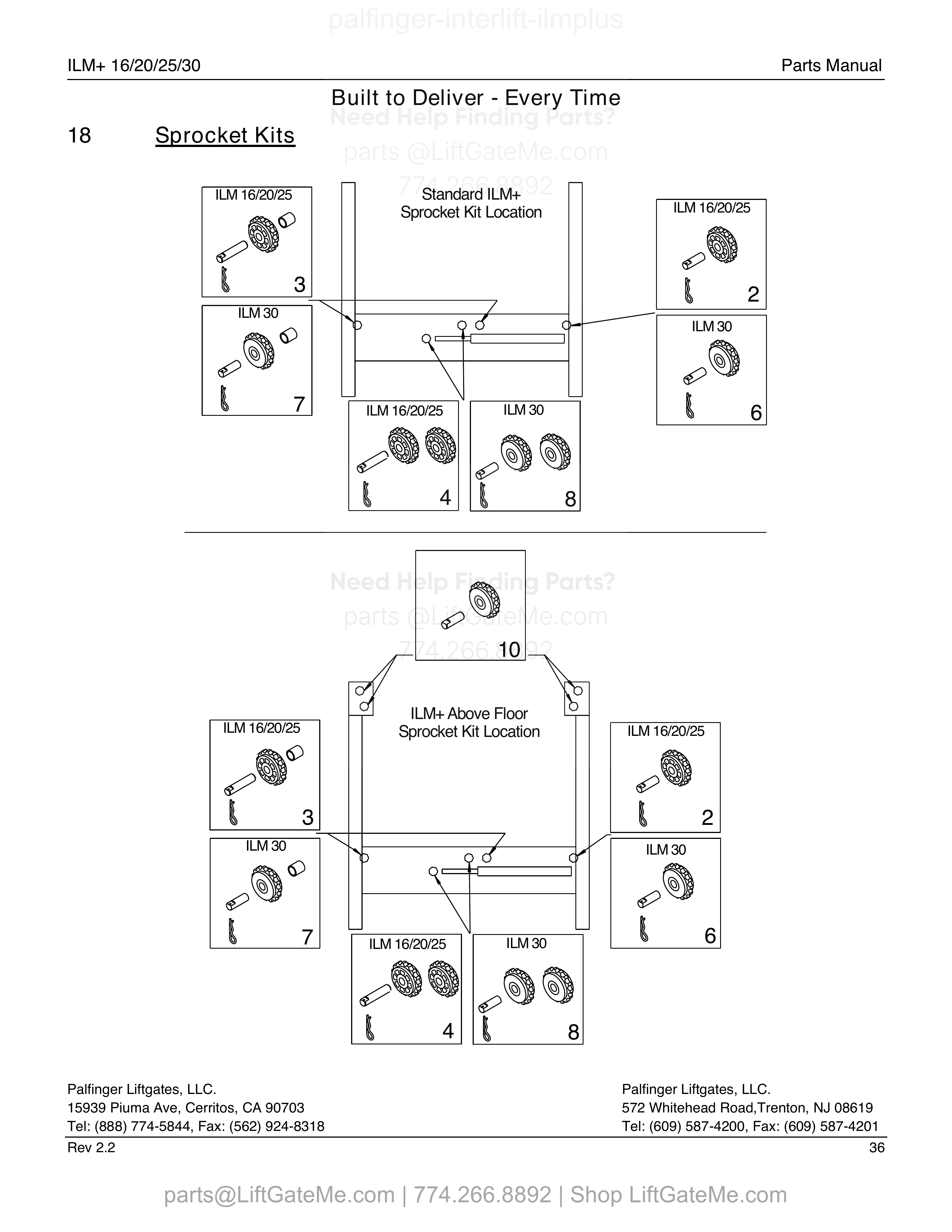

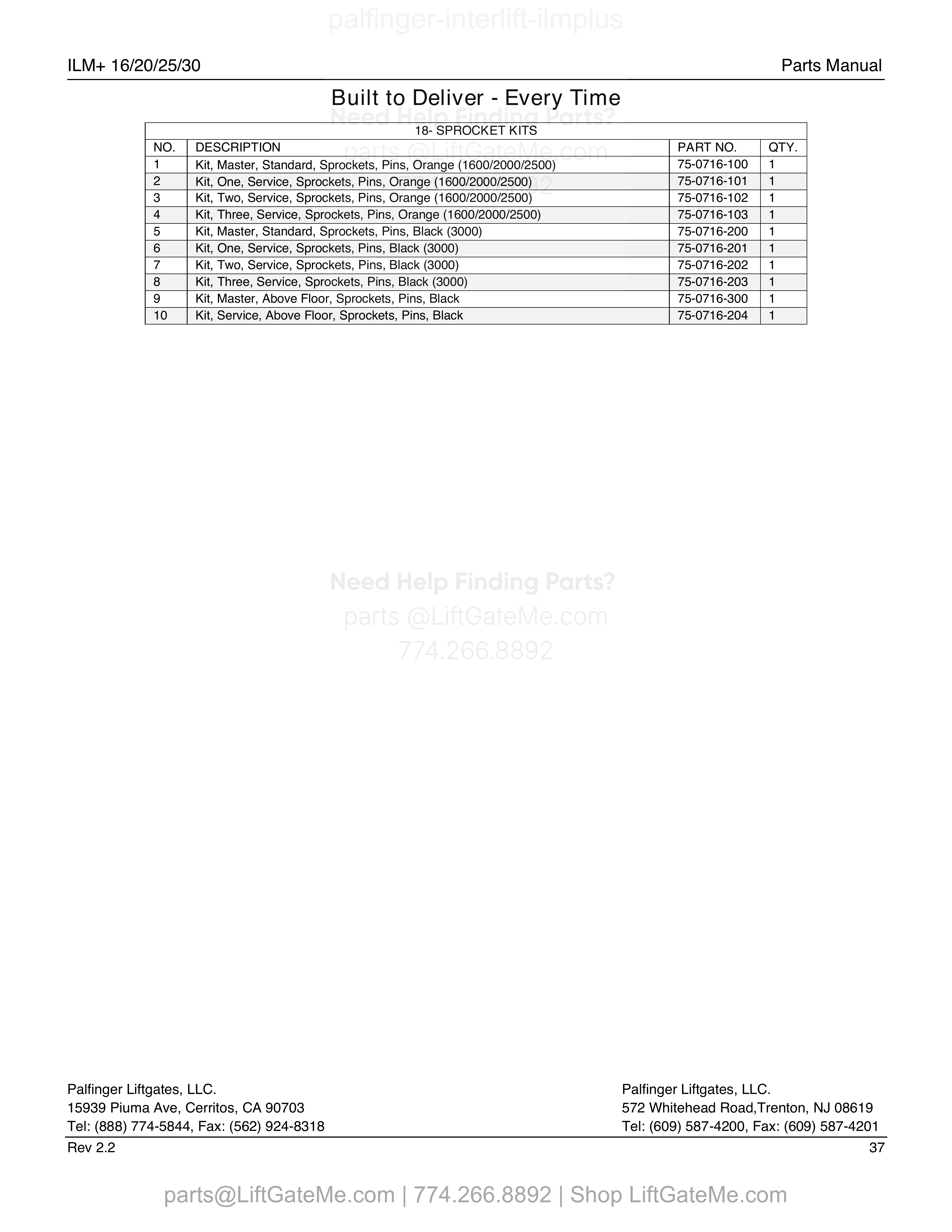

18- SPROCKET KITS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75-0716-100 | Kit, Master, Standard, Sprockets, Pins, Orange (1600/2000/2500) | |
| 2 | 1 | 75-0716-101 | Kit, One, Service, Sprockets, Pins, Orange (1600/2000/2500) | |
| 3 | 1 | 75-0716-102 | Kit, Two, Service, Sprockets, Pins, Orange (1600/2000/2500) | |
| 4 | 1 | 75-0716-103 | Kit, Three, Service, Sprockets, Pins, Orange (1600/2000/2500) | |
| 5 | 1 | 75-0716-200 | Kit, Master, Standard, Sprockets, Pins, Black (3000) | |
| 6 | 1 | 75-0716-201 | Kit, One, Service, Sprockets, Pins, Black (3000) | |
| 7 | 1 | 75-0716-202 | Kit, Two, Service, Sprockets, Pins, Black (3000) | |
| 8 | 1 | 75-0716-203 | Kit, Three, Service, Sprockets, Pins, Black (3000) | |
| 9 | 1 | 75-0716-300 | Kit, Master, Above Floor, Sprockets, Pins, Black | |
| 10 | 1 | 75-0716-204 | Kit, Service, Above Floor, Sprockets, Pins, Black |

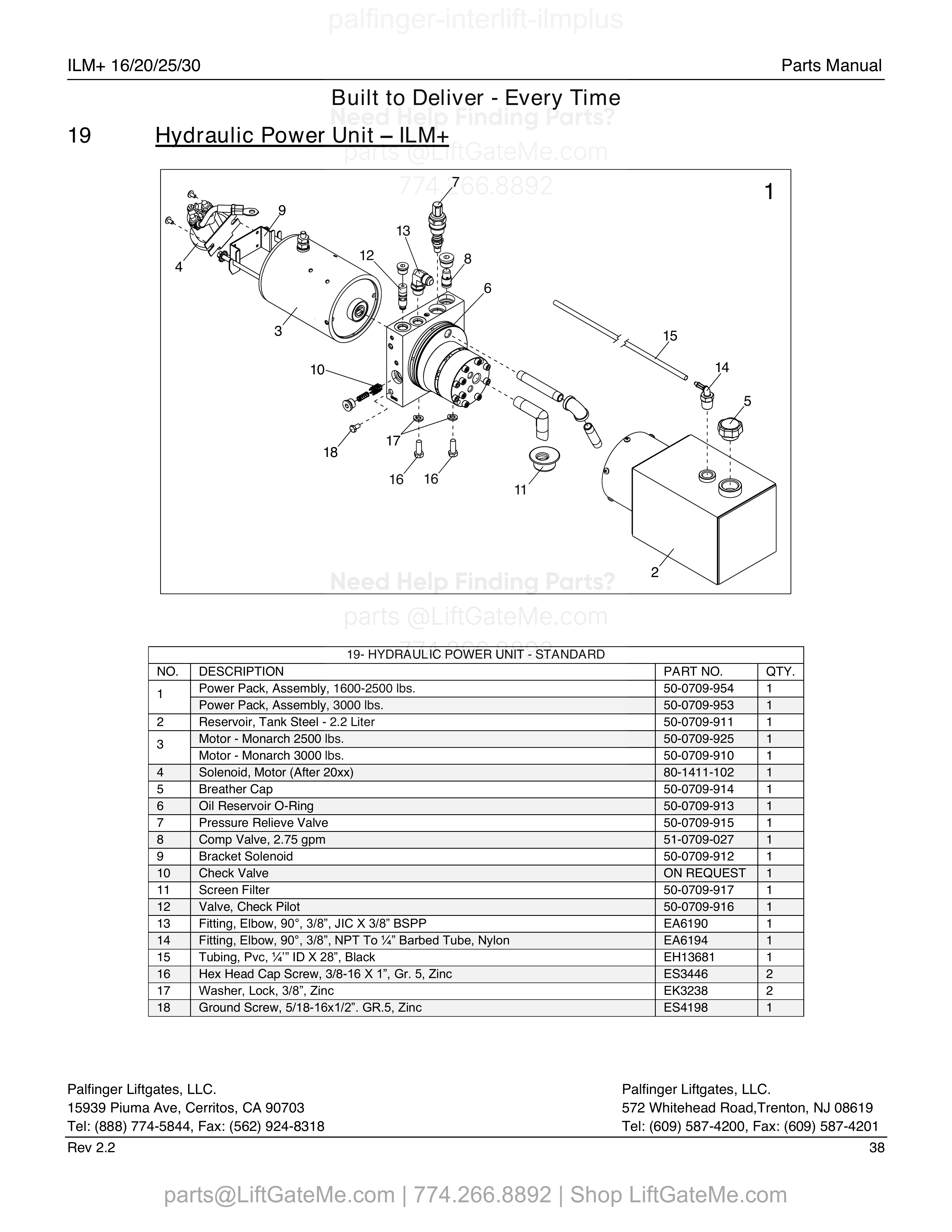

19- HYDRAULIC POWER UNIT - STANDARD
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 50-0709-954 | Power Pack, Assembly, 1600-2500 lbs. | |
| 1 | 1 | 50-0709-953 | Power Pack, Assembly, 3000 lbs. | |
| 2 | 1 | 50-0709-911 | Reservoir, Tank Steel - 2.2 Liter | |
| 3 | 1 | 50-0709-925 | Motor - Monarch 2500 lbs. | |
| 3 | 1 | 50-0709-910 | Motor - Monarch 3000 lbs. | |
| 4 | 1 | 80-1411-102 | Solenoid, Motor (After 20xx) | |
| 5 | 1 | 50-0709-914 | Breather Cap | |
| 6 | 1 | 50-0709-913 | Oil Reservoir O-Ring | |
| 7 | 1 | 50-0709-915 | Pressure Relieve Valve | |
| 8 | 1 | 51-0709-027 | Comp Valve, 2.75 gpm | |
| 9 | 1 | 50-0709-912 | Bracket Solenoid | |
| 10 | 1 | ON REQUEST | Check Valve | |
| 11 | 1 | 50-0709-917 | Screen Filter | |
| 12 | 1 | 50-0709-916 | Valve, Check Pilot | |
| 13 | 1 | EA6190 | Fitting, Elbow, 90°, 3/8”, JIC X 3/8” BSPP | |
| 14 | 1 | EA6194 | Fitting, Elbow, 90°, 3/8”, NPT To ¼” Barbed Tube, Nylon | |
| 15 | 1 | EH13681 | Tubing, Pvc, ¼” ID X 28”, Black | |
| 16 | 2 | ES3446 | Hex Head Cap Screw, 3/8-16 X 1”, Gr. 5, Zinc | |
| 17 | 2 | EK3238 | Washer, Lock, 3/8”, Zinc | |
| 18 | 1 | ES4198 | Ground Screw, 5/18-16x1/2”. GR.5, Zinc |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

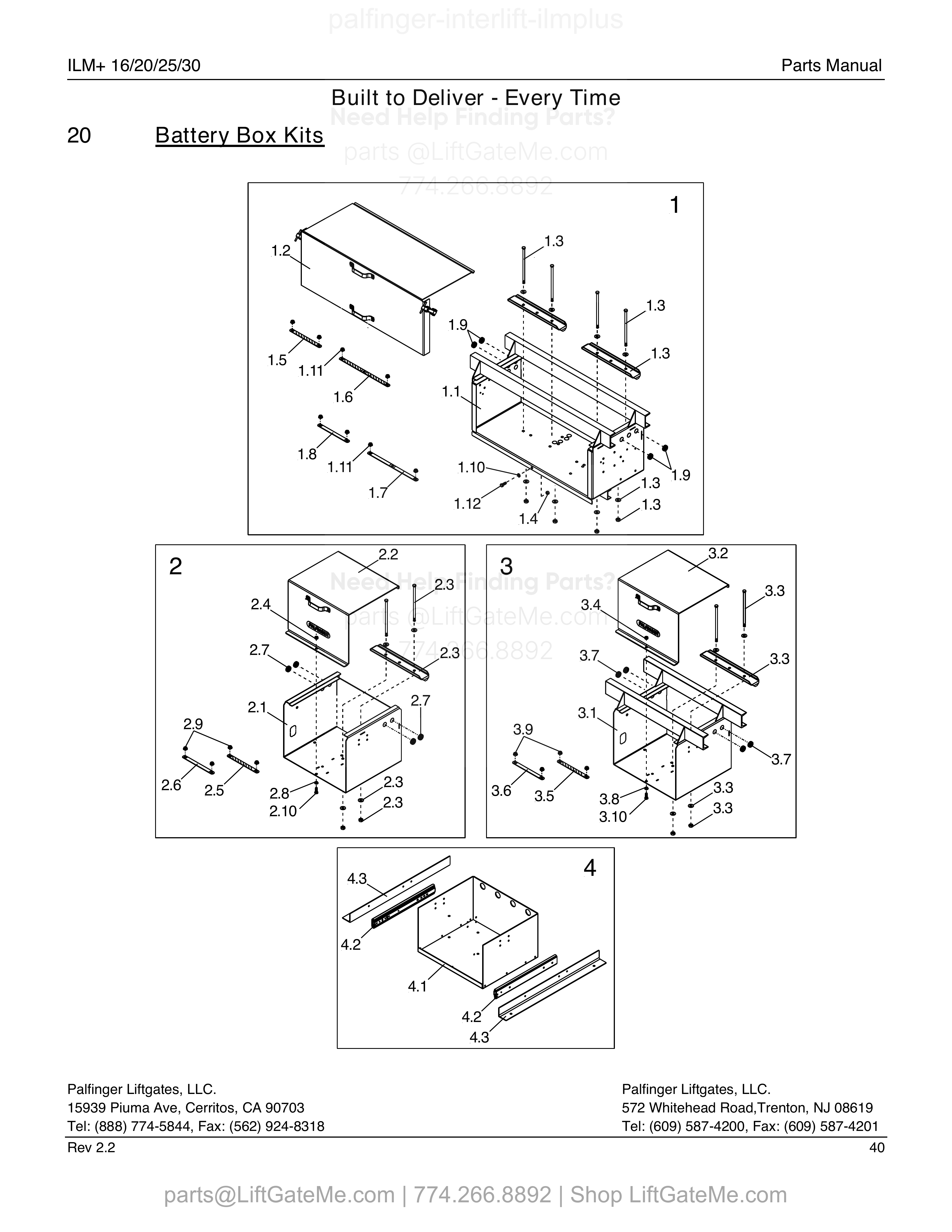

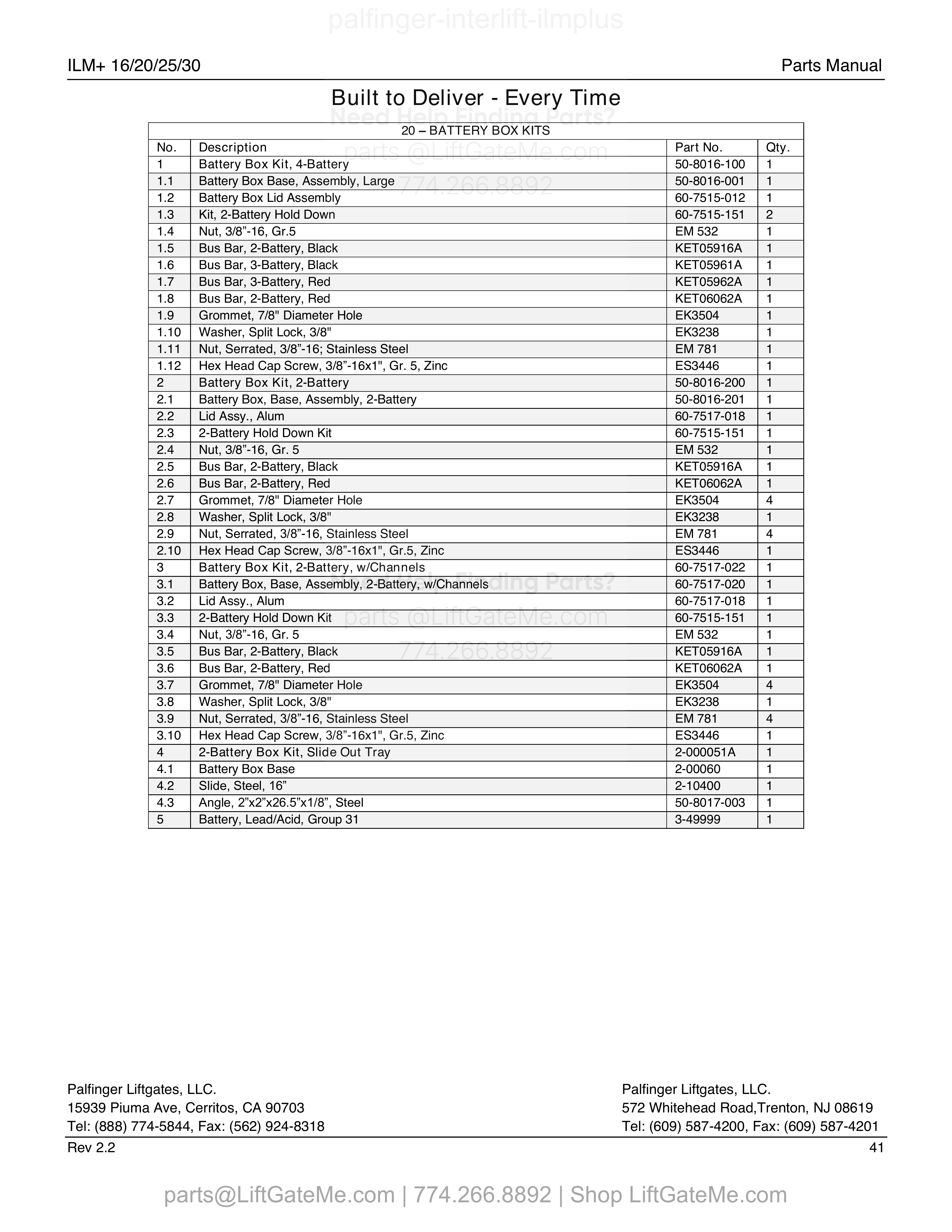

20 – BATTERY BOX KITS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 50-8016-100 | Battery Box Kit, 4-Battery | |
| 1.1 | 1 | 50-8016-001 | Battery Box Base, Assembly, Large | |
| 1.2 | 1 | 60-7515-012 | Battery Box Lid Assembly | |
| 1.3 | 2 | 60-7515-151 | Kit, 2-Battery Hold Down | |
| 1.4 | 1 | EM 532 | Nut, 3/8”-16, Gr.5 | |
| 1.5 | 1 | KET05916A | Bus Bar, 2-Battery, Black | |
| 1.6 | 1 | KET05961A | Bus Bar, 3-Battery, Black | |
| 1.7 | 1 | KET05962A | Bus Bar, 3-Battery, Red | |
| 1.8 | 1 | KET06062A | Bus Bar, 2-Battery, Red | |
| 1.9 | 1 | EK3504 | Grommet, 7/8" Diameter Hole | |
| 1.10 | 1 | EK3238 | Washer, Split Lock, 3/8" | |
| 1.11 | 1 | EM 781 | Nut, Serrated, 3/8”-16; Stainless Steel | |
| 1.12 | 1 | ES3446 | Hex Head Cap Screw, 3/8”-16x1", Gr. 5, Zinc | |
| 2 | 1 | 50-8016-200 | Battery Box Kit, 2-Battery | |
| 2.1 | 1 | 50-8016-201 | Battery Box, Base, Assembly, 2-Battery | |
| 2.2 | 1 | 60-7517-018 | Lid Assy., Alum | |
| 2.3 | 1 | 60-7515-151 | 2-Battery Hold Down Kit | |
| 2.4 | 1 | EM 532 | Nut, 3/8”-16, Gr. 5 | |
| 2.5 | 1 | KET05916A | Bus Bar, 2-Battery, Black | |
| 2.6 | 1 | KET06062A | Bus Bar, 2-Battery, Red | |
| 2.7 | 4 | EK3504 | Grommet, 7/8" Diameter Hole | |
| 2.8 | 1 | EK3238 | Washer, Split Lock, 3/8" | |
| 2.9 | 4 | EM 781 | Nut, Serrated, 3/8”-16, Stainless Steel | |
| 2.10 | 1 | ES3446 | Hex Head Cap Screw, 3/8”-16x1", Gr.5, Zinc | |
| 3 | 1 | 60-7517-022 | Battery Box Kit, 2-Battery, w/Channels | |
| 3.1 | 1 | 60-7517-020 | Battery Box, Base, Assembly, 2-Battery, w/Channels | |
| 3.2 | 1 | 60-7517-018 | Lid Assy., Alum | |
| 3.3 | 1 | 60-7515-151 | 2-Battery Hold Down Kit | |
| 3.4 | 1 | EM 532 | Nut, 3/8”-16, Gr. 5 | |
| 3.5 | 1 | KET05916A | Bus Bar, 2-Battery, Black | |
| 3.6 | 1 | KET06062A | Bus Bar, 2-Battery, Red | |
| 3.7 | 4 | EK3504 | Grommet, 7/8" Diameter Hole | |
| 3.8 | 1 | EK3238 | Washer, Split Lock, 3/8" | |
| 3.9 | 4 | EM 781 | Nut, Serrated, 3/8”-16, Stainless Steel | |
| 3.10 | 1 | ES3446 | Hex Head Cap Screw, 3/8”-16x1", Gr.5, Zinc | |
| 4 | 1 | 2-000051A | 2-Battery Box Kit, Slide Out Tray | |
| 4.1 | 1 | 2-00060 | Battery Box Base | |
| 4.2 | 1 | 2-10400 | Slide, Steel, 16” | |
| 4.3 | 1 | 50-8017-003 | Angle, 2”x2”x26.5”x1/8”, Steel | |
| 5 | 1 | 3-49999 | Battery, Lead/Acid, Group 31 |

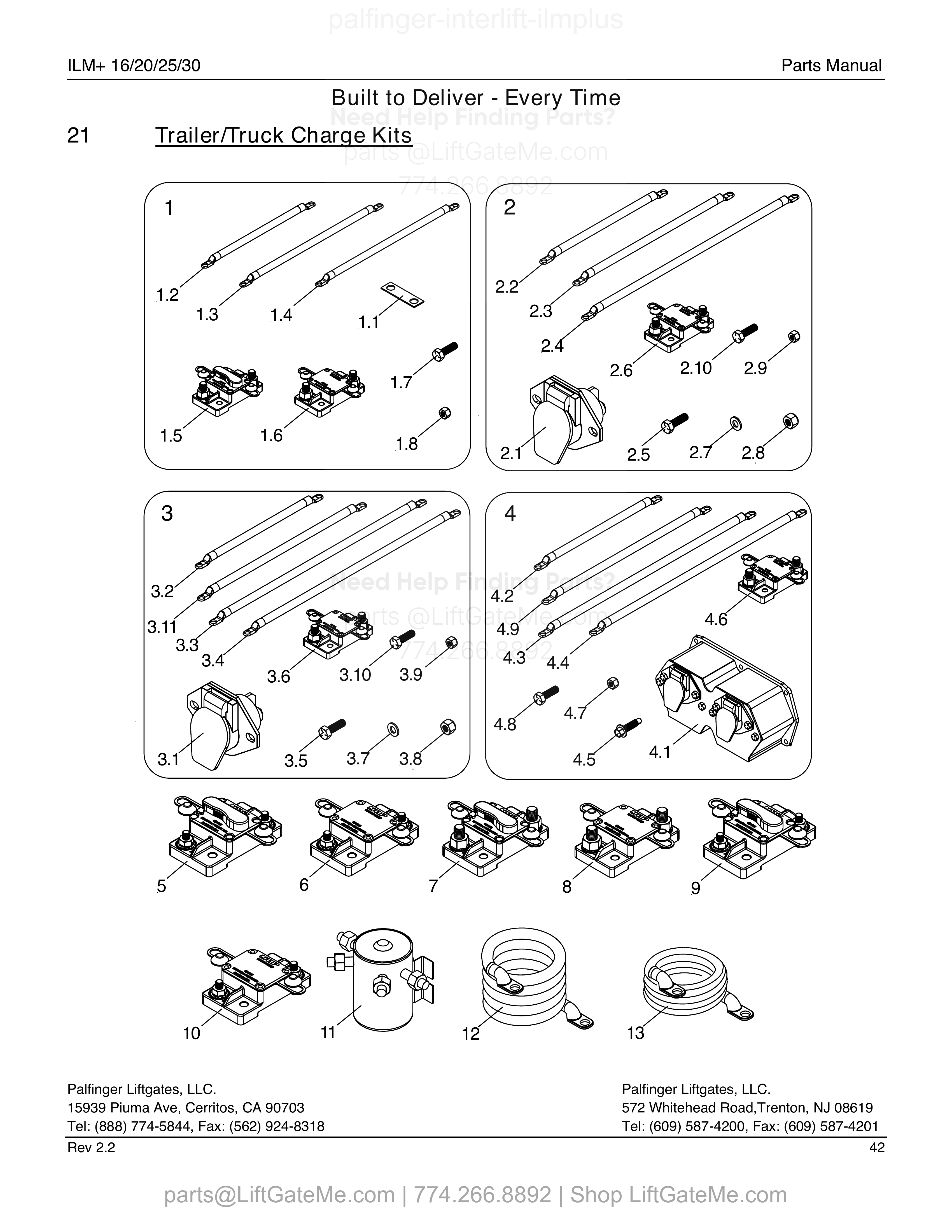

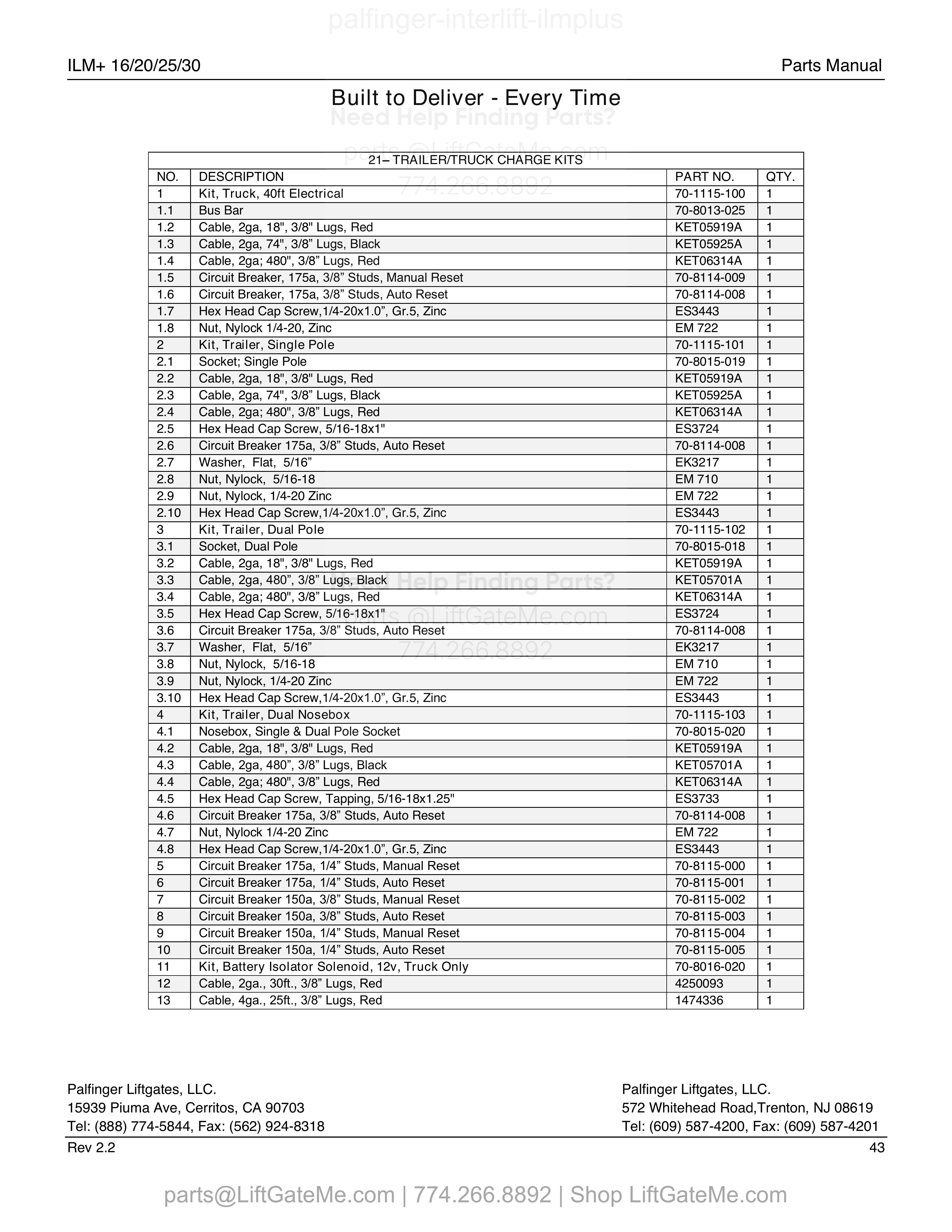

21 – TRAILER/TRUCK CHARGE KITS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70-1115-100 | Kit, Truck, 40ft Electrical | |
| 1.1 | 1 | 70-8013-025 | Bus Bar | |
| 1.2 | 1 | KET05919A | Cable, 2ga, 18", 3/8" Lugs, Red | |
| 1.3 | 1 | KET05925A | Cable, 2ga, 74", 3/8” Lugs, Black | |
| 1.4 | 1 | KET06314A | Cable, 2ga; 480", 3/8” Lugs, Red | |
| 1.5 | 1 | 70-8114-009 | Circuit Breaker, 175a, 3/8” Studs, Manual Reset | |
| 1.6 | 1 | 70-8114-008 | Circuit Breaker, 175a, 3/8” Studs, Auto Reset | |
| 1.7 | 1 | ES3443 | Hex Head Cap Screw, 1/4-20x1.0”, Gr.5, Zinc | |
| 1.8 | 1 | EM 722 | Nut, Nylock 1/4-20, Zinc | |
| 2 | 1 | 70-1115-101 | Kit, Trailer, Single Pole | |
| 2.1 | 1 | 70-8015-019 | Socket; Single Pole | |
| 2.2 | 1 | KET05919A | Cable, 2ga, 18", 3/8" Lugs, Red | |
| 2.3 | 1 | KET05925A | Cable, 2ga, 74", 3/8” Lugs, Black | |
| 2.4 | 1 | KET06314A | Cable, 2ga; 480", 3/8” Lugs, Red | |
| 2.5 | 1 | ES3724 | Hex Head Cap Screw, 5/16-18x1" | |
| 2.6 | 1 | 70-8114-008 | Circuit Breaker 175a, 3/8” Studs, Auto Reset | |
| 2.7 | 1 | EK3217 | Washer, Flat, 5/16” | |
| 2.8 | 1 | EM 710 | Nut, Nylock, 5/16-18 | |
| 2.9 | 1 | EM 722 | Nut, Nylock, 1/4-20 Zinc | |
| 2.10 | 1 | ES3443 | Hex Head Cap Screw,1/4-20x1.0”, Gr.5, Zinc | |
| 3 | 1 | 70-1115-102 | Kit, Trailer, Dual Pole | |
| 3.1 | 1 | 70-8015-018 | Socket, Dual Pole | |
| 3.2 | 1 | KET05919A | Cable, 2ga, 18", 3/8" Lugs, Red | |
| 3.3 | 1 | KET05701A | Cable, 2ga, 480”, 3/8” Lugs, Black | |
| 3.4 | 1 | KET06314A | Cable, 2ga; 480", 3/8” Lugs, Red | |
| 3.5 | 1 | ES3724 | Hex Head Cap Screw, 5/16-18x1" | |
| 3.6 | 1 | 70-8114-008 | Circuit Breaker 175a, 3/8” Studs, Auto Reset | |
| 3.7 | 1 | EK3217 | Washer, Flat, 5/16” | |
| 3.8 | 1 | EM 710 | Nut, Nylock, 5/16-18 | |
| 3.9 | 1 | EM 722 | Nut, Nylock, 1/4-20 Zinc | |
| 3.10 | 1 | ES3443 | Hex Head Cap Screw,1/4-20x1.0”, Gr.5, Zinc | |
| 4 | 1 | 70-1115-103 | Kit, Trailer, Dual Nosebox | |
| 4.1 | 1 | 70-8015-020 | Nosebox, Single & Dual Pole Socket | |
| 4.2 | 1 | KET05919A | Cable, 2ga, 18", 3/8" Lugs, Red | |
| 4.3 | 1 | KET05701A | Cable, 2ga, 480”, 3/8” Lugs, Black | |
| 4.4 | 1 | KET06314A | Cable, 2ga; 480", 3/8” Lugs, Red | |
| 4.5 | 1 | ES3733 | Hex Head Cap Screw, Tapping, 5/16-18x1.25" | |
| 4.6 | 1 | 70-8114-008 | Circuit Breaker 175a, 3/8” Studs, Auto Reset | |
| 4.7 | 1 | EM 722 | Nut, Nylock 1/4-20 Zinc | |
| 4.8 | 1 | ES3443 | Hex Head Cap Screw,1/4-20x1.0”, Gr.5, Zinc | |
| 5 | 1 | 70-8115-000 | Circuit Breaker 175a, 1/4” Studs, Manual Reset | |
| 6 | 1 | 70-8115-001 | Circuit Breaker 175a, 1/4” Studs, Auto Reset | |
| 7 | 1 | 70-8115-002 | Circuit Breaker 150a, 3/8” Studs, Manual Reset | |
| 8 | 1 | 70-8115-003 | Circuit Breaker 150a, 3/8” Studs, Auto Reset | |
| 9 | 1 | 70-8115-004 | Circuit Breaker 150a, 1/4” Studs, Manual Reset | |
| 10 | 1 | 70-8115-005 | Circuit Breaker 150a, 1/4” Studs, Auto Reset | |
| 11 | 1 | 70-8016-020 | Kit, Battery Isolator Solenoid, 12v, Truck Only | |
| 12 | 1 | 4250093 | Cable, 2ga., 30ft., 3/8” Lugs, Red | |
| 13 | 1 | 1474336 | Cable, 4ga., 25ft., 3/8” Lugs, Red |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

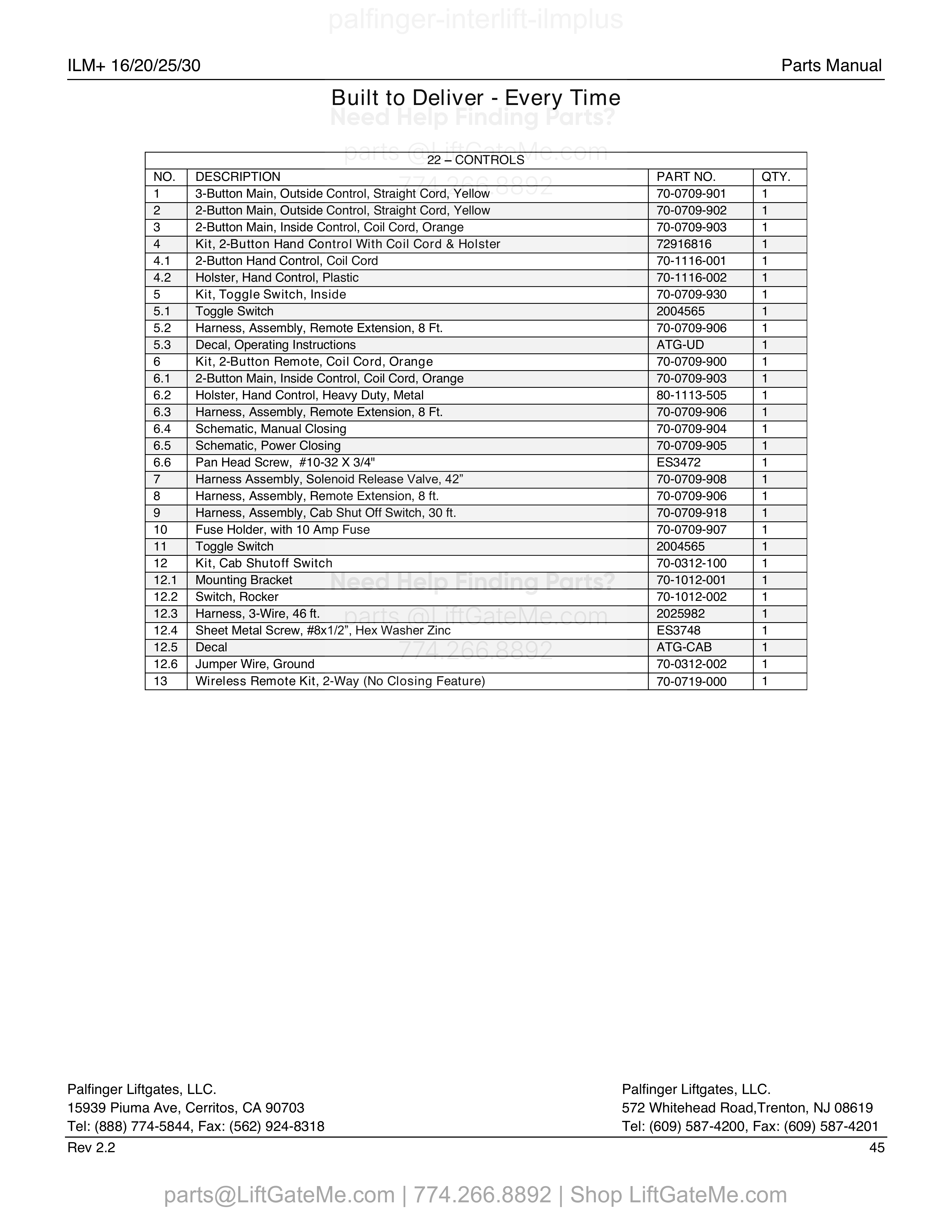

22 – CONTROLS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70-0709-901 | 3-Button Main, Outside Control, Straight Cord, Yellow | |
| 2 | 1 | 70-0709-902 | 2-Button Main, Outside Control, Straight Cord, Yellow | |
| 3 | 1 | 70-0709-903 | 2-Button Main, Inside Control, Coil Cord, Orange | |
| 4 | 1 | 72916816 | Kit, 2-Button Hand Control With Coil Cord & Holster | |
| 4.1 | 1 | 70-1116-001 | 2-Button Hand Control, Coil Cord | |
| 4.2 | 1 | 70-1116-002 | Holster, Hand Control, Plastic | |
| 5 | 1 | 70-0709-930 | Kit, Toggle Switch, Inside | |
| 5.1 | 1 | 2004565 | Toggle Switch | |
| 5.2 | 1 | 70-0709-906 | Harness, Assembly, Remote Extension, 8 Ft. | |
| 5.3 | 1 | ATG-UD | Decal, Operating Instructions | |
| 6 | 1 | 70-0709-900 | Kit, 2-Button Remote, Coil Cord, Orange | |
| 6.1 | 1 | 70-0709-903 | 2-Button Main, Inside Control, Coil Cord, Orange | |
| 6.2 | 1 | 80-1113-505 | Holster, Hand Control, Heavy Duty, Metal | |
| 6.3 | 1 | 70-0709-906 | Harness, Assembly, Remote Extension, 8 Ft. | |
| 6.4 | 1 | 70-0709-904 | Schematic, Manual Closing | |
| 6.5 | 1 | 70-0709-905 | Schematic, Power Closing | |
| 6.6 | 1 | ES3472 | Pan Head Screw, #10-32 X 3/4" | |
| 7 | 1 | 70-0709-908 | Harness Assembly, Solenoid Release Valve, 42” | |
| 8 | 1 | 70-0709-906 | Harness, Assembly, Remote Extension, 8 ft. | |
| 9 | 1 | 70-0709-918 | Harness, Assembly, Cab Shut Off Switch, 30 ft. | |
| 10 | 1 | 70-0709-907 | Fuse Holder, with 10 Amp Fuse | |
| 11 | 1 | 2004565 | Toggle Switch | |
| 12 | 1 | 70-0312-100 | Kit, Cab Shutoff Switch | |
| 12.1 | 1 | 70-1012-001 | Mounting Bracket | |
| 12.2 | 1 | 70-1012-002 | Switch, Rocker | |
| 12.3 | 1 | 2025982 | Harness, 3-Wire, 46 ft. | |
| 12.4 | 1 | ES3748 | Sheet Metal Screw, #8x1/2”, Hex Washer Zinc | |
| 12.5 | 1 | ATG-CAB | Decal | |
| 12.6 | 1 | 70-0312-002 | Jumper Wire, Ground | |
| 13 | 1 | 70-0719-000 | Wireless Remote Kit, 2-Way (No Closing Feature) |

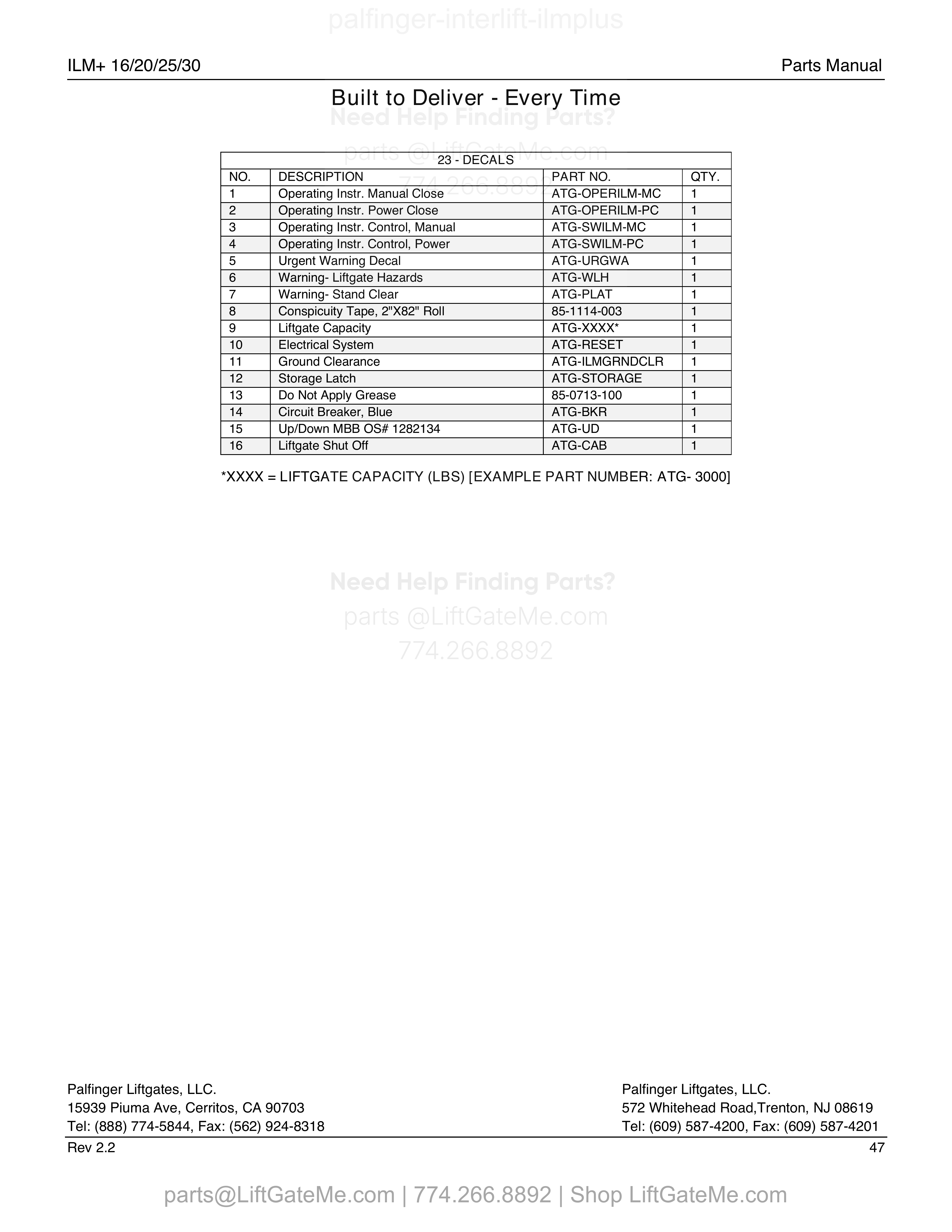

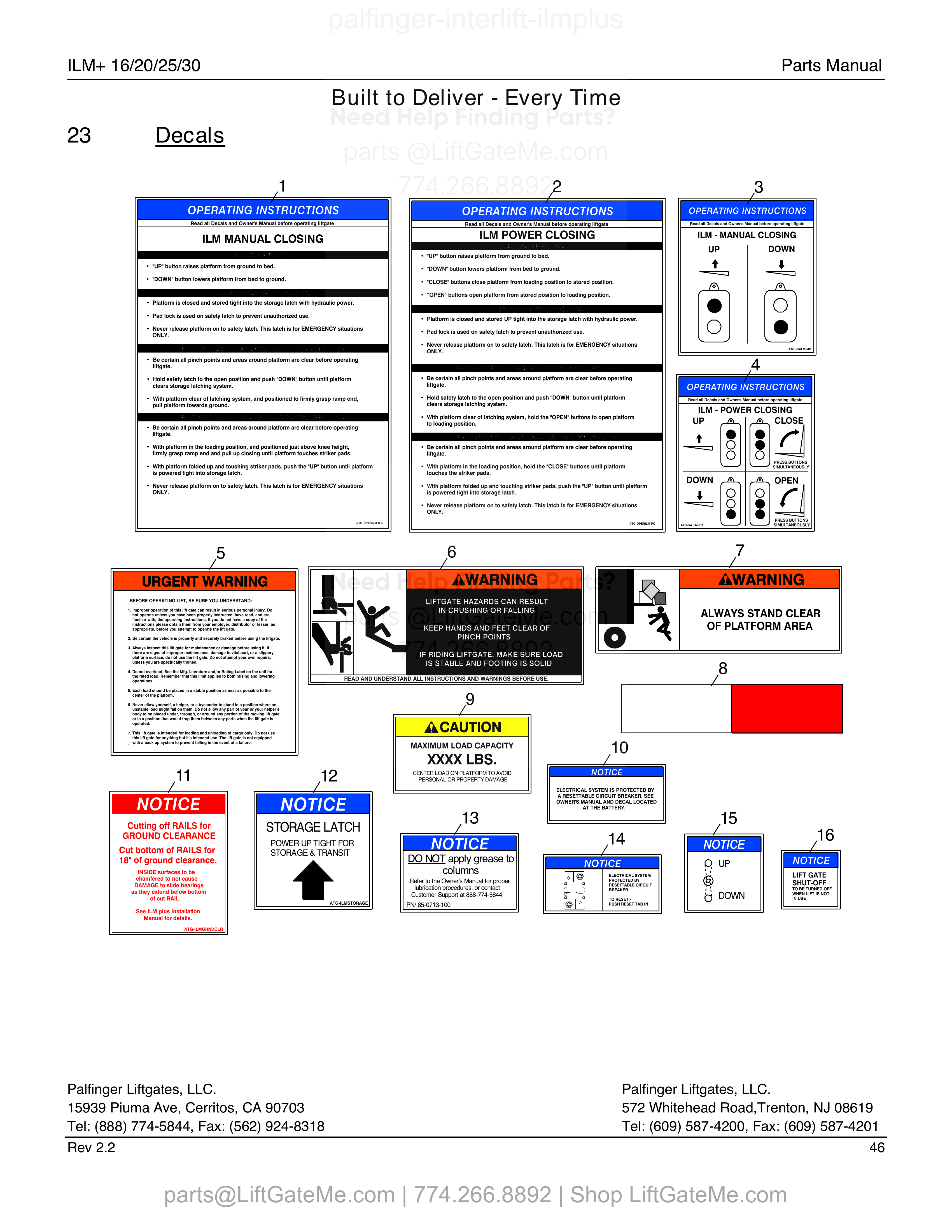

23 - DECALS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | ATG-OPERILM-MC | Operating Instr. Manual Close | |
| 2 | 1 | ATG-OPERILM-PC | Operating Instr. Power Close | |
| 3 | 1 | ATG-SWILM-MC | Operating Instr. Control, Manual | |
| 4 | 1 | ATG-SWILM-PC | Operating Instr. Control, Power | |
| 5 | 1 | ATG-URGWA | Urgent Warning Decal | |
| 6 | 1 | ATG-WLH | Warning- Liftgate Hazards | |
| 7 | 1 | ATG-PLAT | Warning- Stand Clear | |
| 8 | 1 | 85-1114-003 | Conspicuity Tape, 2"X82" Roll | |
| 9 | 1 | ATG-XXXX* | Liftgate Capacity | |
| 10 | 1 | ATG-RESET | Electrical System | |
| 11 | 1 | ATG-ILMGRNDCLR | Ground Clearance | |
| 12 | 1 | ATG-STORAGE | Storage Latch | |
| 13 | 1 | 85-0713-100 | Do Not Apply Grease | |
| 14 | 1 | ATG-BKR | Circuit Breaker, Blue | |
| 15 | 1 | ATG-UD | Up/Down MBB OS# 1282134 | |
| 16 | 1 | ATG-CAB | Liftgate Shut Off |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
