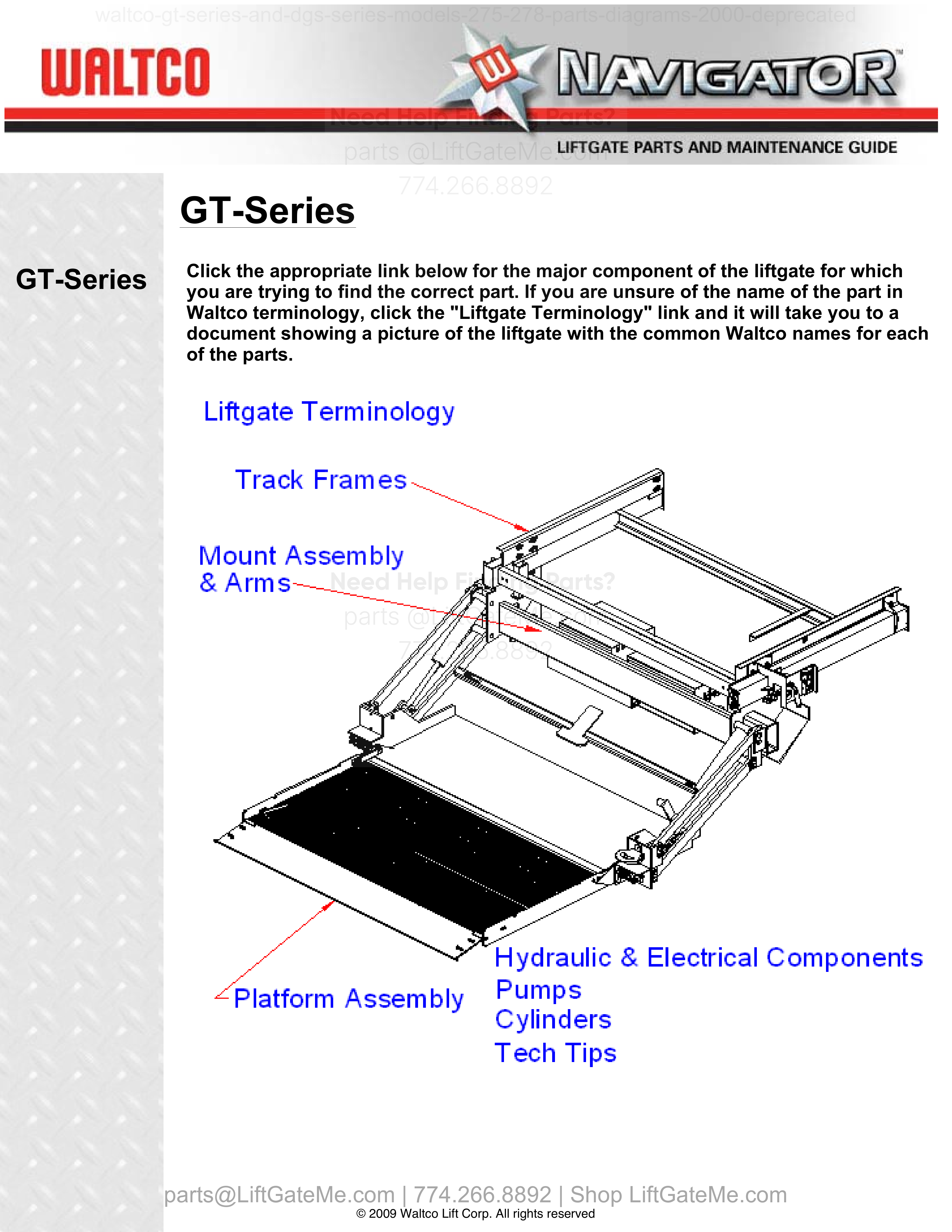

Waltco GT-Series & DGS-Series Models 275-278 Liftgate Parts Diagrams | Approximate Years Pre-2000
Legacy Waltco GT-Series & DGS-Series Models 275-278 Rail Lift parts diagrams
Explore pre-2000 Waltco GT-Series & DGS-Series Models 275-278 parts diagrams for legacy rail lift liftgates. Use this reference to compare diagram callouts, verify part numbers, and support repairs.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you're unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we're always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it
i

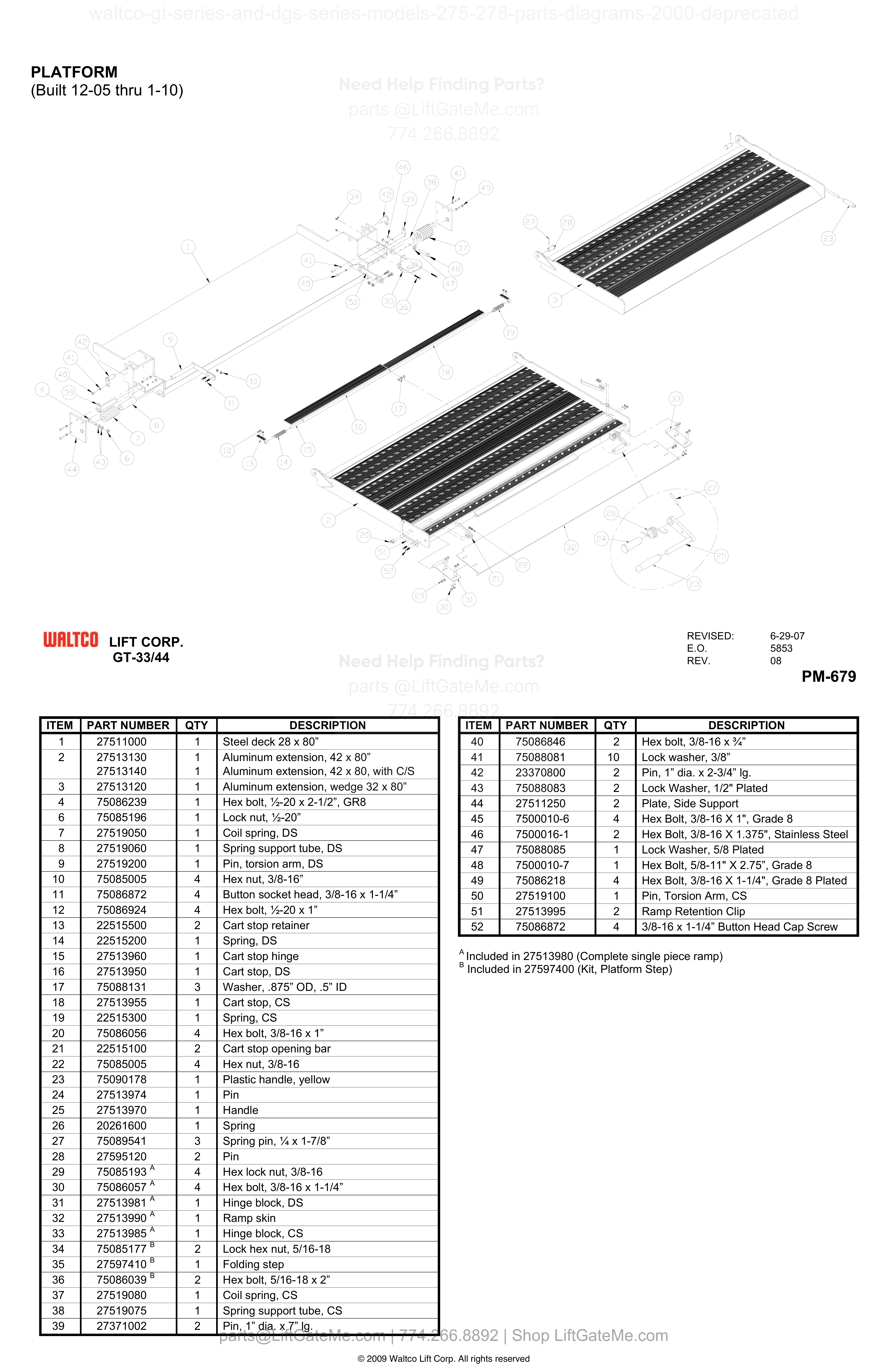

PLATFORM (Built 12-05 thru 1-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27511000 | Steel deck 28 x 80” | |
| 2 | 1 | 27513130 | Aluminum extension, 42 x 80” | |
| 2 | 1 | 27513140 | Aluminum extension, 42 x 80, with C/S | |
| 3 | 1 | 27513120 | Aluminum extension, wedge 32 x 80” | |
| 4 | 1 | 75086239 | Hex bolt, ½-20 x 2-1/2”, GR8 | |
| 6 | 1 | 75085196 | Lock nut, ½-20” | |
| 7 | 1 | 27519050 | Coil spring, DS | |
| 8 | 1 | 27519060 | Spring support tube, DS | |
| 9 | 1 | 27519200 | Pin, torsion arm, DS | |
| 10 | 4 | 75085005 | Hex nut, 3/8-16” | |
| 11 | 4 | 75086872 | Button socket head, 3/8-16 x 1-1/4” | |
| 12 | 4 | 75086924 | Hex bolt, ½-20 x 1” | |
| 13 | 2 | 22515500 | Cart stop retainer | |
| 14 | 1 | 22515200 | Spring, DS | |
| 15 | 1 | 27513960 | Cart stop hinge | |
| 16 | 1 | 27513950 | Cart stop, DS | |
| 17 | 3 | 75088131 | Washer, .875” OD, .5” ID | |
| 18 | 1 | 27513955 | Cart stop, CS | |
| 19 | 1 | 22515300 | Spring, CS | |
| 20 | 4 | 75086056 | Hex bolt, 3/8-16 x 1” | |
| 21 | 2 | 22515100 | Cart stop opening bar | |
| 22 | 4 | 75085005 | Hex nut, 3/8-16 | |
| 23 | 1 | 75090178 | Plastic handle, yellow | |
| 24 | 1 | 27513974 | Pin | |
| 25 | 1 | 27513970 | Handle | |
| 26 | 1 | 20261600 | Spring | |
| 27 | 3 | 75089541 | Spring pin, ¼ x 1-7/8” | |
| 28 | 2 | 27595120 | Pin | |
| 29 | 4 | 75085193 A | Hex lock nut, 3/8-16 | |
| 30 | 4 | 75086057 A | Hex bolt, 3/8-16 x 1-1/4” | |
| 31 | 1 | 27513981 A | Hinge block, DS | |
| 32 | 1 | 27513990 A | Ramp skin | |
| 33 | 1 | 27513985 A | Hinge block, CS | |
| 34 | 2 | 75085177 B | Lock hex nut, 5/16-18 | |
| 35 | 1 | 27597410 B | Folding step | |
| 36 | 2 | 75086039 B | Hex bolt, 5/16-18 x 2” | |
| 37 | 1 | 27519080 | Coil spring, CS | |
| 38 | 1 | 27519075 | Spring support tube, CS | |
| 39 | 2 | 27371002 | Pin, 1” dia. x 7” lg. | |
| 40 | 2 | 75086846 | Hex bolt, 3/8-16 x ¾” | |
| 41 | 10 | 75088081 | Lock washer, 3/8” | |
| 42 | 2 | 23370800 | Pin, 1” dia. x 2-3/4” lg. | |
| 43 | 2 | 75088083 | Lock Washer, 1/2" Plated | |
| 44 | 2 | 27511250 | Plate, Side Support | |
| 45 | 4 | 7500010-6 | Hex Bolt, 3/8-16 X 1", Grade 8 | |
| 46 | 2 | 7500016-1 | Hex Bolt, 3/8-16 X 1.375", Stainless Steel | |
| 47 | 1 | 75088085 | Lock Washer, 5/8 Plated | |
| 48 | 1 | 7500010-7 | Hex Bolt, 5/8-11" X 2.75”, Grade 8 | |
| 49 | 4 | 75086218 | Hex Bolt, 3/8-16 X 1-1/4", Grade 8 Plated | |
| 50 | 1 | 27519100 | Pin, Torsion Arm, CS | |
| 51 | 2 | 27513995 | Ramp Retention Clip | |
| 52 | 4 | 75086872 | 3/8-16 x 1-1/4” Button Head Cap Screw |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

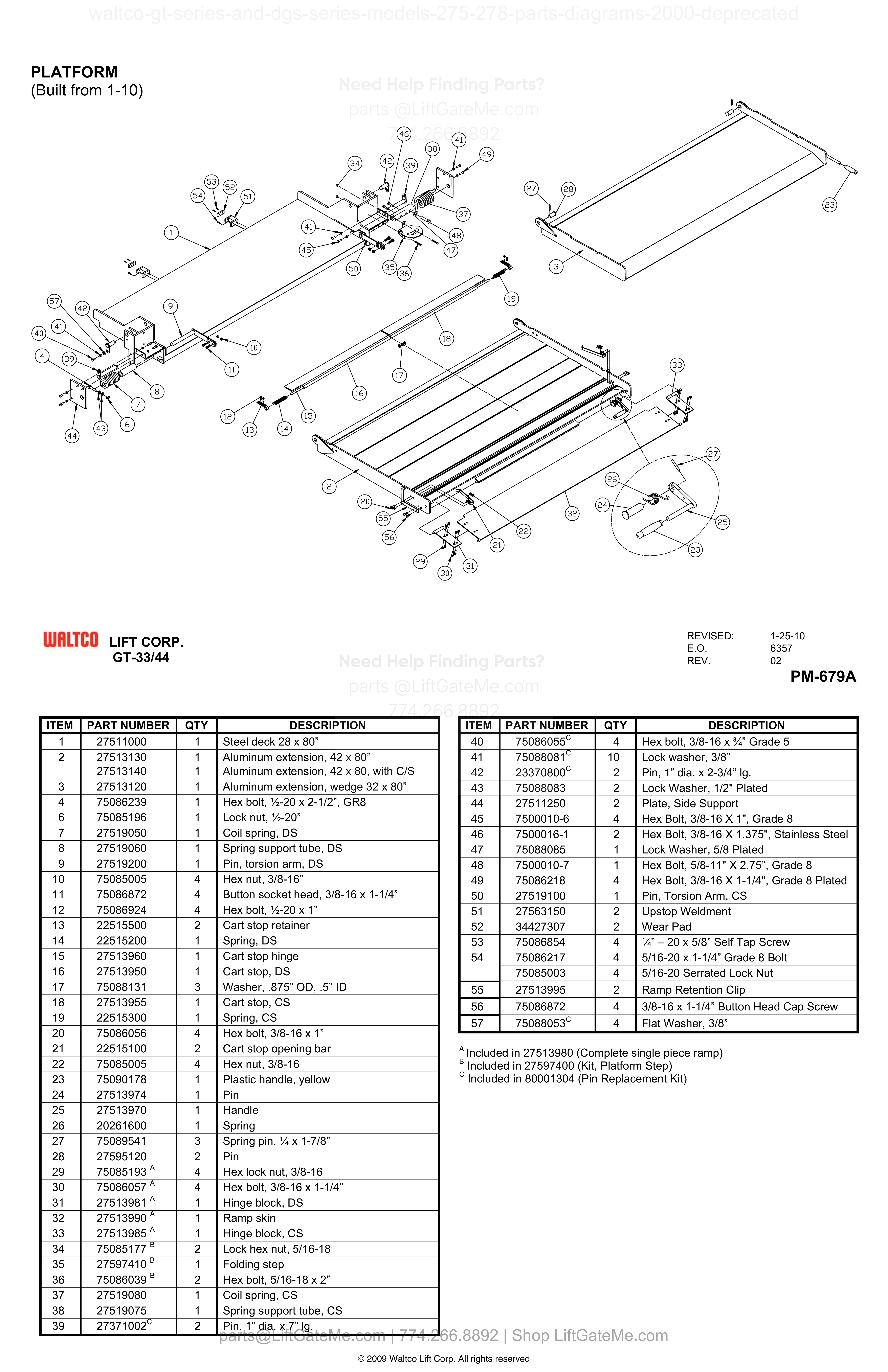

PLATFORM (Built from 1-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27511000 | Steel deck 28 x 80” | |
| 2 | 1 | 27513130 | Aluminum extension, 42 x 80” | |
| 2 | 1 | 27513140 | Aluminum extension, 42 x 80, with C/S | |
| 3 | 1 | 27513120 | Aluminum extension, wedge 32 x 80” | |
| 4 | 1 | 75086239 | Hex bolt, ½-20 x 2-1/2”, GR8 | |
| 6 | 1 | 75085196 | Lock nut, ½-20” | |
| 7 | 1 | 27519050 | Coil spring, DS | |
| 8 | 1 | 27519060 | Spring support tube, DS | |
| 9 | 1 | 27519200 | Pin, torsion arm, DS | |
| 10 | 4 | 75085005 | Hex nut, 3/8-16” | |
| 11 | 4 | 75086872 | Button socket head, 3/8-16 x 1-1/4” | |
| 12 | 4 | 75086924 | Hex bolt, ½-20 x 1” | |
| 13 | 2 | 22515500 | Cart stop retainer | |
| 14 | 1 | 22515200 | Spring, DS | |
| 15 | 1 | 27513960 | Cart stop hinge | |
| 16 | 1 | 27513950 | Cart stop, DS | |
| 17 | 3 | 75088131 | Washer, .875” OD, .5” ID | |
| 18 | 1 | 27513955 | Cart stop, CS | |
| 19 | 1 | 22515300 | Spring, CS | |
| 20 | 4 | 75086056 | Hex bolt, 3/8-16 x 1” | |
| 21 | 2 | 22515100 | Cart stop opening bar | |
| 22 | 4 | 75085005 | Hex nut, 3/8-16 | |
| 23 | 1 | 75090178 | Plastic handle, yellow | |
| 24 | 1 | 27513974 | Pin | |
| 25 | 1 | 27513970 | Handle | |
| 26 | 1 | 20261600 | Spring | |
| 27 | 3 | 75089541 | Spring pin, ¼ x 1-7/8” | |
| 28 | 2 | 27595120 | Pin | |
| 29 | 4 | 75085193 A | Hex lock nut, 3/8-16 | |
| 30 | 4 | 75086057 A | Hex bolt, 3/8-16 x 1-1/4” | |
| 31 | 1 | 27513981 A | Hinge block, DS | |
| 32 | 1 | 27513990 A | Ramp skin | |
| 33 | 1 | 27513985 A | Hinge block, CS | |
| 34 | 2 | 75085177 B | Lock hex nut, 5/16-18 | |
| 35 | 1 | 27597410 B | Folding step | |
| 36 | 2 | 75086039 B | Hex bolt, 5/16-18 x 2” | |
| 37 | 1 | 27519080 | Coil spring, CS | |
| 38 | 1 | 27519075 | Spring support tube, CS | |
| 39 | 2 | 27371002 C | Pin, 1” dia. x 7” lg. | |
| 40 | 4 | 75086055 C | Hex bolt, 3/8-16 x ¾” Grade 5 | |
| 41 | 10 | 75088081 C | Lock washer, 3/8” | |
| 42 | 2 | 23370800 C | Pin, 1” dia. x 2-3/4” lg. | |
| 43 | 2 | 75088083 | Lock Washer, 1/2" Plated | |
| 44 | 2 | 27511250 | Plate, Side Support | |
| 45 | 4 | 7500010-6 | Hex Bolt, 3/8-16 X 1", Grade 8 | |
| 46 | 2 | 7500016-1 | Hex Bolt, 3/8-16 X 1.375", Stainless Steel | |
| 47 | 1 | 75088085 | Lock Washer, 5/8 Plated | |
| 48 | 1 | 7500010-7 | Hex Bolt, 5/8-11" X 2.75”, Grade 8 | |
| 49 | 4 | 75086218 | Hex Bolt, 3/8-16 X 1-1/4", Grade 8 Plated | |
| 50 | 1 | 27519100 | Pin, Torsion Arm, CS | |
| 51 | 2 | 27563150 | Upstop Weldment | |
| 52 | 2 | 34427307 | Wear Pad | |
| 53 | 4 | 75086854 | ¼” – 20 x 5/8” Self Tap Screw | |
| 54 | 4 | 75086217 | 5/16-20 x 1-1/4” Grade 8 Bolt | |
| 54 | 4 | 75085003 | 5/16-20 Serrated Lock Nut | |
| 55 | 2 | 27513995 | Ramp Retention Clip | |
| 56 | 4 | 75086872 | 3/8-16 x 1-1/4” Button Head Cap Screw | |
| 57 | 4 | 75088053 C | Flat Washer, 3/8” |

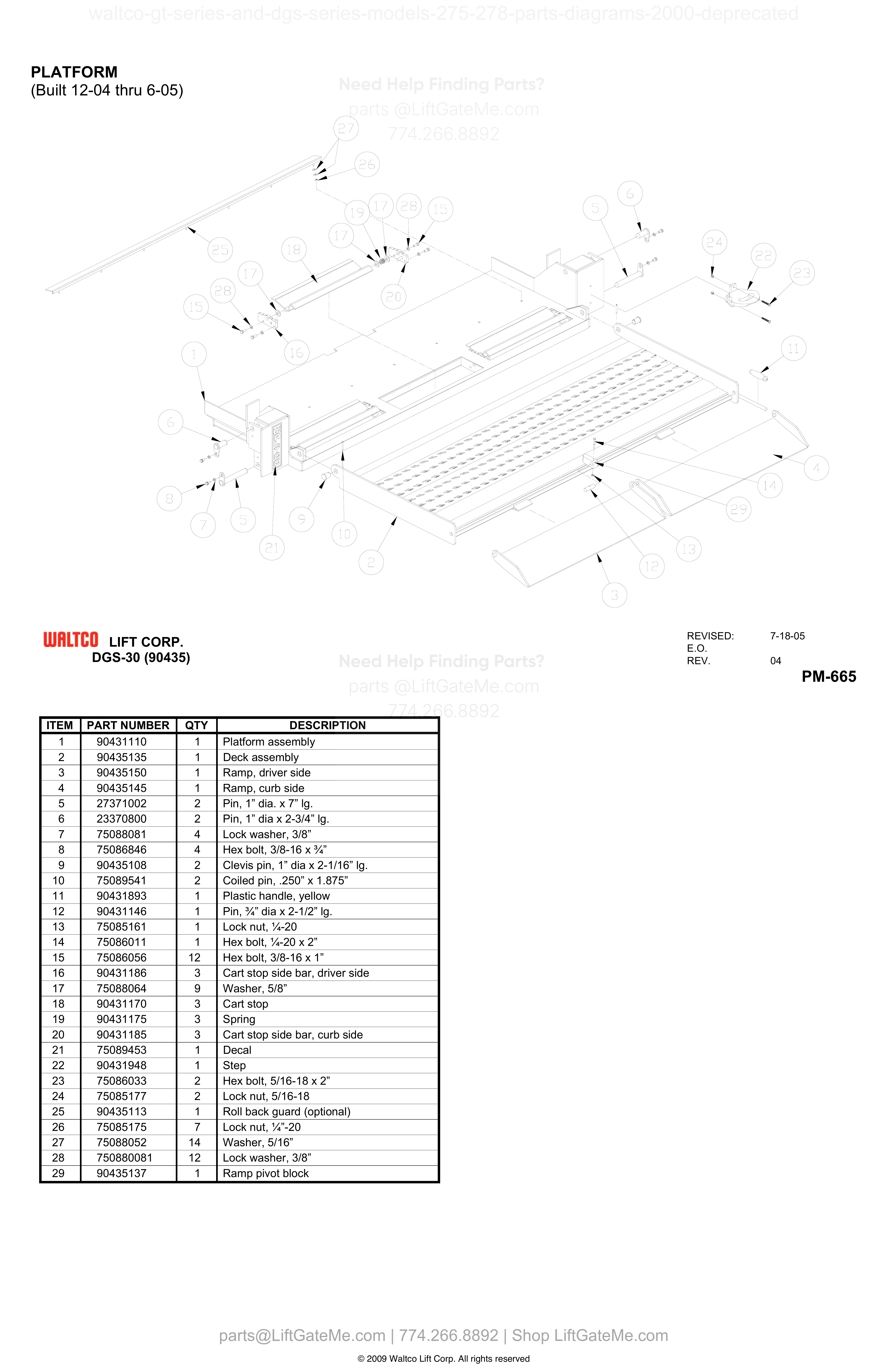

PLATFORM (Built 12-04 thru 6-05)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90431110 | Platform assembly | |
| 2 | 1 | 90435135 | Deck assembly | |
| 3 | 1 | 90435150 | Ramp, driver side | |
| 4 | 1 | 90435145 | Ramp, curb side | |
| 5 | 2 | 27371002 | Pin, 1” dia. x 7” lg. | |
| 6 | 2 | 23370800 | Pin, 1” dia x 2-3/4” lg. | |
| 7 | 4 | 75088081 | Lock washer, 3/8” | |
| 8 | 4 | 75086846 | Hex bolt, 3/8-16 x ¾” | |
| 9 | 2 | 90435108 | Clevis pin, 1” dia x 2-1/16” lg. | |
| 10 | 2 | 75089541 | Coiled pin, .250” x 1.875” | |
| 11 | 1 | 90431893 | Plastic handle, yellow | |
| 12 | 1 | 90431146 | Pin, ¾” dia x 2-1/2” lg. | |
| 13 | 1 | 75085161 | Lock nut, ¼-20 | |
| 14 | 1 | 75086011 | Hex bolt, ¼-20 x 2” | |
| 15 | 12 | 75086056 | Hex bolt, 3/8-16 x 1” | |
| 16 | 3 | 90431186 | Cart stop side bar, driver side | |
| 17 | 9 | 75088064 | Washer, 5/8” | |
| 18 | 3 | 90431170 | Cart stop | |
| 19 | 3 | 90431175 | Spring | |
| 20 | 3 | 90431185 | Cart stop side bar, curb side | |
| 21 | 1 | 75089453 | Decal | |
| 22 | 1 | 90431948 | Step | |
| 23 | 2 | 75086033 | Hex bolt, 5/16-18 x 2” | |
| 24 | 2 | 75085177 | Lock nut, 5/16-18 | |
| 25 | 1 | 90435113 | Roll back guard (optional) | |
| 26 | 7 | 75085175 | Lock nut, ¼”-20 | |
| 27 | 14 | 75088052 | Washer, 5/16” | |
| 28 | 12 | 750880081 | Lock washer, 3/8” | |
| 29 | 1 | 90435137 | Ramp pivot block |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

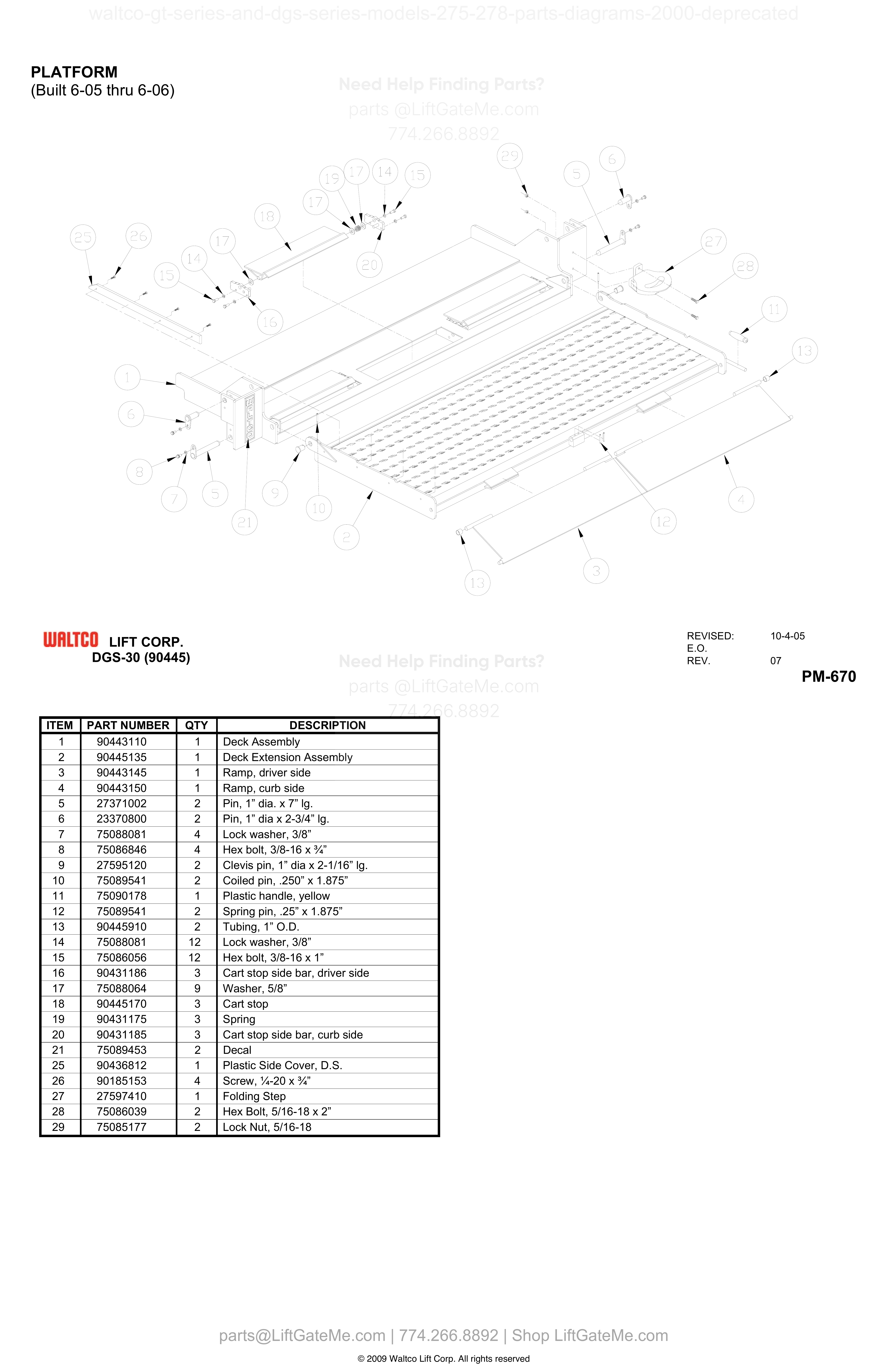

PLATFORM (Built 6-05 thru 6-06)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90443110 | Deck Assembly | |
| 2 | 1 | 90445135 | Deck Extension Assembly | |
| 3 | 1 | 90443145 | Ramp, driver side | |
| 4 | 1 | 90443150 | Ramp, curb side | |
| 5 | 2 | 27371002 | Pin, 1” dia. x 7” lg. | |
| 6 | 2 | 23370800 | Pin, 1” dia x 2-3/4” lg. | |
| 7 | 4 | 75088081 | Lock washer, 3/8” | |
| 8 | 4 | 75086846 | Hex bolt, 3/8-16 x ¾” | |
| 9 | 2 | 27595120 | Clevis pin, 1” dia x 2-1/16” lg. | |
| 10 | 2 | 75089541 | Coiled pin, .250” x 1.875” | |
| 11 | 1 | 75090178 | Plastic handle, yellow | |
| 12 | 2 | 75089541 | Spring pin, .25” x 1.875” | |
| 13 | 2 | 90445910 | Tubing, 1” O.D. | |
| 14 | 12 | 75088081 | Lock washer, 3/8” | |
| 15 | 12 | 75086056 | Hex bolt, 3/8-16 x 1” | |
| 16 | 3 | 90431186 | Cart stop side bar, driver side | |
| 17 | 9 | 75088064 | Washer, 5/8” | |
| 18 | 3 | 90445170 | Cart stop | |
| 19 | 3 | 90431175 | Spring | |
| 20 | 3 | 90431185 | Cart stop side bar, curb side | |
| 21 | 2 | 75089453 | Decal | |
| 25 | 1 | 90436812 | Plastic Side Cover, D.S. | |
| 26 | 4 | 90185153 | Screw, ¼-20 x ¾” | |
| 27 | 1 | 27597410 | Folding Step | |
| 28 | 2 | 75086039 | Hex Bolt, 5/16-18 x 2” | |
| 29 | 2 | 75085177 | Lock Nut, 5/16-18 |

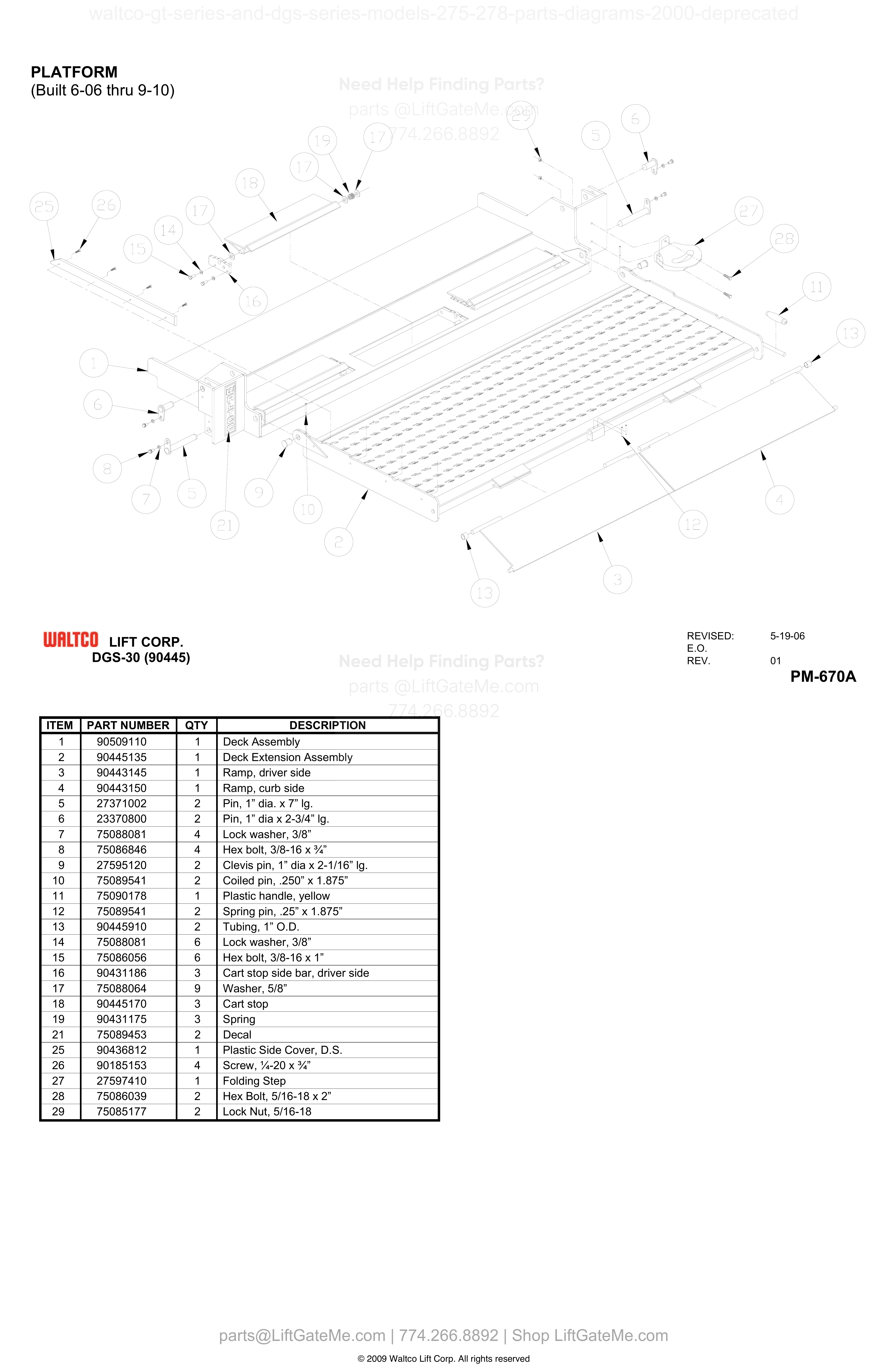

PLATFORM (Built 6-06 thru 9-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90509110 | Deck Assembly | |
| 2 | 1 | 90445135 | Deck Extension Assembly | |
| 3 | 1 | 90443145 | Ramp, driver side | |
| 4 | 1 | 90443150 | Ramp, curb side | |
| 5 | 2 | 27371002 | Pin, 1” dia. x 7” lg. | |
| 6 | 2 | 23370800 | Pin, 1” dia x 2-3/4” lg. | |
| 7 | 4 | 75088081 | Lock washer, 3/8” | |
| 8 | 4 | 75086846 | Hex bolt, 3/8-16 x ¾” | |
| 9 | 2 | 27595120 | Clevis pin, 1” dia x 2-1/16” lg. | |
| 10 | 2 | 75089541 | Coiled pin, .250” x 1.875” | |
| 11 | 1 | 75090178 | Plastic handle, yellow | |
| 12 | 2 | 75089541 | Spring pin, .25” x 1.875” | |
| 13 | 2 | 90445910 | Tubing, 1” O.D. | |
| 14 | 6 | 75088081 | Lock washer, 3/8” | |
| 15 | 6 | 75086056 | Hex bolt, 3/8-16 x 1” | |
| 16 | 3 | 90431186 | Cart stop side bar, driver side | |
| 17 | 9 | 75088064 | Washer, 5/8” | |
| 18 | 3 | 90445170 | Cart stop | |
| 19 | 3 | 90431175 | Spring | |
| 21 | 2 | 75089453 | Decal | |
| 25 | 1 | 90436812 | Plastic Side Cover, D.S. | |
| 26 | 4 | 90185153 | Screw, ¼-20 x ¾” | |
| 27 | 1 | 27597410 | Folding Step | |
| 28 | 2 | 75086039 | Hex Bolt, 5/16-18 x 2” | |
| 29 | 2 | 75085177 | Lock Nut, 5/16-18 |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

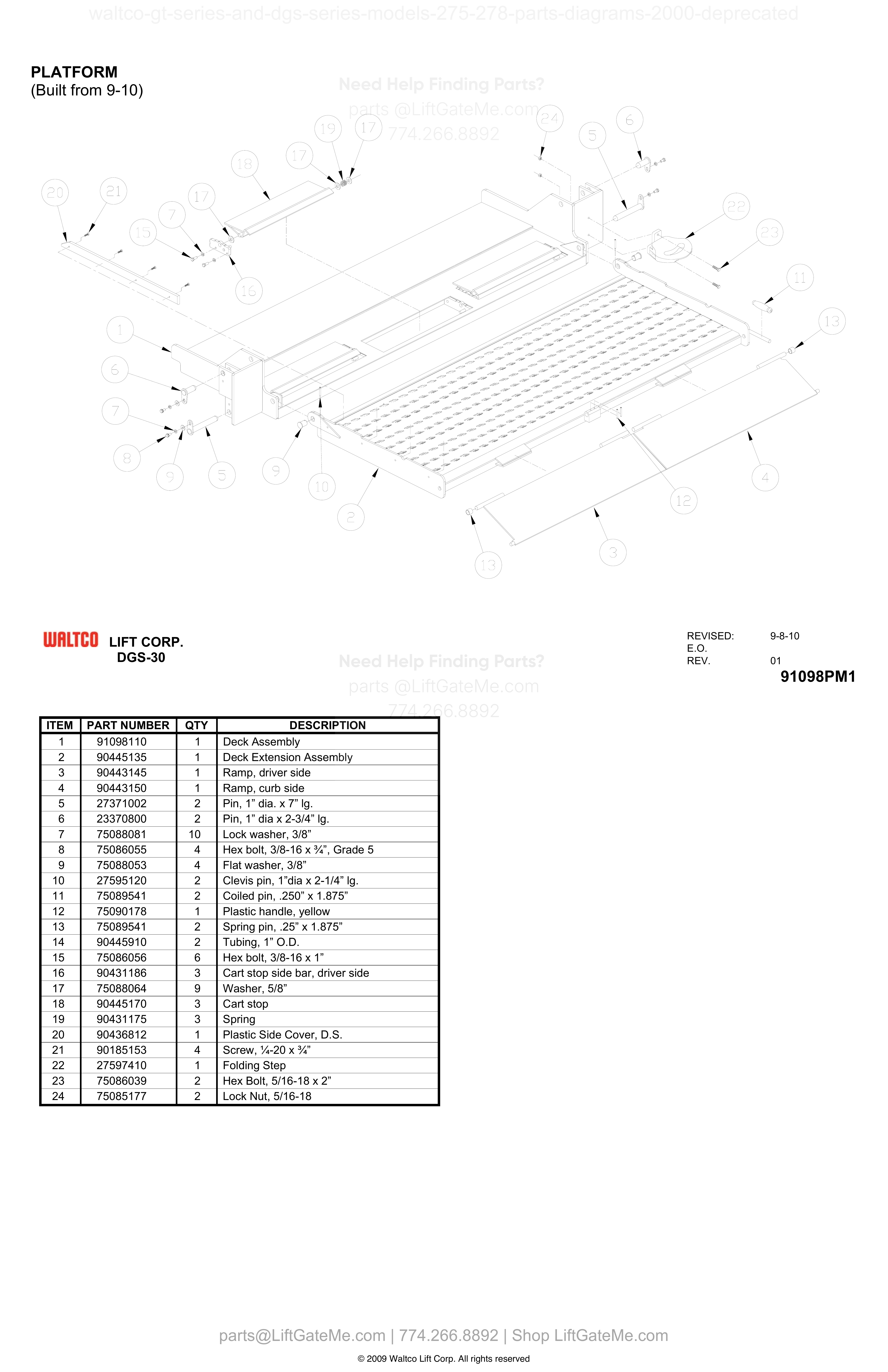

PLATFORM (Built from 9-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 91098110 | Deck Assembly | |
| 2 | 1 | 90445135 | Deck Extension Assembly | |
| 3 | 1 | 90443145 | Ramp, driver side | |
| 4 | 1 | 90443150 | Ramp, curb side | |
| 5 | 2 | 27371002 | Pin, 1” dia. x 7” lg. | |
| 6 | 2 | 23370800 | Pin, 1” dia x 2-3/4” lg. | |
| 7 | 10 | 75088081 | Lock washer, 3/8” | |
| 8 | 4 | 75086055 | Hex bolt, 3/8-16 x ¾”, Grade 5 | |
| 9 | 4 | 75088053 | Flat washer, 3/8” | |
| 10 | 2 | 27595120 | Clevis pin, 1”dia x 2-1/4” lg. | |
| 11 | 2 | 75089541 | Coiled pin, .250” x 1.875” | |
| 12 | 1 | 75090178 | Plastic handle, yellow | |
| 13 | 2 | 75089541 | Spring pin, .25” x 1.875” | |
| 14 | 2 | 90445910 | Tubing, 1” O.D. | |
| 15 | 6 | 75086056 | Hex bolt, 3/8-16 x 1” | |
| 16 | 3 | 90431186 | Cart stop side bar, driver side | |
| 17 | 9 | 75088064 | Washer, 5/8” | |
| 18 | 3 | 90445170 | Cart stop | |
| 19 | 3 | 90431175 | Spring | |
| 20 | 1 | 90436812 | Plastic Side Cover, D.S. | |
| 21 | 4 | 90185153 | Screw, ¼-20 x ¾” | |
| 22 | 1 | 27597410 | Folding Step | |
| 23 | 2 | 75086039 | Hex Bolt, 5/16-18 x 2” | |
| 24 | 2 | 75085177 | Lock Nut, 5/16-18 |
i

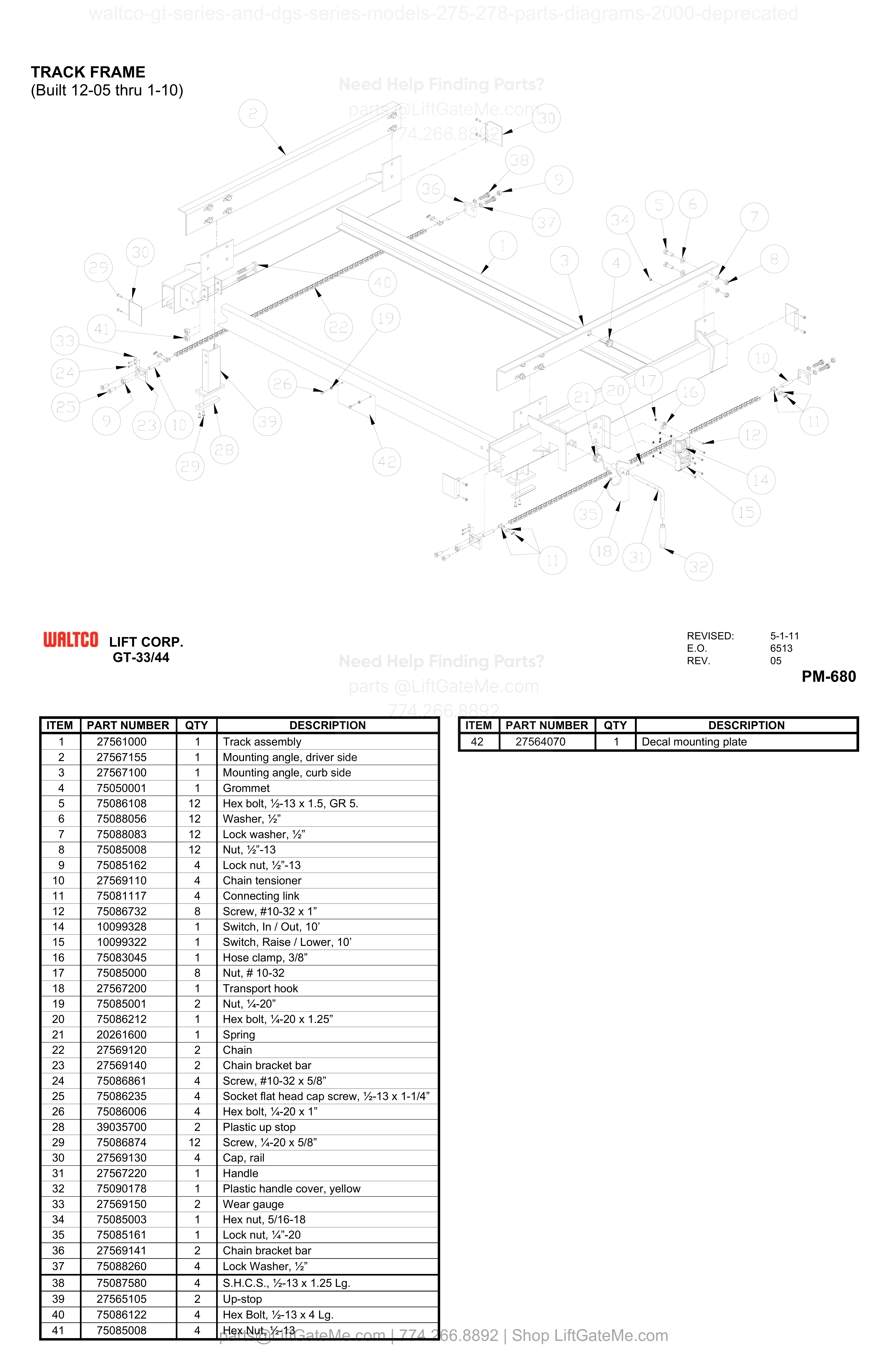

TRACK FRAME
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27561000 | Track assembly | |
| 2 | 1 | 27567155 | Mounting angle, driver side | |
| 3 | 1 | 27567100 | Mounting angle, curb side | |
| 4 | 1 | 75050001 | Grommet | |
| 5 | 12 | 75086108 | Hex bolt, ½-13 x 1.5, GR 5. | |
| 6 | 12 | 75088056 | Washer, ½” | |
| 7 | 12 | 75088083 | Lock washer, ½” | |
| 8 | 12 | 75085008 | Nut, ½”-13 | |
| 9 | 4 | 75085162 | Lock nut, ½”-13 | |
| 10 | 4 | 27569110 | Chain tensioner | |
| 11 | 4 | 75081117 | Connecting link | |
| 12 | 8 | 75086732 | Screw, #10-32 x 1” | |
| 14 | 1 | 10099328 | Switch, In / Out, 10’ | |
| 15 | 1 | 10099322 | Switch, Raise / Lower, 10’ | |
| 16 | 1 | 75083045 | Hose clamp, 3/8” | |
| 17 | 8 | 75085000 | Nut, # 10-32 | |
| 18 | 1 | 27567200 | Transport hook | |
| 19 | 2 | 75085001 | Nut, ¼-20” | |
| 20 | 1 | 75086212 | Hex bolt, ¼-20 x 1.25” | |
| 21 | 1 | 20261600 | Spring | |
| 22 | 2 | 27569120 | Chain | |
| 23 | 2 | 27569140 | Chain bracket bar | |
| 24 | 4 | 75086861 | Screw, #10-32 x 5/8” | |
| 25 | 4 | 75086235 | Socket flat head cap screw, ½-13 x 1-1/4” | |
| 26 | 4 | 75086006 | Hex bolt, ¼-20 x 1” | |
| 28 | 2 | 39035700 | Plastic up stop | |
| 29 | 12 | 75086874 | Screw, ¼-20 x 5/8” | |
| 30 | 4 | 27569130 | Cap, rail | |
| 31 | 1 | 27567220 | Handle | |
| 32 | 1 | 75090178 | Plastic handle cover, yellow | |
| 33 | 2 | 27569150 | Wear gauge | |
| 34 | 1 | 75085003 | Hex nut, 5/16-18 | |
| 35 | 1 | 75085161 | Lock nut, ¼”-20 | |
| 36 | 2 | 27569141 | Chain bracket bar | |
| 37 | 4 | 75088260 | Lock Washer, ½” | |
| 38 | 4 | 75087580 | S.H.C.S., ½-13 x 1.25 Lg. | |
| 39 | 2 | 27565105 | Up-stop | |
| 40 | 4 | 75086122 | Hex Bolt, ½-13 x 4 Lg. | |
| 41 | 4 | 75085008 | Hex Nut, ½-13 | |
| 42 | 1 | 27564070 | Decal mounting plate |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

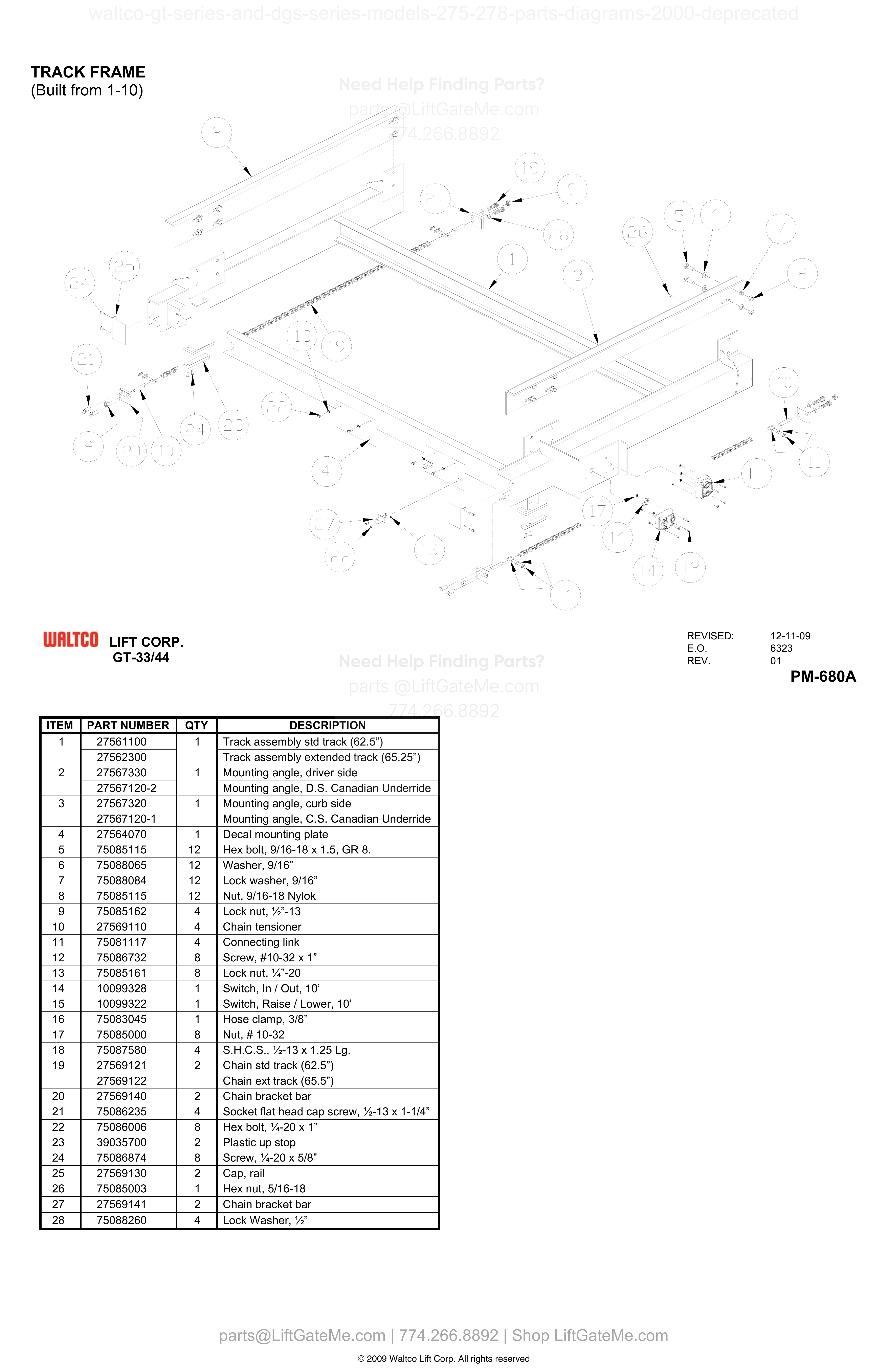

TRACK FRAME (Built from 1-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27561100 | Track assembly std track (62.5”) | |
| 1 | 27562300 | Track assembly extended track (65.25”) | ||
| 2 | 1 | 27567330 | Mounting angle, driver side | |
| 2 | 27567120-2 | Mounting angle, D.S. Canadian Underride | ||
| 3 | 1 | 27567320 | Mounting angle, curb side | |
| 3 | 27567120-1 | Mounting angle, C.S. Canadian Underride | ||
| 4 | 1 | 27564070 | Decal mounting plate | |
| 5 | 12 | 75085115 | Hex bolt, 9/16-18 x 1.5, GR 8. | |
| 6 | 12 | 75088065 | Washer, 9/16” | |
| 7 | 12 | 75088084 | Lock washer, 9/16” | |
| 8 | 12 | 75085115 | Nut, 9/16-18 Nylok | |
| 9 | 4 | 75085162 | Lock nut, ½”-13 | |
| 10 | 4 | 27569110 | Chain tensioner | |
| 11 | 4 | 75081117 | Connecting link | |
| 12 | 8 | 75086732 | Screw, #10-32 x 1” | |
| 13 | 8 | 75085161 | Lock nut, ¼”-20 | |
| 14 | 1 | 10099328 | Switch, In / Out, 10’ | |
| 15 | 1 | 10099322 | Switch, Raise / Lower, 10’ | |
| 16 | 1 | 75083045 | Hose clamp, 3/8” | |
| 17 | 8 | 75085000 | Nut, # 10-32 | |
| 18 | 4 | 75087580 | S.H.C.S., ½-13 x 1.25 Lg. | |
| 19 | 2 | 27569121 | Chain std track (62.5”) | |
| 19 | 27569122 | Chain ext track (65.5”) | ||
| 20 | 2 | 27569140 | Chain bracket bar | |
| 21 | 4 | 75086235 | Socket flat head cap screw, ½-13 x 1-1/4” | |
| 22 | 8 | 75086006 | Hex bolt, ¼-20 x 1” | |
| 23 | 2 | 39035700 | Plastic up stop | |
| 24 | 8 | 75086874 | Screw, ¼-20 x 5/8” | |
| 25 | 2 | 27569130 | Cap, rail | |
| 26 | 1 | 75085003 | Hex nut, 5/16-18 | |
| 27 | 2 | 27569141 | Chain bracket bar | |
| 28 | 4 | 75088260 | Lock Washer, ½” |

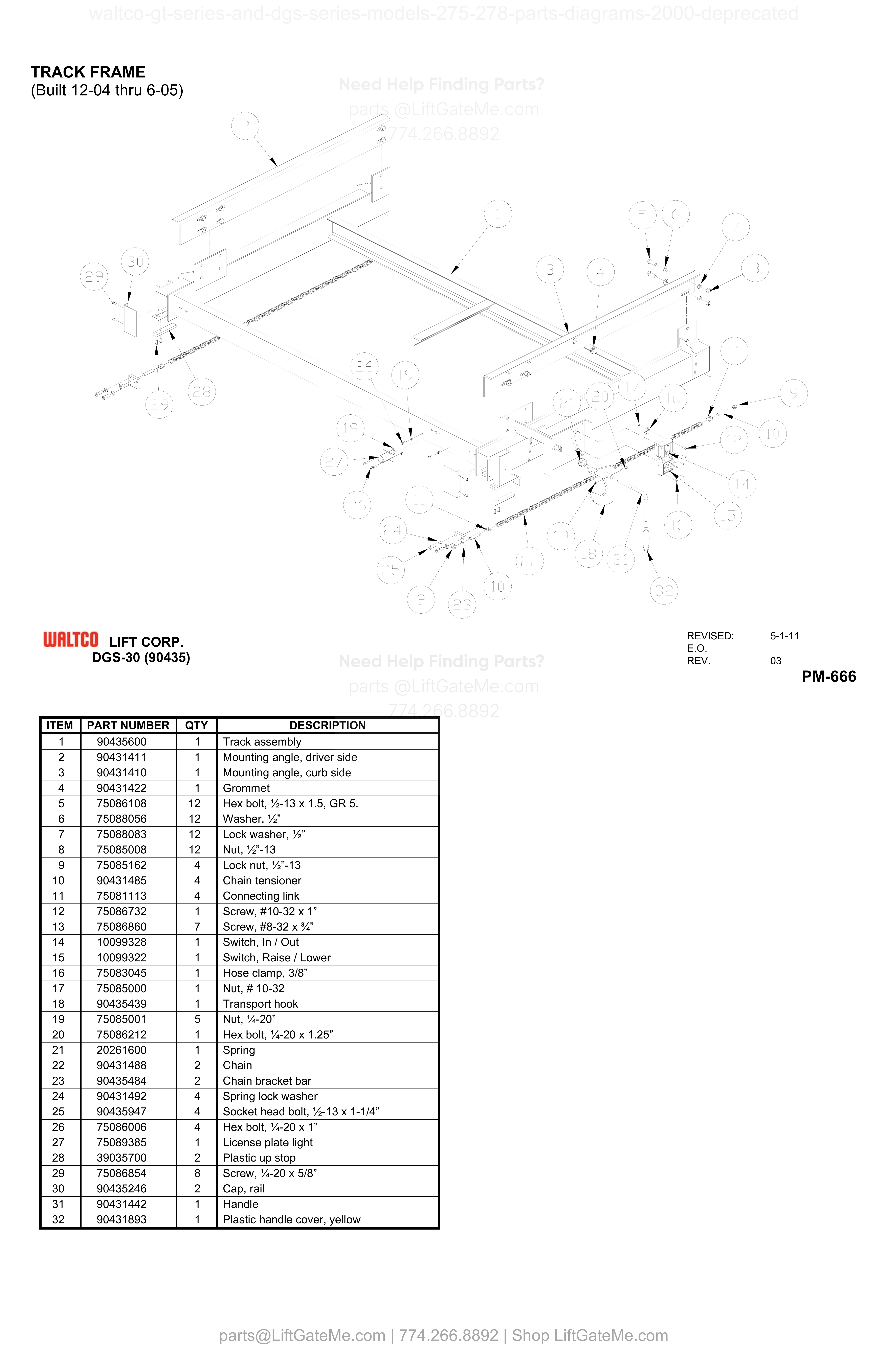

TRACK FRAME (Built 12-04 thru 6-05)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90435600 | Track assembly | |
| 2 | 1 | 90431411 | Mounting angle, driver side | |
| 3 | 1 | 90431410 | Mounting angle, curb side | |
| 4 | 1 | 90431422 | Grommet | |
| 5 | 12 | 75086108 | Hex bolt, ½-13 x 1.5, GR 5. | |
| 6 | 12 | 75088056 | Washer, ½” | |
| 7 | 12 | 75088083 | Lock washer, ½” | |
| 8 | 12 | 75085008 | Nut, ½”-13 | |
| 9 | 4 | 75085162 | Lock nut, ½”-13 | |
| 10 | 4 | 90431485 | Chain tensioner | |
| 11 | 4 | 75081113 | Connecting link | |
| 12 | 1 | 75086732 | Screw, #10-32 x 1” | |
| 13 | 7 | 75086860 | Screw, #8-32 x ¾” | |
| 14 | 1 | 10099328 | Switch, In / Out | |
| 15 | 1 | 10099322 | Switch, Raise / Lower | |
| 16 | 1 | 75083045 | Hose clamp, 3/8” | |
| 17 | 1 | 75085000 | Nut, # 10-32 | |
| 18 | 1 | 90435439 | Transport hook | |
| 19 | 5 | 75085001 | Nut, ¼-20” | |
| 20 | 1 | 75086212 | Hex bolt, ¼-20 x 1.25” | |
| 21 | 1 | 20261600 | Spring | |
| 22 | 2 | 90431488 | Chain | |
| 23 | 2 | 90435484 | Chain bracket bar | |
| 24 | 4 | 90431492 | Spring lock washer | |
| 25 | 4 | 90435947 | Socket head bolt, ½-13 x 1-1/4” | |
| 26 | 4 | 75086006 | Hex bolt, ¼-20 x 1” | |
| 27 | 1 | 75089385 | License plate light | |
| 28 | 2 | 39035700 | Plastic up stop | |
| 29 | 8 | 75086854 | Screw, ¼-20 x 5/8” | |
| 30 | 2 | 90435246 | Cap, rail | |
| 31 | 1 | 90431442 | Handle | |
| 32 | 1 | 90431893 | Plastic handle cover, yellow |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

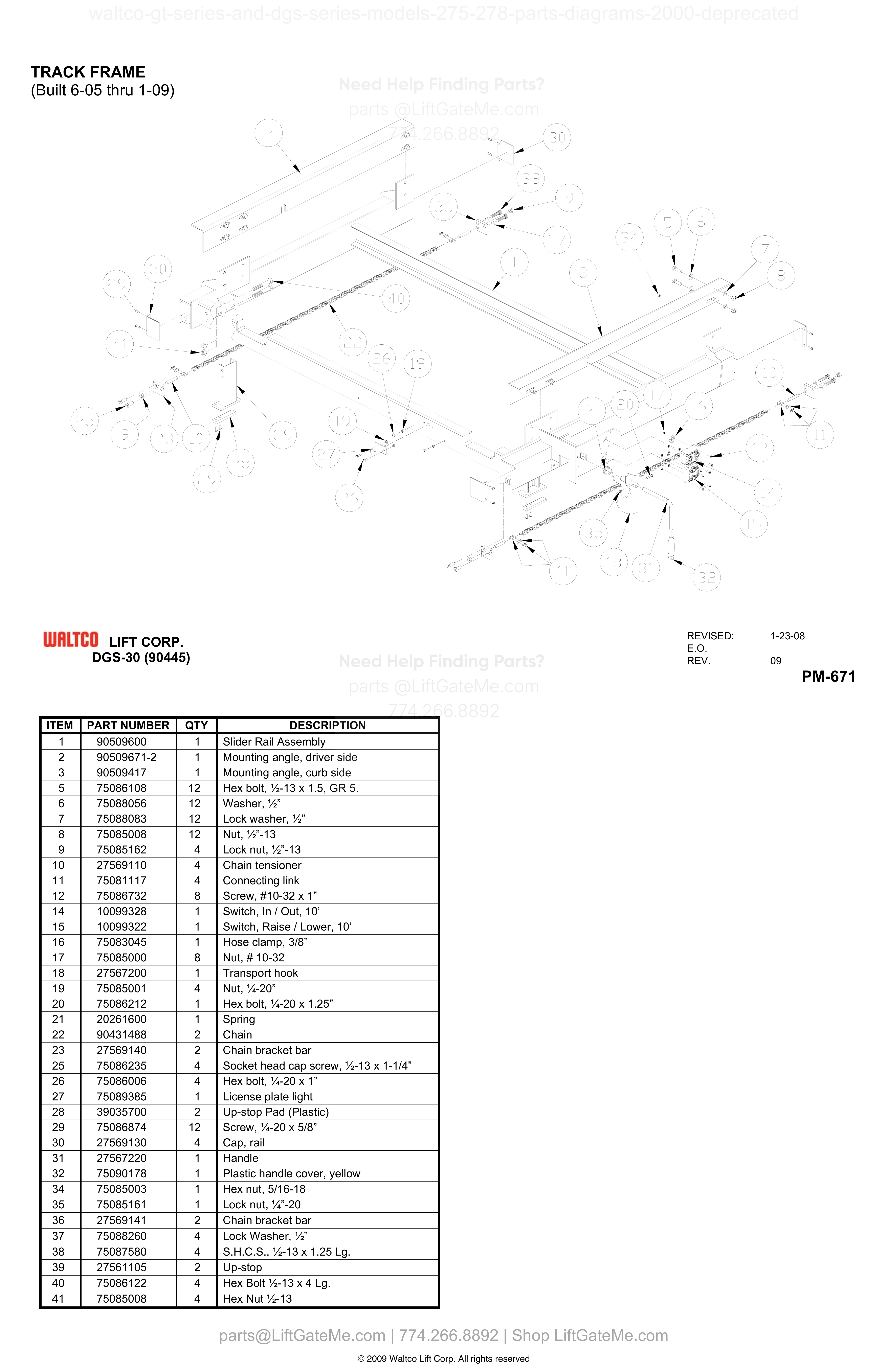

TRACK FRAME (Built 6-05 thru 1-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90509600 | Slider Rail Assembly | |
| 2 | 1 | 90509671-2 | Mounting angle, driver side | |
| 3 | 1 | 90509417 | Mounting angle, curb side | |
| 5 | 12 | 75086108 | Hex bolt, ½-13 x 1.5, GR 5. | |
| 6 | 12 | 75088056 | Washer, ½” | |
| 7 | 12 | 75088083 | Lock washer, ½” | |
| 8 | 12 | 75085008 | Nut, ½”-13 | |
| 9 | 4 | 75085162 | Lock nut, ½”-13 | |
| 10 | 4 | 27569110 | Chain tensioner | |
| 11 | 4 | 75081117 | Connecting link | |
| 12 | 8 | 75086732 | Screw, #10-32 x 1” | |
| 14 | 1 | 10099328 | Switch, In / Out, 10' | |
| 15 | 1 | 10099322 | Switch, Raise / Lower, 10' | |
| 16 | 1 | 75083045 | Hose clamp, 3/8” | |
| 17 | 8 | 75085000 | Nut, # 10-32 | |
| 18 | 1 | 27567200 | Transport hook | |
| 19 | 4 | 75085001 | Nut, ¼-20” | |
| 20 | 1 | 75086212 | Hex bolt, ¼-20 x 1.25” | |
| 21 | 1 | 20261600 | Spring | |
| 22 | 2 | 90431488 | Chain | |
| 23 | 2 | 27569140 | Chain bracket bar | |
| 25 | 4 | 75086235 | Socket head cap screw, ½-13 x 1-1/4” | |
| 26 | 4 | 75086006 | Hex bolt, ¼-20 x 1” | |
| 27 | 1 | 75089385 | License plate light | |
| 28 | 2 | 39035700 | Up-stop Pad (Plastic) | |
| 29 | 12 | 75086874 | Screw, ¼-20 x 5/8” | |
| 30 | 4 | 27569130 | Cap, rail | |
| 31 | 1 | 27567220 | Handle | |
| 32 | 1 | 75090178 | Plastic handle cover, yellow | |
| 34 | 1 | 75085003 | Hex nut, 5/16-18 | |
| 35 | 1 | 75085161 | Lock nut, ¼”-20 | |
| 36 | 2 | 27569141 | Chain bracket bar | |
| 37 | 4 | 75088260 | Lock Washer, ½” | |
| 38 | 4 | 75087580 | S.H.C.S., ½-13 x 1.25 Lg. | |
| 39 | 2 | 27561105 | Up-stop | |
| 40 | 4 | 75086122 | Hex Bolt ½-13 x 4 Lg. | |
| 41 | 4 | 75085008 | Hex Nut ½-13 |

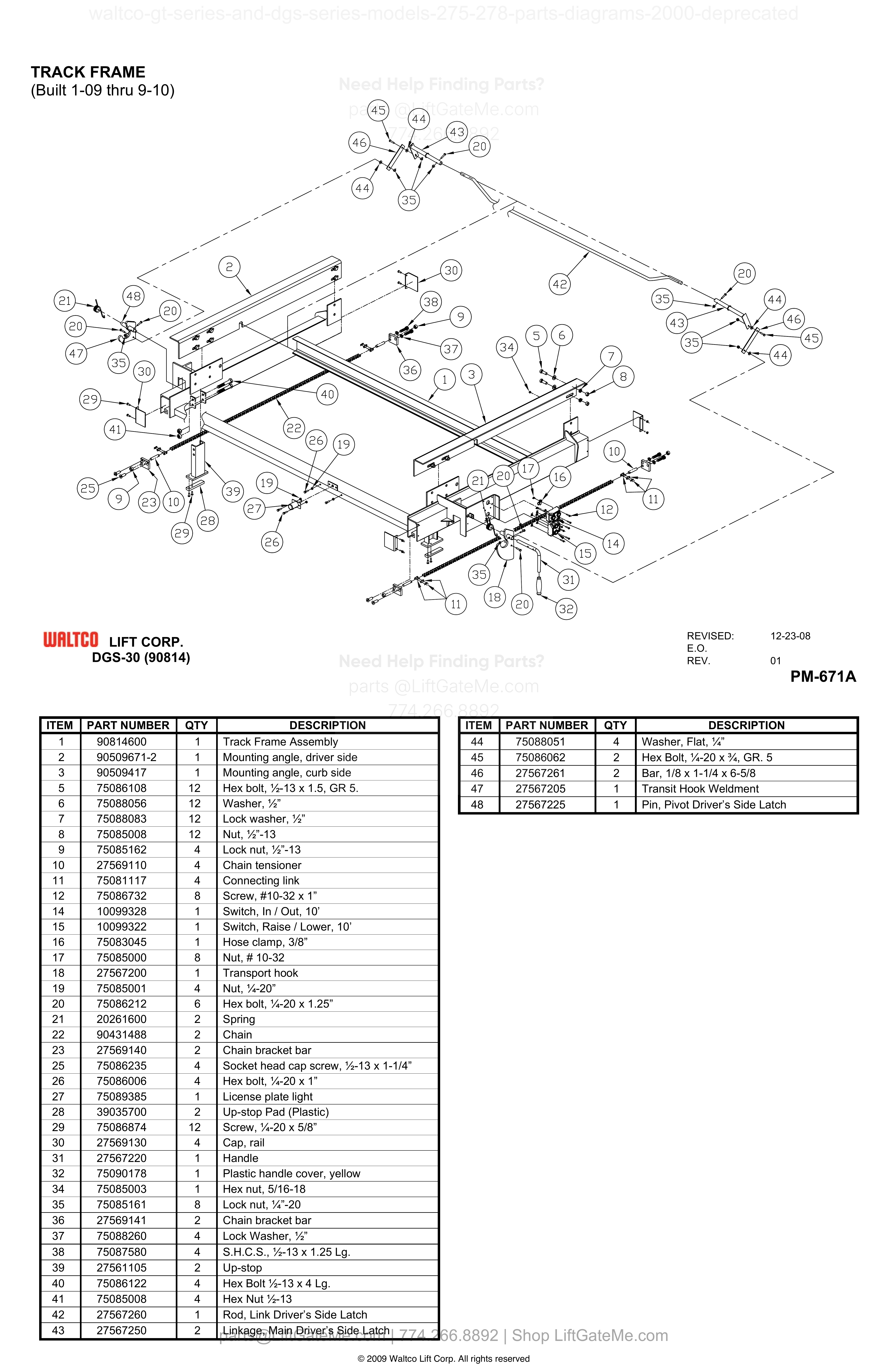

TRACK FRAME (Built 1-09 thru 9-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90814600 | Track Frame Assembly | |
| 2 | 1 | 90509671-2 | Mounting angle, driver side | |
| 3 | 1 | 90509417 | Mounting angle, curb side | |
| 5 | 12 | 75086108 | Hex bolt, ½-13 x 1.5, GR 5. | |
| 6 | 12 | 75088056 | Washer, ½” | |
| 7 | 12 | 75088083 | Lock washer, ½” | |
| 8 | 12 | 75085008 | Nut, ½”-13 | |
| 9 | 4 | 75085162 | Lock nut, ½”-13 | |
| 10 | 4 | 27569110 | Chain tensioner | |
| 11 | 4 | 75081117 | Connecting link | |
| 12 | 8 | 75086732 | Screw, #10-32 x 1” | |
| 14 | 1 | 10099328 | Switch, In / Out, 10’ | |
| 15 | 1 | 10099322 | Switch, Raise / Lower, 10’ | |
| 16 | 1 | 75083045 | Hose clamp, 3/8” | |
| 17 | 8 | 75085000 | Nut, # 10-32 | |
| 18 | 1 | 27567200 | Transport hook | |
| 19 | 4 | 75085001 | Nut, ¼-20” | |
| 20 | 6 | 75086212 | Hex bolt, ¼-20 x 1.25” | |
| 21 | 2 | 20261600 | Spring | |
| 22 | 2 | 90431488 | Chain | |
| 23 | 2 | 27569140 | Chain bracket bar | |
| 25 | 4 | 75086235 | Socket head cap screw, ½-13 x 1-1/4” | |
| 26 | 4 | 75086006 | Hex bolt, ¼-20 x 1” | |
| 27 | 1 | 75089385 | License plate light | |
| 28 | 2 | 39035700 | Up-stop Pad (Plastic) | |
| 29 | 12 | 75086874 | Screw, ¼-20 x 5/8” | |
| 30 | 4 | 27569130 | Cap, rail | |
| 31 | 1 | 27567220 | Handle | |
| 32 | 1 | 75090178 | Plastic handle cover, yellow | |
| 34 | 1 | 75085003 | Hex nut, 5/16-18 | |
| 35 | 8 | 75085161 | Lock nut, ¼”-20 | |
| 36 | 2 | 27569141 | Chain bracket bar | |
| 37 | 4 | 75088260 | Lock Washer, ½” | |
| 38 | 4 | 75087580 | S.H.C.S., ½-13 x 1.25 Lg. | |
| 39 | 2 | 27561105 | Up-stop | |
| 40 | 4 | 75086122 | Hex Bolt ½-13 x 4 Lg. | |
| 41 | 4 | 75085008 | Hex Nut ½-13 | |
| 42 | 1 | 27567260 | Rod, Link Driver’s Side Latch | |
| 43 | 2 | 27567250 | Linkage, Main Driver’s Side Latch | |
| 44 | 4 | 75088051 | Washer, Flat, ¼” | |
| 45 | 2 | 75086062 | Hex Bolt, ¼-20 x ¾, GR. 5 | |
| 46 | 2 | 27567261 | Bar, 1/8 x 1-1/4 x 6-5/8 | |
| 47 | 1 | 27567205 | Transit Hook Weldment | |
| 48 | 1 | 27567225 | Pin, Pivot Driver’s Side Latch |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

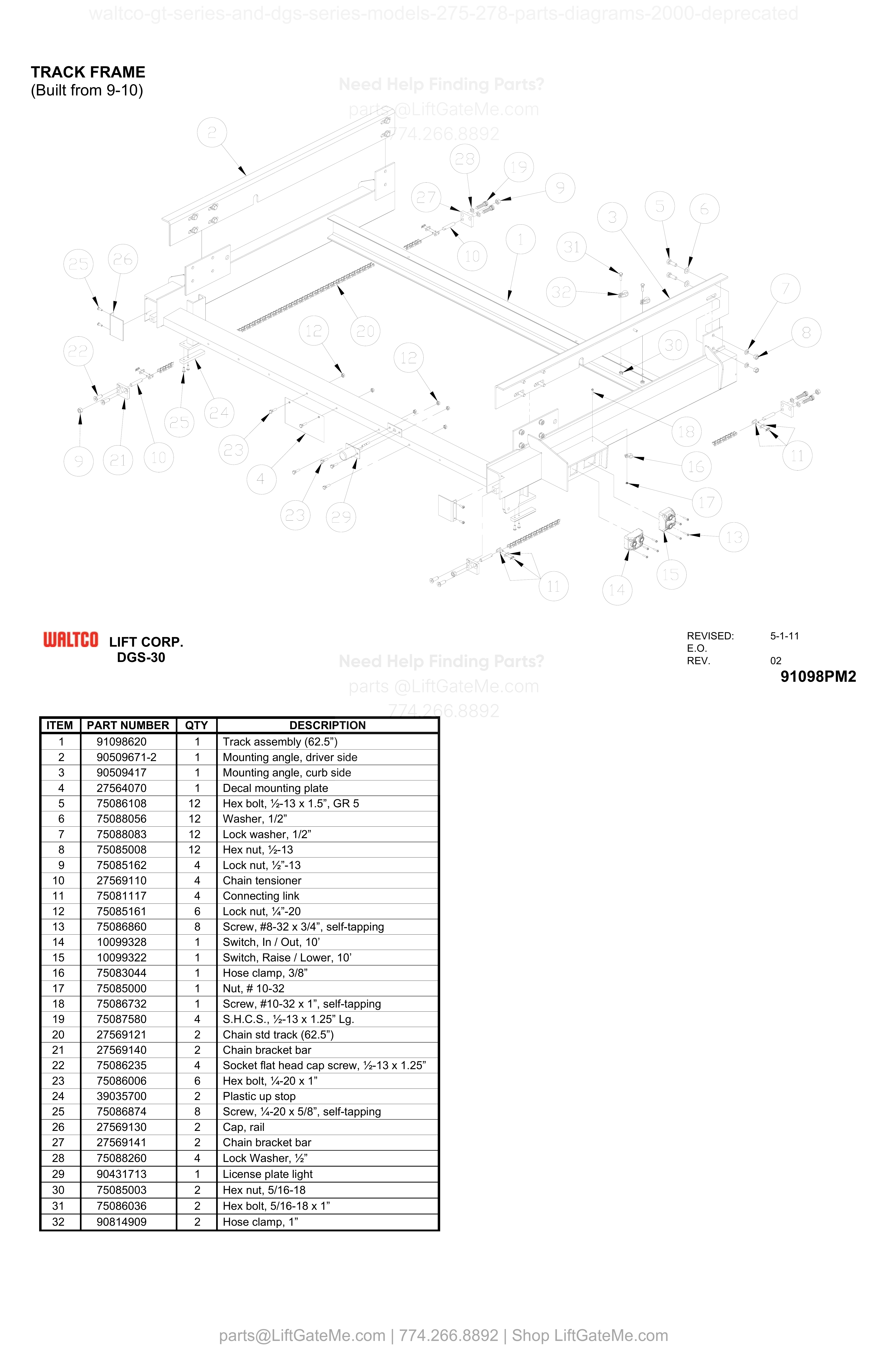

TRACK FRAME (Built from 9-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 91098620 | Track assembly (62.5”) | |
| 2 | 1 | 90509671-2 | Mounting angle, driver side | |
| 3 | 1 | 90509417 | Mounting angle, curb side | |
| 4 | 1 | 27564070 | Decal mounting plate | |
| 5 | 12 | 75086108 | Hex bolt, ½-13 x 1.5”, GR 5 | |
| 6 | 12 | 75088056 | Washer, 1/2” | |
| 7 | 12 | 75088083 | Lock washer, 1/2” | |
| 8 | 12 | 75085008 | Hex nut, ½-13 | |
| 9 | 4 | 75085162 | Lock nut, ½”-13 | |
| 10 | 4 | 27569110 | Chain tensioner | |
| 11 | 4 | 75081117 | Connecting link | |
| 12 | 6 | 75085161 | Lock nut, ¼”-20 | |
| 13 | 8 | 75086860 | Screw, #8-32 x 3/4”, self-tapping | |
| 14 | 1 | 10099328 | Switch, In / Out, 10’ | |
| 15 | 1 | 10099322 | Switch, Raise / Lower, 10’ | |
| 16 | 1 | 75083044 | Hose clamp, 3/8” | |
| 17 | 1 | 75085000 | Nut, # 10-32 | |
| 18 | 1 | 75086732 | Screw, #10-32 x 1”, self-tapping | |
| 19 | 4 | 75087580 | S.H.C.S., ½-13 x 1.25” Lg. | |
| 20 | 2 | 27569121 | Chain std track (62.5”) | |
| 21 | 2 | 27569140 | Chain bracket bar | |
| 22 | 4 | 75086235 | Socket flat head cap screw, ½-13 x 1.25” | |
| 23 | 6 | 75086006 | Hex bolt, ¼-20 x 1” | |
| 24 | 2 | 39035700 | Plastic up stop | |
| 25 | 8 | 75086874 | Screw, ¼-20 x 5/8”, self-tapping | |
| 26 | 2 | 27569130 | Cap, rail | |
| 27 | 2 | 27569141 | Chain bracket bar | |
| 28 | 4 | 75088260 | Lock Washer, ½” | |
| 29 | 1 | 90431713 | License plate light | |
| 30 | 2 | 75085003 | Hex nut, 5/16-18 | |
| 31 | 2 | 75086036 | Hex bolt, 5/16-18 x 1” | |
| 32 | 2 | 90814909 | Hose clamp, 1” |
i

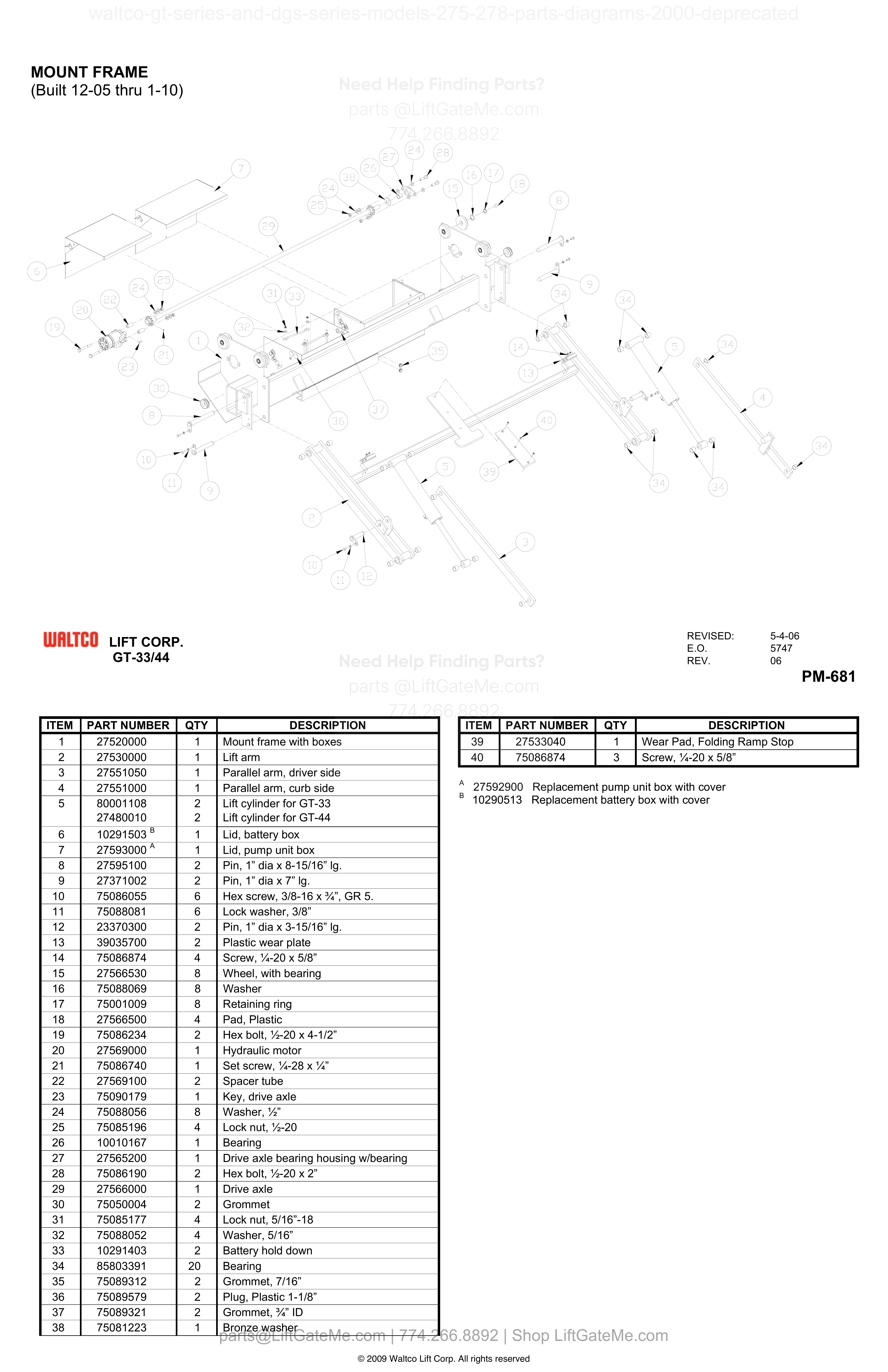

MOUNT FRAME (Built 12-05 thru 1-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27520000 | Mount frame with boxes | |
| 2 | 1 | 27530000 | Lift arm | |
| 3 | 1 | 27551050 | Parallel arm, driver side | |
| 4 | 1 | 27551000 | Parallel arm, curb side | |
| 5 | 2 | 80001108 | Lift cylinder for GT-33 | |
| 5 | 2 | 27480010 | Lift cylinder for GT-44 | |
| 6 | 1 | 10291503 B | Lid, battery box | |
| 7 | 1 | 27593000 A | Lid, pump unit box | |
| 8 | 2 | 27595100 | Pin, 1” dia x 8-15/16” lg. | |
| 9 | 2 | 27371002 | Pin, 1” dia x 7” lg. | |
| 10 | 6 | 75086055 | Hex screw, 3/8-16 x ¾”, GR 5. | |
| 11 | 6 | 75088081 | Lock washer, 3/8” | |
| 12 | 2 | 23370300 | Pin, 1” dia x 3-15/16” lg. | |
| 13 | 2 | 39035700 | Plastic wear plate | |
| 14 | 4 | 75086874 | Screw, ¼-20 x 5/8” | |
| 15 | 8 | 27566530 | Wheel, with bearing | |
| 16 | 8 | 75088069 | Washer | |
| 17 | 8 | 75001009 | Retaining ring | |
| 18 | 4 | 27566500 | Pad, Plastic | |
| 19 | 2 | 75086234 | Hex bolt, ½-20 x 4-1/2” | |
| 20 | 1 | 27569000 | Hydraulic motor | |
| 21 | 1 | 75086740 | Set screw, ¼-28 x ¼” | |
| 22 | 2 | 27569100 | Spacer tube | |
| 23 | 1 | 75090179 | Key, drive axle | |
| 24 | 8 | 75088056 | Washer, ½” | |
| 25 | 4 | 75085196 | Lock nut, ½-20 | |
| 26 | 1 | 10010167 | Bearing | |
| 27 | 1 | 27565200 | Drive axle bearing housing w/bearing | |
| 28 | 2 | 75086190 | Hex bolt, ½-20 x 2” | |
| 29 | 1 | 27566000 | Drive axle | |
| 30 | 2 | 75050004 | Grommet | |
| 31 | 4 | 75085177 | Lock nut, 5/16”-18 | |
| 32 | 4 | 75088052 | Washer, 5/16” | |
| 33 | 2 | 10291403 | Battery hold down | |
| 34 | 20 | 85803391 | Bearing | |
| 35 | 2 | 75089312 | Grommet, 7/16” | |
| 36 | 2 | 75089579 | Plug, Plastic 1-1/8” | |
| 37 | 2 | 75089321 | Grommet, ¾” ID | |
| 38 | 1 | 75081223 | Bronze washer | |
| 39 | 1 | 27533040 | Wear Pad, Folding Ramp Stop | |
| 40 | 3 | 75086874 | Screw, ¼-20 x 5/8” | |
| A | 27592900 | Replacement pump unit box with cover | ||
| B | 10290513 | Replacement battery box with cover |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

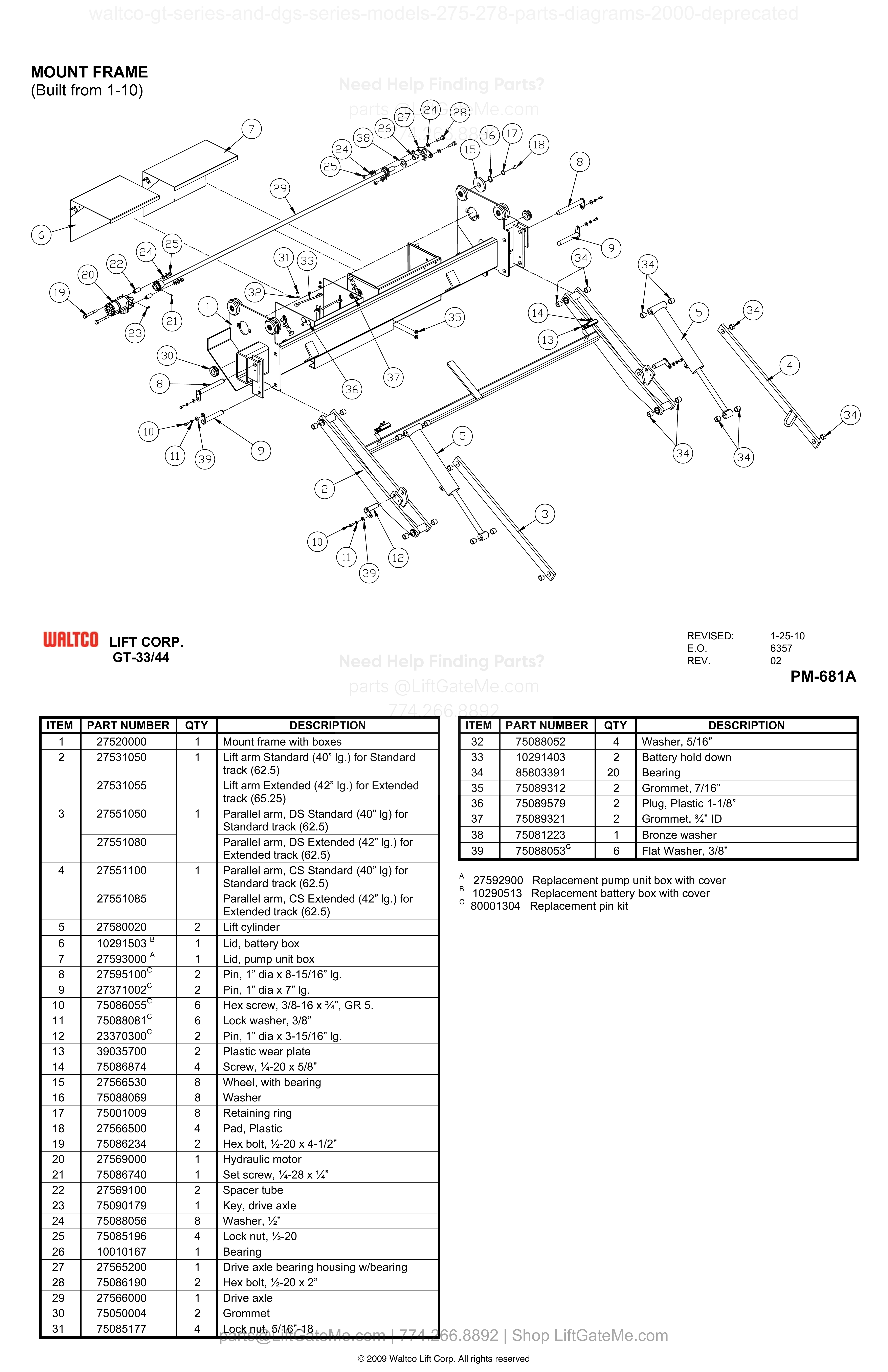

MOUNT FRAME (Built from 1-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 27520000 | Mount frame with boxes | |
| 2 | 1 | 27531050 | Lift arm Standard (40” lg.) for Standard track (62.5) | |
| 2 | 27531055 | Lift arm Extended (42” lg.) for Extended track (65.25) | ||
| 3 | 1 | 27551050 | Parallel arm, DS Standard (40” lg) for Standard track (62.5) | |
| 3 | 27551080 | Parallel arm, DS Extended (42” lg.) for Extended track (62.5) | ||
| 4 | 1 | 27551100 | Parallel arm, CS Standard (40” lg) for Standard track (62.5) | |
| 4 | 27551085 | Parallel arm, CS Extended (42” lg.) for Extended track (62.5) | ||
| 5 | 2 | 27580020 | Lift cylinder | |
| 6 | 1 | 10291503 B | Lid, battery box | |
| 7 | 1 | 27593000 A | Lid, pump unit box | |
| 8 | 2 | 27595100 C | Pin, 1” dia x 8-15/16” lg. | |
| 9 | 2 | 27371002 C | Pin, 1” dia x 7” lg. | |
| 10 | 6 | 75086055 C | Hex screw, 3/8-16 x ¾”, GR 5. | |
| 11 | 6 | 75088081 C | Lock washer, 3/8” | |
| 12 | 2 | 23370300 C | Pin, 1” dia x 3-15/16” lg. | |
| 13 | 2 | 39035700 | Plastic wear plate | |
| 14 | 4 | 75086874 | Screw, ¼-20 x 5/8” | |
| 15 | 8 | 27566530 | Wheel, with bearing | |
| 16 | 8 | 75088069 | Washer | |
| 17 | 8 | 75001009 | Retaining ring | |
| 18 | 4 | 27566500 | Pad, Plastic | |
| 19 | 2 | 75086234 | Hex bolt, ½-20 x 4-1/2” | |
| 20 | 1 | 27569000 | Hydraulic motor | |
| 21 | 1 | 75086740 | Set screw, ¼-28 x ¼” | |
| 22 | 2 | 27569100 | Spacer tube | |
| 23 | 1 | 75090179 | Key, drive axle | |
| 24 | 8 | 75088056 | Washer, ½” | |
| 25 | 4 | 75085196 | Lock nut, ½-20 | |
| 26 | 1 | 10010167 | Bearing | |
| 27 | 1 | 27565200 | Drive axle bearing housing w/bearing | |
| 28 | 2 | 75086190 | Hex bolt, ½-20 x 2” | |
| 29 | 1 | 27566000 | Drive axle | |
| 30 | 2 | 75050004 | Grommet | |
| 31 | 4 | 75085177 | Lock nut, 5/16”-18 | |
| 32 | 4 | 75088052 | Washer, 5/16” | |
| 33 | 2 | 10291403 | Battery hold down | |
| 34 | 20 | 85803391 | Bearing | |
| 35 | 2 | 75089312 | Grommet, 7/16” | |
| 36 | 2 | 75089579 | Plug, Plastic 1-1/8” | |
| 37 | 2 | 75089321 | Grommet, ¾” ID | |
| 38 | 1 | 75081223 | Bronze washer | |
| 39 | 6 | 75088053 C | Flat Washer, 3/8” | |
| A | 27592900 | Replacement pump unit box with cover | ||
| B | 10290513 | Replacement battery box with cover | ||
| C | 80001304 | Replacement pin kit |

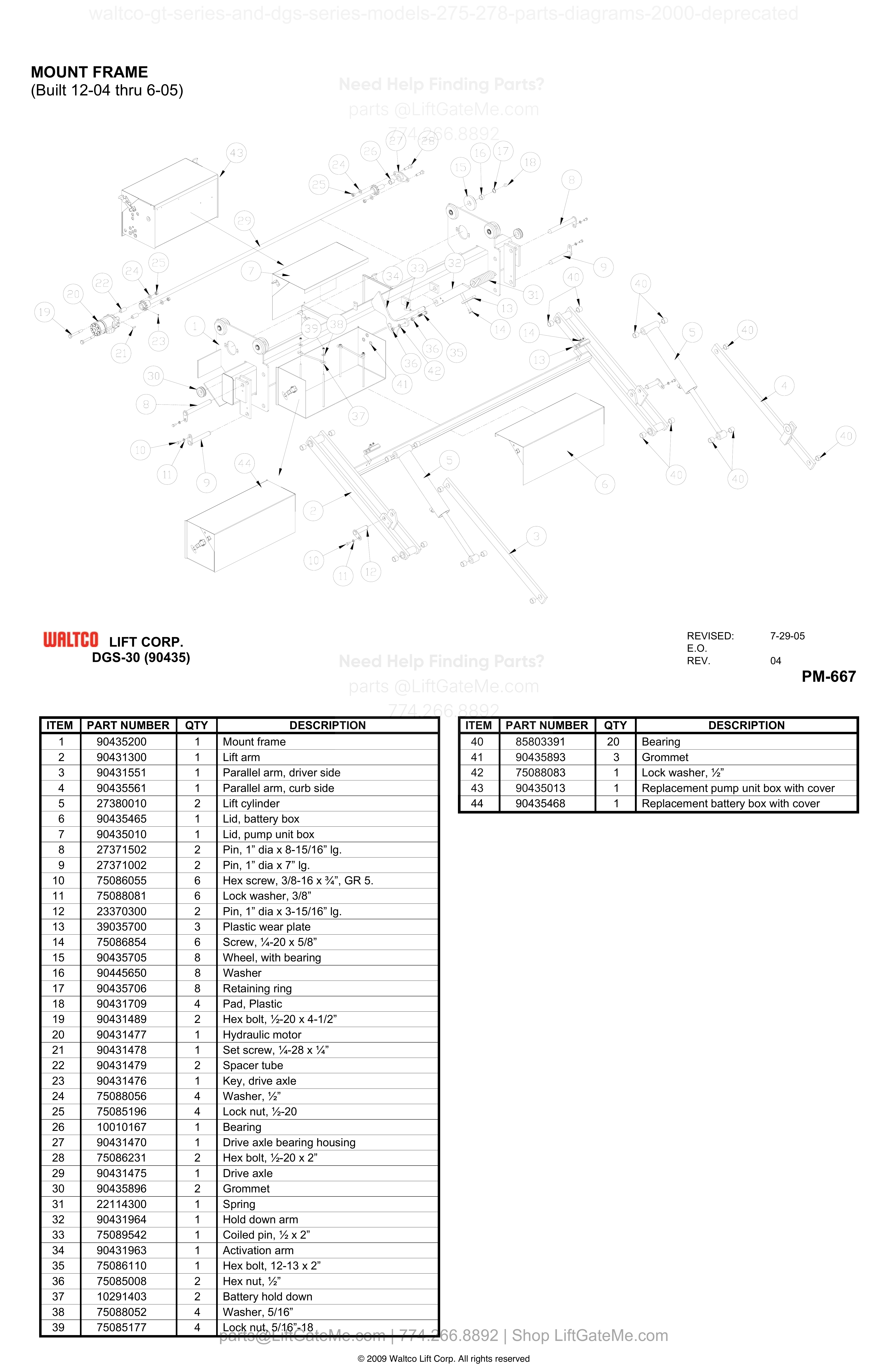

MOUNT FRAME (Built 12-04 thru 6-05)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90435200 | Mount frame | |
| 2 | 1 | 90431300 | Lift arm | |
| 3 | 1 | 90431551 | Parallel arm, driver side | |
| 4 | 1 | 90435561 | Parallel arm, curb side | |
| 5 | 2 | 27380010 | Lift cylinder | |
| 6 | 1 | 90435465 | Lid, battery box | |
| 7 | 1 | 90435010 | Lid, pump unit box | |
| 8 | 2 | 27371502 | Pin, 1” dia x 8-15/16” lg. | |
| 9 | 2 | 27371002 | Pin, 1” dia x 7” lg. | |
| 10 | 6 | 75086055 | Hex screw, 3/8-16 x ¾”, GR 5. | |
| 11 | 6 | 75088081 | Lock washer, 3/8” | |
| 12 | 2 | 23370300 | Pin, 1” dia x 3-15/16” lg. | |
| 13 | 3 | 39035700 | Plastic wear plate | |
| 14 | 6 | 75086854 | Screw, ¼-20 x 5/8” | |
| 15 | 8 | 90435705 | Wheel, with bearing | |
| 16 | 8 | 90445650 | Washer | |
| 17 | 8 | 90435706 | Retaining ring | |
| 18 | 4 | 90431709 | Pad, Plastic | |
| 19 | 2 | 90431489 | Hex bolt, ½-20 x 4-1/2” | |
| 20 | 1 | 90431477 | Hydraulic motor | |
| 21 | 1 | 90431478 | Set screw, ¼-28 x ¼” | |
| 22 | 2 | 90431479 | Spacer tube | |
| 23 | 1 | 90431476 | Key, drive axle | |
| 24 | 4 | 75088056 | Washer, ½” | |
| 25 | 4 | 75085196 | Lock nut, ½-20 | |
| 26 | 1 | 10010167 | Bearing | |
| 27 | 1 | 90431470 | Drive axle bearing housing | |
| 28 | 2 | 75086231 | Hex bolt, ½-20 x 2” | |
| 29 | 1 | 90431475 | Drive axle | |
| 30 | 2 | 90435896 | Grommet | |
| 31 | 1 | 22114300 | Spring | |
| 32 | 1 | 90431964 | Hold down arm | |
| 33 | 1 | 75089542 | Coiled pin, ½ x 2” | |
| 34 | 1 | 90431963 | Activation arm | |
| 35 | 1 | 75086110 | Hex bolt, 12-13 x 2” | |
| 36 | 2 | 75085008 | Hex nut, ½” | |
| 37 | 2 | 10291403 | Battery hold down | |
| 38 | 4 | 75088052 | Washer, 5/16” | |
| 39 | 4 | 75085177 | Lock nut, 5/16”-18 | |
| 40 | 20 | 85803391 | Bearing | |
| 41 | 3 | 90435893 | Grommet | |
| 42 | 1 | 75088083 | Lock washer, ½” | |
| 43 | 1 | 90435013 | Replacement pump unit box with cover | |
| 44 | 1 | 90435468 | Replacement battery box with cover |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

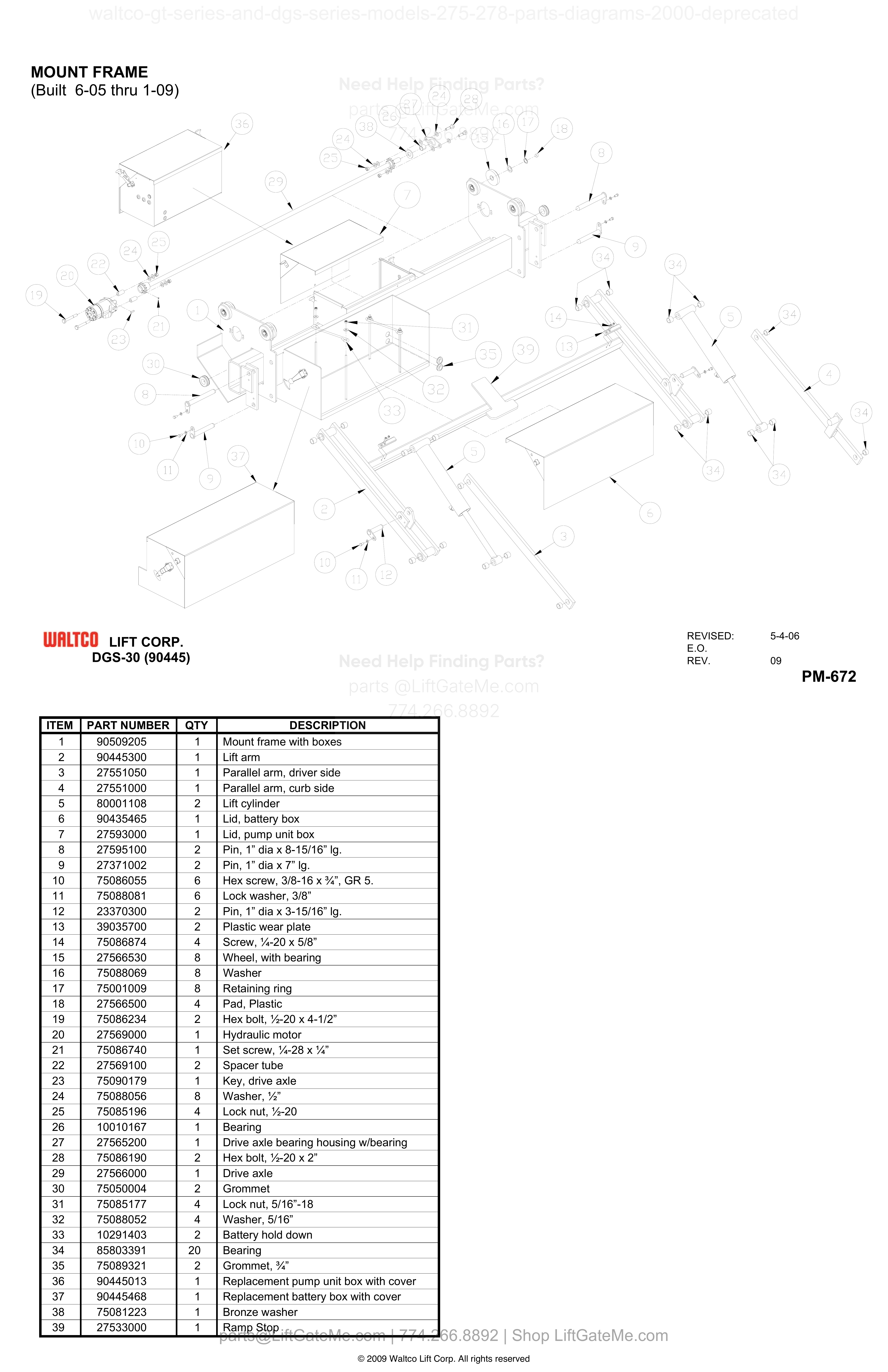

MOUNT FRAME (Built 6-05 thru 1-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90509205 | Mount frame with boxes | |
| 2 | 1 | 90445300 | Lift arm | |
| 3 | 1 | 27551050 | Parallel arm, driver side | |
| 4 | 1 | 27551000 | Parallel arm, curb side | |
| 5 | 2 | 80001108 | Lift cylinder | |
| 6 | 1 | 90435465 | Lid, battery box | |
| 7 | 1 | 27593000 | Lid, pump unit box | |
| 8 | 2 | 27595100 | Pin, 1” dia x 8-15/16” lg. | |
| 9 | 2 | 27371002 | Pin, 1” dia x 7” lg. | |
| 10 | 6 | 75086055 | Hex screw, 3/8-16 x ¾”, GR 5. | |
| 11 | 6 | 75088081 | Lock washer, 3/8” | |
| 12 | 2 | 23370300 | Pin, 1” dia x 3-15/16” lg. | |
| 13 | 2 | 39035700 | Plastic wear plate | |
| 14 | 4 | 75086874 | Screw, ¼-20 x 5/8” | |
| 15 | 8 | 27566530 | Wheel, with bearing | |
| 16 | 8 | 75088069 | Washer | |
| 17 | 8 | 75001009 | Retaining ring | |
| 18 | 4 | 27566500 | Pad, Plastic | |
| 19 | 2 | 75086234 | Hex bolt, ½-20 x 4-1/2” | |
| 20 | 1 | 27569000 | Hydraulic motor | |
| 21 | 1 | 75086740 | Set screw, ¼-28 x ¼” | |
| 22 | 2 | 27569100 | Spacer tube | |
| 23 | 1 | 75090179 | Key, drive axle | |
| 24 | 8 | 75088056 | Washer, ½” | |
| 25 | 4 | 75085196 | Lock nut, ½-20 | |
| 26 | 1 | 10010167 | Bearing | |
| 27 | 1 | 27565200 | Drive axle bearing housing w/bearing | |
| 28 | 2 | 75086190 | Hex bolt, ½-20 x 2” | |
| 29 | 1 | 27566000 | Drive axle | |
| 30 | 2 | 75050004 | Grommet | |
| 31 | 4 | 75085177 | Lock nut, 5/16”-18 | |
| 32 | 4 | 75088052 | Washer, 5/16” | |
| 33 | 2 | 10291403 | Battery hold down | |
| 34 | 20 | 85803391 | Bearing | |
| 35 | 2 | 75089321 | Grommet, ¾” | |
| 36 | 1 | 90445013 | Replacement pump unit box with cover | |
| 37 | 1 | 90445468 | Replacement battery box with cover | |
| 38 | 1 | 75081223 | Bronze washer | |
| 39 | 1 | 27533000 | Ramp Stop |

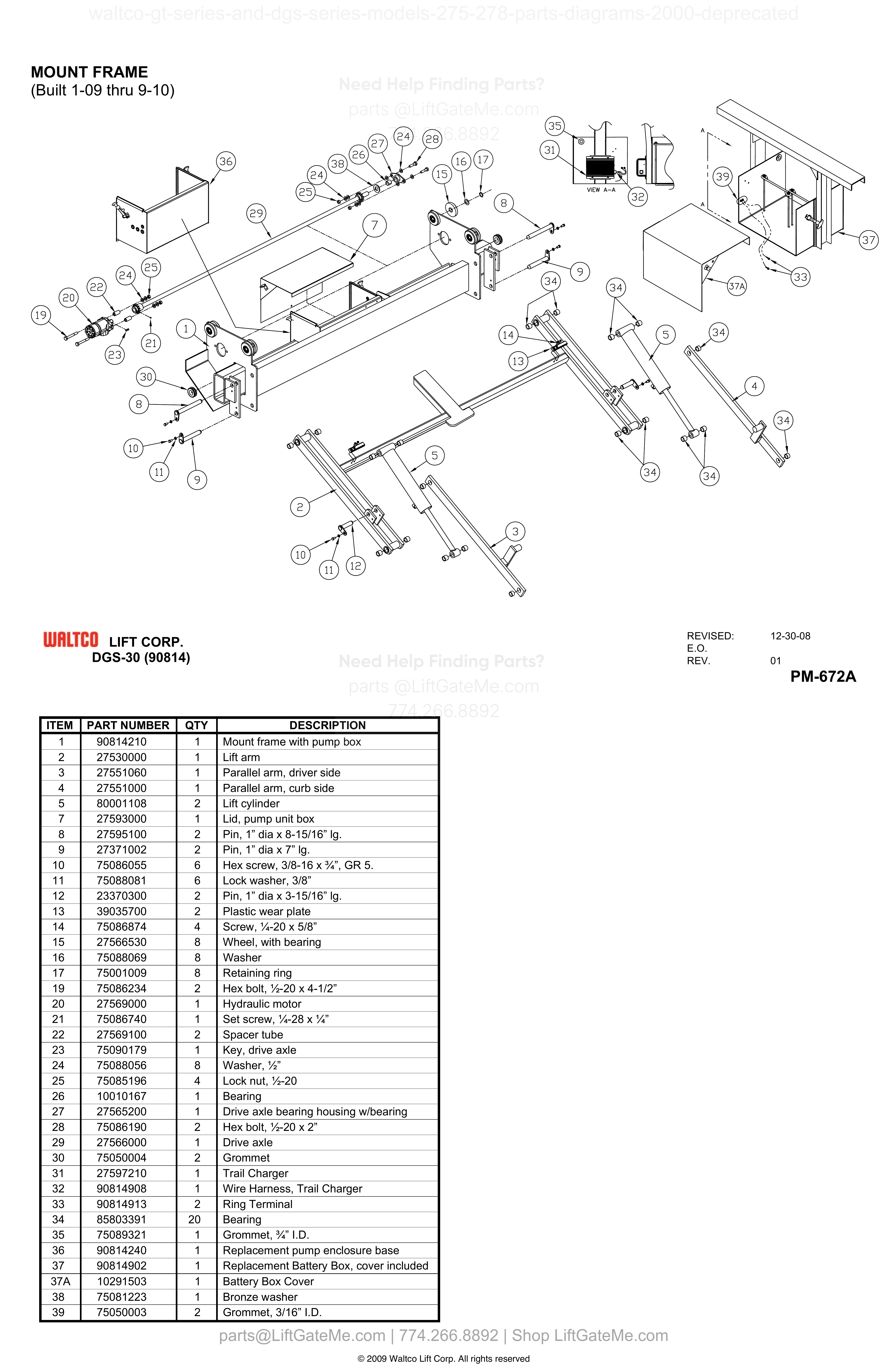

MOUNT FRAME (Built 1-09 thru 9-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90814210 | Mount frame with pump box | |
| 2 | 1 | 27530000 | Lift arm | |
| 3 | 1 | 27551060 | Parallel arm, driver side | |
| 4 | 1 | 27551000 | Parallel arm, curb side | |
| 5 | 2 | 80001108 | Lift cylinder | |
| 7 | 1 | 27593000 | Lid, pump unit box | |
| 8 | 2 | 27595100 | Pin, 1” dia x 8-15/16” lg. | |
| 9 | 2 | 27371002 | Pin, 1” dia x 7” lg. | |
| 10 | 6 | 75086055 | Hex screw, 3/8-16 x ¾”, GR 5. | |
| 11 | 6 | 75088081 | Lock washer, 3/8” | |
| 12 | 2 | 23370300 | Pin, 1” dia x 3-15/16” lg. | |
| 13 | 2 | 39035700 | Plastic wear plate | |
| 14 | 4 | 75086874 | Screw, ¼-20 x 5/8” | |
| 15 | 8 | 27566530 | Wheel, with bearing | |
| 16 | 8 | 75088069 | Washer | |
| 17 | 8 | 75001009 | Retaining ring | |
| 19 | 2 | 75086234 | Hex bolt, ½-20 x 4-1/2” | |
| 20 | 1 | 27569000 | Hydraulic motor | |
| 21 | 1 | 75086740 | Set screw, ¼-28 x ¼” | |
| 22 | 2 | 27569100 | Spacer tube | |
| 23 | 1 | 75090179 | Key, drive axle | |
| 24 | 8 | 75088056 | Washer, ½” | |
| 25 | 4 | 75085196 | Lock nut, ½-20 | |
| 26 | 1 | 10010167 | Bearing | |
| 27 | 1 | 27565200 | Drive axle bearing housing w/bearing | |
| 28 | 2 | 75086190 | Hex bolt, ½-20 x 2” | |
| 29 | 1 | 27566000 | Drive axle | |
| 30 | 2 | 75050004 | Grommet | |
| 31 | 1 | 27597210 | Trail Charger | |
| 32 | 1 | 90814908 | Wire Harness, Trail Charger | |
| 33 | 2 | 90814913 | Ring Terminal | |
| 34 | 20 | 85803391 | Bearing | |
| 35 | 1 | 75089321 | Grommet, ¾” I.D. | |
| 36 | 1 | 90814240 | Replacement pump enclosure base | |
| 37 | 1 | 90814902 | Replacement Battery Box, cover included | |
| 37A | 1 | 10291503 | Battery Box Cover | |
| 38 | 1 | 75081223 | Bronze washer | |
| 39 | 2 | 75050003 | Grommet, 3/16” I.D. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

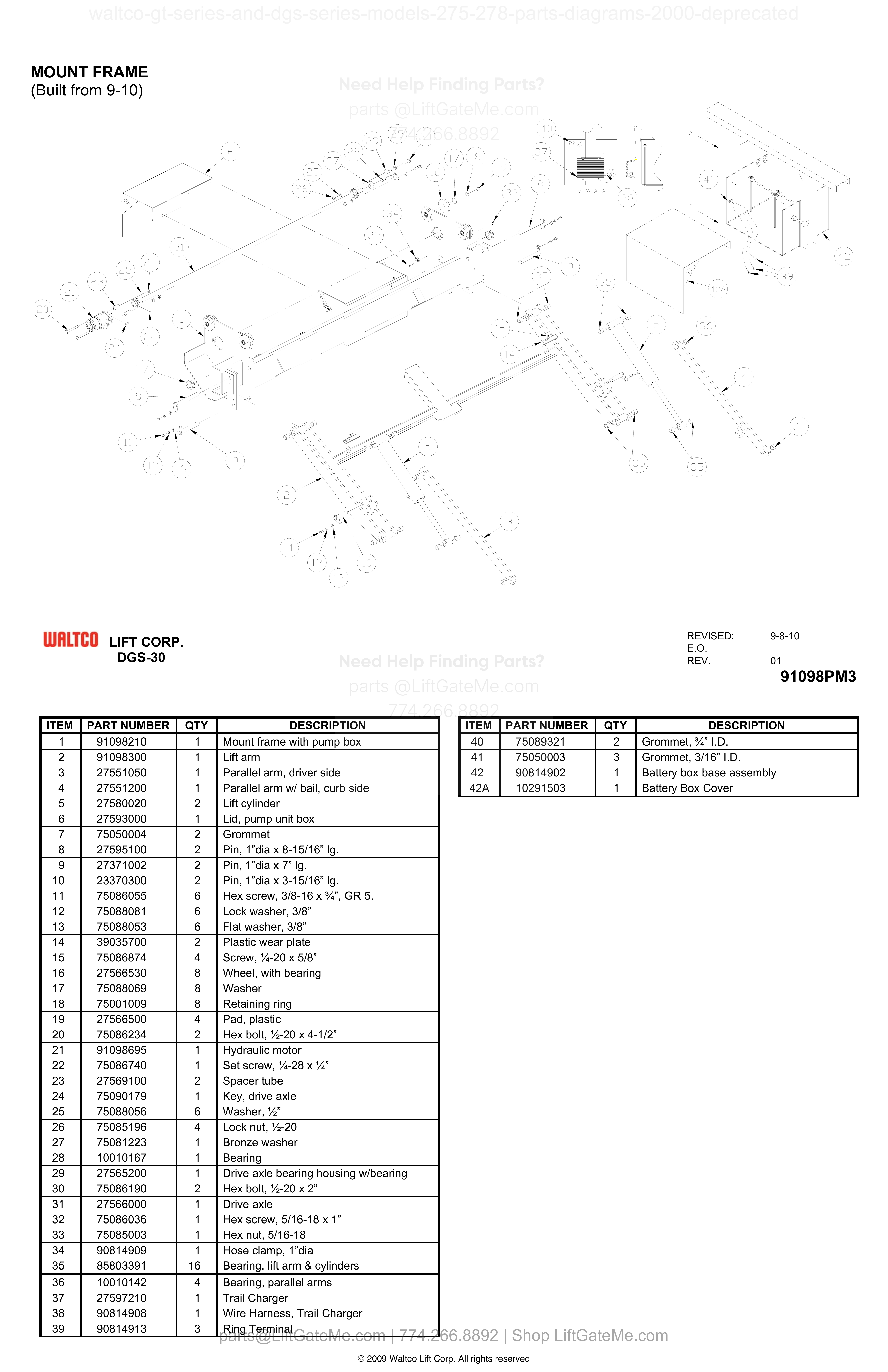

MOUNT FRAME (Built from 9-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 91098210 | Mount frame with pump box | |
| 2 | 1 | 91098300 | Lift arm | |
| 3 | 1 | 27551050 | Parallel arm, driver side | |
| 4 | 1 | 27551200 | Parallel arm w/ bail, curb side | |
| 5 | 2 | 27580020 | Lift cylinder | |
| 6 | 1 | 27593000 | Lid, pump unit box | |
| 7 | 2 | 75050004 | Grommet | |
| 8 | 2 | 27595100 | Pin, 1”dia x 8-15/16” lg. | |
| 9 | 2 | 27371002 | Pin, 1”dia x 7” lg. | |
| 10 | 2 | 23370300 | Pin, 1”dia x 3-15/16” lg. | |
| 11 | 6 | 75086055 | Hex screw, 3/8-16 x ¾”, GR 5. | |
| 12 | 6 | 75088081 | Lock washer, 3/8” | |
| 13 | 6 | 75088053 | Flat washer, 3/8” | |
| 14 | 2 | 39035700 | Plastic wear plate | |
| 15 | 4 | 75086874 | Screw, ¼-20 x 5/8” | |
| 16 | 8 | 27566530 | Wheel, with bearing | |
| 17 | 8 | 75088069 | Washer | |
| 18 | 8 | 75001009 | Retaining ring | |
| 19 | 4 | 27566500 | Pad, plastic | |
| 20 | 2 | 75086234 | Hex bolt, ½-20 x 4-1/2” | |
| 21 | 1 | 91098695 | Hydraulic motor | |
| 22 | 1 | 75086740 | Set screw, ¼-28 x ¼” | |
| 23 | 2 | 27569100 | Spacer tube | |
| 24 | 1 | 75090179 | Key, drive axle | |
| 25 | 6 | 75088056 | Washer, ½” | |
| 26 | 4 | 75085196 | Lock nut, ½-20 | |
| 27 | 1 | 75081223 | Bronze washer | |
| 28 | 1 | 10010167 | Bearing | |
| 29 | 1 | 27565200 | Drive axle bearing housing w/bearing | |
| 30 | 2 | 75086190 | Hex bolt, ½-20 x 2” | |
| 31 | 1 | 27566000 | Drive axle | |
| 32 | 1 | 75086036 | Hex screw, 5/16-18 x 1” | |
| 33 | 1 | 75085003 | Hex nut, 5/16-18 | |
| 34 | 1 | 90814909 | Hose clamp, 1”dia | |
| 35 | 16 | 85803391 | Bearing, lift arm & cylinders | |
| 36 | 4 | 10010142 | Bearing, parallel arms | |
| 37 | 1 | 27597210 | Trail Charger | |
| 38 | 1 | 90814908 | Wire Harness, Trail Charger | |
| 39 | 3 | 90814913 | Ring Terminal | |
| 40 | 2 | 75089321 | Grommet, ¾” I.D. | |
| 41 | 3 | 75050003 | Grommet, 3/16” I.D. | |
| 42 | 1 | 90814902 | Battery box base assembly | |
| 42A | 1 | 10291503 | Battery Box Cover |
i

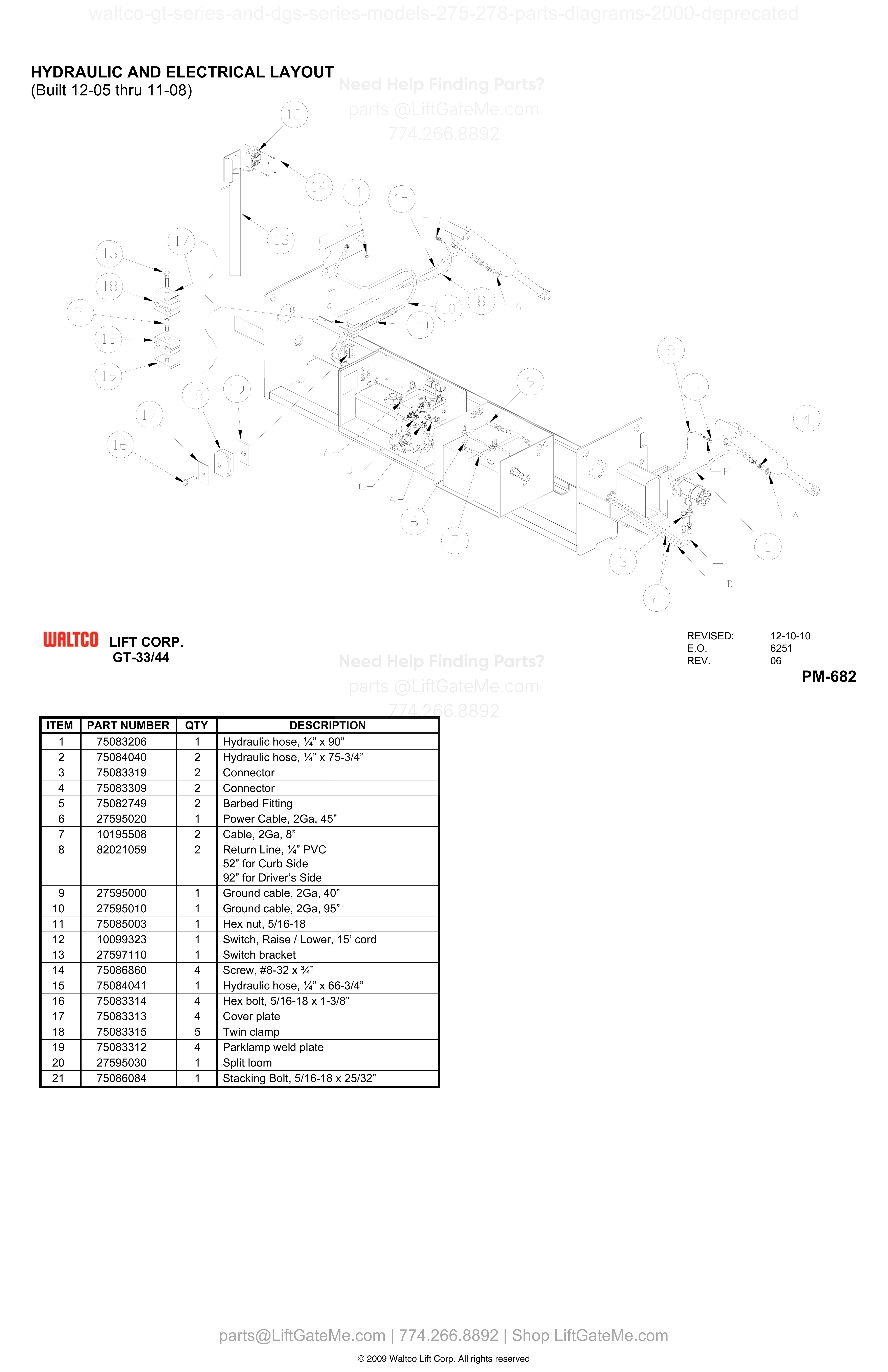

HYDRAULIC AND ELECTRICAL LAYOUT (Built 12-05 thru 11-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75083206 | Hydraulic hose, ¼” x 90” | |
| 2 | 2 | 75084040 | Hydraulic hose, ¼” x 75-3/4” | |
| 3 | 2 | 75083319 | Connector | |
| 4 | 2 | 75083309 | Connector | |
| 5 | 2 | 75082749 | Barbed Fitting | |
| 6 | 1 | 27595020 | Power Cable, 2Ga, 45” | |
| 7 | 2 | 10195508 | Cable, 2Ga, 8” | |
| 8 | 2 | 82021059 | Return Line, ¼” PVC 52” for Curb Side 92” for Driver’s Side | |
| 9 | 1 | 27595000 | Ground cable, 2Ga, 40” | |
| 10 | 1 | 27595010 | Ground cable, 2Ga, 95” | |
| 11 | 1 | 75085003 | Hex nut, 5/16-18 | |
| 12 | 1 | 10099323 | Switch, Raise / Lower, 15’ cord | |
| 13 | 1 | 27597110 | Switch bracket | |
| 14 | 4 | 75086860 | Screw, #8-32 x ¾” | |
| 15 | 1 | 75084041 | Hydraulic hose, ¼” x 66-3/4” | |
| 16 | 4 | 75083314 | Hex bolt, 5/16-18 x 1-3/8” | |
| 17 | 4 | 75083313 | Cover plate | |
| 18 | 5 | 75083315 | Twin clamp | |
| 19 | 4 | 75083312 | Parklamp weld plate | |
| 20 | 1 | 27595030 | Split loom | |
| 21 | 1 | 75086084 | Stacking Bolt, 5/16-18 x 25/32” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

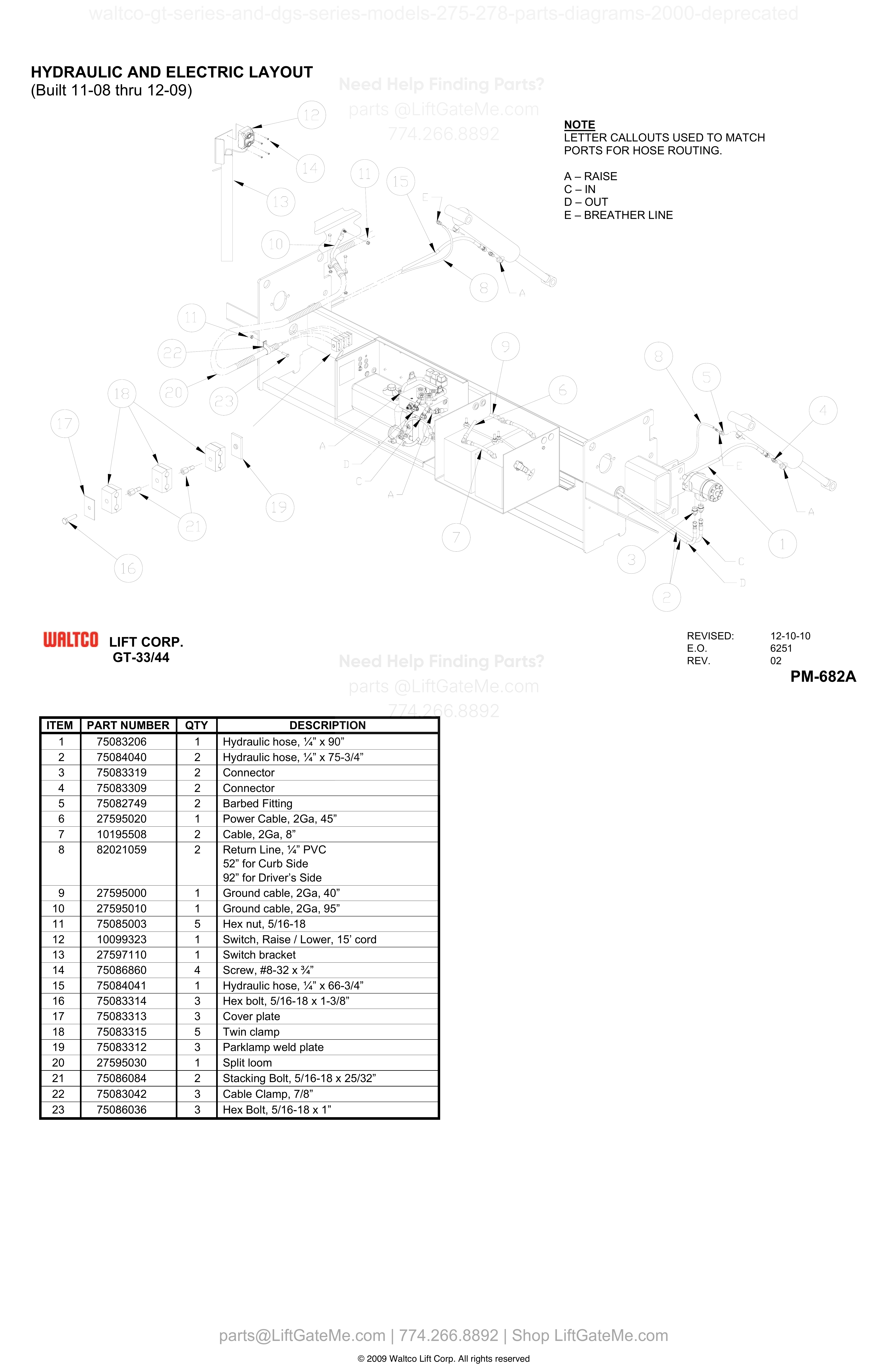

HYDRAULIC AND ELECTRIC LAYOUT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75083206 | Hydraulic hose, ¼” x 90” | |
| 2 | 2 | 75084040 | Hydraulic hose, ¼” x 75-3/4” | |
| 3 | 2 | 75083319 | Connector | |
| 4 | 2 | 75083309 | Connector | |
| 5 | 2 | 75082749 | Barbed Fitting | |
| 6 | 1 | 27595020 | Power Cable, 2Ga, 45” | |
| 7 | 2 | 10195508 | Cable, 2Ga, 8” | |
| 8 | 2 | 82021059 | Return Line, ¼” PVC 52” for Curb Side 92” for Driver’s Side | |
| 9 | 1 | 27595000 | Ground cable, 2Ga, 40” | |
| 10 | 1 | 27595010 | Ground cable, 2Ga, 95” | |
| 11 | 5 | 75085003 | Hex nut, 5/16-18 | |
| 12 | 1 | 10099323 | Switch, Raise / Lower, 15’ cord | |
| 13 | 1 | 27597110 | Switch bracket | |
| 14 | 4 | 75086860 | Screw, #8-32 x ¾” | |
| 15 | 1 | 75084041 | Hydraulic hose, ¼” x 66-3/4” | |
| 16 | 3 | 75083314 | Hex bolt, 5/16-18 x 1-3/8” | |
| 17 | 3 | 75083313 | Cover plate | |
| 18 | 5 | 75083315 | Twin clamp | |
| 19 | 3 | 75083312 | Parklamp weld plate | |
| 20 | 1 | 27595030 | Split loom | |
| 21 | 2 | 75086084 | Stacking Bolt, 5/16-18 x 25/32” | |
| 22 | 3 | 75083042 | Cable Clamp, 7/8” | |
| 23 | 3 | 75086036 | Hex Bolt, 5/16-18 x 1” |

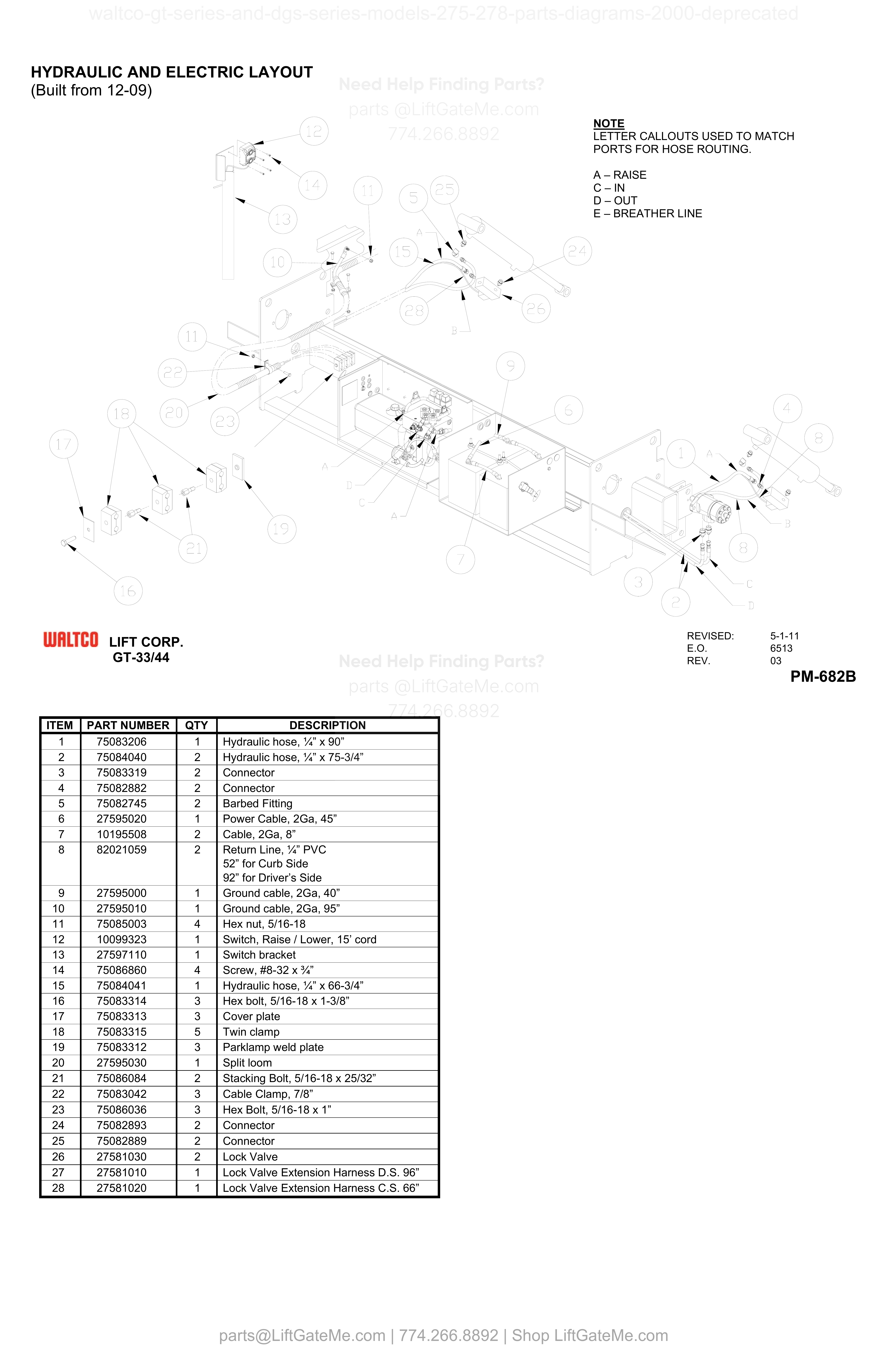

HYDRAULIC AND ELECTRIC LAYOUT (Built from 12-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 75083206 | Hydraulic hose, ¼” x 90” | |
| 2 | 2 | 75084040 | Hydraulic hose, ¼” x 75-3/4” | |
| 3 | 2 | 75083319 | Connector | |
| 4 | 2 | 75082882 | Connector | |
| 5 | 2 | 75082745 | Barbed Fitting | |
| 6 | 1 | 27595020 | Power Cable, 2Ga, 45” | |
| 7 | 2 | 10195508 | Cable, 2Ga, 8” | |
| 8 | 2 | 82021059 | Return Line, ¼” PVC 52” for Curb Side 92” for Driver’s Side | |
| 9 | 1 | 27595000 | Ground cable, 2Ga, 40” | |
| 10 | 1 | 27595010 | Ground cable, 2Ga, 95” | |
| 11 | 4 | 75085003 | Hex nut, 5/16-18 | |
| 12 | 1 | 10099323 | Switch, Raise / Lower, 15’ cord | |
| 13 | 1 | 27597110 | Switch bracket | |
| 14 | 4 | 75086860 | Screw, #8-32 x ¾” | |
| 15 | 1 | 75084041 | Hydraulic hose, ¼” x 66-3/4” | |
| 16 | 3 | 75083314 | Hex bolt, 5/16-18 x 1-3/8” | |
| 17 | 3 | 75083313 | Cover plate | |
| 18 | 5 | 75083315 | Twin clamp | |
| 19 | 3 | 75083312 | Parklamp weld plate | |
| 20 | 1 | 27595030 | Split loom | |
| 21 | 2 | 75086084 | Stacking Bolt, 5/16-18 x 25/32” | |
| 22 | 3 | 75083042 | Cable Clamp, 7/8” | |
| 23 | 3 | 75086036 | Hex Bolt, 5/16-18 x 1” | |
| 24 | 2 | 75082893 | Connector | |
| 25 | 2 | 75082889 | Connector | |
| 26 | 2 | 27581030 | Lock Valve | |
| 27 | 1 | 27581010 | Lock Valve Extension Harness D.S. 96” | |
| 28 | 1 | 27581020 | Lock Valve Extension Harness C.S. 66” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

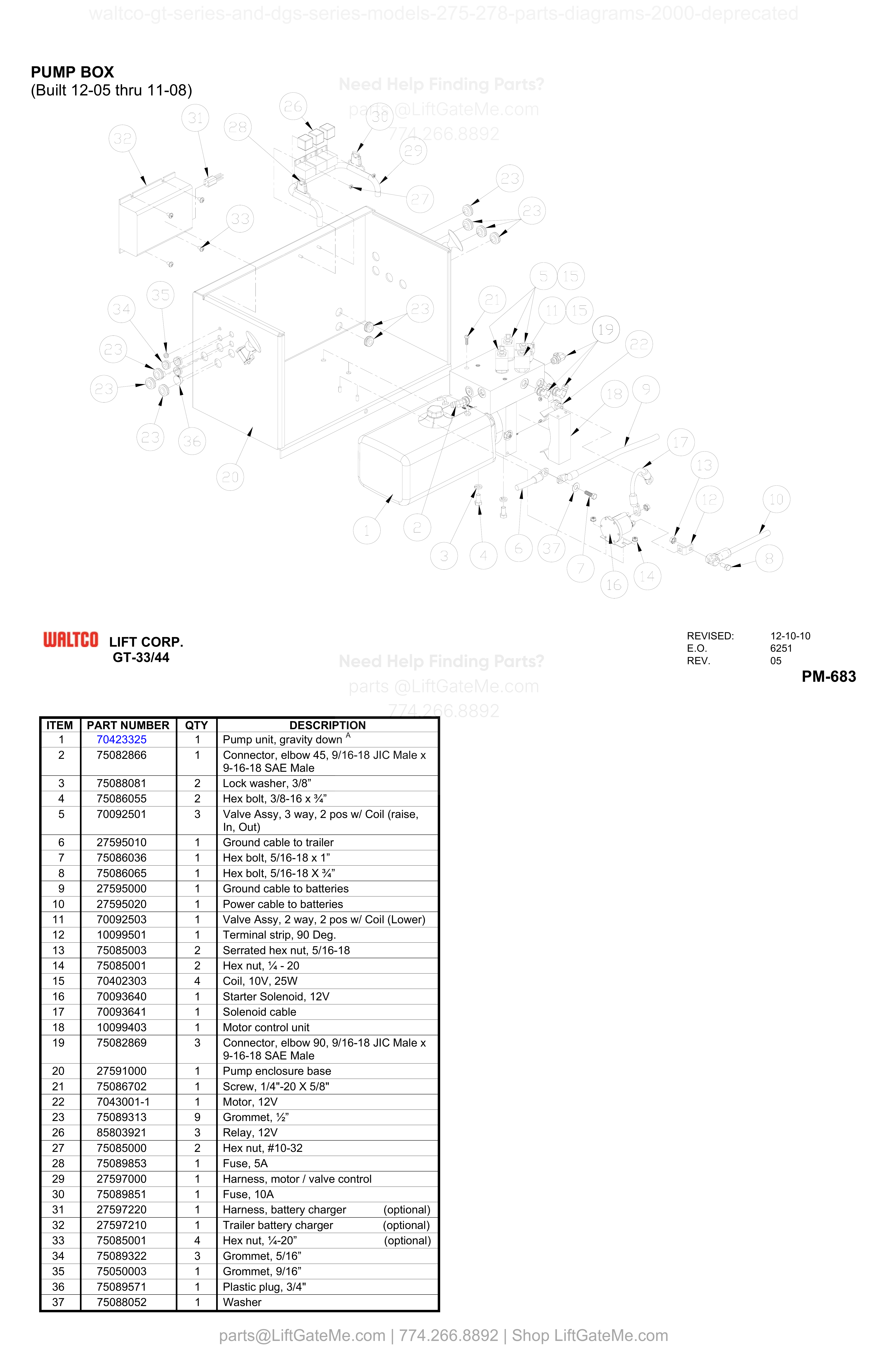

PUMP BOX
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70423325 A | Pump unit, gravity down^A | |
| 2 | 1 | 75082866 | Connector, elbow 45, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 3 | 2 | 75088081 | Lock washer, 3/8” | |
| 4 | 2 | 75086055 | Hex bolt, 3/8-16 x ¾” | |
| 5 | 3 | 70092501 | Valve Assy, 3 way, 2 pos w/ Coil (raise, In, Out) | |
| 6 | 1 | 27595010 | Ground cable to trailer | |
| 7 | 1 | 75086036 | Hex bolt, 5/16-18 x 1” | |
| 8 | 1 | 75086065 | Hex bolt, 5/16-18 X ¾” | |
| 9 | 1 | 27595000 | Ground cable to batteries | |
| 10 | 1 | 27595020 | Power cable to batteries | |
| 11 | 1 | 70092503 | Valve Assy, 2 way, 2 pos w/ Coil (Lower) | |
| 12 | 1 | 10099501 | Terminal strip, 90 Deg. | |
| 13 | 2 | 75085003 | Serrated hex nut, 5/16-18 | |
| 14 | 2 | 75085001 | Hex nut, ¼ - 20 | |
| 15 | 4 | 70402303 | Coil, 10V, 25W | |
| 16 | 1 | 70093640 | Starter Solenoid, 12V | |
| 17 | 1 | 70093641 | Solenoid cable | |
| 18 | 1 | 10099403 | Motor control unit | |
| 19 | 3 | 75082869 | Connector, elbow 90, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 20 | 1 | 27591000 | Pump enclosure base | |
| 21 | 1 | 75086702 | Screw, 1/4"-20 X 5/8" | |
| 22 | 1 | 7043001-1 | Motor, 12V | |
| 23 | 9 | 75089313 | Grommet, ½” | |
| 26 | 3 | 85803921 | Relay, 12V | |
| 27 | 2 | 75085000 | Hex nut, #10-32 | |
| 28 | 1 | 75089853 | Fuse, 5A | |
| 29 | 1 | 27597000 | Harness, motor / valve control | |
| 30 | 1 | 75089851 | Fuse, 10A | |
| 31 | 1 | 27597220 | Harness, battery charger (optional) | |
| 32 | 1 | 27597210 | Trailer battery charger (optional) | |
| 33 | 4 | 75085001 | Hex nut, ¼-20” (optional) | |
| 34 | 3 | 75089322 | Grommet, 5/16” | |
| 35 | 1 | 75050003 | Grommet, 9/16” | |
| 36 | 1 | 75089571 | Plastic plug, 3/4" | |
| 37 | 1 | 75088052 | Washer |

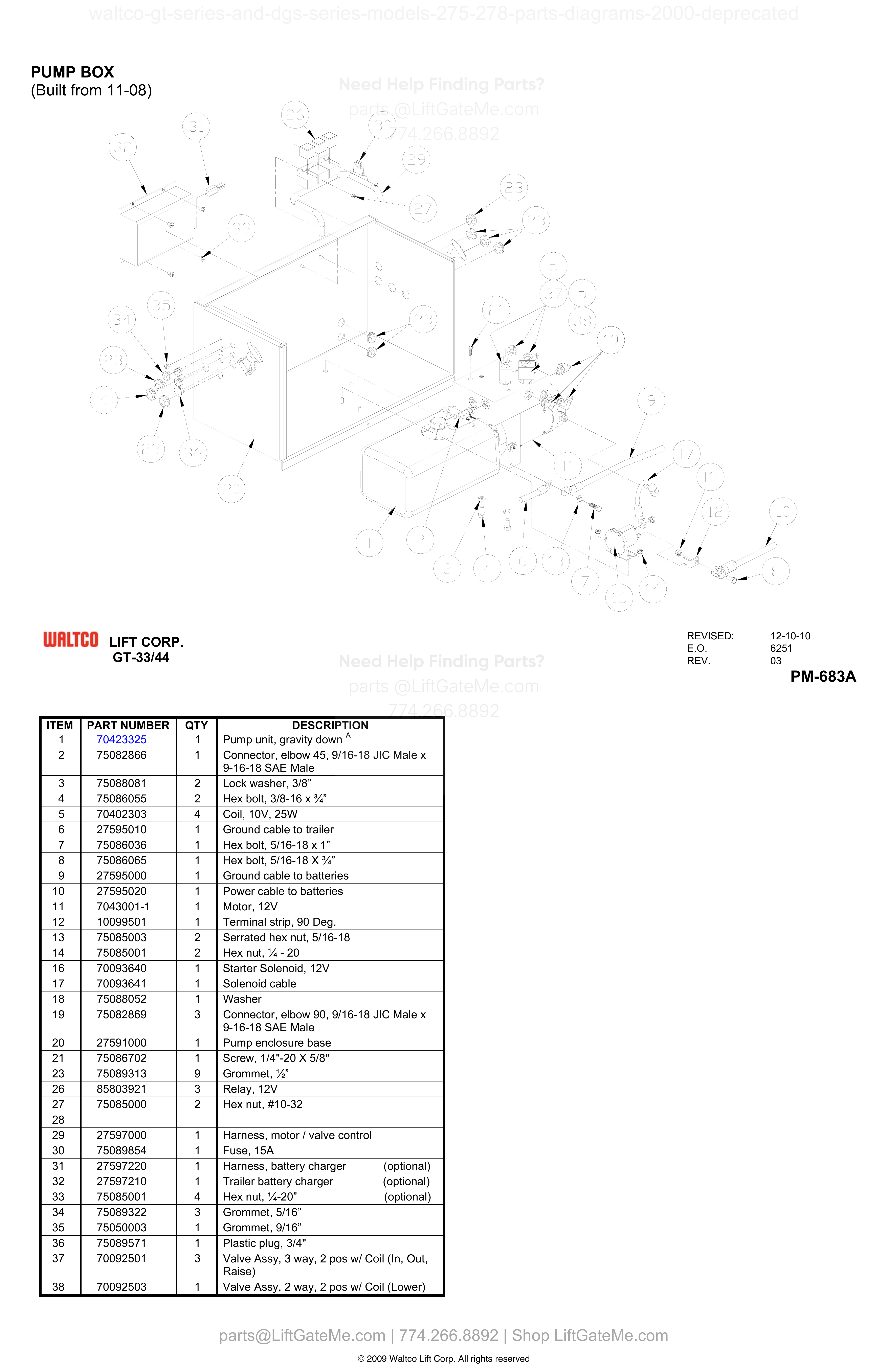

PUMP BOX (Built from 11-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70423325 | Pump unit, gravity down^A | |
| 2 | 1 | 75082866 | Connector, elbow 45, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 3 | 2 | 75088081 | Lock washer, 3/8” | |
| 4 | 2 | 75086055 | Hex bolt, 3/8-16 x ¾” | |
| 5 | 4 | 70402303 | Coil, 10V, 25W | |
| 6 | 1 | 27595010 | Ground cable to trailer | |
| 7 | 1 | 75086036 | Hex bolt, 5/16-18 x 1” | |
| 8 | 1 | 75086065 | Hex bolt, 5/16-18 X ¾” | |
| 9 | 1 | 27595000 | Ground cable to batteries | |
| 10 | 1 | 27595020 | Power cable to batteries | |
| 11 | 1 | 7043001-1 | Motor, 12V | |
| 12 | 1 | 10099501 | Terminal strip, 90 Deg. | |
| 13 | 2 | 75085003 | Serrated hex nut, 5/16-18 | |
| 14 | 2 | 75085001 | Hex nut, ¼ - 20 | |
| 16 | 1 | 70093640 | Starter Solenoid, 12V | |
| 17 | 1 | 70093641 | Solenoid cable | |
| 18 | 1 | 75088052 | Washer | |
| 19 | 3 | 75082869 | Connector, elbow 90, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 20 | 1 | 27591000 | Pump enclosure base | |
| 21 | 1 | 75086702 | Screw, 1/4"-20 X 5/8" | |
| 23 | 9 | 75089313 | Grommet, ½” | |
| 26 | 3 | 85803921 | Relay, 12V | |
| 27 | 2 | 75085000 | Hex nut, #10-32 | |
| 29 | 1 | 27597000 | Harness, motor / valve control | |
| 30 | 1 | 75089854 | Fuse, 15A | |
| 31 | 1 | 27597220 | Harness, battery charger (optional) | |
| 32 | 1 | 27597210 | Trailer battery charger (optional) | |
| 33 | 4 | 75085001 | Hex nut, ¼-20” (optional) | |
| 34 | 3 | 75089322 | Grommet, 5/16” | |
| 35 | 1 | 75050003 | Grommet, 9/16” | |
| 36 | 1 | 75089571 | Plastic plug, 3/4" | |
| 37 | 3 | 70092501 | Valve Assy, 3 way, 2 pos w/ Coil (In, Out, Raise) | |
| 38 | 1 | 70092503 | Valve Assy, 2 way, 2 pos w/ Coil (Lower) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

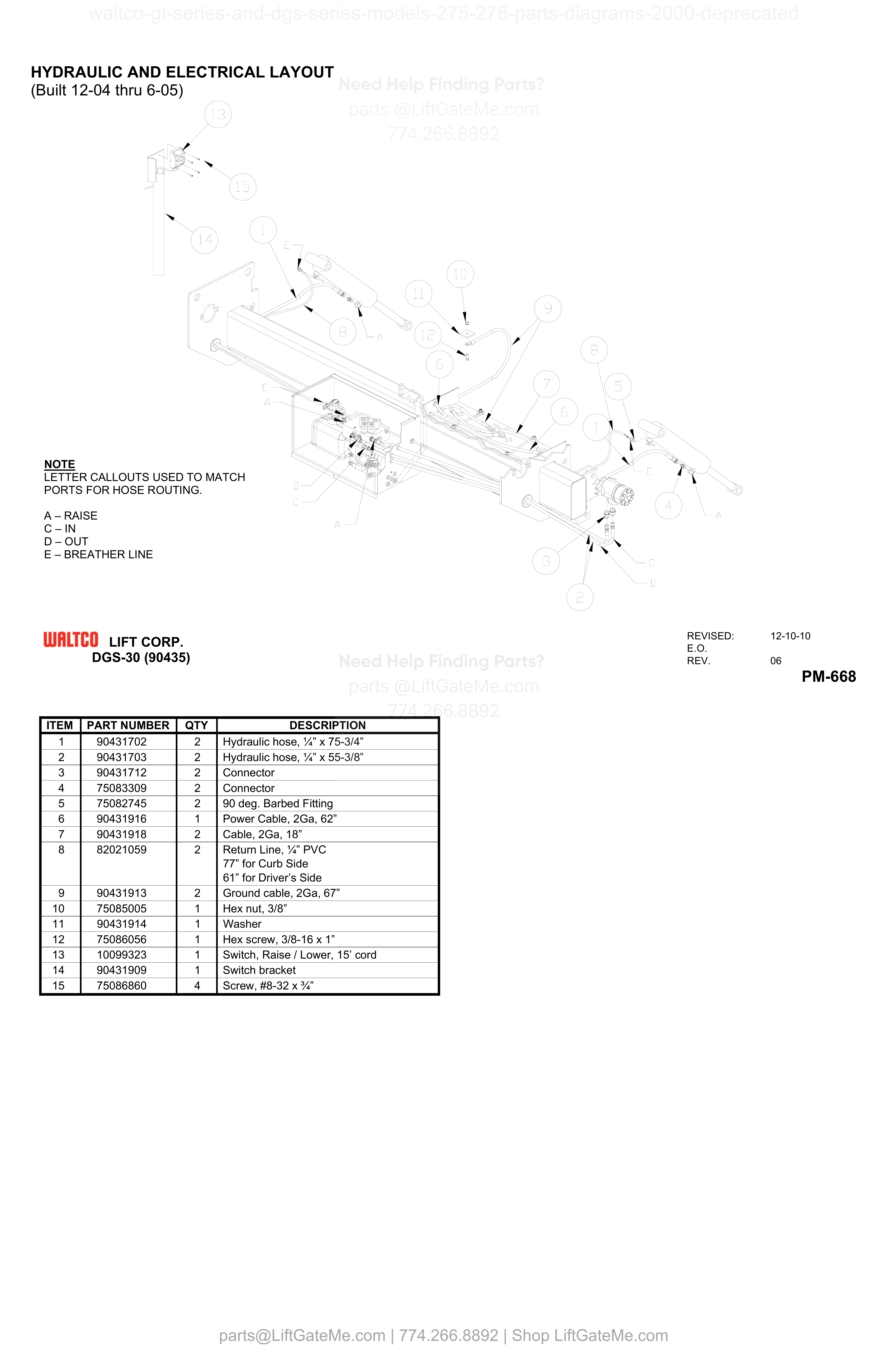

HYDRAULIC AND ELECTRICAL LAYOUT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 90431702 | Hydraulic hose, ¼” x 75-3/4” | |
| 2 | 2 | 90431703 | Hydraulic hose, ¼” x 55-3/8” | |
| 3 | 2 | 90431712 | Connector | |
| 4 | 2 | 75083309 | Connector | |
| 5 | 2 | 75082745 | 90 deg. Barbed Fitting | |
| 6 | 1 | 90431916 | Power Cable, 2Ga, 62” | |
| 7 | 2 | 90431918 | Cable, 2Ga, 18” | |
| 8 | 2 | 82021059 | Return Line, ¼” PVC 77” for Curb Side 61” for Driver’s Side | |
| 9 | 2 | 90431913 | Ground cable, 2Ga, 67” | |
| 10 | 1 | 75085005 | Hex nut, 3/8” | |
| 11 | 1 | 90431914 | Washer | |
| 12 | 1 | 75086056 | Hex screw, 3/8-16 x 1” | |
| 13 | 1 | 10099323 | Switch, Raise / Lower, 15’ cord | |
| 14 | 1 | 90431909 | Switch bracket | |
| 15 | 4 | 75086860 | Screw, #8-32 x ¾” |

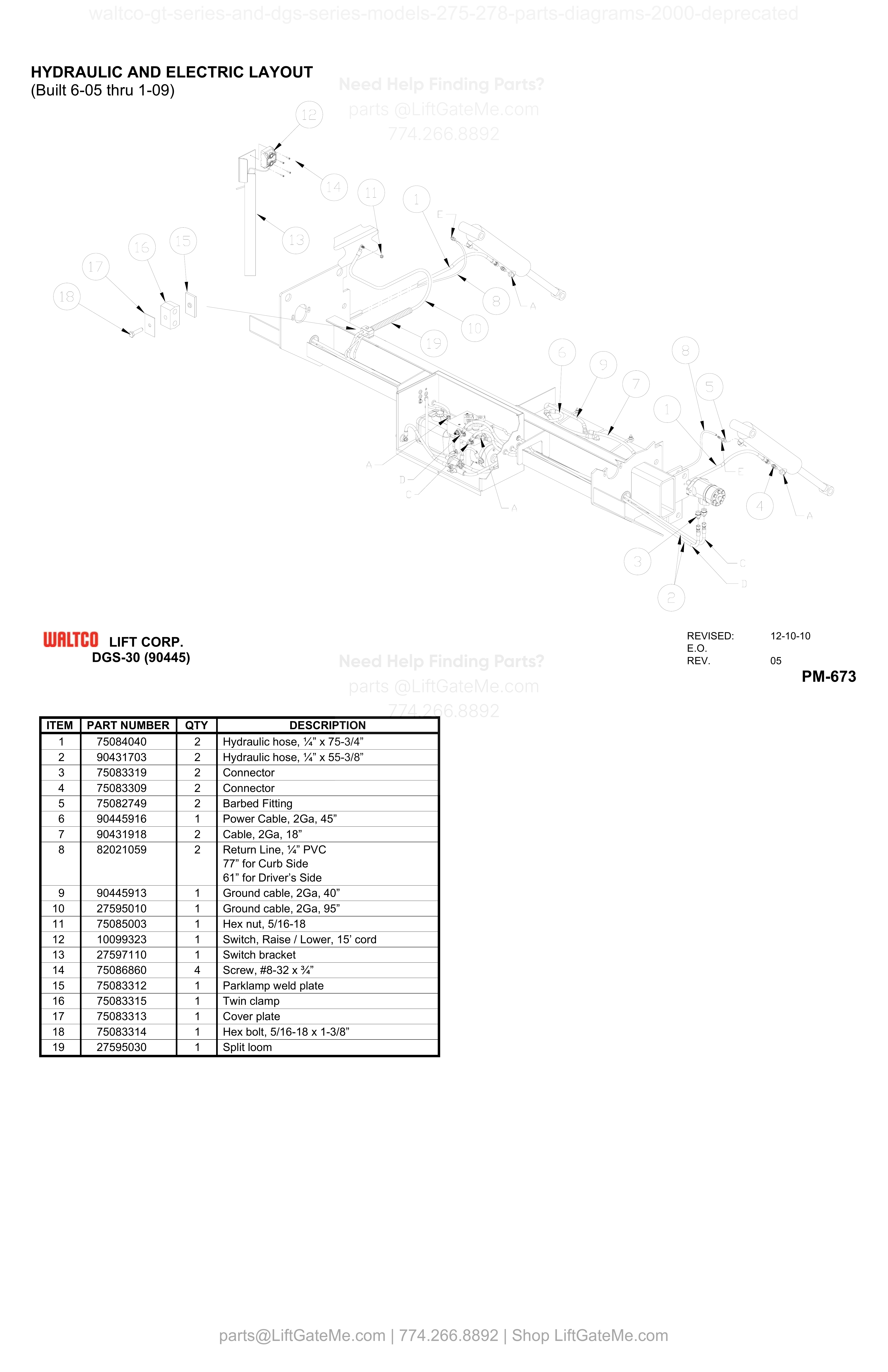

HYDRAULIC AND ELECTRIC LAYOUT (Built 6-05 thru 1-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 75084040 | Hydraulic hose, ¼” x 75-3/4” | |
| 2 | 2 | 90431703 | Hydraulic hose, ¼” x 55-3/8” | |
| 3 | 2 | 75083319 | Connector | |
| 4 | 2 | 75083309 | Connector | |
| 5 | 2 | 75082749 | Barbed Fitting | |
| 6 | 1 | 90445916 | Power Cable, 2Ga, 45” | |
| 7 | 2 | 90431918 | Cable, 2Ga, 18” | |
| 8 | 2 | 82021059 | Return Line, ¼” PVC 77” for Curb Side 61” for Driver’s Side | |
| 9 | 1 | 90445913 | Ground cable, 2Ga, 40” | |
| 10 | 1 | 27595010 | Ground cable, 2Ga, 95” | |
| 11 | 1 | 75085003 | Hex nut, 5/16-18 | |
| 12 | 1 | 10099323 | Switch, Raise / Lower, 15’ cord | |
| 13 | 1 | 27597110 | Switch bracket | |
| 14 | 4 | 75086860 | Screw, #8-32 x ¾” | |
| 15 | 1 | 75083312 | Parklamp weld plate | |
| 16 | 1 | 75083315 | Twin clamp | |
| 17 | 1 | 75083313 | Cover plate | |
| 18 | 1 | 75083314 | Hex bolt, 5/16-18 x 1-3/8” | |
| 19 | 1 | 27595030 | Split loom |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

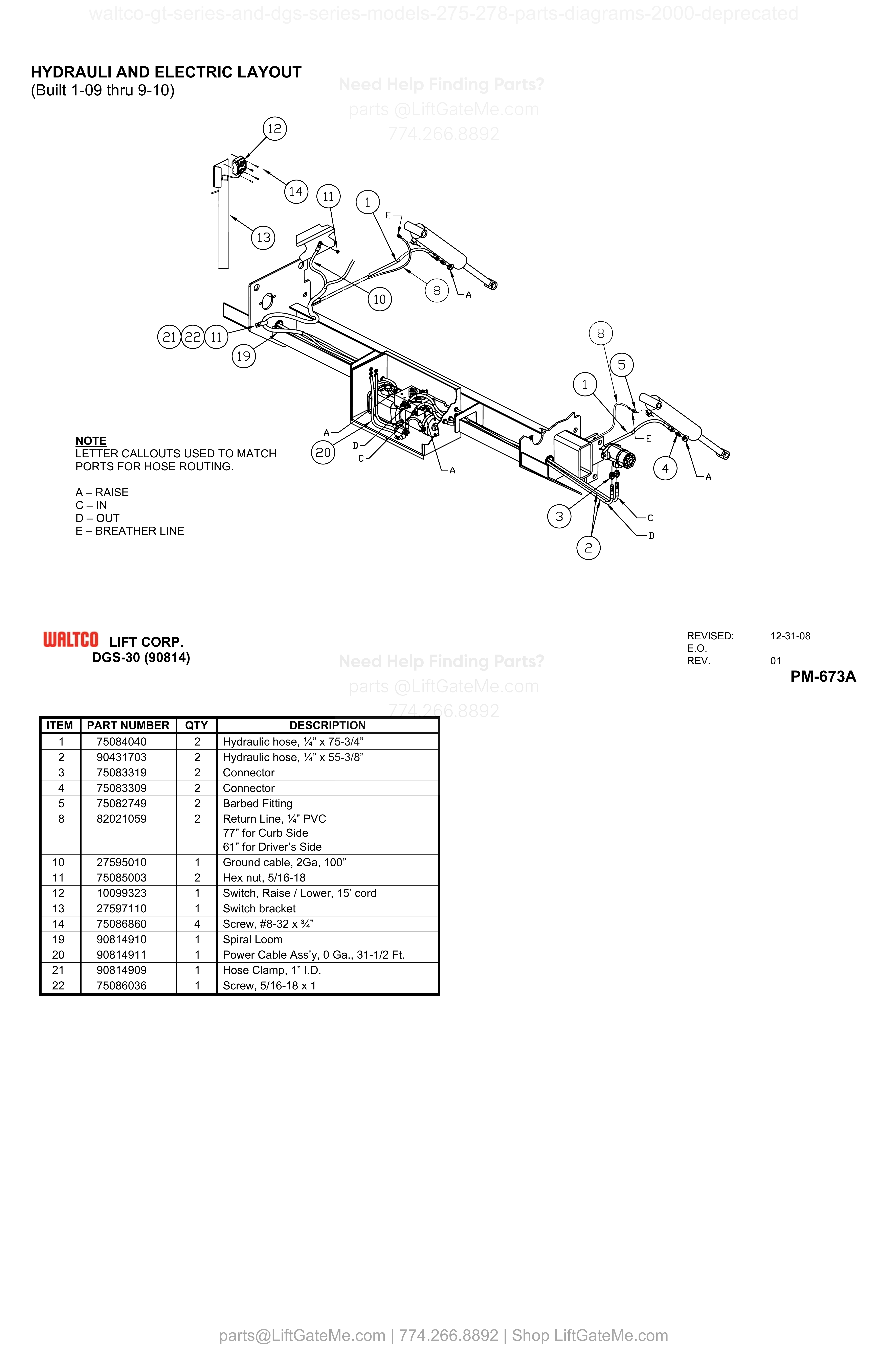

HYDRAULI AND ELECTRIC LAYOUT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 75084040 | Hydraulic hose, ¼” x 75-3/4” | |
| 2 | 2 | 90431703 | Hydraulic hose, ¼” x 55-3/8” | |
| 3 | 2 | 75083319 | Connector | |
| 4 | 2 | 75083309 | Connector | |
| 5 | 2 | 75082749 | Barbed Fitting | |
| 8 | 2 | 82021059 | Return Line, ¼” PVC 77” for Curb Side 61” for Driver’s Side | |
| 10 | 1 | 27595010 | Ground cable, 2Ga, 100” | |
| 11 | 2 | 75085003 | Hex nut, 5/16-18 | |
| 12 | 1 | 10099323 | Switch, Raise / Lower, 15’ cord | |
| 13 | 1 | 27597110 | Switch bracket | |
| 14 | 4 | 75086860 | Screw, #8-32 x ¾” | |
| 19 | 1 | 90814910 | Spiral Loom | |
| 20 | 1 | 90814911 | Power Cable Ass’y, 0 Ga., 31-1/2 Ft. | |
| 21 | 1 | 90814909 | Hose Clamp, 1” I.D. | |
| 22 | 1 | 75086036 | Screw, 5/16-18 x 1 |

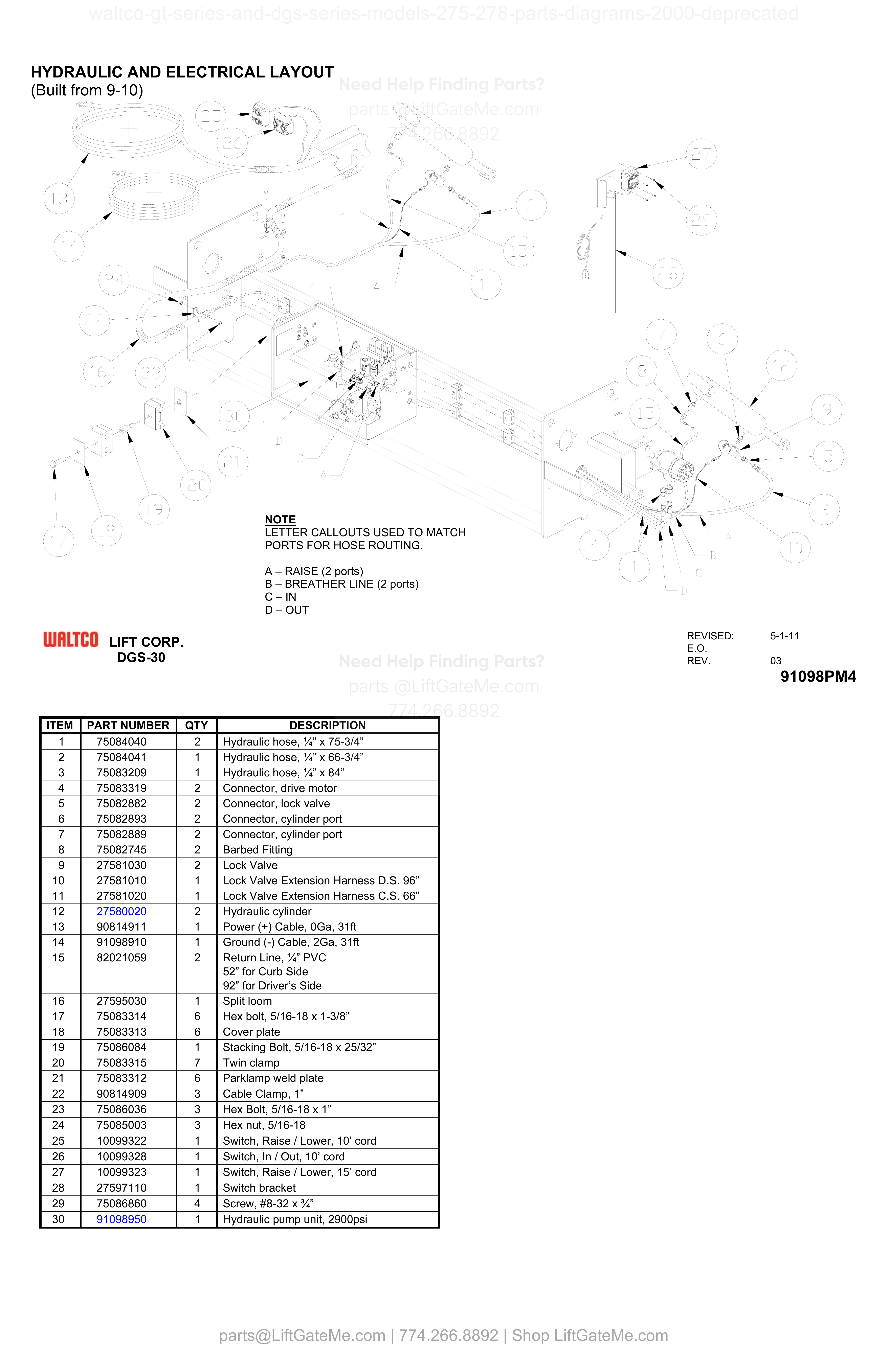

HYDRAULIC AND ELECTRICAL LAYOUT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 75084040 | Hydraulic hose, ¼” x 75-3/4” | |
| 2 | 1 | 75084041 | Hydraulic hose, ¼” x 66-3/4” | |
| 3 | 1 | 75083209 | Hydraulic hose, ¼” x 84” | |
| 4 | 2 | 75083319 | Connector, drive motor | |
| 5 | 2 | 75082882 | Connector, lock valve | |
| 6 | 2 | 75082893 | Connector, cylinder port | |
| 7 | 2 | 75082889 | Connector, cylinder port | |
| 8 | 2 | 75082745 | Barbed Fitting | |
| 9 | 2 | 27581030 | Lock Valve | |
| 10 | 1 | 27581010 | Lock Valve Extension Harness D.S. 96” | |
| 11 | 1 | 27581020 | Lock Valve Extension Harness C.S. 66” | |
| 12 | 2 | 27580020 | Hydraulic cylinder | |
| 13 | 1 | 90814911 | Power (+) Cable, 0Ga, 31ft | |
| 14 | 1 | 91098910 | Ground (-) Cable, 2Ga, 31ft | |
| 15 | 2 | 82021059 | Return Line, ¼” PVC 52” for Curb Side 92” for Driver’s Side | |
| 16 | 1 | 27595030 | Split loom | |
| 17 | 6 | 75083314 | Hex bolt, 5/16-18 x 1-3/8” | |
| 18 | 6 | 75083313 | Cover plate | |
| 19 | 1 | 75086084 | Stacking Bolt, 5/16-18 x 25/32” | |
| 20 | 7 | 75083315 | Twin clamp | |
| 21 | 6 | 75083312 | Parklamp weld plate | |
| 22 | 3 | 90814909 | Cable Clamp, 1” | |
| 23 | 3 | 75086036 | Hex Bolt, 5/16-18 x 1” | |
| 24 | 3 | 75085003 | Hex nut, 5/16-18 | |
| 25 | 1 | 10099322 | Switch, Raise / Lower, 10’ cord | |
| 26 | 1 | 10099328 | Switch, In / Out, 10’ cord | |
| 27 | 1 | 10099323 | Switch, Raise / Lower, 15’ cord | |
| 28 | 1 | 27597110 | Switch bracket | |
| 29 | 4 | 75086860 | Screw, #8-32 x ¾” | |
| 30 | 1 | 91098950 | Hydraulic pump unit, 2900psi |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

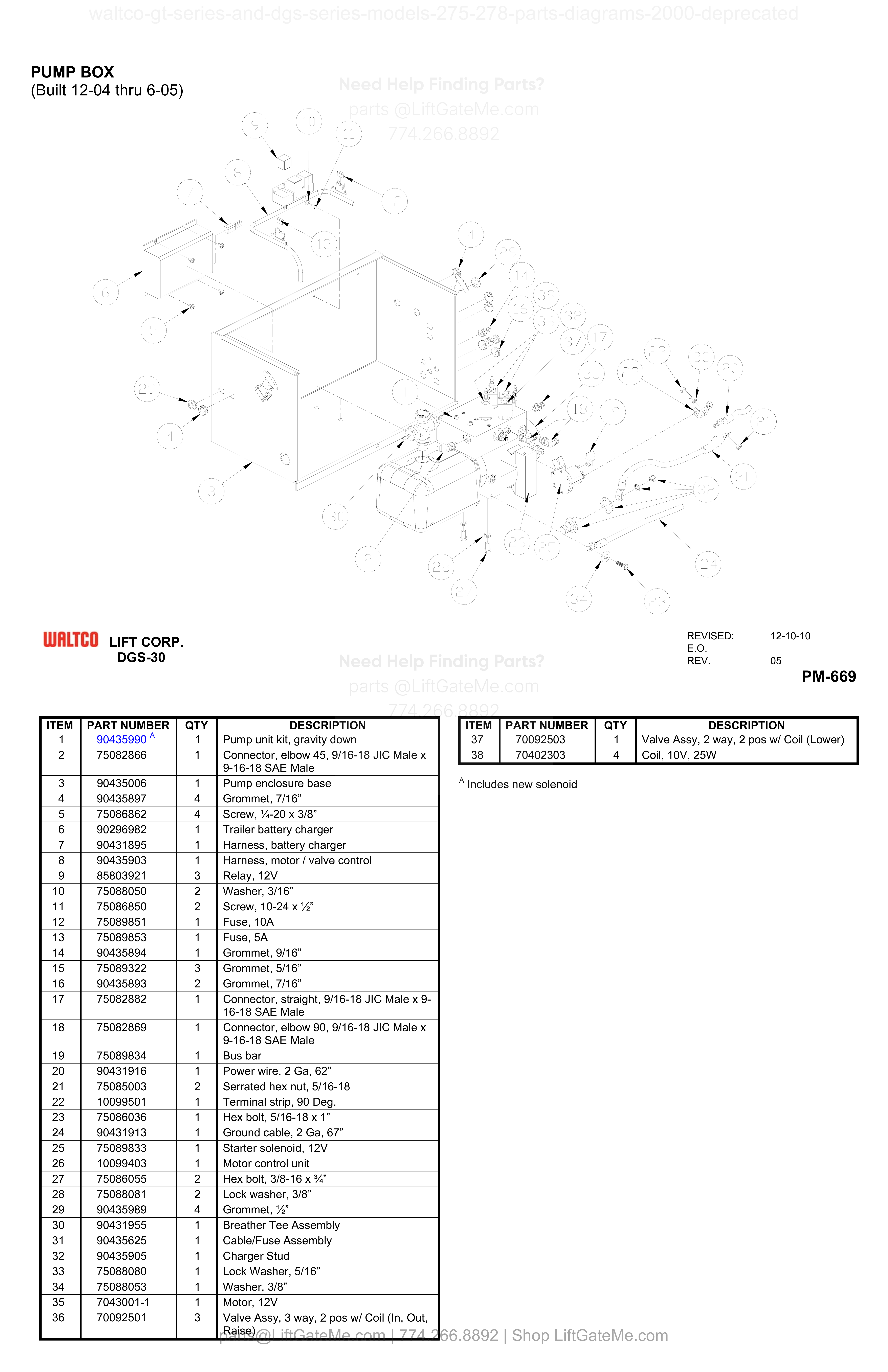

PUMP BOX
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90435990 A | Pump unit kit, gravity down | |
| 2 | 1 | 75082866 | Connector, elbow 45, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 3 | 1 | 90435006 | Pump enclosure base | |
| 4 | 4 | 90435897 | Grommet, 7/16” | |
| 5 | 4 | 75086862 | Screw, ¼-20 x 3/8” | |
| 6 | 1 | 90296982 | Trailer battery charger | |
| 7 | 1 | 90431895 | Harness, battery charger | |
| 8 | 1 | 90435903 | Harness, motor / valve control | |
| 9 | 3 | 85803921 | Relay, 12V | |
| 10 | 2 | 75088050 | Washer, 3/16” | |
| 11 | 2 | 75086850 | Screw, 10-24 x ½” | |
| 12 | 1 | 75089851 | Fuse, 10A | |
| 13 | 1 | 75089853 | Fuse, 5A | |
| 14 | 1 | 90435894 | Grommet, 9/16” | |
| 15 | 3 | 75089322 | Grommet, 5/16” | |
| 16 | 2 | 90435893 | Grommet, 7/16” | |
| 17 | 1 | 75082882 | Connector, straight, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 18 | 1 | 75082869 | Connector, elbow 90, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 19 | 1 | 75089834 | Bus bar | |
| 20 | 1 | 90431916 | Power wire, 2 Ga, 62” | |
| 21 | 2 | 75085003 | Serrated hex nut, 5/16-18 | |
| 22 | 1 | 10099501 | Terminal strip, 90 Deg. | |
| 23 | 1 | 75086036 | Hex bolt, 5/16-18 x 1” | |
| 24 | 1 | 90431913 | Ground cable, 2 Ga, 67” | |
| 25 | 1 | 75089833 | Starter solenoid, 12V | |
| 26 | 1 | 10099403 | Motor control unit | |
| 27 | 2 | 75086055 | Hex bolt, 3/8-16 x ¾” | |
| 28 | 2 | 75088081 | Lock washer, 3/8” | |
| 29 | 4 | 90435989 | Grommet, ½” | |
| 30 | 1 | 90431955 | Breather Tee Assembly | |
| 31 | 1 | 90435625 | Cable/Fuse Assembly | |
| 32 | 1 | 90435905 | Charger Stud | |
| 33 | 1 | 75088080 | Lock Washer, 5/16” | |
| 34 | 1 | 75088053 | Washer, 3/8” | |
| 35 | 1 | 7043001-1 | Motor, 12V | |
| 36 | 3 | 70092501 | Valve Assy, 3 way, 2 pos w/ Coil (In, Out, Raise) | |
| 37 | 1 | 70092503 | Valve Assy, 2 way, 2 pos w/ Coil (Lower) | |
| 38 | 4 | 70402303 | Coil, 10V, 25W |

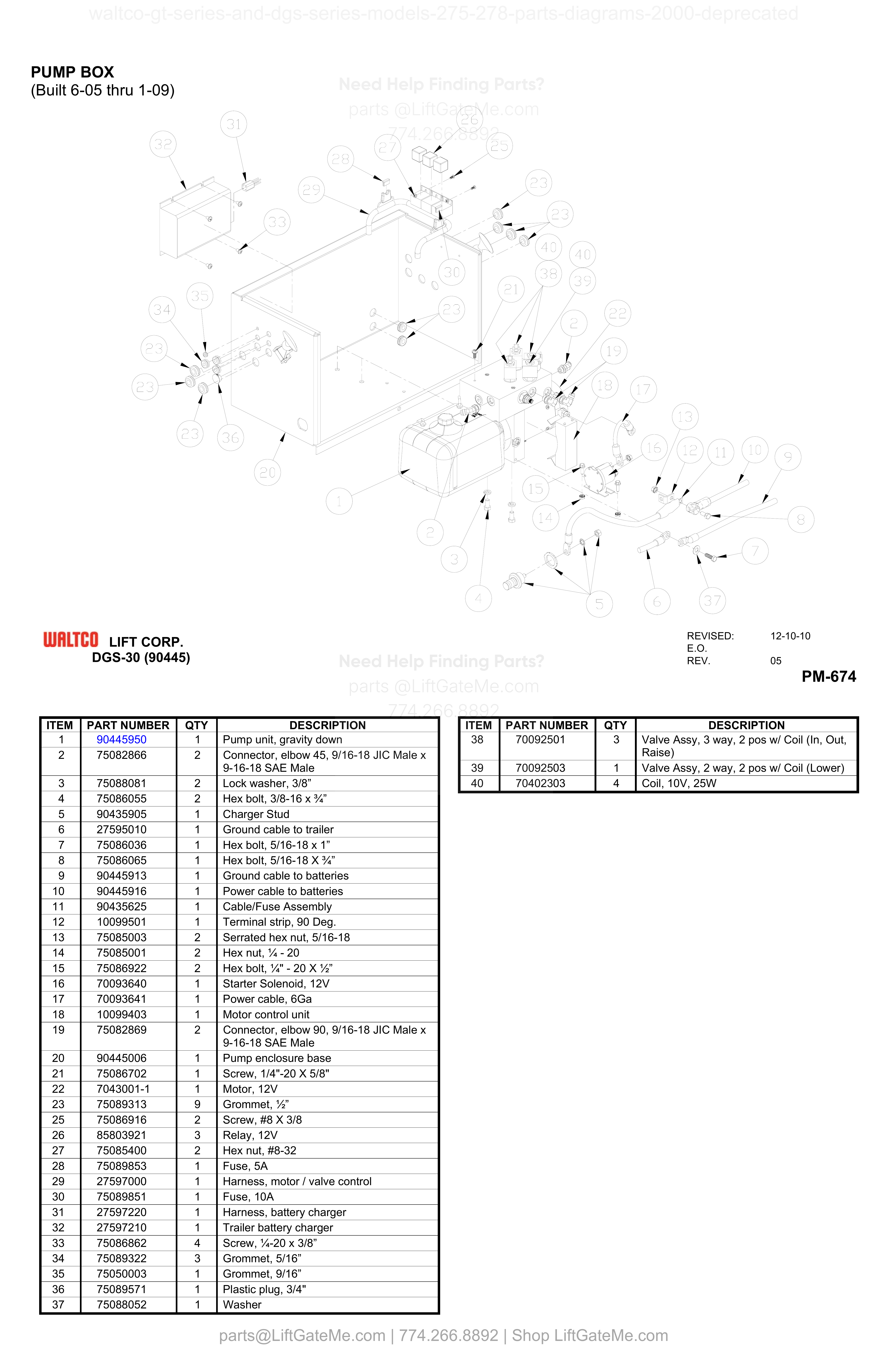

PUMP BOX (Built 6-05 thru 1-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90445950 | Pump unit, gravity down | |
| 2 | 2 | 75082866 | Connector, elbow 45, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 3 | 2 | 75088081 | Lock washer, 3/8” | |
| 4 | 2 | 75086055 | Hex bolt, 3/8-16 x ¾” | |
| 5 | 1 | 90435905 | Charger Stud | |
| 6 | 1 | 27595010 | Ground cable to trailer | |
| 7 | 1 | 75086036 | Hex bolt, 5/16-18 x 1” | |
| 8 | 1 | 75086065 | Hex bolt, 5/16-18 X ¾” | |
| 9 | 1 | 90445913 | Ground cable to batteries | |
| 10 | 1 | 90445916 | Power cable to batteries | |
| 11 | 1 | 90435625 | Cable/Fuse Assembly | |
| 12 | 1 | 10099501 | Terminal strip, 90 Deg. | |
| 13 | 2 | 75085003 | Serrated hex nut, 5/16-18 | |
| 14 | 2 | 75085001 | Hex nut, ¼ - 20 | |
| 15 | 2 | 75086922 | Hex bolt, ¼" - 20 X ½” | |
| 16 | 1 | 70093640 | Starter Solenoid, 12V | |
| 17 | 1 | 70093641 | Power cable, 6Ga | |
| 18 | 1 | 10099403 | Motor control unit | |
| 19 | 2 | 75082869 | Connector, elbow 90, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 20 | 1 | 90445006 | Pump enclosure base | |
| 21 | 1 | 75086702 | Screw, 1/4"-20 X 5/8" | |
| 22 | 1 | 7043001-1 | Motor, 12V | |
| 23 | 9 | 75089313 | Grommet, ½” | |
| 25 | 2 | 75086916 | Screw, #8 X 3/8 | |
| 26 | 3 | 85803921 | Relay, 12V | |
| 27 | 2 | 75085400 | Hex nut, #8-32 | |
| 28 | 1 | 75089853 | Fuse, 5A | |
| 29 | 1 | 27597000 | Harness, motor / valve control | |
| 30 | 1 | 75089851 | Fuse, 10A | |
| 31 | 1 | 27597220 | Harness, battery charger | |
| 32 | 1 | 27597210 | Trailer battery charger | |
| 33 | 4 | 75086862 | Screw, ¼-20 x 3/8” | |
| 34 | 3 | 75089322 | Grommet, 5/16” | |
| 35 | 1 | 75050003 | Grommet, 9/16” | |
| 36 | 1 | 75089571 | Plastic plug, 3/4" | |
| 37 | 1 | 75088052 | Washer | |
| 38 | 3 | 70092501 | Valve Assy, 3 way, 2 pos w/ Coil (In, Out, Raise) | |
| 39 | 1 | 70092503 | Valve Assy, 2 way, 2 pos w/ Coil (Lower) | |
| 40 | 4 | 70402303 | Coil, 10V, 25W |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

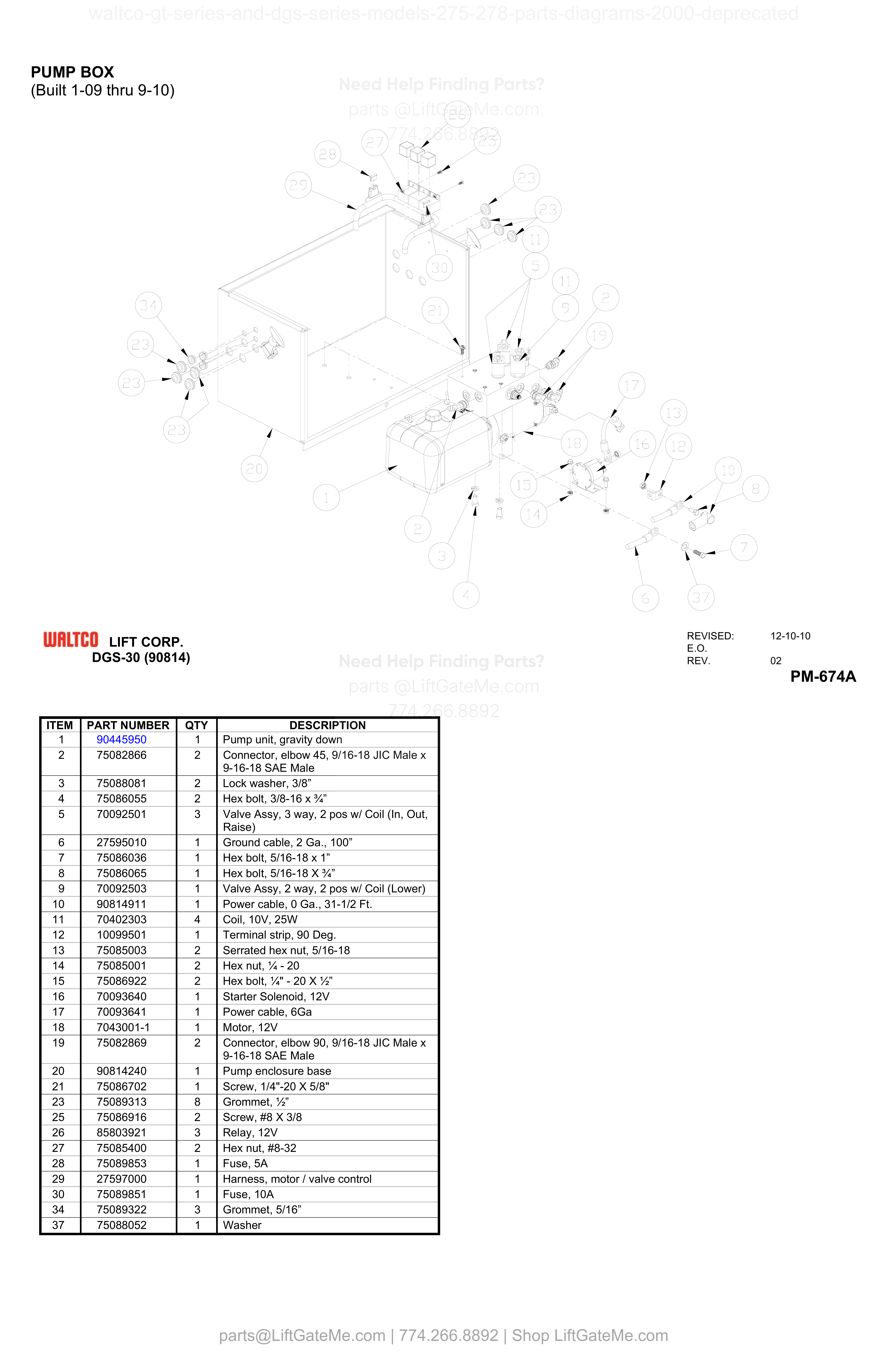

PUMP BOX (Built 1-09 thru 9-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 90445950 | Pump unit, gravity down | |
| 2 | 2 | 75082866 | Connector, elbow 45, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 3 | 2 | 75088081 | Lock washer, 3/8” | |
| 4 | 2 | 75086055 | Hex bolt, 3/8-16 x ¾” | |
| 5 | 3 | 70092501 | Valve Assy, 3 way, 2 pos w/ Coil (In, Out, Raise) | |
| 6 | 1 | 27595010 | Ground cable, 2 Ga., 100” | |
| 7 | 1 | 75086036 | Hex bolt, 5/16-18 x 1” | |
| 8 | 1 | 75086065 | Hex bolt, 5/16-18 X ¾” | |
| 9 | 1 | 70092503 | Valve Assy, 2 way, 2 pos w/ Coil (Lower) | |
| 10 | 1 | 90814911 | Power cable, 0 Ga., 31-1/2 Ft. | |
| 11 | 4 | 70402303 | Coil, 10V, 25W | |
| 12 | 1 | 10099501 | Terminal strip, 90 Deg. | |
| 13 | 2 | 75085003 | Serrated hex nut, 5/16-18 | |
| 14 | 2 | 75085001 | Hex nut, ¼ - 20 | |
| 15 | 2 | 75086922 | Hex bolt, ¼" - 20 X ½” | |
| 16 | 1 | 70093640 | Starter Solenoid, 12V | |
| 17 | 1 | 70093641 | Power cable, 6Ga | |
| 18 | 1 | 7043001-1 | Motor, 12V | |
| 19 | 2 | 75082869 | Connector, elbow 90, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 20 | 1 | 90814240 | Pump enclosure base | |
| 21 | 1 | 75086702 | Screw, 1/4"-20 X 5/8" | |
| 23 | 8 | 75089313 | Grommet, ½” | |
| 25 | 2 | 75086916 | Screw, #8 X 3/8 | |
| 26 | 3 | 85803921 | Relay, 12V | |
| 27 | 2 | 75085400 | Hex nut, #8-32 | |
| 28 | 1 | 75089853 | Fuse, 5A | |
| 29 | 1 | 27597000 | Harness, motor / valve control | |
| 30 | 1 | 75089851 | Fuse, 10A | |
| 34 | 3 | 75089322 | Grommet, 5/16” | |
| 37 | 1 | 75088052 | Washer |

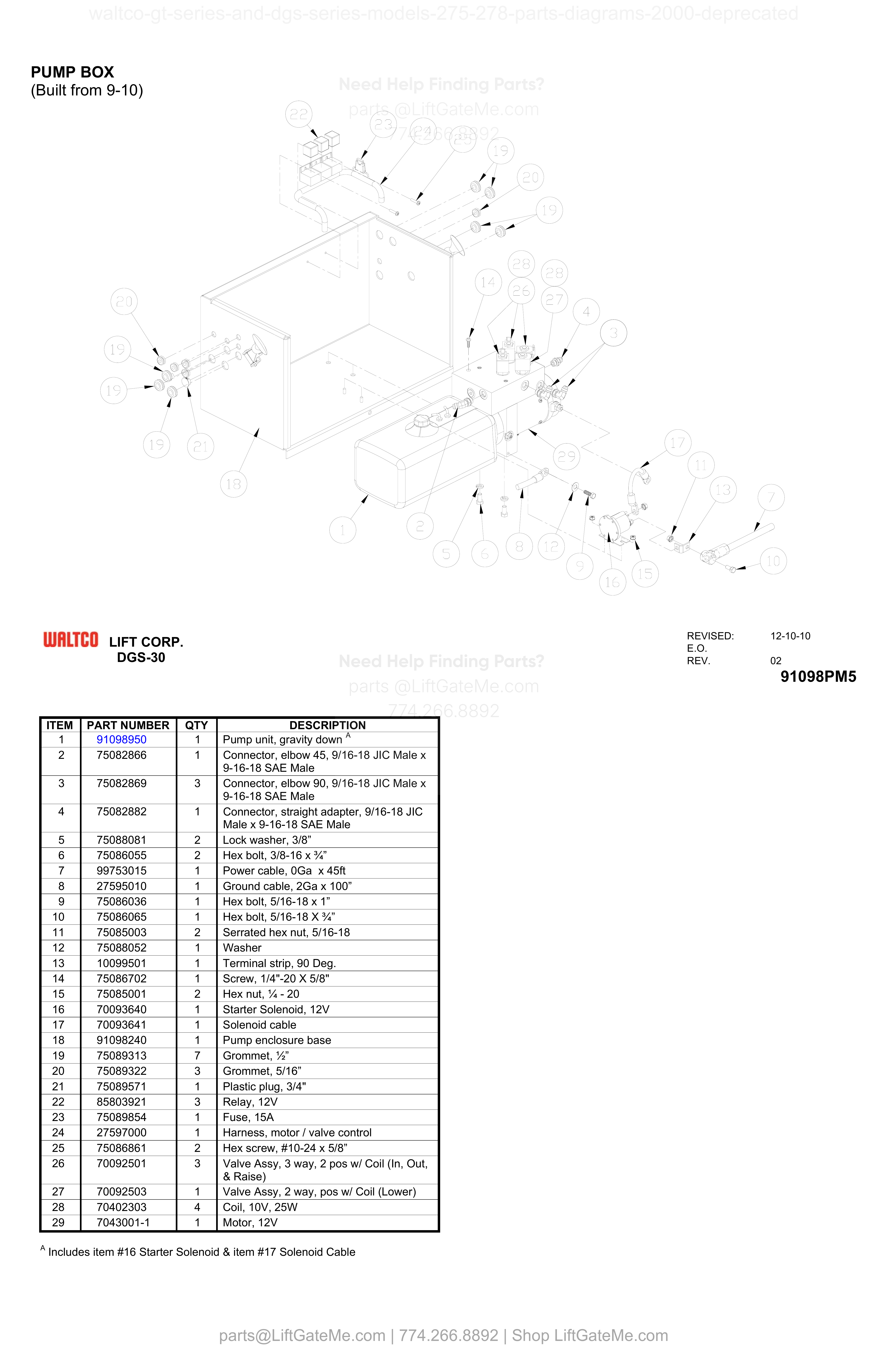

PUMP BOX (Built from 9-10)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 91098950 | Pump unit, gravity down^A | |
| 2 | 1 | 75082866 | Connector, elbow 45, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 3 | 3 | 75082869 | Connector, elbow 90, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 4 | 1 | 75082882 | Connector, straight adapter, 9/16-18 JIC Male x 9-16-18 SAE Male | |
| 5 | 2 | 75088081 | Lock washer, 3/8” | |
| 6 | 2 | 75086055 | Hex bolt, 3/8-16 x ¾” | |
| 7 | 1 | 99753015 | Power cable, 0Ga x 45ft | |
| 8 | 1 | 27595010 | Ground cable, 2Ga x 100” | |
| 9 | 1 | 75086036 | Hex bolt, 5/16-18 x 1” | |
| 10 | 1 | 75086065 | Hex bolt, 5/16-18 X ¾” | |
| 11 | 2 | 75085003 | Serrated hex nut, 5/16-18 | |
| 12 | 1 | 75088052 | Washer | |
| 13 | 1 | 10099501 | Terminal strip, 90 Deg. | |
| 14 | 1 | 75086702 | Screw, 1/4"-20 X 5/8" | |
| 15 | 2 | 75085001 | Hex nut, ¼ - 20 | |
| 16 | 1 | 70093640 | Starter Solenoid, 12V | |
| 17 | 1 | 70093641 | Solenoid cable | |
| 18 | 1 | 91098240 | Pump enclosure base | |
| 19 | 7 | 75089313 | Grommet, ½” | |
| 20 | 3 | 75089322 | Grommet, 5/16” | |
| 21 | 1 | 75089571 | Plastic plug, 3/4" | |
| 22 | 3 | 85803921 | Relay, 12V | |
| 23 | 1 | 75089854 | Fuse, 15A | |
| 24 | 1 | 27597000 | Harness, motor / valve control | |
| 25 | 2 | 75086861 | Hex screw, #10-24 x 5/8” | |
| 26 | 3 | 70092501 | Valve Assy, 3 way, 2 pos w/ Coil (In, Out, & Raise) | |
| 27 | 1 | 70092503 | Valve Assy, 2 way, pos w/ Coil (Lower) | |
| 28 | 4 | 70402303 | Coil, 10V, 25W | |
| 29 | 1 | 7043001-1 | Motor, 12V |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
