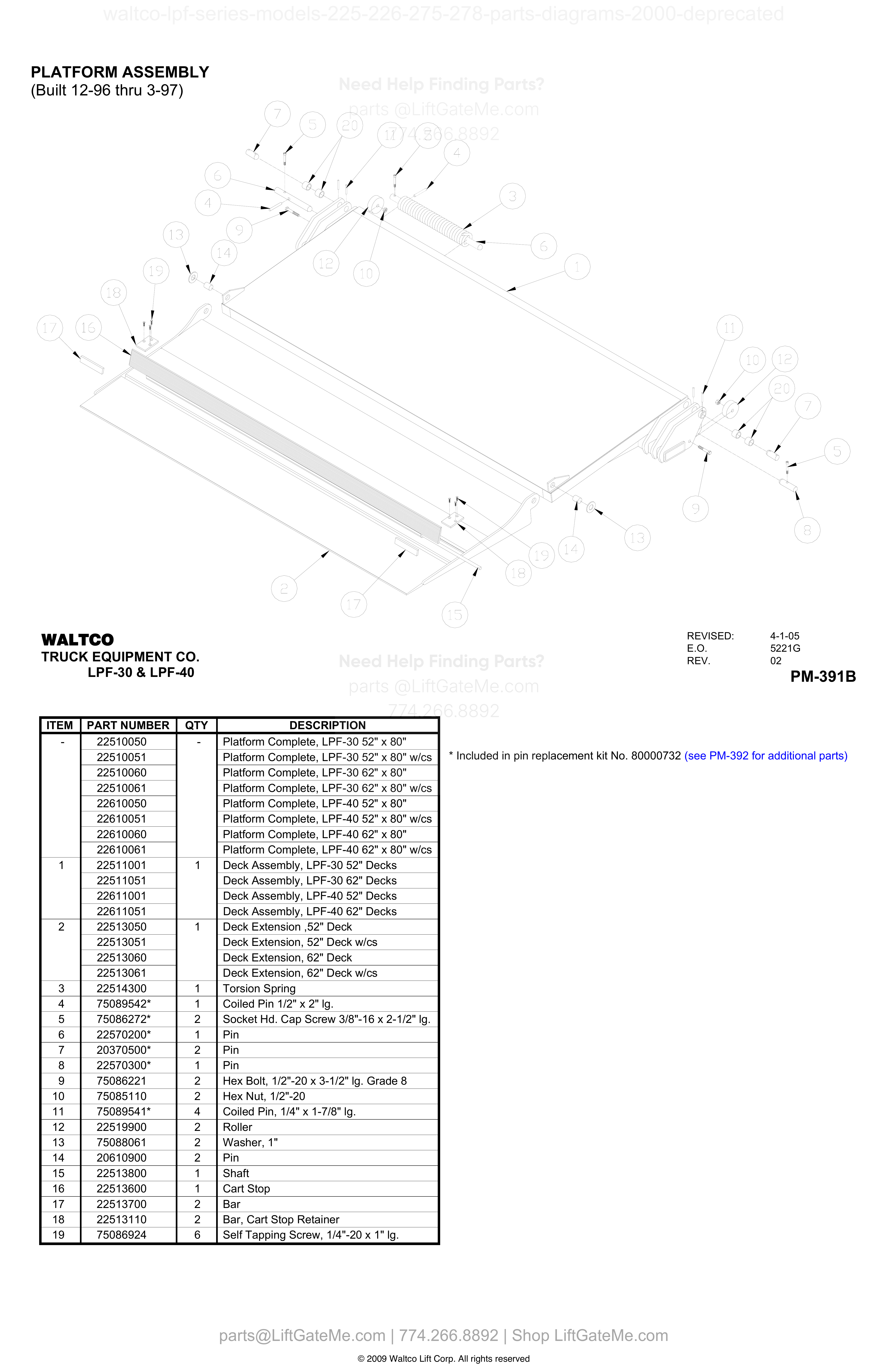

PLATFORM ASSEMBLY (Built 12-96 thru 3-97)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| - | - | 22510050 | Platform Complete, LPF-30 52" x 80" | |
| - | - | 22510051 | Platform Complete, LPF-30 52" x 80" w/cs | |
| - | - | 22510060 | Platform Complete, LPF-30 62" x 80" | |
| - | - | 22510061 | Platform Complete, LPF-30 62" x 80" w/cs | |
| - | - | 22610050 | Platform Complete, LPF-40 52" x 80" | |
| - | - | 22610051 | Platform Complete, LPF-40 52" x 80" w/cs | |
| - | - | 22610060 | Platform Complete, LPF-40 62" x 80" | |
| - | - | 22610061 | Platform Complete, LPF-40 62" x 80" w/cs | |
| 1 | 1 | 22511001 | Deck Assembly, LPF-30 52" Decks | |
| 1 | 1 | 22511051 | Deck Assembly, LPF-30 62" Decks | |
| 1 | 1 | 22611001 | Deck Assembly, LPF-40 52" Decks | |
| 1 | 1 | 22611051 | Deck Assembly, LPF-40 62" Decks | |
| 2 | 1 | 22513050 | Deck Extension ,52" Deck | |
| 2 | 1 | 22513051 | Deck Extension, 52" Deck w/cs | |
| 2 | 1 | 22513060 | Deck Extension, 62" Deck | |
| 2 | 1 | 22513061 | Deck Extension, 62" Deck w/cs | |
| 3 | 1 | 22514300 | Torsion Spring | |
| 4 | 1 | 75089542* | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 75086272* | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 6 | 1 | 22570200* | Pin | |
| 7 | 2 | 20370500* | Pin | |
| 8 | 1 | 22570300* | Pin | |
| 9 | 2 | 75086221 | Hex Bolt, 1/2"-20 x 3-1/2" lg. Grade 8 | |
| 10 | 2 | 75085110 | Hex Nut, 1/2"-20 | |
| 11 | 4 | 75089541* | Coiled Pin, 1/4" x 1-7/8" lg. | |
| 12 | 2 | 22519900 | Roller | |
| 13 | 2 | 75088061 | Washer, 1" | |
| 14 | 2 | 20610900 | Pin | |
| 15 | 1 | 22513800 | Shaft | |
| 16 | 1 | 22513600 | Cart Stop | |
| 17 | 2 | 22513700 | Bar | |
| 18 | 2 | 22513110 | Bar, Cart Stop Retainer | |
| 19 | 6 | 75086924 | Self Tapping Screw, 1/4"-20 x 1" lg. |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

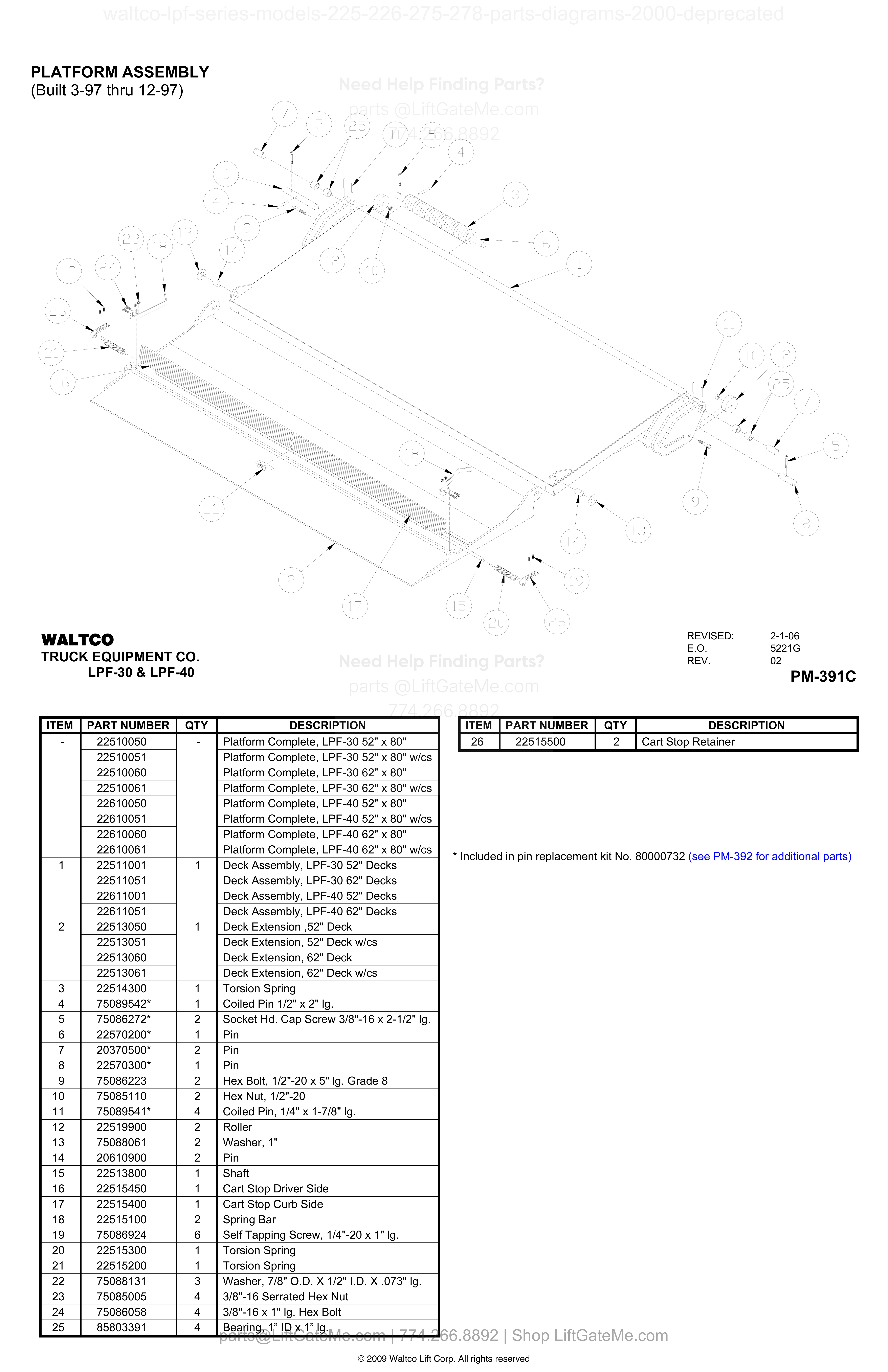

PLATFORM ASSEMBLY (Built 3-97 thru 12-97)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| - | - | 22510050 | Platform Complete, LPF-30 52" x 80" | |
| - | - | 22510051 | Platform Complete, LPF-30 52" x 80" w/cs | |
| - | - | 22510060 | Platform Complete, LPF-30 62" x 80" | |
| - | - | 22510061 | Platform Complete, LPF-30 62" x 80" w/cs | |
| - | - | 22610050 | Platform Complete, LPF-40 52" x 80" | |
| - | - | 22610051 | Platform Complete, LPF-40 52" x 80" w/cs | |
| - | - | 22610060 | Platform Complete, LPF-40 62" x 80" | |
| - | - | 22610061 | Platform Complete, LPF-40 62" x 80" w/cs | |
| 1 | 1 | 22511001 | Deck Assembly, LPF-30 52" Decks | |
| 1 | 1 | 22511051 | Deck Assembly, LPF-30 62" Decks | |
| 1 | 1 | 22611001 | Deck Assembly, LPF-40 52" Decks | |
| 1 | 1 | 22611051 | Deck Assembly, LPF-40 62" Decks | |
| 2 | 1 | 22513050 | Deck Extension ,52" Deck | |
| 2 | 1 | 22513051 | Deck Extension, 52" Deck w/cs | |
| 2 | 1 | 22513060 | Deck Extension, 62" Deck | |
| 2 | 1 | 22513061 | Deck Extension, 62" Deck w/cs | |
| 3 | 1 | 22514300 | Torsion Spring | |
| 4 | 1 | 75089542* | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 75086272* | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 6 | 1 | 22570200* | Pin | |
| 7 | 2 | 20370500* | Pin | |
| 8 | 1 | 22570300* | Pin | |
| 9 | 2 | 75086223 | Hex Bolt, 1/2"-20 x 5" lg. Grade 8 | |
| 10 | 2 | 75085110 | Hex Nut, 1/2"-20 | |
| 11 | 4 | 75089541* | Coiled Pin, 1/4" x 1-7/8" lg. | |
| 12 | 2 | 22519900 | Roller | |
| 13 | 2 | 75088061 | Washer, 1" | |
| 14 | 2 | 20610900 | Pin | |
| 15 | 1 | 22513800 | Shaft | |
| 16 | 1 | 22515450 | Cart Stop Driver Side | |
| 17 | 1 | 22515400 | Cart Stop Curb Side | |
| 18 | 2 | 22515100 | Spring Bar | |
| 19 | 6 | 75086924 | Self Tapping Screw, 1/4"-20 x 1" lg. | |
| 20 | 1 | 22515300 | Torsion Spring | |
| 21 | 1 | 22515200 | Torsion Spring | |
| 22 | 3 | 75088131 | Washer, 7/8" O.D. X 1/2" I.D. X .073" lg. | |
| 23 | 4 | 75085005 | 3/8"-16 Serrated Hex Nut | |
| 24 | 4 | 75086058 | 3/8"-16 x 1" lg. Hex Bolt | |
| 25 | 4 | 85803391 | Bearing, 1” ID x 1” lg. | |
| 26 | 2 | 22515500 | Cart Stop Retainer |

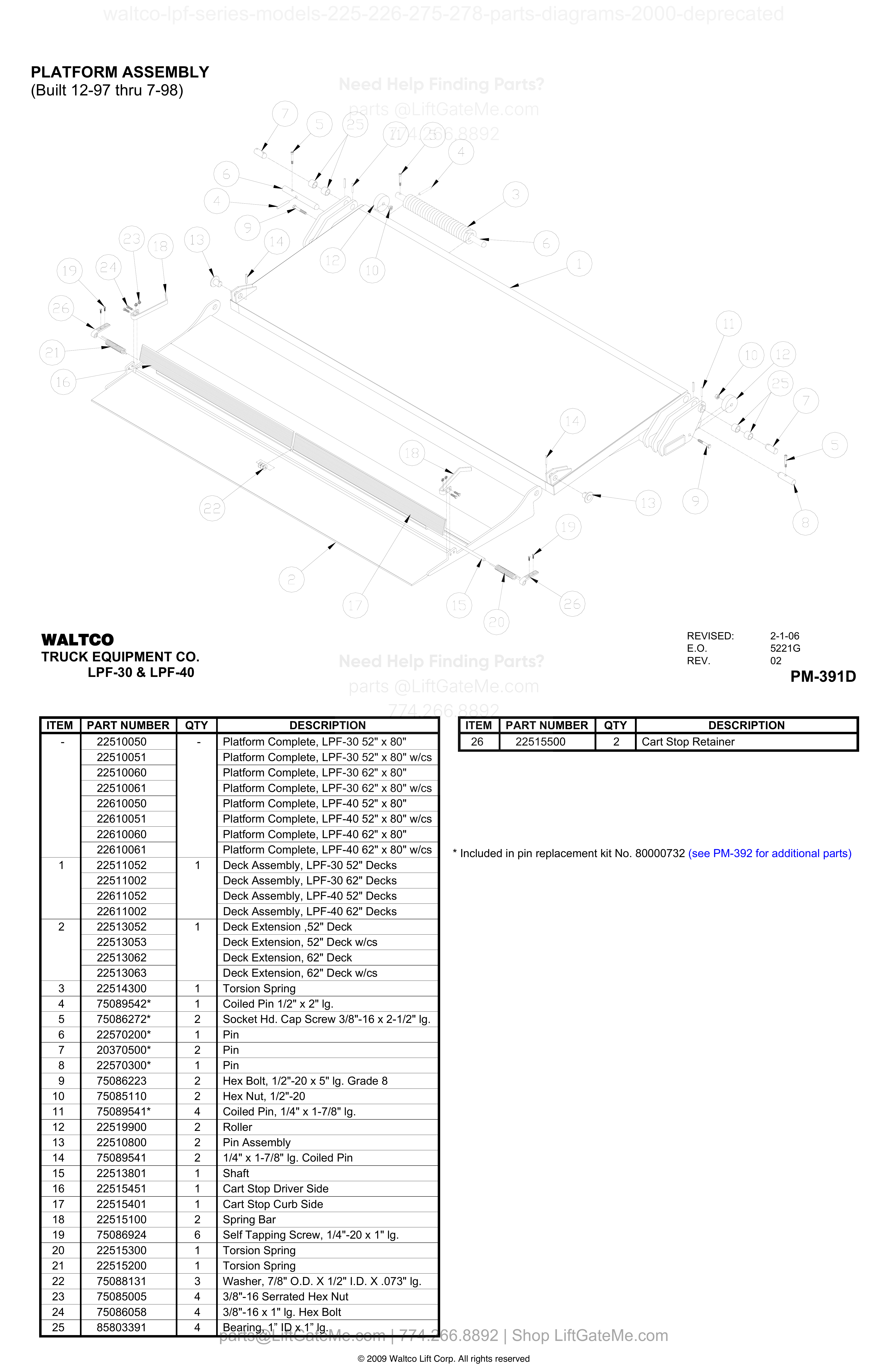

PLATFORM ASSEMBLY (Built 12-97 thru 7-98)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| - | - | 22510050 | Platform Complete, LPF-30 52" x 80" | |
| - | - | 22510051 | Platform Complete, LPF-30 52" x 80" w/cs | |
| - | - | 22510060 | Platform Complete, LPF-30 62" x 80" | |
| - | - | 22510061 | Platform Complete, LPF-30 62" x 80" w/cs | |
| - | - | 22610050 | Platform Complete, LPF-40 52" x 80" | |
| - | - | 22610051 | Platform Complete, LPF-40 52" x 80" w/cs | |
| - | - | 22610060 | Platform Complete, LPF-40 62" x 80" | |
| - | - | 22610061 | Platform Complete, LPF-40 62" x 80" w/cs | |
| 1 | 1 | 22511052 | Deck Assembly, LPF-30 52" Decks | |
| 1 | 1 | 22511002 | Deck Assembly, LPF-30 62" Decks | |
| 1 | 1 | 22611052 | Deck Assembly, LPF-40 52" Decks | |
| 1 | 1 | 22611002 | Deck Assembly, LPF-40 62" Decks | |
| 2 | 1 | 22513052 | Deck Extension ,52" Deck | |
| 2 | 1 | 22513053 | Deck Extension, 52" Deck w/cs | |
| 2 | 1 | 22513062 | Deck Extension, 62" Deck | |
| 2 | 1 | 22513063 | Deck Extension, 62" Deck w/cs | |
| 3 | 1 | 22514300 | Torsion Spring | |
| 4 | 1 | 75089542* | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 75086272* | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 6 | 1 | 22570200* | Pin | |
| 7 | 2 | 20370500* | Pin | |
| 8 | 1 | 22570300* | Pin | |
| 9 | 2 | 75086223 | Hex Bolt, 1/2"-20 x 5" lg. Grade 8 | |
| 10 | 2 | 75085110 | Hex Nut, 1/2"-20 | |
| 11 | 4 | 75089541* | Coiled Pin, 1/4" x 1-7/8" lg. | |
| 12 | 2 | 22519900 | Roller | |
| 13 | 2 | 22510800 | Pin Assembly | |
| 14 | 2 | 75089541 | 1/4" x 1-7/8" lg. Coiled Pin | |
| 15 | 1 | 22513801 | Shaft | |
| 16 | 1 | 22515451 | Cart Stop Driver Side | |
| 17 | 1 | 22515401 | Cart Stop Curb Side | |
| 18 | 2 | 22515100 | Spring Bar | |
| 19 | 6 | 75086924 | Self Tapping Screw, 1/4"-20 x 1" lg. | |
| 20 | 1 | 22515300 | Torsion Spring | |
| 21 | 1 | 22515200 | Torsion Spring | |
| 22 | 3 | 75088131 | Washer, 7/8" O.D. X 1/2" I.D. X .073" lg. | |
| 23 | 4 | 75085005 | 3/8"-16 Serrated Hex Nut | |
| 24 | 4 | 75086058 | 3/8"-16 x 1" lg. Hex Bolt | |
| 25 | 4 | 85803391 | Bearing, 1” ID x 1” lg. | |
| 26 | 2 | 22515500 | Cart Stop Retainer |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

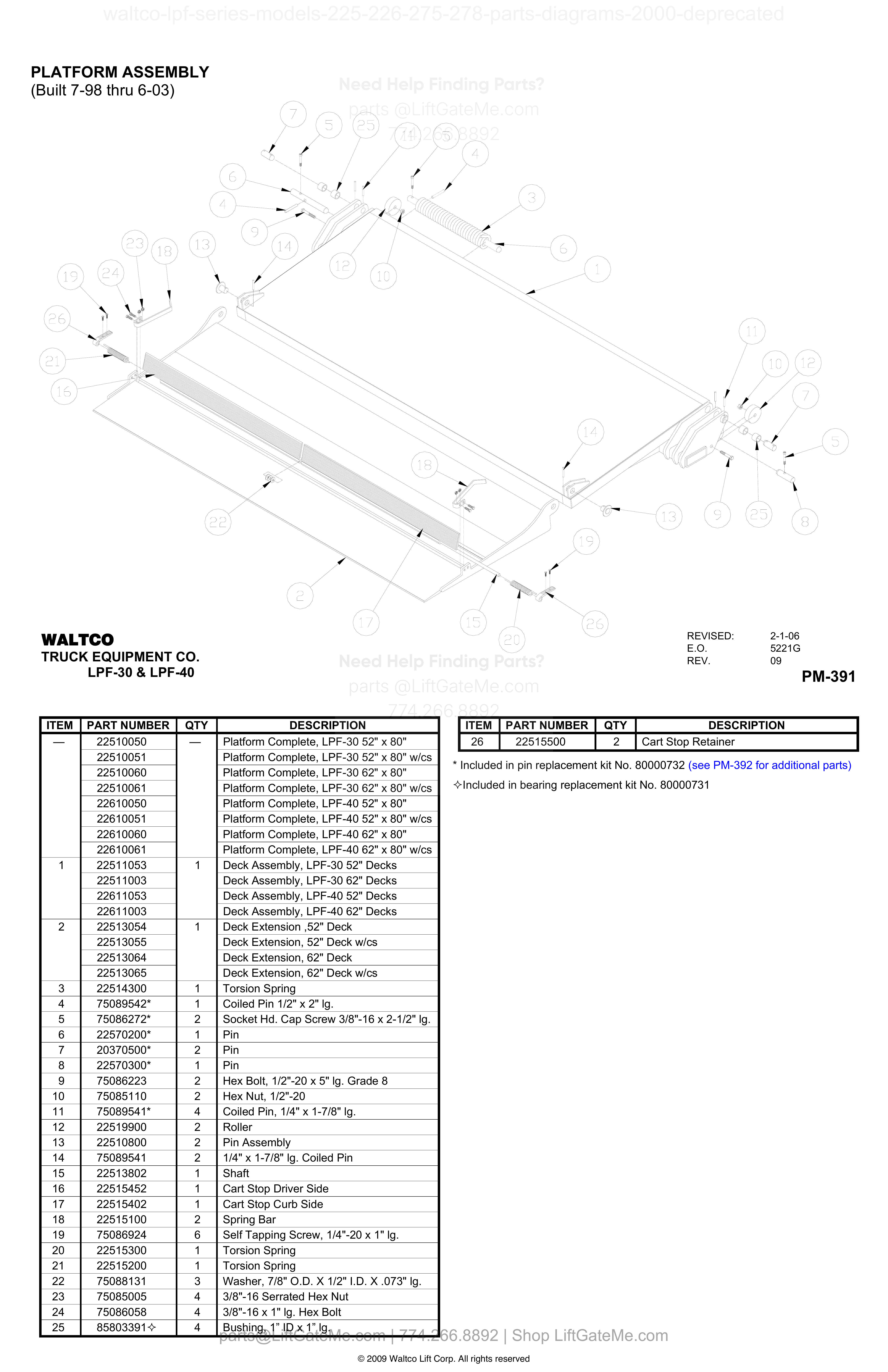

PLATFORM ASSEMBLY (Built 7-98 thru 6-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | — | 22510050 | Platform Complete, LPF-30 52" x 80" | |
| — | — | 22510051 | Platform Complete, LPF-30 52" x 80" w/cs | |
| — | — | 22510060 | Platform Complete, LPF-30 62" x 80" | |
| — | — | 22510061 | Platform Complete, LPF-30 62" x 80" w/cs | |
| — | — | 22610050 | Platform Complete, LPF-40 52" x 80" | |
| — | — | 22610051 | Platform Complete, LPF-40 52" x 80" w/cs | |
| — | — | 22610060 | Platform Complete, LPF-40 62" x 80" | |
| — | — | 22610061 | Platform Complete, LPF-40 62" x 80" w/cs | |
| 1 | 1 | 22511053 | Deck Assembly, LPF-30 52" Decks | |
| 1 | 1 | 22511003 | Deck Assembly, LPF-30 62" Decks | |
| 1 | 1 | 22611053 | Deck Assembly, LPF-40 52" Decks | |
| 1 | 1 | 22611003 | Deck Assembly, LPF-40 62" Decks | |
| 2 | 1 | 22513054 | Deck Extension ,52" Deck | |
| 2 | 1 | 22513055 | Deck Extension, 52" Deck w/cs | |
| 2 | 1 | 22513064 | Deck Extension, 62" Deck | |
| 2 | 1 | 22513065 | Deck Extension, 62" Deck w/cs | |
| 3 | 1 | 22514300 | Torsion Spring | |
| 4 | 1 | 75089542* | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 75086272* | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 6 | 1 | 22570200* | Pin | |
| 7 | 2 | 20370500* | Pin | |
| 8 | 1 | 22570300* | Pin | |
| 9 | 2 | 75086223 | Hex Bolt, 1/2"-20 x 5" lg. Grade 8 | |
| 10 | 2 | 75085110 | Hex Nut, 1/2"-20 | |
| 11 | 4 | 75089541* | Coiled Pin, 1/4" x 1-7/8" lg. | |
| 12 | 2 | 22519900 | Roller | |
| 13 | 2 | 22510800 | Pin Assembly | |
| 14 | 2 | 75089541 | 1/4" x 1-7/8" lg. Coiled Pin | |
| 15 | 1 | 22513802 | Shaft | |
| 16 | 1 | 22515452 | Cart Stop Driver Side | |
| 17 | 1 | 22515402 | Cart Stop Curb Side | |
| 18 | 2 | 22515100 | Spring Bar | |
| 19 | 6 | 75086924 | Self Tapping Screw, 1/4"-20 x 1" lg. | |
| 20 | 1 | 22515300 | Torsion Spring | |
| 21 | 1 | 22515200 | Torsion Spring | |
| 22 | 3 | 75088131 | Washer, 7/8" O.D. X 1/2" I.D. X .073" lg. | |
| 23 | 4 | 75085005 | 3/8"-16 Serrated Hex Nut | |
| 24 | 4 | 75086058 | 3/8"-16 x 1" lg. Hex Bolt | |
| 25 | 4 | 85803391^ | Bushing, 1” ID x 1” lg. | |
| 26 | 2 | 22515500 | Cart Stop Retainer |

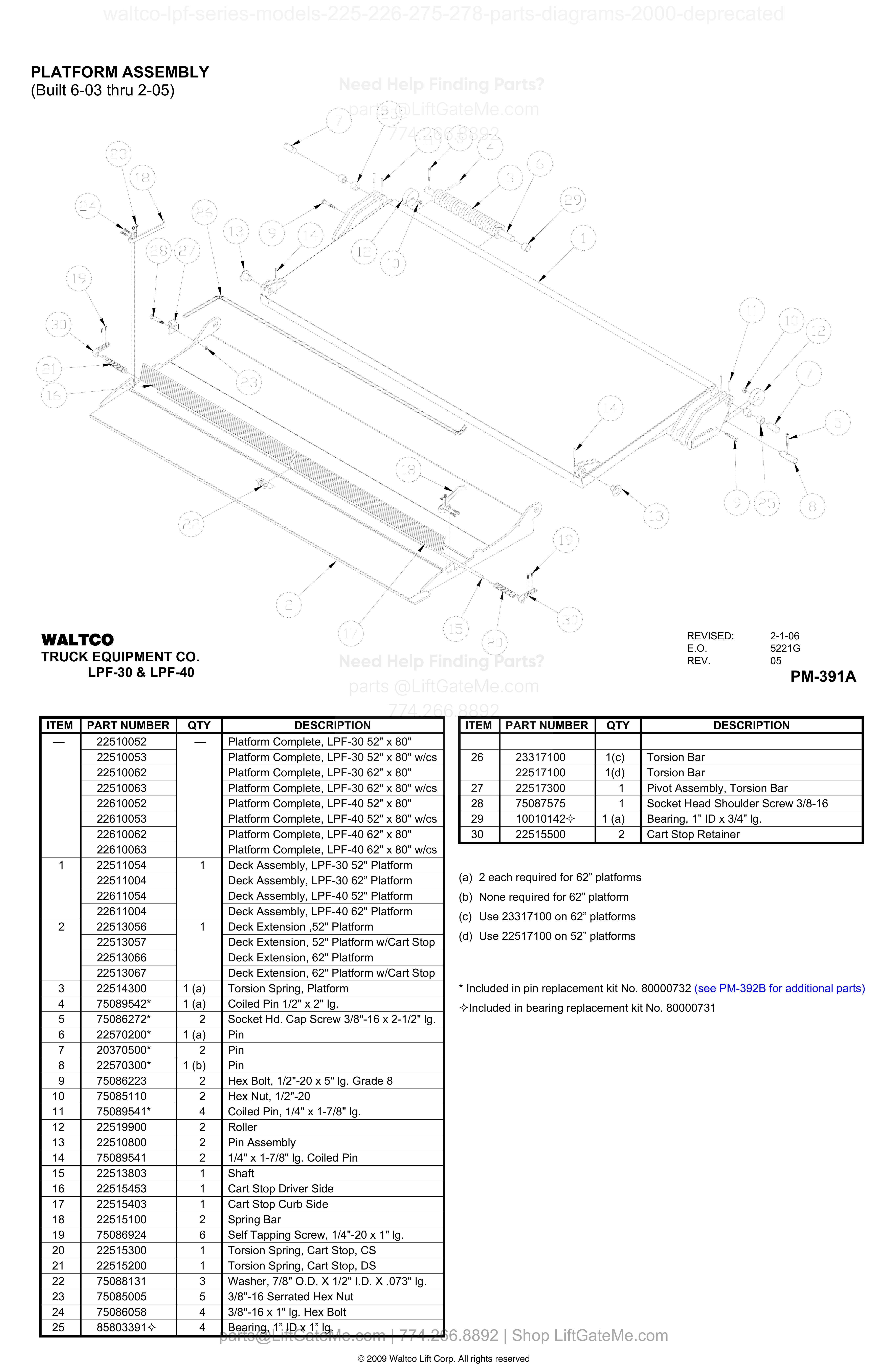

PLATFORM ASSEMBLY (Built 6-03 thru 2-05)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | — | 22510052 | Platform Complete, LPF-30 52" x 80" | |
| — | — | 22510053 | Platform Complete, LPF-30 52" x 80" w/cs | |
| — | — | 22510062 | Platform Complete, LPF-30 62" x 80" | |
| — | — | 22510063 | Platform Complete, LPF-30 62" x 80" w/cs | |
| — | — | 22610052 | Platform Complete, LPF-40 52" x 80" | |
| — | — | 22610053 | Platform Complete, LPF-40 52" x 80" w/cs | |
| — | — | 22610062 | Platform Complete, LPF-40 62" x 80" | |
| — | — | 22610063 | Platform Complete, LPF-40 62" x 80" w/cs | |
| 1 | 1 | 22511054 | Deck Assembly, LPF-30 52" Platform | |
| 1 | 1 | 22511004 | ||
| 1 | 1 | 22611054 | Deck Assembly, LPF-40 52" Platform | |
| 1 | 1 | 22611004 | ||
| 2 | 1 | 22513056 | ||
| 2 | 1 | 22513057 | Deck Extension, 52" Platform w/Cart Stop | |
| 2 | 1 | 22513066 | Deck Extension, 62" Platform | |
| 2 | 1 | 22513067 | Deck Extension, 62" Platform w/Cart Stop | |
| 3 | 1^A | 22514300 | Torsion Spring, Platform | |
| 4 | 1^A | 75089542* | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 75086272* | ||
| 6 | 1^A | 22570200* | Pin | |
| 7 | 2 | 20370500* | Pin | |
| 8 | 1^B | 22570300* | Pin | |
| 9 | 2 | 75086223 | Hex Bolt, 1/2"-20 x 5" lg. Grade 8 | |
| 10 | 2 | 75085110 | Hex Nut, 1/2"-20 | |
| 11 | 4 | 75089541* | Coiled Pin, 1/4" x 1-7/8" lg. | |
| 12 | 2 | 22519900 | Roller | |
| 13 | 2 | 22510800 | Pin Assembly | |
| 14 | 2 | 75089541 | 1/4" x 1-7/8" lg. Coiled Pin | |
| 15 | 1 | 22513803 | Shaft | |
| 16 | 1 | 22515453 | Cart Stop Driver Side | |
| 17 | 1 | 22515403 | Cart Stop Curb Side | |
| 18 | 2 | 22515100 | Spring Bar | |
| 19 | 6 | 75086924 | Self Tapping Screw, 1/4"-20 x 1" lg. | |
| 20 | 1 | 22515300 | Torsion Spring, Cart Stop, CS | |
| 21 | 1 | 22515200 | Torsion Spring, Cart Stop, DS | |
| 22 | 3 | 75088131 | Washer, 7/8" O.D. X 1/2" I.D. X .073" lg. | |
| 23 | 5 | 75085005 | 3/8"-16 Serrated Hex Nut | |
| 24 | 4 | 75086058 | 3/8"-16 x 1" lg. Hex Bolt | |
| 25 | 4 | 85803391^ | Bearing, 1” ID x 1” lg. | |
| 26 | 1^C | 23317100 | Torsion Bar | |
| 26 | 1^D | 22517100 | Torsion Bar | |
| 27 | 1 | 22517300 | Pivot Assembly, Torsion Bar | |
| 28 | 1 | 75087575 | Socket Head Shoulder Screw 3/8-16 | |
| 29 | 1^A | 10010142^ | Bearing, 1” ID x 3/4” lg. | |
| 30 | 2 | 22515500 | Cart Stop Retainer |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

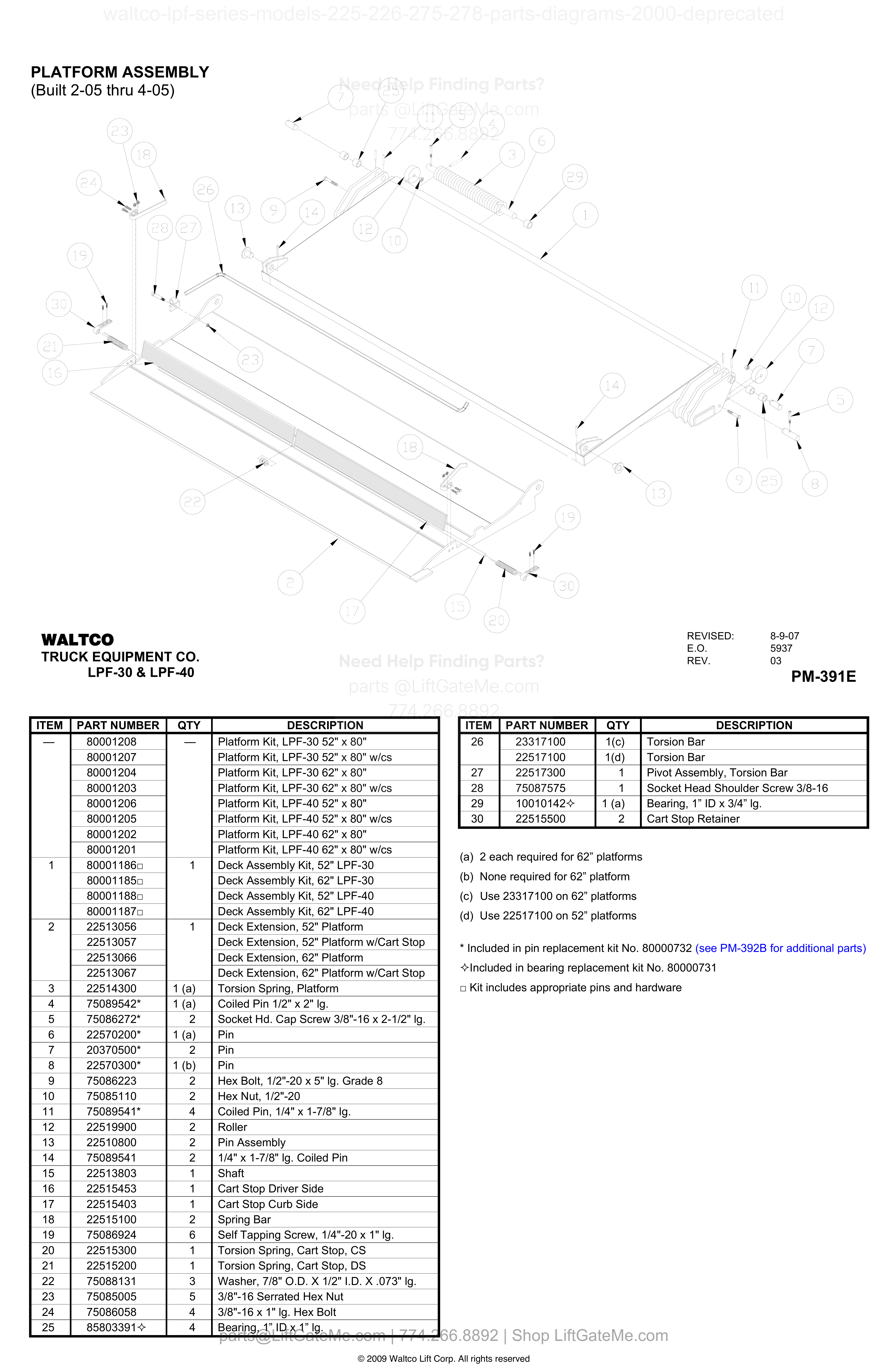

PLATFORM ASSEMBLY (Built 2-05 thru 4-05)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | — | 80001208 | Platform Kit, LPF-30 52" x 80" | |
| — | — | 80001207 | Platform Kit, LPF-30 52" x 80" w/cs | |
| — | — | 80001204 | Platform Kit, LPF-30 62" x 80" | |
| — | — | 80001203 | Platform Kit, LPF-30 62" x 80" w/cs | |
| — | — | 80001206 | Platform Kit, LPF-40 52" x 80" | |
| — | — | 80001205 | Platform Kit, LPF-40 52" x 80" w/cs | |
| — | — | 80001202 | Platform Kit, LPF-40 62" x 80" | |
| — | — | 80001201 | Platform Kit, LPF-40 62" x 80" w/cs | |
| 1 | 1 | 80001186 | Deck Assembly Kit, 52" LPF-30 | |
| 1 | 1 | 80001185 | Deck Assembly Kit, 62" LPF-30 | |
| 1 | 1 | 80001188 | Deck Assembly Kit, 52" LPF-40 | |
| 1 | 1 | 80001187 | Deck Assembly Kit, 62" LPF-40 | |
| 2 | 1 | 22513056 | Deck Extension, 52" Platform | |
| 2 | 1 | 22513057 | Deck Extension, 52" Platform w/Cart Stop | |
| 2 | 1 | 22513066 | Deck Extension, 62" Platform | |
| 2 | 1 | 22513067 | Deck Extension, 62" Platform w/Cart Stop | |
| 3 | 1^A | 22514300 | Torsion Spring, Platform | |
| 4 | 1^A | 75089542* | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 75086272* | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 6 | 1^A | 22570200* | Pin | |
| 7 | 2 | 20370500* | Pin | |
| 8 | 1^B | 22570300* | Pin | |
| 9 | 2 | 75086223 | Hex Bolt, 1/2"-20 x 5" lg. Grade 8 | |
| 10 | 2 | 75085110 | Hex Nut, 1/2"-20 | |
| 11 | 4 | 75089541* | Coiled Pin, 1/4" x 1-7/8" lg. | |
| 12 | 2 | 22519900 | Roller | |
| 13 | 2 | 22510800 | Pin Assembly | |
| 14 | 2 | 75089541 | 1/4" x 1-7/8" lg. Coiled Pin | |
| 15 | 1 | 22513803 | Shaft | |
| 16 | 1 | 22515453 | Cart Stop Driver Side | |
| 17 | 1 | 22515403 | Cart Stop Curb Side | |
| 18 | 2 | 22515100 | Spring Bar | |
| 19 | 6 | 75086924 | Self Tapping Screw, 1/4"-20 x 1" lg. | |
| 20 | 1 | 22515300 | Torsion Spring, Cart Stop, CS | |
| 21 | 1 | 22515200 | Torsion Spring, Cart Stop, DS | |
| 22 | 3 | 75088131 | Washer, 7/8" O.D. X 1/2" I.D. X .073" lg. | |
| 23 | 5 | 75085005 | 3/8"-16 Serrated Hex Nut | |
| 24 | 4 | 75086058 | 3/8"-16 x 1" lg. Hex Bolt | |
| 25 | 4 | 85803391 | ||
| 26 | 1^C | 23317100 | Torsion Bar | |
| 26 | 1^D | 22517100 | Torsion Bar | |
| 27 | 1 | 22517300 | Pivot Assembly, Torsion Bar | |
| 28 | 1 | 75087575 | Socket Head Shoulder Screw 3/8-16 | |
| 29 | 1^A | 10010142 | Bearing, 1” ID x 3/4” lg. | |
| 30 | 2 | 22515500 | Cart Stop Retainer |

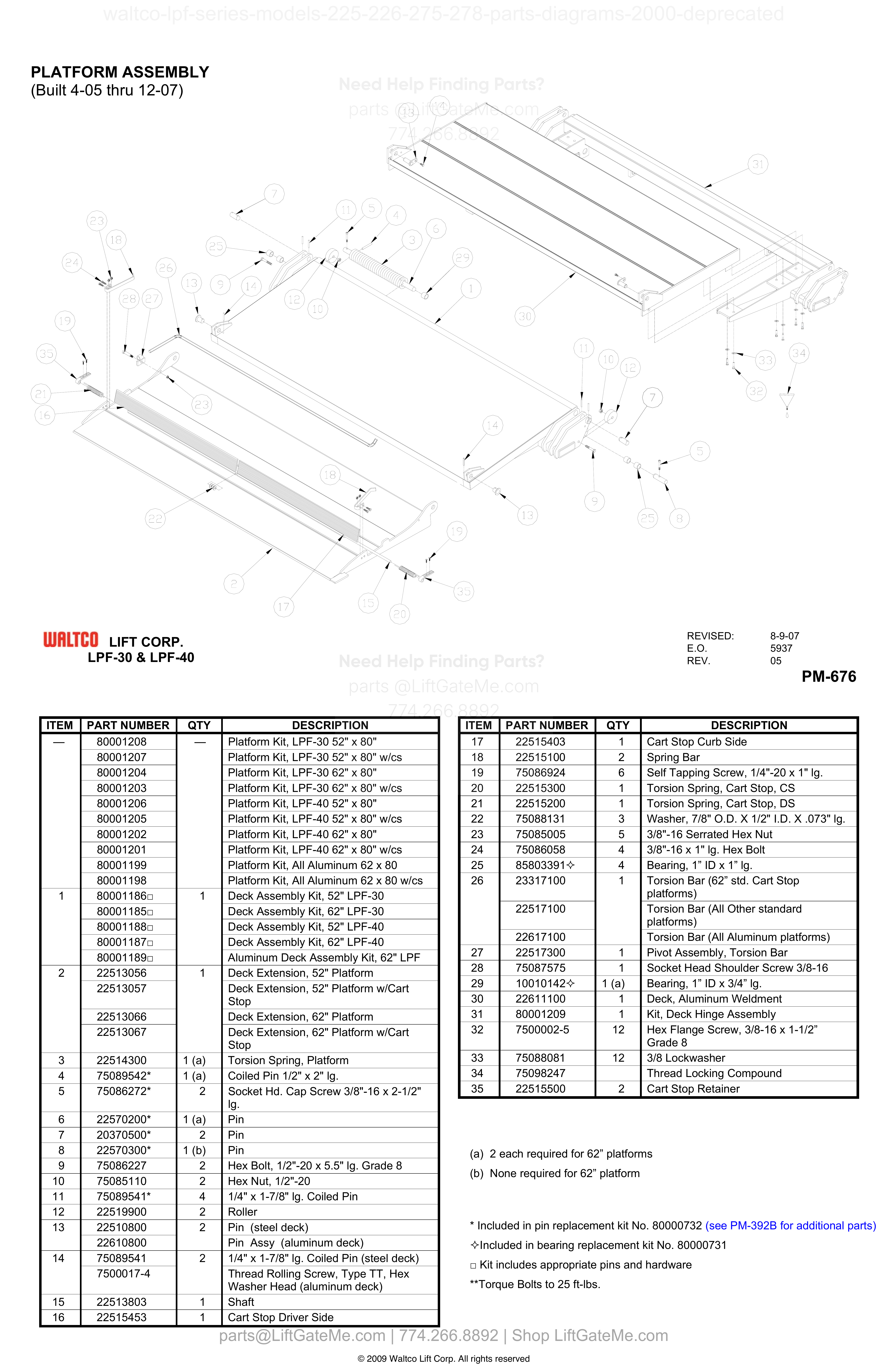

PLATFORM ASSEMBLY (Built 4-05 thru 12-07)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | — | 80001208 | Platform Kit, LPF-30 52" x 80" | |
| — | — | 80001207 | Platform Kit, LPF-30 52" x 80" w/cs | |
| — | — | 80001204 | Platform Kit, LPF-30 62" x 80" | |
| — | — | 80001203 | Platform Kit, LPF-30 62" x 80" w/cs | |
| — | — | 80001206 | Platform Kit, LPF-40 52" x 80" | |
| — | — | 80001205 | Platform Kit, LPF-40 52" x 80" w/cs | |
| — | — | 80001202 | Platform Kit, LPF-40 62" x 80" | |
| — | — | 80001201 | Platform Kit, LPF-40 62" x 80" w/cs | |
| — | — | 80001199 | Platform Kit, All Aluminum 62 x 80 | |
| — | — | 80001198 | Platform Kit, All Aluminum 62 x 80 w/cs | |
| 1 | 1 | 80001186 | Deck Assembly Kit, 52" LPF-30 | |
| 1 | 1 | 80001185 | Deck Assembly Kit, 62" LPF-30 | |
| 1 | 1 | 80001188 | Deck Assembly Kit, 52" LPF-40 | |
| 1 | 1 | 80001187 | Deck Assembly Kit, 62" LPF-40 | |
| 1 | 1 | 80001189 | Aluminum Deck Assembly Kit, 62" LPF | |
| 2 | 1 | 22513056 | Deck Extension, 52" Platform | |
| 2 | 1 | 22513057 | Deck Extension, 52" Platform w/Cart Stop | |
| 2 | 1 | 22513066 | Deck Extension, 62" Platform | |
| 2 | 1 | 22513067 | Deck Extension, 62" Platform w/Cart Stop | |
| 3 | 22514300 | Torsion Spring, Platform | ||
| 4 | 1^A | 75089542* | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 75086272* | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 6 | 1^A | 22570200* | Pin | |
| 7 | 2 | 20370500* | Pin | |
| 8 | 1^B | 22570300* | Pin | |
| 9 | 2 | 75086227 | Hex Bolt, 1/2"-20 x 5.5" lg. Grade 8 | |
| 10 | 2 | 75085110 | Hex Nut, 1/2"-20 | |
| 11 | 4 | 75089541* | 1/4" x 1-7/8" lg. Coiled Pin | |
| 12 | 2 | 22519900 | Roller | |
| 13 | 2 | 22510800 | Pin (steel deck) | |
| 13 | 2 | 22610800 | Pin Assy (aluminum deck) | |
| 14 | 2 | 75089541 | 1/4" x 1-7/8" lg. Coiled Pin (steel deck) | |
| 14 | 2 | 7500017-4 | Thread Rolling Screw, Type TT, Hex Washer Head (aluminum deck) | |
| 15 | 1 | 22513803 | Shaft | |
| 16 | 1 | 22515453 | Cart Stop Driver Side | |
| 17 | 1 | 22515403 | Cart Stop Curb Side | |
| 18 | 2 | 22515100 | Spring Bar | |
| 19 | 6 | 75086924 | Self Tapping Screw, 1/4"-20 x 1" lg. | |
| 20 | 1 | 22515300 | Torsion Spring, Cart Stop, CS | |
| 21 | 1 | 22515200 | Torsion Spring, Cart Stop, DS | |
| 22 | 3 | 75088131 | Washer, 7/8" O.D. X 1/2" I.D. X .073" lg. | |
| 23 | 5 | 75085005 | 3/8"-16 Serrated Hex Nut | |
| 24 | 4 | 75086058 | 3/8"-16 x 1" lg. Hex Bolt | |
| 25 | 4 | 85803391 | Bearing, 1” ID x 1” lg. | |
| 26 | 1 | 23317100 | Torsion Bar (62” std. Cart Stop platforms) | |
| 26 | 1 | 22517100 | Torsion Bar (All Other standard platforms) | |
| 26 | 1 | 22617100 | Torsion Bar (All Aluminum platforms) | |
| 27 | 1 | 22517300 | Pivot Assembly, Torsion Bar | |
| 28 | 1 | 75087575 | Socket Head Shoulder Screw 3/8-16 | |
| 29 | 10010142 | Bearing, 1” ID x 3/4” lg. | ||
| 30 | 1 | 22611100 | Deck, Aluminum Weldment | |
| 31 | 1 | 80001209 | Kit, Deck Hinge Assembly | |
| 32 | 12 | 7500002-5 | Hex Flange Screw, 3/8-16 x 1-1/2” Grade 8 | |
| 33 | 12 | 75088081 | 3/8 Lockwasher | |
| 34 | 75098247 | Thread Locking Compound | ||
| 35 | 2 | 22515500 | Cart Stop Retainer | |
| 4 | 1 | 75089542 | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 75086272 | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 6 | 1 | 22570200 | Pin | |
| 7 | 2 | 20370500 | Pin | |
| 8 | 1 | 22570300 | Pin | |
| 11 | 4 | 75089541 | 1/4" x 1-7/8" lg. Coiled Pin |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

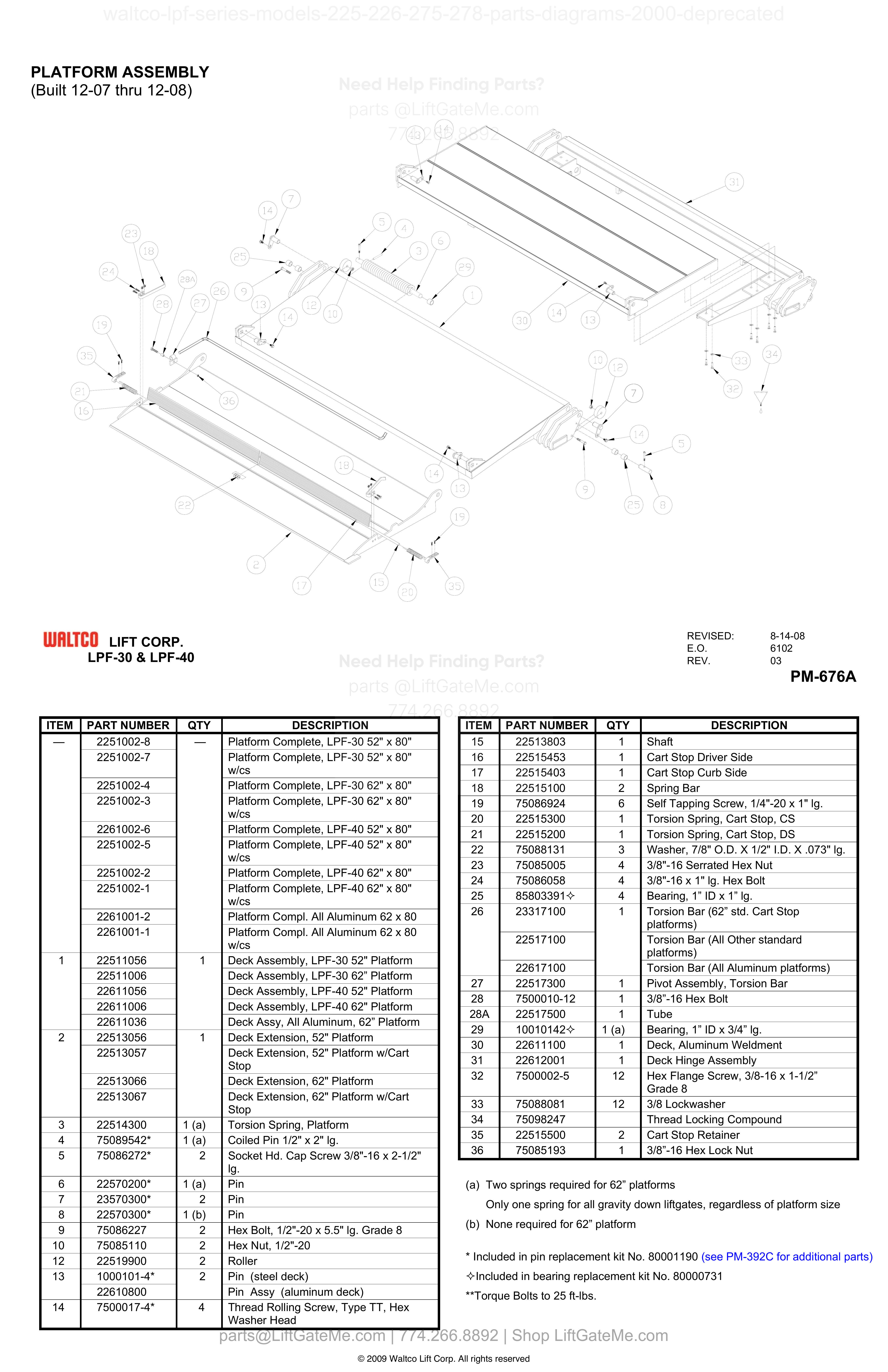

PLATFORM ASSEMBLY (Built 12-07 thru 12-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | — | 2251002-8 | Platform Complete, LPF-30 52" x 80" | |
| — | — | 2251002-7 | Platform Complete, LPF-30 52" x 80" w/cs | |
| — | — | 2251002-4 | Platform Complete, LPF-30 62" x 80" | |
| — | — | 2251002-3 | Platform Complete, LPF-30 62" x 80" w/cs | |
| — | — | 2261002-6 | Platform Complete, LPF-40 52" x 80" | |
| — | — | 2251002-5 | Platform Complete, LPF-40 52" x 80" w/cs | |
| — | — | 2251002-2 | Platform Complete, LPF-40 62" x 80" | |
| — | — | 2251002-1 | Platform Complete, LPF-40 62" x 80" w/cs | |
| — | — | 2261001-2 | Platform Compl. All Aluminum 62 x 80 | |
| — | — | 2261001-1 | Platform Compl. All Aluminum 62 x 80 w/cs | |
| 1 | 1 | 22511056 | Deck Assembly, LPF-30 52" Platform | |
| 1 | 1 | 22511006 | ||
| 1 | 1 | 22611056 | Deck Assembly, LPF-40 52" Platform | |
| 1 | 1 | 22611006 | Deck Assembly, LPF-40 62" Platform | |
| 1 | 1 | 22611036 | ||
| 2 | 1 | 22513056 | Deck Extension, 52" Platform | |
| 2 | 1 | 22513057 | Deck Extension, 52" Platform w/Cart Stop | |
| 2 | 1 | 22513066 | Deck Extension, 62" Platform | |
| 2 | 1 | 22513067 | Deck Extension, 62" Platform w/Cart Stop | |
| 3 | 22514300 | Torsion Spring, Platform | ||
| 4 | 1 | 75089542 | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 75086272 | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 6 | 1 | 22570200 | Pin | |
| 7 | 2 | 23570300 | Pin | |
| 8 | 1 | 22570300 | Pin | |
| 9 | 2 | 75086227 | Hex Bolt, 1/2"-20 x 5.5" lg. Grade 8 | |
| 10 | 2 | 75085110 | Hex Nut, 1/2"-20 | |
| 12 | 2 | 22519900 | Roller | |
| 13 | 2 | 1000101-4 | Pin (steel deck) | |
| 13 | 2 | 22610800 | Pin Assy (aluminum deck) | |
| 14 | 4 | 7500017-4 | Thread Rolling Screw, Type TT, Hex Washer Head | |
| 15 | 1 | 22513803 | Shaft | |
| 16 | 1 | 22515453 | Cart Stop Driver Side | |
| 17 | 1 | 22515403 | Cart Stop Curb Side | |
| 18 | 2 | 22515100 | Spring Bar | |
| 19 | 6 | 75086924 | Self Tapping Screw, 1/4"-20 x 1" lg. | |
| 20 | 1 | 22515300 | Torsion Spring, Cart Stop, CS | |
| 21 | 1 | 22515200 | Torsion Spring, Cart Stop, DS | |
| 22 | 3 | 75088131 | Washer, 7/8" O.D. X 1/2" I.D. X .073" lg. | |
| 23 | 4 | 75085005 | 3/8"-16 Serrated Hex Nut | |
| 24 | 4 | 75086058 | 3/8"-16 x 1" lg. Hex Bolt | |
| 25 | 4 | 85803391 | ||
| 26 | 1 | 23317100 | ||
| 26 | 1 | 22517100 | Torsion Bar (All Other standard platforms) | |
| 26 | 1 | 22617100 | Torsion Bar (All Aluminum platforms) | |
| 27 | 1 | 22517300 | Pivot Assembly, Torsion Bar | |
| 28 | 1 | 7500010-12 | ||
| 28A | 1 | 22517500 | Tube | |
| 29 | 10010142 | |||
| 30 | 1 | 22611100 | Deck, Aluminum Weldment | |
| 31 | 1 | 22612001 | Deck Hinge Assembly | |
| 32 | 12 | 7500002-5 | ||
| 33 | 12 | 75088081 | 3/8 Lockwasher | |
| 34 | 75098247 | Thread Locking Compound | ||
| 35 | 2 | 22515500 | Cart Stop Retainer | |
| 36 | 1 | 75085193 | ||
| 4 | 1 (a) | 75089542* | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 75086272* | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 6 | 1 (a) | 22570200* | Pin | |
| 7 | 2 | 23570300* | Pin | |
| 8 | 1 (b) | 22570300* | Pin | |
| 13 | 2 | 1000101-4* | Pin (steel deck) | |
| 14 | 4 | 7500017-4* | Thread Rolling Screw, Type TT, Hex Washer Head |

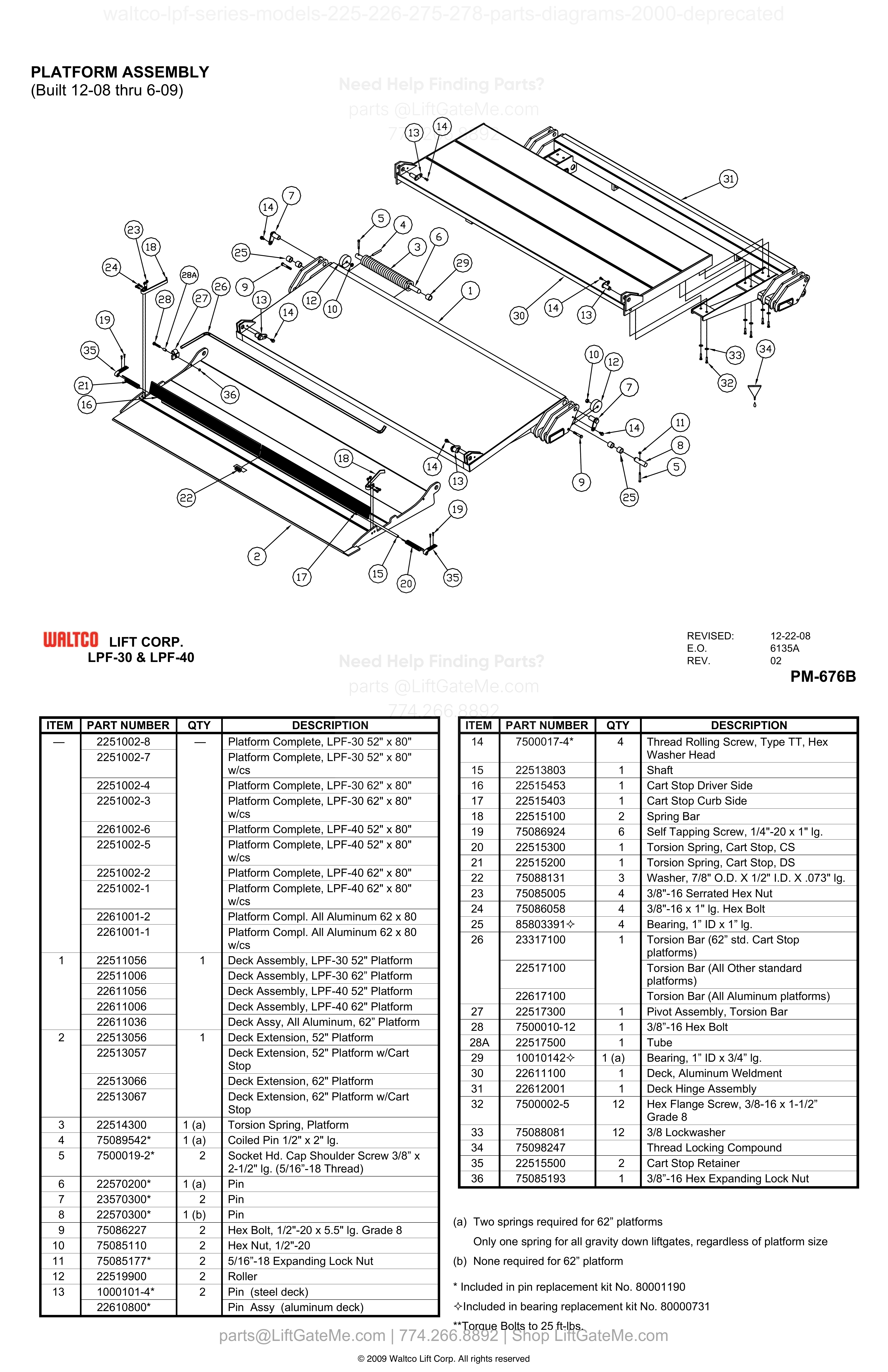

PLATFORM ASSEMBLY (Built 12-08 thru 6-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | — | 2251002-8 | Platform Complete, LPF-30 52" x 80" | |
| — | — | 2251002-7 | Platform Complete, LPF-30 52" x 80" w/cs | |
| — | — | 2251002-4 | Platform Complete, LPF-30 62" x 80" | |
| — | — | 2251002-3 | Platform Complete, LPF-30 62" x 80" w/cs | |
| — | — | 2261002-6 | Platform Complete, LPF-40 52" x 80" | |
| — | — | 2251002-5 | Platform Complete, LPF-40 52" x 80" w/cs | |
| — | — | 2251002-2 | Platform Complete, LPF-40 62" x 80" | |
| — | — | 2251002-1 | Platform Complete, LPF-40 62" x 80" w/cs | |
| — | — | 2261001-2 | Platform Compl. All Aluminum 62 x 80 | |
| — | — | 2261001-1 | Platform Compl. All Aluminum 62 x 80 w/cs | |
| 1 | 1 | 22511056 | Deck Assembly, LPF-30 52" Platform | |
| 1 | 1 | 22511006 | Deck Assembly, LPF-30 62" Platform | |
| 1 | 1 | 22611056 | Deck Assembly, LPF-40 52" Platform | |
| 1 | 1 | 22611006 | Deck Assembly, LPF-40 62" Platform | |
| 1 | 1 | 22611036 | Deck Assy, All Aluminum, 62" Platform | |
| 2 | 1 | 22513056 | Deck Extension, 52" Platform | |
| 2 | 1 | 22513057 | Deck Extension, 52" Platform w/Cart Stop | |
| 2 | 1 | 22513066 | Deck Extension, 62" Platform | |
| 2 | 1 | 22513067 | Deck Extension, 62" Platform w/Cart Stop | |
| 3 | 22514300 | Torsion Spring, Platform | ||
| 4 | 1 (a) | 75089542* | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 7500019-2* | Socket Hd. Cap Shoulder Screw 3/8” x 2-1/2” lg. (5/16”-18 Thread) | |
| 6 | 1 (a) | 22570200* | Pin | |
| 7 | 2 | 23570300* | Pin | |
| 8 | 1 (b) | 22570300* | Pin | |
| 9 | 2 | 75086227 | Hex Bolt, 1/2"-20 x 5.5" lg. Grade 8 | |
| 10 | 2 | 75085110 | Hex Nut, 1/2"-20 | |
| 11 | 2 | 75085177* | 5/16”-18 Expanding Lock Nut | |
| 12 | 2 | 22519900 | Roller | |
| 13 | 2 | 1000101-4* | Pin (steel deck) | |
| 13 | 2 | 22610800* | Pin Assy (aluminum deck) | |
| 14 | 4 | 7500017-4* | Thread Rolling Screw, Type TT, Hex Washer Head | |
| 15 | 1 | 22513803 | Shaft | |
| 16 | 1 | 22515453 | Cart Stop Driver Side | |
| 17 | 1 | 22515403 | Cart Stop Curb Side | |
| 18 | 2 | 22515100 | Spring Bar | |
| 19 | 6 | 75086924 | Self Tapping Screw, 1/4"-20 x 1" lg. | |
| 20 | 1 | 22515300 | Torsion Spring, Cart Stop, CS | |
| 21 | 1 | 22515200 | Torsion Spring, Cart Stop, DS | |
| 22 | 3 | 75088131 | Washer, 7/8" O.D. X 1/2" I.D. X .073" lg. | |
| 23 | 4 | 75085005 | 3/8"-16 Serrated Hex Nut | |
| 24 | 4 | 75086058 | 3/8"-16 x 1" lg. Hex Bolt | |
| 25 | 4 | 85803391 | Bearing, 1” ID x 1” lg. | |
| 26 | 1 | 23317100 | Torsion Bar (62” std. Cart Stop platforms) | |
| 26 | 1 | 22517100 | Torsion Bar (All Other standard platforms) | |
| 26 | 1 | 22617100 | Torsion Bar (All Aluminum platforms) | |
| 27 | 1 | 22517300 | Pivot Assembly, Torsion Bar | |
| 28 | 1 | 7500010-12 | 3/8”-16 Hex Bolt | |
| 28A | 1 | 22517500 | Tube | |
| 29 | 10010142 | Bearing, 1” ID x 3/4” lg. | ||
| 30 | 1 | 22611100 | Deck, Aluminum Weldment | |
| 31 | 1 | 22612001 | Deck Hinge Assembly | |
| 32 | 12 | 7500002-5 | Hex Flange Screw, 3/8-16 x 1-1/2” Grade 8 | |
| 33 | 12 | 75088081 | 3/8 Lockwasher | |
| 34 | 75098247 | Thread Locking Compound | ||
| 35 | 2 | 22515500 | Cart Stop Retainer | |
| 36 | 1 | 75085193 | 3/8”-16 Hex Expanding Lock Nut | |
| 4 | 1^A | 75089542 | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 7500019-2 | Socket Hd. Cap Shoulder Screw 3/8” x 2-1/2” lg. (5/16”-18 Thread) | |
| 6 | 1^A | 22570200 | Pin | |
| 7 | 2 | 23570300 | Pin | |
| 8 | 1^B | 22570300 | Pin | |
| 11 | 2 | 75085177 | 5/16”-18 Expanding Lock Nut | |
| 13 | 2 | 1000101-4 | Pin (steel deck) | |
| 13 | 22610800 | Pin Assy (aluminum deck) | ||
| 14 | 4 | 7500017-4 | Thread Rolling Screw, Type TT, Hex Washer Head |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

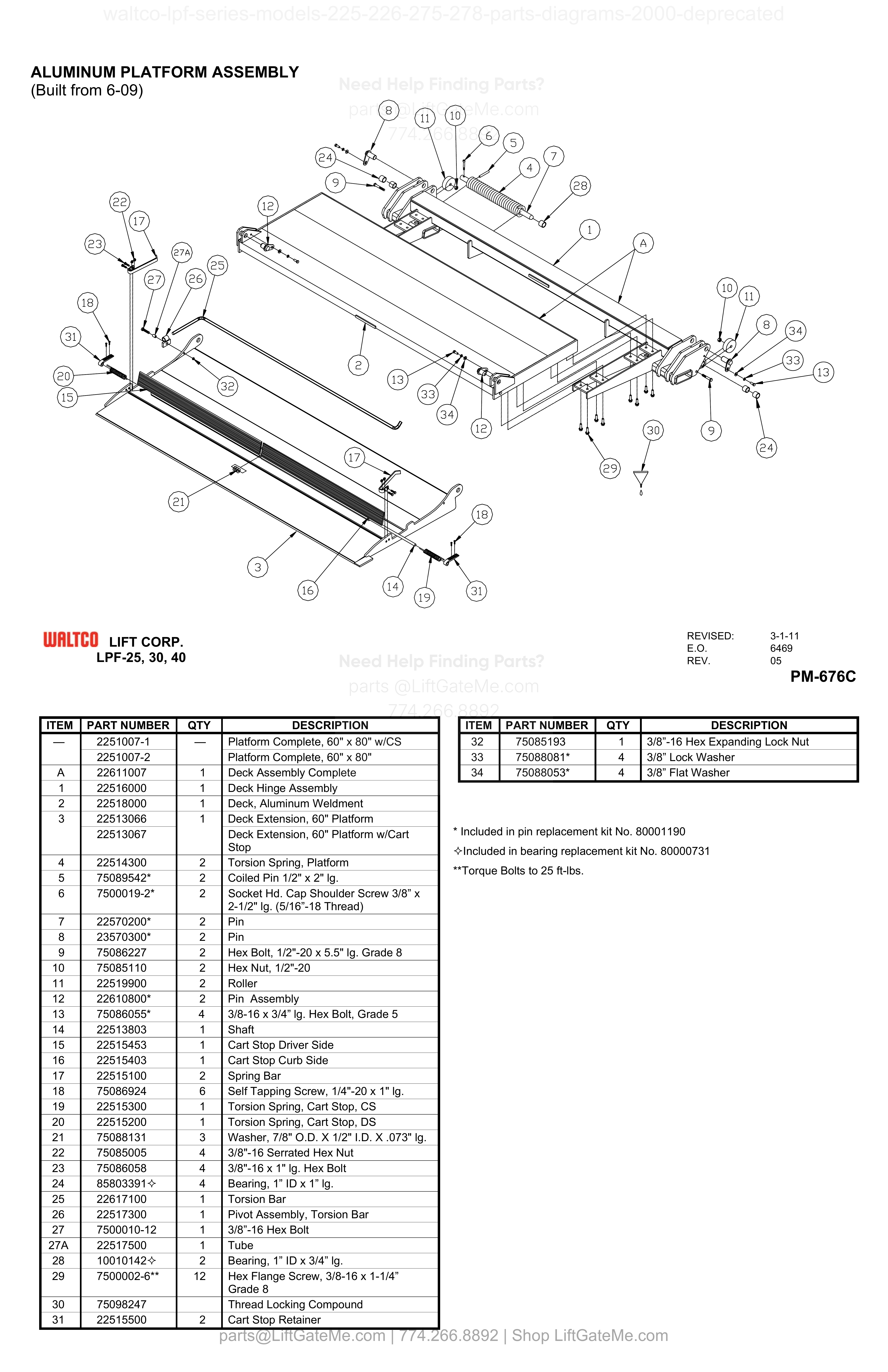

ALUMINUM PLATFORM ASSEMBLY (Built from 6-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | — | 2251007-1 | Platform Complete, 60" x 80" w/CS | |
| — | 2251007-2 | Platform Complete, 60" x 80" | ||
| A | 1 | 22611007 | Deck Assembly Complete | |
| 1 | 1 | 22516000 | Deck Hinge Assembly | |
| 2 | 1 | 22518000 | Deck, Aluminum Weldment | |
| 3 | 1 | 22513066 | Deck Extension, 60" Platform | |
| 3 | 22513067 | Deck Extension, 60" Platform w/Cart Stop | ||
| 4 | 2 | 22514300 | Torsion Spring, Platform | |
| 5 | 2 | 75089542 | Coiled Pin 1/2" x 2" lg. | |
| 6 | 2 | 7500019-2 | Socket Hd. Cap Shoulder Screw 3/8” x 2-1/2” lg. (5/16”-18 Thread) | |
| 7 | 2 | 22570200 | Pin | |
| 8 | 2 | 23570300 | Pin | |
| 9 | 2 | 75086227 | Hex Bolt, 1/2"-20 x 5.5" lg. Grade 8 | |
| 10 | 2 | 75085110 | Hex Nut, 1/2"-20 | |
| 11 | 2 | 22519900 | Roller | |
| 12 | 2 | 22610800 | Pin Assembly | |
| 13 | 4 | 75086055 | 3/8-16 x 3/4” lg. Hex Bolt, Grade 5 | |
| 14 | 1 | 22513803 | Shaft | |
| 15 | 1 | 22515453 | Cart Stop Driver Side | |
| 16 | 1 | 22515403 | Cart Stop Curb Side | |
| 17 | 2 | 22515100 | Spring Bar | |
| 18 | 6 | 75086924 | Self Tapping Screw, 1/4"-20 x 1" lg. | |
| 19 | 1 | 22515300 | Torsion Spring, Cart Stop, CS | |
| 20 | 1 | 22515200 | Torsion Spring, Cart Stop, DS | |
| 21 | 3 | 75088131 | Washer, 7/8" O.D. X 1/2" I.D. X .073" lg. | |
| 22 | 4 | 75085005 | 3/8"-16 Serrated Hex Nut | |
| 23 | 4 | 75086058 | ||
| 24 | 4 | 85803391 | Bearing, 1” ID x 1” lg. | |
| 25 | 1 | 22617100 | Torsion Bar | |
| 26 | 1 | 22517300 | Pivot Assembly, Torsion Bar | |
| 27 | 1 | 7500010-12 | 3/8”-16 Hex Bolt | |
| 27A | 1 | 22517500 | Tube | |
| 28 | 2 | 10010142 | Bearing, 1” ID x 3/4” lg. | |
| 29 | 12 | 7500002-6 | Hex Flange Screw, 3/8-16 x 1-1/4” Grade 8 | |
| 30 | 75098247 | Thread Locking Compound | ||
| 31 | 2 | 22515500 | Cart Stop Retainer | |
| 32 | 1 | 75085193 | 3/8”-16 Hex Expanding Lock Nut | |
| 33 | 4 | 75088081 | 3/8” Lock Washer | |
| 34 | 4 | 75088053 | 3/8” Flat Washer | |
| 5 | 2 | 75089542* | Coiled Pin 1/2" x 2" lg. | |
| 6 | 2 | 7500019-2* | Socket Hd. Cap Shoulder Screw 3/8” x 2-1/2” lg. (5/16”-18 Thread) | |
| 7 | 2 | 22570200* | Pin | |
| 8 | 2 | 23570300* | Pin | |
| 12 | 2 | 22610800* | Pin Assembly | |
| 13 | 4 | 75086055* | 3/8-16 x 3/4" lg. Hex Bolt, Grade 5 | |
| 29 | 12 | 7500002-6** | Hex Flange Screw, 3/8-16 x 1-1/4” Grade 8 | |
| 33 | 4 | 75088081* | 3/8” Lock Washer | |
| 34 | 4 | 75088053* | 3/8” Flat Washer |

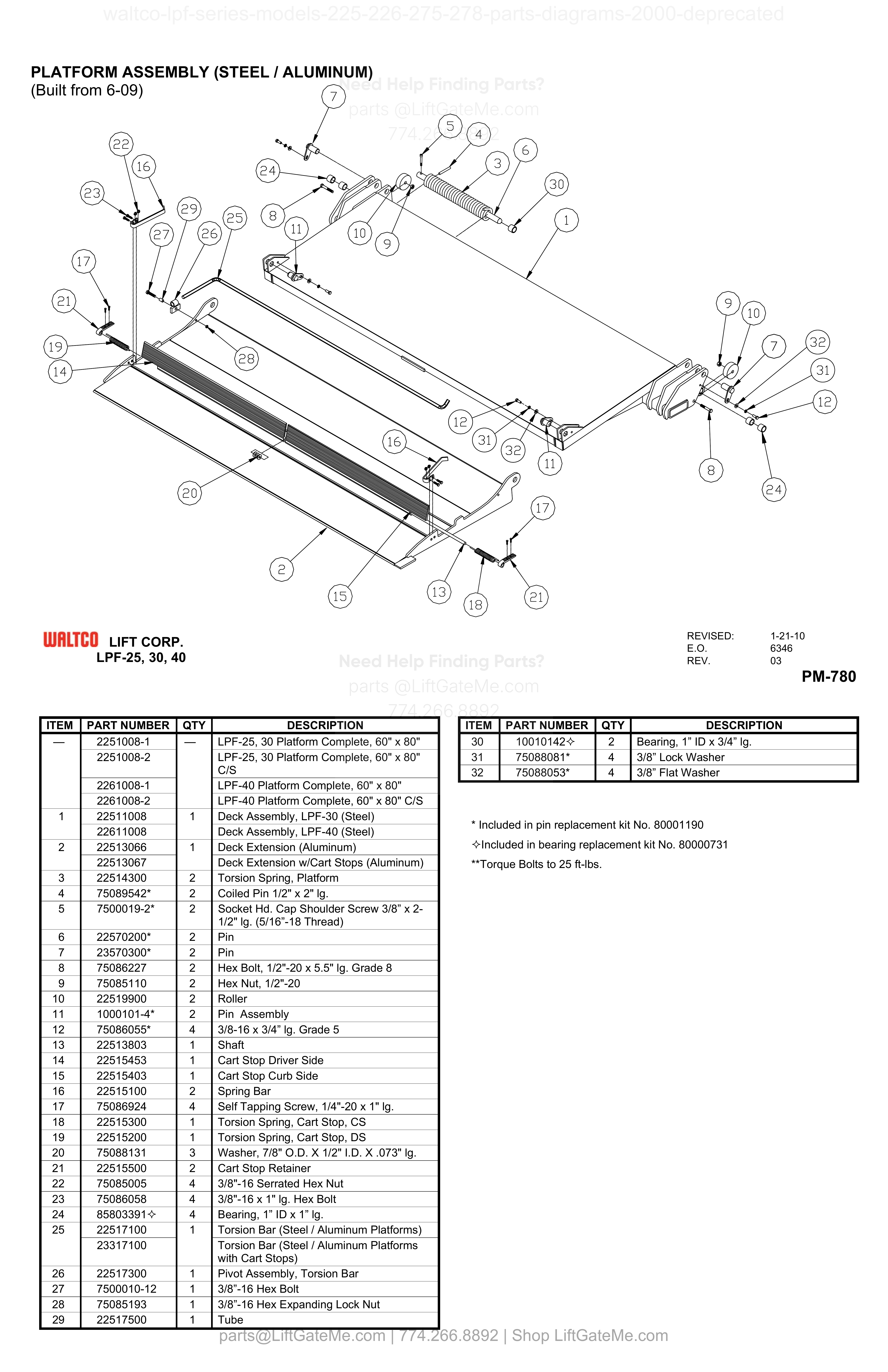

PLATFORM ASSEMBLY (STEEL / ALUMINUM)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| — | — | 2251008-1 | LPF-25, 30 Platform Complete, 60" x 80" | |
| — | — | 2251008-2 | LPF-25, 30 Platform Complete, 60" x 80" C/S | |
| — | — | 2261008-1 | LPF-40 Platform Complete, 60" x 80" | |
| — | — | 2261008-2 | LPF-40 Platform Complete, 60" x 80" C/S | |
| 1 | 1 | 22511008 | Deck Assembly, LPF-30 (Steel) | |
| 1 | 1 | 22611008 | Deck Assembly, LPF-40 (Steel) | |
| 2 | 1 | 22513066 | Deck Extension (Aluminum) | |
| 2 | 1 | 22513067 | Deck Extension w/Cart Stops (Aluminum) | |
| 3 | 2 | 22514300 | Torsion Spring, Platform | |
| 4 | 2 | 75089542* | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 7500019-2* | Socket Hd. Cap Shoulder Screw 3/8” x 2-1/2" lg. (5/16"-18 Thread) | |
| 6 | 2 | 22570200* | Pin | |
| 7 | 2 | 23570300* | Pin | |
| 8 | 2 | 75086227 | Hex Bolt, 1/2"-20 x 5.5" lg. Grade 8 | |
| 9 | 2 | 75085110 | Hex Nut, 1/2"-20 | |
| 10 | 2 | 22519900 | Roller | |
| 11 | 2 | 1000101-4* | Pin Assembly | |
| 12 | 4 | 75086055* | 3/8-16 x 3/4” lg. Grade 5 | |
| 13 | 1 | 22513803 | Shaft | |
| 14 | 1 | 22515453 | Cart Stop Driver Side | |
| 15 | 1 | 22515403 | Cart Stop Curb Side | |
| 16 | 2 | 22515100 | Spring Bar | |
| 17 | 4 | 75086924 | Self Tapping Screw, 1/4"-20 x 1" lg. | |
| 18 | 1 | 22515300 | Torsion Spring, Cart Stop, CS | |
| 19 | 1 | 22515200 | Torsion Spring, Cart Stop, DS | |
| 20 | 3 | 75088131 | Washer, 7/8" O.D. X 1/2" I.D. X .073" lg. | |
| 21 | 2 | 22515500 | Cart Stop Retainer | |
| 22 | 4 | 75085005 | 3/8"-16 Serrated Hex Nut | |
| 23 | 4 | 75086058 | 3/8"-16 x 1" lg. Hex Bolt | |
| 24 | 4 | 85803391 | ||
| 25 | 1 | 22517100 | Torsion Bar (Steel / Aluminum Platforms) | |
| 25 | 1 | 23317100 | Torsion Bar (Steel / Aluminum Platforms with Cart Stops) | |
| 26 | 1 | 22517300 | Pivot Assembly, Torsion Bar | |
| 27 | 1 | 7500010-12 | ||
| 28 | 1 | 75085193 | ||
| 29 | 1 | 22517500 | Tube | |
| 30 | 2 | 10010142 | ||
| 31 | 4 | 75088081* | 3/8” Lock Washer | |
| 32 | 4 | 75088053* | 3/8” Flat Washer | |
| 4 | 2 | 75089542 | Coiled Pin 1/2" x 2" lg. | |
| 5 | 2 | 7500019-2 | Socket Hd. Cap Shoulder Screw 3/8" x 2-1/2" lg. (5/16"-18 Thread) | |
| 6 | 2 | 22570200 | Pin | |
| 7 | 2 | 23570300 | Pin | |
| 11 | 2 | 1000101-4 | Pin Assembly | |
| 12 | 4 | 75086055 | 3/8-16 x 3/4" lg. Grade 5 | |
| 31 | 4 | 75088081 | 3/8" Lock Washer | |
| 32 | 4 | 75088053 | 3/8" Flat Washer |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

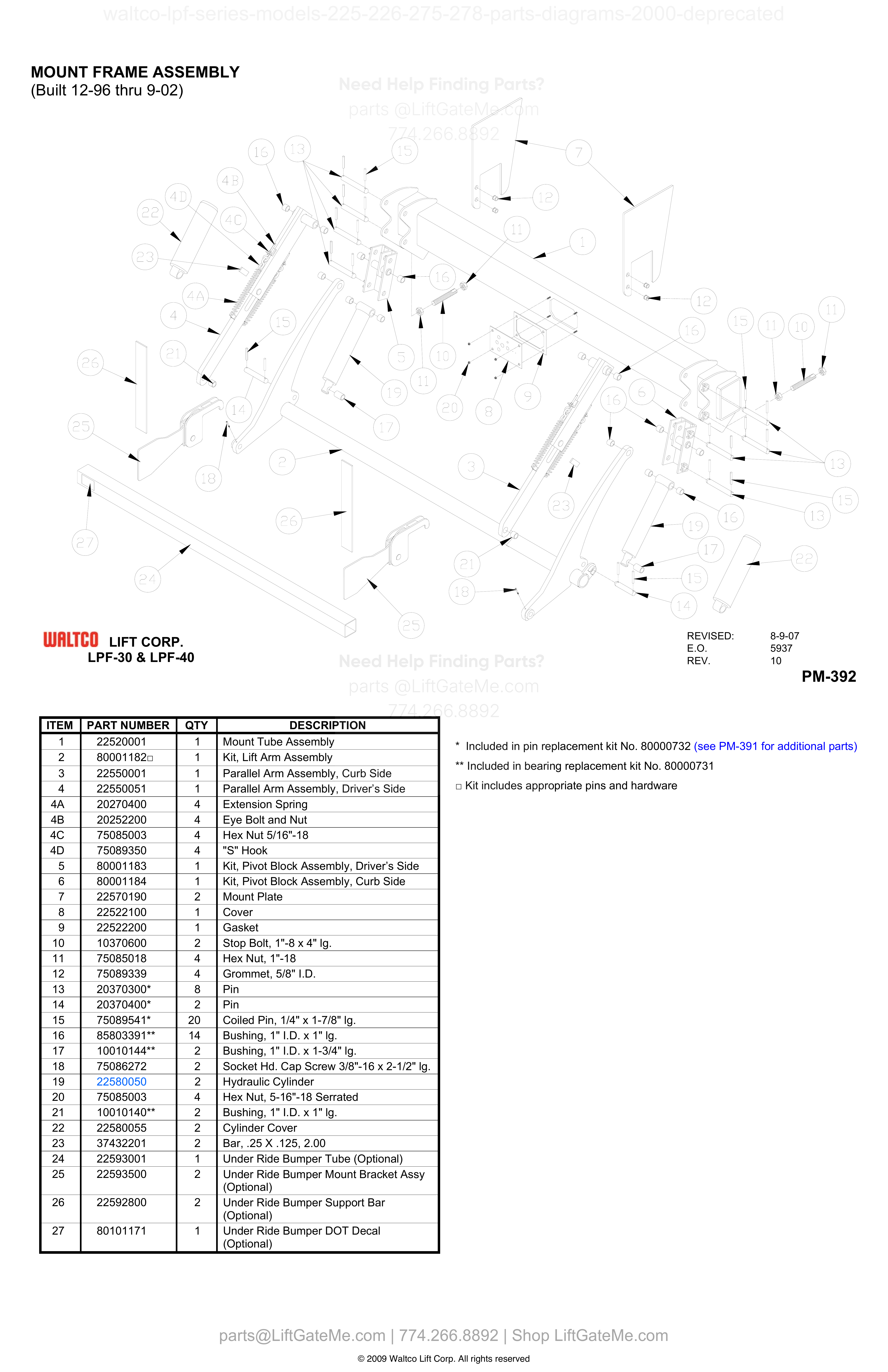

MOUNT FRAME ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22520001 | Mount Tube Assembly | |
| 2 | 1 | 80001182 | Kit, Lift Arm Assembly | |
| 3 | 1 | 22550001 | Parallel Arm Assembly, Curb Side | |
| 4 | 1 | 22550051 | Parallel Arm Assembly, Driver's Side | |
| 4A | 4 | 20270400 | Extension Spring | |
| 4B | 4 | 20252200 | Eye Bolt and Nut | |
| 4C | 4 | 75085003 | Hex Nut 5/16"-18 | |
| 4D | 4 | 75089350 | "S" Hook | |
| 5 | 1 | 80001183 | Kit, Pivot Block Assembly, Driver's Side | |
| 6 | 1 | 80001184 | Kit, Pivot Block Assembly, Curb Side | |
| 7 | 2 | 22570190 | Mount Plate | |
| 8 | 1 | 22522100 | Cover | |
| 9 | 1 | 22522200 | Gasket | |
| 10 | 2 | 10370600 | Stop Bolt, 1"-8 x 4" lg. | |
| 11 | 4 | 75085018 | Hex Nut, 1"-18 | |
| 12 | 4 | 75089339 | Grommet, 5/8" I.D. | |
| 13 | 8 | 20370300 | Pin | |
| 14 | 2 | 20370400 | Pin | |
| 15 | 20 | 75089541 | Coiled Pin, 1/4" x 1-7/8" lg. | |
| 16 | 14 | 85803391 | Bushing, 1" I.D. x 1" lg. | |
| 17 | 2 | 10010144 | Bushing, 1" I.D. x 1-3/4" lg. | |
| 18 | 2 | 75086272 | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 19 | 2 | 22580050 | Hydraulic Cylinder | |
| 20 | 4 | 75085003 | Hex Nut, 5-16"-18 Serrated | |
| 21 | 2 | 10010140 | Bushing, 1" I.D. x 1" lg. | |
| 22 | 2 | 22580055 | Cylinder Cover | |
| 23 | 2 | 37432201 | Bar, .25 X .125, 2.00 | |
| 24 | 1 | 22593001 | Under Ride Bumper Tube (Optional) | |
| 25 | 2 | 22593500 | Under Ride Bumper Mount Bracket Assy (Optional) | |
| 26 | 2 | 22592800 | Under Ride Bumper Support Bar (Optional) | |
| 27 | 1 | 80101171 | Under Ride Bumper DOT Decal (Optional) |

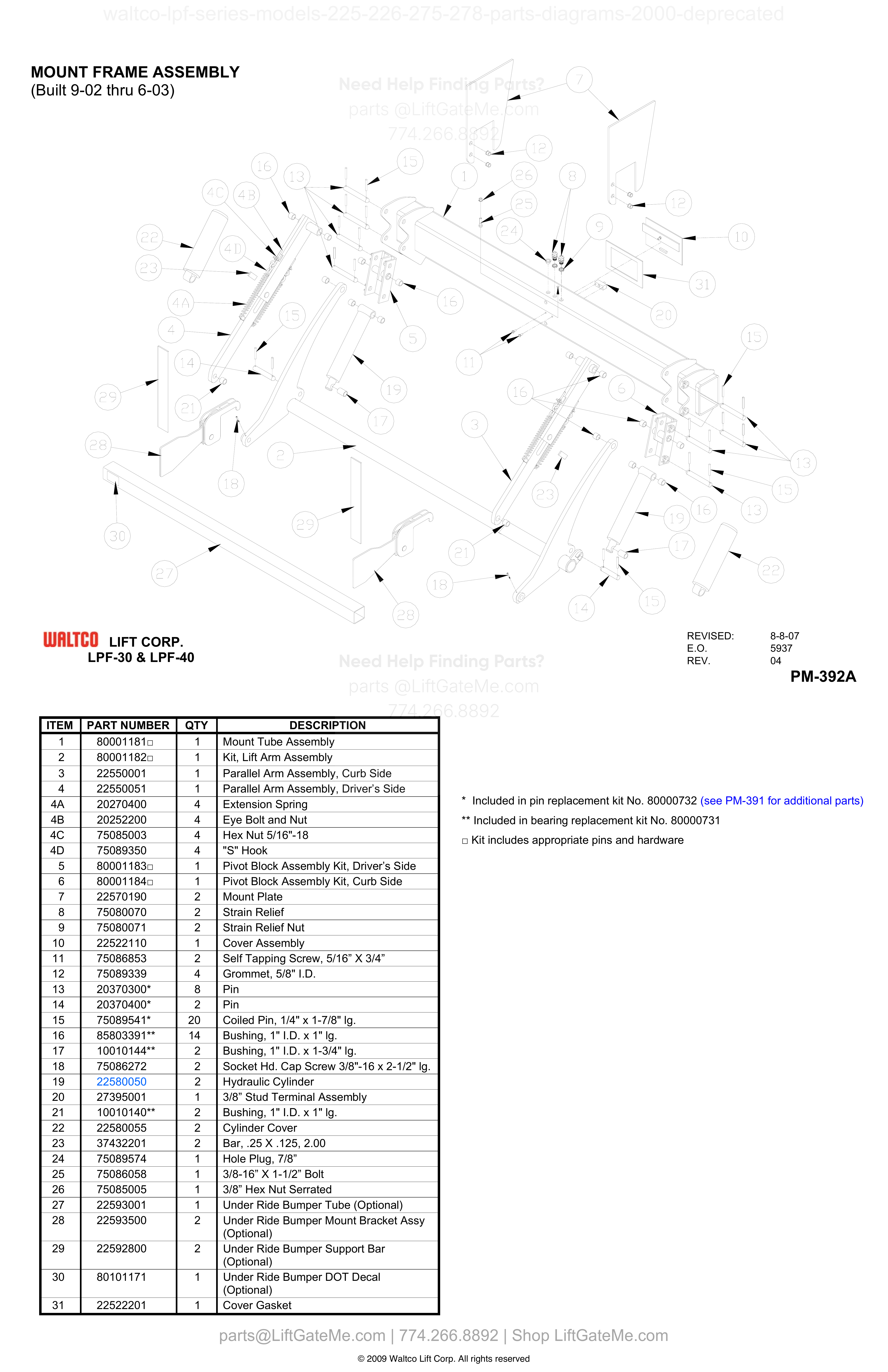

MOUNT FRAME ASSEMBLY (Built 9-02 thru 6-03)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 80001181 | Mount Tube Assembly | |
| 2 | 1 | 80001182 | Kit, Lift Arm Assembly | |
| 3 | 1 | 22550001 | Parallel Arm Assembly, Curb Side | |
| 4 | 1 | 22550051 | Parallel Arm Assembly, Driver's Side | |
| 4A | 4 | 20270400 | Extension Spring | |
| 4B | 4 | 20252200 | Eye Bolt and Nut | |
| 4C | 4 | 75085003 | Hex Nut 5/16"-18 | |
| 4D | 4 | 75089350 | "S" Hook | |
| 5 | 1 | 80001183 | Pivot Block Assembly Kit, Driver's Side | |
| 6 | 1 | 80001184 | Pivot Block Assembly Kit, Curb Side | |
| 7 | 2 | 22570190 | Mount Plate | |
| 8 | 2 | 75080070 | Strain Relief | |
| 9 | 2 | 75080071 | Strain Relief Nut | |
| 10 | 1 | 22522110 | Cover Assembly | |
| 11 | 2 | 75086853 | Self Tapping Screw, 5/16" X 3/4" | |
| 12 | 4 | 75089339 | Grommet, 5/8" I.D. | |
| 13 | 8 | 20370300 | Pin | |
| 14 | 2 | 20370400 | Pin | |
| 15 | 20 | 75089541 | Coiled Pin, 1/4" x 1-7/8" lg. | |
| 16 | 14 | 85803391 | Bushing, 1" I.D. x 1" lg. | |
| 17 | 2 | 10010144 | Bushing, 1" I.D. x 1-3/4" lg. | |
| 18 | 2 | 75086272 | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 19 | 2 | 22580050 | Hydraulic Cylinder | |
| 20 | 1 | 27395001 | 3/8" Stud Terminal Assembly | |
| 21 | 2 | 10010140 | Bushing, 1" I.D. x 1" lg. | |
| 22 | 2 | 22580055 | Cylinder Cover | |
| 23 | 2 | 37432201 | Bar, .25 X .125, 2.00 | |
| 24 | 1 | 75089574 | Hole Plug, 7/8" | |
| 25 | 1 | 75086058 | 3/8-16" X 1-1/2" Bolt | |
| 26 | 1 | 75085005 | 3/8" Hex Nut Serrated | |
| 27 | 1 | 22593001 | Under Ride Bumper Tube (Optional) | |
| 28 | 2 | 22593500 | Under Ride Bumper Mount Bracket Assy (Optional) | |
| 29 | 2 | 22592800 | Under Ride Bumper Support Bar (Optional) | |
| 30 | 1 | 80101171 | Under Ride Bumper DOT Decal (Optional) | |
| 31 | 1 | 22522201 | Cover Gasket |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

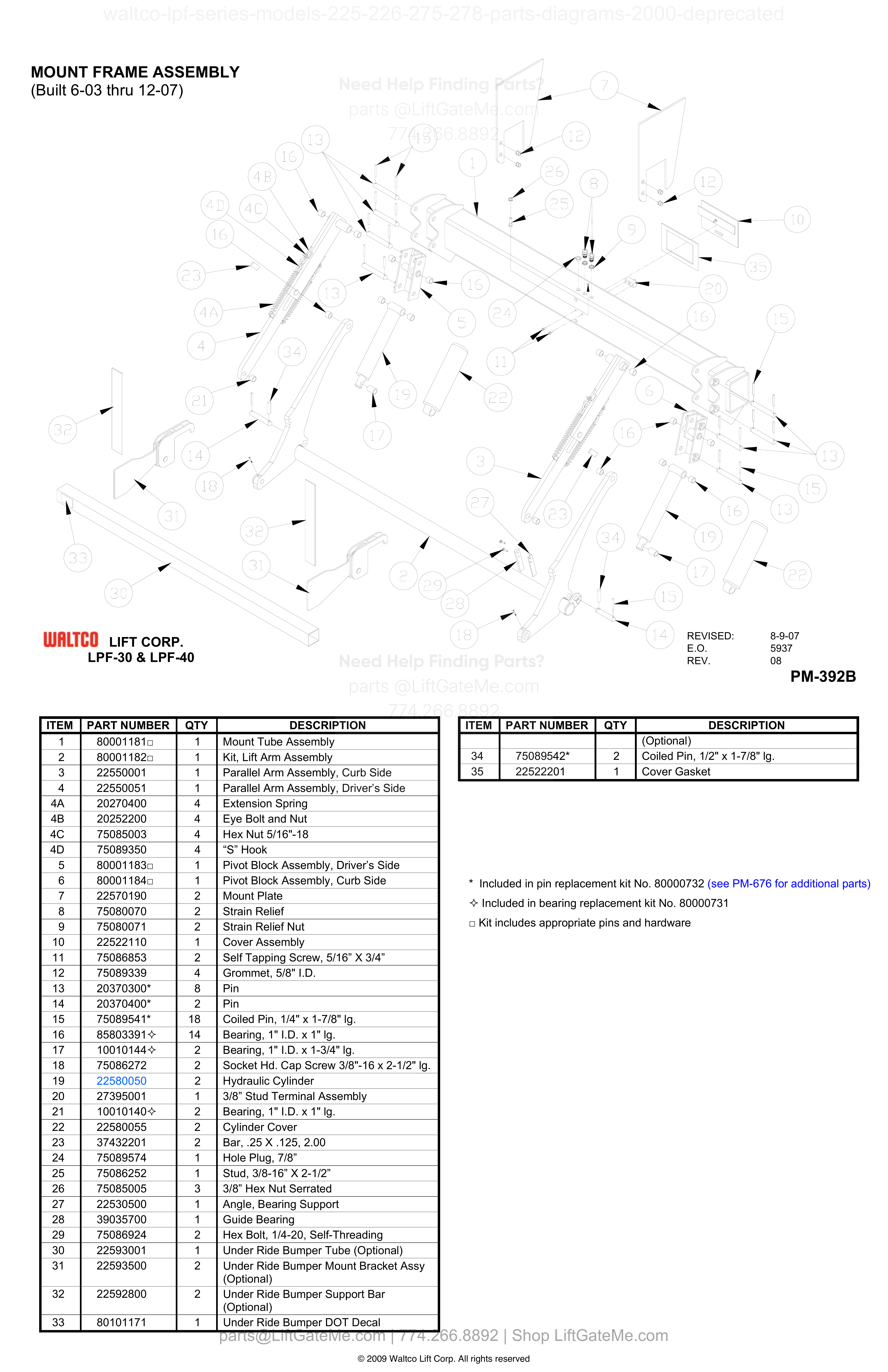

MOUNT FRAME ASSEMBLY (Built 6-03 thru 12-07)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 80001181 | Mount Tube Assembly | |
| 2 | 1 | 80001182 | Kit, Lift Arm Assembly | |
| 3 | 1 | 22550001 | Parallel Arm Assembly, Curb Side | |
| 4 | 1 | 22550051 | Parallel Arm Assembly, Driver’s Side | |
| 4A | 4 | 20270400 | Extension Spring | |
| 4B | 4 | 20252200 | Eye Bolt and Nut | |
| 4C | 4 | 75085003 | Hex Nut 5/16"-18 | |
| 4D | 4 | 75089350 | “S” Hook | |
| 5 | 1 | 80001183 | Pivot Block Assembly, Driver’s Side | |
| 6 | 1 | 80001184 | Pivot Block Assembly, Curb Side | |
| 7 | 2 | 22570190 | Mount Plate | |
| 8 | 2 | 75080070 | Strain Relief | |
| 9 | 2 | 75080071 | Strain Relief Nut | |
| 10 | 1 | 22522110 | Cover Assembly | |
| 11 | 2 | 75086853 | Self Tapping Screw, 5/16” X 3/4” | |
| 12 | 4 | 75089339 | Grommet, 5/8" I.D. | |
| 13 | 8 | 20370300 | Pin | |
| 14 | 2 | 20370400 | Pin | |
| 15 | 18 | 75089541 | Coiled Pin, 1/4" x 1-7/8" lg. | |
| 16 | 14 | 85803391 | Bearing, 1" I.D. x 1" lg. | |
| 17 | 2 | 10010144 | Bearing, 1" I.D. x 1-3/4" lg. | |
| 18 | 2 | 75086272 | Socket Hd. Cap Screw 3/8"-16 x 2-1/2" lg. | |
| 19 | 2 | 22580050 | Hydraulic Cylinder | |
| 20 | 1 | 27395001 | 3/8” Stud Terminal Assembly | |
| 21 | 2 | 10010140 | Bearing, 1" I.D. x 1" lg. | |
| 22 | 2 | 22580055 | Cylinder Cover | |
| 23 | 2 | 37432201 | Bar, .25 X .125, 2.00 | |
| 24 | 1 | 75089574 | Hole Plug, 7/8” | |
| 25 | 1 | 75086252 | Stud, 3/8-16” X 2-1/2” | |
| 26 | 3 | 75085005 | 3/8” Hex Nut Serrated | |
| 27 | 1 | 22530500 | Angle, Bearing Support | |
| 28 | 1 | 39035700 | Guide Bearing | |
| 29 | 2 | 75086924 | Hex Bolt, 1/4-20, Self-Threading | |
| 30 | 1 | 22593001 | Under Ride Bumper Tube (Optional) | |
| 31 | 2 | 22593500 | Under Ride Bumper Mount Bracket Assy (Optional) | |
| 32 | 2 | 22592800 | Under Ride Bumper Support Bar (Optional) | |
| 33 | 1 | 80101171 | Under Ride Bumper DOT Decal | |
| 34 | 2 | 75089542 | Coiled Pin, 1/2" x 1-7/8" lg. | |
| 35 | 1 | 22522201 | Cover Gasket |

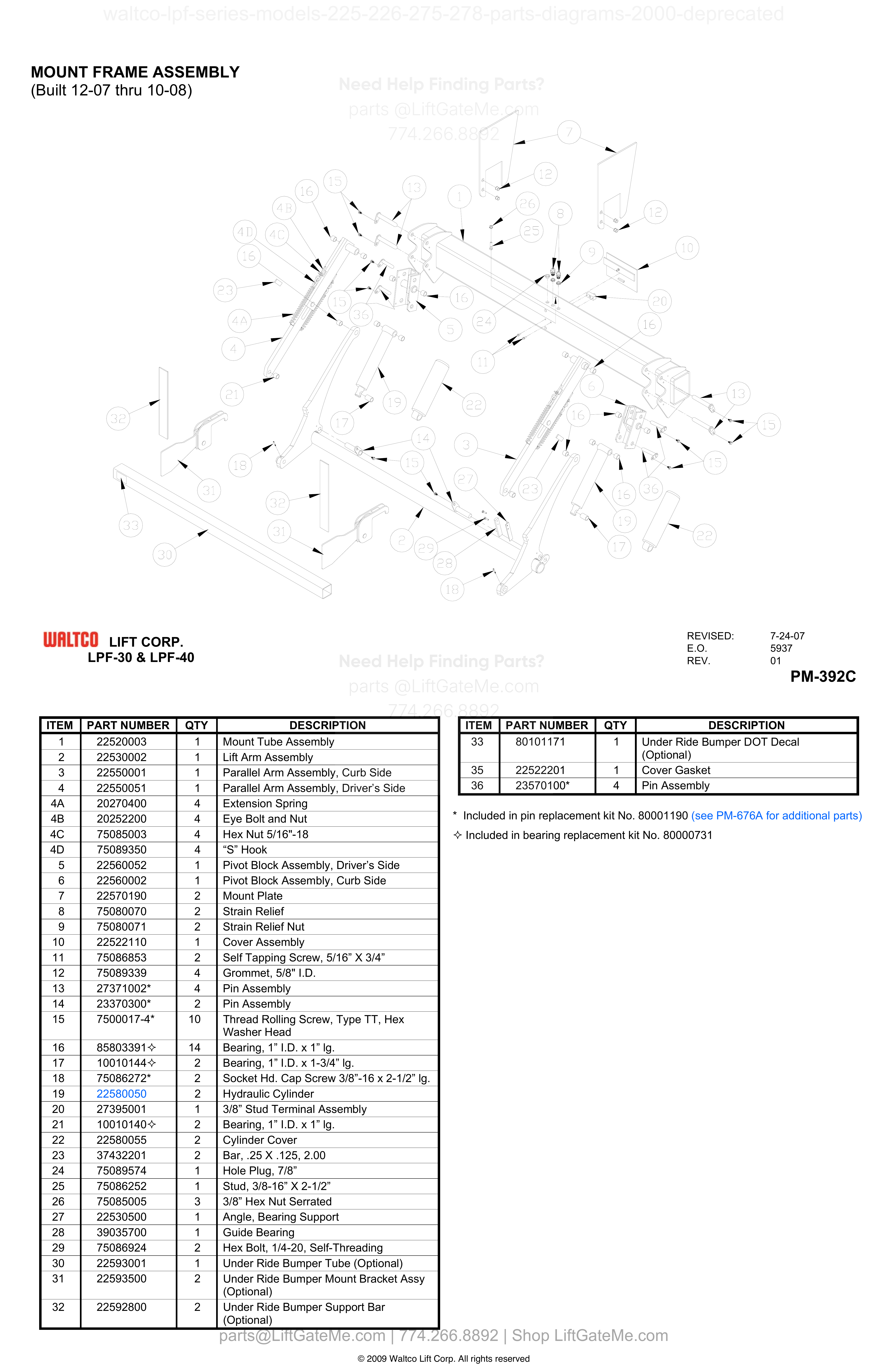

MOUNT FRAME ASSEMBLY (Built 12-07 thru 10-08)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22520003 | Mount Tube Assembly | |
| 2 | 1 | 22530002 | Lift Arm Assembly | |
| 3 | 1 | 22550001 | Parallel Arm Assembly, Curb Side | |
| 4 | 1 | 22550051 | Parallel Arm Assembly, Driver’s Side | |
| 4A | 4 | 20270400 | Extension Spring | |
| 4B | 4 | 20252200 | Eye Bolt and Nut | |
| 4C | 4 | 75085003 | Hex Nut 5/16"-18 | |
| 4D | 4 | 75089350 | “S” Hook | |
| 5 | 1 | 22560052 | Pivot Block Assembly, Driver’s Side | |
| 6 | 1 | 22560002 | Pivot Block Assembly, Curb Side | |
| 7 | 2 | 22570190 | Mount Plate | |
| 8 | 2 | 75080070 | Strain Relief | |
| 9 | 2 | 75080071 | Strain Relief Nut | |
| 10 | 1 | 22522110 | Cover Assembly | |
| 11 | 2 | 75086853 | Self Tapping Screw, 5/16” X 3/4” | |
| 12 | 4 | 75089339 | Grommet, 5/8" I.D. | |
| 13 | 4 | 27371002 | Pin Assembly | |
| 14 | 2 | 23370300 | Pin Assembly | |
| 15 | 10 | 7500017-4 | Thread Rolling Screw, Type TT, Hex Washer Head | |
| 16 | 14 | 85803391 | Bearing, 1” I.D. x 1” lg. | |
| 17 | 2 | 10010144 | Bearing, 1” I.D. x 1-3/4” lg. | |
| 18 | 2 | 75086272 | Socket Hd. Cap Screw 3/8”-16 x 2-1/2” lg. | |
| 19 | 2 | 22580050 | Hydraulic Cylinder | |
| 20 | 1 | 27395001 | 3/8” Stud Terminal Assembly | |
| 21 | 2 | 10010140 | Bearing, 1” I.D. x 1” lg. | |
| 22 | 2 | 22580055 | Cylinder Cover | |
| 23 | 2 | 37432201 | Bar, .25 X .125, 2.00 | |
| 24 | 1 | 75089574 | Hole Plug, 7/8” | |
| 25 | 1 | 75086252 | Stud, 3/8-16” X 2-1/2” | |
| 26 | 3 | 75085005 | 3/8” Hex Nut Serrated | |
| 27 | 1 | 22530500 | Angle, Bearing Support | |
| 28 | 1 | 39035700 | Guide Bearing | |
| 29 | 2 | 75086924 | Hex Bolt, 1/4-20, Self-Threading | |
| 30 | 1 | 22593001 | Under Ride Bumper Tube (Optional) | |
| 31 | 2 | 22593500 | Under Ride Bumper Mount Bracket Assy (Optional) | |
| 32 | 2 | 22592800 | Under Ride Bumper Support Bar (Optional) | |
| 33 | 1 | 80101171 | Under Ride Bumper DOT Decal (Optional) | |
| 35 | 1 | 22522201 | Cover Gasket | |
| 36 | 4 | 23570100 | Pin Assembly |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
MOUNT FRAME ASSEMBLY (Built 10-08 thru 1-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22520003 | Mount Tube Assembly | |
| 2 | 1 | 22530002 | Lift Arm Assembly | |
| 3 | 1 | 22550001 | Parallel Arm Assembly, Curb Side | |
| 4 | 1 | 22550051 | Parallel Arm Assembly, Driver’s Side | |
| 4A | 4 | 20270400 | Extension Spring | |
| 4B | 4 | 20252200 | Eye Bolt and Nut | |
| 4C | 4 | 75085003 | Hex Nut 5/16”-18 | |
| 4D | 4 | 75089350 | “S” Hook | |
| 5 | 1 | 22560052 | Pivot Block Assembly, Driver’s Side | |
| 6 | 1 | 22560002 | Pivot Block Assembly, Curb Side | |
| 7 | 2 | 22570190 | Mount Plate | |
| 8 | 2 | 75080070 | Strain Relief | |
| 9 | 2 | 75080071 | Strain Relief Nut | |
| 10 | 1 | 22522110 | Cover Assembly | |
| 11 | 2 | 75086853 | Self Tapping Screw, 5/16” X 3/4” | |
| 12 | 4 | 27371002 | Pin Assembly | |
| 13 | 2 | 23370300 | Pin Assembly | |
| 14 | 10 | 7500017-4 | Thread Rolling Screw, Type TT, Hex Washer Head | |
| 15 | 14 | 85803391 | Bearing, 1” I.D. x 1” lg. | |
| 16 | 2 | 10010144 | Bearing, 1” I.D. x 1-3/4” lg. | |
| 17 | 2 | 75086272 | Socket Hd. Cap Screw 3/8”-16 x 2-1/2” lg. | |
| 18 | 2 | 22580050 | Hydraulic Cylinder | |
| 19 | 1 | 27395001 | 3/8” Stud Terminal Assembly | |
| 20 | 2 | 10010140 | Bearing, 1” I.D. x 1” lg. | |
| 21 | 2 | 22580055 | Cylinder Cover | |
| 22 | 2 | 37432201 | Bar, .25 X .125, 2.00 | |
| 23 | 1 | 75089574 | Hole Plug, 7/8” | |
| 24 | 1 | 75086252 | Stud, 3/8-16” X 2-1/2” | |
| 25 | 3 | 75085005 | 3/8” Hex Nut Serrated | |
| 26 | 1 | 22530500 | Angle, Bearing Support | |
| 27 | 1 | 39035700 | Guide Bearing | |
| 28 | 2 | 75086924 | Hex Bolt, 1/4-20, Self-Threading | |
| 29 | 1 | 22593001 | Under Ride Bumper Tube (Optional) | |
| 30 | 2 | 22593500 | Under Ride Bumper Mount Bracket Assy (Optional) | |
| 31 | 2 | 22592800 | Under Ride Bumper Support Bar (Optional) | |
| 32 | 1 | 80101171 | Under Ride Bumper DOT Decal (Optional) | |
| 33 | 1 | 22522201 | Cover Gasket | |
| 34 | 4 | 23570100 | Pin Assembly |

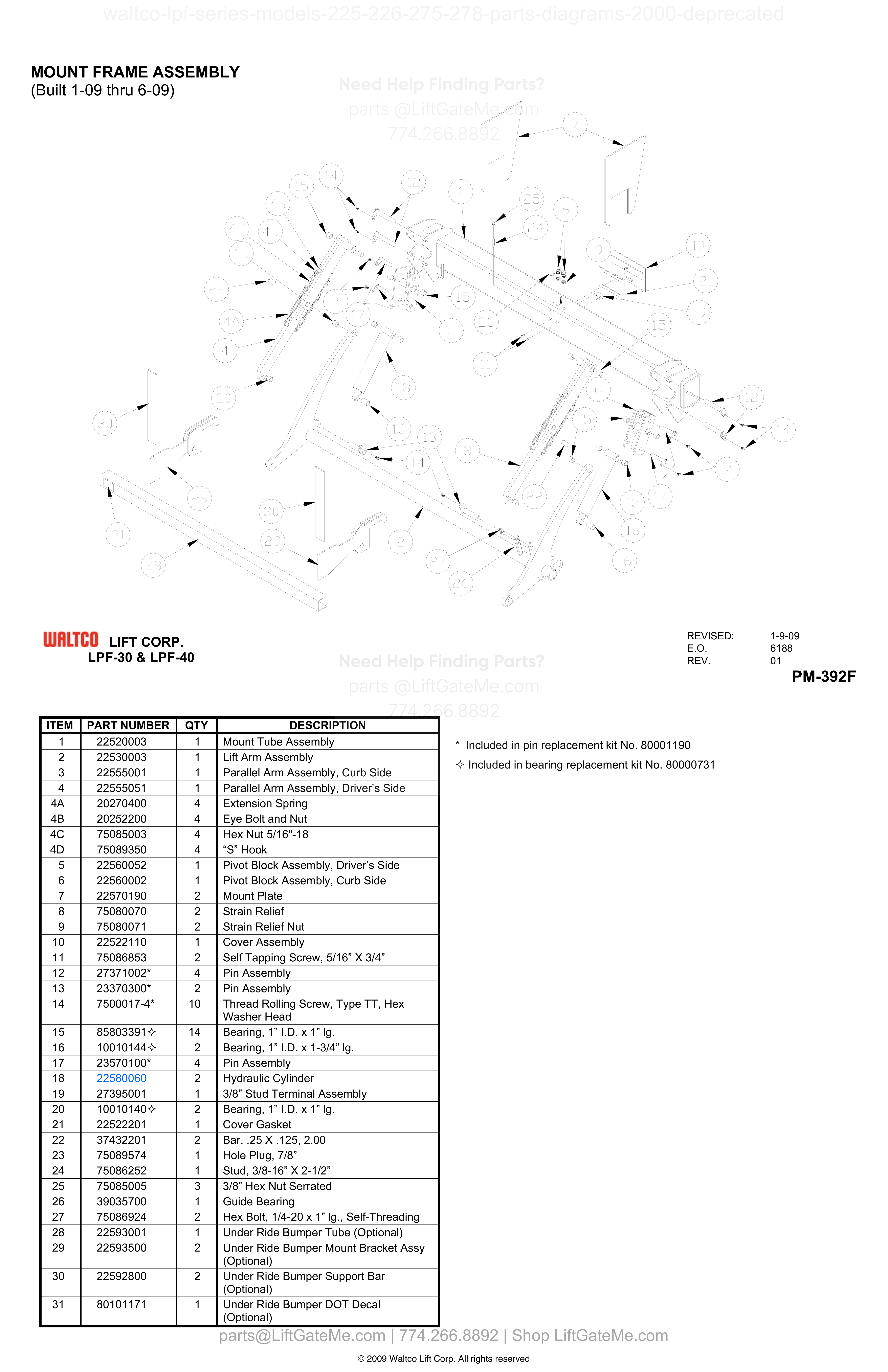

MOUNT FRAME ASSEMBLY (Built 1-09 thru 6-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22520003 | Mount Tube Assembly | |
| 2 | 1 | 22530003 | Lift Arm Assembly | |
| 3 | 1 | 22555001 | Parallel Arm Assembly, Curb Side | |
| 4 | 1 | 22555051 | Parallel Arm Assembly, Driver’s Side | |
| 4A | 4 | 20270400 | Extension Spring | |
| 4B | 4 | 20252200 | Eye Bolt and Nut | |
| 4C | 4 | 75085003 | Hex Nut 5/16"-18 | |
| 4D | 4 | 75089350 | “S” Hook | |
| 5 | 1 | 22560052 | Pivot Block Assembly, Driver’s Side | |
| 6 | 1 | 22560002 | Pivot Block Assembly, Curb Side | |
| 7 | 2 | 22570190 | Mount Plate | |
| 8 | 2 | 75080070 | Strain Relief | |
| 9 | 2 | 75080071 | Strain Relief Nut | |
| 10 | 1 | 22522110 | Cover Assembly | |
| 11 | 2 | 75086853 | Self Tapping Screw, 5/16” X 3/4” | |
| 12 | 4 | 27371002 | Pin Assembly | |
| 13 | 2 | 23370300 | Pin Assembly | |
| 14 | 10 | 7500017-4 | Thread Rolling Screw, Type TT, Hex Washer Head | |
| 15 | 14 | 85803391 | Bearing, 1” I.D. x 1” lg. | |
| 16 | 2 | 10010144 | Bearing, 1” I.D. x 1-3/4” lg. | |
| 17 | 4 | 23570100 | Pin Assembly | |
| 18 | 2 | 22580060 | Hydraulic Cylinder | |
| 19 | 1 | 27395001 | 3/8” Stud Terminal Assembly | |
| 20 | 2 | 10010140 | Bearing, 1” I.D. x 1” lg. | |
| 21 | 1 | 22522201 | Cover Gasket | |
| 22 | 2 | 37432201 | Bar, .25 X .125, 2.00 | |
| 23 | 1 | 75089574 | Hole Plug, 7/8” | |
| 24 | 1 | 75086252 | Stud, 3/8-16” X 2-1/2” | |
| 25 | 3 | 75085005 | 3/8” Hex Nut Serrated | |
| 26 | 1 | 39035700 | Guide Bearing | |
| 27 | 2 | 75086924 | Hex Bolt, 1/4-20 x 1” lg., Self-Threading | |
| 28 | 1 | 22593001 | Under Ride Bumper Tube (Optional) | |
| 29 | 2 | 22593500 | Under Ride Bumper Mount Bracket Assy (Optional) | |
| 30 | 2 | 22592800 | Under Ride Bumper Support Bar (Optional) | |
| 31 | 1 | 80101171 | Under Ride Bumper DOT Decal (Optional) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

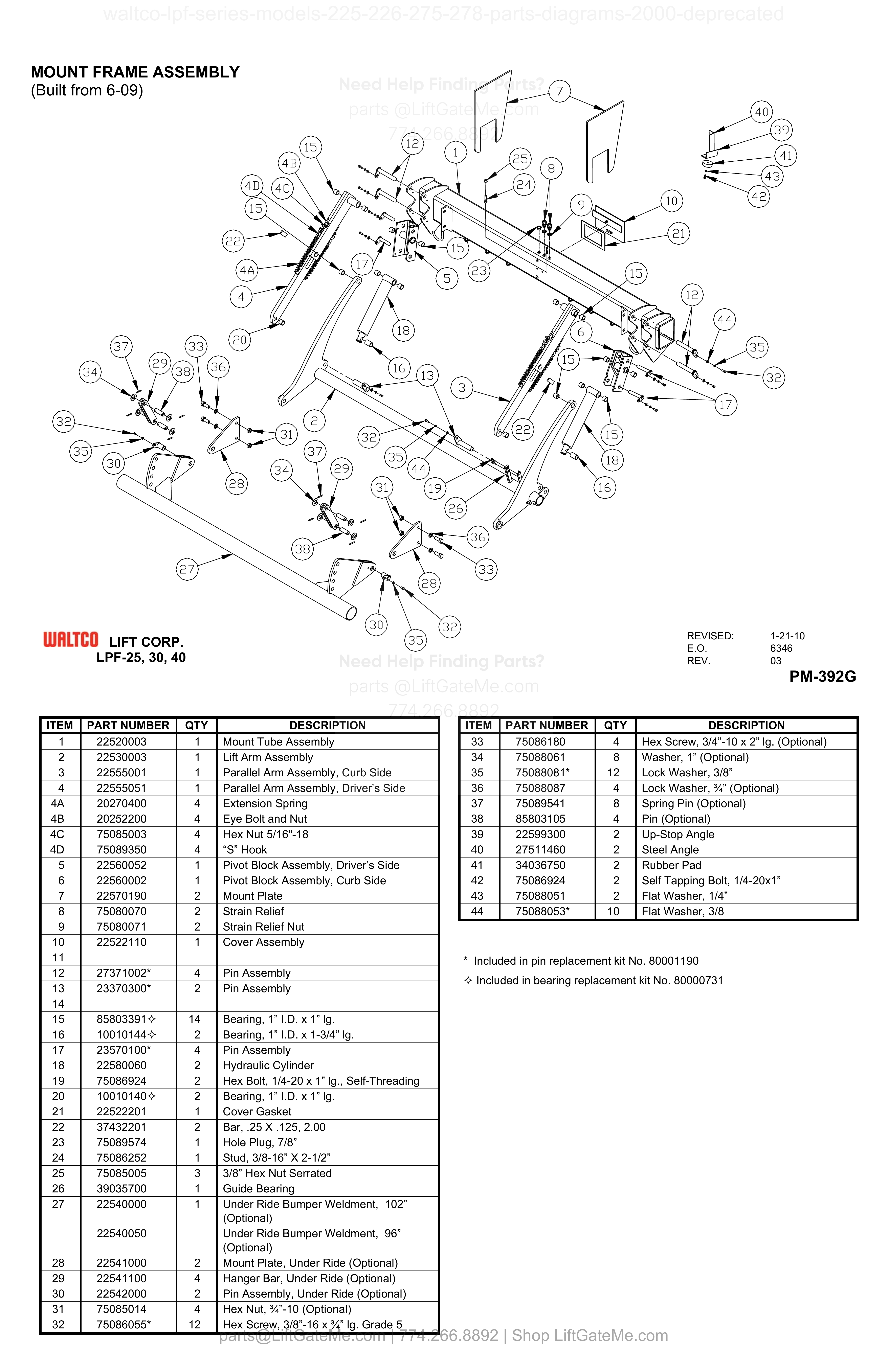

MOUNT FRAME ASSEMBLY (Built from 6-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22520003 | Mount Tube Assembly | |
| 2 | 1 | 22530003 | Lift Arm Assembly | |
| 3 | 1 | 22555001 | Parallel Arm Assembly, Curb Side | |
| 4 | 1 | 22555051 | Parallel Arm Assembly, Driver’s Side | |
| 4A | 4 | 20270400 | Extension Spring | |
| 4B | 4 | 20252200 | Eye Bolt and Nut | |
| 4C | 4 | 75085003 | Hex Nut 5/16"-18 | |
| 4D | 4 | 75089350 | “S” Hook | |
| 5 | 1 | 22560052 | Pivot Block Assembly, Driver’s Side | |
| 6 | 1 | 22560002 | Pivot Block Assembly, Curb Side | |
| 7 | 2 | 22570190 | Mount Plate | |
| 8 | 2 | 75080070 | Strain Relief | |
| 9 | 2 | 75080071 | Strain Relief Nut | |
| 10 | 1 | 22522110 | Cover Assembly | |
| 11 | ||||
| 12 | 4 | 27371002 | Pin Assembly | |
| 13 | 2 | 23370300 | Pin Assembly | |
| 14 | ||||
| 15 | 14 | 85803391 | Bearing, 1” I.D. x 1” lg. | |
| 16 | 2 | 10010144 | Bearing, 1” I.D. x 1-3/4” lg. | |
| 17 | 4 | 23570100 | Pin Assembly | |
| 18 | 2 | 22580060 | Hydraulic Cylinder | |
| 19 | 2 | 75086924 | Hex Bolt, 1/4-20 x 1” lg., Self-Threading | |
| 20 | 2 | 10010140 | Bearing, 1” I.D. x 1” lg. | |
| 21 | 1 | 22522201 | Cover Gasket | |
| 22 | 2 | 37432201 | Bar, .25 X .125, 2.00 | |
| 23 | 1 | 75089574 | Hole Plug, 7/8” | |
| 24 | 1 | 75086252 | Stud, 3/8-16” X 2-1/2” | |
| 25 | 3 | 75085005 | 3/8” Hex Nut Serrated | |
| 26 | 1 | 39035700 | Guide Bearing | |
| 27 | 1 | 22540000 | Under Ride Bumper Weldment, 102” (Optional) | |
| 27 | 22540050 | Under Ride Bumper Weldment, 96” (Optional) | ||
| 28 | 2 | 22541000 | Mount Plate, Under Ride (Optional) | |
| 29 | 4 | 22541100 | Hanger Bar, Under Ride (Optional) | |
| 30 | 2 | 22542000 | Pin Assembly, Under Ride (Optional) | |
| 31 | 4 | 75085014 | Hex Nut, ¾”-10 (Optional) | |
| 32 | 12 | 75086055 | Hex Screw, 3/8”-16 x ¾” lg. Grade 5 | |
| 33 | 4 | 75086180 | Hex Screw, 3/4”-10 x 2” lg. (Optional) | |
| 34 | 8 | 75088061 | Washer, 1” (Optional) | |
| 35 | 12 | 75088081 | Lock Washer, 3/8” | |
| 36 | 4 | 75088087 | Lock Washer, ¾” (Optional) | |
| 37 | 8 | 75089541 | Spring Pin (Optional) | |
| 38 | 4 | 85803105 | Pin (Optional) | |
| 39 | 2 | 22599300 | Up-Stop Angle | |
| 40 | 2 | 27511460 | Steel Angle | |
| 41 | 2 | 34036750 | Rubber Pad | |
| 42 | 2 | 75086924 | Self Tapping Bolt, 1/4-20x1” | |
| 43 | 2 | 75088051 | Flat Washer, 1/4” | |
| 44 | 10 | 75088053 | Flat Washer, 3/8 | |
| 12 | 4 | 27371002* | Pin Assembly | |
| 13 | 2 | 23370300* | Pin Assembly | |
| 17 | 4 | 23570100* | Pin Assembly | |
| 32 | 12 | 75086055* | Hex Screw, 3/8”-16 x ¾” lg. Grade 5 | |
| 35 | 12 | 75088081* | Lock Washer, 3/8” | |
| 44 | 10 | 75088053* | Flat Washer, 3/8 |
i

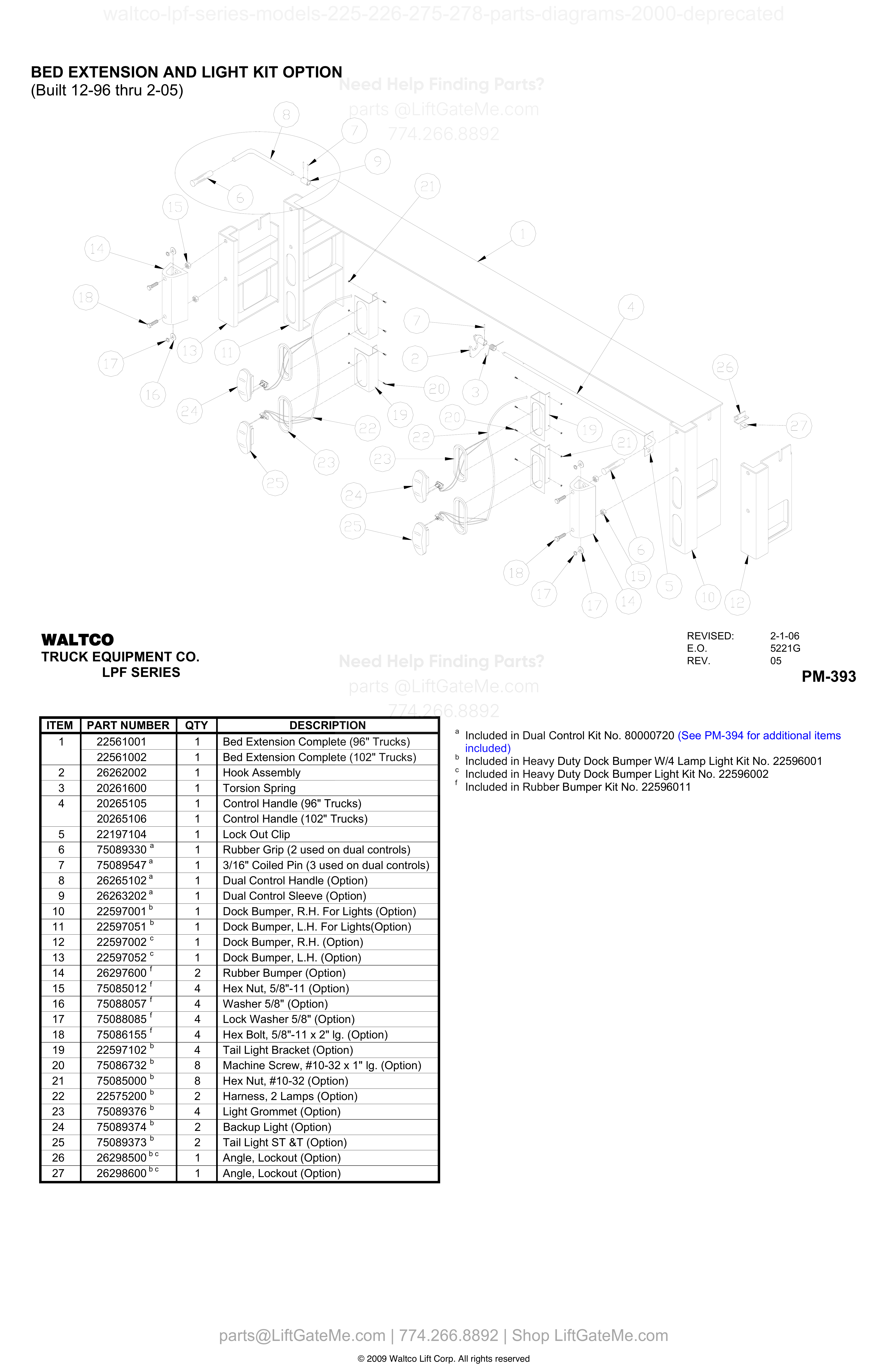

BED EXTENSION AND LIGHT KIT OPTION (Built 12-96 thru 2-05)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22561001 | Bed Extension Complete (96" Trucks) | |
| 1 | 1 | 22561002 | Bed Extension Complete (102" Trucks) | |
| 2 | 1 | 26262002 | Hook Assembly | |
| 3 | 1 | 20261600 | Torsion Spring | |
| 4 | 1 | 20265105 | Control Handle (96" Trucks) | |
| 4 | 1 | 20265106 | Control Handle (102" Trucks) | |
| 5 | 1 | 22197104 | Lock Out Clip | |
| 6 | 1 | 75089330 A | Rubber Grip (2 used on dual controls) | |
| 7 | 1 | 75089547 A | 3/16" Coiled Pin (3 used on dual controls) | |
| 8 | 1 | 26265102 A | Dual Control Handle (Option) | |
| 9 | 1 | 26263202 A | Dual Control Sleeve (Option) | |
| 10 | 1 | 22597001 B | Dock Bumper, R.H. For Lights (Option) | |
| 11 | 1 | 22597051 B | Dock Bumper, L.H. For Lights(Option) | |
| 12 | 1 | 22597002 C | Dock Bumper, R.H. (Option) | |
| 13 | 1 | 22597052 C | Dock Bumper, L.H. (Option) | |
| 14 | 2 | 26297600 F | Rubber Bumper (Option) | |
| 15 | 4 | 75085012 F | Hex Nut, 5/8"-11 (Option) | |
| 16 | 4 | 75088057 F | Washer 5/8" (Option) | |
| 17 | 4 | 75088085 F | Lock Washer 5/8" (Option) | |
| 18 | 4 | 75086155 F | Hex Bolt, 5/8"-11 x 2" lg. (Option) | |
| 19 | 4 | 22597102 B | Tail Light Bracket (Option) | |
| 20 | 8 | 75086732 B | Machine Screw, #10-32 x 1" lg. (Option) | |
| 21 | 8 | 75085000 B | Hex Nut, #10-32 (Option) | |
| 22 | 2 | 22575200 B | Harness, 2 Lamps (Option) | |
| 23 | 4 | 75089376 B | Light Grommet (Option) | |
| 24 | 2 | 75089374 B | Backup Light (Option) | |
| 25 | 2 | 75089373 B | Tail Light ST &T (Option) | |
| 26 | 1 | 26298500 B,C | Angle, Lockout (Option) | |
| 27 | 1 | 26298600 B,C | Angle, Lockout (Option) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

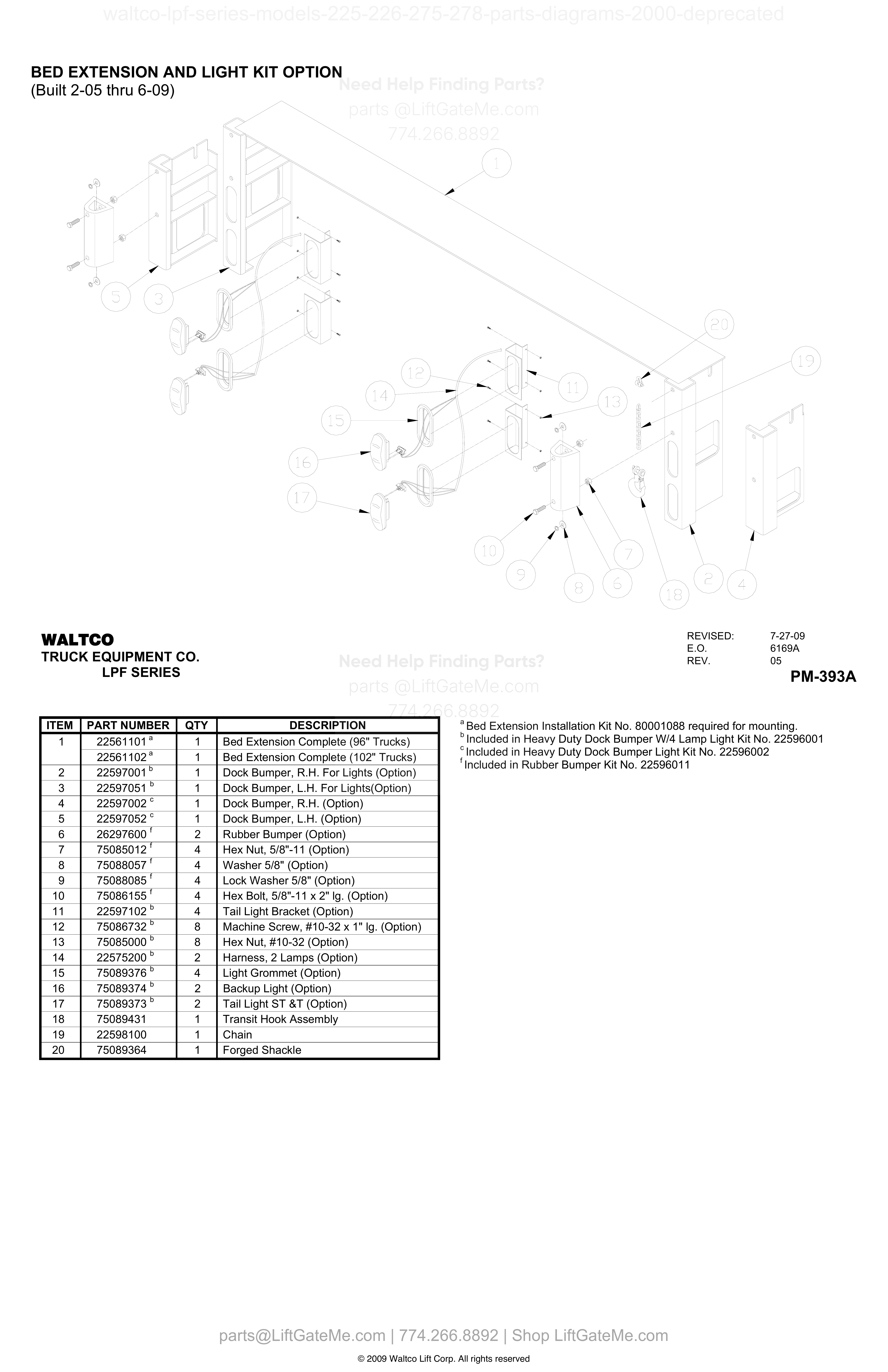

BED EXTENSION AND LIGHT KIT OPTION (Built 2-05 thru 6-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22561101 A | Bed Extension Complete (96" Trucks) | |
| 1 | 1 | 22561102 A | Bed Extension Complete (102" Trucks) | |
| 2 | 1 | 22597001 B | Dock Bumper, R.H. For Lights (Option) | |
| 3 | 1 | 22597051 B | Dock Bumper, L.H. For Lights(Option) | |
| 4 | 1 | 22597002 C | Dock Bumper, R.H. (Option) | |
| 5 | 1 | 22597052 C | Dock Bumper, L.H. (Option) | |
| 6 | 2 | 26297600 F | Rubber Bumper (Option) | |
| 7 | 4 | 75085012 F | Hex Nut, 5/8"-11 (Option) | |
| 8 | 4 | 75088057 F | Washer 5/8" (Option) | |
| 9 | 4 | 75088085 F | Lock Washer 5/8" (Option) | |
| 10 | 4 | 75086155 F | Hex Bolt, 5/8"-11 x 2" lg. (Option) | |
| 11 | 4 | 22597102 B | Tail Light Bracket (Option) | |
| 12 | 8 | 75086732 B | Machine Screw, #10-32 x 1" lg. (Option) | |
| 13 | 8 | 75085000 B | Hex Nut, #10-32 (Option) | |
| 14 | 2 | 22575200 B | Harness, 2 Lamps (Option) | |
| 15 | 4 | 75089376 B | Light Grommet (Option) | |
| 16 | 2 | 75089374 B | Backup Light (Option) | |
| 17 | 2 | 75089373 B | Tail Light ST &T (Option) | |
| 18 | 1 | 75089431 | Transit Hook Assembly | |
| 19 | 1 | 22598100 | Chain | |
| 20 | 1 | 75089364 | Forged Shackle |

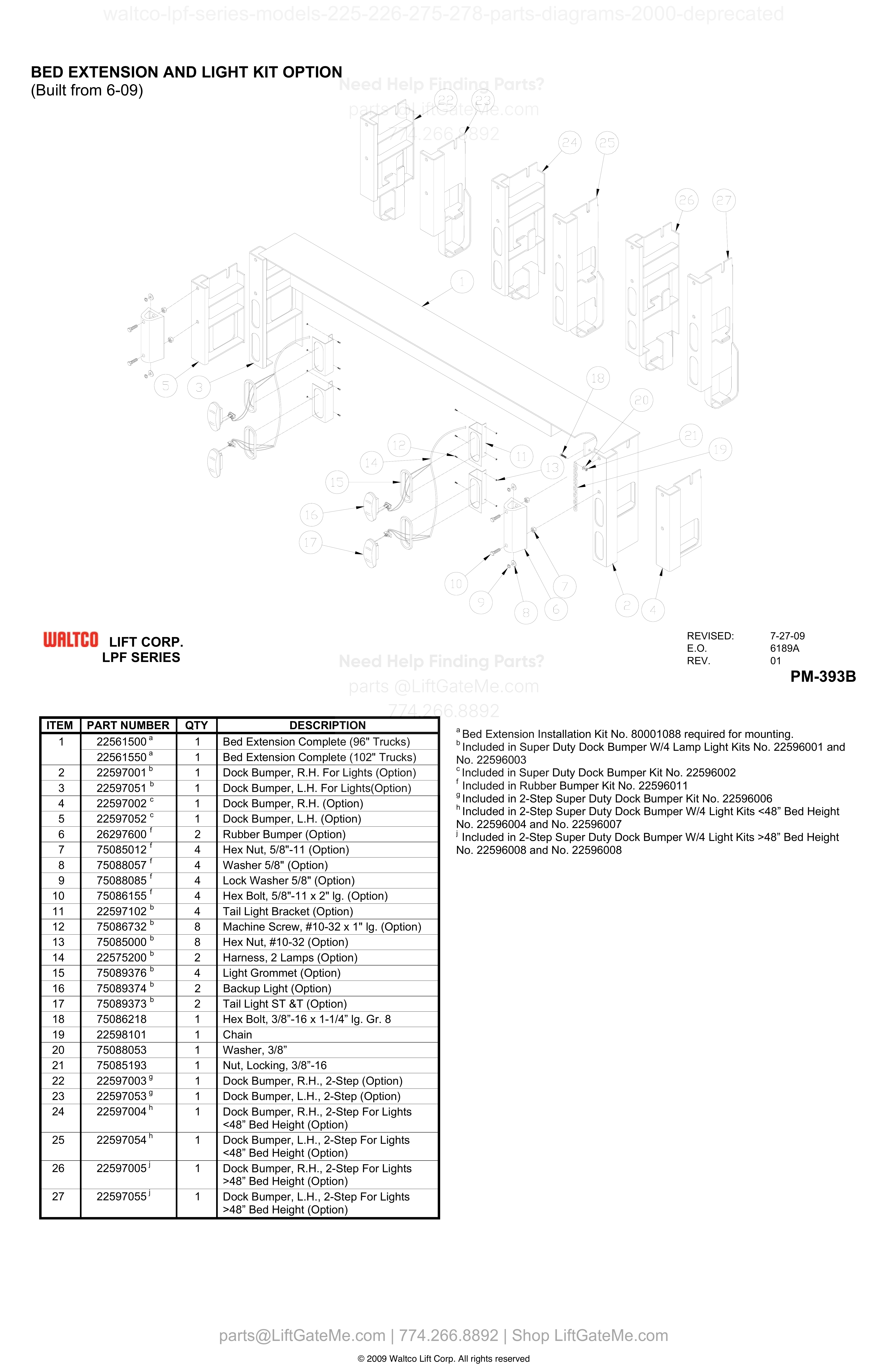

BED EXTENSION AND LIGHT KIT OPTION (Built from 6-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22561500 A | Bed Extension Complete (96" Trucks) | |
| 1 | 1 | 22561550 A | Bed Extension Complete (102" Trucks) | |
| 2 | 1 | 22597001 B | Dock Bumper, R.H. For Lights (Option) | |
| 3 | 1 | 22597051 B | Dock Bumper, L.H. For Lights (Option) | |
| 4 | 1 | 22597002 C | Dock Bumper, R.H. (Option) | |
| 5 | 1 | 22597052 C | Dock Bumper, L.H. (Option) | |
| 6 | 2 | 26297600 F | Rubber Bumper (Option) | |
| 7 | 4 | 75085012 F | Hex Nut, 5/8"-11 (Option) | |
| 8 | 4 | 75088057 F | Washer 5/8" (Option) | |
| 9 | 4 | 75088085 F | Lock Washer 5/8" (Option) | |
| 10 | 4 | 75086155 F | Hex Bolt, 5/8"-11 x 2" lg. (Option) | |
| 11 | 4 | 22597102 B | Tail Light Bracket (Option) | |
| 12 | 8 | 75086732 B | Machine Screw, #10-32 x 1" lg. (Option) | |
| 13 | 8 | 75085000 B | Hex Nut, #10-32 (Option) | |
| 14 | 2 | 22575200 B | Harness, 2 Lamps (Option) | |
| 15 | 4 | 75089376 B | Light Grommet (Option) | |
| 16 | 2 | 75089374 B | Backup Light (Option) | |
| 17 | 2 | 75089373 B | Tail Light ST &T (Option) | |
| 18 | 1 | 75086218 | Hex Bolt, 3/8”-16 x 1-1/4” lg. Gr. 8 | |
| 19 | 1 | 22598101 | Chain | |
| 20 | 1 | 75088053 | Washer, 3/8” | |
| 21 | 1 | 75085193 G | Nut, Locking, 3/8”-16 | |
| 22 | 1 | 22597003 G | Dock Bumper, R.H., 2-Step (Option) | |
| 23 | 1 | 22597053 G | Dock Bumper, L.H., 2-Step (Option) | |
| 24 | 1 | 22597004 H | Dock Bumper, R.H., 2-Step For Lights <48” Bed Height (Option) | |
| 25 | 1 | 22597054 H | Dock Bumper, L.H., 2-Step For Lights <48” Bed Height (Option) | |
| 26 | 1 | 22597005 I | Dock Bumper, R.H., 2-Step For Lights >48” Bed Height (Option) | |
| 27 | 1 | 22597055 I | Dock Bumper, L.H., 2-Step For Lights >48” Bed Height (Option) |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it
i

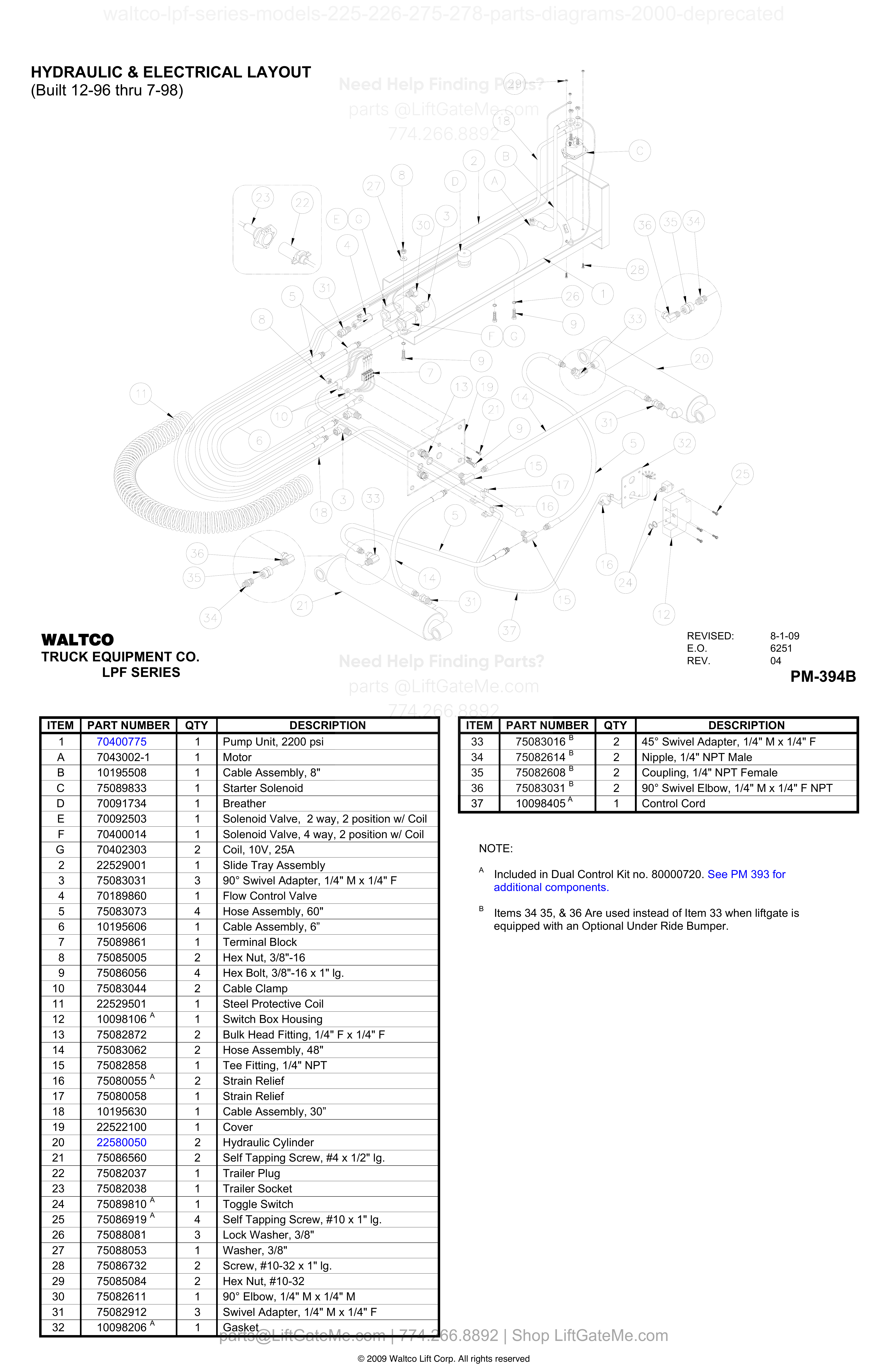

HYDRAULIC & ELECTRICAL LAYOUT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400775 | Pump Unit, 2200 psi | |
| A | 1 | 7043002-1 | Motor | |
| B | 1 | 10195508 | Cable Assembly, 8" | |
| C | 1 | 75089833 | Starter Solenoid | |
| D | 1 | 70091734 | Breather | |
| E | 1 | 70092503 | Solenoid Valve, 2 way, 2 position w/ Coil | |
| F | 1 | 70400014 | Solenoid Valve, 4 way, 2 position w/ Coil | |
| G | 2 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 22529001 | Slide Tray Assembly | |
| 3 | 3 | 75083031 | 90° Swivel Adapter, 1/4" M x 1/4" F | |
| 4 | 1 | 70189860 | Flow Control Valve | |
| 5 | 4 | 75083073 | Hose Assembly, 60" | |
| 6 | 1 | 10195606 | Cable Assembly, 6” | |
| 7 | 1 | 75089861 | Terminal Block | |
| 8 | 2 | 75085005 | Hex Nut, 3/8"-16 | |
| 9 | 4 | 75086056 | Hex Bolt, 3/8"-16 x 1" lg. | |
| 10 | 2 | 75083044 | Cable Clamp | |
| 11 | 1 | 22529501 | Steel Protective Coil | |
| 12 | 1 | 10098106 A | Switch Box Housing | |
| 13 | 2 | 75082872 | Bulk Head Fitting, 1/4" F x 1/4" F | |
| 14 | 2 | 75083062 | Hose Assembly, 48" | |
| 15 | 1 | 75082858 | Tee Fitting, 1/4" NPT | |
| 16 | 2 | 75080055 A | Strain Relief | |
| 17 | 1 | 75080058 | Strain Relief | |
| 18 | 1 | 10195630 | Cable Assembly, 30” | |
| 19 | 1 | 22522100 | Cover | |
| 20 | 2 | 22580050 | Hydraulic Cylinder | |
| 21 | 2 | 75086560 | Self Tapping Screw, #4 x 1/2" lg. | |
| 22 | 1 | 75082037 | Trailer Plug | |
| 23 | 1 | 75082038 | Trailer Socket | |
| 24 | 1 | 75089810 A | Toggle Switch | |
| 25 | 4 | 75086919 A | Self Tapping Screw, #10 x 1" lg. | |
| 26 | 3 | 75088081 | Lock Washer, 3/8" | |
| 27 | 1 | 75088053 | Washer, 3/8" | |
| 28 | 2 | 75086732 | Screw, #10-32 x 1" lg. | |
| 29 | 2 | 75085084 | Hex Nut, #10-32 | |
| 30 | 1 | 75082611 | 90° Elbow, 1/4" M x 1/4" M | |
| 31 | 3 | 75082912 | Swivel Adapter, 1/4" M x 1/4" F | |
| 32 | 1 | 10098206 A | Gasket | |
| 33 | 2 | 75083016 B | 45° Swivel Adapter, 1/4" M x 1/4" F | |
| 34 | 2 | 75082614 B | Nipple, 1/4" NPT Male | |
| 35 | 2 | 75082608 B | Coupling, 1/4" NPT Female | |
| 36 | 2 | 75083031 B | 90° Swivel Elbow, 1/4" M x 1/4" F NPT | |
| 37 | 1 | 10098405 A | Control Cord |
HYDRAULIC & ELECTRICAL LAYOUT (Built 7-98 thru 1-02)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400775 | Pump Unit, 2200 psi | |
| A | 1 | 70400856 | Motor | |
| B | 1 | 10195508 | Cable Assembly, 8" | |
| C | 1 | 75089833 | Starter Solenoid | |
| D | 1 | 70091734 | Breather | |
| E | 1 | 70092503 | Solenoid Valve, 2 way, 2 position w/ Coil | |
| F | 1 | 70400014 | Solenoid Valve, 4 way, 2 position w/ Coil | |
| G | 2 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 22529001 | Slide Tray Assembly | |
| 3 | 3 | 75083031 | 90° Swivel Adapter, 1/4" M x 1/4" F | |
| 4 | 1 | 70189860 | Flow Control Valve | |
| 5 | 4 | 75083073 | Hose Assembly, 60" | |
| 6 | 1 | 10195606 | Cable Assembly, 6” | |
| 7 | 1 | 75089861 | Terminal Block | |
| 8 | 2 | 75085005 | Hex Nut, 3/8"-16 | |
| 9 | 4 | 75086056 | Hex Bolt, 3/8"-16 x 1" lg. | |
| 10 | 2 | 75083043 | Cable Clamp | |
| 11 | 1 | 22529501 | Steel Protective Coil | |
| 12 | 3 | 75082033 | 16 ga Heat Shrink Butt Connector | |
| 13 | 2 | 75082872 | Bulk Head Fitting, 1/4" F x 1/4" F | |
| 14 | 2 | 75083062 | Hose Assembly, 48" | |
| 15 | 1 | 75082858 | Tee Fitting, 1/4" NPT | |
| 16 | 2 | 75080055 | Strain Relief | |
| 17 | 1 | 75080058 | Strain Relief | |
| 18 | 1 | 10195630 | Cable Assembly, 30” | |
| 19 | 1 | 22522100 | Cover | |
| 20 | 2 | 22580050 | Hydraulic Cylinder | |
| 21 | 2 | 75086560 | Self Tapping Screw, #4 x 1/2" lg. | |
| 22 | 1 | 75082037 | Trailer Plug | |
| 23 | 1 | 75082038 | Trailer Socket | |
| 24 | 1 | 80000425 | Raise/Lower Control Switch | |
| 25 | 4 | 75086860 | Self Tapping Screw, #8 x 3/4" lg. | |
| 26 | 3 | 75088081 | Lock Washer, 3/8" | |
| 27 | 1 | 75088053 | Washer, 3/8" | |
| 28 | 2 | 75086732 | Screw, #10-32 x 1" lg. | |
| 29 | 2 | 75085084 | Hex Nut, #10-32 | |
| 30 | 1 | 75082611 | 90° Elbow, 1/4" M x 1/4" M | |
| 31 | 3 | 75082912 | Swivel Adapter, 1/4" M x 1/4" F | |
| 32 | 1 | 10098408 | Control Cord Assembly | |
| 33 | 2 | 75083016 A | 45° Swivel Adapter, 1/4" M x 1/4" F | |
| 34 | 2 | 75082614 A | Nipple, 1/4" NPT Male | |
| 35 | 2 | 75082608 A | Coupling, 1/4" NPT Female | |
| 36 | 2 | 75083031 A | 90° Swivel Elbow, 1/4" M x 1/4" F NPT |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

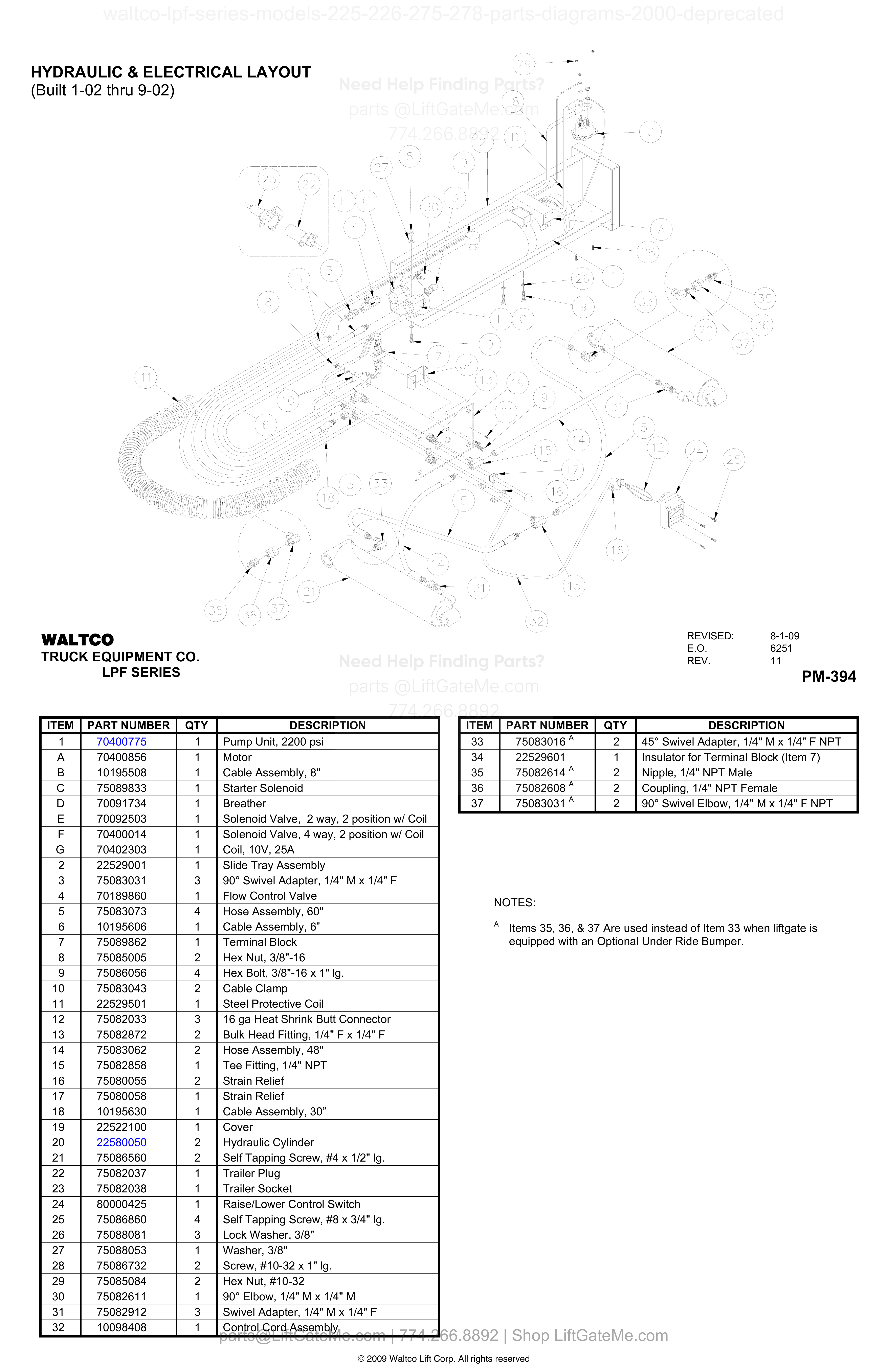

HYDRAULIC & ELECTRICAL LAYOUT (Built 1-02 thru 9-02)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400775 | Pump Unit, 2200 psi | |
| A | 1 | 70400856 | Motor | |
| B | 1 | 10195508 | Cable Assembly, 8" | |
| C | 1 | 75089833 | Starter Solenoid | |
| D | 1 | 70091734 | Breather | |
| E | 1 | 70092503 | Solenoid Valve, 2 way, 2 position w/ Coil | |
| F | 1 | 70400014 | Solenoid Valve, 4 way, 2 position w/ Coil | |
| G | 1 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 22529001 | Slide Tray Assembly | |
| 3 | 3 | 75083031 | 90° Swivel Adapter, 1/4" M x 1/4" F | |
| 4 | 1 | 70189860 | Flow Control Valve | |
| 5 | 4 | 75083073 | Hose Assembly, 60" | |
| 6 | 1 | 10195606 | Cable Assembly, 6” | |
| 7 | 1 | 75089862 | Terminal Block | |
| 8 | 2 | 75085005 | Hex Nut, 3/8"-16 | |
| 9 | 4 | 75086056 | Hex Bolt, 3/8"-16 x 1" lg. | |
| 10 | 2 | 75083043 | Cable Clamp | |
| 11 | 1 | 22529501 | Steel Protective Coil | |
| 12 | 3 | 75082033 | 16 ga Heat Shrink Butt Connector | |
| 13 | 2 | 75082872 | Bulk Head Fitting, 1/4" F x 1/4" F | |
| 14 | 2 | 75083062 | Hose Assembly, 48" | |
| 15 | 1 | 75082858 | Tee Fitting, 1/4" NPT | |
| 16 | 2 | 75080055 | Strain Relief | |
| 17 | 1 | 75080058 | Strain Relief | |
| 18 | 1 | 10195630 | Cable Assembly, 30” | |
| 19 | 1 | 22522100 | Cover | |
| 20 | 2 | 22580050 | Hydraulic Cylinder | |
| 21 | 2 | 75086560 | Self Tapping Screw, #4 x 1/2" lg. | |
| 22 | 1 | 75082037 | Trailer Plug | |
| 23 | 1 | 75082038 | Trailer Socket | |
| 24 | 1 | 80000425 | Raise/Lower Control Switch | |
| 25 | 4 | 75086860 | Self Tapping Screw, #8 x 3/4" lg. | |
| 26 | 3 | 75088081 | Lock Washer, 3/8" | |
| 27 | 1 | 75088053 | Washer, 3/8" | |
| 28 | 2 | 75086732 | Screw, #10-32 x 1" lg. | |
| 29 | 2 | 75085084 | Hex Nut, #10-32 | |
| 30 | 1 | 75082611 | 90° Elbow, 1/4" M x 1/4" M | |
| 31 | 3 | 75082912 | Swivel Adapter, 1/4" M x 1/4" F | |
| 32 | 1 | 10098408 | Control Cord Assembly | |
| 33 | 2 | 75083016 A | 45° Swivel Adapter, 1/4" M x 1/4" F NPT | |
| 34 | 1 | 22529601 | Insulator for Terminal Block (Item 7) | |
| 35 | 2 | 75082614 A | Nipple, 1/4" NPT Male | |
| 36 | 2 | 75082608 A | Coupling, 1/4" NPT Female | |
| 37 | 2 | 75083031 A | 90° Swivel Elbow, 1/4" M x 1/4" F NPT |

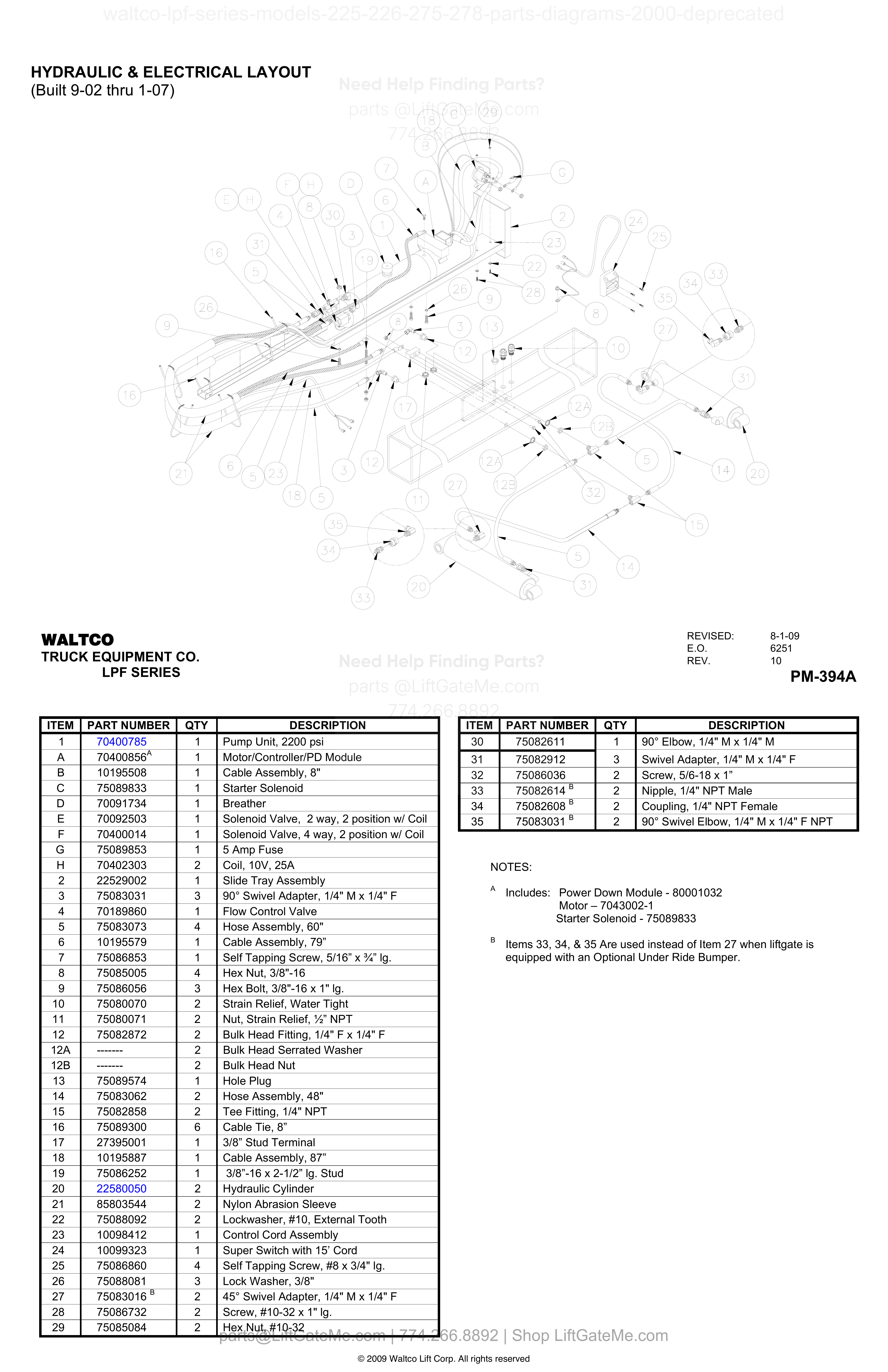

HYDRAULIC & ELECTRICAL LAYOUT (Built 9-02 thru 1-07)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400785 | Pump Unit, 2200 psi | |
| A | 1 | 70400856 A | Motor/Controller/PD Module | |
| B | 1 | 10195508 | Cable Assembly, 8" | |
| C | 1 | 75089833 | Starter Solenoid | |
| D | 1 | 70091734 | Breather | |
| E | 1 | 70092503 | Solenoid Valve, 2 way, 2 position w/ Coil | |
| F | 1 | 70400014 | Solenoid Valve, 4 way, 2 position w/ Coil | |
| G | 1 | 75089853 | 5 Amp Fuse | |
| H | 2 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 22529002 | Slide Tray Assembly | |
| 3 | 3 | 75083031 | 90° Swivel Adapter, 1/4" M x 1/4" F | |
| 4 | 1 | 70189860 | Flow Control Valve | |
| 5 | 4 | 75083073 | Hose Assembly, 60" | |
| 6 | 1 | 10195579 | Cable Assembly, 79” | |
| 7 | 1 | 75086853 | Self Tapping Screw, 5/16” x ¾” lg. | |
| 8 | 4 | 75085005 | Hex Nut, 3/8"-16 | |
| 9 | 3 | 75086056 | Hex Bolt, 3/8"-16 x 1" lg. | |
| 10 | 2 | 75080070 | Strain Relief, Water Tight | |
| 11 | 2 | 75080071 | Nut, Strain Relief, ½” NPT | |
| 12 | 2 | 75082872 | Bulk Head Fitting, 1/4" F x 1/4" F | |
| 12A | 2 | ------- | Bulk Head Serrated Washer | |
| 12B | 2 | ------- | Bulk Head Nut | |
| 13 | 1 | 75089574 | Hole Plug | |
| 14 | 2 | 75083062 | Hose Assembly, 48" | |
| 15 | 2 | 75082858 | Tee Fitting, 1/4" NPT | |
| 16 | 6 | 75089300 | Cable Tie, 8” | |
| 17 | 1 | 27395001 | 3/8” Stud Terminal | |
| 18 | 1 | 10195887 | Cable Assembly, 87” | |
| 19 | 1 | 75086252 | 3/8”-16 x 2-1/2” lg. Stud | |
| 20 | 2 | 22580050 | Hydraulic Cylinder | |
| 21 | 2 | 85803544 | Nylon Abrasion Sleeve | |
| 22 | 2 | 75088092 | Lockwasher, #10, External Tooth | |
| 23 | 1 | 10098412 | Control Cord Assembly | |
| 24 | 1 | 10099323 | Super Switch with 15’ Cord | |
| 25 | 4 | 75086860 | Self Tapping Screw, #8 x 3/4" lg. | |
| 26 | 3 | 75088081 | Lock Washer, 3/8" | |
| 27 | 2 | 75083016 B | 45° Swivel Adapter, 1/4" M x 1/4" F | |
| 28 | 2 | 75086732 | Screw, #10-32 x 1" lg. | |
| 29 | 2 | 75085084 | Hex Nut, #10-32 | |
| 30 | 1 | 75082611 | 90° Elbow, 1/4" M x 1/4" M | |
| 31 | 3 | 75082912 | Swivel Adapter, 1/4" M x 1/4" F | |
| 32 | 2 | 75086036 | Screw, 5/6-18 x 1” | |
| 33 | 2 | 75082614 B | Nipple, 1/4" NPT Male | |
| 34 | 2 | 75082608 B | Coupling, 1/4" NPT Female | |
| 35 | 2 | 75083031 B | 90° Swivel Elbow, 1/4" M x 1/4" F NPT |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

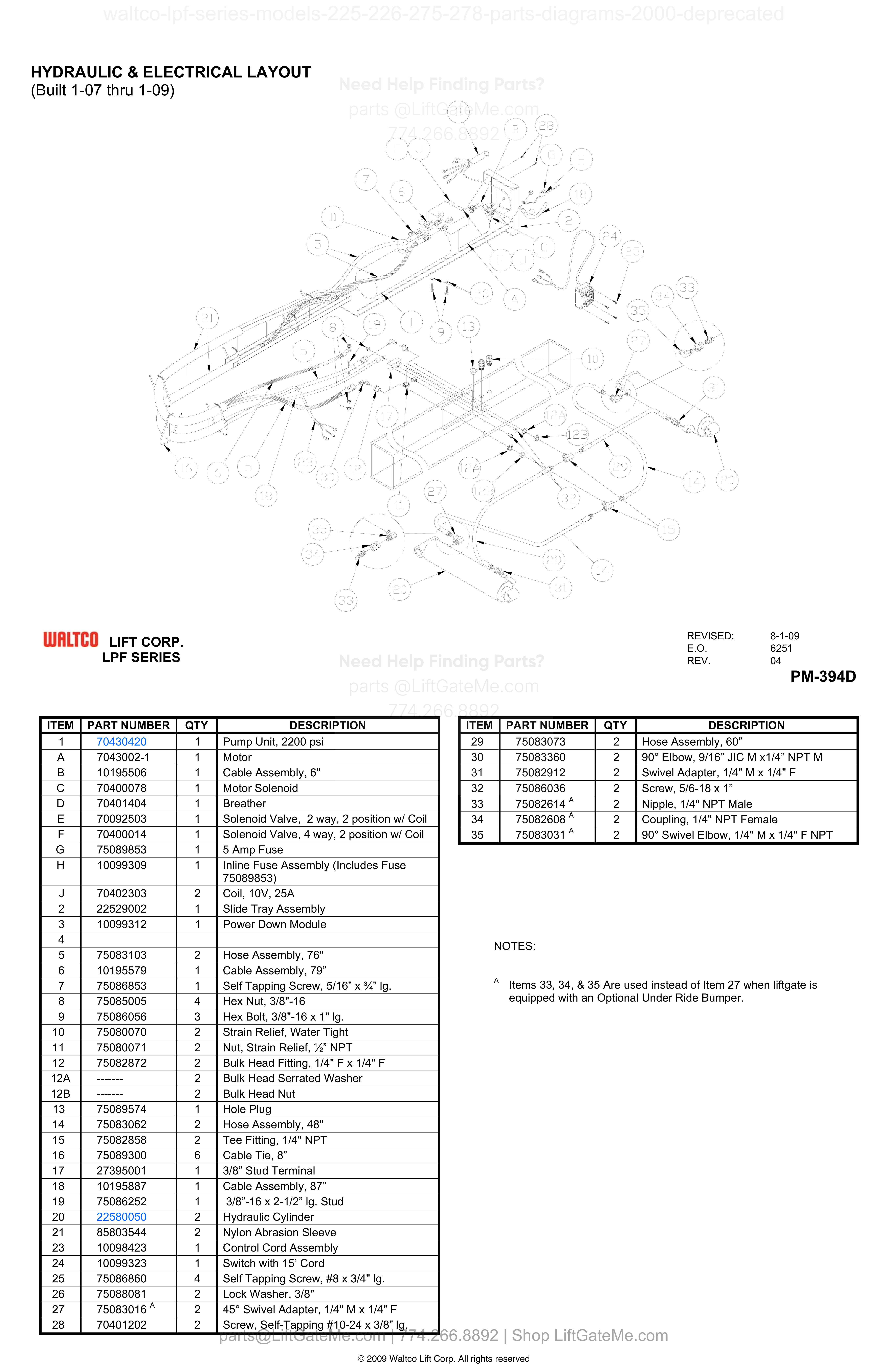

HYDRAULIC & ELECTRICAL LAYOUT (Built 1-07 thru 1-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70430420 | Pump Unit, 2200 psi | |
| A | 1 | 7043002-1 | Motor | |
| B | 1 | 10195506 | Cable Assembly, 6" | |
| C | 1 | 70400078 | Motor Solenoid | |
| D | 1 | 70401404 | Breather | |
| E | 1 | 70092503 | Solenoid Valve, 2 way, 2 position w/ Coil | |
| F | 1 | 70400014 | Solenoid Valve, 4 way, 2 position w/ Coil | |
| G | 1 | 75089853 | 5 Amp Fuse | |
| H | 1 | 10099309 | Inline Fuse Assembly (Includes Fuse 75089853) | |
| J | 2 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 22529002 | Slide Tray Assembly | |
| 3 | 1 | 10099312 | Power Down Module | |
| 4 | ||||
| 5 | 2 | 75083103 | Hose Assembly, 76" | |
| 6 | 1 | 10195579 | Cable Assembly, 79” | |
| 7 | 1 | 75086853 | Self Tapping Screw, 5/16” x ¾” lg. | |
| 8 | 4 | 75085005 | Hex Nut, 3/8"-16 | |
| 9 | 3 | 75086056 | Hex Bolt, 3/8"-16 x 1" lg. | |
| 10 | 2 | 75080070 | Strain Relief, Water Tight | |
| 11 | 2 | 75080071 | Nut, Strain Relief, ½” NPT | |
| 12 | 2 | 75082872 | Bulk Head Fitting, 1/4" F x 1/4" F | |
| 12A | 2 | ------- | Bulk Head Serrated Washer | |
| 12B | 2 | ------- | Bulk Head Nut | |
| 13 | 1 | 75089574 | Hole Plug | |
| 14 | 2 | 75083062 | Hose Assembly, 48" | |
| 15 | 2 | 75082858 | Tee Fitting, 1/4" NPT | |
| 16 | 6 | 75089300 | Cable Tie, 8” | |
| 17 | 1 | 27395001 | 3/8” Stud Terminal | |
| 18 | 1 | 10195887 | Cable Assembly, 87” | |
| 19 | 1 | 75086252 | 3/8”-16 x 2-1/2” lg. Stud | |
| 20 | 2 | 22580050 | Hydraulic Cylinder | |
| 21 | 2 | 85803544 | Nylon Abrasion Sleeve | |
| 23 | 1 | 10098423 | Control Cord Assembly | |
| 24 | 1 | 10099323 | Switch with 15’ Cord | |
| 25 | 4 | 75086860 | Self Tapping Screw, #8 x 3/4" lg. | |
| 26 | 2 | 75088081 | Lock Washer, 3/8" | |
| 27 | 2 | 75083016 A | 45° Swivel Adapter, 1/4" M x 1/4" F | |
| 28 | 2 | 70401202 | Screw, Self-Tapping #10-24 x 3/8” lg. | |
| 29 | 2 | 75083073 | Hose Assembly, 60” | |
| 30 | 2 | 75083360 | 90° Elbow, 9/16” JIC M x1/4” NPT M | |
| 31 | 2 | 75082912 | Swivel Adapter, 1/4" M x 1/4" F | |
| 32 | 2 | 75086036 | Screw, 5/6-18 x 1” | |
| 33 | 2 | 75082614 A | Nipple, 1/4" NPT Male | |
| 34 | 2 | 75082608 A | Coupling, 1/4" NPT Female | |
| 35 | 2 | 75083031 A | 90° Swivel Elbow, 1/4" M x 1/4" F NPT |

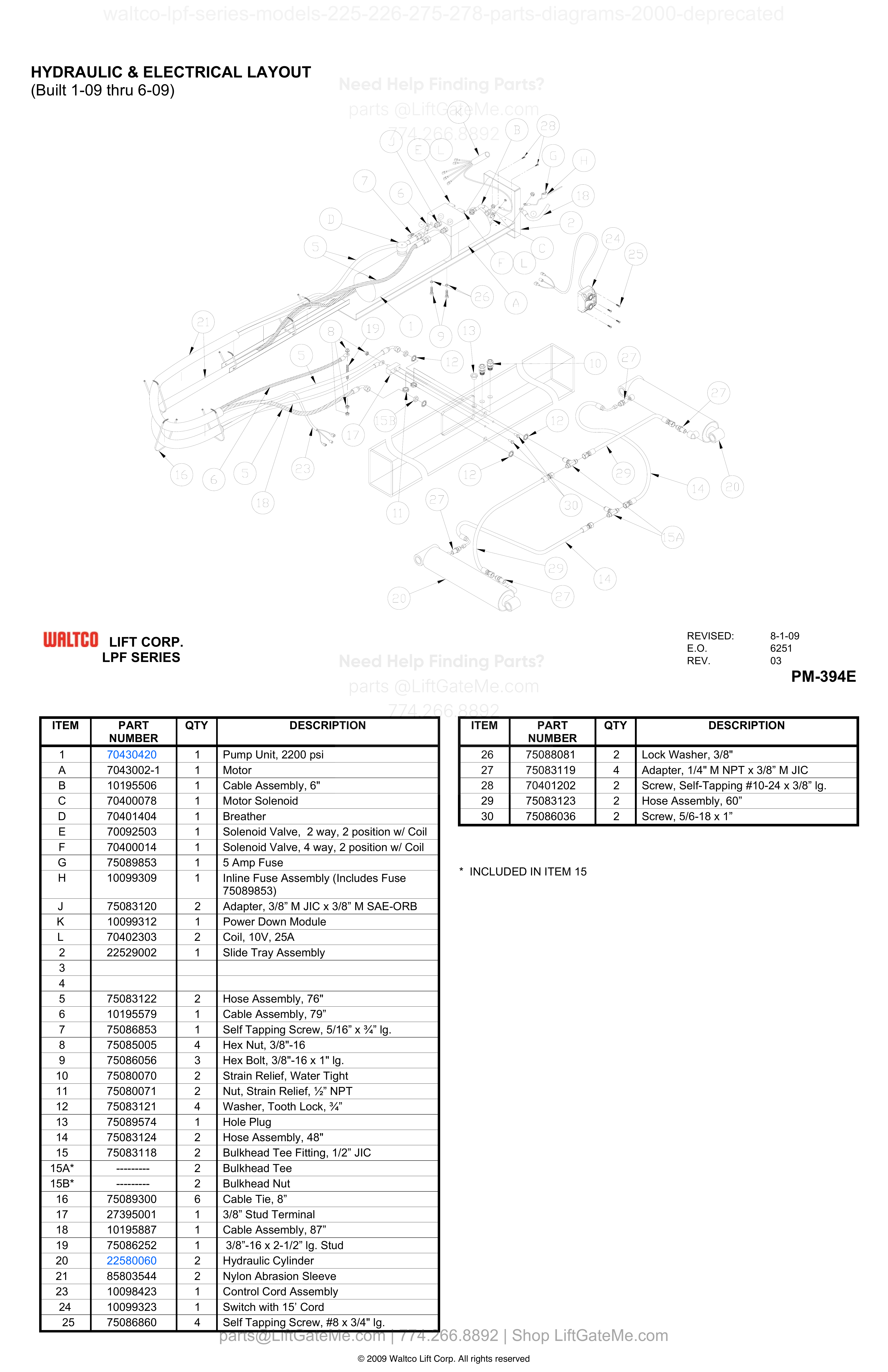

HYDRAULIC & ELECTRICAL LAYOUT (Built 1-09 thru 6-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70430420 | Pump Unit, 2200 psi | |
| A | 1 | 7043002-1 | Motor | |
| B | 1 | 10195506 | Cable Assembly, 6" | |
| C | 1 | 70400078 | Motor Solenoid | |
| D | 1 | 70401404 | Breather | |
| E | 1 | 70092503 | Solenoid Valve, 2 way, 2 position w/ Coil | |
| F | 1 | 70400014 | Solenoid Valve, 4 way, 2 position w/ Coil | |
| G | 1 | 75089853 | 5 Amp Fuse | |
| H | 1 | 10099309 | Inline Fuse Assembly (Includes Fuse 75089853) | |
| J | 2 | 75083120 | Adapter, 3/8” M JIC x 3/8” M SAE-ORB | |
| K | 1 | 10099312 | Power Down Module | |
| L | 2 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 22529002 | Slide Tray Assembly | |
| 5 | 2 | 75083122 | Hose Assembly, 76" | |
| 6 | 1 | 10195579 | Cable Assembly, 79” | |
| 7 | 1 | 75086853 | Self Tapping Screw, 5/16” x ¾” lg. | |
| 8 | 4 | 75085005 | Hex Nut, 3/8"-16 | |
| 9 | 3 | 75086056 | Hex Bolt, 3/8"-16 x 1" lg. | |
| 10 | 2 | 75080070 | Strain Relief, Water Tight | |
| 11 | 2 | 75080071 | Nut, Strain Relief, ½” NPT | |
| 12 | 4 | 75083121 | Washer, Tooth Lock, ¾” | |
| 13 | 1 | 75089574 | Hole Plug | |
| 14 | 2 | 75083124 | Hose Assembly, 48" | |
| 15 | 2 | 75083118 | Bulkhead Tee Fitting, 1/2” JIC | |
| 15A* | 2 | --------- | Bulkhead Tee | |
| 15B* | 2 | --------- | Bulkhead Nut | |
| 16 | 6 | 75089300 | Cable Tie, 8” | |
| 17 | 1 | 27395001 | 3/8” Stud Terminal | |
| 18 | 1 | 10195887 | Cable Assembly, 87” | |
| 19 | 1 | 75086252 | 3/8”-16 x 2-1/2” lg. Stud | |
| 20 | 2 | 22580060 | Hydraulic Cylinder | |
| 21 | 2 | 85803544 | Nylon Abrasion Sleeve | |
| 23 | 1 | 10098423 | Control Cord Assembly | |
| 24 | 1 | 10099323 | Switch with 15’ Cord | |
| 25 | 4 | 75086860 | Self Tapping Screw, #8 x 3/4" lg. | |
| 26 | 2 | 75088081 | Lock Washer, 3/8" | |
| 27 | 4 | 75083119 | Adapter, 1/4" M NPT x 3/8” M JIC | |
| 28 | 2 | 70401202 | Screw, Self-Tapping #10-24 x 3/8” lg. | |
| 29 | 2 | 75083123 | Hose Assembly, 60” | |
| 30 | 2 | 75086036 | Screw, 5/6-18 x 1” |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

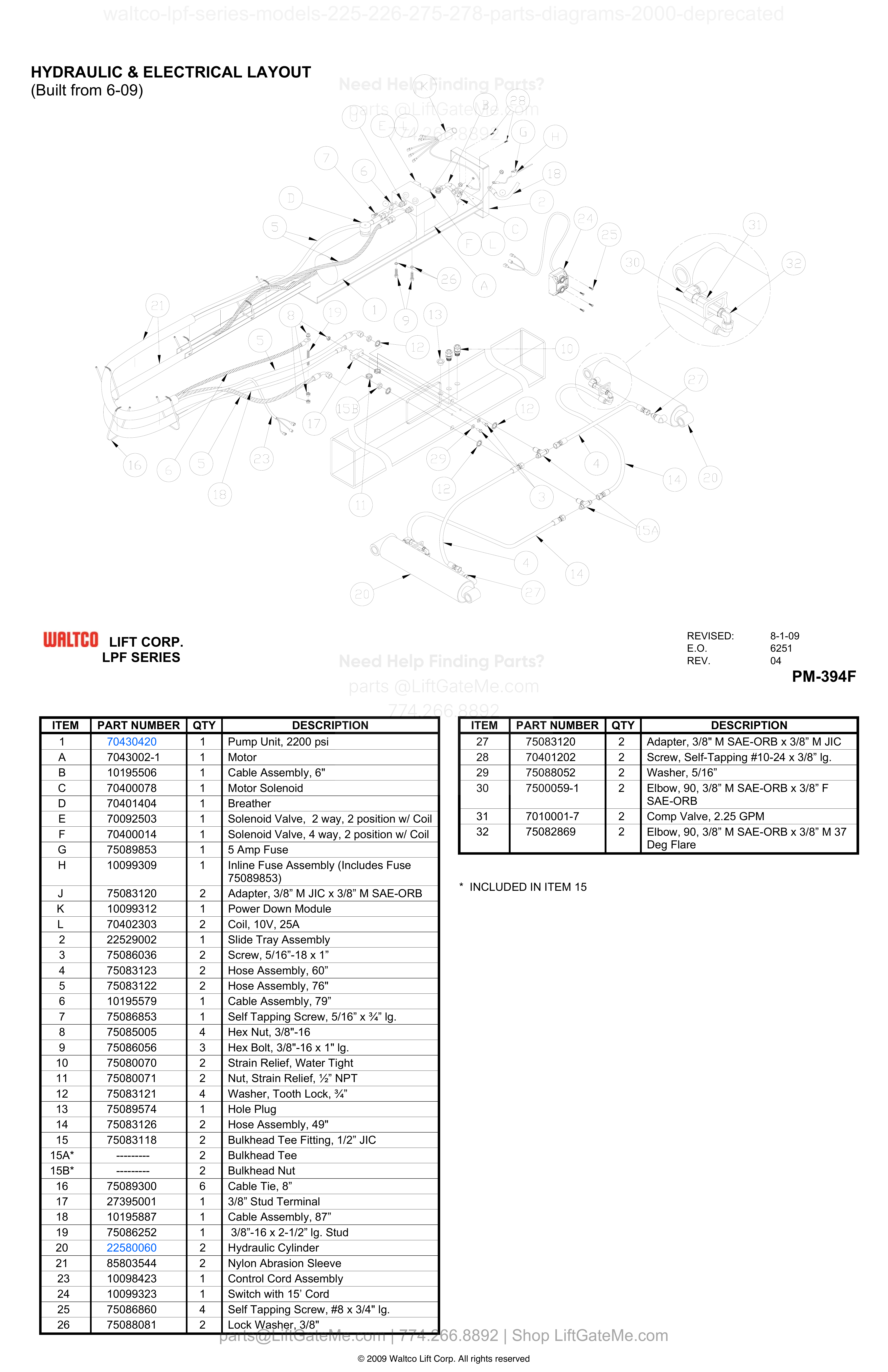

HYDRAULIC & ELECTRICAL LAYOUT (Built from 6-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70430420 | Pump Unit, 2200 psi | |
| A | 1 | 7043002-1 | Motor | |
| B | 1 | 10195506 | Cable Assembly, 6" | |
| C | 1 | 70400078 | Motor Solenoid | |
| D | 1 | 70401404 | Breather | |
| E | 1 | 70092503 | Solenoid Valve, 2 way, 2 position w/ Coil | |
| F | 1 | 70400014 | Solenoid Valve, 4 way, 2 position w/ Coil | |
| G | 1 | 75089853 | 5 Amp Fuse | |
| H | 1 | 10099309 | Inline Fuse Assembly (Includes Fuse 75089853) | |
| J | 2 | 75083120 | ||
| K | 1 | 10099312 | Power Down Module | |
| L | 2 | 70402303 | Coil, 10V, 25A | |
| 2 | 1 | 22529002 | Slide Tray Assembly | |
| 3 | 2 | 75086036 | ||
| 4 | 2 | 75083123 | ||
| 5 | 2 | 75083122 | Hose Assembly, 76" | |
| 6 | 1 | 10195579 | ||
| 7 | 1 | 75086853 | ||
| 8 | 4 | 75085005 | Hex Nut, 3/8"-16 | |
| 9 | 3 | 75086056 | Hex Bolt, 3/8"-16 x 1" lg. | |
| 10 | 2 | 75080070 | Strain Relief, Water Tight | |
| 11 | 2 | 75080071 | Nut, Strain Relief, ½” NPT | |
| 12 | 4 | 75083121 | Washer, Tooth Lock, ¾” | |
| 13 | 1 | 75089574 | Hole Plug | |
| 14 | 2 | 75083126 | Hose Assembly, 49" | |
| 15 | 2 | 75083118 | ||
| 15A* | 2 | --------- | Bulkhead Tee | |
| 15B* | 2 | --------- | Bulkhead Nut | |
| 16 | 6 | 75089300 | ||
| 17 | 1 | 27395001 | ||
| 18 | 1 | 10195887 | ||
| 19 | 1 | 75086252 | ||
| 20 | 2 | 22580060 | Hydraulic Cylinder | |
| 21 | 2 | 85803544 | Nylon Abrasion Sleeve | |
| 23 | 1 | 10098423 | Control Cord Assembly | |
| 24 | 1 | 10099323 | Switch with 15’ Cord | |
| 25 | 4 | 75086860 | Self Tapping Screw, #8 x 3/4" lg. | |
| 26 | 2 | 75088081 | Lock Washer, 3/8" | |
| 27 | 2 | 75083120 | ||
| 28 | 2 | 70401202 | Screw, Self-Tapping #10-24 x 3/8” lg. | |
| 29 | 2 | 75088052 | Washer, 5/16” | |
| 30 | 2 | 7500059-1 | Elbow, 90, 3/8” M SAE-ORB x 3/8” F SAE-ORB | |
| 31 | 2 | 7010001-7 | Comp Valve, 2.25 GPM | |
| 32 | 2 | 75082869 | Elbow, 90, 3/8” M SAE-ORB x 3/8” M 37 Deg Flare | |
| 15A* | 2 | ---------- | Bulkhead Tee | |
| 15B* | 2 | ---------- | Bulkhead Nut |
i

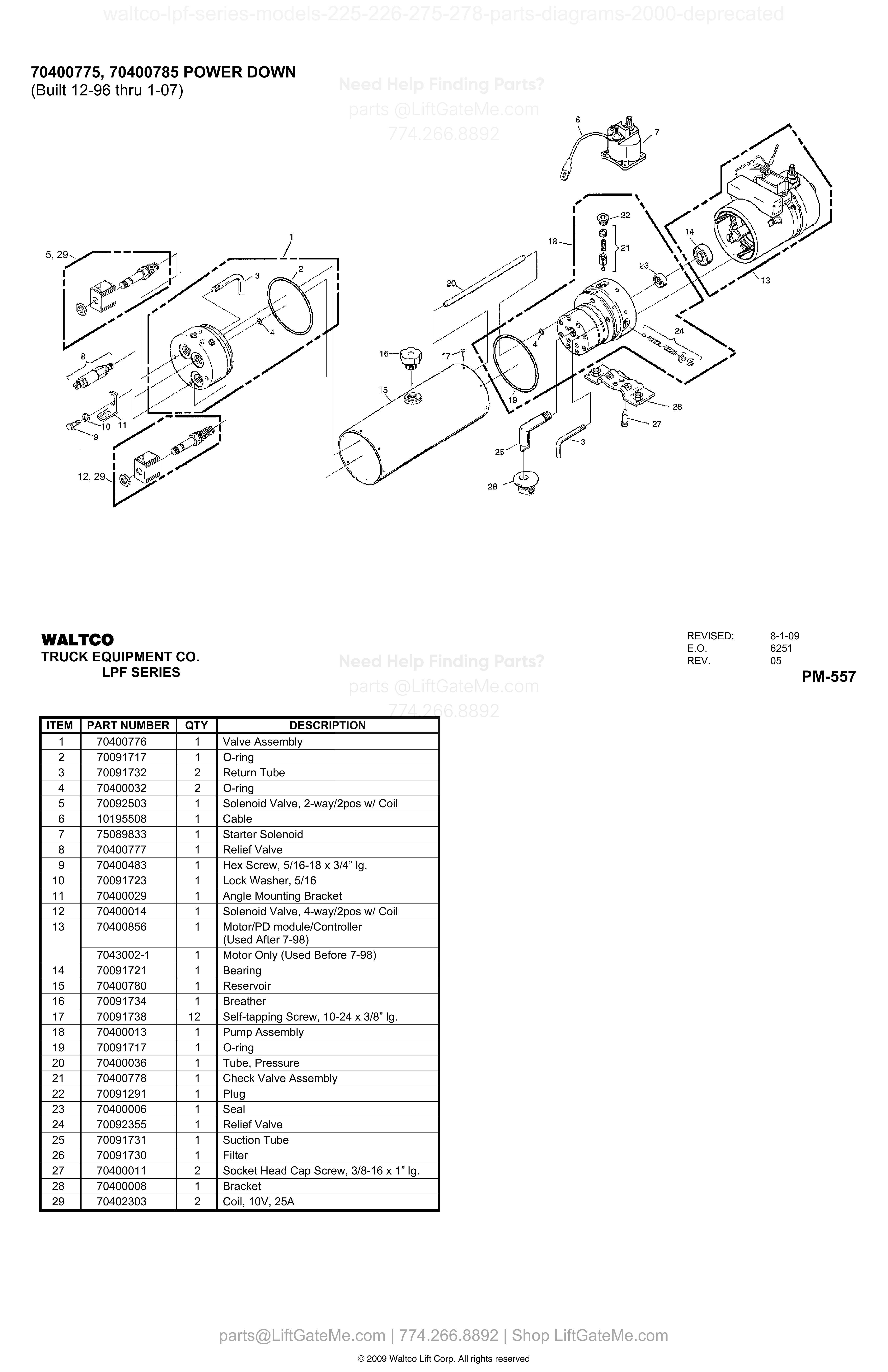

70400775, 70400785 POWER DOWN (Built 12-96 thru 1-07)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400776 | Valve Assembly | |
| 2 | 1 | 70091717 | O-ring | |
| 3 | 2 | 70091732 | Return Tube | |
| 4 | 2 | 70400032 | O-ring | |
| 5 | 1 | 70092503 | Solenoid Valve, 2-way/2pos w/ Coil | |
| 6 | 1 | 10195508 | Cable | |
| 7 | 1 | 75089833 | Starter Solenoid | |
| 8 | 1 | 70400777 | Relief Valve | |
| 9 | 1 | 70400483 | Hex Screw, 5/16-18 x 3/4” lg. | |
| 10 | 1 | 70091723 | Lock Washer, 5/16 | |
| 11 | 1 | 70400029 | Angle Mounting Bracket | |
| 12 | 1 | 70400014 | Solenoid Valve, 4-way/2pos w/ Coil | |
| 13 | 1 | 70400856 | Motor/PD module/Controller (Used After 7-98) | |
| 13 | 1 | 7043002-1 | Motor Only (Used Before 7-98) | |
| 14 | 1 | 70091721 | Bearing | |
| 15 | 1 | 70400780 | Reservoir | |
| 16 | 1 | 70091734 | Breather | |
| 17 | 12 | 70091738 | Self-tapping Screw, 10-24 x 3/8” lg. | |
| 18 | 1 | 70400013 | Pump Assembly | |
| 19 | 1 | 70091717 | O-ring | |
| 20 | 1 | 70400036 | Tube, Pressure | |
| 21 | 1 | 70400778 | Check Valve Assembly | |
| 22 | 1 | 70091291 | Plug | |
| 23 | 1 | 70400006 | Seal | |
| 24 | 1 | 70092355 | Relief Valve | |
| 25 | 1 | 70091731 | Suction Tube | |
| 26 | 1 | 70091730 | Filter | |
| 27 | 2 | 70400011 | Socket Head Cap Screw, 3/8-16 x 1” lg. | |
| 28 | 1 | 70400008 | Bracket | |
| 29 | 2 | 70402303 | Coil, 10V, 25A |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

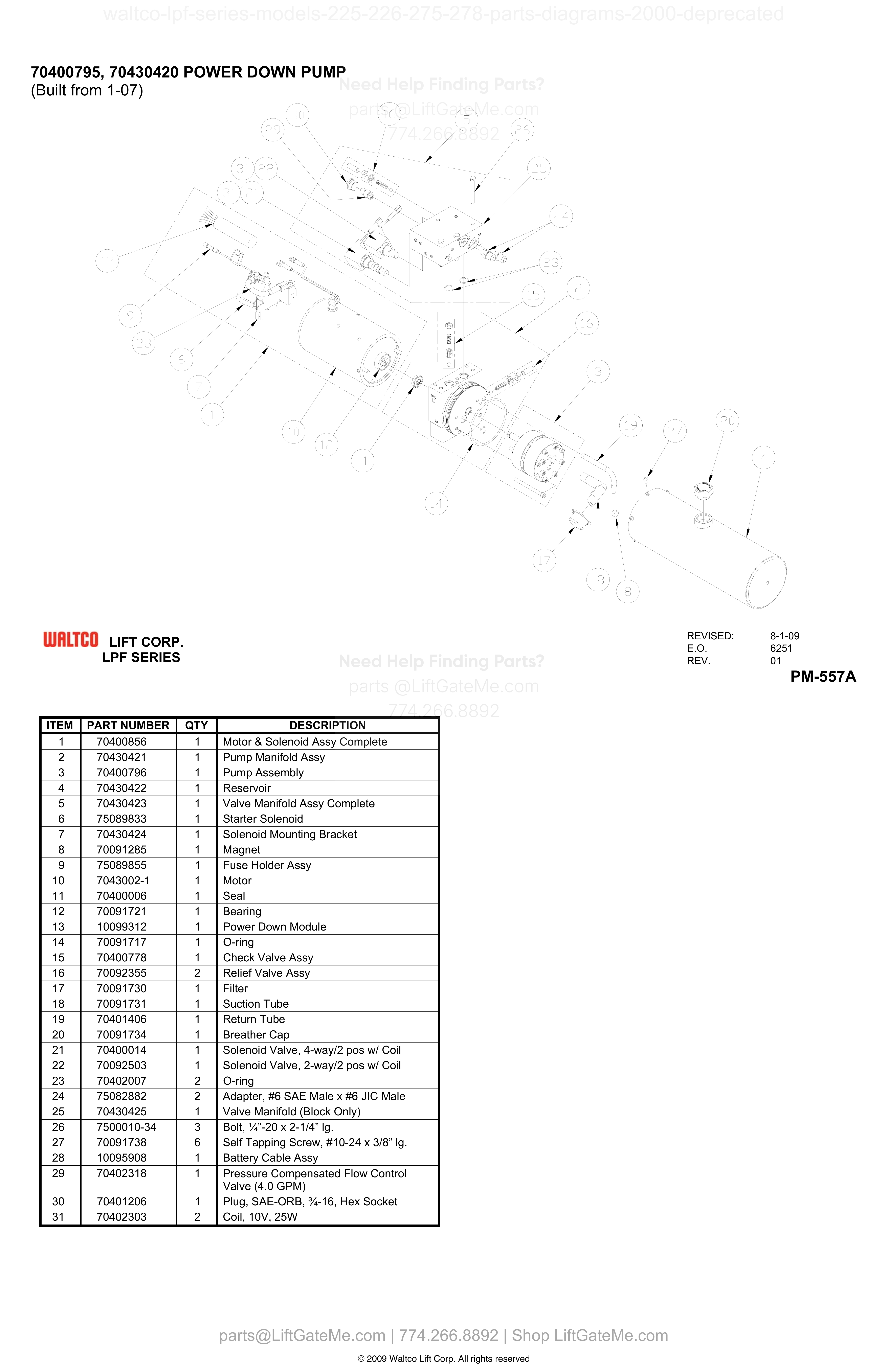

70400795, 70430420 POWER DOWN PUMP (Built from 1-07)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 70400856 | Motor & Solenoid Assy Complete | |
| 2 | 1 | 70430421 | Pump Manifold Assy | |
| 3 | 1 | 70400796 | Pump Assembly | |
| 4 | 1 | 70430422 | Reservoir | |
| 5 | 1 | 70430423 | Valve Manifold Assy Complete | |
| 6 | 1 | 75089833 | Starter Solenoid | |
| 7 | 1 | 70430424 | Solenoid Mounting Bracket | |
| 8 | 1 | 70091285 | Magnet | |
| 9 | 1 | 75089855 | Fuse Holder Assy | |
| 10 | 1 | 7043002-1 | Motor | |
| 11 | 1 | 70400006 | Seal | |
| 12 | 1 | 70091721 | Bearing | |
| 13 | 1 | 10099312 | Power Down Module | |
| 14 | 1 | 70091717 | O-ring | |
| 15 | 1 | 70400778 | Check Valve Assy | |
| 16 | 2 | 70092355 | Relief Valve Assy | |
| 17 | 1 | 70091730 | Filter | |
| 18 | 1 | 70091731 | Suction Tube | |
| 19 | 1 | 70401406 | Return Tube | |
| 20 | 1 | 70091734 | Breather Cap | |
| 21 | 1 | 70400014 | Solenoid Valve, 4-way/2 pos w/ Coil | |
| 22 | 1 | 70092503 | Solenoid Valve, 2-way/2 pos w/ Coil | |
| 23 | 2 | 70402007 | O-ring | |
| 24 | 2 | 75082882 | Adapter, #6 SAE Male x #6 JIC Male | |
| 25 | 1 | 70430425 | Valve Manifold (Block Only) | |
| 26 | 3 | 7500010-34 | Bolt, ¼”-20 x 2-1/4” lg. | |
| 27 | 6 | 70091738 | Self Tapping Screw, #10-24 x 3/8” lg. | |
| 28 | 1 | 10095908 | Battery Cable Assy | |
| 29 | 1 | 70402318 | Pressure Compensated Flow Control Valve (4.0 GPM) | |
| 30 | 1 | 70401206 | Plug, SAE-ORB, ¾-16, Hex Socket | |
| 31 | 2 | 70402303 | Coil, 10V, 25W |

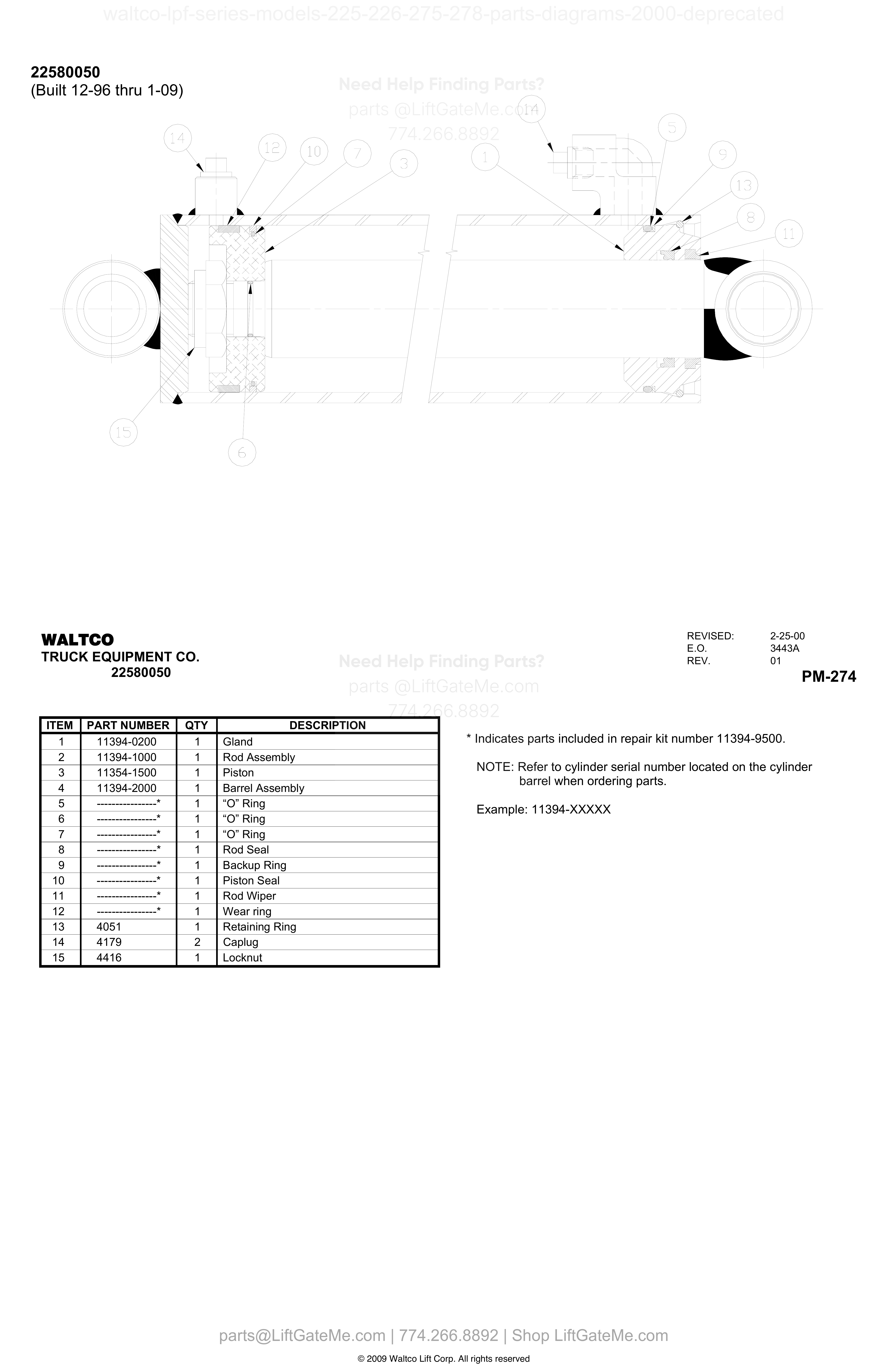

22580050 (Built 12-96 thru 1-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 11394-0200 | Gland | |
| 2 | 1 | 11394-1000 | Rod Assembly | |
| 3 | 1 | 11354-1500 | Piston | |
| 4 | 1 | 11394-2000 | Barrel Assembly | |
| 5 | 1 | ----------------* | “O” Ring | |
| 6 | 1 | ----------------* | “O” Ring | |
| 7 | 1 | ----------------* | “O” Ring | |
| 8 | 1 | ----------------* | Rod Seal | |
| 9 | 1 | ----------------* | Backup Ring | |
| 10 | 1 | ----------------* | Piston Seal | |
| 11 | 1 | ----------------* | Rod Wiper | |
| 12 | 1 | ----------------* | Wear ring | |
| 13 | 1 | 4051 | Retaining Ring | |
| 14 | 2 | 4179 | Caplug | |
| 15 | 1 | 4416 | Locknut |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

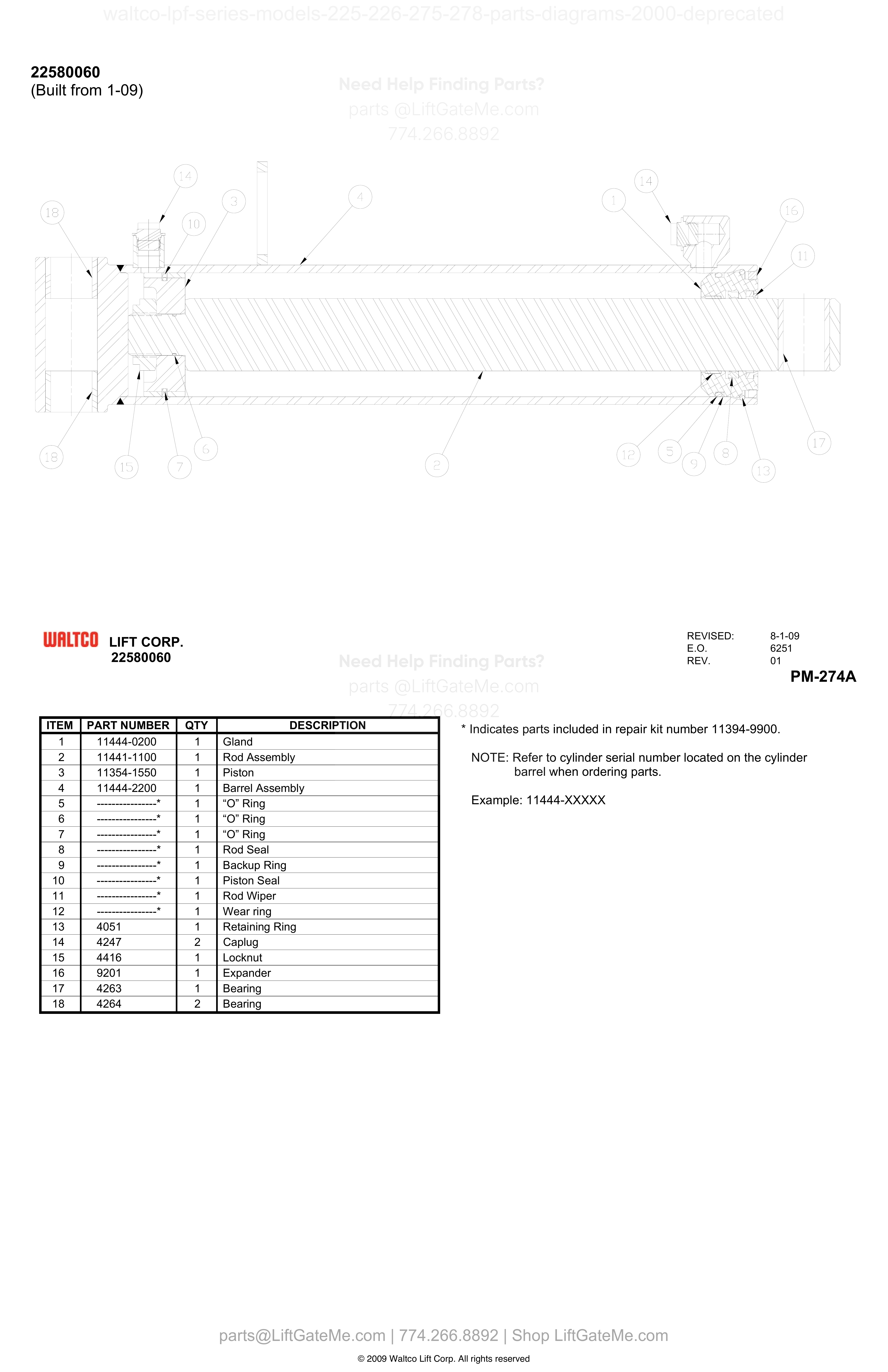

22580060 (Built from 1-09)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 11444-0200 | Gland | |
| 2 | 1 | 11441-1100 | Rod Assembly | |
| 3 | 1 | 11354-1550 | Piston | |
| 4 | 1 | 11444-2200 | Barrel Assembly | |
| 5 | 1 | ----------------* | “O” Ring | |
| 6 | 1 | ----------------* | “O” Ring | |
| 7 | 1 | ----------------* | “O” Ring | |
| 8 | 1 | ----------------* | Rod Seal | |
| 9 | 1 | ----------------* | Backup Ring | |
| 10 | 1 | ----------------* | Piston Seal | |
| 11 | 1 | ----------------* | Rod Wiper | |
| 12 | 1 | ----------------* | Wear ring | |
| 13 | 1 | 4051 | Retaining Ring | |
| 14 | 2 | 4247 | Caplug | |
| 15 | 1 | 4416 | Locknut | |
| 16 | 1 | 9201 | Expander | |
| 17 | 1 | 4263 | Bearing | |
| 18 | 2 | 4264 | Bearing |
Need help confirming the correct part?
Share model, serial, and item number.
Fast technical support
Use this after reviewing the diagram and table. We can verify compatibility before purchase.
Phone
(774) 266-8892Send your details and we will help identify the right replacement part.
Contact SupportImportant Diagram Notice
These diagrams are for reference only.
- Due to unintended occasional data alignment issues, a page table may differ slightly from the original OEM PDF.
- Please verify details against the original PDF file.
- Contact our team anytime for part number confirmation.
Reference mismatch detected
