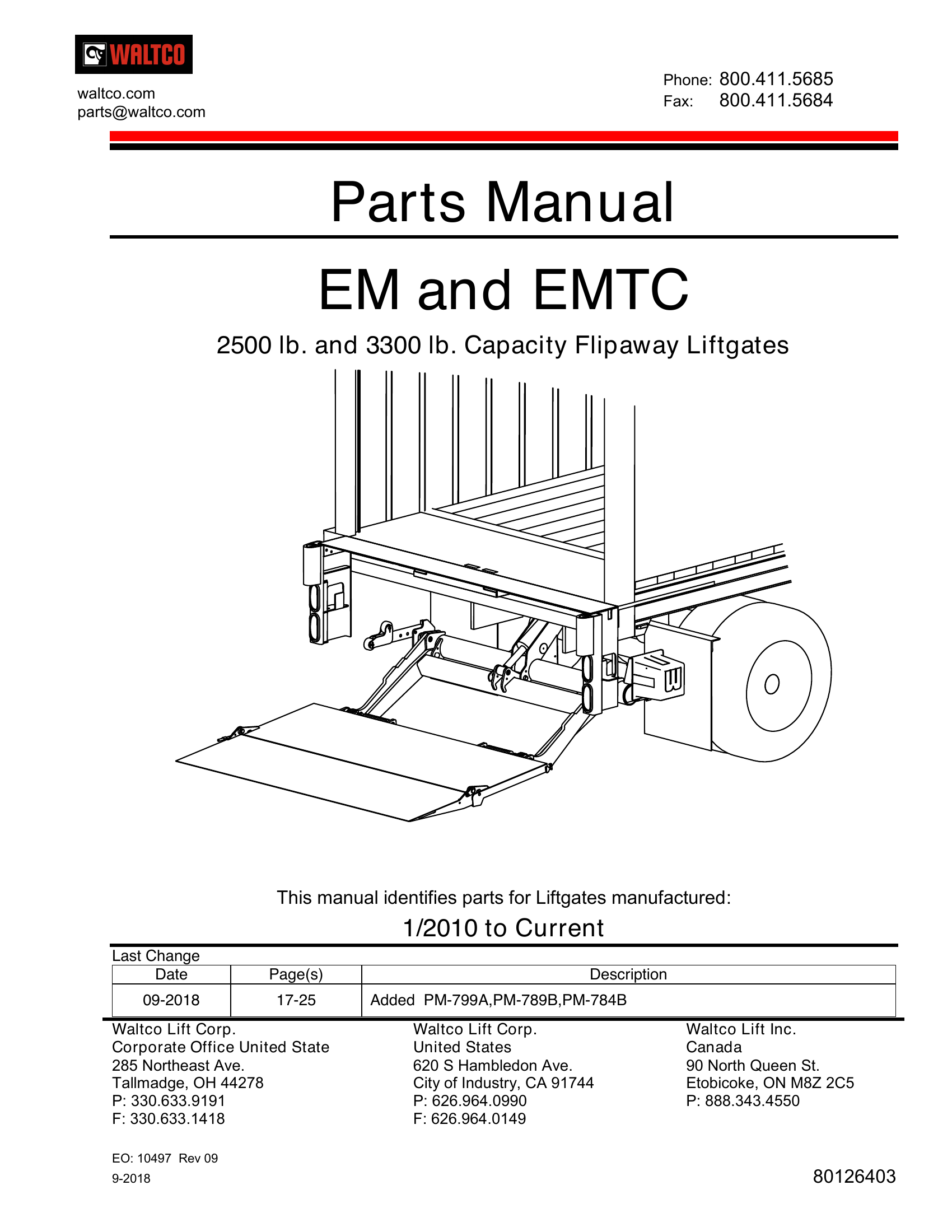

Parts Manual EM and EMTC

Approx. model coverage: 1/2010

Source file: waltco__tuck-under__em-series__parts-manual__2010__2frz3wgj__ff8f8902.pdf

Open original PDF

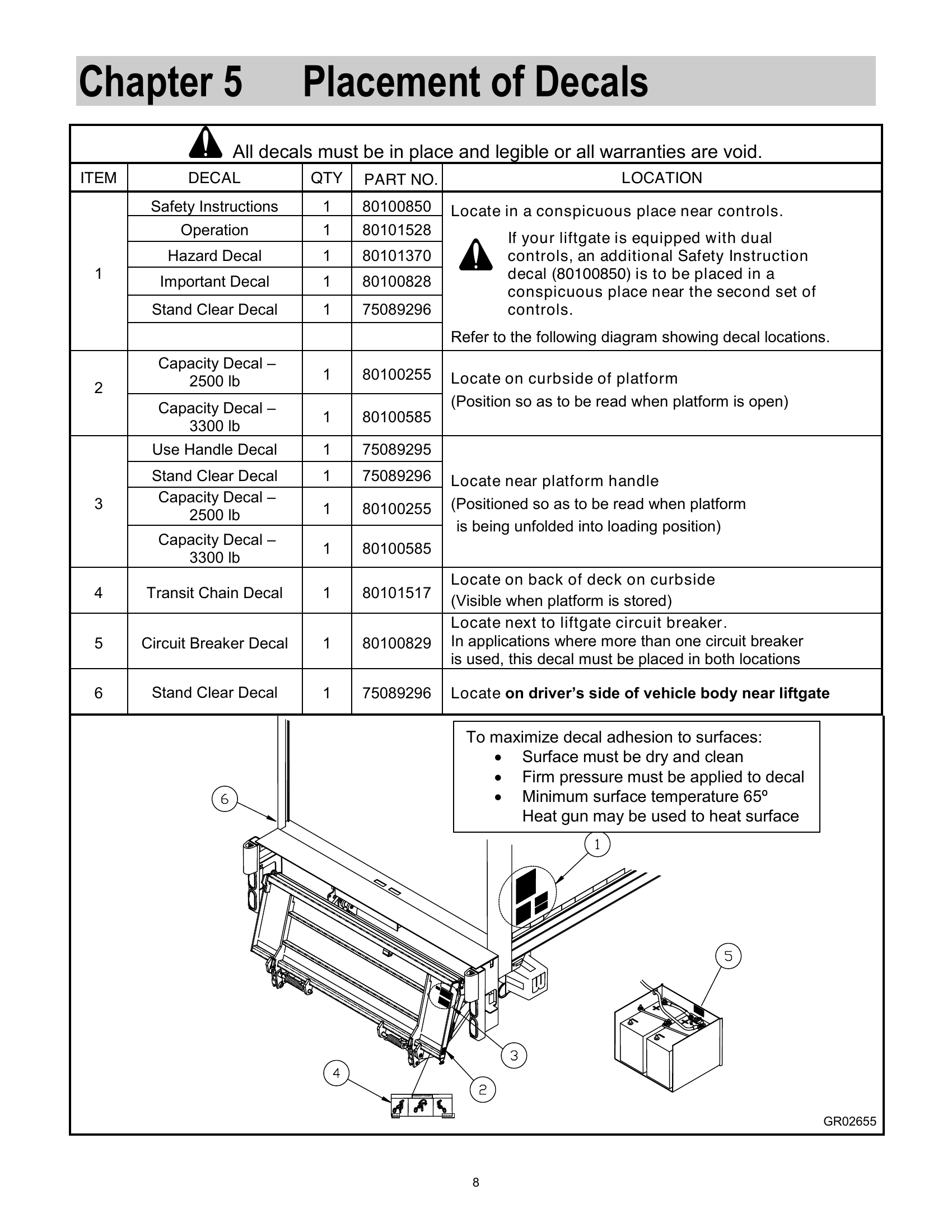

Placement of Decals

Item	Qty	Part Number	Description	Actions
1	1	80100850	Safety Instructions	View Item
1	1	80101528	Operation	View Item
1	1	80101370	Hazard Decal	View Item
1	1	80100828	Important Decal	View Item
1	1	75089296	Stand Clear Decal	View Item
2	1	80100255	Capacity Decal – 2500 lb	View Item
2	1	80100585	Capacity Decal – 3300 lb	View Item
3	1	75089295	Use Handle Decal	View Item
3	1	75089296	Stand Clear Decal	View Item
3	1	80100255	Capacity Decal – 2500 lb	View Item
3	1	80100585	Capacity Decal – 3300 lb	View Item
4	1	80101517	Transit Chain Decal	View Item
5	1	80100829	Circuit Breaker Decal	View Item
6	1	75089296	Stand Clear Decal	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

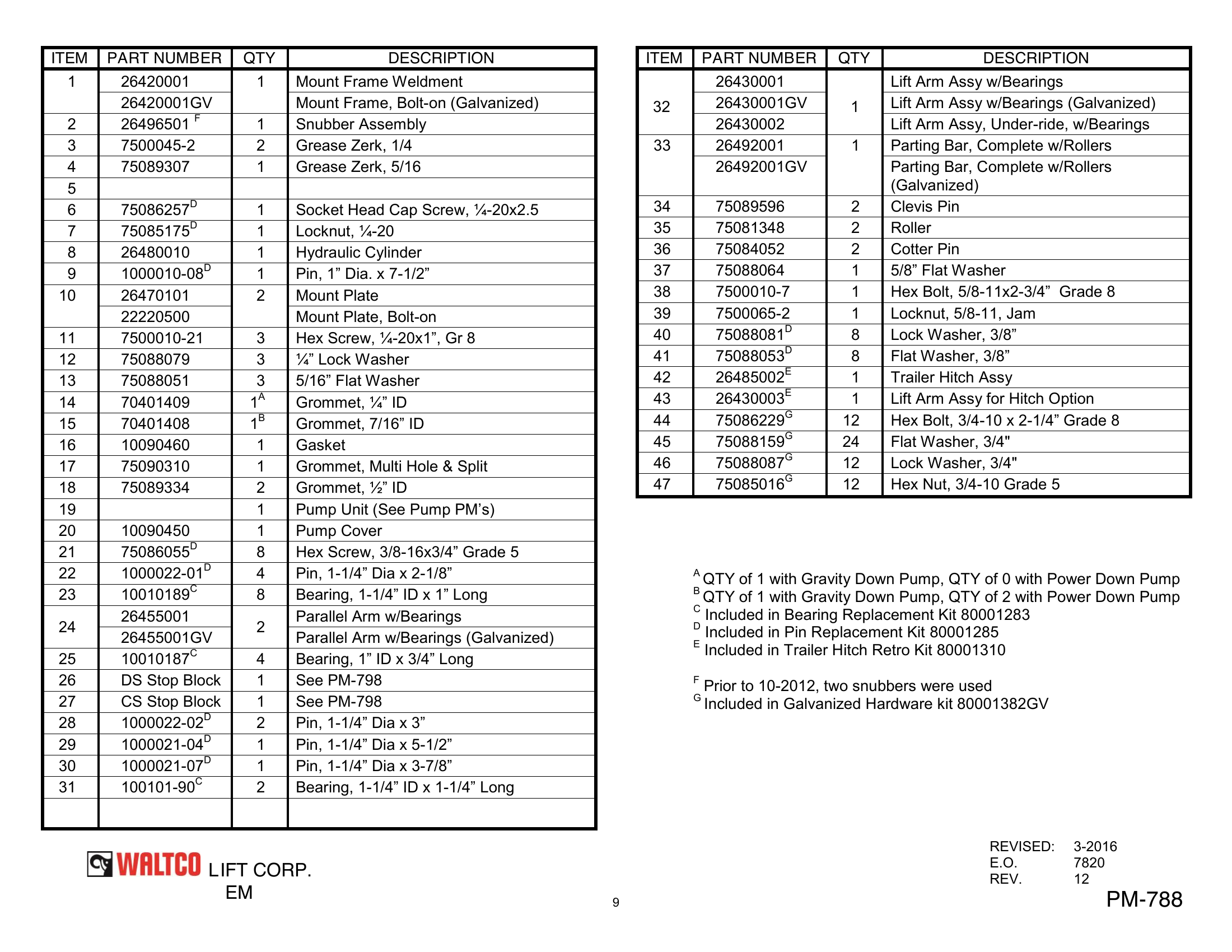

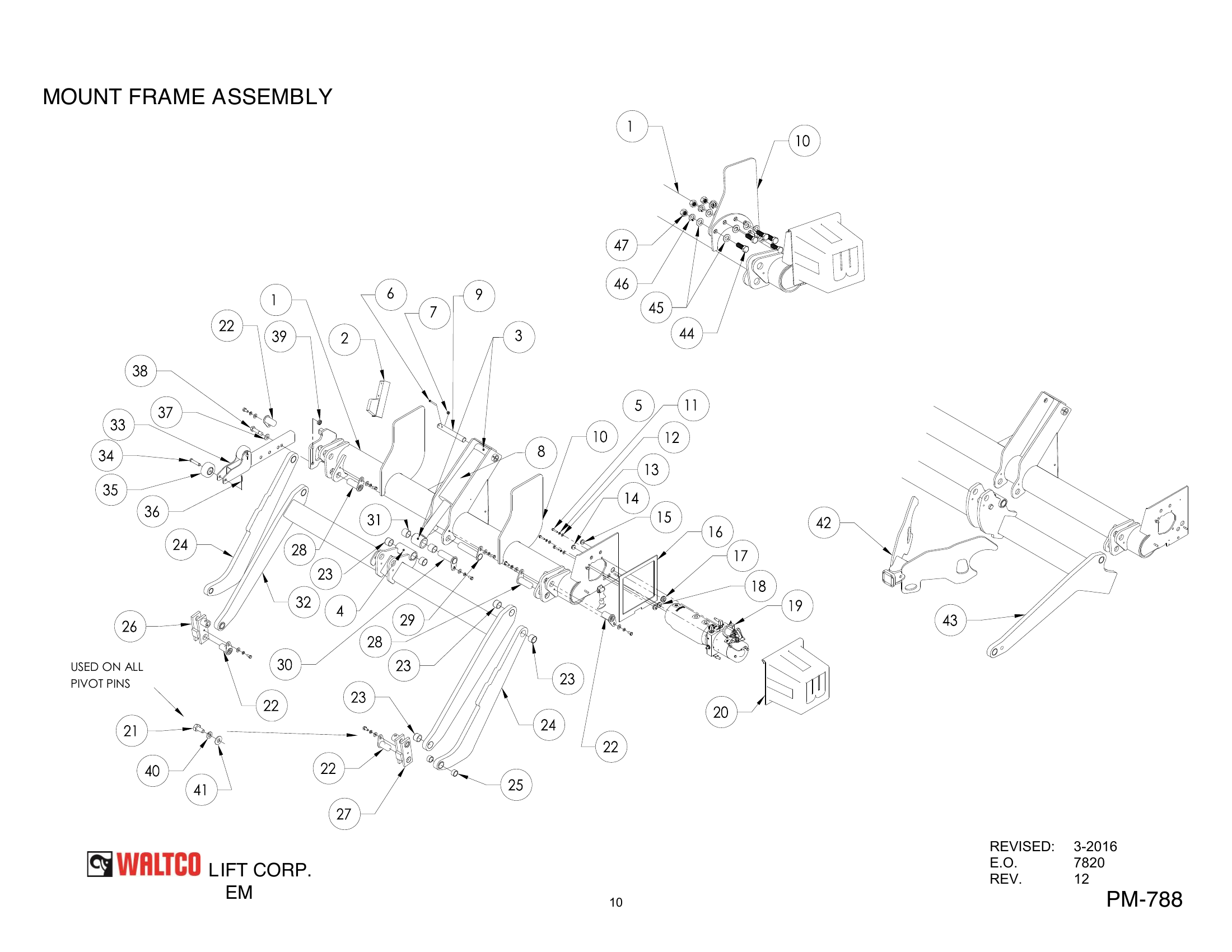

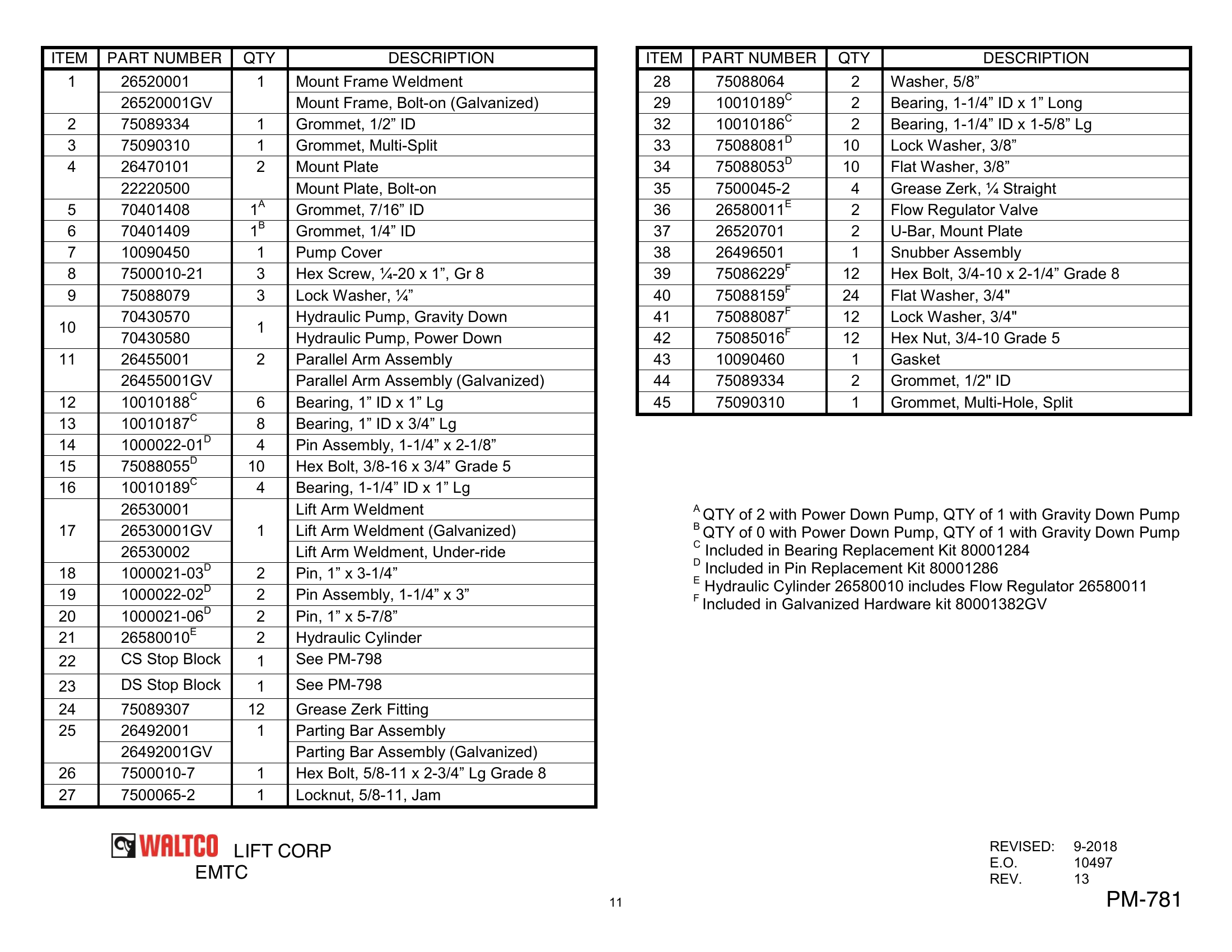

Mount Frame Assembly

Item	Qty	Part Number	Description	Actions
1	1	26420001	Mount Frame Weldment	View Item
1	1	26420001GV	Mount Frame, Bolt-on (Galvanized)	View Item
2	1	26496501	Snubber Assembly	View Item
3	2	7500045-2	Grease Zerk, 1/4	View Item
4	1	75089307	Grease Zerk, 5/16	View Item
6	1	75086257	Socket Head Cap Screw, 1/4-20x2.5	View Item
7	1	75085175	Locknut, 1/4-20	View Item
8	1	26480010	Hydraulic Cylinder	View Item
9	1	1000010-08	Pin, 1” Dia. x 7-1/2”	View Item
10	2	26470101	Mount Plate	View Item
11		22220500	Mount Plate, Bolt-on	View Item
12	3	7500010-21	Hex Screw, 1/4-20x1”, Gr 8	View Item
13	3	75088079	1/4 Lock Washer	View Item
14	3	75088051	5/16 Flat Washer	View Item
15	1	70401409	Grommet, 1/4 ID	View Item
16	1	70401408	Grommet, 7/16” ID	View Item
17	1	10090460	Gasket	View Item
18	1	75090310	Grommet, Multi Hole & Split	View Item
19	2	75089334	Grommet, 1/2 ID	View Item
20	1	10090450	Pump Cover	View Item
21	8	75086055	Hex Screw, 3/8-16x3/4 Grade 5	View Item
22	4	1000022-01	Pin, 1-1/4” Dia x 2-1/8”	View Item
23	8	10010189	Bearing, 1-1/4 ID x 1” Long	View Item
24	2	26455001	Parallel Arm w/Bearings	View Item
24	2	26455001GV	Parallel Arm w/Bearings (Galvanized)	View Item
25	4	10010187	Bearing, 1” ID x 3/4” Long	View Item
26	1	DS Stop Block	See PM-798
27	1	CS Stop Block	See PM-798
28	2	1000022-02	Pin, 1-1/4” Dia x 3”	View Item
29	1	1000021-04	Pin, 1-1/4” Dia x 5-1/2”	View Item
30	1	1000021-07	Pin, 1-1/4” Dia x 3-7/8”	View Item
31	2	100101-90	Bearing, 1-1/4” ID x 1-1/4” Long	View Item
32	1	26430001	Lift Arm Assy w/Bearings	View Item
32	1	26430001GV	Lift Arm Assy w/Bearings (Galvanized)	View Item
33	1	26492001	Parting Bar, Complete w/Rollers	View Item
33	1	26492001GV	Parting Bar, Complete w/Rollers (Galvanized)	View Item
34	2	75089596	Clevis Pin	View Item
35	2	75081348	Roller	View Item
36	2	75084052	Cotter Pin	View Item
37	1	75088064	5/8” Flat Washer	View Item
38	1	7500010-7	Hex Bolt, 5/8-11x2-3/4" Grade 8	View Item
39	1	7500065-2	Locknut, 5/8-11, Jam	View Item
40	8	75088081	Lock Washer, 3/8"	View Item
41	8	75088053	Flat Washer, 3/8"	View Item
42	1	26485002	Trailer Hitch Assy
43	1	26430003	Lift Arm Assy for Hitch Option
44	12	75086229	Hex Bolt, 3/4-10 x 2-1/4" Grade 8	View Item
45	24	75088159	Flat Washer, 3/4"	View Item
46	12	75088087	Lock Washer, 3/4"	View Item
47	12	75085016	Hex Nut, 3/4-10 Grade 5	View Item

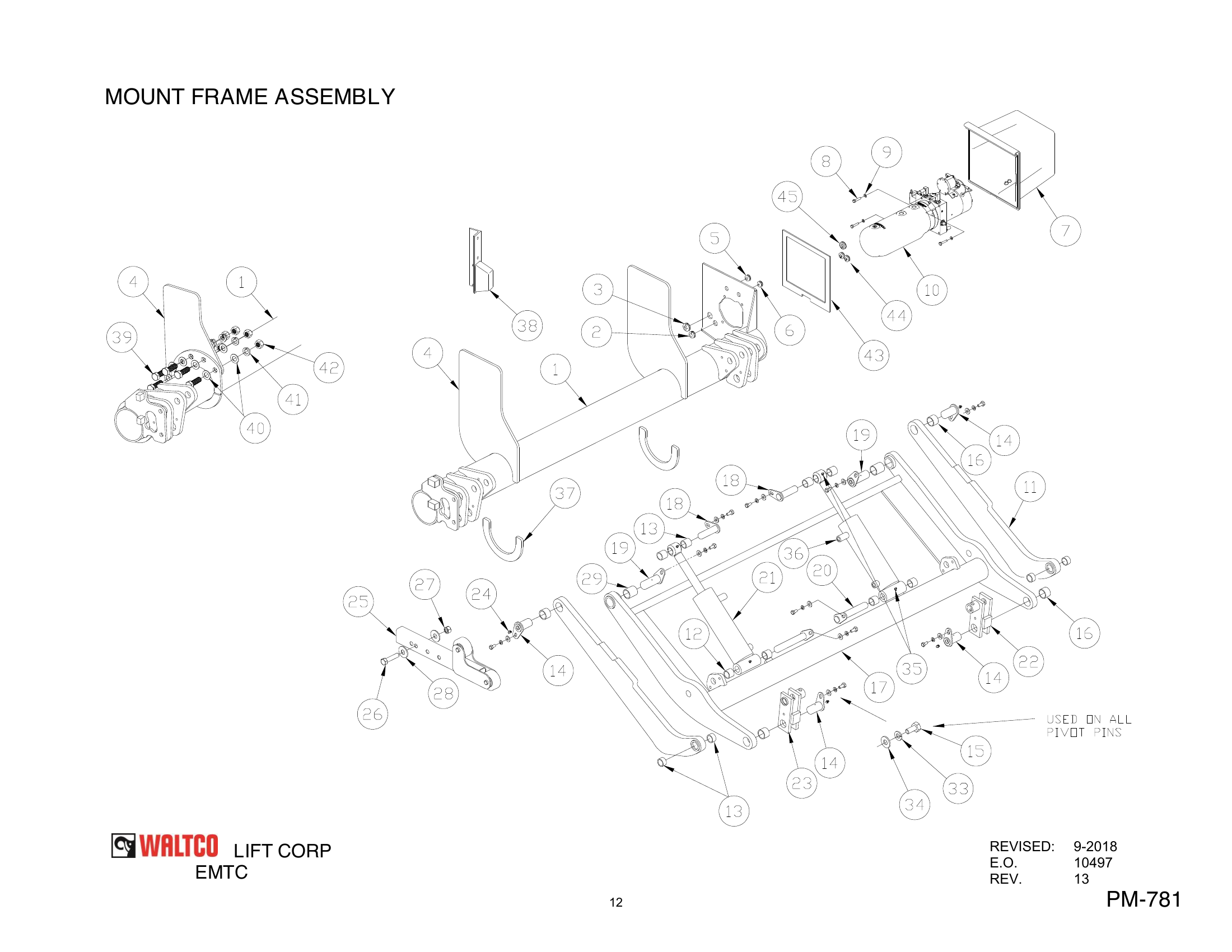

Mount Frame Assembly

Item	Qty	Part Number	Description	Actions
1	1	26520001	Mount Frame Weldment	View Item
1		26520001GV	Mount Frame, Bolt-on (Galvanized)
2	1	75089334	Grommet, 1/2” ID	View Item
3	1	75090310	Grommet, Multi-Split	View Item
4	2	26470101	Mount Plate	View Item
4		22220500	Mount Plate, Bolt-on	View Item
5	1^A	70401408	Grommet, 7/16” ID	View Item
6	1^B	70401409	Grommet, 1/4” ID	View Item
7	1	10090450	Pump Cover	View Item
8	3	7500010-21	Hex Screw, ¼-20 x 1”, Gr 8	View Item
9	3	75088079	Lock Washer, ¼”	View Item
10	1	70430570	Hydraulic Pump, Gravity Down	View Item
10		70430580	Hydraulic Pump, Power Down	View Item
11	2	26455001	Parallel Arm Assembly	View Item
11		26455001GV	Parallel Arm Assembly (Galvanized)	View Item
12	6	10010188^C	Bearing, 1” ID x 1” Lg
13	8	10010187^C	Bearing, 1” ID x 3/4” Lg
14	4	1000022-01^D	Pin Assembly, 1-1/4” x 2-1/8”
15	10	75088055^D	Hex Bolt, 3/8-16 x 3/4” Grade 5
16	4	10010189^C	Bearing, 1-1/4” ID x 1” Lg
17		26530001	Lift Arm Weldment	View Item
17	1	26530001GV	Lift Arm Weldment (Galvanized)
17		26530002	Lift Arm Weldment, Under-ride	View Item
18	2	1000021-03^D	Pin, 1” x 3-1/4”
19	2	1000022-02^D	Pin Assembly, 1-1/4” x 3”
20	2	1000021-06^D	Pin, 1” x 5-7/8”
21	2	26580010^E	Hydraulic Cylinder
22	1	CS Stop Block	See PM-798
23	1	DS Stop Block	See PM-798
24	12	75089307	Grease Zerk Fitting	View Item
25	1	26492001	Parting Bar Assembly	View Item
25		26492001GV	Parting Bar Assembly (Galvanized)	View Item
26	1	7500010-7	Hex Bolt, 5/8-11 x 2-3/4” Lg Grade 8	View Item
27	1	7500065-2	Locknut, 5/8-11, Jam	View Item
28	2	75088064	Washer, 5/8”	View Item
29	2	10010189^C	Bearing, 1-1/4” ID x 1” Long
32	2	10010186^C	Bearing, 1-1/4” ID x 1-5/8” Lg
33	10	75088081^D	Lock Washer, 3/8”
34	10	75088053^D	Flat Washer, 3/8”
35	4	7500045-2	Grease Zerk, ¼ Straight	View Item
36	2	26580011^E	Flow Regulator Valve
37	2	26520701	U-Bar, Mount Plate
38	1	26496501	Snubber Assembly	View Item
39	12	75086229^F	Hex Bolt, 3/4-10 x 2-1/4” Grade 8
40	24	75088159^F	Flat Washer, 3/4"
41	12	75088087^F	Lock Washer, 3/4"
42	12	75085016^F	Hex Nut, 3/4-10 Grade 5
43	1	10090460	Gasket	View Item
44	2	75089334	Grommet, 1/2" ID	View Item
45	1	75090310	Grommet, Multi-Hole, Split	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

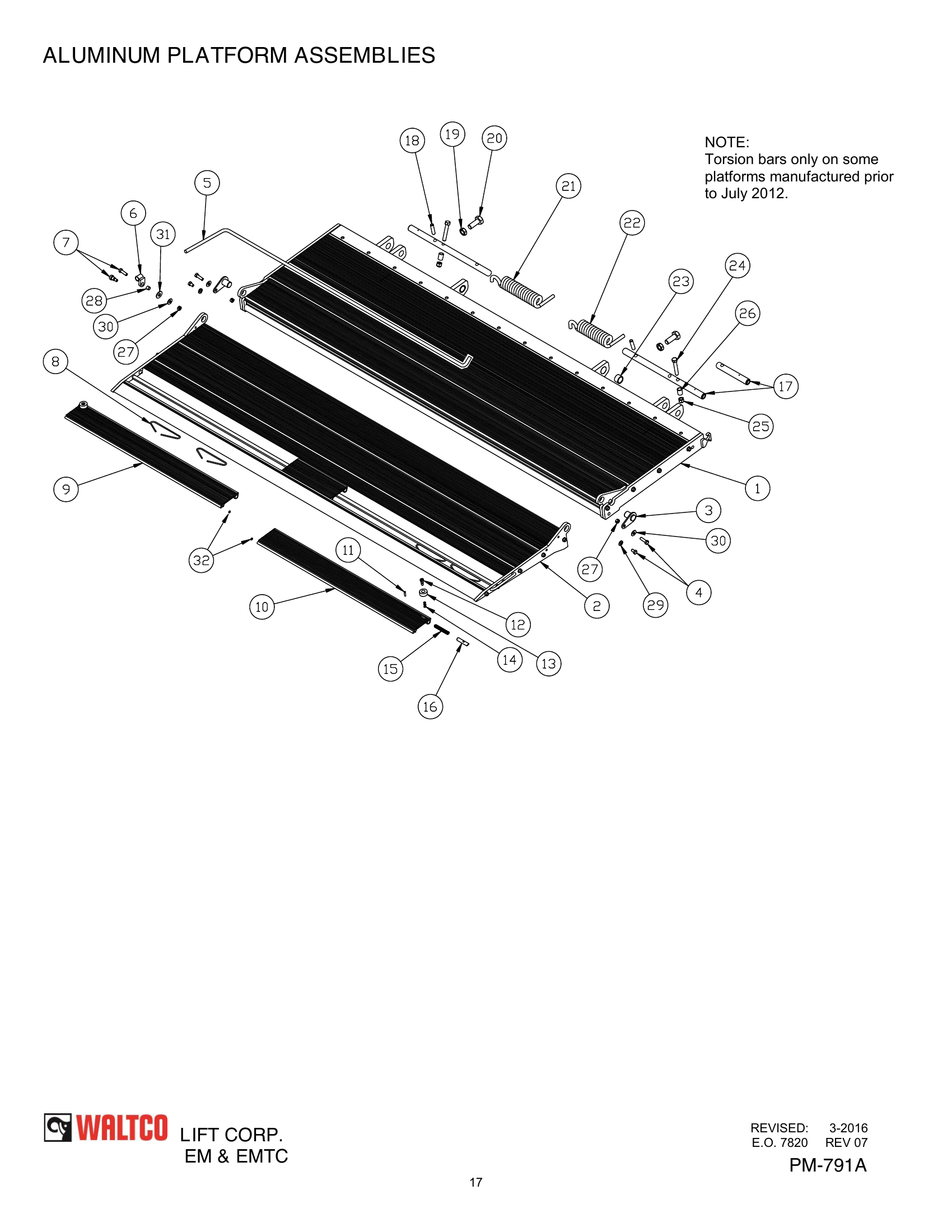

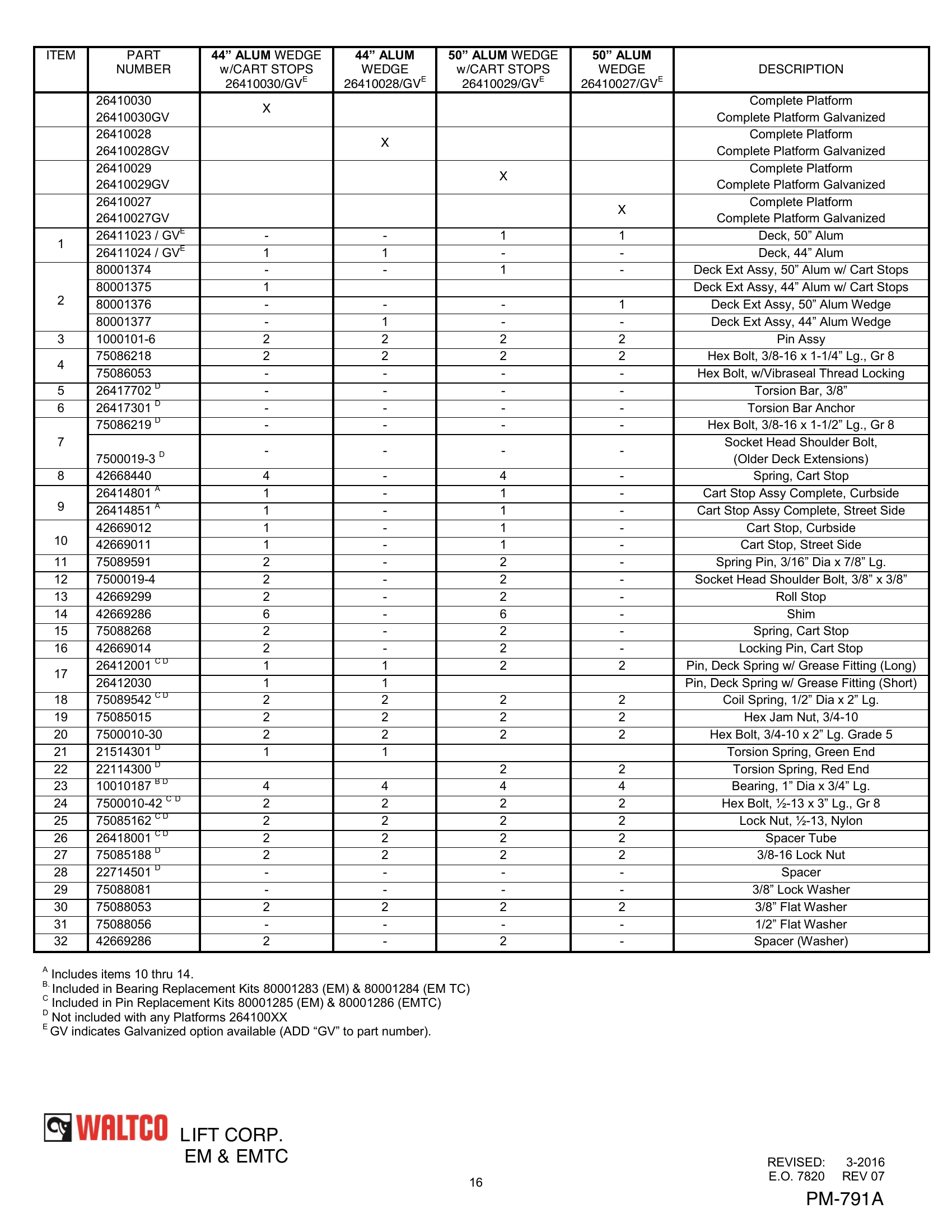

Aluminum Platform Assemblies

Item	Qty	Part Number	Description	Actions
1	-	26411023 / GV	Deck, 50" Alum
1	-	26411023 / GV	Deck, 50" Alum
1	1	26411023 / GV	Deck, 50" Alum
1	1	26411024 / GV	Deck, 44" Alum
1	1	26411024 / GV	Deck, 44" Alum
1	-	26411024 / GV	Deck, 44" Alum
2	-	80001374	Deck Ext Assy, 50" Alum w/ Cart Stops	View Item
2	1	80001375	Deck Ext Assy, 44" Alum w/ Cart Stops	View Item
2	-	80001376	Deck Ext Assy, 50" Alum Wedge	View Item
2	-	80001377	Deck Ext Assy, 44" Alum Wedge	View Item
3	2	1000101-6	Pin Assy	View Item
4	2	75086218	Hex Bolt, 3/8-16 x 1-1/4" Lg., Gr 8	View Item
4	-	75086053	Hex Bolt, w/Vibraseal Thread Locking	View Item
5	-	26417702 D	Torsion Bar, 3/8"
6	-	26417301 D	Torsion Bar Anchor
6	-	75086219 D	Hex Bolt, 3/8-16 x 1-1/2" Lg., Gr 8
7	-	7500019-3 D	Socket Head Shoulder Bolt, (Older Deck Extensions)
8	4	42668440	Spring, Cart Stop	View Item
9	1	26414801 A	Cart Stop Assy Complete, Curbside
9	1	26414851 A	Cart Stop Assy Complete, Street Side
10	1	42669012	Cart Stop, Curbside	View Item
10	1	42669011	Cart Stop, Street Side	View Item
11	2	75089591	Spring Pin, 3/16" Dia x 7/8" Lg.	View Item
12	2	7500019-4	Socket Head Shoulder Bolt, 3/8" x 3/8"	View Item
13	2	42669299	Roll Stop	View Item
14	6	42669286	Shim	View Item
15	2	75088268	Spring, Cart Stop	View Item
16	2	42669014	Locking Pin, Cart Stop	View Item
17	1	26412001 C D	Pin, Deck Spring w/ Grease Fitting (Long)
17	1	26412030	Pin, Deck Spring w/ Grease Fitting (Short)	View Item
18	2	75089542 C D	Coil Spring, 1/2" Dia x 2" Lg.
19	2	75085015	Hex Jam Nut, 3/4-10	View Item
20	2	7500010-30	Hex Bolt, 3/4-10 x 2" Lg. Grade 5	View Item
21	1	21514301 D	Torsion Spring, Green End
22	2	22114300 D	Torsion Spring, Red End
23	4	10010187 B D	Bearing, 1" Dia x 3/4" Lg.
24	2	7500010-42 C D	Hex Bolt, 1/2-13 x 3" Lg., Gr 8
25	2	75085162 C D	Lock Nut, 1/2-13, Nylon
26	2	26418001 C D	Spacer Tube
27	2	75085188 D	3/8-16 Lock Nut
28	-	22714501 D	Spacer
29	-	75088081	3/8" Lock Washer	View Item
30	2	75088053	3/8" Flat Washer	View Item
31	-	75088056	1/2" Flat Washer	View Item
32	2	42669286	Spacer (Washer)	View Item

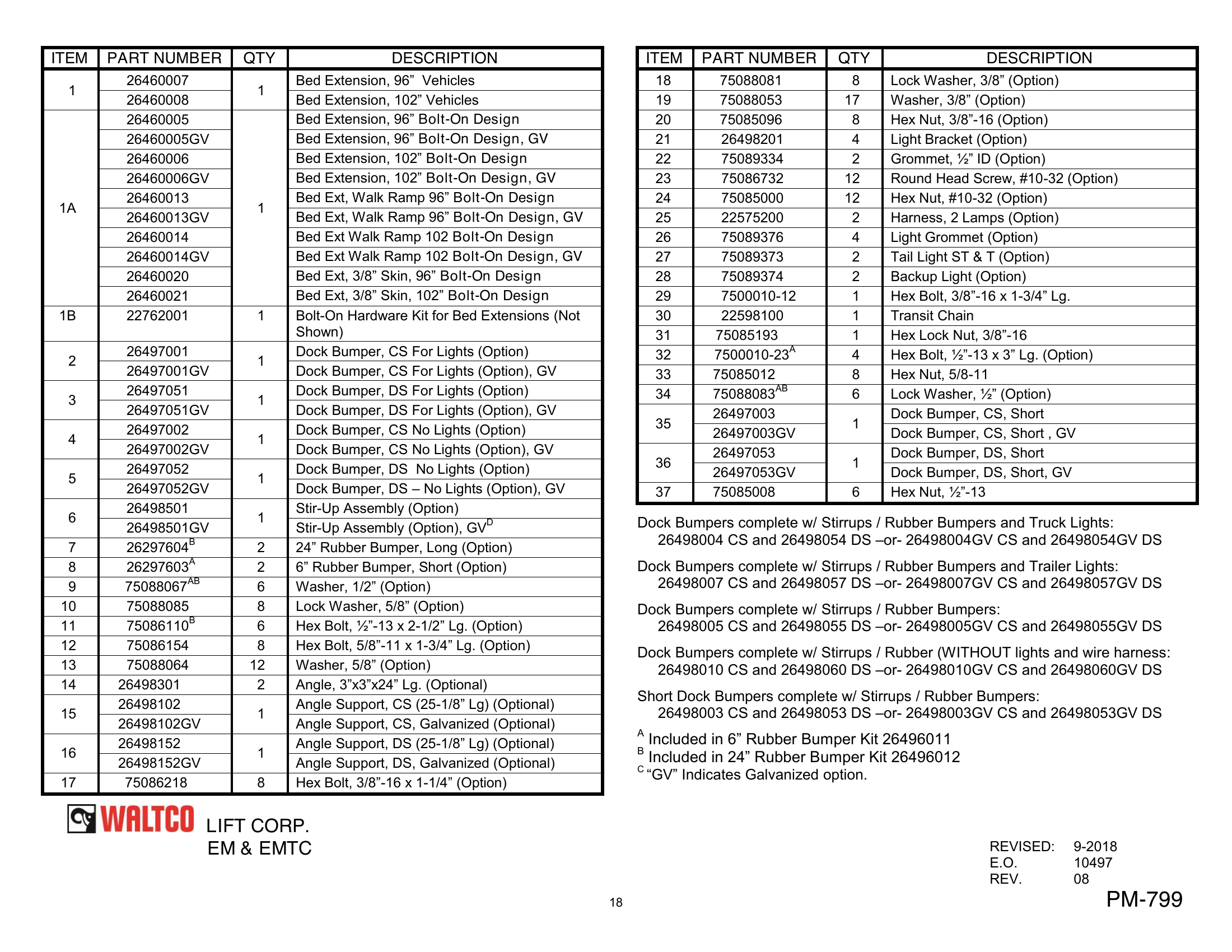

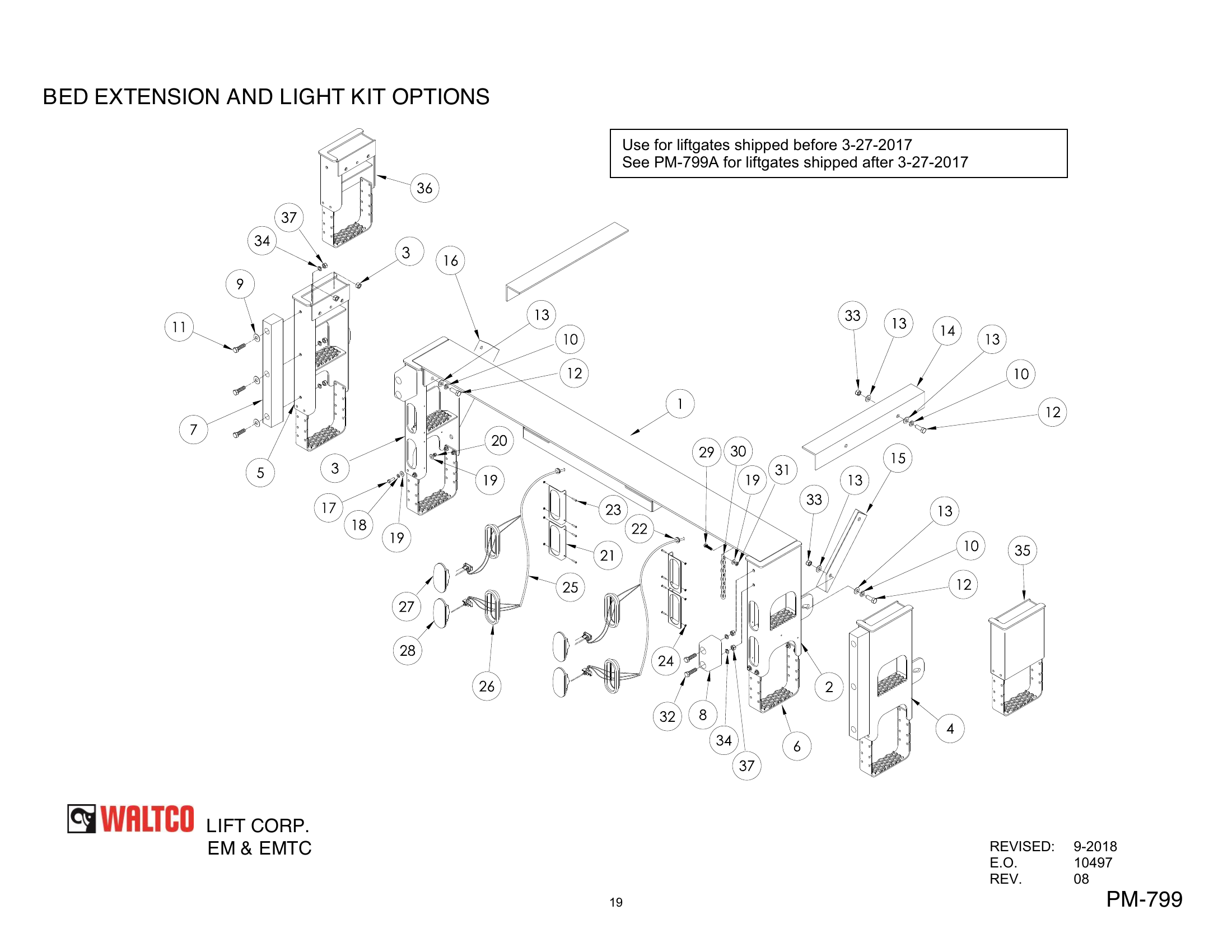

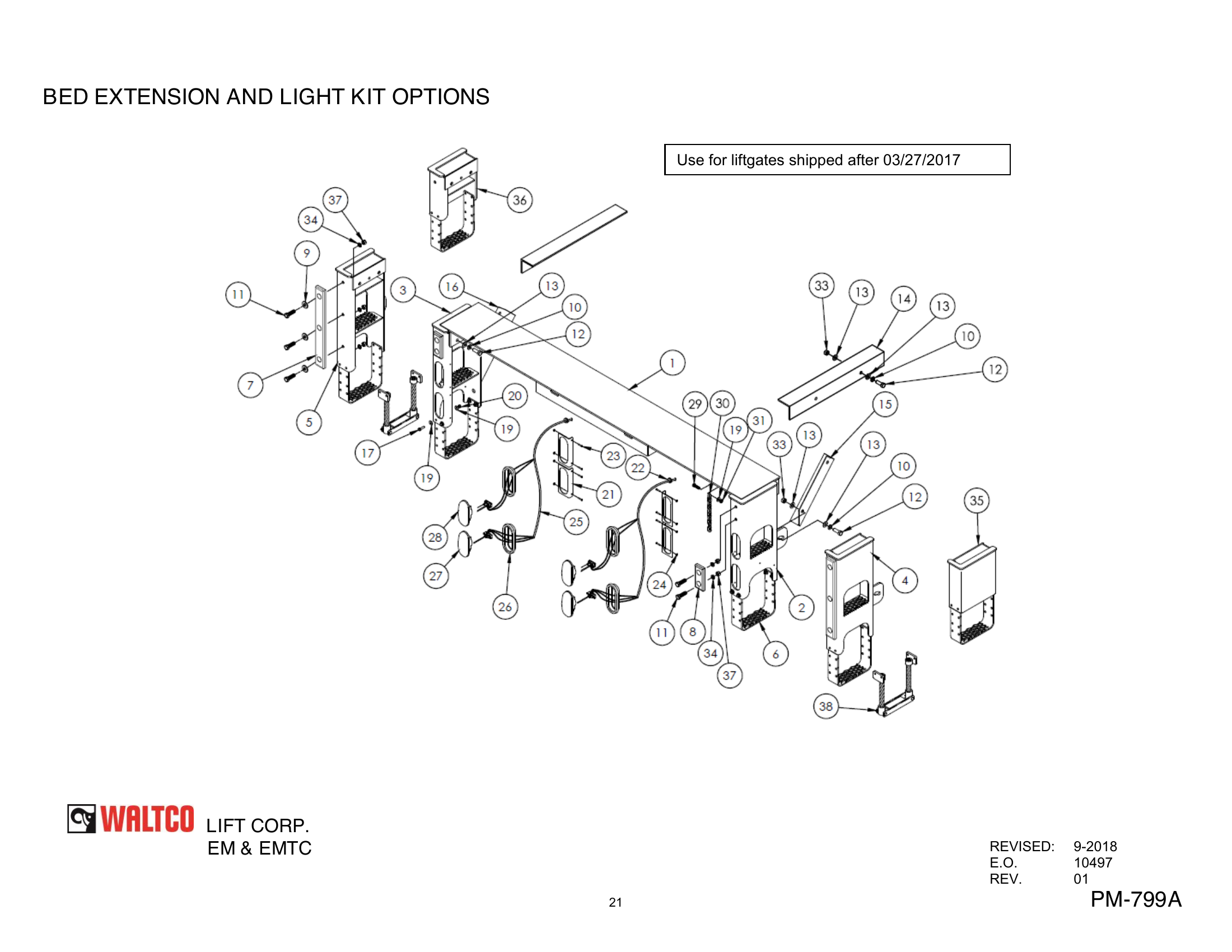

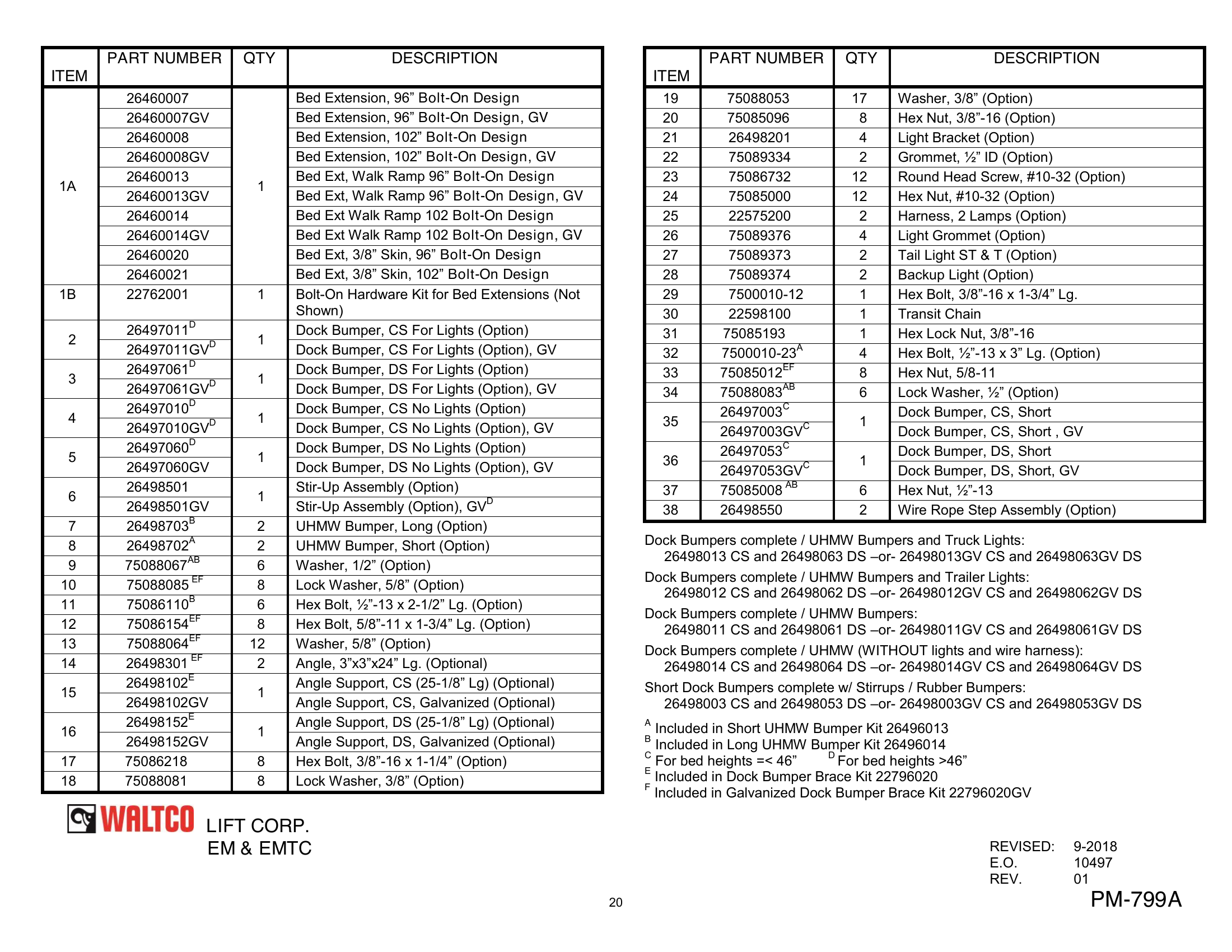

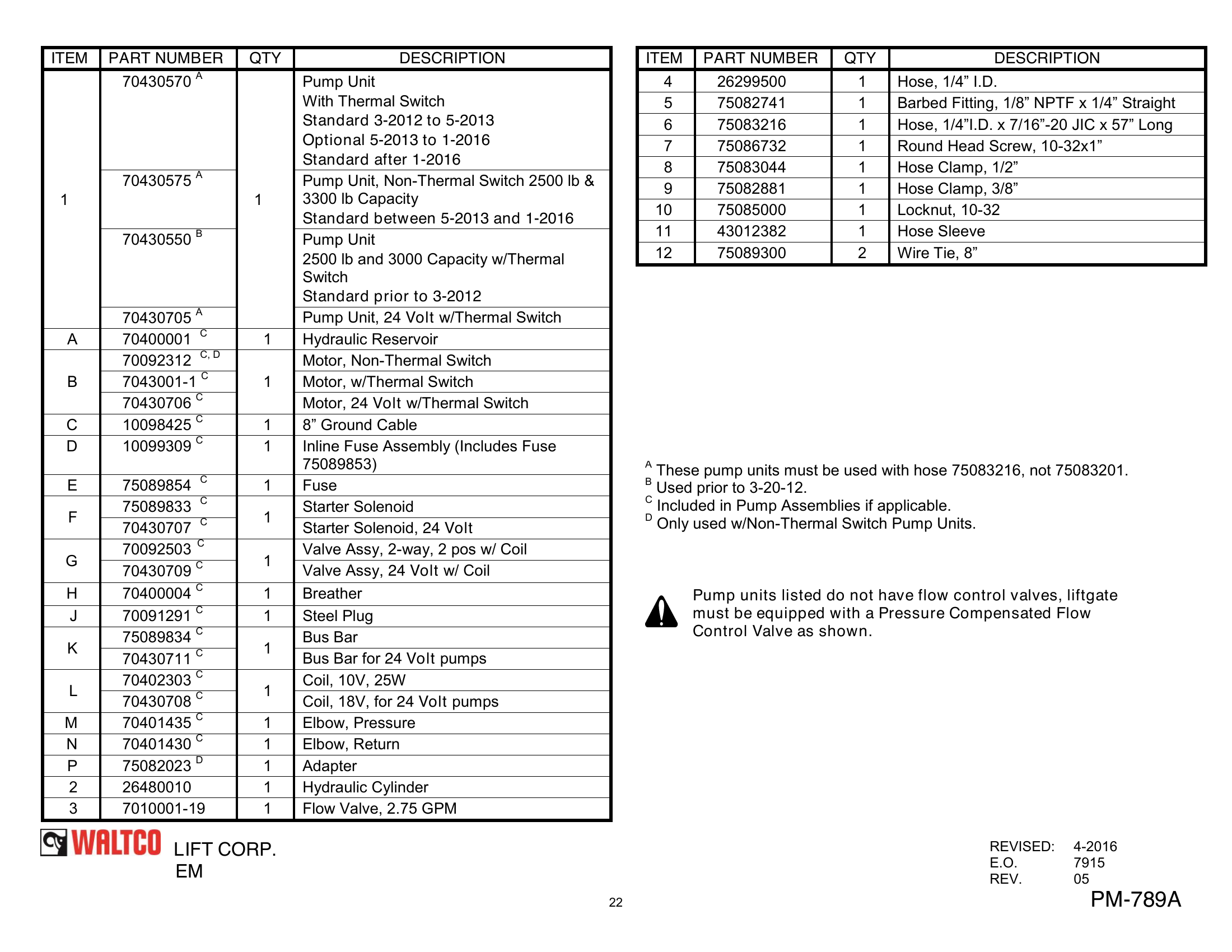

Bed Extension and Light Kit Options

Item	Qty	Part Number	Description	Actions
1A	1	26460007	Bed Extension, 96” Vehicles	View Item
1A		26460008	Bed Extension, 102” Vehicles	View Item
1A		26460005	Bed Extension, 96” Bolt-On Design	View Item
1A		26460005GV	Bed Extension, 96” Bolt-On Design, GV
1A		26460006	Bed Extension, 102” Bolt-On Design	View Item
1A		26460006GV	Bed Extension, 102” Bolt-On Design, GV
1A		26460013	Bed Ext, Walk Ramp 96” Bolt-On Design	View Item
1A		26460013GV	Bed Ext, Walk Ramp 96” Bolt-On Design, GV	View Item
1A		26460014	Bed Ext Walk Ramp 102 Bolt-On Design	View Item
1A		26460014GV	Bed Ext Walk Ramp 102 Bolt-On Design, GV
1A		26460020	Bed Ext, 3/8” Skin, 96” Bolt-On Design	View Item
1A		26460021	Bed Ext, 3/8” Skin, 102” Bolt-On Design	View Item
1B	1	22762001	Bolt-On Hardware Kit for Bed Extensions (Not Shown)	View Item
2	1	26497001	Dock Bumper, CS For Lights (Option)	View Item
2		26497001GV	Dock Bumper, CS For Lights (Option), GV	View Item
3	1	26497051	Dock Bumper, DS For Lights (Option)	View Item
3		26497051GV	Dock Bumper, DS For Lights (Option), GV	View Item
4	1	26497002	Dock Bumper, CS No Lights (Option)
4		26497002GV	Dock Bumper, CS No Lights (Option), GV	View Item
5	1	26497052	Dock Bumper, DS No Lights (Option)	View Item
5		26497052GV	Dock Bumper, DS – No Lights (Option), GV	View Item
6	1	26498501	Stir-Up Assembly (Option)	View Item
6		26498501GV	Stir-Up Assembly (Option), GV	View Item
7	2	26297604	24” Rubber Bumper, Long (Option)	View Item
8	2	26297603	6” Rubber Bumper, Short (Option)	View Item
9	6	75088067	Washer, 1/2” (Option)	View Item
10	8	75088085	Lock Washer, 5/8” (Option)	View Item
11	6	75086110	Hex Bolt, ½”-13 x 2-1/2” Lg. (Option)	View Item
12	8	75086154	Hex Bolt, 5/8”-11 x 1-3/4” Lg. (Option)	View Item
13	12	75088064	Washer, 5/8” (Option)	View Item
14	2	26498301	Angle, 3”x3”x24” Lg. (Optional)	View Item
15	1	26498102	Angle Support, CS (25-1/8” Lg) (Optional)	View Item
15		26498102GV	Angle Support, CS, Galvanized (Optional)	View Item
16	1	26498152	Angle Support, DS (25-1/8” Lg) (Optional)	View Item
16		26498152GV	Angle Support, DS, Galvanized (Optional)	View Item
17	8	75086218	Hex Bolt, 3/8”-16 x 1-1/4” (Option)	View Item
18	8	75088081	Lock Washer, 3/8” (Option)	View Item
19	17	75088053	Washer, 3/8” (Option)	View Item
20	8	75085096	Hex Nut, 3/8”-16 (Option)	View Item
21	4	26498201	Light Bracket (Option)	View Item
22	2	75089334	Grommet, ½” ID (Option)	View Item
23	12	75086732	Round Head Screw, #10-32 (Option)	View Item
24	12	75085000	Hex Nut, #10-32 (Option)	View Item
25	2	22575200	Harness, 2 Lamps (Option)	View Item
26	4	75089376	Light Grommet (Option)	View Item
27	2	75089373	Tail Light ST & T (Option)	View Item
28	2	75089374	Backup Light (Option)	View Item
29	1	7500010-12	Hex Bolt, 3/8”-16 x 1-3/4” Lg.	View Item
30	1	22598100	Transit Chain	View Item
31	1	75085193	Hex Lock Nut, 3/8”-16	View Item
32	4	7500010-23A	Hex Bolt, ½”-13 x 3” Lg. (Option)
33	8	75085012	Hex Nut, 5/8-11	View Item
34	6	75088083	Lock Washer, ½” (Option)	View Item
35	1	26497003	Dock Bumper, CS, Short	View Item
36	1	26497053	Dock Bumper, DS, Short	View Item
37	6	75085008	Hex Nut, ½”-13	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

Bed Extension and Light Kit Options

Item	Qty	Part Number	Description	Actions
1A		26460007	Bed Extension, 96” Bolt-On Design	View Item
1A		26460007GV	Bed Extension, 96” Bolt-On Design, GV	View Item
1A		26460008	Bed Extension, 102” Bolt-On Design	View Item
1A		26460008GV	Bed Extension, 102” Bolt-On Design, GV	View Item
1A	1	26460013	Bed Ext, Walk Ramp 96” Bolt-On Design	View Item
1A		26460013GV	Bed Ext, Walk Ramp 96” Bolt-On Design, GV	View Item
1A		26460014	Bed Ext Walk Ramp 102 Bolt-On Design	View Item
1A		26460014GV	Bed Ext Walk Ramp 102 Bolt-On Design, GV
1A		26460020	Bed Ext, 3/8” Skin, 96” Bolt-On Design	View Item
1A		26460021	Bed Ext, 3/8” Skin, 102” Bolt-On Design	View Item
1B	1	22762001	Bolt-On Hardware Kit for Bed Extensions (Not Shown)	View Item
2	1	26497011D	Dock Bumper, CS For Lights (Option)
2		26497011GVD	Dock Bumper, CS For Lights (Option), GV
3	1	26497061D	Dock Bumper, DS For Lights (Option)
3		26497061GVD	Dock Bumper, DS For Lights (Option), GV
4	1	26497010D	Dock Bumper, CS No Lights (Option)
4		26497010GVD	Dock Bumper, CS No Lights (Option), GV
5	1	26497060D	Dock Bumper, DS No Lights (Option)
5		26497060GV	Dock Bumper, DS No Lights (Option), GV	View Item
6	1	26498501	Stir-Up Assembly (Option)	View Item
6		26498501GV	Stir-Up Assembly (Option), GV	View Item
7	2	26498703B	UHMW Bumper, Long (Option)
8	2	26498702A	UHMW Bumper, Short (Option)
9	6	75088067AB	Washer, 1/2” (Option)
10	8	75088085	Lock Washer, 5/8” (Option)	View Item
11	6	75086110B	Hex Bolt, ½”-13 x 2-1/2” Lg. (Option)
12	8	75086154EF	Hex Bolt, 5/8”-11 x 1-3/4” Lg. (Option)
13	12	75088064EF	Washer, 5/8” (Option)
14	2	26498301	Angle, 3”x3”x24” Lg. (Optional)	View Item
15	1	26498102E	Angle Support, CS (25-1/8” Lg) (Optional)
15		26498102GV	Angle Support, CS, Galvanized (Optional)	View Item
16	1	26498152E	Angle Support, DS (25-1/8” Lg) (Optional)
16		26498152GV	Angle Support, DS, Galvanized (Optional)	View Item
17	8	75086218	Hex Bolt, 3/8”-16 x 1-1/4” (Option)	View Item
18	8	75088081	Lock Washer, 3/8” (Option)	View Item
19	17	75088053	Washer, 3/8” (Option)	View Item
20	8	75085096	Hex Nut, 3/8”-16 (Option)	View Item
21	4	26498201	Light Bracket (Option)	View Item
22	2	75089334	Grommet, ½” ID (Option)	View Item
23	12	75086732	Round Head Screw, #10-32 (Option)	View Item
24	12	75085000	Hex Nut, #10-32 (Option)	View Item
25	2	22575200	Harness, 2 Lamps (Option)	View Item
26	4	75089376	Light Grommet (Option)	View Item
27	2	75089373	Tail Light ST & T (Option)	View Item
28	2	75089374	Backup Light (Option)	View Item
29	1	7500010-12	Hex Bolt, 3/8”-16 x 1-3/4” Lg.	View Item
30	1	22598100	Transit Chain	View Item
31	1	75085193	Hex Lock Nut, 3/8”-16	View Item
32	4	7500010-23A	Hex Bolt, ½”-13 x 3” Lg. (Option)
33	8	75085012EF	Hex Nut, 5/8-11
34	6	75088083AB	Lock Washer, ½” (Option)
35	1	26497003C	Dock Bumper, CS, Short
36	1	26497053C	Dock Bumper, DS, Short
37	6	75085008AB	Hex Nut, ½”-13
38	2	26498550	Wire Rope Step Assembly (Option)	View Item

BED EXTENSION AND LIGHT KIT OPTIONS

Item	Qty	Part Number	Description	Actions
1	1	70430570	Pump Unit With Thermal Switch Standard 3-2012 to 5-2013 Optional 5-2013 to 1-2016 Standard after 1-2016	View Item
1	1	70430575	Pump Unit, Non-Thermal Switch 2500 lb & 3300 lb Capacity Standard between 5-2013 and 1-2016	View Item
1	1	70430550	Pump Unit 2500 lb and 3000 Capacity w/Thermal Switch Standard prior to 3-2012	View Item
1	1	70430705	Pump Unit, 24 Volt w/Thermal Switch	View Item
A	1	70400001	Hydraulic Reservoir	View Item
B		70092312	Motor, Non-Thermal Switch	View Item
B	1	7043001-1	Motor, w/Thermal Switch	View Item
C		70430706	Motor, 24 Volt w/Thermal Switch	View Item
C	1	10098425	8” Ground Cable	View Item
D	1	10099309	Inline Fuse Assembly (Includes Fuse 75089853)	View Item
E	1	75089854	Fuse	View Item
F	1	75089833	Starter Solenoid	View Item
F		70430707	Starter Solenoid, 24 Volt	View Item
G	1	70092503	Valve Assy, 2-way, 2 pos w/ Coil	View Item
G		70430709	Valve Assy, 24 Volt w/ Coil	View Item
H	1	70400004	Breather	View Item
J	1	70091291	Steel Plug	View Item
K	1	75089834	Bus Bar	View Item
K		70430711	Bus Bar for 24 Volt pumps
L	1	70402303	Coil, 10V, 25W	View Item
L		70430708	Coil, 18V, for 24 Volt pumps	View Item
M	1	70401435	Elbow, Pressure	View Item
N	1	70401430	Elbow, Return	View Item
P	1	75082023	Adapter	View Item
2	1	26480010	Hydraulic Cylinder	View Item
3	1	7010001-19	Flow Valve, 2.75 GPM	View Item
4	1	26299500	Hose, 1/4” I.D.	View Item
5	1	75082741	Barbed Fitting, 1/8” NPTF x 1/4” Straight	View Item
6	1	75083216	Hose, 1/4”I.D. x 7/16”-20 JIC x 57” Long	View Item
7	1	75086732	Round Head Screw, 10-32x1”	View Item
8	1	75083044	Hose Clamp, 1/2”	View Item
9	1	75082881	Hose Clamp, 3/8”	View Item
10	1	75085000	Locknut, 10-32	View Item
11	1	43012382	Hose Sleeve	View Item
12	2	75089300	Wire Tie, 8”	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

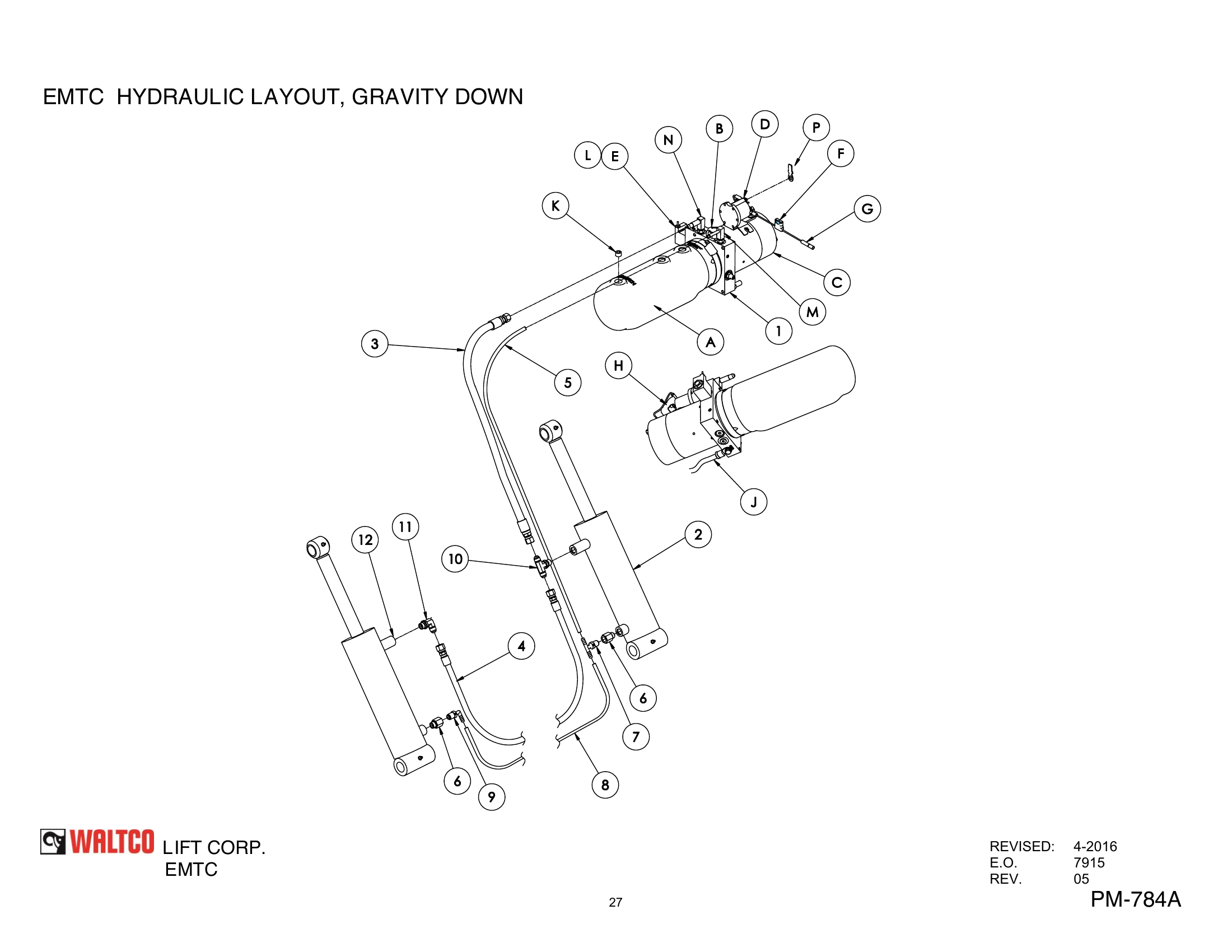

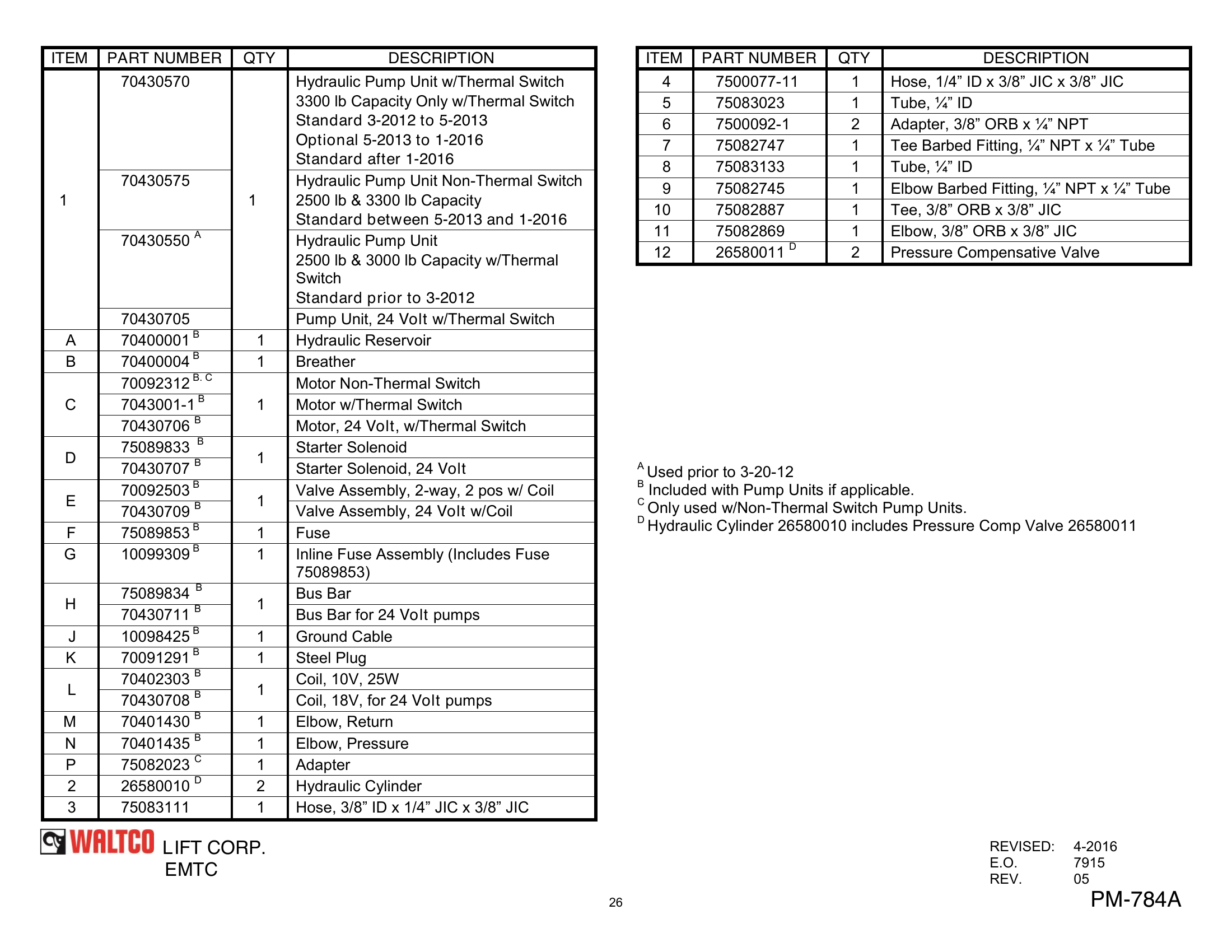

EMTC Hydraulic Layout, Gravity Down

Item	Qty	Part Number	Description	Actions
1	1	70430570	Hydraulic Pump Unit w/Thermal Switch 3300 lb Capacity Only w/Thermal Switch Standard 3-2012 to 5-2013 Optional 5-2013 to 1-2016 Standard after 1-2016	View Item
1	1	70430575	Hydraulic Pump Unit Non-Thermal Switch 2500 lb & 3300 lb Capacity Standard between 5-2013 and 1-2016	View Item
1		70430550	Hydraulic Pump Unit 2500 lb & 3000 lb Capacity w/Thermal Switch Standard prior to 3-2012	View Item
1		70430705	Pump Unit, 24 Volt w/Thermal Switch	View Item
A	1	70400001	Hydraulic Reservoir	View Item
B	1	70400004	Breather	View Item
C		70092312	Motor Non-Thermal Switch	View Item
C	1	7043001-1	Motor w/Thermal Switch	View Item
C		70430706	Motor, 24 Volt, w/Thermal Switch	View Item
D	1	75089833	Starter Solenoid	View Item
D		70430707	Starter Solenoid, 24 Volt	View Item
E	1	70092503	Valve Assembly, 2-way, 2 pos w/ Coil	View Item
E		70430709	Valve Assembly, 24 Volt w/Coil	View Item
F	1	75089853	Fuse	View Item
G	1	10099309	Inline Fuse Assembly (Includes Fuse 75089853)	View Item
H		75089834	Bus Bar	View Item
H		70430711	Bus Bar for 24 Volt pumps
J	1	10098425	Ground Cable	View Item
K	1	70091291	Steel Plug	View Item
L		70402303	Coil, 10V, 25W	View Item
L		70430708	Coil, 18V, for 24 Volt pumps	View Item
M	1	70401430	Elbow, Return	View Item
N	1	70401435	Elbow, Pressure	View Item
P		75082023	Adapter	View Item
2	2	26580010	Hydraulic Cylinder	View Item
3	1	75083111	Hose, 3/8” ID x 1/4” JIC x 3/8” JIC	View Item
4	1	7500077-11	Hose, 1/4” ID x 3/8” JIC x 3/8” JIC	View Item
5	1	75083023	Tube, 1/4” ID	View Item
6	2	7500092-1	Adapter, 3/8” ORB x 1/4” NPT	View Item
7	1	75082747	Tee Barbed Fitting, 1/4” NPT x 1/4” Tube	View Item
8	1	75083133	Tube, 1/4” ID	View Item
9	1	75082745	Elbow Barbed Fitting, 1/4” NPT x 1/4” Tube	View Item
10	1	75082887	Tee, 3/8” ORB x 3/8” JIC	View Item
11	1	75082869	Elbow, 3/8” ORB x 3/8” JIC	View Item
12	2	26580011	Pressure Compensative Valve	View Item

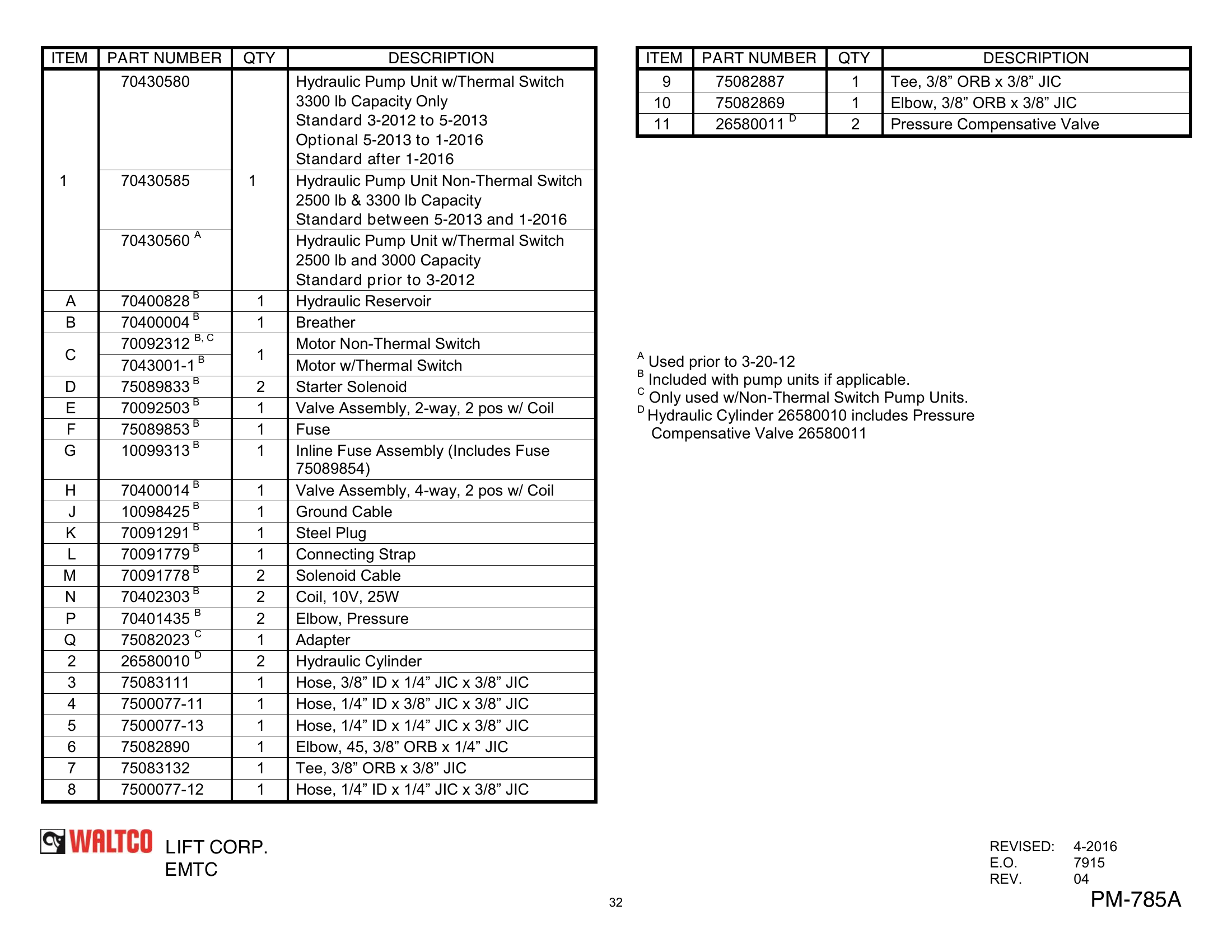

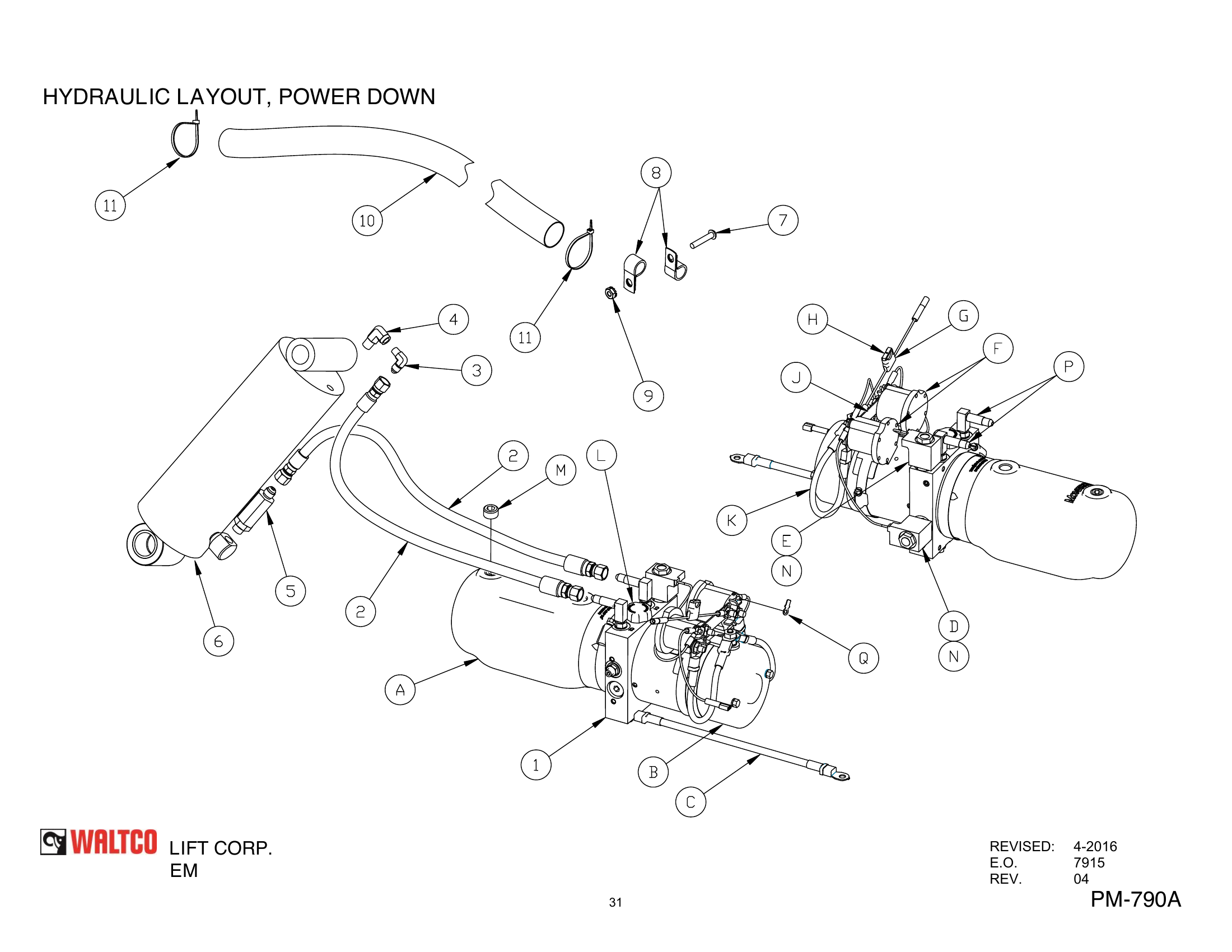

HYDRAULIC LAYOUT, POWER DOWN

Item	Qty	Part Number	Description	Actions
1		70430580	Hydraulic Pump Unit w/Thermal Switch 3300 lb Capacity Only Standard 3-2012 to 5-2013 Optional 5-2013 to 1-2016 Standard after 1-2016	View Item
1	1	70430585	Hydraulic Pump Unit Non-Thermal Switch 2500 lb & 3300 lb Capacity Standard between 5-2013 and 1-2016	View Item
1		70430560	Hydraulic Pump Unit w/Thermal Switch 2500 lb and 3000 Capacity Standard prior to 3-2012	View Item
A	1	70400828	Hydraulic Reservoir	View Item
B		70400004	Breather	View Item
C		70092312	Motor Non-Thermal Switch	View Item
C		7043001-1	Motor w/Thermal Switch	View Item
D	2	75089833	Starter Solenoid	View Item
E	1	70092503	Valve Assembly, 2-way, 2 pos w/ Coil	View Item
F	1	75089853	Fuse	View Item
G	1	10099313	Inline Fuse Assembly (Includes Fuse 75089854)
H	1	70400014	Valve Assembly, 4-way, 2 pos w/ Coil	View Item
J	1	10098425	Ground Cable	View Item
K	1	70091291	Steel Plug	View Item
L	1	70091779	Connecting Strap	View Item
M	2	70091778	Solenoid Cable	View Item
N	2	70402303	Coil, 10V, 25W	View Item
P	2	70401435	Elbow, Pressure	View Item
Q	1	75082023	Adapter	View Item
2	2	26580010	Hydraulic Cylinder	View Item
3	1	75083111	Hose, 3/8” ID x 1/4” JIC x 3/8” JIC	View Item
4	1	7500077-11	Hose, 1/4” ID x 3/8” JIC x 3/8” JIC	View Item
5	1	7500077-13	Hose, 1/4” ID x 1/4” JIC x 3/8” JIC	View Item
6	1	75082890	Elbow, 45, 3/8” ORB x 1/4” JIC	View Item
7	1	75083132	Tee, 3/8” ORB x 3/8” JIC	View Item
8	1	7500077-12	Hose, 1/4” ID x 1/4” JIC x 3/8” JIC	View Item
9	1	75082887	Tee, 3/8” ORB x 3/8” JIC	View Item
10	1	75082869	Elbow, 3/8” ORB x 3/8” JIC	View Item
11	2	26580011	Pressure Compensative Valve	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

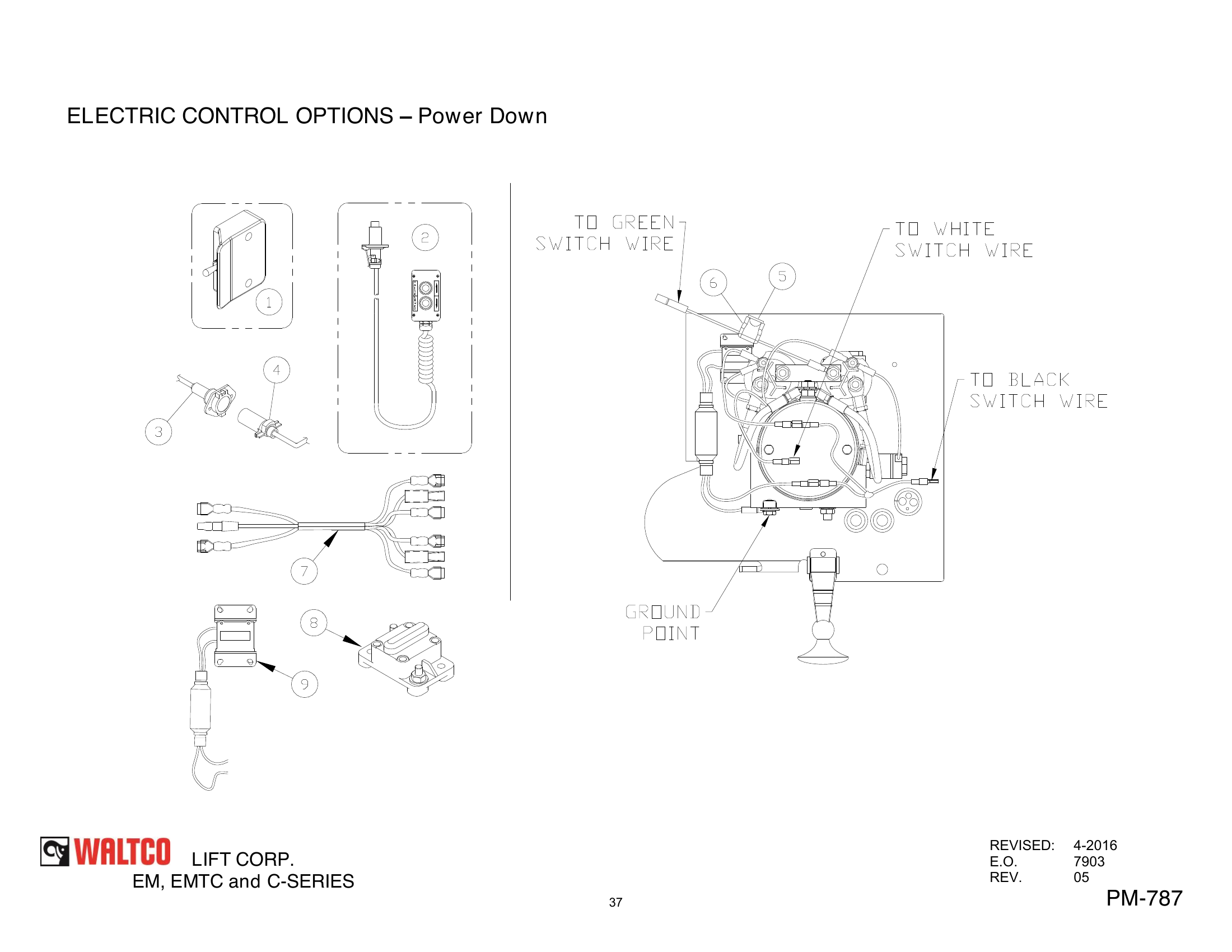

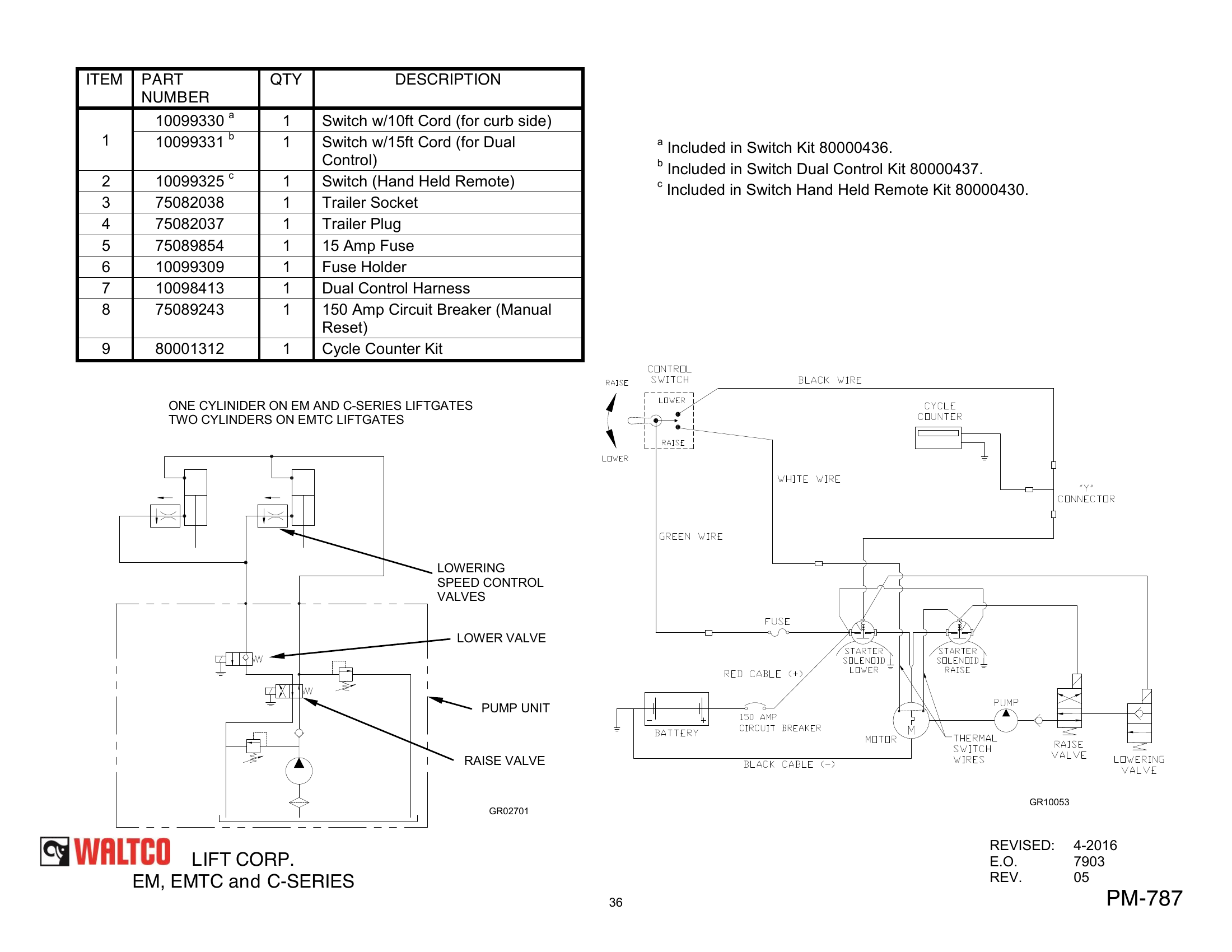

ELECTRIC CONTROL OPTIONS - Power Down

Item	Qty	Part Number	Description	Actions
1	1	10099330	Switch w/10ft Cord (for curb side)	View Item
1	1	10099331	Switch w/15ft Cord (for Dual Control)	View Item
2	1	10099325	Switch (Hand Held Remote)	View Item
3	1	75082038	Trailer Socket	View Item
4	1	75082037	Trailer Plug	View Item
5	1	75089854	15 Amp Fuse	View Item
6	1	10099309	Fuse Holder	View Item
7	1	10098413	Dual Control Harness	View Item
8	1	75089243	150 Amp Circuit Breaker (Manual Reset)	View Item
9	1	80001312	Cycle Counter Kit	View Item

Need help confirming the correct part?

Share model, serial, and item number.

Fast technical support

Use this after reviewing the diagram and table. We can verify compatibility before purchase.

Phone

(774) 266-8892

parts@liftgateme.com

Send your details and we will help identify the right replacement part.

Contact Support

Your cart.

Your cart is empty

Waltco EM Series Parts Diagrams | Approximate Years 2010

Placement of Decals

Mount Frame Assembly

Mount Frame Assembly

Aluminum Platform Assemblies

Bed Extension and Light Kit Options

Bed Extension and Light Kit Options

BED EXTENSION AND LIGHT KIT OPTIONS

EMTC Hydraulic Layout, Gravity Down

HYDRAULIC LAYOUT, POWER DOWN

ELECTRIC CONTROL OPTIONS - Power Down

Need help confirming the correct part?

Fast technical support
