Waltco C-Series Tuck-Under parts diagrams (3/2011)
Parts diagrams for the Waltco C-Series Tuck-Under liftgate. Approximate years: 3/2011. Use the exploded-view diagrams to identify components and match parts for ordering. These diagrams are provided for reference only. Always consult the LiftGateMe team before ordering if there is any doubt. Diagram accuracy cannot be guaranteed without verifying the exact liftgate make, model, and serial number.
Compatibility and Purchasing Notice
Although the information on this page is taken from an OEM lift gate manual, if you’re unsure whether this data matches your exact model and year, PLEASE contact our team. Part numbers can vary by year - even within the same model - and we’re always happy to confirm the correct parts for you.
Have your liftgate serial number ready for faster assistance. Where to find it

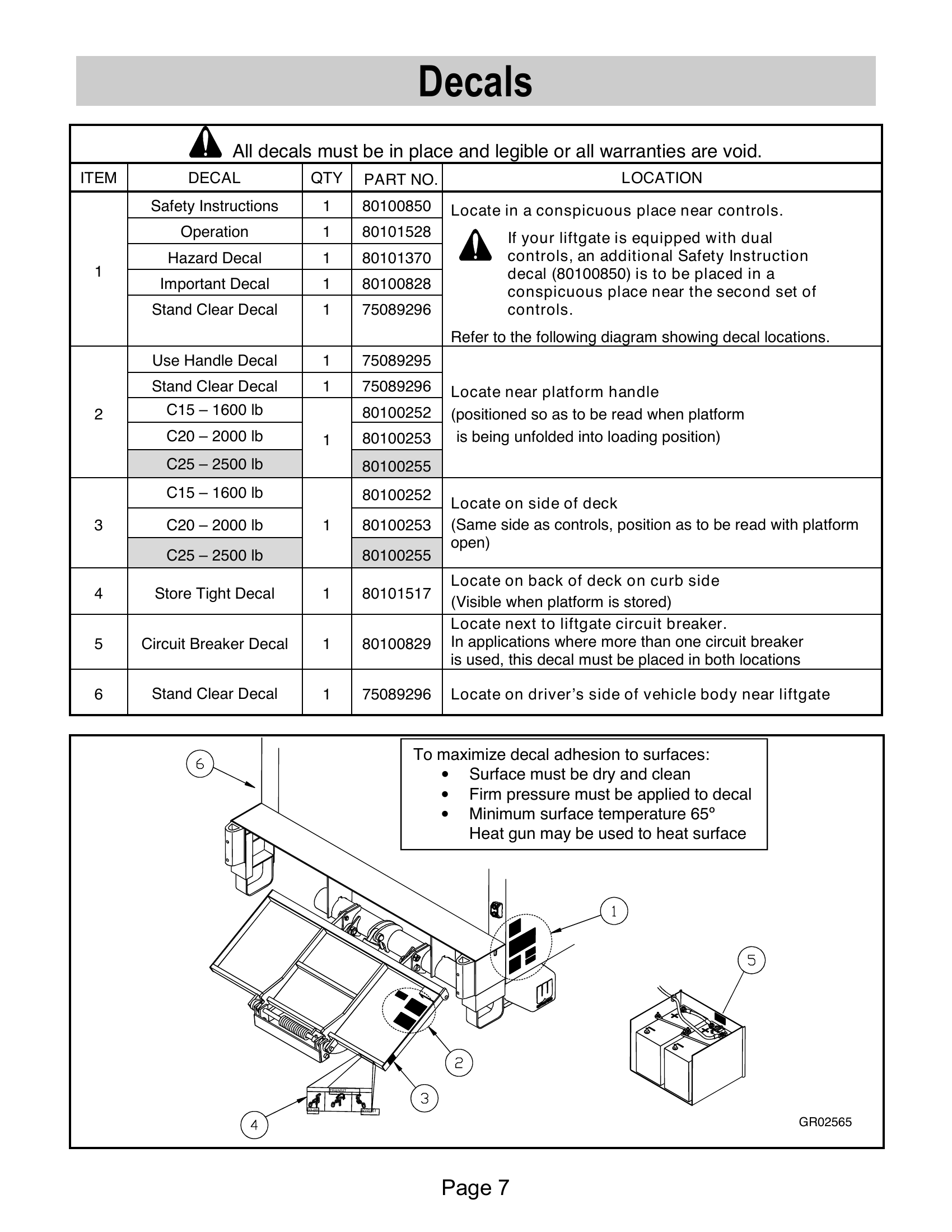

| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 80100850 | Safety Instructions | |
| 1 | 1 | 80101528 | Operation | |
| 1 | 1 | 80101370 | Hazard Decal | |
| 1 | 1 | 80100828 | Important Decal | |
| 1 | 1 | 75089296 | Stand Clear Decal | |
| 2 | 1 | 75089295 | Use Handle Decal | |
| 2 | 1 | 75089296 | Stand Clear Decal | |
| 2 | 80100252 | C15 600 lb | ||
| 2 | 1 | 80100253 | C20 200 lb | |
| 2 | 80100255 | C25 2500 lb | ||
| 3 | 80100252 | C15 600 lb | ||
| 3 | 1 | 80100253 | C20 200 lb | |
| 3 | 80100255 | C25 2500 lb | ||
| 4 | 1 | 80101517 | Store Tight Decal | |
| 5 | 1 | 80100829 | Circuit Breaker Decal | |
| 6 | 1 | 75089296 | Stand Clear Decal |
Reference Notice
Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.
Have your liftgate serial number ready for faster assistance. Where to find it

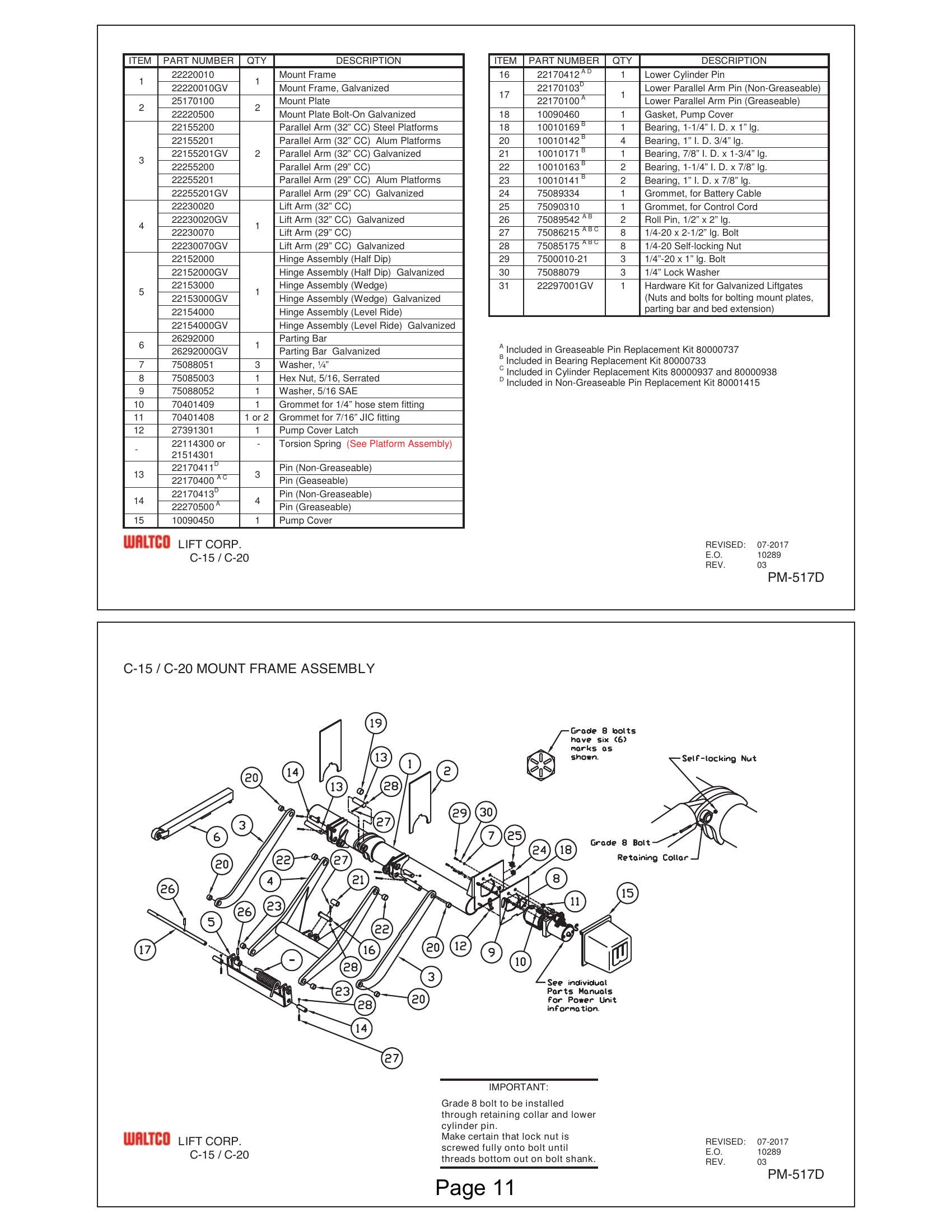

| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 22220010 | Mount Frame | |
| 1 | 22220010GV | Mount Frame, Galvanized | ||
| 2 | 2 | 25170100 | Mount Plate | |
| 2 | 22220500 | Mount Plate Bolt-On Galvanized | ||
| 3 | 2 | 22155200 | Parallel Arm (32" CC) Steel Platforms | |
| 3 | 22155201 | Parallel Arm (32" CC) Alum Platforms | ||
| 3 | 222155201GV | Parallel Arm (32" CC) Galvanized | ||
| 3 | 22255200 | Parallel Arm (29" CC) | ||
| 3 | 22255201 | Parallel Arm (29" CC) Alum Platforms | ||
| 3 | 222552201GV | Parallel Arm (29" CC) Galvanized | ||
| 4 | 1 | 22230020 | Lift Arm (32" CC) | |
| 4 | 22230020GV | Lift Arm (32" CC) Galvanized | ||
| 4 | 22230070 | Lift Arm (29" CC) | ||
| 4 | 22230070GV | Lift Arm (29" CC) Galvanized | ||
| 5 | 22152000 | Hinge Assembly (Half Dip) | ||
| 5 | 22152000GV | Hinge Assembly (Half Dip) Galvanized | ||
| 5 | 1 | 22153000 | Hinge Assembly (Wedge) | |
| 5 | 22153000GV | Hinge Assembly (Wedge) Galvanized | ||
| 5 | 22154000 | Hinge Assembly (Level Ride) | ||
| 5 | 22154000GV | Hinge Assembly (Level Ride) Galvanized | ||
| 6 | 1 | 26292000 | Parting Bar | |
| 6 | 26292000GV | Parting Bar Galvanized | ||
| 7 | 3 | 75088051 | Washer, 1/4" | |
| 8 | 1 | 75085003 | Hex Nut, 5/16, Serrated | |
| 9 | 1 | 75088052 | Washer, 5/16 SAE | |
| 10 | 1 | 70401409 | Grommet for 1/4" hose stem fitting | |
| 11 | 1 or 2 | 70401408 | Grommet for 7/16" JIC fitting | |
| 12 | 1 | 27391301 | Pump Cover Latch | |
| - | 22114300 or 21514301 | Torsion Spring (See Platform Assembly) | ||
| 13 | 3 | 22170411 | Pin (Non-Greaseable) | |
| 13 | 22170400 | Pin (Greaseable) | ||
| 14 | 4 | 22170413 | Pin (Non-Greaseable) | |
| 14 | 22270500 | Pin (Greaseable) | ||
| 15 | 1 | 10090450 | Pump Cover | |
| 16 | 1 | 22170412 | Lower Cylinder Pin | |
| 17 | 1 | 22170103 | Lower Parallel Arm Pin (Non-Greaseable) | |
| 17 | 22170100 | Lower Parallel Arm Pin (Greaseable) | ||
| 18 | 1 | 10090460 | Gasket, Pump Cover | |
| 20 | 1 | 10010169 | Bearing, 1-1/4" I. D. x 1" lg. | |
| 21 | 4 | 10010142 | Bearing, 1" I. D. 3/4" lg. | |
| 22 | 1 | 10010171 | Bearing, 7/8" I. D. x 1-3/4" lg. | |
| 23 | 2 | 10010163 | Bearing, 1-1/4" I. D. x 7/8" lg. | |
| 25 | 1 | 75089334 | Grommet, for Battery Cable | |
| 24 | 1 | 75089334 | Grommet, for Battery Cable | |
| 26 | 1 | 75090310 | Grommet, for Control Cord | |
| 27 | 2 | 75089542 | Roll Pin, 1/2" x 2" lg. | |
| 28 | 8 | 75086215 | 1/4-20 x 2-1/2" lg. Bolt | |
| 29 | 8 | 75085175 | 1/4-20 Self-locking Nut | |
| 30 | 3 | 7500010-21 | 1/4"-20 x 1" lg. Bolt | |
| 31 | 3 | 75088079 | 1/4" Lock Washer | |
| 31 | 1 | 22297001GV | Hardware Kit for Galvanized Liftgates (Nuts and bolts for bolting mount plates, parting bar and bed extension) |

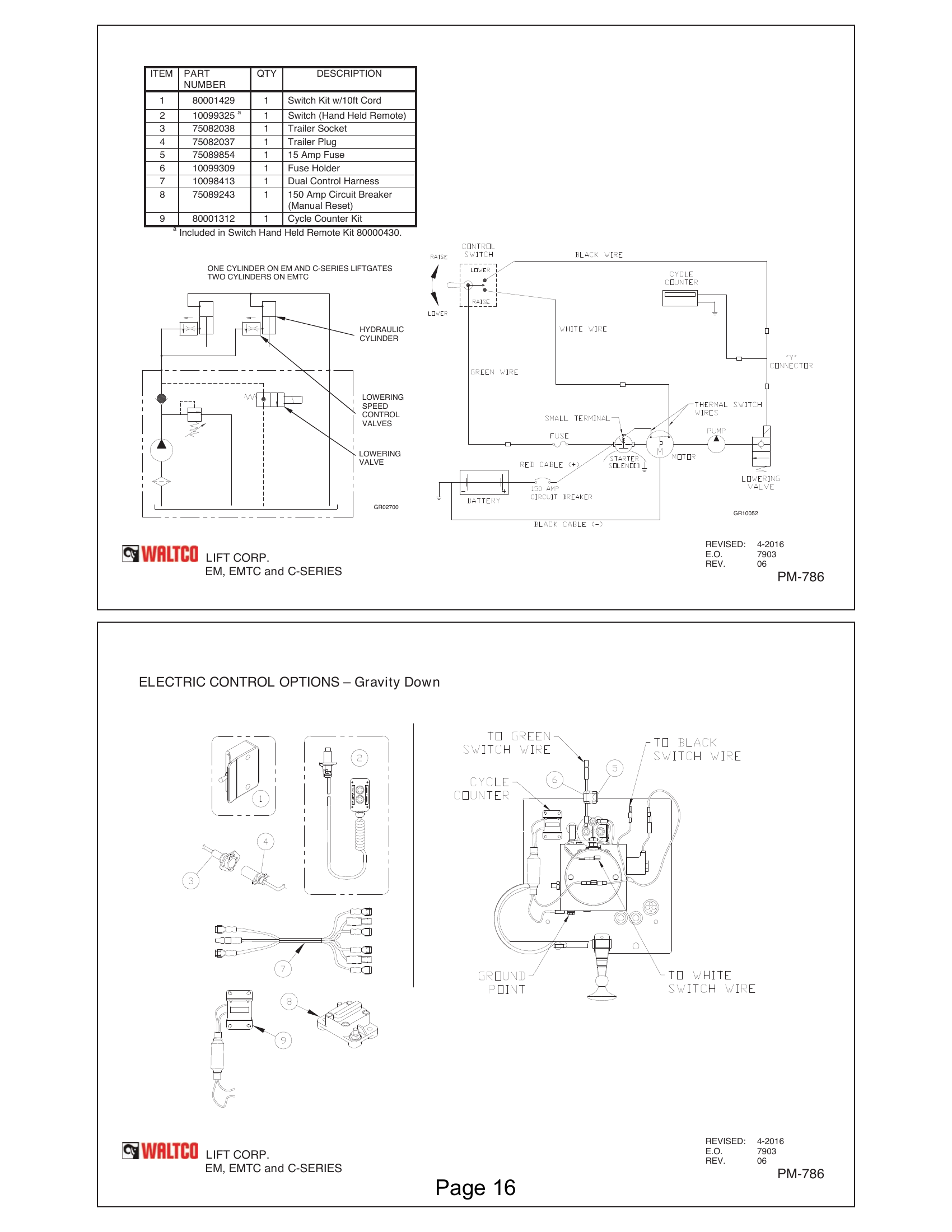

| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 10099330 | Switch w/10ft Cord (for curb side) | |
| 1 | 1 | 10099331 | Switch w/15ft Cord (for Dual Control) | |
| 2 | 1 | 1009925 | Switch (Hand Held Remote) | |
| 3 | 1 | 75082038 | Trailer Socket | |
| 4 | 1 | 75082037 | Trailer Plug | |
| 5 | 1 | 75089854 | 15 Amp Fuse | |
| 6 | 1 | 10099309 | Fuse Holder | |
| 7 | 1 | 10098413 | Dual Control Harness | |
| 8 | 1 | 75089243 | 150 Amp Circuit Breaker (Manual Reset) | |
| 9 | 1 | 80001312 | Cycle Counter Kit |
