TUK-A-WAY TE-20

Approx. model coverage: November 2017 to December 2020

Source file: maxon__tuck-under__te-20__parts-manual__2017-2020__te-16-35-te20-2020-12-cv__bb261592.pdf

Open original PDF

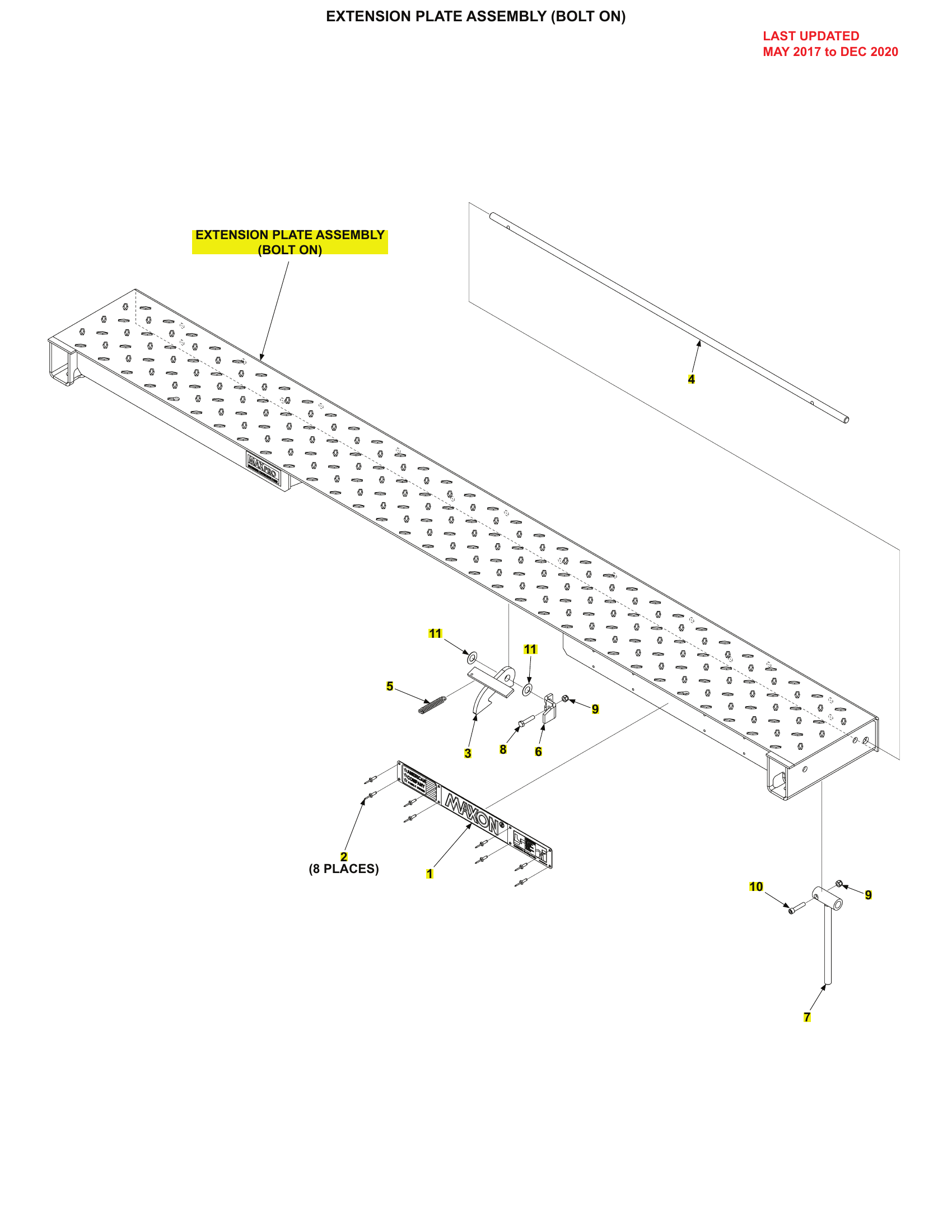

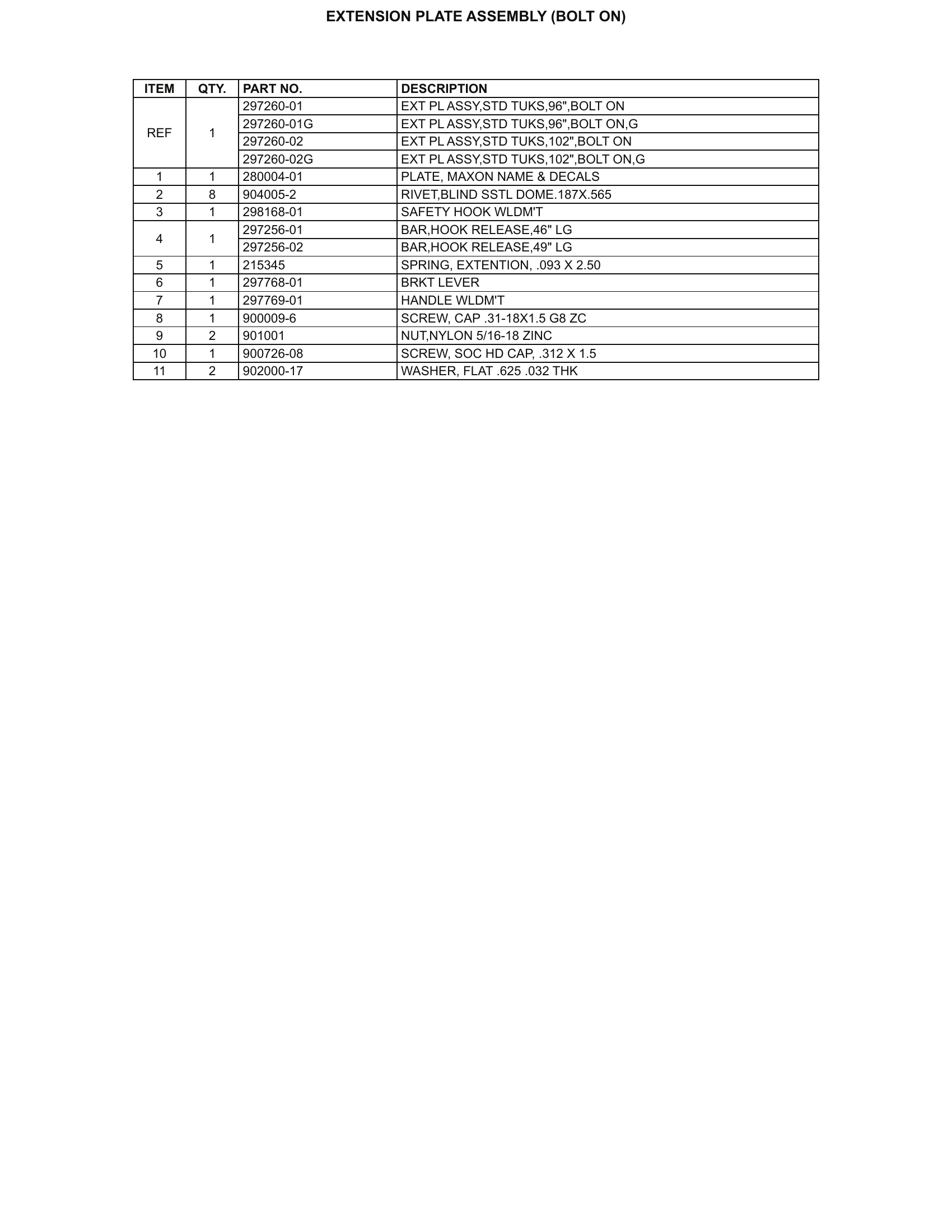

EXTENSION PLATE ASSEMBLY (BOLT ON)

Item	Qty	Part Number	Description	Actions
REF	1	297260-01	EXT PL ASSY, STD TUKS, 96", BOLT ON	View Item
REF	1	297260-01G	EXT PL ASSY, STD TUKS, 96", BOLT ON, G	View Item
REF	1	297260-02	EXT PL ASSY, STD TUKS, 102", BOLT ON	View Item
REF	1	297260-02G	EXT PL ASSY, STD TUKS, 102", BOLT ON, G	View Item
1	1	280004-01	PLATE, MAXON NAME & DECALS	View Item
2	8	900405-2	RIVET, BLIND SSTL DOME, .187X.565
3	1	298168-01	SAFETY HOOK WLDMT	View Item
4	1	297256-01	BAR, HOOK RELEASE, 46" LG	View Item
4	1	297256-02	BAR, HOOK RELEASE, 49" LG	View Item
5	1	215345	SPRING, EXTENTION, .093 X 2.50	View Item
6	1	297678-01	BRKT LEVER
7	1	297769-01	HANDLE WLDMT	View Item
8	1	900009-6	SCREW, CAP, 31-18X1.5 GB ZC	View Item
9	2	901001	NUT; NYLON 5/16-18 ZINC	View Item
10	1	900726-08	SCREW, SOC HD CAP, .312 X 1.5	View Item
11	2	902000-17	WASHER, FLAT .625 .032 THK	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

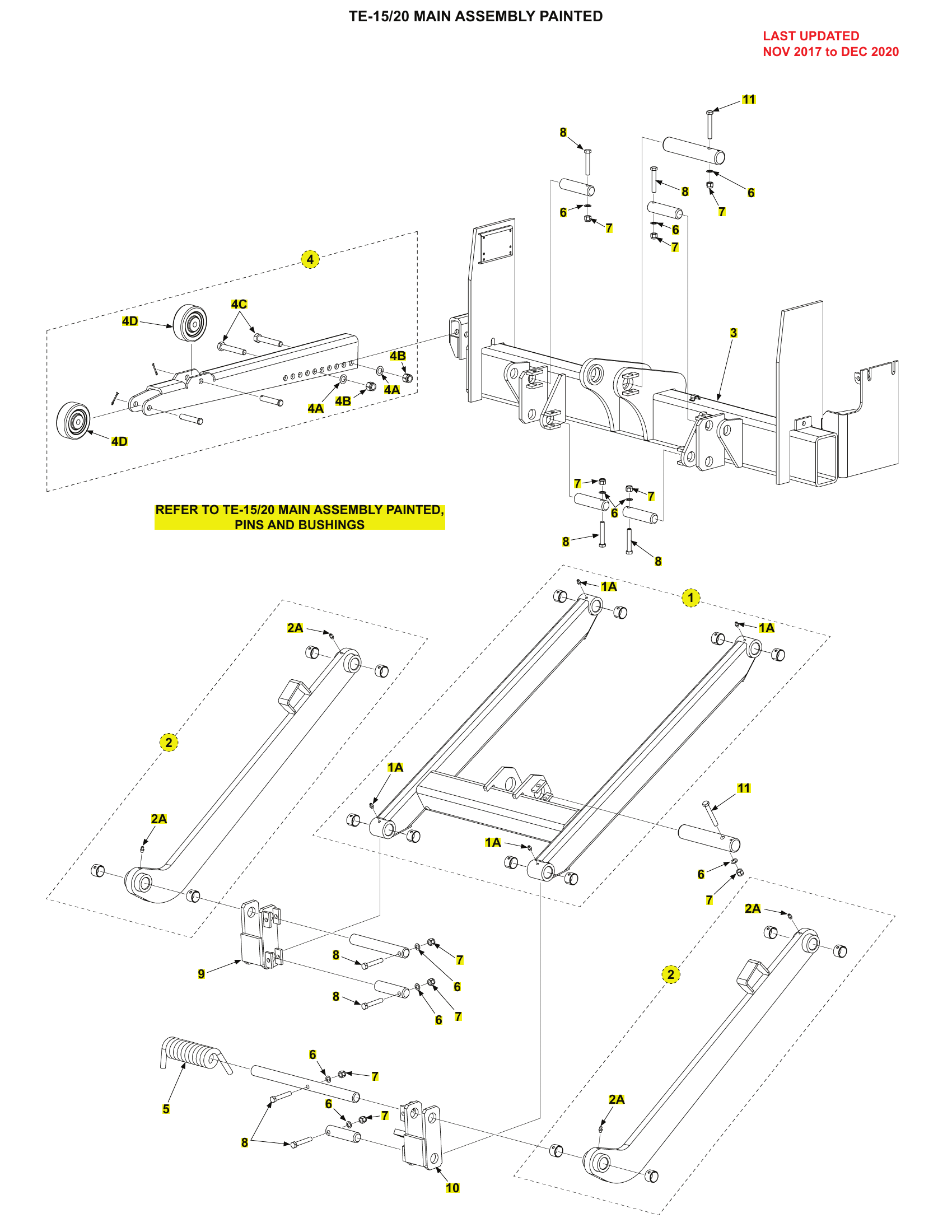

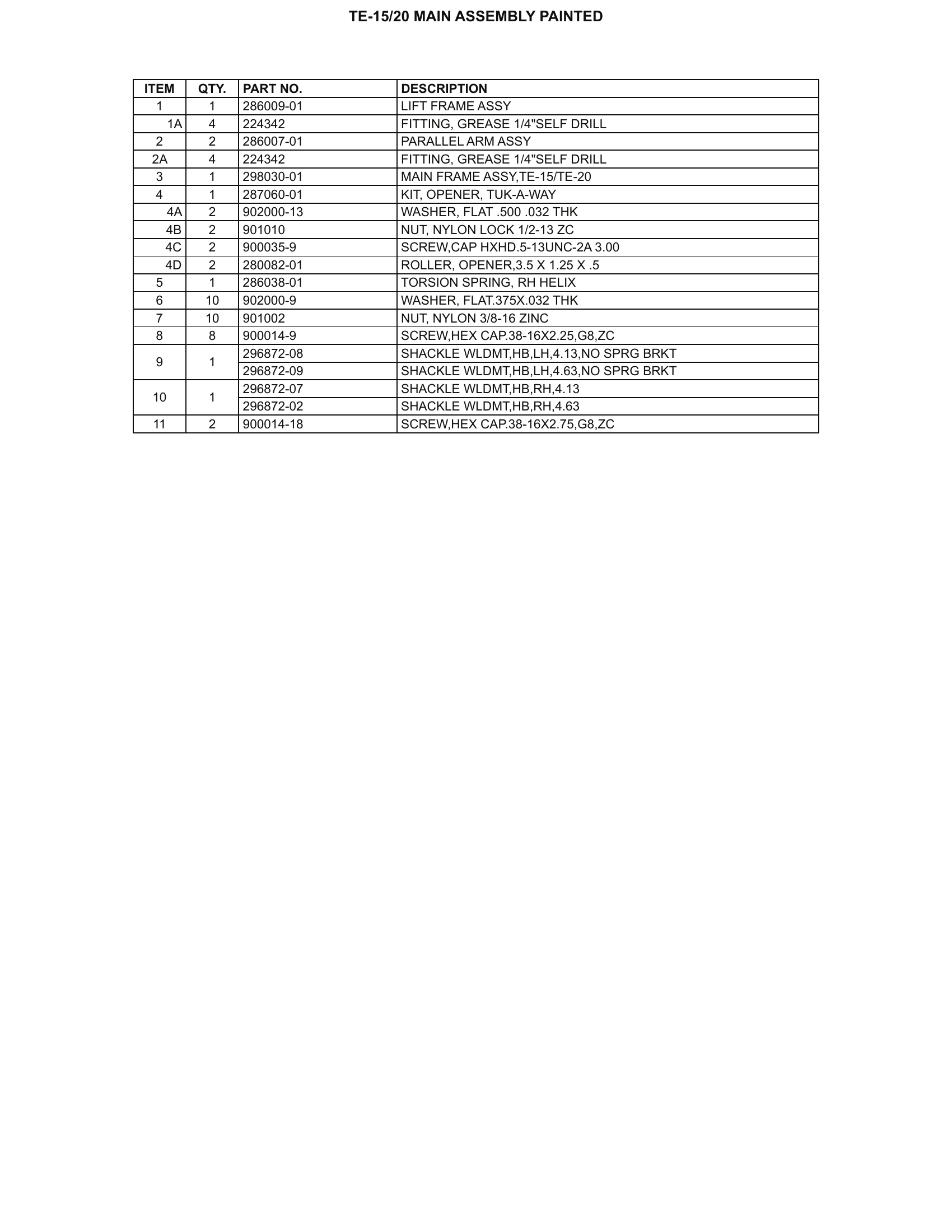

TE-15/20 MAIN ASSEMBLY PAINTED

Item	Qty	Part Number	Description	Actions
1	1	268039-01	LIFT FRAME ASSY	View Item
1A	4	224342	FITTING, GREASE 1/4"SELF DRILL	View Item
2	2	268067-01	PARALLEL ARM ASSY	View Item
2A	4	224342	FITTING, GREASE 1/4"SELF DRILL	View Item
3	1	298030-01	MAIN FRAME ASSY,TE-15/TE-20	View Item
4	1	287060-01	KIT, OPENER, TUK-A-WAY	View Item
4A	2	902000-13	WASHER, FLAT .500 .032 THK	View Item
4B	2	901010	NUT, NYLON LOCK 1/2-13 ZC	View Item
4C	2	900035-9	SCREW,CAP HXHD,5-13UNC-2A 3.00	View Item
4D	2	280082-01	ROLLER, OPENER,3.5 X 1.25 X .5	View Item
5	1	268038-01	TORSION SPRING, RH HELIX	View Item
6	10	902000-9	WASHER, FLAT.375X.032 THK	View Item
7	10	901002	NUT, NYLON 3/8-16 ZINC	View Item
8	8	900014-9	SCREW,HEX CAP,3/8-16X2.25,GB,ZC	View Item
11	2	900014-18	SCREW,HEX CAP,3/8-16X2.75,GB,ZC	View Item

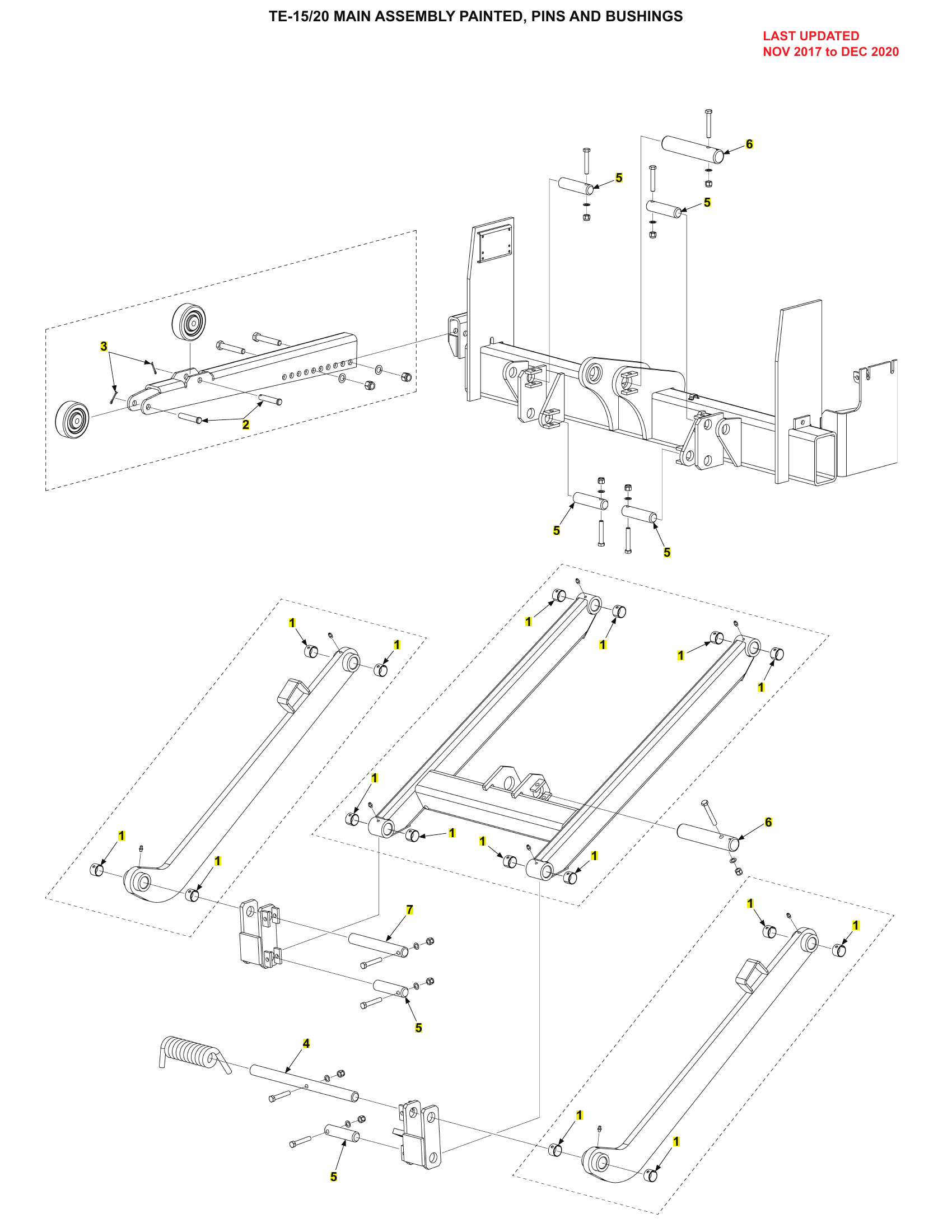

TE-15/20 MAIN ASSEMBLY PAINTED, PINS AND BUSHINGS

Item	Qty	Part Number	Description	Actions
1	16	260916-08	BEARING,SELF LUBE 1"DIA.X.75"	View Item
2	2	905202-03	PIN CLEVIS, .500 DIA X 2.50	View Item
3	2	003805	COTTER PIN 1/8 X 1"
4	1	262891	PIN 1"DIA X 14.00"LG
5	6	256286	PIN 1"DIA. 4.00"LG
6	2	286074-01	PIN, CYLINDER	View Item
7	1	260830	PIN 1"DIA X 7.25"LG	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

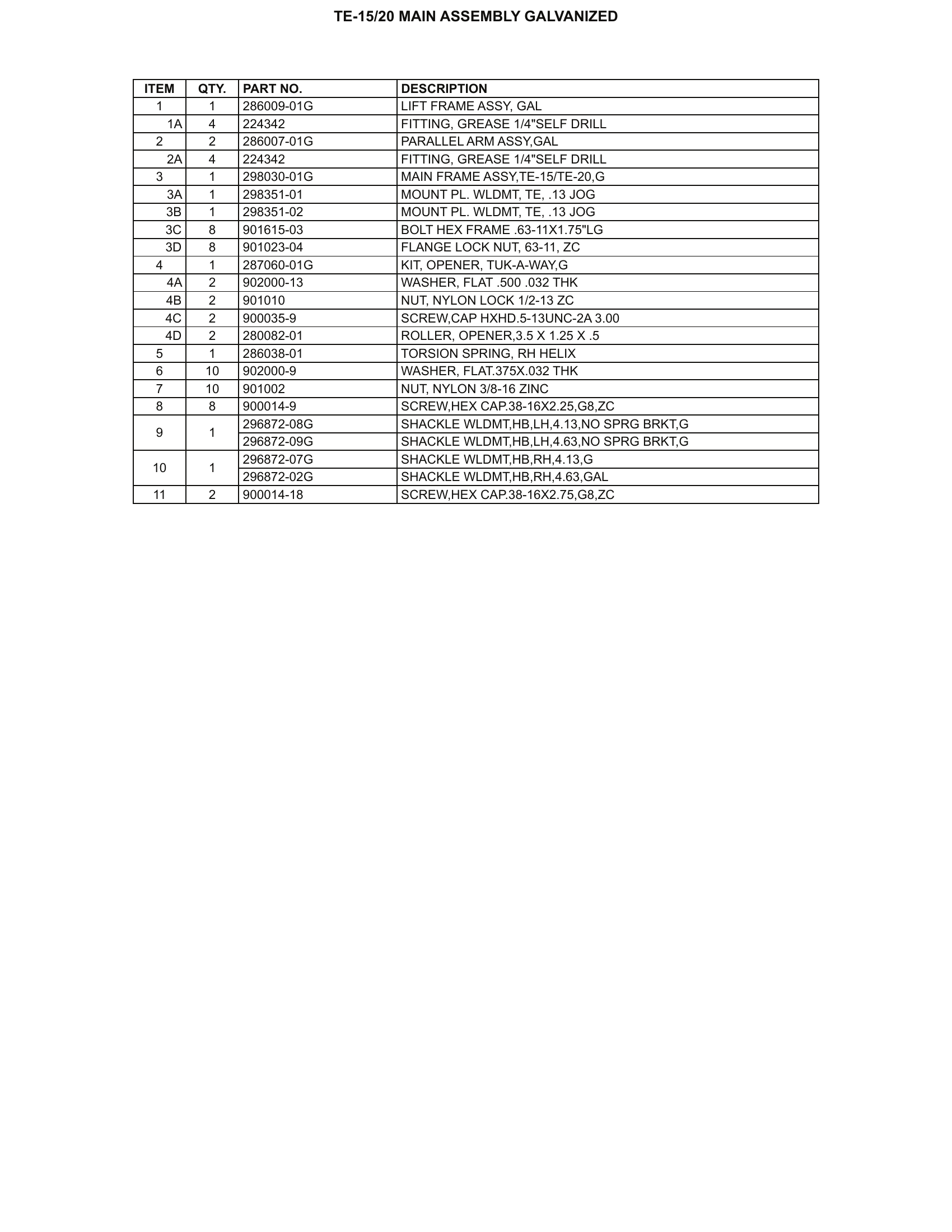

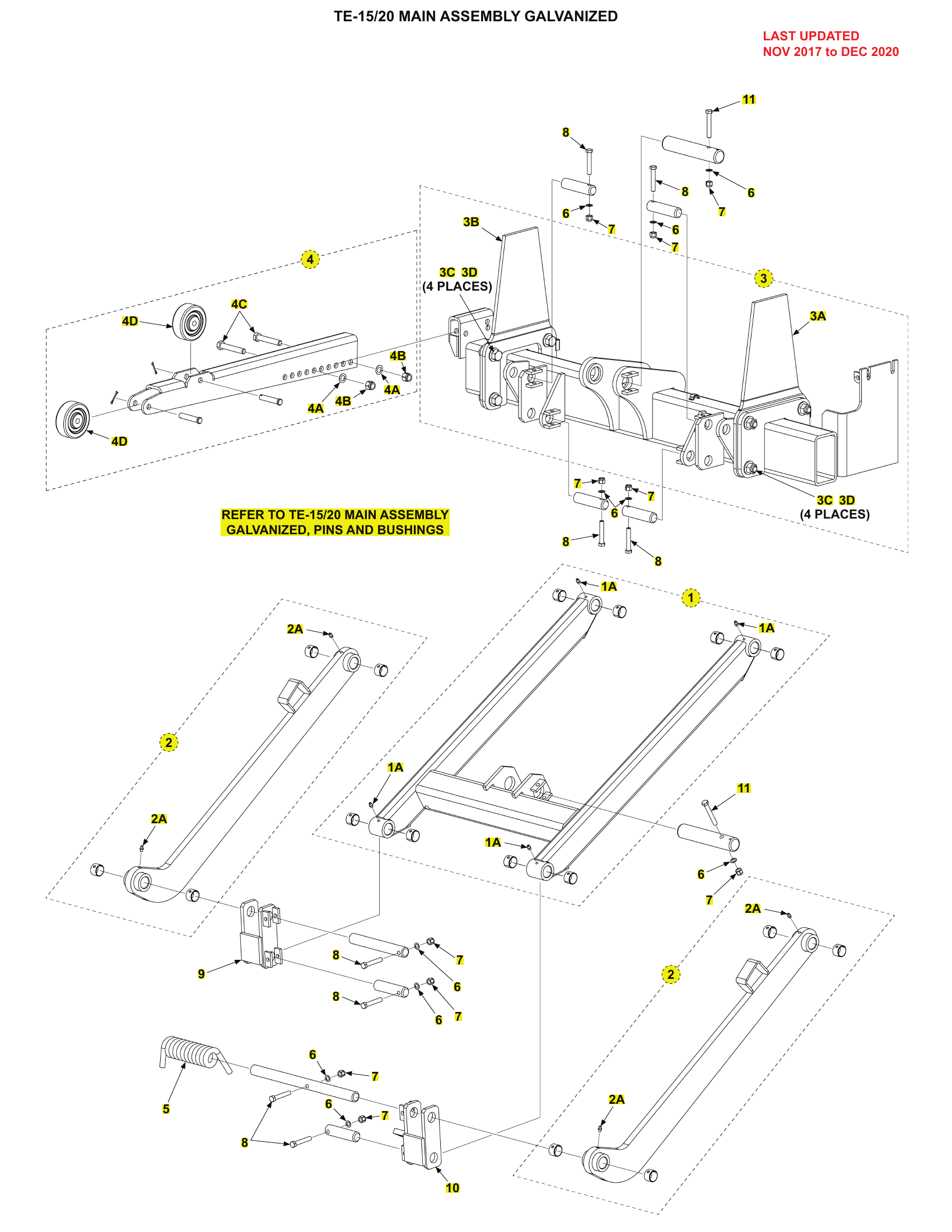

TE-15/20 MAIN ASSEMBLY GALVANIZED

Item	Qty	Part Number	Description	Actions
1	1	268009-01G	LIFT FRAME ASSY, GAL
1A	4	224342	FITTING, GREASE 1/4"SELF DRILL	View Item
2	2	268007-01G	PARALLEL ARM ASSY,GAL
2A	4	224342	FITTING, GREASE 1/4"SELF DRILL	View Item
3	1	298030-01G	MAIN FRAME ASSY,TE-15/TE-20,G	View Item
3A	1	298351-01	MOUNT PL. WLDM'T, TE , 13 JOG	View Item
3B	1	298351-02	MOUNT PL. WLDM'T, TE , 13 JOG	View Item
3C	8	901615-03	BOLT HEX FRAME, 63-11X1.75'LG	View Item
3D	8	901023-04	FLANGE LOCK NUT, 63-11, ZC	View Item
4	1	287060-01G	KIT, OPENER, TUK-A-WAY,G	View Item
4A	2	902000-13	WASHER, FLAT .500-.032 THK	View Item
4B	2	901010	NUT, NYLON LOCK 1/2-13 ZC	View Item
4C	2	900035-9	SCREW,CAP HXHD,5-13UNC-2A 3.00	View Item
4D	2	280082-01	ROLLER, OPENER,2.5 X 1.25 X .5	View Item
5	1	268038-01	TORSION SPRING, RH HELIX	View Item
6	10	902000-9	WASHER, FLAT.375X.032 THK	View Item
7	10	901008	NUT, NYLON 3/8-16 ZINC	View Item
8	8	900014-9	SCREW,HEX CAP,3B-16X2.25,GB,ZC	View Item
9	1	296872-08G	SHACKLE WLDM'T,HB, LH,4.63,NO SPRG BRKT,G	View Item
9	1	296872-09G	SHACKLE WLDM'T,HB, LH,4.63,NO SPRG BRKT,G	View Item
10	1	296872-07G	SHACKLE WLDM'T,HB, RH,4.13,NO SPRG BRKT,G	View Item
10	1	296872-02G	SHACKLE WLDM'T,HB,RH,4.63,GAL	View Item
11	2	900014-18	SCREW,HEX CAP,3B-16X2.75,GB,ZC	View Item

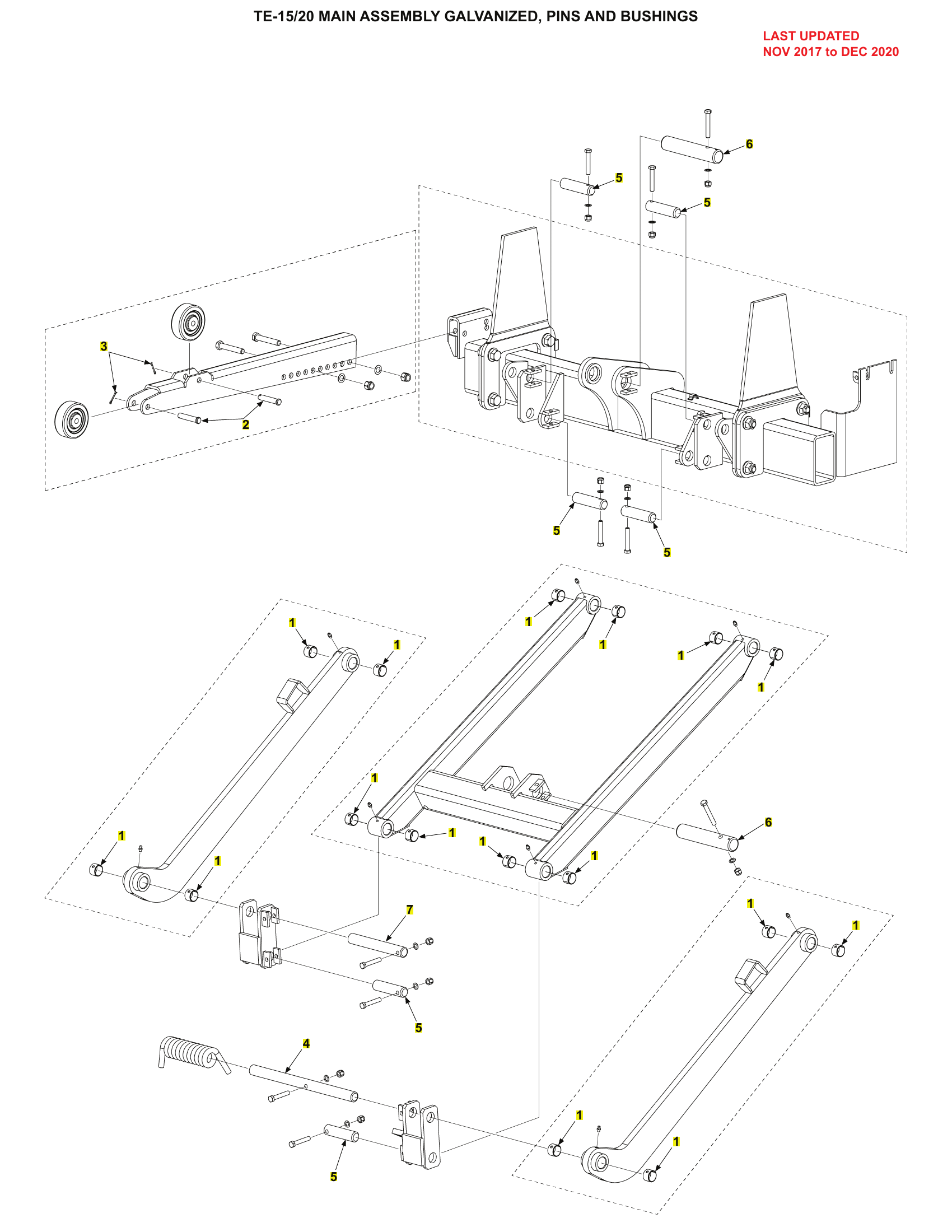

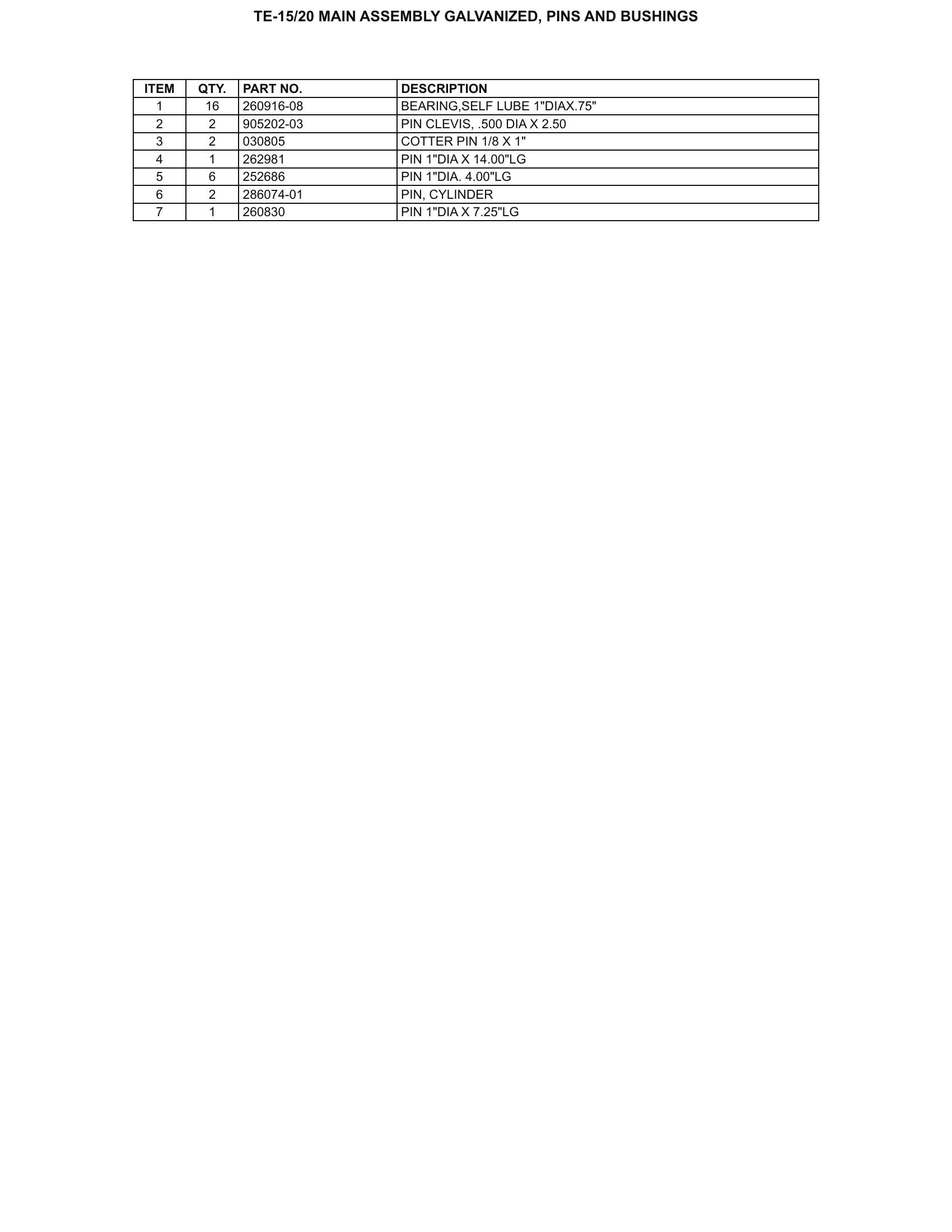

TE-15/20 MAIN ASSEMBLY GALVANIZED, PINS AND BUSHINGS

Item	Qty	Part Number	Description	Actions
1	16	260916-08	BEARING,SELF LUBE 1"DIAX.75"	View Item
2	2	905202-03	PIN CLEVIS, .500 DIA X 2.50	View Item
3	2	003805	COTTER PIN 1/8 X 1"
4	1	262981	PIN 1"DIA X 14.00"LG	View Item
5	6	252686	PIN 1"DIA. 4.00"LG	View Item
6	2	286074-01	PIN, CYLINDER	View Item
7	1	260830	PIN 1"DIA X 7.25"LG	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

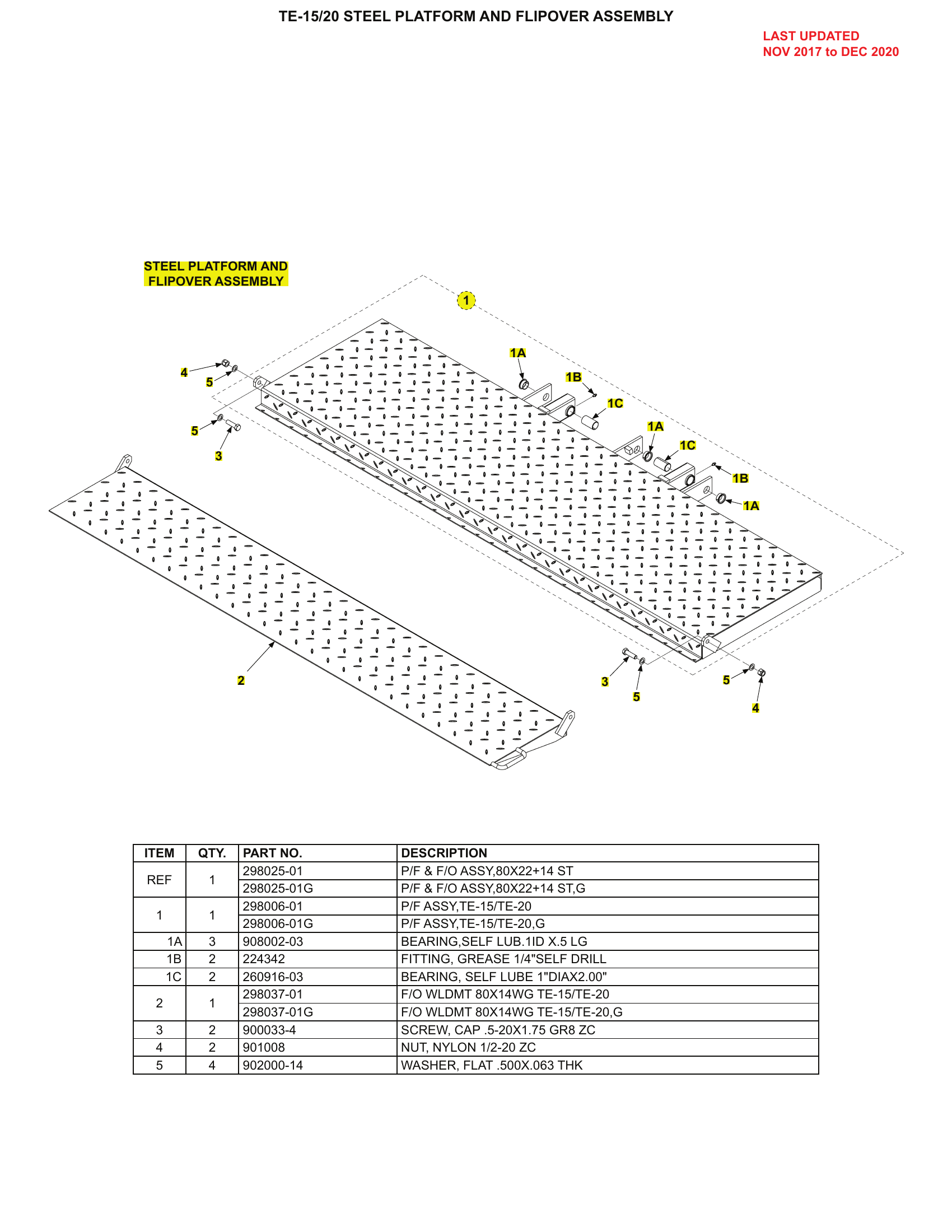

TE-15/20 STEEL PLATFORM AND FLIPOVER ASSEMBLY

Item	Qty	Part Number	Description	Actions
REF	1	298025-01	P/F & F/O ASSY,80X22*14 ST	View Item
REF	1	298025-01G	P/F & F/O ASSY,80X22*14 ST,G	View Item
1	1	298006-01	P/F ASSY,TE-15/TE-20	View Item
1	1	298006-01G	P/F ASSY,TE-15/TE-20,G	View Item
1A	3	908032-03	BEARING,SELF LUBE 11D X .5 LG
1B	2	224342	FITTING, GREASE 1/4"SELF DRILL	View Item
1C	2	260916-03	BEARING, SELF LUBE 1"DIAX2.00"	View Item
2	1	298037-01	F/O WLDM'T 80X14WG TE-15/TE-20	View Item
2	1	298037-01G	F/O WLDM'T 80X14WG TE-15/TE-20,G	View Item
3	2	900033-4	SCREW, CAP,5-20X1.75 GR8 ZC	View Item
4	2	901008	NUT, NYLON 1/2-20 ZC	View Item
5	4	902000-14	WASHER, FLAT .500X.063 THK	View Item

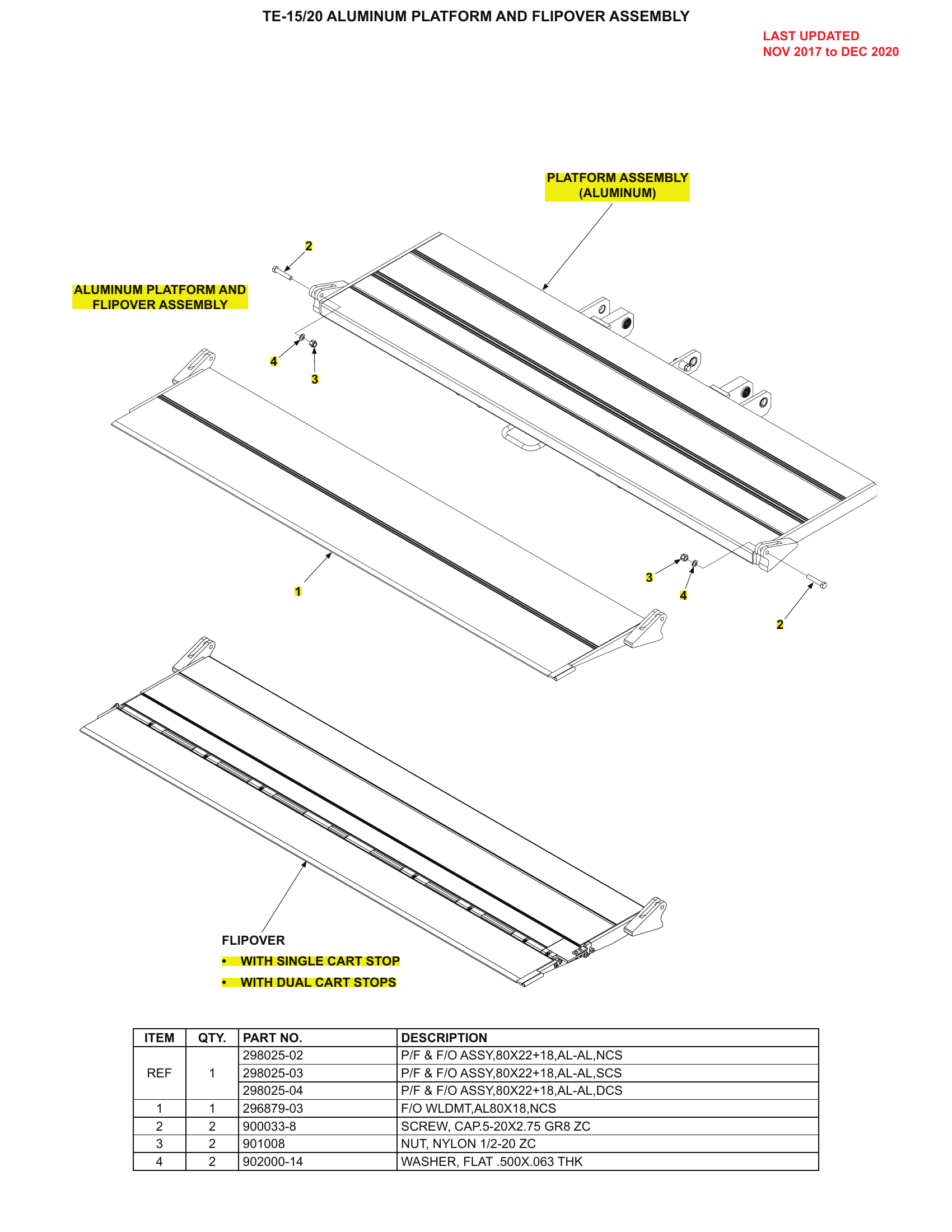

TE-15/20 ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY

Item	Qty	Part Number	Description	Actions
REF	1	298025-02	P/F & F/O ASSY, 80X22*18, AL-AL, NCS	View Item
REF	1	298025-03	P/F & F/O ASSY, 80X22*18, AL-AL, SCS	View Item
REF	1	298025-04	P/F & F/O ASSY, 80X22*18, AL-AL, DCS	View Item
1	1	296879-03	F/O WDLMT, AL 80X18, NCS	View Item
2	2	900033-8	SCREW, CAP 5-20X2.75 GR8 ZC	View Item
3	2	901008	NUT, NYLON 1/2-20 ZC	View Item
4	2	902000-14	WASHER, FLAT .500X.063 THK	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

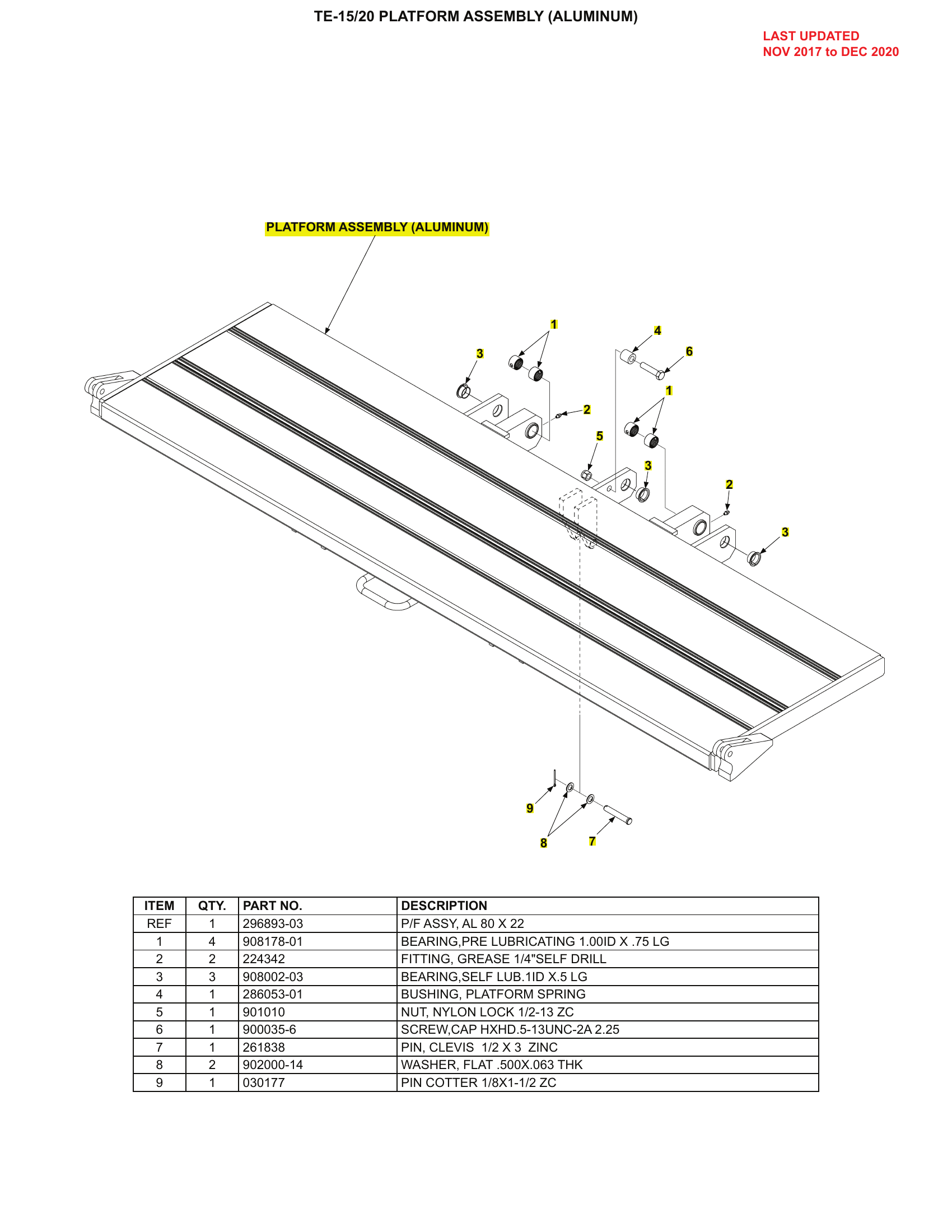

TE-15/20 PLATFORM ASSEMBLY (ALUMINUM)

Item	Qty	Part Number	Description	Actions
REF	1	296893-03	P/F ASSY, AL 80 X 22	View Item
1	4	908178-01	BEARING, PRE LUBRICATING 1.00ID X .75 LG	View Item
2	2	324842	FITTING, GREASE 1/4" SELF DRILL
3	3	209802-03	BEARING, SELF LUB .ID X .5 LG
4	1	286053-01	BUSHING, PLATFORM SPRING	View Item
5	1	901010	NUT, NYLON LOCK 1/2-13 ZC	View Item
6	1	900035-6	SCREW,CAP HHXD,5-13UNC-2A 2.25	View Item
7	1	261838	PIN, CLEVIS 1/2 X 3 ZINC	View Item
8	2	902000-14	WASHER, FLAT .500X.063 THK	View Item
9	1	030177	PIN COTTER 1/8X1-1/2 ZC	View Item

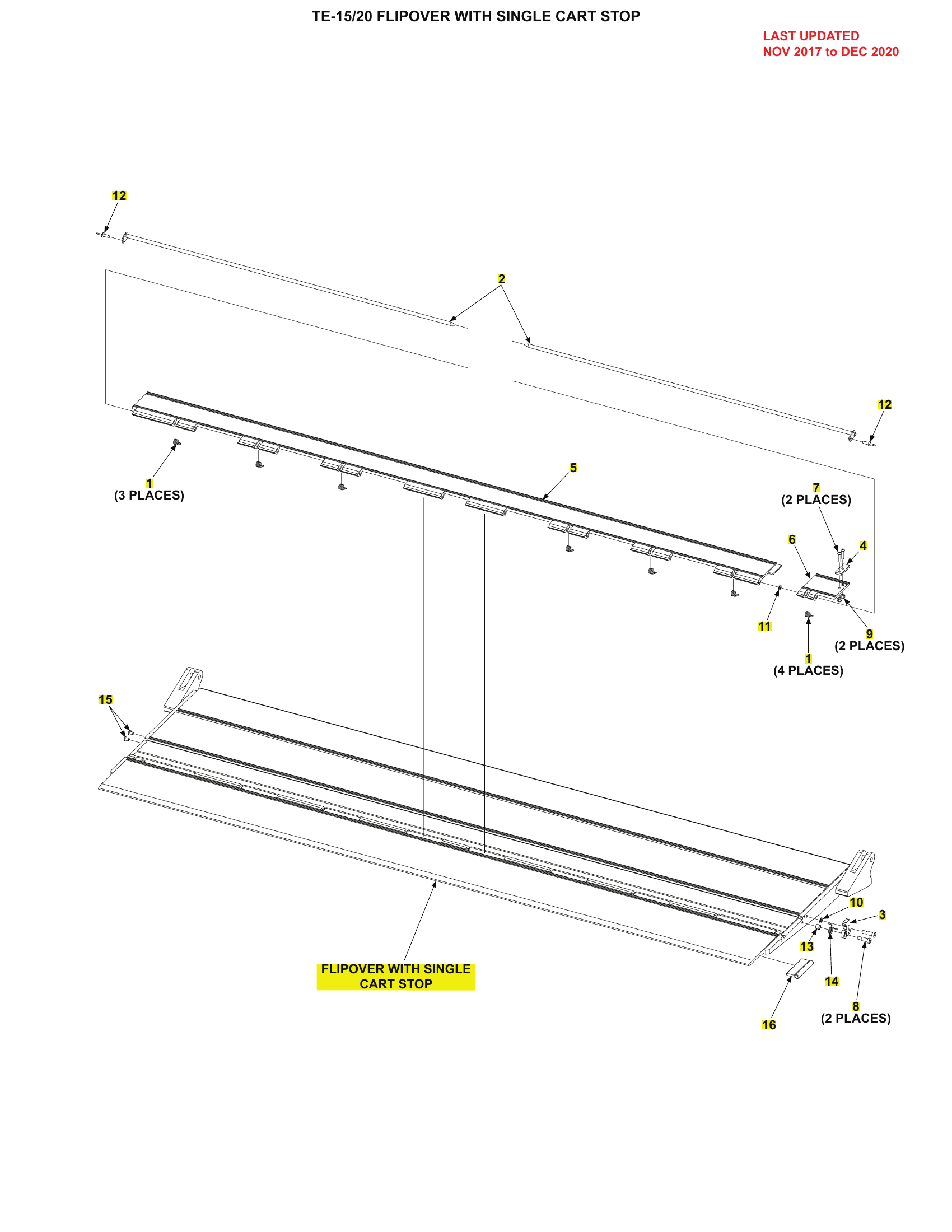

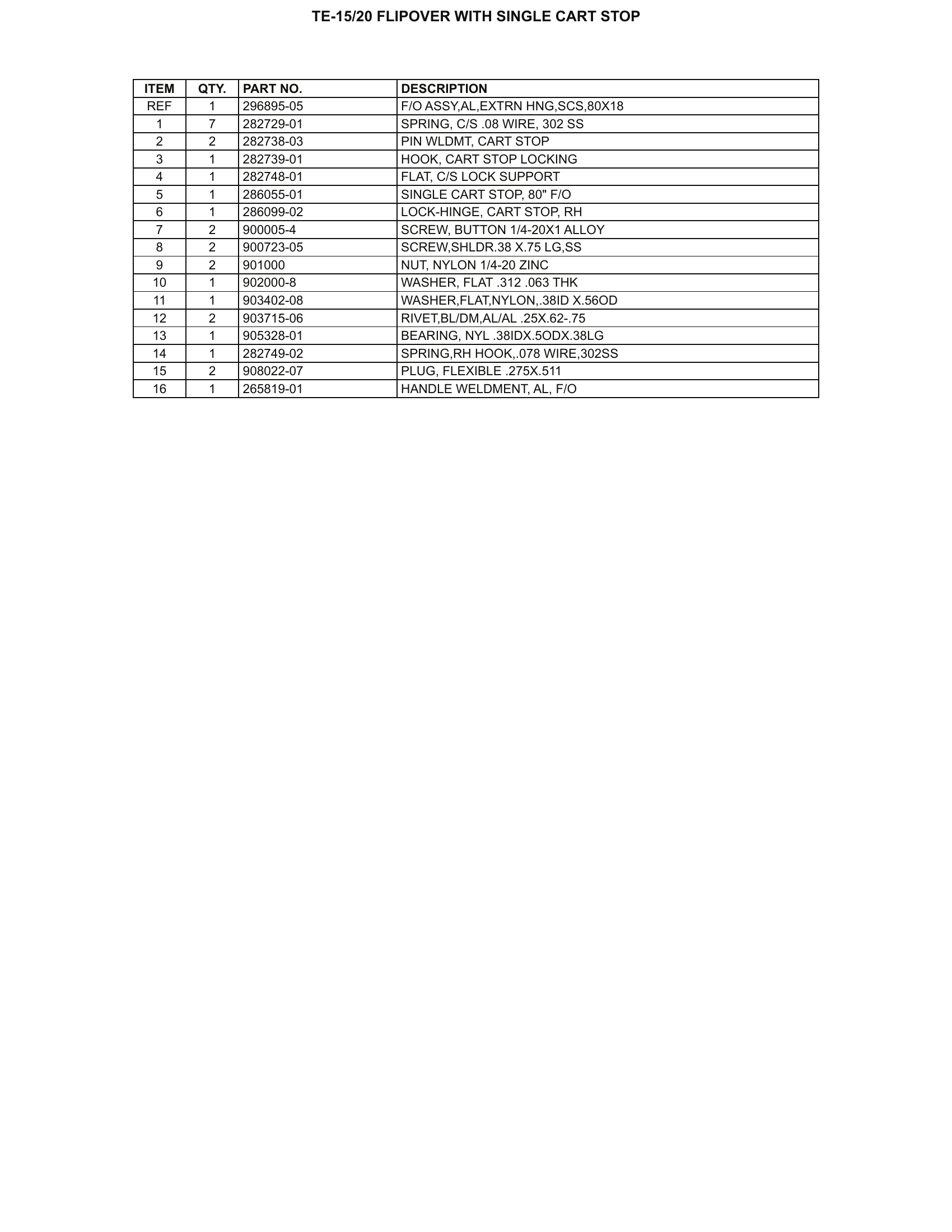

TE-15/20 FLIPOVER WITH SINGLE CART STOP

Item	Qty	Part Number	Description	Actions
REF	1	296895-05	F/O ASSY, AL, EXTRN HNG, SCS, 80X18
1	2	282729-01	SPRING, C/S, .08 WIRE, 302 SS	View Item
2	2	282783-03	PIN WDLMT, CART STOP
3	1	282739-01	HOOK, CART STOP LOCKING	View Item
4	1	282748-01	FLAT, C/S LOCK SUPPORT	View Item
5	1	286055-01	SINGLE CART STOP, 80" F/O	View Item
6	2	900005-4	SCREW, BUTTON 1/4-20X1 ALLOY	View Item
8	2	900723-05	SCREW, SHLDR, .38 X .75 LG, SS	View Item
9	2	901000	NUT, NYLON 1/4-20 ZINC	View Item
10	1	902000-8	WASHER, FLAT .312 .063 THK	View Item
11	1	903402-08	WASHER, FLAT, NYLON, .38ID X .56OD	View Item
12	2	903715-06	RIVET, LB, DM, AL/AL, .25X.625-.75	View Item
13	1	905328-01	BEARING, NYL .38ID X .50OD X .38LG	View Item
14	1	282749-02	SPRING, RH HOOK, .078 WIRE, 302SS	View Item
15	2	908022-07	PLUG, FLEXIBLE .275X.511	View Item
16	1	265819-01	HANDLE WELDMENT, AL, F/O	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

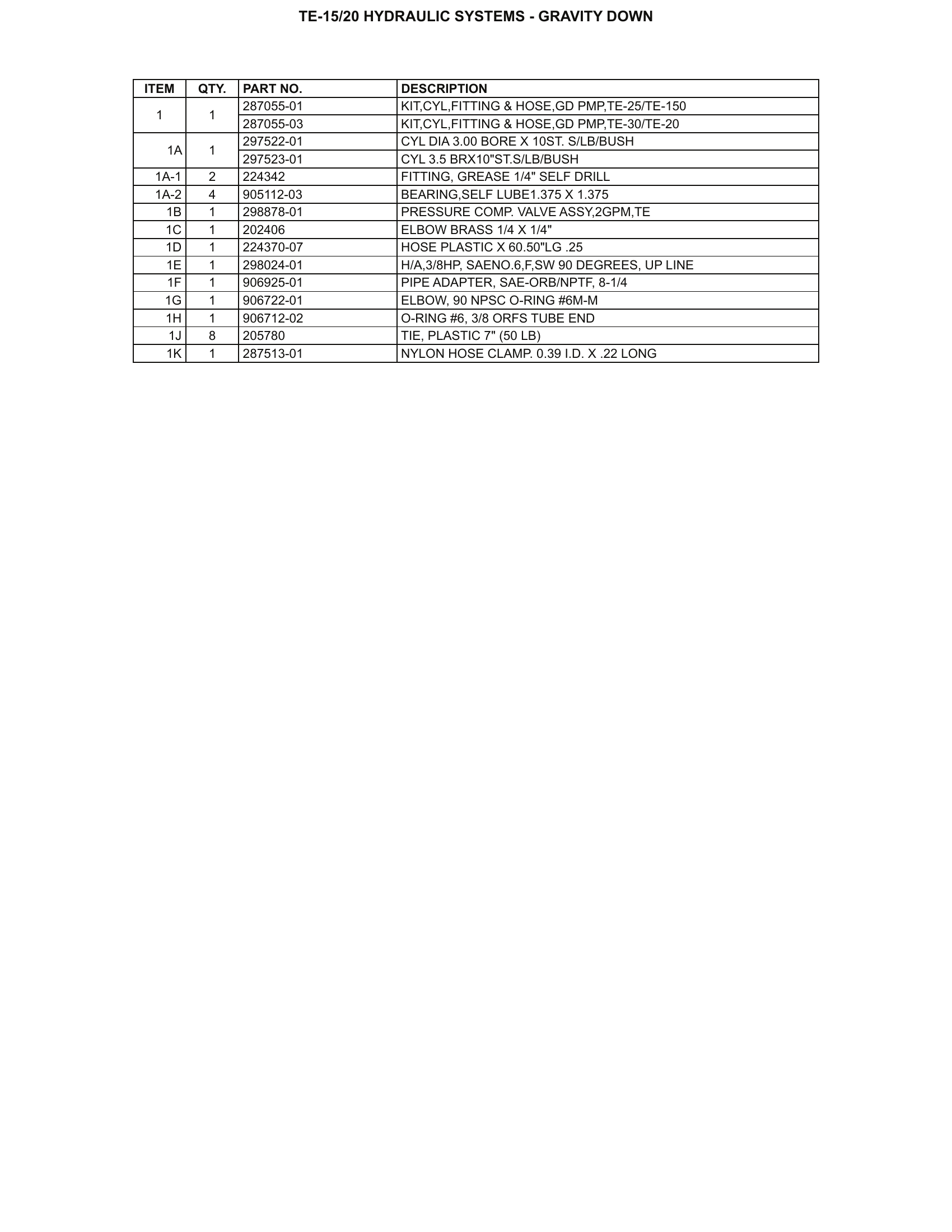

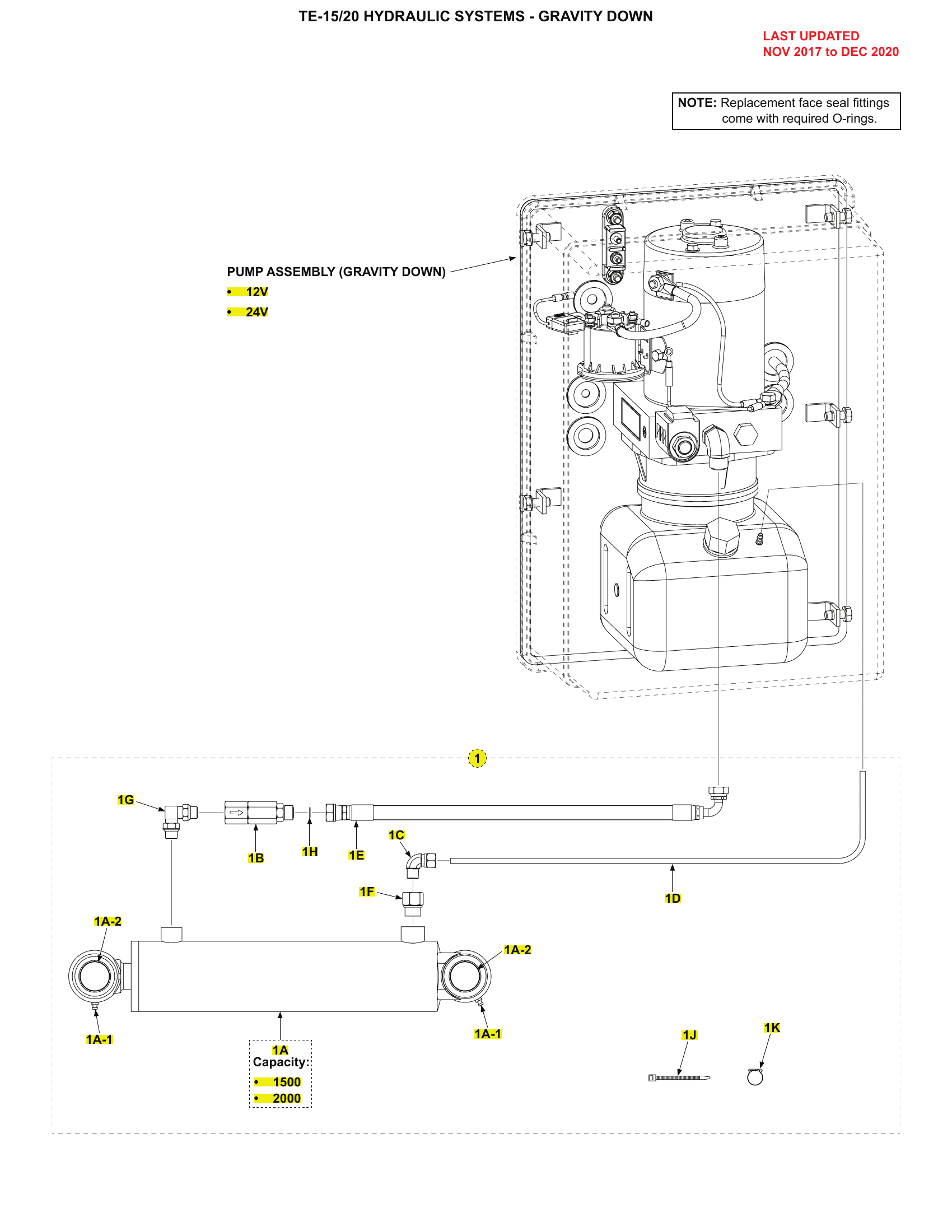

TE-15/20 HYDRAULIC SYSTEMS - GRAVITY DOWN

Item	Part Number	Description	Actions
1	287055-01	KIT,CYL,FITTING & HOSE,GD PMP,TE-25/TE-150
1	287055-03	KIT,CYL,FITTING & HOSE,GD PMP,TE-30/TE-20	View Item
1A	297522-01	CYL DIA 3.00 BORE X 10ST. S/LB/BUSH	View Item
1A	297523-01	CYL 3.5 BXR10±ST,S/LB/BUSH	View Item
1A-1	224342	FITTING, GREASE 1/4" SELF DRILL	View Item
1A-2	9051123-01	BEARING, SELF LUBE1.375 X 1.375
1B	298878-01	PRESSURE COMP. VALVE ASSY,2GPM,TE	View Item
1C	202406	ELBOW BRASS 1/4 X 1/4	View Item
1D	224370-07	HOSE PLASTIC X 60.50"LG .25	View Item
1E	298024-01	H/A,3/8HP, SAE NO.6,FSW 90 DEGREES, UP LINE	View Item
1H	906712-02	O-RING #6, 3/8 ORFS TUBE END	View Item
1J	205780	TIE, PLASTIC 7" (50 LB)	View Item
1K	287513-01	NYLON HOSE CLAMP, 0.39 I.D. X .22 LONG	View Item

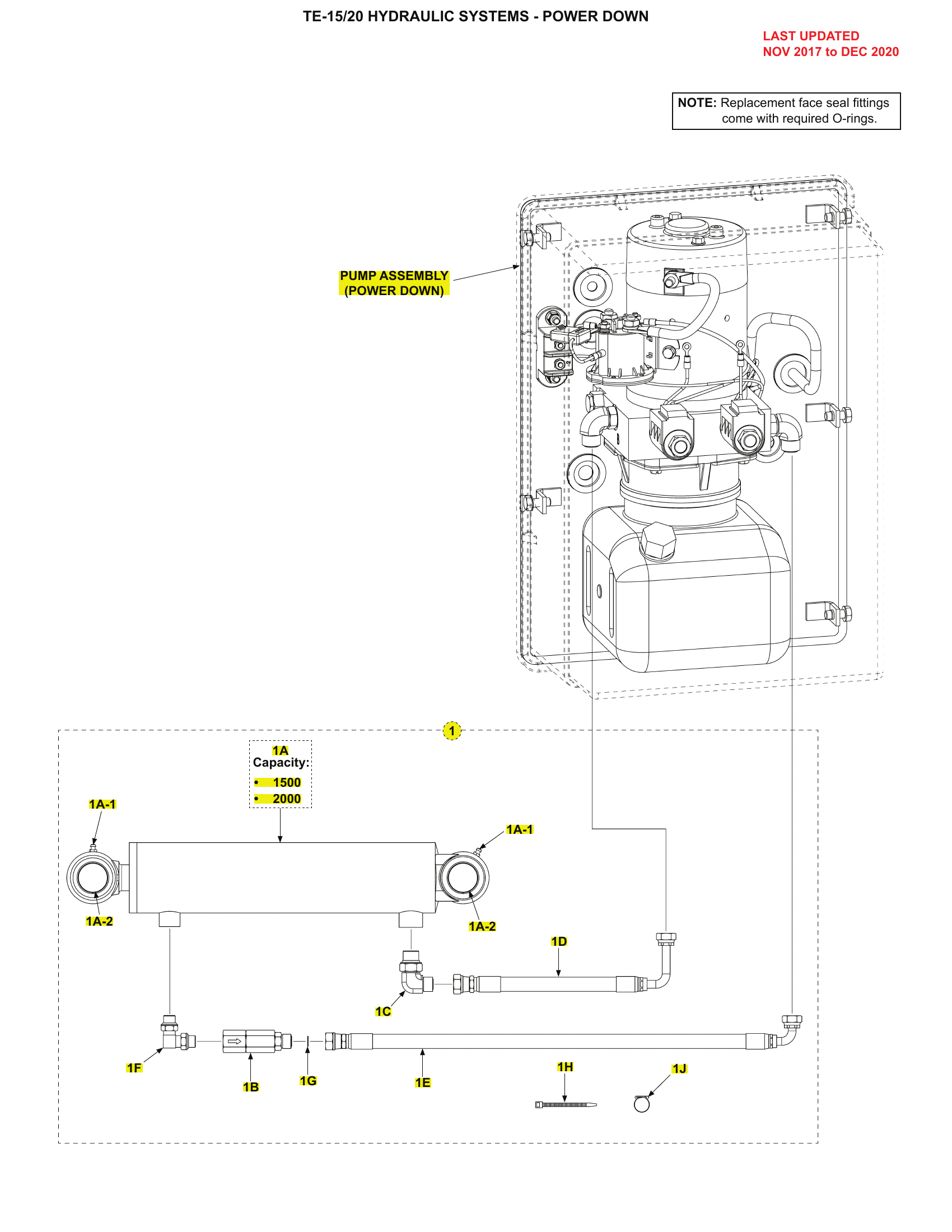

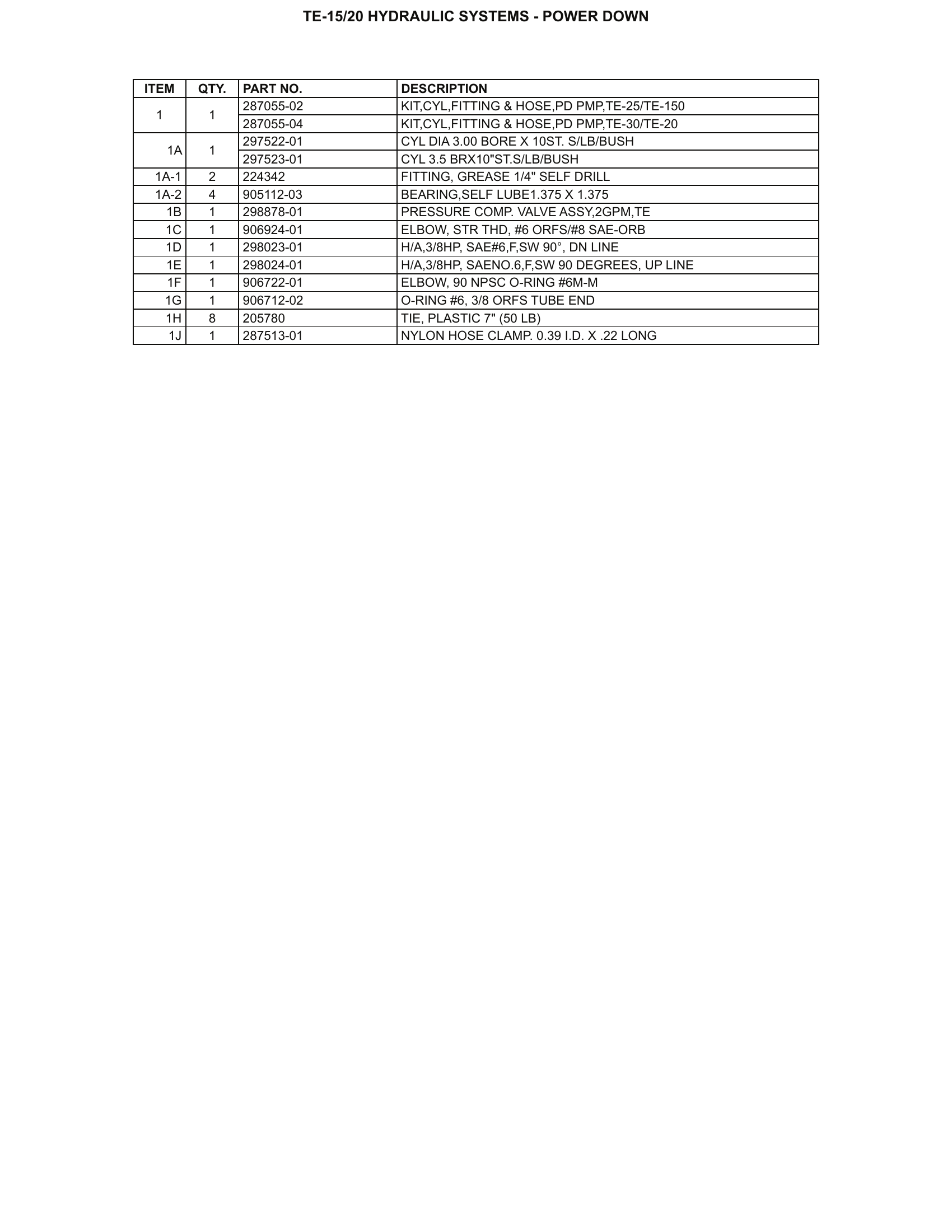

TE-15/20 HYDRAULIC SYSTEMS - POWER DOWN

Item	Part Number	Description	Actions
1	287055-02	KIT,CYL,FITTING & HOSE,PD PMP,TE-25/TE-150
1	287055-04	KIT,CYL,FITTING & HOSE,PD PMP,TE-30/TE-20
1A	297522-01	CYL DIA 3.00 BORE X 10ST. S/LB/BUSH	View Item
1A	297523-01	CYL 3.5 BXR10±ST,S/LB/BUSH	View Item
1A-1	224342	FITTING, GREASE 1/4" SELF DRILL	View Item
1A-2	9051123-01	BEARING, SELF LUBE1.375 X 1.375
1C	906924-01	ELBOW, STR THD, #6 ORFS/#8 SAE-ORB	View Item
1D	298003-21	H/A,3/8HP, SAE#6,FSW 90°, DN LINE
1E	298024-01	H/A,3/8HP, SAE NO.6,FSW 90 DEGREES, UP LINE	View Item
1F	906722-01	ELBOW, 90 NPSC O-RING #6M-M	View Item
1G	906712-02	O-RING #6, 3/8 ORFS TUBE END	View Item
1H	205780	TIE, PLASTIC 7" (50 LB)	View Item
1J	287513-01	NYLON HOSE CLAMP, 0.39 I.D. X .22 LONG	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

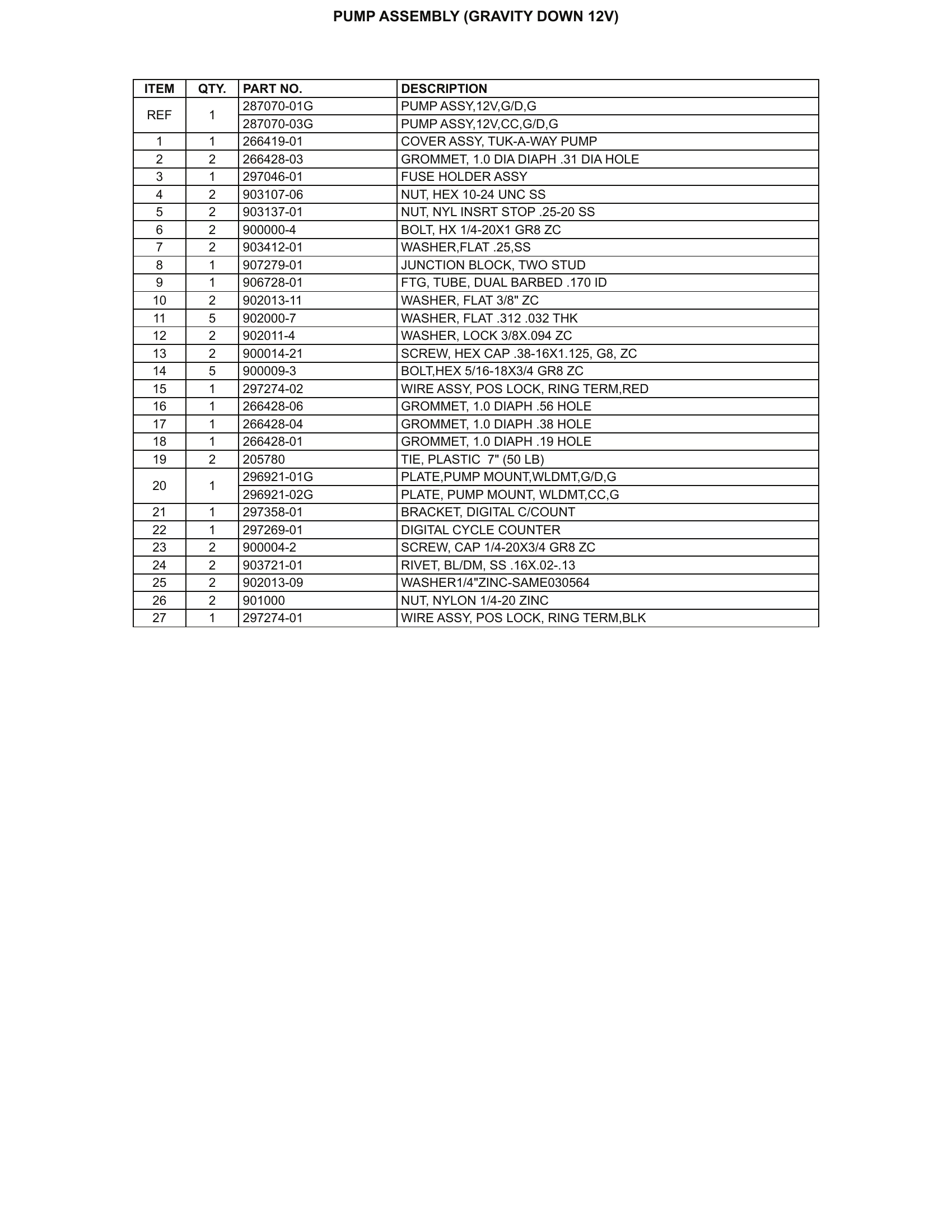

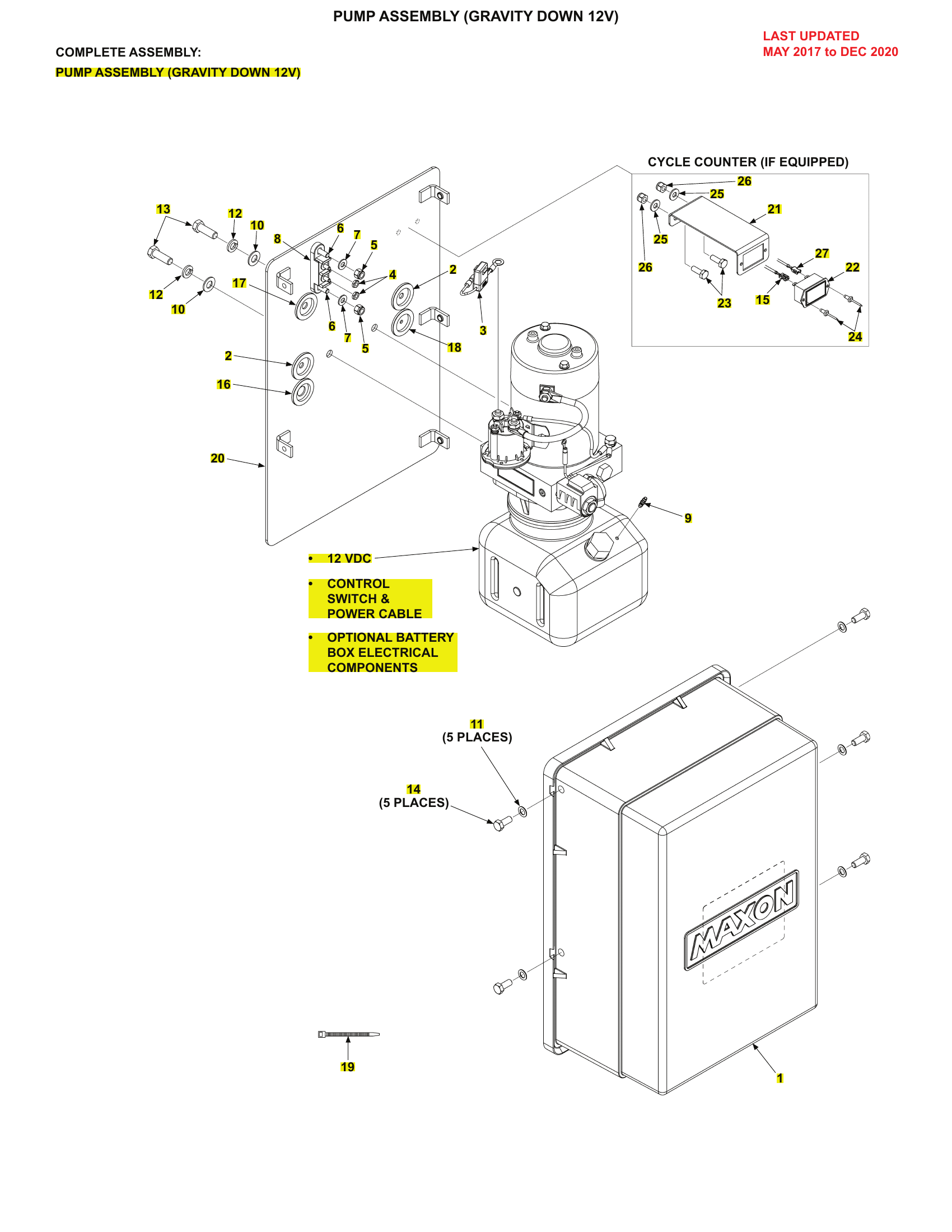

PUMP ASSEMBLY (GRAVITY DOWN 12V)

Item	Qty	Part Number	Description	Actions
REF	1	287070-01G	PUMP ASSY,12V,G/D,G	View Item
REF	1	287070-03G	PUMP ASSY,12V,CC,G/D,G	View Item
1	1	268419-01	COVER ASSY, TUC-A-WAY PUMP
2	2	266428-03	GROMMET, 1.0 DIA DIAPH .31 DIA HOLE	View Item
3	1	297064-01	FUSE HOLDER ASSY
4	2	903107-06	NUT, HEX 10-24 UNC SS	View Item
5	2	901337-01	NUT, NYL INSRT STOP 25-20 SS
7	2	904312-01	WASHER,FLAT .25,SS
8	1	900072-01	JUNCTION BLOCK, TWO STUD	View Item
9	1	906728-01	FTG, TUBE, DUAL BARBED .170 ID	View Item
10	2	902013-11	WASHER, FLAT 3/8 ZC	View Item
11	2	902000-07	WASHER, FLAT .312/.032 THK
12	2	902011-14	WASHER, LOCK 3/8X.094 ZC
13	2	900014-21	SCREW, HEX CAP 3/8-16X1.125, G8, ZC	View Item
14	5	900009-3	BOLT,HEX 5/16-18X3/4 GR8 ZC	View Item
15	1	297274-02	WIRE ASSY, POS LOCK, RING TERM,RED	View Item
16	1	266428-06	GROMMET, 1.0 DIAPH .56 HOLE	View Item
17	1	266428-01	GROMMET, 1.0 DIAPH .38 HOLE	View Item
19	2	205780	TIE, PLASTIC 7" (50 LB)	View Item
20	1	296921-01G	PLATE,PUMP MOUNT,WLDMT,G/D,G	View Item
21	1	296921-02G	PLATE, PUMP MOUNT,WLDMT,CC,G	View Item
22	1	297358-01	BRACKET, DIGITAL C/COUNT	View Item
23	1	297269-01	DIGITAL CYCLE COUNTER	View Item
24	2	900004-02	SCREW, CAP 1/4-20X3/4 GR8 ZC
25	2	903271-01	RIVET, BL/DM, SS, 16X.02-.13
26	2	901000	NUT, NYLON 1/4-20 ZINC	View Item
27	1	297274-01	WIRE ASSY, POS LOCK, RING TERM,BLK	View Item

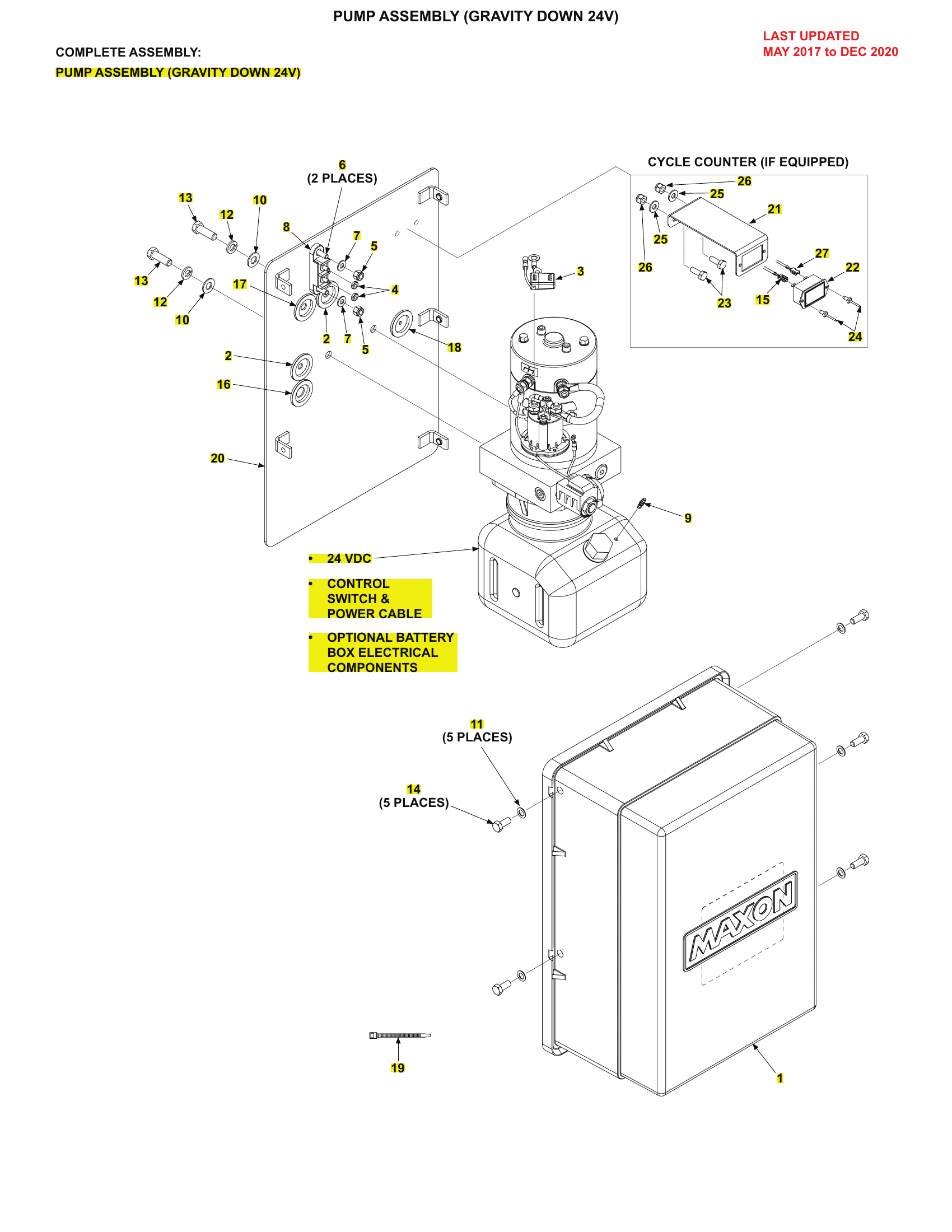

PUMP ASSEMBLY (GRAVITY DOWN 24V)

Item	Qty	Part Number	Description	Actions
REF	1	287070-02G	PUMP ASSY,24V,G/D,G
REF	1	287070-04G	PUMP ASSY,24V,CC,G/D,G
1	1	268419-01	COVER ASSY, TUC-A-WAY PUMP
2	2	266428-03	GROMMET, 1.0 DIA DIAPH .31 DIA HOLE	View Item
3	1	297064-01	FUSE HOLDER ASSY
4	2	903107-06	NUT, HEX 10-24 UNC SS	View Item
5	2	901337-01	NUT, NYL INSRT STOP 25-20 SS
7	2	904312-01	WASHER,FLAT .25,SS
8	1	900072-01	JUNCTION BLOCK, TWO STUD	View Item
9	1	906728-01	FTG, TUBE, DUAL BARBED .170 ID	View Item
10	2	902013-11	WASHER, FLAT 3/8 ZC	View Item
11	2	902000-07	WASHER, FLAT .312/.032 THK
12	2	902011-14	WASHER, LOCK 3/8X.094 ZC
13	2	900014-21	SCREW, HEX CAP 3/8-16X1.125, G8, ZC	View Item
14	5	900009-3	BOLT,HEX 5/16-18X3/4 GR8 ZC	View Item
15	1	297274-02	WIRE ASSY, POS LOCK, RING TERM,RED	View Item
16	1	266428-06	GROMMET, 1.0 DIAPH .56 HOLE	View Item
17	1	266428-01	GROMMET, 1.0 DIAPH .38 HOLE	View Item
19	2	205780	TIE, PLASTIC 7" (50 LB)	View Item
20	1	296921-03G	PLATE, PUMP MOUNT,WLDMT,24V,G
21	1	296921-04G	PLATE, PUMP MOUNT,WLDMT,CC,24V,G
22	1	297358-01	BRACKET, DIGITAL C/COUNT	View Item
23	1	297269-01	DIGITAL CYCLE COUNTER	View Item
24	2	900004-02	SCREW, CAP 1/4-20X3/4 GR8 ZC
25	2	903271-01	RIVET, BL/DM, SS, 16X.02-.13
26	2	901000	NUT, NYLON 1/4-20 ZINC	View Item
27	1	297274-01	WIRE ASSY, POS LOCK, RING TERM,BLK	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

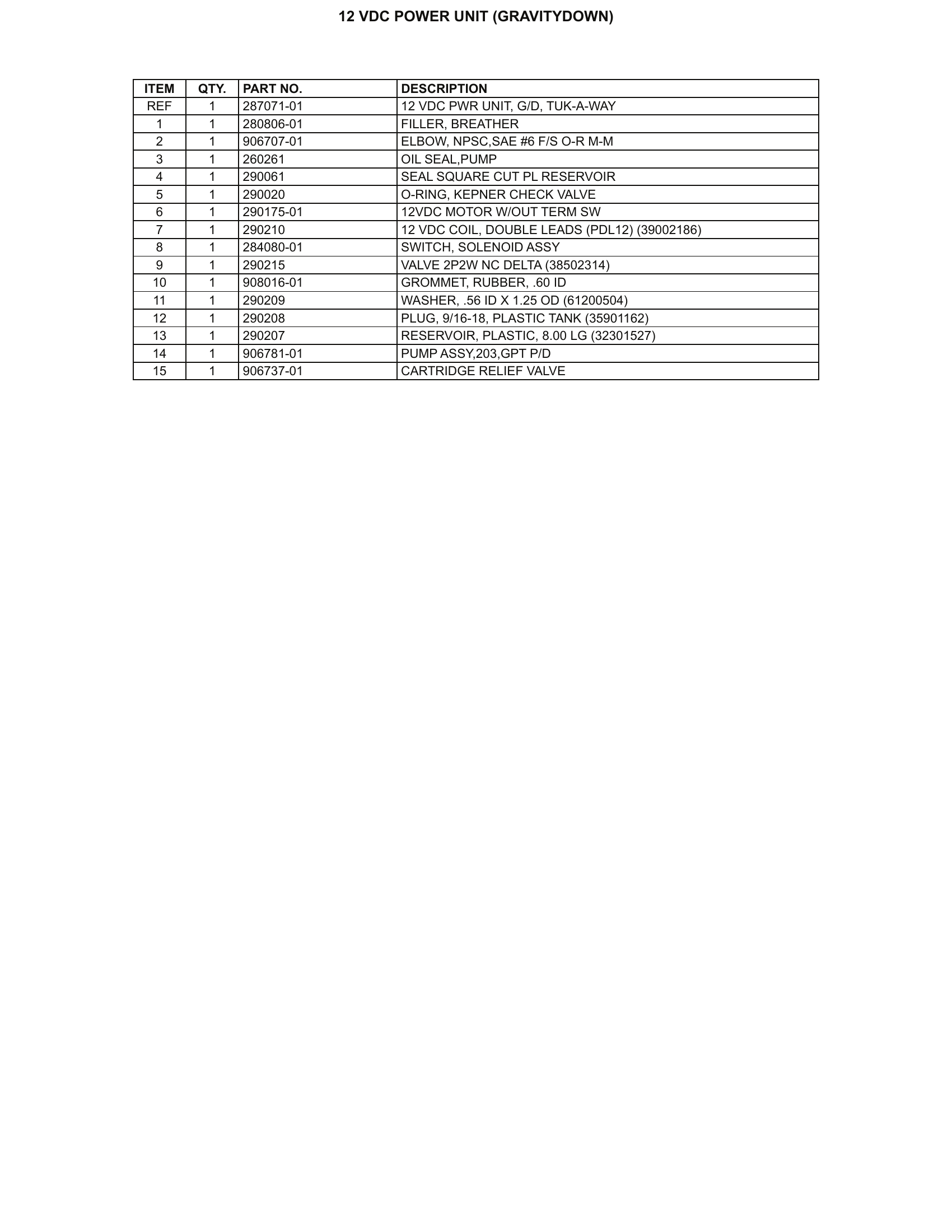

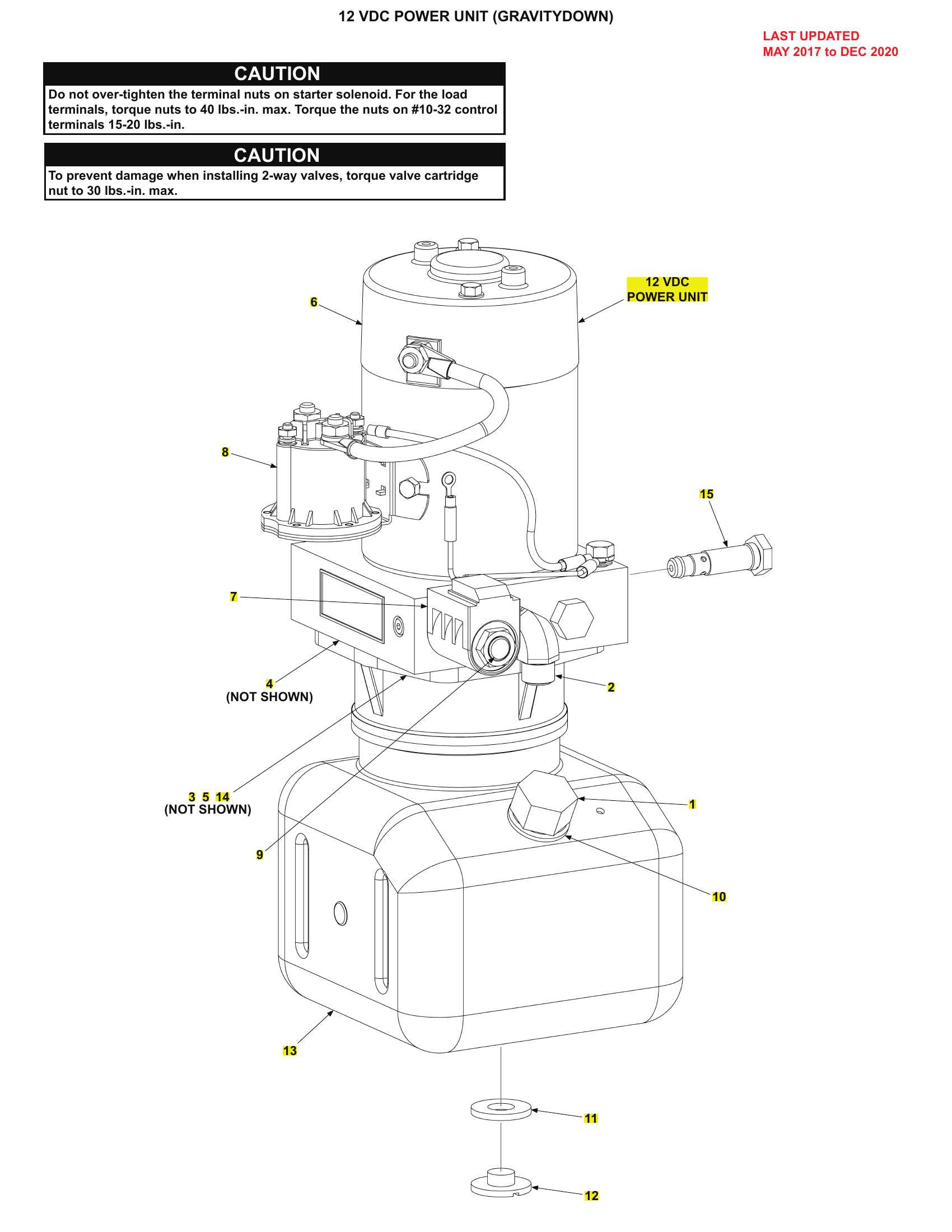

12 VDC POWER UNIT (GRAVITYDOWN)

Item	Qty	Part Number	Description	Actions
REF	1	287071-01	12 VDC PWR UNIT, G/D, TUK-A-WAY	View Item
1	1	280806-01	FILLER, BREATHER	View Item
2	1	906707-01	ELBOW, NPSC,SAE #6 F/S O-R M-M	View Item
3	1	260261	OIL SEAL,PUMP	View Item
4	1	290061	SEAL SQUARE CUT PL RESERVOIR	View Item
5	1	290020	O-RING, KEPNER CHECK VALVE	View Item
6	1	290175-01	12VDC MOTOR W/OUT TERM SW	View Item
7	1	290210	12 VDC COIL, DOUBLE LEADS (PDL12) (39002186)	View Item
8	1	284080-01	SWITCH, SOLENOID ASSY	View Item
9	1	290215	VALVE 2P2W NC DELTA (38502314)	View Item
10	1	980016-01	GROMMET, RUBBER, .60 ID
11	1	290209	WASHER, .516 ID X 1.25 OD (61200504)	View Item
12	1	290208	PLUG, 9/16-18, PLASTIC TANK (35901162)	View Item
13	1	290207	RESERVOIR, PLASTIC, 8.00 LG (32301527)	View Item
14	1	906781-01	PUMP ASSY,203,QPT P/D	View Item
15	1	906737-01	CARTRIDGE RELIEF VALVE	View Item

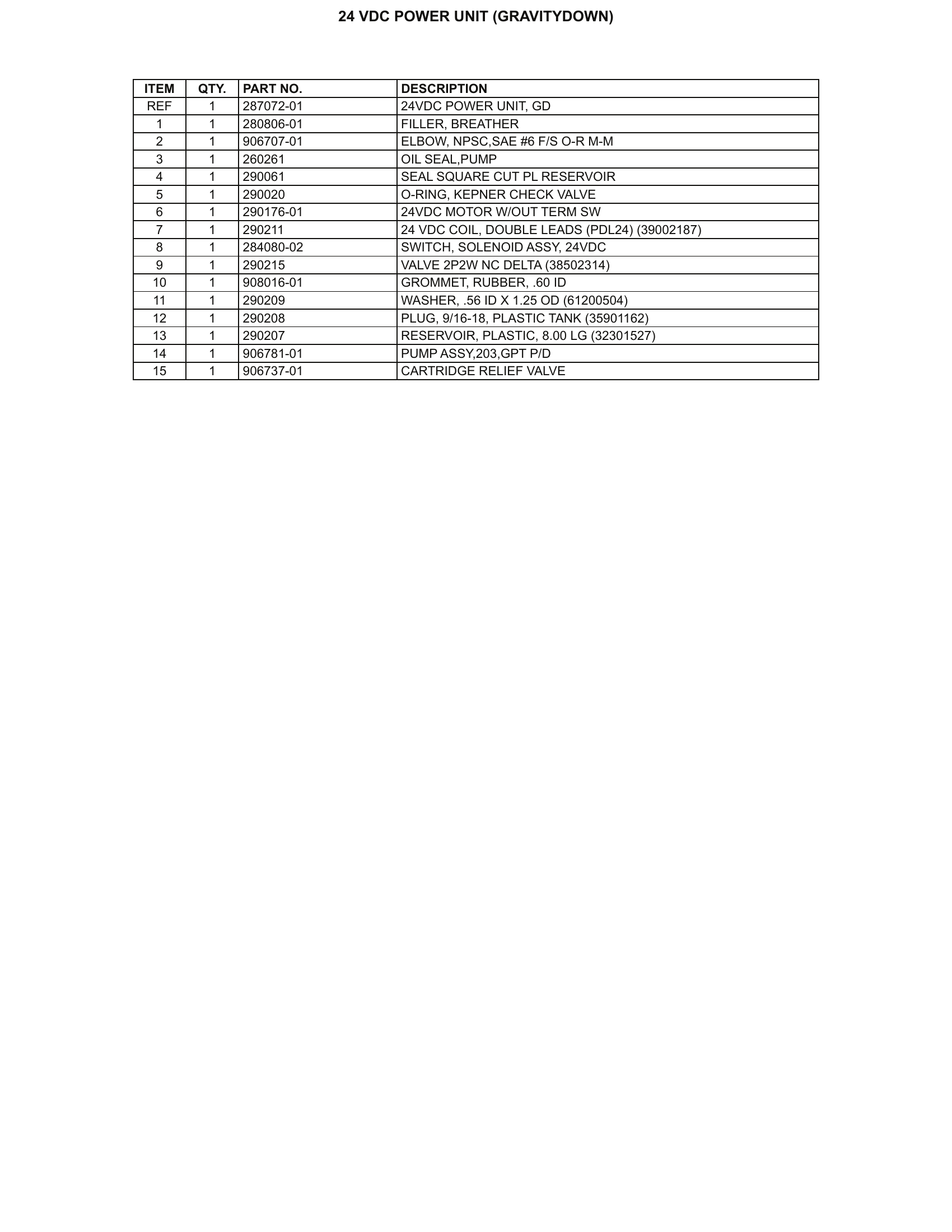

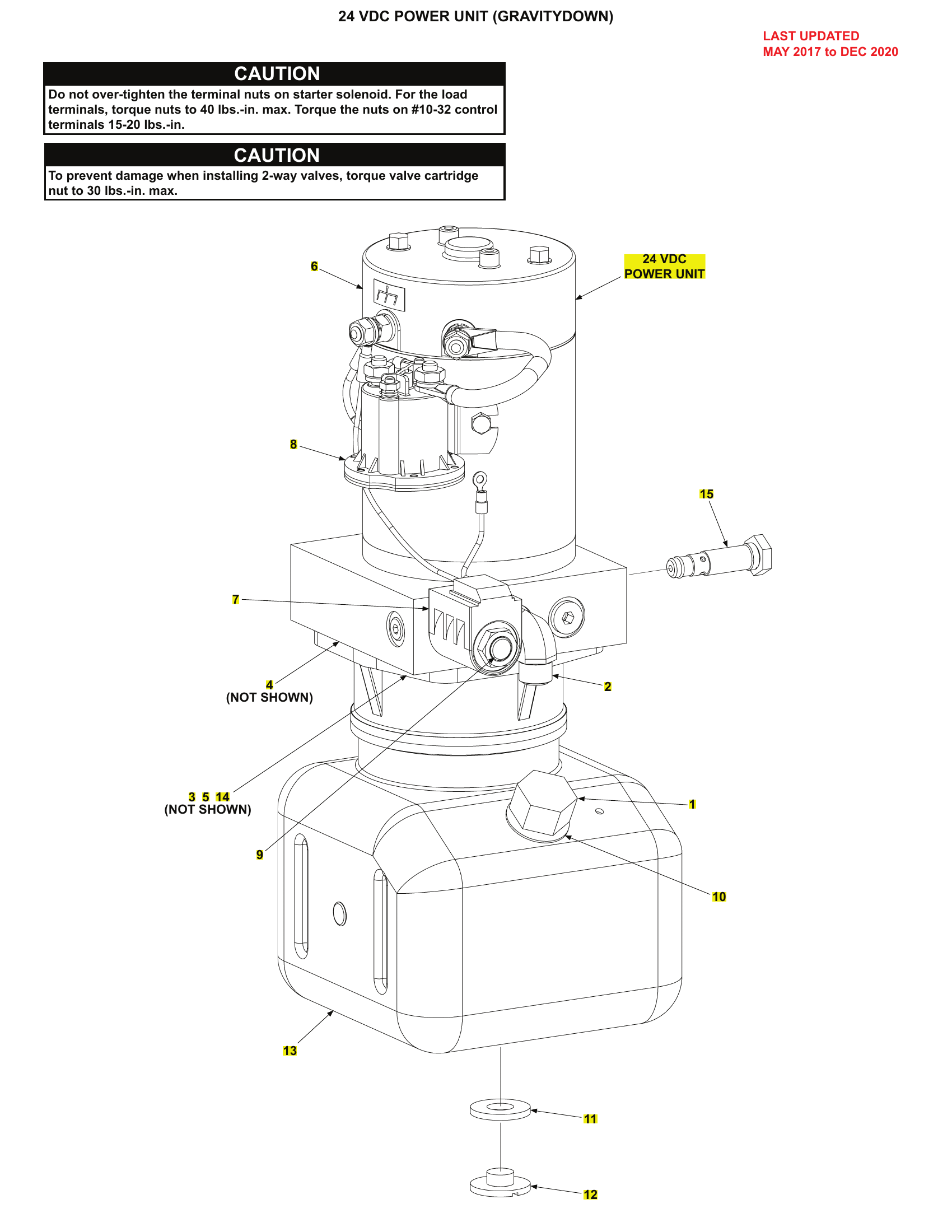

24 VDC POWER UNIT (GRAVITYDOWN)

Item	Qty	Part Number	Description	Actions
REF	1	287072-01	24VDC POWER UNIT, GD	View Item
1	1	280806-01	FILLER, BREATHER	View Item
2	1	906707-01	ELBOW, NPSC,SAE #6 F/S O-R M-M	View Item
3	1	260261	OIL SEAL,PUMP	View Item
4	1	290061	SEAL SQUARE CUT PL RESERVOIR	View Item
5	1	290020	O-RING, KEPNER CHECK VALVE	View Item
6	1	290176-01	24VDC MOTOR W/OUT TERM SW	View Item
7	1	290211	24 VDC COIL, DOUBLE LEADS (PDL24) (39002187)	View Item
8	1	284080-02	SWITCH, SOLENOID ASSY, 24VDC	View Item
9	1	290215	VALVE 2P2W NC DELTA (38502314)	View Item
10	1	980016-01	GROMMET, RUBBER, .60 ID
11	1	290209	WASHER, .516 ID X 1.25 OD (61200504)	View Item
12	1	290208	PLUG, 9/16-18, PLASTIC TANK (35901162)	View Item
13	1	290207	RESERVOIR, PLASTIC, 8.00 LG (32301527)	View Item
14	1	906781-01	PUMP ASSY,203,QPT P/D	View Item
15	1	906737-01	CARTRIDGE RELIEF VALVE	View Item

Reference Notice

Manual links are provided for reference only. If you have any doubt, contact us — we’re happy to verify parts and help you purchase with confidence.

Call Email

Have your liftgate serial number ready for faster assistance. Where to find it

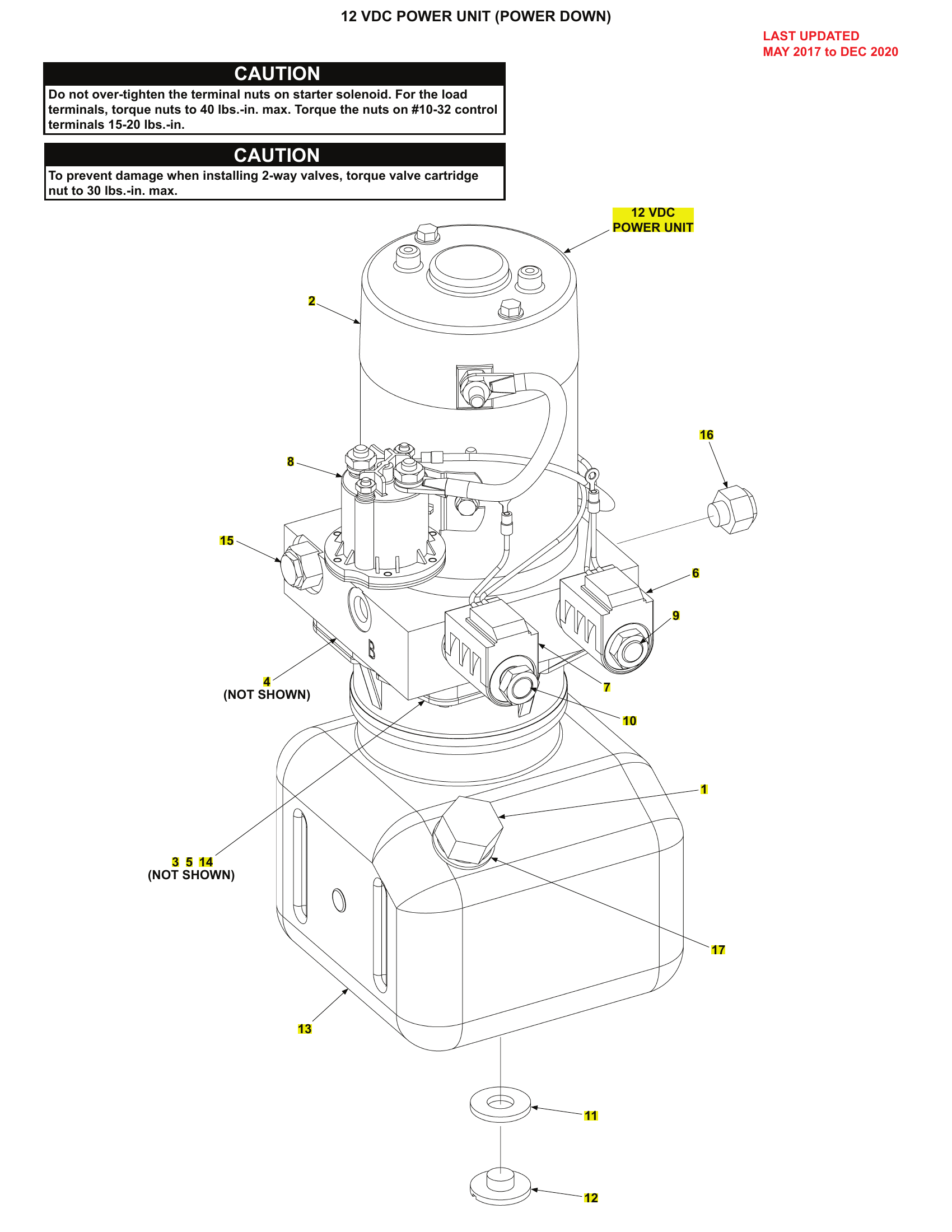

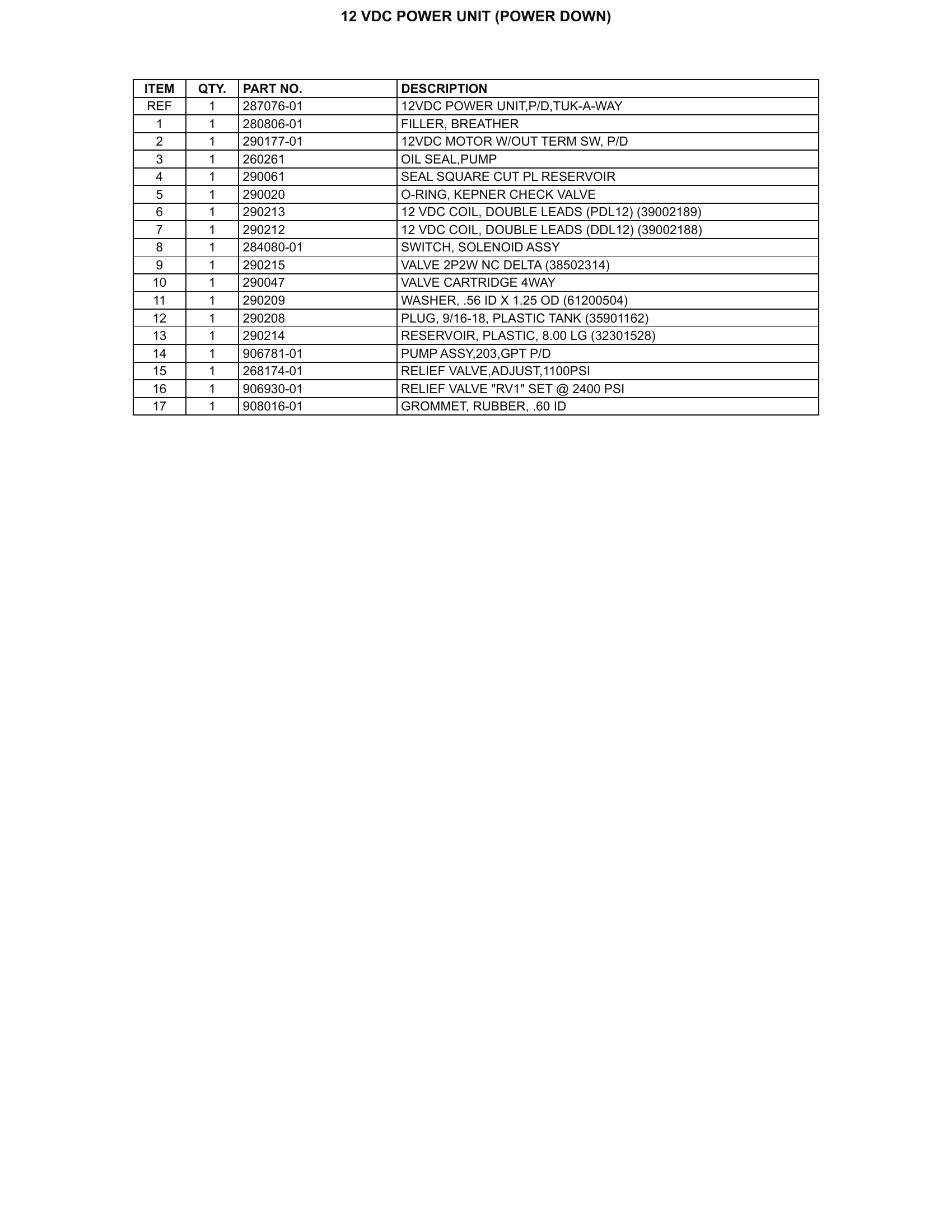

12 VDC POWER UNIT (POWER DOWN)

Item	Qty	Part Number	Description	Actions
REF	1	287076-01	12VDC POWER UNIT,P/D,TUK-A-WAY	View Item
1	1	288206-01	FILLER, BREATHER
2	1	290177-01	12VDC MOTOR W/OUT TERM SW, P/D	View Item
3	1	262061	OIL SEAL,PUMP
4	1	290061	SEAL SQUARE CUT PL RESERVOIR	View Item
5	1	290020	O-RING, KEPNER CHECK VALVE	View Item
6	1	290213	12 VDC COIL, DOUBLE LEADS (PDL12) (39002189)	View Item
7	1	290212	12 VDC COIL, DOUBLE LEADS (DDL12) (39002188)	View Item
8	1	284808-01	SWITCH, SOLENOID ASSY
9	1	290215	VALVE 2P2W NC DELTA (38502314)	View Item
10	1	290047	VALVE CARTRIDGE 4WAY	View Item
11	1	290209	WASHER, .56 ID X 1.25 OD (61200504)	View Item
12	1	290208	PLUG, 9/16-18, PLASTIC TANK (35901162)	View Item
13	1	290214	RESERVOIR, PLASTIC, 8.00 LG (32301528)	View Item
14	1	906781-01	PUMP ASSY,203,GPT P/D	View Item
15	1	268174-01	RELIEF VALVE,ADJUST,1100PSI	View Item
16	1	906390-01	RELIEF VALVE "RV1" SET @ 2400 PSI
17	1	908016-01	GROMMET, RUBBER, .60 ID	View Item

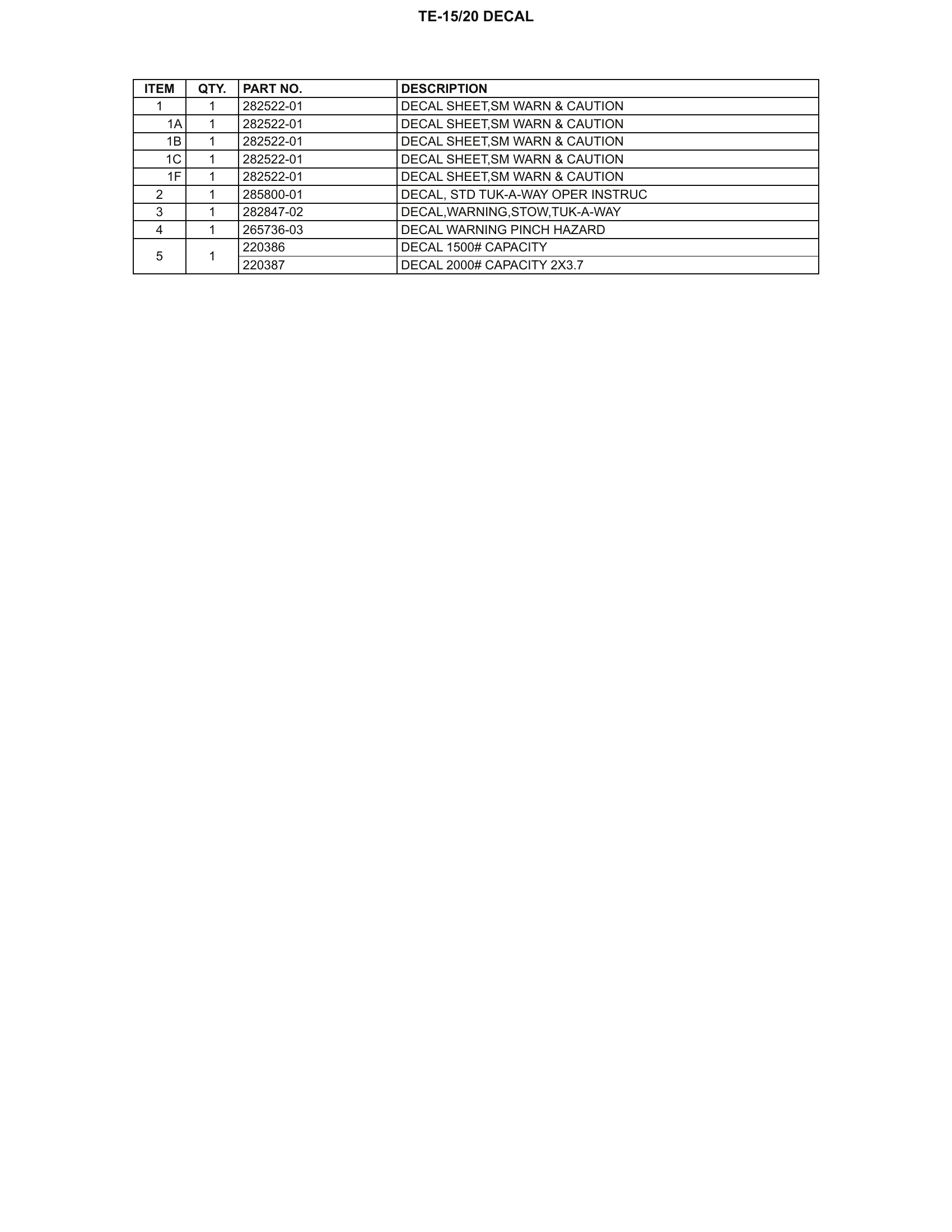

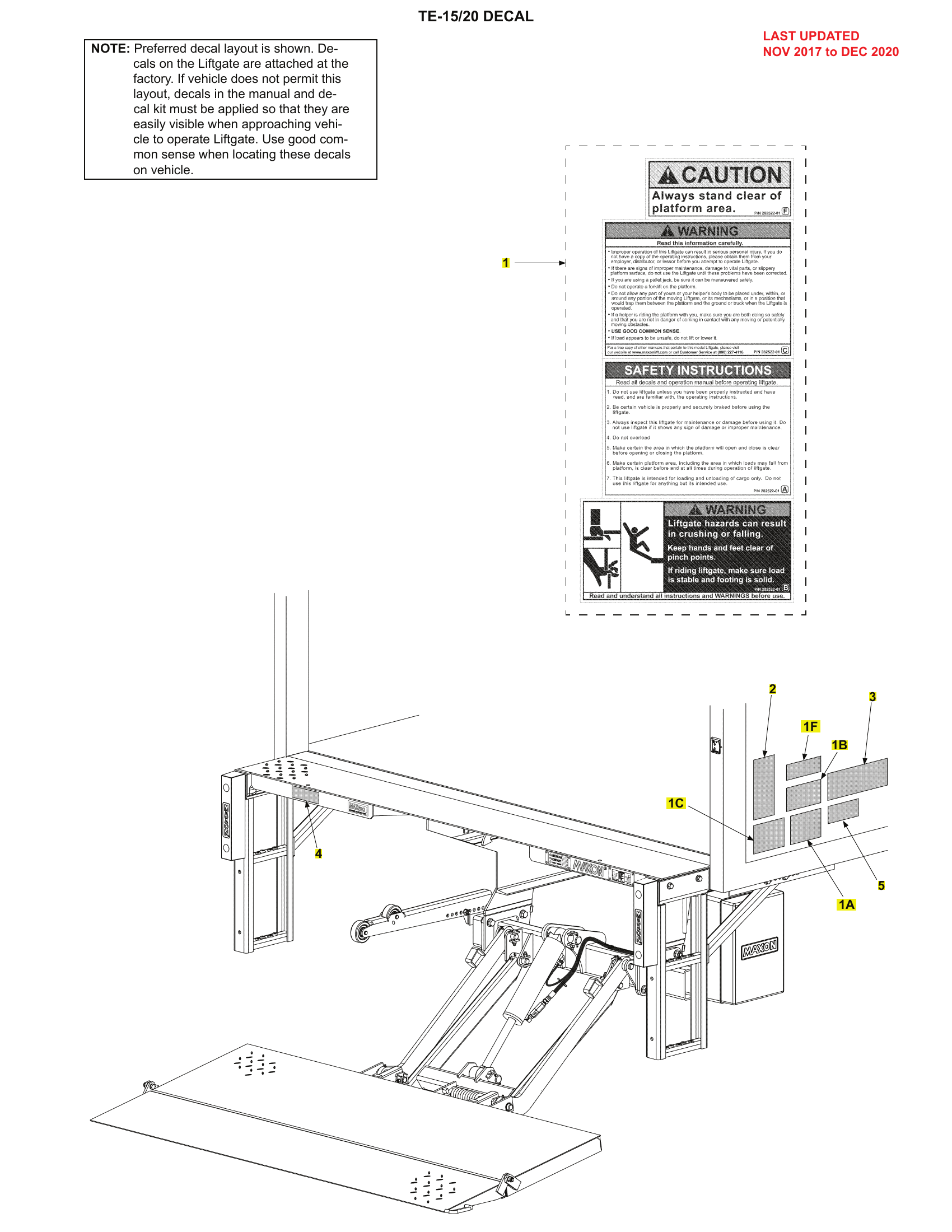

TE-15/20 DECAL

Item	Qty	Part Number	Description	Actions
1	1	282522-01	DECAL SHEET,SM WARN & CAUTION	View Item
1A	1	282522-01	DECAL SHEET,SM WARN & CAUTION	View Item
1B	1	282522-01	DECAL SHEET,SM WARN & CAUTION	View Item
1C	1	282522-01	DECAL SHEET,SM WARN & CAUTION	View Item
1F	1	282522-01	DECAL SHEET,SM WARN & CAUTION	View Item
2	1	285800-01	DECAL, STD TUK-A-WAY OPER INSTRUC
3	1	282847-02	DECAL,WARNING,STOW,TUK-A-WAY	View Item
4	1	265736-03	DECAL WARNING PINCH HAZARD	View Item
5	1	220386	DECAL 1500# CAPACITY	View Item
5	1	220387	DECAL 2000# CAPACITY 2X3.7	View Item

Need help confirming the correct part?

Share model, serial, and item number.

Fast technical support

Use this after reviewing the diagram and table. We can verify compatibility before purchase.

Phone

(774) 266-8892

parts@liftgateme.com

Send your details and we will help identify the right replacement part.

Contact Support

Your cart.

Your cart is empty

Maxon TE-20 Parts Diagrams | Approximate Years 2017-2020

EXTENSION PLATE ASSEMBLY (BOLT ON)

TE-15/20 MAIN ASSEMBLY PAINTED

TE-15/20 MAIN ASSEMBLY PAINTED, PINS AND BUSHINGS

TE-15/20 MAIN ASSEMBLY GALVANIZED

TE-15/20 MAIN ASSEMBLY GALVANIZED, PINS AND BUSHINGS

TE-15/20 STEEL PLATFORM AND FLIPOVER ASSEMBLY

TE-15/20 ALUMINUM PLATFORM AND FLIPOVER ASSEMBLY

TE-15/20 PLATFORM ASSEMBLY (ALUMINUM)

TE-15/20 FLIPOVER WITH SINGLE CART STOP

TE-15/20 HYDRAULIC SYSTEMS - GRAVITY DOWN

TE-15/20 HYDRAULIC SYSTEMS - POWER DOWN

PUMP ASSEMBLY (GRAVITY DOWN 12V)

PUMP ASSEMBLY (GRAVITY DOWN 24V)

12 VDC POWER UNIT (GRAVITYDOWN)

24 VDC POWER UNIT (GRAVITYDOWN)

12 VDC POWER UNIT (POWER DOWN)

TE-15/20 DECAL

Need help confirming the correct part?

Fast technical support
