GPT-17-08 GPTWR
Source file: maxon__tuck-under__gptwr__parts-manual__2019-present__1.pdf

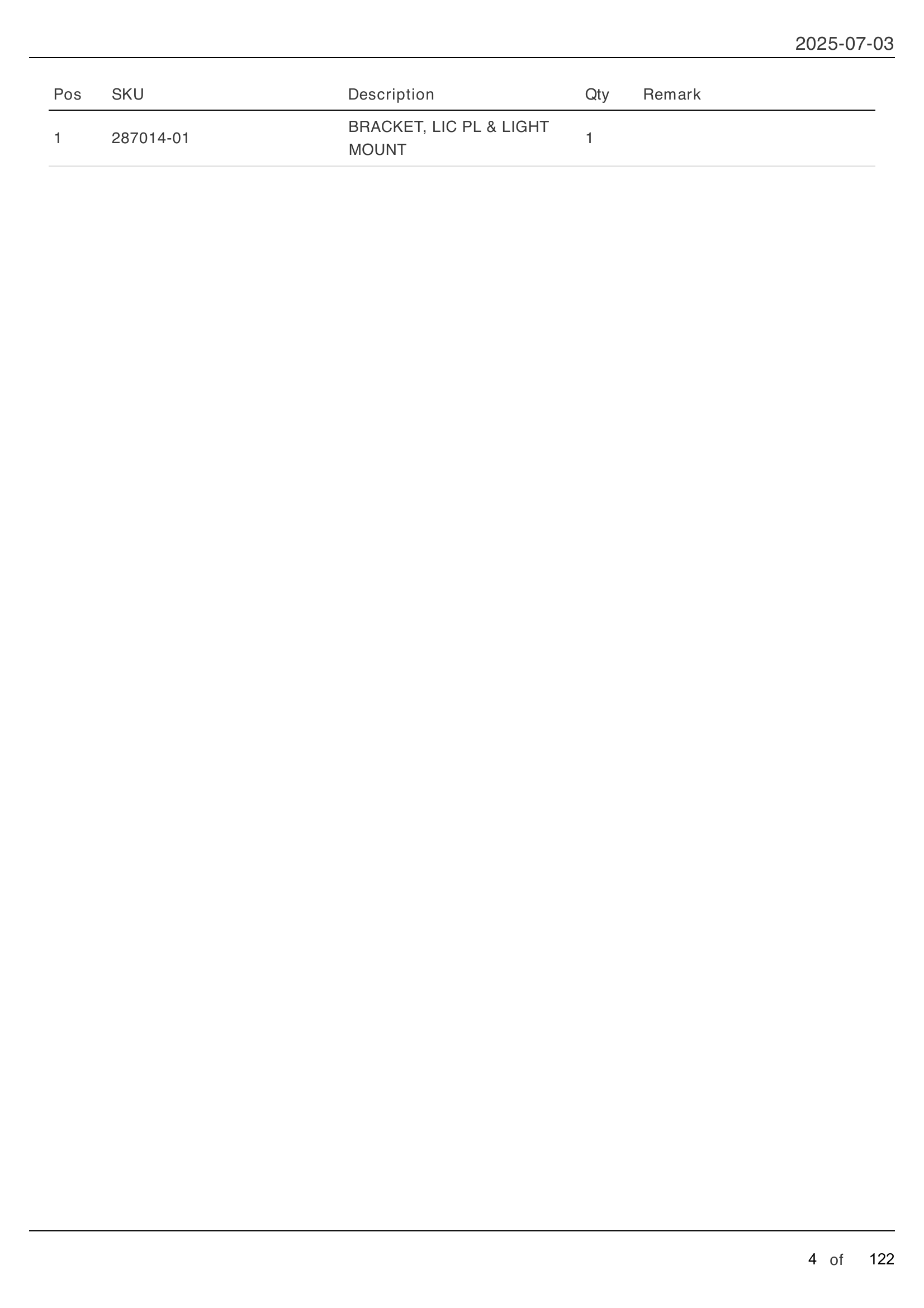

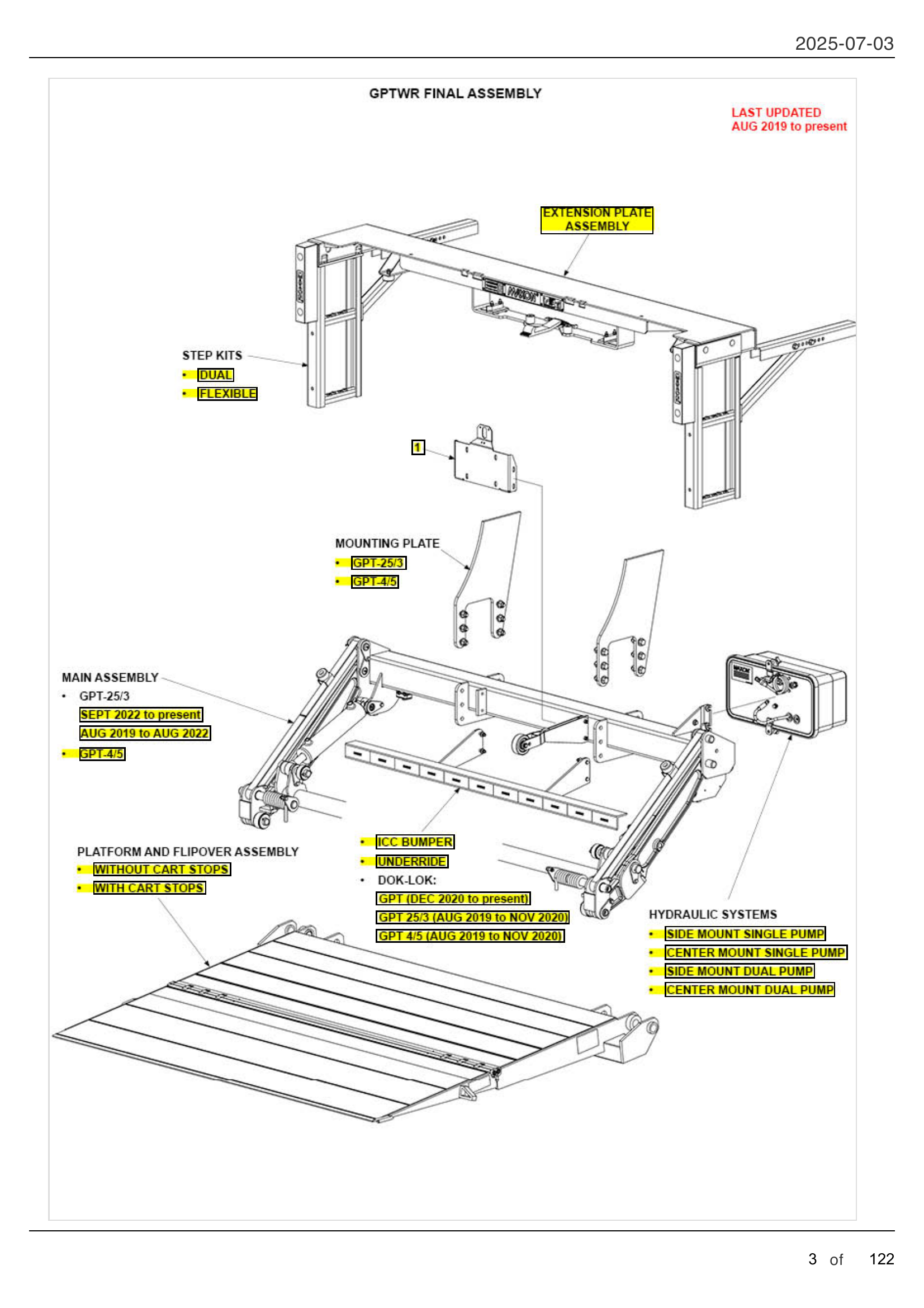

GPTWR FINAL ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287014-01 | BRACKET, LIC PL & LIGHT MOUNT | View Item |

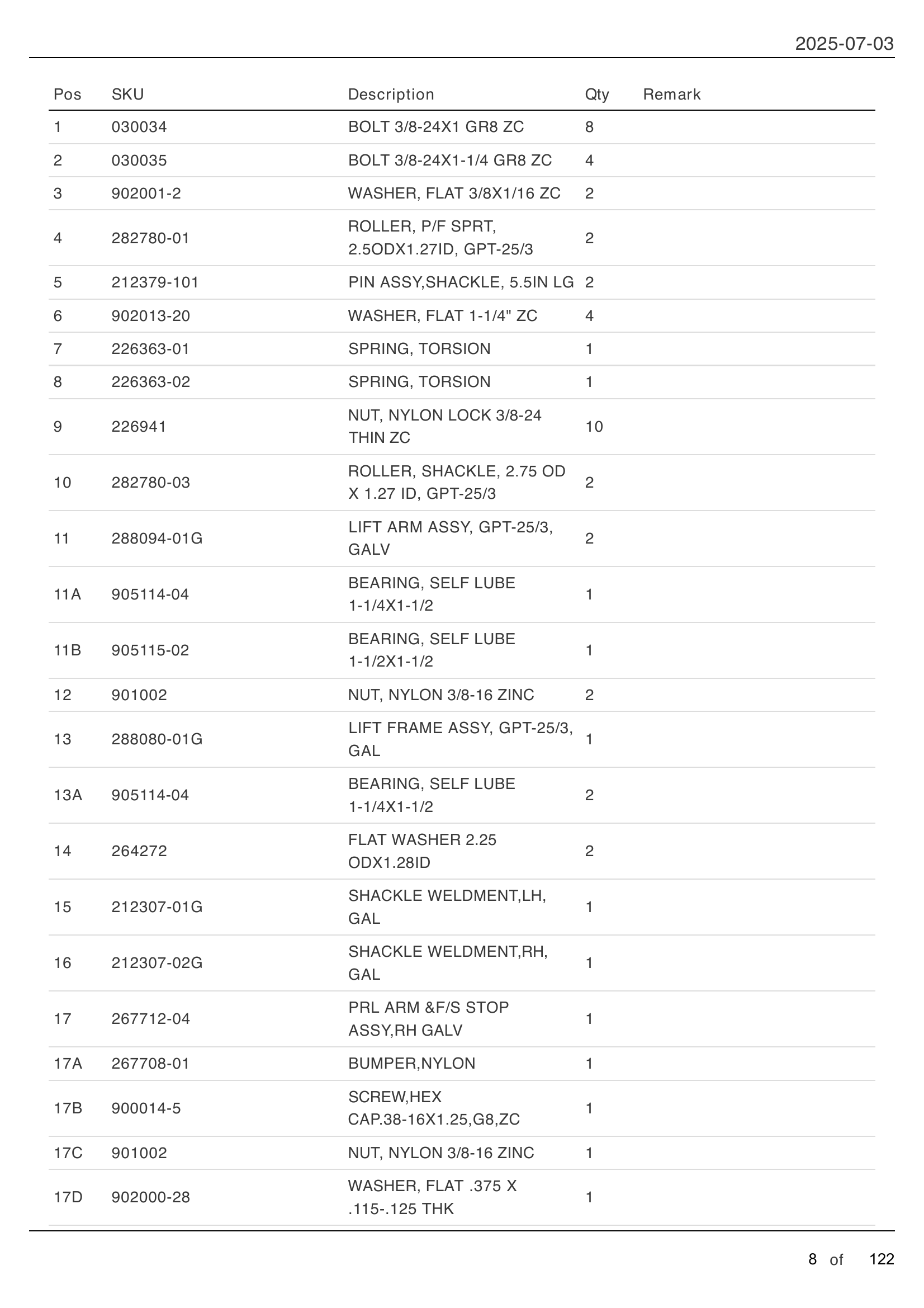

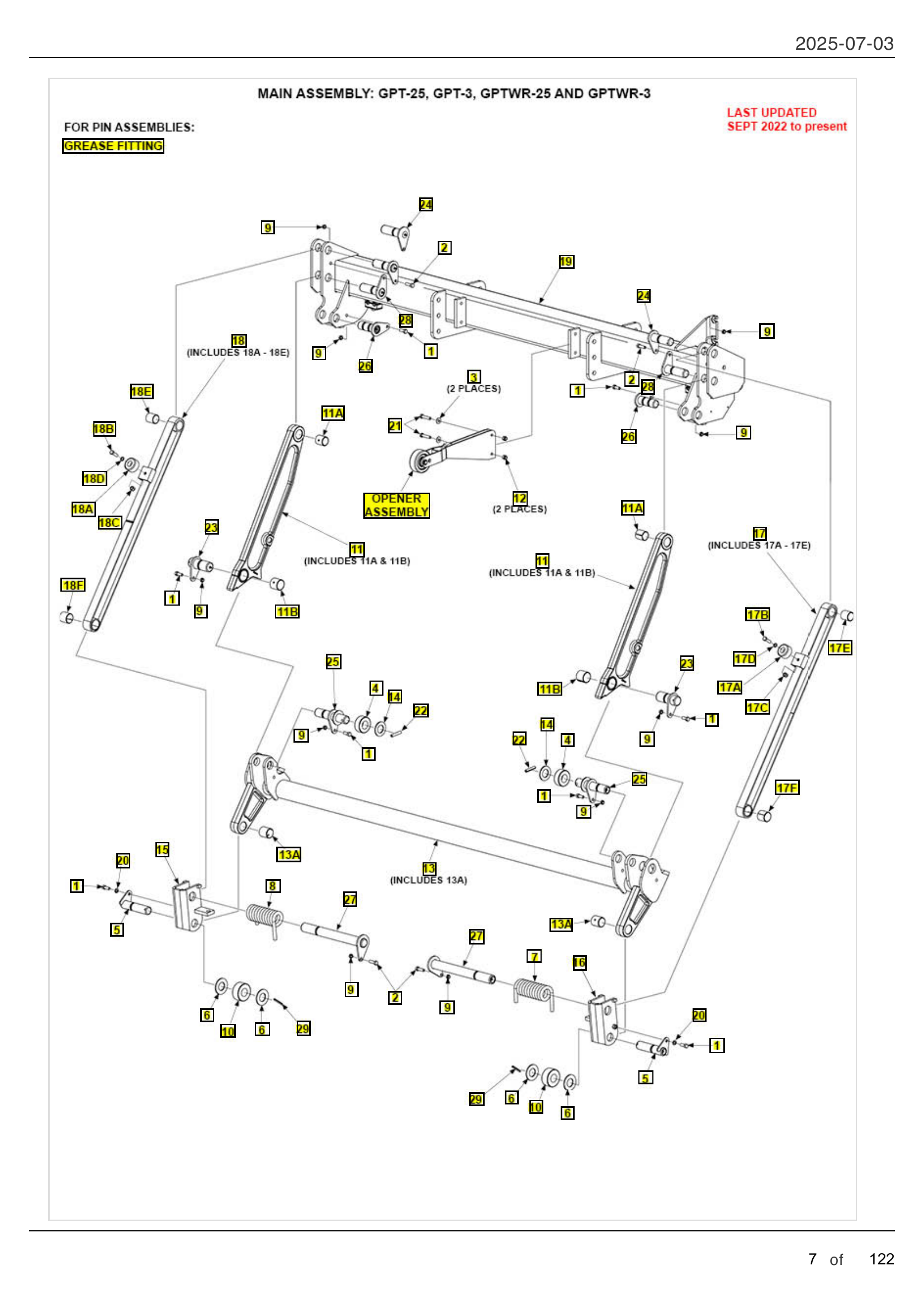

MAIN ASSEMBLY: GPT-25, GPT-3, GPTWR-25 AND GPTWR-3
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 8 | 030034 | BOLT 3/8-24X1 GR8 ZC | View Item |
| 2 | 4 | 030035 | BOLT 3/8-24X1-1/4 GR8 ZC | View Item |
| 3 | 2 | 902001-2 | WASHER, FLAT 3/8X1/16 ZC | View Item |
| 4 | 2 | 282780-01 | ROLLER, P/F SPRT, 2.50DX1.27ID, GPT-25/3 | View Item |
| 5 | 2 | 212379-101 | PIN ASSY,SHACKLE, 5.5IN LG | View Item |
| 6 | 4 | 902013-20 | WASHER, FLAT 1-1/4" ZC | View Item |
| 7 | 1 | 226363-01 | SPRING, TORSION | View Item |
| 8 | 1 | 226363-02 | SPRING, TORSION | View Item |
| 9 | 10 | 226941 | NUT, NYLON LOCK 3/8-24 THIN ZC | View Item |
| 10 | 2 | 282780-03 | ROLLER, SHACKLE, 2.75 OD X 1.27 ID, GPT-25/3 | View Item |
| 11 | 2 | 288094-01G | LIFT ARM ASSY, GPT-25/3, GALV | View Item |
| 11A | 1 | 905114-04 | BEARING, SELF LUBE 1-1/4X1-1/2 | View Item |
| 11B | 1 | 905115-02 | BEARING, SELF LUBE 1-1/2X1-1/2 | View Item |
| 12 | 2 | 901002 | NUT, NYLON 3/8-16 ZINC | View Item |
| 13 | 1 | 288080-01G | LIFT FRAME ASSY, GPT-25/3, GAL | View Item |
| 13A | 2 | 905114-04 | BEARING, SELF LUBE 1-1/4X1-1/2 | View Item |
| 14 | 2 | 264272 | FLAT WASHER 2.25 ODX1.28ID | View Item |
| 15 | 1 | 212307-01G | SHACKLE WELDMENT,LH, GAL | View Item |
| 16 | 1 | 212307-02G | SHACKLE WELDMENT,RH, GAL | View Item |
| 17 | 1 | 267712-04 | PRL ARM &F/S STOP ASSY,RH GALV | View Item |
| 17A | 1 | 267708-01 | BUMPER,NYLON | View Item |
| 17B | 1 | 900014-5 | SCREW,HEX CAP.38-16X1.25,G8,ZC | View Item |
| 17C | 1 | 901002 | NUT, NYLON 3/8-16 ZINC | View Item |
| 17D | 1 | 902000-28 | WASHER, FLAT .375 X .115-.125 THK | View Item |
| 17E | 1 | 905114-04 | BEARING, SELF LUBE 1-1/4X1-1/2 | View Item |
| 17F | 1 | 905112-04 | BEARING, SELF LUBE 1-3/8X1.5 | View Item |
| 18 | 1 | 267712-03 | PRL ARM &F/S STOP ASSY,LH GALV | View Item |
| 18A | 1 | 267708-01 | BUMPER,NYLON | View Item |
| 18B | 1 | 900014-5 | SCREW,HEX CAP.38-16X1.25,G8,ZC | View Item |
| 18C | 1 | 901002 | NUT, NYLON 3/8-16 ZINC | View Item |
| 18D | 1 | 902000-28 | WASHER, FLAT .375 X .115-.125 THK | View Item |
| 18E | 1 | 905114-04 | BEARING, SELF LUBE 1-1/4X1-1/2 | View Item |
| 18F | 1 | 905112-04 | BEARING, SELF LUBE 1-3/8X1.5 | View Item |
| 19 | 1 | 298888-01G | MAIN FRAME WLDMT, GPT-25/3,G | View Item |
| 19 | 1 | 298888-02G | M/F WLDMT,W/DOK-LOK BRKT, GPT-25/3,G | View Item |
| 19 | 1 | 298888-03G | MAIN FRAME WLDMT,CTR MT PMP,GPT-25/3,G | View Item |
| 19 | 1 | 298888-04G | M/F WLDMT,W/DOK-LOK BRKT,CTR MT PMP,GPT-25/3,G | View Item |
| 19 | 1 | 298888-21G | MAIN FRAME WLDMT, D/PMP, GPT-25/3,G | View Item |
| 19 | 1 | 298888-22G | M/F WLDMT,W/DK-LK BRKT,D/PMP,GPT-25/3,G | View Item |
| 19 | 1 | 298888-23G | MAIN FRAME WLDMT,CTR MT D/PMP,GPT-25/3,G | View Item |
| 19 | 1 | 298888-24G | M/F WLDMT,W/DK-LK BRKT,CTR MT D/PMP,GPT-25/3,G | View Item |
| 20 | 2 | 902011-4 | WASHER, LOCK 3/8X.094 ZC | View Item |
| 21 | 2 | 900014-7 | SCREW,HEX CAP.38-16X1.75,G8,ZC | View Item |
| 22 | 2 | 904717-06 | PIN ROLL .38 X 2 ZINC | View Item |
| 23 | 2 | 229657-101 | PIN ASSY | View Item |
| 24 | 2 | 250310-101 | PIN ASSY,P/ARM | View Item |
| 25 | 2 | 253045-101 | PIN ASSY, GPT SERIES, GREASE | View Item |
| 26 | 2 | 228922-101 | PIN ASSY, CYL | View Item |
| 27 | 2 | 265807-101 | PIN ASSY,SPRING | View Item |
| 28 | 2 | 266035-101 | PIN ASSY,L/ARM | View Item |
| 29 | 2 | 905033-5 | ROLL PIN .250 O.D.X2.00"LG | View Item |
| REF | 14 | 224342 | FITTING, GREASE 1/4"SELF DRILL | View Item |

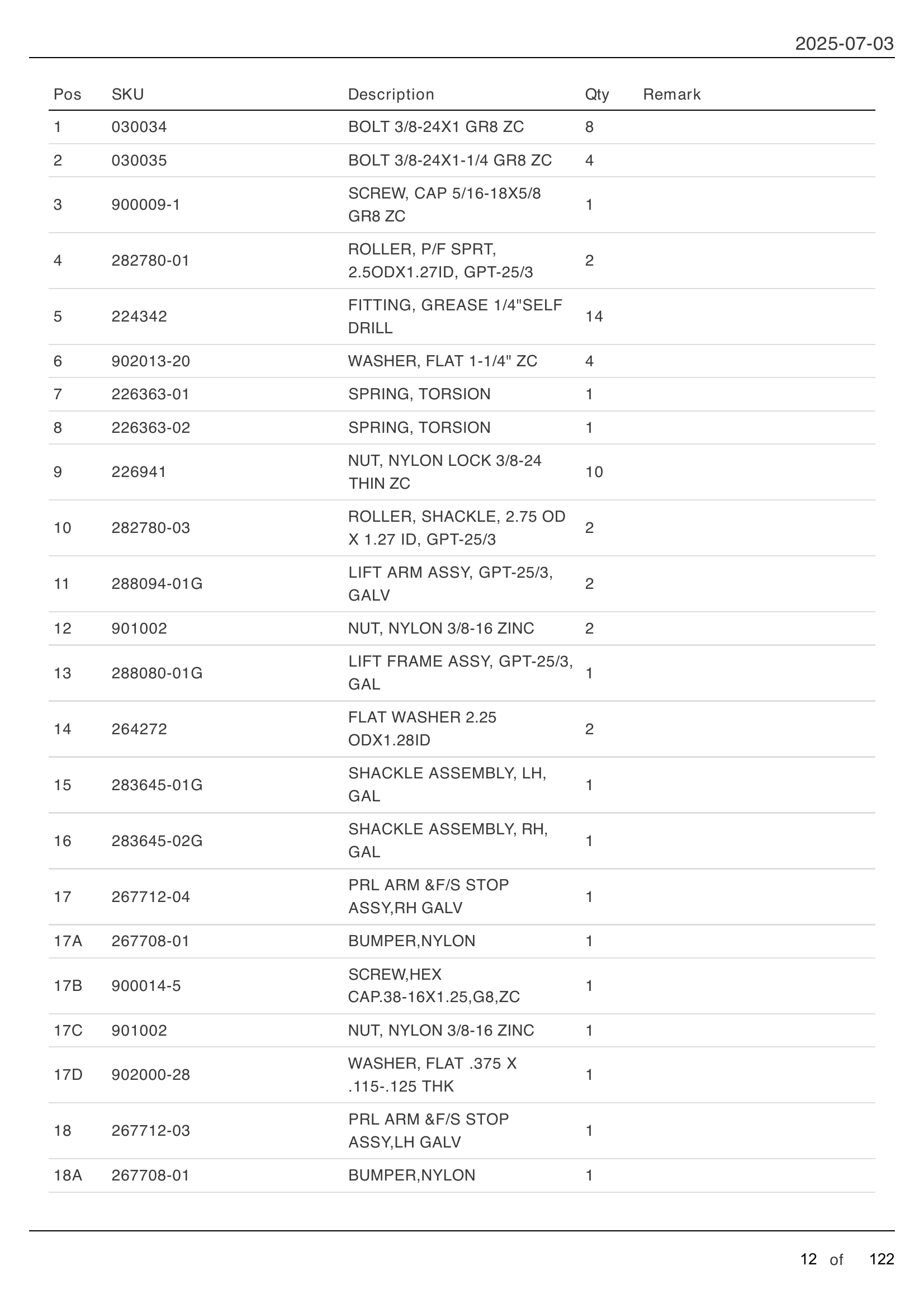

MAIN ASSEMBLY: GPT-25, GPT-3, GPTWR-25 AND GPTWR-3
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 8 | 030034 | BOLT 3/8-24X1 GR8 ZC | View Item |
| 2 | 4 | 030035 | BOLT 3/8-24X1-1/4 GR8 ZC | View Item |
| 3 | 1 | 900009-1 | SCREW, CAP 5/16-18X5/8 GR8 ZC | View Item |
| 4 | 2 | 282780-01 | ROLLER, P/F SPRT, 2.50DX1.27ID, GPT-25/3 | View Item |
| 5 | 14 | 224342 | FITTING, GREASE 1/4"SELF DRILL | View Item |
| 6 | 4 | 902013-20 | WASHER, FLAT 1-1/4" ZC | View Item |
| 7 | 1 | 226363-01 | SPRING, TORSION | View Item |
| 8 | 1 | 226363-02 | SPRING, TORSION | View Item |
| 9 | 10 | 226941 | NUT, NYLON LOCK 3/8-24 THIN ZC | View Item |
| 10 | 2 | 282780-03 | ROLLER, SHACKLE, 2.75 OD X 1.27 ID, GPT-25/3 | View Item |
| 11 | 2 | 288094-01G | LIFT ARM ASSY, GPT-25/3, GALV | View Item |
| 12 | 2 | 901002 | NUT, NYLON 3/8-16 ZINC | View Item |
| 13 | 1 | 288080-01G | LIFT FRAME ASSY, GPT-25/3, GAL | View Item |
| 14 | 2 | 264272 | FLAT WASHER 2.25 ODX1.28ID | View Item |
| 15 | 1 | 283645-01G | SHACKLE ASSEMBLY, LH, GAL | View Item |
| 16 | 1 | 283645-02G | SHACKLE ASSEMBLY, RH, GAL | View Item |
| 17 | 1 | 267712-04 | PRL ARM &F/S STOP ASSY,RH GALV | View Item |
| 17A | 1 | 267708-01 | BUMPER,NYLON | View Item |
| 17B | 1 | 900014-5 | SCREW,HEX CAP.3/8-16X1.25,G8,ZC | View Item |
| 17C | 1 | 901002 | NUT, NYLON 3/8-16 ZINC | View Item |
| 17D | 1 | 902000-28 | WASHER, FLAT .375 X .115-.125 THK | View Item |
| 18 | 1 | 267712-03 | PRL ARM &F/S STOP ASSY,LH GALV | View Item |
| 18A | 1 | 267708-01 | BUMPER,NYLON | View Item |
| 18B | 1 | 900014-5 | SCREW,HEX CAP.3/8-16X1.25,G8,ZC | View Item |
| 18C | 1 | 901002 | NUT, NYLON 3/8-16 ZINC | View Item |
| 18D | 1 | 902000-28 | WASHER, FLAT .375 X .115-.125 THK | View Item |
| 19 | 1 | 298888-01G | MAIN FRAME WLDMT, GPT-25/3,G | View Item |
| 19 | 1 | 298888-02G | M/F WLDMT,W/DOK-LOK BRKT, GPT-25/3,G | View Item |
| 19 | 1 | 298888-03G | MAIN FRAME WLDMT,CTR MT PMP,GPT-25/3,G | View Item |
| 19 | 1 | 298888-04G | M/F WLDMT,W/DOK-LOK BRKT,CTR MT PMP,GPT-25/3,G | View Item |
| 19 | 1 | 298888-21G | MAIN FRAME WLDMT, D/PMP, GPT-25/3,G | View Item |
| 19 | 1 | 298888-22G | M/F WLDMT,W/DK-LK BRKT,D/PMP,GPT-25/3,G | View Item |
| 19 | 1 | 298888-23G | MAIN FRAME WLDMT,CTR MT D/PMP,GPT-25/3,G | View Item |
| 19 | 1 | 298888-24G | M/F WLDMT,W/DK-LK BRKT,CTR MT D/PMP,GPT-25/3,G | View Item |
| 20 | 2 | 902011-4 | WASHER, LOCK 3/8X.094 ZC | View Item |
| 21 | 2 | 900014-7 | SCREW,HEX CAP.3/8-16X1.75,G8,ZC | View Item |
| 22 | 2 | 902001-2 | WASHER, FLAT 3/8X1/16 ZC | View Item |

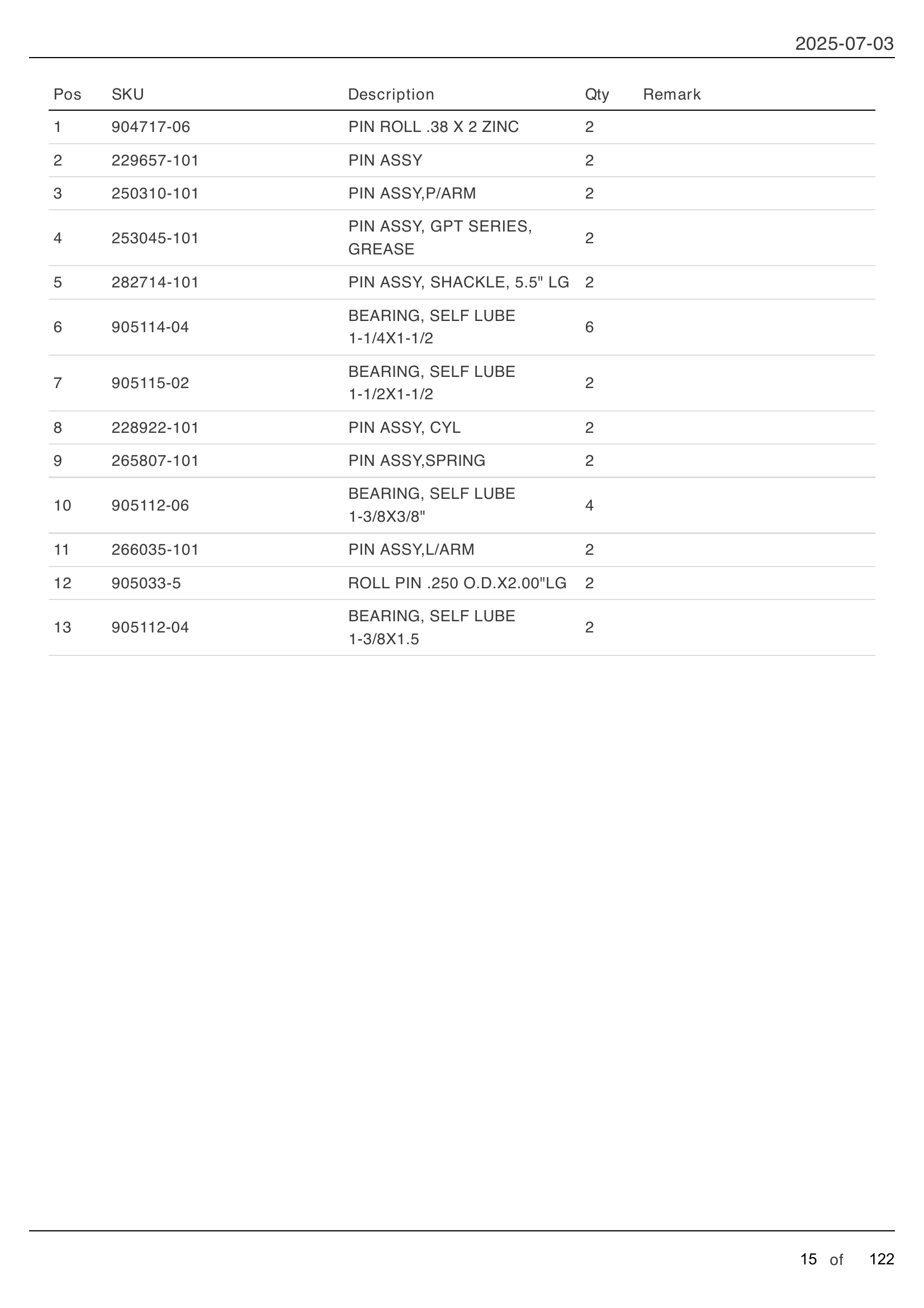

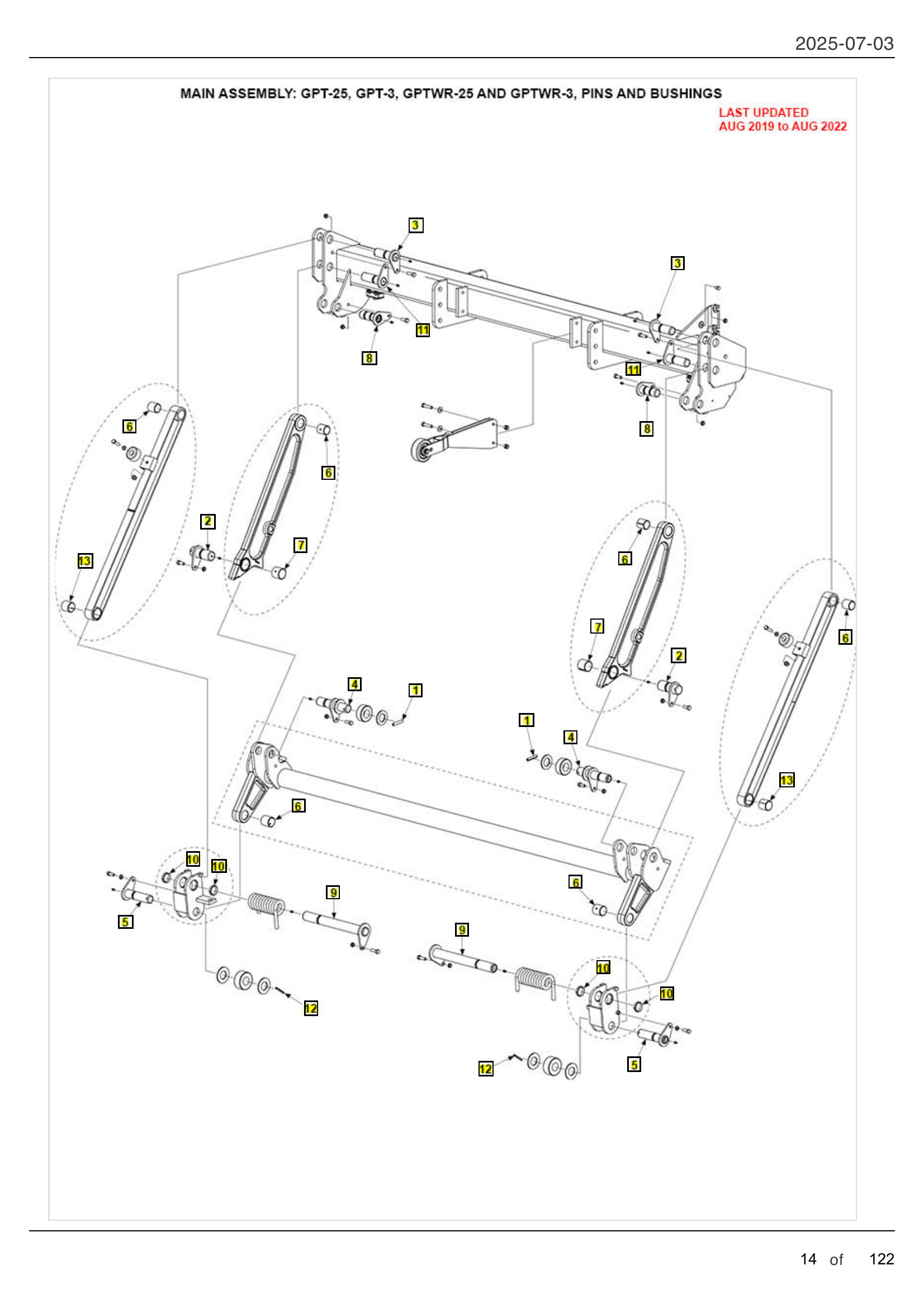

MAIN ASSEMBLY: GPT-25, GPT-3, GPTWR-25 AND GPTWR-3, PINS AND BUSHINGS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 2 | 904717-06 | PIN ROLL .38 X 2 ZINC | View Item |
| 2 | 2 | 229657-101 | PIN ASSY | View Item |
| 3 | 2 | 250310-101 | PIN ASSY,P/ARM | View Item |
| 4 | 2 | 253045-101 | PIN ASSY, GPT SERIES, GREASE | View Item |
| 5 | 2 | 282714-101 | PIN ASSY, SHACKLE, 5.5" LG | View Item |
| 6 | 6 | 905114-04 | BEARING, SELF LUBE 1-1/4X1-1/2 | View Item |
| 7 | 2 | 905115-02 | BEARING, SELF LUBE 1-1/2X1-1/2 | View Item |
| 8 | 2 | 228922-101 | PIN ASSY, CYL | View Item |
| 9 | 2 | 265807-101 | PIN ASSY,SPRING | View Item |
| 10 | 4 | 905112-06 | BEARING, SELF LUBE 1-3/8X3/8" | View Item |
| 11 | 2 | 266035-101 | PIN ASSY,L/ARM | View Item |
| 12 | 2 | 905033-5 | ROLL PIN .250 O.D.X2.00"LG | View Item |
| 13 | 2 | 905112-04 | BEARING, SELF LUBE 1-3/8X1.5 | View Item |

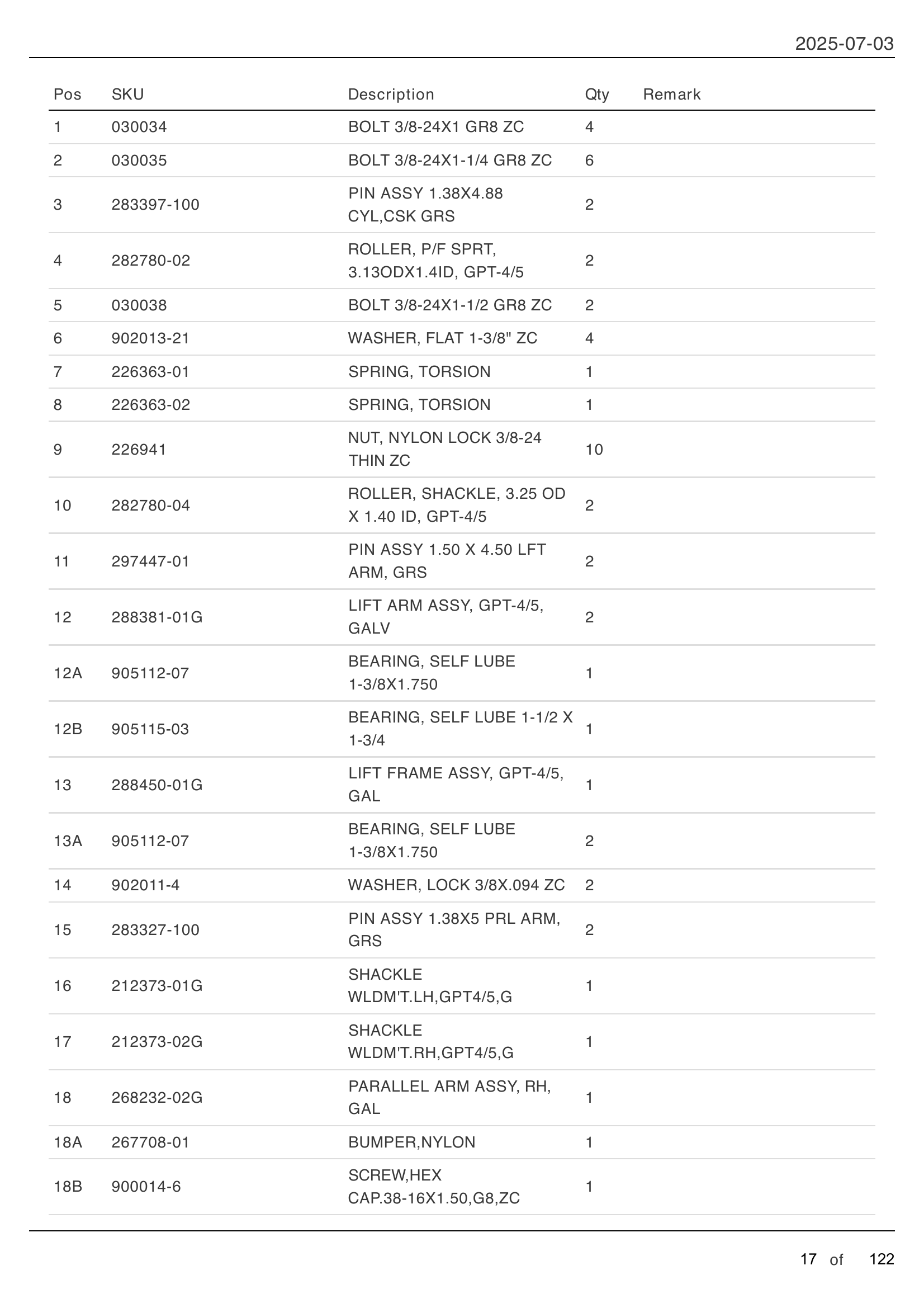

MAIN ASSEMBLY: GPT-4, GPT-5, GPTWR-4 AND GPTWR-5
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 4 | 030034 | BOLT 3/8-24X1 GR8 ZC | View Item |
| 2 | 6 | 030035 | BOLT 3/8-24X1-1/4 GR8 ZC | View Item |
| 3 | 2 | 283397-100 | PIN ASSY 1.38X4.88 CYL,CSK GRS | View Item |
| 4 | 2 | 282780-02 | ROLLER, P/F SPRT, 3.13ODX1.41D, GPT-4/5 | View Item |
| 5 | 2 | 030038 | BOLT 3/8-24X1-1/2 GR8 ZC | View Item |
| 6 | 4 | 902013-21 | WASHER, FLAT 1-3/8" ZC | View Item |
| 7 | 1 | 226363-01 | SPRING, TORSION | View Item |
| 8 | 1 | 226363-02 | SPRING, TORSION | View Item |
| 9 | 10 | 226941 | NUT, NYLON LOCK 3/8-24 THIN ZC | View Item |
| 10 | 2 | 282780-04 | ROLLER, SHACKLE, 3.25 OD X 1.40 ID, GPT-4/5 | View Item |
| 11 | 2 | 297447-01 | PIN ASSY 1.50 X 4.50 LFT ARM, GRS | View Item |
| 12 | 2 | 288381-01G | LIFT ARM ASSY, GPT-4/5, GALV | View Item |
| 12A | 1 | 905112-07 | BEARING, SELF LUBE 1-3/8X1.750 | View Item |
| 12B | 1 | 905115-03 | BEARING, SELF LUBE 1-1/2 X 1-3/4 | View Item |
| 13 | 1 | 288450-01G | LIFT FRAME ASSY, GPT-4/5, GAL | View Item |
| 13A | 2 | 905112-07 | BEARING, SELF LUBE 1-3/8X1.750 | View Item |
| 14 | 2 | 902011-4 | WASHER, LOCK 3/8X.094 ZC | View Item |
| 15 | 2 | 283327-100 | PIN ASSY 1.38X5 PRL ARM, GRS | View Item |
| 16 | 1 | 212373-01G | SHACKLE WLDM'T.LH,GPT4/5,G | View Item |
| 17 | 1 | 212373-02G | SHACKLE WLDM'T.RH,GPT4/5,G | View Item |
| 18 | 1 | 268232-02G | PARALLEL ARM ASSY, RH, GAL | View Item |
| 18A | 1 | 267708-01 | BUMPER,NYLON | View Item |
| 18B | 1 | 900014-6 | SCREW,HEX CAP.3/8-16X1.50,G8,ZC | View Item |
| 18C | 1 | 902011-4 | WASHER, LOCK 3/8X.094 ZC | View Item |
| 18D | 1 | 902000-28 | WASHER, FLAT .375 X .115-.125 THK | View Item |
| 18E | 2 | 905112-07 | BEARING, SELF LUBE 1-3/8X1.750 | View Item |
| 19 | 1 | 268232-01G | PARALLEL ARM ASSY, LH, GAL | View Item |
| 19A | 1 | 267708-01 | BUMPER,NYLON | View Item |
| 19B | 1 | 900014-6 | SCREW,HEX CAP.3/8-16X1.50,G8,ZC | View Item |
| 19C | 1 | 902011-4 | WASHER, LOCK 3/8X.094 ZC | View Item |
| 19D | 1 | 902000-28 | WASHER, FLAT .375 X .115-.125 THK | View Item |
| 19E | 2 | 905112-07 | BEARING, SELF LUBE 1-3/8X1.750 | View Item |
| 20 | 1 | 298889-01G | M/F WLDMT, GPT-4/5, GALV | View Item |
| 20 | 1 | 298889-02G | M/F WLDMT,W/DOK-LOK BRKT,GPT-4/5, GALV | Call For Purchase |
| 20 | 1 | 298889-03G | M/F WLDMT,CTR MT PMP,GPT-4/5,G | Call For Purchase |
| 20 | 1 | 298889-04G | M/F WLDMT,W/DOK-LOK BRKT,CTR MT PMP,GPT-4/5,G | Call For Purchase |
| 20 | 1 | 298889-21G | M/F WLDMT, D/PMP, GPT-4/5, GALV | Call For Purchase |
| 20 | 1 | 298889-22G | M/F WLDMT,W/DK-LK BRKT,D/PMP,GPT-4/5, GALV | Call For Purchase |
| 20 | 1 | 298889-23G | M/F WLDMT,CTR MT D/PMP,GPT-4/5,G | Call For Purchase |
| 20 | 1 | 298889-24G | M/F WLDMT,W/DK-LK BRKT,D/CTR MT PMP,GPT-4/5,G | Call For Purchase |
| 21 | 2 | 901002 | NUT, NYLON 3/8-16 ZINC | View Item |
| 22 | 2 | 900014-7 | SCREW,HEX CAP.3/8-16X1.75,G8,ZC | View Item |
| 23 | 2 | 902001-2 | WASHER, FLAT 3/8X1/16 ZC | View Item |
| 24 | 2 | 283395-100 | PIN ASSY 1.38X6.50 CYL,CSK GRS | View Item |
| 25 | 2 | 226365-100 | PIN ASSY 1.38X5.88 SHACKLE,GRS | View Item |
| 26 | 2 | 265807-101 | PIN ASSY,SPRING | View Item |
| 27 | 2 | 266033-100 | PIN ASSY 1.38X4.5 GREASE FTG | View Item |
| 28 | 2 | 904717-06 | PIN ROLL .38 X 2 ZINC | View Item |
| REF | 14 | 224342 | FITTING, GREASE 1/4"SELF DRILL | View Item |
298889-02G
Item 20 • Qty 1
M/F WLDMT,W/DOK-LOK BRKT,GPT-4/5, GALV
Call For Purchase
298889-03G
Item 20 • Qty 1
M/F WLDMT,CTR MT PMP,GPT-4/5,G
Call For Purchase
298889-04G
Item 20 • Qty 1
M/F WLDMT,W/DOK-LOK BRKT,CTR MT PMP,GPT-4/5,G
Call For Purchase
298889-21G
Item 20 • Qty 1
M/F WLDMT, D/PMP, GPT-4/5, GALV
Call For Purchase
298889-22G
Item 20 • Qty 1
M/F WLDMT,W/DK-LK BRKT,D/PMP,GPT-4/5, GALV
Call For Purchase
298889-23G
Item 20 • Qty 1
M/F WLDMT,CTR MT D/PMP,GPT-4/5,G
Call For Purchase
298889-24G
Item 20 • Qty 1
M/F WLDMT,W/DK-LK BRKT,D/CTR MT PMP,GPT-4/5,G
Call For Purchase

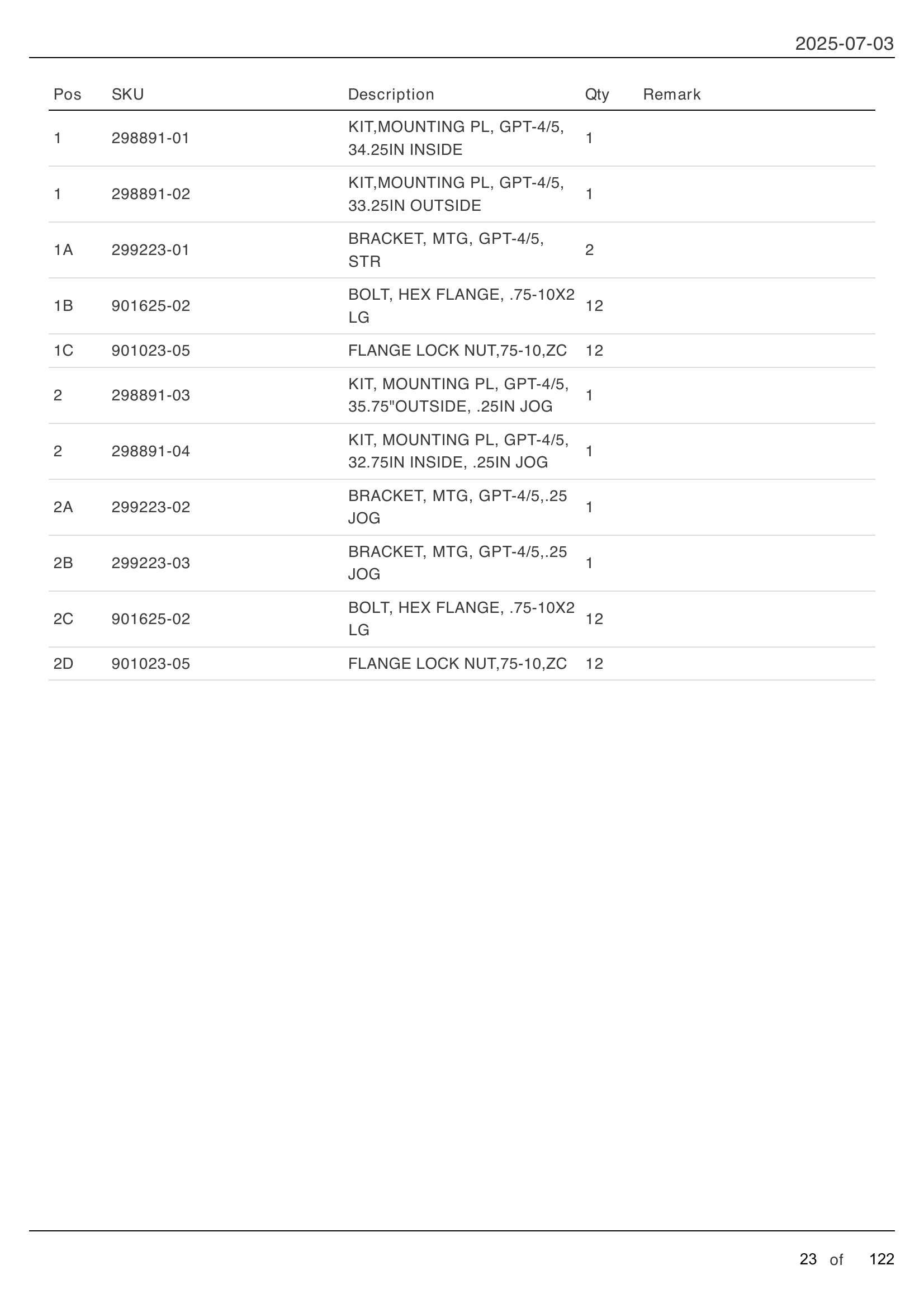

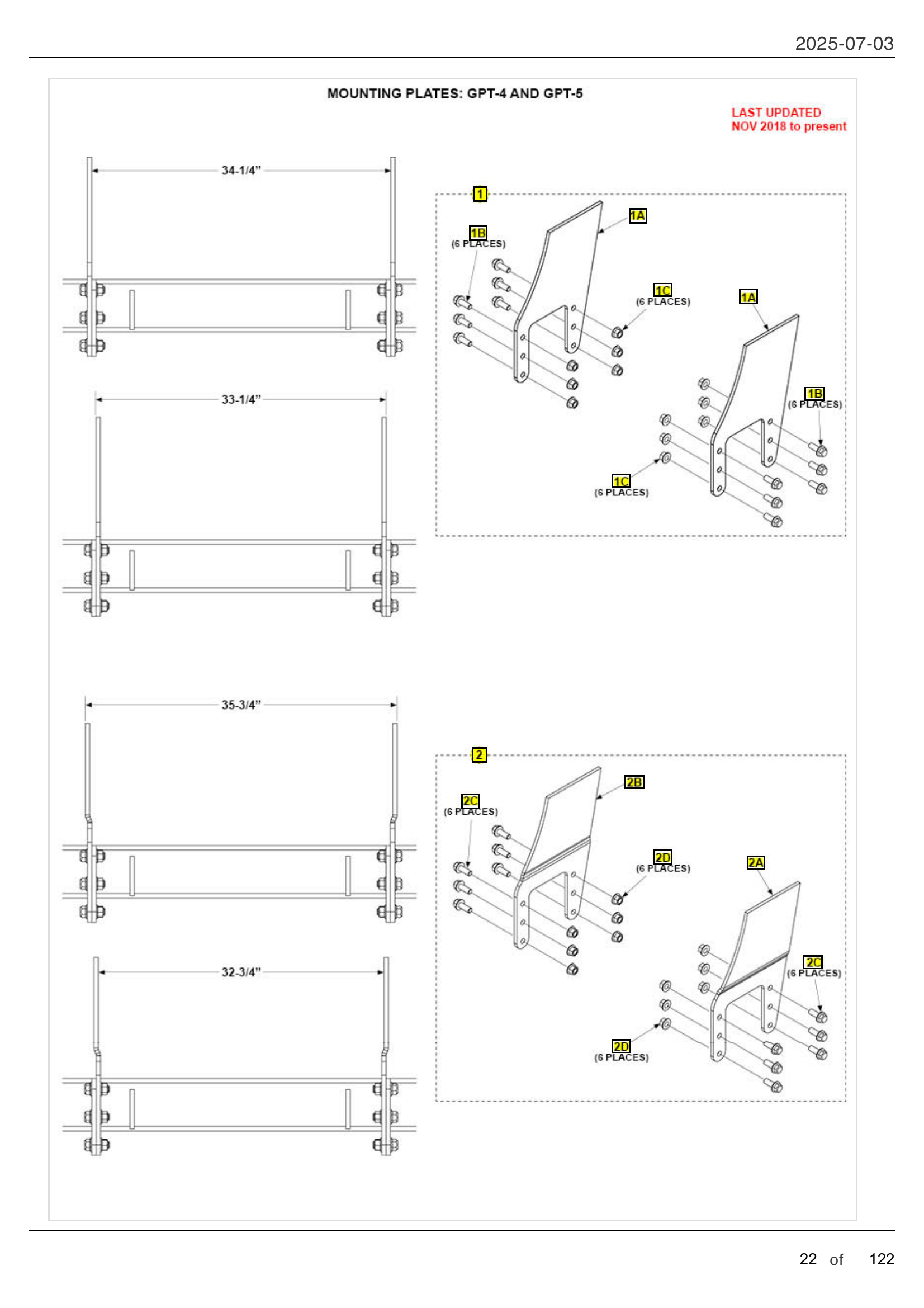

MOUNTING PLATES: GPT-4 AND GPT-5
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 298891-01 | KIT,MOUNTING PL, GPT-4/5, 34.25IN INSIDE | View Item |
| 1 | 1 | 298891-02 | KIT,MOUNTING PL, GPT-4/5, 33.25IN OUTSIDE | Call For Purchase |
| 1A | 2 | 299223-01 | BRACKET, MTG, GPT-4/5, STR | View Item |
| 1B | 12 | 901625-02 | BOLT, HEX FLANGE, .75-10X2 LG | View Item |
| 1C | 12 | 901023-05 | FLANGE LOCK NUT,75-10,ZC | View Item |
| 2 | 1 | 298891-03 | KIT, MOUNTING PL, GPT-4/5, 35.75"OUTSIDE, .25IN JOG | View Item |
| 2 | 1 | 298891-04 | KIT, MOUNTING PL, GPT-4/5, 32.75IN INSIDE, .25IN JOG | Call For Purchase |
| 2A | 1 | 299223-02 | BRACKET, MTG, GPT-4/5,.25 JOG | View Item |
| 2B | 1 | 299223-03 | BRACKET, MTG, GPT-4/5,.25 JOG | View Item |
| 2C | 12 | 901625-02 | BOLT, HEX FLANGE, .75-10X2 LG | View Item |
| 2D | 12 | 901023-05 | FLANGE LOCK NUT,75-10,ZC | View Item |
298891-02
Item 1 • Qty 1
KIT,MOUNTING PL, GPT-4/5, 33.25IN OUTSIDE
Call For Purchase
298891-04
Item 2 • Qty 1
KIT, MOUNTING PL, GPT-4/5, 32.75IN INSIDE, .25IN JOG
Call For Purchase

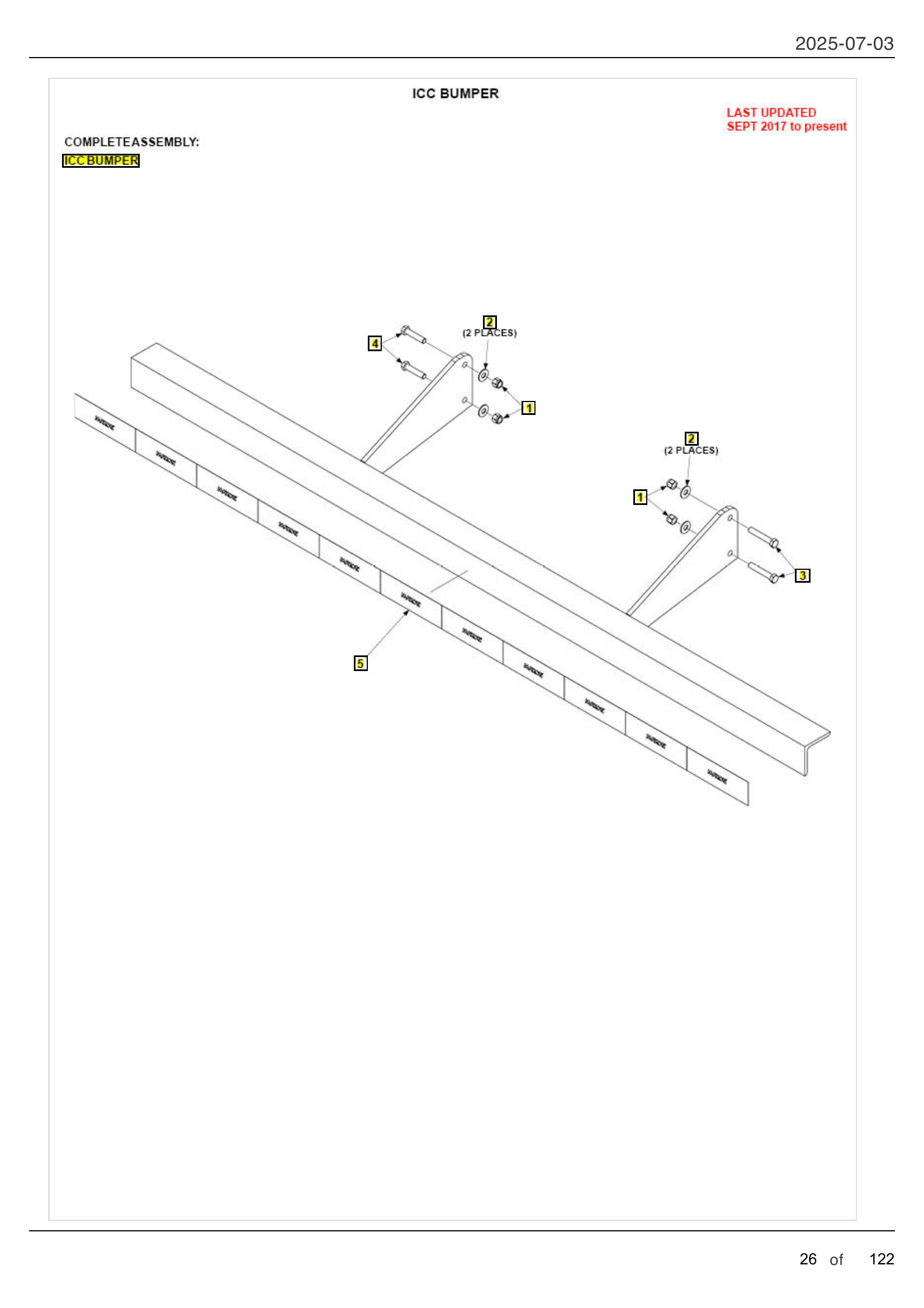

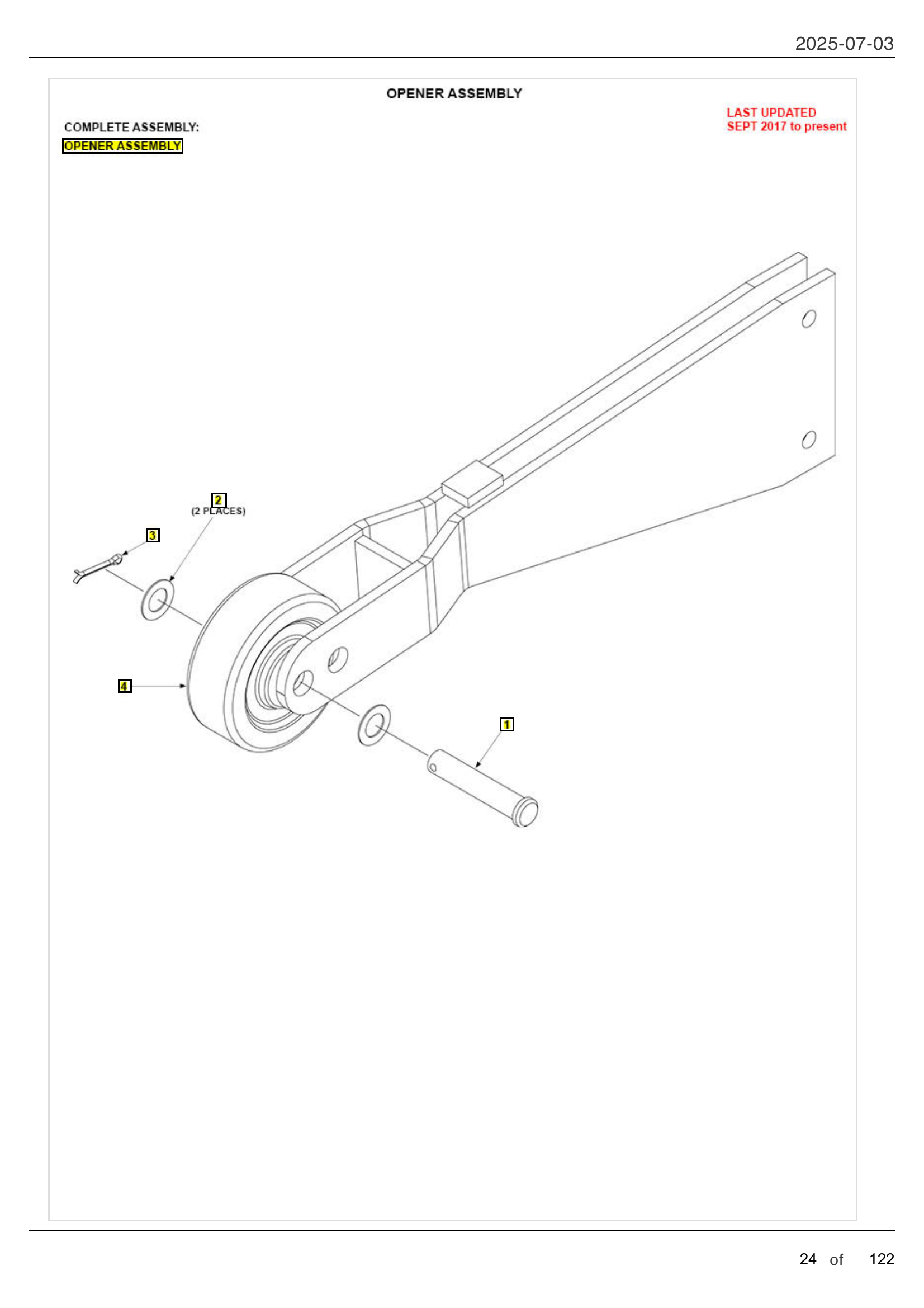

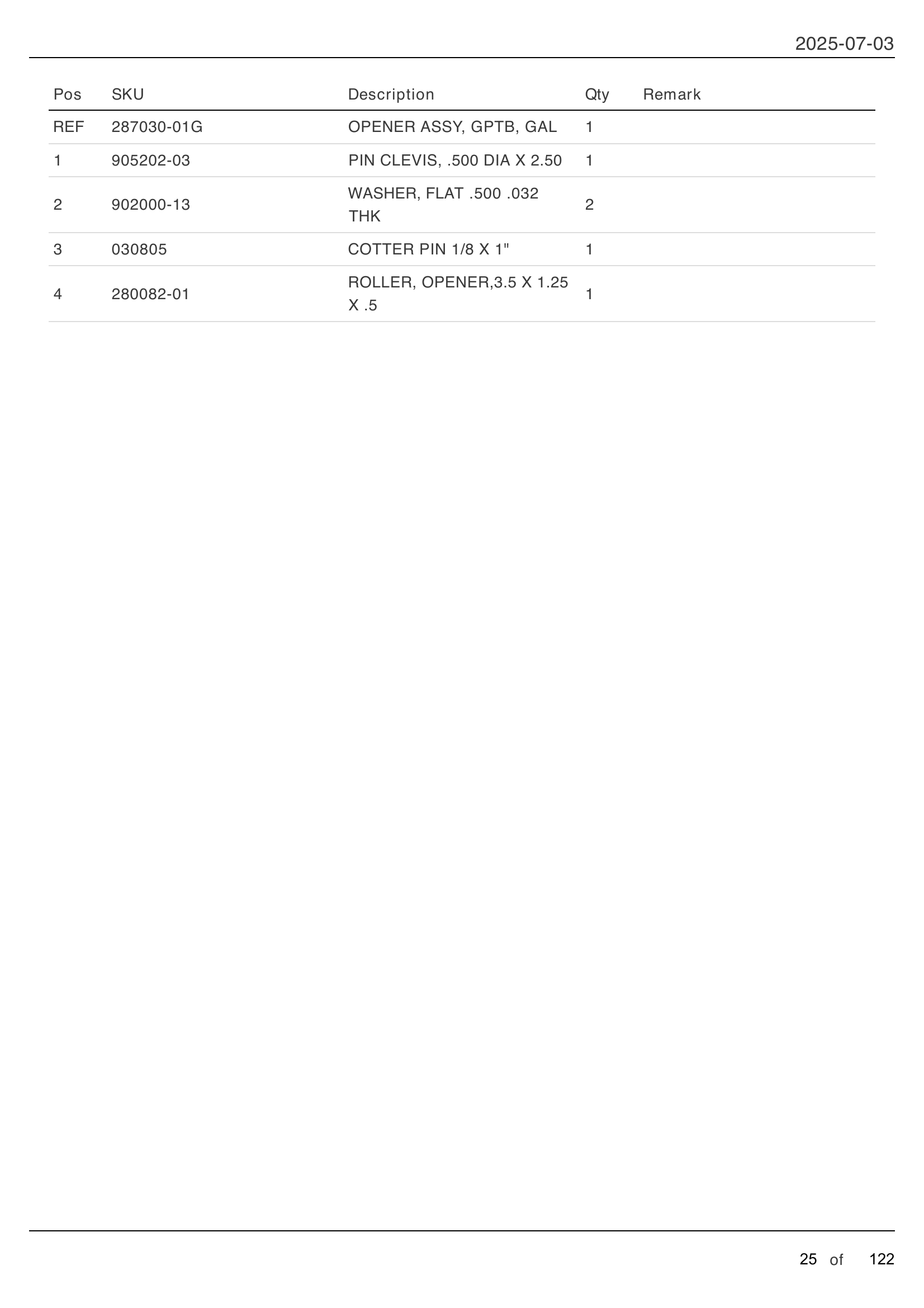

OPENER ASSEMBLY

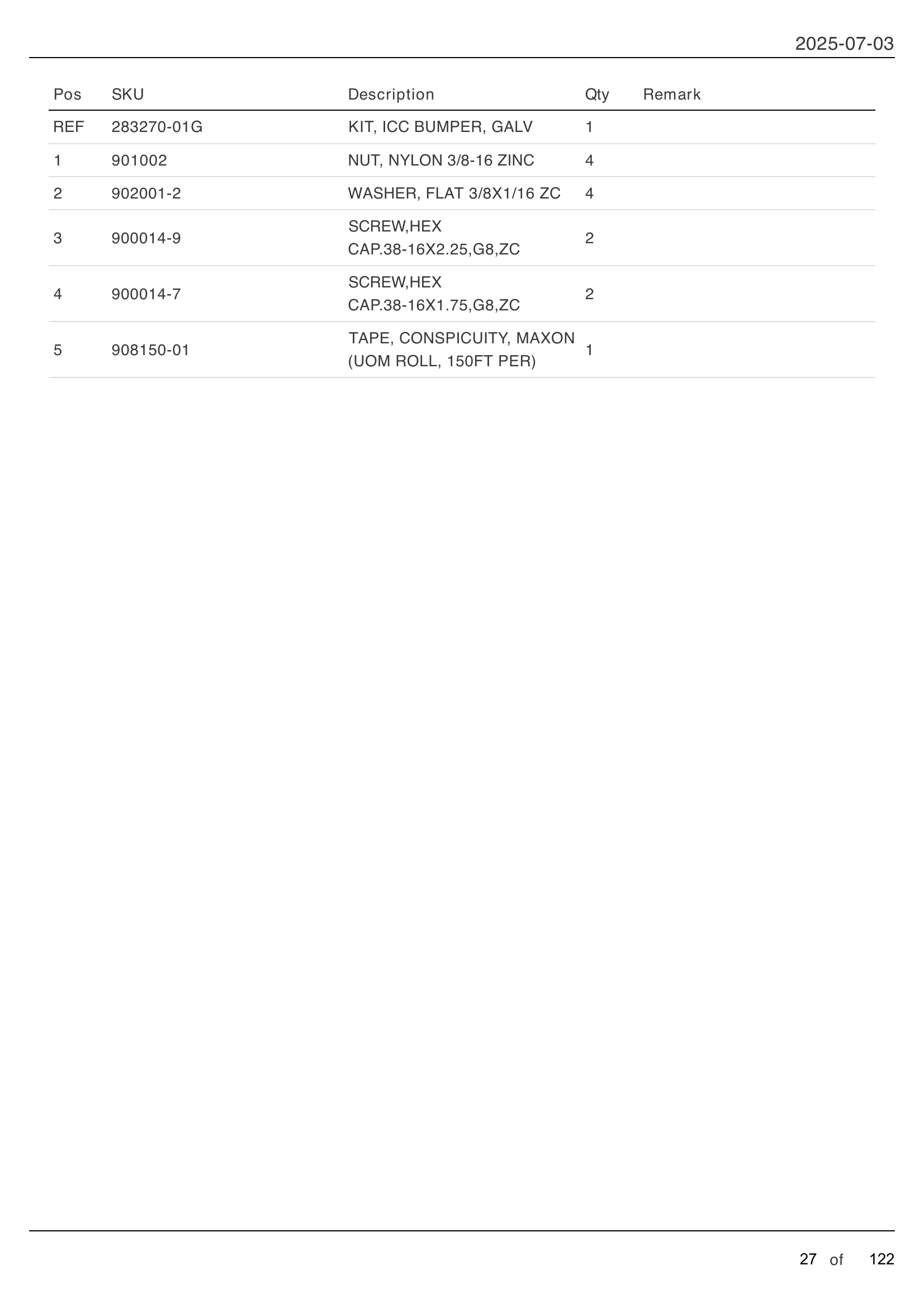

ICC BUMPER
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 283270-01G | KIT, ICC BUMPER, GALV | View Item |
| 1 | 4 | 901002 | NUT, NYLON 3/8-16 ZINC | View Item |
| 2 | 4 | 902001-2 | WASHER, FLAT 3/8X1/16 ZC | View Item |
| 3 | 2 | 900014-9 | SCREW,HEX CAP.38-16X2.25,G8,ZC | View Item |
| 4 | 2 | 900014-7 | SCREW,HEX CAP.38-16X1.75,G8,ZC | View Item |
| 5 | 1 | 908150-01 | TAPE, CONSPICUITY, MAXON (UOM ROLL, 150FT PER) | View Item |

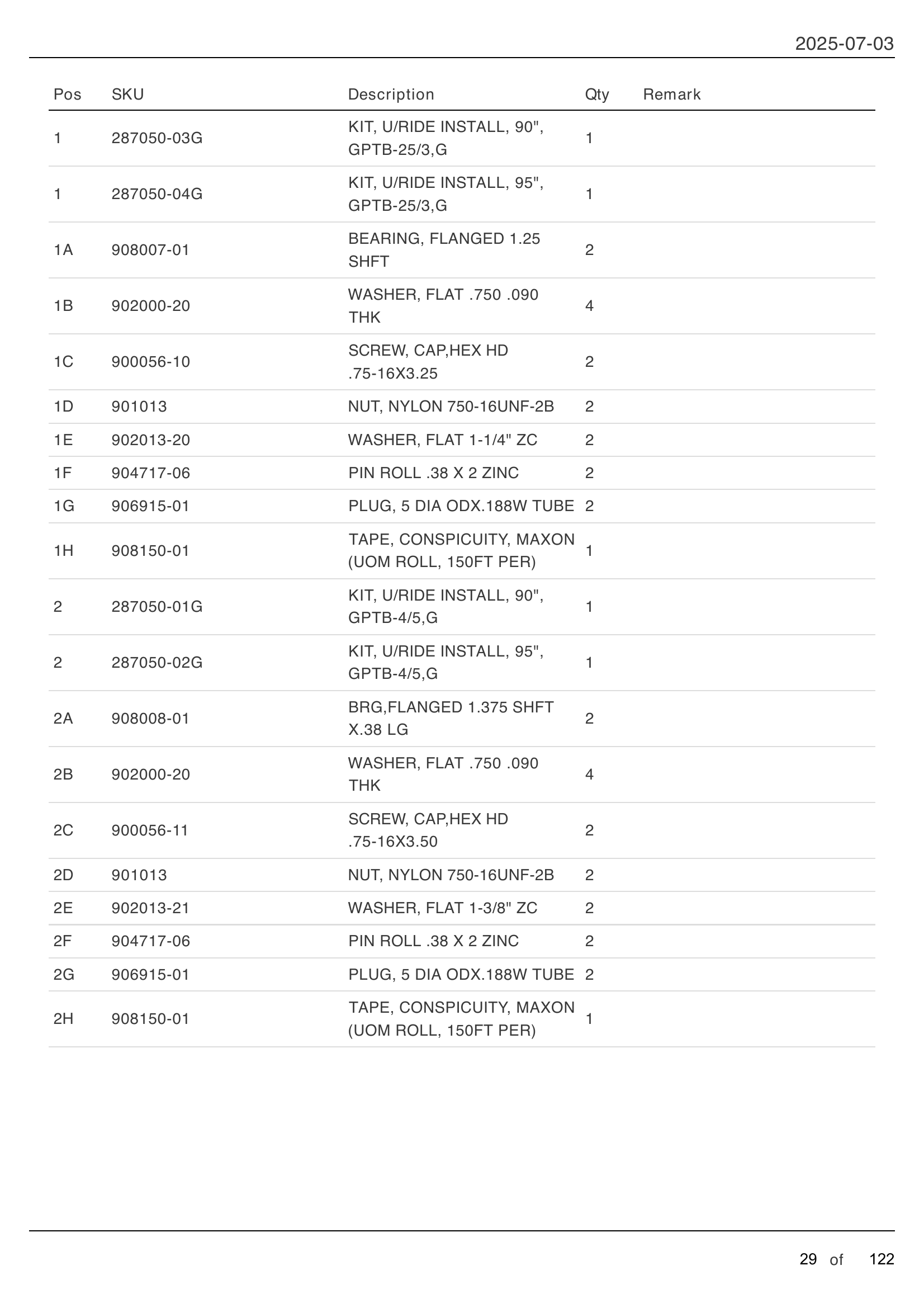

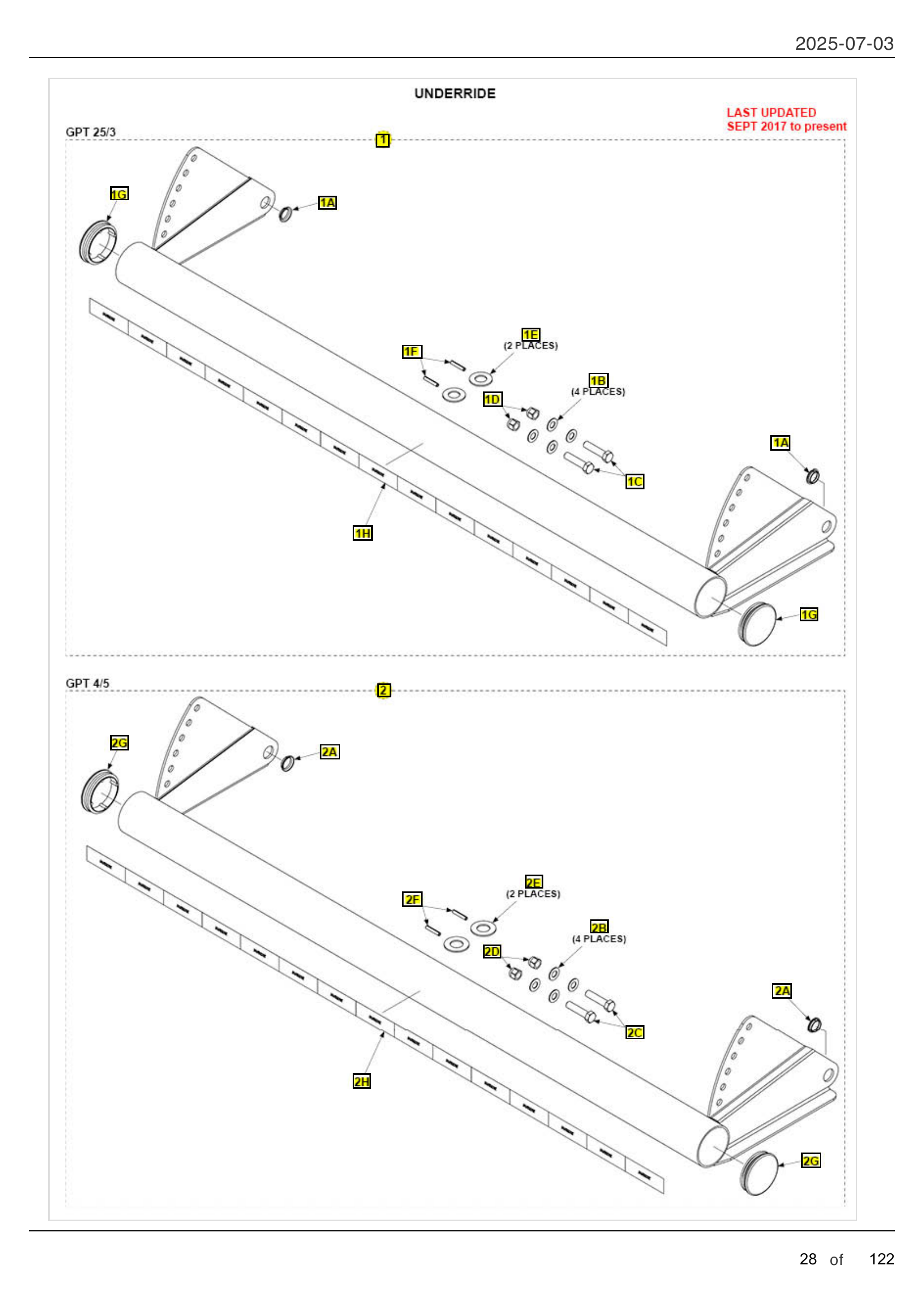

UNDERRIDE
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 287050-03G | KIT, U/RIDE INSTALL, 90", GPTB-25/3,G | View Item |
| 1 | 1 | 287050-04G | KIT, U/RIDE INSTALL, 95", GPTB-25/3,G | View Item |
| 1A | 2 | 908007-01 | BEARING, FLANGED 1.25 SHFT | View Item |
| 1B | 4 | 902000-20 | WASHER, FLAT .750 .090 THK | View Item |
| 1C | 2 | 900056-10 | SCREW, CAP,HEX HD .75-16X3.25 | View Item |
| 1D | 2 | 901013 | NUT, NYLON 750-16UNF-2B | View Item |
| 1E | 2 | 902013-20 | WASHER, FLAT 1-1/4" ZC | View Item |
| 1F | 2 | 904717-06 | PIN ROLL .38 X 2 ZINC | View Item |
| 1G | 2 | 906915-01 | PLUG, 5 DIA ODX.188W TUBE | View Item |
| 1H | 1 | 908150-01 | TAPE, CONSPICUITY, MAXON (UOM ROLL, 150FT PER) | View Item |
| 2 | 1 | 287050-01G | KIT, U/RIDE INSTALL, 90", GPTB-4/5,G | View Item |
| 2 | 1 | 287050-02G | KIT, U/RIDE INSTALL, 95", GPTB-4/5,G | View Item |
| 2A | 2 | 908008-01 | BRG,FLANGED 1.375 SHFT X.38 LG | View Item |
| 2B | 4 | 902000-20 | WASHER, FLAT .750 .090 THK | View Item |
| 2C | 2 | 900056-11 | SCREW, CAP,HEX HD .75-16X3.50 | View Item |
| 2D | 2 | 901013 | NUT, NYLON 750-16UNF-2B | View Item |
| 2E | 2 | 902013-21 | WASHER, FLAT 1-3/8" ZC | View Item |
| 2F | 2 | 904717-06 | PIN ROLL .38 X 2 ZINC | View Item |
| 2G | 2 | 906915-01 | PLUG, 5 DIA ODX.188W TUBE | View Item |
| 2H | 1 | 908150-01 | TAPE, CONSPICUITY, MAXON (UOM ROLL, 150FT PER) | View Item |

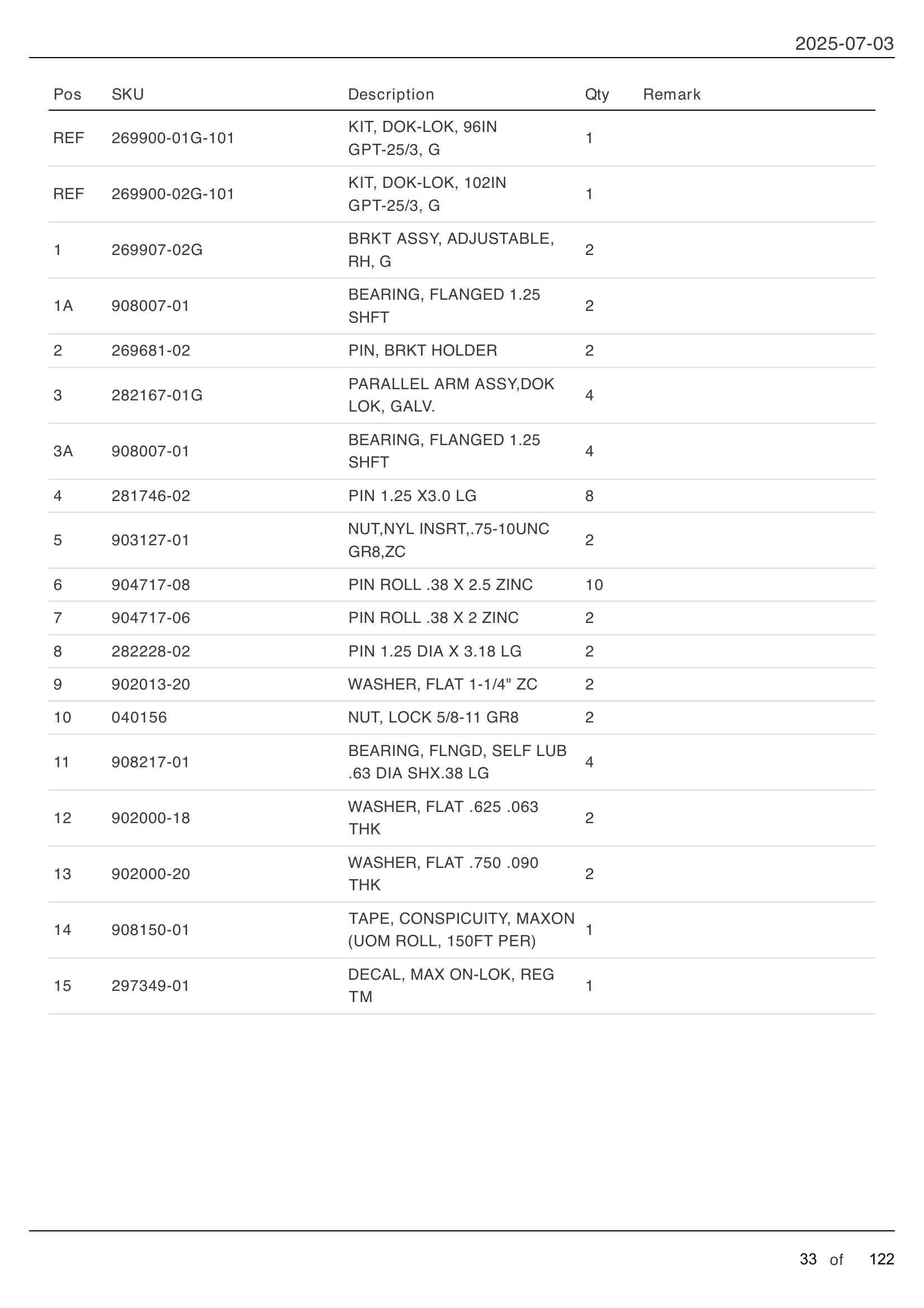

DOK-LOK: GPT 25/3
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 269900-01G-101 | KIT, DOK-LOK, 96IN GPT-25/3, G | View Item |
| REF | 1 | 269900-02G-101 | KIT, DOK-LOK, 102IN GPT-25/3, G | View Item |
| 1 | 2 | 269907-02G | BRKT ASSY, ADJUSTABLE, RH, G | View Item |
| 1A | 2 | 908007-01 | BEARING, FLANGED 1.25 SHFT | View Item |
| 2 | 2 | 269681-02 | PIN, BRKT HOLDER | View Item |
| 3 | 4 | 282167-01G | PARALLEL ARM ASSY,DOK LOK, GALV. | View Item |
| 3A | 4 | 908007-01 | BEARING, FLANGED 1.25 SHFT | View Item |
| 4 | 8 | 281746-02 | PIN 1.25 X3.0 LG | View Item |
| 5 | 2 | 903127-01 | NUT,NYL INSRT,.75-10UNC GR8,ZC | View Item |
| 6 | 10 | 904717-08 | PIN ROLL .38 X 2.5 ZINC | View Item |
| 7 | 2 | 904717-06 | PIN ROLL .38 X 2 ZINC | View Item |
| 8 | 2 | 282228-02 | PIN 1.25 DIA X 3.18 LG | View Item |
| 9 | 2 | 902013-20 | WASHER, FLAT 1-1/4" ZC | View Item |
| 10 | 2 | 040156 | NUT, LOCK 5/8-11 GR8 | View Item |
| 11 | 4 | 908217-01 | BEARING, FLNGD, SELF LUB .63 DIA SHX.38 LG | View Item |
| 12 | 2 | 902000-18 | WASHER, FLAT .625 .063 THK | View Item |
| 13 | 2 | 902000-20 | WASHER, FLAT .750 .090 THK | View Item |
| 14 | 1 | 908150-01 | TAPE, CONSPICUITY, MAXON (UOM ROLL, 150FT PER) | View Item |
| 15 | 1 | 297349-01 | DECAL, MAX ON-LOK, REG TM | Call For Purchase |
297349-01
Item 15 • Qty 1
DECAL, MAX ON-LOK, REG TM
Call For Purchase

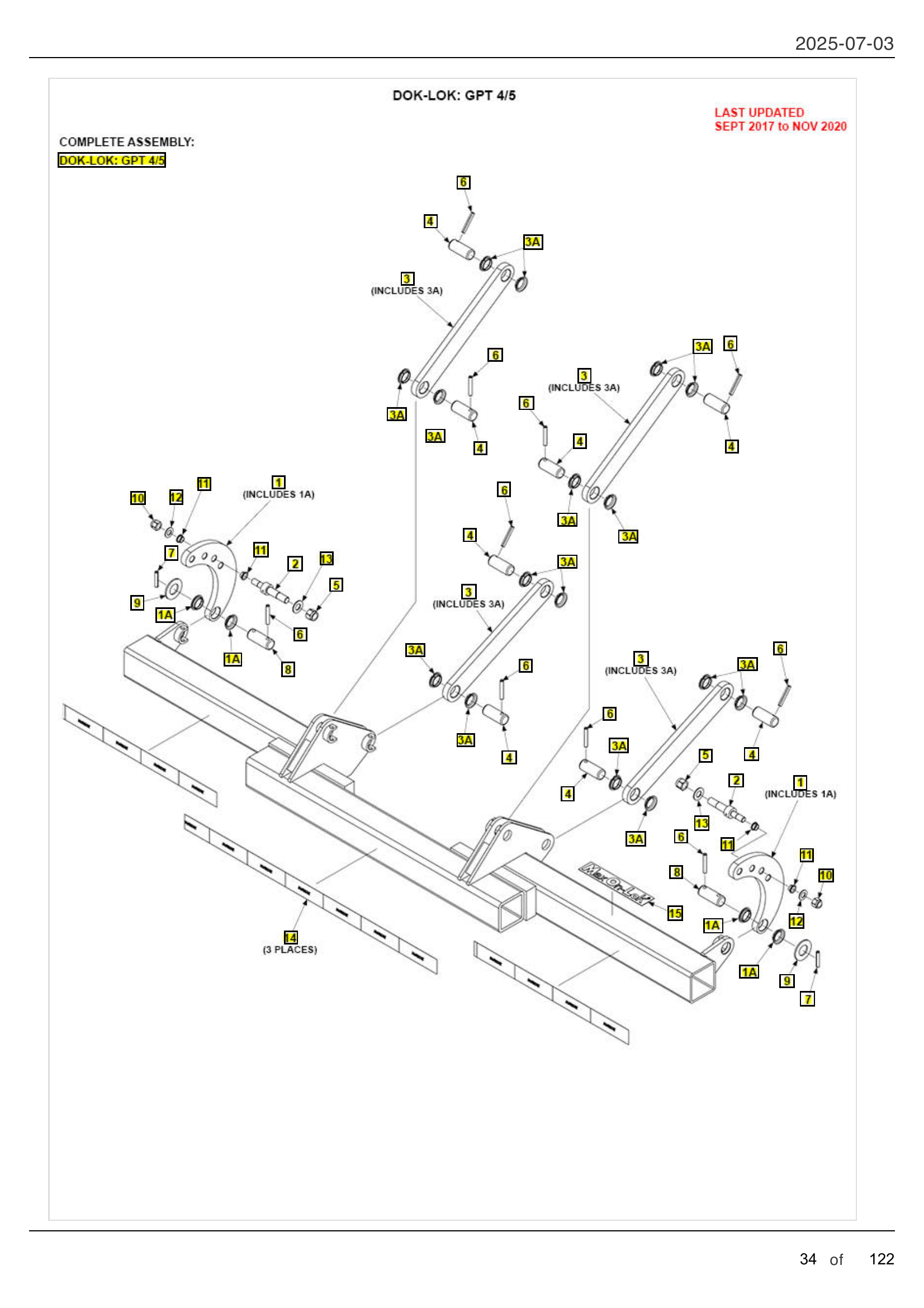

DOK-LOK: GPT 4/5
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 269905-01G-101 | KIT, DOK-LOK, 96IN GPT-4/5, G | View Item |
| REF | 1 | 269905-02G-101 | KIT, DOK-LOK, 102IN GPT-4/5, G | View Item |
| 1 | 2 | 269907-01G | BRKT ASSY, ADJUSTABLE, G | View Item |
| 1A | 2 | 908007-01 | BEARING, FLANGED 1.25 SHFT | View Item |
| 2 | 2 | 269681-01 | PIN BRKT HOLDER | View Item |
| 3 | 4 | 282167-01G | PARALLEL ARM ASSY,DOK LOK, GALV. | View Item |
| 3A | 4 | 908007-01 | BEARING, FLANGED 1.25 SHFT | View Item |
| 4 | 8 | 281746-02 | PIN 1.25 X3.0 LG | View Item |
| 5 | 2 | 903127-01 | NUT,NYL INSRT,.75-10UNC GR8,ZC | View Item |
| 6 | 10 | 904717-08 | PIN ROLL .38 X 2.5 ZINC | View Item |
| 7 | 2 | 904717-06 | PIN ROLL .38 X 2 ZINC | View Item |
| 8 | 2 | 282228-02 | PIN 1.25 DIA X 3.18 LG | View Item |
| 9 | 2 | 902013-20 | WASHER, FLAT 1-1/4" ZC | View Item |
| 10 | 2 | 040156 | NUT, LOCK 5/8-11 GR8 | View Item |
| 11 | 4 | 908217-01 | BEARING, FLNGD, SELF LUB .63 DIA SHX.38 LG | View Item |
| 12 | 2 | 902000-18 | WASHER, FLAT .625 .063 THK | View Item |
| 13 | 2 | 902000-20 | WASHER, FLAT .750 .090 THK | View Item |
| 14 | 1 | 908150-01 | TAPE, CONSPICUITY, MAXON (UOM ROLL, 150FT PER) | View Item |
| 15 | 1 | 297349-01 | DECAL, MAX ON-LOK, REG TM | Call For Purchase |
297349-01
Item 15 • Qty 1
DECAL, MAX ON-LOK, REG TM
Call For Purchase

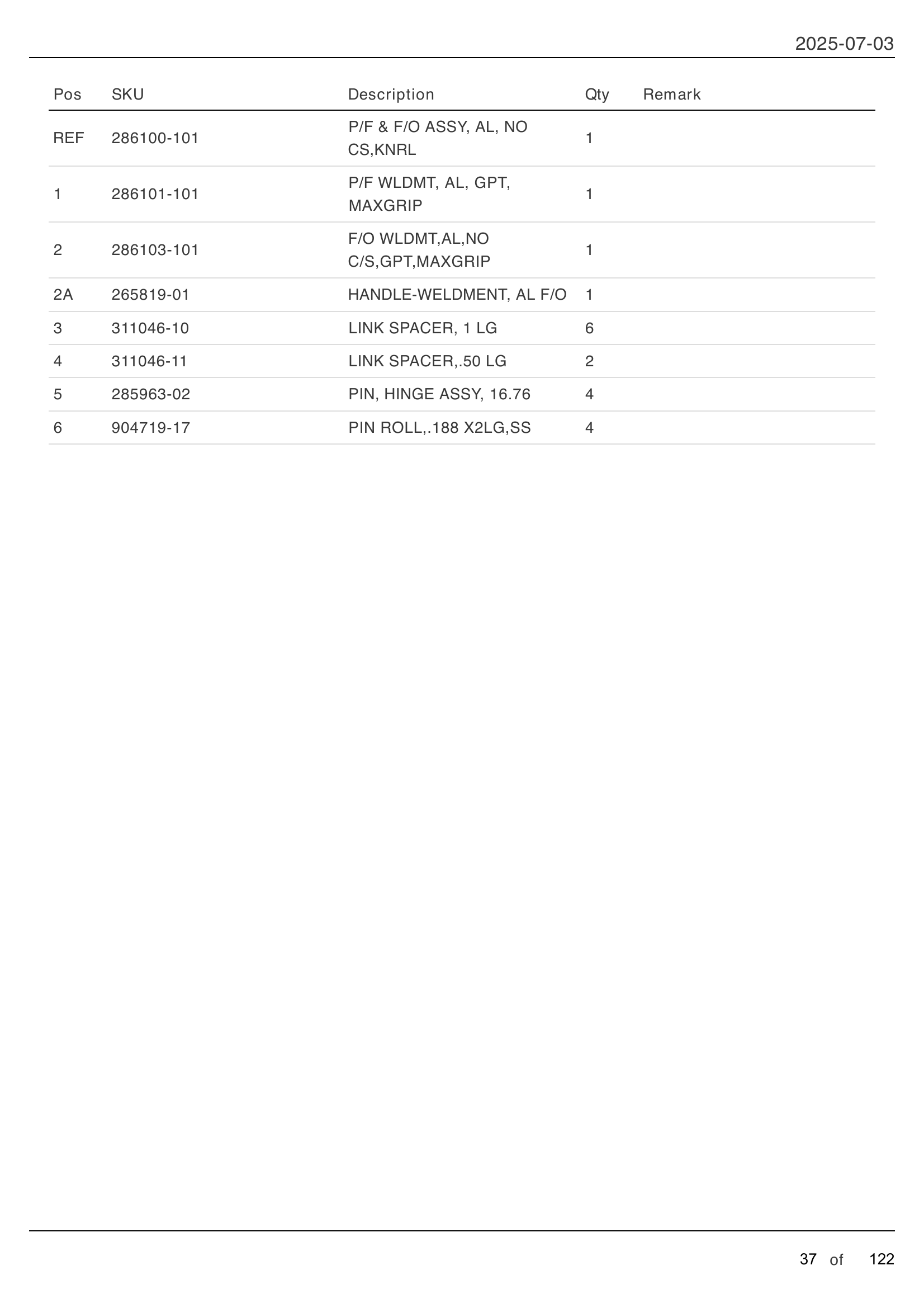

PLATFORM AND FLIPOVER ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 286100-101 | P/F & F/O ASSY, AL, NO CS,KNRL | View Item |
| 1 | 1 | 286101-101 | P/F WLDMT, AL, GPT, MAXGRIP | View Item |
| 2 | 1 | 286103-101 | F/O WLDMT,AL,NO C/S,GPT,MAXGRIP | View Item |
| 2A | 1 | 265819-01 | HANDLE-WELDMENT, AL F/O | View Item |
| 3 | 6 | 311046-10 | LINK SPACER, 1 LG | View Item |
| 4 | 2 | 311046-11 | LINK SPACER,.50 LG | View Item |
| 5 | 4 | 285963-02 | PIN, HINGE ASSY, 16.76 | View Item |
| 6 | 4 | 904719-17 | PIN ROLL,.188 X2LG,SS | View Item |

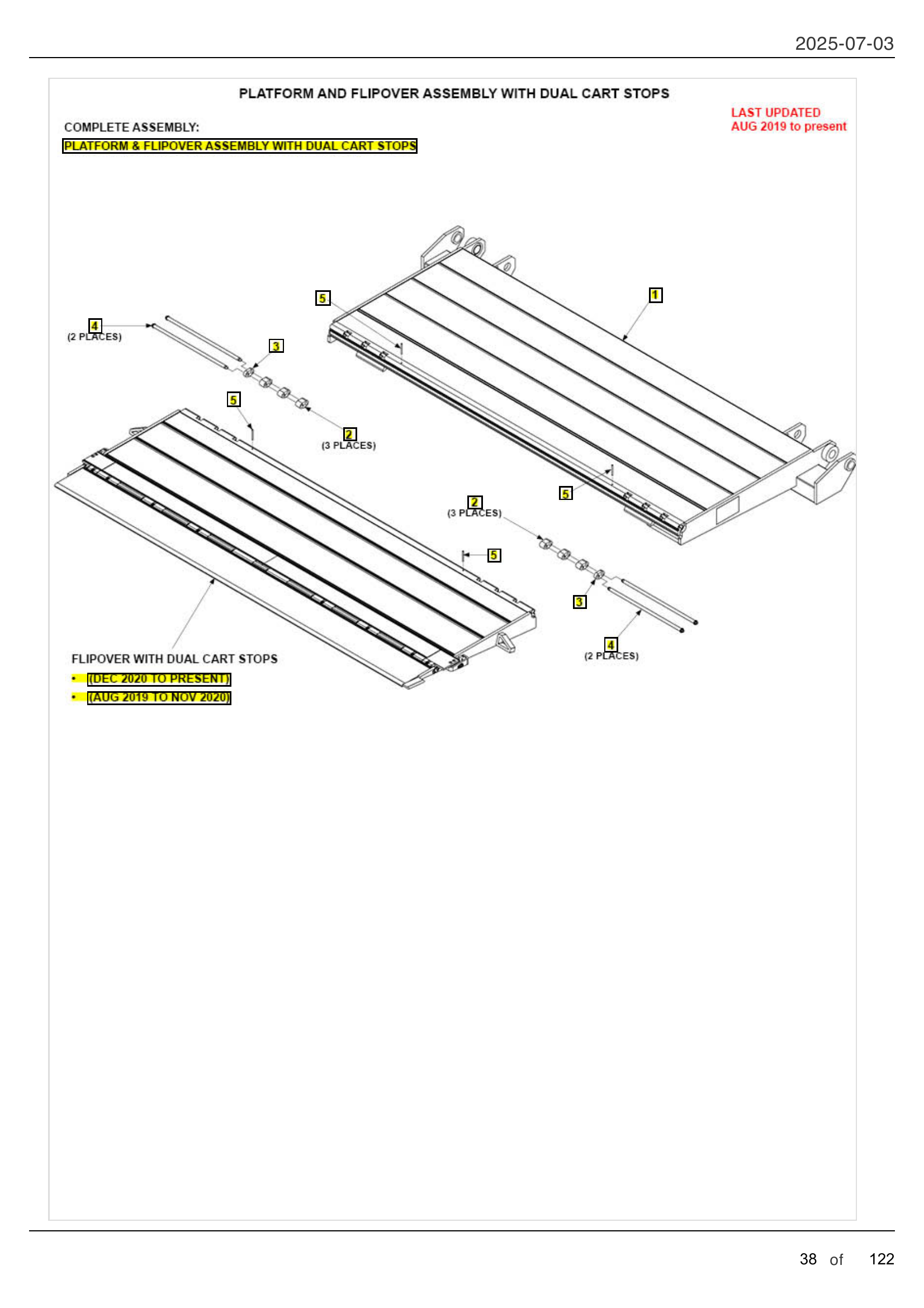

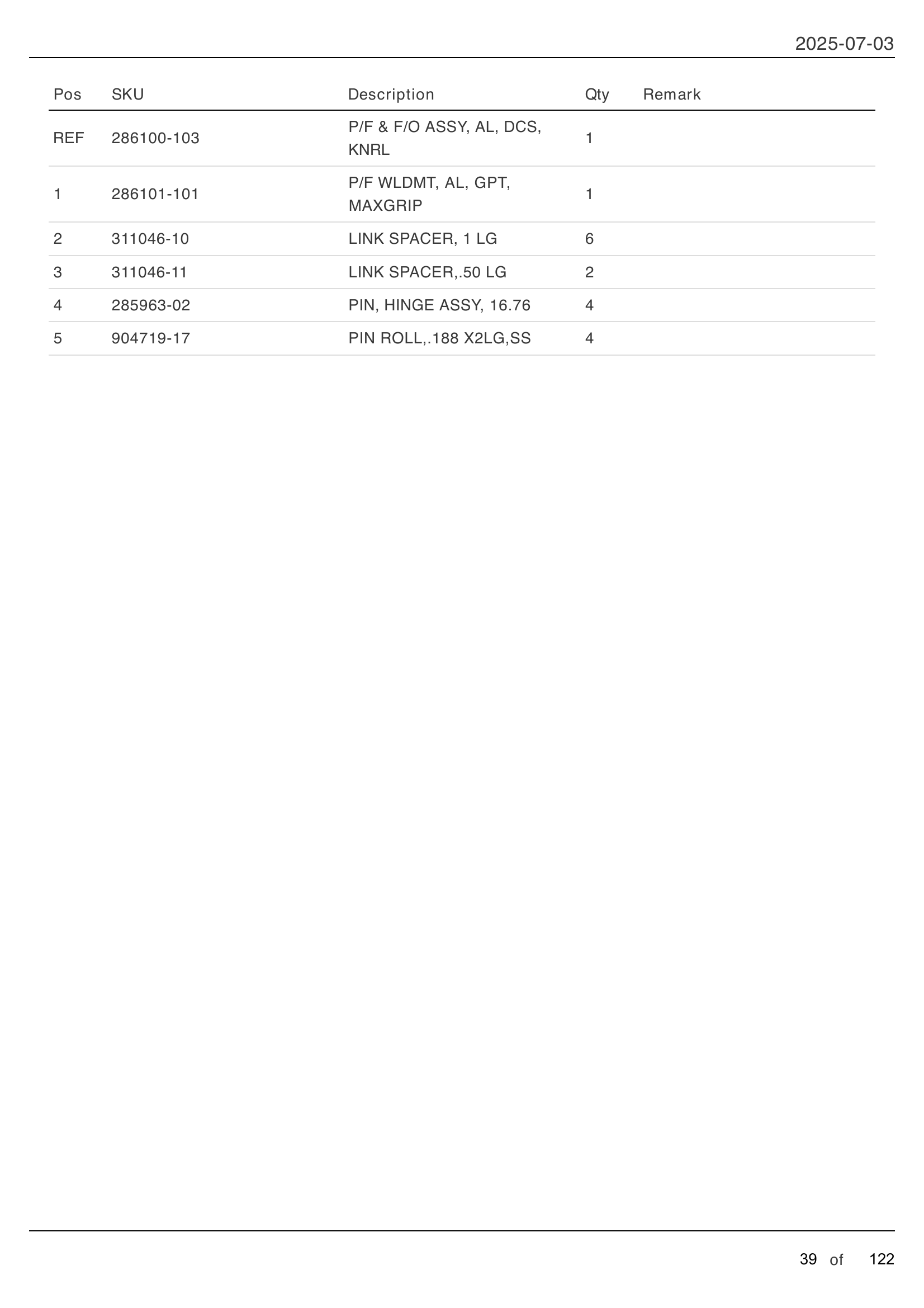

PLATFORM AND FLIPOVER ASSEMBLY WITH DUAL CART STOPS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 286100-103 | P/F & F/O ASSY, AL, DCS, KNRL | View Item |
| 1 | 1 | 286101-101 | P/F WLDMT, AL, GPT, MAXGRIP | View Item |
| 2 | 6 | 311046-10 | LINK SPACER, 1 LG | View Item |
| 3 | 2 | 311046-11 | LINK SPACER,.50 LG | View Item |
| 4 | 4 | 285963-02 | PIN, HINGE ASSY, 16.76 | View Item |
| 5 | 4 | 904719-17 | PIN ROLL,.188 X2LG,SS | View Item |

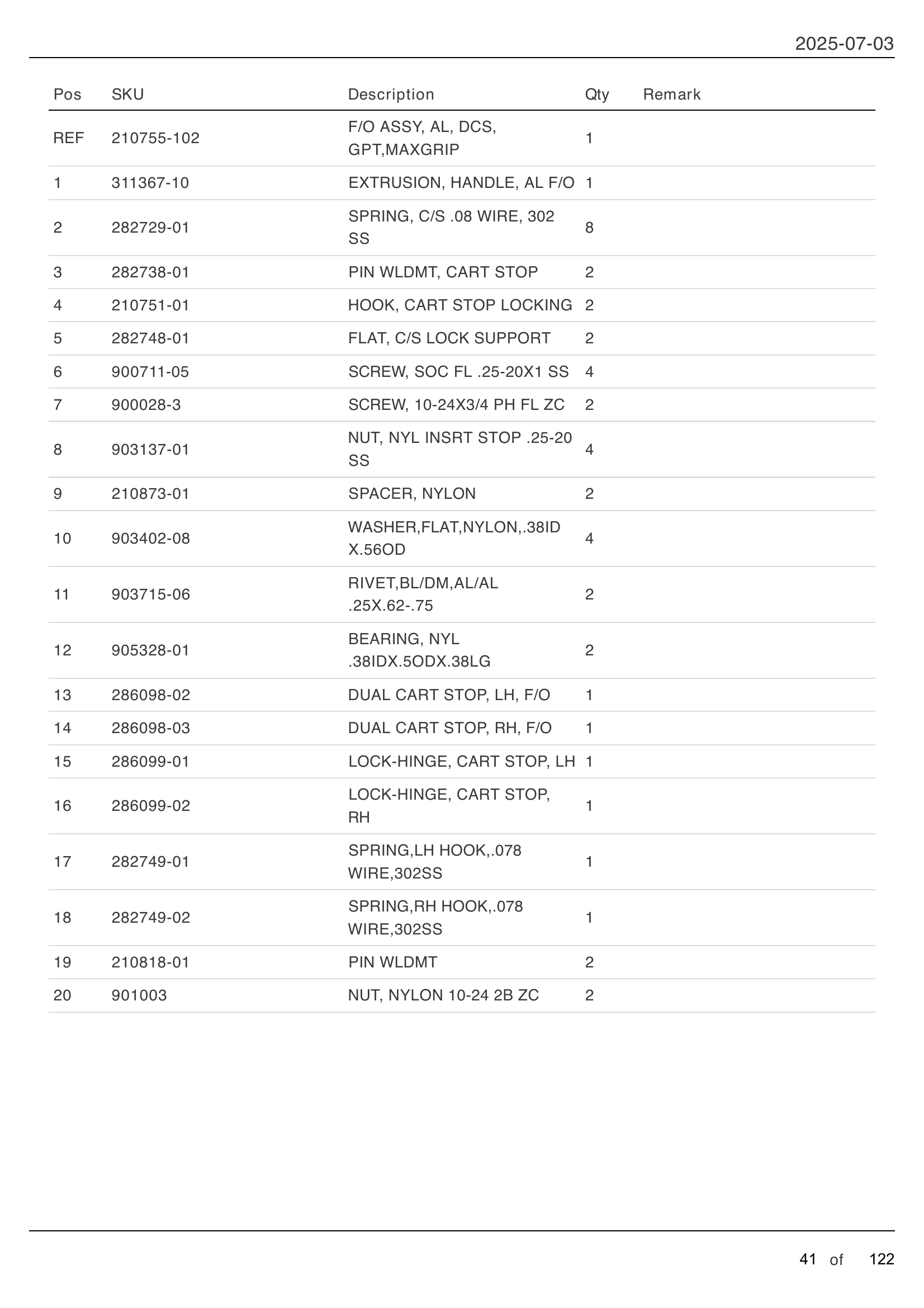

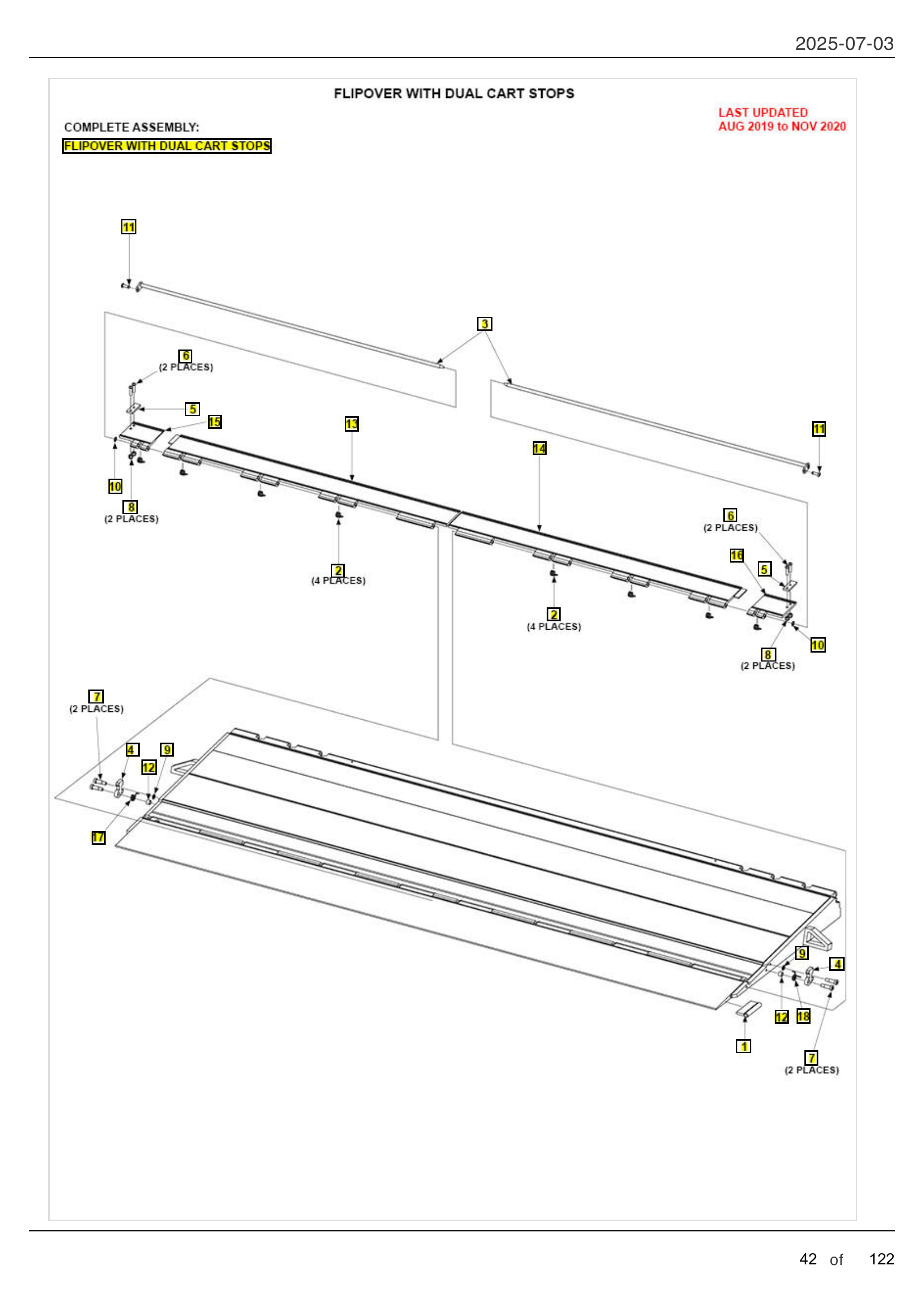

FLIPOVER WITH DUAL CART STOPS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 210755-102 | F/O ASSY, AL, DCS, GPT,MAXGRIP | View Item |
| 1 | 1 | 311367-10 | EXTRUSION, HANDLE, AL F/O | View Item |
| 2 | 8 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | View Item |
| 3 | 2 | 282738-01 | PIN WLDMT, CART STOP | View Item |
| 4 | 2 | 210751-01 | HOOK, CART STOP LOCKING | View Item |
| 5 | 2 | 282748-01 | FLAT, C/S LOCK SUPPORT | View Item |
| 6 | 4 | 900711-05 | SCREW, SOC FL .25-20X1 SS | View Item |
| 7 | 2 | 900028-3 | SCREW, 10-24X3/4 PH FL ZC | View Item |
| 8 | 4 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | View Item |
| 9 | 2 | 210873-01 | SPACER, NYLON | View Item |
| 10 | 4 | 903402-08 | WASHER,FLAT,NYLON,.38ID X.560OD | View Item |
| 11 | 2 | 903715-06 | RIVET,BL/DM,AL/AL .25X,.62-.75 | View Item |
| 12 | 2 | 905328-01 | BEARING, NYL .38IDX.50DX.38LG | View Item |
| 13 | 1 | 286098-02 | DUAL CART STOP, LH, F/O | View Item |
| 14 | 1 | 286098-03 | DUAL CART STOP, RH, F/O | View Item |
| 15 | 1 | 286099-01 | LOCK-HINGE, CART STOP, LH | View Item |
| 16 | 1 | 286099-02 | LOCK-HINGE, CART STOP, RH | View Item |
| 17 | 1 | 282749-01 | SPRING,LH HOOK,.078 WIRE,302SS | View Item |
| 18 | 1 | 282749-02 | SPRING,RH HOOK,.078 WIRE,302SS | View Item |
| 19 | 2 | 210818-01 | PIN WLDMT | View Item |
| 20 | 2 | 901003 | NUT, NYLON 10-24 2B ZC | View Item |

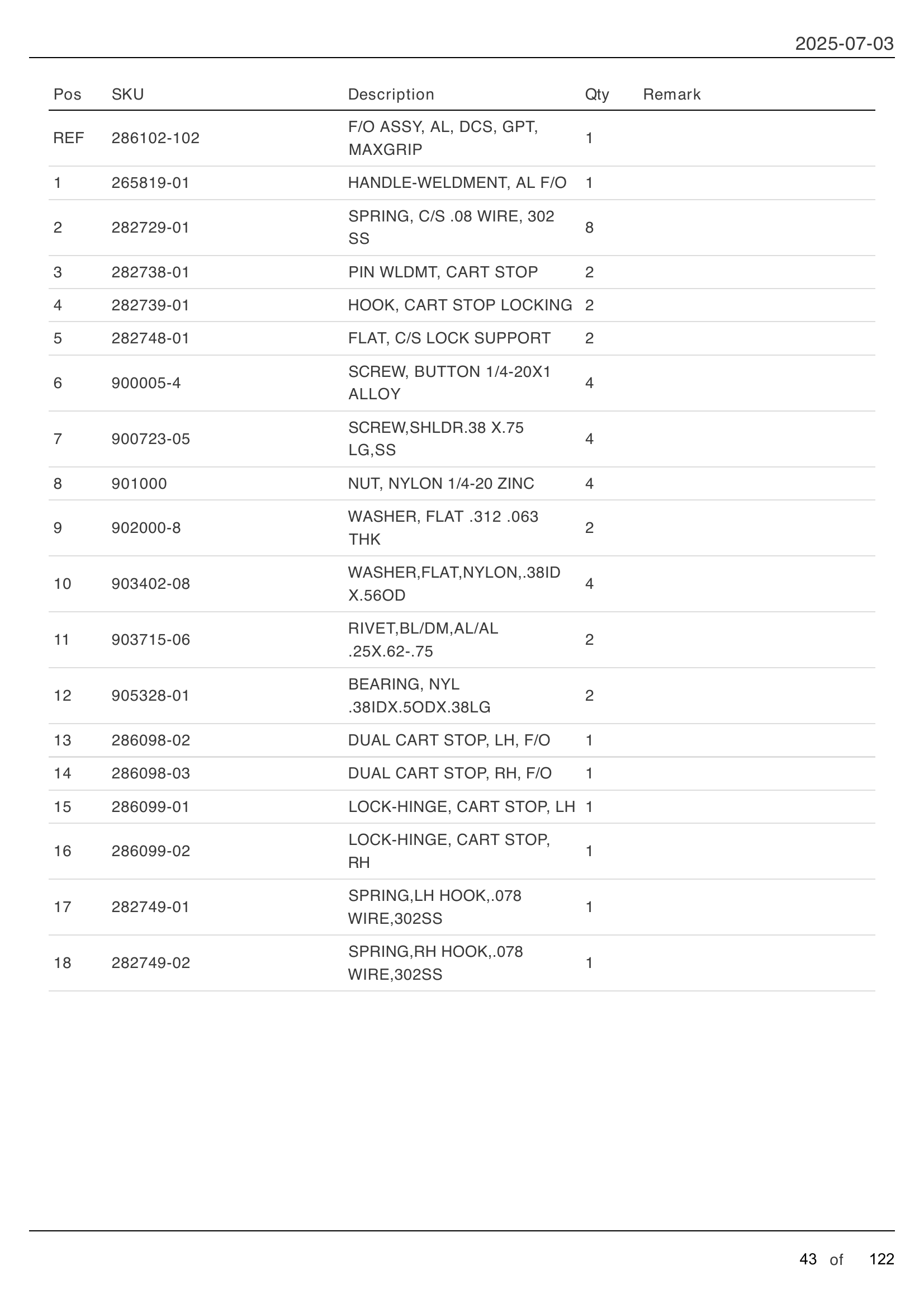

FLIPOVER WITH DUAL CART STOPS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 286102-102 | F/O ASSY, AL, DCS, GPT, MAXGRIP | View Item |
| 1 | 1 | 265819-01 | HANDLE-WELDMENT, AL F/O | View Item |
| 2 | 8 | 282729-01 | SPRING, C/S .08 WIRE, 302 SS | View Item |
| 3 | 2 | 282738-01 | PIN WLDMT, CART STOP | View Item |
| 4 | 2 | 282739-01 | HOOK, CART STOP LOCKING | View Item |
| 5 | 2 | 282748-01 | FLAT, C/S LOCK SUPPORT | View Item |
| 6 | 4 | 900005-4 | SCREW, BUTTON 1/4-20X1 ALLOY | View Item |
| 7 | 4 | 900723-05 | SCREW,SHLDR.38 X.75 LG,SS | View Item |
| 8 | 4 | 901000 | NUT, NYLON 1/4-20 ZINC | View Item |
| 9 | 2 | 902000-8 | WASHER, FLAT .312 .063 THK | View Item |
| 10 | 4 | 903402-08 | WASHER,FLAT,NYLON,.38ID X.560D | View Item |
| 11 | 2 | 903715-06 | RIVET,BL/DM,AL/AL .25X,.62-.75 | View Item |
| 12 | 2 | 905328-01 | BEARING, NYL .38IDX.50DX.38LG | View Item |
| 13 | 1 | 286098-02 | DUAL CART STOP, LH, F/O | View Item |
| 14 | 1 | 286098-03 | DUAL CART STOP, RH, F/O | View Item |
| 15 | 1 | 286099-01 | LOCK-HINGE, CART STOP, LH | View Item |
| 16 | 1 | 286099-02 | LOCK-HINGE, CART STOP, RH | View Item |
| 17 | 1 | 282749-01 | SPRING,LH HOOK,.078 WIRE,302SS | View Item |
| 18 | 1 | 282749-02 | SPRING,RH HOOK,.078 WIRE,302SS | View Item |

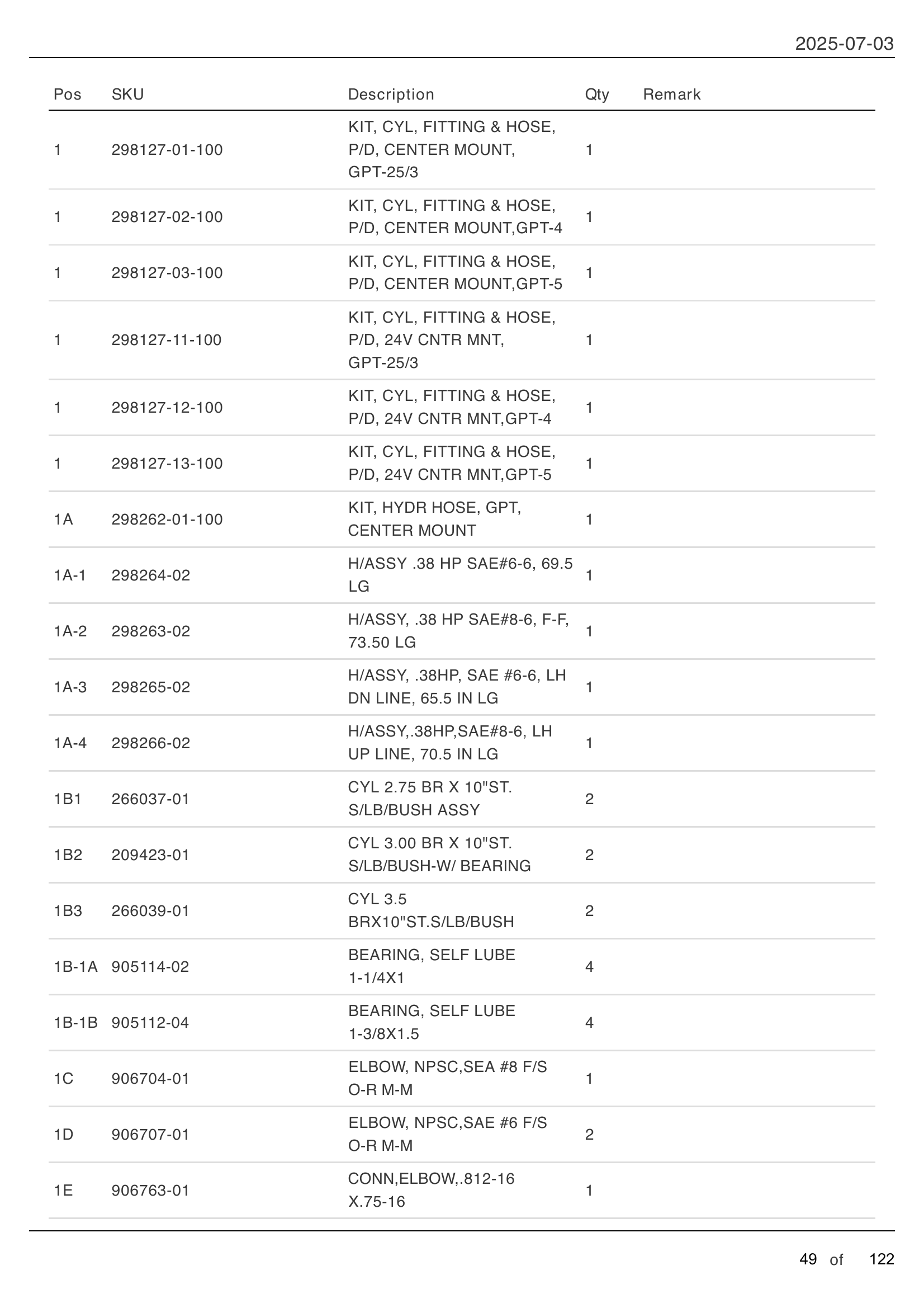

HYDRAULIC SYSTEMS - CENTER MOUNT SINGLE PUMP
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 298127-01-100 | KIT, CYL, FITTING & HOSE, P/D, CENTER MOUNT, GPT-25/3 | View Item |
| 1 | 1 | 298127-02-100 | KIT, CYL, FITTING & HOSE, P/D, CENTER MOUNT,GPT-4 | Call For Purchase |
| 1 | 1 | 298127-03-100 | KIT, CYL, FITTING & HOSE, P/D, CENTER MOUNT,GPT-5 | Call For Purchase |
| 1 | 1 | 298127-11-100 | KIT, CYL, FITTING & HOSE, P/D, 24V CNTR MNT, GPT-25/3 | Call For Purchase |
| 1 | 1 | 298127-12-100 | KIT, CYL, FITTING & HOSE, P/D, 24V CNTR MNT,GPT-4 | Call For Purchase |
| 1 | 1 | 298127-13-100 | KIT, CYL, FITTING & HOSE, P/D, 24V CNTR MNT,GPT-5 | Call For Purchase |
| 1A | 1 | 298262-01-100 | KIT, HYDR HOSE, GPT, CENTER MOUNT | View Item |
| 1A-1 | 1 | 298264-02 | H/ASSY .38 HP SAE#6-6, 69.5 LG | View Item |
| 1A-2 | 1 | 298263-02 | H/ASSY, .38 HP SAE#6, F-F, 73.50 LG | View Item |
| 1A-3 | 1 | 298265-02 | H/ASSY, .38HP, SAE #6-6, LH DN LINE, 65.5 IN LG | View Item |
| 1A-4 | 1 | 298266-02 | H/ASSY,,38HP,SAE#8-6, LH UP LINE, 70.5 IN LG | View Item |
| 1B1 | 2 | 266037-01 | CYL 2.75 BR X 10"ST. S/LB/BUSH ASSY | View Item |
| 1B2 | 2 | 209423-01 | CYL 3.00 BR X 10"ST. S/LB/BUSH-W/ BEARING | View Item |
| 1B3 | 2 | 266039-01 | CYL 3.5 BRX10"ST.S/LB/BUSH | View Item |
| 1B-1A | 4 | 905114-02 | BEARING, SELF LUBE 1-1/4X1 | View Item |
| 1B-1B | 4 | 905112-04 | BEARING, SELF LUBE 1-3/8X1.5 | View Item |
| 1C | 1 | 906704-01 | ELBOW, NPSC,SEA #8 F/S O-R M-M | View Item |
| 1D | 2 | 906707-01 | ELBOW, NPSC,SAE #6 F/S O-R M-M | View Item |
| 1E | 1 | 906763-01 | CONN,ELBOW,.812-16 X.75-16 | View Item |
| 1F | 2 | 906762-01 | CONN,M-M,.562-18 X.812-16 | View Item |
| 1G | 1 | 282999-01 | LOCK VALVE ASSY, 12V | View Item |
| 1G | 1 | 282999-02 | LOCK VALVE ASSY, 24V | View Item |
| 1H | 18 | 905322-01 | TIE,PLASTIC 8" (120LB) BLACK | View Item |
| 1J | 4 | 205780 | TIE, PLASTIC 7" (50 LB) | View Item |
| 1K | 2 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | View Item |
| 1L | 3 | 906712-03 | O-RING #8, 1/2 ORFS TUBE END | View Item |
| 1M | 1 | 282625-14 | CABLE ASSY, LOK VALVE,16/2X90 | View Item |
298127-02-100
Item 1 • Qty 1
KIT, CYL, FITTING & HOSE, P/D, CENTER MOUNT,GPT-4
Call For Purchase
298127-03-100
Item 1 • Qty 1
KIT, CYL, FITTING & HOSE, P/D, CENTER MOUNT,GPT-5
Call For Purchase
298127-11-100
Item 1 • Qty 1
KIT, CYL, FITTING & HOSE, P/D, 24V CNTR MNT, GPT-25/3
Call For Purchase
298127-12-100
Item 1 • Qty 1
KIT, CYL, FITTING & HOSE, P/D, 24V CNTR MNT,GPT-4
Call For Purchase
298127-13-100
Item 1 • Qty 1
KIT, CYL, FITTING & HOSE, P/D, 24V CNTR MNT,GPT-5
Call For Purchase

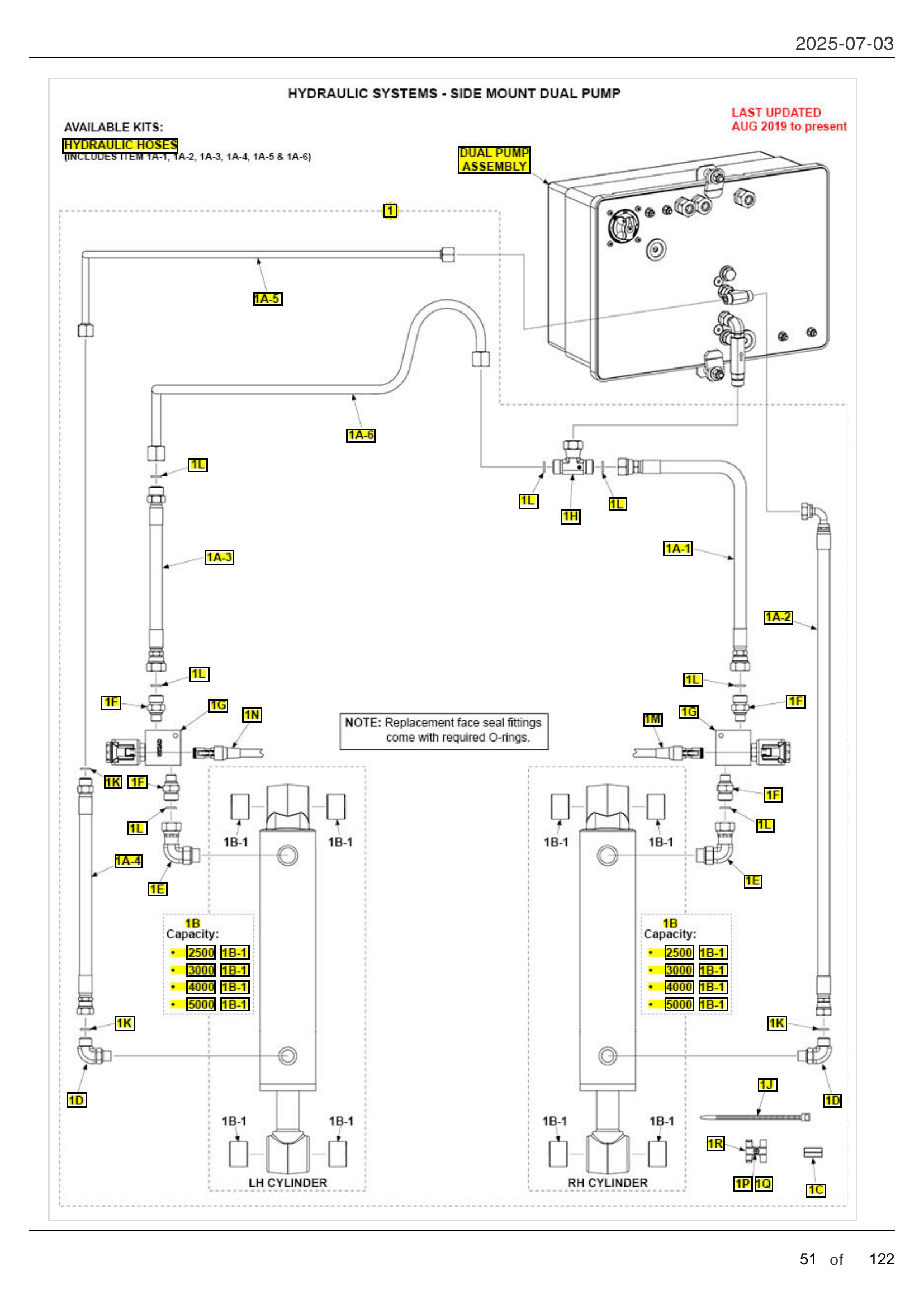

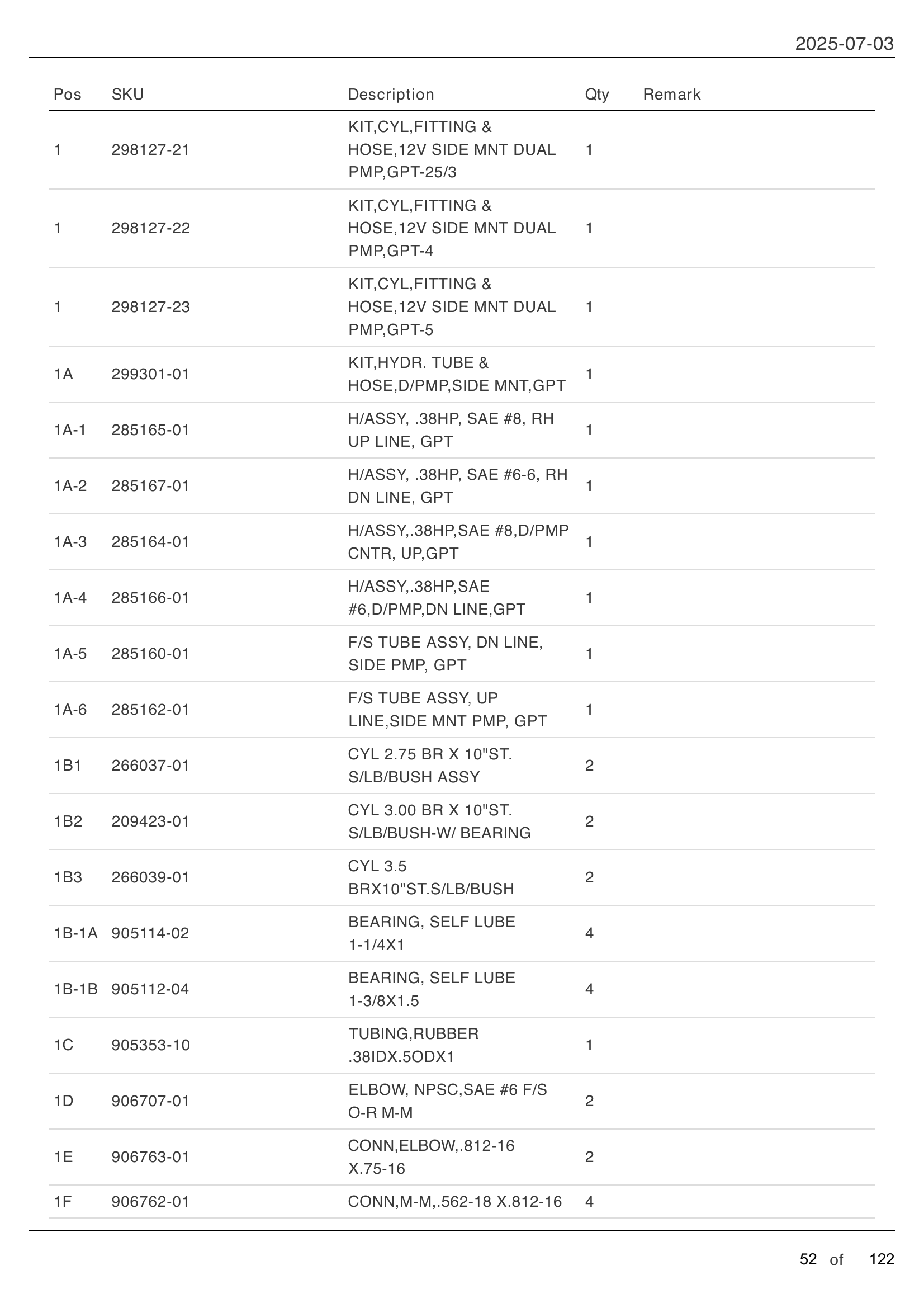

HYDRAULIC SYSTEMS - SIDE MOUNT DUAL PUMP
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 298127-21 | KIT,CYL,FITTING & HOSE,12V SIDE MNT DUAL PMP,GPT-25/3 | Call For Purchase |
| 1 | 1 | 298127-22 | KIT,CYL,FITTING & HOSE,12V SIDE MNT DUAL PMP,GPT-4 | Call For Purchase |
| 1 | 1 | 298127-23 | KIT,CYL,FITTING & HOSE,12V SIDE MNT DUAL PMP,GPT-5 | Call For Purchase |
| 1A | 1 | 299301-01 | KIT,HYDR. TUBE & HOSE,D/PMP,SIDE MNT,GPT | View Item |
| 1A-1 | 1 | 285165-01 | H/ASSY., .38HP, SAE #8, RH UP LINE, GPT | View Item |
| 1A-2 | 1 | 285167-01 | H/ASSY., .38HP, SAE #6, RH DN LINE, GPT | View Item |
| 1A-3 | 1 | 285164-01 | H/ASSY., .38HP,SAE #8,D/PMP CNTR, UP,GPT | View Item |
| 1A-4 | 1 | 285166-01 | H/ASSY.,.38HP,SAE #6,D/PMP,DN LINE,GPT | View Item |
| 1A-5 | 1 | 285160-01 | F/S TUBE ASSY, DN LINE, SIDE PMP, GPT | View Item |
| 1A-6 | 1 | 285162-01 | F/S TUBE ASSY, UP LINE,SIDE MNT PMP, GPT | View Item |
| 1B1 | 2 | 266037-01 | CYL 2.75 BR X 10"ST. S/LB/BUSH ASSY | View Item |
| 1B2 | 2 | 209423-01 | CYL 3.00 BR X 10"ST. S/LB/BUSH-W/ BEARING | View Item |
| 1B3 | 2 | 266039-01 | CYL 3.5 BRX10"ST.S/LB/BUSH | View Item |
| 1B-1A | 4 | 905114-02 | BEARING, SELF LUBE 1-1/4X1 | View Item |
| 1B-1B | 4 | 905112-04 | BEARING, SELF LUBE 1-3/8X1.5 | View Item |
| 1C | 1 | 905353-10 | TUBING,RUBBER .38IDX.50DX1 | View Item |
| 1D | 2 | 906707-01 | ELBOW, NPSC,SAE #6 F/S O-R M-M | View Item |
| 1E | 2 | 906763-01 | CONN,ELBOW,.812-16 X.75-16 | View Item |
| 1F | 4 | 906762-01 | CONN,M-M,.562-18 X.812-16 | View Item |
298127-21
Item 1 • Qty 1
KIT,CYL,FITTING & HOSE,12V SIDE MNT DUAL PMP,GPT-25/3
Call For Purchase
298127-22
Item 1 • Qty 1
KIT,CYL,FITTING & HOSE,12V SIDE MNT DUAL PMP,GPT-4
Call For Purchase
298127-23
Item 1 • Qty 1
KIT,CYL,FITTING & HOSE,12V SIDE MNT DUAL PMP,GPT-5
Call For Purchase

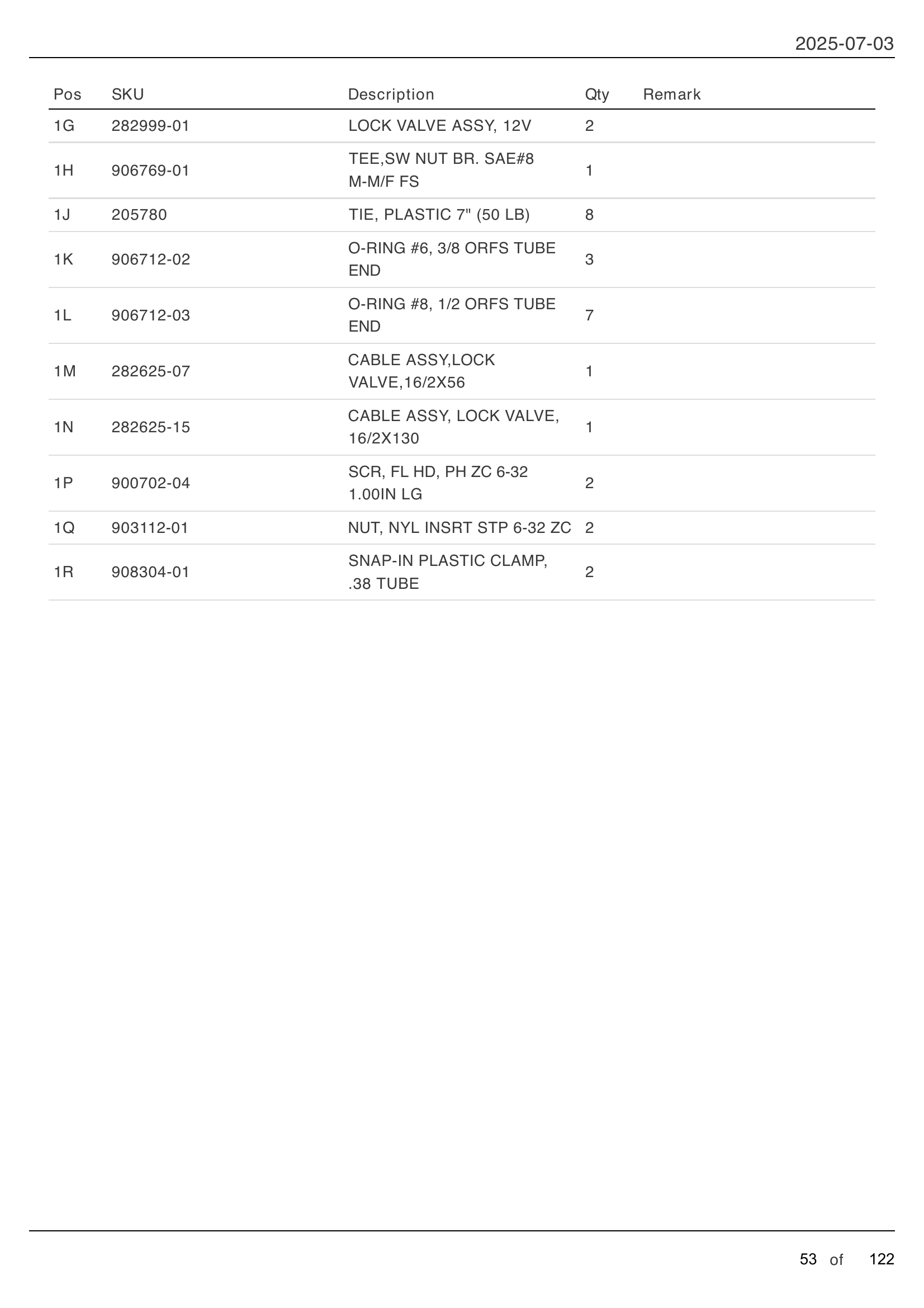

HYDRAULIC SYSTEMS - SIDE MOUNT DUAL PUMP
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1G | 2 | 282999-01 | LOCK VALVE ASSY, 12V | View Item |
| 1H | 1 | 906769-01 | TEE,SW NUT BR. SAE#8 M-M/F FS | View Item |
| 1J | 8 | 205780 | TIE, PLASTIC 7" (50 LB) | View Item |
| 1K | 3 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | View Item |
| 1L | 7 | 906712-03 | O-RING #8, 1/2 ORFS TUBE END | View Item |
| 1M | 1 | 282625-07 | CABLE ASSY,LOCK VALVE,16/2X56 | View Item |
| 1N | 1 | 282625-15 | CABLE ASSY, LOCK VALVE, 16/2X130 | View Item |
| 1P | 2 | 900702-04 | SCR, FL HD, PH ZC 6-32 1.00IN LG | View Item |
| 1Q | 2 | 903112-01 | NUT, NYL INSRT STP 6-32 ZC | View Item |
| 1R | 2 | 908304-01 | SNAP-IN PLASTIC CLAMP, .38 TUBE | Call For Purchase |
908304-01
Item 1R • Qty 2
SNAP-IN PLASTIC CLAMP, .38 TUBE
Call For Purchase

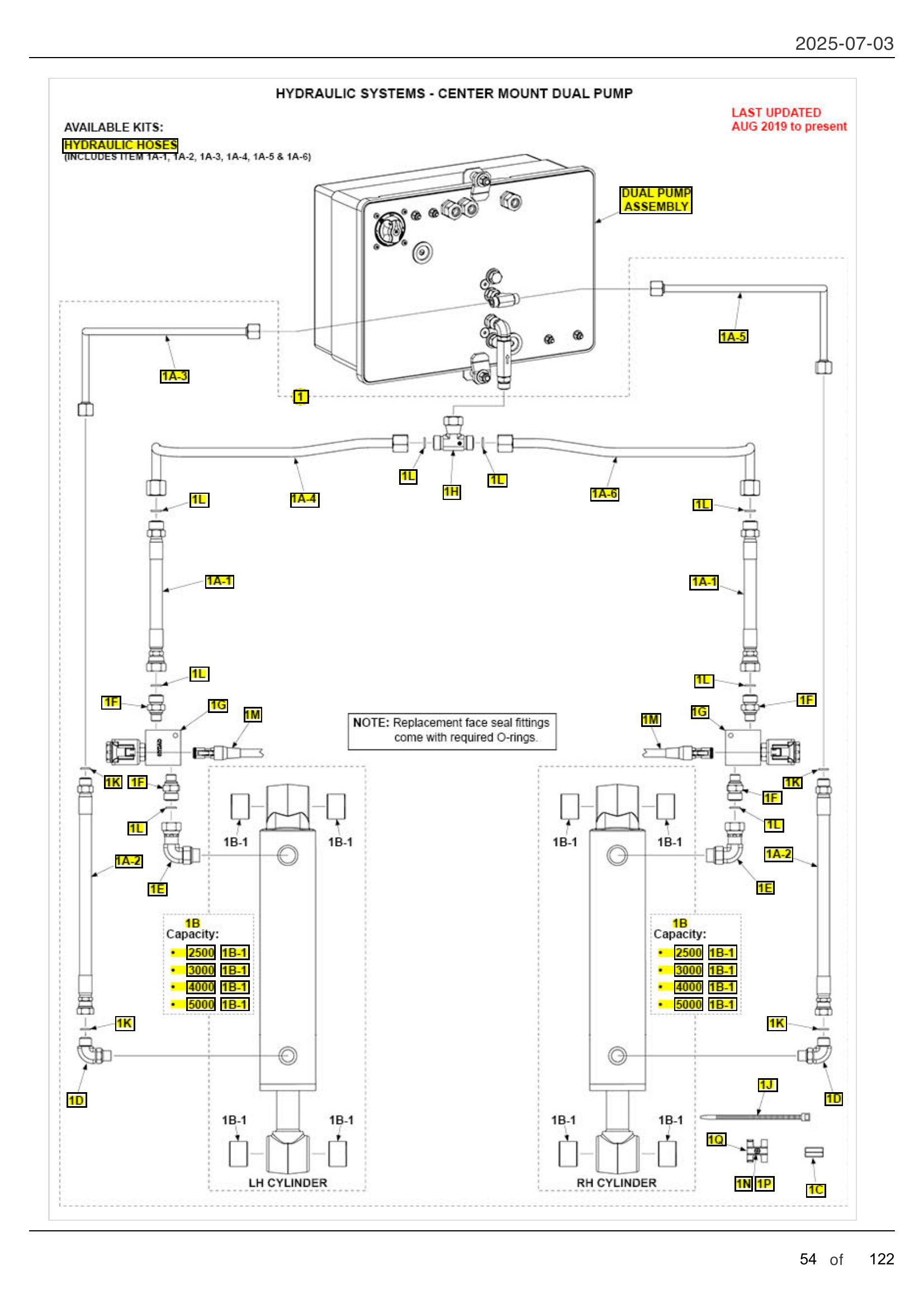

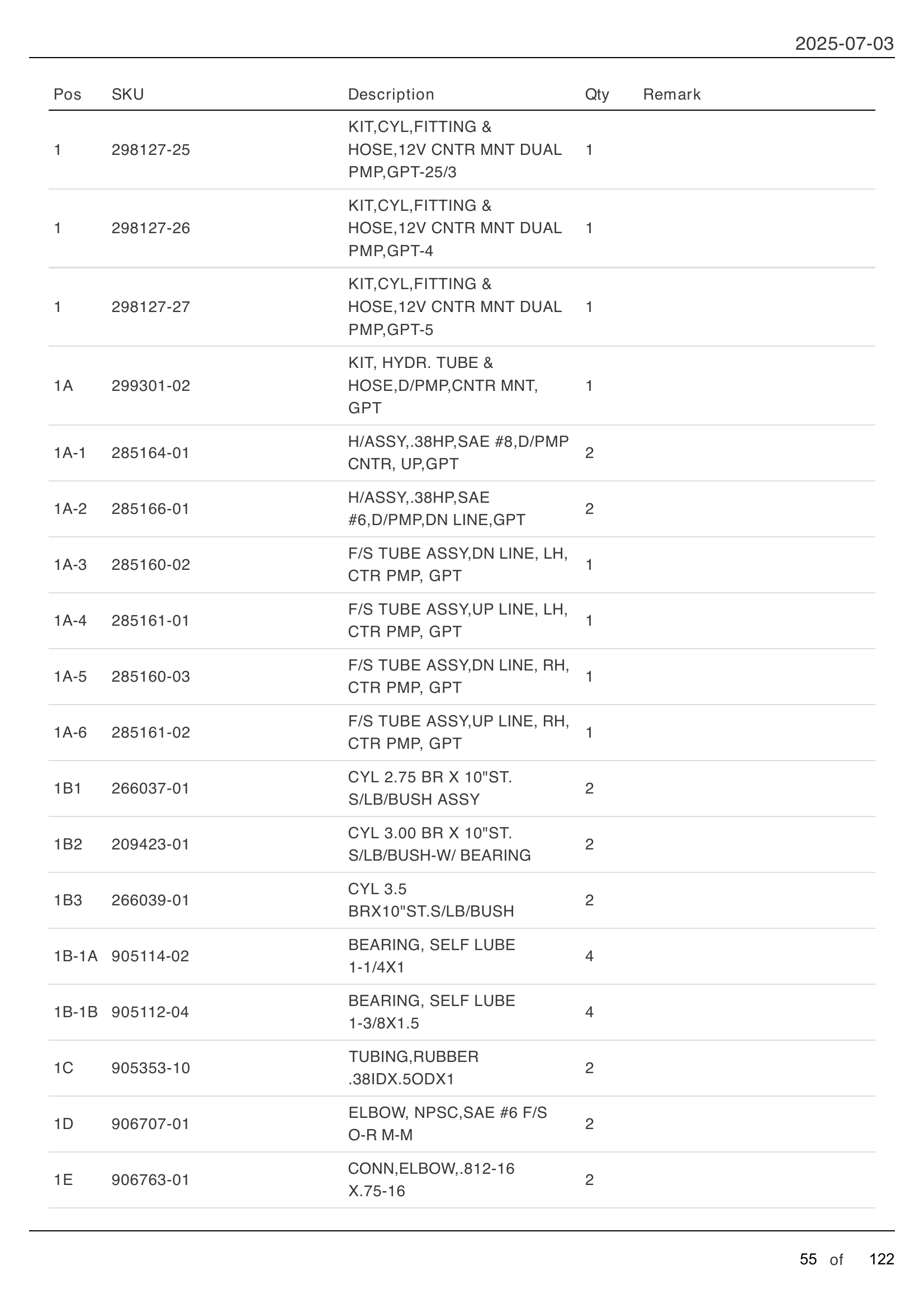

HYDRAULIC SYSTEMS - CENTER MOUNT DUAL PUMP
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 298127-25 | KIT,CYL,FITTING & HOSE,12V CNTR MNT DUAL PMP,GPT-25/3 | View Item |
| 1 | 1 | 298127-26 | KIT,CYL,FITTING & HOSE,12V CNTR MNT DUAL PMP,GPT-4 | Call For Purchase |
| 1 | 1 | 298127-27 | KIT,CYL,FITTING & HOSE,12V CNTR MNT DUAL PMP,GPT-5 | Call For Purchase |
| 1A | 1 | 299301-02 | KIT, HYDR. TUBE & HOSE,D/PMP,CNTR MNT, GPT | Call For Purchase |
| 1A-1 | 2 | 285164-01 | H/ASSY.,.38HP,SAE #8,D/PMP CNTR, UP,GPT | View Item |
| 1A-2 | 2 | 285166-01 | H/ASSY., .38HP,SAE #6,D/PMP,DN LINE,GPT | View Item |
| 1A-3 | 1 | 285160-02 | F/S TUBE ASSY,DN LINE, LH, CTR PMP, GPT | Call For Purchase |
| 1A-4 | 1 | 285161-01 | F/S TUBE ASSY,UP LINE, LH, CTR PMP, GPT | Call For Purchase |
| 1A-5 | 1 | 285160-03 | F/S TUBE ASSY,DN LINE, RH, CTR PMP, GPT | View Item |
| 1A-6 | 1 | 285161-02 | F/S TUBE ASSY,UP LINE, RH, CTR PMP, GPT | View Item |
| 1B1 | 2 | 266037-01 | CYL 2.75 BR X 10"ST. S/LB/BUSH ASSY | View Item |
| 1B2 | 2 | 209423-01 | CYL 3.00 BR X 10"ST. S/LB/BUSH-W/ BEARING | View Item |
| 1B3 | 2 | 266039-01 | CYL 3.5 BRX10"ST.S/LB/BUSH | View Item |
| 1B-1A | 4 | 905114-02 | BEARING, SELF LUBE 1-1/4X1 | View Item |
| 1B-1B | 4 | 905112-04 | BEARING, SELF LUBE 1-3/8X1.5 | View Item |
| 1C | 2 | 905353-10 | TUBING,RUBBER .38IDX.50DX1 | View Item |
| 1D | 2 | 906707-01 | ELBOW, NPSC,SAE #6 F/S O-R M-M | View Item |
| 1E | 2 | 906763-01 | CONN,ELBOW,.812-16 X.75-16 | View Item |
| \n | Call For Purchase |
298127-26
Item 1 • Qty 1
KIT,CYL,FITTING & HOSE,12V CNTR MNT DUAL PMP,GPT-4
Call For Purchase
298127-27
Item 1 • Qty 1
KIT,CYL,FITTING & HOSE,12V CNTR MNT DUAL PMP,GPT-5
Call For Purchase
299301-02
Item 1A • Qty 1
KIT, HYDR. TUBE & HOSE,D/PMP,CNTR MNT, GPT
Call For Purchase
285160-02
Item 1A-3 • Qty 1
F/S TUBE ASSY,DN LINE, LH, CTR PMP, GPT
Call For Purchase
285161-01
Item 1A-4 • Qty 1
F/S TUBE ASSY,UP LINE, LH, CTR PMP, GPT
Call For Purchase
Item \n • Qty
Call For Purchase

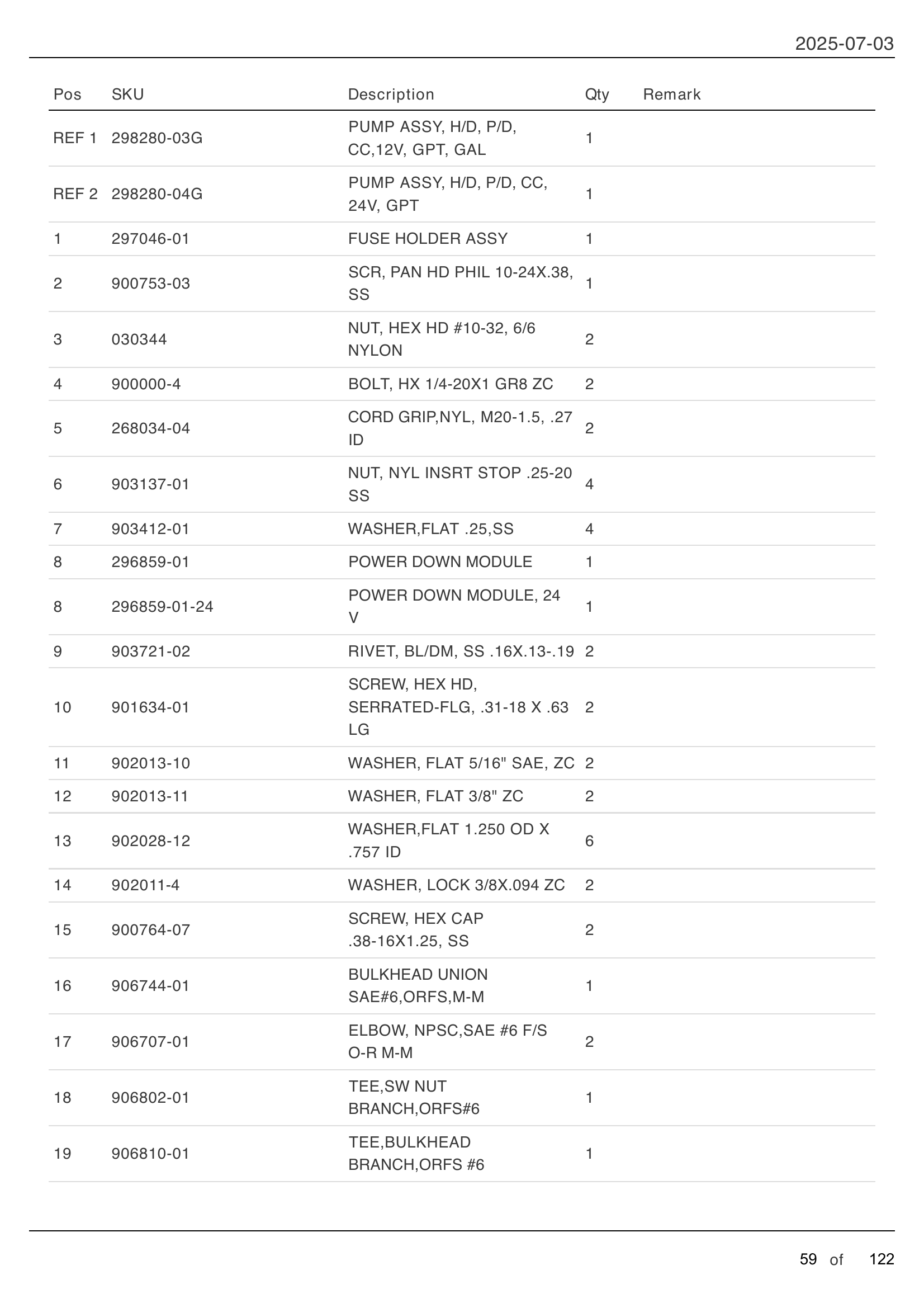

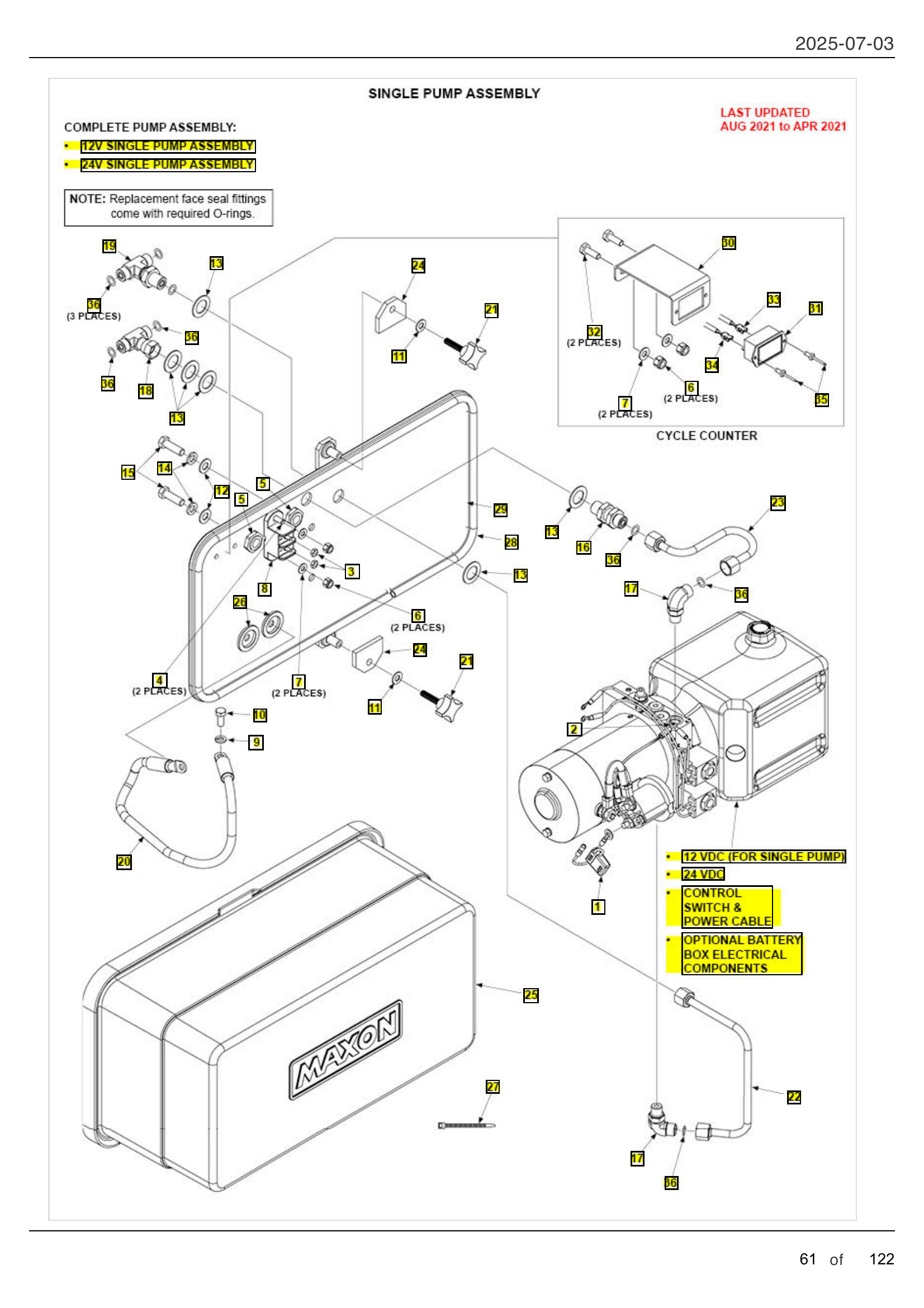

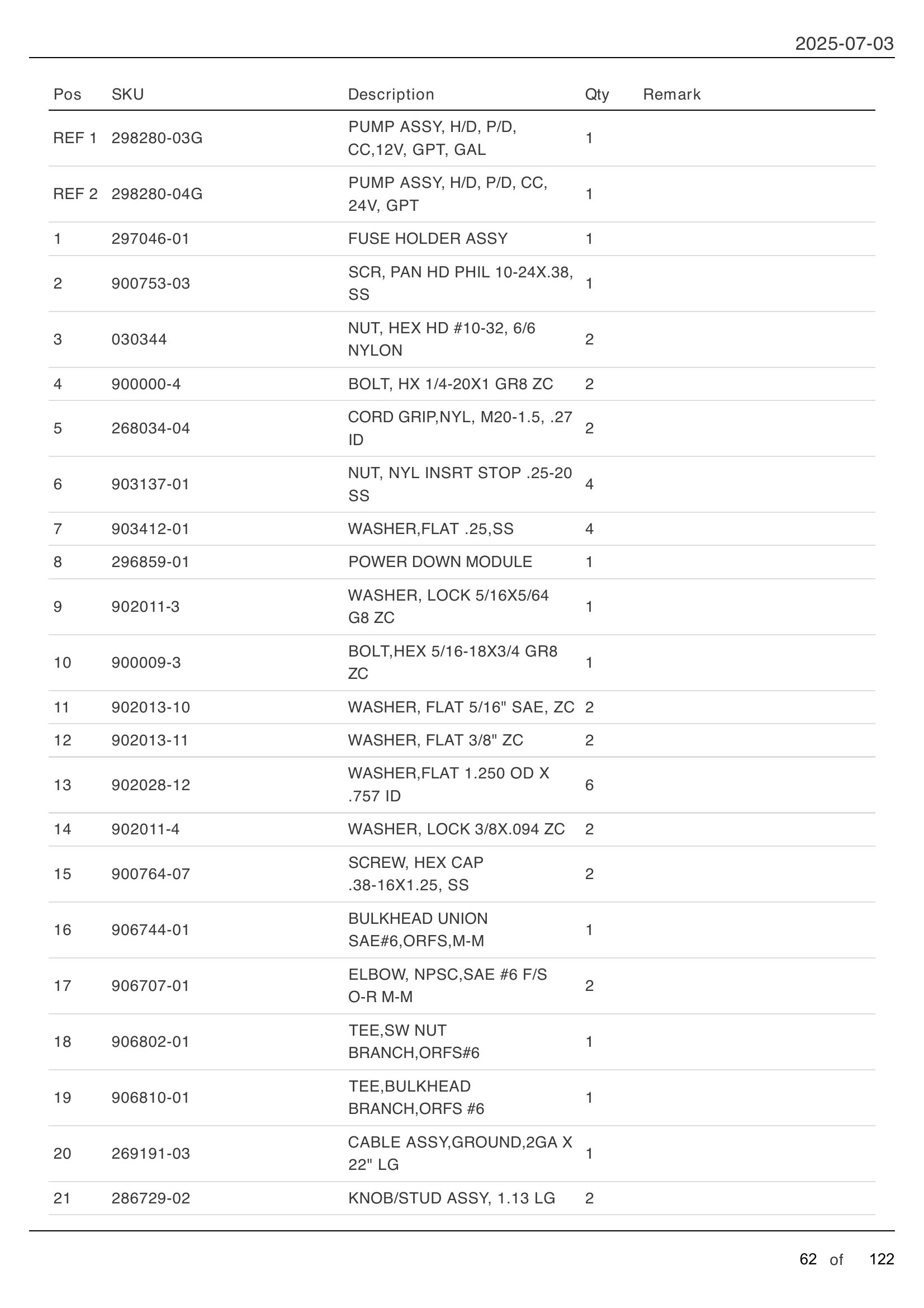

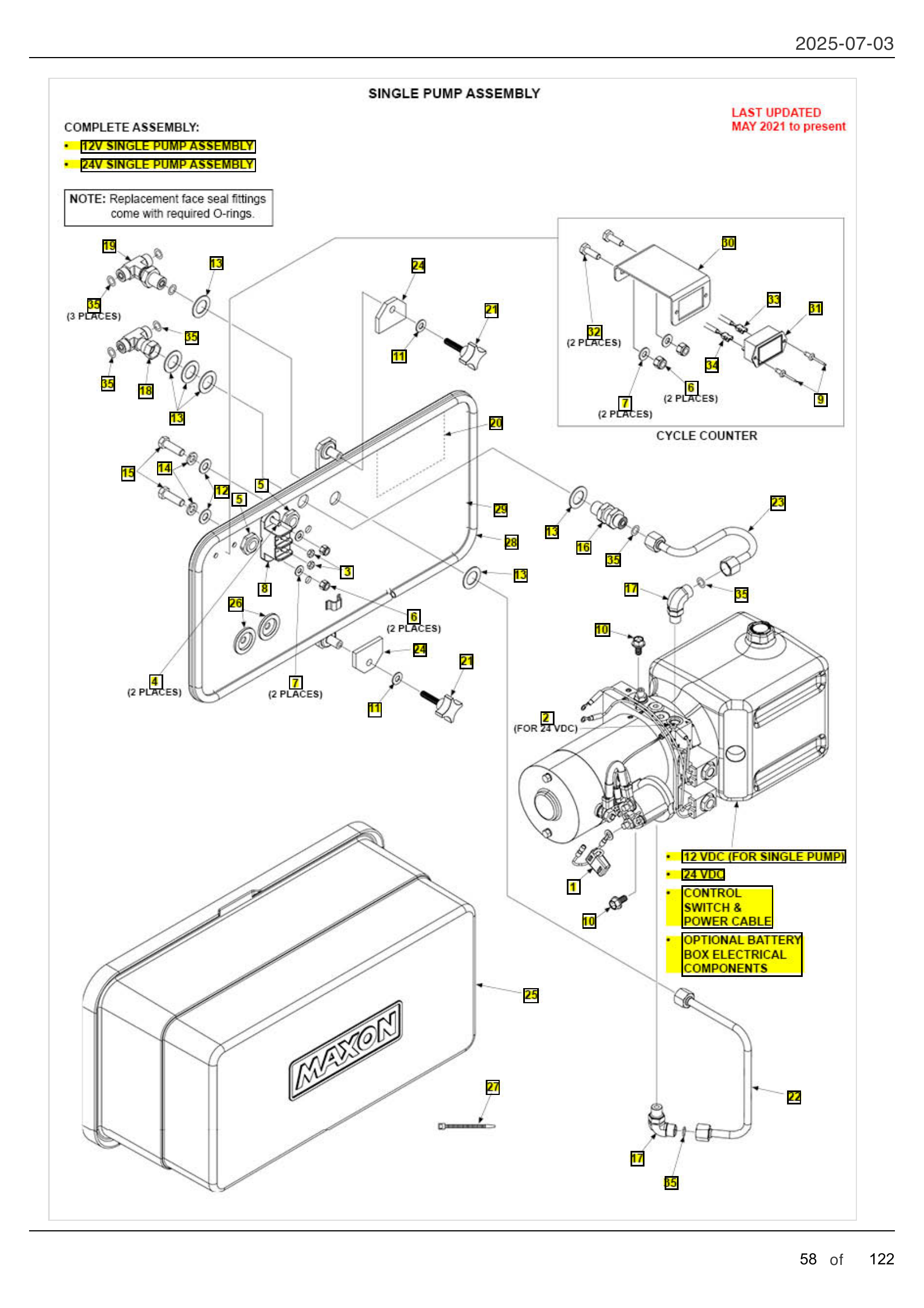

SINGLE PUMP ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF 1 | 1 | 298280-03G | PUMP ASSY, H/D, P/D, CC,12V, GPT, GAL | View Item |
| REF 2 | 1 | 298280-04G | PUMP ASSY, H/D, P/D, CC, 24V, GPT | View Item |
| 1 | 1 | 297046-01 | FUSE HOLDER ASSY | View Item |
| 2 | 1 | 900753-03 | SCR, PAN HD PHIL 10-24X.38, SS | Call For Purchase |
| 3 | 2 | 030344 | NUT, HEX HD #10-32, 6/6 NYLON | View Item |
| 4 | 2 | 900000-4 | BOLT, HX 1/4-20X1 GR8 ZC | View Item |
| 5 | 2 | 268034-04 | CORD GRIP,NYL, M20-1.5, .27 ID | View Item |
| 6 | 4 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | View Item |
| 7 | 4 | 903412-01 | WASHER,FLAT .25,SS | View Item |
| 8 | 1 | 296859-01 | POWER DOWN MODULE | View Item |
| 8 | 1 | 296859-01-24 | POWER DOWN MODULE, 24 V | View Item |
| 9 | 2 | 903721-02 | RIVET, BL/DM, SS .16X.13-.19 | View Item |
| 10 | 2 | 901634-01 | SCREW, HEX HD, SERRATED-FLG, .31-18 X .63 LG | Call For Purchase |
| 11 | 2 | 902013-10 | WASHER, FLAT 5/16" SAE, ZC | View Item |
| 12 | 2 | 902013-11 | WASHER, FLAT 3/8" ZC | View Item |
| 13 | 6 | 902028-12 | WASHER,FLAT 1.250 OD X .757 ID | View Item |
| 14 | 2 | 902011-4 | WASHER, LOCK 3/8X.094 ZC | View Item |
| 15 | 2 | 900764-07 | SCREW, HEX CAP .38-16X1.25, SS | View Item |
| 16 | 1 | 906744-01 | BULKHEAD UNION SAE#6,ORFS,M-M | View Item |
| 17 | 2 | 906707-01 | ELBOW, NPSC,SAE #6 F/S O-R M-M | View Item |
| 18 | 1 | 906802-01 | TEE,SW NUT BRANCH,ORFS#6 | View Item |
| 19 | 1 | 906810-01 | TEE,BULKHEAD BRANCH,ORFS #6 | View Item |
| 20 | 1 | 265331-01 | DECAL MANUALS AT WEBSITE | Call For Purchase |
| 21 | 2 | 286729-02 | KNOB/STUD ASSY, 1.13 LG | View Item |
| 22 | 1 | 282892-01 | TUBE ASSY, DOWN LINE, GPT PUMP | View Item |
| 23 | 1 | 282874-01 | TUBE ASSY, UP LINE, GPTB PUMP | View Item |
| 24 | 2 | 281062-02 | FLAT, HOLDER,1.56 LG | View Item |
| 25 | 1 | 281038-02 | COVER HORIZONTAL PUMP | View Item |
| 26 | 2 | 266428-04 | GROMMET, 1.0 DIAPH .38 HOLE | View Item |
| 27 | 6 | 208153 | TIE, PLASTIC 4" (18 LB) | View Item |
| 28 | 1 | 093203-10 | NEOPRENE BULB,TRIM SEAL59.5"LG | View Item |
| 29 | 1 | 288051-02G | PLATE WLDMT, PMP MNT, C/CNTR, GPTB, G | View Item |
| 30 | 1 | 297358-01 | BRACKET, DIGITAL C/COUNT | View Item |
| 31 | 1 | 297269-01 | DIGITAL CYCLE COUNTER | View Item |
| 32 | 2 | 900004-2 | SCREW, CAP 1/4-20X3/4 GR8 ZC | View Item |
| 33 | 1 | 297274-02 | WIRE ASSY, POS LOCK, RING TERM,RED | View Item |
| 34 | 1 | 297274-01 | WIRE ASSY, POS LOCK, RING TERM,BLK | View Item |
| 35 | 8 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | View Item |
900753-03
Item 2 • Qty 1
SCR, PAN HD PHIL 10-24X.38, SS
Call For Purchase
901634-01
Item 10 • Qty 2
SCREW, HEX HD, SERRATED-FLG, .31-18 X .63 LG
Call For Purchase
265331-01
Item 20 • Qty 1
DECAL MANUALS AT WEBSITE
Call For Purchase
SINGLE PUMP ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF 1 | 1 | 298280-03G | PUMP ASSY, H/D, P/D, CC,12V, GPT, GAL | View Item |
| REF 2 | 1 | 298280-04G | PUMP ASSY, H/D, P/D, CC, 24V, GPT | View Item |
| 1 | 1 | 297046-01 | FUSE HOLDER ASSY | View Item |
| 2 | 1 | 900753-03 | SCR, PAN HD PHIL 10-24X.38, SS | Call For Purchase |
| 3 | 2 | 030344 | NUT, HEX HD #10-32, 6/6 NYLON | View Item |
| 4 | 2 | 900000-4 | BOLT, HX 1/4-20X1 GR8 ZC | View Item |
| 5 | 2 | 268034-04 | CORD GRIP,NYL, M20-1.5, .27 ID | View Item |
| 6 | 4 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | View Item |
| 7 | 4 | 903412-01 | WASHER,FLAT .25,SS | View Item |
| 8 | 1 | 296859-01 | POWER DOWN MODULE | View Item |
| 9 | 1 | 902011-3 | WASHER, LOCK 5/16X5/64 G8 ZC | View Item |
| 10 | 1 | 900009-3 | BOLT,HEX 5/16-18X3/4 GR8 ZC | View Item |
| 11 | 2 | 902013-10 | WASHER, FLAT 5/16" SAE, ZC | View Item |
| 12 | 2 | 902013-11 | WASHER, FLAT 3/8" ZC | View Item |
| 13 | 6 | 902028-12 | WASHER,FLAT 1.250 OD X .757 ID | View Item |
| 14 | 2 | 902011-4 | WASHER, LOCK 3/8X.094 ZC | View Item |
| 15 | 2 | 900764-07 | SCREW, HEX CAP .38-16X1.25, SS | View Item |
| 16 | 1 | 906744-01 | BULKHEAD UNION SAE#6,ORFS,M-M | View Item |
| 17 | 2 | 906707-01 | ELBOW, NPSC,SAE #6 F/S O-R M-M | View Item |
| 18 | 1 | 906802-01 | TEE,SW NUT BRANCH,ORFS#6 | View Item |
| 19 | 1 | 906810-01 | TEE,BULKHEAD BRANCH,ORFS #6 | View Item |
| 20 | 1 | 269191-03 | CABLE ASSY,GROUND,2GA X 22" LG | View Item |
| 21 | 2 | 286729-02 | KNOB/STUD ASSY, 1.13 LG | View Item |
| 22 | 1 | 282892-01 | TUBE ASSY, DOWN LINE, GPT PUMP | View Item |
| 23 | 1 | 282874-01 | TUBE ASSY, UP LINE, GPTB PUMP | View Item |
| 24 | 2 | 281062-02 | FLAT, HOLDER,1.56 LG | View Item |
| 25 | 1 | 281038-02 | COVER HORIZONTAL PUMP | View Item |
| 26 | 2 | 266428-04 | GROMMET, 1.0 DIAPH .38 HOLE | View Item |
| 27 | 6 | 208153 | TIE, PLASTIC 4" (18 LB) | View Item |
| 28 | 1 | 093203-10 | NEOPRENE BULB,TRIM SEAL59.5"LG | View Item |
| 29 | 1 | 288051-02G | PLATE WLDMT, PMP MNT, C/CNTR, GPTB, G | View Item |
| 30 | 1 | 297358-01 | BRACKET, DIGITAL C/COUNT | View Item |
| 31 | 1 | 297269-01 | DIGITAL CYCLE COUNTER | View Item |
| 32 | 2 | 900004-2 | SCREW, CAP 1/4-20X3/4 GR8 ZC | View Item |
| 33 | 1 | 297274-02 | WIRE ASSY, POS LOCK, RING TERM,RED | View Item |
| 34 | 1 | 297274-01 | WIRE ASSY, POS LOCK, RING TERM,BLK | View Item |
| 35 | 2 | 903721-02 | RIVET, BL/DM, SS .16X.13-.19 | View Item |
| 36 | 8 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | View Item |
900753-03
Item 2 • Qty 1
SCR, PAN HD PHIL 10-24X.38, SS
Call For Purchase

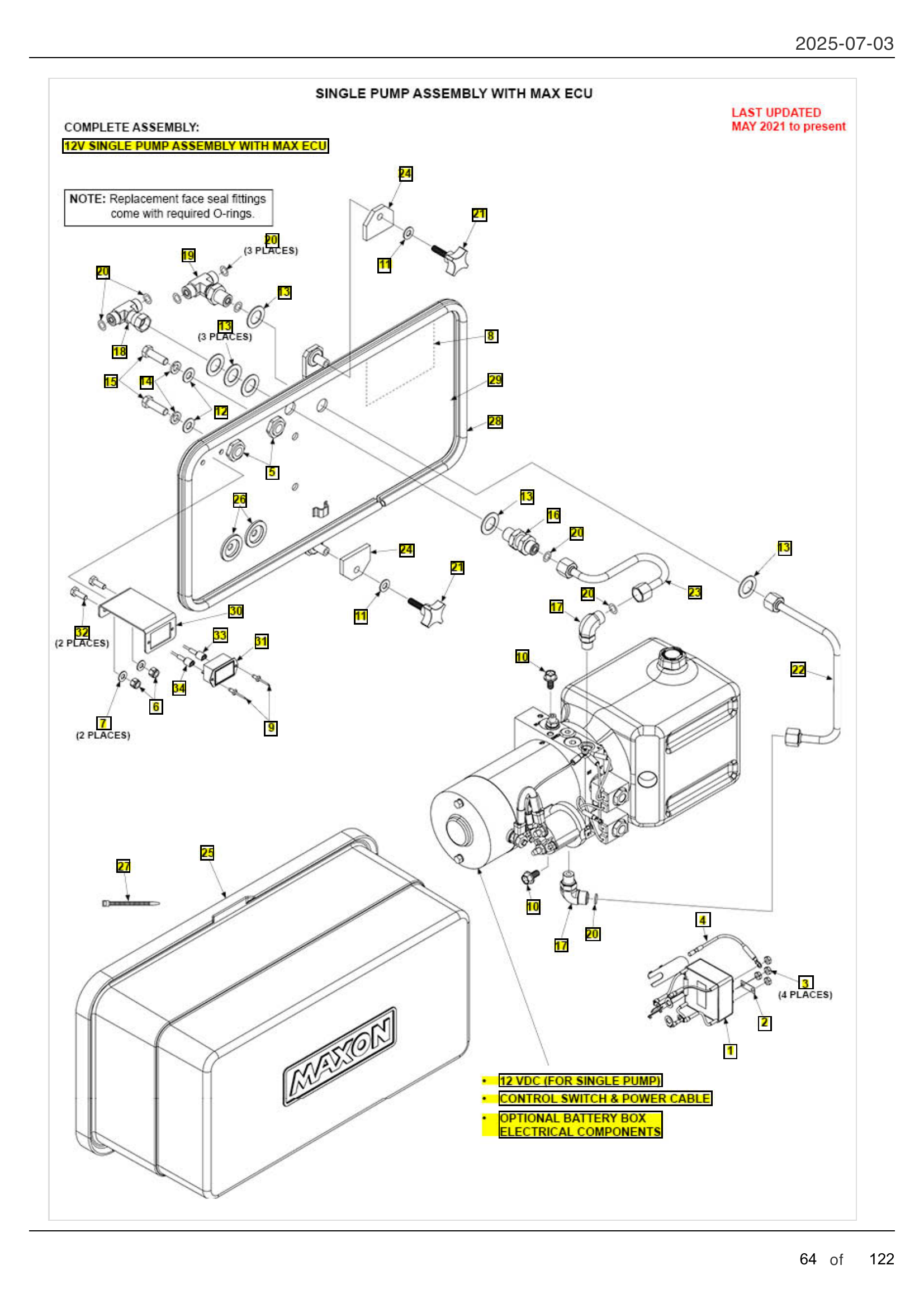

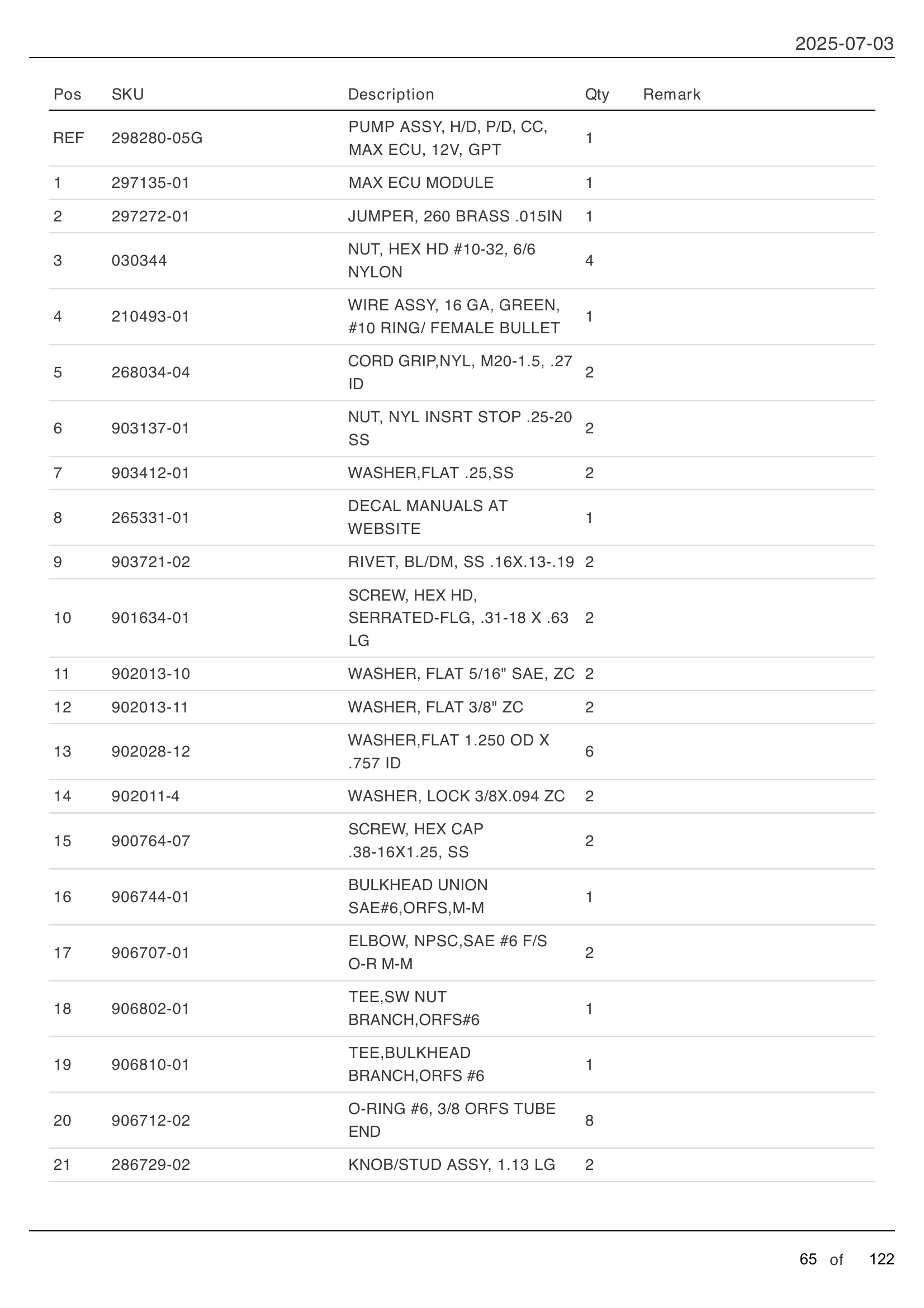

SINGLE PUMP ASSEMBLY WITH MAX ECU
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298280-05G | PUMP ASSY, H/D, P/D, CC, MAX ECU, 12V, GPT | Call For Purchase |
| 1 | 1 | 297135-01 | MAX ECU MODULE | View Item |
| 2 | 1 | 297272-01 | JUMPER, 260 BRASS .015IN | View Item |
| 3 | 4 | 030344 | NUT, HEX HD #10-32, 6/6 NYLON | View Item |
| 4 | 1 | 210493-01 | WIRE ASSY, 16 GA, GREEN, #10 RING/ FEMALE BULLET | View Item |
| 5 | 2 | 268034-04 | CORD GRIP,NYL, M20-1.5, .27 ID | View Item |
| 6 | 2 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | View Item |
| 7 | 2 | 903412-01 | WASHER,FLAT .25,SS | View Item |
| 8 | 1 | 265331-01 | DECAL MANUALS AT WEBSITE | Call For Purchase |
| 9 | 2 | 903721-02 | RIVET, BL/DM, SS .16X.13-.19 | View Item |
| 10 | 2 | 901634-01 | SCREW, HEX HD, SERRATED-FLG, .31-18 X .63 LG | Call For Purchase |
| 11 | 2 | 902013-10 | WASHER, FLAT 5/16" SAE, ZC | View Item |
| 12 | 2 | 902013-11 | WASHER, FLAT 3/8" ZC | View Item |
| 13 | 6 | 902028-12 | WASHER,FLAT 1.250 OD X .757 ID | View Item |
| 14 | 2 | 902011-4 | WASHER, LOCK 3/8X.094 ZC | View Item |
| 15 | 2 | 900764-07 | SCREW, HEX CAP .38-16X1.25, SS | View Item |
| 16 | 1 | 906744-01 | BULKHEAD UNION SAE#6,ORFS,M-M | View Item |
| 17 | 2 | 906707-01 | ELBOW, NPSC,SAE #6 F/S O-R M-M | View Item |
| 18 | 1 | 906802-01 | TEE,SW NUT BRANCH,ORFS#6 | View Item |
| 19 | 1 | 906810-01 | TEE,BULKHEAD BRANCH,ORFS #6 | View Item |
| 20 | 8 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | View Item |
| 21 | 2 | 286729-02 | KNOB/STUD ASSY, 1.13 LG | View Item |
298280-05G
Item REF • Qty 1
PUMP ASSY, H/D, P/D, CC, MAX ECU, 12V, GPT
Call For Purchase
265331-01
Item 8 • Qty 1
DECAL MANUALS AT WEBSITE
Call For Purchase
901634-01
Item 10 • Qty 2
SCREW, HEX HD, SERRATED-FLG, .31-18 X .63 LG
Call For Purchase

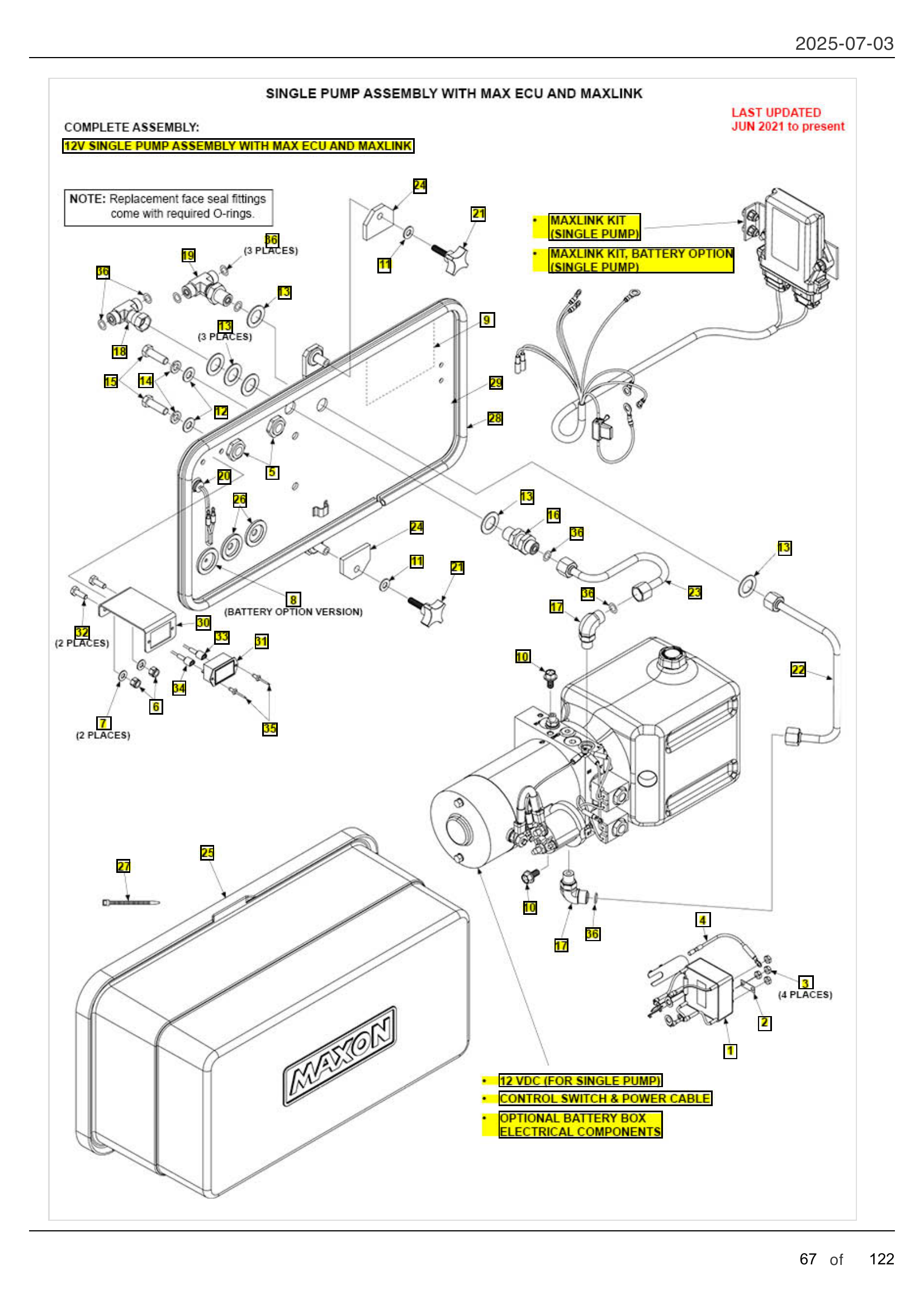

SINGLE PUMP ASSEMBLY WITH MAX ECU AND MAXLINK
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298280-15G | PUMP ASSY, H/D, P/D, CC, SG, 12V, MAXLINK, GPT | Call For Purchase |
| REF | 1 | 298280-25G | PUMP ASSY, H/D, P/D, CC, SG, 12V, MAXLINK, BATT OPT, GPT | Call For Purchase |
| 1 | 1 | 297135-01 | MAX ECU MODULE | View Item |
| 2 | 1 | 297272-01 | JUMPER, 260 BRASS .015IN | View Item |
| 3 | 4 | 030344 | NUT, HEX HD #10-32, 6/6 NYLON | View Item |
| 4 | 1 | 210493-01 | WIRE ASSY, 16 GA, GREEN, #10 RING/ FEMALE BULLET | View Item |
| 5 | 2 | 268034-04 | CORD GRIP,NYL, M20-1.5, .27 ID | View Item |
| 6 | 2 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | View Item |
| 7 | 2 | 903412-01 | WASHER,FLAT .25,SS | View Item |
| 8 | 1 | 266428-01 | GROMMET, 1.0 DIAPH .19 HOLE | View Item |
| 9 | 1 | 265331-01 | DECAL MANUALS AT WEBSITE | Call For Purchase |
| 10 | 2 | 901634-01 | SCREW, HEX HD, SERRATED-FLG, .31-18 X .63 LG | Call For Purchase |
| 11 | 2 | 902013-10 | WASHER, FLAT 5/16" SAE, ZC | View Item |
| 12 | 2 | 902013-11 | WASHER, FLAT 3/8" ZC | View Item |
| 13 | 6 | 902028-12 | WASHER,FLAT 1.250 OD X .757 ID | View Item |
| 14 | 2 | 902011-4 | WASHER, LOCK 3/8X.094 ZC | View Item |
| 15 | 2 | 900764-07 | SCREW, HEX CAP .38-16X1.25, SS | View Item |
| 16 | 1 | 906744-01 | BULKHEAD UNION SAE#6,ORFS,M-M | View Item |
| 17 | 2 | 906707-01 | ELBOW, NPSC,SAE #6 F/S O-R M-M | View Item |
| 18 | 1 | 906802-01 | TEE,SW NUT BRANCH,ORFS#6 | View Item |
| 19 | 1 | 906810-01 | TEE,BULKHEAD BRANCH,ORFS #6 | View Item |
| 20 | 1 | 907522-01 | LED AMBER MARKER, BULLET TERMINALS | Call For Purchase |
| 21 | 2 | 286729-02 | KNOB/STUD ASSY, 1.13 LG | View Item |
| 22 | 1 | 282892-01 | TUBE ASSY, DOWN LINE, GPT PUMP | View Item |
| 23 | 1 | 282874-01 | TUBE ASSY, UP LINE, GPTB PUMP | View Item |
| 24 | 2 | 281062-02 | FLAT, HOLDER,1.56 LG | View Item |
| 25 | 1 | 281038-02 | COVER HORIZONTAL PUMP | View Item |
| 26 | 2 | 266428-04 | GROMMET, 1.0 DIAPH .38 HOLE | View Item |
| 27 | 6 | 208153 | TIE, PLASTIC 4" (18 LB) | View Item |
| 28 | 1 | 093203-10 | NEOPRENE BULB,TRIM SEAL59.5"LG | View Item |
| 29 | 1 | 288051-04G-201 | PLATE WLDT, PMP MNT, CC, MAX ECU, H/D, MAXLINK, GPT, G | Call For Purchase |
| 29 | 1 | 288051-05G-201 | PLATE WLDT, PMP MNT, CC, MAX ECU, H/D, MAXLINK, BATT OPT, GPT, G | Call For Purchase |
| 30 | 1 | 297358-01 | BRACKET, DIGITAL C/COUNT | View Item |
| 31 | 1 | 297269-01 | DIGITAL CYCLE COUNTER | View Item |
| 32 | 2 | 900004-2 | SCREW, CAP 1/4-20X3/4 GR8 ZC | View Item |
| 33 | 1 | 297274-02 | WIRE ASSY, POS LOCK, RING TERM,RED | View Item |
| 34 | 1 | 297274-01 | WIRE ASSY, POS LOCK, RING TERM,BLK | View Item |
| 35 | 2 | 903721-02 | RIVET, BL/DM, SS .16X.13-.19 | View Item |
| 36 | 8 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | View Item |
298280-15G
Item REF • Qty 1
PUMP ASSY, H/D, P/D, CC, SG, 12V, MAXLINK, GPT
Call For Purchase
298280-25G
Item REF • Qty 1
PUMP ASSY, H/D, P/D, CC, SG, 12V, MAXLINK, BATT OPT, GPT
Call For Purchase
265331-01
Item 9 • Qty 1
DECAL MANUALS AT WEBSITE
Call For Purchase
901634-01
Item 10 • Qty 2
SCREW, HEX HD, SERRATED-FLG, .31-18 X .63 LG
Call For Purchase
907522-01
Item 20 • Qty 1
LED AMBER MARKER, BULLET TERMINALS
Call For Purchase
288051-04G-201
Item 29 • Qty 1
PLATE WLDT, PMP MNT, CC, MAX ECU, H/D, MAXLINK, GPT, G
Call For Purchase
288051-05G-201
Item 29 • Qty 1
PLATE WLDT, PMP MNT, CC, MAX ECU, H/D, MAXLINK, BATT OPT, GPT, G
Call For Purchase

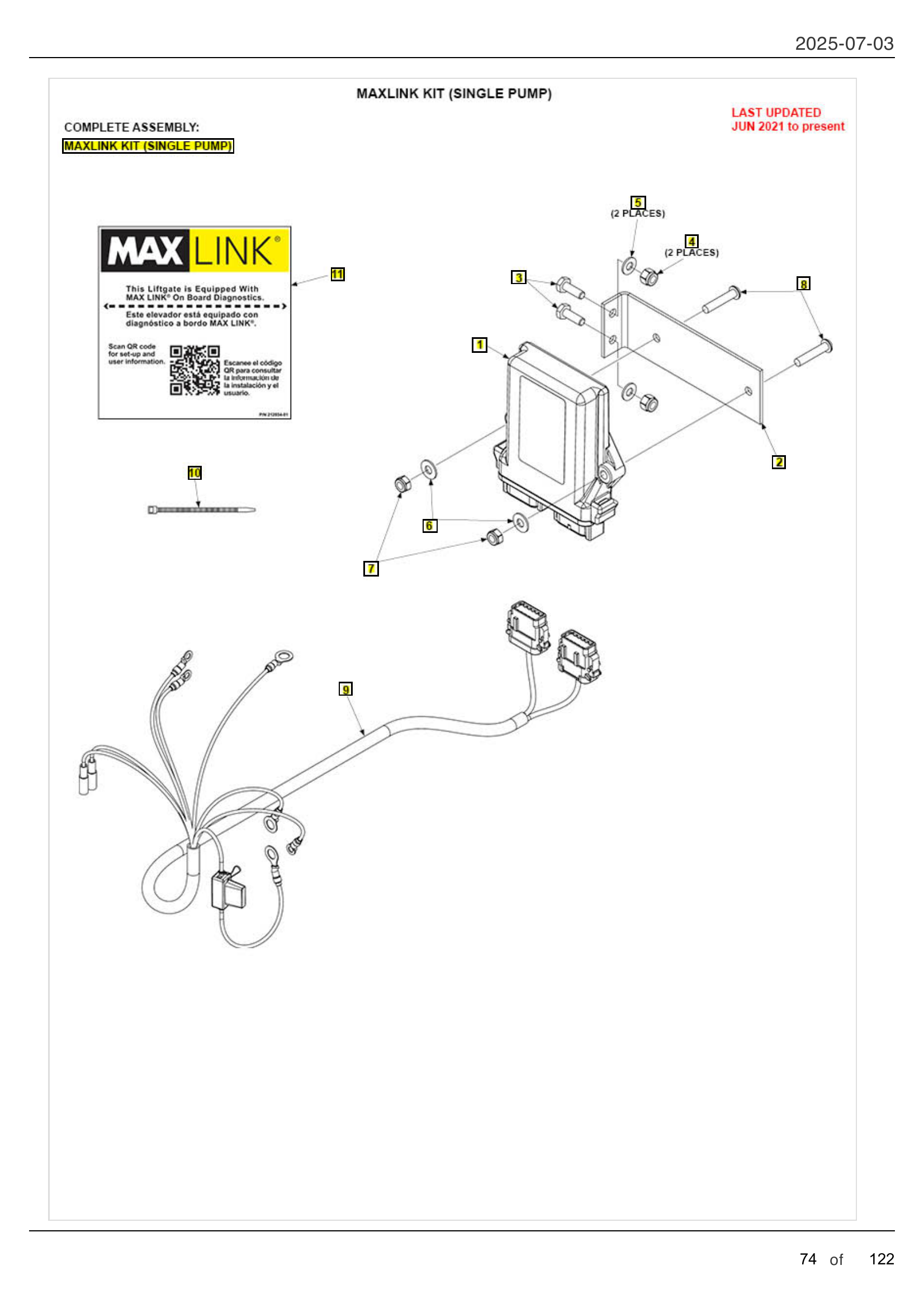

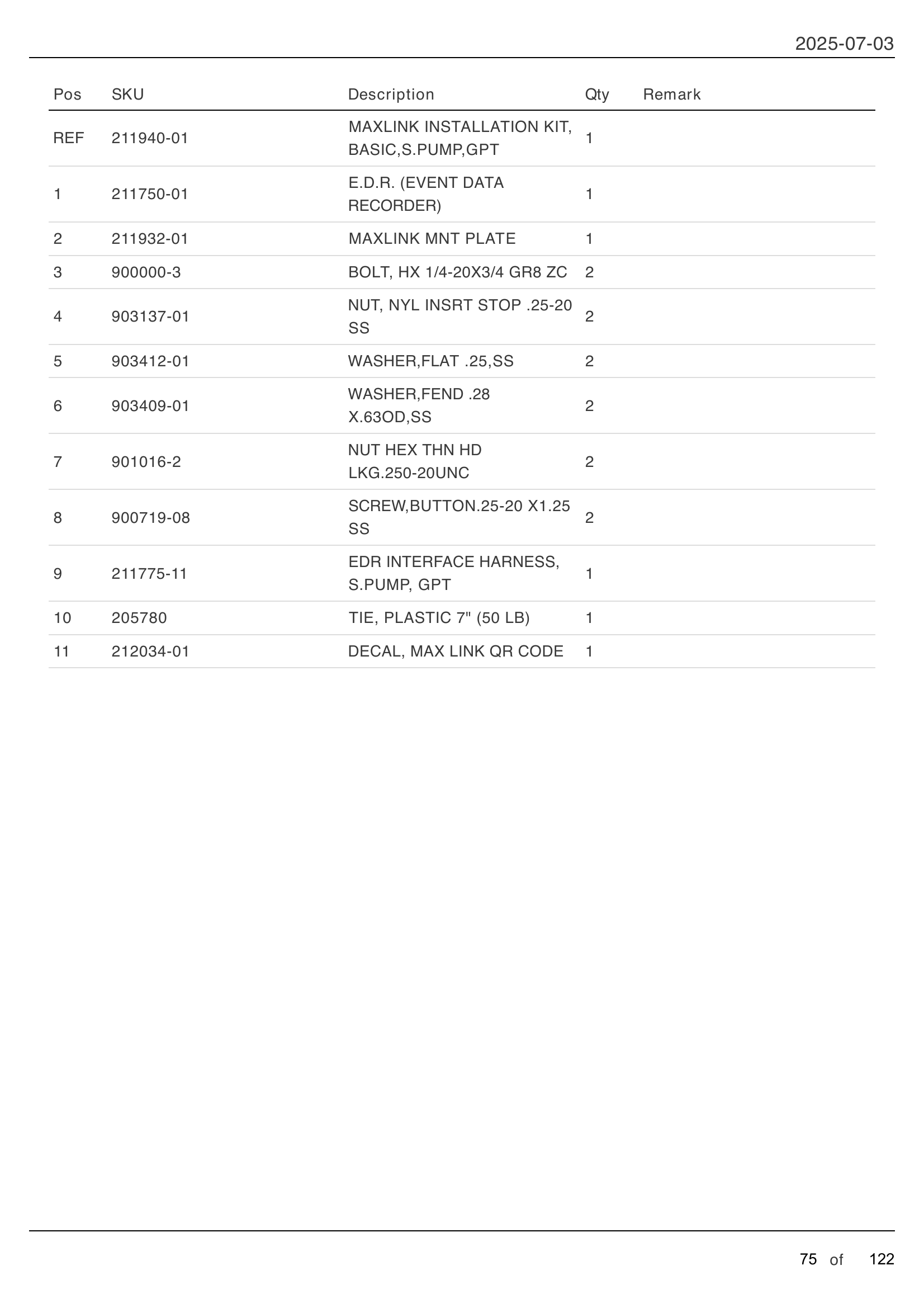

MAXLINK KIT (SINGLE PUMP)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 211940-01 | MAXLINK INSTALLATION KIT, BASIC,S.PUMP,GPT | View Item |
| 1 | 1 | 211750-01 | E.D.R. (EVENT DATA RECORDER) | View Item |
| 2 | 1 | 211932-01 | MAXLINK MNT PLATE | Call For Purchase |
| 3 | 2 | 900000-3 | BOLT, HX 1/4-20X3/4 GR8 ZC | View Item |
| 4 | 2 | 903137-01 | NUT, NYL INSRT STOP .25-20 SS | View Item |
| 5 | 2 | 903412-01 | WASHER,FLAT .25,SS | View Item |
| 6 | 2 | 903409-01 | WASHER,FEND .28 X.63OD,SS | View Item |
| 7 | 2 | 901016-2 | NUT HEX THN HD LKG.250-20UNC | View Item |
| 8 | 2 | 900719-08 | SCREW,BUTTON.25-20 X1.25 SS | View Item |
| 9 | 1 | 211775-11 | EDR INTERFACE HARNESS, S.PUMP, GPT | Call For Purchase |
| 10 | 1 | 205780 | TIE, PLASTIC 7" (50 LB) | View Item |
| 11 | 1 | 212034-01 | DECAL, MAX LINK QR CODE | Call For Purchase |
211932-01
Item 2 • Qty 1
MAXLINK MNT PLATE
Call For Purchase
211775-11
Item 9 • Qty 1
EDR INTERFACE HARNESS, S.PUMP, GPT
Call For Purchase
212034-01
Item 11 • Qty 1
DECAL, MAX LINK QR CODE
Call For Purchase

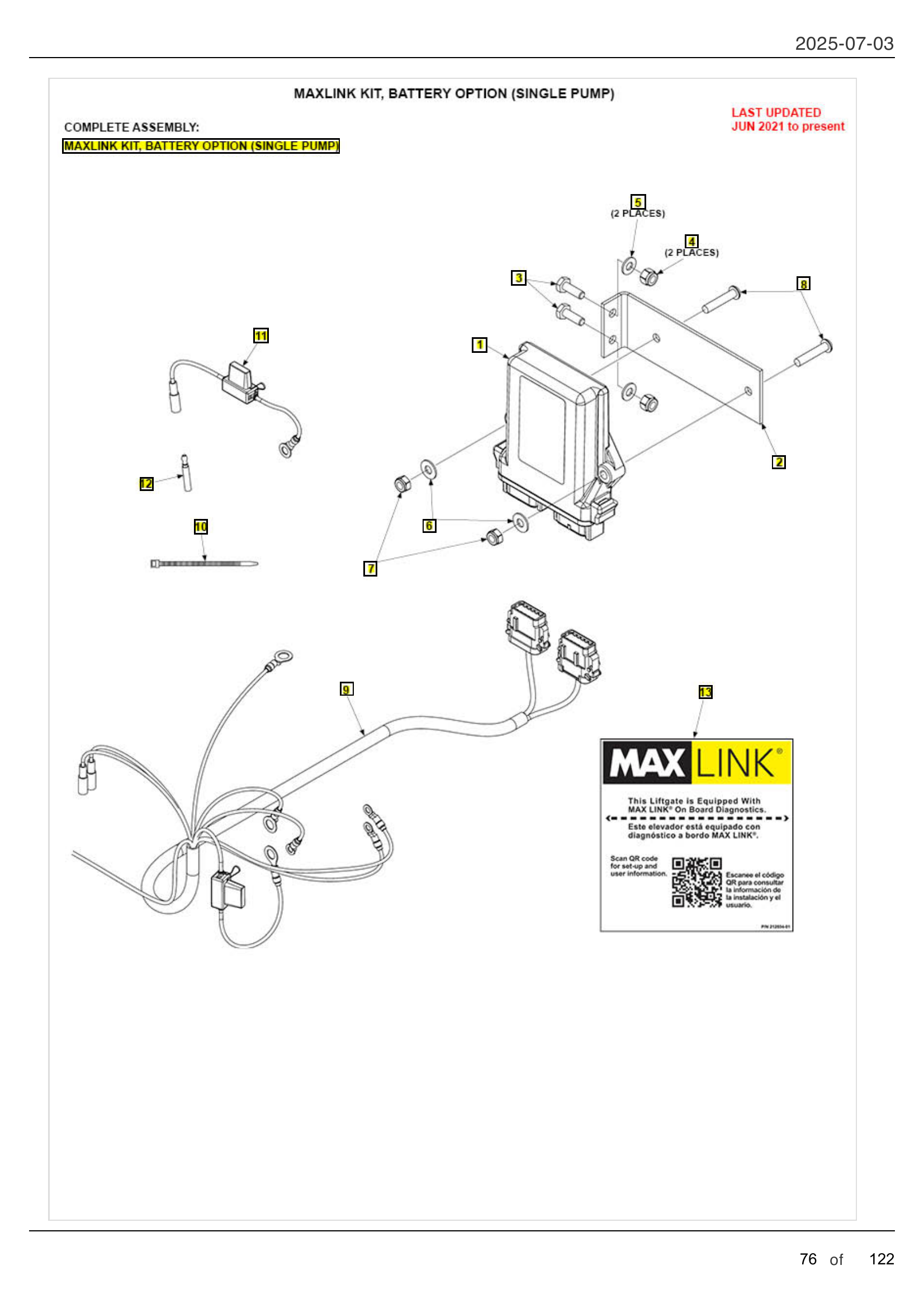

MAXLINK KIT, BATTERY OPTION (SINGLE PUMP)

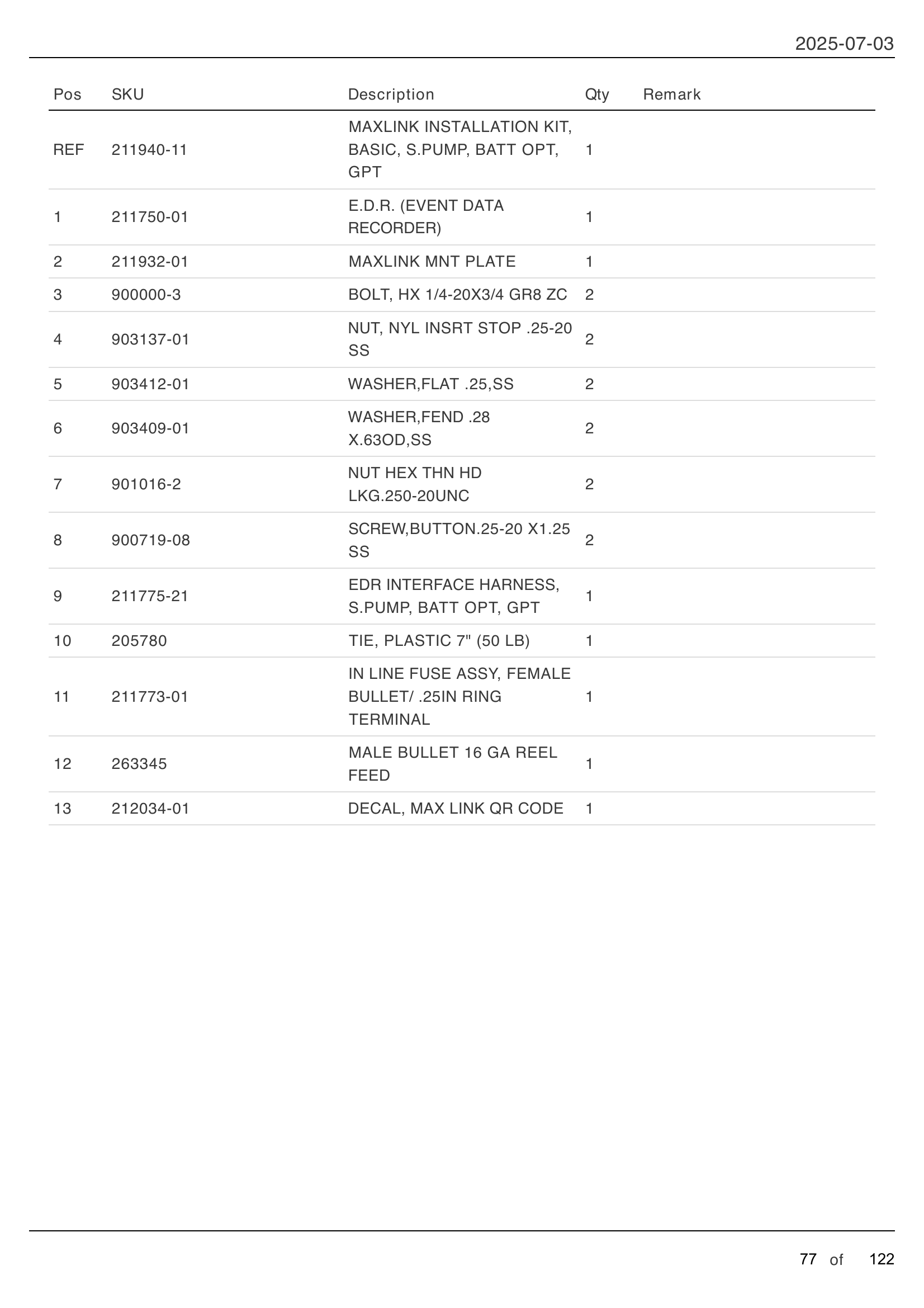

| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 211940-11 | MAXLINK INSTALLATION KIT, BASIC, S.PUMP, BATT OPT, GPT | View Item |
| 1 | 1 | 211750-01 | E.D.R. (EVENT DATA RECORDER) | View Item |
| 2 | 1 | 211932-01 | MAXLINK MNT PLATE | Call For Purchase |
| 3 | 2 | 900000-3 | BOLT, HX 1/4-20X3/4 GR8 ZC | View Item |
| 4 | 2 | 903137-01 | NUT, NYL INSR T STOP .25-20 SS | View Item |
| 5 | 2 | 903412-01 | WASHER,FLAT .25,SS | View Item |
| 6 | 2 | 903409-01 | WASHER,FEND .28 X.63OD,SS | View Item |
| 7 | 2 | 901016-2 | NUT HEX THN HD LKG.250-20UNC | View Item |
| 8 | 2 | 900719-08 | SCREW,BUTTON,.25-20 X1.25 SS | View Item |
| 9 | 1 | 211775-21 | EDR INTERFACE HARNESS, S.PUMP, BATT OPT, GPT | Call For Purchase |
| 10 | 1 | 205780 | TIE, PLASTIC 7" (50 LB) | View Item |
| 11 | 1 | 211773-01 | IN LINE FUSE ASSY, FEMALE BULLET/.25IN RING TERMINAL | Call For Purchase |
| 12 | 1 | 263345 | MALE BULLET 16 GA REEL FEED | Call For Purchase |
| 13 | 1 | 212034-01 | DECAL, MAX LINK QR CODE | Call For Purchase |
211932-01
Item 2 • Qty 1
MAXLINK MNT PLATE
Call For Purchase
211775-21
Item 9 • Qty 1
EDR INTERFACE HARNESS, S.PUMP, BATT OPT, GPT
Call For Purchase
211773-01
Item 11 • Qty 1
IN LINE FUSE ASSY, FEMALE BULLET/.25IN RING TERMINAL
Call For Purchase
263345
Item 12 • Qty 1
MALE BULLET 16 GA REEL FEED
Call For Purchase
212034-01
Item 13 • Qty 1
DECAL, MAX LINK QR CODE
Call For Purchase

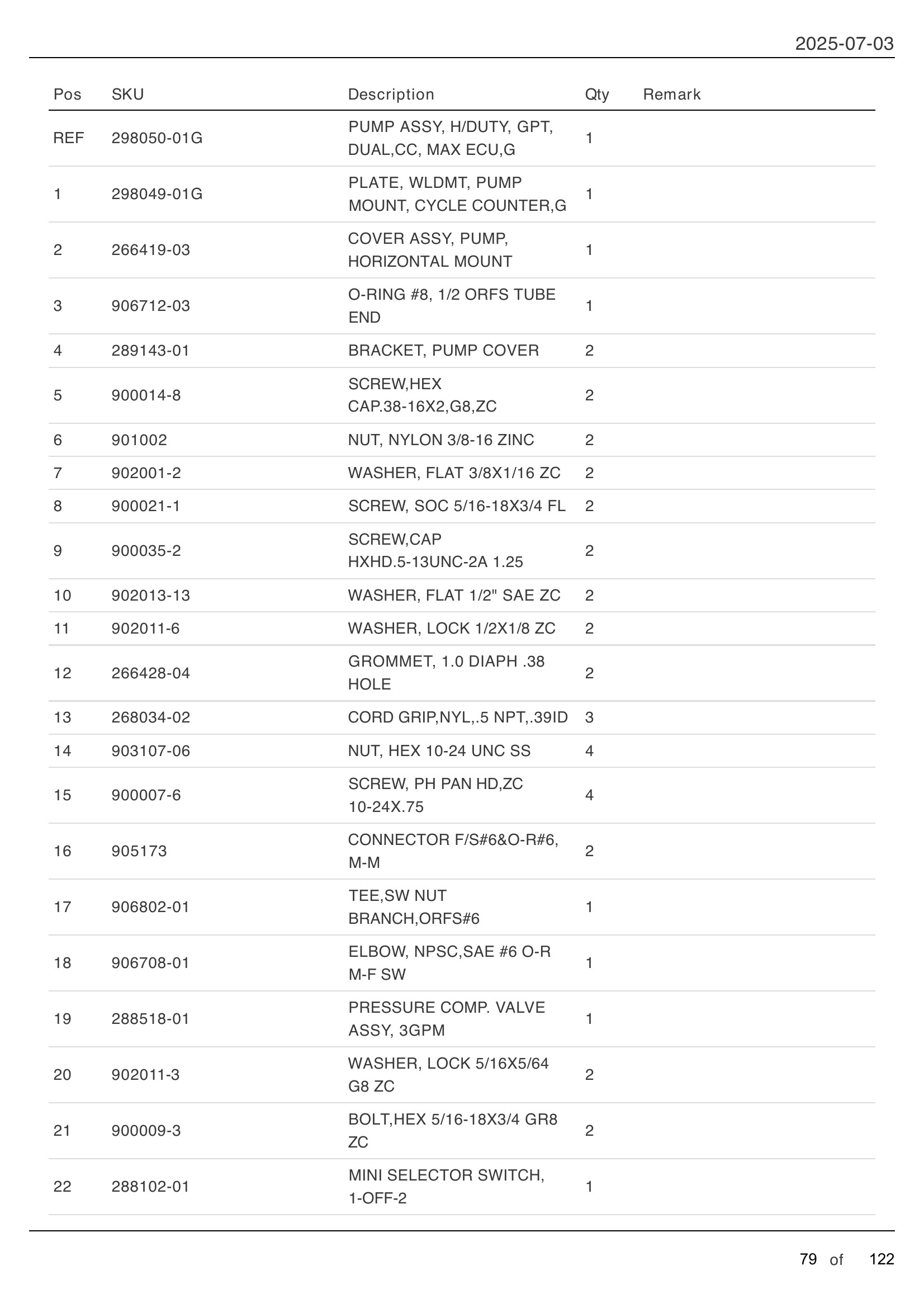

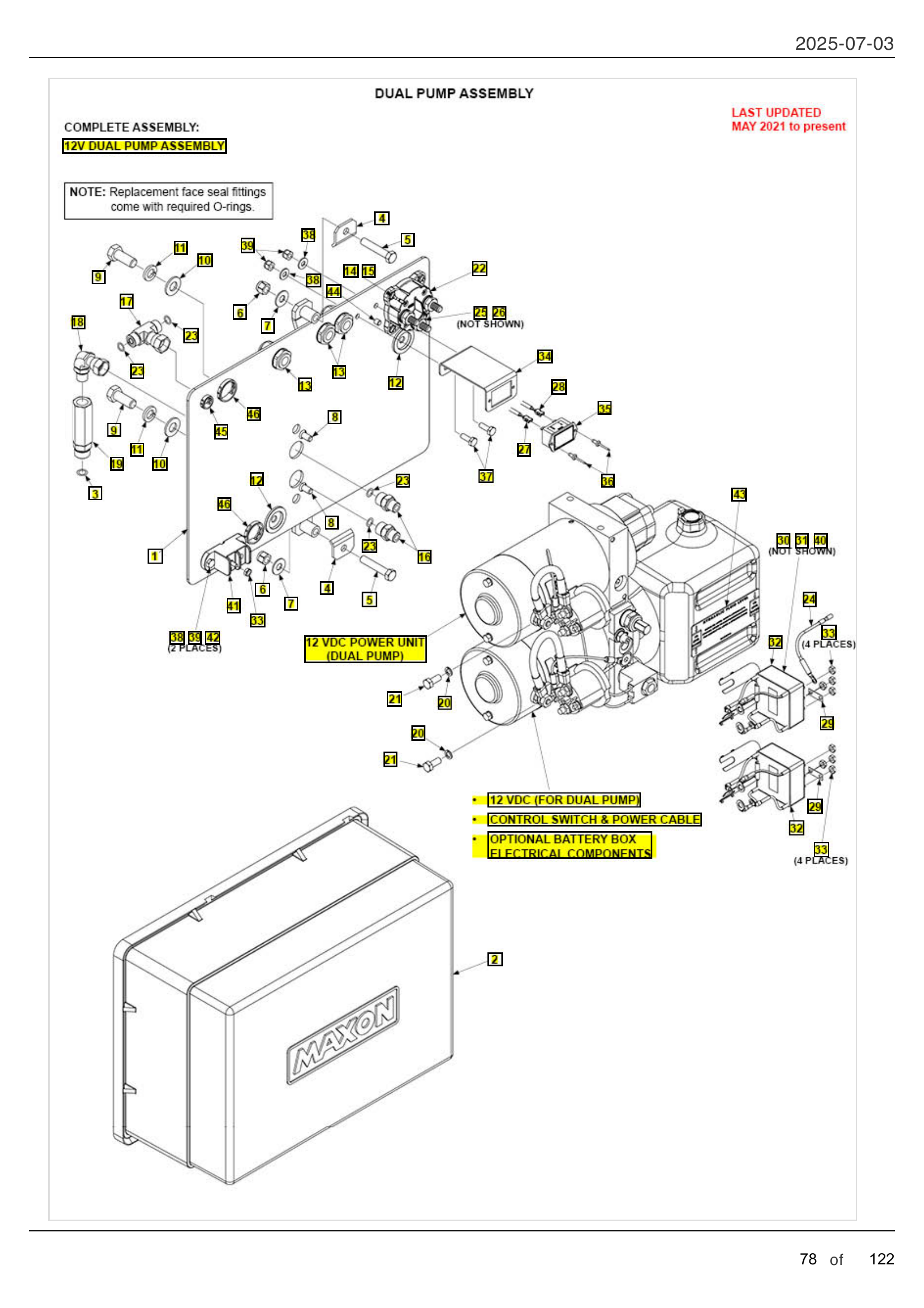

DUAL PUMP ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298050-01G | PUMP ASSY, H/DUTY, GPT, DUAL,CC, MAX ECU,G | View Item |
| 1 | 1 | 298049-01G | PLATE, WLDMT, PUMP MOUNT, CYCLE COUNTER,G | Call For Purchase |
| 2 | 1 | 266419-03 | COVER ASSY, PUMP, HORIZONTAL MOUNT | View Item |
| 3 | 1 | 906712-03 | O-RING #8, 1/2 ORFS TUBE END | View Item |
| 4 | 2 | 289143-01 | BRACKET, PUMP COVER | View Item |
| 5 | 2 | 900014-8 | SCREW,HEX CAP.3/8-16X2,G8,ZC | View Item |
| 6 | 2 | 901002 | NUT, NYLON 3/8-16 ZINC | View Item |
| 7 | 2 | 902001-2 | WASHER, FLAT 3/8X1/16 ZC | View Item |
| 8 | 2 | 900021-1 | SCREW, SOC 5/16-18X3/4 FL | Call For Purchase |
| 9 | 2 | 900035-2 | SCREW,CAP HXHD.5-13UNC-2A 1.25 | View Item |
| 10 | 2 | 902013-13 | WASHER, FLAT 1/2" SAE ZC | View Item |
| 11 | 2 | 902011-6 | WASHER, LOCK 1/2X1/8 ZC | View Item |
| 12 | 2 | 266428-04 | GROMMET, 1.0 DIAPH .38 HOLE | View Item |
| 13 | 3 | 268034-02 | CORD GRIP,NYL.,.5 NPT,.39ID | View Item |
| 14 | 4 | 903107-06 | NUT, HEX 10-24 UNC SS | View Item |
| 15 | 4 | 900007-6 | SCREW, PH PAN HD,ZC 10-24X.75 | View Item |
| 16 | 2 | 905173 | CONNECTOR F/S#6&O-R#6, M-M | View Item |
| 17 | 1 | 906802-01 | TEE,SW NUT BRANCH,ORFS#6 | View Item |
| 18 | 1 | 906708-01 | ELBOW, NPSC,SAE #6 O-R M-F SW | View Item |
| 19 | 1 | 288518-01 | PRESSURE COMP. VALVE ASSY, 3GPM | View Item |
| 20 | 2 | 902011-3 | WASHER, LOCK 5/16X5/64 G8 ZC | View Item |
| 21 | 2 | 900009-3 | BOLT,HEX 5/16-18X3/4 GR8 ZC | View Item |
| 22 | 1 | 288102-01 | MINI SELECTOR SWITCH, 1-OFF-2 | View Item |
| 23 | 4 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | View Item |
| 24 | 1 | 210493-01 | WIRE ASSY, 16 GA, GREEN, #10 RING/ FEMALE BULLET | View Item |
| 25 | 1 | 287676-01-700 | CABLE ASSY, 2 GA, RED, .31/.38 RINGS, BENT, 22.5IN | Call For Purchase |
| 26 | 1 | 287676-02-700 | CABLE ASSY, 2 GA, RED, .31/.38 RINGS, BENT, 18.5IN | Call For Purchase |
| 27 | 1 | 297274-02 | WIRE ASSY, POS LOCK, RING TERM,RED | View Item |
| 28 | 1 | 297274-01 | WIRE ASSY, POS LOCK, RING TERM,BLK | View Item |
| 29 | 2 | 297272-01 | JUMPER, 260 BRASS .015IN | View Item |
| 30 | 1 | 298052-03 | WIRE ASSY, 16AWG, RING TERMINALS #10, BLACK | Call For Purchase |
| 31 | 1 | 298052-02 | WIRE ASSY, 16AWG, RING TERMINALS #10, GREEN | Call For Purchase |
| 32 | 2 | 297135-01 | MAX ECU MODULE | View Item |
| 33 | 9 | 030344 | NUT, HEX HD #10-32, 6/6 NYLON | View Item |
| 34 | 1 | 297358-01 | BRACKET, DIGITAL C/COUNT | View Item |
| 35 | 1 | 297269-01 | DIGITAL CYCLE COUNTER | View Item |
| 36 | 2 | 903721-01 | RIVET, BL/DM, SS .16X.02-.13 | View Item |
| 37 | 2 | 900004-2 | SCREW, CAP 1/4-20X3/4 GR8 ZC | View Item |
| 38 | 4 | 902013-09 | WASHER1/4"ZINC-SAME030564 | View Item |
| 39 | 4 | 901000 | NUT, NYLON 1/4-20 ZINC | View Item |
| 40 | 1 | 298052-01 | WIRE ASSY, 16AWG, RING TERMINALS #10, WHITE | Call For Purchase |
| 41 | 1 | 299335-01 | MODULE ASSY, OFF TIME DELAY | View Item |
| 42 | 2 | 900004-3 | SCREW, CAP 1/4-20X1 GR8 ZC | View Item |
| 43 | 1 | 282927-04 | DECAL, OIL LEVEL | Call For Purchase |
| 44 | 1 | 908022-07 | PLUG, FLEXIBLE .275X.511 | View Item |
| 45 | 1 | 908081-03 | PLUG, NYLON, FOR .75DIA HOLE | Call For Purchase |
298049-01G
Item 1 • Qty 1
PLATE, WLDMT, PUMP MOUNT, CYCLE COUNTER,G
Call For Purchase
900021-1
Item 8 • Qty 2
SCREW, SOC 5/16-18X3/4 FL
Call For Purchase
287676-01-700
Item 25 • Qty 1
CABLE ASSY, 2 GA, RED, .31/.38 RINGS, BENT, 22.5IN
Call For Purchase
287676-02-700
Item 26 • Qty 1
CABLE ASSY, 2 GA, RED, .31/.38 RINGS, BENT, 18.5IN
Call For Purchase
298052-03
Item 30 • Qty 1
WIRE ASSY, 16AWG, RING TERMINALS #10, BLACK
Call For Purchase
298052-02
Item 31 • Qty 1
WIRE ASSY, 16AWG, RING TERMINALS #10, GREEN
Call For Purchase
298052-01
Item 40 • Qty 1
WIRE ASSY, 16AWG, RING TERMINALS #10, WHITE
Call For Purchase
282927-04
Item 43 • Qty 1
DECAL, OIL LEVEL
Call For Purchase
908081-03
Item 45 • Qty 1
PLUG, NYLON, FOR .75DIA HOLE
Call For Purchase

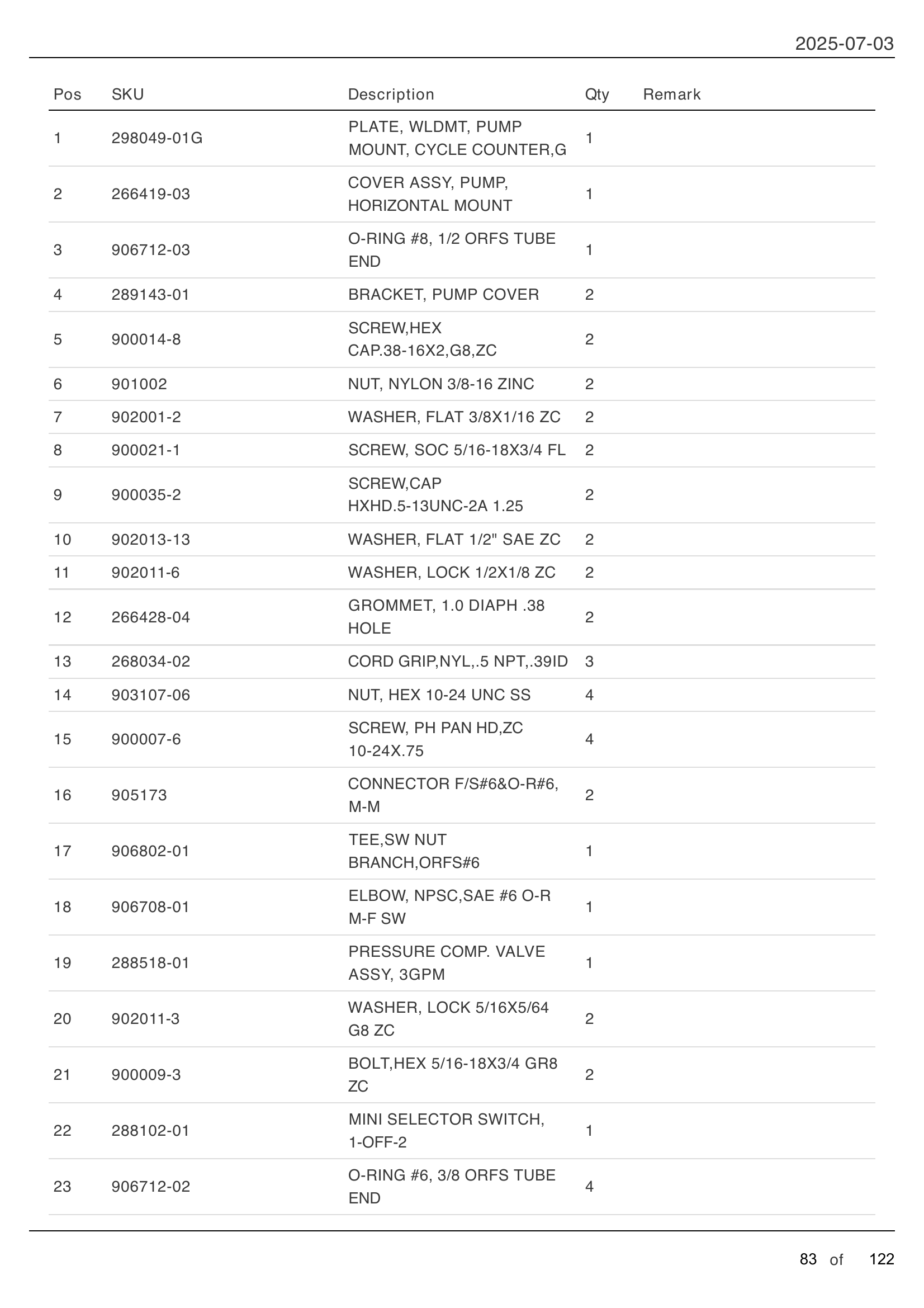

DUAL PUMP ASSEMBLY
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 298049-01G | PLATE, WLDMT, PUMP MOUNT, CYCLE COUNTER,G | Call For Purchase |
| 2 | 1 | 266419-03 | COVER ASSY, PUMP, HORIZONTAL MOUNT | View Item |
| 3 | 1 | 906712-03 | O-RING #8, 1/2 ORFS TUBE END | View Item |
| 4 | 2 | 289143-01 | BRACKET, PUMP COVER | View Item |
| 5 | 2 | 900014-8 | SCREW,HEX CAP.3/8-16X2,G8,ZC | View Item |
| 6 | 2 | 901002 | NUT, NYLON 3/8-16 ZINC | View Item |
| 7 | 2 | 902001-2 | WASHER, FLAT 3/8X1/16 ZC | View Item |
| 8 | 2 | 900021-1 | SCREW, SOC 5/16-18X3/4 FL | Call For Purchase |
| 9 | 2 | 900035-2 | SCREW,CAP HXHD,5-13UNC-2A 1.25 | View Item |
| 10 | 2 | 902013-13 | WASHER, FLAT 1/2" SAE ZC | View Item |
| 11 | 2 | 902011-6 | WASHER, LOCK 1/2X1/8 ZC | View Item |
| 12 | 2 | 266428-04 | GROMMET, 1.0 DIAPH .38 HOLE | View Item |
| 13 | 3 | 268034-02 | CORD GRIP,NYL.,5 NPT,.39ID | View Item |
| 14 | 4 | 903107-06 | NUT, HEX 10-24 UNC SS | View Item |
| 15 | 4 | 900007-6 | SCREW, PH PAN HD,ZC 10-24X.75 | View Item |
| 16 | 2 | 905173 | CONNECTOR F/S#6&O-R#6, M-M | View Item |
| 17 | 1 | 906802-01 | TEE,SW NUT BRANCH,ORFS#6 | View Item |
| 18 | 1 | 906708-01 | ELBOW, NPSC,SAE #6 O-R M-F SW | View Item |
| 19 | 1 | 288518-01 | PRESSURE COMP. VALVE ASSY, 3GPM | View Item |
| 20 | 2 | 902011-3 | WASHER, LOCK 5/16X5/64 G8 ZC | View Item |
| 21 | 2 | 900009-3 | BOLT,HEX 5/16-18X3/4 GR8 ZC | View Item |
| 22 | 1 | 288102-01 | MINI SELECTOR SWITCH, 1-OFF-2 | View Item |
| 23 | 4 | 906712-02 | O-RING #6, 3/8 ORFS TUBE END | View Item |
| 24 | 1 | 269191-07 | CABLE ASSY, GROUND, 2GA X 6-1/8 LG | Call For Purchase |
| 25 | 1 | 287676-01-700 | CABLE ASSY, 2 GA, RED, .31/.38 RINGS, BENT, 22.5IN | Call For Purchase |
| 26 | 1 | 287676-02-700 | CABLE ASSY, 2 GA, RED, .31/.38 RINGS, BENT, 18.5IN | Call For Purchase |
| 27 | 1 | 297274-02 | WIRE ASSY, POS LOCK, RING TERM,RED | View Item |
| 28 | 1 | 297274-01 | WIRE ASSY, POS LOCK, RING TERM,BLK | View Item |
| 29 | 2 | 297272-01 | JUMPER, 260 BRASS .015IN | View Item |
| 30 | 1 | 298052-03 | WIRE ASSY, 16AWG, RING TERMINALS #10, BLACK | Call For Purchase |
| 31 | 1 | 298052-02 | WIRE ASSY, 16AWG, RING TERMINALS #10, GREEN | Call For Purchase |
| 32 | 2 | 297135-01 | MAX ECU MODULE | View Item |
| 33 | 9 | 030344 | NUT, HEX HD #10-32, 6/6 NYLON | View Item |
| 34 | 1 | 297358-01 | BRACKET, DIGITAL C/COUNT | View Item |
| 35 | 1 | 297269-01 | DIGITAL CYCLE COUNTER | View Item |
| 36 | 2 | 903721-01 | RIVET, BL/DM, SS .16X.02-.13 | View Item |
| 37 | 2 | 900004-2 | SCREW, CAP 1/4-20X3/4 GR8 ZC | View Item |
| 38 | 4 | 902013-09 | WASHER1/4"ZINC-SAME030564 | View Item |
| 39 | 4 | 901000 | NUT, NYLON 1/4-20 ZINC | View Item |
| 40 | 1 | 298052-01 | WIRE ASSY, 16AWG, RING TERMINALS #10, WHITE | Call For Purchase |
| 41 | 1 | 299335-01 | MODULE ASSY, OFF TIME DELAY | View Item |
| 42 | 2 | 900004-3 | SCREW, CAP 1/4-20X1 GR8 ZC | View Item |
| 43 | 1 | 265330-03 | DECAL HYD FLUID LEVEL GPT | View Item |
298049-01G
Item 1 • Qty 1
PLATE, WLDMT, PUMP MOUNT, CYCLE COUNTER,G
Call For Purchase
900021-1
Item 8 • Qty 2
SCREW, SOC 5/16-18X3/4 FL
Call For Purchase
269191-07
Item 24 • Qty 1
CABLE ASSY, GROUND, 2GA X 6-1/8 LG
Call For Purchase
287676-01-700
Item 25 • Qty 1
CABLE ASSY, 2 GA, RED, .31/.38 RINGS, BENT, 22.5IN
Call For Purchase
287676-02-700
Item 26 • Qty 1
CABLE ASSY, 2 GA, RED, .31/.38 RINGS, BENT, 18.5IN
Call For Purchase
298052-03
Item 30 • Qty 1
WIRE ASSY, 16AWG, RING TERMINALS #10, BLACK
Call For Purchase
298052-02
Item 31 • Qty 1
WIRE ASSY, 16AWG, RING TERMINALS #10, GREEN
Call For Purchase
298052-01
Item 40 • Qty 1
WIRE ASSY, 16AWG, RING TERMINALS #10, WHITE
Call For Purchase

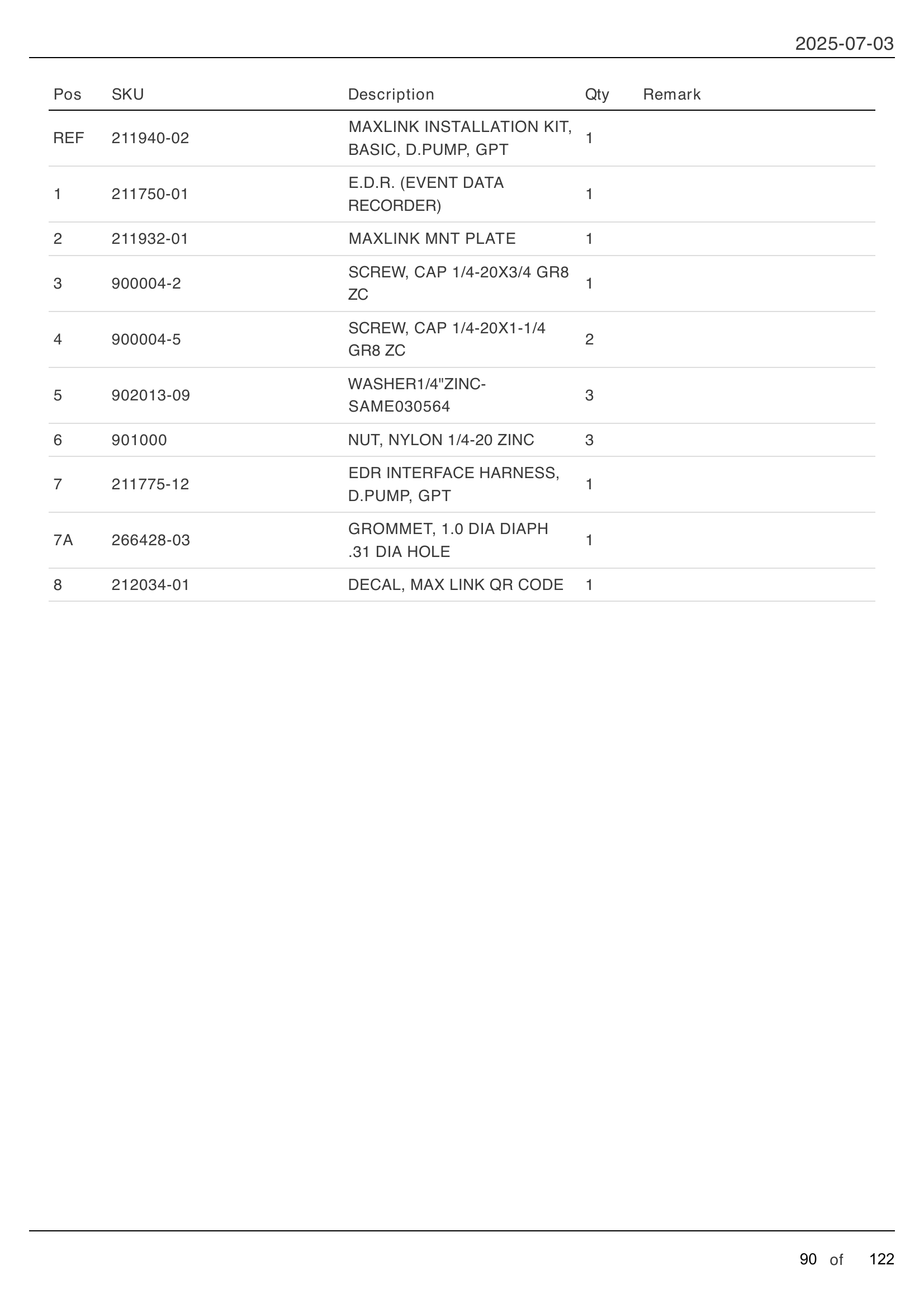

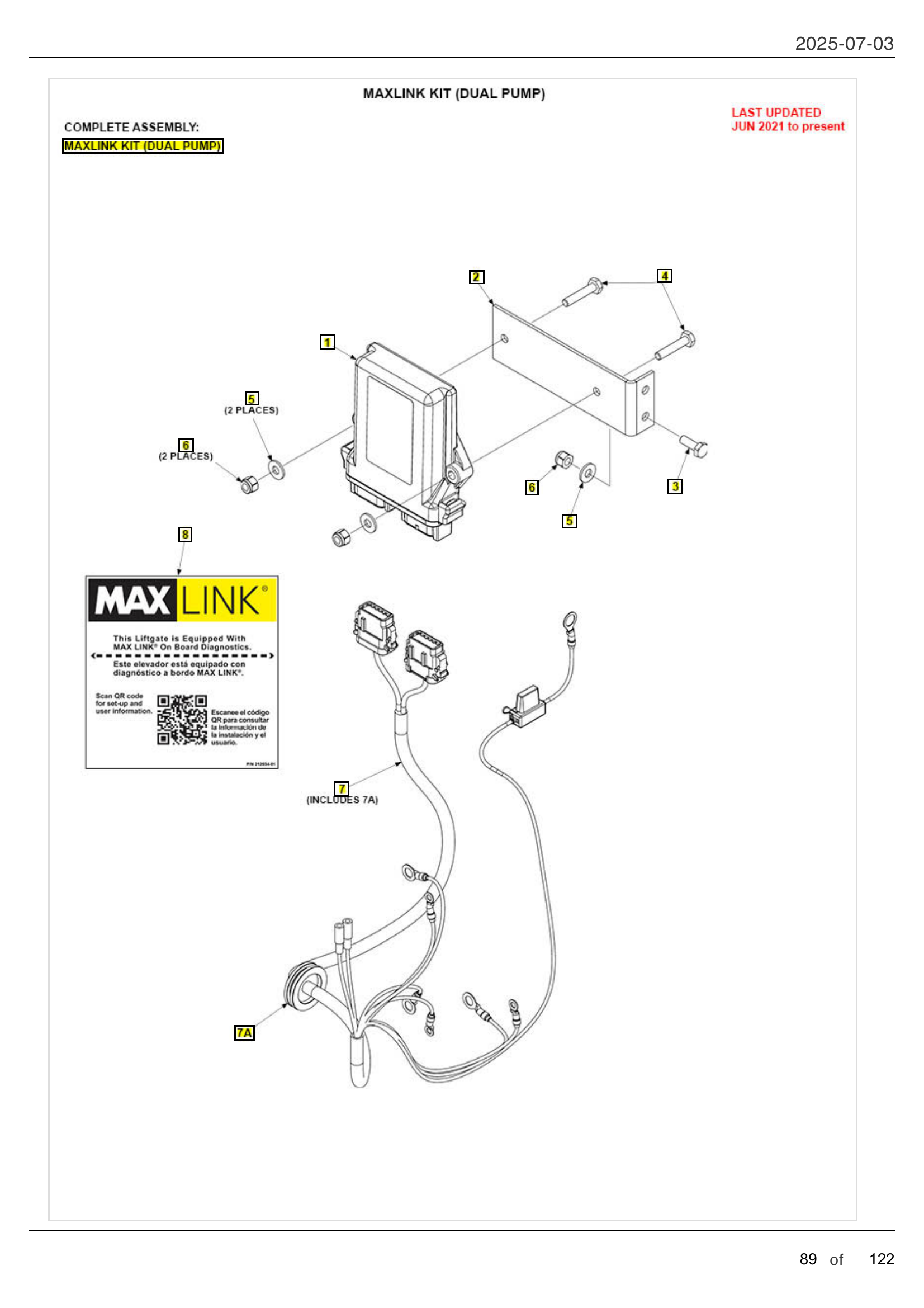

MAXLINK KIT (DUAL PUMP)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 211940-02 | MAXLINK INSTALLATION KIT, BASIC, D.PUMP, GPT | View Item |
| 1 | 1 | 211750-01 | E.D.R. (EVENT DATA RECORDER) | View Item |
| 2 | 1 | 211932-01 | MAXLINK MNT PLATE | Call For Purchase |
| 3 | 1 | 900004-2 | SCREW, CAP 1/4-20X3/4 GR8 ZC | View Item |
| 4 | 2 | 900004-5 | SCREW, CAP 1/4-20X1-1/4 GR8 ZC | View Item |
| 5 | 3 | 902013-09 | WASHER1/4"ZINC-SAME030564 | View Item |
| 6 | 3 | 901000 | NUT, NYLON 1/4-20 ZINC | View Item |
| 7 | 1 | 211775-12 | EDR INTERFACE HARNESS, D.PUMP, GPT | Call For Purchase |
| 7A | 1 | 266428-03 | GROMMET, 1.0 DIA DIAPH .31 DIA HOLE | View Item |
| 8 | 1 | 212034-01 | DECAL, MAX LINK QR CODE | Call For Purchase |
211932-01
Item 2 • Qty 1
MAXLINK MNT PLATE
Call For Purchase
211775-12
Item 7 • Qty 1
EDR INTERFACE HARNESS, D.PUMP, GPT
Call For Purchase
212034-01
Item 8 • Qty 1
DECAL, MAX LINK QR CODE
Call For Purchase

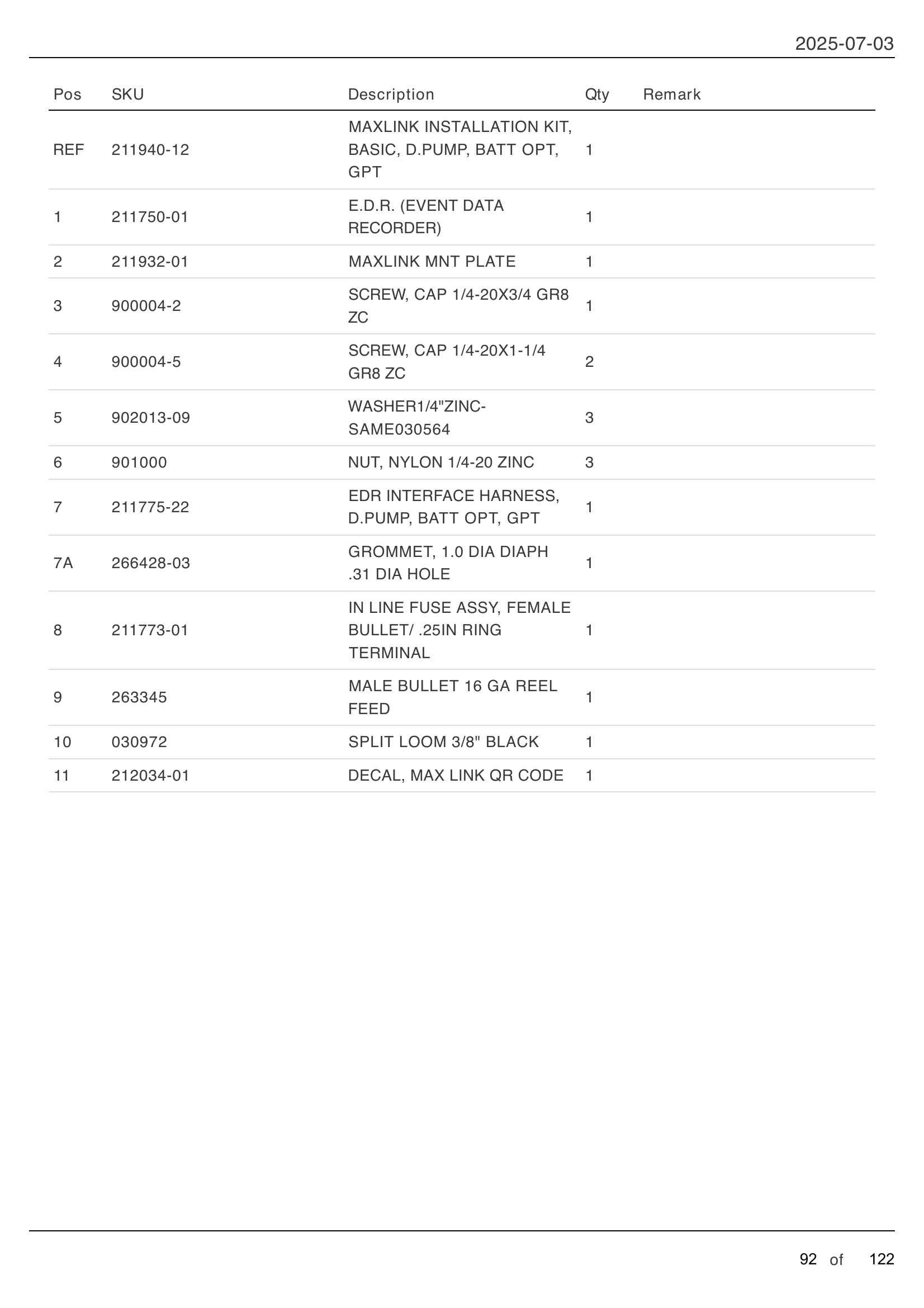

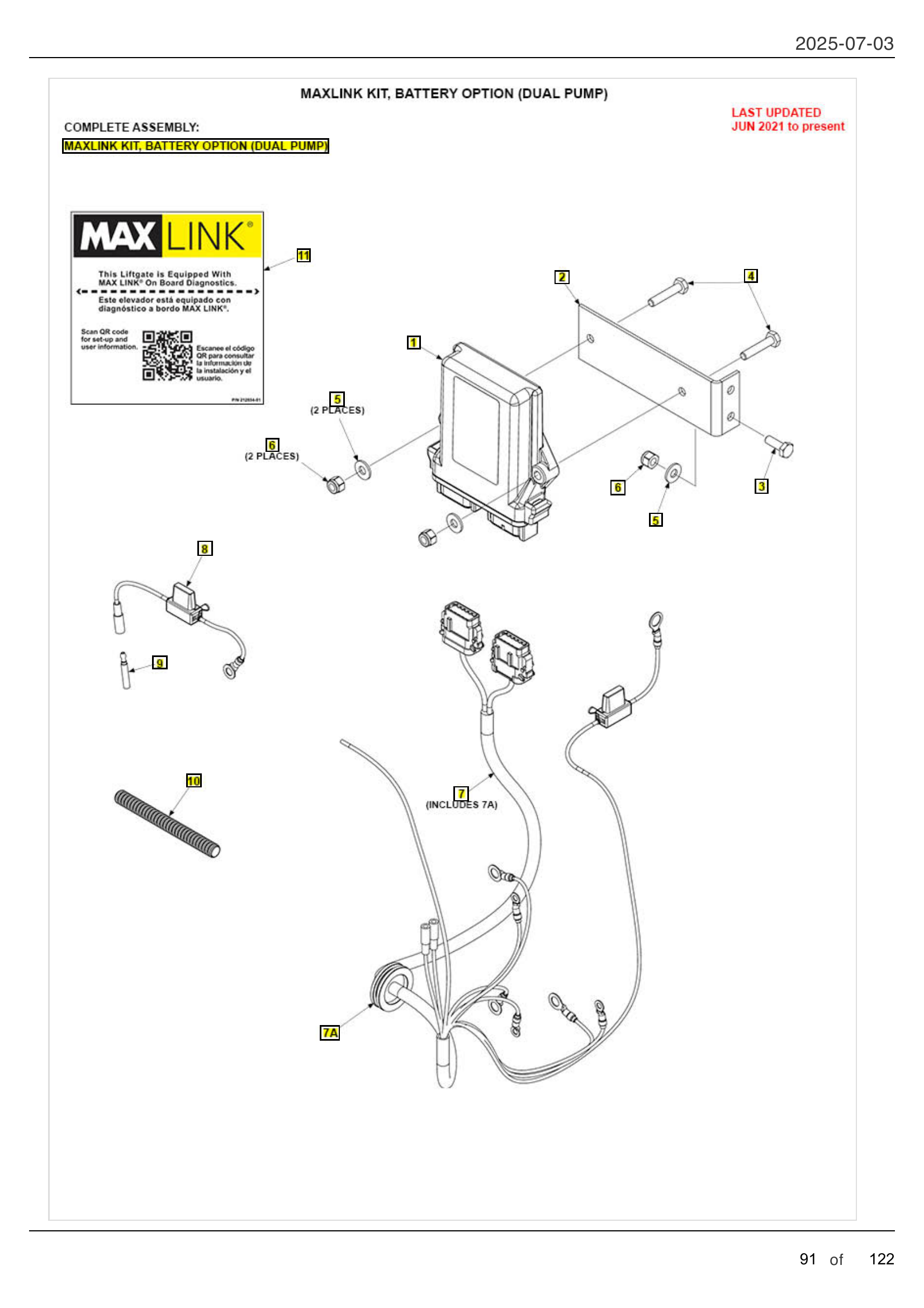

MAXLINK KIT, BATTERY OPTION (DUAL PUMP)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 211940-12 | MAXLINK INSTALLATION KIT, BASIC, D.PUMP, BATT OPT, GPT | View Item |
| 1 | 1 | 211750-01 | E.D.R. (EVENT DATA RECORDER) | View Item |
| 2 | 1 | 211932-01 | MAXLINK MNT PLATE | Call For Purchase |
| 3 | 1 | 900004-2 | SCREW, CAP 1/4-20X3/4 GR8 ZC | View Item |
| 4 | 2 | 900004-5 | SCREW, CAP 1/4-20X1-1/4 GR8 ZC | View Item |
| 5 | 3 | 902013-09 | WASHER1/4"ZINC-SAME030564 | View Item |
| 6 | 3 | 901000 | NUT, NYLON 1/4-20 ZINC | View Item |
| 7 | 1 | 211775-22 | EDR INTERFACE HARNESS, D.PUMP, BATT OPT, GPT | Call For Purchase |
| 7A | 1 | 266428-03 | GROMMET, 1.0 DIA DIAPH .31 DIA HOLE | View Item |
| 8 | 1 | 211773-01 | IN LINE FUSE ASSY, FEMALE BULLET /.25IN RING TERMINAL | Call For Purchase |
| 9 | 1 | 263345 | MALE BULLET 16 GA REEL FEED | Call For Purchase |
| 10 | 1 | 030972 | SPLIT LOOM 3/8" BLACK | Call For Purchase |
| 11 | 1 | 212034-01 | DECAL, MAX LINK QR CODE | Call For Purchase |
211932-01
Item 2 • Qty 1
MAXLINK MNT PLATE
Call For Purchase
211775-22
Item 7 • Qty 1
EDR INTERFACE HARNESS, D.PUMP, BATT OPT, GPT
Call For Purchase
211773-01
Item 8 • Qty 1
IN LINE FUSE ASSY, FEMALE BULLET /.25IN RING TERMINAL
Call For Purchase
263345
Item 9 • Qty 1
MALE BULLET 16 GA REEL FEED
Call For Purchase
030972
Item 10 • Qty 1
SPLIT LOOM 3/8" BLACK
Call For Purchase
212034-01
Item 11 • Qty 1
DECAL, MAX LINK QR CODE
Call For Purchase

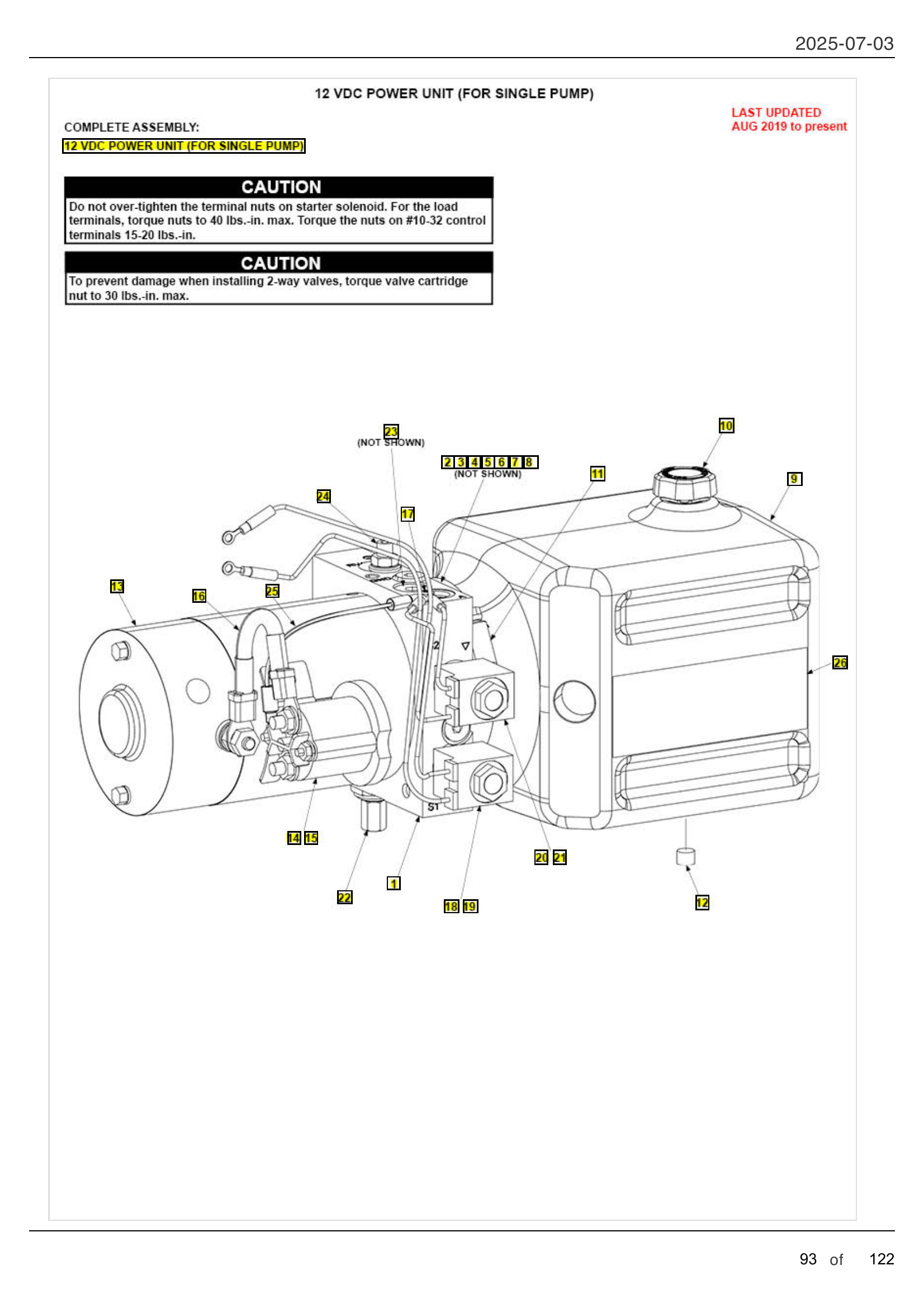

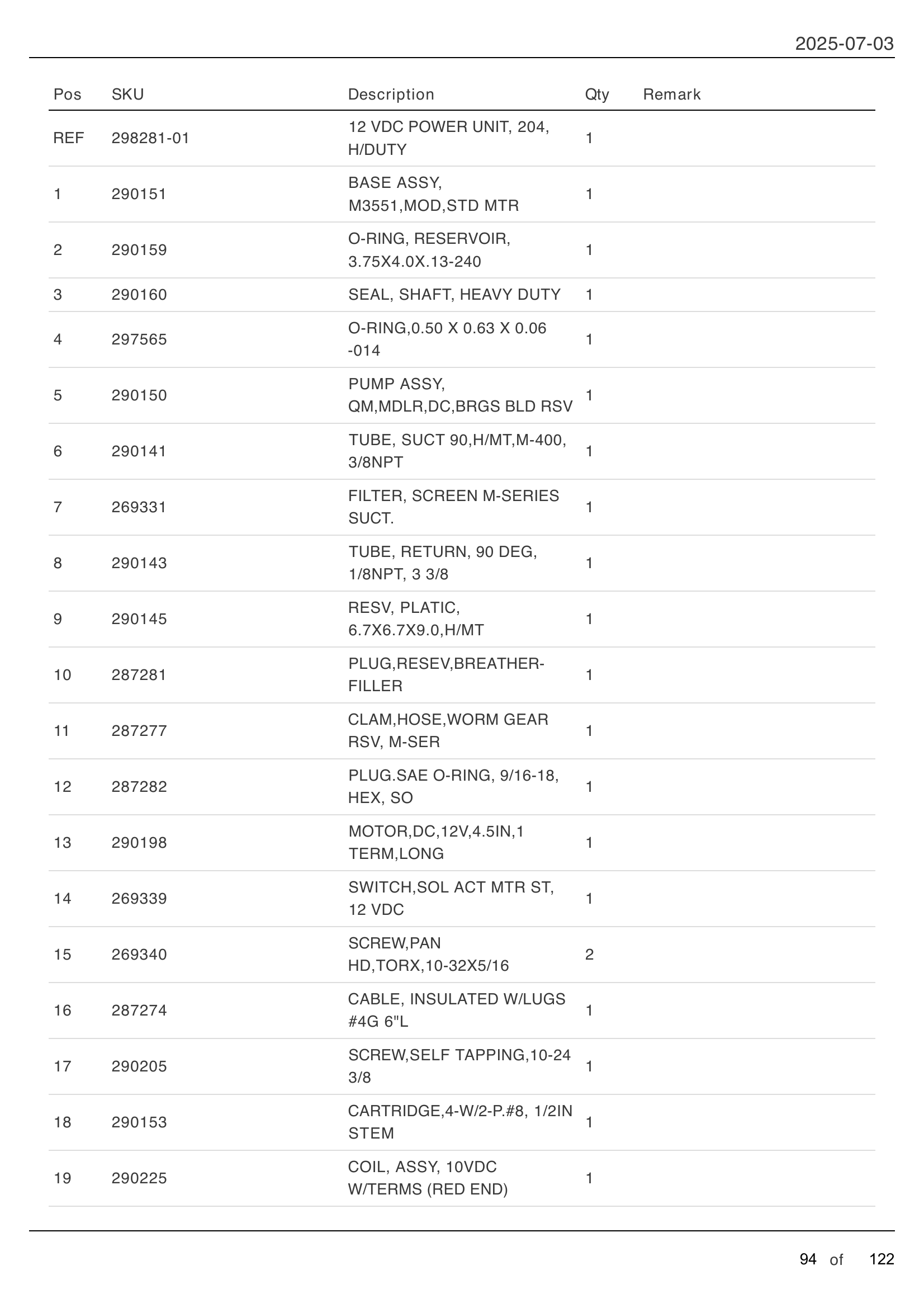

12 VDC POWER UNIT (FOR SINGLE PUMP)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298281-01 | 12 VDC POWER UNIT, 204, H/DUTY | View Item |
| 1 | 1 | 290151 | BASE ASSY, M3551,MOD,STD MTR | View Item |
| 2 | 1 | 290159 | O-RING, RESERVOIR, 3.75X4.0X.13-240 | View Item |
| 3 | 1 | 290160 | SEAL, SHAFT, HEAVY DUTY | View Item |
| 4 | 1 | 297565 | O-RING,0.50 X 0.63 X 0.06 -014 | View Item |
| 5 | 1 | 290150 | PUMP ASSY, QM,MDLR,DC,BRGS BLD RSV | View Item |
| 6 | 1 | 290141 | TUBE, SUCT 90,H/MT,M-400, 3/8NPT | View Item |
| 7 | 1 | 269331 | FILTER, SCREEN M-SERIES SUCT. | View Item |
| 8 | 1 | 290143 | TUBE, RETURN, 90 DEG, 1/8NPT, 3/8 | View Item |
| 9 | 1 | 290145 | RESV, PLATIC, 6.7X6.7X9.0,H/MT | View Item |
| 10 | 1 | 287281 | PLUG,RESEV,BREATHER-FILLER | View Item |
| 11 | 1 | 287277 | CLAM,HOSE,WORM GEAR RSV, M-SER | View Item |
| 12 | 1 | 287282 | PLUG,SAE O-RING, 9/16-18, HEX, SO | View Item |
| 13 | 1 | 290198 | MOTOR,DC,12V,4.5IN,1 TERM,LONG | View Item |
| 14 | 1 | 269339 | SWITCH,SOL ACT MTR ST, 12 VDC | View Item |
| 15 | 2 | 269340 | SCREW,PAN HD,TORX,10-32X5/16 | View Item |
| 16 | 1 | 287274 | CABLE, INSULATED W/LUGS #4G 6"L | View Item |
| 17 | 1 | 290205 | SCREW,SELF TAPPING,10-24 3/8 | View Item |
| 18 | 1 | 290153 | CARTRIDGE,4-W/2-P,#8, 1/2IN STEM | View Item |
| 19 | 1 | 290225 | COIL, ASSY, 10VDC W/TERMS (RED END) | View Item |
| 20 | 1 | 269417 | CARTRIDGE,2W/2P,NC,POPPET|4000 | View Item |
| 21 | 1 | 290169 | COIL, 10VDC #8,DUAL LEAD, #10RING | View Item |
| 22 | 1 | 290171 | VALVE MAX VM01 HDM 10 T.30-95 | View Item |
| 23 | 1 | 269346 | POPPET ASSY, PRSS CMP FL CNTRL | View Item |
| 24 | 1 | 290158 | (USE OR REPLACED BY 280178) VALVE ASSY, R/V, 1001 PSI AND UP | View Item |
| 25 | 1 | 297547 | WIRE ASSY,CNTRL,16AWG,HS,RING | View Item |
| 26 | 1 | 282927-04 | DECAL, OIL LEVEL | Call For Purchase |
282927-04
Item 26 • Qty 1
DECAL, OIL LEVEL
Call For Purchase

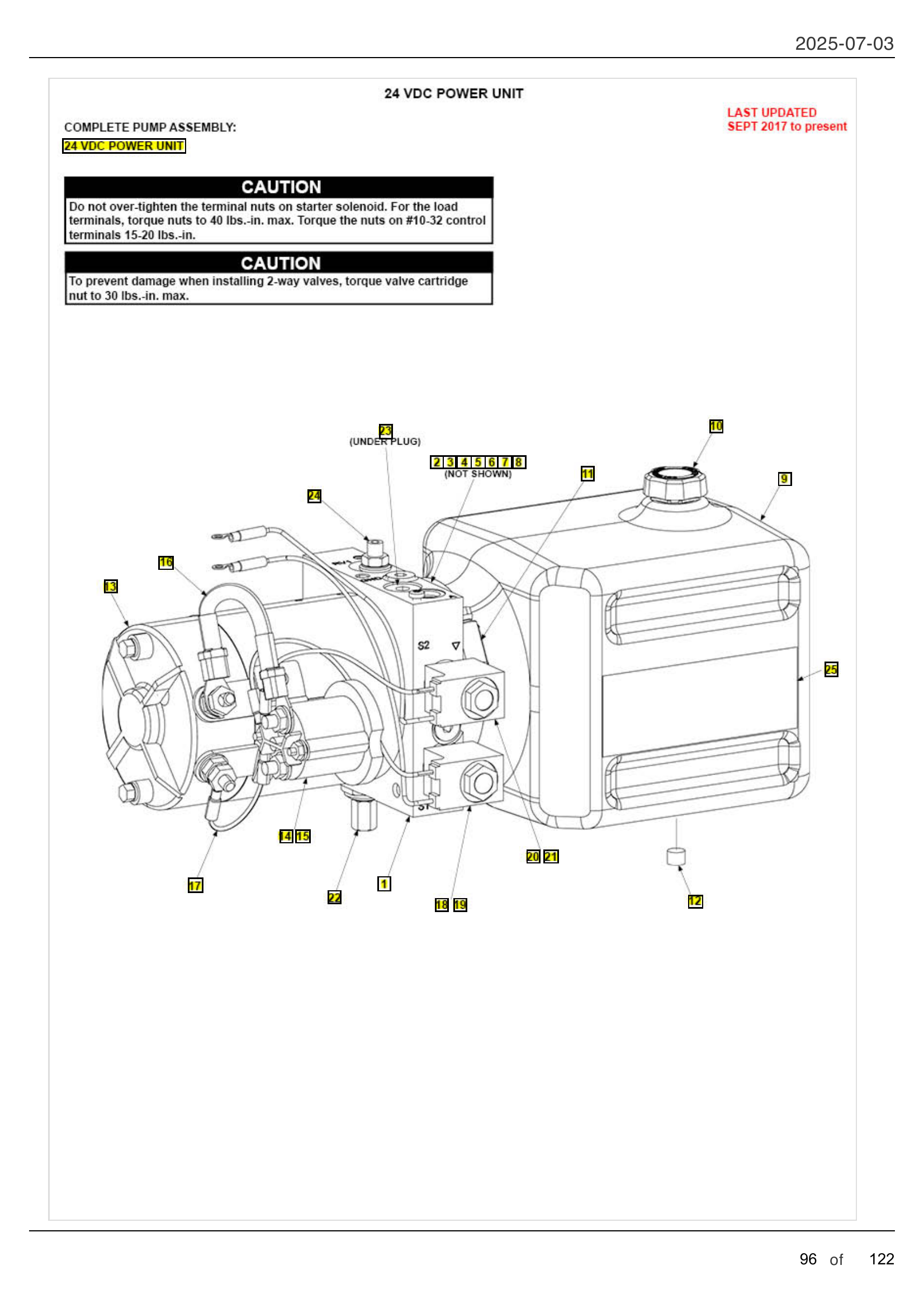

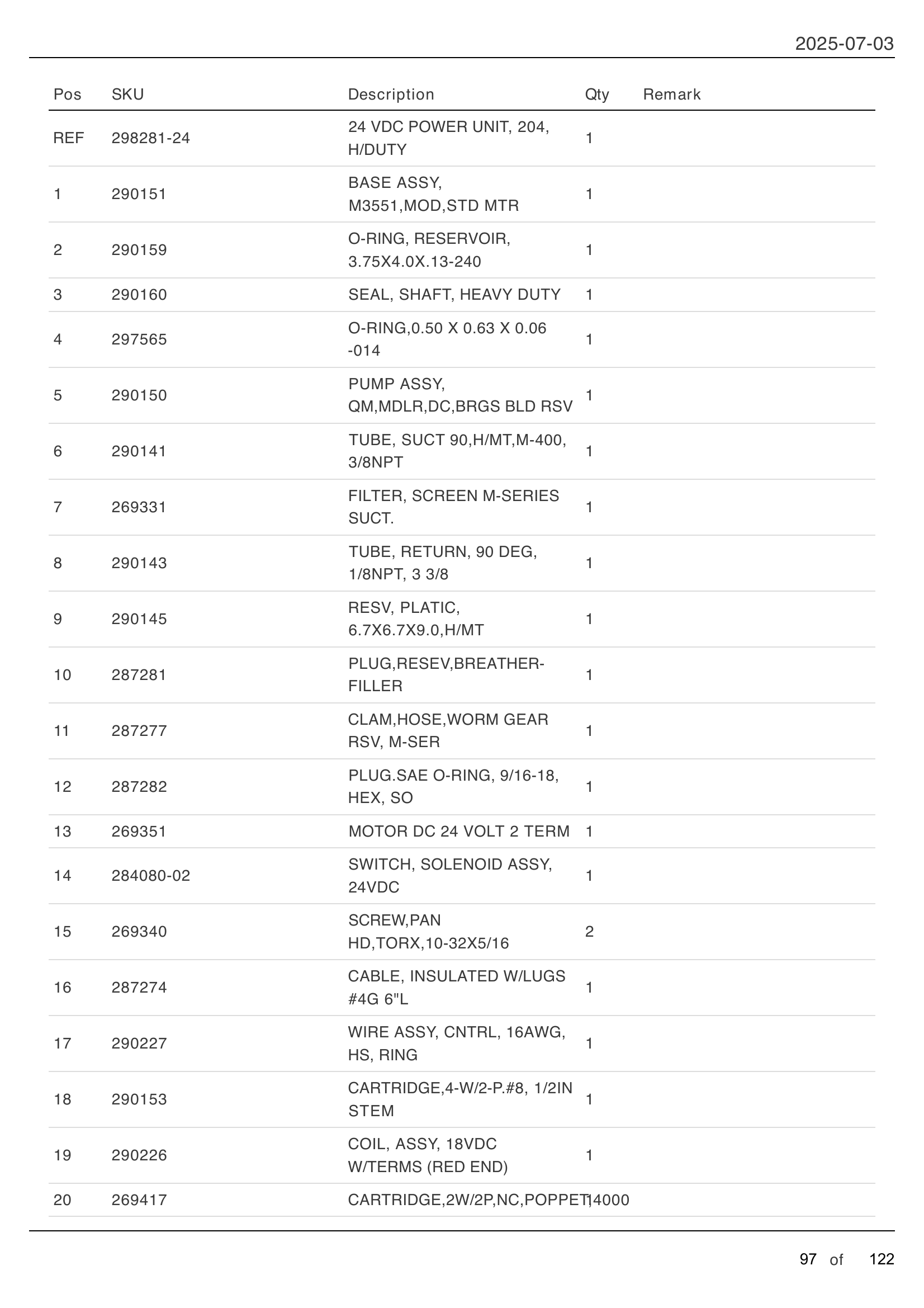

24 VDC POWER UNIT
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 298281-24 | 24 VDC POWER UNIT, 204, H/DUTY | View Item |
| 1 | 1 | 290151 | BASE ASSY, M3551, MOD, STD MTR | View Item |
| 2 | 1 | 290159 | O-RING, RESERVOIR, 3.75X4.0X.13-240 | View Item |
| 3 | 1 | 290160 | SEAL, SHAFT, HEAVY DUTY | View Item |
| 4 | 1 | 297565 | O-RING,0.50 X 0.63 X 0.06 -014 | View Item |
| 5 | 1 | 290150 | PUMP ASSY, QM, MDLR, DC, BRGS BLD RSV | View Item |
| 6 | 1 | 290141 | TUBE, SUCT 90, H/MT, M-400, 3/8NPT | View Item |
| 7 | 1 | 269331 | FILTER, SCREEN M-SERIES SUCT. | View Item |
| 8 | 1 | 290143 | TUBE, RETURN, 90 DEG, 1/8NPT, 3/8 | View Item |
| 9 | 1 | 290145 | RESV, PLATIC, 6.7X6.7X9.0,H/MT | View Item |
| 10 | 1 | 287281 | PLUG,RESEV,BREATHER-FILLER | View Item |
| 11 | 1 | 287277 | CLAM,HOSE,WORM GEAR RSV, M-SER | View Item |
| 12 | 1 | 287282 | PLUG,SAE O-RING, 9/16-18, HEX, SO | View Item |
| 13 | 1 | 269351 | MOTOR DC 24 VOLT 2 TERM | View Item |
| 14 | 1 | 284080-02 | SWITCH, SOLENOID ASSY, 24VDC | View Item |
| 15 | 2 | 269340 | SCREW,PAN HD,TORX,10-32X5/16 | View Item |
| 16 | 1 | 287274 | CABLE, INSULATED W/LUGS #4G 6"L | View Item |
| 17 | 1 | 290227 | WIRE ASSY, CNTRL, 16AWG, HS, RING | View Item |
| 18 | 1 | 290153 | CARTRIDGE,4-W/2-P,#8, 1/2IN STEM | View Item |
| 19 | 1 | 290226 | COIL, ASSY, 18VDC W/TERMS (RED END) | View Item |
| 20 | 1 | 269417 | CARTRIDGE,2W/2P,NC,POPPET T4000 | View Item |
| 21 | 1 | 290168 | COIL,18VDC #8, DUAL LEAD, #10RING | View Item |
| 22 | 1 | 290171 | VALVE MAX VM01 HDM 10 T.30-95 | View Item |
| 23 | 1 | 269346 | POPPET ASSY, PRSS CMP FL CNTRL | View Item |
| 24 | 1 | 290158 | (USE OR REPLACED BY 280178) VALVE ASSY, R/V, 1001 PSI AND UP | View Item |
| 25 | 1 | 282927-04 | DECAL, OIL LEVEL | Call For Purchase |
282927-04
Item 25 • Qty 1
DECAL, OIL LEVEL
Call For Purchase

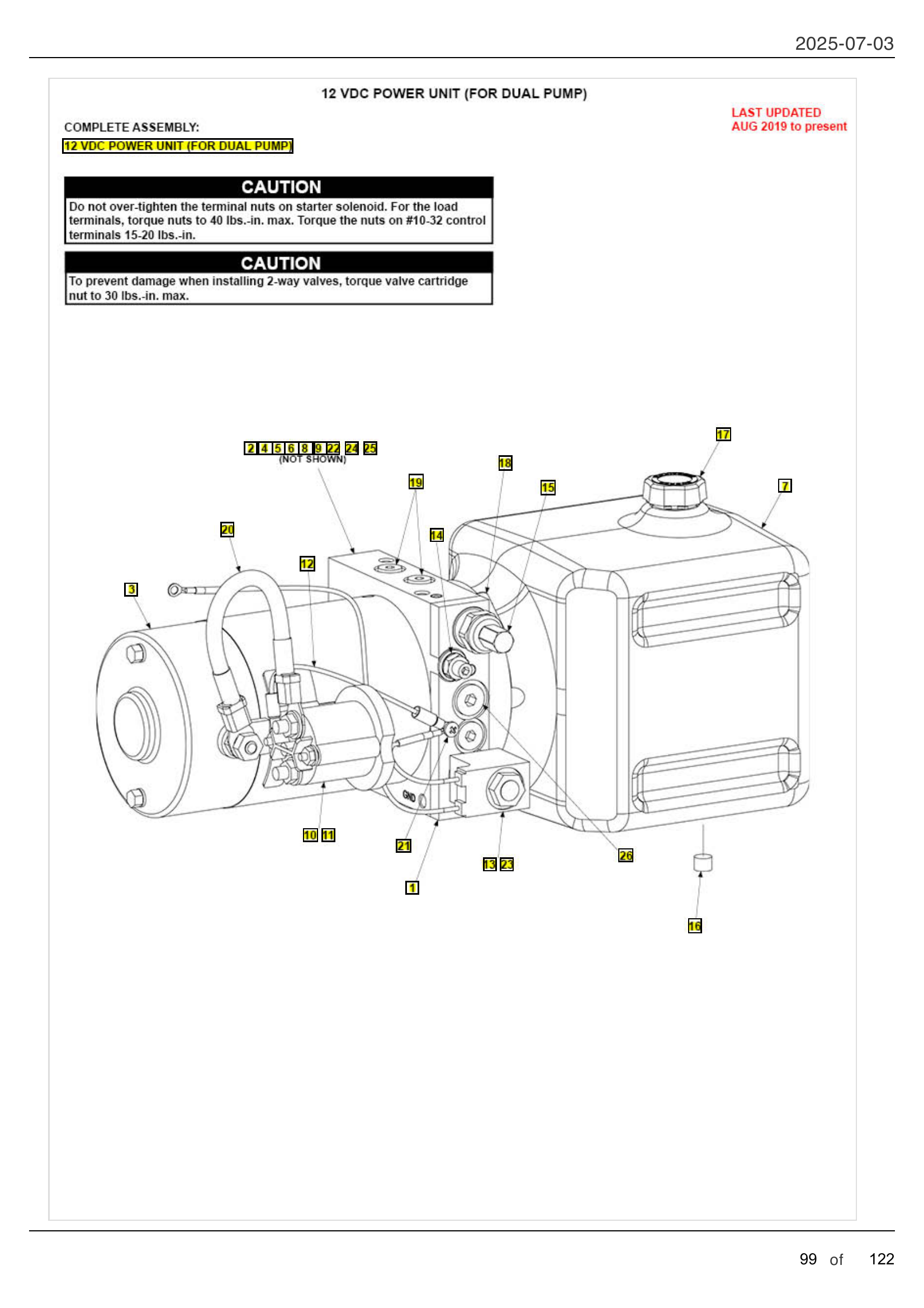

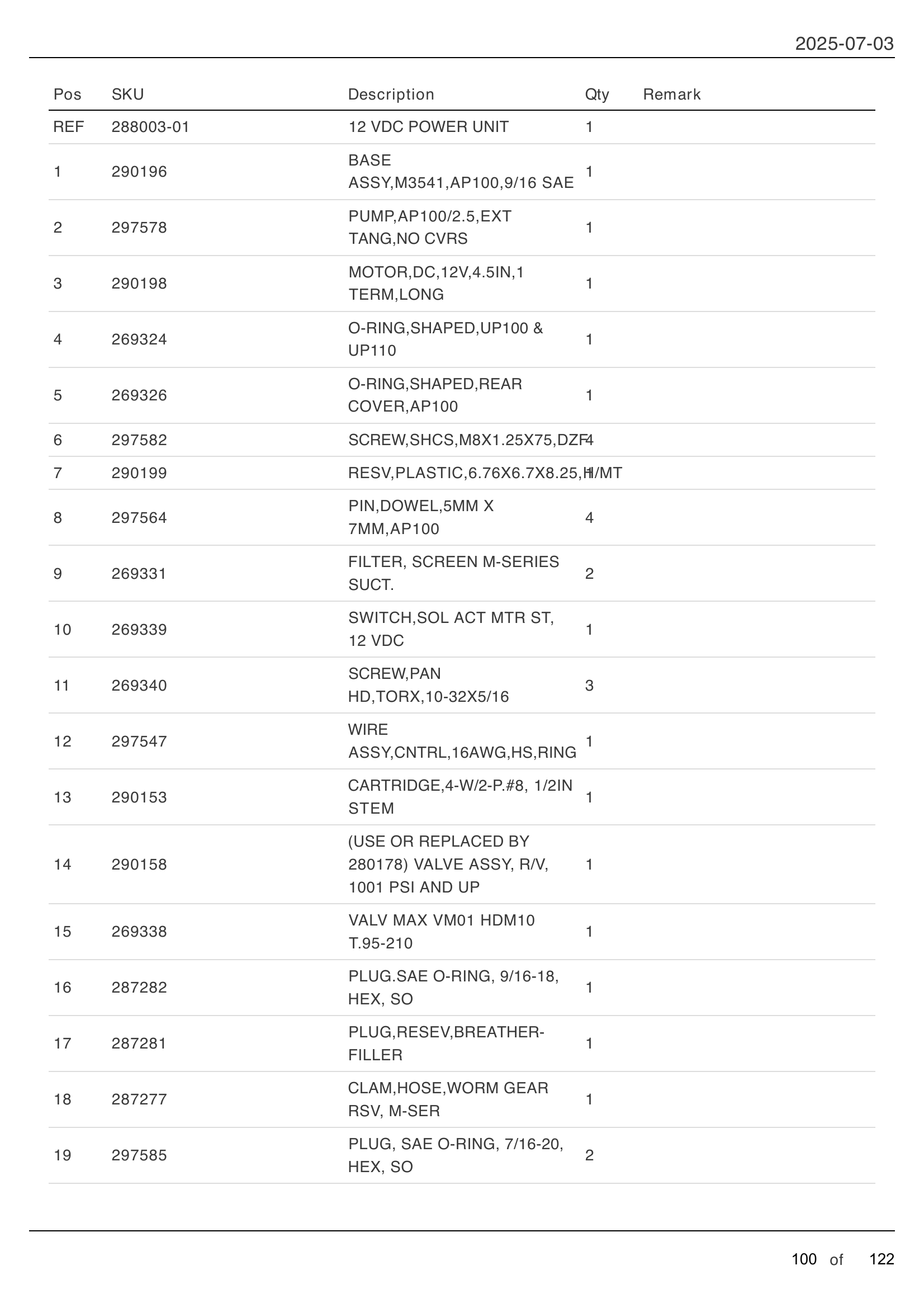

12 VDC POWER UNIT (FOR DUAL PUMP)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 288003-01 | 12 VDC POWER UNIT | View Item |
| 1 | 1 | 290196 | BASE ASSY,M3541,AP100,9/16 SAE | View Item |
| 2 | 1 | 297578 | PUMP,AP100/2.5,EXT TANG,NO CVRS | View Item |
| 3 | 1 | 290198 | MOTOR,DC,12V,4.5IN,1 TERM,LONG | View Item |
| 4 | 1 | 269324 | O-RING,SHAPED,UP100 & UP110 | View Item |
| 5 | 1 | 269326 | O-RING,SHAPED,REAR COVER,AP100 | View Item |
| 6 | 1 | 297582 | SCREW,SHCS,M8X1.25X75,DZF4 | View Item |
| 7 | 1 | 290199 | RESV,PLASTIC,6.7X6.7X8.25,H/MT | View Item |
| 8 | 4 | 297564 | PIN,DOWEL,5MM X 7MM,AP100 | View Item |
| 9 | 2 | 269331 | FILTER, SCREEN M-SERIES SUCT. | View Item |
| 10 | 1 | 269339 | SWITCH,SOL ACT MTR ST, 12 VDC | View Item |
| 11 | 3 | 269340 | SCREW,PAN HD,TORX,10-32X5/16 | View Item |
| 12 | 1 | 297547 | WIRE ASSY,CNTRL,16AWG,HS,RING | View Item |
| 13 | 1 | 290153 | CARTRIDGE,4-W/2-P,#8, 1/2IN STEM | View Item |
| 14 | 1 | 290158 | (USE OR REPLACED BY 280178) VALVE ASSY, R/V, 1001 PSI AND UP | View Item |
| 15 | 1 | 269338 | VALV MAX VM01 HDM10 T.95-210 | View Item |
| 16 | 1 | 287282 | PLUG,SAE O-RING, 9/16-18, HEX, SO | View Item |
| 17 | 1 | 287281 | PLUG,RESEV,BREATHER-FILLER | View Item |
| 18 | 1 | 287277 | CLAM,HOSE,WORM GEAR RSV, M-SER | View Item |
| 19 | 2 | 297585 | PLUG, SAE O-RING, 7/16-20, HEX, SO | View Item |

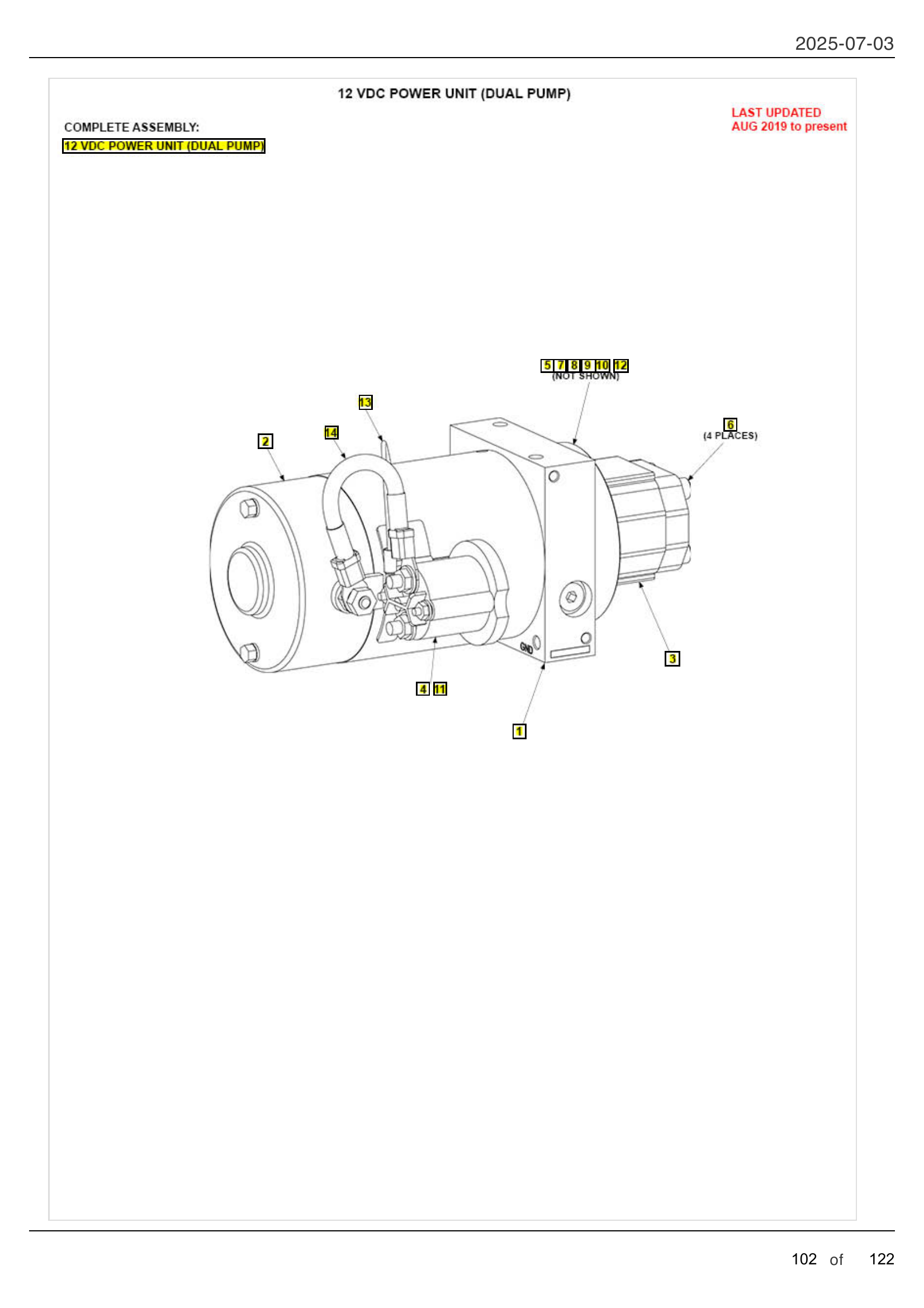

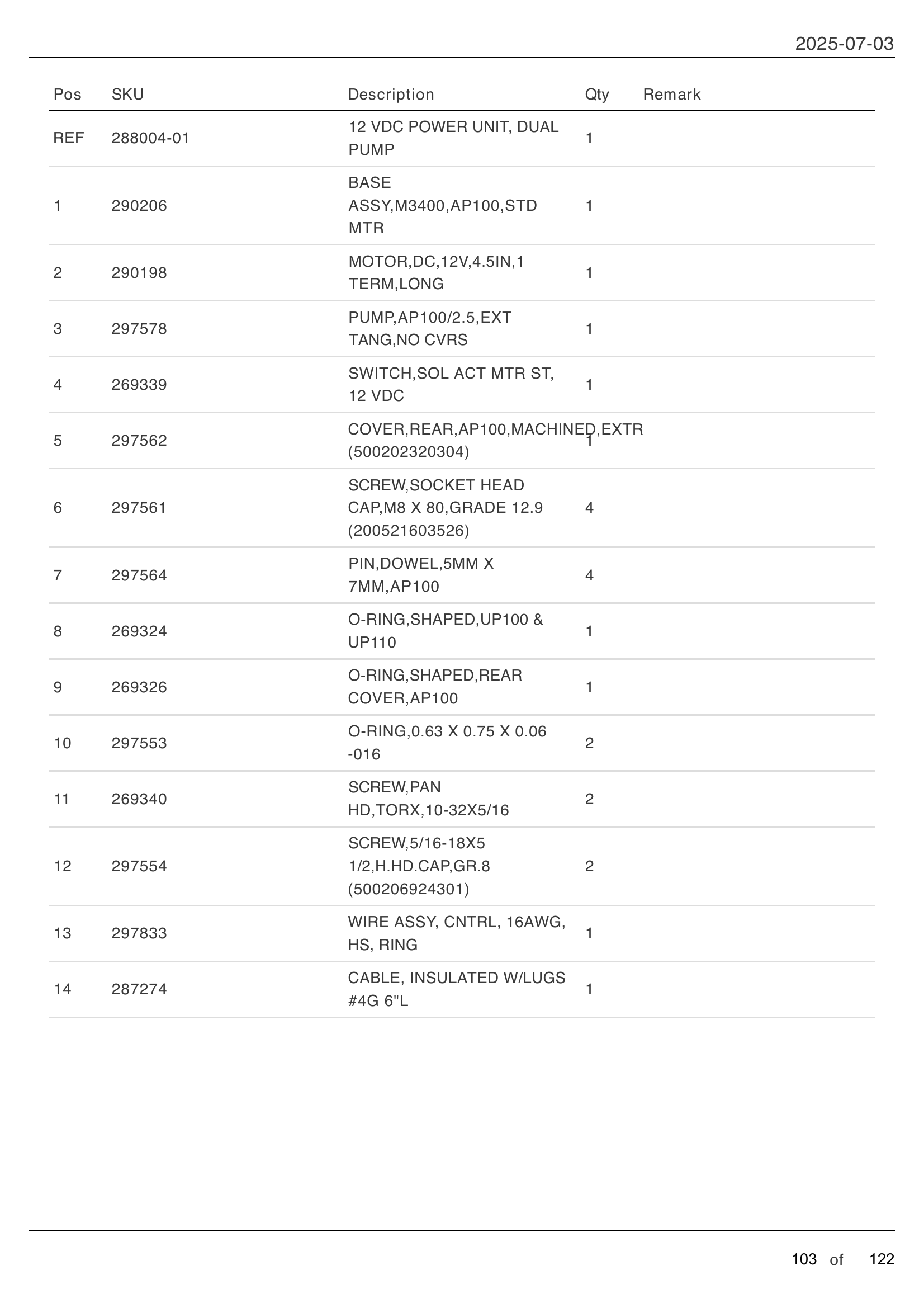

12 VDC POWER UNIT (DUAL PUMP)
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 288004-01 | 12 VDC POWER UNIT, DUAL PUMP | View Item |
| 1 | 1 | 290206 | BASE ASSY,M3400,AP100,STD MTR | Call For Purchase |
| 2 | 1 | 290198 | MOTOR,DC,12V,4.5IN,1 TERM,LONG | View Item |
| 3 | 1 | 297578 | PUMP,AP100/2.5,EXT TANG,NO CVRS | View Item |
| 4 | 1 | 269339 | SWITCH,SOL ACT MTR ST, 12 VDC | View Item |
| 5 | 1 | 297562 | COVER,REAR,AP100,MACHINED,EXTR (500202320304) | View Item |
| 6 | 4 | 297561 | SCREW,SOCKET HEAD CAP,M8 X 80,GRADE 12.9 (200521603526) | View Item |
| 7 | 4 | 297564 | PIN,DOWEL,5MM X 7MM,AP100 | View Item |
| 8 | 1 | 269324 | O-RING,SHAPED,UP100 & UP110 | View Item |
| 9 | 1 | 269326 | O-RING,SHAPED,REAR COVER,AP100 | View Item |
| 10 | 2 | 297553 | O-RING,0.63 X 0.75 X 0.06 -016 | View Item |
| 11 | 2 | 269340 | SCREW,PAN HD,TORX,10-32X5/16 | View Item |
| 12 | 2 | 297554 | SCREW,5/16-18X5 1/2,H.HD.CAP,GR.8 (500206924301) | View Item |
| 13 | 1 | 297833 | WIRE ASSY, CNTRL, 16AWG, HS, RING | View Item |
| 14 | 1 | 287274 | CABLE, INSULATED W/LUGS #4G 6"L | View Item |
290206
Item 1 • Qty 1
BASE ASSY,M3400,AP100,STD MTR
Call For Purchase

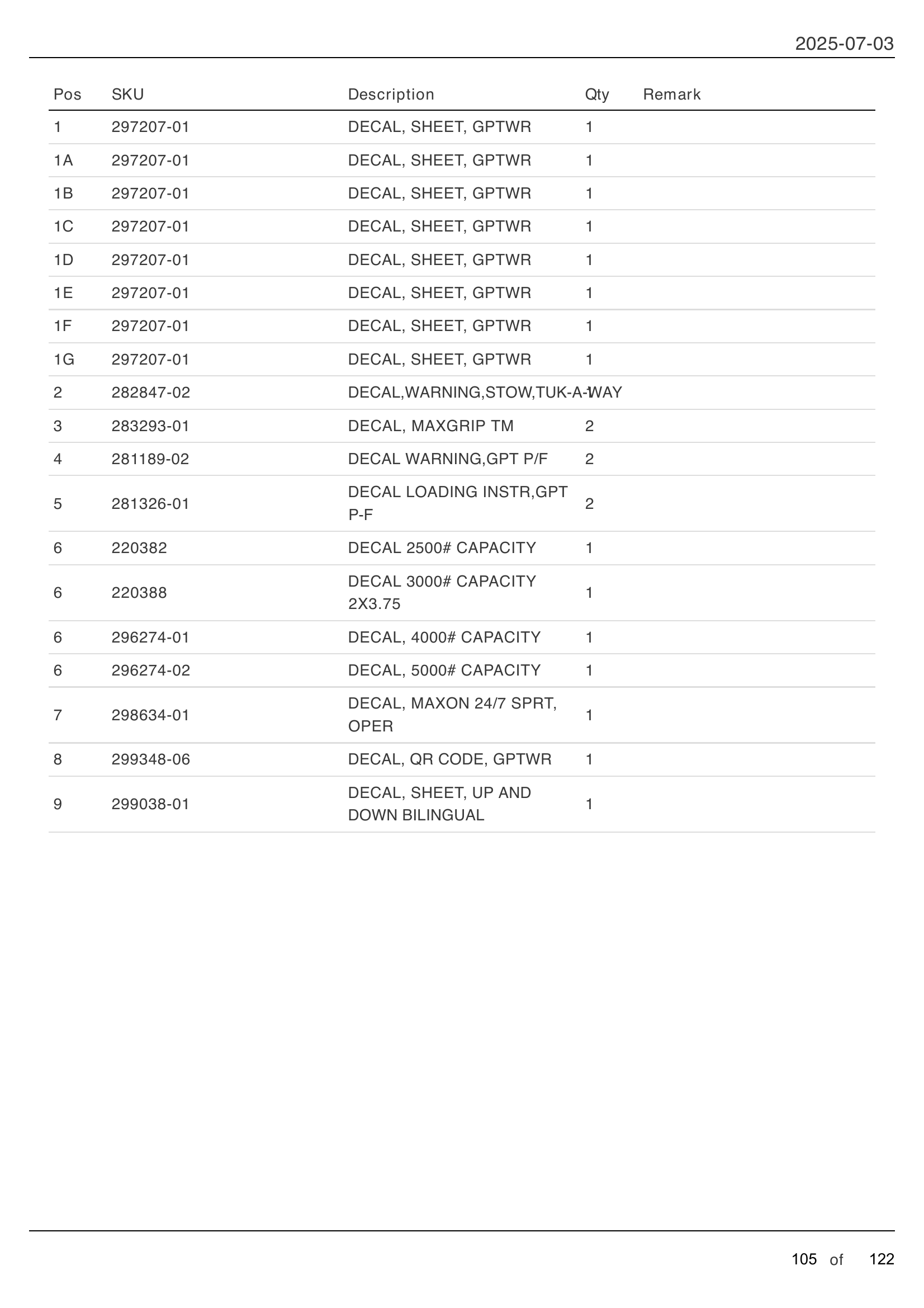

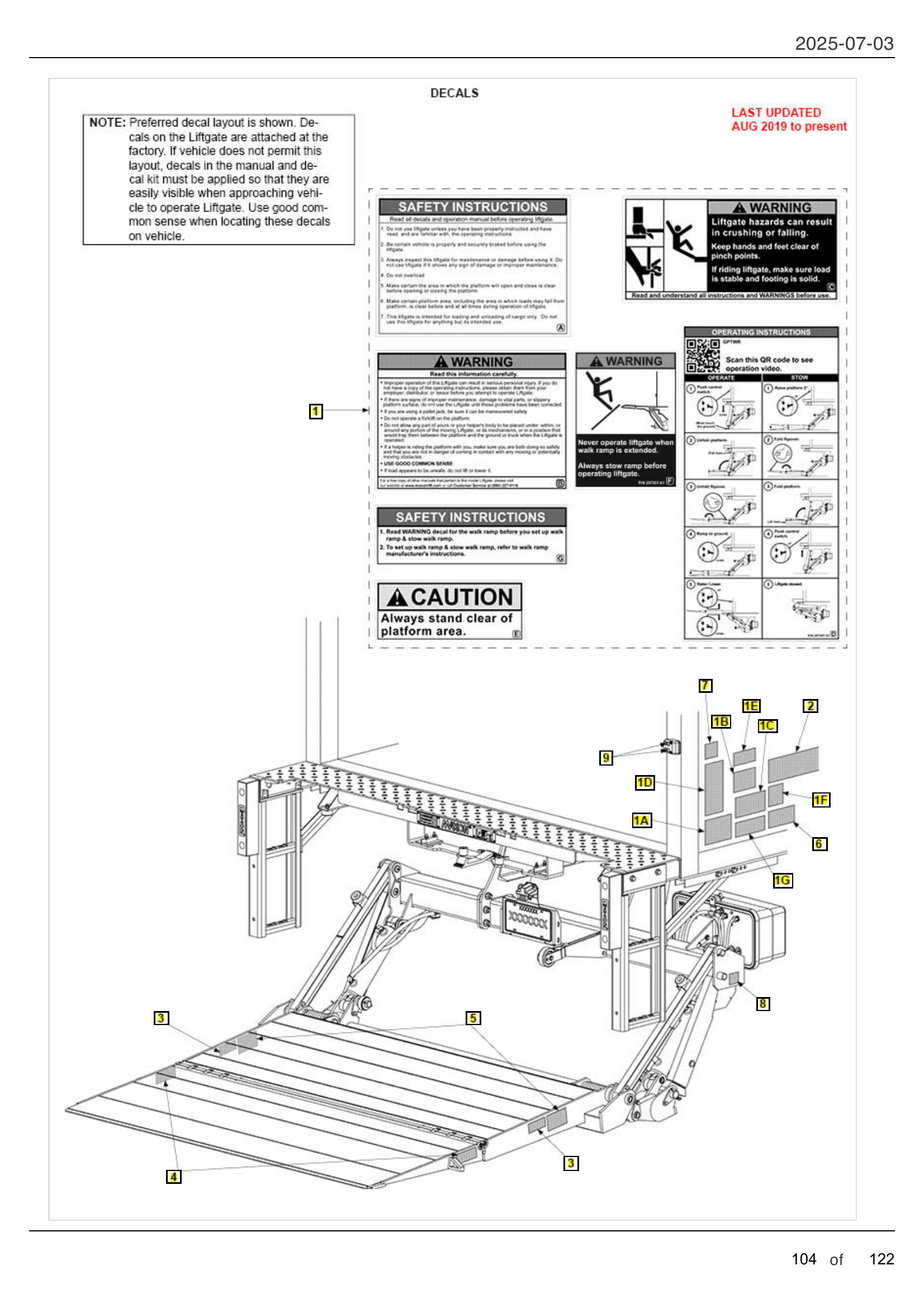

DECALS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 297207-01 | DECAL, SHEET, GPTWR | View Item |
| 1A | 1 | 297207-01 | DECAL, SHEET, GPTWR | View Item |
| 1B | 1 | 297207-01 | DECAL, SHEET, GPTWR | View Item |
| 1C | 1 | 297207-01 | DECAL, SHEET, GPTWR | View Item |
| 1D | 1 | 297207-01 | DECAL, SHEET, GPTWR | View Item |
| 1E | 1 | 297207-01 | DECAL, SHEET, GPTWR | View Item |
| 1F | 1 | 297207-01 | DECAL, SHEET, GPTWR | View Item |
| 1G | 1 | 297207-01 | DECAL, SHEET, GPTWR | View Item |
| 2 | 1 | 282847-02 | DECAL,WARNING,STOW,TUK-A-WAY | View Item |
| 3 | 2 | 283293-01 | DECAL, MAXGRIP TM | Call For Purchase |
| 4 | 2 | 281189-02 | DECAL WARNING,GPT P/F | View Item |
| 5 | 2 | 281326-01 | DECAL LOADING INSTR,GPT P-F | View Item |
| 6 | 1 | 220382 | DECAL 2500# CAPACITY | View Item |
| 6 | 1 | 220388 | DECAL 3000# CAPACITY 2X3.75 | View Item |
| 6 | 1 | 296274-01 | DECAL, 4000# CAPACITY | Call For Purchase |
| 6 | 1 | 296274-02 | DECAL, 5000# CAPACITY | Call For Purchase |
| 7 | 1 | 298634-01 | DECAL, MAXON 24/7 SPRT, OPER | Call For Purchase |
| 8 | 1 | 299348-06 | DECAL, QR CODE, GPTWR | Call For Purchase |
| 9 | 1 | 299038-01 | DECAL, SHEET, UP AND DOWN BILINGUAL | View Item |
283293-01
Item 3 • Qty 2
DECAL, MAXGRIP TM
Call For Purchase
296274-01
Item 6 • Qty 1
DECAL, 4000# CAPACITY
Call For Purchase
296274-02
Item 6 • Qty 1
DECAL, 5000# CAPACITY
Call For Purchase
298634-01
Item 7 • Qty 1
DECAL, MAXON 24/7 SPRT, OPER
Call For Purchase
299348-06
Item 8 • Qty 1
DECAL, QR CODE, GPTWR
Call For Purchase

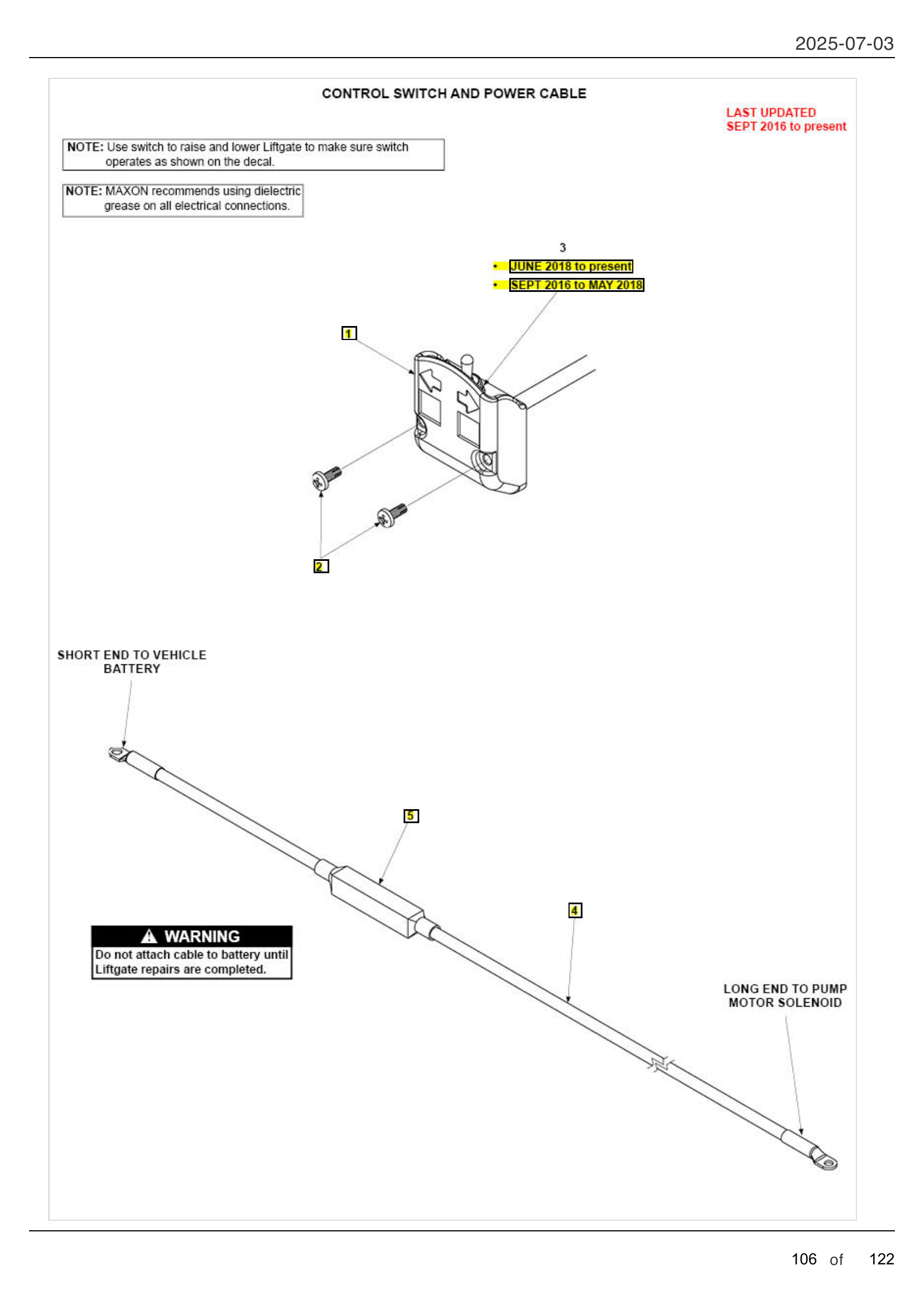

CONTROL SWITCH AND POWER CABLE
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 1 | 1 | 296855-01 | TOGGLE SWITCH ASSY, 138IN LG | View Item |
| 2 | 2 | 900057-7 | SCREW, SELF TAP, 10-24X1-1/2 PH, ZC | View Item |
| 3 New | 1 | 907220 | SOFT INV TOGGLE BOOT | View Item |
| 3 Old | 1 | 905206 | SWITCH SEAL BOOT, HALF-TOGGLE | View Item |
| 4 | 1 | 264422 | CABLE ASSY, 175 AMPS, 38FT | View Item |
| 5 | 1 | 264687 | KIT, MEGA FUSEN 175 AMPS | View Item |

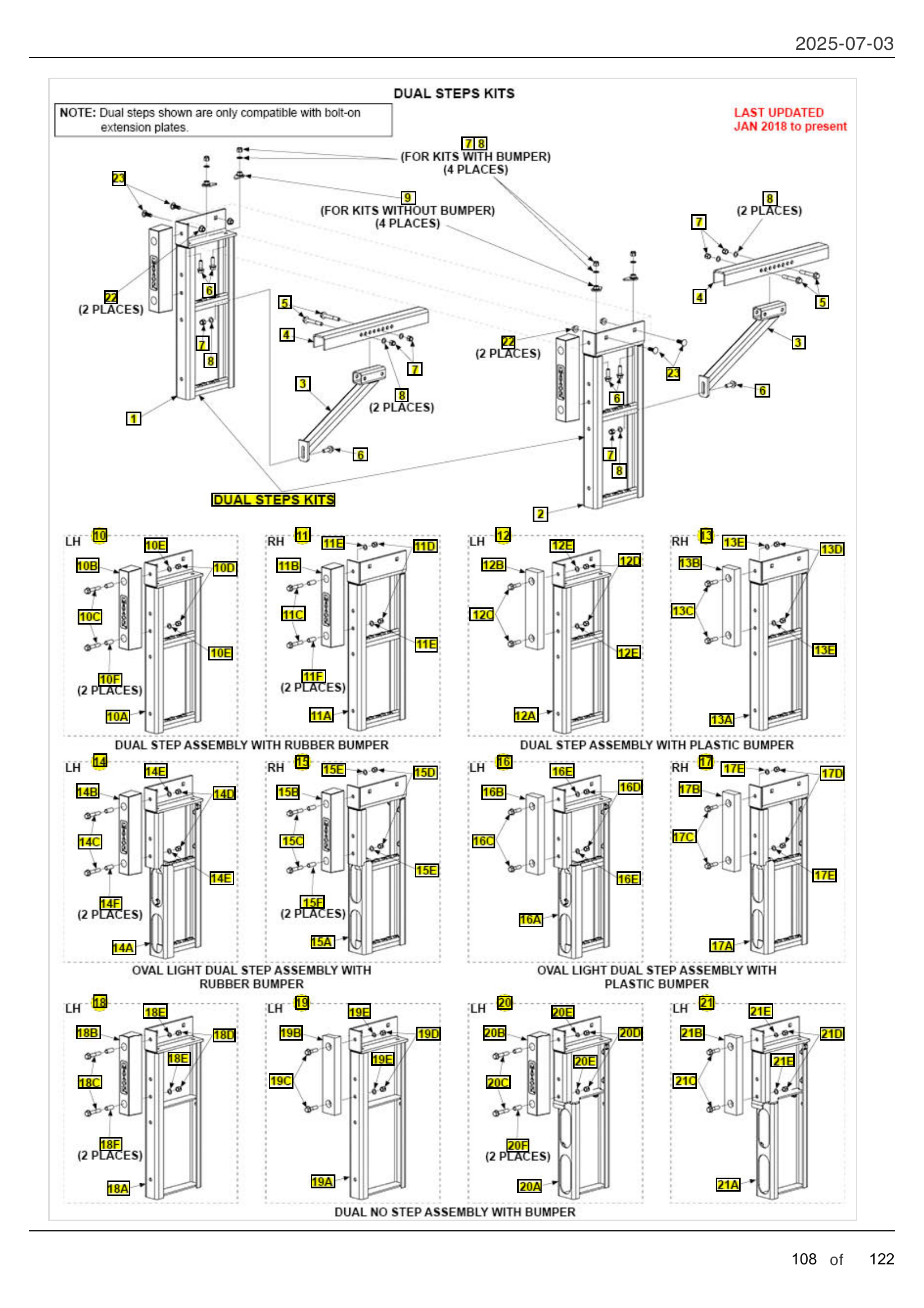

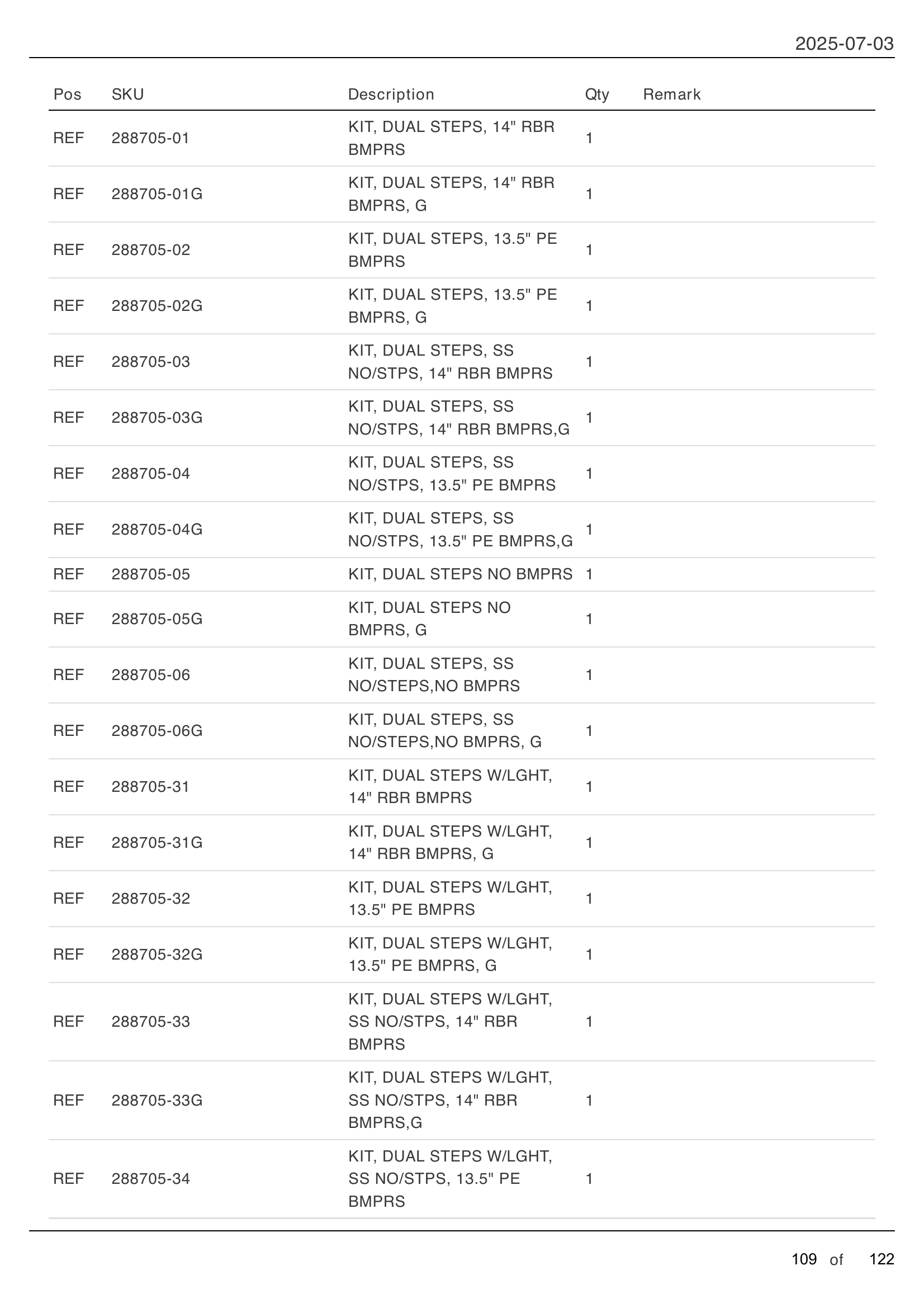

DUAL STEPS KITS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 288705-01 | KIT, DUAL STEPS, 14" RBR BMPRS | View Item |
| REF | 1 | 288705-01G | KIT, DUAL STEPS, 14" RBR BMPRS, G | View Item |
| REF | 1 | 288705-02 | KIT, DUAL STEPS, 13.5" PE BMPRS | View Item |
| REF | 1 | 288705-02G | KIT, DUAL STEPS, 13.5" PE BMPRS, G | View Item |
| REF | 1 | 288705-03 | KIT, DUAL STEPS, SS NO/STPS, 14" RBR BMPRS | View Item |
| REF | 1 | 288705-03G | KIT, DUAL STEPS, SS NO/STPS, 14" RBR BMPRS,G | View Item |
| REF | 1 | 288705-04 | KIT, DUAL STEPS, SS NO/STPS, 13.5" PE BMPRS | View Item |
| REF | 1 | 288705-04G | KIT, DUAL STEPS, SS NO/STPS, 13.5" PE BMPRS,G | View Item |
| REF | 1 | 288705-05 | KIT, DUAL STEPS NO BMPRS | View Item |
| REF | 1 | 288705-05G | KIT, DUAL STEPS NO BMPRS, G | View Item |
| REF | 1 | 288705-06 | KIT, DUAL STEPS, SS NO/STEPS,NO BMPRS | View Item |
| REF | 1 | 288705-06G | KIT, DUAL STEPS, SS NO/STEPS,NO BMPRS, G | View Item |
| REF | 1 | 288705-31 | KIT, DUAL STEPS W/LGHT, 14" RBR BMPRS | View Item |
| REF | 1 | 288705-31G | KIT, DUAL STEPS W/LGHT, 14" RBR BMPRS, G | View Item |
| REF | 1 | 288705-32 | KIT, DUAL STEPS W/LGHT, 13.5" PE BMPRS | View Item |
| REF | 1 | 288705-32G | KIT, DUAL STEPS W/LGHT, 13.5" PE BMPRS, G | View Item |
| REF | 1 | 288705-33 | KIT, DUAL STEPS W/LGHT, SS NO/STPS, 14" RBR BMPRS | View Item |
| REF | 1 | 288705-33G | KIT, DUAL STEPS W/LGHT, SS NO/STPS, 14" RBR BMPRS,G | View Item |
| REF | 1 | 288705-34 | KIT, DUAL STEPS W/LGHT, SS NO/STPS, 13.5" PE BMPRS | View Item |
| \n | Call For Purchase |
Item \n • Qty
Call For Purchase

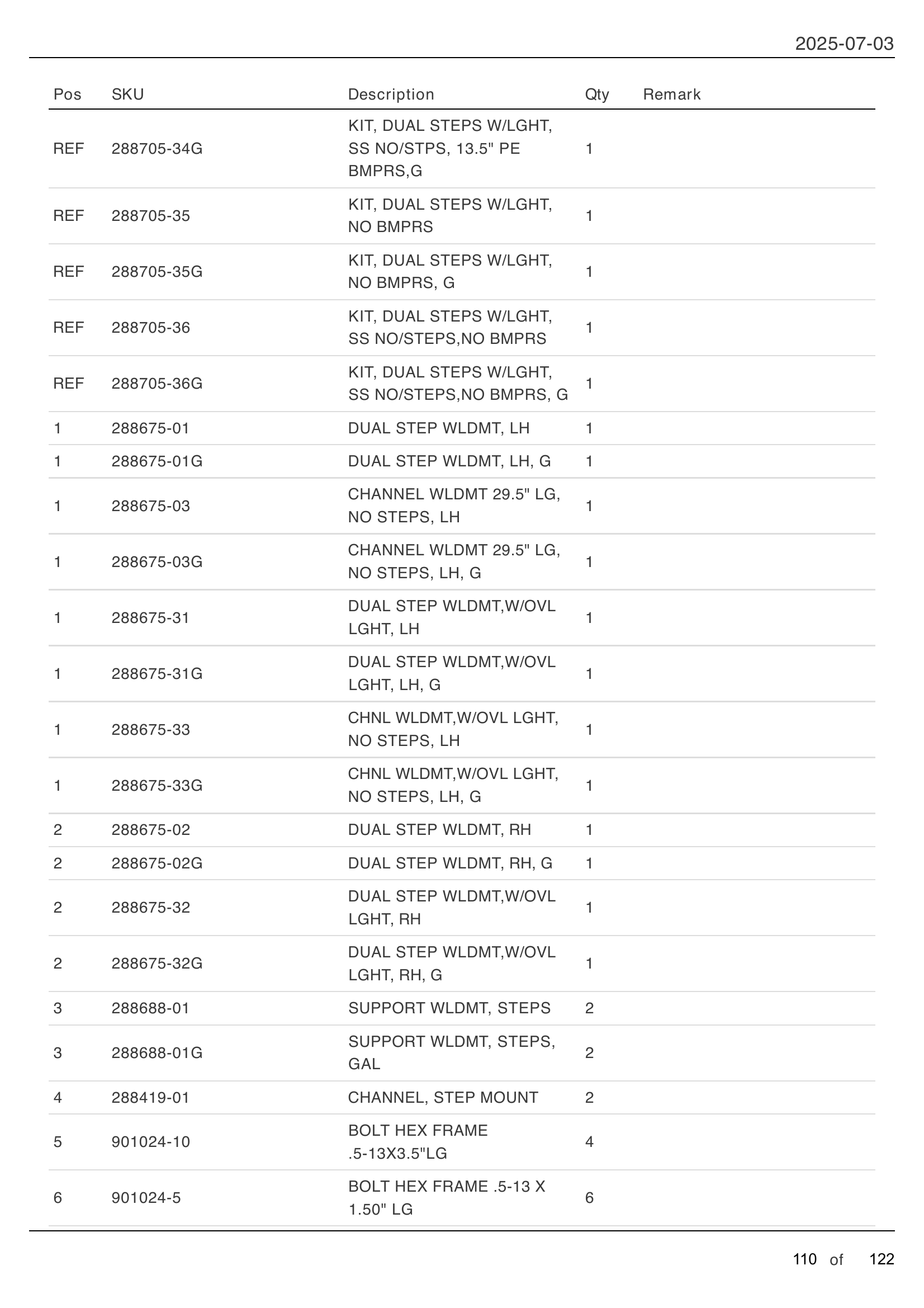

DUAL STEPS KITS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 288705-34G | KIT, DUAL STEPS W/LGHT, SS NO/STPS, 13.5" PE BMPRS,G | View Item |
| REF | 1 | 288705-35 | KIT, DUAL STEPS W/LGHT, NO BMPRS | View Item |
| REF | 1 | 288705-35G | KIT, DUAL STEPS W/LGHT, NO BMPRS, G | View Item |
| REF | 1 | 288705-36 | KIT, DUAL STEPS W/LGHT, SS NO/STEPS,NO BMPRS | View Item |
| REF | 1 | 288705-36G | KIT, DUAL STEPS W/LGHT, SS NO/STEPS,NO BMPRS, G | View Item |
| 1 | 1 | 288675-01 | DUAL STEP WLDMT, LH | View Item |
| 1 | 1 | 288675-01G | DUAL STEP WLDMT, LH, G | View Item |
| 1 | 1 | 288675-03 | CHANNEL WLDMT 29.5" LG, NO STEPS, LH | Call For Purchase |
| 1 | 1 | 288675-03G | CHANNEL WLDMT 29.5" LG, NO STEPS, LH, G | Call For Purchase |
| 1 | 1 | 288675-31 | DUAL STEP WLDMT,W/OVL LGHT, LH | View Item |
| 1 | 1 | 288675-31G | DUAL STEP WLDMT,W/OVL LGHT, LH, G | View Item |
| 1 | 1 | 288675-33 | CHNL WLDMT,W/OVL LGHT, NO STEPS, LH | Call For Purchase |
| 1 | 1 | 288675-33G | CHNL WLDMT,W/OVL LGHT, NO STEPS, LH, G | View Item |
| 2 | 1 | 288675-02 | DUAL STEP WLDMT, RH | View Item |
| 2 | 1 | 288675-02G | DUAL STEP WLDMT, RH, G | View Item |
| 2 | 1 | 288675-32 | DUAL STEP WLDMT,W/OVL LGHT, RH | View Item |
| 2 | 1 | 288675-32G | DUAL STEP WLDMT,W/OVL LGHT, RH, G | View Item |
| 3 | 2 | 288688-01 | SUPPORT WLDMT, STEPS | View Item |
| 3 | 2 | 288688-01G | SUPPORT WLDMT, STEPS, GAL | View Item |
| 4 | 2 | 288419-01 | CHANNEL, STEP MOUNT | View Item |
| 5 | 4 | 901024-10 | BOLT HEX FRAME .5-13X3.5"LG | View Item |
| 6 | 6 | 901024-5 | BOLT HEX FRAME .5-13 X 1.50" LG | View Item |
288675-03
Item 1 • Qty 1
CHANNEL WLDMT 29.5" LG, NO STEPS, LH
Call For Purchase
288675-03G
Item 1 • Qty 1
CHANNEL WLDMT 29.5" LG, NO STEPS, LH, G
Call For Purchase
288675-33
Item 1 • Qty 1
CHNL WLDMT,W/OVL LGHT, NO STEPS, LH
Call For Purchase

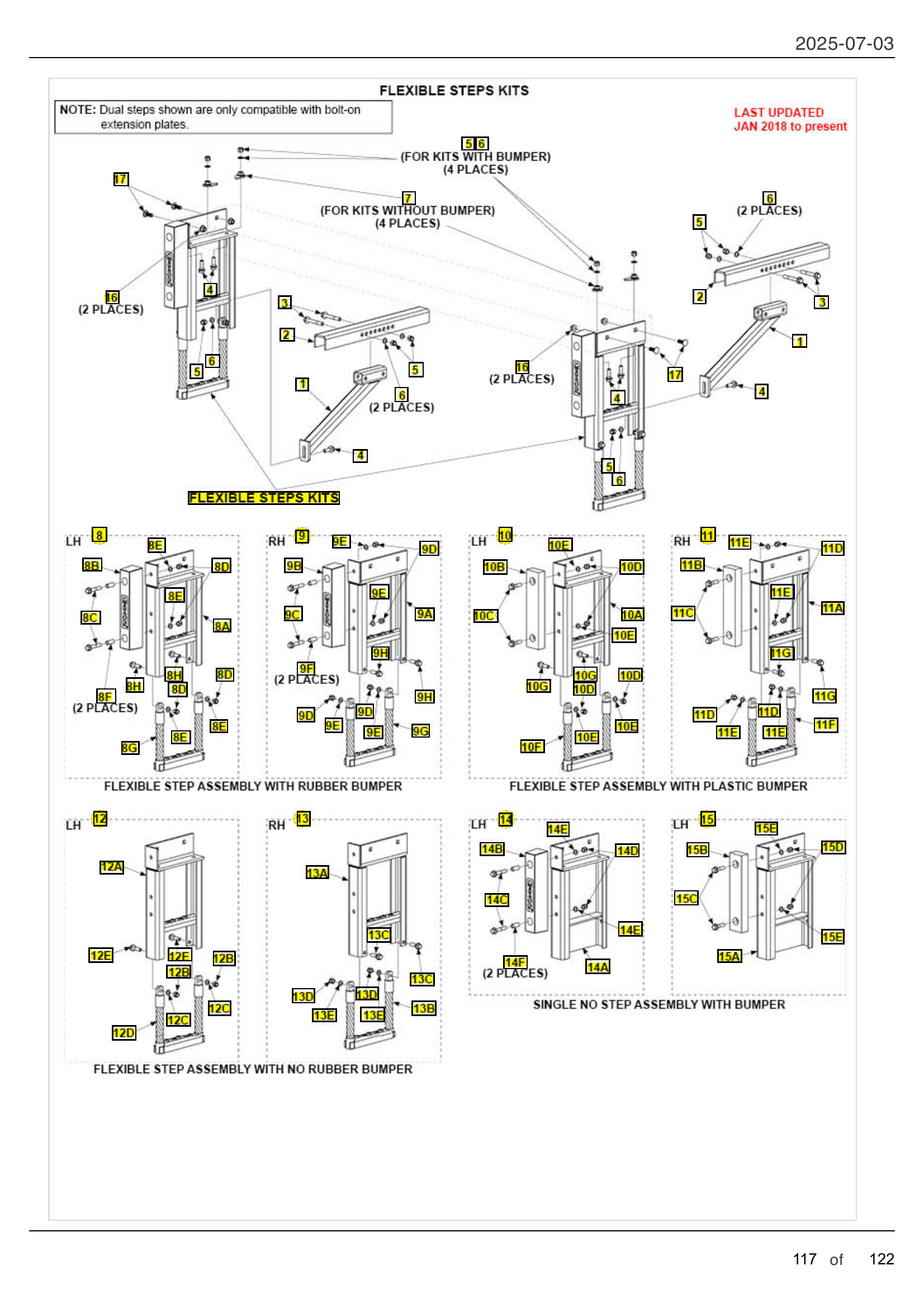

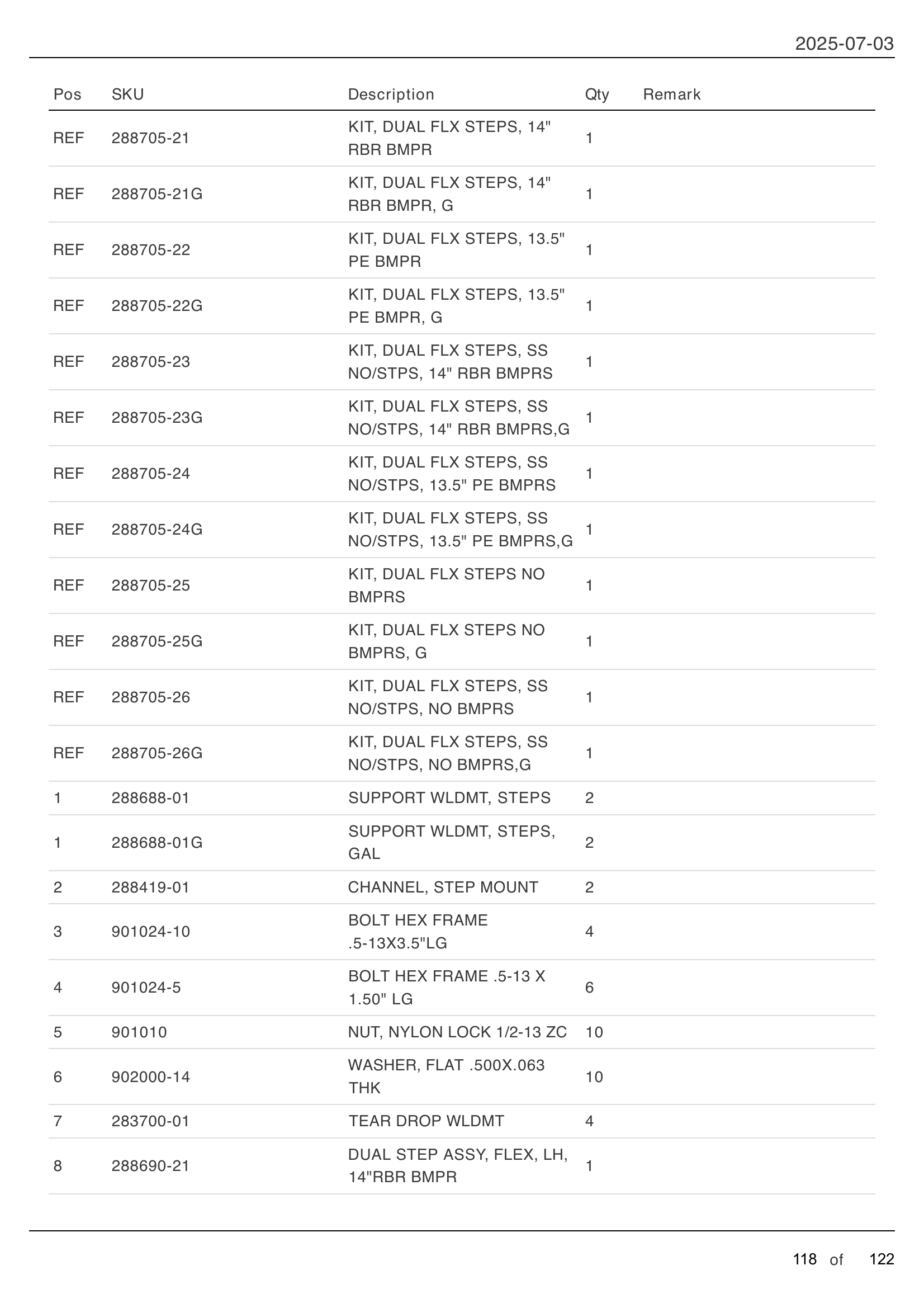

FLEXIBLE STEPS KITS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| REF | 1 | 288705-21 | KIT, DUAL FLX STEPS, 14" RBR BMPR | View Item |
| REF | 1 | 288705-21G | KIT, DUAL FLX STEPS, 14" RBR BMPR, G | View Item |
| REF | 1 | 288705-22 | KIT, DUAL FLX STEPS, 13.5" PE BMPR | View Item |
| REF | 1 | 288705-22G | KIT, DUAL FLX STEPS, 13.5" PE BMPR, G | View Item |
| REF | 1 | 288705-23 | KIT, DUAL FLX STEPS, SS NO/STPS, 14" RBR BMPRS | View Item |
| REF | 1 | 288705-23G | KIT, DUAL FLX STEPS, SS NO/STPS, 14" RBR BMPRS,G | View Item |
| REF | 1 | 288705-24 | KIT, DUAL FLX STEPS, SS NO/STPS, 13.5" PE BMPRS | View Item |
| REF | 1 | 288705-24G | KIT, DUAL FLX STEPS, SS NO/STPS, 13.5" PE BMPRS,G | View Item |
| REF | 1 | 288705-25 | KIT, DUAL FLX STEPS NO BMPRS | View Item |
| REF | 1 | 288705-25G | KIT, DUAL FLX STEPS NO BMPRS, G | View Item |
| REF | 1 | 288705-26 | KIT, DUAL FLX STEPS, SS NO/STPS, NO BMPRS | View Item |
| REF | 1 | 288705-26G | KIT, DUAL FLX STEPS, SS NO/STPS, NO BMPRS,G | View Item |
| 1 | 2 | 288688-01 | SUPPORT WLDMT, STEPS | View Item |
| 1 | 2 | 288688-01G | SUPPORT WLDMT, STEPS, GAL | View Item |
| 2 | 2 | 288419-01 | CHANNEL, STEP MOUNT | View Item |
| 3 | 4 | 901024-10 | BOLT HEX FRAME .5-13X3.5"LG | View Item |
| 4 | 6 | 901024-5 | BOLT HEX FRAME .5-13 X 1.50" LG | View Item |
| 5 | 10 | 901010 | NUT, NYLON LOCK 1/2-13 ZC | View Item |
| 6 | 10 | 902000-14 | WASHER, FLAT .500X.063 THK | View Item |
| 7 | 4 | 283700-01 | TEAR DROP WLDMT | View Item |
| 8 | 1 | 288690-21 | DUAL STEP ASSY, FLEX, LH, 14"RBR BMPR | View Item |

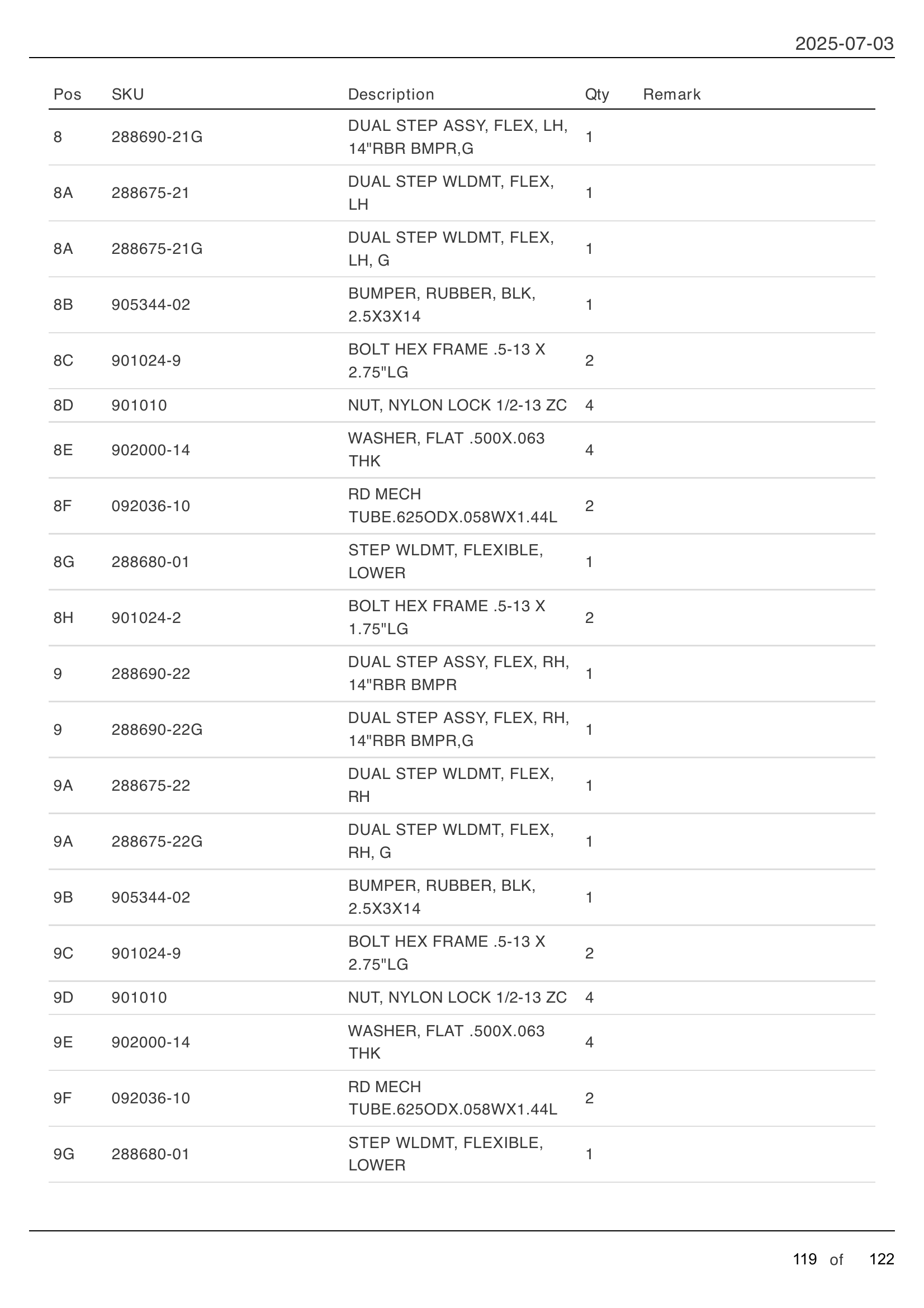

FLEXIBLE STEPS KITS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 8 | 1 | 288690-21G | DUAL STEP ASSY, FLEX, LH, 14"RBR BMPR,G | View Item |
| 8A | 1 | 288675-21 | DUAL STEP WLDMT, FLEX, LH | View Item |
| 8A | 1 | 288675-21G | DUAL STEP WLDMT, FLEX, LH, G | View Item |
| 8B | 1 | 905344-02 | BUMPER, RUBBER, BLK, 2.5X3X14 | View Item |
| 8C | 2 | 901024-9 | BOLT HEX FRAME .5-13 X 2.75"LG | View Item |
| 8D | 4 | 901010 | NUT, NYLON LOCK 1/2-13 ZC | View Item |
| 8E | 4 | 902000-14 | WASHER, FLAT .500X.063 THK | View Item |
| 8F | 2 | 092036-10 | RD MECH TUBE.625ODX.058WX1.44L | View Item |
| 8G | 1 | 288680-01 | STEP WLDMT, FLEXIBLE, LOWER | View Item |
| 8H | 2 | 901024-2 | BOLT HEX FRAME .5-13 X 1.75"LG | View Item |
| 9 | 1 | 288690-22 | DUAL STEP ASSY, FLEX, RH, 14"RBR BMPR | View Item |
| 9 | 1 | 288690-22G | DUAL STEP ASSY, FLEX, RH, 14"RBR BMPR,G | View Item |
| 9A | 1 | 288675-22 | DUAL STEP WLDMT, FLEX, RH | View Item |
| 9A | 1 | 288675-22G | DUAL STEP WLDMT, FLEX, RH, G | View Item |
| 9B | 1 | 905344-02 | BUMPER, RUBBER, BLK, 2.5X3X14 | View Item |
| 9C | 2 | 901024-9 | BOLT HEX FRAME .5-13 X 2.75"LG | View Item |
| 9D | 4 | 901010 | NUT, NYLON LOCK 1/2-13 ZC | View Item |
| 9E | 4 | 902000-14 | WASHER, FLAT .500X.063 THK | View Item |
| 9F | 2 | 092036-10 | RD MECH TUBE.625ODX.058WX1.44L | View Item |
| 9G | 1 | 288680-01 | STEP WLDMT, FLEXIBLE, LOWER | View Item |

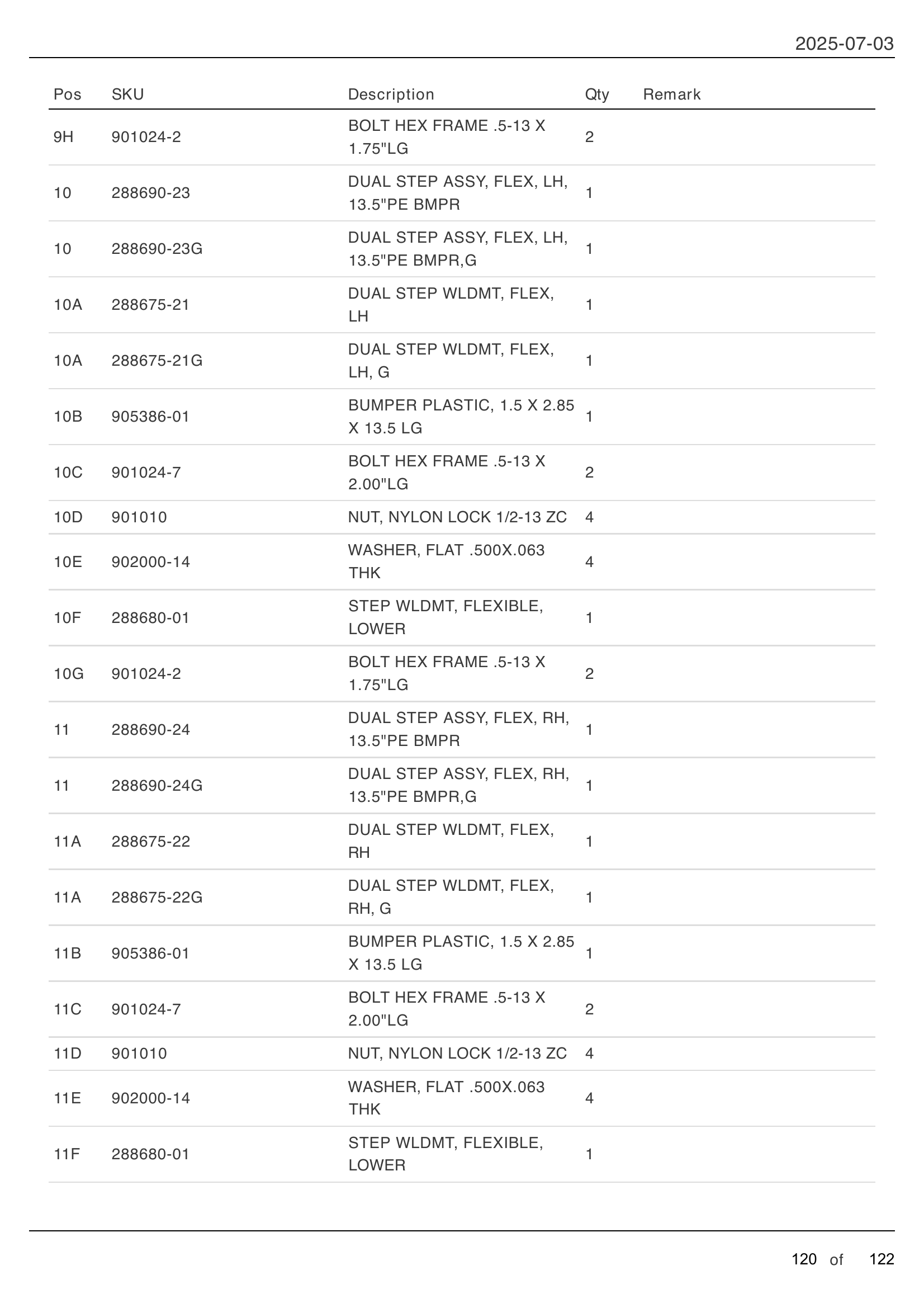

FLEXIBLE STEPS KITS
| Item | Qty | Part Number | Description | Actions |
|---|---|---|---|---|
| 9H | 2 | 901024-2 | BOLT HEX FRAME .5-13 X 1.75"LG | View Item |
| 10 | 1 | 288690-23 | DUAL STEP ASSY, FLEX, LH, 13.5"PE BMPR | View Item |
| 10 | 1 | 288690-23G | DUAL STEP ASSY, FLEX, LH, 13.5"PE BMPR,G | View Item |
| 10A | 1 | 288675-21 | DUAL STEP WLDMT, FLEX, LH | View Item |
| 10A | 1 | 288675-21G | DUAL STEP WLDMT, FLEX, LH, G | View Item |
| 10B | 1 | 905386-01 | BUMPER PLASTIC, 1.5 X 2.85 X 13.5 LG | View Item |
| 10C | 2 | 901024-7 | BOLT HEX FRAME .5-13 X 2.00"LG | View Item |
| 10D | 4 | 901010 | NUT, NYLON LOCK 1/2-13 ZC | View Item |
| 10E | 4 | 902000-14 | WASHER, FLAT .500X.063 THK | View Item |
| 10F | 1 | 288680-01 | STEP WLDMT, FLEXIBLE, LOWER | View Item |
| 10G | 2 | 901024-2 | BOLT HEX FRAME .5-13 X 1.75"LG | View Item |
| 11 | 1 | 288690-24 | DUAL STEP ASSY, FLEX, RH, 13.5"PE BMPR | View Item |
| 11 | 1 | 288690-24G | DUAL STEP ASSY, FLEX, RH, 13.5"PE BMPR,G | View Item |
| 11A | 1 | 288675-22 | DUAL STEP WLDMT, FLEX, RH | View Item |
| 11A | 1 | 288675-22G | DUAL STEP WLDMT, FLEX, RH, G | View Item |
| 11B | 1 | 905386-01 | BUMPER PLASTIC, 1.5 X 2.85 X 13.5 LG | View Item |
| 11C | 2 | 901024-7 | BOLT HEX FRAME .5-13 X 2.00"LG | View Item |
| 11D | 4 | 901010 | NUT, NYLON LOCK 1/2-13 ZC | View Item |
| 11E | 4 | 902000-14 | WASHER, FLAT .500X.063 THK | View Item |
| 11F | 1 | 288680-01 | STEP WLDMT, FLEXIBLE, LOWER | View Item |
